OneTouch® Diabetes Management Software v2.3.1 User Manual

Table of Contents | Index Next X

Table of Contents | Index Next X1

User Manual

See inside for a complete description of program functions

>> Link to the Table of Contents

>> Link to the Index

Information in this document is subject to change without notice. The software described in this document is furnished under a

licensing agreement and may be used only in accordance with terms and conditions of the agreement. It is illegal to copy the

software on any medium except as specifically allowed in the agreement.

© 2006 LifeScan, Inc. a Johnson & Johnson company. All rights reserved.

Microsoft, Windows and MS-DOS are registered trademarks of Microsoft Corporation.

All other products are trademarked by their respective companies.

OneTouch® Diabetes Management Software v2.3.1 User Manual 2

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X2

Table of Contents

Part 1: Before You Begin 6

WELCOME 7

ABOUT THIS MANUAL 10

PACKAGE CONTENTS 13

WHAT YOU NEED TO GET STARTED 14

GETTING TECHNICAL SUPPORT 16

CHANGES TO THE SOFTWARE: 16

NAVIGATING ONETOUCH® DMS 17

Keyboard and Mouse Pointer Conventions 17

OneTouch® DMS Button Behavior 18

Part 2: Getting Started 22

INSTALLING ONETOUCH® DMS V2.3.1 ON YOUR PC 23

STARTING UP ONETOUCH® DMS 29

CUSTOMIZING ONETOUCH® DMS FOR PERSONAL USE 31

Patient Setup 33

General Tab 34

Schedule Tab 37

Medications Tab 42

Regimen Tab 44

Complications Tab 46

Find a Patient Tab 47

Preferences 48

General Tab 49

Displaying Units of Measure 51

Displaying Results as Plasma Values or Whole Blood Values 52

OneTouch® Diabetes Management Software v2.3.1 User Manual 3

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X3

Table of Contents (cont.)

Report Options Tab 54

Global Targets Tab 57

Hypoglycemic Tab 60

Modify Meter Settings 62

Clock Tab 63

General Tab 65

Schedule Tab 67

Insulin Tab 69

Oral Meds Tab 70

Targets & Hypoglycemic Tab 72

Part 3: Diabetes Management 73

DOWNLOAD METER READINGS 74

Connecting a Meter to Your PC 75

Transferring Meter Readings 77

ASSIGNING METER READINGS TO THE DATABASE 78

CLEAR METER READINGS 81

Completing the Clear Meter Readings Process 83

VIEW AND MANAGE REPORTS AND DATA RECORDS 84

General Report Information 84

Choose Your Report 92

Logbook Report 92

The Day View screen of the Logbook Report 97

Glucose Trend Report 99

Pie Chart Report 100

Summary Report 101

OneTouch® Diabetes Management Software v2.3.1 User Manual 4

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X4

Table of Contents (cont.)

Standard Day Report 102

Insulin Report 103

Health Checks Report 104

Average Readings Report 106

Exception Report 107

Data List Report 109

Histogram Report 111

Printing, Faxing and E-Mailing OneTouch® DMS Reports 112

Modify Data Records (Edit, Omit, Restore, and Delete) 115

Editing Records 116

Omitting Records 117

Restoring Records 117

Deleting Records 117

Manually Enter Data 118

The Glucose Tab 122

The Insulin Tab 125

The Oral Meds Tab 127

The Exercise Tab 129

The Food Tab 131

The Health Records Tab 133

Part 4: OneTouch® DMS Database Management 137

ARCHIVING/RETRIEVING DATA RECORDS 138

EXPORTING/IMPORTING DATA RECORDS 142

BACKING UP DATA 145

OneTouch® Diabetes Management Software v2.3.1 User Manual 5

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X5

Table of Contents (cont.)

Part 5: Appendices 146

APPENDIX A: MENU BAR AND TOOL BAR COMMANDS 147

Menu Bar Commands 147

Tool Bar Commands 152

APPENDIX B: GLOSSARY 153

APPENDIX C: TROUBLESHOOTING 160

APPENDIX D: TECHNICAL SUPPORT CONTACT NUMBERS 163

APPENDIX E: INDEX 164

OneTouch® Diabetes Management Software v2.3.1 User Manual 6

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X6

Part 1: Before You Begin

■Welcome

■About This Manual

■Package Contents

■What You Need to Get Started

■Getting Technical Support

■Changes to the Software

■Navigating OneTouch® DMS

•Keyboard and Mouse Pointer Conventions

•OneTouch® DMS Button Behavior

OneTouch® Diabetes Management Software v2.3.1 User Manual 7

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X7

Part 1: Before You Begin

Welcome

Welcome to OneTouch® Diabetes Management Software (DMS) v2.3.1. This Program is

designed to help healthcare professionals and people with diabetes, track and monitor

blood glucose levels. OneTouch® DMS can also be used to help plan meals, exercise, and

medications. So whether you are a person with diabetes using OneTouch® Software at home,

or a healthcare professional using it in your office, OneTouch® DMS can help you manage the

information that can help you improve glycemic control.

OneTouch® DMS enables you to do the following:

■Transfer glucose readings and other data from a meter to your PC

■Choose from 11 Report formats to view and print data

■Calculate glucose averages and standard deviations

■Highlight glucose readings that are within, above, and below the target range

■Customize dates, meal slots, target glucose ranges, etc.

■Add data such as insulin doses, exercise duration, carb intake, and health comments

■Print Reports for long-term record keeping

OneTouch® Diabetes Management Software v2.3.1 User Manual 8

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X8

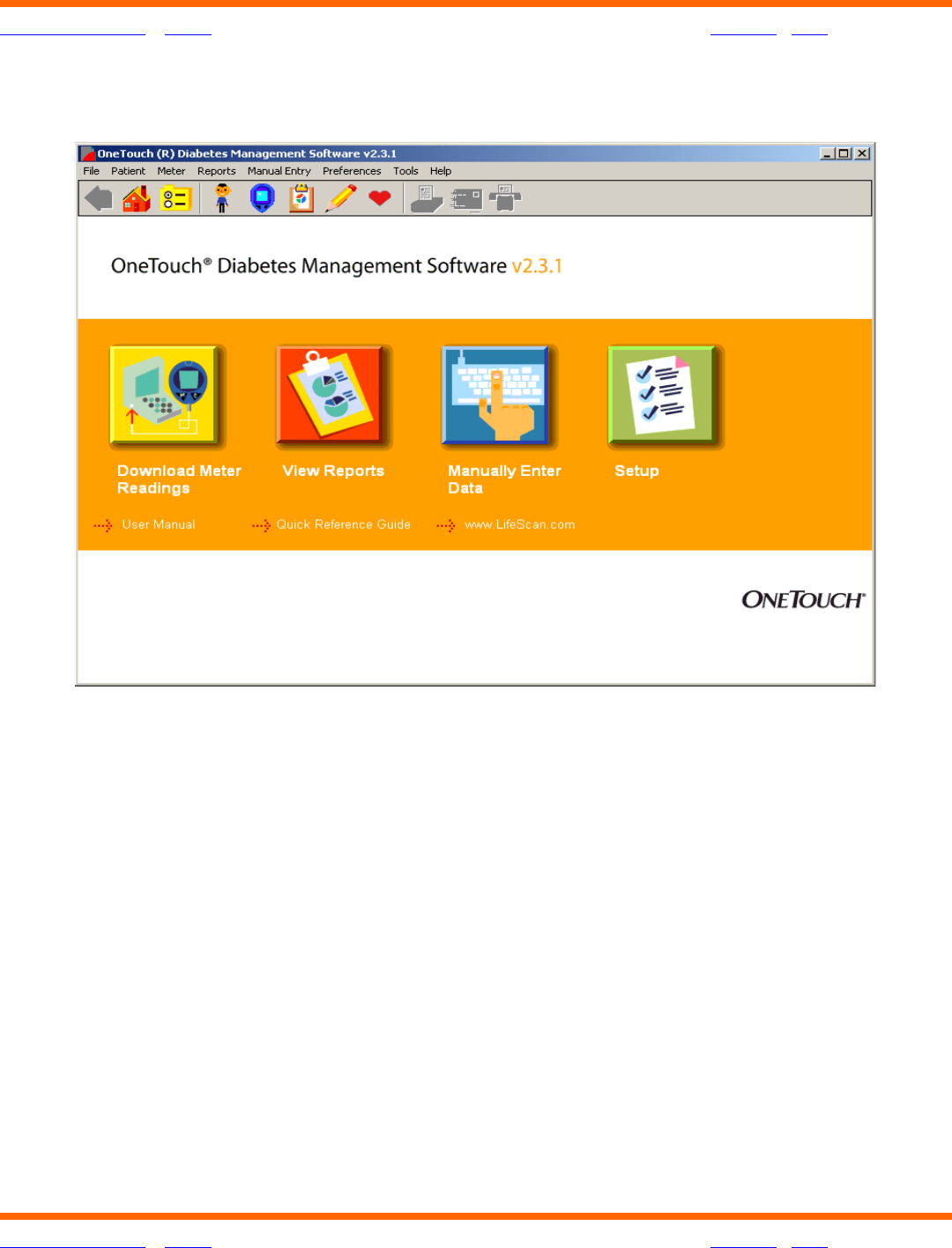

Figure 1.0

OneTouch® Diabetes Management Software v2.3.1 User Manual 9

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X9

OneTouch® DMS is designed for use with the following OneTouch® Blood Glucose Meters:

If you do not see your meter listed, refer to the Owner's Booklet for that meter to check if it is

supported by this version of the Software.

Not all Meter Families are available in all countries. It is assumed that OneTouch® DMS

users have a basic understanding of Microsoft® Windows®. Please refer to the Windows®

documentation that accompanies your PC for technical assistance.

Meter Family Meters

1OneTouch

® BASIC® Meter (with data port)

OneTouch® BASIC® Plus Meter

2OneTouch

® Profile® Meter

3OneTouch

® II Meter

4OneTouch

® SureStep® Meter (with data port)

OneTouch® SureStep® Plus Meter

OneTouch® GlucoTouch® Meter (with data port)

OneTouch® GlucoTouch® Plus Meter

5OneTouch

® FastTake® Meter

OneTouch® PocketScan® Meter

OneTouch® EuroFlash® Meter

OneTouch® SmartScan™ Meter

6OneTouch

® Ultra® Meter

OneTouch® Ultra®2 Meter

7InDuo

® Meter

8OneTouch

® UltraSmart® Meter

IMPORTANT: Meters from Families 1, 2, and 3 may display test results as whole blood

values in certain locales. In other locales, these meters will display test results as plasma

values. Meters from Families 4-8 will always display results as plasma-calibrated values.

OneTouch® DMS lets you transfer readings from any of the meters listed above, regardless

of how the meter displays results. When you generate Reports, you can view data as either

plasma or whole blood values. OneTouch® DMS automatically performs any necessary

conversions. For more information please see Important Information on Plasma and Whole

Blood Readings in the Preferences General Tab screen section.

OneTouch® Diabetes Management Software v2.3.1 User Manual 10

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X10

About This Manual

The OneTouch® DMS User Manual will explain and guide you in using the various OneTouch®

DMS features. A Table of Contents and Index are provided to help you locate topics of interest.

Many sections of the User Manual are formatted in a style similar to the following:

When you see this: You can do this:

Part 1: Before You Begin Get a brief introduction to OneTouch® DMS

before you start using it.

Part 2: Getting Started Install OneTouch® DMS and customize it to

meet your personal needs.

Part 3: Diabetes Management Transfer meter readings, manage data, and

generate Reports.

Part 4: OneTouch® DMS

Database Management

Archive data for storage and export data for

use with other applications.

Part 5: Appendices Learn the OneTouch® DMS Menu, Tool Bar

Commands, and terminology. Also, find

solutions to problems you may encounter

when using OneTouch® DMS.

OneTouch® Diabetes Management Software v2.3.1 User Manual 11

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X11

While using OneTouch® DMS, you can access the User Manual in the following ways:

■From the User Manual hyperlink on the Software home screen

or

■From the computer desktop, click on the START button (on the lower left of the

screen), then select Programs\OneTouch Software and click User Manual

The User Manual is designed as an electronic PDF file. To view or print a file in PDF format,

you need Adobe® Acrobat® Reader 6.0, a free application distributed by Adobe® Systems.

PDF formats make it easy to display and search for content in an interactive fashion while

using OneTouch® DMS. You may also print the entire User Manual or selected sections for

future reference. Once the PDF file is opened, the Adobe® Acrobat® Reader screen provides

control over the viewing and printing of the User Manual.

PDF files follow a set of standard procedures for navigating through documents. Several

options are available for each desired navigational task.

Searching for keywords or phrases:

■Click on Edit from the Menu Bar at the top of the screen. Then select Search from

the drop-down menu. A pop-up field will appear where you may enter the keyword

or phrase you are trying to locate. After searching, the pop-up field will indicate the

number of times the keyword or phrase has been found. It will also highlight every

found reference in the User Manual. You may search for another keyword or phrase

by clicking on New Search.

or

■Click on the Binoculars icon on the Tool Bar. A pop-up field will appear where you

may enter the keyword you are trying to locate. Once the keyword is located, you may

search for other mentions by clicking on New Search.

OneTouch® Diabetes Management Software v2.3.1 User Manual 12

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X12

Paging through documents:

You have several options for paging through the User Manual:

■Using the scroll bar on the right

•Scroll down the document to the desired page.

■Using View from the Menu Bar

•Click on Go To. Then click on First Page/Last Page/Previous Page or Next Page

to get to one of these pages, or Page to get to a particular page number.

■Using the navigational controls at the bottom of the screen.

•Click on the left arrows to go to the First Page and Previous Page. Click on the

right arrows to go to the Next Page and Last Page. To jump to a particular page

number, enter that page number where the current page number is displayed

and press the Enter key.

■Using the Page Up, Page Down, and Arrow keys on your keyboard

•Press the Page Up and Page Down keys to scroll one page at a time.

•Press the Home and End keys to go the first and last page.

•Press the up/down Arrow keys to scroll one line at a time.

OneTouch® Diabetes Management Software v2.3.1 User Manual 13

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X13

Package Contents

The OneTouch® DMS kit is packaged either alone as a software CD (Configuration “A”), or with

a OneTouch™ Interface Cable (Configuration “B” or “C”):

Notes:

■The OneTouch™ Interface Cable for connecting a meter to your PC (either a 9-pin

serial cable or USB cable connection) is also offered separately. OneTouch® DMS

supports data transfer from devices of licensed partner companies. Before data

can be transferred, a software driver will either need to be installed on the device

or installed on your PC. The software driver enables OneTouch® DMS to recognize

the new device so that data transfer can take place. You will need to contact the

manufacturer of the new device for information on ordering and installing the

software driver.

A B C

OneTouch® DMS CD:

•Installation Software (directions

included on the CD sleeve).

•Electronic files for the following

labeling pieces:

•User Manual

•Quick Reference Guide

•Readme File

•Registration Card

XXX

A OneTouch™ Interface Cable for connecting

a meter to your PC (9-pin serial cable)

X

A OneTouch™ Interface Cable for connecting

a meter to your PC (USB cable connection)

X

OneTouch® Diabetes Management Software v2.3.1 User Manual 14

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X14

What You Need To Get Started

To use OneTouch® DMS you need:

■A OneTouch® Meter with a data port (Refer to page 9 for a list of supported meters.)

The following meters also require a meter adapter that connects the OneTouch™

Interface Cable to the meter test strip port:

■An Windows®-compatible computer with the following components:

•266 MHz Intel® Pentium 2 or equivalent (higher is highly recommended)

•Minimum 128 MB of RAM (higher will help overall performance)

•Minimum free hard disk space:

• 100-200 MB during installation

• 100 MB after installation

•Microsoft® Windows® 98 Second Edition, Windows® NT 4.0 Workstation

(SP6 or above), Windows® 2000 Professional (SP4 or above), Windows® Me,

and Windows® XP Home and Professional (SP2 or above)

•9-Pin/25-pin COM or USB port

Meter Meter Adapter

OneTouch® FastTake® Meter OneTouch® FastTake® Adapter

OneTouch® PocketScan® Meter OneTouch® PocketScan® Adapter

OneTouch® EuroFlash® Meter OneTouch® EuroFlash® Adapter

OneTouch® SmartScan™ Meter OneTouch® SmartScan™ Adapter

OneTouch® Diabetes Management Software v2.3.1 User Manual 15

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X15

•Either:

• A OneTouch™ Interface Cable (with Software driver for USB) (required for

OneTouch® Meters only),

or

• An appropriate cable for non-OneTouch® branded devices that are

supported by OneTouch® DMS

•Meter adapter (for OneTouch® FastTake® / PocketScan® / EuroFlash® / SmartScan™

only)

•Mouse/Trackball

•Keyboard

•Windows®-compatible printer (recommended)

•Video monitor and adapter with at least 800 x 600 pixel screen resolution and

256 colors

•CD-ROM drive

OneTouch® Diabetes Management Software v2.3.1 User Manual 16

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X16

Getting Technical Support

Technical support is available from LifeScan for registered users of OneTouch® DMS. Contact

your local LifeScan office for the Technical Support telephone number in your area. See

Appendix D for a list of regional LifeScan offices. Technical Support is able to provide services

as long as you do not make any changes to the PC system on which you successfully installed

the Software.

Changes to the Software:

Features that were added:

■Up to five fax numbers may be stored in OneTouch® DMS for easy retrieval when faxing

reports.

■Out-of-target results on black and white printed reports are now easier to read

■Date range options that make it easier to display meter data that may have been

stored with an incorrect date (e.g., a date in the future).

■The ability to transfer and display data from new devices, including non-OneTouch®

branded meter devices (once communication has been established with the new

device).

■The option to display glucose results in certain Data List Reports in the order that tests

were taken, rather than by the meter calendar date that was automatically saved with

each result.

■All records in the Before-Breakfast through Night meal slot series will be displayed with

the date of the Before-Breakfast start time, including any records that may occur after

midnight.

Features that were eliminated:

■The option to indicate if the Software is used in a Clinic or Home setting.

■The ability to change the meal slot tag on glucose records that were transferred from

meter.

OneTouch® Diabetes Management Software v2.3.1 User Manual 17

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X17

Navigating OneTouch® DMS

Keyboard and Mouse Pointer Conventions

OneTouch® DMS is designed for users who know how to use a PC mouse for “point-and-click”

operation. Your mouse and keyboard are all you need for OneTouch® DMS navigation.

OneTouch® DMS uses standard Microsoft® Windows® keyboard, mouse pointer, and drop-

down menu conventions:

For many OneTouch® DMS tasks, you have several options to achieve the same result. For

example, to transfer meter readings you can:

■Click on the Download Meter Readings icon on the home screen, or

■Select Get Meter Readings from the Meter menu, or

■Click on the Meter icon on the Tool Bar.

If you do this with your

mouse and keyboard:

You can do this:

Point to a OneTouch screen icon with

the mouse

Get more information about a particular

function.

Point to data values with the mouse

while viewing Reports

Get more information that has been tagged to

a data value.

Click the mouse after pointing Make a selection.

Double-click the mouse after pointing Highlight a word.

Click the mouse while pressing

the Shift key

Make multiple selections that are next to one

another.

Click the mouse while pressing

the CTRL key

Make multiple selections that are not next to

one another.

OneTouch® Diabetes Management Software v2.3.1 User Manual 18

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X18

OneTouch® DMS Button Behavior

The following Command buttons appear on several OneTouch® DMS screens. Their actions

are common to all screens unless otherwise noted. A button is enabled (active) if the label on

the button is in black font. A button is disabled (not active) if the label on the button is in

gray font.

When you click on this: You can do this:

Add a new patient name and profile to OneTouch® DMS

database. After clicking on Add New Patient, you will go

to the General Tab of the Patient Setup screen to begin

entering information. If you just created a new database,

only the Guest patient record exists. Before you can

transfer readings from a meter to a patient other than

Guest, you will have to add that patient name to the

OneTouch® DMS database.

Manually add a new data record to the database. After

clicking on Add New Record, the Software will remain

at the current screen where you can continue to add

data records.

If you are modifying a data record via the Report screens,

you may add other types of data records by clicking on

the Add New Record button. This will activate the other

Tab selections on the Manual Entry-A screen.

Display a new report after updating patient name,

date range, or Report format.

Copy one or more database records to a separate file

for storage. Archiving lets you manage the size of the

OneTouch® DMS database by removing older data that

you may no longer need to review. This way you can keep

the database size at a minimum so the OneTouch® DMS

works most efficiently.

OneTouch® Diabetes Management Software v2.3.1 User Manual 19

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X19

OneTouch® DMS Button Behavior (Cont.)

When you click on this: You can do this:

Close the current screen without saving your data entries.

After clicking on Cancel, OneTouch® DMS will then take

you back to the previous screen. Cancel is always enabled

(active).

Delete a data record for a particular patient. Only

manually entered data records can be deleted from

the OneTouch® DMS database. The record will be

permanently deleted from the database. Delete can

also be used to delete a patient (and all of the patient’s

records) from the OneTouch® DMS database.

Save your data entries for the current screen. After you

click on Done, the screen will close and OneTouch® DMS

will take you back to the previous screen.

Copy one or more database records to a comma

separated value (CSV) file, a common Excel file format,

for use with other PC applications.

Complete the desired Program function and continue to

the next screen.

Place exported data back in the OneTouch® DMS

database.

“Restore” an omitted record to the database.

Complete the desired Program function.

OneTouch® Diabetes Management Software v2.3.1 User Manual 20

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X20

OneTouch® DMS Button Behavior (Cont.)

When you click on this: You can do this:

Mark a data record for “omission” from calculations and

Reports. The record remains in the database and may be

re-included for future analyses with the Include button.

Cancel any data entries from the current screen and

restore the settings to the default values.

Restore one or more archived data records to the

database.

Save data entries for the current screen. After you click

on Save, the Software will remain at the current screen.

This button lets you make content changes on several

tabs and save them all at once. Save is only enabled

(active) once you begin to add or modify data. To close

the current screen, you must click on Done or Cancel.

Choose the patient whose name is highlighted on the

Find a Patient Tab of the Patient Setup screen. If you

click on Select, that patient name will replace the Name

in the field.

OneTouch® Diabetes Management Software v2.3.1 User Manual 21

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X21

OneTouch® DMS Links

Text hyperlinks appear on many OneTouch® DMS screens. Hyperlinks provide a fast and easy

way to go to other functional areas of the OneTouch® DMS. Text hyperlinks (also known

simply as links) are visible on OneTouch® DMS screens as dashed arrows followed by text.

By clicking on the text portion, you will go to that functional part of the Software.

Some example text links include:

Add a Patient

Add Insulin

Add Medication

View/edit targets

Find a Patient

View Footnotes

View Statistics and Targets

Tell me more

OneTouch® DMS also utilizes certain data values (numbers, dates, times, etc.) and icons as

links. They appear when viewing Reports. You may click on these links to go to a greater level

of detail in the Report, or to go to the Manual Entry screens where you can modify or add data

records. You can easily identify a data value link as any number or text that is underlined.

OneTouch® Diabetes Management Software v2.3.1 User Manual 22

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X22

Part 2: Getting Started

■Installing/Uninstalling/Upgrading OneTouch® DMS on your PC

■Starting Up OneTouch® DMS

■Customizing OneTouch® DMS for Personal Use

•Patient Setup

•General Tab

•Schedule Tab

•Medications Tab

•Regimen Tab

•Complications Tab

•Find a Patient Tab

•Preferences

•General Tab

•Displaying Units of Measure

•Displaying Results as Plasma Values or Whole Blood Values

•Report Options Tab

•Global Targets Tab

•Hypoglycemic Tab

•Modify Meter Settings

•General Tab

•Clock Tab

•Schedule Tab

•Insulin Tab

•Oral Meds Tab

•Targets and Hypoglycemic Tab

OneTouch® Diabetes Management Software v2.3.1 User Manual 23

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X23

Part 2: Getting Started

Installing OneTouch® DMS v2.3.1 on Your PC

You can use these installation instructions if you:

■Are a new OneTouch® DMS v2.3.1 user, or

■Are upgrading from InTouch® Software, OneTouch® DMS v.2.0, v2.1 or v2.2 in English

to OneTouch® DMS v2.3.1, also in English, or

■Wish to uninstall OneTouch® DMS v2.3.1

Notes:

■Do not use these instructions to upgrade to OneTouch® DMS in a new language.

For example, if you have OneTouch® DMS v2.1 in Spanish already installed on your

system and wish to install OneTouch® DMS v2.3.1 in English, be sure to archive your

Spanish database (OneTouch.mdb from C:\Program Files\OneTouch\Data) in a new

folder, uninstall the Spanish v2.1 and delete the C:\Program Files\OneTouch folder

before installing v2.3.1 in English. Refer to the Archive topic in the User Manual for

information on archiving your data.

■Do not use these instructions to upgrade from OneTouch® DMS Pro. OneTouch® DMS

v2.3.1 is not compatible with databases created with OneTouch® DMS Pro.

OneTouch® Diabetes Management Software v2.3.1 User Manual 24

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X24

There are two steps you must complete before OneTouch® DMS will work on your PC. The first

step is loading the software onto the PC. The second step is linking the software to a patient

database.

1. To install OneTouch® DMS v2.3.1.

Insert the OneTouch® DMS CD into the CD-ROM drive and follow the instructions for

installing the Software Program on your PC. Some of the key screens are described

here:

a. Autorun screen -The Autorun screen provides links to two installations:

•Install/Uninstall/Upgrade OneTouch® DMS v2.3.1

•Install Adobe® Acrobat® Reader 6.0

Notes:

•You will need Adobe® Acrobat® 6.0 or above to view the User Manual and Quick

Reference Guide.

•If you choose to install Adobe® Acrobat® 6.0 first, you will need to return to the

Autorun screen to install OneTouch® DMS v2.3.1. The Autorun screen should

display automatically after inserting the CD in the CD-ROM drive. If it does not,

you can invoke it in one of two ways:

•Reinsert the CD into the CD-ROM drive

•Access your CD drive through Windows® Explorer:

– Right-click the Start button. Choose Explore

– Click on the CD icon containing OneTouch Software.

– Double-click on the OneTouch Software icon.

– Double-click on Autorun.exe.

•At the end of the installation, you should notice a OneTouch icon on your

desktop.

OneTouch® Diabetes Management Software v2.3.1 User Manual 25

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X25

b. Country Selection

•Select the country where you purchase your test strips from the drop-down

menu. It is important to select the right country to ensure that your test results

are presented correctly, because the calibration reference varies from one

country to another.

•For users in countries not included on this list, OneTouch® DMS offers an “Other”

installation option. This option requires you to select your glucose value

reporting options.

•Different glucose value reporting options should

be selected based on the OneTouch® Test Strips

and meters used in your country. Select the

reporting options that match your OneTouch®

Test Strip product information.

2. To connect to a database.

OneTouch® DMS uses a database file to manage information. If you are not upgrading

from OneTouch® DMS v2.0/v2.1/v2.2, in order to begin, you must identify the correct

file to use. You have three choices:

•OPTION 1 - Start fresh by creating a new file to store data.

•OPTION 2 - Use data from an old version of InTouch® Software.

•OPTION 3 - Link to an existing OneTouch® DMS file.

Notes:

■Please choose the required option with care. Choosing the wrong option may lead to

inappropriate results.

■You will not have to repeat these steps once you have either created a new database or

linked to an existing database. OneTouch® DMS will automatically link to that database

every time you use the Software. If you reinstall OneTouch® DMS v2.3.1, you will have

to re-establish the correct database link.

OneTouch® Diabetes Management Software v2.3.1 User Manual 26

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X26

■OneTouch® DMS v2.3.1 is not compatible with databases created with OneTouch®

DMS Pro. Do not use the instructions above to connect with a OneTouch® DMS Pro

database.

Figure 2.0

OneTouch® Diabetes Management Software v2.3.1 User Manual 27

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X27

Note: Linking OneTouch® v2.3.1 to an existing database may take several minutes. This is due

to the complexity of converting data to the new database format. It's also possible that there

may not be enough disk space to perform a conversion from an earlier InTouch® Software

database. In this case you will be notified and the conversion will not proceed. A message will

prompt you to free up disk space and will indicate approximately how much space is needed.

If you: And you want to: You should do this:

Are using OneTouch® DMS

v2.3.1 for the first time

Create a new, blank

database.

Select Start fresh - create a new

file to store patient data

This is the default setting.

Are using OneTouch® DMS

v2.3.1 for the first time

Link to a database

created with an earlier

version of InTouch®

Software

Select Use patient data from an

older version of InTouch

Software

Are reinstalling or

upgrading OneTouch® DMS

v2.3.1

Link to an existing

database created with

OneTouch® DMS.

Select Link to an existing

OneTouch Software file

OneTouch® Diabetes Management Software v2.3.1 User Manual 28

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X28

Uninstalling OneTouch® DMS v2.3.1 from your PC

To uninstall OneTouch® DMS, you have 2 options. If you wish to save OneTouch® DMS

database, be sure to move the database file to a safe storage area on your PC before you

begin. The file is named OneTouch.mdb and it is stored in the \LifeScan\OneTouch\Data

folder in the C:\Program Files directory (this is the default directory). Please also see the

OneTouch® DMS Database Management section of the User Manual for information on

archiving and exporting data.

1. Click on Start\Programs\OneTouch Software. Then select the Uninstall option. Follow

the instructions for removing OneTouch® DMS from your PC.

or

2. Click on Start\Settings\Control Panel\and Add/Remove Programs. Follow the

instructions for removing OneTouch® DMS from your PC.

OneTouch® Diabetes Management Software v2.3.1 User Manual 29

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X29

Starting Up OneTouch® DMS

Once OneTouch® DMS has been installed on your PC, and you have linked to a database, you

are ready to begin. A OneTouch icon should appear on your PC Desktop.

OneTouch® DMS opens up to the Program home screen (see Figure 2.1). The home screen

contains the four main program functions. They are labeled Download Meter Readings,

View Reports, Manually Enter Data, and Setup. Clicking on any of the four icons will

activate the desired function. A description of each function follows:

Figure 2.1

If you: You can do this:

See a OneTouch icon

on your PC Desktop

Double-click on it.

Don't see a OneTouch

icon on your PC

Desktop

Click on Start\Programs\OneTouch

Software\OneTouch Software

OneTouch® Diabetes Management Software v2.3.1 User Manual 30

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X30

When you see this: You can do this:

Download Meter Readings Transfer readings from a meter to

OneTouch®DMS

View Reports View and print up to 11 different program

Reports

Manually Enter Data Add data records or Comments to the

OneTouch® DMS database. These records will

supplement readings transferred from a meter.

Setup Customize OneTouch® DMS for personal use,

create patient profiles, and modify meter

settings

OneTouch® Diabetes Management Software v2.3.1 User Manual 31

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X31

The following links appear under the 4 icons:

User Manual

Quick Reference Guide

www.lifescan.com

Clicking on any of these links will take you to that content area.

Customizing OneTouch® DMS for Personal Use

The Setup main screen lets you customize OneTouch® DMS to meet your needs as a person

with diabetes or a healthcare professional.

The Setup main screen contains three program functions (see Figure 2.2). They are labeled

Patient Setup, Preferences, and Meter Settings. Clicking on any of the three icons will

activate the desired function. A description of each function follows:

Figure 2.2

OneTouch® Diabetes Management Software v2.3.1 User Manual 32

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X32

When you see this: You can do this:

Patient Setup Set up diabetes profile data for you or your

patients

Preferences Customize the Software environment to

meet your needs as a patient or healthcare

professional

Meter Settings Modify meter settings that will impact how

data is stored and displayed in the meter

OneTouch® Diabetes Management Software v2.3.1 User Manual 33

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X33

Patient Setup

The Patient Setup screen lets you create or delete diabetes profile data for yourself or your

patients.

The Patient Setup screen contains six Tabs (see Figure 2.3). They are labeled General,

Schedule, Medications, Regimen, Complications, and Find a Patient. The first 5 Tabs

let you enter diabetes and other health-related profile data. Find a Patient lets you easily

locate patient names in the database. Clicking on any of the six Tabs will activate the

desired function.

A Patient Name will always appear in the Patient field. Most Program functions affect the

Patient whose name appears in this box. If this is not the patient you want, you may select

a different one by clicking on the down arrow. A drop-down menu of Patient Names will

appear. Select the one you want. You may also click on the Find a Patient link. This will

bring you to the Find a Patient Tab where you have several ways to locate a patient in

the database.

If you are downloading data for a new patient you will need to set up a new patient profile.

Click on the Add a Patient link to add a new patient to the database. A description of each

Tab function follows below.

Figure 2.3

OneTouch® Diabetes Management Software v2.3.1 User Manual 34

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X34

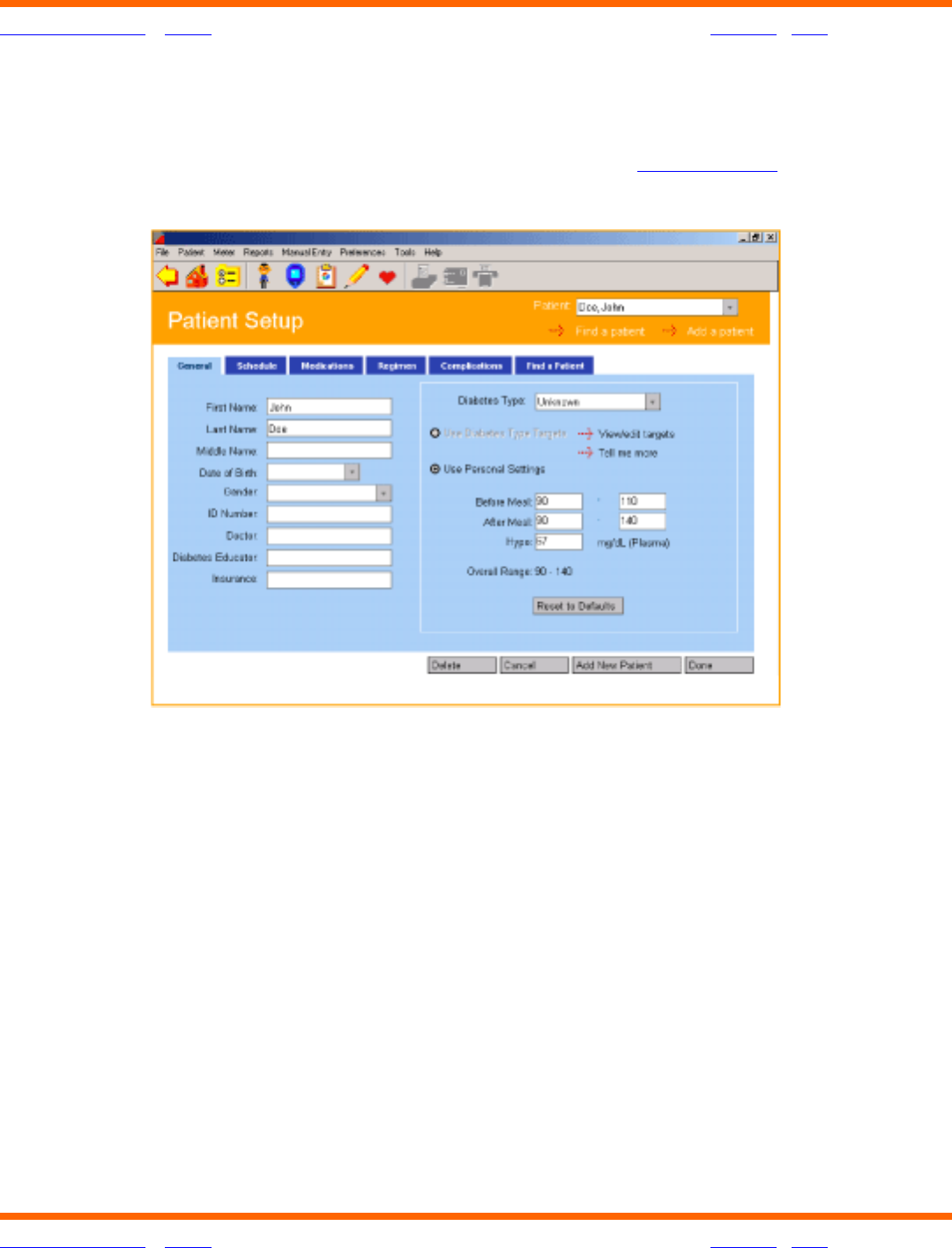

General Tab

The General Tab lets you enter and view personal profile data (see Figure 2.4).

Figure 2.4

OneTouch® Diabetes Management Software v2.3.1 User Manual 35

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X35

When you see this: You can do this:

Patient Data Entry Fields Create a patient profile by entering Last, Middle, and First

Names, Date of Birth, Gender, ID Number, Doctor and

Diabetes Educator Names, and Insurance Carrier.

To specify Date of Birth, modify the information in the Date

field or click on the down arrow. A pop-up calendar box

will appear up with January 1, 1900 set as the default Date

of Birth.

To change the year, click on the year and a set of up/down

arrows will appear. Click on the up/down arrows until you

find the desired year. To change the month, click on the

left/right arrows that appear on the sides of the calendar

box until you find the desired month. Then click on the

desired day.

You may specify Diabetes Type by clicking on the down

arrow in the Diabetes Type field. A drop-down menu

of Diabetes Types will appear. Select the one you want.

You may choose from the following Diabetes Type options:

■Unknown

■Type 1

■Type 2

“Unknown” is the default setting. You can also select

Gestational, Custom 1, Custom 2 or Custom 3 if these

target types are defined in the Preferences Global Targets

screen.

OneTouch® Diabetes Management Software v2.3.1 User Manual 36

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X36

When you see this: You can do this:

Target Ranges Set a glucose target range for this patient for Before-Meal

and After-Meal periods. Target ranges may be specified

by Diabetes Type (select Use Diabetes Type Targets) or

customized for each patient (select Use Personal Settings).

If you specify Use Diabetes Type Targets, the patient will

receive the target ranges defined in the Global Targets Tab

of the Preferences screen. If you would like to view or modify

the target settings that have been set for this Diabetes Type,

click on the View/edit targets link. This will take you to the

Global Targets Tab where you can make changes as needed.

Default settings for Global Targets exist only for Type 1 and

Type 2 Diabetes.

If you have specified the Diabetes Type as “Unknown”, by

default Use Personal Settings will be selected. Here you

will need to set target ranges for this patient. Note that you

can also select Use Personal Settings for Type 1, Type 2 or

any other Diabetes Type.

General rules for entering glucose target ranges are as

follows:

■Enter the lower limit for each Meal Slot in the From

field on the left. Enter the higher limit for each Meal

Slot in the To field on the right.

■Each upper limit must be greater than or equal to its

corresponding lower limit

■Before-Meal and After-Meal target ranges can

overlap

■You must specify both Before-Meal and After-Meal

target ranges

OneTouch® DMS calculates an Overall (Target) Range that

is used in OneTouch® DMS Reports. The Overall (Target)

Range extends from the lowest range limit to the highest

range limit. If you are using Personal Settings, you can

customize the patient's hypoglycemic threshold value.

OneTouch® Diabetes Management Software v2.3.1 User Manual 37

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X37

Schedule Tab

OneTouch® DMS uses meal slots to organize data for Reports. The Schedule tab of the Patient

Setup screen lets you customize the start and end time for 7 pre-defined meal slots for both

working and non-working days (see Figures 2.5a and 2.5b). This way you can track and

monitor your glucose levels and medications for specific time periods throughout the day,

customized to your daily routine.

Start and end times may be set for the following meal slots:

■Before-Breakfast

■After-Breakfast

■Before-Lunch

■After-Lunch

■Before-Dinner

■After-Dinner

■Night

Note: To ensure that glucose readings appear in OneTouch® DMS Reports in the same meal

slot that was used to store the readings in the meter, it is important that the meal schedule

you set up in OneTouch® DMS matches the meal schedule stored in the meter. If the

schedules don't match, glucose readings that are transferred to OneTouch® DMS may be

displayed in an inappropriate meal slot. If any out-of-target readings appear in the wrong

meal slot, this may lead you to misinterpret information when tracking and trending data.

OneTouch® Diabetes Management Software v2.3.1 User Manual 38

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X38

Figure 2.5a

Figure 2.5b

Note: All records in the Before-Breakfast through Night meal slot series will be displayed

sequentially with the date of the Before-Breakfast start time. This includes records that may

occur after midnight.

OneTouch® Diabetes Management Software v2.3.1 User Manual 39

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X39

To set meal slot times

When you see this: You can do this:

Set meal slot times. Review the meal slot times and

decide if they match your schedule. OneTouch® DMS

uses these meal slot times to organize data for Reports.

Each meal slot start time begins when the previous

one ends.

Change the From time of one meal slot, and OneTouch®

DMS automatically changes the To time of the previous

meal slot.

Change the hour for any meal slot, by selecting the hour

value that appears in the From field.

Click on the up/down arrows until you find the desired

hour.

Change the minutes for any meal slot, by selecting the

minutes value that appears in the From field.

Click on the up/down arrows until you find the desired

minutes. All start times should be rounded to the nearest

quarter hour.

OneTouch® Diabetes Management Software v2.3.1 User Manual 40

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X40

To specify different meal slots for working and non-working days:

OneTouch® DMS lets you set different meal slot schedules for working and non-working days.

To use this option:

1. Select Check this box to use different schedules for working and non-working

days at the top of the application screen.

2. When the above check box is selected, a second option will appear: Check boxes of

non-working days.

3. A separate set of From and To time boxes will appear for each meal slot for the non-

working days. Follow the same steps as above for changing meal slot times.

OneTouch® Diabetes Management Software v2.3.1 User Manual 41

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X41

Using the schedule to assign meter readings to time slots:

When readings are transferred from the meter to

OneTouch® DMS, they are tagged with a time stamp

and are automatically assigned time slots. If you decide

to modify meal slot times, you will impact only those

readings that have not yet been transferred. Readings

already in OneTouch® DMS will maintain their existing

meal slot designation. For this reason, it is important to

note if schedule times are appropriate before you transfer

readings. It is also important to synchronize your meter

clock with that of the PC (assuming the PC clock is correct), to ensure that future readings

are slotted correctly. OneTouch® DMS will notify you if your PC and meter clocks are out of

sync by more than 15 minutes.

Using comments/events to assign meter readings to time slots:

Depending on meter type, some OneTouch® Meters allow you

to tag a reading with a meal slot comment. Such readings will

be assigned to the same meal slot by the OneTouch® DMS

application, even if they are taken at a time outside the meal

slot range. For example, a reading with a “Before- Breakfast”

comment/event would be assigned to the Before-Breakfast

time slot even if it were taken outside that time slot. This feature

applies only to the OneTouch® UltraSmart® and OneTouch®

Profile® Meters. For all other OneTouch® Meters, readings are

assigned to time slots using the actual time of the reading.

Sep-08-05 10:00AM

104

mg/dL

OneTouch® Diabetes Management Software v2.3.1 User Manual 42

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X42

Medications Tab

The Medications Tab lets you specify any medications (insulin or other) that are being used to

manage diabetes (see Figure 2.6).

You may select any of the following categories:

■Insulin

■Oral Meds

■Insulin Pump

■Diet and Exercise

Figure 2.6

OneTouch® Diabetes Management Software v2.3.1 User Manual 43

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X43

Medications Tab (Cont.)

If you see this: You can do this:

Insulin Specify Insulin Types from the list that appears on

screen. Check each of the Insulin Types that apply.

You may also specify three custom Insulin Types by

selecting any of the Custom selections below the list.

You may create new names for any of the default

Custom names.

You may also specify one other Insulin Type by

clicking on Other and entering a name.

Oral Meds Specify Oral Meds from the list that appears on

screen. You may also specify 3 custom Medications by

clicking on any of the Custom selection boxes below

the list. You may create new names for any of the

default Custom names.

You may also specify one other Medication by clicking

on Other and entering a name.

Diet and Exercise Indicate that the patient is using Diet and Exercise to

manage diabetes.

Insulin Pump Indicate that the patient is using an Insulin Pump.

OneTouch® Diabetes Management Software v2.3.1 User Manual 44

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X44

Regimen Tab

The Regimen Tab lets you specify a daily schedule (Regimen) for insulin injections (see Figure

2.7).

Up to 5 different Regimens may be created and stored in the database.

Figure 2.7

OneTouch® Diabetes Management Software v2.3.1 User Manual 45

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X45

When you see this: You can do this:

Active/Regimen List Create up to 5 Regimens for any patient. Regimens will be

stored in the database. To define a Regimen, select one of

the 5 default Regimen names from the list on the left side

of the screen. This Regimen name will replace the one in

the Regimen Name field on the right side of the screen.

Regimen Name/Active Create new names for any of the five default Regimen

names.

To make any of the five Regimens the Active Regimen,

click on Active. The word (Active) will then appear next to

that Regimen in the list to the left.

Date Effective Enter an effective start date and daily schedule for insulin

injections. To specify the date, modify the information in

the date field or click on the down arrow. A pop-up

calendar box will appear with the current date set as the

default Date.

To change the year, click on the year and a set of up/down

arrows will appear. Click on the up/down arrows until you

find the desired year. To change the month, click on the

left/right arrows that appear on the sides of the calendar

box until you find the desired month. Then click on the

desired day.

Units and Type For each Active Regimen, at least 1 insulin type and dose

must be specified for at least 1 Meal Slot. You may enter

up to 2 insulin doses for each Meal Slot.

OneTouch® Diabetes Management Software v2.3.1 User Manual 46

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X46

Complications Tab

The Complications Tab lets you specify medical complications related to diabetes

(see Figure 2.8).

Figure 2.8

When you see this: You can do this:

Complications Specify all diabetes-related Complication Types

from the list that appears on screen. Click on all

Complication Types that apply.

You may also specify one other Complication Type

by clicking on Other and entering a name.

OneTouch® Diabetes Management Software v2.3.1 User Manual 47

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X47

Find a Patient Tab

The Find a Patient Tab lets you locate a Patient Name in the database (see Figure 2.9).

This Patient Name will appear on all screens and Reports.

Figure 2.9

If the Patient Name you are looking for is not displayed in the Patient field, you have 3 options

to find it:

1. Click on the down arrow in the Patient field. A drop-down menu of Patient Names will

appear. Select the desired name. This name will then appear in the Patient field.

2. Scroll down the list of names in the large field. When you find the name you are looking

for, select it. This name will then appear in the Enter Patient Name field.

3. Search for a Patient by typing in the Patient Name. First, select the option to search by First

Name or Last Name. The default option is to search by Last Name. Begin entering the First

or Last Name in the Enter Patient Name field. As you enter characters, OneTouch® DMS will

search the database until it finds an exact or close match. When it does, the Patient Name

will be highlighted in the large field. If this is the correct name, click on the Select button.

OneTouch® Diabetes Management Software v2.3.1 User Manual 48

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X48

Preferences

The Preferences screen lets you customize the OneTouch® DMS environment to meet your

needs as a person with diabetes or a healthcare professional.

The Preferences screen contains four Tabs (see Figure 2.10). They are labeled General, Report

Options, Targets and Hypoglycemic. Clicking on any of the four Tabs will activate the

desired function. A description of each Tab function follows:

Figure 2.10

OneTouch® Diabetes Management Software v2.3.1 User Manual 49

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X49

General Tab

The General Tab lets you specify the settings that determine how you will use and interact

with OneTouch® DMS (see Figure 2.10).

When you see this: You can do this:

Look for Meter On Specify the serial port on your PC that you will use

to connect to the meter. If you do not know the

COM port, select Autosearch. OneTouch® DMS will

attempt to locate the correct COM port automatically.

If you know the correct COM port, uncheck

Autosearch and select the port (COM1-COM256).

“Autosearch” is the default setting.

Note: Many PCs only have 2 COM ports and your

mouse or internal modem is usually connected to

one of them. Refer to documentation for your PC

for more information on available COM ports.

Show Instructions for Specify if you want OneTouch® DMS to display

instructions for these 3 functions that apply to

readings in the meter memory. Select the options

you want to display.

Require name confirmation Specify if you want to confirm the patient name is

correct each time you transfer meter readings to

the OneTouch® DMS database.

If you have already transferred readings from a

meter to a patient in the database, the Software

assumes you want to transfer the new readings in

the same meter to the same patient. By requiring

name confirmation, you will have the option of

transferring readings to the same patient, a different

patient, or a Guest patient.

OneTouch® Diabetes Management Software v2.3.1 User Manual 50

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X50

General Tab (cont.)

When you see this: You can do this:

Units of Measure Specify whether you want readings displayed in

OneTouch® DMS Reports as mg/dL (milligrams per

deciliter) or mmol/L (millimoles per liter) units. Click

on the down arrow in the Unit of Measure field.

Then select the desired option from the drop-down

menu. The unit of measure selected here will be

used for glucose, cholesterol and triglycerides data.

If the meter is set to mmol/L units, and you select

mg/dL as your display option, OneTouch® DMS

will automatically convert the readings for display

purposes. The units setting on the meter will not

be affected.

Show Result As Specify whether glucose readings will be displayed

in OneTouch® DMS Reports as either Whole Blood

readings or Plasma readings. Click on the down

arrow in the Show Result as field. Then select the

desired option from the drop-down menu.

Note: To view results the same way they appear in the

meter, refer to your meter display where the glucose

unit of measure appears with the test result, and set

the Show Result as option to display the same units.

OneTouch® Diabetes Management Software v2.3.1 User Manual 51

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X51

Displaying Units of Measure

A. Meter display showing mg/dL for the unit of measure.

B. Meter display showing mmol/L for the unit of measure.

IMPORTANT INFORMATION ABOUT UNITS OF MEASURE

■Different units of measure are standard in different countries or regions. Milligrams

per deciliter (mg/dL) is the standard unit used in the United States. The unit of

measurement used in Canada, some European countries and other parts of the

world is mmol/L. This unit includes a decimal point but mg/dL results do not.

■There is a significant difference in the glucose reading depending on the units of

measurement, mg/dL or mmol/L.

■To view results in OneTouch® DMS the same way they are displayed in your meter,

refer to your meter display where the glucose unit of measure appears with the

test result. If you wish to view results differently from the meter, OneTouch® DMS

can automatically convert readings for display without affecting the setting in

the meter.

Sep-08-05 10:30AM

104

mg/dL

8-Sep-05 10:30AM

5.8

mmol/L

AB

OneTouch® Diabetes Management Software v2.3.1 User Manual 52

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X52

Displaying Results as Plasma Values or Whole Blood Values

IMPORTANT INFORMATION ABOUT PLASMA AND WHOLE BLOOD READINGS:

All LifeScan meters require a sample of whole blood from your finger or arm to give

you a blood glucose reading. But there is a difference in how certain OneTouch®

Meters measure the amount of glucose in the blood.

A few LifeScan meters measure glucose based on the entire whole blood sample.

Others measure glucose based on only the plasma portion of the whole blood sample.

Plasma is the liquid portion of the whole blood sample after the red blood cells are

removed. Most clinical laboratories measure plasma glucose. There is a difference in

the glucose concentration in whole blood and plasma. A glucose reading from a

plasma sample is about 12% higher than a reading from a whole blood sample.

So if you are using a LifeScan meter that measures plasma glucose, readings will be

about 12% higher than those taken from a LifeScan meter that measures glucose

from the entire whole blood portion.

It's important to remember this difference when comparing glucose readings from

OneTouch® Meters with measurements taken at the lab. Several OneTouch® Meters

automatically convert readings to plasma values. Others may not, depending on the

country or locale where the meter was purchased. See the table below for more

information on each OneTouch® Meter.

CAUTION: Due to the difference in glucose readings related to plasma or whole blood

reporting, it is important to use the right test strips with OneTouch® Meters. That's

because test strips are designed to work hand in hand with the way OneTouch® Meters

measure glucose in the blood. For this reason, you should only use test strips purchased

in the same country or locale where you purchased your meter. This will ensure that you

are using the right test strips. As a result, your glucose readings will be as consistent and

accurate as possible. Please refer to the documentation that comes with the test strips.

Note: When communicating with devices other than OneTouch® Meters, the Software

assumes that these devices are plasma calibrated unless otherwise specified.

OneTouch® Diabetes Management Software v2.3.1 User Manual 53

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X53

If you don't see your meter listed, refer to the Owner's Booklet for that meter to check if it is

supported with this version of the Software, and for instructions on whether results are

displayed as plasma or whole blood values.

If you are transferring readings from a OneTouch® Meter that only reports glucose readings as

whole blood values, you can use OneTouch® DMS to display these readings as plasma values

in Reports. Having this option will make it easier to compare these meter readings with

results from the lab.

If you have any of the following

OneTouch®Meter:

The meter will Report glucose

readings as:

OneTouch® BASIC® Meter (with data port)

OneTouch® BASIC® Plus Meter

OneTouch® Profile® Meter

OneTouch® II Meter

Plasma or whole blood, depending on the

locale where the meter was purchased.

Check the product information that

comes with the corresponding test strips.

OneTouch® SureStep® Meter (with data port)

OneTouch® SureStep® Plus Meter

OneTouch® GlucoTouch® Meter (with data port)

OneTouch® GlucoTouch® Plus Meter

OneTouch® FastTake® Meter

OneTouch® PocketScan® Meter

OneTouch® EuroFlash® Meter

OneTouch® SmartScan™ Meter

OneTouch® Ultra® Meter

OneTouch® Ultra®2 Meter

InDuo® Meter

OneTouch® UltraSmart® Meter

Plasma values only.

OneTouch® Diabetes Management Software v2.3.1 User Manual 54

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X54

Report Options Tab

The Report Options Tab lets you select the default settings for routine Report viewing and

printing (see Figure 2.11).

Figure 2.11

If you want to do this: Then do this:

Compare meter readings

with those from a lab

Set the OneTouch® DMS display option to

plasma units.

Display meter readings in

OneTouch® DMS Reports

exactly as they are reported

on the meter

First check how the meter reports readings.

The glucose unit of measure appears with the

test result on the meter display. Then set the

OneTouch® DMS display option to match the

way it's done with the meter display.

OneTouch® Diabetes Management Software v2.3.1 User Manual 55

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X55

When you see this: You can do this:

Select Favorite Report Specify the Report displayed directly after transferring

readings from a meter. Click on the down arrow in the

Select Favorite Report field. Select the Report you want

from the drop-down menu. You may select any of the

following Reports as the Favorite Report:

■Logbook

■Glucose Trend

■Pie Chart

■Standard Day

■Average Readings

■Insulin

■Exception

■Data List

■Histogram

■Health Checks

■Summary

Default Date Range Specify one of several pre-set time periods for viewing and

printing Program Reports. Click on the down arrow in the

Default Date Range field. A drop-down menu of pre-set

time periods will appear. Select the one you want. You may

select from any of the following Date Ranges as the default:

■Since Last Transfer

■Latest 7 Days

■Latest 14 Days

■Latest 30 Days

■Latest 60 Days

■Latest 90 Days

“Latest 14 days” is the default Date Range.

OneTouch® DMS will display the corresponding calendar

start and end dates (in Program Reports) based on the

option chosen.

OneTouch® Diabetes Management Software v2.3.1 User Manual 56

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X56

Sort glucose results in

testing order within the

Data List Report (since last

data transfer)

Specify if you would like to see glucose results in certain

Data List Reports in the order that tests were taken, rather

than by the calendar date that was automatically saved

with each result.

This option is available only when viewing or printing the

Data List Report and specifying the “Since last transfer” Date

Range. This option is not available if you have transferred

results from a OneTouch® UltraSmart® Meter. To display

glucose results in chronological order as defined by the

dates that were tagged to the meter result, the default

selection must be deselected (unchecked).

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 57

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X57

Global Targets Tab

The Global Targets Tab lets you create glucose target ranges that can be applied to all

patients in the database (see Figure 2.12). Templates may be set for each Diabetes Type

(including three Custom types) and for both before-meal and after-meal slots.

The following leading health organization[s] make[s] target range recommendations in their

clinical practice guidelines:

[A.] American Diabetes Association

For mg/dL locales:

Pre-Meal Targets* 90-130 mg/dL plasma or 80-116 mg/dL whole blood

Post-Meal Targets* 90-180 mg/dL plasma or 80-161 mg/dL whole blood

For mmol/L locales:

Pre-Meal Targets* 5.0-7.2 mmol/L plasma or 4.5-6.4 mmol/L whole blood

Post-Meal Targets* 5.0-10.0 mmol/L plasma or 4.5-8.9 mmol/L whole blood

[B.] American Association of Clinical Endocrinologists guideline for intensive diabetes

self-management.

For mg/dL locales:

Pre-Meal Targets* 90-110 mg/dL plasma or 80-98 mg/dL whole blood

Post-Meal Targets* 90-140 mg/dL plasma or 80-125 mg/dL whole blood

For mmol/L locales:

Pre-Meal Targets* 5.0-6.1 mmol/L plasma or 4.5-5.4 mmol/L whole blood

Post-Meal Targets* 5.0-7.8 mmol/L plasma or 4.5-6.9 mmol/L whole blood

[C.] Canadian Diabetes Association

Pre-Meal Targets* 4.0-7.0 mmol/L plasma or 3.6-6.3 mmol/L whole blood

Post-Meal Targets* 5.0-11.0 mmol/L plasma or 4.5-9.8 mmol/L whole blood

*These values are applicable to pre- and post- meal targets for user specific and Diabetes

Type specific targets for Type 1, and Type 2.

OneTouch® Diabetes Management Software v2.3.1 User Manual 58

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X58

General rules for creating glucose target ranges are as follows:

■The From and To values represent the lower and upper limits for each Meal Slot

target range

■Each To value must be greater than or equal to its corresponding From value

■Before-Meal and After-Meal target ranges can overlap

■You must specify both the Before-Meal and After-Meal target ranges for each

Diabetes Type

■Default values for glucose target ranges are provided for Type 1 and Type 2 Diabetes

Types only

■Global target ranges can be applied to every patient with that Diabetes Type,

as specified in the General Tab of the Patient Setup screen

Figure 2.12

OneTouch® Diabetes Management Software v2.3.1 User Manual 59

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X59

Notes:

■Default before-meal and after-meal target ranges are provided for Type 1 and Type 2

diabetes. There are no default target ranges for Gestational diabetes or the three

Custom diabetes types.

■As you set or change target ranges for each Diabetes Type, you are impacting the

targets that are applied to all patients with that Diabetes Type who use Diabetes Type

targets. This means you are setting the target ranges for viewing and printing Reports

for each individual patient. It also means you are affecting the target ranges that are

applied in the General Tab of the Patient Setup screen.

■Targets will shift if you switch between Plasma and Whole Blood.

OneTouch® Diabetes Management Software v2.3.1 User Manual 60

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X60

Hypoglycemic Tab

The Hypoglycemic Tab lets you set a Hypoglycemic threshold (see Figure 2.13). This is the

baseline at or below which glucose readings in Program Reports are designated

“hypoglycemic”.

Figure 2.13

OneTouch® Diabetes Management Software v2.3.1 User Manual 61

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X61

When you see this: You can do this:

Hypoglycemic

threshold

Modify the Hypoglycemic threshold by entering the desired

number. Please note whether the Hypoglycemic threshold is

displayed in mg/dL (or mmol/L) units and as a Plasma (or Whole

Blood) value.

The Hypoglycemic threshold must be set below the lower limits of

all Before-Meal and After-Meal target ranges.

Depending on locale one of the following default hypoglycemic

threshold settings is provided:

■67 mg/dL (3.7 mmol/L) when using plasma values, and 60mg/dL

(3.3 mmol/L) when using whole blood values

or

■70 mg/dL (3.9 mmol/L) when using plasma values, and

63 mg/dL (3.5 mmol/L) when using whole blood values.

To change the Hypoglycemic threshold, enter the desired threshold

value in the field. The Hypoglycemic threshold must be from:

■50 to 90 mg/dL (2.8 to 5 mmol/L) when using plasma values

or

■45 to 80 mg/dL (2.5 to 4.4 mmol/L) when using whole blood

values.

Notes:

■The Hypoglycemic threshold will change whenever you shift

between Whole Blood and Plasma display options. You may

switch display options in the General Tab of the Preferences

screen. OneTouch® DMS will convert the value automatically.

■You can customize the hypoglycemic value for individual

patients in the Patient Setup General screen.

OneTouch® Diabetes Management Software v2.3.1 User Manual 62

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X62

Modify Meter Settings

The Meter Settings main screen lets you modify meter settings that will impact how data is

stored in the meter and displayed in the OneTouch® DMS Reports.

The main screen contains up to six Tabs. They are labeled Clock, General, Schedule, Insulin,

Oral Meds and Targets & Hypoglycemic. Clicking on any of the six Tabs will activate the

desired function.

Note: Some Tabs (or Tab options) may not be available for your meter. Only those that are

available will appear on the OneTouch® DMS screens. When you connect the meter to the PC,

OneTouch® DMS determines which Tab options are available for your meter. Only those

options will be displayed.

OneTouch® Diabetes Management Software v2.3.1 User Manual 63

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X63

Clock Tab

The Clock Tab lets you set and match the time and date for the meter and your PC

(see Figure 2.14).

Figure 2.14

You may select only one of the three Clock Tab options. If you select the third option,

you must enter a Date and Time for the meter.

Note: To ensure that glucose readings appear in OneTouch® DMS Reports in the same meal

slot that was used to store the readings in the meter, it is important that the PC clock time

matches the meter clock time.

If the clock times differ, glucose readings that are transferred to OneTouch® DMS may be

displayed in an inappropriate meal slot. If any out-of-target readings appear in the wrong

meal slot, this may lead you to misinterpret the information when tracking and trending data.

OneTouch® Diabetes Management Software v2.3.1 User Manual 64

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X64

When you see this: You can do this:

Match the meter clock time with the PC clock time.

Leave the meter clock and PC clock times as they are.

Set the date and time of the meter clock so that it's

different from the time of the PC clock.

To specify the date, modify the information in the

Date and Time fields that appear when this option

is selected, or click on the down arrow. A pop-up

calendar box will appear.

To change the year, click on the year and a set of

up/down arrows will appear. Click on the up/down

arrows until you find the desired year. To change

the month, click on the left/right arrows that appear

on the sides of the calendar box until you find the

desired month. Then click on the desired day.

You may modify the Time field by entering the

desired Time, or by clicking on the hour or minute

values that appear. Then click on the up/down arrows

until you find the desired hour and minute.

Note: If you change the meter clock time, only those

glucose readings taken after you have changed the

time will be affected. Results taken prior to the

change are not affected.

OneTouch® Diabetes Management Software v2.3.1 User Manual 65

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X65

General Tab

The General Tab lets you specify many of the settings that control how meter readings are

displayed on the meter screen (see Figure 2.15). Different setup options are available for

different meters.

For each General Tab option, select the desired entry from each of the drop-down menus in

the displayed fields.

Figure 2.15

Notes:

■Figure 2.15 is a view of a OneTouch® UltraSmart® Meter setup screen

■Not all options are available for all meters

OneTouch® Diabetes Management Software v2.3.1 User Manual 66

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X66

When you are using a

OneTouch® UltraSmart®

Meter and you see this:

You can do this:

Language Specify the language the meter uses to display messages.

Beep Turn meter audio cues ON or OFF. Audio cues are used to

confirm the meter has performed a function or to alert you

to a message.

Cholesterol Units Display cholesterol, triglycerides, and glucose readings as

either mg/dL (milligrams per deciliter) or mmol/L

(millimoles per liter).

Time Format Display times either in AM/PM format or 24-hour format

(for example, 6:00 PM is 18:00 in 24-hour format).

Date Format Display dates either in mm/dd/yy format or dd/mm/yy

format (mm is the month, dd is the day, and yy is the year).

Start Week on Specify either Sunday or Monday as the first day in the

week.

Meter Average Period Modify the 14-day glucose readings average to 7, 30, 60 or

90 days. The average will appear next to the most recent

reading.

Insulin Pump Used Specify if an insulin pump is used.

OneTouch® Diabetes Management Software v2.3.1 User Manual 67

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X67

Schedule Tab

The Schedule Tab lets you customize the start and end times for the 7 pre-defined Meal Slots

that are stored in the meter (see Figure 2.16). The meter will tag and record all meter readings

with a Meal Slot designation. Each Meal Slot start time begins when the previous one ends.

So when you change the From time of one Meal Slot, OneTouch® DMS automatically changes

the To time of the previous Meal Slot.

Note: This Tab is only available when connecting a OneTouch® UltraSmart® Meter.

Figure 2.16

Note: To ensure that glucose readings appear in OneTouch® DMS Reports in the same meal

slot that was used to store the readings in the meter, it is important that the meal schedule

stored in the meter matches the schedule stored for that patient in OneTouch® DMS. If you

change the schedule stored in the meter, ensure that the schedule for that patient in

OneTouch® DMS is changed as well.

If the schedules don't match, glucose readings that are transferred to OneTouch® DMS may be

displayed in an inappropriate meal slot. If any out-of-target readings appear in the wrong

meal slot, this may lead you to misinterpret the information when tracking and trending data.

OneTouch® Diabetes Management Software v2.3.1 User Manual 68

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X68

When you see this: You can do this:

Before-Breakfast

After breakfast

Before-Lunch

After-Lunch

Before-Dinner

After-Dinner

Night

Specify the time periods for any Meal Slot. Click on the up/

down arrows to get to the desired From time for each Meal

Slot. The corresponding To time of the previous Meal Slot

will be updated automatically.

OneTouch® Diabetes Management Software v2.3.1 User Manual 69

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X69

Insulin Tab

The Insulin Tab lets you add new Insulins to the Types that are already stored in the meter

(see Figure 2.17).

Note: This Tab is only available with a OneTouch® UltraSmart® Meter.

Figure 2.17

OneTouch® Diabetes Management Software v2.3.1 User Manual 70

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X70

Oral Meds Tab

The Oral Meds Tab lets you add new Medications to the Types that are already stored in the

meter (see Figure 2.18).

Note: This Tab is only available with a OneTouch® UltraSmart® Meter.

When you see this: You can do this:

Existing Insulin Types Display/list the Insulin Types already available with the

meter.

Additional Insulin Types Add up to 11 additional Insulin Types.

Select Favorite Insulin Types Select 3 Insulin Types (from either of these lists) to be

stored in the meter as Favorite Insulin Types. This will

make it easier to enter and record Insulin units in the meter

memory.

Fields will appear for the 3 Favorite Insulin Types. Click on

the down arrow in each field. A drop-down menu of Insulin

Types will appear. Select the desired option for each

Favorite Insulin Type.

OneTouch® Diabetes Management Software v2.3.1 User Manual 71

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X71

Figure 2.18

When you see this: You can do this:

Existing Medications Display/list the Oral Medication Types (Pills A through E)

already available with the meter.

Additional Medications Add up to 10 additional Oral Medication Types.

Select Favorite Medications Select up to five Oral Medication Types from either of these

lists to be stored in the meter as Favorite Oral Medication

Types. This will make it easier to enter and record

medication doses in the meter memory.

Fields will appear for the five Favorite Oral Medication

Types. Click on the down arrow in each field and select the

desired option from the drop down menu.

OneTouch® Diabetes Management Software v2.3.1 User Manual 72

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X72

Targets & Hypoglycemic Tab

The Targets & Hypoglycemic Tab lets you set the Before-Meal and After-Meal glucose target

ranges, and the Hypoglycemic threshold, that are stored in the meter (see Figure 2.19).

General rules for creating glucose target ranges are as follows:

■The From and To values represent the lower and upper limits for each Meal Slot target

range

■Each To value must be greater than or equal to its corresponding From value

■Before-Meal and After-Meal target ranges can overlap

■The From values for any Before-Meal and After-Meal target ranges must be greater

than the Hypoglycemic threshold

Note: This Tab is only available with a OneTouch® UltraSmart® Meter.

Figure 2.19

OneTouch® Diabetes Management Software v2.3.1 User Manual 73

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X73

Part 3: Diabetes Management

■Download (Transfer) Meter Readings

•Connecting a Meter to your PC

•Transferring Meter Readings

■Assigning Meter Readings to the database

■Clear Meter Readings

■View and Manage Data Records and Reports

•General Report Information

•Report Formats

•Logbook Report

•Day View Screen

•Glucose Trend Report

•Pie Chart Report

•Summary Report

•Standard Day Report

•Health Checks Report

•Health Checks Detail Screen

•Average Readings Report

•Insulin Report

•Exception Report

•Data List Report

•Histogram Report

■Printing, Faxing, and E-Mailing Reports

■Modifying Data Records

•Rules for Modifying Data Records

•Editing, Omitting, and Deleting Data Records

■Manually Enter Results

•Rules for Adding Data Records Manually

•Glucose

•Insulin

•Oral Meds

•Exercise

•Food

•Health Records

OneTouch® Diabetes Management Software v2.3.1 User Manual 74

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X74

Download Meter Readings

Glucose readings transferred from the meter are saved in the database. Any Date and Time

tags and any Comments or Event Markers associated with a reading are also transferred.

Event Markers impact how glucose readings are organized and displayed in Program Reports.

Once readings have been transferred, you may clear the readings from the meter memory.

Before you can transfer readings or clear readings from the meter memory, you must first

establish communication between your PC and the meter. Communication steps are covered

below. Please note the following as you establish communications between the meter and

your PC:

■It makes no difference which language the meter is using to display readings.

OneTouch® DMS is designed to work with any language you have selected for the

display.

■Only one meter can communicate with OneTouch® DMS at any given time.

■You may click on the Cancel button at any time to stop the process.

■If the meter Clock time differs from the PC Clock time by more than 15 minutes, a

message box will appear. It will instruct you to make sure the PC and meter Clock

times are the same and accurate.

Caution: If you will be transferring readings from more than 1 meter (for example, one

meter at home and one at work), make sure all meter clock times match the PC clock

time. This will help ensure that your results can be compared to one another and are

accurate.

OneTouch® Diabetes Management Software v2.3.1 User Manual 75

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X75

Connecting a Meter to Your PC

1. Connect the round stereo plug jack on the OneTouch™ Interface Cable to the meter

data port. Firmly push the cable until it clicks into place. If your OneTouch® Meter uses

an adapter in place of a data port, first connect the round stereo plug jack of the Cable

to the adapter. Then connect the other end of the adapter to the meter test strip port.

OneTouch® Meters that use adapters in place of data ports include:

■OneTouch® FastTake® Meter

■OneTouch® PocketScan® Meter

■OneTouch® EuroFlash® Meter

■OneTouch® SmartScan™ Meter

2. Connect the other end of the OneTouch™ Interface Cable to one of the available COM/USB

ports on your PC.

3. Make sure the COM port number matches the selection you made in the General Tab on

the Preferences screen. Or, select the Autosearch option in the General Tab. This is the

default setting. With the Autosearch option, OneTouch® DMS will try to locate the correct

COM port where you connected the meter.

4. In the lists below, find the meter that you are connecting and turn the meter ON or OFF

as noted. A visual of the meter types will appear on the OneTouch® DMS screen to help

guide you.

OneTouch® Diabetes Management Software v2.3.1 User Manual 76

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X76

If you don't see your meter listed, refer to the Owner's Booklet for that meter to check if it is

supported by this version of the Software, and for instructions on whether to turn the meter

ON or OFF before communicating.

If you are connecting one of these meters: You should do this:

OneTouch® BASIC® Meter (with data port)

OneTouch® BASIC® Plus Meter

OneTouch® Profile® Meter

OneTouch® II Meter

OneTouch® SureStep® Meter (with data port)

OneTouch® SureStep® Plus Meter

OneTouch® GlucoTouch® Meter (with data port)

OneTouch® GlucoTouch® Plus Meter

OneTouch® UltraSmart® Meter

Turn the meter ON before

communicating.

OneTouch® FastTake® Meter

OneTouch® PocketScan® Meter

OneTouch® EuroFlash® Meter

OneTouch® SmartScan™ Meter

OneTouch® Ultra® Meter

OneTouch® Ultra®2 Meter

InDuo® Meter

Turn the meter OFF before

communicating.

OneTouch® Diabetes Management Software v2.3.1 User Manual 77

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X77

Transferring Meter Readings

Once you have successfully connected the meter to your PC, you can complete the Download

Meter Readings process (see Figure 3.0):

1. Click on the Download Meter Readings icon on the home screen.

2. Click on the Download Meter Readings button on the Instruction screen when you are

ready.

Note: If you selected Show Instructions for Getting meter readings in the General Tab of

the Preferences screen, instructions will appear to guide you through the Download Meter

Readings process (see Figure 3.0). If you do not want to see these reminder steps in the future,

select the Don't show these instructions again option on the Program screen. Or you may

go to the General Tab of the Preferences screen and deselect the Show Instructions for

Getting meter readings.

Figure 3.0

OneTouch® Diabetes Management Software v2.3.1 User Manual 78

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X78

Assigning Meter Readings to the Database

Readings transferred from a meter must always be linked to a patient name in the OneTouch®

DMS database (see Figure 3.1). Unless you selected Require name confirmation to get

the meter readings in the General Tab on the Preferences screen, OneTouch® DMS will

automatically try to assign meter readings to the same patient you transferred its readings

to the last time. OneTouch® DMS keeps track of meter-patient assignments for every transfer

by checking a unique ID number that's stored in the meter memory.

Figure 3.1

OneTouch® Diabetes Management Software v2.3.1 User Manual 79

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X79

The rules for assigning meter readings to the database are as follows:

■You may transfer readings from a particular meter to the same patient as the previous

transfer, a new patient, or a Guest patient.

■If you want to transfer readings from a meter to a different patient than before, you

must have selected Require name confirmation to get the meter readings in the

General Tab of the Preferences screen. You will be prompted to select a new patient

name. Scroll through the names in the Patient field and select the desired one. If you

do not see the patient name you are looking for, you may click on the Add New

Patient link to create a new name.

■A Guest patient is a permanent entry in the OneTouch® DMS database. It serves as a

generic patient name. For example, you can transfer meter readings to the Guest

patient name for anyone for whom you want to generate a report but for whom you

don't care if their records are saved in the database. Previous Guest entries are deleted

from the database every time you start up the Software and each time you transfer

new readings to the Guest patient.

■You may stop the transfer process by clicking on the Cancel button.

Notes:

■If you are a new OneTouch® DMS user with a blank (empty) database, only the Guest

patient name exists in the database. This means you will have to click on the Add New

Patient button to create a new patient name for the meter transfer.

■If meter readings are not successfully transferred, an on screen message box will

prompt you to check the meter/cable connections. For other meter communications

problems, see Appendix C: Troubleshooting.

OneTouch® Diabetes Management Software v2.3.1 User Manual 80

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X80

After readings are transferred from a device and saved to a patient file, OneTouch® DMS will

display the following information:

1. Total number of results transferred

2. Number of duplicate results

3. Number of unsuitable results. A result is reported as unsuitable when the record

transferred from the device is invalid. Some examples of unsuitable results include:

■The record is missing date or time information.

■The record date is invalid (e.g. the 13th month in the year).

4. Number unsupported results. Unsupported results are valid result types that are either

not currently shown in OneTouch® DMS reports or include more information than

expected. Some examples of unsupported results are:

■A new type of record, e.g. measuring lung capacity.

■A temperature value that is tagged to a glucose meter reading.

Both of these examples are theoretical. The first describes a record type that is not currently

shown in OneTouch® DMS reports. The second describes a result with too much information.

In both examples, the data is stored in OneTouch® DMS, but not displayed in a current

OneTouch® DMS report. Unsupported results may be viewed if a software driver has been

installed on your PC that lets you display the data in a special report format. (See Add-in

Reports under View and Manage Reports and Data Records).

Caution: OneTouch® DMS assumes that a meter is associated with only one patient at

a time. So when a transfer takes place, all readings are assumed to belong to that one

patient. If you plan to have more than one patient use the same meter, make sure to clear

the meter readings between transfers. This will ensure that data for different patients are

not intermingled. Refer to the Clear Meter Readings section for information about clearing

meter readings.

OneTouch® Diabetes Management Software v2.3.1 User Manual 81

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X81

Clear Meter Readings

Once you transfer readings to the database, you can clear the readings from the meter

memory. All readings will be permanently erased from the meter. Clearing meter readings

follows a similar process to Download Meter Readings.

1. Connect the round stereo plug jack on the OneTouch™ Interface Cable to the meter data

port. Firmly push the cable until it clicks into place. If your OneTouch® Meter uses an

adapter in place of a data port, first connect the round stereo plug jack to the adapter.

Then connect the other end of the adapter to the meter test strip port. OneTouch® Meters

that use adapters in place of data ports include:

■OneTouch® FastTake® Meter

■OneTouch® PocketScan® Meter

■OneTouch® EuroFlash® Meter

■OneTouch® SmartScan™ Meter

2. Connect the other end of the OneTouch™ Interface Cable to one of the available COM

ports on your PC.

3. Make sure the COM port number matches the selection you made on the General Tab

of the Preferences screen. Or, select the Autosearch option on the General Tab. If the

Autosearch option is selected, OneTouch® DMS will try to locate the correct COM port

where you connected the meter.

4. Find the meter that you are connecting from the lists below and turn the meter ON or OFF

as noted. A visual of the meter types will appear on the OneTouch® DMS screen to help

guide you.

OneTouch® Diabetes Management Software v2.3.1 User Manual 82

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X82

If you don't see your meter listed, refer to the Owner's Booklet for that meter to check if it is

supported by this version of the Software, and for instructions on whether to turn the meter

ON or OFF before communicating.

If you are connecting one of these meters: You should do this:

OneTouch® BASIC® Meter (with data port)

OneTouch® BASIC® Plus Meter

OneTouch® Profile® Meter

OneTouch® II Meter

OneTouch® SureStep® Meter (with data port)

OneTouch® SureStep® Plus Meter

OneTouch® GlucoTouch® Meter (with data port)

OneTouch® GlucoTouch® Plus Meter

OneTouch® UltraSmart® Meter

Turn the meter ON before

communicating.

OneTouch® FastTake® Meter

OneTouch® PocketScan® Meter

OneTouch® EuroFlash® Meter

OneTouch® SmartScan™ Meter

OneTouch® Ultra® Meter

OneTouch® Ultra®2 Meter

InDuo® Meter

Turn the meter OFF before

communicating.

OneTouch® Diabetes Management Software v2.3.1 User Manual 83

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X83

Completing the Clear Meter Readings Process

Once you have successfully connected the meter to your PC, you can complete the Clear

Meter Readings process (see Figure 3.2).

1. Click on Meter on the Menu Bar. Select Clear Meter Readings from the drop-down menu.

2. Click on the Clear Meter Readings button in Step 3 below when you are ready.

Figure 3.2

Note: If you selected Show Instructions for Clearing Meter in the General Tab on the

Preferences screen, instructions will appear to guide you through the Clear Meter Readings

process. If you do not want to see these reminder steps in the future, select Don't show these

instructions again on the OneTouch® DMS screen. Or you may go to the General Tab of the

Preferences screen and deselect Show Instructions for Clearing Meter.

OneTouch® Diabetes Management Software v2.3.1 User Manual 84

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X84

View and Manage Reports and Data Records

General Report Information

OneTouch® DMS lets you view and analyze glucose readings over different time periods.

You can choose from among 11 different Report formats (see Figure 3.3). Each one presents

glucose readings and other health data in a different way.

Data may be viewed as plasma or whole blood values. Each Report clearly indicates which

values are used in the display. Keep in mind that glucose values, target ranges, and the

Hypoglycemic Value will be adjusted according to the display option you choose.

If you have more than one insulin Regimen, be sure you have the right one in place for the

selected Date Range.

Figure 3.3

OneTouch® Diabetes Management Software v2.3.1 User Manual 85

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X85

To view Program Reports you have several options:

■OneTouch® DMS will display a Favorite Report directly after readings are transferred

from a meter. You can set the Favorite Report in the Report Options Tab on the

Preferences screen.

■Click on the View Reports icon on the home screen. This will take you to the Choose

Your Report main screen where an icon will appear for each of the 11 available Reports.

Click on any of the buttons to display the desired Report. To view the Favorite Report,

click on the View Favorite Report link. From the Choose Your Report main screen

you can select one or more Reports for printing by clicking on any number of the

Select boxes that appear under the Report buttons. Then click on the Print Selected

Reports button.

■Click on the Clipboard icon in the Tool Bar. This will display the Favorite Report.

■Click on Reports in the Menu Bar. Then select the desired Report from the drop-down

menu. This will display the desired Report.

■While displaying the current Report, you can always choose to view another Report,

or change the Date Range for viewing the same Report.

•To change the Date Range, you may either select one of the pre-defined Date

Ranges from the drop-down menu, or customize your own Date Range. To

customize the Date Range, modify the dates in the From and To boxes or click

on either of the down arrows. A calendar box will appear where you can modify

either date. You must click on Apply before the Report will appear for the new

Date Range.

•To change the Report, click on the down arrow in the Report field, and select a

new Report format. You must click on Apply before the new Report will appear.

Some Reports may be larger than the current OneTouch® DMS screen. Use the scroll bar on

the right to move down to the bottom part of the Report if necessary.

To enlarge your screen for viewing Reports you may click on the Maximize button on the top

right of the OneTouch® DMS screen.

Note: Several Reports include the percentage of glucose readings that are outside and

within the target ranges. You may note that some percentages do not add up to exactly

100%. This is due to “rounding error” and does not reflect on the accuracy of the calculations

or the OneTouch® DMS.

OneTouch® Diabetes Management Software v2.3.1 User Manual 86

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X86

Viewing Additional Data

The Software database may include additional data records that cannot be displayed in

existing OneTouch® DMS reports. These records may have been transferred from a newer

OneTouch® Meter or a device from an authorized vendor. When additional records exist for a

given date range and a software driver has been installed on your PC that lets you display the

data in a special report format, OneTouch® DMS will provide the following cues:

■A hyperlink for an Add-in Report will appear at the bottom of relevant OneTouch®

DMS reports. Click on the hyperlink to view these records.

■From the Reports command on the Menu bar, the drop down list of available reports

may include an Add-in Reports option that will take you to the “Select A Report”

screen. This screen will include links to any Add-in Reports that were detected by

OneTouch® DMS during application startup, and where the user can select the date

range and/or patient name.

■On the Choose Your Report screen, a hyperlink for Add-in Reports will be displayed

if any Add-in Reports were detected by OneTouch® DMS during application start up.

Rules for Viewing Additional Data

■The structure and content of Add-in Reports are defined by the software driver for

the new device, and are not subject to the rules for displaying existing OneTouch®

DMS reports.

■The Statistics Panel content will not include data that are shown in Add-in reports,

unless the data is also included in existing OneTouch® DMS reports.

■Add-in Reports cannot be faxed or e-mailed through OneTouch® DMS v2.3.1.

OneTouch® Diabetes Management Software v2.3.1 User Manual 87

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X87

Using ToolTips (the “hover-over” feature) when viewing Reports

ToolTips provide an easy way to display

information that's tagged to a particular data

value on a Report screen. This OneTouch® DMS

feature is also very useful when viewing results

that are represented by symbols rather than

numbers, or that are very close to one another

on the screen. To activate ToolTips, move the

mouse pointer to a particular data value.

A message box will appear with Date, Time,

Comments, and other information depending

on the result type.

■Using ToolTips with Insulin Doses will also display the Insulin Type.

■Using ToolTips with Exercise icons will also display the duration and intensity of the

exercise.

Note: Remember that selected Reports (Logbook, Summary, Standard Day, and Day View)

will display records for meal slots that cross the midnight hour as falling in the same day as

the Before-Breakfast slot that preceded it. However, ToolTips will show the actual date of the

readings.

OneTouch® Diabetes Management Software v2.3.1 User Manual 88

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X88

Report Header

A Header appears at the top of every printed Report.

The Header includes:

■Report Name

■Patient Name

•The name of the patient covered by the Report

■Date Range

■Report Date

•The calendar date the report was generated

■Glucose Units

•Specifies if mg/dL or mmol/L units were used in the Report

■Plasma or Whole Blood values

•Specifies if plasma or whole blood values were used in the Report

■Patient's Age and Sex - if entered in Patient Setup

■Patient's Doctor

OneTouch® Diabetes Management Software v2.3.1 User Manual 89

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X89

Statistics Panel

A statistics panel is included in all reports except for the Insulin, Health Checks, Exception

Reports, and any Add-in Reports. The Panel provides a quantitative summary of the data

that is included in a particular Report.

When you see this in the

Statistics Panel:

It means this:

Glucose Average The average of all glucose readings in the Report.

% Within Target The percentage of glucose readings in the Report that

are within the Before-Meal and After-Meal target

ranges.

# of Glucose Readings The total number of glucose readings included in

the Report. Omitted and Deleted readings are not

included in the calculations.

Number of Hypo Readings The total number of readings that were at or below the

Hypoglycemic threshold.

Standard Deviation A measure of the variability (spread) between

individual glucose readings and the Glucose

Average calculated above. The higher the variability,

the higher the standard deviation.

Target Type Specifies the Diabetes Type for the patient covered

by the Report and whether the results are compared to

global targets or personal targets.

Before-Meal and After-Meal

Targets, and Hypoglycemic

Settings

Specifies the glucose target ranges and Hypoglycemic

threshold used for reporting purposes. You may click

on the text links to go to the Global Targets Tab of the

Preferences screen, or the Patient Setup if personal

settings are in use, to modify the settings.

OneTouch® Diabetes Management Software v2.3.1 User Manual 90

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X90

Footnotes

A footnotes link will appear at the bottom of any Report when glucose readings covered in

the Report Date Range were:

■Above the linear range of the meter that recorded the reading. These readings are

designated as HIGH.

■Below the linear range of the meter that recorded the reading

■Modified from their original values

■Omitted from the Report

OneTouch® Diabetes Management Software v2.3.1 User Manual 91

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X91

Colors and Shading in Reports

Several Reports use color, shading and typefaces to display data or to differentiate data when

viewing or printing Reports.

Viewing Reports:

■The following reports use separate cell colors and bold type to highlight individual

readings that are outside the target ranges: Pie Chart, Logbook Report, Data List

Report, Summary Report, and the Day View screens.

■Different cell colors are used for above target readings, below target readings, and

hypoglycemic readings. A legend that explains the meaning of the colors will appear

on every Report that has out-of-target readings.

■Insulin doses that were transferred from a meter are highlighted in regular type. Doses

that were taken according to a OneTouch® DMS Regimen will appear in bold type.

■Several Report graphs also show the Overall (Target) Range as a shaded gray band.

Printing Reports:

■Reports may be printed in color or black and white.

•Color printing: Identical color schemes are used for viewing and printing

reports.

• Black and white printing: In the Logbook Report, the Data List Report,

the Summary Report, and Day View screens, out-of-target readings are

highlighted as bold italics. The Pie Chart Report uses fill patterns to differentiate

out-of-target and within-target breakdowns. A legend that explains the meaning

of the different fill patterns will appear on every Report that has out-of-target

readings.

■The default setting for printing is color. To change this setting, deselect color print

from the File, Print Options menu.

■The Overall (Target) Range will appear as horizontal dashed lines.

■Insulin doses that were transferred from a meter are highlighted in regular type. Doses

that were taken according to a OneTouch® DMS Regimen will appear in bold type.

OneTouch® Diabetes Management Software v2.3.1 User Manual 92

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X92

Choose Your Report

Logbook Report

The Logbook Report displays daily glucose readings and other data in a logbook format

(see Figure 3.4a). Readings are sorted in chronological order by date and time, and organized

into Meal Slots. Insulin, carb, exercise, and Health Note data are also included. This Report

helps you easily track glucose with health related data that can impact glucose readings.

Out-of- target glucose readings are displayed by colored cells, helping to easily spot trends

relative to a particular time of day.

Figure 3.4a

OneTouch® Diabetes Management Software v2.3.1 User Manual 93

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X93

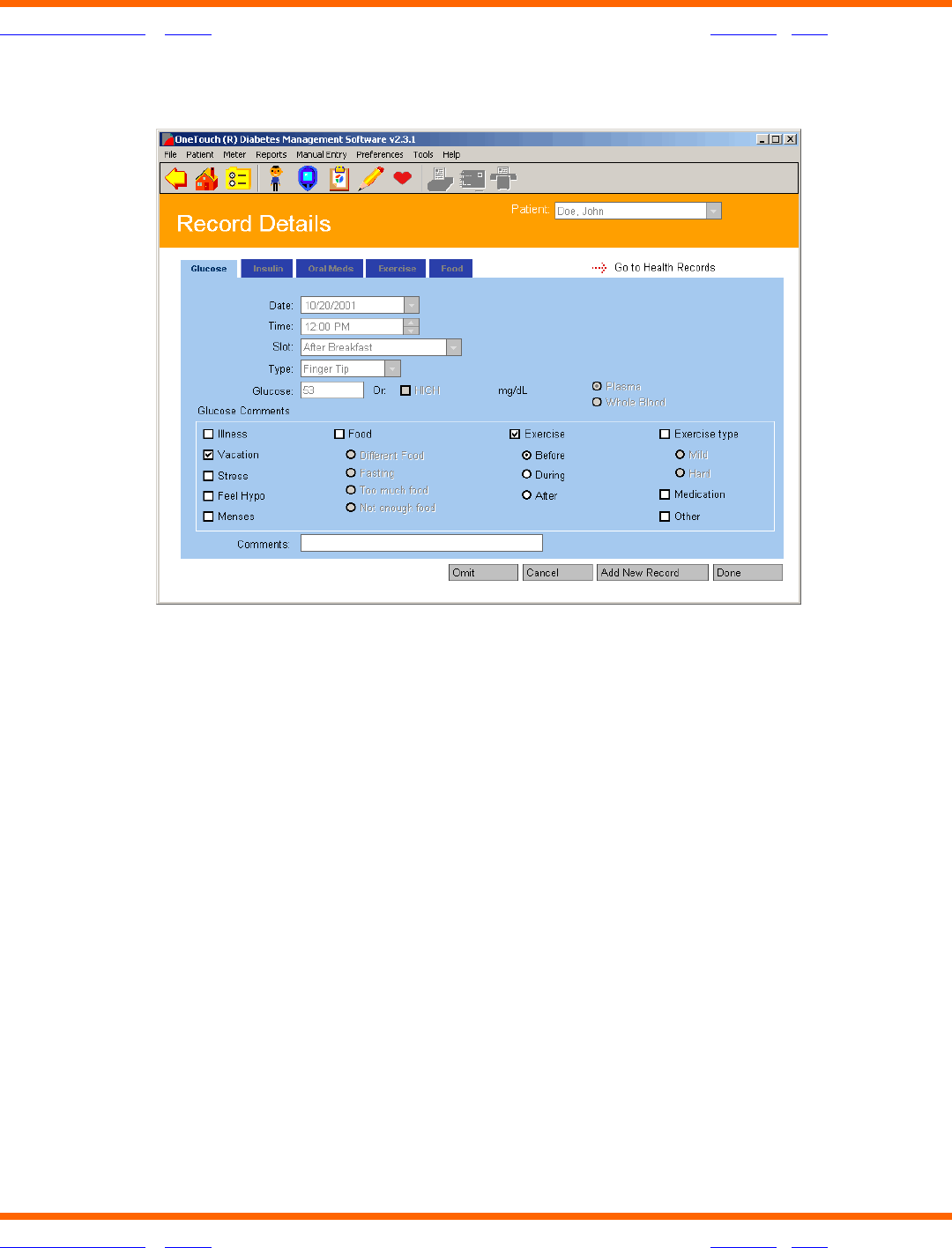

Figure 3.4b

OneTouch® Diabetes Management Software v2.3.1 User Manual 94

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X94

Sorting Data

The Logbook Report may be sorted by date from most recent to oldest, or vice versa.

The default order is most recent to oldest. Click on the arrow next to the word Date on the

top left of the Report to change the order.

Modifying Data

You may modify data records while viewing the Logbook Report. Click on any glucose, insulin,

carb, exercise, or Health Note value and you will go to the Record Details screen (see Figure

3.4b) where you can add comments or change the meal slot tagged to the reading. Please see

the sections on Modifying Data Records and Manually Enter Data for more information on

modifying or adding data records.

Assigning Data to a Meal Slot

Data are grouped into Meal Slots. Times for each Meal Slot are set in the Schedule Tab of the

Patient Setup screen. The Meal Slots are as follows:

■Before-Breakfast

■After-Breakfast

■Before-Lunch

■After-Lunch

■Before-Dinner

■After-Dinner

■Night

The Logbook Report groups the data further into “Breakfast”, “Lunch”, “Dinner”, and “Night”

categories. Glucose readings will appear in their appropriate Meal Slot. Insulin, carb, exercise,

and health note data will be grouped into the “Breakfast”, “Lunch”, “Dinner” and “Night”

Slots only.

OneTouch® Diabetes Management Software v2.3.1 User Manual 95

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X95

Glucose Readings

■Glucose readings are organized by Meal Slot. Times for Meal Slots are set in the

Schedule Tab of the Patient Setup screen.

•Multiple glucose readings for the same Meal Slot in any given day will be

displayed as sequential logbook entries within the same Date.

•All records in the Before-Breakfast through Night meal slot series will be

displayed sequentially with the date of the Before-Breakfast start time.

This includes records that may occur after midnight.

■Readings higher than 600 mg/dL (or 500 mg/dL for the OneTouch® SureStep®/

GlucoTouch®/GlucoTouch® Plus Meters) are displayed as HIGH in the Report. HIGH

values will be converted to 601 mg/dL and 501 mg/dL (for OneTouch® SureStep®/

GlucoTouch®/GlucoTouch® Plus Meters) when used in calculations. If the display units

are in mmol/L, the corresponding converted values are 33.4 mmol/L and 27.8 mmol/L.

■Readings lower than 20 mg/dL (1.1 mmol/L) for OneTouch FastTake®/ PocketScan®/

EuroFlash®/SmartScan™/ OneTouch® Ultra®/ OneTouch® Ultra®2/ OneTouch® UltraSmart®

and InDuo® Meters, are displayed as LOW in the Report. LOW values will be converted

back to their recorded values when used in calculations.

■Readings outside the Before-Meal and After-Meal target ranges, or below the

Hypoglycemic threshold are highlighted by bold type and differentiating cell colors.

Adynamic legend that explains the meaning of the colors will appear on the bottom

of the Report.

■The Total Number of glucose readings, the Average Glucose Level, and the Within

Target % will appear at the bottom of each Meal Slot.

OneTouch® Diabetes Management Software v2.3.1 User Manual 96

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X96

Insulin Data

Insulin doses are organized into Breakfast, Lunch, Dinner and Night and will appear as

abbreviations within the column labeled Meds. The abbreviations for the corresponding

Insulin Types appear in a legend:

■Insulin doses that were transferred from a meter are highlighted in regular font.

Insulin doses that were taken according to a OneTouch® DMS Regimen will appear

in bold font.

Carb Data

The total carb units for that Meal Slot are displayed within the column labeled Carbs.

Exercise Data

An Exercise icon will appear in the column labeled Other if any Exercise results are recorded

in that slot. A legend descriptor for the icon will appear at the bottom of the Report.

Health Notes Data

A Heart icon will appear in the column labeled Other if there are Health Notes recorded for

that Meal Slot. A legend descriptor for the icon will appear at the bottom of the Report.

Comments

A Note icon will appear in the column labeled Cmnt if any Comments are tagged to any

record appearing in that row of the Report.

OneTouch® Diabetes Management Software v2.3.1 User Manual 97

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X97

The Day View screen of the Logbook Report

The Logbook Report provides access to the Day View screen (see Figure 3.5). This screen lets

you display detailed information for any day in the Report. Multiple results for any Meal Slot

will be included, as well as other Food, Exercise, and Health Record data that does not appear

in the Logbook Report.

Figure 3.5

You may also modify data records by clicking on any of the Time or Comment links associated

with any row of the Report. When you click on a link, OneTouch® DMS takes you to the Record

Details screen where you can modify data records. Please see the sections on Modifying Data

Records and Manually Enter Data for more information on modifying or adding data records.

■To access the Day View screen from the Logbook Report, click on any of the Date links.

The Day View screen for that particular day will be displayed.

■Data records are grouped by the following Meal Slots:

•Breakfast

•Lunch

•Dinner

•Night

OneTouch® Diabetes Management Software v2.3.1 User Manual 98

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X98

■Within each Meal Slot grouping, records are ordered chronologically from oldest to

most recent. The order may not be changed in the Day View screen.

■Clicking on Time links associated with any data record will take you to the Record

Details screen where you can modify data records. Data entry fields will be pre-filled

with the existing data record. You may make modifications as desired.

■Similar to other OneTouch® DMS Reports, glucose readings outside the Before-Meal

and After-Meal target ranges or below the Hypoglycemic Value will be highlighted in

bold type and cell color.

■Comments will appear in the Comments column for any data record that has been

tagged. Clicking on Comment links associated with any data record will take you to

the Record Details screen where you can modify data records. Data entry fields will

be pre-filled with the existing data record. You may make modifications as desired.

■New data records may be added from the Day View screen. Simply click on the

Glucose, Insulin, Medications, Exercise, Food, or Health icons on the top right

of the screen. This will take you to the appropriate Manual Entry screen.

■The Status of any special data records is displayed in the Status column as follows:

•“Added” if the data record was entered manually

•“Omitted” if the data record is marked for omission from Reports and calculations

•“Edited” if the data record has been modified. (If a data record is “Edited” and

then “Omitted”, the Status is “Omitted”.)

■The Day View screen may be printed.

OneTouch® Diabetes Management Software v2.3.1 User Manual 99

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X99

Glucose Trend Report

The Glucose Trend Report displays daily glucose readings for a selected Date Range (see

Figure 3.6). This Report helps you easily track changes in glucose readings from day to day.

■Glucose readings are displayed as dots on an X-Y graph. Each reading is connected to

the next with a dashed line.

Note: The dashed line that connects blood sugar readings in this graph does not

reflect actual glucose levels. Blood sugars can go high or low throughout the day

especially around mealtimes, medication or exercise. Actual testing before and after

these events is required to get a better picture of how they affect your sugar levels.

■Readings will appear in chronological order from oldest to most recent. The X-axis

represents the date and time of the reading and the Y-axis represents the actual

glucose level. All glucose readings for a particular day are displayed. When printing the

Glucose Trend Report, readings are displayed as dots and are connected by solid lines.

■The shaded gray area on the graph represents the Overall (Target) Range. Any readings

that fall above or below the shaded gray area are considered outside of this range.

When printing the Glucose Trend Report, the Overall (Target) Range limits will appear

as horizontal dashed lines.

■You may point to any dot to display the value, Date, Time, Slot and Comments tagged

to that result.

Figure 3.6

OneTouch® Diabetes Management Software v2.3.1 User Manual 100

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X100

Pie Chart Report

The Pie Chart Report displays the percentage of glucose readings that fall above, below and

within each Before-Meal and After-Meal target range. This Report helps you easily see how

glucose readings compare with target ranges for each Meal Slot (see Figure 3.7).

■A total of eight pie charts will appear in the Report. These represent the Before-Meal

and After-Meal breakdowns for each Meal Slot , one for Night and one for Overall

Target Range.

■Pie charts for each Before-Meal and After-Meal pairing will appear side by side. This

helps you scan for trends within a particular Meal Slot.

■Chart pairings are also stacked vertically so you can compare Before-Meal percentages

and After-Meal percentages across all Meal Slots.

■The Pie Chart Report uses applicable Before-Meal and After-Meal target ranges to

display an Overall Total range. The Overall Total pie chart provides the percentage

breakdowns using all glucose readings within and outside the Overall (Target) Range.

Figure 3.7

OneTouch® Diabetes Management Software v2.3.1 User Manual 101

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X101

Summary Report

The Summary Report provides an overview for quick analysis of glucose readings and related

health data over the selected date range (see Figure 3.8). It includes the Logbook Report,

Glucose Trend Report, and an overview of the Pie Chart Report. A link to a Statistics Panel is

also included. Only the Logbook portion is shown below.

Figure 3.8

Note: All records in the Before-Breakfast through Night meal slot series will be displayed

sequentially with the date of the Before-Breakfast start time. This includes records that may

occur after midnight.

OneTouch® Diabetes Management Software v2.3.1 User Manual 102

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X102

Standard Day Report

The Standard Day Report displays glucose readings over a 24-hour period (see Figure 3.9).

This Report helps you easily identify patterns in glucose readings by time of day.

■Glucose readings are displayed as dots on an X-Y graph. Readings from the entire date

range will be plotted in one graph. The X-axis represents the time of the reading and

the Y-axis represents the actual glucose level.

■The shaded gray area on the graph represents the Overall (Target) Range. Any readings

that fall above or below the shaded gray are considered outside of this Overall (Target)

Range. When printing the Standard Day Report, the Overall (Target) Range limits will

appear as horizontal dashed lines.

■You may use ToolTips to display the value, Date, Time, Slot and Comments tagged to

any result.

Figure 3.9

OneTouch® Diabetes Management Software v2.3.1 User Manual 103

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X103

Insulin Report

The Insulin Report displays average glucose readings, insulin units, and carbohydrates by

Meal Slot (see Figure 3.10). This Report helps you easily analyze the relationship between

glucose readings, insulin dosing, and carbohydrate intake.

The Insulin Report is composed of two graphs that are stacked on top of one another. The

same X-axis (Breakfast, Lunch, Dinner and Night Meal Slots) is used for both graphs. The Y-axis

represents the actual glucose, insulin or carb value.

■The top graph displays the average glucose reading by Meal Slot. Glucose averages are

represented as dots and are connected by a dashed line. Note: The dashed line that

connects average blood sugar readings in this graph does not reflect actual average

glucose levels.

■The bottom graph displays average insulin units and carb intake by Meal Slot. Each

insulin and carb average is represented as a separate bar. If there are multiple Insulin

Types for any Meal Slot, the averages will appear as side-by-side bars. Only Insulin

Injection and Bolus amounts are used in calculating the averages. Pump Daily Total

amounts are not included. Insulin data transferred from a meter or entered manually

for any Meal Slot will override any insulin units defined in the Regimen Tab of the

Patient Setup screen. Colors will be used to differentiate insulin averages for each

insulin type, and to differentiate insulin averages from carb averages.

Figure 3.10

OneTouch® Diabetes Management Software v2.3.1 User Manual 104

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X104

Health Checks Report

The Health Checks Report displays results from diabetes-related tests and exams (see Figure

3.11). Results may be from doctor exams, lab tests, and other at-home tests. This Report helps

you easily monitor how other health factors are impacted by diabetes.

■The Health Checks Report includes the following result types:

•Cholesterol (HDL, LDL, and Total)

•Triglycerides

•Microalbumin

•Ketones

•HbA1c

•Height

•Weight

•Blood Pressure

•Dr. Visit (Office Visit, Eye Exam, Foot Exam)

■For each Health Checks Result Type (for example, Ketones), the corresponding Value

and Date will appear.

■Multiple results may exist for any Result type but only the most recent result is

displayed. However, the Health Checks Detail screen lets you view all results for a

particular result type (see Figure 3.12). To access the Health Checks Details screen, click

on any of the result type links. The screen will display all records for a given result type

in both log and graph format.

OneTouch® Diabetes Management Software v2.3.1 User Manual 105

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X105

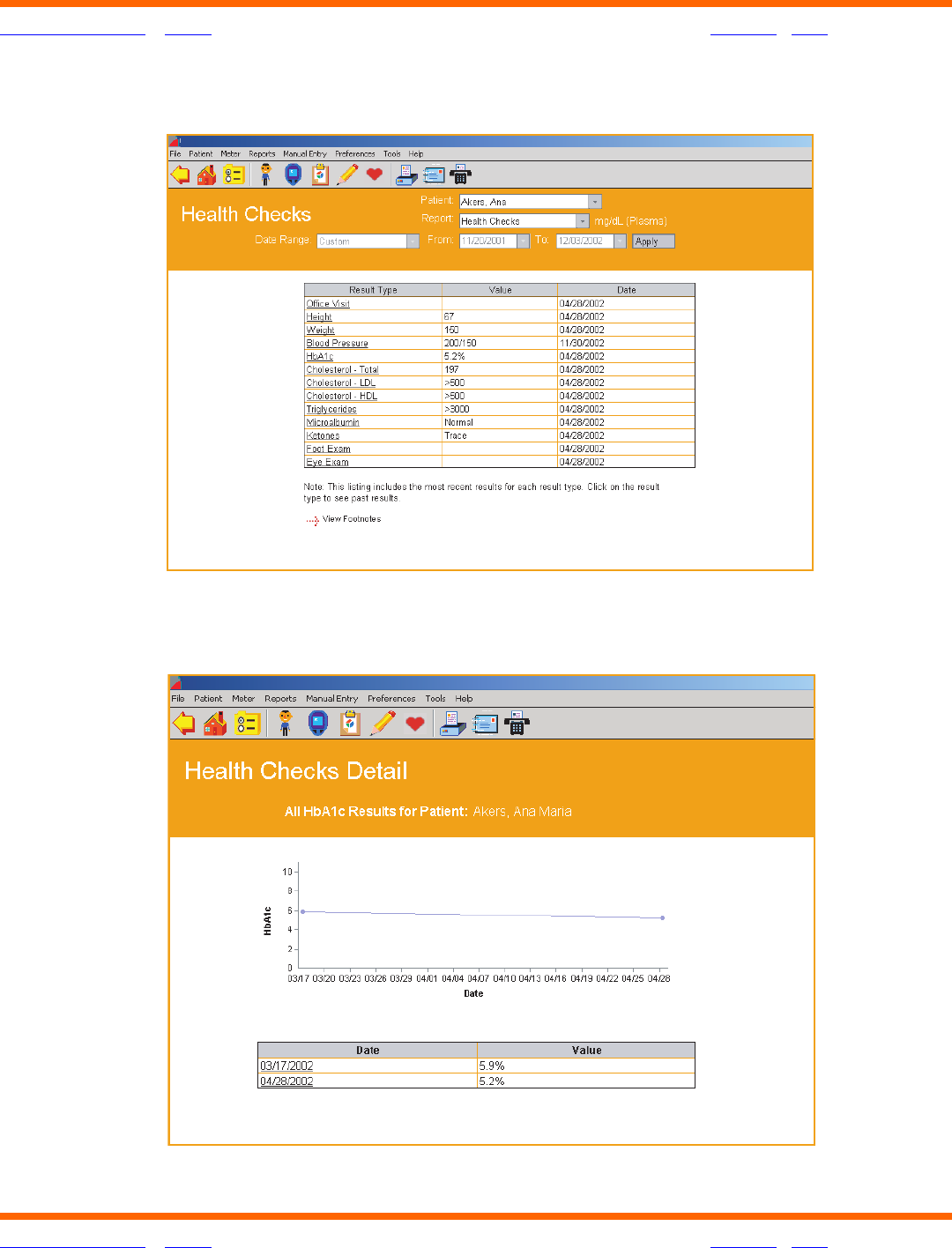

Figure 3.11

Figure 3.12

OneTouch® Diabetes Management Software v2.3.1 User Manual 106

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X106

Average Readings Report

The Average Readings Report displays glucose averages by Meal Slot, exercise period, and

day of the week (see Figure 3.13). This Report helps you easily monitor how glucose readings

are impacted by meals, exercise, and day.

Glucose averages are presented in 3 separate bar charts that are stacked vertically.

■The top chart displays glucose averages by Meal Slot for each day of the week. The

X-axis represents the day of the week and the Y-axis represents the glucose average.

■The middle chart displays glucose averages by Meal Slot. The X-axis represents the

Breakfast, Lunch, Dinner, and Night Meal Slots, and the Y-axis represents the glucose

average. Before-Meal and After-Meal period averages are displayed as side-by-side

bars for each Meal Slot.

■The bottom chart displays glucose averages by Exercise period for each day of the

week. Readings you have tagged with exercise comments are displayed here. The

X-axis represents the day of the week and the Y-axis represents the glucose average.

Before Exercise, During Exercise, and After Exercise period averages are displayed as

side-by-side bars for each day of the week.

Figure 3.13

OneTouch® Diabetes Management Software v2.3.1 User Manual 107

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X107

Exception Report

The Exception Report displays key diabetes-related information for all patients in the

OneTouch® DMS database (see Figure 3.14). This Report helps you easily flag patients who

may need to be managed more closely. It can also be used to document improved standards

of care in a practice. Finally, Reports can be generated for subsets of patients, i.e. those under

a given insurance plan. If you enter insurance information for each patient, you can run a

report including all patients with a given carrier.

Report data may be sorted by the following criteria by clicking on the sort arrow in the correct

column:

■Patient Name

■Total number of glucose readings in the date range

■Percentage of glucose readings below the target ranges

■Percentage of glucose readings above the target ranges

■Total number of hypoglycemic readings

■HbA1c

•By Value or Date

■Dr. Visit by Date

■Eye Exam

■Foot Exam

OneTouch® Diabetes Management Software v2.3.1 User Manual 108

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X108

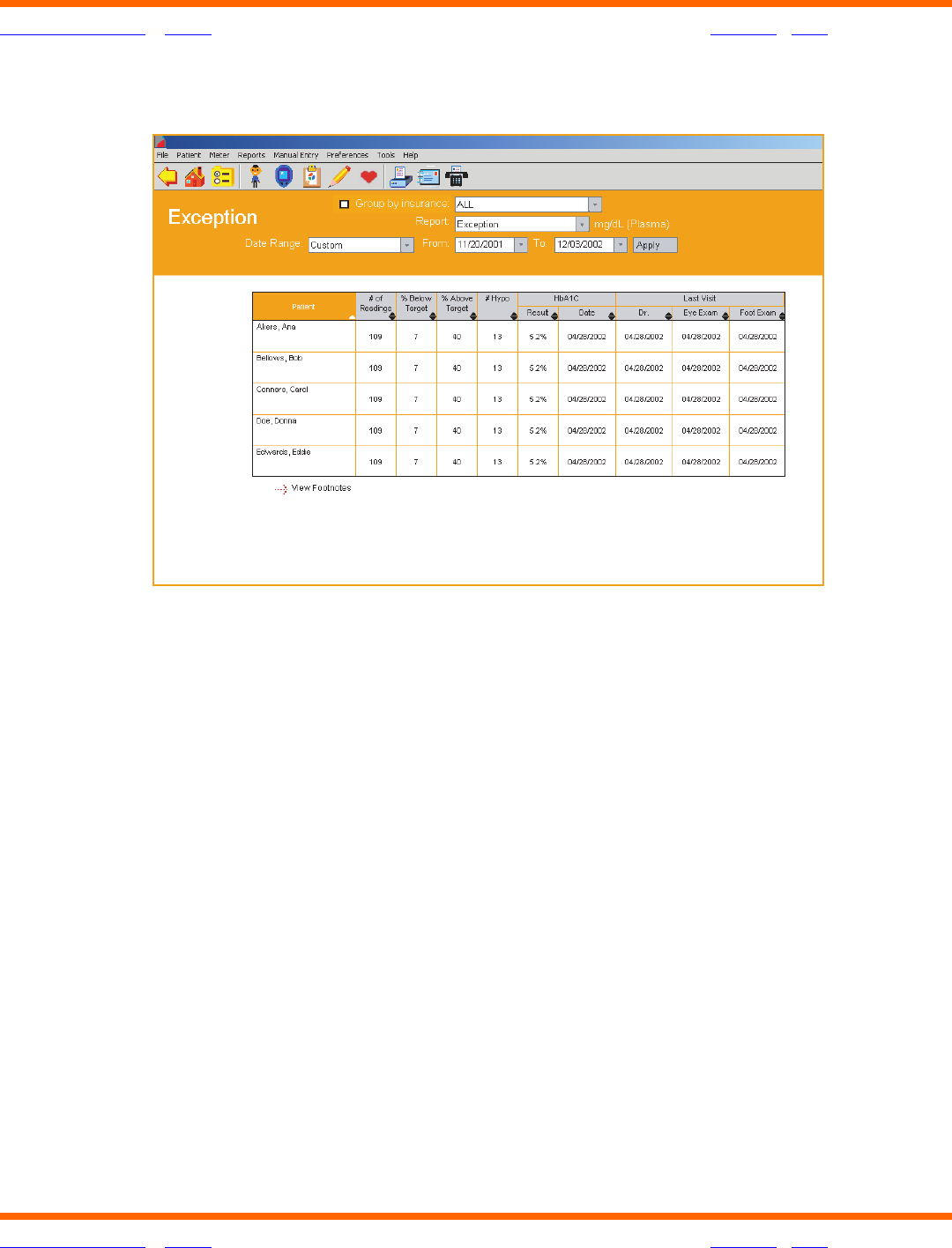

Figure 3.14

OneTouch® Diabetes Management Software v2.3.1 User Manual 109

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X109

Data List Report

The Data List Report displays a sequential list of all glucose, insulin, food, exercise, and other

health data stored in the OneTouch® DMS database (see Figure 3.15). All Comments and any

Edited, Omitted, or Added Status tags will be included. This Report helps you easily monitor

all relevant data for any patient in the database.

Note: While insulin values entered manually or transferred from a meter are displayed in the

Data List Report, insulin regimen values are not. Please refer to the following summary table

to review how insulin values are displayed in the Data List Report.

■Data may be sorted by the following:

•Date/Time

•OneTouch® DMS recognizes the date and time of glucose results based

on how they were tagged by the meter. In some cases, meter date and

time may have been incorrectly set by the user so that the calendar

date sequence of results may not match the actual order that the tests

were taken.

•In the Data List Report (“Since last transfer”), you have the option to

display glucose results in the order that the tests were taken, rather

than by calendar date. This feature is the default option in the Software.

This feature is not available if you have transferred results from a

OneTouch® UltraSmart® Meter.

•To view and print Data List Reports in calendar date order, first deselect

this option in the Report Options tab under Preferences. Then select the

“Since last transfer” Data Range under Data List Reports.

•Result Type

•Meter Serial Number (if included in the Report parameters)

Source of Insulin Data Displayed in the Data List Report

Transferred from a meter YES

Added manually in OneTouch® DMS YES

Insulin Regimen NO

OneTouch® Diabetes Management Software v2.3.1 User Manual 110

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X110

■You may also modify data records from within the Data List Report by clicking on

any of the date or time links associated with any result type. When you click on a link,

OneTouch® DMS takes you to the Record Details screen with the appropriate Tab

already selected. Please see the sections on Editing Data Records and Manually Enter

Data for more information on modifying or adding data records.

■Glucose readings outside the Before-Meal and After-Meal target ranges, or below

the Hypoglycemic Value are highlighted by bold type and differentiating cell colors.

A legend that explains the meaning of the colors will appear on the bottom of the

Report.

Figure 3.15

OneTouch® Diabetes Management Software v2.3.1 User Manual 111

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X111

Histogram Report

The Histogram Report highlights before-meal and after-meal patterns together with glucose

distribution for a given date range (see Figure 3.16). This Report helps you easily monitor the

frequency of glucose readings that fall within and outside a set of ranges.

■Glucose readings from Before-Meal, After-Meal and Night slots are presented as

stacked bars on an X-Y chart. The X-axis represents the pre-defined glucose ranges

and the Y-axis represents the total number of glucose readings in a Meal Slot, for that

particular range.

Figure 3.16

OneTouch® Diabetes Management Software v2.3.1 User Manual 112

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X112

Printing, Faxing and E-Mailing OneTouch® DMS Reports

OneTouch® DMS helps you print all Reports for long-term record keeping. This includes the

ability to print the Day View screen and the Health Checks Drill-Down screen.

You can also fax and e-mail Reports to other people with whom you want to share the data.

To print any Report:

You have several options for printing reports.

1. Print directly from a report

•Display the Report, click on the File Menu Bar Command, and then select Print

Report from the drop-down menu, or

•Simply click on the Printer icon on the Tool Bar.

2. Print without viewing first

•From the Choose Your Report main screen, click on any number of the Select

boxes that appear under the Report buttons.

•Click on the Print Selected Reports button to print the desired Reports.

The default setting for printing is color. To change this setting, deselect color print from the

File, Print Options menu.

Printing Add-in Reports

Add-in reports can be printed directly from the report through the browser printing feature.

Add-in reports cannot be printed without viewing first.

OneTouch® Diabetes Management Software v2.3.1 User Manual 113

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X113

To fax any Report:

1. Display the Report in the Choose Your Report main screen

2. Click on the Telephone icon on the Tool Bar. A Fax cover sheet will appear.

3. Follow the information in the table below to identify which fields require entries and

which are optional

4. Click Send

Note: You can only fax from OneTouch® DMS if your PC has a connected fax modem.

If you see this: The information is: Comments:

Date Required Pre-filled

Time Required Pre-filled

Recipient's Name Optional ---

Recipient's Phone Number Optional ---

Receiving Fax Number Required The Program automatically stores

up to five fax numbers. Select a

number from the drop-down

menu.

Sender's Name Required ---

Sender's Telephone Number Required ---

Notes Optional The sender can add a text message

of up to 100 characters.

OneTouch® Diabetes Management Software v2.3.1 User Manual 114

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X114

To e-mail any Report:

1. Display it first in the Choose Your Report main screen

2. Click on the Letter icon on the Tool Bar. An e-mail message will appear with your report

included as an attachment.

•Enter the e-mail address, a short message, and then send.

Notes:

■Guest patient data in any Report cannot be e-mailed.

■You can only e-mail reports directly from OneTouch® DMS if you have a MAPI-

compliant e-mail client installed on your PC, and an internet connection. Check the

Help file for details on how to mail reports with a non-MAPI e-mail system.

OneTouch® Diabetes Management Software v2.3.1 User Manual 115

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X115

Modify Data Records (Edit, Omit, Restore, and Delete)

OneTouch® DMS lets you make the following types of changes to records in the database:

■Edit records

■Omit records from Reports and calculations

■Restore records that have been previously marked as omitted

■Permanently delete records

Editing may be done whenever you are in the Logbook Report, the Data List Report, the Day

View screen of the Logbook Report, or the Health Checks Detail screen. Click on any of the

time, value, icons or comment links provided on screen. This will take you to the Record

Details screen where you may modify the data record. Many of the data entry fields will be

pre-filled with the existing values. Make your edits as necessary.

Omitting, restoring, and deleting data records may be done in the Record Details screen

(similar to the Manual Entry screens).

Note: The buttons that will appear on the bottom of the Record Details screens may be

different than the buttons that appear on the Manual Entry screens. That's because you can

only add (not modify) records to the database if you go to the Manual Entry screens directly

from the home screen.

OneTouch® Diabetes Management Software v2.3.1 User Manual 116

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X116

Editing Records

You may edit OneTouch® DMS data records, but there are some limitations. Your ability to edit

is determined by the record type and the types of data included in the record.

After you edit a data record, it is tagged as “edited” in the Status column that will appear in

some OneTouch® DMS Reports. Footnotes at the bottom of the Report will indicate that the

Report includes readings that have been edited.

If the data record : Then you can edit these data values:

Was transferred from a meter ■ Comments tagged to the record

You may not edit any other data values.

Was entered manually ■The Meal Slot tagged to the record

■Comments tagged to the record

■Date of record

■Time of record

■Record type

■Record value

Unsupported results These cannot be edited.

OneTouch® Diabetes Management Software v2.3.1 User Manual 117

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X117

Omitting Records

You may want to omit a record that is misleading (for example, if a friend borrowed your

meter to run a test). When you omit a record, it is marked in the software to be left out of

calculations and reports.

Note: Records transferred from your meter cannot be deleted from the Software. Omitted

records will always remain in the database. The Omit function simply excludes omitted

records from calculations and reports (except the Data List Report, see below).

Footnotes at the bottom of reports will indicate if some readings that would have been

included in the report have been omitted. If you want to view which records were Omitted

from a report, go to the Data List Report. This Report shows all data records in the database,

including those marked as omitted. If the word “Omitted” appears in the Status column,

the record was marked to be left out of calculations and reports.

In contrast: any record that was manually entered using the computer can be deleted

permanently.

Restoring Records

You may re-include data records that have been tagged as omitted. When viewing the Day

View screen for the date of the omitted record, click on either the comment icon or the time

link on the row of the record with the “omitted” tag. Then click on the Include button in

the Record Details screen. The omitted tag will be removed from the Status column of the

OneTouch® DMS Reports.

Deleting Records

You may permanently delete some data records from the OneTouch® DMS database.

Only manually entered data records can be deleted. Records transferred from a meter

cannot be deleted.

OneTouch® Diabetes Management Software v2.3.1 User Manual 118

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X118

Manually Enter Data

The Manual Entry screens let you add new data records to the OneTouch® DMS database.

You may also modify data records through the Manual Entry screens when accessed via

the OneTouch® DMS Reports. The editing function is described in the Modifying Data Records

section of the User Manual.

There are two Manual Entry screens, Manual Entry-A and Manual Entry -B.

■The Manual Entry-A screen (see Figure 3.17) contains five Tabs labeled Glucose,

Insulin, Oral Meds, Exercise, and Food.

■The Manual Entry-B screen contains only one Tab for Health Records (see Figure 3.18).

On this screen, you may add diabetes-related health data. These data records can help

provide a more complete picture of diabetes health status. Data entry will be similar to

that of the other data records. Click on the Go to Other Records link to return to the

Manual Entry-A screen.

Both Manual Entry screens include a link to the other.

Whenever you manually add a record, the following rules apply:

■Records will be tagged as “added” in the OneTouch® DMS database. This will

differentiate the record from others that have been transferred from a meter. That tag

will appear in the Status column of the Day View screen in the Logbook and Data List

Reports. A footnote will also appear at the bottom of each Report where “added” data

records are included.

■Records will include a “Time” stamp that is accurate to the nearest second

■The Software restricts you from adding duplicate results

Date, Time and Result (value) are required data entry fields for adding any record type.

Comments are optional.

OneTouch® Diabetes Management Software v2.3.1 User Manual 119

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X119

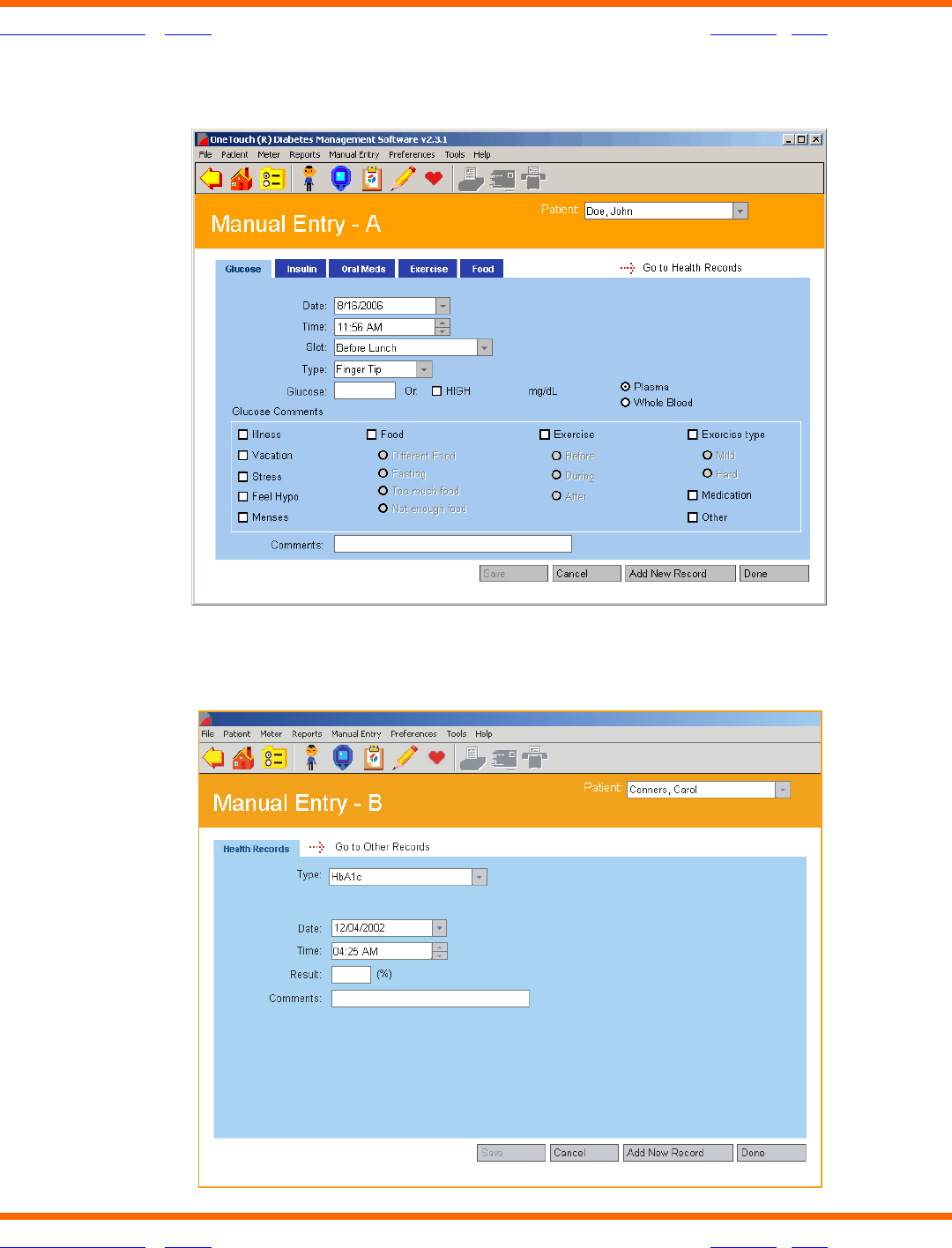

Figure 3.17

Figure 3.18

OneTouch® Diabetes Management Software v2.3.1 User Manual 120

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X120

You have several options to get to the Manual Entry screens where you can add a record by

clicking on the appropriate Tab:

When you see this: You can do this:

On the Home Screen ■Click on the icon and you will go directly to the

Manual Entry-A screen. Click on any of the

5Tabs labeled Glucose, Insulin, Oral Meds,

Exercise, and Food to enter data.

■If you would like to add a Health Record, click

on the Go to Health Records link. You will go

to the Manual Entry-B screen.

■Click on the Go to Other Records link to return

to the Manual Entry-A screen.

On the Menu Bar ■Click on Manual Entry. Then select Glucose,

Insulin, Oral Meds, Exercise, Food, or Health

Records from the drop-down menu to add a

particular record type.

On the Tool Bar ■Click on the Pencil icon and you will go directly

to the Manual Entry-A screen. Click on any of

the five Tabs labeled Glucose, Insulin, Oral

Meds, Exercise, and Food to enter data.

On the Tool Bar ■Click on the Heart icon and you will go directly

to the Manual Entry-B screen. Here you can

enter data for Health Records.

OneTouch® Diabetes Management Software v2.3.1 User Manual 121

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X121

Figure 3.19

The Day View screen of the Logbook Report

You have 2 options for adding data records from the Day View screen (see Figure 3.19):

1. Click on any highlighted links for Glucose, Insulin, Pills, Exercise, Food, or Health record

values. You will go either directly to the Manual Entry-A screen with that particular Tab

selected, or to the Manual Entry-B screen.

If you clicked on any link other than Health Records, you will go to the Manual Entry-A

screen with that Tab selected. This will let you modify that particular data record (please

see the Modifying Data Records section). If you would like to add a data record, click on

the Add New Result button. This will activate all Tab options where you may add

Glucose, Insulin, Oral Meds, Exercise and Food records.

If you clicked on Health Records, you will go to the Manual Entry-B screen. Click on the

Go To Other Results link to return to the Manual Entry-A screen.

2. Click on the Glucose, Insulin, Health Record, Exercise, Food or Pills icons on the top

of the Day View screen. You will either go directly to the Manual Entry-A screen with

that Tab already selected, or to the Manual Entry-B screen. Click on the Add New

Records button to activate any other of the Tabs.

If you clicked on Health Records, you will go to the Manual Entry-B screen. Click on the Go To

Other Results link to return to the Manual Entry-A screen.

OneTouch® Diabetes Management Software v2.3.1 User Manual 122

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X122

The Glucose Tab

The Glucose Tab lets you add Glucose Records to the OneTouch® DMS database

(see Figure 3.20).

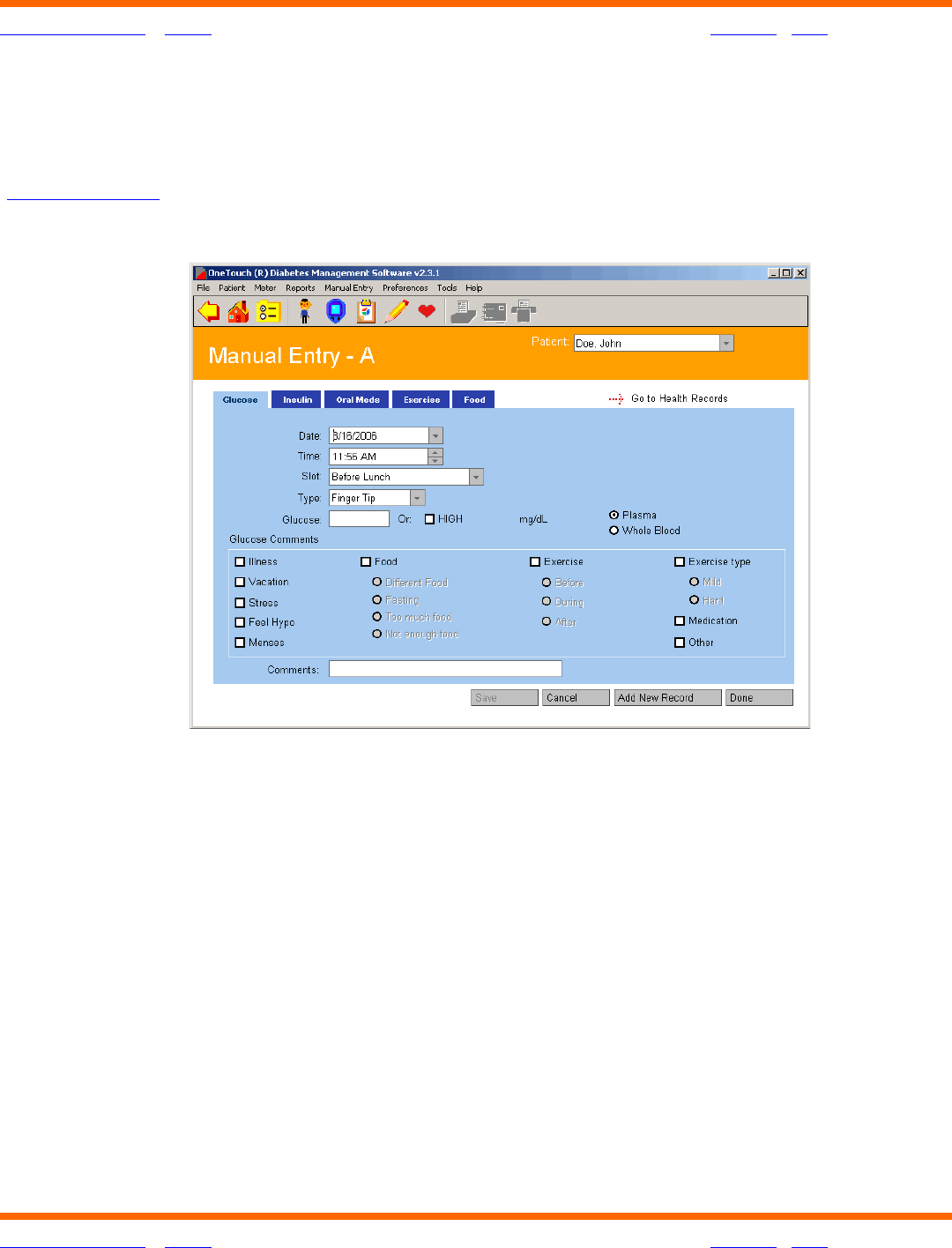

Figure 3.20

OneTouch® Diabetes Management Software v2.3.1 User Manual 123

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X123

When you see this: You can do this:

Date and Time Set the Date and Time for the new Glucose Record.

Both are required data entry fields. You may modify the

information in the date field by entering the desired date.

Or you can click on the down arrow. The pop-up calendar

box will appear where you can change the day, month

and year.

You may modify the information in the Time field by

entering the desired time, or by clicking on the hour or

minute values that appear. Then click on the up/down

arrows until you find the desired hour and minute.

Meal Slot Tag the new Glucose Record to a Meal Slot. Click on

the down arrow where you can select any of the 7 pre-

defined Meal Slots.

Glucose Reading Specify the glucose reading for the new Glucose Record.

The glucose reading is a required data entry field. You

must enter a value or click on HIGH in the check box.

■Values may be in 1-unit increments for mg/dL and

0.1-unit increments for mmol/L.

■If you click on HIGH, it specifies that the glucose

reading was above the linear range of the meter.

You must specify Plasma or Whole Blood values for any

glucose reading that is manually added.

Type Specify the type of glucose reading. Click on the down

arrow in the Type field. A drop-down menu of options

will appear:

■Fingertip

■Alternate site

■Laboratory

■Control

Click on the desired option.

OneTouch® Diabetes Management Software v2.3.1 User Manual 124

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X124

Note: Additional Comment options may be displayed, depending on the meter you are using.

Refer to the Owner's Booklet for that meter for information on comment options.

When you see this: You can do this:

Glucose Comments Assign a Comment to the Glucose Record. You may select from

pre-defined Glucose Comments or create a new Comment in

your own words.

Click on any pre-defined Glucose Comment that applies:

■Illness

■Vacation

■Stress

■Feel Hypo

■Menses

■Food (select only 1 below)

•Different Food

•Fasting

•Too much food

•Not enough food

■Exercise (select only 1 below)

•Before

•During

•After

■Exercise type (select only 1 below)

•Mild

•Hard

■ Medication

■Others

Or, enter new information about your glucose reading in the

Comments field.

OneTouch® Diabetes Management Software v2.3.1 User Manual 125

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X125

The Insulin Tab

The Insulin Tab lets you add Insulin Records to the OneTouch® DMS database (see Figure 3.21).

Figure 3.21

When you see this: You can do this:

Date and Time Set the Date and Time for the new Insulin Record. You may

modify the information in the Date field by entering the desired

date. Or you can click on the down arrow. The pop-up calendar

box will appear where you can change the day, month and year.

You may modify the information in the Time field by entering

the desired Time, or by clicking on the hour or minute values

that appear. Then click on the up/down arrows until you find

the desired hour and minute.

Meal Slot Tag the new Insulin Record to a Meal Slot. Click on the down

arrow where you can select any of the 7 pre-defined Meal Slots.

OneTouch® Diabetes Management Software v2.3.1 User Manual 126

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X126

Injection/Bolus/Pump

Daily Total

Specify the insulin dosing method types and units. Click on the

selection box that applies.

“Injection” is the default selection.

If you select “Injection”:

■Select an Insulin Type from the drop-down menu in the

field. Insulin Types were created in the Medications Tab

of the Patient Setup screen. If you want to add a new

insulin type to the menu list, click on the Add Insulin

link. This will take you to the Medications Tab of the

Patient Setup screen where you can add new Insulin

Types.

■Enter an amount from 0 to 250 in 0.1-unit increments.

If you select “Bolus”:

■Enter an amount from 0 to 60 in 0.1-unit increments.

If you select “Pump Daily Total”:

■Enter an amount from 0 to 100 in 0.1-unit increments.

Insulin Comments Enter any information about your insulin record in the

Comments field.

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 127

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X127

The Oral Meds Tab

The Oral Meds Tab lets you add Oral Medication Records to the OneTouch® DMS database

(see Figure 3.22).

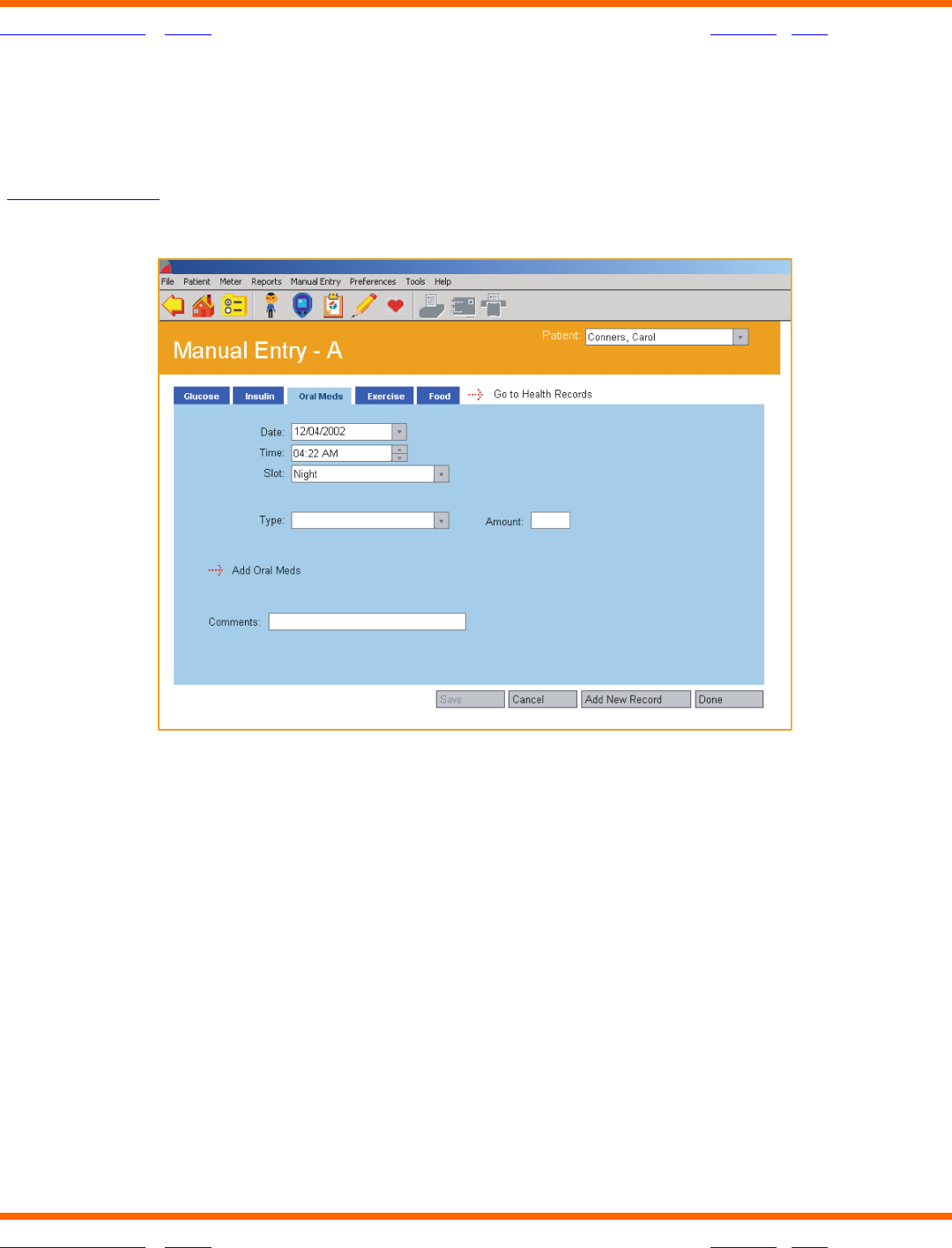

Figure 3.22

OneTouch® Diabetes Management Software v2.3.1 User Manual 128

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X128

When you see this: You can do this:

Date and Time Set the Date and Time for the new Medications Record.

Both are required data entry fields. You may modify the

Date in the field by entering the desired date. Or you can

click on the down arrow. The pop-up calendar box will

appear where you can change the day, month, and year.

You may modify the Time in the field by entering the

desired time, or by clicking on the hour or minute values

that appear. Then click on the up/down arrows until you

find the desired hour and minute.

Meal Slot Tag the new Medications Record to a Meal Slot. Click on

the down arrow where you can select any of the 7 pre-

defined Meal Slots.

Type Specify the type and amount (number of pills) of

medication. Click on the down arrow in the Type field.

A drop-down menu of Medication types will appear.

Select the desired one. The Types of Medications are set

in the Medications Tab of the Patient Setup screen.

If you do not see the desired Medication Type, you may

click on the Add Oral Meds link. This will take you to the

Medications Tab of the Patient Setup screen where you

may add a new Medication Type.

Specify the Medication amount (number of pills) by

entering a value in the Amount field.

Medications

Comments

You may create and assign a new text Comment to the

Medications Record in the Comments field.

OneTouch® Diabetes Management Software v2.3.1 User Manual 129

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X129

The Exercise Tab

The Exercise Tab lets you add Exercise Records to the OneTouch® DMS database

(see Figure 3.23).

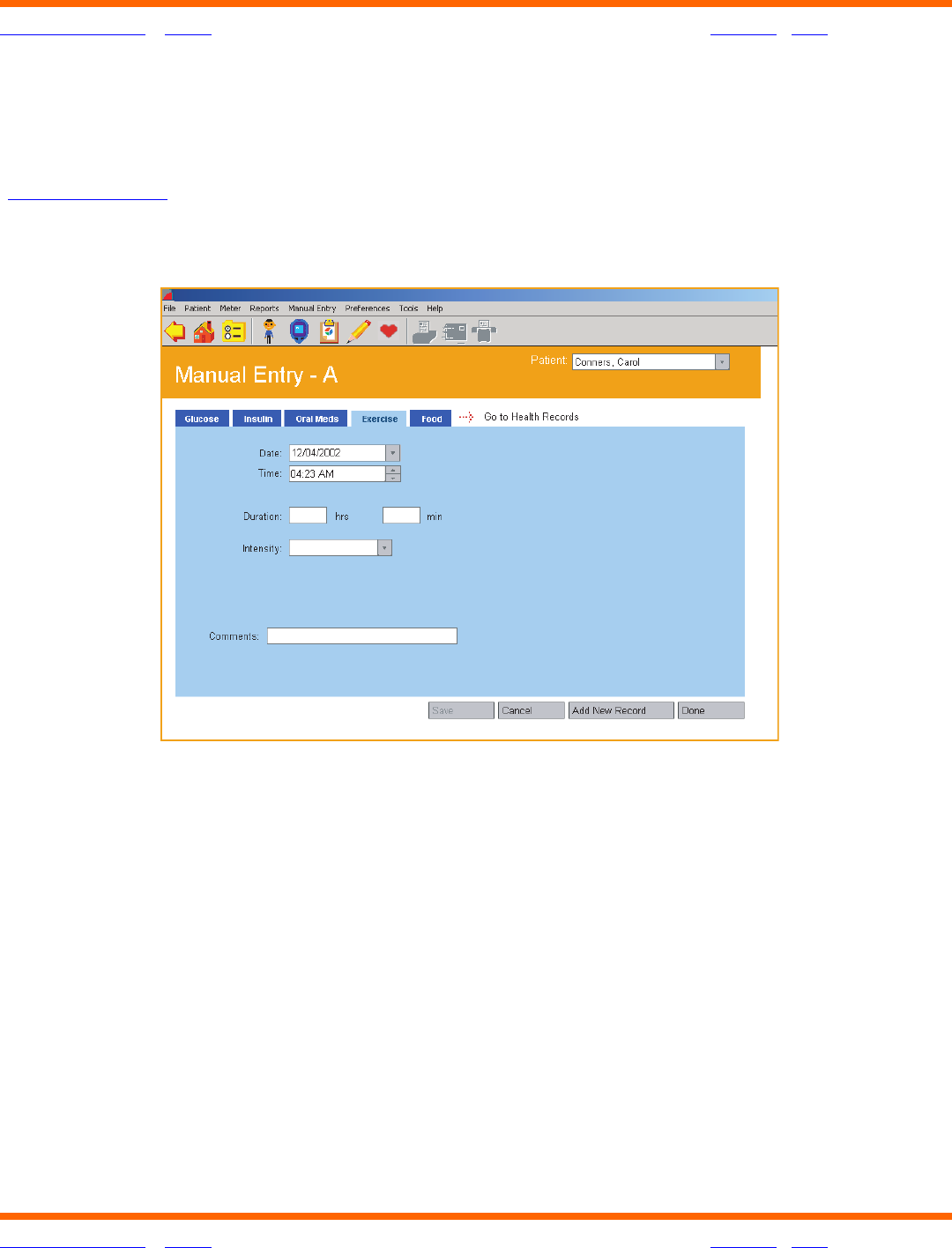

Figure 3.23

OneTouch® Diabetes Management Software v2.3.1 User Manual 130

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X130

When you see this: You can do this:

Date and Time Set the Date and Time for a new Exercise Record. Both are

required entries for any new exercise record. There are no

default values.

■Modify the Date in the field by directly entering

the desired date. Or you can click on the down

arrow. The pop-up calendar box will appear where

you can change the day, month, and year.

■Modify the Time in the field directly by entering

the desired time, or by selecting/clicking on the

hour or minute values that appear. Then click on

the up/down arrows until you find the desired

hour and minute.

Duration and Intensity Enter the Duration and Intensity of the exercise period.

Both are required entry fields for any new exercise record.

There are no default values.

■Specify exercise intensity by clicking on the down

arrow in the Intensity field. Select the desired

intensity level from the drop-down menu that

will appear:

•Mild

•Moderate

•Hard

■Specify exercise duration by entering the time

period in hours and minutes in 5-minute

increments.

Exercise Comments You may create and assign a new text Comment to the

Exercise Record in the Comments field.

OneTouch® Diabetes Management Software v2.3.1 User Manual 131

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X131

The Food Tab

The Food Tab lets you add Food Records to the OneTouch® DMS database (see Figure 3.24).

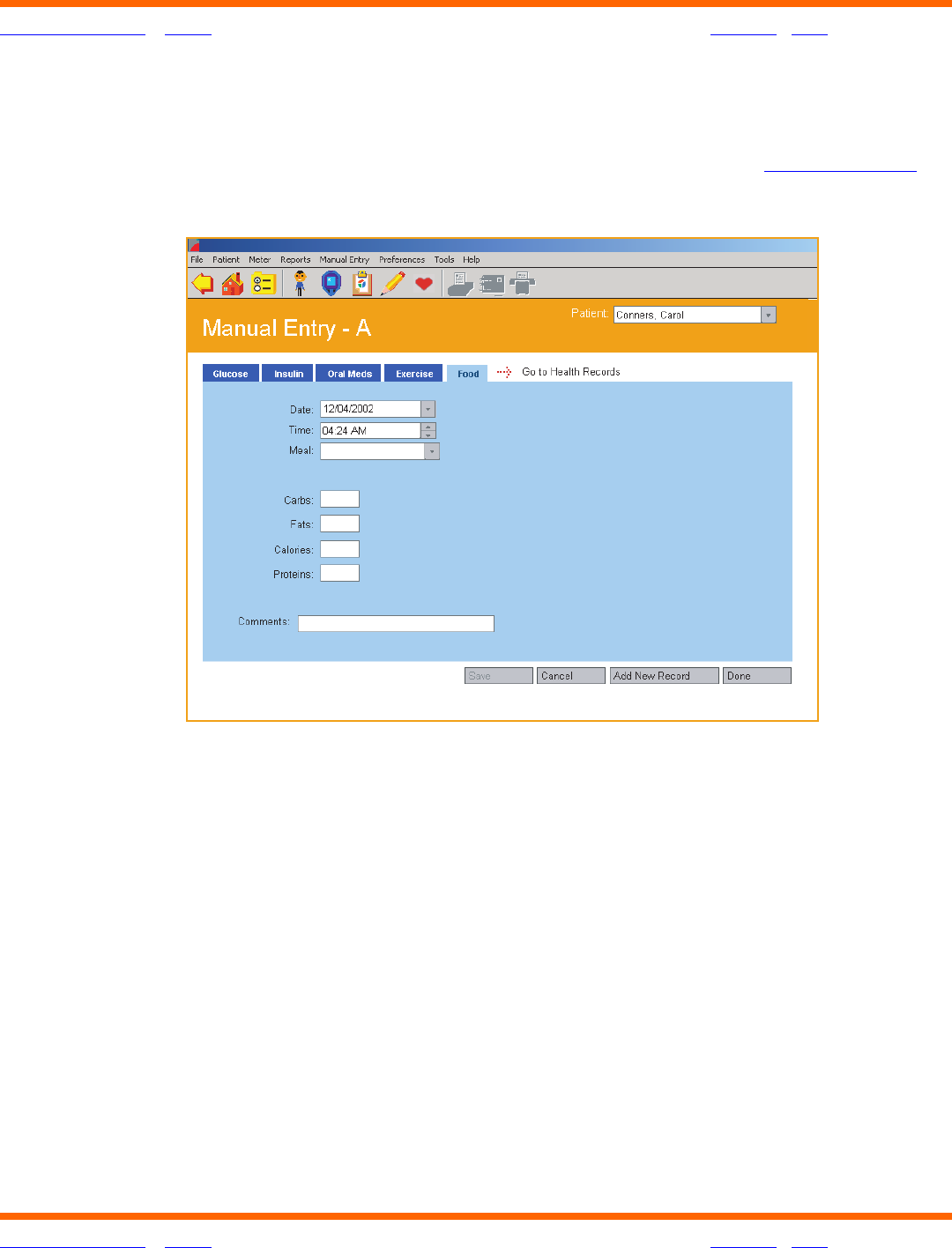

Figure 3.24

OneTouch® Diabetes Management Software v2.3.1 User Manual 132

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X132

When you see this: You can do this:

Date and Time Set the Date and Time for the new Food Record. Both are

required data entry fields for any new food record. There

are no default values.

■Modify the Date in the field by directly entering the

desired date. Or you can click on the down arrow.

The pop-up calendar box will appear where you can

change the day, month, and year.

■Modify the Time in the field by entering the desired

time, or by clicking on the hour or minute values

that appear. Then click on the up/down arrows until

you find the desired hour and minute.

Meal Tag the Food Record to a Meal Slot.

■Click on the down arrow where you can select

Breakfast, Lunch, Dinner or Snack. You can also

select Alcohol as a food type, to record the date and

time when you had a drink.

Carbs, Fats, Calories, and

Proteins

Specify values for the Carbohydrates, Fats, Calories, and

Proteins boxes. At least one food type is required for any

new food record.

■If you are entering Carbs, Proteins, or Fats, enter a

value from 0 to 250 in 1-unit increments.

■If you are entering Calories, enter a value from 0 to

2500 in 5-unit increments.

Food Comments Enter notes about your food record in the Comments field.

OneTouch® Diabetes Management Software v2.3.1 User Manual 133

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X133

The Health Records Tab

The Manual Entry-B screen lets you add Health Records to the OneTouch® DMS database (see

Figure 3.25).

Figure 3.25

You may add the following types of Health Records:

■HbA1c

■Dr. Visits

■Health Notes

■Ketones

■Microalbumin

■Cholesterol

■Blood Pressure (Systolic and Diastolic)

■Height and Weight

You must enter a Date, Time, and Result (value) for each Health Record that you add. Date and

Time are specified in the same manner as with adding other data records.

OneTouch® Diabetes Management Software v2.3.1 User Manual 134

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X134

When you see this: You can do this:

HbA1c Specify HbA1c (A1c) test result as follows:

■Enter a value from 4 to 15 in 0.1-unit increments.

Dr. Visits Enter dates for any of the following types of Dr. Visits:

■Office Visit

■Foot Exam

■Eye Exam

Health Notes Specify one or more of the following types of Health

Notes:

■Stress

■Feel Hypo

■Illness

■Menses

■Vacation

■Other

Ketones Specify one of the following Ketone test results:

■Negative

■Trace

■Small

■Moderate

■Large

OneTouch® Diabetes Management Software v2.3.1 User Manual 135

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X135

Microalbumin Enter a Microalbumin test as either a result type or as an

actual value.

■Result type choices are:

•Normal

•Positive

•>1000

■An actual value may be entered from 1 to 1000 in

1-unit increments.

Blood Pressure Enter Blood Pressure test results. Both Systolic (the higher

number) and Diastolic (the lower number) result are

required entries for any new blood pressure record.

■Enter a Systolic result from 80 to 200 in 1-unit

increments.

■Enter a Diastolic result from 40 to 150 in 1-unit

increments.

Height and Weight Enter height and weight values as follows:

■Heights must be from 0 to 255

■Weights must be from 0 to 600

■Both height and weight may be entered in 0.5 unit

increments

■There are no units associated with height and

weight records. You may enter values for height

and weight in pounds and inches or kilograms and

centimeters.

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 136

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X136

Cholesterol Specify one or more of the following types of Cholesterol

tests:

■Total

■LDL

■HDL

■Triglycerides

You may enter Cholesterol test results as follows:

■For Total Cholesterol

•An actual value between 0 and 1000 mg/dL

(0 to 25.9 mmol/L) or

•Specify “>1000” (“>25.9” in mmol/L)

■For LDL

•An actual value between 0 and 500 mg/dL

(0 to 13.0 mmol/L) or

•Specify “>500” (“>13.0” in mmol/L)

■For HDL

•An actual value between 0 and500 mg/dL

(0 to 13.0 mmol/L) or

•Specify “>500 ” (“>13.0” in mmol/L)

■For Triglycerides

•An actual value between 0 and 3000 mg/dL

(0 to 33.9 mmol/L) or

•Specify “>3000” (“>33.9”in mmol/L)

Units are specified in the General tab of the Preferences

screen.

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 137

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X137

Part 4: OneTouch® DMS Database Management

■Archiving/Retrieving Data Records

■Exporting/Importing Data Records

■Backing Up Data

You have two options for copying OneTouch® DMS database files to other file storage areas

on your PC. This feature lets you store data records for safekeeping or use them with other

PC applications. The first option is archiving data records and the second option is exporting

data records. If you plan to review old data records, the archive option is preferred.

OneTouch® Diabetes Management Software v2.3.1 User Manual 138

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X138

Archiving/Retrieving Data Records

Archiving lets you transfer data records to a separate file for storage. Archiving also lets you

manage the size of the OneTouch® DMS database by removing older data that you may no

longer need to review (if you select the Delete Readings After Archive option). This way you

can keep the database size at a minimum so the OneTouch® DMS works most efficiently.

You may restore archived data using the Retrieve feature (see Figure 4.0).

Figure 4.0

C:\Program Files\LifeScan\OneTouch\Archive\Archive

OneTouch® Diabetes Management Software v2.3.1 User Manual 139

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X139

The Archive Tab

Archiving lets you copy data records from one or more patients in the OneTouch® DMS

database. Records are copied to a separate file on your PC.

Notes:

■When archiving data records, all sequential records in the Before-Breakfast through

Night meal slot series will be tagged with the date of the Before-Breakfast start time.

This includes records that may occur after midnight.

■Archived OneTouch® DMS data will include any “unsupported” results for a given

patient and date range.

When you see this: You can do this:

To File Specify the name of the file where data will be

archived. The default directory for storing archived files

is C:\Program Files\LifeScan\OneTouch\Archive.

If you enter a new file name, you must include the

directory path as the first part of the name. You may

also use the Browse function to help locate a file or

directory.

From and To Specify the date range for the data records you want to

archive. The From and To dates are required data entry

fields. You may modify the dates in the field by

entering the desired date. Or you can click on the

down arrow. The pop-up calendar box will appear

where you can change the day, month, and year.

Select Patient Specify the patient data records you would like to

archive. You may select All Patients, an individual

patient, or a group of patients. To select a group of

patients, hold the CTRL key down while you select a

group of patient names.

Delete Readings After

Archive

Specify if you want the archived data records to be

deleted from the OneTouch® DMS database. Click on

Delete Readings After Archive.

OneTouch® Diabetes Management Software v2.3.1 User Manual 140

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X140

The Retrieve Tab

Retrieving lets you place archived data back in the OneTouch® DMS database. You can also

retrieve data from an InTouch Software database (see Figure 4.1).

Figure 4.1

Notes:

■If you are retrieving data records stored with an older version of OneTouch® DMS into

this version of the Software, be aware of differences in the date tags that are assigned

to meal slots that cross the midnight hour.

■Retrieved records for a given patient and date range will include any unsupported

results.

■The Software does not allow you to retrieve data records from previously archived

OneTouch® DMS versions in another language.

C:\Program Files\LifeScan\OneTouch\Archive\Archive

OneTouch® Diabetes Management Software v2.3.1 User Manual 141

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X141

When you see this: You can do this:

From File Specify the name of the archived file you would like to

restore to the OneTouch® DMS database. You may enter the

name of the file with the directory path as the first part of

the name. You may also use the Browse function to help

locate a file or directory.

Click on the Examine File button to display the patient

names in the archived file before you restore the records to

the OneTouch® DMS database.

From and To Specify the date range for the data records you want to

restore. The From and To dates are required data entry

fields. You may modify the dates in the field by entering the

desired date. Or you can click on the down arrow. The pop-

up calendar box will appear where you can change the day,

month, and year.

Select Patient Specify the patient data records you would like to retrieve.

You may select All Patients, an individual patient, or a

group of patients. To select a group of patients, hold the

Ctrl key down while you select a group of patient names.

OneTouch® Diabetes Management Software v2.3.1 User Manual 142

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X142

Exporting/Importing Data Records

Exporting lets you copy data records to a comma separated value (CSV) file, a common Excel

file format, which is compatible with other PC applications. Exported files do not include

headers for the various data fields.

You may restore exported data using the Import feature.

Note: “Unsupported” results cannot be exported. (See “unsupported results” in the Glossary).

The Export Tab

Exporting lets you copy data records from one or more patients in the OneTouch® DMS

database (see Figure 4.2). Records are copied to a comma separated value (CSV) file on

your PC.

Figure 4.2

C:\Program\LifeScan\OneTouch\Export\Export_

OneTouch® Diabetes Management Software v2.3.1 User Manual 143

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X143

When you see this: You can do this:

From File Specify the name of the file where data will be

exported. The default directory for storing exported

files is C:\Program Files\LifeScan\OneTouch\Export.

If you enter a new file name, you must include the

directory path as the first part of the name. You may

also use the Browse function to help locate a file or

directory.

From and To Specify the date range for the data records you want

to archive. The From and To dates are required data

entry fields. You may modify the dates in the field by

entering the desired date. Or you can click on the

down arrow. The pop-up calendar box will appear

where you can change the day, month, and year.

Select Patient Specify the patient whose data records you would like

to export. You may export data records for only one

patient at a time.

OneTouch® Diabetes Management Software v2.3.1 User Manual 144

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X144

The Import Tab

Importing lets you place exported data back in the OneTouch® DMS database (see Figure 4.3).

You can import from OneTouch® DMS v2.0, v2.1, v.2.2 files or InTouch® Software export files.

You may import data records for only one patient at a time.

If you are importing data records, you must keep the same file format. If you change the file

format, you will not be able to put the data records back in the OneTouch® DMS database.

Notes:

■If you are importing data records stored with an older version of OneTouch® DMS into

this version of the Software, be aware of differences in the date tags that are assigned

to meal slots that cross the midnight hour.

■The Software does not allow you to import previously exported data records from:

•OneTouch® DMS versions in another language

•OneTouch® DMS Pro

Figure 4.3

C:\Program Files\LifeScan\OneTouch\Export\Export_

OneTouch® Diabetes Management Software v2.3.1 User Manual 145

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X145

Backing Up Data

Periodically copy OneTouch.mdb to a network drive, Zip™ disk, tape backup, or other

storage media to guard against accidental data loss. Every three months OneTouch® DMS

will generate a reminder to backup your database.

When you see this: You can do this:

From File Specify the name of the exported file you would like to

restore to the OneTouch® DMS database. You may enter the

name of the file with the directory path as the first part of

the name. You may also use the Browse function to help

locate a file or directory.

Click on the Examine File button to display the patient

names in the exported file before you restore the records to

the OneTouch® DMS database.

From and To Specify the date range for the data records you want to

restore. The From and To dates are required data entry

fields. You may modify the dates in the field by entering the

desired date. Or you can click on the down arrow. The pop-

up calendar box will appear where you can change the day,

month, and year.

Select Patient Specify the patient whose data records you would like to

import. To select a patient, click on the down arrow in the

field. Select the desired patient. You may import data

records for only one patient at a time.

OneTouch® Diabetes Management Software v2.3.1 User Manual 146

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X146

Part 5: Appendices

■Appendix A

•Menu Bar Commands

•Tool Bar Commands

■Appendix B

•Glossary

■Appendix C

•Troubleshooting

■Appendix D

•Technical Support Contact Numbers

■Appendix E

•Index

OneTouch® Diabetes Management Software v2.3.1 User Manual 147

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X147

Appendix A: Menu Bar and Tool Bar Commands

Appendix A describes the Menu Bar and Tool Bar commands. Tool Bar and Menu Bar

commands provide alternate ways to activate OneTouch® DMS functions.

Menu Bar Commands

Menu Bar commands appear at the top of the OneTouch® DMS screens. When you click on

each of the Menu Bar Commands, a drop-down menu of options will appear. Select the

desired action as follows:

When you see this: You can do this:

Print Options

■Color Printing - deselect this option for black

and white printing.

■Printer Setup - display the Windows® Print

Setup box. You can select the printer, paper

size and orientation, etc. in this box.

Print Report - print the current selected Report.

Fax Report - fax the current selected Report.

Email Report - email the current selected Report.

Exit - close (exit) OneTouch® DMS.

OneTouch® Diabetes Management Software v2.3.1 User Manual 148

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X148

Add - display the General Tab of the Patient Setup

screen. Data entry fields will be blank. You can add a

new patient to the database in this Tab.

Delete - display the General Tab of the Patient Setup

screen. Data entry fields will be filled with the current

Patient Name. You can delete a patient from the

database in this Tab.

Find - display the Find a Patient Tab of the Patient

Setup screen. You can find a patient in the database in

this Tab.

Setup - display the Patient Setup screen. You can view

and change diabetes profile data for yourself or your

patients in this screen.

Get Meter Readings - transfer readings from a meter

to the database.

Clear Meter - permanently clear readings from the

meter memory.

Meter Setup - modify meter settings that can impact

how data is entered and displayed in the meter.

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 149

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X149

Display any of the following screens:

■Choose Your Report

■Summary Report

■Average Readings Report

■Data List Report

■Exception Report

■Glucose Trend Report

■Health Checks Report

■Histogram Report

■Insulin Report

■Logbook Report

■Pie Chart Report

■Standard Day Report

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 150

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X150

Glucose - display the Glucose Tab of the Manual

Entry-A screen. You can add new Glucose Records to

the database in this Tab.

Insulin - display the Insulin Tab of the Manual Entry-A

screen. You can add new Insulin Records to the

database in this Tab.

Oral Meds- display the Oral Meds Tab of the Manual

Entry-A screen. You can add new Medications Records

to the database in this Tab.

Exercise - display the Exercise Tab of the Manual

Entry-A screen. You can add new Exercise Records to

the database in this Tab.

Food - display the Food Tab of the Manual Entry-A

screen. You can add new Food Records to the

database in this Tab.

Health Records - display the Manual Entry-B screen.

You can select from the cascading menu and add new

Health Records to the database in this Tab. You can

select from the following drop down menu:

■HbA1c

■Doctor Visits

■Health Notes

■Ketones

■Microalbumin

■Cholesterol

■Blood Pressure

■Height & Weight

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 151

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X151

General - display the General Tab of the Preferences

screen. You can customize the OneTouch® DMS

environment in this Tab, including:

■Locate the COM Port on your PC

■Display the Meter Communications Steps

■Set the Units and Display Viewing Options

Report Options - display the Report Options Tab of

the Preferences screen. You can select the default

Favorite Report and Date Range in this Tab.

Global Targets - display the Global Targets Tab of the

Preferences screen. You can set glucose target ranges

for different Diabetes Types in this Tab.

Hypoglycemic - display the Hypoglycemic Tab of the

Preferences screen. You can set the Hypoglycemic

Value in this Tab. This is the baseline at or below

which readings are designated as “hypoglycemic” in

Reports.

Archive/Retrieve - archive records from the database

to a separate file for storage. Archiving lets you

manage the size of the database so you can keep

OneTouch® DMS running optimally.

Archived data may be restored to the database.

Export/Import - export data from the database to a

comma separated value (CSV) file, a common Excel

file format, where it may be used with other PC

applications.

Exported data may be re-imported to the database.

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 152

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X152

Tool Bar Commands

Tool Bar icons appear underneath the Menu Bar commands. When you move the mouse

cursor over any icon, a field will appear that describes its function. Click on any of the icons

to activate the desired function. A description of each icon function follows:

OneTouch Help - Get help on the current screen.

LifeScan Technical Support - Learn when and how

to contact LifeScan for Technical Support.

About OneTouch - display basic information about

this version of Program Software.

When you click

on this: You can do this: When you click

on this: You can do this:

Back up to the

previous screen.

Go to the Manual

Entry-A screen.

Go to the Home

screen.

Go to the Manual

Entry-B screen.

Go to the

Preferences

screen.

Print the currently

selected Report.

Go to the Patient

Setup screen.

E-mail the

currently selected

Report.

Go to the

Download Meter

Readings Screen.

Fax the currently

selected Report.

Go to your Favorite

Report screen

When you see this: You can do this:

OneTouch® Diabetes Management Software v2.3.1 User Manual 153

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X153

Appendix B: Glossary

This appendix describes most of the terms used in OneTouch® DMS and the User Manual.

adapter. A connection cable for OneTouch® Meters that use a strip port as the data port. The

adapter connects the OneTouch™ Interface Cable to the meter.

Autosearch. The option whereby OneTouch® DMS will automatically search all PC COM ports

until it finds the one that is connected to the meter. You may select Autosearch in the General

Tab of the Preferences screen.

Average Readings Report. A Report that displays glucose averages by Meal Slot, Exercise

period, and day of the week.

bolus dose. The additional units of insulin your body needs around meal times. Insulin

dosing is usually called bolus when administered via an insulin pump. Bolus dosing data may

be added to the database in the Manual Entry screens.

button. These are shaded boxes that appear on the bottom of screens. You can click on these

boxes to accept or cancel data entries.

calendar pop-up box. A pop-up display screen that lets you change the calendar date.

The screen is activated by clicking on the down arrow in any Date field.

carbs. One of the main nutrient groups, carbohydrates, also known as sugars and starches,

are the preferred energy source for the body. Diabetes occurs when carbohydrates are eaten

but not used properly by the body. Managing carbohydrate intake is key to maintaining good

glucose control. OneTouch® DMS provides a way to track carbohydrates along with other

diabetes health related information.

cardiovascular complication. A complication that involves the heart or the major blood

vessels.

cerebrovascular complication. A complication that involves the blood vessels in and around

the brain.

check strip. A special test strip used to verify that your meter and test strips are working

properly. Check strips are used with the OneTouch® II , OneTouch® BASIC® and OneTouch®

Profile® Meters. Look on the back of your meter to see the acceptable range of your check

strip results.

clear meter. Permanently erases all readings from the meter memory.

OneTouch® Diabetes Management Software v2.3.1 User Manual 154

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X154

COM port. Refers to the names of the communications ports that connect your PC to serial

devices. Serial devices include your mouse controller, your printer, and the OneTouch™

Interface Cable. COM ports are often called serial ports. Some computers come with only 2

COM ports. You need to have an available COM port for connecting the OneTouch™ Interface

Cable.

comment. A text entry that is tagged to a Glucose, Insulin or Health Record.

communications mode. This setting defines the interface standard used for communications

between your PC COM port and the meter. It applies only when connecting to a OneTouch® II

Meter. In this case, the communications mode must be set to “RS-232.”

complication. A health condition that develops from diabetes. OneTouch® DMS lets you

keep track of complications for each patient.

control solution. A solution containing a measured amount of glucose that reacts with a

OneTouch® Test Strip. It is used to test the accuracy of a new vial of OneTouch® Test Strips and

the accuracy of the meter. Glucose readings using a control solution sample may be added to

the database in the Manual Entry-A screen.

Data List Report. A Report that displays a list of all glucose, insulin, food, exercise, and other

health data stored in the database.

data entry field. Any place on a screen where you can enter values such as a number, name,

or text.

data port. The outlet on the meter that connects to the OneTouch™ Interface Cable. For

meters that require an adapter, the data port is the strip port.

data rate. Refers to the speed of communications between your PC and the meter. It applies

only when connecting to a OneTouch® II Meter. In this case, the data rate should be set at

9600.

data record. A unit of data about a patient in the database. A record may be a glucose

reading, insulin dosing, or other health data.

date range. Represents the time frame for capturing data when viewing and printing

Reports.

Day View Screen. This is the drill-down feature of the Logbook Report. The Day View

screen lets you display additional information (including multiple readings) for any given day.

Data records may also be edited from within the Day View screen.

OneTouch® Diabetes Management Software v2.3.1 User Manual 155

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X155

defaults. Refers to options (data values or Program tasks) that are pre-set. Defaults are based

on the most common user selections. You may modify the default settings.

drill-down. The feature that lets you access additional information from the Logbook and

Health Checks Reports.

drop-down menu. The list of options that is displayed after clicking arrow buttons on screens

or entries on the Menu Bar.

Exception Report. A OneTouch® DMS Report that ranks patients on key diabetes related

information. Additional sorting capability is provided for patient groups, characterized by

their insurance coverage. Designed in log format, each column of information can be sorted

to provide flexibility in identifying those patients who may not be under good diabetes

control.

exercise record. A data record that contains the duration and intensity of an exercise period.

Favorite Report. The OneTouch® DMS Report the Program will go directly to after readings

are transferred from the meter.

file. A collection of data that is labeled and stored in your PC, or on an external storage device

such as a floppy disk. Your software and database are stored as files on your PC.

food record. A data record that contains carbohydrate, fat, protein, or calorie data.

footnotes. Text messages that appear on the bottom of Reports whenever one or more

glucose readings were outside the linear range of the meter. Footnotes also appear if

readings have been edited or omitted from the Report.

gestational. A type of diabetes that occurs as a result of pregnancy.

Get Meter Readings. The function that transfers readings from the meter to the database.

glucose average. The arithmetic mean calculated on a set of glucose readings.

Guest. A permanent record in the database reserved for any patient who is not regularly

served by OneTouch® DMS. Database records for a Guest are automatically deleted when

you start OneTouch® Software. They are also deleted whenever new data for a Guest are

transferred from a meter.

Glucose Trend Report. A OneTouch® DMS Report that displays an X-Y graph of glucose levels

over a selected Date Range.

OneTouch® Diabetes Management Software v2.3.1 User Manual 156

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X156

HbA1c. An abbreviated name for a glycated hemoglobin test/test result. Also commonly

referred to as A1c. An HbA1c test result indicates your average glucose level over the past 3

to 4 months.

Health Checks Report. A OneTouch® DMS Report that displays home, lab, and doctor exam/

test results.

Health Record. A data record that contains home, lab, or doctor exam/test results.

HIGH glucose readings. Glucose readings that were above the linear range of the meter.

OneTouch® DMS Reports will display HIGH readings as either 501 mg/dL (27.8 mmol/L) or

601 mg/dL (33.4 mmol/L) depending on the meter from where the reading was taken.

HIGH readings will also be converted to these values for calculation purposes.

Histogram Report. A OneTouch® DMS Report that displays glucose readings by Meal Slot

over a set of pre-defined glucose ranges.

hover-over. The OneTouch® DMS feature that lets you display ToolTip information about a

particular reading by moving the mouse cursor over the value.

hypoglycemia. A medical condition in which the glucose level is too low.

injection. An insulin dose administered by syringe or pen.

Insulin Report. A OneTouch® DMS Report that displays glucose readings, carbs, and insulin

doses over the same Meal Slots.

ketones. A compound produced when not enough insulin is available to help the body break

down glucose. The presence of ketones in the urine is a sign that glucose levels have been

very high.

Logbook Report. This OneTouch® DMS Report displays daily glucose readings and other

data in a logbook format. Data are sorted by Date and Meal Slot.

LOW glucose readings. Glucose readings that were below the linear range of the meter.

Meal Slot. How the OneTouch® DMS organizes the day into separate time periods. Many of

the OneTouch® DMS Reports organize data by Meal Slot.

Menu Bar. An area above the Tool Bar that contains a series of text Headers that you can click

on to display drop-down menus for OneTouch® DMS functions. You can select any menu

option to perform that Software task.

OneTouch® Diabetes Management Software v2.3.1 User Manual 157

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X157

meter ID. A unique serial number that is stored in the memory of each OneTouch® Meter.

The Software retrieves the meter ID number when transferring meter readings so that it can

keep track of the meter from which the data originated.

microalbumin. A measure of the amount of protein that is leaking into the urine. The

presence of microalbumin in the urine may be a sign of kidney damage.

nephropathic complication. Any complication that involves the kidneys.

neuropathic complication. Any complication that involves the nervous system.

omit. Marks a data record for “omission” from calculations and Reports. The record remains in

the database and may be re-included for future analyses using the “Restore” button.

OneTouch™ Interface Cable. A cable used to connect a PC to your OneTouch® Meter.

patient. The standard data record in the OneTouch® DMS database.

peripheral vascular complication. Any complication that involves the capillaries or other

small blood vessels.

Preferences. Settings that let you customize how you use and interact with the Software.

Preferences are set in the Preferences screen.

Pie Chart Report. A OneTouch® DMS Report that displays pie charts of the percentage of

within-target and out-of-target glucose readings over a particular Date Range.

plasma reading. A glucose measurement from only the plasma portion of a whole blood

sample.

readings. One or more glucose level measurements recorded by the meter.

regimen. The daily schedule of insulin injections. OneTouch® DMS lets you define up to five

insulin regimens for each patient.

retinopathic complication. Any complication that involves the retina and other areas of

the eye.

RS-232. An interface standard for connecting serial devices to your PC. The data

communication mode must be set to “RS-232,” when using a OneTouch® II Meter with the

OneTouch® DMS. All other OneTouch® Meters are already pre-set to communicate using a

RS-232 interface.

OneTouch® Diabetes Management Software v2.3.1 User Manual 158

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X158

schedule. Seven pre-labeled Meal Slots that define how the Software divides the day.

You can set the actual clock times for each Meal Slot on the Schedule Tab of the Patient

Setup screen.

selected patient. The patient name that appears in the Patient field at the top of most

OneTouch® DMS screens. Unless noted otherwise, most OneTouch® DMS functions will affect

this particular patient record. You can select a different patient by clicking the arrow next to

the box. This turns the box into a drop-down menu.

serial port. Refers to the communications port that connects your PC to a serial device.

These may include your mouse controller, your printer, and the OneTouch™ Interface Cable

(which connects to the meter or other serial devices).

Standard Day Report. A OneTouch® DMS Report that displays an X-Y graph of glucose

readings over a 24-hour day.

Statistics Panel. A summary statistics panel of glucose readings compiled over the selected

Date Range. The panel appears on several OneTouch® DMS Reports.

Summary Report. A OneTouch® DMS Report that includes portions of several Reports for a

comprehensive overview of diabetes health status.

target range. The range of glucose readings that represent guidelines for “good” control.

Tabs. Refers to the way the OneTouch® DMS screens organize selection categories.

Tool Bar. An area below the Menu Bar that contains a series of icons that you can click on to

perform many OneTouch® DMS functions.

unit of measurement. Refers to either mg/dL or mmol/L. Glucose values as well as other test

results are reported in either mg/dL or mmol/L units of measure. Different units of measure

are standard in different countries or regions. The glucose unit of measure appears on the

meter display with a test result. OneTouch® DMS can automatically convert readings for

display without affecting the setting in the meter.

Unsuitable results. Records transferred from a device that are invalid.

Unsupported results. Valid result types that are either not currently shown in OneTouch®

DMS reports or include more information than expected.

OneTouch® Diabetes Management Software v2.3.1 User Manual 159

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X159

USB port. Refers to Universal Serial Bus, an external bus standard that supports data transfer

rates of 12 Mbps. A single USB port can be used to connect up to 127 peripheral devices, such

as mice, modems, and keyboards.

whole blood reading. A glucose measurement from the entire whole blood sample.

OneTouch® Diabetes Management Software v2.3.1 User Manual 160

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X160

Appendix C: Troubleshooting

This appendix will help you solve some of the more common problems you may have when

using OneTouch® DMS.

You may also refer to the README.txt file located in the OneTouch® DMS directory. Click on

Start\Programs\OneTouch Software\Readme. The file contains last-minute information

about OneTouch® DMS, as well as troubleshooting information for your PC and Windows®

operating system.

If you still require assistance, please call LifeScan Technical Support in your area.

Note: The Software is not designed as a network application.

OneTouch® Diabetes Management Software v2.3.1 User Manual 161

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X161

Problems and Solutions

If you see these error

messages on the screen:

You can do the following:

“The meter is not

responding. Check the

cable/adapter connections.”

or

“Error-Could not find any

meter on the serial port.”

1. Verify that the device is a OneTouch® Meter, or check

the Owner's Booklet for that device to see if it is

supported by OneTouch® DMS.

2. Make sure the meter is turned ON or OFF as specified in

of the User Manual.

3. Make sure the OneTouch™ Interface Cable (or other

cable for non-OneTouch® branded devices) is securely

attached to the meter data port and the PC.

4. If the meter also requires an adapter, make sure the

adapter is inserted correctly into the meter and is

securely attached to the OneTouch™ Interface Cable.

5. Make sure you have selected the correct COM port

(or the Autosearch) option on the Preferences screen.

6. Make sure the cable is connected to a 9-pin or 25-pin

serial port, or a USB port.

7. If you are using a OneTouch™ USB Interface Cable,

make sure you have installed the Cable software driver

that was provided in the Cable packaging. The driver

is also available on www.lifescan.com.

8. Make sure the port you are connecting to is not being

used by an internal modem or any device software.

9. If you have a OneTouch® II Meter, make sure the

Diabetes Management Setting is RS-232 and the

baud rate is set to 9600. Refer to the OneTouch® II

Owner's Booklet for more information.

OneTouch® Diabetes Management Software v2.3.1 User Manual 162

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X162

I see data in my patient's

meter that is not displayed

in the OneTouch® DMS

Reports.

The problem is most likely due to a meter date that was

set incorrectly. As an example, if the year in the meter is

incorrectly set to 2014, and the meter is subsequently

used for testing, records in the meter memory will have

dates in the future. When the meter is downloaded to

OneTouch® DMS, the software may not “find” readings

because the Software is looking for blood glucose data

in the current year.

The following suggestions may help:

1) Use the Data List Report to see glucose readings since

the last download. Select “Since last transfer” as the Date

Range in the Data List Report. This will display all readings

since the last download in the order in which the glucose

tests were taken (as opposed to the calendar date order-

which could have been affected by incorrect date settings

in the meter). This feature is not available if you have

transferred results from a OneTouch® UltraSmart® Meter.

Or

Select “Latest 14 days” when specifying the Date Range

for viewing and printing Reports. This will show if there

are any glucose results stamped with dates that are not

the current year.

and

2) The data from the meter set to year 2014 are still in the

database and in the meter. To prevent future problems,

you should:

■Archive and delete the records with dates in the

future

■Clear the meter so that the data is not downloaded

again

and

3) Set the meter to the correct date and time.

If you see these error

messages on the screen:

You can do the following:

OneTouch® Diabetes Management Software v2.3.1 User Manual 163

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X163

Appendix D: Technical Support Contact Numbers

OneTouch® DMS Support

If you have difficulty using OneTouch® DMS please consult the appropriate section of the

user manual and help file. If that does not resolve the problem, please call or email LifeScan

for OneTouch® DMS technical support.

For all other countries: contact your local LifeScan Office or visit the Around the World

section of the LifeScan website at www.lifescan.com for the Technical Support telephone

number in your area.

Country Telephone E-mail

België 0800-15325 service@lifescanbenelux.com

Belgique 0800-14660 service@lifescanbenelux.com

Canada 1 800 663-5521 CustomerService@LifeScanCanada.com

Servicealaclientele@LifeScanCanada.com

Deutschland 0800-72 55 007 service@lifescan.de

España 900 100 228 info@lifescan.es

France 0800 459 459 info@LifeScanFrance.com

Grand-Duché de

Luxembourg

0800-25749 service@lifescanbenelux.com

Ireland 1800 535676 technicalsupport@lifescan.co.uk

Nederland 0800-0222445 service@lifescanbenelux.com

Österreich 0800 244 245 kundenservice@lifescan.at

Schweiz/Suisse/Svizzera 0800-850 905 info@LifeScan.ch

United Kingdom 0800 028 0616 technicalsupport@lifescan.co.uk

United States 1 800 382-7226 CustomerService@LifeScan.com

OneTouch® Diabetes Management Software v2.3.1 User Manual 164

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X164

Appendix E: Index

Topic Page Number

A

Add A Patient Link 33

Add Comments 94

Add Data Records 118

Add Exercise Records 129

Add Food Records 131

Add Glucose Records 122

Add Health Records 133

Add Insulin Link 125

Add Insulin Records 125

Add New Patient Button 79

Add New Record Button 18

Add Oral Medication Records 127

Add Oral Meds Link 128

Apply Button 18

Archivie Button 18

Archiving 138

Assigning Transferred Readings 79

Average Readings Report 106

B

Back Arrow Icon 152

Backup Data Records 145

Beep 66

OneTouch® Diabetes Management Software v2.3.1 User Manual 165

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X165

Blood Pressure Results 135

Button Behavior 18

C

Cable 75

Cancel Button 19

Carbohydrate Intake 103

Cholesterol Results 104

Cholesterol Units 50

Clear Meter 81

Clipboard Icon 152

Clock, Meter 64

Clock, PC 64

Colors in Reports 91

COM Ports 49

Commands 18

Connecting the Meter to the PC 75

Conversion from Whole Blood to Plasma Values 52

D

Data List Report 109

Data Record Status, Added 118

Data Record Status, Edited 116

Data Record Status, Omitted 109

Database Backup 145

Date Format 66

Date Range 85

Day View Screen 97

OneTouch® Diabetes Management Software v2.3.1 User Manual 166

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X166

Default Date Range 55

Delete Button 19

Delete Data Records 19

Delete Patient 19

Diabetes Type Target Settings 57

Done Button 19

Download Meter Readings 74

Dr. Visits Records 134

Drill-Down Feature 155

E

Edit Data Records 116

E-Mail Reports 114

Exception Report 107

Exercise Records 129

Export Button 18

Exporting 142

F

Favorite Report 55

Fax Reports 113

File Menu 147

Find A Patient Link 47

Folder Icon 152

Food Records 131

Footnotes in Reports 90

OneTouch® Diabetes Management Software v2.3.1 User Manual 167

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X167

G

Global Target Settings 57

Glucose Records 122

Glucose Trend Report 99

Glucose Units 50

Go Button 19

Guest Patient 79

H

HbA1c Results 134

Health Checks Report 104

Health Notes 96

Health Records 133

Health Records, Blood Pressure 135

Health Records, Cholesterol 136

Health Records, Dr. Visits 134

Health Records, HbA1c 134

Health Records, Height 135

Health Records, Ketones 134

Health Records, Microalbumin 135

Health Records, Weight 135

Heart Icon 152

Height Results 135

Help Menu 152

HIGH Glucose Readings 90

Histogram Report 111

Home Screen 29

House Icon 152

OneTouch® Diabetes Management Software v2.3.1 User Manual 168

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X168

Hover-Over Feature 87

Hypoglycemic Threshold 60

Hypoglycemic Values 60

I

Icons 152

Import Button 19

Importing 144

Include Button 19

Install Software 13

Insulin 126

Insulin Pump 42

Insulin Records 125

Insulin Regimen 44

Insulin Report 103

Insulin Types 43

Insulin Units 103

InTouch® Software 23

K

Ketones Records 134

Keyboad Conventions 17

L

Letter Icon 152

Linking to a Database 24

Logbook Report 92

LOW Glucose Readings 95

OneTouch® Diabetes Management Software v2.3.1 User Manual 169

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X169

M

Manual Entry Menu 150

Manual Entry Screen, Exercise Records 129

Manual Entry Screen, Food Records 131

Manual Entry Screen, Glucose Records 122

Manual Entry Screen, Health Records 133

Manual Entry Screen, Insulin Records 125

Manual Entry Screen, Oral Medication Records 127

Manually Entry Data 118

Meal Slots 156

Menu Bar Commands 147

Meter Adapter 14

Meter Display Languages 66

Meter Icon 152

Meter Menu 148

Meter Settings, Clock 63

Meter Settings, General 65

Meter Settings, Insulin 69

Meter Settings, Oral Meds 70

Meter Settings, Schedule 67

Meter Settings, Targets & Hypoglycemic 72

Meter Setup 148

Microalbumin Results 135

Mouse Conventions 17

O

OK Button 19

Omit Button 20

OneTouch® Diabetes Management Software v2.3.1 User Manual 170

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X170

Omit Data Records 98

OneTouch® Meters 9

OneTouch® UltraSmart®9

OneTouch™ Interface Cable 157

Oral Medication Records 70

Oral Medication Types 71

Oustside-Target Readings 92

P

Patient Icon 152

Patient Menu 148

Patient Setup Screen, Complications 46

Patient Setup Screen, Find a Patient 47

Patient Setup Screen, General Patient Profile Data 34

Patient Setup Screen, Insulin Regimen 44

Patient Setup Screen, Medications 42

Patient Setup Screen, Schedule 37

PC/System and Software Requirements 14

Pencil Icon 152

Personal Target Settings 36

Pie Chart Report 100

Plasma Values 52

Preferences Menu 151, 152

Preferences Screen, General Programming Environment 49

Preferences Screen, Global Target Settings 57

Preferences Screen, Hypoglycemic Value Setting 60

Preferences Screen, Report Options 54

Print Reports 91

OneTouch® Diabetes Management Software v2.3.1 User Manual 171

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X171

Print Selected Reports Button 112

Printer Icon 152

R

Record Details Screen 94

Report Colors 91

Report Headers 88

Report, Average Readings 106

Report, Data List 109

Report, Exception 107

Report, Favorite 55

Report, Glucose Trend 99

Report, Health Checks 104

Report, Histogram 111

Report, Insulin 103

Report, Logbook 92

Report, Pie Chart 100

Report, Standard Day 102

Report, Summary 101

Reports Menu 149

Reset to Defaults Button 20

Retrieve Button 20

Retrieve Data 140

RS-232 157

S

Save Button 20

Schedule 37

OneTouch® Diabetes Management Software v2.3.1 User Manual 172

Table of Contents | Index W Previous Next X

Table of Contents | Index W Previous Next X172

Select Button 20

Standard Day Report 102

Start Up Software 29

Statistics Panel 89

Summary Report 101

T

Target Ranges 57

Technical Support 163

Telephone Icon 152

Test Strips 52

Time Format 66

Tool Bar Commands 151, 152

ToolTips 87

Transfer Meter Readings 30

Troubleshooting 160

U

Uninstall Software 28

Units 50

Units of Measure 51

USB Connection 75

V

View Footnotes Link 90

View Reports 85

View Statistics and Targets Link 101

View/Edit Targets Link 36

OneTouch® Diabetes Management Software v2.3.1 User Manual 173

Table of Contents | Index W Previous

Table of Contents | Index W Previous 173

©2006 LifeScan, Inc. Milpitas, CA 95035

Rev. date: 07/2006 AW 064-350-01A

W

Weight Records 135

Whole Blood Values 52

Within-Target Readings 100
