SEARS

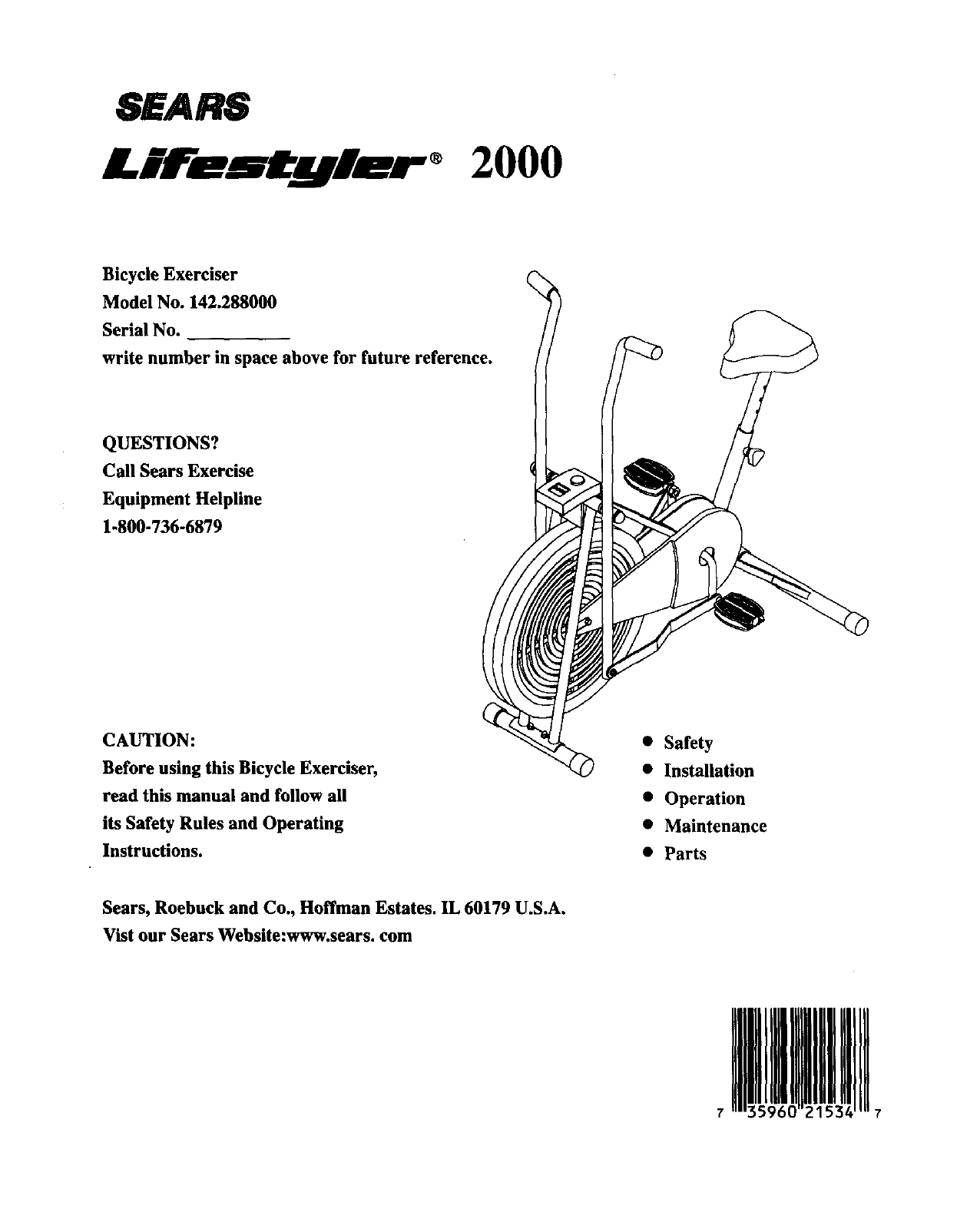

Lif__gl_r ®2000

Bicycle Exerciser

Model No. 142.288000

Serial No.

write number in space above for future reference.

QUESTIONS?

Call Sears Exercise

Equipment Helpline

1-800-736-6879

CAUTION:

Before using this Bicycle Exerciser,

read this manual and follow all

its Safety Rules and Operating

Instructions.

•Safety

•Installation

•Operation

•Maintenance

•Parts

Sears, Roebuck and Co., Hoffman Estates. IL 60179 U.S.A.

Vist our Sears Website:www.sears. corn

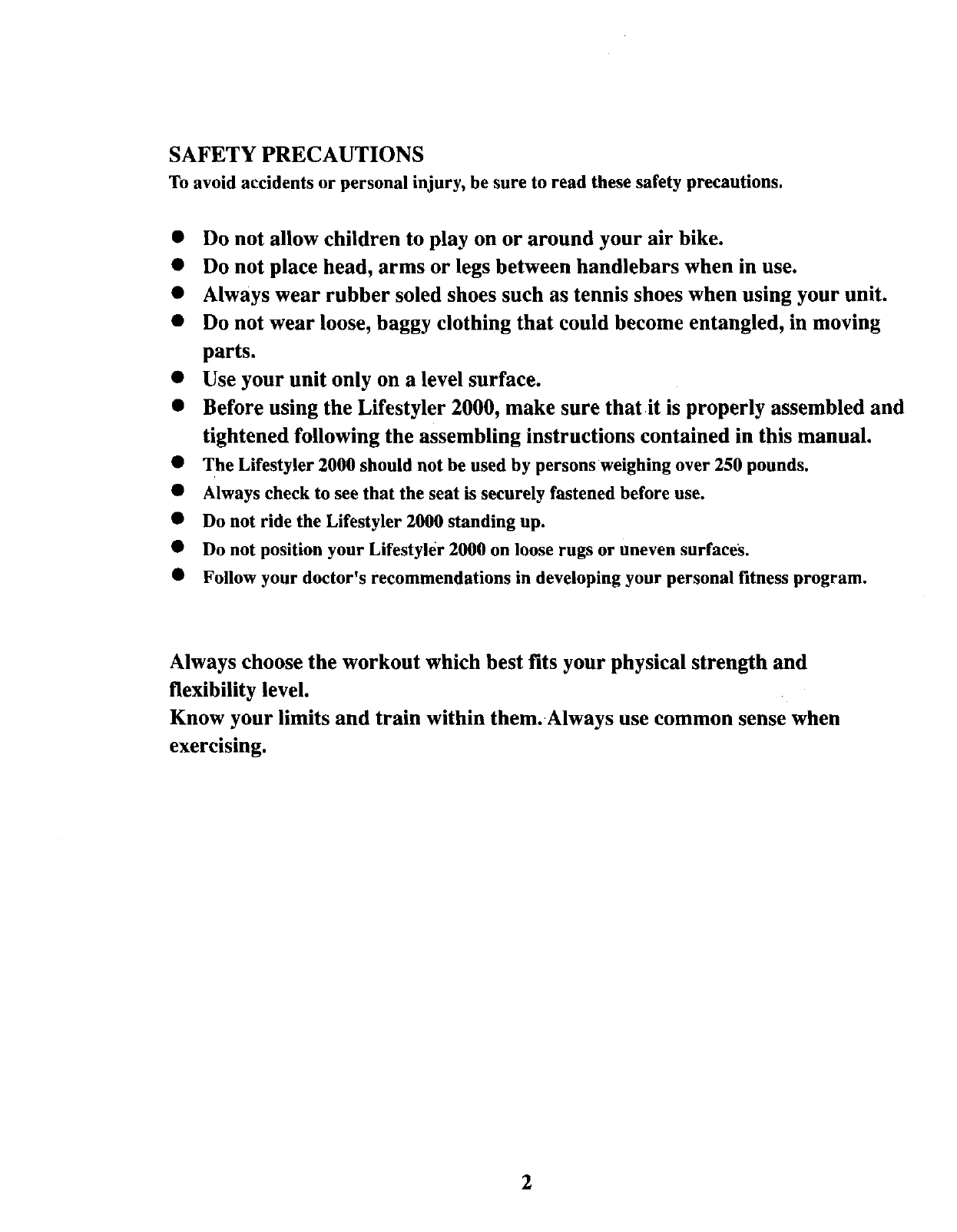

SAFETY PRECAUTIONS

To avoid accidents or personal injury, be sure to read these safety precautions.

•Do not allow children to play on or around your air bike.

•Do not place head, arms or legs between handlebars when in use.

•Always wear rubber soled shoes such as tennis shoes when using your unit.

•Do not wear loose, baggy clothing that could become entangled, in moving

parts.

•Use your unit only on a level surface.

•Before using the Lifestyler 2000, make sure that it is properly assembled and

tightened following the assembling instructions contained in this manual.

•The Lifestyler 2000 should not be used by persons weighing over 250 pounds.

•Always check to see that the seat is securely fastened before use.

•Do not ride the Lifestyler 2000 standing up.

•Do not position your Lifestyler 2000 on loose rugs or uneven surfaces.

•Follow your doctor's recommendations in developing your personal fitness program.

Always choose the workout which best fits your physical strength and

flexibility level.

Know your limits and train within them.Always use common sense when

exercising.

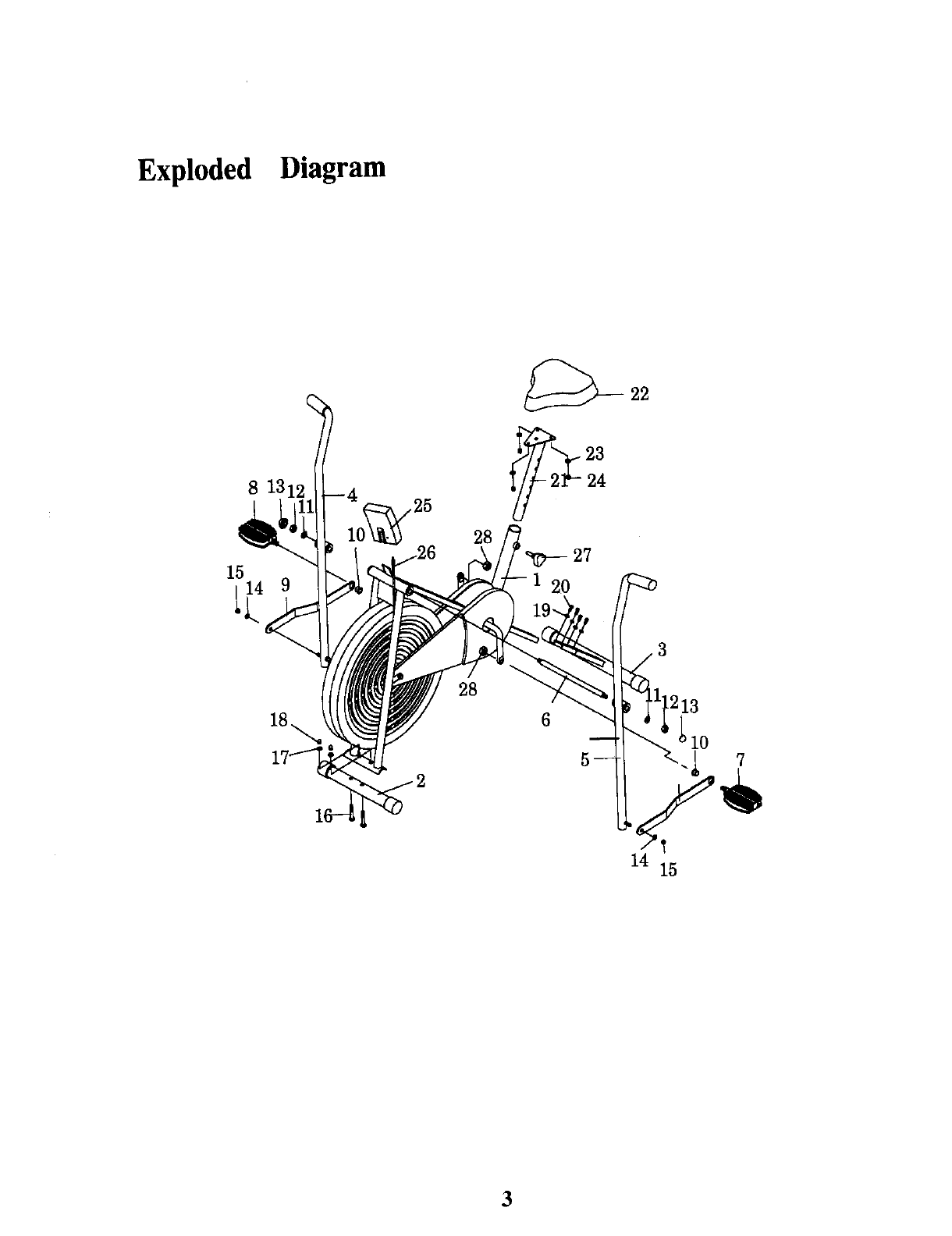

Exploded Diagram

81312

_22

6[213

14 15

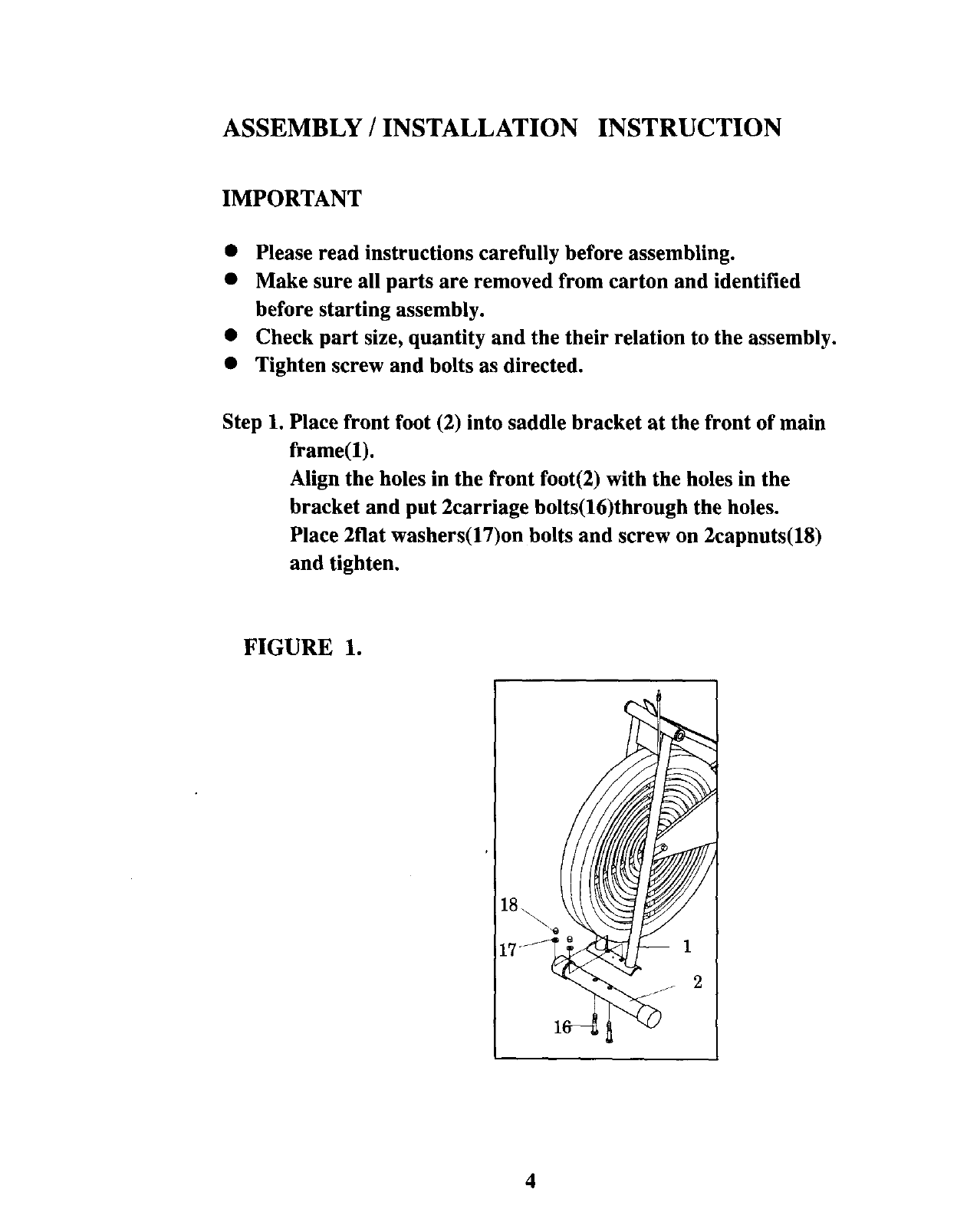

ASSEMBLY /INSTALLATION INSTRUCTION

IMPORTANT

•Please read instructions carefully before assembling.

•Make sure all parts are removed from carton and identified

before starting assembly.

•Check part size, quantity and the their relation to the assembly.

•Tighten screw and bolts as directed.

Step 1. Place front foot (2) into saddle bracket at the front of main

frame(l).

Align the holes in the front foot(2) with the holes in the

bracket and put 2carriage bolts(16)through the holes.

Place 2flat washers(17)on bolts and screw on 2capnuts(18)

and tighten.

FIGURE 1.

Step 2. Slide rear foot (3) into the rear of the man frame(l).

Place 4flat washers(19) with 4screws(20)and tighten

to rear foot of the main frame.

FIGURE 2.

I 20

19 :,,$

Step 3. Slide rear axle (6) through left(5) and right(4) handlebars. And

fasten 2flat washers(ll) with 21ocknuts(12) and 2plastic

caps(13).

FIGURE 3.

131

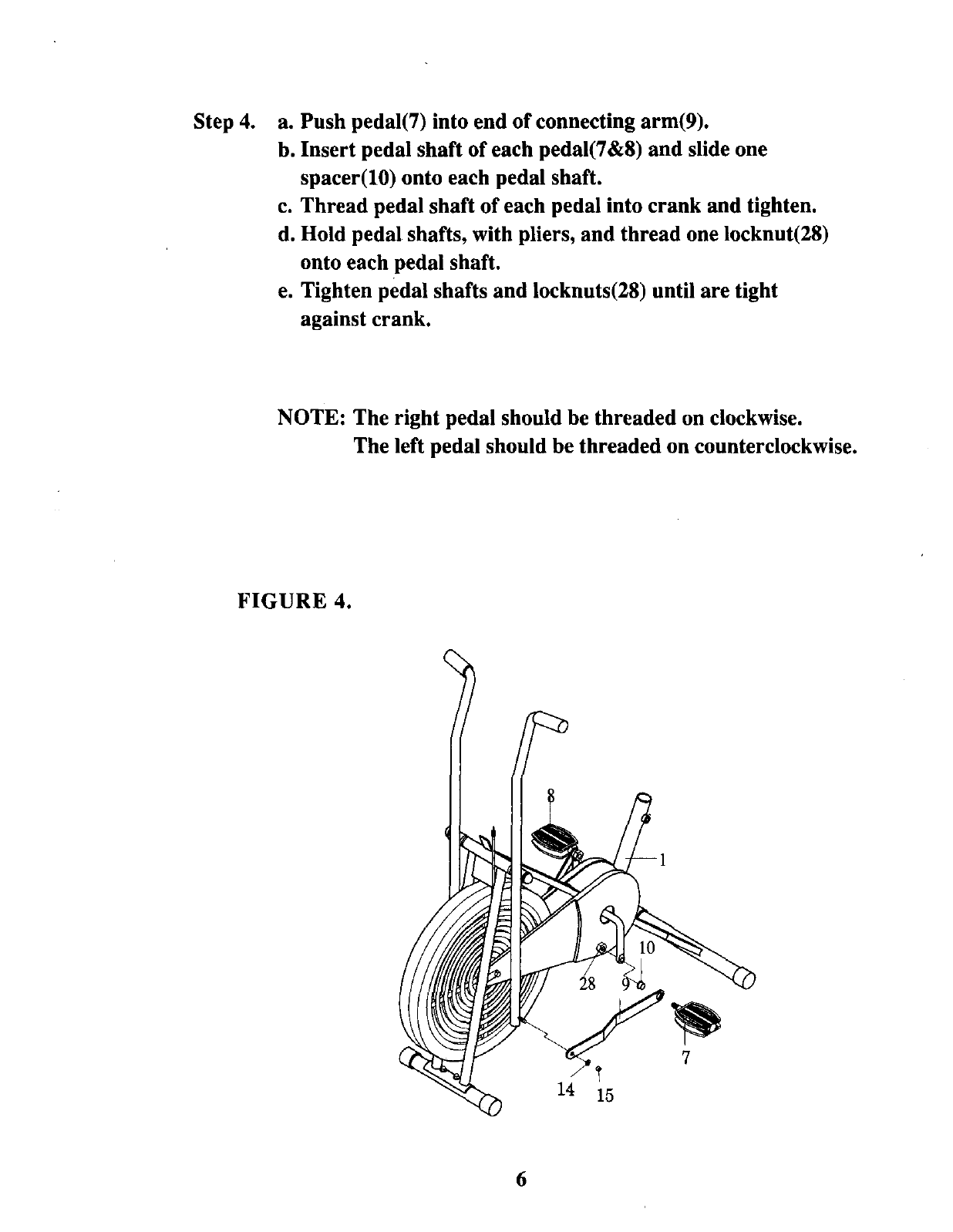

Step 4. a. Push pedal(7) into end of connecting arm(9).

b. Insert pedal shaft of each pedal(7&8) and slide one

spacer(10) onto each pedal shaft.

c. Thread pedal shaft of each pedal into crank and tighten.

d. Hold pedal shafts, with pliers, and thread one locknut(28)

onto each pedal shaft.

e. Tighten pedal shafts and locknuts(28) until are tight

against crank.

NOTE: The right pedal should be threaded on clockwise.

The left pedal should be threaded on counterclockwise.

FIGURE 4.

14 15

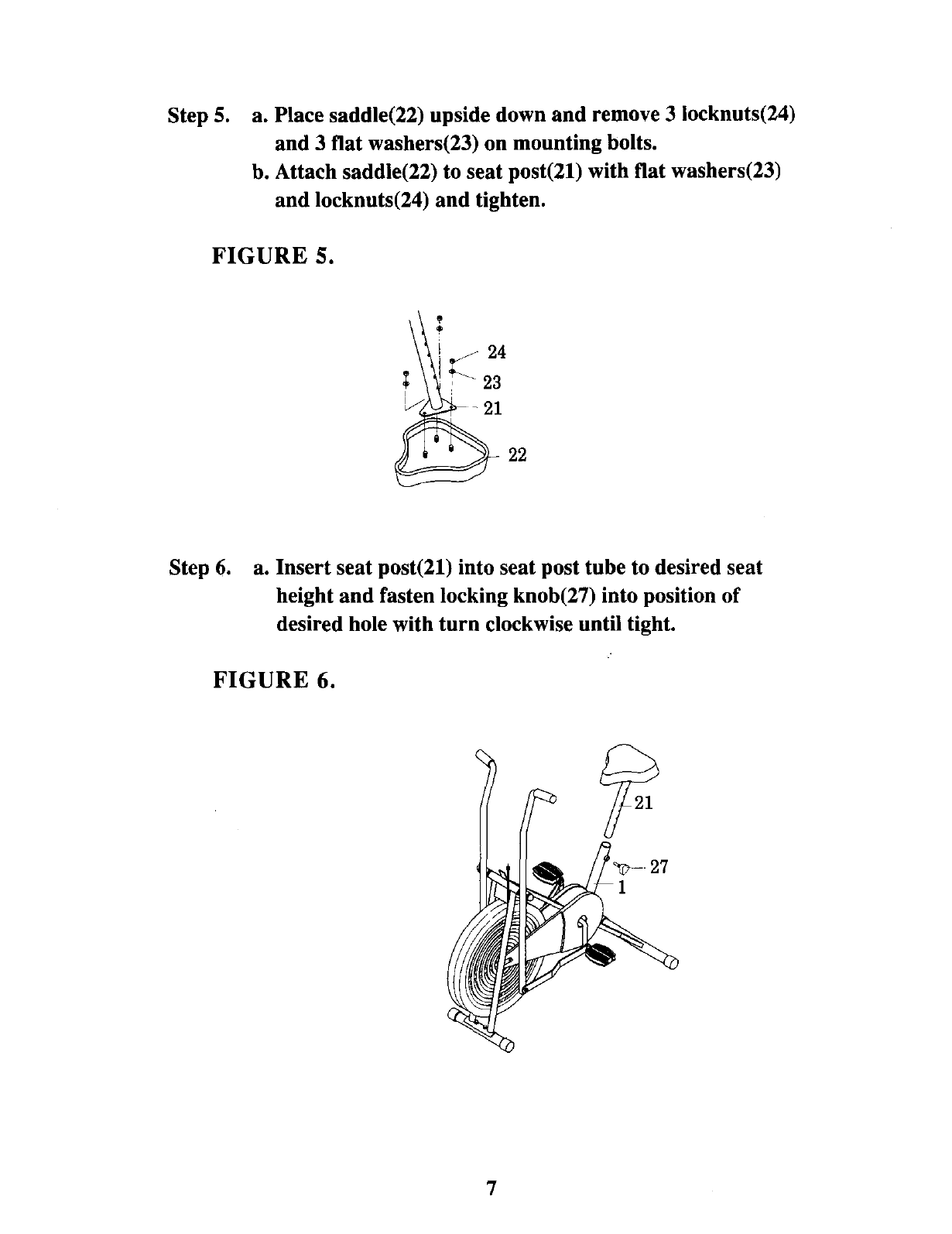

Step 5. a. Place saddle(22) upside down and remove 3 locknuts(24)

and 3 flat washers(23) on mounting bolts.

b. Attach saddle(22) to seat post(21) with flat washers(23)

and Iocknuts(24) and tighten.

FIGURE 5.

_23

_21

Step 6. a. Insert seat post(21) into seat post tube to desired seat

height and fasten locking knob(27) into position of

desired hole with turn clockwise until tight.

FIGURE 6.

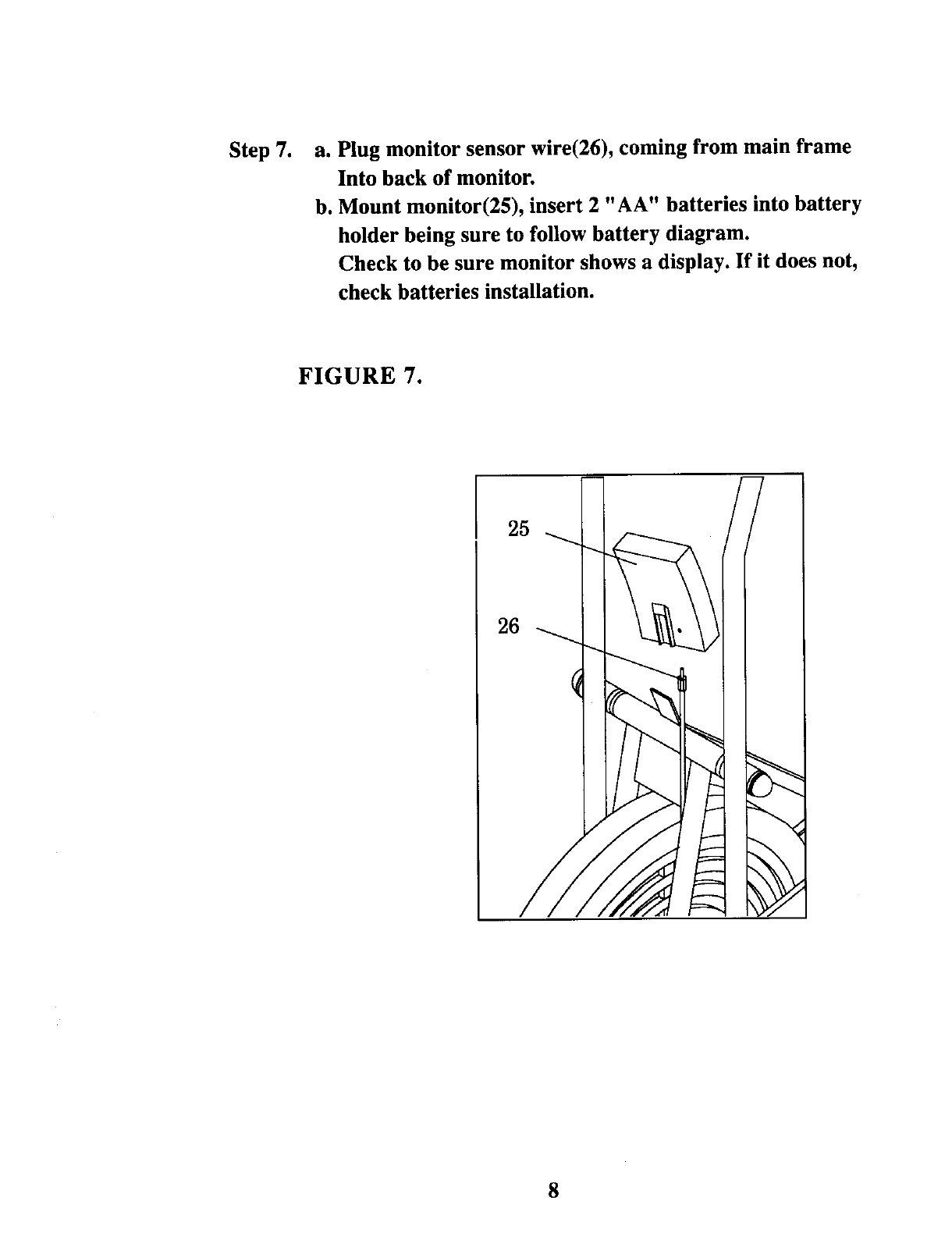

Step 7. a. Plug monitor sensor wire(26), coming from main frame

Into back of monitor.

b. Mount monitor(25), insert 2 "AA" batteries into battery

holder being sure to follow battery diagram.

Check to be sure monitor shows a display. If it does not,

check batteries installation.

FIGURE 7.

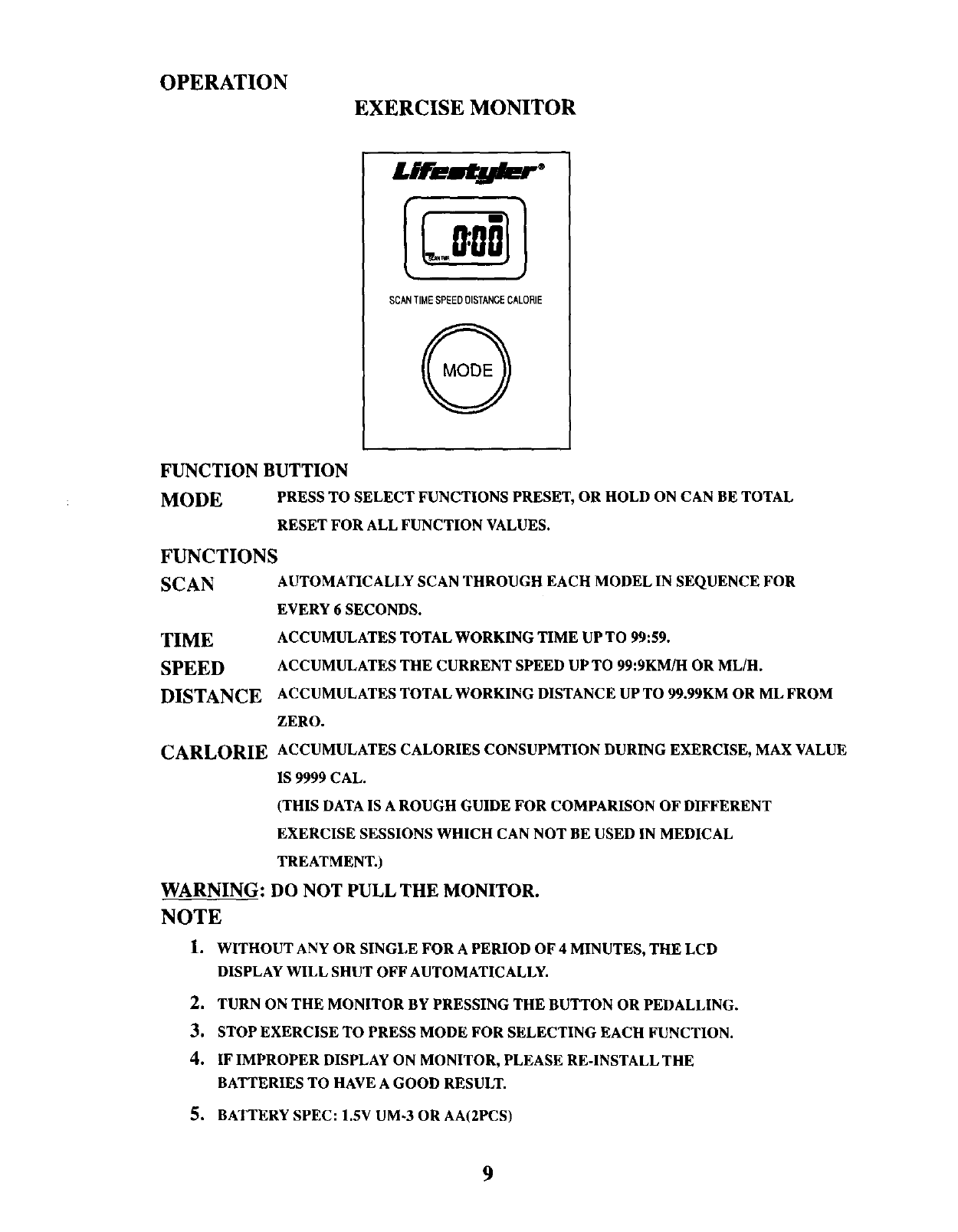

OPERATION

EXERCISE MONITOR

SCANTIMESPEEDDISTANCECALORIE

FUNCTION BUTTION

MODE PRESS TO SELECT FUNCTIONS PRESET, OR HOLD ON CAN BE TOTAL

RESET FOR ALL FUNCTION VALUES.

FUNCTIONS

SCAN AUTOMATICALLY SCAN THROUGH EACH MODEL IN SEQUENCE FOR

EVERY 6SECONDS.

TIME ACCUMULATES TOTAL WORKING TIME UP TO 99:59.

SPEED ACCUMULATES THE CURRENT SPEED UP TO 99:9KM/H OR ML/H.

DISTANCE ACCUMULATESTOTALWORKINGDISTANCEUPTO99.99KMORMLFROM

ZERO.

CARLORIE ACCUMULATES CALORIES CONSUPMTION DURING EXERCISE, MAX VALUE

IS 9999 CAL.

(THIS DATA IS A ROUGH GUIDE FOR COMPARISON OF DIFFERENT

EXERCISE SESSIONS WHICH CAN NOT BE USED IN MEDICAL

TREATMENT.)

DO NOT PULL THE MONITOR.WARNING:

NOTE

I. WITHOUT ANY OR SINGLE FOR A PERIOD OF 4MINUTES, THE LCD

DISPLAY WILL SHUT OFF AUTOMATICALLY.

2. TURN ON THE MONITOR BY PRESSING THE BUTTON OR PEDALLING.

3. STOP EXERCISE TO PRESS MODE FOR SELECTING EACH FUNCTION.

4. IF IMPROPER DISPLAY ON MONITOR, PLEASE RE-INSTALL THE

BATTERIES TO HAVE A GOOD RESULT.

5. BATTERY SPEC: 1.5V UM-3 OR AA(2PCS)

OPERATION

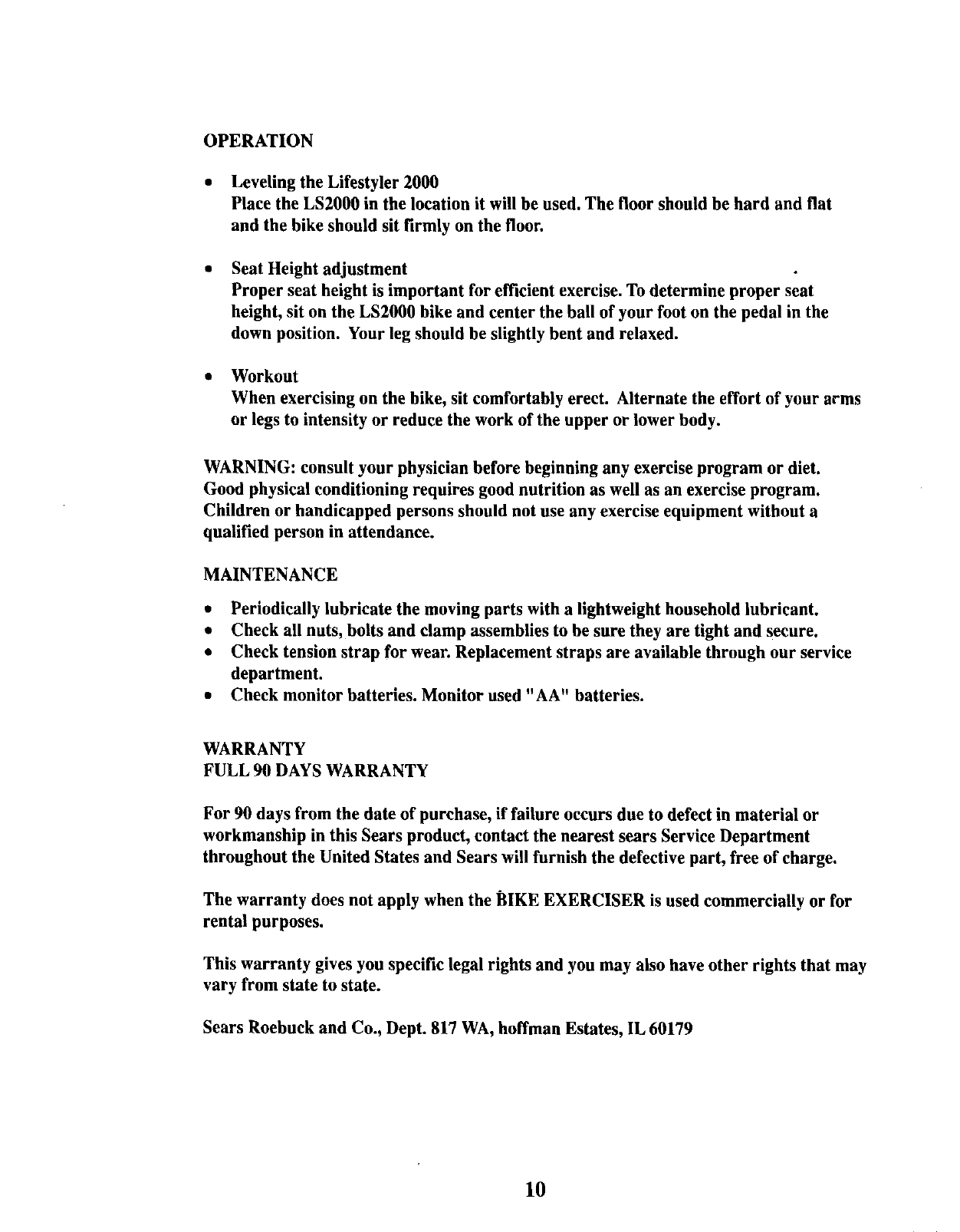

• Leveling the Lifestyler 2000

Place the LS2000 in the location it will be used. The floor should be hard and flat

and the bike should sit firmly on the floor.

Seat Height adjustment

Proper seat height is important for efficient exercise. To determine proper seat

height, sit on the LS2000 bike and center the ball of your foot on the pedal in the

down position. Your leg should be slightly bent and relaxed.

• Workout

When exercising on the bike, sit comfortably erect. Alternate the effort of your arms

or legs to intensity or reduce the work of the upper or lower body.

WARNING: consult your physician before beginning any exercise program or diet.

Good physical conditioning requires good nutrition as well as an exercise program.

Children or handicapped persons should not use any exercise equipment without a

qualified person in attendance.

MAINTENANCE

•Periodically lubricate the moving parts with a lightweight household lubricant.

•Check all nuts, bolts and clamp assemblies to be sure they are tight and secure.

•Check tension strap for wear. Replacement straps are available through our service

department.

•Check monitor batteries. Monitor used "AA" batteries.

WARRANTY

FULL 90 DAYS WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or

workmanship in this Sears product, contact the nearest sears Service Department

throughout the United States and Sears will furnish the defective part, free of charge.

The warranty does not apply when the BIKE EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights and you may also have other rights that may

vary from state to state.

Sears Roebuck and Co., Dept. 817 WA, hoffman Estates, IL 60179

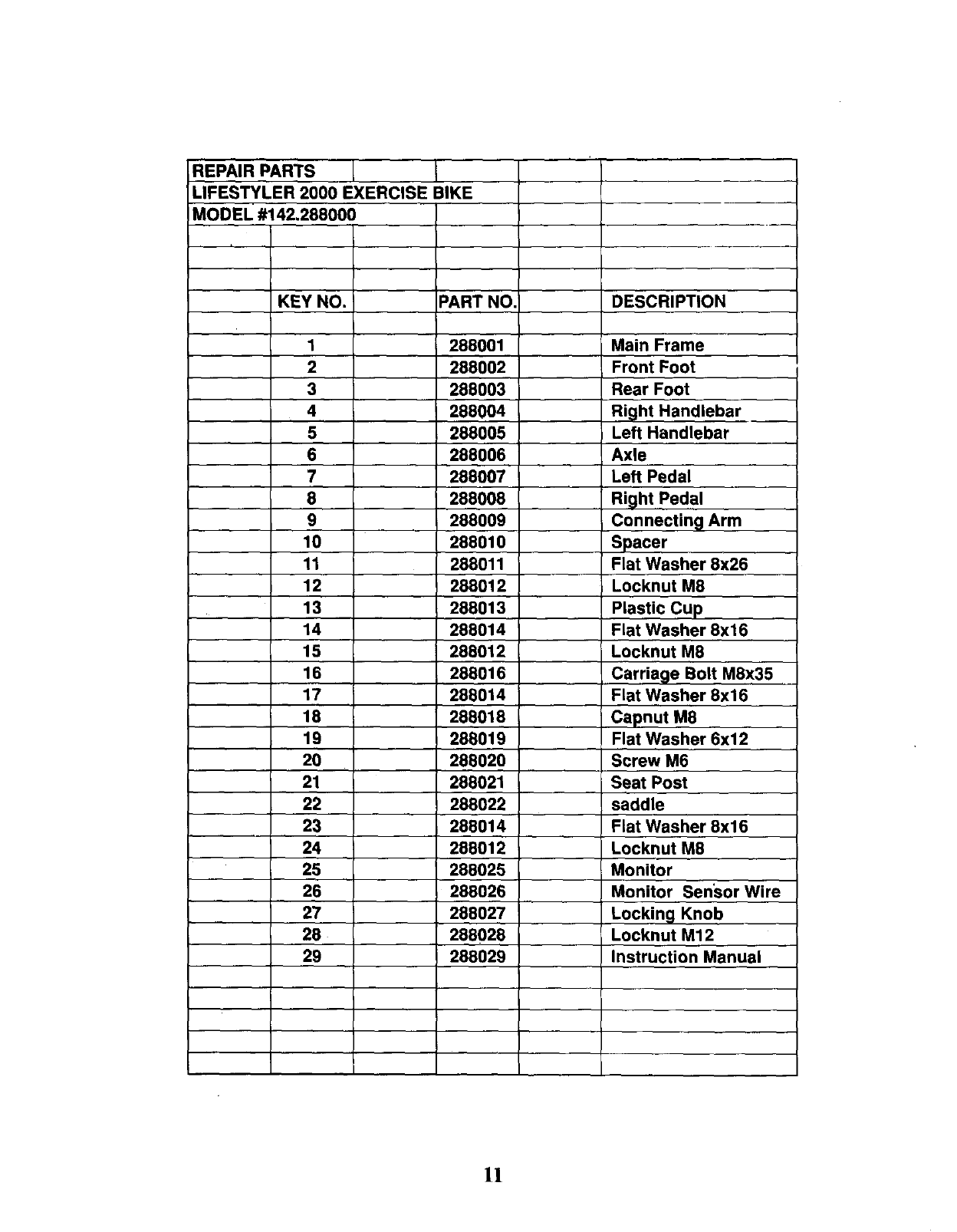

REPAIR PARTS

LIFESTYLER 2000 EXERCISE

MODEL #142.288000

KEY NO.

BIKE

PART NO.

288001

288002

288003

288004

288005

288006

288007

288008

288009

288010

288011

288012

288013

288014

288012

288016

288014

288018

288019

288020

288021

288022

288014

288012

288025

288026

288027

288028

288029

DESCRIPTION

Main Frame

Front Foot

Rear Foot

Right Handlebar

Left Handlebar

Axle

Left Pedal

Right Pedal

Connecting Arm

Spacer

Flat Washer 8x26

Locknut M8

Plastic Cup

Fiat Washer 8x16

Locknut M8

Carriage Bolt M8x35

Fiat Washer 8x16

Capnut M8

Flat Washer 6x12

Screw M6

Seat Post

saddle

Fiat Washer 8x16

Locknut M8

Monitor

Monitor Sen'sor Wire

Locking Knob

Locknut M12

Instruction Manual

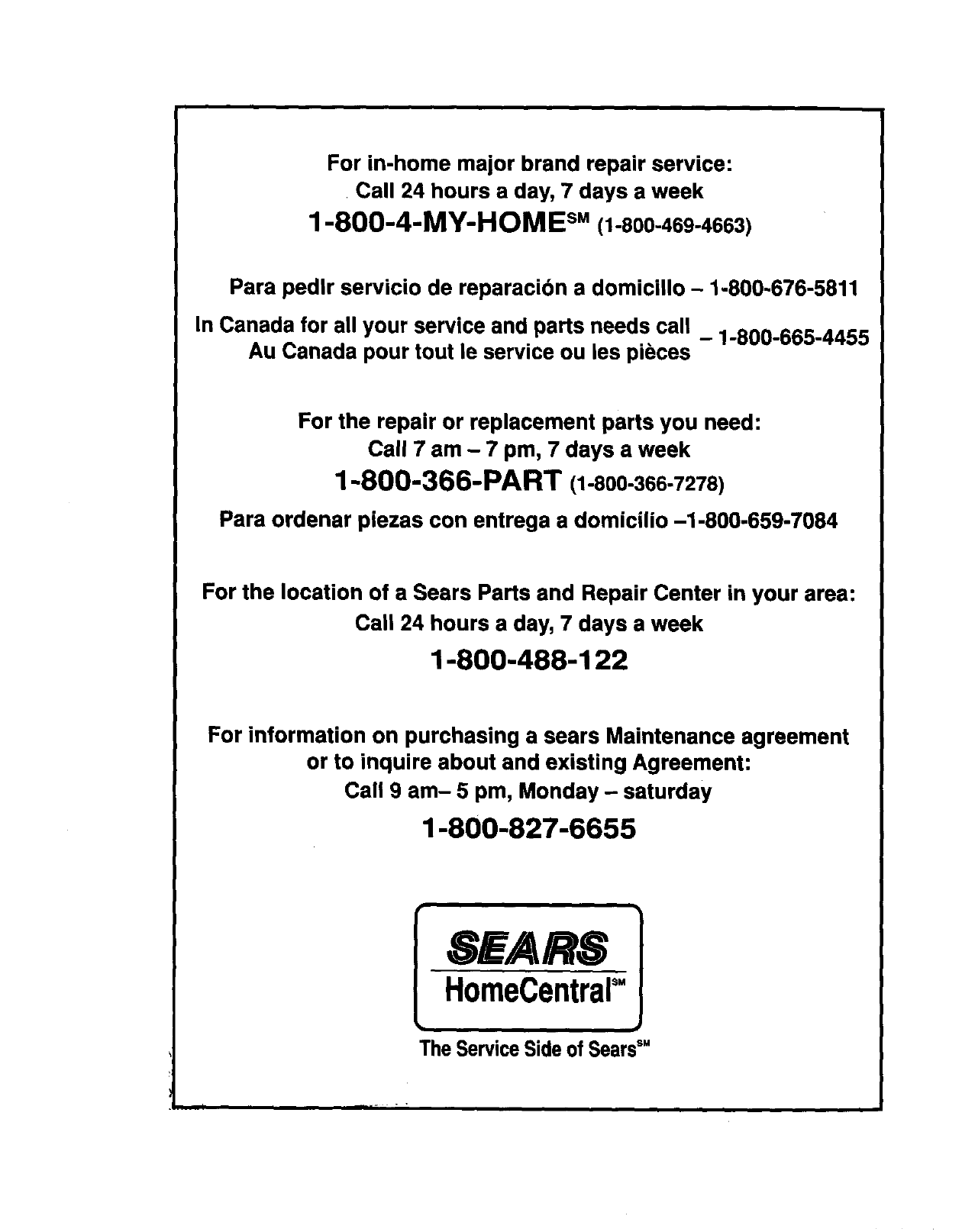

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME sM(1-800-469-4663)

Para pedlr servicio de reparacion a domiciilo - 1-800-676-5811

In Canada for all your service and parts needs call _ 1-800-665-4455

Au Canada pour tout le service ou les pieces

For the repair or replacement parts you need:

Call 7 am - 7 pm, 7 days a week

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio -1-800-659-7084

For the location of a Sears Parts and Repair Center in your area:

Call 24 hours a day, 7 days a week

1-800-488-122

For information on purchasing a sears Maintenance agreement

or to inquire about and existing Agreement:

Call 9 am- 5 pm, Monday - saturday

1-800-827-6655

TheServiceSideof Searss"
