■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■ The door WILL NOT CLOSE unless the Protector System® and cable tension monitor are
connected and properly aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■ The model number label is located behind the hinged door of your opener.
■ DO NOT exceed 10 complete cycles of door operation per hour.
■ This garage door opener is ONLY compatible with MyQ™ and Security✚ 2.0™ accessories.
This product is intended for installation only by trained garage door technicians. This
product may require adjustments to door springs and or track configurations. This product
is not intended for use on low headroom tracks or garage doors utilizing extension springs.
For Residential and Light Duty Commercial Use
Install On Sectional Doors With Torsion Assemblies Only
S
e
e
P
a
g
e
1
8
f
o
r
D
e
t
a
i
l
s
Model 8500
GARAGE DOOR OPENER
2
Introduction
When you see these Safety Symbols and Signal Words on the following pages, they
will alert you to the possibility of serious injury or death if you do not comply with the
warnings that accompany them. The hazard may come from something mechanical or
from electric shock. Read the warnings carefully.
When you see this Signal Word on the following pages, it will alert you to the possibility
of damage to your garage door and/or the garage door opener if you do not comply with
the cautionary statements that accompany it. Read them carefully.
Mechanical
Electrical
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in
strict accordance with the instructions and warnings contained in this manual.
Table of Contents
INTRODUCTION 2
Safety Symbol and Signal Word Review .. 2
Planning ................................................... 3
Preparing Your Garage Door .................... 4
Tools Needed ........................................... 4
Carton Inventory ...................................... 5
Hardware ................................................. 5
ASSEMBLY 6
Attach the Collar to the
Garage Door Opener ................................ 6
Attach Mounting Bracket to
Garage Door Opener ................................ 7
INSTALLATION 7
Position and Mount the
Garage Door Opener ................................ 8
Attach the Emergency Release Rope
and Handle ............................................... 9
Install Power Door Lock ........................... 9
Attach the Cable Tension Monitor
(Required) .............................................. 10
Install the Door Control
(MyQ® Control Panel) ............................ 11
Install Remote Light ............................... 12
Install the Protector System® ................ 13
Connect Power ....................................... 16
Install the Battery Backup (optional) ...... 18
ADJUSTMENT 19
Program the Travel Limits ...................... 19
Set the Force .......................................... 20
Test the Safety Reversal System ............ 21
Test the Protector System® ................... 21
Test Cable Tension Monitor ................... 22
Test Power Door Lock ............................ 22
To Open the Door Manually ................... 22
OPERATION 23
Using Your Garage Door Opener ............ 23
Using the Door Control
(MyQ® Control Panel) ............................ 24
Using the Remote Control ...................... 25
PROGRAMMING 26
To Add a Remote Control,
Keyless Entry, or MyQ® Enabled
Accessories using the
Door Control (MyQ® Control Panel) ....... 26
Internet Gateway (Not Provided) ............ 27
To Erase All Codes From the
Door Control (MyQ® Control Panel)
Memory ................................................. 27
Reprogramming Light or
Additional Light ...................................... 28
Additional Programming for the Keyless
Entry (Not Provided) .............................. 28
MAINTENANCE 29
Care of Your Garage Door Opener .......... 29
TROUBLESHOOTING 30
Diagnostic Chart .................................... 30
Troubleshooting ..................................... 31
Troubleshooting (Continued) ................. 32
REPAIR PARTS 33
Installation Parts .................................... 33
Garage Door Opener Assembly Parts ..... 34
ACCESSORIES 35
REPAIR PARTS AND SERVICE 36
WARRANTY 36
3
Planning
Survey your garage area to see if any of the conditions below apply to your installation.
Depending on your requirements, additional materials may be required.
THIS GARAGE DOOR OPENER IS COMPATIBLE WITH:
• Doors that use a torsion bar and springs. The torsion bar must be 1 inch (2.5 cm)
diameter.
• 4-6 inch (10-15 cm) drums, not to be used on tapered drums over 6 inches (15 cm).
• High lift (up to 54 inches (137.2 cm) high) and standard lift sectional doors up to
14 feet (4.2 m) high.
• Doors up to 18 feet (5.4 m) wide.
• Doors up to 180 sq. ft. (16.7 sq. m).

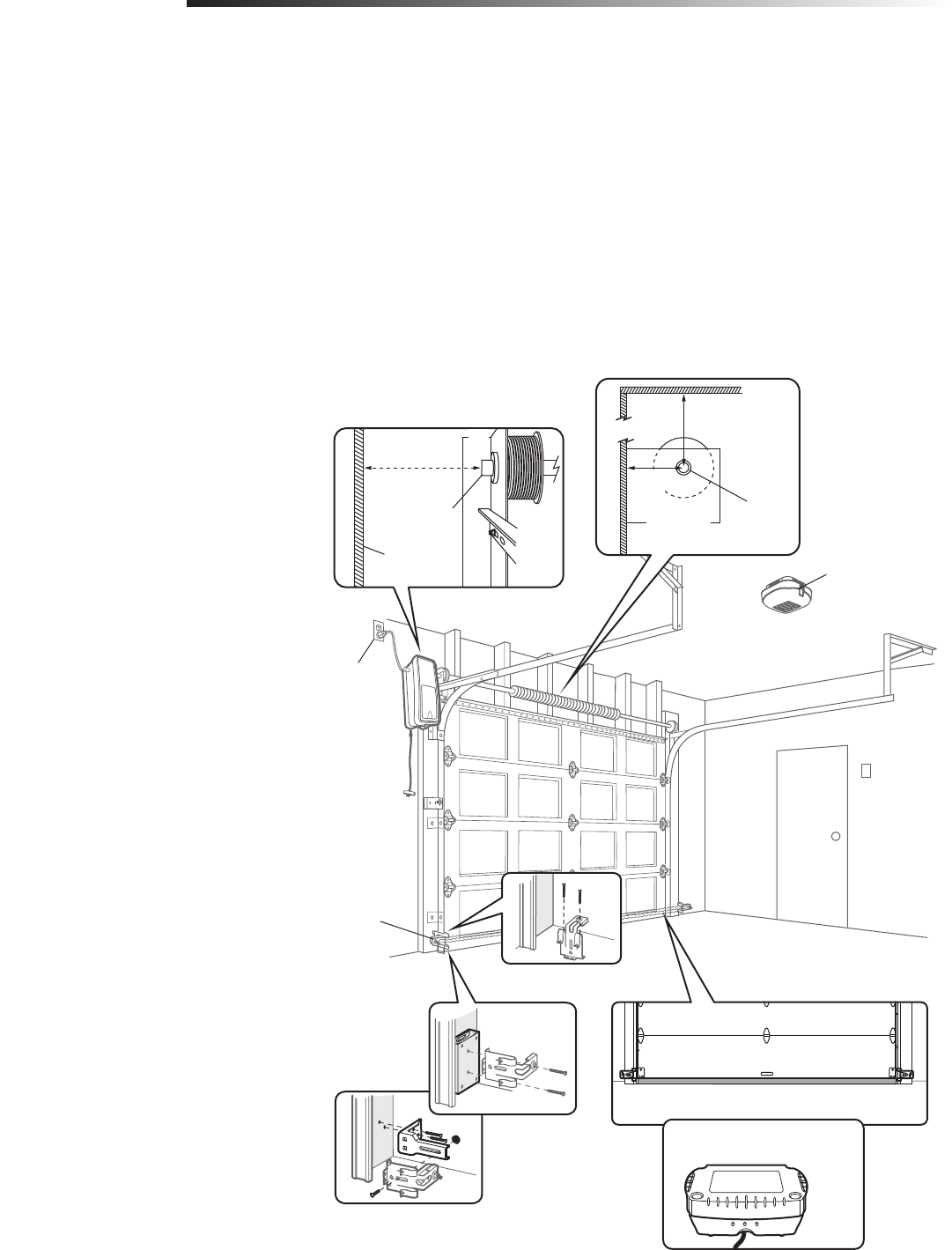

Review or inspect proposed installation area. The garage door opener can be installed on
the left or right side of door. Select the side that meets the requirements listed below.
a. Must have minimum of 2-1/2 inches
(6.4 cm) between the garage wall and
the center of the torsion bar.
b. Must have minimum of 3 inches
(7.6 cm) between the ceiling and the
center of torsion bar.
c. Must have minimum of 8 inches
(20.3 cm) between the side garage
wall (or obstruction) and the end of
torsion bar.
d. The torsion bar must extend at least
1-5 inches (2.5-12 cm) past the
bearing plate. This may vary depending
on your installation requirements.
e. An electric outlet is required within
6 feet (1.8 m) of the installation area.
If outlet does not exist, contact a
qualifi ed electrician.
f. Depending upon garage construction,
extension brackets or wood blocks
may be needed to install safety
reversing sensors.
g. Alternate fl oor mounting of the
safety reversing sensors will require
hardware (not provided).
h. Any gap between the fl oor and the
bottom of the door must not exceed
1/4 inch (6 mm), otherwise the
safety reversal system may not work
properly.
i. A model 475LM Battery Backup is
strongly recommended if there is
no access door to the garage, as
this garage door opener cannot be
used in conjunction with an external
emergency release mechanism.
Introduction
NOTE: Inspect the torsion bar while the
door is raised and lowered. It is important
that there is no noticeable movement up
and down or left and right. If the movement
is not corrected, the life of the garage door
opener will be greatly reduced.
a
b
h
i
cd
e
f
g
Torsion
bar
2-1/2 inches
(6.4 cm)
3 inches
(7.6 cm)
Wall or
obstruction
Torsion bar
8 inches
(20.3 cm)
475LM Battery Backup
Safety reversing
sensor
Remote light
4
Introduction
Preparing Your Garage Door
BEFORE YOU BEGIN:
• Disable locks.
• Remove any ropes connected to the
garage door.
Complete the following test to make sure
the garage door is balanced and is not
sticking or binding:
1. Lift the door halfway up. Release the
door. If balanced, it should stay in
place, supported entirely by its springs.
2. Raise and lower the door to check for
binding or sticking.
If your door binds, sticks, or is out of
balance, call a trained door systems
technician.
3. Verify equal cable tension on each side
of door. Cable tension should remain
equal during the entire travel of the
door.
To prevent damage to garage door and opener:
• ALWAYS disable locks BEFORE installing and operating the opener.
• ONLY operate garage door opener at 120 V, 60 Hz to avoid malfunction and
damage.
• DO NOT exceed 10 complete cycles of door operation per hour.
To prevent possible SERIOUS INJURY or DEATH:
• ALWAYS call a trained door systems technician if garage door binds, sticks, or is
out of balance. An unbalanced garage door may NOT reverse when required.
• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys,
brackets or their hardware, ALL of which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to garage door BEFORE
installing and operating garage door opener to avoid entanglement.

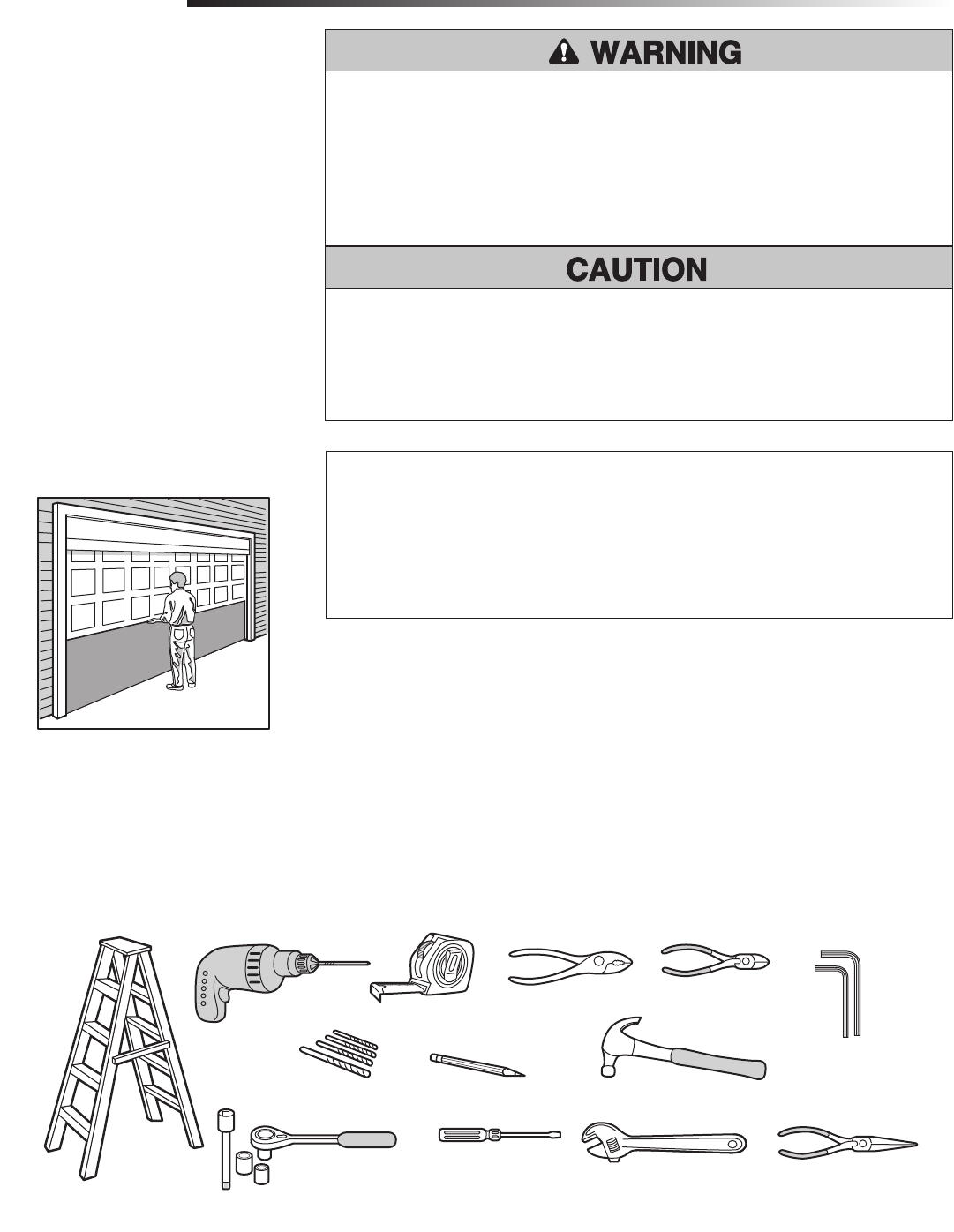

Tools Needed
During assembly, installation and adjustment of the garage door opener, instructions will
call for hand tools as illustrated below.
Specifi cations
Volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Vac - 60 Hz, ONLY
Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 AMP
Rated Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .325 in. lb/sec
10 Cycles per Hour
Pliers Wire Cutters
Claw Hammer
Screwdriver
Adjustable End Wrench
1/4", 5/16" & 3/8" Sockets
and Wrench with 6" Extension
Drill Tape Measure
2
1
Stepladder
Pencil
3/16" and 1/8"
Hex Key Wrench
Needle Nose Pliers
5/32", 3/16", 5/16"
and 3/4" Drill Bits
Sectional Door
Torque Meter (not shown)
5

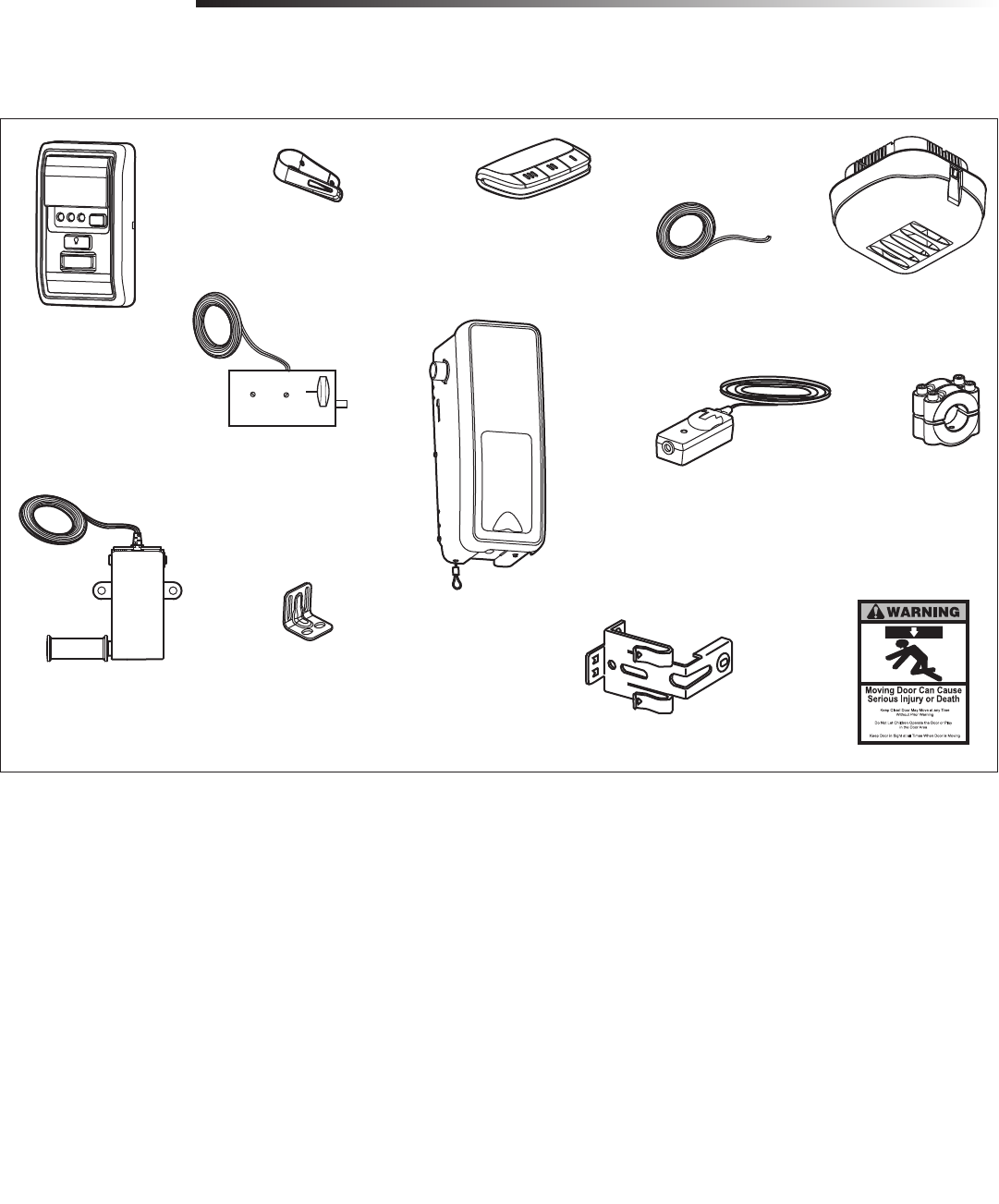

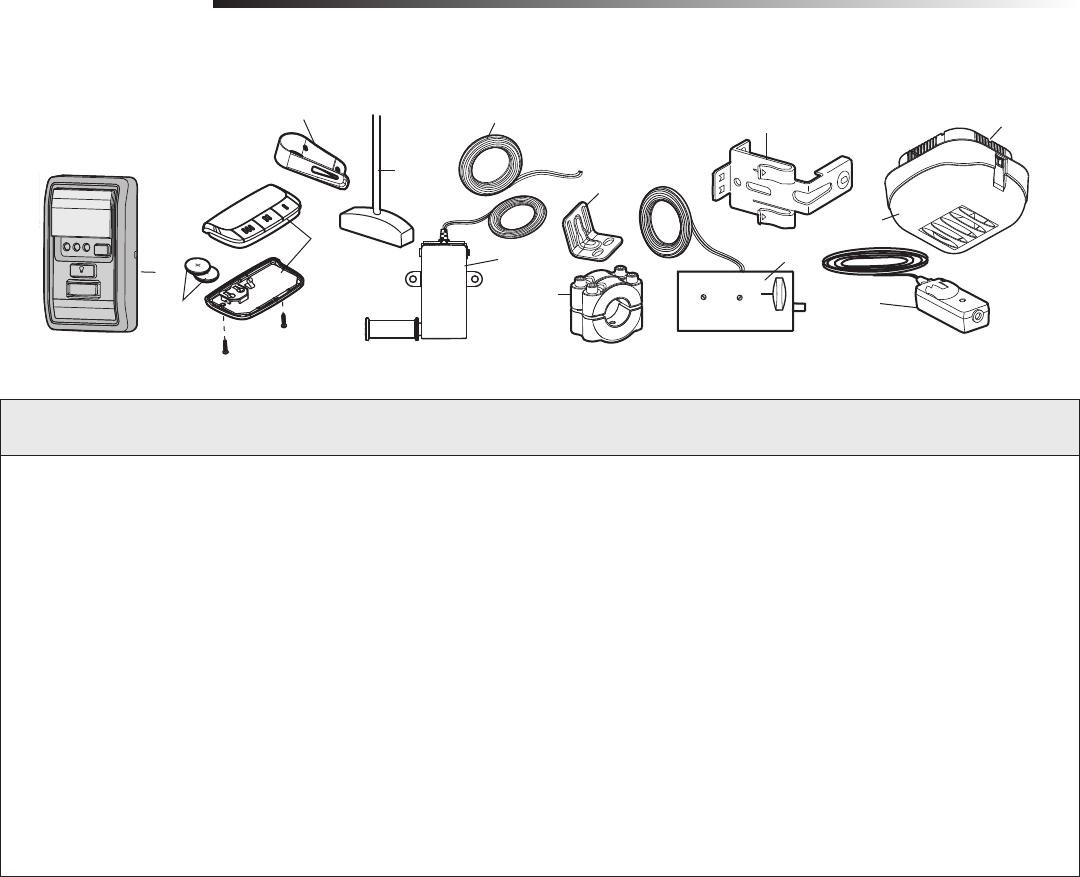

Carton Inventory
Introduction
LIGHT
HOLD
OPEN
Remote Control
Visor Clip
3-Button Premium Remote Control
Model 895MAX (1)
Remote Light
(Garage Door Opener Light)
with Hardware Bag
Power Door Lock with
2-Conductor White & White/Black
Bell Wire with Connector
2 Conductor Bell Wire
White & White/Red
Garage Door Opener
Cable Tension Monitor
with 2-Conductor
Green/White Bell Wires
Mounting Bracket
Collar with Screws
Safety Reversing Sensor Bracket (2)
The Protector System®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving
Eye) with 2-Conductor White &
White/Black Bell Wire attached
Safety Labels
and Literature
Hardware
Accessories included with the garage door opener will vary depending on the model purchased. If anything is missing, carefully check
the packing material.
Hex Screw #14-10x1-7/8" (4)
Screw #6x1-1/4" (2)
Machine Screw #6x1" (2)
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
Pan Head Screw 1/4"-20x1/2" (2)
Hex Head Screw #8x1" (2)
Self Tapping Screw #10-32 (2)
Drywall Anchor (2)
Wall Anchor (Screw-In) (2)
Handle
Rope
Insulated Staples
Lock Template
Door Control
(MyQ® Control Panel)
Model 888LM
6

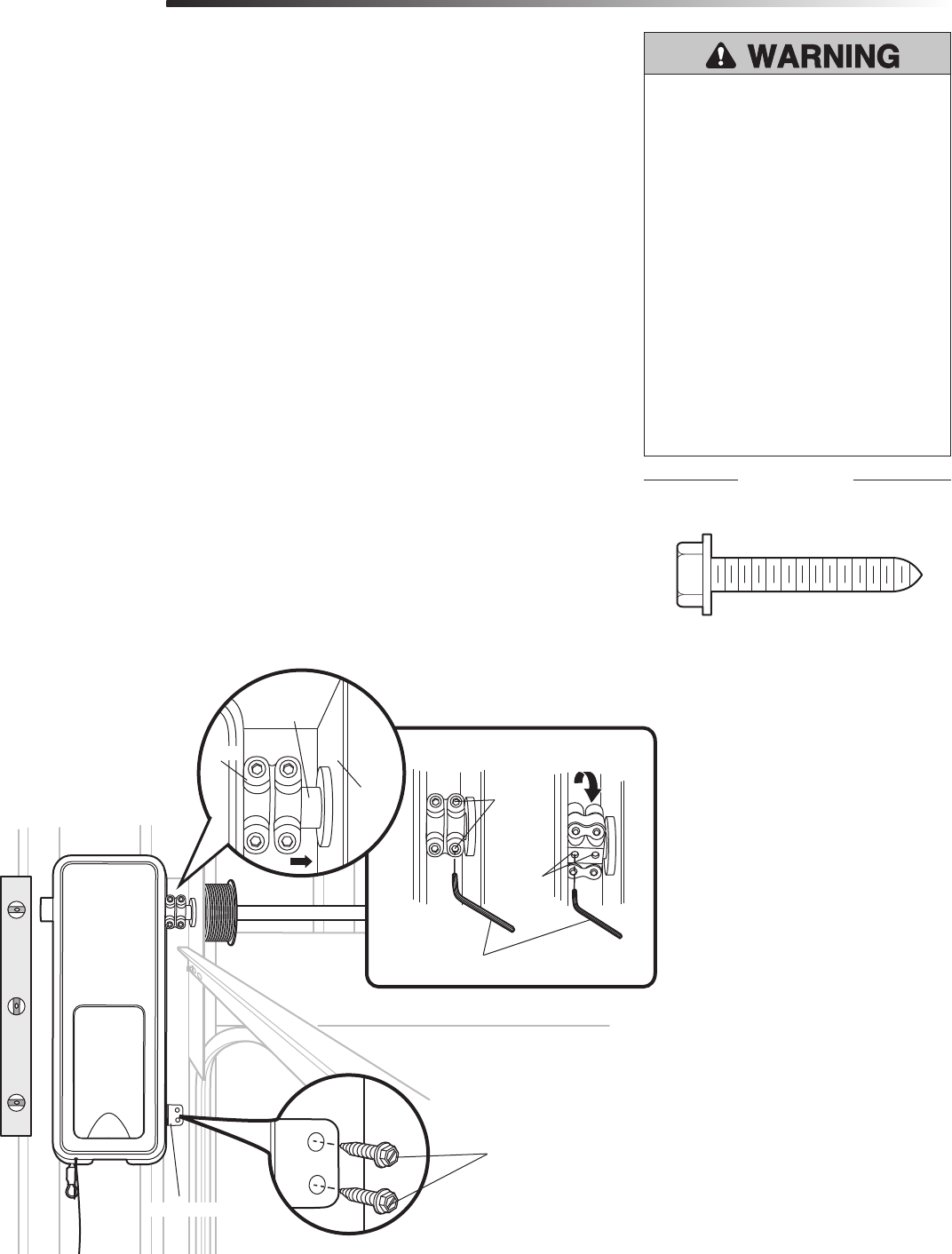

To avoid installation diffi culties, do not run the garage door garage door opener until instructed
to do so.
The garage door opener can be installed on either side of the door (see PLANNING section
page 3). The illustrations shown are for installation on the left side.

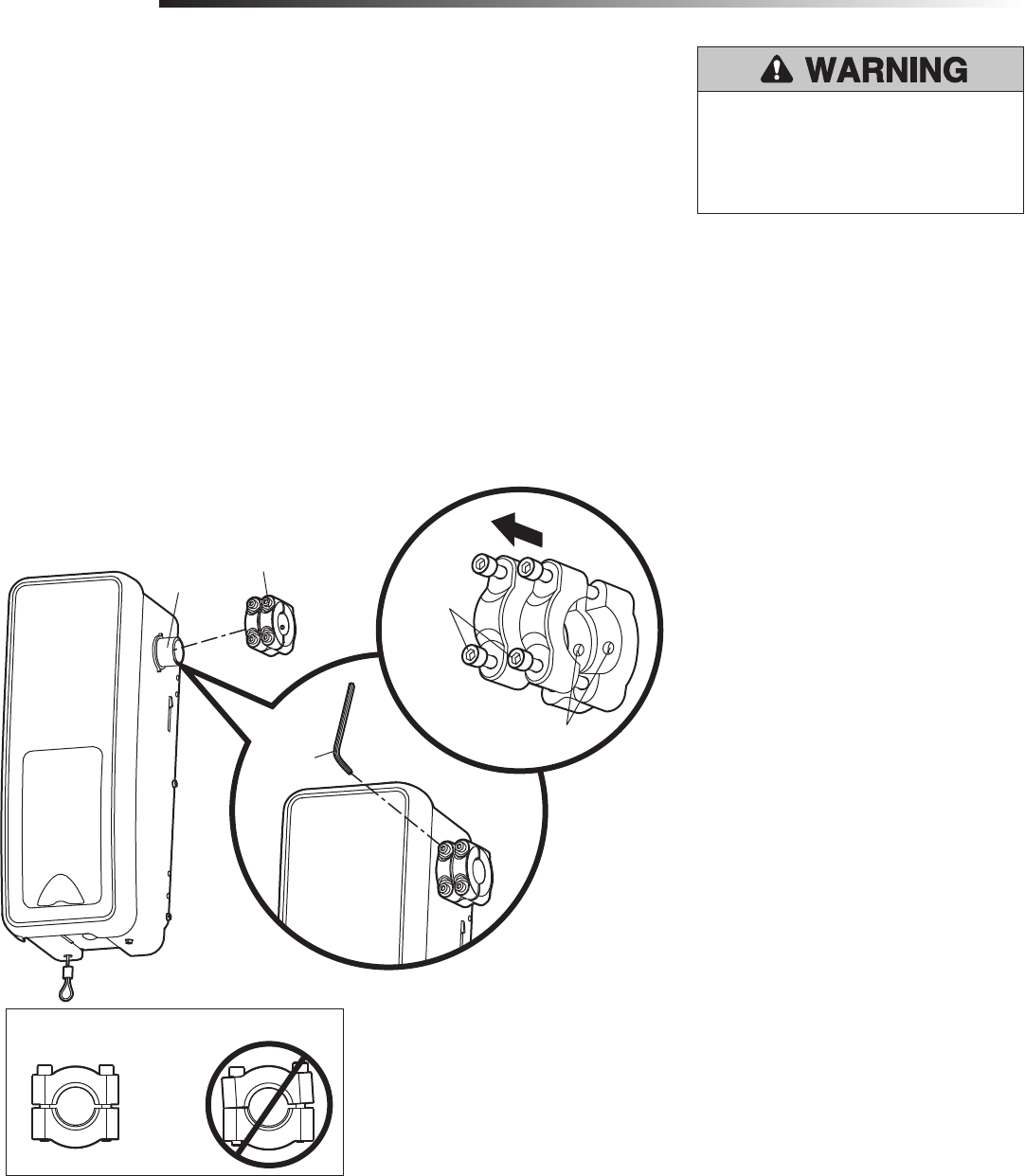

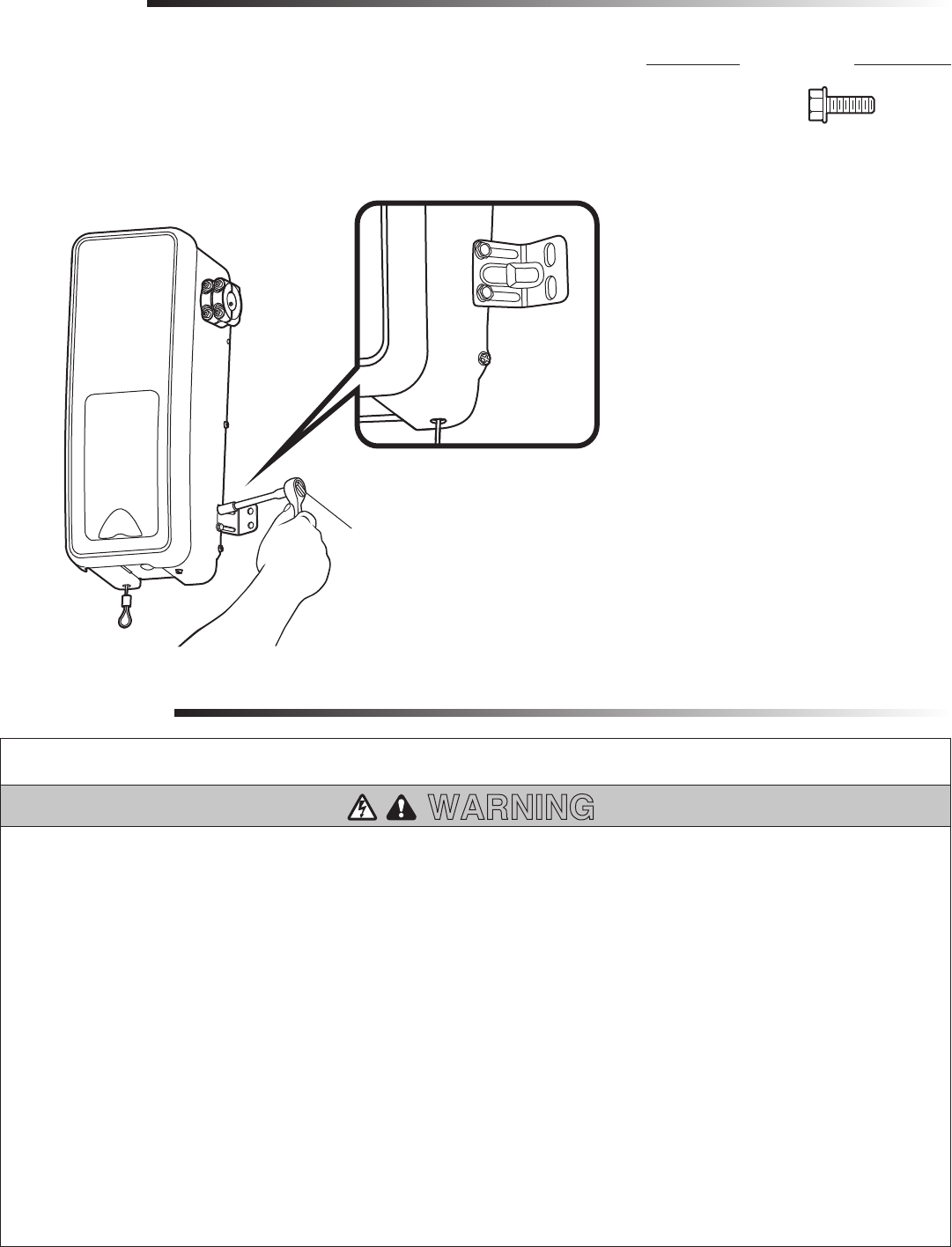

1. Loosen the collar screws.
2. Attach collar to the garage door opener motor shaft. The side of the collar with the
larger hole should be placed on the motor shaft. Ensure that the collar is seated all the
way on motor shaft until stop is reached.
3. Position the collar so the screws are facing out and are accessible when attached to
the torsion bar.
4. Tighten the screws on both sides of the collar equally to secure collar to the motor
shaft (to 12-14 ft./lbs. of torque).
NOTE: Do not tighten set screws until indicated.
Attach the Collar to the Garage Door Opener
Assembly
1
To prevent possible SERIOUS INJURY
or DEATH, the collar MUST be properly
tightened. The door may NOT reverse
correctly or limits may be lost due to
collar slip.
RIGHT WRONG
3/16 Hex
Key Wrench
Collar Screws
Set Screws
Collar
Motor Shaft
7
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
WARNING
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND
INSTRUCTIONS.
2. Install door operator ONLY on properly balanced and
lubricated door. An improperly balanced door may NOT
reverse when required and could result in SEVERE INJURY
or DEATH.
3. ALL repairs to cables, spring assemblies and other
hardware MUST be made by a trained door systems
technician BEFORE installing garage door opener.
4. Disable ALL locks and remove ALL ropes connected to
door BEFORE installing garage door opener to avoid
entanglement.
5 Mount the emergency release within reach, but at least 6
feet (1.83 m) above the fl oor and avoiding contact with
vehicles to avoid accidental release.
6. NEVER connect door operator to power source until
instructed to do so.
7. NEVER wear watches, rings or loose clothing while
installing or servicing the garage door opener. They could
be caught in door or operator mechanisms.
8. Install wall-mounted door control:
• within sight of the door.
• out of reach of children at minimum height of 5 feet
(1.5 m).
• away from ALL moving parts of the door.
9. Install the Entrapment Warning Placard next to the door
control in a prominent location.
10. Place manual release/safety reverse test label in plain view
on inside of door.
11. Upon completion of installation, test safety reversal
system.
Attach Mounting Bracket to Garage Door Opener
2
1. Loosely attach slotted side of mounting bracket to the same side of the garage door
opener as the collar, using self-threading screws provided.
NOTE: Do not tighten screws until instructed.
Socket Wrench
Assembly
HARDWARE
Screw
#10-32 (2)
8
Installation
HARDWARE

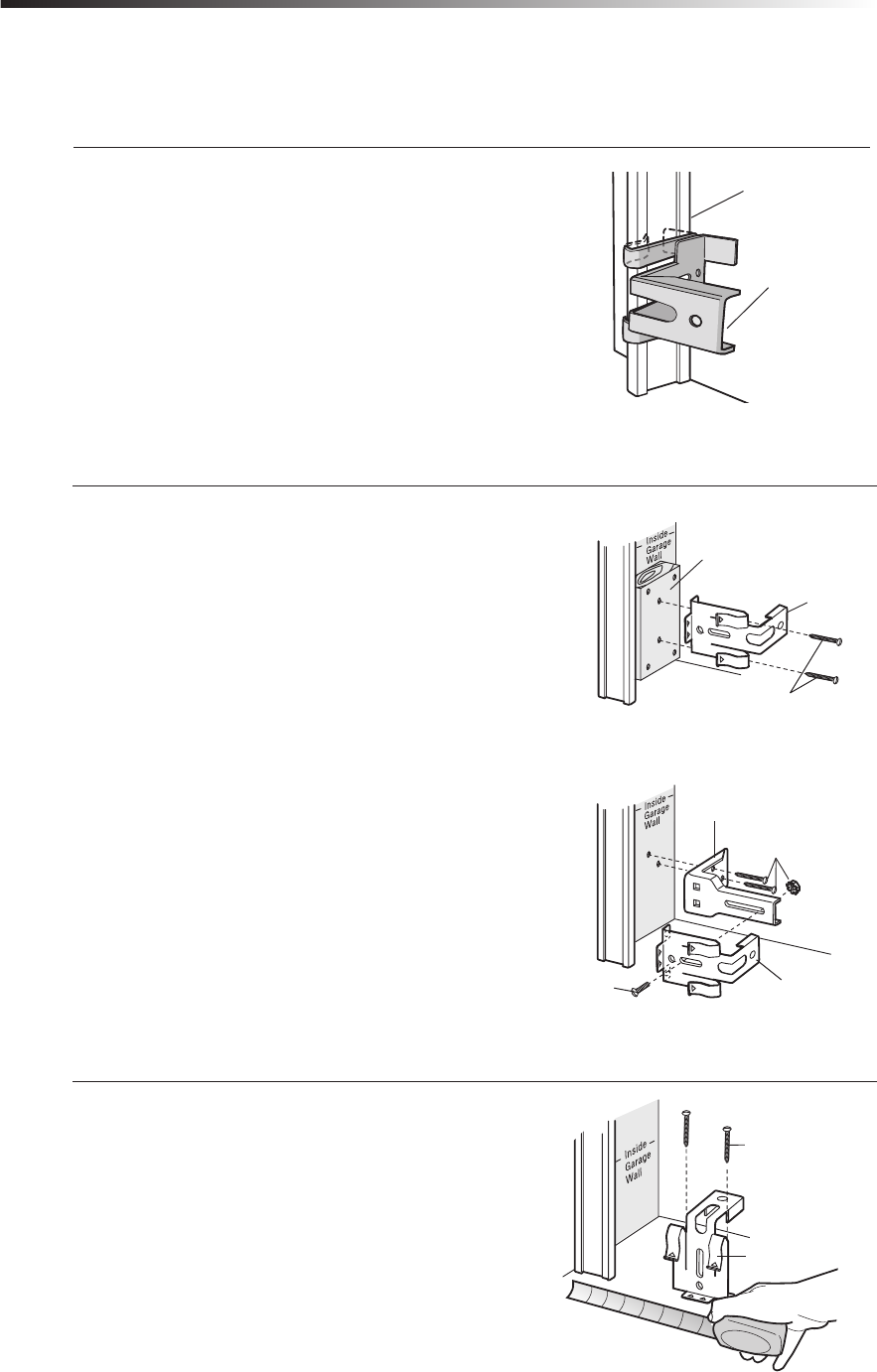

Position and Mount the Garage Door Opener
1
NOTE: For additional mounting options refer to the accessories page.
1. Close the garage door completely.
2. Slide the garage door opener onto the end of the torsion bar. If the torsion bar is too
long or damaged, you may need to cut the torsion bar. Ensure the collar does not
touch the bearing plate.
3. Use a level to position and vertically align the garage door opener. Verify the mounting
bracket is located on a solid surface such as wood, concrete or door/fl ag bracket.
4. When the garage door opener is properly aligned, mark the mounting bracket holes.
If necessary, tighten collar screws on the torsion bar to hold garage door opener in
place while marking holes.
NOTE: The garage door opener does not have to be fl ush to wall.
5. Remove the garage door opener from torsion bar. Drill 3/16 inch pilot holes at the
marked locations. Drill through steel plate if necessary.
6. Slide the garage door opener back onto the torsion bar until pilot holes align with
bracket. Securely tighten collar screws to the torsion bar to 12-14 ft./lbs. of torque
(Figure 1).
7. Securely tighten both set screws (Figure 1).
NOTE: You may need to manually raise the door slightly in order to reach the
set screws.
8. Secure the mounting bracket to the wall and to the garage door opener. Use the
14-10x1-7/8 inch screws to secure the mounting bracket to the wall.
9. Secure the antenna wire with a staple to prevent antenna from being entangled in a
door roller.
To prevent possible SERIOUS INJURY
or DEATH:
• Concrete anchors MUST be used if
mounting bracket into masonry.
• NEVER try to loosen, move or
adjust garage door, springs, cables,
pulleys, brackets or their hardware,
ALL of which are under EXTREME
tension.
• ALWAYS call a trained door systems
technician if garage door binds,
sticks or is out of balance. An
unbalanced garage door might NOT
reverse when required.
• Operator MUST be mounted at a
right angle to the torsion bar to avoid
premature wear on the collar.
Set Screws
3/16" Hex Key Wrench
Bearing
Plate
Insulated Staples
(Not shown)
14-10x1-7/8" Hex Screws (2)
Collar
Torsion Bar
Collar
Screws
FIGURE 1
Mounting Bracket
Screws 14-10x1-7/8"
9

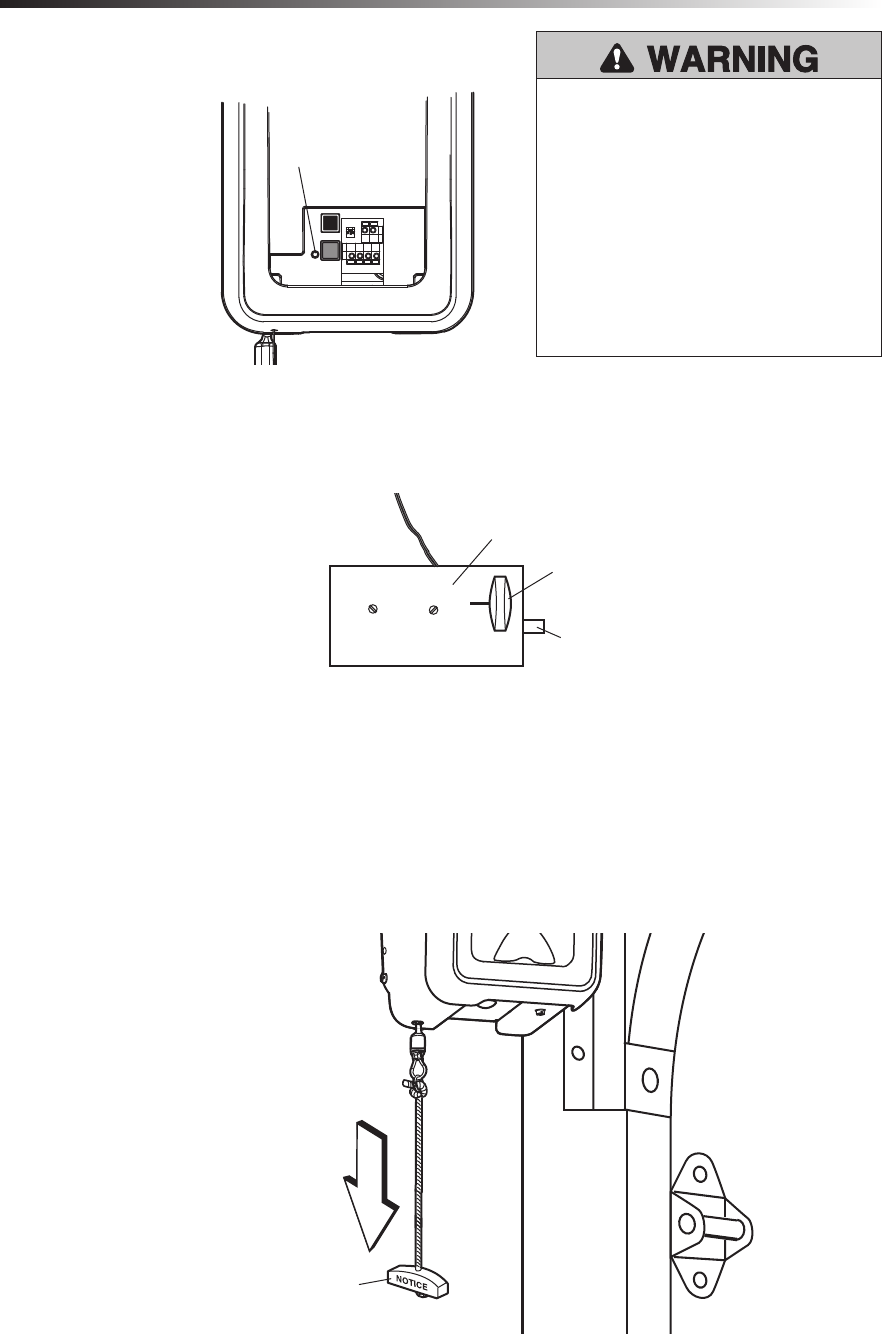

Attach the Emergency Release Rope and Handle
Install Power Door Lock
2
3
1. Thread one end of the rope through the hole in the top of the red handle so “NOTICE”
reads right side up as shown. Secure with an overhand knot at least 1 inch (2.5 cm)
from the end of the rope to prevent slipping.
2. Thread the other end of the rope through the loop in the emergency release cable.
Adjust rope length so the handle is no higher than 6 feet (1.83 m) above the fl oor.
Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal the cut end with a match or lighter to
prevent unraveling.

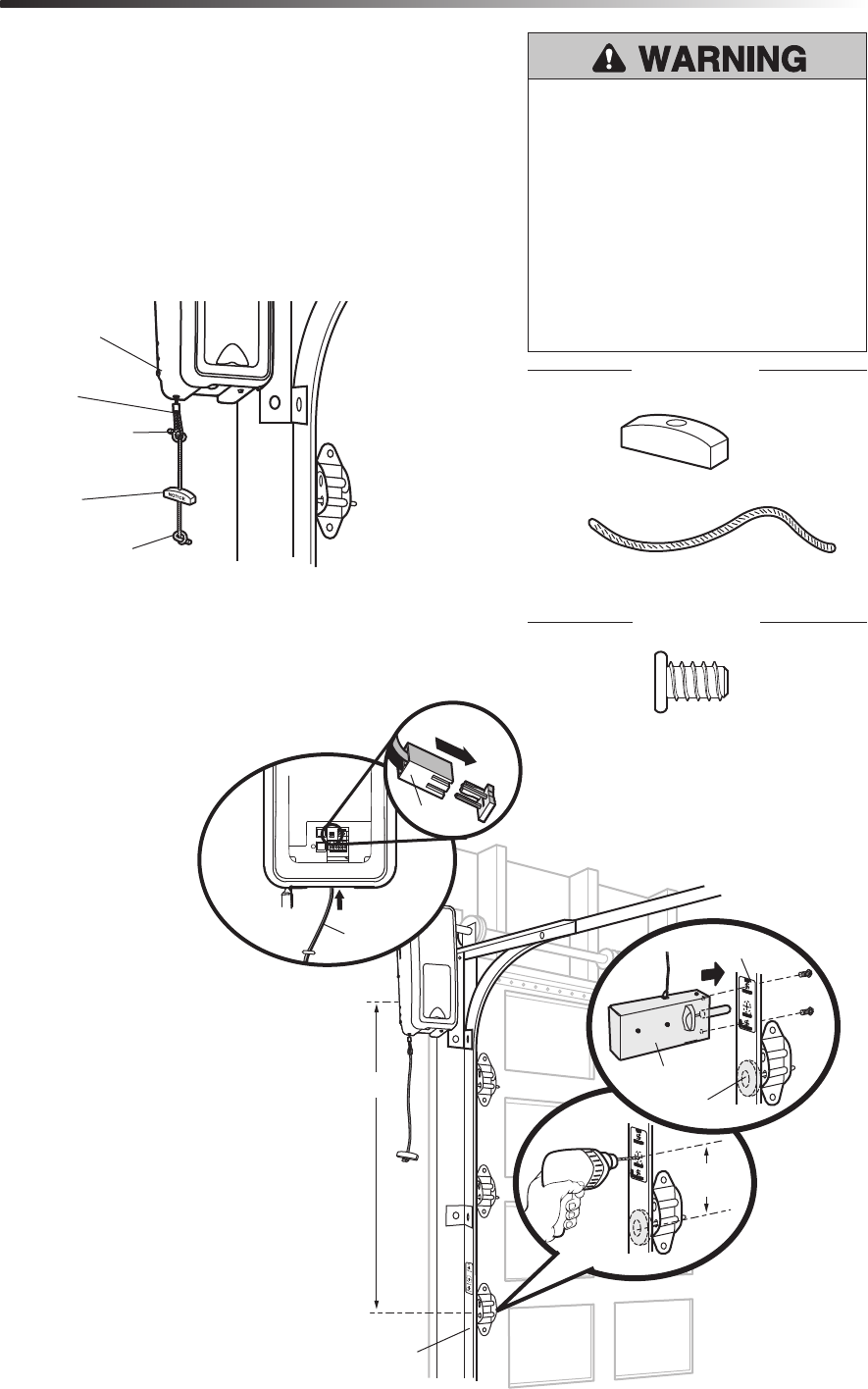

1. The power door lock must be mounted
within 10 feet (3.01 m) of garage door
opener with approximately a 3 inch (7.6
cm) distance between the center of a
door roller and the hole for the power
door lock bolt. If possible, mount on
same side as garage door opener. The
second roller from the bottom is ideal
for most installations.
2. Ensure rail surface is clean and attach
lock template to track.
3. Drill holes as marked on the template.
4. Fasten power door lock to the outside
of the garage door track with hardware
provided.
5. Run bell wire up wall to garage door
opener. Use insulated staples to secure
wire in several places. Insert wire
through the bottom of the garage door
opener.
6. Plug the connector into the garage
door opener.
Installation
The power door lock is used to prevent the garage door from being manually opened once the
door is fully closed.
Garage Door Opener
Emergency
Release Cable
Overhand
Knot
Overhand
Knot
Emergency
Release Handle
To prevent possible SERIOUS INJURY
or DEATH from a falling garage door:
• If possible, use emergency release
handle to disengage door ONLY when
garage door is CLOSED. Weak or
broken springs or unbalanced door
could result in an open door falling
rapidly and/or unexpectedly.
• NEVER use emergency release handle
unless garage doorway is clear of
persons and obstructions.
Roller
Approx. 3"
(7.6 cm)
10 feet (3.01 m) max.
Garage Door
Track
Lock Template
HARDWARE
Insulated Staples
(Not shown)
Lock Screws
1/4"-20x1/2" (2)
Rope
Handle
HARDWARE
Connector
Door Lock
Bell Wire
10
HARDWARE

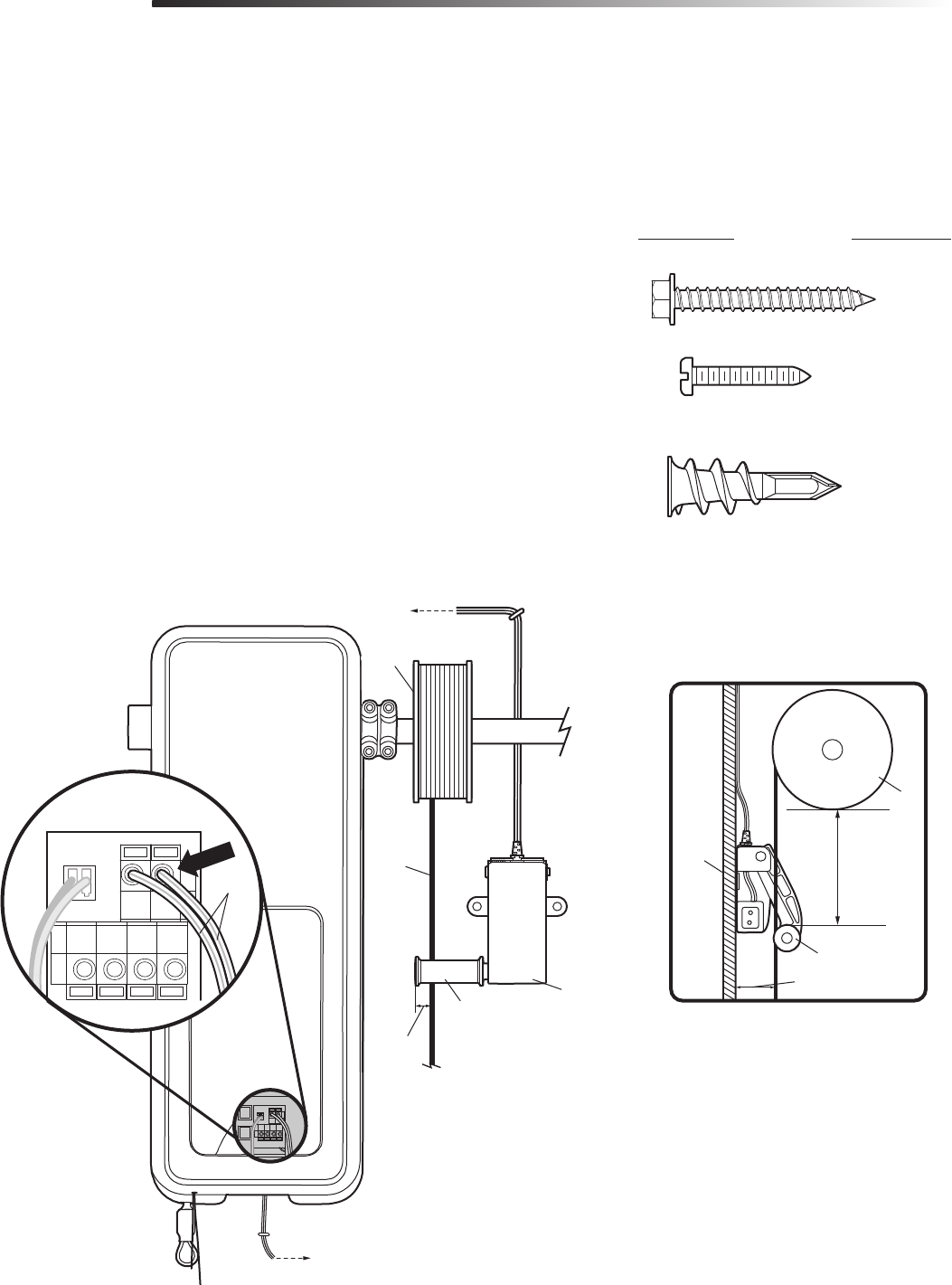

Attach the Cable Tension Monitor (Required)
4
NOTE: The cable tension monitor is shipped for left side installation. It is recommended
that the cable tension monitor be installed on the same side of the door as the garage door
opener. For right side installation, remove the snap-ring holding the roller in place and
reassemble it on the opposite side of the cable
tension monitor.
1. Position the cable tension monitor as close to the drum as possible. Make sure cable
tension monitor is located over a wood support member and the roller is free from any
obstructions.
NOTE: There must be no obstructions in the installation area that prevent the cable
tension monitor or the cable itself from closing completely when slack is detected.
2. Mark and drill 3/16 inch pilot holes for screws (pilot holes are not required for
anchors).
NOTE: If the cable tension monitor cannot be mounted into wood with the lag screws
provided, it can be mounted into 1/2 inch or greater drywall using the wall anchors (2)
and the #8 hex screws (2) provided in the hardware bag.
3. Attach the cable tension monitor to the wall using the hardware provided. Make sure
that the roller is on top of the cable.
4. Run bell wire to garage door opener. Use insulated staples to secure wire.
5. Connect bell wire to the green quick-connect terminals on the garage door opener
(polarity is not important).
NOTE: Cable must have tension through entire door travel. Make sure there is no slack
in cable on opposite side of garage door during normal operation. If slack occurs
during door travel, adjust cables as required.
Drum
Cable
To insert or release wire, push
in tab with screwdriver tip
(to cable tension monitor)
(to garage door opener)
WHT/GRN
Wall 2"-6"
(5-15 cm)
3/4" Min.(18 cm Min.)
Cable Tension
Monitor
Cable Tension
Monitor Roller
1/8"-1/4"
(3-6 cm)
Installation
The cable tension monitor MUST be connected
and properly installed before the garage door
opener will move in the down direction.
The cable tension monitor detects ANY slack
that may occur in the cables and will reverse
the door, eliminating service calls.
SIDE VIEW
#8 Hex Head Screw (2)
Insulated Staples
(Not shown)
#8 Hex Head Screw (2)
Screw #6 (2)
Wall Anchor (2)
Drum
Cable Tension
Monitor Roller
11

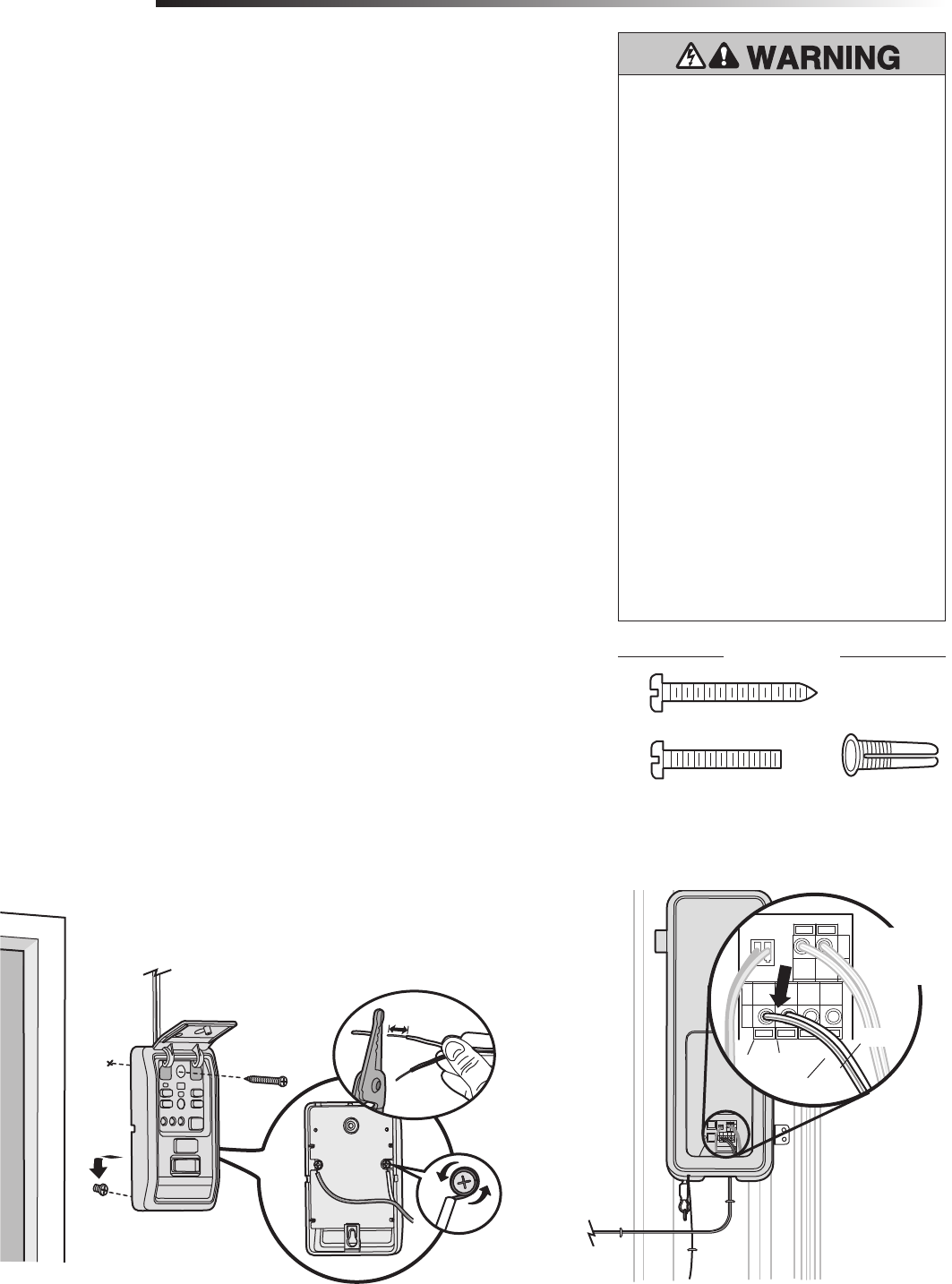

Install the door control within sight of the door at a minimum height of 5 feet (1.5 m) where
small children cannot reach, and away from the moving parts of the door.
For gang box installations it is not necessary to drill holes or install the drywall
anchors. Use the existing holes in the gang box.
NOTE: Due to power consumption this door control (Model 888LM) cannot be used in
conjunction with another wired door control connected to your garage door opener. If
an additional door control is needed, the wireless door control model 885LM can be
programmed to the door control (Model 888LM).
1. Strip 7/16" (11 mm) of insulation from one end of the wire and separate the wires.
2. Connect wires to the door control. Make sure the polarity is correct.
• Red wire to the RED terminal.
• White wire to the WHT terminal.
3. Mark the location of the bottom mounting hole and drill a 5/32" (4 mm) hole.
4. Install the bottom screw, allowing 1/8" (3 mm) to protrude from the wall.
5. Position the bottom hole of the door control over the screw and slide down into
place.
6. Lift the push bar up and mark the top hole.
7. Remove the door control from the wall and drill a 5/32" (4 mm) hole for the top
screw.
8. Position the bottom hole of the door control over the screw and slide down into
place. Attach the top screw.
9. Run the white and red/white wire from the door control to the garage door opener.
Attach the wire to the wall and ceiling with the staples (not applicable for gang box
or pre-wired installations). Do not pierce the wire with the staple as this may cause
a short or an open circuit.
10. Strip 7/16" (11 mm) of insulation from the end of the wire near the garage door
opener. Connect bell wire to the quick-connect terminals on the garage door
opener: white to white and white/red to red.
11. Fasten the warning placard to the wall next to the door control.
NOTE: DO NOT connect the power and operate the garage door opener at this time. The
door will travel to the full open position but will not return to the close position until the
sensor beams are connected and properly aligned. See page 13.
Install the Door Control (MyQ® Control Panel)
5
Installation
To prevent possible SERIOUS INJURY or
DEATH from electrocution:
• Be sure power is NOT connected
BEFORE installing door control.
• Connect ONLY to 7-28 VOLT low
voltage wires.
To prevent possible SERIOUS INJURY or
DEATH from a closing garage door:
• Install door control within sight of
garage door, out of reach of children
at a minimum height of 5 feet (1.5 m),
and away from ALL moving parts of
door.
• NEVER permit children to operate or
play with door control push buttons or
remote control transmitters.
• Activate door ONLY when it can be
seen clearly, is properly adjusted,
and there are no obstructions to door
travel.
• ALWAYS keep garage door in sight
until completely closed. NEVER permit
anyone to cross path of closing garage
door.
HARDWARE
Red White
WHT/RED
WHT
To insert or
release wire,
push in tab with
screwdriver tip
7/16" (11 mm)
Screw 6ABx-1-1/4"
(Standard installation) (2)
Screw 6-32x1" (pre-wired) (2) Drywall Anchors (2)
Insulated Staples
(Not shown)
(to garage door opener)
(to door
control)
12
The remote light (garage door opener light)
is designed to plug directly into a standard
120V outlet. Select an appropriate location
on the ceiling to mount the light within 6
feet (1.8 m) of an electrical outlet so that
the cord and light are away from moving
parts.

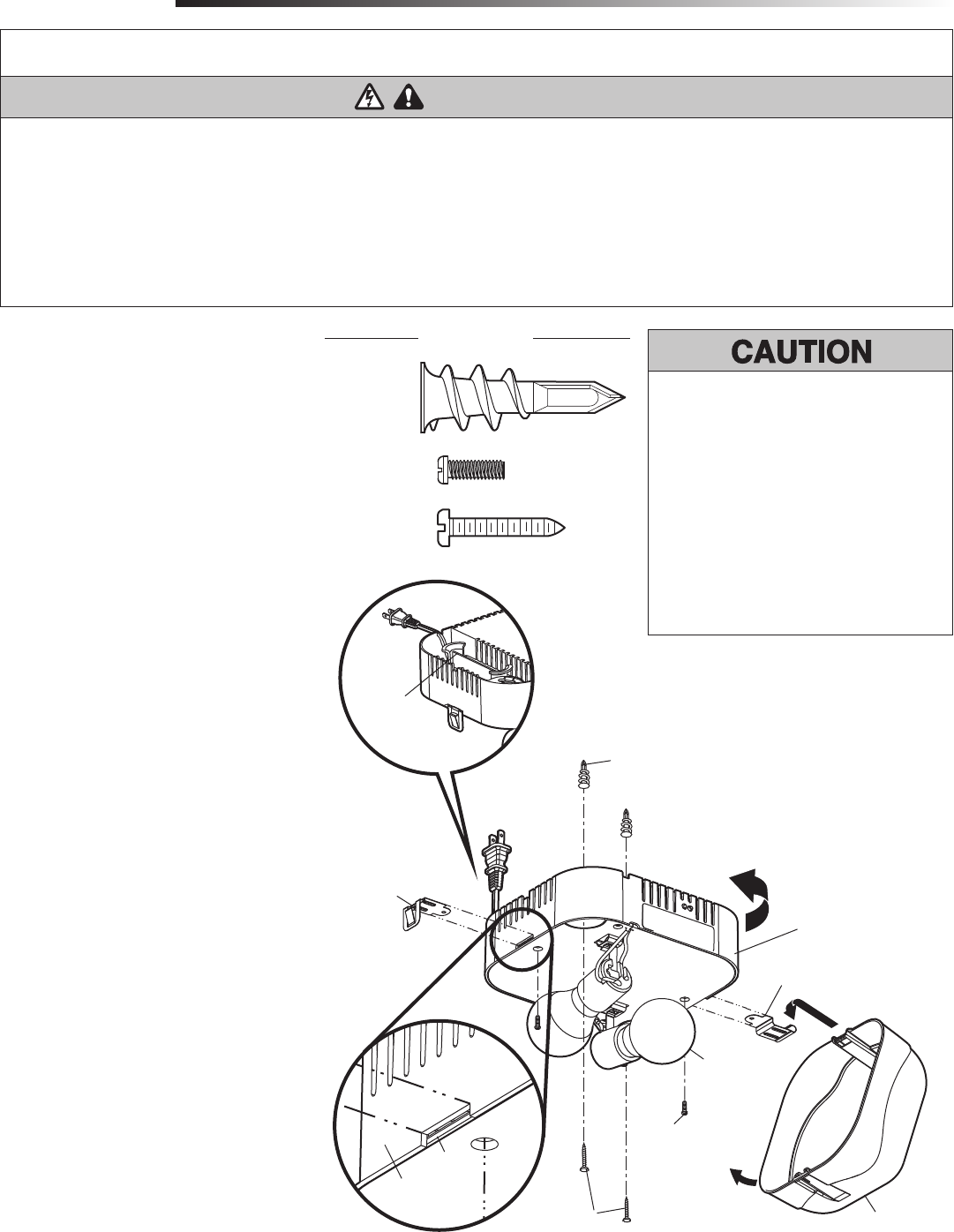

1. Install the hinge and latch clips. Clips
slide in between the metal plate and the
plastic housing on each side of the light
base.
2. Install screws into the ceiling leaving
1/8 inch (3.1 mm) of the thread
exposed.
NOTE: If installing light on drywall and
a ceiling joist cannot be located, use
wall anchors provided. No pilot hole is
required for wall anchors.
3. Determine the length of power cord
needed to reach the nearest outlet.
Wind any excess cord around cord
retainer on the top side of the light
base.
4. Install the light base by pushing onto
the screws and turning the base
clockwise to lock the light in place.
5. Install two Type A19 incandescent or
compact fl uorescent bulbs (100 watt
maximum per bulb, 200 watts total).
NOTE: Do not use LED bubs as they
may reduce the range or performance
of your remote control(s).
6. Install the light lens by hooking one end
of the lens over the hinge and pressing
up on the other end to latch into place.
7. Plug in the light to outlet.
NOTE: Light will not operate until the
garage door opener is activated.
Install Remote Light
6
Installation
To prevent possible OVERHEATING of
the endpanel or light socket:
• DO NOT use short neck or specialty
light bulbs.
• DO NOT use halogen bulbs. Use
ONLY incandescent.
• DO NOT use bulbs larger than 100W.
• ONLY use A19 size bulbs.
To provide an adequate visual alert, the
garage door opener light bulb MUST be
a minimum of 40 Watt (or equivalent).
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
WARNING
WARNING
WARNING WARNING
1. This portable luminaire has a polarized plug (one blade
is wider than the other) as a feature to reduce the risk of
electric shock.
2. This plug will fi t in a polarized outlet ONLY one way.
3. If the plug does not fi t fully in the outlet, reverse the plug.
4. If it still does not fi t, contact a qualifi ed electrician.
5. NEVER use with an extension cord unless plug can be
fully inserted.
6. DO NOT alter the plug.
7. Light is intended for ceiling mount and indoor applications
ONLY.
Latch Clip
Light Clip
Screw
Screws Light Lens
Wall Anchor
Cord
Retainer
100 Watt
(max.)
Metal
Plate
Plastic
Housing
Hinge Clip
Wall Anchor (2)
HARDWARE
Light Clip Screw
#4-20x7/16" (2)
Screw
#6x1" (2)
Light Base
13
The safety reversing sensor must be connected and aligned correctly before the garage door
opener will move in the down direction. This is a required safety device and cannot be disabled.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR
When properly connected and aligned, the safety reversing sensor will detect an obstacle
in the path of its electronic beam. The sending eye (with an amber indicator light)
transmits an invisible light beam to the receiving eye (with a green indicator light). If an
obstruction breaks the light beam while the door is closing, the door will stop and reverse
to full open position, and the opener lights will fl ash 10 times.
The units must be installed inside the garage so that the sending and receiving eyes face
each other across the door, no more than 6 inches (15 cm) above the fl oor. Either can be
installed on the left or right of the door as long as the sun never shines directly into the
receiving eye lens.
The mounting brackets are designed to clip onto the track of sectional garage doors
without additional hardware.
If it is necessary to mount the units on the wall, the brackets must be securely fastened to
a solid surface such as the wall framing. Extension brackets (see accessories) are available
if needed. If installing in masonry construction, add a piece of wood at each location to
avoid drilling extra holes in masonry if repositioning is necessary.
The invisible light beam path must be unobstructed. No part of the garage door (door
tracks, springs, hinges, rollers or other hardware) may interrupt the beam while the door
is closing.
Be sure power is NOT connected to the
garage door opener BEFORE installing
the safety reversing sensor.
To prevent SERIOUS INJURY or DEATH
from a closing garage door:
• Correctly connect and align the
safety reversing sensor. This
required safety device MUST NOT be
disabled.
• Install the safety reversing sensor so
beam is NO HIGHER than 6" (15 cm)
above garage fl oor.
Installation
Safety Reversing Sensor
6" (15 cm) max. above floor
Safety Reversing Sensor
6" (15 cm) max. above floor
Invisible Light Beam
Protection Area
Install the Protector System®
7
Facing the door from inside the garage.
14

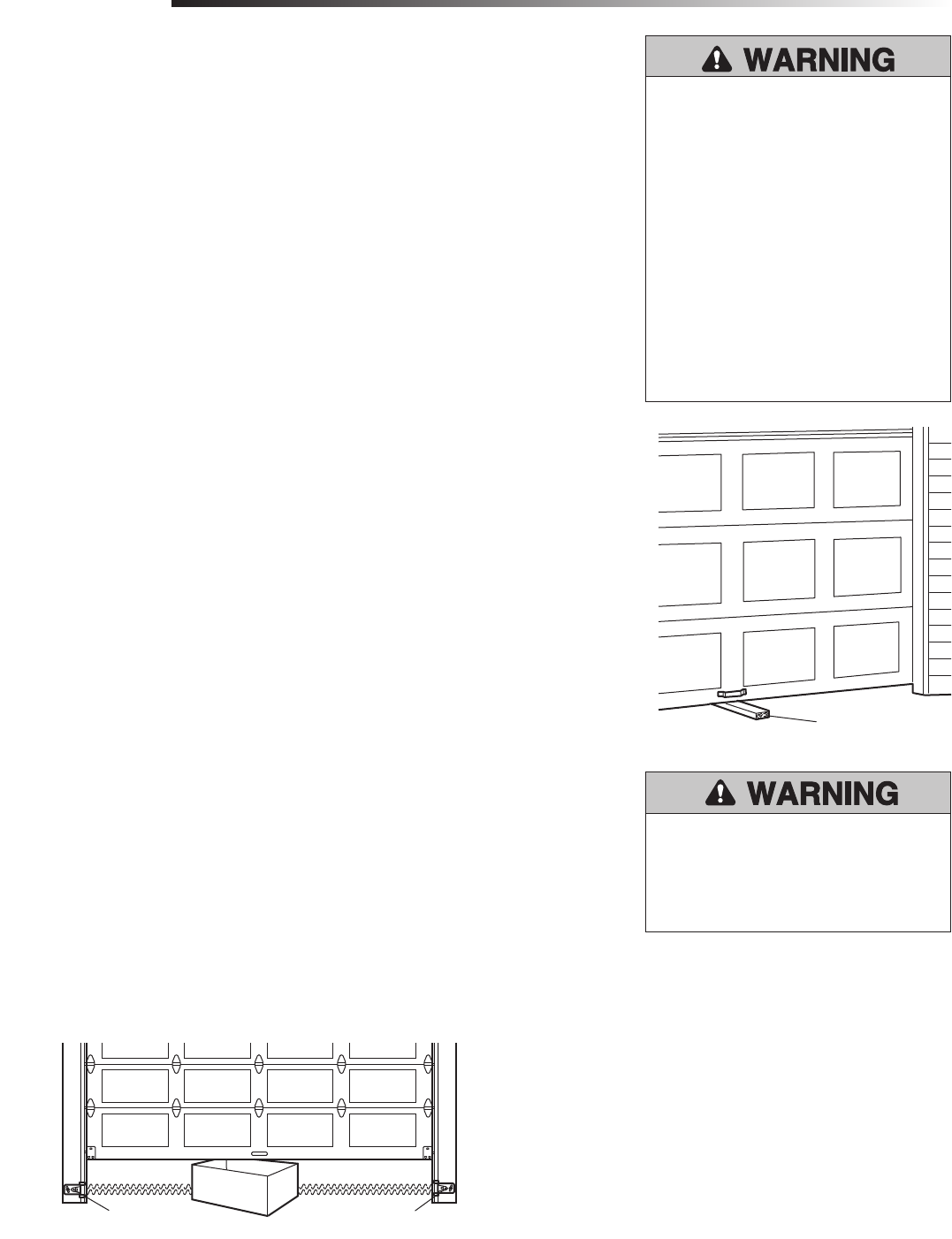

OPTION C: Floor Installation
1. Use wood blocks or extension brackets (see Accessories) to elevate sensor brackets
so the lenses will be no higher than 6" (15 cm) above the fl oor.
2. Carefully measure and place right and left assemblies at the same distance out from
the wall. Be sure all door hardware obstructions are cleared.
3. Fasten to the fl oor with concrete anchors as shown.
Installation
Fasten Wood Block to Wall with
Lag Screws (not provided)
Attach with
Concrete Anchors
(not provided)
OPTION A: Track Installation
1. Slip the curved arms over the rounded edge of each door track, with the curved arms
facing the door. Snap into place against the side of the track. It should lie fl ush, with
the lip hugging the back edge of the track, as shown.
If your door track will not support the bracket securely, wall installation is recommended.
OPTION B: Wall Installation
1. Place the bracket against the wall with curved arms facing the door. Be sure there is
enough clearance for the sensor beam to be unobstructed.
2. If additional depth is needed, an extension bracket (see Accessories) or wood blocks
can be used.
3. Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot
holes on the wall at each side of the door, no higher than 6" (15 cm) above the fl oor.
4. Attach brackets to wall with lag screws (not provided).
If using extension brackets or wood blocks, adjust right and left assemblies to the same
distance out from the mounting surface. Make sure all door hardware obstructions are
cleared.
INSTALLING THE BRACKETS
Be sure power to the opener is disconnected. Install and align the brackets so the safety reversing sensors will face each other across
the garage door, with the beam no higher than 6" (15 cm) above the fl oor. Choose one of the following installations.
Door Track
Safety Reversing
Sensor Bracket
Safety Reversing
Sensor Bracket
Lag Screws
(not provided)
Safety Reversing
Sensor Bracket
(Provided with
Extension Bracket)
Extension Bracket
(See Accessories)
Safety Reversing
Sensor Bracket
(Provided with
Extension Bracket)
15
Installation
WIRE THE SAFETY REVERSING SENSORS
1. Run the wire from both sensors to the garage door opener. Attach the wire to the wall
and ceiling with the staples.
2. Strip 7/16 inch (11 mm) of insulation from each set of wires. Separate the wires. Twist
the white wires together. Twist the white/black wires together.
3. Insert the white wires into the white terminal on the garage door opener. Insert the
white/black wires into the grey terminal on the garage door opener. To insert or
remove the wires from the terminal, push in the tab with a screwdriver tip.
7/16
(11 mm)
HARDWARE
WHT/
BLK
Bell wire
WHT

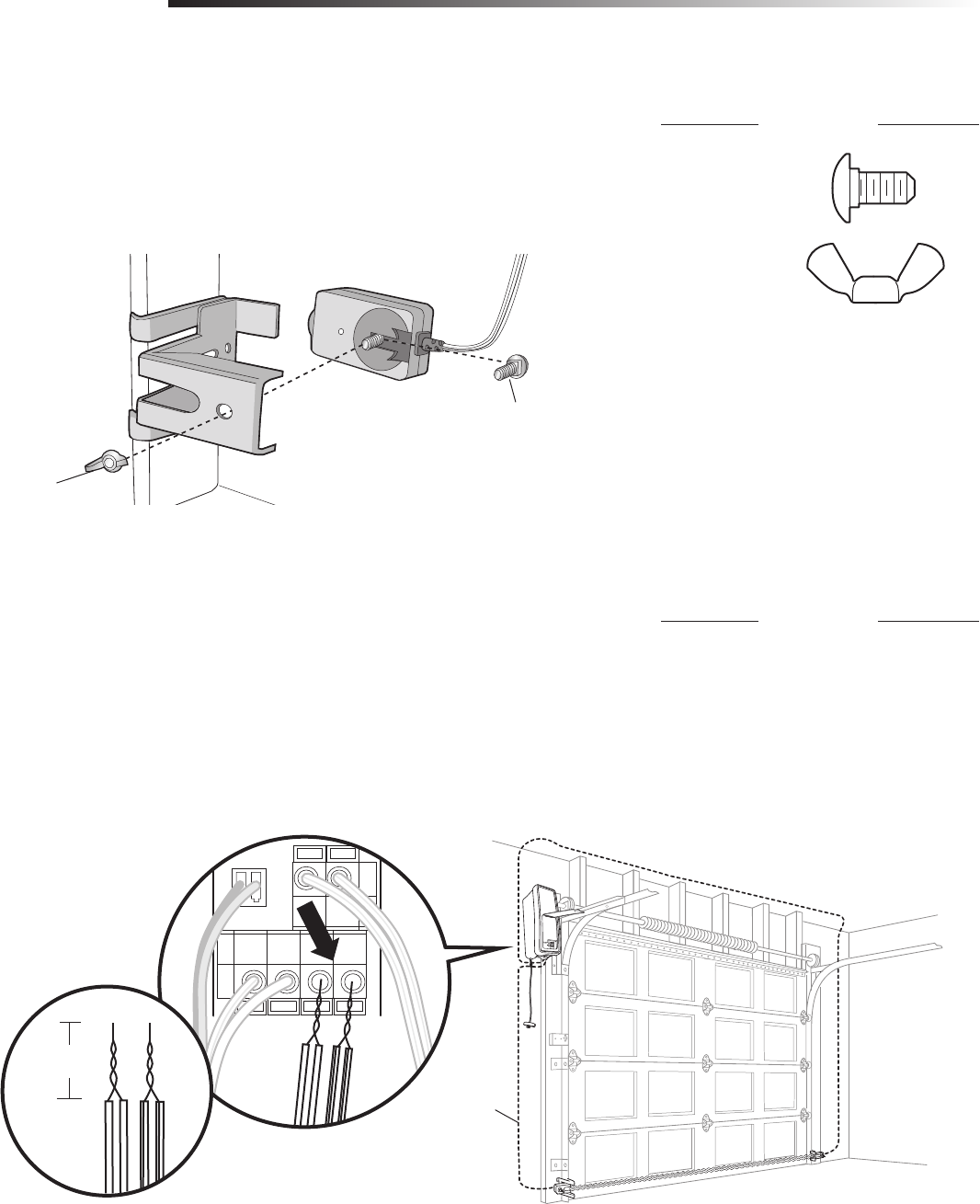

MOUNTING THE SAFETY REVERSING SENSORS
1. Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor.
2. Use wing nuts to fasten safety reversing sensors to brackets, with lenses pointing
toward each other across the door. Be sure the lens is not obstructed by a bracket
extension.
3. Finger tighten the wing nuts.
HARDWARE
Carriage Bolt
Wing Nut
Wing Nut
1/4"-20 (2)
Carriage Bolt
1/4"-20x1/2" (2)
Insulated Staples
(Not shown)
16
Ground
Tab Green Ground
Screw Ground Wire
Black Wire
From Power
Cord
White Wire
From Power
Cord
Flexible
Conduit
90˚ Connector
Green Wire White Wire
Black Wire
BACK VIEW
Connect Power
8
Installation

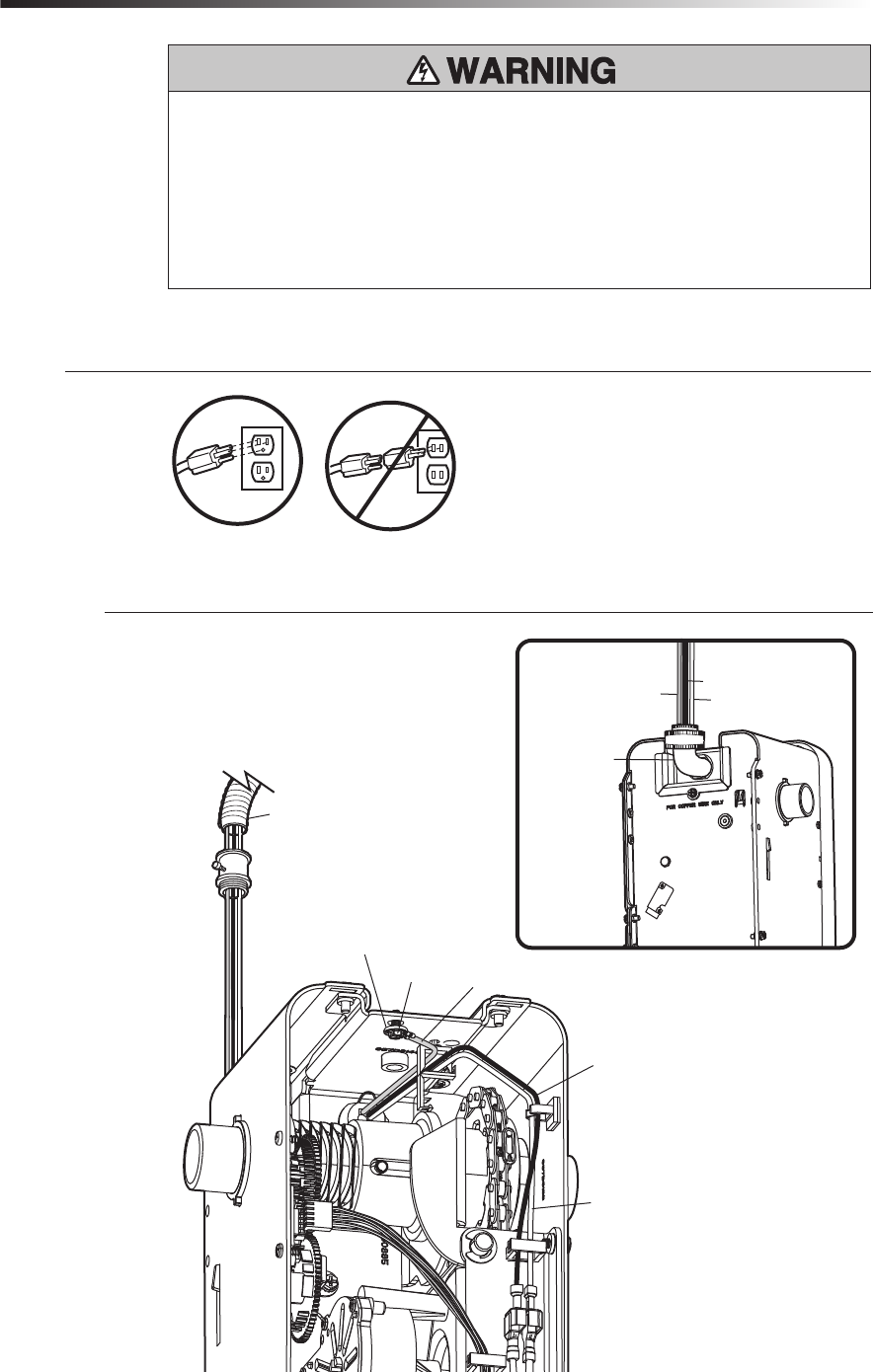

OPTION B: PERMANENT WIRING
CONNECTION
If permanent wiring is required by your local
code, refer to the following procedure.
To make a permanent connection through
the 7/8 inch hole in the back of the garage
door opener (according to local code):
1. Be sure power is NOT connected to
the opener, and disconnect power to
circuit.
2. Remove the garage door opener from
the torsion bar, remove cover screws
and set the cover aside.
3. Remove the attached green ground
terminal.
4. Cut black and white wires and strip
away 1/2 inch (1.3 cm) of insulation,
3 inch (7.6 cm) before spade terminals.
5. Remove the power cord from the
garage door opener.
6. Install a 90° conduit or fl ex cable
adapter to the 7/8 inch hole. Reinstall
garage door opener to torsion bar.
7. Run wires through conduit, cut to
proper length and strip insulation.
8. Attach with wire nuts provided.
9. Properly secure wire under plastic ties
so that wire does not come in contact
with moving parts.
10. Reinstall the cover.
To avoid installation diffi culties, do not run
the garage door opener at this time.
To reduce the risk of electric shock, your
garage door opener has a grounding type
plug with a third grounding pin. This plug
will only fi t into a grounding type outlet. If
the plug doesn’t fi t into the outlet you have,
contact a qualifi ed electrician to install the
proper outlet.
There are two options for connecting
power:
OPTION A: TYPICAL WIRING
1. Plug in the garage door opener into a
grounded outlet.
2. DO NOT run garage door opener at this
time.
To prevent possible SERIOUS INJURY or DEATH from electrocution or fi re:
• Be sure power is NOT connected to the opener, and disconnect power to circuit
BEFORE removing cover to establish permanent wiring connection.
• Garage door installation and wiring MUST be in compliance with ALL local electrical
and building codes.
• NEVER use an extension cord, 2-wire adapter or change plug in ANY way to make it
fi t outlet. Be sure the opener is grounded.
RIGHT
IMPORTANT NOTE: The model 580LM Alternate
Power Supply may be installed if an outlet is not
located near the garage door opener. MyQ® light
controls will continue to work however all other
MyQ® devices and TTC WILL NOT work if using
the Model 580LM Alternate Power Supply. If
you would like to use these features, contact an
electrician to install an outlet near to the garage
door opener.
WRONG
17
Receiving Sensor
Green LED
Sending Sensor
Amber LED
Installation

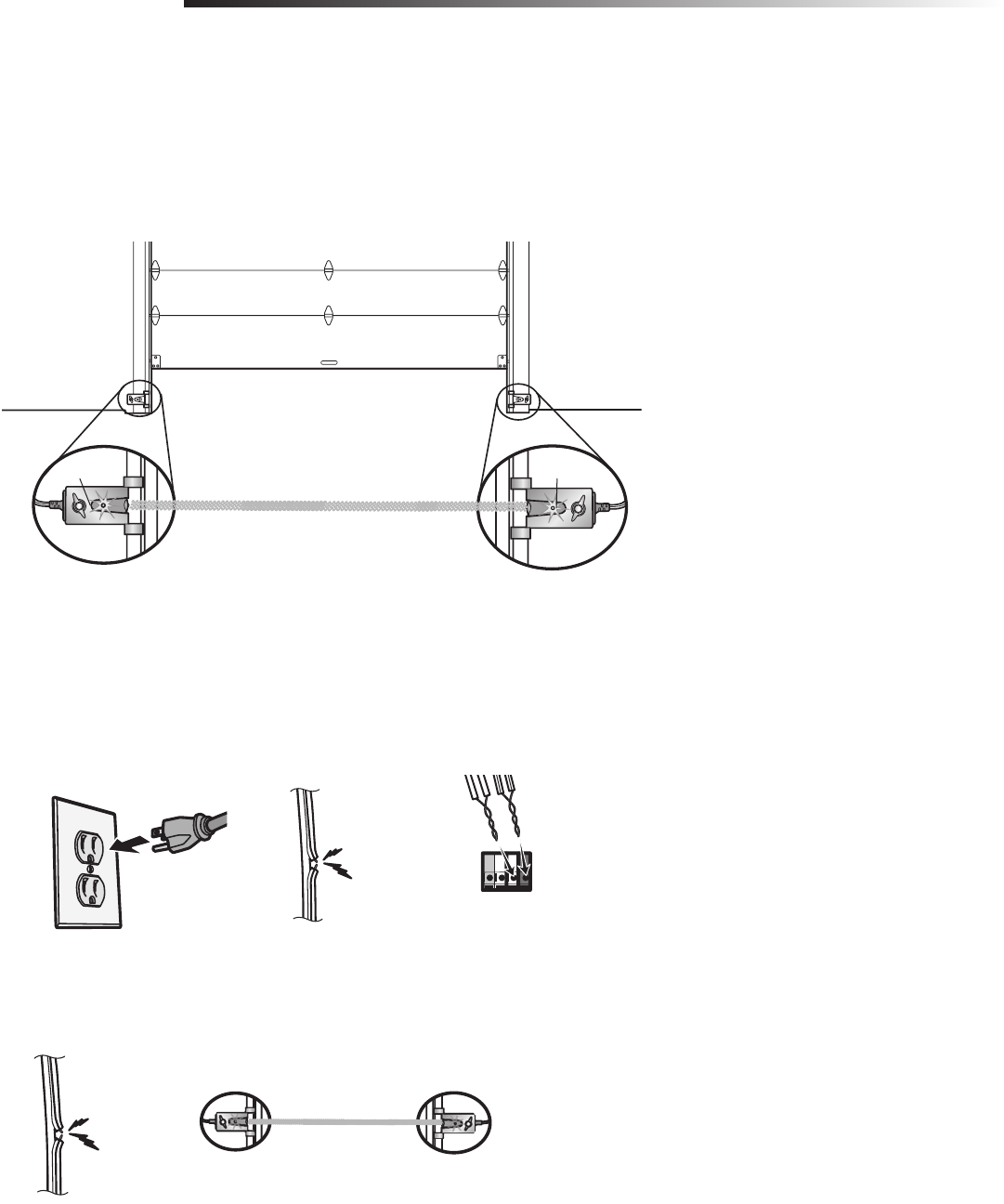

IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING:
• Make sure there is power to the garage door opener.
• Make sure the sensor wire is not shorted/broken.
• Make sure the sensor has been wired correctly: white wires to white terminal and
white/black wires to grey terminal.
If the receiving sensor is in direct
sunlight, switch it with sending
sensor so it is on the opposite side
of the door.
(invisible light beam)
ENSURE THE SAFETY REVERSING SENSORS ARE ALIGNED
The door will not close if the sensors have not been installed and aligned correctly.
When the light beam is obstructed or misaligned while the door is closing, the door will
reverse and the garage door opener lights will fl ash ten times. If the door is already open,
it will not close. The sensors can be aligned by loosening the wing nuts, aligning the
sensors, and tightening the wing nuts.
1. Check to make sure the LEDs in both sensors are glowing steadily. The LEDs in both
sensors will glow steadily if they are aligned and wired correctly.
ENSURE THE DOOR CONTROL IS WIRED CORRECTLY
The yellow command LED and the red learn LED on the door control will blink quickly for
up to 5 minutes as the door control recharges. When the door control is operational, the
yellow command LED will glow steadily.
ROJO
BLANCO
BLANCO
GRIS
ROUGE
BLANC
BLANC
GRIS
RED
WHITE
WHITE
GREY
IF THE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:
• Make sure the sensor wire is not shorted/broken.
• Make sure the sensors are aligned.
18
When in Battery Backup mode, wireless MyQ® devices and Timer-To-Close will be disabled.
If the optional Battery Backup is part of this installation it should be installed at this time.
The Battery Backup can be mounted to either the ceiling or a wall within 3 feet (.9 m) of
the garage door opener.
1. Position the Battery Backup on a structural support (ceiling joist or wall stud).
2. Attach the Battery Backup to the support with the 1-1/2 inch lag screws (2) provided.
There are mounting holes on either side of the Battery Backup.

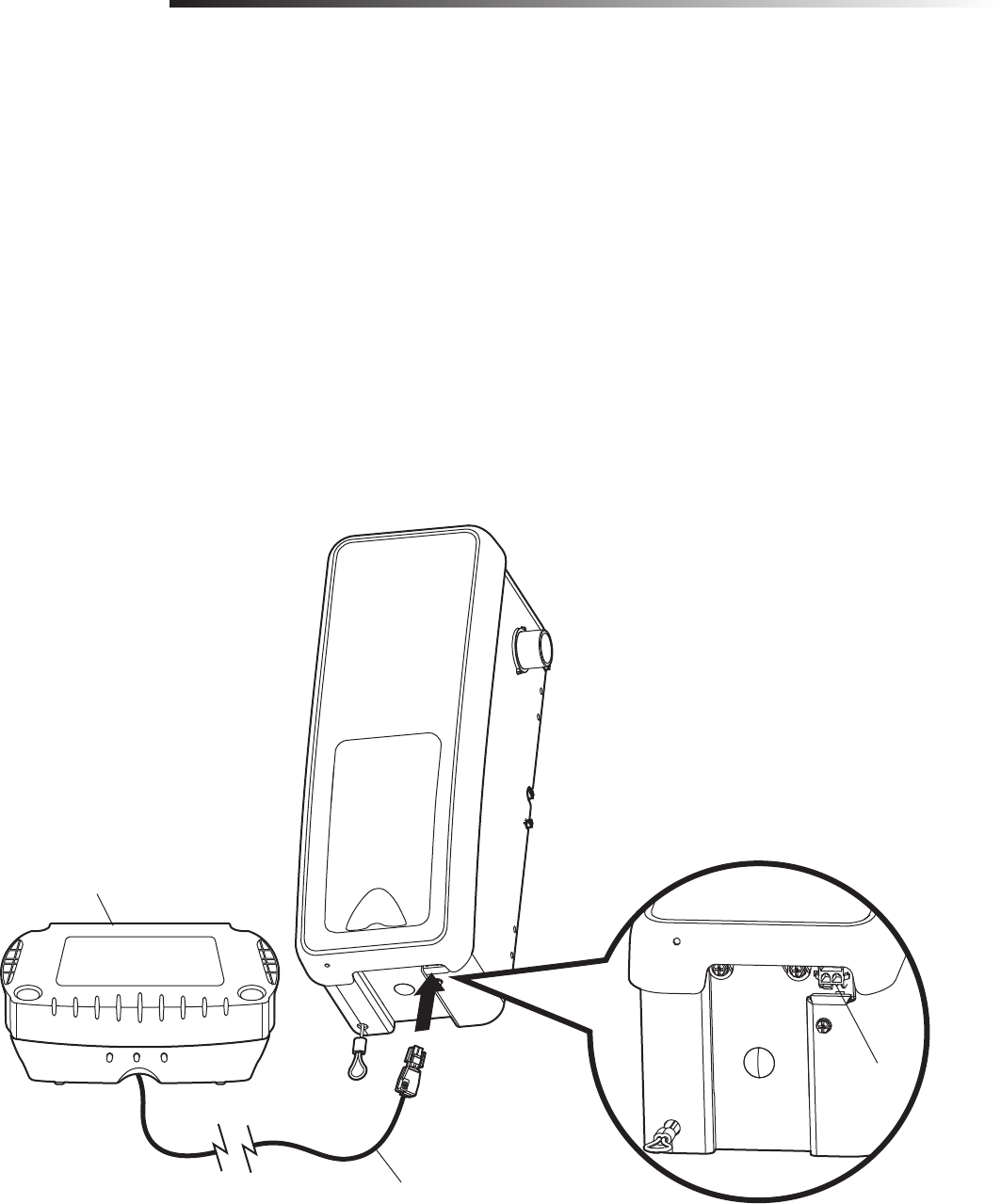

3. Connect the Battery Backup cord into the connector on the bottom of the garage door
opener.
4. Follow all instructions included with the Battery Backup to test for proper operation.
Install the Battery Backup (optional)
9
Installation
Battery Backup Cord
475LM Battery Backup
Connector
19

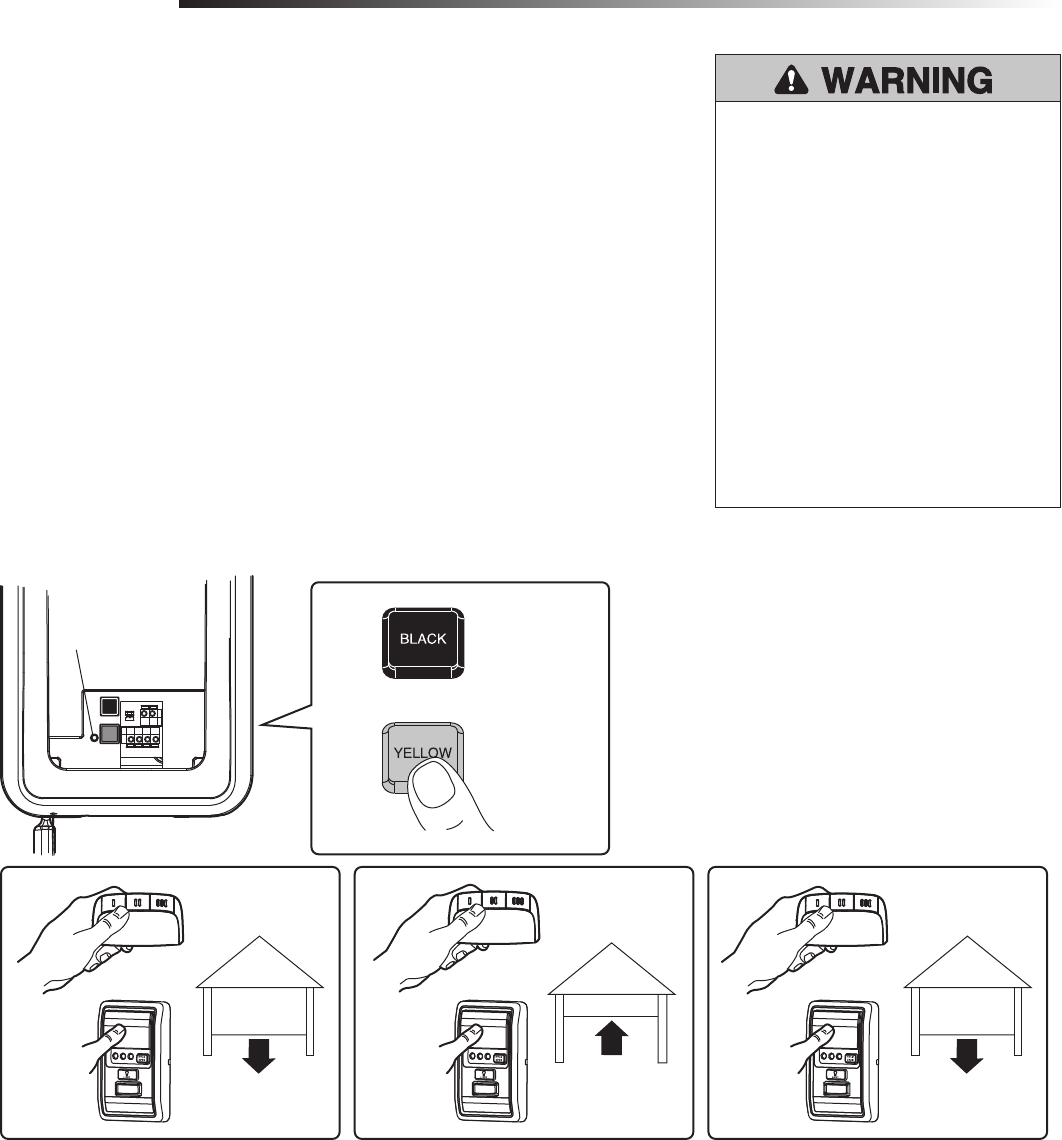

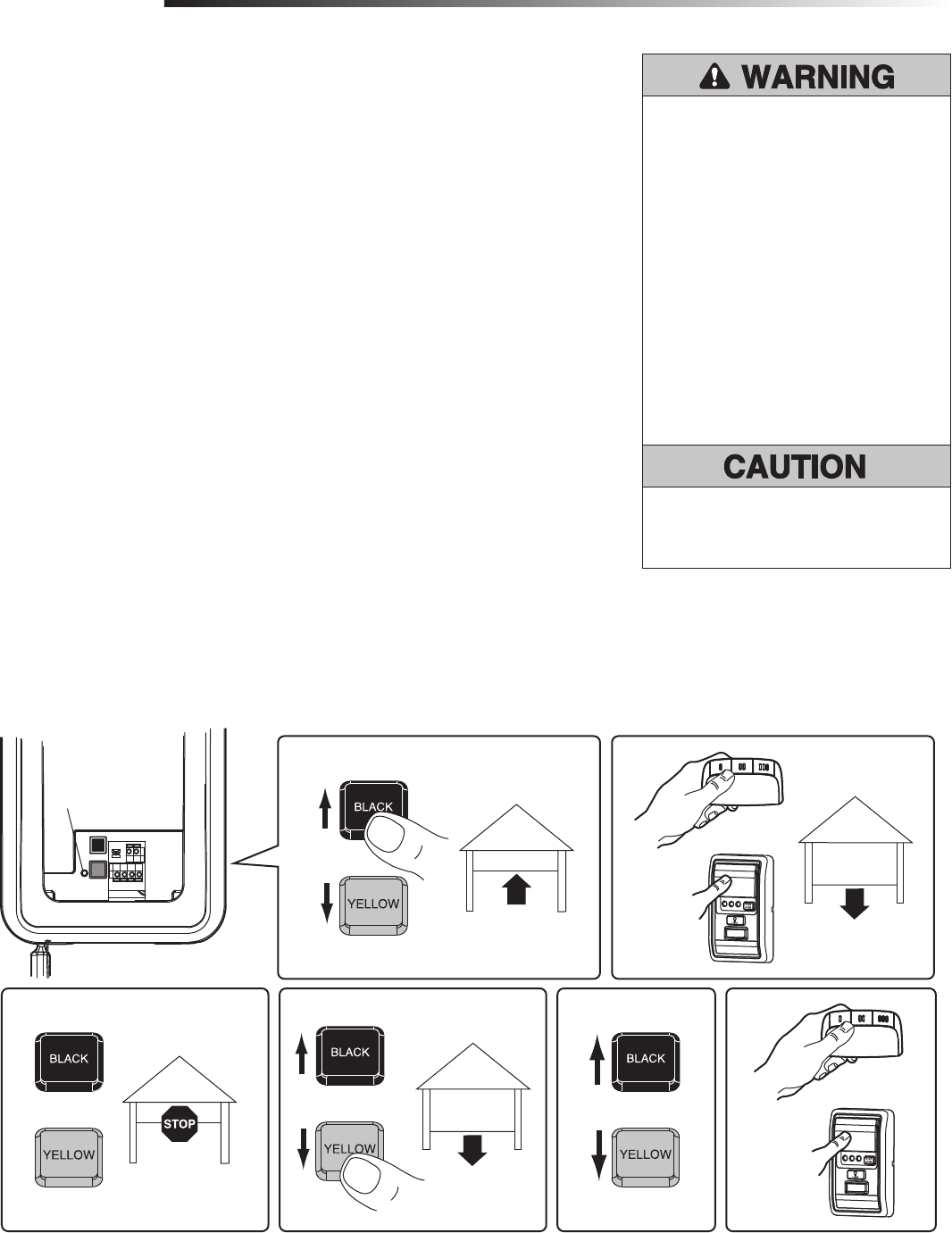

Adjust the position of the door by using the black and yellow buttons. Black moves the
door UP (open) and yellow moves the door DOWN (close).
NOTE: The yellow command LED and the red learn LED will blink quickly for up to
5 minutes as the control panel recharges. When the control panel is operational, the yellow
command LED will glow steadily.
SETTING THE UP POSITION:
1. Press and hold the black button until the LED starts fl ashing slowly, then release.
2. Push and hold the black button until the door reaches the desired UP (open) position.
NOTE: Make sure the door opens high enough for your vehicle.
3. Push the door control or programmed remote control. This sets the UP (open) limit
and begins closing the door.
4. Immediately when the door begins to close, press and release either the black or
yellow button. This will stop the door.
SETTING THE DOWN POSITION:
5. Push and hold the yellow button until the door reaches the desired DOWN (closed)
position.
6. Once the door is closed, if there appears to be too much pressure on the door, you
may toggle the door back and forth using the black and yellow buttons to reach the
desired closed position.
7. Push the door control or programmed remote control. This sets the DOWN (close)
limit and the door should open.
Proceed to Set the Force.
Travel limits regulate the points at which the door will stop when moving up or down.
Program the Travel Limits
Adjustment
12
Without a properly installed safety
reversal system, persons (particularly
small children) could be SERIOUSLY
INJURED or KILLED by a closing
garage door.
• NEVER learn forces or limits when
door is binding or sticking. Repair
door fi rst.
• Incorrect adjustment of garage door
travel limits will interfere with proper
operation of safety reversal system.
• After ANY adjustments are made,
the safety reversal system MUST
be tested. Door MUST reverse on
contact with 1-1/2" high (3.8 cm)
object (or 2x4 laid fl at) on fl oor.
To prevent damage to vehicles, be
sure fully open door provides adequate
clearance.
1
LED
or
or
or
3
7456
20
The force setting measures the amount of force required to open and close the door.
1. Push the yellow button twice to enter into the Force Adjustment Mode. The LED will
fl ash quickly.
2. Push the door control or programmed remote control. The door will close (DOWN).
3. Push the door control or programmed remote control again. The door will open (UP).
4. Push the door control or programmed remote control a third time to close the
door (DOWN).
The LED will stop fl ashing when the force has been programmed.
The door must travel through a complete cycle, up and down, in order for the force to be
set properly. If the garage door opener cannot open and close the door fully, inspect the
door to ensure that it is balanced properly and is not sticking or binding.
If the door is not stopping exactly where you would like it, repeat Program the
Travel Limits.
Set the Force
Without a properly installed safety
reversal system, persons (particularly
small children) could be SERIOUSLY
INJURED or KILLED by a closing
garage door.
• NEVER learn forces or limits when
door is binding or sticking. Repair
door fi rst.
• Too much force on garage door will
interfere with proper operation of
safety reversal system.
• After ANY adjustments are made,
the safety reversal system MUST
be tested. Door MUST reverse on
contact with 1-1/2" high (3.8 cm)
object (or 2x4 laid fl at) on fl oor.
2
Adjustment
1
LED
or or or
423
Push yellow button
twice to enter garage
door opener into
Force Adjustment
Mode
21
TEST
1. With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid fl at) on the
fl oor, centered under the garage door.
2. Operate the door in the down direction. The door must reverse on striking the
obstruction. Upon successful safety reversal test proceed to Adjustment Step 4.
ADJUST
If the door stops on the obstruction, it is not traveling far enough in the down direction.
Complete Adjustment Steps 1 and 2 Program the Travel Limits and Set the Force.
Repeat the test.
When the door reverses on the 1-1/2 inch (3.8 cm) board (or 2x4 laid fl at), remove the
obstruction and run the garage door opener through 3 or 4 complete travel cycles to
test adjustment.
If the garage door opener continues to fail the Safety Reverse Test, call for a trained door
systems technician.
IMPORTANT SAFETY CHECK:
Test the Safety Reverse System after:
• Each adjustment of limits, or force controls.
• Any repair to or adjustment of the garage door (including springs and hardware).
• Any repair to or buckling of the garage fl oor.
• Any repair to or adjustment of the opener.
Test the Safety Reversal System
Test the Protector System®
1. Press the remote control push button to open the door.
2. Place the opener carton in the path of the door.
3. Press the remote control push button to close the door. The door will not move more
than an inch, and the opener lights will fl ash.
The garage door opener will not close from a remote if the indicator light in either sensor
is off (alerting you to the fact that the sensor is misaligned or obstructed).
If the garage door opener closes the door when the safety reversing sensor is obstructed, do
not operate the door. Call for a trained door systems technician.
Without a properly installed safety
reversal system, persons (particularly
small children) could be SERIOUSLY
INJURED or KILLED by a closing
garage door.
• Safety reversal system MUST be
tested every month.
• If one control (force or travel limits) is
adjusted, the other control may also
need adjustment.
• After ANY adjustments are made,
the safety reversal system MUST be
tested. Door MUST reverse on contact
with 1-1/2" (3.8 cm) high object (or
2x4 laid fl at) on the fl oor.
Without a properly installed safety
reversing sensor, persons (particularly
small children) could be SERIOUSLY
INJURED or KILLED by a closing
garage door.
3
4
Adjustment
Safety Reversing Sensor Safety Reversing Sensor
1-1/2" (3.8 cm) board
(or a 2x4 laid flat)
22

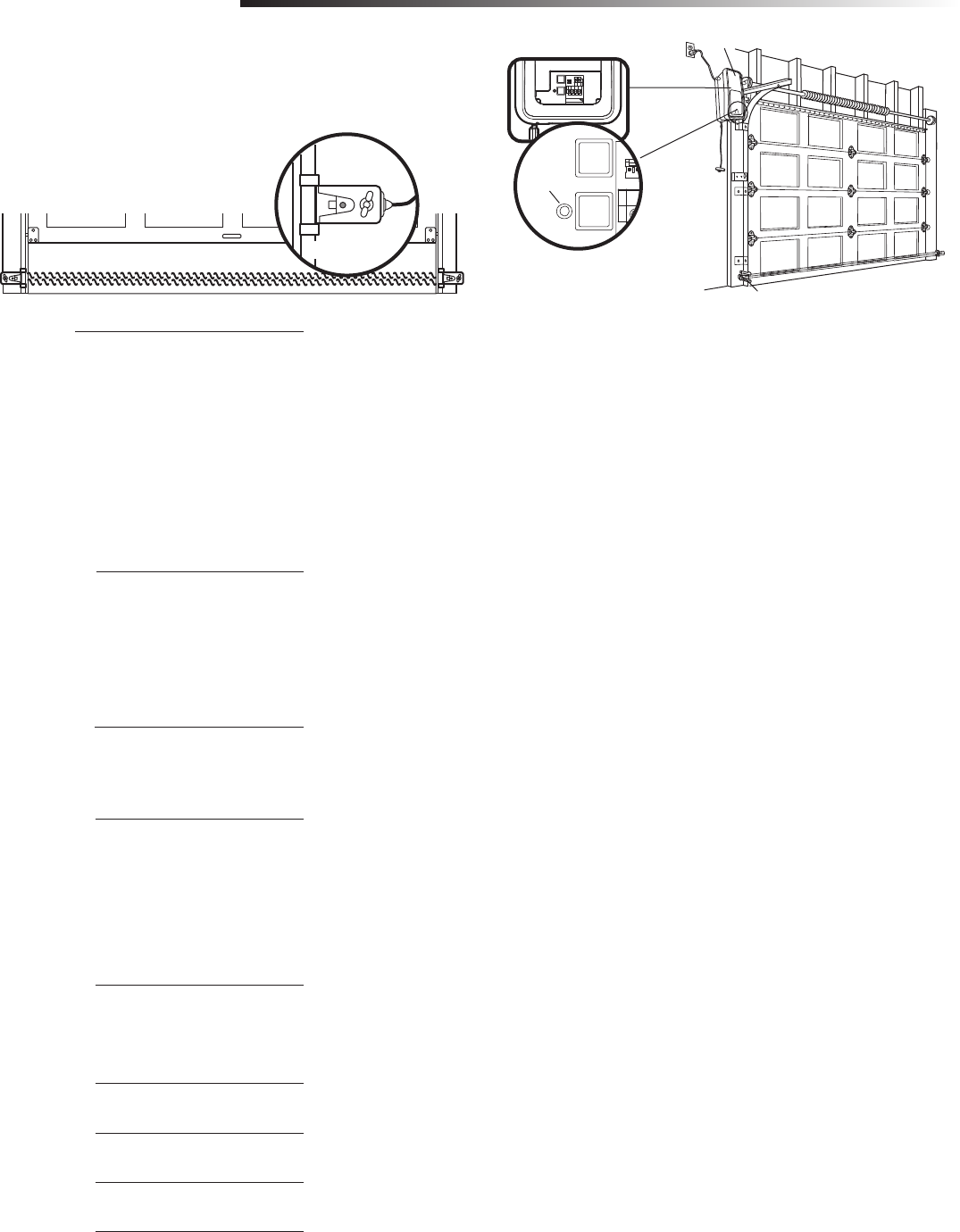

If your cable tension monitor has been
activated the LED on the garage door
opener will blink 9 times.
1. With the door fully closed, the power
door lock bolt should be protruding
through the track.
2. Operate the door in the open direction.
The power door lock should retract
before the door begins to move.
3. Operate the door in the down direction.
When the door reaches the fully closed
position, the power door lock should
automatically activate to secure the
door.
NOTE: If the power door lock does
not function, the lock can be manually
released by sliding the manual release
handle to the open position.
Disengage door lock before proceeding.
The door should be fully closed if possible.
Pull down on the emergency release handle
until a click noise is heard from the garage
door opener and lift the door manually.
To reconnect the door to the garage door
opener, pull the emergency release handle
straight down a second time until a click
noise is heard from the garage door
opener. The door will reconnect on the next
UP or DOWN operation.
Test the emergency release:
1. Make sure the garage door is closed.
2. Pull the emergency release handle. The
garage door should then be able to be
opened manually.
3. Return the door to the closed position.
4. Pull the emergency handle a second
time.
5. Reconnect the door to the garage door
opener.
Test Cable Tension Monitor
Test Power Door Lock
To Open the Door Manually
5
6
7
Adjustment
To prevent possible SERIOUS INJURY
or DEATH from a falling garage door:
• If possible, use emergency release
handle to disengage door ONLY when
garage door is CLOSED. Weak or
broken springs or unbalanced door
could result in an open door falling
rapidly and/or unexpectedly.
• NEVER use emergency release handle
unless garage doorway is clear of
persons and obstructions.
Power Door Lock
Manual Release
Lock Bolt
“Locked”
Emergency
Release Handle
LED
23
Operation
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
WARNING
WARNING
WARNING WARNING
1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.
2. ALWAYS keep remote controls out of reach of children.
NEVER permit children to operate or play with door control
push buttons or remote controls.
3. ONLY activate door when it can be seen clearly, it is
properly adjusted and there are no obstructions to door
travel.
4. ALWAYS keep garage door in sight and away from people
and objects until completely closed. NO ONE SHOULD
CROSS THE PATH OF THE MOVING DOOR.
5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY
OPENED DOOR.
6. If possible, use emergency release handle to disengage door
ONLY when door is CLOSED. Use caution when using this
release with the door open. Weak or broken springs or
unbalanced door could result in an open door falling rapidly
and/or unexpectedly and increasing the risk of SEVERE
INJURY or DEATH.
7. NEVER use emergency release handle unless doorway is
clear of persons and obstructions.
8. After ANY adjustments are made, the safety reversal system
MUST be tested. Failure to adjust the garage door opener
properly may cause SEVERE INJURY or DEATH.
9. Safety reversal system MUST be tested every month. Door
MUST reverse on contact with 1-1/2" (3.8 cm) high object
(or a 2x4 laid flat) on the floor. Failure to adjust the garage
door opener properly may cause SEVERE INJURY or
DEATH.
10. ALWAYS KEEP DOOR PROPERLY BALANCED (see
page 3). An improperly balanced door may NOT reverse
when required and could result in SEVERE INJURY or
DEATH.
11. ALL repairs to cables, spring assemblies and other
hardware, ALL of which are under EXTREME tension,
MUST be made by a trained door systems technician.
12. To avoid SERIOUS PERSONAL INJURY or DEATH from
electrocution, disconnect ALL electric and battery power
BEFORE performing ANY service or maintenance.
13. This operator system is equipped with an unattended
operation feature. The door could move unexpectedly. NO
ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
14. SAVE THESE INSTRUCTIONS.
Your garage door opener has already been
programmed at the factory to operate
with your remote control, which changes
with each use, randomly accessing over
100 billion new codes. MyQ® technology
uses a 900MHz signal to provide two-way
communication between the garage door
opener and MyQ® enabled accessories.
When programmed to the LiftMaster®
Internet Gateway you can monitor and
control your garage door from any internet
enabled computer or smartphone. You may
program up to 12 Security✚ 2.0™ remote
controls, 2 Security✚ 2.0™ keyless entries
and a combination of 16 MyQ® accessories
to the MyQ® control panel.
The garage door opener can be activated
through a wall-mounted door control,
remote control, wireless keyless entry or
MyQ® accessory. When the door is closed
and the garage door opener is activated
the door will open. If the door senses an
obstruction or is interrupted while opening
the door will stop. When the door is in any
position other than closed and the garage
door opener is activated the door will
Using Your Garage Door Opener
close. If the garage door opener senses
an obstruction while closing, the door will
reverse. If the obstruction interrupts the
sensor beam the garage door opener lights
will blink 10 times. However, you can close
the door if you hold the button on the door
control or keyless entry until the door is
fully closed. The safety reversing sensors
do not affect the opening cycle. The safety
reversing sensor must be connected and
aligned correctly before the garage door
opener will move in the down direction.
The garage door opener lights will turn on
when the garage door opener is activated.
They will turn off automatically after 4-1/2
minutes or provide constant light when the
Light feature on the MyQ® Control Panel is
activated. Bulb size is A19. Bulb power is
100 watts maximum.
Light feature: Lights will also turn on when
someone walks through the open garage
door. With a MyQ® Control Panel, this
feature may be turned off as follows: With
the garage door opener lights off, press and
hold the light button for 10 seconds, until
the light goes on, then off again. To restore
this feature, start with the garage door
opener lights on, then press and hold the
light button for 10 seconds until the light
goes off, then on again.
TIMER-TO-CLOSE (TTC)
The TTC feature automatically closes the
door after a specifi ed time period that
can be adjusted using a TTC enabled
door control. Prior to and during the door
closing the garage door opener lights will
fl ash and the garage door opener will beep.
BATTERY BACKUP*
The battery backup system allows access
in and out of your garage, even when the
power is out. When the garage door opener
is operating on battery power, the garage
door opener will run slower, the light will
not function, the Battery Status LED will
glow solid orange, and a beep will sound
approximately every 2 seconds.
* If applicable.
24

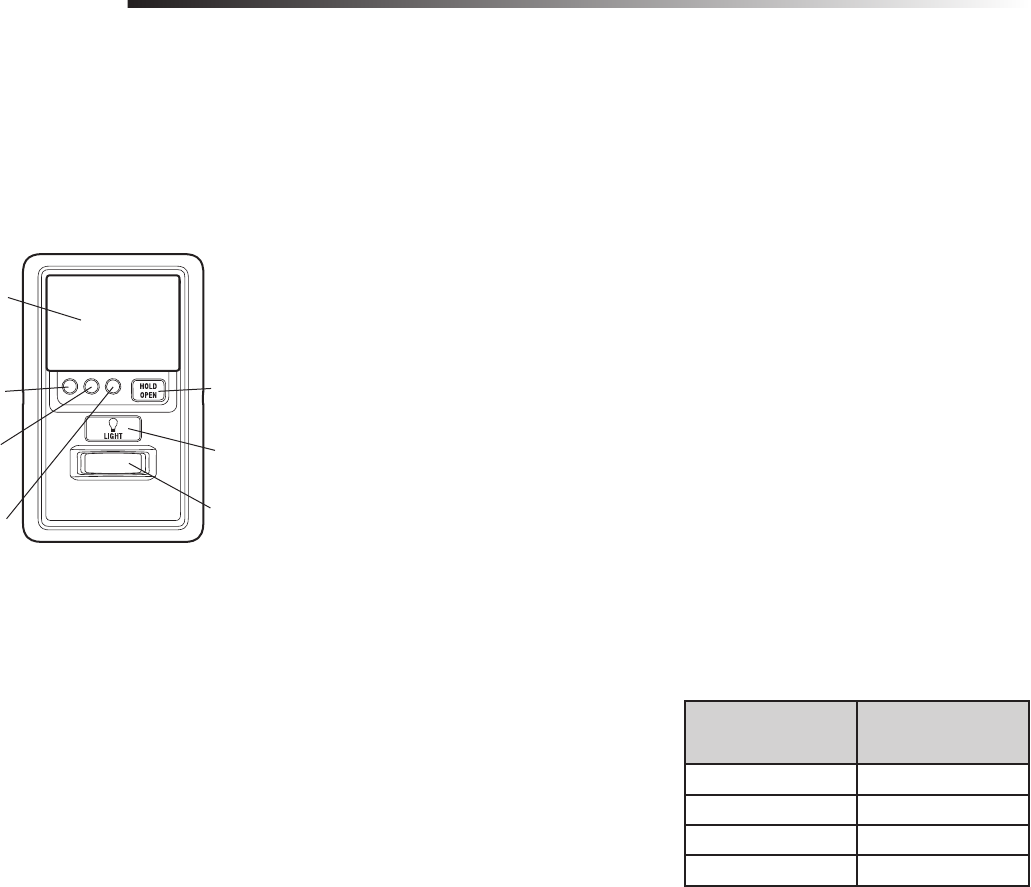

LIGHTS
Press the LIGHT button to turn the garage
door opener lights on or off. When the
lights are turned on they will stay on until
the LIGHT button is pressed again, or
until the garage door opener is activated.
Once the garage door opener is activated
the lights will turn off after the specifi ed
period of time (the factory setting is 4-1/2
minutes). The LIGHT button will not control
the lights when the door is in motion.
To change the amount of time the garage
door opener lights will stay on:
Press and hold the LOCK button until the
garage door opener lights fl ash. The time
interval is indicated by the number of
fl ashes.
NUMBER OF TIMES
GARAGE DOOR OPENER
LIGHTS FLASH
TIME THE
GARAGE DOOR OPENER
LIGHT STAYS ON
1 1 ½ Minutes
2 2 ½ Minutes
3 3 ½ Minutes
4 4 ½ Minutes
Light Feature
The lights will turn on when someone
enters through the open garage door and
the safety reversing sensor infrared beam
is broken.
Activate:
Start with the garage door opener lights
on. Press and hold the LIGHT button
until the garage door opener lights turn
off, then on again.*
Deactivate:
Press and hold the LIGHT button until
the garage door opener lights turn on,
then off again.*
* Approximately 10 seconds
Operation
PUSH BAR
Press the push bar to open/close the door.
LOCK
Designed to prevent operation of the door
from hand-held remote controls. However,
the door will open and close from the
Door Control, the Outdoor Key Switch,
the Keyless Entry Accessories and MyQ®
Internet Gateway.
Activate:
Press and hold the LOCK button for 2
seconds. The command LED will fl ash
as long as the lock feature is activated
and your handheld remote control will
not operate your door at this time.
Deactivate:
Press and hold the LOCK button again
for 2 seconds. The command LED will
stop fl ashing and normal operation will
resume.
MOTION SENSOR
This feature will automatically turn on the
garage door opener lights when motion is
sensed. The lights will come on for 4-1/2
minutes, then shut off.
Activate/Deactivate:
Slide the motion sensor switch ON or
OFF.
Using the Door Control (MyQ® Control Panel)
NOTE: Due to power consumption this door control (Model 888LM) cannot be used in conjunction with another wired door control
connected to your garage door opener. If an additional door control is needed, the wireless door control model 885LM can be
programmed to the door control (Model 888LM). To program the 885LM to the MyQ® Control Panel, follow the remote control
programming steps.
NOTE: MyQ® light controls will continue to work however all other MyQ® devices and TTC will not work if using the Model 580LM
Alternate Power Supply or when in Battery Backup mode.
TIMER-TO-CLOSE (TTC)
The TTC feature automatically closes the
door after a specifi ed time period (1, 5,
or 10 minutes). Once the TTC has been
set and the door is open, the LED for the
selected close interval will blink and begin
to count down to close the door. The
control panel will beep and the garage door
opener lights will fl ash before closing the
door.
The TTC feature will deactivate if the garage
door encounters an obstruction twice; or
the safety reversing sensors are incorrectly
installed. The garage door will reverse open
and WILL NOT close until the obstructions
are clear or the safety reversing sensors are
correctly installed. When the obstruction
has been cleared or the safety reversing
sensors have been aligned, the door will
close when the garage door opener is
activated.
Activate:
Press and hold the ON button until
one of the TTC LEDs light up. Then
press the ON button again to cycle
through the time interval options (the
corresponding TTC LED will light
for each time interval). The garage
door opener light bulbs will blink as
confi rmation.
Deactivate:
Press and hold the OFF button until all
TTC LEDs turn off and a beep is heard
from the control panel.
Temporarily hold door open (suspend
TTC):
Press and release the HOLD OPEN
button. The HOLD OPEN button will
begin to fl ash. Press the HOLD OPEN
button again to resume normal TTC
operation. Unit also returns to normal
TTC operation if unit is activated.
LIGHT Button
HOLD OPEN
Button for the
Timer-To-Close
(TTC)
Motion Sensor
Push Bar
1 Minute
TTC LED
5 Minute
TTC LED
10 Minute
TTC LED
25
Operation

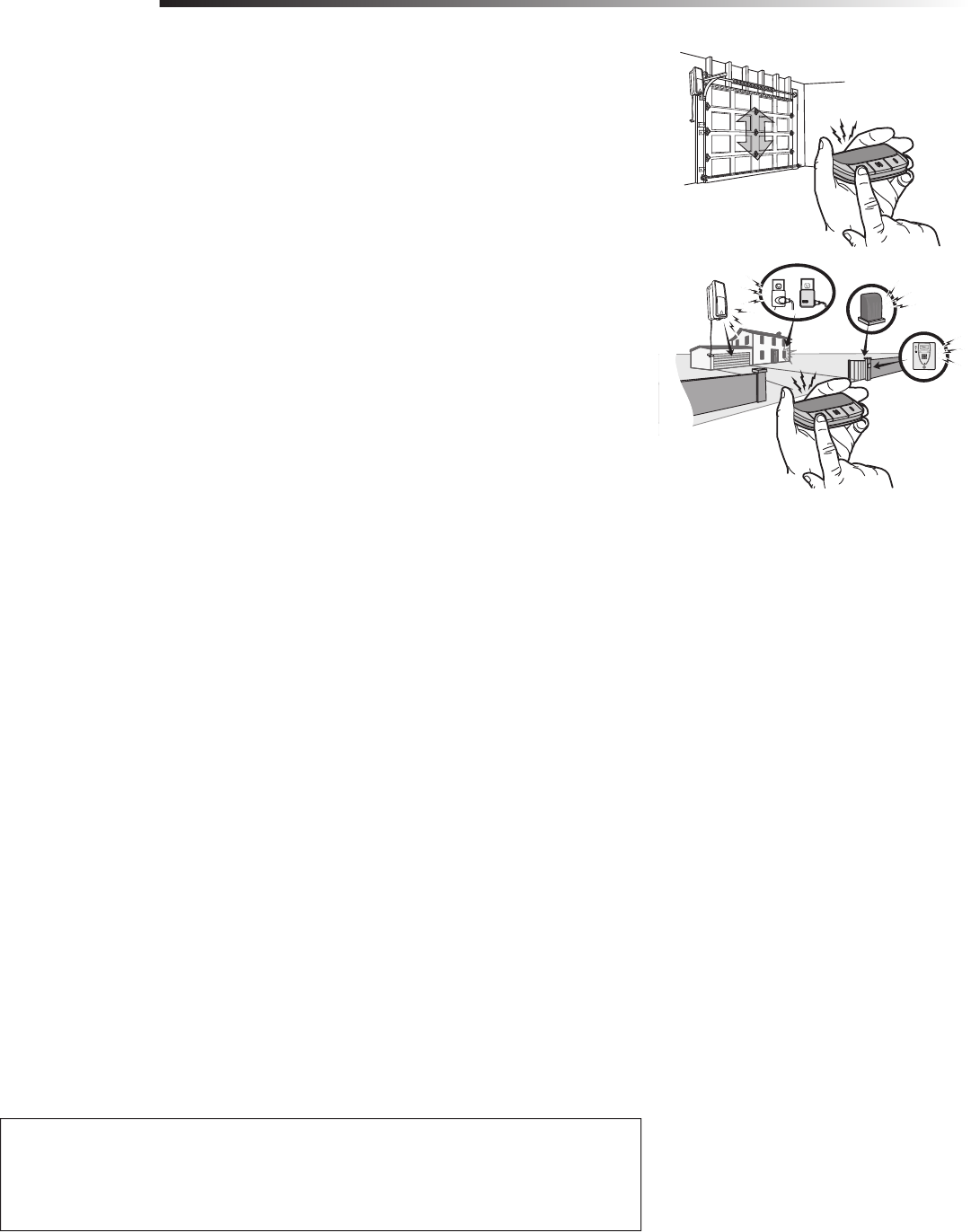

Using the Remote Control
Press and hold the button down until the door or gate starts to move. The remote control
will operate from up to 3 car lengths away on typical installations. Installations and
conditions vary, contact an installing dealer for more information.
3-Button Remote Controls
Additional buttons on the remote control can be programmed to operate up to 3 devices
such as additional garage door openers, light controls, gate operators or access control
systems.
NOTICE: To comply with FCC and/or Industry Canada (IC) rules, adjustment or modifications of this transceiver are
prohibited. THERE ARE NO USER SERVICEABLE PARTS. Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC rules and IC RSS-210. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
26

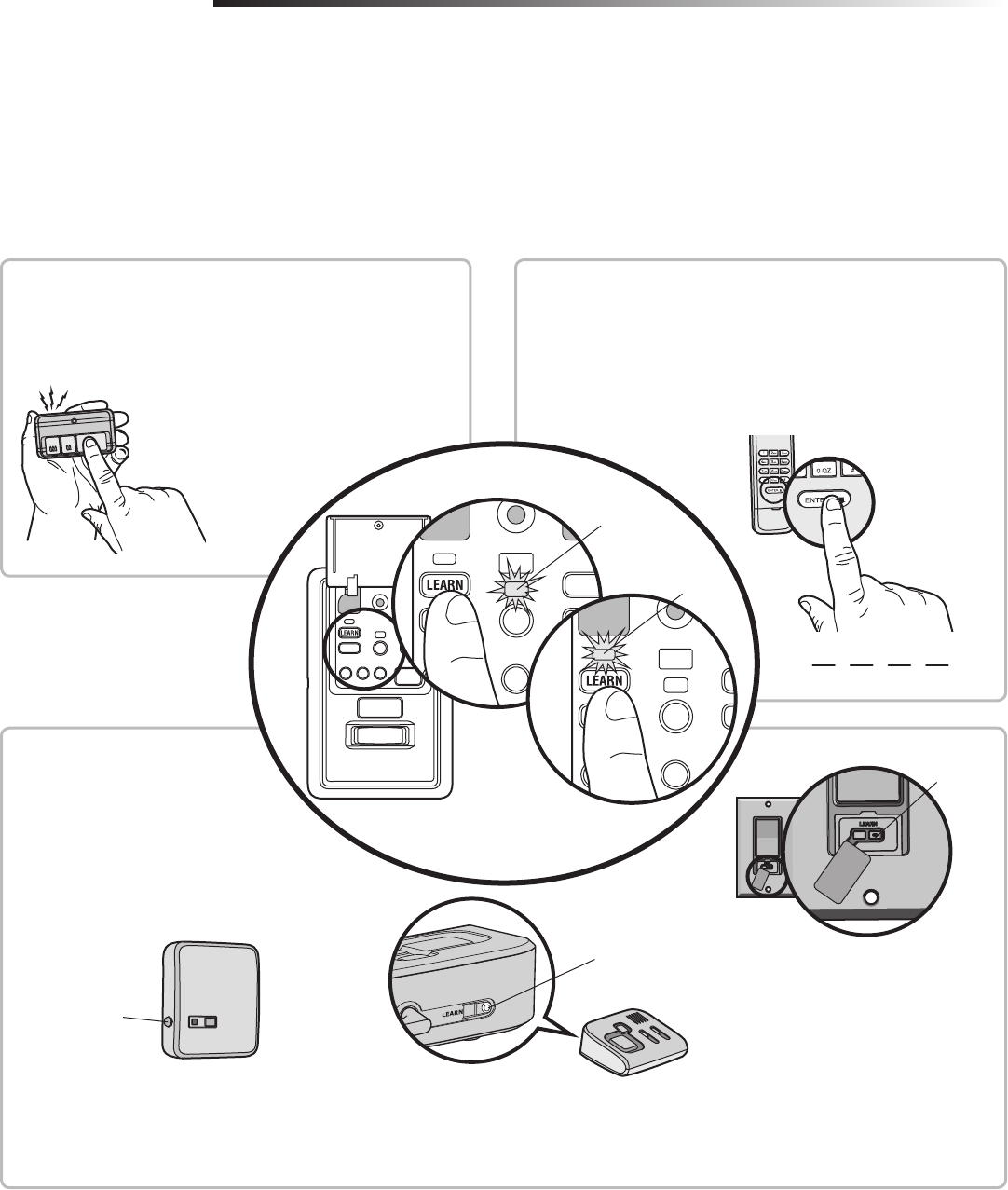

Programming
Your hand-held remote control (model 895MAX) has already programmed to the door control (MyQ® Control Panel) at the factory. Below
are instructions for programming additional remote controls, keyless entries, and MyQ® enabled accessories to the door control.
NOTE: Use the learn button on the door control to program all accessories. The yellow learn button on the garage door opener will NOT
program accessories.
PIN
?? ??
REMOTE CONTROL 1. Press the MyQ® Control Panel LEARN
button twice, the red learn LED will
turn on.
2. Press the button on the remote control
that you wish to operate your garage
door.
3. The garage door opener lights will flash
(or two clicks will be heard) when the
code has been programmed.
1. Press the MyQ® Control Panel LEARN button twice, the red learn
LED will turn on.
2. Enter a 4-digit personal identification number (PIN) of your choice
on the keyless entry keypad. Then press the ENTER button.
3. The garage door opener lights will flash (or two clicks will be
heard) when the code has been programmed.
KEYLESS ENTRY
LEARN
Button
LEARN
Button
Model 825LM - Remote Light Control
Light module can be synchronized with the
garage door opener light bulbs.
Model 823LM - Remote Light Switch
Light module can be synchronized with
the garage door opener light bulbs.
LEARN
Button
Model 829LM - Garage Door and Gate Monitor
Indicates the status of your garage door from inside
the home and allows you to close an open garage door
from inside the house.
MyQ® ENABLED
ACCESSORIES
1. Press the MyQ® Control Panel
LEARN button twice, the red learn
LED will turn on.
2. Press the LEARN button on the
MyQ® device.*
* MyQ® accessories may be programmed to the
LiftMaster® Internet Gateway (Model 828LM)
or the MyQ® control panel. For instructions on
programming to the internet gateway refer to
the manual.
Command
LED (yellow)
Learn
LED
(Red)
To Add a Remote Control, Keyless Entry, or MyQ® Enabled Accessories using the Door
Control (MyQ® Control Panel)
27
Programming

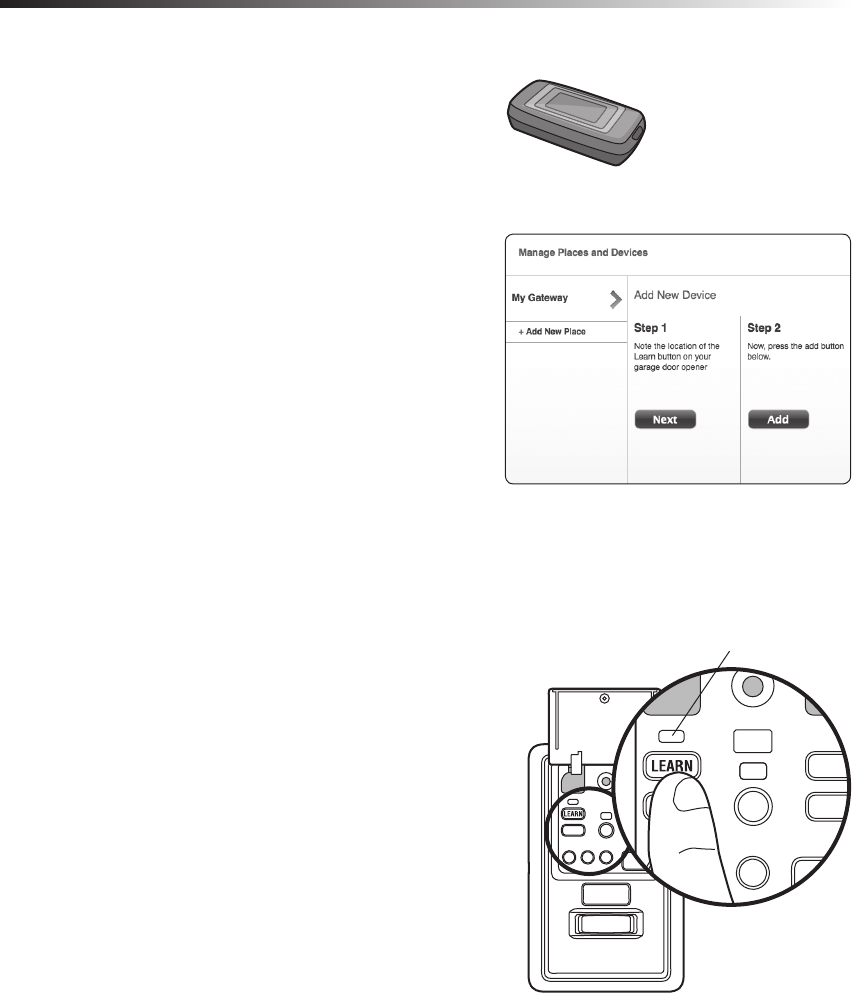

Internet Gateway (Not Provided)
The LiftMaster® Internet Gateway gives you control of your garage door from your internet
connected computer or mobile device. You must have your internet gateway registered to
your customer account at www.myliftmaster.com in order to use it with the MyQ® Control
Panel. Go to www.myliftmaster.com and follow the instructions to create an account and
register your device if you have not already.
To program your MyQ® Control Panel to the LiftMaster® Internet Gateway:
1. Go to www.myliftmaster.com from a computer or mobile device.
2. Click on “Manage Places>Add New Device>Garage Door Opener” and follow the
directions.
3. Once you click ADD you have 3 minutes to press the LEARN button two times on the
MyQ® control panel. The red learn LED will turn on.
4. The red learn LED will turn off when programming is complete. Once the control
panel is learned, it will appear on your screen. You can then name the device (e.g., My
Control Panel, etc.).
Model 828LM
LiftMaster® Internet Gateway
www.myliftmaster.com
To Erase All Codes From the Door Control (MyQ® Control
Panel) Memory
Erase all remote controls and keyless entries:
1. Press and hold the LEARN button on the control panel until the red learn LED goes
out (approximately 6 seconds). All remote control and keyless entry codes are now
erased. Reprogram any compatible accessory you wish to use.
Erase all devices (including MyQ® enabled accessories):
1. Press and hold the LEARN button on the control panel until the red learn LED goes out
(approximately 6 seconds).
2. Immediately press and hold the LEARN button again until the red learn LED goes out.
All codes are now erased. Reprogram any compatible accessory you wish to use.
Red Learn
LED
28
Programming

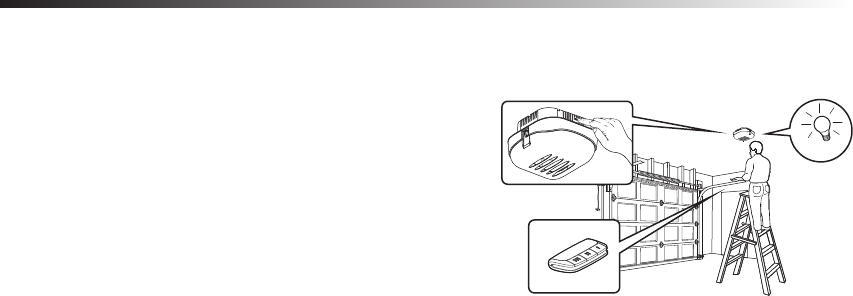

Reprogramming Light or Additional Light
Your garage door opener remote light has already been programmed at the factory to
operate with your opener. Any additional or replacement remote lights will need to be
programmed.
1. Press the LEARN button on the light until the LED comes ON.
2. Activate the garage door opener using the hand-held remote, door control, or keyless
entry.
3. The code has been programmed when the remote light comes on.
Additional Programming for the Keyless Entry (Not
Provided)
TO CHANGE AN EXISTING, KNOWN PIN
If the existing PIN is known, it may be changed by one person without using a ladder.
1. Press the four buttons for the present PIN, then press and hold the # button. Release
the # button.
2. Press the new 4-digit PIN you have chosen, then press ENTER.
Test by pressing the new PIN, then press ENTER. The door should move.
TO SET A TEMPORARY PIN
You may authorize access by visitors or service people with a temporary 4-digit PIN. After
a programmed number of hours or number of accesses, this temporary PIN expires and
will no longer open the door. It can be used to close the door even after it has expired. To
set a temporary PIN:
1. Press the four buttons for your personal entry PIN (not the last temporary PIN), then
press and hold the ✽ button. Release the button.
2. Press the temporary 4-digit PIN you have chosen, then press ENTER.
3. To set the number of hours this temporary PIN will work, press the number of hours
(up to 255), then press ✽.
OR
3. To set the number of times this temporary PIN will open door, press the number of
times (up to 255), then press #.
Test by pressing the four buttons for the temporary PIN, then press ENTER. The door
should move. If the temporary PIN was set to a certain number of openings, remember
that the test has used up one opening. To clear the temporary password, repeat steps 1-3,
setting the number of hours or times to 0 in step 3.
ONE BUTTON CLOSE:
The garage door opener can be closed by pressing only the ENTER button if the one
button close feature has been activated. This feature has been activated at the factory.
To activate or deactivate this feature press and hold buttons 1 and 9 for 10 seconds. The
keypad will blink twice when the one button close is active. The keypad will blink four
times when one button close is deactivated.
29
Maintenance
MAINTENANCE SCHEDULE
Once a Month
• Manually operate door. If it is unbalanced or binding, call a trained door systems
technician.
• Check to be sure door opens and closes fully. Adjust limits and/or force if necessary
(see Adjustment Steps 1 and 2).
• Repeat the safety reverse test. Make any necessary adjustments (see Adjustment Step
3).
Once a Year
• Oil door rollers, bearings and hinges. The garage door opener does not require
additional lubrication. Do not grease the door tracks.
Care of Your Garage Door Opener
To prevent possible SERIOUS INJURY
or DEATH:
• NEVER allow small children near
batteries.
• If battery is swallowed, immediately
notify doctor.
To reduce risk of fi re, explosion or
chemical burn:
• Replace ONLY with 3V2016
coin batteries.
• DO NOT recharge, disassemble, heat
above 100° C (212° F) or incinerate.
NOTICE: To comply with FCC and or Industry Canada (IC)
rules, adjustment or modifications of this receiver and/or
transmitter are prohibited, except for changing the code
setting or replacing the battery. THERE ARE NO OTHER
USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR
OFFICE USE. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.

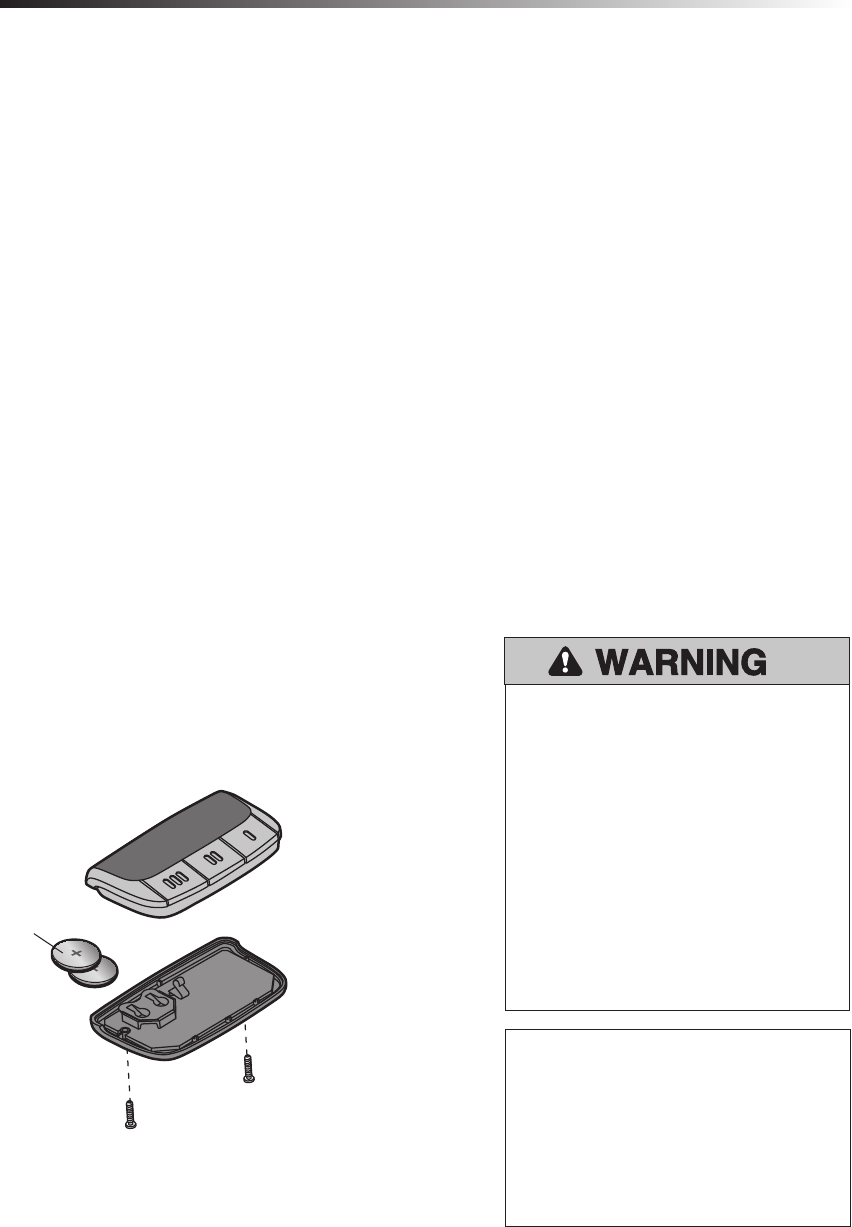

THE REMOTE CONTROL BATTERY
The LED(s) on your remote control will stop fl ashing when the battery is low and needs
to be replaced. To replace battery, open the case as shown. Insert battery positive side
up (+). Replace the battery with only 3V2016 coin cell batteries. Dispose of old battery
properly.
Remove the two screws
and open the case.
3V2016
30
Troubleshooting
Your garage door opener is programmed with self-diagnostic
capabilities. The diagnostic LED will fl ash a number of times, then
pause, signifying it has found a potential issue.
Consult Diagnostic Chart below.
Diagnostic Chart
SYMPTOM: One or both of the Indicator lights on the safety sensors do not glow
steady.
• Inspect sensor wires for a short (staple in wire), correct wiring polarity (black/white
wires reversed), broken or disconnected wires, replace/attach as needed.
• Disconnect all wires from back of garage door opener.
• Remove sensors from brackets and shorten sensor wires to 1-2 ft. (30-60 cm) from
back each of sensor.
• Reattach sending eye to garage door opener using shortened wires. If sending eye
indicator light glows steadily, attach the receiving eye.
• Align sensors, if the indicator lights glow replace the wires for the sensors. If the
sensor indicator lights do not light, replace the safety reversing sensors.
SYMPTOM: The door doesn't activate from the door control.
• Inspect door control/wires for a short (staple in wire), replace as needed.
• Disconnect wires at door control, touch wires together. If garage door opener
activates, replace door control.
• If garage door opener does not activate, disconnect door control wires from garage
door opener. Momentarily short across red and white terminals with jumper wire. If
garage door opener activates, replace door control wires.
SYMPTOM: Sending indicator light glows steadily, receiving indicator light is dim or
flashing.
• Realign receiving eye sensor, clean lens and secure brackets.
• Verify door track is fi rmly secured to wall and does not move.
SYMPTOM: Door travels 2-3 inches and stops.
• Reprogram limits and forces. See Adjustment section.
• If the motor unit continues to travel 2-3 inches, check the travel module connection or
replace the travel module.
SYMPTOM: No movement, motor runs 2-3 seconds.
• Reconnect the emergency release.
• Motor may need to be replaced.
SYMPTOM: Door stops and reverses while closing.
• Check for possible door obstructions and remove.
• Check that the cable tension monitor is properly connected to the opener.
• Replace the cable tension monitor.
SYMPTOM: Door stops while opening.
• Reprogram limits and forces. See Adjustment section.
SYMPTOM: Door stops and reverses while closing.
• Reprogram limits and forces. See Adjustment section.
SYMPTOM: Door stops and reverses while closing.
• Garage door opener will try to compensate three times before turning to a 10 Flash.
SYMPTOM: Door stops while opening.
• Garage door opener will try to compensate three times before turning to a 11 Flash.
1 FLASH
Safety reversing sensors wire open
(broken or disconnected)
2 FLASHES
Safety reversing sensors wire shorted or
black/white wire reversed
3 FLASHES
Door control or wire shorted
4 FLASHES
Safety reversing sensors slightly
misaligned (dim or flashing LED)
5 FLASHES
Motor RPM is not recognized
9 FLASHES
Cable tension monitor reversal
10 FLASHES
Limits and forces need reprogramming
11 FLASHES
Limits and forces need reprogramming
12 FLASHES
Attempting to compensate
13 FLASHES
Attempting to compensate
OR
Safety Reversing Sensor
Diagnostic
LED
Garage Door Opener
Installed
Safety Reversing
Sensor
Installed
Safety Reversing
Sensor
31
Troubleshooting
The garage door opener doesn't operate from either the Door Control or the remote control:
• Does the garage door opener have electric power? Plug a lamp into the outlet. If it doesn't light, check the fuse box or the circuit
breaker. (Some outlets are controlled by a wall switch.)
• Have you disabled all door locks? Review installation instruction warnings on page 7.
• Is there a build-up of ice or snow under the door? The door may be frozen to the ground. Remove any restriction.
• The garage door spring may be broken. Have it replaced (see page 3 for reference).
• If the yellow command LED does not turn on, reverse the wires connected to the RED and WHT terminals of the control panel.
Replace wire if necessary.
The yellow and red LEDs on the Door Control are blinking quickly:
• The control panel is charging, and may take up to 5 minutes to become operational.
My remote control will not activate the garage door:
• Verify the lock feature is not activated on the door control.
• Reprogram the remote control.
• If the remote control will still not activate the door check the diagnostic codes to ensure the garage door opener is working properly.
The remote control has short range:
• Change the location of the remote control in your car.
• Check to be sure the antenna on the side or back panel of the garage door opener extends fully downward.
• Some installations may have shorter range due to a metal door, foil backed insulation, or metal garage siding.
The door doesn't open completely:
• Check power door lock.
• Is something obstructing the door? Is it out of balance, or are the springs broken? Remove the obstruction or repair the door.
The door opens but won't close:
• Check cable tension monitor (see Installation Step 4).
• If the garage door opener lights blink, check the safety reversing sensor (see Installation Step 9).
• If the garage door opener lights don’t blink and it is a new installation (see Adjustment Step 2). For an existing installation, see
below.
Repeat the safety reverse test after the adjustment is complete.
The door reverses for no apparent reason and garage door opener lights don’t blink:
• Check cable tension monitor (see Installation Step 4).
• Is something obstructing the door? Pull the emergency release handle. Operate the door manually. If it is unbalanced or binding, call
a trained door systems technician.
• Clear any ice or snow from the garage fl oor area where the door closes.
• Review Adjustment Step 2.
Repeat safety reverse test after adjustments.
Troubleshooting
32
Troubleshooting
Troubleshooting (Continued)
My door will not close and the light bulbs blink:
The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction.
• Verify the safety sensors are properly installed, aligned and free of any obstructions.
The garage door opener strains to operate door:
• The door may be out of balance or the springs may be broken. Close the door and use the emergency release handle to disconnect
the door. Open and close the door manually. A properly balanced door will stay in any point of travel while being supported entirely
by its springs. If it does not, disconnect the garage door opener and call a trained door systems technician.
The garage door opener motor hums briefl y, then won't work:
• The garage door springs may be broken. See above.
• If the problem occurs on the fi rst operation of the garage door opener, door may be locked. Disable the power door lock.
The garage door opener won't operate due to power failure:
• Manually open the power door lock.
• Use the emergency release handle to disconnect the door. The door can be opened and closed manually. When power is restored,
pull manual release a second time.
• If a Battery Backup is connected, the opener should be able to operate up to 20 times without power.
Door loses limits.
• Collar not tightened securely. Tighten collar (see Assembly Steps 1 and 2) and reprogram limits (see Adjustment Step 1).
The garage door opener moves when the door is in operation:
• Some minor movement is normal for this product. If it is excessive the collar will wear prematurely.
• Check to make sure the torsion bar is not moving left/right excessively.
• Check to make sure the torsion bar is not visibly moving up and down as it rotates.
• Check that the opener is mounted at a right angle to the jackshaft. If not, move the position of the mounting bracket.
Power lock makes noise when operating.
• Call LiftMaster® dealer for replacement power lock.
33
Repair Parts
Installation Parts
11
NOTICE
1
12 13
14
LOCK LIGH T
3
2
4
5
6
7
8
9
10
KEY PART
NO. NO. DESCRIPTION
1 888LM MyQ® Control Panel
2 895MAX 3-Button MAX remote control
3 10A19 3V2016 lithium battery
4 29C151 Remote control visor clip
5 41A4582 Emergency release rope & handle assembly
6 41B4494-1 2-Conductor bell wire - white & white/red
7 41A6104 Cable tension monitor
8 41C0902 Mounting bracket
9 41A5034 Safety sensor kit (receiving and sending
eyes) with 2-conductor bell wire attached
KEY PART
NO. NO. DESCRIPTION
10 41A6388 Collar with set screws (2)
11 41A6102 Power door lock
12 41A5266-1 Safety sensor brackets (2)
13 380LM Remote Light (garage door opener light)
14 41D96-1 Light lens for light
NOT SHOWN
101D173 Push bar for door control
41A6288 Hardware bag for light
41A6298 Installation hardware bag
(includes hardware listed on page 5)
114A4565 Owner’s manual
114A4565SP Owner’s manual - Spanish
LIGHT
HOLD
OPEN
34
Repair Parts

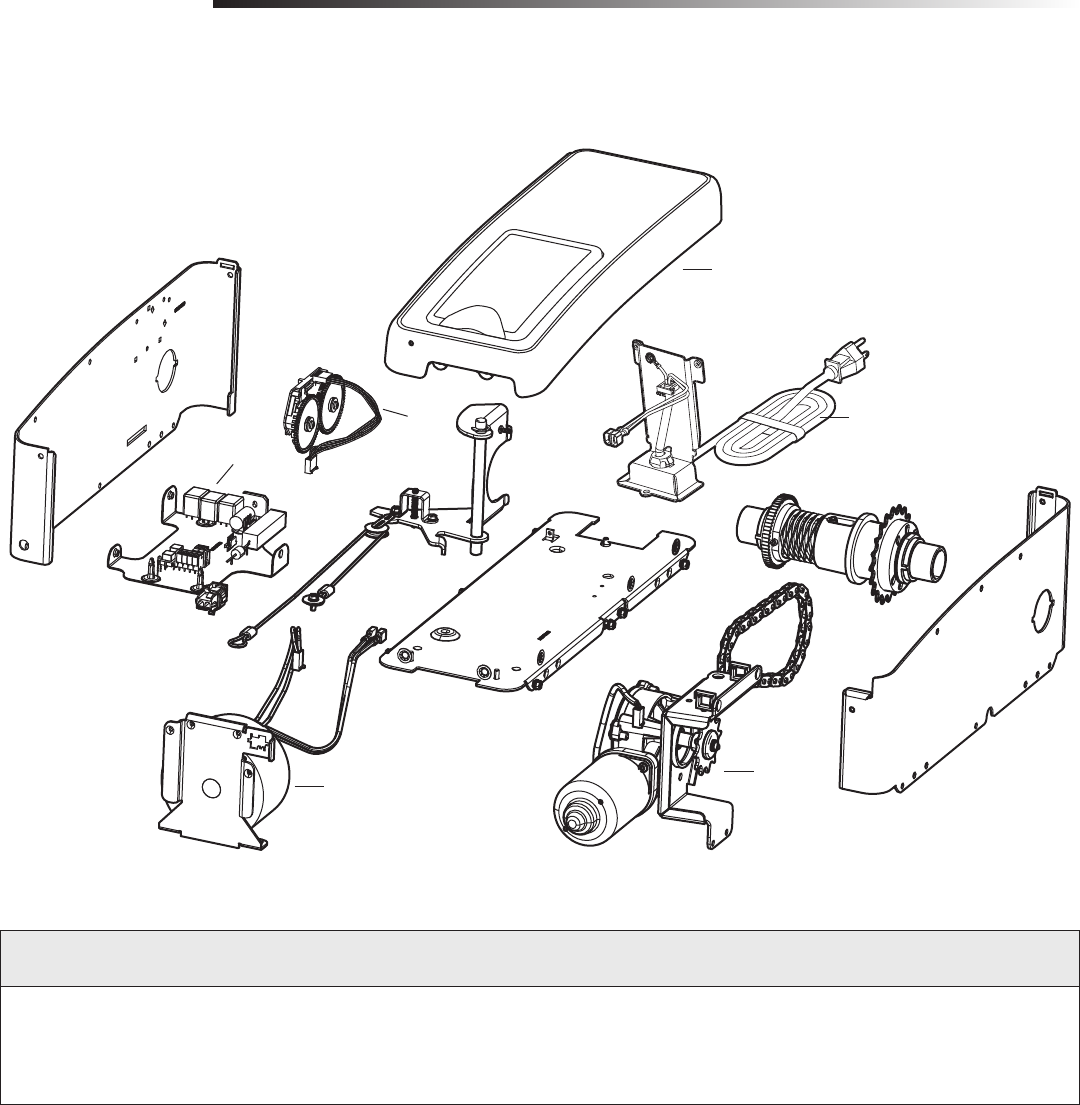

Garage Door Opener Assembly Parts
3
25
4
1
6
KEY PART
NO. NO. DESCRIPTION
1 041DJ002 Logic board complete with plate
2 41A6408 Travel Module
3 41C168 Transformer
KEY PART
NO. NO. DESCRIPTION
4 41A6095 Motor with bracket
5 41B122 Power cord
6 41A6348-3 Cover
35
Extension Brackets:
(Optional) For safety
reversing sensor installation
onto the wall or fl oor.
Security✚ 2.0™ Wireless Door Control:
Push bar, light feature and
auxiliary button. Includes
battery.
Alternate Mounting Kit:
This kit allows model 8500
to be mounted below the
torsion bar in the case where
the torsion bar is not round
or the normal mounting area
is obstructed.
Alternate Power System:
Model 580LM Alternate
Power Supply may be
installed if an outlet is not
located near the garage
door opener.
Garage and Gate Monitor:
Monitor open/closed
status for up to 4 MyQ®
compatible garage door
openers or gate operators
and close them from anywhere in the home.
Remote Light:
Enables homeowner
to turn on a work
light from their car
with their garage door
opener remote or from
anywhere in their home
with an additional LiftMaster Security✚®
remote.
Remote Light Control:
Automatically control your lights
using your garage door opener,
a SECURITY✚ 2.0™ remote
control or a LiftMaster® Internet
Gateway. Plugs into any interior outlet.
Remote Light Switch:
Automatically control your lights
using your garage door opener,
a SECURITY✚ 2.0™ remote
control or a LiftMaster® Internet
Gateway. Simply replaces your current
wired wall switch.
3-Button MAX Remote Control:
Includes visor clip.
LiftMaster® Internet Gateway:
Internet enabled
accessory which connects
to the computer and
allows you to monitor and
control garage door openers and lighting
accessories enabled by MyQ® technology.
Surge Protector:
The Garage Door Opener Surge
Protector is designed to protect
LiftMaster® garage door openers
against damage from lightning
and power surges. Easy to install.
MAX Wireless Keyless Entry:
For use outside of the
home to enable access to
the garage using a 4-digit
PIN.

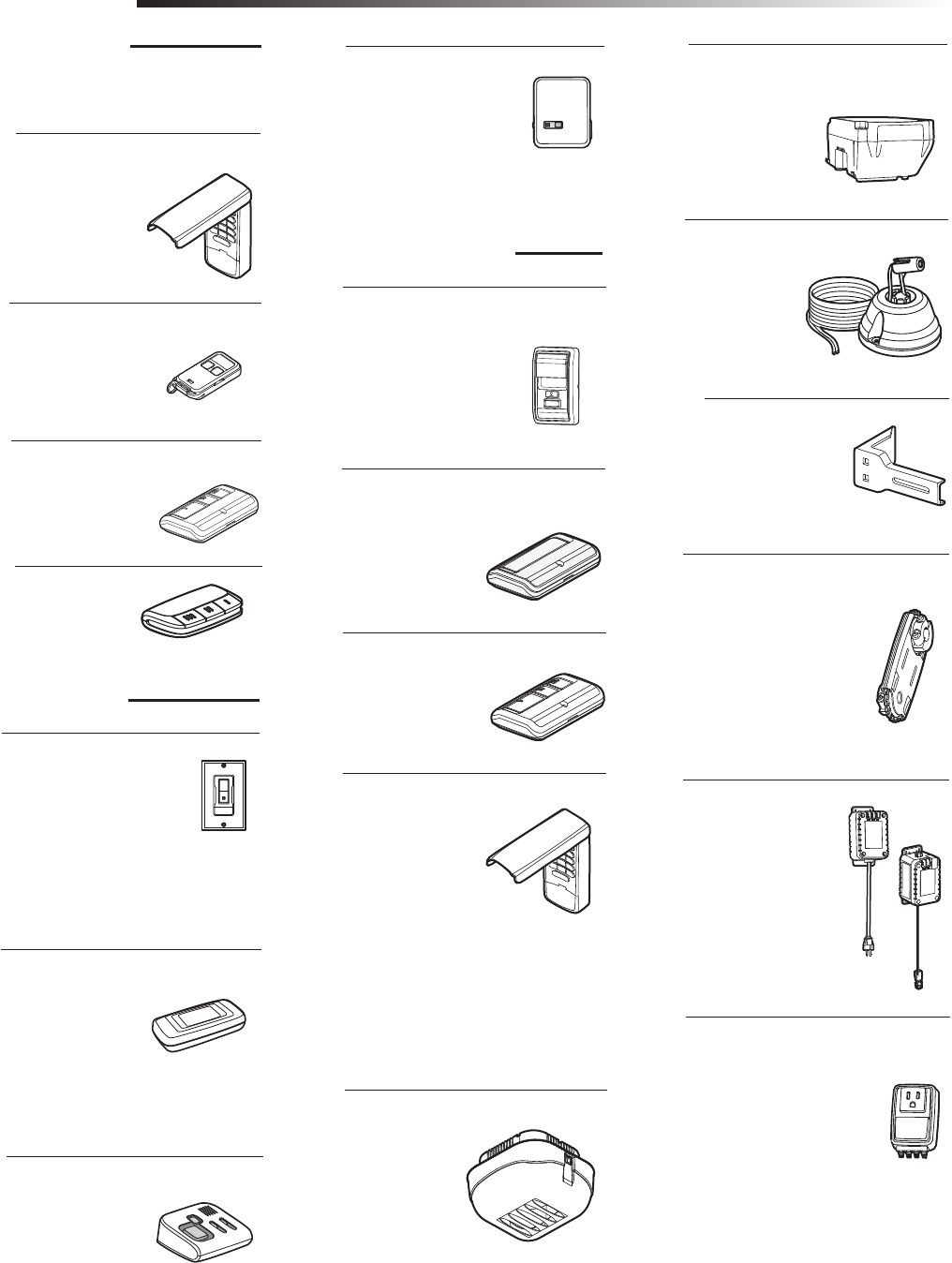

Accessories
890MAX
893MAX
828LM
990LM
41A5281
877MAX
Mini 3-Button MAX Remote Control
829LM
Battery Backup:
Provides backup power
to the garage door
opener.
475LM
885LM
825LM
823LM
380LM
895MAX
3-Button Remote Control:
Includes visor clip.
480LM
580LM
975LM
Laser Park Assist:
Laser enables
homeowners to
precisely park vehicles
in the garage.
MAX ACCESSORIES
Compatible with LiftMaster® garage door
openers manufactured since 1993.
MyQ® ACCESSORIES
STANDARD ACCESSORIES
Single Button Remote Control:
Includes visor clip.
891LM
3-Button Remote Control:
Includes visor clip.
893LM
Wireless Keyless Entry:
Enables homeowner
to operate garage door
garage door opener from
outside by entering a
password on a specially
designed keyboard. Also can add a
temporary password for visitors or service
persons. This temporary password can
be limited to a programmable number of
hours or entries.
877LM
LIFTMASTER® SERVICE IS ON
CALL
OUR LARGE SERVICE ORGANIZATION
SPANS AMERICA
INSTALLATION AND SERVICE INFORMATION IS AS NEAR AS YOUR
TELEPHONE.
SIMPLY DIAL OUR TOLL FREE NUMBER:
1-800-528-9131
www.liftmaster.com
For professional installation, parts and service, contact your local
LIFTMASTER/CHAMBERLAIN dealer. Look for him in the Yellow
Pages, or call our Service number for a list of dealers in your area.
HOW TO ORDER
REPAIR PARTS
Selling prices will be furnished on request or parts will be shipped at
prevailing prices and you will be billed accordingly.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING
INFORMATION:
• PART NUMBER
• PART NAME
• MODEL NUMBER
ADDRESS ORDERS TO:
THE CHAMBERLAIN GROUP, INC.
Technical Support Group
6050 S. Country Club Road
Tucson, Arizona 85706
SERVICE INFORMATION
TOLL FREE NUMBER:
1-800-528-9131
Repair Parts and Service
Warranty
LIFTMASTER® FIVE YEAR LIMITED WARRANTY
LIFETIME MOTOR LIMITED WARRANTY
ONE YEAR LIMITED WARRANTY FOR THE BATTERY BACKUP SYSTEM
The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defects in
materials and/or workmanship for a period of five years from the date of purchase, except that the motor is warranted to be free from defects in materials and/or workmanship for the
lifetime of the product while you own your residence, and the Battery Backup System is warranted to be free from defects in materials and/or workmanship for a period of one year from
the date of purchase. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, and maintenance and testing. Failure
to comply strictly with those instructions will void this limited warranty in its entirety.
If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1- 800-528- 9131, toll free, before dismantling this product. You will
be advised of disassembly and shipping instructions when you call. Then send the product or component, pre-paid and insured, as directed to our service center for warranty repair.
Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair,
which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-
paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option. [You are responsible for any costs incurred in removing and/or reinstalling the
product or any component .]
ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED IN DURATION TO THE APPLICABLE LIMITED WARRANTY PERIOD SET FORTH ABOVE FOR THE RELATED COMPONENT(S), AND NO IMPLIED WARRANTIES WILL EXIST
OR APPLY AFTER SUCH PERIOD. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED
WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE,
FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING
A REPAIRED OR REPLACED UNIT, REPLACEMENT OF CONSUMABLE ITEMS (E.G., BATTERIES IN REMOTE CONTROL TRANSMITTERS AND LIGHT BULBS), OR UNITS INSTALLED
FOR NON-RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE,
INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS
CAUSED BY INTERFERENCE. UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH
USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY
EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS
PRODUCT.
Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty
gives you specific legal rights, and you may also have other rights, which vary from state to state.
© 2013, The Chamberlain Group, Inc.
114A4565B All Rights Reserved
