INSTALLATION MANUAL
SPANISH
FRENCH

ogic

INSTALLATION MANUAL

T AND APT

H, J, AND HJ

PATENT PENDING

The Maintenance Alert System™ allows the installer

to set an internal Maintenance Cycle Counter. The

Logic 4 operator incorporates a self-diagnostic

feature built into the (MAS) Maintenance Alert

System LED. An LED on the 3-button station will

signal when the set number of cycles/months is

reached or when the operator requires immediate

service.

THIS OPERATOR FEATURES THE ENHANCED

Radio Receiver

Built on Board

315MHz

NOT FOR RESIDENTIAL USE

Serial # Box

Installation Date

2 YEAR WARRANTYTHIS PRODUCT IS TO BE

INSTALLED AND SERVICED

BY A TRAINED DOOR

SYSTEMS TECHNICIAN

ONLY.

Operators are shipped in C2

operating mode.

Visit www.liftmaster.com to locate

a professional installing dealer in

your area.

CONTACT INFORMATION

TABLE OF CONTENTS

SAFETY INFORMATION 3

TROLLEY OPERATORS 4-12

Carton Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operator Specifications . . . . . . . . . . . . . . . . . . . . . . . . .4-5

Maximum Door Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 6

ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9

Assemble the Operator (Models T and GT) . . . . . . . . . 7

Install the Chain (Models T and GT). . . . . . . . . . . . . . . 8

Assemble the Operator (Model APT) . . . . . . . . . . . . . . 9

TYPICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . .10-12

Install the Header Bracket . . . . . . . . . . . . . . . . . . . . . 10

Attach the Track to the Header Bracket . . . . . . . . . . . 11

Hang the Operator . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Attach the Door Arm . . . . . . . . . . . . . . . . . . . . . . . . . 12

HOIST AND JACKSHAFT OPERATORS 13-17

Carton Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Operator Specifications . . . . . . . . . . . . . . . . . . . . . . .13-14

Maximum Door Area . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 15

ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Assemble the Operator . . . . . . . . . . . . . . . . . . . . . . . 16

TYPICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . .16-17

Determine Mounting Location . . . . . . . . . . . . . . . . . . 16

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Install the Manual Disconnect . . . . . . . . . . . . . . . . . . 17

WIRING 18-19

Power and Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Control Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

ENTRAPMENT PROTECTION 20-22

LiftMaster Monitored Entrapment

Protection (LMEP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Install the Photoelectric Sensors (Provided) . . . . . . . . . 21

Mount the Photoelectric Sensors (Provided) . . . . . . . . . 22

Wire the LiftMaster Monitored Entrapment

Protection (LMEP) Devices . . . . . . . . . . . . . . . . . . . . . . 22

ADJUSTMENT 23-24

Limit Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Clutch Adjustment (Belt Drive Model Operators) . . . . . . 24

TESTING 25

MANUAL RELEASE 26-27

Emergency Disconnect System Model GT and T . . . . . . 26

Emergency Disconnect System Model APT . . . . . . . . . . 26

Emergency Disconnect System

Model H, GH, J, and HJ . . . . . . . . . . . . . . . . . . . . . . . . . 27

PROGRAMMING 28-35

Introduction to Programming. . . . . . . . . . . . . . . . . . . . . 28

Determine and Set Wiring Type . . . . . . . . . . . . . . . . . . . 29

Programming Remote Controls . . . . . . . . . . . . . . . . .30-31

Maintenance Alert System (MAS) . . . . . . . . . . . . . . . . . 32

Open Mid Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Timer-To-Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-34

Car Dealer Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Maximum Run Timer (MRT) . . . . . . . . . . . . . . . . . . . . . 35

Resetting Factory Defaults - Clearing Memory . . . . . . . . 35

MAINTENANCE 36

Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Life of Operator Feature (Odometer/Cycle Counter) . . . . 36

Brake (If Present). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

How to Order Repair Parts . . . . . . . . . . . . . . . . . . . . . . . 36

TROUBLESHOOTING 37-40

Diagnostic Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Troubleshooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . 38

Troubleshooting Error Codes . . . . . . . . . . . . . . . . . . . . . 39

Troubleshooting Radio Functionality . . . . . . . . . . . . . . . 40

WIRING DIAGRAMS 41-42

Logic (Ver. 4.0) 1 Phase Wiring Diagram. . . . . . . . . . . . 41

Logic (Ver. 4.0) 3 Phase Wiring Diagram. . . . . . . . . . . . 42

ACCESSORIES 43

CONTROL CONNECTION DIAGRAM BACK COVER

Table of contents 2

SAFETY INFORMATION

TO REDUCE THE RISK OF SEVERE INJURY OR DEATH:

IMPORTANT INSTALLATION INSTRUCTIONS

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND

INSTRUCTIONS.

2. Install door operator ONLY on properly balanced and

lubricated door. An improperly balanced door may NOT

reverse when required and could result in SEVERE INJURY

or DEATH.

3. ALL repairs to cables, spring assemblies and other hardware

MUST be made by a trained door systems technician BEFORE

installing operator.

4. Disable ALL locks and remove ALL ropes connected to door

BEFORE installing operator to avoid entanglement.

5. Install door operator 8 feet (2.44 m) or more above floor.

6. NEVER connect door operator to power source until

instructed to do so.

7. NEVER wear watches, rings or loose clothing while installing

or servicing operator. They could be caught in door or

operator mechanisms.

8. Install control station:

• within sight of the door.

• out of reach of children at minimum height of

5 feet (1.5 m).

• away from ALL moving parts of the door.

9. Install the control station far enough from the door to

prevent the user from coming in contact with the door while

operating the controls.

10. Install the entrapment warning placard on wall next to the

control station in a prominent location that is visible from

the door.

11. Place manual release/safety reverse test label in plain view

on inside of door.

12. Upon completion of installation, test entrapment protection

device.

13. SAVE THESE INSTRUCTIONS.

WARNING

WARNING WARNING

When you see these Safety Symbols and Signal Words on the

following pages, they will alert you to the possibility of serious

injury or death if you do not comply with the warnings that

accompany them. The hazard may come from something

mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will

alert you to the possibility of damage to your door and/or the

door operator if you do not comply with the cautionary

statements that accompany it. Read them carefully.

Mechanical

Electrical

IMPORTANT NOTES:

• BEFORE attempting to install, operate or maintain the operator,

you must read and fully understand this manual and follow all

safety instructions.

• DO NOT attempt repair or service of your commercial door and

gate operator unless you are an Authorized Service Technician.

• Operator intended to be installed on a properly balanced door

only. Make sure door is properly balanced before installing.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

SAFETY INFORMATION

Safety Information3

TROLLEY

OPERATOR SPECIFICATIONS

Carton inventory/Operator speciﬁ cations - Trolley

TROLLEY OPERATORS

CARTON INVENTORY

Before beginning your installation check that all components were provided.

DESCRIPTION

Powerhead assembly

Owner’s manual and caution labels

Hardware box (includes fasteners, track spacers, trolley, door arm assembly, front idler and header mounting bracket)

3-Button control station with LED

Trolley drive chain: #48 for 1/3 and 1/2 HP,

#41 for 3/4 HP and higher (all GT models)

Entrapment Protection Device: Model CPS-U photoelectric sensors (standard)

NOTE: The tracks are shipped separately.

MOTOR

TYPE: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous duty

HORSEPOWER:

Model APT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/2 HP

Model GT . . . . . . . . . . . . . . . . . . . . . . 1/2, 3/4, 1 and 1-1/2 HP

Model T . . . . . . . . . . . . . . . . . . . . . . . . 1/3, 1/2, 3/4 and 1 HP

SPEED (At rated load): . . . . . . . . . . . . . . . . . . . . . . .1725 RPM

VOLTAGE: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Model APT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115V 1 Phase

Model GT and T . . . . . . . . . . . . . . . . . . . . . 115/230V 1 Phase,

208/230/460/575V 3 Phase

CURRENT (Amperage):

Model T and GT

Voltage-Phase 1/3 HP 1/2 HP 3/4 HP 1 HP 1-1/2 HP

115-1Ø, 60Hz 8.5 11.2 13.6 16 20

230-1Ø, 60Hz 4.2 5.6 6.8 8 10

208/230-3Ø, 60Hz 3 3.1 4 6 7

460-3Ø, 60Hz 1.5 1.75 2 3 3.5

575-3Ø, 60Hz 1.3 1.4 1.6 1.8 2.75

Model APT

Voltage-Phase 1/2 HP

115-1Ø, 60Hz 11.2

ELECTRICAL

TRANSFORMER:. . . . . . . . . . . . . . . . . . . . . . . 24Vac Secondary

CONTROL STATION:. . . . . . . . . . . . . . .NEMA 3-Button Station

Open/Close/Stop w/LED

WIRING TYPE: . . . . . . . . . . . . . . . . . . . . . . . . . . .C2 (Standard)

Momentary contact to OPEN & STOP, constant pressure to

CLOSE, plus wiring for sensing device to reverse and auxiliary

devices to open and close with open override. See page 29 for

optional wiring types and operating modes.

LIMIT ADJUST:. . . . . . . . . . Linear driven, fully adjustable screw

type cams. Adjustable to 24 feet.

SAFETY

DISCONNECT:. . . . . . . . . . . . . . . Quick disconnect door arm for

emergency manual door operation.

ENTRAPMENT PROTECTION:

LiftMaster Monitored Entrapment Protection (LMEP)

Photoelectric Sensors (CPS-U): . . . . . . . . . . . . . Through beam

used to provide non-contact safety protection.

Safety Edge (Optional): . . . . . . . .Electric or pneumatic sensing

device attached to the bottom edge of door.

TROLLEY

MAXIMUM DOOR AREA (SQ. FT.)

MODEL T

STANDARD SECTIONAL

24 ga.

22 ga.

Steel

Alum.

Doors

---

285

350

500

625

---

Fiberglass

Doors

---

310

400

560

640

20 ga.

Steel

Wood

Doors

24 ga.

Steel

Insul.

260

320

450

560

16 ga.

Steel

---

20 ga.

Steel

Insul.

175

250

325

400

---

16 ga.

Steel

Insul.

125

200

275

310

1/3 HP

1/2 HP

3/4 HP

1 HP

MODEL GT

STANDARD SECTIONAL

24 ga.

22 ga.

Steel

Alum.

Doors

---

350

500

575

625

---

Fiberglass

Doors

---

400

560

625

---

20 ga.

Steel

Wood

Doors

24 ga.

Steel

Insul.

320

450

500

550

16 ga.

Steel

---

20 ga.

Steel

Insul.

250

325

400

475

---

16 ga.

Steel

Insul.

200

250

300

380

1/2 HP

3/4 HP

1 HP

1-1/2 HP

MODEL APT

STANDARD SECTIONAL

20 ga.

Steel

Wood

Doors

24 ga.

Steel

Insul.

225

24 ga.

22 ga.

Steel

Alum.

Doors

Fiberglass

Doors

250

16 ga.

Steel

---

20 ga.

Steel

Insul.

150

---

16 ga.

Steel

Insul.

100

1/2 HP

Operator speciﬁ cations/Maximum door area - Trolley

MECHANICAL

DRIVE REDUCTION:

Model APT and T . . . . . . . . . . Primary: Heavy duty (5L) V-Belt

Secondary: #41 chain/sprocket;

Output: #48 chain (1/3 and 1/2 HP Model T and APT)

or #41 chain (3/4 and 1 HP Model T ONLY)

Model GT . . . . . . . . . . . . . . . . . . . . . .Primary: 20:1 Heavy duty

worm gear-in-oil-bath speed reducer

Output: #41 chain

OUTPUT SHAFT SPEED:

Model APT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 RPM

Model GT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113.5 RPM

Model T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140 RPM

DOOR SPEED (not adjustable):

Model APT . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7" per second

Model GT . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12" per second

Model T . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12" per second

BRAKE: Solenoid actuated disc brake on 3/4 and 1 HP, standard

on Model GT (Available as an option for 1/3 and 1/2 HP)

BEARINGS: . . . . . . . . . . . . . . Output Shaft: Shielded ball bearing

Model APT and T . . . .Clutch Shaft: IronCopper sintered and oil

impregnated

OPERATOR SPECIFICATIONS

TROLLEY

6 Weights and dimensions - Trolley

11.63"

(29.54 cm)

*Door Height Plus 4 feet (minimum)

*23.43"

(59.51 cm)

14"

(35.56 cm)

Highest Point of Door Travel

(10.16 cm)

*- For Units with Brake add 3-1/2"

(Standard on APT, T 3/4 and T 1 HP models; Optional on T 1/3 and 1/2 HP models)

WEIGHTS AND DIMENSIONS

MODELS T AND APT

Hanging Weight: 80-110 lbs.

MODEL GT

Hanging Weight: 140 lbs.

Door Height Plus 4 feet (minimum)

13.05"

(33.15 cm)

18.5"

(46.99 cm)

17.5"

(44.45 cm)

(10.16 cm)

TROLLEY

Assembly - Trolley

ASSEMBLE THE OPERATOR (MODELS T AND GT)

ASSEMBLY

NOTE: For Model APT assembly refer to page 9.

1 Install the track spacers evenly over the length of the track.

Fasten the spacers to the track with bolt (A) and ﬂ ange hex

nuts (B).

2 Install the front idler to the track with bolts (F) and washers

(D).

3 Assemble the trolley with the take up bolt (C), hex nuts (E),

and lock washer (D).

4 Slide the trolley onto the track.

5 Insert bolts (A) into the end of the track and loosely thread the

nuts (B) onto the ends of the bolts.

6 Slide bolts (A) on the end of the track assembly into the “L”

slot in the operator and tighten nuts (B). Insert bolts (A) into

the holes on the end of the track and the operator. Secure the

track with nuts (B).

HARDWARE

Bolt 3/8"-16 x 3/4"

Bolt 3/8"-16 x 1"

Take Up Bolt

Lock Washer 3/8" Hex Nut 3/8"-16

Flange Hex Nut

3/8"-16

TROLLEY

8 Assembly - Trolley

INSTALL THE CHAIN (MODELS T AND GT)

3˝

2˝

NOTE: For Model APT assembly refer to page 9.

1 Position the trolley 2 inches away from the front idler.

2 Attach the chain to the trolley threaded shaft using the master

link.

3 Run the chain along the track to the operator. Wrap the chain

around the operator drive sprocket.

4 Run the chain along the track to the front idler. Wrap the chain

around the front idler.

5 Attach the chain to the front of the trolley using the master

link.

6 Tighten the chain until the chain sags about 3 inches at the

mid point of the track.

MODEL T

MODEL GT

TROLLEY

ASSEMBLE THE OPERATOR (MODEL APT)

NOTE: If your model is not an APT, proceed to the next page. HARDWARE

Bolt 3/8"-16 x 3/4" Flange Hex Nut

3/8"-16

Assembly - Trolley

3˝

Pull the release clip on the trolley and push the end of the

chain through the slot in the trolley.

Install the track spacers evenly over the length of the track.

Fasten the spacers to the track with bolt (A) and ﬂ ange hex

nuts (B).

Install the front idler in the second set of holes on the end of

the track with bolts (A) and nuts (B).

Slide the trolley onto the track so the door arm hole faces the

front (towards the door).

Insert bolts (A) into the end of the track and loosely thread

the nuts (B) onto the ends of the bolts. Slide bolts (A) on the

end of the track assembly into the “L” slot in the operator and

tighten nuts (B).

Insert bolts (A) into the holes on the end of the track and the

operator. Secure the track with nuts (B).

Run the chain along the track to the front idler. Wrap the

chain around the front idler.

Run the chain along the track to the operator. Wrap the chain

around the operator drive sprocket.

Attach one end of the chain to the drive link using a master

link.

Attach the other end of the chain to the free end of the drive

link using a master link and making sure the chain has the

correct tension (the chain should sag about 3 inches at the

mid point of the track). The chain will need to be cut for

proper adjustment. The take-up bolt can be loosened or

tightened to adjust the slack of the chain. Slide the trolley

back and forth past the drive chain to ensure there is no

binding.

TROLLEY

Typical installation - Trolley

TYPICAL INSTALLATION

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural

support on header wall or ceiling, otherwise door might NOT

reverse when required. DO NOT install header bracket over

drywall.

• Concrete anchors MUST be used if mounting header bracket

or 2x4 into masonry.

• NEVER try to loosen, move or adjust door, springs, cables,

pulleys, brackets, or their hardware, ALL of which are under

EXTREME tension.

• ALWAYS call a trained door systems technician if door binds,

sticks, or is out of balance.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

1Close the door. Mark the center of the door with a vertical line,

extend the line onto the ceiling.

INSTALL THE HEADER BRACKET

2Open the door to the highest point of travel mark 4 inches

above the highest point of travel.

The trolley operator is generally mounted over the center of the

door. However, off center mounting may be required due to

interfering structures or location of door stile / top section support.

Typically, the operator may be mounted up to 24 inches off

center on torsion spring doors. Extension springs require center

mounting.

Center the header bracket on the vertical center line and the

horizontal line.

Drill the pilot holes for the header bracket.

5Fasten the header bracket with appropriate hardware

(not provided).

TROLLEY

Typical installation - Trolley

ATTACH THE TRACK TO THE HEADER BRACKET

HANG THE OPERATOR

1Secure the operator using the appropriate fasteners and

locking hardware that will support the weight of the operator.

To avoid possible SERIOUS INJURY from a falling operator:

• Fasten the operator SECURELY to structural supports of the

building.

• Concrete anchors MUST be used if installing ANY brackets

into masonry.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

1Align the track with the header bracket.

Insert the pin through the track and header bracket holes.

Secure with the fasteners.

Swing the operator up and ensure the operator is level.

HARDWARE

Header Pivot Pin (1)

Cotter pins (2)

TROLLEY

12 Typical installation - Trolley

ATTACH THE DOOR ARM

Latch the door arm to the trolley. Make sure the open side of

the notch on the door arm faces the door.

Position the door bracket to the center line of the door and

attach the door bracket to the door using appropriate hardware

(not included). NOTE: When properly installed and adjusted the

door arm should be leaning back toward the operator slightly.

Refer to door manufacturer’s instructions for recommended

installation guidelines.

NO ECIT

HARDWARE

Nylok Nut 3/8"-16 (1)

Flanged Hex Nut 3/8"-16 (2)

A B

Bolt 3/8"-16 x 1" (3)

HOIST AND JACKSHAFT

Carton inventory/Operator speciﬁ cations - Hoist and Jackshaft

OPERATOR SPECIFICATIONS

CARTON INVENTORY

Before beginning your installation check that all components were provided.

DESCRIPTION

Powerhead assembly

Owner’s manual and caution labels

Hardware box (includes fasteners, track spacers, trolley, door arm assembly, front idler and header mounting bracket)

3-Button control station with LED

Hoist hand chain (Models H, HJ and GH ONLY)

Door sprocket

Door/operator drive chain

Entrapment Protection Device: Model CPS-U photoelectric sensors (standard)

HOIST AND JACKSHAFT OPERATORS

MOTOR

TYPE: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous duty

HORSEPOWER:

Model J, H and HJ . . . . . . . . . . . . . . . . 1/3, 1/2, 3/4 and 1 HP

Model GH . . . . . . . . . . . . . . . . .1/2, 3/4, 1, 1-1/2, 2 and 3 HP

SPEED:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1725 RPM

VOLTAGE:

Model J, H and HJ . . . . . . . . . . . . . . . . . . . .115/230V 1 Phase

208/230/460/575V 3 Phase

Model GH . . . . . . . . . . . . . . . . . . . . . . . . . .115/230V 1 Phase

208/230/460/575V 3 Phase

CURRENT (Amperage):

Models H, HJ, and J

Voltage-Phase 1/3 HP 1/2 HP 3/4 HP 1 HP

115-1Ø, 60Hz 8.5 11.2 13.6 16

230-1Ø, 60Hz 4.2 5.6 6.8 8

208/230-3Ø, 60Hz 3 3.1 4 6

460-3Ø, 60Hz 1.5 1.75 2 3

575-3Ø, 60Hz 1.3 1.4 1.6 1.8

Model GH

Voltage-Phase 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP 3 HP

115-1Ø, 60Hz 11.2 13.6 16 20 - -

230-1Ø, 60Hz 5.6 6.8 8 10 - -

208/230-3Ø, 60Hz 3.1 4 6 7 8 10.6

460-3Ø, 60Hz 1.75 2 3 3.5 4 4.8

575-3Ø, 60Hz 1.4 1.6 1.8 2.75 3 -

ELECTRICAL

TRANSFORMER:. . . . . . . . . . . . . . . . . . . . . . . . 24Vac Secondary

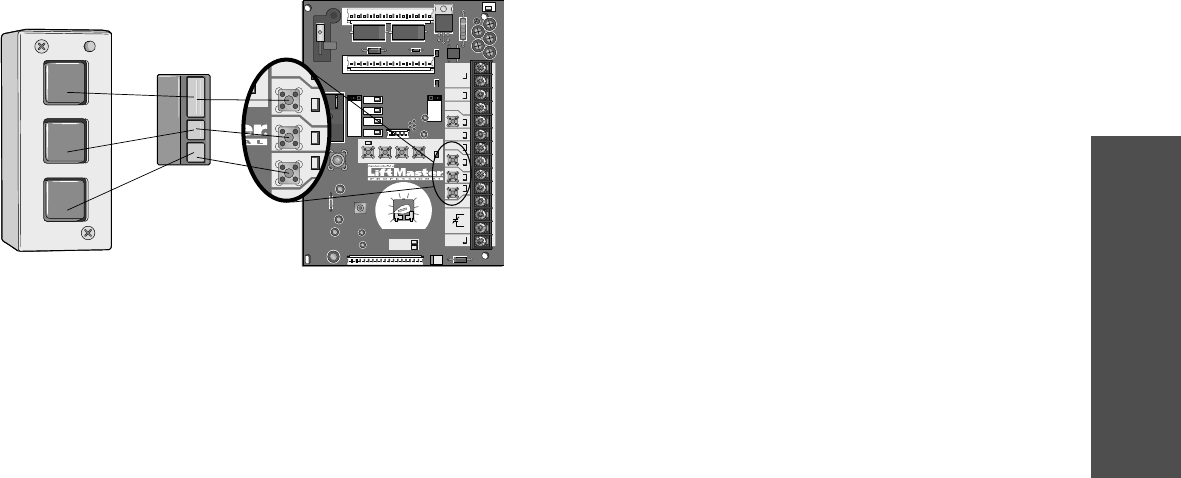

CONTROL STATION:. . . . . . . . . . . . . . . . NEMA 3-Button Station

Open/Close/Stop w/LED

WIRING TYPE: . . . . . . . . . . . . . . . . . . . . . . . . . . . C2 (Standard)

Momentary contact to OPEN and STOP, constant pressure to

CLOSE, plus wiring for sensing device to reverse and auxiliary

devices to open and close with open override. See page 29 for

optional wiring types and operating modes.

LIMIT ADJUST:. . . . . . . . . . Linear driven, fully adjustable screw

type cams. Adjustable to 24 feet.

SAFETY

DISCONNECT:

Model J . . . . .Floor level disconnect for manual door operation

Model H and GH . . . . . . . Floor level chain hoist with electrical

interlock for manual door operation

Model HJ . . . . . . . . . . . . . . Includes both floor level disconnect

systems stated above

ENTRAPMENT PROTECTION:

LiftMaster Monitored Entrapment Protection (LMEP)

Photoelectric Sensors (CPS-U): . . . . . . . . . . . . .Through beam

used to provide non-contact safety protection.

Safety Edge (Optional): . . . . . . . Electric or pneumatic sensing

device attached to the bottom edge of door.

HOIST AND JACKSHAFT

MAXIMUM DOOR AREA (SQ. FT.)

MODELS J, H, AND HJ

SECTIONAL

22 ga.

Steel

Alum.

Doors

24 ga.

22 ga.

Steel

Alum.

Doors

---

285

350

500

625

24 ga.

Steel

Alum.

Grilles

---

Fiberglass

Doors

---

310

400

560

640

---

20 ga.

Steel

Wood

Doors

24 ga.

Steel

Insul.

260

320

450

560

20 ga.

18 ga.

Steel

Grilles

---

210

280

380

475

---

16 ga.

Steel

Insul.

125

200

250

310

1/3 HP

1/2 HP

3/4 HP

1 HP

ROLLING

16 ga.

Steel

---

16 ga.

Steel

---

20 ga.

Steel

Insul.

175

250

325

400

MODEL GH

SECTIONAL

22 ga.

Steel

Alum.

Doors

24 ga.

22 ga.

Steel

Alum.

Doors

---

300

430

560

---

24 ga.

Steel

Alum.

Grilles

---

Fiberglass

Doors

---

325

480

650

---

20 ga.

Steel

Wood

Doors

24 ga.

Steel

Insul.

275

390

500

680

---

20 ga.

18 ga.

Steel

Grilles

---

250

340

430

540

640

875

---

16 ga.

Steel

Insul.

175

225

300

375

460

620

1/2 HP

3/4 HP

1 HP

1-1/2 HP

2 HP

3 HP

5 HP

ROLLING

16 ga.

Steel

---

16 ga.

Steel

---

20 ga.

Steel

Insul.

225

275

325

425

560

840

Call for specifications

Operator speciﬁ cations/Maximum door area - Hoist and Jackshaft

MECHANICAL

DRIVE REDUCTION:

Model J, H, and HJ . . . . . . . . Primary: Heavy duty (5L) V-Belt

Secondary: #48 chain/sprocket;

Output: #50 chain

Model GH . . . . . . . . . . . . Primary: 45:1 for 1/2, 3/4 and 1 HP

Worm gear-in-oil bath gear reducer 44:1 for 1-1/2 and 2 HP

42:1 for 3 HP

Output: #50 chain

OUTPUT SHAFT SPEED:

Model J, H and HJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 RPM

Model GH . . . . . . . . . . . . . . . . . . . .38.3 for 1/2, 3/4 and 1 HP

39.2 for 1-1/2 and 2 HP

41.1 for 3 HP

DOOR SPEED:

Model J, H and HJ . . . . . . . 8-9" per second depending on door

Model GH . . . . . . . . . . . . . 8-9" per second depending on door

BRAKE: . . . . . . . . . . . . . . . . . . . . . Solenoid actuated disc brake

BEARINGS . . . . . . . . . . . . . .Output Shaft: Shielded Ball Bearing

Clutch Shaft: IronCopper sintered and oil impregnated

Models H and HJ ONLY

HAND CHAIN WHEEL: . . . . . . . . . . . . . . . . .Left or right handing

Models H and HJ ONLY

HOIST WHEEL: . . . . . . . Standard mounting on left or right side

OPERATOR SPECIFICATIONS

HOIST AND JACKSHAFT

13.75"

(34.93 cm)

1.5" (3.81 cm)

Door Height Plus 4 feet (minimum)

A - Wall Mounting

B - Bracket Mounting (rolling door)

6.59"

(16.74 cm)

5.5"

(14 cm)

10.5"

(26.67 cm)

Hand Chain Wheel Present

with Models H and HJ ONLY

WEIGHTS AND DIMENSIONS

MODELS J, H AND HJ

Hanging Weight: 80-110 lbs.

14"

WEIGHTS AND DIMENSIONS

HANGING WEIGHT : .........80-1 10 LBS.

Hand Chain Wheel

See

Note #1

See

Note #2

See

Note #3

11-1/2

12-1/2

12-3/4

12-1/2

12-3/4

13-1/4

25-3/4

26-3/4

25-1/4

26-1/4

26-3/4

28-5/8

12-63/64

13-63/64

12-63/64

13-63/64

15-15/64

3-1/2

3-15/16

1/2

3/4

1-1/2

1/2

3/4

1-1/2

DIMENSIONS

PHASE

MODEL GH

Hanging Weight: 140 lbs.

Weights and dimensions - Hoist and Jackshaft

14.5"

(36.83 cm)

16.81"

(42.7 cm)

6.94"

(17.63 cm)

7.56"

(19.2 cm)

7.56"

(19.2 cm)

4.62"

(11.73 cm)

3/8" Bolt

4.41"

(11.2 cm)

4.56"

(11.58 cm)

(22.86 cm)

7.62"

(19.35 cm)

20.15"

(51.18 cm)

16.43"

(41.73 cm)

14"

(35.56 cm)

8.34"

(21.18 cm)

NOTES:

1) Output shaft with 1" x 1/4" key for 1/2 thru 1 HP operators, 1-3/16" x 5/16" key for 1-1/2 and 2 HP operators,

1-1/4" x 1/4" key for 3 HP operators.

2) Mounting centers: X = 4-3/4"; Y = 5-1/2" for 1/2 thru 2 HP operators.

X = 3-5/8"; Y = 9-1/16" for 3 HP operators.

3) Hand chain wheel extends 1-5/8" beyond operator in vertical mounting position as shown.

*23.43"

(59.51 cm)

HOIST AND JACKSHAFT

Assembly/Typical installation - Hoist and Jackshaft

DETERMINE MOUNTING LOCATION

TYPICAL INSTALLATION

Select handing. Right (R) or Left (L).

On models J, H, HJ and GH operators the drive sprocket can be

mounted on either the right or left side.

For models H and HJ with manual hand chain systems, the

handing of the operator must be determined at the time of order.

The handing is indicated by the last letter of the model number

(R or L). The hand chain wheel cannot be switched. If your

installation causes the hand chain to hang in the door opening,

hook the chain to the side near the top of the door jamb.

The operator may be mounted on the wall, shelf or bracket

(not provided, see accessories). The optimum distance between

the door shaft and operator drive shaft is 12 - 15 inches.

Wall mount

Shelf or bracket mount

It is imperative that the wall or mounting surface provide adequate

support for the operator.

This surface must:

a. Be rigid to prevent play between the operator and the door

shaft.

b. Provide a level base.

c. Permit the operator to be fastened securely and with the drive

shaft parallel to the door shaft.

To prevent possible SERIOUS INJURY or DEATH:

• DO NOT connect electric power until instructed to do so.

• If the door lock needs to remain functional, install an interlock

switch.

• ALWAYS call a trained door systems technician if door binds,

sticks or is out of balance. An unbalanced door may NOT

reverse when required.

• NEVER try to loosen, move or adjust doors, door springs,

cable, pulleys, brackets or their hardware, ALL of which are

under EXTREME tension and can cause SERIOUS PERSONAL

INJURY.

• Disable ALL locks and remove ALL ropes connected to door

BEFORE installing and operating door operator to avoid

entanglement.

• Fasten the operator SECURELY to structural supports of the

building.

• Concrete anchors MUST be used if installing ANY brackets.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

ASSEMBLE THE OPERATOR

ASSEMBLY

1a 1b

12" - 15"

EXAMPLE: Right Hand

HOIST AND JACKSHAFT

Typical installation - Hoist and Jackshaft

MOUNTING

INSTALL THE MANUAL DISCONNECT

Place the door sprocket on the door shaft.

Fasten Door retaining bracket 4 feet above the ﬂ oor.

Door retaining bracket

Place the operator drive sprocket on the appropriate side of the

operator for your installation type.

Wrap the drive chain around the door sprocket and the drive

sprocket then secure with the master link.

4Align the door and the drive sprockets. Insert keys and

fasten the sprockets with the set screws. NOTE: It is highly

recommended to add a thread adhesive to secure the set

screws in place.

WIRING

Wiring - Power and ground wiring

WIRING

To reduce the risk of SEVERE INJURY or DEATH:

• ANY maintenance to the operator or in the area near the

operator MUST NOT be performed until disconnecting the

electrical power and locking-out the power. Upon completion of

maintenance the area MUST be cleared and secured, at that

time the unit may be returned to service.

• Disconnect power at the fuse box BEFORE proceeding.

Operator MUST be properly grounded and connected in

accordance with national and local electrical codes. The

operator should be on a separate fused line of adequate

capacity.

• ALL electrical connections MUST be made by a qualified

individual.

• DO NOT install ANY wiring or attempt to run the operator

without consulting the wiring diagram.

• ALL power wiring should be on a dedicated circuit and well

protected. The location of the power disconnect should be

visible and clearly labeled.

• ALL power and control wiring MUST be run in separate

conduit.

Three Phase Power Wiring

Single Phase Power Wiring

Line Power

115/230 Vac

Single Phase

Hot

Neutral

Ground

Phase 1

Phase 2

Phase 3

WARNING

Line Power

208/230/460/575 Vac

Three Phase

POWER AND GROUND

Power and control wiring must be run in separate conduit in

accordance with national and local electrical codes. Must use

14 AWG or heavier wire for power wiring. Use conduit knockouts

for wiring as indicated on the electrical box labels.

Remove the operator cover.

Attach power and ground wires to appropriate terminals.

IMPORTANT NOTE: This operator must be properly

grounded. Failure to properly ground the operator could

result in electric shock and serious injury.

NOTE: In some installations, such as a through-wall-installation,

the rotation of the motor and logic board may have to be changed.

1. Locate the MOTOR DIRECTION jumper on the logic board.

Remove jumper and relocate from STD to REV.

2. Relocate the safety limit switch (SLS) to the opposite side.

3. Remove CLOSE/OPEN decal and reattach appropriately.

2Run power wires to electrical box according to national and

local electrical codes.

ON THREE PHASE MACHINES ONLY: Incorrect phasing of

the power supply will cause the motor to rotate in the wrong

direction. To change motor rotation, exchange incoming

power leads L1 and L2.

DISTANCE GAUGE

50 feet 14 AWG

100 feet 12 AWG

200 feet 8 AWG*

350 feet 6 AWG*

500 feet 4 AWG*

1000 feet 2 AWG*

POWER WIRING CHART

Maximum wire gauge that can be connected to the operator’s

terminal is 12 AWG. When a larger wire gauge is required, the wire

must be gauged down to 12 AWG. USE COPPER WIRE ONLY.

WIRING

Wiring - Control station

Remove the control station cover.

Select appropriate knockout and run the wires to the

operator.

1Connect wires to the control station and replace the control

station cover.

Fasten the entrapment warning placard next to the control

station.

52 Fasten the control station to the wall at least 5 feet above the

ground. The installation surface must be smooth and ﬂ at.

Attach the MAS label to the side of the control station.

DATA

24VAC

LMEP:

EDGE:

OPEN

STOP

COMMON

SBC

MAS

COMMON

TIMER

DEFEAT

POWER

TIMER

NABLE

3-PHASE

1 PHASE

Open

Stop

Maintenance

Alert LED

(WH)(RD)

3-Button

Station

OPEN

STOP

24VAC

TIMER

DEFEAT

COMMON

MAS

LMEP

EDGE

OPEN

STOP

COMMON

SBC

CONTROL STATION

OPEN

STOP

To prevent possible SERIOUS INJURY or DEATH from

electrocution:

• Be sure power is NOT connected BEFORE installing door

control.

To prevent possible SERIOUS INJURY or DEATH from a closing

door:

• Install door control within sight of door, out of reach of

children at a minimum height of 5 feet (1.5 m) and away from

ALL moving parts of door.

• Install the control station far enough from the door to prevent

the user from coming in contact with the door while operating

the controls.

• Install the entrapment warning placard on wall next to the

control station in a prominent location that is visible from the

door.

• NEVER permit children to operate or play with door control

push buttons or remote controls.

• Activate door ONLY when it can be seen clearly, is properly

adjusted and there are no obstructions to door travel.

• ALWAYS keep door in sight until completely closed. NEVER

permit anyone to cross path of closing door.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

WARNING WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

WARNING

Keep Door in Sight at all Times When Door is Moving

Moving Door Can Cause

Serious Injury or Death

Keep Clear! Door May Move at any Time

Without Prior Warning

Do Not Let Children Operate the Door or Play

in the Door Area

Maintenance

Alert System

If light is Flashing

Rapidly, it is time

for routine door

maintenance.

If light is Flashing

Slowly, followed

by a pause, call for

immediate service.

Service every

cycles/months

NOTE: The low voltage control circuit wiring requires insulated,

20 AWG or greater wire. Refer to back page for additional control

wiring.

UL Entrapment Placard

MAS Label

ENTRAPMENT PROTECTION

Entrapment Protection

To prevent possible SERIOUS INJURY or DEATH from a closing

door:

• Be sure power is NOT connected to the door operator BEFORE

installing the photoelectric sensor.

• The door MUST be in the fully opened or closed position

BEFORE installing the LiftMaster Monitored Entrapment

Protection device.

To prevent SERIOUS INJURY, DEATH, ENTRAPMENT, or

PROPERTY DAMAGE:

• Correctly connect and align the photoelectric sensor.

• Install the photoelectric sensor beam NO HIGHER than

6" (15 cm) above the floor.

• This is a required safety device for B2, TS, T, and FSTS wiring

types and MUST NOT be disabled. For D1, C2, and E2 wiring

the installation of an entrapment device is recommended.

• LiftMaster Monitored Entrapment Protection devices are for

use with LiftMaster Commercial Door Operators ONLY. Use

with ANY other product voids the warranty.

• If an edge sensor is being used on a horizontal slide door,

then place one or more edge sensors on both the leading and

trailing edge.

• If an edge sensor is being used on a vertically moving door,

then place one or more edge sensors on the bottom edge of

the door.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

LIFTMASTER MONITORED ENTRAPMENT

PROTECTION (LMEP)

Safety Reversing

Sensor

Invisible Light Beam

Protection Area

Safety Reversing

Sensor

— Right Side of Garage

—

—Left Side of Garage—

Photoelectric Sensor

6" (15 cm) max. above

floor

Invisible Light Beam

Protection Area

Photoelectric Sensor

6" (15 cm) max. above

floor

ENTRAPMENT PROTECTION

IMPORTANT INFORMATION ABOUT THE LIFTMASTER

MONITORED ENTRAPMENT PROTECTION DEVICES

A LiftMaster Monitored Entrapment Protection (LMEP) device is

required for most wiring types (refer to page 29). The operator

comes standard with the photoelectric sensors model CPS-U,

additional entrapment devices are available for purchase

(see accessories). If a LiftMaster Monitored Entrapment Protection

device is not installed, constant pressure to close will be required

from the control station.

When properly connected and aligned, the photoelectric sensors

will detect an obstruction in the path of its invisible light beam. If

an obstruction breaks the light beam while the door is closing, the

door will stop and typically reverse to the full open position.

The photoelectric sensors must be installed facing each other

across the door, no more than 6" (15 cm) above the floor.

Each photoelectric sensor has an LED that will glow steady when

the sensor is properly connected and aligned. The LEDs on both

photoelectric sensors will flicker rapidly when obstructed or

misaligned.

ENTRAPMENT PROTECTION

Entrapment Protection

Mounting Bracket with Square Holes

“C” Wrap

Screws#

10-32x3/8"

Lock Nuts

#10-32

INSTALL THE PHOTOELECTRIC SENSORS (PROVIDED)

WALL INSTALLATION

2Connect each assembly to a slotted bracket, using the

hardware shown. Note alignment of brackets for left and

right sides of the door.

3Finger tighten the lock nuts.

4Use bracket mounting holes as a template to locate and drill

(2) 3/16" diameter pilot holes on both sides of the garage

door, 4-6 inches (10-15 cm) above the ﬂ oor. Do not exceed

6 inches (15 cm).

5Attach bracket assemblies with 1/4"x1-1/2" lag screws.

6Adjust right and left side bracket assemblies to the same

distance out from mounting surface. Make sure all door

hardware obstructions are cleared. Tighten the nuts securely.

ALTERNATE FLOOR INSTALLATION

2Discard slotted bracket. Drill 3/8" holes in each track and

fasten securely with hardware .

DOOR TRACK INSTALLATION

Lag Screws

1/4x1-1/2"

Carriage Bolts (with square

shoulders) 1/4-20x12"

Lock Nuts

1/4"-20

Inside

Wall

Mounting Bracket

with Slot Mounting Bracket with

Square Holes

“C” Wrap

Inside

Wall

“C” Wrap

Mounting Bracket with

Square Holes

Lock Nuts 1/4"

Door Track

Drill 3/8" Holes

Carriage Bolts 1/4-20x1/2"

Sensor

with Wire

Inside

Wall

Indicator Light

Mounting Bracket with

Square Holes

Mounting Bracket

with Slot

“C” Wrap

- Floor -

Attach with Concrete Anchors (Not Provided)

The following instructions show recommended assembly of the bracket(s) and “C” wrap based on the wall installation of the

photoelectric sensors on each side of the door or on the door tracks themselves.

There are also alternate mounting methods which may ﬁ t

your installation requirements better.

Make sure the wraps and brackets are aligned so the photoelectric sensors will face each other across the door.

Fasten the “C” wraps to the mounting brackets having square

holes, using hardware shown.

Indicator Light

ALTERNATE WALL INSTALLATION

Mounting Bracket

with Slot

“C” Wrap

Sensor with Wire

Inside

Wall

- Floor -

Mounting Bracket with

Square Holes

ENTRAPMENT PROTECTION

MOUNT THE PHOTOELECTRIC SENSORS (PROVIDED)

Center each sensor in the bracket with the lenses pointing

toward each other across the door.

Attach the sensors to the brackets with the provided

hardware. Finger tighten the receiving sensor wing nut.

Securely tighten the sending sensor wing nut.

Run the wires from both sensors to the operator. Use

insulated staples to secure wire to the wall and ceiling.

Connect the sensor wires to the operator (see below).

Wire

Indicator Light

“C” Wrap

Wing Nut

Hex Bolt 1/4-20x1-1/2"

Sensor

Photoelectric Sensor

6" (15 cm) max. above ﬂ oor

Photoelectric Sensor

6" (15 cm) max. above ﬂ oor

Invisible Light Beam Protection Area

Bell Wire

Secure wire with

insulated staples

Connect wire to

Operator (refer to

following page)

Entrapment Protection

WIRE THE LIFTMASTER MONITORED ENTRAPMENT PROTECTION (LMEP) DEVICES

Connect the LiftMaster Monitored Entrapment Protection

(LMEP) device to the logic board according to the models

shown below:

TTC

24VAC

LMEP:

EDGE:

OPEN

STOP

COMMON

MAS

COMMON

TIMER

DEFEAT

POWER

TIMER

ENABLE

FSTS

DIAG

3-PHASE

1-PHASE

White (Blue)

White/Black (Brown)

CPS-U and CPS-UN4

40-34141-1

LMEP2

LMEP1

CPS-EI

24VAC

LMEP

EDGE

OPEN

STOP

COMMON

SBC

MAS

COMMON

TIMER

DEFEAT

POWER

Green LED

4-Wire Sensing Edge

Black

White

CPS-EI

ADJUSTMENT

LIMIT ADJUSTMENT

Adjustment - Limits Adjustment

To avoid SERIOUS personal INJURY or DEATH from

electrocution:

• Disconnect electric power BEFORE performing ANY

adjustments or maintenance.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

TO REDUCE THE RISK OF SEVERE INJURY OR DEATH:

IMPORTANT SAFETY INSTRUCTIONS

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children.

NEVER permit children to operate or play with door control

push buttons or remote controls.

3. ONLY activate door when it can be seen clearly, it is properly

adjusted and there are no obstructions to door travel.

4. Personnel should keep away from a door in motion and

ALWAYS keep door in sight until completely closed. NO ONE

SHOULD CROSS THE PATH OF THE MOVING DOOR.

5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY

OPENED DOOR.

6. If possible, use manual release handle to disengage door

ONLY when door is CLOSED. Weak or broken springs or

unbalanced door could result in an open door falling rapidly

and/or unexpectedly causing SEVERE INJURY or DEATH.

7. NEVER use manual release handle unless doorway is clear of

persons and obstructions.

8. After ANY adjustments are made, the entrapment protection

device MUST be tested. Failure to adjust the operator

properly may cause SEVERE INJURY and DEATH.

9. Entrapment Protection device MUST be tested every month.

Failure to adjust the operator properly may cause SEVERE

INJURY and DEATH.

10. ALWAYS KEEP DOOR PROPERLY BALANCED. An

improperly balanced door may NOT reverse when required

and could result in SEVERE INJURY or DEATH. See door

manufacturer’s owners manual.

11. ALL repairs to cables, spring assemblies and other

hardware, ALL of which are under EXTREME tension, MUST

be made by a trained door systems technician.

12. ALWAYS disconnect electric power to door operator

BEFORE making ANY repairs or removing covers.

13. SAVE THESE INSTRUCTIONS.

WARNING

WARNING WARNING

1 Begin with the door in the fully closed position to set the

CLOSE limit.

2 Depress the retaining plate (1) and move the limit nut to the

CLOSE limits (2).

NOTE: The Close Limit Switch (CLS) and Safety Limit Switch

(SLS) LEDs on the logic board will illuminate when the switches

are activated and the power is on.

3 When the retaining plate is released, verify that the retaining

plate is fully seated with the notches of the limit nuts.

4 Open the door to the fully open position and set the OPEN

limit (3).

NOTE: The Open Limit Switch (OLS) LED on the logic board will

illuminate when the switches are activated and the power is on.

5 When the retaining plate is released, verify that the retaining

plate is fully seated with the notches of the limit nuts.

ADJUSTMENT

CLUTCH ADJUSTMENT

(BELT DRIVE MODEL OPERATORS)

Remove the cotter pin from the clutch nut on the clutch shaft.

Turn the clutch nut to release tension.

Re-tighten the clutch nut until there is just enough tension to

permit smooth operation of the door and to allow the clutch

to slip if the door is obstructed.

Secure the clutch nut with the cotter pin.

Adjustment - Clutch adjustment

To avoid SERIOUS personal INJURY or DEATH from

electrocution:

• Disconnect electric power BEFORE performing ANY

adjustments or maintenance.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

WARNING WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

AUXILIARY REVERSAL SYSTEM / RPM SENSOR

The Auxiliary Reversal System is designed to protect the door

and motorized operator. It is NOT a substitute for a safety sensing

device.

Feature: This feature utilizes the RPM sensor connected to the logic

board to detect when the clutch slips and reverses the door (clutch

must be properly adjusted). In addition, the RPM eliminates the

need for a centrifugal switch on single phase motors.

Benefit: The Auxiliary Reversal System reverses the operator upon

hitting an obstruction, preventing excessive door and operator

damage. We require the use of safety devices for primary safety

protection. By removing the centrifugal switch on single phase

motors, the leading cause of motor failures is eliminated. (Auxiliary

Reversal System not applicable on models GH and GT.)

NOTE: This feature is automatically learned and does not require

programming.

OSE OPEN

RPM Sensor

Logic Board

Loosen set screws on clutch nut.

Back off clutch nut until there is very little tension on the

clutch spring.

Tighten clutch nut gradually until there is just enough tension

to permit the operator to move the door smoothly but to allow

the clutch to slip if the door is obstructed. When the clutch is

properly adjusted, it should generally be possible to stop the

door by hand during travel.

Loosen set screws of torque adjustment nut on the gear

reducer.

Back off torque nut until there is very little tension on the

belleville washers.

Tighten torque nut gradually until there is just enough tension

to permit the operator to move the door smoothly through a

complete open/close cycle, but to allow the reducer to slip if

the door is obstructed.

Re-tighten the set screw that is directly over the ﬂ at portion

of the shaft.

(3) Set Screws

Set Screws

Torque Nut

ADJUST TORQUE LIMITER CLUTCH (MODEL GT)

MODEL GH (OPTIONAL MODIFICATION)

TESTING

Testing

TEST 3-BUTTON CONTROL STATION

1. Press OPEN button. (The door should move in the open

direction.)

2. Press STOP button. (The door should stop.)

3. Press and hold the CLOSE button. (The door should move in

the close direction.)

4. Release CLOSE button. Door should stop if in C2 or D1 mode.

Door will reverse to full open position in E2 mode. The door

should continue closing in all other modes.

5. Press STOP button. (The door should stop.)

TEST LIMIT ADJUSTMENT

1. Press OPEN button. (The door should open.)

2. Allow the door to fully open.

3. Press and hold the CLOSE button. (The door should close.)

4. Allow the door to fully close.

5. If the limits are not set properly, remove power and adjust

limits (refer to Limit Adjustment section).

TEST THE PHOTOELECTRIC SENSORS

1. Open the door.

2. Place an obstruction in the path of the photoelectric sensors.

The LMEP LED will blink on the logic board and the receiving

eye LED will turn off.

3. Press and hold the CLOSE button.

The door should not close if photoelectric sensors are

installed.

4. Remove the obstruction.

5. Press and hold the CLOSE button. Door should close.

If door did not reverse from obstruction, check

photoelectric sensors.

NOTE: The Logic 4 control board will automatically learn the

photoelectric sensors (LMEP) once they are properly connected.

If the LMEP is misaligned or disconnected the LMEP LED on the

logic control board will blink on and off. You can close the door

by entering the Restricted Close (RC) mode by holding the close

button. The operator will begin closing after 5 seconds and will

continue to close to the Close Limit or when the close button is

released.

To unlearn the photoelectric sensors, turn the selector dial to

DIAG, push and hold the stop button until the MAS LED flashes.

Without the photoelectric sensors connected the only mode of

operation will be C2, D1 or E2.

IMPORTANT NOTES:

• Do not leave power to the operator on unless all safety and

entrapment protection devices have been tested and are

working properly.

• Be sure you have read and understand all safety instructions

included in this manual.

• Be sure the owner or person(s) responsible for operation of the

door have read and understand the safety instructions, know

how to electrically operate the door in a safe manner and how

to manually disconnect the door from the operator.

TESTING

To avoid SERIOUS personal INJURY or DEATH:

• Disconnect electric power BEFORE performing ANY

adjustments or maintenance.

• ALL maintenance MUST be performed by a trained door

systems technician.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

Apply power to the operator.

When power is applied to the operator, the following LED’s will

illuminate: STOP, CLOSE, OPEN, LMEP, 24Vac, RADIO, DATA,

TIMER ENABLE, OLS MID, SLS, CLS, and MAS. Once the power

up process is completed (approximately 2-3 seconds) only the

appropriate LED’s will continue to be lit:

• Between limits: 24Vac and STOP

• Fully closed position: 24Vac, STOP, CLS and SLS

• Fully opened position: 24Vac, STOP and OLS

Additional LED’s will light when device(s) are activated.

NOTE: When the power up process is over, the MAS LED will

blink a code indicating the version of firmware. If the selector dial

is in the DIAG, OPTN, or PROG position, the MAS will not provide

this code. After the code has been provided the MAS LED will go

out.

1. After power is connected to the operator, the green indicator

lights in both the sending and receiving sensors will glow

steadily if wiring connections and alignment are correct.

2. If the green indicator lights are ﬂ ashing rapidly (and the

invisible light beam path is not obstructed), alignment is

required:

• Loosen the receiving sensor wing nut to allow slight rotation of

the sensor. Adjust sensor vertically and/or horizontally until the

green indicator light glows steadily.

• When the indicator lights are glowing in both sensors, tighten

the receiving sensor wing nut.

ALIGN THE PHOTOELECTRIC SENSORS

MANUAL RELEASE

To prevent possible SERIOUS INJURY or DEATH from a falling

door or arm:

• DO NOT stand under the door arm when pulling the

emergency release.

• If possible, use emergency release handle to disengage trolley

ONLY when door is CLOSED. Weak or broken springs or

unbalanced door could result in an open door falling rapidly

and/or unexpectedly.

• NEVER use emergency release handle unless doorway is clear

of persons and obstructions.

EMERGENCY DISCONNECT SYSTEM

MODEL GT AND T

MANUAL RELEASE

TO DISCONNECT DOOR FROM OPERATOR

The door should be in the fully closed position if possible.

Pull emergency release handle straight down. Emergency

disconnect will open.

TO RECONNECT DOOR ARM TO TROLLEY

Lift free end of door arm to trolley. Pull emergency release

handle to allow arm to engage roll pin. Release handle.

Emergency disconnect will close.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

Manual Release

NO ECI

EMERGENCY DISCONNECT SYSTEM

MODEL APT

TO DISCONNECT DOOR FROM OPERATOR

The door should be in the fully closed position if possible.

Pull down on the emergency release handle and raise or

lower the door manually.

TO RECONNECT DOOR ARM TO TROLLEY

The trolley will reconnect on the next UP or DOWN operation,

either manually or by using the door control or remote.

N O E C I

MANUAL RELEASE

This operator has provisions for manually operating the door

in case of emergency or power failure. Refer to the appropriate

instructions below for your model operator.

MODEL HJ

This operator includes both a ﬂ oor level disconnect chain

(sash chain) to disconnect the door from the door operator and

a disconnect chain with manual hoist to electrically disable the

operator controls.

Pull the disconnect chain to engage the hoist mechanism.

The disconnect chain may be locked in position by slipping

the end through the keyhole of the chain keeper mounted on

the wall.

To disengage, pull the disconnect chain and secure in the

disengaged position by slipping the end through the keyhole

bracket mounted on the wall.

Operate the door in the desired direction by pulling on one

side or the other of the continuous loop hoist chain.

Release the disconnect chain to operate the door again

electrically.

To prevent possible SERIOUS INJURY from a moving chain:

• DISCONNECT electric power to the operator BEFORE manually

operating your door.

• If possible, use emergency disconnect ONLY when door is

CLOSED. Weak or broken springs or unbalanced door could

result in an open door falling rapidly and/or unexpectedly.

• NEVER use emergency disconnect unless doorway is clear of

persons and obstructions.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

These operators are equipped with a manual hoist. An electrical

interlock will disable the electrical controls when the hoist is used.

To operate the hoist:

Pull the disconnect chain (sash chain) to engage the hoist

mechanism. The disconnect chain may be locked in position

by slipping the end through the keyhole of the chain keeper

mounted on the wall.

Operate the door in the desired direction by pulling on one

side or the other of the continuous loop hoist chain.

The disconnect chain must be released from the chain keeper

before the door will operate again electrically.

MODEL H AND GH

MODEL J

This operator has a ﬂ oor level disconnect chain to disconnect the

door from the door operator.

To disengage, pull the disconnect chain (sash chain) and

secure in the disengaged position by slipping the end

through the keyhole bracket mounted on the wall.

The door may now be pushed up or pulled down manually.

Release the disconnect chain to operate the door again

electrically.

H and GH

EMERGENCY DISCONNECT SYSTEM

MODEL H, GH, J, AND HJ

Manual Release

PROGRAMMING

INTRODUCTION TO PROGRAMMING

SLOT 1

RADIO

SLS

MRT MID TTC

DATA

24VAC

LMEP:

EDGE:

OPEN

STOP

COMMON

RELAY A

RELAY B

SBC 1

MAS

COMMON

TIMER

DEFEAT

POWER

TIMER

ENABLE

123

FSTS

DIAG

OPTN

PROG

T TS

CLS

OLS

MID

REV

STD

SLOT 2

MOTOR

DIRECTION

3-PHASE

1-PHASE

Selector Dial

(used for programming

and selecting wiring type) Main Motor Control Harness Connection

Maximum Run

Timer Button

Optional Auxiliary

Card Receptacles

Mid Stop Learn Button

Timer-To-Close

Learn Button

Radio Learn Button Open Button

Close Button

Stop Button

Control Wiring

Terminal Block

Motor Direction Jumper

Maintenance Alert

System Button for

Programming

Single Phase &

Three Phase Jumper

PROGRAMMING

Programming-Introduction to programming

LOGIC BOARD OVERVIEW

LOGIC BOARD PUSH BUTTONS (OPEN, CLOSE, STOP)

Open, Close and Stop buttons are mounted directly on the logic

board. Thus, making it easy to program as well as have door

control at the electrical box.

Either the stop control or a jumper MUST be wired between

terminals 4 and 5 for the on board push buttons to function.

NOTE: Before programming the logic board, set the operator’s

open and close limits. LEDs on the logic board are provided to

assist setting the limits. As each limit is activated the

corresponding LED will light up. The abbreviations are Open Limit

Switch (OLS), Close Limit Switch (CLS) and Sensing Limit Switch

(SLS). Refer to page 19 for limit switch adjustment instructions.

When power is applied to the operator, the following LED’s will

illuminate: STOP, CLOSE, OPEN, LMEP, 24Vac, RADIO, DATA,

TIMER ENABLE, OLS MID, SLS, CLS, and MAS. Once the power

up process is completed (approximately 2-3 seconds) only the

appropriate LED’s will continue to be lit (i.e., STOP, 24Vdc, limit

LED(s) if limit(s) is activated).

NOTE: When the power up process is over, the MAS LED will

blink a code indicating the version of firmware. If the selector

dial is in the DIAG, OPTN, or PROG position, the MAS will not

provide this code. After the code has been provided the MAS LED

will go out.

LOGIC BOARD LED OVERVIEW

Many programmable functions require that a LiftMaster

Entrapment Protection (LMEP) device be installed in order to

function. Refer to the Entrapment Protection section.

PROGRAMMING

DETERMINE AND SET WIRING TYPE

Read the descriptions of the different wiring types to determine which setting will be correct for each application. Once the wiring type

is determined, set the selector dial accordingly.

OPTN

PROG

DIAG

FSTS

SELECTOR DIAL

Programming - Determine and set wiring type

IMPORTANT NOTES:

1. External interlocks may be used with all functional modes.

2. Auxiliary devices are any devices that have only dry contacts.

Examples: photocell, loop detector, pneumatic or electrical

treadles, radio controls, one button stations, pull cords, etc.

3. Open override means that the door may be reversed while

closing by activating an opening device without the need to use

the stop button first.

4. When the door is in a stopped position other than fully closed,

and a safety input is activated (LMEP or EDGE), the Restricted

Close (RC) feature will allow a close command when the close

button is pressed and held. The operator will begin closing after

5 seconds. If the close button is released the door will stop.

When in E2 mode, the door will move to the fully open position.

LIFTMASTER MONITORED ENTRAPMENT PROTECTION (LMEP)

DEVICE IS REQUIRED

A LiftMaster Entrapment Protection (LMEP) device is required for

the following wiring types.

LIFTMASTER MONITORED ENTRAPMENT PROTECTION (LMEP)

DEVICE IS RECOMMENDED

A LiftMaster Entrapment Protection (LMEP) device is

recommended for the following wiring types.

B2 Momentary contact to open, close and stop, plus wiring for

sensing device to reverse and auxiliary devices to open and

close with open override. Programmable mid stop available

with this wiring type. Compatible with 3-Button Station,

1-Button Station, 1 and 3-Button Remote Control.

TS (TIMER SECURE)

This mode will attempt to close the door from any position

except when fully closed, or when a safety input is present.

The stop button will not disable the Timer-To-Close at any

position. To disable the Timer-To-Close in this mode,

installation of a defeat switch is required (see wiring

diagram).

Momentary contact to open, close, and stop with open

override and Timer-To-Close. Every device that causes

door to open, including a reversing device, activates the

Timer-To-Close. Auxiliary controls can be connected to open

input to activate the Timer-To-Close. If the timer has been

activated, the open button and radio control can recycle the

timer. The Timer-To-Close will function from the

programmable mid stop with this wiring type. Compatible

with 3-Button Station, 1-Button Station and 1 and 3-Button

Remote Control.

NOTE: A Programmable “Car Dealer Mode” available.

T Momentary contact to open, close, and stop, with open

override and Timer-To-Close. Every device that causes

the door to open, except any safety edge input device,

activates the Timer-To-Close. Auxiliary controls can be

connected to open input to activate the Timer-To-Close.

If the Timer-To-Close has been activated, the open button

and radio control can recycle the timer. The stop button will

deactivate the timer until the next command input. The

Timer-To-Close will function from the programmable

mid stop with this wiring type. Compatible with 3-Button

Station,1-Button Station and 1 and 3-Button Remote

Control.

NOTE: Programmable “Car Dealer Mode” available.

FSTS Momentary button contact for open, close and stop

programming. User set mid stop. User set Timer-To-Close.

The single button station opens the door to the full

open limit bypassing the mid stop and activates the

Timer-To-Close, putting the operator in TS mode until the

door reaches the down limit, or is stopped in travel. At

which time the operator enters the B2 mode.

Compatible with 3-Button Station, 1-Button Station, 1 and

3-Button Remote Control. A 1-Button remote control in

FSTS mode will open only with the Timer-To-Close,

bypassing a programmed mid stop. The Timer-To-Close will

reset and reverse when closing.

C2 Momentary contact to open and stop with constant pressure

to close, open override plus wiring for sensing device to

reverse. Programmable mid stop available with this wiring

type. Compatible with 3-Button Station and 1-Button

Station.

E2 Momentary contact to open with override and constant

pressure to close. Release of close button will cause door to

reverse (roll-back feature) plus wiring for sensing device to

reverse. Compatible with 3-Button Station.

D1 Constant pressure to open and close with wiring for sensing

device to stop. Compatible with 2 or 3-Button Station.

PROGRAMMING

SINGLE BUTTON REMOTE CONTROL PROGRAMMED AS

A SINGLE BUTTON CONTROL (SBC)

This function programs a remote control as a wireless single

button control. This function will work in the following modes:

In B2 mode, operation is OPEN/STOP/CLOSE/REVERSE/STOP.

In T and TS modes, operation is OPEN/STOP/CLOSE/REVERSE/

STOP and Timer-To-Close start/refresh. NOTE: If Car Dealer

mode is enabled, SBC will be open only stopping at the Open

Mid-Stop.

In FSTS mode, operation is OPEN with Timer-To-Close

start/refresh only, bypassing a programmed Open Mid Stop.

1. Press and release the RADIO button on the logic board

(RADIO LED will light).

2. Press and release the SBC externally wired button or TIMER on

the logic board (RADIO LED flashes rapidly and then remains

on solid).

3. Press and hold the remote control button until the RADIO LED

flashes rapidly. The RADIO LED will then remain on solid after

releasing.

4. Press and release the RADIO button on the logic board (RADIO

LED flashes rapidly and then turns off). The programming

mode is exited if no activity is performed within 30 seconds.

NOTE: Single button remote control is not supported with D1 and

E2 wiring modes. C2 mode will only open and stop while opening.

ERASING REMOTE CONTROLS

Press and hold the RADIO button on the logic board until the

RADIO LED flashes rapidly (approximately 5 seconds).

All remote controls will be erased.

Built in 3-channel, 315 MHz radio receiver allows you to add as

many as 23 Security✚® remotes or dip switch remote controls.

NOTE: The following programming requires a LiftMaster

Monitored Entrapment Protection (LMEP) device.

STANDARD REMOTE CONTROL

1. To enter programming press and release the RADIO button on

the logic board (RADIO LED will light).

2. Press and hold the remote control button until the RADIO LED

flashes rapidly, then release remote control button. The RADIO

LED will then remain on solid after releasing the button. Repeat

to add additional remote control(s).

3. Press and release the RADIO button to complete the

programming. The programming mode is exited if no activity is

performed within 30 seconds.

PROGRAMMING REMOTE CONTROLS

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this

receiver and/or transmitter are prohibited, except for changing the code setting or replacing the

battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

Programming - Remote controls

To prevent possible SEVERE INJURY or DEATH:

• Install a LiftMaster Monitored Entrapment Protection (LMEP)

device.

• NEVER permit children to operate or play with door control

push buttons or remote controls.

• Activate door ONLY when it can be seen clearly, is properly

adjusted and there are no obstructions to door travel.

• ALWAYS keep door in sight until completely closed. NEVER

permit anyone to cross the path of closing door.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

SLOT 1

RADIO

SLS

MRT MID

RELAY A

RELAY B

CLS

OLS

MID

REV

STD

SLOT 2

MOTOR

DIRECTION

RADIO

PROGRAMMING

NOTE: The following programming requires a LiftMaster

Monitored Entrapment Protection (LMEP) device.

Your 315 MHz Security✚® or dip switch remote control can be

programmed to operate as a 3-button wireless control station:

the large button will open the door, the middle button will close

the door, and the third button will stop the door’s movement.

You may set up this feature as follows:

1. To enter programming press and release the RADIO button on

the logic board (the RADIO LED will light).

2. To program the OPEN button to a remote control press and

release the OPEN button on the logic board. The RADIO LED

will flash and then stay on solid. Then press the corresponding

button on the remote control. The RADIO LED on the logic

board will flash, this confirms that the remote control has been

programmed. (By programming the remote you use 1 channel

of the 23 channels on the radio receiver.)

3. To program the CLOSE button to a remote control press and

release the CLOSE button on the logic board. The RADIO LED

will flash and then stay on solid. Then press the corresponding

button on the remote control. The RADIO LED on the logic

board will flash, this confirms that the remote control has been

programmed. (By programming the remote you use 1 channel

of the 23 channels on the radio receiver.)

4. To program the STOP button to a remote control press and

release the STOP button on the logic board. The RADIO LED

will flash and then stay on solid. Then press the corresponding

button on the remote control. The RADIO LED on the logic

board will flash, this confirms that the remote control has been

programmed. (By programming the remote you use 1 channel

of the 23 channels on the radio receiver.)

5. After learning remote controls press the RADIO button on the

logic board (RADIO LED will turn off). NOTE: If no activity

within 30 seconds the radio will automatically exit

programming mode.

SLOT 1

RADIO

SLS

MRT MID TTC

DATA

24VAC

LMEP:

EDGE:

OPEN

STOP

COMMON

RELAY A

RELAY B

SBC

MAS

COMMON

TIMER

DEFEAT

POWER

TIMER

ENABLE

123

FSTS

DIAG

OPTN

PROG

TTS

CLS

OLS

MID

REV

STD

SLOT 2

MOTOR

DIRECTION

3-PHASE

1-PHASE

EDGE:

OPEN

STOP

COMMON

MER

NABLE

OPEN

STOP

Open

Stop

REMOTE CONTROL PROGRAMMING FEATURE

Program Remote Controls from the 3-button control station

(3BCS).

This feature allows the user to add additional remote controls

from the 3BCS. By default the remote control learn option is off.

NOTE: Requires access to the operator electrical box to enable or

disable this feature.

To turn this feature on:

1. Turn the SELECTOR DIAL to PROG.

2. Press and release the RADIO button. The RADIO LED will be lit.

3. Press and release the MID button. The RADIO LED will flash

quickly 6 times.

4. Press and release the RADIO button. The RADIO LED will turn

off.

5. Return the SELECTOR DIAL to the desired wiring type.

To add remote controls from the 3BCS:

1. With the door in the fully closed position (close limit activated),

press and hold STOP.

2. While holding STOP, press and hold CLOSE.

3. While holding STOP and CLOSE, press and hold OPEN.

4. Release all three buttons once the MAS LED has lit.

5. Learn a remote control by one of the following methods:

a. Programming a standard single button/single function

remote control, push and hold the remote control button

until the MAS LED goes out. Repeat steps 1 through 4 to

add additional remote controls.

b. Programming a 3-button/three function remote control

(OPEN/CLOSE/STOP), first push the button on the 3BCS

(Example: OPEN) and then press and hold the button on

the remote control (Example: large button) that you want

to correspond with the selected (Example: OPEN)

command until the MAS LED flashes and goes out.

Repeat steps 1 through 4 to add additional buttons

(CLOSE AND STOP).

To turn this feature off:

1. Turn the SELECTOR DIAL to PROG.

2. Press and release the RADIO button. The RADIO LED will be lit.

3. Press and release the MRT button. The RADIO LED will flash

quickly 3 times.

4. Press and release RADIO button. The RADIO LED will turn off.

5. Return SELECTOR DIAL to desired wiring type.

NOTE: Restoring the operator to Factory Default (see RESETTING

FACTORY DEFAULTS) will also disable this feature. The remote

controls will still be learned.

Programming - Remote controls

PROGRAMMING REMOTE CONTROLS

PROGRAMMING

MAINTENANCE ALERT SYSTEM (MAS)

Feature: An internal cycle counter will activate a flashing LED on

the 3-button control station when the preset number of cycles or

months has elapsed (whichever occurs first). Setting this feature

is optional. By default this feature will never activate. Logic 4

operators incorporate a self diagnostic feature built into the MAS

LED. In addition to indicating when routine maintenance is due,

the MAS LED can be used to troubleshoot some problems with

the operator.

Benefit: The Maintenance Alert System (MAS) assists the

installing dealer in setting up a routine maintenance program.

Once programmed, the MAS notifies the end user (with a flashing

LED on the 3-button station) when a preset number of cycles/

months has elapsed and scheduled maintenance is due.

To Program:

1. Close the door.

2. Turn the selector dial to PROGRAM.

3. Press and release the MAS SET button.

4. Press the STOP button once to clear the MAS memory.

5. Press the OPEN button once for every 5,000 cycles increments.

Press the CLOSE button once for every 3 month increments.

6. Press and release the MAS button to complete the

programming. The on board LED will flash back the

programmed settings. The OPEN LED will flash once for every

5,000 cycles. The CLOSE LED will flash once for every 3

months.

7. Turn the selector dial back to the desired wiring type.

NOTE: If MAS LED flashes 2 or more flashes in a row followed by

a pause, an operator error occurred. Turn to page 35 to diagnose

problem.

Example: A door is installed with 30,000 cycle springs and has an

annual service contract. To set the MAS, turn selector dial to

PROGRAM, press MAS button, press the STOP button to clear the

memory and then press the OPEN button 6 times (30,000 cycles)

and CLOSE 4 times (12 months). Press the MAS again to

complete the programming. Turn the selector dial back to desired

wiring type.

Special Notes about MAS: A 5th wire must be run to the control

station to activate the MAS LED. The MAS LED on the logic board

is always enabled. When the operator is serviced after the MAS

LED has started to flash, repeat the setup procedure to program in

the number or cycles desired until the next service visit OR press

and hold the MAS button for 5 seconds in the PROGRAM mode to

reset the MAS with its current programmed value. To disable the

MAS, follow the programming procedure above and press the

STOP button to reset the counter to zero. Every time the operator

leaves the close limit is counted as one cycle.

To view how many cycles are programmed into the MAS, set the

selector dial to DIAGNOSTIC and press the MAS button. The

OPEN button LED will flash once for every 5,000 cycle increment

programmed and the CLOSE button LED will flash once for every

3 month increment programmed.

To view how many cycles have elapsed since the last time the

MAS was programmed, set the selector dial to DIAGNOSTIC and

press the MAS button. Press the OPEN button; the OPEN LED will

flash once for every 5,000 cycles that has elapsed. Press the

CLOSE button; the CLOSE LED will flash once for every (3)

months that has elapsed. Press the MAS button to exit. Turn the

selector dial back to desired wiring type.

SELECTOR DIAL

OPEN

STOP

Adds 5,000 cycles to Maintenance Alert

System Activation Counter.

Adds 3 Months to Maintenance Alert System

Activation Timer.

Clears memory, sets Maintenance Alert

System Activation Counter to 0 cycles and

0 months.

Press This To Get This

3-BUTTON STATION

OPEN

STOP

Maintenance Alert LED

Programming-Maintenance Alert System (MAS)

OPTN

PROG

DIAG

FSTS

Operation will vary

depending on wiring

type

OPTN

PROG

DIAG

FSTS

PROGRAMMING

OPTN

PROG

DIAG

FSTS

SELECTOR DIAL

Programming - Open mid stop/Timer-To-Close

Operation will

vary depending

on wiring type

SELECTOR DIAL

To prevent possible SEVERE INJURY or DEATH:

• Install a LiftMaster Monitored Entrapment Protection (LMEP)

device.

• NEVER permit children to operate or play with door control

push buttons or remote controls.

• Activate door ONLY when it can be seen clearly, is properly

adjusted and there are no obstructions to door travel.

• ALWAYS keep door in sight until completely closed. NEVER

permit anyone to cross path of closing door.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

OPEN MID STOP

Feature: The Mid Stop feature is to open the door to a preset

point prior to the fully open position.

Benefit: The door opens to a midpoint between open and close

reducing heating and cooling costs. The door will not cycle fully,

providing longer door and operator life.

To Program:

1. Close the door.

2. Turn selector dial to PROGRAM.

3. Press and release the MID button on logic board.

4. Press the OPEN button, wait until the door reaches the desired

mid stop height, then press and release the STOP button.

5. Press and release the MID button to complete programming.

6. Turn selector dial back to desired wiring type.

NOTE: A momentary open command will open the door fully from

the Mid Stop position. Once at the Mid Stop, photoelectric sensors

and other safety devices will not open the door beyond the mid

stop position, except in E2 mode. The Timer-To-Close will work

from the Mid Stop.

To clear the Mid Stop set the selector dial to PROG and press and

hold the MID button for 5 seconds. The MID LED will flash rapidly

and turn off once the Mid Stop has been cleared. Turn selector

dial back to desired wiring type.

TIMER-TO-CLOSE

Feature: Timer automatically closes door after preset time. All

safety devices must be unobstructed.

Benefit: The door will automatically close after preset amount of

time. Great for apartment buildings, fire stations and other

applications where the end user wants the door to close

automatically after a specified amount of time.

Requirements: Must have at least one LiftMaster Monitored

Entrapment Protection (LMEP) device installed (refer to page 20).

Wiring type must be set to TS, T or FSTS.

TO PROGRAM MANUALLY (METHOD 1):

1. Close the door.

2. Turn the selector dial to PROGRAM.

3. Press and release the TIMER button on the logic board.

4. Press and release the STOP button to clear the timer.

5. Press and release the OPEN button for every second the

operator should wait before attempting to close the door. Press

and release the CLOSE button for every 15 seconds the

operator should wait before closing the door.

6. Press and release the TIMER button to complete programming.

The OPEN/CLOSE button LEDs will flash to confirm the timer

setting. The OPEN LED will flash once for every second

programmed and the CLOSE LED will flash once for every 15

seconds programmed.

7. Turn the selector dial to desired timer wiring type

(TS ,T or FSTS).

Example: To close the door after 70 seconds. Turn selector dial to

PROGRAM, press and release the TIMER button, press and

release the STOP button to clear the timer, press and release the

CLOSE button four times for 60 seconds and press and release

the OPEN button 10 times for 10 seconds. Press the TIMER

button to finish programming the timer. Turn selector dial to

desired timer wiring type. (TS, T, FSTS).

OPTN

PROG

DIAG

FSTS

Operation will vary

depending on wiring

type

OPTN

PROG

DIAG

FSTS

OPTN

PROG

DIAG

FSTS

PROGRAMMING

OPTN

PROG

DIAG

FSTS

OPTN

PROG

DIAG

FSTS

OPTN

PROG

DIAG

FSTS

OPTN

PROG

DIAG

FSTS

TIMER-TO-CLOSE

PROGRAM TIMER-TO-CLOSE BY EXAMPLE (Method 2):

TO PROGRAM:

1. Close the door.

2. Turn the selector dial to PROGRAM.

3. Press and hold TIMER button for 5 seconds until OPEN and

OLS flashes then release.

4. Press and release the OPEN button and wait for the door to

reach full open or mid stop position.

5. Wait for desired amount of time to pass. (An internal stop

watch starts counting when the door stops moving.)

6. Press and release the TIMER button, CLOSE button or STOP

button to stop the timer. (TIMER SET LED will turn on.)

7. Turn the selector dial to the desired wiring type (T, TS, FSTS).

NOTE: To read back the Timer-To-Close setting, turn the selector

dial to DIAGNOSTIC and press the TIMER button. The OPEN LED

will flash once for every second programmed and the CLOSE LED

will flash once for every 15 seconds programmed.

In T Mode, timer can be deactivated from the open position by

pressing the STOP button. The timer will be reactivated on the

next operation command. The STOP button WILL NOT deactivate

the timer in the TS mode. To deactivate the timer for more than

one cycle in T mode or in TS mode, attach a defeat switch to 11

and 12 (COMMON and TIMER DEFEAT).

Reminders: FSTS wiring mode allows the Timer-To-Close to be

activated by the Single Button Control (terminal 1) only. T wiring

mode allows the door to attempt to close only one time for safety

purposes.

Operation will vary

depending on wiring type

SELECTOR DIAL

CAR DEALER MODE

Feature: The car dealer mode uses the SBC (Single Button Control

input) to bring the door from a closed position to the programmed

Open Mid-Stop position and keep it at that location even with

multiple inputs.

Benefit: Provides energy cost savings by limiting the door

opening height.

Requirements: This feature works in conjunction with the

programmable Timer-To-Close feature. To enable this feature you

must first connect a treadle, photoelectric sensor or loop detector

accessory to the SBC input and must have at least one LiftMaster

Monitored Entrapment Protection (LMEP) device installed (refer to

page 20). Wiring type must be set to TS or T.

TO PROGRAM:

1. Start with the door in the closed position.

2. Turn the SELECTOR DIAL to PROG.

3. Push the TIMER button and release (Green Timer LED will

be lit).

4. Push the MID button and release. This turns on the Car Dealer

Mode. (The GREEN TIMER LED will flash 6 times indicating the

Car Dealer Mode is turned on.)

5. Push the TIMER button and release.

6. Turn the SELECTOR DIAL to the desired wiring type (TS or T).

NOTE: To disable the Dealer Mode follow steps 2 and 3, then

press the MRT button and release. (The GREEN TIMER LED will

flash 3 times indicating that the Car Dealer Mode is off.)

Programming - Timer-to-close/Car dealer mode

Operation will vary

depending on wiring type

SELECTOR DIAL

PROGRAMMING

OPTN

PROG

DIAG

FSTS

OPTN

PROG

DIAG

FSTS

OPTN

PROG

DIAG

FSTS

MAXIMUM RUN TIMER (MRT)

Feature: The operator can learn the time it takes to open or close

the door plus and an additional 10 seconds.

Benefit: If the operator does not meet its open or close limit

within the set time it will stop, limiting damage to the door and

operator.

To Program:

NOTE: The default setting for the MRT is 90 seconds. In the event

the application requires the MRT be manually learned for a longer

duration follow steps below.

1. Start with the door in the closed position.

2. Set the selector dial to PROGRAM.

3. Press and release the MRT button on logic board.

4. Press the OPEN button and wait for the door to reach the full

open limit.

5. Once the door has reached the open position, programming is

complete.

6. Turn dial to desired wiring type.

NOTE: To reset MRT only, turn selector dial to program and press

and hold the MRT button until the MAS led flashes rapidly.

Operation will vary

depending on wiring

type

SELECTOR DIAL

Programming - Maximum Run Timer (MRT)/Factory defaults

OPTN

PROG

DIAG

FSTS

RESETTING FACTORY DEFAULTS -

CLEARING MEMORY

To reset most of the user installed settings back to factory

defaults:

1. Turn the selector dial to DIAGNOSTIC.

2. Press and hold the STOP button for 5 seconds. The MAS LED

will flash momentarily when the factory defaults have been

restored.

3. Return the selector dial to the desired wiring type.

Factory Defaults:

a. Timer-To-Close = 0 seconds

b. The Mid Stop is deactivated

c. The Maintenance Alert System is deactivated

d. The Maximum Run Timer is set to 90 seconds

e. Car Dealer Mode is deactivated

f. The remote controls will still be learned

g. Remote control programming via the 3-button station

h. The LiftMaster Monitored Entrapment Protection (LMEP)

device will be unprogrammed

NOTE: Life of Operator feature (Odometer/Cycle Counter) and

programmed remote controls are not cleared.

Operation will vary

depending on wiring type

SELECTOR DIAL

MAINTENANCE

MAINTENANCE SCHEDULE

For use with Maintenance Alert System.

Check at the intervals listed in the following chart:

HOW TO ORDER REPAIR PARTS

OUR LARGE SERVICE ORGANIZATION SPANS AMERICA

Installation and service information are available.

Call our TOLL FREE number:

1-800-528-2806

www.liftmaster.com

6 Use SAE 30 Oil (Never use grease or silicone spray).

• Do not lubricate motor. Motor bearings are rated for

continuous operation.

• Do not lubricate clutch or V-belt.

 Repeat ALL procedures.

z Inspect and service whenever a malfunction is observed or

suspected.

To avoid SERIOUS personal INJURY or DEATH:

• Disconnect electric power BEFORE performing ANY

adjustments or maintenance.

• ALL maintenance MUST be performed by a trained door

systems technician.

ATTENTION

AVERTISSEMENT AVERTISSEMENT

AVERTISSEMENT

WARNING

CAUTION

WARNING

PRECAUCIÓN ADVERTENCIA

ADVERTENCIA ADVERTENCIA

LIFE OF OPERATOR FEATURE (ODOMETER/CYCLE COUNTER)

The operator is equipped with an odometer to show how many months and cycles the operator has performed from the time it as

installed. This feature can help determine how long the operator has been in service.

1. Start with the door in the closed position.

2. Turn the SELECTOR DIAL to DIAG (diagnostic mode).

3. Press and release the MAS button on the logic board.

4. Press and release the MRT button on the logic board.

5. The open and close lights will flash. OPEN for every 5,000 cycles and CLOSE for every 3 months.

6. Return the SELECTOR DIAL to the desired wiring type.

NOTE: If the operator has not reached 5,000 cycles or 3 months, there will be no indications.

EVERY 3

MONTHS OR

5,000 CYCLES

EVERY MONTH

EVERY 6

MONTHS OR

10,000 CYCLES

EVERY 12

MONTHS OR

20,000 CYCLES



ITEM

Drive Chain

Sprockets

Clutch

Belt

Fasteners

Manual Disconnect

Bearings and Shafts

LiftMaster Monitored

Entrapment Protection

(LMEP)

PROCEDURE

Check for excessive slack.

Check and adjust as required.

Lubricate.

Check set screw tightness.

Check and adjust as required.

Check condition and tension.

Check and tighten as required.

Check and operate.

Check for wear and lubricate.

Check alignment and

functionality.

BRAKE (IF PRESENT)

A solenoid brake is available as an option for some models. The

brake is adjusted at the factory and should not need additional

adjustment for the life of the brake assembly.

Inspect the brake pad and replace brake assembly when

necessary.

NOTE: Your operator may look different than the operator shown.

Maintenance

TROUBLESHOOTING

DIAGNOSTIC CHART

The logic board has several LEDs to assist in the installation and troubleshooting of the operator. The following chart should assist in

verifying the operator is functioning properly. Turn the selector dial to DIAGNOSTIC to keep the door from moving while

troubleshooting.

TROUBLESHOOTING

Power Green Indicates that power is being generated for the logic board.

Stop Green Indicates a closed circuit between common and terminal 5. Pressing stop should turn off this LED.

Open Yellow Indicates a closed circuit between common and terminal 7. Pressing the open button should turn

ON this LED.

Close Yellow Indicates a closed circuit between common and terminal 6. Pressing the close button should turn

ON this LED.

LMEP Green Solid on indicates photoelectric sensors learned. Flashing indicates photoelectric sensors need to be

connected or obstructed**. Solid off indicates no sensors learned.

Timer Defeat Yellow Solid on indicates a closed circuit between common and terminal 12. Timer-To-Close will not close.

OLS Yellow Pressing the Open Limit Switch should turn ON this LED.

CLS Yellow Pressing the Close Limit Switch should turn ON this LED.

SLS Yellow Pressing the Sensing Limit Switch should turn ON this LED.

Edge Yellow Indicates a closed circuit between common and terminal 8. Pressing the edge should turn ON this LED.

Mid Stop Yellow Solid on indicates door is stopped on up or down mid stop. Flashing indicates MID STOP is being set.

Timer Enabled Green Solid on indicates TIMER is programmed and will activate from open or mid stop position. Flashing

indicates Timer is counting down and door will close after preset time.

SBC Yellow Indicates a closed circuit between common and terminal 1. Pressing the single button control station

should turn ON this LED.

MAS Yellow Indicates the Maintenance Alert System has been activated or an error code has been triggered.

Relay A Yellow Indicates open or close command has been given to the motor. LED turns on when OPEN/CLOSE button is

pressed.

Relay B Yellow Indicates open or close command has been given to the motor. LED turns on when OPEN/CLOSE button is

pressed.

DATA Green Indicates communication between the Logic 4 board and optional TLSCARD.

LED COLOR DEFINITION

Troubleshooting

** RESTRICTED CLOSE. This method will allow you to close the door when LMEP device(s) are no longer working. Press and hold the

CLOSE button until the door reaches the closed limit. If the CLOSE button is released before the door reaches the closed limit the

operator will stop and the procedure will need to be repeated to fully close the door.

TROUBLESHOOTING

TROUBLESHOOTING GUIDE

THE OPERATOR WILL

NOT RESPOND TO ANY

COMMANDS

POWER LED IS NOT ON

STOP BUTTON LED IS

NOT ON

THE DOOR WILL MOVE

ABOUT A FOOT THEN

STOP. AFTER STOPPING,

ONLY CONSTANT

PRESSURE COMMANDS

WILL MOVE THE DOOR

THE DOOR WILL MOVE

MOST OF THE WAY

TOWARDS A LIMIT THEN

STOP. AN EXTRA OPEN OR

CLOSE COMMAND IS ABLE

TO GET DOOR TO

COMPLETE CYCLE

THE DOOR WILL OPEN

SOME BUT NOT

COMPLETELY. AN EXTRA

OPEN IS ABLE TO GET THE

DOOR TO OPEN

COMPLETELY

THE DOOR WILL OPEN BUT

WILL ONLY CLOSE AFTER

A FIVE SECOND DELAY

WITH CONSTANT

PRESSURE ON THE CLOSE

BUTTON (RESTRICTED

CLOSE MODE)

a) No power supply ➤ Verify primary line voltage from power source. Green POWER LED

must be on.

b) Operator control station is wired wrong ➤ Use the OPEN, CLOSE and STOP LEDs to help check correct wiring.

Verify that the board is accepting commands by using the onboard

station. Green LED next to stop button must be on.

c) Interlock switch is activated ➤ Check Interlock(s). If more than one external interlock is present they

must be wired in series. Green LED next to stop button must be on.

d) Dial still in programming, option, ➤ Set dial to desired wiring type.

or diagnostic mode

e) Motor is malfunctioning ➤ Verify proper voltage getting to the motor (Check motor name plate).

f) Motor thermal overload tripped ➤ Check to see if motor is hot. Allow motor to cool before attempting to

move door. Cycle operator in constant pressure one full cycle open and

close to reset fault.

g) Possible accessory malfunction ➤ Disconnect all devices, reattach them one at a time testing for a failure

after each one is replaced.

h) Off Board relay may need to be ➤ When the OPEN or CLOSE button is pressed, Relay A or B LED should

replaced see wiring diagram turn on and the door should move in the corresponding direction. If

Relay A or B lights and the door does not move, off board relay may

need to be replaced (see wiring diagram Off Board Relays).

i) Possible logic board failure ➤ Replace logic board.

a) Control station not connected or wired ➤ Check wiring to control station.

correctly

b) Interlock switch ➤ Check interlock switch(es) for continuity.

a) The photoelectric sensors, edge or ➤ If the on board LMEP LED is flashing, the photoelectric sensor are

other sensing device is obstructed misaligned or not connected. Remove any obstructions, check the

or activated safety device wires for continuity and shorts.

b) The logic board thinks that the direct ➤ Unlearn the photoelectric sensors from the memory by resetting

connect photoelectric sensors are factory defaults.

attached and blocked

FAULT POSSIBLE CAUSE FIX

a) RPM sensor is not connected properly ➤ Check the RPM assembly for loose connections. Check that RPM wheel

or may need to be replaced is turning when operator is running. Check for foreign matter blocking

optical lens.

➤ Replace RPM sensor.

b) Clutch slipping ➤ Adjust clutch and verify that door is not binding.

The Maximum Run Timer is not set ➤ Manually reprogram the Maximum Run Timer (page 35).

correctly OR reset the factory defaults (page 35).

There may be a Mid Stop set ➤ Check to see if the Mid Stop LED is on. Clear the Mid Stop by turning

the selector dial to program. Press and hold the MID STOP button for

5 seconds. Return dial to desired wiring type.

To reset Open Mid Stop refer to page 33.

a) Loose secondary wiring connections ➤ Repair or replace connections or control transformer.

or a faulty control transformer

b) Hoist interlock switch ➤ Check interlock. Verify the manual release chain is not engaged.

Troubleshooting guide

TROUBLESHOOTING

TROUBLESHOOTING ERROR CODES

Logic 4.0 operators incorporate a self diagnostic feature built into

the MAS LED. In addition to indicating when routine maintenance

is due, the MAS LED can be used to troubleshoot some problems

with the operator.

If the MAS LED is flashing on and off rapidly, the Maintenance

Alert System has been triggered and the schedule operator service

is due. If the MAS LED flashes 2 or more pulses in a row followed

by a pause, an operator error has occurred. To view how many

errors currently exist, turn the selector dial to DIAGNOSTIC and

press the OPEN button. To read out each individual error code

(if more than one exists) press CLOSE. It is possible to have more

than one error at a time.

The chart below can assist with identifying the flashes on the

MAS LED.

NOTE: Error codes take priority over normal MAS LED operation. Error codes will repeat on the MAS every 1.5 seconds until cleared.

There may be more than one error present, but only the highest priority will flash. If the highest error is cleared, the next highest will

flash. All errors self-correct when the corrective action is taken and a reset is not needed.

Troubleshooting error codes

ERROR CODE DISPLAY DESCRIPTION EFFECT CORRECTION

E1 1 blink MAS triggered (cycles or months) None normal operation Reset MAS (page 32).

E2 2 blinks No RPM input during opening The door only responds to

constant pressure commands

Clutch is slipping, adjust clutch, or

verify RPM sensor connection or

replace RPM sensor.

NOTE: To relearn the RPM sensor,

move the door with a constant

pressure command. The door will

stop once relearned and normal

operation will resume.

E3 3 blinks (MRT) Maximum Run Time timed

out

The door stops before reaching

set open or close limit(s)

First check Operator for any faults

(i.e., Bad Limit switch), manually

learn Max Run Timer (page 35) OR

reset factory defaults (page 35).

E4 4 blinks Obstruction sensed on closing Operator will reverse to OPEN

position

Cleared by removing obstruction or

realigning photoelectric sensors

and giving a close command.

E5 5 blinks Stuck button pressed for greater

than 2 minutes

Stuck button on 3-button station

will not respond

Stuck button must be unstuck

before it will be recognized as an

input.

E6 6 blinks Invalid option card plugged into

option card receptacles

Option card will not function

properly

Refer to accessories page for list

of supported option card(s).

E7 7 blinks LiftMaster Monitored Entrapment

Protection (LMEP) device faulted

or removed for greater than

2 minutes

Normal operation (5 second

constant pressure override

required to close)

Cleared when safety device is

cleared or connected.

E8 8 blinks Brownout Detected Operator will run as long as

enough power is present

1. Check AC line for voltage.

2. Check transformer secondary

for low voltage. Too many

accessories may be connected

to the transformer.

E9 Flash on start of

movement

Motor movement at invalid time Operator will continue to

function normally for 5

operations and then default to a

constant pressure mode

Check relays and the drive circuitry

to ensure that they are turning off.

Operator must know that they are

turning off. Operator must run

correctly for two starts for the

error to be cleared.

E10 10 blinks Motor Phase Jumper changed

while unit is not in programming

mode

The phase will not change Enter programming mode and

move phase jumper to change

phase.

TROUBLESHOOTING

TROUBLESHOOTING RADIO FUNCTIONALITY

The error codes will display at the radio LED.

NOTE: Radio receiver is compatible with 315 MHz remotes.

ERROR CODE DISPLAY SYMPTOM POSSIBLE PROBLEM CORRECTION

R1 Quick Flash No response from the remote Unlearned remote - Try re-learning the

A user tries to use a remote, remote (page 30).

but the RADIO LED only flashes

briefly and there is no response

from the operator.

R2 No LED activity No response from the remote Cannot recognize remote - Replace battery - OR -

A weak signal caused by a eliminate interference - OR-

discharged battery or outside obtain a qualified remote - OR-

interference with the check antenna connections.

remote(s) - OR - the remote(s)

being learned is not compatible

with the operator. Antenna not

installed or damaged.

R3 Radio LED turns The remote cannot be learned Cannot recognize remote - Replace battery - OR -

off after 30 A weak signal caused by a eliminate interference - OR-

seconds discharged battery or outside obtain a qualified remote - OR-

interference interfering with the check antenna connections.

learn process - OR - the

remote(s) being learned is not

compatible with the operator.

Antenna not installed or

damaged.

R4 2 blinks The remote cannot be learned Receiver memory full - Erase all learned remotes

A user enters RADIO function and re-learn the desired

learning mode but there is no remote.

space left to add another remote.

R5 3 blinks The remote cannot be learned Duplicate remote - This remote already has a

A user enters RADIO function function associated with it. To

learning and selects the function change the function, erase all

to be learned. When the remote learned remotes and

button is pressed for learning, a re-learn the desired remote.

search reveals that remote

is already learned.

R6 LMEP LED flashes Cannot close via constant pressure in No safety device present - Must connect a LiftMaster

C2, D1 or E2 modes. A safety device is required to Monitored Entrapment

close via constant pressure. Protection (LMEP) device.

Troubleshooting radio functionality

WIRING DIAGRAMS

Wiring Diagrams

C61

SLOT 1

RADIO

SLS

MRT MID TTC

DATA

24VAC 14

24VAC

LMEP:

EDGE:

OPEN

STOP

COMMON

RELAY A

RELAY B

SBC

MAS

COMMON

TIMER

DEFEAT

POWER

TIMER

ENABLE

123

FSTS

DIAG

OPTN

PROG

TTS

CLS

OLS

MID

REV

STD

SLOT 2

MOTOR

DIRECTION

3-PHASE

1-PHASE

Remove Jumper

To Install External

Door Interlock

3-Button Station

Maintenance

Alert LED

(RD) (WH)

Open

Stop

Open/Close

Single Button

Sensing

Edge

Refer to page 26 for

LiftMaster Monitored

Entrapment Protection (LMEP)

device connections

Hoist Interlock

When Present

TMR DEF

SWITCH

MOV

(YE)

(BL)

(YE)

(OR)

(WH)

(YE)

(PU)

(WH)

(RD)

(GY)

(YE)

(RD)

(WH)

(PU)

(YE)

(OR)

(GY)

(OR) (PU)

(WH)

(PU)

(YE)

(WH)

(YE)

115 / 230

VOLT 1PH.

POWER IN

hot

neutral

ground

(BK)

COM 120

VAC

120 / 240

VAC

+24 VAC -24 VAC

See Motor

Connections

COIL

COM

(WH)

(BL) (GY)

(YE)

(BR)

(GY)

See Motor

Connections

NOTE: Lock Sensor is provided on Models

DJ and DH only, red wire from main harness

connects to NC on Bypass L/S and to NO on

LOCK SENSOR switch. White wires connect the

COM on BYPASS L/S and LOCK SENSOR switch

to NC on Open L/S.

NOTE: The Lock Sensor switch is

located in the chassis.

OPEN

STOP

NOTE: Gray (GY) and purple (PU) motor wires are reversed

for H and HJ right hand models and all GH and J models.

115V MOTOR CONNECTION 230V MOTOR CONNECTION

(WH)

(RD) (PU)

(YE)

COM

OPEN L/S

LOCK

SENSOR

(see note at left)

CLOSE L/S

SAFETY L/S

(WH) (RD)

(WH)

(RD)

(WH)

(RD)

(YE)

(GY)

1 2 3 4

RPM Board

L3 L2 L1

COM

BYPASS

L/S

(WH)

External Radio Receiver

NOTE: 32 Vdc power supplied

from White and Yellow wires located

within the electrical box.

(WH) (OR) (YE)

R1 R2 R3

LOGIC (VER. 4.0) 1 PHASE WIRING DIAGRAM

WIRING DIAGRAMS

Refer to page 22 for

LiftMaster Monitored

Entrapment Protection (LMEP)

device connections

WIRING DIAGRAMS

Wiring Diagrams

SLOT 1

RADIO

SLS

MRT MID TTC

DATA

24VAC

LMEP:

EDGE:

OPEN

STOP

COMMON

RELAY A

RELAY B

SBC

MAS

COMMON

TIMER

DEFEAT

POWER

TIMER

ENABLE

123

FSTS

DIAG

OPTN

PROG

TTS

CLS

OLS

MID

REV

STD

SLOT 2

MOTOR

DIRECTION

3-PHASE

1-PHASE

Remove Jumper

To Install External

Door Interlock

3-Button Station

Maintenance

Alert LED

(RD) (WH)

Open

Stop

Open/Close

Single Button

Sensing

Edge

Hoist Interlock

When Present

TMR DEF

SWITCH

MOV

NOTE: Lock Sensor is provided on Models

DJ and DH only, red wire from main harness

connects to NC on BYPASS L/S and to NO on

LOCK SENSOR switch. White wires connect the

COM on BYPASS L/S and Lock Sensor switch to

NC on Open L/S.

(WH)

(RD) (PU)

(YE)

COM

OPEN L/S

LOCK

SENSOR

(see note at left)

CLOSE L/S

SAFETY L/S

(WH) (RD)

(YE)

(BL)

(YE)

(OR)

(WH)

(YE)

(PU)

(WH)

(RD)

(GY)

(YE)

(RD)

(WH)

(PU)

(YE)

(OR)

(GY)

(OR)

(PU)

(WH)

(GY) (YE)

(WH)

(GY)

(WH)

(WH) (WH)

(PU)

(BR)

(YE)

208/230/460

VOLT 3PH.

POWER IN

(BK)

COM 120

VAC 240 / 460 /

575 VAC

+24 VAC -24 VAC

COIL COIL

COM COM

NO NO

See Motor

Connections

See Motor

Connections

01 A

OPEN

STOP

NOTE: Gray (GY) and purple (PU) motor

wires are reversed for H and HJ right hand

models and all GH and J models.

575V BRAKE

(WHEN PRESENT)

(GY)

(BR)

(PU)

(BR)

(BL/BK)

(YE)

230V BRAKE

(WHEN PRESENT)

T4 T7 T1

T5 T8 T2

T6 T9 T3

(GY)

(BR)

(PU)

(BR)

(YE)

230V BRAKE

(WHEN PRESENT)

T4 T7 T1

T5 T8 T2

T6 T9 T3

(GY)

(BR)

(PU)

(BR)

(YE)

208/230V MOTOR CONNECTION 460V MOTOR CONNECTION 575V MOTOR CONNECTION

(WH)

(RD)

(YE)

(GY)

1 2 3 4

RPM Board

L3 L2 L1

Refer to page 26 for

LiftMaster Monitored

Entrapment Protection (LMEP)

device connections

NOTE: The Lock Sensor switch is

located in the chassis.

(RD)

COM

BYPASS

L/S

(WH)

External Radio Receiver

NOTE: 32 Vdc power supplied

from White and Yellow wires located

within the electrical box.

(WH) (OR) (YE)

R1 R2 R3

LOGIC (VER. 4.0) 3 PHASE WIRING DIAGRAM

Refer to page 22 for

LiftMaster Monitored

Entrapment Protection (LMEP)

device connections

ACCESSORIES

OPEN

STOP

OPENOPEN

373LM

371LM

65-8202

65-5202

3-Button SECURITY✚® Remote Control:

Includes visor clip.

1-Button SECURITY✚® Remote Control:

Includes visor clip.

Vehicle Detection System:

Pneumatic Sensing Edge Kit with exterior air switch, 2-wire

coil cord and 14' air hose.

Vehicle Detection System:

Pneumatic Sensing Edge Kit with exterior air switch, 2-wire

take-up reel (20' extended) and 14' air hose.

333LM 3-Button Tri-Colored Dip Switch Remote Control:

Includes visor clip.

2-Button Control Station:

Steel enclosure.

1-Button Control Station:

Steel enclosure.

Commercial Protector System®:

Provides protection on doors up to 45' wide. NEMA-4 rated.

CPS-UN4

3-Button Control Station:

Steel enclosure with Maintenance Alert System.

02-103L

OPEN

Commercial Protector System®:

Provides protection on doors up to 30' wide.

CPS-U

OPEN

ENTRAPMENT PROTECTION DEVICES

REMOTE CONTROLS 315MHz

CONTROL STATIONS

OPTION CARDS

02-102

02-101

ACCESSORIES

CPS-EI Monitored Safety Edge Interface:

For use with the approved 4-wire safety edge (see below).

OPEN

40-34141-1

LMEP2

LMEP1

CPS-EI

OPEN

STOP

Key Control Station:

Indoor flush mount, NEMA 1 with Stop button.

02-110

Accessories

Timer Light Status Card:

The TLS option card provides special functionality to

activate and flash auxiliary devices such as lights, bells, and

horns/strobes at various door positions, and to provide

special timer functions.

TLS1CARD

Auxiliary Contact Card:

The Auxiliary Contact option card has both Normally-Open

and Normally-Closed contacts that actuate when the door is

idle, opening, or closing.

AUXCARD

65ME1234 Miller ME123 4-Wire Monitored Safety Edge:

For sectional or rolling doors.

65ME110 Miller ME110 4-Wire Monitored Safety Edge:

For rolling grilles and counter shutters.

Cast iron bracket to mount J, H, DH, DJ, and GH side mount

operators on end bracket of a rolling door or grill. For vertical or

horizontal mount on either front or top of coil. Cannot be welded.

Heavy gauge steel bracket for vertical or horizontal mount on either

front or top of coil on a rolling door. Has a variety of mounting hole

patterns compatible with many OEM manufacturers. For use with J,

H, DJ, and DH operators. May be welded.

08-9098

MOUNTING BRACKETS

OPEN

10-12360

Same as 08-9098, but with adapter plate to hold mounting bolts in

place for easy mounting.

Heavy gauge steel bracket for vertical or horizontal mount on either

front or top of coil on a rolling door. May be welded. For use with J,

H, DJ, and DH operators.

Same as 1A4324, but with adapter plate to hold mounting bolts in

place for easy mounting.

08-9098EZ

1A4324

1A4324EZ

OPEN

Operator Cover:

For use with wall-mounted J, H, GH, DH or DJ operators.

Measures 31" x 19" x 18" (L x W x D). Assembly required.

Recommended for damp environments where direct spray is

present. Required when the operator is installed less than 8

feet above the floor.

1A3982

OPEN

Antenna Extension Kit:

The antenna extension kit can be used with EXT-ANT for

maximum radio receiver range.

86LM (15')

86LMT (25')

MISCELLANEOUS

For 1" shafts. Recommended to properly tension drive chain

between operator shaft and door shaft.

71-6023

71-6125 Same as 71-6023, but for 1-1/4" shafts.

For Jackshaft Type Operators

CHAIN TENSIONERS

65ME123C U-Shaped Mounting Channel:

For 65ME1234 edge when installed on sectional doors.

65ME123C1 T-Shaped Mounting Channel:

For 65ME1234 edge when installed on rolling doors. Fits between

L-shaped angles used to construct a bottom bar on rolling doors.

65ME123CA3 L-Shaped Mounting Channel:

For 65ME1234 edge when installed on sectional doors.

MOUNTING CHANNELS

CPS3CARD Option Logic Board:

For use when more than one set of photoelectric sensors are

required. Also available pre-packaged with a second set of

photoelectric sensors; see CPS3 or CPS3-N4 in Commercial Door

Operator Product and Accessories Price List for more information.

MONITORED

NON-MONITORED

OPEN

WPB3LM3

WPB1LM3

Wireless 3 Button Control Station SECURITY✚®:

Rugged composite housing. (Wireless controls cannot be used in

place of hard wired controls.)

Wireless Single Push Button Control SECURITY✚®:

Rugged composite housing. (Wireless controls cannot be

used in place of hard wired controls.)

WKP5LM3 (5 4-digit entry codes)

WKP250LM3 (250 4-digit entry codes)

Wireless Access Control Keypads SECURITY✚®:

Rugged composite housing. (Wireless controls cannot be

used in place of hard wired controls.)

LiftMaster offers a variety of SECURITY✚® Remote Controls for your

application needs. Single to 4-Button, visor or key chain. Contact

your authorized dealer.

CONTROL CONNECTION DIAGRAM

IMPORTANT NOTES:

1. The 3-Button Control Station provided must be connected for operation.

2. If a STOP button is not used, a jumper must be placed between terminals 4 and 5.

3. When adding accessories, install them one at a time and test each one after it is added to ensure proper installation and operation

with the Commercial Door Operator.

3 BUTTON STATION OR 3 POSITION KEYSWITCH WITH SPRING RETURN TO CENTER AND STOP BUTTON

2 OR MORE KEY LOCKOUT

R1 R2 R3

7 6 4 5

Stop

Open

Stop

Open

7 6 4 5

Stop

Open

2 BUTTON STATION OR 3 POSITION KEYSWITCH WITH SPRING RETURN TO CENTER

STANDARD

7 6 4

Open

D1 & E2

MODE ONLY

2 OR MORE

7 6 4

Open

D1 & E2

MODE ONLY

OPEN / CLOSE

14B2, T, TS & FSTS

MODE ONLY

1 BUTTON STATION OR ANY AUXILIARY DEVICE RADIO CONTROLS

EXTERNAL

RADIO RECEIVER

NON-MONITORED SENSING DEVICE TO REVERSE OR STOP EXTERNAL INTERLOCK

11 82323

Remove Factory Installed Jumper

When Interlock is Used

ONE 2 OR MORE

STANDARD

7 6 4 5

Stop

Open

All Wiring Types

Keyswitch

Sensing Device

Maintenance

Alert LED

10 10

Maintenance

Alert LED

Maintenance

Alert LED

(RED)

(WHITE)

(RED)

(WHITE)

(RED)

(WHITE)

Note: 11 and 4 are both the same common.

Either is acceptable.

See note 2.

TIMER DEFEAT SWITCH

NOTE: 32 Vdc power supplied from white

and yellow wires located within the

electrical box.

NOTE: Stop circuit must be wired in series for

all stop buttons to function. This may require

removal of factory installed jumper bar in the

3-button station.

Keyswitch

11 12 (WH) (OR) (YE)

Liftmaster J Owners Manual 01 35241F

655302 0135241

Navigation menu

Versions of this User Manual:

Views

Navigation
