Lightcomm Technology MID1026 Tablet User Manual 072 IM EN V1 1
Lightcomm Technology Co., Ltd. Tablet 072 IM EN V1 1
Users Manual
DL1026
Cautions
This user manual has been specially designed to guide you through the
functions and features of your device.
1) Please read this manual carefully before using your device to ensure
safe and correct use.
2) The descriptions in this manual are based on the default settings of
your device.
3) Do not use this unit near water. Do not place over the unit any
container with liquid inside.
4) Please do not put your device in high temperature, moisture or dust
place. The tablet is not waterproof.
5) Avoid falling or violent collision. Do not violently shake the touch
screen, otherwise, it could lead to damage or display abnormal.
6) If system shutdown automatically, it means the battery may used up,
battery charging is required.
7) Please charge the tablet regularly if not in use for a long time to avoid
the damage caused by the excessive consumption of battery.
8) Do not disassemble or use alcohol, thinner or benzene class to swab
product surface.
9) Please do not use the tablet when driving or walking in the street,
otherwise it may lead an accident.
11) Memory space available is nominal, as the android system itself
takes up part of the memory space and the operation of the program
will also take up space.
12) Storage capacity available is nominal, as the android system
occupies about hundreds of MB storage capacity. And in order to
install the software needs, the system must reserve certain storage
capacity, so the actual usable space is less than nominal space.
13) When CPU operates in high speed, especially playing 3D games or
High-definition video for a long time, the fuselage will have fever.
14) Please keep this manual for future reference.
Chapter One(overview)
Appearance
Buttons
Power on and off
Open and close standby mode
Lock and unlock the screen
Homepage information bar
Text input
Reset
USB connection
Accessories
Chapter Two (Internet)
Browser
Chapter Three (Application)
File manager
Downloads
Catalog
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
2.1
3.1
3.2
Chapter Four (System setting)
Wireless networks setting
Sound setting
Display setting
Apps setting
Language and input setting
4.1
4.2
4.3
4.4
4.5
4.6
4.7
1
2
2
2
2
3
3
4
4
4
4
4
5
5
6
5
6
6
6
6
6
6
6
7
8
9
Date & time setting
Security setting
Chapter Seven (Attentions)
Chapter Six (Specification)
Chapter Five (Keyboard)
1.1 Appearance
Chapter One Overview
1
Front Camera
Back Camera
Volume+
Volume-
Speaker
Earphone
USB
TF card
Power
MIC
Charge
DC IN
Keyboard
Tablet
POGO pin Caps locks light
Touch board
Power light
1.2 Buttons
Power button
Volume
Press Volume+/- to adjust the volume.
1.5 Lock and unlock the screen
Lock
You can set the sleep time in the system of display.
The system will sleep automatically and lock the screen to the standby
mode if without any activity when reaches the preset standby time.
Unlock
Drag to unlock the screen and enter the application interface.
Long press the power button 2-3 seconds to turn the unit on. When the
tablet is in operation, short press power button to enter the off-screen
state and short press it again to light up the screen.
1.3 Power on and off
Power on
Long press the power button 2-3 seconds, pictures will show up until to
the interface.
Power off
Long press the power button, choose “Power off” to shut down.
1.4 Open and close standby mode
Open the standby mode
When the tablet is in operation, you can press the power button to go
to the standby mode which can save power.
Close the standby mode
When the tablet is in standby mode, you can press the power button to
light up the screen and the unit will back to normal state.
2
10:03
?123
1.6 Homepage Information Bar
1.7 Text Input
When use the tablet, you can use the virtual keyboard to input text,
number, symbols directly by touching screen. After selecting the
Android input method, the default keyboard show as below:
To switch the numbers and letters, press
To switch the capital and lowercase letter, press
TimeBluetooth
WiFi
Battery power
Back Recent app
Home
Volume -
Volume +
Screenshot
3
1.8 Reset
1.9 USB connection
Insert USB disk to the USB port as an external storage device.
Use a USB cable to connect the micro USB port for battery charging.
( Note: Micro USB port is only for battery charging, and cannot connect
with external USB storage device.)
1.10 Accessories
Chapter two: Internet
2.1 Browser
Require network support before using a web browser, if there are
network supporting problems, please contact your network operator or
the service provider.
Tablet's web browser can connect to the Internet via WiFi to satisfy
your business and individual network needs .
Please touch (Settings) to set up the WiFi so that you can use the
browser normally.
Power Adapter
Keyboard
Quick Start Guide
1
1
1
Touch (Browser) in the application list to enter the browser pages.
Long press the power button about 8 seconds to reset the unit.
4
55
3.1 File Manager
Touch (File manager), you can copy files among SD card, USB
and internal memory.
3.2 Downloads
Touch , you can preview the downloading and downloaded
documents. You can stop the downloading file or
delete the downloaded file.
Chapter Three (Application)
https://
Input URL: Touch the input area to get the soft key board, then input
the URL.
Touch to show the submenu of the browser, and choose the
corresponding one accordingly.
Chapter Four: System setting
Click (Settings) to enter the system setting interface.
4.2 Sound setting
6
4.1 Wireless networks setting
Set WiFi ON, the system will scan the available wireless network
automatically and display the wireless local area network in the list. If
the local area network has the sign , it represents the network has
been encrypted, it needs password for connection. While the sign
represents the network is unlocked and can be connected directly.
Set the system volume, the default notification sound, enable or
disable the touch sound and screen lock sound.
4.3 Display setting
Set the brightness, wallpaper, sleep time and font size.
4.4 Apps setting
Display the applications. Choose one application, the relevant
information will show up, then you can choose force stop or uninstall.
You can also choose to clear the cache, unloaded program and default
value.
4.5 Security setting
Set the system securities.
4.6 Language& input setting
Set the default language and input method.
4.7 Date & time setting
Set date and time manually or set automatic date and time by using
network-provided time.

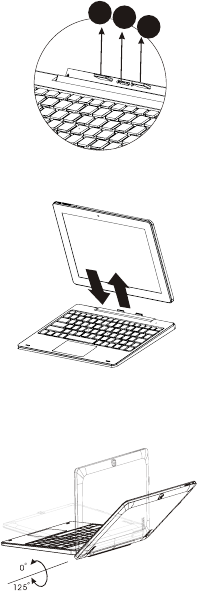

Chapter Five (Keyboard)
1. Dock Port
Connect the 5-pin magnetic dock port
to support the keyboard.
212
3. Undocking the Tablet
Firmly grasp the tablet and secure
the keyboard at the same time,
then gently pull out the tablet.
4. keyboard can be rotated
Along the spindle in the keyboard,
tablet can be rotated between 0°
and 125° which makes it have a
good view from different angle.
2. Connect Keyboard and tablet
Place tablet and keyboard vertically,
insert the clasps of the keyboard
into the two holes of tablet to
connect.
7
Chapter Six (Specification)
Dimension(mm*mm*mm)
Weight
LCD
OS
Processor
Memory
WI-FI
Connections
Battery
Operating temperature
259.8*174*10.6
Approx 530g
10.1" 800×1280 IPS
Android 6.0
1.3GHz Quad-Core
1GB PCDDR, 32GB Storage
802.11 b/g/n
Micro-USB, Micro-SD (up to
32GB), Earphone Jack
3.7V 5000mAh Li-Poly
Between 0 and 40
8
Owing to continuous improvement, no prior notice will be given regarding changes on
above feature and spec.
lf at any time in the future you should need to dispose of this product please
note that waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local Authority
or retailer for recycling advice. (Waste Electrical and Electronic equipment
Directive)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Android, Google, Google Play, and other marks are trademarks of
Google Inc.
Chapter Seven (Attentions)
This device has been tested and meets applicable limits for radio
frequency (RF) exposure. Specific Absorption Rate (SAR) refers to
the rate at which the body absorbs RF energy. The SAR limit is 1.6
watts per kilogram averaged over 1 gram of tissue.
