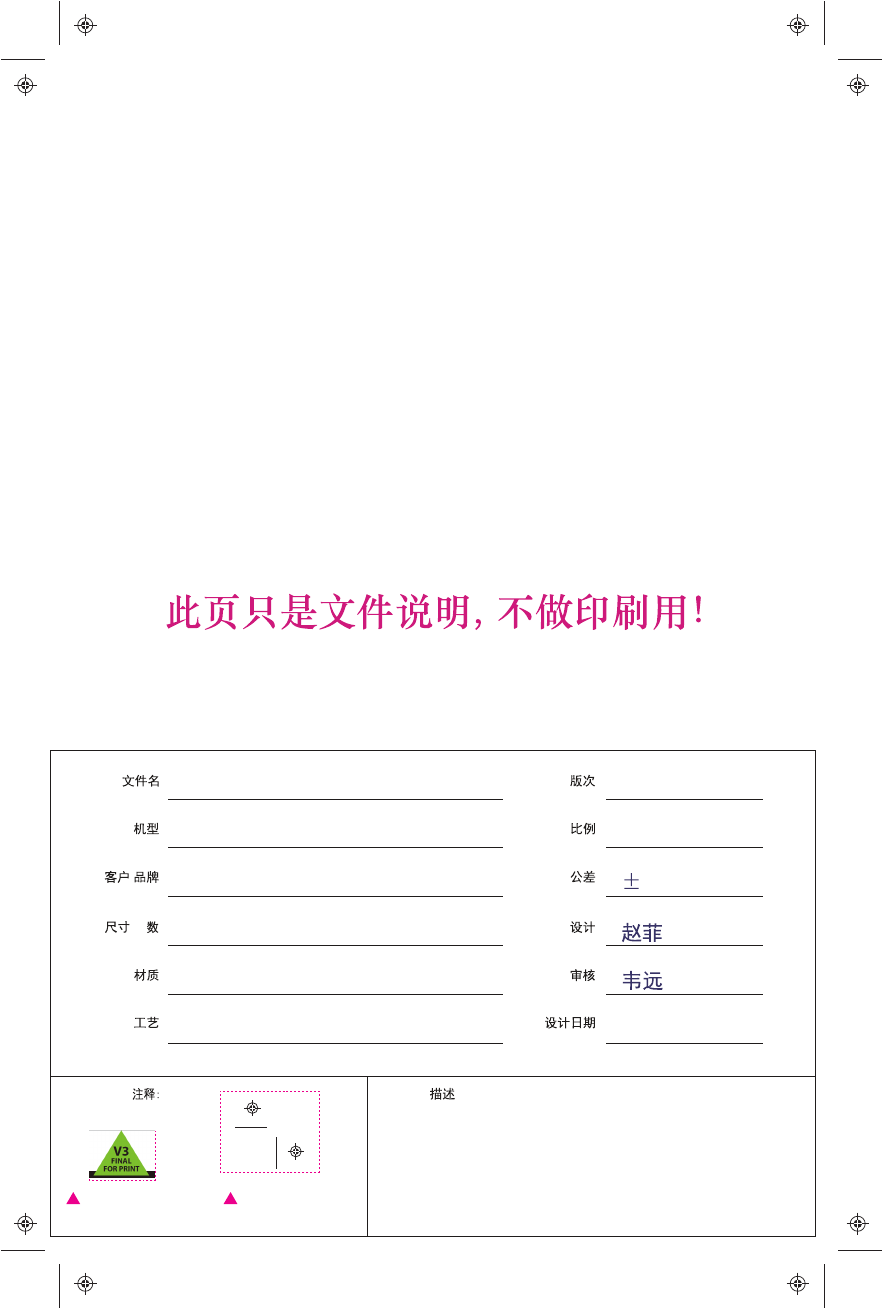

File Name
Designer
Checked
/
Customer
Material
technique
+P
Size
Scale
Tolerance
Project#
Rivision
Design Date
MID1028
BBY
1:1
V1.1
5mm
2017.06.29
148*210mm, 16P
Description
Remarks:
供应商印刷定位用
不是印刷内容!
客户版本号说明
不是印刷内容!
印刷排版说明：
封面: 下一页
封二: 印刷内容
封三: 印刷内容
封底: 最后一页
封面底128g铜版纸,内页80g书写纸
单黑印刷,封面/封底过耐磨水性光油,钉装
17MHZ050-INF-EN-V1.1
Before using your new product, please read these instructions to prevent any damage.
IMPORTANTINFORMATION
10.1"Flex™ Tablet for Android™
with Detachable Keyboard
NS-P10A8100K
FINDYOUR USER GUIDE ONLINE!
1. Go to www.insigniaproducts.com.
2. Use the search bar to find NS-P10A8100.
3. Select Support & Downloads.
4. Next to User Guide, select the language you
want.
V1
FINAL
FOR PRINT
Important Safety Instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this product near water. Do not touch your device with wet
hands.
6Clean only with a dry cloth.
7Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8Do not place near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9Do not expose the device to direct sunlight.
10 Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
product.
11 Only use attachments/accessories specified by the manufacturer.
12 Unplug this device during lightning storms or when unused for long periods
of time.
13 To reduce the risk of fire or electric shock, do not expose this device to rain,
moisture, dripping, or splashing.
14 Do not crush or puncture the product. Avoid exposing the device to high
external pressure. Do not operate the device in a very cold or very hot
temperature, such as in cold weather or in an un-air-conditioned motor
vehicle during intense heat.
15 Do not remove the cover or back to reduce the risk of electric shock. There
are no user-serviceable parts inside. Refer servicing to qualified personnel.
16 Do not place the device on an unstable cart, stand, tripod, bracket, or table.
The unit may fall, resulting in possible damage or injury.
17 To prevent hearing damage, do not use the headphones at a high volume.
18 Never place heavy or sharp objects on the LCD panel or device.
19 Only use the AC adapter included with the device. Using any other adapter
will void your warranty.
www.insigniaproducts.com
10.1"Flex™ Tablet for Android™ with Detachable Keyboard
3
Troubleshooting
What should Ido if Icannot charge my tablet?
lMake sure that your USB cable is not damaged.
lMake sure that your power adapter is connected to a working power outlet
and that your surge protector (if used) is turned on.
lMake sure that your USB cable is connected to your tablet securely. Do not
force the connector in or you may damage the port.
lIf your battery was drained completely, let your tablet charge for at least an
hour before trying to turn it on.
What should I do if I can’t connect to the Internet?
lLook for a wireless signal indicator ( ) in the status bar at the top of the
screen. If there is no icon or if the icon is not filled in, you are not connected.
lMake sure that Wi-Fi is turned on.
lMake sure that you select the right network and enter the correct password.
lTurn your tablet off, then back on.
lReset your Wi-Fi router/modem.
What should I do if I forget my password?
lIf you enabled the Smart Lock to automatically unlock your tablet, make
sure that your tablet is in the place/state you designated when you set it up
(for example, near a certain Wi-Fi network or Bluetooth device). See your
User Guide for more information about the smart lock feature.
Note
If you did not enable the Smart Lock before forgetting your password, you cannot use it to access your data.
lReset your tablet to factory defaults (see "How do Ireset my tablet to
factory defaults? (on page6)"). Your personal apps and data will be deleted
from your tablet. However, some data (such as emails or contacts)will sync
to your device when you sign back in using the same Google account.
Note
Some apps may require you to have enabled "Back up & sync" to retrieve your data.
What should I do if I cannot turn on my tablet?
lConnect the charger to check the battery level on the screen. If the battery
is too low, your tablet will not turn on. Fully charge the battery.
Can I open Microsoft Office and PDF files on my tablet?
lYou can purchase and download third-party applications to read these files.
www.insigniaproducts.com
NS-P10A8100K
4
What should I do if my tablet won’t recognize the microSD card?
lMake sure that you have inserted the memory card correctly (with the label
facing the screen). The memory card should click into place.
lWith the microSD card inserted, turn off your tablet, then turn it back on.
lMake sure that you are attempting to view your files in the correct location
on your tablet.
lMake sure that your memory card is formatted correctly. See the card
manufacturer's instructions for more information.
What should I do if there is no sound coming from my tablet?
lIf listening through headphones, unplug and reconnect your headphones.
Make sure that the connector is pushed in all the way.
lIf listening through your tablet's speakers, unplug any devices connected to
the headphone jack.
lIf you are connected to a Bluetooth device, turn off Bluetooth on your
tablet.
lThe volume may be muted or set too low. Increase the volume setting.
lOpen Apps >Settings >Sound to check your tablet's sound
settings.
What should Ido if my keyboard doesn't work?
Note
These troubleshooting steps are for the Insignia tablet keyboard that came with your tablet. If you are
using a different keyboard, see the documentation that came with it for help.
lMake sure that the keyboard connection contacts on your tablet align with
the contacts on your keyboard.
lClean the connection contacts on your tablet and keyboard with a soft cloth.
lIf your touchpad is not working, press to turn it back on. The touchpad
LED turns off when the touchpad is active.
Can Iturn my keyboard's touchpad off?
lYes. Press to turn the touchpad on or off. The touchpad LED turns off
when the touchpad is active.
What can I connect to the keyboard's USB port?
lYou can connect a mouse, flash drive, or other peripheral device. You
cannot run high-power devices (such as a DVD drive).
lYou cannot charge your tablet through the USB port.
Why is the actual storage less than the storage listed in the
specification?
lYour tablet has the full amount of storage listed in the specification.
However, some of this space is used for system applications and data files.
www.insigniaproducts.com
10.1"Flex™ Tablet for Android™ with Detachable Keyboard
5
How do Ireset my tablet to factory defaults?
Notes
lResetting your tablet to factory defaults will delete all personal apps and data from your tablet.
lIf you cannot access your tablet's settings, press and hold the power button for eight seconds to boot
into recovery mode.
1Tap Apps >Settings >Backup & reset.
2Tap Factory data reset, then tap RESETTABLET.
How do Iset a screen lock?
1Tap Apps >Settings >Security >Screen lock.
2Select a screen lock type, then follow the on-screen prompts to set it up.
What should I do if the display freezes or does not respond?
lPress and hold the (power) button for 10 seconds to turn off your tablet,
then turn your tablet back on.
Need additional help?
lVisit www.support.google.com/android for tips and tutorials on using
Android.
lCheck the online FAQs for answers to common questions. Go to
www.insigniaproducts.com, then search for NS-P10A8100K. Next to
Features, select Support & Downloads, then select FAQs.
lCheck out our online community forum for helpful information from other
Insignia tablet owners. Go to www.insigniaproducts.com, search for
NS-P10A8100K, then select FAQs & community discussions from the
Need help? box.
lFind your User Guide online. Go to www.insigniaproducts.com and search
for NS-P10A8100K. Next to Features, select Support & Downloads, then
next to User Guide, select the language you want.
www.insigniaproducts.com
NS-P10A8100K
6
Specifications
Specifications are subject to change without notice.
Operating system Android 7.0 (Nougat)
CPU MTKQuad-Core
Display
10.1" diagonal panel (25.4 cm)
800 × 1280 IPS
Capacitive 5-point touch panel
Wireless/Connectivity
802.11 a/b/g/n
Bluetooth 4.1
GPS
Memory 32GB internal memory
Micro SD slot Up to 128GB
Camera 2 MP front-facing (fixed focus)
2 MP rear-facing (auto focus)
Sensors G-Sensor/Accelerometer
Audio
Internal stereo speakers
MP3
AAC
Battery and power 6000mAh lithium ion
Up to six hours of video playback
Power supply 5V/2A
Video H.264, MPEG4
Input and output
Micro SD slot: up to 128GB
3.5 mm stereo headphone jack
Micro USB port
Dimensions
Tablet:10.0 × 6.9 × .4 in. (25.4 × 17.5
× 1.0 cm)
Keyboard:10.0 × 7.1 × 0.8 in. (25.4 ×
18.1 × 2.0 cm)
Weight
Tablet (without keyboard):1.2 lbs.
(0.5 kg)
Tablet with keyboard:2.2 lbs. (1.0
kg)
www.insigniaproducts.com
10.1"Flex™ Tablet for Android™ with Detachable Keyboard
7
Legal notices
Android, Google, Google Play, and other marks are trademarks of Google Inc.
All other products and brand names are trademarks of their respective owners.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Part 15
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
lConsult the dealer or an experienced radio/TV technician for help.
Warning:
Changes or modifications not expressly approved by the party responsible for
compliance with the FCC Rules could void the user’s authority to operate this
equipment.
Note:
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user's authority to operate the equipment.
ICRSSStatement
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
www.insigniaproducts.com
NS-P10A8100K
8
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
RSS-102 Statement
This equipment complies with Industry Canada radiation exposure limits set forth
for an uncontrolled environment.
Cet équipement est conforme à l'exposition aux rayonnements Industry Canada
limites établies pour un environnement non contrôlé.
Within the 5.15 to 5.25 GHz band, UNII devices will be restricted to indoor
operations to reduce any potential for harmful interference to co-channel Mobile
Satellite System (MSS) operations.
This device complies with CAN ICES-3 (B)/NMB-3(B).
The device complies with RF specifications. Ensure that the device accessories,
such as a device case and device holster, are not composed of metal
components. Keep the device away from your body to meet the distance
requirement.
SAR Certification Information
This device is also designed to meet the requirements for exposure to radio
waves established by the Federal Communications Commission (USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged over one gram of tissue.
The highest SAR value reported to the FCC for this device type complies with this
limit.
IFETEL Statement
La operación de este equipo está sujeta a las siguientes dos condiciones:
1) es posible que este equipo o dispositivo no cause interferencia perjudicial y
2) este equipo debe aceptar cualquier interferencia, incluyendo la que pueda
causar su propia operación no deseada.
ONE-YEAR LIMITED WARRANTY -
INSIGNIA
Definitions:
The Distributor* of Insignia branded products warrants to you, the original
purchaser of this new Insignia-branded product (“Product”), that the Product
shall be free of defects in the original manufacturer of the material or
workmanship for a period of one (1) year from the date of your purchase of the
Product (“Warranty Period”).
www.insigniaproducts.com
10.1"Flex™ Tablet for Android™ with Detachable Keyboard
9
For this warranty to apply, your Product must be purchased in the United States
or Canada from a Best Buy branded retail store or online at www.bestbuy.com or
www.bestbuy.ca and is packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the
Product. Your purchase date is printed on the receipt you received with the
Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or
workmanship of the Product is determined to be defective by an authorized
Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair
the Product with new or rebuilt parts; or (2) replace the Product at no charge with
new or rebuilt comparable products or parts. Products and parts replaced under
this warranty become the property of Insignia and are not returned to you. If
service of Products or parts are required after the Warranty Period expires, you
must pay all labor and parts charges. This warranty lasts as long as you own your
Insignia Product during the Warranty Period. Warranty coverage terminates if you
sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location, please take your
original receipt and the Product to any Best Buy store. Make sure that you place
the Product in its original packaging or packaging that provides the same amount
of protection as the original packaging. If you purchased the Product from a Best
Buy online web site (www.bestbuy.com or www.bestbuy.ca), mail your original
receipt and the Product to the address listed on the web site. Make sure that you
put the Product in its original packaging or packaging that provides the same
amount of protection as the original packaging.
To obtain warranty service, in the United States call 1-888-BESTBUY or in Canada
call 1-866-BESTBUY. Call agents may diagnose and correct the issue over the
phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded
retail stores or websites to the original purchaser of the product in the county
where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
lCustomer instruction/education
lInstallation
lSet up adjustments
lCosmetic damage
www.insigniaproducts.com
NS-P10A8100K
10
lDamage due to weather, lightning, and other acts of God, such as power
surges
lAccidental damage
lMisuse
lAbuse
lNegligence
lCommercial purposes/use, including but not limited to use in a place of
business or in communal areas of a multiple dwelling condominium or
apartment complex, or otherwise used in a place of other than a private
home.
lModification of any part of the Product, including the antenna
lDisplay panel damaged by static (non-moving) images applied for lengthy
periods (burn-in).
lDamage due to incorrect operation or maintenance
lConnection to an incorrect voltage or power supply
lAttempted repair by any person not authorized by Insignia to service the
Product
lProducts sold “as is” or “with all faults”
lConsumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
lProducts where the factory applied serial number has been altered or
removed
lLoss or Theft of this product or any part of the product
lDisplay panels containing up to three (3) pixel failures (dots that are dark or
incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of
the display size or up to five (5) pixel failures throughout the display. (Pixel
based displays may contain a limited number of pixels that may not
function normally.)
lFailures or Damage caused by any contact including but not limited to
liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR
EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST
BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS
WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER
EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME
STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
www.insigniaproducts.com
10.1"Flex™ Tablet for Android™ with Detachable Keyboard
11
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR
PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China
www.insigniaproducts.com
NS-P10A8100K
12
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China. V1 ENG
17-0371
