Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • C1007
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:

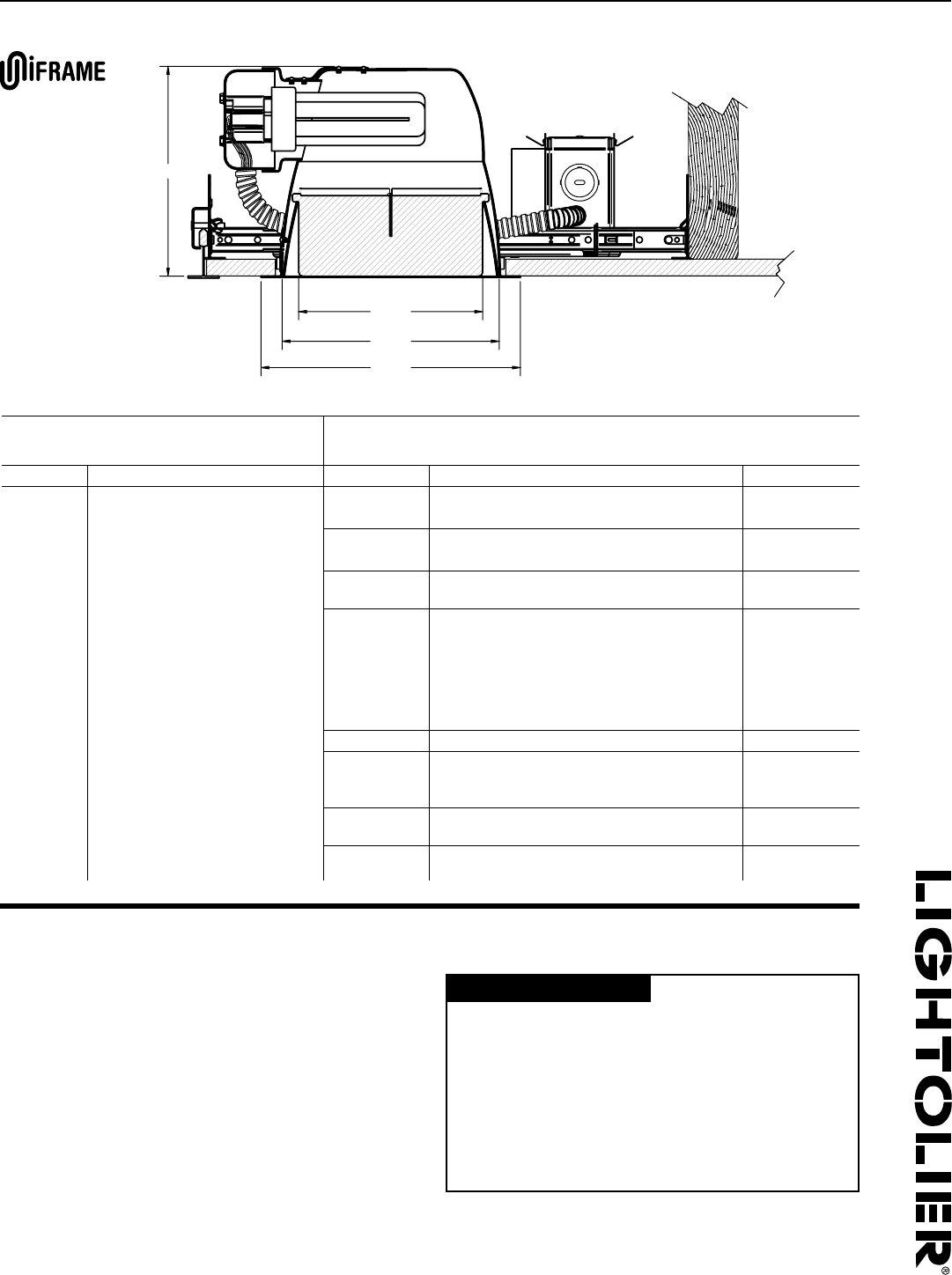

Lytecaster® Performance Recessed CFL Downlighting 1101HCB
Page 1 of 2 6 ¾" Aperture Horizontal Cross Blade, Compact Fluorescent, Performance Series,
Reflector Trim
Features
1. Reflector: Formed aluminum. Matte White flange.
2. Finishes: WH = Matte White Paint
A = Aluminum Paint
3. Cross Blade: .050" thick aluminum "floating" cross blade painted white or
aluminum.
4. Performance Data: 60° Cutoff angle.
See attached photometric reports for distribution and efficiency data.
Go to www.lightolier.com for .IES files.
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe™ Compact Fluorescent
Performance Series Reflector Trims
Compatible Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
Catalog No. Description Catalog No. Installation Type Lamping
1101HACB
1101HWHCB
6-3/4” Horizontal Shielded Cross Blade –
Aluminum
6-3/4” Horizontal Shielded Cross Blade –
Matte White
1101F18U
1101FR18U
Uniframe™ Non-IC 120/277v
Uniframe™ Non-IC Remodeler 120/277v
18w Quad/Triple
1101FD26L1
1101FD26L2
Uniframe™ Non-IC Lutron Dimming 120v
Uniframe™ Non-IC Lutron Dimming 277v
26w Quad/Triple
1101FD32L1
1101FD32L2
Uniframe™ Non-IC Lutron Dimming 120v
Uniframe™ Non-IC Lutron Dimming 277v
32w Triple
1101F2642U
1101FR2642U
1101F2642UEM
1101FD2642MX1
1101FD2642MX2
1101FD2642M7U
Uniframe™ Non-IC 120/277v
Uniframe™ Non-IC Remodeler 120/277v
Uniframe™ Non-IC Emergency 120/277v
Uniframe™ Non-IC Advance Mark10 Dimming 120v
Uniframe™ Non-IC Advance Mark10 Dimming 277v
Uniframe™ Non-IC Advance Mark7 Dimming 120/277v
26w Quad/Triple
32w Triple
42w Triple
1101F18ICU/N Performance IC 120/277v 18w Quad/Triple
1101F2642ICU
1101F2642IUN
Performance IC 120/277v 26w Quad/Triple
32w Triple
42w Triple
1101FDICMX1/N Performance IC Advance Mark10 Dimming 120v 26w Quad/Triple
32w Triple
1101FDICMX2/N Performance IC Advance Mark10 Dimming 277v 26w Quad/Triple
32w Triple
6 3/8"
7 7/8"
6 1/2"
5 1/2"
Labels
cULus Listed. Suitable for Damp Locations. I.B.E.W.
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • C1007
Job Information Type:
Lytecaster® Performance Recessed CFL Downlighting 1101HCB
Page 2 of 2 6 ¾" Aperture Horizontal Cross Blade, Compact Fluorescent, Performance Series,
Reflector Trim

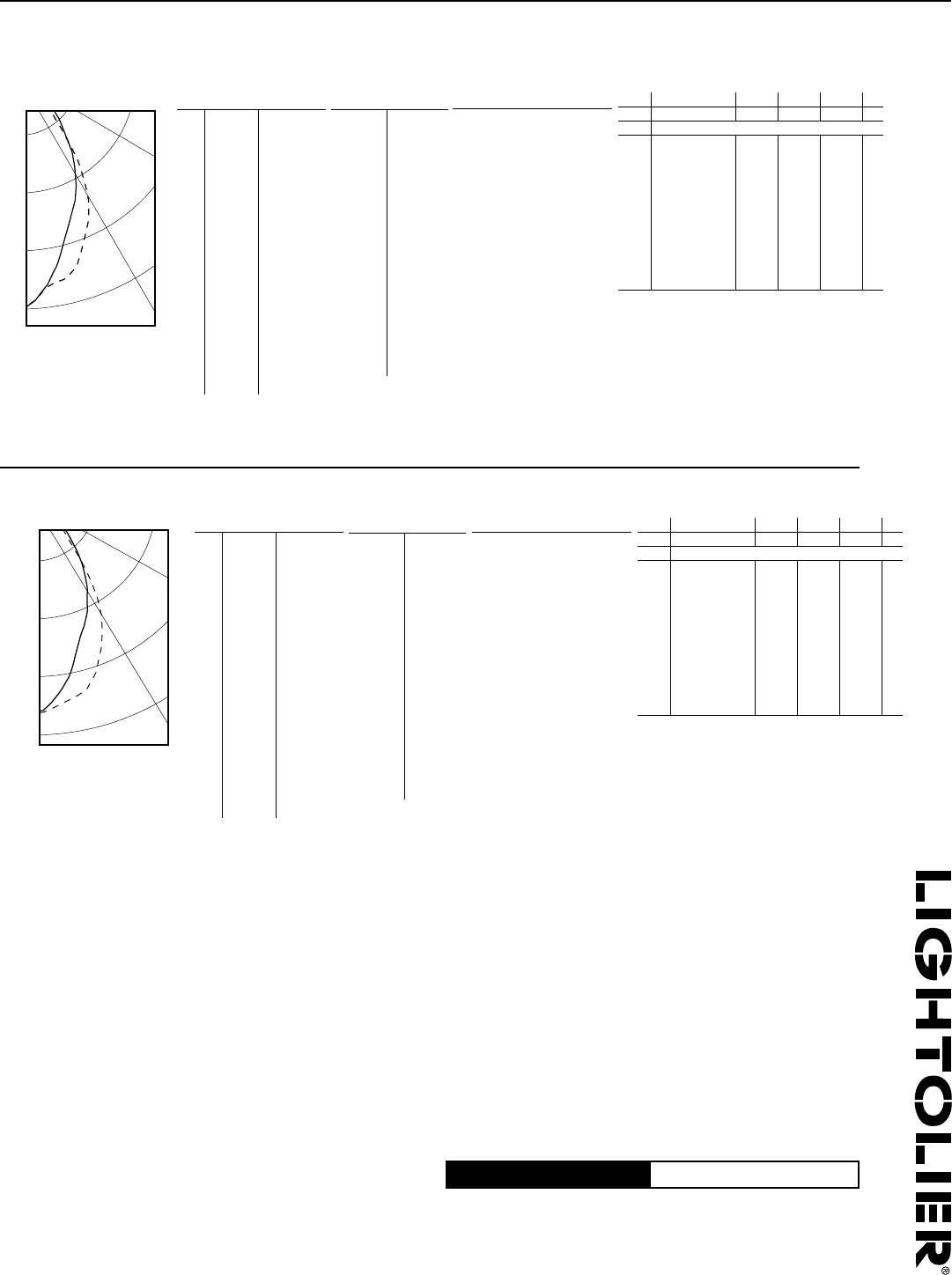

32W TRIPLE TUBE LAMP, LUMEN RATING = 2200 LMS, ELECTRONIC BALLAST, WHITE CROSS BLADE
42W TRIPLE TUBE LAMP, LUMEN RATING = 3200 LMS, ELECTRONIC BALLAST, WHITE CROSS BLADE
60°
30°
1
2
225
450
695
900
2
1
167
333
500
666
60˚
30˚
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 390.66 17.8 47.9
0-40 550.53 25 67.5
0-60 726.61 33 89.1
0-90 815.38 37.1 100
90-120 0 0 0
90-130 0 0 0
90-150 0 0
90-180 815.38 37.1 100
** Efficiency = 37.1% **
COEFFICIENTS OF UTILIZATION
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
044 44 44 44 43 43 41 41 39 39 37
141 40 38 37 39 37 37 36 36 34 33
238 36 34 32 35 32 34 31 33 30 29
336 32 30 28 35 32 28 31 27 30 26
433 30 27 25 29 25 28 24 27 26 23
531 27 24 22 27 22 26 22 25 22 21
629 25 22 20 25 20 24 20 23 20 19
727 23 20 18 23 18 22 18 22 18 17
826 21 19 17 21 17 21 17 20 17 16
36 24 20 17 16 20 16 19 16 19 15 15
10 23 19 16 15 19 14 18 14 18 14 14
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 35
ZONAL LUMEN SUMMARY
Zone Lumens
0-10 59.95
10-20 147.91
20-30 183.79
30-40 159.87
40-50 103.2
50-60 72.98
60-70 50.18
70-80 28.8
80-90 9.7
90-100 0
100-110 0
110-120 0
120-130 0
130-140 0
140-150 0
150-160 0
160-170 0
170-180 0
CANDLEPOWER SUMMARY
Angle 0˚ CP 90˚ CP
0 666 666
5 635 637
10 572 597
15 494 582
20 432 528
25 383 468
30 324 401
35 263 287
40 193 177
45 142 116
50 106 97
55 80 80
60 64 64
65 51 51
70 39 39
75 27 28
80 17 18
85 8 9
90 5 5
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 498.04 15.6 47.7
0-40 701.05 21.9 67.2
0-60 929.8 29.1 89.1
0-90 1043.73 32.6 100
90-120 0 0 0
90-130 0 0 0
90-150 0 0 0
90-180 1043.73 32.6 100
** Efficiency = 32.6% **
COEFFICIENTS OF UTILIZATION
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0 39 39 39 39 38 38 36 36 35 35 33
1 36 35 34 33 34 32 33 31 32 30 29
2 34 31 30 28 31 28 30 27 29 27 25
3 31 29 26 25 28 24 27 24 26 24 23
4 29 26 24 22 26 22 25 21 24 21 20
5 27 24 21 20 23 19 21 19 20 19 18
6 26 22 19 18 22 18 21 17 21 17 17
7 24 20 18 16 20 16 20 16 19 16 15
8 23 19 16 15 19 15 18 15 18 15 14
36 21 18 15 14 17 14 17 14 17 14 13
10 20 16 14 13 16 13 16 13 16 13 12
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 47
ZONAL LUMEN SUMMARY
Zone Lumens
0-10 73.64
10-20 188.16
20-30 236.24
30-40 203
40-50 134.48
50-60 94.28
60-70 64.6
70-80 36.97
80-90 12.35
90-100 0
100-110 0
110-120 0
120-130 0
130-140 0
140-150 0
150-160 0
160-170 0
170-180 0
CANDLEPOWER SUMMARY
Angle 0˚ CP 90˚ CP
0 816 816
5 778 801
10 701 774
15 604 751
20 526 688
25 466 599
30 394 503
35 325 369
40 249 232
45 185 154
50 136 124
55 104 102
60 82 82
65 65 65
70 50 49
75 35 35
80 22 22
85 11 11
90 2 4
SC = 0.8 x 0.98
1 – 0°
2 – 90°
CERTIFIED TEST REPORT NO. 3353FR
COMPUTED BY LSI PROGRAM
**TEST-LITE**
SC = 0.8 x 1.0
1 – 0°
2 – 90°
CERTIFIED TEST REPORT NO. 3356FR
COMPUTED BY LSI PROGRAM
**TEST-LITE**
