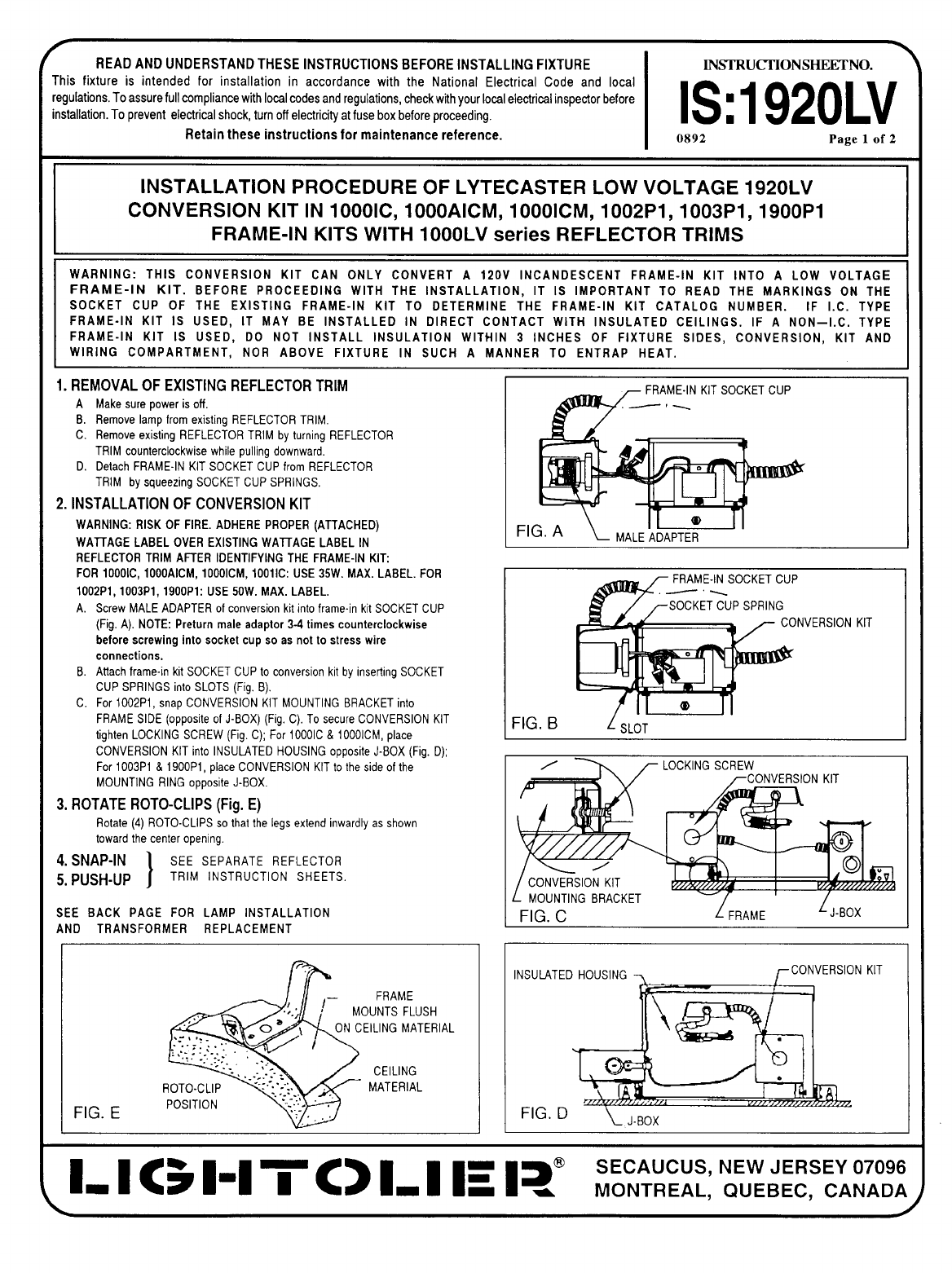

READANDUNDERSTANDTHESEINSTRUCTIONSBEFOREINSTALLINGFIXTURE INSTRUCI’IONSHEETNO.
sfixture is intended for installation in accordance with the National Electrical Code and local
ulations. To assure full compliance with local codes and regulations, check with your local electrical inspector before
ablation.To prevent electrical shock, turn offelecttici~ at fuse box before proceeding, IS:1920LV
Retain these instructions for maintenance reference. 0892 Page 1of 2
INSTALLATION PROCEDURE OF LYTECASTER LOW VOLTAGE 1920LV
CONVERSION KIT IN 1000IC, 1000AICM, 1000ICM, 1002P1, 1003 PI, 1900P1
FRAME-IN KITS WITH 1000LV series REFLECTOR TRIMS
WARNING: THIS CONVERSION KIT CAN ONLY CONVERT A120V INCANDESCENT FRAME-IN KIT INTO ALOW VOLTAGE
FRAME-IN KIT. BEFORE PROCEEDING WITH THE INSTALLATION, IT IS IMPORTANT TO READ THE MARKINGS ON THE
SOCKET CUP OF THE EXISTING FRAME-IN KIT TO DETERMINE THE FRAME-IN KIT CATALOG NUMBER. IF I.C. TYPE
FRAME-IN KIT IS USED, IT MAY BE INSTALLED IN DIRECT CONTACT WITH INSULATED CEILINGS. IF ANON–I.C. TYPE
FRAME-IN KIT IS USED, DO NOT INSTALL INSULATION WITHIN 3INCHES OF FIXTURE SIDES, CONVERSION, KIT AND
WIRING COMPARTMENT, NOR ABOVE FIXTURE IN SUCH AMANNER TO ENTRAP HEAT.
REMOVALOFEXISTING REFLECTORTRIM
AMakesure power is off,
B, Removelamp from existing REFLECTORTRIM.
C. Removeexisting REFLECTORTRIM byturning REFLECTOR
TRIM counterclockwisewhile pulling downward.
D. DetachFRAME-lNKIT SOCKETCUP from REFLECTOR
TRIM bysqueezing SOCKETCUP SPRINGS,
INSTALLATIONOF CONVERSIONKIT
WARNING: RISK OF FIRE. ADHERE PROPER(ATTACHED)
WAITAGE LABEL OVER EXISTINGWATrAGE LABEL IN
REFLECTORTRIM AFTER IDENTIFYINGTHE FRAME-INKIT:
FOR 1000IC, 1000AICM, 1000ICM, 1001IC: USE 35W. MAX. LABEL. FOR
1002P1, 1003P1, 1900P1: USE 50W. MAX. LABEL.
A.
B.
c.
Screw MALE ADAPTER of conversionkit into frame-inkit SOCKETCUP
(Fig, A). NOTE: Preturn male adaptor 3-4 times counterclockwise
before screwing into socket cup so as not to stress wire
connections.
Attach frame-inkit SOCKETCUP to conversionkit by insertingSOCKET
CUP SPRINGSinto SLOTS(Fig, B),
For 1002P1,snao CONVERSIONKIT MOUNTINGBRACKETinto
FRAME SIDE (opposite of J-BOX) (Fig. C). To secure CONVERSION KIT
tighten LOCKING SCREW (Fig. C); For 1000IC &1000ICM, place
CONVERSION KIT into INSUUTED HOUSING opposite J-BOX (Fig. D);
For1003Pl &1900 Pl, placeCONVERS1ONKITtotheside of the
MOUNTINGRING oppositeJ-BOX.
ROTATEROTO-CLIPS(Fig. E)
Rotate (4) ROTO.CLIPSso that the legs extendinwardlyas shown
toward the center opening.
SNAP-IN
}
SEE SEPARATE REFLECTOR
PUSH-UP TRIM INSTRUCTION SHEETS.
;E BACK PAGE FOR LAMP INSTALLATION
ID TRANSFORMER REPLACEMENT
m
FRAME
MOUNTS FLUSH
ON CEILING MATERIAL
. .. . . .. .. ..- ..
,- .’.’! . . CEILING
MATERIAL
POSITION
FIG. E
FI
NVERSION KIT
FIG. BL“-”
SLOT
FIG C[FRAME ~J-BOX
INSULATED HOUSING n/-Conversion KIT
FIG. D

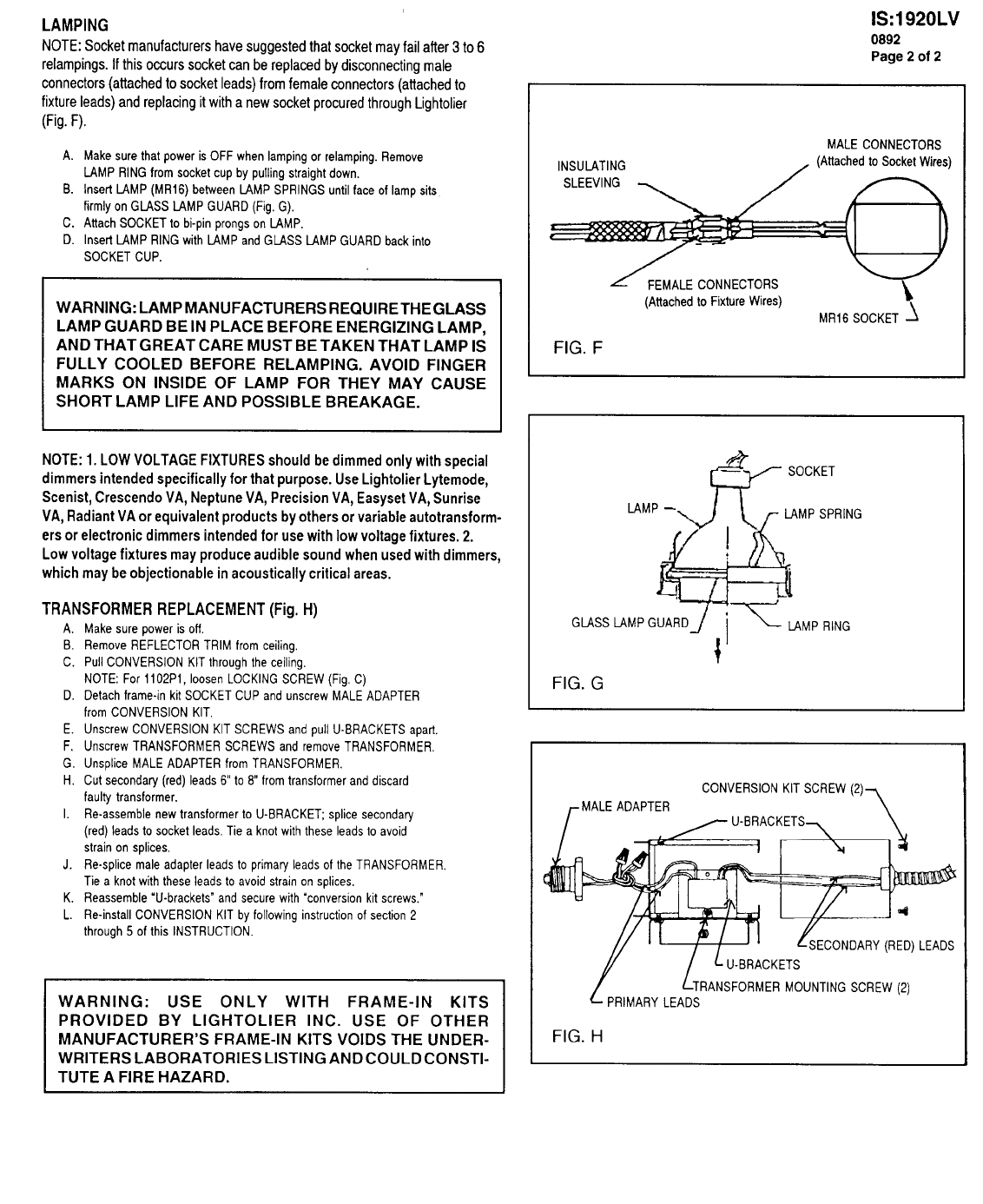

LAMPING
NOTE: Socket manufacturers have suggested that socket may fail after 3to 6
relampings. If this occurssocketcan be replacedby disconnectingmale
connectors(attachedto socketleads)fromfemaleconnectors(attachedto
fixtureleads)and replacingit with anewsocketprocuredthroughLightolier
(Fig.F).
A.
B.
c.
D.
Makesure that power is OFF when Iamping or relamping. Remove
LAMP RING from socket cup by pulling straight down.
Inserl IAMP (MR16) between LAMP SPRINGS until face of lamp sits
firmly on GLASS LAMP GUARD (Fig, G),
Attach SOCKET to hi-pin prongs on LAMP,
Insert IAMP RINGwith IAMP and GLASS lAMP GUARDback into
SOCKETCUP.
WARNING: LAMP MANUFACTURERS REQUIRE THE GLASS
LAMP GUARD BE IN PLACE BEFORE ENERGIZING LAMP,
AND THAT GREAT CARE MUST BE TAKEN THAT LAMP IS
FULLY COOLED BEFORE RELAMPING. AVOID FINGER
MARKS ON INSIDE OF LAMP FOR THEY MAY CAUSE
SHORT LAMP LIFE AND POSSIBLE BREAKAGE.
NOTE:1. LOWVOLTAGE FIXTURESshould be dimmed only with special
dimmers intended specifically for that purpose. UseLightolier Lytemode,
Scenist, Crescendo VA, Neptune VA, Precision VA, Easyset VA, Sunrise
VA, Radiant VA or equivalent products by others or variable autotransform-
ers or electronic dimmers intended for use with low voltage fixtures. 2.
Low voltage fixtures may produce audible sound when used with dimmers,
which may be objectionable in acoustically critical areas.
TRANSFORMER REPLACEMENT (Fig. H)
A.
B.
c.
D.
E.
F.
G.
H.
1,
J.
K.
L.
Make sure power is off.
Remove REFLECTOR TRIM from ceiling,
Pull CONVERSION KIT through the ceiling,
NOTE: For 1102P1, loosen LOCKING SCREW (Fig. C)
Detach frame-in kit SOCKET CUP and unscrew MALE ADAPTER
from CONVERSION KIT,
Unscrew CONVERSION KIT SCREWS and pull U-BRACKETS apart,
Unscrew TRANSFORMER SCREWS and remove TRANSFORMER,
Unsplice MALE ADAPTER from TRANSFORMER,
Cut secondary (red) leads 6“ to 8“ from transformer and discard
faulty transformer.
Re-assemble new transformer to U-BRACKET splice secondary
(red) leads to socket leads. Tie aknot with these leads to avoid
strain on splices,
Re-splice male adapter leads to primary leads of the TRANSFORMER
Tie aknot with these leads to avoid strain on splices,
Reassemble “U-brackets” and secure with “conversion kit screws.”
Re-install CONVERSION KIT bv following instruction of section 2
through 5of this INSTRUCTION. -
WARNING: USE ONLY WITH FRAME-IN KITS
PROVIDED BY LIGHTOLIER INC. USE OF OTHER
MANUFACTURER’S FRAME-IN KITS VOIDS THE UNDER-
WRITERS LABORATORIES LISTING AND COULD Consti-
tute AFIRE HAZARD.
IS:1920LV
0892
Page 2of 2
MALE CONNECTORS
INSULATING (Attached to Socket Wires)
SLEEVING
z“FEMALE CONNECTORS y
(Attached to Fixture Wires)
MR16 SOCKET 1
FIG. F
R
.SOCKET
LAMP -LAMP SPRING
&
!
L
~,MARyLE~s‘U-BRACKETS
TRANSFORMER MOUNTING SCREW (2)
IFIG. H
