Lytespan® Track Lighting 8292F3E

Page 1 of 2 PowerArc™ Double Ended Metal Halide 30° Vertical Flood

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • C0807

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

8292F3EWH Matte White 70W CDM or CMH T-6

8292F3EBK Matte Black Double Ended Metal Halide (M-98)

8292F3EAL Metallic Aluminum

Catalog No. Finishes Track Mountings Lamps

Ordering Information

Features

1. Ballast Housing: 0.09” extruded aluminum housing with die cast endcaps.

2. Ballast: High power factor electronic metal halide ballast.

3. Reflector Housing: .095” thick extruded aluminum body with die cast end

caps.

4. Vertical Pivot: 0 - 90° vertical adjustment.

5. Horizontal Pivot: Die cast track adapter with positive rotation stop provides

385° horizontal rotation.

6. Sockets: 5 Kv pulse rated sockets with nickel plated contacts; leads

enclosed in silicone coated fiberglass sleeving.

7. Contact Holder: High temperature thermoplastic. Secures luminaire

mechanically and makes electrical contact with track.

8. Brass Contact: Extends for connection to second circuit in Advent®

Lytespan® track.

9. Flood Reflector: Symmetrical aluminum reflector for illumination on vertical

surface.

10. Safety Interlock Switch: Disconnects power when safety lens is removed.

11. Safety Lens: Tempered 1/8” UV filtering glass. Meets or exceeds safety

requirements for metal halide lamps.

12. Indicator Guide: Aiming indicator assures consistent and precise multiple

unit alignment.

13. Locking Lever: Nickel plated steel. For mechanical/electrical connection to

track.

Electrical

Electronic Ballast

Input Voltage: 120V, 60Hz

Power Factor: >95%

Input Power: 78W

Input Current: .67 amp

Electrical (Continued)

Harmonic Distortion: <10%

DO NOT USE ON A DIMMING CIRCUIT

Options and Accessories

Accepts PowerArc Accessory Holder (8293AC), Vertical Blade Louver (8293LV),

Spread Lens (8293BE), UV Filter (8293UV), and Visor (8293VS).

NOTE: 8293UV or 8293BE must be combined with 8293AC.

Finish

All painted finishes are baked enamel.

Labels

UL, cUL

All Lytespan® Track Systems, Multipoint, and

Monopoint. DO NOT USE with any other mounting

accessories or stem mounted Radius® Track.

12

Lytespan® Track Lighting 8292F3E

Page 2 of 2 PowerArc™ Double Ended Metal Halide 30° Vertical Flood

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B0807

Job Information Type:

5,659 12,000

T6 70W MasterColor

Metal Halide 29° x 85°

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

0° 30° Horizontal 30° Vertical 45° Vertical

Aiming Angle 0° 30° Horizontal 30° Vertical 45° Vertical

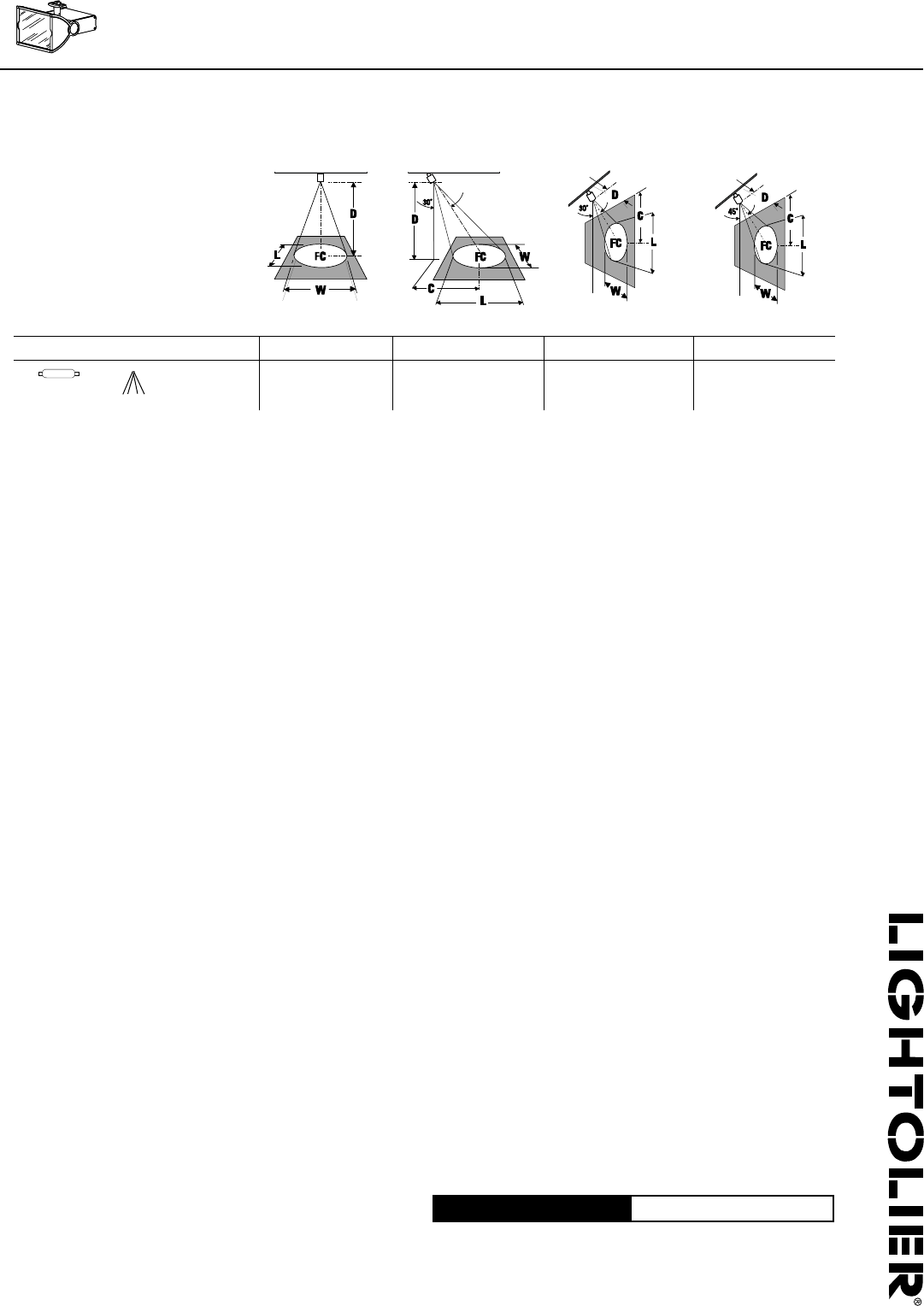

L Beam Length

W Beam Width

C Distance to center beam

D Distance

A Aiming Angle

FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

D FC L W

6’ 157 3.1’ 11.0’

8’ 88 4.1’ 14.7’

10’ 57 5.2’ 18.3’

12’ 38 6.2’ 22.0’

D C FC L W

5’ 2.9’ 147 3.5’ 10.6’

7’ 4.0’ 75 4.9’ 14.8’

8’ 5.2’ 45 6.3’ 19.0’

11’ 6.4’ 30 7.8’ 23.3 ’

D C FC L W

2’ 3.5’ 177 5.2’ 7.3’

3’ 5.2’ 79 7.8’ 11.0’

4’ 5.9’ 44 10.4’ 14.7’

5’ 8.7' 28 12.9’ 18.3’

D C FC L W

3’ 3.0’ 222 3.3’ 7.8’

5’ 5.0’ 80 5.5’ 13.0’

7’ 7.0’ 41 7.8’ 16.1’

9’ 9.0’ 25 10.0’ 23.3’

La mp Information:

70W CDM or CMH T6 Double Ended Metal Halide.

Initial Lumens: 6200 to 7000

CRI: 85

Rated Avg. life: 12,000 hrs.

5,659 12,000
