LigoWave PTP523MP 2x2 MIMO 802.11 DIGITAL TRANSMISSION SYSTEM User Manual Title
LigoWave LLC 2x2 MIMO 802.11 DIGITAL TRANSMISSION SYSTEM Title
LigoWave >
Users Manual
Copyright
© 2012 LigoWave
This user’s guide and the software described in it are copyrighted with all rights reserved. No part
of
this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form by any means without the written permission of LigoWave.
Notice
LigoWave reserves the right to change specifications without prior notice.
While the information in this manual has been compiled with great care, it may not be deemed an
assurance of product characteristics. LigoWave shall be liable only to the degree specified in the
terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and
the use of its contents is subject to written authorization from LigoWave.
Trademark
s
LigoWave logo is trademark of LigoWave LLC.
All other registered and unregistered trademarks in this document are the sole property of their
respective owners.
LigoWave Page
1
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Cautio
n
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
FCC Radiation Exposure Statement
To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 3.9 feet
is required between the antenna and all occupational persons, and a minimum separation distance of 8.7 feet
is required between the antenna and all public persons.
Antenna Installation
WARNING: It is installer’s responsibility to ensure that when using the authorized antennas in the United States
(or where FCC rules apply), only those antennas certified with the product are used. The use of any antenna
other than those certified with the product is expressly forbidden in accordance to FCC rules CFR47 part
15.204. The installer should configure the output power level of antennas, according to country regulations and
per antenna type. Professional installation is required of equipment with connectors to ensure compliance with
health and safety issues.
Industry Canada Statement
English
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter (7607A-PTP5NMP) has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
French
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une
antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but
de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio (7607A-PTP5NMP) a été approuvé par Industrie Canada pour fonctionner avec les
types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque
type d'antenne. Les types d'antenne non inclus dans cette liste,ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
LigoWave Page
2
Antenna Compliance
The LigoPTP 5-23 MIMO PRO contains internal antenna.
CE Mark Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
R&TTE
Comp
li
a
nce
Stat
eme
nt
This equipment complies with all the requirements of the Directive 1999/5/EC of the European Parliament and
the Council of 9 March 1999 on Radio Equipment and Telecommunication Terminal Equipment and the
Mutual Recognition of their Conformity (R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal
Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this manual and of the computer manufacturer must therefore be allowed at all
times to ensure the safe use of the equipment.
EU Countries
I
nte
nded
for U
se
The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland,
France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The
Netherlands, Portugal, Spain, Sweden and United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein,
Norway and Switzerland.
EU Countries Not Intended for
Use
None.
LigoWave Page
3
About This Guide
Purpos
e
The purpose of this guide is to provide a quick and easy explanation of getting started with the
LigoPTP 5-23 MIMO PRO. This is only a starter guide and full documentation may be found at our
online wiki:
http://www.ligowave.com/wiki
Definitions,
Acronyms and Abbreviations
The following typographic conventions and symbols are used throughout this document:
Additional information that may be helpful but which is not required.
Important information that should be observed.
LigoWave Technical
Sup
port
If you encounter problems when installing or using this product, please consult the LigoWave website
at www.ligowave.com for:
Direct contact to the LigoWave support centers.
Frequently Asked Questions (FAQ).
Download area for the latest software, user documentation and product updates.
Contact Us
EU office:
UAB WILIBOX
Veiveriu 150 - IIIa.
Kaunas, LT-46391
Lithuania
Phone +370 37 759007
Fax +370 37 759006
(UTC +2)
US office:
LigoWave
138 Mountain Brook Drive
Canton, GA 30115
United States of America
Phone +1 877 544 6928 (1 877 LIGOWAVE)
+1 678 490 0108
(UTC -5)
LigoWave Page
4
Hardware Introduction
Gen
era
l
Overview
The label of the LigoPTP 5-23 MIMO PRO contains:
Model name. The official model name is LigoPTP 5-23 MIMO PRO
FCC ID. The FCC ID is V2V-PTP523MP
IC ID. 7607A-PTP523MP
LigoWave Page
5
Access the LigoPTP 5-23 MIMO PRO
The first connection to the LigoPTP 5-23 MIMO PRO can be made using a standard Ethernet
cable connected directly to your PC. See next sections for the instructions on how to access the
LigoPTP 5-23 MIMO PRO management interfaces.
Connection
via WEB
b
ro
ws
er
The default IP address of the LigoPTP 5-23 MIMO PRO is 192.168.2.66 with a subnet mask of
255.255.255.0.
Step 1 Configure your PC with a static IP address on the 192.168.2.0 subnet with mask
255.255.255.0. Connect LigoPTP 5-23 MIMO PRO Ethernet interface in to the same
physical network as your PC. Open the Web browser and type the default IP address
of the LigoPTP 5-23 MIMO PRO: https://192.168.2.66/

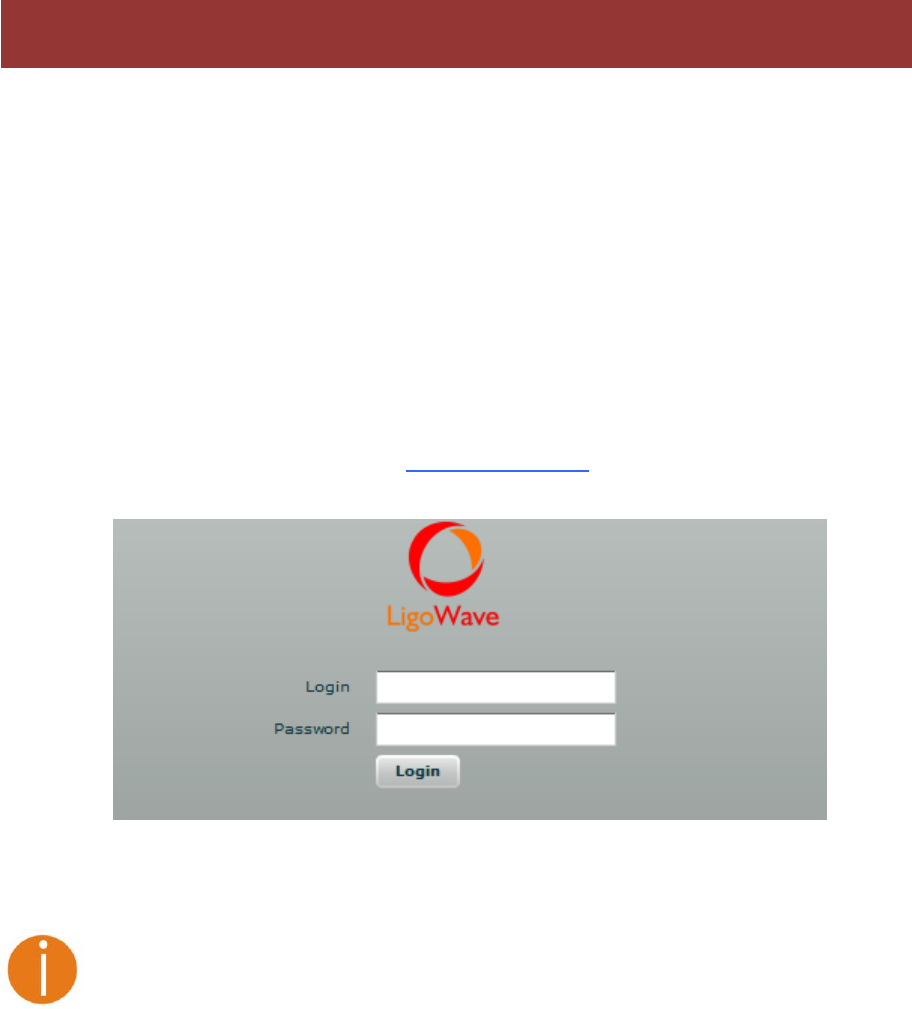

Step 2 Enter the LigoPTP 5-23 MIMO PRO administrator login details to access the Web
management:
The default administrator login settings for all LigoPTP 5-23 MIMO PRO
are:
User Name: admin
Password: admin01
Step 3 After successful administrator log on you will see the main page of the LigoPTP 5-23
MIMO PRO Web management interface. The LigoPTP 5-23 MIMO PRO now is ready for
configuration. For further instructions on Web management refer to the respective
document at the LigoWave wiki at http://www.ligowave.com/wiki
LigoWave Page
6
Resetting to Factory Defaults
LigoWave products have the capability of being reset to defaults by pinging the device with a certain
packet size when the radio is booting.
During the startup of the device, when the drivers of the ethernet interfaces are loaded, the discovery
daemon is started. The daemon suspends startup process for 3 seconds and waits for ICMP "echo
request" packet of length 369 bytes. If the packet is received, the discovery daemonresets the device
to default configuration.
Steps to reset to default settings:
Step 1. Power off the device.
Step 2. Obtain the device MAC address.
Step 3. Connect a PC to the same physical subnet as the device.
Step 4. Execute 'arp -s' command to assign the IP address (IP address should be from the same
subnet as PC) to the device MAC address:
arp -s <IP address to assign> <device MAC address>
Step 5. Start pinging the device:
For linux users:
ping <IP address> -s 369
For Windows users:
ping <IP address> -l 369 -t -w 200 -S <Computer IP address>
Step 6. Power up device and wait about 30sec or more (depends from device hardware).
