LRT214 / LRT224

User Guide

ii

Table of Contents

Linksys

ii

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Ports 1

LED Indicators 2

Reset 2

Placement Tips 2

Wall Mounting Tips 2

Getting Started with the Router Conguration. . . . . . . . . . . .3

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Host Name and Domain Name 9

IP Mode 9

LAN Setting (Device IP address and subnets) 9

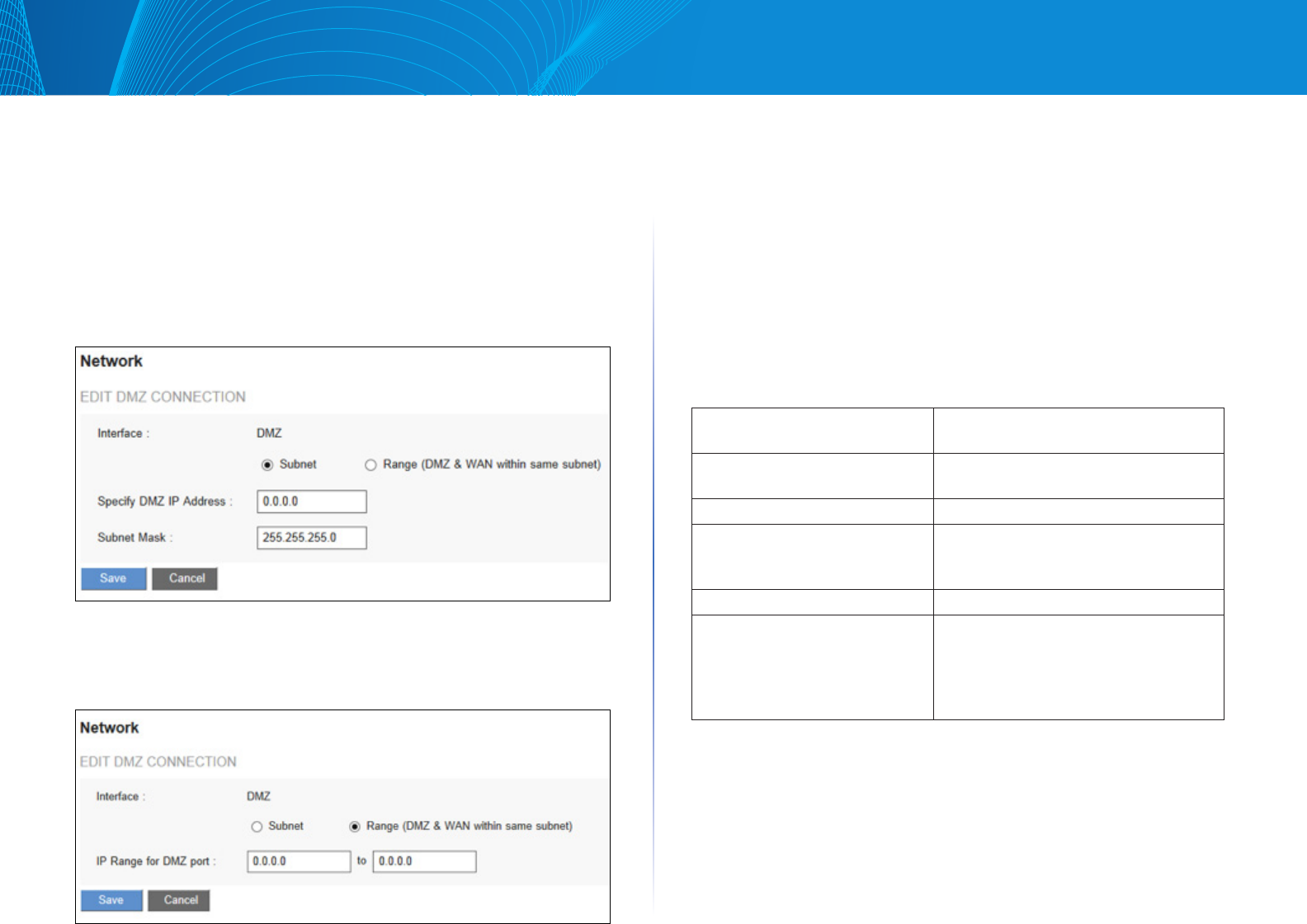

WAN Setting/ DMZ Setting (Internet connection & DMZ) 10

Setting Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

DMZ Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Port Forwarding and Port Triggering . . . . . . . . . . . . . . . . . 16

Port Range Forwarding 17

Port Triggering 18

Port Address Translation . . . . . . . . . . . . . . . . . . . . . . . . . 19

One-to-One NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Setting MAC Clone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Advanced Routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Dynamic Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Static Routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

IPv6 Transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

DHCP Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

DHCP Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Router Advertisement (IPv6) . . . . . . . . . . . . . . . . . . . . . . 26

IP & MAC Binding (for IPv4 Only) . . . . . . . . . . . . . . . . . . . .27

DNS Local Database. . . . . . . . . . . . . . . . . . . . . . . . . . . .28

System Management . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Dual WAN (LRT224 Only) / Network Service Detection 30

Dual WAN 30

Network Service Detection 30

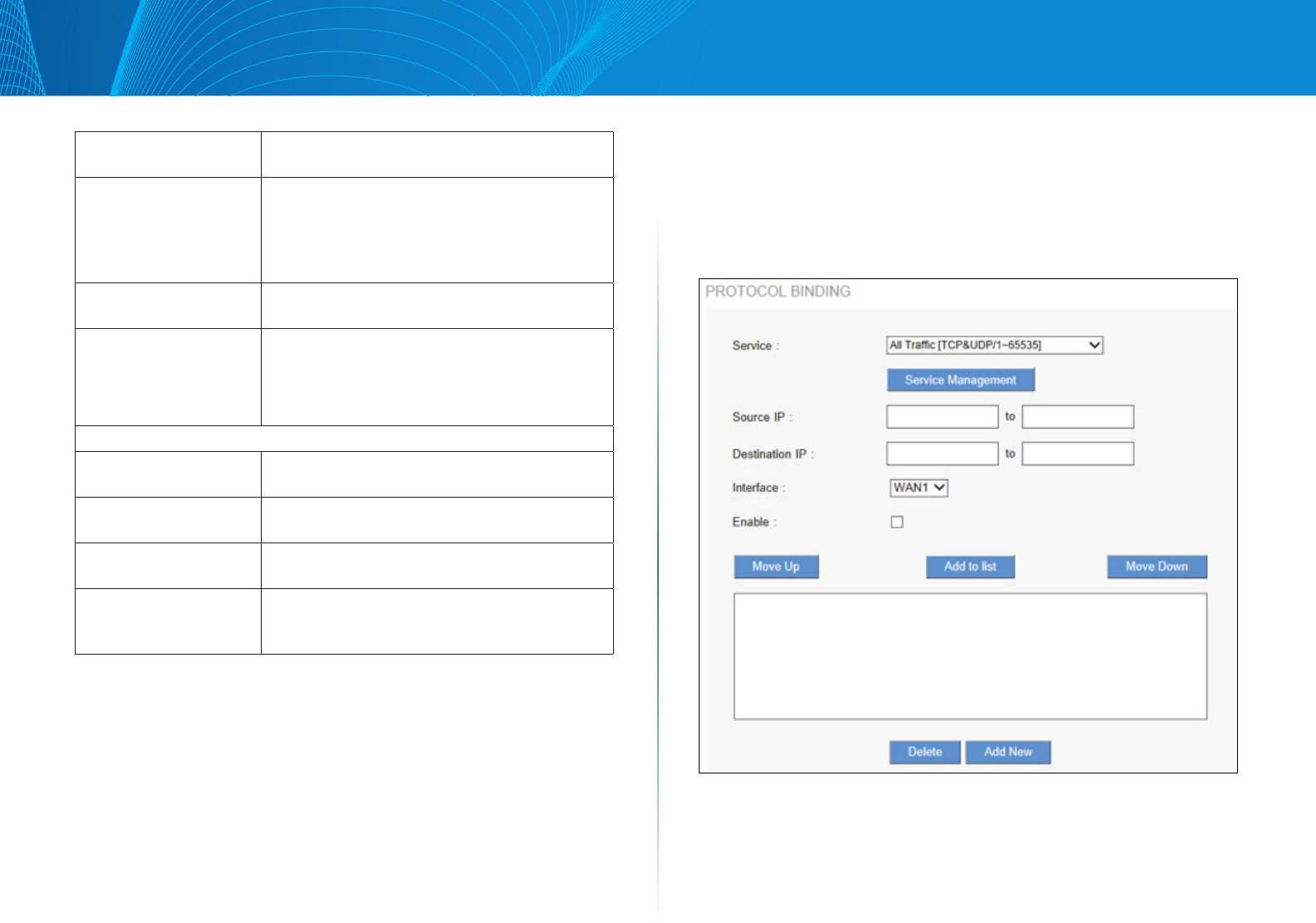

Protocol Binding (Only Dual-WAN Mode supports this function) 31

Bandwidth Management 33

SNMP 35

SSL Certicate 35

Port Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Port Setup 37

Port Status 38

802.1Q 39

802.1Q LAN Status 39

802.1Q LAN Conguration 40

Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Firewall General Settings 41

Access Rules 42

Content Filter 45

VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Summary 47

Gateway to Gateway 48

Client to Gateway 53

VPN Passthrough 58

PPTP Server 58

IP Address Range 58

Table of Contents

iii

Table of Contents

Linksys

PPTP Server 58

Connection List 59

EasyLink VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Summary 59

EasyLink VPN Server Status 59

Inbound EasyLink VPN Status 60

Outbound EasyLink VPN Status 60

Inbound EasyLink VPN 60

Add a New Account 60

Outbound EasyLink VPN 60

Edit Account 60

OpenVPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Summary 61

OpenVPN Server Status 61

OpenVPN Client Status 61

OpenVPN Server 61

Global Conguration Setting 62

OpenVPN Client 64

Certicate Setting 64

Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

System Log 66

Syslog 66

E-mail Alert 66

Log Setting 67

System Statistics 68

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Diagnostic 69

DNS Name Lookup 69

Ping 69

Factory Default 69

Firmware Upgrade 70

Restart 70

Backup and Restore 70

Restore Startup Conguration 70

Backup Conguration File 70

Copy Conguration File 70

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

FAQ and Supplemental Information . . . . . . . . . . . . . . .72

I

Introduction

Linksys

I

Introduction

LRT214/LRT224

Linksys’s VPN Routers for Small Business, LRT214 Gigabit VPN Router and LRT224

Dual WAN Gigabit VPN Router, support site-to-site VPN, which allows branch

offices to connect with the central office, and client-to-site VPN, which allows

employees to securely connect back to their offices while they are away. The

dual-WAN model supports WAN Failover, which allows a business to continue its

network operation when one of its WAN connections to the Internet fails. With

dual-WAN load balancing, the dual-WAN model can aggregate the bandwidths

of both WAN connections to achieve a higher Internet bandwidth than what a

single WAN connection can provide.

Employees increasingly demand remote access to enterprise IT resources

through their mobile devices such as smartphones and tablets. LRT214/LRT224

support OpenVPN server, which allows OpenVPN clients running on employees’

laptops, smartphones, and tablets to connect to the offices using two-factor

authentication. Two-factor authentication typically requires pre-installed

certificates as part of the authentication of an OpenVPN connection, in addition

to username/password, for additional security.

The products come with an integrated firewall that supports URL filtering

and access rules that allow administrators to further regulate the traffic within

the business network based on the services (i.e. TCP/UDP ports) and source/

destination IP addresses.

LRT214/LRT224 routers support 802.1q, which provides separation between

resources in different SSIDs/VLANs. This allows them to work with modern

wireless access points that support multiple SSIDs.. With inter-VLAN routing,

the products allow specified traffic to traverse between VLANs. The products

support dual stack IPv4 and IPv6, as well as transition technologies such as 6to4.

Like other Linksys routers, the products have an intuitive Web administrative

interface that allows small business owners to deploy and manage the routers

without professional IT staff onsite. The operational health of the products

can be monitored through system logs and email alerts. Standard MIBs are

supported, which allows the products to be monitored by a SNMP-based

network management system.

1

Hardware Installation

Linksys

1

Hardware Installation

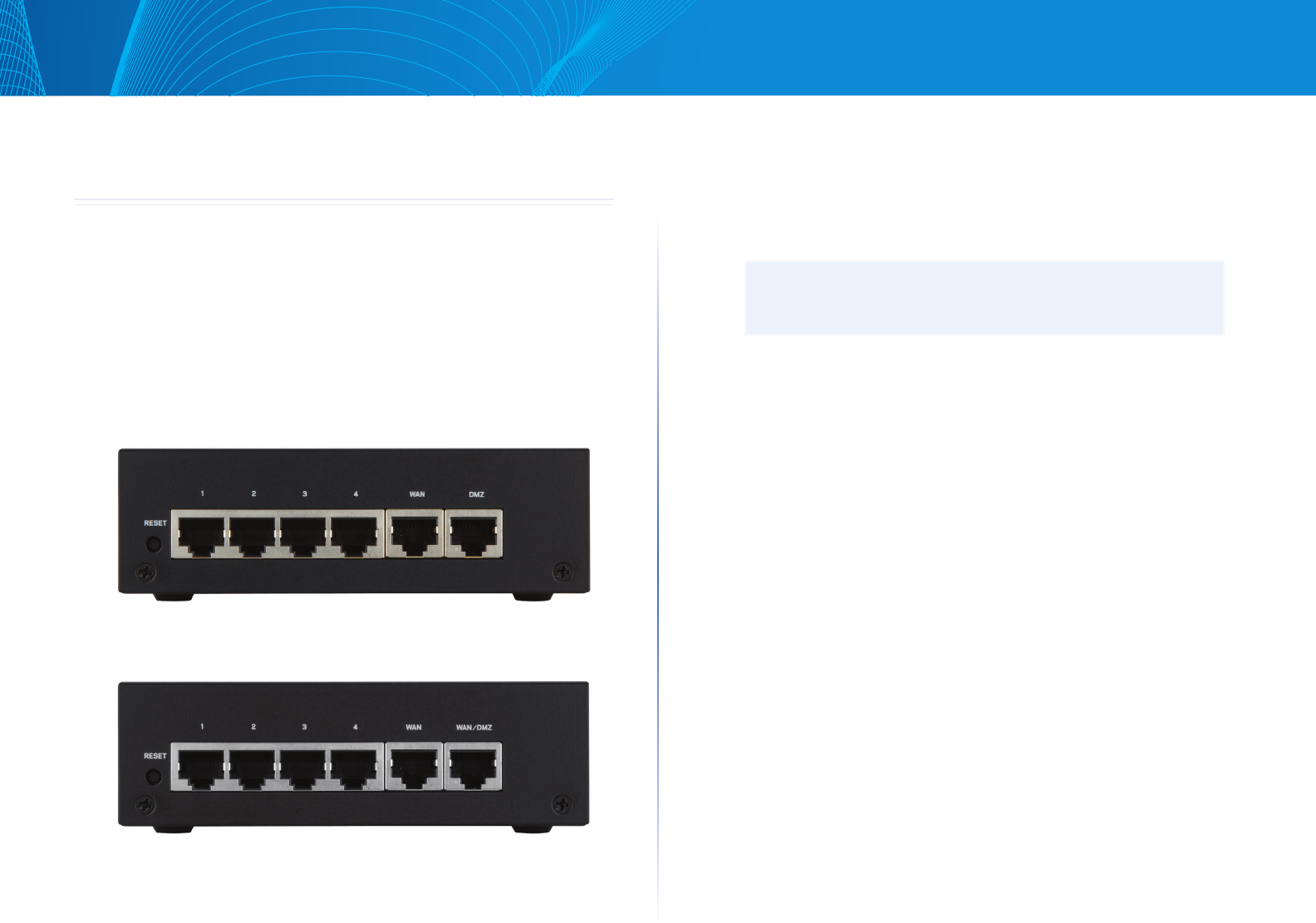

Ports

LRT214

In this chapter we are going to introduce hardware interface as well as

physical installation.

LRT224

•WAN: : The WAN ports can be connected with DSL or cable modems,

provided by your internet service provider (ISP).

•DMZ: Use the DMZ (Demilitarized Zone) port to connect to a DMZ host,

such as a Web server or mail server. Inbound traffic can access the DMZ

host without exposing your intranet.

•WAN/DMZ (LRT224):LRT224 Dual WAN Gigabit VPN Router comes with

a port you can configure as a second WAN port or DMZ port based on

your network requirements.

NOTE

Dual WAN settings, such as link failover or load balance, will be

disabled when you configure the port as DMZ port.

LAN (1~4):Use the LAN ports to connect devices such as switching hubs,

computers, printer servers, etc., to the local network or intranet.

2

Hardware Installation

Linksys

LED Indicators

Reset

Action Description

Press Reset Button For

5 Secs

Warm start

DIAG indicator: Diag LED flashing slowly

Press Reset Button

Longer than 10 Secs

Factory default

DIAG indicator: Diag LED flashing quickly

Placement Tips

•Do not place anything on top of the router. It could be damaged by

excessive weight.

•Do not obstruct heat dissipation holes on the sides of the router.

•Do not expose to direct sunlight or other heat source. Keep area around

router adequately ventilated.

•Place the router on a flat surface.

Wall Mounting Tips

The router has two wall-mount slots on its bottom panel. When mounting the

router on the wall, please ensure that the heat dissipation holes are facing

sideways as shown in the following picture for safety reasons. Linksys is not

responsible for damages incurred by insecure wall-mounting hardware.

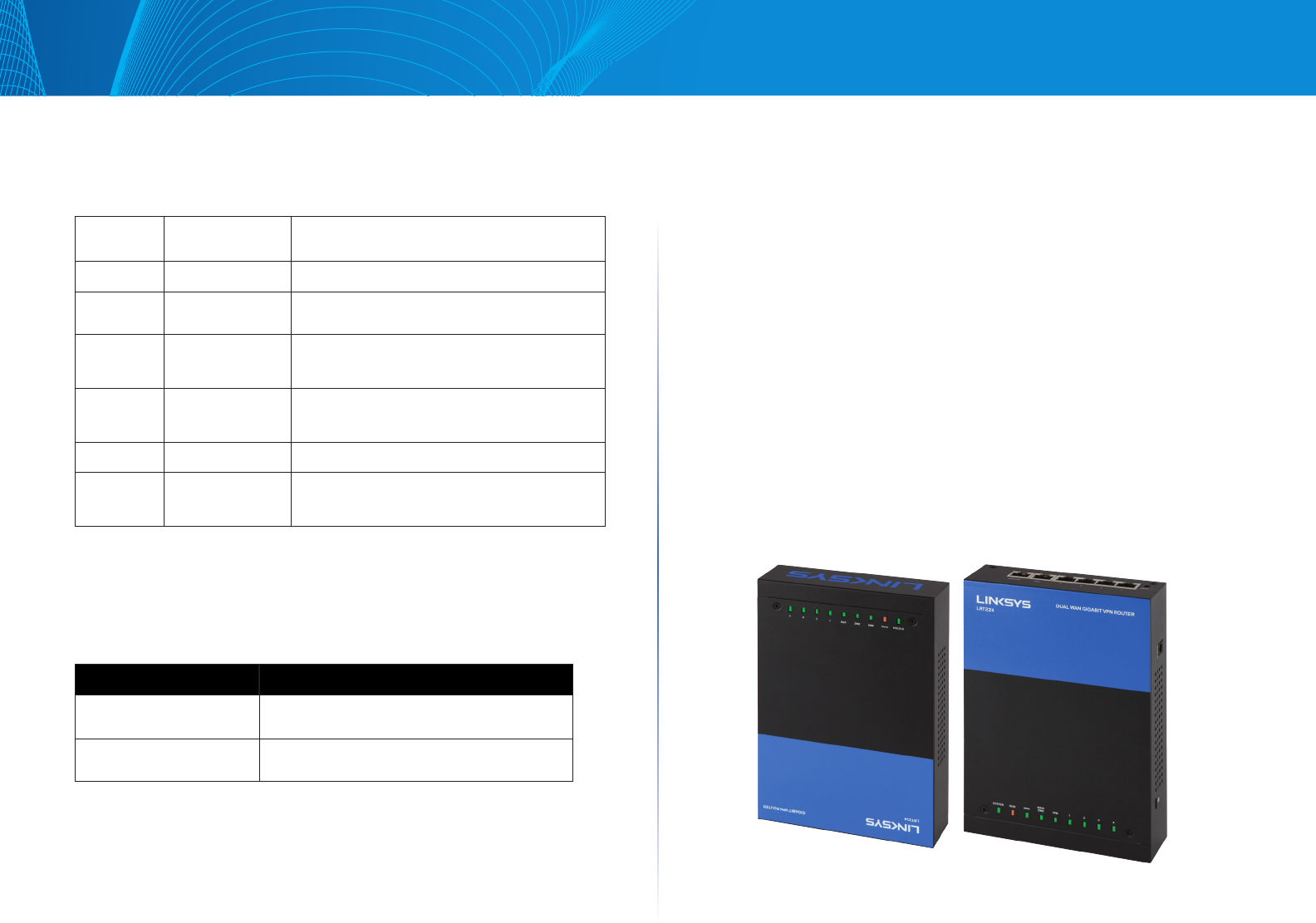

LED Name Color Description

System Green On: Power On

Blinking: System booting up

DIAG Amber

On: System not ready

Off: System ready

Blinking: System is on self-test

WAN Green/ Amber

Amber On: 10/100M link

Amber Blinking: 10/100M activity

Green On: Gigabit link

Green Blinking: Gigabit activity

WAN/DMZ Green/ Amber

Amber On: 10/100M link

Amber Blinking: 10/100M activity

Green On: Gigabit link

Green Blinking: Gigabit activity

VPN Green On: Designated VPN tunnel up

Off: Designated VPN tunnel down

1~4

Ethernet Green/ Amber

Amber On: 10/100M link

Amber Blinking: 10/100M activity

Green On: Gigabit link

Green Blinking: Gigabit activity

3

Getting Started with the Router Configuration

Linksys

3

Follow the instructions to configure your router.

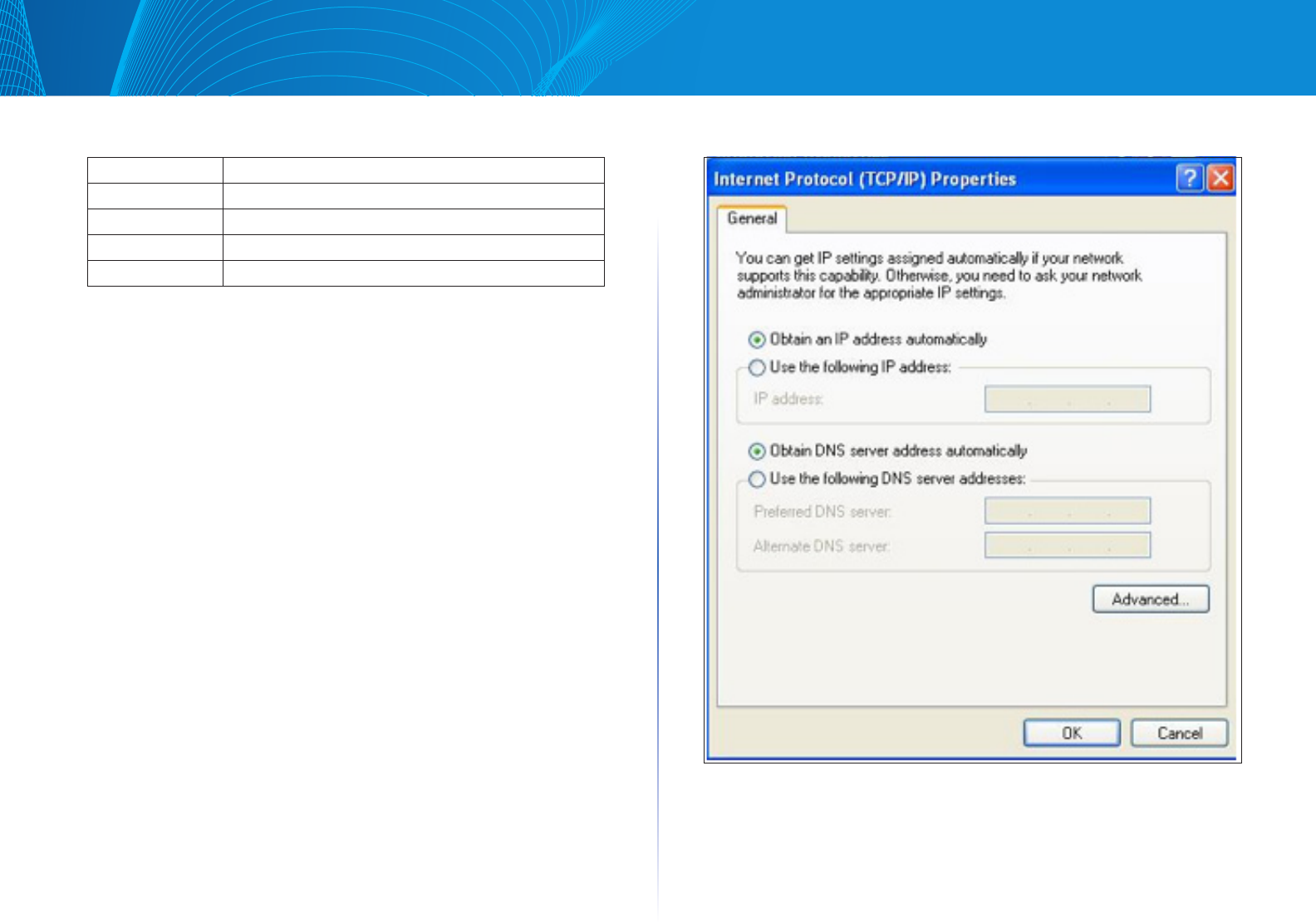

1. Be sure your computer is connected to a LAN port on the router and set

to receive an automatic IP address from the DHCP server.

2. Open a Web browser and type 192.168.1.1 in the address bar.

3. On the login screen, type in default username: admin, and default

password: admin. Click Log In.

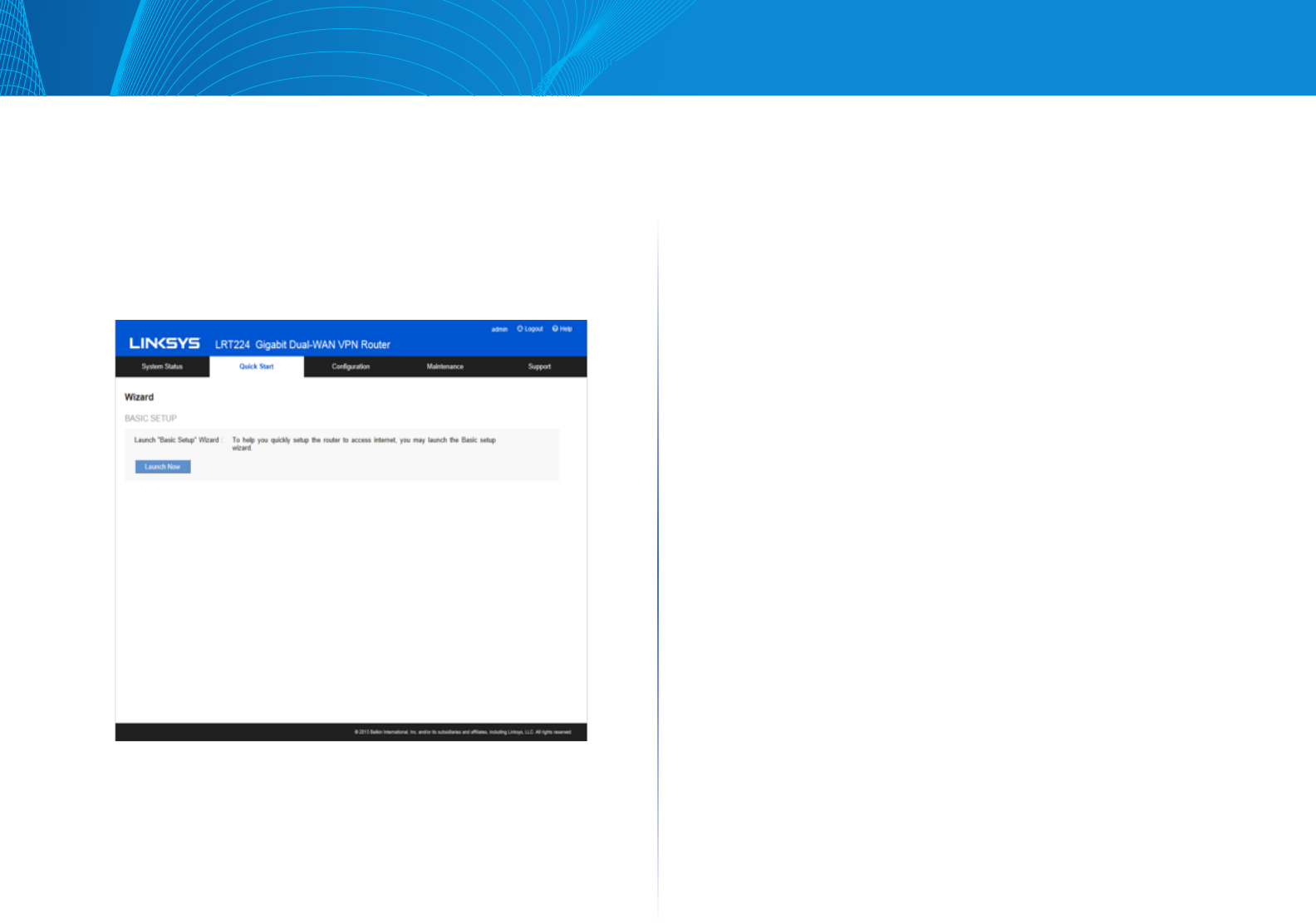

4. Launch Setup Wizard – on the System Status or Quick Start tab – to

complete configuration. Allow blocked content if asked.

5. The Configuration tab allows more control of your network based on

your management needs.

NOTE:

Windows users can find the router IP address through the DOS

prompt. Click on the Start button, enter “CMD” in the search field,

and type “ipconfig” at the prompt. The IP address is the Default

Gateway.

System Status

After logging in to the Web GUI, you will be directed to system status page,

where you can glance how the router is configured. You can click on the System

Status tab to view the current status of the router later on.

Getting Started with the Router Configuration

4

Getting Started with the Router Configuration

Linksys

System Information

This section includes the following information:

•Serial Number: Serial number of this router.

•Firmware Version: Current firmware version.

•Model Number: Model name of the router.

•MD5 Checksum: A value used for validation of the firmware installed

on the router.

•LAN

IPv4/Subnet Mask

IPv6/Prefix: Current LAN IP address of the router.

•Working Mode: Current working mode as Gateway or Router mode.

•System Up Time: How long since the last restart (or power-up) of the

router.

Configuration

You may click Setup Wizard button to launch wizard.

Port Statistics

Port ID: ID of physical port.

Interface: Type of the port: LAN, WAN or DMZ.

Status: Status of the port: Disabled, Enabled or Connected.

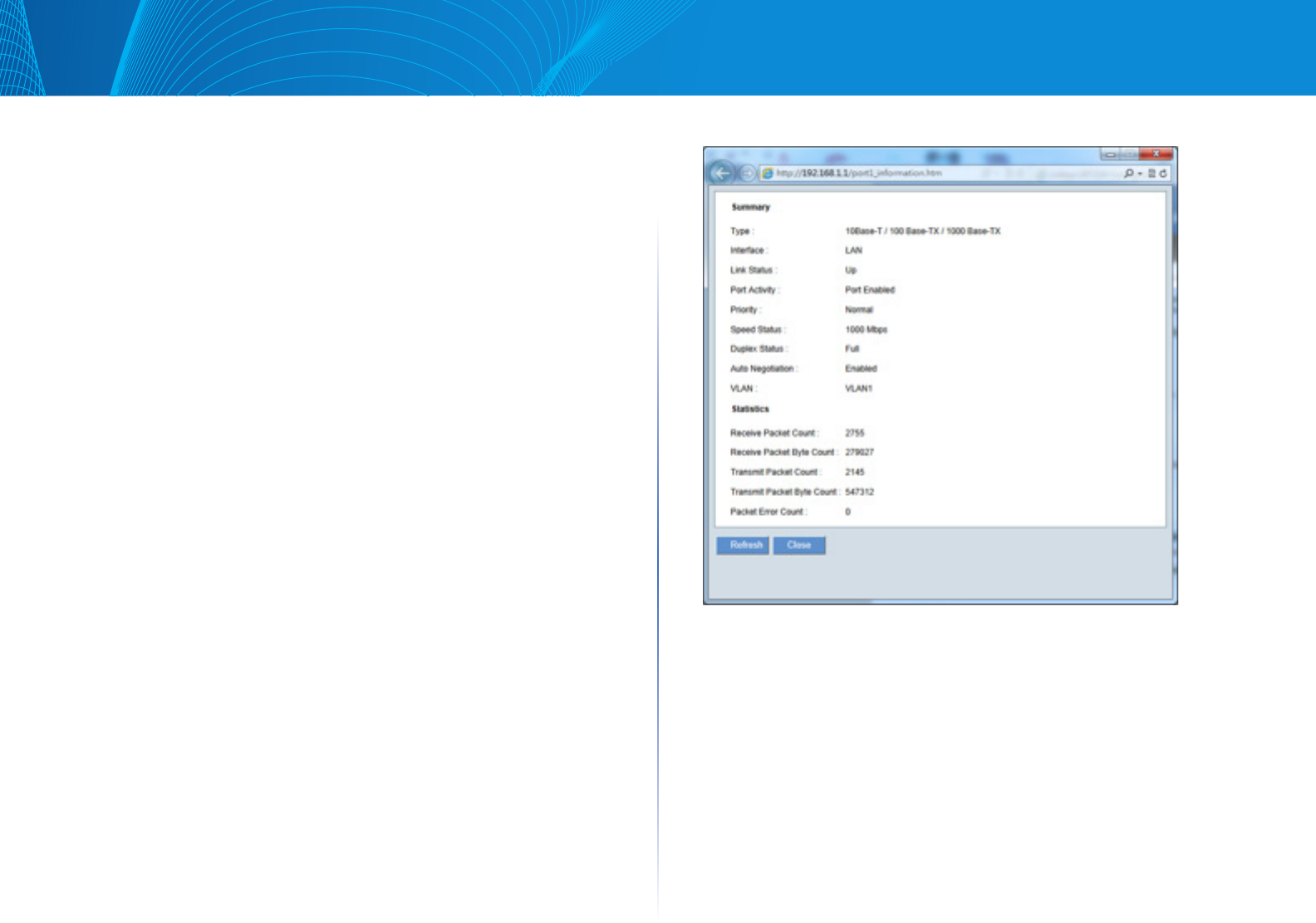

Clicking on a port’s status will launch a window with statistics on that port.

5

Getting Started with the Router Configuration

Linksys

Type: 10Base-T / 100 Base-TX / 1000 Base-TX.

Interface: LAN/WAN/DMZ.

Link Status: Up or down.

Port Activity: Port Enabled, Port Disabled, or Port

Connected.

Priority: High or Normal.

Speed Status: 10Mbps, 100Mbps or 1000Mbps.

Duplex Status : Half or Full.

Auto Negotiation : On or Off.

VLAN : VLAN ID.

This table also gives you the counts for packets received and sent, packet bytes

received and sent, and packet errors.

WAN Status

This section displays information for the WAN and DMZ interface.

NOTE:

You should enable Dual-Stack IP first to view IPv6 status. Please go

to Configuration > Network. .

IP Address: WAN IP address.

Default Gateway: Default gateway IP address.

DNS: IP address of the DNS server.

Dynamic DNS: (IPv4 Only) Enabled or disabled.

Release: If the WAN type is “Obtain an IP address

automatically (DHCP),” this button will appear.

Click Release to release the IP address.

Renew: If the WAN type is “Obtain an IP address

automatically (DHCP),” this button will

appear. Click Renew to update the IP address.

Connect/ Disconnect: If the WAN type is PPPoE or PPTP, this button

will appear. Click Disconnect to cut the

connection from ISP server. Click Connect to

re-dial to the server.

DMZ Status:

NOTE:

It is recommended to designate the configurable port on the

LRT224 as a DMZ port. Go to Device Configuration > Network and

check the Enable DMZ box.

IP Address: IP address of DMZ port.

DMZ Host: Private IP of DMZ host.

6

Getting Started with the Router Configuration

Linksys

Firewall Settings

This section displays the current firewall settings:

SPI (Stateful Packet Inspection): Default configuration is On.

DoS (Denial of Service): Default configuration is On.

Block WAN Request: Default configuration is On.

Remote Management: Default configuration is Off.

Access Rule: The number of access rules configured

in the router.

VPN Settings

Tunnel(s) Used: Number of tunnels configured.

Tunnel(s) Available: Number of tunnels the router supports.

OpenVPN Status

Tunnel(s) Used: Number of OpenVPN tunnels configured.

Tunnel(s) Available: Number of OpenVPN tunnels the router supports.

Log Setting Status

This section displays the following information:

Syslog Server: Indicates whether Syslog server is activated.

Email Log: Indicates whether Email Log is activated.

7

Getting Started with the Router Configuration

Linksys

Quick Start (Setup Wizard)

Click the Quick Start tab to access Basic Setup Wizard. The setup wizard will

help you set up your network easily and finish basic network settings.

Basic Setup

Click Launch Now to run the Basic Setup Wizard. Refer to the information from

your ISP to enter the required settings for your connection.

You can configure Host and Domain, WAN setting, LAN setting, Time and

Password here. Click Finish button to leave the wizard.

8

Setup

Linksys

• Network

• SettingPassword

• Time

• DMZHost

• Forwarding

• PortAddressTranslation

• One-to-OneNAT

• MACAddressClone

• DynamicDNS

• AdvancedRouting

• IPv6Transition

Setup

9

Setup

Linksys

Network

Go to the Configuration > Setup > Network page to set up your LAN, WAN

(Internet connections), and DMZ interface.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes..

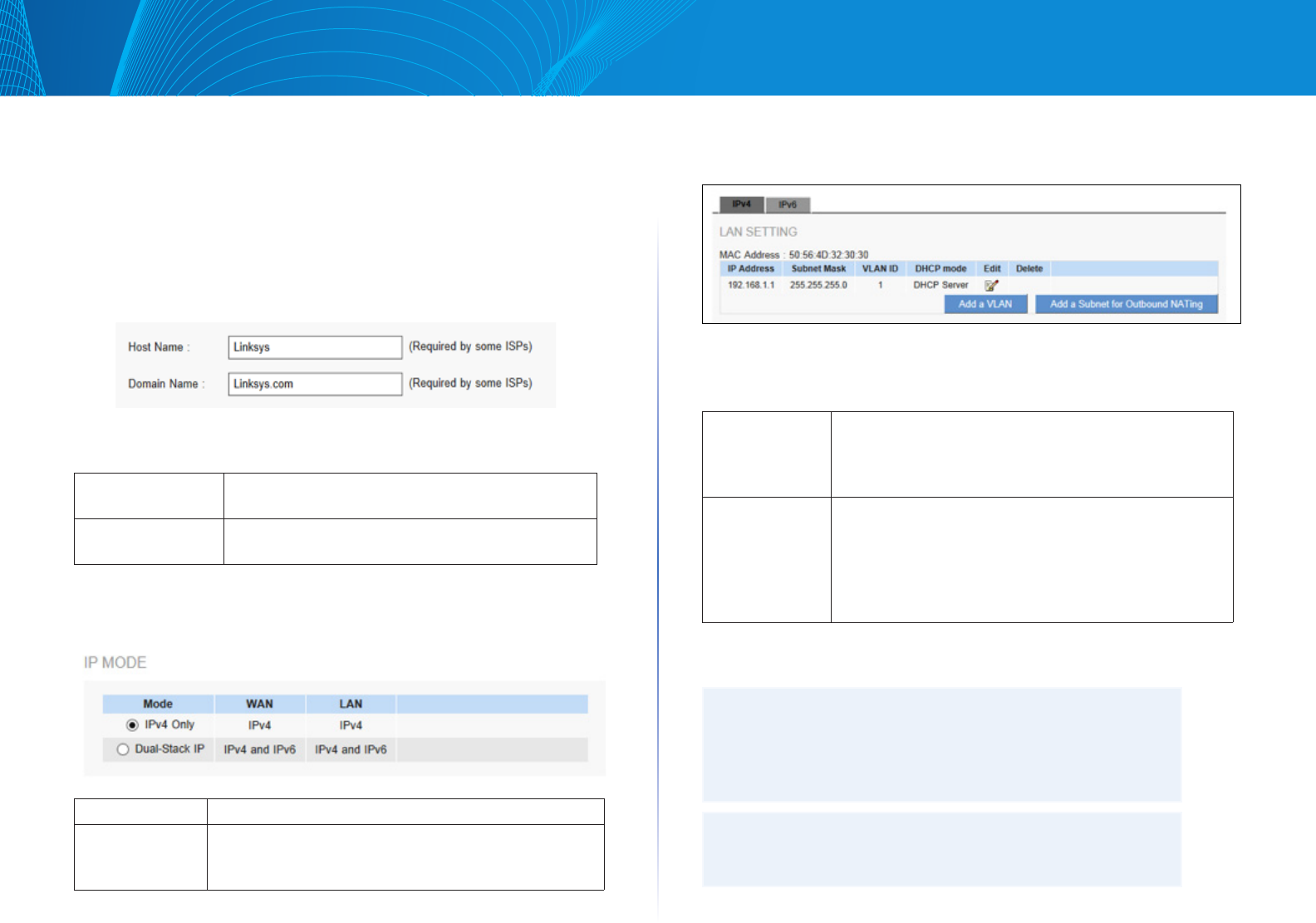

Host Name and Domain Name

Though this configuration is not necessary in most environments, some ISPs in

some countries may require it.

Host Name: Keep the default setting or enter a host name

specified by your ISP.

Domain Name:Keep the default setting or enter a domain name

specified by your ISP.

IP Mode

Choose the type of addressing to use on your network:

IPv4 Only: Use only IPv4 addressing.

Dual-StackIP: Use IPv4 and IPv6 addressing. After you enable this

option, you can configure both IPv4 and IPv6 addresses

for LAN, WAN, and DMZ settings on this page.

LAN Setting (Device IP address and subnets)

Changing the device IP address

Enter the following information:

For IPv4: Click the IPv4 tab, and then enter the Device IP Address

and Subnet Mask. The default configuration is 192.168.1.1

and the default Subnet Mask is 255.255.255.0. It can be

changed according to the actual network structure.

For IPv6: Users have to enable Dual-Stack IP in the IP mode section

in advance to configure IPv6. Then click the IPv6 tab, and

then enter the IPv6 Address and the Prefix Length. The

default IP address is fc00::1, and the default prefix length

is 7. It can be changed according to the actual network

structure.

NOTE:

To configure global IPv6 prefixes for your LAN devices, go to the

WAN Setting, click the IPv6 tab, and click Edit for the WAN interface.

Then enter the LAN IPv6 Address. For more information, see WAN

Setting (Internet connection).

NOTE:

Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

10

Setup

Linksys

NOTE:

A pop-up confirmation message will appear to remind you to log

in to the user Web GUI with the new device IP address. Click OK to

confirm the change, or click Cancel to leave without applying the

changes.

Multiple Subnet Setting (IPv4 only)

This function enables users to add IP segments that differ from the router

network segment to the multi-net segment configuration. The Internet will

then be directly accessible.

Add a VLAN: Click the button to add a new VLAN. The router

supports up to 5 VLANs. In other words, you can

add another 4 new VLANs.

Add a Subnet for

Outbound NATing:

1.Click the button and enter a LAN IP address and

a Subnet Mask. The IP address and subnet mask

appear in the list. Repeat this step as needed to add

more subnets.

2. You can also modify an existing subnet

3.Click the trash can icon to delete the subnet

WAN Setting/ DMZ Setting

(Internet connection & DMZ)

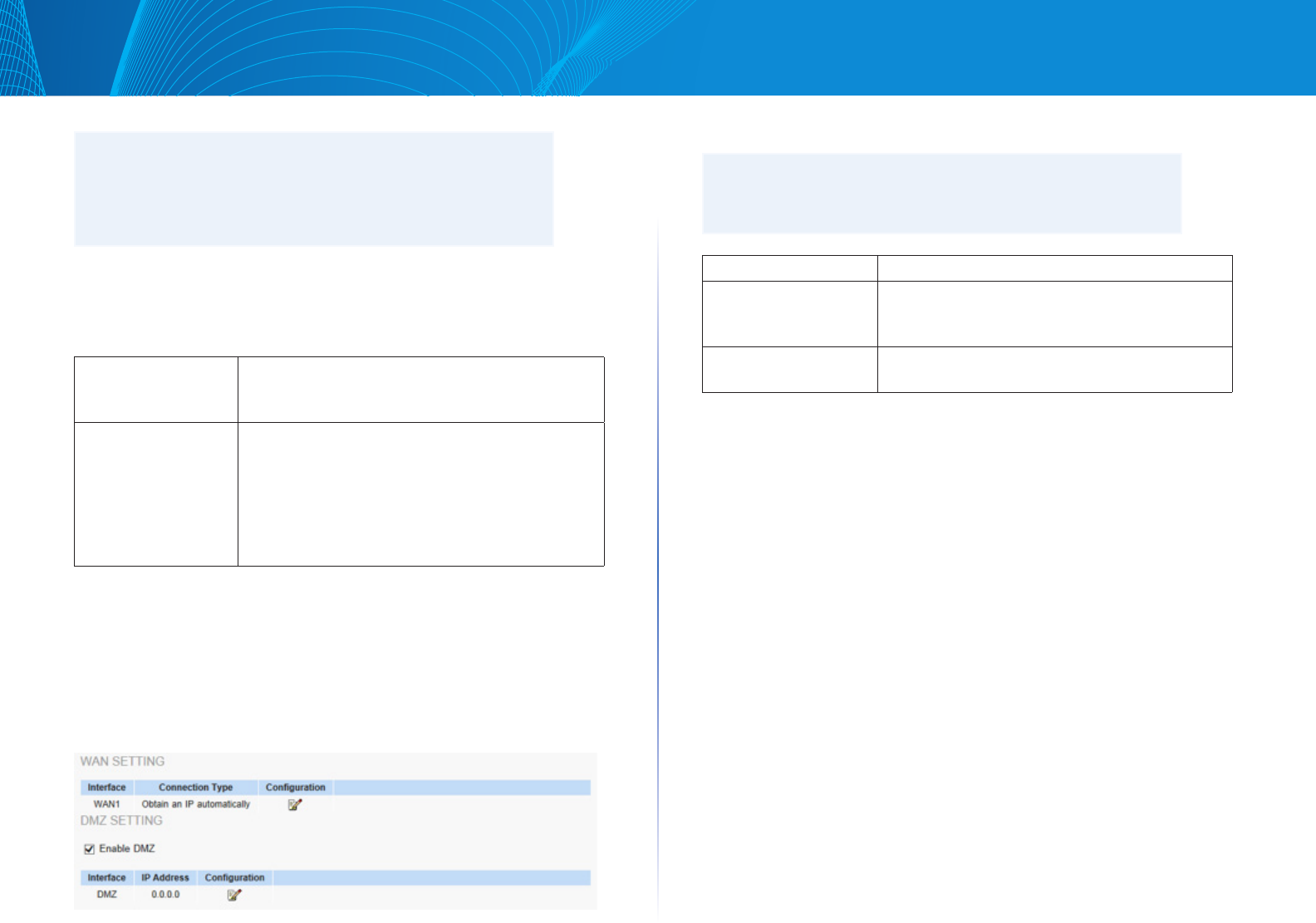

To set the WAN port to link to the Internet, refer to the configuration information

provided by your ISP (Internet Service Provider). The WAN setting table shows

WAN and DMZ ports of the router. You can configure the WAN/DMZ port for

use as a DMZ.

WAN Setting

NOTE:

Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Interface: An indication of which port is connected.

WAN

Connection Type:

Obtain an IP automatically, Static IP, PPPoE (Point-

to-Point Protocol over Ethernet), PPTP (Point-to-

Point Tunneling Protocol) and Transparent Bridge.

Config.: A modification in an advanced configuration. Click

Edit to enter the advanced configuration page.

11

Setup

Linksys

Obtain an Automatic IP automatically:

This mode is often used in the connection mode to obtain an automatic DHCP

IP. This is the device system default connection mode. It is a connection mode

in which DHCP clients obtain an IP address automatically. To use a different

connection mode, refer to the following instructions for selection of appropriate

configurations. Users can also set up their own DNS IP address. Check the

options and input the user-defined DNS IP addresses.

Use the following DNS

Server Addresses:

Select a user-defined DNS server IP address.

DNS Server: Input the DNS IP address set by ISP. At least

one IP group should be input. The maximum

number of acceptable groups is two.

MTU (Maximum Transmission

Unit)

Choose Auto or Manual. Default is Auto. The

default value is 1500. Different value could be

set in different network environment (e.g., ADSL

PPPoE MTU: 1492).

Static IP:

If an ISP issues a static IP (such as one IP or eight IP addresses, etc.), please select

this connection mode and follow the steps below to input the IP numbers

issued by an ISP into the relevant boxes.

Specify WAN IP address: Input the available static IP address issued by

your ISP.

Subnet Mask: Input the subnet mask of the static IP address

issued by ISP, such as:

Issued eight static IP addresses: 255.255.255.248

Issued 16 static IP addresses: 255.255.255.240

Default Gateway: Input the default gateway issued by ISP. For

ADSL users, it is usually an ATU-R IP address.

Optical fiber users should input the optical fiber

switching IP.

DNS Server: Input the DNS IP address issued by your ISP.

At least one IP group should be input. The

maximum number of acceptable groups is two.

MTU

(Maximum Transmission

Unit):

Choose “Auto” or “Manual.” Default is “Auto.” The

default value is 1500. Different value could be

set in different network environment (e.g., ADSL

PPPoE MTU: 1492).

12

Setup

Linksys

PPPoE:

This option is for an ADSL virtual dial-up connection (suitable for ADSL PPPoE).

User Name: Input the user name issued by your ISP.

Password: Input the password issued by your ISP.

Connect on Demand: This function enables the auto-dialing function

in a PPPoE dial connection. When the client port

attempts to connect with the Internet, the device

will automatically make a dial connection. If the

line has been idle for a period of time, the system

will break the connection automatically. (The

default time for automatic disconnection from no

packet transmissions is five minutes).

Keep Alive: This function enables the PPPoE dial connection to

keep connected, and to automatically redial if the

line is disconnected. It also enables a user to set

up a time for redialing. The default is 30 seconds.

Use the following DNS

Server Addresses:

Select a user-defined DNS server IP address.

DNS Server: Input the DNS IP address set by ISP. At least one IP

group should be input. The maximum number of

acceptable groups is two.

MTU (Maximum

Transmission Unit)

Choose “Auto” or “Manual”. Default is “Auto.” The

default value is 1500. Different value could be

set in different network environment (e.g., ADSL

PPPoE MTU: 1492).

PPTP:

Specify WAN

IP Address:

The IP address to be configured could be one

issued by your ISP. (The IP address is usually

provided by the ISP when the PC is installed.

Contact your ISP for relevant information).

Subnet Mask: Input the subnet mask of the static IP address

issued by your ISP, such as:

Issued eight static IP addresses: 255.255.255.248

Issued 16 static IP addresses: 255.255.255.240

Default Gateway: Input the default gateway of the static IP address

issued by your ISP. For ADSL users, it is usually an

ATU-R IP address.

User Name: Input the user name issued by your ISP.

Password: Input the password issued by your ISP.

Connect on Demand: This function enables the auto-dialing function

to be used for a L2TP dial connection. When the

client port attempts to connect with the Internet,

the device will automatically connect with the

default ISP auto dial connection. When the

network has been idle for a period of time, the

system will break the connection automatically.

(The default time for automatic break off when no

packets have been transmitted is five minutes).

Keep Alive: This function enables the L2TP dial connection

to redial automatically when the connection has

been disconnected. Users can set up the redialing

time. The default is 30 seconds.

MTU(Maximum

Transmission Unit):

Choose “Auto” or “Manual”. Default is “Auto.” The

default value is 1500. Different value could be

set in different network environment (e.g., ADSL

PPPoE MTU: 1492).

13

Setup

Linksys

L2TP

Specify WAN IP

Address

Configure a static IP address. The IP address could be one

issued by an L2TP server.

Subnet Mask Input the subnet mask of the static IP address.

Default Gateway Input the IP address of the L2TP server.

Username Input the username of the L2TP client.

Password Input the password of the L2TP client.

Connect on

Demand

Enables auto-dialing for a dial connection. When the

client port tries to connect to the Internet, the device will

automatically connect with the L2TPserver. When the

network has been idle for a period of time, the system

will break the connection automatically. (The default

time for automatic connection break is five minutes).

Keep Alive Enables the dial connection to redial automatically

when disconnected. Set the redialing time (default is 30

seconds).

MTU Choose Auto or Manual. Default setting is Auto. The

default manual setting value is 1500 bytes. A different

value could be set in a different network environment

(e.g., ADSL PPPoE MTU: 1492).

Transparent Bridge:

The feature will come in handy in when a company wants to add a firewall or

dual-WAN device without changing the IP addresses of the computers in its

intranet. This function will enable users to integrate existing networks without

changing the original structure. Select the Transparent Bridge mode for the

WAN connection mode. In this way, users will be able to connect normally to

the Internet while keeping the original IP addresses in the intranet.

If there are two WANs configured, users still can select Transparent Bridge

mode for WAN connection mode, and load balancing will still function as usual.

Specify WAN IP Address: Input one of the static IP addresses issued by

ISP.

Subnet Mask: Input the subnet mask of the static IP address

issued by your ISP, such as: Issued eight static

IP addresses: 255.255.255.248. Issued 16 static

IP addresses: 255.255.255.240.

Default Gateway: Input the default gateway of the static IP

address issued by your ISP. For ADSL users, it

is usually an ATU-R IP address.

DNS Server: Input the DNS IP address set by your ISP.

At least one IP group should be input. The

maximum acceptable is two IP groups.

Internal LAN IP Range: Input the available IP range issued by your

ISP. If your ISP issued two discontinuous IP

address ranges, users can input them into

Internal LAN IP Range 1 and Internal LAN IP

Range 2, respectively.

MTU (Maximum Transmission

Unit):

MTU is abbreviation of Maximum Transmission

Unit. “Auto” and “Manual” can be chosen. The

default value is 1500. Different value could

be set in different network environment. (e.g.

ADSL PPPoE MTU: 1492)

The default is “Auto”.

DMZ Setting

For some network environments, an independent configurable DMZ port

may be required to set up externally connected servers such as WEB and Mail

servers. Therefore, the device supports a set of independent configurable DMZ

ports for users to set up connections for servers with real IP addresses. The DMZ

ports act as bridges between the Internet and LANs.

Check Enable DMZ box and click the edit icon to configure DMZ port.

The DMZ configuration can be classified by subnet and range:

14

Setup

Linksys

Subnet:

If the DMZ and WAN are located in different subnets:

If the ISP issued 16 real IP addresses: 220.243.230.1-16 with Mask

255.255.255.240, users have to separate the 16 IP addresses into two groups:

220.243.230.1-8 with Mask 255.255.255.248, and 220.243.230.9-16 with Mask

255.255.255.248 and then set the device and the gateway in the same group

with the other group in the DMZ.

Range:

If the DMZ and WAN are within same subnet:

IP Range: Input the IP range located at the DMZ port.

Setting Password

Use the Configuration > Setup > Password page to change the administrator

username and password. It is strongly recommended to change the default

username and password (admin/admin).

CAUTION If the password is forgotten, reset the router to factory default

settings. All the configurations of the router will disappear.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to leave without any change.

NOTE If you want to enable remote access on the Firewall > General setting,

changing your password is necessary.

Old Password: Enter the old password. The default

password is admin.

New Username:Enter a new username. To keep the

existing username, leave this field blank.

Confirm New Username: Re-enter the new username.

New Password: Enter a new password for the router.

Alphanumeric characters and symbols

are allowed, but no spaces.

Confirm New Password: Re-enter the new password.

Minimum

Password Complexity:

Check the box to enable box if you want

to enforce password complexity and

enable the Password Strength Meter.

This option is enabled by default and is

recommended.

NOTE When Minimum Password Complexity is enabled, the password must

meet the requirements listed below.

• At least 8 characters is must.

• The password cannot be the same as Username.

• The password cannot be the same as the current password

• Must contain characters from at least 3 of the following 4 categories:

uppercase letters, lowercase letters, numbers, and special characters

available on a standard keyboard.

15

Setup

Linksys

Password Strength Meter: When enabling Minimum Password

Complexity, the Password Strength Meter

appears and indicates the password

strength.

Red means you have to reset the password.

Yellow means the password is acceptable.

Green means the password is strong.

Password

Aging Enforcement:

Choose Disable to make the password

permanent. Choose Change the password

after if you want the password to expire

after the specified period. Check Change

the password after and input the specified

number of Days.

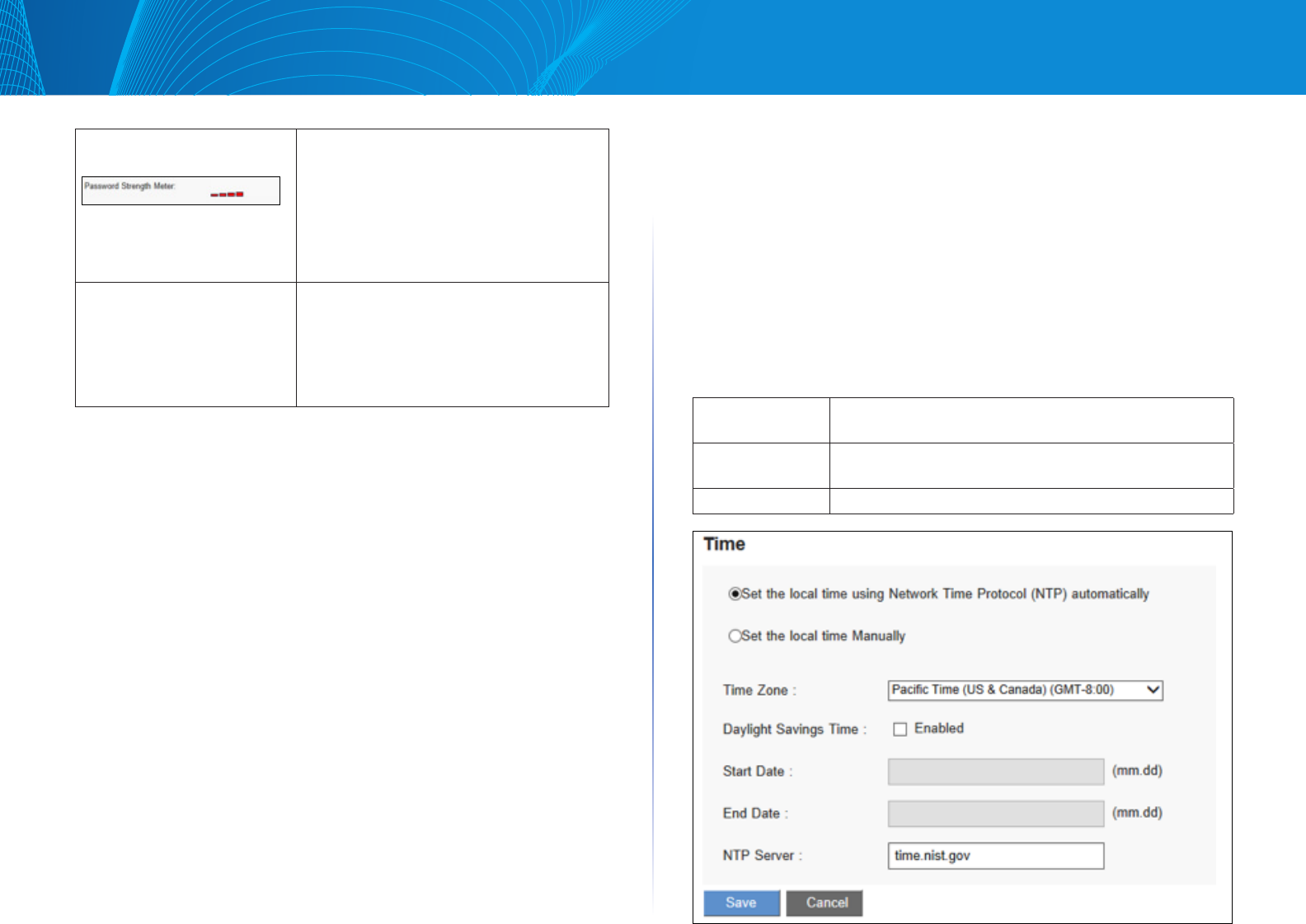

Time

Go to Configuration > Setup > Time page to configure the system time. The

exact time of event occurrences will be recorded in the System Log, as will the

time of closing or opening of access for Internet resources. You can select the

NTP Server synchronization function or set up a time manually.

NOTE : Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Set the local time using Network Time Protocol (NTP) automatically:

Time Zone Select your location from the pull-down time zone list to

show correct local time.

Daylight Saving If there is Daylight Saving Time in your area, click Enabled

and enter start date and end day of the period.

NTP Server Input NTP server IP address.

16

Setup

Linksys

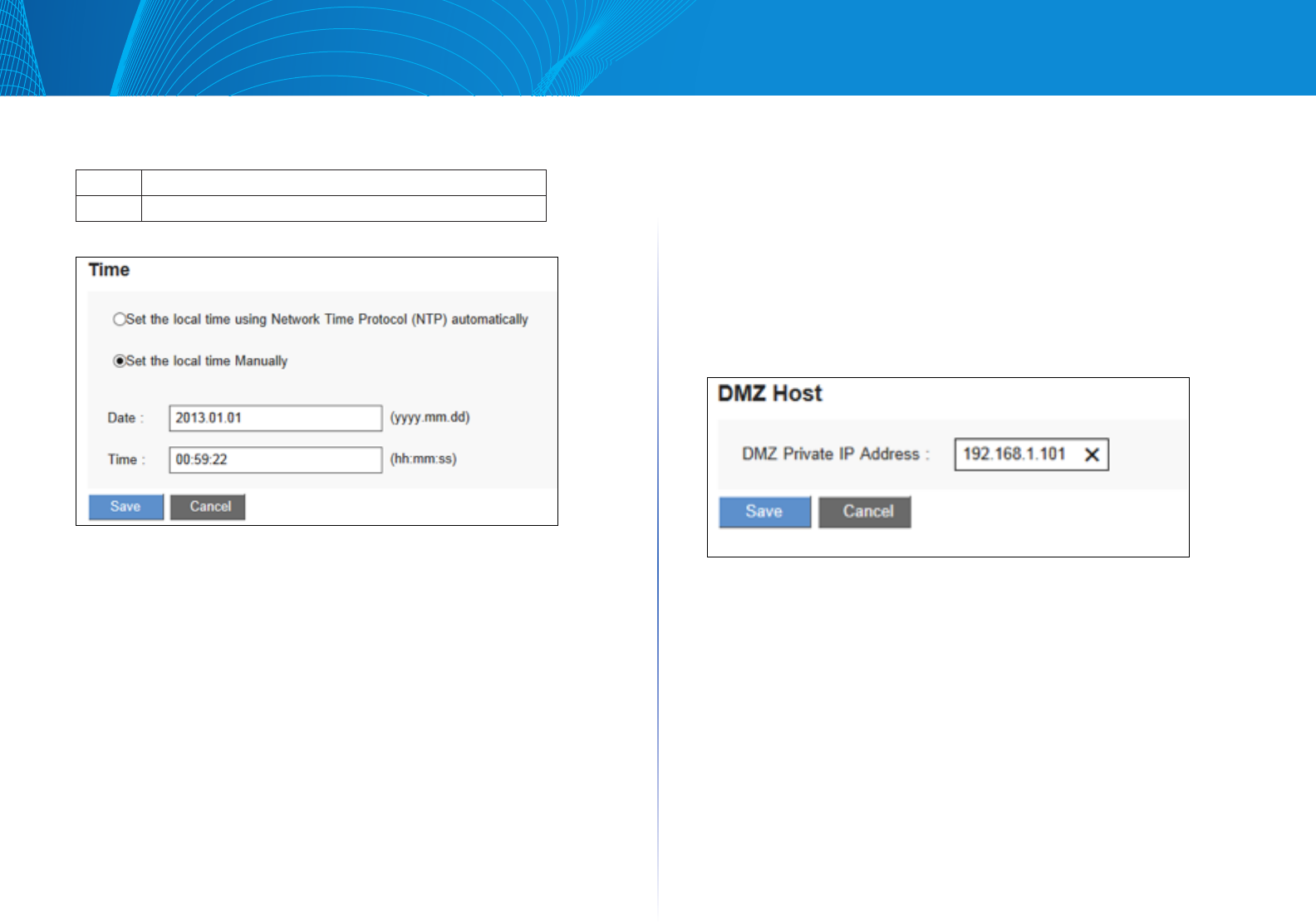

Set the local time manually:

Date: Input date as yyyy.mm.dd, i.e., 2013.9.30.

Time: Input current time as hh:mm:ss, i.e., 08:50:00.

DMZ Host

When the NAT mode is activated, users may need to use applications

that do not support virtual IP addresses, such as network games or video

conferencing. We recommend that users map the device actual WAN IP

addresses directly to the intranet virtual IP addresses. Setting up a DMZ host

will allow one host in the LAN to be exposed to the Internet to use services

such as Internet gaming and video conferencing. Access to the DMZ host

from the Internet can be restricted by using firewall access rules. Use the

Configuration > Setup > DMZ Host page.

Enter the LAN IP address of the server that you want to use as a DMZ host.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes

Port Forwarding and Port Triggering

You can set up a port forwarding virtual host to allow public access to servers

connected to the LAN ports. Port Forwarding opens a specified port or a port

range for a service, such as FTP, WWW, and mail, etc. Port Triggering opens a

port range for services that use alternate ports to communicate between the

server and LAN host. Use the Configuration > Setup > Forwarding page to

configure.

• PortRangeForwarding

• PortTriggering

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

17

Setup

Linksys

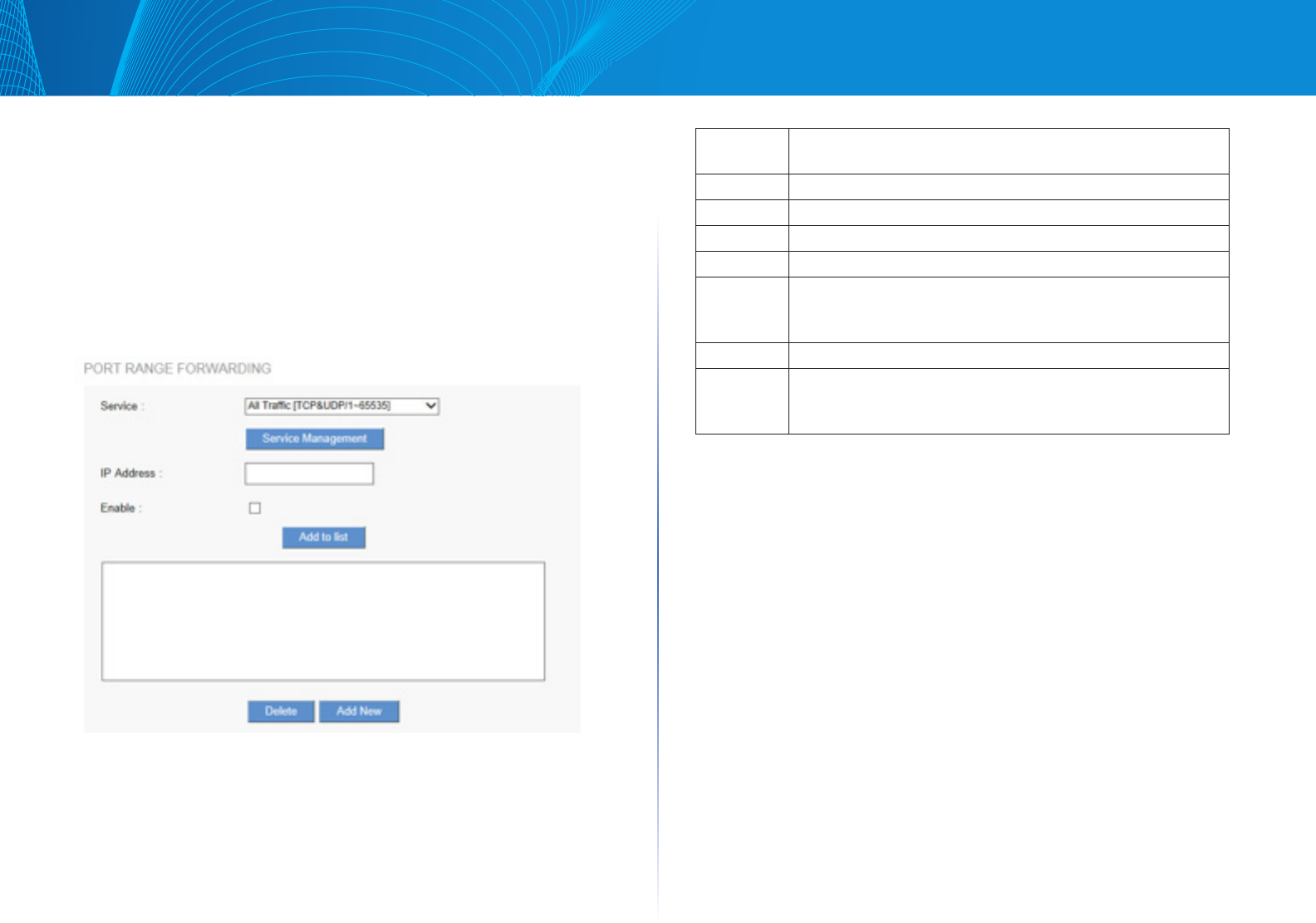

Port Range Forwarding

Port forwarding can be used to set up public services on your network. When

users from the Internet make certain requests to your network, the router

can forward those requests to computers that are equipped to handle the

requests. If, for example, you set the port number 80 (HTTP) to be forwarded

to IP address 192.168.1.2, then all HTTP requests from outside users will be

forwarded to 192.168.1.2.

To set up other services input the server TCP or UDP port number and the

virtual host IP addresses.

Service Select the service. You can also add a new service from

Service Management.

IP Address Input the LAN IP address of the virtual host.

Interface Select the WAN port. (Dual WAN router only)

Enable Check the box to enable this function.

Add to list Click the button to add a new entry.

Update Select the entry that you want to modify. Change the setting

and then click Update. Clicking Add New deselects the entry

and clears the text fields.

Delete Click the entry and then click Delete.

View To view the entry table, choose Port Range Forwarding or

Port Triggering.Click Refresh to renew the display. Click Close

to return to configuring page.

Adding a service

To add a new service item or to edit an existing service, click Service

Management. If the web browser displays a warning about the pop-up

window, click to allow the blocked content.

In the Service Management window, add or edit entries as needed. After

setting a rule, be sure to click OK to save your settings, or click Cancel to undo

them.

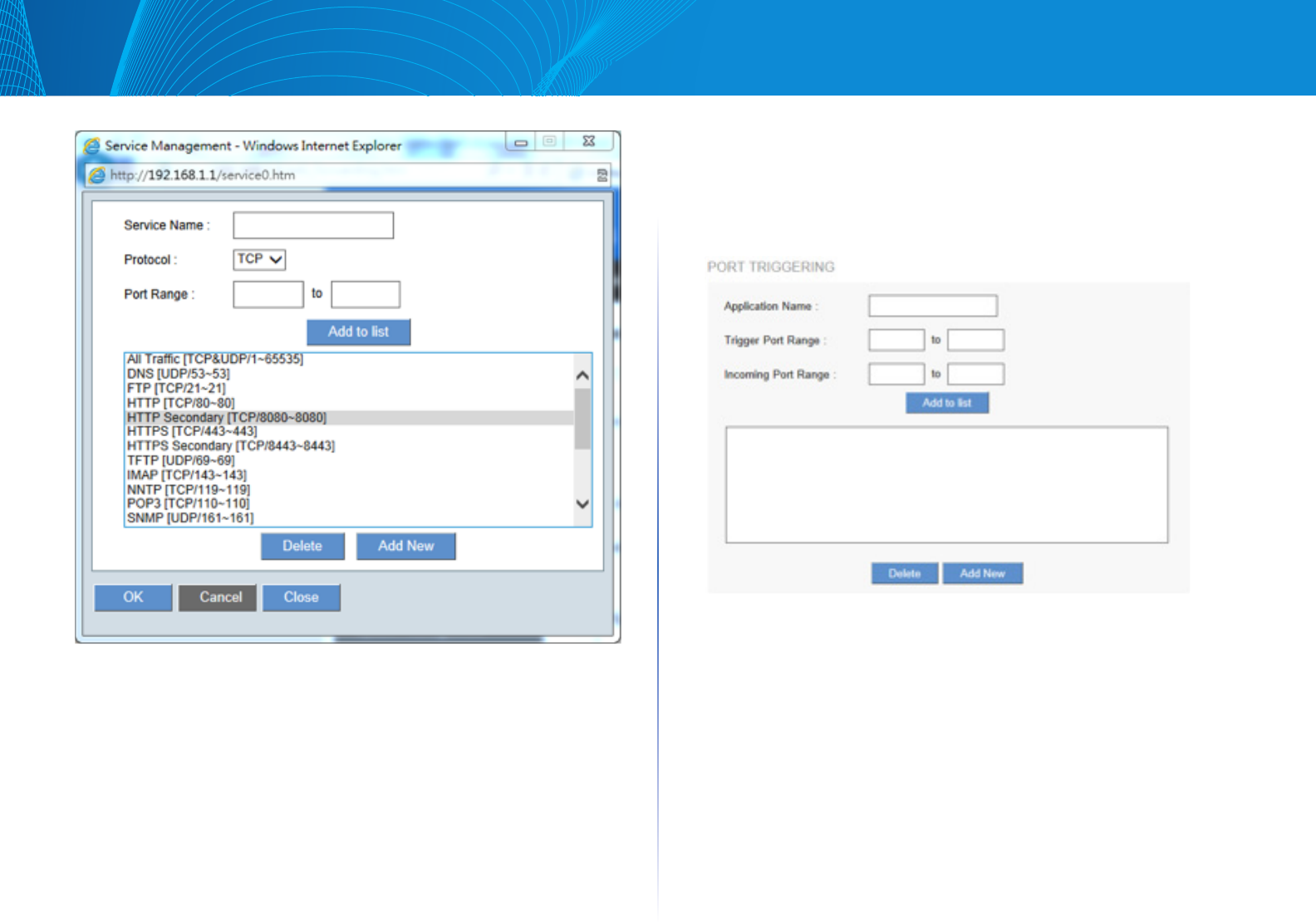

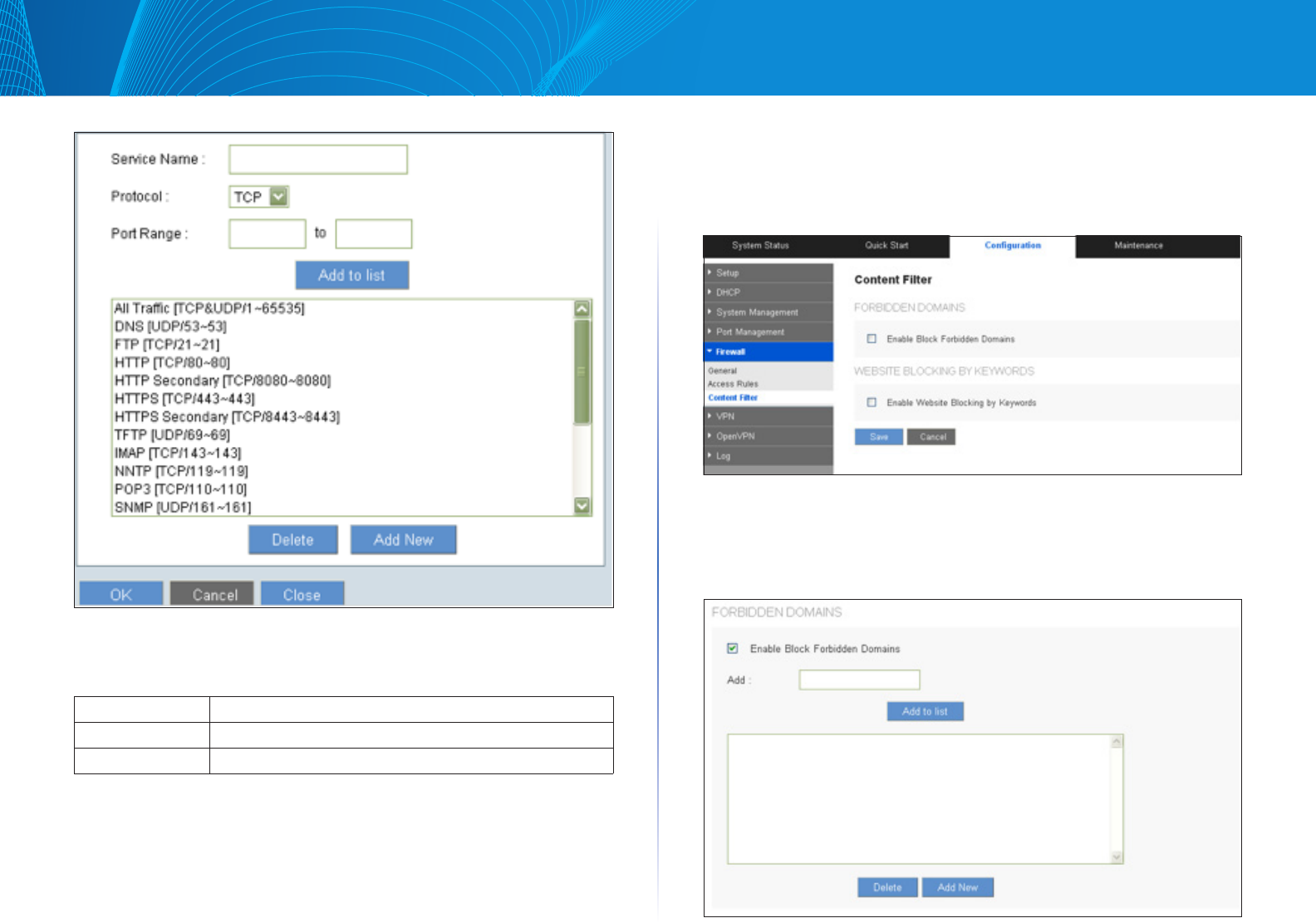

To add a service to the list, enter the following information, and click Add to

List. You can have up to 30 services in the list.

18

Setup

Linksys

• Service Name: Give a name to the service.

• Protocol: Choose the required protocol: TCP, UDP or Ipv6.

• Port Range: Enter a range.

• To add another new service: Enter the information, and then click Add

to list.

• To edit a service you created: Select the service in the list and then click

Update to make the changes. If you do not need to make changes, click

Add New to de- select the service and clear the text fields.

• To delete a service from the list: Click Delete to delete an existing service.

Port Triggering

Some Internet applications use alternate ports to communicate between the

server and LAN host. Port Triggering opens a port range for those services.

The device will forward the incoming packets to the assigned LAN host.

19

Setup

Linksys

Application Name: Enter the name of the application.

Trigger Port Range: Input the starting and ending port numbers of

the trigger port range.

Incoming Port Range: Input the starting and ending port numbers of

the incoming port range.

Add to list: Click the button to add a new entry. Up to 30

applications are supported.

Update: Select the entry that you want to modify.

Change the setting and click Update. Clicking

Add New deselects the entry and clears the

text fields.

Delete: Click the entry and then click Delete .

View: To view the entry table, choose Port Range

Forwarding or Port Triggering. Click Refresh

to renew the display. Click Close to return to

configuring page.

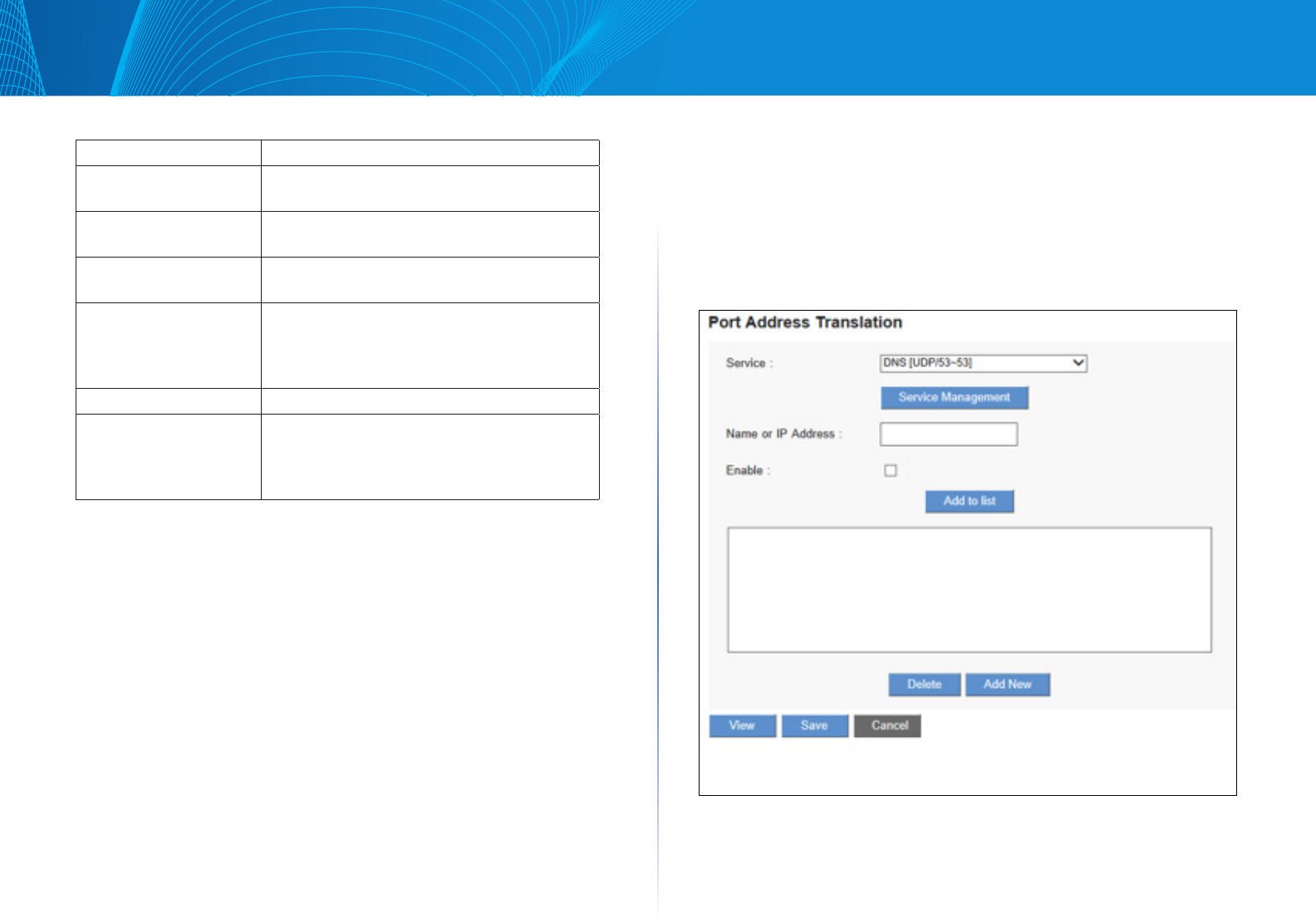

Port Address Translation

Use the Setup > Port Address Translation. This feature allows Windows to

automatically configure the router to open and close ports for Internet

applications such as gaming and videoconferencing.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes.

20

Setup

Linksys

Service Select the service. You can also add a new service

from Service Management.

Name or IP Address Input the Intranet virtual IP address or host name.

Enable Activate this function.

Service Management Add or remove service ports from the management

list.

Add to List Click the button to add a new entry.

Update Select the entry that you want to modify. Change

the setting and click Update. Clicking Add New

deselects the entry and clears the text fields.

Delete Click the entry and then click Delete.

View To view the entry table, click Refresh to update the

display. Click Close to return to configuring page.

Adding a service

To add a new service item or to edit an existing service, click Service

Management. If the web browser displays a warning about the pop-up

window, click to allow the blocked content.

In the Service Management window, add or edit entries as needed. After

setting a rule, be sure to click OK to save your settings or click Cancel to undo

them. To add a service to the list: Enter

• Service Name: Give a name to the service.

• Protocol: Choose the required protocol: TCP, UDP or Ipv6.

• Port Range: Enter the port range.

• To add another new service: enter the information, and click Add to list.

• To edit a service you created: , select the service in the list and click

Update to make the changes. If you do not need to make changes, click

Add New to deselect the service and clear the text fields.

• To delete a service from the list, click Delete.

One-to-One NAT

If your ISP issued more than one actual IP (such as eight ADSL static IP

addresses or more), you can map the remaining real IP addresses to the

intranet devices with virtual IP addresses.

You can also map a private IP address range to a public IP address range of

equal length (for example, five private addresses and five public addresses).

The first virtual address will be mapped to the first external address.

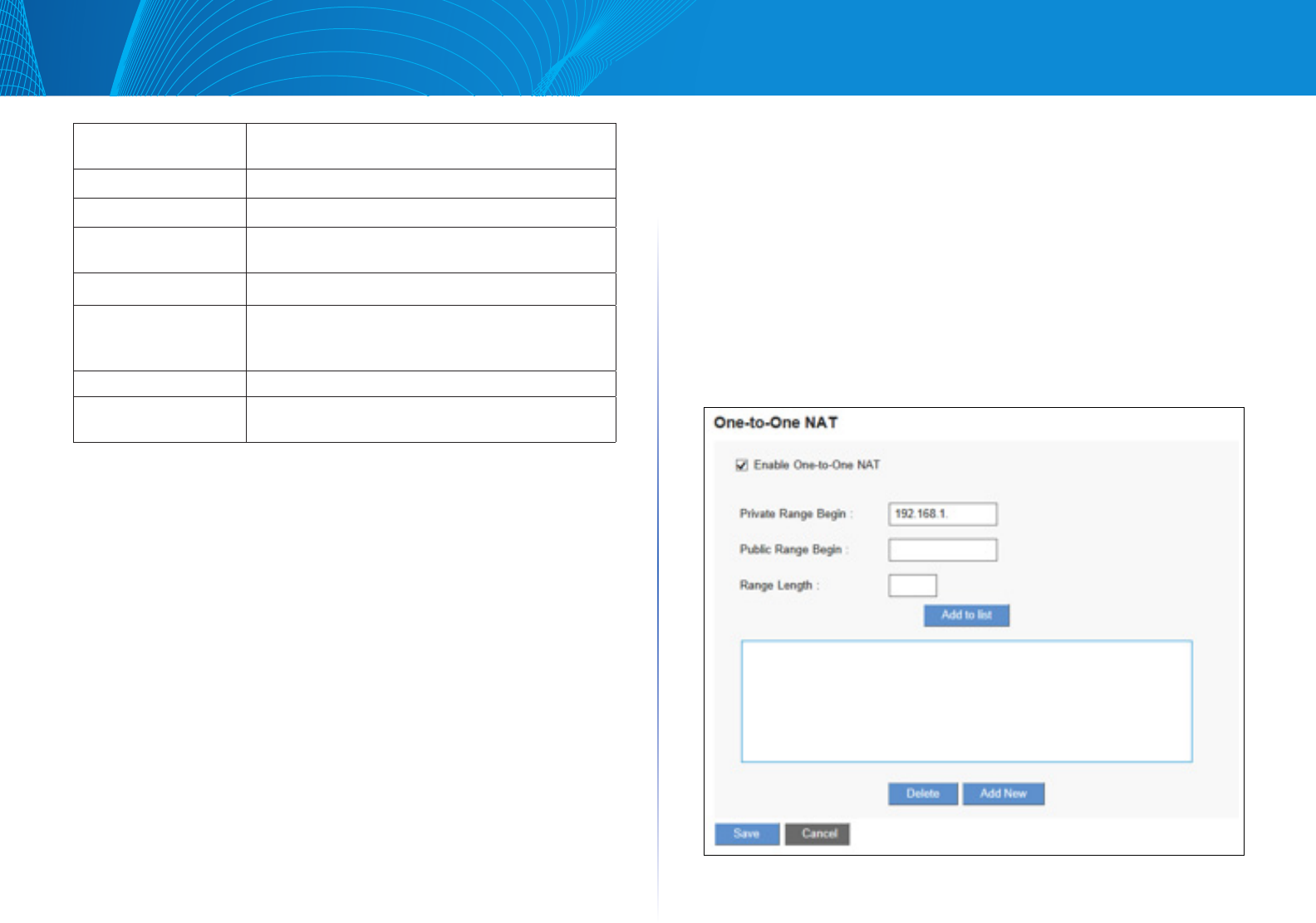

Use the Configuration > Setup > One-to-One NAT page to enable One-to-One

NAT (Network Address Translation).

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to leave without any change.

21

Setup

Linksys

Enabled One to One NAT: Check to enable the One-to-One NAT function.

Private Range Begin: Input the Private IP address for the Intranet

One-to-One NAT function.

Public Range Begin: Input the Public IP address for the Internet

One-to-One NAT function.

Range Length: Input the numbers of final IP addresses of

actual Internet IP addresses. (Please do not

include IP addresses in use by WAN ports.)

Add to List: Add this configuration to the One-to-One NAT

list.

Update: Select the entry that you want to modify.

Change the setting and click Update. Clicking

Add New will deselect the entry and clear the

text fields.

Delete: Click the entry and then click Delete.

Setting MAC Clone

Some ISPs ask for a fixed MAC address (network card physical address) for

distributing IP addresses. Users can input the network card physical address

(MAC address: 00-xx-xx-xx-xx-xx) here. The Linksys LRT series router will adopt

this MAC address registered to your ISP. Use the Configuration > Setup > MAC

Address Clone page

Click Edit to get into configuring page.

MAC Clone Settings

NOTE Remember to click Save before leaving the page. You can also click

Cancel to leave without any change.

To clone a MAC address, enter the following settings. Select the interface you

want to configure if the router supports dual WAN ports.

User Defined WAN MAC Address: Check this item to manually clone a

MAC address. Enter the 12 digits of the

MAC address that you registered with

your ISP.

MAC Address from this PC: Check this item to clone the MAC

address of the device you are currently

using.

The MAC address of your PC is

displayed automatically.

22

Setup

Linksys

Dynamic DNS

With Dynamic Domain Name System (DDNS) service offers the function of

dynamic web address transferred you can assign a domain name to a dynamic

WAN IP address. This function will benefit VPN connection, website, FTP or

other TCP/IP service in dynamic IP address network. Use the Configuration

> Setup > Dynamic DNS page to configure the WAN interfaces with your

Dynamic DNS information.

You have to go to DynDNS.org (www.dyndns.org) or 3322.org (www.3322.org)

to register a domain name before configuring DDNS function.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Click Edit icon for the WAN interface to continue.

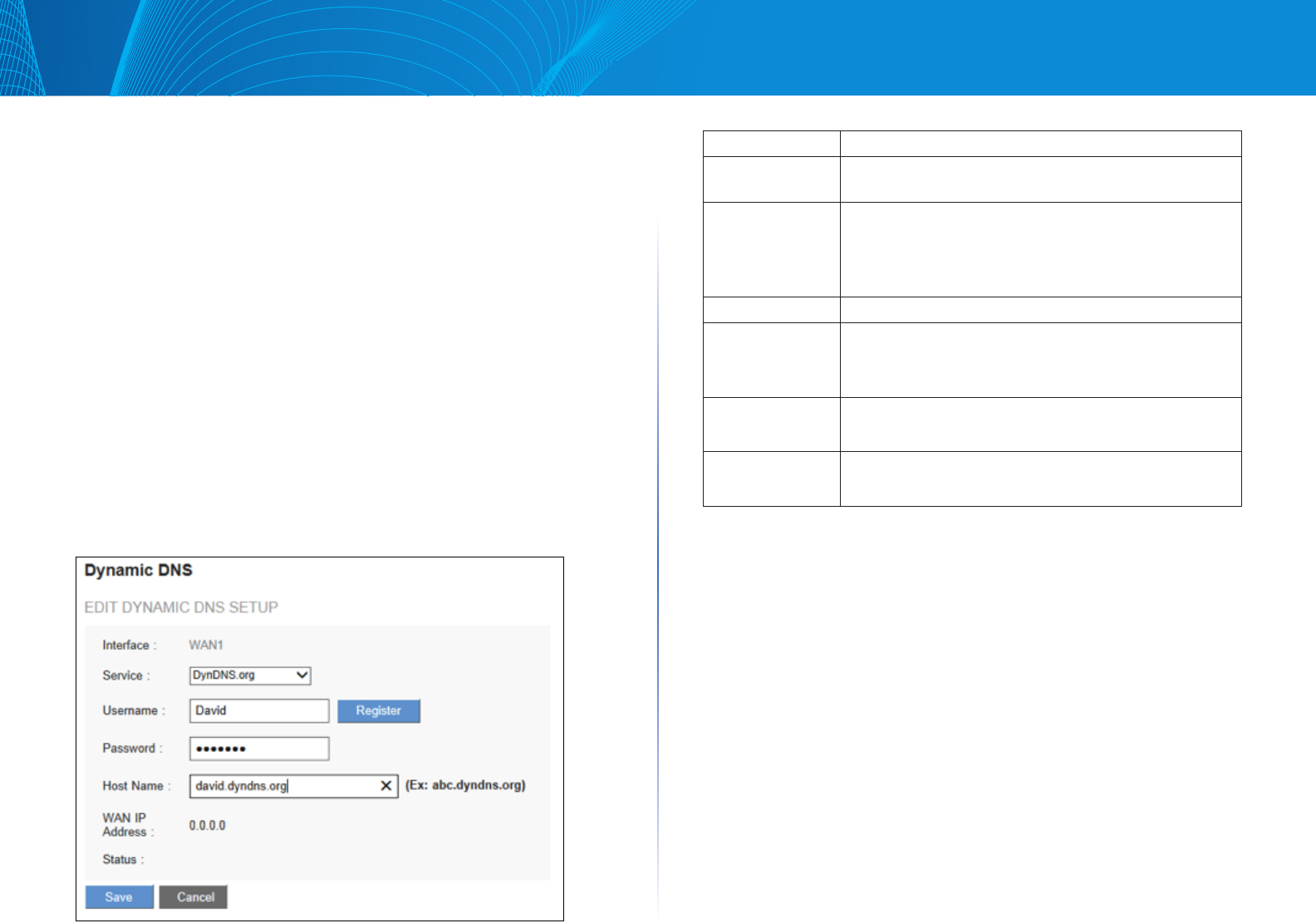

Dynamic DNS Setup

The Dynamic DNS Setup page appears after you click Edit icon on the

Dynamic DNS page.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes.

Interface: Indicates the WAN port the user has selected.

Service: Check the box to choose your service (DynDNS.org or

3322.org).

Username: Input the username for your DDNS account.

If you have not previously registered a host name,

click Register to go to the website to sign up for DDNS

service.

Password: Enter the password for your account.

Host Name: Use these three fields to enter the host name you

registered.

Examples are abc.dyndns.org or xyz.3322.org.

WAN IP Address

(Read only)

Input the actual dynamic IP address issued by your ISP.

Status

(Read only)

Indicates the status of the current IP function refreshed

by DDNS.

Advanced Routing

Use the Configuration > Setup > Advanced Routing page to configure the

dynamic and static routing.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes.

• ClicktheIPv4 or IPv6 tab.

• DynamicRouting

• StaticRouting

• ClickViewatthebottomofthepagetochecktheroutingtable.Click

Refresh to update the data, or click Close to close the pop-up

window.

23

Setup

Linksys

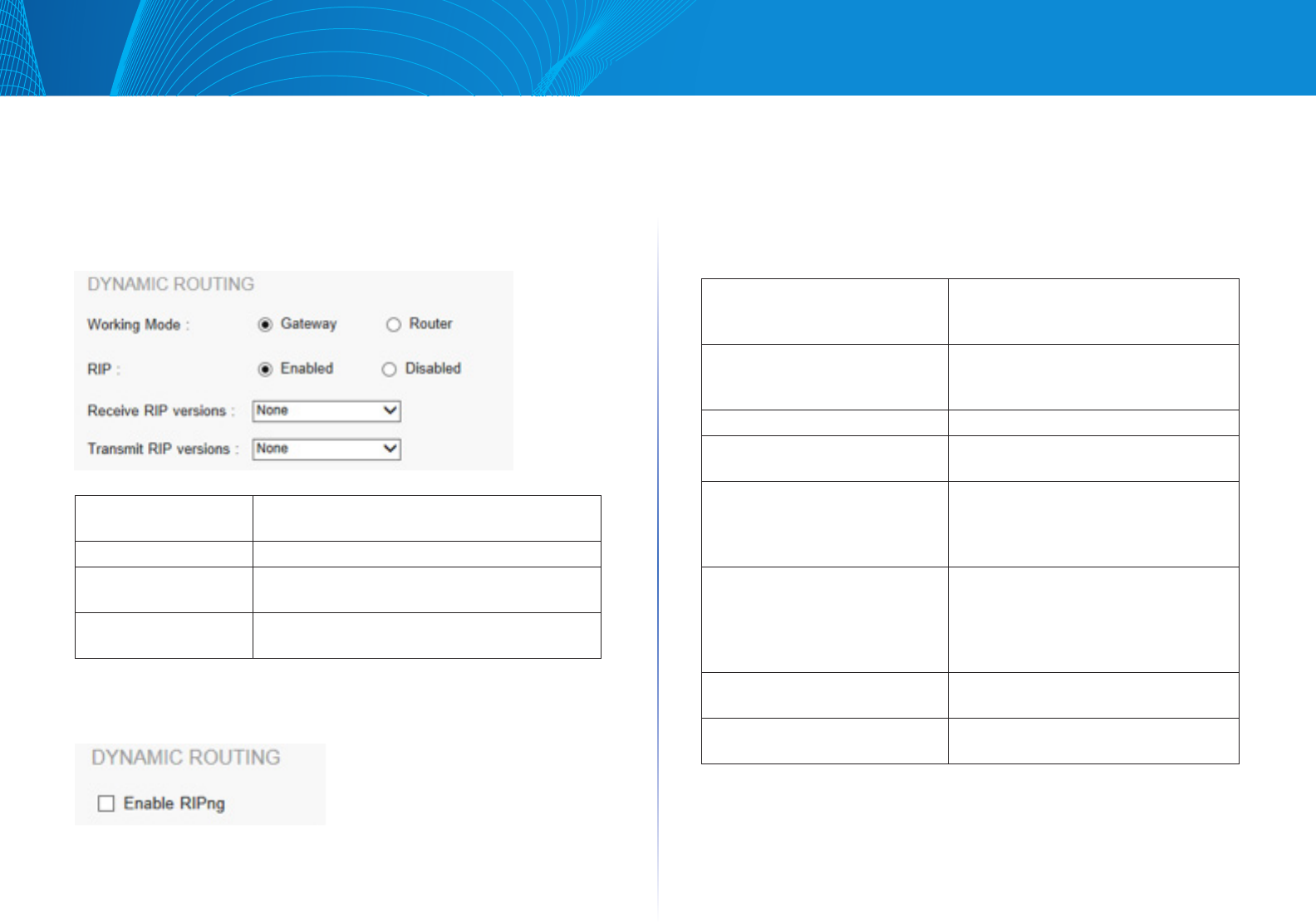

Dynamic Routing

Enter the settings for dynamic routing by using Routing Information Protocol

(RIP)

Dynamic Routing for IPv4:

Working Mode: Select the working mode of the device:

Gateway mode or Router mode.

RIP: Click “Enabled” to enable the RIP function.

Receive RIP versions: Select one of “None, RIPv1, RIPv2,Both RIP v1

and v2”.

Transmit RIP versions: Select one of“None,RIPv1,RIPv2-

Broadcast,RIPv2-Multicast”.

Dynamic Routing for IPv6

NOTE: You should enable Dual-Stack IP to configure dynamic routing for IPv6.

RIPng: Click “Enabled” to open the function.

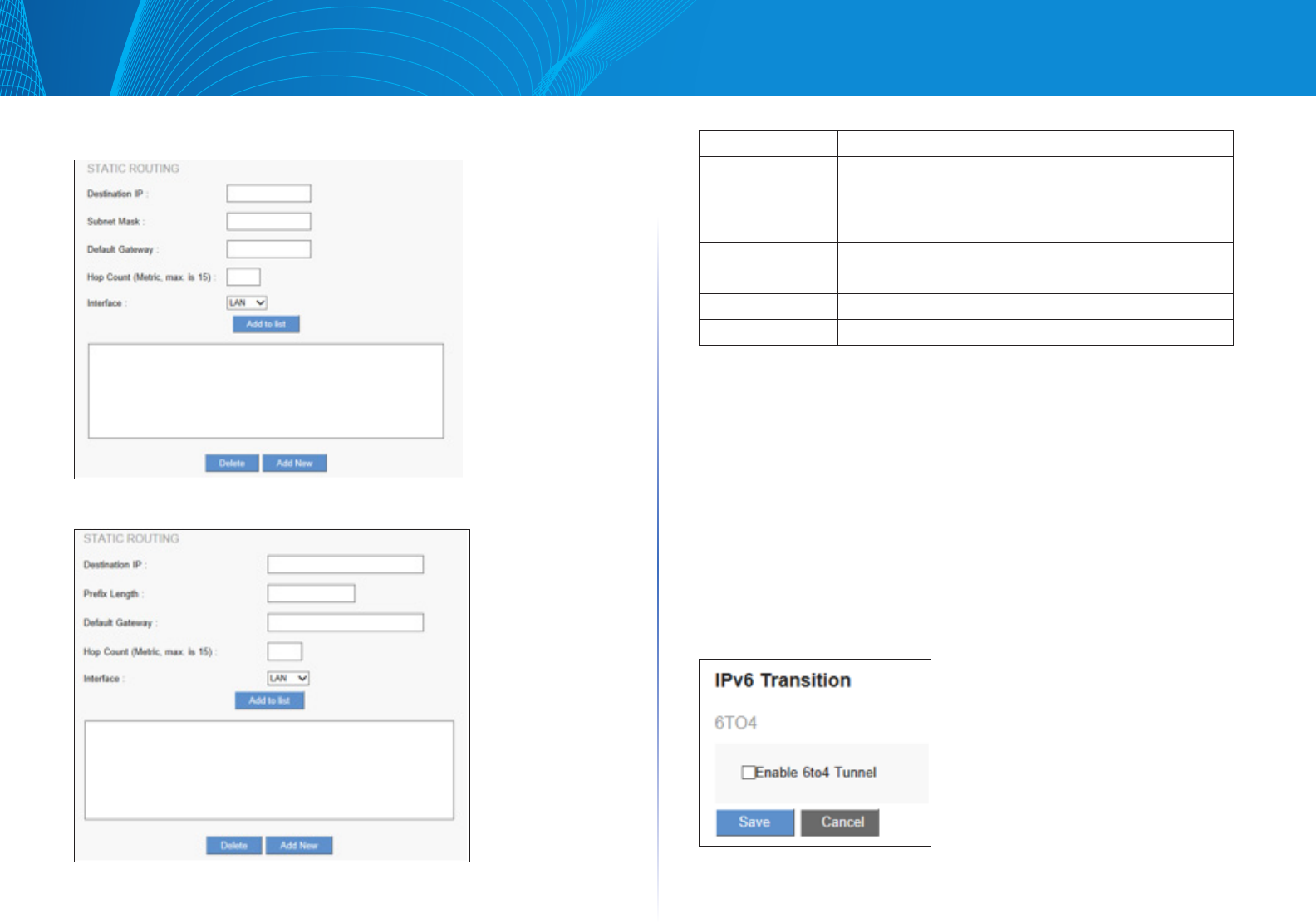

Static Routing

When there are more than one router and IP subnets, the routing mode for

the device should be configured as static routing. Static routing enables

different network nodes to seek necessary paths automatically. It also enables

different network nodes to access each other.

Destination IP: Input the remote network IP address

that is to be routed. For example, the IP/

subnet is 192.168.2.0.

Subnet Mask (IPv4 only): Input the remote network subnet

that is to be routed. For example,

255.255.255.0.

Prefix Length (Pv6 only): Input the prefix length.

Default Gateway: The default gateway location of the

network node that is to be routed.

Hop Count (Metric, max. is 15): This is the router layer count for the IP. If

there are two routers under the device,

users should input “2” for the router

layer. The default is “1.” (Max. is 15.)

Interface: Select WAN port or LAN port for

network connection location.

Select LAN if this router gets Internet

connectivity from a gateway router on

your LAN.

Add to List: Add the routing rule into the list. You

can enter up to 30 routes.

Delete: Remove the selected routing rule from

the list.

24

Setup

Linksys

IPv4

IPv6

Outgoing Mail Server

The router allows log messages and OpenVPN client’s configuration file (.ovpn)

to be sent to external email address. You can configure outgoing mail server by

going to Configuration > Setup > Outgoing Mail Server.

IPv6 Transition

When Dual-Stack IP is enabled on the Setup > Network page, a 6to4 tunnel

is enabled by default for IPv6 packets via 6to4 source/destination addressing

exchange. This feature allows the router to establish auto-tunnel in IPv4

network (or a real IPv4 Internet connection) across two independent IPv6

networks. Use the Setup > IPv6 Transition page to disable or enable this

feature.

IPv6 Transition establishes a 6to4 tunnel that enables two IPv6 networks to

communicate through IPv4 infrastructure. When you enable dual-stack IP, IPv6

transition will be turned on by default.

Check the box to enable the 6to4 tunnel, or uncheck the box to disable.

box to disable.

You have to enable Managed RA flags to support auto-configuration to get

the 6to4 prefixes (Please refer to Router Advertisement), such as 2002:[IPv4

WAN IP in hex number]::.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Sender Email address of sender.

Mail Server: Hostname or IP address of SMTP mail server. For

Google’s SMTP server, you can find the information

from Google support page at https://support.google.

com/a/answer/176600?hl=en

Authentication: Authentication type, such as Login Plain, TLS and SSL.

SMTP Port: 1~65535 can be accepted. The default value is 25.

Username: Username for authentication.

Password: Password for authentication.

25

DHCP

Linksys

25

DHCP

DHCP

DHCP is a network protocol used to configure devices that are connected to a

network so they can communicate on that network using the Internet Protocol (IP).

You could set up the DHCP server or DHCP relay, and view the DHCP status.

DHCP Setup

An embedded DHCP server supports automatic IP assignation for LAN computers.

(This function is similar to the DHCP service in NT servers.) It benefits users by

freeing them from the inconvenience of recording and configuring IP addresses

for each PC. When a computer is turned on, it will acquire an IP address from the

device automatically.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Click the IPv4 tab or the IPv6 tab.

IPv4:

VLAN: Choose the VLAN.

Device IP: This is the default device IP.

Subnet Mask: Input the subnet mask of the static IP address issued by

ISP.

There are three DHCP modes: None, DHCP Server, and DHCP Relay.

DHCP Server: Check the option to enable the DHCP server automatic IP

lease function. When enabled, all PCs will be able to acquire IP automatically.

Otherwise, users should configure static virtual IP for each PC

DHCP Relay: Check the option to enable the DHCP relay function. DHCP relay

is a proxy that is able to receive a DHCP request and resend it to the real DHCP

server.

DHCP Server IP Address: This is the current DHCP IP.

Client lease Time: This is to set up a lease time for the IP address

acquired by a PC. The default is 1,440 minutes

(one day). Users can change it according to their

needs. The time unit is minutes.

Range Start: The initial IP automatically leased by DHCP. The

default initial IP is 192.168.1.100.

Range End: Thefinal IP automatically leased by DHCP. The

default initial IP is 192.168.1.149.

DNS Server: You could use DNS proxy, DNS from ISP, or

configure your own DNS below.

Static DNS 1: Input the IP address of the DNS server.

Static DNS 2: Input the IP address of the DNS server.

WINS Server: Input the IP address of WINS.

IPv6:

Enable DHCP Server: Check the option to enable the DHCP server

automatic IP lease function. When enabled,

all PCs will be able to acquire IP automatically.

Otherwise, users should configure static virtual IP

for each PC.

Client lease Time: This is to set up a lease time for the IP address

acquired by a PC. The default is 1,440 minutes

(one day). Users can change it according to their

needs. The time unit is minutes.

Range Start: The initial IP automatically leased by DHCP. The

default initial IP is 192.168.1.100.

Range End: The final IP automatically leased by DHCP. The

default initial IP is 192.168.1.149.

DNS Server (required) 1: Input the IP address of the DNS server.

Static DNS 2: Input the IP address of the DNS server.

26

DHCP

Linksys

DHCP Status

This is an indication list of the current status and setup record of the DHCP

server. The indications are for the administrator’s reference when a network

modification is needed.

VID VLAN ID.

DHCP Server Current DHCP IP.

Dynamic IP Used The number of dynamic IPs leased by DHCP.

Static IP Used The number of static IPs assigned by DHCP.

DHCP Available The number of IPs still available in the DHCP server.

Total The total number of IPs the DHCP server is configured to

lease.

Client Table

Client Host Name The name of the current computer.

IP Address The IP address acquired by the current computer.

MAC Address

(IPv4 Only)

The actual MAC network location of the current

computer.

Client Lease Time The lease time of the IP released by DHCP.

Delete Remove a record of an IP lease.

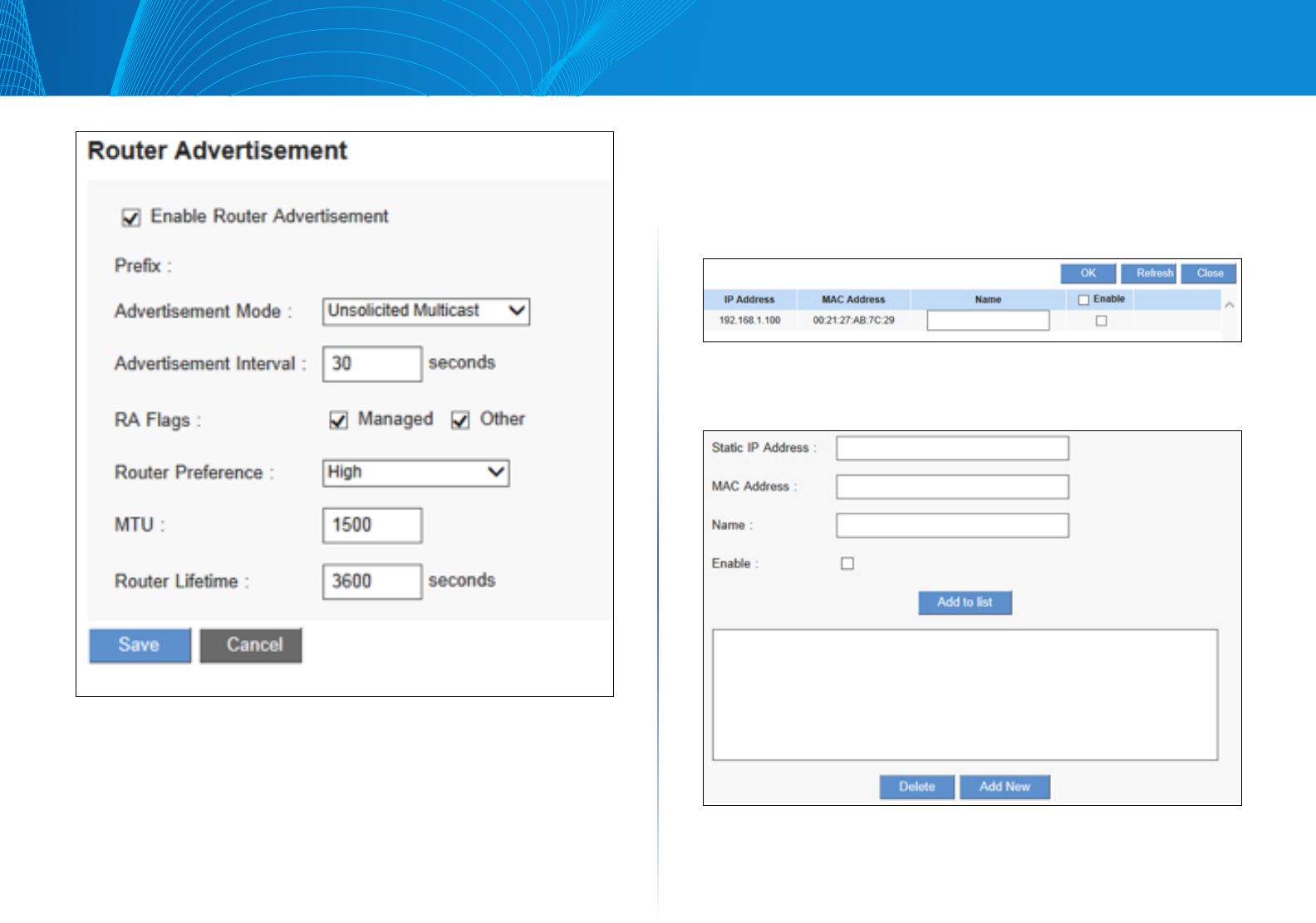

Router Advertisement (IPv6)

PCs in the LAN can configure an IPv6 address through Router Advertisement

function.

Go to Configuration > DHCP > Router Advertisement page to enable the

function. When this feature is enabled the router periodically multicasts a

router advertisement packet, including prefix information, that announces it is

available. A host will learn the prefixes and parameters for the local network.

Before configuring Router Advertisement, you should enabled Dual-Stack IP on

the Setup > Network page.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to leave without any change.

Advertisement Mode: The default value is “Unsolicited Multicast,”

which will send router advertisements to all IPv6

devices.

Choose “Unicast Only” to send router

advertisement only to already known IPv6

devices.

Advertisement Interval: Input the interval time for the router to send out

the RA messages.

RA Flags: When Managed is checked, IP information can be

found on the DHCPv6 server in LAN.

When Other is checked, IP and other information,

such as DNS server, can be got from DHCPv6 server

in LAN.

You can check or uncheck both options.

Router Preference: If two routers are accessible, the one with the

higher preference will be chosen by the host.

Choose High, Medium or Low.

MTU: (Maximum

Transmission Unit)

Input MTU value. MTU is the largest packet size

can be sent.

Router Lifetime Router advertisements expire after a period

determined by you. Devices on the network will

not try to access a router at an expired address.

27

DHCP

Linksys

IP & MAC Binding (for IPv4 Only)

IP & MAC Binding assigns IP addresses to specific devices. In this way, you can

also make sure that users can not add extra PCs for Internet access or change

private IP addresses.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to leave without any change.

IP & MAC Binding

•Set up IP & MAC Binding from IP & MAC Table

Click Show unknown MAC addresses button, an IP address and MAC table

will appear. Input a name for the device and check Enable box to bind the IP

and MAC addresses.

Click OK to save the configuration or Close to leave without saving. You can

also click Refresh to update the table.

-SetupIP&MACBindingManually

28

DHCP

Linksys

Static IP Address: Input a specified static IP address. You can also input

0.0.0.0 in the boxes. The router will assign a static IP

address to the device.

MAC Address: Input the static real MAC (the address on the network

card) for the server or PC.

Name: For distinguishing devices, input the name or address of

the client that is to be bound to the server.

Enabled: Activate this configuration.

Add to list: Add the configuration or modification to the list.

Delete: Remove the selected binding from the list.

Add New: Add new binding.

•Block MAC address on the list with wrong IP address

Check the box to enable the function. The device listed with wrong IP address

will be blocked by the router.

•Block MAC address not on the list

Click the box to enable. The device which is not listed on the list will be blocked

by the router.

DNS Local Database

You can configure your router to function as a DNS server for your intranet

devices. It provides much faster domain name matching service than using

external DNS servers. If the requested domain name is not found in the

database, the DNS sever for WAN ports still can provide matching service.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to leave without any change.

29

DHCP

Linksys

Host Name: Input the domain name, i.e. abc.com.

IP Address: Input the IP address of the domain.

Add to list: Add the configuration or modification to the list.

Delete: Remove the selected entry from the list.

Add New: Add new entry.

NOTE When you enable DNS local database, you have to set the IP address

of the router as DNS server for your computer. It will be “Obtain DNS server

address automatically” by default.

30

System Management

Linksys

System Management

You can configure advanced setting in System Management category, please

refer to following items:

• DualWAN(LRT224Only)/NetworkServiceDetection

• BandwidthManagement

• SNMP

• SSLCertificate

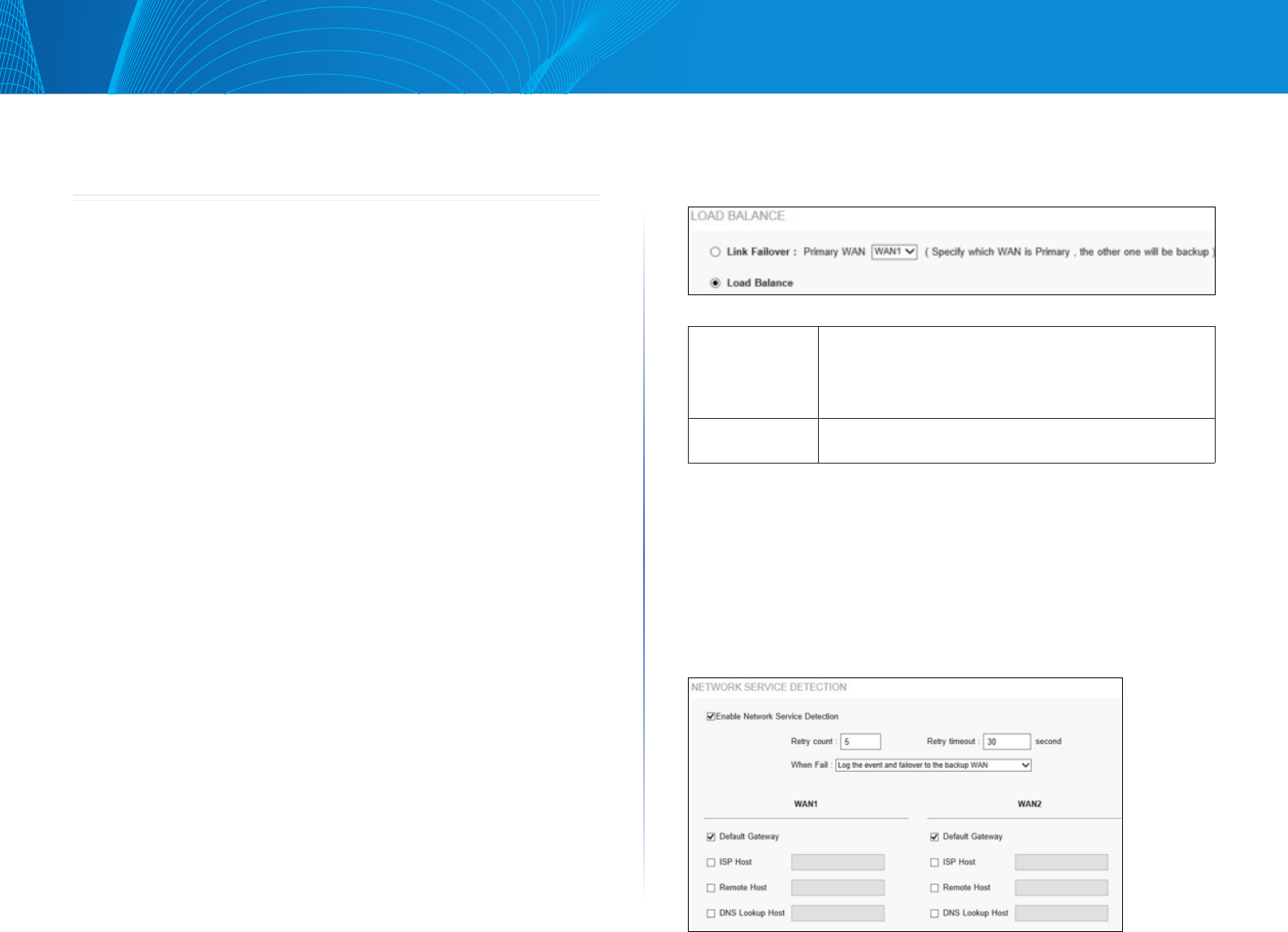

Dual WAN (LRT224 Only) / Network

Service Detection

Dual WAN

You can choose Link Failover or Load Balance mode when you use Dual WAN

setting. Go to Configuration > System Management > Dual WAN.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Mode

You can configure two Internet connections by using the WAN and the WAN/DMZ port.

Two modes can be selected:

Link Failover: Only the primary WAN port works in normal time; the

other WAN is a backup port.

If the primary WAN connection is unavailable, the backup

WAN connection will take over the traffic.

Load Balance: Two WAN ports will work simultaneously. The router will

balance traffic between the two ports.

Network Service Detection

This is a detection system for network external services. If this option is selected,

information such Retry or Retry Timeout will be displayed. If two WANs are

used for external connection, be sure to activate the NSD system, so as to avoid

any unwanted break caused by the device misjudgment of the overload traffic

for the WAN.

31

System Management

Linksys

Protocol Binding (Only Dual-WAN Mode supports this

function)

Users can define specific IP addresses or specific application service ports

to go through a user-assigned WAN for external connections. For any other

unassigned IP addresses and services, WAN load balancing will still be carried out.

Enable Network

Service Detection:

Click to enable Network Service Detection.

Retry count: Input the retry times for network service

detection. If there is no feedback from the Internet

in the configured retry times, the router will rule

“External Connection Disconnected.” The default

is five retry times.

Retry Timeout: The default is 30 seconds. After the retry timeout,

external service detection will restart.

When Fail: (1) Prohibit WAN2 from handling traffic for WAN1

when WAN1 connection fails.

(2) Allow WAN2 to accept traffic from WAN2

when WAN1 connection fails.

Detecting Feedback Servers:

Default Gateway: If you check the box, the router will ping the default

gateway of your ISP to check network connectivity.

ISP Host: Router will attempt to ping the specified IP address

to determine whether network service is available.

Remote Host: Router will attempt to ping the specified IP address

to determine whether network service is available.

DNS Lookup Host: Router will attempt to ping the specified host/

domain name to determine whether network

service is available.

If you check multiple boxes, the router will detect internet connectivity if a ping

to any of the IP addresses is successful. If the router can ping none of them, it

will declare that the internet connectivity associated with the given WAN port

is not available. This will trigger the router to redirect all traffic to the WAN port

that has internet connectivity according to NSD.

32

System Management

Linksys

Service: This is to select the Binding Service Port to be activated.

The default (such as ALL-TCP&UDP 0~65535, WWW

80~80, FTP 21 to 21, etc.) can be selected from the pull-

down option list. The default Service is All 0~65535.

Option List for Service Management: Click the button

to enter the Service Port configuration page to add or

remove default Service Ports on the option list.

Source IP:Users can assign packets of specific Intranet virtual IP to

go through a specific WAN port for external connection.

In the boxes here, input the Intranet virtual IP address

range; for example, if 192.168.1.100~150 is input,

the binding range will be 100~150. If only specific

Service Ports need to be designated, while specific IP

designation is not necessary, input “0” in the IP boxes.

Destination IP:In the boxes, input an external static IP address. For

example, if connections to destination IP address

210.11.1.1 are to be restricted to WAN1, the external

static IP address 210.1.1.1 ~ 210.1.1.1 should be input. If

a range of destinations is to be assigned, input the range

such as 210.11.1.1 ~ 210.11.255.254. This means the

Class B Network Segment of 210.11.x.x will be restricted

to a specific WAN. If only specific Service Ports need to be

designated, while a specific IP destination assignment is

not required, input “0” into the IP boxes.

Interface: Select the WAN for which users want to set up the

binding rule.

Enable: To activate the rule.

Add To List: To add this rule to the list.

Delete To remove the rules selected from the Service List.

Moving Up & Down: The priority for rule execution depends on the rule order

in the list. A rule located at the top will be executed prior

to those located below it. Users can arrange the order

according to their priorities.

Add New: Click the button to start a new entry.

Note The rules configured in Protocol Binding will be executed by the device

according to their priorities too. The higher up on the list, the higher the priority

of execution.

Adding a service

To add a new service item or to edit an existing service, click Service

Management. If the web browser displays a warning about the pop-up

window, click to allow the blocked content.

In the Service Management window, add or edit entries as needed. After setting

a rule, be sure to click OK to save your settings or click Cancel to undo them. To

add a service to the list: Enter the following information, and then click Add to

List. You can have up to 30 services in the list.

o Service Name: Give a name to the service.

o Protocol: Choose the required protocol. TCP, UDP or Ipv6 can be chosen.

o Port Range: Enter the port range.

•To add another new service: Enter the information, and then click Add

to list.

•To edit a service you created: Select the service in the list and then click

Update to make the changes. If you do not need to make changes, click

Add New to de- select the service and clear the text fields.

•To delete a service from the list : Click Delete to delete an existing service.

33

System Management

Linksys

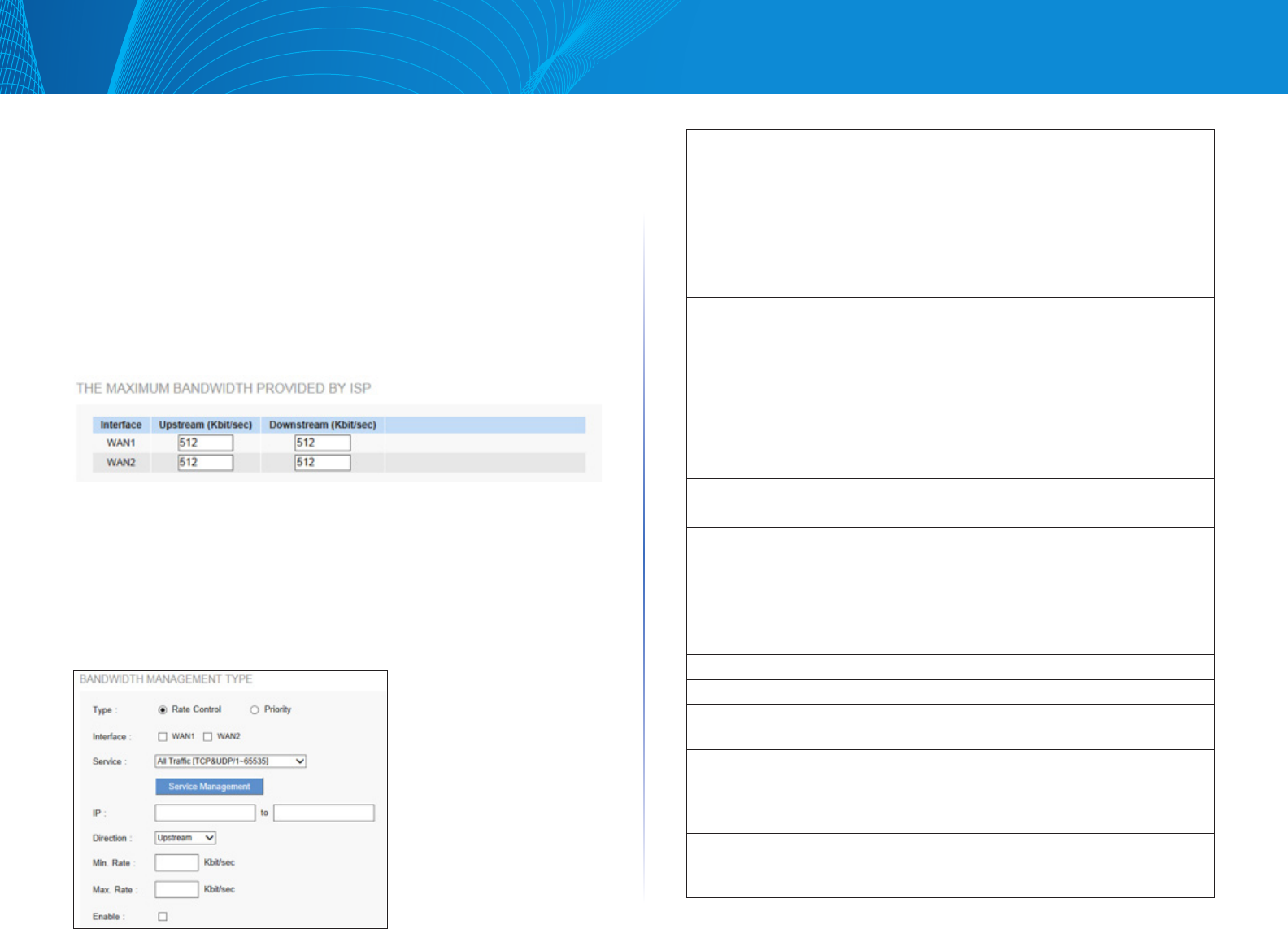

Bandwidth Management

You can configure upstream and downstream bandwidth and set Quality of

Service (QoS) rules in this page.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to leave without any change.

The Maximum Bandwidth Provided by ISP

Input the maximum upstream and downstream bandwidth which users applied

for from ISP. The default is 512 kbit/sec.

NOTE The unit of calculation in this example is Kbit. Some software indicates

the downstream/upstream speed with the unit KB. 1KB = 8Kbit.

Bandwidth Management Type

There are two types of QoS: Rate Control and Priority.

• Rate Control: Configure minimum (guaranteed) bandwidth and

maximum (limited) bandwidth for Specified IP address or Service Port.

Interface: Select on which WAN the QoS rule should

be executed. It can be a single selection or

multiple selections.

Service: Select a service to manage. If the bandwidth

for all services of each IP is to be controlled,

select “All (TCP&UDP) 1~65535”. You can also

click Service Management to add service

items.

IP Address: Select which user is to be controlled. If only

a single IP is to be restricted, input this IP

address in both fields, such as “192.168.1.100

to 192.168.1.100”. If an IP range is to

be controlled, input the range, such as

“192.168.1.100 ~ 192.168.1.150”. If all Intranet

users that connect with the device are to be

controlled, input “0” in the boxes of IP address.

Direction: Upstream: outbound traffic.

Downstream: inbound traffic.

Min. & Max. Rate: (Kbit/Sec) The minimum bandwidth rule guarantees

minimum available bandwidth.

The maximum bandwidth rule restricts

maximum available bandwidth.

Enable: Click to enable the rule.

Add to list: Add this rule to the list.

Delete: Click to delete an existing entry.

Update: Select the entry that you would like to modify.

Change the setting and click Update. Clicking

Add New deselects the entry and clears the

text fields.

View: Click Refresh to update the display or Close

to return to configuration page.

34

System Management

Linksys

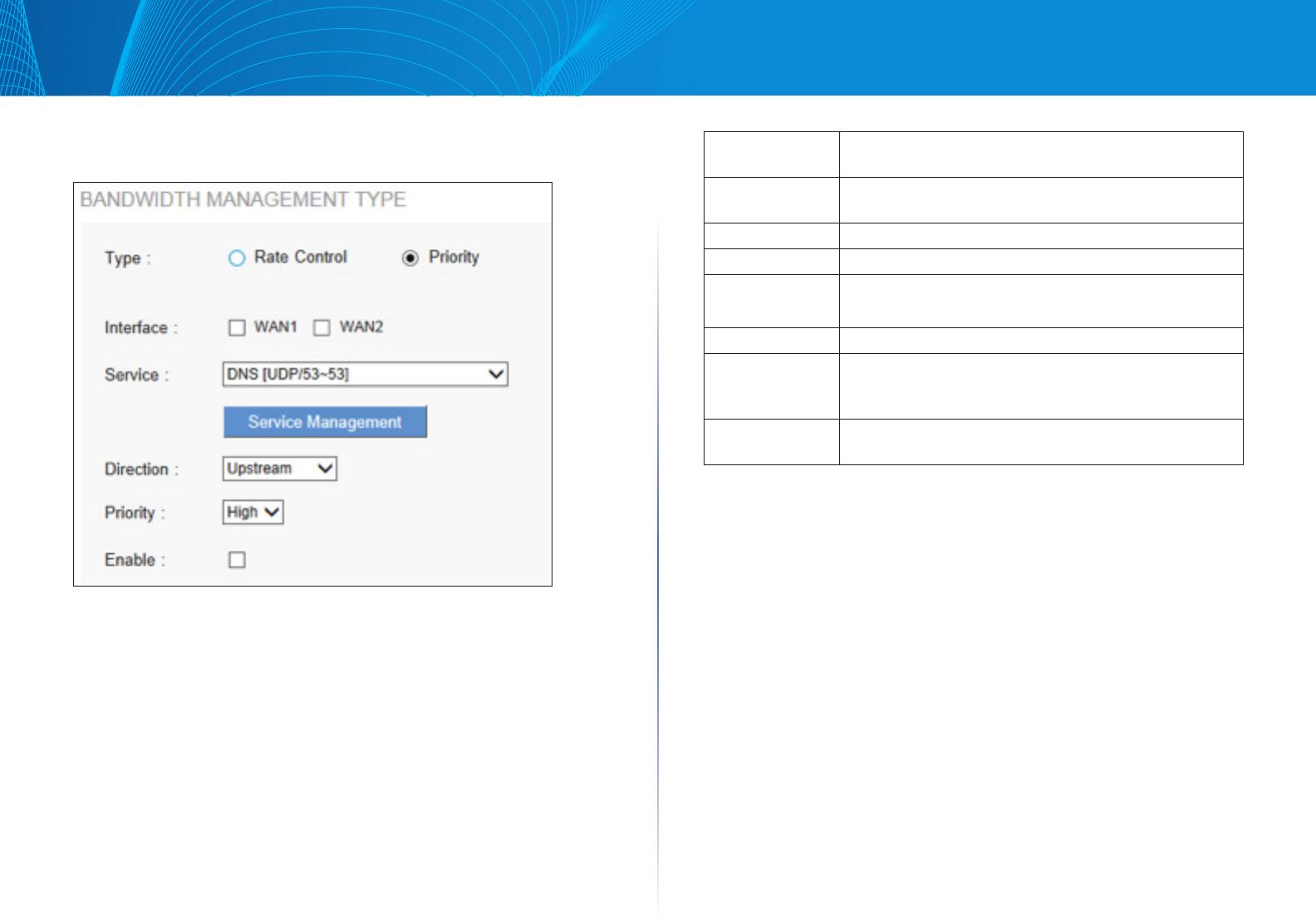

• Priority: Identify priority for specified services. Interface: Select on which WAN the QoS rule should be executed. It

can be a single selection or multiple selections.

Service: Select a service to manage. You can also click Service

Management to add service items.

Direction: Upstream: outbound traffic.

Downstream: Downstream: inbound traffic.

Priority: High or Low

Delete: Click to delete an existing entry.

Update: Select the entry that you want to modify. Change the

setting and click Update. Clicking Add New will deselect

the entry and clear the text fields.

View: Click Refresh to update the display or Close to return to

configuring page.

Adding a service

To add a new service item or to edit an existing service, click Service

Management. If the web browser displays a warning about the pop-up window,

click to allow the blocked content.

In the Service Management window, add or edit entries as needed. After

setting a rule, be sure to click OK to save your settings or click Cancel to undo

them. To add a service to the list, enter the following information, and click Add

to list. You can have up to 30 services in the list.

o Service Name: Name the service.

o Protocol: TCP, UDP or Ipv6.

o Port Range: Enter a range.

•To add another new service, enter the information, and click Add to list.

•To edit a service you created, select the service in the list and click Update.

If you do not need to make changes, click Add New to deselect the service

and clear the text fields.

•To delete a service from the list, click Delete.

35

System Management

Linksys

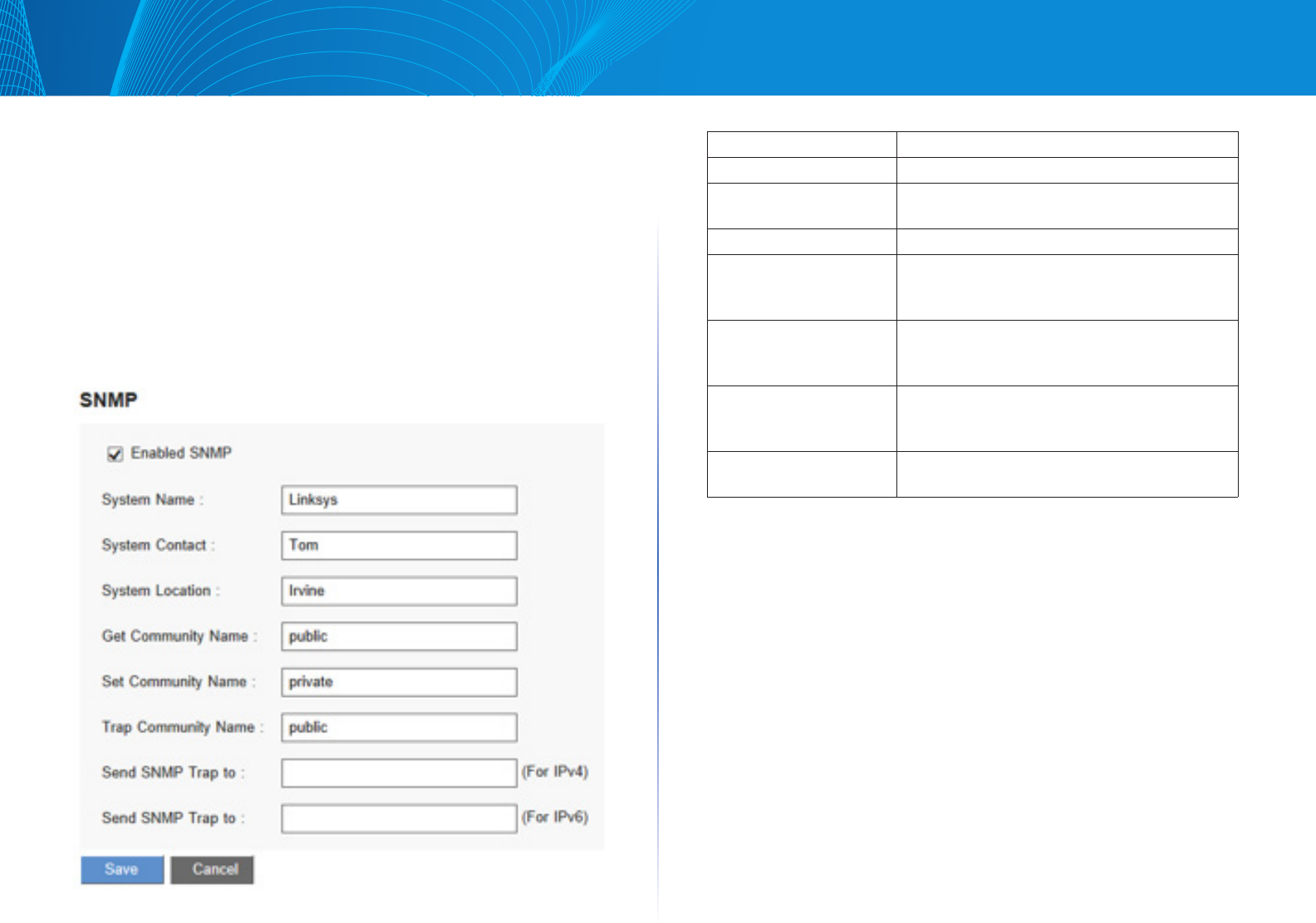

SNMP

Go to Configuration > System Management > SNMP page to set up SNMP

(Simple Network Management Protocol). SNMP refers to network management

communications protocol, and it is also an important network management

item. Through SNMP communications protocol, programs with network

management, such as SNMP browser, can help communications of real-time

management. The device supports standard SNMP v1/v2c and is consistent

with SNMP network management software

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Enabled SNMP: Enable SNMP feature. Enabled is the default.

System Name: Set the name of the device, e.g., Linksys.

System Contact: Set the name of the person who manages the

device, e.g., Tom.

System Location: Define the location of the device, e.g., Irvine.

Get Community Name: Set the name of the group or community that

can view the device SNMP data. The default

setting is "Public".

Set Community Name:Set the name of the group or community that

can receive the device SNMP data. The default

setting is "Private".

Trap Community Name: Set user parameters (password required by the

Trap-receiving host computer) to receive Trap

message.

Send SNMP Trap to: Set one IP address (IPv4 or IPv6) or Domain

Name for the Trap-receiving host computer.

SSL Certificate

You can configure SSL certificates here.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to leave without any change.

36

System Management

Linksys

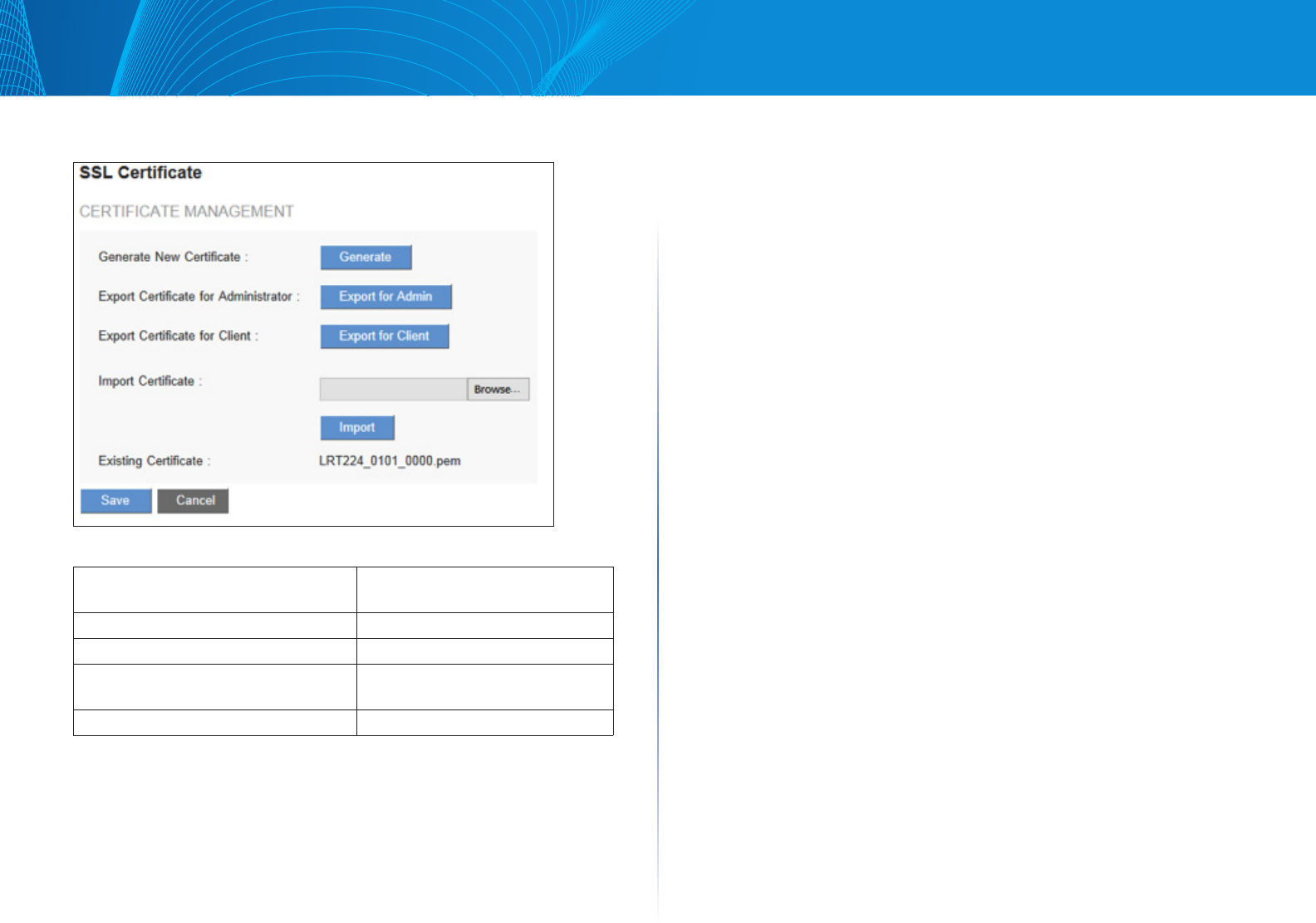

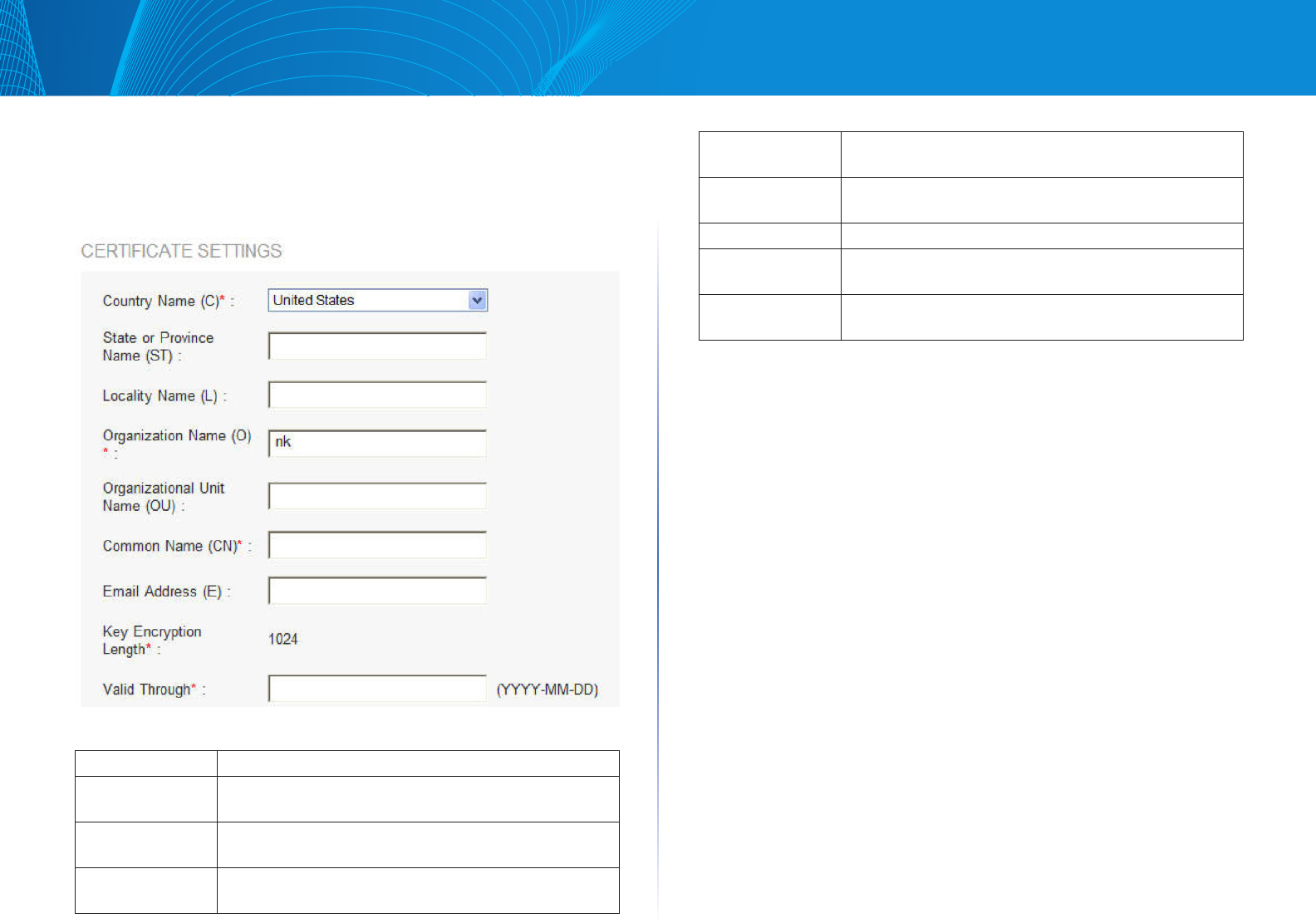

Certificate Management

Generate New Certificate: Click Generate and click OK to creat

a new SSL certificate.

Export Certificate for Administrator: Click Export for Admin.

Export Certificate for Client: Click Export for Client.

Import Certificate: Click Browse to choose a certificate

and click Import.

Existing Certificate: Indicates current certificate.

37

Port Management

Linksys

37

Port Management

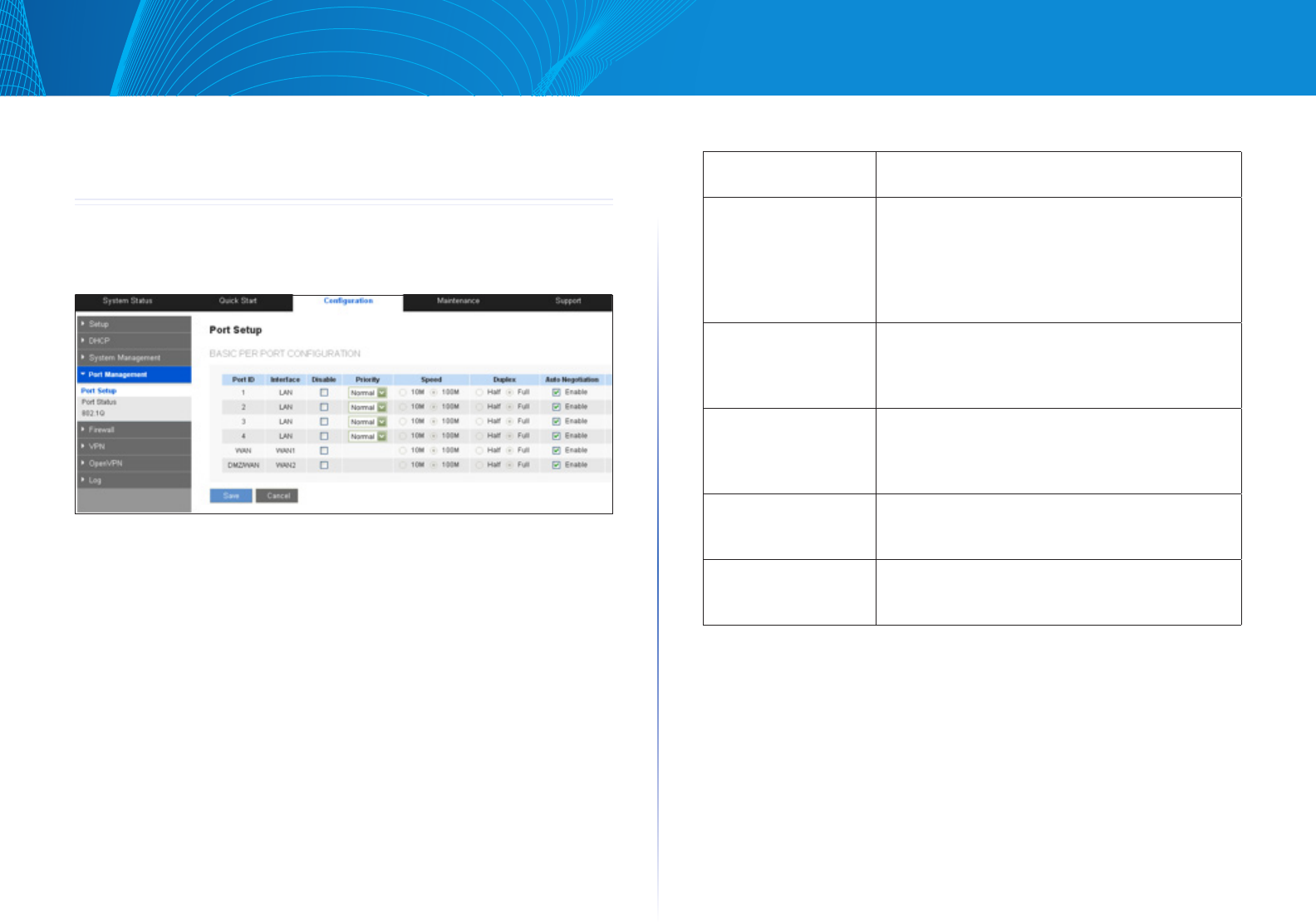

Port Setup

The default port settings will be sufficient for most small businesses, but you

can still use the Port Management > Port Setup page to customize these settings.

You can disable a port or customize its priority, speed, duplex mode, and auto-

negotiation settings. You can also enable port-based VLANs to control traffic

between devices on your network.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes.

Enter the following settings, as needed:

Disable: Check this box to disable a port. By default, all ports

are enabled.

Priority:(for LAN ports

only)

Use this setting to ensure Quality of Service by

prioritizing the traffic for devices on particular ports.

For example, you might assign High priority to a

port that is used for gaming or videoconferencing.

For each port, select the appropriate priority level,

High or Normal. The default setting is Normal.

Speed: If you want to adjust this setting, first uncheck

the Enable box in the Auto Negotiation column

to disable auto-negotiation. Then select the port

speed: 10Mbps, 100Mbps or 1000Mbps.

Duplex: If you want to set the duplex mode, first uncheck

the Enable box in the Auto Negotiation column to

disable auto-negotiation. Select the duplex mode,

Half or Full.

Auto Neg.: Check the Enable box to allow the router to auto-

negotiate connection speeds and duplex mode.

This feature is enabled by default.

VLAN: (for LAN ports

only)

All LAN ports are on VLAN 1 by default. To place a

port on a separate VLAN, choose a VLAN from the

drop-down list.

38

Port Management

Linksys

Port Status

Use the Configuration > Port Management > Port Status page to view information

and statistics for a selected port.

From the Port ID list, choose a port. Click Refresh to update the data.

Summary

For the selected port, the Summary table displays the following:

Type: The port type

Interface: The interface type, LAN or WAN.

Link Status: The status of the connection

Port Activity: The status of the port

Speed Status: The speed of the port, 10 Mbps, 100 Mbps or

1000Mbps

Duplex Status: The duplex mode, Half or Full.

Auto Negotiation: Enable/disable

VLAN: The VLAN of the port.

Statistics

Port Receive Packet Count: The number of packets received

Port Receive Packet Byte Count:The number of packet bytes received.

Port Transmit Packet Count: The number of packets transmitted.

Port Transmit Packet Byte Count: The number of packet bytes

transmitted.

Port Packet Error Count: The number of packet errors.

39

Port Management

Linksys

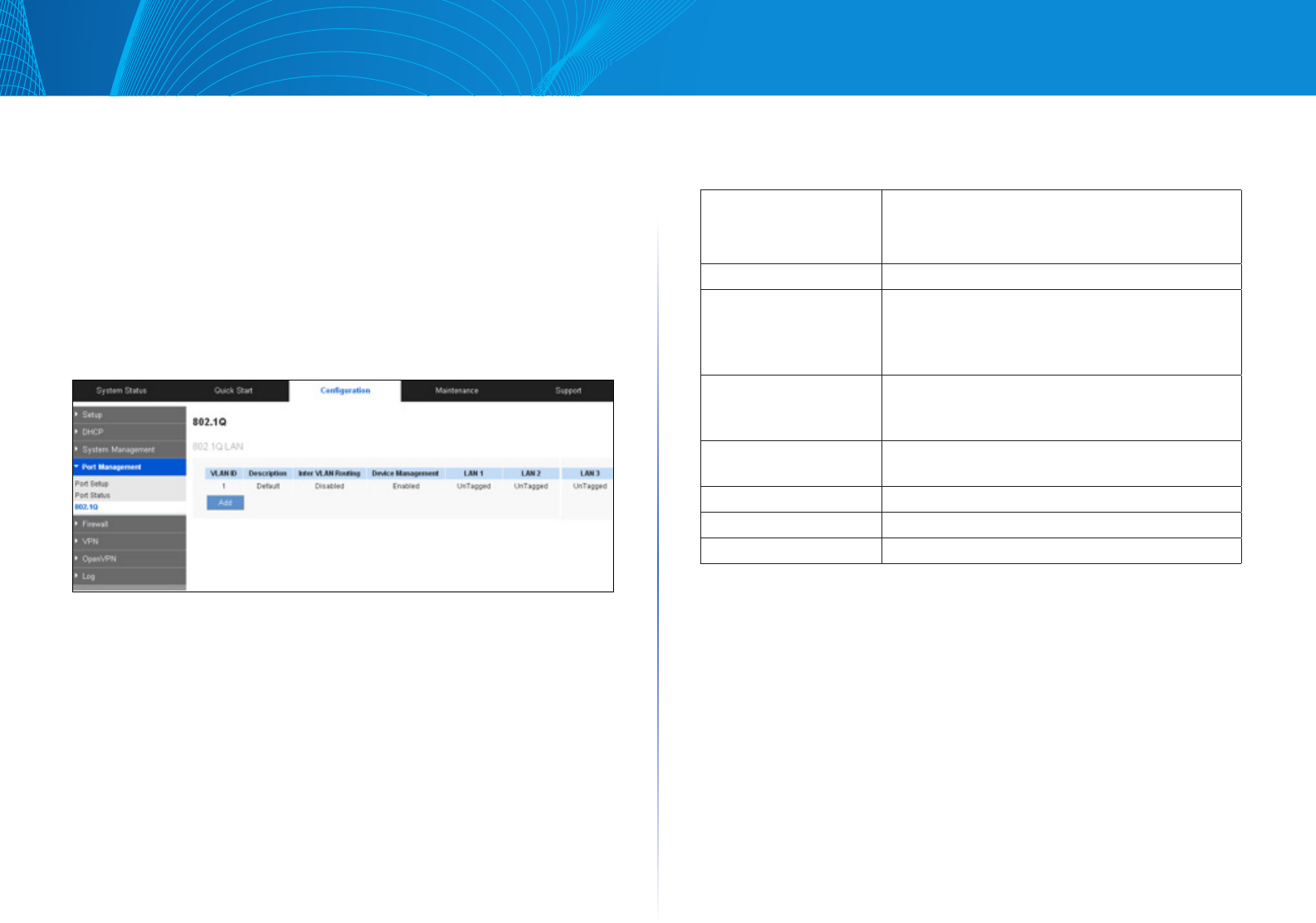

802.1Q

The router supports up to five sets of VLANs, which are used to divide networks

into several segments. Dividing networks makes them easier to manage and

enhances performance and security through isolation.

802.1Q is a protocol for carrying VLAN traffic on an Ethernet. 802.1Q will append

a tag which includes VLAN membership information within the original packet.

The devices can communicate with others with the same VLAN ID. In this way, it

will make the network manageable and secure.

Go to Configuration > Port Management > 802.1Q.

802.1Q LAN Status

VLAN ID: Indicates VLAN ID (VID).

The first VLAN with VID1 is default VLAN and

cannot be deleted.

Description: The name of the VLAN.

Inter VLAN Routing: Every set of VLAN has its own DHCP address pool.

If VLAN is enabled to communicate with other

sets of VLAN, the status is shown as Enabled. The

default value is Disabled.

Device Management: If this VLAN is allowed to open Web GUI, the status

will be shown as Enabled. The default value is

Disabled.

LAN1 ~ LAN4: Indicates VLAN status of physical LAN port. It could

be Tagged, Untagged or Excluded.

Config.: To configure existing VLAN.

Del.: To delete existing VLAN.

Add: Click Add button to add a new set of VLAN.

40

Port Management

Linksys

802.1Q LAN Configuration

You can click Edit to change an existing VLAN configuration or click Add to set

up a new set of VLAN.

VLAN ID: Input VID (range:2~4092) of the VLAN.

Description: Give a name to the VLAN.

Inter VLAN Routing:Every set of VLAN has its own DHCP address pool.

Select Enabled so that the VLAN is allowed to

communicate with other sets of VLAN. The default

value is Disabled.

Device

Management:

Select Enabled to allow the VLAN access to the Web

GUI. The default value is Disabled.

LAN1 ~ LAN4: Configure VLAN status of physical LAN ports. There

can only be one untagged VID for a LAN port.

For example, if we configure LAN2 as Untagged

for VID2, LAN2 for VID1 will be changed as Tagged

automatically.

If we configure LAN2 for VID1 as Tagged, LAN2 for

VID2 will be changed as Untagged automatically.

If there is only one VID, changing status to Tagged for

any LAN port is not allowed.

41

Firewall

Linksys

41

Firewall

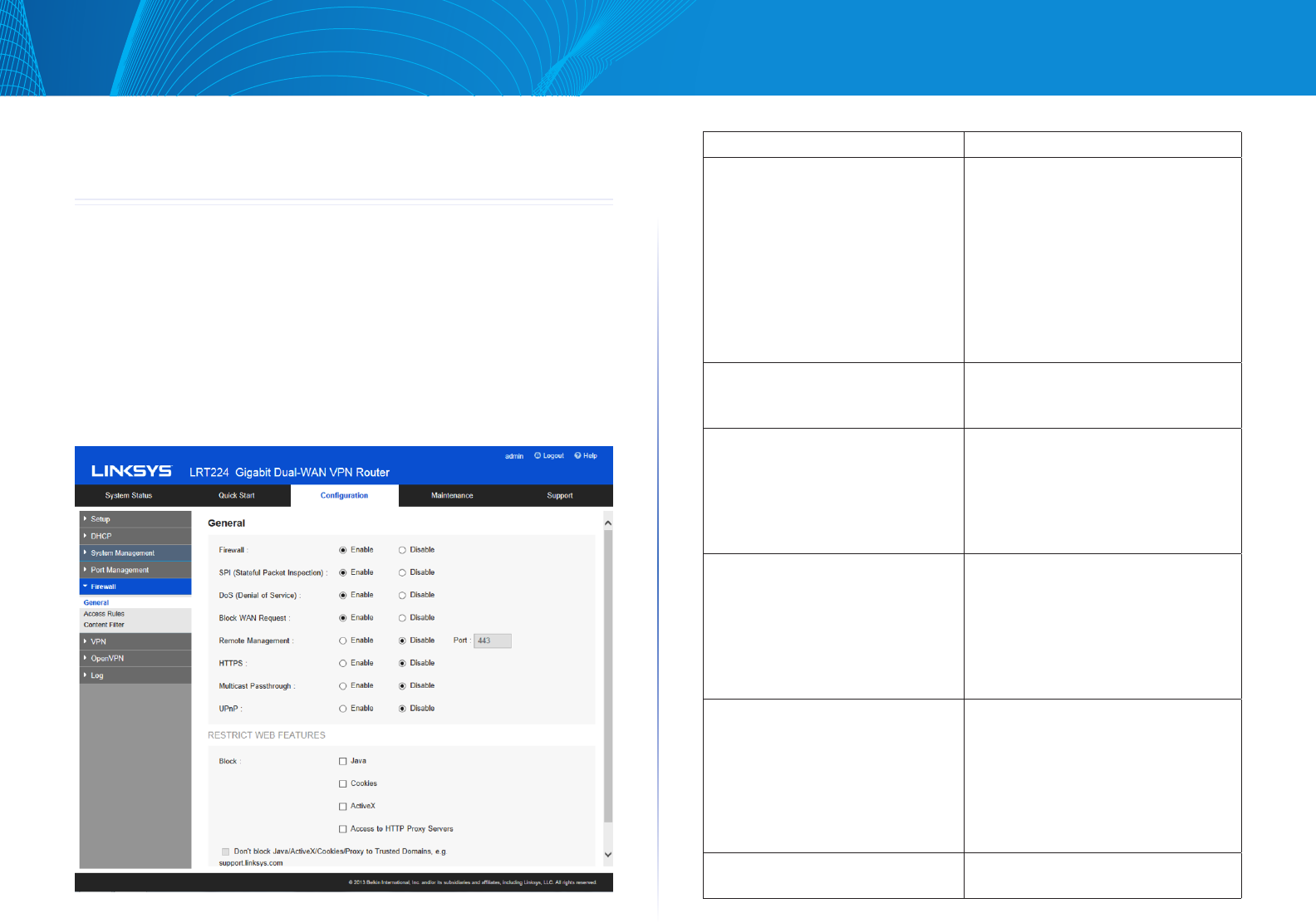

Firewall General Settings

General

The firewall is enabled by default. If the firewall is set as disabled, features such

as SPI, DoS, and outbound packet responses will be turned off automatically.

Meanwhile, the remote management feature will be activated. The network

access rules and content filter will be turned off.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes.

Firewall Turn on/off the firewall.

SPI (Stateful Packet Inspection) Enables the packet automatic

authentication detection technology.

The firewall operates mainly at the

network layer. By running the dynamic

authentication for each connection, it

will also perform an alarming function

for application procedure. Meanwhile,

the packet authentication firewall may

decline the connections that use non-

standard communication protocol.

DoS (Denial of Service) Prevents DoS attacks such as SYN

Flooding, Smurf, LAND, Ping of Death,

IP Spoofing and so on.

Block WAN Request When enabled, shuts down outbound

ICMP and abnormal packet responses

in connection. Default value is

enabled, which prevents users from

pinging the WAN IP from outside the

network.

Remote Management Must be enabled to enter the device’s

Web-based UI remotely. A valid

external IP address (WAN IP) for the

device should be filled in and the

modifiable default control port should

be adjusted (the default is set to 80,

modifiable).

HTTPS Multicast Pass Through HTTPS is more secure. This feature

allows user to turn on HTTPS.

There are many audio and visual

streaming media on the network.

Broadcasting may allow the client end

to receive this type of packet message

format. This feature is off by default.

UPnP This feature allows users to enable/

disable UPnP.

42

Firewall

Linksys

Restrict Web Features

It supports the block that is connected through: Java, Cookies, Active X, and

HTTP Proxy access.

Don’t Block Java / ActiveX

/ Cookies Proxy to Trusted

Domain

When enabled, users can add trusted network

or IP address into the trust domain.

Access Rules

You can use access rules to manage network packet traffic and determine

whether the access is allowed by the firewall. Please use Configuration >

Firewall > Access Rules to edit or add new rules.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes.

Default access rules are as below:

• AlltrafficfromtheLANtotheWANisallowed.

• AlltrafficfromtheWANtotheLANisdenied.

• AlltrafficfromtheDMZtotheLANisdenied.

NOTE Be sure not to disable all firewall protection or block all traffic to the

Internet.

The following four extra rules are always on and are not affected by other user-

defined settings.

• HTTPservicefromLANtodeviceisallowed.

• DHCPservicefromtheLANisallowed.

• DNSservicefromtheLANisallowed.

• PingservicefromtheLANtothedeviceisallowed.

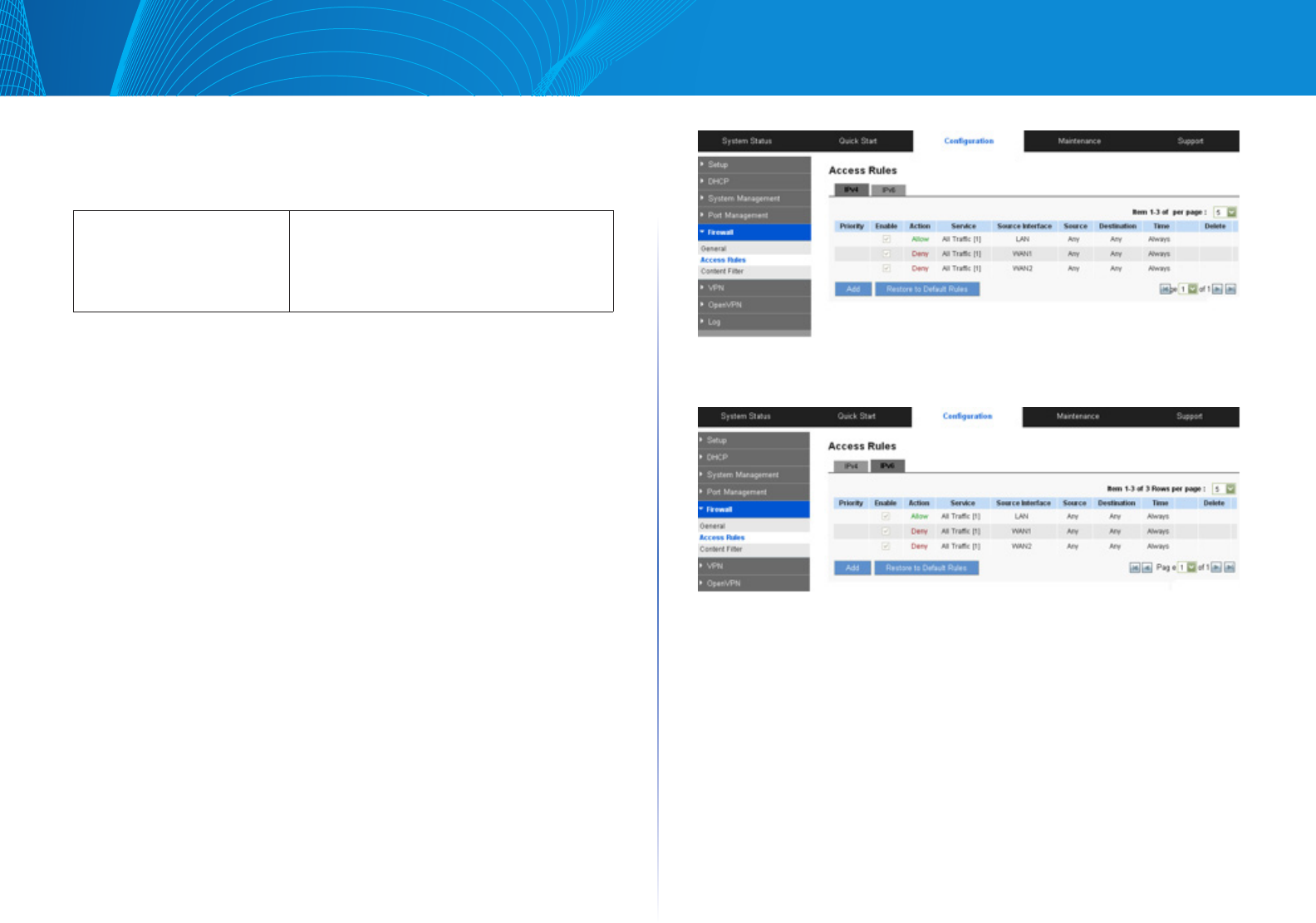

Managing the access rules

Except for the default rules, you can set the priority for each rule.

Click the IPv4 tab to set rules for traffic with IPv4 addressing.

Or click the IPv6 tab to set rules for traffic with IPv6 addressing.

You can use the Rows per page list at the top right corner of the table to decide

the number of rules to display on each page, and use the Page list to choose a

particular page.

43

Firewall

Linksys

Priority Indicates the priority of the access rule; 1 being

the highest. Select an option from the drop-down

list to change the priority. The default access rules

have the lowest priority.

Enable A new rule will be automatically assigned with a

priority. You can change the priority by editing.

To add a new rule Check the Enable box to enable or uncheck to

disable. The default rules are not allowed to

change.

To edit a custom rule Click Edit.

To delete an existing

rule

Click Delete and click OK to continue, or click

Cancel to close the message without deleting the

rule.

Return to Default

Rules

Click Restore to Default Rules to delete all the self-

defined settings.

Adding or Editing access rules

Click Add or Edit to enter Access Rules configuring page.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to leave without any change.

Services (Both IPv4 and IPv6)

44

Firewall

Linksys

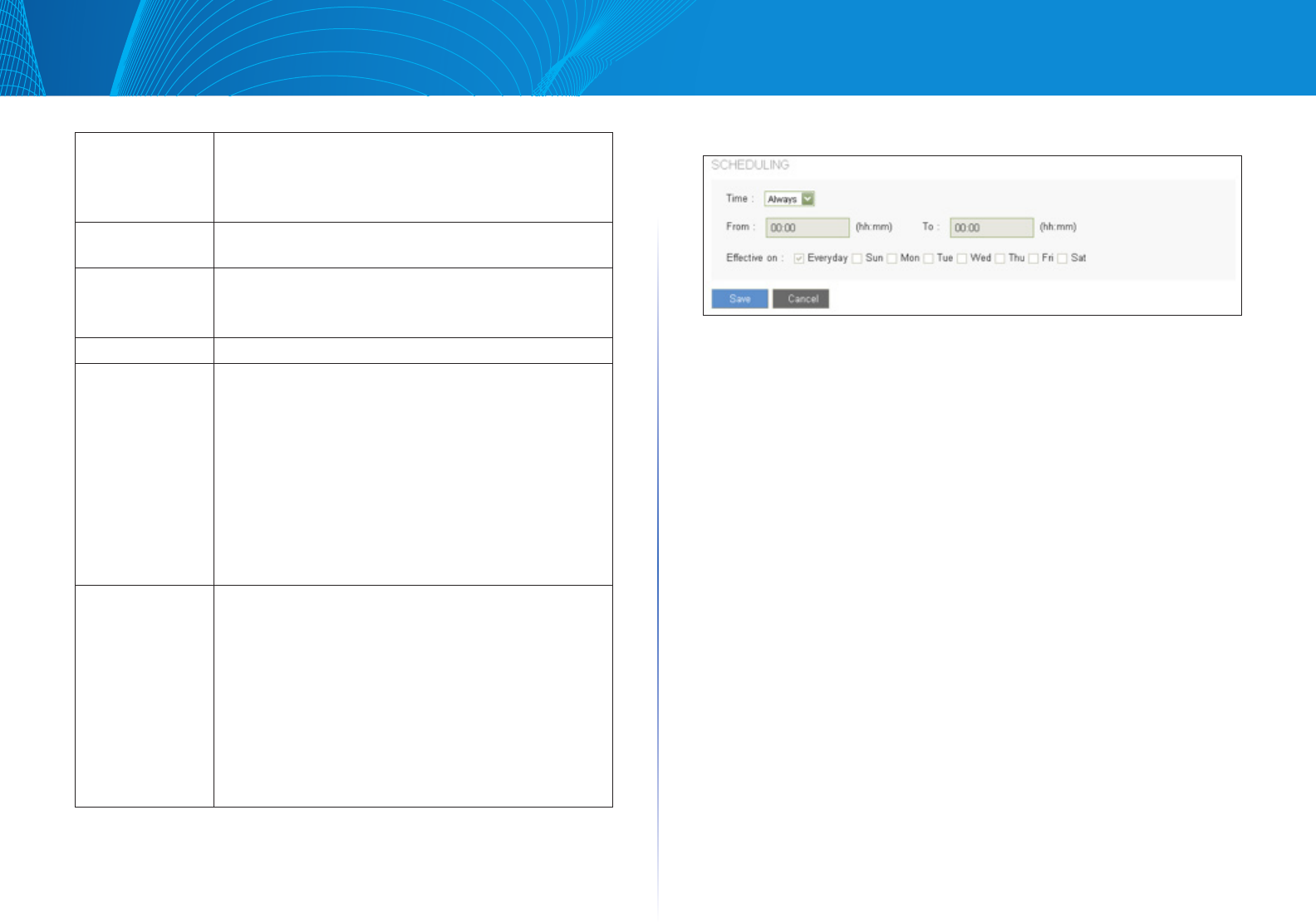

Action: Allow: Permits the pass of packets compliant with this

control rule.

Deny: Prevents the pass of packets not compliant with

this control rule.

Service: Choose the service for this rule. You can also click Service

Management to add new services.

Log: Not Log: There will be no log record.

Log packets match this rule: Events will be recorded in

the log.

Source Interface: Choose the source interface that is affected by this rule.

Source IP: Identify the traffic source that is affected by this rule.

Choose one of the following options from drop-down list:

•ANY: This rule applies to any IP address.

•Single: This rule applies to a single IP address. Enter

the IP address in the following box.

•Range: This rule applies to a range of IP addresses

(IPv4 only). Enter the first IP address in the first box,

and then enter the final IP address in the second box.

•Subnet: This rule applies to a subnetwork (IPv6 only).

Enter the IP address and the prefix length.

Dest. IP: Identify the traffic destination that is affected by this rule.

Choose one of the following options from drop-down list:

•ANY: This rule applies to any IP address.

•Single: This rule applies to a single IP address. Enter

the IP address in the following box.

•Range: This rule applies to a range of IP addresses

(IPv4 only). Enter the first IP address in the first box,

and then enter the final IP address in the second box.

•Subnet: This rule applies to a subnet (IPv6 only).

Enter the IP address and the prefix length.

Scheduling (IPv4 Only)

Define a schedule when this rule is active:

• Time:

o Always: Choose this option if the rule applies at all times.

o Interval: Choose this option to specify the time period when the rule is

active. If you choose this option, you must enter a time period in the From

and To fields. Optionally, you can specify the days of the week.

• From and To: To specify active times and days. Enter the start time in the

From field and enter end time in the To field. Use hh:mm format, such as

15:30 for 3:30 pm. Enter 00:00 to 00:00 if the rule applies during all times

of day.

• Effective on: If you chose Interval, you can use check boxes to specify

the active days of the rule. Check the Everyday box if the rule is active on

all days. To choose specific days, uncheck the Everyday box and then

check the box for each day when the rule is active.

Adding a service

To add a new service item or to edit an existing service, click Service

Management. In the Service Management window, add or edit entries as

needed. After setting a rule, be sure to click OK to save your settings or click

Cancel to undo them.

45

Firewall

Linksys

Add a service to the list: enter the following information, and then click Add

to List. You can have up to 30 services on the list.

Service Name: Give a name to the service.

Protocol: Choose the required protocol: TCP, UDP or Ipv6.

Port Range: Enter the port range.

Add another new service: Enter the information, and then click Add to list.

Edit a service you created: Select the service on the list and click Update

to make the changes. If you do not need to make changes, clicking Add New

deselects the service and clears the text fields.

Delete a service from the list: Click Delete.

Content Filter

The device supports two Web page restriction modes: one blocks certain

forbidden domains; the other gives access to certain Web pages. Only one of

these two modes can be selected.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Forbidden Domains

46

Firewall

Linksys

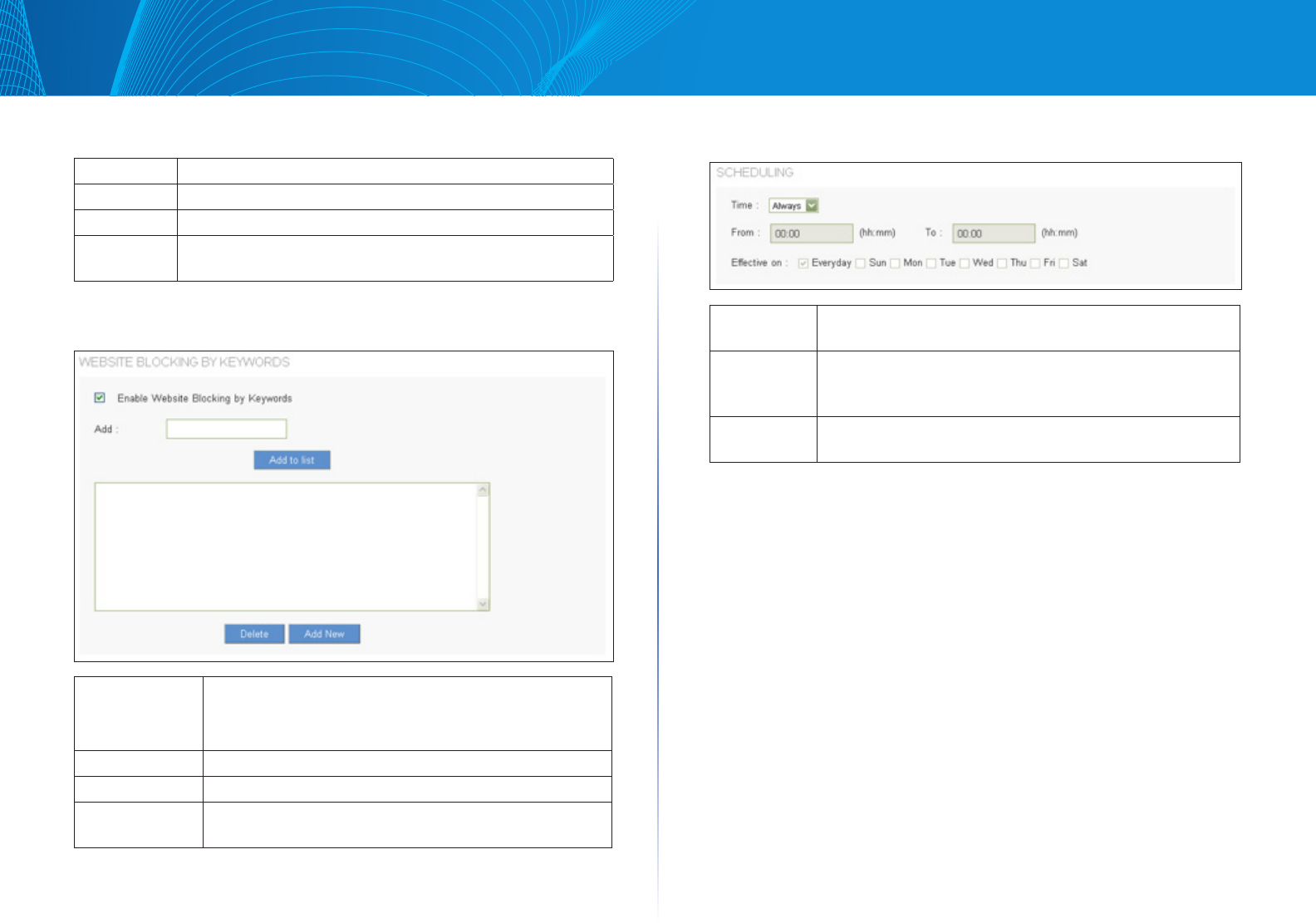

Fill in the complete website such as to have it blocked.

Add: Enter the websites to be controlled, such as www.gamble.com.

Add to list: Click ”Add to list” to create a new website to be controlled.

Delete: Click to select one or more controlled websites and delete.

Add New: Click the button to add a new domain when pre-defined

domain is selected.

Website Blocking by Keywords

Add: Enter keywords. (English only)

If users enter the string ”casino”, any websites containing

”casino” will be blocked.

Add to List: Add this new service item content to the list.

Delete: Delete the service item content from the list.

Add New: Click the button to add a new keyword when pre-defined

keyword is selected.

Scheduling

Always: “Always” applies the rule on a round-the-clock basis.

“Interval” will apply the rule according to the defined time.

From…To…: When “Interval” is selected, the control rule has time

limitations. The setting method is in 24-hour format, such as

08:00 - 18:00 (8 a.m. to 6 p.m.)

Effective on: Click “Everyday” or choose the day that you would like the

scheduling rule to be effective.

47

VPN

Linksys

47

VPN

VPN (Virtual Private Network) is a technology that enables two private networks

to establish a secure and encrypted connection across public network, such as

the Internet. VPN allows remote user, say a branch office or employee at home,

to access the company intranet and share files, video conference or access

servers, i.e., ERP or mail server.

The router provides several VPN protocols. You can choose which kinds of VPN

technology are most suitable for your network structure and using scenarios.

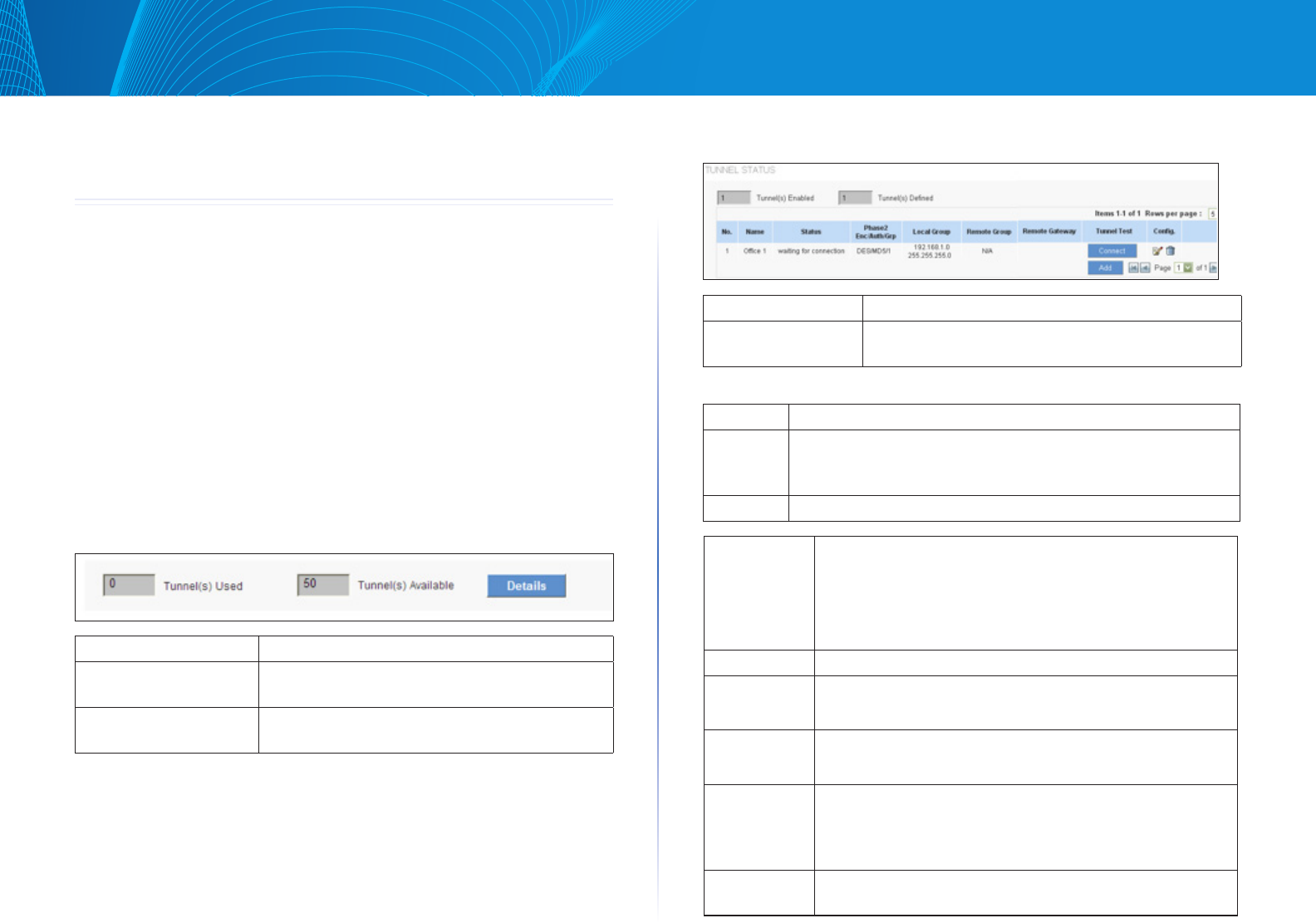

Summary

The Summary page features details on the current status of VPN tunnel. The

router supports up to 50 tunnels.

NOTE Summary information about PPTP only appears when you enable the

PPTP server.

Summary

Tunnel(s) Used: The number of VPN tunnels in use.

Tunnels Available: The total number of VPN tunnels the router will

support.

Detail: Click Refresh to update the data, or click Close to

return to summary page.

Tunnel Status

Tunnel(s) Enabled: How many tunnels are enabled by the administrator.

Tunnel(s) Defined: How many tunnels are defined by the administrator:

enabled and disabled.

The table displays the following information about each tunnel:

No.: Indicates the number of the tunnel.

Name: VPN tunnel connection name, such as XXX OfficeGive the

tunnels different names to avoid confusion if you have more

than one tunnel connected.

Status: Connected or Waiting for Connection.

Phase2

Encrypt/

Auth/Group:

Displays settings such as Encryption type (NULL/DES/3DES/

AES-128/AES-192/AES-256), Authentication method (NULL/

MD5/SHA1), and DH Group number (1/2/5)

If users select Manual setting for IPSec, Phase 2 DH group

will not display.

Local Group: Settings for local VPN connection secure group.

Remote

Group:

Settings for remote VPN connection secure group.

Remote

Gateway:

The IP address of the Remote Gateway.

Tunnel Test: Click “Connect” to verify the tunnel status. The test result will

be updated. To disconnect, click “Disconnect” to stop the

VPN connection. To delete tunnel settings, select a tunnel,

and then click the Delete icon.

Config.: Setting icons include Edit and Delete. Click on Edit to change

settings. Click Delete to remove all tunnel settings.

48

VPN

Linksys

Add: Add a new tunnel and choose Gateway to Gateway or Client

to Gateway..

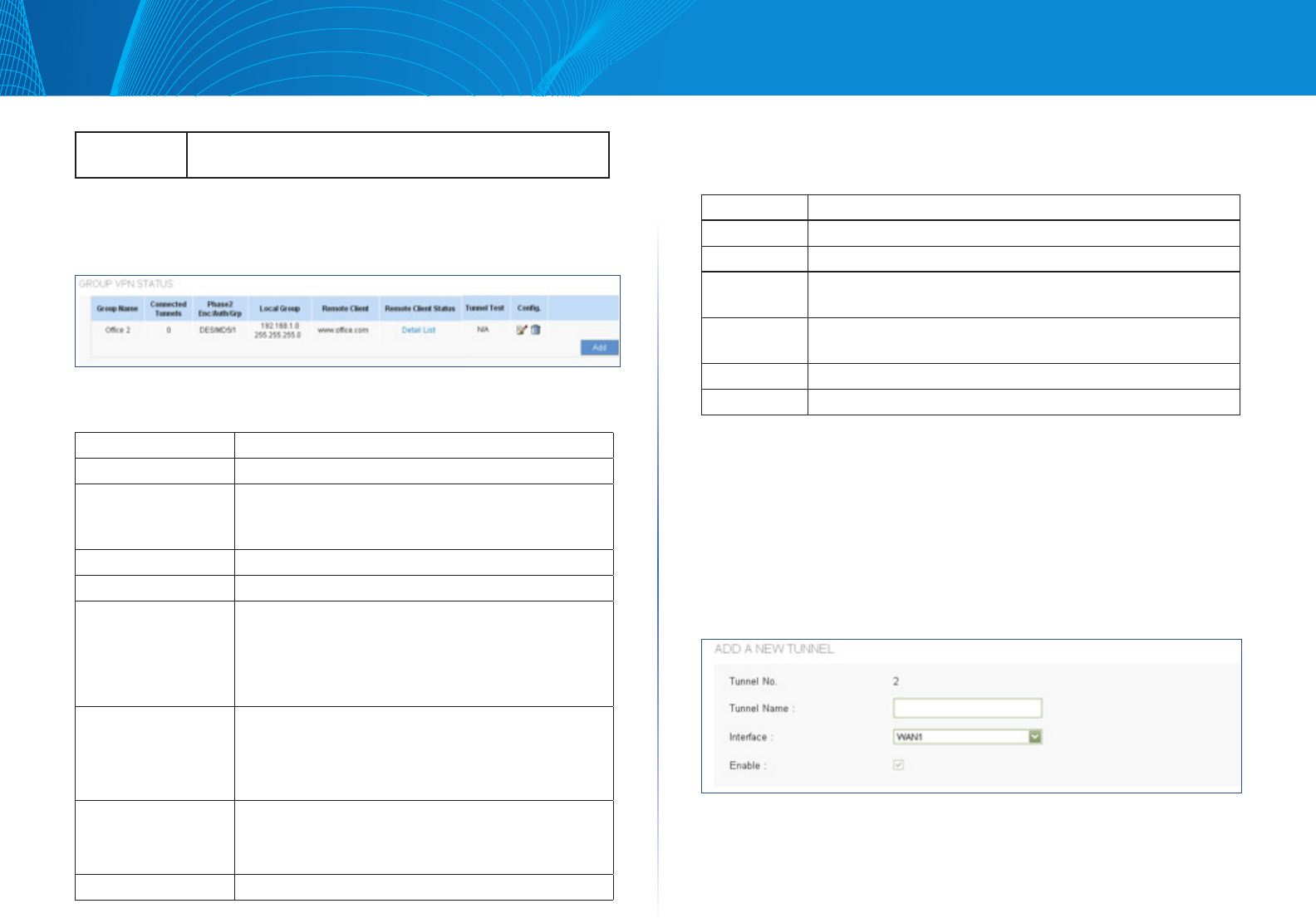

Group VPN Status

If you enable the Group VPN setting for any of your Client to Gateway tunnels,

the status information appears in this table.

Group Name: The current Group VPN name.

Connected Tunnels: The number of users logged into the group VPN.

Phase2 Enc/Auth/

Grp:

Settings such as Encryption type (NULL/DES/3DES/

AES-128/AES-192/AES-256), Authentication method

(NULL/MD5/SHA1), and DH Group number (1/2/5)

Local Group: The IP address and subnet mask of the Local Group.

Remote Client: The remote clients in the group VPN.

Remote Clients Status: Status of the remote clients: Online or Offline. Click

Detail List to open the Group List window. This

window indicates the Group Name, IP address, and

Connection Time. Click Refresh to update the data, or

click Close to return to the summary page.

Tunnel Test: Click Connect to verify the tunnel status. The test

result will be updated.

To disconnect, click “Disconnect” to stop the VPN

connection.

Config.: Setting items include Edit and Delete.

Click on Edit to change the settings. Click the Delete

icon to remove all tunnel settings.

Add: Click to add a new Group VPN.

VPN Client Status

This section identifies the VPN clients currently connected to the router.

No.: The ID number of the VPN client.

User Name: The name of the VPN client.

Status: The status of the VPN client connection.

Start Time: Time when the VPN client established its VPN connection to

the router.

End Time: The time when the VPN client ended its VPN connection to

the router.

Duration: The period of time that the VPN connection has been active.

Disconnect: Disconnect the selected VPN client.

Gateway to Gateway

Go to Configuration >VPN > Gateway to Gateway to add a new IPSec tunnel.

The following instructions will guide users to set a VPN tunnel between remote

client and the router.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes.

Add a New Tunnel

49

VPN

Linksys

Tunnel No.: Indicates the tunnel number.

Tunnel Name: Displays the current VPN tunnel connection name, such as

XXX Office. Users are well-advised to give them different

names to avoid confusion.

NOTE If this tunnel is to be connected to the other VPN

device, some device requires that the tunnel name

is identical to the name of the host end to facilitate

verification. This tunnel can thus be successfully enabled.

Interface: From the pull-down menu, users can select the WAN port

for this VPN tunnel.

Enable: Click to activate the VPN tunnel. This option is set to

activate by default.

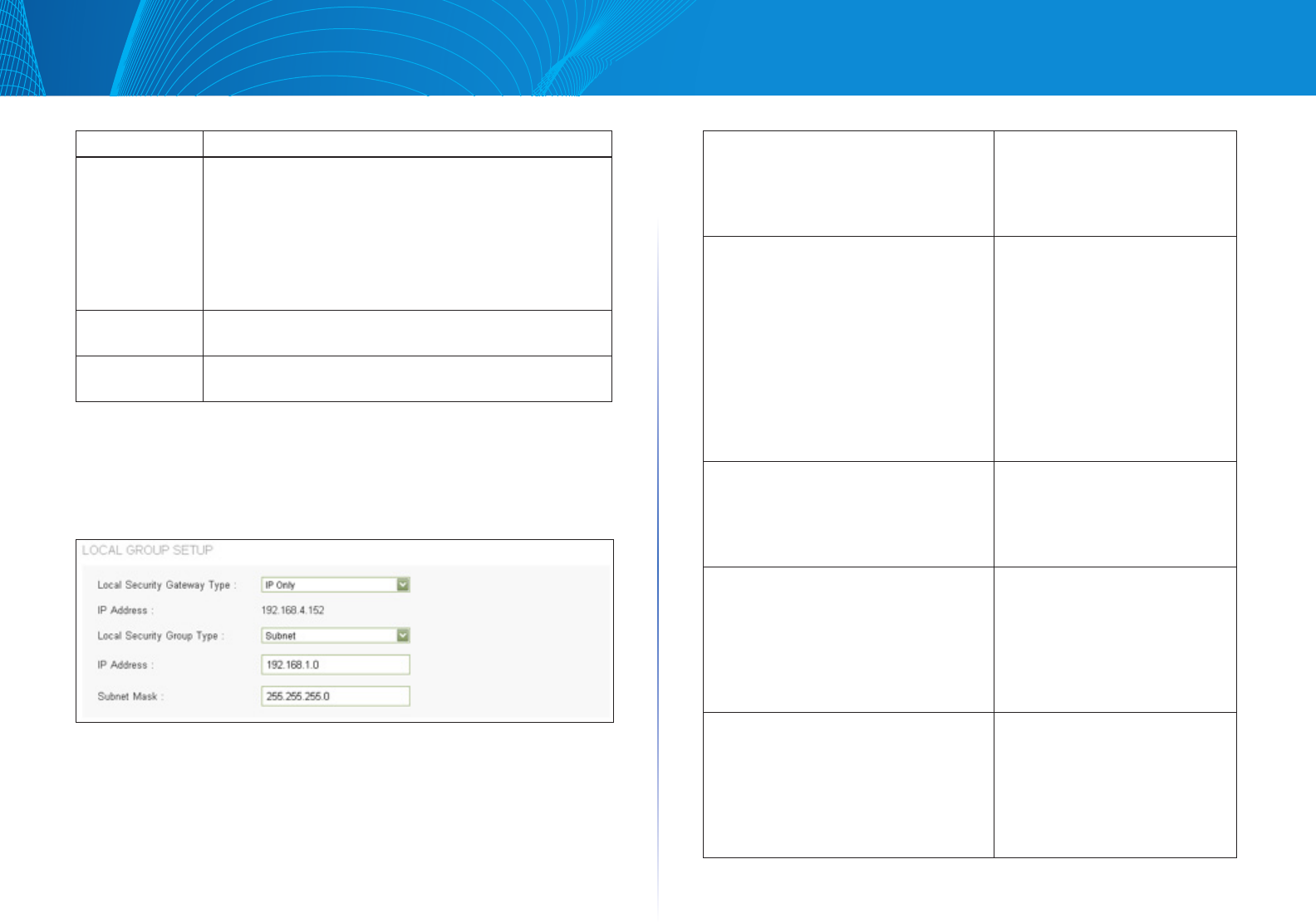

Local Group Setup and Remote Group Setup

The Local settings are for this router, and the Remote settings are for the router

on the other site of the tunnel. Mirror these settings when configuring the VPN

tunnel on the other router.

• Local/RemoteSecurityGatewayType:ThisLocalSecurityGatewayType

must be identical to the Remote Security Gateway Type of the remote peer.

IP Only: Entering the IP address is the

only way to access this tunnel.

The WAN IP address will be

automatically filled into this

space.

IP + Domain Name (FQDN)

Authentication:

The WAN IP address will be

automatically filled into this

column. FQDN refers to the

combination of host name

and domain name and can be

retrieved from the Internet,

e.g.,vpn.server.com. This IP

address and domain name must

be identical to those of the VPN

secure gateway setting type to

establish successful connection.

IP + E-mail Address (USER FQDN)

Authentication:

Enter the IP address and email

address to access this tunnel.

The WAN IP address will be

automatically filled into this

column.

Dynamic IP + Domain Name (FQDN)

Authentication:

If the remote VPN gateway

requires connection to the

device for VPN connection, this

device will start authentication

and respond to this VPN tunnel

connection. Enter the domain

name.

Dynamic IP + E-mail Address (USER

FQDN) Authentication:

When VPN Gateway requires for

a VPN connection, the device will

start authentication and respond

to VPN tunnel connection. If

users select this option to link to

VPN, enter the eMail address for

email authentication.

• Local/RemoteSecurityGroupType:

50

VPN

Linksys

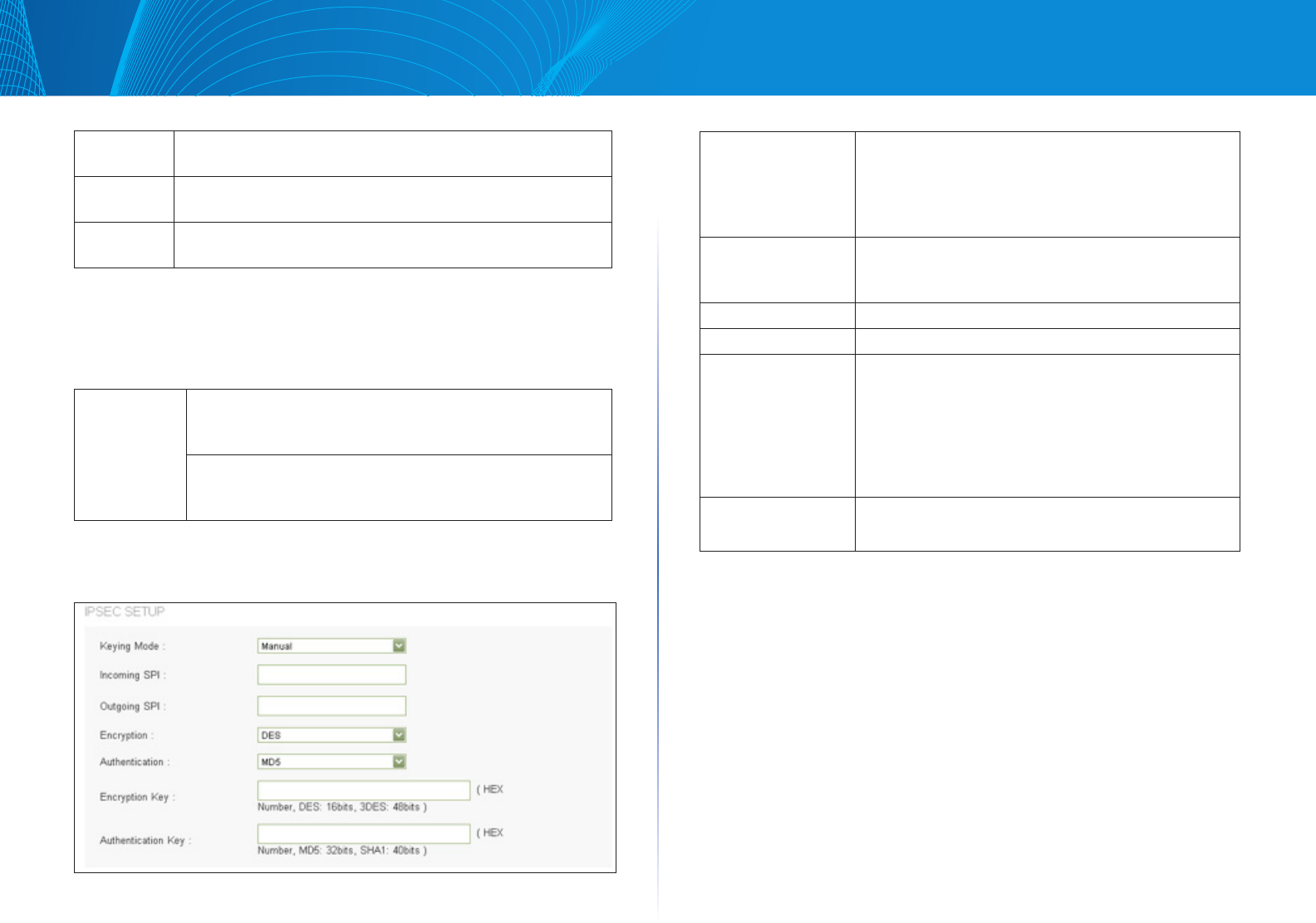

IP Address: Allows only the IP address that is entered to build the VPN

tunnel.

Subnet: Allows local computers in this subnet to connect to the VPN

tunnel.

IP Range: Allows a range of IP addresses to use this tunnel. Input the

beginning IP and the ending IP of the range.

IPSec Setup

NOTE The configuration on the remote router should be the same as the local

router.

Keying

Mode:

Manual: Choose if you want to configure a self-defined key

without negotiation. Encryption key and Authentication key

will be used to verify remote users.

IKE with Preshared Key: Authenticates remote users by a

pre-shared key, and negotiates the second key in phase 2.

IKE with Pre-shared Key is selected by default.

• Manual mode

Be sure to enter the same settings when configuring the other end router for

this tunnel.

Incoming SPI: Input a number between 100~ffffffff as SPI (Security

Parameter Index). SPI is an identification tag for an

IPSec association. The incoming SPI of this router

should be the same as the outgoing SPI at the other

end of the tunnel.

Outgoing SPI: Input a hexadecimal number between 100~ffffffff as

SPI. The outgoing SPI of this router should be the same

as the incoming SPI at the other end of the tunnel.

Encryption: DES or 3DES.

Authentication: MD5 or SHA1.

Encryption Key: Input 16 numbers for DES method or 48 numbers for

3DES method.

If you enter less than required values, zeroes will be

filled in to empty spaces.

Example: If you enter 12345678 for DES encryption,

the box will show “1234567800000000.”

Authentication

Key:

Enter 32 numbers for MD5 method or 40 numbers for

SHA1 encryption method.

• IKEwithPresharedKey

Be sure to enter the same settings when configuring the other end router for

this tunnel.

51

VPN

Linksys

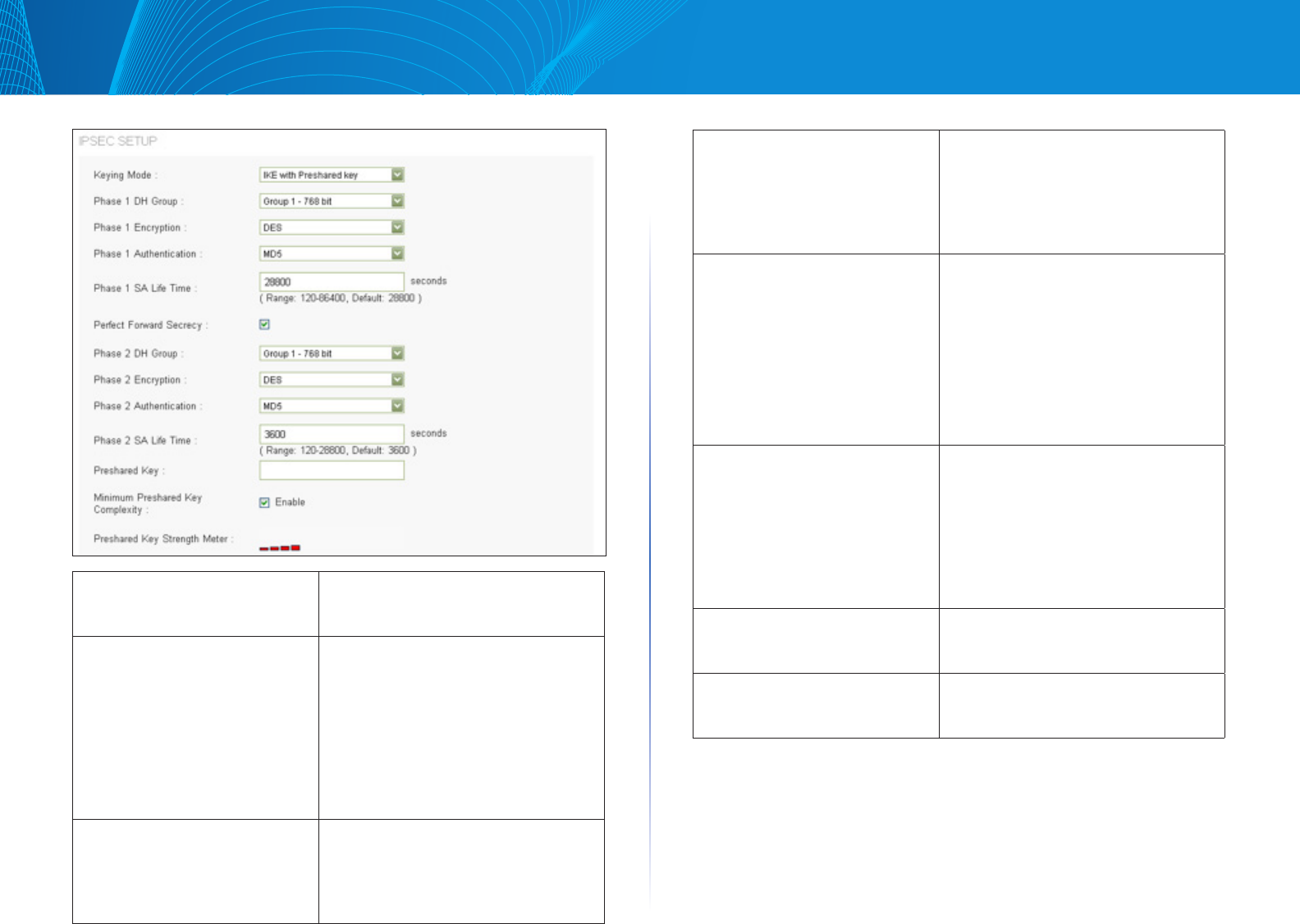

Phase 1 / Phase 2 DH Group: Allows users to select Diffie-Hellman

groups: Group 1/ Group 2/ Group 5. DH

is a key exchange protocol.

Phase 1 / Phase 2 Encryption: Allows users to set this VPN tunnel to

use any encryption mode. Note that this

parameter must be identical to that of

the remote encryption parameter: DES

(64-bit encryption mode), 3DES (128-bit

encryption mode), AES (the standard

of using security code to encrypt

information). It supports 128-bit, 192-

bit, and 256-bit encryption keys.

Phase 1 / Phase 2 Authentication: Allows users to set this VPN tunnel to

use any authentication mode. Note that

this parameter must be identical to that

of the remote authentication mode:

MD5 or SHA1.

Phase 1 / Phase 2 SA Life Time: The lifetime for this exchange code is set

to 28,800 seconds (8 hours) by default.

This allows the automatic generation

of other exchange passwords within

the valid time of the VPN connection to

guarantee security.

Perfect Forward Secrecy: Check to enable perfect forward secrecy

(PFS). The Phase 2 shared key generated

during the IKE coordination will conduct

further encryption and authentication.

When PFS is enabled, hackers using

brute force to capture the key will not

be able to get the Phase 2 key in such a

short period of time.

The function is checked by default.

Preshared Key: For the Auto (IKE) option, enter a

password of any digit or characters in the

text of Pre-shared Key, and the system

will automatically translate what users

entered as exchange password and

authentication mechanism during the

VPN tunnel connection. This exchange

password can be up to 30 characters.

Minimum Preshared Key

Complexity:

Check the box to enable Minimum Pre-

shared Key Complexity. The default is

enabled.

Preshared Key Strength Meter: Check the Minimum Pre-shared Key

Complexity box and a strength meter

will appear.

• Advanced(OnlyforIKEwithPre-sharedKeymode)

You can click Advanced+ to configure advanced settings for IKE with Pre-

shared key mode. To hide the settings, click Advanced-.

52

VPN

Linksys

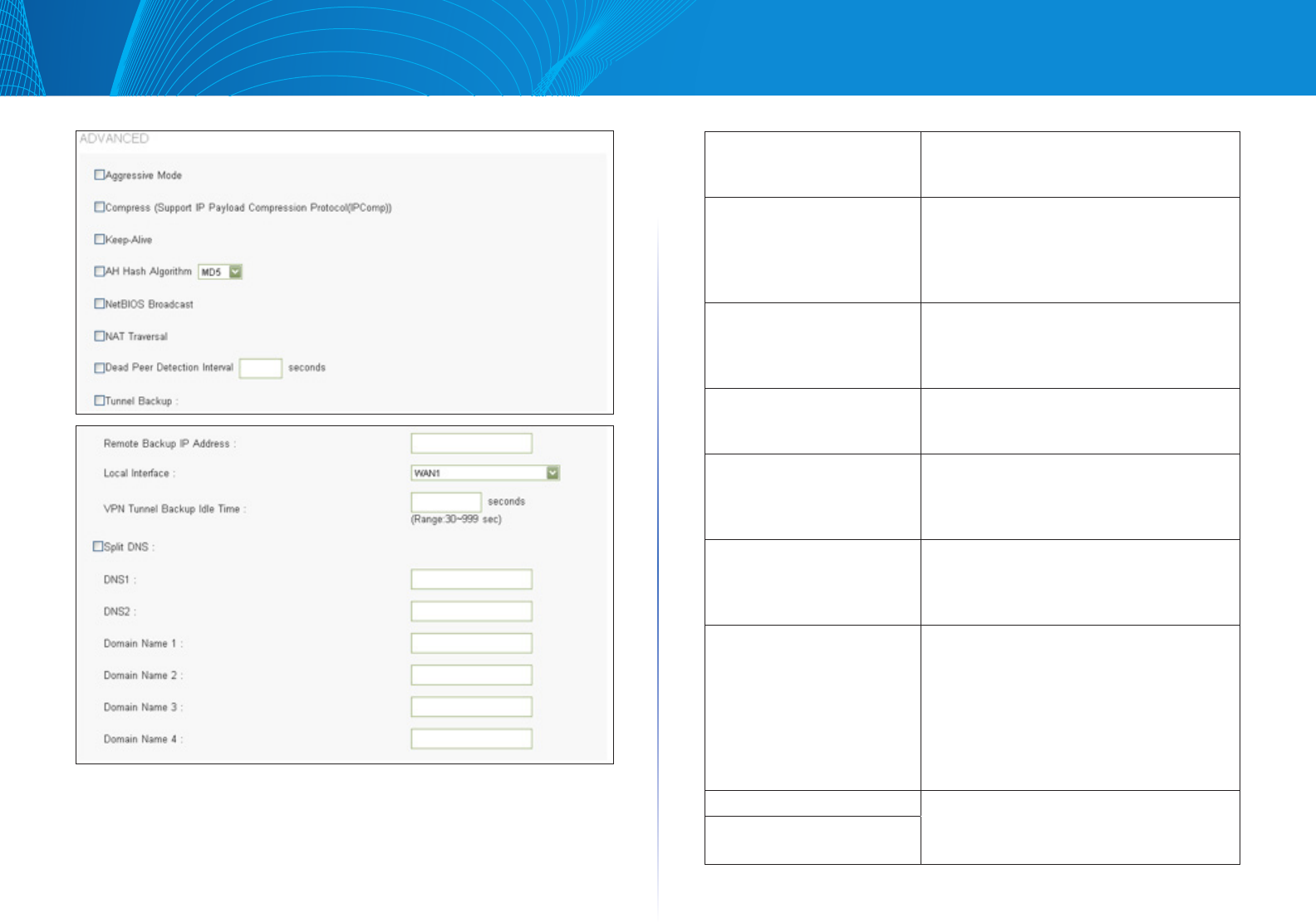

Aggressive Mode: Adopted by remote devices to enhance the

security control if dynamic IP is used for

connection.

Compress (Support IP

Payload Compression

Protocol (IP Comp)):

Reduces the size of IP datagrams. The

router will compress IP datagram size

when initiating a tunnel. When the router

works as a responder, it will always accept

compression.

Keep-Alive: The router will keep this VPN connection

when this function is enabled. Used to

connect the remote node and headquarters,

or used for the remote dynamic IP address.

AH Hash Algorithm: Enables the router to authenticate IP headers

to verify the integrity of packets transmitted

through the tunnel.

NetBIOS Broadcast: Ensures the passage of NetBIOS broadcast

packets. This facilitates the easy connection

with other Microsoft networks, but it also

increases the traffic using this VPN tunnel.

NAT Traversal: Allows IPSec traffic to pass through

devices that don’t support IPSec packets.

Recommended if your router is behind a NAT

gateway.

Dead Peer Detection (DPD): The router will regularly transmit HELLO/ACK

message packets to detect whether there is

connection between the two ends of the VPN

tunnel. If one end is disconnected, the device

will disconnect the tunnel automatically and

then create a new connection. Users can

define the transmission time for each DPD

message packet.

Tunnel Backup: Remote Backup IP Address:

Input an alternative IP address or original

WAN IP of the other end VPN router.

53

VPN

Linksys

Local Interface:

Choose the WAN port to connect the backup

tunnel.

VPN Tunnel Backup Idle Time:

If the primary tunnel doesn’t work within

configured period, the backup tunnel will be

connected. The default value is 30 seconds.

Split DNS: The router can send DNS requests to one DNS

server and other DNS requests to another

DNS server. If the address resolution requests

from clients match one of the configured

domain names, it will pass the request to the

assigned DNS server. Otherwise, the request

will be passed to the DNS server assigned to

the WAN port.

DNS1/DNS2: Input the IP address of the

DNS server to use for the specific domains.

Domain Name1~4:

Input the domain names to DNS servers

which the requests for these domains will be

passed to.

Client to Gateway

Go to Configuration > VPN > Client to Gateway to add a new IPSec tunnel.

NOTE Remember to click Save to save your settings before leaving the page.

You can also click Cancel to undo the changes.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

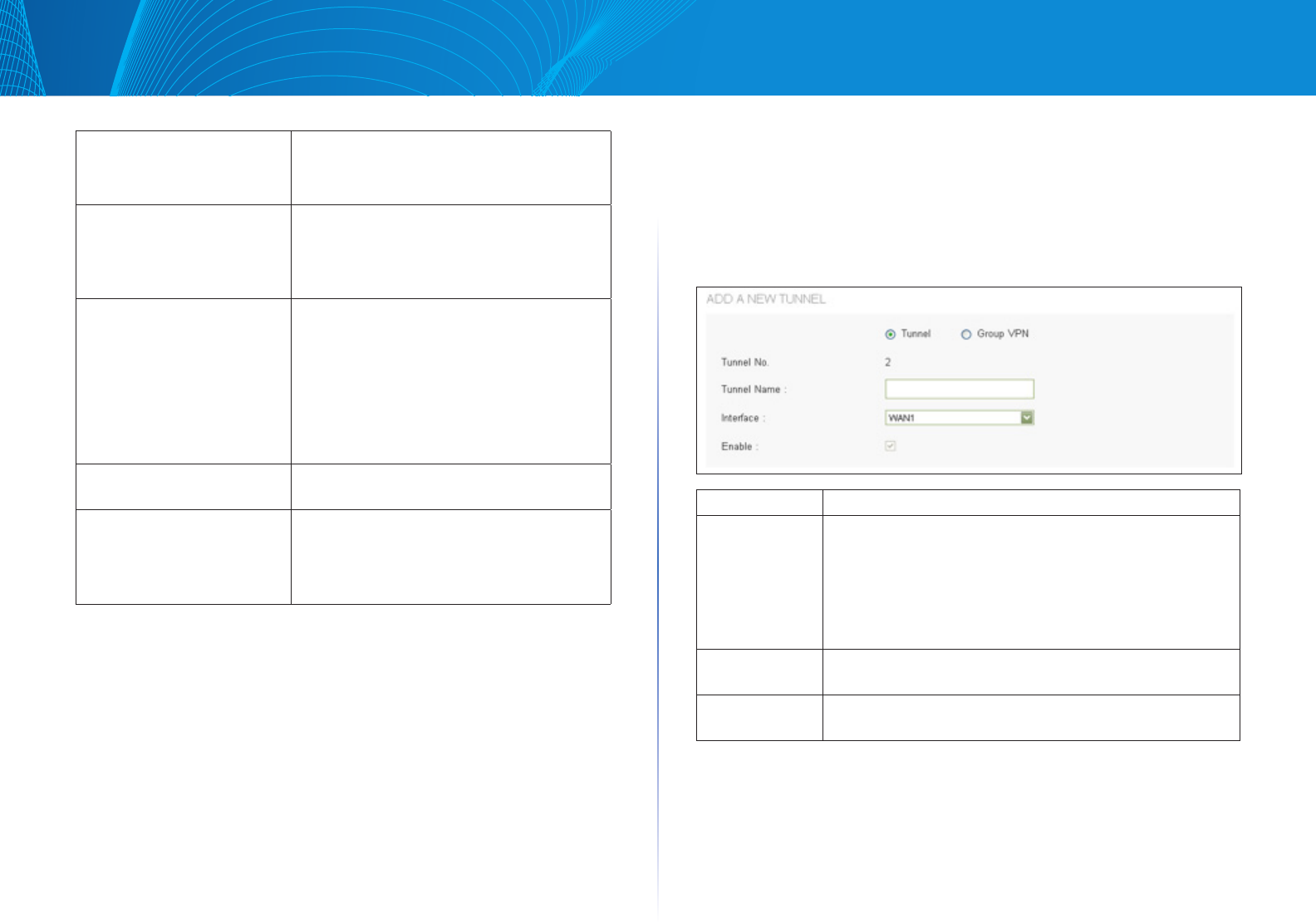

Add a New Tunnel

You can choose Tunnel to create a tunnel between single remote user and the

router, or choose Group VPN for a group of users.

Tunnel No.: Tunnel number.

Tunnel Name: Current VPN tunnel connection name, such as XXX Office.

Give them different names to avoid confusion.

Note: If this tunnel is to be connected to the other VPN

device, some devices require that the tunnel name

is identical to the name of the host end to facilitate

verification.

Interface: From the drop-down menu, select the WAN port for this

VPN tunnel.

Enable: Click to enable the VPN tunnel. This option is set to enabled

by default.

54

VPN

Linksys

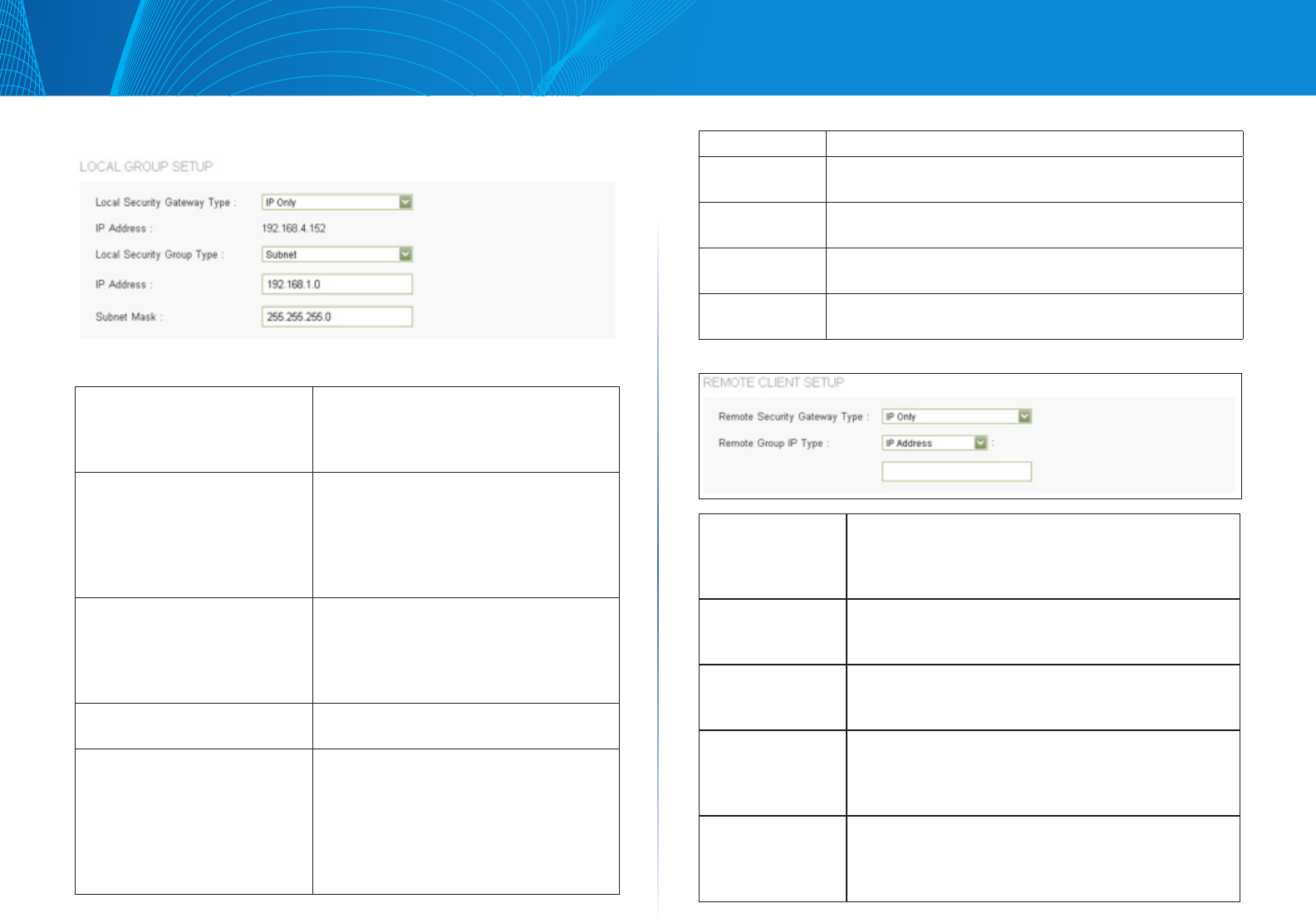

Local Group Setup

• LocalSecurityGatewayType:

IP Only: Must enter the IP address to gain access

to this tunnel. The WAN IP address will

be automatically filled into this space. No

further settings necessary.

IP + Domain Name (FQDN)

Authentication:

The WAN IP address will be automatically

filled into this field. No further settings

necessary. FQDN refers to the combination

of host name and domain name, and can

be retrieved from the Internet, e.g., vpn.

server.com.

IP + E-mail Address (USER

FQDN) Authentication:

If users select IP address and email, enter

the IP address and email address to access

to this tunnel. The WAN IP address will be

automatically filled into this space. No

further settings necessary.

Dynamic IP + Domain Name

(FQDN) Authentication:

If users select this option to link to VPN,

please enter the domain name.

Dynamic IP + E-mail Address

(USER FQDN) Authentication:

If using dynamic IP address to connect

to the device, select this option. When

VPN Gateway asks for VPN connection,

the device will start authentication and

respond to VPN tunnel connection. If users

select this option to link to VPN, enter email

address for email authentication.

•Local Security Group Type allows users to set the local VPN connection

access type.

IP Address: Designates the IP address to build the VPN tunnel.

Subnet: Allows local computers in this subnet to connect to the

VPN tunnel.

IP Range: Allows a range of IP addresses to use this tunnel. Input IPs

for the beginning and the end of the range.

Domain Name: Input the domain name if Domain Name (FQDN)

Authentication is selected.

Email Address: Input the email address if Email Address (USER FQDN)

Authentication is selected.

Remote Client Setup for Single Remote User (Tunnel is Chosen.)

IP Only:Must enter the IP address to access to this tunnel.

You can also select IP by DNS Resolved, and enter the

domain name of the client on the Internet. The router

will automatically get the IP address by DNS Resolved.

IP + Domain

Name (FQDN)

Authentication:

Enter the domain name and IP address.

IP+E-mailAddress

(USER FQDN)

Authentication:

Enter the IP address (Or IP By Resolved) and email

address.

Dynamic IP

+ Domain

Name (FQDN)

Authentication:

Enter the domain name to authenticate the client. The

domain name can be used for only one tunnel.

Dynamic IP +

E-mail Address

(USER FQDN)

Authentication:

Enter the email address to authenticate the client.

55

VPN

Linksys

Remote Client Setup for Group VPN

Specify the method for identifying the clients to establish the VPN tunnel. The

following options are available for a Group VPN.

Domain

Name (FQDN)

Authentication:

Enter a domain name to use for authenticating remote

users. The domain name must be unique for each

tunnel.

E-mail Address

(USER FQDN)

Authentication:

Enter an email address for authenticating remote

users. The email address must be unique for each

tunnel.

Microsoft XP/2000

VPN Client:

Select this option if the clients use VPN client software

built in to Microsoft XP/2000.

IPSec Setup

Enter the Internet Protocol Security settings for this tunnel.

NOTE The configuration on remote client software should be the same as the

local router.

Keying Mode: Manual: If you want to configure a self-defined key

without negotiation. Encryption key and Authentication

key will be used to verify remote users.

Note: Manual mode is not supported in Group VPN mode.

IKE with Preshared Key:If you want to authenticate

remote users by a pre-shared key and then negotiate the

second key in phase 2. IKE with Pre-shared Key is selected

by default.

• Manualmode

Enter the settings for manual mode. Be sure to enter the same settings when

configuring the other end router for this tunnel.

Incoming SPI: Input a number between 100~ffffffff as SPI

(Security Parameter Index). SPI is an identification

tag of an IPSec association. The incoming SPI of

this router should be the same as the outgoing SPI

of the other end of the tunnel.

Outgoing SPI: Input a number between 100~ffffffff as SPI. The

outgoing SPI of this router should be the same as

the incoming SPI of the other end of the tunnel.

Encryption: DES or 3DES.

Authentication: MD5 or SHA1.

Encryption Key: Input number as encryption key. You should enter

16 numbers for DES method or 48 numbers for

3DES method.

If you enter less than required values, zeroes will

be filled in to empty spaces. Example: If you enter

12345678 for DES encryption, the box will show

“1234567800000000.”

Authentication Key: Input number as authentication key. You should

enter 32 numbers for MD5 method or 40 numbers

for SHA1 method.

• IKE with Preshared Key

56

VPN

Linksys

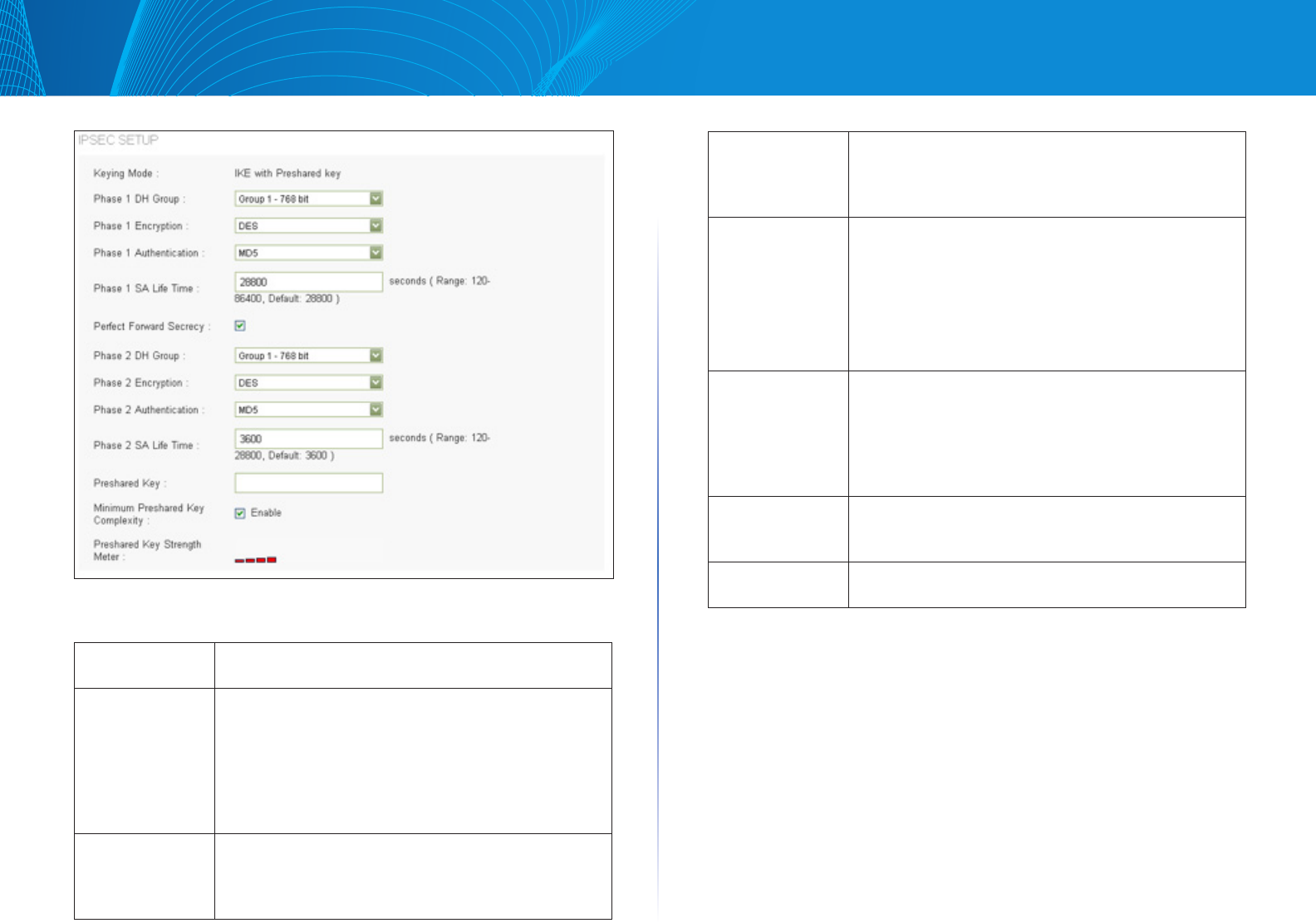

Enter the settings for IKE with preshared key mode. Be sure to enter the same

settings when configuring the other end router for this tunnel.

Phase 1 / Phase 2

DH Group:

Allows users to select Diffie-Hellman groups: Group 1/

Group 2/ Group 5. DH is a key exchange protocol.

Phase 1 / Phase 2

Encryption:

Allows users to set this VPN tunnel to use any encryption

mode. Note that this parameter must be identical to

that of the remote encryption parameter: DES (64-bit

encryption mode), 3DES (128-bit encryption mode),

AES (the standard of using security code to encrypt

information). It supports 128-bit, 192-bit, and 256-bit

encryption keys.

Phase 1 / Phase 2

Authentication:

Allows users to set this VPN tunnel to use any

authentication mode. Note that this parameter must

be identical to that of the remote authentication mode:

“MD5” or “SHA1”.

Phase 1 / Phase 2

SA Life Time:

The lifetime for this exchange code is set to 28,800

seconds (8 hours) by default. This allows the automatic

generation of other exchange passwords within the

valid time of the VPN connection to guarantee security.

Perfect Forward

Secrecy:

Check to enable perfect forward secrecy (PFS) The Phase

2 shared key generated during the IKE coordination will

conduct further encryption and authentication. When

PFS is enabled, hackers using brute force to capture the

key will not be able to get the Phase 2 key in such a short

period of time.

The function is checked by default.

Preshared Key: For the Auto (IKE) option, enter a password of any digit

or characters in the text of Pre-shared Key, and the

system will automatically translate what users entered

as exchange password and authentication mechanism

during the VPN tunnel connection. This exchange

password can be up to 30 characters.

Minimum

Preshared Key

Complexity:

Check the box to enable Minimum Preshared Key

Complexity.

Preshared Key

Strength Meter:

Check the MinimumPre-sharedKeyComplexity box

and a strength meter will appear.

• Advanced (Only for IKE with Preshared Key mode)

You can click Advanaced+ to configure advanced settings for IKE with

Preshared key mode. To hide the settings, please click Advanced-.

57

VPN

Linksys

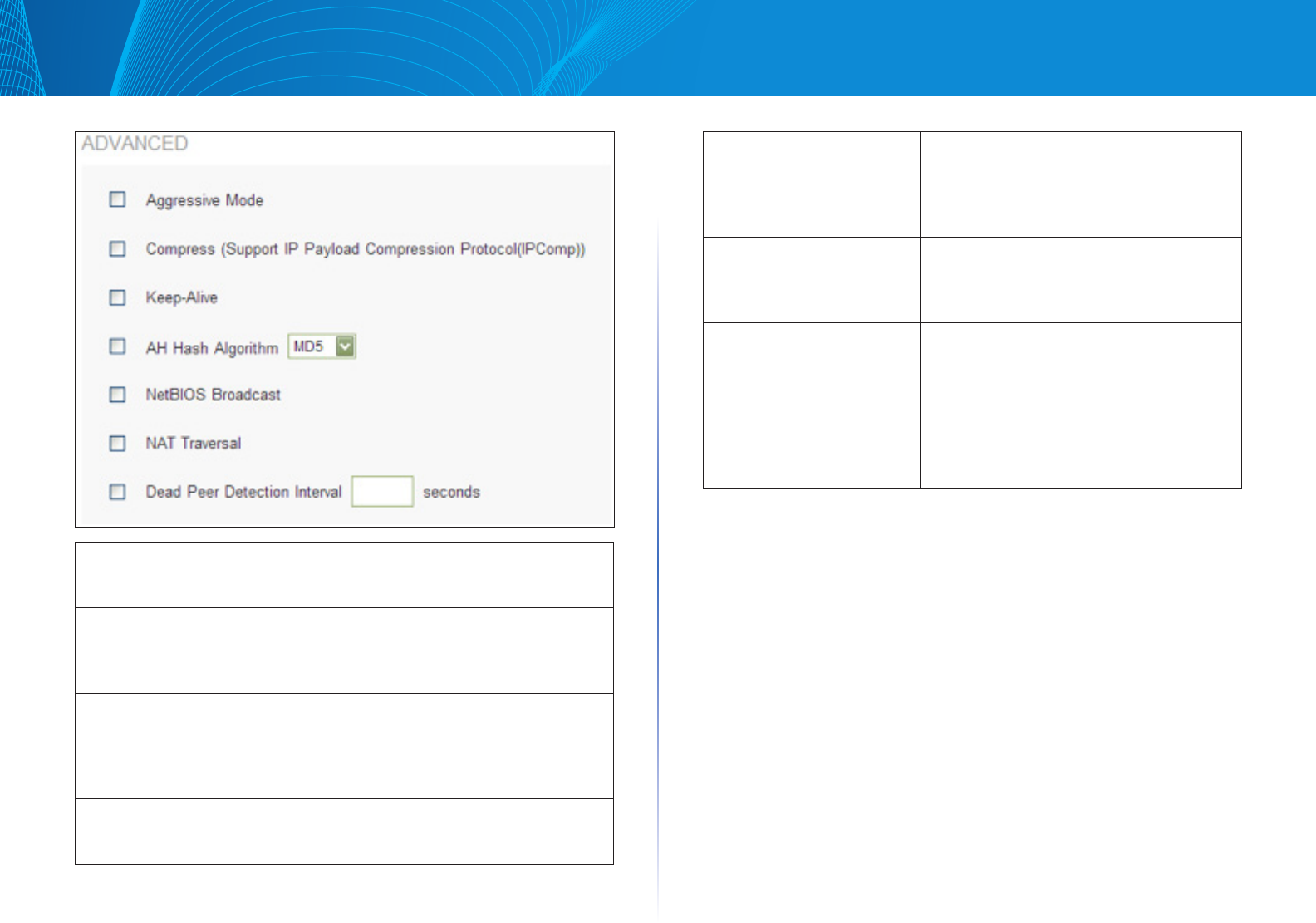

Aggressive Mode:Adopted by remote devices to enhance the

security control if dynamic IP is used for

connection.

Compress (Support IP

Payload Compression

Protocol (IP Comp)):

Reduces the size of IP datagrams. The

router will compress IP datagram size when

initiating a tunnel. When the router works as a

responder, it will always accept compression.

Keep-Alive: The router will keep this VPN connection

when this function is enabled. Used to

connect the remote node and headquarters

or used for the remote dynamic IP address.

AH Hash Algorithm: Enables the router to authenticate IP

header to verify the integrity of the packets

transmitted through the tunnel.

NetBIOS Broadcast: Ensures the passage of NetBIOS broadcast

packets. This facilitates the easy connection

with other Microsoft network, but it also

increases the amount of traffic using this

VPN tunnel.

NAT Traversal: Allows IPSec traffic to pass through

devices that don’t support IPSec packets.

Recommended if your router is behind a

NATgateway.

Dead Peer Detection (DPD): The router will regularly transmit HELLO/ACK

message packets to detect whether there is a

connection between the two ends of the VPN

tunnel. If one end is disconnected, the device

will disconnect the tunnel automatically and

then create a new connection. Users can

define the transmission time for each DPD

message packet.

58

VPN

Linksys

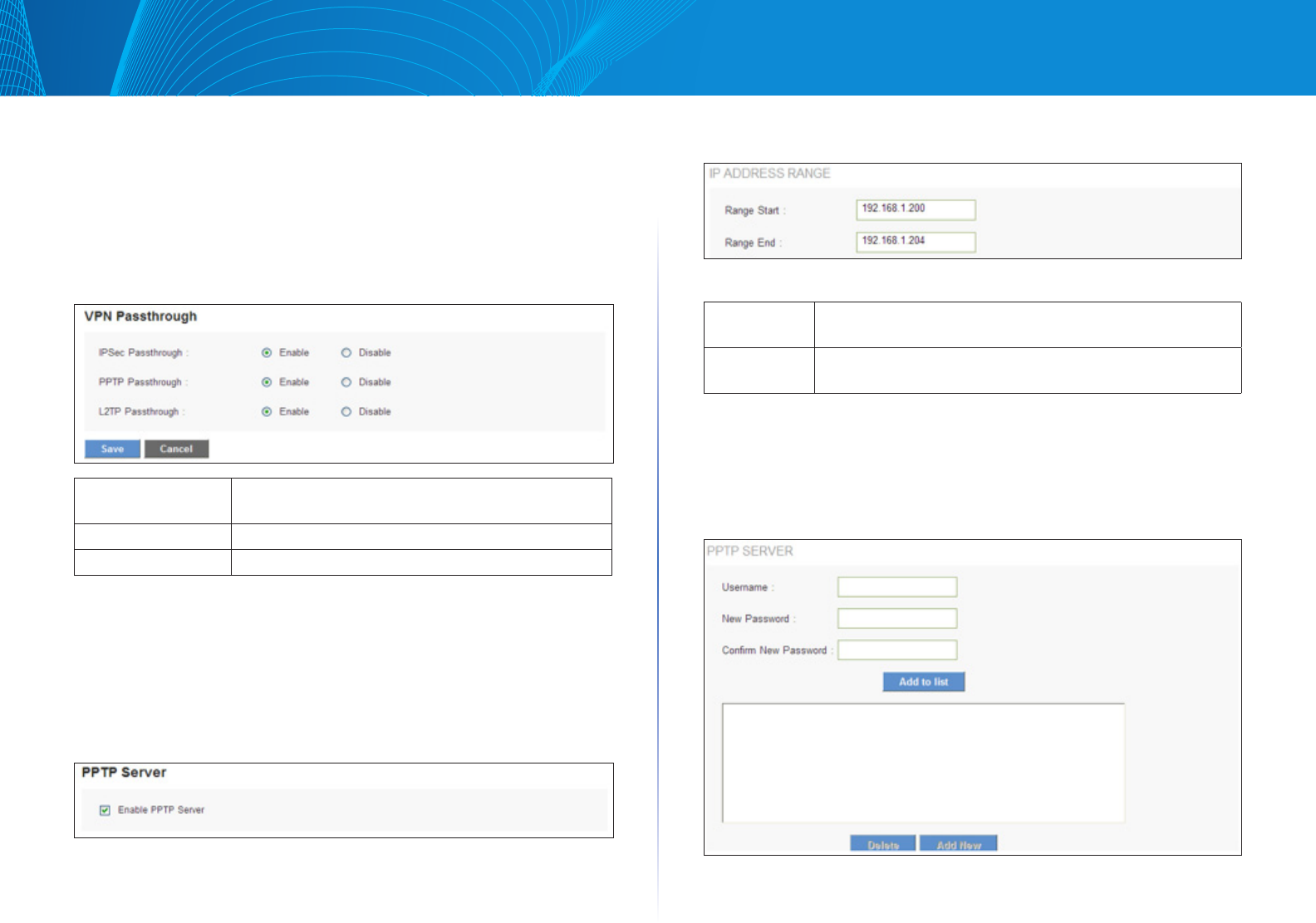

VPN Passthrough

Enable VPN passthrough to allow VPN clients to pass through the router.

You can also disable the VPN passthrough to block VPN connection. Use the

Device Configuration > VPN > VPN Passthrough page to enable or disable VPN

passthrough.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

IPSec Pass Through: If enabled, IPSec tunnel is allowed to pass through the

router.

PPTP Pass Through: If enabled, PPTP is allowed to pass through the router.

L2TP Pass Through: If enabled, L2TP is allowed to pass through the router.

PPTP Server

Use the Configuration > VPN > PPTP Server page to enable PPTP (Point-to-

Point Tunneling Protocol) VPN tunnels for users who are running PPTP client

software on Microsoft Windows.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to leave without any change.

Check the Enable PPTP Server box to allow PPTP VPN tunnels. Uncheck the

box to disable this feature. It is disabled by default.

IP Address Range

Range Start: Enter the first address of LAN range to assign to the PPTP

VPN clients.

Range End: Enter the final address of LAN range to assign to the PPTP

VPN clients.

The default range is 192.168.1.200 to 92.168.1.204. The LAN IP address range

for PPTP VPN clients should be outside of the normal DHCP range of the router.

PPTP Server

Add or edit the list of PPTP VPN users.

59

VPN

Linksys

To add a user to the list: Enter the information identified in NOTE

(below), and click Add to list.

To add another new user: Enter the information identified in NOTE

(below), and click Add to list.

To modify a user on the

list:

Click the entry that you want to modify. Make

changes, and click Update. If you do not need

to make changes, you can click Add New to

deselect the entry and clear the text fields.

To delete a user from the

list:

Click the entry that you want to delete. To

select a block of entries, click the first entry,

hold down the Shift key, and click the final

entry in the block. To select individual entries,

hold down the Ctrl key while clicking. Click

Delete.

NOTE

Username: Enter a name.

New Password: Enter a password.

Confirm New Password: Re-enter the password.

Connection List

The following read-only information appears. You can click Refresh to update

the data.

Username: Name of the PPTP VPN client.

Remote Address: WAN IP address of the PPTP VPN client.

PPTP IP Address: LAN IP address that the PPTP server assigned to the

client upon connection.

EasyLink VPN

Summary

EasyLink VPN replaces the conventional complicated VPN setup process by

entering Server IP, User Name, and Password.

Go to Configuration > EasyLink VPN > Summary to see the summary page.

EasyLink VPN Server Status

Enable Indicates whether EasyLink VPN server is

enabled or disabled. You can go to EasyLink

VPN Server setting page to change the

configuration.

Protocol Indicates current EasyLink VPN handshaking

protocol.

Encryption/ Authentication/

DH Group

Indicates encryption /authentication/ DH

Group mode. For example, 3DES/ MD5/ Group

2 -1024 bit

Config. Click the Edit icon to get into EasyLink VPN

Server setting page.

Inbound EasyLink VPN Status

Use the Rows per page list at the top right corner of the table to decide the number

of rules to display on each page and use the Page list to choose a particular page.

Enable Indicates whether the specified EasyLink VPN client is

enabled or disabled. You can go to Inbound EasyLink VPN

setting page to change the configuration.

Account Indicates the user names of remote clients.

Status The status of the tunnel: Connected or Waiting for Connection.

Local Group The setting for VPN connection secure group of the local end.

Remote Gateway The IP address of the Remote Gateway.

Remote Group Setting for remote VPN connection secure group.

Tunnel Test Click Connect to verify the tunnel status. The test result will

be updated.

To disconnect, click Disconnect to stop the VPN connection.

To delete tunnel settings, select a tunnel, and then click the

Delete icon.

Config. Click the Edit icon to get into Inbound EasyLink VPN setting

page. You can also click the trash can icon to delete the client

configuration.

60

VPN

Linksys

Inbound EasyLink VPN

This page allows the administrator to add a new inbound EasyLink VPN user

(intiator). The role of the router is responder.

Go to EasyLink VPN > Inbound EasyLink VPN to add a new remote user

configuration.

NOTE Click Save before leaving the page or the configuration will be

abandoned. Click Cancel to undo the changes.

NOTE To edit an existing inbound Easylink VPN user, go to Easylink VPN

summary page and click the Edit icon of the corresponding VPN user.

Add a New Account

VPN Role Indicates the role of the router is Responder.

Enable Indicates whether the specified inbound EasyLink

VPN account is enabled or disabled.

Account Name The username of remote user.

Password The user password of remote user.

Authentication

Port

Indicates authentication port.

Local Security

Group Type

Local security group type is Subnet.

IP Address Input LAN IP address of the router.

Subnet Mask Input subnet mask of the router.

Outbound EasyLink VPN

This page will introduce how to configure outbound EasyLink VPN. The role of

the router is a tunnel initiator.

The router only supports one outbound Easylink VPN connection.

Go to EasyLink VPN > Outbound EasyLink VPN to configure.

NOTE Click Save before leaving the page or the configuration will be

abandoned. Click Cancel to undo the changes.

Edit Account

VPN Role Indicates the role of the router is Initiator.

Enable Check to enable outbound Easylink VPN connection or

uncheck to disable.

Account Name Input the username to make an outbound Easylink VPN

connection.

Password Input the required password to make an outbound

Easylink VPN connection.

Primary Server Input the IP address of remote server.

Secondary Server Input the IP address of secondary remote server.

Authentication

Port

Select the authentication port.

Keep Alive Check the box to enable Keep Alive.

Local Security

Group Type

Indicates local security type as Subnet.

IP Address Input local IP address.

Subnet Mask Input local subnet mask.

61

OpenVPN

Linksys

61

OpenVPN

Summary

The router supports up to five OpenVPN tunnels. OpenVPN is a SSL/TLS-based

technique to create secure point-to-point tunnel connection.

Go to Configuration > OpenVPN > Summary to check summary page.

OpenVPN Server Status

Enable: Indicates OpenVPN server is enabled or disabled.

Go to OpenVPN Server setting page to change the

configuration.

Valid Duration: The duration in which the certificate is valid. For an

example, from2013-06-01 to 2014-06-01.

Authentication

Type:

Password, Certificate or Password+Certificate.

Protocol: TCP or UDP. For example, TCP443 or UDP1194.

Encryption: Encryption mode.

Security Subnet: The subnet to which OpenVPN client can connect.

Config.: Click the Edit icon to get into OpenVPN Server setting page.

OpenVPN Client Status

You can use the Rows per page list at the top right corner of the table to decide

the number of rules to display on each page and use the Page list to choose a

particular page.

Enable: Indicates the specified OpenVPN client is enabled

or disabled. Go to OpenVPN Client setting page to

change the configuration.

Valid Duration: The duration in which the certificate is valid. For an

example, From: 2013-06-01 To: 2014-06-01.

Name: The client’s name.

Remote IP Address: WAN IP address of the router.

Virtual IP Address: The virtual IP address assigned to the OpenVPN

client.

Status: Current OpenVPN clients. Disconnect button will

appear when client connects to server. Pushing the

button disconnects the tunnel.

Export: Click the OpenVPN logo to generate client

configuration. Client users can import this .ovpn file

to their mobile device or PCs to create an OpenVPN

tunnel to the router.

Config.: Click the Edit icon to get into OpenVPN Client setting

page. You can also click the trash can icon to delete

the client configuration.

You can also click Add button under the OpenVPN client table to configure a

new OpenVPN client.

OpenVPN Server

This page will introduce how to configure OpenVPN server. Check the box to

enable OpenVPN server or uncheck to disable.

62

OpenVPN

Linksys

NOTE Remember to click Save before leaving the page. You can also click Cancel

to undo the changes.

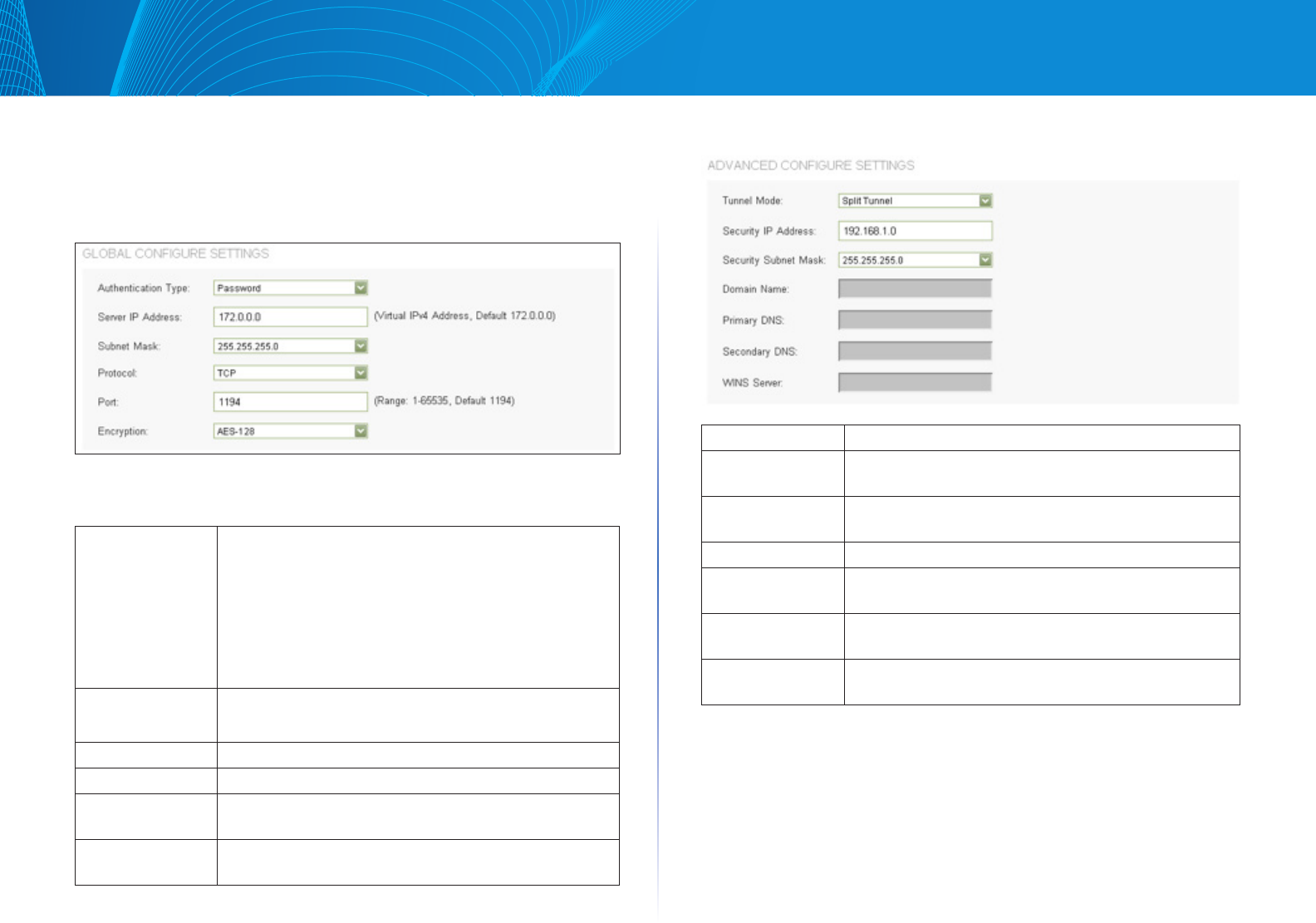

Global Configuration Setting

Authentication

Type:

Password, Certificate or Password+Certificate.

Certificate Setting will be hidden when Password is

selected.

Note When you change authentication type, all client

configurations and current used certificates will be

cleaned up. A warning message will appear after clicking

Save. You need to confirm again to save the change..

Server

IP Address:

Input a virtual IPv4 address for the server. 172.0.0.0 is the

default value.

Subnet Mask: Input the IPv4 subnet mask.

Protocol: Choose handshaking protocol as TCP or UDP.

Port: Configure OpenVPN server listen port. 1194 is the default

value.

Encryption: Select encryption mode: NULL, DES, 3DES, AES-128,

AES-192andAES-256.

Advanced Configure Setting

Tunnel Mode Split Tunnel and Full Tunnel.

Security IP

Address

Configure allowable subnet for OpenVPN clients.

Security Subnet

Mask

These two items only can be set on Split Tunnel mode.

Domain Name Input Domain Name when Full Tunnel mode is selected.

Primary DNS Input primary DNS server IP address when Full Tunnel

mode is selected.

Secondary DNS Input secondary DNS server IP address when Full Tunnel

mode is selected.

WINS Server You can also configure WINS server for OpenVPN server

when Full Tunnel mode is selected.

63

OpenVPN

Linksys

Certificate Setting

If you select Certificate or Password+Certificate as authentication type, you

have to configure the certificate here. (* indicates required field)

Country Name (C) Select a country for server certificate.

State or Province

Name (ST)

Input state or province name.

Locality Name (L) Input locality name (city, town or other municipal

jurisdiction).

Organization

Name (O)

Input organization name. Example: Linksys LLC.

Organizational

Unit Name (OU)

Input organization unit. Example: Accounting.

Common Name

(CN)

Input a common name for the certificate.

Email Address (E) Input an email address.

Key Encryption

Length

1024 or 2048.

Valid Through The date the certificate will expire. The start date will be

today.

64

OpenVPN

Linksys

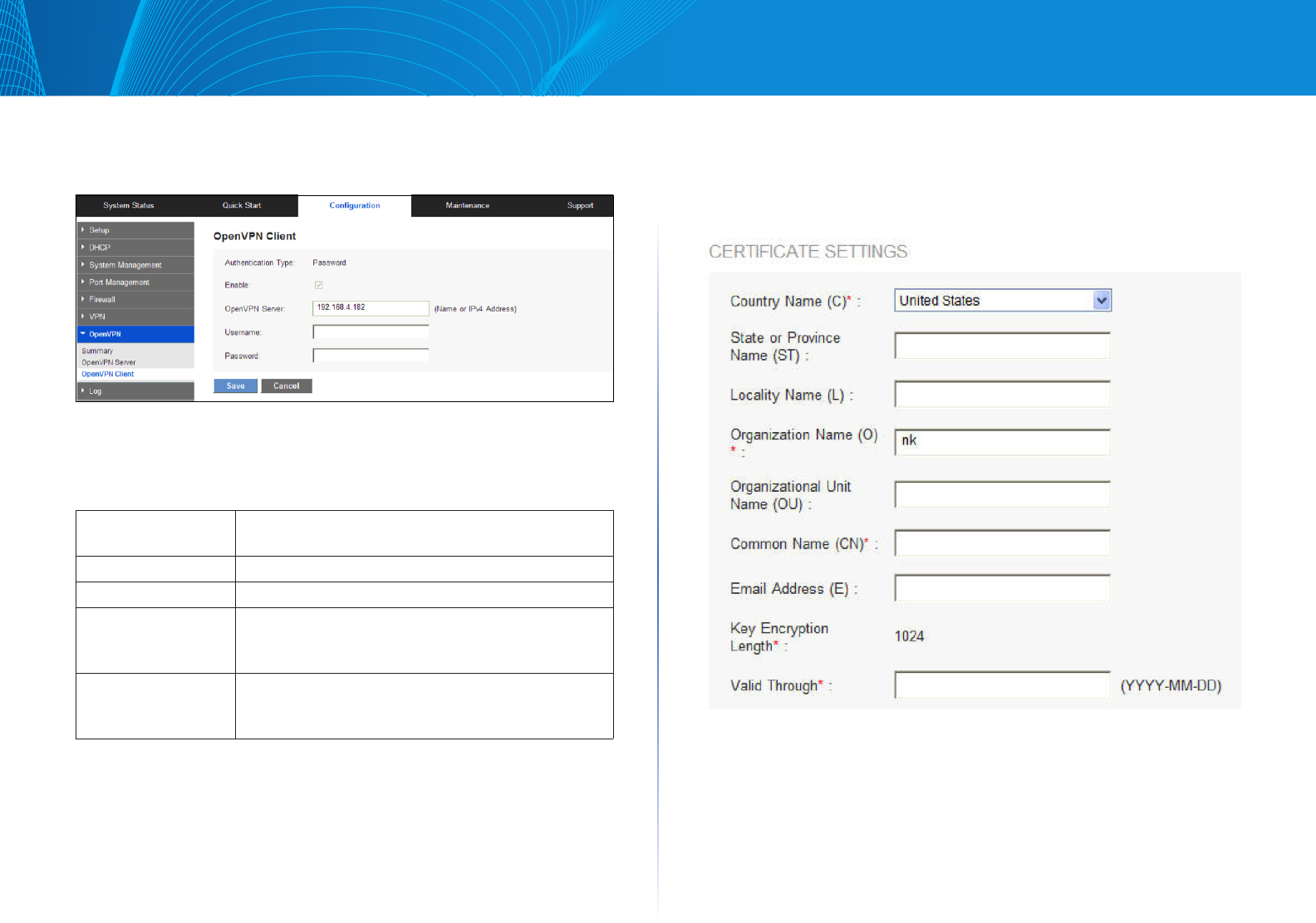

OpenVPN Client

Go to OpenVPN > OpenVPN Client to add a new client configuration.

You can also click the edit icon or Add button in summary page to get into

setting page.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to undo the changes.

Authentication

Type

Current authentication type.

Enable Enabled or disabled.

OpenVPN Server OpenVPN server IPv4 address or DNS resolved name.

Username Give a username to the OpenVPN client. It can only

be edited for Password or Password+Certificate

authentication type.

Password Input the password to the OpenVPN client. It can

only be edited for Password or Password+Certificate

authentication type.

Certificate Setting

If you select Certificate or Password+Certificate as authentication type, you

have to configure the certificate here. (* indicates required field)

65

OpenVPN

Linksys

Country Name (C) Select a country for server certificate.

State or Province Name

(ST)

Input state or province name.

Locality Name (L) Input locality name (city, town or other municipal

jurisdiction).

Organization Name (O) Input organization name. Example: Linksys LLC.

Organizational Unit

Name (OU)

Input organization unit. Example: Accounting.

Common Name (CN) Input a common name for the certificate.

Email Address (E) Input an email address.

Key Encryption Length 1024 or 2048.

Valid Through The date the certificate will expire. The start date

will be today.

66

Log

Linksys

Log

The router has the real-time surveillance management feature that provides

information about current system operation. From the log management and

look up, we can see the relevant operation status and traffic statistics. Setup

error and attack alerts here.

System Log

Go to Device Configuration > Log > System Log page to configure syslog and

alerts. You can also view the log tables here.

NOTE Remember to click Save before leaving the page. You can also click

Cancel to leave without any change.

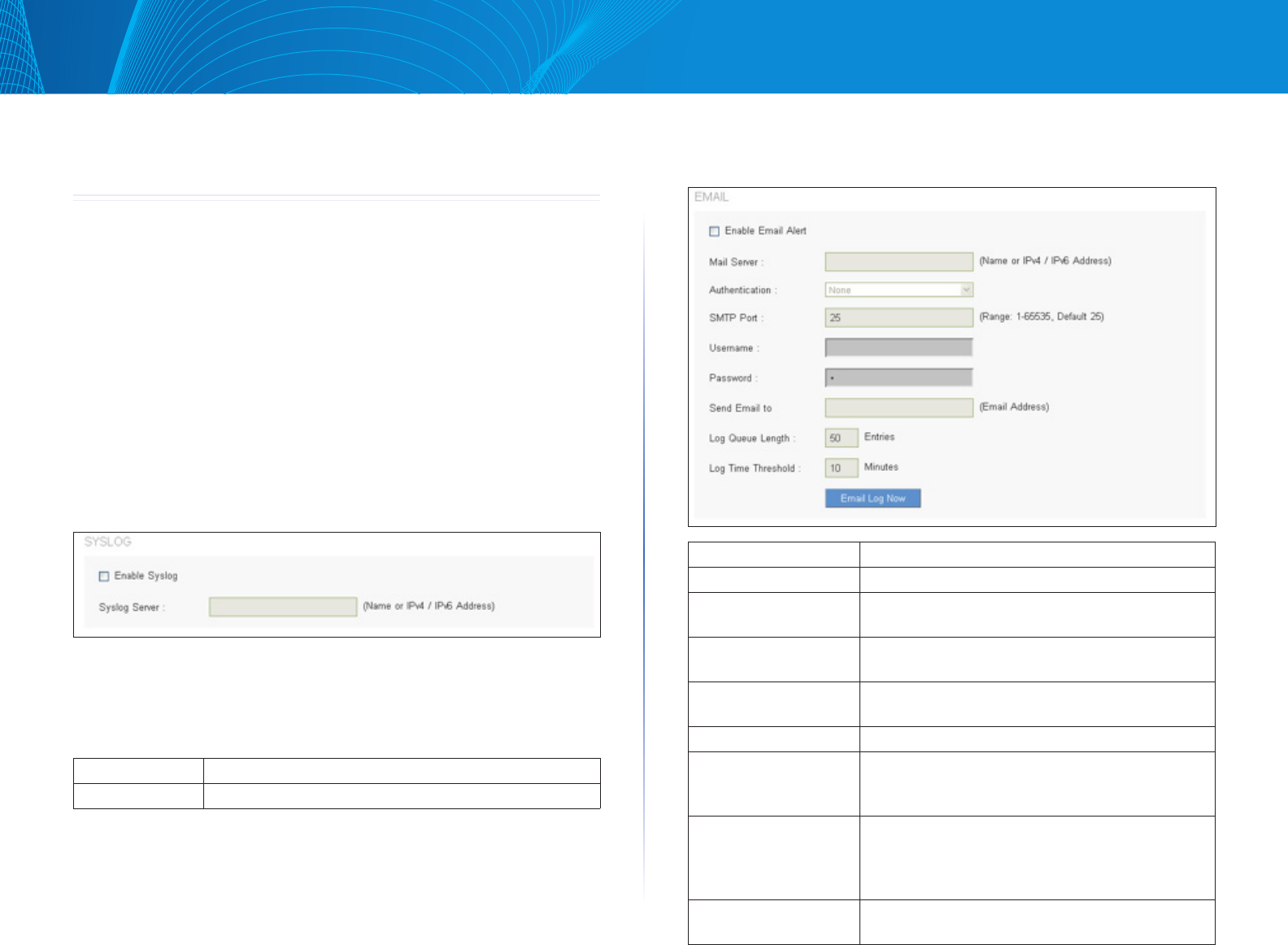

Syslog

The device provides external system log servers with a log collection feature.

System log is an industrial standard communications protocol, which is

designed to dynamically capture related system messages from the network.

The system log provides the source and the destination IP addresses during the

connection, service number, and type.

Enable Syslog Check to enable syslog.

Syslog Server Enter the syslog server name or IP address.

Email Alert

Enable email alerts to send logs to a specified email address.

Enable Email Alert: Check to enable.

Mail Server: Enter the mail server name or IP address.

Authentication: Choose which kind of authentication: None, Login

Plain, TLS or SSL.

SMTP Port: Input the SMTP port from 1-65535. The default is

25.

Username/ Password: Input the username and password of the email

account.

Send Email to: Input the email address.

Log Queue Length: Set the number of log entries. The default entry

number is 50. When this defined number is reached,

the system will automatically send out the log mail.

Log Time Threshold: Set a time interval for the system to send the

log. The default is 10 minutes. The system will

automatically send out the log every 10 minutes

unless you change the interval.

Email Log Now Click this button to immediately send a message to

the specified email address, to test your settings.

67

Log

Linksys

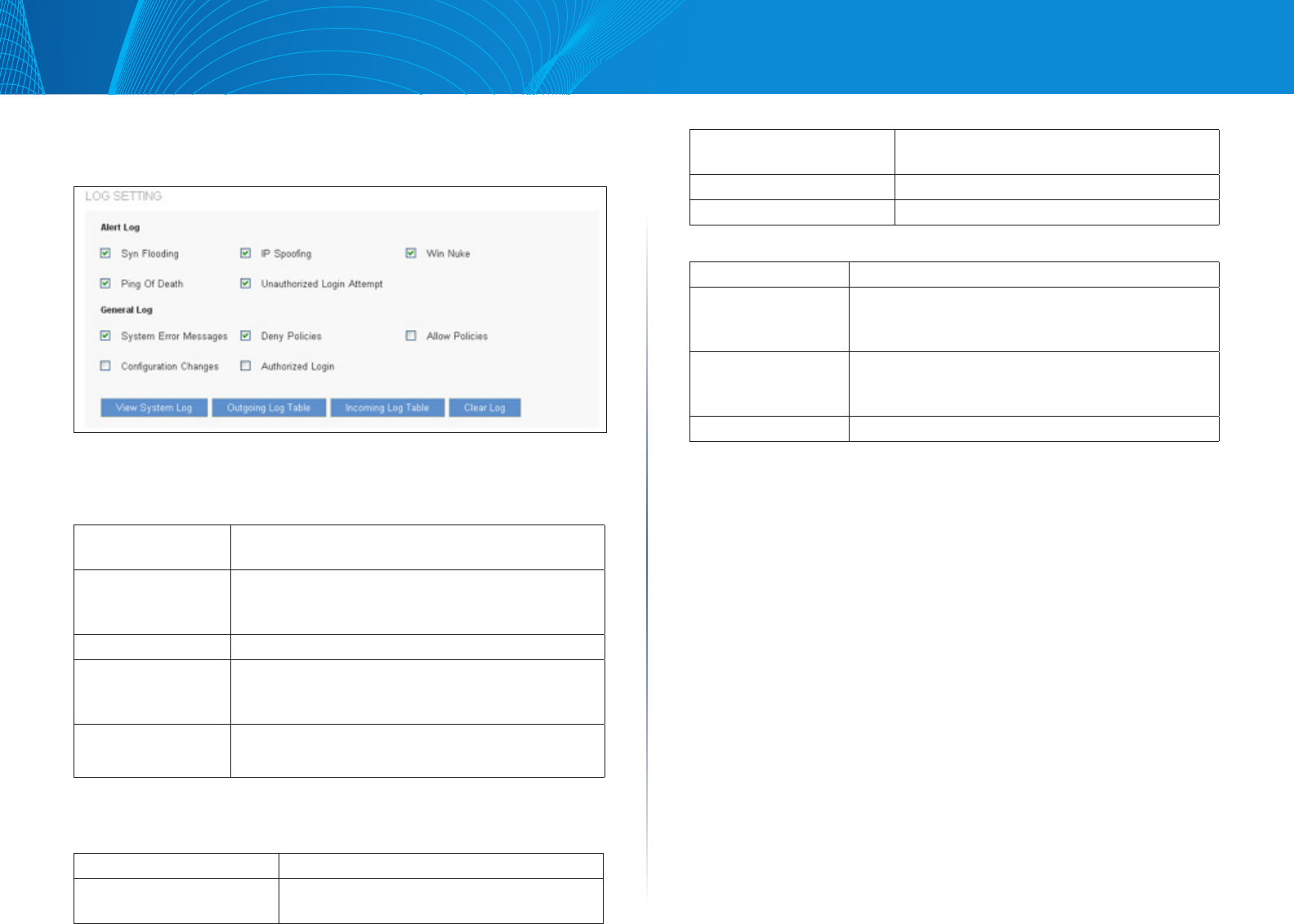

Log Setting

Choose which events will be reported in the logs:

Alert Log: Click to activate these alerts: Syn Flooding, IP Spoofing, WinNuke,

Ping of Death / Unauthorized Login Attempt.

Syn Flooding: Heavy syn packet transmission in a short time

overloads the system.

IP Spoofing: Hackers use packet sniffing to intercept data

transmitted on the network. They then change the

sender’s IP address to access the source system.

Win Nuke: Servers are attacked or trapped by a trojan program.

Ping of Death: The system fails because the sent data exceeds the

maximum packet that can be handled by the IP

protocol.

Unauthorized

Login Attempt:

If intruders into the device are identified, the message

will be sent to the system log.

General LogClick to activate the features, including System error message,

blocked regulations, regulation of passage permission, system configuration

change and registration verification.

System Error Messages: Identifies system errors.

Deny Policies: Records when remote users fail to enter the

system because of access rules.

Allow Policies: Records when remote users enter the system

through successful authentication.

Configuration Changes: Records changes in the system’s configuration.

Authorized Login: Records authorized logins.

Four buttons for interaction with the system log online.

View System Log: Read message content online via the device.

Outgoing Log Table: View log packets that have been sent out from the

PC to the Internet. Information includes LAN IP,

destination IP, and service port.

Incoming Log Table: View system packet log of those entering the firewall.

Information includes external source IP addresses,

destination IP addresses, and service ports.

Clear Log: Clears all the current information on the log.

68

Log

Linksys

System Statistics

Go to Configuration > Log > System Statistics page to view statistics of all

router interfaces

Click Refresh button to update the statistics.

Interface Indicates interface: WAN, LAN and DMZ.

Device Name Port ID: eth0, eth1, eth2, and so on.

Status Port status: Connected, Disconnected,

Enabled, or Disabled.

IP Address IP address.

MAC Address MAC address.

Subnet Mask Subnet mask.

Default Gateway Default gateway IP address.

DNS DNS server.

Received Packets Number of received packets.

Sent Packets Number of sent packets.

Total Packets Number of packets sent and received.

Received Bytes Number of received bytes.

Sent Bytes Number of sent bytes.

Total Bytes Number of bytes sent and received.

Error Packets Received Number of received error packets.

Dropped Packets Received Number of received dropped packets.

69

Maintenance

Linksys

69

Maintenance

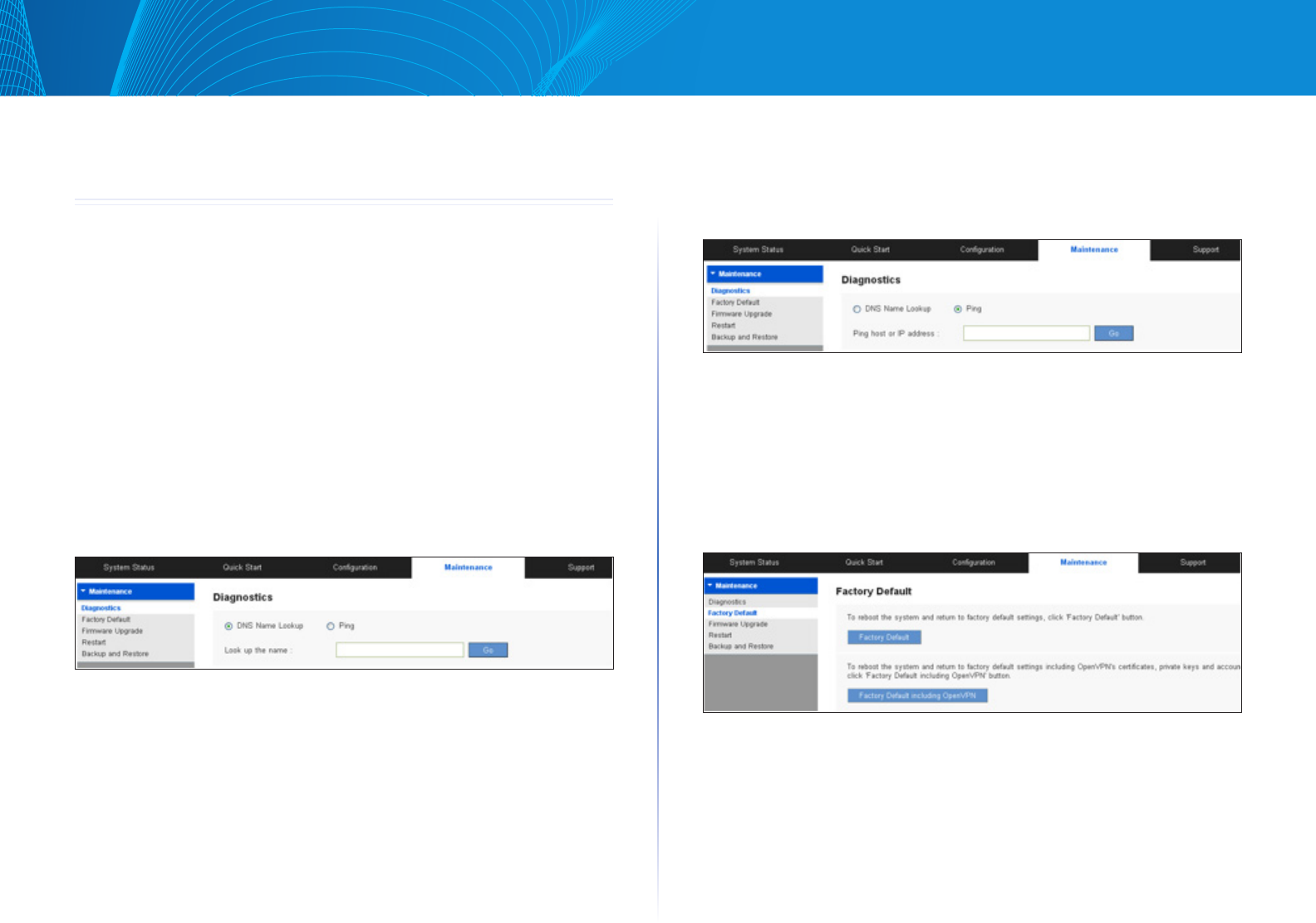

Diagnostic

The device provides a simple online network diagnostic tool to help users

troubleshoot network-related problems. Go to Maintenance > Diagnostic.

The features include DNS Lookup (Domain Name Inquiry Test) and Ping (Packet

Delivery/Reception Test).

DNS Name Lookup

Choose this option to test connectivity to the DNS server that you specified on

the Configuration > Setup > Network page, or to look up an IP address that you

want to use in the ping test.

Enter a host name – example: www.linksys.com (Do not include a prefix such as

http://) - and click Go. You will see the IP address of the host.

NOTE This feature requires that the router can connect to a valid DNS server.

Please check if your WAN interface can be linked to the Internet.

Ping

This feature informs users of the status quo of the outbound session and allows

users to know if computers are online or not.

On this screen, please enter the host IP that users want to test such as

192.168.5.20. Press Go to start the test. The result will be displayed on this

screen.

Factory Default

Use the Maintenance > Factory Default page to restore the router to its factory

default settings.

1. Click Factory Default if you want to restore the router to its factory default

settings except OpenVPN configuration. When the confirmation message

appears, click OK to continue or click Cancel to abandon.

2. Click Factory Default including OpenVPN if you also want to restore

OpenVPN configuration. When the confirmation message appears, click

OK to continue or click Cancel to abandon.

70

Maintenance

Linksys

Firmware Upgrade

Users may directly upgrade the device firmware on the Firmware Upgrade

page. First download the firmware file from Linksys.com. Go to Maintenance >

Firmware Upgrade. Please confirm all information about the software version

in advance. Select and browse the software file, click Firmware Upgrade button

to complete the upgrade of the designated file.

NOTE

1. When choosing previous firmware versions, all settings will be restored

back to default.

2. Upgrading firmware may take a few minutes, so please don’t turn off the

power or press the reset button.

3. Please don’t close the window or disconnect the link during the upgrade

process.

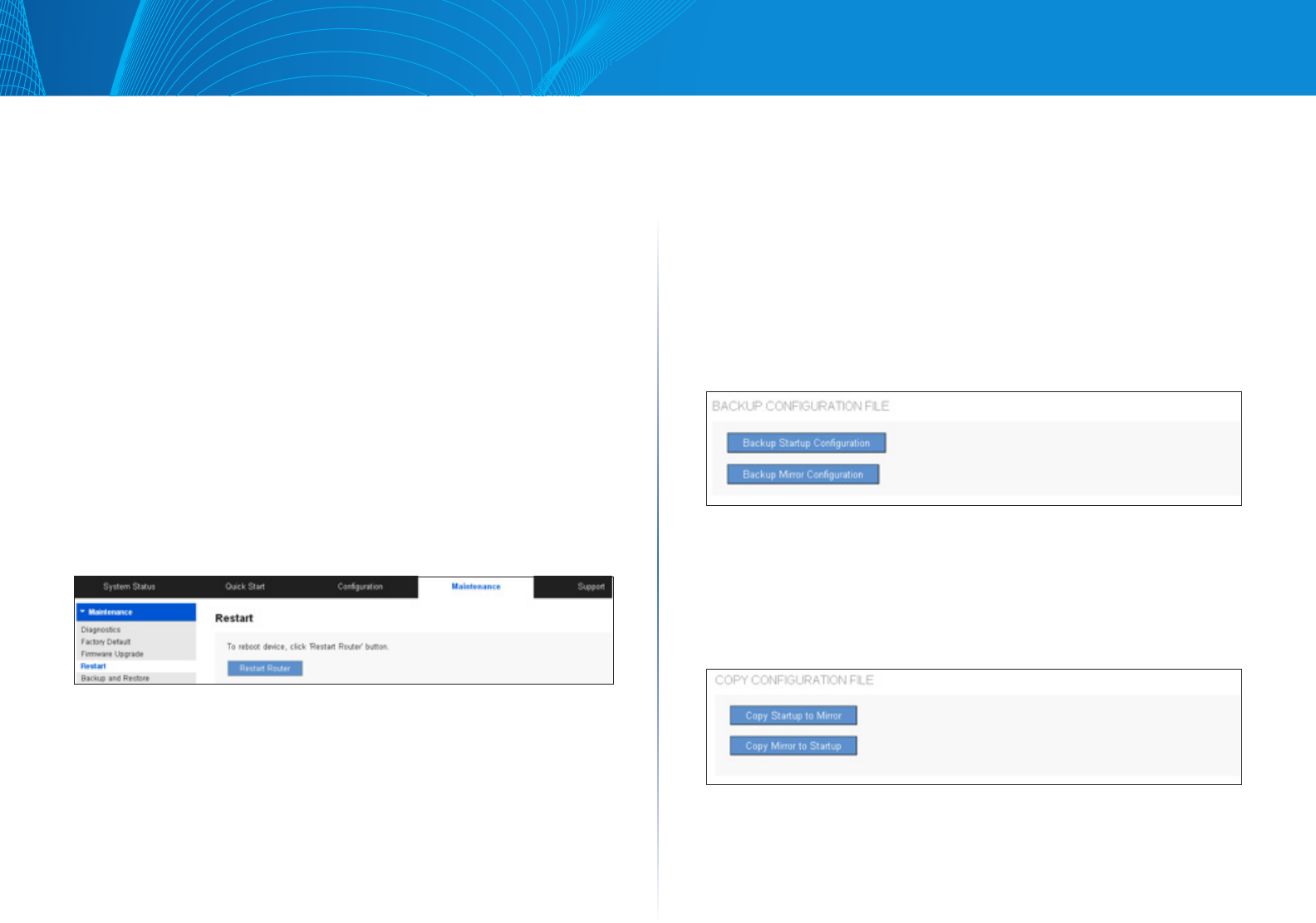

Restart

Go to Maintenance > Restart.

Click Restart Router to reboot the router, and then click OK to continue or click

Cancel to abandon.

Backup and Restore

Go to Maintenance > Backup and Restore page. You can export the current

configuration or restore existing backup settings here. You can back up two

kinds of configuration files: the startup and the mirror configuration. The router

will load the startup configuration file when it boots up, and copy the startup

file to the mirror configuration. If the startup configuration file fails, the mirror

configuration file will be adopted.

NOTE If the router operates for 24 hours without reboot or configuration

changed, the startup configuration will be copied to mirror configuration

automatically.

Restore Startup Configuration

You can import an existing configuration file (.config) to the router. Click

Browse in the Restore Startup Configuration section and find the file, and then

click Restore to import the configuration.

Backup Configuration File

You can export your startup and mirror configuration files to your computer.

If needed, you can use these files to restore the settings. Click Backup Startup

Configuration or Backup Mirror Configuration. The default filenames will be

Startup.config or Mirror.config. You can change the filenames if you wish.

Copy Configuration File

You can copy your startup configuration file to your mirror configuration file or

copy mirror to your startup configuration manually.

NOTE

Make a current configuration file before doing this action so that you

can return to the current configuration if not satisfied with the startup or

mirror configuration file.

71

Technical Support

Linksys

Technical Support

Click Support tab to search for more information about the router or technical

support from Linksys support team.

Product Website

Click Launch Now to visit product website to get more information about the

router.

Linksys Support Website

Click Launch Now to visit Linksys support website to get more support for the

router.

72

FAQ and Supplemental Information

Linksys

FAQ and Supplemental

Information

Click on the following links for more information about operation of your

router.

LRT214/LRT224

•Product comparison between LRT214 and LRT224

•LRT214 and LRT224 Frequently Asked Questions

•Recovering the LRT214 and LRT224 from a failed firmware upgrade using

TFTP

•How to create a VLAN on the Linksys Gigabit VPN Routers, LRT214 and

LRT224

•Setting up PPTP on LRT214/LRT224 and Windows computer

•EasyLink VPN Frequently Asked Questions

•Locating the IP address of your Smart Switch using a Linksys Small Business

router

•Configuring the Linksys Gigabit VPN Router with OpenVPN

•Establishing Client to Gateway IPsec Tunnel with Shrewsoft VPN Client

•Configuring OpenVPN on your Android™ device

•How to create an Access Rule on the Linksys Gigabit VPN Router

•How to configure One-to-One NAT on the Linksys Gigabit VPN Router

•Establishing Client to Gateway IPsec Tunnel with IPSecuritas VPN Client

•Accessing the web-based setup page of the Linksys Gigabit VPN router

•Configuring OpenVPN for iOS device

•Setting up web, email, DNS or FTP servers on the Linksys Gigabit VPN

Router

•Blocking a Domain or website by using keywords on the Linksys Gigabit

VPN Router

•Creating an IPSec tunnel Client to Gateway on a Linksys Gigabit VPN router

•Creating an IPSec tunnel Gateway to Gateway on a Linksys VPN router

•Setting up the Linksys Gigabit VPN Router using the Basic Setup Wizard

•Configuring a VPN connection on your iPad®

•Disabling VPN in your iPad®

•Connecting to a VPN Tunnel Using a Router

•Creating VLAN Trunking Using the Linksys Manageable Switches

•Checking the VPN Settings on a Linksys Router

•Setting-Up a VPN Tunnel on Two Linksys Routers

•Setting up and connecting to a VPN on your iPhone®

•How to Setup Multi-Site VPN

•Encountering difficulties when connecting to the VPN Tunnel using a

Linksys router

LRT214

•Getting to know the Linksys LRT214

LRT224

•Getting to know the Linksys LRT224

Visit linksys.com/support for award-winning

technical support

© 2014 Belkin International, Inc. and/or its affiliates. All rights reserved.

BELKIN, LINKSYS and many product names and logos are trademarks

of the Belkin group of companies. Third-party trademarks mentioned are

the property of their respective owners.

8820-01696 Rev. C00
