Powerline AV 4-Port

Network Adapter

Model: PLS300

Easily network your home using existing

electrical outlets

The Powerline AV 4-port Network Adapter lets you easily create a network using the

existing electrical outlets in your home. Now you don’t have to drill holes in walls and

climb through the attic or cellar to install network cables -- just use the wires that already

run through the building.

The Powerline AV 4-port Network Adapter connects computers, or any other wired

Ethernet device, using the HomePlug® AV network standard. Adding devices to the

network is as simple as plugging the Powerline AV 4-port Adapter into an electrical outlet,

and connecting up to four Ethernet-equipped devices to the built-in Ethernet ports.

Additional devices can be connected to the same network using additional Powerline AV

Adapters plugged into an electrical outlet anywhere in the house.

Once your computers are connected to the network, they can share resources like printers

and storage space, and all kinds of files -- video, music, digital pictures, and documents.

With up to 200Mbps data rates*, you can play virtually lag-free head-to-head network

computer games, and run applications like streaming standard or HD video, and Voice

over IP telephony. Plug your Internet connected router into a Powerline AV 4-port

Network Adapter and you’ll be able to get to the Internet from any Powerline AV attached

computer in the house.

The Linksys Powerline AV 4-port Network Adapter is the perfect solution for easy, “no new

wires”, home or office networking.

DATASHEET

Use your existing powerlines to

network your computers and other

devices

Share files, printers, storage, and

networked games throughout your

home — connect it to a router to

share your Cable or DSL Internet

connection

Built-in 4-port Ethernet switch

HomePlug® AV technology for data

rates up to 200Mbps*

128-bit encryption helps keep your

data secure

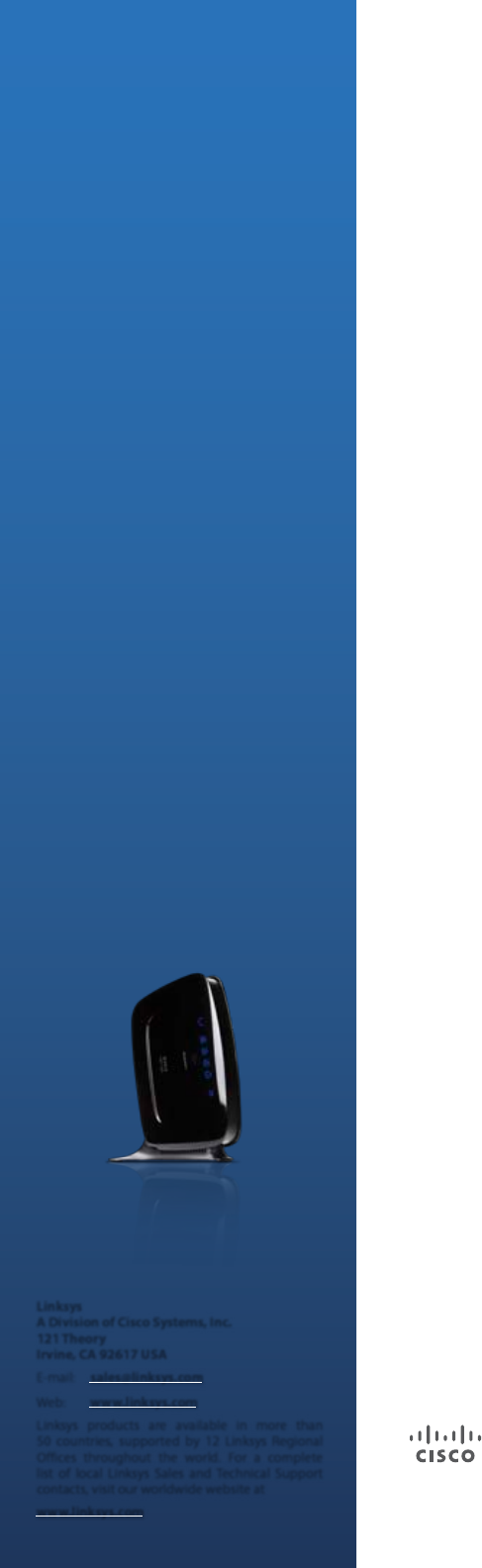

Linksys

A Division of Cisco Systems, Inc.

121 Theory

Irvine, CA 92617 USA

E-mail: sales@linksys.com

Web: www.linksys.com

Linksys products are available in more than

50 countries, supported by 12 Linksys Regional

Offices throughout the world. For a complete

list of local Linksys Sales and Technical Support

contacts, visit our worldwide website at

www.linksys.com

* The HomePlug AV network data rate is up to 200Mbps. Actual throughput of the PLE300 is limited to 100Mbps by the Ethernet 10/100 specication, and

will vary depending on network trac and environmental conditions such as building wiring type and routing.

Maximum performance for the Powerline AV Network Adapter is derived from the HomePlug Powerline Alliance HomePlug AV specication. Actual

performance can vary, including lower powerline network capacity and data throughput rate. Performance depends on many factors, conditions and

variables, including volume of network trac, home wiring construction, operating system used, mix of networking products used, interference from

other electrical devices, age of home wiring, wireline range and coverage as determined by wiring route or path between devices and other adverse

conditions.

Check the product package and contents for specic features supported. Specications are subject to change without notice.

Linksys, Cisco and the Cisco Logo are registered trademarks or trademarks of Cisco Systems, Inc. and/or its aliates in the U.S. and

certain other countries. Copyright © 2008 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks

or registered trademarks of their respective holders.

8091510NC-ST Model: PLS300

Specifications

Model PLS300

Standards HomePlug AV, IEEE 802.3, IEEE 802.3u

Ports Power, Ethernet 1-4

Buttons Reset, HomePlug Simple Connect Button

LEDs Power, Powerline, Ethernet 1-4

Cabling Type RJ-45, Power

Security features 128-bit AES Link Encryption

Security key bits 128

Environmental

Dimensions 5.83" x 1.38" x 4.06"

Weight 6.70 oz

Power 100-240V AC, 50-60Hz

Certication FCC, CE

Operating Temp. 32 to 104°F

Storage Temp. -4 to 140°F

Operating Humidity 10 to 80% Noncondensing

Storage Humidity 5 to 90% Noncondensing

Package Contents

Powerline AV 4-Port Network Adapter•

User Guide on CD-ROM•

Ethernet network cable•

Power cord•

Stand•

Quick Installation Guide•

Minimum Requirements

PC or other device with Ethernet network adapter•

AC power outlet•

Another HomePlug® AV enabled device•

Features

Works with HomePlug AV •

enabled devices

Enables data transfer through •

exisiting power lines

Up to 200Mbps transfer rate at •

physical layer

128-bit AES Encryption with Key •

Management

Supports 1024/256/64/16/8-•

QAM, QPSK, BPSK and ROBO

Modulation Schemes

Supports TCP/IP, compatible •

with standard routers and

networked deveices.

Integrated Quality of Service •

(QoS) Enhancements:

contention-free access, four-

level priority based contention

access, and multi segment

bursting

TDMA and priority based CSMA/•

CA channel access schemes

maximize eciency and

throughput

Built-in 4 Ethernet ports provide •

connection to up to 4 devices
