Lionda Technology Co GH5850BDLD03 Digital Cordless Phone – Base Unit User Manual 5850 DSS man

Lionda Technology Co Ltd Digital Cordless Phone – Base Unit 5850 DSS man

users manual

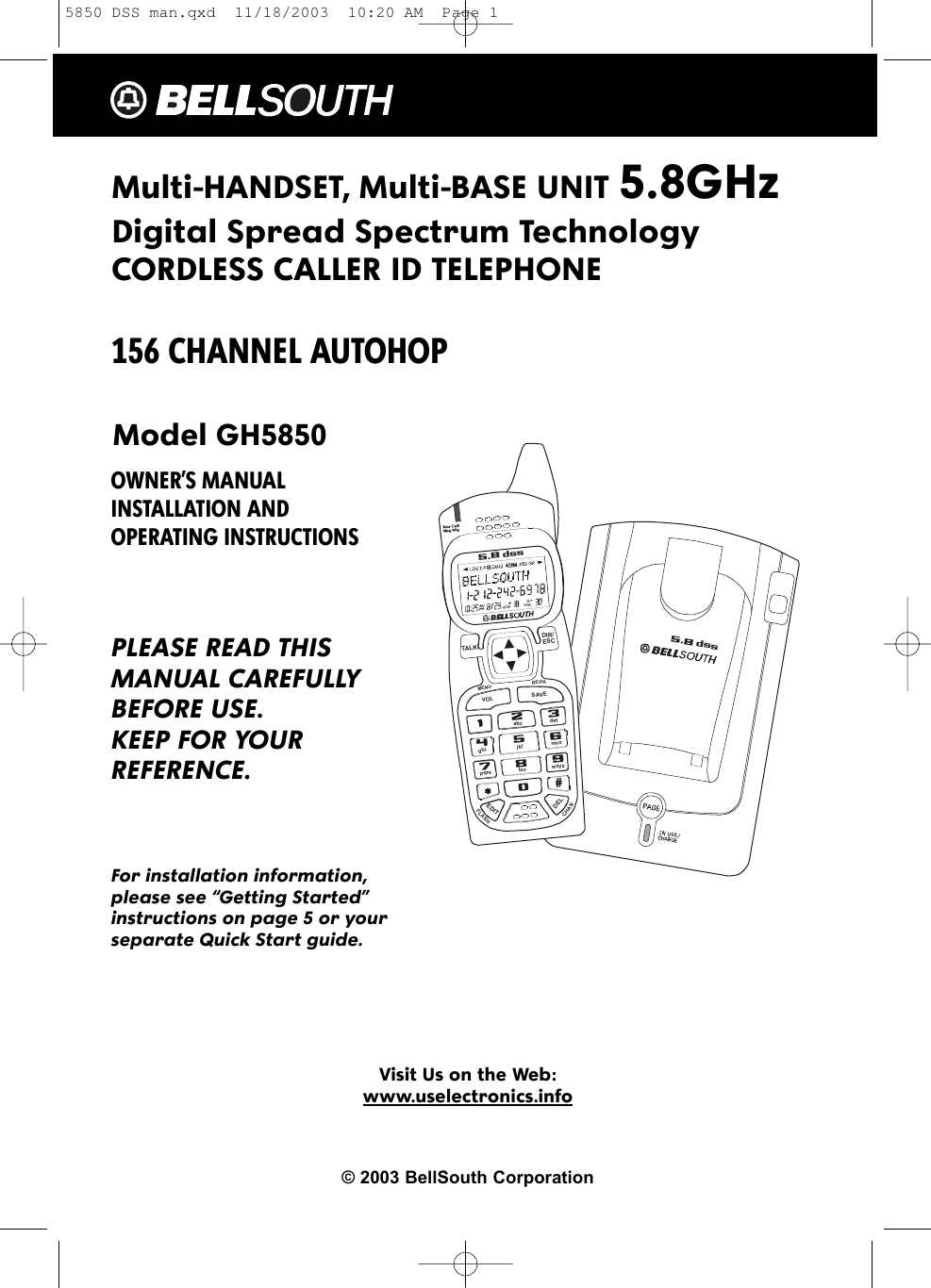

Multi-HANDSET, Multi-BASE UNIT 5.8GHzDigital Spread Spectrum Technology CORDLESS CALLER ID TELEPHONE 156 CHANNEL AUTOHOPModel GH5850OWNER’S MANUAL INSTALLATION AND OPERATING INSTRUCTIONSPLEASE READ THISMANUAL CAREFULLYBEFORE USE.KEEP FOR YOURREFERENCE.For installation information,please see “Getting Started”instructions on page 5 or yourseparate Quick Start guide.Visit Us on the Web:www.uselectronics.info© 2003 BellSouth Corporation5.8 dss19#0wxyz5.8 dssTALKMENURE/PAEDITDELVOLSAVEFLASHCHANDIR/ESC2abc3def6mno5jkl4ghi7pqrs8tuv5850 DSS man.qxd 11/18/2003 10:20 AM Page 1

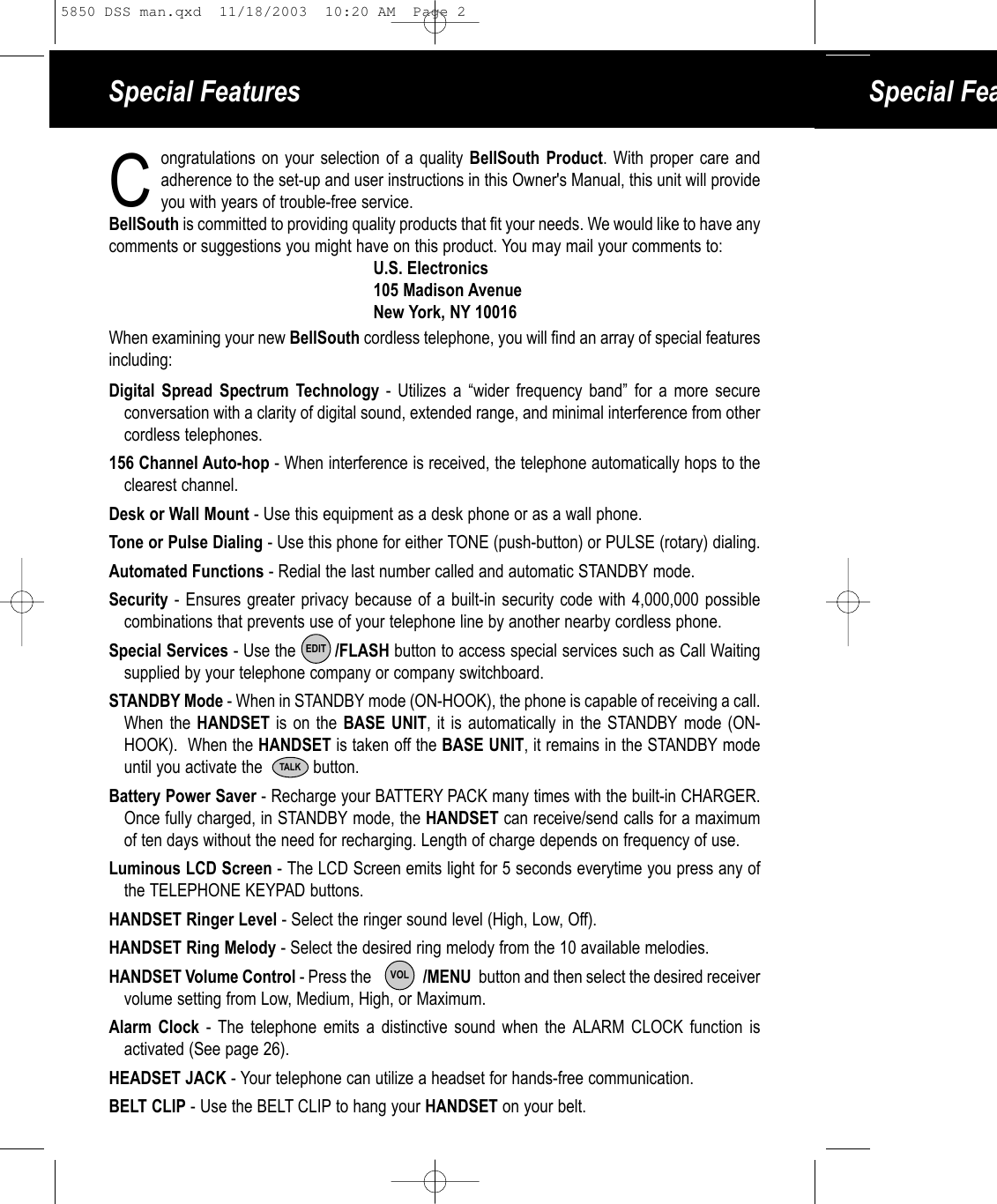

Special Features Special Feaongratulations on your selection of a quality BellSouth Product. With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide you with years of trouble-free service. BellSouth is committed to providing quality products that fit your needs. We would like to have anycomments or suggestions you might have on this product. You may mail your comments to:U.S. Electronics105 Madison AvenueNew York, NY 10016When examining your new BellSouth cordless telephone, you will find an array of special featuresincluding:Digital Spread Spectrum Technology - Utilizes a “wider frequency band” for a more secureconversation with a clarity of digital sound, extended range, and minimal interference from other cordless telephones.156 Channel Auto-hop - When interference is received, the telephone automatically hops to theclearest channel.Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone.Tone or Pulse Dialing - Use this phone for either TONE (push-button) or PULSE (rotary) dialing.Automated Functions - Redial the last number called and automatic STANDBY mode.Security - Ensures greater privacy because of a built-in security code with 4,000,000 possible combinations that prevents use of your telephone line by another nearby cordless phone.Special Services - Use the /FLASH button to access special services such as Call Waitingsupplied by your telephone company or company switchboard.STANDBY Mode - When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call.When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode (ON-HOOK). When the HANDSET is taken off the BASE UNIT, it remains in the STANDBY modeuntil you activate the button.Battery Power Saver - Recharge your BATTERY PACK many times with the built-in CHARGER.Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximumof ten days without the need for recharging. Length of charge depends on frequency of use.Luminous LCD Screen - The LCD Screen emits light for 5 seconds everytime you press any ofthe TELEPHONE KEYPAD buttons.HANDSET Ringer Level - Select the ringer sound level (High, Low, Off).HANDSET Ring Melody - Select the desired ring melody from the 10 available melodies. HANDSET Volume Control - Press the /MENU button and then select the desired receiver volume setting from Low, Medium, High, or Maximum.Alarm Clock - The telephone emits a distinctive sound when the ALARM CLOCK function isactivated (See page 26). HEADSET JACK - Your telephone can utilize a headset for hands-free communication.BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt.EDITTALKCVOL5850 DSS man.qxd 11/18/2003 10:20 AM Page 2

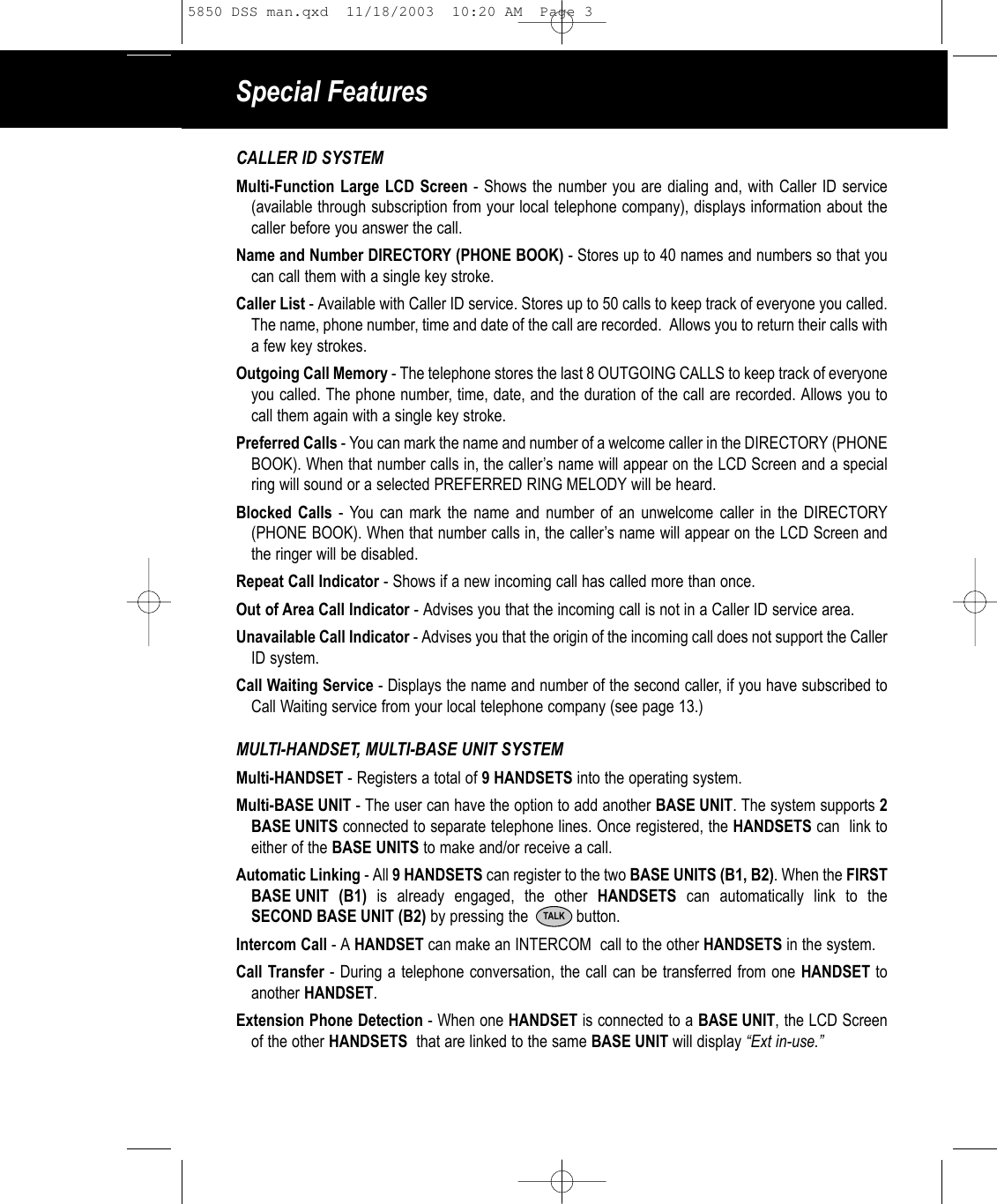

Special FeaturesCALLER ID SYSTEMMulti-Function Large LCD Screen - Shows the number you are dialing and, with Caller ID service (available through subscription from your local telephone company), displays information about thecaller before you answer the call.Name and Number DIRECTORY (PHONE BOOK) - Stores up to 40 names and numbers so that you can call them with a single key stroke.Caller List - Available with Caller ID service. Stores up to 50 calls to keep track of everyone you called.The name, phone number, time and date of the call are recorded. Allows you to return their calls witha few key strokes.Outgoing Call Memory - The telephone stores the last 8 OUTGOING CALLS to keep track of everyone you called. The phone number, time, date, and the duration of the call are recorded. Allows you to call them again with a single key stroke.Preferred Calls - You can mark the name and number of a welcome caller in the DIRECTORY (PHONEBOOK). When that number calls in, the caller’s name will appear on the LCD Screen and a specialring will sound or a selected PREFERRED RING MELODY will be heard.Blocked Calls - You can mark the name and number of an unwelcome caller in the DIRECTORY(PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen andthe ringer will be disabled.Repeat Call Indicator - Shows if a new incoming call has called more than once.Out of Area Call Indicator - Advises you that the incoming call is not in a Caller ID service area.Unavailable Call Indicator - Advises you that the origin of the incoming call does not support the CallerID system. Call Waiting Service - Displays the name and number of the second caller, if you have subscribed toCall Waiting service from your local telephone company (see page 13.)MULTI-HANDSET, MULTI-BASE UNIT SYSTEMMulti-HANDSET - Registers a total of 9 HANDSETS into the operating system. Multi-BASE UNIT - The user can have the option to add another BASE UNIT. The system supports 2BASE UNITS connected to separate telephone lines. Once registered, the HANDSETS can link toeither of the BASE UNITS to make and/or receive a call. Automatic Linking - All 9 HANDSETS can register to the two BASE UNITS (B1, B2). When the FIRSTBASE UNIT (B1) is already engaged, the other HANDSETS can automatically link to theSECOND BASE UNIT (B2) by pressing the button.Intercom Call - A HANDSET can make an INTERCOM call to the other HANDSETS in the system.Call Transfer - During a telephone conversation, the call can be transferred from one HANDSET toanother HANDSET.Extension Phone Detection - When one HANDSET is connected to a BASE UNIT, the LCD Screenof the other HANDSETS that are linked to the same BASE UNIT will display “Ext in-use.”TALK5850 DSS man.qxd 11/18/2003 10:20 AM Page 3

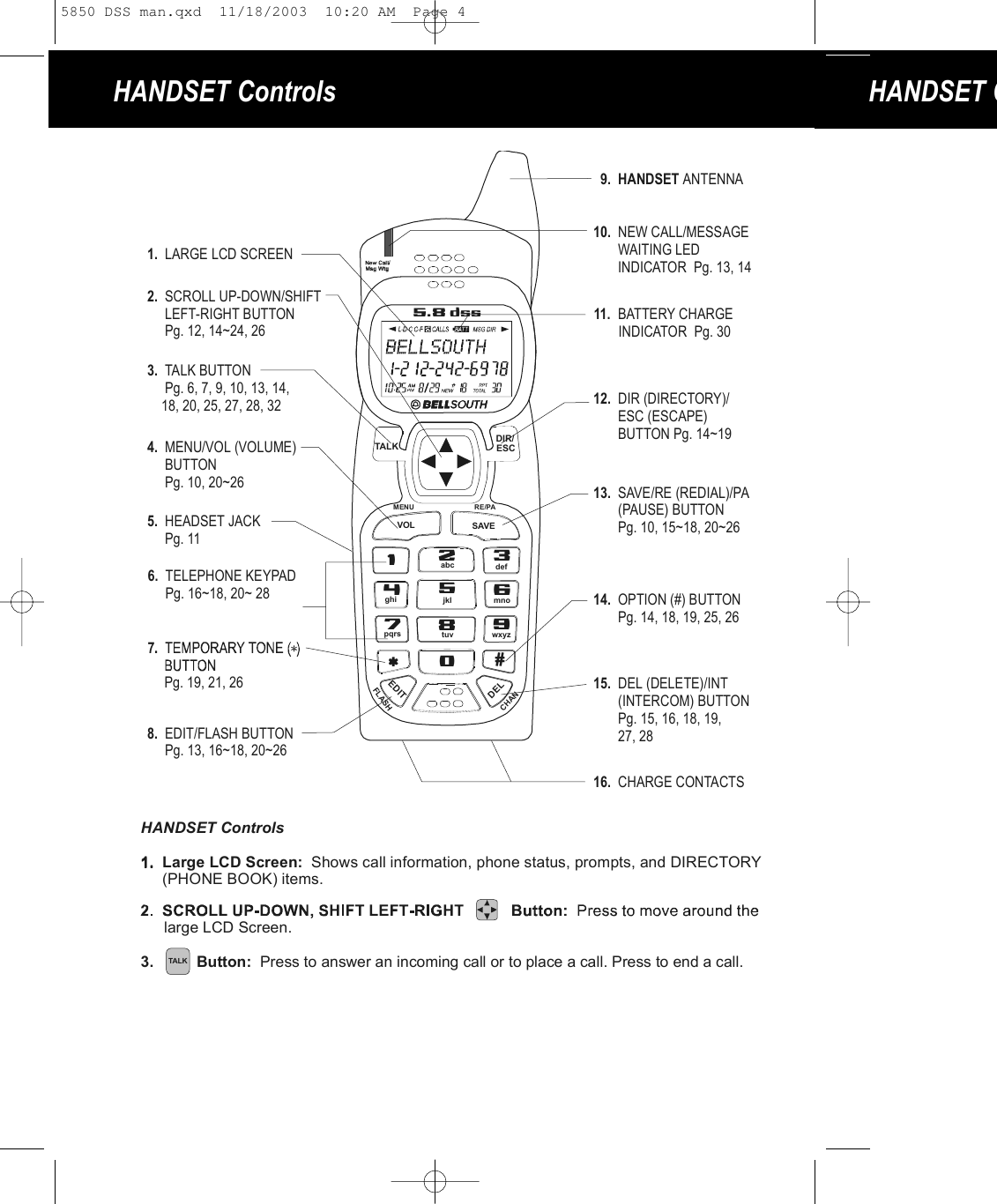

HANDSET Controls HANDSET C19#0wxyz5.8 dssTALKMENU RE/PAEDITDELVOL SAVEFLASHCHANDIR/ESC2abc 3def6mno5jkl4ghi7pqrs 8tuv1. LARGE LCD SCREEN12. DIR (DIRECTORY)/ ESC (ESCAPE) BUTTON Pg. 14~1915. DEL (DELETE)/INT (INTERCOM) BUTTON Pg. 15, 16, 18, 19, 27, 2813. SAVE/RE ( REDIAL)/PA (PAUSE) BUTTON Pg. 10, 15~18, 20~2610. MESSAGE WAITING LED INDICATOR Pg. 13, 14NEW CALL/11. BATTERY CHARGE INDICATOR Pg. 305. HEADSET JACK Pg. 114. MENU/VOL (VOLUME) BUTTON Pg. 10, 20~266. TELEPHONE KEYPAD Pg. 16~18, 20~ 288. FLASH BUTTON Pg. 13, 16~18, 20~26EDIT/16. CHARGE CONTACTS2. SCROLL UP-DOWN/SHIFT LEFT-RIGHT BUTTON Pg. 12, 14~24, 263. TALK BUTTON Pg. 6, 7, 9, 10, 13, 14, 18, 20, 25, 27, 28, 32 Pg. 19, 21, 26 714. OPTION (#) BUTTON Pg. 14, 18, 19, 25, 269. HANDSET ANTENNA3. Button: Press to answer an incoming call or to place a call. Press to end a call. 1. Large LCD Screen: Shows call information, phone status, prompts, and DIRECTORY (PHONE BOOK) items. HANDSET Controls1.large LCD Screen.TALK5850 DSS man.qxd 11/18/2003 10:20 AM Page 4

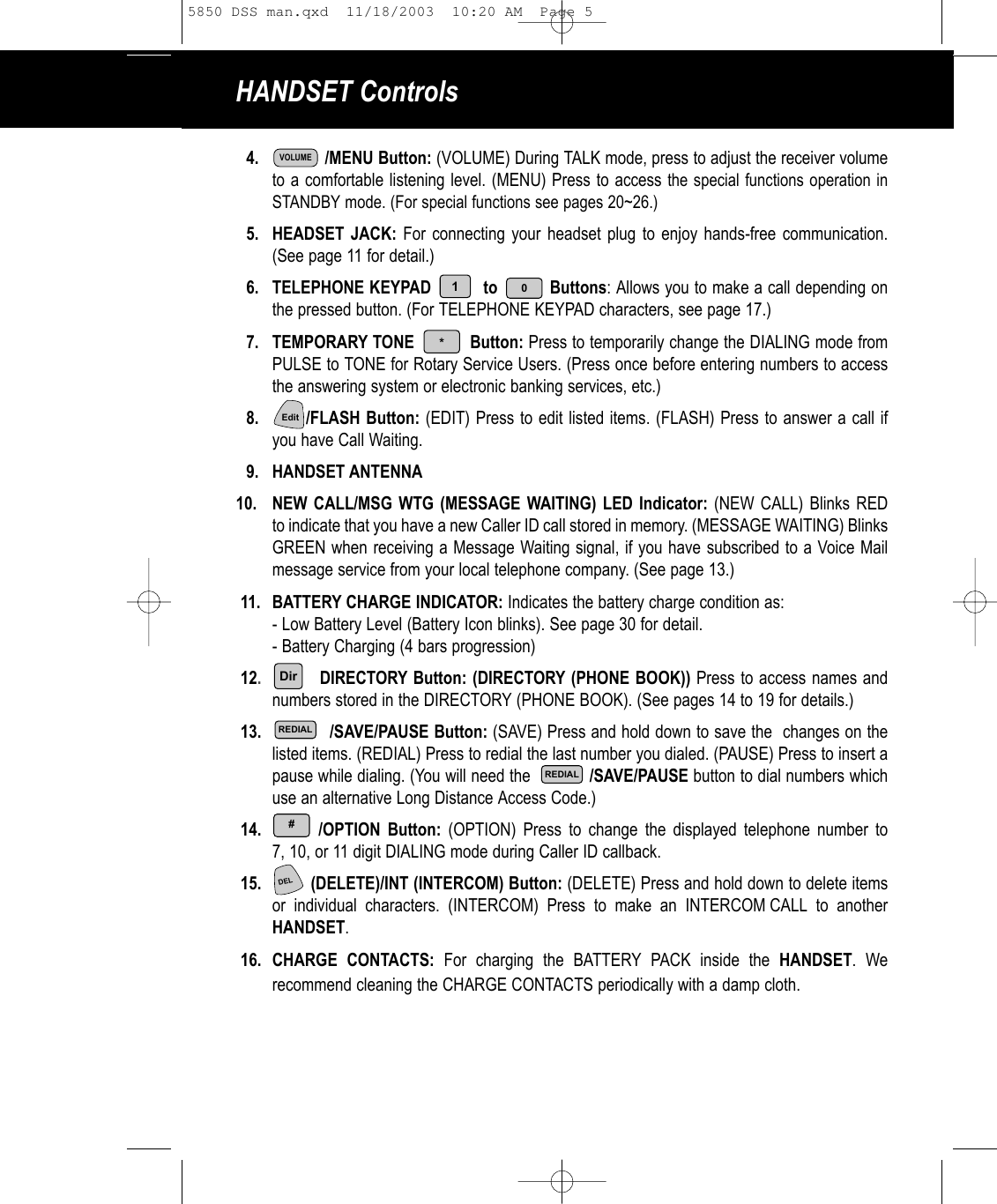

HANDSET Controls4. /MENU Button: (VOLUME) During TALK mode, press to adjust the receiver volume to a comfortable listening level. (MENU) Press to access the special functions operation inSTANDBY mode. (For special functions see pages 20~26.) 5. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication. (See page 11 for detail.)6. TELEPHONE KEYPAD to Buttons: Allows you to make a call depending on the pressed button. (For TELEPHONE KEYPAD characters, see page 17.)7. TEMPORARY TONE Button: Press to temporarily change the DIALING mode from PULSE to TONE for Rotary Service Users. (Press once before entering numbers to accessthe answering system or electronic banking services, etc.)8. /FLASH Button: (EDIT) Press to edit listed items. (FLASH) Press to answer a call ifyou have Call Waiting.9. HANDSET ANTENNA10. NEW CALL/MSG WTG (MESSAGE WAITING) LED Indicator: (NEW CALL) Blinks REDto indicate that you have a new Caller ID call stored in memory. (MESSAGE WAITING) BlinksGREEN when receiving a Message Waiting signal, if you have subscribed to a Voice Mailmessage service from your local telephone company. (See page 13.)11. BATTERY CHARGE INDICATOR: Indicates the battery charge condition as:- Low Battery Level (Battery Icon blinks). See page 30 for detail.- Battery Charging (4 bars progression)12.DIRECTORY Button: (DIRECTORY (PHONE BOOK)) Press to access names andnumbers stored in the DIRECTORY (PHONE BOOK). (See pages 14 to 19 for details.)13. /SAVE/PAUSE Button: (SAVE) Press and hold down to save the changes on thelisted items. (REDIAL) Press to redial the last number you dialed. (PAUSE) Press to insert a pause while dialing. (You will need the /SAVE/PAUSE button to dial numbers whichuse an alternative Long Distance Access Code.)14. /OPTION Button: (OPTION) Press to change the displayed telephone number to 7, 10, or 11 digit DIALING mode during Caller ID callback. 15. (DELETE)/INT (INTERCOM) Button: (DELETE) Press and hold down to delete items or individual characters. (INTERCOM) Press to make an INTERCOM CALL to another HANDSET.16. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. We recommend cleaning the CHARGE CONTACTS periodically with a damp cloth. VOLUMEEdit*10DirREDIALREDIALDEL#5850 DSS man.qxd 11/18/2003 10:20 AM Page 5

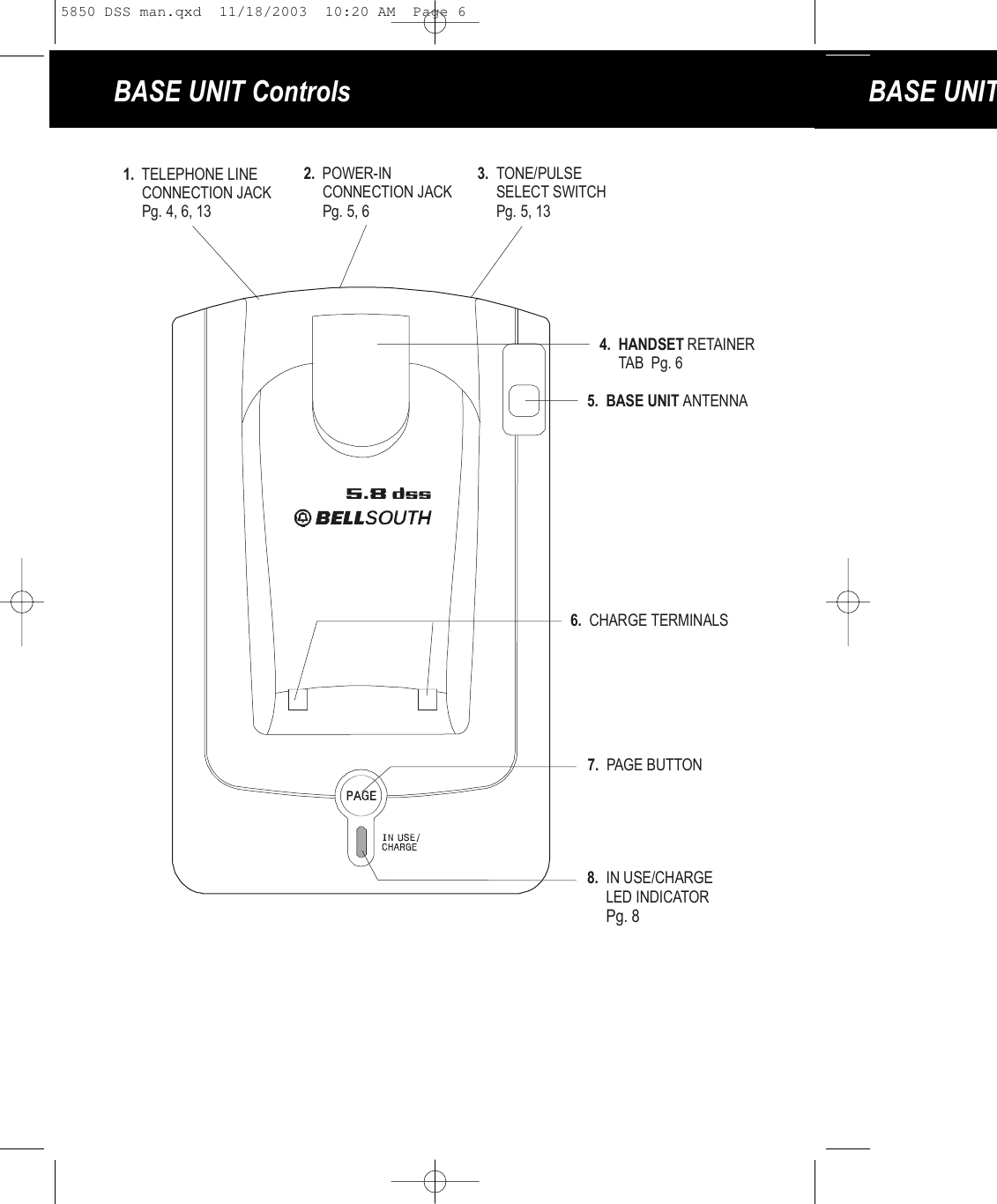

BASE UNIT Controls BASE UNIT5.8 dss3. TONE/PULSE SELECT SWITCH Pg. 5, 136. CHARGE TERMINALS5. BASE UNIT ANTENNA 8. IN USE/CHARGE LED INDICATOR Pg. 87. PAGE BUTTON4. HANDSET RETAINER TAB Pg. 6 1. TELEPHONE LINE CONNECTION JACK Pg. 4, 6, 132. POWER-IN CONNECTION JACK Pg. 5, 65850 DSS man.qxd 11/18/2003 10:20 AM Page 6

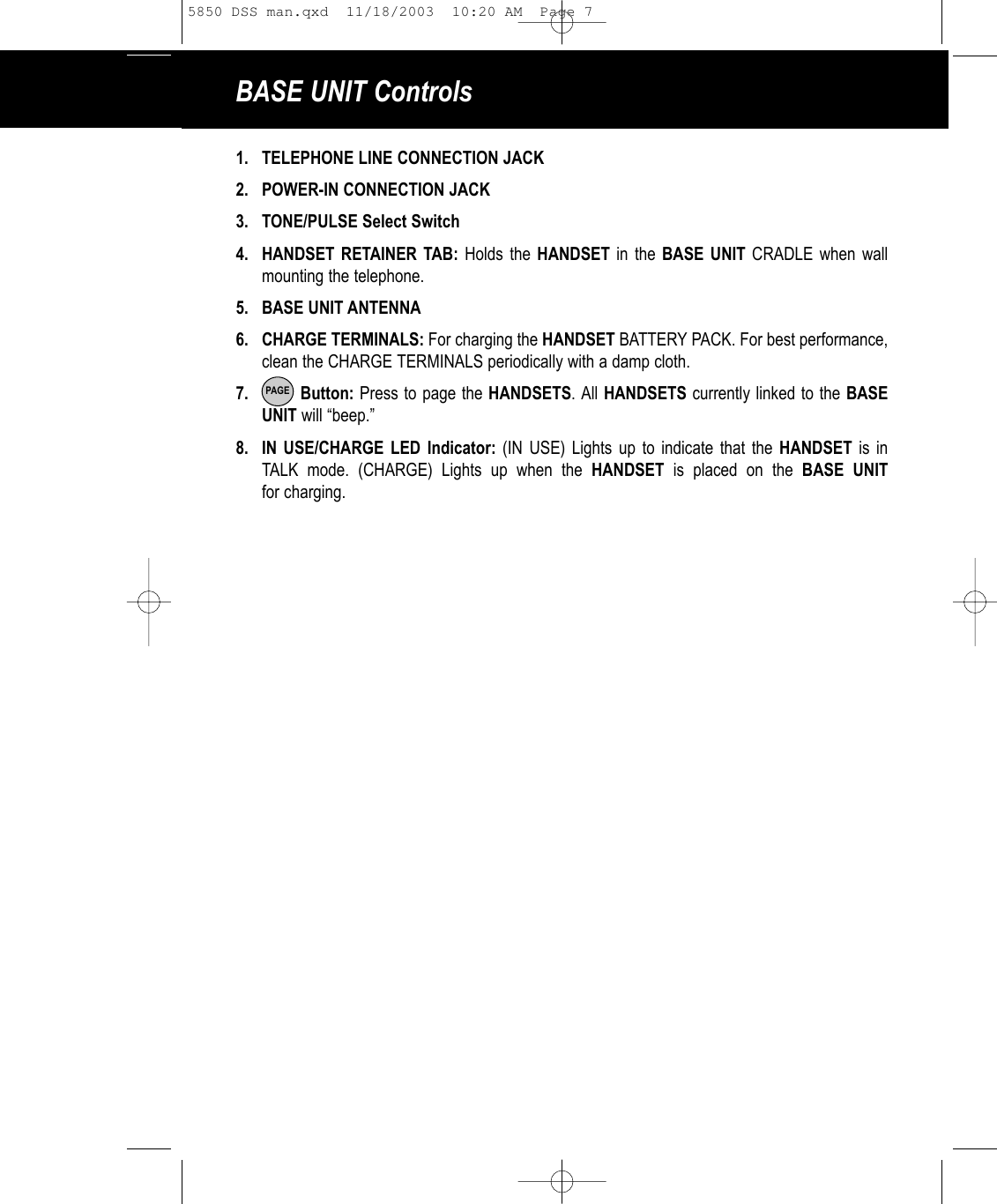

BASE UNIT Controls1. TELEPHONE LINE CONNECTION JACK2. POWER-IN CONNECTION JACK3. TONE/PULSE Select Switch4. HANDSET RETAINER TAB: Holds the HANDSET in the BASE UNIT CRADLE when wall mounting the telephone. 5. BASE UNIT ANTENNA6. CHARGE TERMINALS: For charging the HANDSET BATTERY PACK. For best performance, clean the CHARGE TERMINALS periodically with a damp cloth.7. Button: Press to page the HANDSETS. All HANDSETS currently linked to the BASEUNIT will “beep.” 8. IN USE/CHARGE LED Indicator: (IN USE) Lights up to indicate that the HANDSET is in TALK mode. (CHARGE) Lights up when the HANDSET is placed on the BASE UNITfor charging.PAGE5850 DSS man.qxd 11/18/2003 10:20 AM Page 7
Contents Contents Safety Instructions .......................................................................................................... 3Getting Started.................................................................................................................5Desk Mounting ................................................................................................................8Wall Mounting.................................................................................................................. 8Cordless Telephone Operation........................................................................................ 9Message Waiting................................................................................................... 13Caller ID System Operation............................................................................................. 12Name and Telephone Number DIRECTORY (PHONE BOOK)..................................16Redial Feature............................................................................................................ 10Deleting a Single Record...................................................................................... 15Receiving Calls...........................................................................................................9Placing a Call from the Caller List ........................................................................14Caller List ...................................................................................................................13Viewing Caller Information During Incoming Calls................................................12Caller ID with Call Waiting.....................................................................................13Preparing for Use....................................................................................................... 9Placing Calls...............................................................................................................10Viewing the Caller List ..........................................................................................14Storing Caller ID Records into the DIRECTORY (PHONE BOOK)..................... 15Deleting all Records.............................................................................................. 15Using the Headset Feature.........................................................................................11Viewing the DIRECTORY (PHONE BOOK).........................................................16Telephone Keypad Characters..............................................................................17Caller ID System.........................................................................................................12Storing Phone Numbers........................................................................................16Placing Calls from the DIRECTORY (PHONE BOOK)......................................... 18Editing a Stored Number in the DIRECTORY (PHONE BOOK)........................... 18Deleting a Stored Record in the DIRECTORY (PHONE BOOK).......................... 191Preferred Calls ..................................................................................................... 19HANDSET Volume Control.........................................................................................10Extension In Use Indicator..........................................................................................11Blocked Calls ........................................................................................................195850 DSS man.qxd 11/18/2003 10:20 AM Page 8

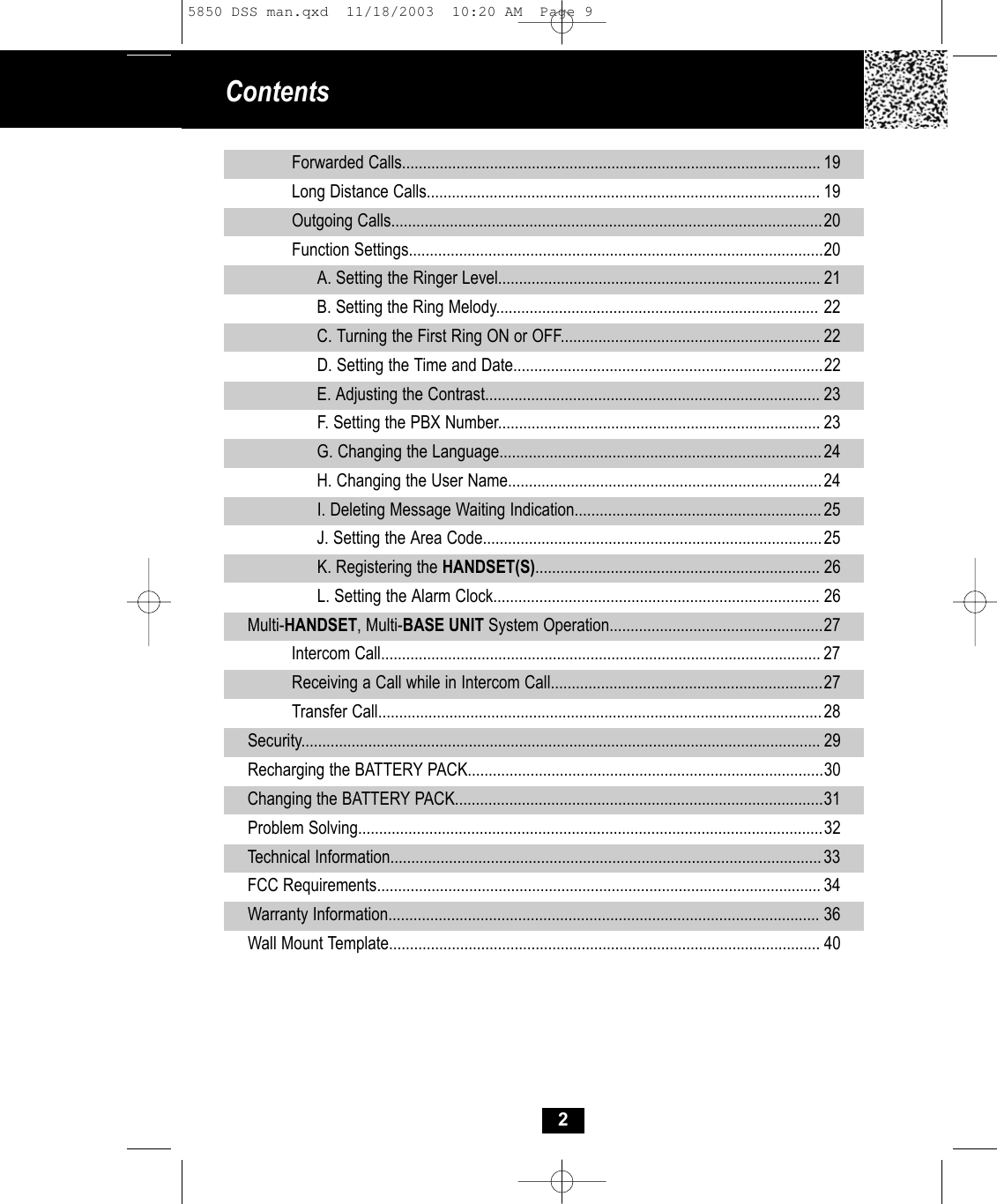

Contents Forwarded Calls.................................................................................................... 19Function Settings...................................................................................................20A. Setting the Ringer Level............................................................................. 21K. Registering the HANDSET(S).................................................................... 26G. Changing the Language............................................................................. 24E. Adjusting the Contrast................................................................................ 23FCC Requirements.......................................................................................................... 34C. Turning the First Ring ON or OFF.............................................................. 22Problem Solving...............................................................................................................32Recharging the BATTERY PACK.....................................................................................30I. Deleting Message Waiting Indication........................................................... 25J. Setting the Area Code.................................................................................25B. Setting the Ring Melody............................................................................. 22D. Setting the Time and Date..........................................................................22Changing the BATTERY PACK........................................................................................31Technical Information.......................................................................................................33Warranty Information....................................................................................................... 36F. Setting the PBX Number............................................................................. 23Security............................................................................................................................ 29H. Changing the User Name...........................................................................24Wall Mount Template....................................................................................................... 402Long Distance Calls.............................................................................................. 19Outgoing Calls.......................................................................................................20L. Setting the Alarm Clock.............................................................................. 26Multi-HANDSET, Multi-BASE UNIT System Operation...................................................27Intercom Call......................................................................................................... 27Receiving a Call while in Intercom Call.................................................................27Transfer Call.......................................................................................................... 285850 DSS man.qxd 11/18/2003 10:20 AM Page 9

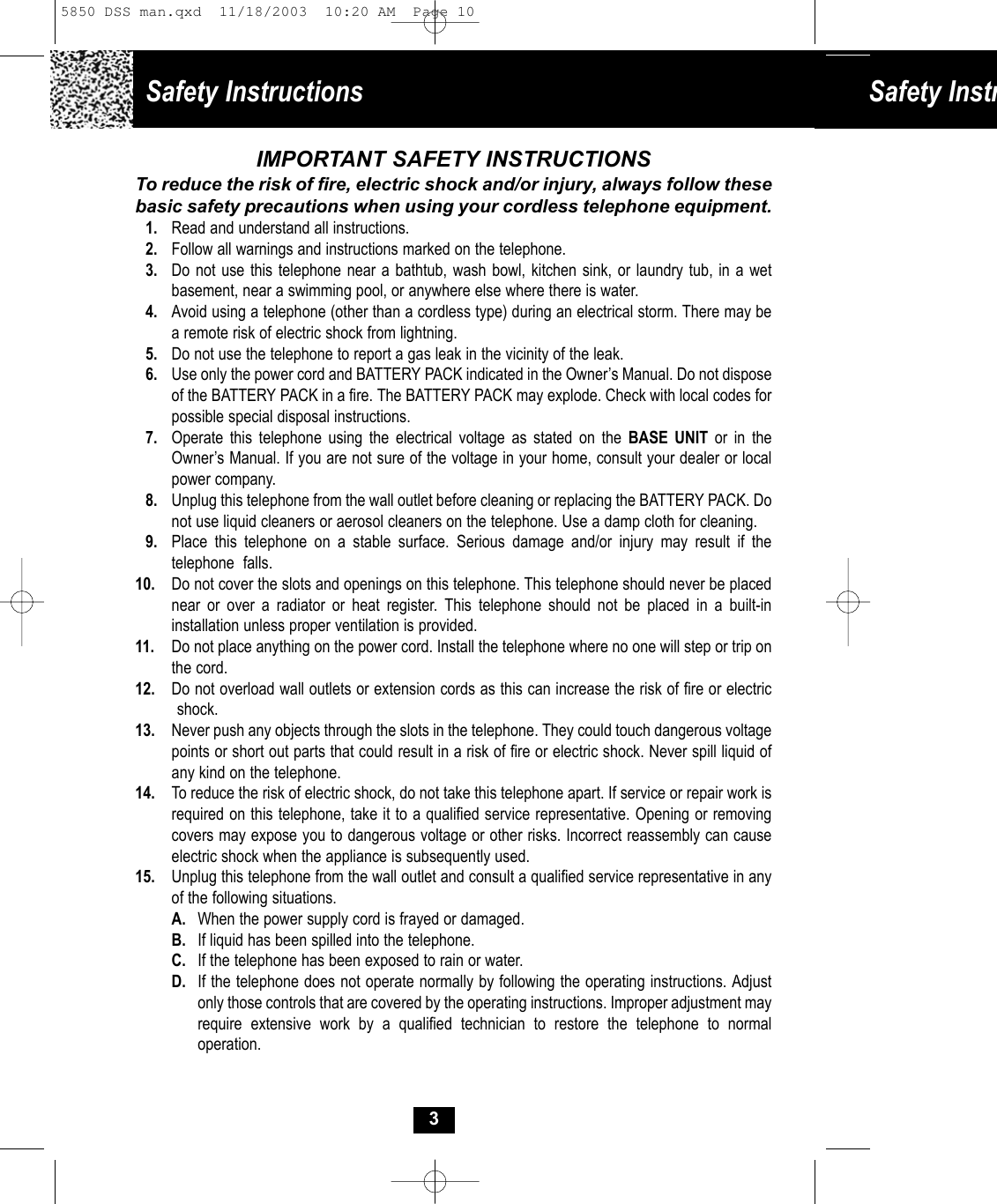

Safety Instructions Safety Instr3IMPORTANT SAFETY INSTRUCTIONSTo reduce the risk of fire, electric shock and/or injury, always follow thesebasic safety precautions when using your cordless telephone equipment.1. Read and understand all instructions.2. Follow all warnings and instructions marked on the telephone.3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, or anywhere else where there is water.4. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 5. Do not use the telephone to report a gas leak in the vicinity of the leak.6. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual. Do not dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode. Check with local codes forpossible special disposal instructions. 7. Operate this telephone using the electrical voltage as stated on the BASE UNIT or in the Owner’s Manual. If you are not sure of the voltage in your home, consult your dealer or local power company.8. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY PACK. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth for cleaning.9. Place this telephone on a stable surface. Serious damage and/or injury may result if the telephone falls.10. Do not cover the slots and openings on this telephone. This telephone should never be placed near or over a radiator or heat register. This telephone should not be placed in a built-in installation unless proper ventilation is provided.11. Do not place anything on the power cord. Install the telephone where no one will step or trip on the cord.12. Do not overload wall outlets or extension cords as this can increase the risk of fire or electric shock.13. Never push any objects through the slots in the telephone. They could touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the telephone.14. To reduce the risk of electric shock, do not take this telephone apart. If service or repair work is required on this telephone, take it to a qualified service representative. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 15. Unplug this telephone from the wall outlet and consult a qualified service representative in any of the following situations.A. When the power supply cord is frayed or damaged.B. If liquid has been spilled into the telephone.C. If the telephone has been exposed to rain or water.D. If the telephone does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment may require extensive work by a qualified technician to restore the telephone to normal operation.5850 DSS man.qxd 11/18/2003 10:20 AM Page 10

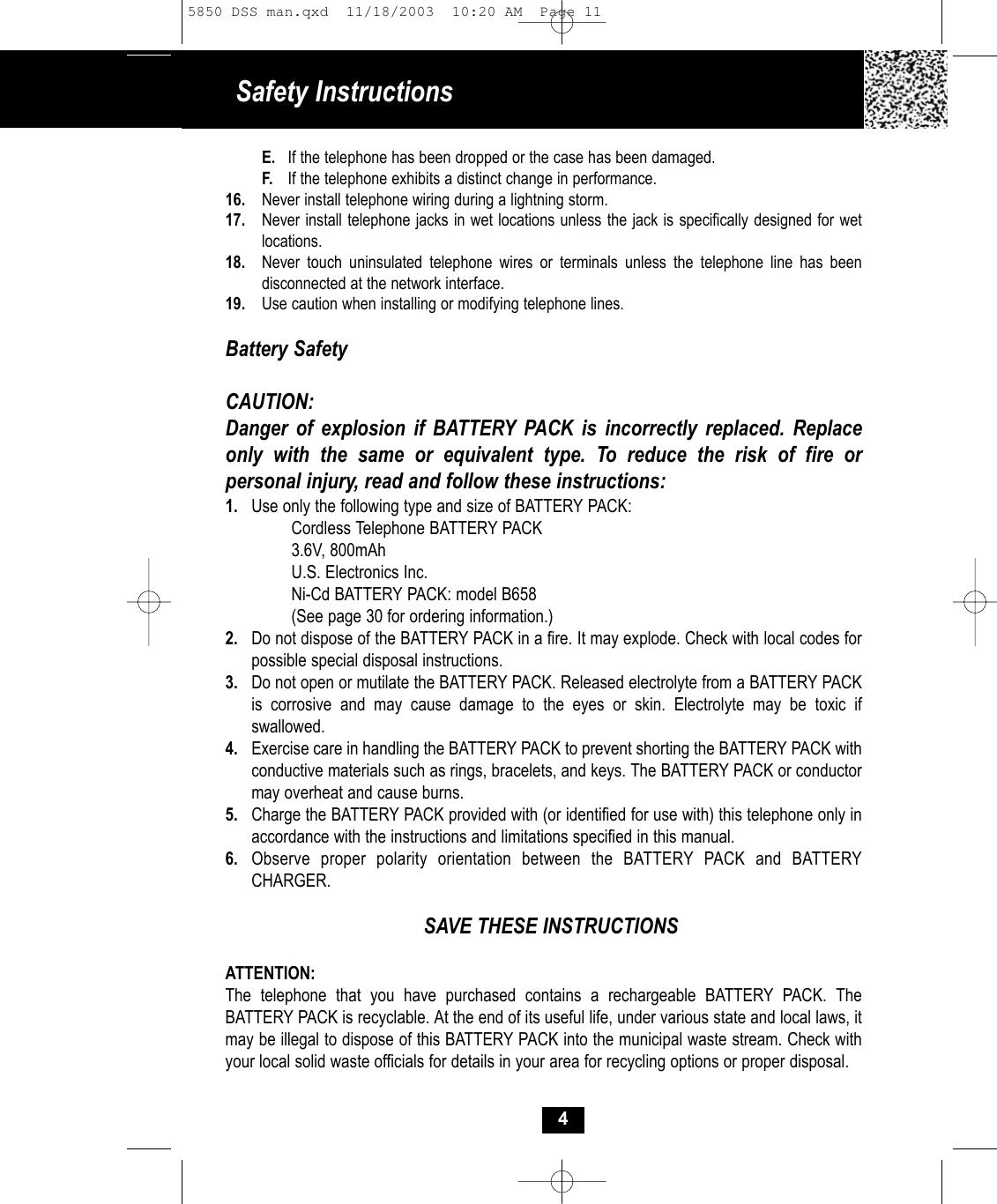

Safety InstructionsE. If the telephone has been dropped or the case has been damaged.F. If the telephone exhibits a distinct change in performance.16. Never install telephone wiring during a lightning storm.17. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.18. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.19. Use caution when installing or modifying telephone lines.Battery SafetyCAUTION:Danger of explosion if BATTERY PACK is incorrectly replaced. Replaceonly with the same or equivalent type. To reduce the risk of fire or personal injury, read and follow these instructions:1. Use only the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 800mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: model B658(See page 30 for ordering information.)2. Do not dispose of the BATTERY PACK in a fire. It may explode. Check with local codes for possible special disposal instructions.3. Do not open or mutilate the BATTERY PACK. Released electrolyte from a BATTERY PACK is corrosive and may cause damage to the eyes or skin. Electrolyte may be toxic if swallowed.4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK with conductive materials such as rings, bracelets, and keys. The BATTERY PACK or conductor may overheat and cause burns.5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only in accordance with the instructions and limitations specified in this manual.6. Observe proper polarity orientation between the BATTERY PACK and BATTERY CHARGER.SAVE THESE INSTRUCTIONSATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. The BATTERY PACK is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal. 45850 DSS man.qxd 11/18/2003 10:20 AM Page 11

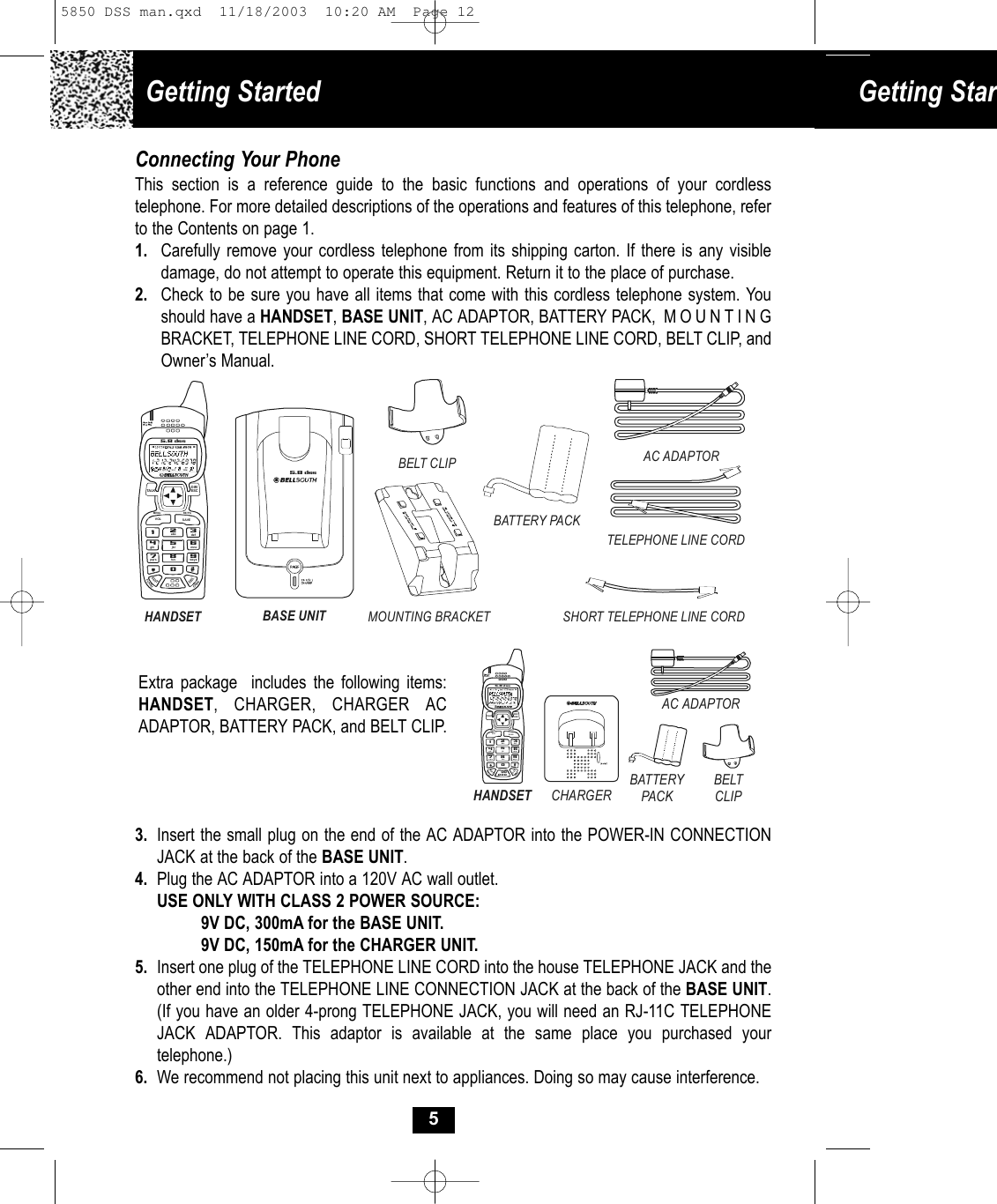

Getting Started Getting StarConnecting Your PhoneThis section is a reference guide to the basic functions and operations of your cordless telephone. For more detailed descriptions of the operations and features of this telephone, refer to the Contents on page 1.1. Carefully remove your cordless telephone from its shipping carton. If there is any visibledamage, do not attempt to operate this equipment. Return it to the place of purchase.2. Check to be sure you have all items that come with this cordless telephone system. You should have a HANDSET, BASE UNIT, AC ADAPTOR, BATTERY PACK, MOUNTING BRACKET, TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD, BELT CLIP, and Owner’s Manual.3. Insert the small plug on the end of the AC ADAPTOR into the POWER-IN CONNECTION JACK at the back of the BASE UNIT.4. Plug the AC ADAPTOR into a 120V AC wall outlet.USE ONLY WITH CLASS 2 POWER SOURCE:9V DC, 300mA for the BASE UNIT.9V DC, 150mA for the CHARGER UNIT.5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and the other end into the TELEPHONE LINE CONNECTION JACK at the back of the BASE UNIT. (If you have an older 4-prong TELEPHONE JACK, you will need an RJ-11C TELEPHONE JACK ADAPTOR. This adaptor is available at the same place you purchased yourtelephone.)6. We recommend not placing this unit next to appliances. Doing so may cause interference.55.8 dssSHORT TELEPHONE LINE CORDTELEPHONE LINE CORDAC ADAPTORBELT CLIPBATTERY PACKMOUNTING BRACKETBASE UNITHANDSET19#0wxyz5.8 dssTA LKMENU RE/ PAEDITDELVOL SAVEFLASHCHANDIR/ESC2abc 3def6mno5jkl4ghi7pqrs 8tuvCHARGERHANDSETAC ADAPTORBATTERY PACKBELT CLIP19#0wxyz5.8 dssTALKMENU R E/PAEDITDELVOL SAVEFLASHCHANDI R/ESC2abc 3def6mno5jkl4ghi7pqrs8tuvExtra package includes the following items: HANDSET, CHARGER, CHARGER AC ADAPTOR, BATTERY PACK, and BELT CLIP.5850 DSS man.qxd 11/18/2003 10:20 AM Page 12

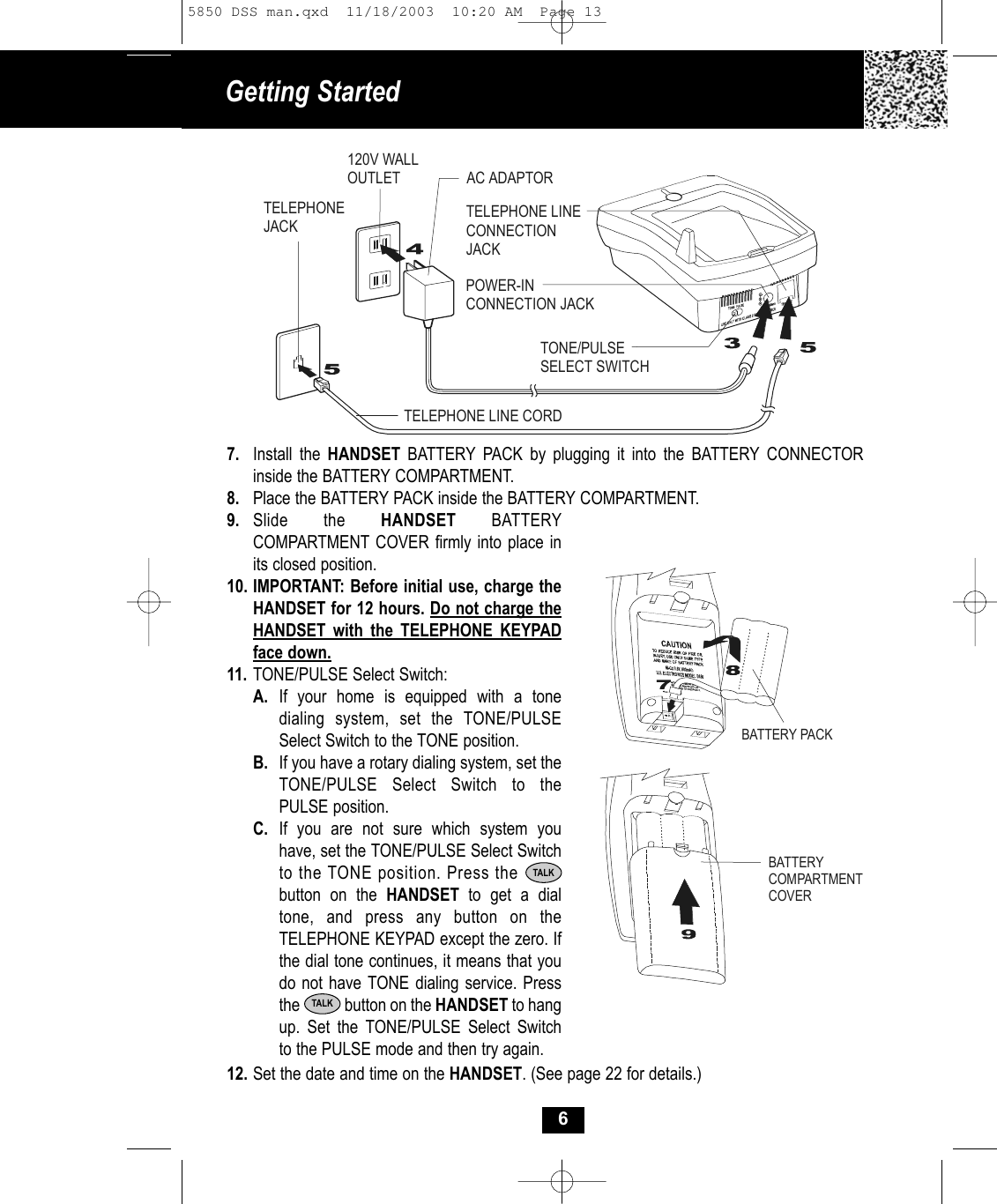

Getting Started 69. Slide the HANDSET BATTERYCOMPARTMENT COVER firmly into place inits closed position.10. IMPORTANT: Before initial use, charge theHANDSET for 12 hours. Do not charge the HANDSET with the TELEPHONE KEYPAD face down.11. TONE/PULSE Select Switch:A. If your home is equipped with a tone dialing system, set the TONE/PULSE Select Switch to the TONE position.B. If you have a rotary dialing system, set the TONE/PULSE Select Switch to the PULSE position.C. If you are not sure which system you have, set the TONE/PULSE Select Switchto the TONE position. Press the button on the HANDSET to get a dial tone, and press any button on the TELEPHONE KEYPAD except the zero. If the dial tone continues, it means that you do not have TONE dialing service. Pressthe button on the HANDSET to hang up. Set the TONE/PULSE Select Switch to the PULSE mode and then try again.TALK12. Set the date and time on the HANDSET. (See page 22 for details.)7. Install the HANDSET BATTERY PACK by plugging it into the BATTERY CONNECTOR inside the BATTERY COMPARTMENT. 8. Place the BATTERY PACK inside the BATTERY COMPARTMENT.AC ADAPTORTELEPHONE LINE CORDTELEPHONEJACK120V WALLOUTLETTONE/PULSESELECT SWITCHPOWER-INCONNECTION JACKTELEPHONE LINECONNECTION JACKBATTERY PACKBATTERY COMPARTMENTCOVERTALK5850 DSS man.qxd 11/18/2003 10:20 AM Page 13

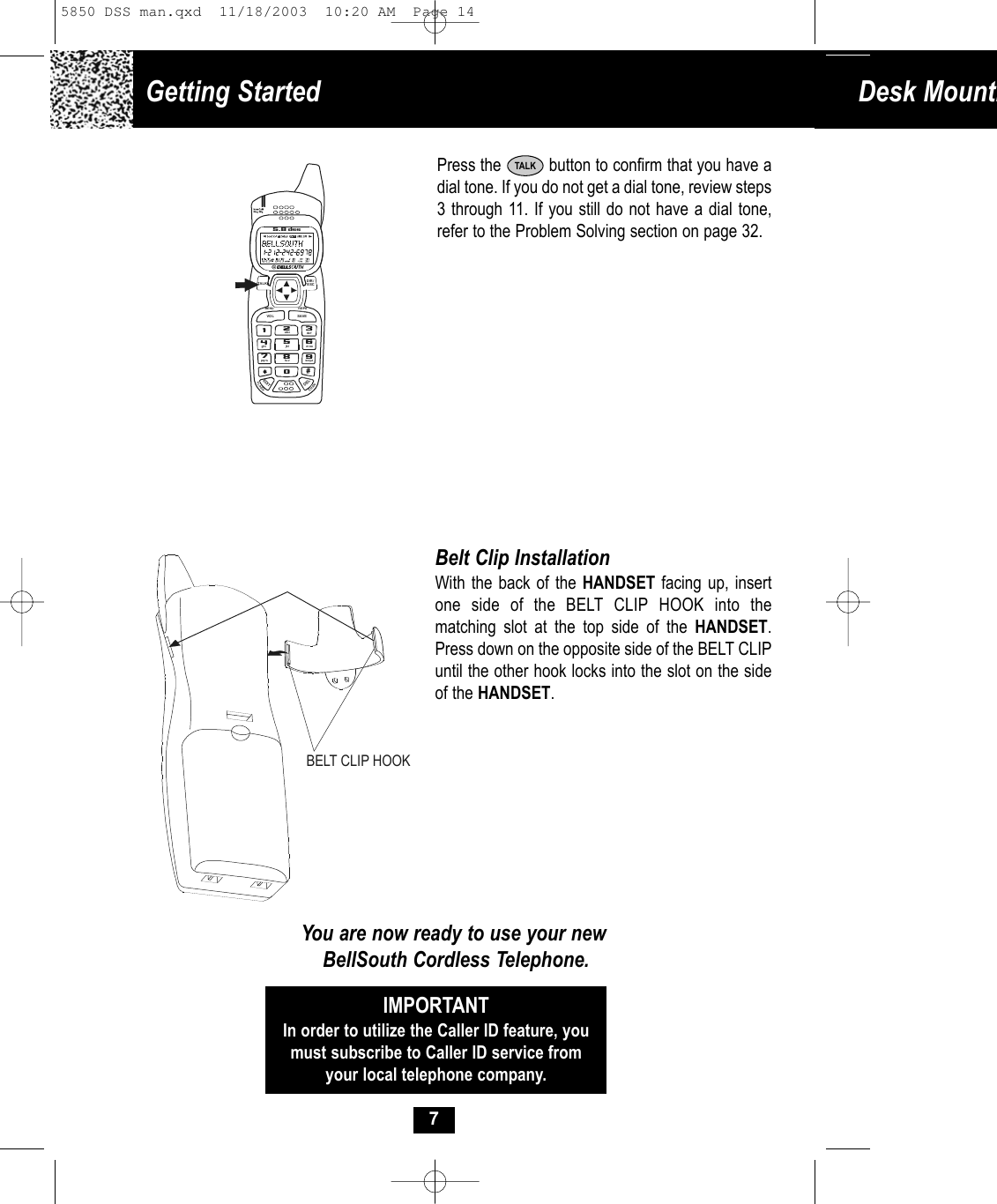

Getting Started Desk Mounti7Press the button to confirm that you have adial tone. If you do not get a dial tone, review steps3 through 11. If you still do not have a dial tone,refer to the Problem Solving section on page 32.TALKBelt Clip InstallationWith the back of the HANDSET facing up, insertone side of the BELT CLIP HOOK into the matching slot at the top side of the HANDSET.Press down on the opposite side of the BELT CLIPuntil the other hook locks into the slot on the sideof the HANDSET.You are now ready to use your newBellSouth Cordless Telephone.IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.BELT CLIP HOOK19#0wxyz5.8 dssTALKMENU RE/PAEDITDELVO L SAVEFLASHCHANDIR/ESC2abc3de f6mno5jkl4ghi7pqr s 8tu v5850 DSS man.qxd 11/18/2003 10:20 AM Page 14

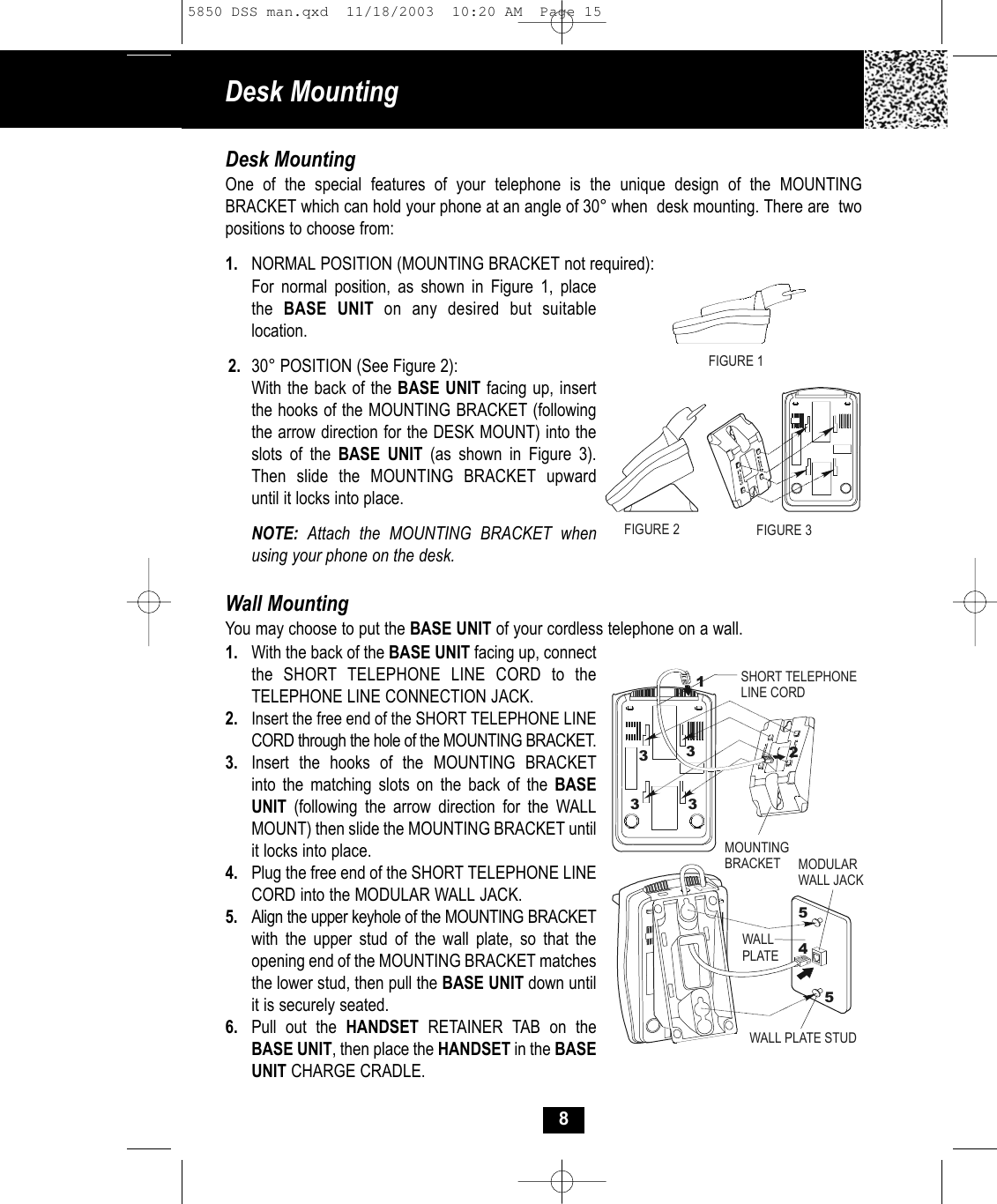

Desk Mounting 8Desk MountingOne of the special features of your telephone is the unique design of the MOUNTING BRACKET which can hold your phone at an angle of 30° when desk mounting. There are twopositions to choose from:1. NORMAL POSITION (MOUNTING BRACKET not required):For normal position, as shown in Figure 1, placethe BASE UNIT on any desired but suitablelocation.2. 30° POSITION (See Figure 2):With the back of the BASE UNIT facing up, insert the hooks of the MOUNTING BRACKET (following the arrow direction for the DESK MOUNT) into theslots of the BASE UNIT (as shown in Figure 3).Then slide the MOUNTING BRACKET upwarduntil it locks into place.NOTE: Attach the MOUNTING BRACKET whenusing your phone on the desk.Wall MountingYou may choose to put the BASE UNIT of your cordless telephone on a wall.1. With the back of the BASE UNIT facing up, connect the SHORT TELEPHONE LINE CORD to the TELEPHONE LINE CONNECTION JACK. 2. Insert the free end of the SHORT TELEPHONE LINECORD through the hole of the MOUNTING BRACKET.3. Insert the hooks of the MOUNTING BRACKET into the matching slots on the back of the BASEUNIT (following the arrow direction for the WALLMOUNT) then slide the MOUNTING BRACKET until it locks into place. 4. Plug the free end of the SHORT TELEPHONE LINECORD into the MODULAR WALL JACK. 5. Align the upper keyhole of the MOUNTING BRACKETwith the upper stud of the wall plate, so that the opening end of the MOUNTING BRACKET matchesthe lower stud, then pull the BASE UNIT down until it is securely seated.6. Pull out the HANDSET RETAINER TAB on the BASE UNIT, then place the HANDSET in the BASEUNIT CHARGE CRADLE.FIGURE 2 FIGURE 3MOUNTINGBRACKET MODULAR WALL JACKWALL PLATEWALL PLATE STUDSHORT TELEPHONELINE CORD124553333FIGURE 15850 DSS man.qxd 11/18/2003 10:20 AM Page 15
Cordless Telephone Operation Cordless Tel9Preparing for UseBefore you can use your cordless telephone, you must charge the HANDSET for 12 hours.Failure to do so will require recharging of the BATTERY PACK more often. 1. Place the HANDSET on the BASE UNIT for 12 hours.2. After 12 hours, remove the HANDSET from the BASE UNIT.Before you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failure to do so will require more frequent charging of the BATTERY PACK.See page 30 for more information on the BATTERY PACK.NOTE:Depending on the frequency of use, once the HANDSET is fully charged, it remains functional for approximately 7 hours of continuous use and approximately 10 days when theHANDSET is off the BASE UNIT in STANDBY mode. 1. When the phone rings, the LCD Screen of all of the HANDSETS registered to the system will display “Ring.” If you have Caller ID, the LCD Screen will display the Caller ID information after the first ring.2. With the HANDSET on or off of the BASE UNIT, press the button. “Talk” will be displayed and the Call Timer starts to count. Start your conversation.3. To end your conversation, either press the buttonor place the HANDSET on the BASE UNIT. Theduration of the call will be displayed on the LCDScreen for about 3 seconds and then returns theLCDScreen to the STANDBY mode. TALKReceiving CallsWhen a call is received, all of the HANDSETS registered to the system will ring with the RINGERLEVEL and MELODY selected by the user. The first HANDSET to respond will get the call. NOTE:If you are too far away from the BASE UNIT, the HANDSET emits “beep” sounds to warn youthat the background noise level is too high for proper communication between the HANDSETand the BASE UNIT. When you hear this sound, you should move closer to the BASE UNIT toreduce the noise level. Otherwise, the call will automatically cut off.MinutesSecondsTALK5850 DSS man.qxd 11/18/2003 10:20 AM Page 16

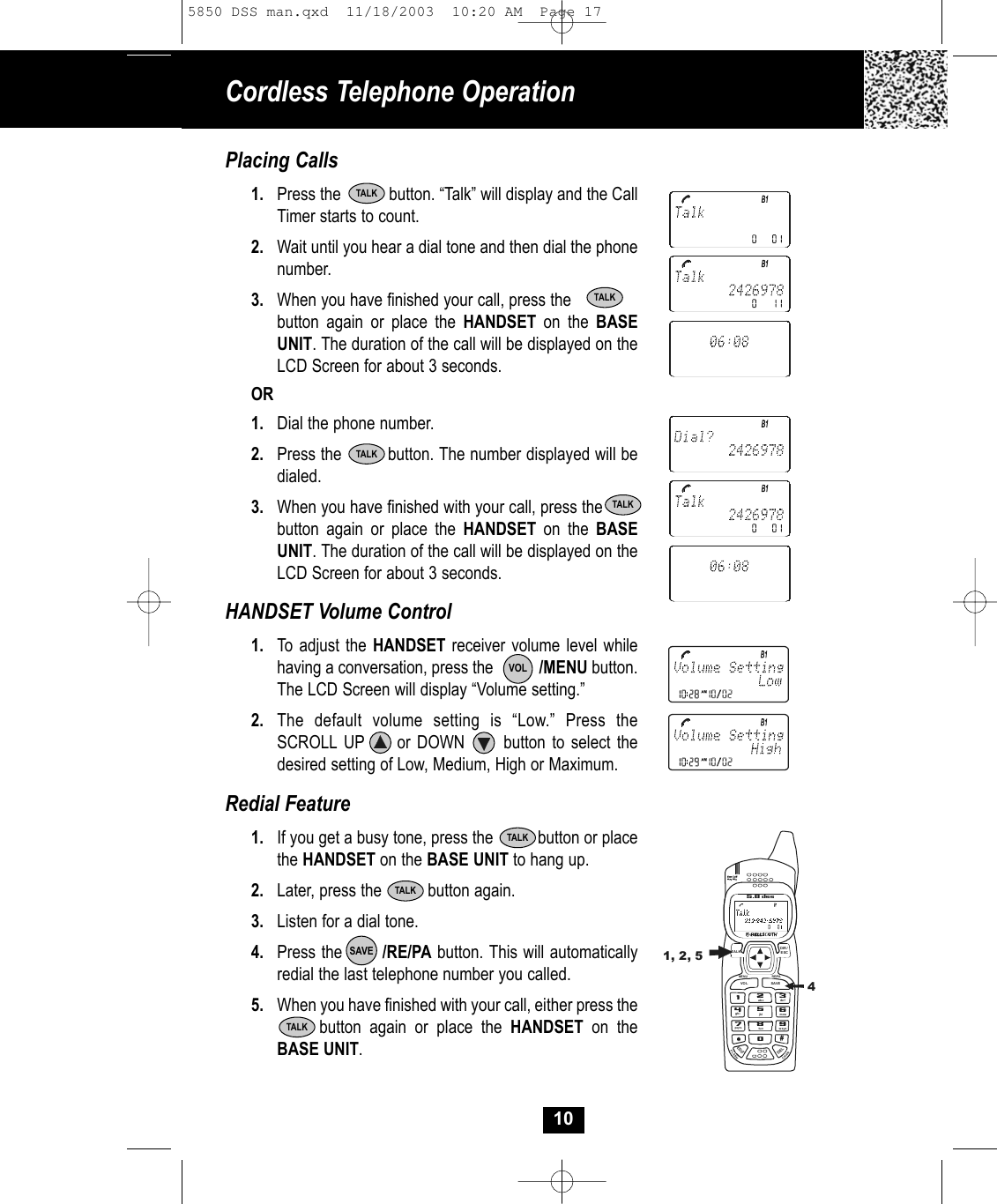

Cordless Telephone Operation10Placing Calls1. Press the button. “Talk” will display and the CallTimer starts to count. 2. Wait until you hear a dial tone and then dial the phonenumber.3. When you have finished your call, press the button again or place the HANDSET on the BASEUNIT. The duration of the call will be displayed on theLCD Screen for about 3 seconds. OR1. Dial the phone number.2. Press the button. The number displayed will bedialed.3. When you have finished with your call, press the button again or place the HANDSET on the BASE UNIT. The duration of the call will be displayed on theLCD Screen for about 3 seconds. HANDSET Volume Control1. To adjust the HANDSET receiver volume level whilehaving a conversation, press the /MENU button. The LCD Screen will display “Volume setting.” 2. The default volume setting is “Low.” Press theSCROLL UP or DOWN button to select thedesired setting of Low, Medium, High or Maximum.Redial Feature1. If you get a busy tone, press the button or placethe HANDSET on the BASE UNIT to hang up.2. Later, press the button again.3. Listen for a dial tone.4. Press the /RE/PA button. This will automaticallyredial the last telephone number you called.5. When you have finished with your call, either press thebutton again or place the HANDSET on theBASE UNIT. TALKSAVEVOLTALKTALKTALKTALKTALKTALK19#0wxyz5.8 dssTALKMENU RE/PAEDITDELVO L SAVEFLASHCHANDIR/ESC2abc3de f6mno5jkl4ghi7pqr s 8tu v1, 2, 545850 DSS man.qxd 11/18/2003 10:20 AM Page 17

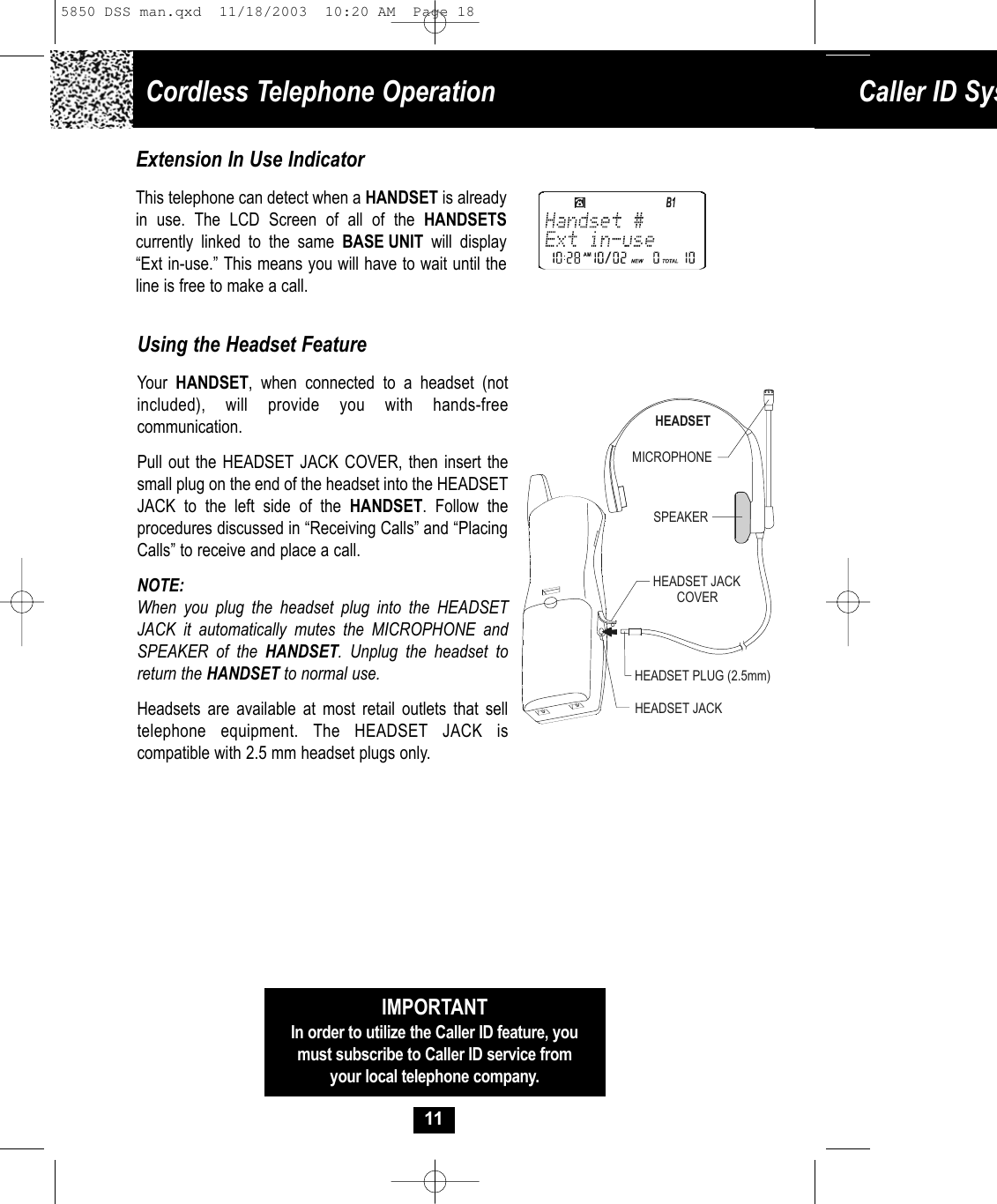

Cordless Telephone Operation Caller ID Sys11Using the Headset FeatureYour HANDSET, when connected to a headset (notincluded), will provide you with hands-freecommunication. Pull out the HEADSET JACK COVER, then insert thesmall plug on the end of the headset into the HEADSETJACK to the left side of the HANDSET. Follow the procedures discussed in “Receiving Calls” and “PlacingCalls” to receive and place a call. NOTE:When you plug the headset plug into the HEADSETJACK it automatically mutes the MICROPHONE andSPEAKER of the HANDSET. Unplug the headset toreturn the HANDSET to normal use. Headsets are available at most retail outlets that selltelephone equipment. The HEADSET JACK is compatible with 2.5 mm headset plugs only. MICROPHONEHEADSETSPEAKERHEADSET JACKHEADSET JACKCOVERHEADSET PLUG (2.5mm)IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.Extension In Use IndicatorThis telephone can detect when a HANDSET is alreadyin use. The LCD Screen of all of the HANDSETS currently linked to the same BASE UNIT will display“Ext in-use.” This means you will have to wait until theline is free to make a call.5850 DSS man.qxd 11/18/2003 10:20 AM Page 18

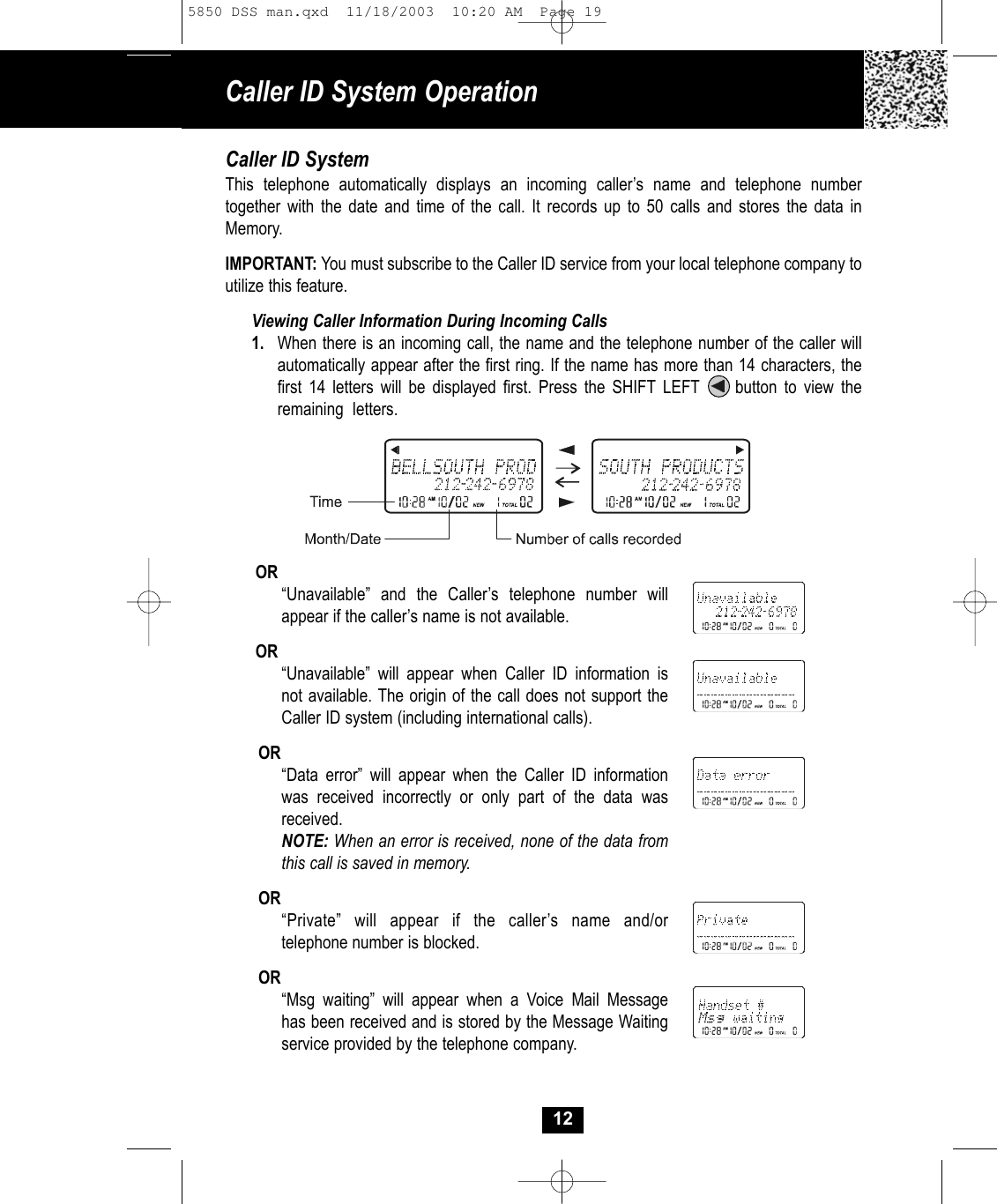

Caller ID System Operation12Caller ID SystemThis telephone automatically displays an incoming caller’s name and telephone number together with the date and time of the call. It records up to 50 calls and stores the data in Memory. IMPORTANT: You must subscribe to the Caller ID service from your local telephone company toutilize this feature.Viewing Caller Information During Incoming Calls1. When there is an incoming call, the name and the telephone number of the caller will automatically appear after the first ring. If the name has more than 14 characters, thefirst 14 letters will be displayed first. Press the SHIFT LEFT button to view the remaining letters.OR“Unavailable” and the Caller’s telephone number will appear if the caller’s name is not available.OR“Unavailable” will appear when Caller ID information is not available. The origin of the call does not support the Caller ID system (including international calls).OR“Data error” will appear when the Caller ID informationwas received incorrectly or only part of the data wasreceived.NOTE: When an error is received, none of the data from this call is saved in memory. OR“Private” will appear if the caller’s name and/or telephone number is blocked.OR“Msg waiting” will appear when a Voice Mail Message has been received and is stored by the Message Waitingservice provided by the telephone company.5850 DSS man.qxd 11/18/2003 10:20 AM Page 19

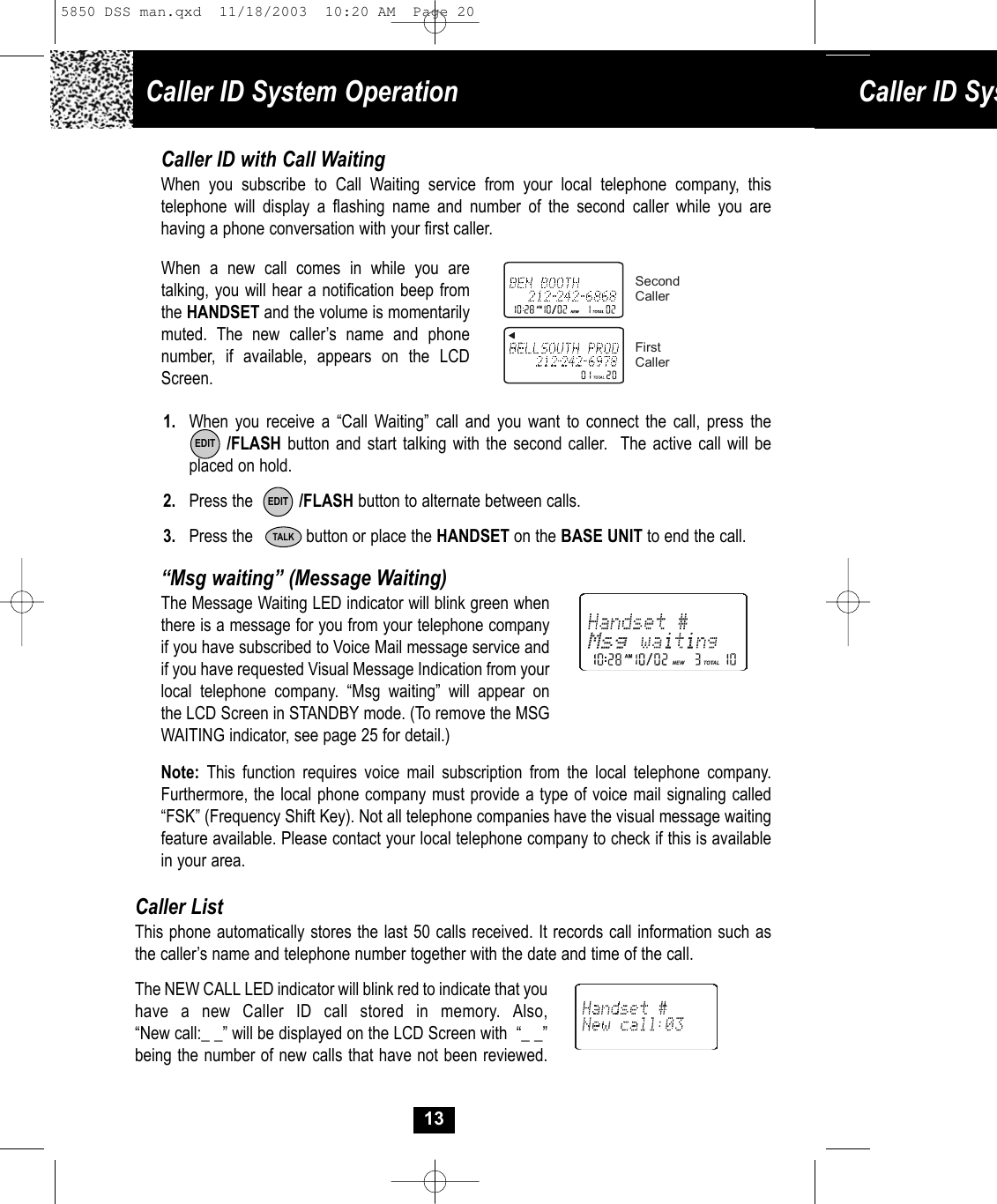

Caller ID System Operation Caller ID Sys13Caller ID with Call WaitingWhen you subscribe to Call Waiting service from your local telephone company, this telephone will display a flashing name and number of the second caller while you are having a phone conversation with your first caller.When a new call comes in while you are talking, you will hear a notification beep fromthe HANDSET and the volume is momentarily muted. The new caller’s name and phone number, if available, appears on the LCDScreen.1. When you receive a “Call Waiting” call and you want to connect the call, press the/FLASH button and start talking with the second caller. The active call will be placed on hold. 2. Press the /FLASH button to alternate between calls.3. Press the button or place the HANDSET on the BASE UNIT to end the call.SecondCallerFirstCallerTALK“Msg waiting” (Message Waiting)The Message Waiting LED indicator will blink green whenthere is a message for you from your telephone companyif you have subscribed to Voice Mail message service andif you have requested Visual Message Indication from yourlocal telephone company. “Msg waiting” will appear onthe LCD Screen in STANDBY mode. (To remove the MSG WAITING indicator, see page 25 for detail.)EDITNote: This function requires voice mail subscription from the local telephone company. Furthermore, the local phone company must provide a type of voice mail signaling called “FSK” (Frequency Shift Key). Not all telephone companies have the visual message waiting feature available. Please contact your local telephone company to check if this is available in your area.Caller ListThis phone automatically stores the last 50 calls received. It records call information such asthe caller’s name and telephone number together with the date and time of the call. The NEW CALL LED indicator will blink red to indicate that youhave a new Caller ID call stored in memory. Also, “New call:_ _” will be displayed on the LCD Screen with “_ _”being the number of new calls that have not been reviewed.EDIT5850 DSS man.qxd 11/18/2003 10:20 AM Page 20
Caller ID System Operation14Viewing the Caller List 1. With the HANDSET in STANDBY mode, press theSCROLL UP or DOWN button. The LCD Screen will display “Incoming call,” press the SCROLL UPor DOWN button again to display the Caller ID records. 2. Any unviewed (new) calls will be displayed first. Theinformation on the call will be displayed with the name, number, date, and time that the call was received.3. Pressing the SCROLL DOWN button will go throughthe calls from the last call received to the first Caller ID record. Pressing the SCROLL UP button will allow you to view the calls from the first call received to thelast.4. If the name has more than 14 characters, the first 14 letters will be displayed first. Press the SHIFT LEFT button to view the remaining letters. 5. Press the button to return to STANDBY mode.Placing a Call from the Caller ListYou can place a call from the Caller list by using the Caller ID CALLBACK feature.1. When viewing the Caller ID List, press the SCROLL UP or DOWN button tofind the record you wish to call back.2. Press the /OPTION button to change the displayed number to 7, 10, or 11 digits.The first dialing option displayed is the 11 digits for a long distance call.Press the /OPTION button for the second time, the displayed number will change to 7 digits for a local call.Press the /OPTION button for the third time, the displayed number will change to 10 digits for a local call with area code.#3. Press the button to dial the displayed number. Press the button to canceland return to STANDBY mode. 4. To end a call, either press the button or place the HANDSET on the BASE UNIT.TALKFirst press.Second press.Third press.DIR/ESCTALK##DIR/ESC5850 DSS man.qxd 11/18/2003 10:20 AM Page 21

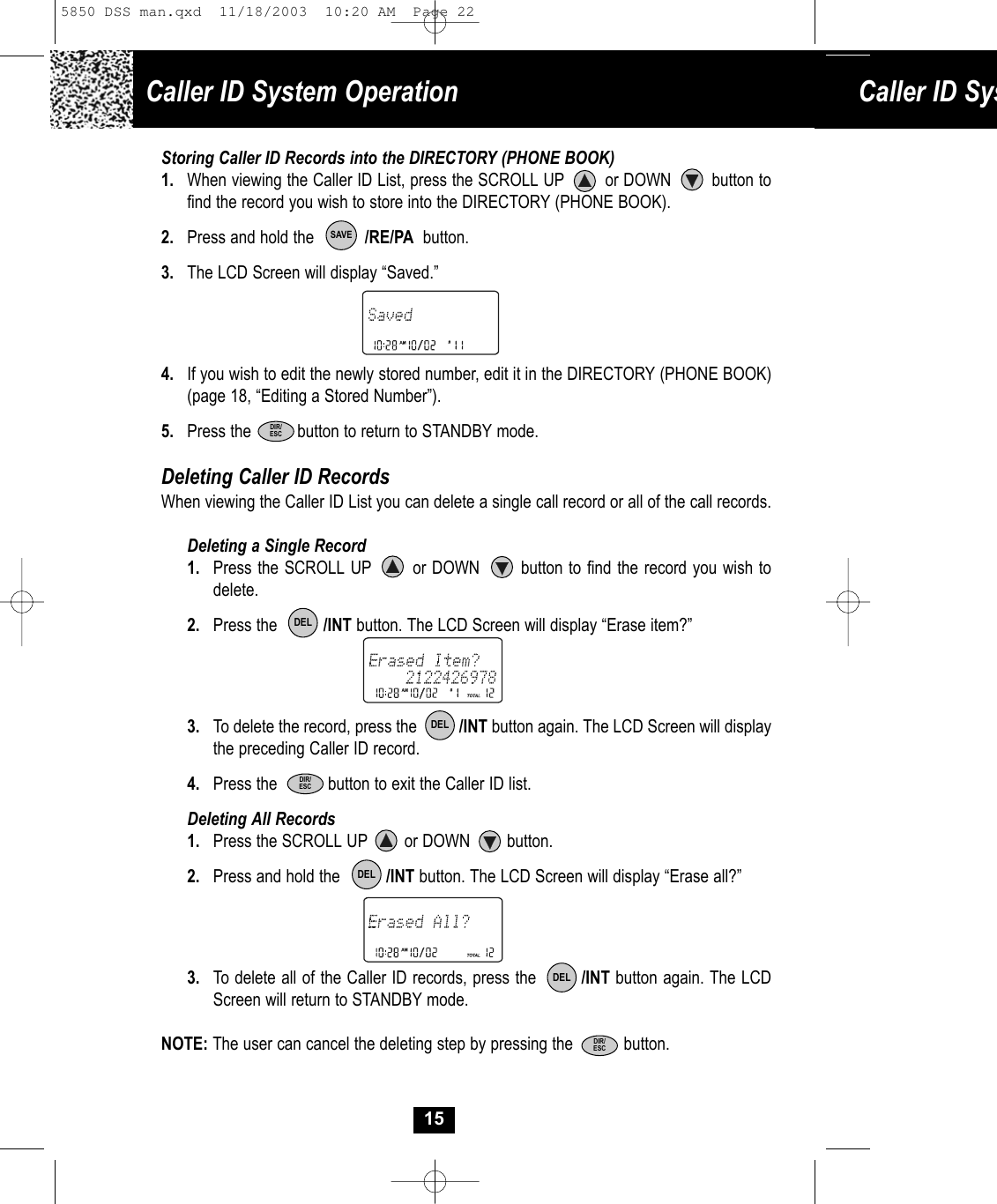

Caller ID System Operation Caller ID Sys15Storing Caller ID Records into the DIRECTORY (PHONE BOOK)1. When viewing the Caller ID List, press the SCROLL UP or DOWN button tofind the record you wish to store into the DIRECTORY (PHONE BOOK).2. Press and hold the /RE/PA button.3. The LCD Screen will display “Saved.”4. If you wish to edit the newly stored number, edit it in the DIRECTORY (PHONE BOOK) (page 18, “Editing a Stored Number”).5. Press the button to return to STANDBY mode.Deleting Caller ID RecordsWhen viewing the Caller ID List you can delete a single call record or all of the call records.Deleting a Single Record1. Press the SCROLL UP or DOWN button to find the record you wish to delete.2. Press the /INT button. The LCD Screen will display “Erase item?”3. To delete the record, press the /INT button again. The LCD Screen will displaythe preceding Caller ID record.4. Press the button to exit the Caller ID list.Deleting All Records1. Press the SCROLL UP or DOWN button. 2. Press and hold the /INT button. The LCD Screen will display “Erase all?”3. To delete all of the Caller ID records, press the /INT button again. The LCDScreen will return to STANDBY mode.NOTE: The user can cancel the deleting step by pressing the button. SAVEDELDIR/ESCDELDELDELDIR/ESCDIR/ESC5850 DSS man.qxd 11/18/2003 10:20 AM Page 22

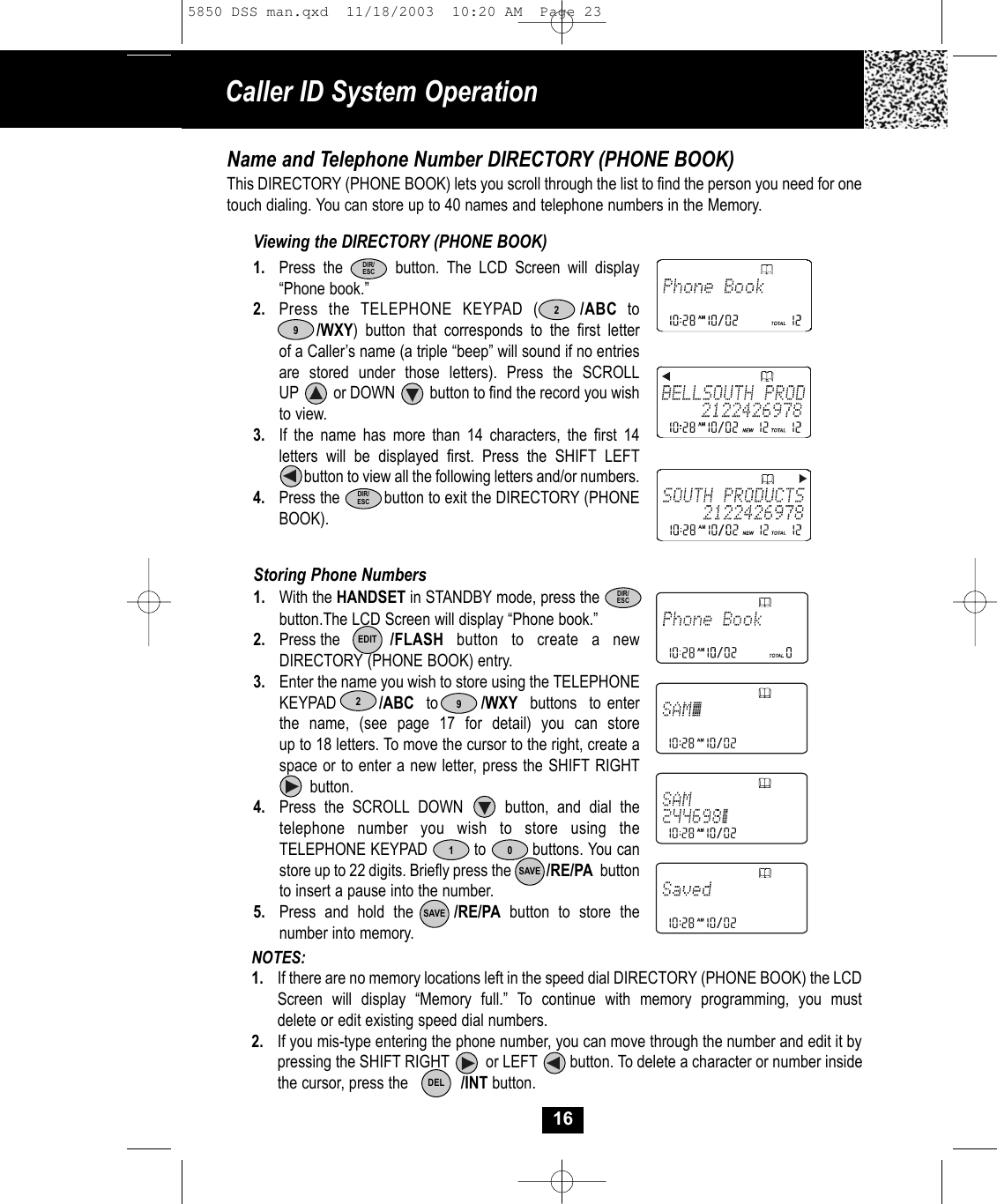

NOTES: 1. If there are no memory locations left in the speed dial DIRECTORY (PHONE BOOK) the LCD Screen will display “Memory full.” To continue with memory programming, you must delete or edit existing speed dial numbers.2. If you mis-type entering the phone number, you can move through the number and edit it by pressing the SHIFT RIGHT or LEFT button. To delete a character or number inside the cursor, press the /INT button.Caller ID System Operation16Name and Telephone Number DIRECTORY (PHONE BOOK)This DIRECTORY (PHONE BOOK) lets you scroll through the list to find the person you need for onetouch dialing. You can store up to 40 names and telephone numbers in the Memory.Viewing the DIRECTORY (PHONE BOOK)1. Press the button. The LCD Screen will display “Phone book.”2. Press the TELEPHONE KEYPAD ( /ABC to/WXY) button that corresponds to the first letterof a Caller’s name (a triple “beep” will sound if no entriesare stored under those letters). Press the SCROLL UP or DOWN button to find the record you wishto view.3. If the name has more than 14 characters, the first 14 letters will be displayed first. Press the SHIFT LEFTbutton to view all the following letters and/or numbers.4. Press the button to exit the DIRECTORY (PHONEBOOK). Storing Phone Numbers1. With the HANDSET in STANDBY mode, press thebutton.The LCD Screen will display “Phone book.”2. Press the /FLASH button to create a newDIRECTORY (PHONE BOOK) entry. 3. Enter the name you wish to store using the TELEPHONEKEYPAD /ABC to /WXY buttons to enter the name, (see page 17 for detail) you can store up to 18 letters. To move the cursor to the right, create a space or to enter a new letter, press the SHIFT RIGHTbutton. 4. Press the SCROLL DOWN button, and dial thetelephone number you wish to store using theTELEPHONE KEYPAD to buttons. You canstore up to 22 digits. Briefly press the /RE/PA buttonto insert a pause into the number.5. Press and hold the /RE/PA button to store the number into memory.SAVESAVE0DIR/ESCEDITDEL129DIR/ESC29DIR/ESC5850 DSS man.qxd 11/18/2003 10:20 AM Page 23

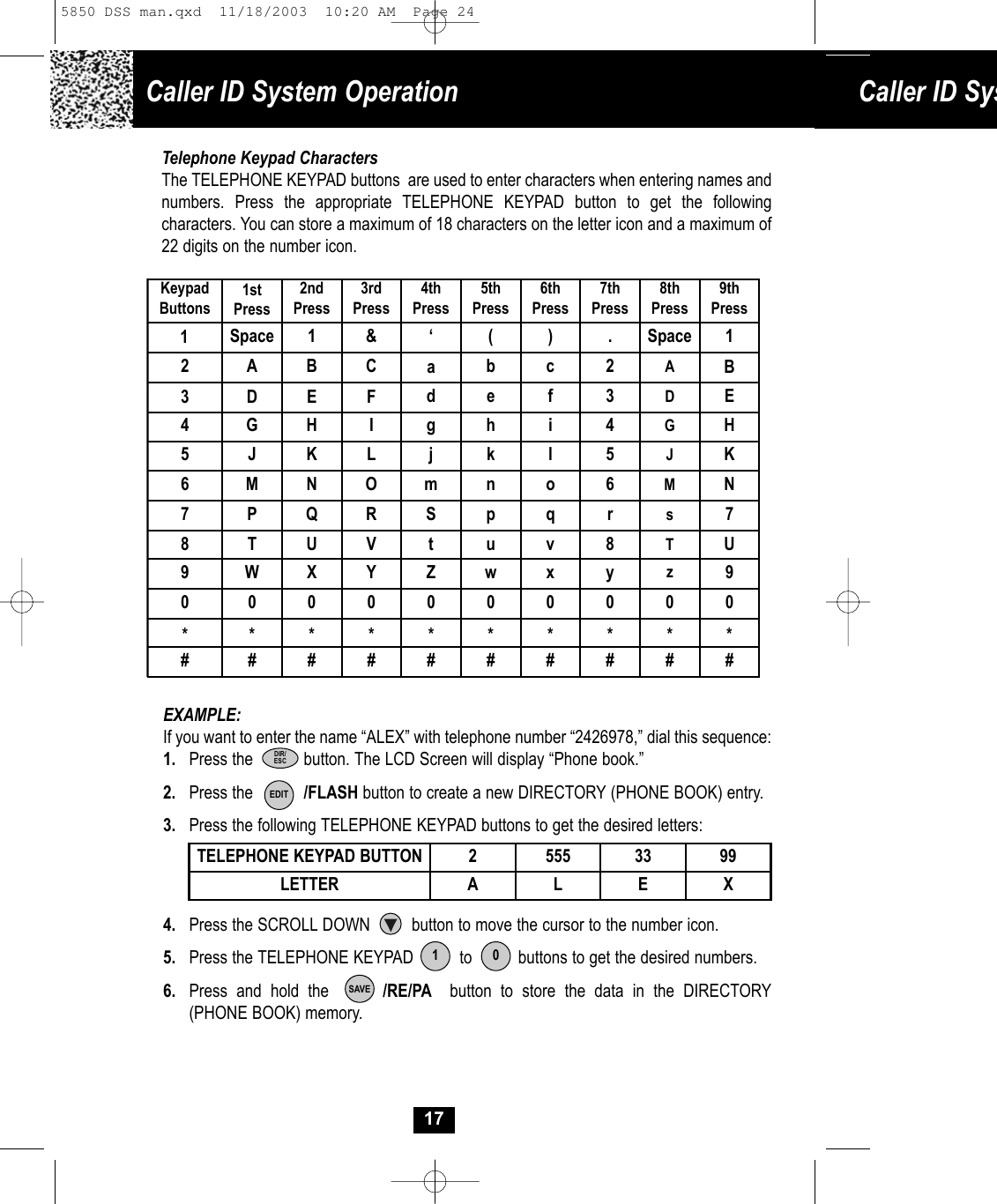

1SpaceCaller ID System Operation Caller ID Sys17Telephone Keypad CharactersThe TELEPHONE KEYPAD buttons are used to enter characters when entering names and numbers. Press the appropriate TELEPHONE KEYPAD button to get the following characters. You can store a maximum of 18 characters on the letter icon and a maximum of 22 digits on the number icon. EXAMPLE: If you want to enter the name “ALEX” with telephone number “2426978,” dial this sequence:1. Press the button. The LCD Screen will display “Phone book.” 2. Press the /FLASH button to create a new DIRECTORY (PHONE BOOK) entry.3. Press the following TELEPHONE KEYPAD buttons to get the desired letters:4. Press the SCROLL DOWN button to move the cursor to the number icon.5. Press the TELEPHONE KEYPAD to buttons to get the desired numbers.6. Press and hold the /RE/PA button to store the data in the DIRECTORY (PHONE BOOK) memory.TELEPHONE KEYPAD BUTTON 2 555 33 99LETTER A L E XSAVEDIR/ESCEDITKeypadButtons1stPress2ndPress3rdPress4thPress5thPress6thPress7thPress8thPress9thPress12 A B C ab c 2 AB3 D E F d e f 3 DE4 G H I g h i 4 GH5 J K L j k l 5 JK6 M N O m n o 6 MN7 P Q R S p q r s78 T U V t u v 8 TU9 W X Y Z w x y z90 0 0 0 0 0 0 0 0 0 * * * * * * * * * * # # # # # # # # # # 10‘&().Space 15850 DSS man.qxd 11/18/2003 10:20 AM Page 24

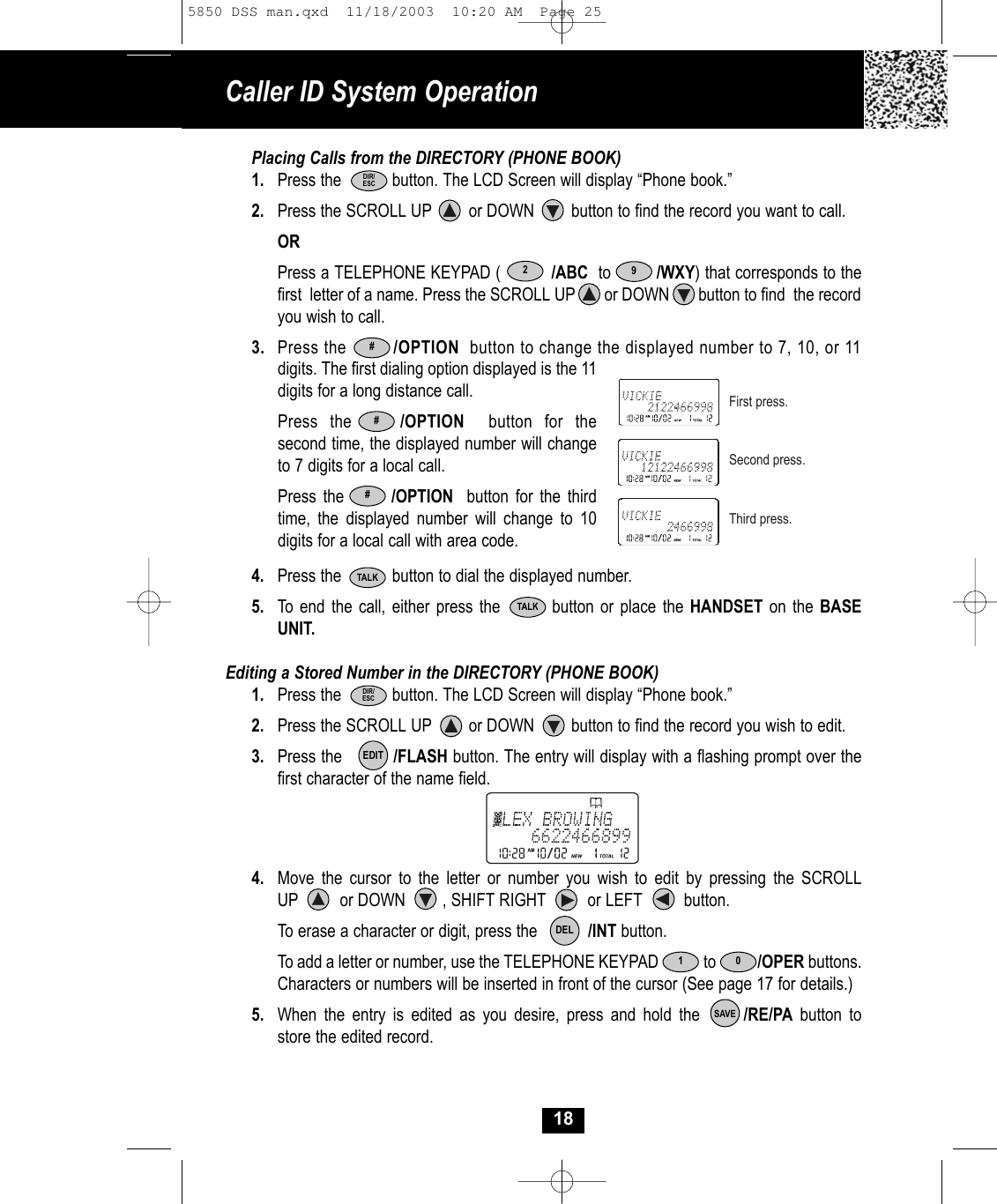

Caller ID System Operation18Placing Calls from the DIRECTORY (PHONE BOOK)1. Press the button. The LCD Screen will display “Phone book.” 2. Press the SCROLL UP or DOWN button to find the record you want to call.ORPress a TELEPHONE KEYPAD ( /ABC to /WXY) that corresponds to thefirst letter of a name. Press the SCROLL UP or DOWN button to find the recordyou wish to call.3. Press the /OPTION button to change the displayed number to 7, 10, or 11digits. The first dialing option displayed is the 11 digits for a long distance call. Press the /OPTION button for the second time, the displayed number will change to 7 digits for a local call.Press the /OPTION button for the third time, the displayed number will change to 10 digits for a local call with area code.4. Press the button to dial the displayed number.5. To end the call, either press the button or place the HANDSET on the BASEUNIT.Editing a Stored Number in the DIRECTORY (PHONE BOOK)1. Press the button. The LCD Screen will display “Phone book.”2. Press the SCROLL UP or DOWN button to find the record you wish to edit.3. Press the /FLASH button. The entry will display with a flashing prompt over thefirst character of the name field.4. Move the cursor to the letter or number you wish to edit by pressing the SCROLLUP or DOWN , SHIFT RIGHT or LEFT button. To erase a character or digit, press the /INT button. To add a letter or number, use the TELEPHONE KEYPAD to /OPER buttons.Characters or numbers will be inserted in front of the cursor (See page 17 for details.)5. When the entry is edited as you desire, press and hold the /RE/PA button tostore the edited record.DIR/ESCTALKDIR/ESC29#10SAVEEDITFirst press.Second press.Third press.DELTALK##5850 DSS man.qxd 11/18/2003 10:20 AM Page 25
Caller ID System Operation Caller ID Sys19Deleting a Stored Record in the DIRECTORY (PHONE BOOK)1. Press the button. The LCD Screen will display “Phone book.”2. Press the SCROLL UP or DOWN button to find the record you wish to delete.3. Press the /INT button. The LCD Screen will display “Erase item?”4. To delete the record, press the /INT button again. The LCD Screen will display thepreceding Caller ID record.5. Press the button to return to STANDBY mode.PREFERRED CALLSYou can assign stored numbers a PREFERRED CALL status. When an incoming call ismatched to a stored number designated as PREFERRED, the phone will generate a special ringer sound or will play the RING MELODY assigned by the user after the Caller ID information is received.When you are saving the name and number into the DIRECTORY (PHONE BOOK), add a “#” symbol at thebeginning of the name by pressing the button. BLOCKED CALLSYou can assign stored numbers a BLOCKED CALL status. When an incoming call is matched to a stored number designated as blocked, the phone will not ring after the Caller ID information is received.When you are saving the name and number into the DIRECTORY (PHONE BOOK), add an “*” symbol at thebeginning of the name by pressing the button. DEL#*To assign a RING MELODY, add a “#” symbol followed by the desired RING MELODY number (1~0) at thebeginning of the name. To hear a sample of the RINGMELODY sound, see page 22 for details. “C-F” (Forwarded Call)The “CF” icon pops-up on the LCD Screen, when the incoming call has been assigned to your telephone number and the service is provided by your local telephone company.“L-D-C” (Long Distance Call)The “LDC” icon pops-up on the LCD Screen, when the incoming call is a long distance call and the service is provided by your local telephone company.DELDIR/ESCDIR/ESC5850 DSS man.qxd 11/18/2003 10:20 AM Page 26

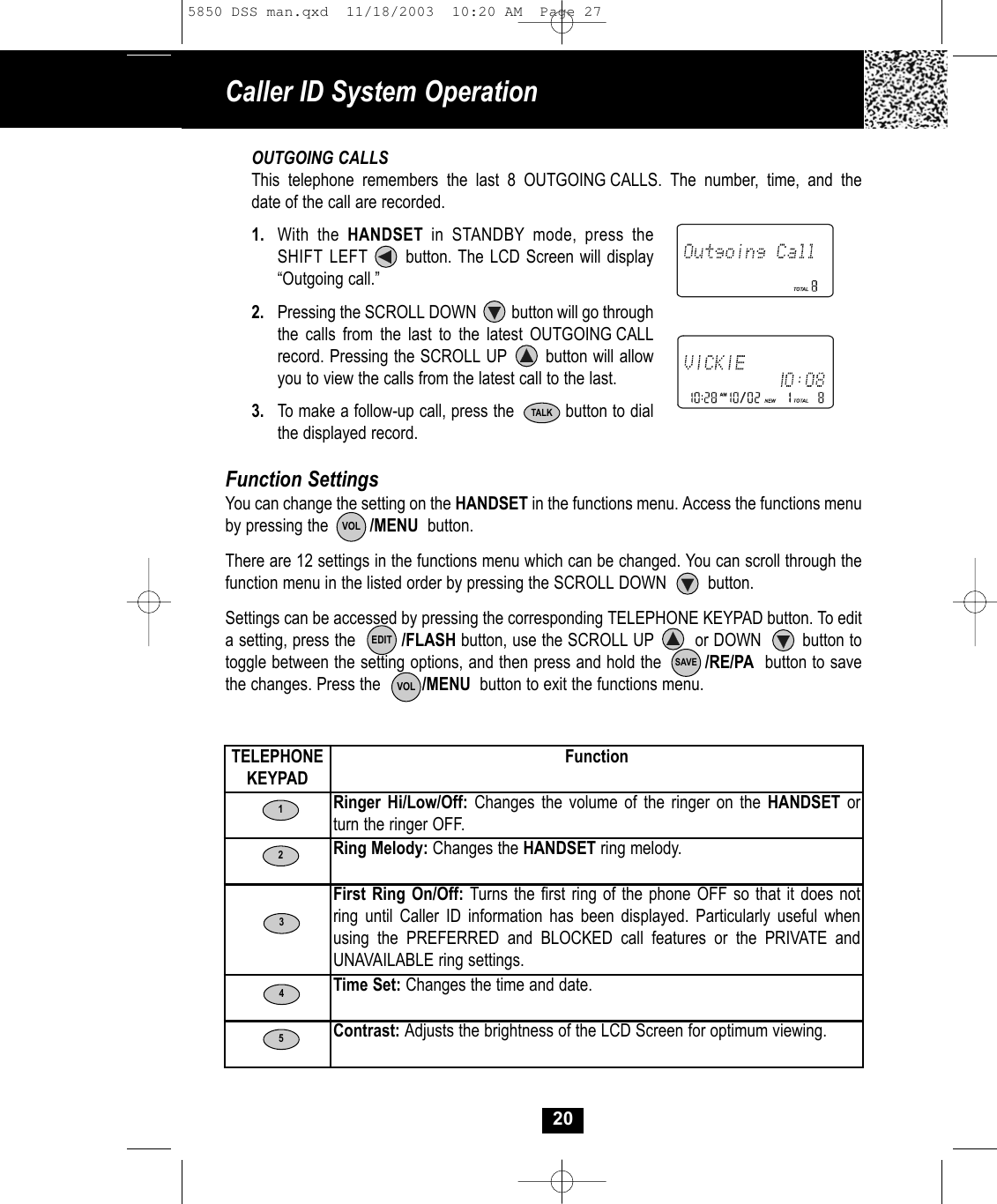

Caller ID System Operation20OUTGOING CALLSThis telephone remembers the last 8 OUTGOING CALLS. The number, time, and the date of the call are recorded. 1. With the HANDSET in STANDBY mode, press theSHIFT LEFT button. The LCD Screen will display “Outgoing call.” 2. Pressing the SCROLL DOWN button will go throughthe calls from the last to the latest OUTGOING CALL record. Pressing the SCROLL UP button will allow you to view the calls from the latest call to the last.3. To make a follow-up call, press the button to dial the displayed record.Function SettingsYou can change the setting on the HANDSET in the functions menu. Access the functions menuby pressing the /MENU button.There are 12 settings in the functions menu which can be changed. You can scroll through thefunction menu in the listed order by pressing the SCROLL DOWN button. Settings can be accessed by pressing the corresponding TELEPHONE KEYPAD button. To edit a setting, press the /FLASH button, use the SCROLL UP or DOWN button to toggle between the setting options, and then press and hold the /RE/PA button to save the changes. Press the /MENU button to exit the functions menu.VOLTALKSAVEEDITTELEPHONEKEYPAD FunctionRinger Hi/Low/Off: Changes the volume of the ringer on the HANDSET orturn the ringer OFF.Ring Melody: Changes the HANDSET ring melody.First Ring On/Off: Turns the first ring of the phone OFF so that it does not ring until Caller ID information has been displayed. Particularly useful whenusing the PREFERRED and BLOCKED call features or the PRIVATE andUNAVAILABLE ring settings.Time Set: Changes the time and date.Contrast: Adjusts the brightness of the LCD Screen for optimum viewing.12345VOL5850 DSS man.qxd 11/18/2003 10:20 AM Page 27

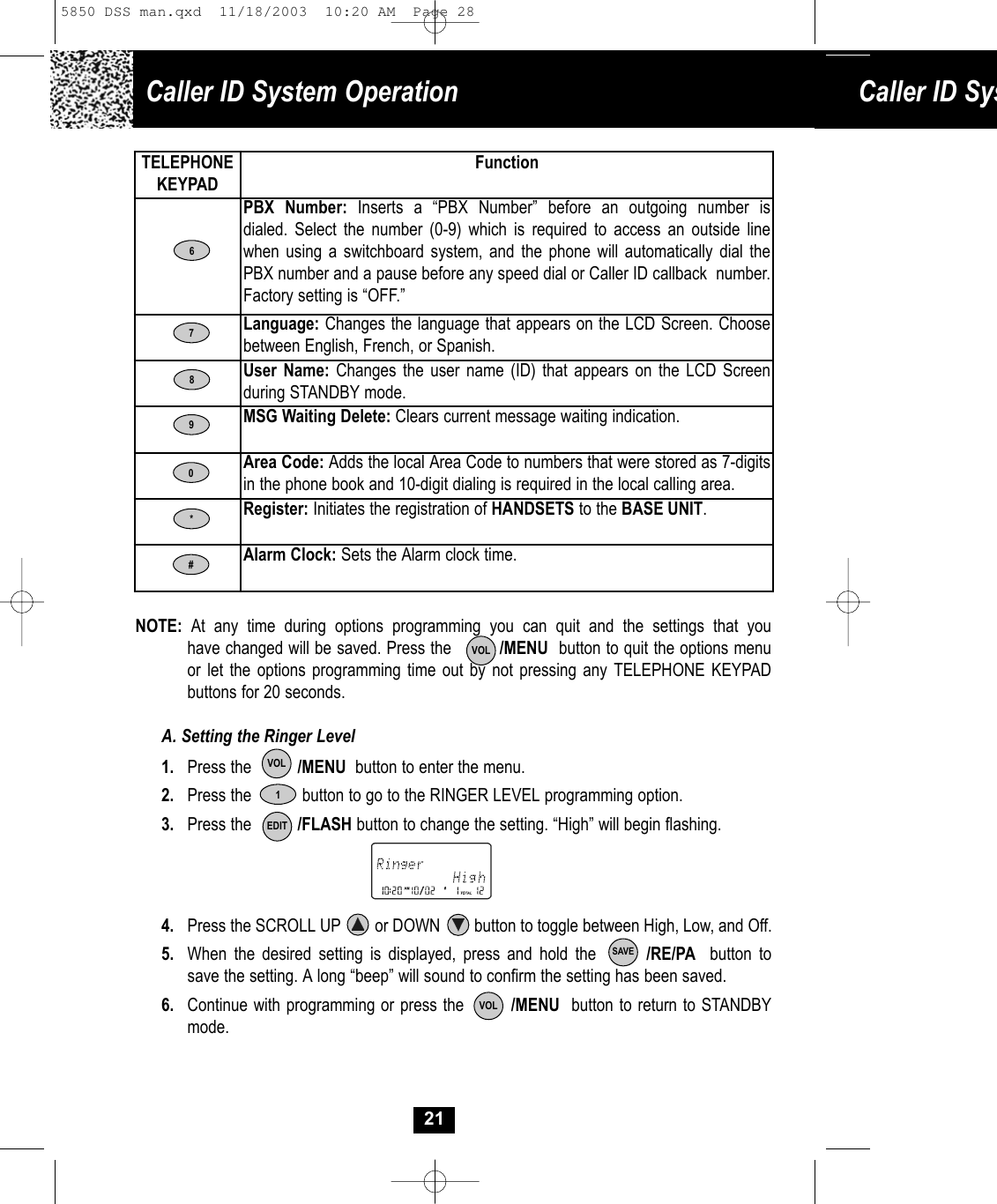

Caller ID System Operation Caller ID Sys21TELEPHONEKEYPAD FunctionPBX Number: Inserts a “PBX Number” before an outgoing number is dialed. Select the number (0-9) which is required to access an outside line when using a switchboard system, and the phone will automatically dial the PBX number and a pause before any speed dial or Caller ID callback number. Factory setting is “OFF.”Language: Changes the language that appears on the LCD Screen. Choosebetween English, French, or Spanish.User Name: Changes the user name (ID) that appears on the LCD Screen during STANDBY mode.MSG Waiting Delete: Clears current message waiting indication.Area Code: Adds the local Area Code to numbers that were stored as 7-digitsin the phone book and 10-digit dialing is required in the local calling area.Register: Initiates the registration of HANDSETS to the BASE UNIT.Alarm Clock: Sets the Alarm clock time.67890*#NOTE: At any time during options programming you can quit and the settings that you have changed will be saved. Press the /MENU button to quit the options menu or let the options programming time out by not pressing any TELEPHONE KEYPAD buttons for 20 seconds.A. Setting the Ringer Level1. Press the /MENU button to enter the menu.2. Press the button to go to the RINGER LEVEL programming option.3. Press the /FLASH button to change the setting. “High” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between High, Low, and Off.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.VOLEDITVOLSAVE1VOL5850 DSS man.qxd 11/18/2003 10:20 AM Page 28

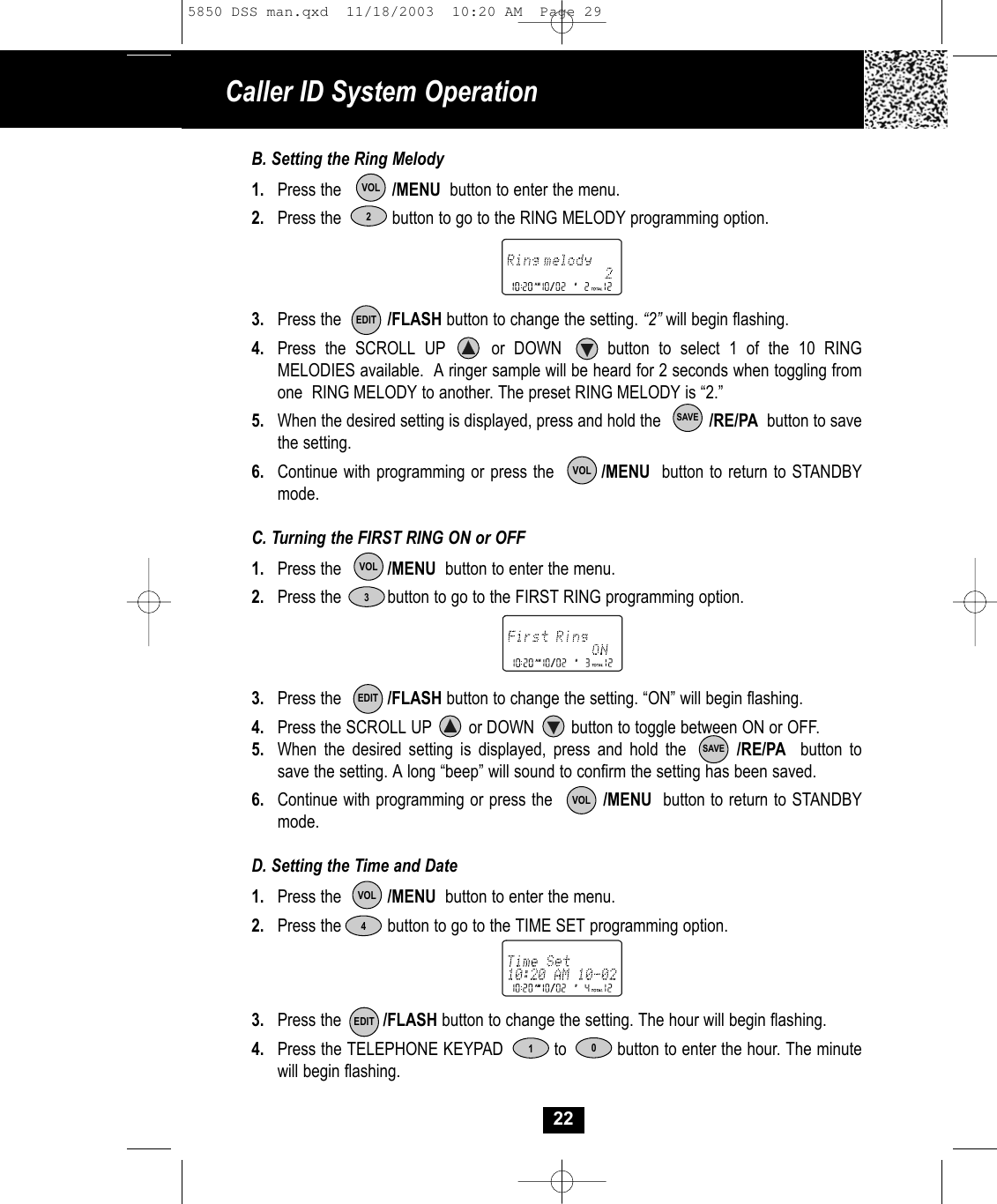

Caller ID System OperationB. Setting the Ring Melody1. Press the /MENU button to enter the menu.2. Press the button to go to the RING MELODY programming option.3. Press the /FLASH button to change the setting. “2” will begin flashing.4. Press the SCROLL UP or DOWN button to select 1 of the 10 RINGMELODIES available. A ringer sample will be heard for 2 seconds when toggling fromone RING MELODY to another. The preset RING MELODY is “2.”5. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. 6. Continue with programming or press the /MENU button to return to STANDBYmode.C. Turning the FIRST RING ON or OFF1. Press the /MENU button to enter the menu.2. Press the button to go to the FIRST RING programming option.3. Press the /FLASH button to change the setting. “ON” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ON or OFF.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.D. Setting the Time and Date1. Press the /MENU button to enter the menu.2. Press the button to go to the TIME SET programming option.3. Press the /FLASH button to change the setting. The hour will begin flashing.4. Press the TELEPHONE KEYPAD to button to enter the hour. The minute will begin flashing.022VOLEDITSAVEVOLEDITVOLSAVEEDITVOLVOL14325850 DSS man.qxd 11/18/2003 10:20 AM Page 29

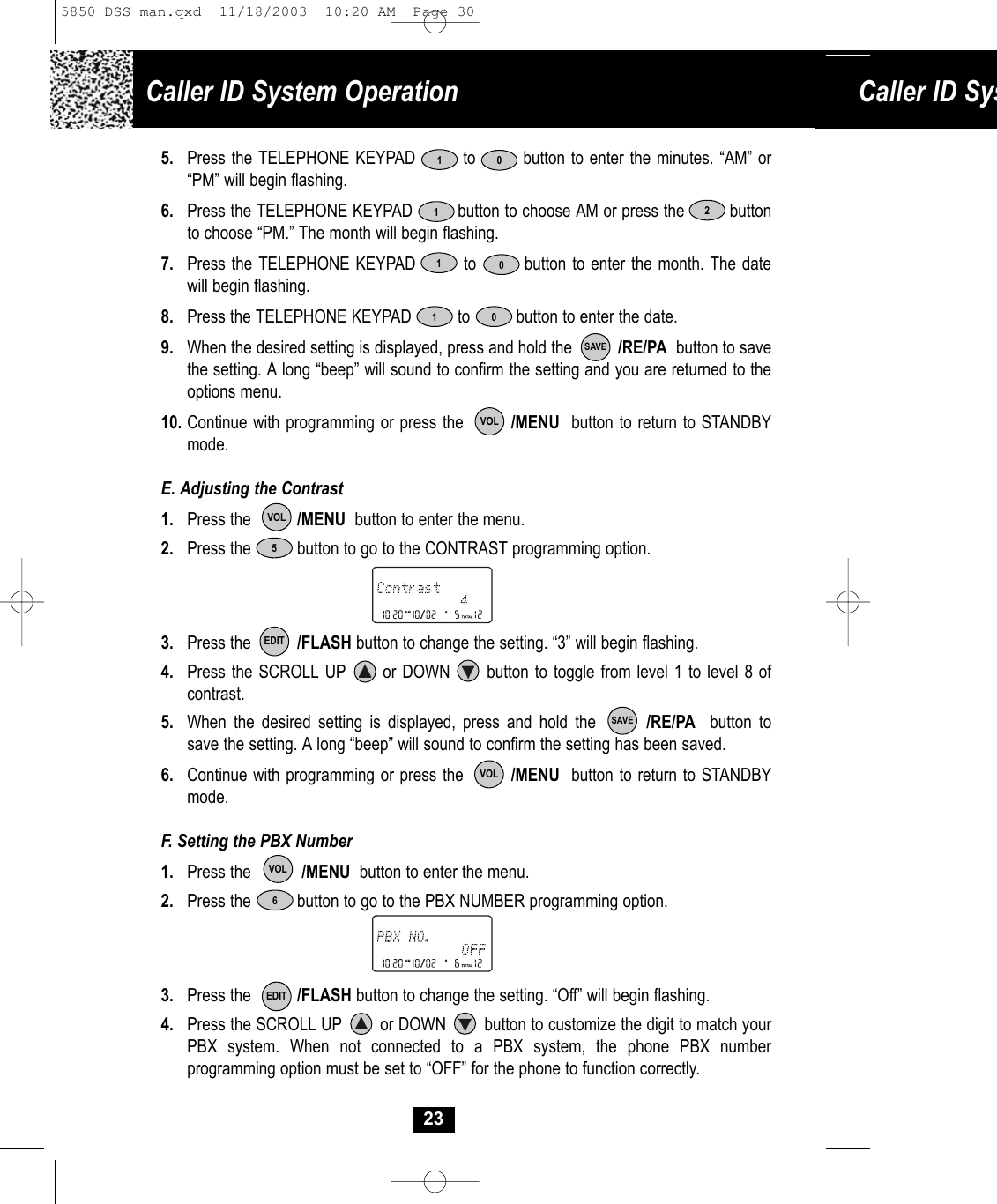

Caller ID System Operation Caller ID Sys235. Press the TELEPHONE KEYPAD to button to enter the minutes. “AM” or “PM” will begin flashing.6. Press the TELEPHONE KEYPAD button to choose AM or press the buttonto choose “PM.” The month will begin flashing.7. Press the TELEPHONE KEYPAD to button to enter the month. The datewill begin flashing. 8. Press the TELEPHONE KEYPAD to button to enter the date. 9. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. A long “beep” will sound to confirm the setting and you are returned to theoptions menu.10. Continue with programming or press the /MENU button to return to STANDBYmode.E. Adjusting the Contrast1. Press the /MENU button to enter the menu.2. Press the button to go to the CONTRAST programming option.3. Press the /FLASH button to change the setting. “3” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle from level 1 to level 8 of contrast.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.F. Setting the PBX Number1. Press the /MENU button to enter the menu.2. Press the button to go to the PBX NUMBER programming option.3. Press the /FLASH button to change the setting. “Off” will begin flashing.4. Press the SCROLL UP or DOWN button to customize the digit to match your PBX system. When not connected to a PBX system, the phone PBX numberprogramming option must be set to “OFF” for the phone to function correctly.SAVESAVE5EDIT1VOL2VOLVOLVOLEDIT01110065850 DSS man.qxd 11/18/2003 10:20 AM Page 30

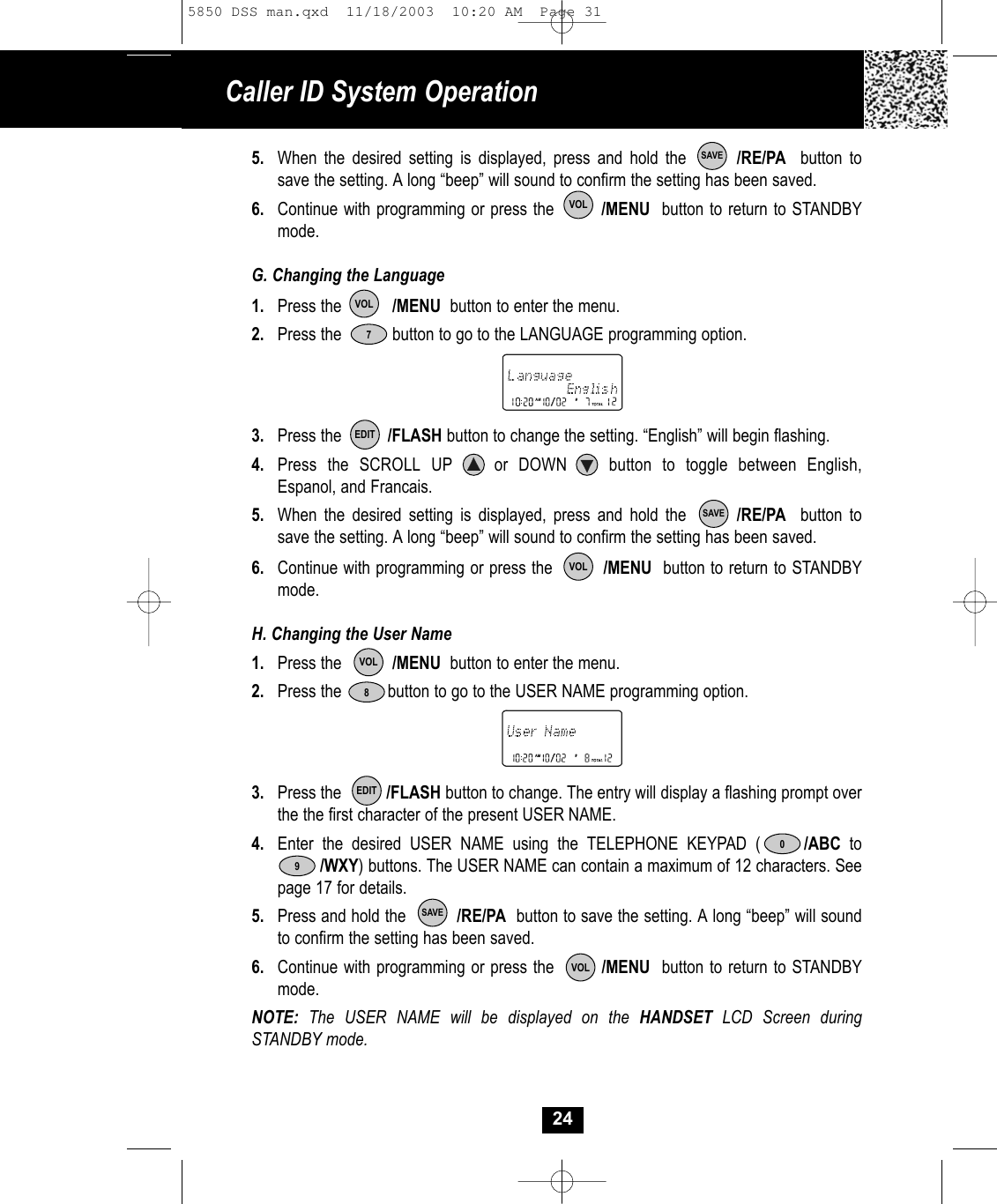

Caller ID System Operation245. When the desired setting is displayed, press and hold the /RE/PA button tosave the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.G. Changing the Language1. Press the /MENU button to enter the menu.2. Press the button to go to the LANGUAGE programming option.3. Press the /FLASH button to change the setting. “English” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between English, Espanol, and Francais.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.H. Changing the User Name1. Press the /MENU button to enter the menu.2. Press the button to go to the USER NAME programming option.3. Press the /FLASH button to change. The entry will display a flashing prompt overthe the first character of the present USER NAME.4. Enter the desired USER NAME using the TELEPHONE KEYPAD ( /ABC to /WXY) buttons. The USER NAME can contain a maximum of 12 characters. Seepage 17 for details. 5. Press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.NOTE: The USER NAME will be displayed on the HANDSET LCD Screen during STANDBY mode.79VOLSAVEEDITVOLVOLSAVEVOLEDITSAVEVOL085850 DSS man.qxd 11/18/2003 10:20 AM Page 31

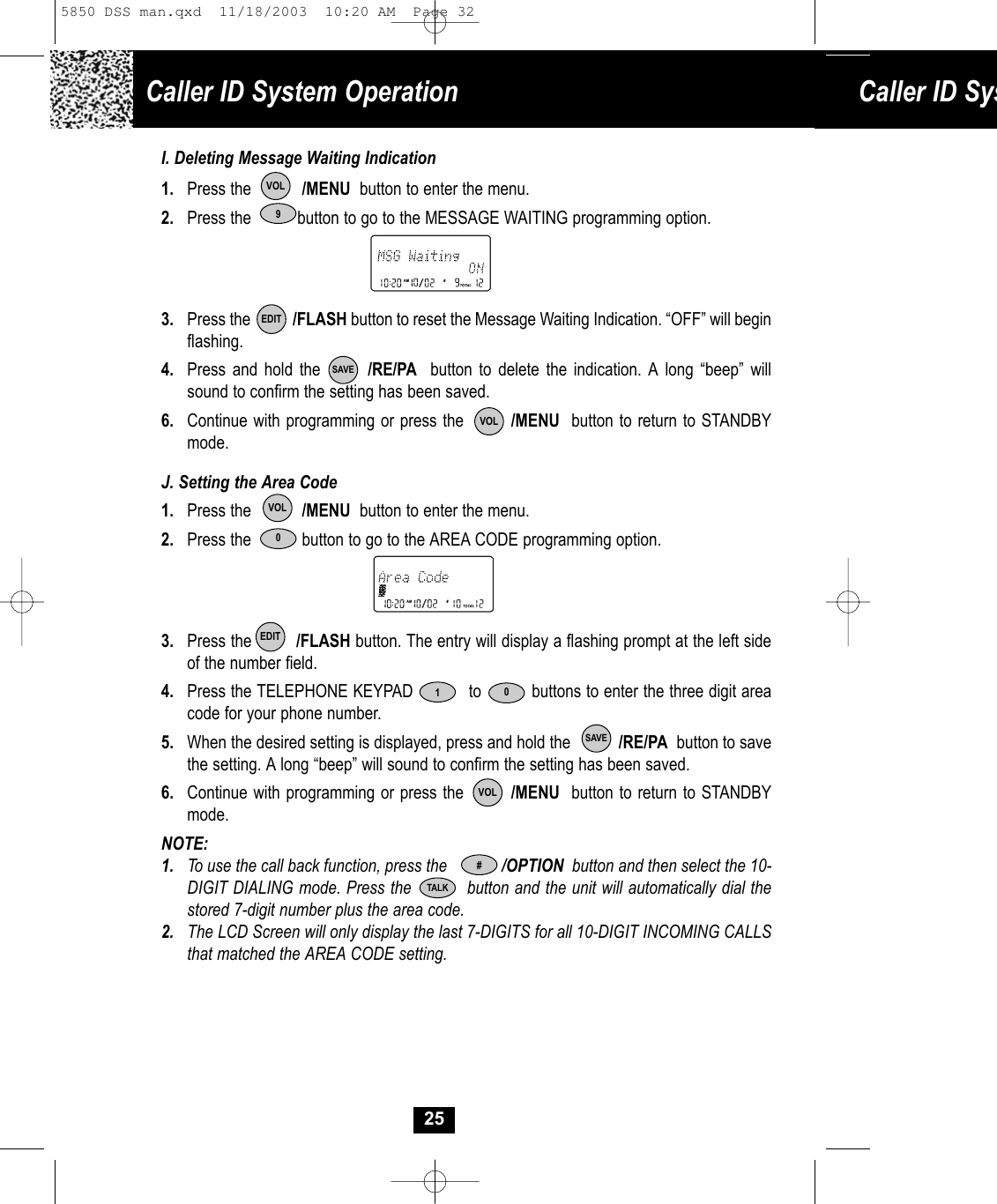

Caller ID System Operation Caller ID SysI. Deleting Message Waiting Indication1. Press the /MENU button to enter the menu.2. Press the button to go to the MESSAGE WAITING programming option.3. Press the /FLASH button to reset the Message Waiting Indication. “OFF” will begin flashing.4. Press and hold the /RE/PA button to delete the indication. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.J. Setting the Area Code1. Press the /MENU button to enter the menu.2. Press the button to go to the AREA CODE programming option.3. Press the /FLASH button. The entry will display a flashing prompt at the left sideof the number field.4. Press the TELEPHONE KEYPAD to buttons to enter the three digit area code for your phone number. 5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.NOTE: 1. To use the call back function, press the /OPTION button and then select the 10-DIGIT DIALING mode. Press the button and the unit will automatically dial the stored 7-digit number plus the area code.2. The LCD Screen will only display the last 7-DIGITS for all 10-DIGIT INCOMING CALLSthat matched the AREA CODE setting. 90#TALK25VOLEDITSAVEVOLVOLVOLEDITSAVE015850 DSS man.qxd 11/18/2003 10:20 AM Page 32

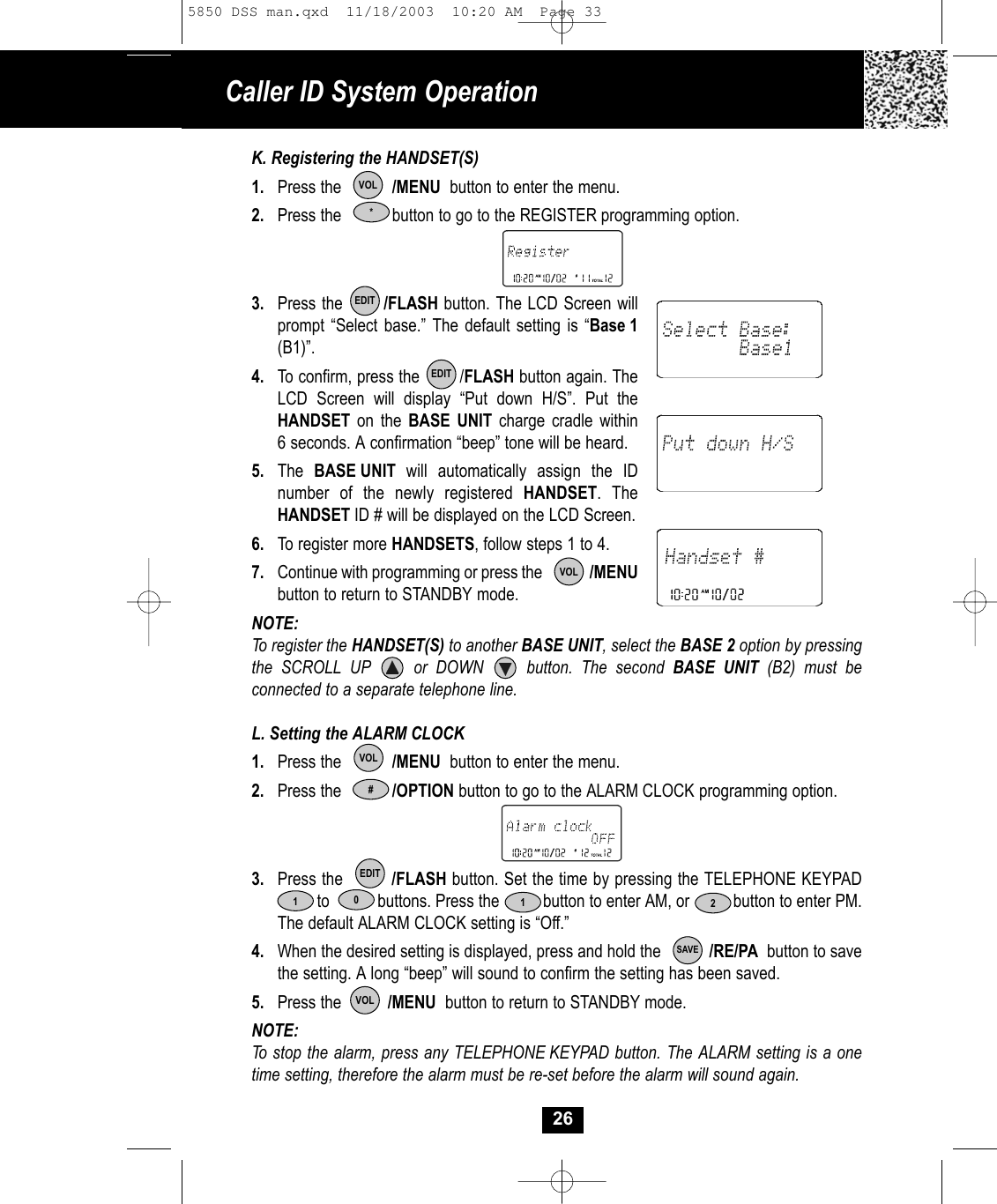

Caller ID System OperationK. Registering the HANDSET(S)1. Press the /MENU button to enter the menu.2. Press the button to go to the REGISTER programming option.3. Press the /FLASH button. The LCD Screen will prompt “Select base.” The default setting is “Base 1 (B1)”.4. To confirm, press the /FLASH button again. The LCD Screen will display “Put down H/S”. Put the HANDSET on the BASE UNIT charge cradle within 6 seconds. A confirmation “beep” tone will be heard. 5. The BASE UNIT will automatically assign the ID number of the newly registered HANDSET. TheHANDSET ID # will be displayed on the LCD Screen.6. To register more HANDSETS, follow steps 1 to 4.7. Continue with programming or press the /MENUbutton to return to STANDBY mode.NOTE: To register the HANDSET(S) to another BASE UNIT, select the BASE 2 option by pressingthe SCROLL UP or DOWN button. The second BASE UNIT (B2) must be connected to a separate telephone line. L. Setting the ALARM CLOCK1. Press the /MENU button to enter the menu.2. Press the /OPTION button to go to the ALARM CLOCK programming option.3. Press the /FLASH button. Set the time by pressing the TELEPHONE KEYPAD to buttons. Press the button to enter AM, or button to enter PM.The default ALARM CLOCK setting is “Off.”4. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. A long “beep” will sound to confirm the setting has been saved.5. Press the /MENU button to return to STANDBY mode.NOTE: To stop the alarm, press any TELEPHONE KEYPAD button. The ALARM setting is a onetime setting, therefore the alarm must be re-set before the alarm will sound again. *#126EDITVOLSAVEEDITVOLVOLEDITVOL1025850 DSS man.qxd 11/18/2003 10:20 AM Page 33

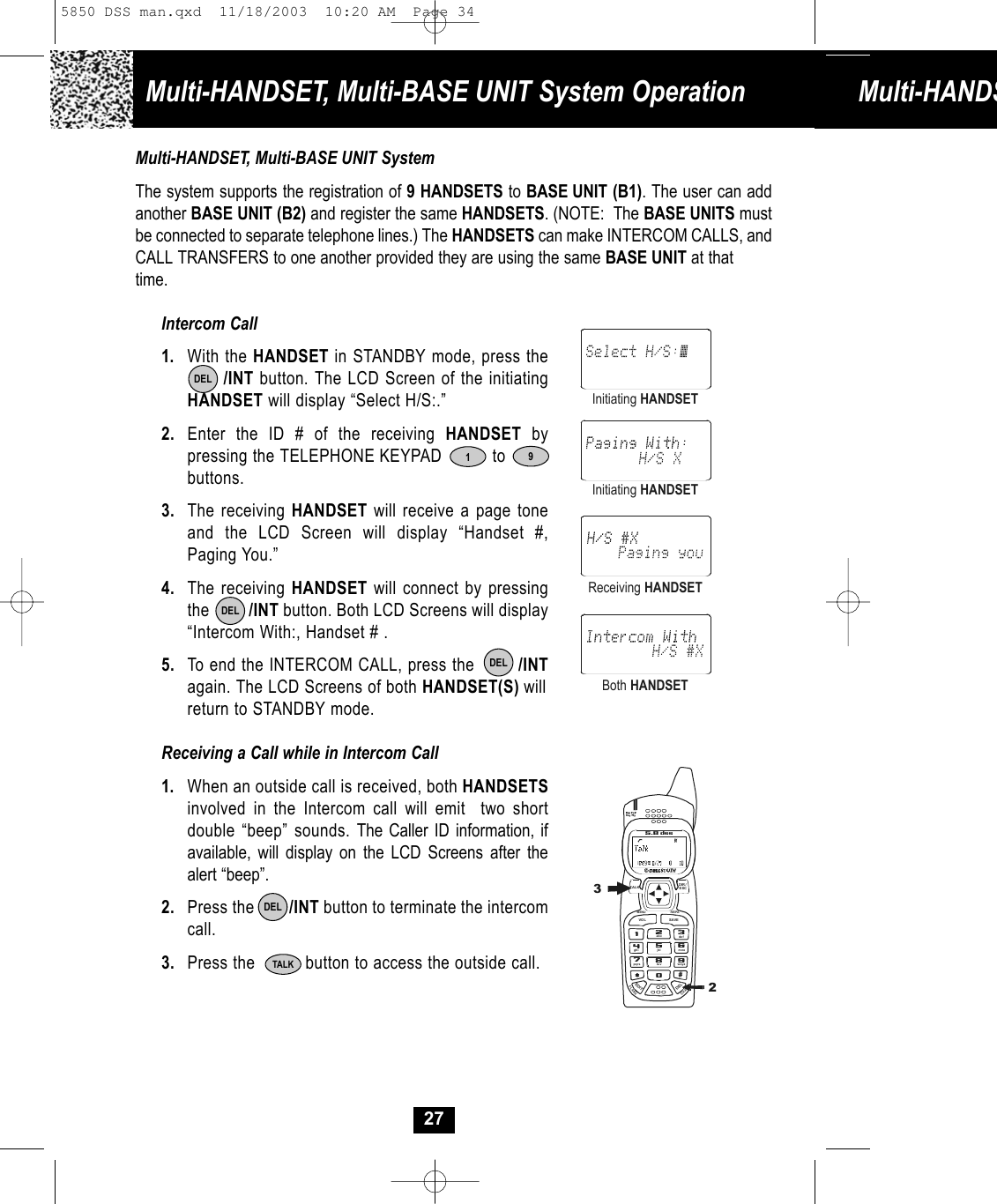

Multi-HANDSET, Multi-BASE UNIT System Operation Multi-HANDS27Multi-HANDSET, Multi-BASE UNIT SystemThe system supports the registration of 9 HANDSETS to BASE UNIT (B1). The user can addanother BASE UNIT (B2) and register the same HANDSETS. (NOTE: The BASE UNITS mustbe connected to separate telephone lines.) The HANDSETS can make INTERCOM CALLS, andCALL TRANSFERS to one another provided they are using the same BASE UNIT at that time. Intercom Call1. With the HANDSET in STANDBY mode, press the/INT button. The LCD Screen of the initiating HANDSET will display “Select H/S:.”2. Enter the ID # of the receiving HANDSET by pressing the TELEPHONE KEYPAD to buttons. 3. The receiving HANDSET will receive a page tone and the LCD Screen will display “Handset #, Paging You.”4. The receiving HANDSET will connect by pressingthe /INT button. Both LCD Screens will display“Intercom With:, Handset # .5. To end the INTERCOM CALL, press the /INTagain. The LCD Screens of both HANDSET(S) willreturn to STANDBY mode. Receiving a Call while in Intercom Call1. When an outside call is received, both HANDSETSinvolved in the Intercom call will emit two shortdouble “beep” sounds. The Caller ID information, ifavailable, will display on the LCD Screens after thealert “beep”.2. Press the /INT button to terminate the intercomcall.3. Press the button to access the outside call. 1DELInitiating HANDSETInitiating HANDSETReceiving HANDSETBoth HANDSETTALKDELDELDEL919#0wxyz5.8 dssTALKMENU RE/PAEDITDELVO L SAVEFLASHCHANDIR/ESC2abc3de f6mno5jkl4ghi7pqr s 8tu v325850 DSS man.qxd 11/18/2003 10:20 AM Page 34

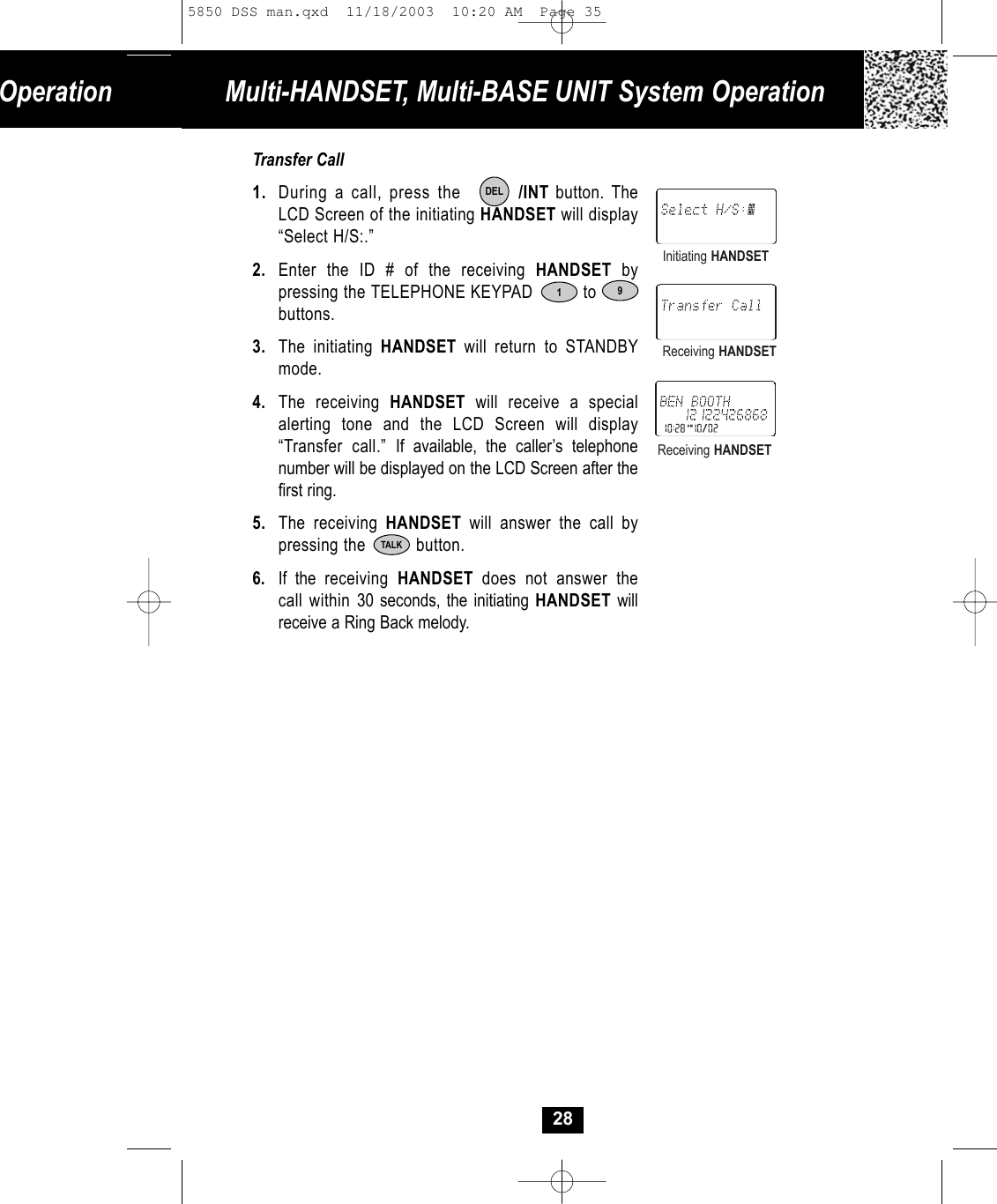

Operation Multi-HANDSET, Multi-BASE UNIT System OperationTransfer Call1. During a call, press the /INT button. The LCD Screen of the initiating HANDSET will display“Select H/S:.”2. Enter the ID # of the receiving HANDSET by pressing the TELEPHONE KEYPAD to buttons.3. The initiating HANDSET will return to STANDBYmode.4. The receiving HANDSET will receive a special alerting tone and the LCD Screen will display“Transfer call.” If available, the caller’s telephone number will be displayed on the LCD Screen after thefirst ring. 5. The receiving HANDSET will answer the call by pressing the button. 6. If the receiving HANDSET does not answer thecall within 30 seconds, the initiating HANDSET willreceive a Ring Back melody.1DELInitiating HANDSETReceiving HANDSETReceiving HANDSET28TALK95850 DSS man.qxd 11/18/2003 10:20 AM Page 35
Security Recharging 29Security SystemYour cordless telephone uses a digital coding security system to prevent unauthorized use ofyour telephone line by another nearby cordless telephone. The system has its own identifyingsignal created by microcomputers in both the BASE UNIT and the HANDSET.Security CodeThis telephone has an internal security code with 4,000,000 possible combinations. 156 Channel Auto-HopYour cordless telephone automatically selects the best channel from the 156 frequenciesavailable to transmit signals between the BASE UNIT and the HANDSET. When interference isreceived from other cordless telephones, your telephone automatically hops to the next clearchannel.5850 DSS man.qxd 11/18/2003 10:20 AM Page 36

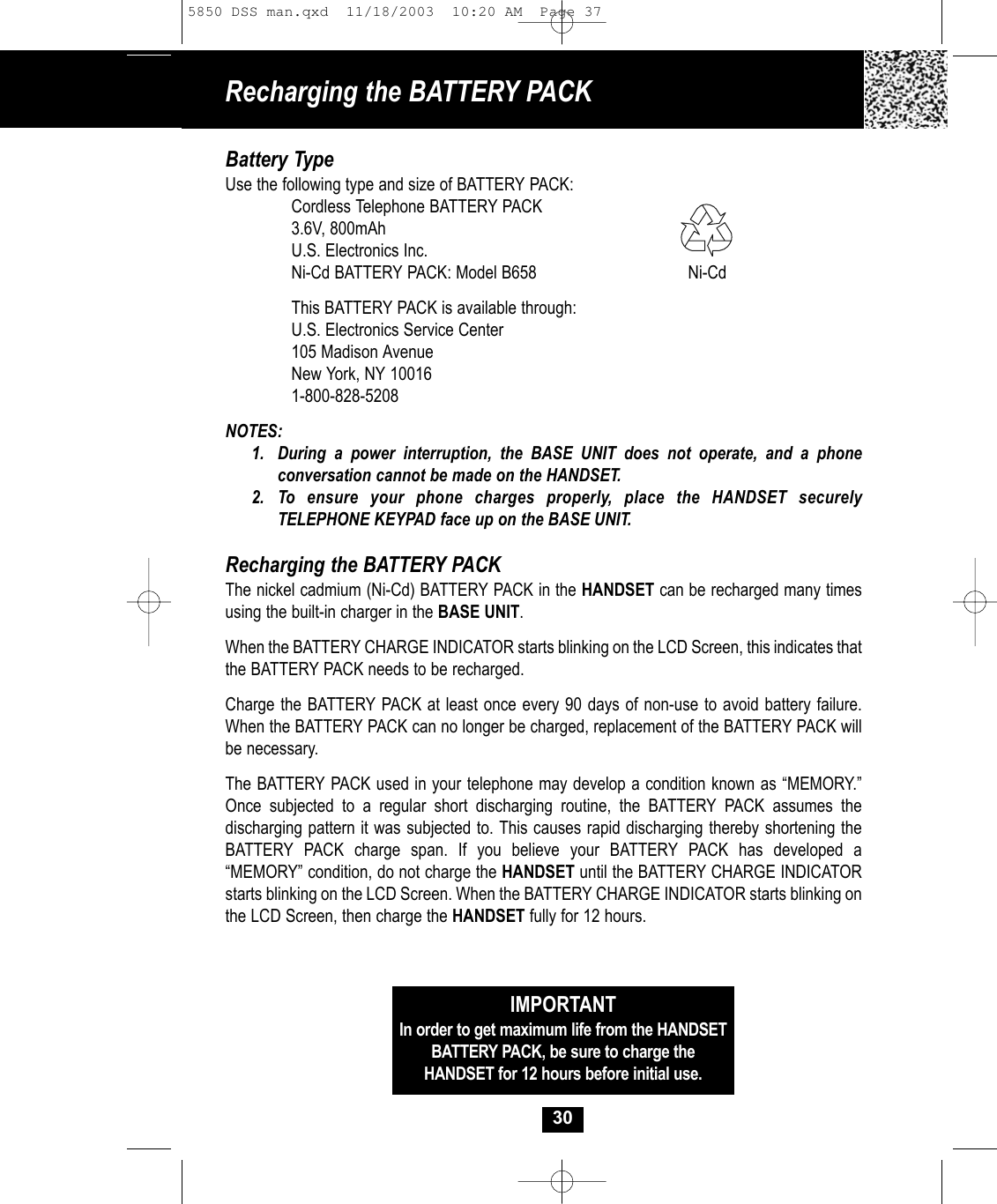

Recharging the BATTERY PACK30Battery TypeUse the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 800mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: Model B658 Ni-CdThis BATTERY PACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-828-5208NOTES:1. During a power interruption, the BASE UNIT does not operate, and a phone conversation cannot be made on the HANDSET.2. To ensure your phone charges properly, place the HANDSET securely TELEPHONE KEYPAD face up on the BASE UNIT.Recharging the BATTERY PACKThe nickel cadmium (Ni-Cd) BATTERY PACK in the HANDSET can be recharged many times using the built-in charger in the BASE UNIT.When the BATTERY CHARGE INDICATOR starts blinking on the LCD Screen, this indicates that the BATTERY PACK needs to be recharged.Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.When the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will be necessary.The BATTERY PACK used in your telephone may develop a condition known as “MEMORY.”Once subjected to a regular short discharging routine, the BATTERY PACK assumes the discharging pattern it was subjected to. This causes rapid discharging thereby shortening theBATTERY PACK charge span. If you believe your BATTERY PACK has developed a“MEMORY” condition, do not charge the HANDSET until the BATTERY CHARGE INDICATORstarts blinking on the LCD Screen. When the BATTERY CHARGE INDICATOR starts blinking on the LCD Screen, then charge the HANDSET fully for 12 hours.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use.5850 DSS man.qxd 11/18/2003 10:20 AM Page 37

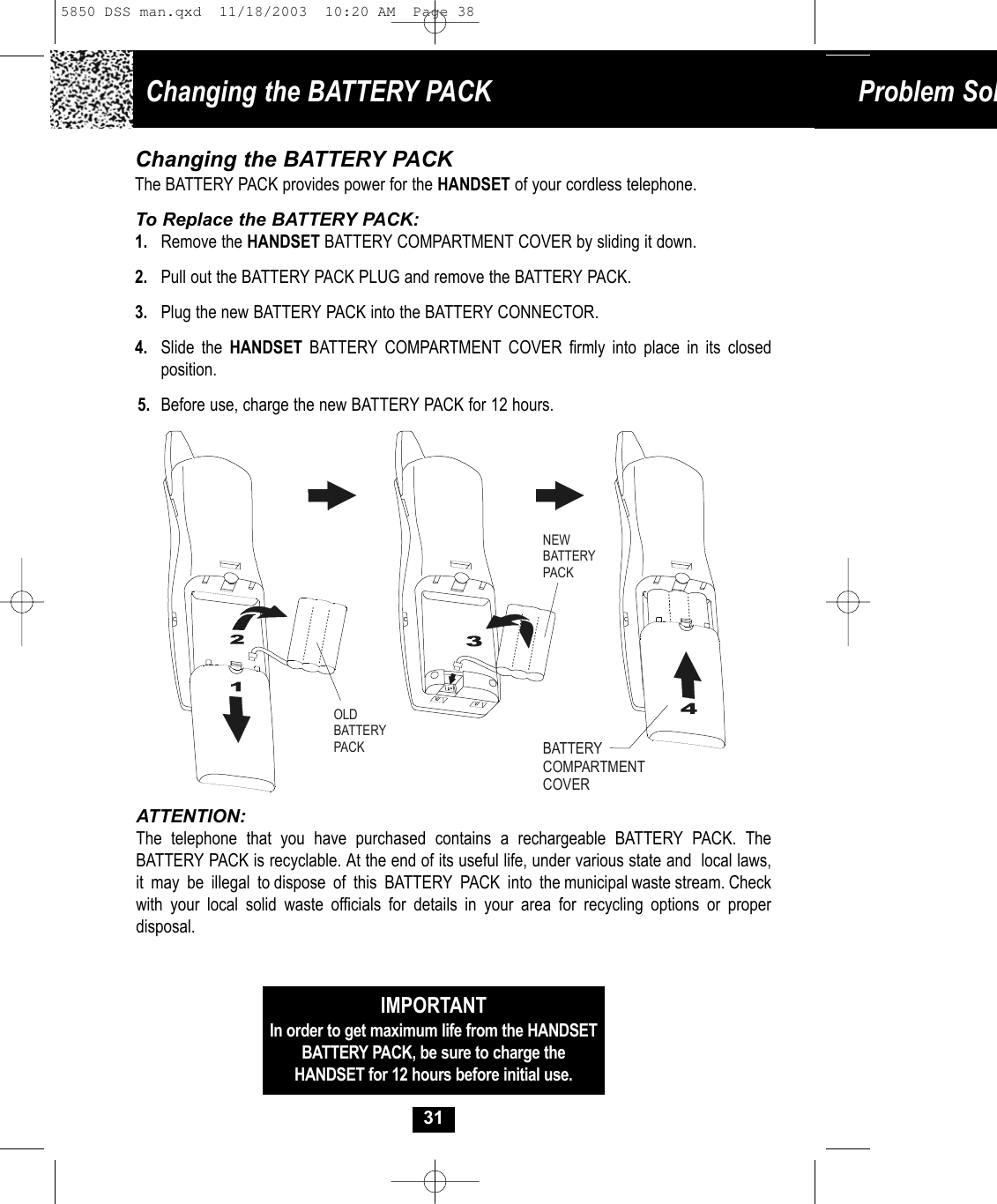

Changing the BATTERY PACK Problem Sol31Changing the BATTERY PACKThe BATTERY PACK provides power for the HANDSET of your cordless telephone.To Replace the BATTERY PACK:1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.5. Before use, charge the new BATTERY PACK for 12 hours.ATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and local laws,it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Checkwith your local solid waste officials for details in your area for recycling options or proper disposal.OLDBATTERY PACKNEWBATTERY PACKBATTERY COMPARTMENTCOVERIMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use.5850 DSS man.qxd 11/18/2003 10:20 AM Page 38

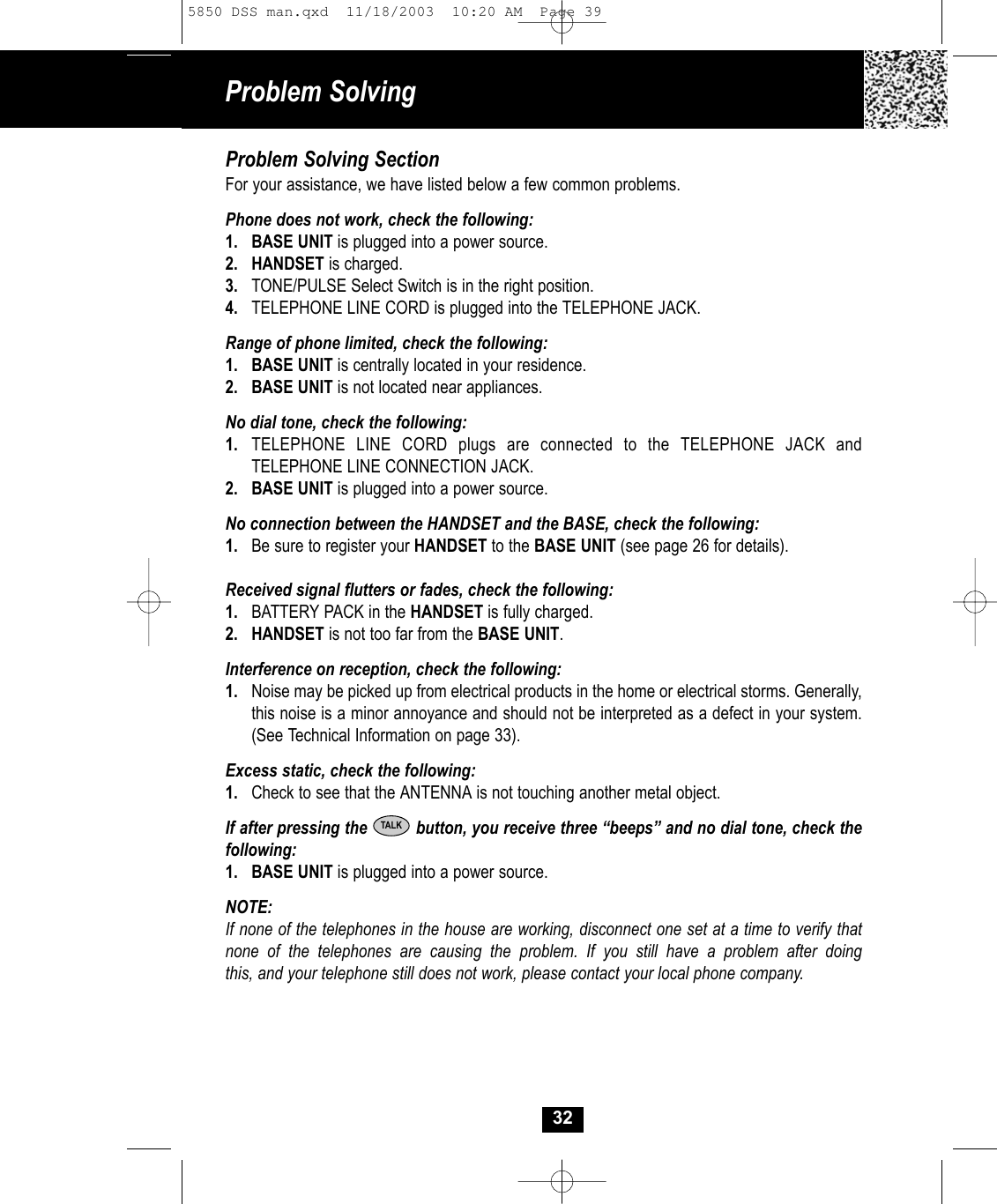

32Problem Solving SectionFor your assistance, we have listed below a few common problems.Phone does not work, check the following:1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select Switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.Range of phone limited, check the following:1. BASE UNIT is centrally located in your residence.2. BASE UNIT is not located near appliances.No dial tone, check the following:1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and TELEPHONE LINE CONNECTION JACK.2. BASE UNIT is plugged into a power source.No connection between the HANDSET and the BASE, check the following:1. Be sure to register your HANDSET to the BASE UNIT (see page 26 for details).Received signal flutters or fades, check the following:1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.Interference on reception, check the following:1. Noise may be picked up from electrical products in the home or electrical storms. Generally, this noise is a minor annoyance and should not be interpreted as a defect in your system. (See Technical Information on page 33).Excess static, check the following:1. Check to see that the ANTENNA is not touching another metal object.If after pressing the button, you receive three “beeps” and no dial tone, check thefollowing: 1. BASE UNIT is plugged into a power source.NOTE: If none of the telephones in the house are working, disconnect one set at a time to verify thatnone of the telephones are causing the problem. If you still have a problem after doingthis, and your telephone still does not work, please contact your local phone company.TALKProblem Solving5850 DSS man.qxd 11/18/2003 10:20 AM Page 39

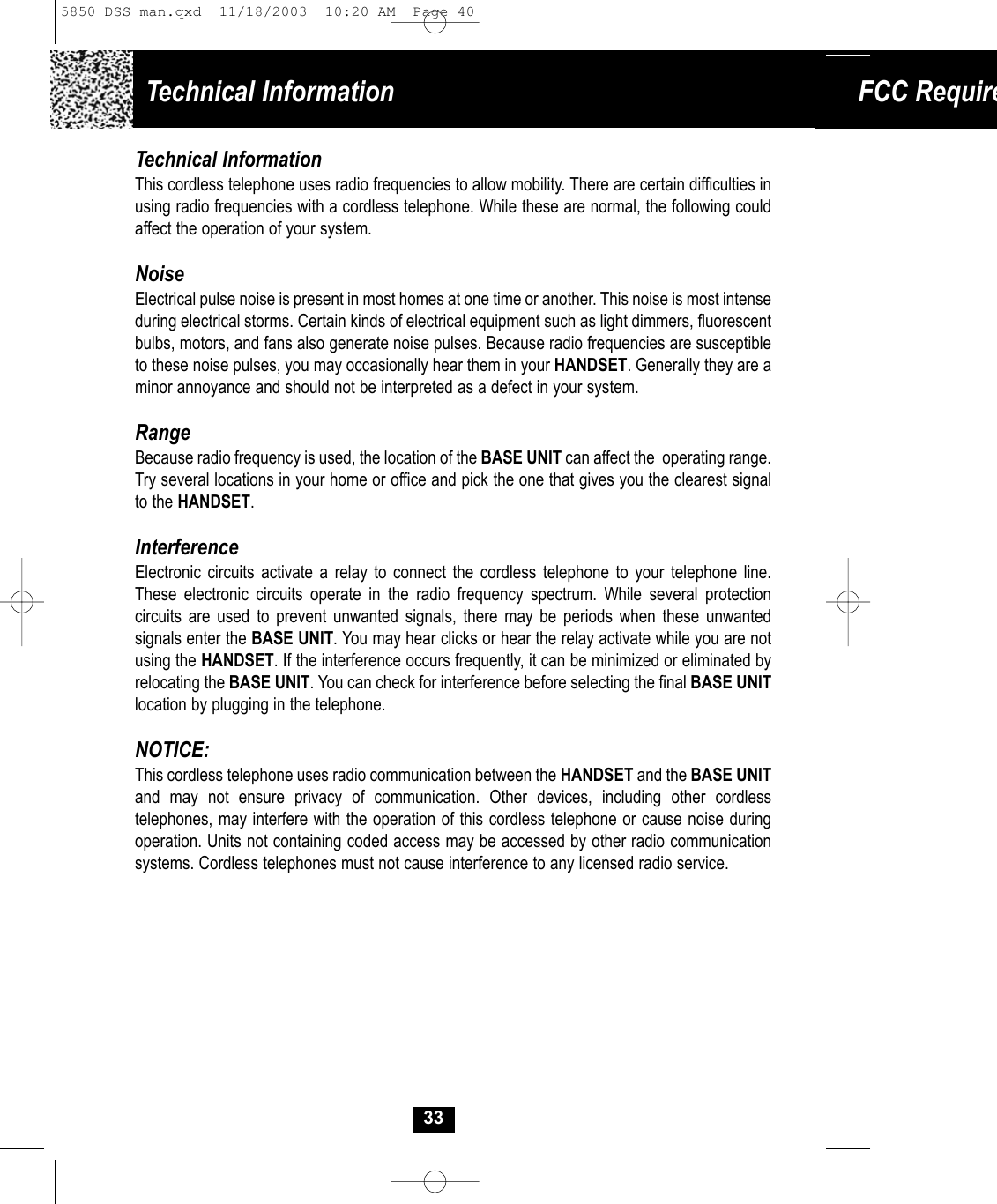

Technical Information FCC Require33Technical InformationThis cordless telephone uses radio frequencies to allow mobility. There are certain difficulties inusing radio frequencies with a cordless telephone. While these are normal, the following could affect the operation of your system.NoiseElectrical pulse noise is present in most homes at one time or another. This noise is most intense during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise pulses, you may occasionally hear them in your HANDSET. Generally they are aminor annoyance and should not be interpreted as a defect in your system.RangeBecause radio frequency is used, the location of the BASE UNIT can affect the operating range. Try several locations in your home or office and pick the one that gives you the clearest signalto the HANDSET.InterferenceElectronic circuits activate a relay to connect the cordless telephone to your telephone line.These electronic circuits operate in the radio frequency spectrum. While several protection circuits are used to prevent unwanted signals, there may be periods when these unwanted signals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are notusing the HANDSET. If the interference occurs frequently, it can be minimized or eliminated byrelocating the BASE UNIT. You can check for interference before selecting the final BASE UNITlocation by plugging in the telephone.NOTICE:This cordless telephone uses radio communication between the HANDSET and the BASE UNITand may not ensure privacy of communication. Other devices, including other cordless telephones, may interfere with the operation of this cordless telephone or cause noise duringoperation. Units not containing coded access may be accessed by other radio communication systems. Cordless telephones must not cause interference to any licensed radio service.5850 DSS man.qxd 11/18/2003 10:20 AM Page 40

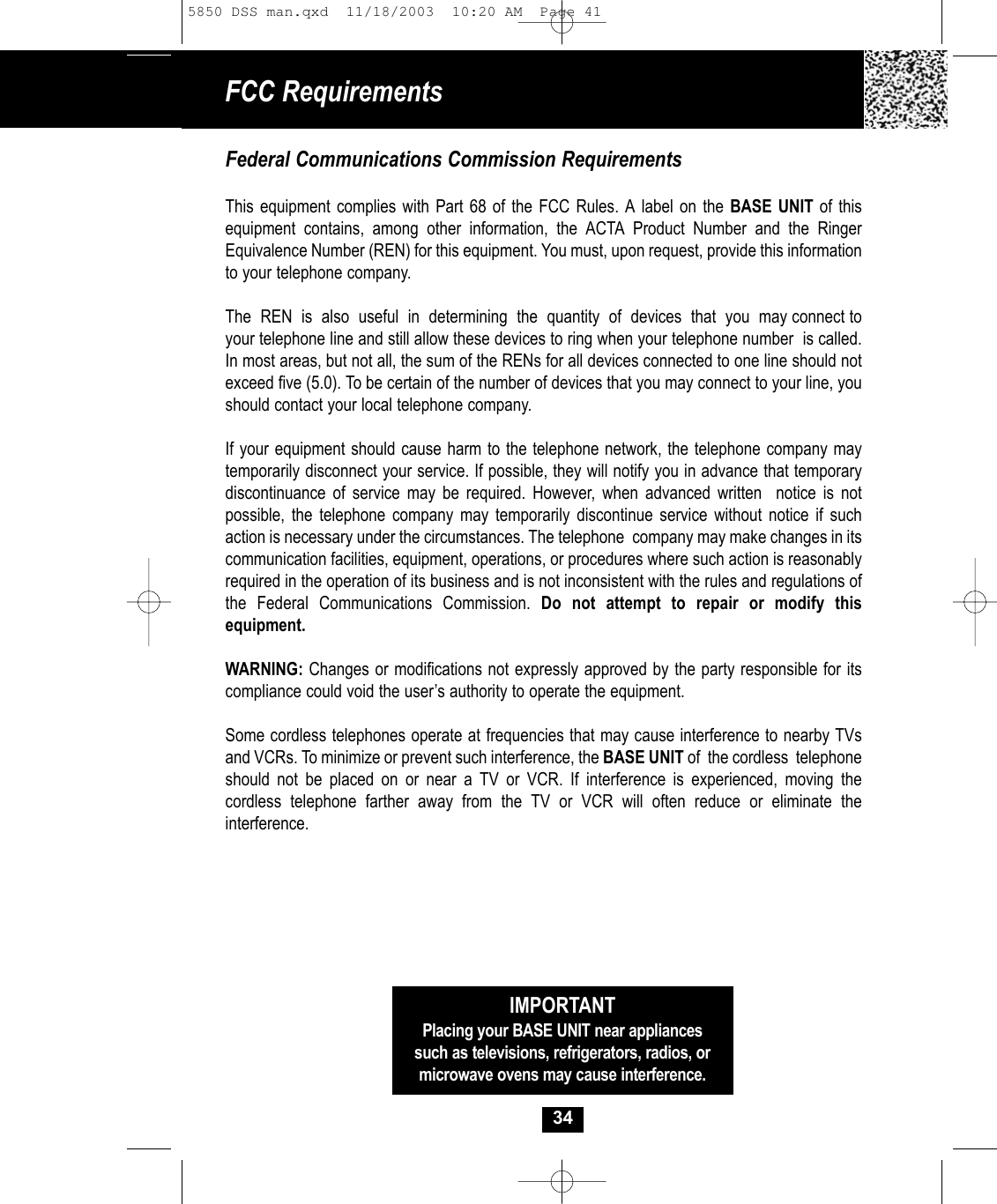

34IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.Federal Communications Commission RequirementsThis equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of this equipment contains, among other information, the ACTA Product Number and the RingerEquivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company.The REN is also useful in determining the quantity of devices that you may connect toyour telephone line and still allow these devices to ring when your telephone number is called.In most areas, but not all, the sum of the RENs for all devices connected to one line should notexceed five (5.0). To be certain of the number of devices that you may connect to your line, you should contact your local telephone company.If your equipment should cause harm to the telephone network, the telephone company may temporarily disconnect your service. If possible, they will notify you in advance that temporarydiscontinuance of service may be required. However, when advanced written notice is not possible, the telephone company may temporarily discontinue service without notice if suchaction is necessary under the circumstances. The telephone company may make changes in itscommunication facilities, equipment, operations, or procedures where such action is reasonablyrequired in the operation of its business and is not inconsistent with the rules and regulations of the Federal Communications Commission. Do not attempt to repair or modify this equipment. WARNING: Changes or modifications not expressly approved by the party responsible for its compliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearby TVsand VCRs. To minimize or prevent such interference, the BASE UNIT of the cordless telephoneshould not be placed on or near a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.FCC Requirements 5850 DSS man.qxd 11/18/2003 10:20 AM Page 41

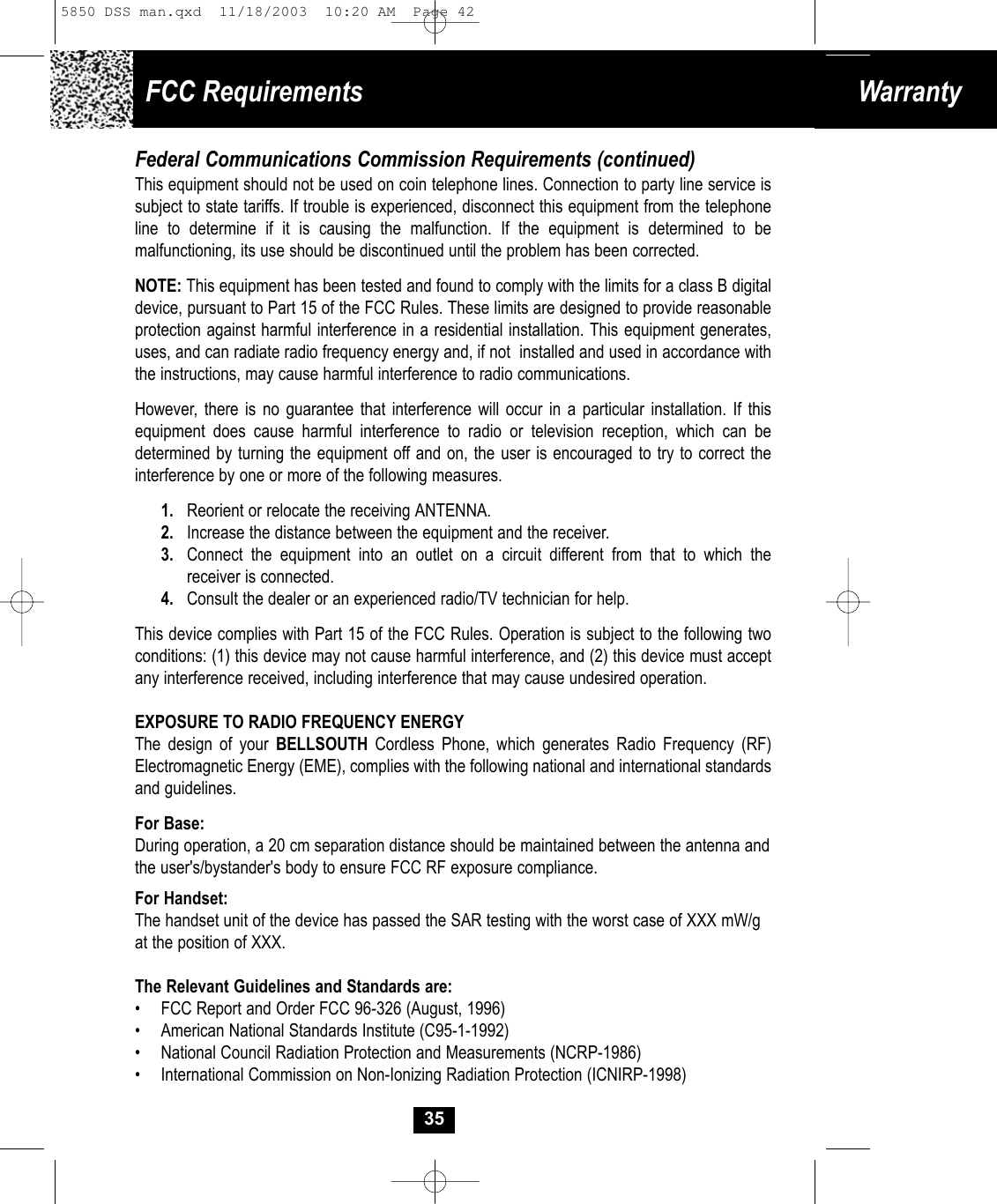

FCC Requirements WarrantyFederal Communications Commission Requirements (continued)This equipment should not be used on coin telephone lines. Connection to party line service issubject to state tariffs. If trouble is experienced, disconnect this equipment from the telephoneline to determine if it is causing the malfunction. If the equipment is determined to be malfunctioning, its use should be discontinued until the problem has been corrected.NOTE: This equipment has been tested and found to comply with the limits for a class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.1. Reorient or relocate the receiving ANTENNA.2. Increase the distance between the equipment and the receiver.3. Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.EXPOSURE TO RADIO FREQUENCY ENERGYThe design of your BELLSOUTH Cordless Phone, which generates Radio Frequency (RF)Electromagnetic Energy (EME), complies with the following national and international standardsand guidelines.For Base:During operation, a 20 cm separation distance should be maintained between the antenna andthe user's/bystander's body to ensure FCC RF exposure compliance.For Handset:The handset unit of the device has passed the SAR testing with the worst case of XXX mW/gat the position of XXX.The Relevant Guidelines and Standards are:• FCC Report and Order FCC 96-326 (August, 1996)• American National Standards Institute (C95-1-1992)• National Council Radiation Protection and Measurements (NCRP-1986)• International Commission on Non-Ionizing Radiation Protection (ICNIRP-1998)355850 DSS man.qxd 11/18/2003 10:20 AM Page 42
Warranty InformationBellSouth ProductsOne-Year Limited WarrantyThis limited warranty sets forth all BellSouth Products responsibilities regarding your product. There are no other expressed or implied warranties from BellSouth Products.Warranty Service ProvidedIf you purchased the telephone new from a retail vendor, BellSouth Products warrants the telephone against defects in material and workmanship for a period of one (1) year from the original date of purchase. This warranty is in lieu of all other expressed warranties. This warranty begins when you purchase the telephone and continues for one (1) year unless yousell or rent the telephone, in which case the warranty stops.BellSouth Products disclaims any implied warranty, including the warranty of merchantabilityand the warranty of fitness for a particular purpose, as of the date of 90 days from your original purchase of the telephone. BellSouth Products assumes no responsibility for any special, incidental, or consequential damages. This warranty gives you specific legal rights and you may have other rights which varyfrom state to state. Some states do not allow the exclusion or limitations of special, incidental orconsequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitation may not apply to you.Warranty Service Not ProvidedThis warranty does not cover damage resulting from accident, misuse, abuse,improper installation or operation, lack of reasonable care, unauthorized modification, the affixing of any attachment not provided by BellSouth Products with the telephone and/or lossof parts. This warranty is voided in the event any unauthorized person opens, alters or repairsthe telephone. All BellSouth equipment being returned for repair must be suitably packaged.Telephone companies use different types of equipment and offer various types of services to customers. BellSouth Products does not warrant that this telephone is compatible with thetype of equipment of any particular telephone company or the services provided by it.36Warranty5850 DSS man.qxd 11/18/2003 10:20 AM Page 43

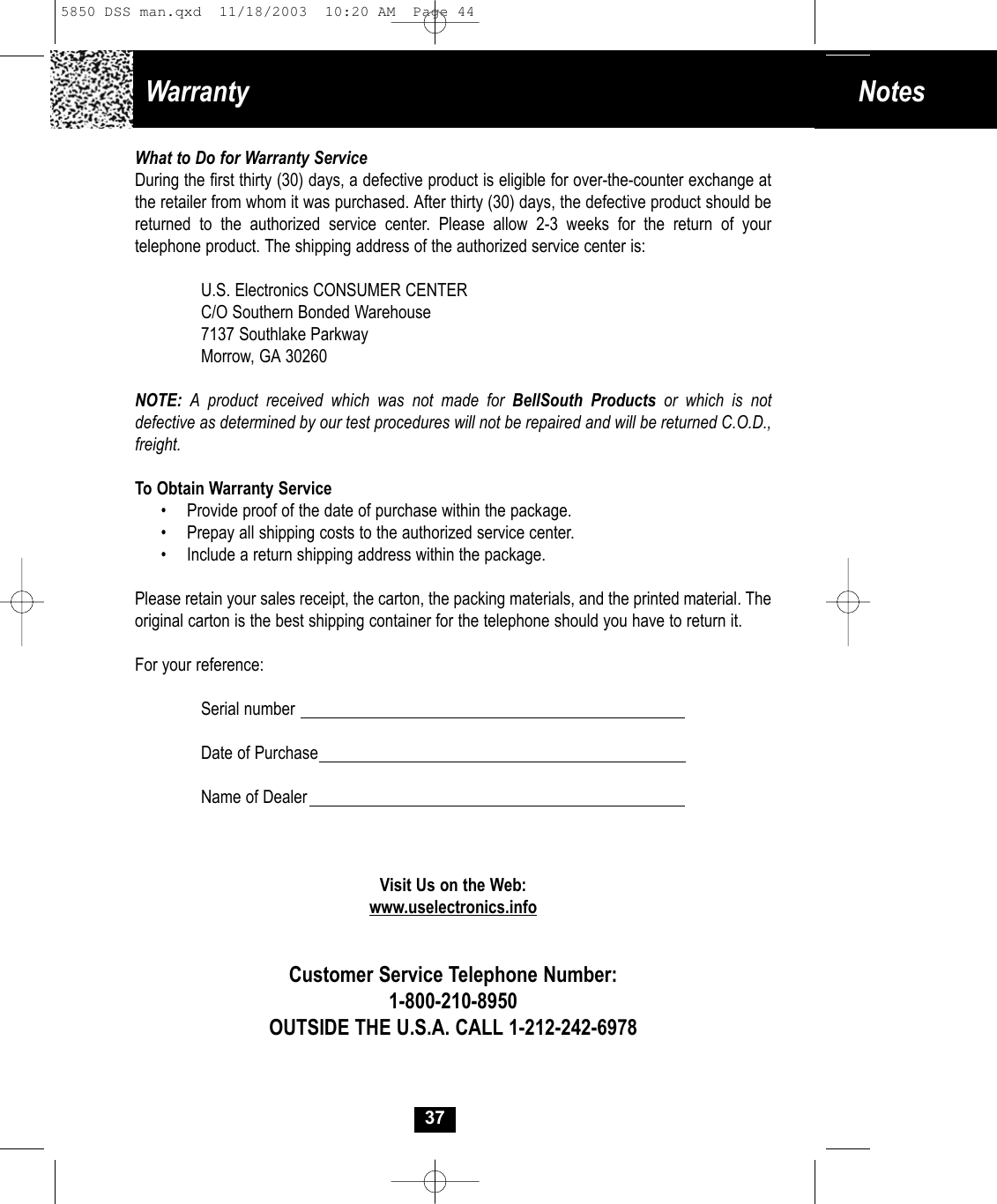

Notes Warranty What to Do for Warranty ServiceDuring the first thirty (30) days, a defective product is eligible for over-the-counter exchange atthe retailer from whom it was purchased. After thirty (30) days, the defective product should bereturned to the authorized service center. Please allow 2-3 weeks for the return of your telephone product. The shipping address of the authorized service center is:U.S. Electronics CONSUMER CENTERC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE: A product received which was not made for BellSouth Products or which is not defective as determined by our test procedures will not be repaired and will be returned C.O.D., freight.To Obtain Warranty Service• Provide proof of the date of purchase within the package.• Prepay all shipping costs to the authorized service center.• Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printed material. The original carton is the best shipping container for the telephone should you have to return it.For your reference:Serial numberDate of PurchaseName of DealerVisit Us on the Web:www.uselectronics.infoCustomer Service Telephone Number:1-800-210-8950OUTSIDE THE U.S.A. CALL 1-212-242-6978375850 DSS man.qxd 11/18/2003 10:20 AM Page 44

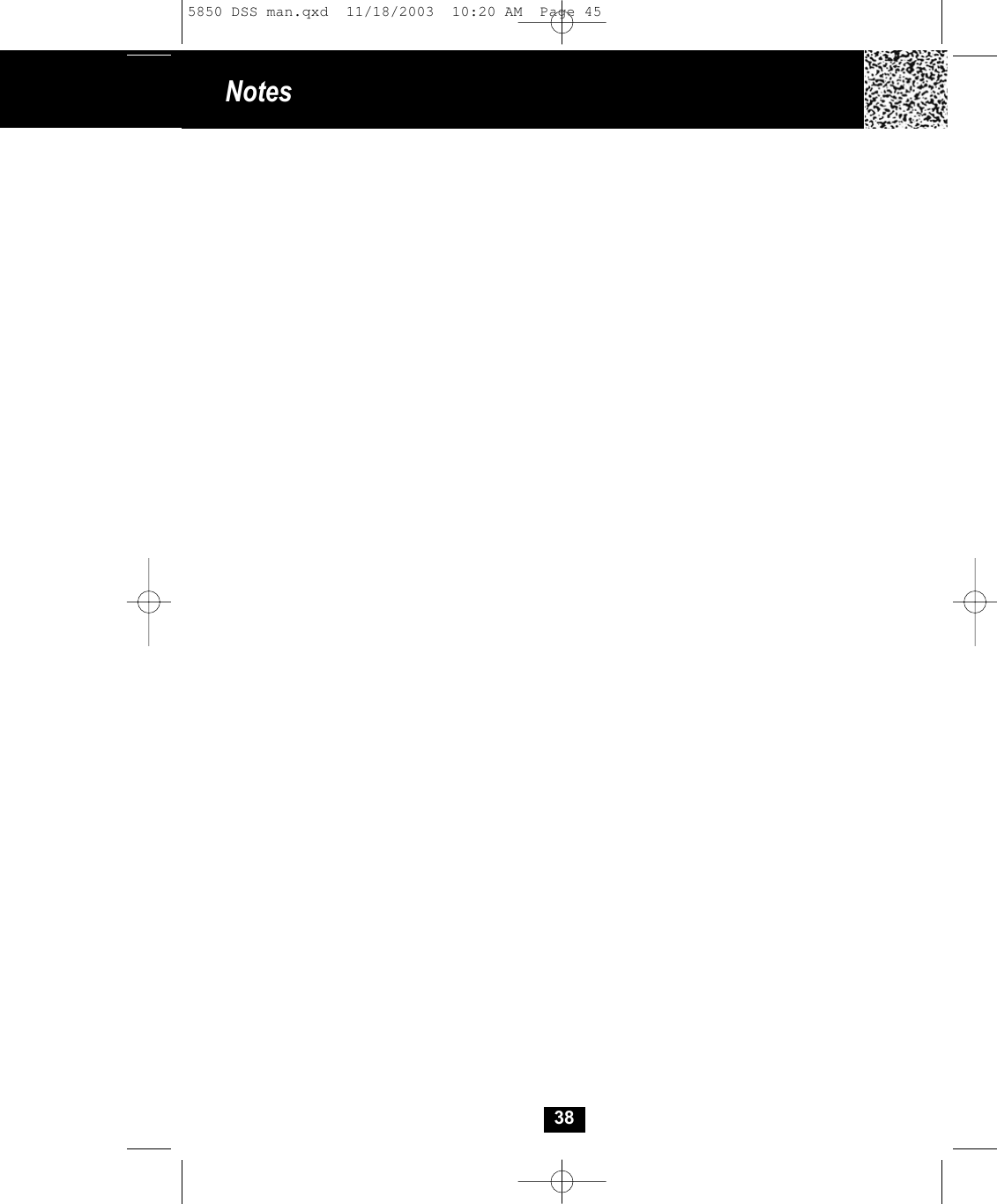

Notes 385850 DSS man.qxd 11/18/2003 10:20 AM Page 45

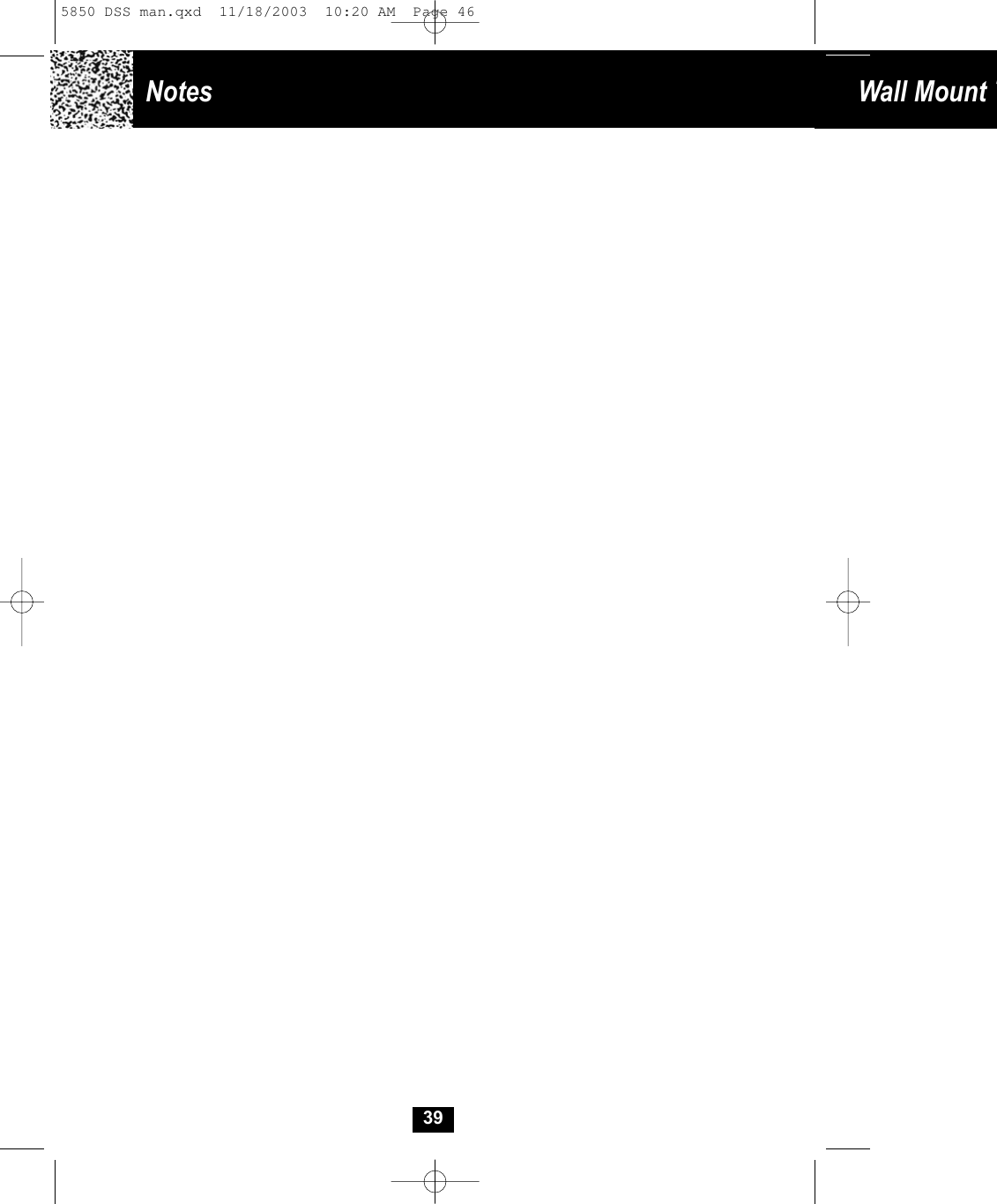

Notes Wall Mount T395850 DSS man.qxd 11/18/2003 10:20 AM Page 46

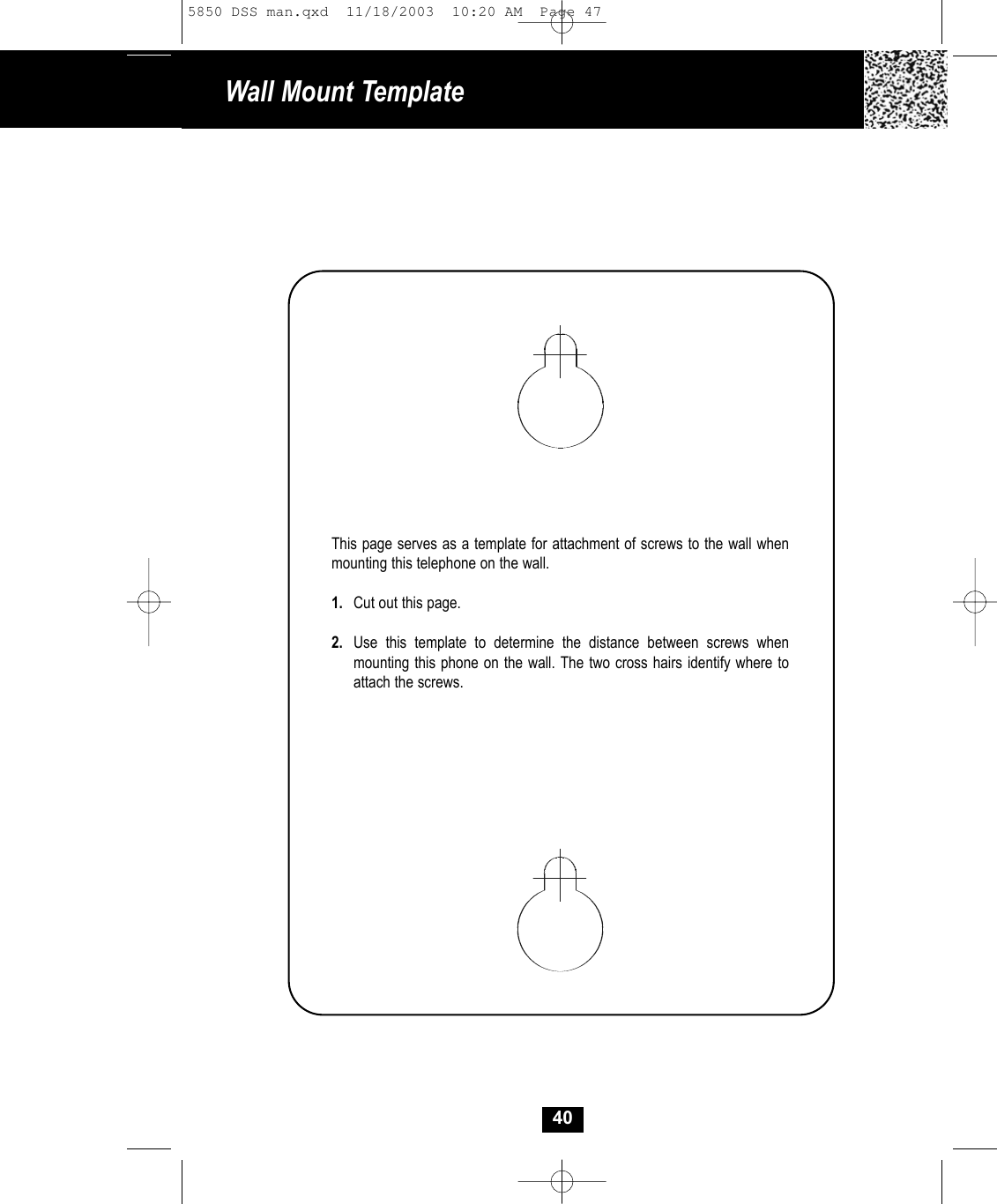

Wall Mount Template This page serves as a template for attachment of screws to the wall whenmounting this telephone on the wall.1. Cut out this page.2. Use this template to determine the distance between screws whenmounting this phone on the wall. The two cross hairs identify where toattach the screws.405850 DSS man.qxd 11/18/2003 10:20 AM Page 47
IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.IMPORTANTThe AC ADAPTOR must always be pluggedinto an electrical outlet.IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.IMPORTANTIf you live in an area which receives frequent thunderstorms, we strongly recommend pluggingyour AC ADAPTOR into a surge protector.5850 DSS man.qxd 11/18/2003 10:20 AM Page 48

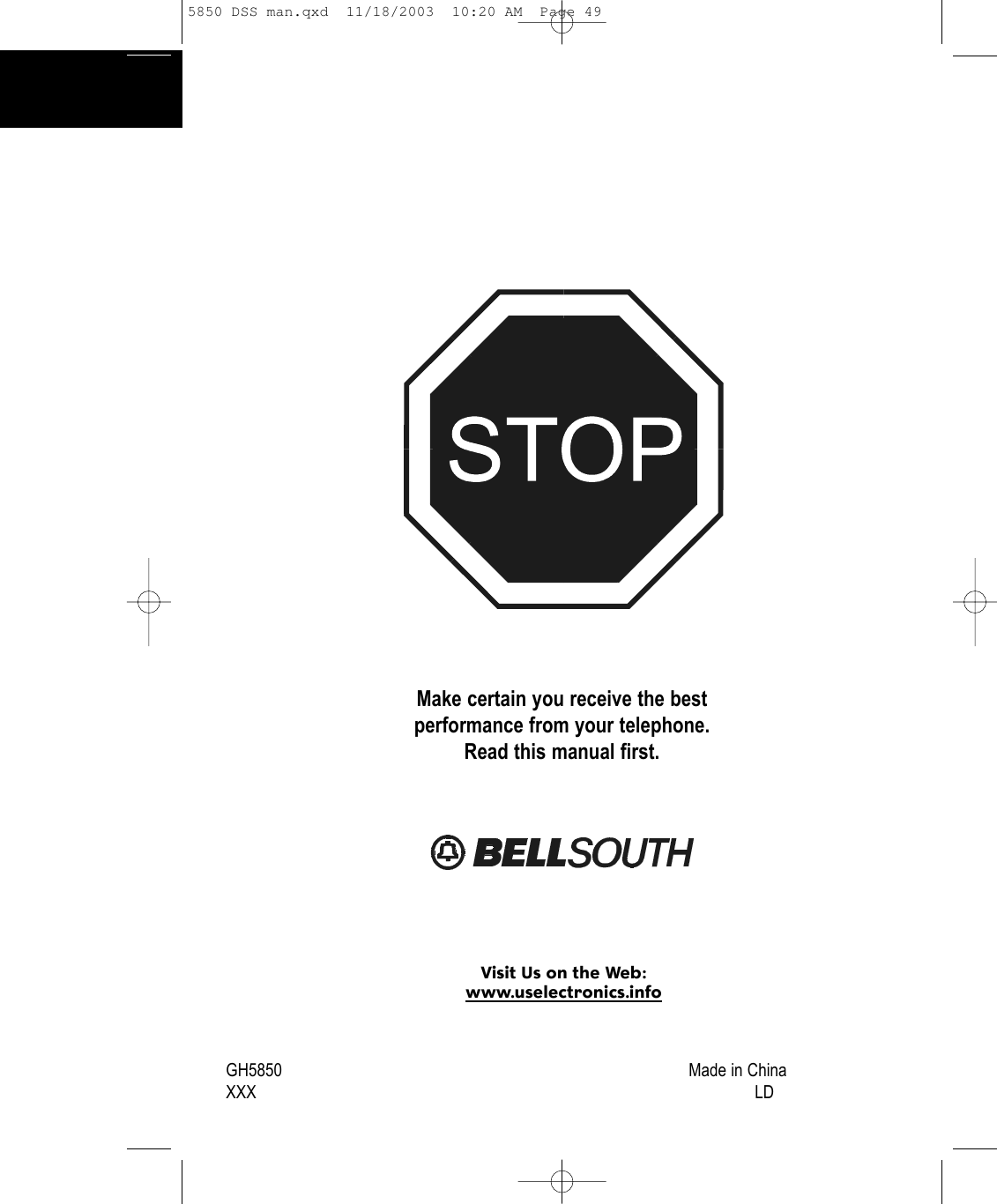

Make certain you receive the bestperformance from your telephone.Read this manual first.GH5850 Made in ChinaXXX LDVisit Us on the Web:www.uselectronics.info5850 DSS man.qxd 11/18/2003 10:20 AM Page 49
