1. Introduction
This document presents the functional specification of a Multi-Handset, Digital 2.4 GHz Frequency Code
Division Spread Spectrum Basic Cordless phone system with Type II Caller ID.
2. System Features
• Basic 2.4 GHz Code Division Spread Spectrum cordless telephone
• 1 telephone line
• Multi-Handset system (support up to 9 handsets)
• Multi-Base system (handset can register up to 2 base)
• 77 channels Autohop
• 2 line, 14 character Caller ID display, 7-segment time and date, including icons
max. of 18 characters on the Letter Icon and a max. of 22 digits on the Number Icon
• 40 Caller Log Memory
• 40 numbers telephone book (Name and Number) with priority setting
• Caller ID Callback Function
• Caller ID and Caller ID on Call Waiting (CIDCW)
• Intercom Call between Handsets
• One-touch Caller ID Call Record review
• One-touch Outgoing Call Record review
• Menu system with sub-levels
• 2 Ringer Levels on Handset (high, low)
• 3 Volume Levels on Handset (high, mid, low)
• 6 Ringer Melody Settings
• Username
• Flash, Redial, Pause
• Headset jack
• Displaying Name, Number, Date and Time
• Out of Range Indication
• Call Waiting Indication
• Battery Low Indication
• Preferred Calls
• Blocked Calls
• Backlit LCD Display
• Standby time – 80 hours
• Talk time – 4 hours
• 3 Language Selectable
• New Call Indication
• Call Counter
4
Confidential

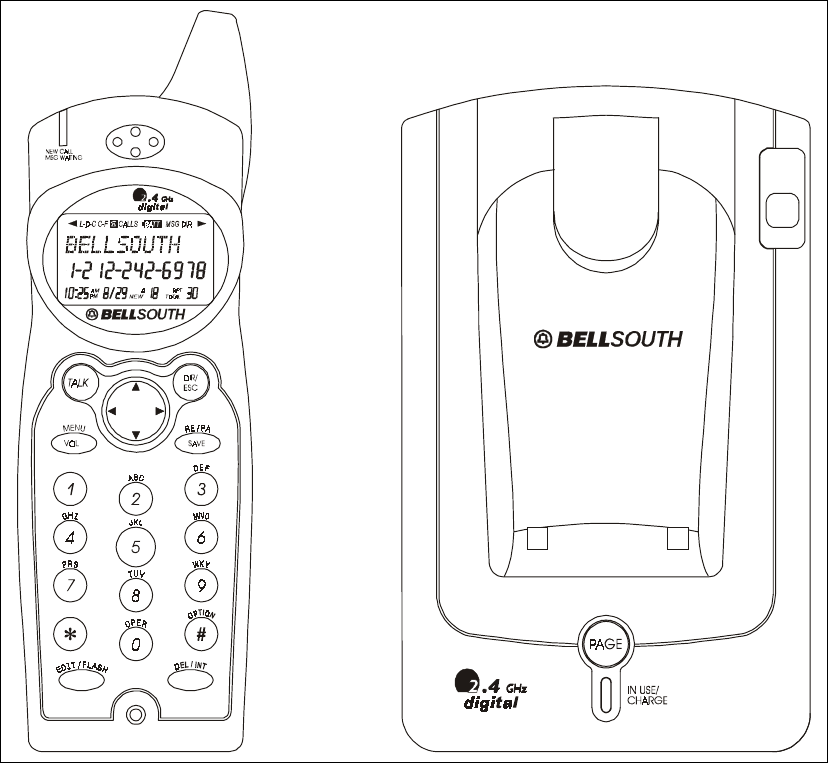

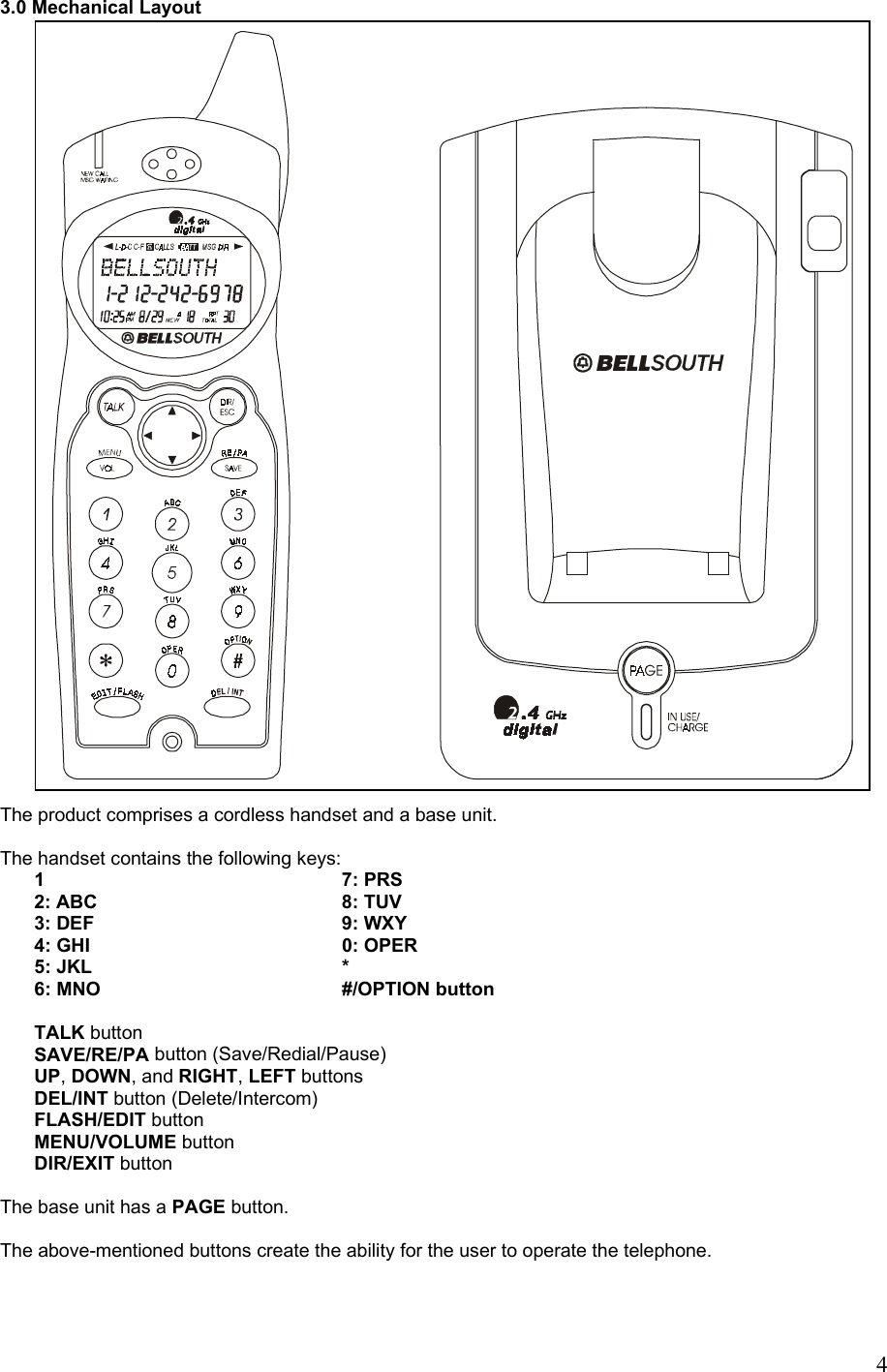

3.0 Mechanical Layout
The product comprises a cordless handset and a base unit.
The handset contains the following keys:
1 7: PRS
2: ABC 8: TUV
3: DEF 9: WXY
4: GHI 0: OPER
5: JKL *
6: MNO #/OPTION button
TALK button
SAVE/RE/PA button (Save/Redial/Pause)
UP, DOWN, and RIGHT, LEFT buttons
DEL/INT button (Delete/Intercom)
FLASH/EDIT button
MENU/VOLUME button
DIR/EXIT button
The base unit has a PAGE button.
The above-mentioned buttons create the ability for the user to operate the telephone.
