PAGE900 MHz CORDLESS CALLER ID TELEPHONE WITH CALL WAITING40 CHANNEL AUTOSCANModel MH9110PLEASE READ THISMANUAL CAREFULLYBEFORE USE.KEEP FOR YOURREFERENCE.OWNER'S MANUALINSTALLATION ANDOPERATINGINSTRUCTIONS5© 1995, 2002 BellSouth CorporationTALKDIRSAVEREDIAL
ongratulations on your selection of a quality BellSouth Product. With propercare, and by following the setup and user instructions in this manual, this unitwill provide you with years of trouble free service.BellSouth is committed to providing quality products that fit your needs. We would like tohave any comments or suggestions you might have on this product. You may mail yourcomments to: U.S. Electronics105 Madison AvenueNew York, NY 10016When examining your new BellSouth cordless telephone, you will find an array ofspecial features including:Filtered Sound™ System - Receives considerably less noise than conventional cordlesstelephones because of a special circuit which delivers the clearest possiblereception.40 Channel Autoscan - Press the DEL/CHAN button on the HANDSET to find and lockon to the clearest channel for any call.Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone.TONE or PULSE Dialing - Use this phone for either TONE (rotary) or PULSE (push-button) dialing.Automated Functions - Redial the last number called and automatic STANDBY mode.Security - Ensures greater privacy because a built-in security code with 65,536combinations prevents use of your telephone line by another nearby cordlesstelephone.Dependable Battery - Recharge your BATTERY PACK many times with the built-incharger. The battery low warning tone tells you when the BATTERY PACK needsrecharging (See page 27).Special Services - Use the EDIT/FLASH button to access special services such asCall Waiting supplied by your telephone company or company switchboard.STANDBY Mode - When in STANDBY mode (ON-HOOK), the telephone is capable ofreceiving a call. When the HANDSET is on the BASE UNIT, it is automatically in theSTANDBY mode (ON-HOOK). When the HANDSET is taken off the BASE UNIT, itremains in the STANDBY mode until you activate the button.Battery Power Saver - Once fully charged, in STANDBY mode, the HANDSET canreceive/send calls for a maximum of five days without the need for recharging.Length of charge depends on frequency of use.Luminous LCD Screen - The LCD Screen emits light for 10 seconds every time youpress any of the TELEPHONE KEYPAD buttons.HANDSET Ringer Level - Select the ringer sound level (HI, LOW, OFF).HANDSET Volume Control Switch - Select the receiver volume level (HI, MID, LOW).CSpecial Features
HEADSET JACK - Your telephone can utilize a headset for hands-free communication.BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt.CALLER ID SYSTEMMulti-Function Large LCD Screen - Shows the number you are dialing and, with CallerID service (available through subscription from your local telephone company),displays information about the caller before you answer the call.Name and Number Directory - Stores up to 40 names and numbers so that you can callthem with a single key stroke.Caller List - Available with Caller ID service. Stores up to 80 calls to keep track ofeveryone who called. The name, phone number, time and date of the call arerecorded. Allows you to return their calls with a single key stroke.Preferred Calls - You can mark the name and number of a welcome caller in theDIRECTORY. When that number calls in, the caller’s name will appear on theDISPLAY and a special ring sound will be heard.Blocked Calls - You can mark the name and number of an unwelcome caller inthe DIRECTORY. When that number calls in, the caller’s name will appear onthe DISPLAY and the ringer will be disabled.Repeat Call Indicator - Shows if a new incoming call has called more than once.Unavailable Call Indicator - Advises you that the origin of the incoming call does notsupport the Caller ID system.Call Waiting Service - Displays the name and number of the second caller, if youhave subscribed for Call Waiting service from your local telephone company(see page 13).Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail messageservice and requested Visual Message Indication from your local telephonecompany (see page 13). This telephone also detects a Stutter Dial Tone signalevery time there is a Voice Mail message for you from your Voice Mail messageprovider if you have subscribed to Voice Mail message service.Special Features
TALK DIRSAVEREDIAL1. LARGE LCD SCREEN11. DIR (DIRECTORY) BUTTON Pg. 14, 15, 16, 18, 1915. DEL (DELETE)/CHAN (CHANNEL) BUTTON Pg. 9, 15, 16, 18, 19, 12. REDIAL/SAVE BUTTON Pg. 10, 15, 16, 18, 20~259. MESSAGE WAITING LED INDICATOR Pg. 13NEW CALL/13. VOLUME CONTROL (HI, MID, LOW) SWITCH10. BATT LOW INDICATOR Pg. 275. HEADSET JACK Pg. 114. MENU/VOICE MAIL BUTTON Pg. 13, 20~256. TELEPHONE KEYPAD Pg. 16~18, 20, 21, 24, 258. FLASH BUTTON Pg. 13, 14, 16, 18, 20~25EDIT/16. CHARGE CONTACTSHANDSET ControlsHANDSET Controls1. items.2. SCROLL UP-DOWN/SHIFT LEFT-RIGHT BUTTON Pg. 12, 14~16, 18~243. TALK BUTTON Pg. 6, 7, 9, 10, 13, 14, 18, 292. SCROLL UP -DOWN , SHIFT LEFT -RIGHT Button: 3. Button: Press to move aroundPress to answer an incoming call or to place a call. Press to end a call the large LCD Screen. Pg. 14, 19 714. OPTION BUTTON Pg. 9, 12TALK

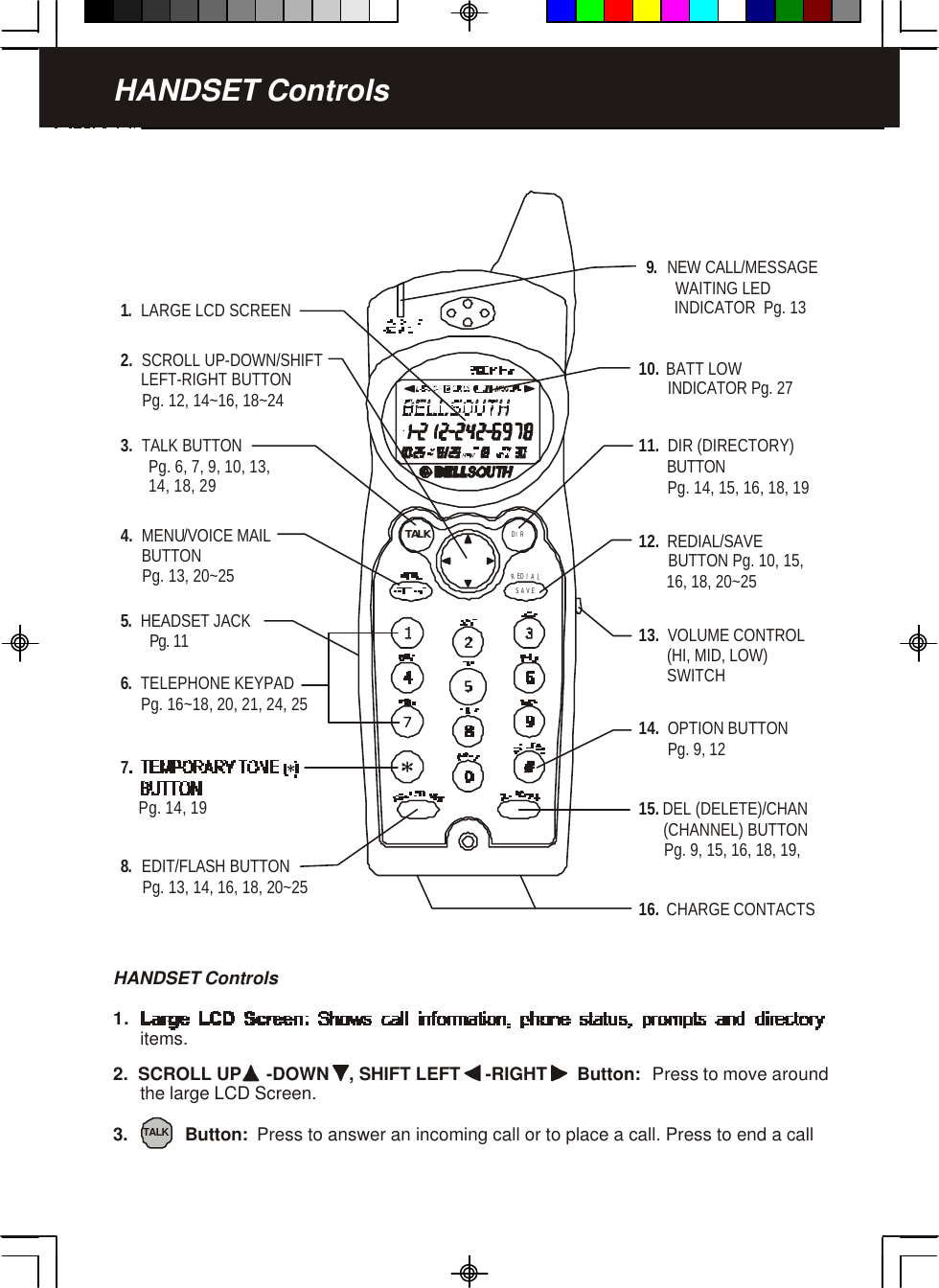

HANDSET Controls4. /VOICE MAIL Button: (MENU) Press to access the special functionsoperation in STANDBY mode. (For special functions see page 20~21.) (VOICE MAIL)Press to automatically dial the Voice Mail Post Code in your area to access yourVoice Mail message.5. HEADSET JACK: For connecting your headset plug to enjoy hands-freecommunication. (See page 11 for detail.)6. TELEPHONE KEYPAD Buttons: Allows you to make a call depending on pressedbutton. (For TELEPHONE KEYPAD characters, see page 17.)7. TEMPORARY TONE Button: Press to temporarily change the dialing mode fromPULSE to TONE for Rotary Service Users. (Press once before entering numbers toaccess the Answering System or electronic banking services, etc.)8. EDIT/FLASH Button: (EDIT) Press to edit listed items. (FLASH) Press to answer acall if you have Call Waiting.9. NEW CALL/MSG WTG (MESSAGE WAITING) LED Indicator: (NEW CALL) Blinks toindicate that you have a new Caller ID call stored in memory. (MESSAGE WAITING)Blinks at a slow rate when receiving a Message Waiting signal, if you havesubscribed to a Voice Mail message service from your local telephone company.(See page 13.)10.BATT LOW INDICATOR: Appears on the LCD Screen when the battery charge is low.(See page 27 for detail.)11. (DIRECTORY) Button: Press to access names and numbers stored in theDIRECTORY. (See pages 16 to 19 for details.)12. /REDIAL Button: (SAVE) Press and hold down to save the changes on the listeditems. (REDIAL) Press to redial the last number you dialed. (PAUSE) Press toinsert a pause while dialing. (You will need the /REDIAL button to dialnumbers which use an alternative Long Distance Access Code.)13. HANDSET Volume Control (hi, mid, low) Switch: Select the receiver volume level(HI, MID, LOW).14. /OPTION Buttton: Press to change the displayed number to form 7, 10 or 11digits during Caller ID callback.15. DEL(DELETE)/CHAN (CHANNEL) Button: (DELETE) - Press and hold down todelete itemsor individual characters. (CHANNEL) Press to change the operatingchannel when you hear interference.16. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. Werecommend cleaning the CHARGE CONTACTS periodically with a damp cloth.*#

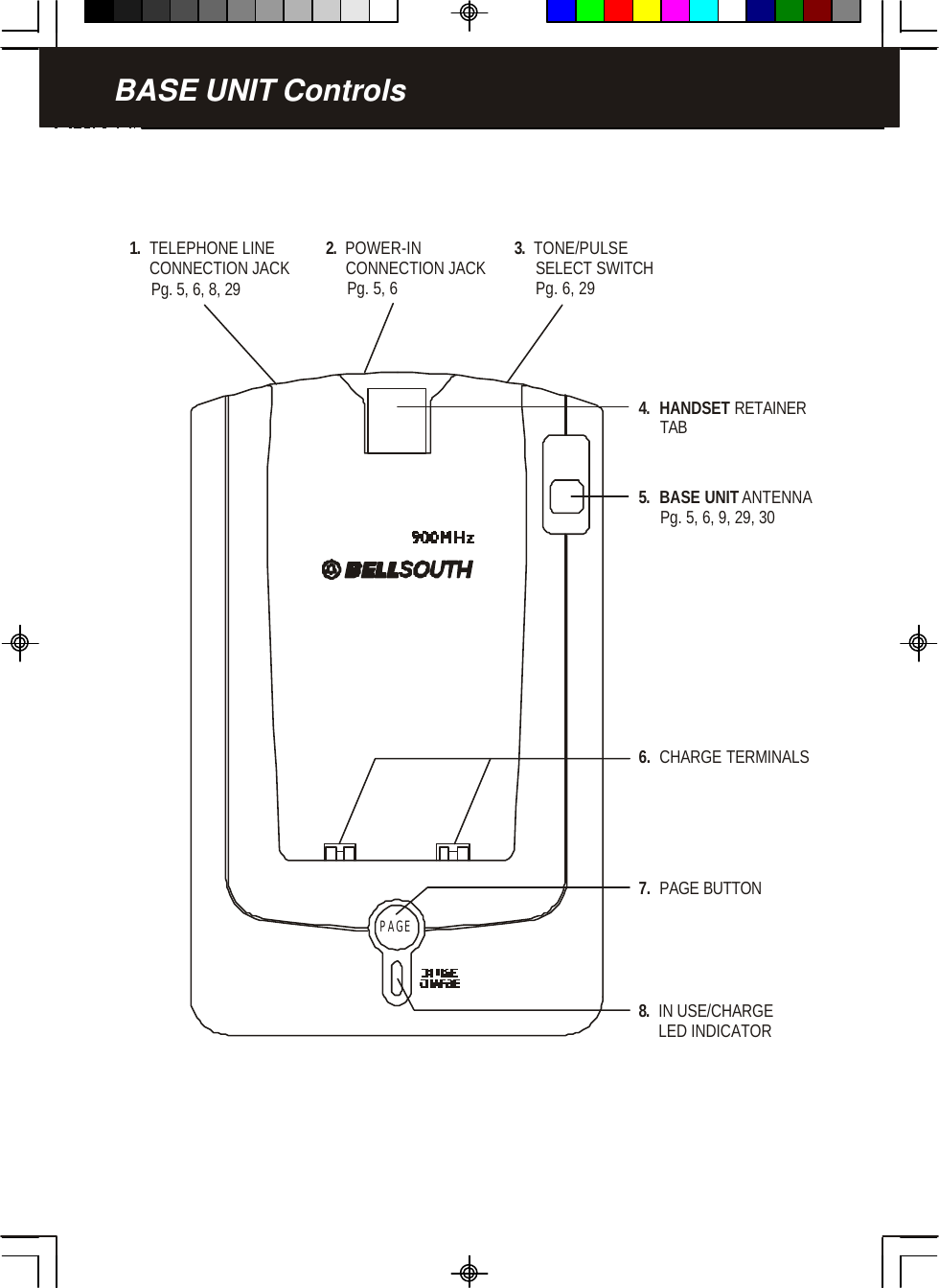

BASE UNIT Controls1. TELEPHONE LINE CONNECTION JACK Pg. 5, 6, 8, 293. TONE/PULSE SELECT SWITCH Pg. 6, 292. POWER-IN CONNECTION JACK Pg. 5, 66. CHARGE TERMINALS5.BASE UNIT ANTENNA Pg. 5, 6, 9, 29, 308. IN USE/CHARGE LED INDICATOR7. PAGE BUTTONPAGE4.HANDSET RETAINER TAB
BASE UNIT Controls1. TELEPHONE LINE CONNECTION JACK2. POWER-IN CONNECTION JACK3. TONE/PULSE Select Switch4. HANDSET Retainer Tab: For holding the HANDSET to rest securely in the BASE UNITCRADLE during wall mounting.5. BASE UNIT ANTENNA6. CHARGE TERMINALS: For charging the HANDSET BATTERY PACK. For bestperformance, clean the CHARGE TERMINALS periodically with a damp cloth.7. Button: Press to page the HANDSET.8. IN USE/CHARGE LED Indicator: (IN USE) Lights up to indicate that the HANDSET is inTALK mode and blinks when an extension telephone is in use. (CHARGE) Lights upwhen the HANDSET is placed on the BASE UNIT for charging.IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.

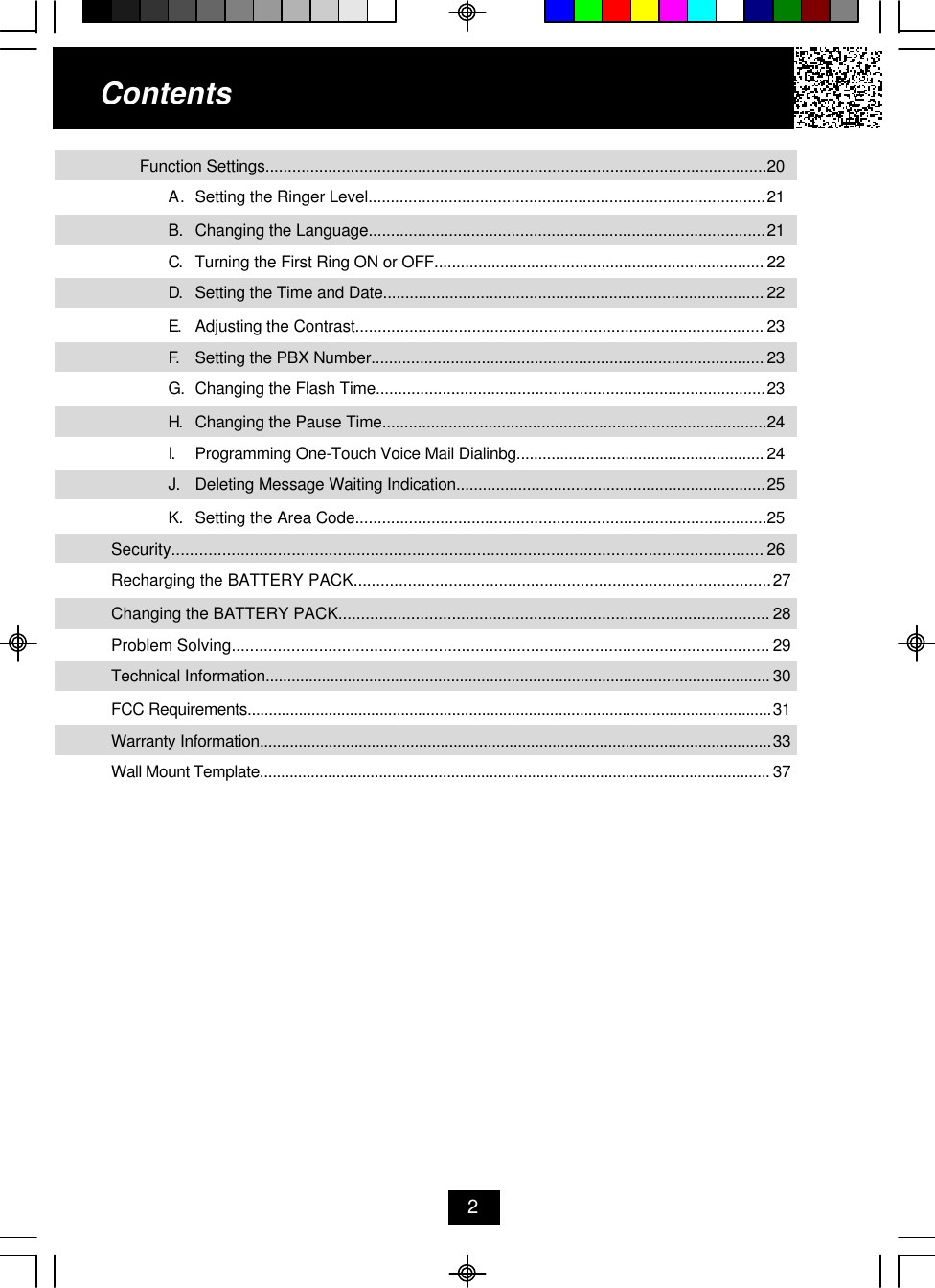

Safety Instructions.....................................................................................................................3Getting Started........................................................................................................................... 5Desk Mounting............................................................................................................................8Wall Mounting............................................................................................................................. 8Cordless Telephone Operation...................................................................................................9Preparing for Use................................................................................................................ 9Receiving Calls.................................................................................................................... 9Placing Calls.........................................................................................................................10Redialing.............................................................................................................................. 10Extension Phones................................................................................................................ 11Using the Headset Feature.................................................................................................. 11Caller ID System Operation........................................................................................................ 12Caller ID System...................................................................................................................12Viewing Caller Information During Incoming Calls......................................................... 12Caller ID with Call Waiting.............................................................................................. 13Message Waiting........................................................................................................... 13One-Touch Voice Mail Dialing........................................................................................ 13Caller List............................................................................................................................. 14Viewing the Caller List.................................................................................................. 14Placing a Call from the Caller List.................................................................................. 14Storing Caller ID Records into the DIRECTORY................................................................. 15To Delete a Single Record in the Caller List................................................................... 15To Delete all Records in the Caller List.......................................................................... 15Name and Telephone Number DIRECTORY.......................................................................... 16Viewing the DIRECTORY (Phonebook)........................................................................ 16Storing Phone Numbers.................................................................................................16Telephone Keypad Characters......................................................................................17Placing Calls from the DIRECTORY................................................................................ 18Editing a Stored Number in the DIRECTORY.................................................................. 18Deleting a Stored Number in the DIRECTORY ...............................................................19Preferred Calls.............................................................................................................. 19Blocked Calls................................................................................................................. 19Contents1
Function Settings................................................................................................................20A. Setting the Ringer Level.........................................................................................21B. Changing the Language.........................................................................................21C. Turning the First Ring ON or OFF........................................................................... 22D. Setting the Time and Date...................................................................................... 22E. Adjusting the Contrast........................................................................................... 23F. Setting the PBX Number......................................................................................... 23G. Changing the Flash Time........................................................................................23H. Changing the Pause Time.......................................................................................24I. Programming One-Touch Voice Mail Dialinbg......................................................... 24J. Deleting Message Waiting Indication......................................................................25K. Setting the Area Code............................................................................................25Security................................................................................................................................ 26Recharging the BATTERY PACK............................................................................................27Changing the BATTERY PACK............................................................................................... 28Problem Solving..................................................................................................................... 29Technical Information..................................................................................................................... 30FCC Requirements...........................................................................................................................31Warranty Information.......................................................................................................................33Wall Mount Template........................................................................................................................ 37Contents2
Safety Instructions3IMPORTANT SAFETY INSTRUCTIONSTo reduce the risk of fire, electric shock and/or injury, always follow thesebasic safety precautions when using your cordless telephone equipment.1. Read and understand all instructions.2. Follow all warnings and instructions marked on the telephone.3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub,in a wet basement, near a swimming pool, or anywhere else where there is water.4. Avoid using a telephone (other than a cordless type) during an electrical storm.There may be a remote risk of electric shock from lightning.5. Do not use the telephone to report a gas leak in the vicinity of the leak.6. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual. Donot dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode.Check with local codes for possible special disposal instructions.7. Operate this telephone using the electrical voltage as stated on the BASE UNIT orin the Owner’s Manual. If you are not sure of the voltage in your home, consult yourdealer or local power company.8. Unplug this telephone from the wall outlet before cleaning or replacing theBATTERY PACK. Do not use liquid cleaners or aerosol cleaners on the telephone.Use a damp cloth for cleaning.9. Place this telephone on a stable surface. Serious damage and/or injury may resultif the telephone falls.10. Do not cover the slots and openings on this telephone. This telephone should neverbe placed near or over a radiator or heat register. This telephone should not beplaced in a built-in installation unless proper ventilation is provided.11. Do not place anything on the power cord. Install the telephone where no one willstep or trip on the cord.12. Do not overload wall outlets or extension cords as this can increase the risk of fireor electric shock.13. Never push any objects through the slots in the telephone. They could touchdangerous voltage points or short out parts that could result in a risk of fire orelectric shock. Never spill liquid of any kind on the telephone.14. To reduce the risk of electric shock, do not take this telephone apart. If service orrepair work is required on this telephone, take it to a qualified servicerepresentative. Opening or removing covers may expose you to dangerous voltageor other risks. Incorrect reassembly can cause electric shock when the appliance issubsequently used.15. Unplug this telephone from the wall outlet and consult a qualified servicerepresentative in any of the following situations.A. When the power supply cord is frayed or damaged.B. If liquid has been spilled into the telephone.C. If the telephone has been exposed to rain or water.D. If the telephone does not operate normally by following the operatinginstructions. Adjust only those controls that are covered by the operatinginstructions. Improper adjustment may require extensive work by a qualifiedtechnician to restore the telephone to normal operation.
E. If the telephone has been dropped or the case has been damaged.F. If the telephone exhibits a distinct change in performance.16. Never install telephone wiring during a lightning storm.17. Never install telephone jacks in wet locations unless the jack is specificallydesigned for wet locations.18. Never touch uninsulated telephone wires or terminals unless the telephone line hasbeen disconnected at the network interface.19. Use caution when installing or modifying telephone lines.Battery SafetyCAUTION:Danger of explosion if BATTERY PACK is incorrectly replaced. Replace onlywith the same or equivalent type. To reduce the risk of fire or personalinjury, read and follow these instructions:1. Use only the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 600mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: model B650(See page 27 for ordering information.)2. Do not dispose of the BATTERY PACK in a fire. It may explode. Check with localcodes for possible special disposal instructions.3. Do not open or mutilate the BATTERY PACK. Released electrolyte from a BATTERYPACK is corrosive and may cause damage to the eyes or skin. Electrolyte may betoxic if swallowed.4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERYPACK with conductive materials such as rings, bracelets and keys. The BATTERYPACK or conductor may overheat and cause burns.5. Charge the BATTERY PACK provided with (or identified for use with) this telephoneonly in accordance with the instructions and limitations specified in this manual.6. Observe proper polarity orientation between the BATTERY PACK and BATTERYCHARGER.SAVE THESE INSTRUCTIONSATTENTION:The product that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and locallaws, it may be illegal to dispose of this BATTERY PACK into the municipal waste stream.Check with your local solid waste officials for details in your area for recycling options orproper disposal.Safety Instructions4

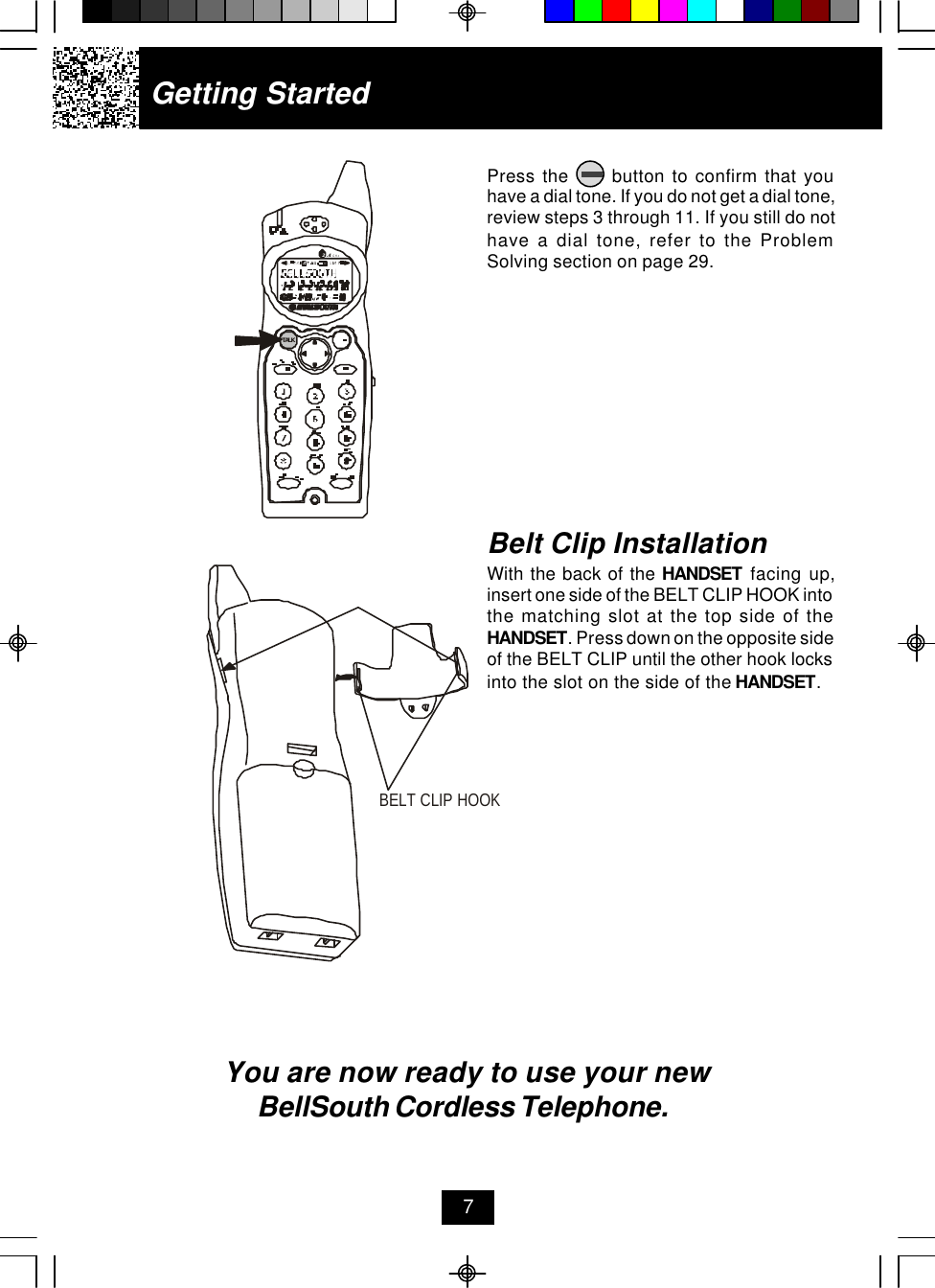

Getting StartedConnecting Your PhoneThis section is a reference guide to the basic functions and operations of your cordlesstelephone. For more detailed descriptions of the operations and features of thistelephone, refer to the Contents on page 1.1.Carefully remove your cordless telephone from its shipping carton. If there is anyvisible damage, do not attempt to operate this equipment. Return it to the placeof purchase.2.Check to be sure you have all items that come with this cordless telephone system.You should have a HANDSET, BASE UNIT, AC ADAPTOR, BATTERY PACK,MOUNTING BRACKET, TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD,BELT CLIP and Owner’s Manual.53. Insert the small plug on the end of the AC ADAPTOR into the POWER-INCONNECTION JACK at the back of the BASE UNIT.4. Plug the AC ADAPTOR into a 120V AC wall outlet.USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 300mA.5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACKand the other end into the TELEPHONE LINE CONNECTION JACK at the back of theBASE UNIT. (If you have an older 4-prong TELEPHONE JACK, you will need anRJ-11C TELEPHONE JACK ADAPTOR. This adaptor is available at the same placeyou purchased your telephone.)6. We recommend not placing this unit next to appliances. Doing so may causeinterference.HANDSET BELT CLIPTELEPHONE LINE CORDAC ADAPTORSHORT TELEPHONE LINE CORDBASE UNIT MOUNTING BRACKETBATTERY PACKTALKPAGE

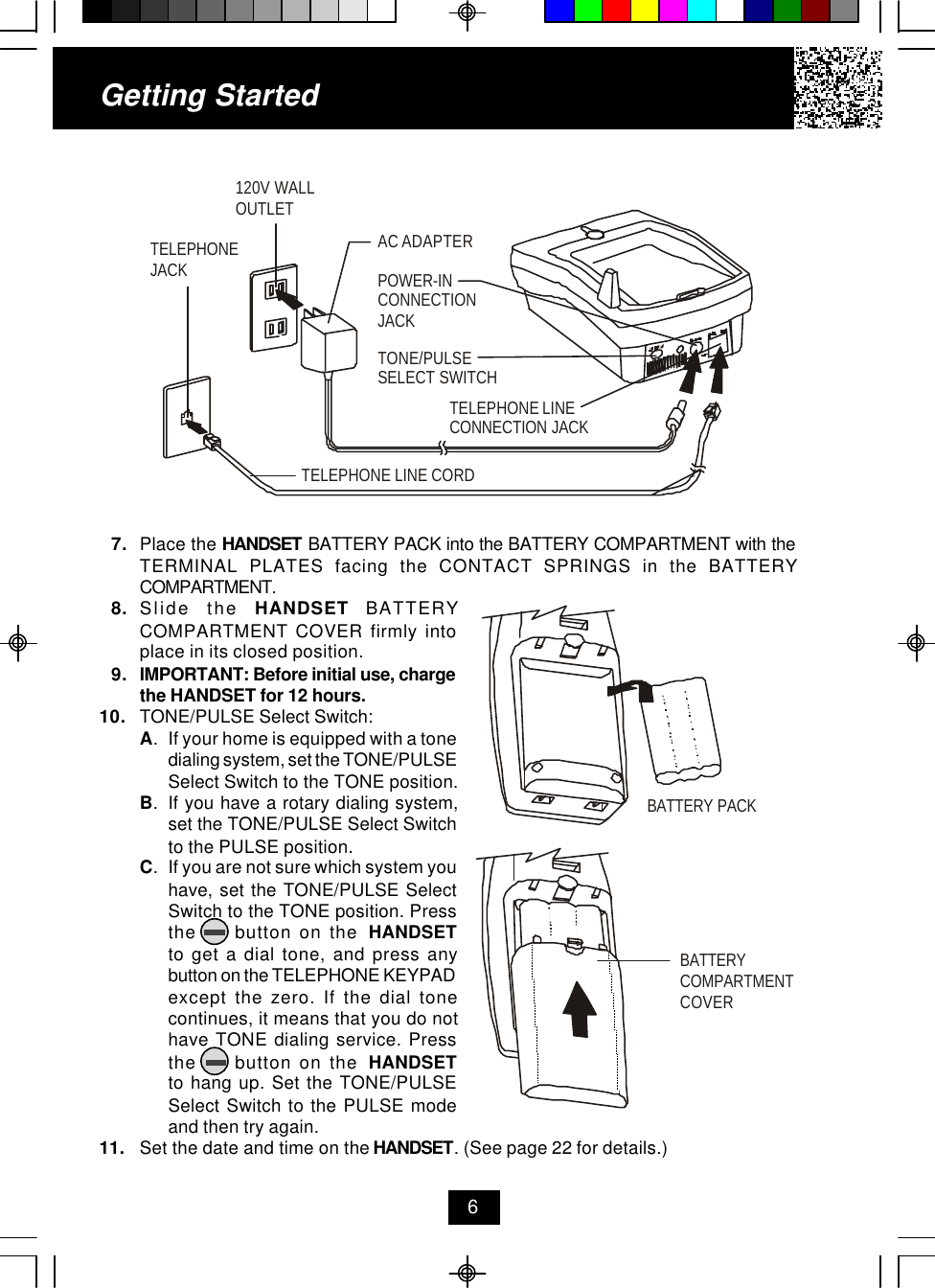

Getting Started7. Place the HANDSET BATTERY PACK into the BATTERY COMPARTMENT with theTERMINAL PLATES facing the CONTACT SPRINGS in the BATTERYCOMPARTMENT.8. Slide the HANDSET BATTERYCOMPARTMENT COVER firmly intoplace in its closed position.9. IMPORTANT: Before initial use, chargethe HANDSET for 12 hours.10. TONE/PULSE Select Switch:A.If your home is equipped with a tonedialing system, set the TONE/PULSESelect Switch to the TONE position.B.If you have a rotary dialing system,set the TONE/PULSE Select Switchto the PULSE position.C.If you are not sure which system youhave, set the TONE/PULSE SelectSwitch to the TONE position. Pressthe button on the HANDSETto get a dial tone, and press anybutton on the TELEPHONE KEYPADexcept the zero. If the dial tonecontinues, it means that you do nothave TONE dialing service. Pressthe button on the HANDSETto hang up. Set the TONE/PULSESelect Switch to the PULSE modeand then try again.11. Set the date and time on the HANDSET. (See page 22 for details.)6AC ADAPTERTELEPHONE LINE CORDTELEPHONEJACK120V WALLOUTLETTONE/PULSESELECT SWITCHTELEPHONE LINECONNECTION JACKPOWER-INCONNECTION JACKBATTERY PACKBATTERY COMPARTMENTCOVER
Getting StartedPress the button to confirm that youhave a dial tone. If you do not get a dial tone,review steps 3 through 11. If you still do nothave a dial tone, refer to the ProblemSolving section on page 29.You are now ready to use your new BellSouth Cordless Telephone.Belt Clip InstallationWith the back of the HANDSET facing up,insert one side of the BELT CLIP HOOK intothe matching slot at the top side of theHANDSET. Press down on the opposite sideof the BELT CLIP until the other hook locksinto the slot on the side of the HANDSET.7.42GHzTALKBELT CLIP HOOK

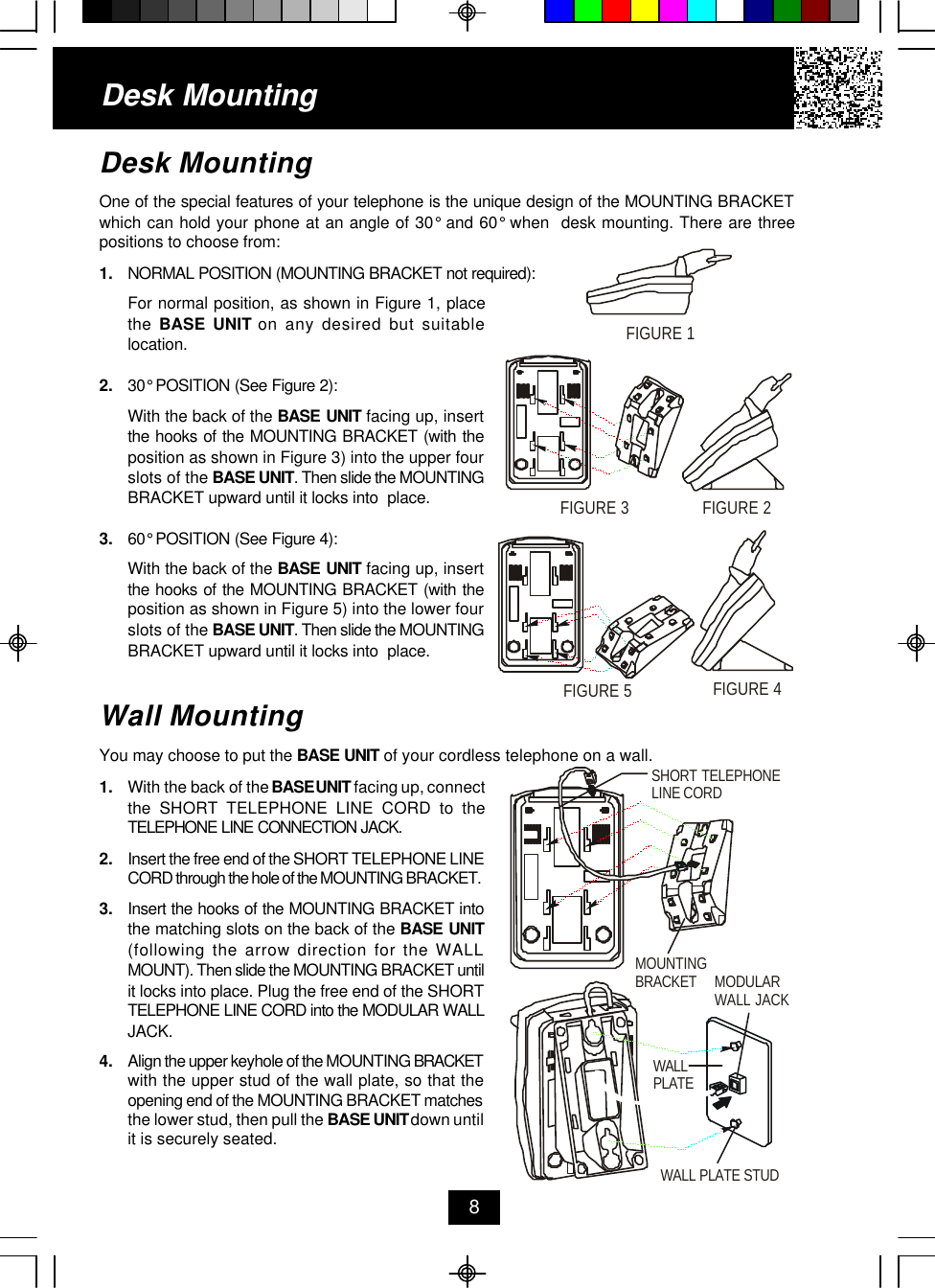

Desk MountingOne of the special features of your telephone is the unique design of the MOUNTING BRACKETwhich can hold your phone at an angle of 30° and 60° when desk mounting. There are threepositions to choose from:1. NORMAL POSITION (MOUNTING BRACKET not required):For normal position, as shown in Figure 1, placethe BASE UNIT on any desired but suitablelocation.2. 30° POSITION (See Figure 2):With the back of the BASE UNIT facing up, insertthe hooks of the MOUNTING BRACKET (with theposition as shown in Figure 3) into the upper fourslots of the BASE UNIT. Then slide the MOUNTINGBRACKET upward until it locks into place.3. 60° POSITION (See Figure 4):With the back of the BASE UNIT facing up, insertthe hooks of the MOUNTING BRACKET (with theposition as shown in Figure 5) into the lower fourslots of the BASE UNIT. Then slide the MOUNTINGBRACKET upward until it locks into place.Wall MountingYou may choose to put the BASE UNIT of your cordless telephone on a wall.1. With the back of the BASE UNIT facing up, connectthe SHORT TELEPHONE LINE CORD to theTELEPHONE LINE CONNECTION JACK.2. Insert the free end of the SHORT TELEPHONE LINECORD through the hole of the MOUNTING BRACKET.3. Insert the hooks of the MOUNTING BRACKET intothe matching slots on the back of the BASE UNIT(following the arrow direction for the WALLMOUNT). Then slide the MOUNTING BRACKET untilit locks into place. Plug the free end of the SHORTTELEPHONE LINE CORD into the MODULAR WALLJACK.4. Align the upper keyhole of the MOUNTING BRACKETwith the upper stud of the wall plate, so that theopening end of the MOUNTING BRACKET matchesthe lower stud, then pull the BASE UNIT down untilit is securely seated.Desk Mounting8FIGURE 2FIGURE 3FIGURE 1FIGURE 5FIGURE 4MOUNTINGBRACKET MODULAR WALL JACKWALL PLATEWALL PLATE STUDSHORT TELEPHONELINE CORD

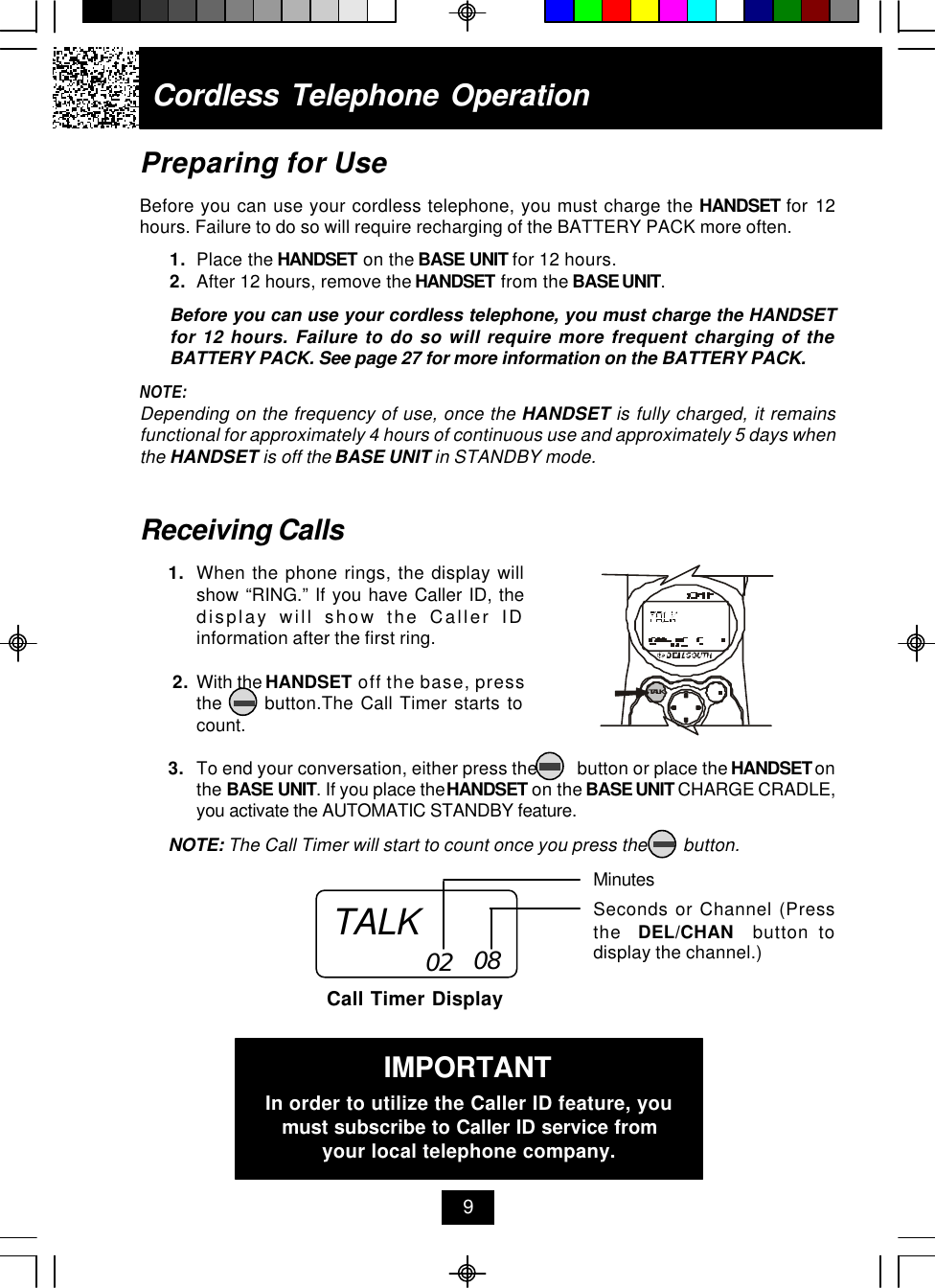

Cordless Telephone Operation9Receiving Calls1. When the phone rings, the display willshow “RING.” If you have Caller ID, thedisplay will show the Caller IDinformation after the first ring. 2. With the HANDSET off the base, pressthe button.The Call Timer starts tocount.3. To end your conversation, either press the button or place the HANDSET onthe BASE UNIT. If you place the HANDSET on the BASE UNIT CHARGE CRADLE,you activate the AUTOMATIC STANDBY feature.NOTE: The Call Timer will start to count once you press the button.MinutesSeconds or Channel (Pressthe DEL/CHAN button todisplay the channel.)Call Timer Display02 08Preparing for UseBefore you can use your cordless telephone, you must charge the HANDSET for 12hours. Failure to do so will require recharging of the BATTERY PACK more often.1. Place the HANDSET on the BASE UNIT for 12 hours.2. After 12 hours, remove the HANDSET from the BASE UNIT.Before you can use your cordless telephone, you must charge the HANDSETfor 12 hours. Failure to do so will require more frequent charging of theBATTERY PACK. See page 27 for more information on the BATTERY PACK.NOTE:Depending on the frequency of use, once the HANDSET is fully charged, it remainsfunctional for approximately 4 hours of continuous use and approximately 5 days whenthe HANDSET is off the BASE UNIT in STANDBY mode.TALKIMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.TALK

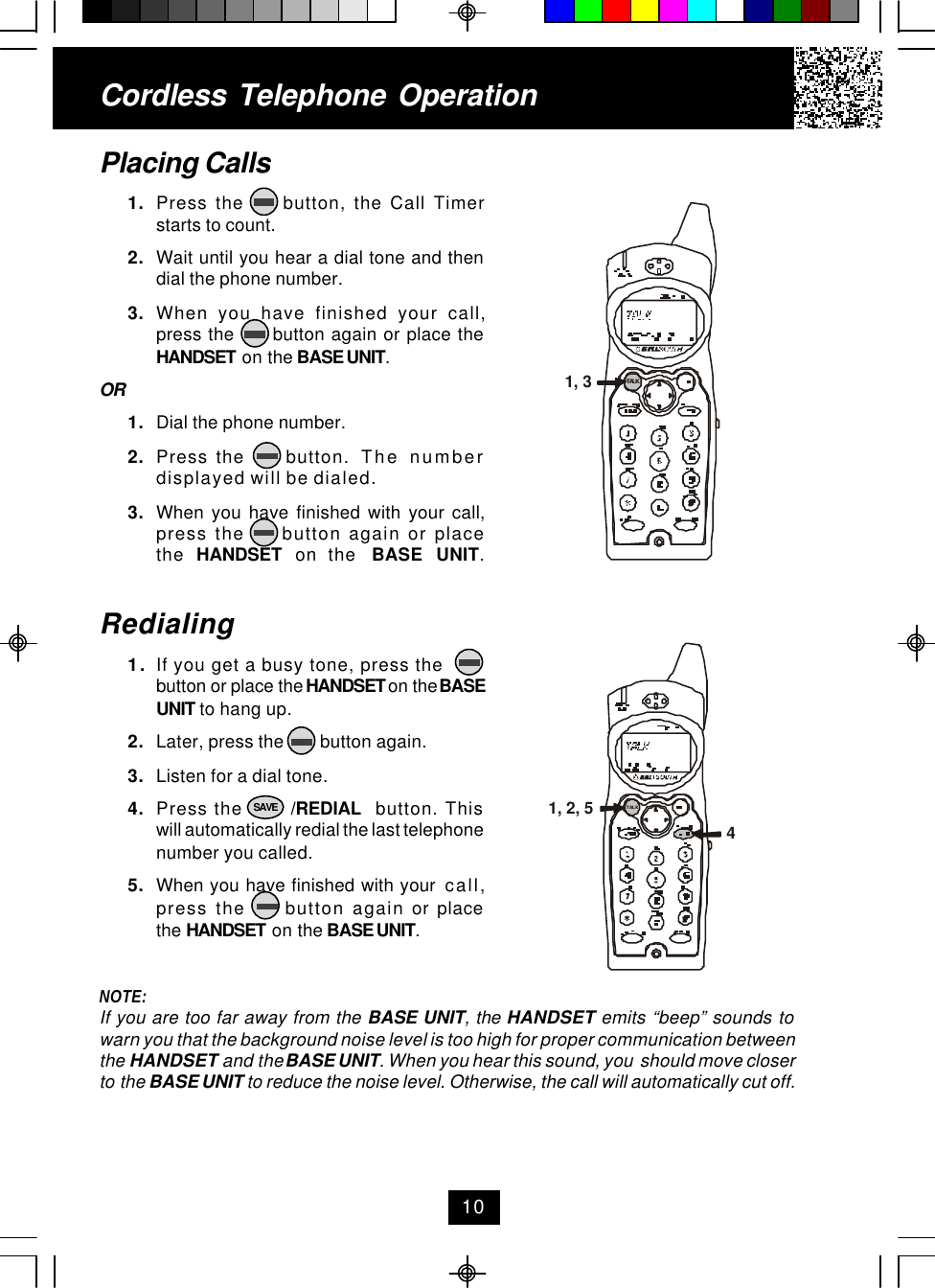

Cordless Telephone OperationPlacing Calls1. Press the button, the Call Timerstarts to count.2. Wait until you hear a dial tone and thendial the phone number.3. When you have finished your call,press the button again or place theHANDSET on the BASE UNIT.OR1. Dial the phone number.2. Press the button. The numberdisplayed will be dialed.3. When you have finished with your call,press the button again or placethe HANDSET on the BASE UNIT.Redialing1. If you get a busy tone, press thebutton or place the HANDSET on the BASEUNIT to hang up.2. Later, press the button again.3. Listen for a dial tone.4. Press the /REDIAL button. Thiswill automatically redial the last telephonenumber you called.5. When you have finished with your call,press the button again or placethe HANDSET on the BASE UNIT.NOTE:If you are too far away from the BASE UNIT, the HANDSET emits “beep” sounds towarn you that the background noise level is too high for proper communication betweenthe HANDSET and the BASE UNIT. When you hear this sound, you should move closerto the BASE UNIT to reduce the noise level. Otherwise, the call will automatically cut off.10SAVE1, 3 TALK1, 2, 54TALK

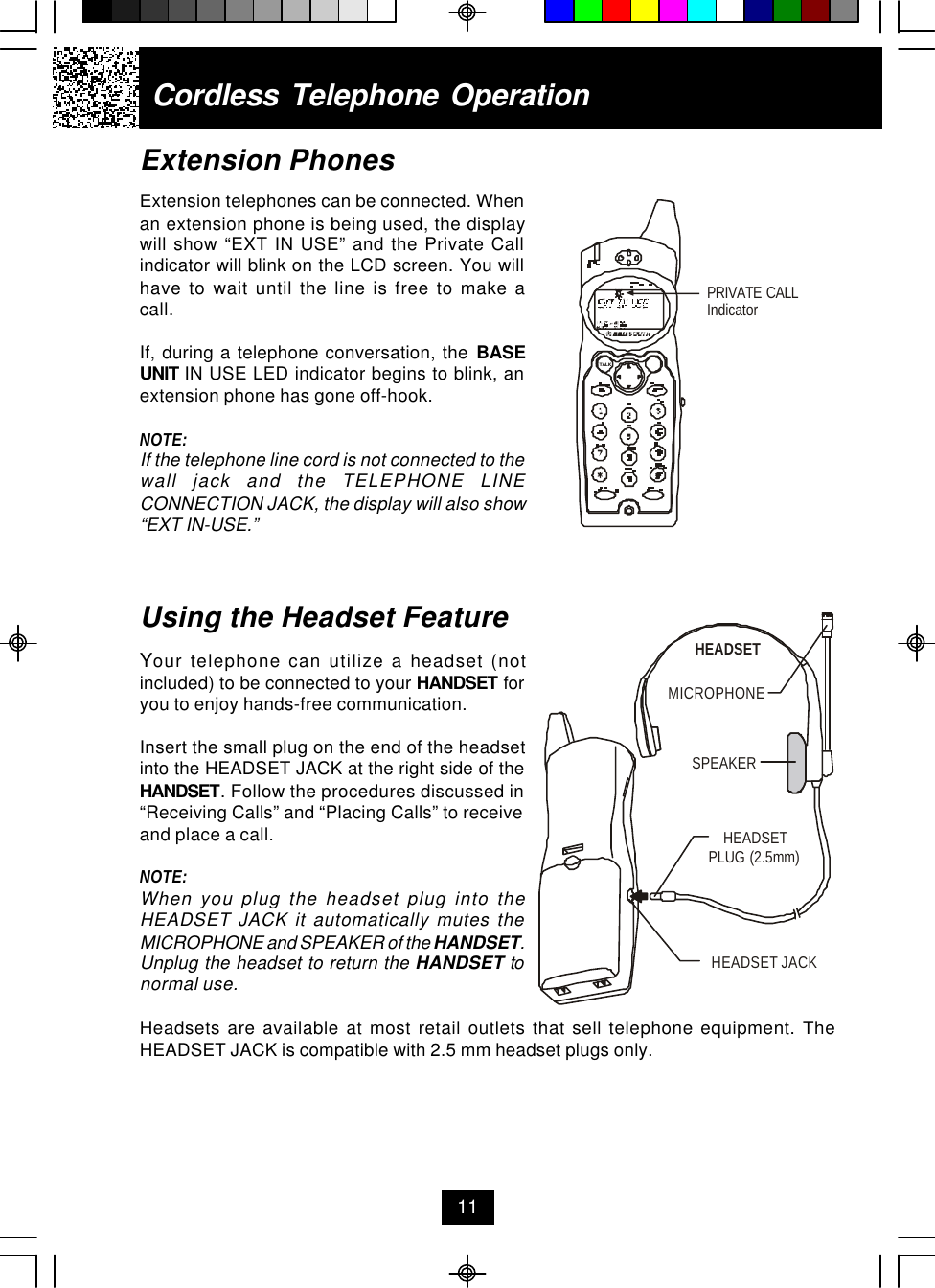

Extension PhonesExtension telephones can be connected. Whenan extension phone is being used, the displaywill show “EXT IN USE” and the Private Callindicator will blink on the LCD screen. You willhave to wait until the line is free to make acall.If, during a telephone conversation, the BASEUNIT IN USE LED indicator begins to blink, anextension phone has gone off-hook.NOTE:If the telephone line cord is not connected to thewall jack and the TELEPHONE LINECONNECTION JACK, the display will also show“EXT IN-USE.”Using the Headset FeatureYour telephone can utilize a headset (notincluded) to be connected to your HANDSET foryou to enjoy hands-free communication.Insert the small plug on the end of the headsetinto the HEADSET JACK at the right side of theHANDSET. Follow the procedures discussed in“Receiving Calls” and “Placing Calls” to receiveand place a call.NOTE:When you plug the headset plug into theHEADSET JACK it automatically mutes theMICROPHONE and SPEAKER of the HANDSET.Unplug the headset to return the HANDSET tonormal use.Headsets are available at most retail outlets that sell telephone equipment. TheHEADSET JACK is compatible with 2.5 mm headset plugs only.Cordless Telephone Operation11PRIVATE CALLIndicatorTALKMICROPHONEHEADSETSPEAKERHEADSET JACKHEADSETPLUG (2.5mm)

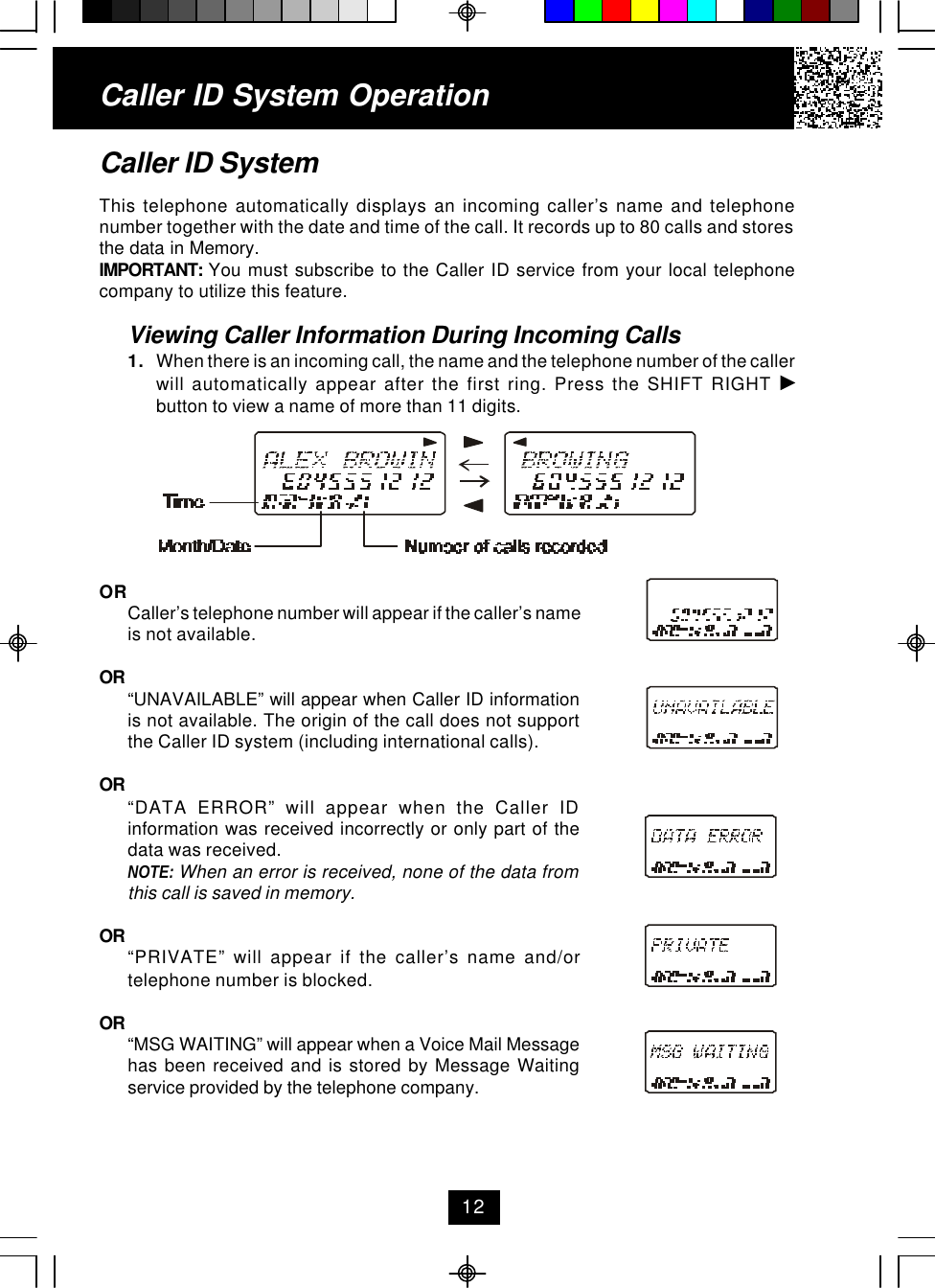

Caller ID System OperationCaller ID SystemThis telephone automatically displays an incoming caller’s name and telephonenumber together with the date and time of the call. It records up to 80 calls and storesthe data in Memory.IMPORTANT: You must subscribe to the Caller ID service from your local telephonecompany to utilize this feature.Viewing Caller Information During Incoming Calls1. When there is an incoming call, the name and the telephone number of the callerwill automatically appear after the first ring. Press the SHIFT RIGHT button to view a name of more than 11 digits.ORCaller’s telephone number will appear if the caller’s nameis not available.OR “UNAVAILABLE” will appear when Caller ID informationis not available. The origin of the call does not supportthe Caller ID system (including international calls).OR “DATA ERROR” will appear when the Caller IDinformation was received incorrectly or only part of thedata was received.NOTE: When an error is received, none of the data fromthis call is saved in memory.OR “PRIVATE” will appear if the caller’s name and/ortelephone number is blocked.OR “MSG WAITING” will appear when a Voice Mail Messagehas been received and is stored by Message Waitingservice provided by the telephone company.12

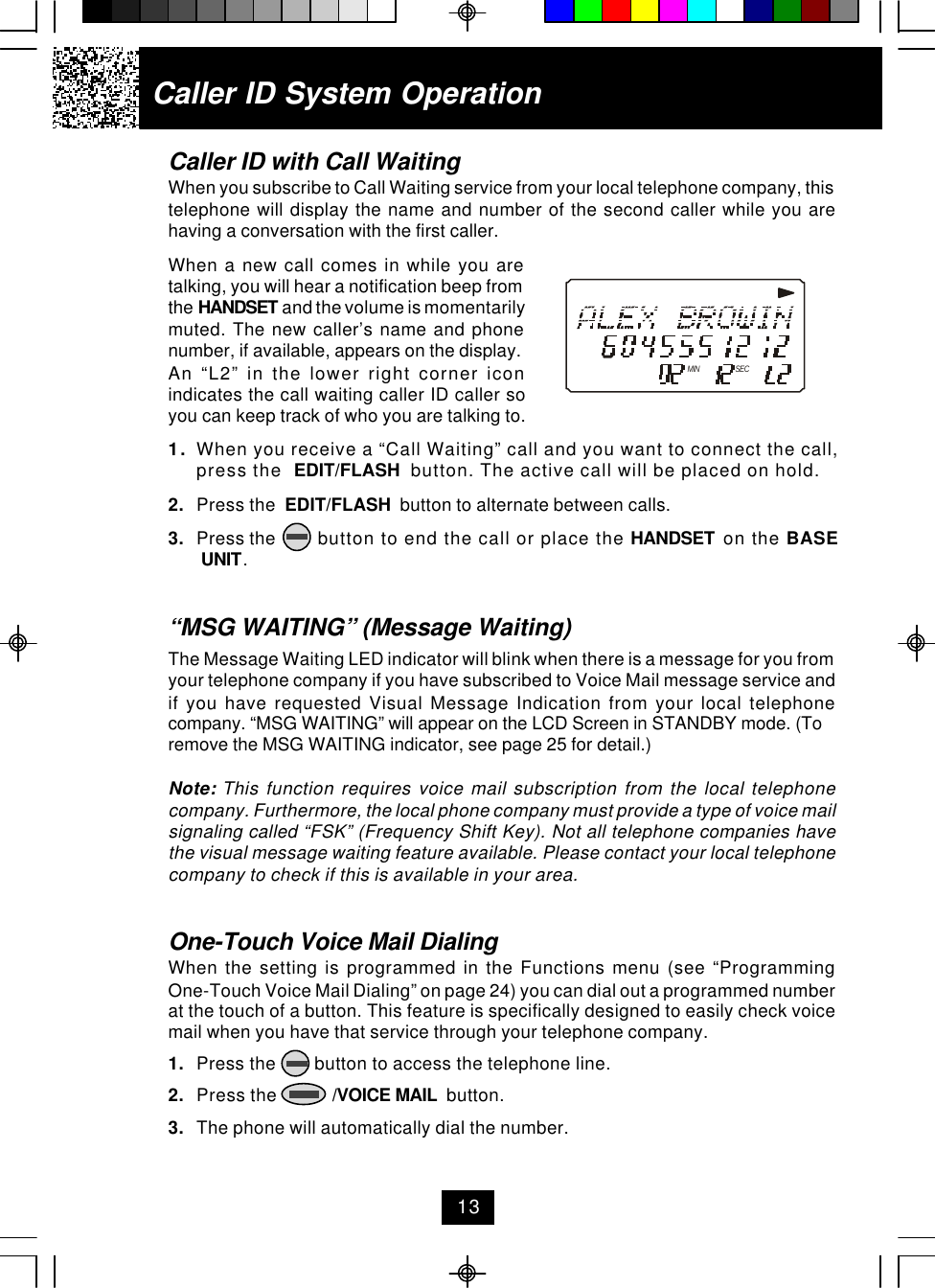

Caller ID with Call WaitingWhen you subscribe to Call Waiting service from your local telephone company, thistelephone will display the name and number of the second caller while you arehaving a conversation with the first caller.When a new call comes in while you aretalking, you will hear a notification beep fromthe HANDSET and the volume is momentarilymuted. The new caller’s name and phonenumber, if available, appears on the display.An “L2” in the lower right corner iconindicates the call waiting caller ID caller soyou can keep track of who you are talking to.1. When you receive a “Call Waiting” call and you want to connect the call,press the EDIT/FLASH button. The active call will be placed on hold.2. Press the EDIT/FLASH button to alternate between calls.3. Press the button to end the call or place the HANDSET on the BASE UNIT.“MSG WAITING” (Message Waiting)The Message Waiting LED indicator will blink when there is a message for you fromyour telephone company if you have subscribed to Voice Mail message service andif you have requested Visual Message Indication from your local telephonecompany. “MSG WAITING” will appear on the LCD Screen in STANDBY mode. (Toremove the MSG WAITING indicator, see page 25 for detail.)Note: This function requires voice mail subscription from the local telephonecompany. Furthermore, the local phone company must provide a type of voice mailsignaling called “FSK” (Frequency Shift Key). Not all telephone companies havethe visual message waiting feature available. Please contact your local telephonecompany to check if this is available in your area.One-Touch Voice Mail DialingWhen the setting is programmed in the Functions menu (see “ProgrammingOne-Touch Voice Mail Dialing” on page 24) you can dial out a programmed numberat the touch of a button. This feature is specifically designed to easily check voicemail when you have that service through your telephone company.1. Press the button to access the telephone line.2. Press the /VOICE MAIL button.3. The phone will automatically dial the number.Caller ID System OperationMIN SEC13

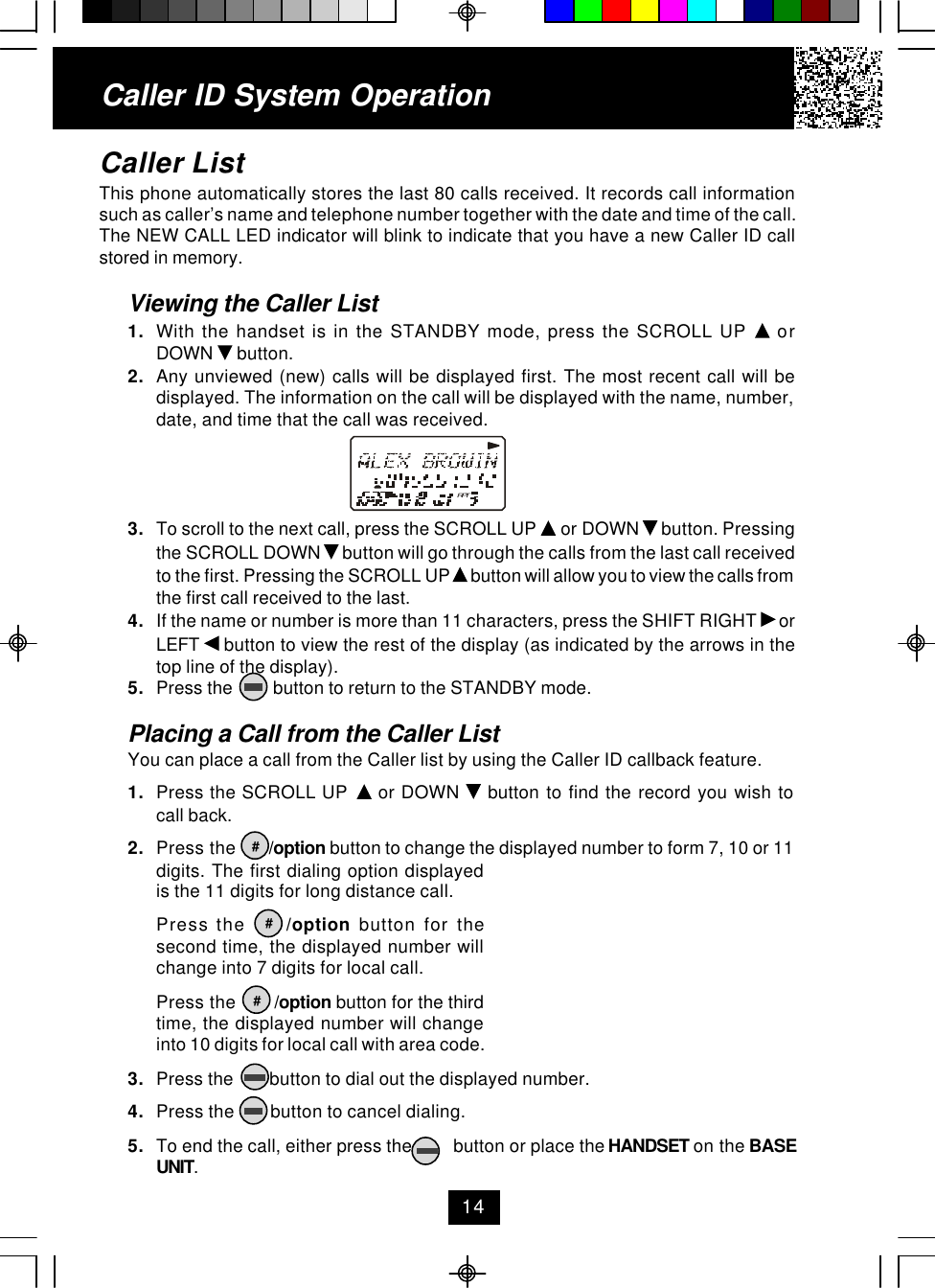

Caller ID System OperationCaller ListThis phone automatically stores the last 80 calls received. It records call informationsuch as caller’s name and telephone number together with the date and time of the call.The NEW CALL LED indicator will blink to indicate that you have a new Caller ID callstored in memory.Viewing the Caller List1. With the handset is in the STANDBY mode, press the SCROLL UP orDOWN button.2. Any unviewed (new) calls will be displayed first. The most recent call will bedisplayed. The information on the call will be displayed with the name, number,date, and time that the call was received.3. To scroll to the next call, press the SCROLL UP or DOWN button. Pressingthe SCROLL DOWN button will go through the calls from the last call receivedto the first. Pressing the SCROLL UP button will allow you to view the calls fromthe first call received to the last.4. If the name or number is more than 11 characters, press the SHIFT RIGHT orLEFT button to view the rest of the display (as indicated by the arrows in thetop line of the display).5. Press the button to return to the STANDBY mode.Placing a Call from the Caller ListYou can place a call from the Caller list by using the Caller ID callback feature.1. Press the SCROLL UP or DOWN button to find the record you wish tocall back.2. Press the /option button to change the displayed number to form 7, 10 or 11digits. The first dialing option displayedis the 11 digits for long distance call.Press the /option button for thesecond time, the displayed number willchange into 7 digits for local call.Press the /option button for the thirdtime, the displayed number will changeinto 10 digits for local call with area code.3. Press the button to dial out the displayed number.4. Press the button to cancel dialing.5. To end the call, either press the button or place the HANDSET on the BASEUNIT.14#RPT##
Caller ID System OperationStoring Caller ID Records into the Directory1. Press the SCROLL UP or DOWN button to find the record you wish to storeinto the directory.2. Press and hold the button.3. The display will show “SAVED.”4. If you wish to edit the newly stored number, edit it in the phone book (page 18,“Editing a Stored Number”).5. Press the button to return the HANDSET to STANDBY mode.Deleting Caller ID RecordsWhen viewing the Caller ID information you can delete a single call record or allthe call records.To Delete a Single Record1. Press the SCROLL UP or DOWN button to find the record you wish todelete.2. Press the DEL/CHAN button. The LCD screen will prompt “ERASE ITEM?”3. To delete the record, press the DEL/CHAN button. The LCD screen will show“ERASED.”4. Press the button to exit the Caller ID log.To Delete All Records1. Press the SCROLL UP or DOWN button.2. Press and hold the DEL/CHAN button. The LCD screen will prompt “ERASEALL?”3. To delete all the Caller ID records, press the DEL/CHAN button. The LCDScreen will show “ALL ERASED” and then return to the STANDBY mode.15

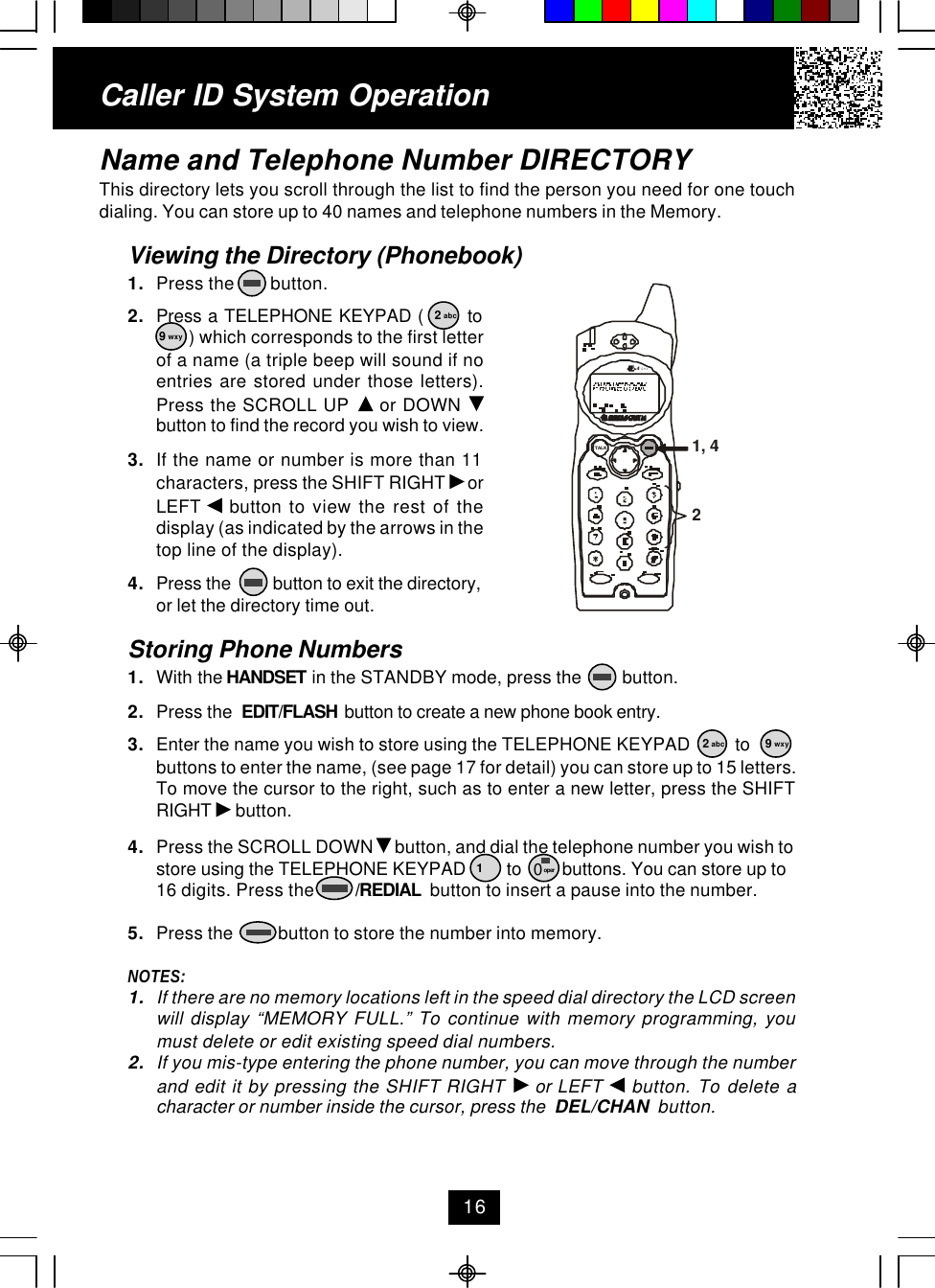

Caller ID System OperationName and Telephone Number DIRECTORYThis directory lets you scroll through the list to find the person you need for one touchdialing. You can store up to 40 names and telephone numbers in the Memory.Viewing the Directory (Phonebook)1. Press the button.2. Press a TELEPHONE KEYPAD ( to ) which corresponds to the first letterof a name (a triple beep will sound if noentries are stored under those letters).Press the SCROLL UP or DOWN button to find the record you wish to view.3. If the name or number is more than 11characters, press the SHIFT RIGHT orLEFT button to view the rest of thedisplay (as indicated by the arrows in thetop line of the display).4. Press the button to exit the directory,or let the directory time out.Storing Phone Numbers1. With the HANDSET in the STANDBY mode, press the button.2. Press the EDIT/FLASH button to create a new phone book entry.3. Enter the name you wish to store using the TELEPHONE KEYPAD tobuttons to enter the name, (see page 17 for detail) you can store up to 15 letters.To move the cursor to the right, such as to enter a new letter, press the SHIFTRIGHT button.4. Press the SCROLL DOWN button, and dial the telephone number you wish tostore using the TELEPHONE KEYPAD to buttons. You can store up to16 digits. Press the /REDIAL button to insert a pause into the number.5. Press the button to store the number into memory.NOTES:1. If there are no memory locations left in the speed dial directory the LCD screenwill display “MEMORY FULL.” To continue with memory programming, youmust delete or edit existing speed dial numbers.2. If you mis-type entering the phone number, you can move through the numberand edit it by pressing the SHIFT RIGHT or LEFT button. To delete acharacter or number inside the cursor, press the DEL/CHAN button.162 abc9 wxy2 abc 9 wxy10 oper1, 42.42GHzTALK

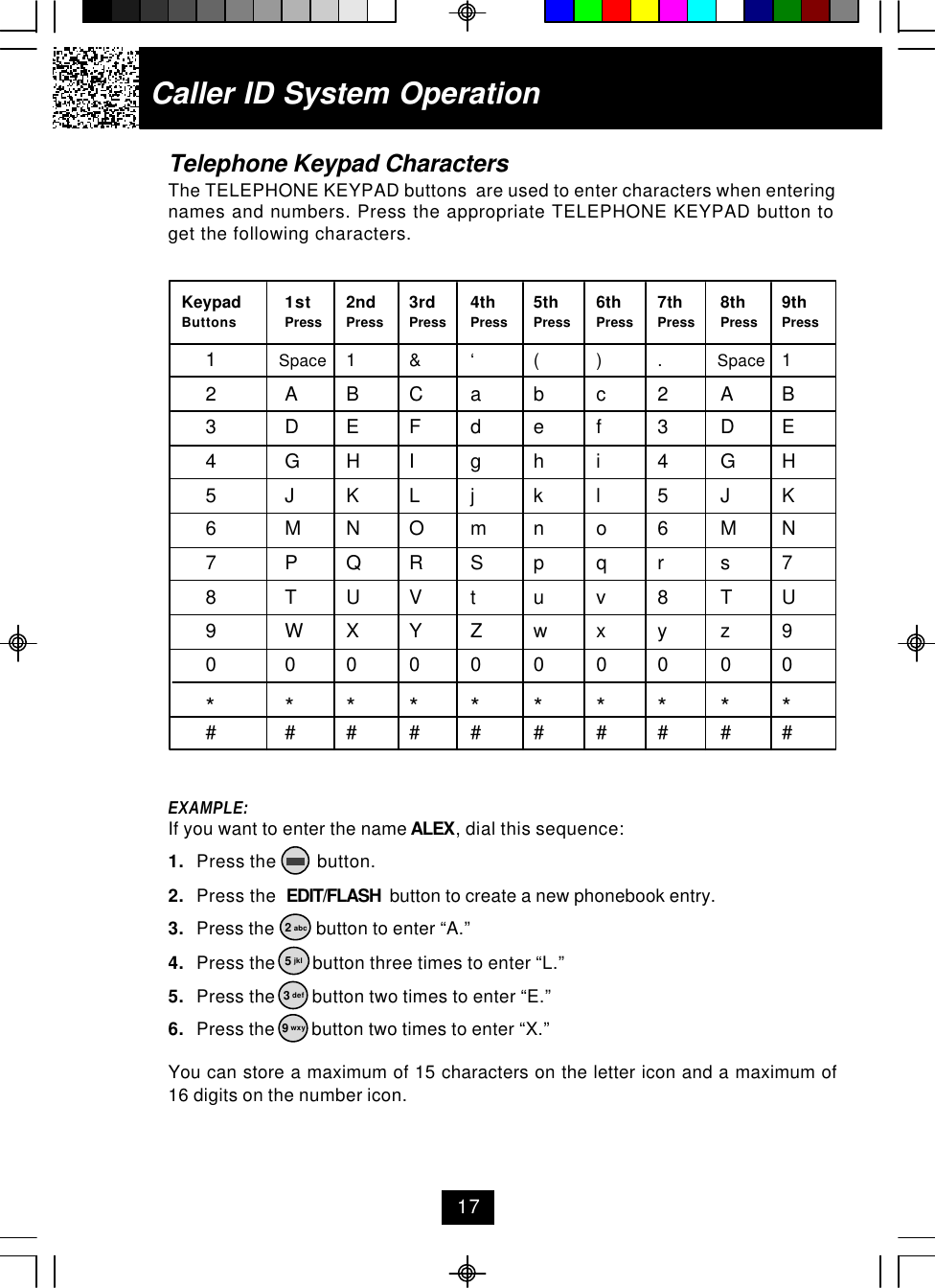

Caller ID System OperationTelephone Keypad CharactersThe TELEPHONE KEYPAD buttons are used to enter characters when enteringnames and numbers. Press the appropriate TELEPHONE KEYPAD button toget the following characters. Keypad 1st 2nd 3rd 4th 5th 6th 7th 8th 9th Buttons Press Press Press Press Press Press Press Press Press1 Space 1&‘( ) . Space 12A B Cabc2A B3DEFdef3DE4GHIghi4GH5JKLjkl5JK6MNOmno6MN7PQRSp q rs78TUVtuv8TU9WX Y Zwxyz90 0 0 0 0 0 0 0 0 0* * * * * * * * * *# # # # # # # # # #EXAMPLE:If you want to enter the name ALEX, dial this sequence:1. Press the button.2. Press the EDIT/FLASH button to create a new phonebook entry.3. Press the button to enter “A.”4. Press the button three times to enter “L.”5. Press the button two times to enter “E.”6. Press the button two times to enter “X.”You can store a maximum of 15 characters on the letter icon and a maximum of16 digits on the number icon.2 abc5 jkl3 def9 wxy17

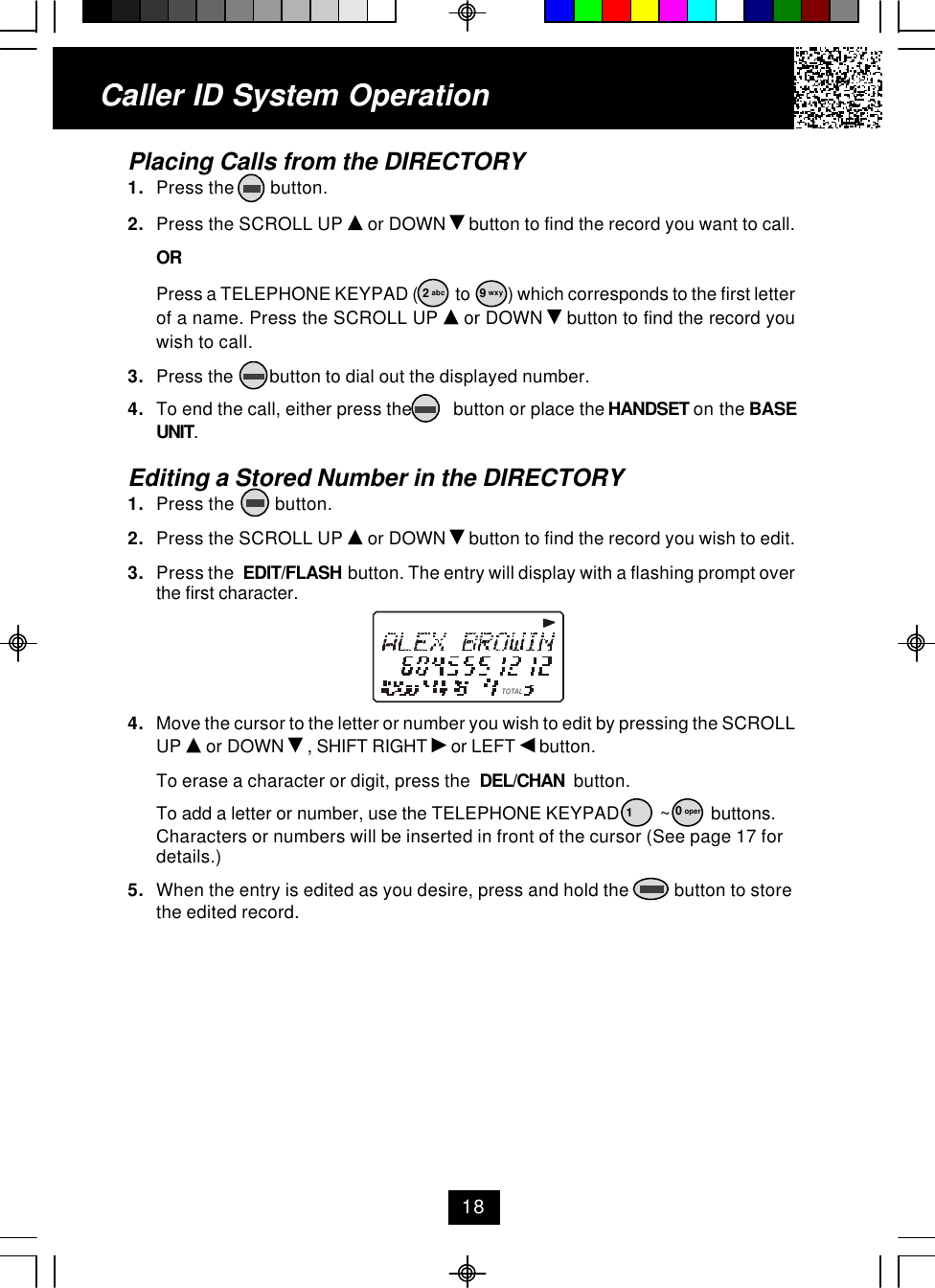

Caller ID System OperationPlacing Calls from the DIRECTORY1. Press the button.2. Press the SCROLL UP or DOWN button to find the record you want to call.ORPress a TELEPHONE KEYPAD ( to ) which corresponds to the first letterof a name. Press the SCROLL UP or DOWN button to find the record youwish to call.3. Press the button to dial out the displayed number.4. To end the call, either press the button or place the HANDSET on the BASEUNIT.Editing a Stored Number in the DIRECTORY1. Press the button.2. Press the SCROLL UP or DOWN button to find the record you wish to edit.3. Press the EDIT/FLASH button. The entry will display with a flashing prompt overthe first character.4. Move the cursor to the letter or number you wish to edit by pressing the SCROLLUP or DOWN , SHIFT RIGHT or LEFT button.To erase a character or digit, press the DEL/CHAN button.To add a letter or number, use the TELEPHONE KEYPAD ~ buttons.Characters or numbers will be inserted in front of the cursor (See page 17 fordetails.)5. When the entry is edited as you desire, press and hold the button to storethe edited record.182 abc 9 wxy10 operTOTAL

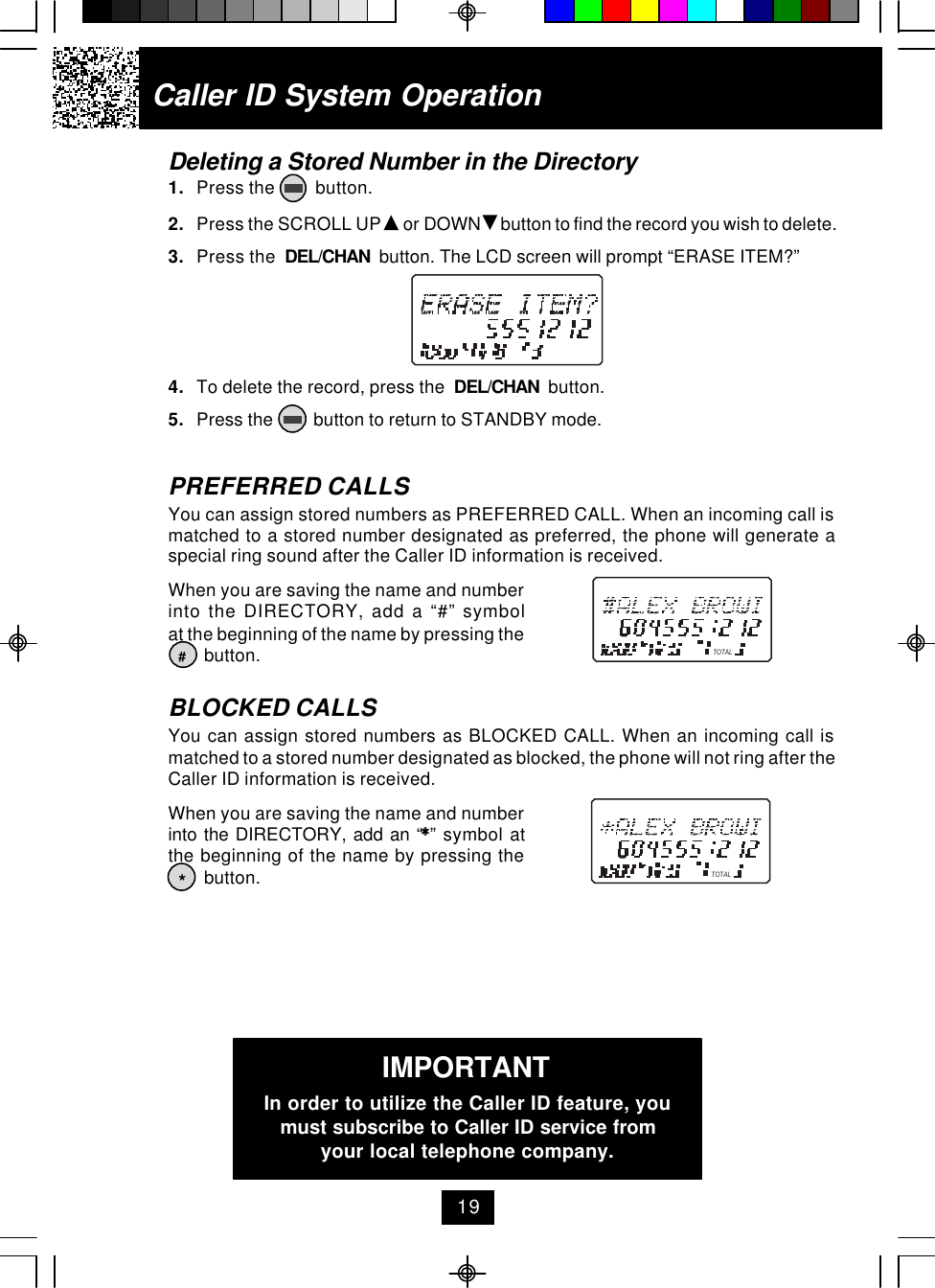

Caller ID System OperationDeleting a Stored Number in the Directory1. Press the button.2. Press the SCROLL UP or DOWN button to find the record you wish to delete.3. Press the DEL/CHAN button. The LCD screen will prompt “ERASE ITEM?”4. To delete the record, press the DEL/CHAN button.5. Press the button to return to STANDBY mode.PREFERRED CALLSYou can assign stored numbers as PREFERRED CALL. When an incoming call ismatched to a stored number designated as preferred, the phone will generate aspecial ring sound after the Caller ID information is received.When you are saving the name and numberinto the DIRECTORY, add a “#” symbolat the beginning of the name by pressing the button.BLOCKED CALLSYou can assign stored numbers as BLOCKED CALL. When an incoming call ismatched to a stored number designated as blocked, the phone will not ring after theCaller ID information is received.When you are saving the name and numberinto the DIRECTORY, add an “**” symbol atthe beginning of the name by pressing the button.#*TOTALTOTALIMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.19
Caller ID System OperationFunction SettingsYou can change the setting on the handset in the functions menu. Access thefunctions menu by pressing and holding the /VOICE MAIL button.There are 11 settings in the functions menu which can be changed. You can scrollthrough the function menu in the listed order by pressing SCROLL DOWN button.Settings can be reached directly by pressing that number on the keypad. To edit asetting, press the EDIT/FLASH button, use the SCROLL UP or DOWN button totoggle between the setting options, and then press and hold button to savechanges. Press the /VOICE MAIL button to exit the functions menu. TELEPHONE Function KEYPAD1Ring Hi/Low/Off: Change the volume of the ringer on the handset orturn the ringer OFF.2Language: Change the language that appears on the display. Choosebetween English, French, and Spanish.3First Ring On/Off: Turn the first ring of the phone OFF so that it doesnot ring until Caller ID information has been displayed. Particularlyuseful when using the priority and blocked call features or theprivate and unavailable ring settings.4Time Set: Change the time and date.5Contrast: Adjust the brightness of the display for optimum viewing.6PBX Number: Determines if a “PBX Number” is used before anoutgoing number is dialed. Select a number (0-9) which isnecessary to dial out when using a switchboard system, and thephone will automatically dial the PBX number and a pause beforeany speed dial or Caller ID callback number. Default setting is “OFF.”7Flash Time: Allows you to adjust the flash time to accommodate thephone service in your area.8Pause Time: Allows you to adjust the number of seconds that apause lasts such as during programmed pauses in your speed dialnumbers or after your PBX number is dialed.9Voice Mail: The programmed one-touch number designed toenable easy access to voice mail service provided by your telephonecompany.21345678920

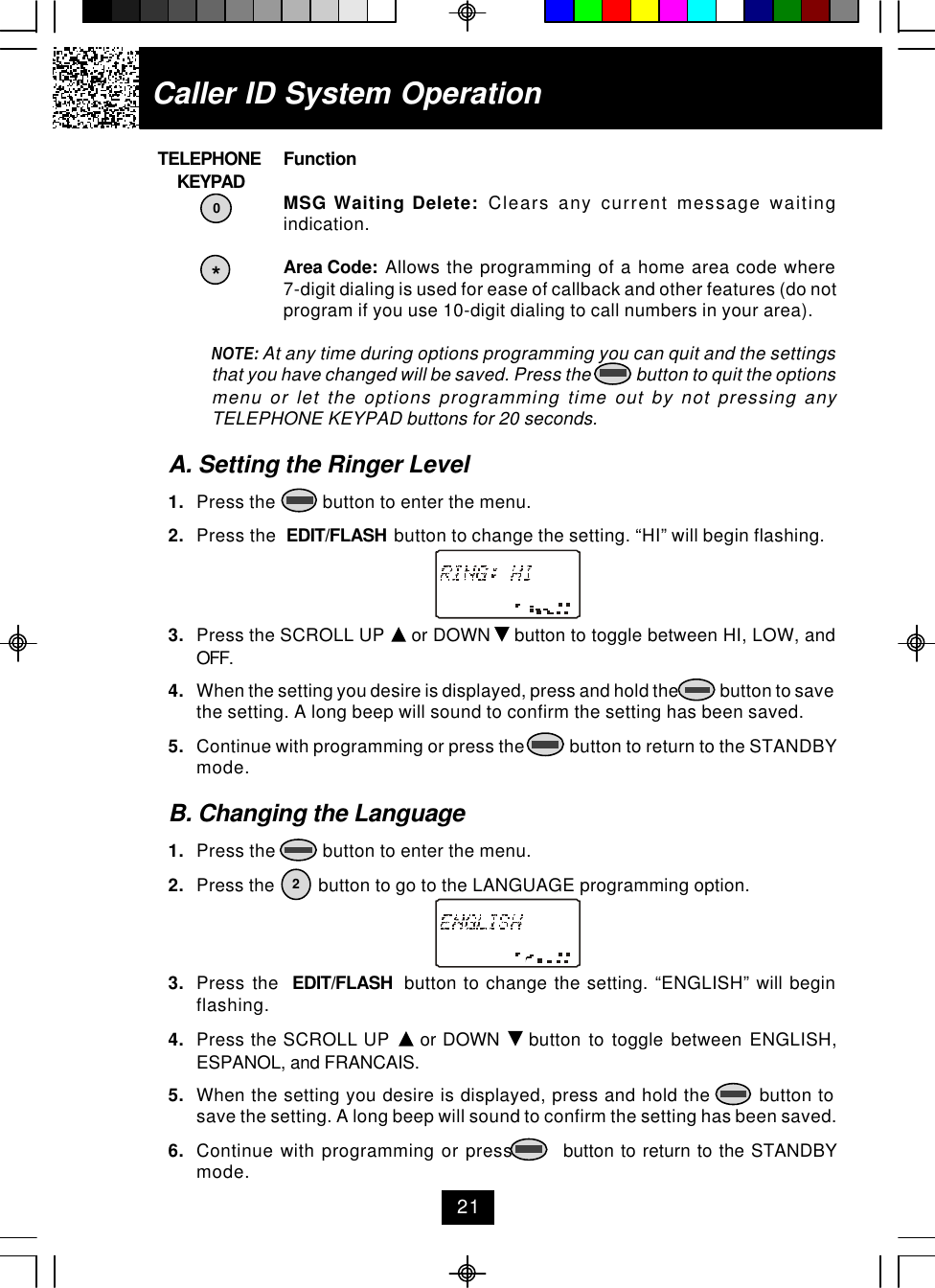

TELEPHONE Function KEYPAD0MSG Waiting Delete: Clears any current message waitingindication.*Area Code: Allows the programming of a home area code where7-digit dialing is used for ease of callback and other features (do notprogram if you use 10-digit dialing to call numbers in your area).NOTE: At any time during options programming you can quit and the settingsthat you have changed will be saved. Press the button to quit the optionsmenu or let the options programming time out by not pressing anyTELEPHONE KEYPAD buttons for 20 seconds.A. Setting the Ringer Level1. Press the button to enter the menu.2. Press the EDIT/FLASH button to change the setting. “HI” will begin flashing.3. Press the SCROLL UP or DOWN button to toggle between HI, LOW, andOFF.4. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.5. Continue with programming or press the button to return to the STANDBYmode.B. Changing the Language1. Press the button to enter the menu.2. Press the button to go to the LANGUAGE programming option.3. Press the EDIT/FLASH button to change the setting. “ENGLISH” will beginflashing.4. Press the SCROLL UP or DOWN button to toggle between ENGLISH,ESPANOL, and FRANCAIS.5. When the setting you desire is displayed, press and hold the button tosave the setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press button to return to the STANDBYmode.0*2Caller ID System Operation21

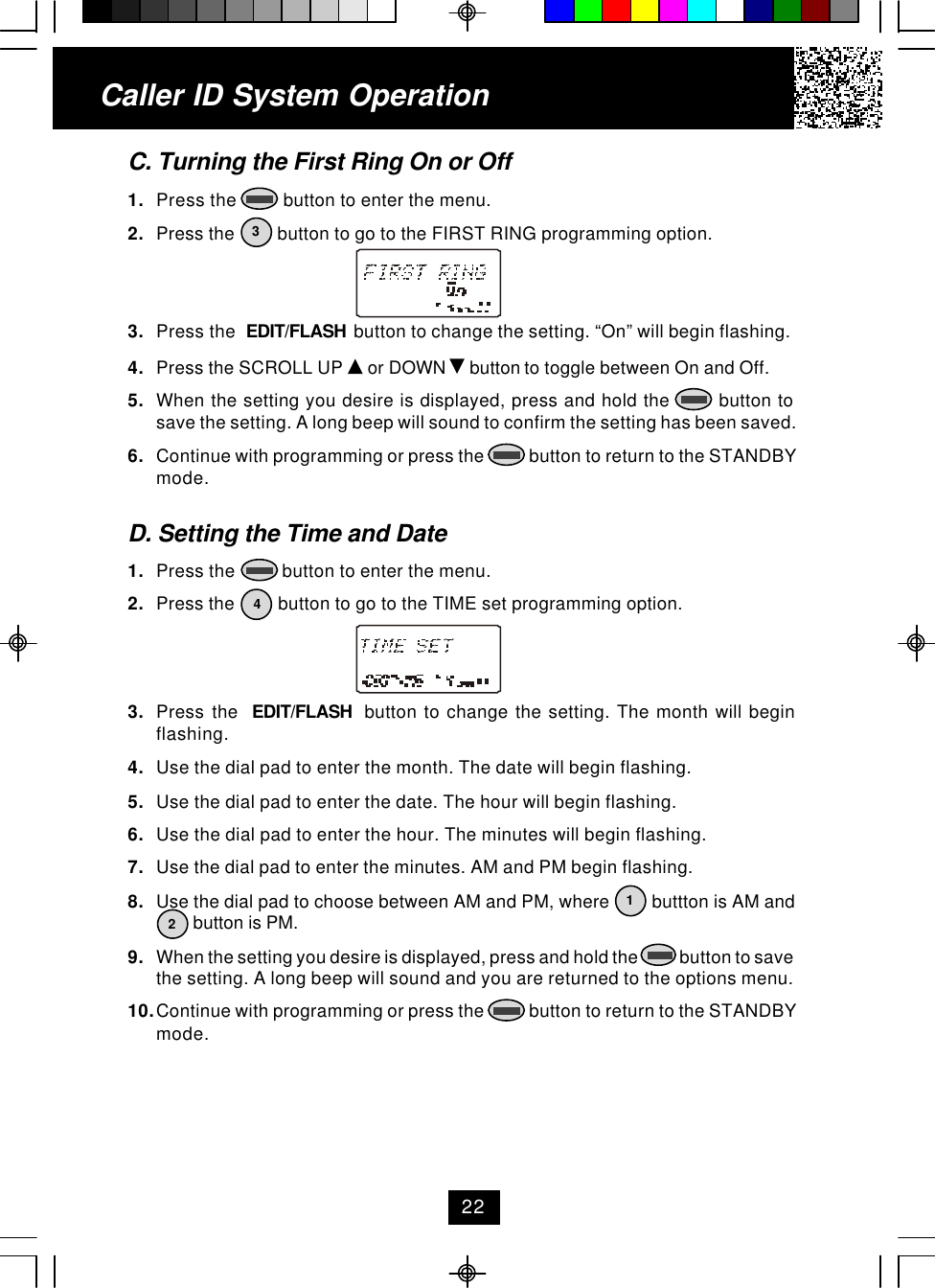

C. Turning the First Ring On or Off1. Press the button to enter the menu.2. Press the button to go to the FIRST RING programming option.3. Press the EDIT/FLASH button to change the setting. “On” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between On and Off.5. When the setting you desire is displayed, press and hold the button tosave the setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press the button to return to the STANDBYmode.D. Setting the Time and Date1. Press the button to enter the menu.2. Press the button to go to the TIME set programming option.3. Press the EDIT/FLASH button to change the setting. The month will beginflashing.4. Use the dial pad to enter the month. The date will begin flashing.5. Use the dial pad to enter the date. The hour will begin flashing.6. Use the dial pad to enter the hour. The minutes will begin flashing.7. Use the dial pad to enter the minutes. AM and PM begin flashing.8. Use the dial pad to choose between AM and PM, where buttton is AM and button is PM.9. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound and you are returned to the options menu.10.Continue with programming or press the button to return to the STANDBYmode.Caller ID System Operation341222

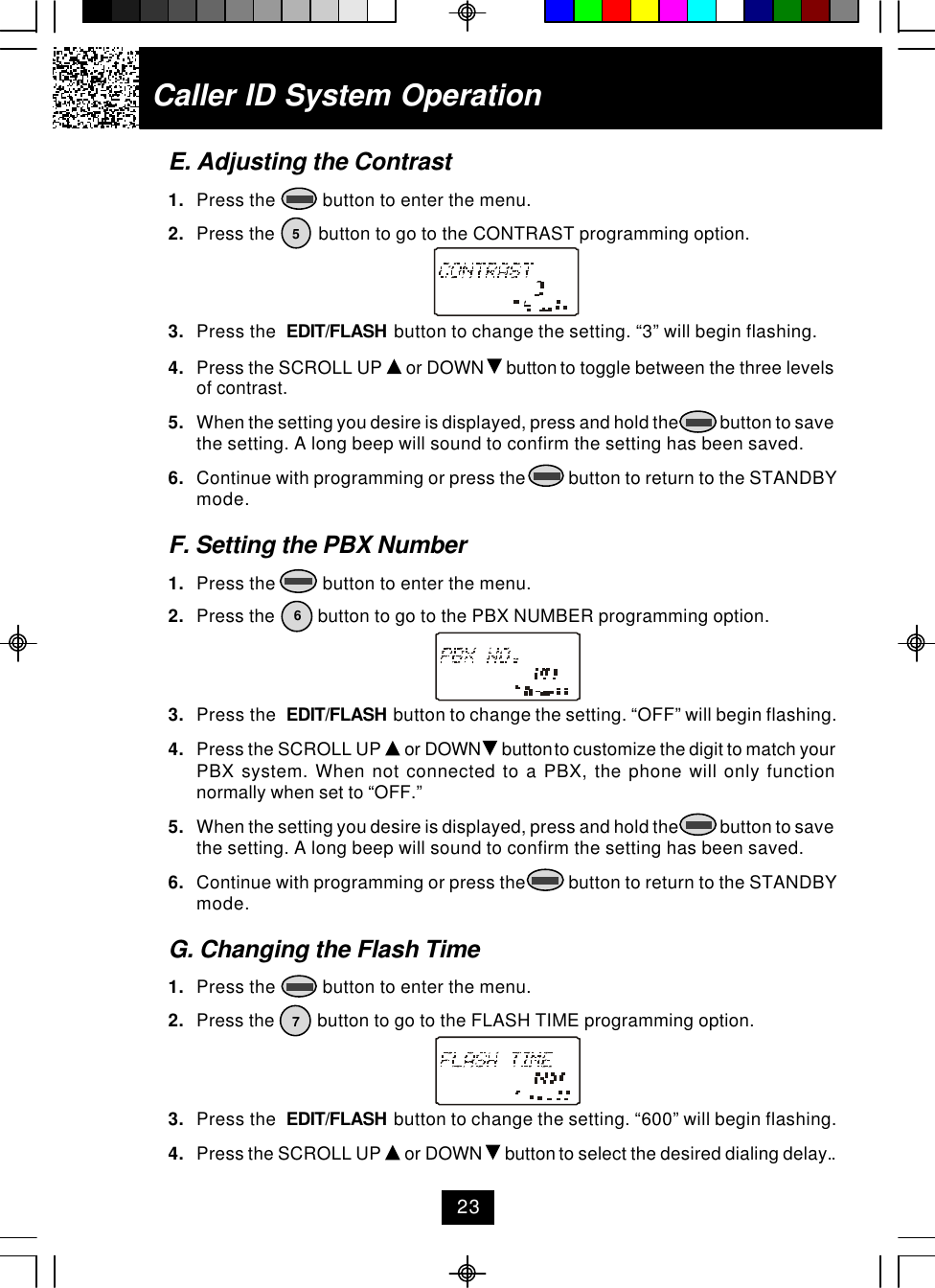

Caller ID System OperationE. Adjusting the Contrast1. Press the button to enter the menu.2. Press the button to go to the CONTRAST programming option.3. Press the EDIT/FLASH button to change the setting. “3” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between the three levelsof contrast.5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press the button to return to the STANDBYmode.F. Setting the PBX Number1. Press the button to enter the menu.2. Press the button to go to the PBX NUMBER programming option.3. Press the EDIT/FLASH button to change the setting. “OFF” will begin flashing.4. Press the SCROLL UP or DOWN button to customize the digit to match yourPBX system. When not connected to a PBX, the phone will only functionnormally when set to “OFF.”5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press the button to return to the STANDBYmode.G. Changing the Flash Time1. Press the button to enter the menu.2. Press the button to go to the FLASH TIME programming option.3. Press the EDIT/FLASH button to change the setting. “600” will begin flashing.4. Press the SCROLL UP or DOWN button to select the desired dialing delay..56723

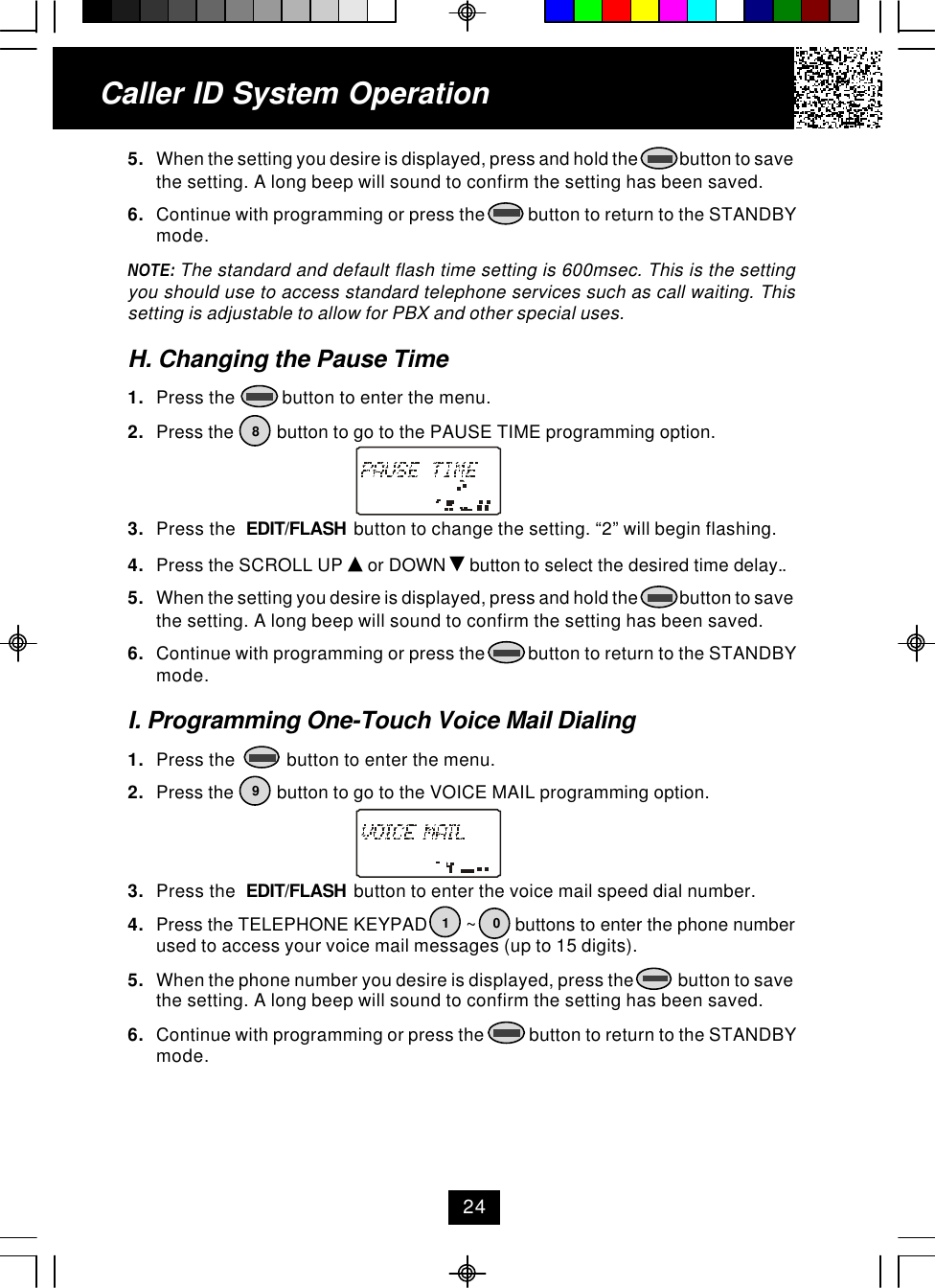

Caller ID System Operation5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press the button to return to the STANDBYmode.NOTE: The standard and default flash time setting is 600msec. This is the settingyou should use to access standard telephone services such as call waiting. Thissetting is adjustable to allow for PBX and other special uses.H. Changing the Pause Time1. Press the button to enter the menu.2. Press the button to go to the PAUSE TIME programming option.3. Press the EDIT/FLASH button to change the setting. “2” will begin flashing.4. Press the SCROLL UP or DOWN button to select the desired time delay..5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press the button to return to the STANDBYmode.I. Programming One-Touch Voice Mail Dialing1. Press the button to enter the menu.2. Press the button to go to the VOICE MAIL programming option.3. Press the EDIT/FLASH button to enter the voice mail speed dial number.4. Press the TELEPHONE KEYPAD ~ buttons to enter the phone numberused to access your voice mail messages (up to 15 digits).5. When the phone number you desire is displayed, press the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press the button to return to the STANDBYmode.819024

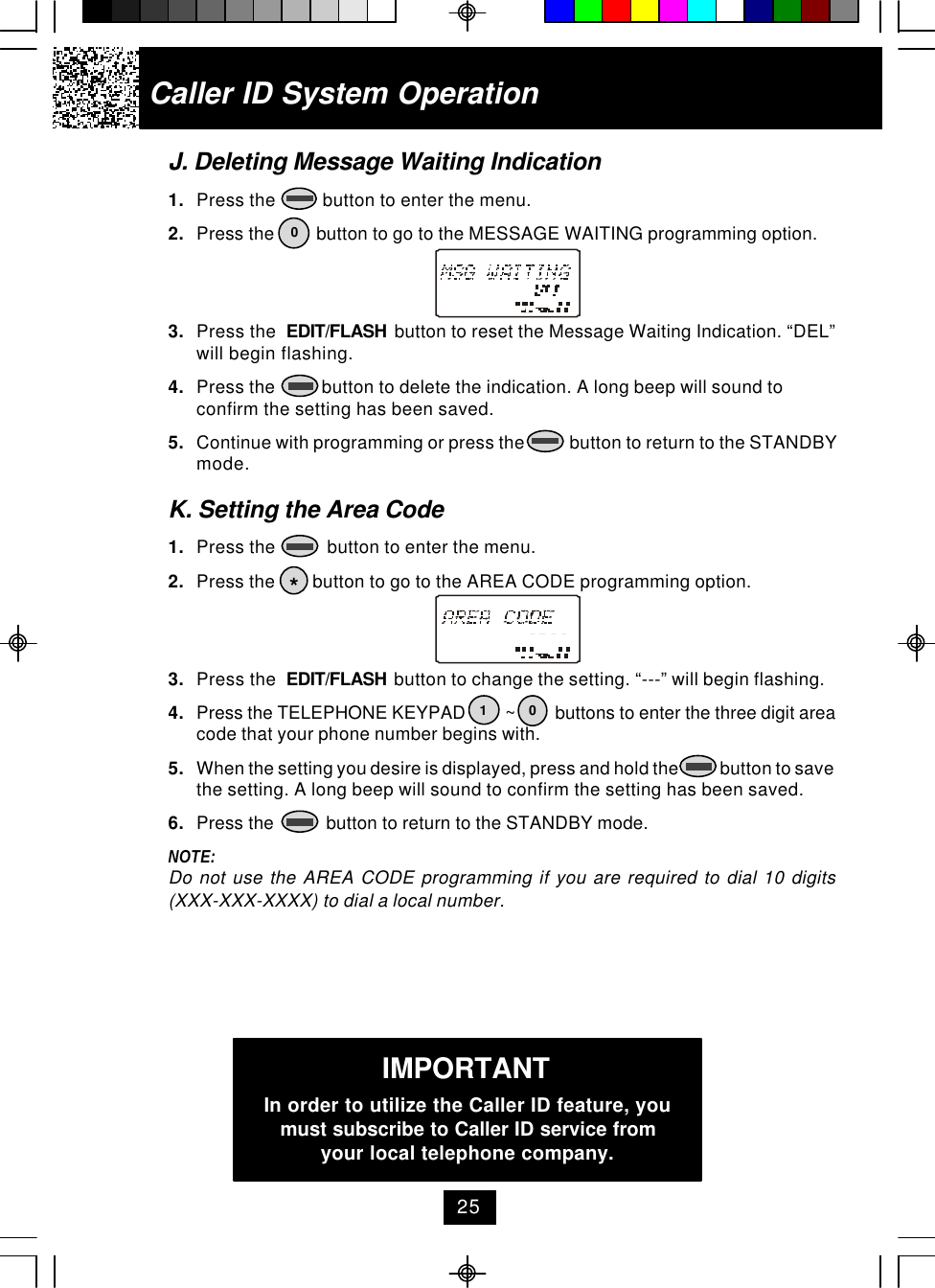

J. Deleting Message Waiting Indication1. Press the button to enter the menu.2. Press the button to go to the MESSAGE WAITING programming option.3. Press the EDIT/FLASH button to reset the Message Waiting Indication. “DEL”will begin flashing.4. Press the button to delete the indication. A long beep will sound toconfirm the setting has been saved.5. Continue with programming or press the button to return to the STANDBYmode.K. Setting the Area Code1. Press the button to enter the menu.2. Press the button to go to the AREA CODE programming option.3. Press the EDIT/FLASH button to change the setting. “---” will begin flashing.4. Press the TELEPHONE KEYPAD ~ buttons to enter the three digit areacode that your phone number begins with.5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Press the button to return to the STANDBY mode.NOTE:Do not use the AREA CODE programming if you are required to dial 10 digits(XXX-XXX-XXXX) to dial a local number.Caller ID System Operation0*1 0IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.25

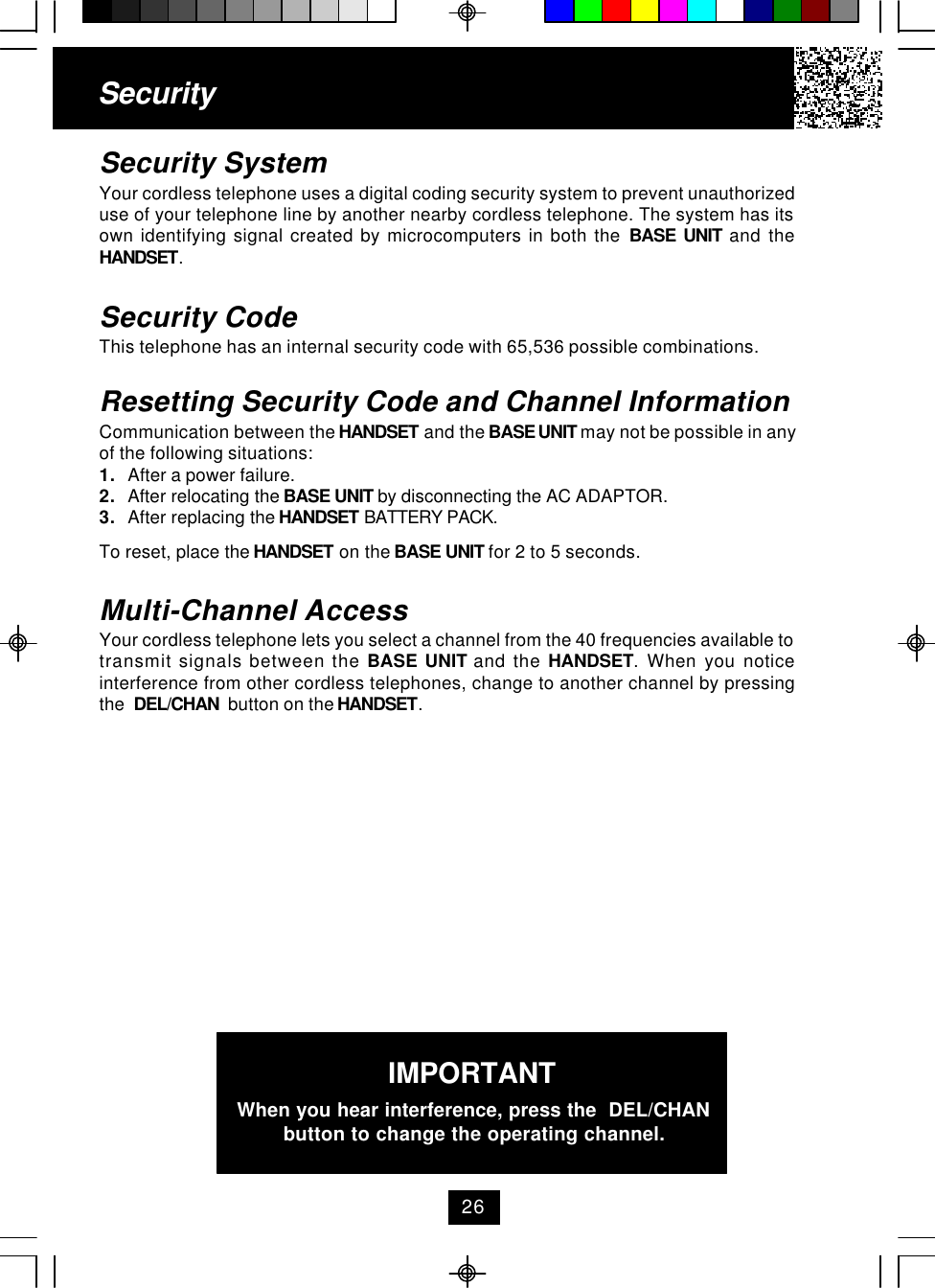

SecuritySecurity SystemYour cordless telephone uses a digital coding security system to prevent unauthorizeduse of your telephone line by another nearby cordless telephone. The system has itsown identifying signal created by microcomputers in both the BASE UNIT and theHANDSET.Security CodeThis telephone has an internal security code with 65,536 possible combinations.Resetting Security Code and Channel InformationCommunication between the HANDSET and the BASE UNIT may not be possible in anyof the following situations:1. After a power failure.2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.3. After replacing the HANDSET BATTERY PACK.To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.Multi-Channel AccessYour cordless telephone lets you select a channel from the 40 frequencies available totransmit signals between the BASE UNIT and the HANDSET. When you noticeinterference from other cordless telephones, change to another channel by pressingthe DEL/CHAN button on the HANDSET.IMPORTANTWhen you hear interference, press the DEL/CHANbutton to change the operating channel.26
Battery TypeUse the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 600mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: Model B650 Ni-CdThis BATTERY PACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-828-5208NOTE: During a power interruption, the BASE UNIT does not operate, and a phoneconversation cannot be made on the HANDSET.Recharging the BATTERY PACKThe nickel cadmium (Ni-Cd) BATTERY PACK in the HANDSET can be recharged manytimes using the built-in charger in the BASE UNIT.When the BATT LOW symbol appears on the LCD Screen, a “beep” sound will be heardevery 10 seconds. This indicates that the BATTERY PACK needs to be recharged.Charge the BATTERY PACK at least once every 90 days of non-use to avoid batteryfailure. When the BATTERY PACK can no longer be charged, replacement of theBATTERY PACK will be necessary.The BATTERY PACK used in your telephone may develop a condition known as“MEMORY.” Once subjected to a regular short discharging routine, the BATTERY PACKassumes the discharging pattern it was subjected to. This causes rapid dischargingthereby shortening the BATTERY PACK charge span. If you believe your BATTERY PACKhas developed a “MEMORY” condition, do not charge the HANDSET until the BATT LOWsymbol appears on the LCD Screen. When the BATT LOW symbol appears on the LCDScreen, charge the HANDSET fully for 12 hours.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.Recharging the BATTERY PACK27

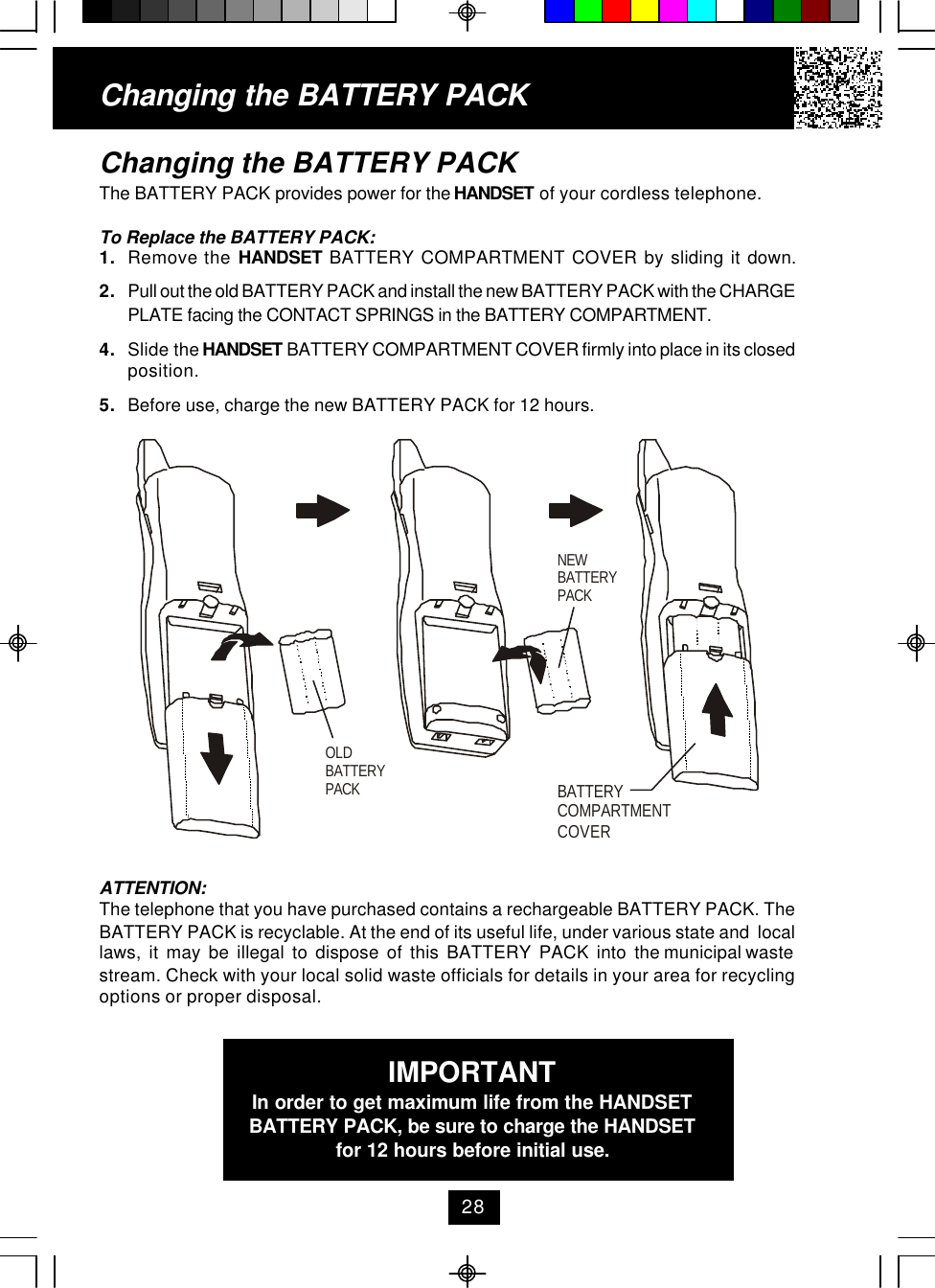

Changing the BATTERY PACKThe BATTERY PACK provides power for the HANDSET of your cordless telephone.To Replace the BATTERY PACK:1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.2. Pull out the old BATTERY PACK and install the new BATTERY PACK with the CHARGEPLATE facing the CONTACT SPRINGS in the BATTERY COMPARTMENT.4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closedposition.5. Before use, charge the new BATTERY PACK for 12 hours.Changing the BATTERY PACKATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and locallaws, it may be illegal to dispose of this BATTERY PACK into the municipal wastestream. Check with your local solid waste officials for details in your area for recyclingoptions or proper disposal.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.28OLDBATTERY PACKNEWBATTERY PACKBATTERY COMPARTMENTCOVER

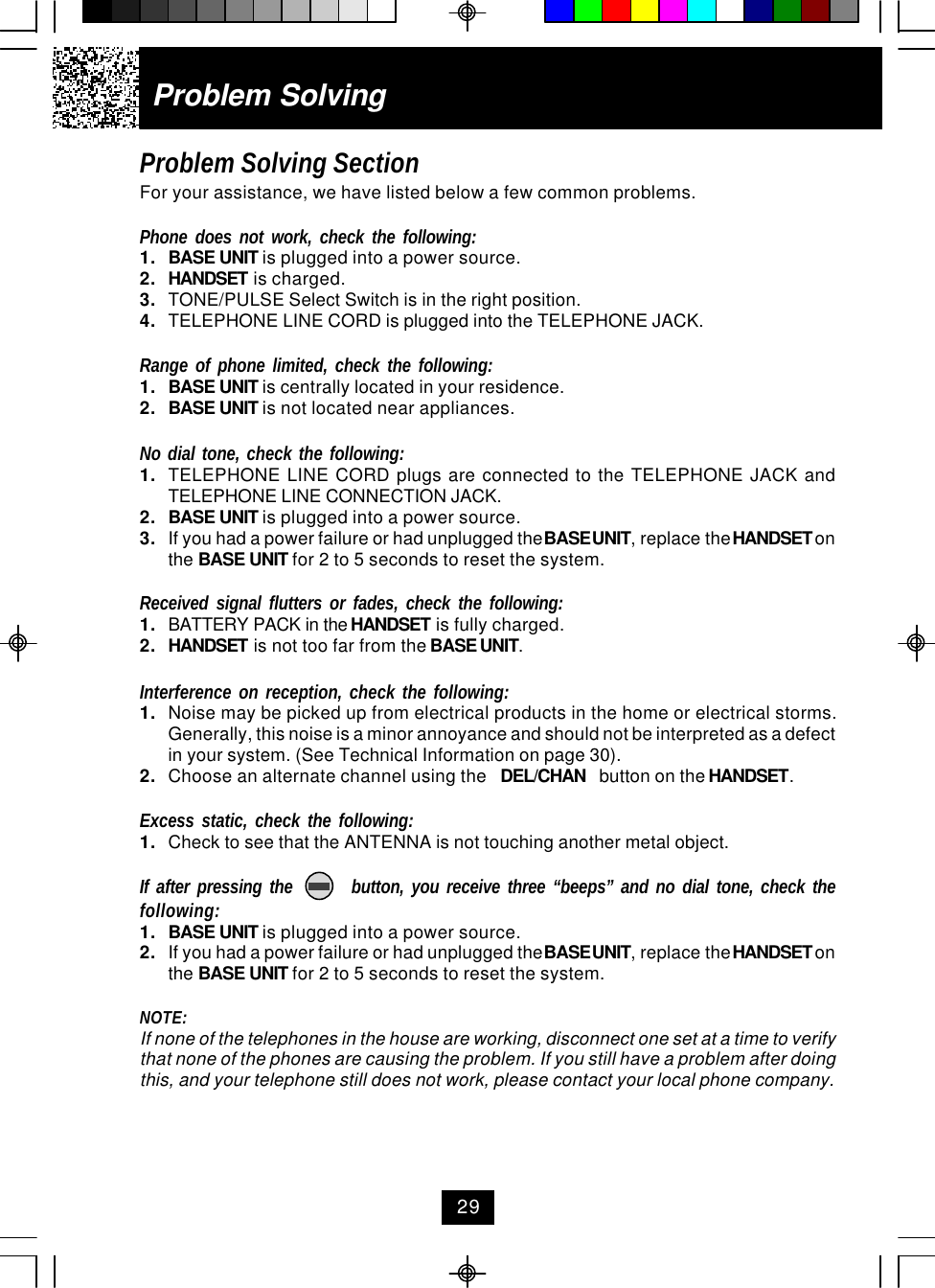

Problem Solving SectionFor your assistance, we have listed below a few common problems.Phone does not work, check the following:1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select Switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.Range of phone limited, check the following:1. BASE UNIT is centrally located in your residence.2. BASE UNIT is not located near appliances.No dial tone, check the following:1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK andTELEPHONE LINE CONNECTION JACK.2. BASE UNIT is plugged into a power source.3. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET onthe BASE UNIT for 2 to 5 seconds to reset the system.Received signal flutters or fades, check the following:1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.Interference on reception, check the following:1. Noise may be picked up from electrical products in the home or electrical storms.Generally, this noise is a minor annoyance and should not be interpreted as a defectin your system. (See Technical Information on page 30).2. Choose an alternate channel using the DEL/CHAN button on the HANDSET.Excess static, check the following:1. Check to see that the ANTENNA is not touching another metal object.If after pressing the button, you receive three “beeps” and no dial tone, check thefollowing:1. BASE UNIT is plugged into a power source.2. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET onthe BASE UNIT for 2 to 5 seconds to reset the system.NOTE:If none of the telephones in the house are working, disconnect one set at a time to verifythat none of the phones are causing the problem. If you still have a problem after doingthis, and your telephone still does not work, please contact your local phone company.Problem Solving29

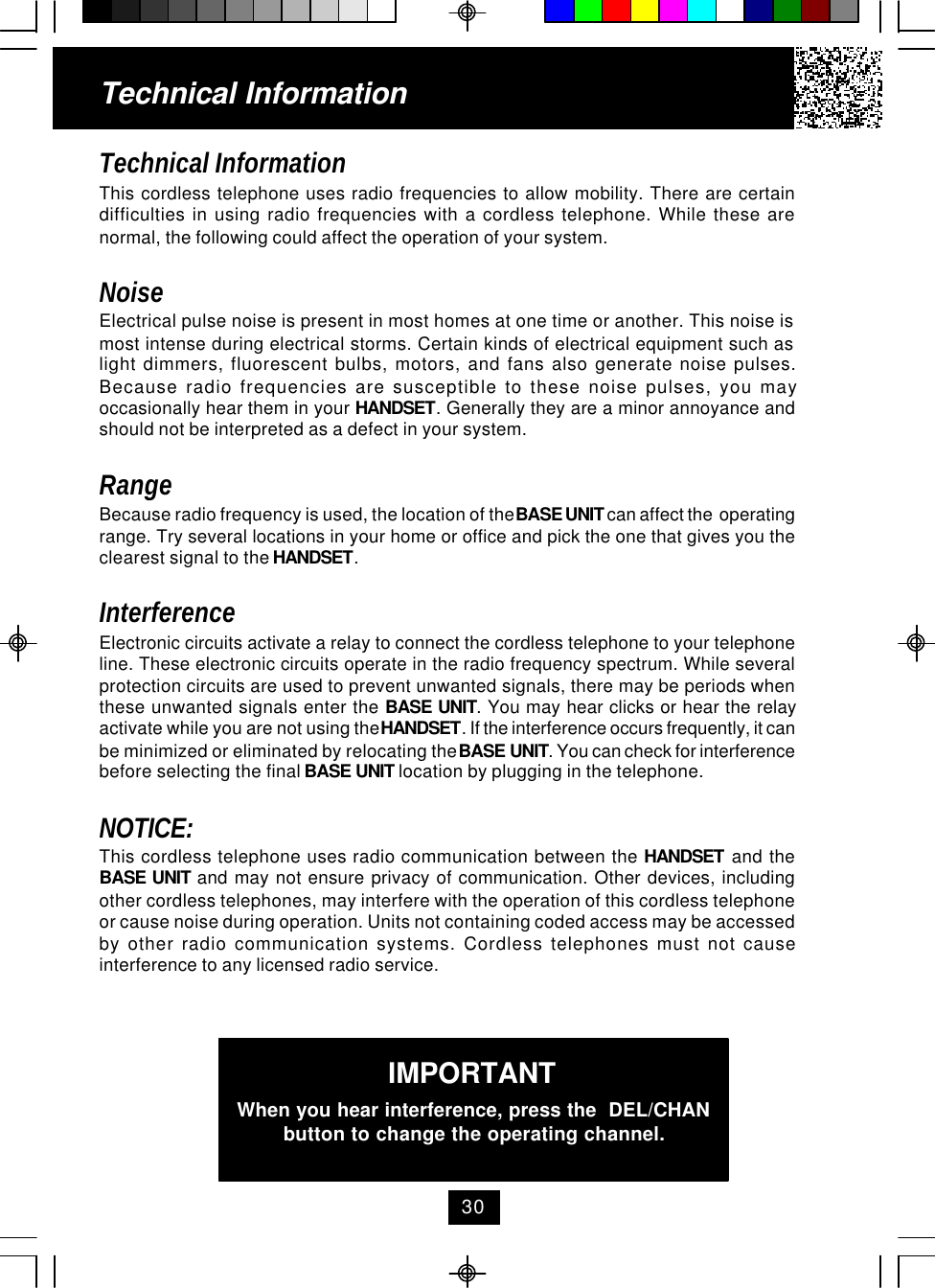

Technical InformationThis cordless telephone uses radio frequencies to allow mobility. There are certaindifficulties in using radio frequencies with a cordless telephone. While these arenormal, the following could affect the operation of your system.NoiseElectrical pulse noise is present in most homes at one time or another. This noise ismost intense during electrical storms. Certain kinds of electrical equipment such aslight dimmers, fluorescent bulbs, motors, and fans also generate noise pulses.Because radio frequencies are susceptible to these noise pulses, you mayoccasionally hear them in your HANDSET. Generally they are a minor annoyance andshould not be interpreted as a defect in your system.RangeBecause radio frequency is used, the location of the BASE UNIT can affect the operatingrange. Try several locations in your home or office and pick the one that gives you theclearest signal to the HANDSET.InterferenceElectronic circuits activate a relay to connect the cordless telephone to your telephoneline. These electronic circuits operate in the radio frequency spectrum. While severalprotection circuits are used to prevent unwanted signals, there may be periods whenthese unwanted signals enter the BASE UNIT. You may hear clicks or hear the relayactivate while you are not using the HANDSET. If the interference occurs frequently, it canbe minimized or eliminated by relocating the BASE UNIT. You can check for interferencebefore selecting the final BASE UNIT location by plugging in the telephone.NOTICE:This cordless telephone uses radio communication between the HANDSET and theBASE UNIT and may not ensure privacy of communication. Other devices, includingother cordless telephones, may interfere with the operation of this cordless telephoneor cause noise during operation. Units not containing coded access may be accessedby other radio communication systems. Cordless telephones must not causeinterference to any licensed radio service.Technical InformationIMPORTANTWhen you hear interference, press the DEL/CHANbutton to change the operating channel.30

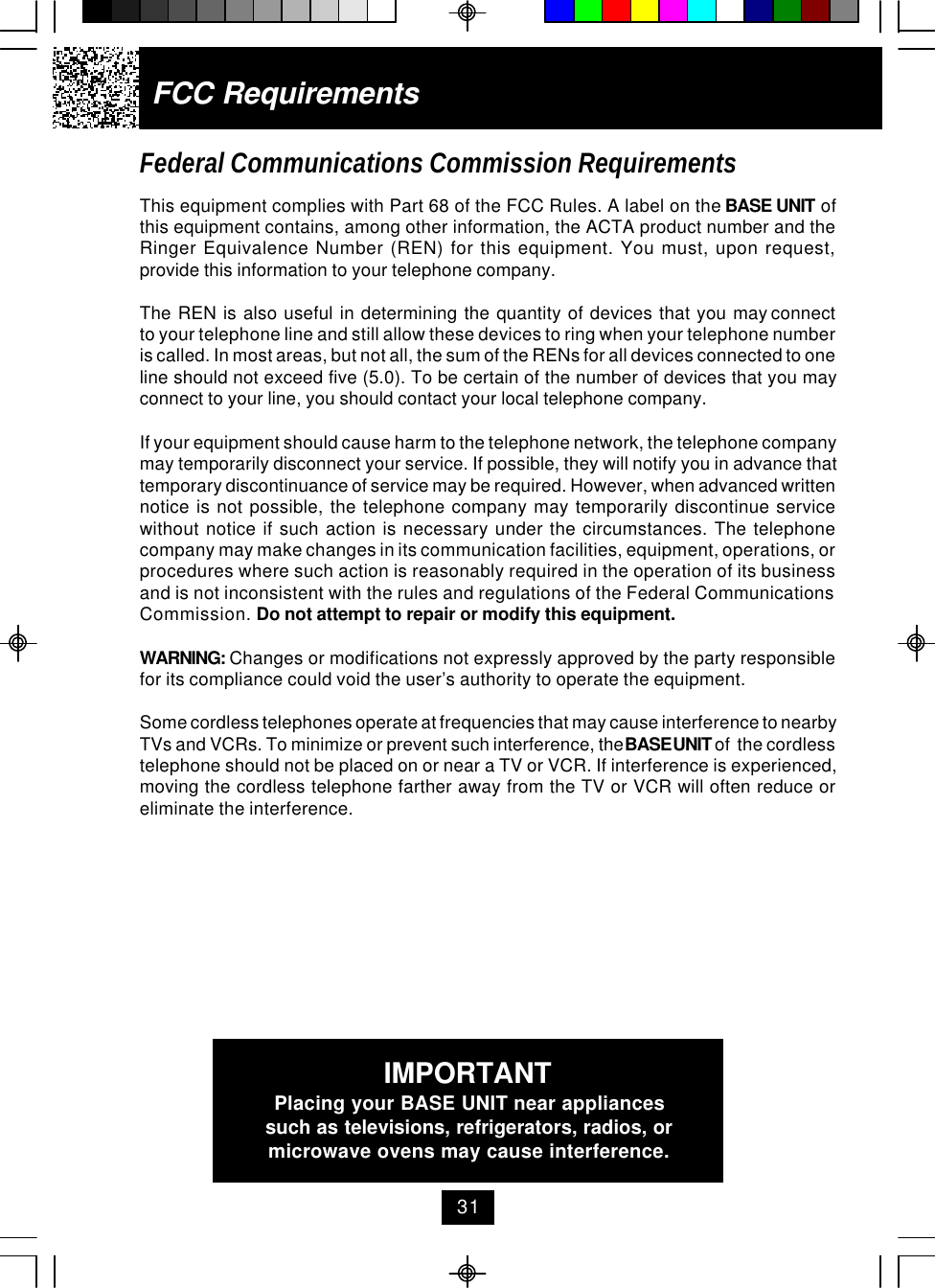

FCC RequirementsFederal Communications Commission RequirementsThis equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT ofthis equipment contains, among other information, the ACTA product number and theRinger Equivalence Number (REN) for this equipment. You must, upon request,provide this information to your telephone company.The REN is also useful in determining the quantity of devices that you may connectto your telephone line and still allow these devices to ring when your telephone numberis called. In most areas, but not all, the sum of the RENs for all devices connected to oneline should not exceed five (5.0). To be certain of the number of devices that you mayconnect to your line, you should contact your local telephone company.If your equipment should cause harm to the telephone network, the telephone companymay temporarily disconnect your service. If possible, they will notify you in advance thattemporary discontinuance of service may be required. However, when advanced writtennotice is not possible, the telephone company may temporarily discontinue servicewithout notice if such action is necessary under the circumstances. The telephonecompany may make changes in its communication facilities, equipment, operations, orprocedures where such action is reasonably required in the operation of its businessand is not inconsistent with the rules and regulations of the Federal CommunicationsCommission. Do not attempt to repair or modify this equipment.WARNING: Changes or modifications not expressly approved by the party responsiblefor its compliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearbyTVs and VCRs. To minimize or prevent such interference, the BASE UNIT of the cordlesstelephone should not be placed on or near a TV or VCR. If interference is experienced,moving the cordless telephone farther away from the TV or VCR will often reduce oreliminate the interference.IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.31

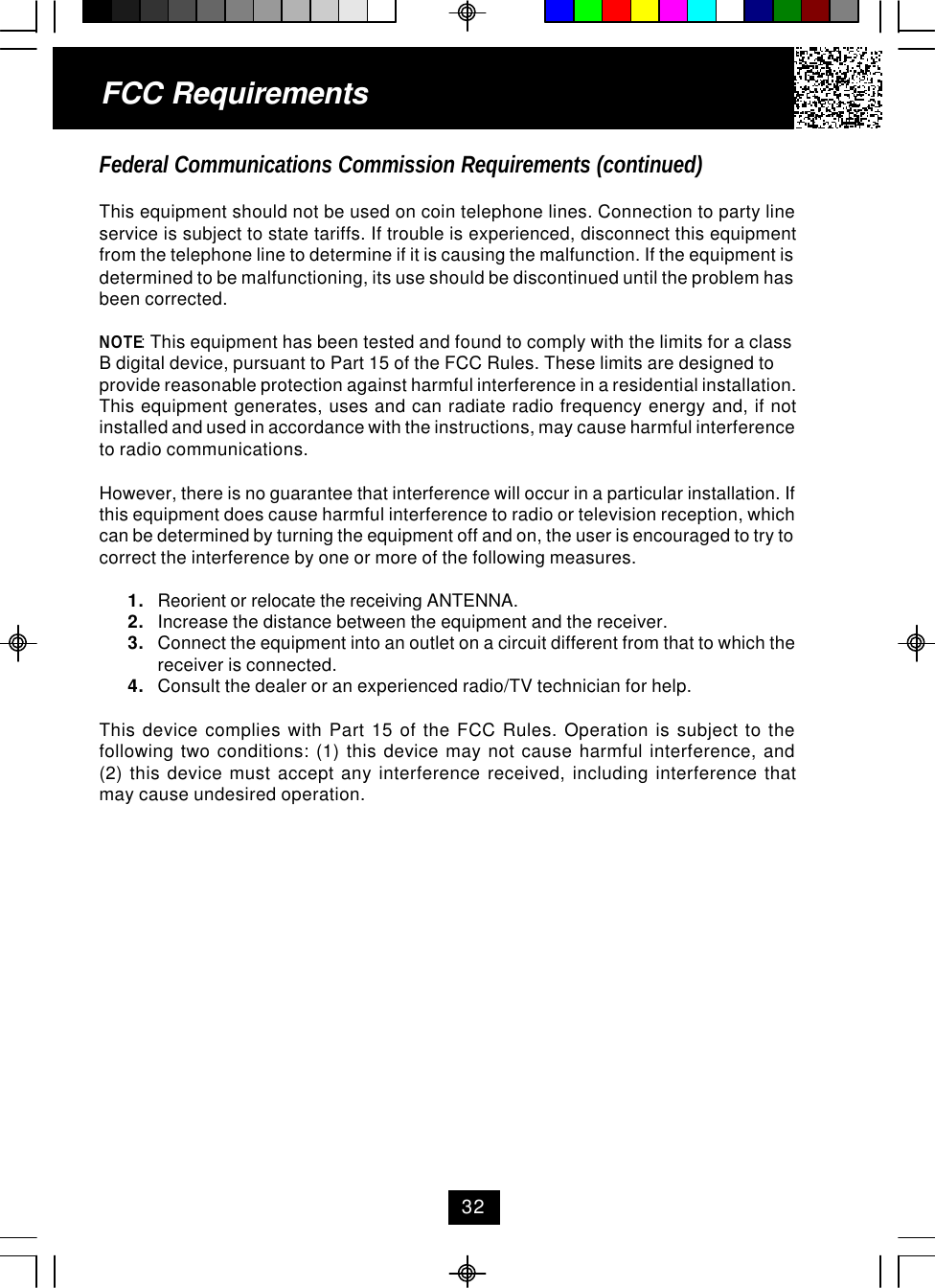

Federal Communications Commission Requirements (continued)This equipment should not be used on coin telephone lines. Connection to party lineservice is subject to state tariffs. If trouble is experienced, disconnect this equipmentfrom the telephone line to determine if it is causing the malfunction. If the equipment isdetermined to be malfunctioning, its use should be discontinued until the problem hasbeen corrected.NOTE: This equipment has been tested and found to comply with the limits for a classB digital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interferenceto radio communications.However, there is no guarantee that interference will occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures.1. Reorient or relocate the receiving ANTENNA.2. Increase the distance between the equipment and the receiver.3. Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference thatmay cause undesired operation.FCC Requirements32

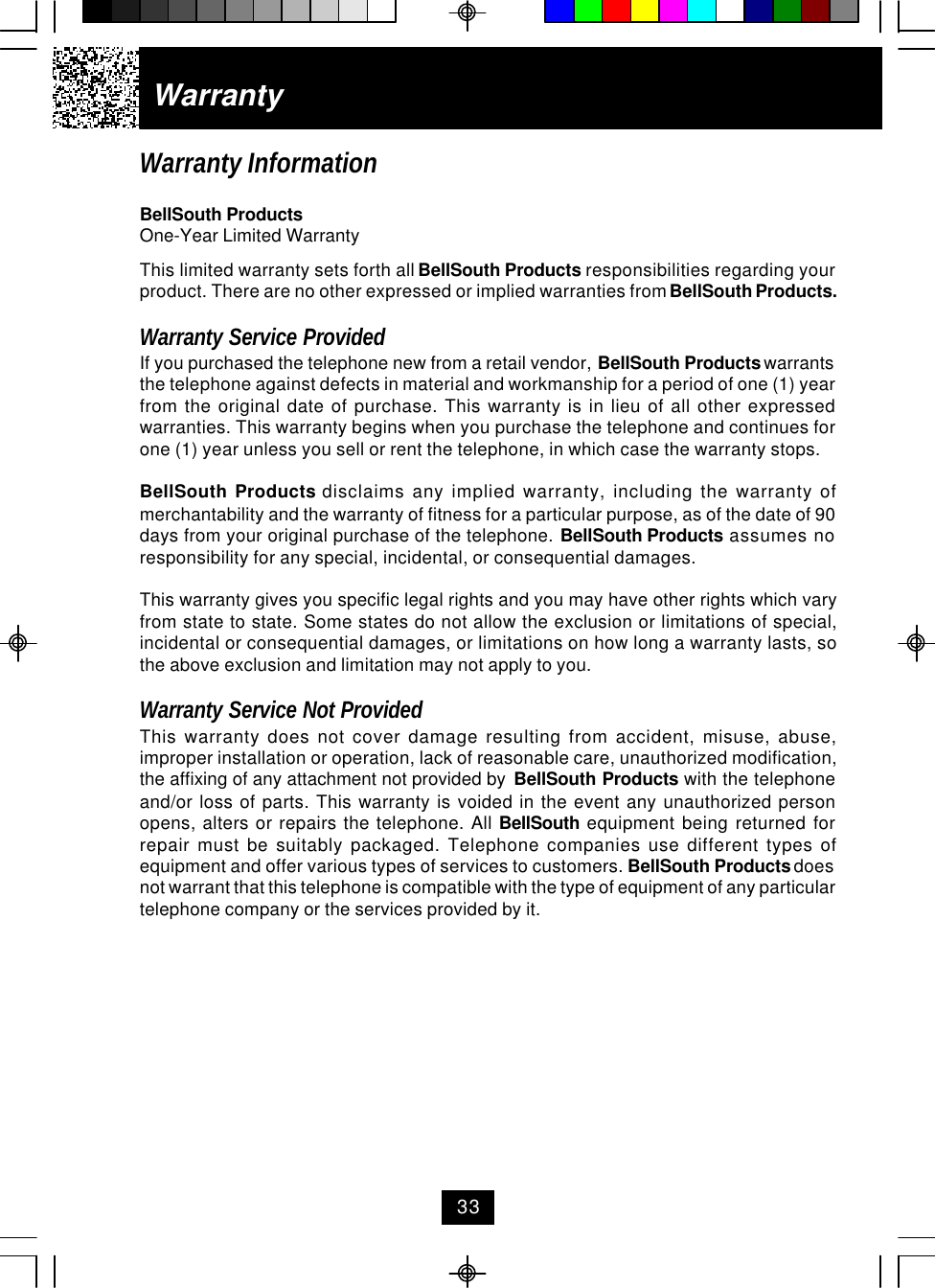

WarrantyWarranty InformationBellSouth ProductsOne-Year Limited WarrantyThis limited warranty sets forth all BellSouth Products responsibilities regarding yourproduct. There are no other expressed or implied warranties from BellSouth Products.Warranty Service ProvidedIf you purchased the telephone new from a retail vendor, BellSouth Products warrantsthe telephone against defects in material and workmanship for a period of one (1) yearfrom the original date of purchase. This warranty is in lieu of all other expressedwarranties. This warranty begins when you purchase the telephone and continues forone (1) year unless you sell or rent the telephone, in which case the warranty stops.BellSouth Products disclaims any implied warranty, including the warranty ofmerchantability and the warranty of fitness for a particular purpose, as of the date of 90days from your original purchase of the telephone. BellSouth Products assumes noresponsibility for any special, incidental, or consequential damages.This warranty gives you specific legal rights and you may have other rights which varyfrom state to state. Some states do not allow the exclusion or limitations of special,incidental or consequential damages, or limitations on how long a warranty lasts, sothe above exclusion and limitation may not apply to you.Warranty Service Not ProvidedThis warranty does not cover damage resulting from accident, misuse, abuse,improper installation or operation, lack of reasonable care, unauthorized modification,the affixing of any attachment not provided by BellSouth Products with the telephoneand/or loss of parts. This warranty is voided in the event any unauthorized personopens, alters or repairs the telephone. All BellSouth equipment being returned forrepair must be suitably packaged. Telephone companies use different types ofequipment and offer various types of services to customers. BellSouth Products doesnot warrant that this telephone is compatible with the type of equipment of any particulartelephone company or the services provided by it.33

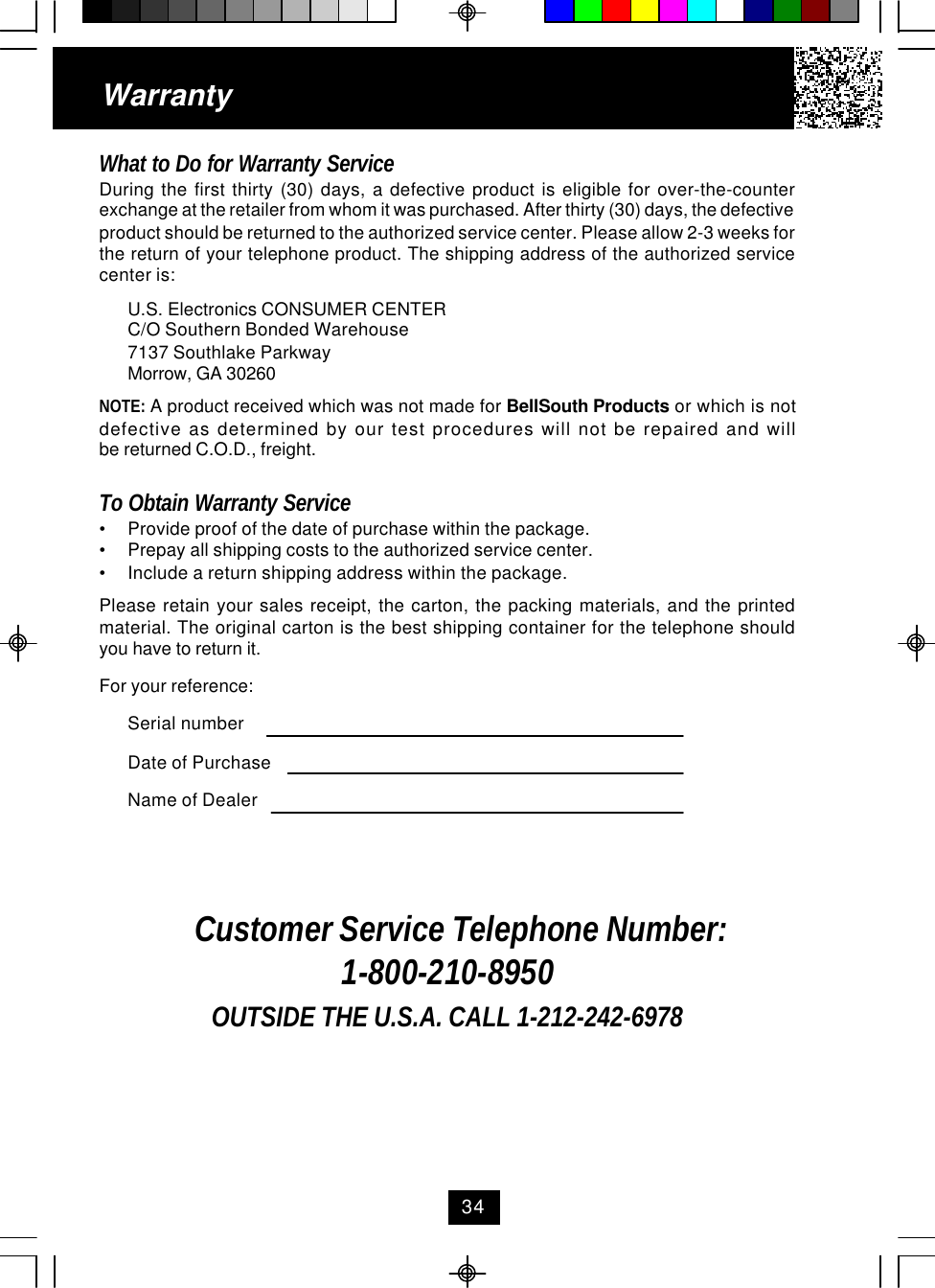

WarrantyWhat to Do for Warranty ServiceDuring the first thirty (30) days, a defective product is eligible for over-the-counterexchange at the retailer from whom it was purchased. After thirty (30) days, the defectiveproduct should be returned to the authorized service center. Please allow 2-3 weeks forthe return of your telephone product. The shipping address of the authorized servicecenter is:U.S. Electronics CONSUMER CENTERC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE: A product received which was not made for BellSouth Products or which is notdefective as determined by our test procedures will not be repaired and willbe returned C.O.D., freight.To Obtain Warranty Service•Provide proof of the date of purchase within the package.•Prepay all shipping costs to the authorized service center.•Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printedmaterial. The original carton is the best shipping container for the telephone shouldyou have to return it.For your reference:Serial numberDate of PurchaseName of DealerCustomer Service Telephone Number:1-800-210-8950OUTSIDE THE U.S.A. CALL 1-212-242-697834
Notes35
Wall Mount TemplateThis page serves as a template for attachment of screws to the wallwhen mounting this telephone on the wall.1. Cut out this page.2. Use this template to determine the distance between screwswhen mounting this phone on the wall. The two cross hairsidentify where to attach the screws.37

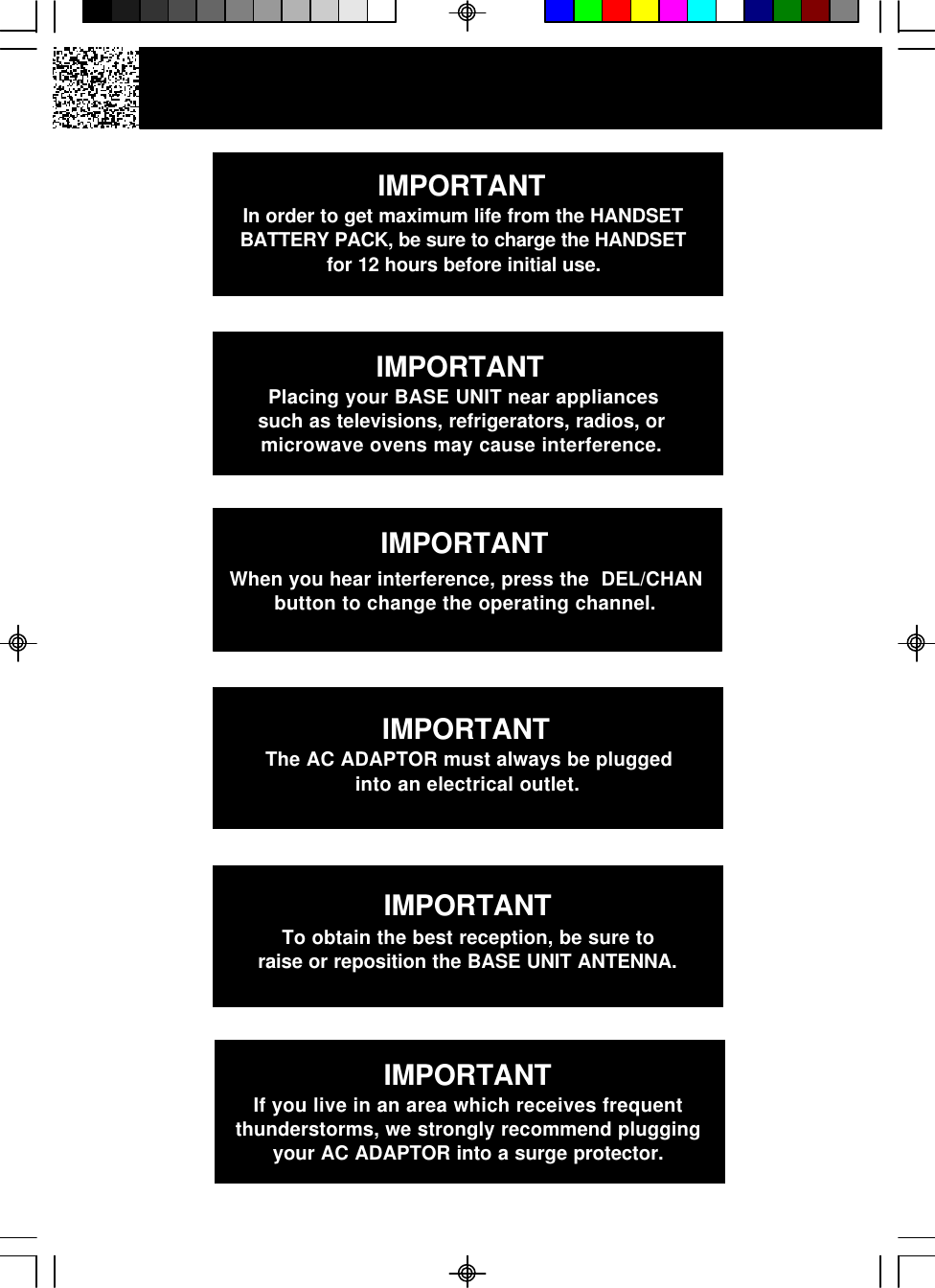

IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.IMPORTANTThe AC ADAPTOR must always be pluggedinto an electrical outlet.IMPORTANTTo obtain the best reception, be sure toraise or reposition the BASE UNIT ANTENNA.IMPORTANTIf you live in an area which receives frequentthunderstorms, we strongly recommend pluggingyour AC ADAPTOR into a surge protector.IMPORTANTWhen you hear interference, press the DEL/CHANbutton to change the operating channel.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.
GH9457 Made in ChinaLDSTOPMake certain you receive the bestperformance from your telephone.Read this manual first.
