CORDLESS TELEPHONEModel XG2100OWNER'S MANUALINSTALLATION ANDOPERATINGINSTRUCTIONSPLEASE READ THISMANUAL CAREFULLYBEFORE USE.KEEP FOR YOURREFERENCE.4© 2002 BellSouth CorporationVisit Us on the Web:www.uselectronics.info

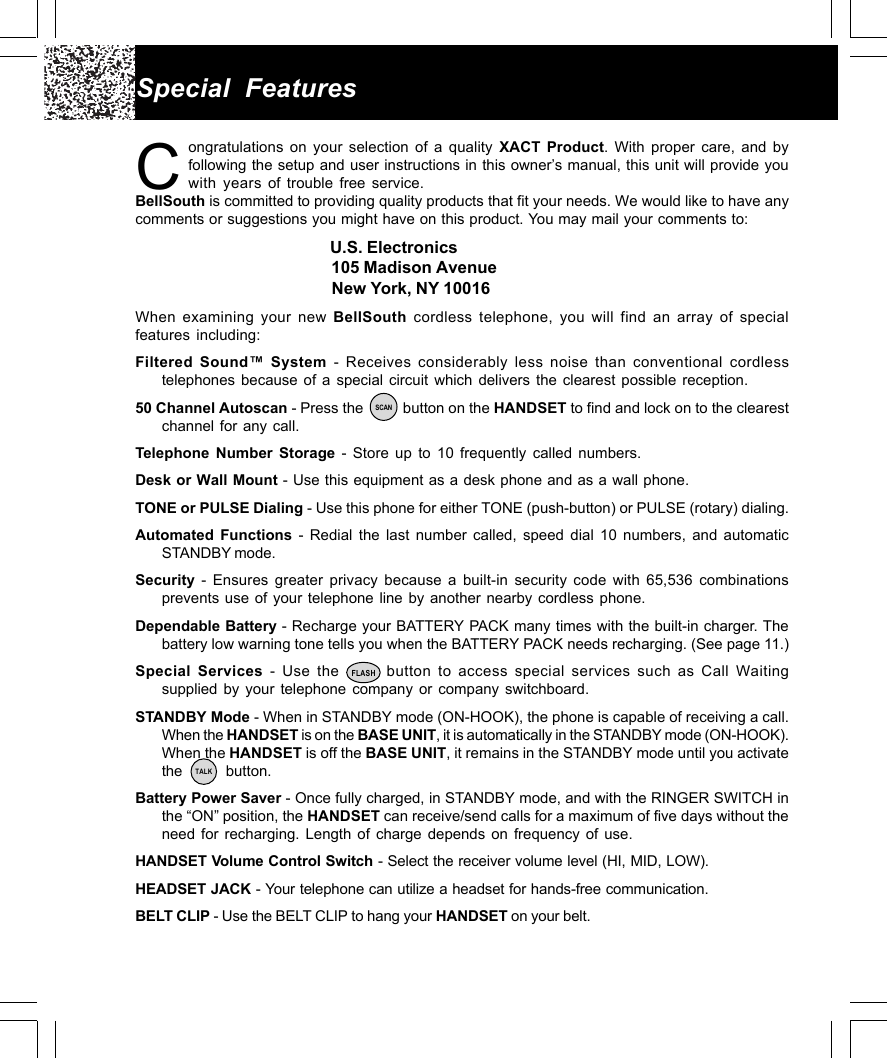

ongratulations on your selection of a quality XACT Product. With proper care, and byfollowing the setup and user instructions in this owner’s manual, this unit will provide youwith years of trouble free service.BellSouth is committed to providing quality products that fit your needs. We would like to have anycomments or suggestions you might have on this product. You may mail your comments to:         U.S. Electronics         105 Madison Avenue         New York, NY 10016When examining your new BellSouth cordless telephone, you will find an array of specialfeatures including:Filtered Sound™ System - Receives considerably less noise than conventional cordlesstelephones because of a special circuit which delivers the clearest possible reception.50 Channel Autoscan - Press the          button on the HANDSET to find and lock on to the clearestchannel for any call.Telephone Number Storage - Store up to 10 frequently called numbers.Desk or Wall Mount - Use this equipment as a desk phone and as a wall phone.TONE or PULSE Dialing - Use this phone for either TONE (push-button) or PULSE (rotary) dialing.Automated Functions - Redial the last number called, speed dial 10 numbers, and automaticSTANDBY mode.Security  - Ensures greater privacy because a built-in security code with 65,536 combinationsprevents use of your telephone line by another nearby cordless phone.Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger. Thebattery low warning tone tells you when the BATTERY PACK needs recharging. (See page 11.)Special Services - Use the       button to access special services such as Call Waitingsupplied by your telephone company or company switchboard.STANDBY Mode - When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call.When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode (ON-HOOK).When the HANDSET is off the BASE UNIT, it remains in the STANDBY mode until you activatethe          button.Battery Power Saver - Once fully charged, in STANDBY mode, and with the RINGER SWITCH inthe “ON” position, the HANDSET can receive/send calls for a maximum of five days without theneed for recharging. Length of charge depends on frequency of use.HANDSET Volume Control Switch - Select the receiver volume level (HI, MID, LOW).HEADSET JACK - Your telephone can utilize a headset for hands-free communication.BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt.Special FeaturesCTALKSCANFLASH

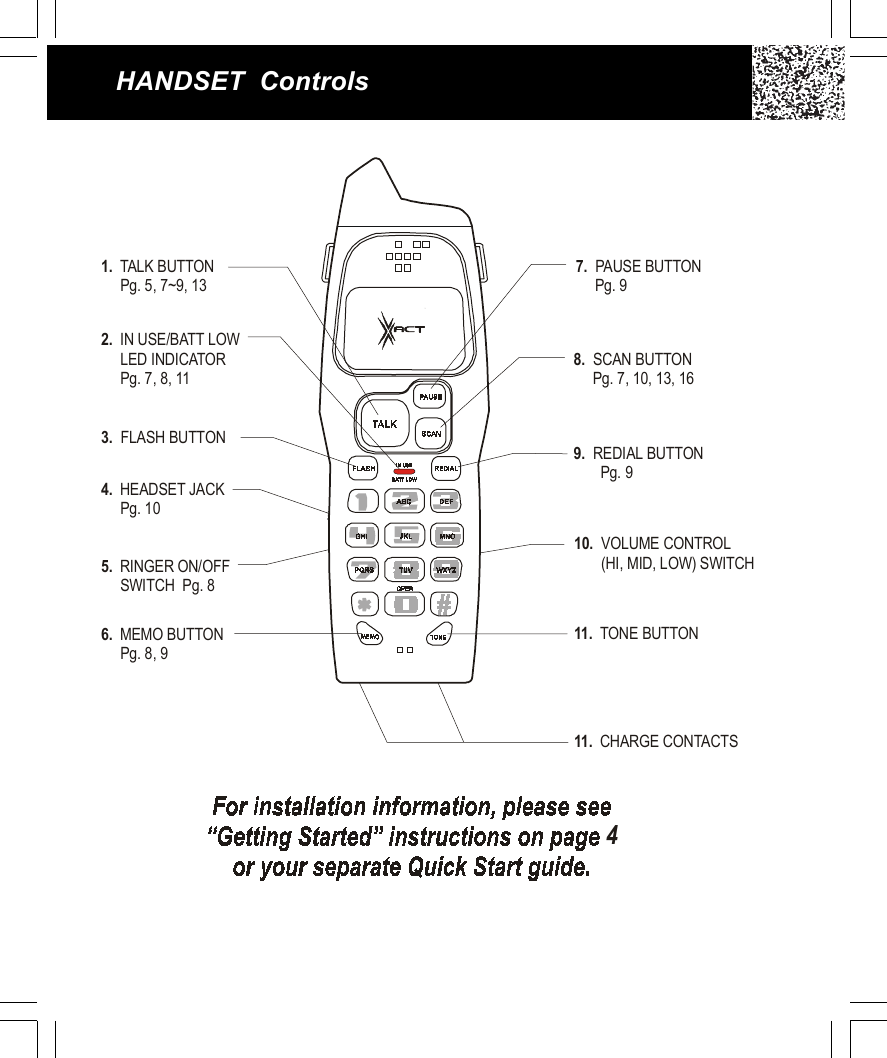

HANDSET Controls47.  PAUSE BUTTON     Pg. 91.  TALK BUTTON     Pg. 5, 7~9, 136.  MEMO BUTTON     Pg. 8, 910.  VOLUME CONTROL       (HI, MID, LOW) SWITCH11.  CHARGE CONTACTS8.  SCAN BUTTON      Pg. 7, 10, 13, 163.  FLASH BUTTON      9.  REDIAL BUTTON       Pg. 94.  HEADSET JACK     Pg. 1011.  TONE BUTTON5.  RINGER ON/OFF     SWITCH  Pg. 82.  IN USE/BATT LOW      LED INDICATOR      Pg. 7, 8, 11

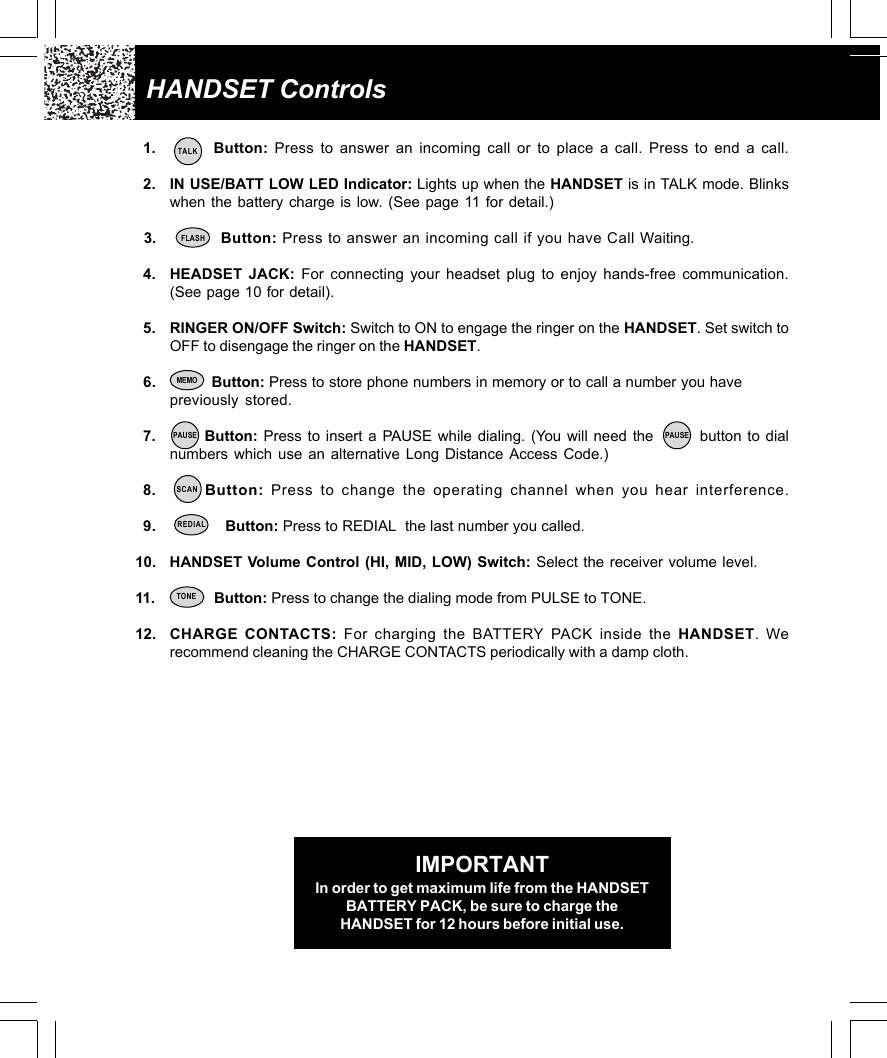

IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge theHANDSET for 12 hours before initial use.HANDSET Controls1.         Button: Press to answer an incoming call or to place a call. Press to end a call.2. IN USE/BATT LOW LED Indicator: Lights up when the HANDSET is in TALK mode. Blinkswhen the battery charge is low. (See page 11 for detail.)  3.           Button: Press to answer an incoming call if you have Call Waiting.4. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication.(See page 10 for detail).5. RINGER ON/OFF Switch: Switch to ON to engage the ringer on the HANDSET. Set switch toOFF to disengage the ringer on the HANDSET.6.            Button: Press to store phone numbers in memory or to call a number you havepreviously stored.7.       Button: Press to insert a PAUSE while dialing. (You will need the        button to dialnumbers which use an alternative Long Distance Access Code.)8.      Button: Press to change the operating channel when you hear interference.9.                Button: Press to REDIAL  the last number you called.10. HANDSET Volume Control (HI, MID, LOW) Switch: Select the receiver volume level.11.            Button: Press to change the dialing mode from PULSE to TONE.12. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. Werecommend cleaning the CHARGE CONTACTS periodically with a damp cloth.FLASHSCANREDIALTONETALKPAUSEMEMOPAUSE

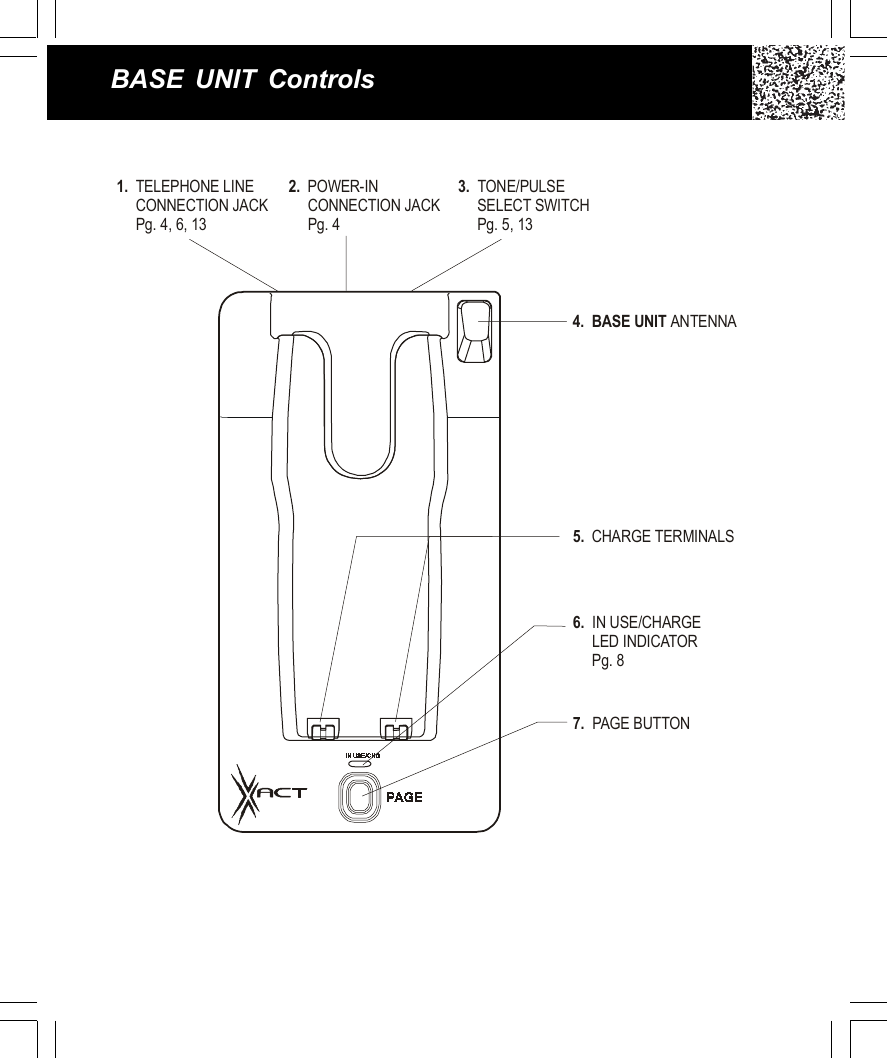

BASE UNIT Controls1.  TELEPHONE LINE     CONNECTION JACK     Pg. 4, 6, 133.  TONE/PULSE     SELECT SWITCH     Pg. 5, 132.  POWER-IN     CONNECTION JACK     Pg. 45.  CHARGE TERMINALS4. BASE UNIT  ANTENNA6.  IN USE/CHARGE     LED INDICATOR     Pg. 87.  PAGE BUTTON
BASE UNIT Controls1. TELEPHONE LINE CONNECTION JACK2. POWER-IN CONNECTION JACK3. TONE/PULSE Select Switch4. HANDSET RETAINER TAB: Holds the HANDSET in the BASE UNIT CRADLE when wallmounting the telephone.5. BASE UNIT ANTENNA6. CHARGE TERMINALS: For charging the BATTERY PACK inside the HANDSET. We recommendcleaning the CHARGE TERMINALS periodically with a damp cloth.7.          Button: Press to page the HANDSET. Press again to stop.8. IN USE/CHARGE LED Indicator: Lights up when the HANDSET is in TALK mode or when theHANDSET is placed on the BASE UNIT for charging.IMPORTANTPlacing your BASE UNIT near appliances suchas televisions, refrigerators, radios, ormicrowave ovens may cause interference.PAGE
Contents1Safety Instructions....................................................................................................................... 2Getting Started............................................................................................................................. 4Desk Mounting.............................................................................................................................. 6Wall Mounting............................................................................................................................... 6Basic Operation....................................................................................................... .................... 7Preparing for Use.................................................................................................................. 7Placing Calls...........................................................................................................................7Receiving Calls...................................................................................................................... 8Storing Numbers.................................................................................................................... 8Recalling Stored Numbers..................................................................................................... 9Redial Feature........................................................................................................................9Using the Headset Feature.................................................................................................... 10Security........................................................................................................................................ 10Recharging the BATTERY PACK.................................................................................................. 11Changing the BATTERY PACK......................................................................................................12Problem Solving............................................................................................................................ 13Technical Information....................................................................................................................14FCC Requirements........................................................................................................................15Warranty.......................................................................................................................................17Wall Mount Template..................................................................................................................... 19

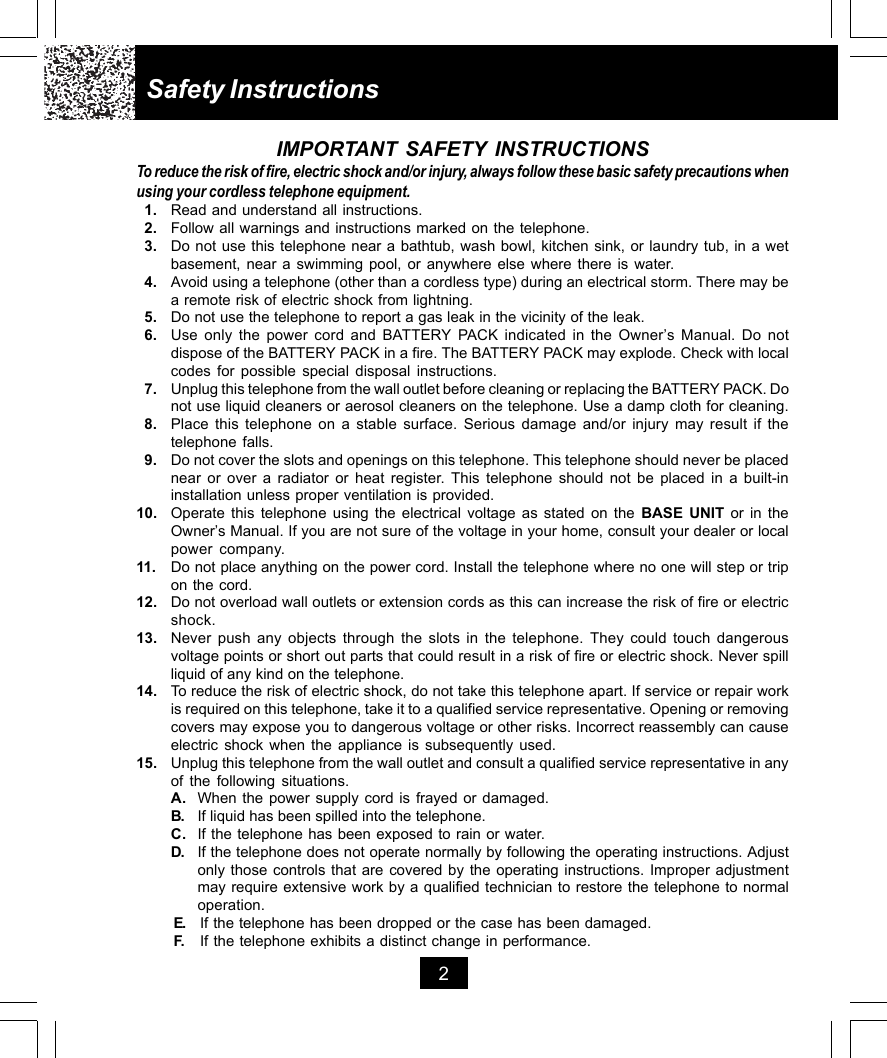

Safety Instructions2IMPORTANT SAFETY INSTRUCTIONSTo reduce the risk of fire, electric shock and/or injury, always follow these basic safety precautions whenusing your cordless telephone equipment.1. Read and understand all instructions.2. Follow all warnings and instructions marked on the telephone.3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wetbasement, near a swimming pool, or anywhere else where there is water.4. Avoid using a telephone (other than a cordless type) during an electrical storm. There may bea remote risk of electric shock from lightning.5. Do not use the telephone to report a gas leak in the vicinity of the leak.6. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual. Do notdispose of the BATTERY PACK in a fire. The BATTERY PACK may explode. Check with localcodes for possible special disposal instructions.7. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY PACK. Donot use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth for cleaning.8. Place this telephone on a stable surface. Serious damage and/or injury may result if thetelephone falls.9. Do not cover the slots and openings on this telephone. This telephone should never be placednear or over a radiator or heat register. This telephone should not be placed in a built-ininstallation unless proper ventilation is provided.10. Operate this telephone using the electrical voltage as stated on the BASE UNIT or in theOwner’s Manual. If you are not sure of the voltage in your home, consult your dealer or localpower company.11. Do not place anything on the power cord. Install the telephone where no one will step or tripon the cord.12. Do not overload wall outlets or extension cords as this can increase the risk of fire or electricshock.13. Never push any objects through the slots in the telephone. They could touch dangerousvoltage points or short out parts that could result in a risk of fire or electric shock. Never spillliquid of any kind on the telephone.14. To reduce the risk of electric shock, do not take this telephone apart. If service or repair workis required on this telephone, take it to a qualified service representative. Opening or removingcovers may expose you to dangerous voltage or other risks. Incorrect reassembly can causeelectric shock when the appliance is subsequently used.15. Unplug this telephone from the wall outlet and consult a qualified service representative in anyof the following situations.A. When the power supply cord is frayed or damaged.B. If liquid has been spilled into the telephone.C. If the telephone has been exposed to rain or water.D. If the telephone does not operate normally by following the operating instructions. Adjustonly those controls that are covered by the operating instructions. Improper adjustmentmay require extensive work by a qualified technician to restore the telephone to normaloperation.E. If the telephone has been dropped or the case has been damaged.F. If the telephone exhibits a distinct change in performance.

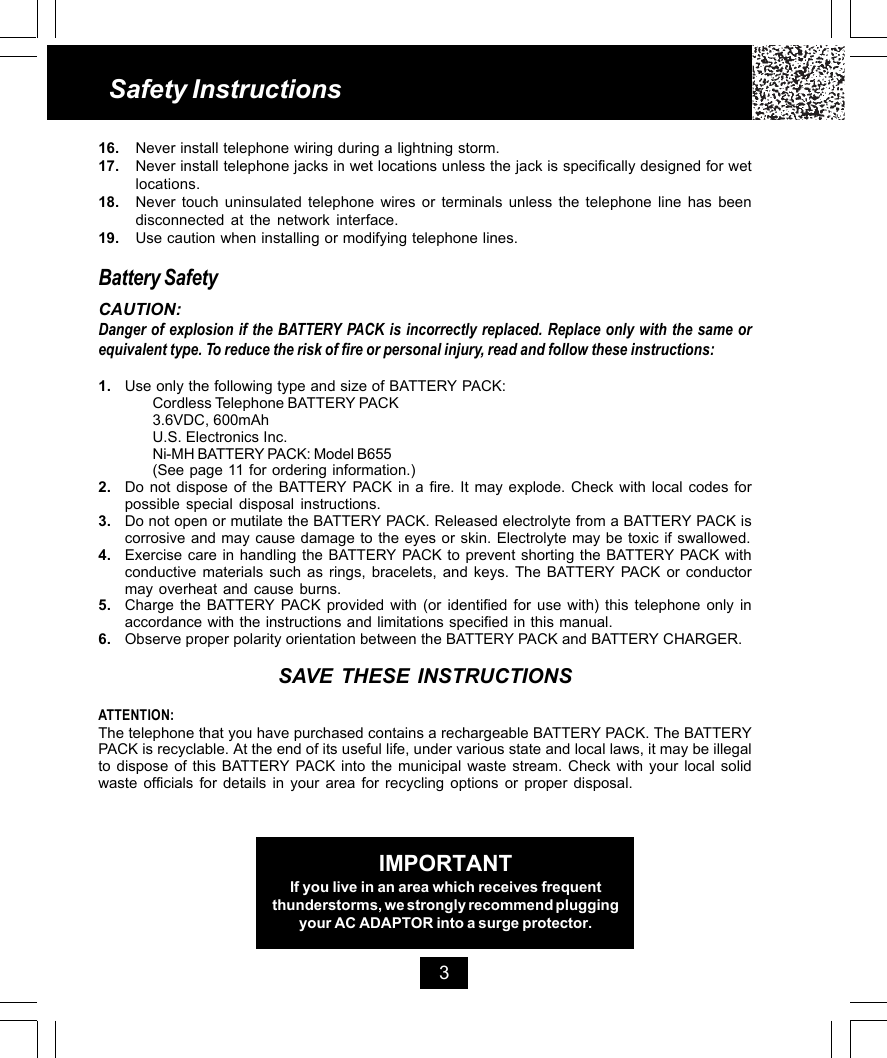

16. Never install telephone wiring during a lightning storm.17. Never install telephone jacks in wet locations unless the jack is specifically designed for wetlocations.18. Never touch uninsulated telephone wires or terminals unless the telephone line has beendisconnected at the network interface.19. Use caution when installing or modifying telephone lines.Battery SafetyCAUTION:Danger of explosion if the BATTERY PACK is incorrectly replaced. Replace only with the same orequivalent type. To reduce the risk of fire or personal injury, read and follow these instructions:1. Use only the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6VDC, 600mAhU.S. Electronics Inc.Ni-MH BATTERY PACK: Model B655(See page 11 for ordering information.)2. Do not dispose of the BATTERY PACK in a fire. It may explode. Check with local codes forpossible special disposal instructions.3. Do not open or mutilate the BATTERY PACK. Released electrolyte from a BATTERY PACK iscorrosive and may cause damage to the eyes or skin. Electrolyte may be toxic if swallowed.4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK withconductive materials such as rings, bracelets, and keys. The BATTERY PACK or conductormay overheat and cause burns.5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only inaccordance with the instructions and limitations specified in this manual.6. Observe proper polarity orientation between the BATTERY PACK and BATTERY CHARGER.SAVE THESE INSTRUCTIONSATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. The BATTERYPACK is recyclable. At the end of its useful life, under various state and local laws, it may be illegalto dispose of this BATTERY PACK into the municipal waste stream. Check with your local solidwaste officials for details in your area for recycling options or proper disposal.Safety Instructions3IMPORTANTIf you live in an area which receives frequentthunderstorms, we strongly recommend pluggingyour AC ADAPTOR into a surge protector.
Getting StartedConnecting Your PhoneThis section is a reference guide to the basic functions and operations of your cordless telephone.For more detailed descriptions of the operations and features of this telephone, refer to theContents on page 1.1. Carefully remove your cordless telephone from its shipping carton. If there is any visibledamage, do not attempt to operate this equipment. Return it to the place of purchase.2. Check to be sure you have all items that come with this cordless telephone system. You shouldhave a HANDSET, BASE UNIT, AC ADAPTOR, MOUNTING BRACKET, TELEPHONE LINE CORD,SHORT TELEPHONE LINE CORD, BATTERY PACK, BELT CLIP, and Owner’s Manual.43. Insert the small plug on the end of the AC ADAPTOR into the POWER-IN CONNECTION JACK atthe back of the BASE UNIT.4. Plug the AC ADAPTOR into a 120V AC wall outlet.USE ONLY WITH CLASS 2 POWER SOURCE 12V DC, 200mA.5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and the otherend into the TELEPHONE LINE CONNECTION JACK on the back of the BASE UNIT. (If you havean older 4-prong TELEPHONE JACK, you will need an RJ-11C TELEPHONE JACK ADAPTOR.This adaptor is available at the same place you purchased your telephone.)AC ADAPTORTELEPHONE LINE CORDTELEPHONEJACK120V WALLOUTLETTONE/PULSESELECT SWITCHTELEPHONE LINECONNECTION JACKPOWER-INCONNECTION JACK3455SHORT TELEPHONE LINE CORDTELEPHONE LINE CORDAC ADAPTORBASE UNITMOUNTINGBRACKETHANDSETBELT CLIPBATTERY PACK
11. TONE/PULSE Select Switch:A. If your home is equipped with a tone dialing system, set the TONE/PULSE Select Switch tothe TONE position.B. If you have a rotary dialing system, set the TONE/PULSE Select Switch to the PULSEposition.C. If you are unsure which system you have, set the TONE/PULSE Select Switch to the TONEposition. Press the        button on the HANDSET to get a dial tone, and press any buttonon the TELEPHONE KEYPAD except the zero. If the dial tone continues, it means that youdo not have tone dialing service. Press the        button on the HANDSET to hang up. Setthe TONE/PULSE Select Switch to the PULSE mode and then try again.Getting Started56. We recommend not placing this unit next to appliances. Doing so may cause interference.7. Install the HANDSET BATTERY PACK by plugging it into the BATTERY CONNECTOR inside theBATTERY COMPARTMENT.8. Place the BATTERY PACK inside the BATTERY COMPARTMENT.9. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.10. IMPORTANT:  Before initial use, charge the HANDSET for 12 hours.  Do not charge theHANDSET with TELEPHONE KEYPAD face down.Press the         button to confirm that you have a dialtone. If you do not get a dial tone, review steps 3through 11. If you still do not have a dial tone, refer tothe Problem Solving section on page 13.Belt Clip InstallationWith the back of the HANDSET facing up, insert oneside of the BELT CLIP HOOK into the matching slot atthe top side of the HANDSET. Press down on theopposite side of the BELT CLIP until the other hooklocks into the slot on the side of the HANDSET.You are now ready to use your newBellSouth Cordless Telephone.TALKTALKTALKBATTERY PACKBATTERY COMPARTMENTCOVER978BELT CLIP HOOK
Desk MountingOne of the special features of your telephone is the unique design of the MOUNTING BRACKETwhich can hold your phone at an angle of 30° when desk mounting. There are two positions tochoose from:1. NORMAL POSITION (MOUNTING BRACKET notrequired):For normal position, as shown in Figure 1, place theBASE UNIT on any desired but suitable location.2. 30°  POSITION (See Figure 2):With the back of the BASE UNIT facing up, insert thehooks of the MOUNTING BRACKET (with theposition as shown in Figure 3) into the fourslots of the BASE UNIT. Then slide the MOUNTINGBRACKET upward until it locks into place.Wall MountingYou may choose to put the BASE UNIT of your cordless telephone on a wall.1. With the back of the BASE UNIT facing up, connectthe SHORT TELEPHONE LINE CORD to theTELEPHONE LINE CONNECTION JACK.2. Insert the free end of the SHORT TELEPHONE LINECORD through the hole of the MOUNTING BRACKET.3. Insert the hooks of the MOUNTING BRACKET intothe matching slots on the back of the BASE UNIT(following the arrow direction for the WALL MOUNT)then slide the MOUNTING BRACKET until it locksinto place.4. Plug the free end of the SHORT TELEPHONE LINECORD into the MODULAR WALL JACK.5. Align the upper keyhole of the MOUNTING BRACKETwith the upper stud of the wall plate, so that theopening end of the MOUNTING BRACKET matchesthe lower stud, then pull the BASE UNIT down untilit is securely seated.6. Pull out the HANDSET RETAINER TAB in the BASEUNIT then place the HANDSET in the BASEUNIT CHARGE CRADLE.6FIGURE 1FIGURE 2FIGURE 3MOUNTINGBRACKET MODULAR WALL JACKWALL PLATEWALL PLATE STUDSHORT TELEPHONELINE CORD123333455
7Basic OperationPreparing for UseBefore you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failureto do so will require recharging of the BATTERY PACK more often.1. Place the HANDSET on the BASE UNIT for 12 hours.2. After 12 hours, remove the HANDSET from the BASE UNIT.Before you can use your cordless telephone, you must charge the HANDSET for 12hours. Failure to do so will require more frequent charging of the BATTERY PACK.See page 11 for more information on the BATTERY PACK.NOTE:Depending on the frequency of use, once the HANDSET is fully charged, it remains functional forapproximately 4 hours of continuous use and approximately 5 days when the HANDSET is off theBASE UNIT in STANDBY mode.Placing Calls1. Press the          button. The IN USE LED indicatorwill light up.2. Listen for a dial tone.3. Dial the phone number.4. When you have finished your call, either pressthe       button or place the HANDSET on theBASE UNIT. The IN USE LED indicator will turnoff.NOTES:1. The BASE UNIT does not have a ringer and does not ring when receiving an incoming call.2. If you are too far away from the BASE UNIT, the HANDSET emits “beep” sounds to warn youthat the background noise level is too high for proper communication between the HANDSETand the BASE UNIT. When you hear this sound, you should move closer to the BASE UNIT toreduce the noise level. Otherwise, the call will automatically cut off.TALKTALKIMPORTANTDo not use this telephone within 20 ft. of amicrowave oven while it is working, as you mayexperience interference. This is a normaloccurrence with 2.4 GHz phones and shouldnot be interpreted as a defect in the product.

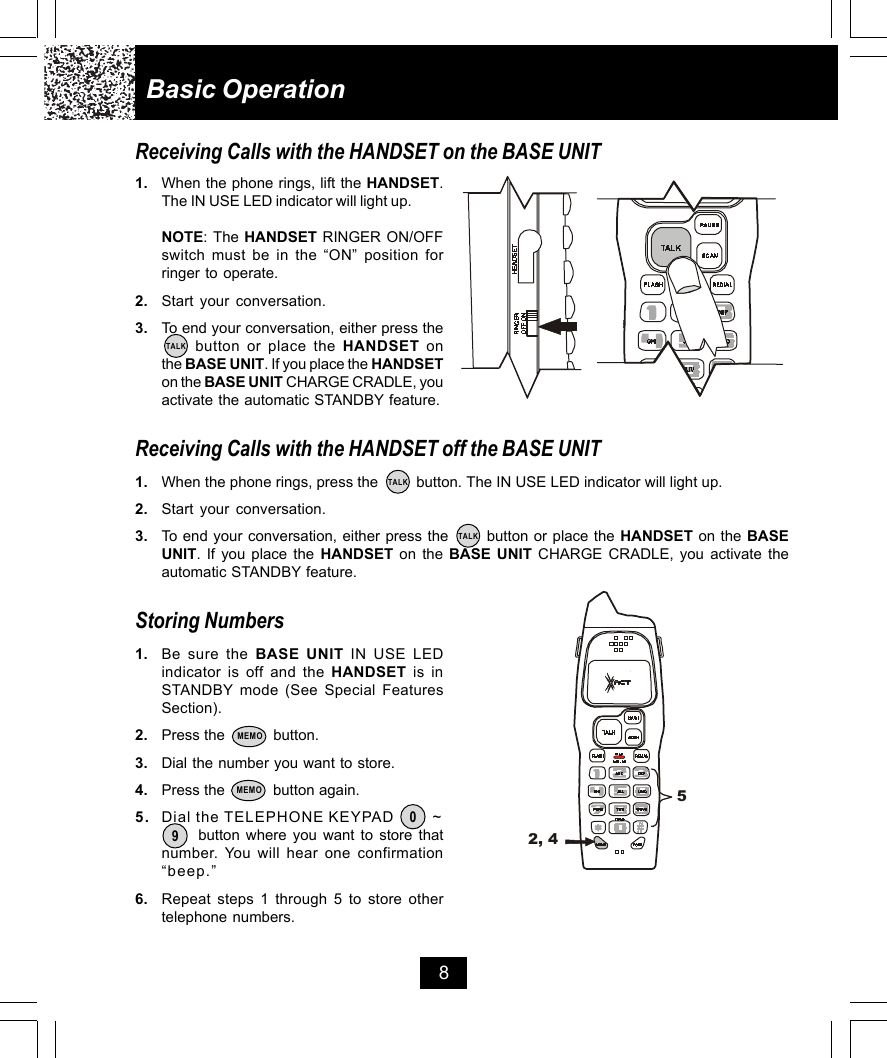

8Basic OperationReceiving Calls with the HANDSET on the BASE UNIT1. When the phone rings, lift the HANDSET.The IN USE LED indicator will light up.NOTE: The HANDSET RINGER ON/OFFswitch must be in the “ON” position forringer to operate.2. Start your conversation.3. To end your conversation, either press the     button or place the HANDSET onthe BASE UNIT. If you place the HANDSETon the BASE UNIT CHARGE CRADLE, youactivate the automatic STANDBY feature.Receiving Calls with the HANDSET off the BASE UNIT1. When the phone rings, press the         button. The IN USE LED indicator will light up.2. Start your conversation.3. To end your conversation, either press the       button or place the HANDSET on the BASEUNIT. If you place the HANDSET on the BASE UNIT CHARGE CRADLE, you activate theautomatic STANDBY feature.Storing Numbers1. Be sure the BASE UNIT IN USE LEDindicator is off and the HANDSET is inSTANDBY mode (See Special FeaturesSection).2. Press the           button.3. Dial the number you want to store.4. Press the           button again.5. Dial the TELEPHONE KEYPAD         ~      button where you want to store thatnumber. You will hear one confirmation“beep.”6. Repeat steps 1 through 5 to store othertelephone numbers.TALK09TALKTALKMEMOMEMO 52, 4

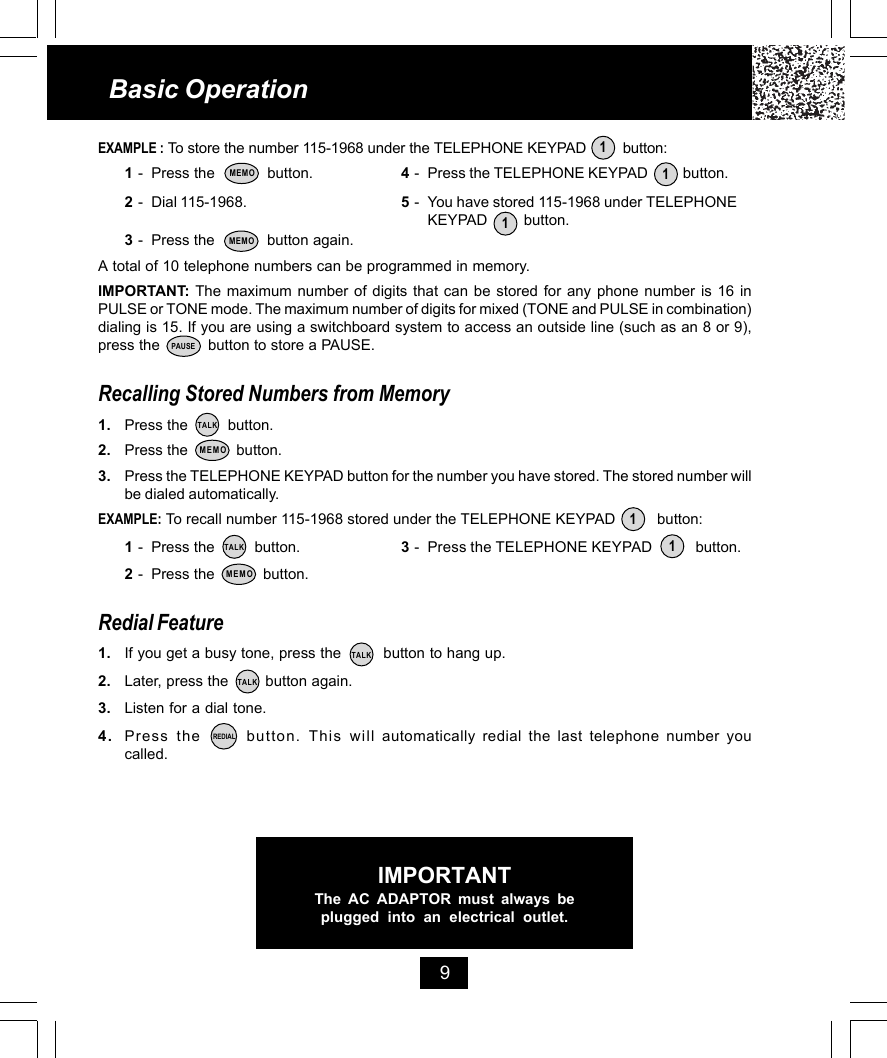

9EXAMPLE : To store the number 115-1968 under the TELEPHONE KEYPAD         button:1 - Press the            button. 4 - Press the TELEPHONE KEYPAD          button.2 - Dial 115-1968. 5 - You have stored 115-1968 under TELEPHONEKEYPAD          button.3 - Press the            button again.A total of 10 telephone numbers can be programmed in memory.IMPORTANT: The maximum number of digits that can be stored for any phone number is 16 inPULSE or TONE mode. The maximum number of digits for mixed (TONE and PULSE in combination)dialing is 15. If you are using a switchboard system to access an outside line (such as an 8 or 9),press the           button to store a PAUSE.Recalling Stored Numbers from Memory1. Press the         button.2. Press the           button.3. Press the TELEPHONE KEYPAD button for the number you have stored. The stored number willbe dialed automatically.EXAMPLE: To recall number 115-1968 stored under the TELEPHONE KEYPAD          button:1 - Press the         button. 3 - Press the TELEPHONE KEYPAD            button.2 - Press the           button.Redial Feature1. If you get a busy tone, press the         button to hang up.2. Later, press the        button again.3. Listen for a dial tone.4. Press the      button. This will automatically redial the last telephone number youcalled.Basic OperationTALKTALKMEMOMEMOTALKREDIAL11111MEMOMEMOPAUSETALKIMPORTANTThe AC ADAPTOR must always beplugged into an electrical outlet.

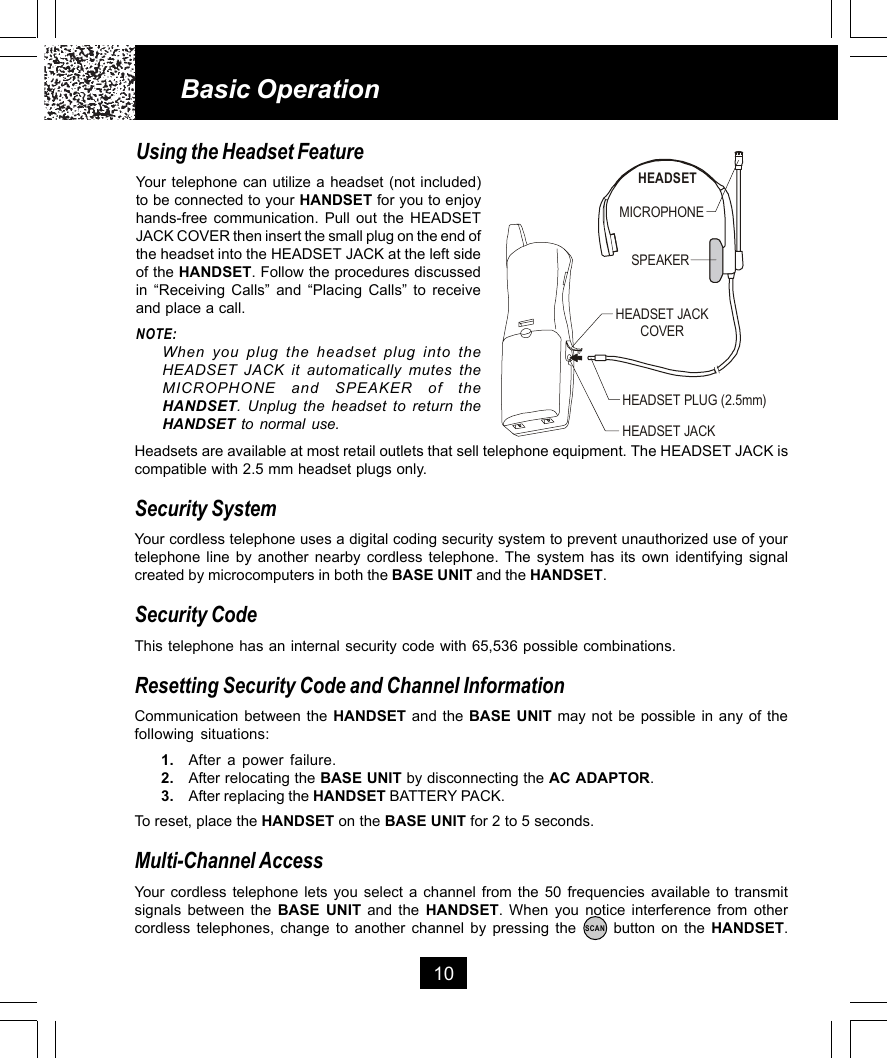

10Using the Headset FeatureYour telephone can utilize a headset (not included)to be connected to your HANDSET for you to enjoyhands-free communication. Pull out the HEADSETJACK COVER then insert the small plug on the end ofthe headset into the HEADSET JACK at the left sideof the HANDSET. Follow the procedures discussedin “Receiving Calls” and “Placing Calls” to receiveand place a call.NOTE:When you plug the headset plug into theHEADSET JACK it automatically mutes theMICROPHONE and SPEAKER of theHANDSET. Unplug the headset to return theHANDSET to normal use.Basic OperationHeadsets are available at most retail outlets that sell telephone equipment. The HEADSET JACK iscompatible with 2.5 mm headset plugs only.Security SystemYour cordless telephone uses a digital coding security system to prevent unauthorized use of yourtelephone line by another nearby cordless telephone. The system has its own identifying signalcreated by microcomputers in both the BASE UNIT and the HANDSET.Security CodeThis telephone has an internal security code with 65,536 possible combinations.Resetting Security Code and Channel InformationCommunication between the HANDSET and the BASE UNIT may not be possible in any of thefollowing situations:1. After a power failure.2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.3. After replacing the HANDSET BATTERY PACK.To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.Multi-Channel AccessYour cordless telephone lets you select a channel from the 50 frequencies available to transmitsignals between the BASE UNIT and the HANDSET. When you notice interference from othercordless telephones, change to another channel by pressing the      button on the HANDSET.SCANMICROPHONEHEADSETSPEAKERHEADSET JACKHEADSET JACKCOVERHEADSET PLUG (2.5mm)

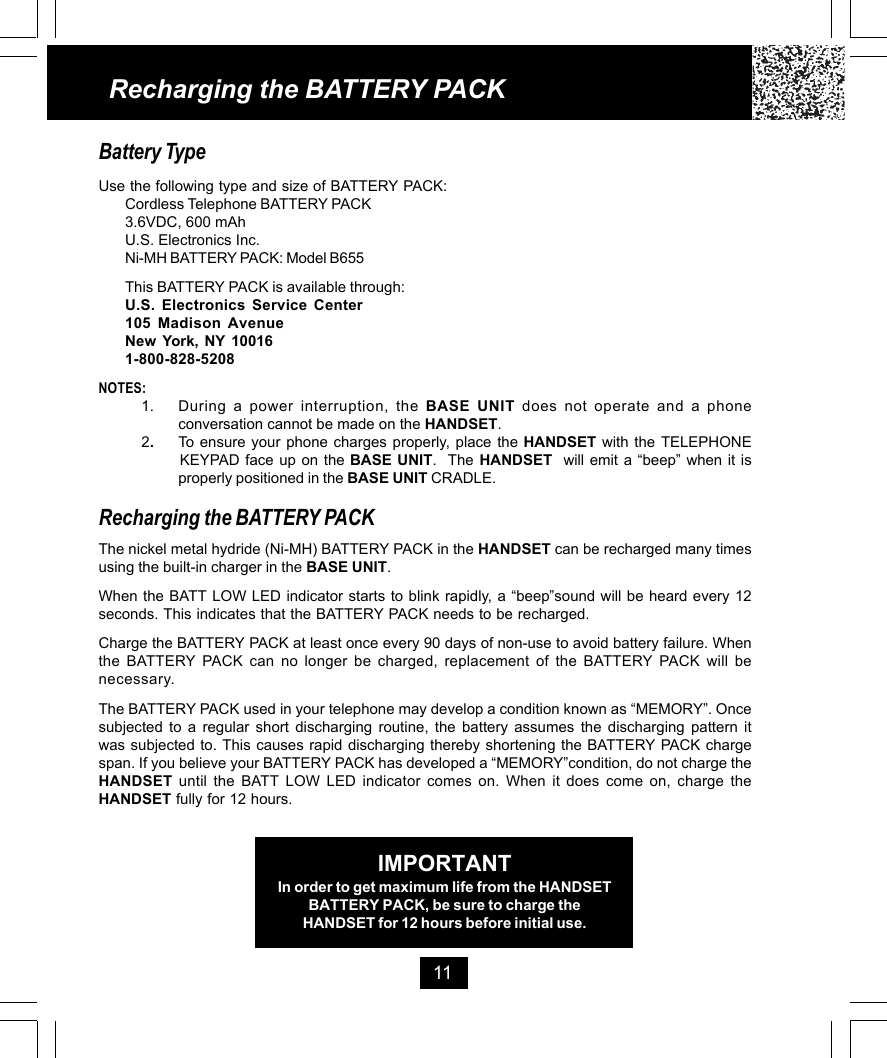

11Recharging the BATTERY PACKBattery TypeUse the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6VDC, 600 mAhU.S. Electronics Inc.Ni-MH BATTERY PACK: Model B655This BATTERY PACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-828-5208NOTES:1. During a power interruption, the BASE UNIT does not operate and a phoneconversation cannot be made on the HANDSET.2.To ensure your phone charges properly, place the HANDSET with the TELEPHONE     KEYPAD face up on the BASE UNIT.  The HANDSET  will emit a “beep” when it isproperly positioned in the BASE UNIT CRADLE.Recharging the BATTERY PACKThe nickel metal hydride (Ni-MH) BATTERY PACK in the HANDSET can be recharged many timesusing the built-in charger in the BASE UNIT.When the BATT LOW LED indicator starts to blink rapidly, a “beep”sound will be heard every 12seconds. This indicates that the BATTERY PACK needs to be recharged.Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure. Whenthe BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will benecessary.The BATTERY PACK used in your telephone may develop a condition known as “MEMORY”. Oncesubjected to a regular short discharging routine, the battery assumes the discharging pattern itwas subjected to. This causes rapid discharging thereby shortening the BATTERY PACK chargespan. If you believe your BATTERY PACK has developed a “MEMORY”condition, do not charge theHANDSET until the BATT LOW LED indicator comes on. When it does come on, charge theHANDSET fully for 12 hours.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge theHANDSET for 12 hours before initial use.
12Changing the BATTERY PACKChanging  the BATTERY PACKThe BATTERY PACK provides power for the HANDSET of your cordless telephone.To Replace the BATTERY PACK:1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.5. Before use, charge the new BATTERY PACK for 12 hours.ATTENTION:The product that you have purchased contains a rechargeable BATTERY PACK. The BATTERYPACK is recyclable. At the end of its useful life, under various state and local laws, it may be illegalto dispose of this BATTERY PACK into the municipal waste stream. Check with your local solidwaste officials for details in your area for recycling options or proper disposal.OLDBATTERY PACKNEWBATTERY PACKBATTERY COMPARTMENTCOVER

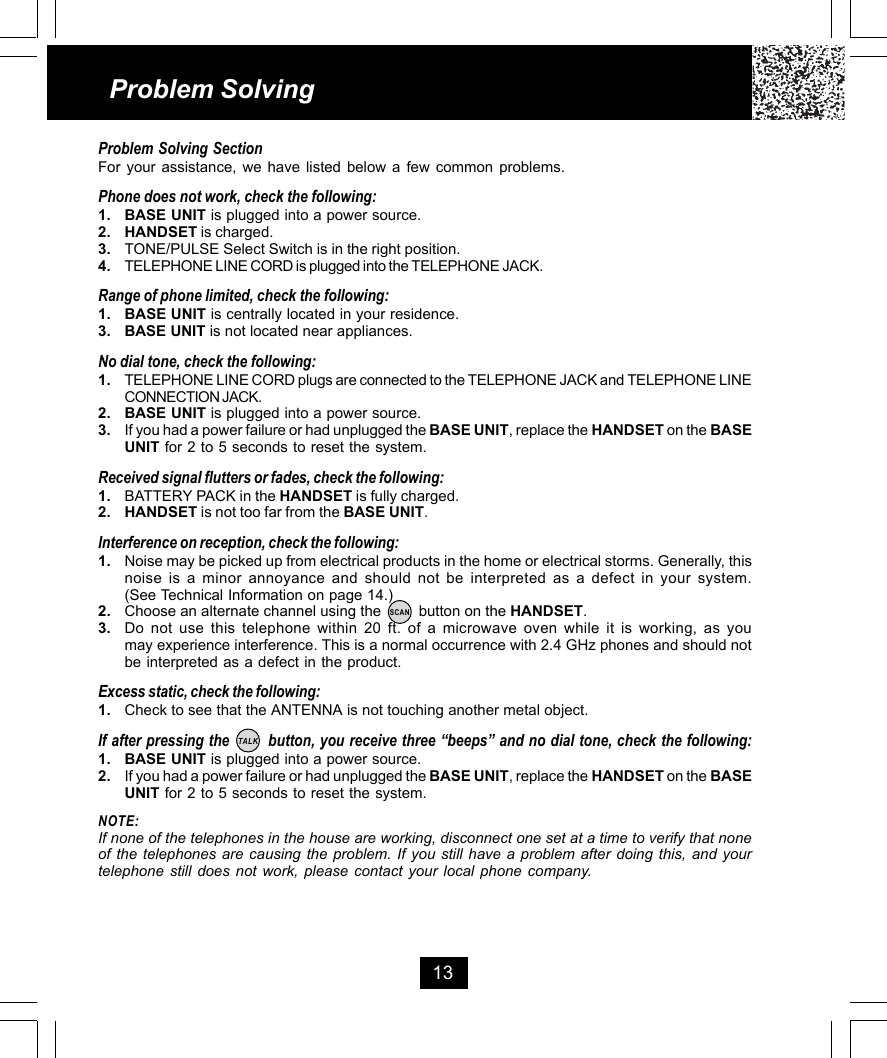

13Problem SolvingProblem Solving SectionFor your assistance, we have listed below a few common problems.Phone does not work, check the following:1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select Switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.Range of phone limited, check the following:1. BASE UNIT is centrally located in your residence.3. BASE UNIT is not located near appliances.No dial tone, check the following:1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and TELEPHONE LINECONNECTION JACK.2. BASE UNIT is plugged into a power source.3. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on the BASEUNIT for 2 to 5 seconds to reset the system.Received signal flutters or fades, check the following:1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.Interference on reception, check the following:1. Noise may be picked up from electrical products in the home or electrical storms. Generally, thisnoise is a minor annoyance and should not be interpreted as a defect in your system.(See Technical Information on page 14.)2. Choose an alternate channel using the         button on the HANDSET.3. Do not use this telephone within 20 ft. of a microwave oven while it is working, as youmay experience interference. This is a normal occurrence with 2.4 GHz phones and should notbe interpreted as a defect in the product.Excess static, check the following:1. Check to see that the ANTENNA is not touching another metal object.If after pressing the        button, you receive three “beeps” and no dial tone, check the following:1. BASE UNIT is plugged into a power source.2. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on the BASEUNIT for 2 to 5 seconds to reset the system.NOTE:If none of the telephones in the house are working, disconnect one set at a time to verify that noneof the telephones are causing the problem. If you still have a problem after doing this, and yourtelephone still does not work, please contact your local phone company.TALKSCAN
14Technical InformationTechnical InformationThis  cordless  telephone  uses  radio  frequencies  to  allow  mobility.  There  are  certain difficultiesin using radio frequencies with a cordless telephone. While these are normal, the following couldaffect the operation of your system.NoiseElectrical pulse noise is present in most homes at one time or another. This noise is most intenseduring electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescentbulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible tothese noise pulses, you may occasionally hear them in your HANDSET. Generally they are a minorannoyance and should not be interpreted as a defect in your system.RangeBecause radio frequency is used, the location of the BASE UNIT can affect the  operating range.Try several locations in your home or office and pick the one that gives you the clearest signal tothe HANDSET.InterferenceElectronic circuits activate a relay to connect the cordless telephone to your telephone line. Theseelectronic circuits operate in the radio frequency spectrum. While several protection circuits areused to prevent unwanted signals, there may be periods when these unwanted signals enter theBASE UNIT. You may hear clicks or hear the relay activate while you are not using the HANDSET.If the interference occurs frequently, it can be minimized or eliminated by relocating the BASE UNIT.You can check for interference before selecting the final BASE UNIT location by plugging in thephone.NOTICE:This cordless telephone uses radio communication between the HANDSET and the BASE UNIT andmay not ensure privacy of communication. Other devices, including other cordless telephones,may interfere with the operation of this cordless telephone or cause noise during operation. Unitsnot containing coded access may be accessed by other radio communication systems. Cordlesstelephones must not cause interference to any licensed radio service.IMPORTANTIf you live in an area which receives frequentthunderstorms, we strongly recommend pluggingyour AC ADAPTOR into a surge protector.

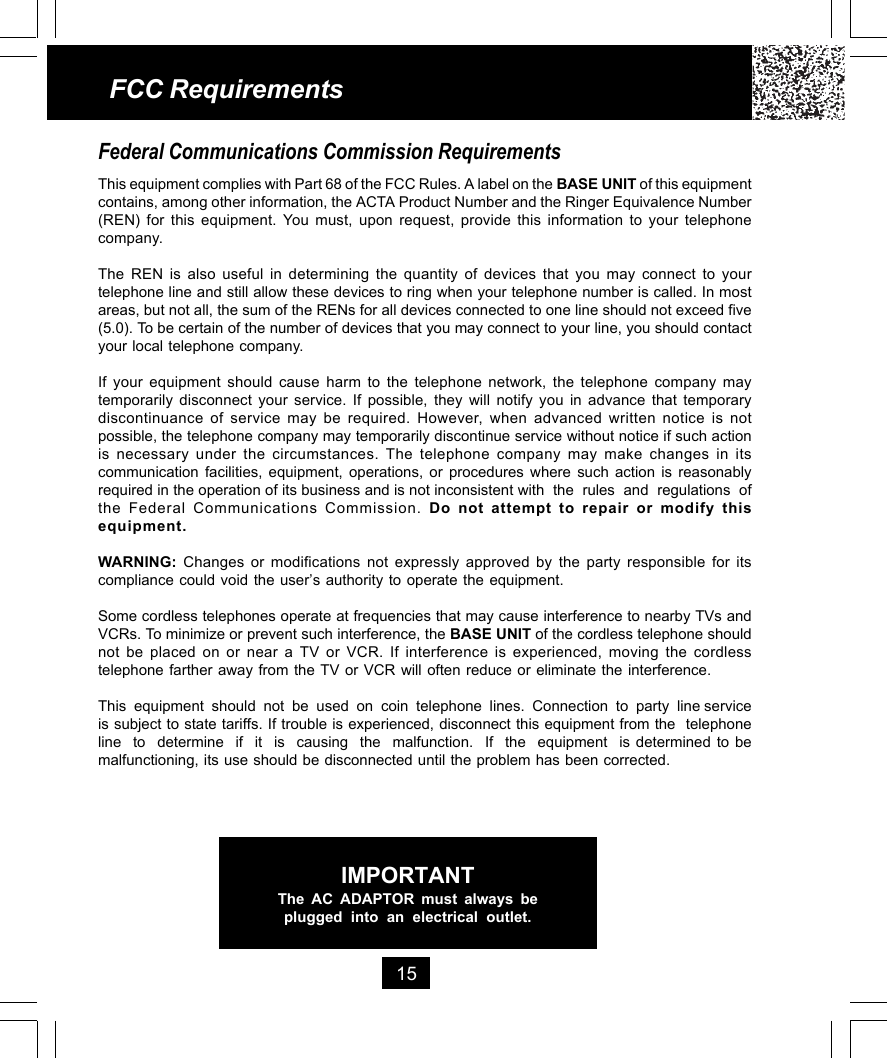

15FCC RequirementsFederal Communications Commission RequirementsThis equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of this equipmentcontains, among other information, the ACTA Product Number and the Ringer Equivalence Number(REN) for this equipment. You must, upon request, provide this information to your telephonecompany.The REN is also useful in determining the quantity of devices that you may connect to yourtelephone line and still allow these devices to ring when your telephone number is called. In mostareas, but not all, the sum of the RENs for all devices connected to one line should not exceed five(5.0). To be certain of the number of devices that you may connect to your line, you should contactyour local telephone company.If your equipment should cause harm to the telephone network, the telephone company maytemporarily disconnect your service. If possible, they will notify you in advance that temporarydiscontinuance of service may be required. However, when advanced written notice is notpossible, the telephone company may temporarily discontinue service without notice if such actionis necessary under the circumstances. The telephone company may make changes in itscommunication facilities, equipment, operations, or procedures where such action is reasonablyrequired in the operation of its business and is not inconsistent with  the  rules  and  regulations  ofthe Federal Communications Commission. Do not attempt to repair or modify thisequipment.WARNING:  Changes or modifications not expressly approved by the party responsible for itscompliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearby TVs andVCRs. To minimize or prevent such interference, the BASE UNIT of the cordless telephone shouldnot be placed on or near a TV or VCR. If interference is experienced, moving the cordlesstelephone farther away from the TV or VCR will often reduce or eliminate the interference.This  equipment  should  not  be  used  on  coin  telephone  lines.  Connection  to  party  line serviceis subject to state tariffs. If trouble is experienced, disconnect this equipment from the  telephoneline  to  determine  if  it  is  causing  the  malfunction.  If  the  equipment  is determined to bemalfunctioning, its use should be disconnected until the problem has been corrected.IMPORTANTThe AC ADAPTOR must always beplugged into an electrical outlet.

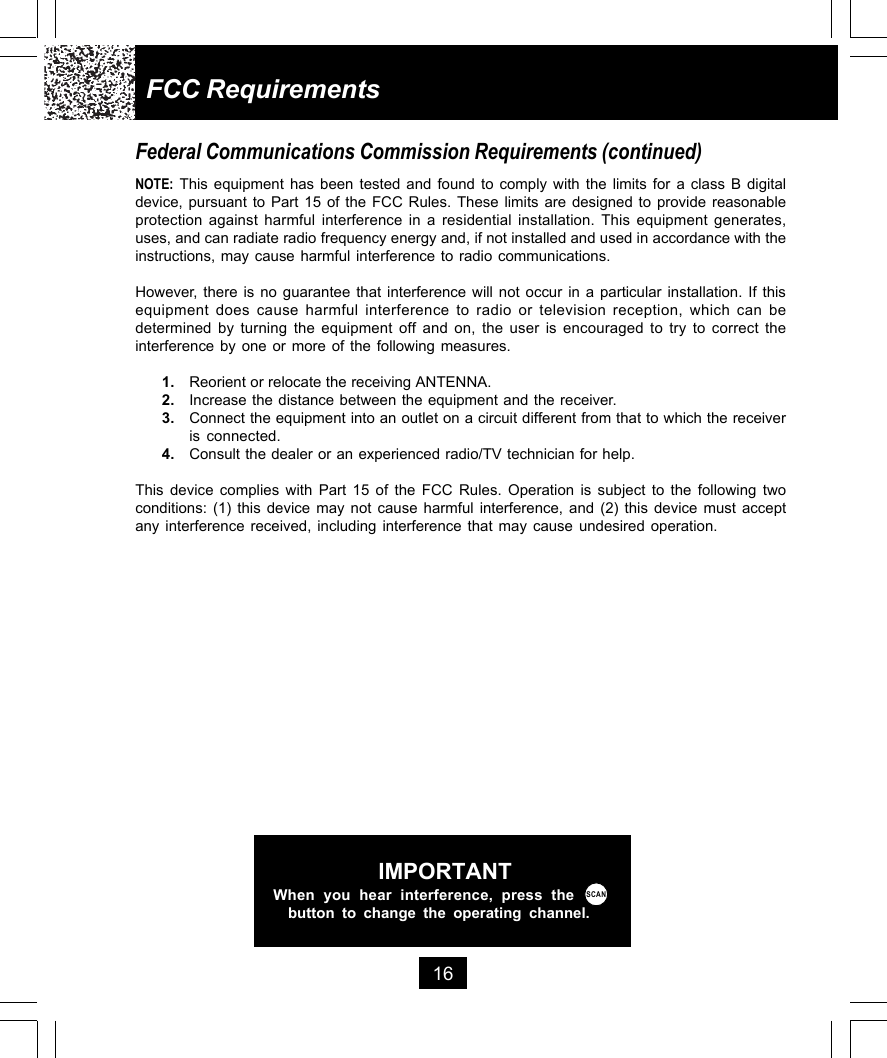

16FCC RequirementsFederal Communications Commission Requirements (continued)NOTE: This equipment has been tested and found to comply with the limits for a class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures.1. Reorient or relocate the receiving ANTENNA.2. Increase the distance between the equipment and the receiver.3. Connect the equipment into an outlet on a circuit different from that to which the receiveris connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.IMPORTANTWhen you hear interference, press the  button to change the operating channel.SCAN
17WarrantyWarranty InformationBellSouth ProductsOne-Year Limited WarrantyThis limited warranty sets forth all BellSouth Products responsibilities regarding your product.There are no other expressed or implied warranties from BellSouth Products.Warranty Service ProvidedIf you purchased the telephone new from a retail vendor, BellSouth Products warrants thetelephone against defects in material and workmanship for a period of one (1) year from the originaldate of purchase. This warranty is in lieu of all other expressed warranties. This warranty beginswhen you purchase the telephone and continues for one (1) year unless you sell or rent thetelephone, in which case the warranty stops.BellSouth Products disclaims any implied warranty, including the warranty of merchantabilityand the warranty of fitness for a particular purpose, as of the date of 90 days from your originalpurchase of the telephone. BellSouth Products assumes no responsibility for any special,incidental, or consequential damages.This warranty gives you specific legal rights and you may have other rights which vary from stateto state. Some states do not allow the exclusion or limitations of special, incidental or consequentialdamages, or limitations on how long a warranty lasts, so the above exclusion and limitation may notapply to you.Warranty Service Not ProvidedThis warranty does not cover damage resulting from accident, misuse, abuse, improper installationor operation, lack of reasonable care, unauthorized modification, the affixing of any attachment notprovided by BellSouth Products with the telephone and/or loss of parts. This warranty is voidedin the event any unauthorized person opens, alters or repairs the telephone. All BellSouthequipment being returned for repair must be suitably packaged. Telephone companies use differenttypes of equipment and offer various types of services to customers. BellSouth Products doesnot warrant that this telephone is compatible with the type of equipment of any particular telephonecompany or the services provided by it.IMPORTANTThe AC ADAPTOR must always beplugged into an electrical outlet.

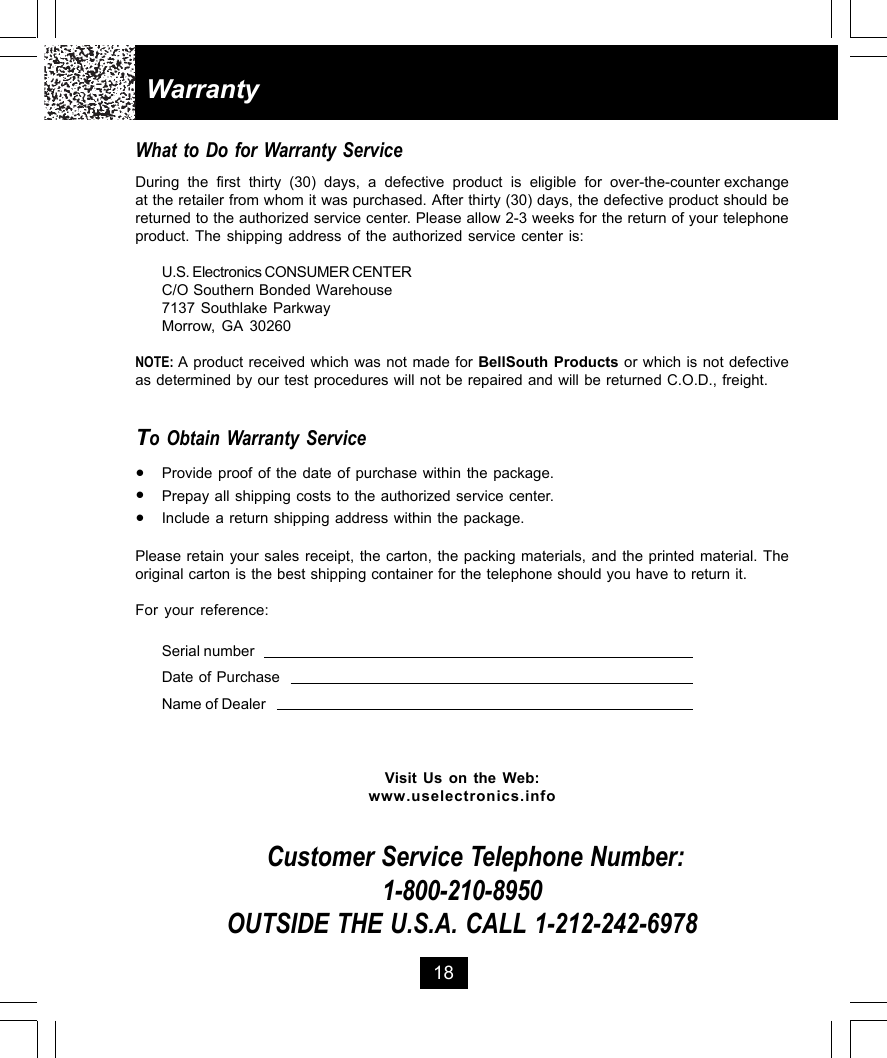

18WarrantyWhat to Do for Warranty ServiceDuring  the  first  thirty  (30)  days,  a  defective  product  is  eligible  for  over-the-counter exchangeat the retailer from whom it was purchased. After thirty (30) days, the defective product should bereturned to the authorized service center. Please allow 2-3 weeks for the return of your telephoneproduct. The shipping address of the authorized service center is:U.S. Electronics CONSUMER CENTERC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE: A product received which was not made for BellSouth Products or which is not defectiveas determined by our test procedures will not be repaired and will be returned C.O.D., freight.To Obtain Warranty Service•Provide proof of the date of purchase within the package.•Prepay all shipping costs to the authorized service center.•Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printed material. Theoriginal carton is the best shipping container for the telephone should you have to return it.For your reference:Serial numberDate of PurchaseName of DealerVisit Us on the Web:www.uselectronics.infoCustomer Service Telephone Number:1-800-210-8950OUTSIDE THE U.S.A. CALL 1-212-242-6978
Wall Mount TemplateThis page serves as a template for attachment of screws to the wall whenmounting this telephone on the wall.1. Cut out this page.2. Use this template to determine the distance between screws whenmounting this phone on the wall. The two cross hairs identify where toattach the screws.19
