Users Manual Part 2
22
TELEPHONE
KEYPAD Function
PBX Number: Inserts if a “PBX Number” before an outgoing number is
dialed. Select the number (0-9) which is required to access an outside line
when using a switchboard system, and the phone will automatically dial the
PBX number and a pause before any speed dial or Caller ID callback number.
factory setting is “OFF.”
Language: Changes the language that appears on the LCD Screen. Choose
between English, French, or Spanish.
User Name: Changes the user name (ID) that appears on the LCD Screen
during STANDBY mode.
MSG Waiting Delete: Clears current message waiting indication.
Area Code: Adds the local Area Code to numbers that were stored as 7-digits
in the phone book and 10-digit dialing is required in the local calling area.
Register: Initiates the registration of HANDSETS to the BASE UNIT.
Alarm Clock: Sets the Alarm clock time.
6
7
8
9
0
*
#
NOTE: At any time during options programming you can quit and the settings that you
have changed will be saved. Press the /MENU button to quit the options menu
or let the options programming time out by not pressing any TELEPHONE KEYPAD
buttons for 20 seconds.
A. Setting the Ringer Level
1. Press the /MENU button to enter the menu.
2. Press the button to go to the RINGER LEVEL programming option.
3. Press the button to change the setting. “High” will begin flashing.
4. Press the SCROLL UP or DOWN button to toggle between HI, LOW, and OFF.
5. When the desired setting is displayed, press and hold the /RE/PA button to
save the setting. A long “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.
VOL
VOL
EDIT/FLASH
VOL
SAVE
1
Caller ID System Operation
21

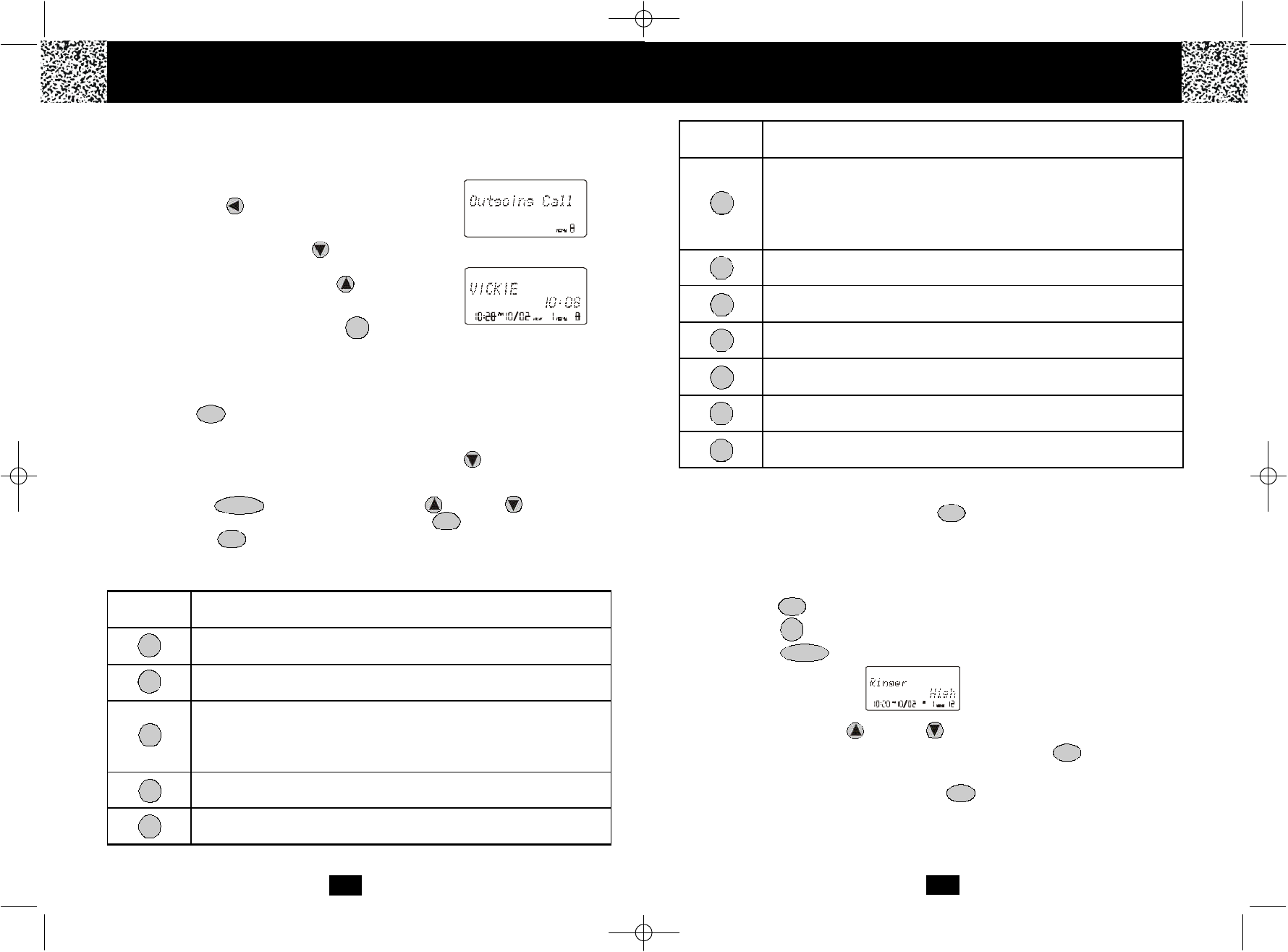

Outgoing Calls
This telephone remembers the last 8 OUTGOING CALLS. The name, time, date, and the
duration of the call are recorded.
1. With the HANDSET in STANDBY mode, press the
SHIFT LEFT button. The LCD Screen will display
“Outgoing call.”
2. Pressing the SCROLL DOWN button will go through
the calls from the last to the latest OUTGOING CALL
record. Pressing the SCROLL UP button will allow
you to view the calls from the latest call to the last.
3. To make a follow-up call, press the button to dial
the displayed record.
Function Settings
You can change the setting on the HANDSET in the functions menu. Access the functions menu
by pressing the /MENU button.
There are 12 settings in the functions menu which can be changed. You can scroll through the
function menu in the listed order by pressing the SCROLL DOWN button.
Settings can be accessed by pressing the corresponding TELEPHONE KEYPAD button. To edit
a setting, press the button, use the SCROLL UP or DOWN button to toggle
between the setting options, and then press and hold the /RE/PA button to save the
changes. Press the /MENU button to exit the functions menu.
VOL
TALK
SAVE
EDIT/FLASH
VOL
TELEPHONE
KEYPAD Function
Ring Hi/Low/Off: Changes the volume of the ringer on the HANDSET or
turn the ringer OFF.
Ringer Melody: Changes the HANDSET ring melody.
First Ring On/Off: Turns the first ring of the phone OFF so that it does not
ring until Caller ID information has been displayed. Particularly useful when
using the PREFFERED and BLOCKED call features or the PRIVATE and
UNAVAILABLE ring settings.
Time Set: Changes the time and date.
Contrast: Adjusts the brightness of the LCD Screen for optimum viewing.
1
2
3
4
5
Caller ID System Operation
DSST~2801~B.qxd 1/25/2003 7:03 PM Page 12
24
5. Press the TELEPHONE KEYPAD to button to enter the minute. “AM” or
“PM” will begin flashing.
6. Press the TELEPHONE KEYPAD button to choose AM or press the button
to choose PM. The month will begin flashing.
7. Press the TELEPHONE KEYPAD to button to enter the month. The date
will begin flashing.
8. Press the TELEPHONE KEYPAD to button to enter the date.
9. When the desired setting is displayed, press and hold the /RE/PA button to save
the setting. A long “beep” will sound to confirm the setting and you are returned to the
options menu.
10. Continue with programming or press the /MENU button to return to STANDBY
mode.
E. Adjusting the Contrast
1. Press the /MENU button to enter the menu.
2. Press the button to go to the CONTRAST programming option.
3. Press the button to change the setting. “4” will begin flashing.
4. Press the SCROLL UP or DOWN button to toggle from 1 to 8 levels of
contrast.
5. When the desired setting is displayed, press and hold the /RE/PA button to
save the setting. A long “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.
F. Setting the PBX Number
1. Press the /MENU button to enter the menu.
2. Press the button to go to the PBX NUMBER programming option.
3. Press the button to change the setting. “OFF” will begin flashing.
4. Press the SCROLL UP or DOWN button to customize the digit to match your
PBX system. When not connected to a PBX, the phone will only function normally when
set to “OFF.”
SAVE
SAVE
5
EDIT/FLASH
6
EDIT/FLASH
1 0
1
0
1 0
1
VOL
2
VOL
VOL
VOL
Caller ID System Operation

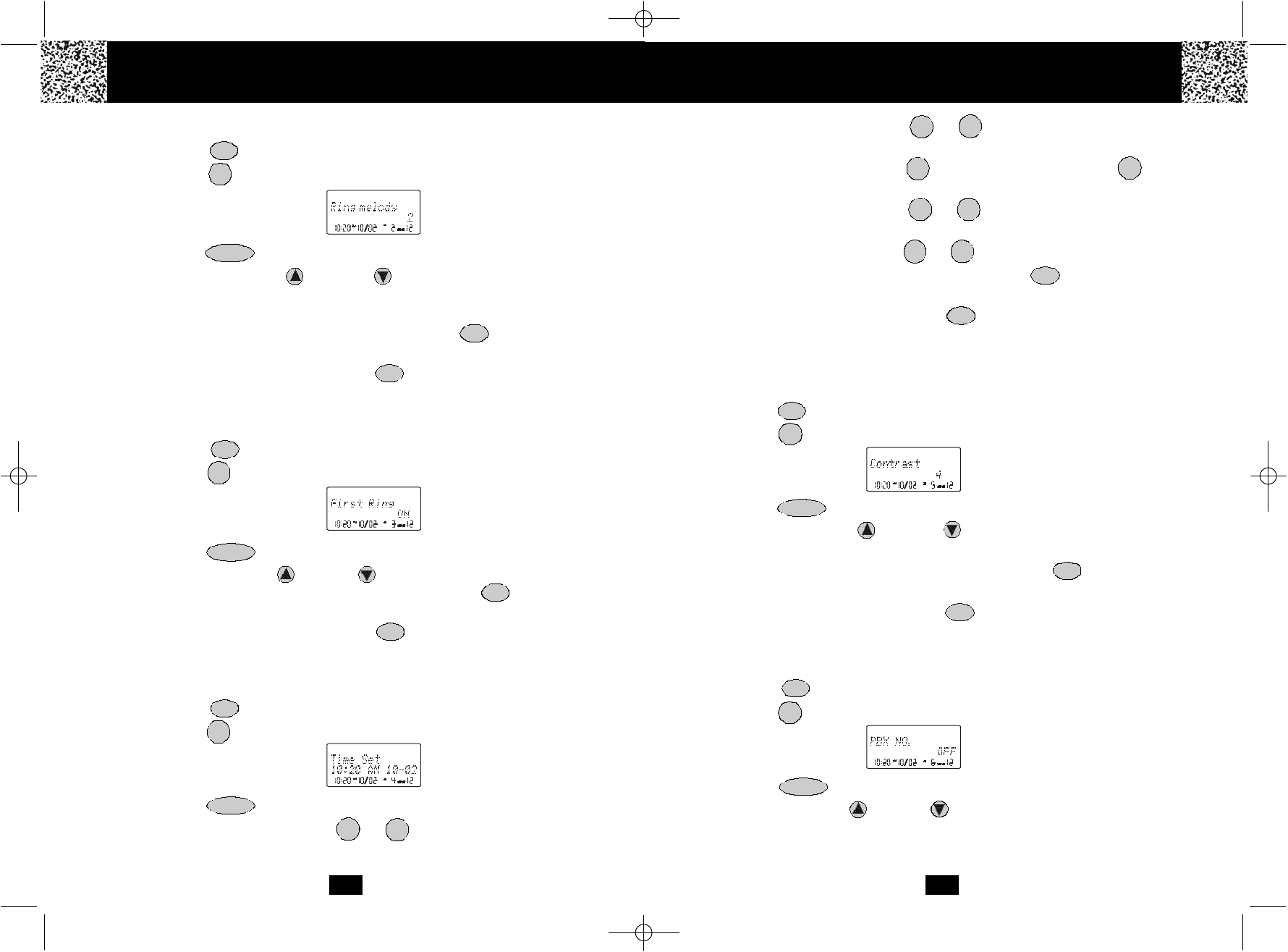

B. Setting the Ringer Melody
1. Press the /MENU button to enter the menu.
2. Press the button to go to the RINGER MELODY programming option.
3. Press the button to change the setting. “2” will begin flashing.
4. Press the SCROLL UP or DOWN button to select 1 of the 10 RINGER
MELODIES available. A ringer sample will be heard for 2 seconds when toggling from
one RINGER MELODY to another. The preset RINGER MELODY is “2.”
5. When the desired setting is displayed, press and hold the /RE/PA button to save
the setting.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.
C. Turning the FIRST RING ON or OFF
1. Press the /MENU button to enter the menu.
2. Press the button to go to the FIRST RING programming option.
3. Press the button to change the setting. “ON” will begin flashing.
4. Press the SCROLL UP or DOWN button to toggle between ON or OFF.
5. When the desired setting is displayed, press and hold the /RE/PA button to
save the setting. A long “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.
D. Setting the Time and Date
1. Press the /MENU button to enter the menu.
2. Press the button to go to the TIME set programming option.
3. Press the button to change the setting. The hour will begin flashing.
4. Press the TELEPHONE KEYPAD to button to enter the hour. The minute
will begin flashing.
EDIT/FLASH
3
SAVE
2
VOL
EDIT/FLASH
SAVE
VOL
VOL
VOL
VOL
4
EDIT/FLASH
1 0
23
Caller ID System Operation
DSST~2801~B.qxd 1/25/2003 7:03 PM Page 14
I. Deleting Message Waiting Indication
1. Press the /MENU button to enter the menu.
2. Press the button to go to the MESSAGE WAITING programming option.
3. Press the button to reset the Message Waiting Indication. “Off” will begin
flashing.
4. Press and hold the /RE/PA button to delete the indication. A long “beep” will
sound to confirm the setting has been saved.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.
J. Setting the Area Code
1. Press the /MENU button to enter the menu.
2. Press the button to go to the AREA CODE programming option.
3. Press the button. The entry will display a flashing prompt at the right side of
the number field.
4. Press the TELEPHONE KEYPAD to buttons to enter the three digit area
code for your phone number.
5. When the desired setting is displayed, press and hold the /RE/PA button to save
the setting. A long “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.
NOTE:
To use the call back function, press the /OPTION button and then select the 10-DIGIT
DIALING mode. Press the button and the unit will automatically dial the stored
7-digit number plus the area code.
The LCD Screen will only display the last 7-DIGITS for all 10-DIGIT INCOMING CALLS that
matched the AREA CODE setting.
EDIT/FLASH
SAVE
9
VOL
VOL
VOL
0
EDIT/FLASH
10
VOL
SAVE
#
TALK
26
Caller ID System Operation
25
5. When the desired setting is displayed, press and hold the /RE/PA button to
save the setting. A long “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.

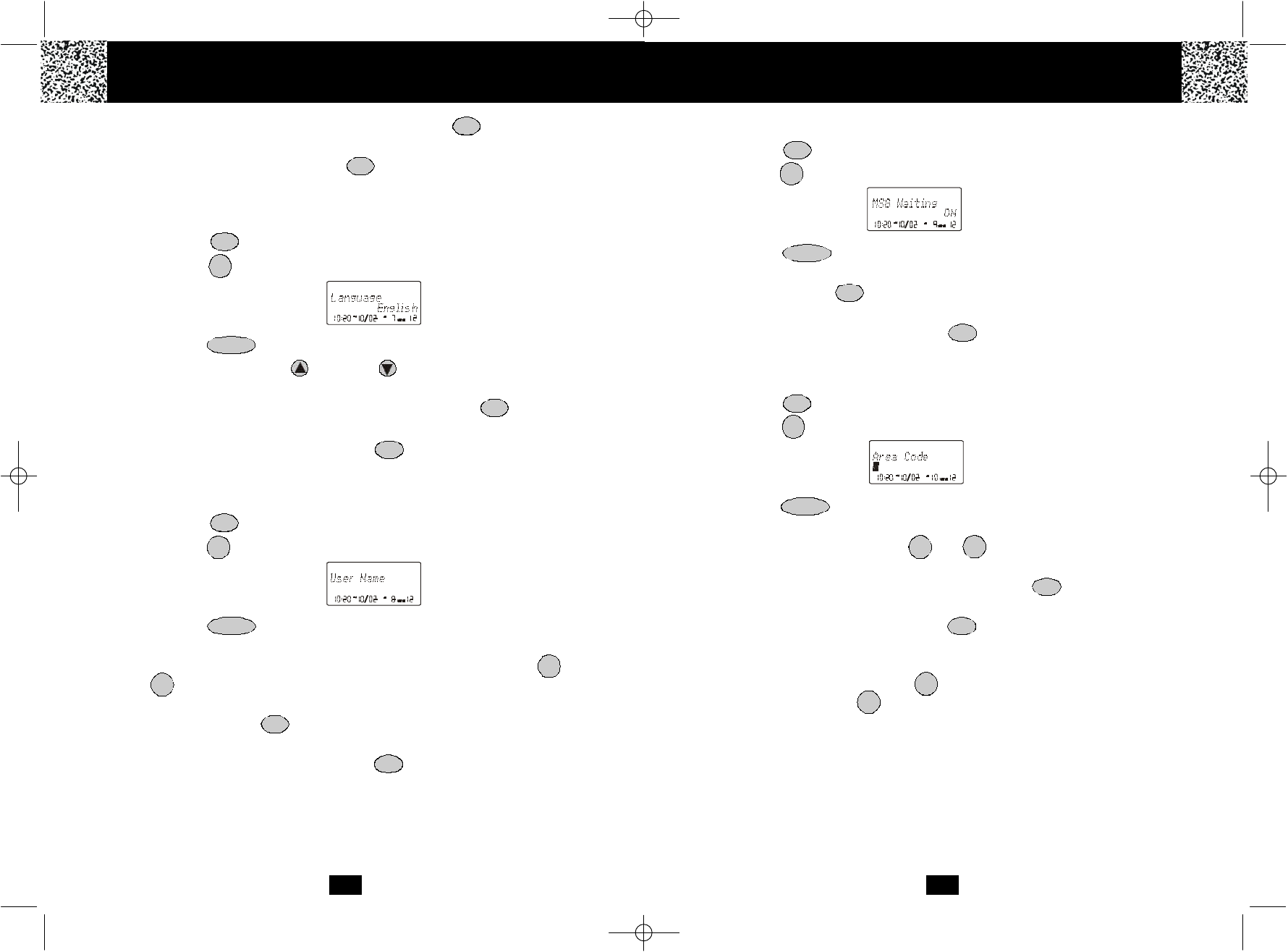

G. Changing the Language
1. Press the /MENU button to enter the menu.
2. Press the button to go to the LANGUAGE programming option.
3. Press the button to change the setting. “English” will begin flashing.
4. Press the SCROLL UP or DOWN button to toggle between ENGLISH,
ESPANOL, and FRANCAIS.
5. When the desired setting is displayed, press and hold the /RE/PA button to
save the setting. A long “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.
H. Changing the User Name
1. Press the /MENU button to enter the menu.
2. Press the button to go to the USER NAME programming option.
3. Press the button to change. The entry will display a flashing prompt over the
the first character of the present USER NAME.
4. Enter the desired USER NAME using the TELEPHONE KEYPAD ( /ABC to
/WXY) buttons. The USER NAME can contain a maximum of 12 characters. See
page 17 for details.
5. Press and hold the /RE/PA button to save the setting. A long “beep” will sound
to confirm the setting has been saved.
6. Continue with programming or press the /MENU button to return to STANDBY
mode.
NOTE: The USER NAME will be displayed on the HANDSET LCD Screen during
STANDBY mode.
SAVE
VOL
VOL
7
VOL
SAVE
EDIT/FLASH
EDIT/FLASH
VOL
8
0
9
SAVE
VOL
Caller ID System Operation
DSST~2801~B.qxd 1/25/2003 7:03 PM Page 16
28

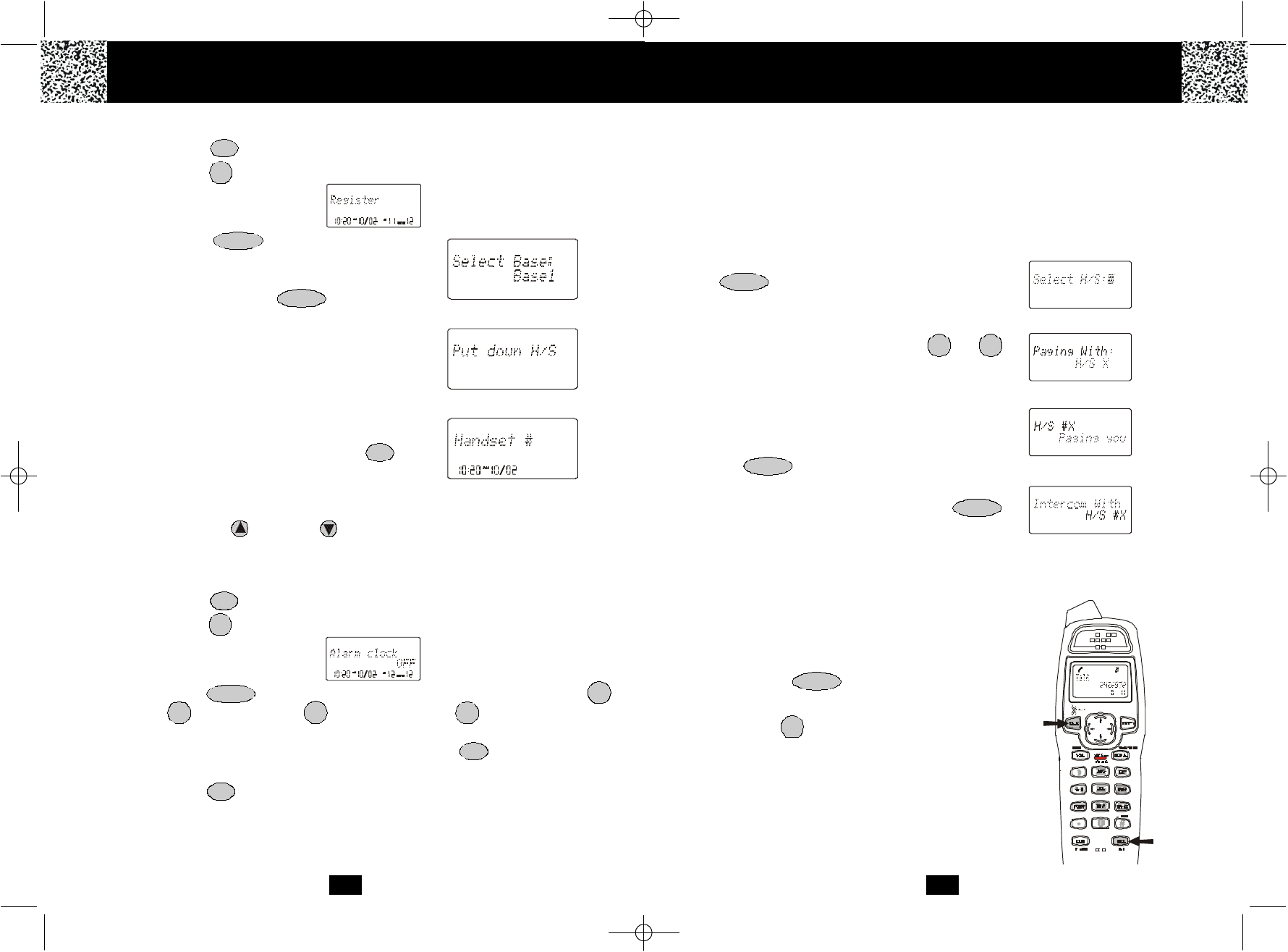

Multi-HANDSET, Multi-BASE UNIT System
The system supports the registration of 9 HANDSETS into the BASE UNIT. The user at his
option can add another BASE UNIT (B2) and register the same HANDSETS. The HANDSETS
can make an INTERCOM CALL, CALL TRANSFER to one another provided they are linked to
the same BASE UNIT at a time.

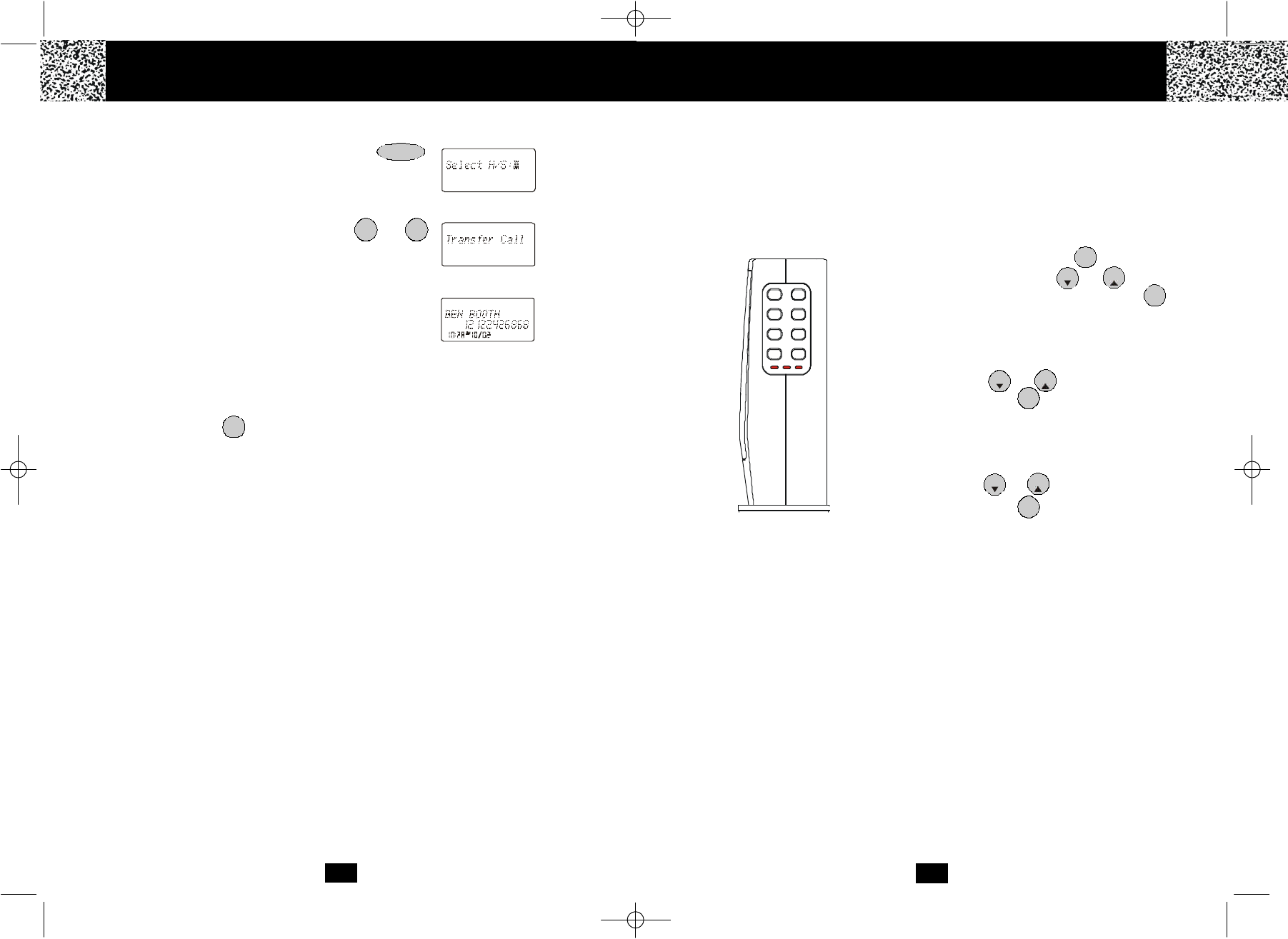

Intercom Call
1. With the HANDSET in STANDBY mode, press the
button . The LCD Screen of the initiating
HANDSET will display “Select H/S:.”
2. Enter the ID # of the receiving HANDSET by
pressing the TELEPHONE KEYPAD to
buttons (self exclusive).
3. The receiving HANDSET will receive a page tone
and the LCD Screen will display “Handset # X,
Paging you.”
4. The receiving HANDSET will connect by pressing
the button. Both LCD Screen will display
“Intercom With:, Handset # X.”
5. To end the INTERCOM CALL, press the
again. The LCD Screen of both HANDSET will
return to Standby mode.
Receiving a Call while in Intercom Call
1. When a call arrives, both HANDSET of the already
connected Intercom call will emit two short double
“beep” sound. The Caller ID information, if available,
will display on the LCD Screen after the alert beep.
2. Press the button to terminate the
Intercom call.
3. Press the button to access the call.
1 9
DEL/INT
DEL/INT
DEL/INT
Initiating HANDSET
Initiating HANDSET
Receiving HANDSET
Both
HANDSET
DEL/INT
TALK 3
2
Multi-HANDSET, Multi-BASE UNIT System Operation
K. Registering the HANDSET
1. Press the /MENU button to enter the menu.
2. Press the button to go to the REGISTER programming option.
3. Press the button. The LCD Screen will
prompt “Select base.” The default setting is “BASE 1
(B1)”.
4. To confirm, press the button again. The
LCD Screen will display “Put down H/S”. Put the
HANDSET on the BASE UNIT charge cradle within
6 seconds. A confirmation “beep” tone will be heard.
5. The BASE UNIT will automatically assign the ID
number of the newly registered HANDSET. The
HANDSET ID # will be displayed on the LCD Screen.
6. To register more HANDSETS, follow steps 1 to 4.
7. Continue with programming or press the /MENU
button to return to STANDBY mode.
NOTE:
To register the HANDSET/S to another BASE UNIT. Select the BASE 2 option by pressing
the SCROLL UP or DOWN button. The second BASE UNIT (B2) must be
connected to a separate telephone line.
L. Setting the ALARM CLOCK
1. Press the /MENU button to enter the menu.
2. Press the button to go to the ALARM CLOCK programming option.
3. Press the button. Set the time by pressing the TELEPHONE KEYPAD
to buttons. Press the button to enter AM, or button to enter PM. The
default ALARM CLOCK setting is “Off.”
4. When the desired setting is displayed, press and hold the /RE/PA button to save
the setting. A long “beep” will sound to confirm the setting has been saved.
5. Press the /MENU button to return to STANDBY mode.
NOTE:
To stop the alarm, press any TELEPHONE KEYPAD button. The ALARM setting is one short
setting and once activated it has to be re-set for the next alarm.
*
EDIT/FLASH
VOL
EDIT/FLASH
VOL
VOL
#
EDIT/FLASH 1
0 1 2
VOL
SAVE
27
Caller ID System Operation
DSST~2801~B.qxd 1/25/2003 7:03 PM Page 18
IMPORTANT: To ensure the proper operation of your Answering System:
1. Plug the AC ADAPTOR into the POWER - IN CONNECTION Jack.
2. Press and hold down the RESET button for 2 seconds at the back of the BASE
UNIT before initial use.

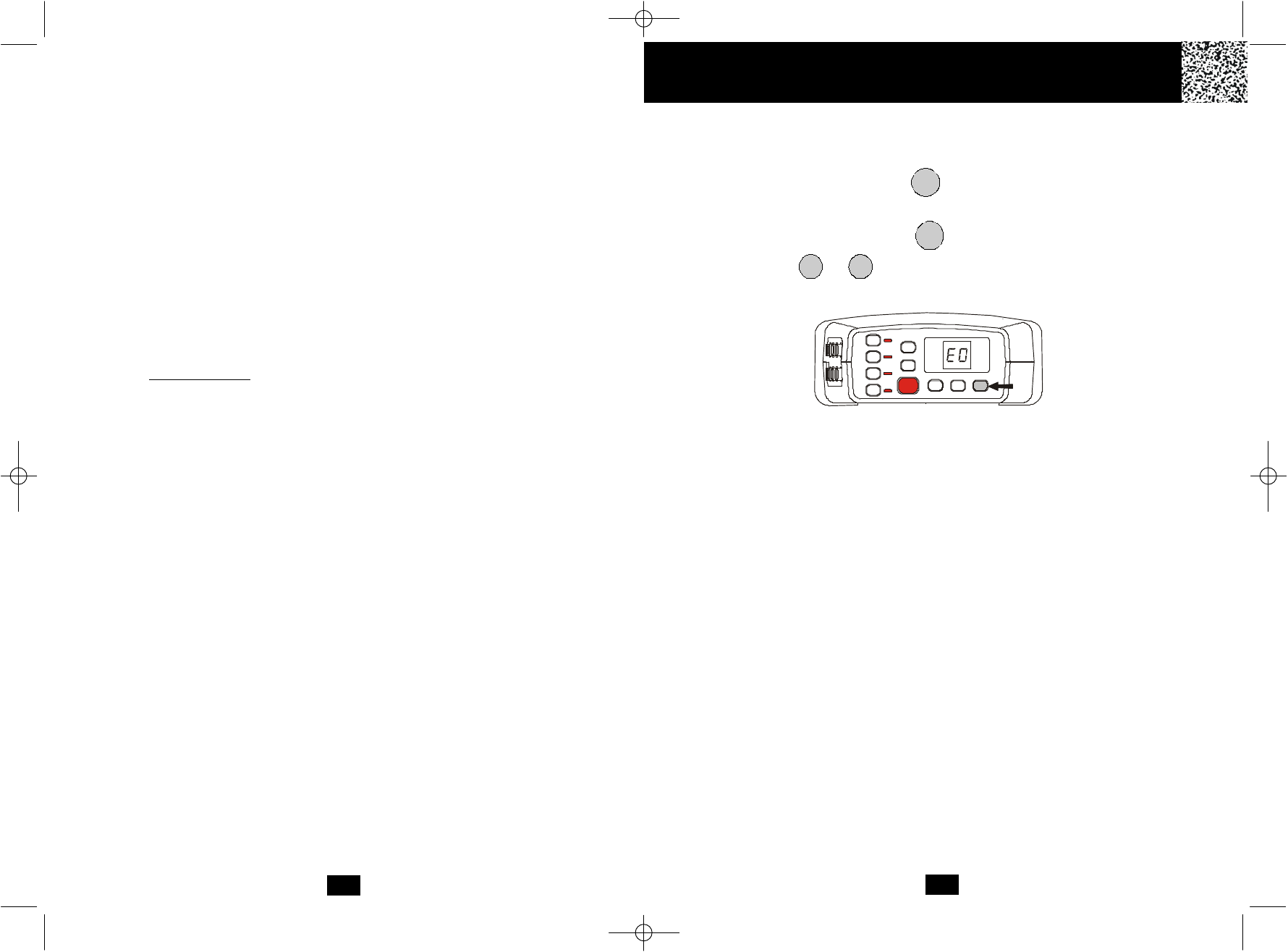

Setting the Day/Time Stamp
1. Day Setting
Press and hold down the button for 2
seconds then press the or button
to select the day time setting. Press the
button again to accept the setting, and then it
will continuously jump to the hour setting.
2. Hour Setting
Press the or to select the hour,
then press the button to accept the
setting. The entry will continuously jump to the
minute time setting.
3. Minute Setting
Press the or to select the minute,
then press the button to accept the
setting.
NOTES:
1. The HANDSET and BASE UNIT clocks are independent from each other. Set the
HANDSET clock by following the time setting steps on page 23.
2. In case of power failure, reset the time setting on the BASE UNIT clock.
Recording Your Outgoing Messages
Your Answering System provides one PRIMARY MAILBOX and four individual MAILBOXES
(1, 2, 3, 4) which can receive their own Incoming Messages (ICM). Before using your Answering
System, it is suggested that you record an Outgoing Message (OGM). This is the announcement
callers will hear when the system answers a call.
A prerecorded system announcement “Please record your message after the beep” is available
if you choose not to record your own OGM.
30
TIME
ON/OFF
ANS
OGM
TIME
SKIP RPT
CODE
MEMO
ANS
ON/OFFIN USE SPK
ERASE
SKIP
RPT
TIME
TIME
TIME
SKIP
RPT
SKIP
RPT
Answering System Operation
Transfer Call
1. During a call conversation, press the
button. The LCD Screen of the initiating HANDSET
will display “Select H/S:.”
2. Enter the ID # of the receiving HANDSET by
pressing the TELEPHONE KEYPAD to
buttons (self exclusive).
3. The initiating HANDSET will return to STANDBY
mode.
4. The receiving HANDSET will receive a special
alerting tone and the LCD Screen will display
“Transfer call.” If available, the caller’s telephone
number will be displayed on the LCD Screen after the
first ring.
5. The receiving HANDSET will answer the call by
pressing the button.
6. If the receiving HANDSET does not answer the
call within 30 seconds, the initiating HANDSET will
receive a ring back melody.
1 9
DEL/INT
Initiating HANDSET
Receiving HANDSET
Receiving
HANDSET
29
TALK
Multi-HANDSET, Multi-BASE UNIT System Operation
DSST~2801~B.qxd 1/25/2003 7:03 PM Page 20
NOTE: To check your OGM in a mailbox, press a mailbox button and then press the
button. If you do not have an OGM in a mailbox, it will announce “MAILBOX #, you have
no announcement.” Once a mailbox is activated, its corresponding MAILBOX LED
indicator blinks slowly to show that the mailbox is active. If you do not press a button to
activate another function within 10 seconds, the Answering System will return to the
PRIMARY MAILBOX. You may return to the PRIMARY MAILBOX at anytime by
pressing the button.
Turning the Answering System ON/OFF
1. Press the button to turn ON the Answering System. You will hear the following
message, “Answering machine is ON.”
2. Press the button again to turn OFF the Answering System. You will now hear the
following, “Answering machine is OFF.”
NOTE: Once turned OFF, the answer function will answer only after the tenth ring, allowing
you to turn the Answering System ON from a remote location.
Setting to Answer Calls
The ANSWER ON/OFF LED indicator must be ON for the Answering System to answer
calls. Depending on the setting of the ANNC/ICM switch, the Answering System will either
hang up after your announcement (ANNC) or begin to record your caller’s messages (ICM).
After the caller leaves an ICM, the time and day will be stamped at the end of each
recorded ICM. The ICM is stored in the MEMORY and the LED Message Display shows the
total number of ICMs currently stored.
NOTE: ICMs are limited to a maximum of 2 minutes. If the ICM is more than 2 minutes, the
system “beeps” and hangs up; or if the Answering System’s MEMORY runs out, the
Answering System announces, “Memory full” and hangs up.
Setting to Announce Only
During ANNC (Announce) mode, your system answers incoming calls with your recorded
ANNC but will not record any ICMs.
1. Set the ANNC/ICM select switch to ANNC. The LED Message Display shows “Ao.”
2. Press and hold down the button to record your ANNC.
3. Begin speaking after you hear, “Please record your announcement after the beep.” Do
not release the button until you have completed your announcement OGM.
4. One second after completing your ANNC, release the button and you will hear,
“End of recording.” Your recorded ANNC will be played back for your approval.
NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds in length. If you
have not recorded an ANNC, the Answering System will answer “Memory Full” and
hangs up.
Answering System Operation
32
OGM
STOP
ANS
ON/OFF
ANS
ON/OFF
OGM
OGM
OGM
A. Recording your OGM in the PRIMARY MAILBOX
1. Press and hold down the button to record your message.
2. Begin speaking immediately after you hear, “Please record your announcement after
the beep.” Continue to depress the button. One second after completing your
OGM, release the button and the Answering System will announce, “End
of Recording.” Your recorded message will be played back for your approval.
NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds
in length.
If you wish to change your OGM, repeat steps 1 through 2.
NOTE: To obtain a better sound quality for locally recorded (OGMs and Memos)
messages, speak directly into the MICROPHONE from a distance of 9 to
12 inches.
It is recommended that you record an OGM on your PRIMARY MAILBOX instructing
a caller to leave an ICM in one of the four mailboxes. If the caller is using a Touchtone
telephone, this will enable the caller to record an ICM directly into one of the four
mailboxes by dialing “11” for MAILBOX 1, “22” for MAILBOX 2, “33” for MAILBOX 3,
“44” for MAILBOX 4.
Example of a Primary OGM: “Hello, please leave a message after the tone, or if you are
using a Touchtone telephone, please Dial 11 for Beth, Dial 22 for Jenny, Dial 33 for
Jonathan, Dial 44 for Esson.”
NOTE: To check your OGM, press the button. If you did not record an OGM, your
Answering System will announce, “You have no announcement.”
B. Recording your OGM for Individual MAILBOX 1, 2, 3, or 4
1. Press a mailbox button, the corresponding MAILBOX LED indicator will blink.
2. Press and hold down the button to record your message.
3. Begin speaking immediately after you hear, “Please record your announcement after
the beep.” Continue to depress the button. One second after completing your
OGM, release the button. The Answering System will announce, “End of
recording.” Your recorded message will be played back for your approval.
NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds
in length.
If you wish to change your OGM, repeat steps 1 through 3.
31
OGM
OGM
OGM
OGM
OGM
OGM
OGM
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 22
Playing of Messages/Memos
A. To play messages/memos in the PRIMARY MAILBOX.
1. Press the button, the system will play all NEW messages/memos.
2. After playing all NEW messages/memos, press the button again, the system
will play all of its messages.
B. To play messages/memos in an individual MAILBOX (1, 2, 3, 4).
1. Press a mailbox button, the corresponding MAILBOX LED indicator starts to blink.
2. Press the button. The system will play all NEW messages/memos.
3. After playing all NEW messages/memos, press the button again, the system
will play all of its messages/memos.
NOTE: When the MAILBOX LED indicators are lit, messages are present.
C. To interrupt a message.
1. Press the button to end the playing of a message. The Answering System will
announce, “End of messages.”
D. To repeat a message/memo.
1. Press the button once while playing a message, the Answering System
repeats the current message in its entirety. Press the button twice to repeat
playing the previous message.
E. To skip a message/memo.
1. Press the button once. The Answering System stops playing, moves to the
next message/memo and resumes playback. The system advances one message/
memo each time you press the button.
NOTE: While playing a message, press the button to pause, “PA” will be displayed.
Press the button again to continue playing the message where you stopped.
34
PLAY
PLAY
PLAY
PLAY
STOP
PLAY
PLAY
SKIP
RPT
RPT
SKIP
Message Alert
When the message alert switch is “ON,” the unit will generate a “beep” sound every 12 seconds
after a new message has been recorded. If you do not want to hear the “beep,” set the switch to
OFF.”
Setting Ring Select
To choose the number of times the phone rings before the Answering System responds, set the
Ring Select switch to 3R, 5R or TS (TOLL SAVER).
Set to 3R -System answers call after the third ring.
Set to 5R -System answers call after the fifth ring.
Set to TS -Use “TOLL SAVER” (TS) when you will be checking your system for messages
from a remote location using long distance services or from a pay phone. The
Answering System responds after the third ring only if you have a new message
waiting. If there are no new messages, the phone will answer after the fifth ring.
You can then hang up after the fourth ring to avoid paying for the call.
Recording a Memo
A. To record a Memo in the PRIMARY MAILBOX
1. Press and hold down the button to record your Memo.
2. Begin speaking immediately after you hear, “Please record your message after the
beep.” Continue to depress the button. One second after completing your
Memo, release the button and you will hear, “End of recording.” Day and time
are automatically stamped at the end of the message.
NOTE: The Answering System advances the message count automatically after the actual
message is recorded.
B. To record a Memo in an individual MAILBOX (1, 2, 3, 4)
1. Press a mailbox button, the corresponding MAILBOX LED indicator will blink.
2. Press and hold down the button to record your Memo.
3. Begin speaking immediately after you hear, “Please record your message after the
beep.” Continue to depress the button. One second after completing your
Memo, release the button and you will hear, “End of Recording.” Day and time
are automatically stamped at the end of the message.
NOTE: The Answering System advances the message count automatically after the
actual message is recorded.
Answering System Operation
33
MEMO
MEMO
MEMO
MEMO
MEMO
MEMO
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 24
Remote Operation through a Tone Telephone
You can use many Answering System features when you are away from home. To protect your
privacy, most of the features can be used only after you enter the three-digit Remote Access
Code.
Remote Access Codes
The Remote Access Codes are preset at the factory as shown below. You can use the preset
codes or choose your own.
PRIMARY MAILBOX: 999
MAILBOX 1: 555
MAILBOX 2: 666
MAILBOX 3: 777
MAILBOX 4: 888
NOTE: If the RESET button is pressed, the Remote Access Codes return to the factory preset
codes.
Changing of the Remote Access Codes
All of the digits of the Remote Access Codes are a combination of numbers 5, 6, 7, 8, 9, 0.
IMPORTANT: Digits 1, 2, 3, and 4 cannot be used when changing the Remote Access Codes
for any mailbox (including the PRIMARY MAILBOX).
1. Press a mailbox button for MAILBOX 1, 2, 3, or 4. For the PRIMARY MAILBOX, follow
steps 2 to 6.
2. Press and hold down the button until you hear the short beep.
3. Press the or to select the first digit, then press the button to accept the
setting.
4. Press the or to select the second digit, then press the button to accept
the setting.
5. Press the or to select the third digit, then press the button to accept
the setting.
6. Press the button to return back to standby mode.
36
CODE
CODE
CODE
CODE
STOP
SKIPRPT
SKIP
RPT
SKIPRPT
Answering System Operation
Saving Messages
The Answering System saves your messages automatically. After playing all of your messages,
the Answering System announces, “End of message” and the total number of messages stored
in the memory will be indicated on the LED Message Display.
NOTE: The Answering System has a total Memory capacity of 12 minutes or up to 63 messages
(OGM/ICM/MEMO). If the recorded messages contain high background noise, the total
recording capacity of the unit will be less than 12 minutes.
Erasing Messages
A. To erase all of the messages in the PRIMARY MAILBOX
1. Press and hold down the button until you hear the announcement, “Messages
erased, you have no new message.”
B. To erase all of the messages in an individual MAILBOX (1, 2, 3, 4)
1. If you want to erase all of the messages in a mailbox, activate the desired mailbox.
2. Press and hold down the button until you hear the announcement, “Messages
Erased, Mailbox # you have no new message.”
C. To erase selected messages/memos
1. While the unwanted message is playing, press the button. The Answering
System announces erasure of the selected message/memo. After the erasure is
complete, the numeric order of the remaining messages will be rearranged.
When the Memory is Full
When there is no memory available for additional messages, the Answering System will
announce, “Memory full,” but will not save messages.
Two-Way Recording
Two-way recording allows you to record your conversation with another caller. Two-way
recording can be enabled during conversation while you are using the HANDSET.
1. During conversation, press a mailbox button (MAILBOX 1, 2, 3, or 4) where you want to
record your conversation. The corresponding MAILBOX LED indicator will blink.
2. Press and hold down the button. The LED Message Display will show “2r” to
indicate the recording mode.
3. Release the button to end your conversation recording.
4. Also you can record on the PRIMARY MAILBOX, just follow steps 2 and 3.
NOTE: Recording two-way conversations may be subject to local, state, or federal laws and
regulations. Consent of both parties is required when a conversation will be recorded.
Answering System Operation
35
ERASE
ERASE
ERASE
MEMO
MEMO
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 26
38
Speakerphone Operation
This telephone allows you to answer calls using the BASE UNIT through the speakerphone
function.
1. When the phone rings, press the button. The BASE UNIT LED MESSAGE
DISPLAY will show “SP.”
2. Start your conversation.
3. To end your conversation, press the button again
NOTE: Press the or button to adjust the BASE UNIT speaker volume to your
comfortable listening level.
Security System
Your cordless telephone uses a digital coding security system to prevent unauthorized use of
your telephone line by another nearby cordless telephone. The system has its own identifying
signal created by microcomputers in both the BASE UNIT and the HANDSET.
Security Code
This telephone has an internal security code with 4,000,000 possible combinations.
Resetting Security Code and Channel Information
Communication between the HANDSET and the BASE UNIT may not be possible in any of the
following situations:
1. After a power failure.
2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.
3. After replacing the HANDSET BATTERY PACK.
77 Channel Auto-Hop
Your cordless telephone automatically selects the best channel from the 77 frequencies
available to transmit signals between the BASE UNIT and the HANDSET. When an interference
is received from other cordless telephones, your telephone automatically hops to the next clear
channel.
SPEAKER
SPEAKER
VOL+ VOL-
M
1
VOL+
VOL-
P
AGE
STOP
SP
KPLAY
M2
M3
M4
Speakerphone Operation
Using the Remote Instruction Code
1. Dial your telephone number.
2. Listen to or bypass the OGM in the PRIMARY MAILBOX.
3. Enter your Remote Access Code. If the announcement does not stop, enter the Remote
Access Code again.
4. The Answering System will request that you enter the Instruction Code or press the “*”
button for help.
A. If you do not know the Instruction Code, press the “*” button immediately. The Answering
System will announce the Instruction Codes. Otherwise, if a command is not received by
the Answering System within 10 seconds, it will automatically hang up.
The following is the Remote Instruction Code Help Menu:
Instruction Codes
To playback message press “2.”
To repeat message press “1.”
To skip message press “3.”
To stop press “8.”
To playback announcement press “5.”
To turn answering machine ON or OFF press “6.”
To erase message press “9.”
To Record memo or announcement press “0.”
(To record a message press “2”, to record announcement press “5”)
(Press “1” for MAILBOX 1, press“2” for MAILBOX 2, press “3” for MAILBOX 3, and
press “4” for MAILBOX 4. Otherwise, if you did not press the desired MAILBOX #
location within 2~3 seconds, the Answering System will automatically hang up.)
To change mailbox press “#.”
B. Press the corresponding number of the Instruction Code you wish to activate. You don’t
have to listen to the entire Instruction Code Help Menu before giving a command. You
may enter the desired Instruction Code Number at any given time.
37
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 28
40

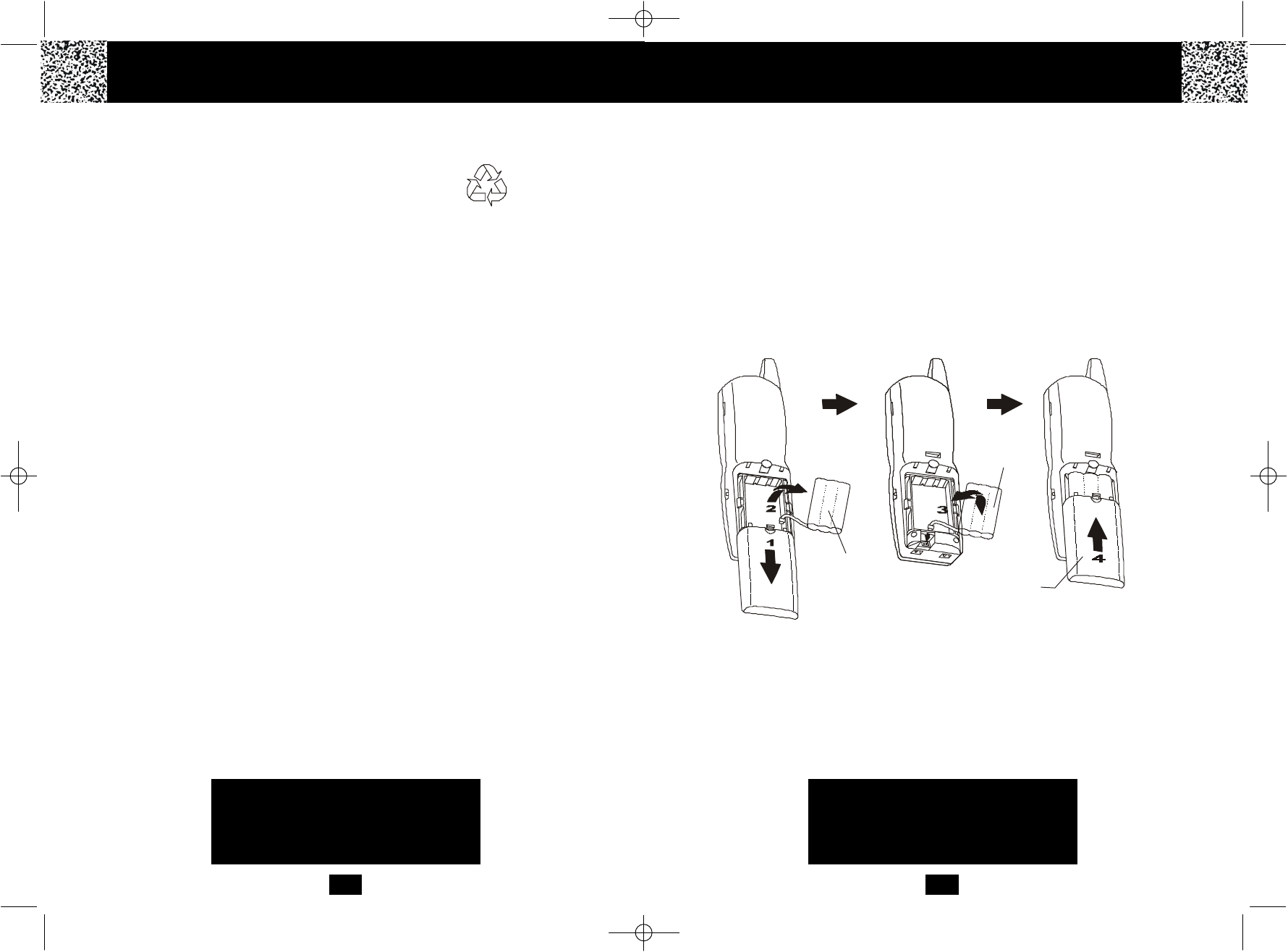

Changing the BATTERY PACK
The BATTERY PACK provides power for the HANDSET of your cordless telephone.
To Replace the BATTERY PACK:
1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.
2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.
3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.
4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed
position.
5. Before use, charge the new BATTERY PACK for 12 hours.
ATTENTION:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The
BATTERY PACK is recyclable. At the end of its useful life, under various state and local laws,
it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check
with your local solid waste officials for details in your area for recycling options or proper
disposal.
OLD
BATTERY
PACK
NEW
BATTERY
PACK
BATTERY
COMPARTMENT
COVER
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the
HANDSET for 12 hours before initial use.
Changing the BATTERY PACK
39
Battery Type
Use the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6V, 800mAh
U.S. Electronics Inc.
Ni-Cd BATTERY PACK: Model B658 Ni-Cd
This BATTERY PACK is available through:
U.S. Electronics Service Center
105 Madison Avenue
New York, NY 10016
1-800-828-5208
NOTES:
1. During a power interruption, the BASE UNIT does not operate, and a phone
conversation cannot be made on the HANDSET.
Recharging the BATTERY PACK
The nickel cadmium (Ni-Cd) BATTERY PACK in the HANDSET can be recharged many times
using the built-in charger in the BASE UNIT.
When the BATTERY CHARGE INDICATOR appears with two bars blinking on the LCD Screen,
a “beep” sound will be heard every 10 seconds. This indicates that the BATTERY PACK needs
to be recharged.
Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.
When the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will
be necessary.
The BATTERY PACK used in your telephone may develop a condition known as “MEMORY.”
Once subjected to a regular short discharging routine, the BATTERY PACK assumes the
discharging pattern it was subjected to. This causes rapid discharging thereby shortening the
BATTERY PACK charge span. If you believe your BATTERY PACK has developed a
“MEMORY” condition, do not charge the HANDSET until the BATTERY CHARGE INDICATOR
appears with two bars blinking on the LCD Screen. When the BATTERY CHARGE INDICATOR
appears with two bars blinking on the LCD Screen, charge the HANDSET fully for 12 hours.
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the
HANDSET for 12 hours before initial use.
Recharging the BATTERY PACK
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 30
Problem Solving
Answering System does not work, check the following:
1. BASE UNIT is plugged into the power source.
2. Reset the system by pressing and holding the RESET button for 2 seconds at the top side
of the BASE UNIT.
Answering System does not answer calls, check the following:
1. ANSWER ON/OFF LED indicator is lit.
Answers calls only after 10 rings, check the following:
1. ANSWER ON/OFF LED indicator is lit.
2. Message Memory is not full.
Does not respond to remote commands, ensure the following:
1. Correct Remote Access Code is entered.
2. A TONE telephone is being used.
Messages are incomplete, ensure the following:
1. Message Memory is not full.
2. Caller may be hesitating and pausing for more than 7 seconds.
Answers calls but does not record messages, check the following:
1. ANNC/ICM switch is set to ICM.
2. Memory is not full.
3. Extension telephone was not picked up.
NOTE:
If none of the telephones in the house are working, disconnect one set at a time to verify that
one of the telephones are causing the problem. If you still have a problem after doing this, and
your telephone still does not work, please contact your local phone company.
42
41
Problem Solving Section
For your assistance, we have listed below a few common problems.
Phone does not work, check the following:
1. BASE UNIT is plugged into a power source.
2. HANDSET is charged.
3. TONE/PULSE Select Switch is in the right position.
4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.
Range of phone limited, check the following:
1. BASE UNIT is centrally located in your residence.
2. BASE UNIT is not located near appliances.
No dial tone, check the following:
1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and
TELEPHONE LINE CONNECTION JACK.
2. BASE UNIT is plugged into a power source.
Received signal flutters or fades, check the following:
1. BATTERY PACK in the HANDSET is fully charged.
2. HANDSET is not too far from the BASE UNIT.
Interference on reception, check the following:
1. Noise may be picked up from electrical products in the home or electrical storms. Generally,
this noise is a minor annoyance and should not be interpreted as a defect in your system.
(See Technical Information on page 43).
Excess static, check the following:
1. Check to see that the ANTENNA is not touching another metal object.
If after pressing the button, you receive three “beeps” and no dial tone, check the
following:
1. BASE UNIT is plugged into a power source.
TALK
Problem Solving
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 32
44
IMPORTANT
Placing your BASE UNIT near appliances
such as televisions, refrigerators, radios, or
microwave ovens may cause interference.
Federal Communications Commission Requirements
This equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of this
equipment contains, among other information, the ACTA Product Number and the Ringer
Equivalence Number (REN) for this equipment. You must, upon request, provide this information
to your telephone company.
The REN is also useful in determining the quantity of devices that you may connect to
your telephone line and still allow these devices to ring when your telephone number is called.
In most areas, but not all, the sum of the RENs for all devices connected to one line should not
exceed five (5.0). To be certain of the number of devices that you may connect to your line, you
should contact your local telephone company.
If your equipment should cause harm to the telephone network, the telephone company may
temporarily disconnect your service. If possible, they will notify you in advance that temporary
discontinuance of service may be required. However, when advanced written notice is not
possible, the telephone company may temporarily discontinue service without notice if such
action is necessary under the circumstances. The telephone company may make changes in its
communication facilities, equipment, operations, or procedures where such action is reasonably
required in the operation of its business and is not inconsistent with the rules and regulations of
the Federal Communications Commission. Do not attempt to repair or modify this
equipment.
WARNING: Changes or modifications not expressly approved by the party responsible for its
compliance could void the user’s authority to operate the equipment.
Some cordless telephones operate at frequencies that may cause interference to nearby TVs
and VCRs. To minimize or prevent such interference, the BASE UNIT of the cordless telephone
should not be placed on or near a TV or VCR. If interference is experienced, moving the
cordless telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
Technical Information FCC Requirements
43
Technical Information
This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties in
using radio frequencies with a cordless telephone. While these are normal, the following could
affect the operation of your system.
Noise
Electrical pulse noise is present in most homes at one time or another. This noise is most intense
during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent
bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible
to these noise pulses, you may occasionally hear them in your HANDSET. Generally they are a
minor annoyance and should not be interpreted as a defect in your system.
Range
Because radio frequency is used, the location of the BASE UNITcan affect the operating range.
Try several locations in your home or office and pick the one that gives you the clearest signal
to the HANDSET.
Interference
Electronic circuits activate a relay to connect the cordless telephone to your telephone line.
These electronic circuits operate in the radio frequency spectrum. While several protection
circuits are used to prevent unwanted signals, there may be periods when these unwanted
signals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are not
using the HANDSET. If the interference occurs frequently, it can be minimized or eliminated by
relocating the BASE UNIT. You can check for interference before selecting the final BASE UNIT
location by plugging in the telephone.
NOTICE:
This cordless telephone uses radio communication between the HANDSET and the BASE UNIT
and may not ensure privacy of communication. Other devices, including other cordless
telephones, may interfere with the operation of this cordless telephone or cause noise during
operation. Units not containing coded access may be accessed by other radio communication
systems. Cordless telephones must not cause interference to any licensed radio service.
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 34
Warranty Information
XACT Products
One-Year Limited Warranty
This limited warranty sets forth all XACT Products responsibilities regarding your product.
There are no other expressed or implied warranties from XACT Products.
Warranty Service Provided
If you purchased the telephone new from a retail vendor, XACT Products warrants the
telephone against defects in material and workmanship for a period of one (1) year from the
original date of purchase. This warranty is in lieu of all other expressed warranties. This
warranty begins when you purchase the telephone and continues for one (1) year unless you
sell or rent the telephone, in which case the warranty stops.
XACT Products disclaims any implied warranty, including the warranty of merchantability and
the warranty of fitness for a particular purpose, as of the date of 90 days from your original
purchase of the telephone. XACT Products assumes no responsibility for any special,
incidental, or consequential damages.
This warranty gives you specific legal rights and you may have other rights which vary
from state to state. Some states do not allow the exclusion or limitations of special, incidental or
consequential damages, or limitations on how long a warranty lasts, so the above exclusion and
limitation may not apply to you.
Warranty Service Not Provided
This warranty does not cover damage resulting from accident, misuse, abuse,
improper installation or operation, lack of reasonable care, unauthorized modification, the
affixing of any attachment not provided by XACT Products with the telephone and/or loss of
parts. This warranty is voided in the event any unauthorized person opens, alters or repairs the
telephone. All XACT equipment being returned for repair must be suitably packaged. Telephone
companies use different types of equipment and offer various types of services to
customers. XACT Products does not warrant that this telephone is compatible with the
type of equipment of any particular telephone company or the services provided by it.
46
FCC Requirements Warranty
Federal Communications Commission Requirements (continued)
This equipment should not be used on coin telephone lines. Connection to party line service is
subject to state tariffs. If trouble is experienced, disconnect this equipment from the telephone
line to determine if it is causing the malfunction. If the equipment is determined to be
malfunctioning, its use should be discontinued until the problem has been corrected.
NOTE: This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
1. Reorient or relocate the receiving ANTENNA.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
EXPOSURE TO RADIO FREQUENCY ENERGY
The radiated output power of the device is far below the FCC radio frequency exposure limits.
The internal wireless radio operates within guidelines found in radio frequency safety standards and
recommendations, which reflect the consensus of the scientific community. The level of energy
emitted is far less than the electromagnetic energy emitted by wireless
deivce such as mobile phones. However, the use ofthe device may be
restricted in some situations or environments, such as aboard airplanes. if
you are unsure of restriction, you are encourged to ask for authorziation before us it.
45
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 36
48
Notes Warranty
What to Do for Warranty Service
During the first thirty (30) days, a defective product is eligible for over-the-counter exchange at
the retailer from whom it was purchased. After thirty (30) days, the defective product should be
returned to the authorized service center. Please allow 2-3 weeks for the return of your
telephone product. The shipping address of the authorized service center is:
U.S. Electronics CONSUMER CENTER
C/O Southern Bonded Warehouse
7137 Southlake Parkway
Morrow, GA 30260
NOTE: A product received which was not made for XACT Products or which is not
defective as determined by our test procedures will not be repaired and will be returned C.O.D.,
freight.
To Obtain Warranty Service
•Provide proof of the date of purchase within the package.
•Prepay all shipping costs to the authorized service center.
•Include a return shipping address within the package.
Please retain your sales receipt, the carton, the packing materials, and the printed material. The
original carton is the best shipping container for the telephone should you have to return it.
For your reference:
Serial number
Date of Purchase
Name of Dealer
Visit Us on the Web:
www.uselectronics.info
Customer Service Telephone Number:
1-800-210-8950
OUTSIDE THE U.S.A. CALL 1-212-242-6978
47
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 38
This page serves as a template for attachment of screws to the wall when
mounting this telephone on the wall.
1. Cut out this page.
2. Use this template to determine the distance between screws when
mounting this phone on the wall.
The two cross hairs identify where to attach the screws.
50
Notes Wall Mount Template
49
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 40
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the HANDSET
for 12 hours before initial use.
IMPORTANT
Placing your BASE UNIT near appliances
such as televisions, refrigerators, radios, or
microwave ovens may cause interference.
IMPORTANT
The AC ADAPTOR must always be plugged
into an electrical outlet.
IMPORTANT
In order to utilize the Caller ID feature, you
must subscribe to Caller ID service from
your local telephone company.
IMPORTANT
If you live in an area which receives frequent
thunderstorms, we strongly recommend plugging
your AC ADAPTOR into a surge protector.
DSST~2801~B.qxd 1/25/2003 7:04 PM Page 42
