Lionel POLARGTX Polar Express G Gauge Train Set User Manual
Lionel L.L.C. Polar Express G Gauge Train Set
Lionel >
User Manual
71-1022-250
7/07
Lionel
Polar Express G Gauge
Owner's Manual
Lionel
Polar Express G Gauge
Owner's Manual

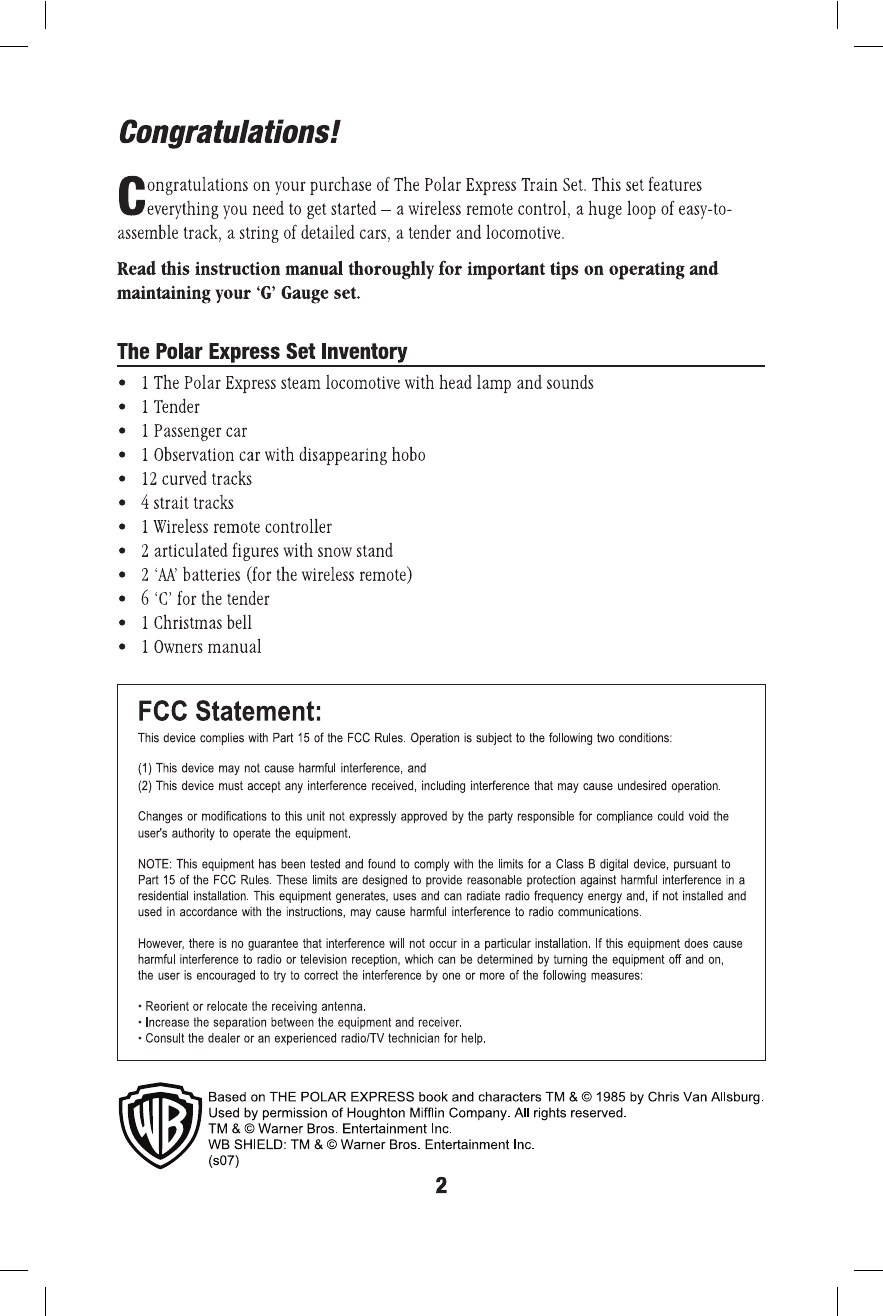

3
Table of contents
Track assembly and layout
Joining the track sections 4
Layouts 5
Battery installation and options
Installation and options

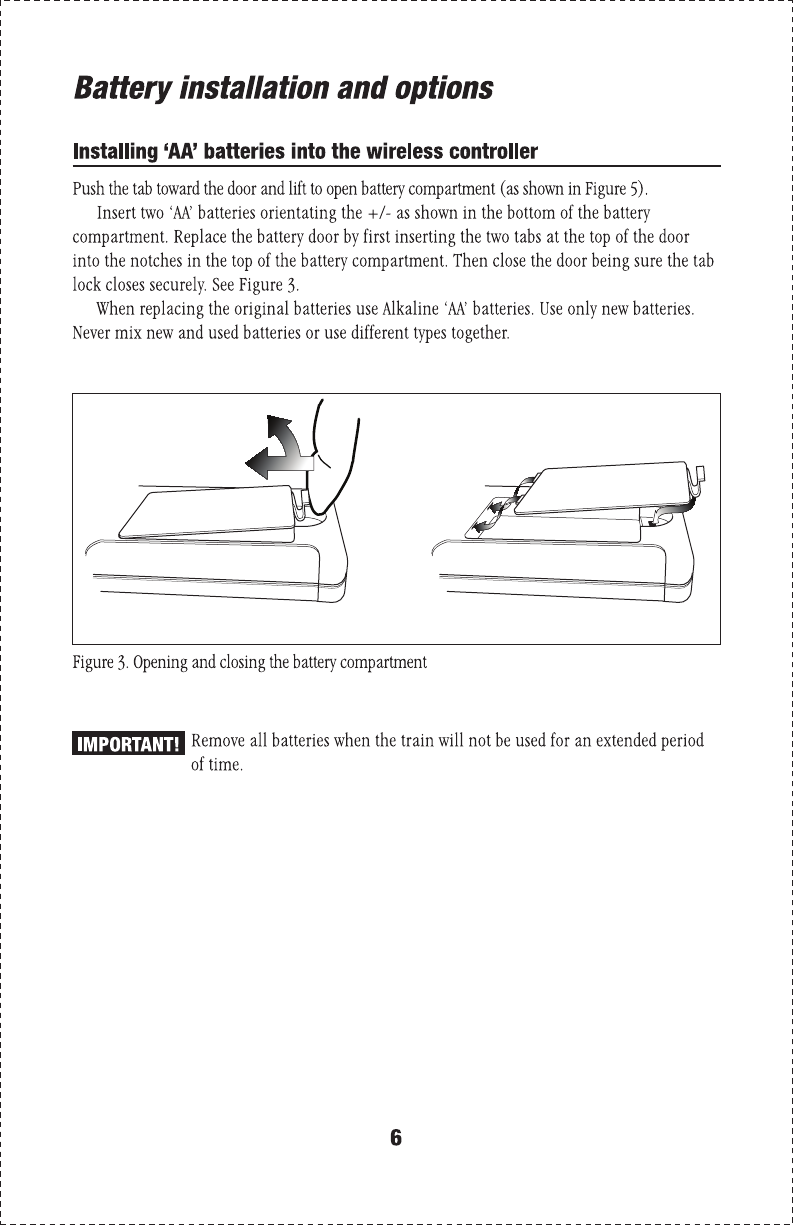

Installing 'AA' batteries into the wireless controller 6

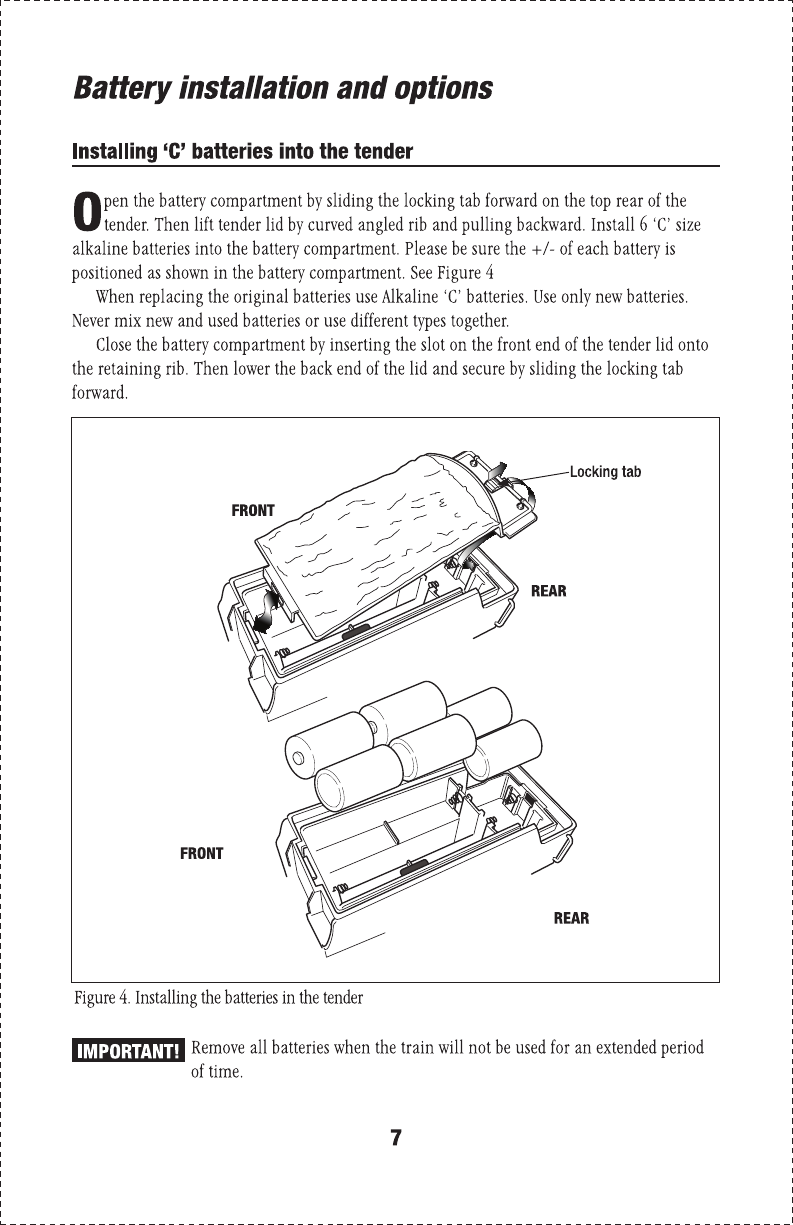

Installing 'C' batteries into the tender 7
Operating your Polar Express train
Connecting the engine and coal tender 8
Power switches on the wireless controller 9
Power activation button on the engine 10

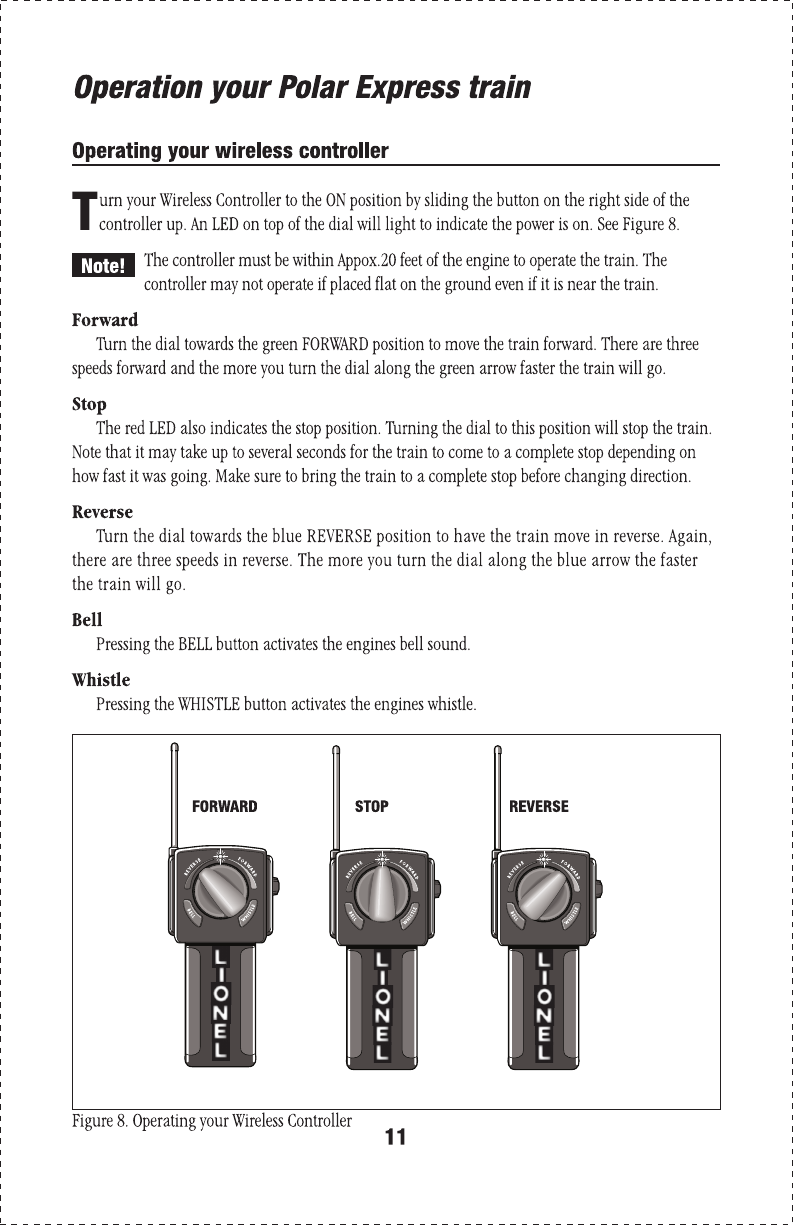

Operating your wireless controller 11
Maintenance and operations
Disappearing hobo feature on the Observation car 12
Using 9.6 volt rechargeable batteries (not included) 13
Cleaning the track 14
Troubleshooting 15
Limited Warranty/Lionel Service 16
The following Lionel marks may be used throughout this instruction manual and are protected under
law. All rights reserved.
Lionel®, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™, DynaChuff™,
StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1® Remote Controller,
PowerMaster®, Lionel ZW®, ZW®, PowerHouse®, TMCC®, Lionelville™, Lockon®, Wireless Tether™,
LionMaster®, FatBoy™, American Flyer®, TrainSounds™, PowerMax™
The name FasTrack® is used with permission from Pitsco, Inc.
4
Track assembly and layout
Joining the track sections
Join the track sections together by placing them on a flat surface and inserting the plastic
tabs of each track section into the corresponding openings of the next section. Press or
squeeze the ties together to connect. This may require the help of an adult. Recheck all track
connection points upon completing your layout to be sure they are secure.
To disassemble the track just lift one of the track sections slightly at an angle where they
join together and they will snap apart. See Figure 1.
The rails should be kept clean, dry, and free from oil, grease, and dirt. Clean the track
periodically with a clean soft cloth.

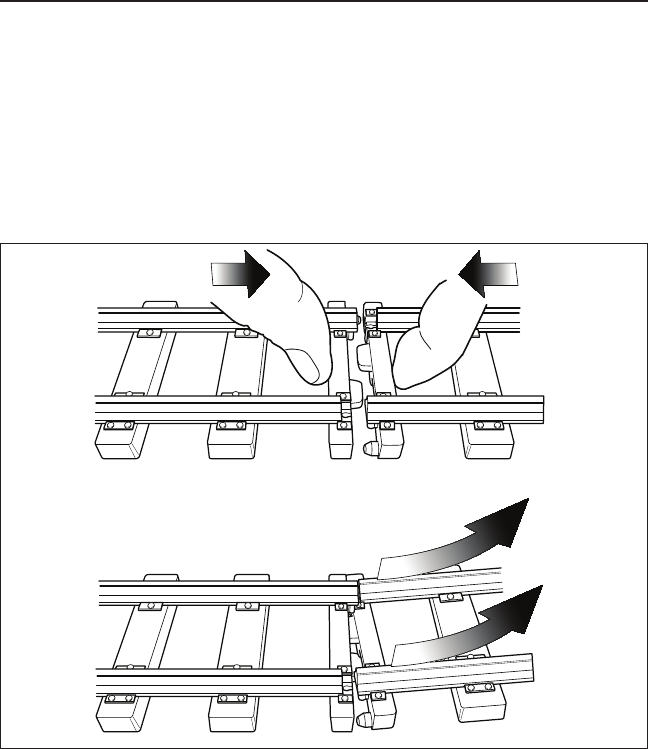

Figure 1. Assembling and disassembling the track
5
Track assembly and layout
Layouts
These are three possible layouts you can make with the track provided. See Figure 2.
Circle
• Connect all curved track
Extended Circle
• Make 4 ninety degree curve sections by joining 3 curved sections each
• Connect each ninety degree curve section by using 1 section of strait to join each 3 section
curve.
Oval
• Make 2 half circle using 6 curve tracks for each. Make 2 long strait tracks using 2 sections
each. Join the curves using the 2 long strait sections.
Figure 2. Possible track layouts
8
Operation your Polar Express train
Connecting the engine and coal tender
Place the engine on the track first. Be sure that all wheels are within the track rails. Next
insert the power plug into the receptacle in the center back of the engine platform. See
Figure 5.
The engine will not run without this power plug inserted into the engine.
Place the Coal Tender on the track behind the Engine and connect the couplers. Be sure all
the Coal Tenders wheels are all on the track rails.
Remove all batteries when the train will not be used for an extended period
of time.

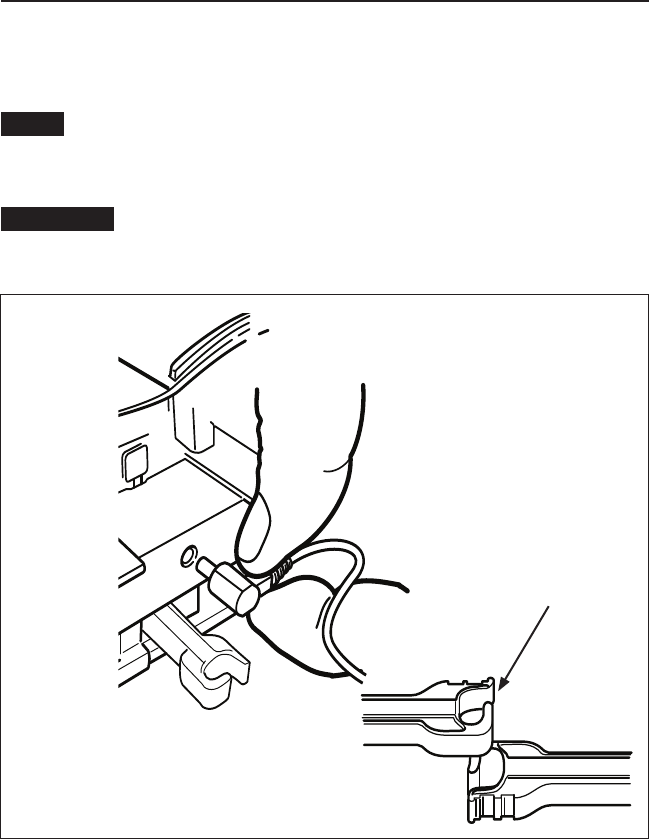

Figure 5. Connecting the enginer and the coal tender
Note!
IMPORTANT!
Connecting the
couplers
9
Operation your Polar Express train
Power switches on the wireless controller
Turn the power switch on the side of the wireless remote to the up or ON position. The red
light at the top of the speed dial will illuminate to tell you the controller is on.
Turn the power switch on the Wireless Controller to the down position or OFF when not in
use. The light at the top of the dial will go out to indicate the power is off. See Figure 6.
Leaving the Wireless Controller power ON when not in use will drain the controller’s
battery.
Figure 6. Using the wireless controller
Note!
F
O
R
W
A
R
D
R
E
V
E
R
S
E
W
H
I
S
T
L
E
B
E
L
L
F
O
R
W
A
R
D
R
E
V
E
R
S
E
W
H
I
S
T
L
E
B
E
L
L
Power on light
10
Operation your Polar Express train
Power activation button on the engine
Press the grey Power Activation button located on top of the boiler just in front of the cab
area of the engine. The light in the front of the engine and stationary sounds will come
on to indicate the train is operational. See Figure 7.
The engine power automatically turns off if not used after 10 minutes. When the
engine automatically time out into the off mode the light and stationary sounds
shut down off.
Just press the start button again to continue to play. Pressing the start button again will not shut the
train off. You can either let it time out for 10 minutes or if required, disconnect the power cord from
the back of the engine. Note the engine was designed to use the auto shut off to turn the engine
off. Very little power is used during the time out period if Wireless Controller is not activating any
operations. The stationary sounds and light will continue during this time out period until the engine
shuts off at the end of the ten minutes.
Note!

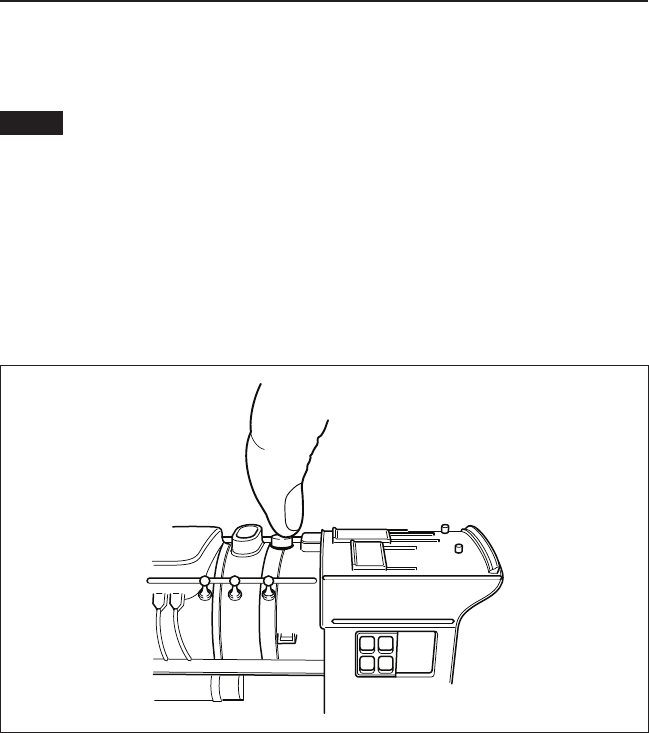

Figure 7. Power Activation Button
12
Maintenance and operations
Disappearing hobo feature on Observation car.
To make the Hobo disappear just press the snow directly behind the Hobo and continue
turning the platform until it snaps into palace.
To make the Hobe reappear just press the snow on the panel just in front of the footsteps
and continue to rotate platform until it snaps into place. See Figure 9.
This figure is not removable and is permanently attached to the rotating platform.
Note!

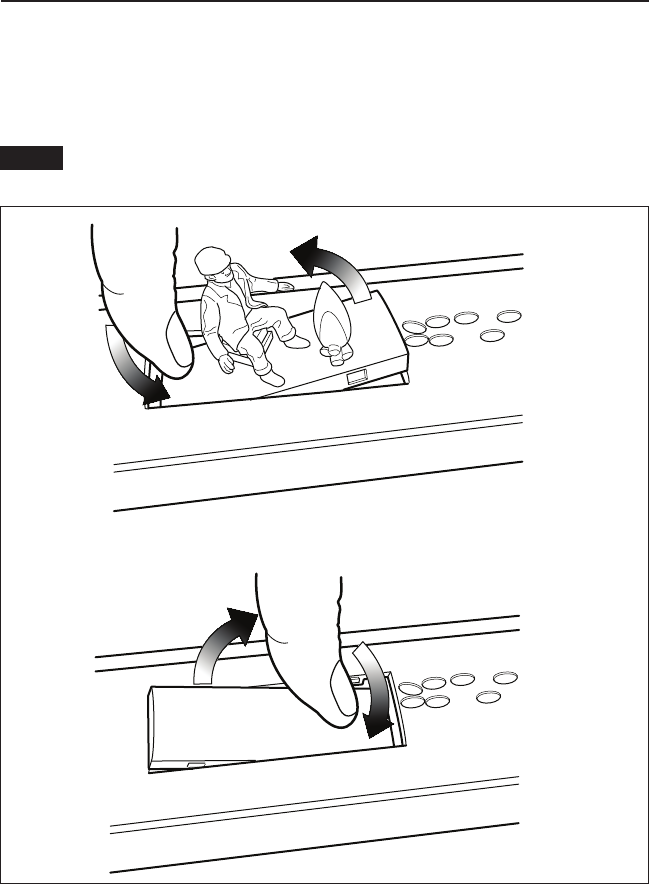

Figure 9. Operating the Hobo Feature on the Observation car
13
Maintenance and operations
Using 9.6 Volt rechargeable batteries (not included)
Open the battery compartment by sliding the locking tab forward on the top rear of the
tender.Then lift tender lid by curved angled rib and pulling backward. Refer to Figure 4
on page 7.
Place the 9.6 Volt rechargeable battery in the center slot of the large battery compartment
connecting battery power plug into it’s receptacle. See Figure 10.
Close the battery compartment by inserting the slot on the rear end of the tender lid onto
the retaining rib. Then lower the front end of the lid and secure by sliding the locking tab
backward.
The 9.6 Volt battery should be removed from the tender for charging as this produces heat
that could damage your tender.
It should be noted that the battery life of the rechargeable will be significantly less when
using 6 Alkaline ‘C’ batteries.
When using a 9.6V rechargeable battery DO NOT place any ‘C’ batteries
in the lower portion of the battery box. This could result in damage to the
engines electronics.
IMPORTANT!

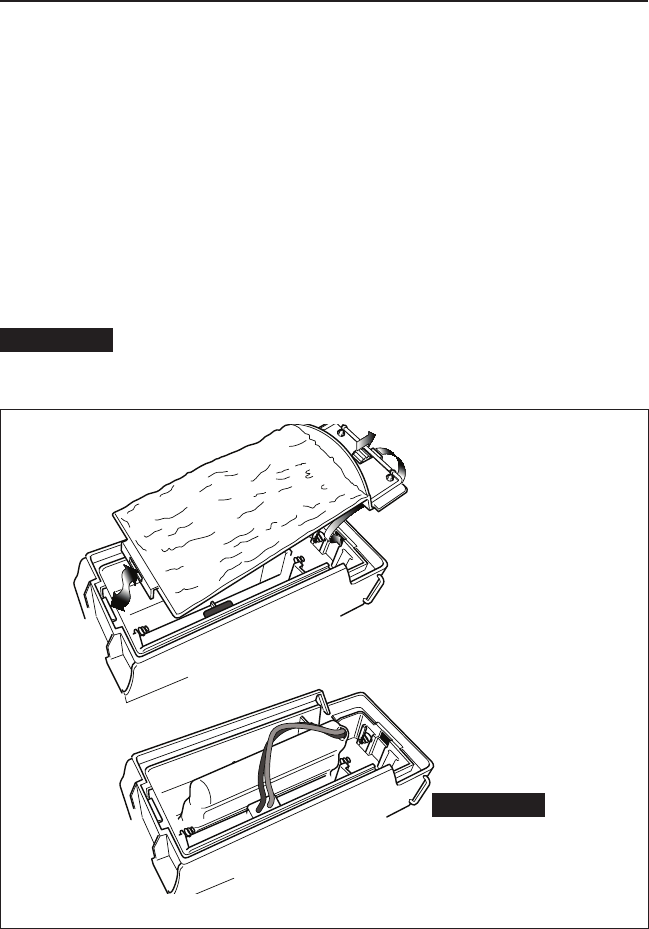

Figure 10. Using a 9.6 Volt Rechargeable Batteries
9.6v batteries must be placed
vertically in the slot provided
as shown. Do not lay the
horizontally as this may cause
damage to your tender.
IMPORTANT!
14
Maintenance and operations
Cleaning the track
It is very important to keep the track and wheels free from dirt and grease. Wipe them with a
soft cloth whenever they get dirty. This will help the engine run more efficiently.
15
Maintenance and operations
Troubleshooting
Train will not run and engine light is not on.
1. Check if engine automatically timed out and shut off by pressing the engines Power
Activation button (see page 10).
2. Check that the wire connecting the engine and coal tender is securely in its socket. After
checking this connection press the Power Activation button (see page 8).
3. After checking the above and if the light is still not on replace the 6 ‘C’ batteries in the
tender. Be sure the batteries are oriented as indicated in the battery compartments. After
replacing batteries press the Power Activation Button (see page 7).
Train will not run but engine light and sounds are on.
1. Check the to be sure the Wireless Controller power is in the On position. This will be
indicated by the red LED being illuminated.
2. Try moving the controller closer to the engine. Although designed for an optimal range of
10 feet the signal can be weakened with by metal object or other interference.
3. Be sure the controller is not lying flat on floor or on the same surface as the train. Try
picking the controller upright.
4. Replace the 2 AA batteries in the controller. Be sure the batteries are oriented as indicated
in the battery compartment.
Train runs but wheels slip on track.
1. Check top of track rails and rubberized drive wheels for dirt or grease. Clean with a soft dry
or slightly dampened cloth.
2. Check to see that all wheels of both engine, tender and cars are located properly on the
track.
Limited Warranty/Lionel Service
This Lionel product, including all mechanical and electrical components, moving parts, motors and
structural components, except for light bulbs, is warranted to the original consumer-purchaser, for one
year against original defects in materials or workmanship when purchased through an authorized Lionel
merchant.
This warranty does NOT cover normal wear and tear, light bulbs, defects appearing in the course of
commercial use, or damage resulting from abuse or misuse of the product by the purchaser. Transfer of
this product by the original consumer-purchaser to another person voids this warranty. Modification of this
product voids this warranty.
Any warranted product which is defective in original materials or workmanship and is delivered by the
original consumer-purchaser to Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof
of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or
labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the
original purchase price will be granted. Any products on which warranty service is sought must be sent freight
or postage prepaid, as transportation and shipping charges are not covered by the warranty.
In no event shall Lionel L.L.C. be liable for incidental or consequential damages.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
exclusion may not apply to you.
This limited warranty gives you specific legal rights, and you may have other rights which vary from state
to state.
Instructions for Obtaining Service
If service for this Lionel L.L.C. product is required, bring the item, along with your dated sales receipt and
completed warranty information to the nearest Authorized Lionel Service Center. Your nearest Lionel Service
Center can be found by calling 1-800-4-Lionel, or by accessing our Website at www.lionel.com.
If you prefer to send your product back to Lionel L.L.C. for repair in Michigan, you must first call
586-949-4100 or FAX 586-949-5429, or write to Customer Service, P.O. Box 748, New Baltimore, MI
48047-0748, stating what the item is, when it was purchased and what seems to be the problem. You will be
sent a return authorization letter and label to ensure your merchandise will be properly handled upon receipt.
Once you have received your return authorization and label, make sure that the item is packed to prevent
damage during shipping and handling. We suggest that you use the product’s original packaging. This
shipment must be prepaid and we recommend that it be insured.
Please make sure you have followed all of the above instructions carefully before returning any
merchandise for service. You may choose to have your product repaired by one of our Authorized Lionel
Service Centers after its warranty has expired. A reasonable service fee will be charged.
Warranty Information
Please complete the information below and keep it, along with your dated sales receipt. You must present
this and your dated sales receipt when requesting warranty service.
Name ������������������������������������������������������������������������
Address �����������������������������������������������������������������������
Place of Purchase ����������������������������������������������������������������
Date of Purchase �����������������������������������������������������������������
Product Number �����������������������������������������������������������������
Product Description ���������������������������������������������������������������
