Listen Technologies LK1-001 LK-1 ListenTALK Transceiver User Manual ListenTALK

Listen Technologies Corporation LK-1 ListenTALK Transceiver ListenTALK

ListenTALK User Manual

ListenTALK
www.listentech.com
USER MANUAL
Mobile Two-Way
Communication
System
2
Dear Valued Customer,
Thank you for choosing Listen! We are dedicated to providing you with
the highest quality products available, and take pride in delivering
outstanding performance to ensure you are completely satised.
We independently certify each of our products to the highest quality
standards and back them with a limited lifetime guarantee. We are
available to answer any questions you might have during installation or
in the operation of our products. At Listen, it’s all about you, should you
have any comments or suggestions we’re here to listen.
Here’s how to reach us:
+1.801.233.8992 +1.800.330.0891 North America
+1.801.233.8995 fax support@listentech.com www.listentech.com
Thank you and enjoy your listening experience!
Best regards,
Russell Gentner and the Listen Team
3
4 Introduction
5 Components
5 Denitions
6 Safety Cautions!
7 Transceiver Quick Reference
9 Docking Station Tray Quick Reference
11 Transceiver Specications
13 Docking Station Tray Quick Reference
14 System Setup
16 Transceiver – General Operation
17 System Talkback Modes
18 ListenTALK Security
18 Transceiver Programming
20 Docking Station Operation
21 Advanced Features
21 Software Suite
22 Accessories
22 Applications
23 System Troubleshooting
24 Compliance Notice and FCC Statement and Industry Canada Statements
25 Warranty
25 Contact Information
LISTENTALK TABLE OF CONTENTS
4
INTRODUCTION
ListenTALK is a portable wireless collaboration system designed for group communications in
a variety of applications including Training and Collaboration, Assistive Listening, Guided Tour
Groups, Language Interpretation and Translation, Event Production and Sports Intercom.
SIMPLE AND VERSATILE
ListenTALK systems are simple to purchase and congure and they are highly versatile.
Create a ListenTALK Group with the push of a button in the Docking Station, with the click of a
mouse in the ListenTALK Software Suite or on the go using built-in Near Field Communication
(NFC) technology. Use as many as ten simultaneous groups in the same area.
ListenTALK Transceivers are simple to operate and Leaders can easily designate one of three
Participant modes to meet the needs of any venue or application.
RELIABLE AND SECURE
Instead of the overcrowded 2.4 GHz frequency, ListenTALK operates on the 1.9 GHz band
in full duplex and utilizes frequency hopping and spread spectrum technology to increase
reliability and reduce interference. Headset styles are available for use in quiet or noisy
environments.
Listen understands that your security matters, so each ListenTALK is equipped with a
multilayer security protocol consisting of a 40-bit (pin free) group subscription, 32-bit
authentication and a 64-bit encryption scheme assuring secure conversations.
WELCOME TO LISTENTALK!
ListenTALK is Simple, Versatile, Scalable, Secure and Reliable!
5

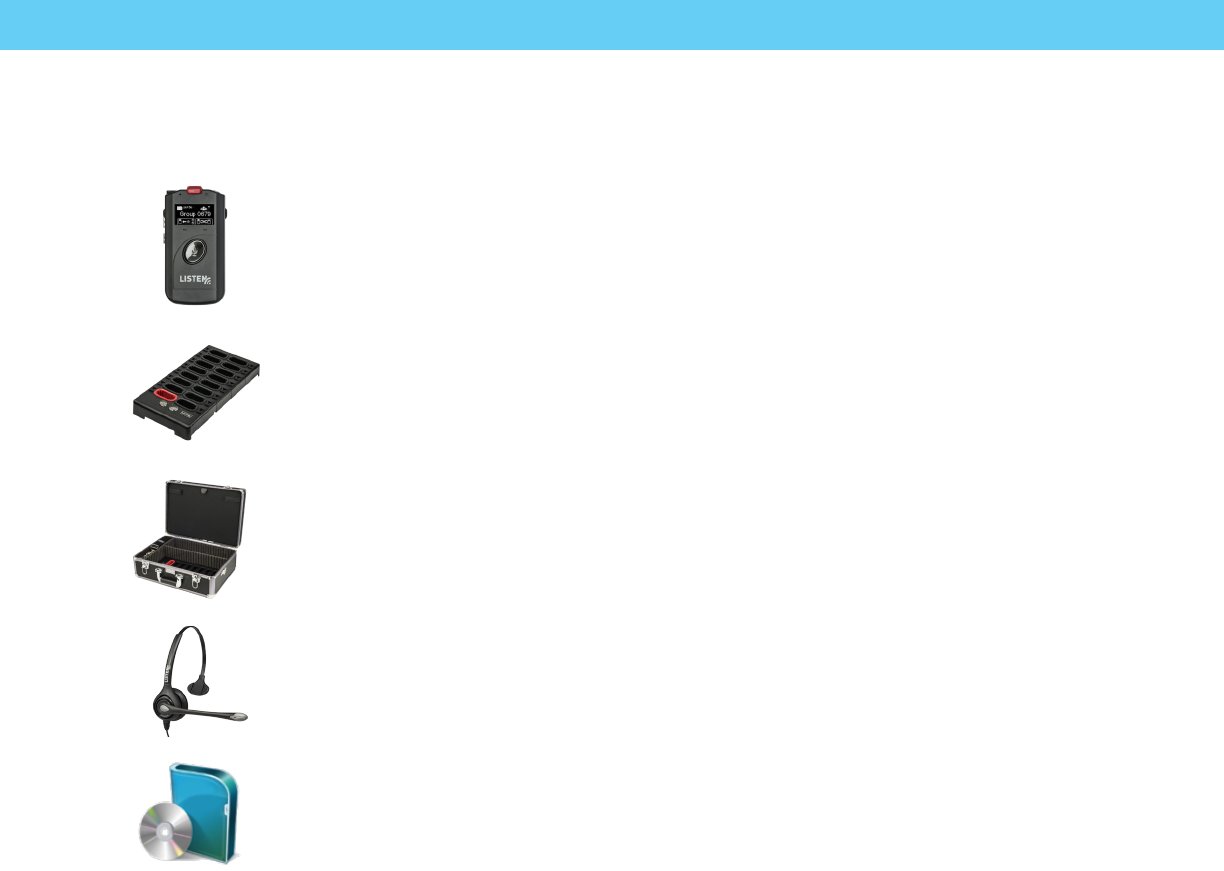

LISTENTALK COMPONENTS
LISTENTALK DEFINITIONS
ListenTALK Group
A ListenTALK Group is two or more ListenTALK Transceivers which have been Paired.
Pairing
Pairing is the process whereby ListenTALK Transceivers become a group. ListenTALK Transceivers may be
paired by NFC (Near-Field Communications), with a Docking Station or with the ListenTALK Software Suite.
Leader, Sub-Leader and Participant
A Group consists of one Leader, one or more Sub-Leaders (optional) and one or more Participants. In a
museum tour, the museum guide would be the Leader, an assistant guide would be the Sub-Leader and
the museum guests would be Participants.
ListenTALK Security
Conversations within a ListenTALK Group are encrypted by a unique Pair Key which separates Groups
from one another and ensures secure conversations within each Group. The Pair Key is generated by the
Group’s Leader and shared with each Sub-Leader and Participant (see Page 18).
ListenTALK Transceiver LK-1
The term ListenTALK refers to the system as a whole and to the hand-held
ListenTALK Transceivers.
Docking Station 16 Tray
The optional ListenTALK Docking Station 16 serves as convenient storage, programming
and charging station for ListenTALK Transceivers. The Docking Station makes it easy to
create a ListenTALK Group and perform other tasks.
Docking Station Case 16
The optional ListenTALK Docking Station Case serves as convenient storage,
programming and charging station and portable carrying case for ListenTALK
Transceivers. The Docking Station Case provides all of the features of the
Docking Station 16 Tray.
Accessories
ListenTALK accessories include an Intelligent Cable Management Unit for the Docking
Station 16 Tray, several headsets and an alkaline battery case. Note that ListenTALK
Transceivers may also be used with standard smart phone headsets.
ListenTALK Software Suite
Available for Windows PCs, the ListenTALK Software Suite makes it easy to pair
ListenTALKs to form ListenTALK Groups, check ListenTALK status and it includes
many advanced programming features. (See Page 21)
6
LISTENTALK SAFETY CAUTIONS!
Hearing Safety
This product is designed to amplify audio to a high volume level which could potentially cause hearing
damage if used improperly. To protect your hearing make sure the volume is turned down before putting
on the headset. Then adjust the volume up to the minimum setting required to hear clearly. Do not allow
children or other unauthorized individuals to have access to this product without supervision.
Medical Device Safety
Before using this Listen product with an implantable or other medical device, consult your physician
or manufacturer of your implantable or other medical device. Always make sure you are using this
product in accordance with the safety guidelines established by your physician or the implantable device
manufacturer.
Recycling
Help Listen Technologies protect the environment! Please take the time to dispose of your
equipment properly.
Product Recycling Instructions
Please do NOT dispose of your Listen Technologies equipment in the household trash.
Please take the equipment to an electronics recycling center; OR, return the product to
the factory for proper disposal.
Battery Recycling Instructions
Please do NOT dispose of batteries in the household trash. Please take the batteries
to a retail or community collection point for recycling.
7

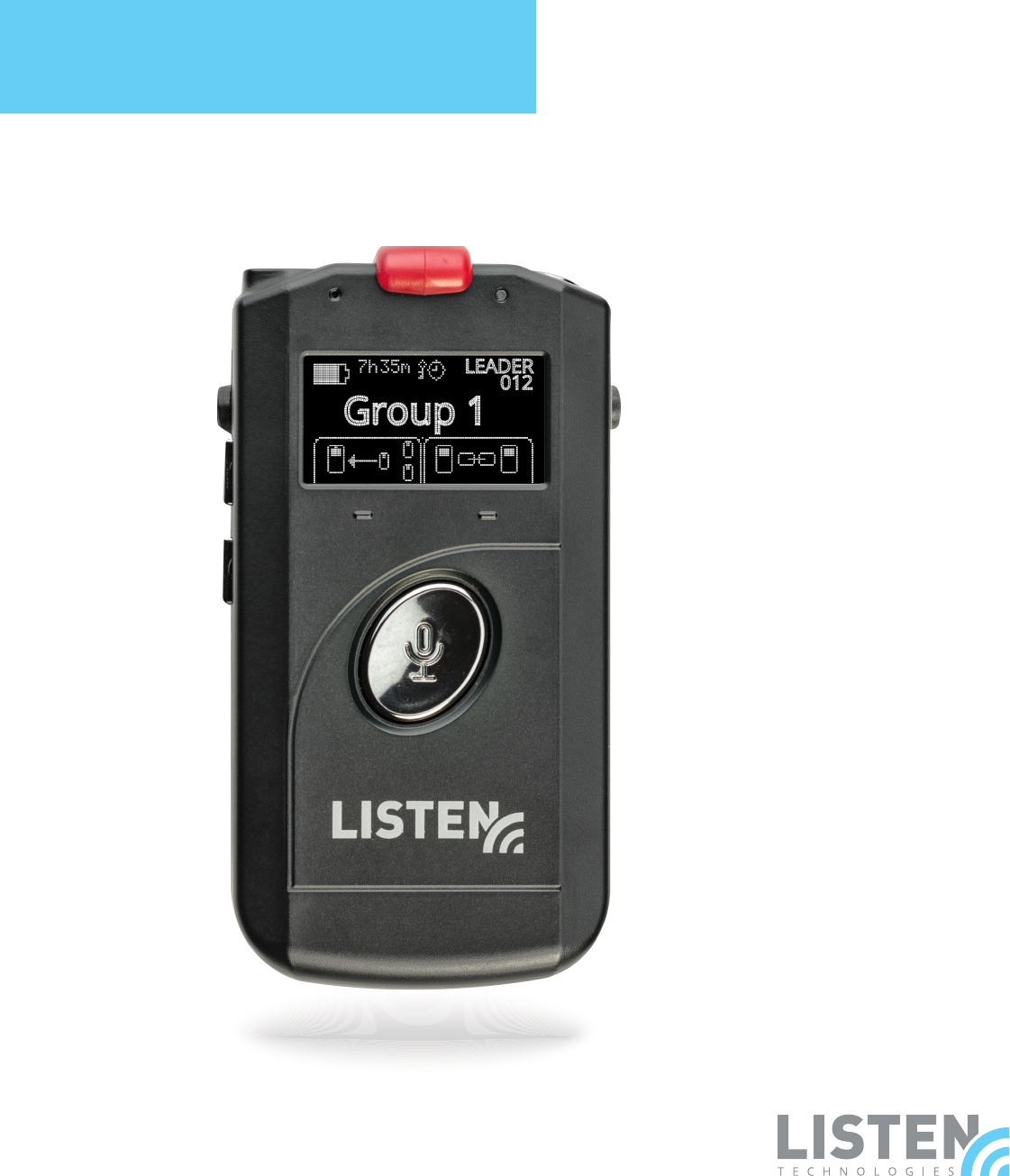

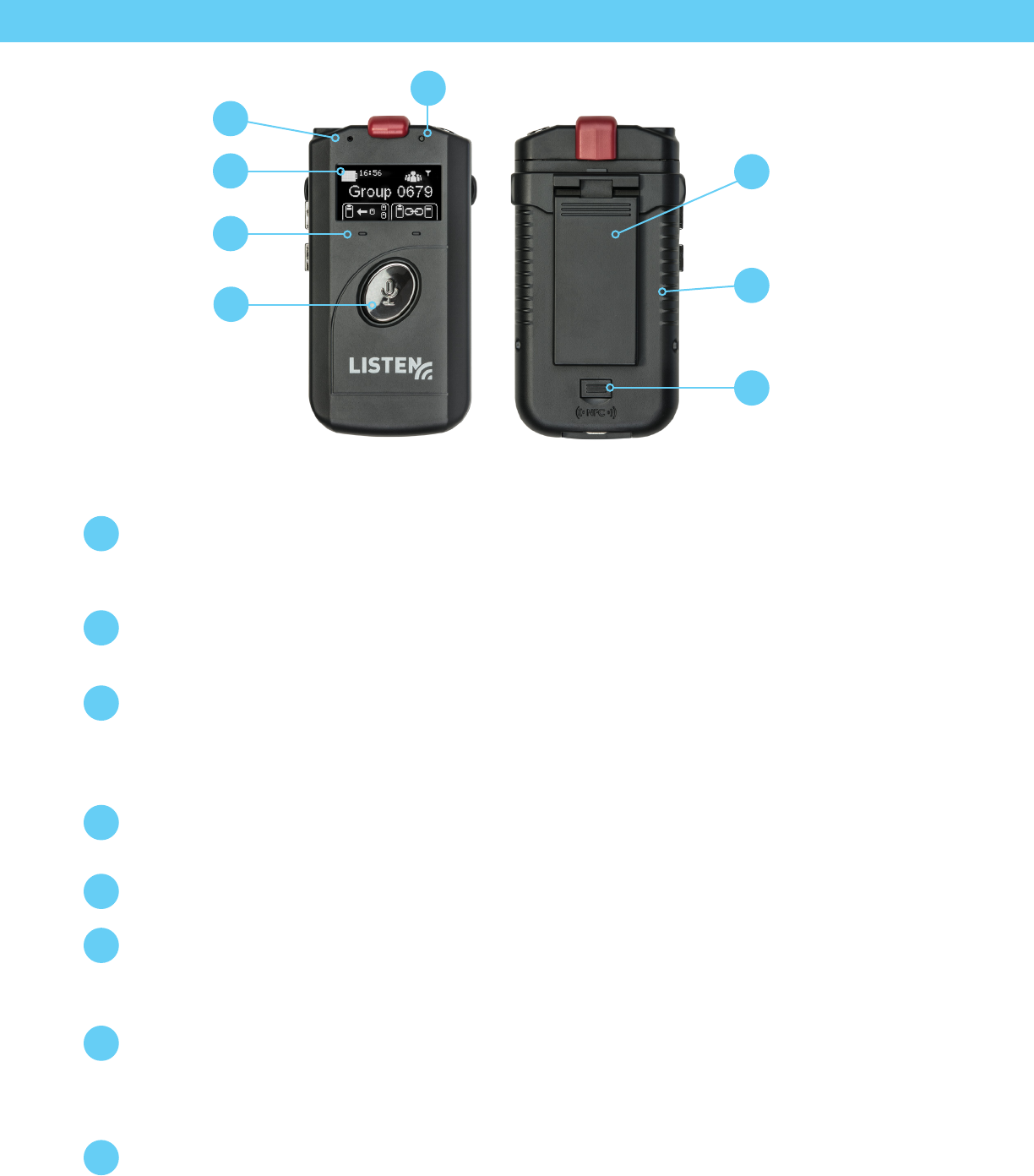

LISTENTALK TRANSCEIVER QUICK REFERENCE
Internal Microphone
Internal microphone may be used by a Participant. For best results, a Leader should use an
external microphone-equipped headset. Visit www.listentech.com/assistive-listening/listentalk/
to choose from a wide range of headsets and other accessories.
Graphic Display
Displays context-sensitive information such as Group Name/Number, Charging Status,
Battery Life, Prole Mode, Soft Button Menus, and Volume Level.
Soft Buttons
Leader: Left Soft Button scrolls through System Talkback Modes (O Mode, Leader Mode
or Group Mode – See Page 17). Right Soft Button initiates pairing. Both buttons operate for
Transceiver programming (see Page 18).
Participant: Soft Buttons are disabled except during Transceiver programming (see Page 18).
Talk Button & Menu Exit
Leader: Press Talk Button to toggle between Talk and Mute.
Participant: Press and hold Talk Button to talk; release to mute.
Light Sensor
Automatically brightens or dims the Graphic Display based on ambient light conditions.
Removable Belt/Lanyard Clip
To use the Lanyard, snap its metal ring into and up in the slot at the top of the Belt Clip. Then,
adjust the Lanyard to a comfortable length and slip it over the user’s head. Alternately, simply slip
the Belt Clip over a user’s belt.
Rechargeable Battery
Charge ListenTALKs in Docking Station or connect a USB charger to the Micro USB port. Access
the battery compartment by depressing the button on the battery door. Alkaline batteries (not
rechargeable) may be used by installing the optional Alkaline Battery Case and three AAA size
alkaline batteries.
Neareld Antenna
Allows a Leader to Pair with Sub-Leaders or Participants to form a Group as described on Page 15.
1
2
3
4
5
6
7
8
Light Sensor
Microphone
Graphic Display
Soft Buttons
Talk Button &
Menu Exit
Removable
Belt/Lanyard Clip
Rechargeable Battery
(or Alkaline)
Neareld Antenna
(Under Door)
1
2
4
5
8
6
7
3
8

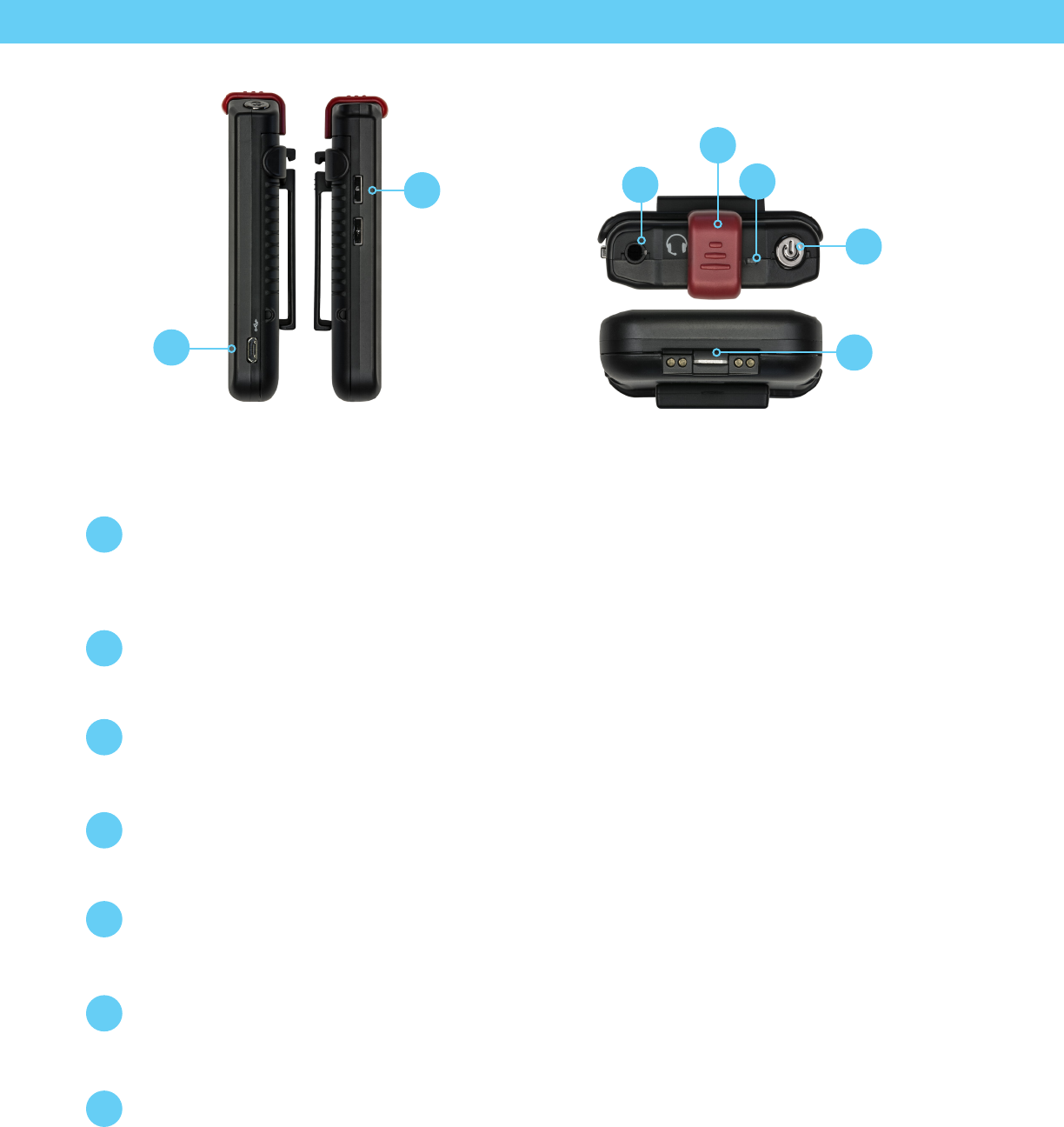

LISTENTALK TRANSCEIVER QUICK REFERENCE
Volume Control & Menu Navigation
Operation: Controls Headset volume.
Programming: Navigates menus shown in the Graphic Display.
Micro USB
Connect Micro USB to a standard USB charger to charge the ListenTALK. Connect to a Windows
computer to program the ListenTALK using the ListenTALK Software Suite.
Power Button & Status Screen
Press and hold for one second to power on the ListenTALK and display the Status Screen. Press and
hold for three seconds to power o. Press momentarily to display the Status Screen during use.
Status Indicator
Status Indicator will ash during charging and turn solid when ListenTALK is fully charged.
Leader or Sub-Leader Status Indicator turns red to indicate Mute after pressing Talk Button.
Leader Clip
Snap a Leader Clip onto a Transceiver to create a Leader or Sub-Leader. Omit from Participant
Transceiver.
3.5mm Headset/Microphone Port
Use a headset such as those available at www.listentech.com/assistive-listening/listentalk/transceiver-
headsets/. Note that ListenTALK Transceivers also accept standard smart phone headsets/earbuds.
Charger Contacts
Allow ListenTALKs to charge automatically when placed in the Docking Station. Also allow
communication with a Windows computer equipped with the ListenTALK Software Suite.
9
10
11
12
12
13
14
15
Bottom: Charger
Contacts
(for Docking Station)
3.5mm Headset/
Microphone Port Leader Clip
Status LED
Volume Control &
Menu Navigation
Micro USB (for
Battery Charging
& Conguration)
9
10
11 Power Button &
Menu Enter
13
14
15
9

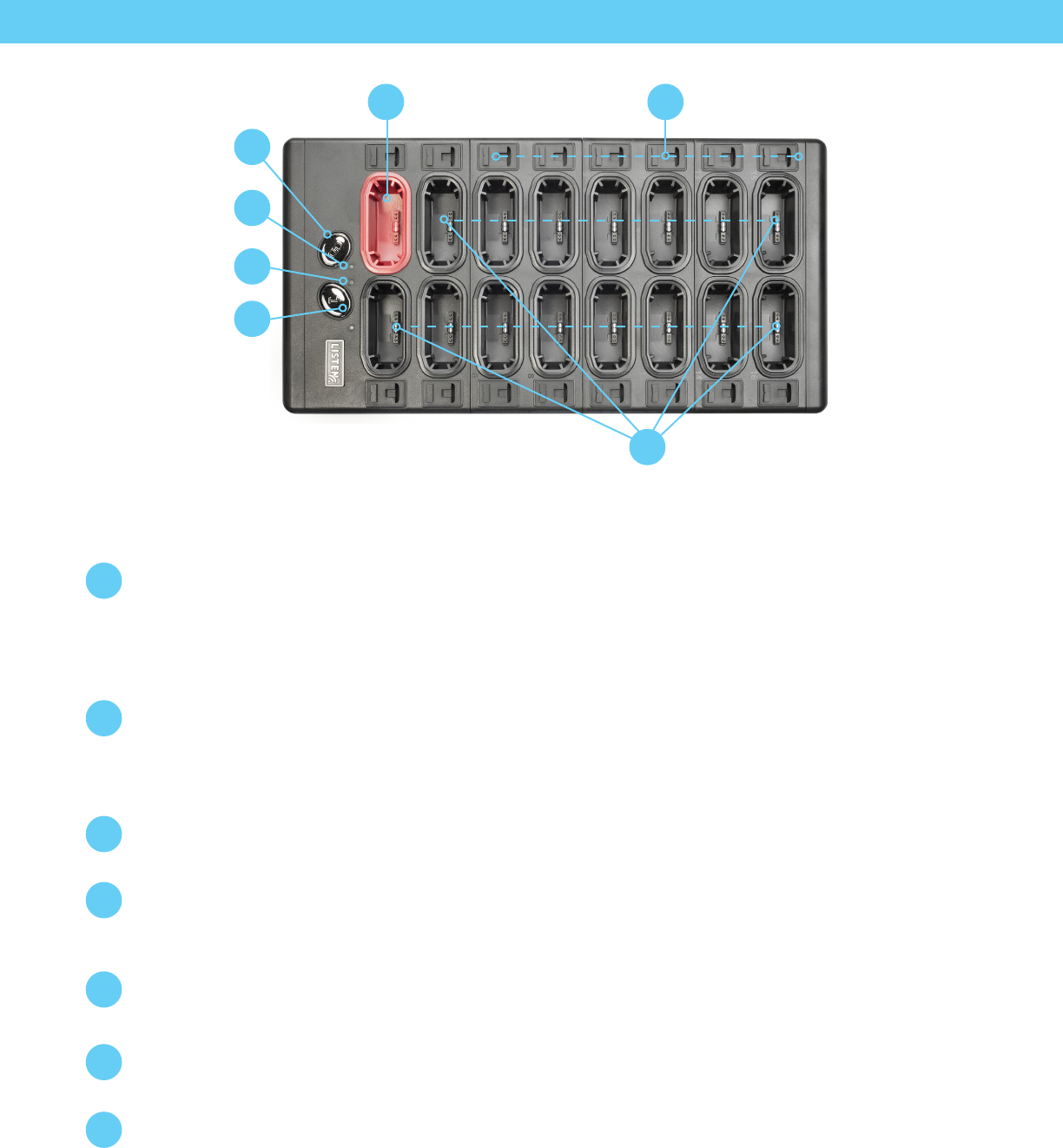

LISTENTALK DOCKING STATION TRAY QUICK REFERENCE
Pairing Button
Create a ListenTALK Group by inserting Transceivers into Leader and Participant Pockets, and then
momentarily pressing the Docking Station Pairing Button. Note: Momentarily pressing the Docking
Station Pairing Button uses the Leader’s existing Pairing Key. To create a new Pairing Key, press and
hold the Pairing Button for ve seconds (also see Page 15).
Pairing Indicator
Pairing Indicator will ash during pairing, then turn solid momentarily and nally extinguish when the
pairing process is completed successfully. The Pairing Indicator and Status Indicator will both ash
and then extinguish during New Pair Key generation (see Page 21).
Status Indicator
Status Indicator lights during Status Button activation.
Status Button
Press and hold the Status Button to illuminate the ListenTALK Graphic Displays for Group
identication and individual ListenTALK information.
Leader Pocket
Used for charging, pairing and programming.
Leader Clip Storage
Snap unused Leader Clips onto these storage tabs.
Participant Pockets
Used for charging, pairing and programming.
1
2
3
4
5
6
7
Leader Clip StorageLeader Pocket
Pairing Button
Pairing Indicator
Status Indicator
Status Button
6
1
5
2
3
4
Participant Pockets
7
10

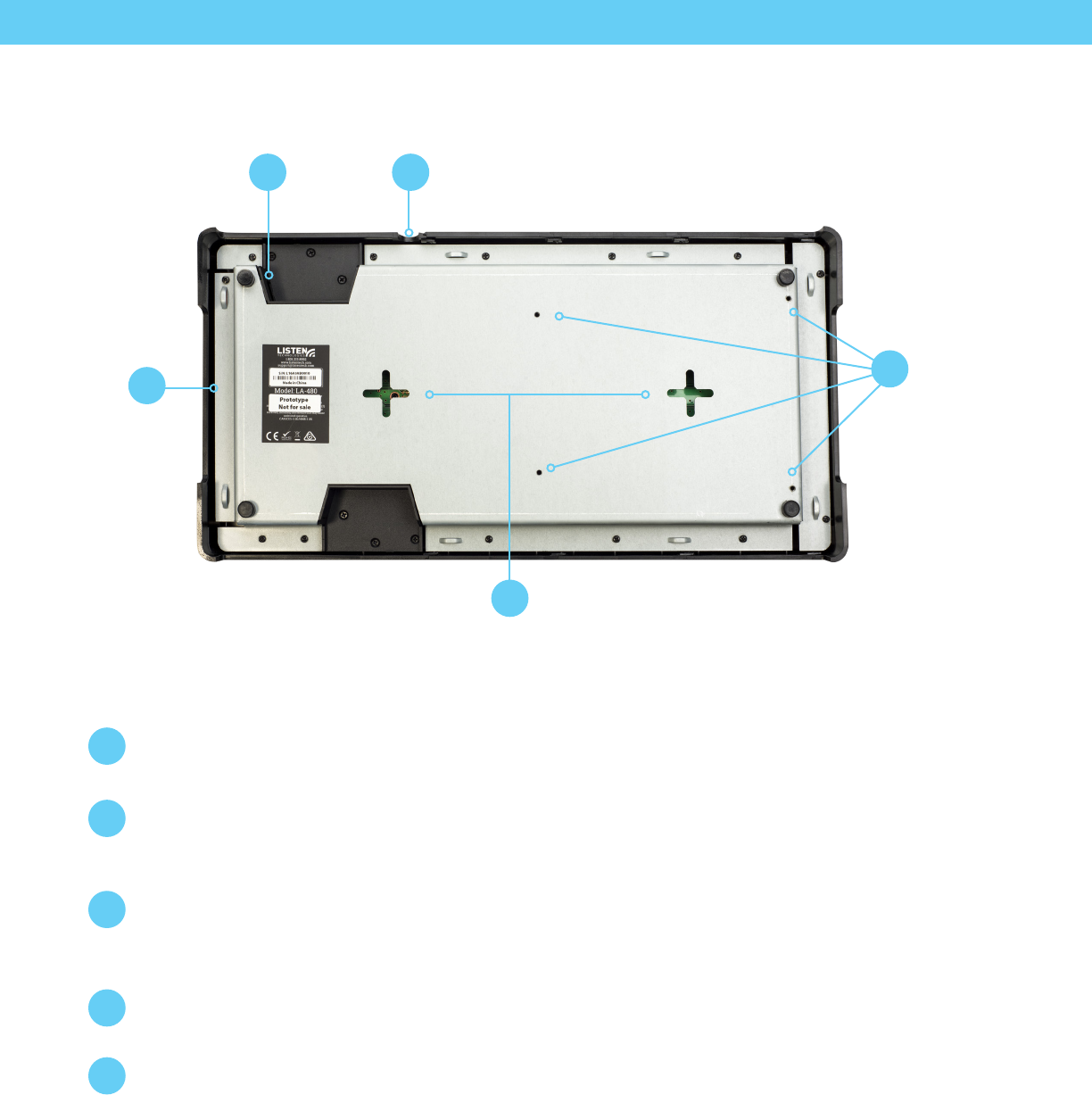

LISTENTALK DOCKING STATION TRAY QUICK REFERENCE
Handles
Handles for holding the Docking Station Tray.
USB Port
Connect to Windows computer to program, pair and manage inventory of ListenTALK
Transceivers using the ListenTALK Software Suite.
Power Connector
Connect the Power Supply to this Power Connector and the Power Cord to any standard
AC outlet (100/240 VAC, 50/60 Hz).
Intelligent Cable Management Unit Mounts (LA-382)
The Optional Docking Station Intelligent Cable Management Unit fastens to these holes.
Wall-Mounting Slots
Mount two screws with ¼” heads 6-inches apart on a wall. Slip Docking Station 16
onto screw heads.
8
9
10
11
12
Wall Mounting Slots
8
Handles
Intelligent
Cable
Management
Unit Mounts
(LA-382)
USB Port Power Connector
9 10
11
12
11
LISTENTALK TRANSCEIVER SPECIFICATIONS*
Physical
Dimensions (H x W x D) with Belt Clip 10 x 5.4 x 2.4 cm (3.93 x 2.13 x 0.93 in.)
Dimensions (H x W x D) less Belt Clip 10 x 5.4 x 1.6 cm (3.93 x 2.13 x 0.63 in.)
Weight 79 g (2.79 oz.)
Ship Weight 206 g (7.20 oz.) with 454 g (1.0 lbs.) minimum
Enclosure material PC ABS Plastic
Indicators Display - 64 x 128 OLED, Variable brightness LED – RED/White multifunction
(Mute, Charge Status)
User Controls Volume up, Volume Down, Talk, Power/Status, Talk Modes, Pairing
Programming Via software and USB port on Transceiver or via software and USB port on Docking Station
Connections
Headset – 3.5mm TRRS, CTIA complaint
USB – Micro USB, Control and Charging
Charger- 4 Contact, Control and Charging
Audio
Headphone Output
Speaker load 16 - 32 ohm load
Max output power 67 mW, 16-ohm load, Threshold of Clipping
Sidetone Adjustable
Microphone Input
Compatibility Electret, external bias
Bias 3 volt, 2 mA Current Maximum
Sensitivity requirement -28 to - 50 dBV/Pa
Internal Microphone
Switching Auto detect on jack insertion or Manual
Maximum input level 109 DBSPL
Gain Adjustable, 30 dB range
Purpose Accepts Listen Technologies Headsets or standard smart-phone headsets.
Can be used as a Mic/Line input (See “Mic Select” Menu Choices on Page 19)
Connector
Nominal Input Level for Line
Source -10dBu (0.24 volts)
System
Frequency Response 40 Hz to 15 kHz +/- 3dB, 22kHz low pass lter
SNR 70 dB, A- weighted, Threshold of Clipping
THD 0.5% @ 1kHz, 22kHz low pass enabled
Headset/Microphone Port
Tip Headset Left +
First Ring Headset Right +
Second Ring Common/Ground/-
Sleeve Mic/Line Input +
12
Radio
Operating Frequency North America – 1920 to 1930 MHz
Europe – 1880 to 1900 MHz
Average Power North America – 4 mW
Europe – 10 mW
Typical Range North America – Indoor 100 m, Outdoor 200 m, depending upon conditions
Europe – Indoor 150 m, Outdoor 300 m, depending upon conditions
Modulation GFSK – FHSS
TDD/TDMA/DCA
Security
Subscription – 40 bit (Pin Free)
Authentication – 32 bit
Encryption – 64 bit
Power & Battery Management
Battery type Lithium – ion, rechargeable non-proprietary removable, 1200 mAh
Optional - 3 AAA Battery Compartment
Typical operate time
Li-Ion - Participant Mode – 12 Hours
AAA – Participant Mode – 7 Hours
LI-ion – Leader Mode – 7 hours
AAA – Leader Mode – 4 hours
Typical charge time 4 Hours
Power save modes
Power down on loss of signal
Power down on disconnection of headset (1 min)
Power down on charging
Environmental
Temperature - Operation -10° C (14° F) to 40° C (104° F)
Temperature - Storage -20° C (-4° F) to 50° C (122° F)
Relative Humidity 0 to 95% relative humidity, non-condensing
LISTENTALK TRANSCEIVER SPECIFICATIONS CONTINUED
Compliance
Standards Pending (FCC part 15, ICS-03, CE, RCM, RoHS, WEEE)
* Specications subject to change without notice.

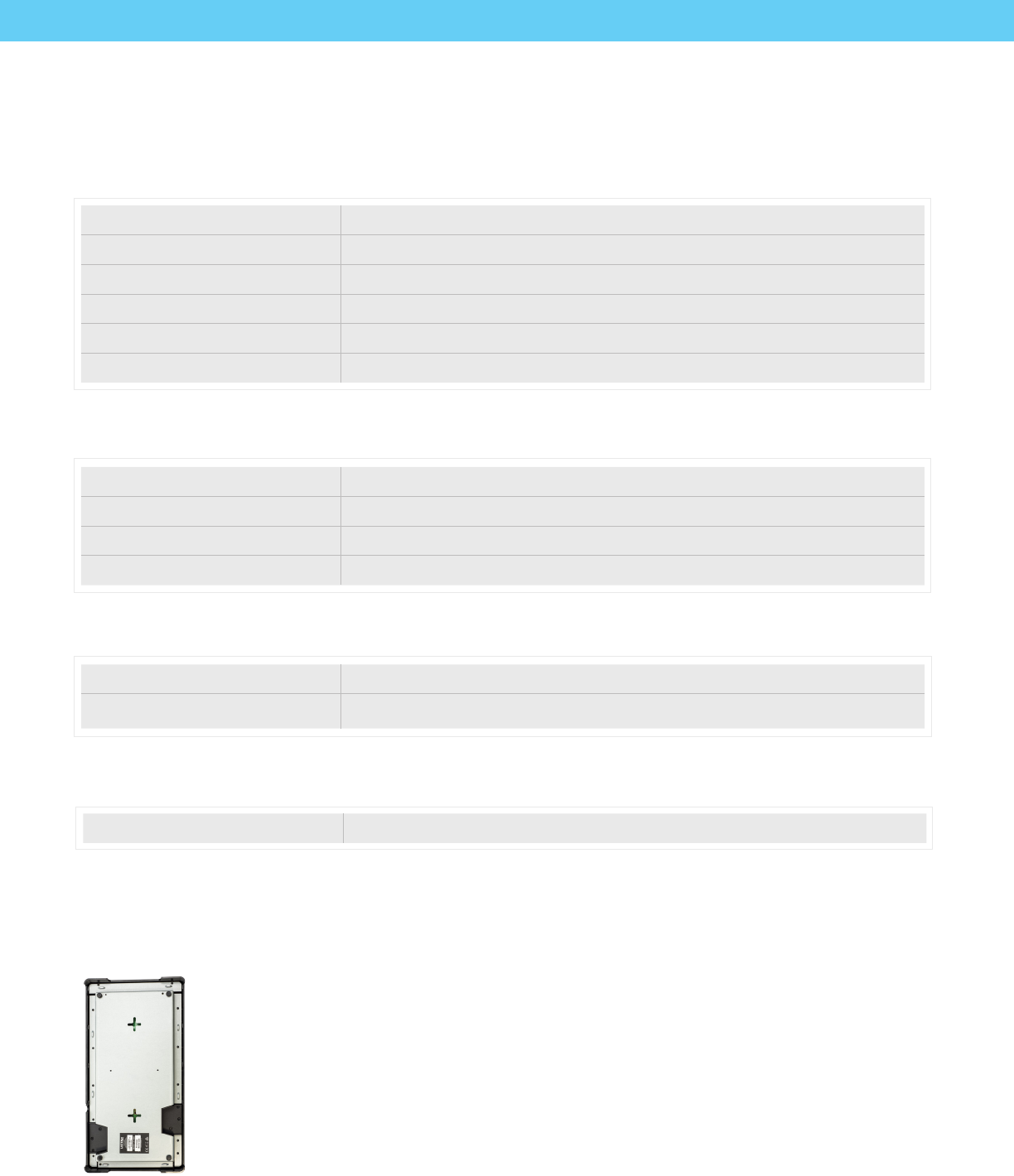

13
Physical
Color Black, Chrome Buttons, Red Leader Pocket
Dimensions (H x W x D) 50 x 192 x 375 mm (1.97 x 7.56 x 14.77 in.)
Unit Capacity 16 Units
Unit Weight 1.73 kg (3.8 lbs.)
Ship Weight 2.59 kg (5.7 lbs.)
Power
Power Supply Input 100-240VAC, 50-60 Hz
Power Supply Output 12 VDC, 5.0 A, 60 W
Power Supply Connector 5.5 mm (0.22 in.) OD x 2.3 mm (.09 in.)) ID, barrel type
Power Cord 182.9 cm (72 in.) Input Power Cord, 109.3 cm (43 in.) Output Cord
LISTENTALK DOCKING STATION 16 SPECIFICATIONS*
Compliance
Standards UL, CE, RCM, RoHS
* Specications subject to change without notice.
Interconnections
Connection/s USB type B
Power
14
Physical
Case Color Gray & Chrome
Tray Color Black, Chrome Buttons, Red Leader Pocket
Dimensions (H x W x D) 190 x 350 x 465 mm (7.48 x 13.78 x 18.31 in.)
Unit Capacity 16 Units
Unit Weight 5.13 kg (11.3 lbs.)
Ship Weight 5.95 kg (13.1 lbs.)
Power
Power Supply Input 100-240VAC, 50-60 Hz
Power Supply Output 12 VDC, 5.0 A, 60 W
Power Supply Connector 5.5 mm (0.22 in.) OD x 2.3 mm (.09 in.) ID, barrel type
Power Cord 182.9 cm (72 in.) Input Power Cord, 109.3 cm (43 in.) Output Cord
LISTENTALK DOCKING STATION CASE 16 SPECIFICATIONS*
Interconnections
Connection/s USB type B
Power
Compliance
Power Supply UL, CE, RCM, RoHS
* Specications subject to change without notice.
LISTENTALK SYSTEM SETUP
Mount and Connect the Docking Station
ListenTalk Transceivers may be operated with or without a Docking Station. If your
system does not have a Docking Station, please proceed to “Prepare and Charge Each
ListenTalk Transceiver” (next). Mount the Docking Station on a at surface. Connect
the Power Supply to the Docking Station and to any standard AC outlet (100/240 VAC,
50/60 Hz). To program the Docking Station and its Transceivers via computer (USB)
install the ListenTALK Software Suite (see Page 21).
15
LISTENTALK SYSTEM SETUP CONTINUED
Prepare and Charge the ListenTALK Transceivers
Remove the protective screen cover and clear plastic battery isolation tab from each
Transceiver. Charge Transceivers in the Docking Station or connect each Transceiver’s
Micro USB to a USB charger. When 100% charged, a Transceiver’s Status Indicator is
solid. Alternately, insert the optional Alkaline Battery Pack and three AAA size
alkaline batteries.
Create a ListenTALK Leader
Each ListenTALK Transceiver can be a Leader or a Participant. The default mode is
Participant. To create a Leader, turn on any Transceiver and place a red Leader Clip on
the Transceiver. To create a Sub-Leader, place a Leader Clip on a Participant Unit and
pair to the Leader.
Create a ListenTALK Group by Pairing Transceivers
A ListenTalk Group consists of at least one Leader and an unlimited number of
Participants and Sub-Leaders (Sub-Leaders are optional). Create a ListenTalk Group
by Pairing a Leader with Participants and Sub-Leaders.
Pairing With a Docking Station
Place the Leader into the red Docking Station pocket. Place Participant and Sub-
Leader Transceivers into the black Docking Station pockets (see diagrams on Page 9).
Momentarily press the Pairing Button on the Docking Station. Pairing Indicator will ash
during pairing, then turn solid momentarily and nally extinguish when the pairing
process is completed. To pair more than 15 Participants and Sub-Leaders, repeat the
process using the same Leader.
Pairing Without a Docking Station – Near-Field Communications Method
Press and hold the Leader’s Right Soft Button to initiate Pairing Mode. Then, Pair
Participant and Sub-Leader Transceivers to the Leader by touching the back of the
Leader to the back of each Participant and Sub-Leader. Upon successful pairing, the
Participant or Sub-Leader will beep and display a link symbol on its Graphic Display.
Press and hold the Leader’s Right Soft Button again to exit Pairing Mode.
Create Additional ListenTALK Groups
An unlimited number of ListenTalk Groups may be created by repeating these steps.
Up to 10 groups may be operated simultaneously in one area.
Adding Participants to an Existing Group
With a Docking Station, simply place the existing Leader and new Participant or
Sub-Leader Transceivers into the Docking Station and press the Pairing Button
momentarily. To add Participants without a Docking station, place the Leader into
Pairing Mode and touch the back of the Leader to each new Participant or Sub-Leader.
Connect Ear Speakers or Headsets
Connect headsets to each Transceiver. Participants may use the Transceiver’s built-in
microphone. Leaders and Sub-Leaders should use a microphone-equipped headset in
noisy environments.
Pairing
Button
16
LISTENTALK TRANSCEIVER – GENERAL OPERATION
General Operation

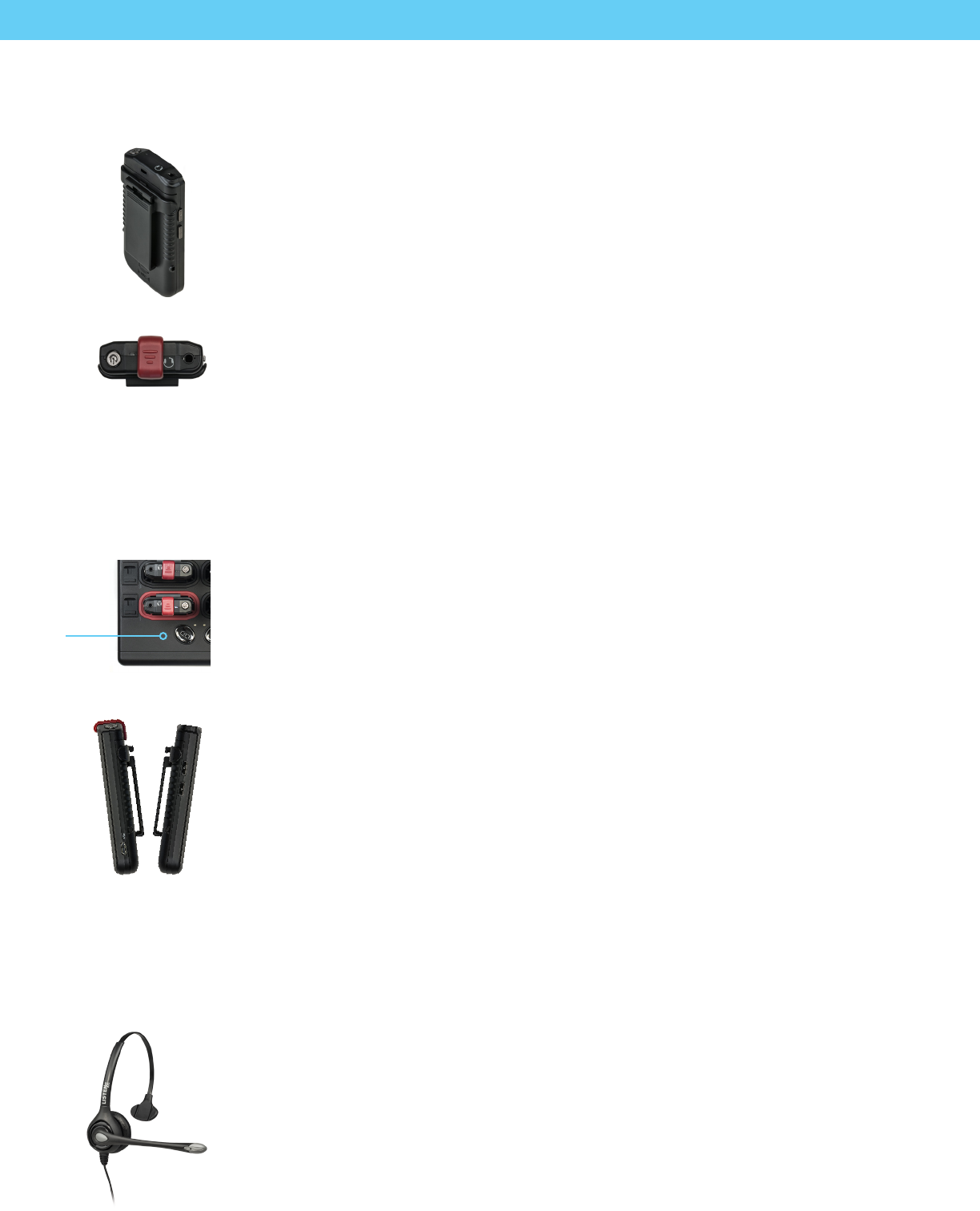

Belt Clip and Lanyard
To use the Lanyard, snap its metal ring in and up in the slot at the top of the Belt Clip. Then, adjust the
Lanyard to a comfortable length and slip it over the user’s head. Alternately, simply slide the Belt Clip
over a user’s belt.
Power Button
Press and hold the Power Button for one second to turn the Transceiver on. Press and hold the Power Button
for three seconds to turn it o. While a Transceiver is powered on, a momentary Power Button press will
display the Transceiver’s status for three seconds.
Volume Buttons
Press the Volume Up or Volume Down button to increase or decrease the volume.
Transceiver Display and Status

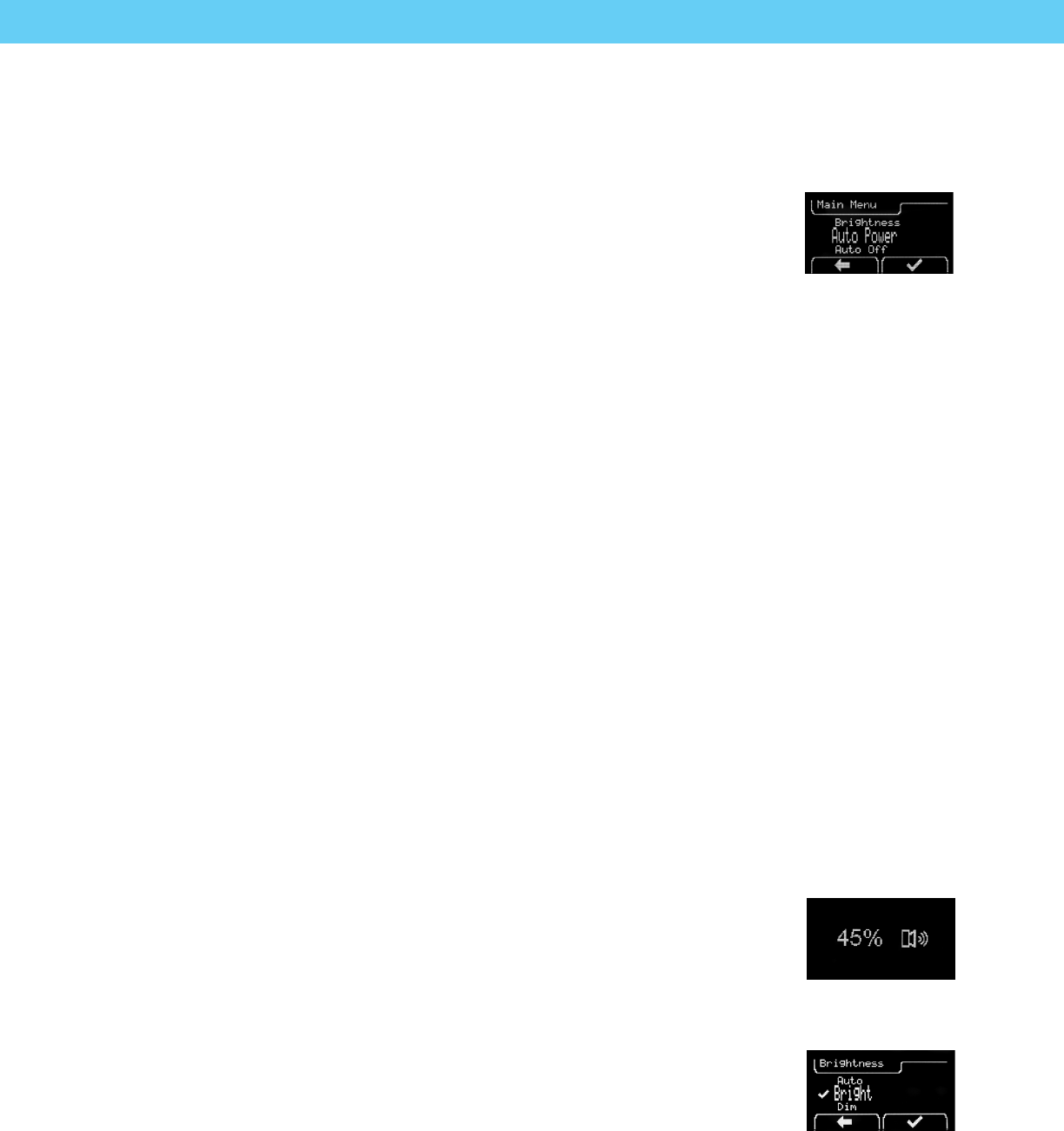

The Display will extinguish automatically after a few seconds. Press the Power Button momentarily to
check Transceiver Status. Press any button (i.e. Volume Up/Down) to activate the Display for that function.
Function buttons operate normally even when the Display is o.
Battery Status, Charging and Battery Replacement
The Status Indicator will ash slowly when the Transceiver needs to be charged. Rechargeable ListenTALK
Transceivers may be charged in the Docking Station. To charge an individual Transceiver, connect a USB
charger to its Micro USB port. To replace batteries on Transceivers equipped with the optional Alkaline
Battery Case, depress the button on the battery door to access the Battery Compartment. Insert three AAA
size alkaline batteries.
Internal Microphone
In quiet environments, both Leader and Participants may use the Transceiver’s Internal Microphone.
Microphone-equipped headsets are best for noisy environments visit
www.listentech.com/assistive-listening/listentalk/transceiver-headsets/
Participant Buttons
Press and hold the Talk Button to speak. Release to mute. Participant can speak to the entire Group or only to
the Leader depending on the Talkback Mode set by the Leader (see Page 17). The Participant Talk Button does
not function when the Leader chooses “O” mode. Only one Participant can speak at a time. Soft Buttons are
disabled on Participant Transceivers.
Leader Buttons
Press and release the Talk Button to toggle between Talk and Mute. It is not necessary to hold down the
Leader’s Talk Button. The Leader congures ListenTALK Talkback Modes as described on Page 17. The Leader
also controls Group Pairing and passes the Group Name and Pair Key to Sub-Leaders and Participants.
Sub-Leader Buttons
The Sub-Leader’s Talk Button operates like that on a Leader. A Sub-Leader can Pair new Sub-Leaders and
Participants making them members of a Group. In so doing, the Sub-Leader passes on the Group Name and
Pair Key from the Leader.
17

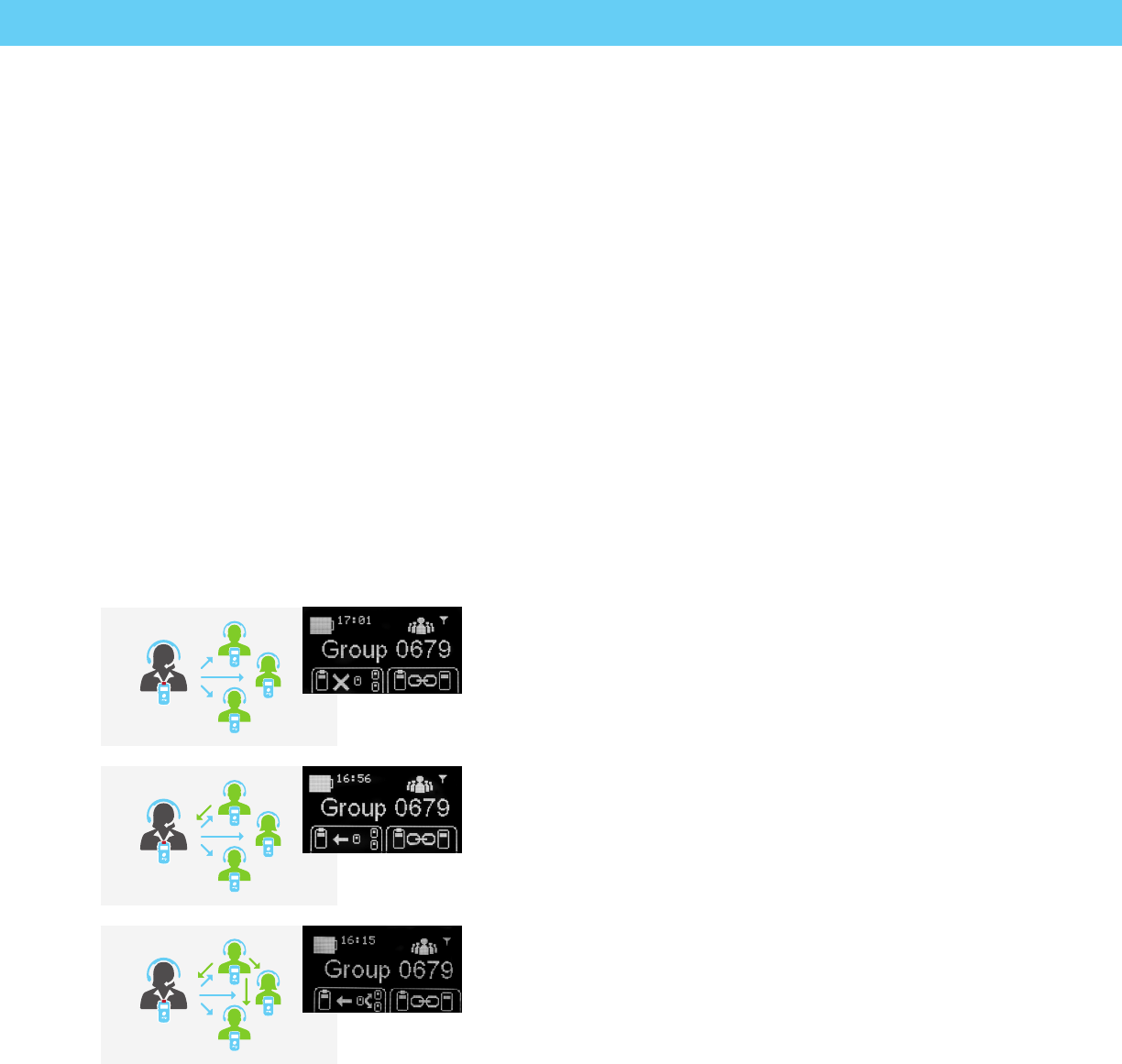

LISTENTALK SYSTEM TALKBACK MODES
Press and release the Leader’s Left Soft Button repeatedly to toggle among the three Talkback Modes.
In O Mode, Participant and Sub-Leader Talkback is disabled. In Leader Mode, only the Leader can hear
Participant and Sub-Leader questions. In Group Mode, Participant and Sub-Leader questions are broadcast to
the entire Group. The Leader’s Graphic Display indicates Talkback Mode (see below). Only one Participant or
Sub-Leader can speak at a time.
Respond
Participants can
listen and respond
to leader only
Discuss
Participants can listen
and respond to leader
and group
Listen
Participants in
listen only mode
3 PARTICIPANT MODES
3 PARTICIPANT MODES
LISTEN
Participants
in listen
only mode
RESPOND
Participants
can listen
and respond
to leader only
DISCUSS
Participants
can listen and
respond to
leader and group
O Mode – Leader’s Display has No Arrows
Participants and Sub-Leaders can listen to the Leader
but cannot respond.
Leader Mode – Leader’s Display has Left Arrow
Participants and Sub-Leaders can listen to Leader and
pose questions to the Leader.
Group Mode – Leader’s Display has Left and Right Arrows
Participants and Sub-Leaders can listen and respond to
the Leader and other Group members.
Operation with Leader and Sub-Leader
ListenTALK Groups have one Group Leader and an unlimited number of Sub-Leaders and Participants.
A single Sub-Leader is useful for classes with dual instructors or tour groups led by more than one
person. A Group with one Leader and multiple Sub-Leaders is a versatile wireless intercom for event
production, sporting activities and training sessions and it can facilitate workgroup collaboration in
warehouses, manufacturing environments or construction sites. Sub-Leaders can Pair with new Sub-
Leaders or Participants, making them members of a Group and passing the Group name and Pair Key
from the Leader. Also see Applications on Page 22.
18
LISTENTALK SECURITY
Conversations within a ListenTALK Group are encrypted by a unique Pair Key which separates Groups from
one another and ensures secure conversations within each Group. The Pair Key is generated by the Group’s
Leader and shared with each Sub-Leader and Participant. When Sub-Leaders add new Transceivers to a
Group, they pass the Leader’s Pair key to these new group members.
ListenTALK Pair Key security may be congured with the ListenTALK Software Suite or through the
Leader’s New Pair Key menu choices as described next.
Never – Normal Security (Default)
By this (default) choice the Pair Key never changes within a Group. This enables secure communication
within a Group while allowing unrestricted Group expansion and is a good choice for venues like museums
where the number of Participants may vary from tour to tour.
8 Hours, 4 Hours or 1 Hour – High Security
By this choice, the existing Pair Key is maintained when expanding a Group within the chosen time window.
After the time window expires, the Leader will generate a new Pair Key when it Pairs with a Sub-Leader or
Participant making them part of a new Group. This enables expansion of an existing Group but only
within the chosen time window.
Always – Highest Security
By this choice, the Leader will always generate a new Pair Key when it Pairs with a Sub-Leader or
Participant making them part of a new Group. This disables the expansion of an existing group
and is a good choice for high-security venues.
Resetting a Group’s Pair Key
It is possible to reset a Group’s Pair Key without changing the Group Name. This may be useful when a
Transceiver is misplaced and you want to exclude that Transceiver from the Group thereby preventing
it from listening to or taking part in conversations.
To reset the Pair Key for a ListenTALK Group, place the Leader, Sub-Leader(s) and Participants into their
respective Docking Station pockets. Then, press and hold the Docking Station Pairing Button for ve seconds.
The Paring Indicator and Status Indicators will ash momentarily and then turn solid indicating success.
The ListenTALK Software Suite can also implement this process.
To reset the Pair Key for a ListenTALK Group without a Docking Station, set the Leader’s New Pair
Key menu choice to “Always”. Then, repeat the Near Field Communication pairing operation for all
Transceivers in a Group.
Note that the Docking Station and Software Suite force a New Pair Key without regard to the
Leader’s New Pair Key menu choice.
LISTENTALK TRANSCEIVER PROGRAMMING
ListenTALK Transceivers may be programmed by placing them in the Docking Station and connecting
the Docking Station USB Port to a Windows computer equipped with the ListenTALK Software Suite. An
individual ListenTALK Transceiver may be programmed by connecting its Micro USB to the USB port on a
Windows computer equipped with the ListenTALK Software Suite. An individual ListenTALK Transceiver
may be programmed by pressing specic buttons on the Transceiver while monitoring its Graphic Display.
Programming choices are described in the following topic.
19
Programming an Individual ListenTALK Transceiver Without a Computer
Accessing the ListenTALK Transceiver Menu
Turn on the Transceiver. Then, simultaneously press and hold the Power Button and
Volume Down Button for about three seconds to access the Programming Menu. The
Display will say “Main Menu” at the top left. The Transceiver will automatically exit the
Menu after 20 seconds of inactivity.
Navigating the Menu
Scroll through Menu Items using the Volume Up and Down Buttons. The Display shows the current
Menu Item in large type. The previous and next Menu Items are displayed in smaller type above
and below the current Menu Item.
Press and momentarily hold the Right Soft Button to access a Menu Item. Then, scroll through options
for this Menu Item using the Volume Up and Down buttons. To choose an option, press and momentarily
hold the Right Soft Button again. The Menu Item will display a check mark to conrm your choice.
Then, press and momentarily hold the Left Soft Button to exit this Menu Item.
Exiting the ListenTALK Transceiver Menu
To exit the Transceiver menu and save your choices, press the Left Soft Button twice. The Display will show
“Updated” to conrm that your choices have been saved.
Transceiver Menu Choices
Mic Select
Auto (default): Automatically selects an external mic, if present, or the ListenTALK’s internal mic if no
external mic is detected.
Internal: Forces force use of the ListenTALK’s internal microphone.
External: Forces use of an external microphone.
Line: Allows use of an external, -10dBu line-level source.
Mic Gain
Auto (default): Appropriate for the Transceiver’s internal microphone and most
external microphones.
Numeric: To manually adjust the gain for an external microphone or line-level source,
scroll up or down for up to ±12dB of increase/decrease in 3dB increments.
Brightness
Auto (default): Uses the ListenTALK’s Light Sensor to adjust Display brightness.
Bright or Dim: Permanently adjusts the display brightness.
O: Turns the display o during normal use. (Volume Up & Down,
Talk Button remain functional).
Auto Power
On (default): The Transceiver will automatically turn o and charge when it is returned
to the Docking Station and automatically turn on when it is removed from the Docking Station.
O: Control the Transceiver’s on/o status manually.
20
Auto O
30 Minutes (default): Turns the Transceiver o after 30 minutes of inactivity (no link to Leader).
20 Minutes or 10 Minutes: Turns the Transceiver o after 20 or 10 minutes of inactivity.
O: Disables the Auto O function.
Jacksense
On (default): Turns on the Transceiver when a headset is connected to the Headset/Microphone Port; turns
o the Transceiver when the headset is disconnected.
O: Control the Transceiver’s on/o status manually.
Sidetone
Normal (default): A talker hears their own voice at a normal level in their own headset.
Quiet or Loud: Decreases or increases the level of a talker’s voice in their own headset.
New Pair Key
This menu choice – which only functions on a Leader - controls ListenTALK New Pair Key security.
Please see ListenTALK Security on Page 18 for a discussion of this menu choice.
Mode Select
Use Leader Clip (default): You must insert a Leader Clip to convert a Transceiver into a Leader.
Force Leader: Converts a Transceiver into a Leader without a Leader Clip.
Language
English (default): The default language for the Menus is English.
Espanol, Duetsch, Français; Presents Menus in Spanish, German or French.
Reset Device
No (default): Maintains existing menu choices, Group name and Pair Key.
Yes: To reset the ListenTALK to all factory default settings, choose Yes.
LISTENTALK DOCKING STATION OPERATION (SEE PAGES 9 - 10)
The ListenTALK Docking Station operates as a charger and programming station and provides convenient
storage for ListenTALK Transceivers. Mount the Docking Station on a at surface. Connect the Power Supply to
the Docking Station and to any standard AC outlet (100/240 VAC, 50/60 Hz). Place ListenTALK Transceivers into
the Leader and Participant Pockets to charge and program the Transceivers.
Creating a ListenTALK Group with the Docking Station
To create a Leader, or Sub-Leader snap a red Leader Clip onto any Transceiver. Omit the Leader Clip from
Participant ListenTALKs. Place the Leader in the Docking Station’s red Leader Pocket. Place Sub-Leader(s) and
Participants in the Docking Station’s black Participant Pockets.
To create a Group, Pair the Leader with Sub-Leader(s) and Participants by pressing the Pairing Button
momentarily on the Docking Station. The Pairing Indicator will ash during pairing, then turn solid and nally
extinguish when the pairing process is completed.
21
Resetting a Group’s Pair Key with the Docking Station
To reset the Pair Key for a ListenTALK Group, place the Leader, Sub-Leader(s) and Participants
into their respective Docking Station pockets. Then, press and hold the Docking Station Pairing
Button for ve seconds. The Paring and Status Indicators will ash momentarily and then turn solid
indicating success.
Checking ListenTALK Status with the Docking Station
Press the Docking Station Status Button. The Status Indicator will illuminate and the individual
ListenTALK Graphic Displays will show ListenTALK Transceiver ID, Group name, Group number,
battery status, signal strength and other information.
LISTENTALK ADVANCED FEATURES
Using Multiple ListenTALK Groups
Each ListenTALK Group operates on its own communications channel. You may create an unlimited
number of ListenTALK Groups and up to ten Groups may operate without interference within a
given area. ListenTALK Groups have one Group Leader and an unlimited number of Sub-Leaders
and Participants. Communication within a Group is encrypted by a unique Pair Key making
ListenTALK an ideal choice for facilities that need secure communications for simultaneous
translation, tour-guide use and other applications. Please see “ListenTALK Security” on Page 18 for
more information.
Charging and Battery Replacement
Rechargeable ListenTALK Transceivers may be charged in the Docking Station. To charge an individual
Transceiver, connect a USB charger to its Micro USB port.
To replace batteries on a non-rechargeable Transceiver, depress the button on the battery door and slide the
battery door downwards. Insert three AAA size alkaline batteries.
Updating ListenTALK Firmware
ListenTALK Transceiver rmware updates are available through the ListenTALK Software Suite.
LISTENTALK SOFTWARE SUITE
The ListenTALK Software Suite allows a Windows computer to program a ListenTALK system and check
ListenTALK status. After installation, the software will automatically connect to any Docking Station or
individual Transceiver connected to the computer’s USB port.
ListenTALK Software Suite features include complete setup, inventory management, group creation and
naming. The suite includes an extensive help le.
22
LISTENTALK ACCESSORIES
A wide variety of accessories enable ListenTALK systems to be congured for many dierent
applications. A complete list and full description of ListenTALK accessories may be found at:
www.listentech.com/assistive-listening/listentalk/
Docking Station Case 16
The Docking Station Case has the same features as the Docking Station Tray 16 in a convenient portable form.
Chargers
For applications that do not require Docking Station programming features, Listen oers a one-port or
four-port USB charger.
Headsets
Several varieties of headsets are available allowing ListenTALK usage in quiet and noisy environments.
ListenTALK Transceivers accept third-party earphones and microphone-equipped earphones through their
3.5mm Headset/Microphone Ports. ListenTALK Transceivers include a built-in microphone which may be
used by Participants in quiet environments.
Other Accessories
Other accessories include a spare Lithium-Ion Rechargeable Transceiver Battery Pack, a AAA Alkaline Battery
Compartment and a Transceiver Protective Case.
LISTENTALK APPLICATIONS
Tour Guide System
A ListenTALK System is ideal for use as a museum, factory or other facility tour-guide system. Create a
ListenTALK Group as described on Page 15. Press and release the Leader’s Talk Button to toggle between Talk
and Mute. Press and hold a Participant Talk Button to talk to the Leader or Group as dened by the Leader’s
choice of Talkback Modes (see Page 17).
Tour Guide System with Leader and Sub-Leader
A second ListenTALK Leader, known as a Sub-Leader, is useful for two-instructor tours, classrooms or any
application where a second Leader will accompany a group and speak to all Group members. Insert a red
Leader Clip onto a Transceiver and Pair it to the Leader (see Page 15) to create a Sub-Leader. The Leader
controls the Group name, Pair Key and Talkback Modes. The Sub-Leader Talk Button toggles between Talk and
Mute modes. Sub-Leaders can Pair with new Sub-Leaders or Participants, making them members of a Group
and passing the Group name and Pair Key from the Leader.
Training and Collaboration
A ListenTALK System with multiple Sub-Leaders is ideal for training in a corporate or sports setting.
Choose a noise-cancelling, microphone-equipped headset when needed for noisy environments and
set the ListenTALK System Talkback Mode as desired to restrict or enable talkback from Sub-Leaders and
Participants (see Page 17).
Simultaneous Translation
It may be desirable to create two, separate ListenTALK Groups so that Participants speaking one language
are not confused by translation into a second language. For this application, create two separate ListenTALK
23
Groups in a normal manner as described on Page 15. The ListenTALK Software Suite allows Groups to have
descriptive names such as “English” and “Spanish”.
Wireless Intercom
Two or more ListenTALK Transceivers may be used as a versatile wireless intercom for event production,
sporting activities and training sessions and it can facilitate workgroup collaboration in warehouses,
manufacturing environments or construction sites. Create a ListenTALK Group with one Transceiver as Leader
and the other Transceivers as Sub-Leaders to enable hands-o, full-duplex conversations.
The Talk Button on a Leader or Sub-Leader is a toggle – touch once to talk; touch again to mute. This allows
a Leader and a Sub-Leader to hold a hands-o, full-duplex conversation (both in Talk Mode). If a second
Sub-Leader presses their Talk Button, they take over the conversation and the rst Sub-Leader automatically
mutes. Multiple Sub-Leaders can hold a conversation with the Leader in this manner while other Sub-Leaders
listen. To enable this capability, the Leader must choose “Group Mode” using their Left Soft Button. Also see
“Operation with Leader and Sub-Leader” on Page 17.
LISTENTALK SYSTEM TROUBLESHOOTING
The ListenTALK Has No Power
Make sure the ListenTALK has a fully charged battery or is connected to a standard USB charger. Make sure
the Power Button on the top of the Transceiver has been pressed to turn the Transceiver ON. If this does not
work, make sure the battery is installed properly and/or install a replacement battery.
There is No Audio
Check that the ListenTALK is on the same Group with other Participants and the Leader. Make sure the
Volume Control is turned up to at least 25%. Conrm that the headset is plugged in all of the way.
Audio is Distorted
Verify the audio on the transmitter is not turned up too loud; this will cause distortion. Insure the headset
connectors are pushed all the way into the Headset/Microphone Port on top of the Transceiver.
Try a dierent headset.
I Cannot Pick Up the Signal on My ListenTALK
Check to make sure the ListenTALK Leader and Participants are members of the same group.
I Can Pick up the Signal on the ListenTALK, but it Sounds like it’s not Tuned in.
Check the ListenTALK Leader and Participant and conrm members of the same group and
move closer to the Leader.
My Battery is Not Charging (Rechargeable ListenTALK Transceivers).
Verify the clear plastic pull tab has been removed from the ListenTALK battery door engaging the battery
connections. Make sure the battery is installed properly and that the Transceiver is fully inserted into the
Docking Station pocket. If using a USB charger, try another USB cable. Check the charging device to verify
it is plugged in the proper power outlet and power is available at the outlet. If this does not work, install a
replacement battery.
I Want to Run the ListenTALK Transceiver from a USB Charger
Simply plug any standard USB charger into the Micro USB connector on the side of the ListenTALK Transceiver.
24
FCC STATEMENT AND INDUSTRY CANADA STATEMENT
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) These devices may not cause harmful interference, and (2) these devices must accept any interference
received, including interference that may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
FCC and IC Notice
•FCC ID and IC ISED certification notice can be found inside the battery compartment or in the product menu.
oThe product menu can be access by simultaneously pressing the volume down and power buttons.
oThe FCC ID and IC ISED is accessed by pressing the volume down button until the “About” menu is
displayed and pressing the check mark soft button.
•FCC ID et avis d’attestation IC ISED se trouvent à l’intérieur du compartiment des piles ou dans le menu
produits.
oLe menu produit peut être l’accès en appuyant simultanément sur la diminution du volume et le bouton
power.
ol’ID FCC et IC ISED est accessible en appuyant sur le bouton volume faible jusqu’à ce que le menu
"Informations" s’affiche en appuyant sur le bouton doux case à cocher.
RF Exposure Warning
•This equipment complies with FCC and IC radiation exposure limits set forth for body worn portable devices
in an uncontrolled environment.
•This equipment may be safely worn and operated handheld or next to your body such as on a lanyard or
clipped to clothing.
•Cet équipement est conforme à la FCC et IC limites d’exposition aux rayonnements dénies pour appareils
portables corps portés dans un environnement non contrôlé.
•Cet équipement peut être porté et exploité suivante à votre corps comme sur une longe ou ordinateur de
poche ou découpé aux vêtements en toute sécurité.
25
ICES Statement
This device complies with ICES-003 class B.
This device complies with Industry Canada’s license-exempt RSS Standards. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation
of the device.
Cet appareil est conforme à la classe B de l’ICES-003
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence (s). Son utilisation est
soumise aux deux conditions suivantes:
(1) cet appareil ne peut pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un
fonctionnement indésirable de l’appareil.
CAN ICES-3 (B)/NMB-3(B)
WARRANTY
Please visit www.listentech.com/support/warranty/ for warranty and service information.
CONTACT INFORMATION
LISTEN TECHNOLOGIES 14912 Heritage Crest Way, Bludale, Utah 84065-4818 USA
Phone: +1.801.233.8992 Toll-Free: 1.800.330.0891 www.listentech.com
Copyright © 1998 - 2017 Listen Technologies Corporation. All rights reserved.
20170915
26
LISTEN TECHNOLOGIES 14912 Heritage Crest Way, Bludale, Utah 84065-4818 USA
Phone: +1.801.233.8992 Toll-Free: 1.800.330.0891 www.listentech.com
Copyright © 1998 - 2017 Listen Technologies Corporation. All rights reserved.

ListenTALK-User-Manual

Navigation menu
