Listen Technologies T216001 ListenPoint Assistive Listening Kit (216 MHz) User Manual
Listen Technologies Corporation ListenPoint Assistive Listening Kit (216 MHz)
User Manual
Welcome!
Let’s get started.
What you will need:

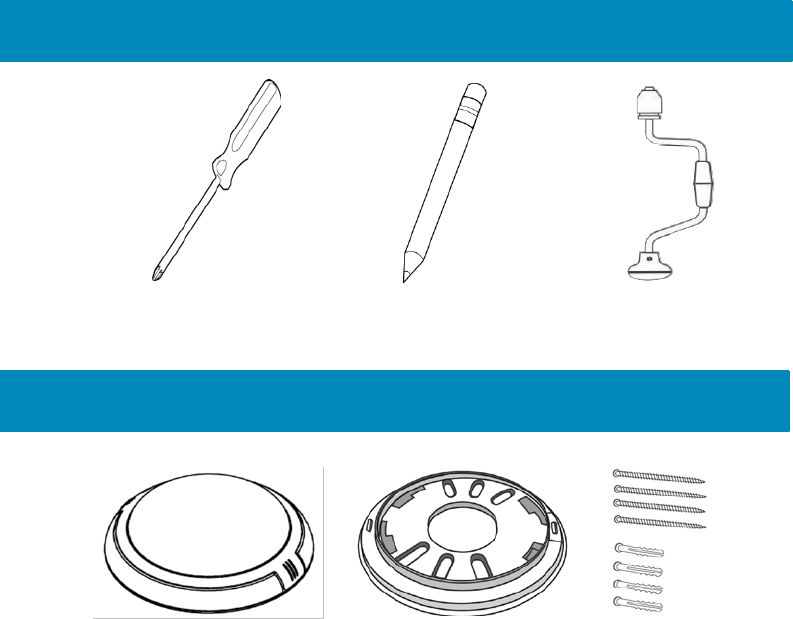

Screwdriver Marking Pencil Hole Saw
What’s in the box:
LPT-T216
ListenPoint
®
ALS Module
(216MHz)
Mounting Platform Mounting Hardware
* If you did not receive all listed parts please call Listen Technologies Corporation - See back page for contact information.
Plan and Prepare for Installation
a. Evaluate the room for optimal placement of the T216 ALS Transmitter.
b. Decide where you want to install your
T216 ALS Transmitter. Use a pencil to
mark the center of the Transmitter’s
location.

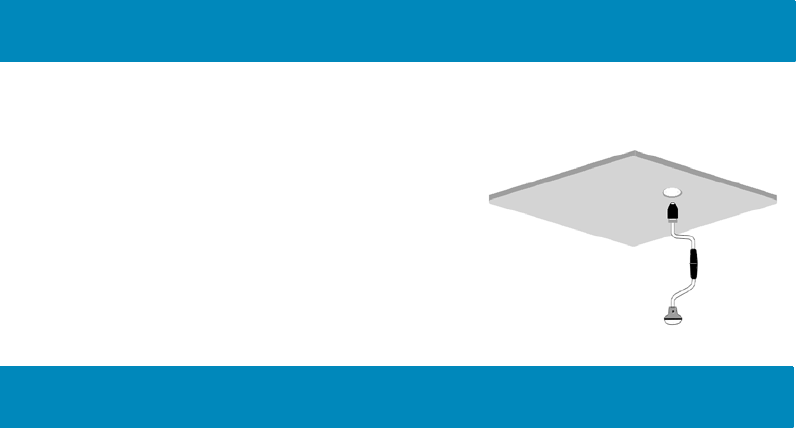

c. Using the mounting template provided;
cut a hole in the ceiling with a hole saw.
Items to Remember
* The distance between the T216 ALS Transmitter and the Room Module
should only be a maximum of 50 ft. (15 m).
The T216 ALS Transmitter broadcasts an FM signal. FM signal will travel
* through walls and other visual obstructions. Appropriate attention
needs to be paid to placement of the transmitter for optimal privacy
and performance within the room.
* Do not cut into ceiling without safely checking above the hole location for the presence
of any wires, ducting, or any other obstruction that may exist.
Transmitter Installation
Pull Cable
a. Run the Cat-5e cable from your ListenPoint® Room Module (RM) to
the hole at the desired location for your T216 ALS Transmitter. This
may require additional tools to pull the cable through any
obstructions.
b. Cable should be pulled through the open slot of the mounting platform.
c. Mount the ALS Mounting Platform included with the T216 ALS Transmitter
on the ceiling using the supplied mounting hardware.
* May be attached to an electrical box, or directly to the ceiling or ceiling tile.
Attach ALS Transmitter to Room Module and Mount
1 2 3 4
SPEAKERS
LISTE
4
LISTEN
BUS
N BUS PAGING
6-12VDC
N.C. COM N.O.
RELAY
TO
CU
INPUT
INPUT
OUTPUT
19VDC

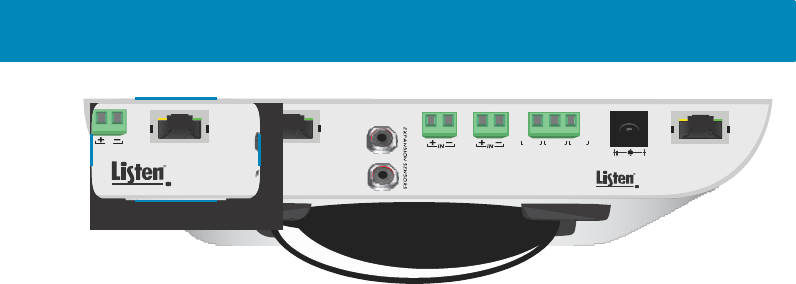

Connect Transmitter to RM
a. Connect the Cat-5e cable to the “LISTEN BUS” port on the RM. Connect
the other end of the Cat-5e cable directly to the T216 ALS Transmitter
via the port.
b. Mount the T216 ALS Transmitter onto the ALS Transmitter Mounting Plat-
form. The Transmitter will slide in and snap into place.
* To snap into place, simply align notches and turn clockwise until it snaps.
Installation is complete!
Configure Your System

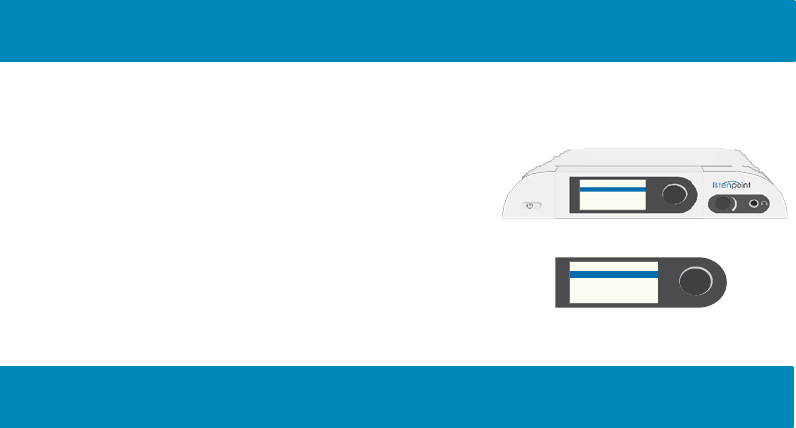

Adjust Menu Items on the ListenPoint® Control Unit
To access CU Menu Items follow this sequence:
a. First, ensure that your ListenPoint® System
has the latest updates in firmware (See
included card with Update Information).
b. Press the CU control knob.
c. Scroll down to the “Optional Module”
Tab and push the control knob.
Top Level Menu
Speaker Control
Paging
Microphones
Auto Select On
Top Level
Menu
Speaker Control
Paging
Microphones
Auto Select
On
Select Power Level
a. The Transmitter has 3 levels of power: High, Medium (default) and Low.
This allows for customizable transmission applications in a variety of
environments and circumstances.
b. The default Medium level has the optimal coverage for a standard 30
ft. x 30 ft. (9 m X 9 m) room.
c. The High setting has a range of 150 ft. (46 m)
d. The Low setting has a range of 10 ft. x 10 ft. (3 m X 3 m)
e. Highlight the power level that best suits your environment and Press the
CU control knob.
For advanced help in determining Transmitter placement, please call Listen Technologies
Corporation - See back page for contact info.
Channel Settings
a. The T216 ALS Transmitter has 57 channel settings—19 wide band and 38
narrow band. Adjust the FM receivers to the desired channel.
b. Tune the receivers to the transmission channel.

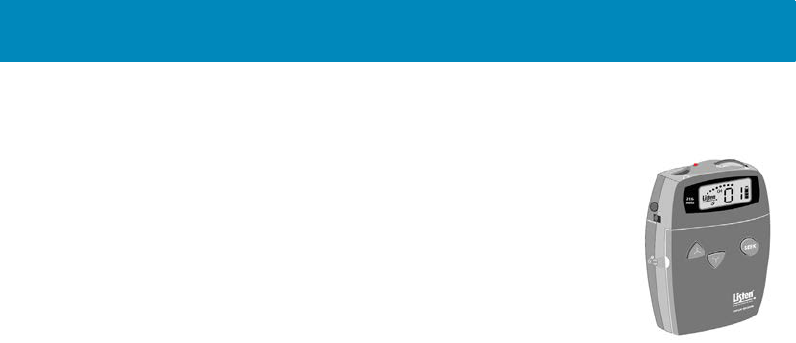

* We recommend the use of genuine Listen® wireless
receivers and accessories for solid performance and
the highest standards of quality.
Channel Selection
It is important to choose channels that are free from interference to
achieve proper operation of your Listen equipment. This process is trial and
error. Before turning on the transmitter, listen to the wide band channels
(Channels that start with a “2” for 216MHz when using a Listen receiver).
Listen to the audio through the headphone or on a Listen receiver. Choose
a channel with the least amount of interface. Unless you are interfacing
with an existing narrowband transmission system, always use a wide band
channel. If you are using multiple channels follow this process:
a. Same Space. If you are using multiple transmitters in the same space,
the most number of channels that will work simultaneously is three at
216MHz. With all of the transmitters off, listen for interference on all the
wide band channels via the headphone jack on a Listen receiver. Us-
ing the frequency compatibility tables on page 9, eliminate any chan-
nels that have noticeable interference. Now choose the channels with
the widest channel spacing. It is recommended that adjacent chan-
nels be spaced at least 300 kHz. If there is no interference the following
channels are recommended: Channels 2A, 2K and 2V at 216MHz.
b. Distributed Spacing. If you are using transmitters that are spread out
over space, you can achieve more simultaneous broadcast channels.
However, it is critical that your receiver(s) be located as close to its
transmitter as possible. You can use adjacent channels (see frequency
compatibility tables on page 10) in this case as long as the adjacent
channel transmitter is at least 50% further away from the receiver as its
transmitter. Example: The transmitter or the receiver on channel E is 100
feet from the receiver. The adjacent channel transmitter on channel D
should be at least 150 feet away.
216 MHz Compatibility Chart
Frequency
MHz Listen
Phonak
Microfield
Comtek
Williams
Gentner
CSI
AVR
LightSpeed
216.0125
1A
1
1
C01
N01
216.025
2A
41
41
1
1
216.0375
3A
2
2
216.0625
1B
21
3
216.075
2B
42
42
2
10
216.0875
3B
4
4
C05
216.1125
1C
5
5
216.125
2C
43
43
A
3
6
216.1375
3C
22
6
216.1625
1D
23
7
216.175
2D
44
44
B
4
14
216.1875
3D
8
8
216.2125
1E
9
9
C09
N09
216.225
2E
45
45
C
5
2
216.2375
3E
24
10
216.2625
1F
25
11
216.275
2F
46
46
D
6
11
216.2875
3F
12
12
C12
N12
216.3125
1G
13
13
216.325
2G
47
47
E
7
7
216.3375
3G
26
14
216.3625
1H
27
15
216.375
2H
48
48
F
8
15
216.3875
3H
16
16
C18
N18
216 MHz Compatibility Chart
Frequency
MHz Listen
Phonak
Microfield
Comtek
Williams
Gentner
CSI
AVR
LightSpeed
216.4125
1J
17
17
C21
216.425
2J
49
49
G
9
18
216.4375
3J
18
18
216.5125
1K
61
21
216.525
2K
29
51
H
10
3
216.5375
3K
62
22
216.5625
1L
28
23
216.575
2L
52
52
I
11
12
216.5875
3L
64
24
C24
N64
216.6125
1M
65
25
C25
216.625
2M
53
53
J
12
8
216.6375
3M
81
26
216.6625
1N
82
27
216.675
2N
54
54
K
13
16
216.6875
3N
68
28
216.7125
1P
69
29
C29
216.725
2P
55
55
L
14
19
216.7375
3P
83
30
216.7625
1R
84
31
216.775
2R
56
56
15
4
216.7875
3R
72
32
C32
N72
216.8125
1S
73
33
C33
216.825
2S
57
57
13
216 MHz Compatibility Chart
Frequency
MHz Listen
Phonak
Microfield
Comtek
Williams
Gentner
CSI
AVR
LightSpeed
216.8375
3S
76
34
216.8625
1T
85
35
216.875
2T
58
58
9
216.8875
3T
86
36
216.9125
1U
77
37
C37
N77
216.925
2U
59
59
17
216.9375
3U
88
38
216.9625
1V
79
39
C39
216.975
60
60
5
216.9875
80
40
C40
N80
Listen SQTM
People are accustomed to listening to low noise, high fidelity audio (deliv-
ered via CD, DVD, etc.). FM radio systems, such as those made by Listen
Technologies, have more inherent noise compared to most sound systems.
To minimize noise, Listen uses a noise reduction technology called Listen-
SQ™. Both the transmitter and receiver must have the SQ feature enabled
to achieve the desired results. SQ is available on your T216 Transmitter and
Listen receivers.
If you are planning to use this product with older Listen systems that do not
have Listen SQ or equipment not manufactured by Listen, you should dis-
able Listen SQ.
Your Listen equipment has been shipped to you with the SQ feature en-
abled. You may need to disable the SQ function for one or more of the
following reasons:
a. You are using your new Listen system with older version Listen
equipment that does not have the SQ function.
b. You are using your new Listen system with equipment supplied by other
manufacturers.
c. You expect that end users may bring and use their own receivers that
don’t have the SQ function..
Phonak® and 3rd Party Hearing Devices
a. Your ListenPoint® T216 Transmitter is able to interface with Phonak
®
hearing devices. Select the Phonak option in the CU control menu
and press enable.
* We recommend the use of genuine Listen® wireless receivers and
accessories for solid performance and the highest standards of quality.
Test Your System
Power Up and Test the System
a. Push the power button on the CU (turning on CU will also power the RM).
b. Test the system with a fully charged microphone – push any button on
the microphone or simply remove from the Charging/Storage Station
to turn on. Wait 10 Seconds, and then adjust the volume on the micro-
phone until you have a comfortable listening level.
c. Set the FM receivers to the appropriate channel.
d. Listen for noise or interference.
RF Maximization Strategies
For proper and dependable operation, Listen receivers should receive a
strong and consistent signal from the originating transmitter. The following
strategies should be used maximize this signal:
a. When using your system, keep in mind that the location of both the
transmitter and receiver is critical to maximizing signal strength.
b. Eliminate or minimize obstructions between the transmitter and the
receivers.
c. Minimize the distance between the transmitter and the receivers.
d. Stay clear of metal objects.
e. Keep the headphone cables connected to the receivers fully
extended. Do not shorten or coil headphone cables. These cables
are the antennas for your portable products.
* If the RF signal to the 216MHz model receivers is too high, the audio will be distorted. This
may happen if you are within 5 feet of the 216MHz transmitter.
Compliance Notice and FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. These devices may not cause harmful interference, and
2. These devices must accept any interference received, including
interference that may cause undesirable
Listen’s LPT-T216 Assistive Listening Transmitter (216MHz)
This transmitter is authorized by rule under the Low Power Radio Service (47
C.F.R. Part 95) and must not cause harmful interference to TV reception or
United States Navy SPASUR installations. You do not need an FCC license
to operate this transmitter. This transmitter may only be used to provide:
auditory assistance to persons with disabilities, persons who require lan-
guage translation, or persons in educational settings; health care services
to the ill; law enforcement tracking services under agreement with a law
enforcement agency; or automated maritime telecommunications system
(AMTS) network control communications. Two-way voice communications
and all other types of uses not mentioned above are expressly prohibited.
CAUTION: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate Listen’s equipment.
FCC Statement
This equipment has been tested and found to comply with the limits for
a class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
RF Safety Instructions
For RF Safety and per FCC and Industry Canada regulations, the product
should never be installed within 8-inches (20cm) of typical people loca-
tions.
Contacting Listen
If technical service is needed, please contact Listen.
Pre-authorization is required before returning Listen products.
If products were damaged in shipment, please contact the carrier,
then contact Listen for replacement or repair requirements payable by
the carrier.
Listen’s corporate headquarters are located in Bluffdale, Utah U.S.A.
We are open Monday through Friday, 8am to 5pm Mountain Time.
14912 Heritagecrest Way
Bluffdale, Utah 84065-4818
+1.801.233.8992
+1.800.330.0891 North America
+1.801.233.8995 fax
support@listentech.com
www.listentech.com
Need more help?
Get the most from your ListenPoint® system.
Check out our FAQs, instructional videos and support.
listentech.com/listenpoint
® 2009-2013 by Listen Technologies Corporation. All Rights reserved. ListenPoint® and the Listen® logo are registered
trademarks of Listen Technologies Corporation. Other brand and product names are trademarks or registered trademarks
are of their respective holders.
