Full line catalog
and pricebook
Electromagnetic locks,
electric strikes and acessories
Contents
Electromagnetic locks
and electric strikes
WMG Series 4
MG Series 6
CS Series 8
MS Series 10
RS Series 12

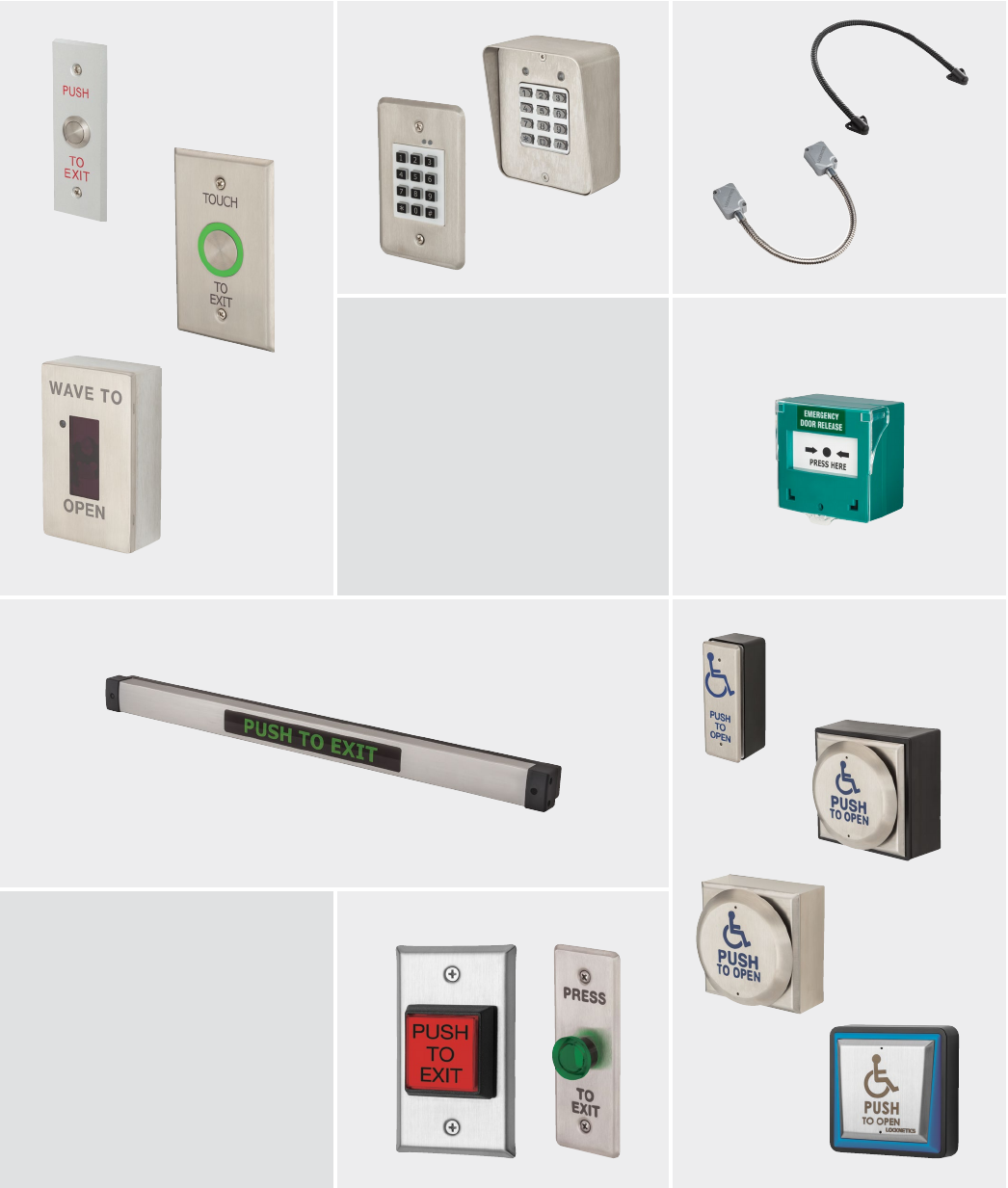

Access control accessories
Pushbuttons 15
Specialty switches 17
Digital keypads 18
Touchbars 19
Push plates 20
Emergency breaks 21
Door cords 22
Specialty sensor
and buzzer switches 23
Limited product warranty 25
Allegion General Terms and
Conditions of Sale and Service 26
Weight and case quantity chart 31
Customer Support
Administrative Oces
Allegion Administrative Oce
11819 N. Pennsylvania St.
Carmel, IN 46032
allegion.com/us
Placing Orders for Direct Accounts
You can place orders with Allegion via the
fax numbers or emails listed below:
Fax: 1.800.452.0665
Email: order_entry_schlage_commercial@allegion.com
Customer Care
Our Customer Care Representatives are available for
questions or assistance for sales order support and
technical product support.
Phone: 1.877.671.7011
Technical Product Email Support
Email: electronic_lock_techprodsupport@allegion.com
2 • Locknetics • Full line catalog
Electromagnetic locks
and electric strikes
3 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
WMG Series
600 and 1200 models
The WMG Series of weather resistant, surface electromagnetic locks are designed for
high profile openings that require a tamper-resistant lock with an aesthetically pleasing
appearance. A stainless steel housing, fire-rated epoxy seal, optional mounting bracket
and an assortment of brackets enable the WMG Series to be used in a variety of
applications. Designed for up to 600 lb. or 1200 lb. holding strength.
Features and benefits
§Stainless steel housing
§Sealed with fire-rated epoxy for weather and
tamper-resistant applications
§Optional mounting plate for quick,
simple installation
§Magnetic bond sensor included
§Built-in voltage spike suppressor
§Field selectable 12/24 VDC
§Suitable for outdoor use
Accessories
§Z bracket kit for inswing doors
§L bracket for narrow frame, outswing doors
§ 12" and 58" filler plates
Specifications
§UL10C single door, listed
§UL294, listed
§UL1034, listed
Electrical
§Dual voltage: 12 VDC @ 0.5A/24 VDC @ 0.25A
WMG600 WMG1200
WLBK600
L bracket
WLBK1200
L bracket
WZBK600
Z bracket
WZBK1200
Z bracket
630/US32D
Satin stainless steel
Brackets Finishes
Finishes
628/US28
Aluminum
4 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
Lock and armature dimensions
WMG600
Lock: 8" x 1 2332" x 1 916"
(203mm x 43.5mm x 40mm)
Armature: 7 516" x 1 34" x 916"
(185mm x 45mm x 14mm)
WMG1200
Lock: 8 1116" x 2 1116" x 1 58"
(220mm x 68mm x 42mm)
Armature: 7 14" x 1 38" x 58"
(185mm x 61mm x 16mm)
WMG Series
600 and 1200 models
WMG Series list prices
Product name Product description Finish Voltage UPC List price
WMG600 Weatherproof maglock - 600lb 630/US32D 12/24 VDC 043156646098 $370.00
WZBK600 Z-bracket - 600lb 628/US28 N/A 043156646104 $135.00
WLBK600 L-bracket - 600lb 628/US28 N/A 043156646111 $58.00
WMG1200 Weatherproof maglock - 1200lb 630/US32D 12/24 VDC 043156646142 $470.00
WZBK1200 Z-bracket - 1200lb 628/US28 N/A 043156646159 $140.00
WLBK1200 L-bracket - 1200lb 628/US28 N/A 043156646166 $63.00
WFP50 12" Filler plate 628/US28 N/A 043156646128 $25.00
WFP63 58" Filler plate 628/US28 N/A 043156646135 $25.00
5 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
MG Series
600 and 1200 models
The MG Series of surface mount electromagnetic locks provides a cost
competitive, slim profile and dependable solution for a variety of applications.
Designed for up to 600 lb. or 1200 lb. holding strength.
Features and benefits
§Bi-colored LED bond sensor
provides easy lock status
identification
§Adjustable mounting plate
for quick, simple installation
§Removable PCB for easy
installation
§Built-in voltage spike
suppressor
§Field selectable 12/24 VDC
Options (DT models only)
§Timer to provide a 0-90
second dealy for locking
§Door status sensor S.P.D.T.
switch to determine if door
is open or closed
MG600 MG1200
Finishes
Finishes
Accessories
§U bracket for glass door
§Z bracket for inswing doors
§L bracket for narrow frame
and outswing doors
§ 12" and 58" filler plates
Specifications
§UL10C single door, listed
§UL294, listed
§Indoor use only
630/US32D
Satin stainless steel
628/US28
Aluminum
Brackets
Electrical
§Dual voltage: 12 VDC @
0.5A/24 VDC @ 0.25A
MLBK600
L bracket
MLBK1200
L bracket
MUBK
U bracket
MZBK600
Z bracket
MZBK1200
Z bracket
6 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
Lock and armature dimensions
MG Series
600 and 1200 models
MG600
Lock: 9 78" x1 78" x1 116"
(250mm x 47.2mm x 26.5mm)
Armature: 7 516" x 1 12" x 12" 
(185mm x 38mm x 12.5mm)
MG1200
Lock: 10 12" x2 78" x 1 12"
(266mm x 73mm x 40mm)
Armature: 7 13" x 2 25" x 35"
(185mm x 61mm x 16mm)
MG Series list price
Product name Product description Finish Voltage UPC List price
MG600 Maglock - Standard 600lb 630/US32D 12/24 VDC 043156646173 $159.00
MG600DT Maglock - Monitored 600lb 630/US32D 12/24 VDC 043156646180 $184.00
MZBK600 Z-bracket - 600lb 628/US28 N/A 043156646197 $100.00
MUBK U-bracket - 600lb/1200lb, adjustable 628/US28 N/A 043156646203 $65.00
MLBK600 L-bracket - 600lb 628/US28 N/A 043156646210 $50.00
MG1200 Maglock - Standard 1200lb 630/US32D 12/24 VDC 043156646241 $239.00
MG1200DT Maglock - Monitored 1200lb 630/US32D 12/24 VDC 043156646258 $264.00
MZBK1200 Z-bracket - 1200lb 628/US28 N/A 043156646265 $115.00
MLBK1200 L-bracket - 1200lb 628/US28 N/A 043156646289 $57.00
MFP50 12" Filler plate 628/US28 N/A 043156646234 $18.00
MFP63 58" Filler plate 628/US28 N/A 043156646227 $23.00
Filler plates
Finishes
628/US28
Aluminum
MFP50 and MFP63
7 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
CS Series
450 and 750 models
The low, versatile profile CS Series of electric strikes are designed
for use with cylindrical locksets and select mortise locksets
without deadbolt for both metal and wood door frames.
Features and benefits
§Low profile
§Field selectable fail-safe and fail-secure
(fail-secure default), with simple and easy
screw reversal
§Included trim piece for installation flexibility
and improved appearance
§Mounting tabs included for aluminum
frame installation
§Two faceplates included: Radius and square
edge stainless steel (4 7/8" x 1 1/4")
§Field selectable 12/24 VDC
§Voltage spike suppressor included
§Suitable for rain or dust environment
Options
§CS450 Series accepts latch bolt up to 916"
§CS750 Series accepts latch bolt up to 34"
§Latch bolt monitoring available
Accessories
§Buzzer rectifier with timer (TBR-100)
§Faceplates kits in 613/US10B finish
§ 7 1516 x 1 716 radius edge, stainless steel
faceplate kits for wood applications
§1" (25mm) lip extension
§2" (50mm) lip extension
Specifications
§UL1034 Burglar-resistant electric locking
mechanisms, listed
§UL294 (indoor), listed
§Static strength of 1500 lb. static load,
UL certified
§Dynamic strength of 70 .-lb. dynamic
load, UL certified
§250,000 cycles endurance, UL certified*
Electrical
§Dual Voltage: 12VDC @ 0.3A/24VDC@ 0.15A
*LBM models UL certified to 100,000 cycles.
8 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
CS Series
450 and 750 models
CS450/CS750
3 38" x 1 1116" x 1 316"
(85.5mm x 43.5mm x 29.5mm)
CSFP-kit
1 14" x 18" x 4 78"
(31.75mm x 3mm x 124mm)
CWFP-kit
1 716" x 18" x 7 1516"
(36.5mm x 3mm x 201.6mm)
CSLE-1
1" (25mm)
CSLE-2
2" (50mm)
CS Series list price
Product name Product description Finish Voltage UPC List price
CS450-32D E-strike - 916" deep 630/US32D 12/24 VDC 043156645893 $170.00
CS450-LBM-32D E-strike - 916" deep w/LBM 630/US32D 12/24 VDC 043156645909 $239.00
CS750-32D E-strike - 34" deep 630/US32D 12/24 VDC 043156645961 $170.00
CS750-LBM-32D E-strike - 34" deep w/LBM 630/US32D 12/24 VDC 043156645978 $239.00
CSFP-KIT-10B US10B faceplates - Qty 2; Square
and radius corner (4 78" x 1 14")
613/US10B N/A 043156645916 $38.00
CWFP-KIT-10B US10B radius corner faceplate
(7 1516" x 1 716") wood applications
613/US10B N/A 043156645930 $48.00
CWFP-KIT-32D US32D radius corner faceplate
(7 1516" x 1 716") wood applications
630/US32D N/A 043156645923 $38.00
CSLE-1 1" lip extension N/A N/A 043156645947 $50.00
CSLE-2 2" lip extension N/A N/A 043156645954 $50.00
TBR-100 Timer-buzzer rectifier with surge protection for
strikes and other access control components
N/A N/A 043156651740 $49.00
Strike and accessory dimensions
Faceplate kit and trim piece
Finish - faceplates
Trim pieceFaceplates
(not sold together) 630/US32D
Satin stainless steel
613/US10B
Dark bronze
CSFP-kit CWFP-kit
9 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
MS Series
100 model
The MS100 Series electric strike is designed for use with heavy
duty mortise locksets and cylindrical locksets. Five different
faceplates included for optional flexibility of installation in
wood or metal frames.
Features and benefits
§Heavy duty design with vertical adjustments
for flexibility
§Field selectable fail-safe and fail-secure
(fail-secure default), with simple and easy
screw reversal on non-fire rated models
§Included trim piece for installation flexibility
and improved appearance
§Mounting tabs included for aluminum frame
installation on non-fire rated doors in non-fire
rated applications
§Five stainless steel faceplates included
for optional flexibility (4 78" x 1 14" with
differing cutouts)
§Field selectable 12/24 VDC
§Built-in voltage spike suppressor included
§Suitable for rain or dust environment
Options
§Fire rating
§Latch bolt monitoring
Accessories
§Buzzer rectifier with timer (TBR-100)
§Faceplate kit in 613/US10B finish
Specifications
§UL1034 burglary-resistant electric locking
mechanisms, listed
§UL294 (indoor), listed
§Static strength of 1500 lb. static load, UL
certified
§Dynamic strength of 70.-lb. dynamic load, UL
certified
§UL10C Fire rated, listed - MS100-F models only
§250,000 cycles endurance, UL certified
Electrical
§Dual-voltage 12 VDC @ .3A/24 VDC @ .15A
10 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
MS Series
100 model
MS Series list prices
Product name Product description Finish Voltage UPC List price
MS100-32D E-strike - 1" deep; 5 faceplates 630/US32D 12/24 VDC 043156645985 $520.00
MS100-F-32D E-strike - 1" deep; 5 faceplates (Fire-rated) 630/US32D 12/24 VDC 043156646074 $520.00
MS100-LBM-32D E-strike - 1" deep; 5 faceplates with LBM 630/US32D 12/24 VDC 043156645992 $620.00
MS100-F-LBM-32D E-strike - 1" deep; 5 faceplates with LBM (Fire-rated) 630/US32D 12/24 VDC 043156646081 $620.00
MSFP-KIT-10B 5 piece extra faceplate kit 613/US10B N/A 043156646005 $55.00
TBR-100 Timer-buzzer rectifier with surge protection for
strikes and other access control components
N/A N/A 043156651740 $49.00
MS100
(excluding faceplate)
3 516" x 1 58" x 1 1316"
(84.5mm x 41.5mm x 46.7mm)
Deadbolt latch faceplate Latchbolt faceplate
Strike and accessory dimensions
Faceplate kit and trim piece
Finish - faceplates
Faceplate kit Trim piece 630/US32D
Satin stainless steel
613/US10B
Dark bronze
11 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
RS Series
200 and 300 models
The RS Series of surface mounted electric rim strikes are designed
with endurance and flexibility. Available to accommodate rim exit
devices with a 12" or 34" throw pullman latchbolt and multiple
spacers are included for superior installation. Four attachment
points to the frame provide for extra durability.
Features and benefits
§Surface mounted for easy installation
§Slotted mounting holes for increased
adjustment flexibility
§Multiple spacers included for easy installation
§Sleek cover case design
§Field selectable fail-safe and fail-secure
(fail-secure default), with simple and easy
screw position change, non-fire rated models
§Field selectable 12/24 VDC
§Built-in voltage spike suppressor
§Suitable for rain or dust environments
Options
§RS200 Series accepts 12" throw
pullman latchbolt
§RS300 Series accepts 34" throw
pullman latchbolt
§Offered in both 630/US32D and
613/US10B finishes
§RS300 available in fire rated version
Accessories
§Buzzer rectifier with timer (TBR-100)
Specifications
§UL1034 Burglary-resistant electric
locking mechanisms, listed
§UL294 (indoor), listed
§UL10C Fire Rated, 90 min. RS300-F
models only
§Static strength of 1500 lb. static load,
UL certified
§Dynamic strength of 70 .-lb.
dynamic load, UL certified
§250,000 cycles endurance, UL
certified
Electrical
§Dual-voltage 12 VDC @ .54A / 24
VDC @ .27A
Finishes
630/US32D
Satin stainless steel
613/US10B
Dark bronze
12 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
RS Series
200 and 300 models
RS Series list prices
Product name Product description Finish Voltage UPC List price
RS200-32D Rim strike - 12"; Depth with spacers 630/US32D 12/24 VDC 043156646029 $475.00
RS200-10B Rim strike - 12"; Depth with spacers 613/US10B 12/24 VDC 043156646036 $520.00
RS300-32D Rim strike - 34"; Depth with spacers 630/US32D 12/24 VDC 043156646050 $485.00
RS300-10B Rim strike - 34"; Depth with spacers 613/US10B 12/24 VDC 043156646067 $530.00
RS300-F-32D Fire rated rim strike - 34"; Depth with spacers 630/US32D 12/24 VDC 043156001552 $550.00
RS300-F-10B Fire rated rim strike - 34"; Depth with spacers 613/US10B 12/24 VDC 043156001569 $595.00
Strike dimensions
Spacers
Included with strike
RS200
9" x 1 34" x 12"
(229mm x 44.5mm x 13mm)
RS300
9" x 1 34" x 34"
(229mm x 44.5mm x 19mm)
RS200
Thick
3mm
Thin
1mm
Thin
1mm
RS300
13 • Locknetics • Full line catalog
Access control accessories
14 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
Pushbuttons
IPB-100, IPB-100-N
IPB-300, IPB-300-N
Features and benefits
§LED illuminated push button
§12/24 VDC, switch contact rated @ 5A /125 VAC
§Includes 3 lenses: Red/Green - "Push to Exit"; Blue - Handicap logo
§2" square push button on single gang plate; 1 12" square push
button on narrow stile plate
§Switch mounted on stainless steel single gang or narrow stile plate
§Momentary action switch
§SPDT and DPDT switches included
Features and benefits
§LED illuminated mushroom-style round push button
§Red and green lenses included
§12/24 VDC, SPDT switch contact rated @ 5A/125VAC
§Single gang and narrow stile plate available
§Ideal for request-to-exit applications to release electromagnetic locks
§Fits standard stainless steel single gang surface or recessed electrical boxes
(except narrow stile switches)
§Narrow stile model includes narrow black plastic electrical box
Illuminated pushbuttons
The push to exit button series combines the most popular buttons in one box.
The IPB Series is packaged with multiple lense options and switches for flexibility.
15 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
MPB-100, MPB-100-N Features and benefits
§Vandal resistant brass nickel plated push button
§Labeled "PUSH TO EXIT"
§Momentary action switch
§12/24 VDC, SPDT switch contact rated @ 5A/125VAC
§Aluminum single gang and narrow stile plate available
Push buttons
System accessories
Metal pushbuttons
The metal push to exit button provides increased security with a durable and stylish appearance.
Options
Product name Product description UPC List price
IPB-100 LED illuminated 2" button; 3 lenses; SPDT and DPDT switches included 043156651351 $65.00
IPB-100-N LED illuminated 2" button; 3 lenses; SPDT and DPDT switches included; Narrow plate 043156001644 $65.00
IPB-300 LED illuminated mushroom style round button; 2 lenses; SPDT switch 043156651375 $109.00
IPB-300-N LED illuminated mushroom style round button; 2 lenses; SPDT switch; Narrow plate 043156651382 $109.00
MPB-100 Metal button; 'Push to Exit'; SPDT switch 043156651405 $109.00
MPB-100-N Metal button; 'Push to Exit'; SPDT switch; Narrow plate 043156651399 $109.00
16 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
Specialty switches
TS-100, TS-100-N
WS-200, WS-200-MB
Features and benefits
§Dual LED (Red/Green) indicates inactive/active status
§12/24 VDC, SPDT switch contacts rated @ 2A/30VAC
§Programmable timer output 1-40 sec, adjustable
§Available in stainless steel single gang or narrow stile plate
§Narrow stile model includes narrow black plastic electrical box
Features and benefits
§Infrared sensor technology for no contact switch activation
§Sensor detection range up to approximately 4"
§Dual LED (Red/Green) indicates inactive/active status
§Time delay settable for 0.5, 5, 10 or 20 seconds
§12/24 VDC, SPDT switch contacts rated @ 2A/30VAC
§Single gang stainless steel, weather resistant and vandal
resistant faceplate
§Operating temperature range is -10° F to +130° F
§Available in flush or surface mount with metal box
Touch sense
The touch sense is a cap sense style switch. There is no movable action in the switch, but instead only a
touch is required to operate it. The illuminated bi-color LED provides easy status indication.
Wave sense
The touchless wave sense series is ideal for request-to-exit situations where a sanitary environment is
desired such as healthcare facilities, restaurants, restrooms or labs.
TS Series/WS Series list prices
Product name Product description UPC List price
TS-100 Dual LED status indicator with programmable timer; SPDT switch 043156651498 $125.00
TS-100-N Dual LED status indicator with programmable timer; SPDT switch; Narrow plate 043156651504 $125.00
WS-200 Touchless infrared sensor switch activation with dual LDE and time delay; SPDT switch 043156651511 $125.00
WS-200-MB Touchless infrared sensor switch activation with dual LDE and time delay; SPDT switch;
Metal box included
043156651528 $135.00
17 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
Digital keypads
DKP-165, DKP-165-S
and DKP-165-FM
Features and benefits
§Fully programmable with up to 480 users with 1 to 6 digit user codes
§Keys are backlit for visibility in dark areas with audible and visual key
press feedback
§12/24 VDC, switch contacts rated @ 2A/30VAC/VDC
§Multi-colored LEDs indicate the state of the keypad
§Timed anti-pass back
§302 stainless steel gang plate
§Operating temperature range is -10° F to +130° F
§Available in surface mount (DKP-165-S) or flush
mount (DKP-165-FM)
§Tamper resistant screws included for faceplate (DKP-165 S only)
§Designed for indoor use (DKP-165)
Digital keypads
The DKP Series keypads are designed for simple access control or code control for up to four individual devices.
These keypads are a great choice for controlling electric strikes, electromagnetic locks, security systems or other
types of openings requiring on/off or momentary control outputs.
DKP Series list prices
Product name Product description UPC List price
DKP-165 Indoor digital keypad; Up to 480 users weith timed anti-pass back 043156651634 $110.00
DKP-165-S Digital keypad; Surface mount with case; Up to 480 users with timed anti-pass back 043156651641 $175.00
DK-165-FM Digital keypad; Flush mount; Up to 480 users with timed anti-pass back 043156651658 $150.00
DKP-165
4 34" x 3" x 1 38"
(120mm x 76mm x 34.9mm)
DKP-165-S
4 1516" x 4 18" x 2 38"
(125mm x 105mm x 60mm)
DKP-165-FM
4 34" x 3 1516" x 1 12"
(120mm x 100mm x 37.4mm)
Dimensions
18 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
To u c h b a r s
TB-36, TB-42, TB-48 Features and benefits
§Low operating force, minimal bar travel
§Non-latching
§12/24 VDC, includes two SPDT switches for positive
redundant operation
§Field reversible and easily installed on all types of doors
§Heavy duty clear anodized satin aluminum construction
§Includes 'Push to Exit' sticker
§Available in three lengths - 36", 42" and 48"
§Available in 628/US28 Aluminum finish
To u c h b a r
The touchbar is a request to exit device, usually installed as a redundancy to other access control devices for
non-fire rated indoor doors.
TB Series list prices
Product name Product description Finish UPC List price
TB-36 Touchbar - 36" door 628/US28 043156651467 $189.00
TB-42 Touchbar - 42" door 628/US28 043156651474 $239.00
TB-48 Touchbar - 48" door 628/US28 043156651481 $239.00
19 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
PPH Series list prices
Product name Product description UPC List price
PPH-100-PL Large round push plate w/black box; Stainless steel faceplate with DPDT switch 043156651412 $109.00
PPH-100-AL Large round push plate w/aluminum box; Stainless steel faceplate with DPDT switch 043156651429 $129.00
PPH-200-LED Illuminated dual color large square push plate w/black box; Stainless steel faceplate
with SPDT switch
043156651443 $149.00
PPH-50 Rectangular narrow push plate w/black box; Stainless steel faceplate with SPDT switch 043156651450 $79.00
Push plates
PPH-100-PL, PPH-100-AL,
PPH-200-LED, PPH-50
Features and benefits
§Stainless steel faceplate with
engraved text and anodized finish
§Tamper resistant mounting
§Designed for use in high trac areas
§Mounts on a standard double gang
electrical box, except PPH-50
§Red/Blue LED ring available
(PPH-200-LED)
Push plates
The PPH Series of push plates are dependable, responsive and easy to install stainless steel switches. These
assisted door controls are ideal for a broad range of door automation.
PPH-100-AL
DPDT switch contacts rated
5A @ 125 or 250 VAC
4 12" x 4 12" x 2 34" - includes box
(115mm x 115mm x 69.5mm)
PPH-100-PL
DPDT switch contacts rated 15A @ 125 or 250 VAC
5 18" x 5 18" x 2 34" - Includes box
(130mm x 130mm x 70mm)
PPH-200-LED
SPDT switch contacts rated
0.5A @ 120 VAC or 1A @ 24 VDC
5 18" x 5 18" x 1 34 " - includes box
(133mm x 133mm x 45mm)
PPH-50
12/24 VDC, SPDT switch contacts
rated @ 5A/125VAC, 3A/250VAC
4 12" x 1 34" x 1 34"
(114.3mm x 44.4mm x 44.4mm)
20 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
Emergency breaks
EGB-100-G, EBG-100-R Features and benefits
§12/24 VDC, DPDT switch contacts rated @ 5A/125VAC
§Available in green or red case
§Detachable terminal block for easy installation
§Built-in 80db buzzer
§Blue backlight
§Non-glass, durable plastic unit, making it suitable for high
trac areas
§Resettable key included and available to order as a
replacement part (EGB-KEY)
§Replacement cover available (EGB-COV)
Emergency break
The resettable EGB Series are call points that can be activated without a power supply during emergencies.
They are typically located on fire escape doors. The main function is to override an electrical locking device in
case of emergency. A provided key allows the unit to be reset to normal mode.
Detachable terminal block
EGB Series list prices
Product name Product description UPC List price
EGB-100-G Resettable emergency call point station with green case; Includes bue backlight, built-in
buzzer and DPDT switch
043156651597 $120.00
EGB-100-R Resettable emergency call point station with red case; Includes bue backlight, built-in
buzzer and DPDT switch
043156651603 $120.00
EGB-KEY Replacement and resettable key 043156651610 $10.00
EGB-COV Replacement clear plastic cover 043156651627 $10.00
21 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
Door cords
DC-HD-16, DC-AL-20, DC-BR-20,
DC-PL-12, DC-PL-20
Features and benefits
§Door loops available in 12", 16" and 20" in length
§Stainless steel cable resists abraison and damage
§Silver and brown (DC-BR-20) finish available to
match doors and frames
§Surface mount
§Mounting hardware included
Door cords
The door cords offer a protective conduit for running wires from the frame to the door installed with electrical
devices such as electrified locks. The cords are available in various lengths and finishes.
Heavy duty - DC-HD-16 with large, durable
aluminum boxes for extra protection
Inside loop diameter: 38"
Outside loop diameter: 12"
Medium duty - DC-AL-20/DC-BR-20 with aluminum
end caps for increased durability
Light duty - DC-PL-12/DC-PL-20 with plastic end caps
Inside loop diameter: 516"
Outside loop diameter: 716"
DC Series list prices
Product name Product description UPC List price
DC-HD-16 Heavy duty door cord with aluminum boxes; Stainless steel cable; 16" length 043156651559 $39.00
DC-AL-20 Medium duty door cord with aluminum end caps; Stainless steel cable; 20" length 043156651566 $27.00
DC-BR-20 Medium duty door cord with aluminum end caps; Stainless steel cable; 613/US10B finish 043156001651 $32.00
DC-PL-12 Light duty door cord with silver plastic end caps; Stainless steel cable; 12" lengths 043156651573 $22.00
DC-PL-20 Light duty door cord with silver plastic end caps; Stainless steel cable; 20" lengths 043156651580 $22.00
22 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
Specialty sensor
and buzzer switches
TBR-100
EMS-100
Features and benefits
§Built-in surge protection
§Input 12/24 VAC, outputs 1A/12VDC
§Built-in 80db buzzer
§Selectable relock time (5, 15, 30 or 60 seconds)
§Red LED output indicator
Features and benefits
§Operating voltage: 12/24 VDC
§Sensing field adjustment masks provide accurate detection zones
§Compact , aesthetically pleasing design
§Includes ceiling and surface mount adapters
§Operating temperature range is -20° F to +130° F
Timer-buzzer rectifier
The TBR is a multi-functional device made to serve as an added layer of security or convenience for your
access control system. The TBR offers a delay timer, buzzer and AC to DC rectifier all in one package.
EMS Series
This versatile sensor can be surface mounted above any door, ceiling or wall. The EMS Series has the
flexibility and low profile design to make it an effective sensor for managing building security and trac flow.
23 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
CSW-100, CSW-200 Features and benefits
§Made from PVC material
§CSW-100 - flush mount
§CSW-200 - surface mount
§SPDT switch
§Momentary toggle action
CSW Series
The CSW Series of switches were designed for a concealed desk application. They are used to release an
electric lock or device from a remote location. The CSW Series currently operates via momentary action
toggle switches that can be surface mounted.
Options
Product name Product description UPC List price
TBR-100 Timer-buzzer rectifier with surge protection for strikes and other access
control components
043156651740 $49.00
EMS-100 Exit motion sensor with ceiling and surface mount adapters 043156651535 $160.00
CSW-100 Flush mount concealed desk resleas; SPDT switch 043156651542 $38.00
CSW-200 Surface mount concealed desk release; SPDT switch; Narrow stile 043156001637 $38.00
24 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
Product Warranty period
Locknetics electromagnetic locks 5 years
Locknetics electric strikes 5 years
Locknetics access control accessories 3 years
Limited product warranty
Schlage Lock Company, LLC (the “Company”) extends a limited warranty against defects in material and workmanship
to the original user of the Locknetics™ branded products manufactured by the Company (the “Products”) beginning
from the date of purchase by the original user pursuant to the terms below. Certain Products contain restrictions
to this limited warranty, additional warranties, or different warranty periods. Please see below for specific Product
limited warranty periods and details. This warranty only applies to Locknetics™ branded products purchased on or
aer September 1, 2017.
What The Company Will do: Upon return of the defective Product to the Company or its authorized distributor for
inspection, free and clear of all liens and encumbrances and accompanied by the statement of defects and proof
of purchase, the company will, at its option, repair or replace the Product (with new or remanufactured product (as
applicable), or refund the purchase price.
Original User: These limited warranties only apply to the original end user of the Products (“Original User”). These
warranties are not transferable.
What is not Covered: The following costs, expenses and damages are not covered by the provisions of these limited
warranties: (i) back charges or labor costs including, but not limited to, such costs as the removal and reinstallation of
the Product or for normal maintenance; (ii) shipping and freight expenses required to return the Product to Company;
(iii) failures, defects, or damage (including, but not limited to, any security failure or loss of data) caused by any
third party product, service, or system connected or used in conjunction with the Product; (iv) any other incidental,
consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but
not limited to, strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such
damages; or (vi) normal wear and tear.
The provisions of these limited warranties do not apply to Products: (i) used for purposes for which they are not
designed or intended by the Company; (ii) which have been subjected to alteration, misuse, abuse, negligence, or
accident; (iii) which have been improperly stored, installed, maintained, repaired or operated; (iv) which are not the
proper size for the application, have been used in violation of written instructions provided by the Company, or have
been installed with improper or incorrect parts; (v) which have been subjected to improper temperature, humidity, or
other environmental conditions (i.e., corrosion); or (vi) which, based on the Company’s examination, do not disclose
to the Company satisfactory non-conformance to these warranties. Additionally, these warranties do not cover
scratches, abrasions, or deterioration due to the use of paints, solvents, or other chemicals.
Additional Terms: The Company does not authorize any person to create for it any obligation or liability in connection
with the Products. No other warranties, express or implied, are made to the Original User with respect to the Products
including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose. No agent,
representative, dealer, or distributor of Company has the authority to increase or alter the obligations under this limited
warranties. No action arising out of a claimed breach of this warranty by Company may be brought by the Original User
more than one (1) year aer the cause of action has arisen.
How local law applies: This limited warranty gives you specific rights, and you may also have other rights as otherwise
permitted by law. If these Products are considered a consumer product, some local laws do not allow limitations on
incidental or consequential damages or how long an implied warranty lasts, so the above limitations may not fully
apply. Refer to your local laws for your specific rights under this limited warranty.
Claims Process: If you have a claim under this limited warranty, please contact Company’s Customer Service for
repair, replacement or refund of the original purchase price in exchange for the return of the Product to Company.
Contact Company’s Customer Service at 1-877-671-7011.
Warranty information
25 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
Allegion General Terms and
Conditions of Sale and Service
1. GENERAL/ACCEPTANCE. (a) This Agreement contains the only terms and conditions by which Company will quote and sell Deliverables to Customer; (b) The terms “purchase
order” or “order” for the purposes of this Agreement include the term “request for quotation,” as appropriate; (c) This Agreement supersedes all pre-printed or boilerplate terms and
conditions set forth in any purchase order issued by Customer; (d) No reference herein to Customer’s purchase order will in any way incorporate different or additional terms and
conditions, all of which Company hereby expressly objects to; (e) ANY ACCEPTANCE BY COMPANY OF CUSTOMER'S PURCHASE ORDER IS EXPRESSLY CONDITIONED ON THE
CUSTOMER'S ASSENT TO AND ACCEPTANCE OF THE TERMS AND CONDITIONS CONTAINED IN THIS AGREEMENT; (f) Company reserves the right to decline any order, in whole
or in part, for any reason.
2. ORDERS.
a. Order Processing. When Customer wishes to place an order for Deliverables, it will deliver to Company a purchase order. All such purchase orders must (i) be in a written format
acceptable to Company, (ii) be legible, (iii) include a purchase order number, (iv) include Customer’s account number, invoice address, ship to address, shipping method,
shipper’s letter of instruction for international shipments, part number, pricing, and designated contact information, (v) include, if applicable, any special configuration ID
numbers, necessary programming information, special factory instructions, and requested specifications regarding a particular finish, handing, design, backset, or strike, (vi)
reference any applicable pricing discounts under an ongoing buying program or based on a written quote from Company, along with the applicable buying program number or
quotation number, and (vii) not combine buying program and quoted product on the same order.
b. Minimum Orders. In the event the order value does not meet any required minimum net Deliverable value, Company may, at its sole discretion, (i) increase the quantity of items
in the order to meet the minimum net Deliverable value requirement; (ii) apply a minimum order charge; (iii) reject the order, or (iv) waive the requirement, provided that the
waiver of a requirement for one order shall not constitute a waiver of the requirement for any future orders.
c. Acceptance of Purchase Orders. Company will endeavor to (i) acknowledge receipt of each purchase order issued in accordance with this Agreement, and (ii) notify Customer
whether Company accepts or rejects the purchase order. If Company fails to accept or reject a purchase order within a reasonable time period, such failure to respond will be
deemed a rejection of the entire order. Orders that combine buying program and quoted product on the same order will not be accepted and are hereby rejected by Company.
d. Changes to Order/Cancellation of Orders. Additional terms and conditions regarding order changes and cancellations are available on the Allegion customer website, WHICH
TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE. Unless otherwise provided herein, Customer acknowledges that (i) requesting a Change Order may cause a
delay in the scheduled shipment date, a longer lead time or result in a new scheduled shipment date; (ii) Orders may not be changed aer 48 hours of Company’s order
acknowledgment; (iii) Aer 48 hours of Company’s order acknowledgment, all changes to an accepted purchase order will be subject to a Change Order charge of 25% of the
net Deliverable value, plus the cost of labor and fabrication or raw material that Company incurred prior to the receipt of the Change Order from Customer, or that may be
required due to the Change Order; (iv) the requested change may result in additional charges for labor, fabrication, and raw material, and (v) if Customer cancels an order or
portion of an order that includes Deliverables that have been manufactured and prepped for shipping, a 45% restocking fee will apply. Notwithstanding the foregoing, Customer
cannot change or cancel credential orders, reader orders, biometrics orders or any non-cataloged, special, Custom or nonstandard items once they have been placed. All
cancelled orders for a Non Recurring Expense (NRE), credential orders, reader orders, biometrics orders, and/or Custom orders will be subject to a cancellation charge of 100%
of the acknowledged price.
e. Add-ons. Add-on orders will not be accepted. Additions to orders will be entered as separate stand-alone orders and must qualify for all terms of sale, including discounts, on an
individual basis.
f. Fast-Track Orders. No changes or cancellations will be accepted on the 24-Hour Fast Track Program. For 3-day Fast Track orders, changes and cancellations may only be
requested by Customer within 24 hours of Company’s order acknowledgment if the order has not shipped. For 5-Day Fast Track orders, changes and cancellations may only be
requested by Customer if the order has not shipped and if the request is made to Company within 48 hours of Company’s order acknowledgment. Return Material Authorization
(RMA) for Deliverables must be processed through Fast Track Customer Service.
g. Steelcra Orders. For all Steelcra orders, changes or cancellations are allowed without penalty only if made within 48 hours of Company’s order acknowledgment, and
provided that the order has not shipped. Some exceptions do apply – please consult the factory. Changes are not allowed on Rapid Program orders aer the order has been
entered and acknowledged. Aer 48 hours of Company’s order acknowledgment, all changes or cancellations are subject to a charge of 25% of the order. Unless otherwise
specified by Company in writing, any changes to orders acknowledged by Company that affect the delivery date will be deemed a new order and will require acknowledgement
by Company as provided in this Section. Additional products, features, terms and conditions regarding the Rapid Program are available on the Allegion customer website,
WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE.
3. PRICES, INVOICES AND PAYMENT.
a. Prices. The prices in Company’s Price Book are subject to change at any time, without notice to Customer. Company may charge Customer additional amounts if Customer
requests special packing, marking, shipment, product modification, or engineering services. Oral prices specified by Company are null and void. Quote numbers must be
referenced on Customer’s purchase order in order for the Company’s quoted pricing to apply. Orders that do not reference a quote number will receive buy program pricing or
book net pricing. Quoted prices are for those specific products quoted for a specified job, and are subject to the Price Book in effect at the time Company receives the order.
b. Taxes. Prices do not include any present or future federal, state or local property, license, privilege, sales, use, excise, gross receipts or other like taxes or assessments which may
result from transactions or any services performed in connection therewith. Any taxes, charges, or duties imposed by any governmental authority on the sale of Deliverables will
be paid by Customer, in addition to the selling price specified by Company.
c. Payment Terms. Company will deliver to Customer an invoice with each shipment of Deliverables hereunder. Customer will pay all invoiced amounts within 35 days of the
invoice date (subject to any early pay discounts that may be offered to Customer by Company in its sole discretion). Customer will make all payments in United States dollars.
Past due invoices will be subject to a late payment service charge of 1.5% per month on any overdue unpaid balance, equivalent to 18% per annum, or the maximum rate
permitted by law, whichever is less. Customer shall reimburse Company for all costs of collection, including, without limitation, reasonable attorneys' fees, for any overdue
amount owed by Customer to Company, and such collection costs shall also be subject to interest charges.
4. QUOTATIONS.
a. Project Quotations. Project or new construction quotes are restricted to the specific project quoted for the quantities, finishes, and series of Deliverables referenced on the
quote. Company reserves the right to require proof of sale of Company products for any quoted project.
b. Stock Quotations. Deliverables fulfilling stock quotations may only be used for the following: i) Stocking of the Customer’s shelves for small, quick-turn, discretionary projects,
or ii) Sale to a general contractor or installer for new construction. Stock quotations may not be used for any project containing any Company no-substitution, specified
products. Deliverables purchased under Stock Quotations cannot be redistributed to other Customer branch locations or re-sold to other resellers or used for aermarket sales,
end-user annual contracts or sold over the counter to any walk in trade.
c. General. All quotes are subject to this Agreement, unless otherwise specified by Company, and are subject to change at any time prior to Company’s acceptance of a purchase
order referencing the applicable quote number. Company, its representatives and employees reserve the right, in their sole discretion and for any reason, to refuse a Customer’s
request to quote a price other than the standard list price, regardless of whether Company or its representatives or employees have previously quoted discounted prices to the
Customer on some or all of its orders. Customer’s failure to comply with this Section 4 will be considered a material breach of this Agreement, and will entitle Company to
immediately terminate any purchase orders and/or Customer’s ability to distribute Company’s products.
5. SECURITY INTEREST. Customer grants Company, and Company retains, a purchase money security interest and lien on any and all of Customer’s rights, title and interest in each
Deliverable sold by Company to Customer, wherever located, until the invoice for the applicable Deliverable(s) is paid in full, including any late charges and costs of collection.
Customer authorizes Company to, and will assist Company in, taking all necessary steps to perfect and maintain Company’s interest in such Deliverables.
6. CREDIT TERMS. Unless Customer pre-pays all of its purchase orders in advance, its purchase orders will be subject to the credit limit and other terms of credit (“Credit Terms”) set
forth in Company’s credit application, which Credit Terms Customer acknowledges are subject to change by Company at any time. Company reserves the right to request payment
in advance of shipment or any order or to request adequate assurances for Customer’s payment of an order and may withhold or stop shipment, without any liability to Company,
until Customer submits payment or adequate assurance of payment.
7. RESALE OF DELIVERABLES. Customer agrees and warrants that it will offer Company products in support of Company-written specifications and will maintain sucient
inventory to adequately support End Users, installers, and/or general contractors’ needs. Company may implement an MSRP or a resale pricing program at any time in its sole
discretion. Failure to comply with such program(s) will be considered a material breach of this Agreement, and will entitle Company to immediately terminate any purchase order
and/or Customer’s ability to distribute Company’s products. Customer shall, at its own expense, gain and maintain sucient knowledge of the industry and products competitive
with Deliverables so as to be able to (a) explain in detail to End Users, installers, and/or general contractors the differences between the Deliverables and competing products, (b)
Terms and conditions
26 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
ensure that an adequate number of trained, capable and qualified technical personnel with sucient knowledge of the Deliverables and who have obtained all necessary
licenses and permits are available to assist End Users, installers, and/or general contractors, and (c) respond to such End Users, installers, and/or general contractors with
respect to the general operation and use of the Deliverables including, but not limited to, (1) acting as a liaison between the End Users, installers and/or general contractors
and Company in matters requiring Company participation, (2) providing general product information and configuration support on standard protocols and features, (3)
collecting relevant technical problem identification information, and (4) posting and distributing any warranty information concerning the Products in accordance with
Company’s instructions. Customer is responsible for all service and support resulting from the re-sale of any Deliverable to End-Users, installers and/or general contractors,
examples of which may include, but are not limited to, support activities such as installation, initialization, soware set-up, training, trouble-shooting, technical support and
field service. In the event Customer is unwilling or unable to perform said support activities, Company reserves the right to recover from Customer any and all expenses
incurred by Company to resolve the afore-mentioned End-User, installer and/or general contractor issues. Technical product training is recommended for Customer in order
to fully service and support Deliverables purchased from Company that are resold to End-Users, installers and/or general contractors.
8. DEFAULT. If Customer is in default of payment or otherwise with respect to any purchase order or other contract with Company, Company shall have the right, in addition to
all other legal remedies and without prejudice to any of its right hereunder, to defer further shipments under that or any other purchase order until such default is corrected
and to declare all outstanding bills of Customer to be immediately due and payable.
9. INSPECTION AND DELIVERY.
a. Inspection. Customer will inspect all Deliverables immediately aer receiving them. Customer will be deemed to have accepted the Deliverables unless Customer
notifies Company in writing of any nonconformance within 10 days of delivery and provides Company written evidence reasonably documenting that nonconformance.
Inspection of Deliverables at Company's facility is not permitted.
b. Delivery. Delivery schedules for Deliverables are based upon current production capacities, material or component availability, and inventory, and may be changed by
Company as conditions require. Delivery schedules for services are based upon Company’s prompt receipt of, and prompt access to, Customer’s equipment and all
information necessary to complete the services. In no event will any delivery date be construed as falling within the meaning of “time is of the essence.” Partial delivery
shall be accepted by Customer and paid for at the price and on the terms stated herein. Any partial delivery shall constitute a separate sale, and payment shall be
separately made when due. If any part of a delivery hereunder is not delivered by Company in accordance with Customer’s purchase order, this Agreement shall not be
affected thereby.
10. TITLE AND RISK OF LOSS. Unless otherwise specified by Company, (i) where the Customer is located in the United States, all Deliverables will be sold “Uniform
Commercial Code, FOB Origin, Company's factory”; and (ii) where the Customer is located outside of the United States, all Products will be sold “Ex-works, Company's
factory (Incoterms 2010).” In either instance, title and risk of loss will pass to Customer upon delivery to the carrier at Company's factory, provided, however, as set forth
herein, Company shall retain a security interest in the Deliverables until full payment has been made therefore, and Customer agrees, upon request, to do all things and acts
necessary to protect Company’s interest by adequately insuring the Deliverables against loss or damage from any cause and to have Company named as an additional
insured. Customer will promptly provide Company with a copy of the relevant certificate of insurance upon Company’s request.
11. SHIPPING AND SHIPPING PROGRAMS.
a. Freight Charges. Company will ship all Deliverables in accordance with Company’s freight shipment guidelines, which are set forth on the Allegion customer website
(“Freight Shipping Guidelines”), WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN.
b. Rush Charges. Expedited order options are available as set forth in Company’s Freight Shipping Guidelines.
c. Packing and Marking. Company will pack, mark, and ship Deliverables according to its standard procedures for shipment, unless the parties agree, in writing, that
Company will comply with any special instructions provided by Customer. Special instructions may result in an increased price.
d. International Shipments. For all international orders, a Shipper’s letter of instruction must be submitted in writing with the order. Failure to do so will result in the order
being rejected. Complete adherence to this order requirement will be strictly enforced. Company will not be held liable for any charges resulting from delays due to lack of
complete required information being supplied. Once received by the Company, a purchase order cannot be combined with any other order to increase average order size as
it relates to Company’s Freight Shipping Guidelines. However, for orders placed under Company’s FastTrack 24 Hour/5 Day Program (available for Schlage, Von Duprin,
LCN and Glynn-Johnson products); ii) FastTrack 24 Hour/3 Day Program (available for Ives products); or ProExpress (available for specific product lines stated in the
ProExpress price book for Falcon, Ives, Glynn Johnson, LCN, Schlage and Von Duprin products), the applicable brands or product categories may, subject to certain order
requirements identified by Company, be combined on a single order to increase average order size used in Company’s Freight Shipping Guidelines.
12. CLAIMS. All claims must be submitted in writing to Company as follows: (i) All claims for prices must be submitted within thirty (30) days from the date of invoice; (ii) All
claims regarding Deliverable quantity or incorrect orders must be submitted within ten (10) days from the date of delivery; (iii) All claims for damage to Deliverables (while in
the care, custody, and control of Company) must be submitted within thirty (30) days from the date of invoice; (iv) All claims for loss or damage to Deliverables while in the
care, custody, and/or control of a carrier will be the responsibility of Customer, unless otherwise agreed by the parties.
13. PRODUCT CHANGES. Company’s product policy is one of ongoing update and revision, and accordingly, Company reserves the right to change, without notice, the design of,
or the process of manufacturing, the Deliverables covered by this Agreement.
14. PRODUCT USAGE LIMITATION. Customer agrees: (i) not to sell or use a Deliverable in any manner contrary to the manner in which the Deliverable is intended to be used;
and/or (ii) not to modify the design of any Deliverable for use with another product without the prior written consent of Company.
15. PRODUCT RETURNS. Unless otherwise agreed by the parties in writing, Deliverables that are correctly furnished by Company per the purchase order may not be returned
unless Customer receives written authorization from Company. If returns are authorized by Company, a return merchandise authorization (“RMA”) number must be provided
by Company. Deliverables identified under such RMA must be returned to Company within 90 days of issuance of the RMA. Such RMA number and any accompanying RMA
documents, the original invoice number, and a written explanation for the return must be included with the returned Deliverables in order for Company to inspect and approve
a credit for the return. For warranty returns, a credit in the amount of the original purchase price will only be issued if, aer Company’s receipt and inspection of the returned
Deliverables, Company confirms, in its sole discretion, the defect is valid and approves the return. For non-warranty returns/convenience returns, in the event Company
approves such a return, in its sole discretion, the following shall apply: (a) the total amount of Deliverables requested to be returned shall be a minimum of $250.00; (b) a
credit will be made to Customer’s account in the amount of the original purchase price less freight and a handling charge of 45% of the net material on the original invoice;
and (c) only Deliverables that are new, current, standard, non-obsolete, non-specially manufactured, unused, in their original condition as at the time of sale by Company to
Customer, in their original packaging and in Customer’s inventory less than 180 days from the date of shipment by the Company and not ordered as part of a master key
solution, may be considered by Company for return. Such credit will only be issued if, aer Company’s receipt and inspection of Deliverables, Company approves the return.
The amount of final credit will be determined upon receipt at the factory and following Company’s inspection and analysis of the condition of the returned material.
Company retains the right to deny credit to anyone for any reason.
16. CONFIDENTIAL INFORMATION.
a. Non-Use And Non-Disclosure. Customer shall not use the Confidential Information of the Company except for the purpose of performing its obligations under this
Agreement or exercising the rights granted herein (the “Purpose”). Customer shall protect Confidential Information of the Company from disclosure and unauthorized
use in the same manner that it protects its own Confidential Information, but in no event shall such standard of care be less than reasonable care. Customer may disclose
Confidential Information of the Company only to its employees who require such information for the Purpose and who are subject to confidentiality obligations at least as
protective as those set forth herein.
b. Proprietary Information and Advice. (a) All designs, data, and specifications provided by Company are proprietary and may not be disclosed or reused by Customer
without the prior written consent of Company; (b) Company assumes no obligation or liability for any advice given by Company, the results obtained, or damages incurred
as a result of such advice, and all such advice is given and accepted at Customer’s risk.
c. Return. Upon the termination or expiration of a purchase order or this Agreement or upon the request of the Company, the Customer agrees to end all further use of, to
immediately return to the Company the original version of, and to delete or destroy all copies of, any and all Confidential Information of the Company.
17. TRADEMARKS. Except as agreed to by Company in writing, Customer agrees not to (a) use Company’s name in any form of publicity; or (b) use, create, register or market,
directly or indirectly, in whole or in part, Company’s names, logos, brands, or any other trademarks, or names that are now or may hereaer be owned by Company, as part of
Customer’s corporate or business name, as part of an internet domain name, uniform resource locator (URL), or in any way connected with Customer’s business, trade
address or other designations. Upon termination of this Agreement or upon the request of company for any reason, any use of Company’s trademarks or names will be
immediately discontinued.
18. LIMITED WARRANTY.
COMPANY MAKES NO OTHER WARRANTIES EXCEPT THOSE STATED IN COMPANY’S LIMITED WARRANTY IN EFFECT ON THE DATE COMPANY ACCEPTS EACH
APPLICABLE PURCHASE ORDER (“LIMITED WARRANTY”). THE LIMITED WARRANTY MAY BE FOUND IN THE APPLICABLE PRICE BOOK AND ON THE ALLEGION
CUSTOMER WEBSITE, WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE. COMPANY WILL MAIL CUSTOMER A HARD COPY OF THIS WARRANTY
UPON CUSTOMER’S WRITTEN REQUEST. IN THE EVENT THAT CERTAIN DELIVERABLE WARRANTIES ARE NOT FURNISHED BY THE COMPANY TO CUSTOMER, COMPANY
WARRANTS ONLY TO CUSTOMER THAT THE DELIVERABLES WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF 12 MONTHS FROM THE
DATE OF SHIPMENT OF THE DELIVERABLES. COMPANY’S SOLE OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING, AT COMPANY’S
OPTION, THE DEFECTIVE DELIVERABLE, PROVIDED WRITTEN NOTICE OF THE DEFECT OR NONCONFORMANCE IS PROVIDED BY CUSTOMER WITHIN 30 DAYS OF
DISCOVERY OF THE DEFECT OR NONCONFORMANCE. COMPANY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE DELIVERABLES,
Terms and conditions
27 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.
a. Exclusions. The provisions of this Limited Warranty do not apply to Deliverables that: (A) are not the proper size for the application; (B) are not installed in accordance with
Company’s published installation instructions; (C) are installed with improper or incorrect parts and/or are used for purposes for which they are not designed or intended; (D)
have been repaired or altered without the Company’s prior written consent; (E) have been subjected to misuse, abuse, negligence or accident; (F) have been improperly
stored, installed, maintained or operated; (G) have been used in violation of written instructions provided by Company to Customer; (H) have been subjected to improper
temperature, humidity, or other environmental conditions, or (I) have been affected by normal wear and tear. In addition, the provisions of this Limited Warranty do not apply
to any defects or issues with the design or performance of equipment or products not manufactured by Company, nor does it apply to any code compliance or permit
requirements for the assembly, installation, erection or construction of any goods. Company is not responsible for loss or damage resulting from use of Deliverables in
conjunction with parts or systems not manufactured by Company. Accessories or products furnished by the Company, but manufactured by others, shall carry whatever
warranty the manufacturers have conveyed to the Company and which can be passed to Customer.
b. Services. Company warrants that its services will be free from defects in material and workmanship for a period of 12 months from the date of completion of the particular
items of service. Company’s sole obligation under this service warranty is limited to repair or reperformance, at its option of the service, provided however, if repair or
reperformance is either impractical or impossible, the Company will refund to Customer that portion of the price paid to Company for any defective service, provided written
notice of the defect or nonconformance is provided by Customer within 30 days of discovery of the nonconformance.
c. Notification. Customer agrees to immediately notify Company in writing if any claim is made against Customer for any damages caused by any modules, parts, products,
service or other Deliverables which may be the direct result of any defect in the manufacture of such aforementioned products. Customer agrees to cooperate with Company
and its counsel in the defense of such claim and Customer agrees not to settle such claim without Company’s written consent. If Customer fails to notify Company of such
claim or fails to cooperate in such defense as aforesaid, then Company shall be discharged from any obligations under this Section and shall have no further liability to
Customer.
d. Exceptions. The following costs and expenses are not covered by the provisions of these limited warranties: (i) labor costs for the removal and reinstallation of Deliverables
or other manufacturer’s products; (ii) shipping and freight expenses required to return Deliverables to Company; (iii) normal maintenance; and (iv) economic losses. In
addition, the provisions of this warranty are not applicable to anything other than defects in Company’s material (products only) or workmanship.
19. LIMITATION OF REMEDIES.
CUSTOMER'S EXCLUSIVE AND SOLE REMEDY ON ACCOUNT OF, OR IN RESPECT OF, THE FURNISHING OF NON-CONFORMING DELIVERABLES, SHALL BE TO (A) SECURE
REPAIR OR REPLACEMENT OF THE PRODUCTS; OR (B) SECURE REPAIR OR RE-PERFORMANCE OF THE SERVICES OR TO OBTAIN A REFUND OF THE PRICE PAID FOR THE
DEFECTIVE SERVICE, ALL AT COMPANY’S OPTION. IN NO EVENT WILL THE COMPANY'S MAXIMUM LIABILITY EXCEED THE SELLING PRICE FOR THE DELIVERABLE. THE
WARRANTY, OBLIGATIONS AND LIABILITIES OF COMPANY (INCLUDING ITS SUPPLIERS) AND THE RIGHTS AND REMEDIES OF CUSTOMER ARE EXCLUSIVE AND ARE IN LIEU
OF AND CUSTOMER HEREBY WAIVES AND RELEASES ALL OTHER WARRANTIES, OBLIGATIONS, REPRESENTATIONS OR LIABILITIES EXPRESS OR IMPLIED ARISING BY LAW,
IN CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE, INCLUDING BUT NOT LIMITED TO (I) ANY IMPLIED WARRANTY OF MERCHANTABILI-
TY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTY IMPLIED THROUGH COURSE OF PERFORMANCE, COURSE OF DEALING, OR USAGE OF TRADE OR (II)
CLAIMS ARISING OUT OF THE NEGLIGENCE OF COMPANY OR COMPANY’S SUPPLIERS OR (III) ANY OTHER CLAIM ARISING OUT OF, CONNECTED WITH, OR RESULTING
FROM THE PERFORMANCE OF COMPANY OR FROM THE DESIGN, MANUFACTURE, SALE, REPAIR, LEASE OR USE OF THE DELIVERABLE, OR ANY COMPONENT THEREOF,
DELIVERED OR RENDERED HEREUNDER OR OTHERWISE.
20. INDEMNIFICATION AND LIMITATION OF LIABILITY.
a. Customer shall indemnify, defend and hold Company, and its ocers, directors, employees, customers, Aliates, suppliers, users and agents, (collectively the “Indemnitees”)
harmless from and against any and all damages, claims, losses, expenses, costs, obligations, liabilities, including without limiting the generality of the foregoing, liabilities for
court costs and attorneys’ fees, suffered directly or indirectly by an Indemnitee by reason of, or arising out of any injury, death or loss to any person, or injury to any property
(collectively, “Damages”), received or sustained by any person(s) or property, arising out of, occasioned by, attributable or related to i) any breach of any representation or
warranty made by Customer, its ocers, directors, employees, aliates, users, agents, representatives or customers to Company or any third party, (ii) any failure by Customer
to perform or fulfill any of its covenants, acts and/or omissions to Company or to any third party, or (iii) any litigation, proceeding or claim by any third party relating in any way
to the obligations of Customer and/or the Deliverables sold by Company to Customer hereunder. Customer shall not consummate any settlement of any indemnified claim
without the Indemnitees’ prior written consent. Customer’s obligation to indemnify Indemnitees will continue in full force and effect notwithstanding the termination or
expiration of any order under this Agreement. In any claim against an Indemnitee by an employee of Customer or any subcontractor or anyone directly or indirectly employed
by any of them or anyone for whose acts they may be liable, the indemnification obligations set forth in this Section shall not be limited in any way by or for Customer or any
subcontractor under any applicable worker’s compensation act, disability or other employee benefit act, or insurance coverage. This provision shall survive termination of any
order or Agreement. IN NO EVENT WILL COMPANY, ITS OFFICERS, DIRECTORS, EMPLOYEES, CUSTOMERS, AFFILIATES, USERS AND AGENTS, (NOR COMPANY’S
SUPPLIERS) BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND OR NATURE UNDER ANY CIRCUMSTANCES
INCLUDING, BUT NOT LIMITED TO, LOSS OF USE OF THE PRODUCTS, SERVICE INTERRUPTION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF INTEREST, LOST
GOODWILL, LOSS OF DATA, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, LOSS BY REASON OF SHUTDOWN OR NON-OPERATION, INCREASED EXPENSES OF
OPERATION, OR CLAIMS OF CUSTOMER'S CUSTOMERS, OR ANY OTHER LOSSES OR DAMAGES ARISING OUT OF ANY LACK OR LOSS OF USE OF THE DELIVERABLES
WHETHER BASED ON CONTRACT, WARRANTY, TORT (INCLUDING, BUT NOT LIMITED TO, STRICT LIABILITY OR NEGLIGENCE), PATENT INFRINGEMENT, OR OTHERWISE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
b. INTELLECTUAL PROPERTY INDEMNITY. Company makes no representation or warranty to the Customer that the Deliverables shall not infringe any intellectual property
rights including, without limitations, claims arising from patent, copyright, trademark, trade secret, or other intellectual property infringement. Customer agrees to hold
Company harmless from and defend the Company against any such claim of intellectual property infringement, including any Damages resulting from that claim, the cost of
complying with any preliminary or permanent injunction, and all other costs of defense (including the attorneys’ fees and costs), in connection with the foregoing.
c. To the extent that applicable law does not permit any limitations set out in this Agreement, such limitation shall not be applied or invoked. Nothing in this Agreement will be
interpreted to disclaim liability of Company or the Indemnitees for gross negligence or willful misconduct. The limitations of remedy and liability herein shall not be
interpreted to affect Company’s obligations, if any, for claims for (i) property damage, (ii) personal injury, or (iii) wrongful death asserted by persons who are not parties to or
beneficiaries of this Agreement. Further, the limitations of remedy and liability herein shall not be interpreted to limit Company’s or Customer’s right, if permitted by
applicable law, to assert a claim for contribution among joint tortfeasors in connection with a claim by a person who is not a party to this Agreement.
21. CERTIFICATIONS. Certification of Deliverables for compliance with UL and ANSI standards are tested and performed by third-party independent laboratories. Any field
modification or alteration of certified Deliverables will void certification and Company is not liable to Customer to certify any modified or altered Deliverable.
22. TERM FOR CLAIMS. NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS AGREEMENT BY COMPANY MAY BE BROUGHT BY CUSTOMER MORE THAN ONE (1) YEAR
AFTER THE CAUSE OF ACTION HAS ARISEN.
23. CONSUMER PRODUCTS.
WITH RESPECT TO “CONSUMER PRODUCTS” AS DEFINED UNDER THE MAGNUSON-MOSS WARRANTY ACT (“MMWA”), THE FOLLOWING STATEMENTS ARE MADE. (A)
SOME STATES OR LOCAL LAWS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU; (B) IF
ANY IMPLIED WARRANTY IS PROVIDED UNDER THE MMWA, IT IS LIMITED TO THE DURATION OF THE WARRANTY PROVIDED IN SECTION 18 ABOVE. (C) SOME STATES OR
LOCAL LAWS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU; AND (D) THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR LOCATION TO
LOCATION.
24. FORCE MAJEURE/EXCUSABLE DELAY. Any delay or failure of Company to perform its obligations hereunder will be excused to the extent that it is caused by an event or
occurrence beyond Company’s control such as, by way of example and not by way of limitation, acts of God, acts by any governmental authority (whether valid or invalid),
governmental laws and regulations not presently in effect, fires, floods, windstorms, explosions, riots, natural disasters, wars, sabotage, accidents, labor problems (including,
without limitation, lockouts, strikes, and slowdowns) at Company's facility, its source plant or their suppliers, inability to obtain power, material, labor equipment, or transporta-
tion, or court injunction or order. The delivery date will be extended for a time equal to that of the delay and the schedule for Company’s performance will be deemed adjusted to
that effect.
25. ENTIRE AGREEMENT AND AMENDMENT. This Agreement, together with the attachments, exhibits, webpages, or supplements specifically referenced and incorporated herein,
constitute the entire agreement between Company and Customer with respect to the matters contained herein and supersede all previous communications, representations, or
agreements, either oral or written between Company and Customer. No agreement or understanding varying or expanding this Agreement will be binding upon either party
unless it is in writing and signed by a duly authorized representative of each party hereto.
26. CONFLICTS. In the event of any conflict or inconsistency between the terms of any agreement, or any part of an agreement or the various documents (including, but not limited
to, electronic documents) between Company and Customer, unless the parties agree otherwise in writing, the various components of the agreements shall be given the following
precedence (in descending order of precedence): a) any master agreement or long term agreement between Company and Customer; b) any specific terms, conditions and/or
warranties of the individual products or Deliverables; c) the terms and conditions of this Agreement, and d) any purchase order.
27. UNSATISFACTORY CREDIT/TERMINATION FOR INSOLVENCY OR DEFAULT. Customer shall furnish Company with statements evidencing Customer’s financial condition as
Company may, from time to time, reasonably request, and shall notify Company immediately of any and all events that may have a material adverse effect on Customer’s
business or financial condition. If Company determines, in its sole discretion, that Customer’s financial condition or creditworthiness is inadequate or unsatisfactory, then in
addition to Company’s other rights, Company may without liability or penalty, take any of the following actions: (i) modify the payment terms for any outstanding and/or future
Terms and conditions
28 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
purchases; (ii) cancel any previously accepted orders; (iii) delay any further shipment of Deliverables to Customer; or (iv) any combination of the above.
Company may immediately terminate an order from Customer by giving written notice to Customer in the event of the happening of any of the following or any other
comparable event: (i) insolvency of the Customer; (ii) filing of a petition in bankruptcy by or against the Customer; (iii) appointment of a receiver or trustee for the Customer;
(iv) execution of an assignment for the benefit of creditors by the Customer, all of which will allow Company to demand reclamation of all affected orders; (v) Customer
ceases or threatens to cease to trade; (vi) Company determines that Customer does not meet or no longer meets the credit requirements of Company or Customer’s credit
account is closed; (vii) any Customer violation of law, specifically including, without limitation, those laws set forth in this Agreement.
In the event of termination in accordance with this section, Company will not be obligated to accept any existing or additional orders from Customer and Company will be
released from its obligation to deliver under orders accepted prior to such termination. The rejection or termination of any order by Company will not entitle Customer to any
termination or severance compensation, or to any payment in respect to any goodwill established by Customer, or render Company liable for damages on account of the loss
of prospective profits, or on account of any loss, expenditure, investment or obligation incurred or made by Customer.
No action taken under this Section 27 by Company (nor any failure of Company to act under this Section 27) will constitute a waiver by Company of any of its rights to enforce
Customer’s obligations, including the obligation of Customer to make payments as required under this Agreement. Upon termination of any order, all amounts owed by
Customer to Company will become immediately due and payable, whether or not otherwise then due or payable.
28. CREDIT RISK ON RESALE OF DELIVERABLES. Customer is responsible for all credit risks with respect to, and for collecting payment for, all Deliverables sold to third parties
(including End Users, installers, and/or general contractors) whether or not Customer has made full payment to Company for such Deliverables. The inability of Customer to
collect payment for any Deliverable shall not affect Customer’s obligation to pay Company for any Deliverable.
29. GOVERNING LAW; VENUE; AND EXPENSES. Any dispute or claim relating to this Agreement shall be governed by and construed according to the laws of the State of
Indiana (excluding its conflict of laws principles); and not by the provisions of the 1980 United Nations Convention on the International Sale of Goods. Any disputes or claims
shall be instituted and maintained in the courts of the State of Indiana. Customer consents to the exercise of jurisdiction over it by such courts and agrees that Indiana is not
an inconvenient forum for any action arising from or relating to this Agreement. Customer agrees to pay for all expenses (including, but not limited to, collection costs, court
costs and attorneys’ fees) incurred by Company in enforcing the obligations of Customer under this Agreement.
30. RELATIONSHIP OF THE PARTIES. Nothing in this Agreement or any other document creates an employment, partnership, joint venture, or agency relationship between
Company and Customer, including that of franchisee/franchisor. No party will have any power or authority to enter into any commitment on behalf of or otherwise bind the
any other party on any matter. No employee of Customer will be deemed to be an employee of Company. If any provision of this Agreement is deemed to create a franchise
relationship or business opportunity between the Parties, then Company may terminate any purchase order or this Agreement or the Parties shall negotiate in good faith to
modify this Agreement so as to effect the original intent of the Parties as closely as possible in a mutually acceptable manner in order that the transactions contemplated
hereby are consummated as a reseller agreement and not a franchise or business opportunity agreement.
31. SETOFF. Customer does not have the right to setoff or to back charge against any amounts which become payable to Company under this Agreement or otherwise.
Company will not accept responsibility for backcharges for the cost of material or labor by Customer or any third party.
32. ELECTRONIC COMMUNICATIONS AND ELECTRONIC SIGNATURES. Both parties expressly agree to electronic transactions and acknowledge that documents they sign
electronically will bind them to the same extent as a paper signature. Customer represents and warrants to Company that only employees authorized to bind Customer
legally shall electronically sign any document under this Agreement. Customer shall comply with any method of electronic communication/payment processing specified by
Company, including electronic funds transfer, pay-on-receipt processes/systems, order transmission, releases, electronic signature, and electronic communication systems,
including, without limitation, the use of electronic data interchange ("EDI") portals. Notwithstanding the foregoing, e-mails, even those containing a signature block of one of
Company’s representatives, shall not constitute a signed writing.
33. COMPLIANCE WITH APPLICABLE LAWS.
a. General. Company and Customer will comply with all applicable federal, state and municipal laws, regulations, codes, ordinances and orders that pertain to the
Deliverables, including but not limited to full compliance with any applicable provisions of The Health Insurance Portability and Accountability Act. Where the Customer
is located outside the United States, or where the customer intends to ship the product outside the United States, the Customer shall be responsible for compliance with
all U.S. export laws, and for filing all U.S. Electronic Export Information, as applicable.
b. The Customer acknowledges and agrees that: (i) it shall not violate applicable laws and regulations in performing its duties under this Agreement; (ii) it does not and
shall not engage in any conduct that shall violate any applicable anti-bribery or anti-corruption laws or regulations; (iii) it (and its owners, ocers, directors, employees
and agents) shall not pay, offer, promise or authorize the payment of, either directly or indirectly, anything of value (including but not limited to cash, gis and
entertainment) to (a) any government ocial or employee of any government; (b) any ocial or employee of any department, agency, or instrumentality of a
government; (c) any employee of any corporation or entity owned or controlled by a government; (d) any family member of such ocials or employees; (e) any political
party, party ocial, or political candidate; or (f) any other persons, owners, ocers, directors, employees and agents of any corporation or entity; to improperly or illegally
assist in obtaining or retaining business (including but not limited to any contracts, avoidance of duties or reduction of tariffs, reduction of taxes or to obtain money owed,
or to obtain regulatory approval) or for the purpose of causing, soliciting or inducing the sale and purchase of the Deliverables by any party, and (iv) it has full knowledge
of and will comply with the Company’s Code of Conduct for Business Partners as set forth on the Allegion customer website, WHICH IS HEREBY INCORPORATED BY
REFERENCE.
c. The Customer shall indemnify and hold the Company harmless from any claim, demand, expense or cost arising from any breach of this Article.
d. The Customer shall permit the Company to conduct an audit or review of the Customer’s financial books and records and business operations at such other times that the
Company considers it necessary to confirm compliance with this provision. Such audit may be conducted by representatives of the Company or, at the Company’s sole
discretion, by a certified public accounting firm selected by the Company. The Customer shall cooperate with any inquiries from the Company’s Ethics and Compliance
Group.
e. A violation of this provision constitutes a material breach of this Agreement and the Company may terminate any purchase order or this Agreement immediately, with no
opportunity to cure, in accordance with Section 27 of this Agreement.
f. Notwithstanding the foregoing provisions of this Section 33, (i) Company is not responsible for obtaining or maintaining any permits for the performance of services or the
verification or compliance with any code requirements relative to the performance of services, (ii) to the extent any sale of Deliverables pursuant to this Agreement may
require approval of the U.S. Government, Company’s obligations under this Agreement are conditioned upon the grant of such approval and upon compliance by
Customer with any restrictions imposed by the U.S. Government in connection with such approval, and (iii) in the event the Deliverables are to be used in a nuclear facility,
the Customer shall, prior to such use, arrange for insurance or governmental indemnity protecting Company against liability. The Customer hereby releases and agrees to
indemnify Company and its suppliers for any nuclear damage including, but not limited to, loss of use, in any manner arising out of the nuclear incident, whether alleged to
be due, in whole or in part by Company or its suppliers.
g. No Inducements. Each party represents to each other that neither it nor any person acting on its behalf has, in contravention of any applicable law, given or offered to give
or will give or offer to give, any sum of money or other material consideration to any person, directly or indirectly, as an inducement to obtain business hereunder or to
influence the granting of licenses or other governmental permissions to enter into this Agreement or perform obligations hereunder.
h. Equal Employment Opportunity. Company is a U.S. federal contractor that complies with Executive Order 11246, as amended, and applicable regulations in 41 CFR Parts
60-1 through 60-60, 29 U.S.C. § 793 and applicable regulations in 41 CFR § 60-741; and 38 U.S.C. § 4212 and applicable regulations in 41 CFR Part 60-250 and 60-300.
THE FOLLOWING PROVISIONS ARE INCORPORATED HEREIN BY REFERENCE: Executive Order 11246, as amended by Executive Order 13672, and 41 CFR § 60-4.3(a);
Executive Order 11701 and 41 CFR §§ 60-250.5(a), 60-300.5; Executive Order 11758 and 41 CFR § 60-741.5(a); U.S. immigration laws, including the L-1 Visa Reform Act of
2004 and the H-1B Visa Reform Act of 2004; and Executive Order 13496.
i. Ethical Business Conduct. Customer shall adopt and comply with Company’s Business Partner Code of Conduct which is EXPRESSLY INCORPORATED HEREIN BY
REFERENCE.
34. REPRESENTATIONS AND WARRANTIES. Customer represents, warrants and covenants to Company that: (a) it has the right, power, and authority to enter into this
Agreement and fully perform its obligations hereunder; (b) it has all necessary rights in and to its respective Content and Marks for use within the scope of this Agreement,
including the licenses granted herein; and (c) it complies, and at all times shall comply, with all laws, rules, and regulations in effect that are applicable to its performance
under this Agreement, including obtaining all such approvals and/or permits as may be required hereunder.
35. NO THIRD-PARTY BENEFICIARY. Each party is entering into this Agreement solely based on the representations contained herein for its own purposes and not for the
benefit of any third party.
36. NOTICES AND CHANGE OF ADDRESS. All notices or other communications under this Agreement shall be in writing and delivered in person, or sent by receipted courier,
express mail, e-mail, or postage prepaid certified or registered mail, addressed to the party for whom it is intended, at the addresses set forth in this Agreement. Either party
may change its address for notice by giving written notice to the other party. Any notice or other communication shall be deemed given no later than the date actually
received. Notice by courier, express mail, certified mail, or registered mail shall be deemed given on the date it is ocially recorded as delivered and, in the absence of such
Terms and conditions
29 • Locknetics • Full line catalog
WMG SeriesMG SeriesCS SeriesMS Series
RS Series
PushbuttonsSpecialty switches/
Digital keypads
Touchbars/
Push plates
Warranty/Terms
and conditions
Specialty sensor
and buzzer switches
Emergency breaks/
Door cords
record of delivery, it shall be rebuttably presumed to have been delivered on the third Business Day aer it was deposited. Notices sent by e-mail require tangible confirmation of
receipt from addressee.
37. ASSIGNMENT. Customer may not assign this Agreement without the prior written consent of Company. Company may assign its rights and delegate its duties under this
Agreement, without the prior consent of Customer, to an Aliate, or to a third party in the event of a spin-off, merger, business combination, consolidation or sale of all, or
substantially all, of its assets or business that are related to this Agreement. The rights and duties in this Agreement shall bind and inure to the benefit of any such assignee.
38. SEVERABILITY. If any provision of this Agreement is held to be invalid, illegal, or unenforceable under any statute, regulation, ordinance, executive order, or other rule of law, that
provision will be deemed severed to the extent necessary to comply with such statute, regulation, ordinance, order, or rule. In the event such provision is deemed severed, the
parties will negotiate in good faith to arrive at an alternative arrangement approximating the original business objective of the parties. The remaining terms and conditions of this
Agreement will remain in effect.
39. NO IMPLIED WAIVER. The failure of either party at any time to require performance by the other party of any provision of this Agreement will in no way affect the right to require
such performance at any time thereaer, nor will the waiver of either party of a breach of any provision of this Agreement constitute a waiver of any succeeding breach of the
same or any other provision.
40. MISCELLANEOUS. (a) This Agreement does not make either party the agent or legal representative of the other party. Neither party is authorized to create any obligation on
behalf of the other party including, but not limited to, the obligation for payment of any service or warranty obligation hereunder; (b) The rights and remedies herein reserved to
Company are cumulative and additional to any other rights and remedies provided at law or equity; (c) The ocial text of this Agreement is in the English language. If this
Agreement is translated into another language, the English text will govern any question with respect to interpretation; (d) The headings in this Agreement are for convenience of
reference only and do not affect the meaning of this Agreement in any manner.
DEFINITIONS.
Capitalized terms have the meanings set forth in this Section, or in the Section in which they first appear in this Agreement.
Agreement” means these Allegion Terms and Conditions of Sale and Service, together with any applicable Country Supplement or Region Supplement provided by Company,
and all of the documents referenced herein or therein.
"Aliate" means any Person that directly or indirectly, through one or more intermediaries, controls, is controlled by, or is under common control with, the Company. The term
"control" (including the terms "controlled by" and "under common control with") means the possession, directly or indirectly, of the power to direct or cause the direction of the
management and policies of a Person, whether through the ownership of voting securities, by contract or otherwise.
"Business Day" means any day except Saturday, Sunday or any other day on which commercial banks located in the United States are authorized or required by Law to be closed
for business.
“Company” means Schlage Lock Company, LLC or any subsidiary or aliate thereof selling products that are part of the Allegion product portfolio. Schlage Lock Company and/or
its subsidiary or aliates will be severally but not jointly liable under the Agreement.
“Company Marks” refers to the Marks of Company.
“Confidential Information” shall mean any and all information provided by either party to the other party pertaining to the disclosing party’s business. Confidential Information
shall include, but not be limited to, any bitting lists, formulae for products, manufacturing processes, production techniques, packaging processes, methods, research materials,
ideas, marketing plans and related materials, quality standards, test results and data, apparatus, engineering drawings, contract documents, computer soware, hardware, or
firmware, business activities information such as financial information, reports, projections, books and records, customer and supplier information, and operations, customer and
supplier lists and data, specifications, know how, and other Proprietary Information or Trade Secrets (as defined herein) that either party may furnish to the other party.
Confidential Information shall not include information that: (a) is or becomes publicly known if such public knowledge or disclosure is not the result of any act or failure to act on
the part of the receiving party; (b) is, at the time of disclosure, already known to the Receiving Party without utilizing the Confidential Information; (c) is information disclosed to
the Receiving Party by a third party which is not to the Receiving Party’s knowledge, aer inquiry of the third party, under a duty of confidentiality to the Disclosing Party; or (d) is
independently developed by the Receiving Party without the use of Confidential Information. The Receiving Party shall have the burden of proof as to prior knowledge and
absence of breach. Confidential Information may be furnished in any tangible or intangible form including, but not limited to, writings, drawings, computer and other electronic
media, logic diagrams, component specifications, graphs, prototypes, samples, or verbal communications and regardless of whether such information is marked or designated as
“confidential.” For the avoidance of doubt, all information, knowledge or data disclosed by Company to Customer, regardless of whether disclosed in written, tangible, oral, visual
or other form, including, without limitation, sample products, equipment, soware, or other objects or material, provided by Company to Customer, and all information,
knowledge or data which was obtained by Customer from visits to Company’s facilities, shall be considered “Confidential Information” under this Agreement.
“Content” means all information (including without limitation any text, music, sound, photographs, video, graphics, data or soware), in any medium, on a particular Company
Web page or Website or in Marketing Materials.
“Customer” means the purchaser of Deliverables from Company.
“Deliverables” means any good or service or both purchased by Customer from Company under these General Terms and Conditions of Sale and Service.
“End Users" means the purchaser that (a) has acquired a Deliverable from Customer for (i) its own and its Aliate's/Aliates' internal use and not for resale, remarketing or
distribution or (ii) incorporation into its own products and (b) is an individual or entity, other than any federal, state or local agency, oce or division.
"IP" means all intellectual property and industrial property rights comprising or relating to/of the following: (a) Patents; (b) Trademarks; (c) internet domain names, whether or
not Trademarks, registered by any authorized private registrar or Governmental Authority, web addresses, web pages, website and URLs; (d) works of authorship, expressions,
designs and design registrations, whether or not copyrightable, including copyrights and copyrightable works, soware and firmware, application programming interfaces,
architecture, files, records, schematics, data, data files, and databases and other specifications and documentation; (e) Trade Secrets; and (f) all other intellectual property and
industrial property rights, and all rights, interests and protections that are associated with, equivalent or similar to, or required for the exercise of, any of the foregoing, however
arising, in each case whether registered or unregistered and including all registrations and applications for, and renewals or extensions of, such rights or forms of protection
pursuant to the Laws of any jurisdiction throughout in any part of the world.
“Marketing Materials” means all marketing brochures, buckslips, pamphlets, emails, text, call scripts or other material, whether in printed format, audio or audiovisual format, or
in any other format, that contain any (i) Content relating to the Company Deliverables or (ii) Company Marks.
“Marks” means collectively the domain names, trademarks, trade names, service marks, trade dress, logos, and the like used or provided by either party for use in connection with
this Agreement.
"Patents" means all patents (including all reissues, divisionals, provisionals, continuations and continuations-in-part, re-examinations, renewals, substitutions and extensions
thereof), patent applications, and other patent rights and any other Governmental Authority-issued indicia of invention ownership (including inventor's certificates, petty patents
and patent utility models).
“Person” means a person or entity.
“Price Books” mean Company’s current Price Book in effect for the applicable Deliverable being purchased by Customer.
"Trade Secrets" means and includes business or technical information of either party, including processes, formulas, devices, techniques, compilations and other material that a
party attempts to maintain in secret and that derive commercial value for such party from not being generally known to the public or readily ascertainable through independent
development or reverse engineering.
(rev. 03 2017)
Terms and conditions
30 • Locknetics • Full line catalog
WMG Series MG Series CS Series MS Series RS Series Pushbuttons Specialty switches/
digital keypads
Touchbars/
push plates
Warranty/Terms
and conditions
Emergency breaks/
Door cords
Specialty sensor
and buzzer switches
Weight and case quantity chart
Series name UPC Case carton quantities Case carton weight (lb)*Product weight (lb)*List price
CS450 US32D 043156645893 14 30.9 2.20 $170.00
CS450-LBM US32D 043156645909 14 30.9 2.20 $239.00
CS750 US32D 043156645961 14 30.9 2.20 $170.00
CS750-LBM US32D 043156645978 14 30.9 2.20 $239.00
CSFP kit US10B 043156645916 50 28.7 0.57 $38.00
CSLE-1 043156645947 200 22.0 0.11 $50.00
CSLE-2 043156645954 100 19.8 0.20 $50.00
CSW-100 043156651542 200 35.3 0.18 $38.00
CSW-200 043156001637 200 35.3 0.18 $38.00
CWFP kit US10B 043156645930 100 29.8 0.30 $48.00
CWFP kit US32D 043156645923 100 29.8 0.30 $38.00
DC-AL-20 043156651566 100 24.3 0.24 $27.00
DC-BR-20 043156001651 100 24.3 0.24 $32.00
DC-HD-16 043156651559 80 32.0 0.40 $39.00
DC-PL-12 043156651573 200 30.2 0.15 $22.00
DC-PL-20 043156651580 100 23.1 0.23 $22.00
DKP-165 043156651634 50 19.8 0.40 $110.00
DKP-165-FM 043156651658 18 18.3 1.02 $150.00
DKP-165-S 043156651641 18 18.7 1.04 $175.00
EGB-100-G 043156651597 60 34.2 0.57 $120.00
EGB-100-R 043156651603 60 34.2 0.57 $120.00
EGB-COV 043156651627 100 6.6 0.07 $10.00
EGB-KEY 043156651610 500 14.3 0.03 $10.00
EMS-100 043156651535 25 11.5 0.46 $160.00
IPB-100 043156651351 54 23.8 0.44 $65.00
IPB-100-N 043156001644 54 23.8 0.44 $65.00
IPB-300 043156651375 50 22.0 0.44 $109.00
IPB-300-N 043156651382 50 17.6 0.35 $109.00
MFP50 043156646234 80 32.2 0.40 $18.00
MFP63 043156646227 60 30.0 0.50 $23.00
MG1200 043156646241 332.8 10.95 $239.00
MG1200DT 043156646258 332.8 10.95 $264.00
MG600 043156646173 629.3 4.89 $159.00
MG600DT 043156646180 629.8 4.96 $184.00
MLBK1200 043156646289 30 33.1 1.10 $57.00
MLBK600 043156646210 60 31.3 0.52 $50.00
MPB-100 043156651405 50 18.1 0.36 $109.00
MPB-100-N 043156651399 50 19.8 0.40 $109.00
MS100 US32D 043156645985 14 33.1 2.36 $520.00
MS100-F US32D 043156646074 14 35.3 2.52 $520.00
MS100-F-LBM US32D 043156646081 14 35.3 2.52 $620.00
MS100-LBM US32D 043156645992 14 33.1 2.36 $620.00
MSFP kit US10B 043156646005 50 33.1 0.66 $55.00
MUBK 043156646203 20 31.3 1.57 $65.00
MZBK1200 043156646265 10 32.2 3.22 $115.00
MZBK600 043156646197 17 31.1 1.83 $100.00
PPH-100-AL 043156651429 20 37.5 1.87 $129.00
PPH-100-PL 043156651412 20 25.4 1.27 $109.00
PPH-200-LED 043156651443 20 26.5 1.32 $149.00
PPH-50 043156651450 50 24.3 0.49 $79.00
RS200 US32D 043156646029 10 28.7 2.87 $475.00
RS200 US10B 043156646036 10 28.7 2.87 $520.00
RS300 F US10B 043156001569 10 28.7 2.87 $595.00
RS300 F US32D 043156001552 10 28.7 2.87 $550.00
RS300 US10B 043156646067 10 28.7 2.87 $530.00
RS300 US32D 043156646050 10 28.7 2.87 $485.00
TB-36 043156651467 428.7 7.17 $189.00
TB-42 043156651474 430.9 7.7 2 $239.00
TB-48 043156651481 433.1 8.27 $239.00
TBR-100 043156651740 100 12.1 0.12 $49.00
TS-100 043156651498 50 19.8 0.40 $125.00
TS-100-N 043156651504 50 19.8 0.40 $125.00
WFP50 043156646128 75 33.1 0.44 $25.00
WFP63 043156646135 50 26.5 0.53 $25.00
WLBK1200 043156646166 10 32.5 3.25 $63.00
WLBK600 043156646111 10 23.1 2.31 $58.00
WMG1200 043156646142 333.1 11.02 $470.00
WMG600 043156646098 633.1 5.51 $370.00
WS-200 043156651511 30 12.1 0.40 $125.00
WS-200-MB 043156651528 30 14.3 0.48 $135.00
WZBK1200 043156646159 10 15.4 1.54 $140.00
WZBK600 043156646104 10 13.2 1.32 $135.00
31 • Locknetics • Full line catalog
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading
brands like CISA®
, Interflex®
, LCN®
, Schlage®
, SimonsVoss® and Von Duprin®.
Focusing on security around the door and adjacent areas, Allegion produces
a range of solutions for homes, businesses, schools and other institutions.
Allegion is a $2 billion company, with products sold in almost 130 countries.
For more, visit www.allegion.com
About Allegion
© 2017 Allegion
011823, Rev. 01/18
www.allegion.com/us

Navigation menu
