Overview
GF3000 Series shear locks feature a patented design, oering advances over any shear
lock in the market.
A microprocessor-based control module provides advanced electronic features.
This circuitry automatically senses and adjusts input voltage, allowing for operation
from 12 to 24 volt DC power sources.
These mortise shear locks oer the advantage of a totally concealed locking
mechanism, providing superior security and appearance while allowing for normal door
movement. The patented design incorporates locking “tabs” on the magnet assembly
with mating grooves in the armature plate.
The GF3000 Series locks are ideally suited for commercial grade quality hollow metal
doors and frames, as well as herculite doors with top rail. Advances in design provide low
operating temperatures, making these shear lock suitable for use in the growing demand
for concealed locks in wood frames.
The GF3000TRD model is available when armature adjustment is required from the
edge of the door due to flush ceiling conditions. The GF3000BRD model is available
when no top rail mounting is available.
Features and benefits
§3000 lb. hold force rating
§Fully concealed shear lock mortise design
§Automatic voltage selection (AVS) 12/24
VDC (filtered)
§Built-in automatic relock switch
§Adjustable time delay on relock,
0-30 seconds
§Low temperature operation
§Microprocessor controlled
§Optional Magnetic Bond Sensor (MBS) to
monitor the secure/not secure condition of
the lock
§Optional Door Status Monitor (DSM) to
sense the open/closed position of the door
§ANSI/BHMA 156.23, UL 10C, cUL, and CSFM
certifications
§Limited lifetime warranty on magnetic coil

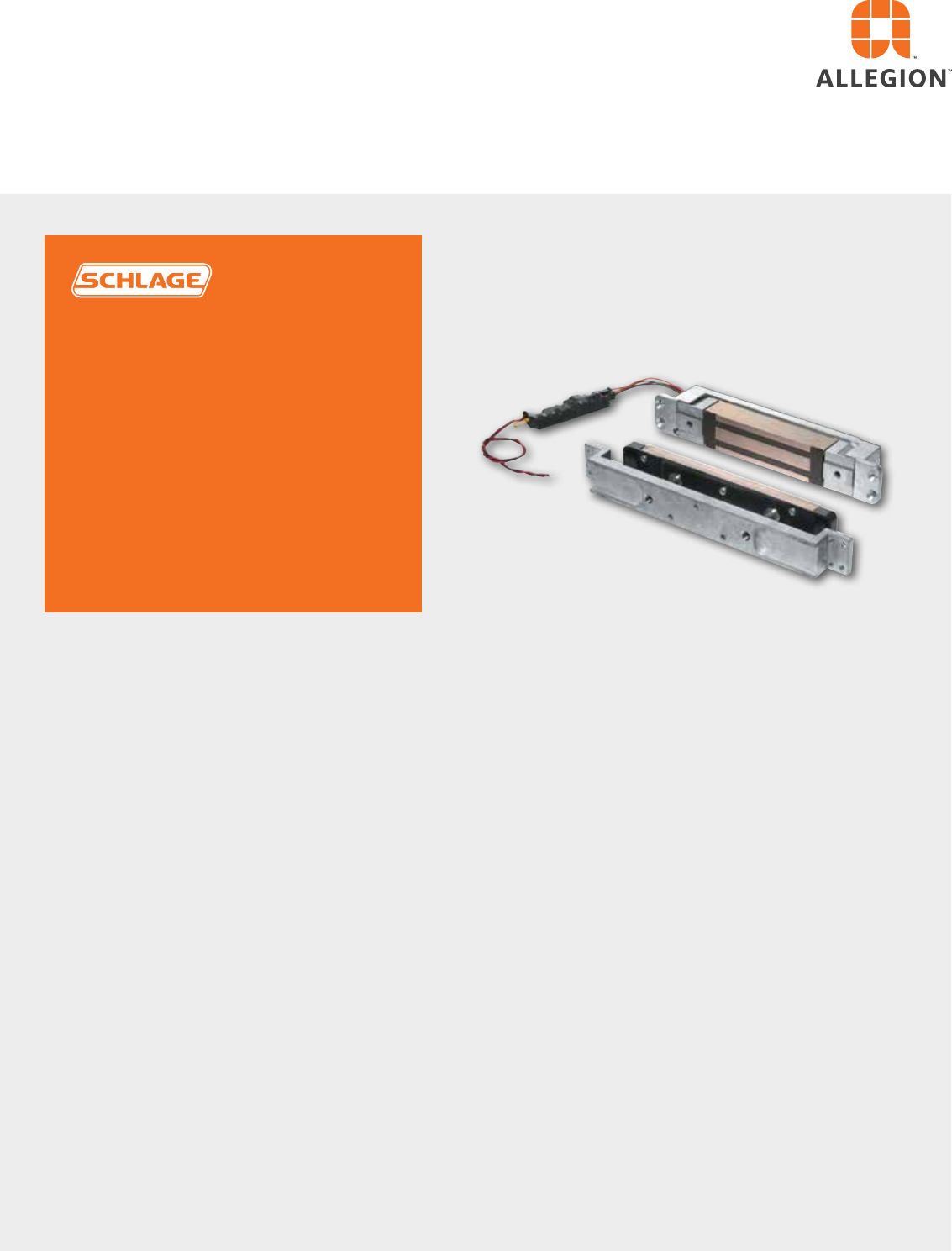

GF3000
Mortise mounted shear lock
About Allegion
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands
like CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®
. Focusing on security around the
door and adjacent areas, Allegion produces a range of solutions for homes, businesses,
schools and other institutions. Allegion is a $2 billion company, with products sold in
almost 130 countries. For more, visit www.allegion.com.
Allegion, the Allegion logo, Schlage, and the Schlage logo are trademarks of Allegion plc, its subsidiaries and/or aliates in the
United States and other countries. All other trademarks are the property of their respective owners.
© 2015 Allegion
004160, Rev. 08/15
www.allegion.com/us
Ordering information
§GF3000 (Standard Model): Fully concealed shear lock. The armature mounts into top of door
or top rail and magnet mounts into header or frame. Air gap adjustment is from top edge of
door. Vertical mounting of magnet and armature is also an option.
§GF3000TRD (Top Rail Door): Fully concealed shear lock intended for use when top of door
is not accessible for air gap adjustment after door is hung. Armature mounts into top of door
or top rail and magnet mounts into header or frame. Air gap adjustment is from latch edge of
door.
§GF3000BRD (Bottom Rail Door): Fully concealed shear lock intended for use when top of
door is not accessible for air gap adjustment after door is hung. Armature mounts into bottom
of door or bottom rail and magnet mounts into floor. Air gap adjustment is from edge of
armature. Popular application for Herculite doors.
Options
§DSM/MBS - Door Status Monitor/Magnetic Bond Sensor
Specifications
GF3000 GF3000TRD GF3000BRD
Holding force 3000 lbs 3000 lbs 3000 lbs
Input voltage* 12/24 VDC 12/24 VDC 12/24 VDC
Current draw .90A @ 12VDC
.45A @ 24VDC
.90A @ 12VDC
.45A @ 24VDC
.90A @ 12VDC
.45A @ 24VDC
Lock body
Dimensions (L x H x D)
9 1⁄2 " x 1 1⁄2 " x 1 1⁄2 " 9 1⁄2 " x 1 1⁄2 " x 1 1⁄2 "N/A
Lock body with mounting tabs 11 9⁄16 " x 1 1⁄2 " x 1 1⁄2 " 11 9⁄16 " x 1 1⁄2 " x 1 1⁄2 " 7 1⁄16 " x 1 1⁄2 " x 1 3⁄16 "
Threshold box N/A N/A 7 1⁄2 " x 2 1⁄4 " x 1 3⁄4 "
Armature 8 3⁄8" x 1 3⁄8" x 1⁄2" 8 3⁄8" x 1 3⁄8" x 1⁄2" 6 1⁄8 " x1 3⁄8 " x 7⁄16 "
Armature bracket 10 5⁄8" x 1 3⁄8" x 1" 61⁄4" x 1 3⁄8" x 11⁄4" 61⁄4" x 1 3⁄8" x 11⁄4"
Weight 7 lbs. 6 lbs. 6 lbs.
Certifications UL 10C, cUL, CSFM,
ANSI/BHMA 156.23
UL 10C, cUL, CSFM,
ANSI/BHMA 156.23
UL 10C, cUL, CSFM,
ANSI/BHMA 156.23
*Requires filtered, regulated power supply.
