The CO-Series is the ideal solution for customers seeking the

added security and convenience of electronic access control

without the cost or complexity of a fully networked system.

The CO-100 is a standalone lock that is manually programmable.

User rights for the CO-100 are stored on the lock. Unique PIN

codes can be assigned to each user. This minimizes the number

of mechanical keys issued which protects the integrity of your

key system. PIN codes can be easily added or deleted at

anytime right at the door.

The CO-100 from Schlage offers you many choices. Cylindrical,

mortise, and exit trim chassis options are available as well as a

wide variety of finishes and levers to suite with your existing

hardware.

Mechanical key override is standard and compatible with

multiple cylinder types. The CO-Series is also compatible with

many popular brands of exit devices.

The CO-Series has been tested the highest standards in the

industry to ensure quality and reliability you have come to

expect from Schlage. The CO-Series is ANSI/BHMA A156.25,

ANSI/BHMA Grade 1 certified and UL 294 listed.

CO-100

Standalone Electronic Lock

Features and Benefits

• Manually Programmable

• Up to 500 unique 3-6 digit PIN codes stored on the

lock

• ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified

and UL 294 listed

• Classroom/Storeroom function and Office function

available

• Chassis options include cylindrical, mortise, and exit

trim

• Compatible with most major brands of key systems and

exit devices

• Normal, toggle, pass through, and freeze credential

attributes available

Images shown are not to scale.

Standalone/Offline Locking Solutions

CO-100 Standalone

Dimensions

Functions

 Classroom/Storeroom

 Office

Standard Status

Signals

 Battery Status - indicated

by blinking lights

Specifications

Manually Programmable Options

Programming*

Normal Use*

Toggle*

Freeze*

Pass-through*

Used to enable programming of the lock. Does not unlock the lock.

Unlocks the lock momentarily when in a normally secured state.

Changes the state of the lock unless in Freeze state.

Maintains the lock in current state until Freeze PIN is entered again.

Unlocks a lock momentarily, regardless of state.

*Credentials can be 3-6 digits in length.

Credential Type Function

Exterior of the Lock Interior of the Lock

Cylindrical Mortise

CO-100 Electronic Lock Specifications

Users 500

Credential Verification Time

(Keypad Only)

≤ 1 second

Visual/Audible Communications Tri-colored LED’s & audible indicators

Power Supply 4 AA batteries (standard off the shelf: included)

Battery Life Up to 2 yrs with 4 AA batteries

Operating Temperature - Exterior -31° to 151°F (-35° to 66°C)

Operating Temperature - Interior 32° to 120°F (0° to 49°C) due to battery

Operating Humidity 0 - 100% condensing

Certifications ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10 C,

FCC Part 15, ADA and RoHS

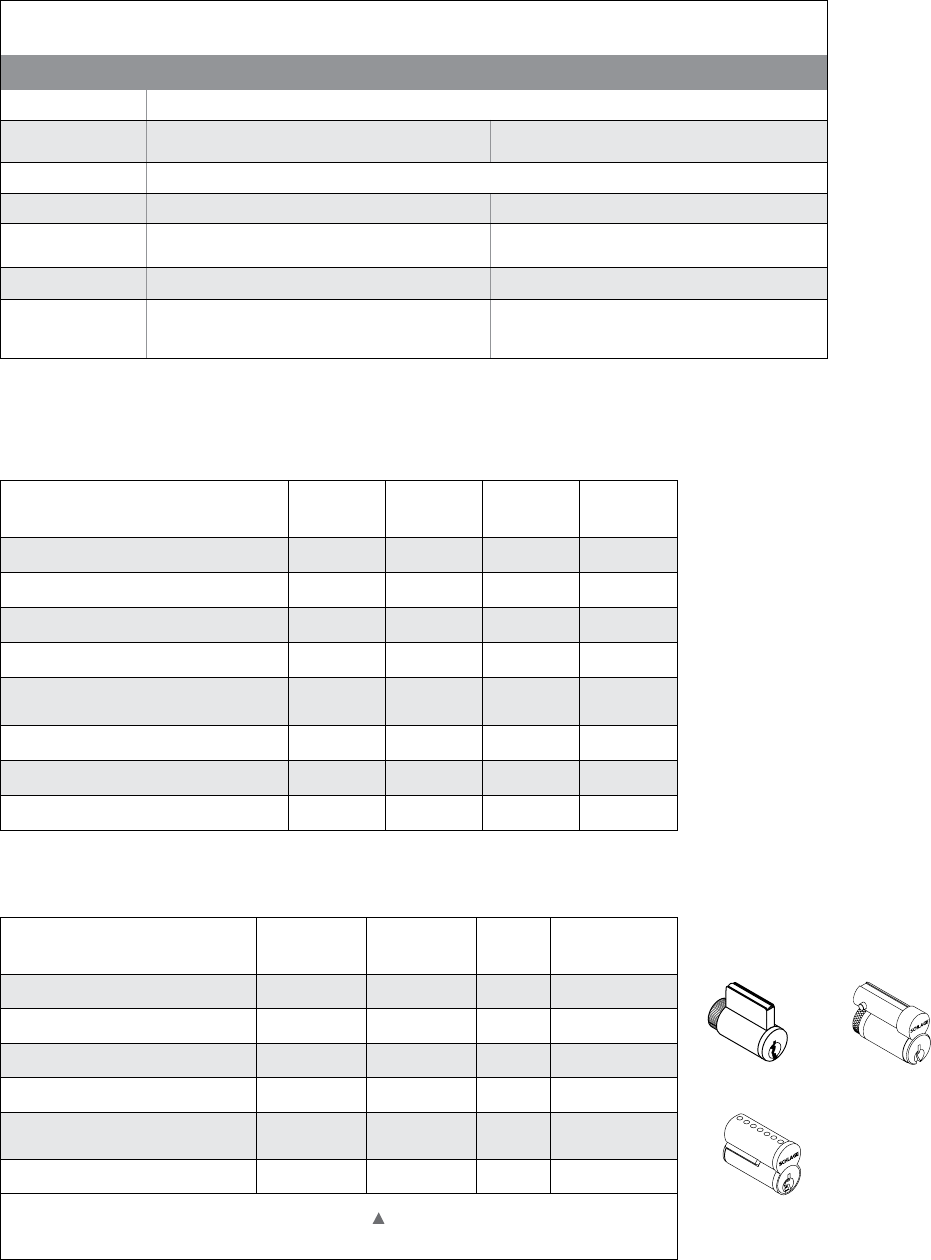

Mechanical Specifications

Handing

Meets or exceeds A156.25 and A156.2 Series 4000,

Grade 1 strength and operational requirements

2-3/4˝ standard, 2-3/8˝, 3-3/4˝ and 5˝ optional

1/2˝ throw security latch standard

3/4” throw optional

Pressure cast zinc, plated to match finish symbols

ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip

to center standard, optional strikes, lip lengths and

ANSI strike box available

Meets or exceeds A156.25 and A156.13

Series 1000, Grade 1 operational and security

2-3/4” only

Steel, plated to match finish symbols

ANSI curved lip strike 1-1/4” x 4-7/8” x

1-3/16” lip to center with dust box standard,

optional strikes lip lengths available

ANSI Standard

Door Thickness

Backset

Latch Bolt

Levers

Strike

Handed to Order, Field Reversible

1-3/4” standard, 1-3/8” to 2-3/4” optional (available in 1/8” increments)

3/4” throw with anti-friction tongue standard

Chassis Cylindrical (Based on Schlage ND-Series) Mortise (Based on Schlage L-Series)

Compatibility

Full Cylinder Full Size

Interchangeable Core

Small Format

Interchangeable Core

Cylinder Compatibility Full Size

key-in-lever 6 pin

Full Size

key-in-lever 7 pin

FSIC

6 & 7pin

SFIC

6 & 7pin

Schlage - - -

Falcon 

Sargent® (10L + 11L Full Size)   

Corbin Russwin®  

Yale®

(also includes Medeco 31*0100 FSIC)  

Best® 

-= with cylinder or less cylinder options = less cylinder only

 = less cylinder, only with Sparta and Rhodes levers Note: See pricebook for specific configurations.

Exit Device Compatibility Rim SVR CVR/CVC Mortise

Von Duprin 98/99 and 98/99 XP ✓ ✓ ✓*✓

Von Duprin 22/22F ✓ ✓

Falcon 25 ✓

Corbin Russwin® 5000 ✓

Precision™ 21 Rim 2100 converts to

21 with Precision's BP21 kit ✓

Yale® 7000 ✓

Dorma® 9300 ✓

Sargent® 80 ✓

* Metal door only

877-671-7011 • securitytechnologies.ingersollrand.com

CO -100 -CY-70 -KP -SPA -626 -PD - C123 -RH -13- 0 4 9 -10-025-1-3/4

Series

Class

Chassis

Function

Reader

Lever Style

Finish

Lever Cylinder

Keying Type

Handing

3 41 2 5 6 7 8 9 10

Selections Correspond With the Numbers Above

Standard options are indicated in bold. See price book for specific configuration options.

11 Backset & Latch or Armor Front

Cylindrical

13-049 2-3/4” Backset, Deadlatch,

Square Corner, 1-1/8” x 2-1/4”

Mortise

09-663 Armor Front, 1-1/4” Wide,

Square Corner

12 Strike

Cylindrical

10-025 1-3/16 Lip, ANSI, No Box,

1-1/4” x 4-7/8”

Mortise

10-072 1-3/16” Lip, 1-1/4” x 4-7/8”

Square Corner, Box

See price book for other available strikes

13 Door Thickness

1-3/4”

Other thicknesses available between

1-3/8” and 2-3/4”

See price book for details

7 Finish

626 Satin Chrome

605 Bright Brass

606 Satin Brass

612 Satin Bronze

619 Satin Nickel

625 Bright Chrome

643e Aged Bronze

626AM Satin Chrome Antimicrobial

8 Lever Cylinder Type

PD Schlage 6-pin Full Cylinder

See price book for other SFIC, FSIC and Less Cores

options available. Compatible with Schlage,

Sargent, Corbin, Medeco and Yale

9 Keyway Type

C123 Everest

See price book for other available keyway options

including master keying

10 Handing

RH Right Handed

RHR Right Handed Reverse

LH Left Handed

LHR Left Handed Reverse

Field reversible

3 Chassis

CY Cylindrical

MS Mortise

993R Exit Trim – Rim/CVR/CVC

993S Exit Trim – SVR

993M Exit Trim – Mortise

993DT Exit Dummy Trim

4 Function

70 Classroom/Storeroom

50 Office

5 Reader

KP Keypad

6 Lever

SPA Sparta

RHO Rhodes

ATH Athens

TLR Tubular

Available with knurled surface

Strike

Door

Thickness

Backset

& Latch

11 12 13

©2012 Ingersoll Rand 004186 06/12

Lever styles

Sparta Rhodes

Athens Tubular

Warm tone finishes

Cool tone finishes

605 606 612 643e

Bright Brass Satin Brass Satin Bronze Aged Bronze

619 625 626 626AM

Satin Nickel Bright Satin Chrome Satin Chrome

Chrome Antimicrobial

Standard cylinders shown, SFIC and FSIC also available.

Ordering Information

Available through one of our GSA Schedule 84 approved distributors

Required Fields Factory Defaults & Options
