1
Trilogy Series
DL3000 Programming Instructions
OI224C 8/98ALARM LOCK
ALARM LOCK
ALARM LOCK

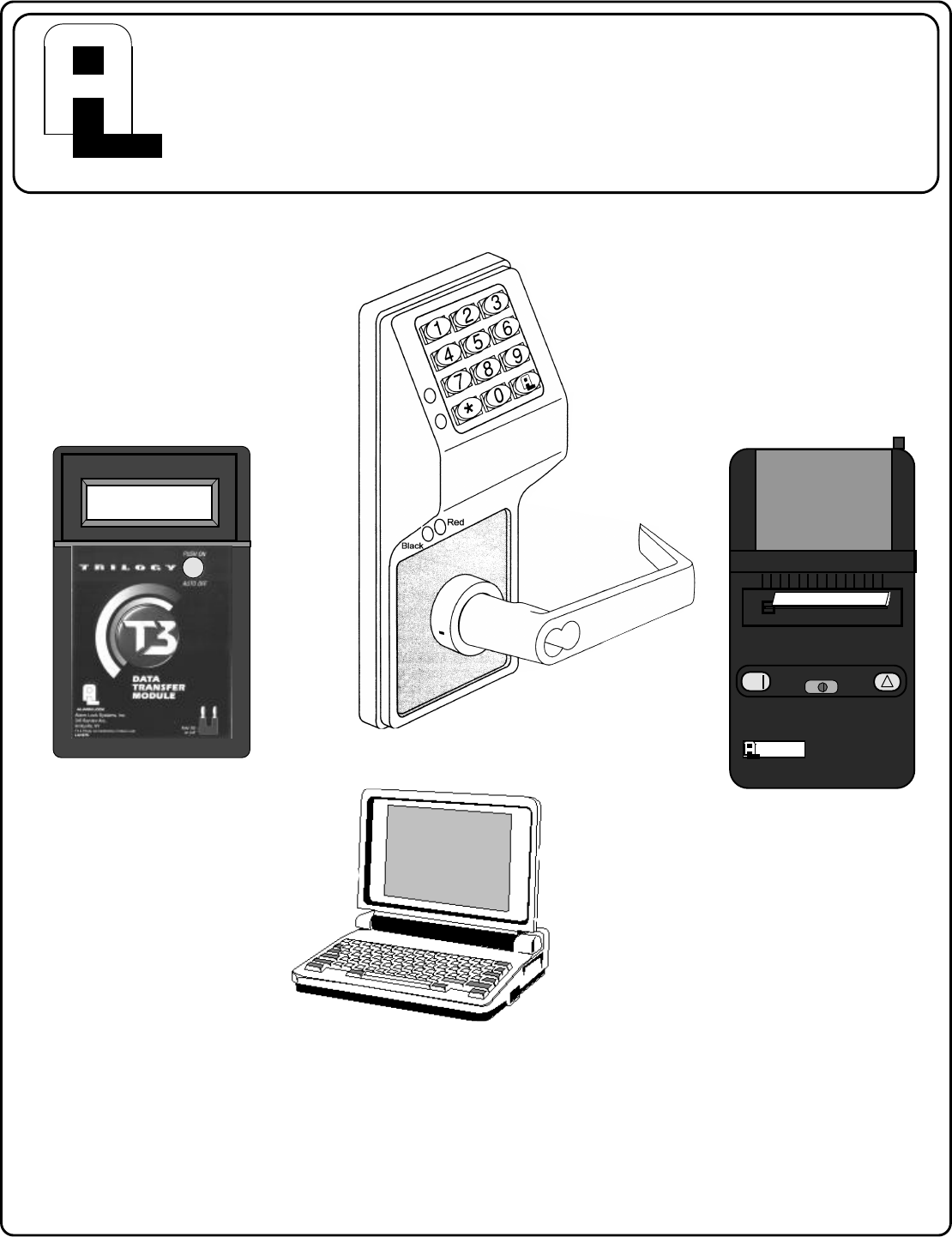

DL3000 Trilogy Series
Standalone Access Control System
PLUG IN THEN
ENTER YOUR CODE
2
Features -----------------------------------------------------------------------------------------------------4
Audit Trail -------------------------------------------------------------------------------------------------4
User Features -------------------------------------------------------------------------------------------4
150 Scheduled Events --------------------------------------------------------------------------------4
Keypad and Download Programming --------------------------------------------------------------4
AL-IR1 Infrared Printer --------------------------------------------------------------------------------4
AL-DTM Data Transfer Module ---------------------------------------------------------------------4
Additional Features -----------------------------------------------------------------------------------5
Ambush Function ---------------------------------------------------------------------------------------5
User Associated for more than one Group ------------------------------------------------------5
Service Code --------------------------------------------------------------------------------------------5
Keypad Lockout ----------------------------------------------------------------------------------------5
Non-Volatile Memory ----------------------------------------------------------------------------------5
Error Checking ------------------------------------------------------------------------------------------5
Real Time clock -----------------------------------------------------------------------------------------5
Programmable Relay Functions --------------------------------------------------------------------5
Programmable Timeout Functions -----------------------------------------------------------------5
Advanced Features -----------------------------------------------------------------------------------5
Manager Initiated Functions -------------------------------------------------------------------------5
Wiring and Power Up ---------------------------------------------------------------------------------6
Terminals -------------------------------------------------------------------------------------------------6
Power Up - Retain Lock Information --------------------------------------------------------------6
Power Up - Erase all Programming ----------------------------------------------------------------6
AL-DTM Data Transfer Module ---------------------------------------------------------------------6
Self Diagnostic Indications --------------------------------------------------------------------------6
Preliminary Information -----------------------------------------------------------------------------7
Lock Operation -----------------------------------------------------------------------------------------7
Programming Notes ------------------------------------------------------------------------------------7
LED Indications -----------------------------------------------------------------------------------------7
Audible Indications -------------------------------------------------------------------------------------7

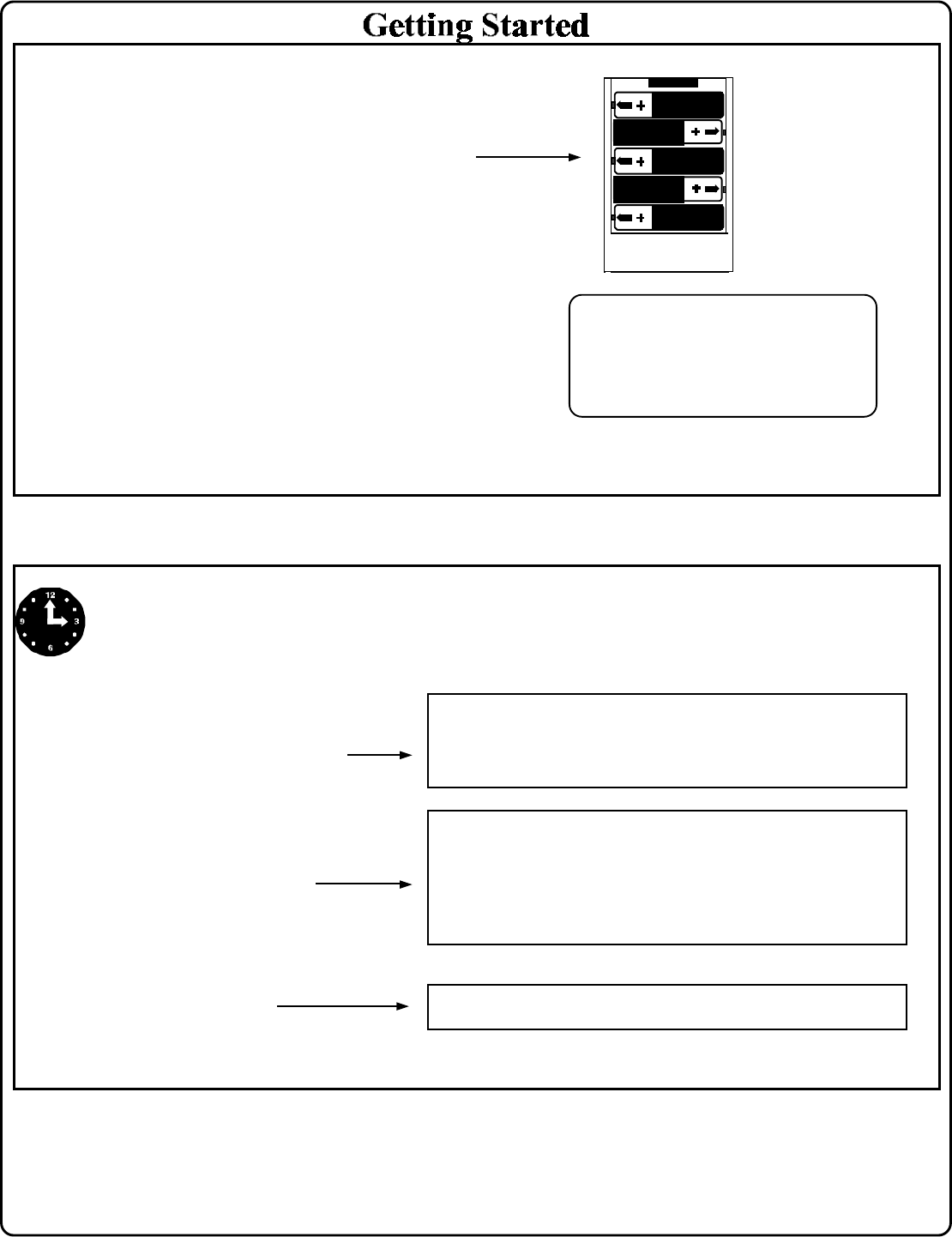

Getting Started -------------------------------------------------------------------------------------------8
Battery Installation -------------------------------------------------------------------------------------8
Entering Program Mode ------------------------------------------------------------------------------8
Setting the Clock ---------------------------------------------------------------------------------------8
User Programming -------------------------------------------------------------------------------------9
Printing User code Lists ------------------------------------------------------------------------------9
Printing the Audit Trail ---------------------------------------------------------------------------------9
Methods of Programming -------------------------------------------------------------------------10
3
Programming Functions ----------------------------------------------------------------------------11
New Master Code---------------------------------------------------------------------------------------11
Add/Delete/Change User Codes --------------------------------------------------------------------11
Disable User----------------------------------------------------------------------------------------------11
Enable User ----------------------------------------------------------------------------------------------11
User Enable with Timeout-----------------------------------------------------------------------------12
User Lockout Mode-------------------------------------------------------------------------------------12
Change User Program Level Ability ----------------------------------------------------------------12
Enable User 300 (Service Code) -------------------------------------------------------------------12
Erase All Users Except the Master Code---------------------------------------------------------12
Clear All Schedules and Timeout Functions------------------------------------------------------13
Clear All Timeout Functions --------------------------------------------------------------------------13
Enable/Disable Groups --------------------------------------------------------------------------------13
Group Disable/Enable with Timeout ----------------------------------------------------------------14
Add/Delete Group Association-----------------------------------------------------------------------14
Set Date---------------------------------------------------------------------------------------------------15
Set Time---------------------------------------------------------------------------------------------------15
Set Day of Week----------------------------------------------------------------------------------------15
Daylight Savings Time Enable/Disable ------------------------------------------------------------15
Clock Adjust ----------------------------------------------------------------------------------------------16
Passage Mode Enable/Disable----------------------------------------------------------------------16
Timed Passage Mode----------------------------------------------------------------------------------16
Passage Mode Enable/Disable - Schedule will not Override --------------------------------17
Pass Time-------------------------------------------------------------------------------------------------17
Printer Functions----------------------------------------------------------------------------------------18
Downloading----------------------------------------------------------------------------------------------18
AL-DTM Door Number ---------------------------------------------------------------------------------19
Lockout ----------------------------------------------------------------------------------------------------19
Remote Input---------------------------------------------------------------------------------------------19
Ambush ----------------------------------------------------------------------------------------------------19
Relay-------------------------------------------------------------------------------------------------------20
Enter Key -------------------------------------------------------------------------------------------------20
Scheduled Passage Mode Enable/Disable-------------------------------------------------------20
Scheduled Group Enable/Disable-------------------------------------------------------------------21
Quick Schedules ----------------------------------------------------------------------------------------22
Scheduled Passage Mode - Group 1 Activated -------------------------------------------------22
Scheduled Relay Activation - Group 1 Activated------------------------------------------------23
Scheduled Group 4 Enable - Group 1 Activated-------------------------------------------------23
Clear Programming and History LOG --------------------------------------------------------------23
Using Advanced Features ------------------------------------------------------------------------24
Programming Record Sheet ----------------------------------------------------------------------25
User Code Record Sheet ---------------------------------------------------------------------------26
Schedules ---------------------------------------------------------------------------------------------------27
Warranty------------------------------------------------------------------------------------------------------28
4

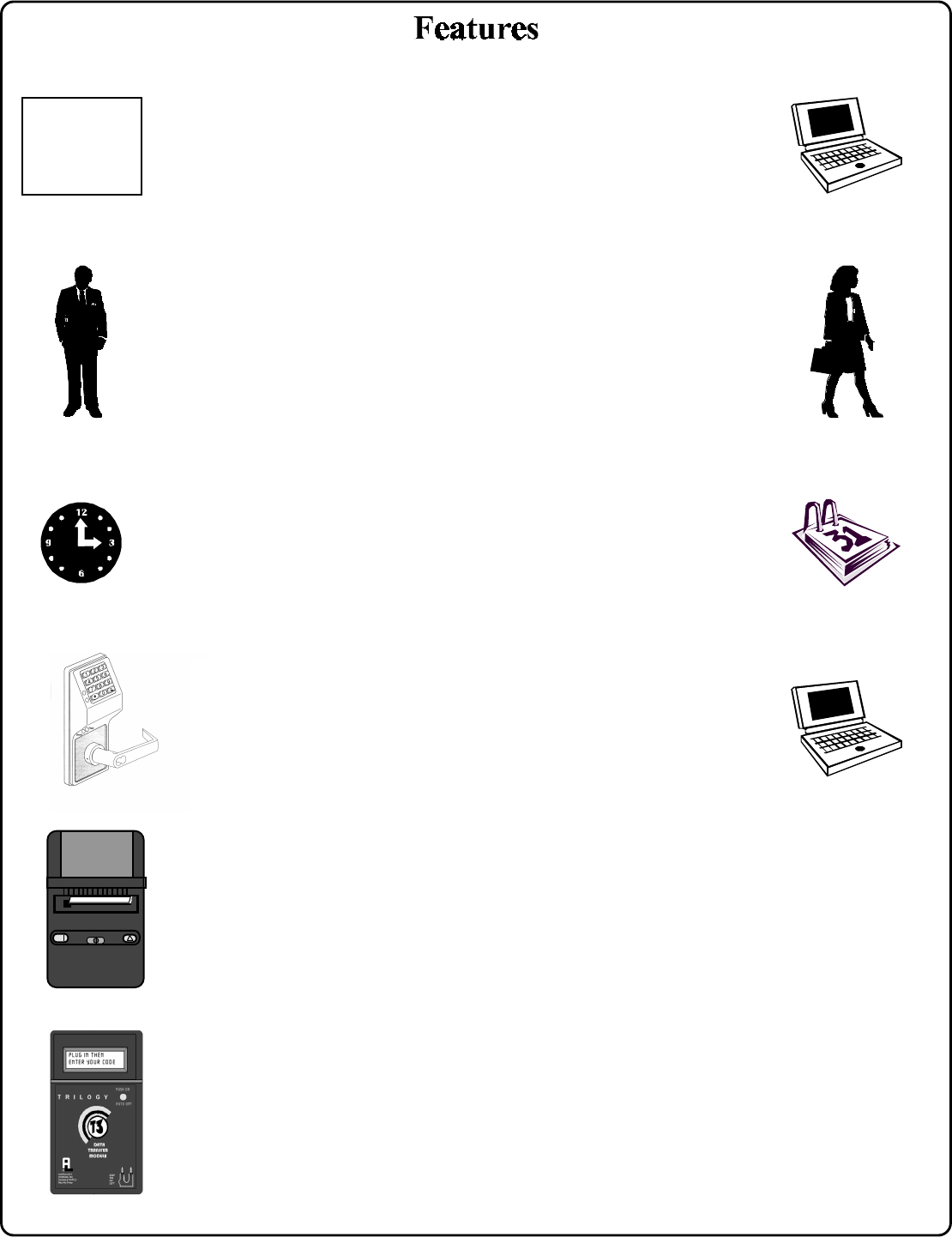

150 Scheduled Events
• Programmed to Unlock/Lock
• Disable/Enable Users
• 4 "Quick Schedules" - allows programming of the 4 most
common time schedules in one step
User Features
• 300 User Codes
• Master, Manager, Supervisor and Basic User Codes
• 3, 4, 5 or 6 digit User Codes
• Service Code (One-Time-Only Code)
• User Lockout Mode - Total user lockout except User 1 code
• 4 User Groups
Keypad and Download Programming
All programming may be done from the keypad, or from a PC,
using Alarm Lock's DL-Windows Software.
AL-DTM Data Transfer Module
Optional Data Transfer Module. Use Alarm Lock’s AL-DTM to
easily transfer program data between up to 48 locks and a PC
running DL-WINDOWS software. Easily transfer Audit Trail from
multiple locks and then view or print each Audit Trail from a
computer.
AL-IR1 Infrared Printer
Optional hand-held infrared printer may be used to print
the Audit Trail and User Code List.
Audit Trail - 1600 Events
• Time/Date Stamped Log of all Entries
• Logs program mode changes
• View Audit Trail:
Print using the AL-IR1 hand-held printer
Upload using Alarm Lock's DL-WINDOWS Software
Use Alarm Locks AL-DTM to upload multiple lock logs.
------- AUDIT LOG -------
04/07/98 13:06:35 Tue
13:01:59 001 PROGRAM 56
13:01:29 001 PROGRAM 57
13:00:53 001 ENTRY
13:00:26 013 ENTRY
13:00:03 012 ENTRY
12:56:27 001 PROGRAM 2
12:56:27 001 PROGRAM 40
12:56:04 001 PROGRAM 39
12:55:00 NEW CLCK TIME
12:01:39 OLD CLCK TIME
12:00:45 RAM TEST:PASS
12:00:45 POWER UP
-------------------------
End of Audit Log
5
Ambush Function Relay Terminals
1. Connect terminals 5 & 6 to a device able to properly
monitor normally open dry contacts for an ambush
condition.
2. Program the Relay for Ambush Function Activated (10)
using Program Function 67.
3. Set the Ambush Code using Program Function 66.
4. When the ambush code is entered followed by a valid
user code, the relay will close for 2 seconds.
Ambush Code
The ambush code defaults to 99. An error will sound if you
try to program a new user code starting with the ambush
code.
Users Associated for more than one group
If a user is associated with more than one group, all
associated groups would have to be disabled before the
user is disabled.
Service Code
User number 300 is the service code. Once the service
code is used, it is disabled. Function 9 is used to re-enable
the service code.
Keypad Lockout
Programmable number of attempts before keypad lockout.
Programmable lockout time.
Non-Volatile Memory
All programming is stored in non-volatile memory.
Error Checking
Extensive keypad program error checking reduces
likelihood of programming error.
Real Time Clock
Real time clock allows logging of events to within one
second accuracy. Unique feature (Functions 43/44) allows
speeding up or slowing down the clock providing long term
accuracy of the clock functions to within 3 minutes per year.
Programmable Relay Functions
Relay may be programmed to energize when one or more
selected events occur.
Programmable Timeout Functions
Timeout functions allow enabling/disabling users and
enabling passage mode for a time period without requiring
Group 1 Activated Features
Group 1 Member in puts lock in Passage
Mode Feature (88 & 89)
1. Use Function 88 to set an Open Time Window. The
lock will unlock (Passage Mode) when any Group 1
Member enters a code.
2. Use Function 89 to set the time to close the window.
Note: Passage Mode will have to be disabled each
night using Function 46 or schedule Function 73.
Example: Open window at 7:00AM using function 88,
Close Window at 8:30AM using function 89.
Lock will unlock when a member of group 1 enters their
code between 7:00AM and 8:30AM. If no group 1
member arrives between 7:00AM and 8:30AM, the lock
will stay locked all day.
Disarming a Burglary Control Panel (90 &
91)
1. Connect terminals 5 & 6 to a burglar control panel
with switch input for disarming.
2. Use Function 90 to set the time to open the window
allowing any Group 1 Member to close the relay
for 2 seconds. Note: Only 1 relay closure will occur even
if another member of group 1 enters their code.
3. Use Function 91 to set the time to close the window.
Note: The alarm panel will have to be armed at night by
the user or by an automatic schedule function of
the alarm panel.
Example: Open window at 7:00AM using program
Function 90, Close Window at 8:30AM using Function
91.
The relay will close, one time only, when a member of
group 1 enters their code between 7:00AM and 8:30AM.
Group 1 Member Enables Group 4 Users
(92 & 93)
1. Use Function 92 to set the time to open the window
allowing any group 1 member to enable group 4.
2. Use Function 93 to set the time to close the window.
Note: Group 4 will have to be disabled each night using
Function 17 or schedule Function 82. Example: Open
window at 7:00AM using Function 92, close window at
8:30AM using Function 93.Group 4 will be enabled when
a member of group 1 enters their code between 7:00AM
6

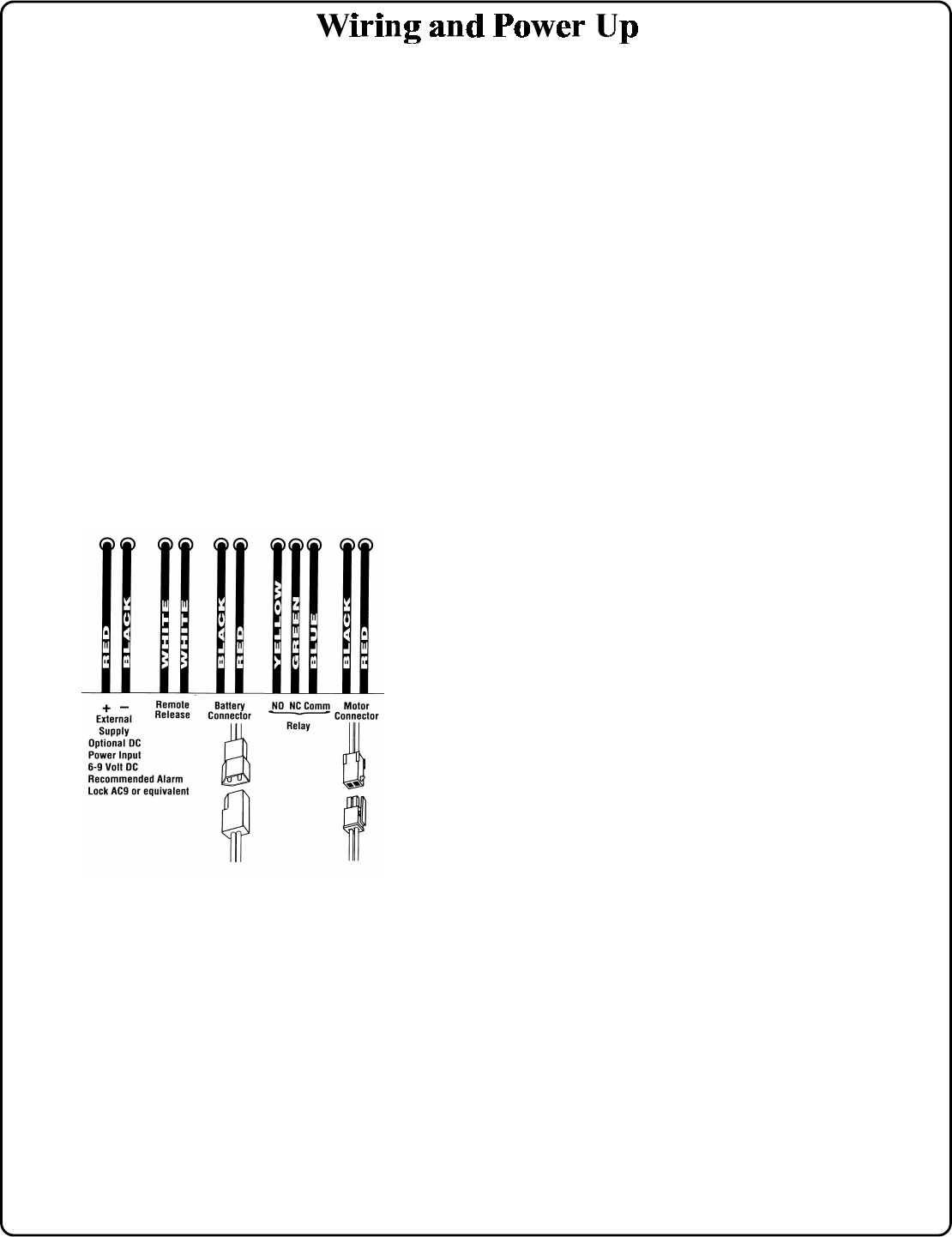

Terminals (Standard Models Only)
1 & 2 (Operation without Batteries) - Optional 7.5 VDC
Voltage for operation without batteries.
3 & 4 (Remote Input) - Wire a Normally Open Contact to
Terminals 3 & 4. Momentarily close to allow person to pass
through door. NOTE: Remote Input is enabled from the
factory.
5 & 6 (Normally Open Relay) - See Function 67 for
programming options for the Relay.
PC Interface - Connect to Serial Port on Computer using
A-PCI interface cable.
Battery Replacement
When a valid code is entered and the batteries are weak the
lock LED will light amber, and the sounder will sound for 4
seconds. The DL3000 uses 5 AA-size 1.5 volt alkaline
batteries. The lock will function with weak batteries; however
be sure to replace the batteries as soon as possible.
Remove the screw at the bottom of the housing and remove
the cover. Replace all 5 batteries quickly - within 2 minutes.
Note: Do not press any buttons while replacing the batteries
(unless lock programming is to be erased). Pressing any
key will remove the voltage that is required to keep the
system clock and Audit Trail.
Power-Up - Retain Lock Programming
(Audit Trail and Clock Settings lost)
1. Remove at least one battery.
2. Press any key to insure the locks capacitor is fully
Power-Up - Erase All Programming
(Factory Default will be loaded)
1. Remove at least one battery.
2. Press any key to insure locks capacitor is fully discharged.
3. Re-install battery (lock will give 3 short beeps).
4. Press any key within 5 sec after hearing the 3 beeps.
5. A series of 12 slow beeps will be heard followed by 20
seconds of silence, followed by 6 fast beeps.
All programming has been erased and the lock is now ready
for use.
Note: All lock programming can also be erased by entering
Function 99.
Self Diagnostic Indications
Various system tests are performed at power up and during
operation of the lock.
Steady 4 Second Sounder with a Yellow LED indication
every time a user code is entered - indicates a Low
Battery Condition.
Continuous Series of Beeps - indicates the lock detected
a system fault which would not allow any part of the system
to operate. Ensure batteries are good.
Sequence of 7 Beeps Repeated 4 Times with a Yellow
LED indication, every time a user code is entered -
indicates a non-fatal memory or clock error has been
detected. Under this condition, unexpected operation is
possible. Do not mistake the low battery indication as a
memory or clock error.
Wire Leads for DL3000WP Models
7
Lock Operation
Important: Before attempting to program any codes or
functions, Note the following:
• While the lever or knob may be rotated at any time, the latch
will not be engaged to unlock the door unless a valid code has
been entered.
• When a valid code is entered, the lock will unlock immediately
and remain unlocked for about 5 seconds (or longer, if
reprogrammed by functions 52 and 53).
Audible Indications
Key Press A beep will sound with each
key press
Invalid Code 6 beeps
Low Battery Indication (Sounds
when a valid code is entered) A 4-second tone
Successful Program Entry 2 short beeps
Unsuccessful Program Entry 7 short beeps
LED Indications
Key Press - The red LED will light
momentarily whenever a key is pressed.
Wrong Code - If a wrong code is entered,
the red LED will flash 6 times.
RED LED
Valid Code - The green LED will come on
momentarily when a valid code has been
entered.
GREEN LED
Low Battery - Will light when keys are
pressed to indicate a low battery condition.
Program Mode Entered - Indicates that the
program mode is entered.
YELLOW LED
Programming - Notes
It is recommended that all programming be prepared in advance
using the DL3000 Programming Sheets for reference while
programming (see User Code and Schedule Recording sheets
at the back of this manual), then be secured when finished.
PROGRAM LEVELS
You must have the programming authority level equal to the
authority level required to access a programming function.
Programming authority levels can have a value of 1, 2, 3, 4 or M.
A programming authority level of M (Master) is associated with
the Master Code and cannot be associated with any other user.
Note: Having a Program Authority Level of 3 does not allow
access to programming Functions with required authority levels
of 1, 2 or 4.
MASTER, MANAGER, SUPERVISOR AND BASIC CODES
Program ability and Group association for most users can be
modified through programming. To keep structure to the user
codes, the following suggested hierarchy of codes is defaulted
when adding codes using Program Function 2.
Master Code - User 1: Always enabled and can program all
functions, can't be group associated
Manager Codes - Users 2 - 6 (Program Set Ability of 1, 2, &
3): Can program all functions except functions relating to lock
configuration, no default group association.
Supervisor - User 7 - 11 (Program Level Ability of 1 & 2): Can
only program functions relating to day to day operation, no
default group association.
Following a Power Up, Function 1 (New Master Code)
must be accessed before any other programming
function is permitted.
NOTE:
Program Level Required - The
program level required to access
the Function. Possible
Programming Levels of 1,2,3,4 and
M, where M = Master Code.
Program Authority Level of User
must be equal to the Function that
3. Disable User ; 3 ; [ _ _ _ ] :
4. Enable User ; 4 ; [ _ _ _ ] :
• User Number must be between 2 and 300.
NOTE: Will Enable/Disable users even if the user is associated with a enabled group. 2
Enabling/Disabling Users (By User Number)
Programming key
Function Name
Programming
Information
If a wrong key is pressed during code entry, press the ; button repeatedly until the error sound is heard (7 short
beeps), this will clear the entry, then re-enter the key sequence again.
General Program Mode Information
8
Battery Installation
Remove the back cover and install batteries as shown. The lock
will beep 3 times. To load the default program press any key
within 5 seconds, the lock will beep slowly while the default
values are loaded and beep rapidly upon completion.
Entering Program Mode
1. Enter Master Code 1 2 3 4 5 6
Default Master Code
2. Enter ;
Program a new Master Code.
; 1 ; [ _ _ _ _ _ _ ] ; [ _ _ _ _ _ _ ] :
New Master Code Confirm New Master Code
Setting the Clock - While still in Program Mode enter the following commands to set the clock.
Program the Date.
; 3 8 ; [ _ _ _ _ _ _ ] :
Date
Program the Time.
; 3 9 ; [ _ _ _ _ ] :
Time
Program the Day of the Week.
; 4 0 ; [ _ ] :
Day
For Example: To set time to 8:25 P.M.;
Enter: ; 3 9 ; 2 0 2 5 :
For Example: To set time to 8:25 A.M.;
Enter: ; 3 9 ; 0 8 2 5:
For Example: March. 8, 1998;
Enter:
; 3 8 ; 0 3 0 8 9 8 :
For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday,
5 for Thursday, 6 for Friday and 7 for Saturday.
Program Mode
The keypad sounder will beep every 6 seconds
and the keypad LED will flash green every 6
seconds while in program mode when no keys
are pressed. NOTE: There is a 3 minute
Timeout if no keys are pressed while in
Program Mode.
9
ALARM LOCK SYSTEMS, INC
VERSION DL26 org REC
04/07/98 13:11:28 Tue
Clock adjust setting +0
Cycle count hex 00000E
F39 day ct hex 00

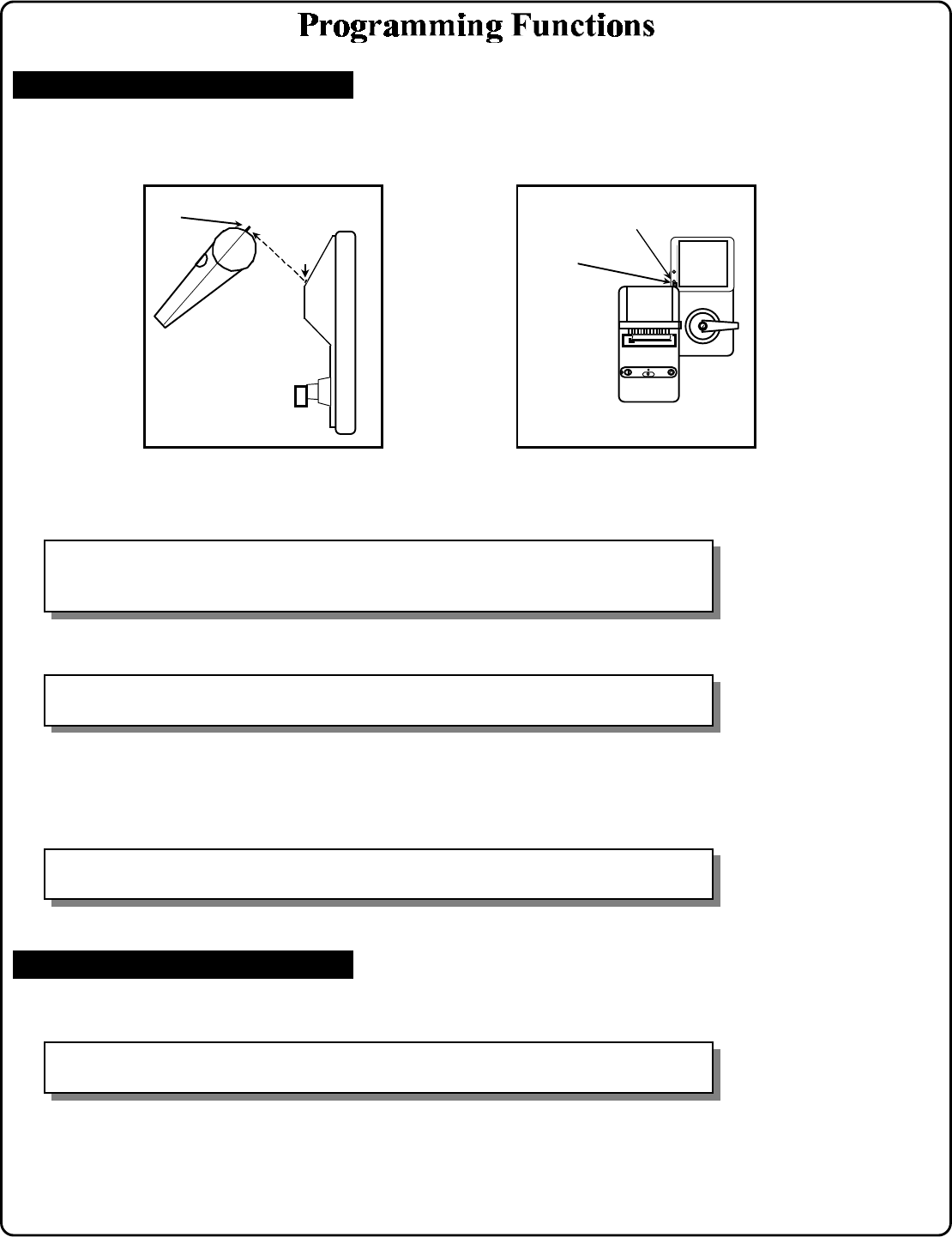

Print the Lock’s Time, Date and Day programming to
ensure the clock is set correctly. Refer to Printer
Functions (page 18) for proper Printer-Lock positioning.
From Program Mode enter the following command:
; 5 7 :
Optional
User Programming
Add a Basic User Code
Program a User Code of 987. Use Function 2, and add the new user
as User 12 (Users 12-50 are Basic Users). Refer to Function 2 (page
11).
; 2 ; 1 2 ; 9
8 7 :
Add another Basic User Code
Program a User Code of 246. Use Function 2, and add the new user as User 13.
Refer to Function 2 (page 11).
; 2 ; 1 3 ; 2
4 6 :
Exit Program Mode
User code conflicts
Care should be taken not to
program a new user code which
matches the first digits of any other
user code. (only the code with the
least number of digits would be
recognized). Example: If user
codes 123 and 123456 are both
entered in the system only code
123 would be recognized.
To program user codes that match
the first digits of other codes, see
program Function 69.
An error will sound if you try to
program a new user code which
matches the first digits of the
Master User Code (User Number
04/07/98 13:06:35 Tue
USER
ENABLED ?
|
USER|USER | |GROUP|PROG
NUM |CODE | | |SETS
1 123456 E .... 1234
12 987 E .... ....
13 246 E .... ....
Print the Lock’s User Code List. Refer to Printer
Functions (page 18) for proper Printer-Lock positioning.
From Program Mode enter the following command:
; 5 6 :
User Number (12) User 12’s Code
User Number (13) User 13’s Code
------- AUDIT LOG -------
04/07/98 13:06:35 Tue
13:01:59 001 PROGRAM 56
13:01:29 001 PROGRAM 57
13:00:53 001 ENTRY
13:00:26 013 ENTRY
13:00:03 012 ENTRY
12:56:27 001 PROGRAM 2
12:56:27 001 PROGRAM 40
12:56:04 001 PROGRAM 39
12:55:00 NEW CLCK TIME
12:01:39 OLD CLCK TIME
12:01:30 001 PROGRAM 38
12:01:30 DATE CHANGED
12:01:07 001 ENTRY
12:00:48 CLK TEST:PASS
12:00:45 RAM TEST:PASS
12:00:45 POWER UP
-------------------------
End of Audit Log
Print the Lock’s Audit Trail. Refer to Printer
Functions (page 18) for proper Printer-Lock positioning.
From Program Mode enter the following command:
; 5 5 :
10
Keypad Programming
Entering Program Mode
1. Enter Master Code 1 2 3 4 5 6
Default Master Code
2. Enter ;
Program the Master Code before programming any other
Functions (New Lock or following a power up).
New Master Code (User Number 1)
; 1 ; [ _ _ _ _ _ _ ] ; [ _ _ _ _ _ _ ] :
New Master Code Confirm Master Code
Exiting Program Mode
There are 2 ways to exit Program Mode:
1. Hold down any key for 3 seconds
2. Press no keys for 3 minutes
(Program Mode Timeout).
Downloading
“BeepBeep” “BeepBeep” “BeepBeep” “BeepBeep”
Sounder will sound 2 short beeps 4 times to indicate
the program mode is active.
The DL3000 lock can also be programmed using
a computer and Alarm Lock's
DL-WINDOWS Software.
Tri-Color
Infrared LED
PC Interface/AL-DTM
Program Mode
The keypad sounder will beep every 6 seconds
and the keypad LED will flash green every 6
seconds while in program mode when no keys
are pressed. NOTE: There is a 3 minute
Program Mode Timeout if no keys are pressed
while in Program Mode. A steady tone will
sound indicating there is 15 seconds left to
press a key or Program Mode will timeout.
2 series of 4 Quick Beeps once
the Exit Sequence has initiated. “BeepBeepBeepBeep” “BeepBeepBeepBeep”
6 - Slow Beeps “Beep” “Beep” “Beep” “Beep” “Beep” “Beep”
End of Exit Sequence “BeepBeep”
The DL3000 lock can also be programmed using
Alarm Lock's AL-DTM Data Transfer Module and
a computer running Alarm Lock's DL-WINDOWS
Software.
AL-DTM
DL3500 Lock (mounted on door)
-
+
NOTE: Observe Tab Direction
when inserting cable into DL3500 Lock.
-
+
(Tab to the left)
PLUG IN THEN
ENTER YOUR CODE
AL-DTM
DL3500 Lock (mounted on door) IBM COMPATIBLE
LAPTOP COMPUTER
TO SERIAL PORT (DB-9)
E.G. <COM 1>
AL-PCI
-
+
NOTE: Observe Tab Direction
when inserting cable into DL3500 Lock.
Note: AL-DTM
has been
configured using
a computer
running DL-
WINDOWS
software. Refer to
DL-WINDOWS
Software
11
1. New Master Code (User Number 1)
2. Add/Delete/Change User Codes 2-300
; 1 ; [ _ _ _ _ _ _ ] ; [ _ _ _ _ _ _ ] :
Users programmed with Function 2 will default to a Group
Association and a Program Level Ability as follows:
USER TYPE USER NUMBER DEFAULT
GROUP ASSOCIATION
PROGRAM
LEVEL ABILITY
Master Code 1none 1, 2, 3, 4, Master
Manager Codes 2 - 6 none 1, 2, 3
Supervisor 7 - 11 none 1, 2
Basic User Codes 12 - 50 none none
Basic User Codes Group 1 51 - 100 1none
Basic User Codes Group 2 101 - 150 2none
Basic User Codes Group 3 151 - 200 3none
Basic User Codes Group 4 201 - 250 4none
Basic User Codes 251 - 298 none none
Non-Pass Code 299 none none
Service Code 300 none none
3. Disable User ; 3 ; [ _ _ _ ] :
(User Number)
; 2 ; [ _ _ _ ] ; [ _ _ _ _ _ _ ] :
4. Enable User ; 4 ; [ _ _ _ ] :
(User Number)
Enabling/Disabling Users (By User Number)
• User Number must be between 2 and 300.
• To delete a code, leave the User Code blank
• User Code must be 3-6 digits
• Master Code must be 6 digits-only.
NOTE: Following a power up, Function 1 (New Master Code), must be accessed before
any other programming function is permitted.
3
M
USERS
• User Number must be between 2 and 300
NOTE: Will Enable/Disable users even if the user is associated with a enabled group. 2
User 299 is a Non-Pass Code. This is the only code that will initiate data transfer with the AL-DTM. This code can be assigned
program ability to allow printing the log to the handheld printer without allowing the user to pass through the door. This code may
be used to record a guard’s location in a building while “making his rounds”.
NOTE:
12
USERS
; 6 :
6. Enable Total User Lockout
7. Disable Total User Lockout ; 7 :
8. Change User Program Level Ability ; 8 ; [ _ _ _ ] ; [ _ _ _ _ ] :
(User Number) (Program Levels)
; 1 0 ; 0 0 0 :
10. Erase All Users Except the Master Code
User Lockout Mode
Enables/Disables all User Codes (Except User 1 Code) from operating the lock. Note: No
other programming functions or schedules will re-enable users. Users must be re-enabled
with function 7.
Service Code is a One-Time-Only Code. Once it is used, it is disabled until enabled again.
; 9 :
9. Enable User 300 (Service Code)
• User Number must be between 2 and 300.
The ability to program one or more program levels may be selected.
Example 1: Allow User 67 to program levels 1, 2 and 4;
Enter:
; 8 ; 6 7 ; 1 2 4 :
NOTE: User 67 does not have access to Programming Functions with a Program Level
Ability of 3.
Example 2: Prevent User 67 from programming any programming levels;
Enter:
; 8 ; 6 7 :
NOTE: Having a Program Level Ability of 4 does not allow access to functions requiring a
Program Level Ability of 3, 2 or 1. If multiple levels are required, program for each level
that is required.
Erases all user codes except the Master Code (User 1).
M
3
2
M
5. User Enable with Timeout
(Enter Timeout, XXX Hours)
; 5 ; [ _ _ _ ] ; [ _ _ _ ] :
(User Number) (XXX Hours)
• User Numbers must be between 2-300.
• Hours must be between 1 - 999 2
11. Reserved
13
; 1 2 ; 0 0 0 :12. Clear All Schedules and Timeout
; 1 3 ; 0 0 0 :
Clears all programmed Timeout Functions. Includes functions 5, 25 to 34 and Function 47.
NOTE: Only 4 Timeout Functions are allowed at any one time. An error beep will sound if
more than 4 Timeout Functions are attempted to be programmed.
Clears all programmed Schedules and all Timeout Functions. Includes Schedule
Functions 72 to 93. Includes Timeout Functions 5, 25 to 34 and Function 47. NOTE: Up
to 4 Timeout Functions may be pending at any one time. An error beep will sound if
more than 4 Timeout Functions are attempted to be programmed.
3
3
13. Clear All Timeout Functions
CLEAR FUNCTIONS
; 1 4 :
Enable/Disable Groups
; 1 5 :
16. Disable Group 3 ; 1 6 :
17. Disable Group 4 ; 1 7 :
18. Disable All Groups ; 1 8 :
19. Enable Group 1 ; 1 9 :
20. Enable Group 2 ; 2 0 :
21. Enable Group 3 ; 2 1 :
22. Enable Group 4 ; 2 2 :
23. Enable All Groups ; 2 3 :
Enter the functions below to Enable/Disable Groups.
14. Disable Group 1
15. Disable Group 2
2
GROUPS
24. Reserved
14
GROUPS
; 2 5 ; [ _ _ _ ] :
(XXX Hours)
25. Timed Disable Group 1
Group Disable/Enable with Timeout (Enter Timeout, XXX Hours)
• Hours must be between 1 - 999
• Enter the functions below to Enable/Disable groups for the amount of time entered in
hours. NOTE: Only 4 Timeout Functions are allowed at any one time. An error beep will
sound if more than 4 Timeout Functions are attempted to be programmed.
2
; 3 5 ; [ _ _ _ ] ; [ _ _ _ _ ] :
(User Number) (Groups)
35. Add/Delete Group Association
• Groups not Selected are Disassociated from the User
• User Number must be between 2 and 300.
• 1 or more (1-4) groups to associate with user may be selected.
Add Example: To associate user 67 with groups 1, 2 and 4;
Enter:
; 3 5 ; 6 7 ; 1 2 4 :
Delete Example: To remove all group associations for user 67;
Enter:
; 2 6 ; [ _ _ _ ] :
(XXX Hours)
26. Timed Disable Group 2
; 2 7 ; [ _ _ _ ] :
(XXX Hours)
27. Timed Disable Group 3
; 2 8 ; [ _ _ _ ] :
(XXX Hours)
28. Timed Disable Group 4
; 2 9 ; [ _ _ _ ] :
(XXX Hours)
29. Timed Disable All Groups
; 3 0 ; [ _ _ _ ] :
(XXX Hours)
30. Timed Enable Group 1
; 3 1 ; [ _ _ _ ] :
(XXX Hours)
31. Timed Enable Group 2
; 3 2 ; [ _ _ _ ] :
(XXX Hours)
32. Timed Enable Group 3
; 3 3 ; [ _ _ _ ] :
(XXX Hours)
33. Timed Enable Group 4
; 3 4 ; [ _ _ _ ] :
(XXX Hours)
34. Timed Enable All Groups
3
36 - 37. Reserved
Clear All Timeout Functions by entering Function 13.NOTE:
15
Daylight Savings Time Enable/Disable
; 3 8 ; [ _ _ _ _ _ _ ] :
(Date)
38. Set Date
39. Set Time ; 3 9 ; [ _ _ _ _ ] :
(Time)
; 4 1 :
41. Enable Daylight Savings
; 4 2 :
42. Disable Daylight Savings
; 4 0 ; [ _ ] :
(Day)
40. Set Day of Week
• Use month day year format - MMDDYY - single digit months and days are entered with a
preceding zero.
• Enter Only the last two digits of the year.
For Example: March. 8, 1998;
Enter:
; 3 8 ; 0 3 0 8 9 8 :
• For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for
Thursday, 6 for Friday and 7 for Saturday.
For Example: To set day to Sunday;
Enter: ; 4 0 ; 1 :
NOTE: Daylight Savings Time Adjustment is 1st Sunday in April (time forwarded) until last
Sunday in October (time regressed). Daylight Savings Time is enabled from the factory.
• Time must be 4 digits.
• Use 24 Hour Format (add 12 hours to program P.M. times)
For Example: To set time to 8:25 P.M.;
Enter: ; 3 9 ; 2 0 2 5 :
For Example: To set time to 8:25 A.M.;
Enter: ; 3 9 ; 0 8 2 5 :
3
3
3
4
CLOCK SETTINGS
16
CLOCK ADJUST
; 4 3 ; [ _ _ ] :
(seconds)
43. Speed Up Clock
; 4 4 ; [ _ _ ] :
(seconds)
44. Slow Down Clock
• Number of seconds to Speed Up/Slow Down clock each day must be 0-55 seconds.
Always consider the current setting when using this function. (Use of this function is not
cumulative.) For example, if the clock needs to be sped up 10 seconds per day and the
current setting is 10, program 20 seconds using Function 43.
Example 1: Clock is losing 13 seconds every day, enter:
; 4 3 ; 1 3 :.
This example assumes that the clock adjust setting was at the factory default of zero.
Function 57 can be used to print the current clock adjust setting.
Example 2: Clock is gaining 13 seconds every day, enter:
; 4 4 ; 1 3 :.
This example assumes that the clock adjust setting was at the factory default of zero.
Function 57 can be used to print the current clock adjust setting.
Example 3: To set the clock adjust setting back to the factory default of zero, enter:
; 4 3 : or ; 4 4 :
Clock Adjust
4
; 4 5 :
45. Enable Passage Mode
; 4 6 :
46. Disable Passage Mode
47. Timed Passage Mode ; 4 7 ; [ _ _ _ ] :
(XXX Hours)
• Allows passage through the door without the need for a code using Function 45. Re-Lock
using Function 46.
• Programmed Schedules will override the state of the lock using functions 45 and 46. If it
is required that programmed schedules do not override passage mode, Enable/Disable
Passage Mode Enable/Disable - Schedule will Override
2
• Hours must be between 1 - 999.
Allows passage through the door without the need for a code for the programmed amount of
time.
2
PASSAGE MODE
17
49. Disable Passage Mode
50. Return Lock to Normal
Passage Mode Schedule
(The DL3000 will lock or unlock
depending on the current schedule)
48. Enable Passage Mode
; 5 1 :
51. Set Pass Time to 5 Sec.
; 5 2 :
; 5 3 :
• Allows passage through the door without the need for a code using Function 48. Re-Lock
using Function 49.
• Programmed Schedules will not override the state of the lock using functions 48 and 49.
If it is required that programmed schedules do override passage mode, Enable/Disable
Passage mode using Functions 45/46. Use Function 50 to return the lock to scheduled
functions.
Passage Mode Enable/Disable - Schedule will not Override
Use the functions below to change the pass time to 5, 10 or 15 seconds. The Pass Time is
defaulted to 5 seconds. The Pass Time is the time the lock stays unlocked after a User
Code is entered.
Pass Time
2
4
52. Set Pass Time to 10 Sec.
53. Set Pass Time to 15 Sec.
PASSAGE MODE
; 4 9 :
; 4 8 :
; 5 0 :
54. Reserved
PASS TIME
See Scheduled functions 72 and 73 for scheduled passage mode.
NOTE:
18
; 5 5 :
; 5 7 :
57. Print Clock Settings and Software
Version
55. Print Audit Trail
; 5 6 :
56. Print User Code List
; 5 8 :
58. Upload/Download PC Data
Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2. 20
events will print at a time; press 1 for more events, or 9 to quit. To abort printing, press any
key for 3 Sec (Three short beeps will sound).
Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2. To abort
printing, press any key for 3 Sec (Three short beeps will sound).
Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2.
For use with DL-WINDOWS software, refer to OI237. AL-PCI interface cable needed.
1
3
3
PRINTER
DOWNLOADING
Hold the printer’s tab perpendicular to the Lock’s infrared LED as shown in Figure 1 and Figure 2. If the printer
1
Infrared
LED
DL3000 to Printer - Front View
123
456
789
:0;
Printer
Tab
Infrared
LED
DL3000 to Printer
- Side View
Printer
Tab
Figure 1 Figure 2
19
60. Number of Attempt Before Lockout
61. Set the Attempts Lockout Time
• Number of attempts before lockout must be 1-9 attempts.
• The number of attempts is reduced by half every time the keypad is locked out without a
successful code entry (default is 6 attempts).
• The attempt count is reset each time a valid code is entered.
• Lockout Time must be 1-60 seconds.
How long the keypad is locked out after a series of unsuccessful attempts (default is 15
4
4
LOCKOUT
; 6 4 :
64. Disable Remote Input
• Wire a Normally Open Contact to Terminals 3 & 4. Momentarily close to allow person to
pass through door.
• Enter the functions below to Disable/Enable the Remote Input.
NOTE: The Remote Input is enabled as part of the default program.
Remote Input Disable/Enable
; 6 5 :
65. Enable Remote Input
; 6 6 ; [ _ _ ] :
(Ambush Code)
66. Ambush Code
• Ambush code must be 2 digits.
• An error will sound if the ambush code matches the 1st two digits of any user code. See
Using Ambush Function on page 5.
2
3
REMOTE INPUT
AMBUSH
; 6 0 ; [ _ ] :
(Number of Attempts)
; 6 1 ; [ _ _ ] :
(Lockout Time)
62-63. Reserved
59. AL-DTM Door Number
• Door Number must be between 1- 48.
For use with Alarm Lock’s AL-DTM Data Transfer Module. Using the AL-DTM up to 48
locks can be Downloaded/Uploaded and History LOGs can be retrieved. Enter a door
number for each lock. After configuring the AL-DTM, using Alarm Lock's DL-WINDOWS
Software, any of the following data transfers can be initiated by plugging the AL-DTM into
the lock and simply entering User Code 299 at the lock.
• Upload Lock Program
• Upload History LOG
• Download Lock Program
4
AL-DTM
; 5 9 ; [ _ _ ] :
Door Number)
20
; 6 9 :
69. Enable : as Enter Key
• When this function is enabled the user must press the : key after a user code entry,
this allows user codes which are subsets of other user codes.
Example:
1 2 3 : is a valid user code;
1 2 3 4 : is a valid user code
Enter Key Enable/Disable (Allows Programming of Codes that Match the 1st digits of other Codes)
; 7 0 :
70. Disable : as Enter Key
4
ENTER KEY
72. Schedule Enable Passage
Mode (Unlock)
; 7 2 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
Use the functions below to Enable/Disable Schedule Passage Mode.
For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for
Thursday, 6 for Friday and 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and
Sunday, 0 for all days of week.
Scheduled Passage Mode Enable/Disable
73. Schedule Disable Passage
Mode (Lock) ; 7 3 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
SCHEDULES
; 6 7 ; [ _ ] :
(Relay Function)
67. Add Relay Function
; 6 8 ; 0 0 0 :
68. Delete All Relay Functions
• Relay function must be 1-11
Program 1 or more functions below to activate the Relay for 2 seconds when the following
event occur:
1. Remote Input while enabled 6. Function 90 Activated 11. Any key press
2. Remote Input while disabled 7. Locked by Schedule
3. Failed Entry attempt 8. Unlocked by Schedule
4. Disabled user entered code 9. Keypad Lock Out
Delete all Relay Functions programmed by Function 67.
4
4
RELAY
3
71. Reserved
21
74. Schedule Enable Group 1 ; 7 4 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
Scheduled Group Enable/Disable
Use the functions below to Enable/Disable Groups at the time programmed.
• For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for
Thursday, 6 for Friday and 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and
Sunday, 0 for all days of week.
SCHEDULES
75. Schedule Enable Group 2 ; 7 5 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
76. Schedule Enable Group 3 ; 7 6 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
77. Schedule Enable Group 4 ; 7 7 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
78. Schedule Enable All Groups ; 7 8 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
79. Schedule Disable Group 1 ; 7 9 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
80. Schedule Disable Group 2 ; 8 0 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
81. Schedule Disable Group 3 ; 8 1 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
82. Schedule Disable Group 4 ; 8 2 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
83. Schedule Disable All Groups ; 8 3 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
3
Clear All Schedule and Timeout Functions by entering Function 12.
NOTE:
22
; 8 5 ; [ _ ] :
(Group)
; 8 7 ; [ _ ] :
(Group)
; 8 6 ; [ _ ] :
84. Business Quick Schedule
7AM-5PM, Monday - Friday
; 8 4 ; [ _ ] :
(Group)
QUICK SCHEDULES
85. Day Quick Schedule
7AM-5PM, All days
86. Evening Quick Schedule
3PM-1AM, All days
87. Night Quick Schedule
11PM-9AM, All days
88. Passage Mode
(Open Time Window)
; 8 8 ; [ _ ] ; [ _ _ _ _ ] :
• For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for
Thursday, 6 for Friday and 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and
Sunday, 0 for all days of week.
• Enter time of day in 24 hour format.
Enter the Open and Close Window Functions below to set up a Window where if any Group
1 User Code is entered within the programmed window, Passage Mode will be activated.
See Group 1 Member in Puts Lock in Passage Mode on page 5.
Scheduled Passage Mode (Group 1 Activated)
89. Passage Mode
(Close Time Window)
; 8 9 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
SCHEDULES GROUP 1 ACTIVATED
3
• Group number must be 1-4
Enter the number of the group that is to be enabled for the time specified for the Quick
Schedules below:
3
Quick Schedules - Enable Group
23
90. Relay Activation
(Open Time Window)
; 9 0 ; [ _ ] ; [ _ _ _ _ ] :
• Also program Relay Function 6 using Function 67 (; 6 7 ; 6 :).
• For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for
Thursday, 6 for Friday and 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and
Sunday, 0 for all days of week.
• Enter time of day in 24 hour format.
Enter the Open and Close Window Functions below to set up a Window where if any Group
1 User Code is entered within the programmed window the relay will be activated for 2
seconds. For use with a Control Panel that has a key switch disarm option (see Disarming a
Burglary Control Panel ). See Disarming a Burglar Alarm on page 5.
Scheduled Relay Activation (Group 1 Activated)
; 9 1 ; [ _ ] ; [ _ _ _ _ ] :
92. Enable Group 4
(Open Time Window)
; 9 2 ; [ _ ] ; [ _ _ _ _ ] :
(Day) (Time)
• For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for
Thursday, 6 for Friday and 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and
Sunday, 0 for all days of week.
• Enter time of day in 24 hour format.
Enter the Open and Close Window Functions below to set up a Window where if any Group
1 User Code is entered within the programmed window Group 4 will be enabled. See
Group 1 Member enables Group 4 Members on page 5.
Scheduled Group 4 Enable (Group 1 Activated)
93. Enable Group 4
(Close Time Window)
; 9 3 ; [ _ ] ; [ _ _ _ _ ] :
91. Relay Activation
(Close Time Window)
SCHEDULES GROUP 1 ACTIVATED
3
3
; 9 9 ; 0 0 0 :99. Clear All Lock Programming and
Clears all programming and History LOG. M
CLEAR ALL PROGRAMMING AND HISTORY LOG
94 - 98. Reserved
24
Advanced User Programming
Add a User that is a member of Group 2 & Group 3
Program a User Code of 789 that is a member of Group 2. Refer to Function 2 (page 11). Use Function 2,
and add the new user as User 101 (Users 101-150 are members of Group 2):
Add User 101:
; 2 ; 1 0 1 ; 7 8 9 :
Make User 101 also member of Group 3 using Function 35:
; 3 5 ; 1 0 1 ; 2 3 :
Note: Although User 101 is by default a member of Group 2, Group 2 must be included when using Function 35 or the
Group 2 association will be removed.
Group 1 Activated Features
Add a User to Group 1
Program a User Code of 456789 that is also a member of Group 1. Use Function 2, and add the new user as
User 2 (Manager).
Add User 2:
; 2 ; 2 ; 4 5 6 7 :
Make User 2 a member of Group 1 by using Function 35:
; 3 5 ; 2 ; 1 :
Add Schedule that Opens the Lock (Passage Mode) when a member of Group 1 enters their code.
Program a schedule using Function 88 and Function 89 between the hours of 6 A.M. and 10 A.M. for all days of the week.
Enter the Open Window Time of 6 A.M.: ; 8 8 ; 0 ; 0 6 0 0 :
Enter the Close Window Time of 10 A.M.: ; 8 9 ; 0 ; 1 0 0 0 :
The Lock will now be put in passage mode IF User 2 (or any Group 1 User) enters their code between 6 A.M. and 10 A.M.
Th e Lock will have to be manually locked each night by entering the following command using Function 46.
Manually close the Lock by entering the following command:
; 4 6 :
The Lock can also be programmed to automatically close each night at 6 P.M. by adding a scheduled Lock Time using
Function 73:
Automatically (Scheduled Lock) close the Lock by entering the following command:
; 7 3 ; 0 ; 1 8 0 0 :
Other Group 1 Initiated (Manager) Functions include:
Disarming a Burglar Alarm (Relay Activation) See functions 90/91.
Group 4 Enable - See functions 92/93.
If the lock is programmed as above. The lock will be put in passage mode IF User 2 enters their
code between the hours of 6 A.M. and 10 A.M.
The example to add Users
to Group 2 and Group 3
has been selected due to
the fact that Group 1
Activated Functions
require that a member a
Group 1 enter their code
to activate the function.
Do not add general users
to Group 1 if Manager
Initiated Functions are to
be programmed -
Functions 88/89, 90/91
and 92/93.
Note:
Note:
To Change to a different
Group 1 Activated
Function.
Replace functions 88 & 89
(Passage Mode Enable)
with functions 90/91
(Burglar Alarm Disarm) or
92/93 (Group 4 Enable).
25
Function
Number(s) Function Name Programming
40/41 Daylight Savings Time Enable/Disable Enable • Disable •
(Enable)
43/44 Clock Adjust
51/52/53 Pass Time 5 sec • 10 sec • 15 sec •
(5 sec)
59 AL-DTM Door Number
60 Number of Attempt Before Lockout
61 Set the Attempts Lockout Time
64/65 Remote Input Disable/Enable Enable • Disable •
(Enable)
66 Ambush Code
67 Add Relay Function Check all that apply
1. Remote Input while enabled
2. Remote Input while disabled
3. Failed Entry attempt
4. Disabled user entered code
5. Authorized Entry
6. Function 90 Activated
7. Locked by Schedule
8. Unlocked by Schedule
9. Keypad Lock Out
10. Ambush Function Activated
11. Any Key Press
•
•
•
•
•
•
•
•
•
•
•
69/70 Enter Key Enable/Disable Enable • Disable •
(Disable)
+/- 0-55 seconds
(0) (0) Seconds
1-48
(0) (1) Door Number
1-9 attempts
(6) Attempts
1-60 seconds
(1) (5) Seconds
01-99
(9) (9) Ambush Code
Default Values are shown in parentheses.
26
User Number
(1-300) User Code
(3-6 digits) Group
Association Program Set
Ability User Name
12341234
For a complete list of user codes obtain a print out from either the remote printer
(Program Function 56) or using the DL-3000 WINDOWS Downloading Software.
Note:
27
Day(s)
Function Number
Up to 150 scheduled functions can be programmed. For
Day Enter :
1 = Sunday, 2 = Monday, 3=Tuesday, 4 Wednesday
5 = Thursday, 6 = Friday, 7=Saturday, 8 = Monday - Friday
9 = Saturday and Sunday, 0=All days of the week
Enter time of day in 24 hour format (00:00- 23:59)
Time Function Name
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
28
ALARM LOCK LIMITED WARRANTY
ALARM LOCK SYSTEMS, INC. (ALARM LOCK) warrants its products to be free from manufacturing defects in materials
and workmanship for twelve months following the date of manufacture. ALARM LOCK will, within said period, at its option,
repair or replace any product failing to operate correctly without charge to the original purchaser or user.
This warranty shall not apply to any equipment, or any part thereof, which has been repaired by others, improperly
installed, improperly used, abused, altered, damaged, subjected to acts of God, or on which any serial numbers have
been altered, defaced or removed. Seller will not be responsible for any dismantling or reinstallation charges.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON THE
FACE HEREOF. THERE IS NO EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY OR A WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE. ADDITIONALLY, THIS WARRANTY IS IN LIEU OF ALL OTHER
OBLIGATIONS OR LIABILITIES ON THE PART OF ALARM LOCK.
Any action for breach of warranty, including but not limited to any implied warranty of merchantability, must be brought
within the six months following the end of the warranty period. IN NO CASE SHALL ALARM LOCK BE LIABLE TO
ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN
NEGLIGENCE OR FAULT.
In case of defect, contact the security professional who installed and maintains your security system. In order to
exercise the warranty, the product must be returned by the security professional, shipping costs prepaid and insured to
ALARM LOCK. After repair or replacement, ALARM LOCK assumes the cost of returning products under warranty.
ALARM LOCK shall have no obligation under this warranty, or otherwise, if the product has been repaired by others,
improperly installed, improperly used, abused, altered, damaged, subjected to accident, nuisance, flood, fire or acts of
God, or on which any serial numbers have been altered, defaced or removed. ALARM LOCK will not be responsible for
any dismantling, reassembly or reinstallation charges.
This warranty contains the entire warranty. It is the sole warranty and any prior agreements or representations, whether
oral or written, are either merged herein or are expressly cancelled. ALARM LOCK neither assumes, nor authorizes any
other person purporting to act on its behalf to modify, to change, or to assume for it, any other warranty or liability
concerning its products.
In no event shall ALARM LOCK be liable for an amount in excess of ALARM LOCK's original selling price of the product,
for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of the
product. Seller's warranty, as hereinabove set forth, shall not be enlarged, diminished or affected by and no obligation or
liability shall arise or grow out of Seller's rendering of technical advice or service in connection with Buyer's order of the
goods furnished hereunder.
ALARM LOCK RECOMMENDS THAT THE ENTIRE SYSTEM BE COMPLETELY TESTED WEEKLY.
Warning: Despite frequent testing, and due to, but not limited to, any or all of the following; criminal tampering, electrical
or communications disruption, it is possible for the system to fail to perform as expected. ALARM LOCK does not
represent that the product/system may not be compromised or circumvented; or that the product or system will prevent
any personal injury or property loss by burglary, robbery, fire or otherwise; nor that the product or system will in all cases
provide adequate warning or protection. A properly installed and maintained alarm may only reduce risk of burglary,
robbery, fire or otherwise but it is not insurance or a guarantee that these events will not occur. CONSEQUENTLY,
SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY DAMAGE, OR OTHER LOSS
BASED ON A CLAIM THE PRODUCT FAILED TO GIVE WARNING. Therefore, the installer should in turn advise the
consumer to take any and all precautions for his or her safety including, but not limited to, fleeing the premises and allig
police or fire department, in order to mitigate the possibilities of harm and/or damage.
ALARM LOCK is not an insurer of either the property or safety of the user's family or employees, and limits its liability for
any loss or damage including incidental or consequential damages to ALARM LOCK's original selling price of the product
regardless of the cause of such loss or damage.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of
incidental or consequential damages, or differentiate in their treatment of limitations of liability for ordinary or gross

Navigation menu
