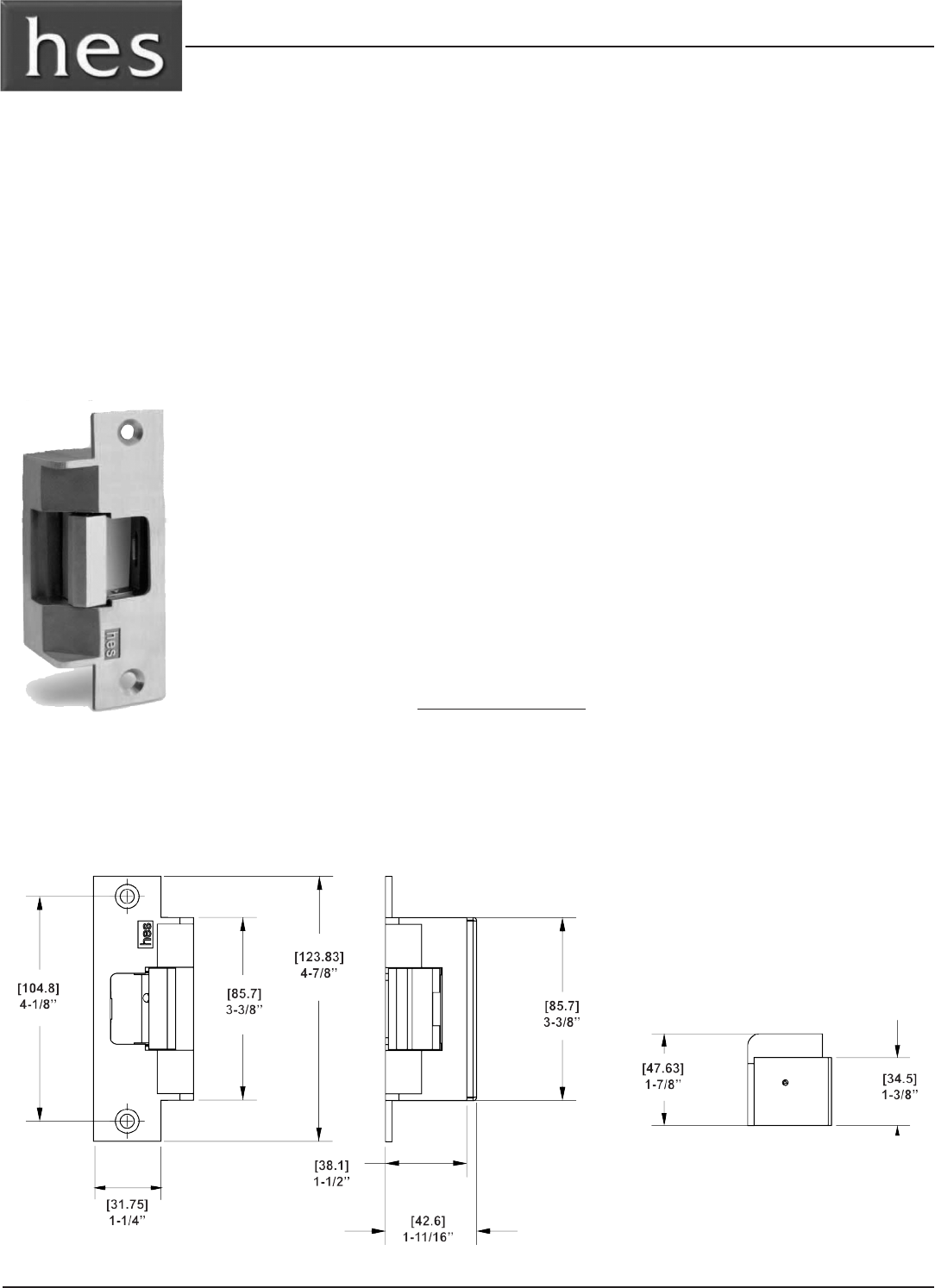

Specifications

• UL 10C, 3 hour fire-rated (fail secure only)

• ANSI A250.13-2003 windstorm listed

• UL 1034, burglary-resistant listed

• ANSI/BHMA 156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• MEA New York City accepted

• Florida Building Code approved

• Patented design

Stocking Part #’s

• 1006-12/24VDC-630

• 1006-12/24VDC-BLK

• 1006-F-12/24VDC-630 (Fail Safe)

Frame application

• Steel

• Aluminum

• Wood

Electrical (continuous duty)

• .45 Amps @ 12VDC

• .25 Amps @ 24VDC

1006 series

E For use with:

Corbin/Russwin Security Bolt,

Weiserbolt, and

normally extended 1” tubular

deadbolts.

ANSI/BHMA Numbers: #E09391,

#E09392, #E09393

J For use with:

Cylindrical locksets up to 3/4”

throw and all locksets with

center-lined bolts. ANSI/BHMA

Numbers: #E09321, #E09322,

#E09323

K For use with:

Mortise locksets with a deadlatch positioned above

the latchbolt.

Compatible Locksets:

Baldwin, Marks, PDQ, Others

ANSI/BHMA Numbers: #E09321, #E09322, #E09323

KD For use with:

Mortise locksets with a deadlatch positioned above

the latchbolt.

Compatible Locksets:

Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)

ANSI/BHMA Numbers: #E09321, #E09322, #E09323

KM For use with:

Mortise locksets with a

deadlatch positioned below the latchbolt.

Compatible Locksets:

Accurate, Arrow, Best*, Corbin/Russwin, Falcon

(1992 M Series), Sargent (7800, 8200 & 9200 se-

ries), Yale (8800)

*For Best 45H & 47H deadlatch below, and Best 34H

- 37H deadlatch above.

ANSI/BHMA Numbers: #E09321, #E09322, #E09323

Stocking Part #’s

• E-OPTION-630

Stocking Part #’s

• J-OPTION-630

Stocking Part #’s

• K-OPTION-630

• KD-OPTION-630

• KM-OPTION-630

Orchard Lock Distributors, Inc.

78

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

5000 and 5200 series

Specifications

• UL 1034, burglary-resistant listed

• ANSI/BHMA 156.31, Grade 1

• MEA New York City accepted

• Patented design

Frame application

• Steel

• Aluminum

• Wood

Electrical

• .24 Amp @ 12VDC

• .12 Amp @ 24VDC

• DC continuous duty/AC intermittent duty

Standard Features

• Tamper resistant

• Static strength 1,500 lbs.

• Dynamic strength 70 ft-lbs.

• Endurance rating 500,000 cycles

• Field selectable fail secure/ fail safe

• Dual voltage 12 or 24 VAC/VDC

• In-frame horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates 5/8” - 3/4” latchbolt

(with 1/8” door gap)

• Strike body depth 1-3/16”

• Plug-in connector

• Trim enhancer included

• Five year warranty

Stocking Part #’s

• 5000-12/24VDC

Stocking Part #’s

• 5200-12/24VDC

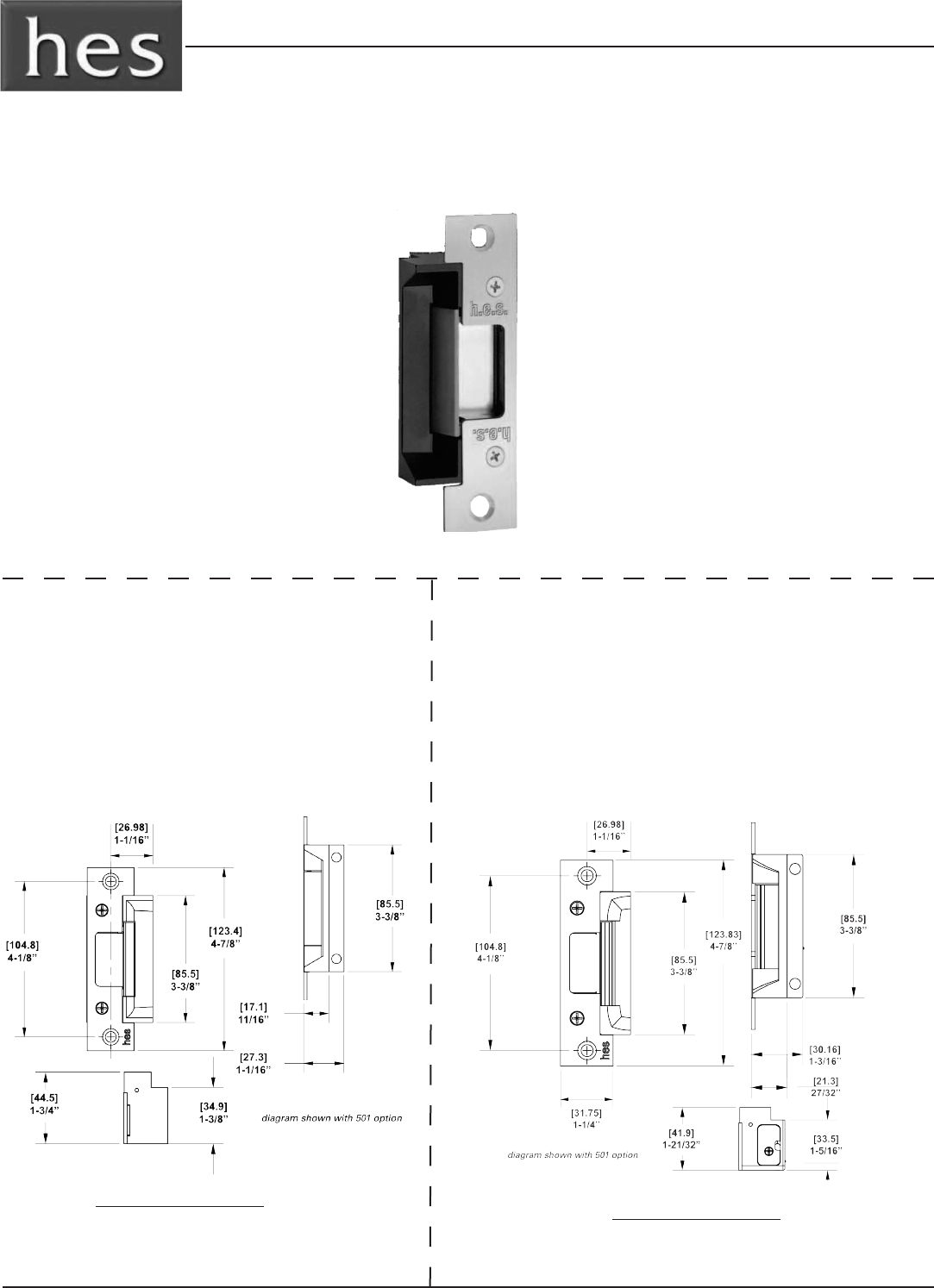

Designed with the installer in mind, the 5200 series

raises the standard in adaptability for electric strikes.

Offering features such as an all new innovative ap-

proach to in-frame horizontal adjustability, the electric

strike is the perfect fit for multiple applications. The

field selectable fail secure/fail safe unit is easy to install

and accommodates 3/4” latchbolts.

The 5000 series is a compact, high performance

electric strike designed for low profile openings

where there is limited space behind the jamb. This

includes narrow style aluminum jambs and jambs

with protruding glass inside. The field selectable

fail secure/fail safe unit is easy to install and ac-

commodates 5/8” latchbolts.

Orchard Lock Distributors, Inc.

79

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

501 For use with:

Cylindrical locksets in

ANSI metal jambs.

501B For use with:

Cylindrical locksets. Includes

universal mounting tabs. Aluminum

doors and frames with

radius front.

502 For use with:

Cylindrical locksets.

Includes universal mount-

ing tabs. Aluminum

frames.

503 For use with:

Cylindrical locksets. In-

cludes universal mount-

ing tabs.

Stocking Part #’s

• 501-OPTION-613

• 501-OPTION-630

Stocking Part #’s

• 503-OPTION-630

Stocking Part #’s

• 501B-OPTION-628

Stocking Part #’s

• 502-OPTION-630

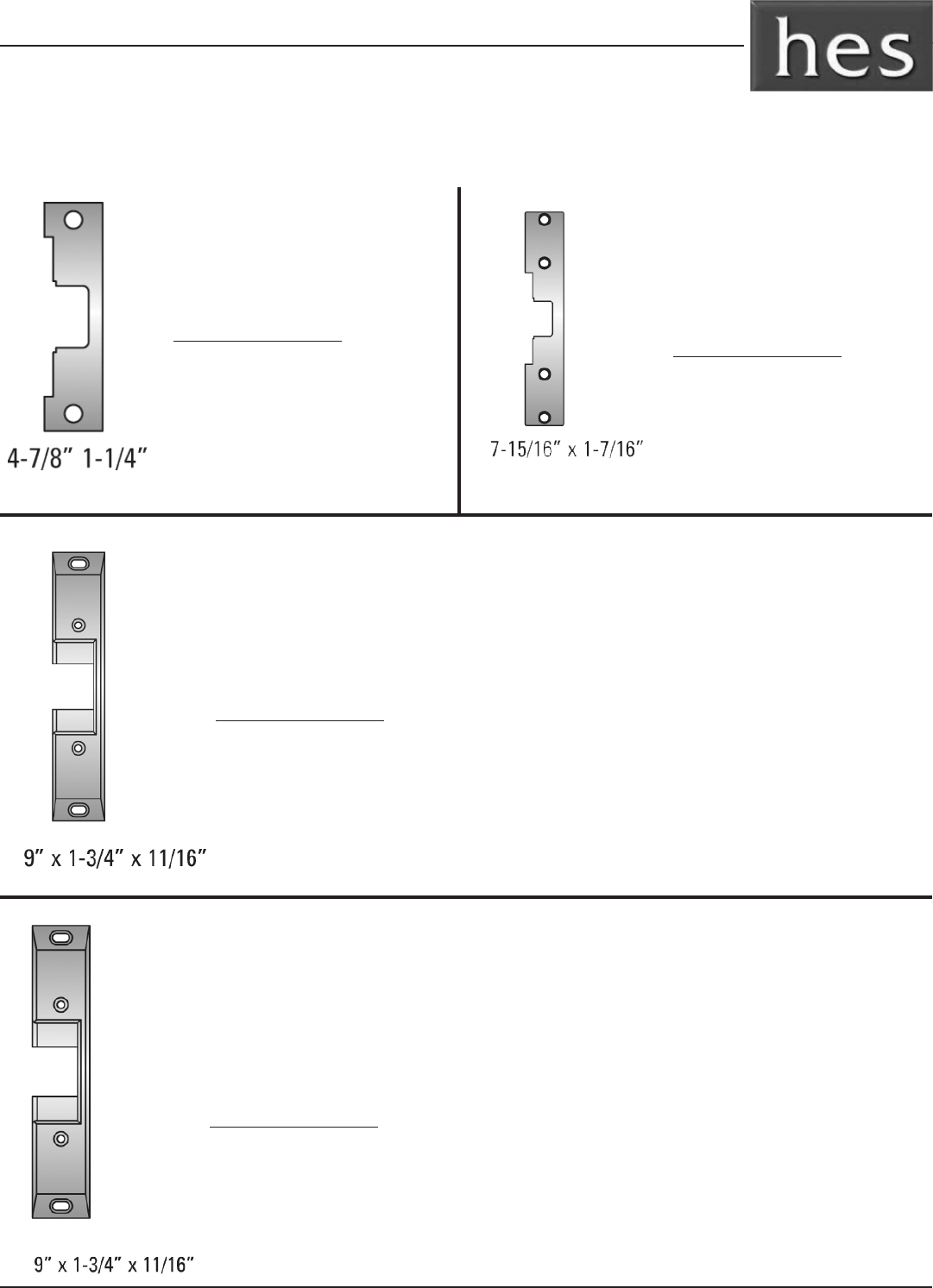

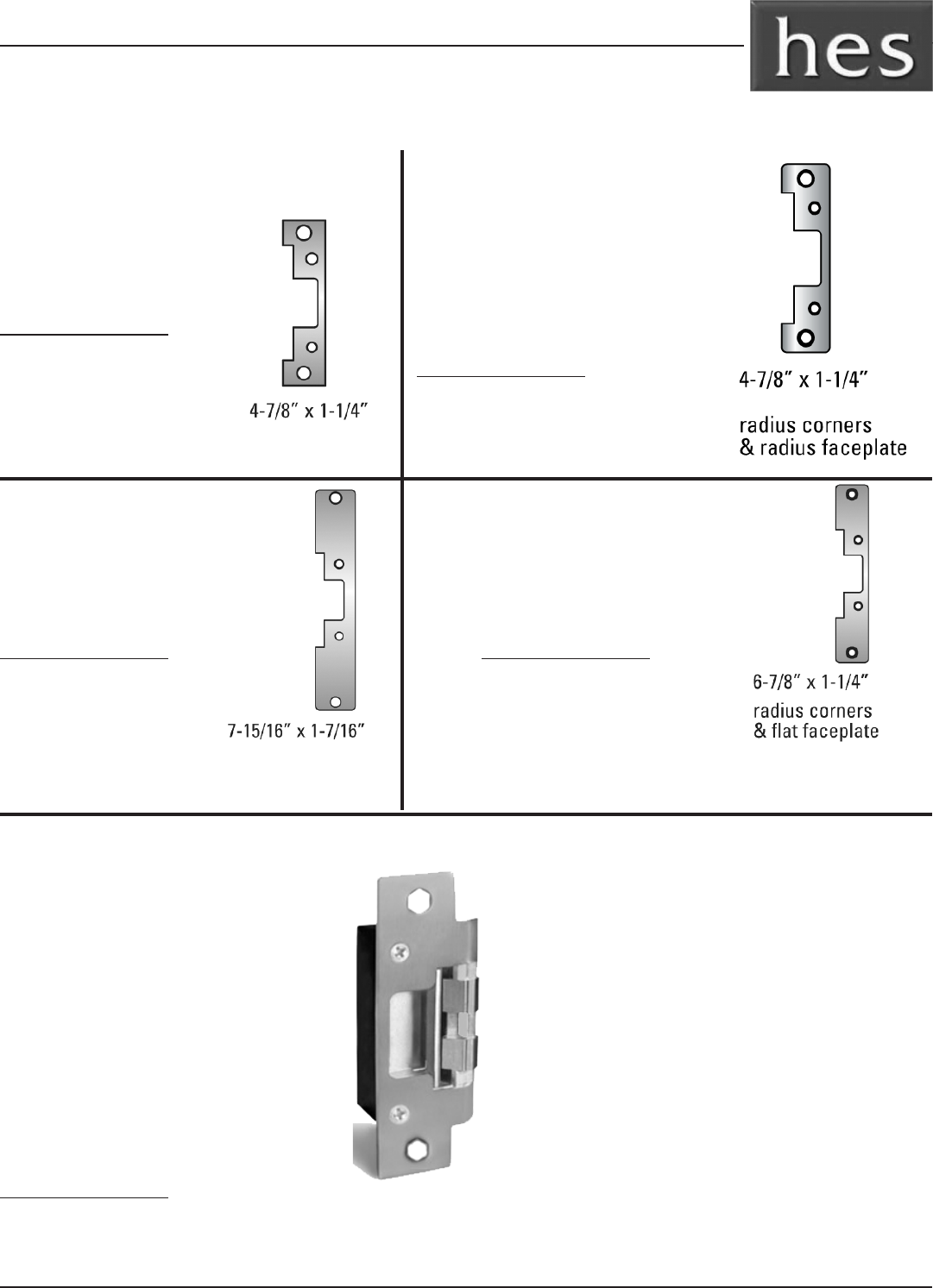

5000 and 5200 series FacePlates

Frame application

• Steel

• Aluminum

• Wood

Electrical

• .24 Amps @12VDC

• .12 Amps @ 24VDC

• DC Continuous Duty

• AC Intermittent Duty

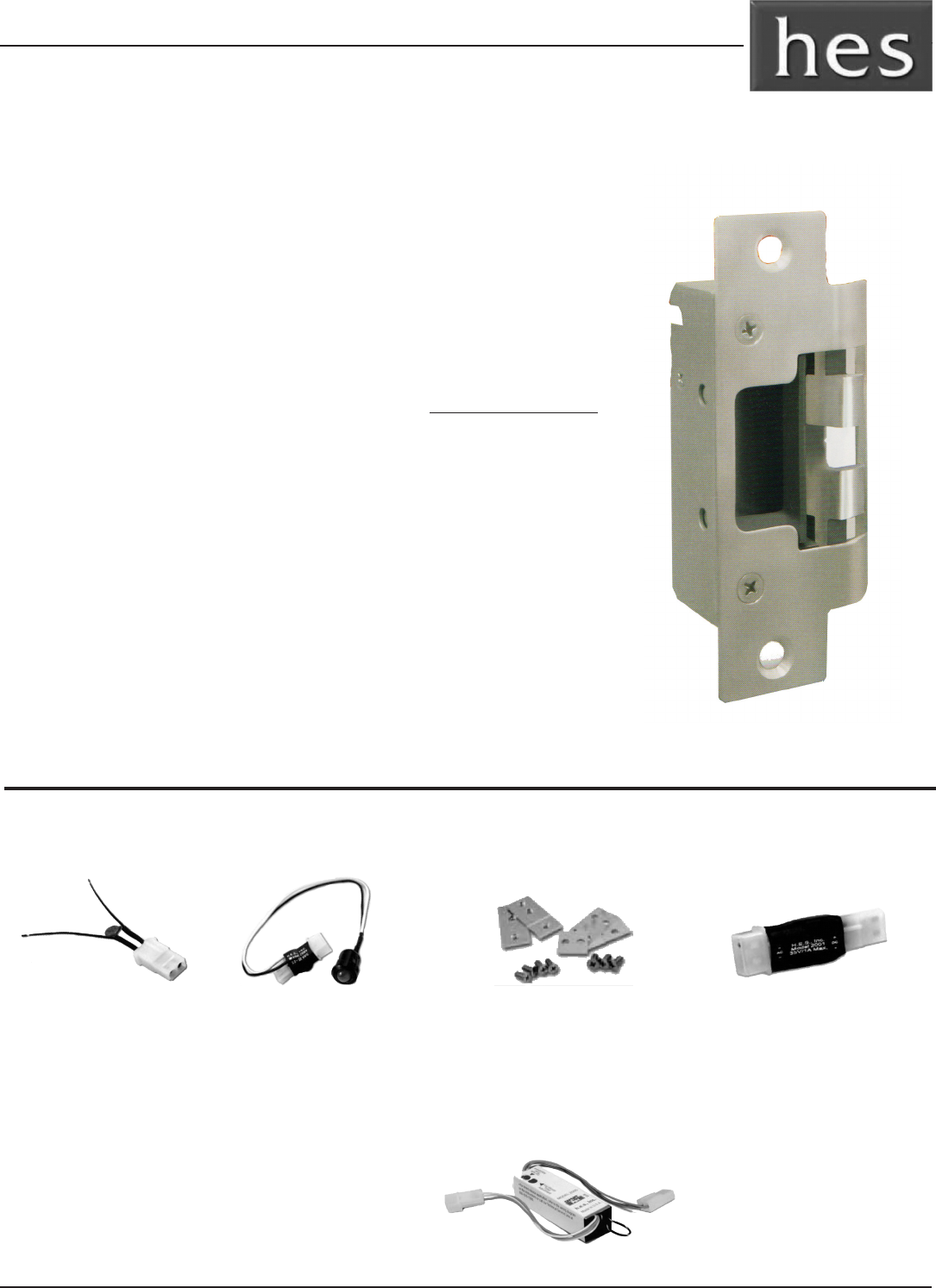

5900 series - Concealed Standard Features

• Concealed

• No cutting on frame required

• Vertical adjustability to accommodate

door sag

• Tamper resistant

• Field selectable fail safe/fail secure

• Dual voltage 12 or 24 VAC/VDC

• Non-handed

• Internally mounted solenoid

• Accommodates 1/2-5/8” latchbolts (with

1/8” door gap)

• Strike body depth 1-1/16”

• Plug-in connector

• Five year warranty

Stocking Part #’s

• 5900-12/24VDC

• 591-OPTION-630 (4-7/8” x 1-1/4” square corner)

Orchard Lock Distributors, Inc.

80

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

Specifications

• UL 1034, burglary-resistant listed

• ANSI/BHMA 156.31, Grade 2

• MEA New York City accepted

•Patented design

Frame application

• Steel

• Aluminum

• Wood

Electrical (continuous duty)

• .45 Amp @ 12VDC

• .25 Amp @ 24VDC

The 7000 series has a modular design to accommodate both cylindrical and rim exit

locksets. The 7000 series will accommodate various types of latchbolts from 5/8” to

3/4” throw. The unique design of the keeper module allows the unit to operate under

excessive door loading. The 7000 series has an internally mounted solenoid for ease

of installation in metal, aluminum and wood jambs. The heavy-duty construction of the

7000 series electric strikes makes them ideal for high usage applications.

Standard Features

• Stainless steel construction

• Tamper resistant

• Static strength 1,000 lbs.

• Dynamic strength 50 ft-lbs.

• Endurance 500,000 cycles

• Field selectable fail secure/fail safe

• Accommodates up to 30 lbs. pre-load

• Horizontal adjustment (783S, 786S and

789S options)

• Non-handed

• Internally mounted solenoid

• Strike body depth 1-11/16”

• Plug-in connector

• Trim enhancer (701 and 702 options)

• Pocket adapter (789S option)

• Three year limited warranty

Stocking Part #’s

• 7000-12VDC

• 7000-24VDC

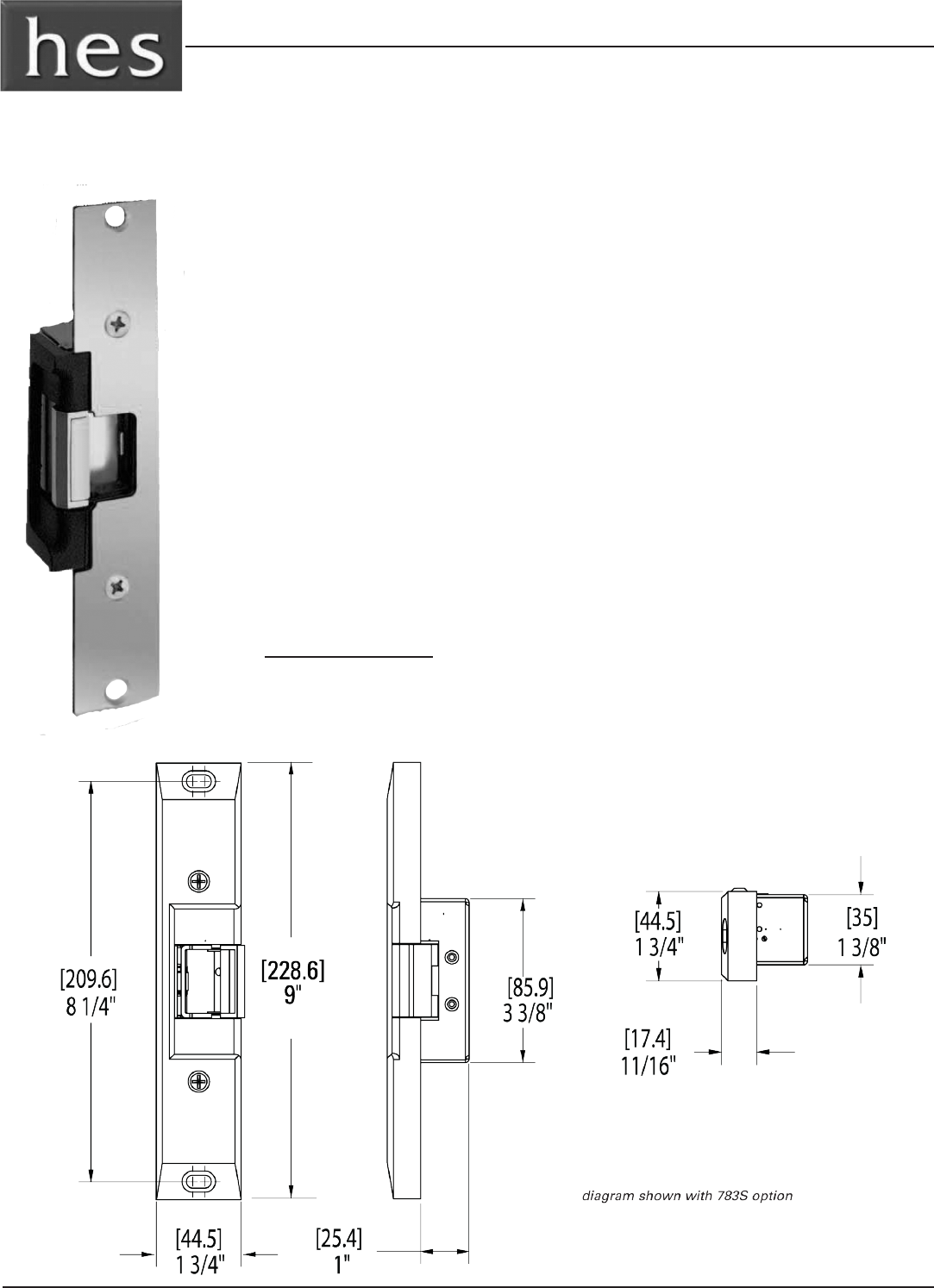

7000 series

Orchard Lock Distributors, Inc.

81

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

701 For use with:

Cylindrical locksets up to 5/8”

throw.

ANSI/BHMA Numbers: #E09322,

#E09323

702 For use with:

Cylindrical locksets up to 5/8”

throw.

ANSI/BHMA Numbers: #E09322,

#E09323

783S For use with:

Rim exit devices in metal jambs with up to a 3/4” pullman latch. Compatible Locksets:

American Device, Arrow, Doramatic, Monarch, Precision, Sargent, Von Duprin, Yale

ANSI/BHMA Numbers: #E09312, #E09313

789S For use with:

Rim exit devices in aluminum jambs with up to a 3/4” pullman latch. Includes keeper

pocket adapter.

Compatible Locksets:

American Device, Arrow, Doramatic, Jackson, Monarch, Precision, Sargent, Von

Duprin, Yale

ANSI/BHMA Numbers: #E09312, #E09313

7000 series Faceplates

Stocking Part #’s

• 701-OPTION-630

Stocking Part #’s

• 702-OPTION-630

Stocking Part #’s

• 783S-OPTION-630

Stocking Part #’s

• 789S-OPTION-630

Orchard Lock Distributors, Inc.

82

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

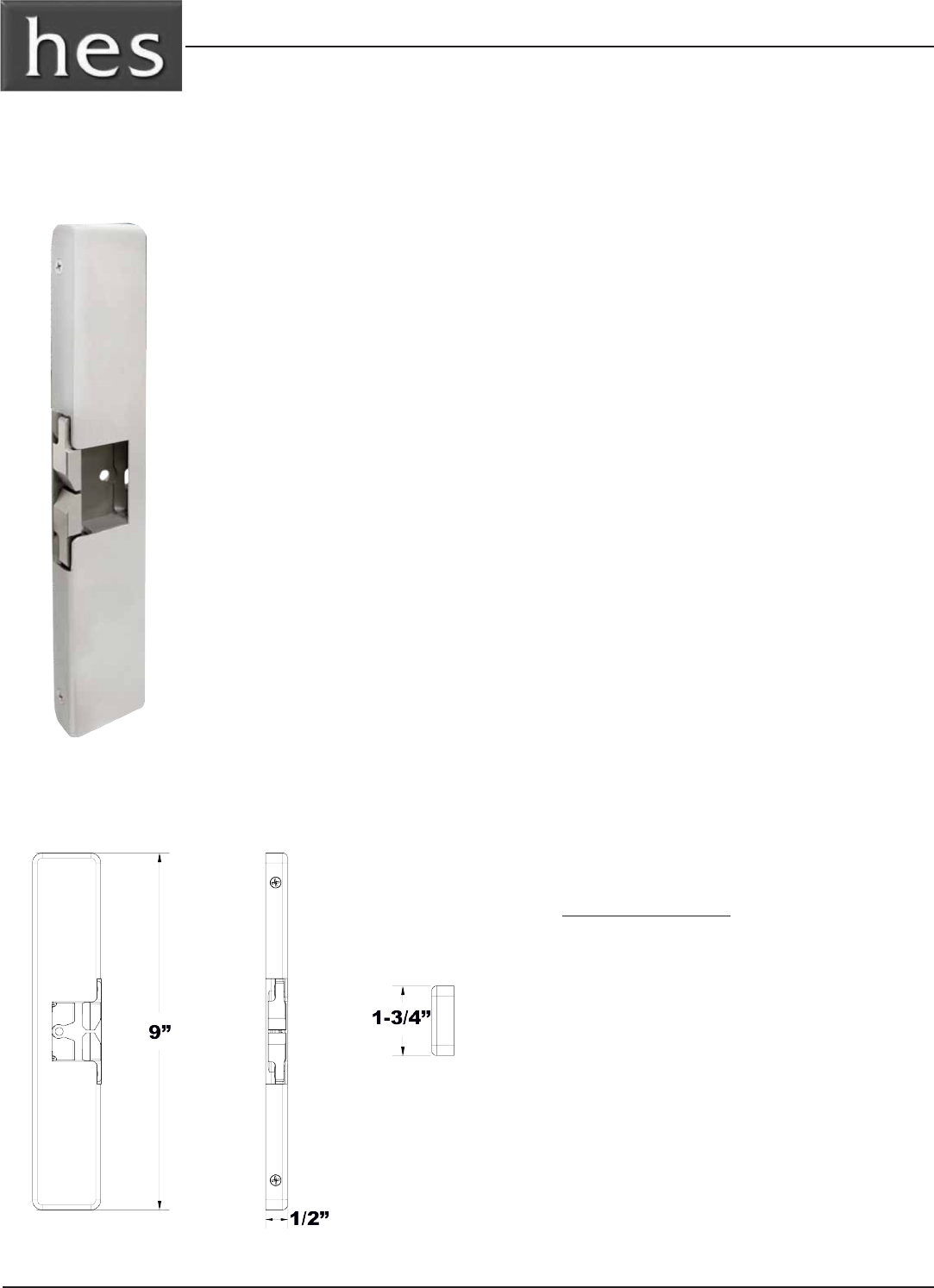

9400 series

The HES 9400 electric strike is completely surface-mounted with a unique 1/2”

slim-line form that is ideal for 1/2” throw rim exit devices in steel, aluminum or wood

frames. The product is UL 1034 listed and exceeds ANSI/BHMA Grade 1 standards.

Designed with a smooth new profile, the 9400 series features a cover that con-

ceals the mounting screws and offers a sleek surface for superior looks and added

strength.

Specifications

• UL1034 burglary-resistant rated

• ANSI/BHMA, A156.31 Grade 1

(#E09371,#E09372, #E09373)

• Patent # 6,390,520 & patent pending

Frame application

• Metal

• Wood

Electrical

• .45Amps@12VDCcontinuousduty

• .25Amps@24VDCcontinuousduty

Standard Features

• Completely surface mounted

• Decorative cover for sleek new look

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs.

• Dynamic strength 70 ft-lbs.

• Endurance 500,000 cycles

• Field selectable fail safe/fail secure

• Dual voltage 12 or 24 VDC

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates up to 1/2” pullman latch

• Five year limited warranty

Stocking Part #’s

• 9400-12/24VAC/DC-630

Orchard Lock Distributors, Inc.

83

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

Specifications

• UL 10C fire-rated, 1-1/2 hr

(fail secure only)

• CAN4-S104 (ULC-S104) fire door

conformant

• WHI fire door listed

• UL1034 burglary-resistant listed

• ANSI/BHMA 156.31, Grade 1 (#E09371,

#E09372)

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• California fire marshall listed

• UBC-7-2-94, Uniform Building Code

• Patented design

Frame application

• Steel

• Wood

Electrical (continuous duty)

• .45 Amps @ 12VDC

• .25 Amps @ 24VDC

Standard Features

• Completely surface mounted

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs.

• Dynamic strength 70 ft-lbs.

• Endurance 500,000 cycles

• Field selectable fail safe/fail secure

• Dual voltage 12 or 24 VDC

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates up to 3/4” pullman latch

• Five year limited warranty

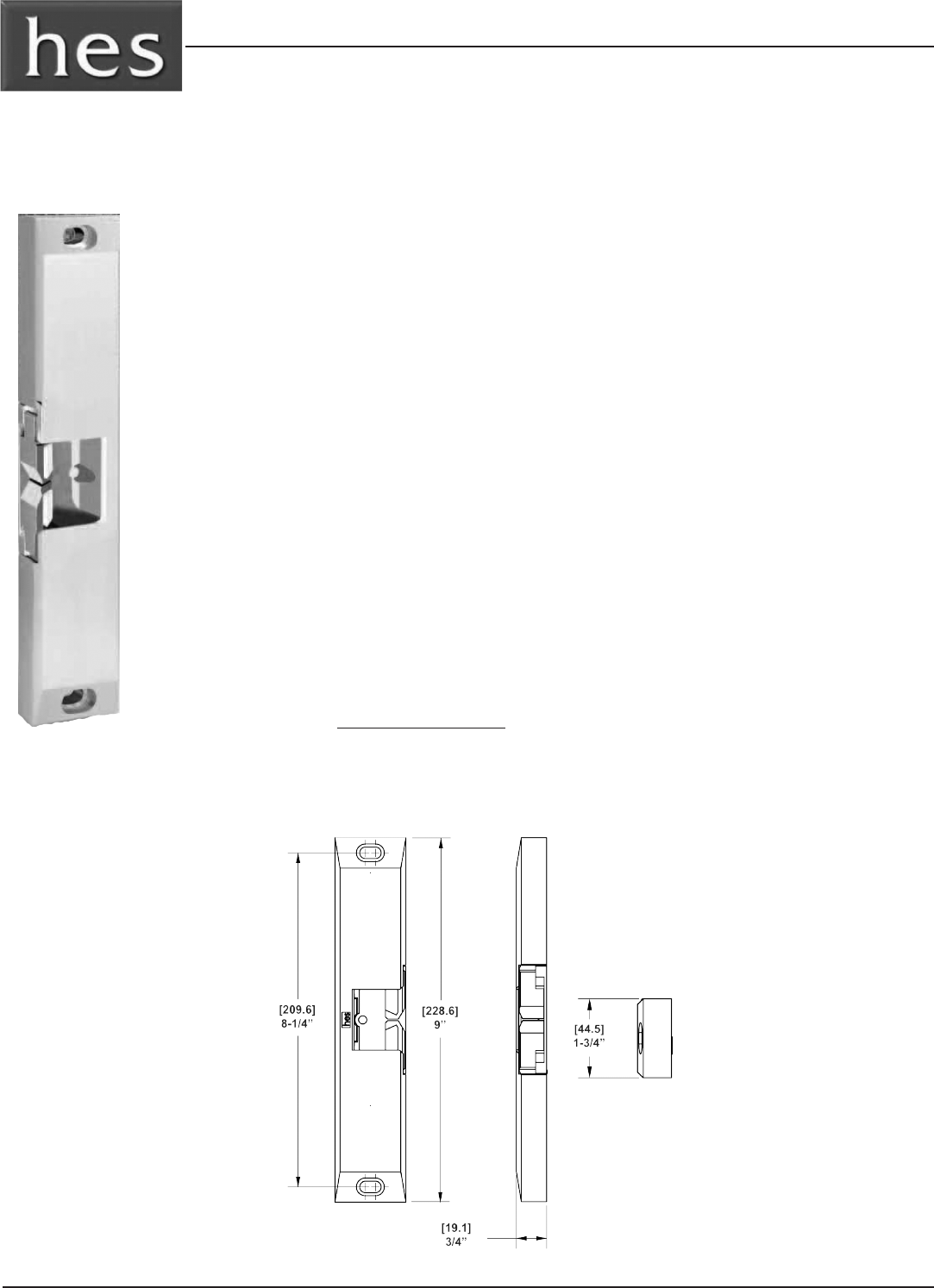

The 9500 series Genesis™ is completely surface mounted, featuring all components com-

pletely encased within its 3/4” thick stainless steel housing-requiring no cuts to the jamb.

Designed for use with 3/4” exit devices, the Genesis series is field selectable to either fail

secure or fail safe operation and can be operated with either 12 or 24 Volts DC. The 9500

Genesis™ is the perfect solution for fire-rated rim exit applications.

9500 series Fire Rated

Stocking Part #’s

• 9500-12/24VDC-630

Orchard Lock Distributors, Inc.

84

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

Stocking Part #’s

• 9600-12/24VAC/DC-630

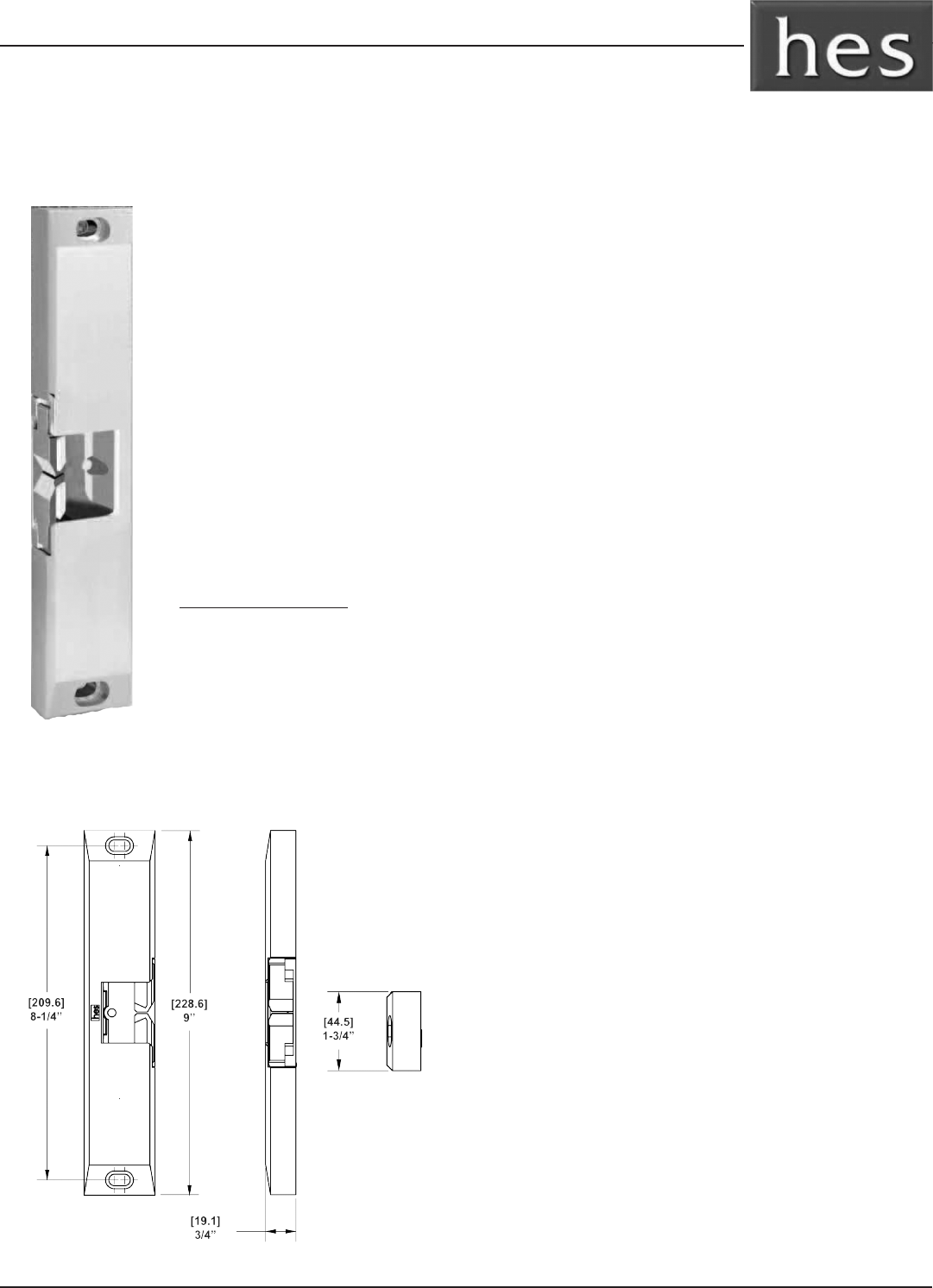

9600 series

Completely surface mounted, the 9600 series Genesis™ is the first of its kind. The 9600

accommodates rim exit devices in metal or wood jambs. The 9600 features an

internally mounted solenoid and two stainless steel, independently-operating locking

mechanisms. The 9600 is easy to install, with all components of the 9600 encased in the

¾” thick stainless steel housing, requiring no cuts to the jamb prior to installation.

Specifications

• UL1034 burglary-resistant rated

•ANSI/BHMA, 156.31 Grade 1

(#E09731, #E09732)

• Patented design

Frame application

• Steel

• Aluminum*

• Wood

Electrical (continuous duty)

• .45 Amps @ 12VDC

• .25 Amps @ 24VDC

Standard Features

•Completely surface mounted

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs.

• Dynamic strength 70 ft-lbs.

• Endurance 500,000 cycles

• Field selectable fail safe/fail secure

• Dual voltage 12 or 24 VDC

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates up to 3/4” pullman latch

• Five year limited warranty

Orchard Lock Distributors, Inc.

85

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

Specifications

• UL 10C fire rated, 3 hour (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• WHI fire door listed

• UL 1034 burglary-resistant listed

• ANSI/BHMA 156.31, Grade 1 (#E09321,

#E09322, #E09323)

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• California Fire Marshall Listed

• UBC-7-2-94, Uniform Building Code

• Patented design

Frame application

• Steel

• Aluminum

• Wood

Electrical

• .24 Amps @ 12VDC

• .12 Amps @ 24VDC

• DC continuous duty/AC intermittent duty

NOTE: Relocation of the strike prep may be

required for Schlage L Series and Yale 8700

mortise locks. Best 40 Series requires a

minimum 1/4” door gap.

Stocking Part #’s

• 4500-12/24VAC/DC-630

The 4500 series is the first electric strike designed for installation in 2” UL 10C fire-rated frames with 1/2”

drywall penetration. Based on the design of the popular 5000 series, the 4500 electric strike features a low

profile 1-3/8” depth, heavy-duty cast stainless steel construction and horizontal adjustment for simple in-

stallation. Its strength is derived from a unique keeper pin locking design, enabling the 4500 to exceed the

ratings of the frame, door and locking hardware. Designed for use with cylindrical and mortise locksets up to

a 3/4” throw.

4500 series

Orchard Lock Distributors, Inc.

86

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

Specifications

• UL 10C, 3 hour fire-rated

(fail secure only)

• UL 1034, burglary-resistant listed

• ANSI/BHMA 156.31, Grade 1

(#E09321,#E09322, #E09323)

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• MEA New York City accepted

• UBC-7-2-94, Uniform Building Code

• Patented design

Frame application

• Steel

• Aluminum

• Wood

Electrical (continuous duty)

• .45 Amps @ 12VDC

• .25 Amps @ 24VDC

Stocking Part #’s

• 7501-12VDC-630

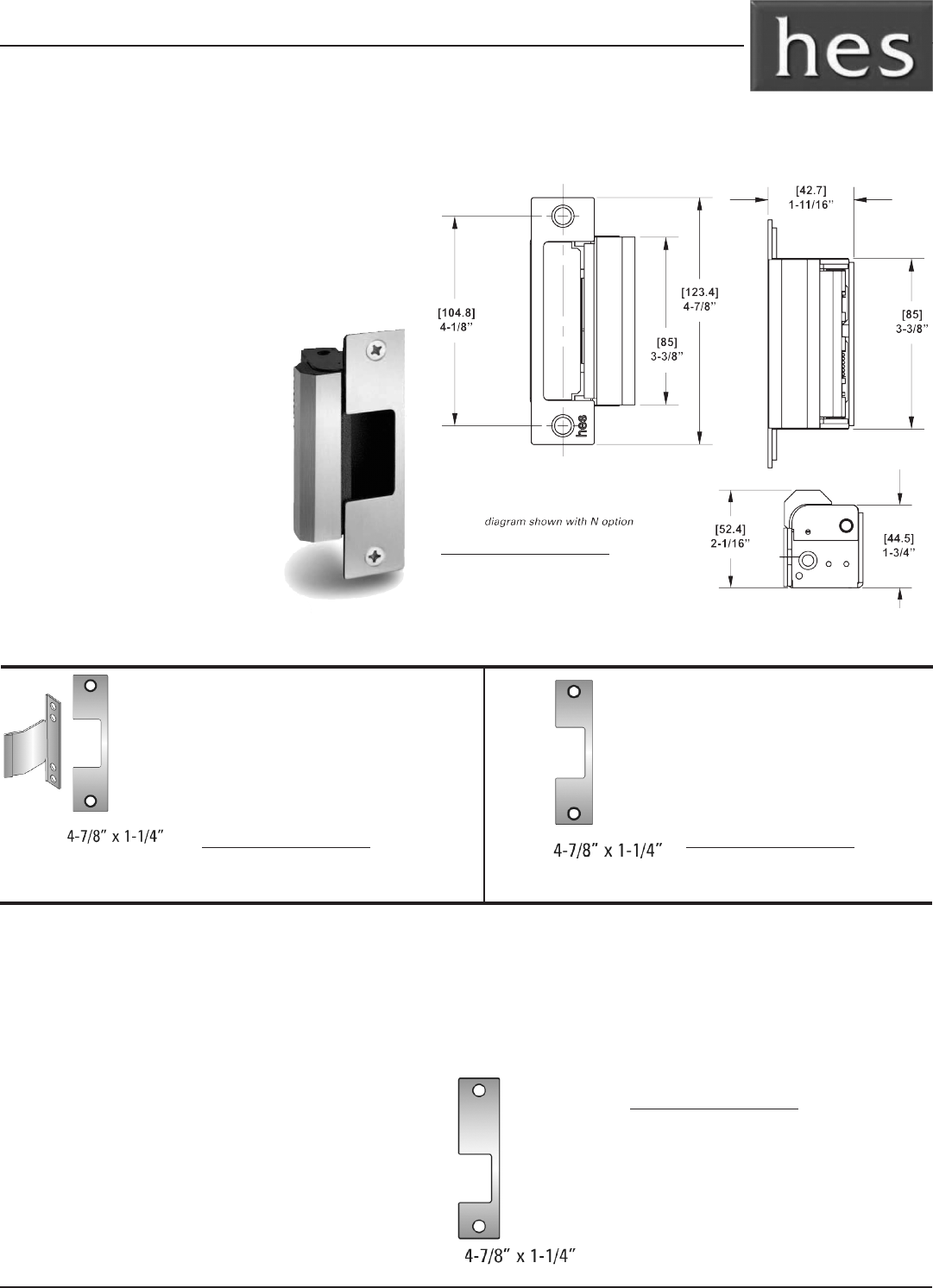

The 7500 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused

by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door

bind. The solenoid is internally mounted for compactness, making the 7500 series electric strikes easy to install

in hollow metal, concrete filled metal, wood and aluminum jambs.

7500 series

Orchard Lock Distributors, Inc.

87

Toll Free (800) 233-2146 Toll Free Fax (877) 908-5625

152

• Universal mounting tabs

Mount inside hollow metal

and aluminum jambs

2001

• Plug-in bridge rectifier

Converts AC to DC. 35

V, 1 Amp

2003

• MOV Protects against

possible inrush and

reverse surges

2005

• SMART Pac II™

In-line power control able to receive input voltages

from 12-32V AC or DC. Built-in bridge rectifier

provides 12 or 24VDC output. Under continuous duty

the output VDC is reduced by 25% to extend the life

of the electric strike. Includes in-line fuse, MOV, and

2-8 second adjustable timer

2006P

• Plug-in buzzer Audible

operation indicator

2009P

• Plug-in LED Visible

operation indicator

Parts

The best choice for retrofit into fire-rated frames

Introducing the fire-rated, concealed 8300 series, a compact, high

performance product for use with cylindrical locksets. Designed for

fast, easy installation, the 8300 fits into a standard 1" ANSI/BHMA

A156.115 dustbox, with little or no modification to the frame, and

offers vertical adjustability to accommodate door sag and

misalignment. Best of all, this unique electric strike complies with

NFPA 80-07 guidelines for retrofit into fire-rated frames, so you can

save money, save time, and save lives!

8300 series

Specifications

• UL 10C, fire-rated, 3 hour (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• NFPA 80-07 compliant

• UL 1034, burglary-resistant listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• UBC-7-2-94, uniform building code

• Patent #5,934,720 and patent pending

Frame application

• Metal

• Wood

Electrical

• .24 Amp @ 12VDC/VAC

• .12 Amp @ 24VDC/VAC

ª DC continuous duty/AC

intermittent duty only

Stocking Part #’s

• 8300-12/24VDC

Face Plates

• 801-OPTION-630

Orchard Lock Distributors, Inc.
