High Security & Access Control Locks

Product Catalog & Technical Specifications

Price List for April 1, 2018

CLIQ™, Maximum+ and Maximum+ Restricted

Security for the 21st Century

2- 13

14-16

17-20

21- 28

29-32

33-36

37- 40

41- 47

48- 55

56- 68

69- 74

75- 79

80- 88

90- 112

Prices Effective April 1, 2018

Maximum+

Restricted

Twin Maximum

CLIQ

Twin Exclusive

Twin V-10

Twin Pro

Product Price List/Catalog

& Technical Specifications

Table of Contents

History | General Information | Standard Terms &

Conditions of Sale | Architectural Specifications

Electronic Access Control

Keys & Keying

Mortise Cylinders

Rim Cylinders

High Security Mogul Cylinders

Mortise & Rim Interchangeable Core Cylinders

Key-in-Knob Cylinders | Key-in-Lever Cylinders

Deadbolts

Auxiliary Locks

Padlocks

Profile Cylinders

Pin Kits | Tools | Accessories

Care & Maintenance

Technical Specifications

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

History of ASSA, Incorporated

Table of

Contents

General

Info.

In 1984 ASSA entered the North American market by establishing ASSA, Inc.

in Naperville, IL as a marketing arm of ASSA AB in Sweden. ASSA, Inc. was a full

line manufacturer of mortise locks, padlocks, auxiliary locks, and high security

key systems. Starting in 1992, ASSA, Inc. shifted its sales direction from

independent dealer sales to institutional, industrial, and government sales

and began focusing its product offering on the retrofit and replacement high

security cylinder segment. With the introduction of its new master keying

capabilities ASSA became the logical choice for institutions around the

United States and Canada offering patent protected, unique geographically

exclusive keyways for ASSA authorized security centers and end users.

In 1994 ASSA, Inc. became part of the ASSA ABLOY Group which was

formed through the merger of ASSA AB in Sweden and Abloy Oy in Finland.

Headquartered in Stockholm, ASSA ABLOY has grown from a regional

company into an international group with around 43,000 employees, sales

of about $7 billion and operations in over 70 countries. ASSA ABLOY offers a

more complete range of door opening solutions than any other company on

the market and remains dedicated to satisfying end-user needs for security,

safety and convenience. In the fast-growing electromechanical security

segment, the Group has a leading position in areas such as access control,

identification technology, entrance automation and hotel security.

By 1996, ASSA had cemented several partnerships with detention equipment

manufacturers gaining a significant presence in the corrections market both

in North and South America. In 2000 ASSA, Inc. opened its doors to a new

5,000 square foot facility in New Haven, CT increasing its production capabilities

with state of the art machinery and assembly equipment.

In 2001, ASSA launched the ASSA CLIQ, a technological platform for intelligent

cylinders – the first joint development project in ASSA ABLOY. In the same year,

ASSA ABLOY participates in the Volvo Ocean Race, dramatically increasing

awareness of the company among millions worldwide.

Great advancements in electronics are a common theme in the first decade

of the new century. Released in 2013, the ASSA CLIQ Remote system was

developed with a focus on the customer’s remote security, administration

and bottom line. The innovative ASSA CLIQ Remote is yet another example

of why ASSA continues to be the world’s leader in high security and patented

key control solutions.

ASSA was established in 1881 by the blacksmith August Stenman

after buying a small hinge manufacturer in the town of Eskilstuna,

Sweden. One day his wife embroidered a pillow slip with his

name forwards and backwards – “August Stenman, Stenman

August,” and so ASSA became the name of the new company.

By 1939, ASSA had produced its first cylinder lock and delivered

its first 5-pin cylinder master key system seven years later. In

1959, ASSA introduced its first registered key systems with key

control. In 1981, ASSA celebrated its 100th anniversary as a

company with the release of the ASSA Twin 6000 system,

a new cylinder concept utilizing the dual locking mechanisms

of today's ASSA High Security cylinders.

Maximum+

Restricted

Twin Maximum

CLIQ

Twin Exclusive

Twin V-10

Twin Pro

Product Price List/Catalog

& Technical Specifications

Jerry Burhans

Vice President of Sales &

Business Development

ASSA, Inc.

1-800-235-7482

Jerry.Burhans@assaabloy.com

www.assalock.com

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

General Information

Table of

Contents

General

Info.

High Security Key Control Programs

ASSAmakes profile andsidebar combinations(keyway)available to locksmith/dealers, endusers,wholesale distributors,

and original equipment manufacturers (OEM) on a geographically exclusive basis. These programs are designed to

meet the security requirements of virtually any customer by allowing them to essentially “own” their own keyway

in a contractually defined geographic territory.

Locksmith/Dealer Program

The locksmith/dealer contracts with a wholesale distributor to have exclusive rights to sell the keyway in the

defined territory. The locksmith must purchase all restricted components (key blanks, cut keys, sidebars,

complete and sub-assembled cylinders and factory generated key charts) from the distributor named on

the written agreement.

Types of Exclusivity

Locally Exclusive – Distributor establishes multiple locksmith/dealers selling the same keyway

in a metropolitan area or state/province.

Regionally Exclusive – Distributor establishes a sole locksmith/dealer for a large territory such

as entire or multiple states/provinces.

Nationally Exclusive – Distributor establishes a sole locksmith/dealer for an entire country.

End User Program

The institutional End User contracts with ASSA, Inc. to have an exclusive keyway established in a defined territory

for its use only. The End User can purchase restricted products (key blanks, cut keys, sidebars, complete and

sub-assembled cylinders and factory generated key charts) from any authorized distributor with written authorization

from an authorized signatory specified in the written agreement.

Types of Exclusivity

Regionally Exclusive – ASSA establishes an End User keyway for a large territory such as entire

or multiple states/provinces.

Nationally Exclusive – ASSA establishes an End User keyway for an entire country.

Continentally/Global Exclusive – ASSA establishes an End User keyway for an entire continent

or for global exclusivity.

Wholesale Distributor Program

The Wholesale Distributor contracts with ASSA to have exclusive rights to sell a specified “house” keyway in the

defined territory. Distributors are allowed to sell this keyway to any customer as they see fit within the territory

specified in the written agreement. The Distributor is also allowed to stock other keyways as necessary to service

their locksmith/dealer base.

Types of Exclusivity

Regionally Exclusive – ASSA establishes a Distributor keyway for a large territory such as entire

or multiple states/provinces.

Nationally Exclusive – ASSA establishes a Distributor keyway for an entire country.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Table of

Contents

General

Info.

Prices Effective April 1, 2018

General Information

Original Equipment Manufacturer (OEM) Program

The OEM contracts with ASSA to have exclusive rights to distribute a specified keyway through installation of the

restricted products (key blanks, cut keys, sidebars, complete and sub-assembled cylinders and factory generated

key charts) in their product as a component part or as a supplemental product for sale.

Types of Exclusivity

Regionally Exclusive – ASSA establishes an OEM keyway for a large territory such as entire or multiple

states/provinces.

Nationally Exclusive – ASSA establishes an OEM keyway for an entire country.

Continentally/Global Exclusive – ASSA establishes an OEM keyway for an entire continent or for

global exclusivity.

Keyway Information

Each key control program utilizes a standard cylinder plug profile (broaching). Various sidebar codes are combined

with the profile to create different unique keyways. Twin 6000 key blanks produced after August 1988 are stamped

with the complete keyway code including both side code and profile, e.g. 507-51. All other series (except C4/CLIQ

and CLIQ Remote) will typically only include the side code designation. Please include side code and profile

(if applicable) when ordering key blanks and cylinders, except SNS cylinders (See Cylinder form below).

Cylinder Form

ASSA High Security locks are available in three different forms. When ordering cylinders, please be sure to

indicate Cylinder Form.

COMP (Complete) – Fully keyed cylinder. Master keyed, keyed different, and keyed alike items include

two cut keys per cylinder.

SUB (Sub-assembled) – Uncombinated cylinder includes sidebar mechanism, but no tumbler pins,

springs or key blanks. Pin chamber closure strip, plug and screws provided.

SNS (Sub-assembled, No sidebar) – Uncombinated cylinder without sidebar and sidebar springs.

Includes side pins, side pin springs, standard tailpiece items and pin chamber closure strip.

Note: The SNS option is not available for 600, Twin Low, and Maximum+ Restricted Series cylinders.

Master Keying

ASSA locks and cylinders may be master keyed to meet

virtually any requirement. Contact ASSA Key Records

Department to discuss special needs.

Finishes

Standard finishes (shown right). Cylinder plugs

and LFIC shells are only available in 626/US26D

Satin Chrome and 606/US4 Satin Brass. Antique brass

(609) is available for deadbolts only.

Note: See specific product sections of catalog to

view available finish options for that product.

ASSA

BHMA

Symbol

Equivalent

U.S. Symbol

Finish

Description

625 US 26 Bright Chrome

626 US 26D Satin Chrome

605 US 3 Bright Brass

606 US 4 Satin Brass

609 US 5 Antique Brass

624 US 10B Dark Oxidized

612 US 10 Satin Bronze

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

General Information

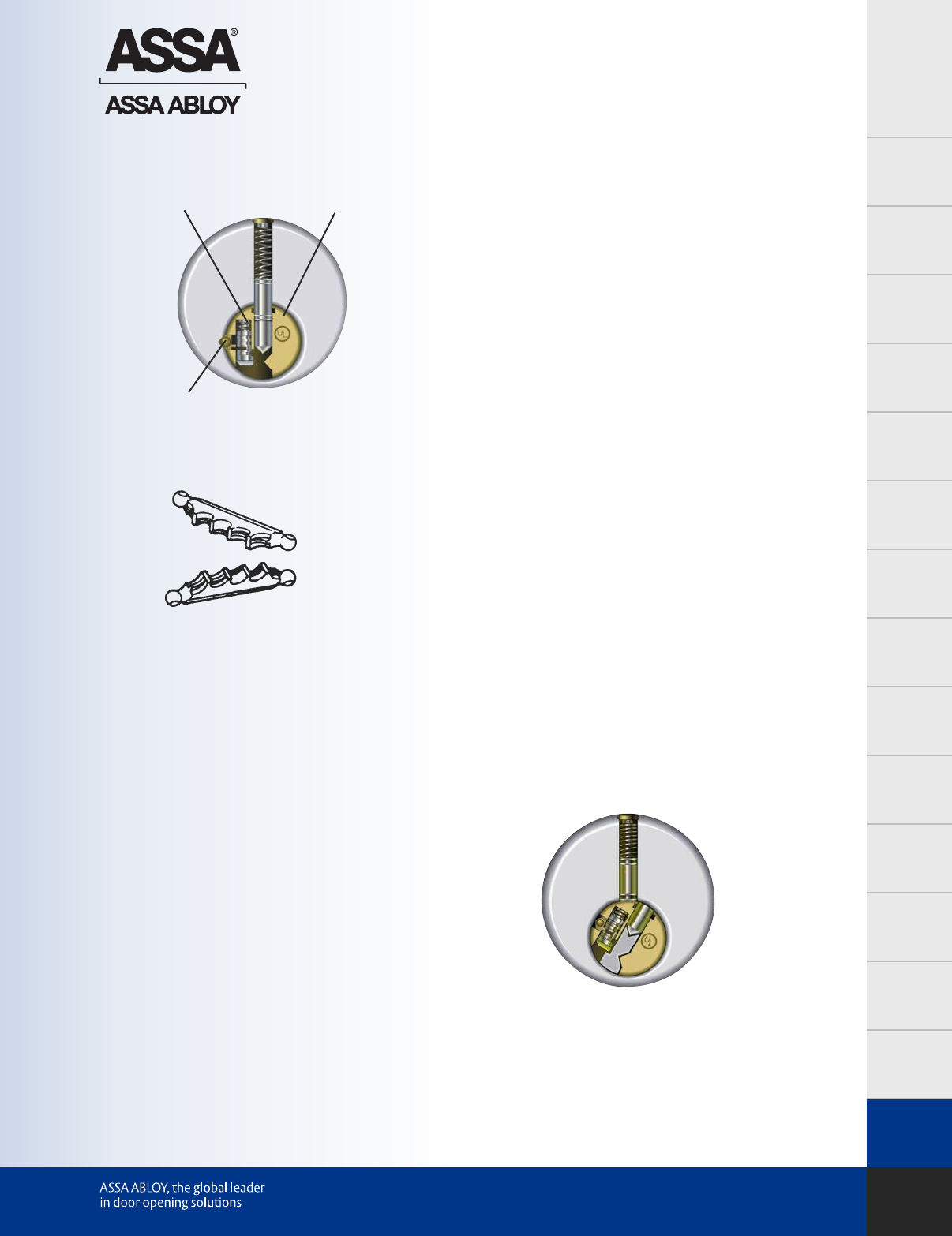

Special Function Cylinders

ASSA offers two special function cylinders most commonly used in the Detention market. One is a directional

cylinder, which is operated bi-directionally by one key and in one direction only (clockwise or counterclockwise) by

a subordinate key. This special function is accomplished by a modification to the cylinder plug. The necessity for this

product is clear; to provide functionality in the system design. However, due to the physical modification of the

plug when used in a master key system, the potential size of the master key system will be reduced.

The second special function is a limited rotation cylinder. This cylinder requires two modifications and will be

used in conjunction with a directional function. One key will operate bi-directionally and only one direction

(clockwise or counter-clockwise) by a subordinate key stopping at a pre-determined position prior to 180°.

These modifications will greatly reduce the potential of a master key system. It is essential to indicate all special

function cylinders in the initial master key system design. Otherwise they may not be possible as part of the

master key system.

Special function cylinders are offered in limited models and are noted by symbol: † indicating the model

number is available in special functions.

How to order

Red Core

ASSA provides Red temporary construction cores (red cores are always 51 Profile) for its interchangeable core

cylinders upon request. Red cores are $134.00 list and upon return to ASSA, credit will be issued for the full in-

voiced amount less a 50% handling fee. Request for credit must be made in writing to ASSA Customer Service ref-

erencing the original invoice upon which the red cores appear. KEYS ARE NOT INCLUDED IN THE PRICE OF THE

RED CORE AND ARE NOT ELIGIBLE FOR RETURN. All cut keys are invoiced at $19.90 list each.

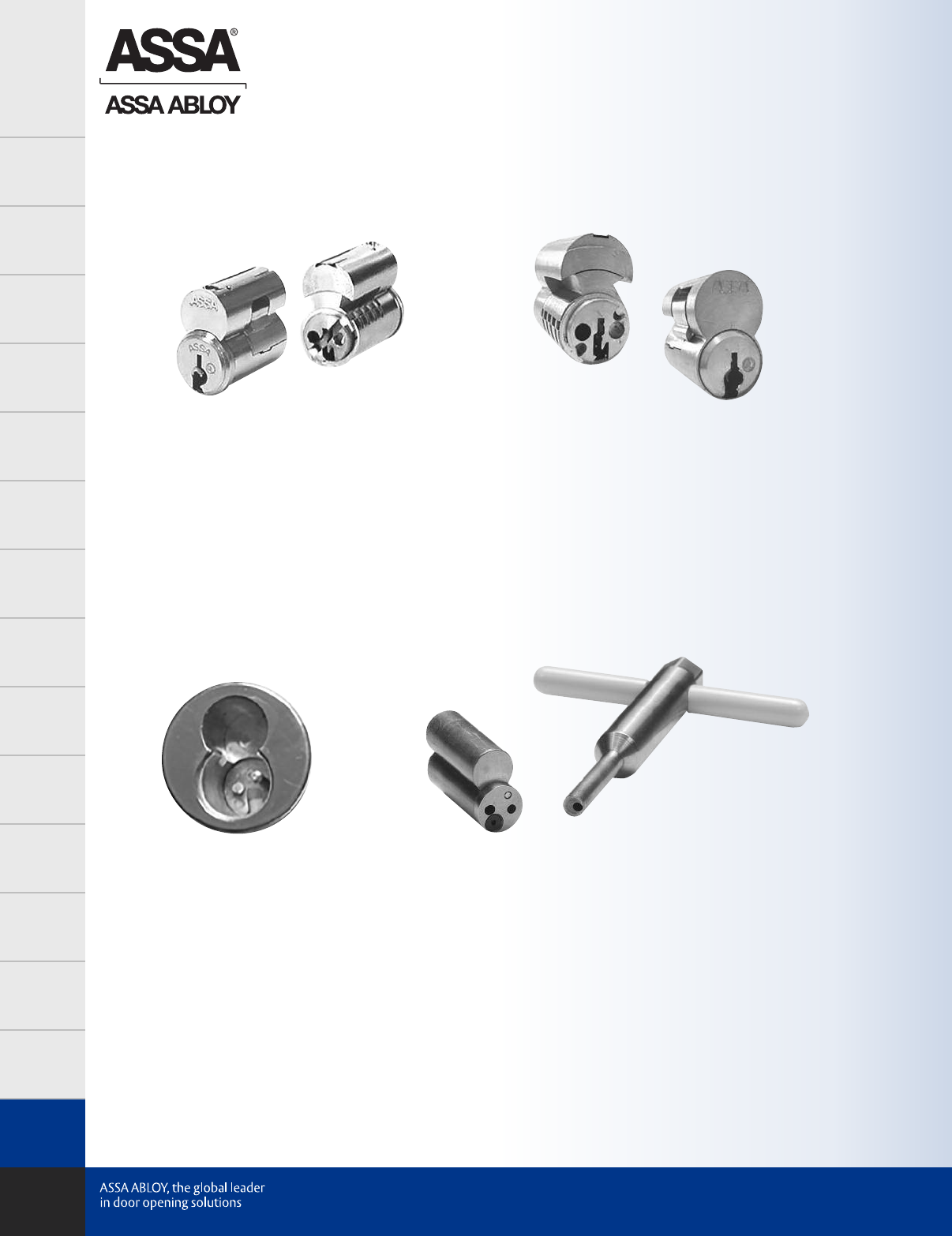

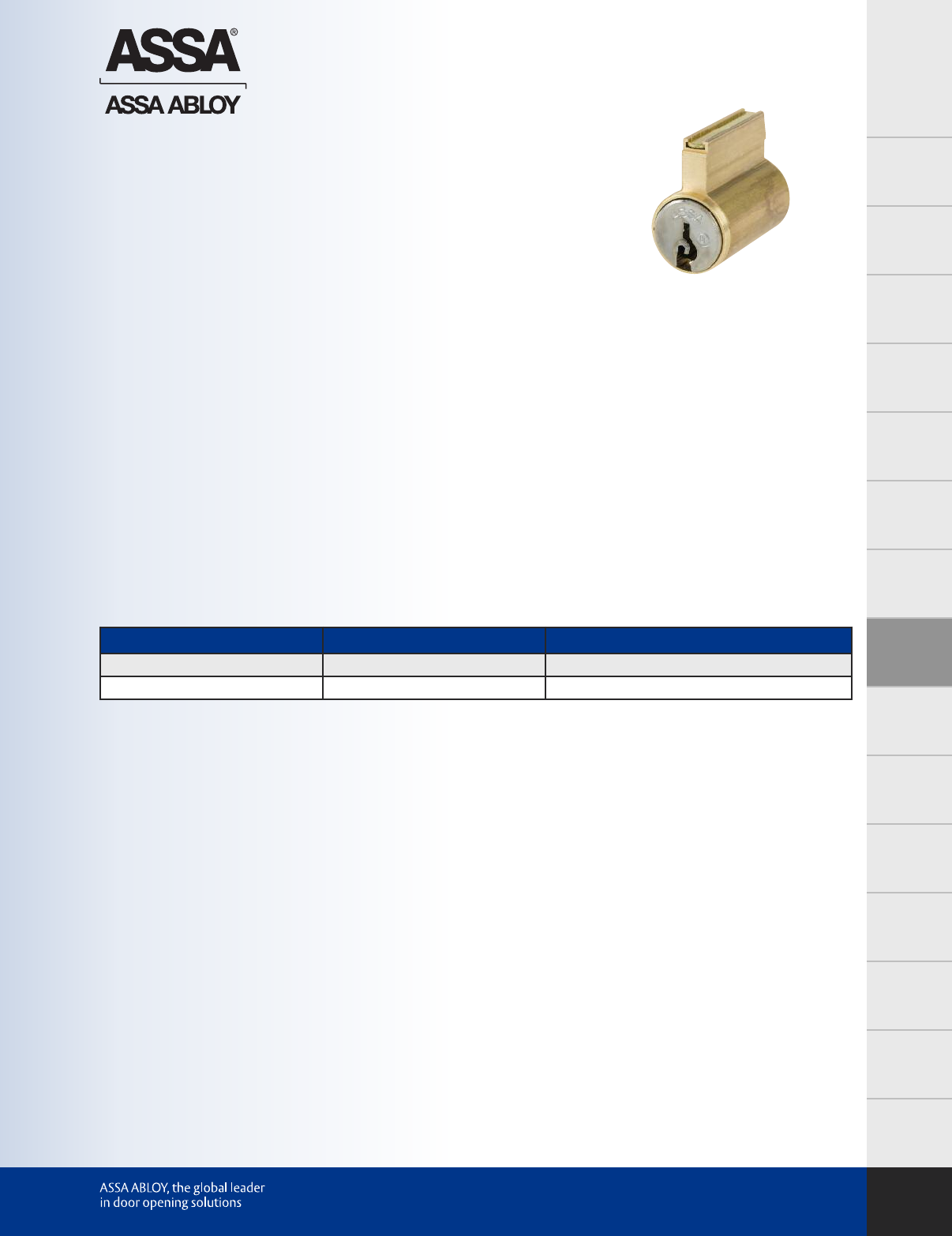

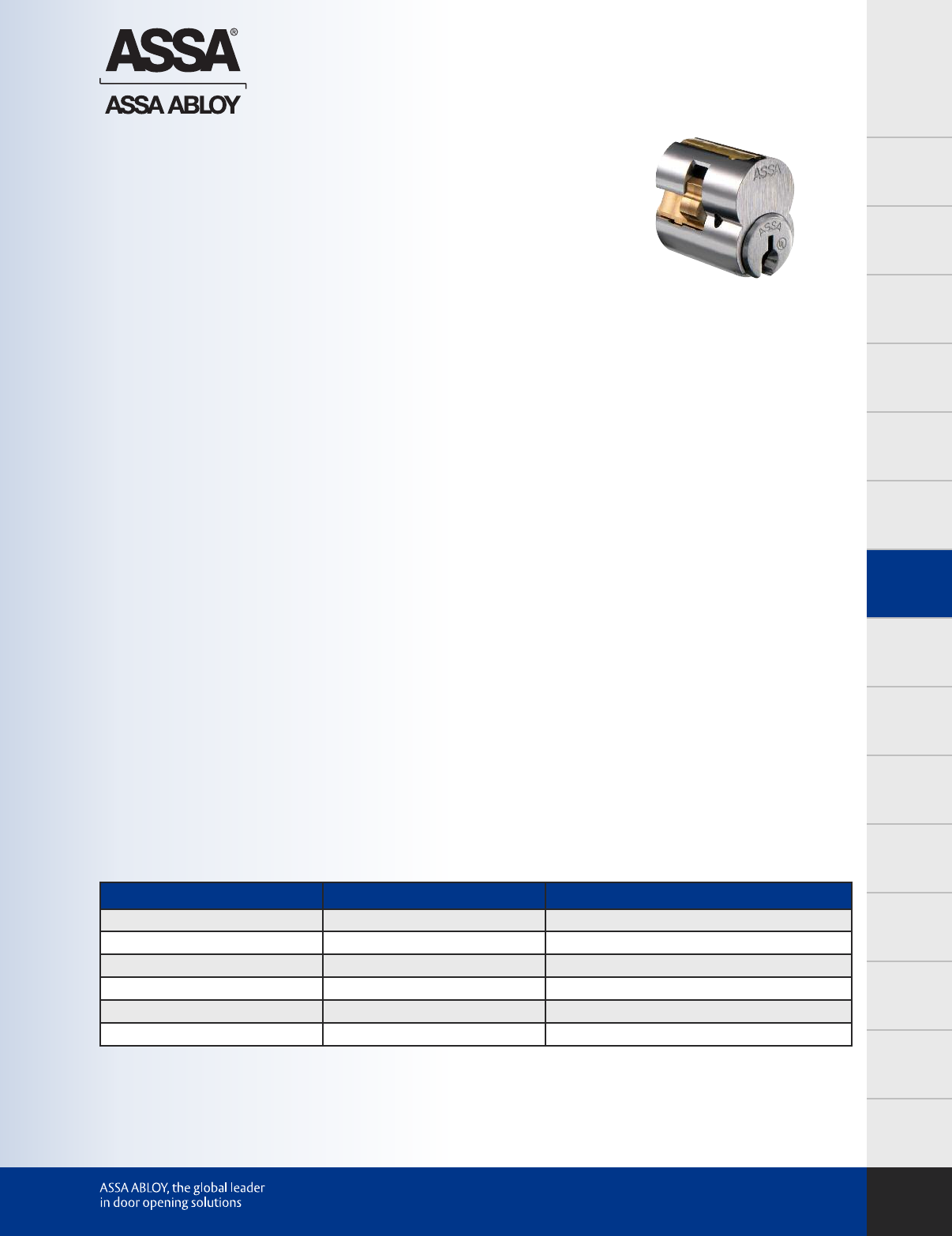

To order interchangeable core cylinders with temporary cores, specify cylinder model number, Cam, finish, by

RED CORE, example, 6552ICR-1 x 626 x RED CORE. Cylinder will be charged at COMP price. To order red core sepa-

rately, specify70600ICR. Specify change keys as TWIN-KD-RED and control keys as TWIN-CT-RED. To order perma-

nent cores see page 40.

Example Model No. Finish Profile – Side Bar

Specify

E8551CW-14 626 851 – 888 (For Directional Cylinders Clockwise Rotation)

E8551CC-14 626 851 – 888 (For Directional Cylinders Counter Clockwise Rotation)

E8551CL-14 626 851 – 888 (For Limited Rotation Cylinders Counter Clockwise Rotation)

E8551WL-14 626 851 – 888 (For Limited Rotation Cylinders Clockwise Rotation)

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Table of

Contents

General

Info.

Prices Effective April 1, 2018

General Information

ASSA High Security Key Systems

Twin 6000 Classic – The Twin 6000 Series, released in 1981, was

ASSA’s first key system to employ patented dual independent

locking mechanisms providing optimum pick resistance and key

control. Marketed to both the locksmith and end user markets, the

Twin 6000 allowed the user to “own” their own private key section.

The Twin 6000 remains immensely popular with lock professionals

for its ease of service, very large master key system yield, and the rugged durability of the key. The Twin 6000 was

the first ASSA key system to earn the Underwriter’s Laboratory 437 rating, a series of tests designed to measure a

cylinder’s resistance to picking, pulling, drilling, and forcing attacks.

Twin V-10 – With the introduction of the Twin V-10 system in 1996, ASSA brought to market a new patented

key and cylinder design that helped to eliminate unauthorized duplicate keys and maintain a key control

system unmatched in the industry. The very narrow keyway was designed to stop picking tools from easily

entering the cylinder. Multiple pitched side pins allowed the master key system yield to be expanded

dramatically thus offering the possibility of having more than a million locks keyed differently operated by

a single master key.

Twin Exclusive – In 2000, ASSA introduced the Twin Exclusive, a patent-protected upgrade to the highly

successful Twin 6000 series. Utilizing the same dual locking mechanism, the Twin Exclusive built on the

original design and allowed one key to work both cylinders.

Twin Pro – Introduced to the North American market in 2003, the Twin Pro high security key control system

was developed for large institutional end users and ASSA Certified Service Centers. The Twin Pro is not stocked

by our traditional wholesale distributors and is shipped directly from our factory to the end user or service

center thus eliminating the possibility of the system being compromised. ASSA offers training for facilities

with in-house locksmiths to service these locks or they can be serviced by an ASSA Certified Service Center.

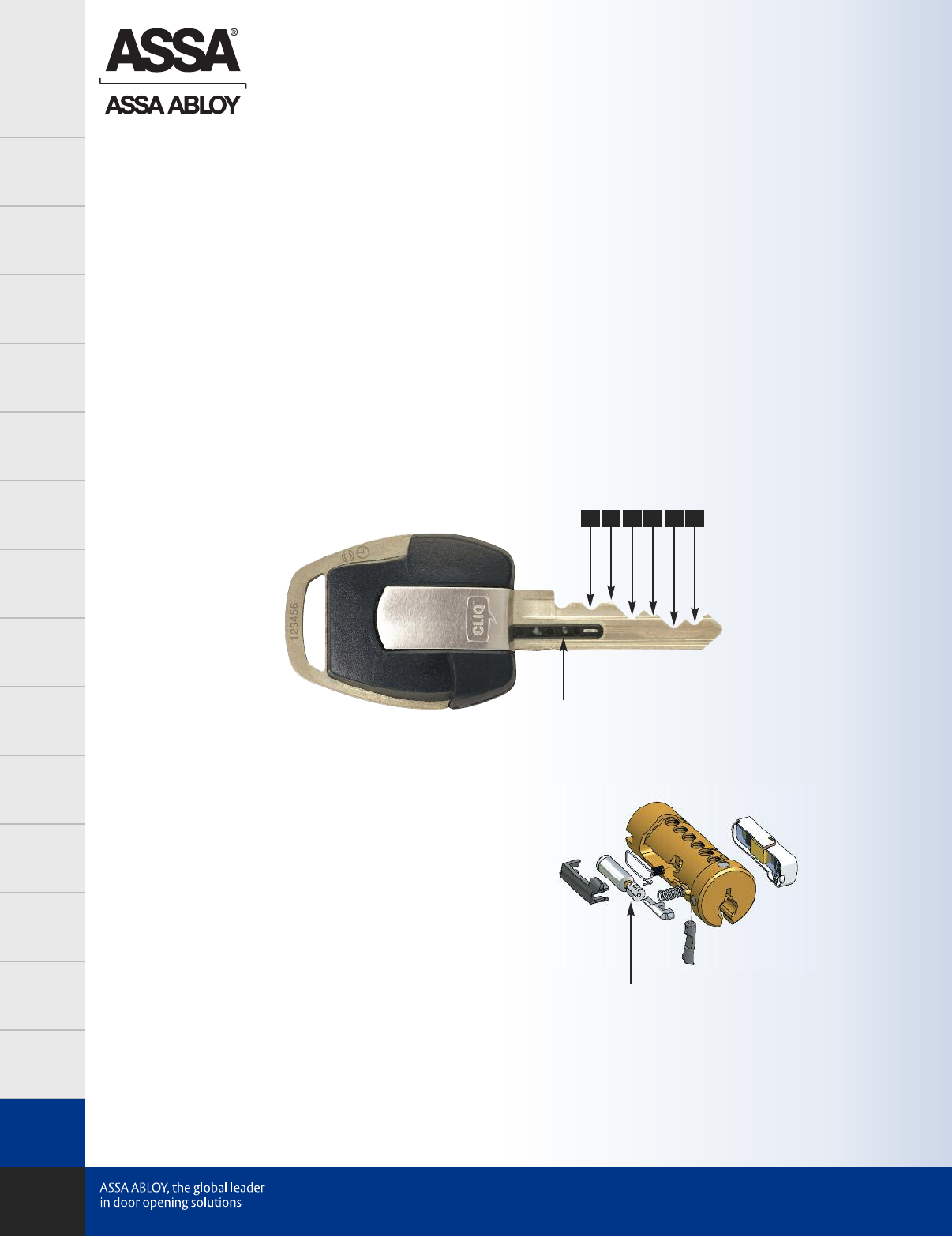

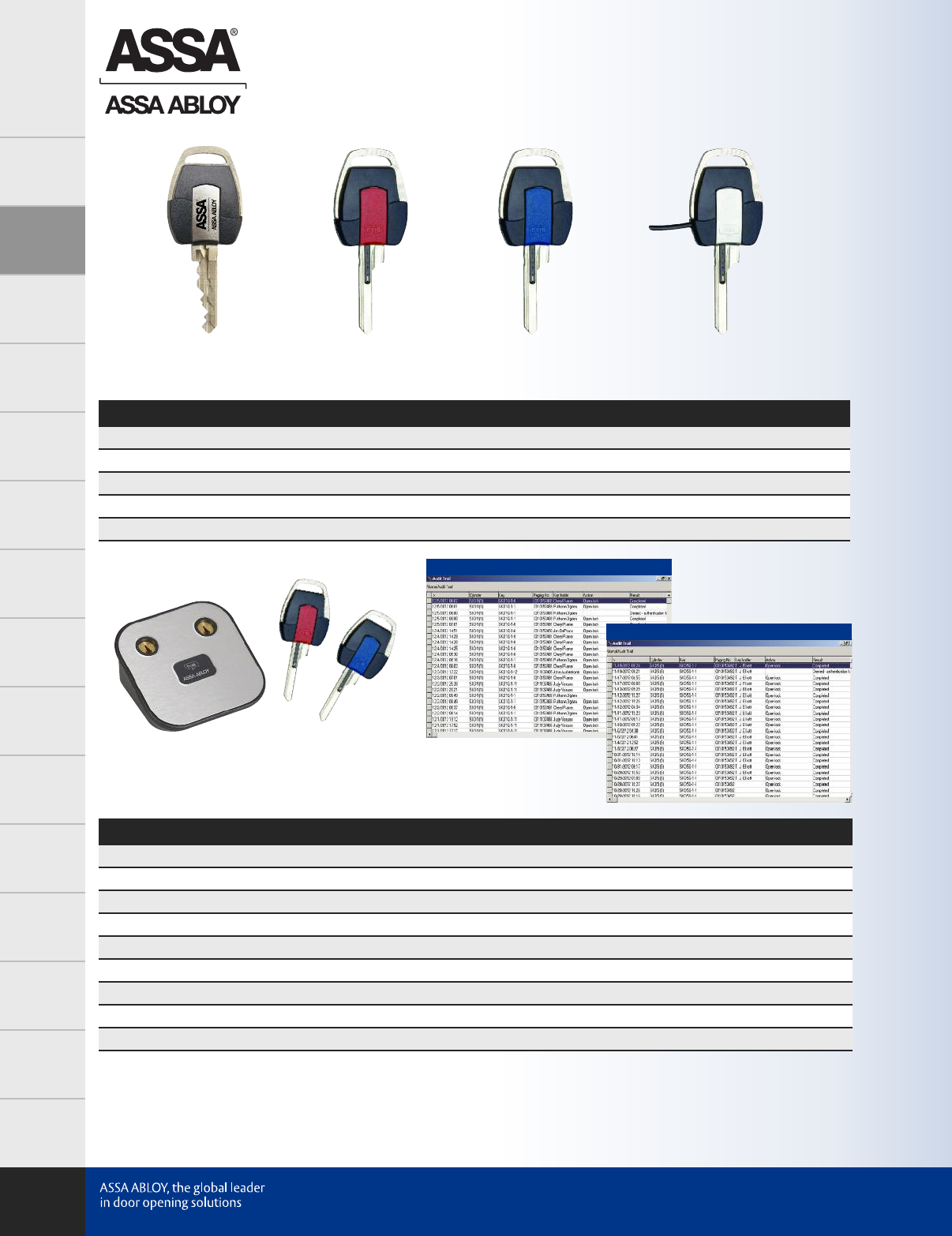

C4/CLIQ – The ASSA C4/CLIQ electro-mechanical key system was released to the North American market in

2004. Concept 4 (C4) is an intelligent lock system that combines the best of mechanical key and cylinder

design and electronics in the smartest possible manner. The CLIQ™technology was developed through

the collaboration of several ASSA ABLOY companies in Europe and has blossomed into the most innovative

electro-mechanical key and cylinder system on the market today. The unique design provides a high security

key and cylinder combination with an added electronic access control feature that requires no power source

of any kind at the door opening. Power is supplied by a standard lithium battery installed in the key thus

eliminating the need for hard wiring at the opening. Every time a key is inserted into a cylinder the transaction

and its result are recorded with a time and date stamp and stored in both the key and cylinder enabling the

user to monitor access to any area including those for which supplying power to the opening would be

impractical or impossible.

Twin Maximum – The Twin Maximum product line introduced in 2005 was set up to interface with the

ASSA C4/CLIQ system. It is the mechanical keyway utilized by the C4 and allows the possibility of combining

mechanical keys and cylinders with the CLIQ™technology in the same master key system. The Twin Maximum

uses multiple pitched side pins like the Twin V-10 giving the potential for extremely large master key systems.

Maximum+ – The Maximum+ product line, launched in 2013, features the most sophisticated, state of the art

mechanical locking technology on the market today. Utilizing our trademarked Security Ridge™on the key, the

Maximum+ system offers a level of patented protection unmatched by industry standards. The Maximum+

carries a utility patent that extends until 2030 and is backward compatible with our Twin Maximum product

enabling one key to operate both cylinders. All Maximum+ products can be fully integrated with the ASSA CLIQ

electromechanical access control system ensuring full key holder accountability for virtually any opening. The

ASSA Maximum+ and CLIQ combination is designed to provide maximum flexibility while maintaining the

highest standards of physical security and access control.

All Legacy

Products are

subject to

Pricing and

Availability.

6000 Series

is in Limited

supply and will

be replaced by

7000 Series.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

General Information

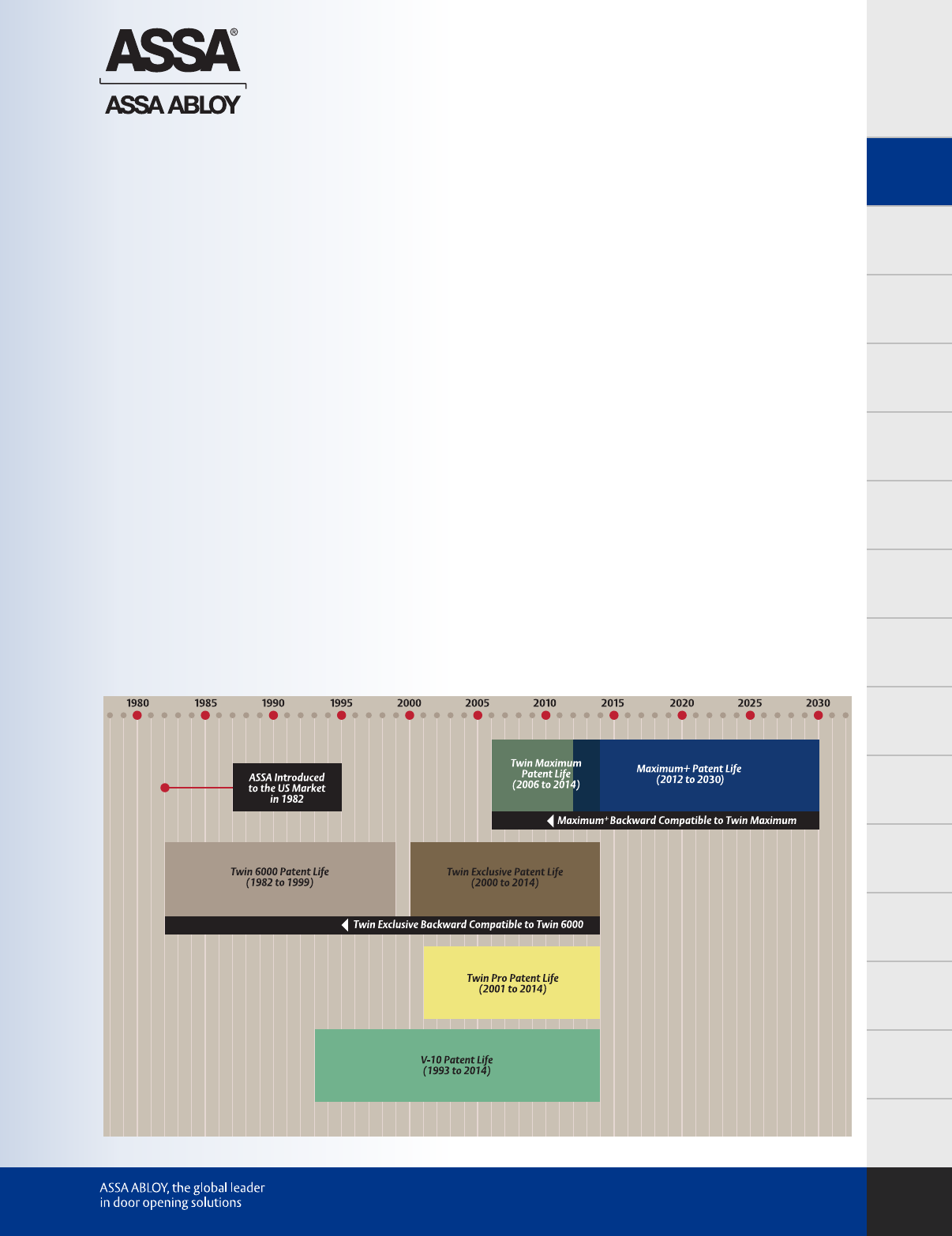

Timeline of ASSA keying systems

Maximum+ Restricted – A patent restricted key system providing legal protection over unauthorized key

duplication to 2030. This system is offered for interior use because it does not have the added cost of UL 437

physical protections of the Maximum+ system. Maximum+ Restricted provides a cost competitive solution

where the risk of physical attack on cylinders is relatively low.

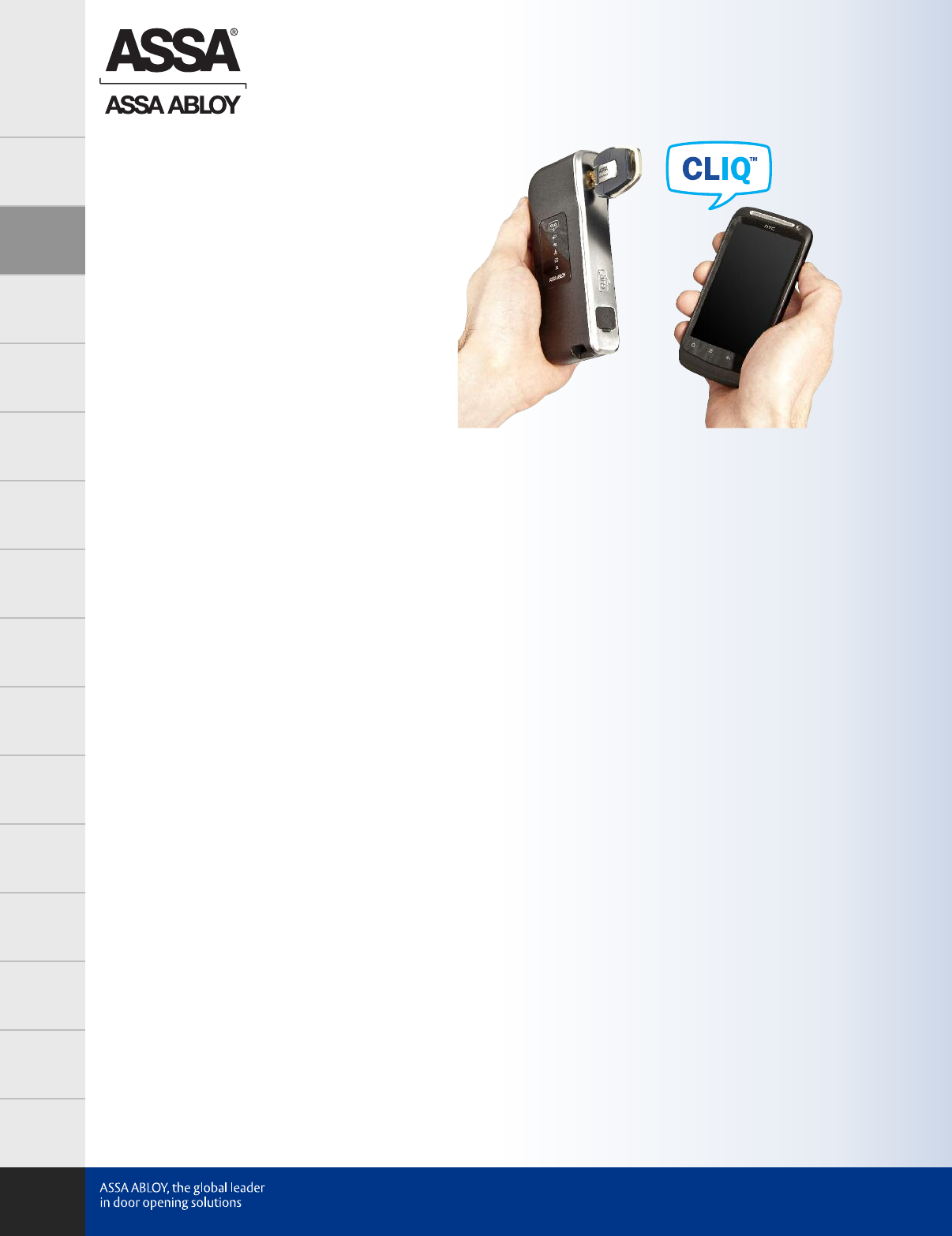

CLIQ Remote – Released in 2013, the ASSA CLIQ Remote system was developed with a focus on the customer’s

remote security, administration and bottom line. CLIQ Remote is aimed at customers who need to change

authorizations relatively often, but need mechanical security. The system is designed with the advantages of both

access control and mechanical key systems, which makes it suitable for geographically scattered businesses.

CLIQ Remote makes it possible to give one person — regardless of location, anywhere in the world — remote

access to a building. It also offers the option to decide the time of day an issued key will start and stop working,

as well as in which doors. All ASSA CLIQ Remote electromechanical keys systems can be fully integrated with

both Maximum Plus and Twin Maximum mechanical systems for maximum flexibility.

ASSA Medium Security Key Systems

600 Series – The ASSA 600 Series incorporates many of the security and performance features of the High

Security systems but does not have a sidebar or side pins. Keys are made of high quality nickel silver and

cylinders provide a superior level of pick resistance. The 600 Series is a stand alone key system and is

available in five profiles (keyways).

Twin Low – The Twin Low product line of cylinders is available in some of the Twin 6000 Classic profiles but

without the restricted sidebar component. This product offers a lower cost alternative for interior and less

sensitive openings affording the key holder the convenience of operating 3 levels of security (Twin Exclusive,

Twin 6000 Classic, and Twin Low) with the same key.

500/700 Series – One of the oldest key systems still supported by ASSA, the 500/700 Series product was

developed in the early 20th century. The 500 Series key uses a 5 pin tumbler system while the 700 Series

uses 7 pins. ASSA, Inc. no longer supports cylinder or cylinder parts sales for this product series however

key blanks in all existing profiles are available by special order.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Table of

Contents

General

Info.

Prices Effective April 1, 2018

Standard Terms & Conditions of Sale

1. General; Definitions

1.1 Entire Agreement

Unless otherwise agreed to in writing by ASSA, Inc. (“ASSA”), the terms and conditions contained herein

constitute the entire agreement between the parties with respect to the subject matter hereof and supercede all

prior communications and agreements. Acceptance by ASSA of Buyer’s Order, or Buyer’s acceptance of ASSA’s

proposal, is expressly limited to and conditioned upon Buyer’s acceptance of these terms and conditions which

may not be changed or waived except in writing signed by the parties. Any additional, inconsistent or different

terms and conditions contained in Buyer’s purchase order or other documentation are hereby expressly rejected.

1.2 Definitions

In these terms and conditions of sale: (i) “Buyer” means the person or entity who accepts a quotation of ASSA for

the sale of the Products or whose Order for the Products is accepted by ASSA; (ii) “Conditions” means the standard

terms and conditions of sale set out in this document and includes any special terms and conditions agreed to in

writing between Buyer and ASSA; (iii) “Order” means an order for Products placed by Buyer with ASSA and ac-

cepted by ASSA; (iv) “Products” means the products ordered by Buyer and shall include all products, parts and ac-

cessories furnished to Buyer by ASSA.

2. Shipping; Delivery

2.1 Terms of Shipment

Unless otherwise agreed to in writing, all Products are shipped F.O.B. ASSA’s location. ASSA reserves the right to

deliver in installments.

2.2 Shipping Charges

Subject to Section 2.3, ASSA will pay all shipping charges in advance of shipment only for shipments of $1,500.00 net

U.S. or more with delivery to Buyer at a single location. Buyer will pay all shipping charges in advance of shipment

for all shipments that are less than $1,500.00 net U.S. or that require delivery to Buyer at more than a single location.

Such charges will be added to Buyer’s invoice. A shipping & handling charge of $1.05 per shipping carton will apply

to shipments.

2.3 Choice of Carrier; Route

Unless otherwise requested on Buyer’s Order, ASSA will ship by carrier and route of its choice to any freight service

point within the continental United States. If Buyer requests a carrier or route on its Order, ASSA will deliver in

accordance with such request and Buyer will pay the entire amount of all shipping charges in advance of shipment.

3. Title and Risk of Loss

Subject to Section 5.3, title to and risk of loss of each Product purchased by Buyer shall pass to Buyer and delivery

shall be deemed to be complete upon transfer of the Products to a carrier for shipment at ASSA’s location or

the Products otherwise leave the possession or control of ASSA. This Section 3 shall survive any expiration or

termination hereof.

4. Orders

4.1 Acceptance

Orders can be sent to ASSA via the following 3 methods:

Mail: ASSA, Inc., 3625 Alleghany Drive, Salem, VA 24153

Fax: 800-892-3256

E-mail: AssaOrders@assalock.com.

ASSA reserves the right to refuse Orders and is not bound to honor any Order unless and until such Order has been

accepted by ASSA. ASSA may refuse an Order by delivering notice, orally or in writing, of such refusal to Buyer

within ten (10) days of ASSA’s receipt of such Order.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Standard Terms & Conditions of Sale

4.2 End User Security Authorization Procedures.

To insure proper control of End User restricted products, ASSA requires that the End User complete a Delivery of

Controlled ASSA Components for End Users Form. The form will indicate where and to whom their restricted

product will ship upon leaving the ASSA factory. Restricted product is defined as high security keyblanks, cut keys,

sidebars, sub-assembled cylinders (SUB), complete and master keyed cylinders (COMP), and key charts. All orders

involving an End User restricted product must be signed by the proper authorized personnel on file at ASSA. This

is critical in order to maintain the integrity of the End User’s key system. ASSA will honor the specific, written

instructions of the authorized personnel for the shipping and handling of each purchase order. Such instructions

must be included with each order. A copy of the End User Controlled Product Delivery Form is available by

contacting ASSA customer service or the local ASSA sales representative. Please note the option of blanket

authorization on the form. If the end user chooses this option, it is the end user’s responsibility to keep the

authorization current and on file. ASSA does not maintain any files of blanket authorizations. A copy of a CURRENT

authorization form signed by an authorized signatory must accompany every Distributor purchase order

containing End User restricted product sent to ASSA whether the product is shipping to the End User location or not.

All orders not having this form will be suspended indefinitely or until such form is produced. In the event that any

change occurs in the authorization of any End User personnel, ASSA will require that official written notification

be made to ASSA by the End User on their letterhead before additional orders will be released. A copy of the

authorization form “Controlled Product Delivery Form” can be found on our website @ www.assalock.com.

From the home page select “Resources”, select “Forms and Applications”, then click on “Download the

Controlled Product Delivery Form Now”.

4.3 Order Identification

All packages are identified as to contents and assigned an Order number. The Order number also appears on Order

acknowledgements, packing slips, freight bills and invoices.

4.4 Packing

Unless otherwise specified, all locks and cylinders are packed individually.

4.5 Changes and Cancellations

No Order that has been accepted by ASSA may be changed or cancelled by Buyer unless ASSA agrees to such

change or cancellation in writing. Buyer will indemnify ASSA in full against all loss (including loss of revenue),

costs (including the cost of all labor and materials used), damages, charges, and expenses incurred by ASSA.

Changes will result in a delay in the scheduled ship date. Additions to Orders will be entered as a separate Order.

Special Orders for non-cataloged items and any Orders that are within sixty (60) days of the original shipment date

are not subject to cancellation.

4.6 Return Products Authorization

Return Products will not be accepted unless authorized in advance in writing by ASSA. Used or damaged items will

not be accepted. Products returned to ASSA for credit must be received by ASSA within sixty (60) days of initial

shipment and must be in saleable condition. The value of goods returned is subject to appraisal as to physical

condition. Returns will only be accepted for credit invoicing and a minimum handling charge of 40% will be

debited. All returned Products must be shipped F.O.B. ASSA’s location, freight prepaid. Credit will not be issued

for missing parts. Requirement for returns are: the ordering distributor must request a Return Goods Authoriza-

tion (RGA) in writing through the same process that purchase orders are done. Each Item being returned must

have full item description with the original purchase order number that the item was ordered under or the ASSA

order number that the item was shipped under which can be found on the Item box label marked “Order No” or REF#.

Return Goods Authorization is then approved or denied through ASSA’s established internal process. In either

case the requesting distributor is notified by ASSA in writing. If approved, distributor will receive in writing a

Return Goods Authorization Number and instructions for marking containers for authorized items being returned.

Once received, Items are physically inspected and checked against the RGA. Information will then be forwarded

to the credit department where credit invoicing will be applied. Any Items sent by distributor that are not listed

as part of the authorized return will not be credited and ASSA will not be responsible for return of these items to

the shipper.

ASSA will not accept Keyed Cylinder returns.

ASSA RGA Center

6174 State Route 88, Finleyville, PA 15332-1068

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Table of

Contents

General

Info.

Prices Effective April 1, 2018

Standard Terms & Conditions of Sale

5. Price; Taxes; Payment

5.1 Price

Unless otherwise agreed to in writing, the price for the Products shall be ASSA’s prevailing price at the time

the Order is accepted by ASSA or any other price quoted in writing to Buyer. ASSA’s price lists are for general

information only and do not constitute a binding, open offer by ASSA for the sale of Products. ASSA reserves the

right to modify its standard prices at any time without notice; prices for some Products may change frequently due

to market fluctuations.

5.2 Taxes

Buyer shall pay the full amount of any tax or other charge now or hereafter imposed by law upon, with respect to, or

measuredby the sale, shipment or price of any Product sold hereunder, including without limitation any handling

charges; federal, state, or local sales, use, excise, value added, gross receipts or other like taxes; customs duties;

and any insurance desired by Buyer. If Buyer is exempt from an applicable tax or duty, then Buyer must provide

ASSA with a valid exemption certificate before shipment of Products. Foreign shipments placed with ASSA may

require additional charges for documentation and overseas packaging. Such charges will be identified on ASSA’s

invoices. This Section 5.2 shall survive any expiration or termination hereof.

5.3 Payment

Unless otherwise agreed to in writing, payment is due thirty (30) days from the date of the invoice. If payments

are not made when due, Buyer will pay, in addition to the overdue payment, a late charge equal to the lesser of

1.5% per month or the highest applicable rate allowed by law on such overdue amounts. Overdue accounts will

be assigned to the credit department for all transactions. Once an account has been assigned to the credit

department, no Order may be taken, entered or shipped without approval from the credit manager. Buyer hereby

grants ASSA a purchase money security interest in each Product and agrees to cooperate with ASSA in protecting

such interest.

6. Insurance

6.1 Insurance Coverage

Buyer shall procure and maintain, at its expense, the following types of insurance from an insurer acceptable to

ASSA, in the amounts at least equal to those specified below, with deductibles not in excess of $100.00. ASSA

shall not be required to supply Products to Buyer at any time that the insurance coverage provided for herein is

not in full force and effect.

6.2 Certificates

Buyer shall, within fifteen (15) days from the date hereof, furnish ASSA with a certificate of insurance issued by the

insurance company or companies issuing the insurance policies required hereby. Such certificates shall provide

that written notices shall be given to ASSA at its address specified herein at least forty-five (45) days prior to any

cancellation or change in any such policy.

7. Warranties and Limitation of Liability

7.1 Warranty

ASSA represents and warrants the Products against defective material and faulty workmanship for a period of

one year after the date of delivery [and warrants the finish to meet quality standards at the time of delivery]. This

warranty expressly does not apply to faulty product operation due to: (a) improper installation; (b) the use of

any keys, cylinder pins or other accessories not expressly approved by ASSA; or (c) failure to provide reasonable

maintenance. ASSA will not warranty cross-keyed cylinders.

7.2 Limitation of Liability

ASSA’s liabilityunderthis warranty shall belimitedsolelytothe repairorreplacement oftheProducts, orpartsthereof,

or refund to the Buyer of the purchase price thereof. ASSA shall not be responsible for any defect or non-conformity in

the Products that: (a) is created after the time of delivery; (b) results from Products for which materials, specifications

or designs were provided by Buyer; or (c) results from modifications to the Products by Buyer or others. IN NO EVENT

SHALL ASSA BE LIABLE FORSPECIAL,INDIRECT,INCIDENTAL,ORCONSEQUENTIALDAMAGES, WHETHER IN CONTRACT,

WARRANTY, NEGLIGENCE, TORT, STRICT LIABILITY, OR OTHERWISE including but not limited to loss of profits or

revenue, loss of use of the Products, delays, or claims of customers of the Buyer or other third parties for such

other damages. ASSA’s liability on all claims, whether in contract, warranty, negligence, tort, strict liability or

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Standard Terms & Conditions of Sale

otherwise for any loss or damage arising out of, or connected with an Order or the performance or breach thereof,

or from the design, manufacture, sale, or delivery shall in no case exceed the purchase price of the Product.

7.3 No Other Warranties

EXCEPT AS EXPRESSLY SET FORTH IN SECTION 7.1, ASSA MAKES NO OTHER REPRESENTATIONS OR WARRANTIES,

EXPRESS OR IMPLIED, AT LAW OR IN EQUITY, WITH RESPECT TO THE PRODUCTS OR THEIR CHARACTERISTICS,

QUALITY OR PERFORMANCE, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF ANY INTELLECTUAL PROPERTY RIGHTS OF

THIRD PARTIES AND ANY SUCH REPRESENTATIONS AND WARRANTIES ARE HEREBY EXPRESSLY DISCLAIMED.

8. Claims

Buyermust notify ASSAofanyclaim[foradjustment]inwritingatASSA’saddressspecifiedhereinwithinthirty(30) days

after the date of the invoice in question. Buyer must notify ASSA of any claim for shortages or incorrectly filled Orders

in writing within ten (10) days after receipt of shipment. Under no circumstances will ASSA be responsible for any

charges for labor or material incurred by others without the prior written consent of ASSA.

9. Indemnity

9.1 Personal Injury and Property Damage

Buyer shall indemnify ASSA and hold ASSA harmless against all claims, liability, loss or other damages (including

ASSA’s legal expenses) to all persons for injury of any nature, including, without limitation, sickness, and/or death,

and for property damage caused by any Product or part thereof after the time of delivery of such Product or after

such Product otherwise leaves the possession or control of ASSA.

9.2 Compliance with Law

Buyer agrees: (a) to fully comply with all applicable federal, state and local laws, rules, regulations and guidelines,

including without limitation, all applicable regulations and guidelines promulgated, from time to time, by Federal

and state environmental and transportation officials, and (b) to indemnify and hold harmless ASSA from and

against all claims, liability, loss or other damages (including ASSA’s legal expenses) resulting in any way from

non-compliance therewith.

9.3 Survival

This Section 9 shall survive any expiration or other termination hereof.

10. Trademarks and Other Markings

Buyer shall remove any and all of ASSA’s trademarks, labels, distinctive markings, and designs which may appear

on any Product or on the packaging material therefore at the time of delivery of such Product and to refrain from

making any use of such trademarks, labels, distinctive markings and designs.

11. Miscellaneous

11.1 Governing Law

The validity and interpretation of these terms and conditions of sale shall be governed by the laws of the State of

Connecticut without regard to its principles of conflicts of law.

11.2 Force Majeure

ASSA shall not be liable for its failure to perform hereunder due to any contingency beyond its reasonable

control, including without limitation acts of God, fires, floods, wars, sabotage, accidents, labor disputes or shortages,

governmental laws, ordinances, rules and regulations, whether valid or invalid (including, but not limited to,

priorities, requisitions, allocations, and price adjustment restrictions), inability to obtain material, equipment or

transportation, and any other similar contingency. In the event of delay due to any such cause, the date of delivery

will be postponed by such length of time as may be reasonably necessary to compensate for the delay.

11.3. No Assignment

These terms and conditions of sale are not assignable or transferable by Buyer, in whole or in part, without the prior

written consent of ASSA.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Table of

Contents

General

Info.

Prices Effective April 1, 2018

Standard Terms & Conditions of Sale

11.4 Modification

No modification or waiver of these terms and conditions of sale shall be effective unless made in a writing signed

by ASSA. No course of action shall be deemed to modify these terms and conditions of sale.

11.5 Severability.

Whenever possible each provision and term of these terms and conditions of sale will be interpreted in a manner

to be effective and valid but if any provision or term hereof is held to be prohibited by law or invalid, then such

provision or term will be ineffective only to the extent of such prohibition or invalidity, without invalidating or

affecting in any manner whatsoever the remainder of such provision or term or the remaining provisions or terms

hereof.

COPYRIGHTS, PATENTS

All products shown in ASSA catalogs, brochures and price lists are either patented, copyrighted or registered by

ASSA. *Prices, products, equipment, finishes, models, specifications and availability are subject to change

without notice.

All notices or other correspondence to ASSA may be made at the following address:

ASSA, Inc.

3625 Alleghany Drive

Salem, VA 24153

(800) 235-7482

(800) 892-3256 fax

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Architectural Specifications

High Security Key System

General requirements:

1. Provide a high security key system capable of integrating various type of lock cylinders; mogul, builder hardware,

and auxiliary locks, into a patented, geographically restricted, factory master keyed system to allow control

over the entire facility.

a. Include detention mogul cylinders, builders hardware cylinders, auxiliary locks, and padlocks keyed into

one compatible system for locks specified in this section and those specified in related sections.

b. Proprietary Keyway: Provide written guarantee from the manufacturer that the Keyway used on this project

is for the exclusive use of the Owner on a regional basis..

2. Master Keying

a. Provide level 3 grandmaster key system. As defined in (DHI) "Keying Systems and Nomenclature".

b. Provide factory established key system and keying of cylinders.

1). Arrange for manufacturer to maintain permanent key identification and registration records.

3. Keys

a. Replacement Keys: Available only from the manufacturer upon written authorization from the Owner.

b. Stamping of Keys: Stamp keys with an identification code in accordance with "Keying Procedures, Systems,

and Nomenclature" published by DHI.

c. Quantity:

1) Change keys:

a. Allow for four (4) change keys per lock cylinder.

b. Furnish a minimum of six (6) keys per key set, remaining keys as instructed by the Owner.

2) Master level keys:

a. Furnish a minimum of ten (10) of each masterkey and six (6) of each master level key above

the grandmaster.

b. Material: Nickel silver alloy.

c. Minimum size: 1" x 3" long 1/8" thick.

4. Cylinders

a. Marking of Cylinders: Using a black indelible ink pen, mark body of cylinders with an identification code

in accordance with "Keying Procedures, Systems, and Nomenclature" published by DHI.

b. Standard compliance

1) Listed under UL 437.

2) ANSI/BHMA A156.30 standard for High Security Cylinders.

3) ASTM 1577 6.6 standards for Correctional Cylinders.

5. Temporary Construction Security

a. Provide temporary construction cylinders and keys for exterior doors, automatically locking doors where

security is required, and doors to rooms used for storage.

1) Temporary cylinders and keys remain the property of the contractor.

b. Provide temporary blank strike plates for lock bolt receivers to prevent automatic locking of doors where

temporary construction cylinders are not used and security at the door during construction is not required.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Benefits:

• Installation Without Wiring at

the Opening

• Access Rights Updated Remotely

• User Key Revalidation

• Multiple Time Schedules

•AuditTrailwithTimeandDateStamp

• Extreme Master Keying Capacity

• Cost Effectiveness

• Wide Range of Retrofit Cylinder

Shapes

• SameKeyOperatesboth Mechanical

and Electronic Lock

• DES Encrypted

Functionality:

• Battery Life2 Years or 20KOpenings

• HID Prox Chip Option

Warranty:

• 2 Years on Electronics

• ASSA warrants against key breakage

under normal use

Certification:

• Patented Key Control

• Operating Temperatures: -40° F

to 130° F

Technical Information:

• PowerSupplyisProvidedby theKey

• Data Transfer 64 Bit and Higher

• Water Resistant

• Sealed Electronics

• No Wires

The ASSA CLIQ Remote takes the C4 CLIQ

concept to a new level by making it possible

to give one person, regardless of location,

anywhere in the world, the ability to remotely

grant or deny access to an opening for a

specific period, day or time.

Administrators can make all daily changes

to users’ access rights without ever

needing to have the keys physically or visit

the opening. The web-based application

CLIQ Web Manager links users with one or

moreremoteprogrammingdevicesstrategically

located where users frequently pass such as the staff entrance. All user keys feature a quartz

clock making it possible to control the user’s authorization during selected times. You can specify

both a start and a stop time when a key will have access to a particular opening. Keys can be

enabled to work on multiple schedules for different openings.

Employing an optional feature known as revalidation, a user key can be set to expire at regular

intervals requiring that the user revalidate the key for current access permissions. Revalidation

limits the liability of a lost or stolen key by blocking any future updates. For example, if keys are

set to expire every 24 hours, the user must access a remote programming device in order to get

new authorization for the next interval. In the event of a lost or stolen user key the electronic

authorization can simply be blocked and the key becomes useless.

All ASSA CLIQ Remote electromechanical keys systems can be fully integrated with both

Maximum+ and Twin Maximum mechanical systems for maximum flexibility. CLIQ Remote

helps you to take a total solution approach to key administration, regardless of facility

placement or size, saving both time and money.

ASSA CLIQ / Remote

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

ASSA CLIQ Remote™/ Keys & Accessories

Item No. Description Price

CLIQ-KDR CLIQ Remote User Key

110.25

CLIQ-KDRP CLIQ Remote User Key with Proximity Tag

128.75

CLIQ-RMCK CLIQ Remote Master C-Key

193.25

CLIQ-RCK CLIQ Remote C-Key

186.00

CLIQ-PD CLIQ Programming Device

1,361.00

CLIQ-RPD CLIQ Remote Wall Programming Device

813.25

CLIQ-MPD CLIQ Remote Mobile Programming Device

772.25

CLIQ-VRPD CLIQ Remote Outdoor/Vandal Resistant Programming Device

1,465.00

CLIQ-REND CLIQ Remote End User Kit

1,670.00

CLIQ-RDEMO CLIQ Remote Demo Kit

6,871.50

CLIQ-TRAINING Off-site Factory Training 1,419.50/day/net

ASSA CLIQ Remote™

Item No. Description Annual Service Fee

CLIQ-WH-B Basic 567.75

CLIQ-WH-RP Remote Plus 1,703.50

CLIQ-WH-EPW Enterprise Plus 3,407.00

ASSA CLIQ™Web Hosting Service

Item No. Description 1-Time License Fee Annual Maint. Fee

CLIQ-SH-EPW Enterprise Plus with Web Services 17,035.25 1,376.00

ASSA CLIQ™Customer Web Hosting Service

ASSA CLIQ Remote™Web Manager Features

CLIQ Remote™C-Key,

User Key, Master C-Key CLIQ Remote™

Programming Device CLIQ Remote™

Remote Wall

Programming Device

CLIQ Remote™

Remote Mobile

Programming Device

Part Number CLIQ-WH-B CLIQ-WH-RP CLIQ-WH-EPW

Description Hosted Basic Hosted Remote+ Hosted Enterprise

Domain Administration √ √ √

Remote Programming x √ √

Key Revalidation x √ √

Access Profiles x √ √

Temporary Access Groups x √ √

Flexible Revalidation x x √

Cylinder Groups x x √

Web Services for 3rd Party Applications x x √

Features

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Item No. Description Price

CLIQ-KD CLIQ Cut Key

106.75

CLIQ-KDP CLIQ-Cut Key with Proximity tag

125.25

CLIQ-CK CLIQ C-Key

186.00

CLIQ-MCK CLIQ Master C-Key

193.25

CLIQ-CON CLIQ Contact Key

200.00

ASSA C4 CLIQ™Keys

C4 CLIQ

Contact

Key

C4 CLIQ

Cut Key C4 CLIQ

C-Key C4 CLIQ

Master

C-Key

CLIQ Program Device C4 CLIQ Software

Item No. Description Price

CLIQ-END Program Device with Single Site Performer Software – Manages CLIQ System

1,981.75

CLIQ-END-NT Program Device with Network Performer Software – Manages CLIQ System

2,407.75

CLIQ-ESDK Executive Sales Demo Kit

632.50/net

CLIQ-DEA ProgramDevicewithSingleSitePerformerSoftware–ManagesMultipleCLIQSystems

1,981.75

CLIQ-DEA-NT ProgramDevicewithNetworkPerformerSoftware–ManagesMultipleCLIQSystems

2,407.75

CLIQ-PD CLIQ Programming Device

1,361.00

CLIQ-NT-LIC License Upgrade from Single Site to Network Installation

1,084.25

CLIQ-TRAINING Off Site Factory Training

1,419.50/day/net

CLIQ-SDK Sales Demo Kit

8,810.25

ASSA C4 CLIQ™Programming Unit & Software

Cylinder Audit Trail Chart

Key Audit Chart

ASSA C4 CLIQ / Keys & Software

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

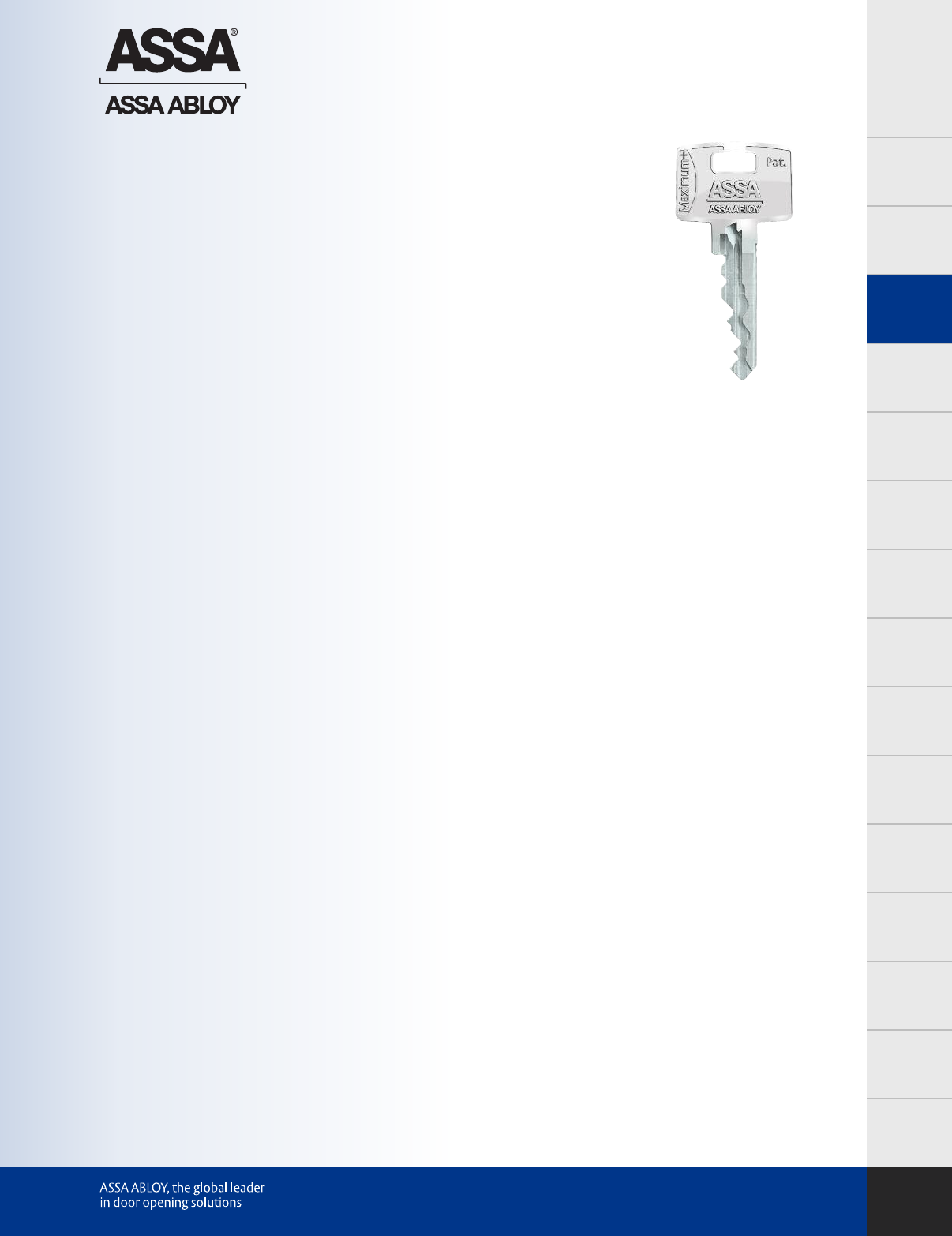

Keys and Keying

Benefits:

• Two sets of key cuts designed to

operate independent locking

mechanisms

• Innovative key design protected

by U.S. and international patents

• Patented key control offers the

ultimate in high security

• Top cuts can be generated on

standard, quality code cutting

equipment

• ASSA’s generous keying capabili-

ties allow over 160,000 change

keys under a single master key

Certification:

• Maximum+ key listed under

U.S. Patent number 8,205,473

Warranty:

• ASSA warrants that if a key should

break under normal usage, ASSA

will replace it at no charge

• ASSA warrants that no other

top level master key for any other

ASSA factory generated master

key system will operate as a top

level key in an end-user’s system

for a specified geographic territory

• ASSA’s patented key systems

are legally protected against

unauthorized key duplication

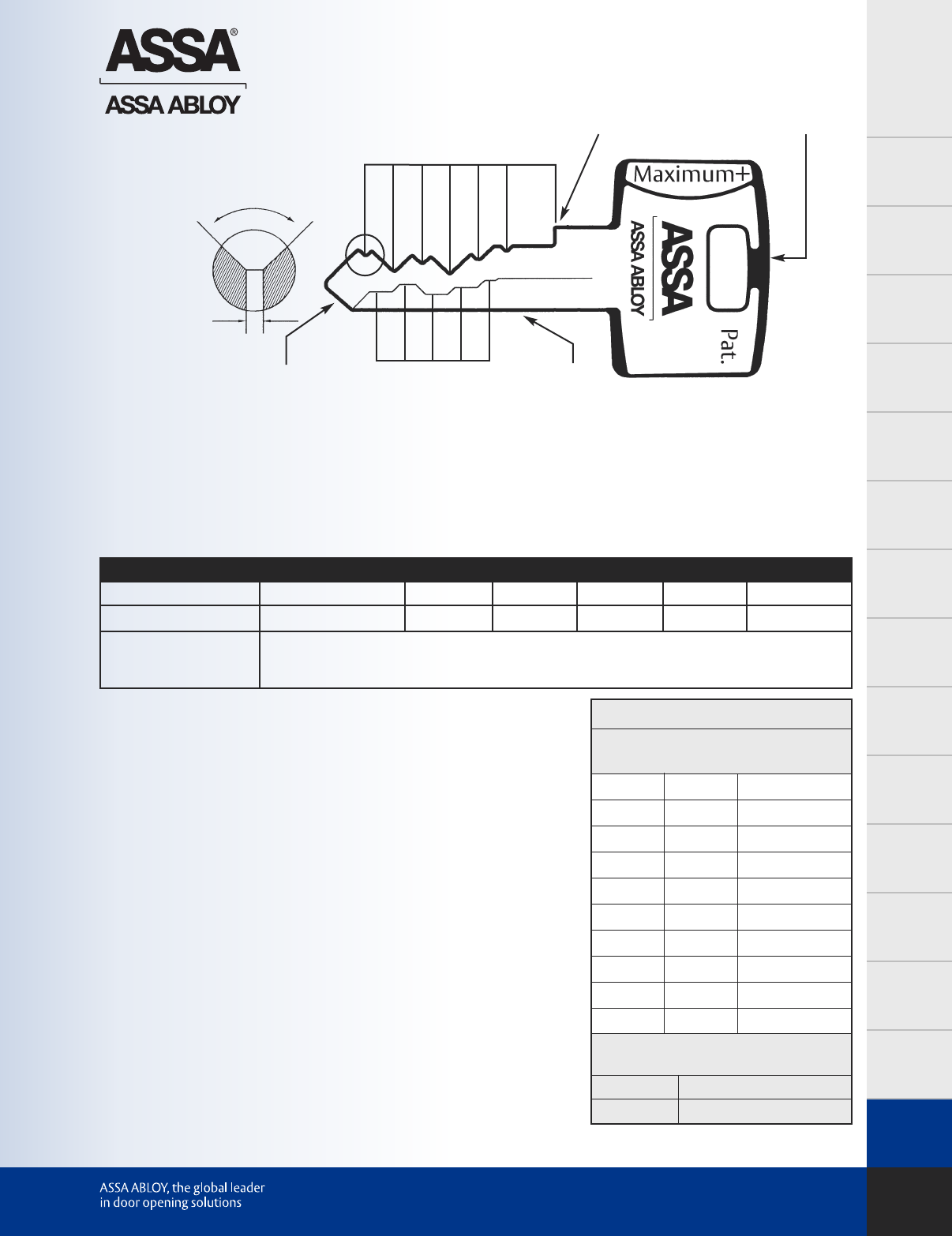

Technical Information:

• High quality nickel silver material

• Key combination is read from tip

to bow

• No. 1 cut is deepest,

No. 9 is shallowest

• Maximum adjacent cut is 5

(example: 1-6 is acceptable,

1-7, 8 or 9 is not)

• Cut depth is measured as root

depth from back of key to

bottom of cut

Special stamping and custom

coining available

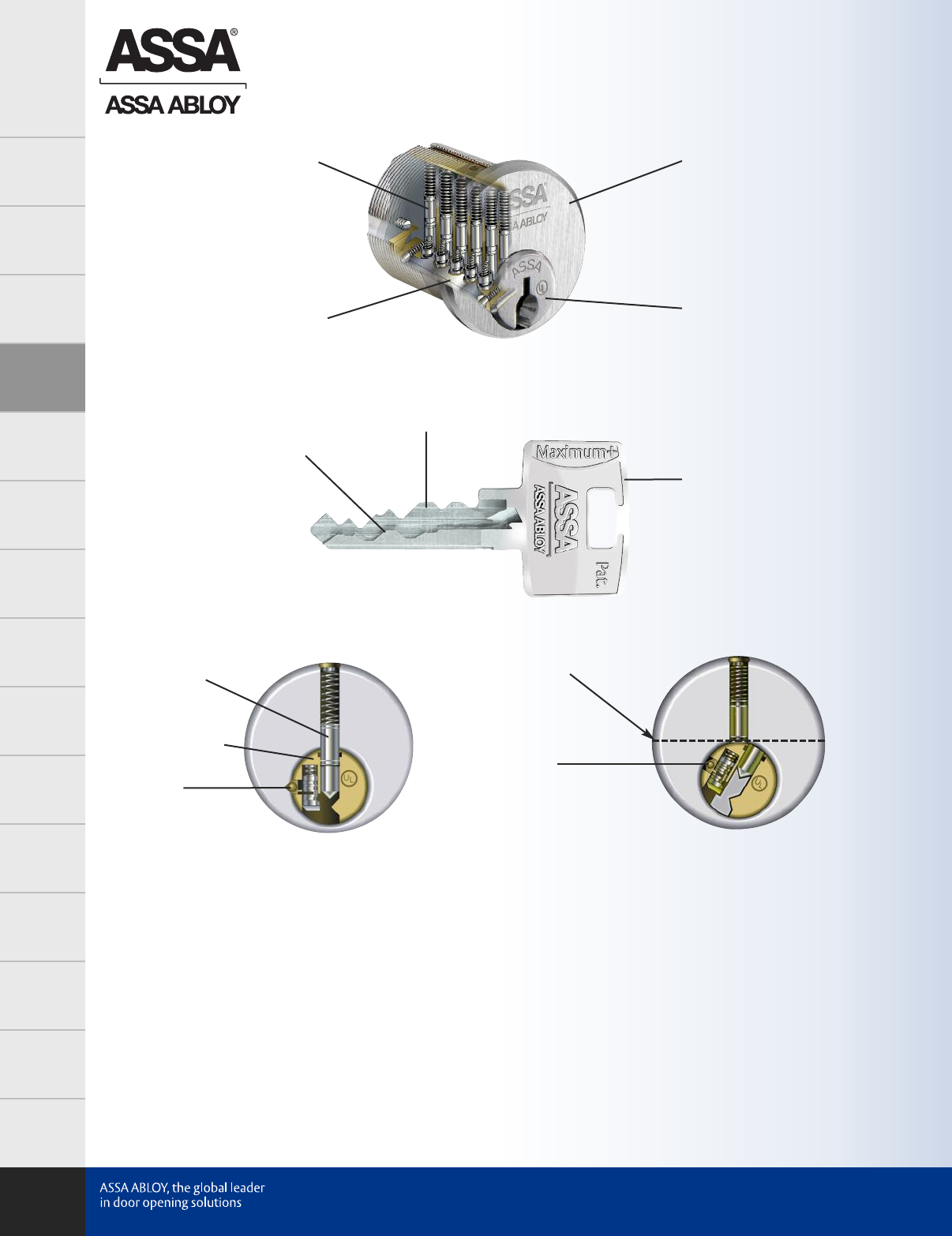

All ASSA keys are manufactured from the highest quality nickel

silver material. The key’s rounded back facilitates smooth

operation and minimizes wear. The large key bow simplifies

identification and use by manually impaired people.

Available in several profiles ASSA high security keys all feature a

unique side milling on the lower portion of the key blade which is

precut at the ASSA factory. Each side milling represents a proprietary

key section that is factory controlled on a geographic basis providing

an unmatched level of patented key control.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

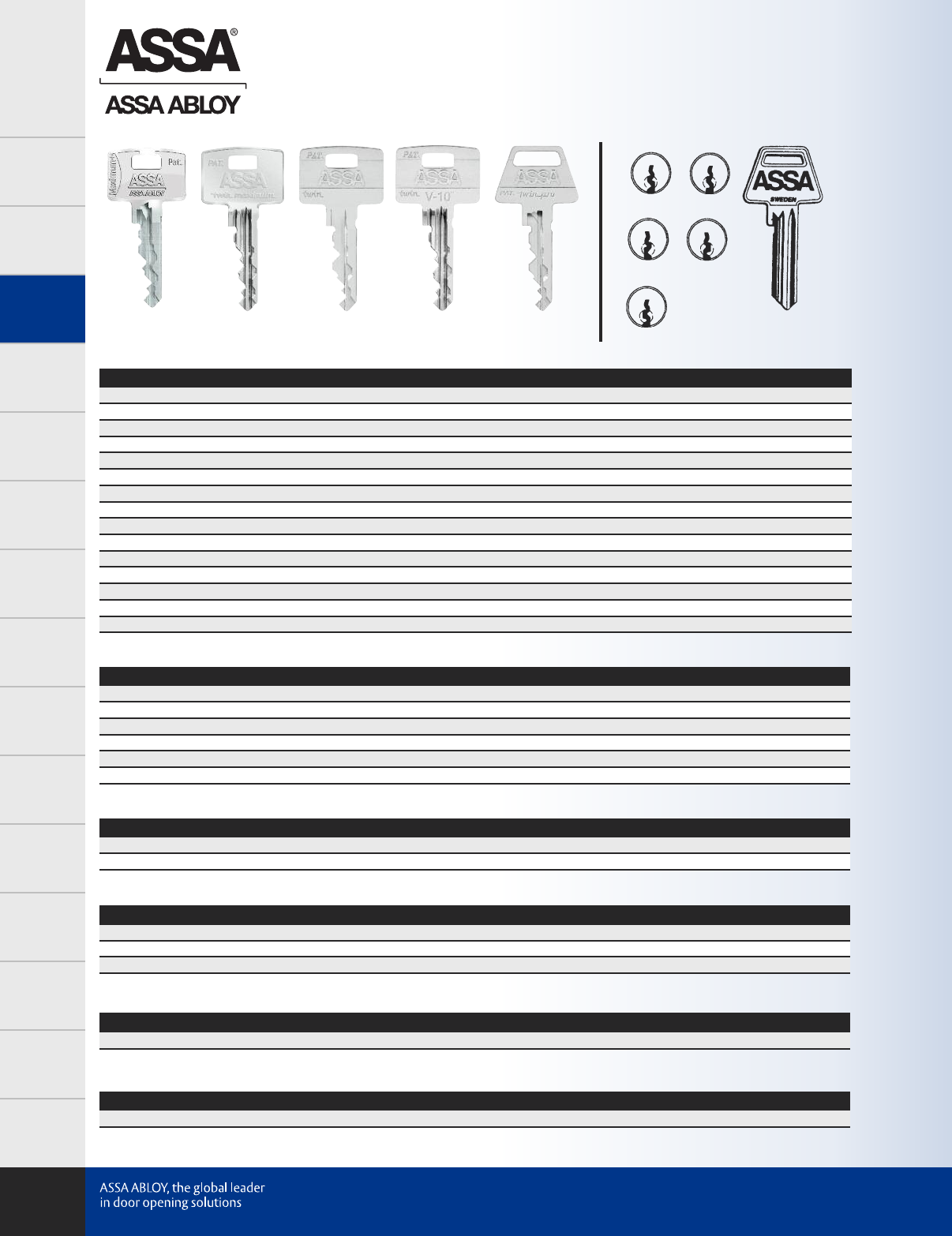

Maximum+ Twin Maximum Twin 6000 &

Twin Exclusive Twin V-10 Twin Pro

Item No. Description Price

MAXP-KD Maximum+ Cut Keys KD/KA

18.25

MAXP-MK Maximum+ Cut Keys, In a Master Key System

18.25

MAXP-CTRL Maximum+ Control Key

18.25

TMAX-KD Twin Maximum Cut Keys KD/KA (Replaced by part MAXP-KD in 2014)

18.25

TMAX-MK Twin Maximum Cut Keys, In a Master Key System (Replaced bypartMAXP-MK in2014)

18.25

TMAX-CTRL Twin Maximum Control Key (Replaced by part MAXP-CTRL in 2014)

18.25

TWIN-KD Twin Exclusive/6000 Classic (Specify Profile) Cut Keys KD/KA

19.90

TWIN-MK Twin Exclusive/6000 Classic (Specify Profile) Cut Keys, In a Master KeySystem

19.90

TWIN-CTRL Twin Exclusive/Twin 6000 Control Key

19.90

V-10-KD Twin V-10 Cut Keys KD/KA

19.90

V-10-MK Twin V-10 Cut Keys, In a Master Key System

19.90

V-10-CTRL Twin V-10 Control Key

19.90

TPRO-KD Twin Pro Cut Keys KD/KA

19.90

TPRO-MK Twin Pro Cut Keys, In a Master Key System

19.90

TPRO-CTRL Twin Pro Control Key

19.90

ASSA Cut Keys

Keys and Keying

868062

600 Series

UK UM

PK PL

Item No. Description Price

462000 Key blanks/ specify profile

7.65

ASSA 500 Series Key Blanks

Item No. Description Price

462001 Key blanks/ specify profile

7.65

ASSA 700 Series Key Blanks

Item No. Description Price

600-KD Cut Keys KD / KA

19.50

600-MK Cut Keys, In a Master Key System

19.50

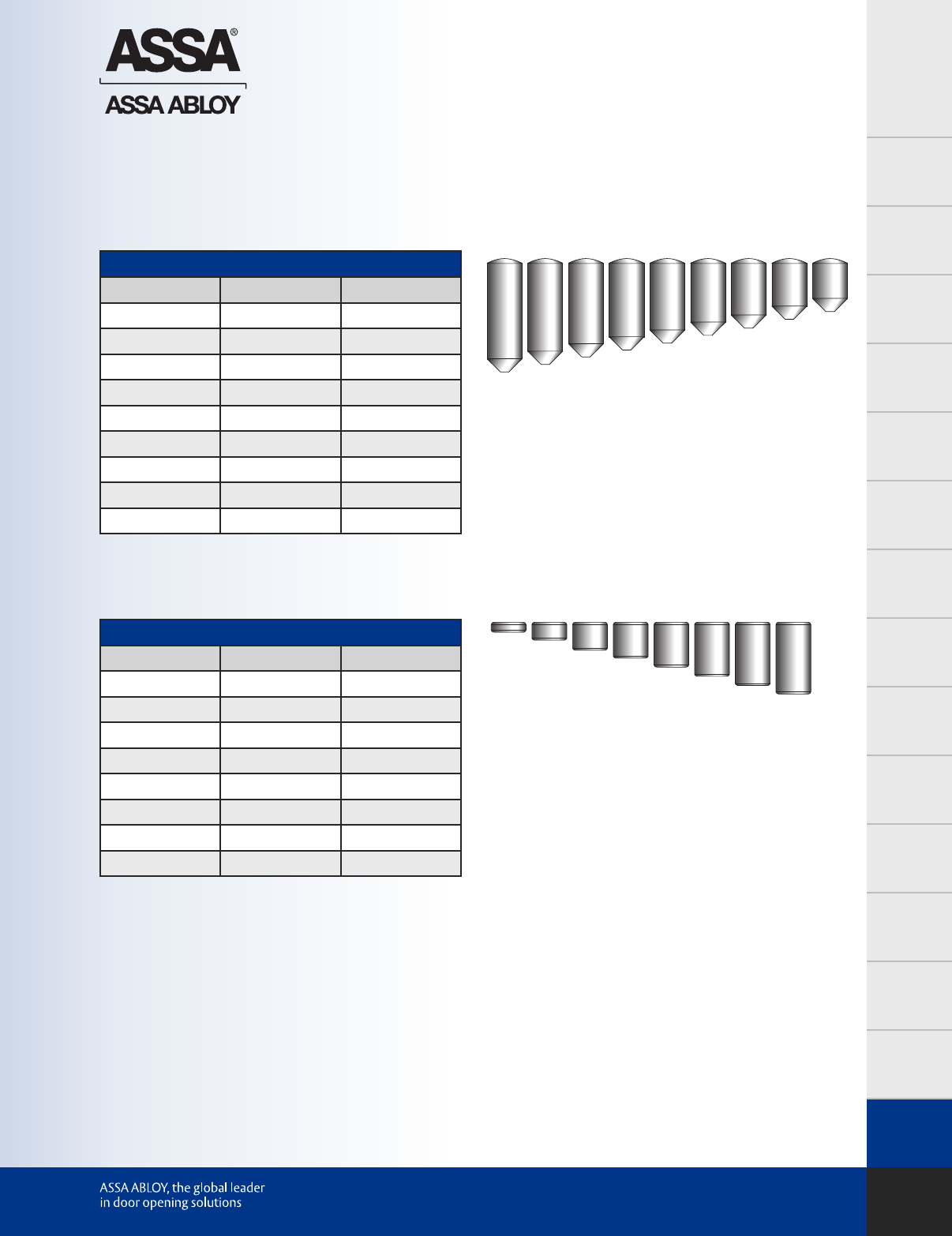

868062 Key blanks/ Specify profile (UK, UL, UM, PK, PL)

7.40

ASSA 600 Series Cut Keys & Key Blanks

Item No. Description Price Each

323330 Maximum+ Key Blank Qty. 100/box (Specify Sidebar Code)

7.15

359644 Twin Maximum Key Blanks Qty. 100/box (Specify Sidebar Code), (Replaced by part 323330 in 2014)

7.15

867091 Twin 6000 Key Blanks (specify sidebar code and profile) Qty. 100/box

7.60

E867091 Twin Exclusive Key blanks/Sidebar code (specify sidebar code) Qty 100/box

7.60

250694 Twin V-10 Keyblanks/Sidebar code (specify sidebar code) Qty 100/box

7.60

816313 Twin Pro Keyblanks/Sidebar code (specify sidebar code) Qty. 100/box

7.60

ASSA Key Blanks

Item No. Description Price

IDC Initial die charge

250.00/net

868996 500 minimum key blank quantity each order (Specify profileand side code)

7.65

ASSA Coined Key Blanks

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Keys and Keying

Item No. Description Price

RE-KEY Non-Master Keyed Cylinders

65.75

RE-KEY-MK Master Keyed Cylinders

80.50

Rekeying Charges

The ASSA Key Records Department carefully designs and records master key systems in compliance with customer requirements

and ASSA security policy. System documents are thoroughly detailed, produced, and professionally presented, and should

be considered valuable and confidential. Key Records information and service is available as follows:

Factory Keyed Cylinders

Cylinders pinned by the factory are supplied “Keyed Different” or if so specified as one of the following options:

• Master Keyed (Bittings provided at No Charge when requested with the order)...................................................18.25 per cylinder

• Keyed Alike/Keyed Different..................................................................................................................................................................No Charge

• Single Keyed Different (Part of MK System) ............................................................................................................................18.25 per cylinder

Master Key Log

An ASSA Master Key order log file must be submitted electronically to ASSA Key Records for all factory master keyed orders.

The form is available by contacting your ASSA Sales Representative, ASSA Customer Service, or on our web site at

www.assalock.com/download.htm. The completed form is then e-mailed to ASSA Key Records at Assaorders@assalock.com.

Factory Generated Master Key Systems

ASSA will provide new master key systems for pinning by the locksmith in accordance with prices below:

Bitting lists or key charts requested for key sets ordered with a factory keyed product for new or existing master key systems will

be provided at “No Charge.”

Orders for bitting lists ONLY without factory keyed product will be charged per the price table below.

Orders for additional bittings for existing master key groups will be provided as follows:

A) Up to 10 bittings under an existing master key already established in the system will be provided at “No Charge.” Orders for

all bittings requiring the establishment of a new master key in an existing master key system will be provided per the price

table below.

B) Orders greater than 10 bittings for an existing master key system will be provided per the price table below.

C) Order acknowledgement will reflect tier number for appropriate quantity.

ON PAPER ON DISK

Bittings Bittings & Bittings Bittings &

Tier Quantity Only Pinnings Only Pinnings

1 1-50..................................................................200.00.........................600.50...............................................94.25.........................194.75

2 51-200.............................................................300.50.........................799.75...............................................94.25.........................387.25

3 201-1000.......................................................398.75.........................999.50...............................................94.25.........................484.75

4 1001-5000 ....................................................499.50.....................1,600.00...............................................94.25.........................776.75

5 5001-10000..................................................630.25.....................2,400.75...............................................94.25.....................1,166.75

6 10001-25000...............................................858.00.....................3,107.50 ............................................182.50.....................1,508.00

Over 25,000 or more contact Customer Service for quote.

These prices are for a hierarchical Master Key System with no Cross-keying of selective keys. For special requirements, contact

Customer Service or Key Records Department. System design changes requested by the customer to an established ASSA master

key system are subject to a $500.00 list charge.

Systems prior to 1996, contact Customer Service for quote. Disks will be provided in flat ASCII text only.

Standard KD/KA key stamping includes keyway designation code.

Standard MK system stamping includes standard key coding key symbol.

Do Not Duplicate and other special stamping requirements will be priced at 4.75 per stamp. ASSA can stamp up to

6 alpha-numeric characters. If more are required please consult the factory.

Factory does not recommend cross-keying and will

not warranty any cross-keyed cylinders.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Master Key Order Procedure:

Master key system orders for ASSA products are processed using proprietary software. This allows us to import the customer

order data when it is submitted to us in the compatible format described below on a diskette or via E-mail. All ASSA factory

master key systems must be submitted electronically in this format

Excel File Format:

The format of an Excel file which we can import is shown

below. The first row in the file should number the columns

1 through 14, the file should not contain headers or formulas.

The import of an Excel format file offers a special feature

regarding systems which incorporate a ENG key. If a particular

item is to be operated by the ENG key in addition to the

other key indicated by the keyset you can indicate this to

our software by adding a suffix of “-E” to the keyset. In such

a case AA1 would become AA1-E if it should be operated by

the ENG key. This specification option is not available if the

imported file is supplied in ASCII format.

In order to ensure that correct master keying information is

received and accurate records are maintained, ASSA has

designed an Order Log Template. The following is an example

of a completed sample order log:

The template for the order log file that must be submitted with all factory master keyed orders can be found on our web site at

http://www.assalock.com/en/site/assalock_com/Resources.

When filling out the key quantity column, the quantity of keys entered on the line will be the total number of keys supplied for that

line. This field cannot be left blank. Even if no keys are required a zero must be entered.

In the example above, item 4 has 3 cylinders and 2 keys specified.

The total number of keys to be supplied for this line is 2.

The Order Log Template is also available by contacting your local ASSA sales representative or ASSA Customer

Service. If a computer or the Excel program is not available to you, contact your local ASSA sales representative

for assistance in getting the form completed. The completed form along with the formal written purchase order is then e-mailed to

ASSA Customer Service at email address Assaorders@assalock.com.

The ASSA Key Records Department carefully designs and records master key systems in compliance with customer

requirements and ASSA security policy. System documents are thoroughly detailed, produced, and professionally

presented, and should be considered valuable and confidential. Key Records information and service is available

as follows:

Factory Keyed Cylinders:

Cylinders pinned by the factory are supplied “Keyed Different” or if so specified as one of the following options:

• Master Keyed (Bittings provided at No Charge when requested with the order)

• Keyed Alike/Keyed Different

• Single Keyed Different (Part of MK System)

Factory does not recommend cross-keying

and will not warranty any cross-keyed cylinders.

Keys and Keying

Column Content Character Limit

1 Item # 4

2 Cyl. Quan. 4

3 Cyl/Cam PN 12

4 Finish 5

5 Column Unused Column Unused

6 Keyset 12

7 Key Quan. 4

8 Door # 12

9 Comments 20

10 Spl. Key stamp 12 (For stamping other than

DHI or SKCS standard)

11 Column Unused Column Unused

12 Column Unused Column Unused

13 Column Unused Column Unused

14 Cross Keying Info 20

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

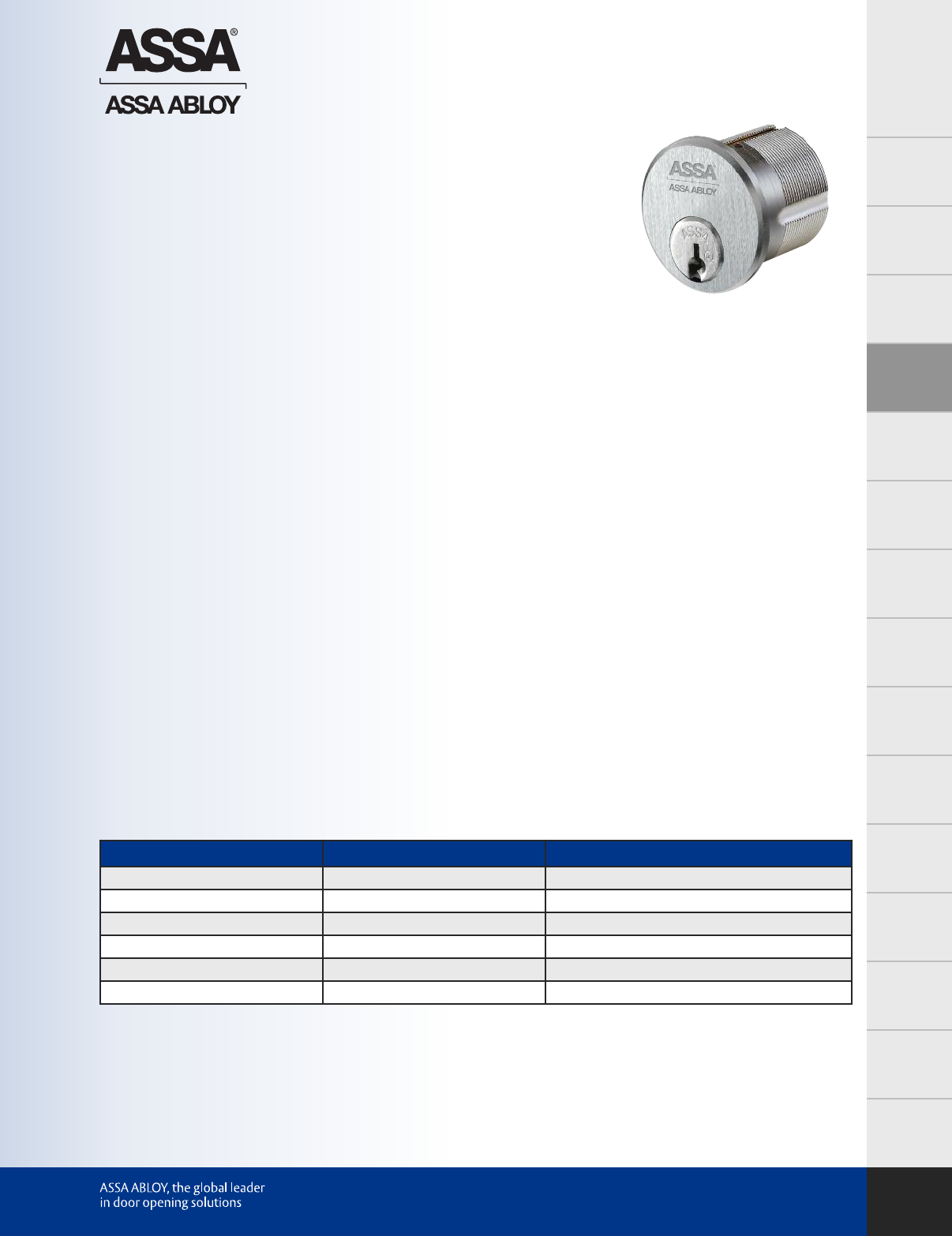

Mortise Cylinders

Benefits:

• Drill resistant cylinder housing

and plug

• Case-hardened steel inserts and

stainless steel pins

•Two independent locking

mechanisms to ensure

optimum pick resistance

• Inactive “false” gates in side pins

designedto increasepick resistance

• Counter mill in each chamber

position to further enhance pick

resistance

• Extremely close tolerances

• Can be easily rekeyed in the field

•Withthepurchaseofoneinexpensive

kit, 1-1/8" mortise cylinder is easily

converted to rim cylinder

Certification:

• All ASSA High Security Mortise

cylinders are U.L. 437 Listed

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

Technical Information:

• Available in cylinder lengths 1-1/8"

through 2" in 1/8" increments

• Available with limited rotation

and/or unidirectional features

• 13 cam options available

• Cylinder housing and plug are

made of high quality brass

• Stainless steel top pins

• Bottom pins and master pins are

nickel silver

ASSA mortise cylinders are designed to replace several original

manufacturers’ cylinders in their locksets offering the highest

level of security available on the market today. Made to standard

U.S. dimensions, these rugged cylinders are available in a variety

of finishes and lengths and stand up to even the heaviest abuse.

All ASSA High Security mortise cylinders are listed under U.L. 437,

a set of tests for determining the cylinder's physical resistance

against various forms of attack. ASSA mortise cylinders will improve the security of

standard mortise locksets by Arrow, Corbin/Russwin, Sargent, Schlage, Yale and many

other manufacturers.

BHMA Symbol U.S. Symbol Description

625 US 26 Bright Chrome

626 US 26D Satin Chrome

605 US 3 Bright Brass

606 US 4 Satin Brass

612 US 10 Satin Bronze

624 US 10B Dark Oxidized Bronze

Finishes:

Note: Plug finishes available in 626 and 606 only.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

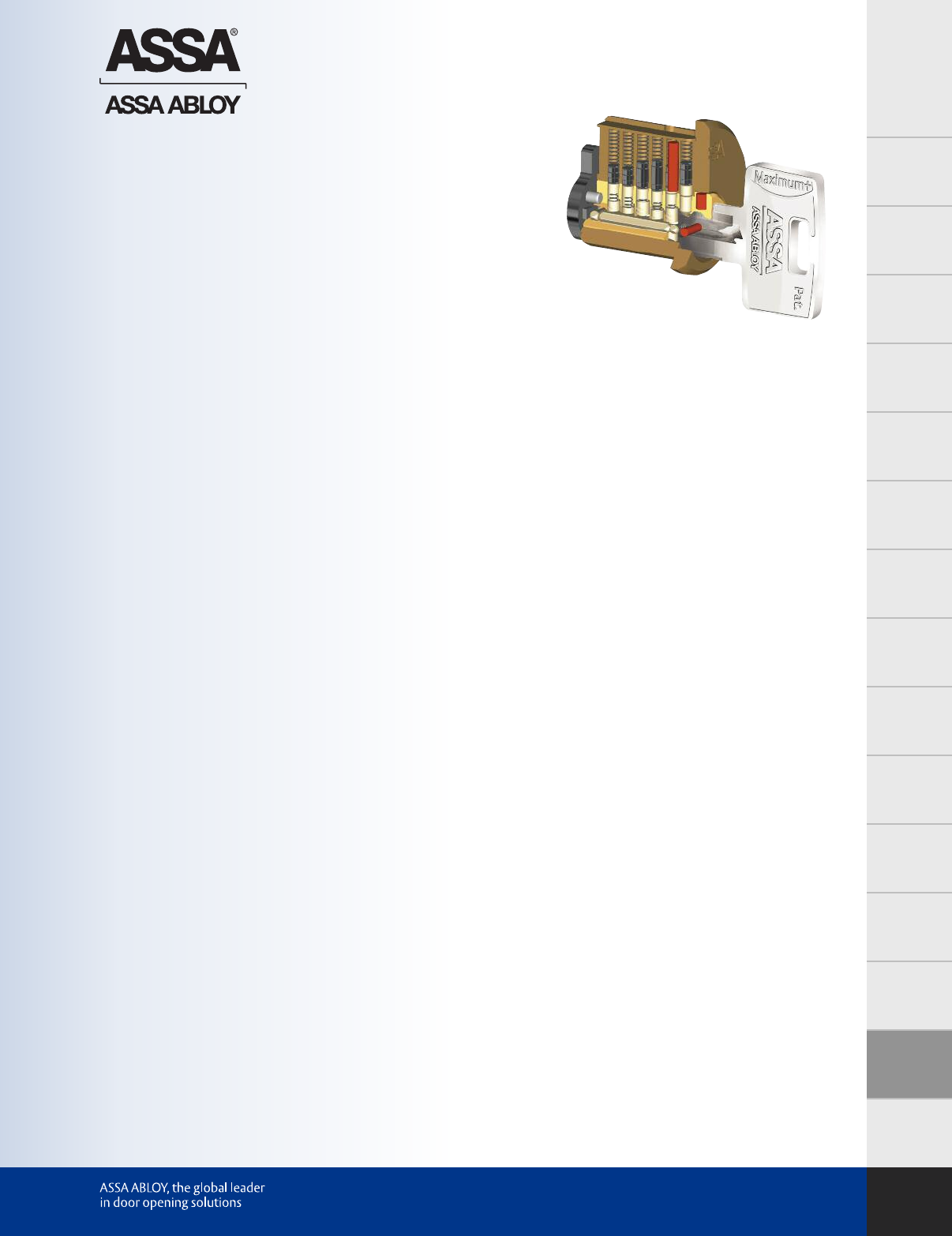

Spool Driver Pins

Countermilling

Side Bar

Shear Line

Side Bar

No key inserted:

• Standard pins block the shear line

• Side bar rests in groove of cylinder

housing, blocking movement of plug

Drill-resistant

Cylinder Housing

Standard-pin

Tumbler System

Drill-resistant

Cylinder Plug

Coded Side Bar

Locking System

Correct key inserted:

• System code of key lifts standard pins to shear line

• Side bar code of key lifts side pins into a position

where the side bar can be received. Side bar then

recesses into plug as key is turned

System Code

Large Key-bow

Side Bar Code

Mortise Cylinders Cut-Away View

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

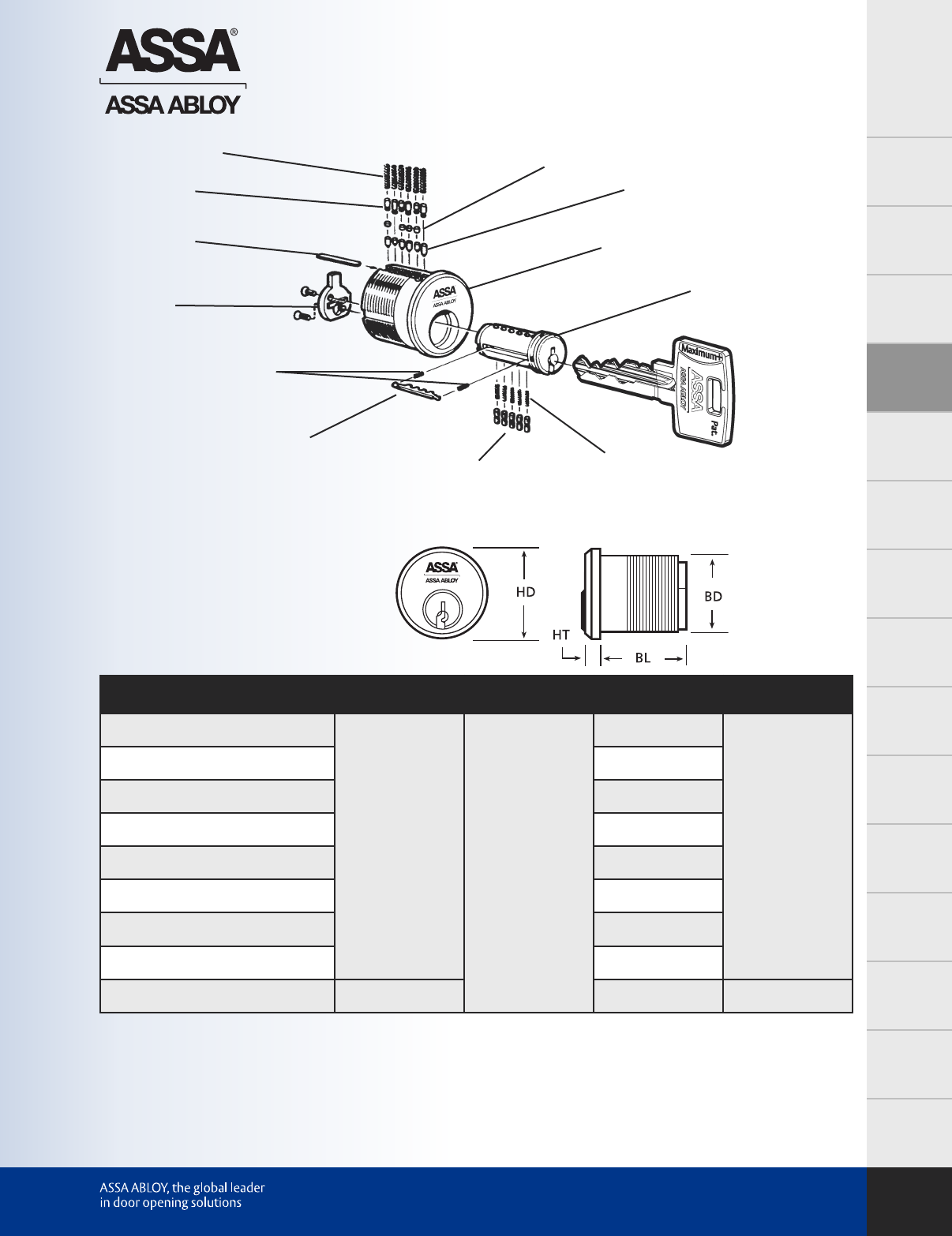

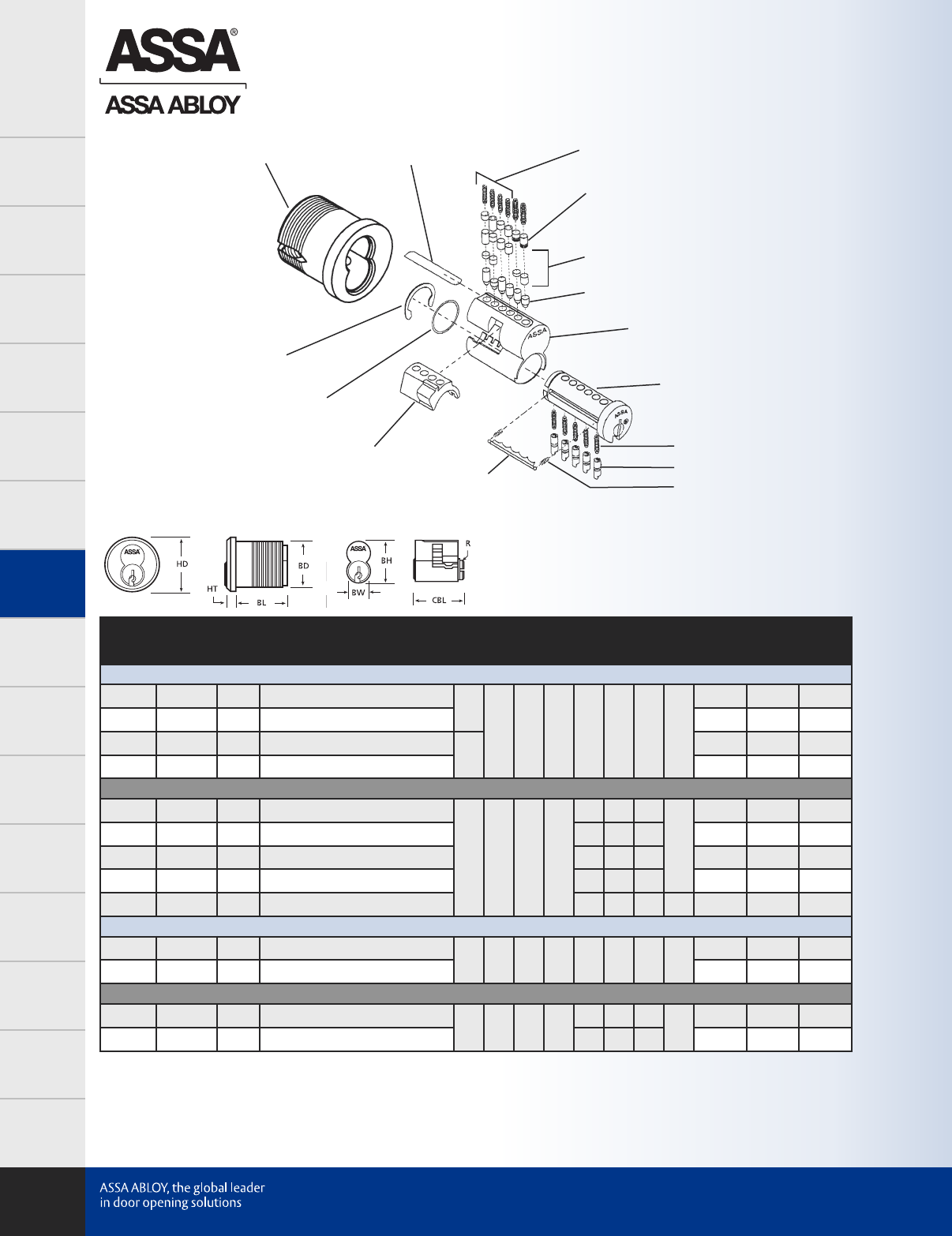

Mortise Cylinders Exploded View

Cylinder Springs

Top Pins

Cover Strip

Master Pins

Cylinder Housing

Cylinder Plug

Bottom Pins

Cam

Sidebar

Sidebar Springs

Side Pins Side Pin Spring

Mortise Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length (Includes Cam)

BD – Body Diameter

Mortise Cylinders Specifications

Description HD

Head Diameter

Head Thickness

BodyLength w/Cam

Body Diameter

1-1/8" Mortise Cylinders

1.366" 0.138"

1.125"

1.157"

1-1/4" Mortise Cylinders 1.25"

1-3/8" Mortise Cylinders 1.375"

1-1/2" Mortise Cylinders 1.5"

1-5/8" Mortise Cylinders 1.625"

1-3/4" Mortise Cylinders 1.75"

1-7/8" Mortise Cylinders 1.875"

2" Mortise Cylinders 2.0"

Corbin Jumbo Mortise Cylinder 1.648" 1.125" 1.492"

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Cam # Description RA – Head Radius RB – Overall Radius

#1 Adams Rite Cam 0.118" 0.555"

#2 Sargent Cam N/A 0.709"

#3 Corbin Clover Leaf Cam 0.114" 0.602"

#4 Corbin Beaver Tail Cam N/A 0.732"

#5 Yale Standard Cam N/A 0.709"

#6 Schlage “L” Cam 0.124" 0.516"

#7 Segal Type Cam N/A 0.779"

#8 Corbin Jumbo Cam N/A 0.914"

#9 Best 30H Cam 0.114" 0.602"

#10 AirTeq/Norment Cam N/A 0.787"

#12 Corbin Jumbo Clover Leaf 0.114" 0.828"

#13 Sargent Short Cam N/A 0.515"

#15 Yale Replacement Cam 0.308" 0.742"

Adams Rite

Sargent

Corbin

Clover Leaf

Corbin

Beaver Tail

Yale Standard

Schlage L

Segal Type

Corbin Jumbo

Best 30H

#10

AirTeq/Norment

#12

Corbin Jumbo

Clover Leaf

#13

Sargent

Short

#15

Yale Rep.

Available Cams for Mortise Locks

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Mortise Cylinders

Mortise Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length (Includes Cam)

BD – Body Diameter

Model#/Cam Notes Size Description HD HT BL BD Comp Sub SNS

Maximum+

9851- (Specify Cam) † 1-1/8"

Maximum+

Mortise Cylinder 1.366" 0.138"

1.125"

1.157"

126.75 119.25 112.25

9852- (Specify Cam) † 1-1/4" 1.25" 136.75 127.00 119.75

9853- (Specify Cam) 1-3/8" 1.375" 301.75 294.25 287.25

9854- (Specify Cam) 1-1/2" 1.50" 317.50 310.00 303.00

9855- (Specify Cam) 1-5/8" 1.625" 322.25 314.75 307.75

9856- (Specify Cam) 1-3/4" 1.75" 328.50 321.00 314.00

9857- (Specify Cam) 1-7/8" 1.875" 335.00 327.50 320.50

9858- (Specify Cam) 2" 2.0" 342.50 335.00 328.00

Maximum+ Restricted

R2851- (Specify Cam) † 1-1/8"

Maximum+

Restricted

Mortise Cylinder

1.366" 0.138"

1.125"

1.157"

45.00 32.00 —

R2852- (Specify Cam) † 1-1/4" 1.25" 60.50 46.75 —

R2853- (Specify Cam) 1-3/8" 1.375" 72.75 67.75 —

R2854- (Specify Cam) 1-1/2" 1.50" 65.50 51.75 —

R2855- (Specify Cam) 1-5/8" 1.625" 93.50 89.00 —

Twin Maximum

8851- (Specify Cam) † 1-1/8"

Twin Maximum

Mortise Cylinder 1.366" 0.138"

1.125"

1.157"

136.75 127.25 120.25

8852- (Specify Cam) † 1-1/4" 1.25" 147.75 138.25 131.25

8853- (Specify Cam) 1-3/8" 1.325" 325.25 317.75 310.75

8854- (Specify Cam) 1-1/2" 1.50" 342.75 335.25 328.25

8855- (Specify Cam) 1-5/8" 1.625" 337.50 330.00 323.00

8856- (Specify Cam) 1-3/4" 1.75" 344.00 336.50 329.50

8857- (Specify Cam) 1-7/8" 1.875" 351.25 343.75 336.75

8858- (Specify Cam) 2" 2.0" 359.00 351.50 344.50

Twin Exclusive

E6551- (Specify Cam) † 1-1/8"

Twin Exclusive

Mortise Cylinder 1.366" 0.138"

1.125"

1.157"

151.75 141.25 133.75

E6552- (Specify Cam) † 1-1/4" 1.25" 164.00 153.50 145.75

E6553- (Specify Cam) 1-3/8" 1.325" 372.25 364.00 356.50

E6554- (Specify Cam) 1-1/2" 1.50" 380.50 372.25 364.75

E6555- (Specify Cam) 1-5/8" 1.625" 374.75 366.50 359.00

E6556- (Specify Cam) 1-3/4" 1.75" 382.25 374.00 366.25

E6557- (Specify Cam) 1-7/8" 1.875" 390.25 382.00 374.25

E6558- (Specify Cam) 2" 2.0" 398.75 390.50 382.75

Twin 6000 Classic

6551- (Specify Cam) † 1-1/8"

Twin 6000 Classic

Mortise Cylinder 1.366" 0.138"

1.125"

1.157"

151.75 142.00 133.75

6552- (Specify Cam) † 1-1/4" 1.25" 164.00 153.50 145.75

6553- (Specify Cam) 1-3/8" 1.375" 372.25 364.00 356.50

6554- (Specify Cam) 1-1/2" 1.50" 380.50 372.25 364.75

6555- (Specify Cam) 1-5/8" 1.625" 374.75 366.50 359.00

6556- (Specify Cam) 1-3/4" 1.75" 382.25 374.00 366.25

6557- (Specify Cam) 1-7/8" 1.875" 390.25 382.00 374.25

6558- (Specify Cam) 2" 2.0" 398.75 390.50 382.75

– Twin Maximum available with either CLIQ™Remote or C4 CLIQ™Technology, add $535.50.

Example: 8851-1 xCLIQ x 626 x Sidebar x Comp

† Available in special function cylinders, see page 5, add $36.35.

How To Order ASSA Mortise Cylinders:

Example: Model # Cam # Finish Security Form Keyway

9851- ...............1 (Cams 1-6 no extra charge) ...........................626 ...................Sub.............................0A7-200

(Cams 7-15 add $5.00 to price of cylinder) Contact Customer Service Department for Keyway Numbers.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Mortise Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length (Includes Cam)

BD – Body Diameter

Model#/Cam Notes Size Description HD HT BL BD Comp Sub SNS

Twin V-10

V6551- (Specify Cam) † 1-1/8"

Twin V-10 Mortise

Cylinder 1.366" 0.138"

1.125"

1.157"

156.50 146.00 138.25

V6552- (Specify Cam) † 1-1/4" 1.25" 168.75 158.50 150.75

V6553- (Specify Cam) 1-3/8" 1.375" 372.25 364.00 356.50

V6554- (Specify Cam) 1-1/2" 1.50" 380.50 372.25 364.75

V6555- (Specify Cam) 1-5/8" 1.625" 374.75 366.50 359.00

V6556- (Specify Cam) 1-3/4" 1.75" 382.25 374.00 366.25

V6557- (Specify Cam) 1-7/8" 1.875" 390.25 382.00 374.25

V6558- (Specify Cam) 2" 2.0" 398.75 390.50 382.75

Twin Pro

6151- (Specify Cam) † 1-1/8"

Twin Pro Mortise

Cylinder 1.366" 0.138"

1.125"

1.157"

156.50 146.00 138.25

6152- (Specify Cam) † 1-1/4" 1.25" 168.75 158.50 150.75

6153- (Specify Cam) 1-3/8" 1.325" 372.25 364.00 356.50

6154- (Specify Cam) 1-1/2" 1.50" 380.50 372.25 364.75

6155- (Specify Cam) 1-5/8" 1.625" 374.75 366.50 359.00

6156- (Specify Cam) 1-3/4" 1.75" 382.25 374.00 366.25

6157- (Specify Cam) 1-7/8" 1.875" 390.25 382.00 374.25

6158- (Specify Cam) 2" 2.0" 398.75 390.50 382.75

Twin Low

L651- (Specify Cam) 1-1/8"

Twin Low Mortise

Cylinder 1.366" 0.138"

1.125"

1.157"

134.00 125.75 —

L652- (Specify Cam) 1-1/4" 1.25" 134.00 125.75 —

L653- (Specify Cam) 1-3/8" 1.325" 265.50 257.25 —

L654- (Specify Cam) 1-1/2" 1.50" 273.00 264.75 —

L655- (Specify Cam) 1-5/8" 1.625" 263.75 255.50 —

L656- (Specify Cam) 1-3/4" 1.75" 271.25 263.00 —

L657- (Specify Cam) 1-7/8" 1.875" 286.75 278.50 —

L658- (Specify Cam) 2" 2.0" 286.75 278.50 —

Twin 600 Series Classic

651- (Specify Cam) 1-1/8"

Twin 600 Series

Classic Mortise

Cylinder

1.366" 0.138"

1.125"

1.157"

134.00 125.75 —

652- (Specify Cam) 1-1/4" 1.25" 134.00 125.75 —

653- (Specify Cam) 1-3/8" 1.325" 265.50 257.25 —

654- (Specify Cam) 1-1/2" 1.50" 273.00 264.75 —

655- (Specify Cam) 1-5/8" 1.625" 263.75 255.50 —

656- (Specify Cam) 1-3/4" 1.75" 271.25 263.00 —

657- (Specify Cam) 1-7/8" 1.875" 286.75 278.50 —

658- (Specify Cam) 2" 2.0" 286.75 278.50 —

† Available in special function cylinders, see page 5, add $36.35.

Mortise Cylinders

How To Order ASSA Mortise Cylinders:

Example: Model # Cam # Finish Security Form Keyway

9851- ...............1 (Cams 1-6 no extra charge) ...........................626 ...................Sub.............................0A7-200

(Cams 7-15 add $5.00 to price of cylinder) Contact Customer

Service Department for

Keyway Numbers.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

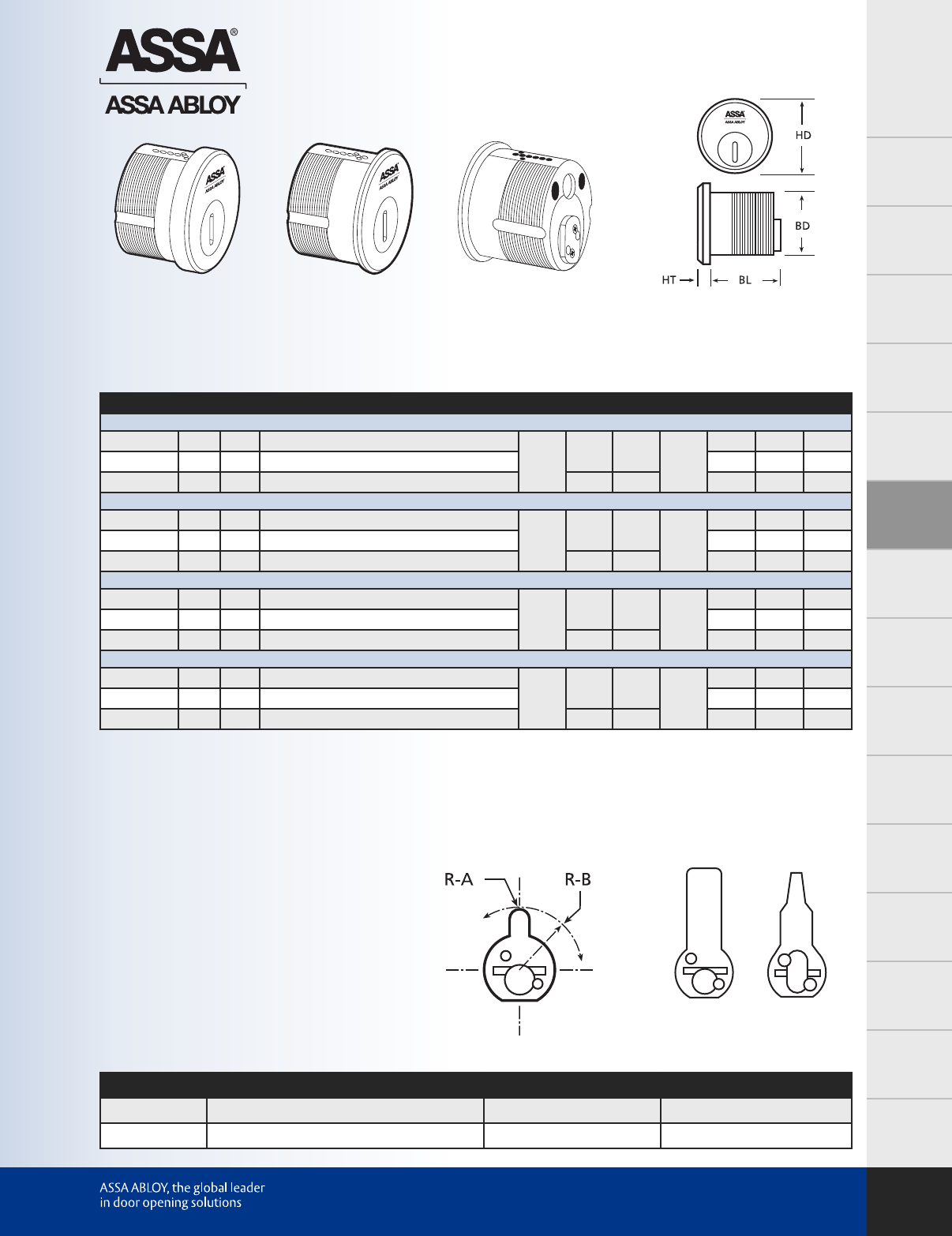

Mortise Cylinders

Mortise Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length (Includes Cam)

BD – Body Diameter

Model#/Cam Notes Description HD HT BL BD Comp Sub SNS

Maximum+

7951-8 † Corbin Jumbo Mortise Cylinder

with Corbin Jumbo Cam 1.648" 0.138" 1.125" 1.492"

283.00 275.50 268.50

7951-12 † Corbin Jumbo Mortise Cylinder

w/ Cor. Jumbo Clover Cam 283.00 275.50 268.50

Twin Maximum

7851-8 † Corbin Jumbo Mortise Cylinder

with Corbin Jumbo Cam 1.648" 0.138" 1.125" 1.492"

291.25 283.75 276.75

7851-12 † Corbin Jumbo Mortise Cylinder

w/ Cor. Jumbo Clover Cam 291.25 283.75 276.75

Twin Exclusive

E7551-8 † Corbin Jumbo Mortise Cylinder

with Corbin Jumbo Cam 1.648" 0.138" 1.125" 1.492"

333.00 322.50 315.00

E7551-12 † Corbin Jumbo Mortise Cylinder

w/ Cor. Jumbo Clover Cam 333.00 322.50 315.00

Twin 6000 Classic

7551-8 † Corbin Jumbo Mortise Cylinder

with Corbin Jumbo Cam 1.648" 0.138" 1.125" 1.492"

333.00 322.50 315.00

7551-12 † Corbin Jumbo Mortise Cylinder

w/ Cor. Jumbo Clover Cam 333.00 322.50 315.00

Twin V-10

V7551-8 † Corbin Jumbo Mortise Cylinder

with Corbin Jumbo Cam 1.648" 0.138" 1.125" 1.492"

333.00 322.50 315.00

V7551-12 † Corbin Jumbo Mortise Cylinder

w/ Cor. Jumbo Clover Cam 333.00 322.50 315.00

Twin Pro

7151-8 † Corbin Jumbo Mortise Cylinder

with Corbin Jumbo Cam 1.648" 0.138" 1.125" 1.492"

333.00 322.50 315.00

7151-12 † Corbin Jumbo Mortise Cylinder

w/ Cor. Jumbo Clover Cam 333.00 322.50 315.00

Twin Low

L751-8 Corbin Jumbo Mortise Cylinder

with Corbin Jumbo Cam 1.648" 0.138" 1.125" 1.492"

269.00 259.50 —

L751-12 Corbin Jumbo Mortise Cylinder

w/ Cor. Jumbo Clover Cam 269.00 259.50 —

Twin Low 600 Series Classic

751-8 Corbin Jumbo Mortise Cylinder

with Corbin Jumbo Cam 1.648" 0.138" 1.125" 1.492"

269.00 259.50 —

751-12 Corbin Jumbo Mortise Cylinder

w/ Cor. Jumbo Clover Cam 269.00 259.50 —

Corbin Jumbo Mortise Cylinders

– Twin Maximum available with either CLIQ™Remote or C4 CLIQ™Technology, add $535.50.

Example: 7851-8 xCLIQ x 626 x Sidebar x Comp

† Available in special function cylinders, see page 5, add $36.35.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

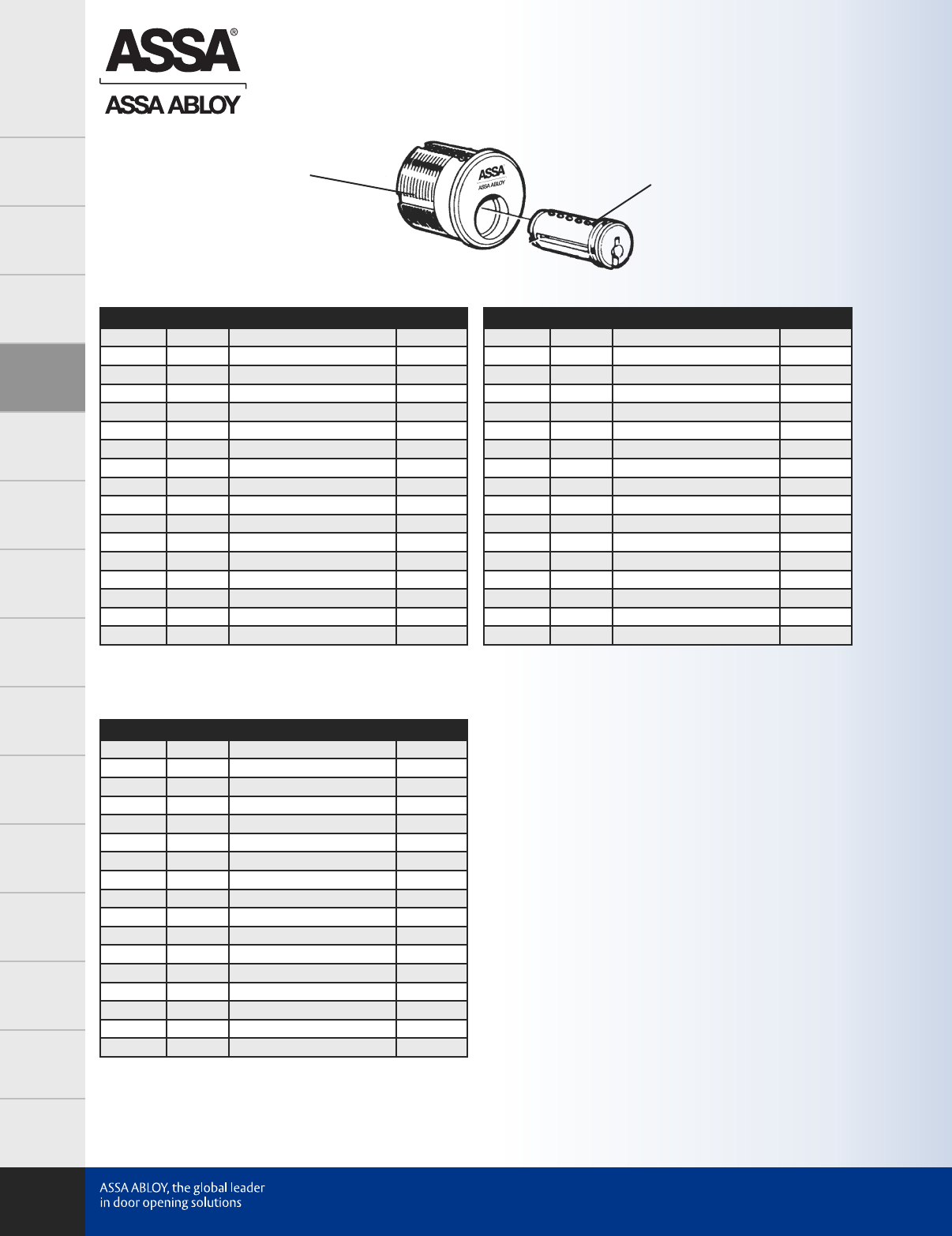

Model# Notes Description Price

867429 * 1-1/8" Cylinder Shell 90.65

867430 * 1-1/4" Cylinder Shell 90.65

867431 * 1-3/8" Cylinder Shell 153.10

867432 * 1-1/2" Cylinder Shell 153.10

867433 * 1-5/8" Cylinder Shell 144.25

867434 * 1-3/4" Cylinder Shell 149.95

867435 * 1-7/8" Cylinder Shell 159.90

867436 * 2" Cylinder Shell 166.25

807987 * Corbin Jumbo 1-1/8" Shell 104.55

353970 * 1-1/8" Cylinder Plug 43.00

353971 * 1-1/4" Cylinder Plug 46.50

353972 * 1-3/8" Cylinder Plug 49.15

353973 * 1-1/2" Cylinder Plug 53.35

353974 * 1-5/8" Cylinder Plug 58.85

353975 * 1-3/4" Cylinder Plug 67.85

353976 * 1-7/8" Cylinder Plug 69.25

353977 * 2" Cylinder Plug 76.30

Twin V-10

Model# Notes Description Price

867429 * 1-1/8" Cylinder Shell 90.65

867430 * 1-1/4" Cylinder Shell 90.65

867431 * 1-3/8" Cylinder Shell 153.10

867432 * 1-1/2" Cylinder Shell 153.10

867433 * 1-5/8" Cylinder Shell 144.25

867434 * 1-3/4" Cylinder Shell 149.95

867435 * 1-7/8" Cylinder Shell 159.90

867436 * 2" Cylinder Shell 166.25

807987 * Corbin Jumbo 1-1/8" Shell 104.55

367019 * † 1-1/8" Cylinder Plug 43.00

367020 * † 1-1/4" Cylinder Plug 43.00

367021 * † 1-3/8" Cylinder Plug 52.00

367022 * † 1-1/2" Cylinder Plug 54.75

367023 * † 1-5/8" Cylinder Plug 44.35

367024 * † 1-3/4" Cylinder Plug 65.05

367025 * † 1-7/8" Cylinder Plug 70.70

367026 * † 2" Cylinder Plug 76.30

Twin Exclusive / Twin 6000 Classic

Model# Notes Description Price

867429 * 1-1/8" Cylinder Shell 90.65

867430 * 1-1/4" Cylinder Shell 90.65

867431 * 1-3/8" Cylinder Shell 153.10

867432 * 1-1/2" Cylinder Shell 153.10

867433 * 1-5/8" Cylinder Shell 144.25

867434 * 1-3/4" Cylinder Shell 149.95

867435 * 1-7/8" Cylinder Shell 159.90

867436 * 2" Cylinder Shell 166.25

807987 * Corbin Jumbo 1-1/8" Shell 104.55

356955 * † 1-1/8" Cylinder Plug 39.10

356956 * † 1-1/4" Cylinder Plug 39.10

356957 * † 1-3/8" Cylinder Plug 44.70

356958 * † 1-1/2" Cylinder Plug 48.50

356959 * † 1-5/8" Cylinder Plug 53.50

356960 * † 1-3/4" Cylinder Plug 59.15

356961 * † 1-7/8" Cylinder Plug 59.15

356962 * † 2" Cylinder Plug 69.35

Maximum+ / Twin Maximum / Twin Pro

Cylinder Shell Cylinder Plug

* – Indicates Finished Components.

† – Specify Profile. 51, 851

* – Indicates Finished Components* – Indicates Finished Components.

† – Specify Profile. 0A7, 0M7

Mortise Component Parts

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

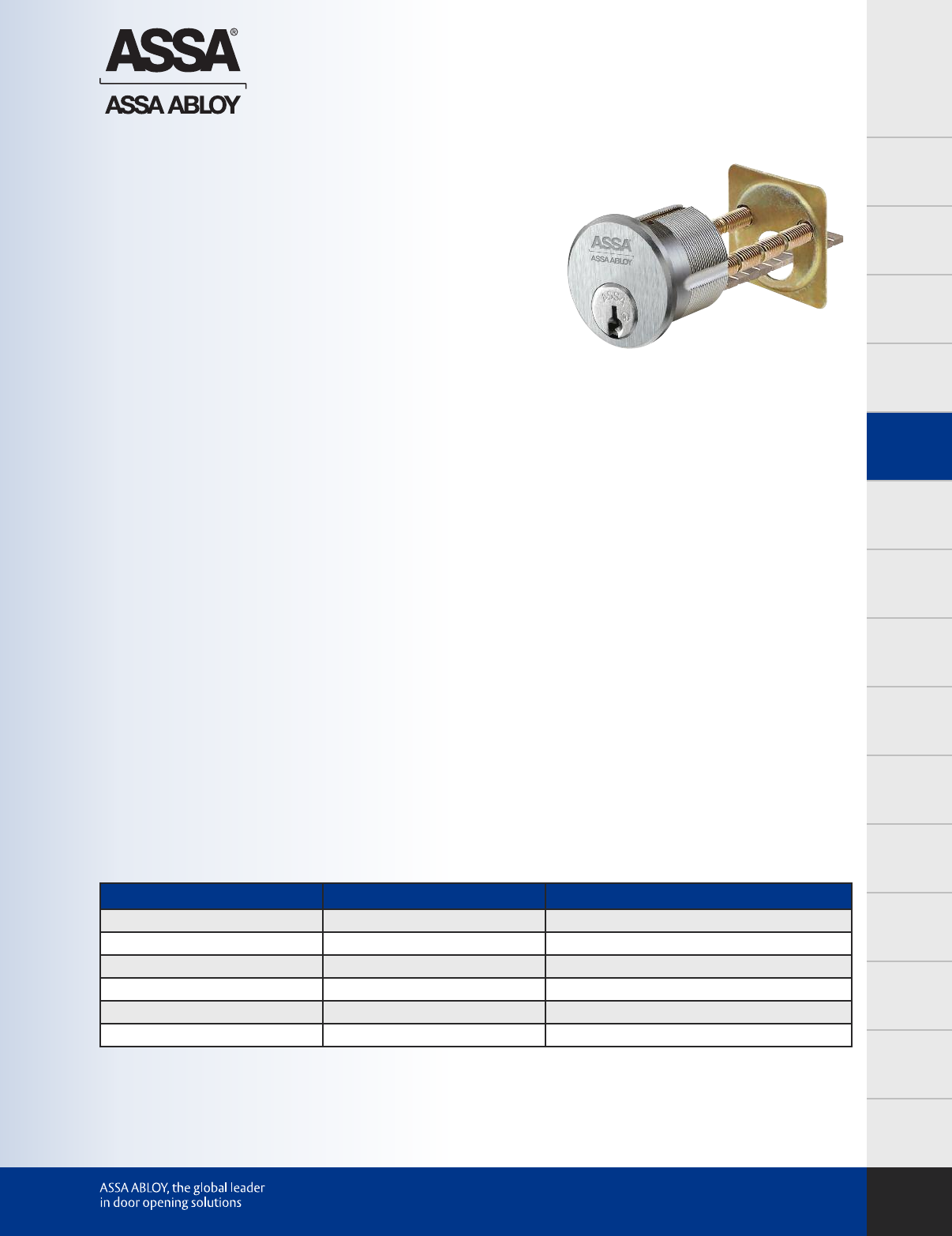

Rim Cylinders

Benefits:

• Drill resistant cylinder housing

and plug

• Case-hardened steel inserts and

stainless steel pins

•Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive “false” gates in side

pins designed to increase pick

resistance

• Counter mill in each chamber

position to further enhance

pick resistance

• Extremely close tolerances

• Can be easily rekeyed in the field

• Standard and Sargent hole

pattern available

• Standard rim cylinder is easily

converted to mortise cylinder

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

Certification:

• AllASSAHigh Security Rimcylinders

are U.L. 437 Listed

Technical Information:

• Available with limited rotation

and/or unidirectional features

• Cylinder housing and plug are

made of high quality brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

Commonly used on apartment and condominium doors,

ASSA rim cylinders are used on vertical deadbolt locks and

are also designed for commercial exit and panic devices.

Available with either horizontal/vertical break-off or

lazy-motion type break-off tailpieces, ASSA rim cylinders

can be ordered with the standard or the Sargent rim exit

device mounting patterns. The standard rim cylinder can

be easily converted to a mortise cylinder by simply

replacing the rim tailpiece assembly with the

appropriate cam.

BHMA Symbol U.S. Symbol Description

625 US 26 Bright Chrome

626 US 26D Satin Chrome

605 US 3 Bright Brass

606 US 4 Satin Brass

612 US 10 Satin Bronze

624 US 10B Dark Oxidized Bronze

Finishes:

Note: Plug finishes available in 626 and 606 only.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Drill-resistant

Cylinder Housing

Standard-pin

Tumbler System

Drill-resistant

Cylinder Plug

Coded Side Bar

Locking System

Rim Cylinder

Mounting Plate

Rim Cylinder

Mounting Screws

Tailpiece

System Code

Large Key-bow

Side Bar Code

Rim Cylinders Cut-Away View

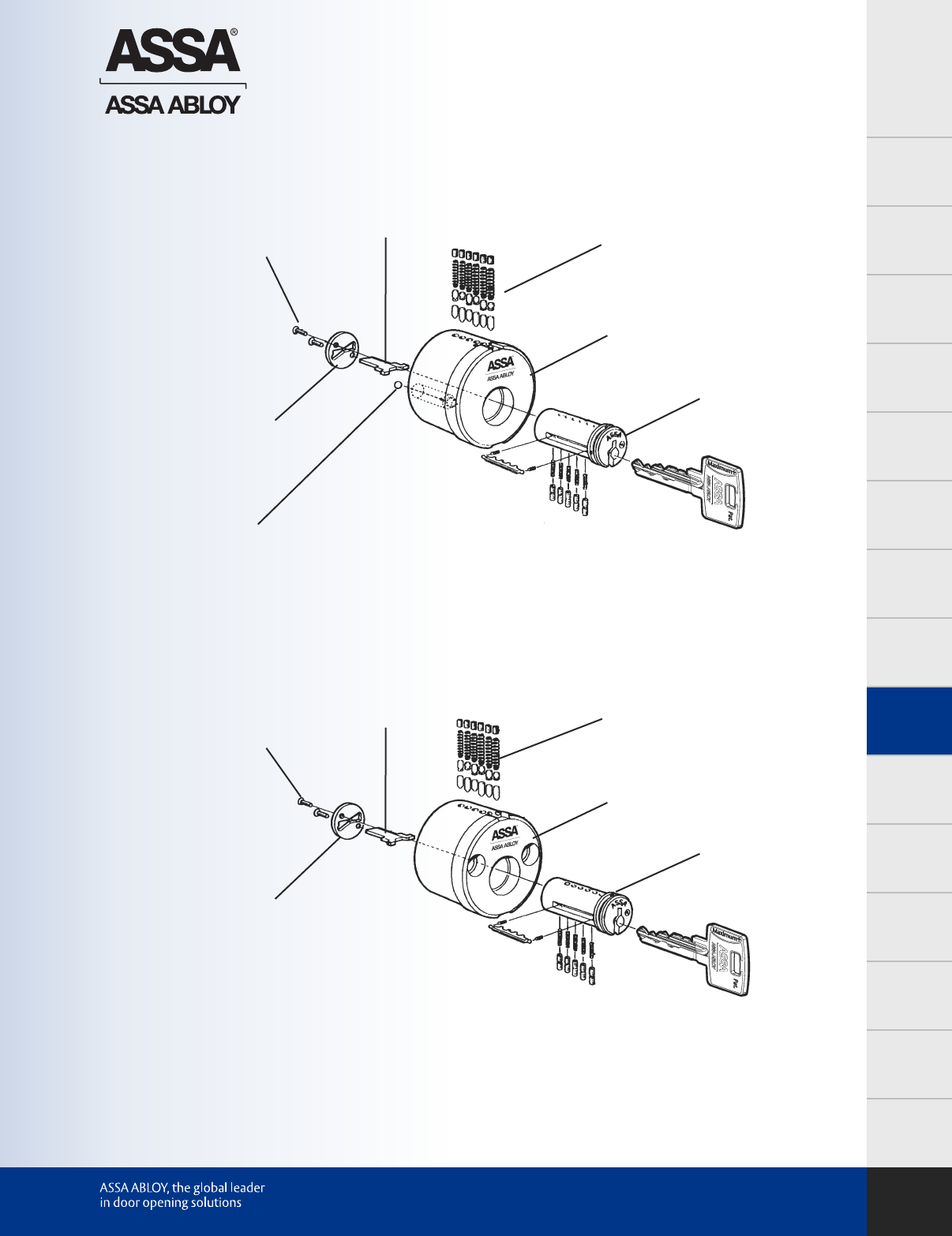

Rim Cylinders Exploded View

Cylinder Springs

Top Pins

Cover Strip

Cylinder Shell

Cylinder Plug

Bottom Pins

Available Tailpieces

Sidebar Sidebar

Springs Side Pins

Side Pin

Spring

Master Pins

Prices Effective April 1, 2018

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Rim Cylinders

Mortise Cylinder Key:

HD – Head Diameter HT – Head Thickness BL – Body Length (Includes Retainer) BD – Body Diameter

H/V L

Available Tailpieces

Model# Tailpiece

(Specify) Notes Description HD HT BL BD Comp Sub SNS

Maximum+ Rim Cylinders

9851 H, V, or L † 1-1/8" Rim Cylinder 1.366" 0.138" 1.290"

1.157"

152.25 142.50 135.25

7951 H, V, or L † Corbin Jumbo Rim Cylinder 1.643" 0.170" 1.270" 288.50 281.00 274.00

S9851 H, V, or L † SpecialSGTCylinder(DrilledforSGT.Devices) 1.366" 0.138" 1.290" 168.00 160.00 153.00

Maximum+ Restricted Rim Cylinders

R2851 H, V, or L 1-1/8" Rim Cylinder 1.366" 0.138" 1.290" 1.157" 57.50 44.00 —

RS2851 H, V, or L SpecialSGTCylinder(DrilledforSGT.Devices) 71.25 66.75 —

Twin Maximum Rim Cylinders

8851 H, V, or L † 1-1/8" Rim Cylinder 1.366" 0.138" 1.290"

1.157"

162.50 152.75 145.50

7851 H, V, or L † Corbin Jumbo Rim Cylinder 1.643" 0.170" 1.270" 296.75 289.25 282.25

S8851 H, V, or L † SpecialSGTCylinder(DrilledforSGT.Devices) 1.366" 0.138" 1.290" 170.75 162.75 155.75

Twin Exclusive Rim Cylinders

E6551 H, V, or L † 1-1/8" Rim Cylinder 1.366" 0.138" 1.290"

1.157"

180.75 170.00 162.00

E7551 H, V, or L † Corbin Jumbo Rim Cylinder 1.643" 0.170" 1.270" 351.50 341.00 333.25

ES6551 H, V, or L † SpecialSGTCylinder(DrilledforSGT.Devices) 1.366" 0.138" 1.290" 195.50 186.75 179.00

Twin 6000 Classic Rim Cylinders

6551 H, V, or L † 1-1/8" Rim Cylinder 1.366" 0.138" 1.290"

1.157"

186.50 175.75 167.75

7551 H, V, or L † Corbin Jumbo Rim Cylinder 1.643" 0.170" 1.270" 352.00 341.50 333.75

S6551 H, V, or L † SpecialSGTCylinder(DrilledforSGT.Devices) 1.366" 0.138" 1.290" 195.50 186.75 179.00

Twin V-10 Rim Cylinders

V6551 H, V, or L † 1-1/8" Rim Cylinder 1.366" 0.138" 1.290"

1.157"

186.50 175.75 167.75

V7551 H, V, or L † Corbin Jumbo Rim Cylinder 1.643" 0.170" 1.270" 351.50 341.00 333.25

VS6551 H, V, or L † SpecialSGTCylinder(DrilledforSGT.Devices) 1.366" 0.138" 1.290" 195.50 186.75 179.00

Twin Pro Rim Cylinders

6151 H, V, or L † 1-1/8" Rim Cylinder 1.366" 0.138" 1.290"

1.157"

186.50 175.75 167.75

7151 H, V, or L † Corbin Jumbo Rim Cylinder 1.643" 0.170" 1.270" 352.00 341.50 333.75

S6151 H, V, or L † SpecialSGTCylinder(DrilledforSGT.Devices) 1.366" 0.138" 1.290" 195.50 186.75 179.00

Twin Low Rim Cylinders

L651 H, V, or L 1-1/8" Rim Cylinder 1.366" 0.138" 1.290"

1.157"

140.25 132.00 —

L751 H, V, or L Corbin Jumbo Rim Cylinder 1.643" 0.170" 1.270" 276.50 267.00 —

LS651 H, V, or L SpecialSGTCylinder(DrilledforSGT.Devices) 1.366" 0.138" 1.290" 172.25 162.25 —

600 Series Rim Cylinders

651 H, V, or L 1-1/8" Rim Cylinder 1.366" 0.138" 1.290"

1.157"

140.25 132.00 —

751 H, V, or L Corbin Jumbo Rim Cylinder 1.643" 0.170" 1.270" 276.50 267.00 —

S651 H, V, or L SpecialSGTCylinder(DrilledforSGT.Devices) 1.366" 0.138" 1.290" 172.25 162.25 —

– Twin Maximum available with either CLIQ™Remote or C4 CLIQ™Technology $535.50.

Example: 8851-H x CLIQ x 626 x Sidebar x Comp Note: V = Vertical; H = Horizontal; L = Lazy Motion.

Note:Allrimcylindersaresuppliedwithaspringloadedcollar. †Availableinspecialfunctioncylinders,seepage5, add $36.35.

Prices Effective April 1, 2018

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Cylinder Shell Cylinder Plug

* – Indicates Finished Components.

† – Specify Profile.

Rim Cylinder mounting plates, screws included with cylinder.

All items available separately below:

Part No. Description Price

900210............Rim cylinder mounting plate.................................2.65

900211............Rim cylinder mounting screws .............................2.05

900209............Kit, includes plate and 2 screws............................3.75

900212............Rim cylinder collar rings

(Finish 605, 624 & 626

ONLY

)...............................6.25

867450............Horizontal & Vertical Rim Tailpiece Kit,

includes 900209 Kit...............................................24.95

867451............Lazy Motion Rim Tailpiece Kit,

includes 900209 Kit...............................................24.95

Aluminum blocking rings, finish 626 or 624 ONLY

Part No. Thickness Price

900219............1/4".................................................7.15

900220............3/8".................................................7.15

900221............1/2".................................................7.15

Adjustable collar ring, Item No. 900222,

finish 626,605 or 624

ONLY

, ..........................13.85

Hardened collar ring, Item No. 900223,

finish 626 or 624

ONLY

, ...................................21.15

Corbin Jumbo Collar, Item No. 900224,

finish 626,

ONLY

................................................17.50

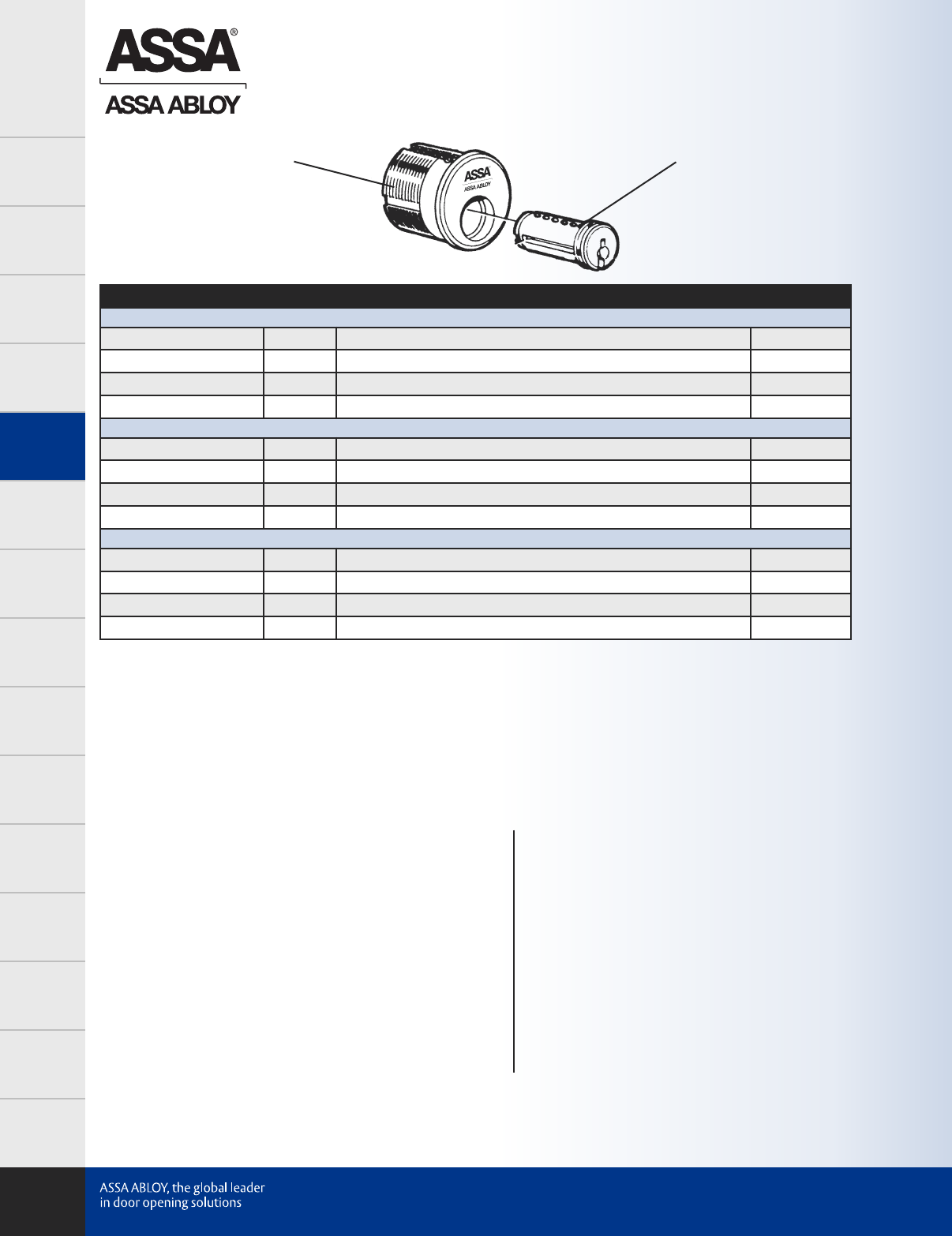

Rim Cylinder Component Parts

Model# Notes Description Price

Maximum + / Twin Maximum / Twin Pro

354947 * SARGENT Drilled Rim Shell 130.95

867429 * 1-1/8" Cylinder Shell 90.65

807987 * Corbin Jumbo 1-1/8" Shell 104.55

356955 * 1-1/8" Cylinder Plug (Profile 0A7 or 0M7) 39.10

Twin Exclusive / Twin 6000 Classic

354947 * SARGENT Drilled Rim Shell 130.95

867429 * 1-1/8" Cylinder Shell 90.65

807987 * Corbin Jumbo 1-1/8" Shell 104.55

367019 * † 1-1/8" Cylinder Plug (Profile 51 or 851) 43.00

Twin V-10

354947 * SARGENT Drilled Rim Shell 130.95

867429 * 1-1/8" Cylinder Shell 90.65

807987 * Corbin Jumbo 1-1/8" Shell 104.55

353970 * † 1-1/8" Cylinder Plug 43.00

How To Order ASSA Rim Cylinders:

Example: Model # Tailpiece Finish Security Form Keyway

9851-.........................H ..........................................626.............................Sub ...............................................0A7-200

Contact Customer Service

Department for Keyway

Numbers.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

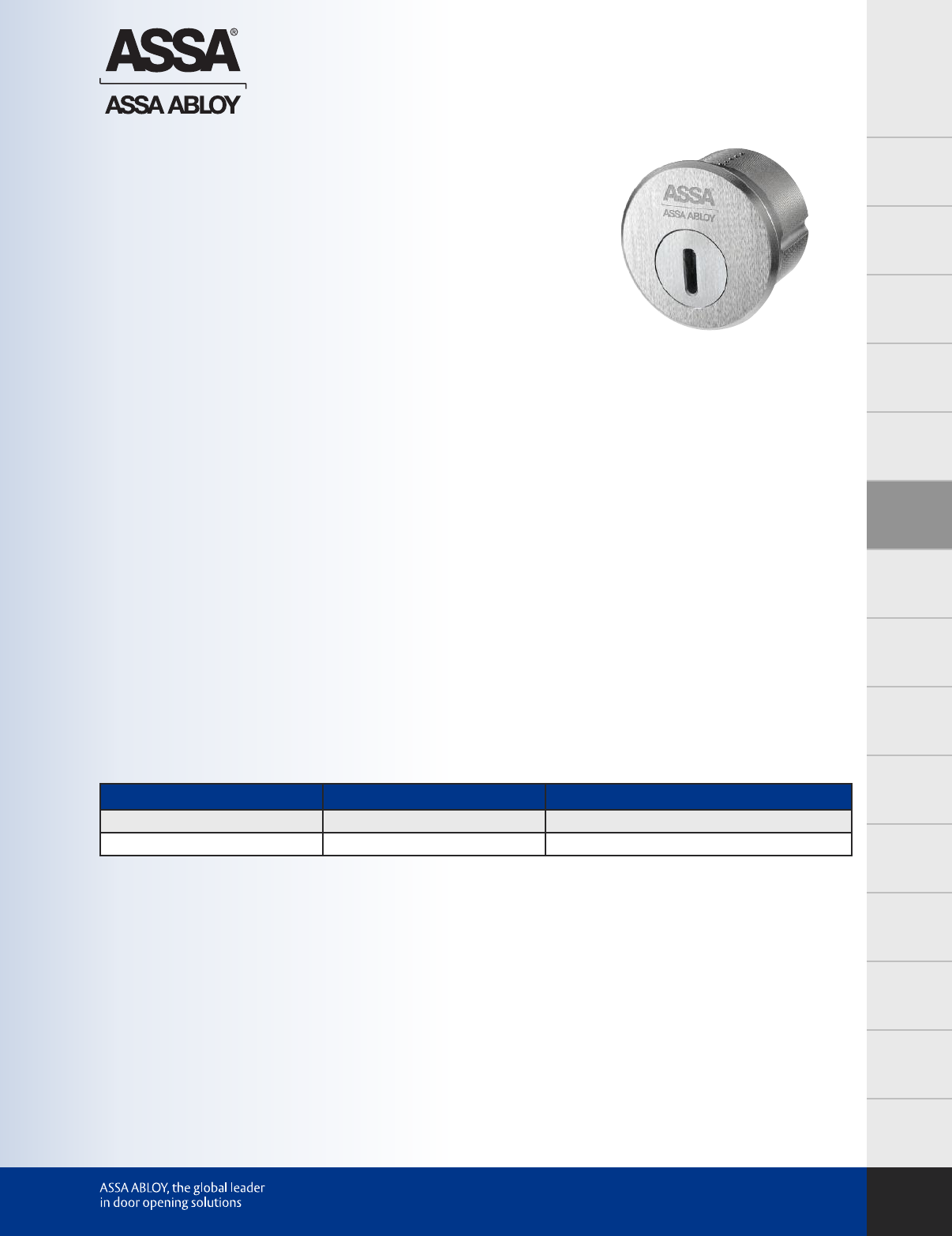

High Security Mogul Cylinders

Benefits:

• Hardened plug cover plate to

prevent drill attack

• Case-hardened steel inserts and

stainless steel pins

• Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive “false” grooves on side

pins designed to enhance pick

resistance

• Counter mill in each chamber

position to further enhance pick

resistance

• Extremely close tolerances

• Can be easily rekeyed in the field

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

Certification:

• All ASSA Twin Series Mogul

cylinders are U.L. 437 listed as

well as ASTM F 1577 6.6 Certified

for standard test methods for

Detention Locks

Technical Information:

• Available in 1-1/8"

and 1-1/2" lengths

• Available with limited rotation

and/or unidirectional features

• Cylinder housing and plug are

made of high quality brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

ASSA Mogul cylinders are designed to provide the maximum

level of security and durability. Available for Folger Adam,

AirTeq/Norment, R.R. Brink, Sargent, and Southern Steel

detention locksets, the ASSA Mogul is the smart choice for

today’s corrections industry. A hardened cover plate and

hardened steel inserts in the cylinder shell provide protection

against even the most savage and determined forms of

physical attack.

BHMA Symbol U.S. Symbol Description

626 US 26D Satin Chrome

606 US 4 Satin Brass

Finishes:

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Pin Chamber

Closing Rod Pin Chamber

Springs

Cam

Cam Screws

Cylinder Shell

Side Bar Side Bar

Springs

Side Pins

Side Pin

Springs

Top Pins

Bottom Pins

Cylinder Plug

Hardened

Cover Plate

Pin Chamber

Closing Rod Pin Chamber

Springs

Cam Adapter

Cam Screws

Cylinder Shell

Side Bar

Side Pins

Top Pins

Bottom Pins

Cylinder Plug

Hardened

Cover Plate

1-1/8" Mogul Cylinder

1-1/2" Mogul Cylinder

Side Bar

Springs Side Pin

Springs

High Security Mogul Cylinders Exploded View

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

High Security Mogul Cylinders

1-1/8" Mogul Cylinder

AirTeq/Norment

R.R. Brink

1-1/2" Mogul Cylinder

Southern Steel

Folger Adam

AirTeq/Norment

Mogul Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length (Includes Cam)

BD – Body Diameter

Mdl#/Cam Notes Size Description HD HT BL BD Comp Sub SNS

Twin Maximum Mogul Cylinders

M8551-11 † 1-1/8" AirTeq/Norment Cyl with Mogul Cam

2.245" 0.340" 1.260" 2.0"

271.50 264.00 257.00

M8551-14 † 1-1/8" AirTeq/Norment Cyl with SGT Mogul Cam 271.50 264.00 257.00

M8551SS † 1-1/2" Southern Steel Cyl without Cam 0.120" 1.590" 271.50 264.00 257.00

Twin Exclusive Mogul Cylinders

E8551-11 † 1-1/8" AirTeq/Norment Cyl with Mogul Cam

2.245" 0.340" 1.260" 2.0"

279.50 272.00 265.00

E8551-14 † 1-1/8" AirTeq/Norment Cyl with SGT Mogul Cam 279.50 272.00 265.00

E8551SS † 1-1/2" Southern Steel Cyl without Cam 0.120" 1.590" 279.50 272.00 265.00

Twin V-10 Mogul Cylinders

V8551-11 † 1-1/8" AirTeq/Norment Cyl with Mogul Cam

2.245" 0.340" 1.260" 2.0"

279.50 272.00 265.00

V8551-14 † 1-1/8" AirTeq/Norment Cyl with SGT Mogul Cam 279.50 272.00 265.00

V8551SS † 1-1/2" Southern Steel Cyl without Cam 0.120" 1.590" 279.50 272.00 265.00

Twin 6000 Classic Mogul Cylinders

8551-11 † 1-1/8" AirTeq/Norment Cyl with Mogul Cam

2.245" 0.340" 1.260" 2.0"

282.25 274.75 267.75

8551-14 † 1-1/8" AirTeq/Norment Cyl with SGT Mogul Cam 282.25 274.75 267.75

8551SS † 1-1/2" Southern Steel Cyl without Cam 0.120" 1.590" 282.25 274.75 267.75

No Cams offered for 1-1/2" Mogul Cylinders.

† Available in special function cylinders, see page 5.

Cam # Description RA – Head Radius RB – Overall Radius

#11 Mogul Cam N/A 1.165"

#14 Sargent Mogul Cam N/A 1.043"

#11

Mogul

#14

Sargent

Mogul Cam

Available Cams

for High Security

Mogul Cylinders

No Cams offered for 1-1/2" Mogul cylinders

† Available in special function cylinders, see page 5, add $36.35.

How To Order ASSA High Security Mogul Cylinders:

Example: Model # Cam Finish Security Form Keyway

E8551- ......................11 ...............................626....................Sub......................................851-200

Contact Customer

Service Department for

Keyway Numbers.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

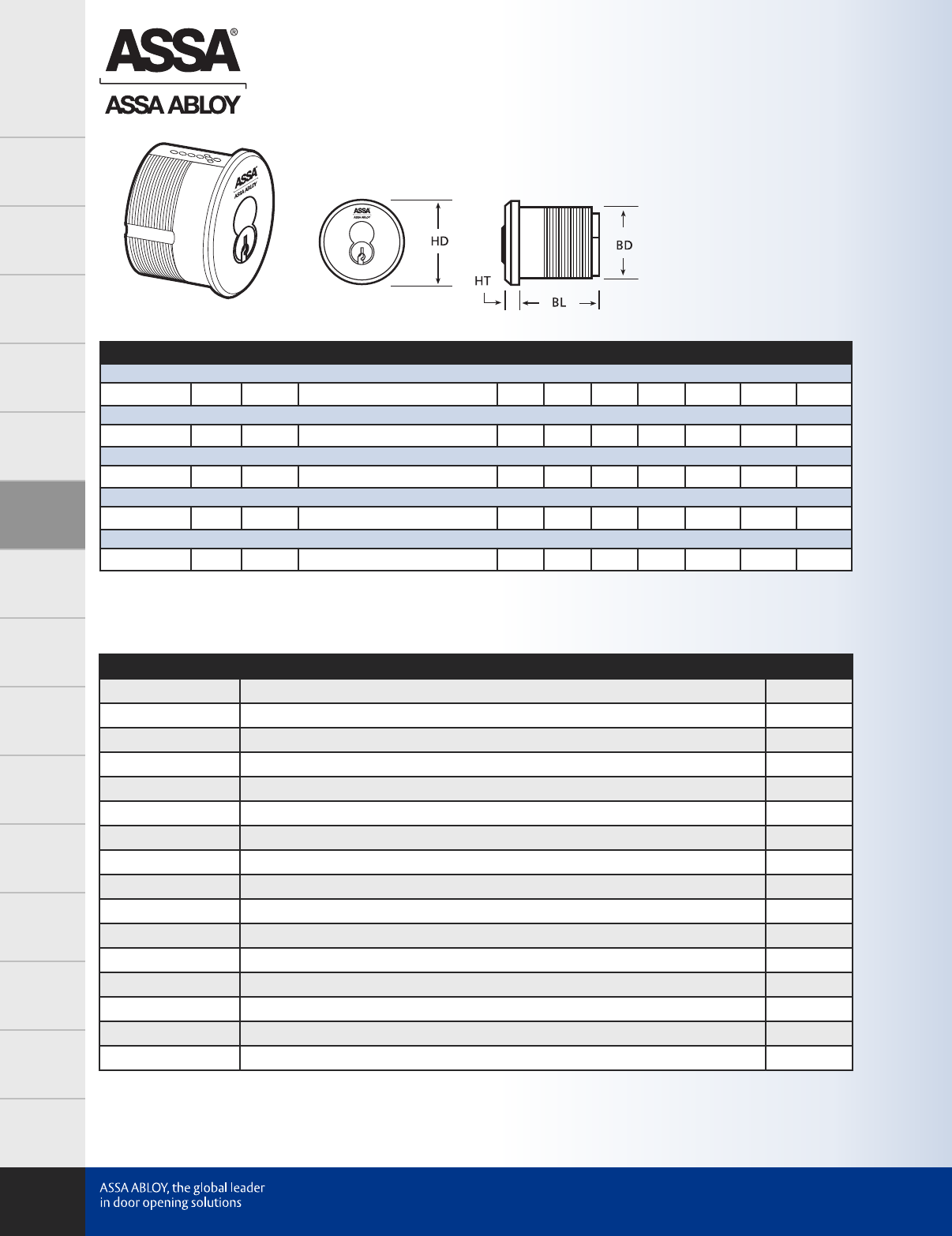

Model#/Cam Notes Size Description HD HT BL BD Comp Sub SNS

Twin Maximum Interchangeable Core Mogul Cylinders

M8551SSIC 1-1/2" Southern Steel IC Cyl w/o Cam 2.245" 0.120" 1.590" 2.0" 384.50 379.00 372.00

Twin Exclusive Interchangeable Core Mogul Cylinders

E8551SSIC 1-1/2" Southern Steel IC Cyl w/o Cam 2.245" 0.120" 1.590" 2.0" 395.75 390.25 383.25

Twin V-10 Interchangeable Core Mogul Cylinders

V8551SSIC 1-1/2" Southern Steel IC Cyl w/o Cam 2.245" 0.120" 1.590" 2.0" 399.75 394.25 387.25

Twin 6000 Classic Interchangeable Core Mogul Cylinders

8551SSIC 1-1/2" Southern Steel IC Cyl w/o Cam 2.245" 0.120" 1.590" 2.0" 399.75 392.25 385.25

ASSA 1-1/2" Temporary Interchangeable Red Core Mogul Cylinders

8551SSICR 1-1/2" Southern Steel IC Cyl w/o Cam 2.245" 0.120" 1.590" 2.0" 399.75 — —

1-1/2" IC Mogul Cylinder

Mogul Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length (Includes Cam)

BD – Body Diameter

High Security Mogul Component Parts

Model#/Cam Description Price

354050 Twin Exclusive Plug for 1-1/8" Mogul Cylinder 60.80

250893 Twin Exclusive Plug for 1-1/2" Mogul Cylinder 62.00

250861 Twin V-10 Plug for 1-1/8" Mogul Cylinder 62.60

250894 Twin V-10 Plug for 1-1/2" Mogul Cylinder 62.60

360451 Twin Maximum Plug for 1-1/8" Mogul Cylinder 60.85

251126 Twin Maximum Plug for 1-1/2" Mogul Cylinder 60.80

8551DUM 1-1/8" Mogul Dummy Cylinder 136.75

8551SSDUM 1-1/2" Mogul Dummy Cylinder 136.75

80601* 1-1/2" Mogul IC Housing 240.50

354051* 1-1/8" Mogul Cylinder Housing 99.70

357672* 1-1/2" Mogul Cylinder Housing 103.00

354993 Cam Adapter for 1-1/2" Cylinder 18.50

809339* Mogul Cylinder Plug Cover Plate 21.10

907035 Mogul Chamber Screw Wrench 1.95

806974 Closing Rod 1.60

812151 Cam Adapter Screws 1.05

* – Indicates Finished Components.

To order Interchangeable Cores separately – see pages 38, 39 & 40 for details.

High Security IC Mogul Cylinders

For temporary cores refer to Red Core on page 5.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Interchangeable Core Cylinders

Benefits:

• Easily rekeyed openings in

the field

• Can be used in master key

system with standard locks

• Available in multiple

manufacturers’ formats

• Drill resistant cylinder housing

and plug

• Case-hardened steel inserts

and stainless steel pins

•Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive “false” gates in side pins

designed to increase pick resistance

• Counter mill in each chamber

position to further enhance pick

resistance

Technical Information:

• Available for 1-1/4" and 1-3/4"

mortise and rim cylinders

• Build-up pins in first four

positions operate control

feature

•Cylinder housing and

interchangeable core are

made of high quality brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

Certification:

• Only ASSA format High Security

Interchangeable core cylinders

are listed under U.L. 437

Designed with both security and convenience in mind,

the ASSA Large Format Interchangeable core cylinder is

perfect for apartment buildings, dormitories, classrooms,

and other applications requiring instant rekeying capabilities.

This cylinder is adaptable to a variety of large format

interchangeable core applications and can be integrated

into master keyed systems that use both standard and

interchangeable core cylinders. Available in standard ASSA format, large format Schlage,

Yale 6 pin, Sargent 6 pin, and Corbin-Russwin 6 pin formats. Only ASSA format High Security

Interchangeable core cylinders are listed under U.L. 437.

BHMA Symbol U.S. Symbol Description

625 US 26 Bright Chrome

626 US 26D Satin Chrome

605 US 3 Bright Brass

606 US 4 Satin Brass

612 US 10 Satin Bronze

624 US 10B Dark Oxidized Bronze

Finishes IC Mortise Cylinder Housings Only:

Note: Plug and IC Shells available in 626 and 606 finishes only.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

IC Control Chamber Springs

Spool Top Pin

Build-Up Pins

Bottom Pins

IC Shell

Cylinder Plug

Side Pin Spring

IC Closing Strip

Side Pin

Sidebar Spring

Sidebar

IC Control Sleeve

IC Wave Washer

IC C Ring

IC Cylinder Housing

Model# Cam or

Tailpiece

(Specify)

Notes Description HD HT BL BD BH BW CBL R Comp Sub SNS

Maximum+ Mortise and Rim IC Cylinders

9852IC Cam 1-1/4" IC Mortise Cylinder 1.366"

0.175" 1.125" 1.157" 1.055" 0.655" 1.247" 0.036"

198.25 190.75 183.75

9852IC H, V or L 1-1/4" IC Rim Cylinder 205.50 198.00 191.00

7951IC Cam 1-1/4" CorbinJumbo IC MortiseCyl 1.643" 348.75 341.25 334.25

7951IC H, V or L 1-1/4" Corbin Jumbo IC Rim Cyl 358.25 350.75 343.75

Interchangeable Cores Only

98600IC ASSA IC 6 Pin Core Only

N/A N/A N/A N/A

1.055" 0.655" 1.247"

0.036"

119.50 114.00 107.00

99060IC † Sargent IC 6 Pin Core Only N/A N/A 1.247" 119.50 114.00 107.00

91060IC Schlage IC 6 Pin Core Only 1.045" 0.628" 1.450" 119.50 114.00 107.00

98060IC Yale Style IC 6 Pin Core Only 1.045" 0.671" 1.415" 119.50 114.00 107.00

95060IC ▲CorbinRusswinStyleIC6PinCoreOnly N/A N/A N/A N/A 146.75 141.25 134.25

Maximum+ Restricted Mortise and Rim IC Cylinders

R2852IC Cam 1-1/4" IC Mortise Cylinder 1.366" 0.175" 1.125" 1.157" 1.055" 0.655" 1.247" 0.036" 139.75 134.75 —

R2852IC H, V or L 1-1/4" IC Rim Cylinder 152.00 146.00 —

Interchangeable Cores Only

R28600IC ASSA IC 6 Pin Core Only N/A N/A N/A N/A 1.055" 0.655" 1.247" 0.036" 94.25 80.00 —

R28060IC Yale Style IC 6 Pin Core Only 1.045" 0.671" 1.415" 88.25 71.25 —

Mortise and Rim IC Cylinders

Mortise Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length

(Includes Cam)

BD – Body Diameter

BH – Body Height

BW – Body Width

CBL – IC Core Body Length

R– Retainer

For temporary cores refer to Red Core on page 5.

† This cylinder requires part # SGTRCTOOL for mortise and rim cylinders. See Page 88.

▲This cylinder requires part # CRRCTOOL for mortise and rim cylinders. See Page 88.

Notes:

Mortise and Rim IC Cylinders Exploded View

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Mortise Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length

(Includes Cam)

BD – Body Diameter

BH – Body Height

BW – Body Width

CBL – IC Core Body Length

R– Retainer

Mortise and Rim IC Cylinders

Model# Camor

ailpiece

(Specify)

Notes Description HD HT BL BD BH BW CBL R Comp Sub SNS

Twin Maximum Mortise and Rim IC Cylinders

8852IC Cam 1-1/4" IC Mortise Cylinder 1.366"

0.175" 1.125" 1.157" 1.055" 0.655" 1.247" 0.036"

214.00 206.50 199.50

8852IC H, V or L 1-1/4" IC Rim Cylinder 221.00 213.50 206.50

7851IC Cam 1-1/4" Corbin Jumbo IC Mortise Cyl 1.643" 358.25 350.75 343.75

7851IC H, V or L 1-1/4" Corbin Jumbo IC Rim Cyl 368.00 360.50 353.50

Interchangeable Cores Only

88600IC ASSA IC 6 Pin Core Only

N/A N/A N/A N/A

1.055" 0.655" 1.247"

0.036"

124.75 119.25 112.25

89060IC † Sargent IC 6 Pin Core Only N/A N/A 1.247" 124.75 119.25 112.25

81060IC Schlage IC 6 Pin Core Only 1.045" 0.628" 1.450" 124.75 119.25 112.25

88060IC Yale Style IC 6 Pin Core Only 1.045" 0.671" 1.415" 124.75 119.25 112.25

85060IC ▲CorbinRusswinStyleIC6PinCoreOnly N/A N/A N/A N/A 153.75 148.25 141.25

Twin Exclusive Mortise and Rim IC Cylinders

E6552IC Cam 1-1/4" IC Mortise Cylinder

1.366" 0.175" 1.125" 1.157" 1.055" 0.655" 1.247" 0.036"

244.75 236.50 228.75

E6552IC H, V or L 1-1/4" IC Rim Cylinder 253.00 244.75 237.00

E7551IC Cam 1-1/4" Corbin Jumbo IC Mortise Cyl 409.50 401.25 393.50

E7551IC H, V or L 1-1/4" Corbin Jumbo IC Rim Cyl 421.00 412.75 405.00

Interchangeable Cores Only

E70600IC ASSA IC 6 Pin Core Only

N/A N/A N/A N/A

1.055" 0.655" 1.247"

0.036"

142.75 136.75 129.00

E90600IC † Sargent IC 6 Pin Core Only N/A N/A 1.247" 142.75 136.75 129.00

E10600IC Schlage IC 6 Pin Core Only 1.045" 0.628" 1.450" 142.75 136.75 129.00

E80600IC Yale Style IC 6 Pin Core Only 1.045" 0.671" 1.415" 142.75 136.75 129.00

For temporary cores refer to Red Core on page 5.

† This cylinder requires part # SGTRCTOOL for mortise cylinders. See Page 88.

▲This cylinder part # CRRCTOOL for mortise cylinders. See Page 88.

–TwinMaximum availablewitheither CLIQ™RemoteorC4 CLIQ™Technology, add $535.50.

Example: 8852IC-1 x CLIQ x 626 x Sidebar x Comp.

Notes:

How To Order ASSA Mortise and Rim IC Cylinders:

Example: Model # Cam # Finish Security Form Keyway

9852IC- ...........1 (Cams 1-6 no extra charge) ...........................626 ...................Sub.............................0A7-200

(Cams 7-15 add $5.00 to price of cylinder) Contact Customer

Service Department

for Keyway Numbers.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

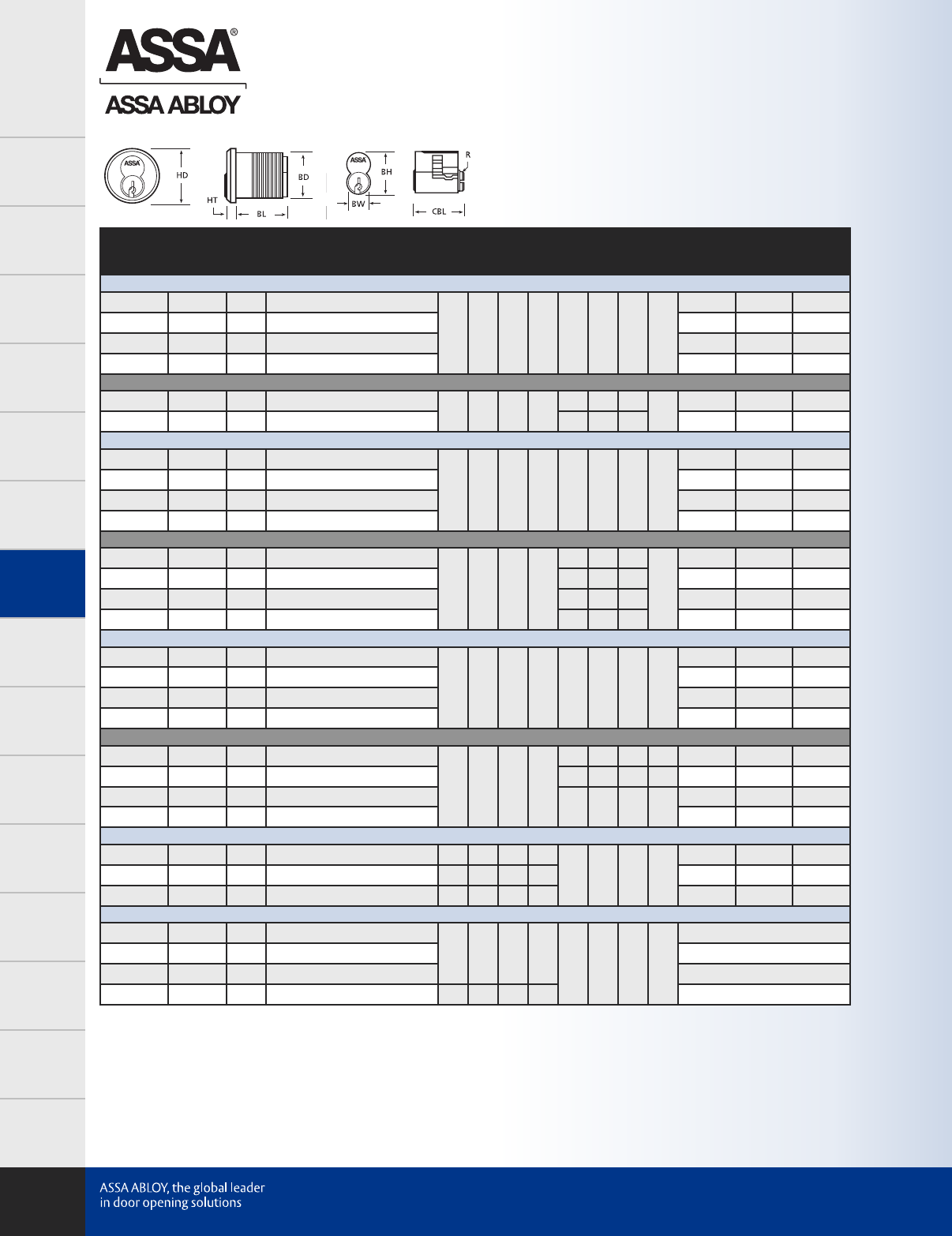

Mortise and Rim IC Cylinders

Model# Camor

Tailpiece

(Specify)

Notes Description HD HT BL BD BH BW CBL R Comp Sub SNS

Twin 6000 Classic Mortise and Rim IC Cylinders

6552IC Cam 1-1/4" IC Mortise Cylinder

1.366" 0.175" 1.125" 1.157" 1.055" 0.655" 1.247" 0.036"

244.75 236.50 228.75

6552IC H, V or L 1-1/4" IC Rim Cylinder 253.00 244.75 237.00

7551IC Cam 1-1/4"CorbinJumboICMortiseCyl 409.50 401.25 393.50

7551IC H, V or L 1-1/4" Corbin Jumbo IC Rim Cyl 421.00 412.75 405.00

Interchangeable Cores Only

70600IC ASSA IC 6 Pin Core Only N/A N/A N/A N/A 1.055" 0.655" 1.247" 0.036" 142.75 136.75 129.00

80600IC Yale Style IC 6 Pin Core Only 1.045" 0.671" 1.415" 142.75 136.75 129.00

Twin V-10 Mortise and Rim IC Cylinders

V6552IC Cam 1-1/4" IC Mortise Cylinder

1.366" 0.175" 1.125" 1.157" 1.055" 0.655" 1.247" 0.036"

244.75 236.50 228.75

V6552IC H, V or L 1-1/4" IC Rim Cylinder 253.00 244.75 237.00

V7551IC Cam 1-1/4"CorbinJumboICMortiseCyl 409.50 401.25 393.50

V7551IC H, V or L 1-1/4" Corbin Jumbo IC Rim Cyl 421.00 412.75 405.00

Interchangeable Cores Only

V70600IC ASSA IC 6 Pin Core Only

N/A N/A N/A N/A

1.055" 0.655" 1.247"

0.036"

142.75 136.75 129.00

V90600IC † Sargent IC 6 Pin Core Only N/A N/A 1.247" 142.75 136.75 129.00

V10600IC Schlage IC 6 Pin Core Only 1.045" 0.628" 1.450" 142.75 136.75 129.00

V80600IC Yale Style IC 6 Pin Core Only 1.045" 0.671" 1.415" 142.75 136.75 129.00

Twin Pro Mortise and Rim IC Cylinders

6152IC Cam 1-1/4" IC Mortise Cylinder

1.366" 0.175" 1.125" 1.157" 1.055" 0.655" 1.247" 0.036"

244.75 236.50 228.75

6152IC H, V or L 1-1/4" IC Rim Cylinder 253.00 244.75 237.00

7152IC Cam 1-1/4"CorbinJumboICMortiseCyl 409.50 401.25 393.50

7152IC H, V or L 1-1/4"CorbinJumboICRimCyl 421.00 412.75 405.00

Interchangeable Cores Only

61600IC ASSA IC 6 Pin Core Only

N/A N/A N/A N/A

1.055" 0.655" 1.247" 0.036" 142.75 136.75 129.00

69060IC † Sargent IC 6 Pin Core Only N/A N/A N/A N/A 142.75 136.75 129.00

61060IC Schlage IC 6 Pin Core Only 1.055" 0.655" 1.247" 0.036" 142.75 136.75 129.00

68060IC Yale Style IC 6 Pin Core Only 142.75 136.75 129.00

1-1/4" Temporary Interchangeable Red Core Mortise/Rim Cylinder

6552ICR Cam *1-1/4" IC Mortise Cylinder 1.366" 0.175" 1.125" 1.157"

––––

222.50 — —

6552ICR H, V or L *1-1/4" IC Rim Cylinder 1.366" 0.175" 1.125" 1.157" 230.00 — —

70600ICR Temp. Const. Core (Red Core) 1.055" 0.655" 1.247" 0.036" 134.00 — —

Interchangeable Core Housings Price

60601 Cam *IC Housing

1.366" 0.175" 1.125" 1.157" ––––

82.50

60601 H, V or L *IC Housing 89.50

60606 Cam *1-3/4" IC Housing 226.00

80601 *1-1/2" Mogul IC Housing 2.245" 0.120" 1.590" 2.0" 240.50

For temporary cores refer to Red Core on page 5.

† This cylinder requires Sargent tailpiece kit part # 867454 for cylindrical locks or part # SGTRCTOOL for mortise cylinders. See Pages 87 & 88.

* – Indicates Finished Components.

Mortise Cylinder Key:

HD – Head Diameter

HT – Head Thickness

BL – Body Length

(Includes Cam)

BD – Body Diameter

BH – Body Height

BW – Body Width

CBL – IC Core Body Length

R– Retainer

How To Order ASSA Mortise and Rim IC Cylinders:

Example: Model # Cam # Finish Security Form Keyway

9852IC- ...........1 (Cams 1-6 no extra charge) ..................626 ...................Sub......................................0A7-200

(Cams 7-15 add $5.00 to price of cylinder) Contact Customer Service Department

for Keyway Numbers.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Key-in-Knob/Lever Cylinders

Benefits:

• Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive “false” gates in side

pins designed to increase pick

resistance

• Counter mill in each chamber

position to further enhance

pick resistance

• Extremely close tolerances

• Can be easily rekeyed in the field

• Patented key control

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

Certification:

• All ASSA Key-in-Knob/Lever

cylinders are U.L. 437 listed

Technical Information:

• Available in 15 different retrofit

assemblies

• Cylinder shell and plug made

of high quality brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

ASSA Key in Knob/Key in Lever cylinders are designed to

replace many original manufacturers’ cylinders in their lock-

sets including Arrow, Corbin/Russwin, Falcon, Sargent,

Schlage, Yale and many other manufacturers thus offering

the highest level of security available on the market today.

BHMA Symbol U.S. Symbol Description

626 US 26D Satin Chrome

606 US 4 Satin Brass

Finishes:

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

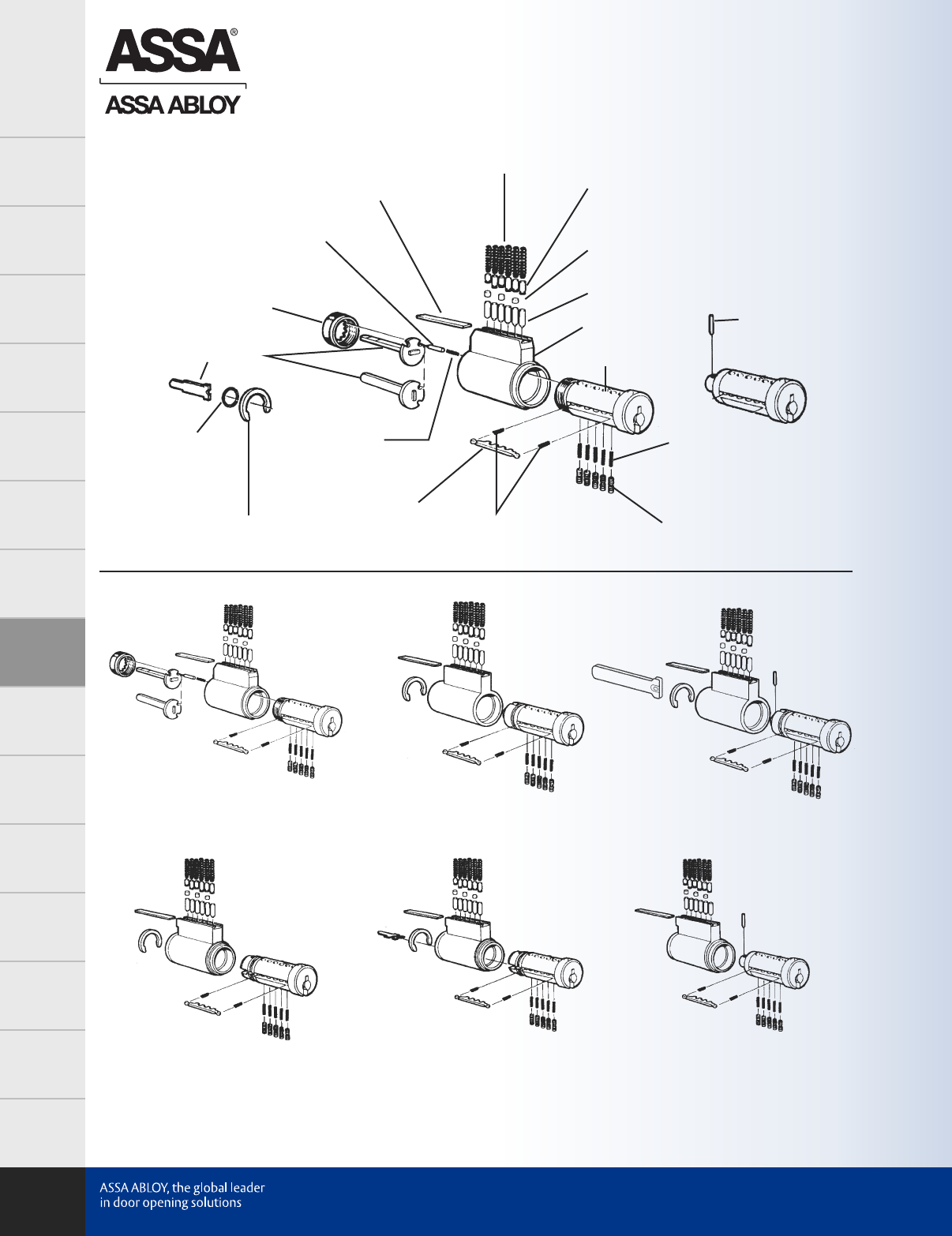

Key-in-Knob/Levers Cylinders Exploded View

XX611 – Schlage XX631 – Yale XX632 – Yale

XX651 – Corbin/Russwin XX652 – Corbin/Russwin XX653 – Corbin/Russwin

Sidebar Side Pin

Side Pin Springs

Roll Pin

Retainer

Shell

Bottom Pins

Build-Up Pins

Top Pins

Springs

Plug

Sidebar Springs

Plug Cap

Tailpiece

Tail Ring

Plug Cap Pin

Closing Strip

Plug Cap Spring

C-Clip Plug Retainer

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

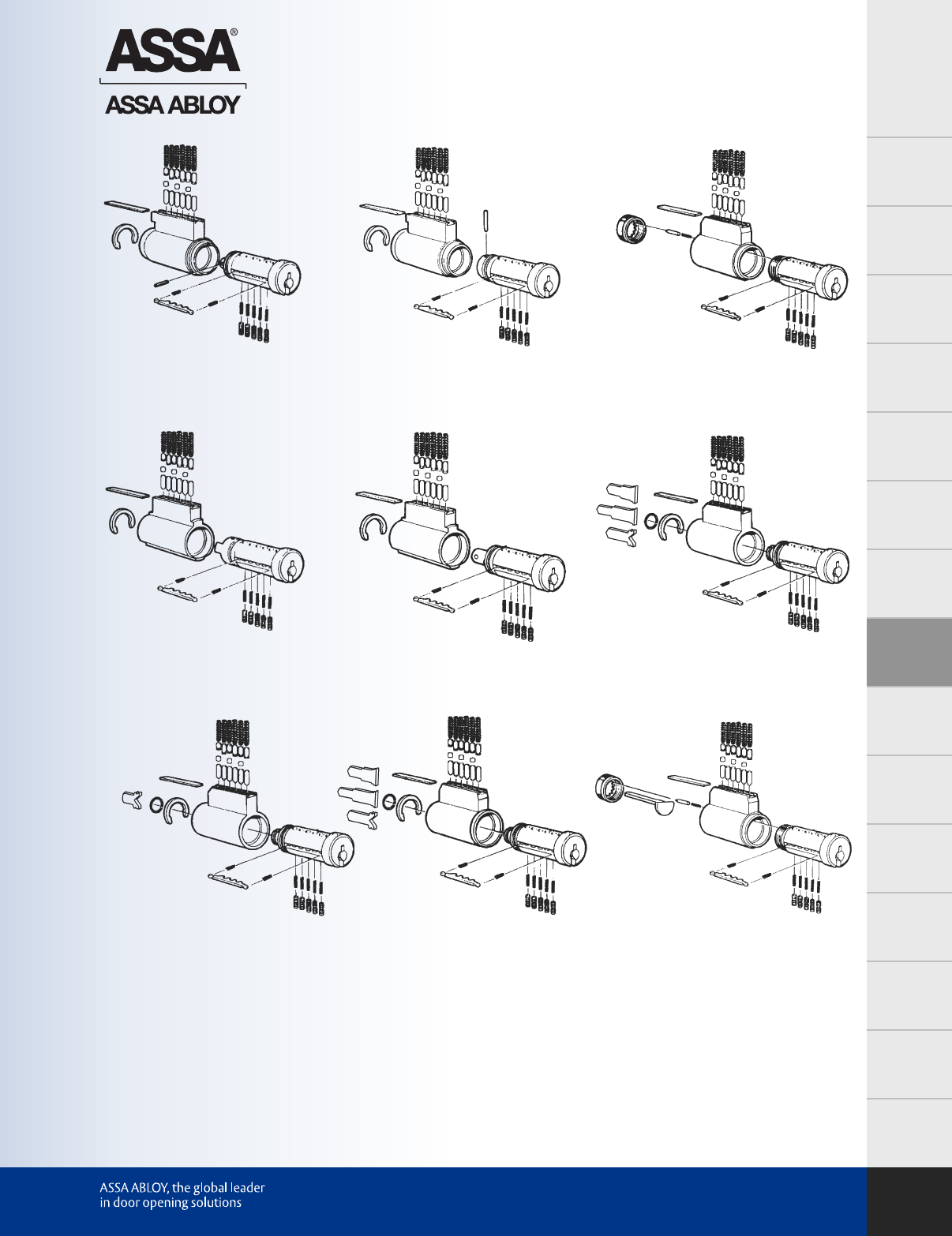

Key-in-Knob/Levers Cylinders Exploded View

XX654 – Corbin/Russwin XX655 – Corbin/Russwin XX661 – Falcon

XX671 – Sargent XX672 – Sargent XX673 – Sargent

XX673-TZ – Sargent XX691 – Arrow XX692 – Arrow

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

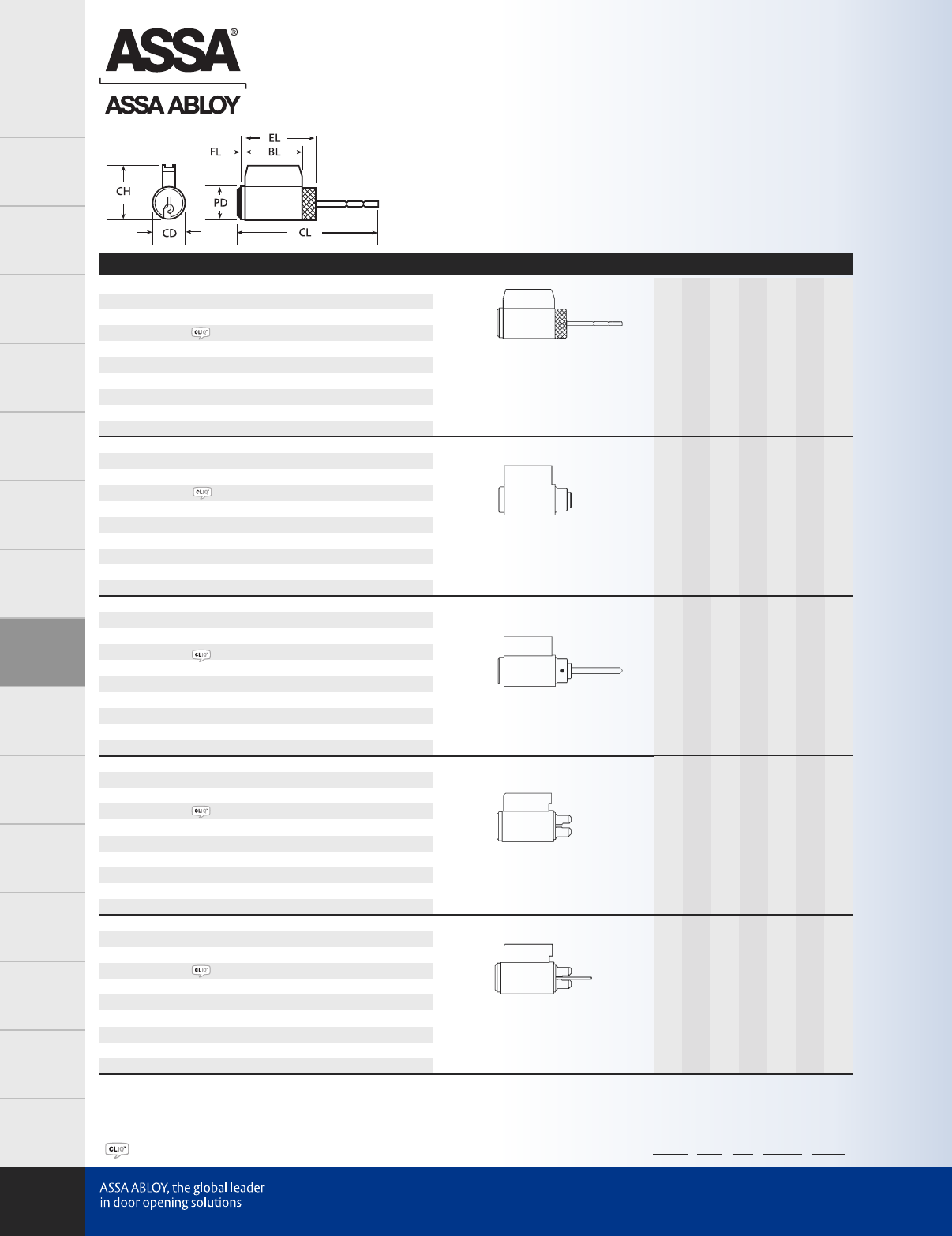

Key-in-Knob/Levers Cylinders

Key-in-Knob/Lever Key:

BL– Bible Length

CD – Cylinder Diameter

CH – Cylinder Height

CL – Cylinder Length

EL – Effective Length

FL – Front Length

PD – Plug Face Diameter

Schlage

1.023 0.634 1.020 2.465 1.250 0.071 0.560

Maximum+ 98611 113.25 105.75 98.75

Maximum+Restricted R28611 43.50 29.75 —

Twin Maximum 88611 121.00 113.50 106.50

Twin Exclusive E65611 126.00 118.50 111.50 Standard and heavy-duty 6-pin, includes cap,

pin, spring and break-off tailpiece. For B series

Deadbolts Corbin/Russwin CL3300, CL3400,

CL3600, CL3700, CK4700, CL3900 (Must use

original manufacturer's tailpieceandstabilizing

sleeve).CK4400forallfunctions except 29, 55,

&82. Also use for A5 & N5 exit trim.

Twin 6000 Classic 65611 126.00 118.50 111.50

Twin V-10 V65611 126.00 118.50 111.50

Twin Pro 61611 126.00 118.50 111.50

Twin Low L6611 110.00 102.50 —

Twin 600 Classic 6611 110.00 102.50 —

Make Model # Comp Sub SNS Description BL CD CH CL EL FL PD

Yale

1.000 0.677 1.071 N/A 1.429 0.000 0.560

Maximum+ 98631 113.25 105.75 98.75

Maximum+Restricted R28631 58.25 53.50 —

Twin Maximum 88631 121.00 113.50 106.50

Twin Exclusive E65631 126.00 118.50 111.50

Twin 6000 Classic 65631 126.00 118.50 111.50

Twin V-10 V65631 126.00 118.50 111.50

Twin Pro 61631 126.00 118.50 111.50 Standard and heavy-duty

Twin Low L6631 110.00 102.50 —

Twin 600 Classic 6631 110.00 102.50 —

Yale

1.000 0.677 1.071 2.975 1.429 0.000 0.560

Maximum+ 98632 113.25 105.75 98.75

Maximum+Restricted R28632 58.25 53.50 —

Twin Maximum 88632 121.00 113.50 106.50

Twin Exclusive E65632 126.00 118.50 111.50

Twin 6000 Classic 65632 126.00 118.50 111.50

Twin V-10 V65632 126.00 118.50 111.50

Twin Pro 61632 126.00 118.50 111.50

Key-In-Lever styleTwin Low L6632 110.00 102.50 —

Twin 600 Classic 6632 110.00 102.50 —

Corbin/Russwin

1.038 0.677 1.071 N/A 1.453 0.135 0.560

Maximum+ 98651 113.25 105.75 98.75

Maximum+Restricted R28651 58.25 53.50 —

Twin Maximum 88651 121.00 113.50 106.50

Twin Exclusive E65651 126.00 118.50 111.50

Twin 6000 Classic 65651 126.00 118.50 111.50

Twin V-10 V65651 126.00 118.50 111.50

Twin Pro 61651 126.00 118.50 111.50 Heavy-duty, new style (Not 3400, 3600,

3800 series) Use for CK4200, & UT5200

Twin Low L6651 110.00 102.50 —

Twin 600 Classic 6651 110.00 102.50 —

Corbin/Russwin

1.038 0.677 1.071 2.165 1.453 0.135 0.560

Maximum+ 98652 113.25 105.75 98.75

Maximum+Restricted R28652 58.25 53.50 —

Twin Maximum 88652 121.00 113.50 106.50

Twin Exclusive E65652 126.00 118.50 111.50

Twin 6000 Classic 65652 126.00 118.50 111.50

Twin V-10 V65652 126.00 118.50 111.50

Twin Pro 61652 126.00 118.50 111.50 Standard-duty, new style tailpiece

included. For CK4300, 5600, & B2,

G2, G3 exit trim

Twin Low L6652 110.00 102.50 —

Twin 600 Classic 6652 110.00 102.50 —

– Twin Maximum available with either CLIQ™Remote or C4 CLIQ™Technology, add $535.50. Example: 88611 x CLIQ x 626 x Sidebar x Comp

How To Order ASSA Key-in-Knob/Lever Cylinders:

Example: Model # Finish Security Form Keyway

98611-...........................626.......................Sub............................................0A7-200 Contact Customer Service Department

for Keyway Numbers.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

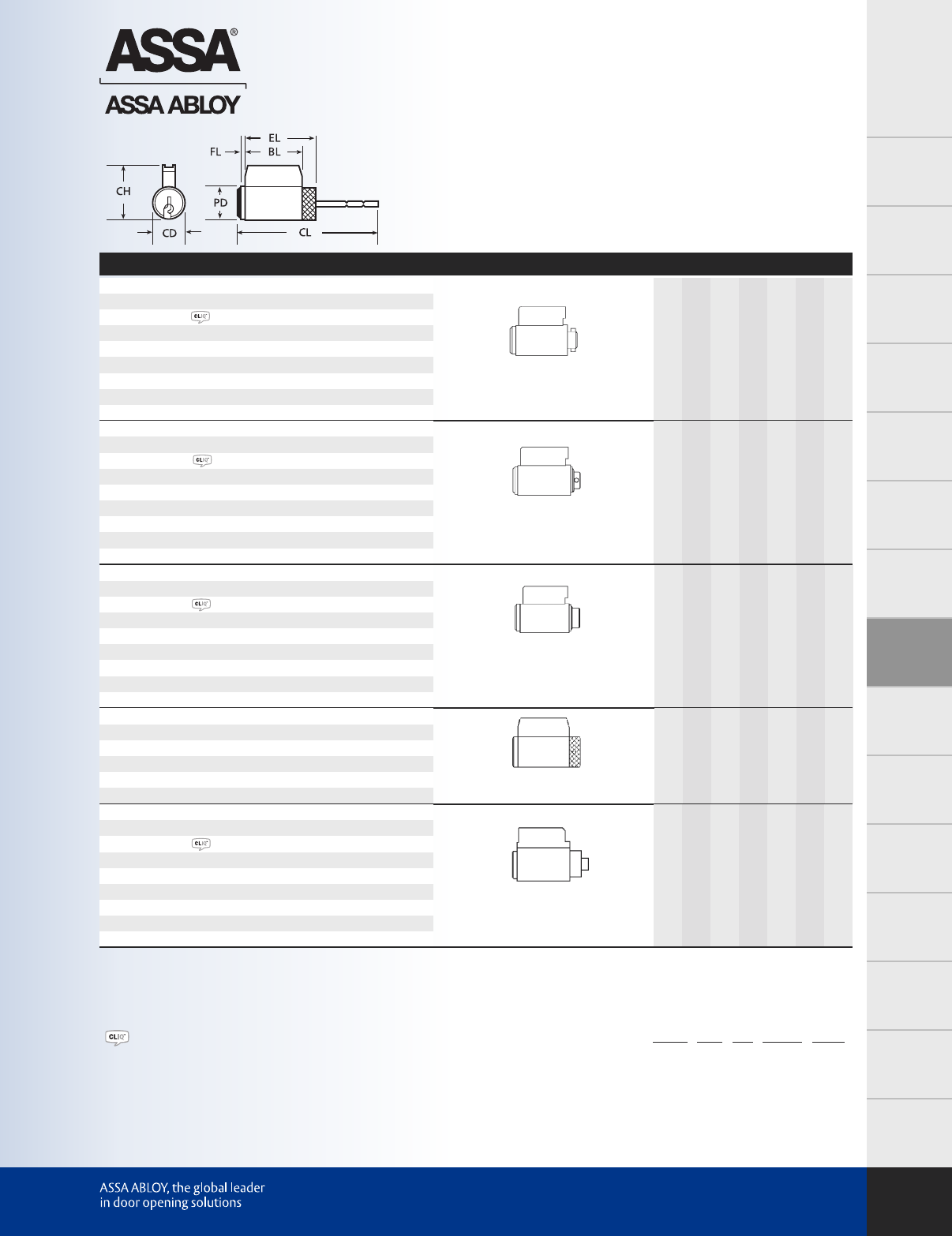

Key-in-Knob/Levers Cylinders

Key-in-Knob/Lever Key:

BL– Bible Length

CD – Cylinder Diameter

CH – Cylinder Height

CL – Cylinder Length

EL – Effective Length

FL – Front Length

PD – Plug Face Diameter

Corbin/Russwin

1.038 0.677 1.071 N/A 1.275 0.135 0.560

Maximum+ 98653 140.50 133.00 126.00

Twin Maximum 88653 150.50 143.00 136.00

Twin Exclusive E65653 156.50 149.00 142.00

Twin 6000 Classic 65653 156.50 149.00 142.00

Twin V-10 V65653 156.50 149.00 142.00

Twin Pro 61653 156.50 149.00 142.00

Russwin cylinder 19F35Twin Low L6653 110.00 102.50 —

Twin 600 Classic 6653 110.00 102.50 —

Make Model # Comp Sub SNS Description BL CD CH CL EL FL PD

Corbin/Russwin

1.038 0.677 1.071 N/A 1.299 0.135 0.560

Maximum+ 98654 140.50 133.00 126.00

Twin Maximum 88654 150.50 143.00 136.00

Twin Exclusive E65654 156.50 149.00 142.00

Twin 6000 Classic 65654 156.50 149.00 142.00

Twin V-10 V65654 156.50 149.00 142.00

Twin Pro 61654 156.50 149.00 142.00 Russwin cylinder 25F26, 25F56, 24F15,

67F69, 55F76

Twin Low L6654 110.00 102.50 —

Twin 600 Classic 6654 110.00 102.50 —

Corbin/Russwin

1.038 0.677 1.071 N/A 1.305 0.135 0.560

Maximum+ 98655 140.50 133.00 126.00

Twin Maximum 88655 150.50 143.00 136.00

Twin Exclusive E65655 156.50 149.00 142.00

Twin 6000 Classic 65655 156.50 149.00 142.00

Twin V-10 V65655 156.50 149.00 142.00

Twin Pro 61655 156.50 149.00 142.00

Russwin cylinder 25F65Twin Low L6655 110.00 102.50 —

Twin 600 Classic 6655 110.00 102.50 —

Falcon

1.022 0.634 1.020 N/A 1.325 0.071 0.560

Twin Exclusive E65661 156.50 149.00 142.00

Twin 6000 Classic 65661 156.50 149.00 142.00

Twin V-10 V65661 156.50 149.00 142.00

Twin Low L6661 110.00 102.50 — S & X Series, Use original manufacturer

cap and tailpiece

Twin 600 Classic 6661 110.00 102.50 —

Sargent

1.025 0.677 1.071 N/A 1.447 0.000 0.560

Maximum+ 98671 140.50 133.00 126.00

Twin Maximum 88671 150.50 143.00 136.00

Twin Exclusive E65671 156.50 149.00 142.00

Twin 6000 Classic 65671 156.50 149.00 142.00

Twin V-10 V65671 156.50 149.00 142.00

Twin Pro 61671 156.50 149.00 142.00

IntegraTwin Low L6671 110.00 102.50 —

Twin 600 Classic 6671 110.00 102.50 —

– Twin Maximum available with either CLIQ™Remote or C4 CLIQ™Technology, add $535.50. Example: 88653 x CLIQ x 626 x Sidebar x Comp

How To Order ASSA Key-in-Knob/Lever Cylinders:

Example: Model # Finish Security Form Keyway

98653-...........................626.......................Sub............................................0A7-200 Contact Customer Service Department

for Keyway Numbers.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Key-in-Knob/Levers Cylinders

Key-in-Knob/Lever Key:

BL– Bible Length

CD – Cylinder Diameter

CH – Cylinder Height

CL – Cylinder Length

EL – Effective Length

FL – Front Length

PD – Plug Face Diameter

– Twin Maximum available with either CLIQ™Remote or C4 CLIQ™Technology, add $535.50. Example: 88673 x CLIQ x 626 x Sidebar x Comp

Sargent

1.010 0.677 1.071 N/A 1.663 0.020 0.560

Maximum+ 98672 113.25 105.75 98.75

Maximum+Restricted R28672 44.75 30.75 —

Twin Maximum 88672 121.00 113.50 106.50

Twin Exclusive E65672 126.00 118.50 111.50

Twin 6000 Classic 65672 126.00 118.50 111.50

Twin V-10 V65672 126.00 118.50 111.50

Twin Pro 61672 126.00 118.50 111.50

Heavy-duty 7, 8, 9 lines KIKTwin Low L6672 110.00 102.50 —

Twin 600 Classic 6672 110.00 102.50 —

Make Model # Comp Sub SNS Description BL CD CH CL EL FL PD

Sargent

0.990 0.634 1.020

2.000

2.040

2.315

1.235 0.000 0.560

Maximum+ 98673 113.25 105.75 98.75

Maximum+Restricted R28673 40.50 26.75 —

Twin Maximum 88673 121.00 113.50 106.50

Twin Exclusive E65673 126.00 118.50 111.50

Twin 6000 Classic 65673 126.00 118.50 111.50

Twin V-10 V65673 126.00 118.50 111.50

Twin Pro 61673 126.00 118.50 111.50 Standard duty 3 tailpieces included

6 Line KIK, 7 Line KIL, 10 Line KIL

Twin Low L6673 110.00 102.50 —

Twin 600 Classic 6673 110.00 102.50 —

Sargent T-Zone

0.990 0.634 1.020 1.720 1.235 0.000 0.560

Maximum+ 98673-TZ 113.25 105.75 98.75

Maximum+Restricted R28673-TZ 40.50 26.75 —

Twin Maximum 88673-TZ 121.00 113.50 106.50

Twin Exclusive E65673-TZ 126.00 118.50 111.50

Twin 6000 Classic 65673-TZ 126.00 118.50 111.50

Twin V-10 V65673-TZ 126.00 118.50 111.50

Twin Pro 61673-TZ 126.00 118.50 111.50

T-Zone 11 Line KILTwin Low L6673-TZ 110.00 102.50 —

Twin 600 Classic 6673-TZ 110.00 102.50 —

Arrow

1.0220.6341.020

2.000

2.040

2.315

1.2680.0700.560

Maximum+ 98691 113.25 105.75 98.75

Maximum+Restricted R28691 36.50 23.00 —

Twin Maximum 88691 121.00 113.50 106.50

Twin Exclusive E65691 126.00 118.50 111.50

Twin 6000 Classic 65691 126.00 118.50 111.50

Twin V-10 V65691 126.00 118.50 111.50 Standard and heavy-duty, 3 tailpiece in-

cluded for Arrow C, H, L, M, Q, S & W Series

Key-in-Knob & Key-in-Lever styles

Twin Pro 61691 126.00 118.50 111.50

Twin Low L6691 110.00 102.50 —

Twin 600 Classic 6691 110.00 102.50 —

Arrow

1.022 0.634 1.020 3.465 1.352 0.000 0.560

Maximum+ 98692 113.25 105.75 98.75

Twin Maximum 88692 121.00 113.50 106.50

Twin Exclusive E65692 126.00 118.50 111.50

Twin 6000 Classic 65692 126.00 118.50 111.50

Twin V-10 V65692 126.00 118.50 111.50

Twin Pro 61692 126.00 118.50 111.50 For Arrow deadbolts only, includes tail-

pieces for double & single cylinders

Twin Low L6692 110.00 102.50 —

Twin 600 Classic 6692 110.00 102.50 —

How To Order ASSA Key-in-Knob/Lever Cylinders:

Example: Model # Finish Security Form Keyway

98672-...........................626.......................Sub............................................0A7-200 Contact Customer Service Department

for Keyway Numbers.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Key-in-Knob/Key-in-Lever Component Parts

Twin V-10

Twin Exclusive / Twin 6000 Classic

Maximum+ / Twin Maximum / Twin Pro

Model# Notes Description Price

868056 Schlage Cylinder Shell 53.60

868057 Yale Cylinder Shell 53.60

367156 Russwin/Corbin Cylinder Shell 53.60

868060 Sargent Integra Cylinder Shell 53.60

868061 Sargent Heavy-duty Cylinder Shell 53.60

367159 Sargent Standard-duty Cylinder Shell 53.60

250619 Arrow Cylinder Shell 52.30

907203 Arrow Deadbolt/Weiser KIK Shell 53.60

353978 * Schlage Cylinder Plug 53.55

353979 * Yale Cylinder Plug – (Must specify KIK or KIL) 43.45

353980 * Sargent Integra Cylinder Plug 56.70

353981 * Sargent Heavy-Duty 7, 8, 9 Cylinder Plug 53.55

353982 Falcon S & X Series/Weiser Deadbolt Plug 56.70

353983 * Arrow/Sargent 6-line Cylinder Plug 46.05

353984 * Russwin/Corbin std. & Heavy-Duty Cylinder Plug 46.05

353985 * Russwin/Corbin 19F35 Cylinder Plug 46.05

353986 * Corbin 25F26 Cylinder Plug 46.05

353787 * Russwin/Corbin 25F65 Cylinder Plug 48.50

453978 * Arrow Deadbolt Plug 47.25

92C-114 Arrow Deadbolt Cap 3.95

92C-127 Arrow Deadbolt Plug Cap Spring 1.35/ea

92C-128 Arrow Deadbolt Plug Cap Pin 1.35

92C-121 Arrow Deadbolt Washer 1.35

92C-123 Arrow Deadbolt Blocking Piece 2.90

D61-44 Arrow Deadbolt Long Tailpiece (Single Cylinder) 3.95

D62-44 Arrow Deadbolt ShortTailpiece (DoubleCylinder) 2.90

Model# Notes Description Price

868056 Schlage Cylinder Shell 53.60

868057 Yale Cylinder Shell 53.60

367156 Russwin/Corbin Cylinder Shell 53.60

868060 Sargent Integra Cylinder Shell 53.60

868061 Sargent Heavy-duty Cylinder Shell 53.60

367159 Sargent Standard-duty Cylinder Shell 53.60

250619 Arrow Cylinder Shell 52.30

907203 Arrow Deadbolt/Weiser KIK Shell 53.60

356982 *† Schlage Cylinder Plug 53.55

356983 *† Yale Cylinder Plug – (Must specify KIK or KIL) 53.55

356988 *†Sargent Integra Cylinder Plug 53.55

356989 *†Sargent Heavy-Duty 7, 8, 9 Cylinder Plug 53.55

356990 *† Arrow/Sargent 6-line Cylinder Plug 53.55

356984 *† Russwin/Corbin std. & Heavy-Duty Cylinder Plug 53.55

356985 *†Russwin/Corbin 19F35 Cylinder Plug 53.55

356986 *† Corbin 25F26 Cylinder Plug 53.55

356987 *† Russwin/Corbin 25F65 Cylinder Plug 53.55

92C-114 Arrow Deadbolt Cap 3.95

92C-127 Arrow Deadbolt Plug Cap Spring 1.35/ea

92C-128 Arrow Deadbolt Plug Cap Pin 1.35

92C-121 Arrow Deadbolt Washer 1.35

92C-123 Arrow Deadbolt Blocking Piece 2.90

D61-44 Arrow Deadbolt Long Tailpiece (Single Cylinder) 3.95

D62-44 ArrowDeadbolt Short Tailpiece(DoubleCylinder) 2.90

Model# Notes Description Price

868056 Schlage Cylinder Shell 53.60

868057 Yale Cylinder Shell 53.60

367156 Russwin/Corbin Cylinder Shell 53.60

868060 Sargent Integra Cylinder Shell 53.60

868061 Sargent Heavy-duty Cylinder Shell 53.60

367159 Sargent Standard-duty Cylinder Shell 53.60

250619 Arrow Cylinder Shell 52.30

907203 Arrow Deadbolt/Weiser KIK Shell 53.60

367068 *† Schlage Cylinder Plug 53.55

367069 *† Yale Cylinder Plug – (Must specify KIK or KIL) 53.55

367073 *† Sargent Integra Cylinder Plug 53.55

367074 *† Sargent Heavy-Duty 7, 8, 9 Cylinder Plug 53.55

868233 † Falcon S & X Series/Weiser Deadbolt Plug 59.15

868607 *† Arrow/Sargent 6-line Cylinder Plug 44.70

868649 *† Russwin/Corbin std. & Heavy-Duty Cylinder Plug 46.05

868650 *† Russwin/Corbin 19F35 Cylinder Plug 46.05

868651 *† Corbin 25F26 Cylinder Plug 46.05

868652 *† Russwin/Corbin 25F65 Cylinder Plug 46.05

467068 *† Arrow Deadbolt Plug 47.25

92C-114 Arrow Deadbolt Cap 3.95

92C-127 Arrow Deadbolt Plug Cap Spring 1.35/ea

92C-128 Arrow Deadbolt Plug Cap Pin 1.35

92C-121 Arrow Deadbolt Washer 1.35

92C-123 Arrow Deadbolt Blocking Piece 2.90

D61-44 Arrow Deadbolt Long Tailpiece (Single Cylinder) 3.95

D62-44 ArrowDeadbolt Short Tailpiece(DoubleCylinder) 2.90

* - Indicates Finished Components

† – Specify Profile 51, 851.

* - Indicates Finished Components

† – Specify Profile 0A7, 0M7.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

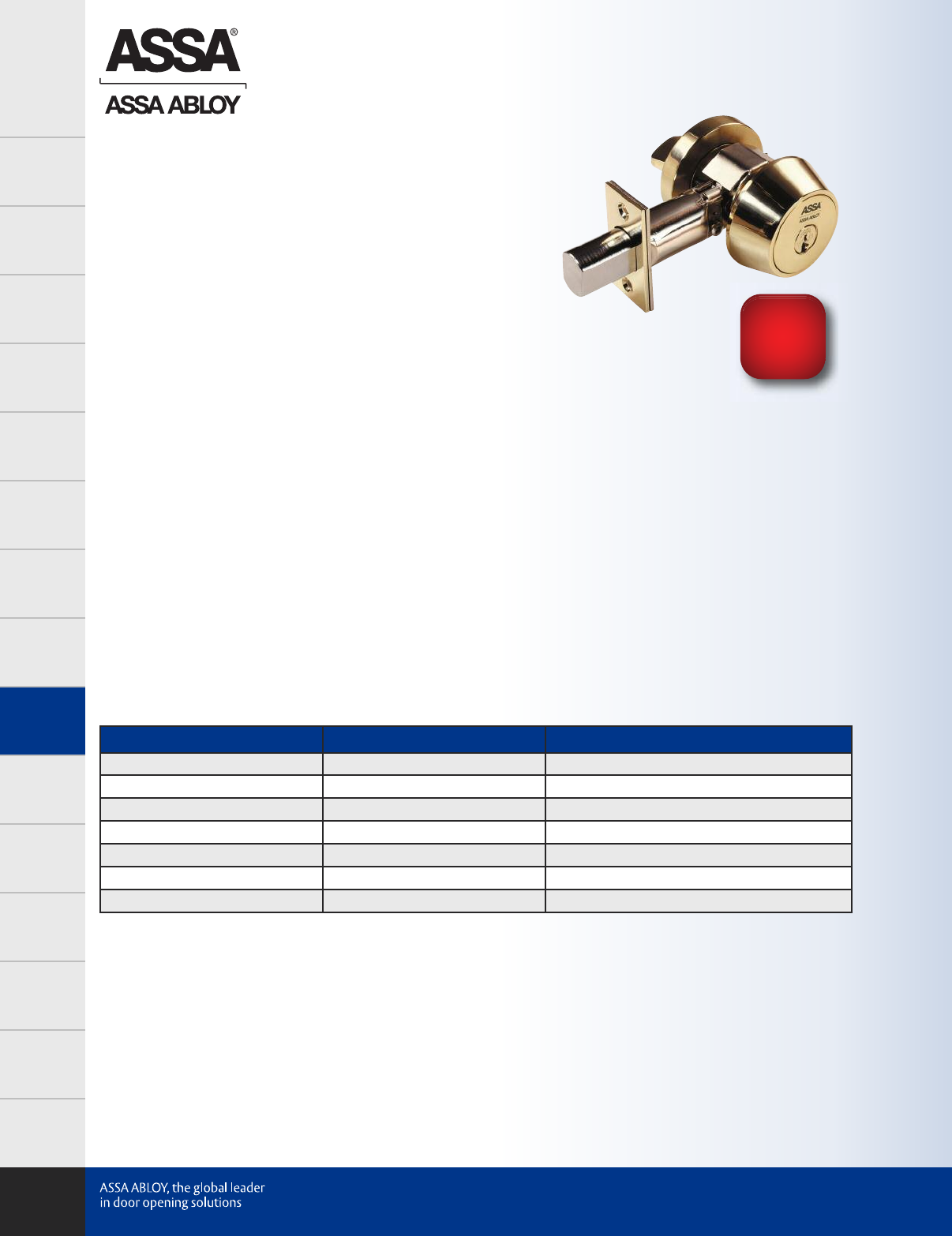

Deadbolts

Benefits:

• ASSA Hardhat™ to prevent

physical attack

• Free spinning guard collars to

prevent wrenching

• Available in interchangeable core

• High security solid brass cylinders

• 1/4" Aircraft strength steel

mounting bolts

• Hardened bolt with full 1" throw

• Non-handed

Warranty:

• ASSA warrants its cylinders

and deadbolts against defective

workmanship or wear resulting

from defects for one year

Certification:

• All ASSA 6000 Deadbolts are

U.L. 437 Listed

Technical Information:

• Cylinder shell and plug made

of high quality brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

The ASSA 6000 Series deadbolt is designed to withstand

any form of physical attack including drilling, prying,

driving, or pulling. Its free spinning guard collars protect

it from pipe wrenching while its hardened inserts guard

against drilling. The 6000 comes equipped with the ASSA

Hardhat™ to protect it from outside through-the-door

attacks known as “ice picking.” All ASSA 6000 Series

deadbolts are available with interchangeable core and

feature our unique dual locking mechanism rendering

them virtually pick proof.

BHMA Symbol U.S. Symbol Description

625 US 26 Bright Chrome

626 US 26D Satin Chrome

605 US 3 Bright Brass

606 US 4 Satin Brass

609 US 5 Antique Brass

612 US 10 Satin Bronze

624 US 10B Dark Oxidized Bronze

Finishes:

6000 Series

is in Limited

supply and will

be replaced by

7000 Series.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Deadbolt Cylinders

Tailpiece Screw

Tailpiece

Outside Cylinder

Inside Cylinder

Pin Chamber Closing Screws

Outside Cylinder Shell

Cylinder Plug

Tailpiece Washer

Security Balls

Tailpiece Screw

Tailpiece Pin Chamber Closing Screws

Inside Cylinder Shell

Cylinder Plug

Tailpiece Washer

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Model# Notes Description Comp Sub SNS

Maximum +

9800 Single cylinder w/thumbturn 300.75 291.75 286.75

9800DC Double cylinder 420.75 411.75 403.25

9800NT Single cylinder no thumbturn 271.50 264.00 257.00

9800LB Single cylinder less bolt 180.75 173.25 166.25

9800DCLB Double cylinder less bolt 288.75 274.25 259.75

Twin Maximum

8800 Single cylinder w/thumbturn 315.25 306.25 301.25

8800DC Double cylinder 440.75 431.75 423.25

8800NT Single cylinder no thumbturn 284.25 276.75 269.75

8800LB Single cylinder less bolt 189.50 182.00 175.00

8800DCLB Double cylinder less bolt 302.50 288.00 273.50

Twin Exclusive

E6000 Single cylinder w/thumbturn 327.75 318.75 313.75

E6000DC Double cylinder 458.50 449.50 441.00

E6000NT Single cylinder no thumbturn 295.75 288.25 281.25

E6000LB Single cylinder less bolt 197.00 189.50 182.50

E6000DCLB Double cylinder less bolt 314.50 300.00 285.50

Twin 6000 Classic

6000 Single cylinder w/thumbturn 327.75 318.75 313.75

6000DC Double cylinder 458.50 449.50 441.00

6000NT Single cylinder no thumbturn 295.75 288.25 281.25

6000LB Single cylinder less bolt 197.00 189.50 182.50

6000DCLB Double cylinder less bolt 314.50 300.00 285.50

Twin V-10

V6000 Single cylinder w/thumbturn 327.75 318.75 313.75

V6000DC Double cylinder 458.50 449.50 441.00

V6000NT Single cylinder no thumbturn 295.75 288.25 281.25

V6000LB Single cylinder less bolt 197.00 189.50 182.50

V6000DCLB Double cylinder less bolt 314.50 299.50 291.00

Twin Pro

6100 Single cylinder w/thumbturn 327.75 318.75 313.75

6100DC Double cylinder 458.50 449.50 441.00

6100NT Single cylinder no thumbturn 295.75 288.25 281.25

6100LB Single cylinder less bolt 197.00 189.50 182.50

6100DCLB Double cylinder less bolt 314.50 300.00 285.50

600 Series Grade 1 Deadbolt Locks

Model# Notes Description Comp Sub SNS

600 Series Classic

600 Single cylinder w/thumbturn 304.50 295.50 —

600DC Double cylinder 404.50 386.50 —

600NT Single cylinder no thumbturn 236.75 227.75 —

600LB Single cylinder less bolt 169.75 159.75 —

600DCLB Double cylinder less bolt 269.50 251.50 —

6000 Series Grade 1 Deadbolt Locks

Deadbolts

6000 Series

Deadbolt

For extra thick doors of 2" – 2-1/2", please suffix model numbers with -ET.

Example:.............9800-ET ..............605.......................2-3/8" backset .......................F .................................................Sub............................................0A7-200

– Twin Maximum available with either CLIQ™Remote or C4 CLIQ™Technology, add $535.50. Example: 8800 x CLIQ x 626 x Sidebar x Comp

How To Order ASSA Deadbolts:

Example: Model # Finish Backset Bolt Type Security Form Keyway

9800.................605 ...................#3 – 2-3/4" Backset .......F – Face Plate....................Sub......................................0A7-200

or or

#8 – 2-3/8" Backset D – Drive-In Contact Customer Service Department for

Keyway Numbers.

6000 Series

is in Limited

supply and will

be replaced by

7000 Series.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

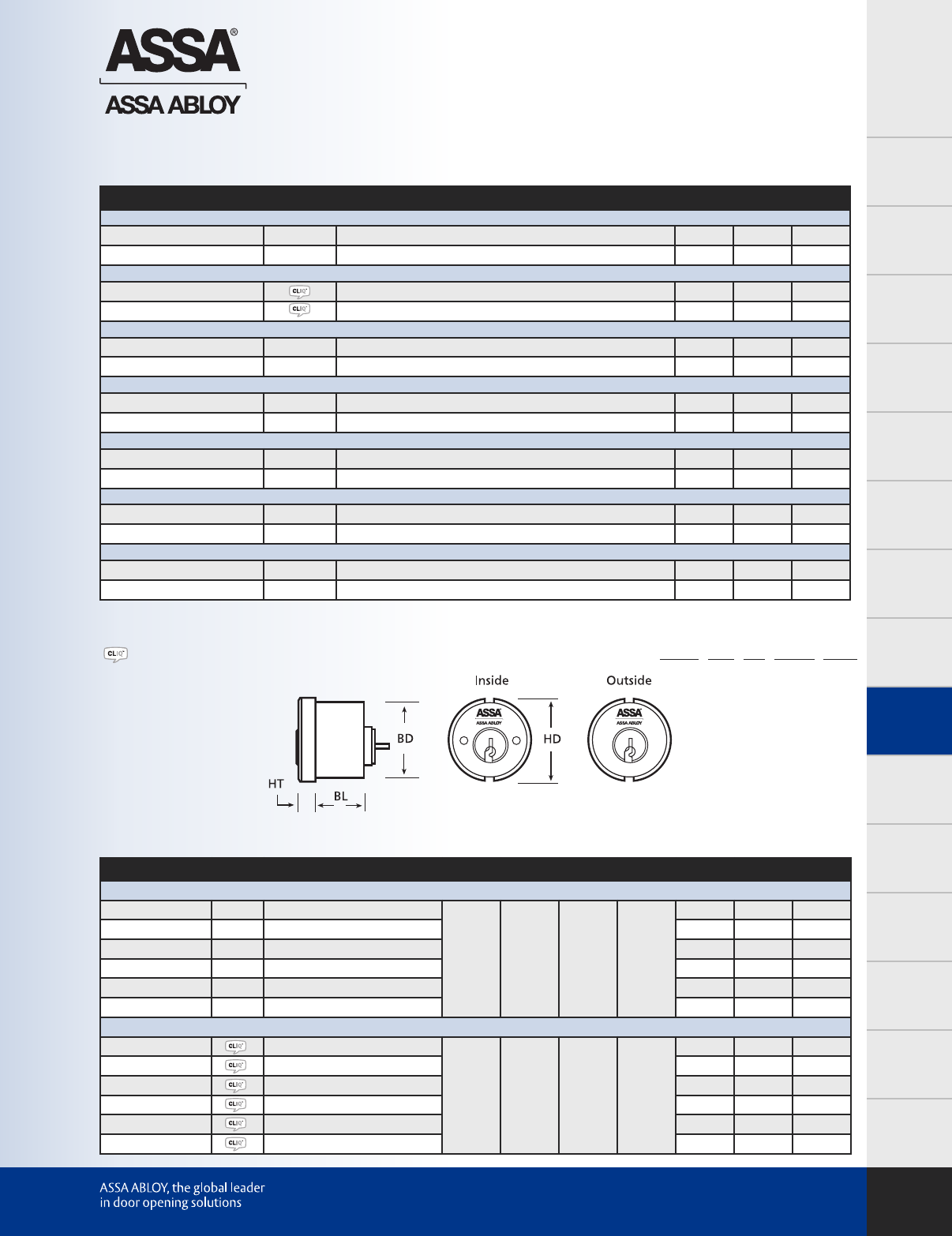

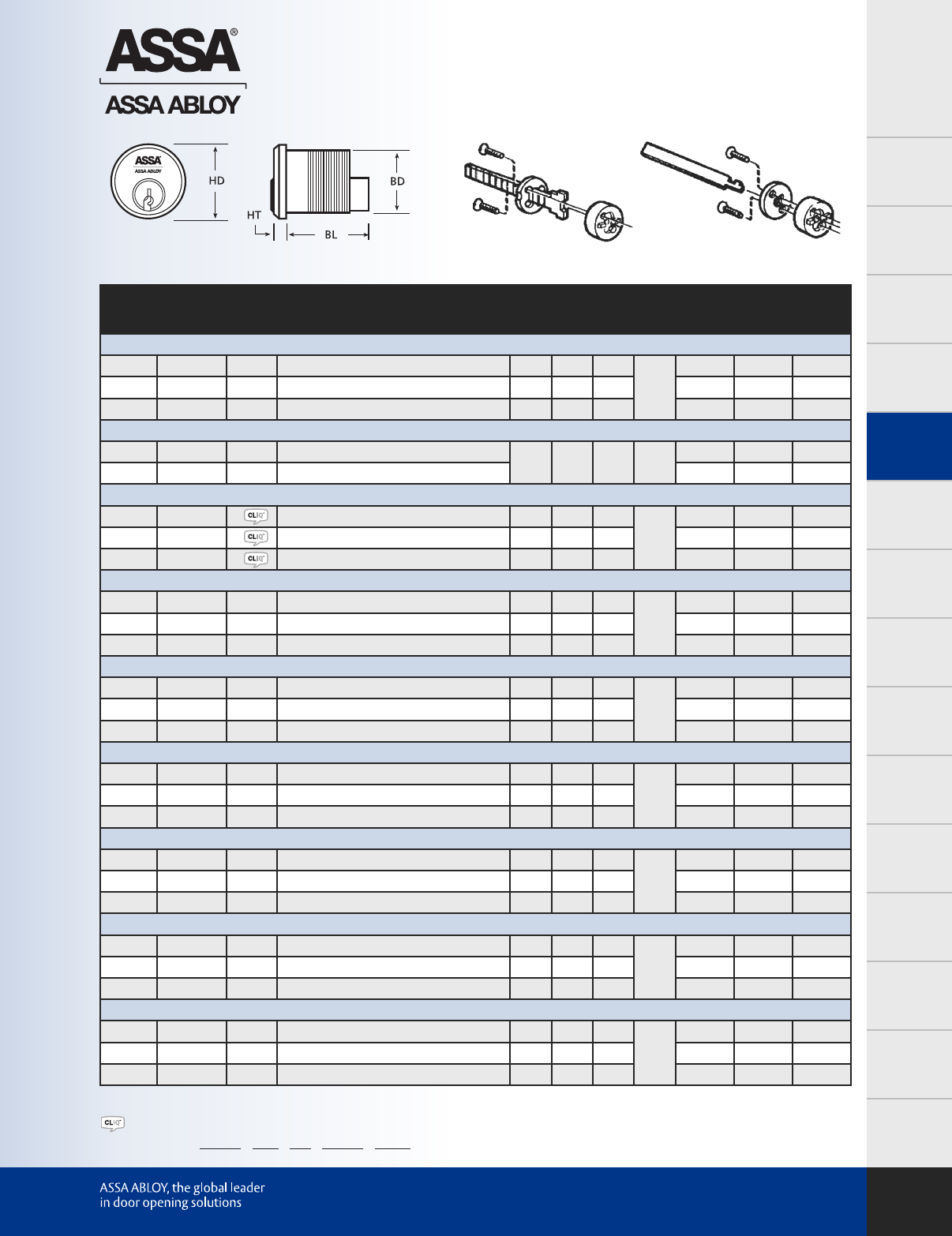

6000 Series Grade 1 Deadbolt Locks Interchangeable Core

Model# Notes Description Comp Sub SNS

Maximum +

9800IC Single cylinder IC 391.25 383.75 376.75

9800DCIC Double cylinder IC 451.00 435.25 426.25

Twin Maximum

8800IC Single cylinder IC 404.00 396.50 389.50

8800DCIC Double cylinder IC 472.25 456.75 448.75

Twin Exclusive

E6000IC Single cylinder IC 426.25 418.75 411.75

E6000DCIC Double cylinder IC 491.25 476.25 467.75

Twin 6000 Classic

6000IC Single cylinder IC 426.25 418.75 411.75

6000DCIC Double cylinder IC 491.25 476.25 467.75

Twin V-10

V6000IC Single cylinder IC 426.25 418.75 411.75

V6000DCIC Double cylinder IC 491.25 476.25 467.75

Twin Pro

6100IC Single cylinder IC 426.25 418.75 411.75

6100DCIC Double cylinder IC 491.25 476.25 467.75

6000 Series Grade 1 Deadbolt Locks Interchangeable Core Less Core

6000ICLC Single cylinder IC (Less Core) 327.75 – –

6000DCICLC Double cylinder IC (Less Core) 392.75 – –

Model# Notes Description HT BL BD HD Comp Sub SNS

Maximum +

9881 Outside cylinder

0.323 0.920 1.440 1.572

179.00 171.50 164.50

9882 Inside cylinder 179.00 171.50 164.50

9883 Inside & Outside cylinder 358.00 343.00 329.00

9881IC Outside IC cylinder 288.25 280.75 273.75

9882IC Inside IC cylinder 288.25 280.75 273.75

9883IC Inside & Outside IC cylinder 588.50 574.00 559.50

Twin Maximum

8881 Outside cylinder

0.323 0.920 1.440 1.572

191.25 183.75 176.75

8882 Inside cylinder 191.25 183.75 176.75

8883 Inside & Outside cylinder 382.75 367.75 354.75

8881IC Outside IC cylinder 308.00 300.50 293.50

8882IC Inside IC cylinder 308.00 300.50 293.50

8883IC Inside & Outside IC cylinder 628.75 614.25 599.75

6000 Series Deadbolt Cylinders Only

Deadbolts

– TwinMaximumavailablewitheitherCLIQ™RemoteorC4CLIQ™Technology,add$535.50.Example:8800ICxCLIQx626xSidebarxComp

For extra thick doors of 2" – 2-1/2", please suffix model numbers with -ET.

Example: .........9800-ET...........605 ..........2-3/8" backset...........................F................Sub ..........0A7-200

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

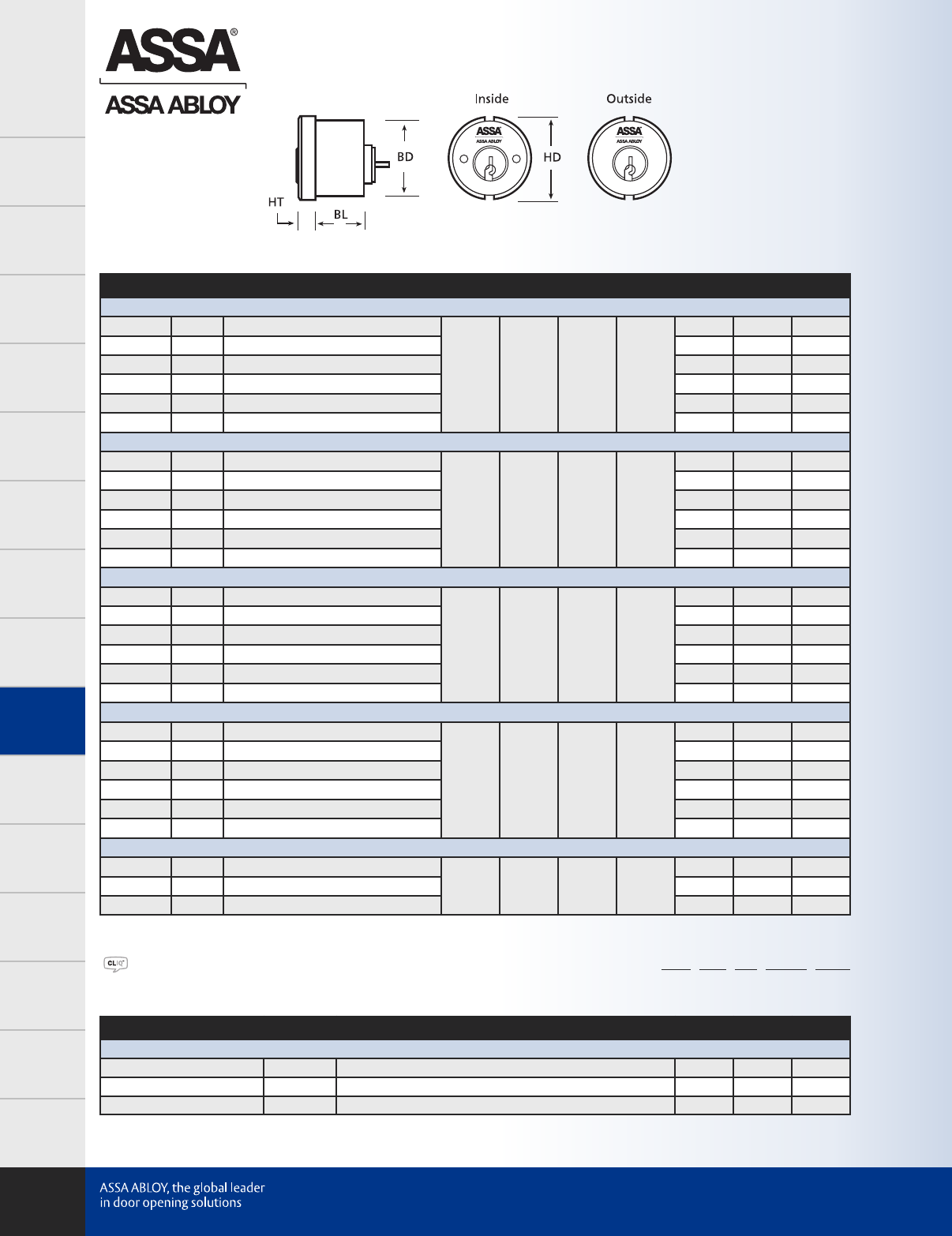

Model# Notes Description HT BL BD HD Comp Sub SNS

Twin Exclusive

E65811 Outside cylinder

0.323 0.920 1.440 1.572

198.75 191.25 184.25

E65812 Inside cylinder 198.75 191.25 184.25

E65813 Inside & Outside cylinder 398.25 383.25 369.25

E65811IC Outside IC cylinder 320.00 312.50 305.50

E65812IC Inside IC cylinder 320.00 312.50 305.50

E65813IC Inside & Outside IC cylinder 653.75 639.25 624.75

Twin 6000 Classic

65811 Outside cylinder

0.323 0.920 1.440 1.572

198.75 191.25 184.25

65812 Inside cylinder 198.75 191.25 184.25

65813 Inside & Outside cylinder 398.25 383.25 369.25

65811IC Outside IC cylinder 320.00 312.50 305.50

65812IC Inside IC cylinder 320.00 312.50 305.50

65813IC Inside & Outside IC cylinder 653.75 639.25 624.75

Twin V-10

V65811 Outside cylinder

0.323 0.920 1.440 1.572

198.75 191.25 184.25

V65812 Inside cylinder 198.75 191.25 184.25

V65813 Inside & Outside cylinder 398.25 383.25 369.25

V65811IC Outside IC cylinder 320.00 312.50 305.50

V65812IC Inside IC cylinder 320.00 312.50 305.50

V65813IC Inside & Outside IC cylinder 653.75 639.25 624.75

Twin Pro

6181 Outside cylinder

0.323 0.920 1.440 1.572

198.75 191.25 184.25

6182 Inside cylinder 198.75 191.25 184.25

6183 Inside & Outside cylinder 398.25 383.25 369.25

6181IC Outside IC cylinder 320.00 312.50 305.50

6182IC Inside IC cylinder 320.00 312.50 305.50

6183IC Inside & Outside IC cylinder 653.75 639.25 624.75

Interchangeable Core Cylinder Less Core

65811ICLC Outside cylinder (Less Core)

0.323 0.920 1.440 1.572

151.50 – –

65812ICLC Inside cylinder (Less Core) 151.50 – –

65813ICLC Inside & Outside cylinder (Less Core) 333.75 – –

600 Series Deadbolt Cylinders Only

Model# Notes Description Comp Sub SNS

600 Series Classic

6811 Outside cylinder 155.00 146.00 —

6812 Inside cylinder 155.00 146.00 —

6813 Inside & Outside cylinder 309.00 290.00 —

6000 Series Deadbolt Cylinders Only

Deadbolts

For extra thick doors of 2" – 2-1/2", please suffix model numbers with -ET.

Example: .........9881-ET................605..........2-3/8" backset.......................F................Sub ..........0A7-200

– TwinMaximumavailablewitheitherCLIQ™RemoteorC4CLIQ™Technology,add$535.50.Example:8881xCLIQx626xSidebarxComp

For extra thick doors of 2" – 2-1/2", please suffix model numbers with -ET.

Example: .........9881-ET................605..........2-3/8" backset.......................F................Sub ..........0A7-200

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

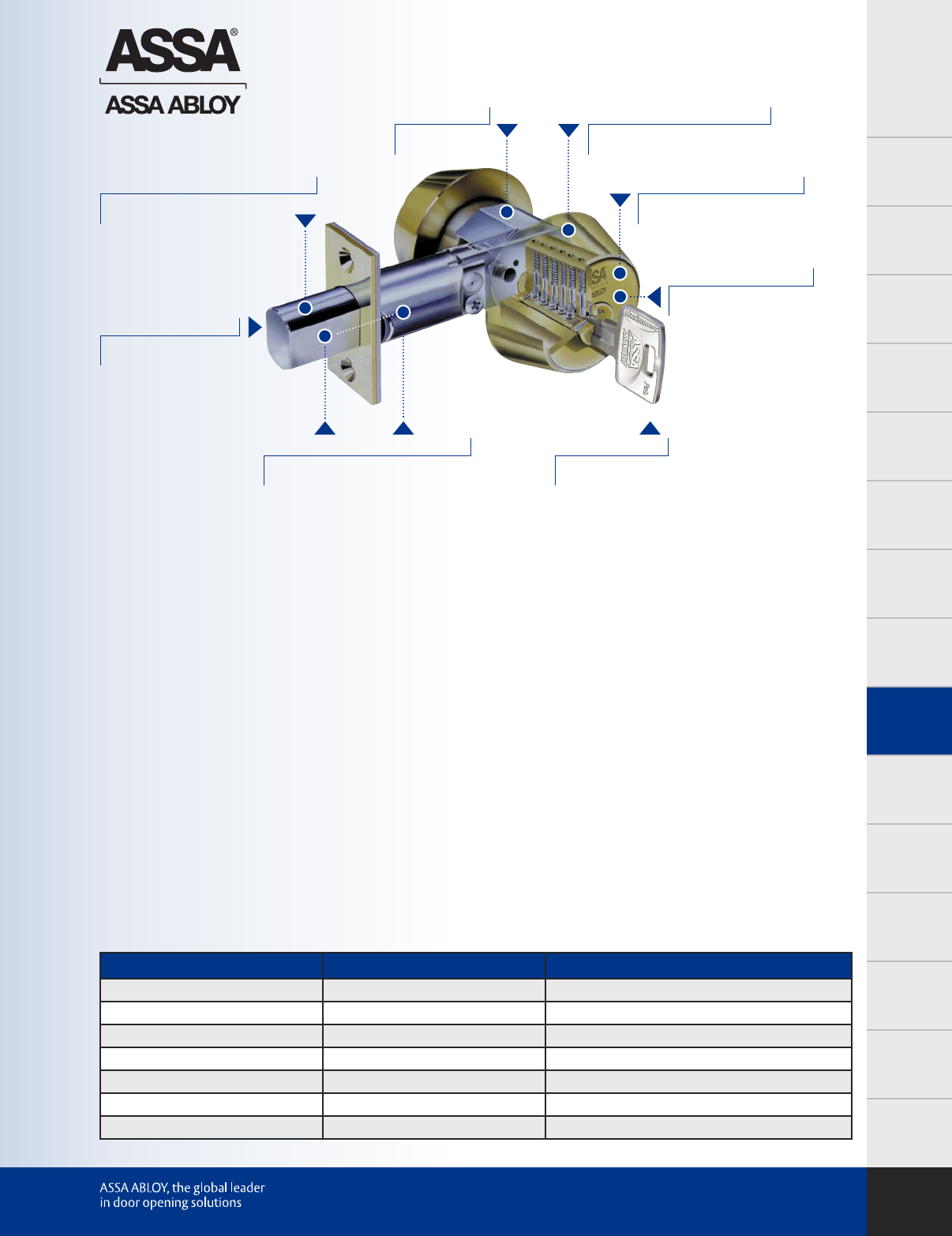

Deadbolts

Benefits:

• ASSA Hardhat™ to prevent

physical attack

• Free spinning guard collars to

prevent wrenching

• High security solid brass cylinders

• 1/4" Aircraft strength steel

mounting bolts

• Hardened bolt with full 1" throw

• Non-handed

Warranty:

• ASSA warrants its cylinders

and deadbolts against defective

workmanship or wear resulting

from defects for one year

Certification:

• All ASSA 7000 Deadbolts are

U.L. 437 Listed

• All ASSA 7000 Deadbolts are

Fire Listed R38765

Technical Information:

• Cylinder shell and plug made

of high quality brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

The ASSA 7000 Series deadbolt is designed to withstand any form of physical attack including

drilling, prying, driving, or pulling. Its free spinning guard collars protect it from pipe wrenching

while its hardened inserts guard against drilling. The 7000 comes equipped with the ASSA

Security Guard to protect it from outside through-the-door attacks known as “ice picking.”

All ASSA High Security products feature our unique dual locking mechanism rendering them

virtually pick proof.

BHMA Symbol U.S. Symbol Description

625 US 26 Bright Chrome

626 US 26D Satin Chrome

605 US 3 Bright Brass

606 US 4 Satin Brass

609 US 5 Antique Brass

612 US 10 Satin Bronze

624 US 10B Dark Oxidized Bronze

Finishes:

Stands up to sawing through the bolt

Virtually impossible to saw through the

hardened steel bolt with a hacksaw

Built to resist prying with a crowbar

Hardened steel bolt is surrounded

by heavy-guage tubular steel

Protects against kicking

A specially designed strike

plate has 2 screws to anchor

the strike directly to the building

No copying of keys

Keys are protected under patent, making it illegal for

keys to be duplicated without proper authorization

Security Shield

Guards against

ice pick attacks

Protects against drill attacks

Built with strategically placed

hardened steel inserts

Guards against

wrenching off the lock

Free spinning guard collars

prevent wrenching

Shields against hammer attacks

Made of solid brass and secured with high

tensile steel bolts for maximum resistance

7000 Series Deadbolt

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Deadbolts

7000 Series Grade 1 Deadbolt Locks

Model# Notes Description Comp Sub SNS

Maximum +

7900 Single cylinder deadbolt 220.00 215.00 210.00

7900DC Double cylinder deadbolt 310.00 300.00 290.00

7900CL Classroom deadbolt 225.00 220.00 215.00

7900NT Single cylinder deadbolt no thumbturn 215.00 210.00 205.00

Twin Maximum

7800 Single cylinder deadbolt 231.00 226.00 221.00

7800DC Double cylinder deadbolt 325.50 315.50 305.50

7800CL Classroom deadbolt 236.25 231.25 226.25

7800NT Single cylinder deadbolt no thumbturn 225.75 220.75 215.75

Twin Exclusive

E7900 Single cylinder deadbolt 231.00 226.00 221.00

E7900DC Double cylinder deadbolt 325.50 315.50 305.50

E7900CL Classroom deadbolt 236.25 231.25 226.25

E7900NT Single cylinder deadbolt no thumbturn 225.75 220.75 215.75

Twin 6000 Classic

7000 Single cylinder deadbolt 231.00 226.00 221.00

7000DC Double cylinder deadbolt 325.50 315.50 305.50

7000CL Classroom deadbolt 236.25 231.25 226.25

7000NT Single cylinder deadbolt no thumbturn 225.75 220.75 215.75

Twin V-10

V7900 Single cylinder deadbolt 231.00 226.00 221.00

V7900DC Double cylinder deadbolt 325.50 315.50 305.50

V7900CL Classroom deadbolt 236.25 231.25 226.25

V7900NT Single cylinder deadbolt no thumbturn 225.75 220.75 215.75

Twin Pro

7100 Single cylinder deadbolt 231.00 226.00 221.00

7100DC Double cylinder deadbolt 325.50 315.50 305.50

7100CL Classroom deadbolt 236.25 231.25 226.25

7100NT Single cylinder deadbolt no thumbturn 225.75 220.75 215.75

7000 Series

Deadbolt

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Deadbolts

6000 Series Deadbolt Parts

* - Indicates Finished Components

† – Specify Profile 0A7 for Maximum+ or 0M7 for Twin Maximum.

* - Indicates Finished Components

Model# Notes Description Price

352323 Outside Cylinder Shell 64.20

352324 Inside Cylinder Shell 55.85

352326 * Thumbturn 64.20

353969 * Twin V-10 Cylinder Plug 49.40

356071 * Twin Exclusive Cylinder Plug 49.40

816068 * † Maximum+ / Twin Maximum Cylinder Plug 64.50

442774 * Deadbolt Bolt Faceplate 136.30

907001 * 2-3/4" Faceplate Bolt 212.70

907002 * 2-3/4" Drive-In Bolt 212.70

907003 * 2-3/8" Faceplate Bolt 212.70

907004 * 2-3/8" Drive-In Bolt 212.70

907005 * Strike Plate with Screws 27.05

907007 Reinforced Strike Box and Screws 35.95

907008 Security Bolt Guard Plate (Hardhat) 5.55

806263 Thumbturn Tailpiece bushing 7.30

352325 Thumbturn Housing Only 62.95

806265 Thumbturn Spindle 43.05

806266 * Cylinder Thumbturn Cap 4.40

806266IC Cylinder Cap, IC 4.00

806266NT * Cylinder Cap, No Thumbturn 8.05

806256 IC Cylinder and Thumbturn Cap 8.35

806267 * Cylinder Ring 55.85

812164 Outside IC Cylinder Housing 71.05

Model# Notes Description Price

806268 * Spacer Ring 1-3/8" Door 46.05

806270 * Thumbturn Ring 48.50

806346 Pin Chamber Closing Screws 140.85/pk

806483 Thumbturn Set Screws 1.65

867046 Tailpiece Washer 5.90

867090 Tailpiece Screw 1.95

806262 Tailpiece 3.95

867109 Tailpiece for Special Door Thickness 10.95/ea

907008 Deadbolt Security Guard 5.55

907015 SecurityBallsforSingle&DoubleCylinder 2.05

907010 DeadboltMountingBolts(Std.SingleCyl.) 2.05

907011 DeadboltMountingBolts(Std.Doublecyl.) 2.70

907012 Deadbolt mounting Bolts (3") 3.30

907013 Deadbolt Mounting Bolts (3-1/4") 4.60

907016 Deadbolt Strike Box Screw 1.65

907017 Grade 1 Cylinder Deadbolt

Extension Kit 2"–2-1/2" Thick Door 17.00

907018 Grade 1 Double Cylinder Deadbolt

Extension Kit 2"–2-1/2" Thick Door 17.00

907035 Deadbolt Chamber Screw Wrench 1.95

250865 Inside IC Cylinder Housing 62.25

M80 Series Grade 2 Deadbolt Locks

Model# Notes Description Comp Sub SNS

Maximum +

98M80 Single cylinder w/thumbturn 145.50 138.00 131.00

98M80DC Double cylinder 228.25 213.25 199.25

Maximum + Restricted

R28M80 Single cylinder w/thumbturn 91.75 84.25 —

R28M80DC Double cylinder 109.75 94.75 —

Twin Maximum

88M80 Single cylinder w/thumbturn 156.75 149.25 142.25

88M80DC Double cylinder 245.75 230.75 216.75

Twin Exclusive

EM80 Single cylinder w/thumbturn 163.00 155.50 148.50

EM80DC Double cylinder 255.75 240.75 226.75

Twin 6000 Classic

M80 Single cylinder w/thumbturn 163.00 155.50 148.50

M80DC Double cylinder 255.75 240.75 226.75

Twin V-10

VM80 Single cylinder w/thumbturn 163.00 155.50 148.50

VM80DC Double cylinder 255.75 240.75 226.75

Twin Pro

61M80 Single cylinder w/thumbturn 163.00 155.50 148.50

61M80DC Double cylinder 255.75 240.75 226.75

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Auxiliary Locks

Prices Effective April 1, 2018

Benefits:

• All locks operated by same high

security key

• Unlimited number of applications

• Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive “false” gates in side pins

designed to increase pick resistance

• Can be easily rekeyed in the field

Technical Information:

• Cylinder housing and plug made

of high quality brass

• Stainless steel top pins

• Bottom pins and master pins are

nickel silver

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

ASSA’s auxiliary lock line brings the

same level of key control and durability

to cam locks, window locks, drawer and

desk locks are standard for all of our high

security products. All of our auxiliary locks

are operated by the same 6 pin uniquely

side coded keys as the rest of our high

security line eliminating the need for

maintaining separate key systems.

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

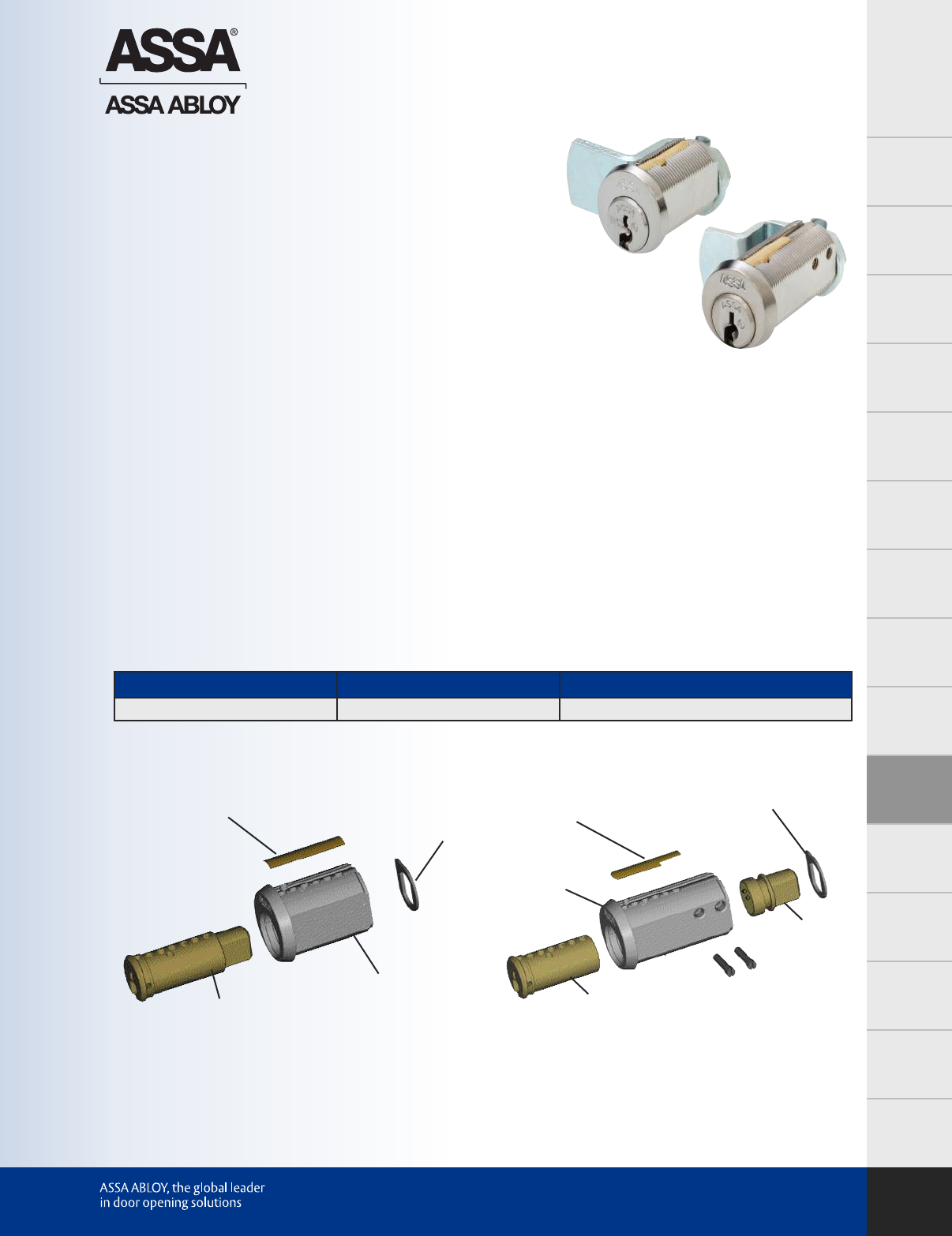

Cam Locks

Cam Locks Exploded View

Benefits:

• Operated by 6 pin high security key

• Available in key retaining and

non-key retaining

• 31 different catches available

• Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive “false” gates in side

pins designed to increase pick

resistance

Technical Information:

• Installation prep 22 mm, 7/8"

Double "D" (punch available

from ASSA)

• Uses stainless steel hollow

interchangeable core drivers

• Body and plug chromium

plated brass

• Bottom pins and master pins

are nickel silver

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

ASSA manufactures the most rugged high security cam

locks on the market today. The sturdy design makes it

perfect for inner safe doors and compartments, cash

storage containers, drug carts, gun cabinets, alarm

control panels, and key storage cabinets. ASSA cam locks

are operated with the same ASSA 6 pin high security key

as the rest of our product offering and are available in

both key retaining and non-key retaining models.

BHMA Symbol U.S. Symbol Description

625 US 26 Bright Chrome

Finishes:

Key Retained

Plug

Shell

Stop

Washer

Cover Slide

Plug Pins

Shell

Stop

Washer

Cover Slide

Non-Key Retained

Cam

Adapter

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

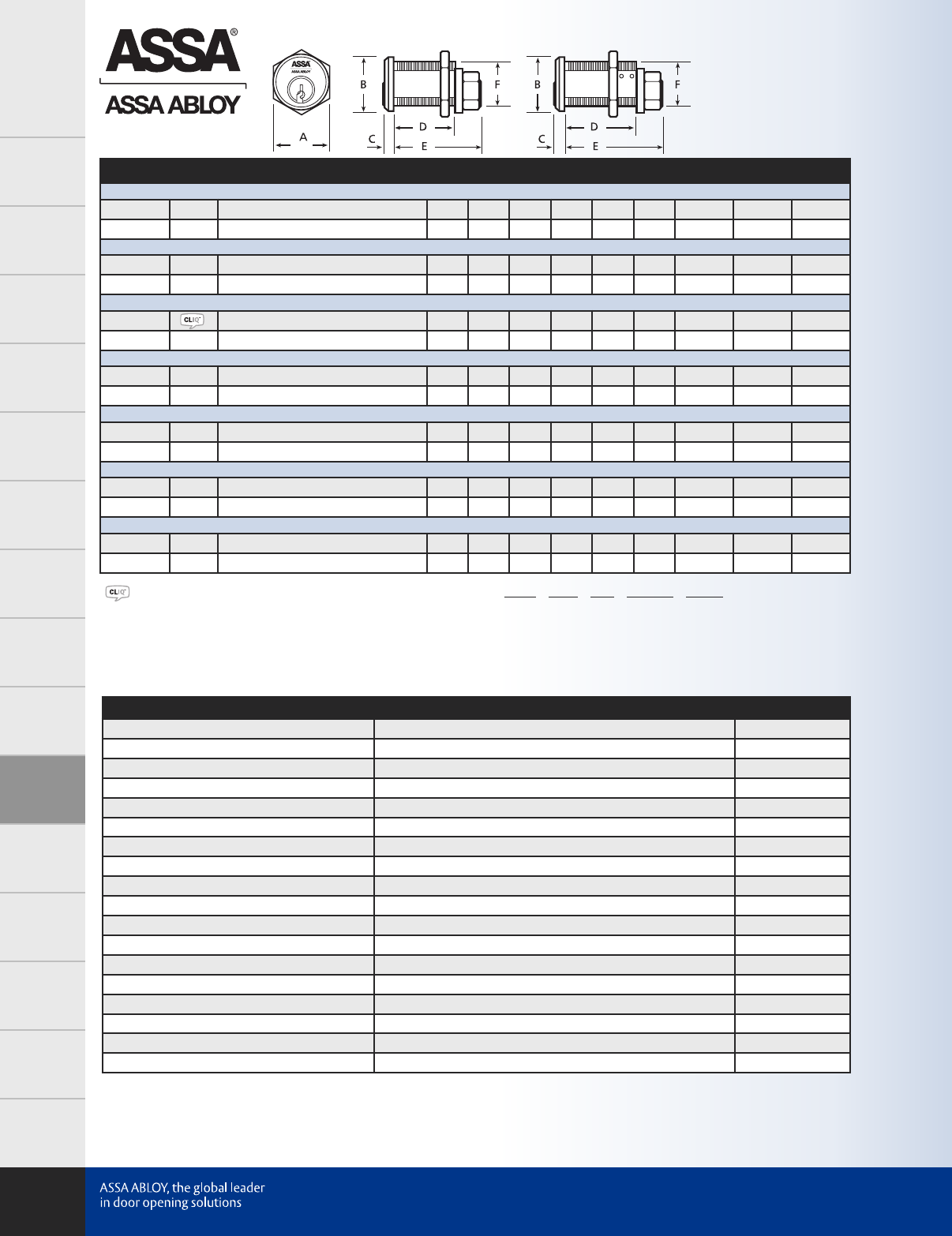

Cam Locks

Model# Notes Description A B C D E F Comp Sub SNS

Maximum +

9871 Key Retaining Cam Lock 90° 1.025 0.980 0.110 1.070 1.490 0.860 84.50 76.75 70.00

9872 Non-KeyRetainingCam Lock360° 1.025 0.980 0.150 1.510 1.865 0.860 91.50 83.75 77.00

Maximum + Restricted

R2871 Key Retaining Cam Lock 90° 1.025 0.980 0.110 1.070 1.490 0.860 76.00 71.00 —

R2872 Non-KeyRetainingCamLock360° 1.025 0.980 0.150 1.510 1.865 0.860 76.00 71.00 —

Twin Maximum

8871 Key Retaining Cam Lock 90° 1.025 0.980 0.110 1.070 1.490 0.860 91.00 83.50 76.50

8872 Non-KeyRetainingCam Lock360° 1.025 0.980 0.150 1.510 1.865 0.860 98.25 90.50 83.75

Twin Exclusive

E6571 Key Retaining Cam Lock 90° 1.025 0.980 0.110 1.070 1.490 0.860 94.50 86.75 80.00

E7571 Non-KeyRetainingCamLock360° 1.025 0.980 0.150 1.510 1.865 0.860 102.25 94.50 87.75

Twin 6000 Classic

6571 Key Retaining Cam Lock 90° 1.025 0.980 0.110 1.070 1.490 0.860 94.50 87.00 80.00

7571 Non-KeyRetainingCam Lock360° 1.025 0.980 0.150 1.510 1.865 0.860 102.25 94.50 87.75

Twin V-10

V6571 Key Retaining Cam Lock 90° 1.025 0.980 0.110 1.070 1.490 0.860 94.50 86.75 80.00

V7571 Non-KeyRetainingCamLock 360° 1.025 0.980 0.150 1.510 1.865 0.860 102.25 94.50 87.75

Twin Pro

6171 Key Retaining Cam Lock 90° 1.025 0.980 0.110 1.070 1.490 0.860 94.50 86.75 80.00

7171 Non-KeyRetainingCam Lock360° 1.025 0.980 0.150 1.510 1.865 0.860 102.25 94.50 87.75

Cam Locks Accessories

– Twin Maximum available with CLIQ™ Technology. Example: 8871 x CLIQ x 626 x Sidebar x Comp

How To Order ASSA Auxiliary Locks:

Example: Model # Security Form Keyway

9871.................Sub......................................0A7-200 Contact Customer Service Department for Keyway Numbers.

Model# Description Price

Seecatalogpages59-60for product number Cam Lock Catches 3.10

CLK-1 Cam Lock Catch Kit (Includes 2 ea. of 31 Cam Catches) 156.15

CLP-D 7/8" Double D Cam Lock/Switch Lock Punch 638.80

490271 Cam Lock cylinder ring 13.00

391053 Cam Lock dust cap 7.50

490825 Cam Lock fixing plate 4.30

491449 Cam Lock fixing plate 4.30

497008 Cam Lock front plate 7.10

490657 Cam Lock front plate 7.10

490821 Cam Lock front plate 7.10

491450 Cam Lock front plate 7.10

490246 Cam Lock washer 1.45

491299 Cam Lock nail plate 3.10

490583 Cam Lock nut 2.65

491439 Cam Lock nut (m11x1) 2.65

490610 Cam Lock housing nut (m22x1) 4.30

490663 Cam Lock housing washer 7.10

492069 Cam Lock turn stop washer 7.10

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

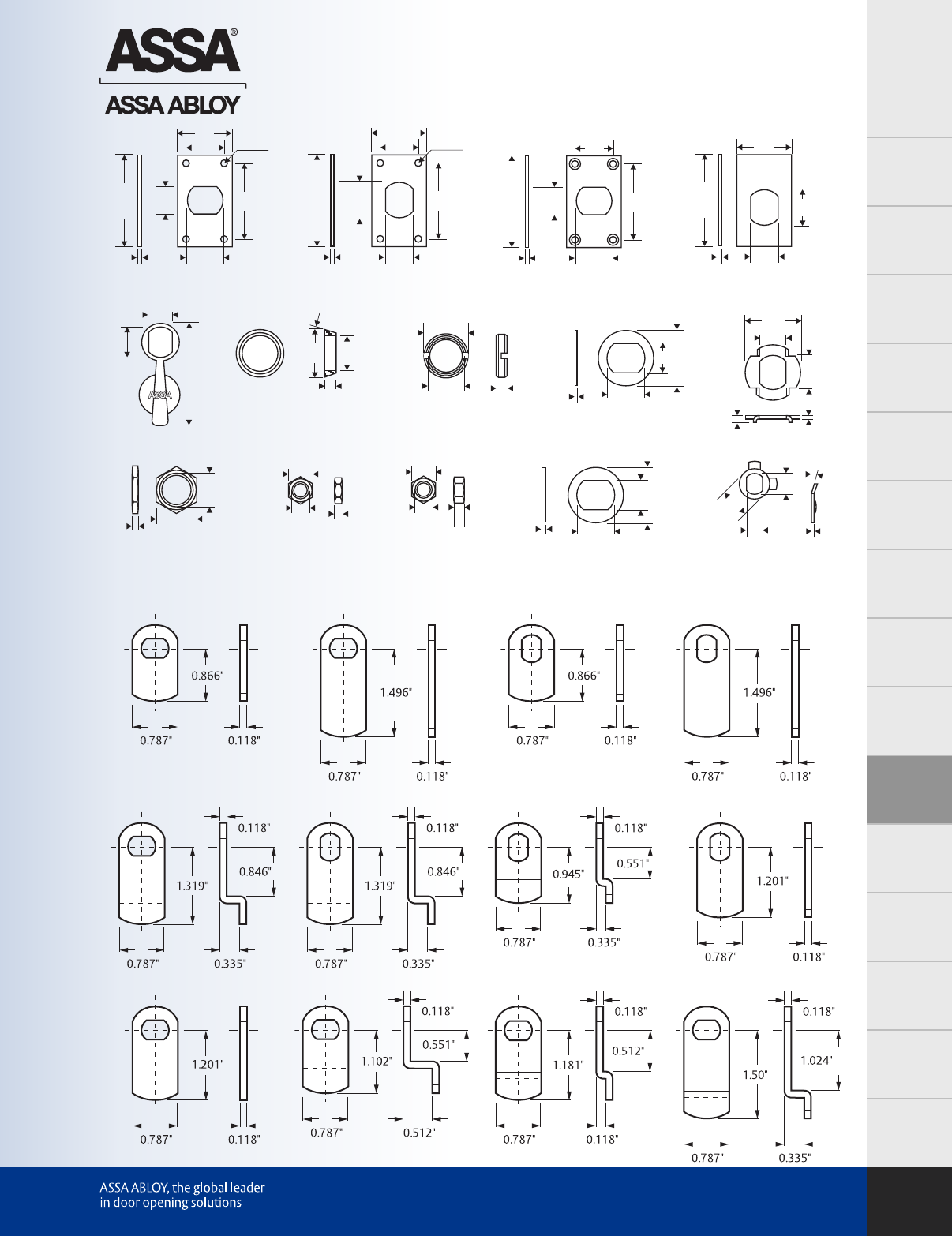

Ø1.1811" Ø0.86614"

15°

0.27559"

3.03149"

Ø 0.86614"

0.70866"

1.88976"

0.94488"

0.70866"

Ø 0.86614"0.03937"

2.28346"

1.33858" Ø 0.177165"

(4x)

1.88976"

0.94488"

0.86614"

0.70866"

0.059055"

2.283346"

1.33858" Ø0.15748"

(4x)

0.70866"

Ø0.86614"

0.07874"

Ø 1.33858"

0.70866"

Ø 0.86614"

0.0295275"

Ø 1.33858"

1.88976"

0.94488"

0.70866"

Ø 0.86614"0.07874"

2.28346"

1.33858"

0.70866"

Ø 0.86614"

0.07874"

2.28346"

Ø0.43307"

0.31496" 0.019685"

15°

Ø 0.62992"

±.007874"

0.70866"

Ø 0.86614"

0.03937"

Ø 1.33858"

0.11811"

M 0.43307" x1

NV 0.59055"

0.177165"

M 0.43307" x1

NV 0.59055"

0.255905"

0.137795"

NV 1.02362"

M0.86614" x 1

Ø 1.02362"

0.23622"

M0.86614" x 1

Cylinder Ring 490271

Front Plate 490821 Front Plate 491450

Lock Washer 490246

Nail Plate 491299

Nut

490583

Housing Nut 490610

Housing Washer 490663

Nut

491439

Dust Cap 391053

Fixing Plate 490825 Fixing Plate 491449

Front Plate 497008

Front Plate 490657

Cam Locks Accessories

Cam Lock Catches

390040 390041 390042 390043

390044 390045 390054 390055

390056 390058 390061 390062

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

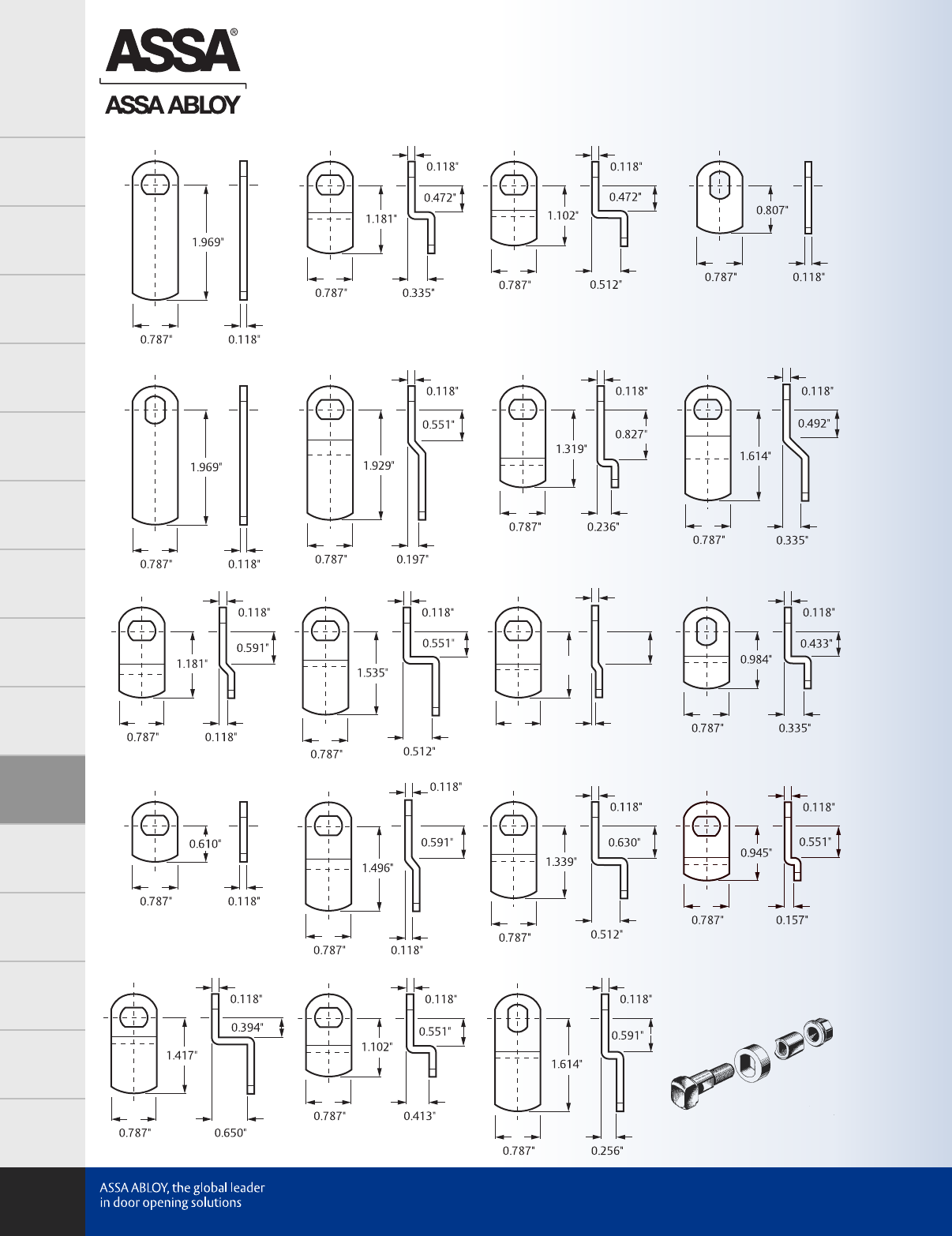

Cam Lock Catches

490827 490842 490847 490880

490890 490907 490926

0.787" 0.039"

0.118"0.118"

1.181"

0.591"

490963

490972 490973 491210 491221

491317 491331 491498 CLP-D

390068 390069 390070 490800

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Benefits:

• 6 pin high security cylinder

• Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive “false” gates in side

pins designed to increase pick

resistance

Technical Information:

• Cast aluminum housing

• Cast aluminum rim and

mortise strike

• Cylinder body and plug high

quality brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

ASSA Utility Locks are used to secure sliding glass or wood

doors, storage cabinets, and windows. They can be keyed

into any ASSA key system or used as a stand alone locking

device. The body is finished with baked on white enamel.

This assembly locks with just one push of your thumb or

finger, as easy as locking a file cabinet. The Utility Lock comes with all of its own mounting

hardware for standard wood frame applications and shims for uneven surfaces.

Utility Locks

Press Cylinder

Lock Case

Strike Plate

Screws

Covers

Spring & Pin

Bottom Plate

For Stop Plate

Bottom Plate For Strike Plate

Model# Notes Description A B C D E Comp Sub SNS

Maximum +

9880 Utility Lock 0.868 1.472 1.345 0.670 1.115 117.75 110.00 103.25

Twin Maximum

8880 Utility Lock 0.868 1.472 1.345 0.670 1.115 123.25 115.50 108.75

Twin Exclusive

E7680 Utility Lock 0.868 1.472 1.345 0.670 1.115 128.25 120.50 113.75

Twin 6000 Classic

7680 Utility Lock 0.868 1.472 1.345 0.670 1.115 128.25 120.50 113.75

Twin V-10

V7680 Utility Lock 0.868 1.472 1.345 0.670 1.115 128.25 120.50 113.75

Twin Pro

6180 Utility Lock 0.868 1.472 1.345 0.670 1.115 128.25 120.50 113.75

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

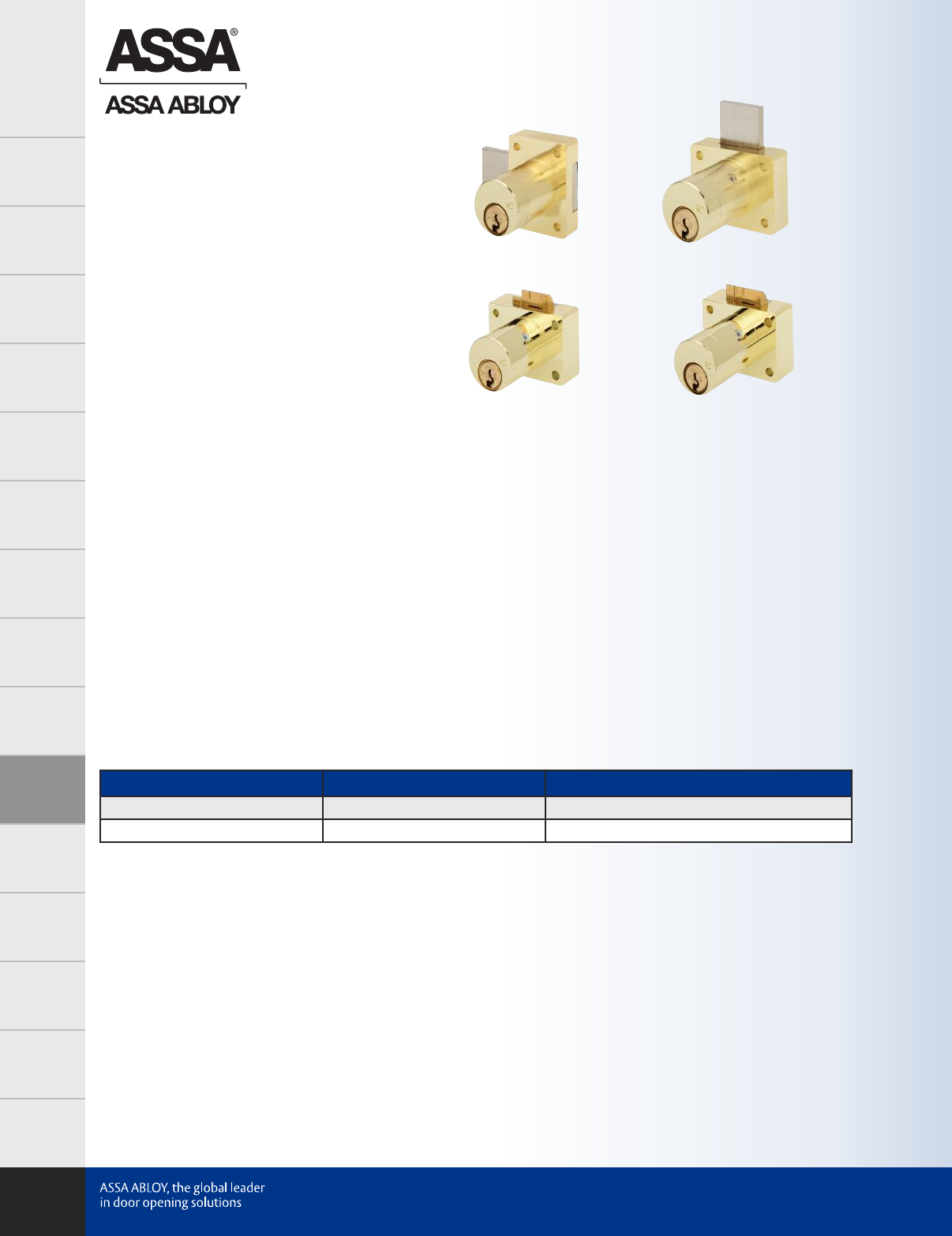

Cabinet Locks

Benefits:

• ASSA U.L. 437 high security

cylinder

• Setscrew for easy rekeying

• Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive “false” gates in side

pins designed to increase pick

resistance

Technical Information:

• Available with plastic spacer

and strike

• Cabinet lock available with

horizontal or vertical bolt

and deadlatch

• Desk lock available in 7/8" and

1-3/8" mounting thickness

• Bolt material high quality brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

ASSA cabinet and desk locks feature our

high security U.L. 437 listed cylinders.

These versatile locks can be keyed into

any ASSA master key system. The cylinder

can be easily rekeyed by removing the set

screw on the side of the cylinder housing.

BHMA Symbol U.S. Symbol Description

626 US 26D Satin Chrome

605 US 3 Bright Brass

Finishes:

1-3/8" Door Lock 1-3/8" Drawer Lock

7/8" Deadlocking Latch 1-3/8" Deadlocking Latch

Cabinet Locks

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

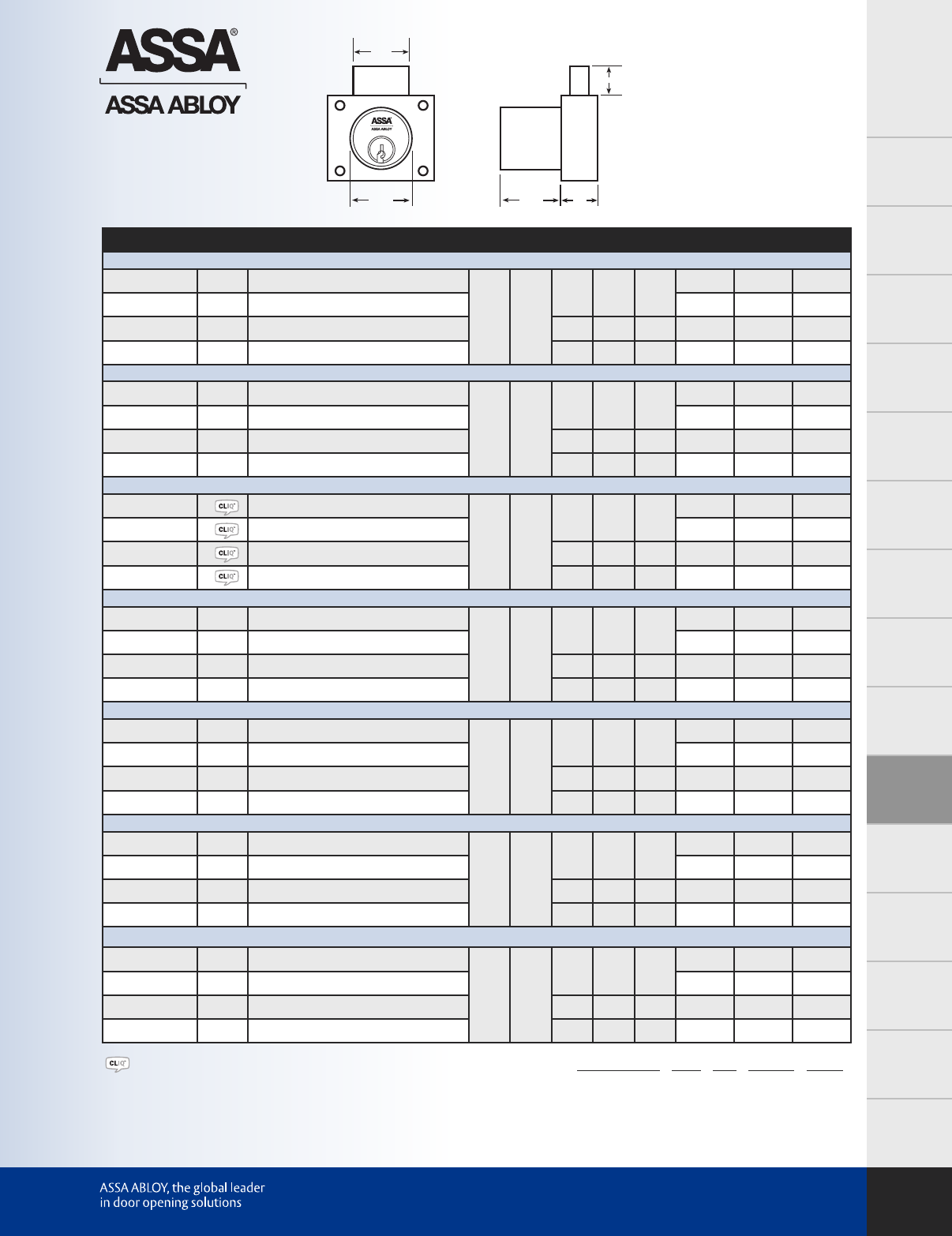

Model# Notes Description A B C D E Comp Sub SNS

Maximum +

98700AS-138 * 1-3/8" Door Lock

1.010 1.120

1.420 0.515 0.965 139.25 131.50 124.75

98800AS-138 * 1-3/8" Drawer Lock 139.25 131.50 124.75

98850AS-078 * 7/8" Deadlocking Latch 1.185 0.635 0.320 167.50 159.75 153.00

98850AS-138 * 1-3/8" Deadlocking Latch 1.420 0.515 0.965 169.75 162.00 155.25

Maximum + Restricted

R28700AS-138 * 1-3/8" Door Lock

1.010 1.120

1.420 0.515 0.965 69.50 55.75 –

R28800AS-138 * 1-3/8" Drawer Lock 69.50 55.75 –

R28850AS-078 * 7/8" Deadlocking Latch 1.185 0.635 0.320 97.75 84.00 –

R28850AS-138 * 1-3/8" Deadlocking Latch 1.420 0.515 0.965 100.00 86.25 –

Twin Maximum

88700AS-138 * 1-3/8" Door Lock

1.010 1.120

1.420 0.515 0.965 149.00 141.25 134.50

88800AS-138 * 1-3/8" Drawer Lock 149.00 141.25 134.50

88850AS-078 * 7/8" Deadlocking Latch 1.185 0.635 0.320 179.00 171.25 164.50

88850AS-138 * 1-3/8" Deadlocking Latch 1.420 0.515 0.965 181.50 173.75 167.00

Twin Exclusive

E700AS-138 * 1-3/8" Door Lock

1.010 1.120

1.420 0.515 0.965 155.00 147.50 140.50

E800AS-138 * 1-3/8" Drawer Lock 155.00 147.25 140.50

E850AS-078 * 7/8" Deadlocking Latch 1.185 0.635 0.320 186.25 178.50 171.75

E850AS-138 * 1-3/8" Deadlocking Latch 1.420 0.515 0.965 188.50 180.75 174.00

Twin 6000 Classic

700AS-138 * 1-3/8" Door Lock

1.010 1.120

1.420 0.515 0.965 155.00 147.25 140.50

800AS-138 * 1-3/8" Drawer Lock 155.00 147.25 140.50

850AS-078 * 7/8" Deadlocking Latch 1.185 0.635 0.320 186.25 178.50 171.75

850AS-138 * 1-3/8" Deadlocking Latch 1.420 0.515 0.965 188.50 180.75 174.00

Twin V-10

V700AS-138 * 1-3/8" Door Lock

1.010 1.120

1.420 0.515 0.965 155.00 147.25 140.50

V800AS-138 * 1-3/8" Drawer Lock 155.00 147.25 140.50

V850AS-078 * 7/8" Deadlocking Latch 1.185 0.635 0.320 186.25 178.50 171.75

V850AS-138 * 1-3/8" Deadlocking Latch 1.420 0.515 0.965 188.50 180.75 174.00

Twin Pro

61700AS-138 * 1-3/8" Door Lock

1.010 1.120

1.420 0.515 0.965 155.00 147.25 140.50

61800AS-138 * 1-3/8" Drawer Lock 155.00 147.25 140.50

61850AS-078 * 7/8" Deadlocking Latch 1.185 0.635 0.320 186.25 178.50 171.75

61850AS-138 * 1-3/8" Deadlocking Latch 1.420 0.515 0.965 188.50 180.75 174.00

B C D

– Twin Maximum available with CLIQ™ Technology, add $535.50. Example: 88700AS-138 x CLIQ x 626 x Sidebar x Comp

* Indicate product finish, Cabinet locks are available in 605 & 626 only.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Benefits:

• Choice of actuation (plunger as

well as a variety of integral and

auxiliary actuators)

• Choice of electrical termination

(solder, quick connect, PCB)

• Available with standard or

narrow stile mounting plate

with LED

Technical Information:

• Single pull double throw

(SPDT) pin actuator and

solder termination standard

• 3 amp at 12 or 24 VDC

• Uses stainless steel hollow inter-

changeable core drivers

• Body and plug chromium

plated brass

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

Combining state of the art Securitron designed technology with

the versatility of an ASSA non key retaining cam lock, this switch

lock is fully reversible from maintained to momentary.

BHMA Symbol U.S. Symbol Description

626 US 26D Satin Chrome

Finishes:

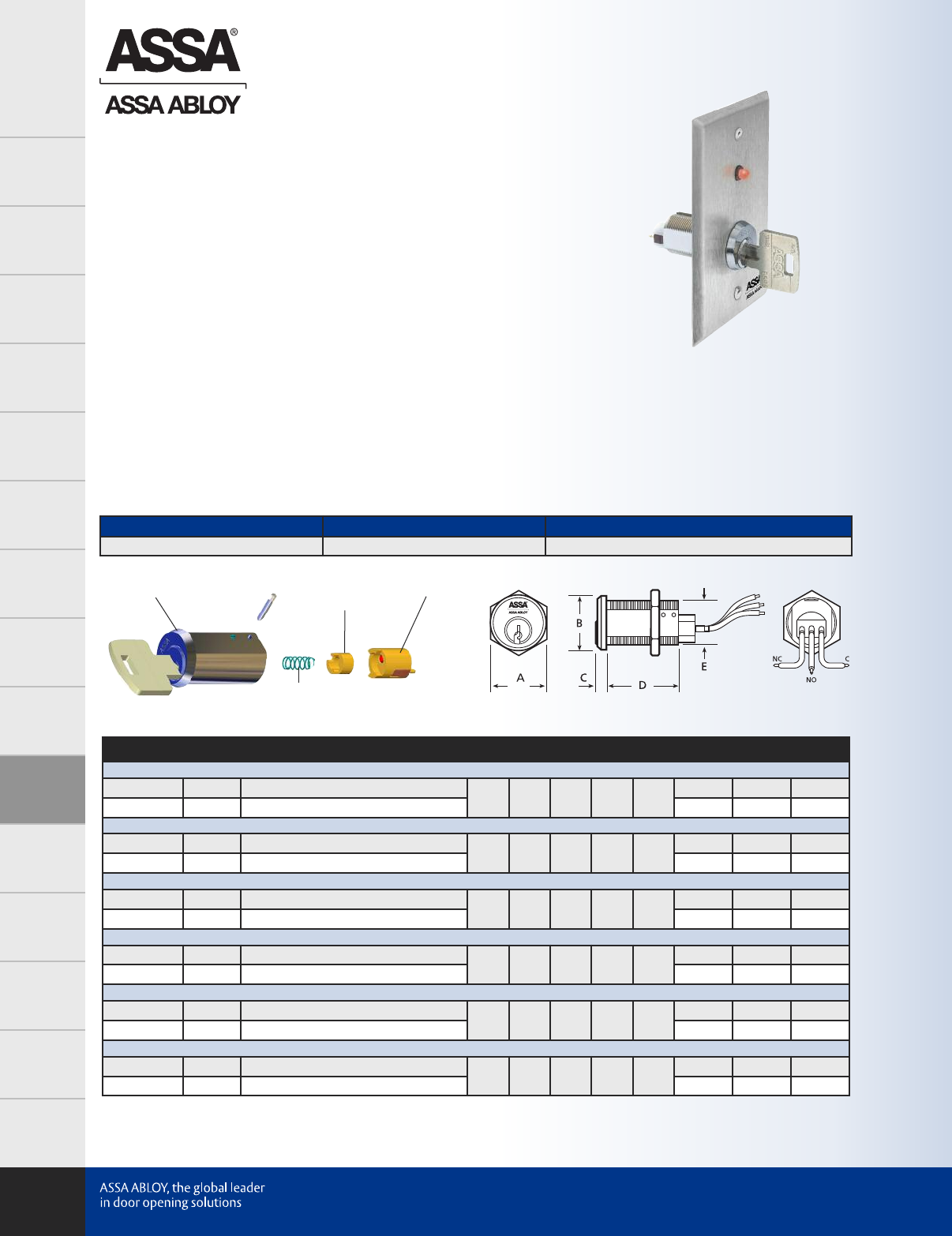

Micro Keyswitch Locks

ASSA Cam Lock

Key & Cylinder

Compression Spring

Switch

Actuator

Cam

Micro Switch &

Housing Unit

Insert

Keyswitches

Model# Notes Description A B C D E Comp Sub SNS

Maximum +

9870-LP Keyswitch Switch Momentary 1.025 0.980 0.110 1.510 0.860 267.50 260.00 253.00

9871-LP Keyswitch Switch On/Off 267.50 260.00 253.00

Twin Maximum

8870-LP Keyswitch Switch Momentary 1.025 0.980 0.110 1.510 0.860 280.25 272.75 265.75

8871-LP Keyswitch Switch On/Off 280.25 272.75 265.75

Twin Exclusive

E7700-LP Keyswitch Switch Momentary 1.025 0.980 0.110 1.510 0.860 288.50 281.00 274.00

E7771-LP Keyswitch Switch On/Off 288.50 281.00 274.00

Twin 6000 Classic

7700-LP Keyswitch Switch Momentary 1.025 0.980 0.110 1.510 0.860 288.50 281.00 274.00

7771-LP Keyswitch Switch On/Off 288.50 281.00 274.00

Twin V-10

V7700-LP Keyswitch Switch Momentary 1.025 0.980 0.110 1.510 0.860 288.50 281.00 274.00

V7771-LP Keyswitch Switch On/Off 288.50 281.00 274.00

Twin Pro

6700-LP Keyswitch Switch Momentary 1.025 0.980 0.110 1.510 0.860 288.50 281.00 274.00

6771-LP Keyswitch Switch On/Off 288.50 281.00 274.00

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

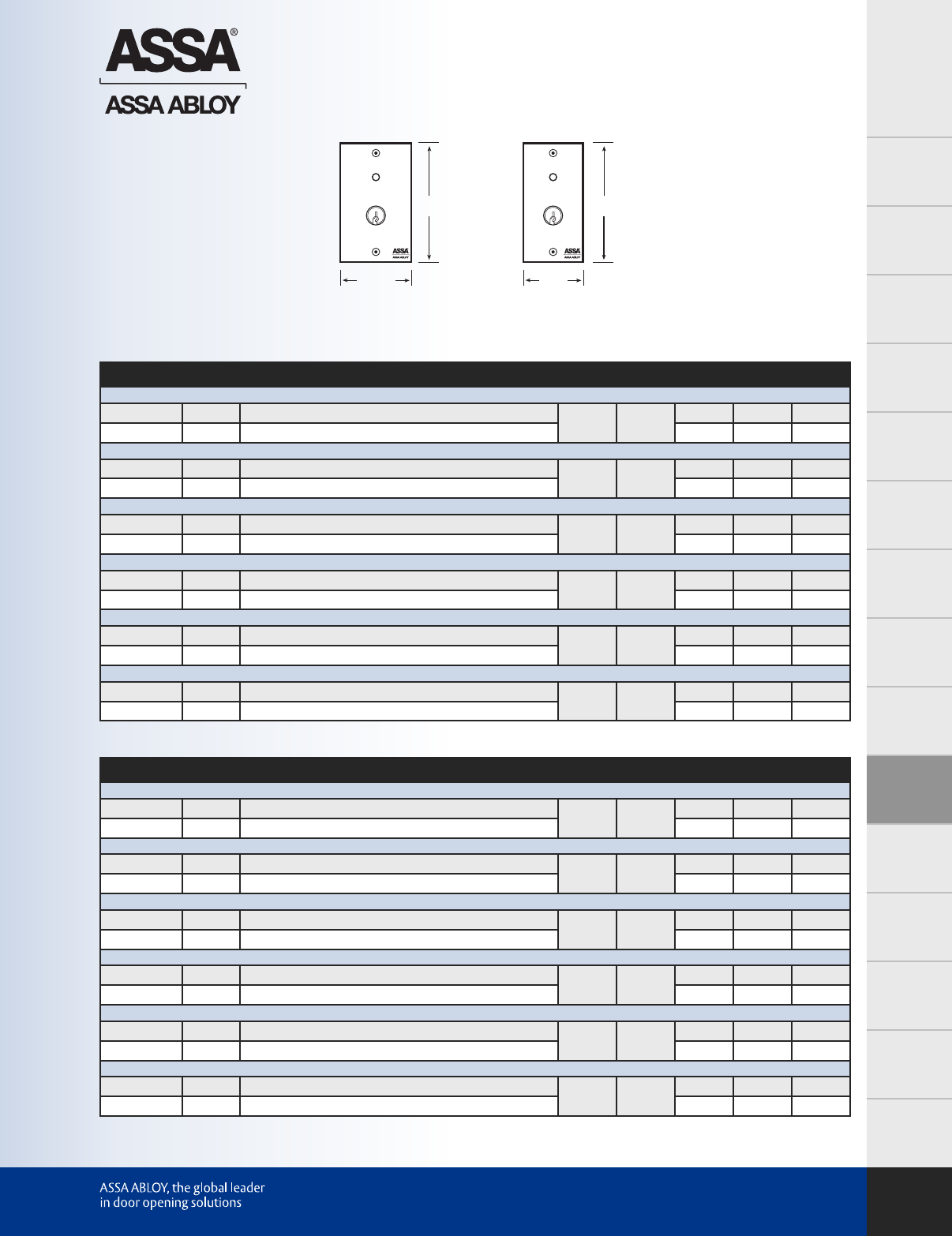

Micro Keyswitch Locks

Keyswitches with Single Gang Plate

Model# Notes Description A B Comp Sub SNS

Maximum +

9870-SG Single Gang Plate Bi/LED Momentary 2.75 4.50 366.00 358.50 351.50

9871-SG Single Gang Plate Bi/LED On/Off 366.00 358.50 351.50

Twin Maximum

8870-SG Single Gang Plate Bi/LED Momentary 2.75 4.50 383.25 375.75 368.75

8871-SG Single Gang Plate Bi/LED On/Off 383.25 375.75 368.75

Twin Exclusive

E7700 Single Gang Plate Bi/LED Momentary 2.75 4.50 394.75 387.25 380.25

E7771 Single Gang Plate Bi/LED On/Off 394.75 387.25 380.25

Twin 6000 Classic

7700 Single Gang Plate Bi/LED Momentary 2.75 4.50 394.75 387.25 380.25

7771 Single Gang Plate Bi/LED On/Off 394.75 387.25 380.25

Twin V-10

V7700 Single Gang Plate Bi/LED Momentary 2.75 4.50 394.75 387.25 380.25

V7771 Single Gang Plate Bi/LED On/Off 394.75 387.25 380.25

Twin Pro

6700 Single Gang Plate Bi/LED Momentary 2.75 4.50 394.75 387.25 380.25

6771 Single Gang Plate Bi/LED On/Off 394.75 387.25 380.25

Keyswitches with Narrow Stile Plate

Model# Notes Description A B Comp Sub SNS

Maximum +

9870-N Narrow Stile Plate Bi/LED Momentary 1.75 4.50 323.50 316.00 309.00

9871-N Narrow Stile Plate Bi/LED On/Off 323.50 315.75 309.00

Twin Maximum

8870-N Narrow Stile Plate Bi/LED Momentary 1.75 4.50 339.00 331.00 323.50

8871-N Narrow Stile Plate Bi/LED On/Off 339.00 331.00 323.50

Twin Exclusive

E7700-N Narrow Stile Plate Bi/LED Momentary 1.75 4.50 349.25 341.75 334.75

E7771-N Narrow Stile Plate Bi/LED On/Off 349.25 341.75 334.75

Twin 6000 Classic

7700-N Narrow Stile Plate Bi/LED Momentary 1.75 4.50 349.25 341.75 334.75

7771-N Narrow Stile Plate Bi/LED On/Off 349.25 341.75 334.75

Twin V-10

V7700-N Narrow Stile Plate Bi/LED Momentary 1.75 4.50 349.25 341.75 334.75

EV7771-N Narrow Stile Plate Bi/LED On/Off 349.25 341.75 334.75

Twin Pro

6700-N Narrow Stile Plate Bi/LED Momentary 1.75 4.50 349.25 341.75 334.75

6771-N Narrow Stile Plate Bi/LED On/Off 349.25 341.75 334.75

Single Gang Plate Narrow Stile Plate

Mortise Keyswitch Locks

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

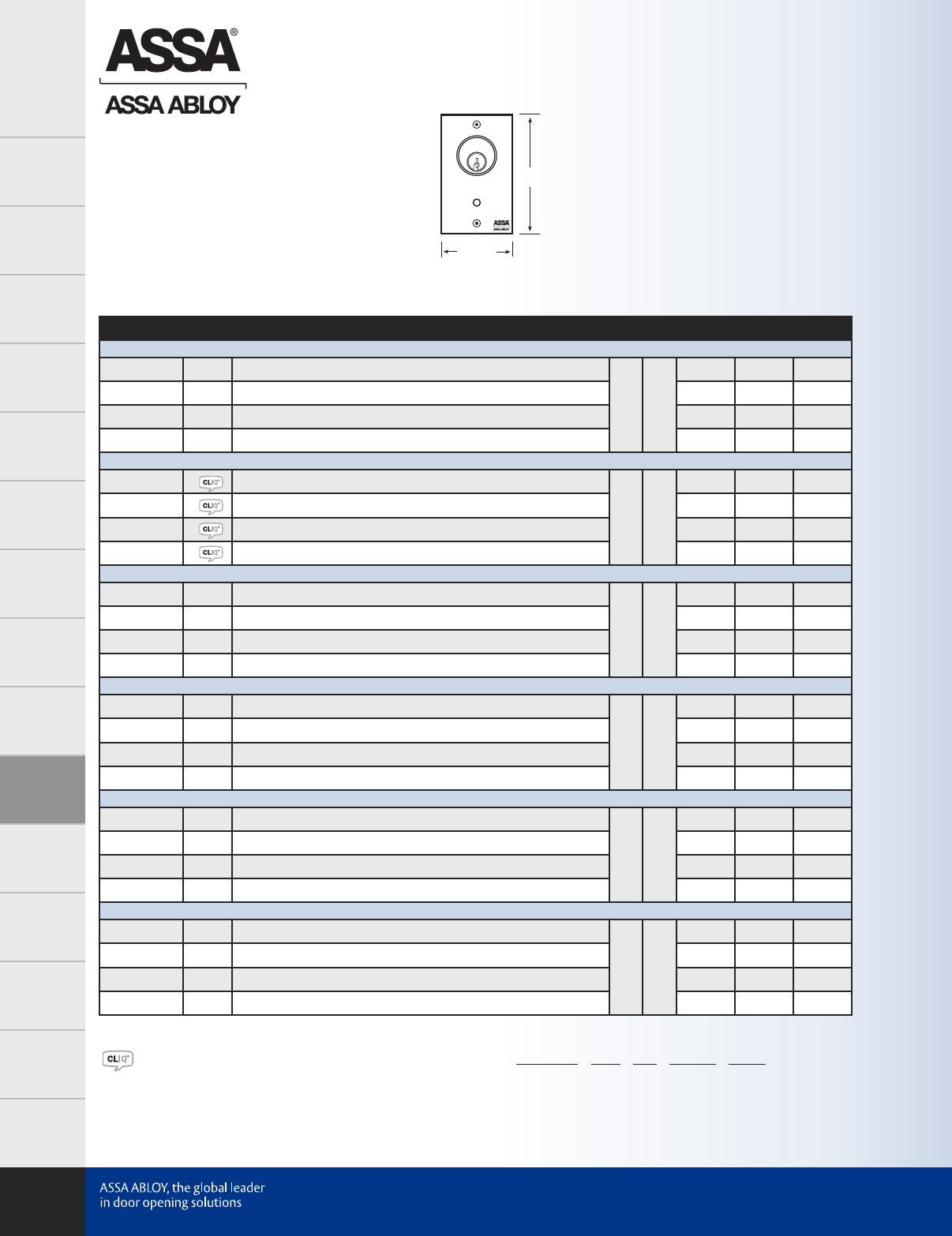

Mortise Keyswitches with Single Gang Plate

Model# Notes Description A B Comp Sub SNS

Maximum +

9851MKS *Single Gang Plate Mortise Bi/LED with One SPDT Momentary Switch

2.75 4.50

386.50 377.00 370.00

9851MKSA *SingleGangPlate MortiseBi/LEDwith OneSPDTAlternate- On/OffSwitch 386.50 377.00 370.00

9851MKS2 *Single Gang Plate Mortise Bi/LED with One DPDT Momentary Switch 386.50 377.00 370.00

9851MKS2A *SingleGangPlateMortiseBi/LEDwithOneDPDTAlternate- On/OffSwitch 386.50 377.00 370.00

Twin Maximum

8851MKS *Single Gang Plate Mortise Bi/LED with One SPDT Momentary Switch

2.75 4.50

417.00 407.50 400.50

8851MKSA *SingleGangPlate MortiseBi/LEDwith OneSPDTAlternate- On/OffSwitch 417.00 407.50 400.50

8851MKS2 *Single Gang Plate Mortise Bi/LED with One DPDT Momentary Switch 417.00 407.50 400.50

8851MKS2A *SingleGangPlateMortiseBi/LEDwithOneDPDTAlternate- On/OffSwitch 417.00 407.50 400.50

Twin Exclusive

E6551MKS *Single Gang Plate Mortise Bi/LED with One SPDT Momentary Switch

2.75 4.50

429.25 419.75 412.75

E6551MKSA *SingleGang Plate MortiseBi/LEDwith OneSPDTAlternate- On/OffSwitch 429.25 419.75 412.75

E6551MKS2 *Single Gang Plate Mortise Bi/LED with One DPDT Momentary Switch 429.25 419.75 412.75

E6551MKS2A *SingleGangPlateMortiseBi/LEDwithOneDPDTAlternate-On/OffSwitch 429.25 419.75 412.75

Twin 6000 Classic

6551MKS *Single Gang Plate Mortise Bi/LED with One SPDT Momentary Switch

2.75 4.50

429.25 419.75 412.75

6551MKSA *SingleGangPlate MortiseBi/LEDwith OneSPDTAlternate- On/OffSwitch 429.25 419.75 412.75

6551MKS2 *Single Gang Plate Mortise Bi/LED with One DPDT Momentary Switch 429.25 419.75 412.75

6551MKS2A *SingleGangPlateMortiseBi/LEDwithOneDPDTAlternate- On/OffSwitch 429.25 419.75 412.75

Twin V-10

V6551MKS *Single Gang Plate Mortise Bi/LED with One SPDT Momentary Switch

2.75 4.50

429.25 419.75 412.75

V6551MKSA *SingleGang Plate MortiseBi/LEDwith OneSPDTAlternate- On/OffSwitch 429.25 419.75 412.75

V6551MKS2 *Single Gang Plate Mortise Bi/LED with One DPDT Momentary Switch 429.25 419.75 412.75

V6551MKS2A *SingleGangPlateMortiseBi/LEDwithOneDPDTAlternate -On/OffSwitch 429.25 419.75 412.75

Twin Pro

6151MKS *Single Gang Plate Mortise Bi/LED with One SPDT Momentary Switch

2.75 4.50

429.25 419.75 412.75

6151MKSA *SingleGangPlate MortiseBi/LEDwith OneSPDTAlternate- On/OffSwitch 429.25 419.75 412.75

6151MKS2 *Single Gang Plate Mortise Bi/LED with One DPDT Momentary Switch 429.25 419.75 412.75

6151MKS2A *SingleGangPlateMortiseBi/LEDwithOneDPDTAlternate- On/OffSwitch 429.25 419.75 412.75

* Mortise Keyswitch assemblies can take up to two switches and are supplied with one switch. All switches are listed on page 68.

– Twin Maximum available with CLIQ™ Technology. Example: 8851 MKS xCLIQ x 626 x Sidebar x Comp

Mortise Keyswitch Locks

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

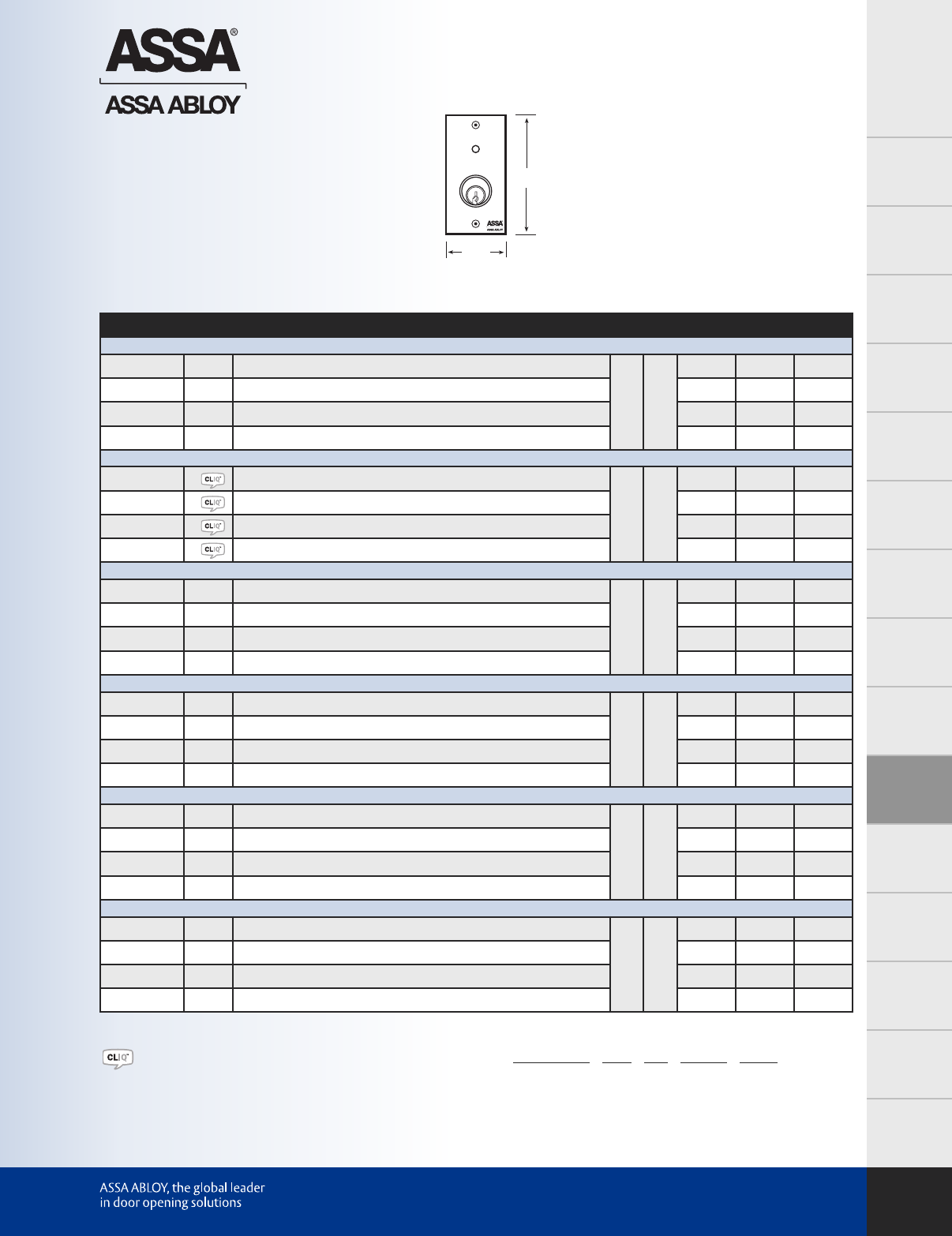

Mortise Keyswitches with Narrow Stile Plate

Model# Notes Description A B Comp Sub SNS

Maximum +

9851MKS-N *Narrow Stile Plate Mortise Bi/LED with One SPDT Momentary Switch

1.75 4.50

386.50 377.00 370.00

9851MKSA-N *Narrow Stile Plate MortiseBi/LEDwithOneSPDT Alternate-On/OffSwitch 386.50 377.00 370.00

9851MKS2-N *Narrow Stile Plate Mortise Bi/LED with One DPDT Momentary Switch 386.50 377.00 370.00

9851MKS2A-N *Narrow Stile Plate Mortise Bi/LEDwithOneDPDTAlternate -On/Off Switch 386.50 377.00 370.00

Twin Maximum

8851MKS-N *Narrow Stile Plate Mortise Bi/LED with One SPDT Momentary Switch

1.75 4.50

417.00 407.50 400.50

8851MKSA-N *Narrow Stile Plate MortiseBi/LEDwithOneSPDT Alternate-On/OffSwitch 417.00 407.50 400.50

8851MKS2-N *Narrow Stile Plate Mortise Bi/LED with One DPDT Momentary Switch 417.00 407.50 400.50

8851MKS2A-N *Narrow Stile Plate Mortise Bi/LEDwithOneDPDTAlternate -On/Off Switch 417.00 407.50 400.50

Twin Exclusive

E6551MKS-N *Narrow Stile Plate Mortise Bi/LED with One SPDT Momentary Switch

1.75 4.50

429.25 419.75 412.75

E6551MKSA-N *Narrow Stile Plate MortiseBi/LEDwithOneSPDT Alternate-On/OffSwitch 429.25 419.75 412.75

E6551MKS2-N *Narrow Stile Plate Mortise Bi/LED with One DPDT Momentary Switch 429.25 419.75 412.75

E6551MKS2A-N *Narrow Stile Plate MortiseBi/LED withOneDPDTAlternate -On/OffSwitch 429.25 419.75 412.75

Twin 6000 Classic

6551MKS-N *Narrow Stile Plate Mortise Bi/LED with One SPDT Momentary Switch

1.75 4.50

429.25 419.75 412.75

6551MKSA-N *Narrow Stile Plate MortiseBi/LEDwithOneSPDT Alternate-On/OffSwitch 429.25 419.75 412.75

6551MKS2-N *Narrow Stile Plate Mortise Bi/LED with One DPDT Momentary Switch 429.25 419.75 412.75

6551MKS2A-N *Narrow Stile Plate Mortise Bi/LEDwithOneDPDTAlternate -On/Off Switch 429.25 419.75 412.75

Twin V-10

V6551MKS-N *Narrow Stile Plate Mortise Bi/LED with One SPDT Momentary Switch

1.75 4.50

429.25 419.75 412.75

V6551MKSA-N *Narrow Stile Plate MortiseBi/LEDwith One SPDT Alternate-On/OffSwitch 429.25 419.75 412.75

V6551MKS2-N *Narrow Stile Plate Mortise Bi/LED with One DPDT Momentary Switch 429.25 419.75 412.75

V6551MKS2A-N *Narrow Stile Plate MortiseBi/LED withOneDPDT Alternate- On/Off Switch 429.25 419.75 412.75

Twin Pro

6151MKS-N *Narrow Stile Plate Mortise Bi/LED with One SPDT Momentary Switch

1.75 4.50

429.25 419.75 412.75

6151MKSA-N *Narrow Stile Plate MortiseBi/LEDwithOneSPDT Alternate-On/OffSwitch 429.25 419.75 412.75

6151MKS2-N *Narrow Stile Plate Mortise Bi/LED with One DPDT Momentary Switch 429.25 419.75 412.75

6151MKS2A-N *Narrow Stile Plate Mortise Bi/LEDwithOneDPDTAlternate -On/Off Switch 429.25 419.75 412.75

* Mortise Keyswitch assemblies can take up to two switches and are supplied with one switch. All switches are listed on page 68.

– Twin Maximum available with CLIQ™ Technology. Example: 8851 MKS-N xCLIQ x 626 x Sidebar x Comp

Mortise Keyswitch Locks

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Switch Position

for 90° Clockwise

(3 O’Clock Activation)

Switch

(Momentary/Alternate)

Switch Assembly

Optional/Additional

Switch Position for 90°

Counter-Clockwise

(9 O’Clock Activation)

Or: 180° Individual

CW-CCW

(9 & 3 O’Clock Activation)

SPTD: 3-Wire (As Shown)

DPDT: 6-Wire (As Shown x 2 Pole Sets)

Model# Description Price

ASMKS SPDT Momentary 89.45

ASMKSA SPDT Alternate (ON/OFF) 89.45

ASMKS2 DPDT Momentary 141.95

ASMKS2A DPDT Alternate (ON/OFF) 141.95

Optional Switches for Mortise Switch Plates

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Benefits:

• Sturdy design ensures maximum

durability

• Class 2 available in key retaining

and non-key retaining, extended

shackle

• Shackle made of rust resistant

case hardened steel

• Hockey Puck style shackleless

design provides maximum

protection against hacksaw

and bolt cutter attacks

• Drain holes to prevent freezing

• No external screws or rivets

Technical Information:

• Class 2 body extruded brass, rust

resistant case hardened steel

shackle, tensile strength 1.5 tons.

(Class 2 not recommended for

exterior use)

• Class 2 convertible from key

retaining to non-key retaining

• Class 3 body case hardened steel,

rust resistant case hardened steel

shackle, tensile strength 4.5 tons

• Hockey Puck style body can

withstand up to 10,000 lbs of

force from bolt cutters

• Stainless steel top pins

• Bottom pins and master pins

are nickel silver

Warranty:

• ASSA warrants its cylinders

against defective workmanship

or wear resulting from defects

for one year

Certification:

• All ASSA High Security Padlocks

are U.L. 437 listed

ASSA manufactures high security padlocks in

three classes, all of which can be integrated

into any new or existing ASSA master key

system. Our heavy duty padlocks are made

from the highest quality materials and have

withstoodthe mostrigorous testingprocedures.

ASSA padlocks are used in a wide variety of

applications including storagerooms, perimeter

fences,and armories.

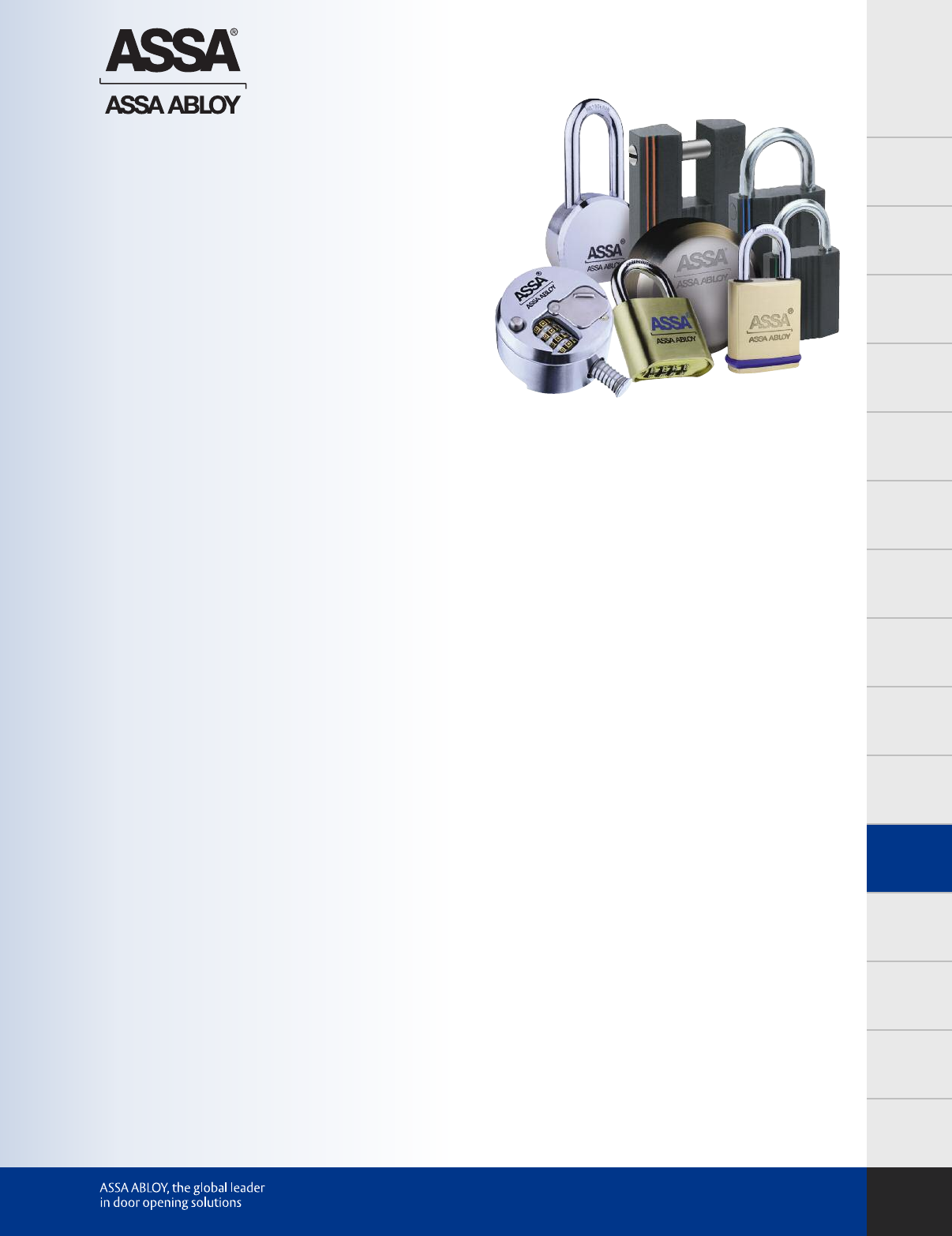

Padlocks

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

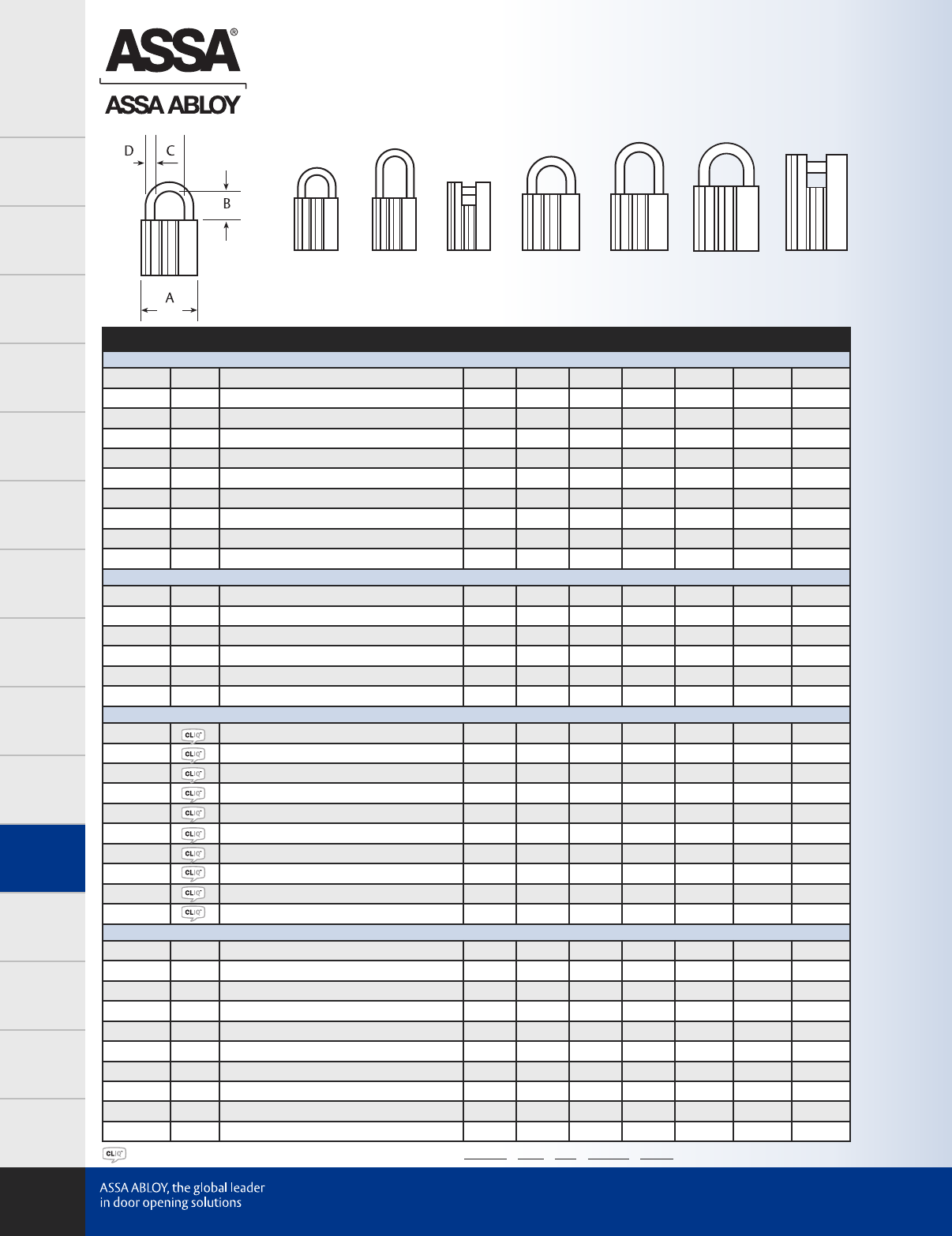

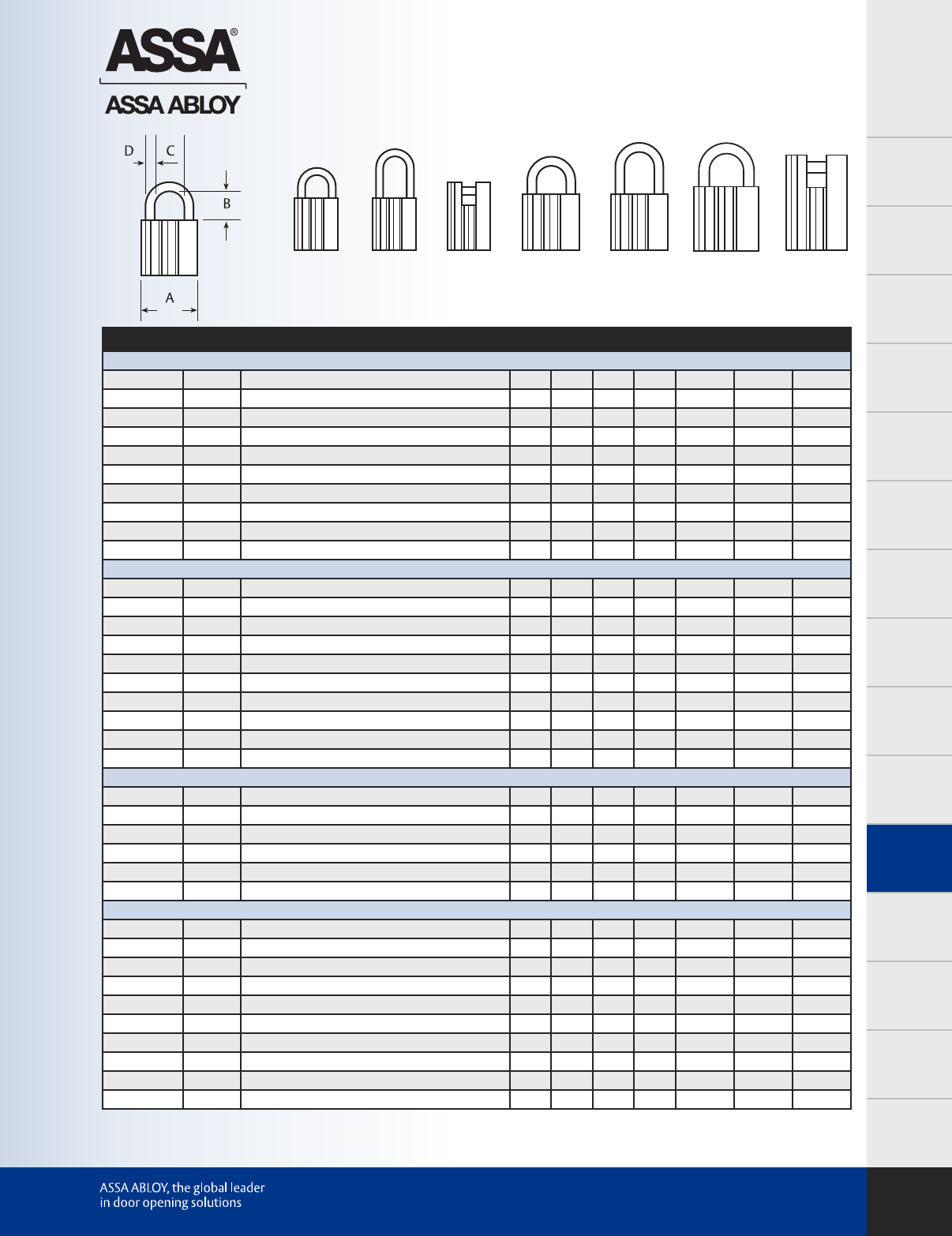

#2 #2

Extended

Shackle

Extended

Shackle

Shrouded #4-5

Shrouded

#3 #4

Model# Notes Description A B C D Comp Sub SNS

Maximum +

98190B No.2 Non-Key-Retaining 1.900 1.100 0.940 0.315 146.75 139.25 132.25

98190LB No.2 Non-Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 153.25 145.75 138.75

98190SB No.2 Non-Key-Ret. w/Shrouded Shackle 1.900 0.535 0.475 0.315 166.50 159.00 152.00

98191B No.2 Key-Retaining 1.900 1.100 0.940 0.315 146.75 139.25 132.25

98191LB No.2 Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 153.25 145.75 138.75

98391B No.3 Key-Retaining 2.450 1.235 1.295 0.395 288.25 280.75 273.75

98391LB No.3 Key-Retaining Ext. Shackle 2.450 1.875 1.295 0.395 319.25 311.75 304.75

98391SB No.3 Key Ret. w/Shrouded Shackle 2.450 0.710 0.590 0.395 325.75 318.25 311.25

98491B No.4 Key-Retaining 3.150 0.985 0.830 0.550 447.50 440.00 433.00

98591SB No.5 Key Ret. w/Shrouded Shackle 3.150 0.985 0.830 0.550 479.75 472.25 465.25

Maximum + Restricted Padlocks

R28190B No.2 Non-Key-Retaining 1.900 1.100 0.940 0.315 98.50 84.75 —

R28190LB No.2 Non-Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 111.50 97.75 —

R28190SB No.2 Non-Key-Ret. w/Shrouded Shackle 1.900 0.535 0.475 0.315 112.75 98.75 —

R28191B No.2 Key-Retaining 1.900 1.100 0.940 0.315 100.00 86.25 —

R28191LB No.2 Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 113.00 99.25 —

R28391B No.3 Key-Retaining 2.450 1.235 1.295 0.395 203.75 190.00 —

Twin Maximum

88190B No.2 Non-Key-Retaining 1.900 1.100 0.940 0.315 157.00 149.50 142.50

88190LB No.2 Non-Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 163.75 156.25 149.25

88190SB No.2 Non-Key-Ret. w/Shrouded Shackle 1.900 0.535 0.475 0.315 178.25 170.75 163.75

88191B No.2 Key-Retaining 1.900 1.100 0.940 0.315 157.00 149.50 142.50

88191LB No.2 Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 163.75 156.25 149.25

88391B No.3 Key-Retaining 2.450 1.235 1.295 0.395 308.00 300.50 293.50

88391LB No.3 Key-Retaining Ext. Shackle 2.450 1.875 1.295 0.395 341.00 333.50 326.50

88391SB No.3 Key Ret. w/Shrouded Shackle 2.450 0.710 0.590 0.395 348.25 340.75 333.75

88491B No.4 Key-Retaining 3.150 0.985 0.830 0.550 478.25 470.75 463.75

88591SB No.5 Key Ret. w/Shrouded Shackle 3.150 0.985 0.830 0.550 512.50 505.00 498.00

Twin Exclusive

E65190B No.2 Non-Key-Retaining 1.900 1.100 0.940 0.315 163.25 155.75 148.75

E65190LB No.2 Non-Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 163.00 156.00

E65190SB No.2 Non-Key-Ret. w/Shrouded Shackle 1.900 0.535 0.475 0.315 185.25 177.75 170.75

E65191B No.2 Key-Retaining 1.900 1.100 0.940 0.315 163.25 155.75 148.75

E65191LB No.2 Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 163.00 156.00

E65391B No.3 Key-Retaining 2.450 1.235 1.295 0.395 320.00 312.50 305.50

E65391LB No.3 Key-Retaining Ext. Shackle 2.450 1.875 1.295 0.395 355.00 347.50 340.50

E65391SB No.3 Key Ret. w/Shrouded Shackle 2.450 0.710 0.590 0.395 362.25 354.75 347.75

E65491B No.4 Key-Retaining 3.150 0.985 0.830 0.550 497.50 490.00 483.00

E65591SB No.5 Key Ret. w/Shrouded Shackle 3.150 0.985 0.830 0.550 533.25 525.75 518.75

– Twin Maximum available with CLIQ™ Technology. Example: 88191B x CLIQ x 626 x Sidebar x Comp

Padlocks

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Model# Notes Description A B C D Comp Sub SNS

Twin 6000 Classic

65190B No.2 Non-Key-Retaining 1.900 1.100 0.940 0.315 163.25 155.75 148.75

65190LB No.2 Non-Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 163.00 156.00

65190SB No.2 Non-Key-Ret. w/Shrouded Shackle 1.900 0.535 0.475 0.315 185.25 177.75 170.75

65191B No.2 Key-Retaining 1.900 1.100 0.940 0.315 163.25 155.75 148.75

65191LB No.2 Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 163.00 156.00

65391B No.3 Key-Retaining 2.450 1.235 1.295 0.395 320.00 312.50 305.50

65391LB No.3 Key-Retaining Ext. Shackle 2.450 1.875 1.295 0.395 355.00 347.50 340.50

65391SB No.3 Key Ret. w/Shrouded Shackle 2.450 0.710 0.590 0.395 362.25 354.75 347.75

65491B No.4 Key-Retaining 3.150 0.985 0.830 0.550 497.50 490.00 483.00

65591SB No.5 Key Ret. w/Shrouded Shackle 3.150 0.985 0.830 0.550 533.25 525.75 518.75

Twin V-10

V65190B No.2 Non-Key-Retaining 1.900 1.100 0.940 0.315 163.25 155.75 148.75

V65190LB No.2 Non-Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 163.00 156.00

V65190SB No.2 Non-Key-Ret. w/Shrouded Shackle 1.900 0.535 0.475 0.315 185.25 177.75 170.75

V65191B No.2 Key-Retaining 1.900 1.100 0.940 0.315 163.25 155.75 148.75

V65191LB No.2 Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 163.00 156.00

V65391B No.3 Key-Retaining 2.450 1.235 1.295 0.395 320.00 312.50 305.50

V65391LB No.3 Key-Retaining Ext. Shackle 2.450 1.875 1.295 0.395 355.00 347.50 340.50

V65391SB No.3 Key Ret. w/Shrouded Shackle 2.450 0.710 0.590 0.395 362.25 354.75 347.75

V65491B No.4 Key-Retaining 3.150 0.985 0.830 0.550 497.50 490.00 483.00

V65591SB No.5 Key Ret. w/Shrouded Shackle 3.150 0.985 0.830 0.550 533.25 525.75 518.75

600 Series Classic

6190B No.2 Non-Key-Retaining 1.900 1.100 0.940 0.315 156.50 147.50 —

6190LB No.2 Non-Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 161.50 —

6190SB No.2 Non-Key-Ret. w/Shrouded Shackle 1.900 0.535 0.475 0.315 185.25 176.25 —

6191B No.2 Key-Retaining 1.900 1.100 0.940 0.315 156.50 147.50 —

6191LB No.2 Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 161.50 —

6391B No.3 Key-Retaining 2.450 1.235 1.295 0.395 248.50 239.50 —

Twin Pro

61190B No.2 Non-Key-Retaining 1.900 1.100 0.940 0.315 163.25 155.75 148.75

61190LB No.2 Non-Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 163.00 156.00

61190SB No.2 Non-Key-Ret. w/Shrouded Shackle 1.900 0.535 0.475 0.315 185.25 177.75 170.75

61191B No.2 Key-Retaining 1.900 1.100 0.940 0.315 163.25 155.75 148.75

61191LB No.2 Key-Retaining Ext. Shackle 1.900 2.035 0.940 0.315 170.50 163.00 156.00

61391B No.3 Key-Retaining 2.450 1.235 1.295 0.395 320.00 312.50 305.50

61391LB No.3 Key-Retaining Ext. Shackle 2.450 1.875 1.295 0.395 355.00 347.50 340.50

61391SB No.3 Key Ret. w/Shrouded Shackle 2.450 0.710 0.590 0.395 362.25 354.75 347.75

61491B No.4 Key-Retaining 3.150 0.985 0.830 0.550 497.50 490.00 483.00

61591SB No.5 Key Ret. w/Shrouded Shackle 3.150 0.985 0.830 0.550 533.25 525.75 518.75

#2 #2

Extended

Shackle

Extended

Shackle

Shrouded #4-5

Shrouded

#3 #4

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

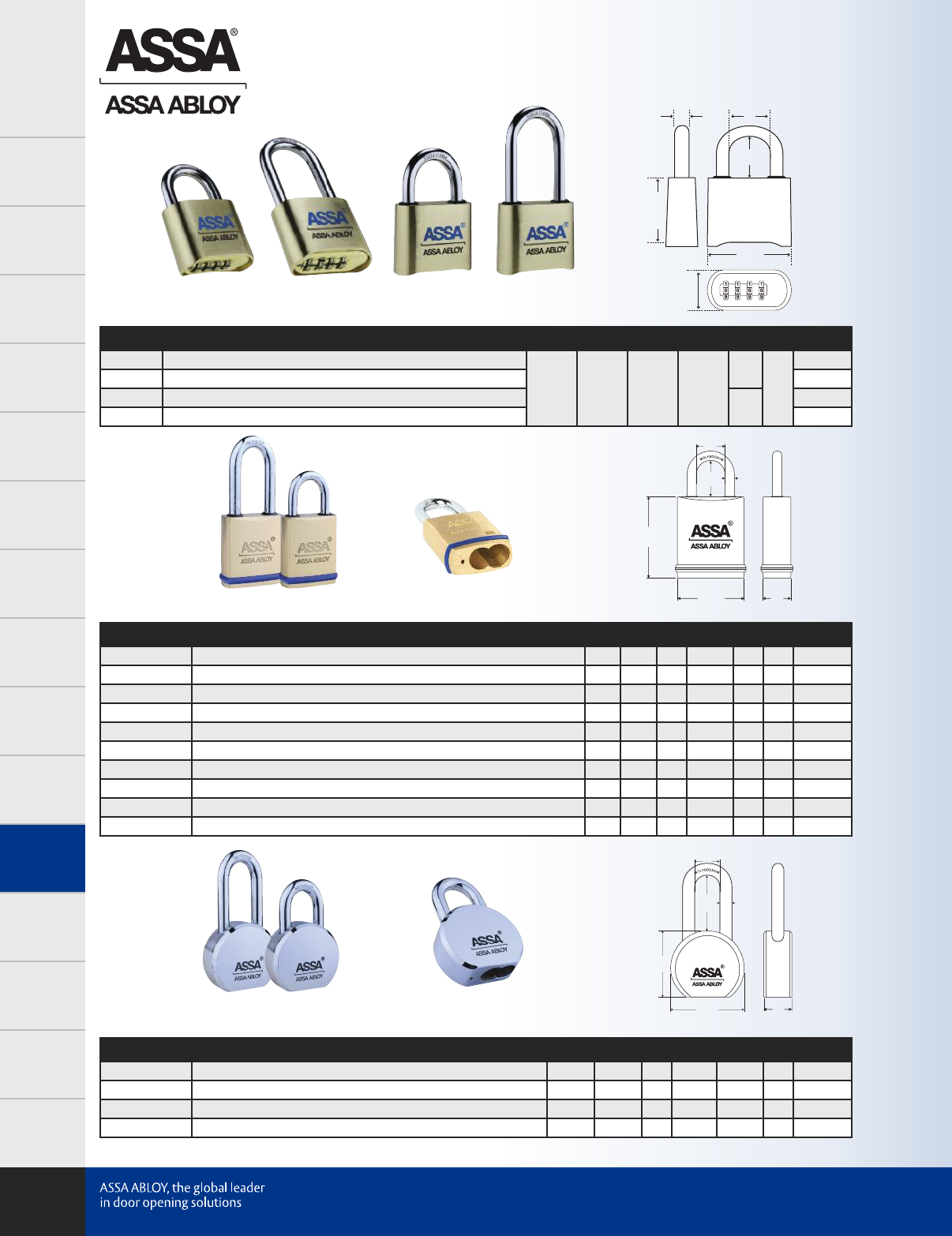

Padlocks

Model# Description W H T D K Y MSRP

SRB36 4-Dial Brass Combination Padlock 1” Shackle

1.875 1.6875 0.70312 0.3125

1.0

26.00

SRB36D 4-Dial Brass Combination Padlock 1” Shackle Carded 26.00

SRB37 4-Dial Brass Combination Padlock 2-1/4” Shackle 2.25 27.00

SRB37D 4-Dial Brass Combination Padlock 2-1/4” Shackle Carded 27.00

Combination Resettable Brass Padlock

Model# Description W H T A B C MSRP

AA-450/6-25-KIK 1-3/4" Wide Brass Body KIK Padlock with 1" Clearance & 1/4" Dia. Shackle 1.75 2.25 4/5 .25 1.0 .75 48.50

AA-450-25-KIK 1-3/4" Wide Brass Body KIK Padlock with 1" Clearance & 5/16" Dia. Shackle 1.75 2.25 4/5 .3125 1.0 .75 48.50

AA-450-25-SFIC 1-3/4" Wide Brass Body SFIC Padlock with 1" Clearance & 5/16" Dia. Shackle 1.75 2.25 4/5 .3125 1.0 .75 48.50

AA-500-25-KIK 2" Wide Brass Body KIK Padlock with 1" Clearance & 3/8" Dia. Shackle 2.0 2.25 4/5 .375 1.0 .75 57.50

AA-500-25-SFIC 2" Wide Brass Body SFIC Padlock with 1" Clearance & 3/8" Dia. Shackle 2.0 2.25 4/5 .375 1.0 .75 57.50

AA-450/6-50-KIK 1-3/4" Wide Brass Body KIK Padlock with 2" Clearance & 1/4" Dia. Shackle 1.75 2.25 4/5 .25 2.0 .75 50.00

AA-450-50-KIK 1-3/4" Wide Brass Body KIK Padlock with 2" Clearance & 5/16" Dia. Shackle 1.75 2.25 4/5 .3125 2.0 .75 50.00

AA-450-50-SFIC 1-3/4" Wide Brass Body SFIC Padlock with 2" Clearance & 5/16" Dia. Shackle 1.75 2.25 4/5 .3125 2.0 .75 50.00

AA-500-50-KIK 2" Wide Brass Body KIK Padlock with 2" Clearance & 3/8" Dia. Shackle 2.0 2.25 4/5 .375 2.0 .75 59.75

AA-500-50-SFIC 2" Wide Brass Body SFIC Padlock with 2" Clearance & 3/8" Dia. Shackle 2.0 2.25 4/5 .375 2.0 .75 59.75

KIK & SFIC Interchangeable Core Padlocks

Model# Description W H T A B C MSRP

AA-900-KIK Round Body Solid Steel KIK Padlock with 1" Shackle 2.626 2.375 1.0 1.125 .875 .75 50.00

AA-900-SFIC Round Body Solid Steel SFIC Padlock with 1" Shackle 2.626 2.375 1.0 1.125 .875 .75 50.00

AA-902-KIK Round Body Solid Steel KIK Padlock with 2" Shackle 2.625 2.375 1.0 2.125 .875 .75 52.00

AA-902-SFIC Round Body Solid Steel KSFIC Padlock with 2" Shackle 2.625 2.375 1.0 2.125 .875 .75 52.00

KIK & SFIC High Security Solid Steel Interchangeable Core Padlocks

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Padlocks

Prices Effective April 1, 2018

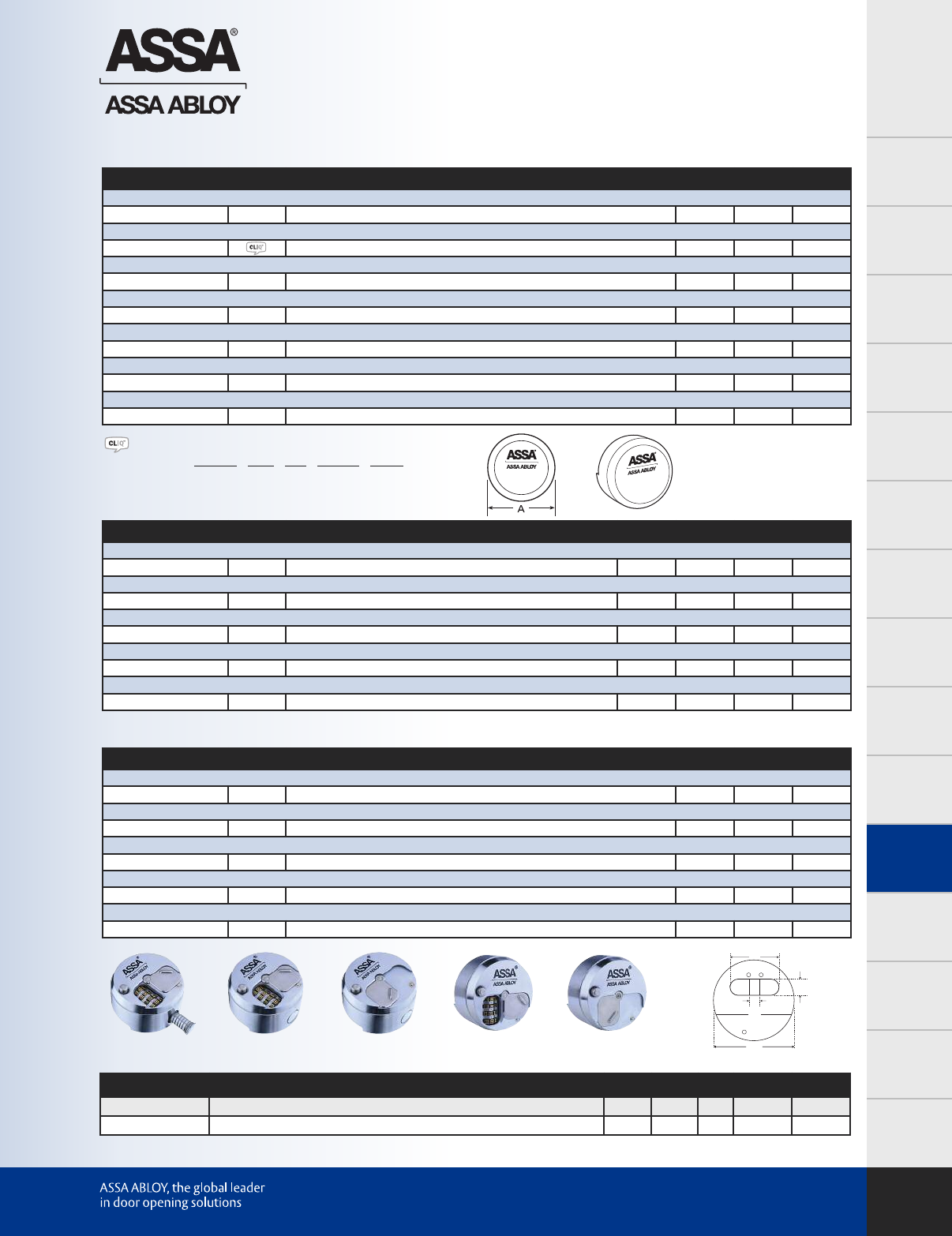

Padlock Cylinders Only

Model# Notes Description Comp Sub SNS

Maximum +

98911 Padlock Cylinder No. 2, 3, 4-5 97.50 90.00 83.00

Twin Maximum

88911 Padlock Cylinder No. 2, 3, 4-5 102.25 94.50 87.75

Twin Exclusive

E65911 Padlock Cylinder No. 2, 3, 4-5 106.25 98.75 91.75

Twin 6000 Classic

65911 Padlock Cylinder No. 2, 3, 4-5 106.25 98.75 91.75

Twin V-10

V65911 Padlock Cylinder No. 2, 3, 4-5 106.25 98.75 91.75

Twin Pro

61911 Padlock Cylinder No. 2, 3, 4-5 106.25 98.75 91.75

600 Series Classic

6911 Padlock Cylinder No. 2, 3, 4-5 104.00 95.00 —

“Hockey Puck” Shackle Less Padlock

Model# Notes Description A Comp Sub SNS

Maximum +

9840 Hockey Puck Style Padlock 2.875 145.50 137.00 130.50

Twin Maximum

8840 Hockey Puck Style Padlock 2.875 152.25 143.75 137.75

Twin Exclusive

E6540 Hockey Puck Style Padlock 2.875 158.50 150.00 143.50

Twin V-10

V6540 Hockey Puck Style Padlock 2.875 158.50 150.00 143.50

Twin Pro

6140 Hockey Puck Style Padlock 2.875 158.50 150.00 143.50

“Hockey Puck” Cylinders Only

Model# Notes Description Comp Sub SNS

Maximum +

98411 Hockey Puck Cylinder 96.25 88.75 81.75

Twin Maximum

88411 Hockey Puck Cylinder 101.25 93.75 86.75

Twin Exclusive

E65411 Hockey Puck Cylinder 105.00 97.50 90.50

Twin V-10

V65411 Hockey Puck Cylinder 105.00 97.50 90.50

Twin Pro

61411 Hockey Puck Cylinder 105.00 96.50 90.00

– Twin Maximum available with CLIQ™ Technology.

Example: 88191B x CLIQ x 626 x Sidebar x Comp

Model# Description W D X Y MSRP

AA-SR400 Resettable Dial Puck Lock 10,000 Combinations 2.875 .375 0.5 1.71875 100.00

AA-SR400-D Resettable Dial Puck Lock 10,000 Combinations Visual Package 2.875 .375 0.5 1.71875 100.00

Dial Puck Lock – Shackle Less Resettable Combination W

Padlocks

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

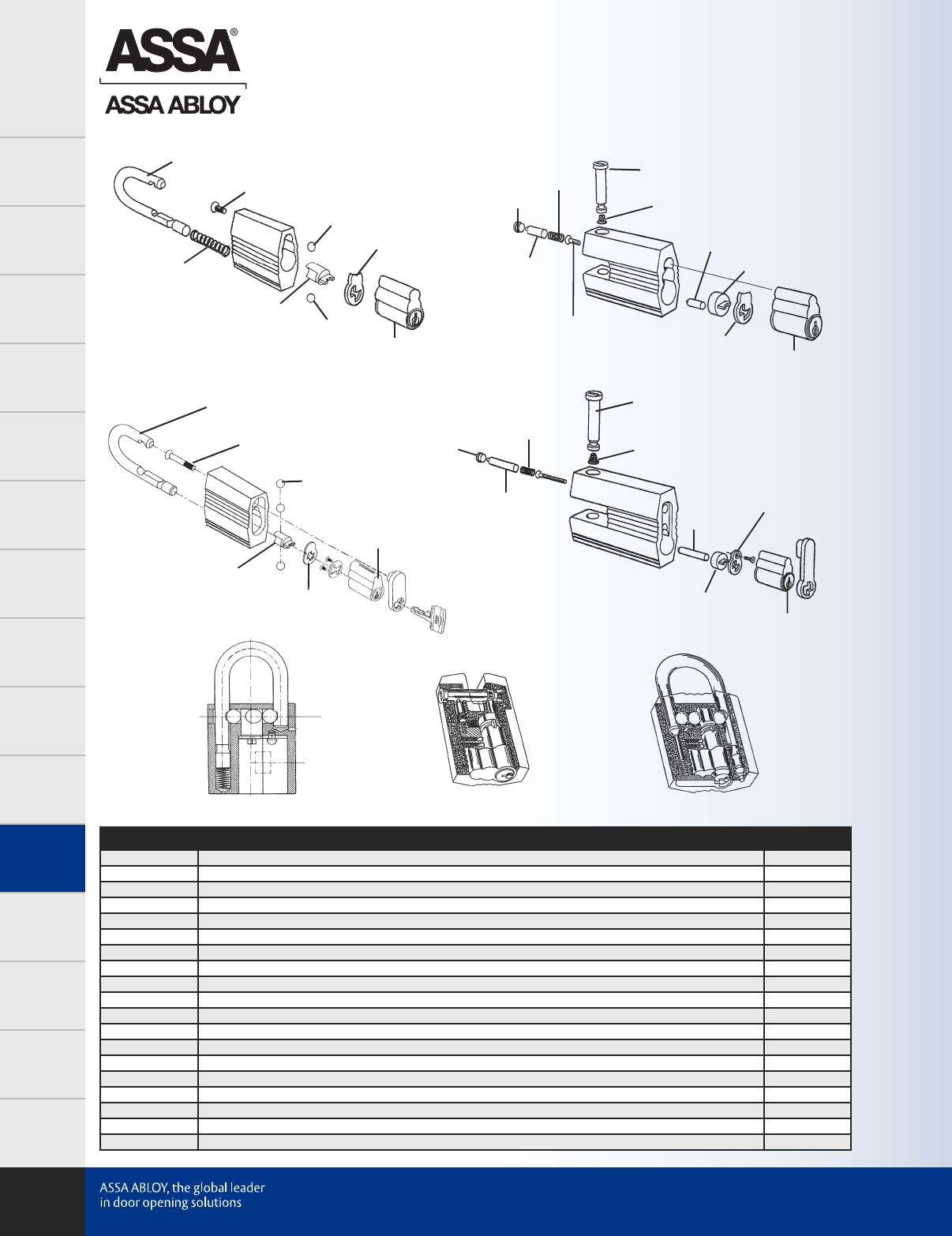

Padlock Component Parts

Model# Description Price

806898 No.2 Regular Shackle 37.95/ea

807217 No.2 Extended Shackle 40.60/ea

P250517 No.2 Shackle Spring 1.65/ea

806910 No.3 Padlock Shackle 48.70/ea

809387 No.2 Key-Retaining Blocking pin 6.30/ea

809388 No.2 Non-Key-Retaining Conversion Kit (Includes Blocking Pin/Spring/Tailpiece) 46.25/ea

P793810 No.2 Tailpiece Cam Screws 1.65/ea

867046 No.2 Tailpiece Washer 5.90/ea

P857300 No.2 Plate & No. 3 Plate 1.35/ea

803607 No.2 Locking Balls 1.35/ea

P793110 No.2 Cylinder Retaining Screw 1.65/ea

806913 No.3 Cylinder Retaining Screw 7.90/ea

803575 No.3 Locking Ball Bearings 2.55/ea

806911 No.3 Blocking Pin 30.40/ea

089280 No.3 Extended Shackle 48.35

353969 Twin V-10 Padlock Cylinder Plug 49.65

367018 Twin 6000 Classic Padlock Cylinder Plug (Specify Profile 50,52,61,62) 49.65

356071 Twin Exclusive / 6000 Classic Padlock Cylinder Plug (Specify Profile 51,851) 49.40

816068 Maximum+ / Twin Maximum Padlock Cylinder Plug (Specify Profile 0A7, 0M7) 64.50

Shackle

Spring

Plug

Screw

Ball

Blocking

Plate

Blocking

Bar

Pin Blocking

Blocking

Plate

Spring

Screw

Cylinder

Plug Cylinder

Plug

#2 Padlock #2 Shrouded Padlock

Shackle

Screw

Balls

Blocking

Plate

Blocking

Cylinder

Plug

#3 Padlock #4-5 Padlock

Plug

Retaining

Bar

Blocking

Plate

Spring

Cylinder

Plug

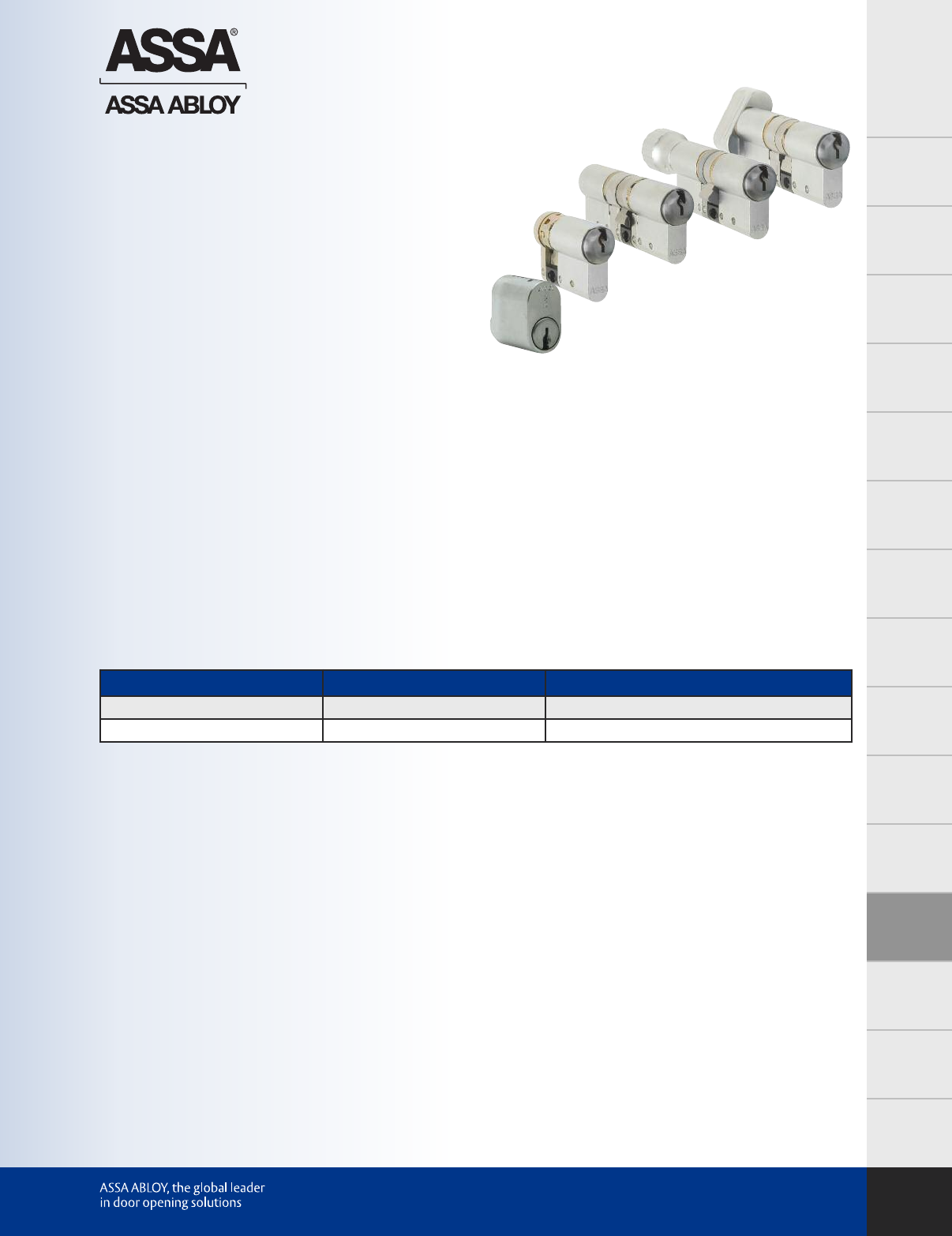

European Cylinders

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Benefits:

• Retrofits variety of European

applications

• Two independent locking

mechanisms to ensure security

and optimum pick resistance

• Inactive "false" grooves on side

pins designed to increase pick

resistance

Technical Information:

• M20 Series available for different

door thicknesses

• Cylinder housing and plug made

of high quality brass

• Stainless steel top pins

• Bottom pins and master pins are

nickel silver

Warranty:

• ASSA warrants its products

against defective workmanship

or wear resulting from defects

for one year

ASSA manufactures a variety of European

cylinders including the Scandinavian oval

and the Euro Din (M20 Series). Available for

different door thicknesses and featuring

a cam actuator, ASSA Euro Din cylinders

can be used with many types of imported

locksets and specialty hardware. All European

cylinders can be keyed into any new or

existing ASSA key system.

BHMA Symbol U.S. Symbol Description

626 US 26D Satin Chrome

605 US 3 Bright Brass

Finishes:

M27

M24

M22

M23

Scandinavian

Oval Cylinder

ASSA M20 Cylinder – Master Key System

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Profile Cylinders

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Model# Notes Description Comp Sub SNS

Maximum +

98M27 Large Thumbturn Single Cylinder

Call Factory For Pricing.

98M24 Small Thumbturn Single Cylinder

98M22 Double Cylinder

98M23 Single Cylinder No Thumbturn

Twin Maximum

88M27 Large Thumbturn Single Cylinder

Call Factory For Pricing.

88M24 Small Thumbturn Single Cylinder

88M22 Double Cylinder

88M23 Single Cylinder No Thumbturn

Twin V-10

V65M27 Large Thumbturn Single Cylinder

Call Factory For Pricing.

V65M24 Small Thumbturn Single Cylinder

V65M22 Double Cylinder

V65M23 Single Cylinder No Thumbturn

Twin 6000 Classic

65M27 Large Thumbturn Single Cylinder

Call Factory For Pricing.

65M24 Small Thumbturn Single Cylinder

65M22 Double Cylinder

65M23 Single Cylinder No Thumbturn

M20 Din Euro Profile Cylinders

– Twin Maximum available with CLIQ™ Technology. Example: 88M27 x CLIQ x Comp

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

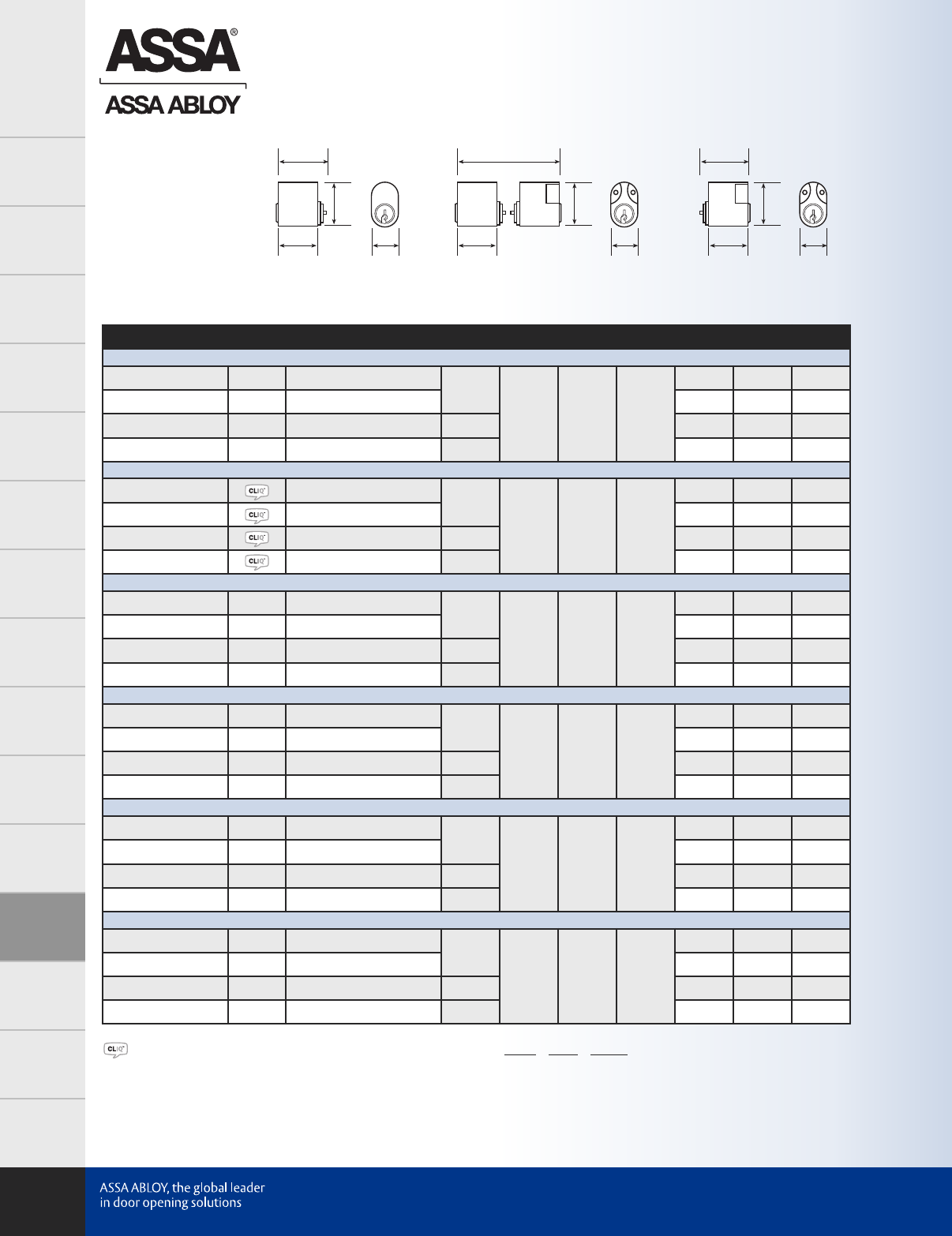

Scandinavian Oval Cylinders

Profile Cylinder Key:

TL – Total Length

A– Cylinder Length

B– Cylinder Height

C– Cylinder Width

Model# Notes Description TL A B C Comp Sub SNS

Maximum +

9801 Oval, Outside 1.577

1.236 1.376 0.784

177.25 169.75 162.25

9801L Oval, Outside for 505 191.75 183.75 176.75

9802 Oval, Double N/A 362.00 348.50 332.00

9803 Oval, Inside 1.577 179.75 171.75 164.75

Twin Maximum

8801 Oval, Outside 1.577

1.236 1.376 0.784

195.00 187.50 180.00

8801L Oval, Outside for 505 211.00 203.00 196.00

8802 Oval, Double N/A 398.25 384.75 368.25

8803 Oval, Inside 1.577 197.75 189.75 182.75

Twin Exclusive

E6501 Oval, Outside 1.577

1.236 1.376 0.784

202.75 195.25 187.75

E6501L Oval, Outside for 505 219.25 211.25 204.25

E6502 Oval, Double N/A 414.50 401.00 384.50

E6503 Oval, Inside 1.577 205.75 197.75 190.75

Twin 6000 Classic

6501 Oval, Outside 1.577

1.236 1.376 0.784

202.75 195.25 187.75

6501L Oval, Outside for 505 219.25 211.25 204.25

6502 Oval, Double N/A 414.50 401.00 384.50

6503 Oval, Inside 1.577 205.75 197.75 190.75

Twin V-10

V6501 Oval, Outside 1.577

1.236 1.376 0.784

202.75 195.25 187.75

V6501L Oval, Outside for 505 219.25 211.25 204.25

V6502 Oval, Double N/A 414.50 401.00 384.50

V6503 Oval, Inside 1.577 205.75 197.75 190.75

600 Series Classic

601 Oval, Outside 1.577

1.236 1.376 0.784

159.25 150.25 —

601L Oval, Outside for 505 179.00 169.00 —

602 Oval, Double N/A 348.75 329.75 —

603 Oval, Inside 1.577 171.00 162.00 —

Oval Cylinders

6501 6502 6503

– Twin Maximum available with CLIQ™ Technology. Example: 8801 x CLIQ x Comp

NOTE: Oval cylinders do not include cylinder rings, mounting screws or other trim.

Scandinavian Oval Cylinders

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

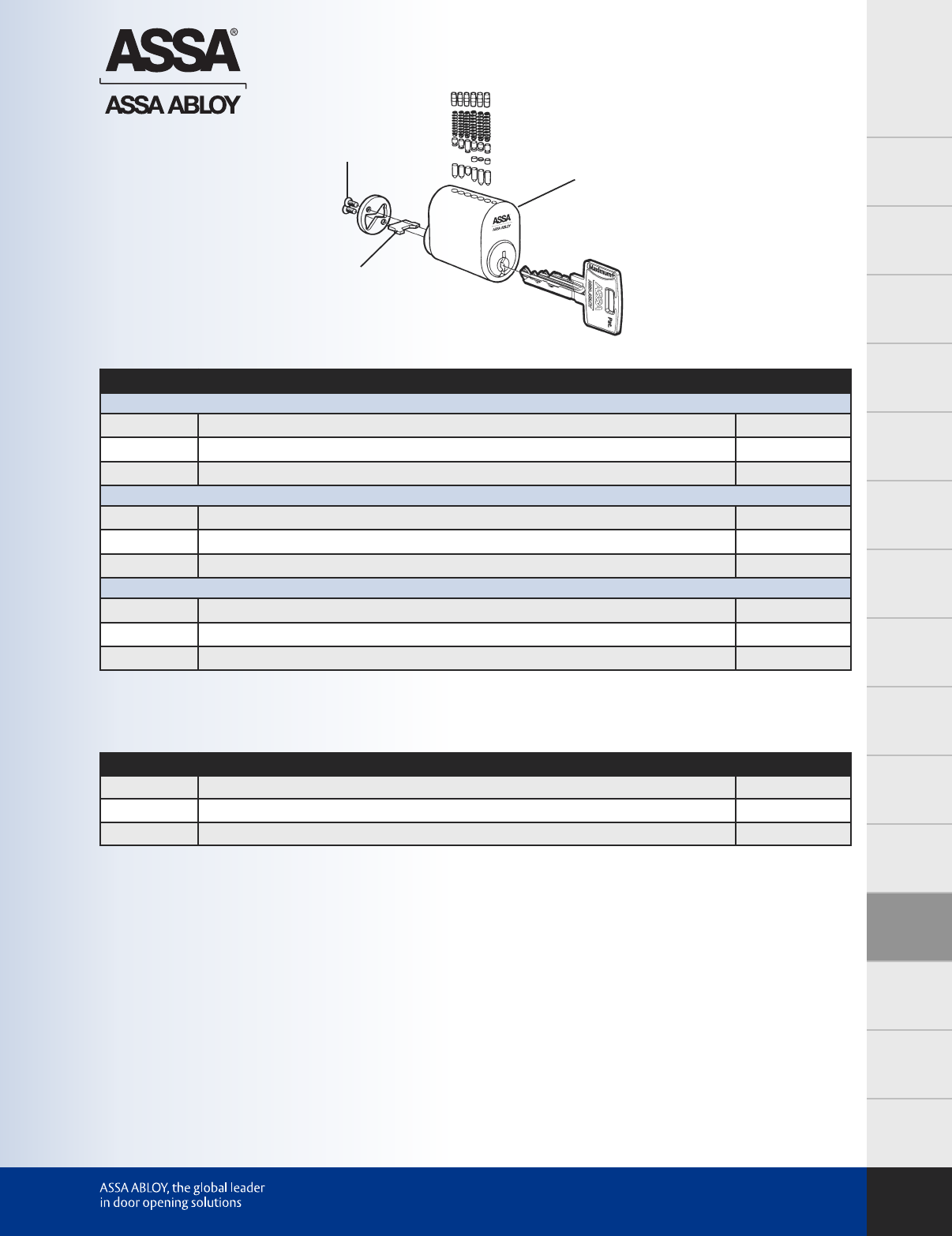

Oval Cylinder Parts

Model# Description Price

Maximum+ / Twin Maximum

867064 Oval Cyl. Housing, Outside 57.30

867110 Oval Cyl. Housing, Inside 72.40

816068 † Oval Cylinder Plug 64.50

Twin Exclusive / 6000 Classic

867064 Oval Cyl. Housing, Outside 57.30

867110 Oval Cyl. Housing, Inside 72.40

356071 † Oval Cylinder Plug (Specify Profile) 49.40

Twin V-10

867064 Oval Cyl. Housing, Outside 57.30

867110 Oval Cyl. Housing, Inside 72.40

353969 Oval Cylinder Plug 49.40

Oval Cylinder Adapters

Model# Description Price

803170 Oval Outside Cylinder Adapter, for Schlage KIK/KIL Cylinder 115.25

803171 Oval Inside Cylinder Adapter, for Schlage KIK/KIL Cylinder 115.25

804215 Schlage Adapter Tailpiece (Will fit 505 function) 17.15

Cylinder

Plug & Shell

Cam Piece

Screws

† – Specify Profile

Pin Kits, Tools & Accessories

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

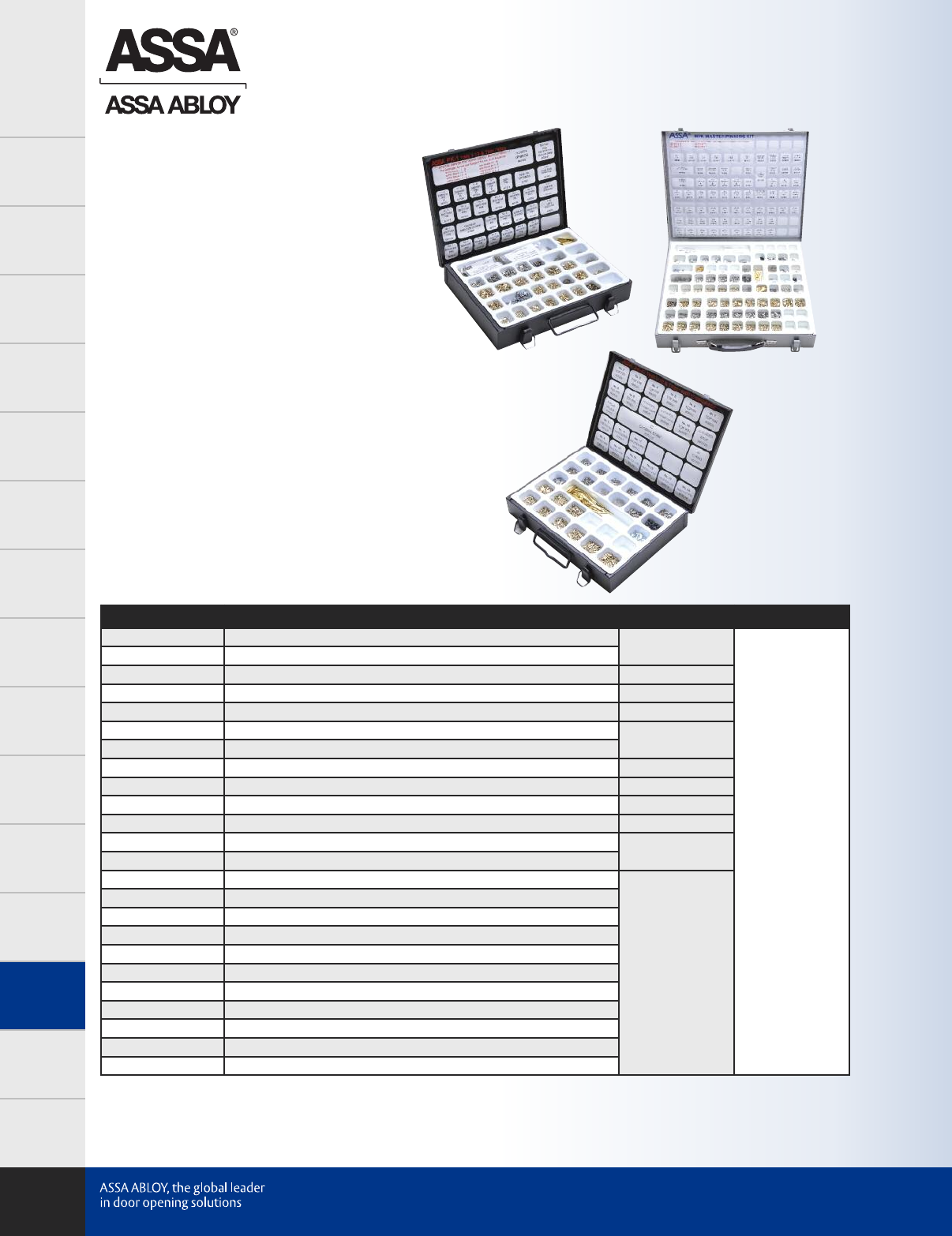

ASSA provides all the necessary tools

for both the retail and institutional

locksmith to service and maintain our

locks in the field. We offer several sizes

of pinning kits from large, full service

kits designed for the shop environment

to smaller, convenient kits appropriate

for service calls.

Also available are high quality key

cutting equipment, all approved

ASSA cylinder lubricants.

MPK Master Pin Kit

Item Number Description Quantity Price Per Kit

353838 Left Side Pin V-10 50

1,754.75

359654 Twin-Max Sidepin Left

362808 Corbin RC Cover Strip 10

806263 Db Plastic Thumbturn Guide 2

806346 Deadbolt Top Closing Screws 25

807164 V-10/T Pro Spring For Side Bar 100

807165 V-10/T Pro Sidepin Springs

807401 RC C-Ring 4

807402 RC Cover Slide 15

807403 RC Cam Adapter 2

807404 RC Wave Washer 10

807405 RC Rubber Stop 6

809312 IC Core Plug Spacer Washer

809314 Master Pin 9, IC Core Cylinders

100

809315 Master Pin 10, IC Core Cylinders

809316 Master Pin 11, IC Core Cylinders

809317 Master Pin 12, IC Core Cylinders

809318 Master Pin 13, IC Core Cylinders

809319 Master Pin 14, IC Core Cylinders

809320 Master Pin 15, IC Core Cylinders

809321 Master Pin 16, IC Core Cylinders

809322 Master Pin 17, IC Core Cylinders

809328 Top Pin 2, IC Core Cylinders

809329 Top Pin 3, IC Core Cylinders

Continued on next page

Pin Kits, Tools & Accessories

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

MPK Master Pin Kit (Continued)

Item Number Description Quantity Price Per Kit

809330 Top Pin 4, IC Core Cylinders

100

Price is on

809331 Top Pin 5, IC Core Cylinders

809332 Top Pin 6, IC Core Cylinders

809333 Top Pin 7, IC Core Cylinders

809334 Top Pin 8, IC Core Cylinders

809335 Top Pin 9, IC Core Cylinders

809336 Top Pin 10, IC Core Cylinders

809340 IC Core Chamber Springs (1-4)

816080 Twin-Pro Sidepin 50

867015 Side Pin, ASSA Twin

867065 600/Twin Pin Chamber Springs

100

807261 Top Pin A, Twin & 600

807262 Top Pin B, Twin & 600

807263 Top Pin C, Twin & 600

807264 Top Pin D, Twin & 600

867070 Master Pin 1, Twin & 600

867071 Master Pin 2, Twin & 600

867072 Master Pin 3, Twin & 600

867073 Master Pin 4, Twin & 600

867074 Master Pin 5, Twin & 600

867075 Master Pin 6, Twin & 600

867076 Master Pin 7, Twin & 600

867077 Master Pin 8, Twin & 600

867078 Bottom Pin 1, Twin & 600

867079 Bottom Pin 2, Twin & 600

867080 Bottom Pin 3, Twin & 600

867081 Bottom Pin 4, Twin & 600

867082 Bottom Pin 5, Twin & 600

867083 Bottom Pin 6, Twin & 600

867084 Bottom Pin 7, Twin & 600

867085 Bottom Pin 8, Twin & 600

867086 Bottom Pin 9, Twin & 600

867087 Twin Spring For Side Pin

867088 Twin Spring For Side Bar

867090 Std Tail Piece Screw Twin/600 25

867445 Cam, Adams Rite 600/Twin

867446 Cam, Clover Leaf 600/Twin

867447 Cam, Beaver Tail 600/Twin

867452 Cam, Sargent 600/Twin

867453 Cam, Schlage

868141 M/R Cover Strip 600/Twin 50

868624 Rollpin Corbin/4—Sargent/2 10

868958 Schlage Plug Cap

4868959 Schl KIK Plug Cap Sprg-Deleted

868960 Schlage KIK Plug Cap Pin

872610 Cam, Standard 600/Twin 2

900257 Yale Tailpiece Roll Pin 10

Pin Kits, Tools & Accessories

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Item Number Description Quantity Price Per Kit

353838 Left Side Pin V-10 50

1,002.85

359654 Twin-Max Sidepin Left

807164 V-10/T Pro Spring For Side Bar 100

807165 V-10/T Pro Sidepin Springs

816080 Twin-Pro Sidepin 50

867015 Side Pin, ASSA Twin

867065 600/Twin Pin Chamber Springs 500

807261 Top Pin A, Twin & 600

100

807262 Top Pin B, Twin & 600

807263 Top Pin C, Twin & 600

807264 Top Pin D, Twin & 600

867070 Master Pin 1, Twin & 600

867071 Master Pin 2, Twin & 600

867072 Master Pin 3, Twin & 600

867073 Master Pin 4, Twin & 600

867074 Master Pin 5, Twin & 600

867075 Master Pin 6, Twin & 600

867076 Master Pin 7, Twin & 600

867077 Master Pin 8, Twin & 600

867078 Bottom Pin 1, Twin & 600

867079 Bottom Pin 2, Twin & 600

867080 Bottom Pin 3, Twin & 600

867081 Bottom Pin 4, Twin & 600

867082 Bottom Pin 5, Twin & 600

867083 Bottom Pin 6, Twin & 600

867084 Bottom Pin 7, Twin & 600

867085 Bottom Pin 8, Twin & 600

867086 Bottom Pin 9, Twin & 600

867087 Twin Spring For Side Pin

867088 Twin Spring For Side Bar

867090 Standard Tail Piece Screw Twin/600

868141 M/R Cover Strip 600/Twin

PK-1 Pin Kit

Pin Kits, Tools & Accessories

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Item Number Description Quantity Price Per Kit

807402 RC Cover Slide

50 156.85

809328 Top Pin 2, IC Core Cylinders

809329 Top Pin 3, IC Core Cylinders

809330 Top Pin 4, IC Core Cylinders

809331 Top Pin 5, IC Core Cylinders

809332 Top Pin 6, IC Core Cylinders

809333 Top Pin 7, IC Core Cylinders

809334 Top Pin 8, IC Core Cylinders

809335 Top Pin 9, IC Core Cylinders

809340 IC Core Chamber Springs (1-4)

PK-Cam Pin Kit

Item Number Description Quantity Price Per Kit

362808 Corbin RC Cover Strip 10

940.30

807401 RC C-Ring

807402 RC Cover Slide

807405 RC Rubber Stop

809312 IC Core Plug Spacer Washer

809314 Master Pin 9, IC Core Cylinders

100

809315 Master Pin 10, IC Core Cylinders

809316 Master Pin 11, IC Core Cylinders

809317 Master Pin 12, IC Core Cylinders

809318 Master Pin 13, IC Core Cylinders

809319 Master Pin 14, IC Core Cylinders

809320 Master Pin 15, IC Core Cylinders

809321 Master Pin 16, IC Core Cylinders

809322 Master Pin 17, IC Core Cylinders

809328 Top Pin 2, IC Core Cylinders

809329 Top Pin 3, IC Core Cylinders

809330 Top Pin 4, IC Core Cylinders

809331 Top Pin 5, IC Core Cylinders

809332 Top Pin 6, IC Core Cylinders

809333 Top Pin 7, IC Core Cylinders

809334 Top Pin 8, IC Core Cylinders

809335 Top Pin 9, IC Core Cylinders

809336 Top Pin 10, IC Core Cylinders

809340 IC Core Chamber Springs (1-4) 200

PK-IC Interchangeable Core Pin Kit

Pin Kits, Tools & Accessories

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Item Number Description Quantity Price Per Kit

807164 V-10/T Pro Spring For Side Bar

25 219.45

867065 600/Twin Pin Chamber Springs

807261 Top Pin A, Twin & 600

807262 Top Pin B, Twin & 600

807263 Top Pin C, Twin & 600

807264 Top Pin D, Twin & 600

867070 Master Pin 1, Twin & 600

867071 Master Pin 2, Twin & 600

867072 Master Pin 3, Twin & 600

867073 Master Pin 4, Twin & 600

867074 Master Pin 5, Twin & 600

867075 Master Pin 6, Twin & 600

867076 Master Pin 7, Twin & 600

867077 Master Pin 8, Twin & 600

867078 Bottom Pin 1, Twin & 600

867079 Bottom Pin 2, Twin & 600

867080 Bottom Pin 3, Twin & 600

867081 Bottom Pin 4, Twin & 600

867082 Bottom Pin 5, Twin & 600

867083 Bottom Pin 6, Twin & 600

867084 Bottom Pin 7, Twin & 600

867085 Bottom Pin 8, Twin & 600

867086 Bottom Pin 9, Twin & 600

867088 Twin Spring For Side Bar

867090 Std Tail Piece Screw Twin/600

PKMM Pin Kit

Pin Kits, Tools & Accessories

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

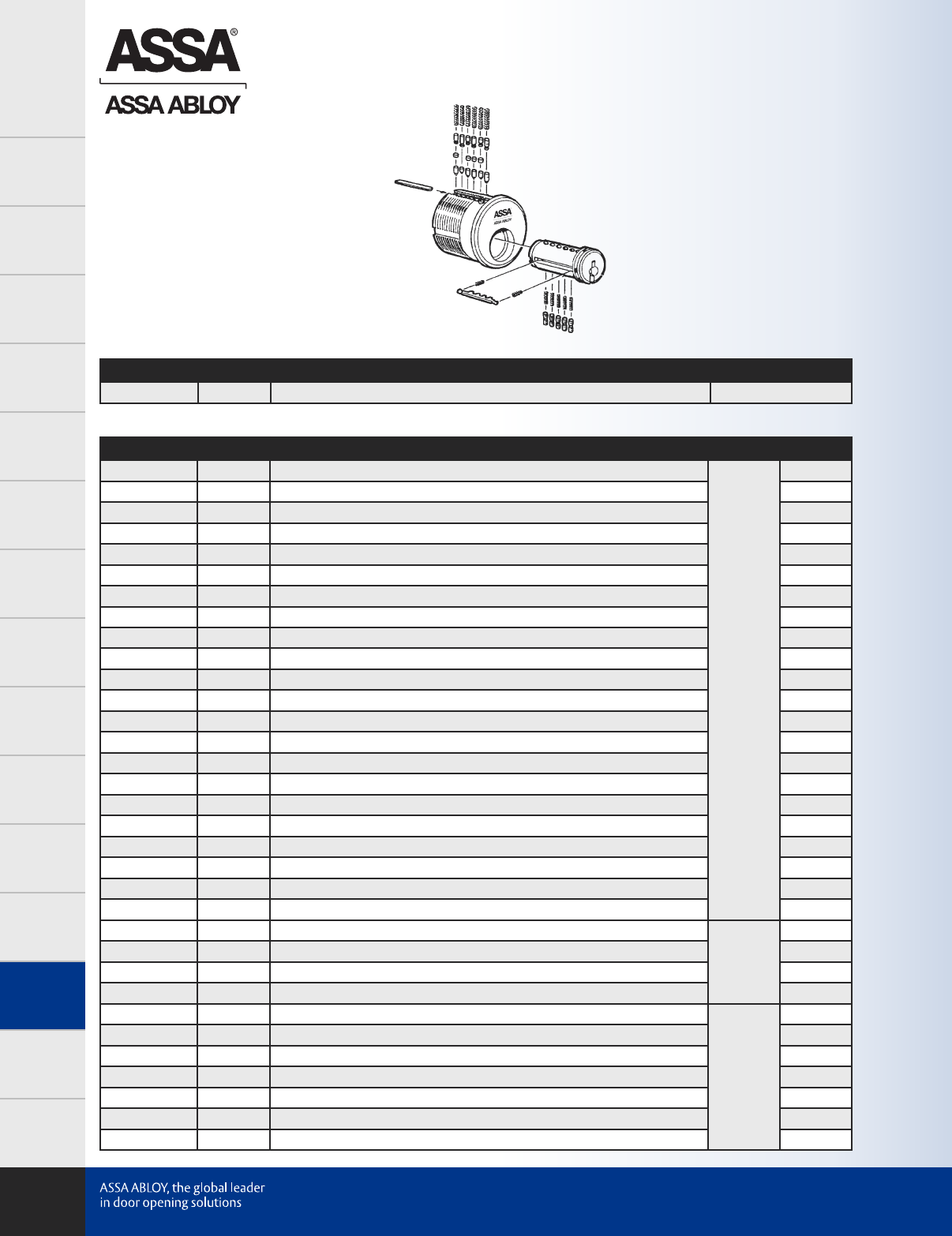

Model# Notes Description Pkg. Qty. Price

354023 Control Sleeve 60.05/ea

359058 Maximum+ and Twin Maximum Inner Plug (Specify 0A7, 0M7) 54.60

353213 * IC Inner Plug (Specify Profile 51, 851) 54.35/ea

353968 * V-10 IC Inner Plug 42.20/ea

807401 IC C-Ring 1.40/ea

807402 IC& Cam Lock Cover Slide 2.50/ea

807403 IC Cam Adapter 45.30/ea

807404 IC Wave Washer 2.05/ea

807405 IC Rubber Stop 2.65/ea

810695 * IC Core (Figure-8) Housing 92.00/ea

807411 * IC Mortise/Rim Housing 111.50/ea

809340 IC Core Chamber Spring (1st Four Chambers) 100 37.10/pk

809312 IC Plug Spacer Washer 1.50/ea

Interchangeable Core Parts

Model# Notes Description Pkg. Qty. Price

809328 Top Pin #2

100

37.35/pk

809329 Top Pin #3 37.35/pk

809330 Top Pin #4 37.35/pk

809331 Top Pin #5 37.35/pk

809332 Top Pin #6 37.35/pk

809333 Top Pin #7 37.35/pk

809334 Top Pin #8 37.35/pk

809335 Top Pin #9 37.35/pk

809336 Top Pin #10 37.35/pk

Top Pins for Interchangeable Core and Cam Locks Cylinders Only

Model# Notes Description Pkg. Qty. Price

809314 Master Pin #9

100

39.50/pk

809315 Master Pin #10 39.50/pk

809316 Master Pin #11 39.50/pk

809317 Master Pin #12 39.50/pk

809318 Master Pin #13 39.50/pk

809319 Master Pin #14 39.50/pk

809320 Master Pin #15 39.50/pk

809321 Master Pin #16 39.50/pk

809322 Master Pin #17 39.50/pk

Master Pins (Build Up) for Interchangeable Core Cylinders Only

*Indicate product finish.

Pin Kits, Tools & Accessories

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Model# Notes Description Pkg. Qty. Price

807261 Driver Pin 1-2 (A)

100

40.00/pk

807262 Driver Pin 3-4 (B) 40.00/pk

807263 Driver Pin 5-6 (C) 40.00/pk

807264 Driver Pin 7-8-9 (D) 40.00/pk

867070 Master Pin 1 40.00/pk

867071 Master Pin 2 40.00/pk

867072 Master Pin 3 40.00/pk

867073 Master Pin 4 40.00/pk

867074 Master Pin 5 40.00/pk

867075 Master Pin 6 40.00/pk

867076 Master Pin 7 40.00/pk

867077 Master Pin 8 40.00/pk

867078 Bottom Pin 1 40.00/pk

867079 Bottom Pin 2 40.00/pk

867080 Bottom Pin 3 40.00/pk

867081 Bottom Pin 4 40.00/pk

867082 Bottom Pin 5 40.00/pk

867083 Bottom Pin 6 40.00/pk

867084 Bottom Pin 7 40.00/pk

867085 Bottom Pin 8 40.00/pk

867086 Bottom Pin 9 40.00/pk

867065 Cylinder Springs 40.00/pk

867015 Twin Side Pins

90.85/pk

353838 V-10 Left Hand Side Pins 71.40/pk

359654 Maximum+ / Twin Maximum Left Hand Side Pins 77.85/pk

816080 Twin Pro Side Pins 85.40/pk

807164 Maximum+ / Twin Maximum / V-10 Sidebar Springs

100

25.95/pk

807165 Maximum+ / Twin Maximum / V-10 Sidepin Springs 25.95/pk

867087 Twin Sidepin Springs 28.15/pk

867088 Twin Sidebar Springs 28.15/pk

868141 Pin Chamber Closing Strips, Mort, Rim, KIK 0.90/ea

867093 Closing Plugs, Oval Cylinders 135.20/pk

806346 Pin Chamber Closing Screws - Jumbo, Mogul, Dbolt 140.85/pk

Model# Notes Description Price

267008 Sidebar (Specify Side Code) 12.65 each

Pins, Spring & Closers

Sidebars

Pin Kits, Tools & Accessories

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

#14

H/V

Tailpieces

#11 #12 #13 #15

#1 #2 #3 #4 #5 #6 #7 #8

#9#10

Cam Key: R-A – Head Radius • R-B – Overall Radius

Model# Description R-A R-B Pkg. Qty. Price

867445 #1 Adams Rite Cam 0.118 0.555

7.55/ea

867452 #2 Sargent Cam N/A 0.709 7.55/ea

867446 #3 Corbin Clover Leaf Cam 0.114 0.602 7.55/ea

867447 #4 Corbin Beaver Tail Cam N/A 0.732 8.50/ea

872610 #5 Yale/Standard Cam N/A 0.709 7.55/ea

867453 #6 Schlage “L” Cam 0.124 0.516 18.20/ea

805412 #7 Segal Type Cam N/A 0.779 18.20/ea

806471 #8 Jumbo Corbin Cam N/A 0.914 18.20/ea

907306 #9 Best 30H Series 0.114 0.602 18.75/ea

353445 #10 Airteq/Norment Cam N/A 0.787 7.30/ea

809337 #11 Airteq/Norment Mogul Cam N/A 1.165 19.45/ea

354945 #12 Corbin Jumbo Clover Leaf Cam 0.114 0.828 19.45/ea

355849 #13 Sargent Short Cam N/A 0.515 19.45/ea

355850 #14 Sargent Mogul N/A 1.043 19.45/ea

872612 #15 Yale Replacement Cam 0.308 0.742 18.20/ea

867450 Horizontal & Vertical Rim Tailpiece kit 24.95/ea

867451 Lazy-motion Rim Tailpiece kit 24.95/ea

868958 Schlage KIK Plug Cap 10 3.85/ea

868959 Schlage KIK Plug Cap Spring 100 1.35/ea

868960 Schlage KIK Plug Cap Pin 1.35/ea

804877 Schlage Break-off Tailpiece 10 7.80/ea

868654 Corbin New Style Standard-duty Tailpiece 100 4.35/ea

868624 Rollpin - Corbin 10 1.35/ea

868231 Cylinder Plug Retaining Ring 100 1.40/ea

900250 Sargent 6-line, Arrow Tailpiece (short) 4.15/ea

900251 Sargent 6-line, Arrow Tailpiece (long) 4.15/ea

900252 Sargent 6-line, Arrow Tailpiece retaining ring 1.35/ea

900253 Sargent/Arrow Tailpiece (Med.) 3.50/ea

900254 Sargent 11-line T-Zone Tailpiece 7.80/ea

900256 Yale Key-In-Lever Tailpiece 10.35/ea

900257 Yale Key-In-Lever Roll Pin 3.85/ea

867045 Oval Cylinder Tailpiece 50 5.65/ea

803169 Oval Cylinder Tailpiece, 505 Lock Function 17.65/ea

867046 Tailpiece Washer 50 5.90/ea

867090 Phillips Screws for Cams, Mortise & Oval Tailpiece 100 1.95/ea

868138 Slotted Screws for Rim Tailpiece 2.05/ea

868134 Tail Extension for Rim Cylinder 18.00/ea

867109 Break-off Tailpiece for V/H Rim Cylinder 10.95/ea

868136 Lazy Motion Tailpiece for Rim Cylinder 10.65/ea

867454 Sargent RC Tailpiece (7 Line Lever) 16.05/ea

867455 Sargent RC Tailpiece (10 Line Lever) 16.05/ea

867456 Sargent RC Tailpiece (11 Line Lever) 16.05/ea

Cams & Tailpieces

Pin Kits, Tools & Accessories

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

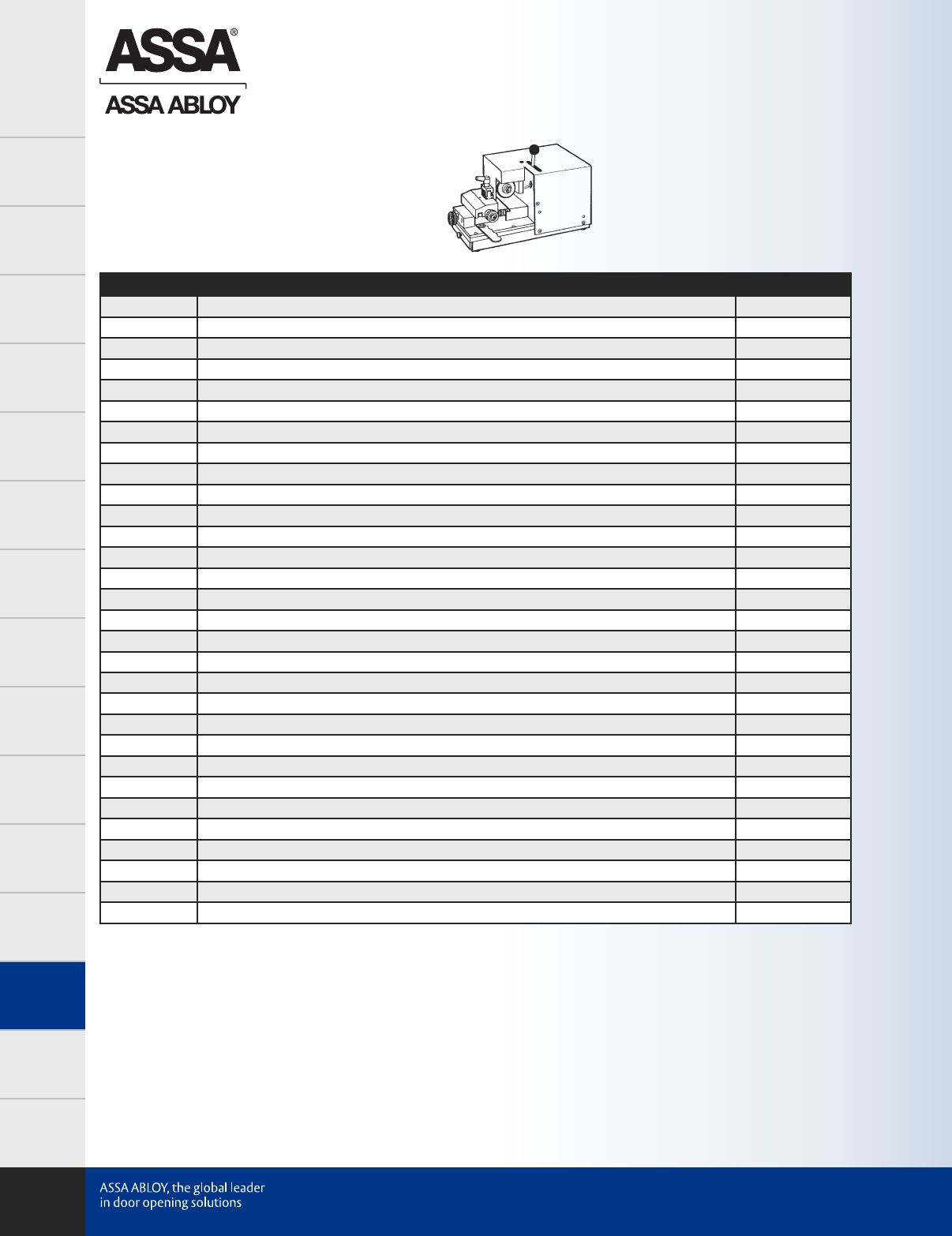

Pin Kits & Tools

Positive Stop

Code Machine

PS6000T

Model# Description Price

PK-1 Pin Kit No.1 Full-Size Standard Kit for Twin 1,002.85

PK-IC Pin Kit-Interchangeable Core Upgrade 940.30

PK-MM Micro Mini Pin Kit 219.45

PK-CAM PK Cam Lock Upgrade 156.85

MPK Master Pinning Kit Twin & IC 1,754.75

869018 Twin Series Cutter Wheel for HPC Code Max CM90Z/.032" 621.40

869017 Twin Series Framon Cutter Wheel 534.55

867056 Cutter Wheel for PS-7000R 722.95

KXASDC Depth Cam for KX-1 ASSA 203.50

KXASSC Space Cam for KX-1 ASSA 203.50

KXAS01 Cam Set for KX-1 434.75

KXAS02 Cam Set Plus Vise 734.50

KXAS03 Cam Set Plus Cutter 935.70

KXAS04 Cam Set (Cutter Vise) 1,269.30

F2SH050A ASSA Vise 334.25

807718 ASSA Lock Spray Lubricant 23.95

816296 ASSA Lock Spray Cleaner/De-Icer 23.95

PL872630 ASSA Maximum+ Cutaway 275.70

PS-6000T Positive Stop Code Key Machine 7,337.30

907200 PK-1 Pin Kit Box Only 221.60

907205 PK-IC Pin Kit Box IC Only 228.30

907206 MPK Pin Kit Box Only 302.50

907207 Micro Mini Pin Kit Box Only 101.00

907208 Pin Kit Cam Lock Upgrade Box Only 101.00

907009 Clear Deadbolt Mounting Ring 24.15

SGTRCTOOL Shearing Tool for Sargent style Interchangeable Core 457.80

CRRCTOOL Shearing Tool for Corbin Russwin style Interchangeable Core 457.80

KD-98 ASSA Key Gauge 44.10

907044 ASSA Plug Follower 6.80

907046 ASSA Screwdriver 19.15

Care & Maintenance for ASSA Cylinders & Keys

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

ASSA products are the highest quality cylinder products

on the market today. The following information for

maintaining proper condition of your ASSA cylinders

and keys will insure the best performance for you and

your clients.

Make sure that all key cutting equipment is properly

calibrated in accordance to ASSA manufacturer

specification. This is the first consideration in the proper performance of ASSA cylinders.

Regularly inspect keys in use and replace any keys that show physical wear immediately.

ASSA cylinders are mechanical devices and like any mechanical device they need regular

preventive maintenance. At the time of installation cylinders must be lubricated with ASSA

approved lubricant. ASSA recommends part #807718-ASSA Lock Spray Lubricant. Wipe off any

excess lubricant on exposed surfaces. Cleaning and lubricating the lock mechanism that the

ASSA cylinder is being installed into is important as well. ASSA cylinders should be lubricated at

least twice a year as normal maintenance.

• Do not use graphite or silicone lubricants. Use only ASSA approved lubricants.

• Do not expose ASSA cylinders to chemical wash.

• Do not paint any cylinder surfaces.

Do not over lubricate ASSA cylinders. If you suspect cylinder has been over lubricated or

suspect excessive dirt or other particles or debris, thoroughly flush with ASSA cleaner de-icer

or use an alcohol base electrical contact cleaner that leaves no residue. Let dry or dry with

compressed air then re-lubricate with ASSA approved lubricant.

Technical Information

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

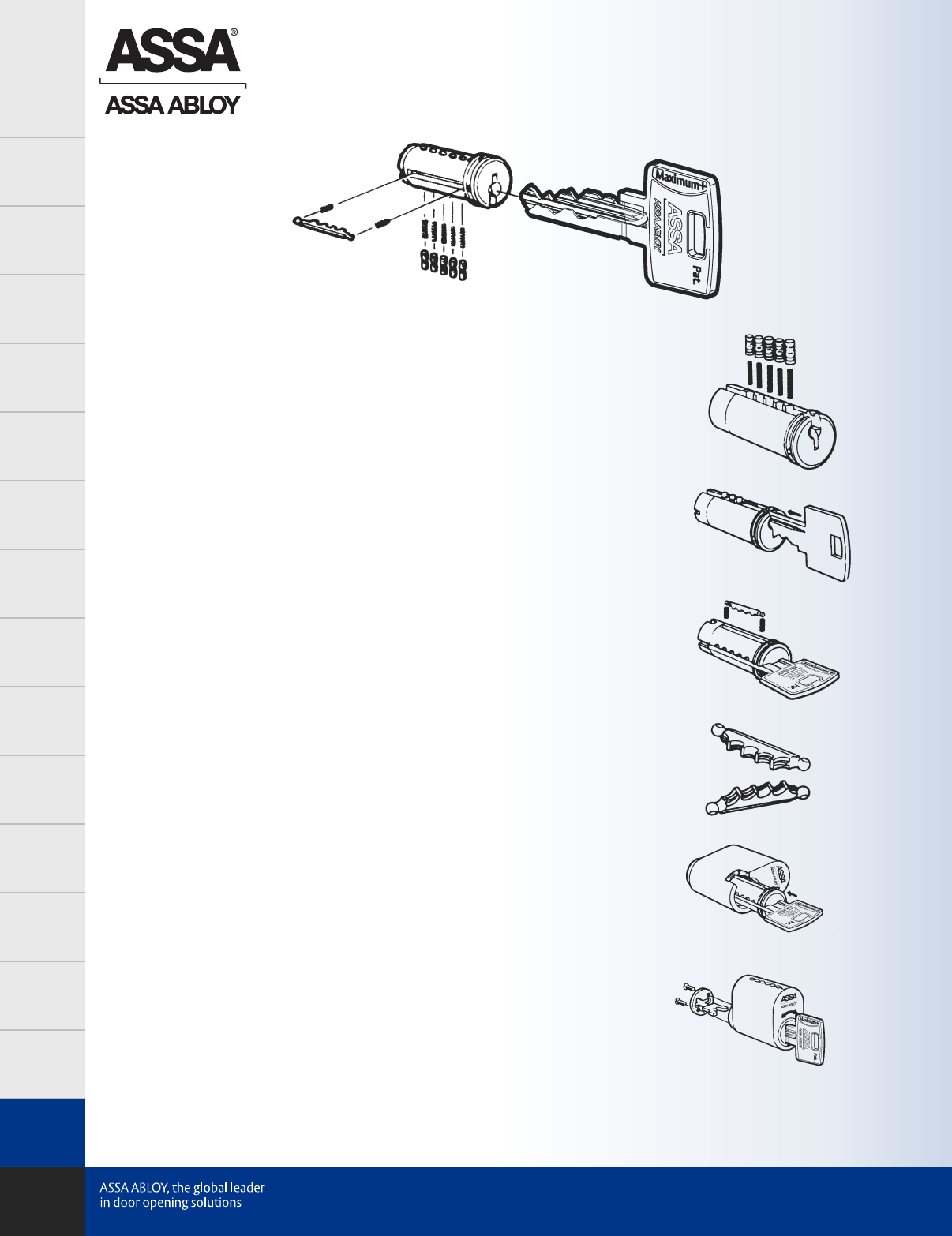

Basic Cylinder Assembly

Step One.

Invert the cylinder plug and place the side pin springs in the side

pin holes. Insert the side pins.

NOTE!

The side pins are all identical. It is imperative that the springs

locate correctly or the cylinder will malfunction.

Step Two.

With the cylinder still inverted, insert a key with the

correct side code to hold the side pins in place.

Step Three.

Position the short sidebar springs at each end of the sidebar slot.

NOTE!

It is imperative that the springs are located in the

prepared holes.

Step Four.

Lay the sidebar in the slot so that the fences correspond to the

opening gates in the side pins. It should now be possible to press

the sidebar down in its slot so that it is flush with the outer face of

the cylinder plug.

NOTE!

The key should remain in the cylinder plug during this operation.

Step Five.

Place the cylinder plug in the cylinder house. If the sidebar is fit-

ted correctly, the cylinder plug can now be turned within the

shell. Hold the cylinder plug in place when withdrawing the key.

Step Six.

Fit the tailpiece and secure.

Note: Cylinder plug diameter is .510".

Technical Information

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

A. 0.8mm (0.032") wide flat base.

B. 90° cutting angle.

C. The six top cut positions are counted from tip to bow at nine depths of cut.

D. The five side cut positions are counted from tip to bow at five depths of cut and are restricted to factory

production only.

The chart below only references top cut spacing.

General Rules

The cut depth should be measured from the back of the

key to the bottom of the cut.

Spacing is calculated from the shoulder of the key.

The key combinations are cut from the tip of the key towards the bow.

The system code must be cut at 90º cutting angle and a

0.8mm (0.032") wide flat base.

No.1 cut is deepest cut, no. 9 is shallowest.

Maximum Adjacent Cut Specification (MACS) = 5.

Example: 1 cut adjacent to 6 cut is acceptable.

1 cut adjacent to 7, 8, or 9 cut NOT acceptable.

90°

P1 P2 P3 P4 P5

Measurement P1 P2 P3 P4 P5 P6

mm 25.7 21.9 18.1 14.3 10.5 6.7

Inch 1.0118 0.8622 0.7126 0.5630 0.4134 0.2638

Tolerance +0.02 / -0.03mm

+0.0008 / -0.0012

Depths: Key Combinations

Normal depths for key

combinations

Depths: mm Inch

N0. 1 4.03 0.1587

N0. 2 4.63 0.1823

N0. 3 5.23 0.2059

N0. 4 5.83 0.2295

N0. 5 6.43 0.2531

N0. 6 7.03 0.2768

N0. 7 7.63 0.3004

N0. 8 8.23 0.3240

N0. 9 8.83 0.3476

Measure from back of key to

bottom of cut

Tolerance + 0.00 - 0.04mm

+0.00" - .0016"

Key BowShoulder Stop

Key Tip Key Back

Technical Information

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Ordering:

When ordering key blanks, the profile and geographically assigned code must be stated.

Side bar Code is cut at ASSA Factory only. Key blanks are provided as shown.

Side bar code/profile can be identified on key bow. Example: for Twin 6000 Series, 51-599; there are 5 different

profiles in the ASSA Twin 6000 Series which are; 50, 51, 52, 61, and 62.

Key Stamping:

All new key blanks and cut keys will be stamped as original from factory in accordance with assigned keyway.

51-599

Key Cutting:

Key combination can be cut on many code machines and duplicating machines. Code cutting machines historically,

produce better keys than Key-duplicating machines. The ASSA key is a quality key. ASSA recommends quality

cutters. ASSA supplies cutting wheels for the HPC 1200 CM and Code Max code machine as well as cutters,

vises, and cams for Framon KX1.

ASSA Recommended Code Machines:

• ASSA PS-6000T (Made by Framon)

• Any Framon Machine designed to cut ASSA Twin and Max+ Series keys

• Silca Ultra Code

• HPC Code Max

• ITL 9700 Series Code Machine

Twin Maximum

Profile 0M7

Maximum+

Profile 0A7 Twin Pro

Profile 0P4 Twin Exclusive

Profile 851 Twin 6000

Profiles

50, 51, 52, 61, 62

Twin V-10

Profile 95

Technical Information

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

ASSA Twin Series Pinning

The same bottom and master pins used in all ASSA Twin Series, Maximum+, and 600 Series product are made of high-

quality nickel silver. The deepest cut on a Twin Series and Maximum+ key is the #1 length and the shallowest is

the #9 length. This makes the #1 pin the longest and the #9 pin the shortest. All pins are 0.114” in diameter.

#1 #2 #3 #4 #5 #6 #7 #8

ASSA Twin master pins are engineered for single step \masterkeying, creating the largest master key capabilities

of any pin tumbler lock in production.

By numbering from the smallest to the largest, pinning may easily be calculated by subtracting the master pin

number from the bottom pin number. (i.e. 7 - 3 = 4. A #3 master pin with a #7 bottom pin is the same physical

length as a #4 bottom pin alone.) If the master pin (or pins) leave a remainder of less than one when subtracted

from the bottom pin, the overall stack height of the chamber is wrong.

Bottom Pin Part Numbers & Lengths

Pin Size

Part Number Length

867078 0.3503"

867079 0.3267"

867080 0.3031"

867081 0.2795"

867082 0.2559"

867083 0.2322"

867084 0.2086"

867085 0.1850"

867086 0.1614"

Master Pin Part Numbers & Lengths

Pin Size

Part Number Length

867070 0.0236"

867071 0.0472"

867072 0.0708"

867073 0.0944"

867074 0.1181"

867075 0.1417"

867076 0.1652"

867077 0.1889"

Pins for ASSA cylinders do not taper to a ball nose radius like most pin tumbler pins, but have a flat tip that is

0.020” in diameter. This provides more reliable contact between tumbler and key

#1 #2 #3 #4 #5 #6 #7 #8 #9

Technical Information

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

There are six different types of side pins used in ASSA High Security Twin Series and Maximum+ cylinders. The

Twin 6000 and Twin Exclusive use one type of side pin with two false grooves above and below the opening gate.

Twin Series and Maximum+ Series side pins are lifted by the side cut on the key blank to a proper height to

match the fence pattern on the geographically controlled side bar.

There are two different Twin V-10 side pins, left or right hand. Four false side grooves are provided for pick resist-

ance. The Twin V-10 side pin has an eccentric shape and must be properly positioned before insertion in the side

pin chamber of the plug. Left and right hand side pins offer the flexibility to utilize multiplexing capabilities.

The Twin Pro side pin is similar to the design of the Twin V-10 but there is only one type for all five side pin positions.

This side pin design is lifted at the back of the pin rather than the bottom surface.

Twin Maximum and Maximum+ side pins are available in left and right hand offering the flexibility of multiplexing

similar to Twin V-10. The ASSA Twin Maximum and Maximum+ series cylinder is the mechanical platform that

is integrated by C4 CLIQ and CLIQ Remote electromechanical keys and cylinders.

Twin 6000 &

Twin Exclusive

Side Pin

Left hand & right hand

Twin V-10 side pins flanking

a side view.

TwinProSidepindrawing

ontheleftshowsthe

backoftheTwinProside

pinandit’sliftpoint.

Twin Maximum and

Maximum+ side pins are

available in left or right

hand similar to V-10.

Like the Twin Pro side pin,

the Twin Maximum and

Maximum+ side pins are

lifted at the bottom of the

centering tab.

Example: Whenusing a #4bottom pin,aB top pin (driver)

is required for proper stack height in the chamber.

A #7 bottom pin and a #3 master pin would also

require a B top pin.

KIK&KILcylindersmeasuring 1.020"intheCH dimension

listed in the product section will use a modified pin

stack.This is donebycalculatingtherequired top pinand

then using one size smaller in the cylinder, i.e. using

an A top pin instead of a B in the above example. If the

shortest top pin (A) needs to be shortened, a #5 master

pin should be substituted. The #5 master pin is one

increment step shorter than the A top pin.

Top Pins/Spool Drivers

Height Width

A – 4 mm/0.15 inch 2.9 mm/0.114 inch

B – 5 mm/0.19 inch 2.9 mm/0.114 inch

C – 6 mm/0.23 inch 2.9 mm/0.114 inch

D – 7 mm/0.27 inch 2.9 mm/0.114 inch

Top Pin Part Numbers & Uses

Driver Part Number Stack Height

A 807261 1 or 2

B 807262 3 or 4

C 807263 5 or 6

D 807264 7 or 8 or 9

Technical Information

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

There are five side pins in every ASSA Twin and Maximum+

Series cylinder. In the Twin 6000 and Twin Exclusive, there

is only the one type of side pin and for the Twin V-10 Series

there are left-hand and right-hand side pins. ASSA Twin Pro

has yet another single type of side pin. For Twin Maximum

and Maximum+ there are left- and right-hand side pins similar

to Twin V-10 for multiplexing capability

The actual side code combination is machined into the side

bar itself and again on the side cut of the Twin Series and

Maximum+ key.

The purpose of the side pins is to align the opening gate by

the side-cut milled on the side of the key that will align the

side pin with the coded side bar fence. If they match, then

the side bar will be unlocked.

With five depths in each position and five positions on each

side bar, there are 3,125 different side codes possible. ASSA has

2,805 available. ASSA Twin side codes are assigned to dealers,

distributors and end-users on a restricted geographical basis.

ASSA refers to the sidecode as an “intelligent” keyway that is

unique to the market area of each dealer and end-user. The

sidecode assures ultimate key control while the technicians

have total control of the keying and pinning.

ASSA sidebars are reversible. Each sidebar is assigned with

two matching key blanks, the obverse and reverse side

codes. Twin V-10, Twin Maximum, and Maximum+ operations

are capable of additional key blanks, and these capabilities

are assigned only by and from the factory.

Note: Plug diameter is .510".

Counter-Milling

Side Bar

Side Pin

Side Bar Operation

Technical Information

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

ASSA Master Keying Capability

ASSA offers single step progression master key systems. Unlike most standard progression systems that are

restricted to two step progression, industry standards require a minimum of .023" from one step increments

to the next for all lock manufacturers in order to prevent unwanted interchange in master key systems.

Considering ASSA’s high tolerance and approximate 0.024" step increments, its nine depths of cut in six

positions offers considerably more theoretic and usable combinations

than any other lock manufacturer on the market today.

Figure 1 shows a standard two step progression chart. If the last

three columns are progressed, the theoretic total change keys

under a single master key would be 64 change keys on a page.

If the first three columns were then progressed, there would be

64 pages for a total of 4,096 theoretic change keys under a single

master key. If we were to consider that there is a MACS of 7, this

system would yield approximately 3,000 usable change key

combinations.

Figure 2 shows ASSA’s single step progression chart. If we were to

progress only the last two columns, we would get a theoretic total

of 64 change keys on a page. If we then progressed the two center

columns, we would then get a theoretic total of 64 pages. So you

see, we have already matched the total 4,096 theoretic change keys

in the first exercise from Figure 1, but only four of our six chambers

have been progressed. Now let’s progress the first two columns to

get 64 volumes, of 64 pages, of 64 changes per page. This gives us a

theoretic total of 262,144 change keys under a single master key.

With a MACS of 5 we typically lose about one half of our theoretic

total, still yielding about 130,000 and in some cases as many as

160,000 usable change key combinations under a single master

key, on each of our 1,402 available reversible sidebars.

Figure 2

TMK 126958

237169

348271

K459382

B561493

A672514

783625

894736

915847

Figure 1

TMK 2 5 8 3 6 9

4 7 0 5 8 1

K6 9 2 7 0 3

B8 1 4 9 2 5

A0 3 6 1 4 7

64 pages 64 changes

per page

Technical Information

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

Calculating Pin Stacks

Always choose the bottom pin, in a given chamber, by comparing the cuts in that chamber. Always select the

highest number for the bottom pin since that would be the shortest possible pin. Next, subtract the remaining

cut to obtain the master pin needed. The driver pins are calculated by subtracting the master pins from the

bottom pins, chamber by chamber. In the case of stacked master pins always total the master pins then subtract

that number from the bottom pin.

Example:

AA - 495599 AB - 495499 AC - 495699

AA1 - 495524 AB1 - 495464 AC1 - 495625

AA2 - 495536 AB2 - 495438 AC2 - 495644

AA3 - 495562 AB3 - 495426 AC3 - 495637

The following would describe typical pinning arrangements for bottom, master and driver pins from our

sample systems.

495799 "AA" Key 495799 "GMK" Key

495327 "1AA" Key 495599 "AA" Key

495536 "AA2" Key

495799 Bottom Pins 495799 Bottom Pin

- - -472 Master Pins - - -263 Master Pins

BDCBAD Top Pins BDCCBC Top Pins

Technical Information

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

Prices Effective April 1, 2018

ASSA C-4 CLIQ & CLIQ Remote

The ASSA CLIQ technology is designed with the advantages of both electronic access control and mechanical

key systems making it suitable for organizations spread over wide geographic areas. The ASSA CLIQ features

time schedule access control, the ability to grant or deny authorizations electronically and provide an audit

trail. This unique technology provides a high security key and cylinder combination requiring no power source

of any kind at the opening.

For more detailed information please see pages 15 & 16 or visit our website www.assalock.com and select the

“Products” tab.

Considerations for Master Key System design

There is a black power and data transfer strip inserted alongside the CLIQ electromechanical keys as part of the

electronics. When designing a masterkey system where CLIQ will be used there is a cut depth restriction in the

sixth position. A number one or two depth of cut can not be used so that the black power and data strip is not

damaged when cutting the key. Clamping the key into a the vice jaw of a key duplicating or code cutting ma-

chine will also damage the black power and data transfer strip. CLIQ keys, are always cut at the factory.

Servicing ASSA CLIQ cylinders

The ASSA CLIQ electronic components, Motor and actuator

are sealed in the cylinder plug and are not field serviceable.

All ASSA CLIQ cylinders are keyed at the factory.

Lubrication

The only approved lubricant is the ASSA Lock Spray part

number 807718.

The ASSA Lock Spray is conductive and the formula resists

collection of dust and dirt. Any other lubricant used can

mask the contact read for power and data transfer.

P6 P5 P4 P3 P2 P1

Black power and data transfer strip

A motor drives the electromechanical

blocking element that locks the side rail.

Technical Information

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

Prices Effective April 1, 2018

ASSA Large Format Interchangeable Core, ASSA Yale & ASSA Corbin Russwin LFIC

With the discontinuation of the ASSA removable core (RC) product, in 1996 ASSA introduced a new Large Format

Interchangeable core (LFIC) product which may be mounted in the same figure eight housing as the old product.

The new LFIC product is designed to be compatible with systems written for the old product and may even safely

be supplied as expansion in some key systems not originally designed with the RC or LFIC product in mind.

VALUES

C = Control Bitting CK = Change Key Bitting

BP = Bottom Pin MK = Master Key Bitting

MP = Master Pin

BUP = Build-up Pin

TP = Top Pin

Stack = 20

This LFIC has a control "sleeve" in the first four pin chambers and pinning for those chambers is calculated using

specific formulas to determine the two top components of the pin stack. The TOP PIN (TP) is determined from

the control KEY combination, simply add one to the bitting of the control key in the first four positions to

determine the size of the top pin for the corresponding pin chamber.

TP=C+1

The sizes of the BOTTOM PIN (BP) and MASTER PIN (MP) are determined using the normal method. The only other

component in the stack is the buildup pin and the following formula will give you the correct size to use in the

pin chamber.

Master Keyed Non-Master Keyed

BP = MAX (CK/MK) BP = CK

MP = ABS (CK-MK) MP = 0

TP=C+1 TP=C+1

BUP = 20 - {TP + [10 - (BP-MP)]} BUP = 20 - [TP + (10-CK)]

If the particular chamber is cross keyed, it will have more than one master pin in it and the formula should be

modified to reflect that condition. The pinning for the last two pin chambers should be calculated in the same

manner used for ASSA non-IC products.

Using the formula isn’t any more difficult than adding and subtracting. The example here is for a master keyed

LFIC cylinder, and this formula will apply to the first four pin chambers only. As with all formulas, it should be

worked from the inside out. Our keys for this cylinder are:

CTRL 216499

AA 495799

1AA 642799

Technical Information

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

100

Prices Effective April 1, 2018

The Top Pin is calculated as CTRL Bitting + 1, in this case.

Pin Chamber 1 Pin Chamber 2 Pin Chamber 3 Pin Chamber 4

CTRL Bitting 2 + 1 = 3 TP CTRL Bitting 1 + 1 = 2 TP CTRL Bitting 6 + 1 = 7 TP CTRL Bitting 4 + 1 = 5

The only pin size we don’t now know is the BUP (Build-up Pin). The formula will tell us that.

BUP = 20 - { TP +[10 - (BP - MP)]}

Pin Chamber 1 Pin Chamber 2 Pin Chamber 3 Pin Chamber 4

BUP=20-{3+[10-(6-2)]} BUP=20-{2+[10-(9-5)]} BUP=20-{7+[10-(5-3)]} BUP=20-{5+[10-(7-0)]}

BUP=20-{3+[10-4)]} BUP=20-{2+[10-4)]} BUP=20-{7+[10-2)]} BUP=20-{5+[10-7]}

BUP=20-{3+6} BUP=20-{2+6} BUP=20-{7+8} BUP=20-{5+3}

BUP=20-9 BUP=20-8 BUP=20-15 BUP=20-8

BUP=11 BUP=12 BUP=5 BUP=12

From this formula we know that the pinning of the cylinder would be:

TP 3 2 7 5DD

BUP 11 12 5 12 - -

MP 2 5 3 - - -

BP 6 9 5 7 9 9

The build-up pin may be any size from 1 up to 17. As part of the product release we have created 9 new master

pins for use as build-up pins. They are numbered 9 through 17. In conjunction with this product release ASSA

has produced nine new top pins 2 through 10. These new top pins have a recess drilled into the top of them to

accept the new, smaller diameter top pin spring which must be used in the first four control sleeve chambers of

the cylinder.

If you are generating your own key systems, there are some new combination selection rules which should be

followed for the TMK and the CTRL (Control Key).

1) The TMK should have a number 9 depth as one of the first four cut positions and the corresponding

position in the CTRL key should be a number 1 depth.

2) The last two cut depths of the CTRL key should be the same as the TMK.

With the exception of the preceding rules, the other cut positions in the CTRL key may be any depth except the

TMK depth. The combination used for the CTRL key should be removed from the key system if it is generated as

part of the progression.

Technical Information

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

101

Prices Effective April 1, 2018

ASSA Sargent Large Format Interchangeable Core

Follow the same formula and rules as specified for the ASSA Large Format Interchangeable & Yale & Corbin

Russwin LFIC but change the stack to 19.

IMPORTANT: If the build-up pin (BUP) is equal to 0 no build-up pin is used.

CTRL 216969

AA 495769

1AA 642169

The Top Pin is calculated as CTRL Bitting + 1, in this case.

Pin Chamber 1 Pin Chamber 2 Pin Chamber 3 Pin Chamber 4

CTRL Bitting 2 + 1 = 3 TP CTRL Bitting 1 + 1 = 2 TP CTRL Bitting 6 + 1 = 7 TP CTRL Bitting 9 + 1 = 10

Pin Chamber 1 Pin Chamber 2 Pin Chamber 3 Pin Chamber 4

TP=2+1=3 TP=1+1=2 TP=6+1=7 TP=9+1=10

The only pin size we don’t now know is the BUP (Build-up Pin). The formula will tell us that.

BUP = 19 - { TP +[10 - (BP - MP)]}

Pin Chamber 1 Pin Chamber 2 Pin Chamber 3 Pin Chamber 4

BUP=19-{3+[10-(6-2)]} BUP=19-{2+[10-(9-5)]} BUP=19-{7+[10-(5-3)]} BUP=19-{10+[10-(7-6)]}

BUP=19-{3+[10-4)]} BUP=19-{2+[10-4)]} BUP=19-{7+[10-2)]} BUP=19-{10+[10-1]}

BUP=19-{3+6} BUP=19-{2+6} BUP=19-{7+8} BUP=19-{10+9}

BUP=19-9 BUP=19-8 BUP=19-15 BUP=19-19

BUP=10 BUP=11 BUP=4 BUP=0 (no BUP is used in

this chamber)

From this formula we know that the pinning of the cylinder would be:

TP 3 2 7 10 CD

BUP 10 11 4 - --

MP 2 5 3 6 - -

BP 6 9 5 7 69

The build-up pin may be any size from 1 up to 17. As part of the product release we have created 9 new master

pins for use as build-up pins. They are numbered 9 through 17. In conjunction with this product release ASSA

has produced nine new top pins 2 through 10. These new top pins have a recess drilled into the top of them to

accept the new, smaller diameter driver spring which must be used in the first four control sleeve chambers of

the cylinder.

If you are generating your own key systems, there are some new combination selection rules which should be

followed for the TMK and the CTRL (Control Key).

1) The TMK should have a number 9 depth as one of the first four cut positions and the corresponding

position in the CTRL key should be a number 1 depth.

2) The last two cut depths of the CTRL key should be the same as the TMK.

With the exception of the preceding rules, the other cut positions in the CTRL key may be any depth except the

TMK depth. The combination used for the CTRL key should be removed from the key system if it is generated as

part of the progression.

Technical Information

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

102

Prices Effective April 1, 2018

The ASSA Sargent & Corbin Russwin retrofit LFIC cores require a shearing tool to cut the drive pin in existing Sargent

or Corbin Russwin housings that is in line with the ASSA side bar. This simple and effective hand tool is inserted fully

into the figure 8 opening of a Sargent or Corbin Russwin LFIC housing over both drive pins. The T handle is inserted

into the large opening on the left and turned shearing the left drive pin to the proper length.

ASSA Sheering Tool for Sargent and Corbin Russwin LFIC Original Housings

Sargent 6 Pin LFIC

Model # Description

CRRCTOOL Shearing Tool for Corbin Russwin style IC

SGTRCTOOL Shearing Tool for Sargent style IC

Corbin Russwin 6 Pin LFIC

Technical Information

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

103

Prices Effective April 1, 2018

ASSA Schlage Removable Core

The Schlage removable core has a control sleeve in the first cut position at the ASSA key tip

Only the number 8 or 9 depth of cut can be used for the operating keys

The control key can be cut to the 1, 2, 3 or 4 depth of cut only, in the first position at the ASSA key tip.

A build-up pin hollowed top pin and an ASSA IC top pin spring is used in the first chamber position to engage

the control sleeve and drive blocking pin to lock or unlock the core in the Schlage original housing.

No master pinning is allowed in the control chamber position. Positions 2 through 6 can be used for

normal ASSA master pinning.

Calculating the loads is as follows:

The Top Pin is equal to the control cut plus 6

TP = CTRL + 6

The build-up pin is equal to the operating cut minus the control cut plus 2

BUP = 2+ (Operating Cut - CTRL Cut )

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

104

Prices Effective April 1, 2018

Technical Information

The chart below shows pinning combinations available in the first pin chamber position.

Schlage Removable Core pinning combinations for 1st position.

CTRL Cut Operating Cut Build-up Pin Top Pin

1897

1910 7

2888

2998

3879

3989

48610

49710

Build-up pins and hollowed top pins can be found in the ASSA PK-IC upgrade pinning kit,

MPK pinning kit or purchased separately.

Note: Positions 2 through 6 use the ASSA modified pin stacks by downsizing top pins by one increment.

Servicing ASSA Cam Locks

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

105

Prices Effective April 1, 2018

ASSA cam locks are serviced with standard Twin bottom and master pins. The tops pins, or drivers and springs

used in ASSA cam locks are the hollowed top pins used in the ASSA Interchangeable Core product T-2 through

T-9. The top pin used in each chamber is equal to the total operating stack. A #7 bottom pin uses a T-7 top pin.

For master keying a #5 bottom pin – a #3 master pin equals a total operating stack of 2. The T-2 top pin is used.

Due to stack height restrictions the #1 depth of cut cannot be used in ASSA cam locks.

Top Pin #2 – 809328

Top Pin #3 – 809329

Top Pin #4 – 809330

Top Pin #5 – 809331

Top Pin #6 – 809332

Top Pin #7 – 809333

Top Pin #8 – 809334

Top Pin #9 – 809335

IC Core Chamber Spring – 809340

For metal installation use 7/8" double D punch.

Key Retained

Plug

Shell

Stop

Washer

Cover Slide

Plug Pins

Shell

Stop

Washer

Cover Slide

Cam

Adapter

Non-Key Retained

Technical Information

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

106

Prices Effective April 1, 2018

• Locksmith is encouraged to use the

ASSA-343 form card shown below to

• Customer would then be required to sign an

ASSA-312formin order to receive additional

cut keys for subsequent orders.

• Locksmith should check signature(s) on

the ASSA-343 form registration card and

verify that it matches the signature on

the ASSA-312 form.

• Personal identification should also be

requestedforadditionalcustomerprotection.

ASSA Blind Code Key Decoder.

1 2 3 4 5 6

1E F J B G A

2J A B C D F

3F C D J H E

4C H A D B J

5D G F E J H

6B D E H A G

7H B G F C D

8G J H A E C

9A E C G F B

Security Authorization Procedure

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

107

Technical Information

Prices Effective April 1, 2018

ASSA-312 FORM

• The ASSA-312 form may be used to verify customer signatures at the time of sale and issuance of cut keys.

• Customer will sign the form in the signature block portion, date the signature and copy any stamping

information in the space provided.

• Locksmith will check the signature against the original ASSA-343 signature registration card to verify

and authorize key cutting.

• Form number is then recorded on the back side of the ASSA-343 card.

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

108

Prices Effective April 1, 2018

Notes:

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

109

Prices Effective April 1, 2018

Notes:

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

110

Prices Effective April 1, 2018

Notes:

Tableof

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

ICCore

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools&

Accessories

Care&

Maint.

Technical

Specs.

111

Prices Effective April 1, 2018

Notes:

Table of

Contents

General

Info.

Electronic

Access

Control

Keys &

Keying

Mortise

Cyls.

Rim

Cyls.

Mogul

Cyls.

IC Core

Cyls.

KIK/KIL

Cyls.

Deadbolts

Auxiliary

Locks

Padlocks

Profile

Cyls.

Pin Kits

Tools &

Accessories

Care &

Maint.

Technical

Specs.

112

Prices Effective April 1, 2018

Notes:

PBApril2018

ASSA, Inc.

3625 Alleghany Drive

Salem, VA 24153

Phone: 800-235-7482 • Fax: 800-892-3256

E-mail: AssaOrders@assalock.com.

Websites: www.assalock.com • www.assacliq.com

ASSA ABLOY is the

global leader in door

opening solutions

dedicated to satisfying

end-user needs for

security, safety and

convenience.

Locks April 1, 2018 Ass 4 1

Navigation menu

Versions of this User Manual:

Views

Navigation
