466
www.acclock.com
Accredited Lock Supply
C
CompX eLock is a highly engineerd electronic lock
with a motor-driven latch. Its uncompromising lock
control electronics includes a non-volatile memory
that stores 250 user/supervisor codes and audit trail.
With optional LockView™ audit trail software, CompX
eLock remembers 1500 access attempts. Programming
is simple with numeric keypad or Windows™ based
Lockview™ software.
FL150-KP-CAB
30885
FL150-ICKP-CAB
57500
FL150-PRKP-CAB
53300
Keypad only, cabinet version includes: (1) battery
pack (6-AA, batteries - not included), (1) spring loaded
latch, (2) cables
Proximity HID reader with keypad, cabinet version
includes: (1) battery pack (6-AA, batteries - not
included), (1) spring loaded latch, (2) cables
NETWORK CompX eLock
Eliminates Manual Temperature Logging
• Prevens human error
• Automatically records temperature at programmed
intervals
• Data history is archived and easily accesible
Temperature Monitoring
• Utilizes 802.11g wireless protocol or Ethernet com-
munication
• Escalating notication system sends temperature "out
of range" alerts via email, text message, voice call or fax
• Audible and visual local alarming at eLock
• Records up to 500,000 temperature data points and
provides programmable charts, graphs and reports
• Monitors internal temperatures 1000C to -1000C
• Programming can be done manually on user friendly
LCD blue backlit screen or through LockView® software
Access Controls
• 3,000 users/supervisor codes
• LockView software provides an Audit Trail of the
last 15,000 access attempts; including date, time and
user name
• Four modes of access: Keypad, Proximity card (HID
or iClass HID), Magstripe card (Track 2)
• Uses existing identication cards
• Motor driven latching mechanism provides the con-
venience of automatic relocking
WI-FI TEMP MONITORING
FLWS-KP-TMP-V WiFi, keypad, Temp monitoring,
vertical mount (Sub R for V - right hand horizontal mount
or L for left hand horizontal mount) 2103.00
FLWS-MSKP-TMP-V WiFi, magstripe/keypad,
Temp monitoring, vertical mount (Sub R for V - right
hand horizontal mount or L for left hand horizontal
mount)
2293.20
FLWS-PRKP-TMP-V WiFi, prox/keypad, Temp monitor-
ing, vertical mount (Sub R for V - right hand horizontal
mount or L for left hand horizontal mount)
2471.63
FLWS-ICKP-TMP-V WiFi, iClass (prox)/keypad, Temp
monitoring, vertical mount (Sub R for V - right hand
horizontal mount or L for left hand horizontal mount)
2404.35
STAND ALONE TEMP MONITORING
SS-KP-TMP-V Stand alone, keypad, Temp moni-
toring, vertical mount (Sub R for V - right hand horizontal
mount or L for left hand horizontal mount)
1670.18
SS-MSKP-TMP-V WiFi, magstripe/keypad, Temp
monitoring, vertical mount (Sub R for V - right hand
horizontal mount or L for left hand horizontal mount)
1860.30
SS-PRKP-TMP-V WiFi, prox/keypad, Temp monitor-
ing, vertical mount (Sub R for V - right hand horizontal
mount or L for left hand horizontal mount)
2038.72
SS-ICKP-TMP-V WiFi, iClass (prox)/keypad, Temp
monitoring, vertical mount (Sub R for V - right hand
horizontal mount or L for left hand horizontal mount)
1971.45
STAND ALONE CompX eLock
• Three modes of access: Keypad, Proximity card (HID),
Magstripe card (Track 2)
• Uses existing prox and magstripe cards
Call for your specific application and
pricing.
150 SERIES
300 SERIES
200 SERIES
All Versions Feature:
• Audit trail of last 1,500 access attempts with date,
time and user name
• 250 user/supervisor codes
• Three modes of access: Keypad, Proximity card*
HID or iCLASS HID *Use existing identication cards
• Motor driven latching mechanism
• 6-AA battery pack; premium brand Alkaline batteries
recommended (not included)
• Low battery indicator
• Jump start battery override available through mini
USB communications port allows the user, with a
valid credential, to access the CompX eLock® when
the batteries are exhausted
• Audible alarm bolt system
• Mini USB communications port for audit trail download
with optional LockView 5 software
• Compatible with 12-volt electric door strikes
to control access on interior doors
Proximity HID iCLASS smart card reader with keypad,
cabinet version includes: (1) battery pack (6-AA,
batteries not included), (1) spring loaded latch, (2)
cables
Go To Table of Contents
ENCYCLOPEDIA OF LOCKSMITH SUPPLIES
1.800.652.2835 467
www.acclock.com
Accredited Lock Supply
DUAL Axess KEYLESS CAM LOCK
• 10,000 possible combinations with key override
• Replaces any standard cam lock to get instant key-
less access
• Retrots into existing 3/4" wood or metal mounting
holes - no need for drilling or modification
• Small prole ts most door and drawers
• Two access modes: combination or key
• Combination secure - can only be changed with the
proper key and current correct combination
• Removable lock plug for easy rekeying
• Master keying standard
• Heavy duty die cast construction
Available cylinder lengths: 7/8" & 1 3/8"
NAD8030-19 NAD8031-19
Cylinder Length 7/8" 1 3/8"
Maximum Mat. Thick. 5/8" 1 1/8"
MKKA Codes* 3 3
MKKD Codes 60 60
Case Qty. 10 10
Key Blank D8770 D8770
Plug Removal Key D8771 D8771
Master Key D8772 D8772
Price 41.56 41.56
* Key Codes: DA108, DA120, DA124
B
LOCKVIEW 5 SOFTWARE
for 150 and 200 Series eLocks
NETWORK CABINET
eLOCK
• Easy installation on existing or
new cabinets
• 3,000 user/supervisor codes
• Four modes of access: Keypad,
Proximity card HID or iCLASS
HID, Magstripe card (Track 2)
(Can use existing id cards)
• Motor-driven latching mecha-
nism provides the convenience
of automatic relocking
• Can operate two latches or doors
• Operates on 6 AA alkaline bat-
teries or dedicated power supply
• Low battery indicator
• "Jump Start" 9-volt battery port
• Programming can be done
manually on user-friendly LCD
blue backlit screen or through
Lockview® software
• Compatible with 12-volt electric
door strikes to conrol access on
interior doors
• Optional door switch provides
instant notification of unauthor-
ized entry or door ajar alerts
Utilizes wireless 802.11g or
Ethernet communication on
existing networks.
FLWS-KP-CAB 1389.54
WiFi, keypad, cabinet
FLWS-MSKP-CAB 1535.82
WiFi, magstripe/keypad,
cabinet
FLWS-PRKP-CAB 1660.98
WiFi, prox/keypad, cabinet
FLWS-ICKP-CAB 1627.04
WiFi, iClass (prox), cabinet
LockView® 5 software features:
LockView® makes it easy to monitor audit trails
for the last 1,500 access attempts, manage users
and eLocks, and assign time-based restrictions
and dual credential access. Downloading and
uploading information is simple. Attach mini USB
to communications port on eLock and standard
USB to laptop.
• Provides a comprehensive audit trail of the last
1,500 access attempts; including date, time and
user name
• Complies with Joint Commission standards
and is 21 CFR Part 11 compliant
• When connected, LockView sends updates to the
eLock. Updates can include:
— User changes (Add / Delete / Modify Credentials)
— eLock Changes (Add / Delete / Modify eLocks)
— Access Rights changes
• LockView software sold separately
Minimum System Requirements:
2GB RAM, 2GB free space on hard drive, 64bit
Compatible, OS: Windows XP, Vista, 7. Pentium III 1.0
GHz or higher. Other configurations are acceptable;
please consult factory for detailed information.
LockView-5 Software to operate 150 & 200
Series eLocks, includes: (1) Client License,
(1) USB drive, (1) standard USB to Mini-USB
cable 700.00
LockView-5PRO Software to operate 150, 200, &
300 Series eLocks, includes: (2) Client License,
(1) USB drive, (1) standard USB to Mini-USB
cable 1,000.00
NET-CLIENT Additonal license; use with
LockView 5/5 PRO 600.00
TECH-SUPPORT 1 year support 325.00
Go To Table of Contents
468
www.acclock.com
Accredited Lock Supply
BRASS PIN TUMBLER CYLINDER CAM LOCKS
Application - For drawers, R.H. or L.H.
door, NAC8103 and NAC8109 for lipped
construction; the balance for flush ap-
plication.
Operation - 900 cam turn; key removable
in both locked and unlocked positions.
Keying - Will key together with all other
NAC8100 series locks. Available Keyed
Different(850 changes). Master Keyed
Different GM (650 changes).
Packaging - 10 in a box. Supplied with two
keys; trim washer, spur washer for wood;
flat washer for metal; and two cams for all
three applications.
Key Blank - D4291.
MK 2765 KD 2494
Code Finish Type of Cylinder Maximum
Mounting Length Material
Thickness
NAC8101-26D Dull Chrome Lipped 15/16" 5/8"
NAC8101-4 Satin Brass Lipped 15/16" 5/8"
NAC8102-26D Dull Chrome Flush 1 1/6" 3/4"
NAC8102-4 Satin Brass Flush 1 1/16" 3/4"
NAC8103-26D Dull Chrome Lipped 1 3/16" 7/8"
NAC8103-4 Satin Brass Lipped 1 3/16" 7/8"
NAC8106-26D Dull Chrome Flush 1 7/16" 1 1/8"
NAC8106-4 Satin Brass Flush 1 7/16" 1 1/8"
NAC8108-26D Dull Chrome Flush 1 3/4" 1 3/8"
NAC8108-4 Satin Brass Flush 1 3/4" 1 3/8"
NAC8109-26D Dull Chrome Lipped 1 3/4" 1 1/2"
NAC8109-4 Satin Brass Lipped 1 3/4" 1 1/2"
Code Finish Bolt Bolt Price
Type Travel
NAC8047-26 Polished Chrome Spring 1/8" 48.47
DISC TUMBLER CYLINDER CAM LOCKS
Application - For drawers, R.H. or L.H. doors with either lipped or flush construction.
Operation - 900 cam turn; key removable in both locked and unlocked positions.
Keying - Will key together with all other NAC8000 and NAC8700 series cabinet
locks; excluding NAC8062. Available Keyed Alike (6 key codes), Keyed Different
(200 changes) and Master Keyed Different E41A (200 changes).
Packaging - 25 in a box. Supplied with two keys; trim washer and spur washer for
wood; and two cams.
Key Blank - D8785.
Locks furnished with
straight cams assembled
Code Finish Cylinder Max.Mat. Price
Length Thickness
NAC8051-14A Bright Nickel 7/16" 7/64" 7.79
NAC8051-3 Bright Brass 7/16" 7/64" 8.26
NAC8052-14A Bright Nickel 5/8" 15/64" 7.79
NAC8052-3 Bright Brass 5/8" 15/64" 8.26
NAC8053-14A Bright Nickel 1 3/16" 7/8" 7.79
NAC8053-3 Bright Brass 1 3/16" 7/8" 8.26
NAC8053-4G Antique Brass 1 3/16" 7/8" 8.26
NAC8054-14A Bright Nickel 15/16" 5/8" 7.79
NAC8054-3 Bright Brass 15/16" 5/8" 8.26
NAC8054-4G Antique Brass 15/16" 5/8" 8.26
NAC8055-14A Bright Nickel 1 7/16" 1 1/8" 7.79
NAC8055-3 Bright Brass 1 7/16" 1 1/8" 8.26
NAC8055-4G Antique Brass 1 7/16" 1 1/8" 8.26
NAC8060-14A Bright Nickel 1 3/4" 1 7/16" 10.95
NAC8060-3 Bright Brass 1 3/4" 1 7/16" 11.38
NAC8060-4G Antique Brass 1 3/4" 1 7/16" 11.38
NAC8073-14A Bright Nickel 1 3/16" 7/8" 7.79
NAC8073-3 Bright Brass 1 3/16" 7/8" 8.26
NAC8073-4G Antique Brass 1 3/16" 7/8" 8.26
NAC8075-14A Bright Nickel 1 7/16" 1 1/8" 7.79
NAC8075-3 Bright Brass 1 7/16" 1 1/8" 8.26

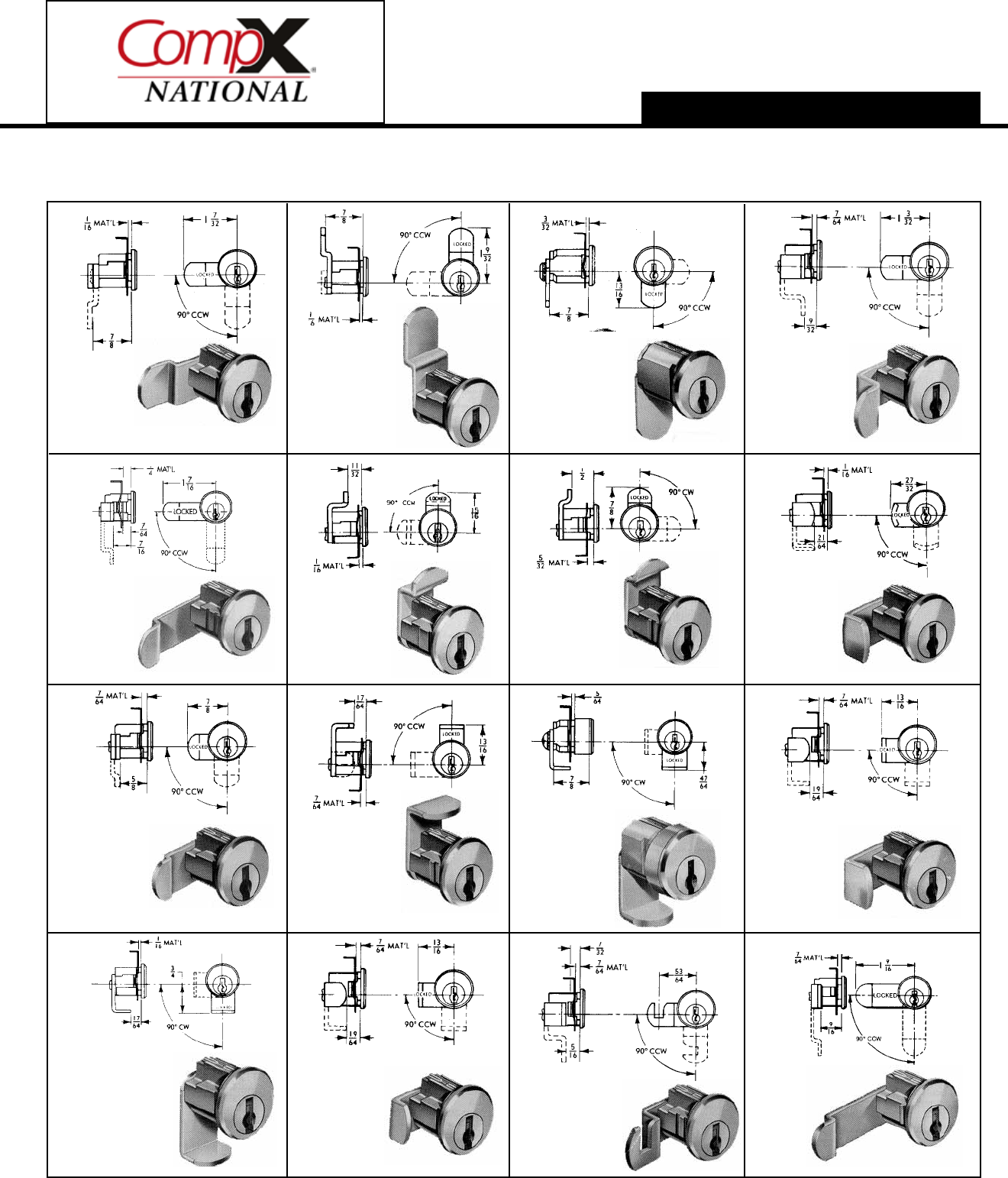

CYLINDER CAM LOCKS
Brass Pin Tumbler Die Cast Pin Tumbler Disc Tumbler
B
DISC TUMBLER FILE CABINET LOCKS
Application - Used internally on filing cabinets to gang lock drawers.
Operation - Key removable in locked position.
Keying - Keyed only to "Pundra" keyway, P141A when ordering KA.
Packaging - Supplied with two keys.
Go To Table of Contents
ENCYCLOPEDIA OF LOCKSMITH SUPPLIES
1.800.652.2835 469
www.acclock.com
Accredited Lock Supply
Code Installation Direction of Turn
To Open
NAC8730 Architectural 900 c/cw
Mail Box Fronts
REVERSIBLE OPERATION
DISC TUMBLER CYLINDER CAM LOCK
1433 ea.
Application - For drawers, R.H. or L.H. doors with either lipped or flush construction.
Operation - 90;dg cam turn; key removable in both locked and unlocked positions.
Keying - Reversible key operation. Available Keyed Alike(1 key code-SX1) and Keyed
different (100 changes).
Packaging - 25 in a box. Supplied with two keys; spur washer for wood; and two cams
Key Blank - D8777.
Code Finish Cylinder Maximum
Length
NAC8062-14A Bright Nickel 7/8" 9/16"
MOUNTING
HOLE FOR
ALL LOCKS 982
Packed 25 per box.
Bright Nickel Finish.
Keyblank - D4292.
1244
APPLICATION - Exterior pedestal-
mounted neighborhood boxes. Has
keyway dust shutter for lock protection.
Clip mounted.
OPERATION -900 clockwise cam turn to
open. Key removable in locked position.
KEYING - Available keyed differently
only (100 changes)
PACKAGING -Supplied with a selection
of five cams, three keys, mounting clip,
cam nut and lock washer.
PIN TUMBLER “MULTI-CAMTM MAILBOX LOCKS
Lock furnished
with straight cam
assembled
REVERSIBLE
KEY
APPLICATION - Interior architectural
mail boxes used in apartments, con-
dominiums, schools, lobbies. Nut
mounted.
OPERATION - 900 counter-clockwise
cam turn to open. Key removable in
locked position only.
KEYING - Available keyed differently
only (100 changing)
PACKAGING -Supplied with selection
of five cams, two keys, mounting nut
and cam screw.
NAC8735
Door Of Pedestal
Mounted Neighborhood
Mailboxes
CYLINDER CAM LOCK PIN TUMBLER MAILBOX LOCKS
Disc Tumbler Multi-Cam
B
Direction to Open: 900 cw
NEW POSTAL LOCKS
• Stainless Steel Plug
• 120 taper on cylinder head
• Now able to accommodate up to 3/16" stem
• Drain holes on the bottom of the cylinder
• Will include spring clip, mounting nut and (3) keys
C9100 operates clockwise
C9200 operates counter clockwise
C9100 ships w/o a cam for replacement of locks for new
Standard 4C boxes shipped only to USPS
NAC9100 25/box 15.90 each
NAC9200 25/box 15.90 each
NEW USPS KEYBLANKS
• 2 keyways with 1000 changes each
NAD4300 Std. Keyway 1.58
NAD4301 Reverse Keyway 1.58
50/box
Heavy-Duty Cam for Mailbox Locks
Designed exclusively for C9100 & C9200
postal locks. .317" mounting hole.
NAC7120 5/bag 9.98ea Overall Length: 2 1/4"
Offset: 1/4"
Cam Thickness: 3/16"
POSTAL LOCK FOR NON-USPS DELIVERED SITES
The new C9300 postal lock is for private delivery postal
mailboxes only in colleges, universities, commercial
buildings and mail/parcel centers.
Application: Interior or exterior, pedestal-mounted or
in-wall boxes. Screw mounted. Hardware not included.
Commercial equivalent of USPS 306-B.
Operation: 900 counterclockwise cam turn to open.
Key removable in lockded position.
Packaging: Supplied with cam assembled and three
keys.
NAC9300 14.52
Keyblank - NAD4400 1.70ea
10/bag
Go To Table of Contents
470
www.acclock.com
Accredited Lock Supply
811 ea.
NAC8710
Bommer Industries
NAC8713
Auth Electric
NAC8715
Florence Mfg.
NAC8722
Dura Steel XL-202
NAC8716
S.H. Couch
NAC8724
Bommer Ind.
NAC8720
Dura Steel
NAC8719
Miami-Carey
NAC8717
Nutone
NA8718
Cutler Mail
Chute
NAC8711
Bommer Industries
MAILBOX LOCKS
Pin Tumbler
NAC8712
Bommer Industries
NAC8714
American Device
NAC8721
Permbit XL-201
NAC8723
Jensen General
NAC8725
Cutler Federal
983
983
B
Go To Table of Contents
ENCYCLOPEDIA OF LOCKSMITH SUPPLIES
1.800.652.2835 471
www.acclock.com
Accredited Lock Supply

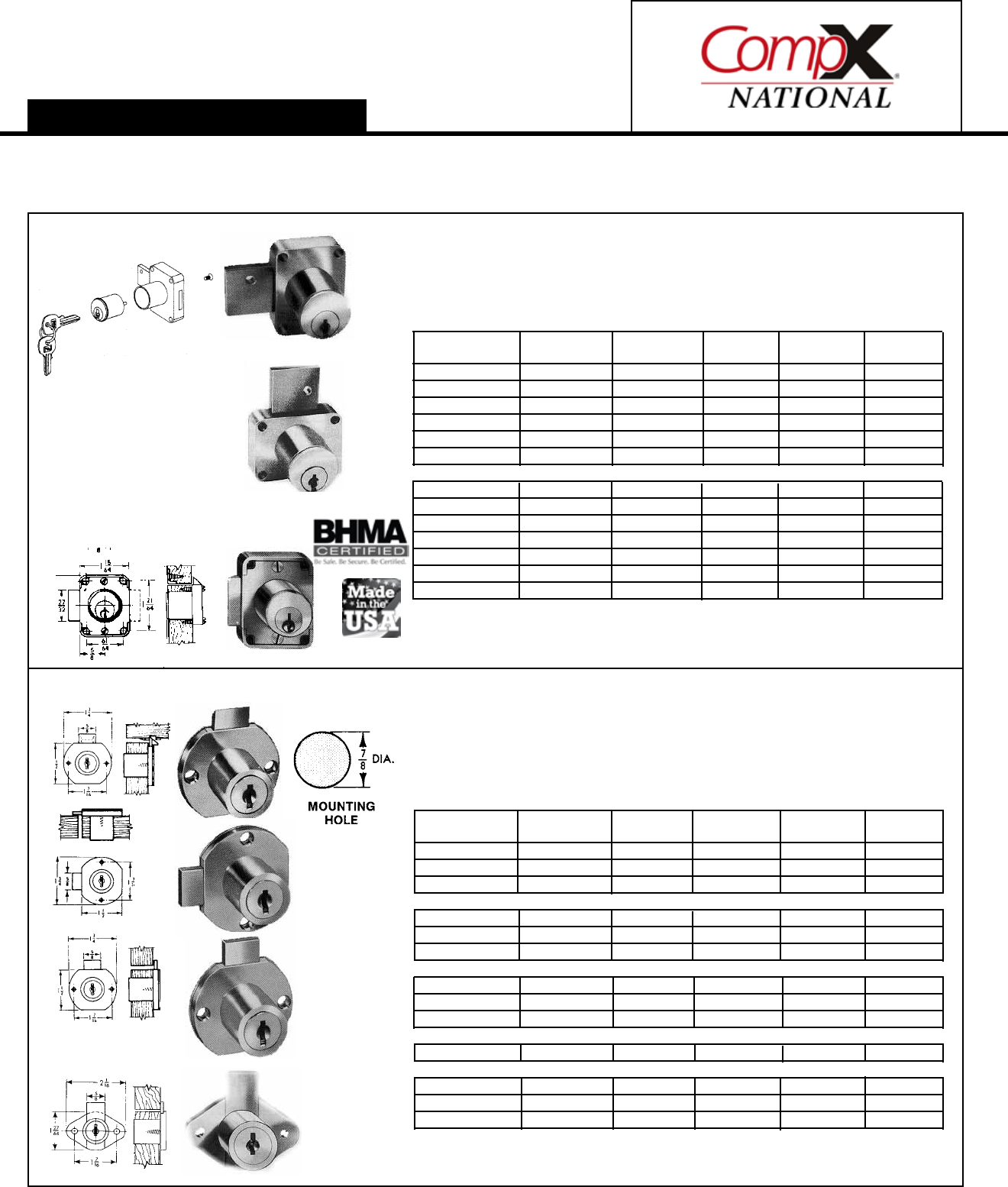

Application - Surface Mounted. For drawers and doors. Requires 7/8" diameter hole for cylinder.
Operation - Key removable in both locked and unlocked positions.
Keyed - Will key together with all other NAC8000 and NAC8700 series locks; excluding NAC8602. Available
Keyed Alike: NAC8703 and NAC8704(6 key codes), NAC8705 and NAC8706(3 key codes): Keyed Different; (200
changes), and Master Keyed different E41A(200 changes). NAC8706 is not stocked Master Keyed.
Packaging - 25 per box. Supplied with two keys and mounting screws; with strike furnished with NAC8706 lock.
Finishes: 14A - Bright Nickel; 3 - Bright Brass; 4G - Antique Brass
Key Blank - D8785.
Code Installation Bolt Cylinder Bolt Price
Type Length Travel
NAC8703-14A Drawer Dead 15/16" 11/32" 10.73
NAC8703-3 Drawer Dead 15/16" 11/32" 11.00
NAC8703-4G Drawer Dead 15/16" 11/32" 11.00
NAC8704-14A Door Dead 15/16" 11/32" 11.00
NAC8704-3 Door Dead 15/16" 11/32" 11.34
NAC8704-4G Door Dead 15/16" 11/32" 11.34
NAC8705-14A Drawer Dead 1 3/16" 11/32" 11.39
NAC8705-3 Drawer Dead 1 3/16" 11/32" 11.73
NAC8705-4G Drawer Dead 1 3/16" 11/32" 11.73
NAC8706-3 Drawer Spring 15/16" 9/32" 13.56
NAC8803-14A Drawer Dead 15/16" 11/32" 9.97
NAC8803-3 Drawer Dead 15/16" 11/32" 10.28
NAC8803-4G Drawer Dead 15/16" 11/32" 10.28
Code Finish Installation Bolt Cylinder Bolt
Type Length Travel
NAC8173-26D Dull Chrome Door Dead 7/8" 3/4"
NAC8173-4 Satin Brass Door Dead 7/8" 3/4"
NAC8173-4G Antique Brass Door Dead 7/8" 3/4"
NAC8174-26D Dull Chrome Door Dead 1 1/8" 3/4"
NAC8175-26D Dull Chrome Door Dead 1 3/8" 3/4"
NAC8139-26D* Dull Chrome Door Spring 3/4" 7/32"
NAC8178-26D Dull Chrome Drawer Dead 7/8" 3/4"
NAC8178-4 Satin Brass Drawer Dead 7/8" 3/4"
NAC8178-4G Antique Brass Drawer Dead 7/8" 3/4"
NAC8177-26D Dull Chrome Drawer Dead 1 1/8" 3/4"
NAC8179-26D Dull Chrome Drawer Dead 1 3/8" 3/4"
NAC8179-4 Satin Brass Drawer Dead 1 3/8" 3/4"
NAC8180-26D Satin Chrome Drawer Dead 1 5/8" 3/4"
Packed 10 per box.
* Key removable in locked position only (not "Advantage Plus") 42.56
Certified Grade 2 locks also available for MRI applications - non-ferrous or non-magnetic
versions. Made to order.
PIN TUMBLER DOOR AND DRAWER LOCKS
"ADVANTAGE PLUS"
DISC TUMBLER DOOR DRAWER LOCKS
Application - Surface Mounted. For drawers, R.H. or L.H. doors. Requires 7/8" diameter hole for the cylinder.
Operation - Key removable in both locked and unlocked positions; except NAC8139.
Keying - Will key together with all other pin tumbler locks using D4291 key blank. Available Keyed Alike, 26D
finish (4 key codes), 4 and 4G finish (2 key codes). All finishes available Keyed Different (850 changes) and
Master Keyed Different GM 1(650 changes).
Packaging - 10 in a box. Supplied with two keys, strike and mounting screw.
Key Blank - D4291.
8706
8704
8703
8705
C8173, 8175
C8177,8178, 8179
C8139
The PLUS feature allows you to
remove the cylinder from our
pin tumbler locks while the lock
remains in place. Simply use a
5/64" allen wrench from the back
to remove the cylinder and plug
for re-keying.
DOOR AND DRAWER LOCKS
Pin Tumbler Disc Tumbler
8803
B
3255ea
Go To Table of Contents
472
www.acclock.com
Accredited Lock Supply
Application - For drawers with NAC8701 for center drawers of metal desks. Fits
special piercing of drawer and selvedge. NAC8896 is a specific replacement lock.
Operation - Key removable in both locked and unlocked positions.
Keying - NAC8701 will key together with all other NAC8000 and NAC8700 series
locks; excluding NAC8602. Available Keyed Alike; NAC8701 (6 key codes), NAC8896
(1 key code); Keyed Different; NAC8701(200 changes). NAC8896 (50 changes).
NAC8701 is available Master Keyed different E41A(200 changes).
Packaging - NAC8701, NAC8702 - 25 per box; NAC8896 - 10 box. Supplied with
two keys and mounting nut for NAC8701s.
Key Blank - D8785.
Code Installation Bolt Cylinder Bolt Price
Type Length Travel
NAC8701-14A Center Drawer Insertable 19/32" 11/32" 15.78
of Metal Desks Dead Bolt
NAC8896-26D Desk Drawer Dead Bolt 1/2" 5/8" 39.03
SLAMCAM - Spring Loaded Latch PIN TUMBLER DRAWER LOCKS
2653
Application - Surface Mounted. For drawers. Requires 7/8" diameter hole for the
cylinder.
Operation - Cylinder removable from front of lock while lock remains in place. Key
removable in both locked and unlocked positions.
Keying - Will key together with all other NAC8100 series locks. Available Keyed
Alike (4 key codes), Keyed Different (850 changes), and Master Keyed different
GM (650 changes).
Packaging - 10 in a box. Supplied with two keys and mounting screws.
Key Blank - D4291.
NAC7163-2C 3" long replacement bolt 2.04
Code Finish Installation Bolt Cylinder Bolt
Type Length Travel
NAC8163-26D Dull Chrome Drawer Dead 15/16" 11/32"
NAC8163-4 Satin Brass Drawer Dead 15/16" 11/32"
HALF MORTISE DRAWER LOCK
HOUSING
Has interchangeable cylinders.
Packed 10 per box.
NAC8161-26 19.64
Bright Chrome
DISC TUMBLER DRAWER LOCKS
PIN TUMBLER REMOVABLE CYLINDER
5-pin. Removable cylinder for NAC8161
housing. Packed 10 per box.
NAC8160-26D 39.46
Dull Chrome
MOUNTING
HOLES 8896
8701
57/64
B
SlamCAM converts CompX National cam locks
into self-locking — just close the door or drawer.
Two unique features in one package: self-locking
and a spring-loaded latch.
True convenience — release the key, and the
self-locking component automatically returns the
lock, along with SlamCAM, to the locked position.
Retrofits CompX National cam locks C8051
through C8075
Helps eliminate security concerns; slam the
door and it’s locked
Upgrade CompX National cam locks (C8051-
C8075) to SlamCAM with self-locking — two
unique features in one package.
SlamCAM — spring loaded latch
Replacing steel cams with Slam-
CAM eliminates steel cams that
crash into furniture or strikes while
in the latched position. Bent cams
can cause locks not to secure
properly or secure at all.
Self-locking
The self-locking feature uses spring
tension to conveniently return the
lock to the locked position. User
turns the key to the open position and opens the door or drawer. Upon releasing
the key, the self-locking component returns the lock along with SlamCAM to the
locked position; user simply closes the door or drawer — no need to turn the lock
back to the locked position.
NAC7017 9.42
Go To Table of Contents
ENCYCLOPEDIA OF LOCKSMITH SUPPLIES
1.800.652.2835 473
www.acclock.com
Accredited Lock Supply
Application - For drawers. Half mortise type requires mortise for housing and 7/8"
diameter hole for cylinder.
Operation - Key removable in both locked and unlocked positions;except NAC8131.
Keying - Will key together with all other NAC8100 series locks. Available Keyed Alike,
26D finish(4 key codes) and 4 finish(2 key codes). Both finishes available Key Differ-
ent(8500 changes). 26D finish available Master Keyed different GM1(650 changes).
Packaging - 10 per box. Supplied with two keys, strike and mounting screws.
Key Blank - D4291.
Code Installation Bolt Cylinder Bolt
Type Length Travel
NAC8131-26D Drawer Spring 7/8" 7/32"
NAC8131-4 Drawer Spring 7/8" 7/32"
NAC8133-26D Drawer Dead 7/8" 1/4"
NAC8133-4 Drawer Dead 7/8" 1/4"
NAC8135-26D Drawer Dead 1 1/8" 1/4"
Application - For sliding doors, both of plate glass and wood, NAC 8142 requires
a 7/8" diameter hole for cylinder. NAC8150 is used internally on filing cabinets to
gang lock drawers.
Operation - Key removable in locked position for NAC8140 and NAC8150. Key
removable in both locked and unlocked positions for NAC8142.
Keying - Will key together with all other NAC8100 series locks. Available Keyed
Alike: NAC8140 and NAC8143(4 key codes). NAC8142(6 keys codes) and NAC815(5
key codes); Keyed Different; NAC8140 and NAC8142(25 changes), NAC8150(850
changes). NAC8142 is available Master Keyed different GM1(650 changes).
Packaging - 10 per box. Supplied with two keys. NAC8142 is furnished with strike
and mounting screws.
Key Blank - D4291.
Code Installation Bolt Cylinder Bolt Price
Type Length Travel
NAC8140-26D Plate Glass Interal 43.50
Sliding Doors Spring Bolt
NAC8142-26D Sliding Doors Plunger Bolt 1 1/8" 7/16" 47.39
NAC8142-4 Sliding Doors Plunger Bolt 1 1/8" 7/16" 47.39
NAC8143-26D Sliding Doors Plunger Bolt 1 3/8" 7/16" 47.39
NAC8143-4 Sliding Doors Plunger Bolt 1 3/8" 7/16" 47.39
NAC8150-26D Filing Cabinet Round Spring 1/8" 26.53
Action
Application - For metal cabinet doors. Reversible for R.H. or L.H. application.
Latch plate is for either 2 or 3-point latching.
Operation - 900 turn to open. Choice of key Operation.
Keying - Will key together with all other NAC8100 locks. Available Keyed Alike
(3 key codes) and Keyed Different (650 changes).
Packaging - 10 in a box. Supplied with two keys and a latch plate.
Key Blank - D4291.
Code Key Operation Maximum
Material Thickness
NAC8154-26D Key Removable in both 1/8"
Locked/Unlocked Positions
NAC8155-26D Key removable in Locked Position Only 1/8"

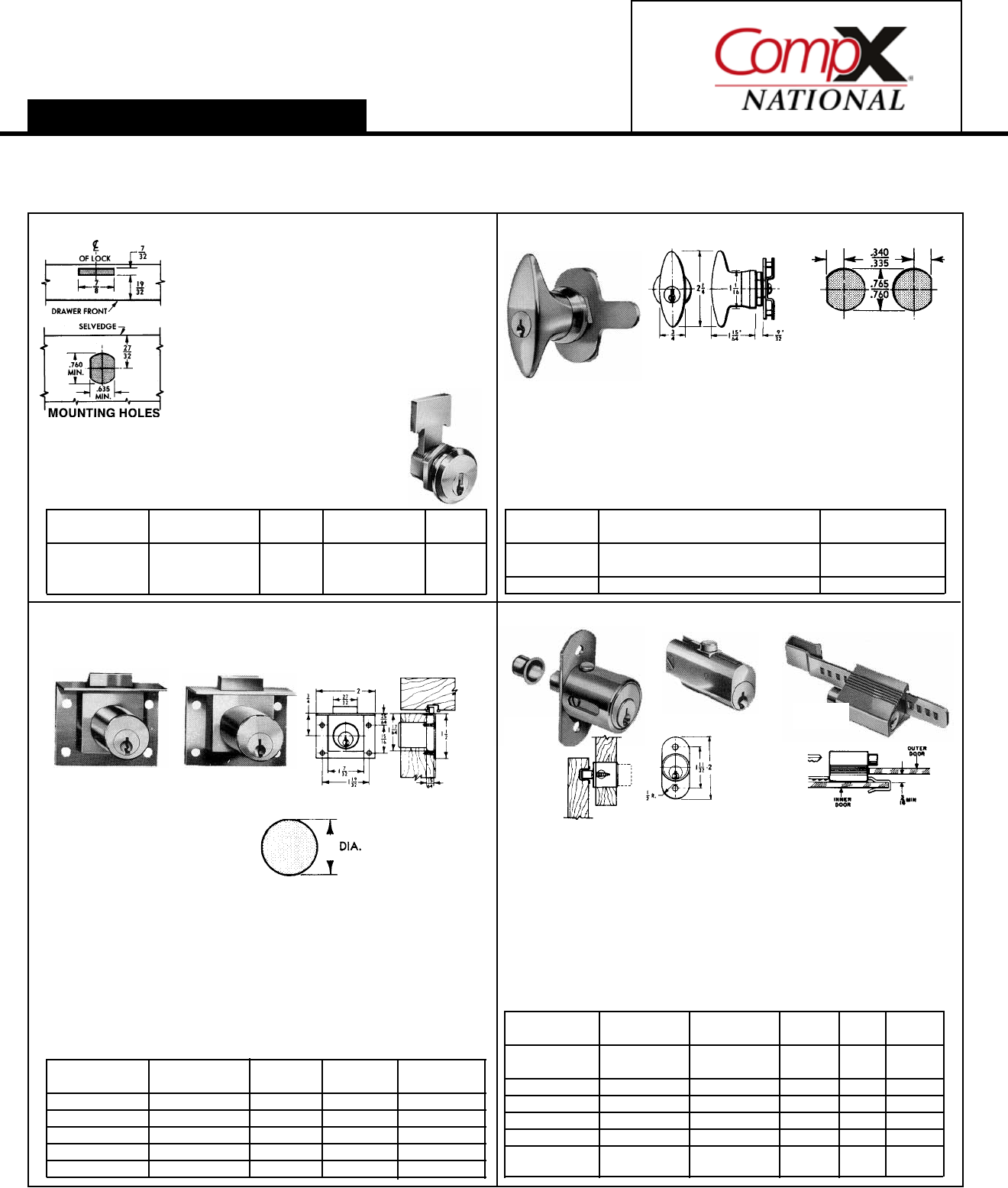

PIN TUMBLER KNOB LOCKS
7016 ea.
PIN TUMBLER LOCK INSERTABLE BOLT
MOUNTING HOLE Addi-
tional Mortise required
for mounting.
4789 ea.
PIN TUMBLER SLIDING DOOR, FILE CABINET LOCKS
L.H. Door R.H. Door
MOUNTING HOLES
PIN TUMBLER HALF MORTISE
DRAWER LOCK
MOUNTING HOLES
Application - For center drawers of desks. Fits special pierc-
ing of drawer front and selvedge.
Operation - Key removable in both locked and unlocked
positions.
Keying - Will key together with all other NAC8100 series locks.
Available Keyed Alike(4 key codes), Keyed Different(8500
changes) and Master Keyed different GM(650 changes).
Packages - 10 per box. Supplied with two keys and mount-
ing nut.
Key blank - D4291.
2846 ea.
Code Installation Bolt Cylinder Bolt
Type Length Travel
NAC8137-26D Metal Drawer Insertable 19/32" Dead Bolt 7/16"
1/4" Maximum
Material Thickness
8131 8133, 8135
8142
8143
8140
FILE CABINET PIN TUMBLER SLIDING DOOR
PIN TUMBLER KNOB LOCKS PIN TUMBLER LOCK INSERTABLE BOLT
8150
57/64
B
NAC8137-BOLT
Replacement Bolt Only
3.50
Go To Table of Contents
474
www.acclock.com
Accredited Lock Supply
Application-For metal doors on lockers and cabinets,R.H.and L.H.Both NAC8756
and NAC8757 will fit spindles, except NAC8747 which has an 8-32 tapped end
hole. NAC8749 will accept only the NAC8757 tongue. Spindle can be cut to fit
special requirements.
Operation - Key removable in both locked and unlocked positions.
Keying - Will key together with all other NAC8000 and NAC8700 series locks; exclud-
ing NAC8062. Available Key Alike (3 key codes), except NAC8747 and NAC8749(1
key code); and Keyed Different (200 changes).
Direction of Turn to Open - 900 c/cw. Key Blank - D8785.
Packaging - 10 per box. Supplied with two keys and mounting bolts.
Code Description Mounting Spindle Price
Type Length
NAC8747-26D Locking Rear 1" Square 30.72
NAC8749-26D Locking Rear 4" Square 30.72
NAC8751-26D Locking Rear 1" Threaded 30.72
NAC8754-26D Locking Rear 3" Threaeded 30.72
NAC8755-26D Non-locking Rear 3" Threaded 27.47
NAC8758-26D Locking Escutcheon 1" Threaded 30.72
NAC8759-26D Locking Escutcheon 3" Threaded 30.72

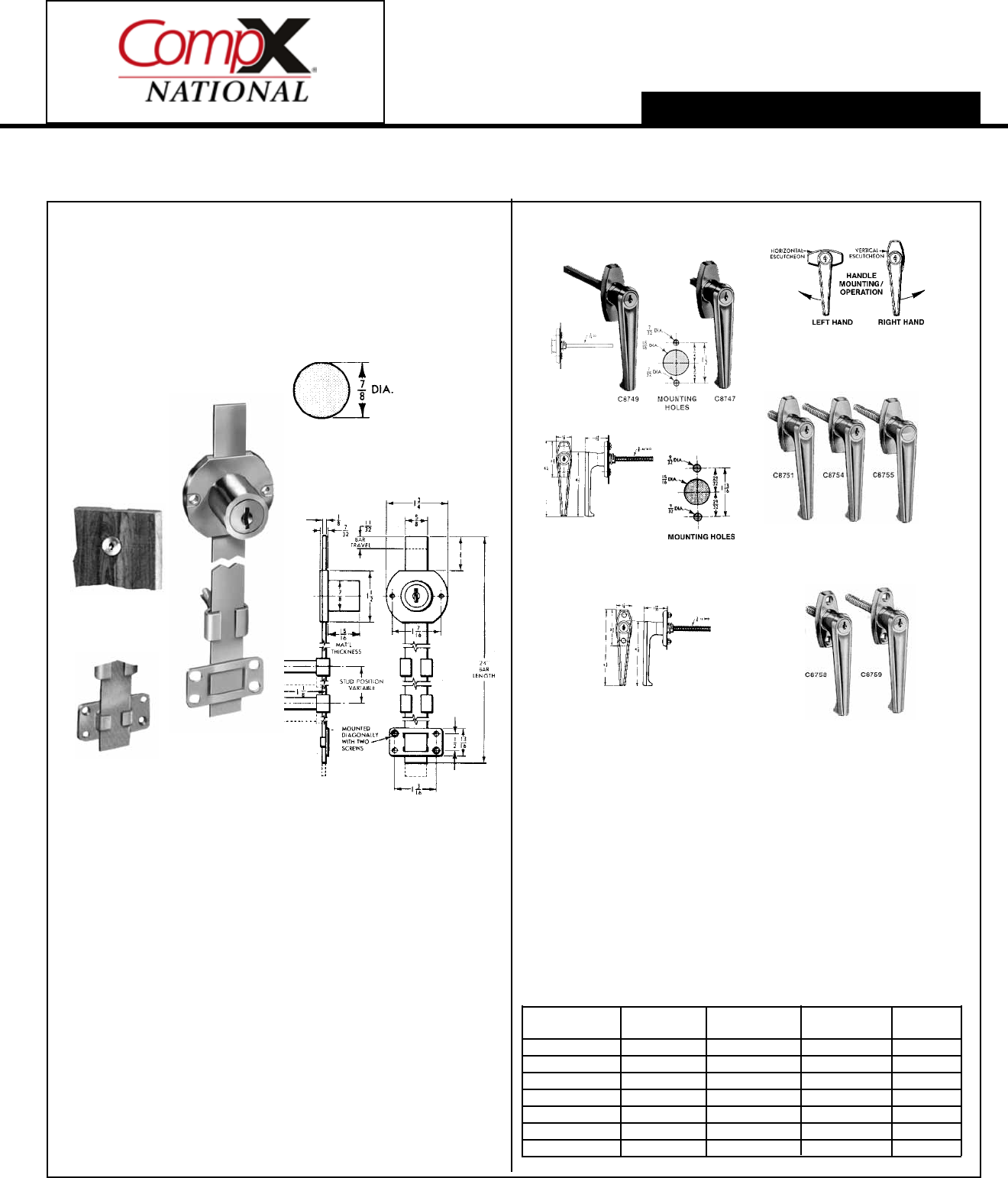

DISC TUMBLER GANG LOCK
NAD8090-14A Bright Nickel
NAD8090-3 Bright Brass
NAD8090-4G Antique Brass
3070 ea.
Application - For locking drawers in desk pedestals and other multiple drawer ap-
plications. Requires a 7/8" diameter hole for cylinder, and a dado for bar, measuring
7/8" x 1/8" deep on inside of panel.
Operation - Key removable in both locked and unlocked positions. Turning the key
locks all drawers simultaneously(drawers must be closed). Bar moves studs into
notch in drawer or slide, preventing movement.
Keying - Will key together with all NAC8000 and NAC8700 series locks; excluding
NAC8602. Available Keyed Alike(6 key codes), Keyed Different(200 changes), and
Master Keyed different E41A(20 changes).
Packaging - 5 per box. Supplied with two keys, three each stud slides and locking
studs, mounting hasp saddle and mounting screws.
Installation - Desk pedestals or similar multi-drawer conditions.
Bolt Operation - Dead locking.
Cylinder Length - 15/16"; Bolt Travel - 11/32".
Key Blank - D8785.
DISC TUMBLER HANDLE LOCKS
Additional 7/8" x 1/8"
deep dado for bar
required on inside
of panel.
Release plug
from backside
for rekeying
Saddle reverses
for mortise
application.
MOUNTING HOLE
DISC TUMBLER GANG LOCK
DISC TUMBLER HANDLE LOCKS
Cylinder is
located near top
of pedestal
B
Go To Table of Contents
ENCYCLOPEDIA OF LOCKSMITH SUPPLIES
1.800.652.2835 475
www.acclock.com
Accredited Lock Supply

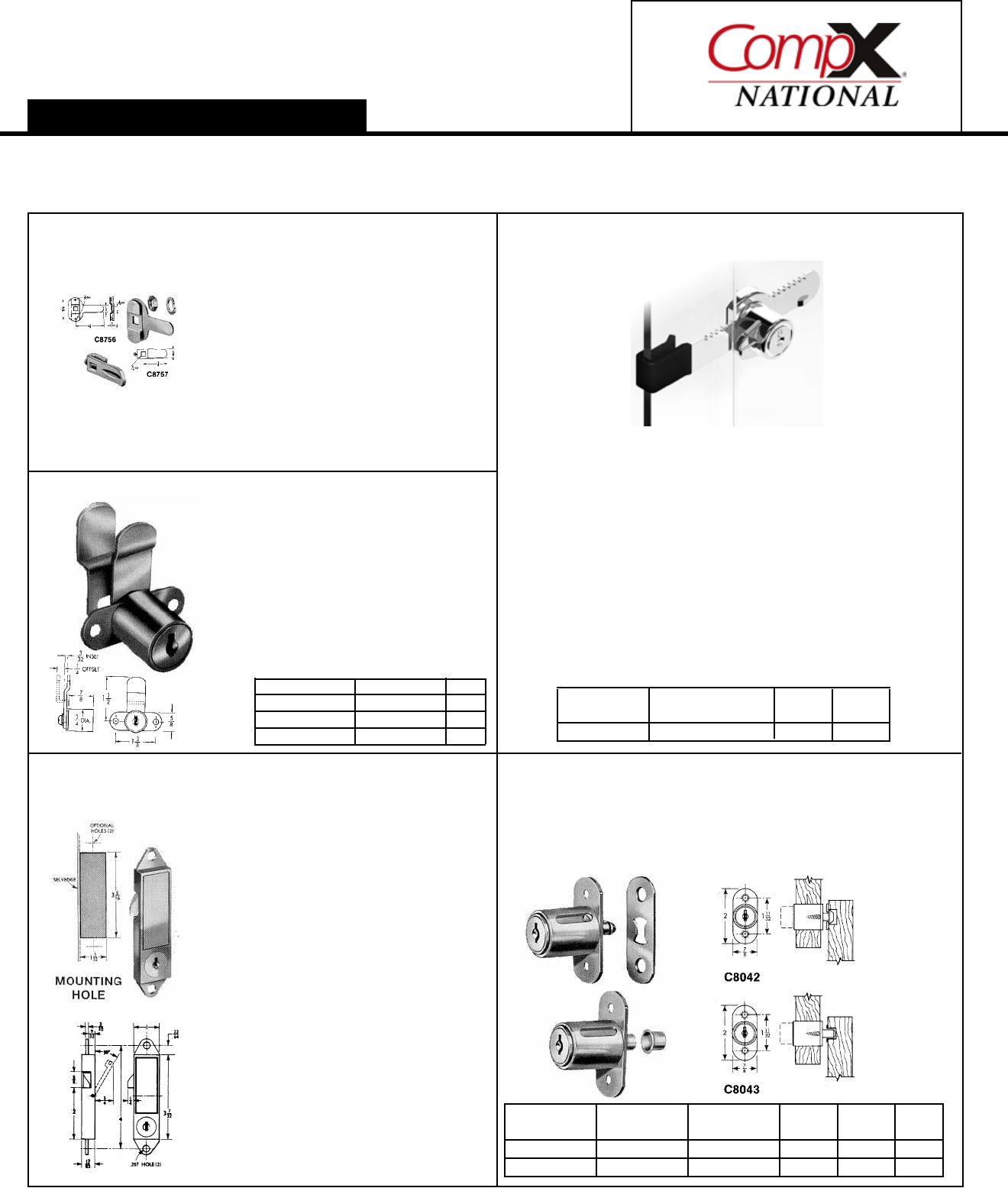

PARTS FOR DISC TUMBLER HANDLE LOCKS
DISC TUMBLER DOOR & DRAWER LOCK w/flexafunction
DISC TUMBLER CIRCUIT BREAKER
CABINET LOCK
SINGLE POINT LATCH TONGUE
Side mounted, set screw. Zinc-plated.
25 per box.
NAC8757-2C 4.87
THREE POINT LATCH PLATE WITH TONGUE
Used with locking bars, Hex nuts with lock washers
threaded on spindle. Zinc-plated.
NAC8756-2C 6.24
Application - For right handed metal door of
electrical circuit breaker cabinets.
Operation - Key removable in both locked and
unlocked positions. Push plate operates spring
bolt. Unlocked, push acts as spring latch.
Keying - Keyed Alike only.
Packaging - 10 per box. Supplied with two
keys; no mounting hardware.
Type of Mounting - R.H. Door.
Bolt Type - Spring; Bolt Travel - 7/32".
Key Blank - D8786.
NAC8070-2C
Zinc Plated
2339
Application - For doors and drawers. Surface
mounted. Requires a 3/4" dia. hole for cylinder.
Operation - Choice of either 900 or 1800 cam turn.
Key removable in both positions.
Keying - Will key together with all other disc tumbler
locks using D8785 key blank.Masterkeying to E41A.
Packaging - 25 per box. Supplied with two keys,
two mounting screws, two formed cams and two
stop washers. Cams unassembled.
Key Blank - D8785.
Code Finish Price
NAC8080-14A Bright Nickel 9.78
NAC8080-3 Bright Brass 10.08
NAC8080-4G Antique Brass 10.08
DISC TUMBLER
Circuit Breaker Cabinet Handle Lock Parts Window Lock
B
DISC TUMBLER SLIDING DOOR LOCKS
Application - For wood sliding doors. Requires a 7/8" diameter hole in front door
for cylinder.
Operation - 9C8042; Push in cylinder, key turn engages bolt behind strike. C8043;
Pushing in cylinder locks doors. Key removable in both locked and unlocked positions.
Keying - Will key together with all other disc tumbler locks using D8785 key blank.
Packaging - Supplied with two keys, strike and mounting screws.
Code Installation Cylinder Bolt Bolt Price
Type Length Travel
NAC8042-26D Sliding Doors 90o Turn Hook 7/8" 7/16" 39.45
NAC8043-26D Sliding Doors Plunger 1" 7/16" 21.04
DISC TUMBLER SLIDING GLASS DOOR LOCK
APPLICATION – C8040 for glass sliding by-pass doors up to ¼” thick.
OPERATION – C8040: key removable in locked position only.
KEYING – Will key together with all other disc tumbler locks using D8785 key
blank. See table for keying. Master keying to E41A using D8783 key blank.
PACKAGING – C8040 supplied with two keys and felt pad to be applied to back
of lock body.
KA Codes: C346A, C390A, C413A, C415A, C420A, C642A
200 KD Codes; 200 MKKD Codes
Code Installation Bolt Price
Type
NAC8040-14A Sliding Glass Doors Bolt 14.86
Go To Table of Contents
476
www.acclock.com
Accredited Lock Supply
Code Finish Installation Bolt Cylinder Price
Type Length
NAC8384-3 Bright Chest, Lid Hook 19.41
Brass Full Mortise
NAC8414-4G Antique Chest, Lid Internal 7/8" 22.98
Brass Surface Engages Strike
Mounted
FURNITURE LOCKS CHEST/LID LOCKS
Application - Lid locks for cedar chests and other lid locking requirements. NAC8412
Code Finish Installation Bolt Bolt Price
Type Travel
NAC8207-3 Bright Brass R.H. Door, Drawer Dead 3/16 15.41
Full Mortise
NAC8252-3 Bright Brass R.H. Door, Drawer, Dead 3/16" 13.25
Full Mortise
NAC8253-3 Bright Brass L.H. Door, Full Mortise Dead 3/16" 13.25
NAC8826-3 Bright Brass Door/Drawer, Dead 21/64" 9.67
Surface Mounted
is surface mounted and requires a 9/16" diameter hole for the cylinder. NAC8384
requires 11/32" wide x depth of lock full mortise, plus mortise for selvedge, plus
a hole for key entry.
Operation - Key removable in both locked and unlocked positions. C8412 uses push-
button to release lid when lock is used as a latch to keep lid closed, but not locked.
Keying - Keyed Alike.
Packaging - 25 per box. Supplied with one key. Appropriate strikes and mount-
ing screws are supplied with locks; additional keyhole escutcheon furnished with
NAC8384.
Key Blank - NAC8384: D8890.
NAC8412: D8191.
Application - Primarily for furniture and other fine cabinetry. NAC8826 is surface
mounted and requires a hole for key entry. All other locks require full 11/32" x depth
of lock. Additional mortising required for lock selvedge plus hole for key entry.
Operation - Key removable in both locked and unlocked positions.
Keying - Keyed Alike.
Packaging - 25 per box. Supplied with one key. All locks, except NAC8826, are sup-
plied with strikes. Key hole escutcheons are packed with NAC8207 and NAC8826.
Key Blank - D8890.
C8252
C8253
C8826
C8207
C8414
C8384
FURNITURE LOCKS CHEST/LID LOCKS
LOCKER LOCKS
B
"THE ADVANTAGE PLUS" Pin Tumbler Door and Drawer Cam Locks
The locks are fastened in place with two screws for easy installation. Re-keying or servicing is accomplished
by removing the cam retaining screw and cam. Use a 5/64" allen wrench to remove the plug cylinder as-
sembly. The mounting plate remains installed on the cabinet. Re-key as required and reinstall cylinder plug
assembly on mounting plate.
Key blank: D4291. Satin Chrome Finish. Available master keyed, KD and KA.
APPLICATION- For drawer, R.H. or L.H. doors.
C8183 assembled for door function. C8188 as-
sembled for drawer function.
OPERATON-90° cam turn, key removable in both
locked and unlocked positions.
KEYING-Will key together with all other pin tumbler
locks using D4291 key blank, except mailbox locks.
See table for available keying. Masterkeying to GM1.
PACKAGING-Supplied with two keys, extra back-
plate, two cams and two mounting screws. If trim
ring is required, order C2017 separately.
Note: If formed cam is required. order C7113 or
C7116. P/N Mounting Cylinder Maximum Qty/
Length Mat.Thickness Case
NAC8183-26D Flush 7/8" 7/8" 10
NAC8188-26D Flush 1 3/8" 1 3/8" 10
2646
Go To Table of Contents
ENCYCLOPEDIA OF LOCKSMITH SUPPLIES
1.800.652.2835 477
www.acclock.com
Accredited Lock Supply

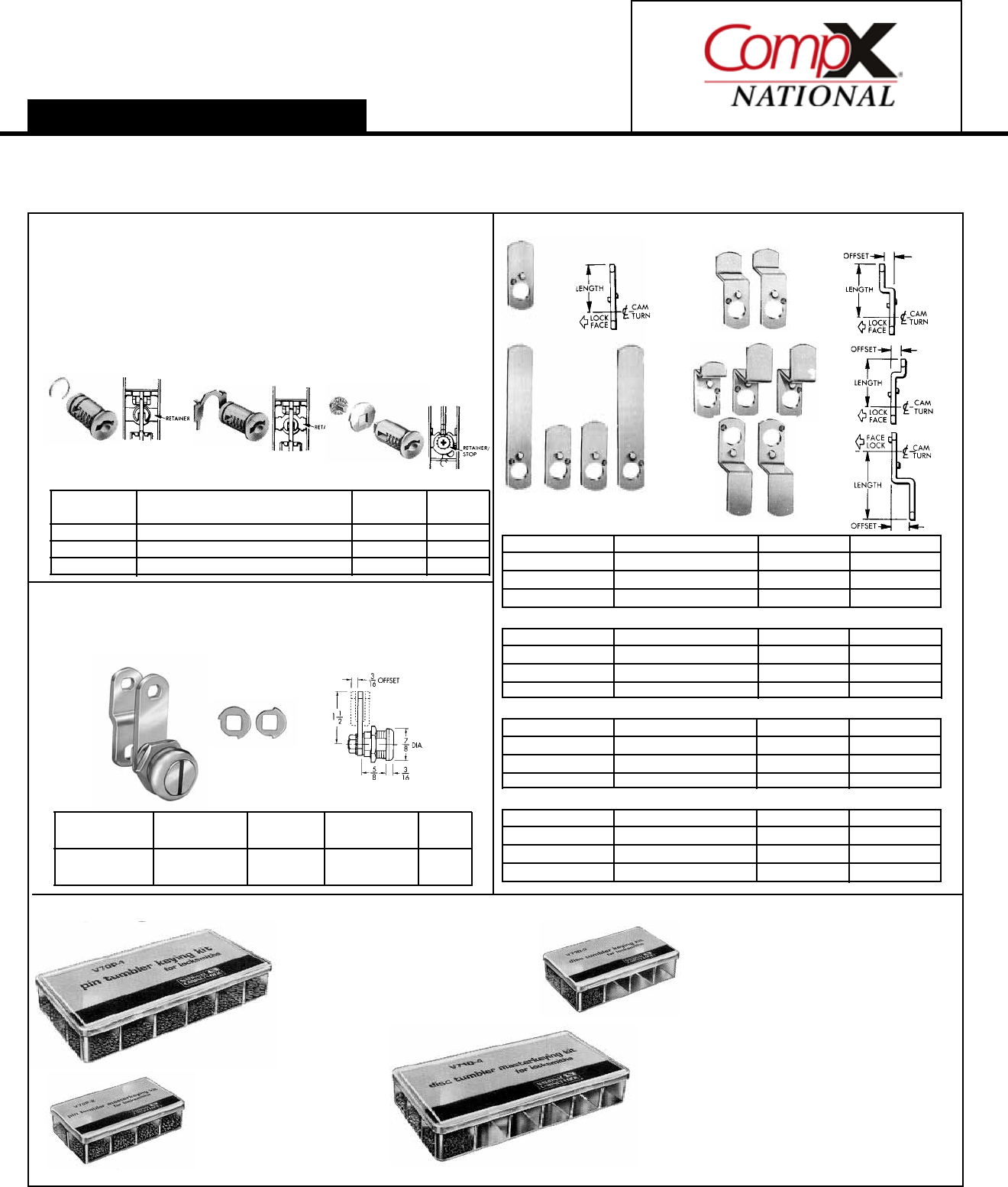

COOLER LOCKING HANDLE REPLACEMENT PLUGS
Operation - Key removable in both locked and unlocked positions. Handle may be
used as a latch until locked by key.
Keying - Keyed Alike to XC-3.
Packaging - NAC8764, NAC8763, NAC8762 - 25 per box. NAC8762 and NAC8763
plugs are supplied with two keys and specific retainer. NAC8764 plug is supplied
with two keys, retainer/stop and screw.
Bright Chrome finish. Key Blank - D8780.
DISC TUMBLER MASTERKEYING KIT
100 ea. 02, 04, 06, 24, 26, 40,
42, 46, 60, 62 and 64 Tumblers
250 Tumbler Springs
NAV71D-4
6177
PIN TUMBLER KEYING KIT
100 ea. 1,2,3 and 4 Drivers
100 ea. 0, 1, 2, 3, 4, 5, 6, 7, 8, and 9 Tumblers
250 Tumbler Springs
100 Tumbler Retainers
50 ea. C3735 and C3738 Plug Retainers
NAV70P-1
15805
For L.H. Door and
Counter-clockwise Use
Code Description Length Price/Ea.
NAC7102-2C Straight Cam 1 1/4" 1.49
NAC7103-2C Straight Cam 1 1/8" 1.49
NAC7105-2C Straight Cam 3" 1.72
For R.H. Door andCounter-clockwise Use
Code Description Length Price/Ea.
NAC7101-2C Straight Cam 1 1/4" 1.49
NAC7104-2C Straight Cam 3" 1.72
NAC7115-2C Double Formed Cam 1 5/8" 2.12
L.H.
Code Description Length Price/Ea.
NAC7111-2C Double Formed Cam 1 1/4" 2.12
NAC7112-2C Double Formed Cam 1 1/8" 2.12
NAC7114-2C Double Formed Cam 1 5/8" 2.12
Code Description Length Price/Ea.
NAC7110-2C Double Formed Cam 1 1/4" 2.12
NAC7113-2C Double Formed Cam 1 5/8" 2.12
NAC7116-2C Double Formed Cam 1 5/8" 2.12
Packed 20 per bag. Zinc-Plated
PIN TUMBLER CAM Cams for pin tumbler cylinder cam locks. All cams have
dual application, see table below.
PIN KEYING KITS
Code Installation Bolt Price
Type
NAC8762-26 Early models, N.L. 59-1105 handles 15.31
NAC8763-26 N.L. 59- 1105 handles 15.31
NAC8764-26 Current NAC8765 handles 15.31
PIN TUMBLER
MASTERKEYING KIT
100 ea. 2, 3, 4, 5, 6, 7 and
8 Master Drivers
NAV70P-2
3944
DISC TUMBLER KEYING KIT
100 ea. 00, 22, 44, and 66 Tumblers
250 Tumbler Springs
NAV71D-3
3037
C8762 C8763 C8764
PIN TUMBLER CAMS PIN KEYING KITS
COOLER LOCKING HANDLE AND PLUGS
C7101
C7104
C7103 C7102
7105
C7110 C7111
C7116 C7113
C7112
C7115
C7114
B
SCREWDRIVER CAM LATCH
Application: For drawers or doors that do not require a key for locking
Operation: flexafunctionTM feature provides choice of 900 or 1800 cam turn. Cams
are double punched for flexibility in mounting latch.
Packaging: Supplied with two cams, two stop washers, spur washer and mounting nut.
C8065 9001800
with flexafunc-
tionTM
P/N Mounting Cylinder Maximum Qty/
Length Mat.Thickness Case
NAC8065-14A Lipped, Flush 5/8" 1/4" 25
or Overlay
644
Go To Table of Contents
478
www.acclock.com
Accredited Lock Supply

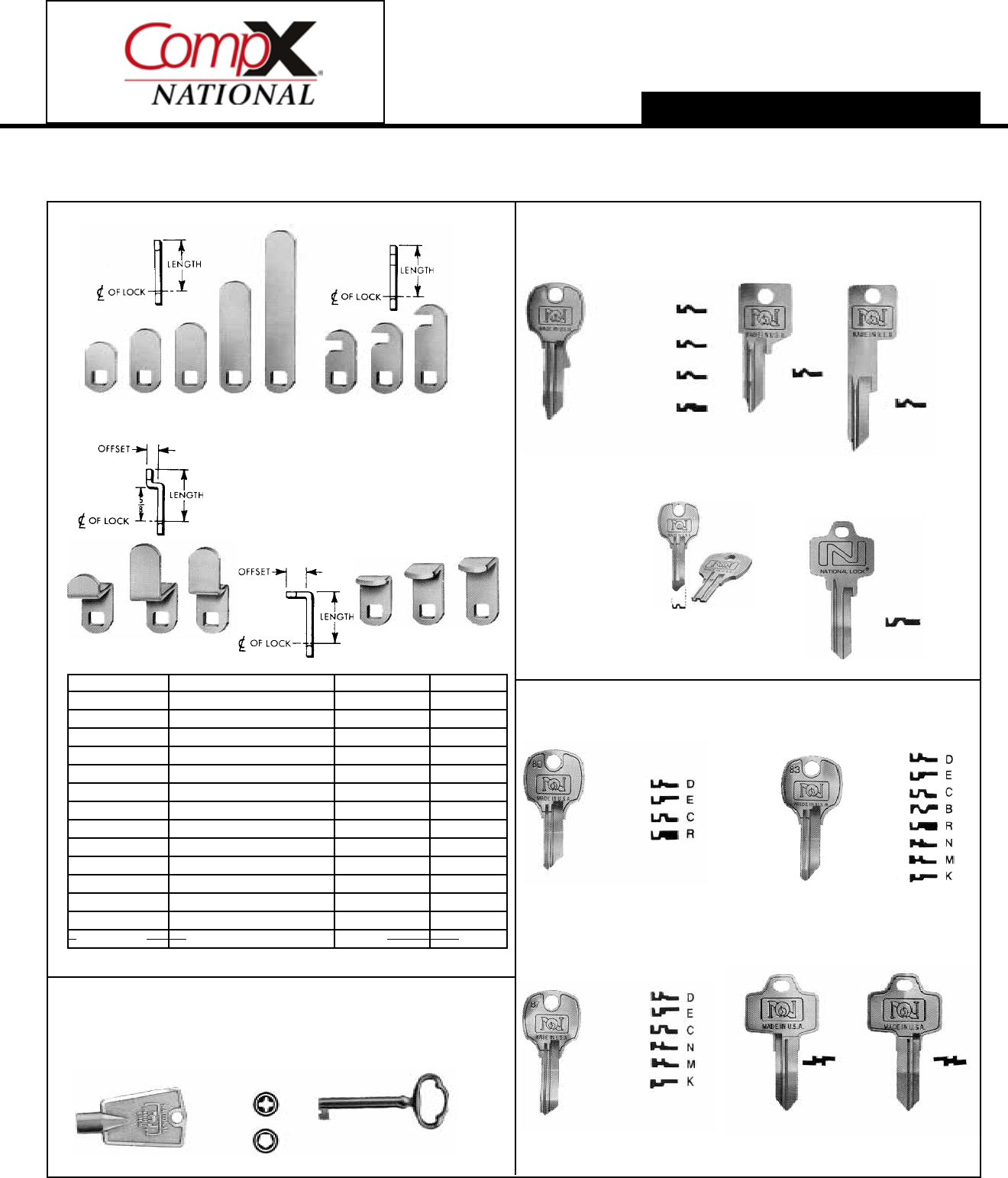

Code Description Length Price/ea
NAC7001-2C Straight Cam 3/4" 1.27
NAC7002-2C Straight Cam 1" 1.27
NAC7003-2C Straight Cam 1 1/8" 1.27
NAC7004-2C Straight Cam 2" 1.32
NAC7005-2C Straight Cam 3" 1.44
NAC7006-2C Straight Hooked Cam 1" 1.52
NAC7007-2C Straight Hooked Cam 1 1/8" 1.52
NAC7008-2C Straight Hooked Cam 1 1/2" 1.52
NAC7009-2C Double Formed Cam 1 3/4" 1.81
NAC7013-2C Double Formed Cam 1 1/8" 1.81
NAC7011-2C Single Formed Cam 1 /8" 1.81
NAC7012-2C Single Formed Cam 1" 1.81
NAC7010-2C Single Formed Cam 5/8" 1.81
NAC7014-2C Double Formed Cam 1 5/8" 1.81
Zinc-Plated. 25 per Bag.
ORIGINAL PIN TUMBLER KEYBLANKS
Brass Packed 50 per carton
PIN TUMBLER BLANKS
3 Pin Tumbler
NAD4290
4 Pin Tumbler
NAD4291
5 Pin Tumbler
NAD4292
5 Pin Tumbler
NAD4293
1.39 ea.
ORIGINAL DISC TUMLBER KEYBLANKS
Brass Packed 50 per carton
DISC TUMBLER CAMS
WARDED BARREL KEY
NAD8890
1.92 ea.
FREEZER LOCK KEYS
NAD8590
1.37 ea.
NAD8591
1.37 ea.
KEYS
Die Cast Packed 50 per carton
4 PIN TUMBLER BLANK
NAD4296
2.15 ea. NAD4297
4.27 ea.
4 DISC TUMBLER BLANKS
NAD8780
NAD8781
NAD8782
NAD8790
1.28 ea.
6 DISC TUMBLER
NAD8787
NAD8788
NAD8789
NAD8795
NAD8796
NAD8798
1.28 ea.
5 or 6 DISC TUMBLER
REVERSIBLE KEY BLANKS
5 DISC TUMBLER BLANKS
NAD8783
NAD8784
NAD8785
NAD8786
NAD8791
NAD8792
NAD8793
NAD8794
1.28 ea.
NAD8777 NAD8778
1.34 ea. 1.34 ea.
IDENTIFYING
KEY BLANKS
Blanks are listed
with related actual
size cross section.
Sight down the
end of the blank to
identify the cross
section or profile.
5 PIN TUMBLER BLANK
NAD4295
1.53 ea.
C7001 C7002 C7003 C7004 C7005 C7006 C7007 C7008
STRAIGHT CAMS STRAIGHT HOOK CAMS
Selection of cams that per-
mit adaption of disc tumbler
cylinder cam locks to meet
nearly every application
need.
Straight Hook Cams and
Double Formed Cams can
be reversed when required.
C7013 C7009 C7014
DOUBLE FORMED CAMS
C7010 C7012 C7011
SINGLE FORMED CAMS
B
Go To Table of Contents
ENCYCLOPEDIA OF LOCKSMITH SUPPLIES
1.800.652.2835 479
www.acclock.com
Accredited Lock Supply
PARACENTRIC LEVER TUMBLER BLANKS
ORIGINAL LEVER TUMBLER KEYBLANKS
Packed 50 per carton
FLAT LEVER TUMLBER BLANKS
NAD8193
Steel
3.12 ea.
NAD8192
Steel
1.04ea.
NAD8191
Steel
60¢ ea.
NAD8490
Brass
2.77ea.
NAD8491
Brass
5.38 ea.
KEYBLANKS GARAGE DOOR HANDLE
• CODE BOOKS
ORIGINAL MASTER KEYS
P/N Description Material Price
NAD4299 Pin Tumbler GM! Master Key Brass 3.84
NAD8419 Lever Tumbler 5LM Flat Master Key Steel 3.84
NAD8799 Disc Tumbler E41A Master Key Brass 3.84
NAD8999 Disc Tumbler E13A Master Key Brass 3.84
B
KEY CODE BOOKS
D8001 Pin Tumbler Key
Codes - Includes the most
popular National key codes:
GM1 series, GM2 series,
GM2A series, GM300 series,
GM600 series and GM700
series.
NAD8001
1298
D8002 Disc Tumbler and Lever Tumbler Key Codes -
Includes the most popular National key codes: standard
4 tumbler sries, standard 5 tumbler series, standard 6
tumbler series, 5 tumbler prefix RD series, 5 tumbler prefix
GF series, 5 tumbler prefix SK and KS series, 6 tumbler
prefix SK and KS series and 5 lever tumbler series 8LLT.
NAD8002
849
Code Installation Operation Description Price
NAC8797-2C Inside Door Sliding Bolt 2 3/4" bolt 32.76
near track locks into track mechanism
GARAGE DOOR MECHANISM - LOCKING HANDLE
Operation - Turning key releases mechanism, unlocking door. Handle turns down
to vertical position. Turn handle to horizontal to lock door. Key removable in both
locked and unlocked positions.
Keying- Keyed different only. 10 changes.
Packaging- Handle supplied with 2 keys. Mechanism furnished with mounting screws.
Application - For mounting on sectional over-head doors. Factory assembled for
right hand mounting: mechanism installs at right side of door to lock into track
(inside garage). Handle is installed over mechanism on outside of door. Handle
replaces Overhead Door locking handles. Units can be reversed in field for left
hand application.
Finishes: 2C - Zinc-plated; 26.
Packaging - 5 per box.
Key Blank - D8785.
Go To Table of Contents
