Locks SDC Price List #18 February 1, 2017 2 2017a

User Manual: Locks February 1, 2017 Mayflower Sales - Current Price Lists

Open the PDF directly: View PDF PDF.
Page Count: 112 [warning: Documents this large are best viewed by clicking the View PDF Link!]

SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
1
P.O. Box 3670, Camarillo, CA 93011 • Phone: (800) 413-8783 (805)494-0622 • www.SDCsecurity.com • service@sdcsecurity.com
Electric & Mechanical
Access Control Hardware
Price List 18
.4
P
RICES
V
ALID
S
TARTING
F
EBRUARY
1
ST
, 2017
The Lock Behind Your System
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
2
Table of Contents

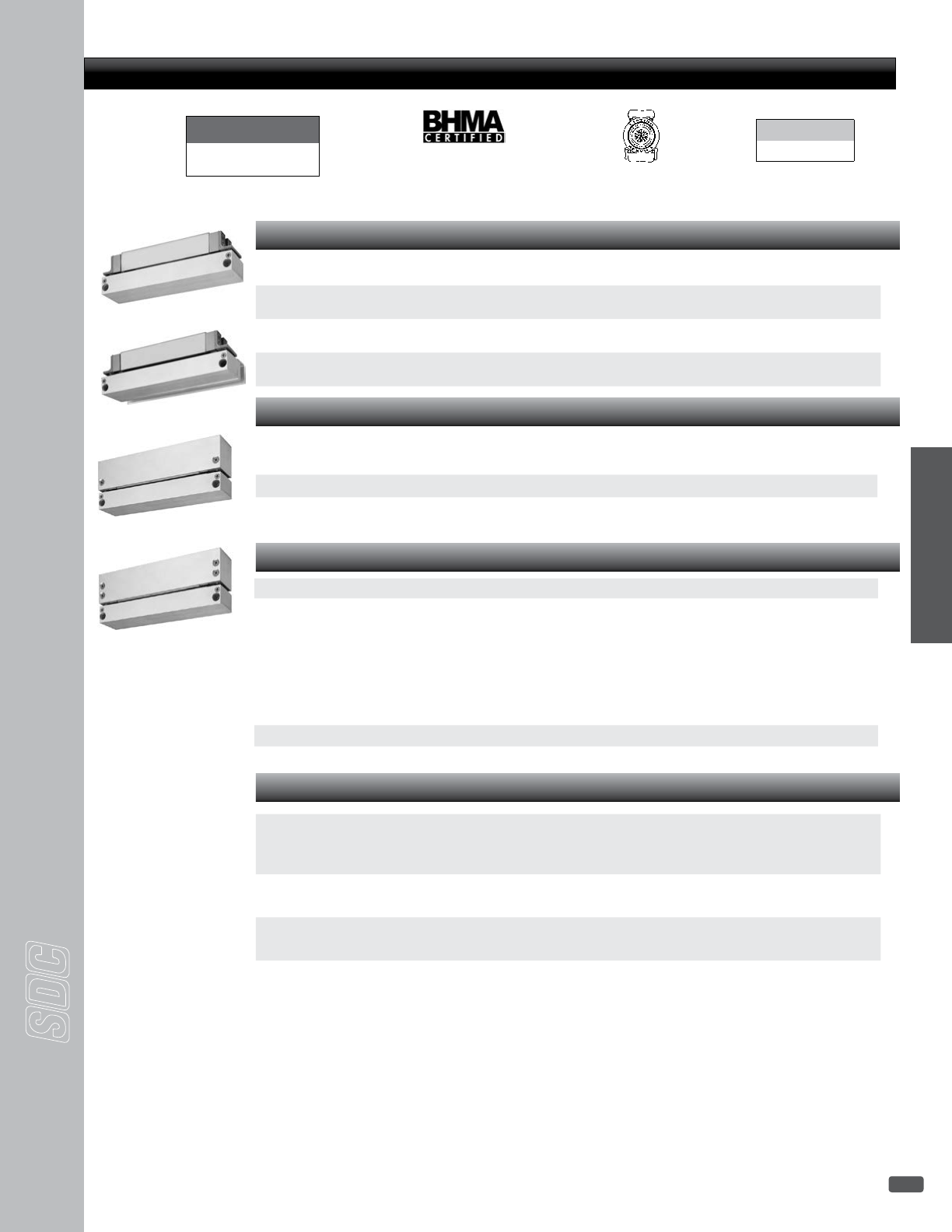

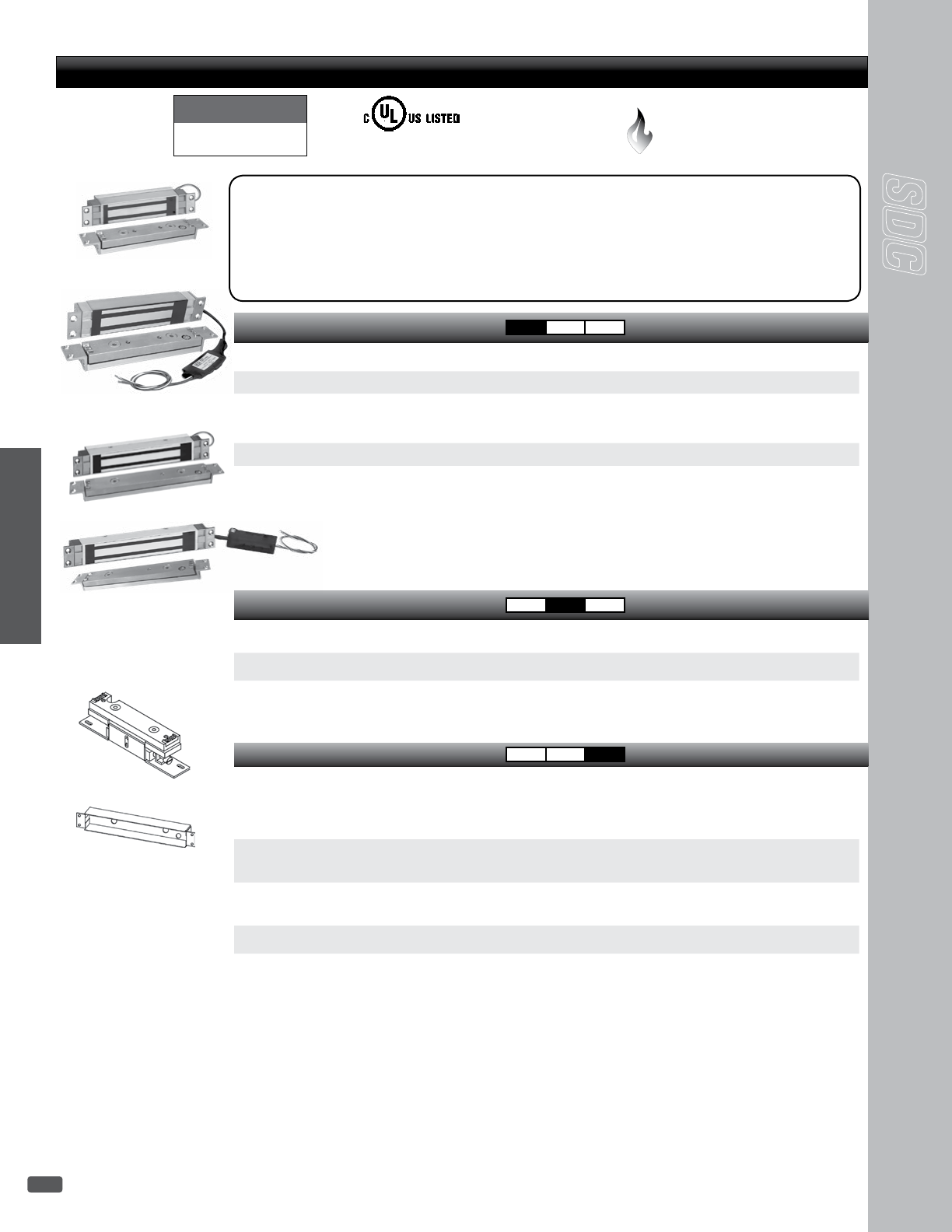

Magnetic Locks

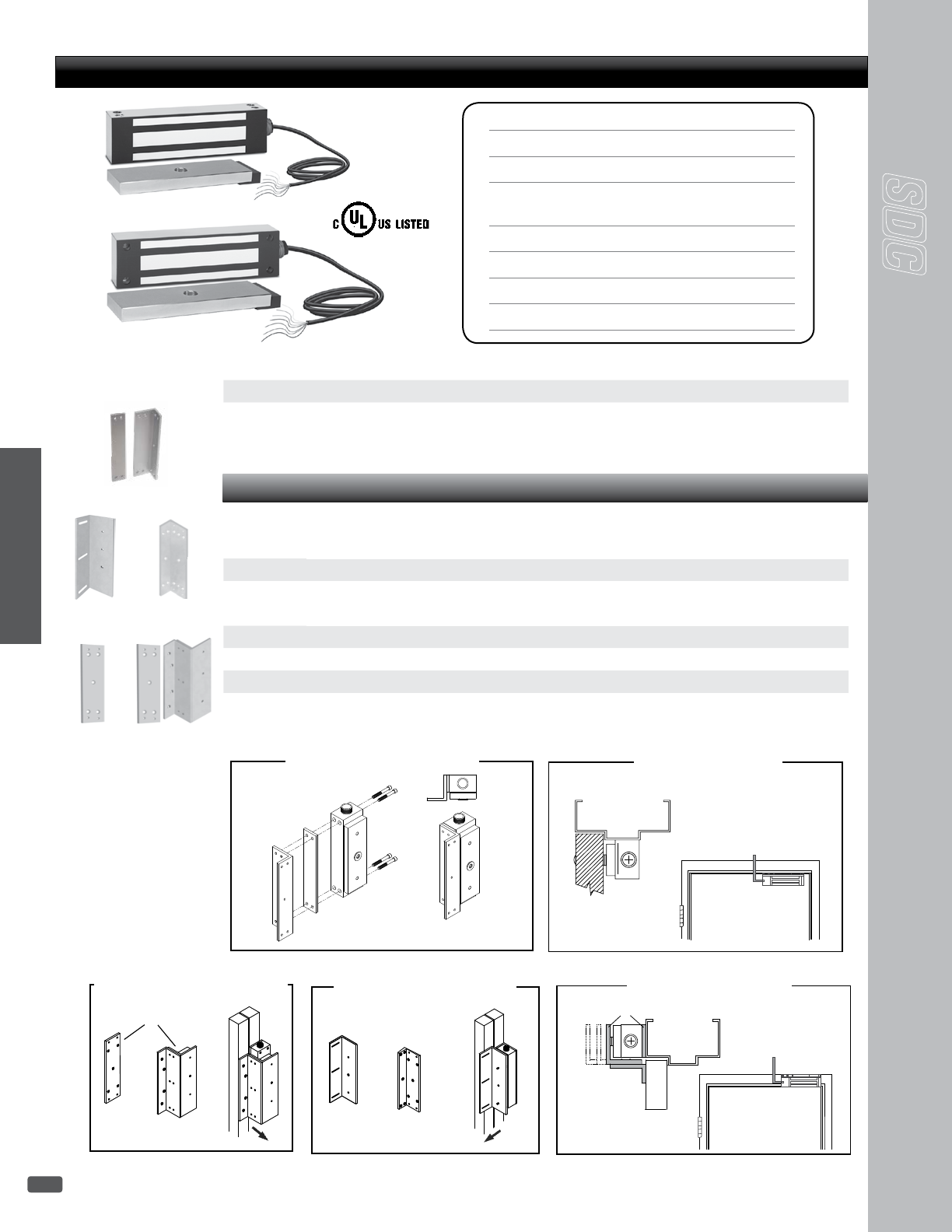

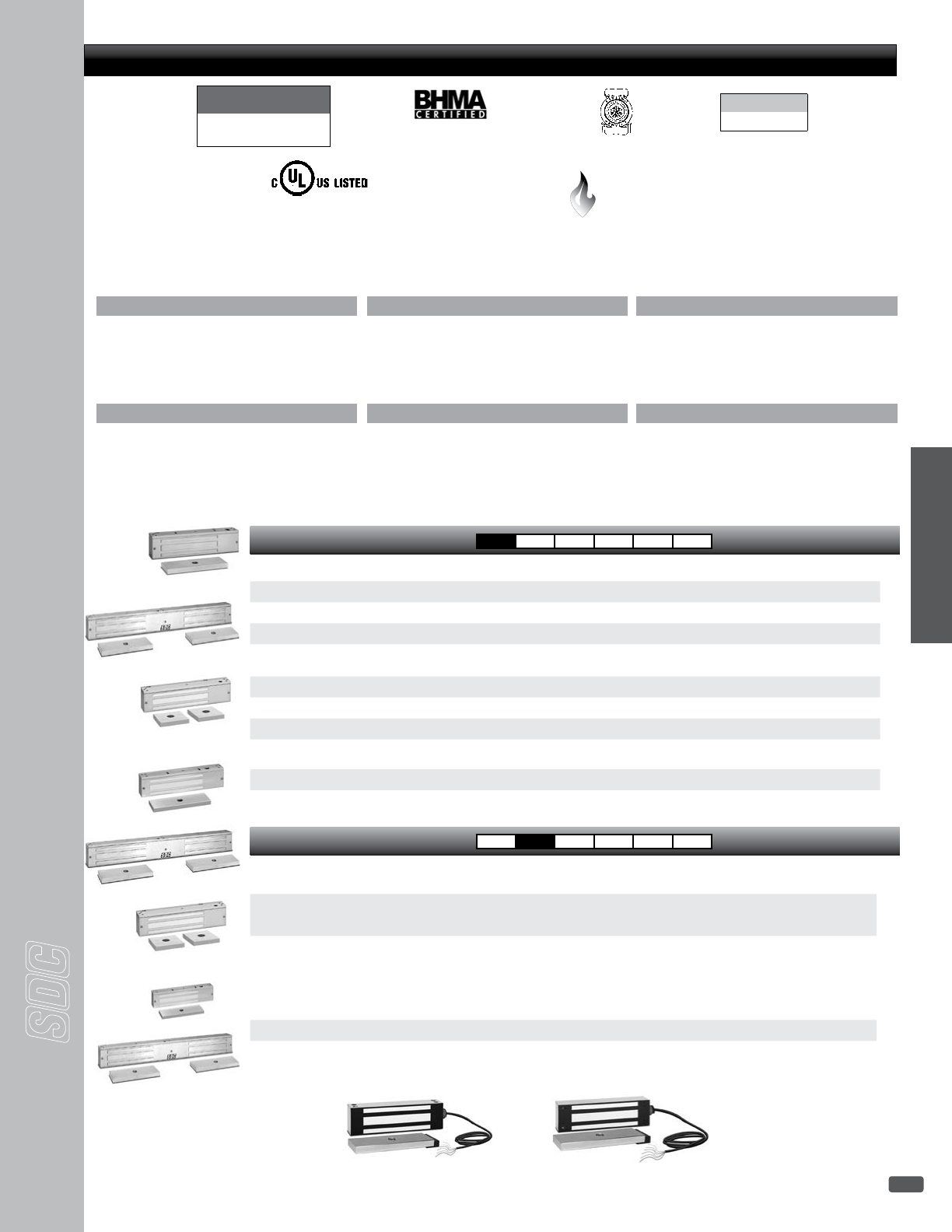

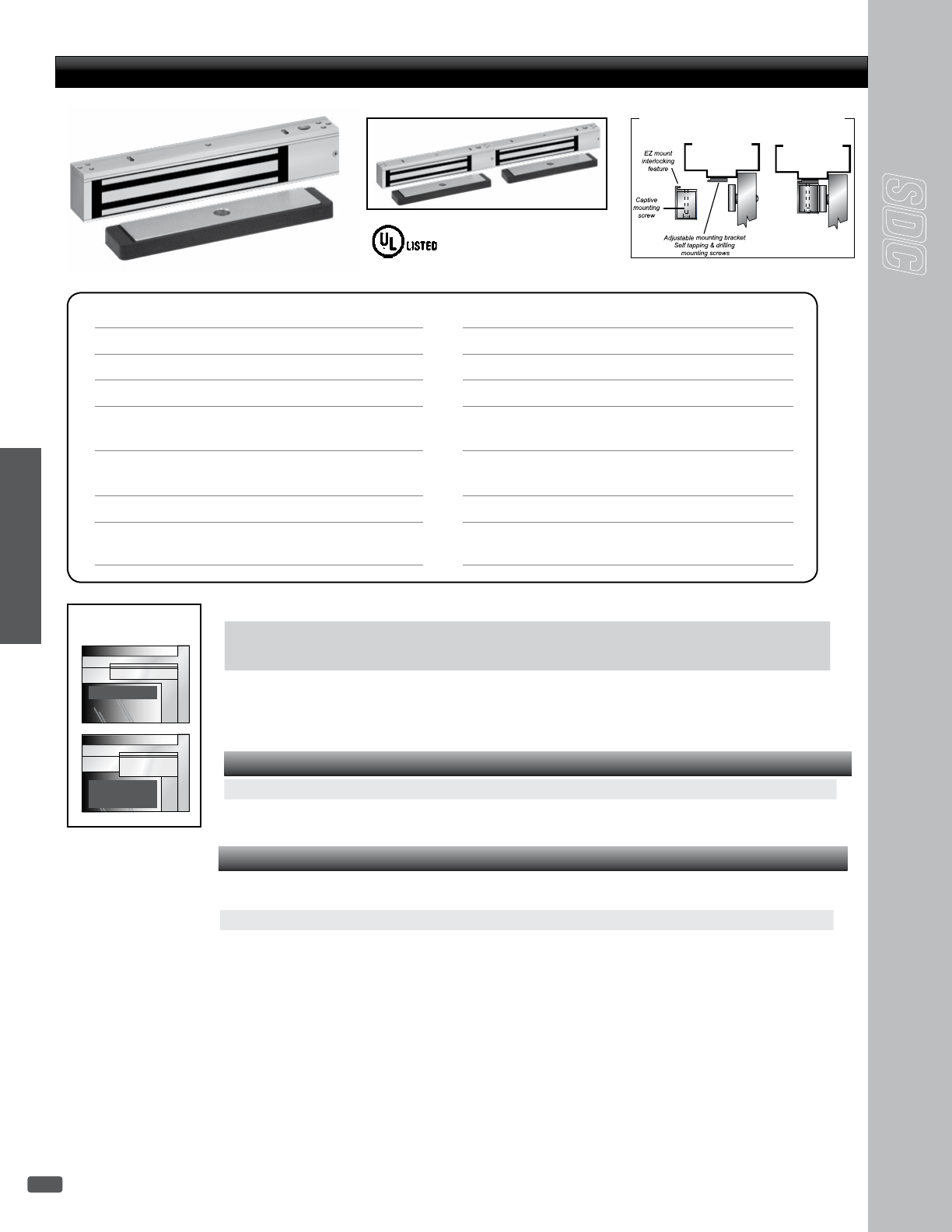

7 .................. 1511/12/13, 1571/72/73, 1581/82 EMLock®
8 .....................EMLock® Top Jamb + Glass Door Mounts
9 ................... EMLock® Modular Upgrade Kits EZ Series
9 ................................... Reusable Heavy Duty Drill Fixture
10 ............................................. Universal Header Bracket
10 ............................................. Aluminum Spacer Bracket
10 ...............................................Armature Mounting Plate
10 .............................Door Coordinator Lock Mounting Kit
11 .....................................................................Filler Plates

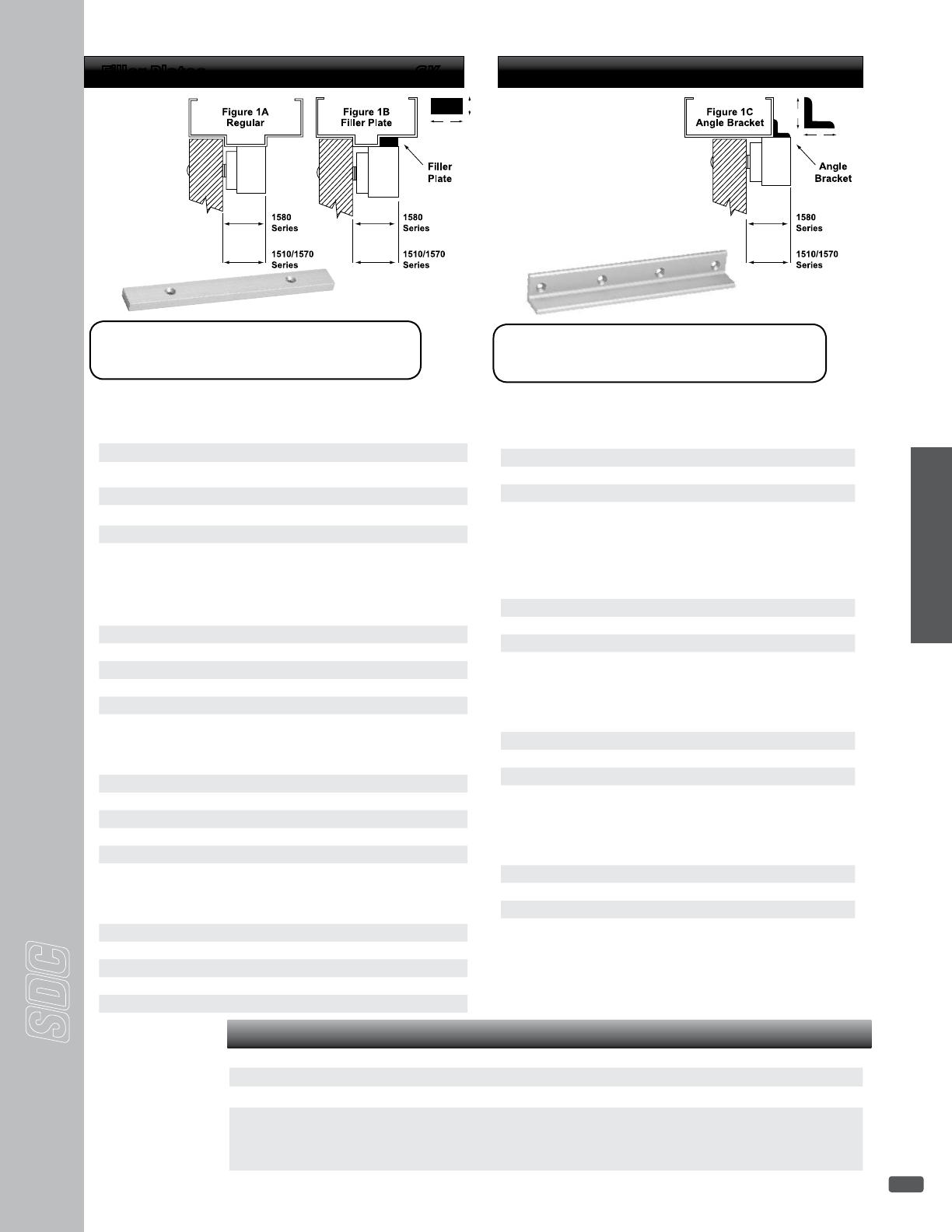

11 ...............................................................Angle Brackets
12 ............................................350 Narrow Line EMLock®
13 .............................. E6200, E1200, E600 Excel™ Series
13 ....................Top Jamb Mounting Kit for Excel™ Series
13 .....Retrofit Kit for Discontinued Locknetics 390+ PLUS
13 .. Glass Door Armature Mounting Kit for Excel™ Series
13 Mounting Brackets and Filler Plates for Excel™ Series
14 ............. 1561/62/65/66 Hi/Shear Concealed EMLock®
15 .......1562SC / 1563SCHDB / 1561S / 1561TJ Hi/Shear
................... Semi-Concealed & Surface Mount EMLock®
16 .......................................... 1575 / 1576 Gate EMLock®

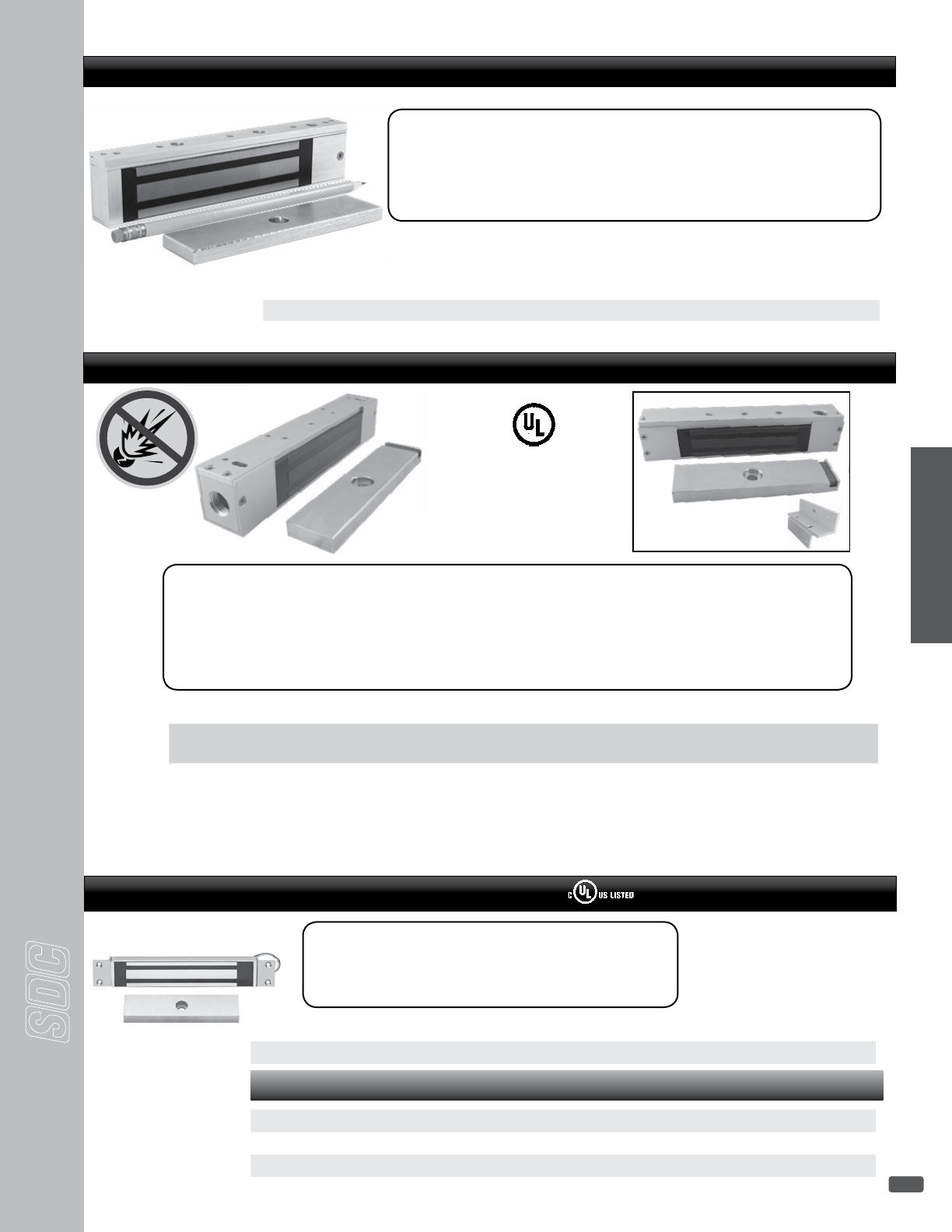

17 ................................. E300 Excel™ Micro Cabinet Lock
17 ............................. EP17624 Explosion Proof EMLock®
17 ..................... 1591 Mortise EMLock® for Sliding Doors
DeLayeD egress Locks

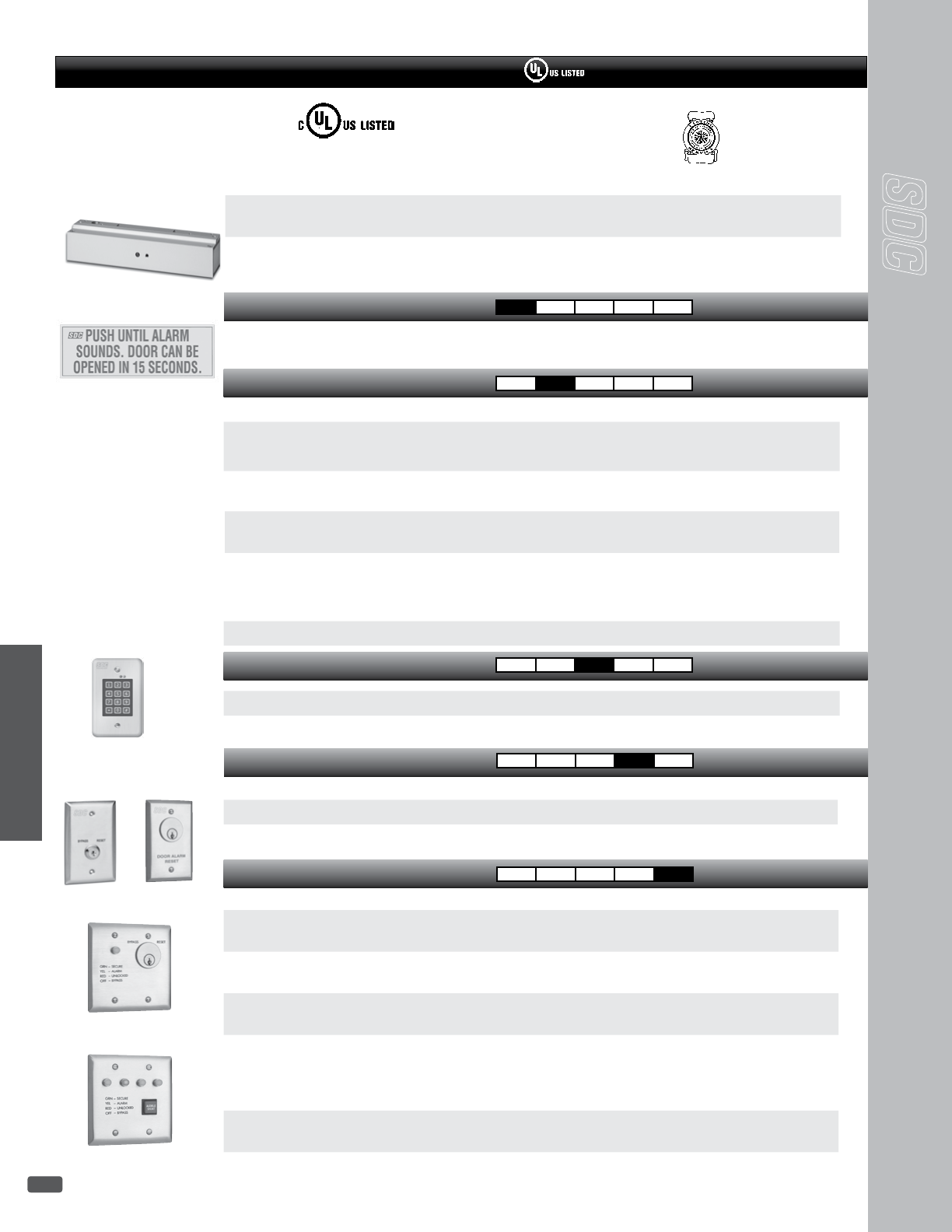

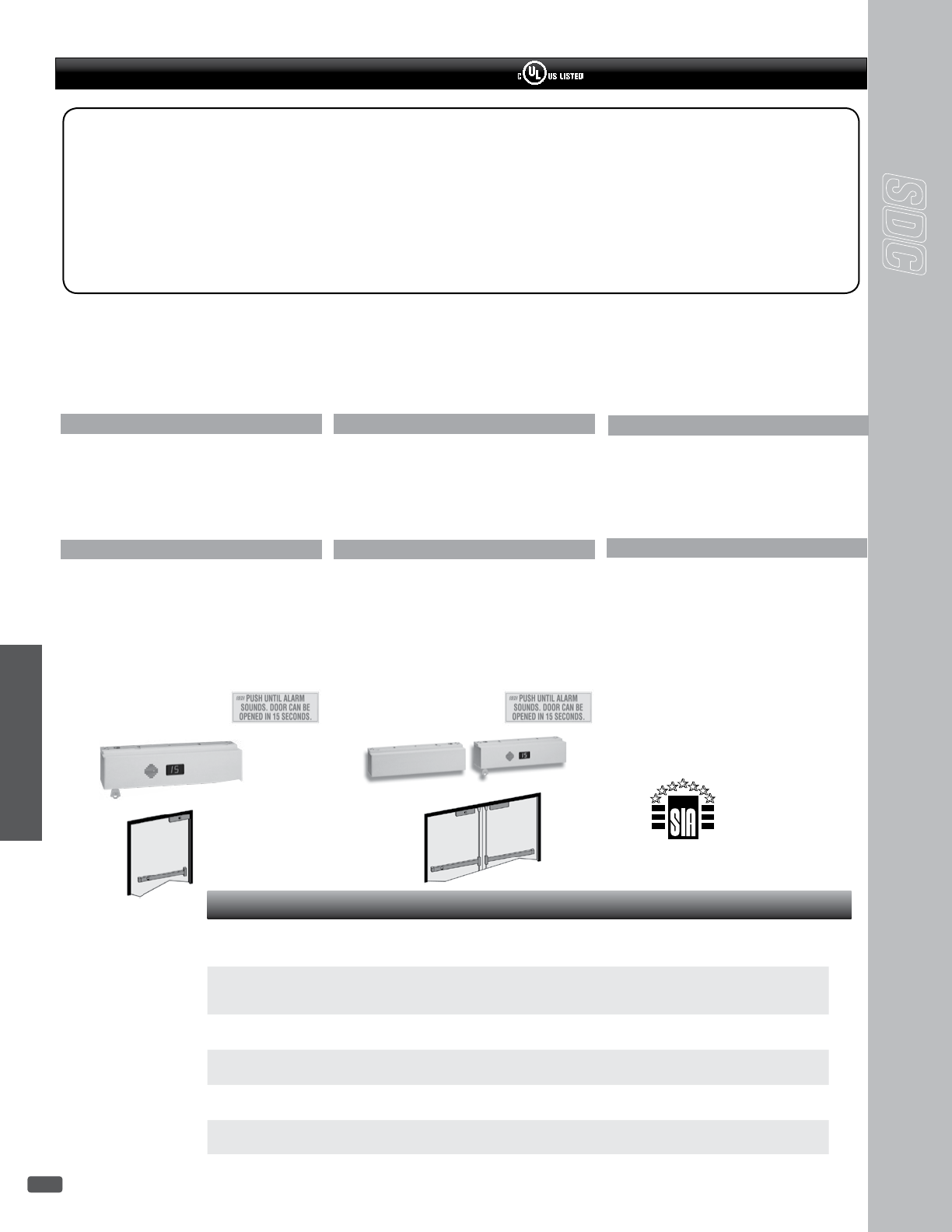

18 ........ 1511S / T ExitCheck® Delayed Egress EMLock®
20 ......1581S ExitCheck® Mini Delayed Egress EMLock®
21 ................101 ExitCheck® Wall Mount Delayed Egress
22 ..............Local and Remote Controls and Annunciators

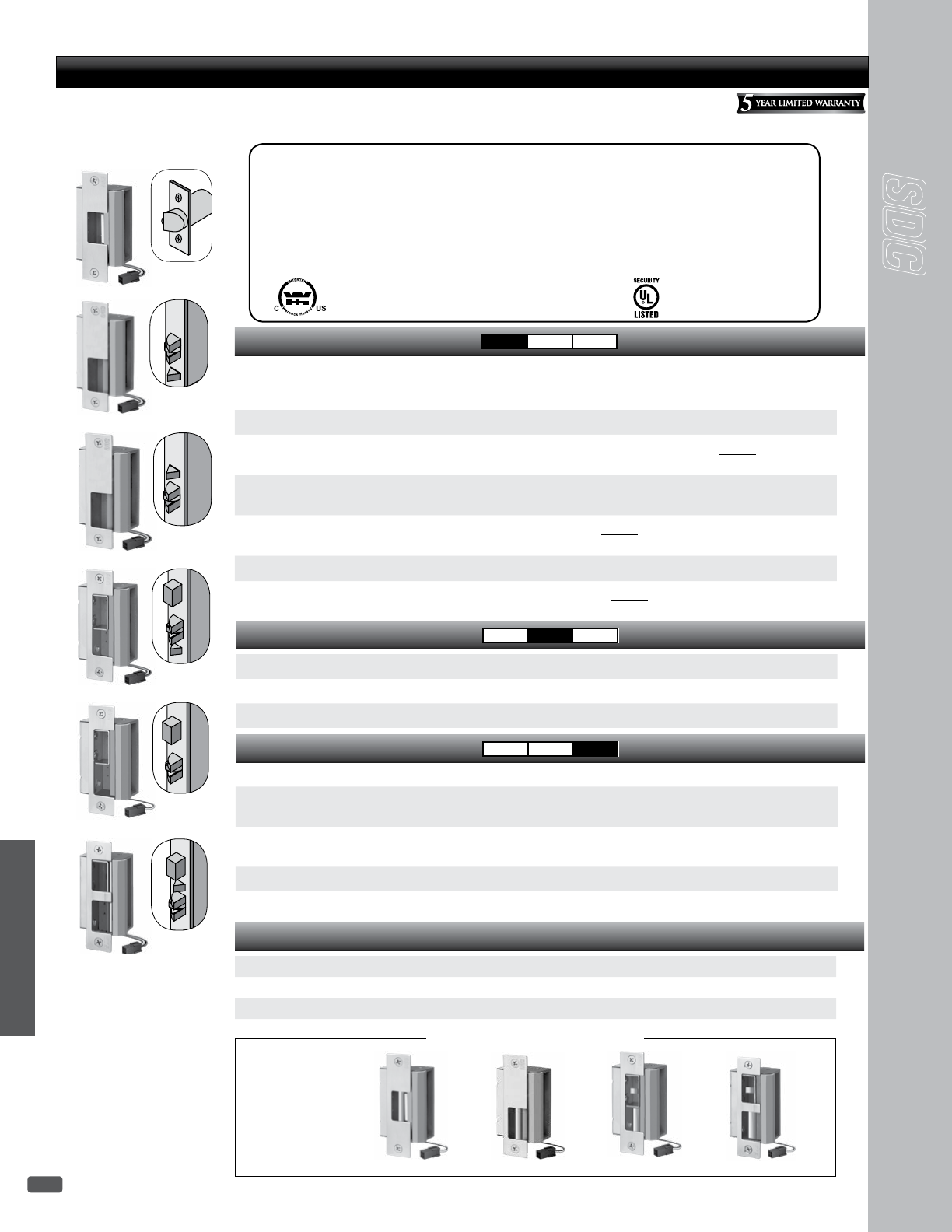

eLectric strikes

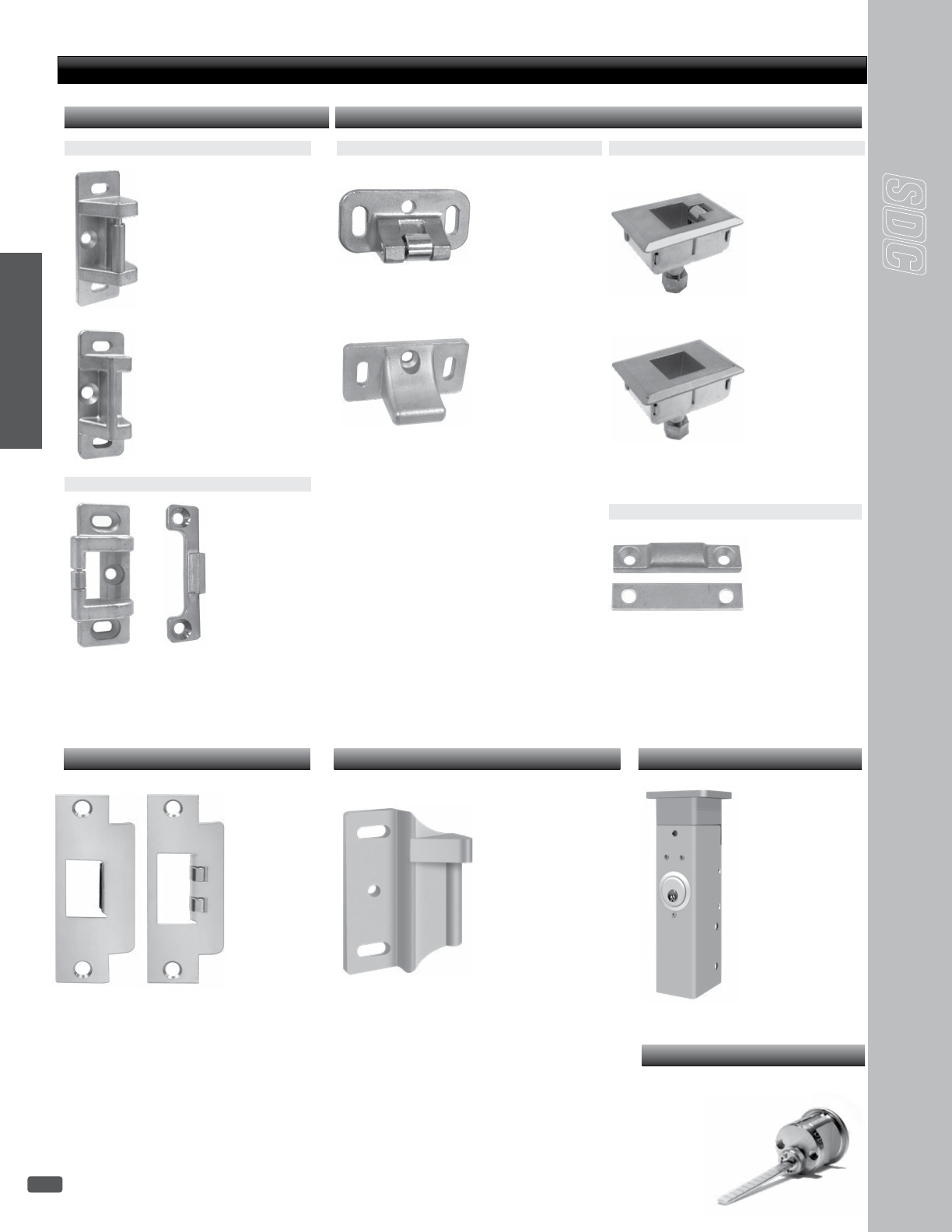

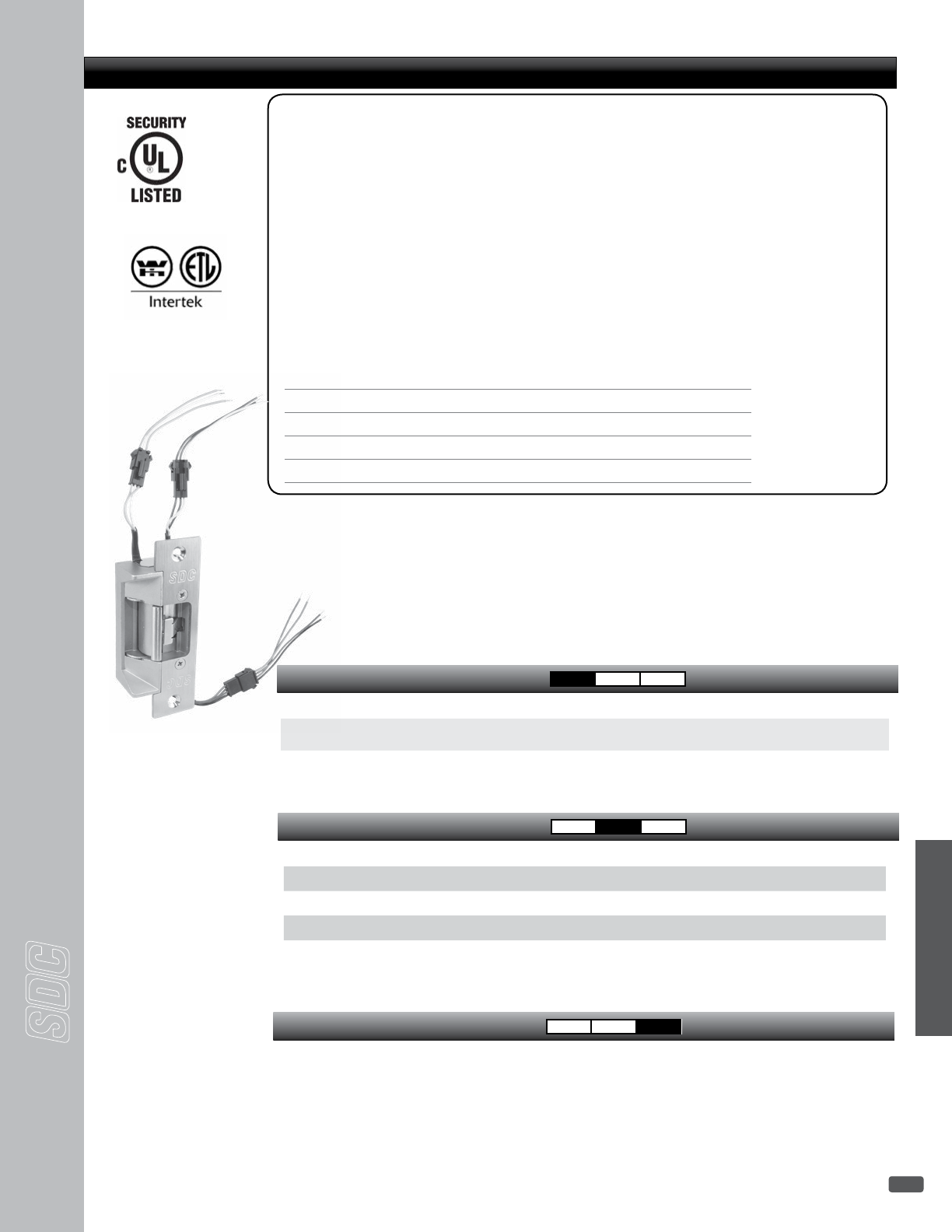

23 .................................................15 Series Electric Strike
23 .................................................25 Series Electric Strike
23 ............................ 30 Series Rim Mount Electric Strikes
24 .................................................45 Series Electric Strike
25 ........................................ 45F Fire Rated Electric Strike
26 .............................. 55 Series UniFLEX™ Electric Strike
27 ................... 55 ABC UniFLEX™ Multi Application Pack
27 .. MS Series Latch and Deadbolt Monitoring Strike Kits

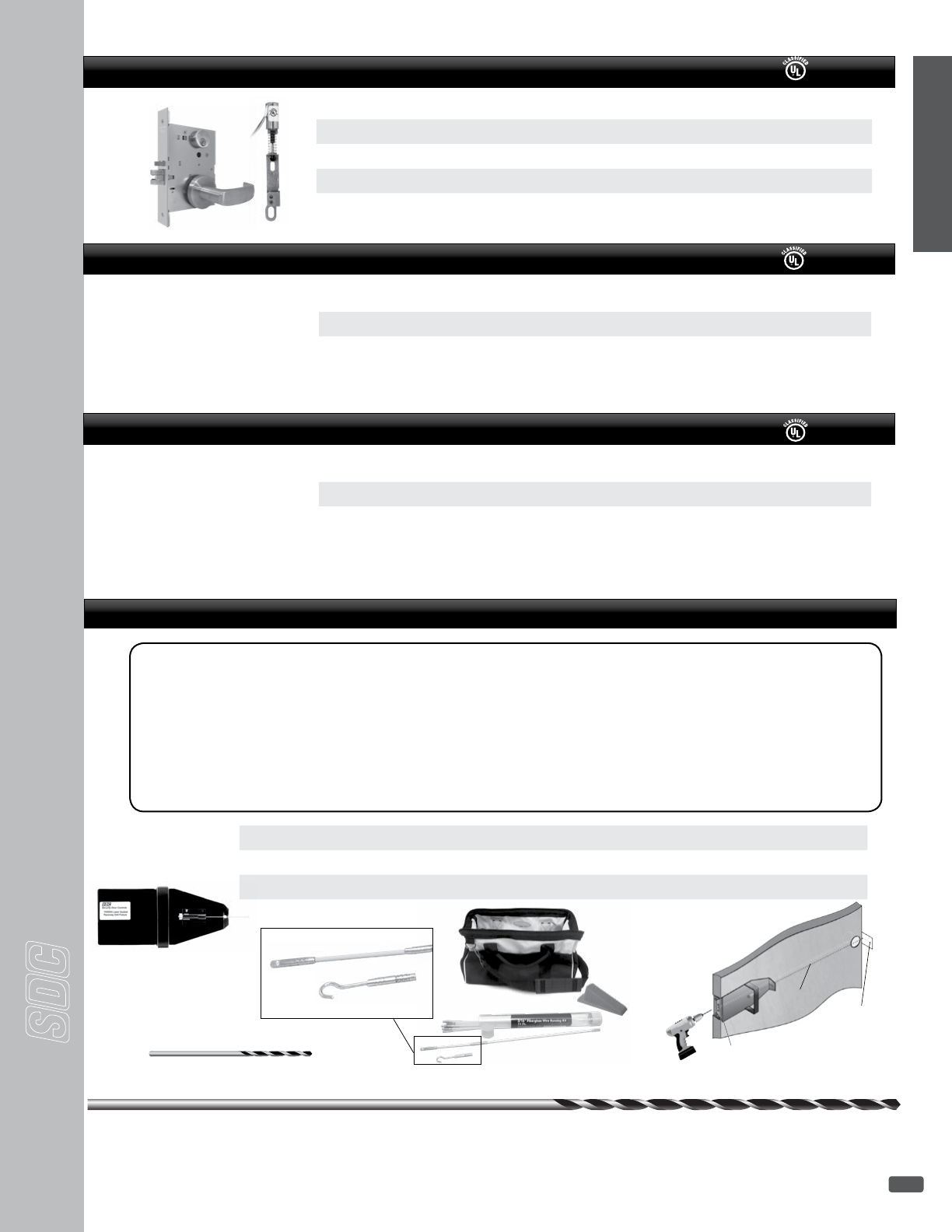

eLectrifieD Locksets
28 ...................................... 7200 Series ELECTRA MOD™
29 .......................... 7200 Series Distributor Supplied Lock
30 ................ Z7200 Series ELECTRA PRO™ Heavy Duty
...........................................................Cylindrical Locksets
31 ........................MLR Z7600 Motorized Latch Retraction
................................................................. Mortise Lockset

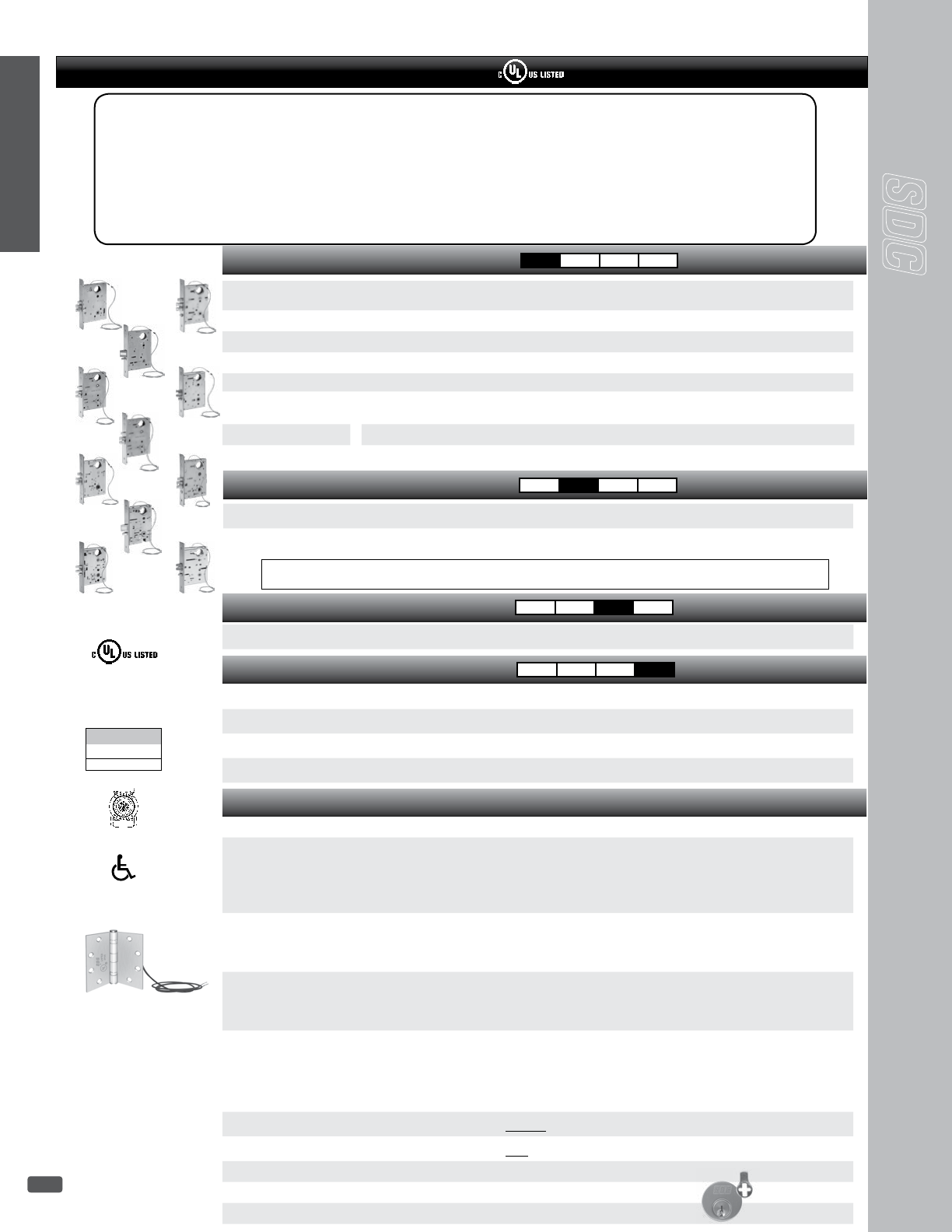

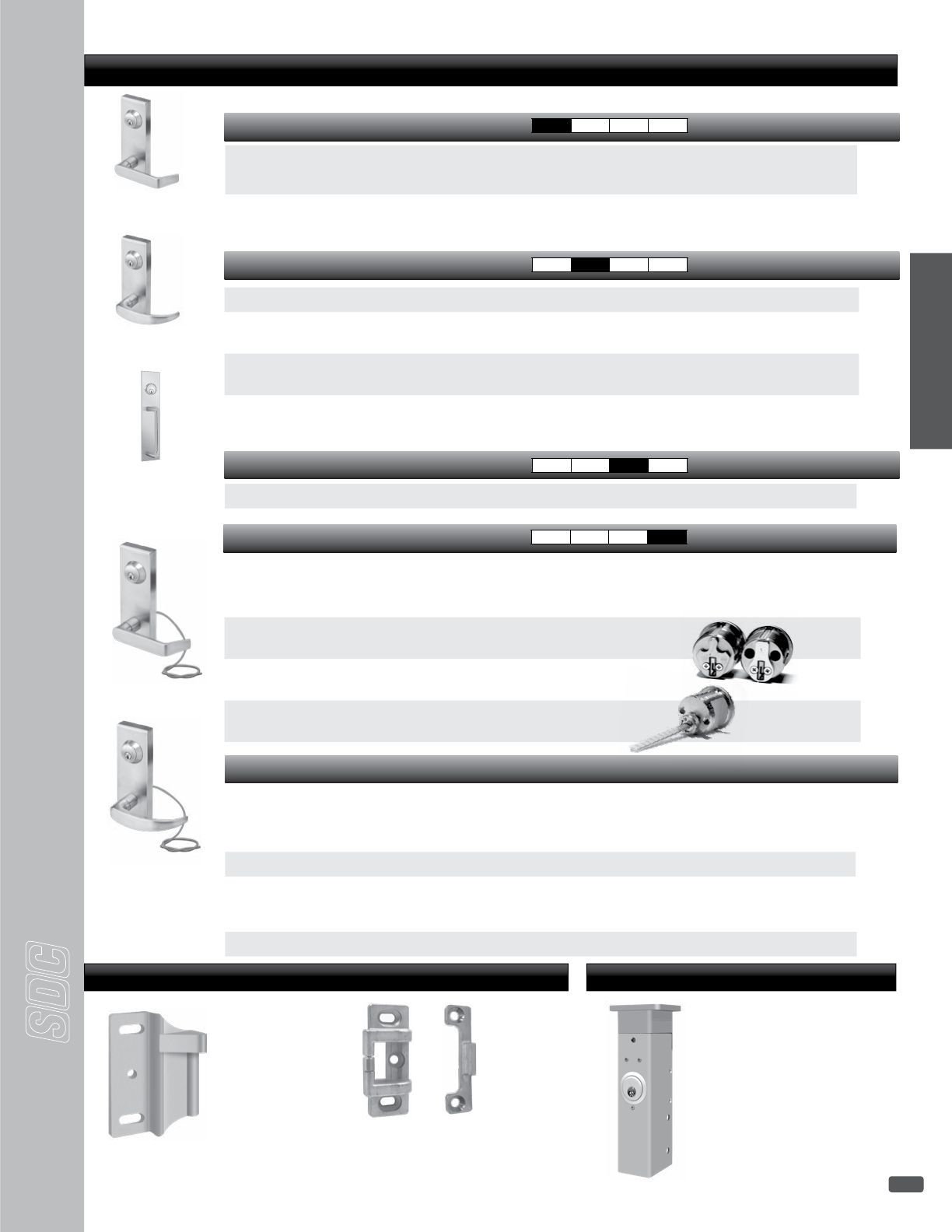

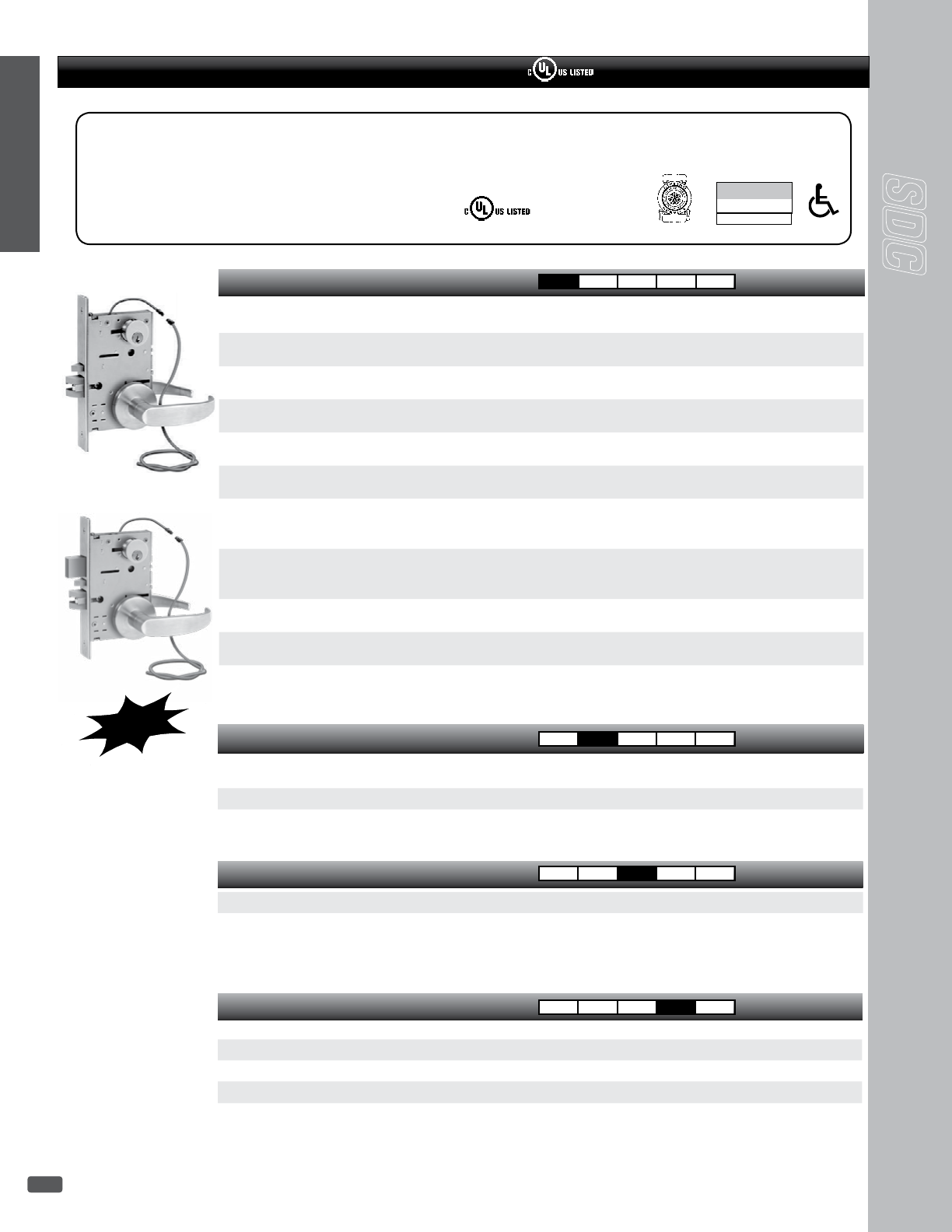

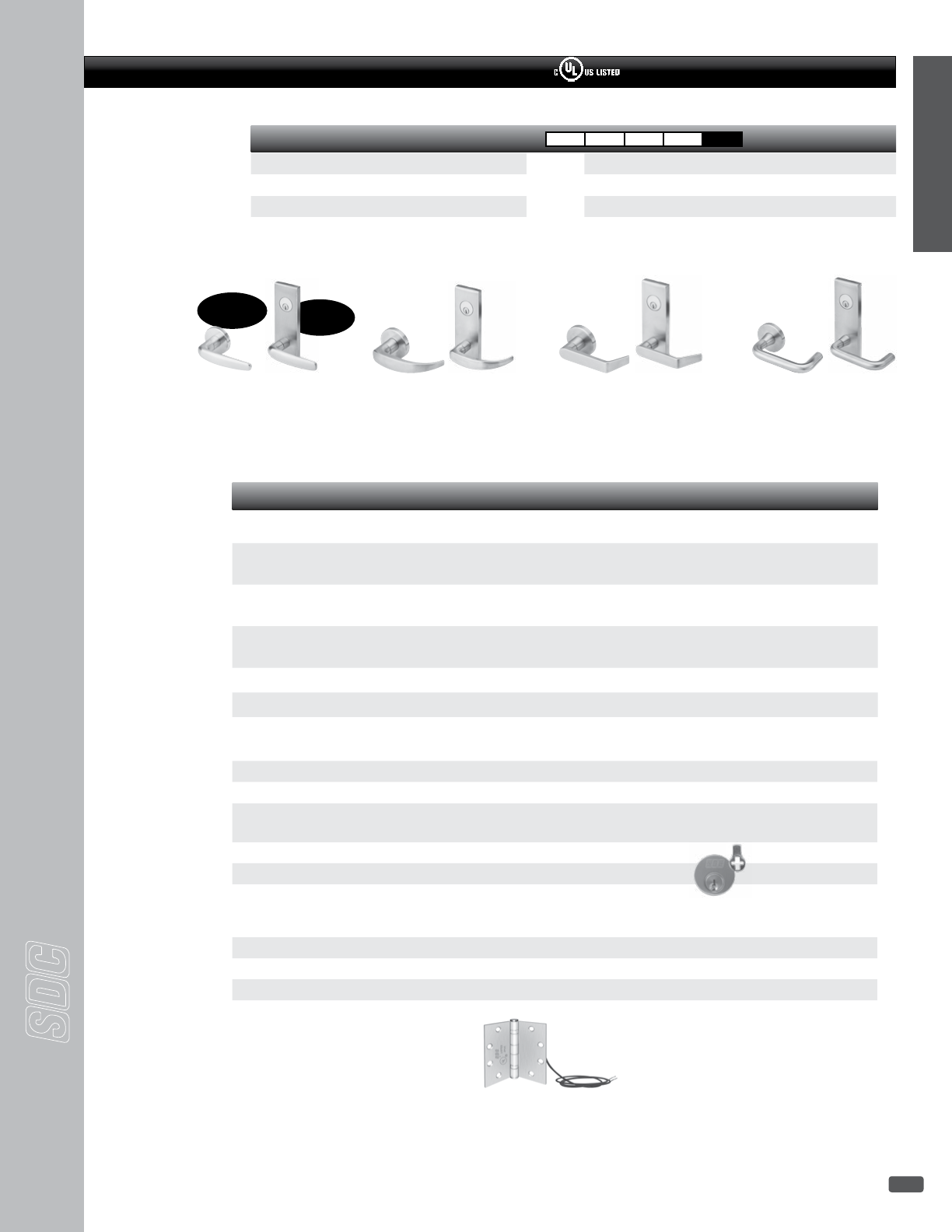

32 ..................Z7800 SELECTRIC™ PRO Electric Lockset
34 ................... 7800 SELECTRIC™ MOD Series Locksets
35 ........SK-L90 Field Electrification Kit for Schlage L9000
35 ..................SK-88 Field Electrification Kit for Yale 8805
35 ............ SK-82 Field Electrification Kit for Sargent 8206
36 .................................................. 7500 Series HiTower®

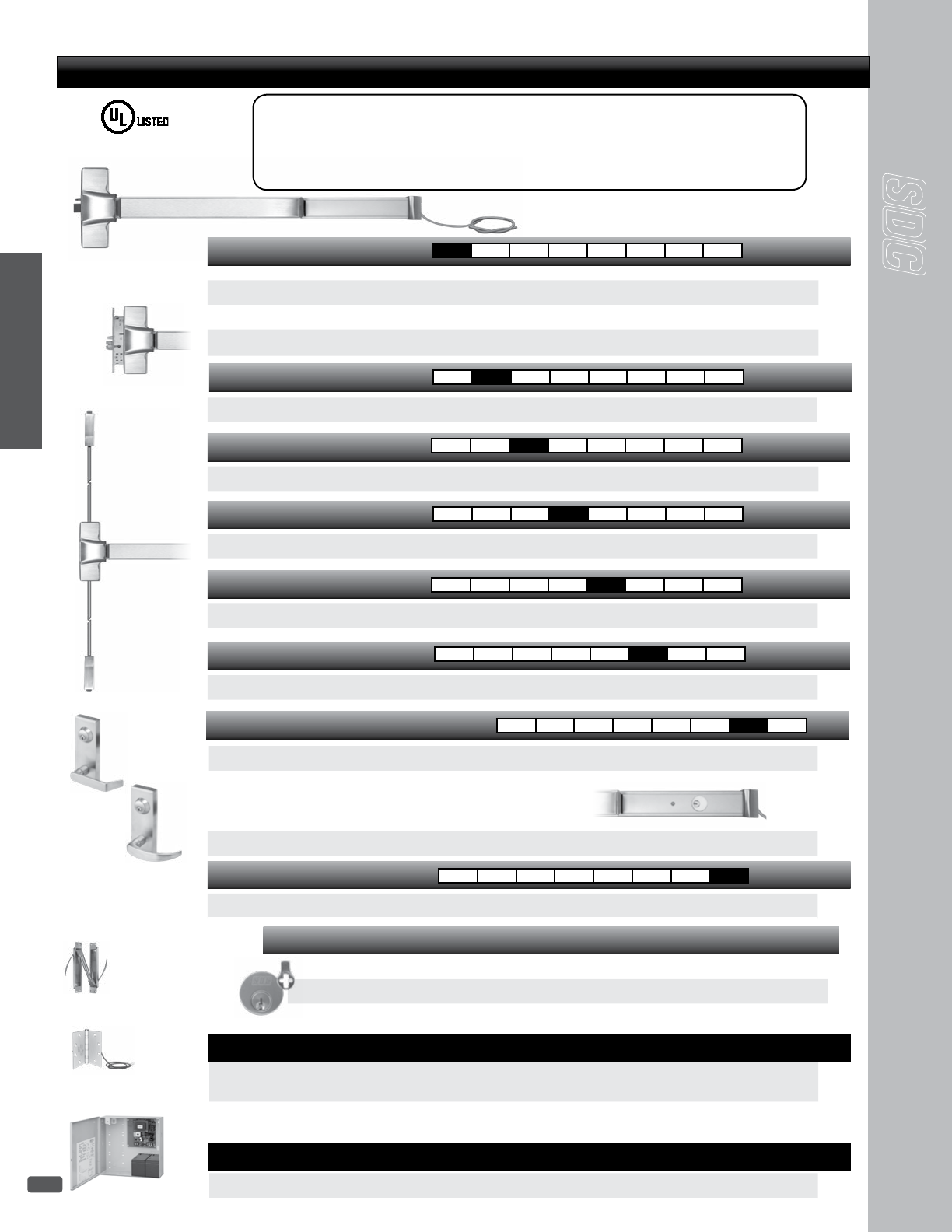

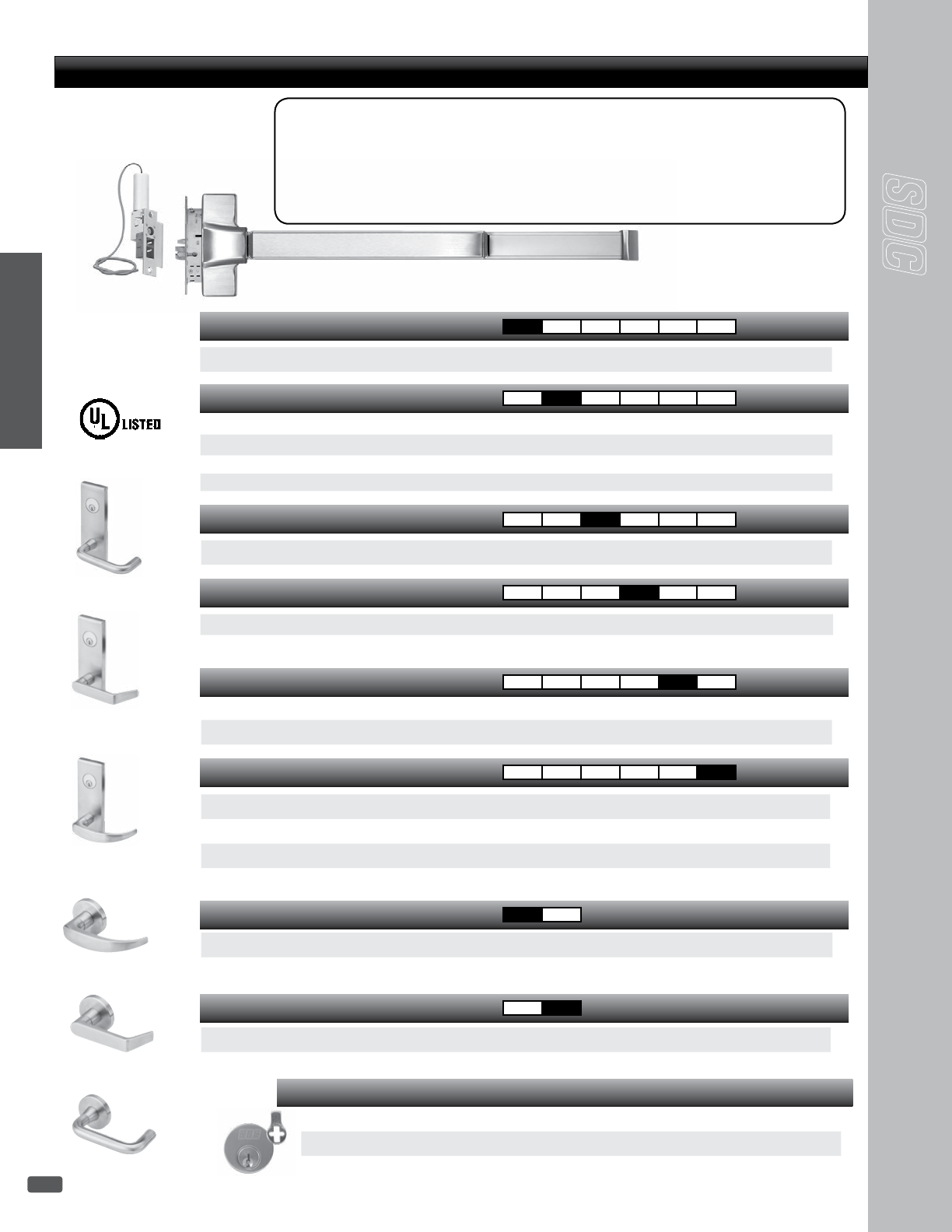

exit Devices

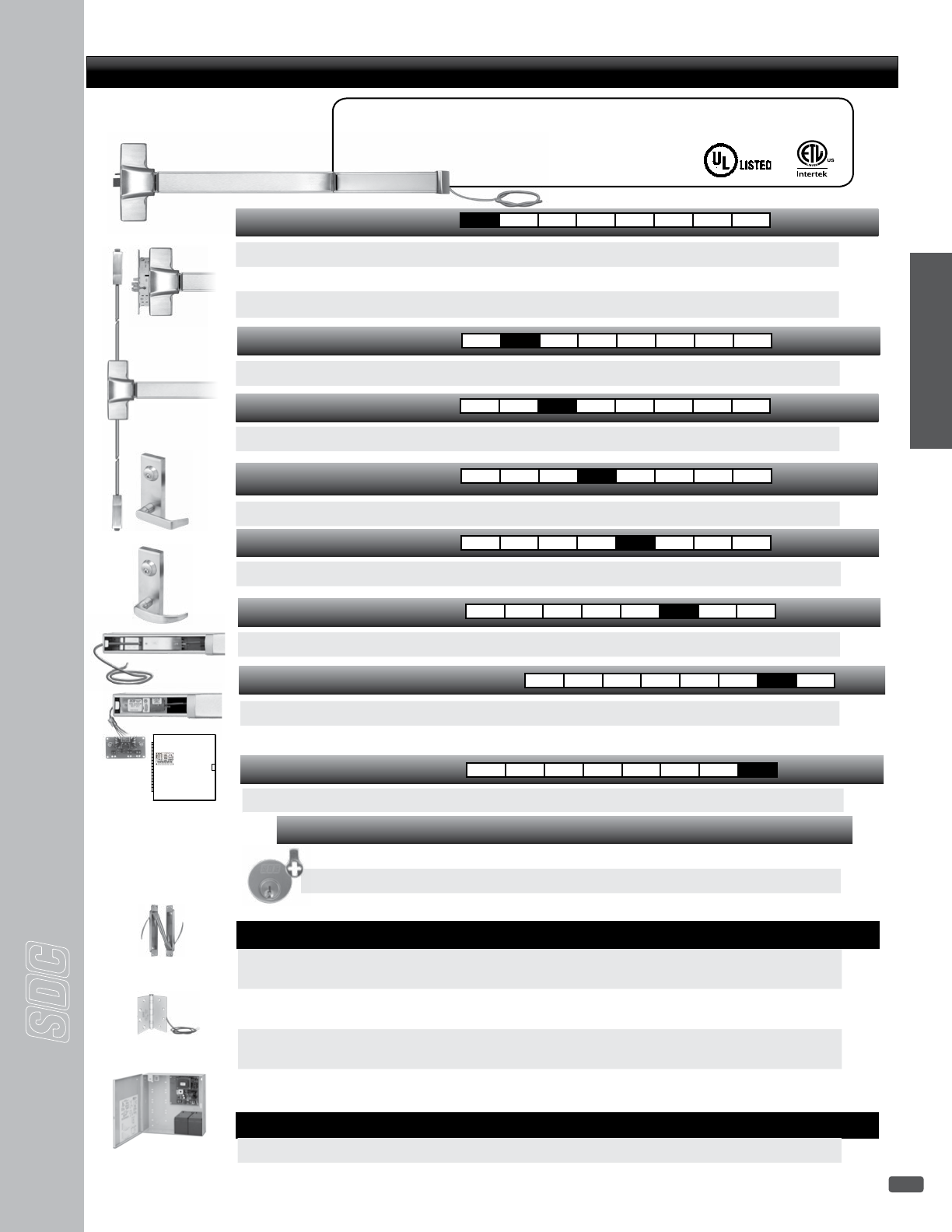

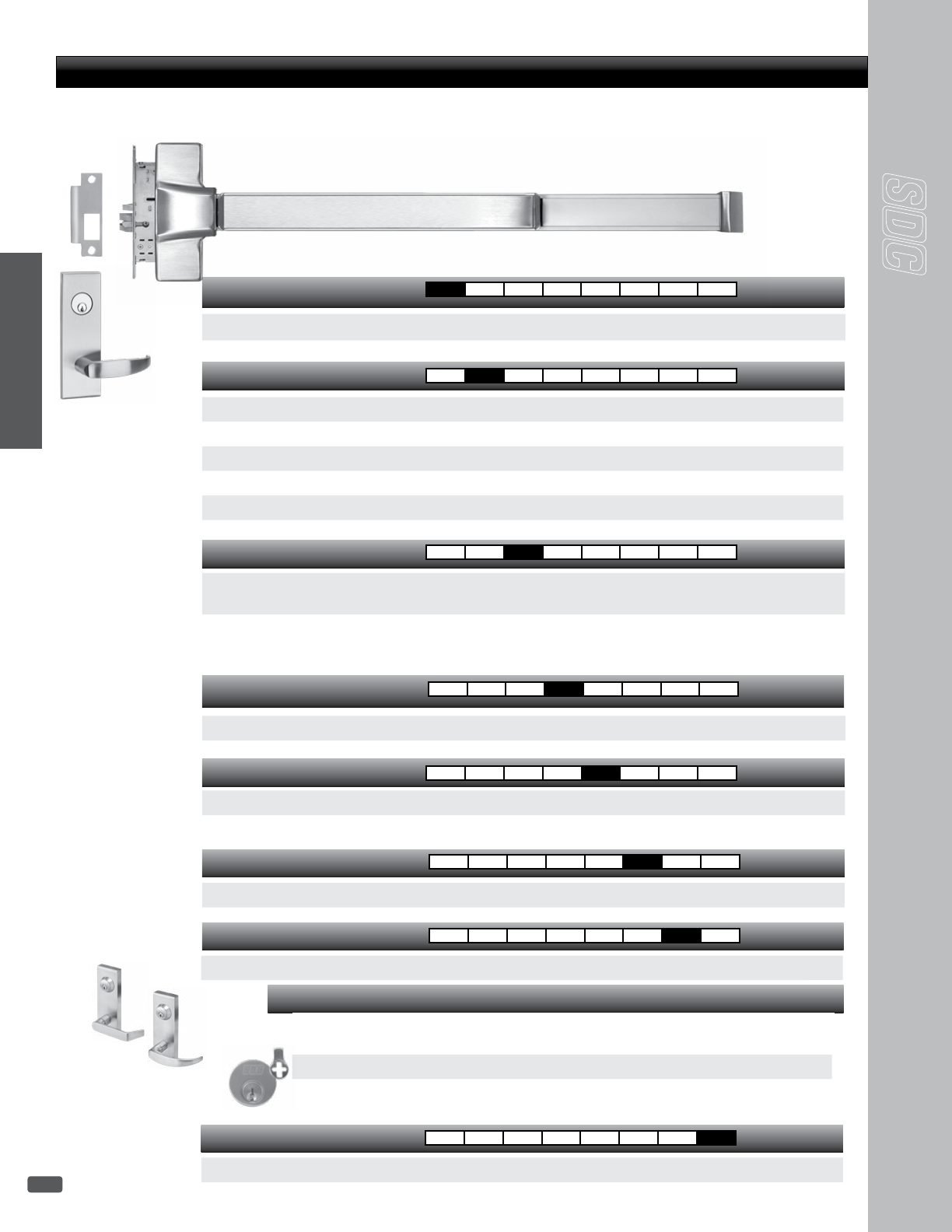

38 ............... S6000 SPECTRA™ Touch Bar Exit Devices -
....................... 6100 RIM and 6200 SURFACE VERTICAL
39 .................................................................... Device Trim
40 ............... S6000 SPECTRA™ Touch Bar Exit Devices -
.................................................................. 6300 MORTISE
42 ..............................................S6000-101 Exit Check® -
.....................................Delayed Egress All-In-One Device
44 ........................S6000 DE Exit Device - Delayed Egress
45 ......................... S6000 A/B Exit Devices - Alarmed Exit
46 .................. S6303FH HiTower Pro® Electrified Mortise
......................................................................... Exit Device

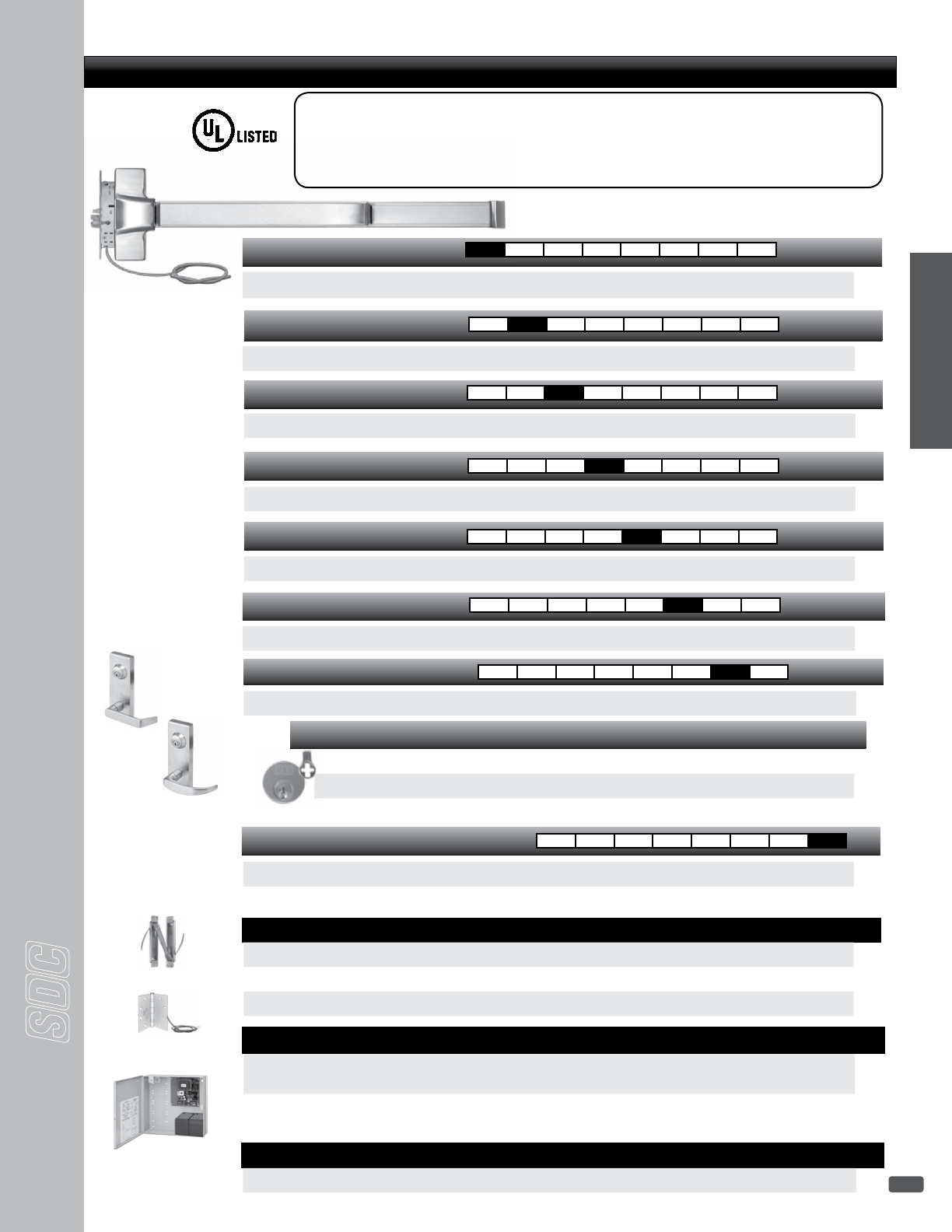

47 ......................... S6300 Exit Device - Electrified Mortise
48 ........................ S6000 G Exit Device - Electric Dogging
49 ............................. S6000 E Exit Device - Electric Latch
............................................................Retraction/Dogging

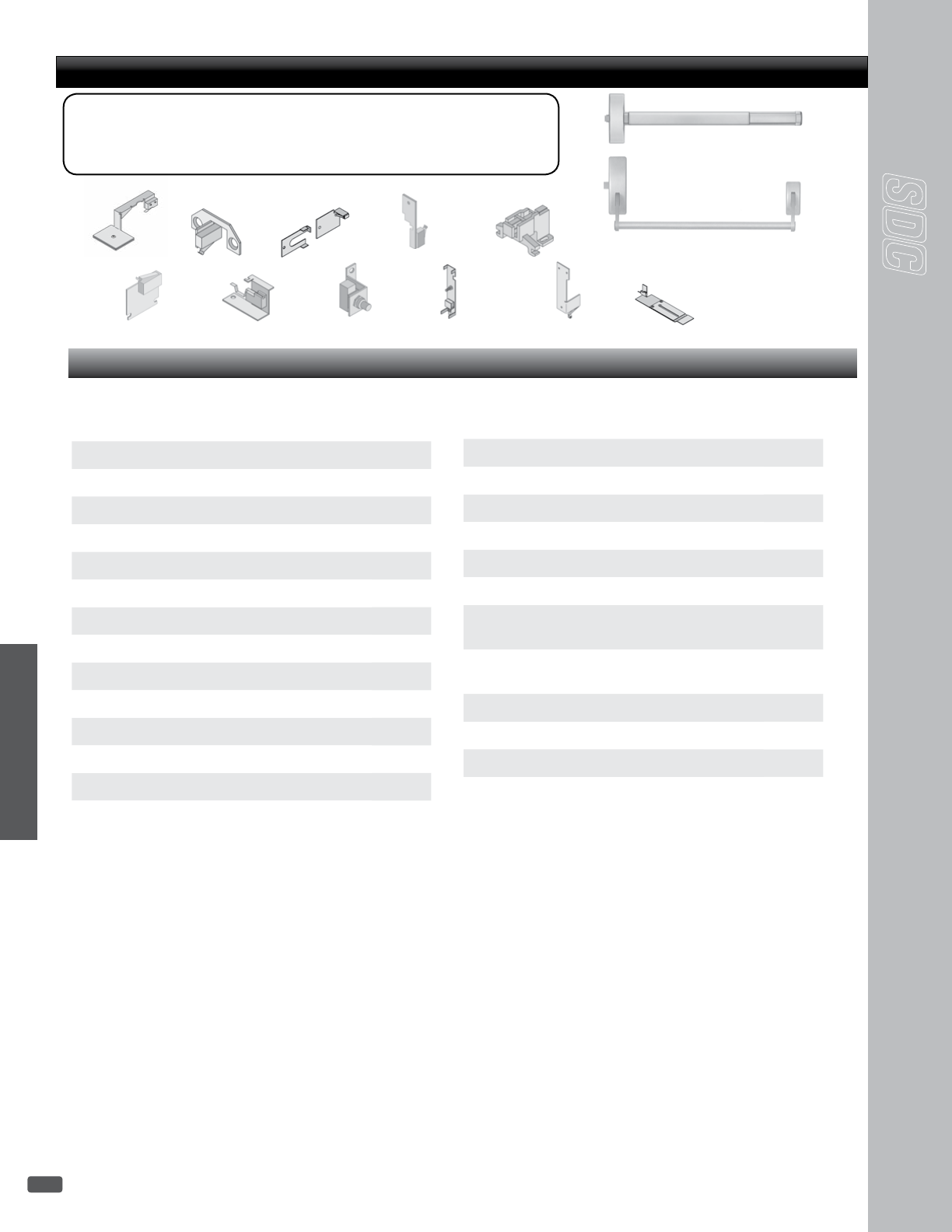

50 ......................................................... Exit Device Strikes
51 ...................... LR100 QUIET DUO™ 700mA Dual Latch
.................................................... Retraction / Dogging Kit
57 .............. IP100 QUIET DUO™ 12V PoE-Capable Latch
.................................................... Retraction / Dogging Kit
BoLt Locks

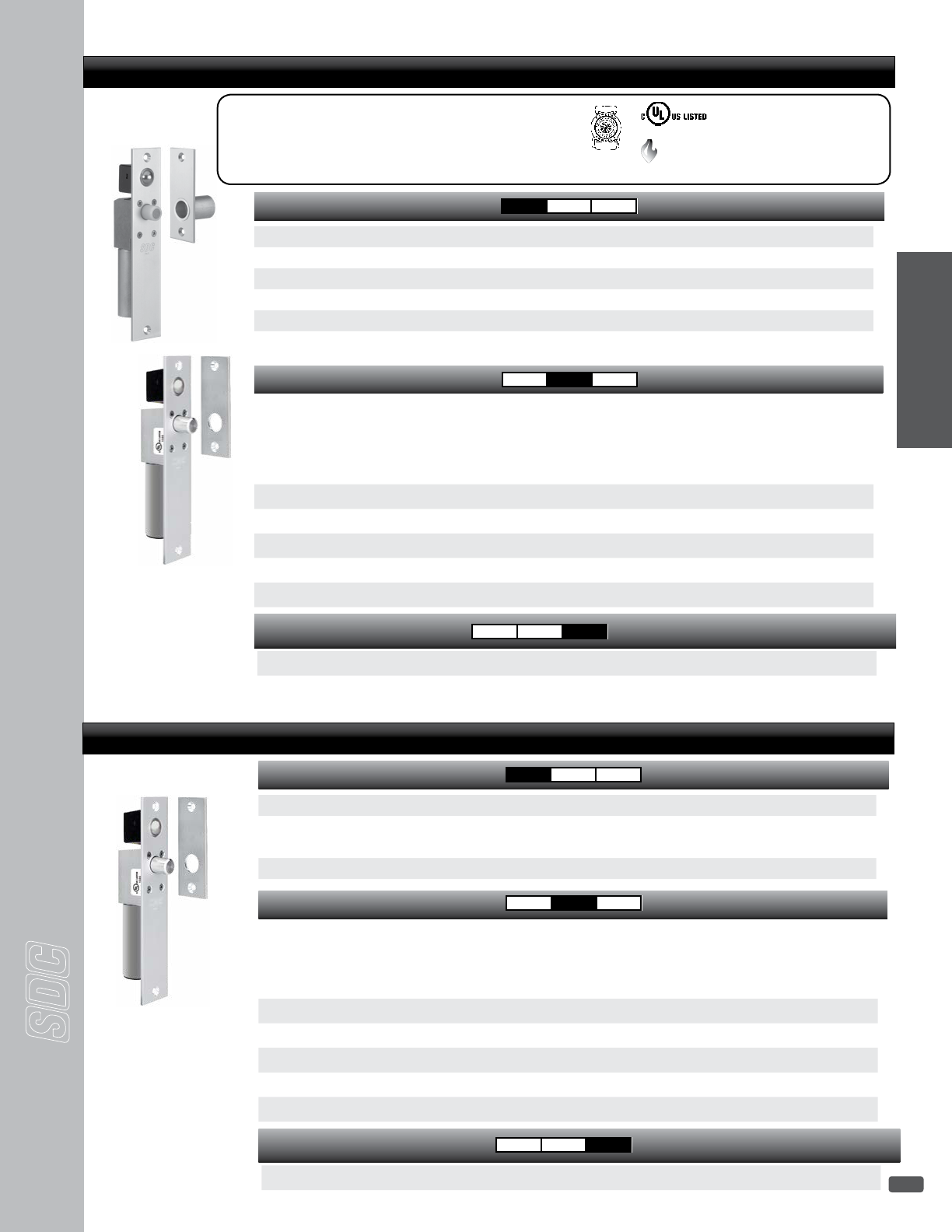

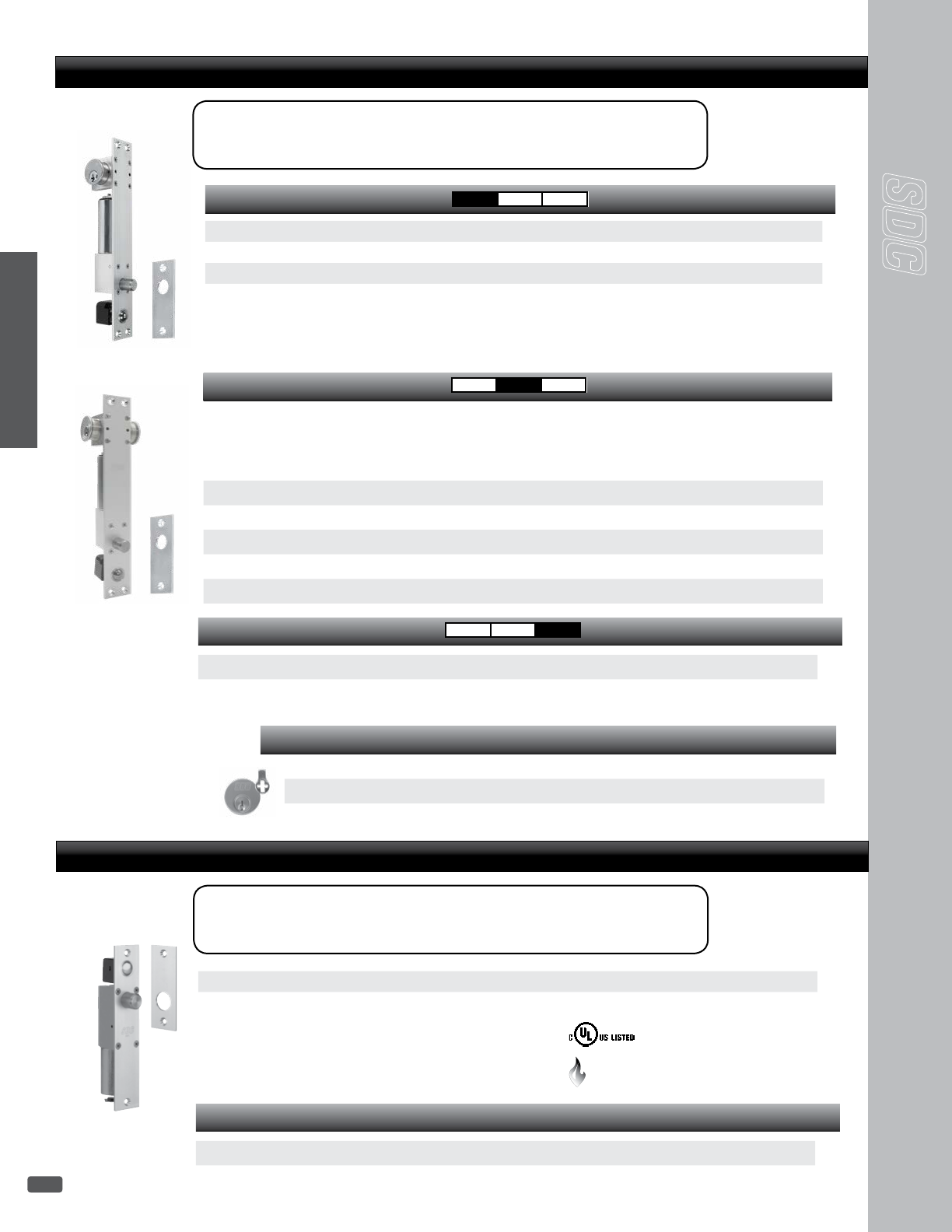

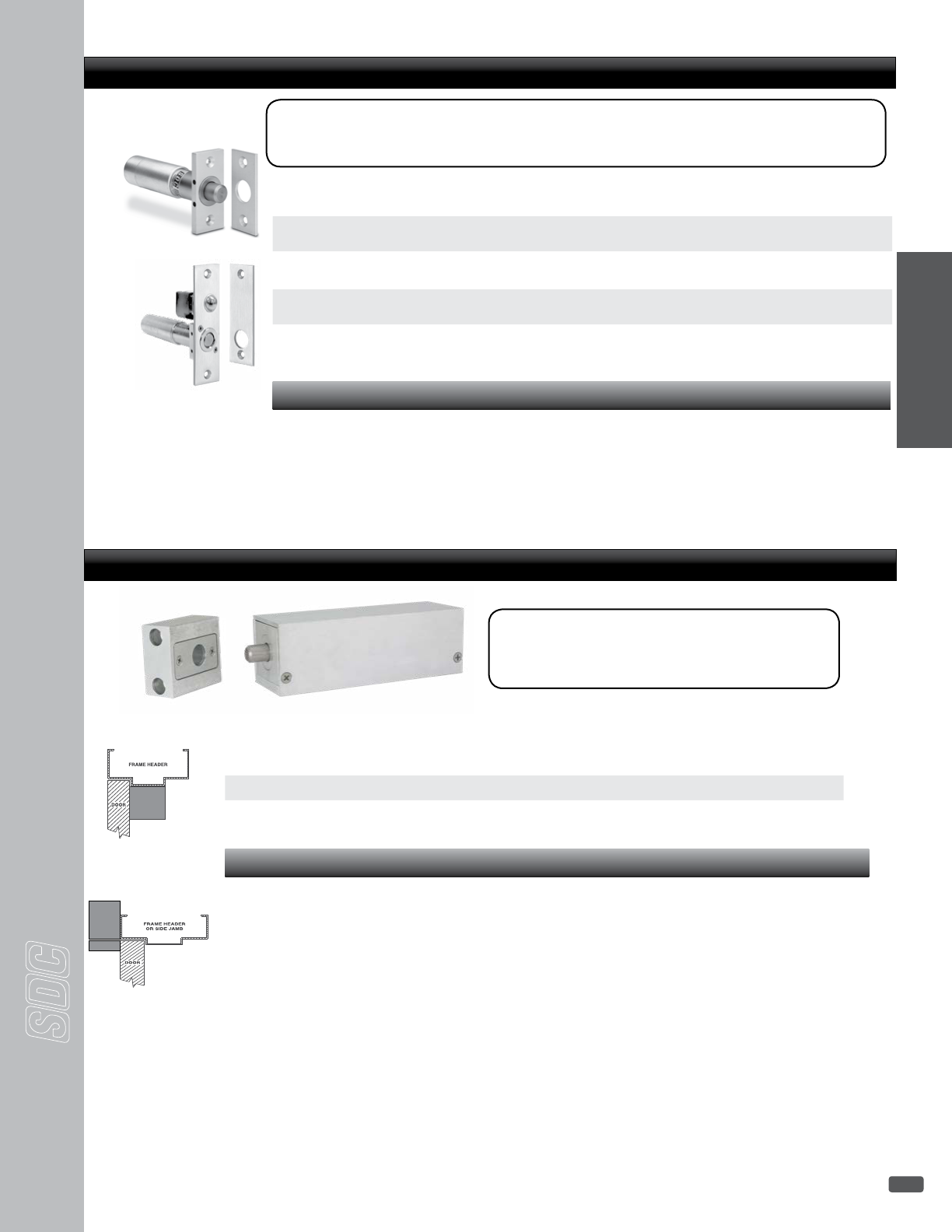

59 ............................FS23MIV / 1091 / 1291 / 1490 / 2490
..................................SPACESAVER® Mortise Bolt Locks
60 .............................. 1091 / 1190 / 1291SPACESAVER®
.........................Mortise Bolt Locks FOR WOOD FRAMES
60 ........1091 / 1290 Mechanical Release SPACESAVER®
60 ..................... 1190 / 2090 Heavy Duty SPACESAVER®
61 110 / 210 / 160 / 260 Conventional Mortise Bolt Locks
61 ............................. 180 / 280 Surface Mount Bolt Locks

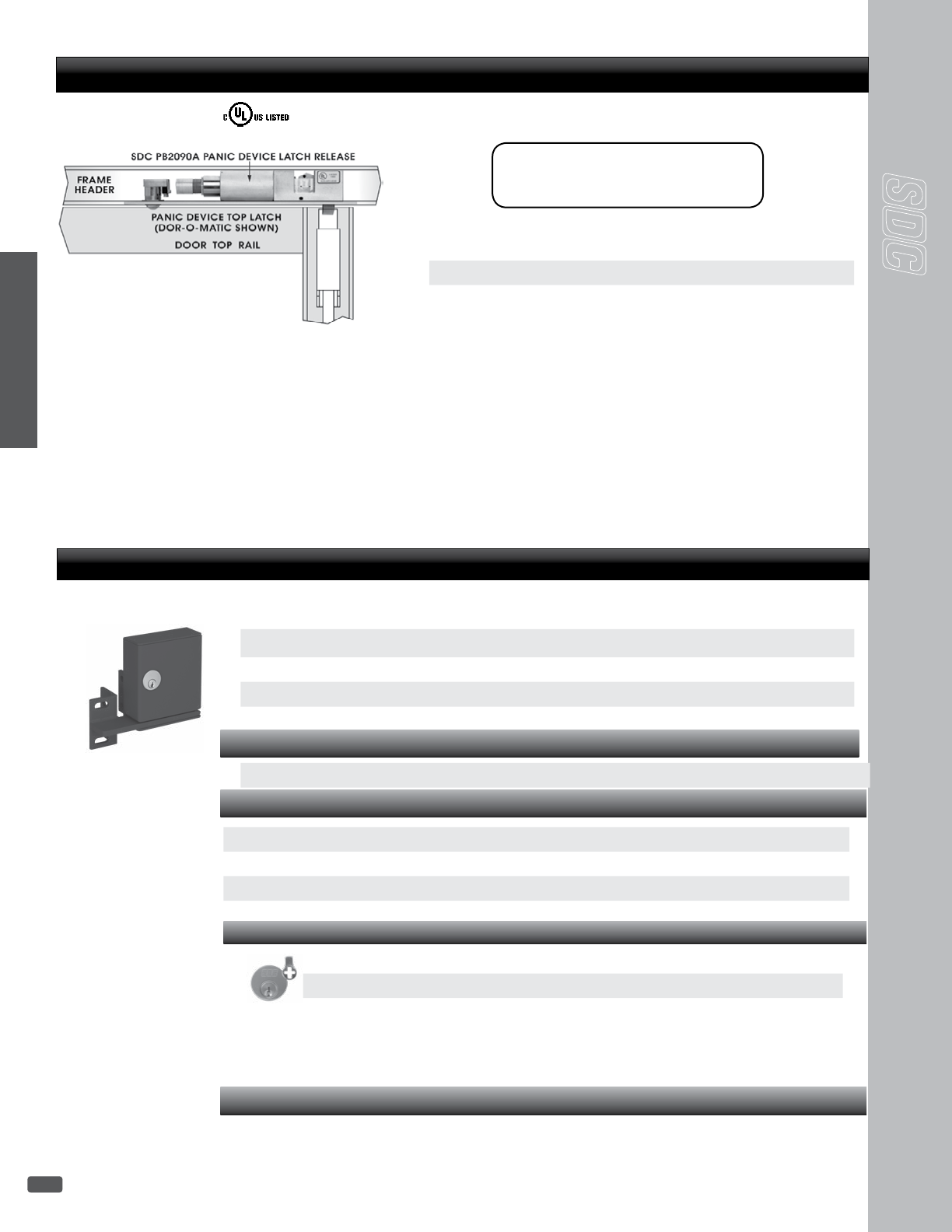

62 ...........................PB2090 Paniclok Exit Device Release
62 ........................................... GL160 / GL260 Gate Locks

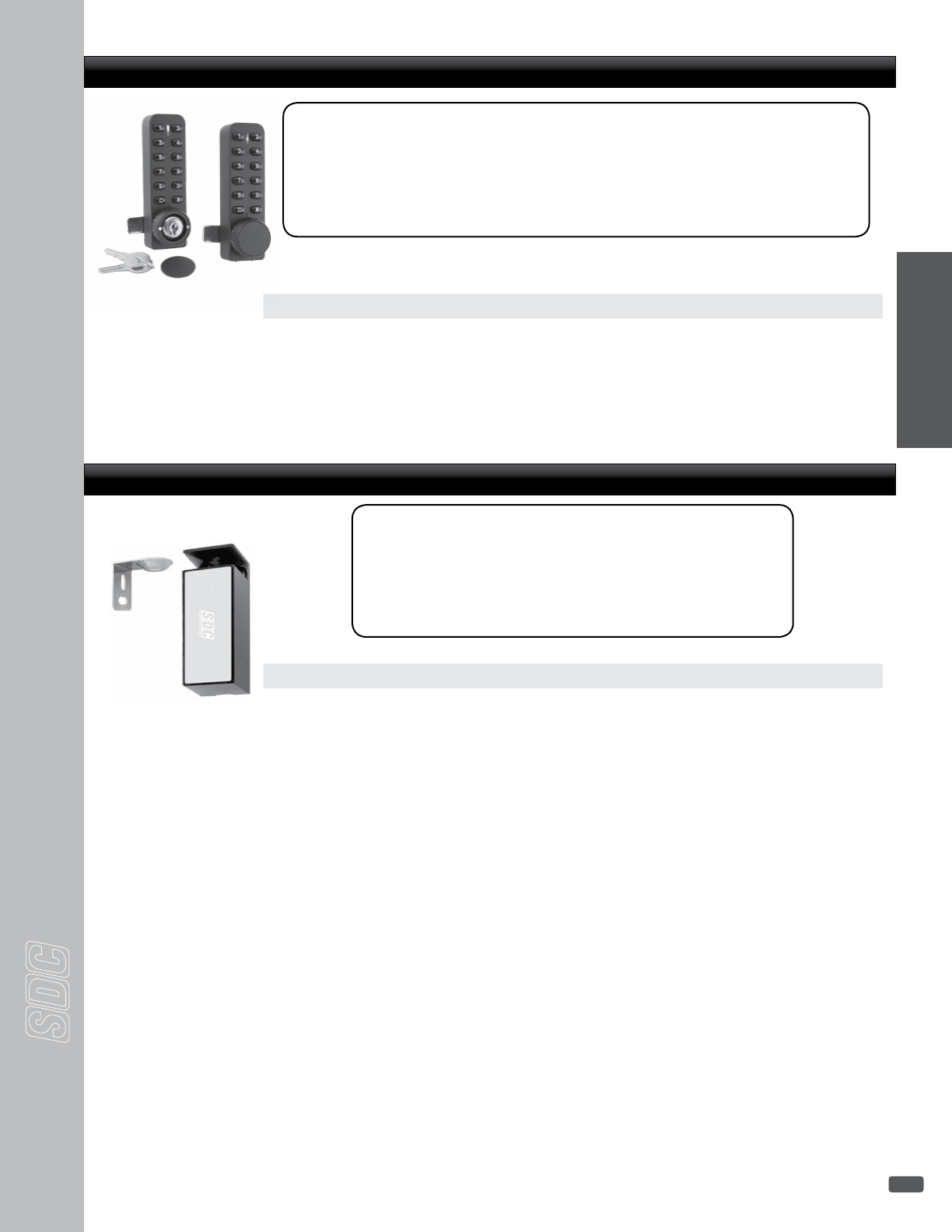

63 ..................................295 Programmable Cabinet Lock
63 ...........................................................290 Cabinet Lock
access controL

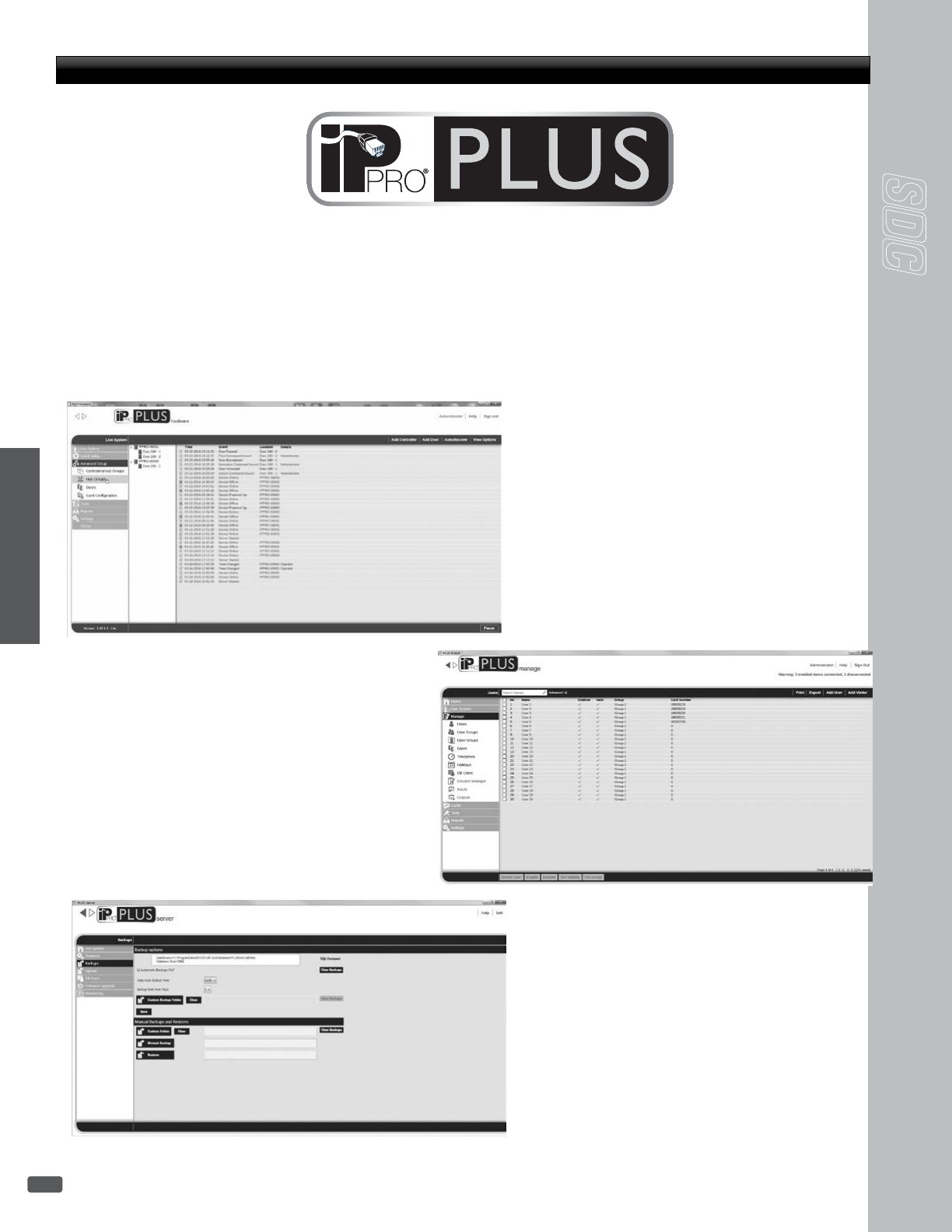

64 ................... IP Pro™ Series IP-based Access Control

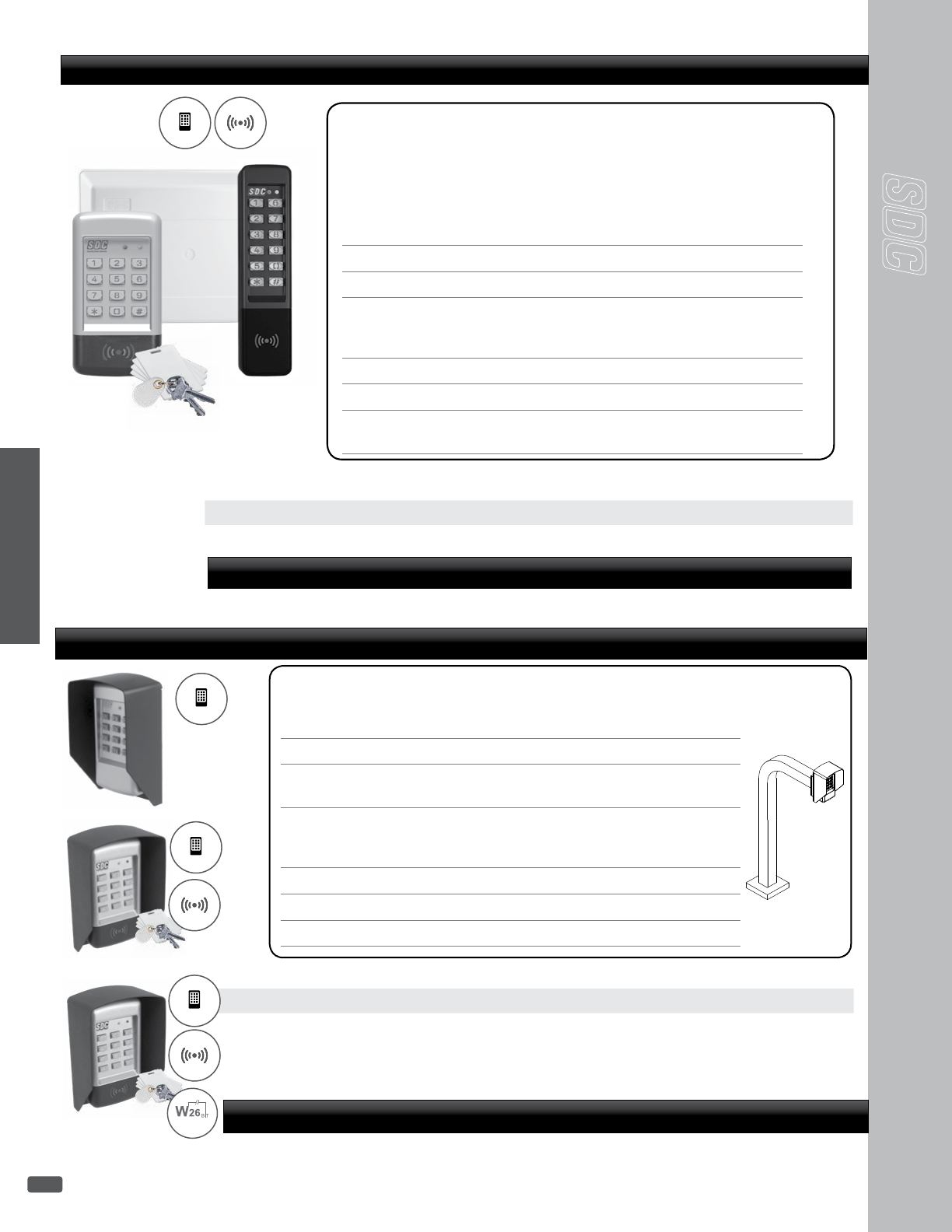

68 ............................................. 918 / 918W EntryCheck™
69 .............................. 920 / 920P / 920PW EntryCheck™
69 ...................923 / 923P / 923PW Narrow EntryCheck™
70 ............................. 921P / 924P 2-PIECE EntryCheck™
70 ...................925 / 925P / 925PW Shroud EntryCheck™

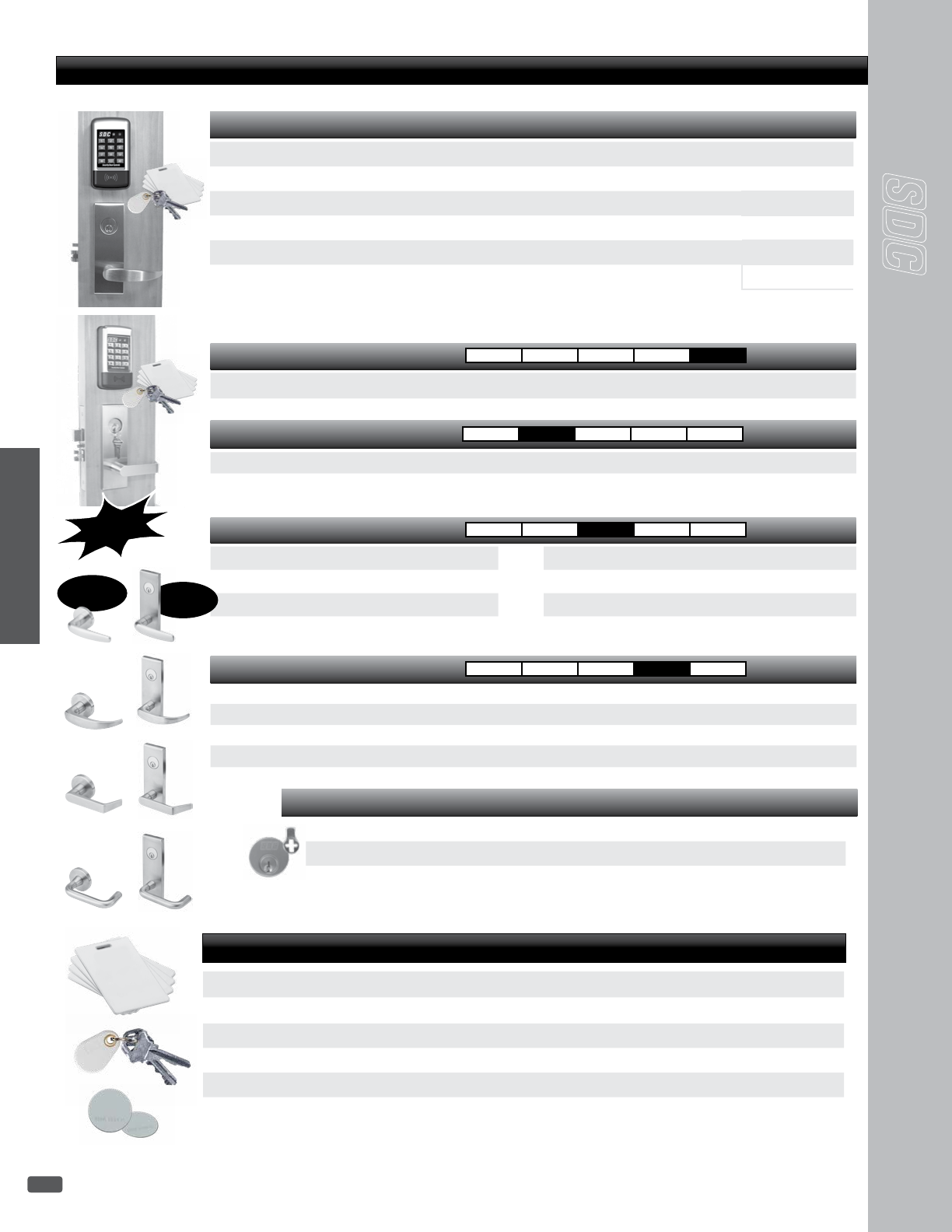

71 ..... E75 EntryCheck™ Standalone Electronic Lockset -
...........................................................................SDC Lock
72 ................................................ E76/E76+ EntryCheck™
......... Standalone Electronic Lockset - SDC Mortise Lock
73 ..... E77 EntryCheck™ Standalone Electronic Lockset -
......................................................... SDC Rim Exit Device

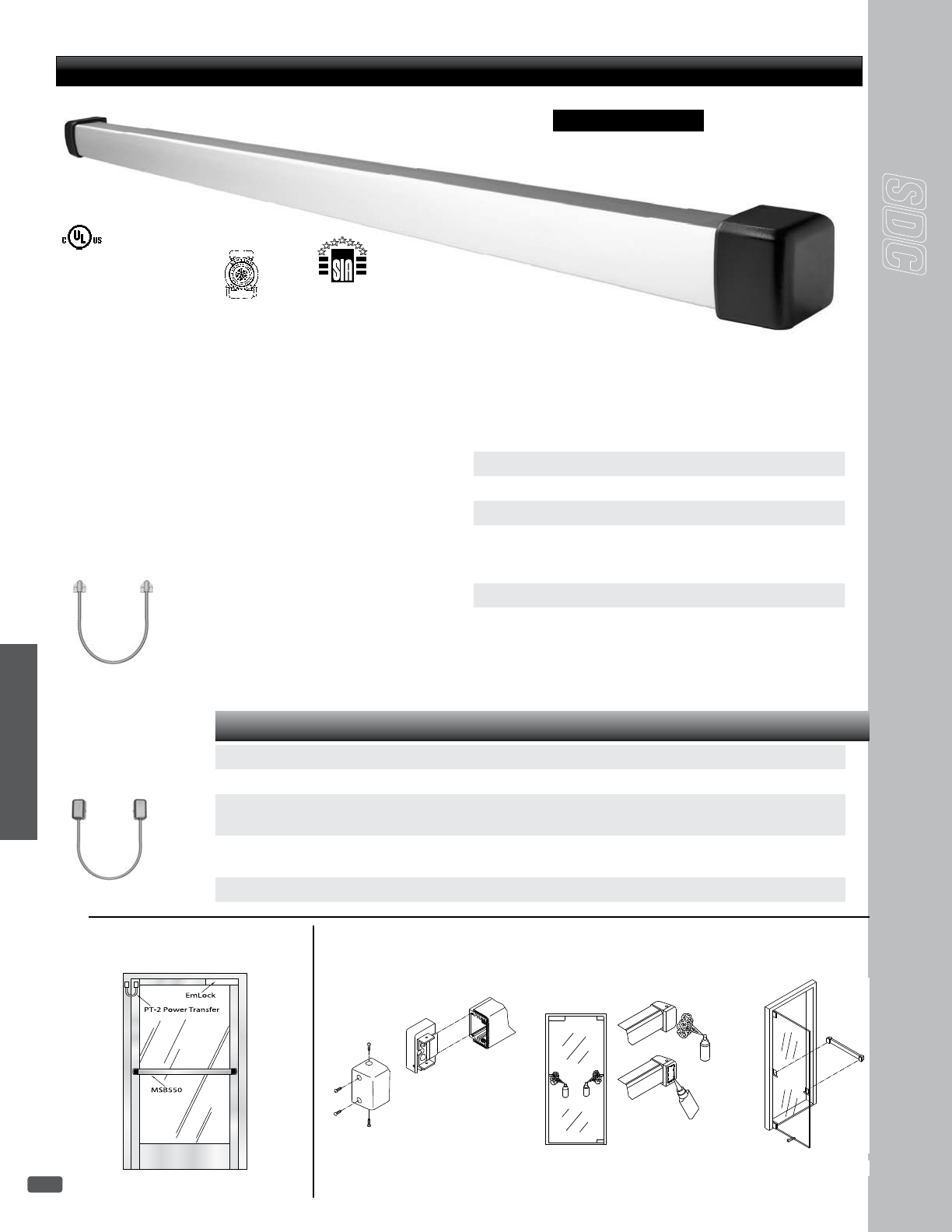

egress controL
74 ....................................... PSB560 SureExit® Sense Bar
75 ................................... MSB550 Mechanical Switch Bar
75 . MSB550W Weather Resistant Mechanical Switch Bar
76 ................................ 500 Series Exit Device Switch Kits

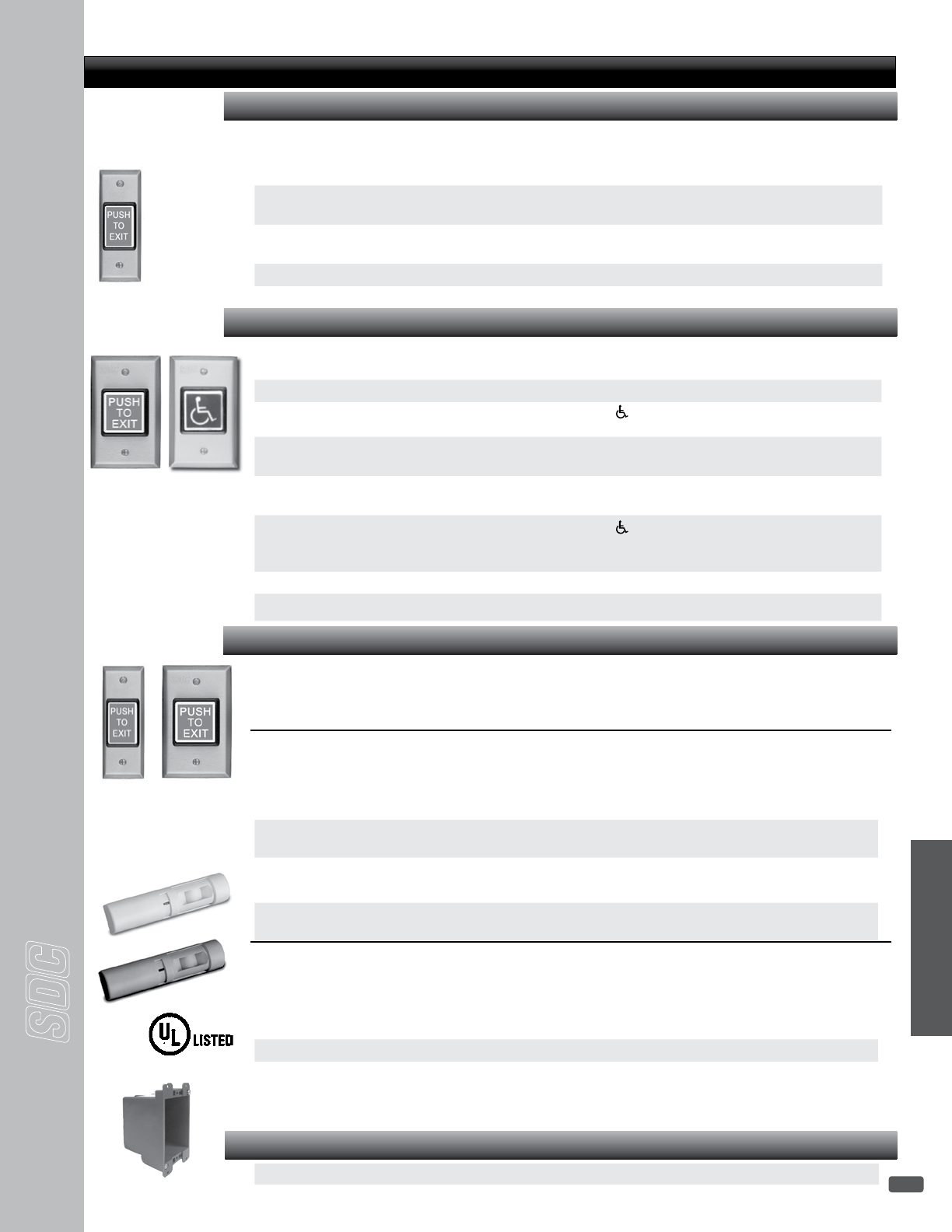

key & exit switches

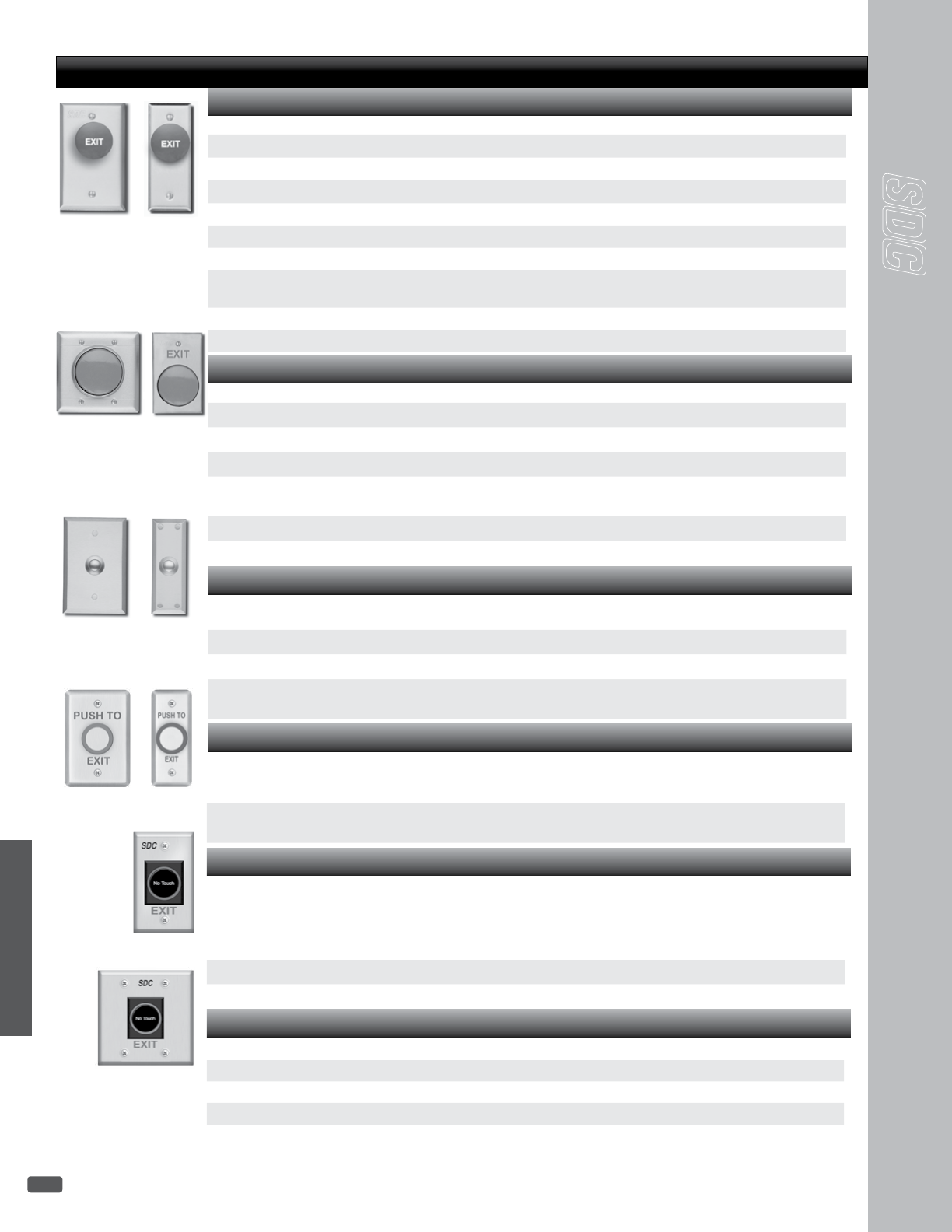

77 ............................. 410 / 420 / 423 Series Exit Switches
78 ...........430 / 440 / 450 / 463 / 474 Series Exit Switches

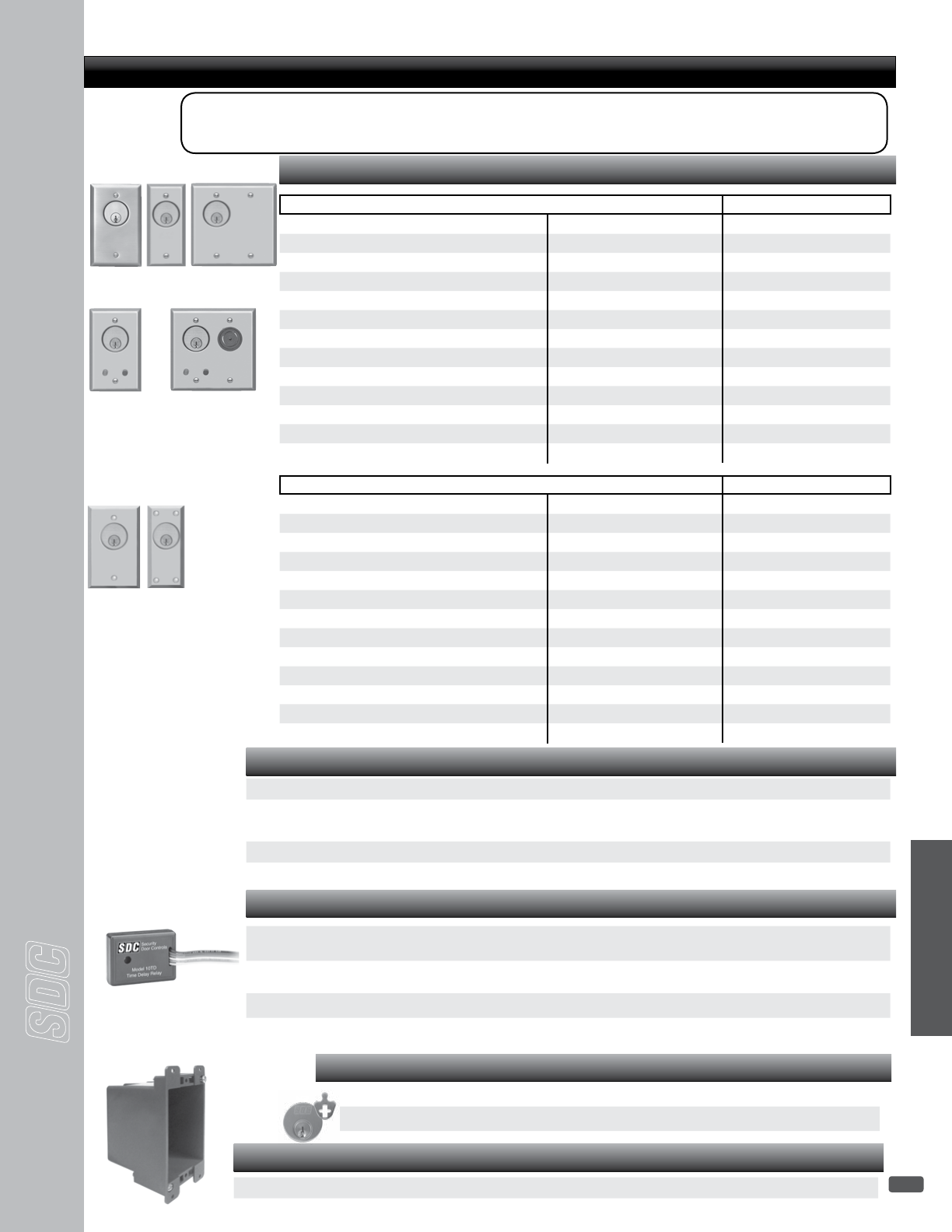

79 ...................................... 700 / 800 Series Key Switches
80 ............. MD-31 Series Passive Infrared Egress Control
80 ..................................................10TD Time Delay Relay
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
3
Table of Contents
Over 200 Access
Hardware products
available for next business
day shipping.
East & West coast warehouses
reduced time-in-transit
• SDC - Camarillo, CA
• SDC - Baltimore, MD
A
B
Dealers & Installers:
Contact SDC to nd out
rst hand which products
your SDC distributor can
expedite.
Some products in this price book are protected by one
or more of the following U.S. Patents. Foreign Patents
are not shown: 4,021,065; 4,099,752; 4,596,411;
4,609,910; 4,623,178; 4,623,181; 4,634,155; 4,641,867;
4,826,223; 4,986,581; 5,000,497; 5,006,723; 5,033,779;
5,141,271; 5,376,910; 5,429,399; 5,525,880; 5,564,228;
5,876,073; 6,363,363; 6,363,763; 7,540,542; 7,614,669;
7,698,918
aDa coMpLiant
81 .......................................................Auto EntryControl™

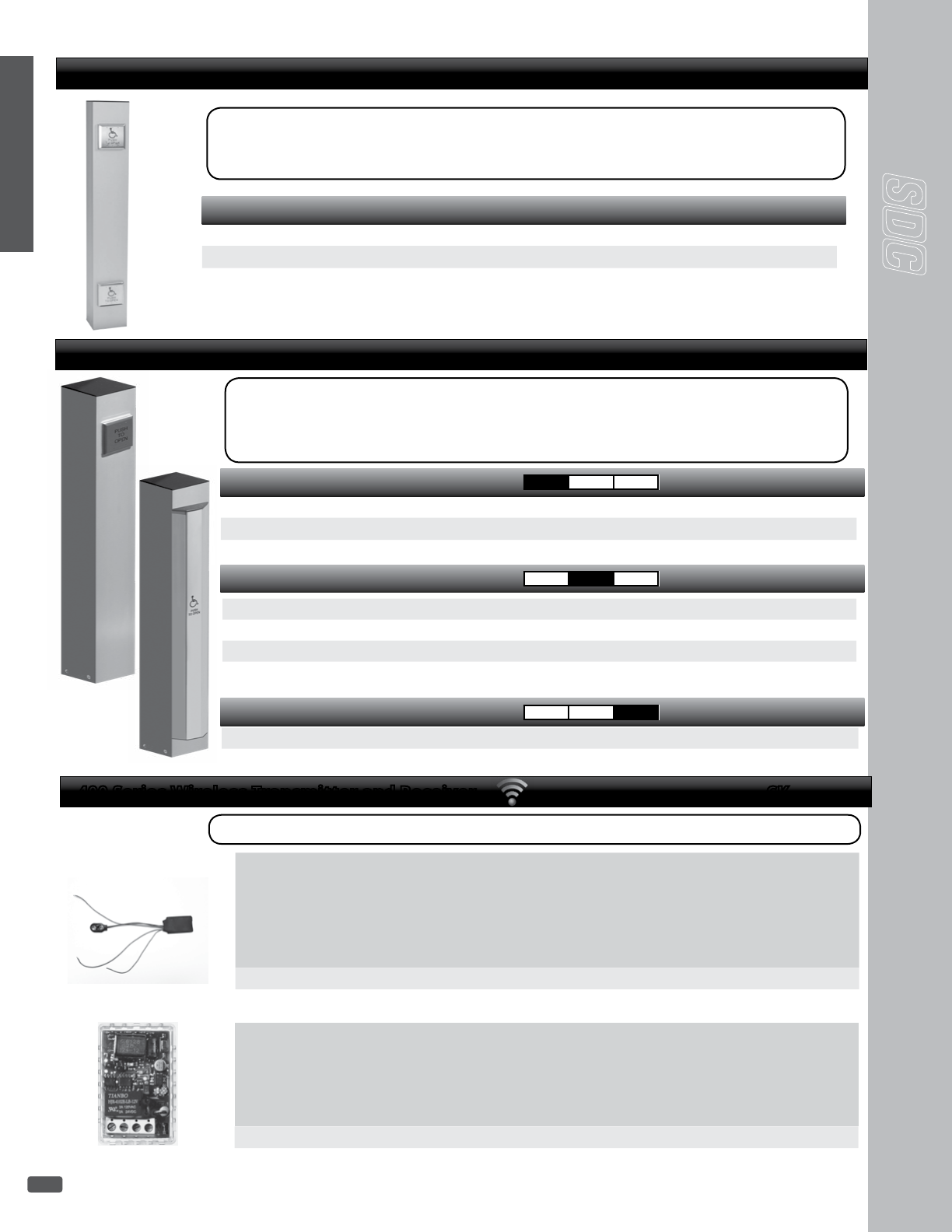

82 ................... Dual Switch Bollard Post - CBC compliant
82 ................................................................... Bollard Post
82 .............. 400 Series Wireless Transmitter and Receiver

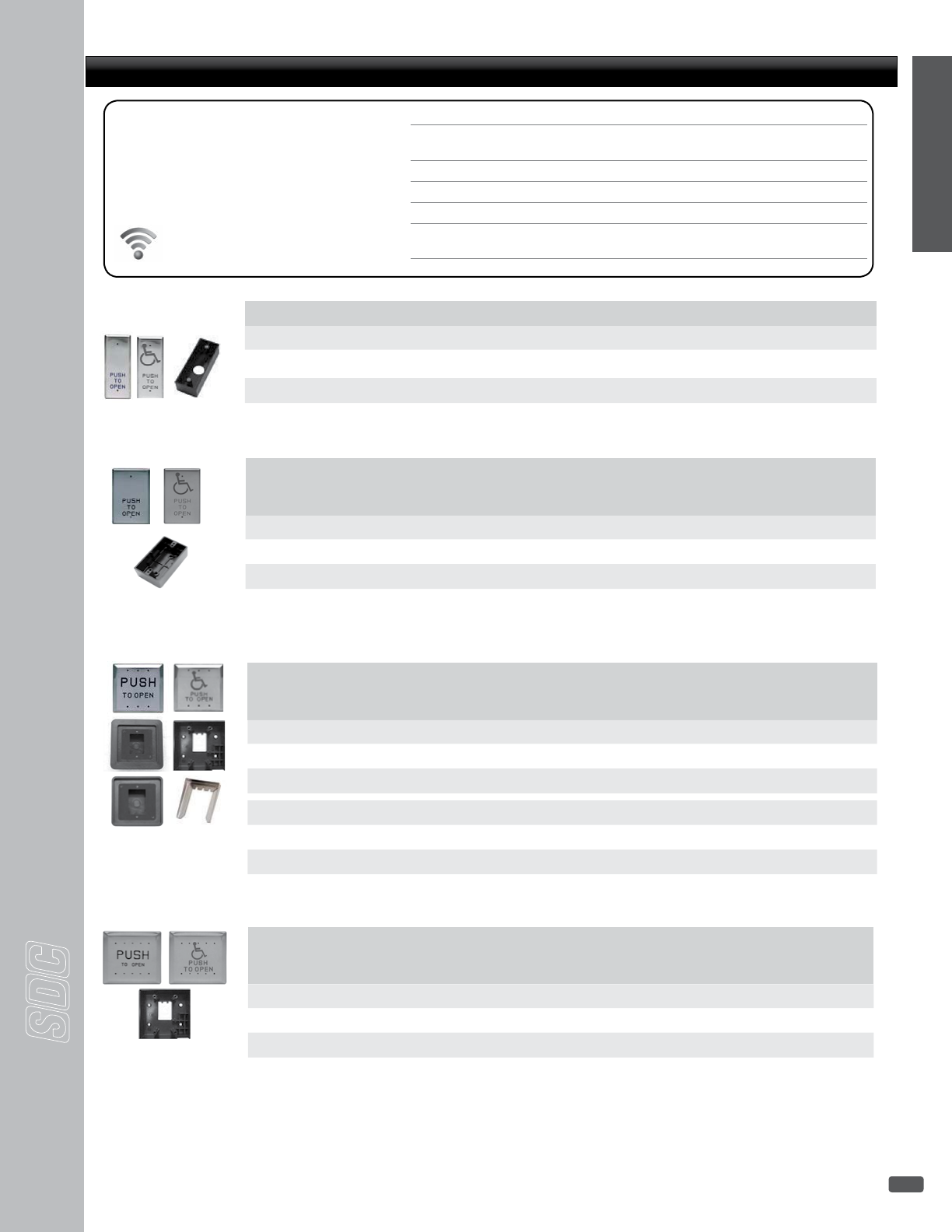

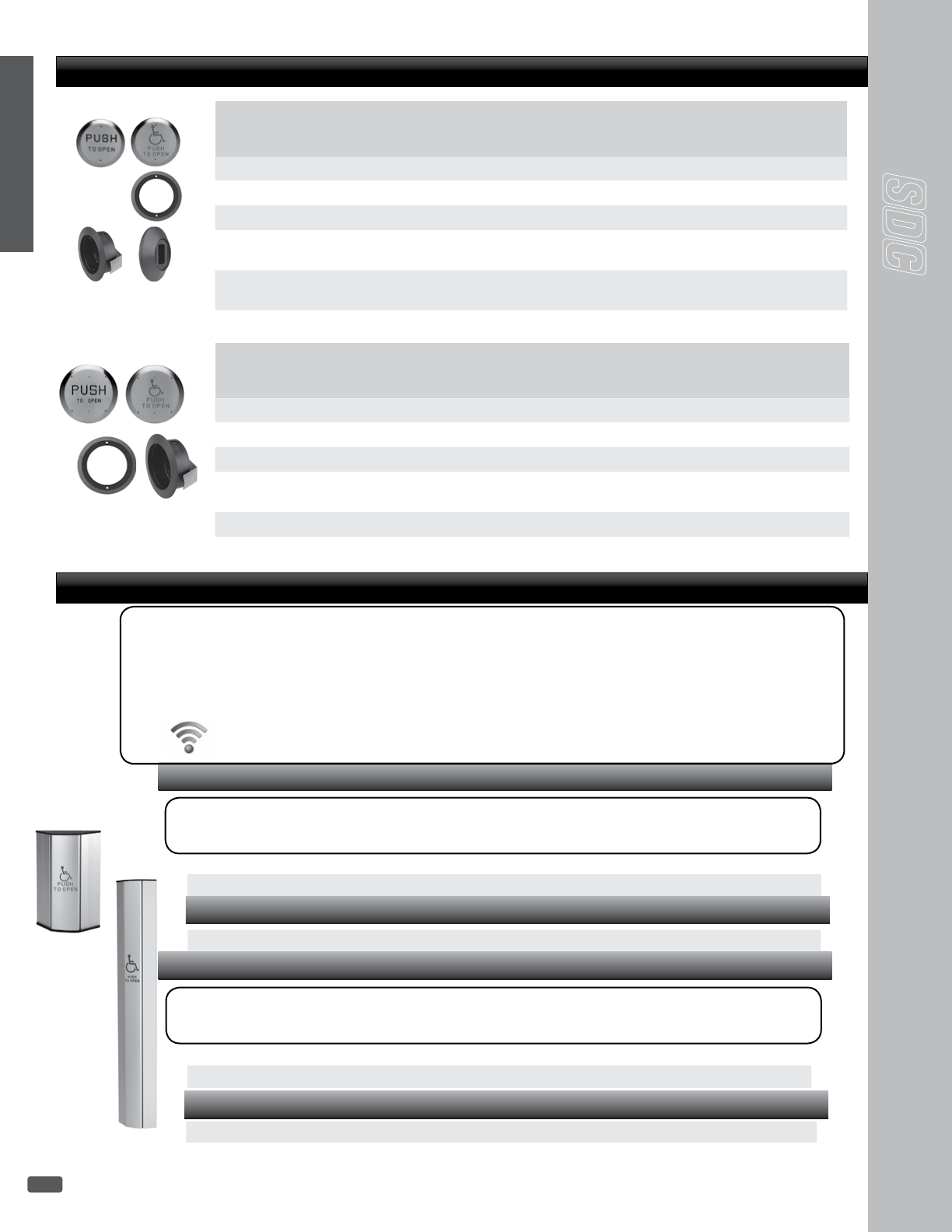

83 .................................... 480 Series Push Plate Switches

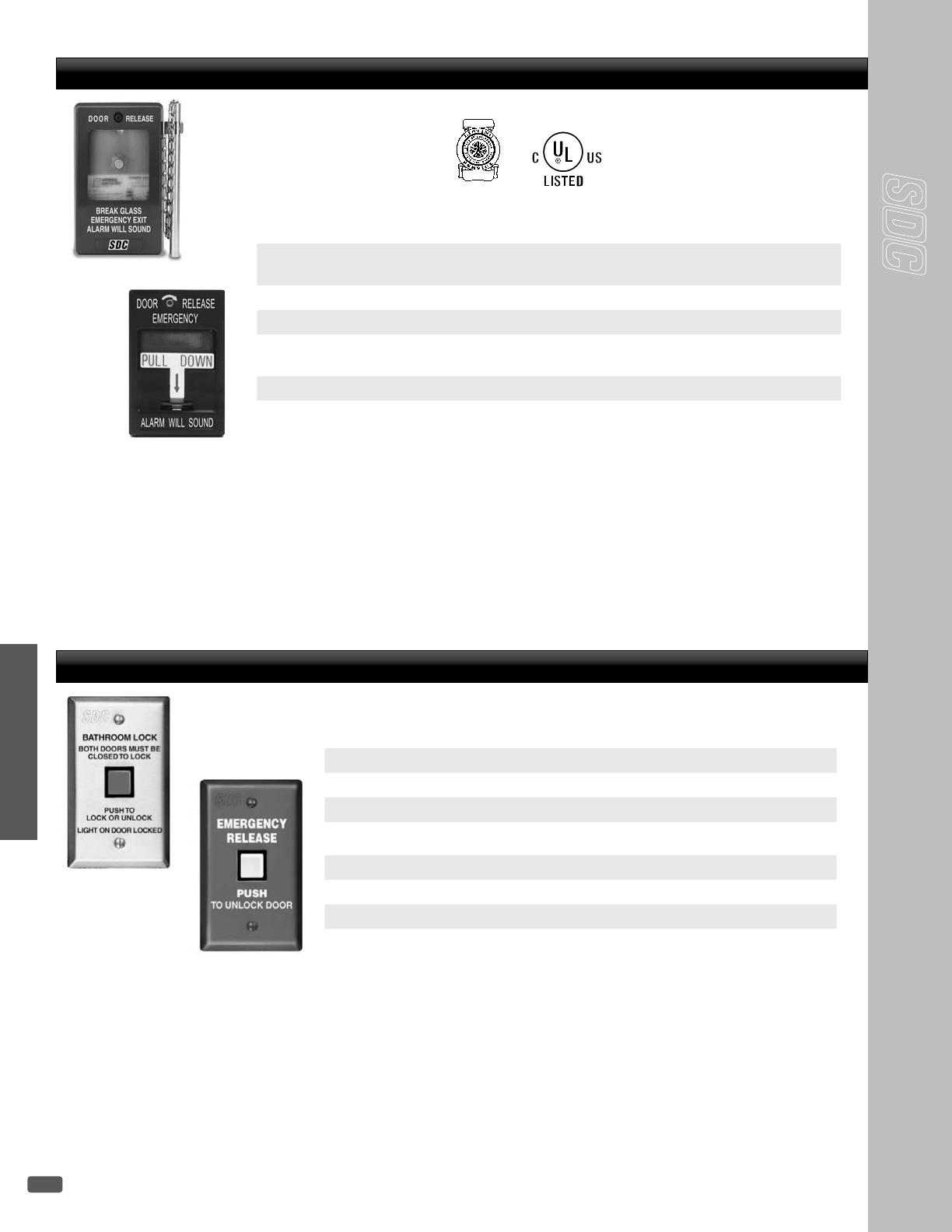

86 .............................. 491 / 492 Emergency Door Release
86 .... CB400 / CB700
Series Communicating Bathroom Controls
87
.....................................CBP- Communicating Bathroom Package
power transfer Devices

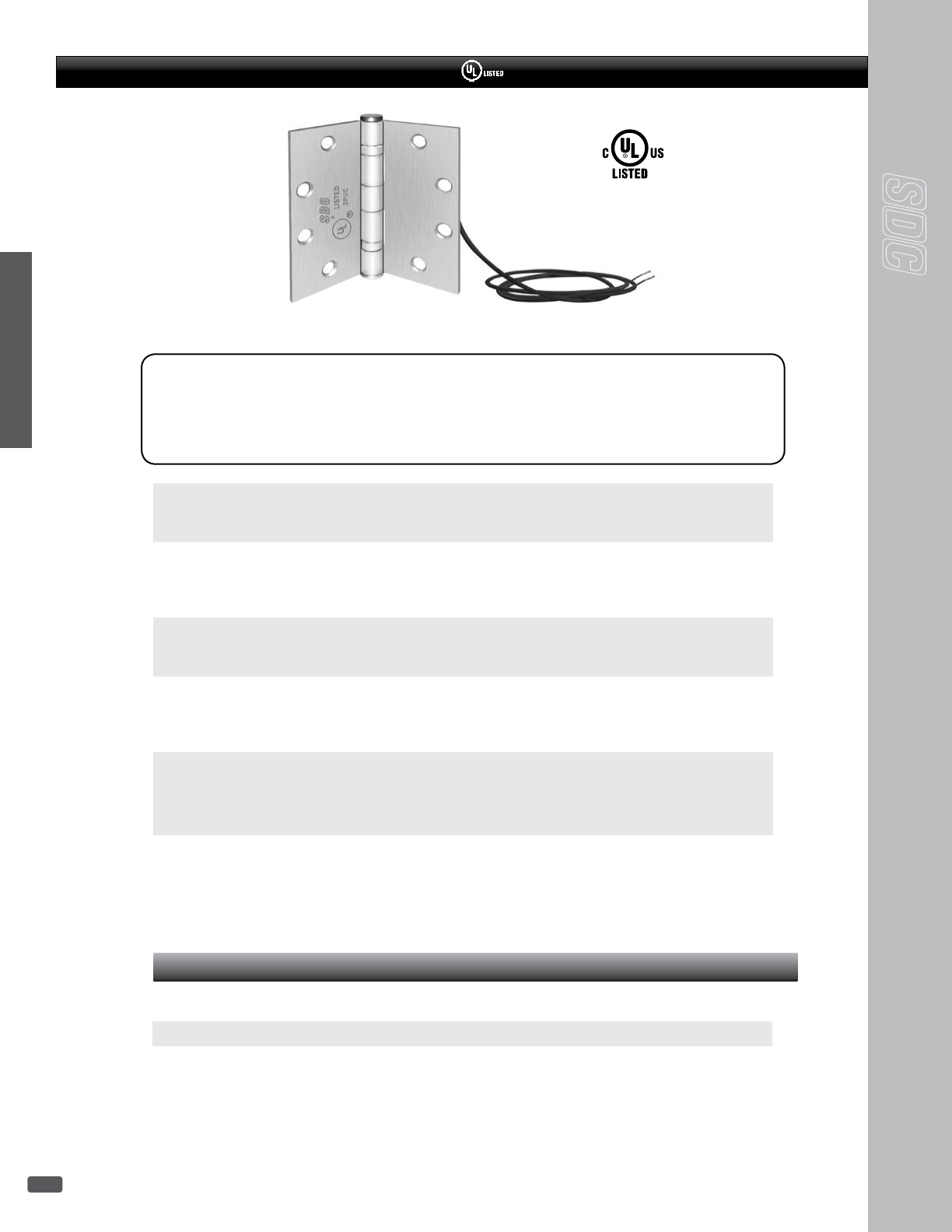

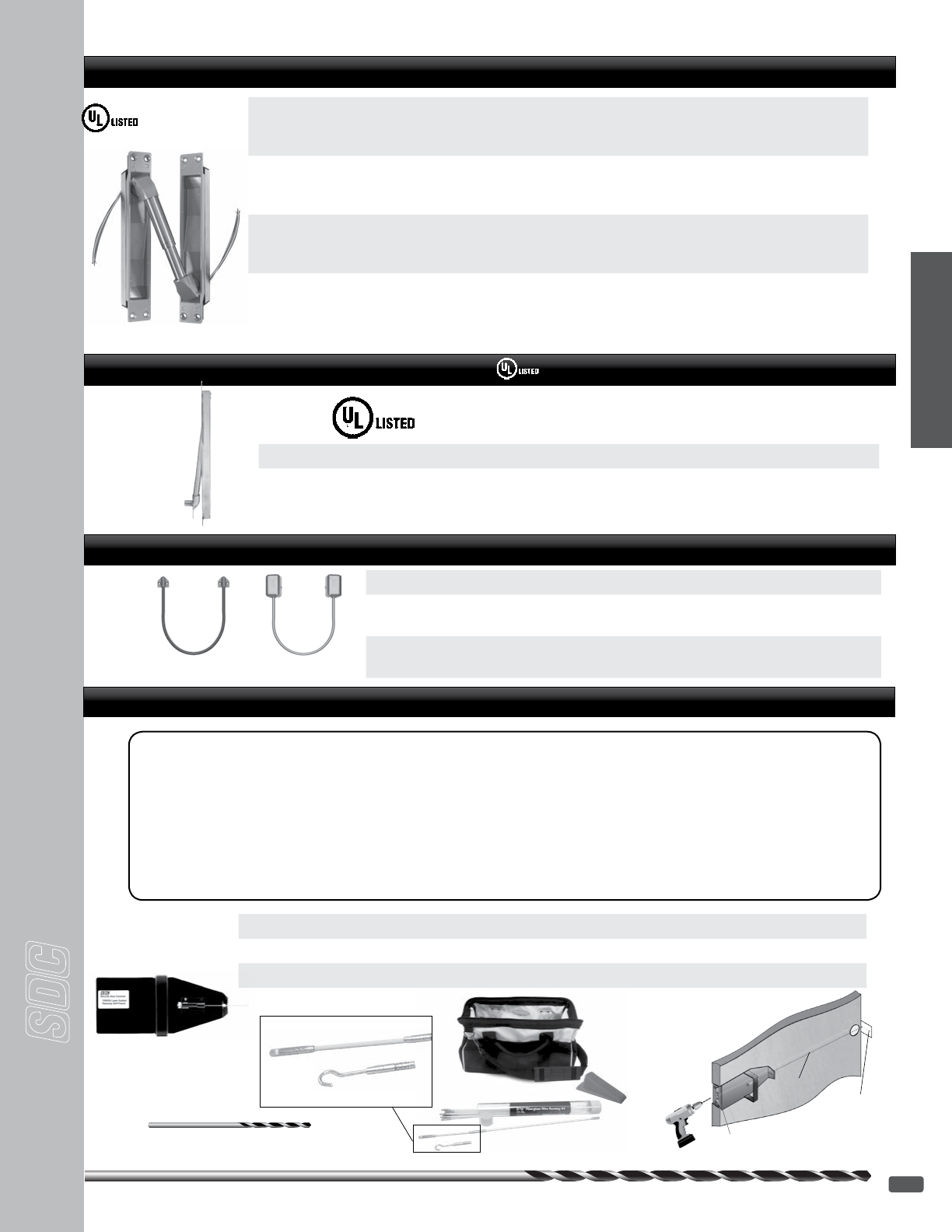

88 ............................................ PTH Power Transfer Hinge
89 ............................ PTM / PT-5 Power Transfer Devices
89 ................................PT-2 / PT-3 Power Transfer Loops
power suppLy & Door controLers

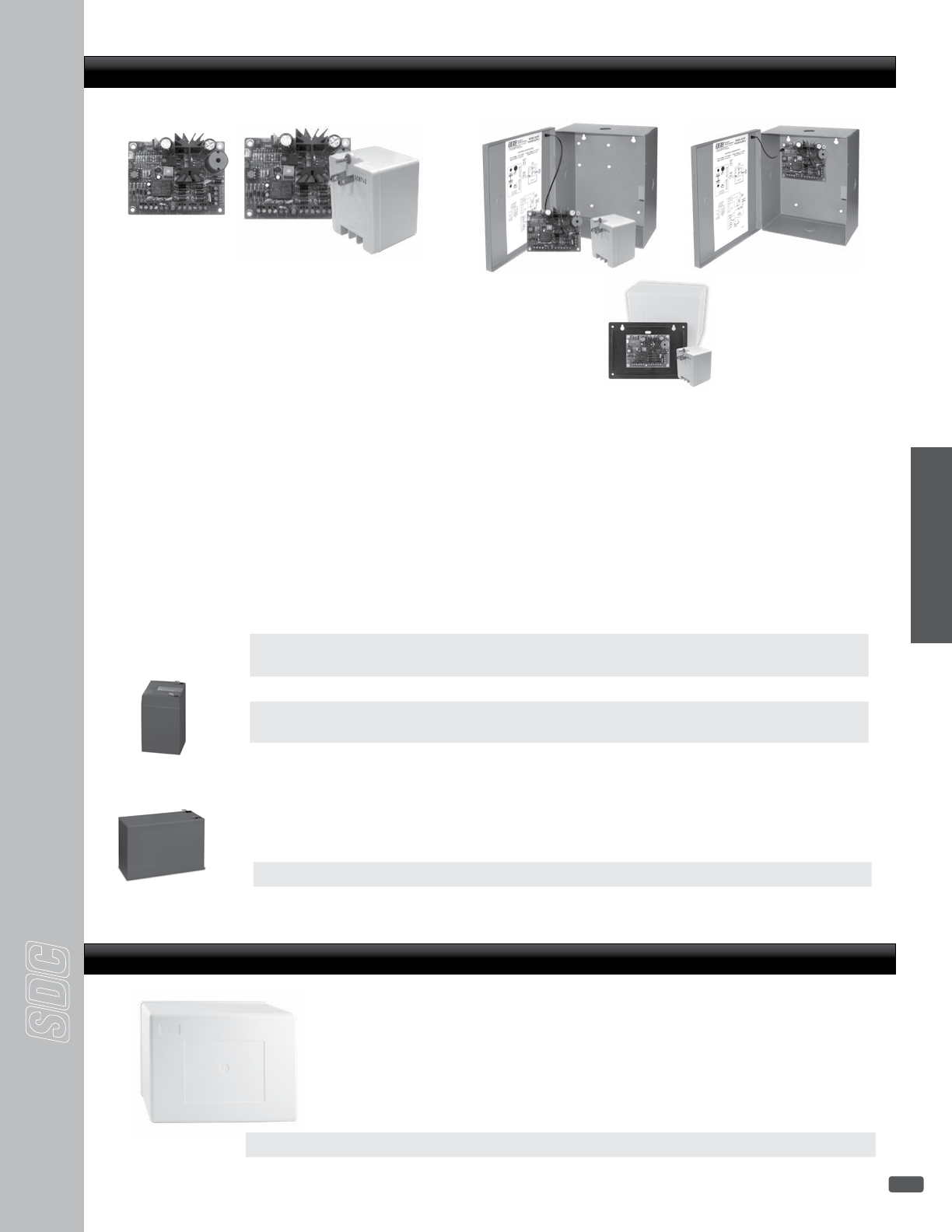

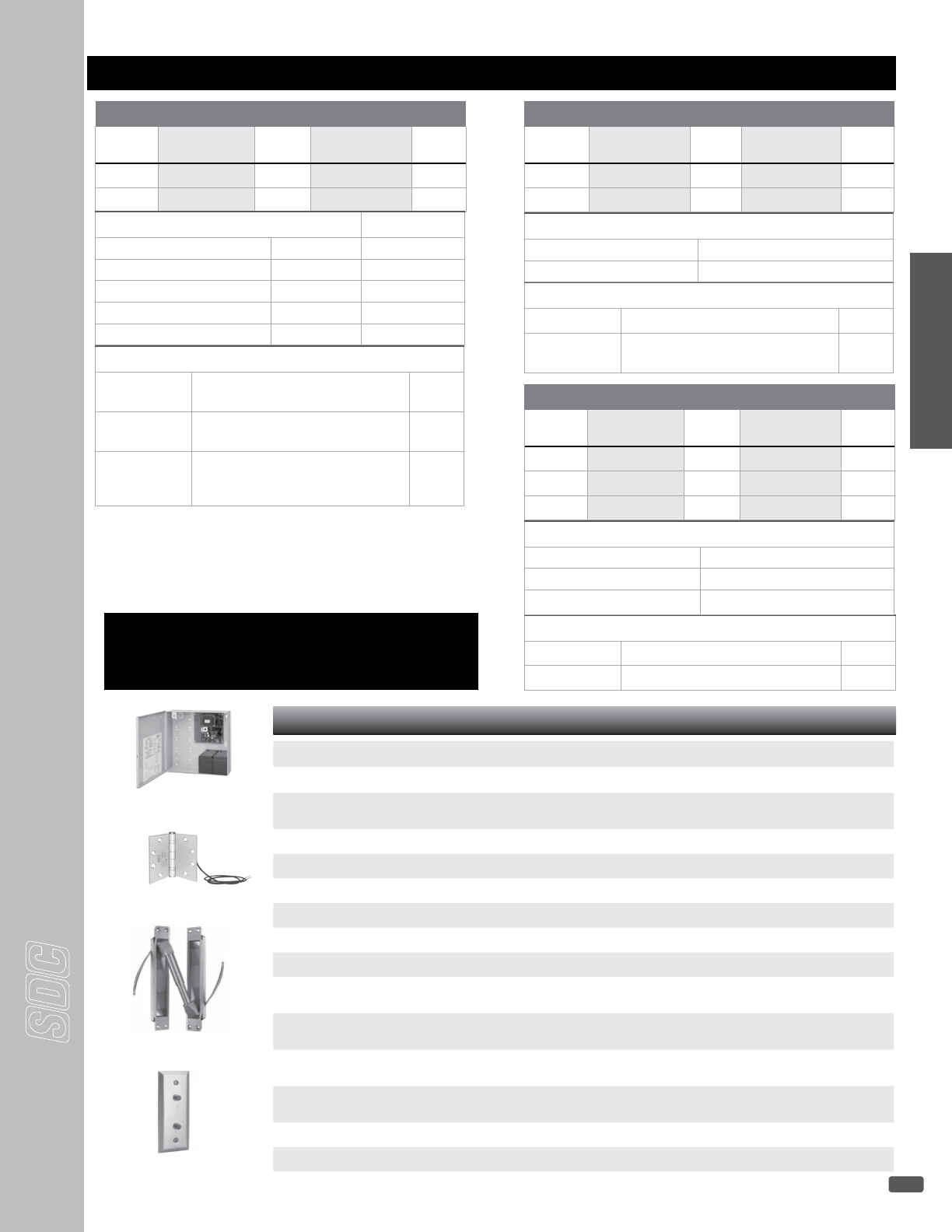

90 .................602 / 631 / 632 / 634 / 636 Power Supplies/
........................................... Controllers & Battery Standby
91 ............................. 621 Access Control Power Supplies
91 ................................. UME Universal Module Enclosure
92 ........UR-1 / UR2-4 / UR4-8 Universal Control Modules
92 ............. FB-4 / ACM / CR4 / PB Door Control Modules
92 ...........................................PSM / EMC Output Module
93 ................. TR12 / TR24 DC Regulated Power Supplies

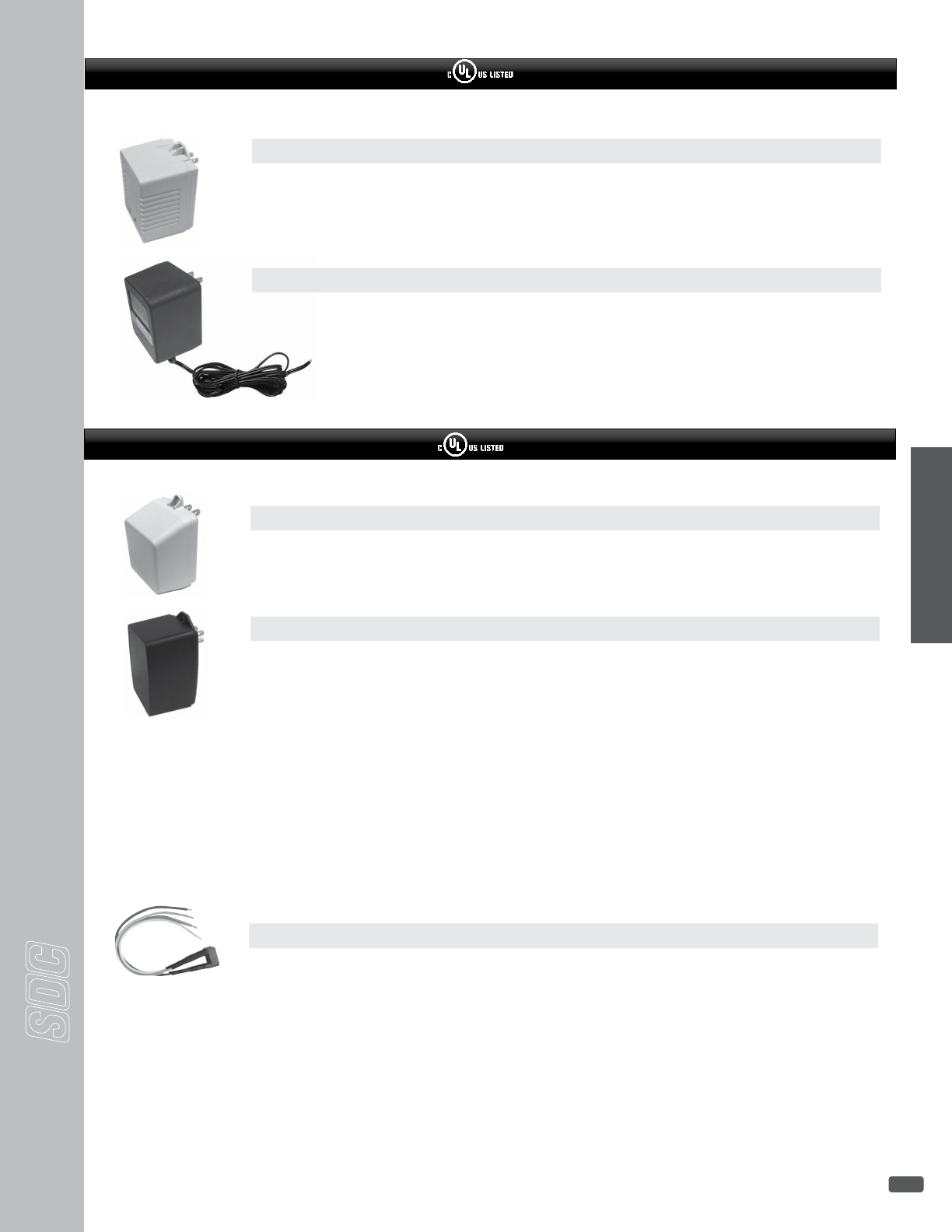

93 .....................................TP1220 / TP2440 Transformers
94 ........................................Power Supply Capacity Chart

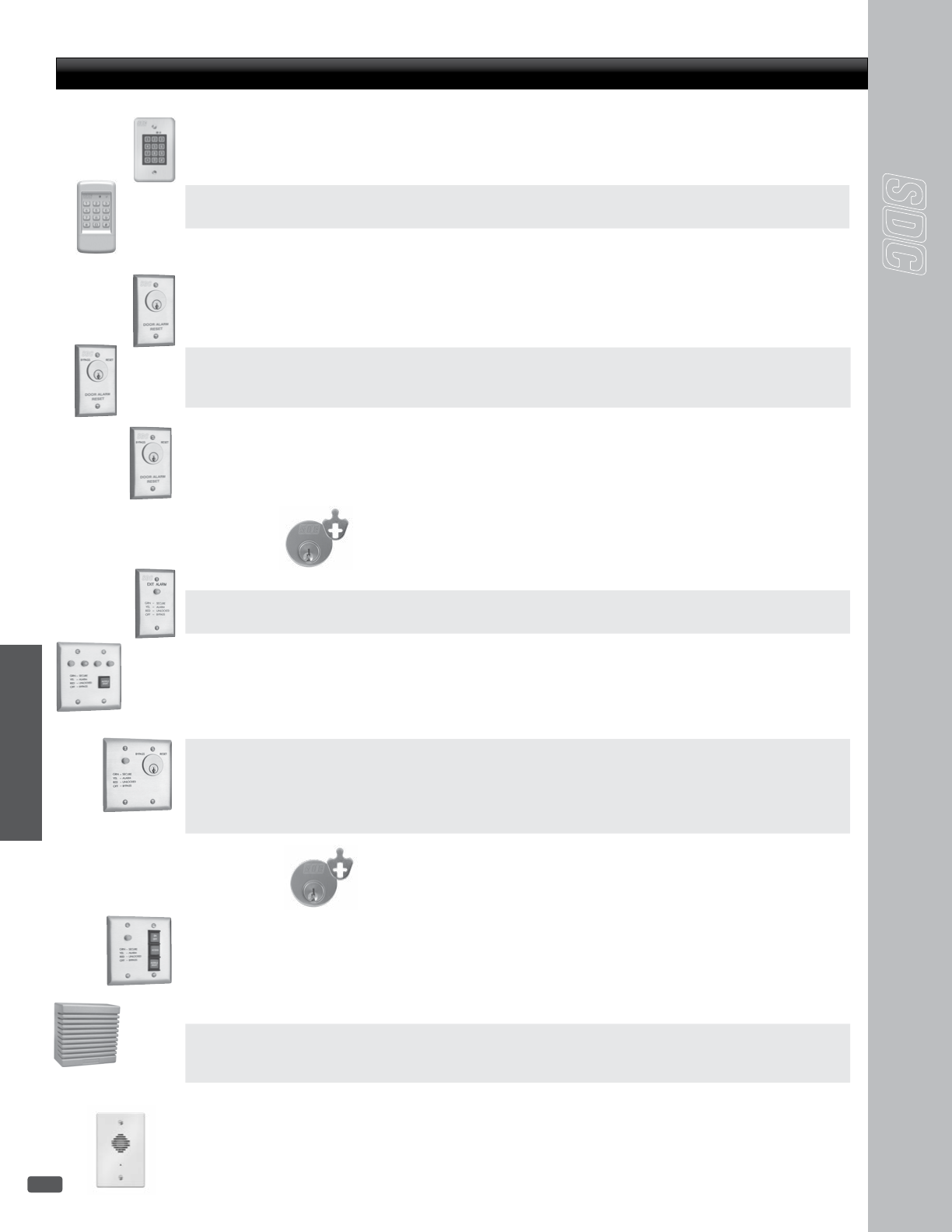

reMote controLs

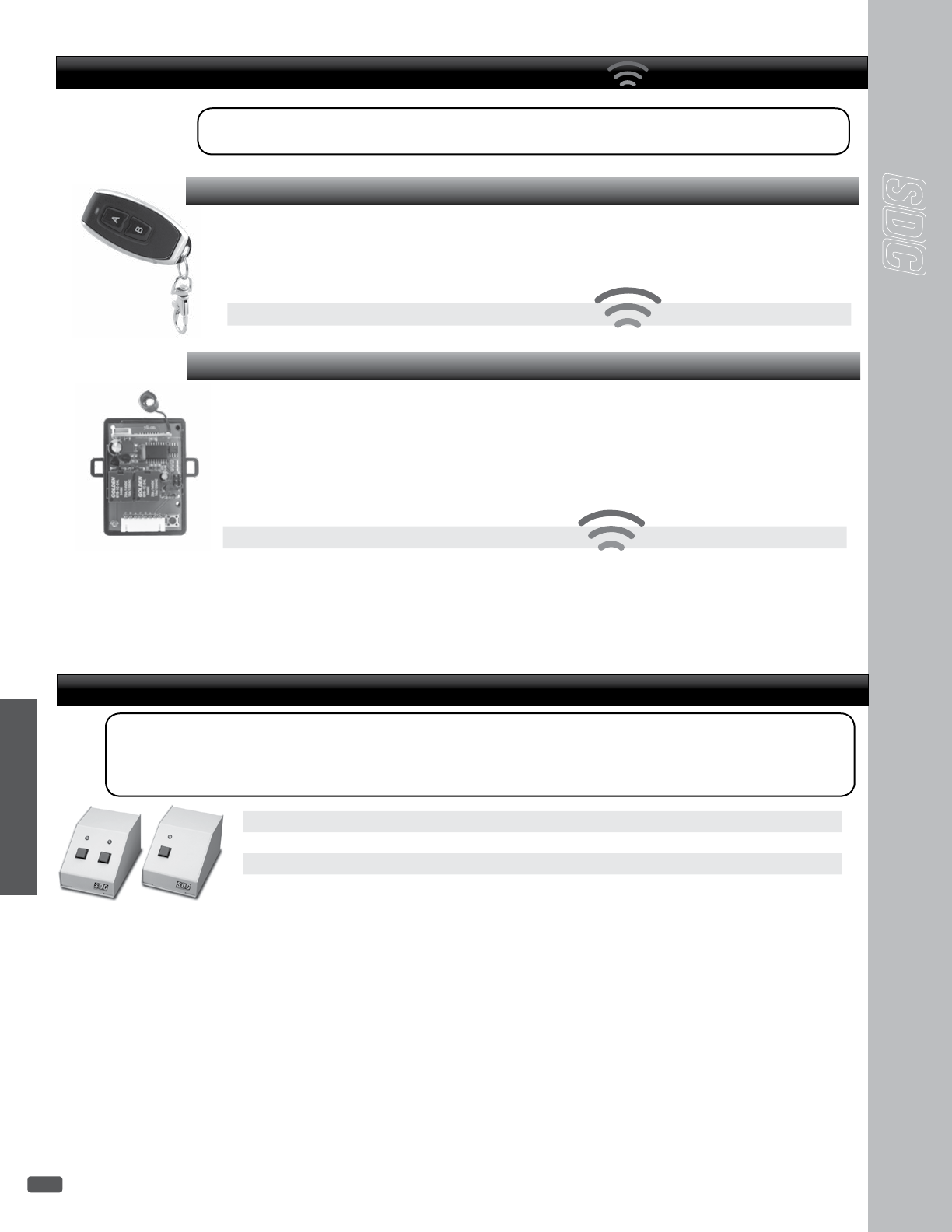

96 .............WRC SeriesWireless Transmitter and Receiver
96 .....................................................DTMO Mini Consoles
97 ..........................TCC / RCC Modular Control Consoles
97 ............................15 Series Desk Switch Compact Box

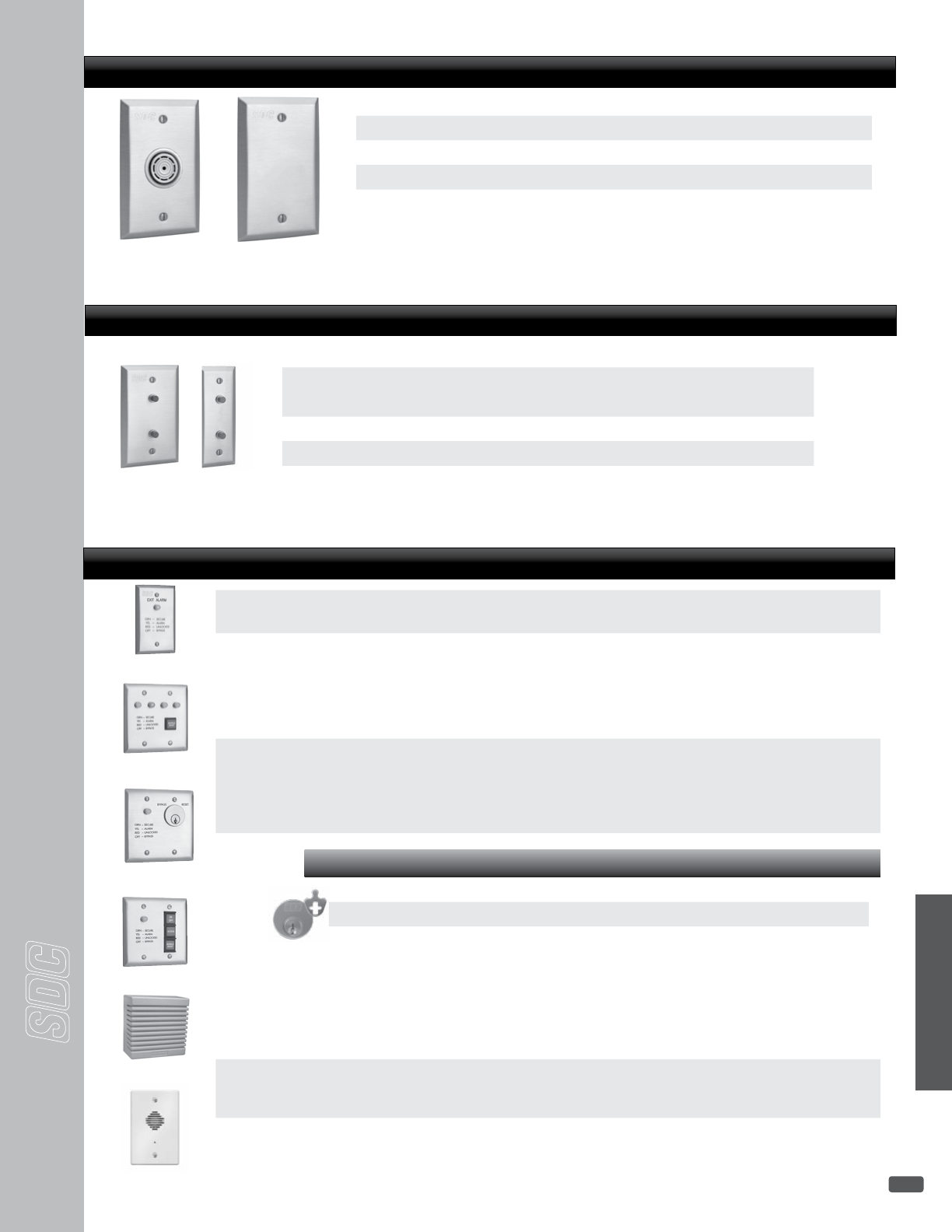

annunciators
98 ............................................EA Series Door Prop Alarm
98 ............................................... EA100 Exit Annunciators
99 ..................................... 400 Series Sirens and Buzzers
99 ....................................400 Series Wall Mount Indicator
99 ................................................101 Series Annunciators
accessories

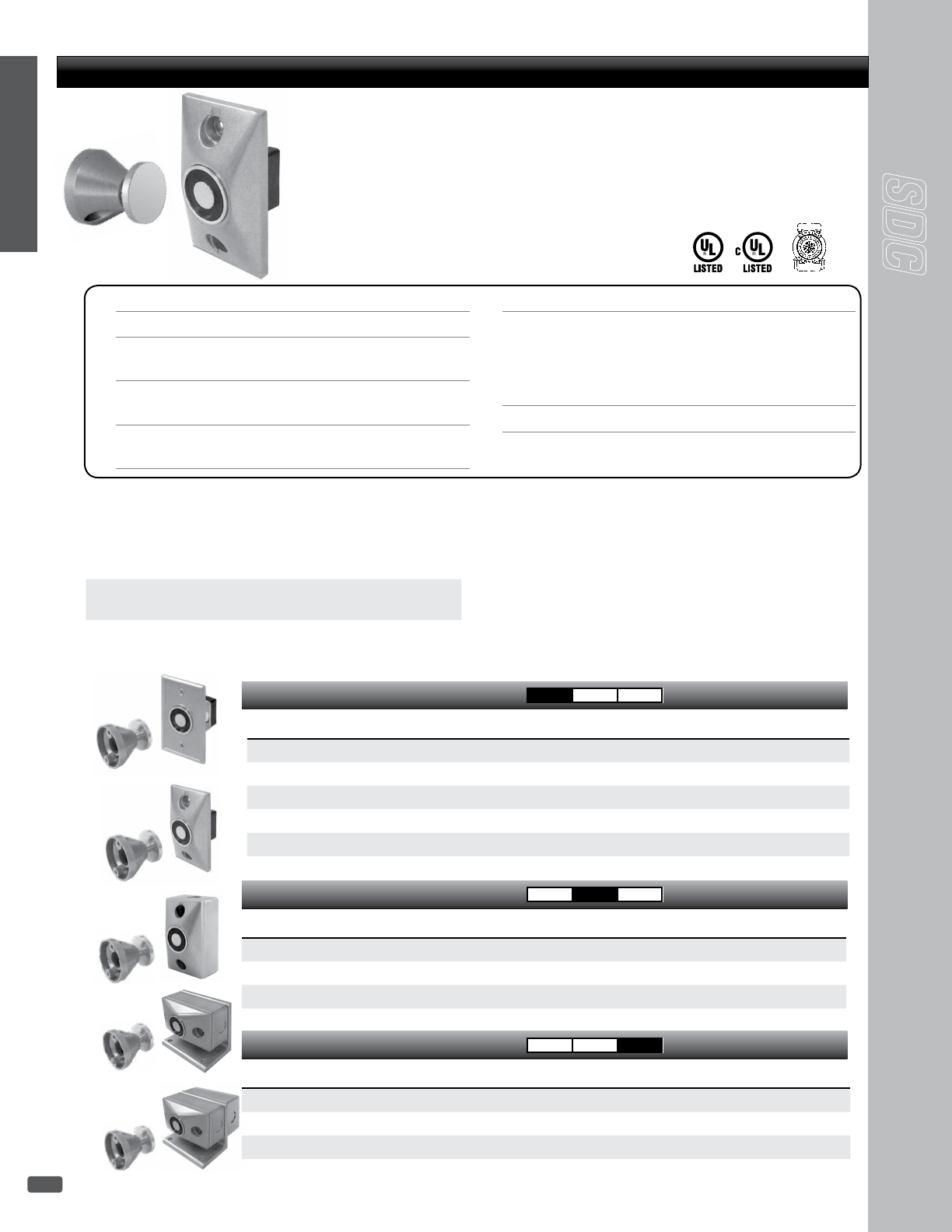

100 .......EH Series Magnetic Door Hold & Release Device

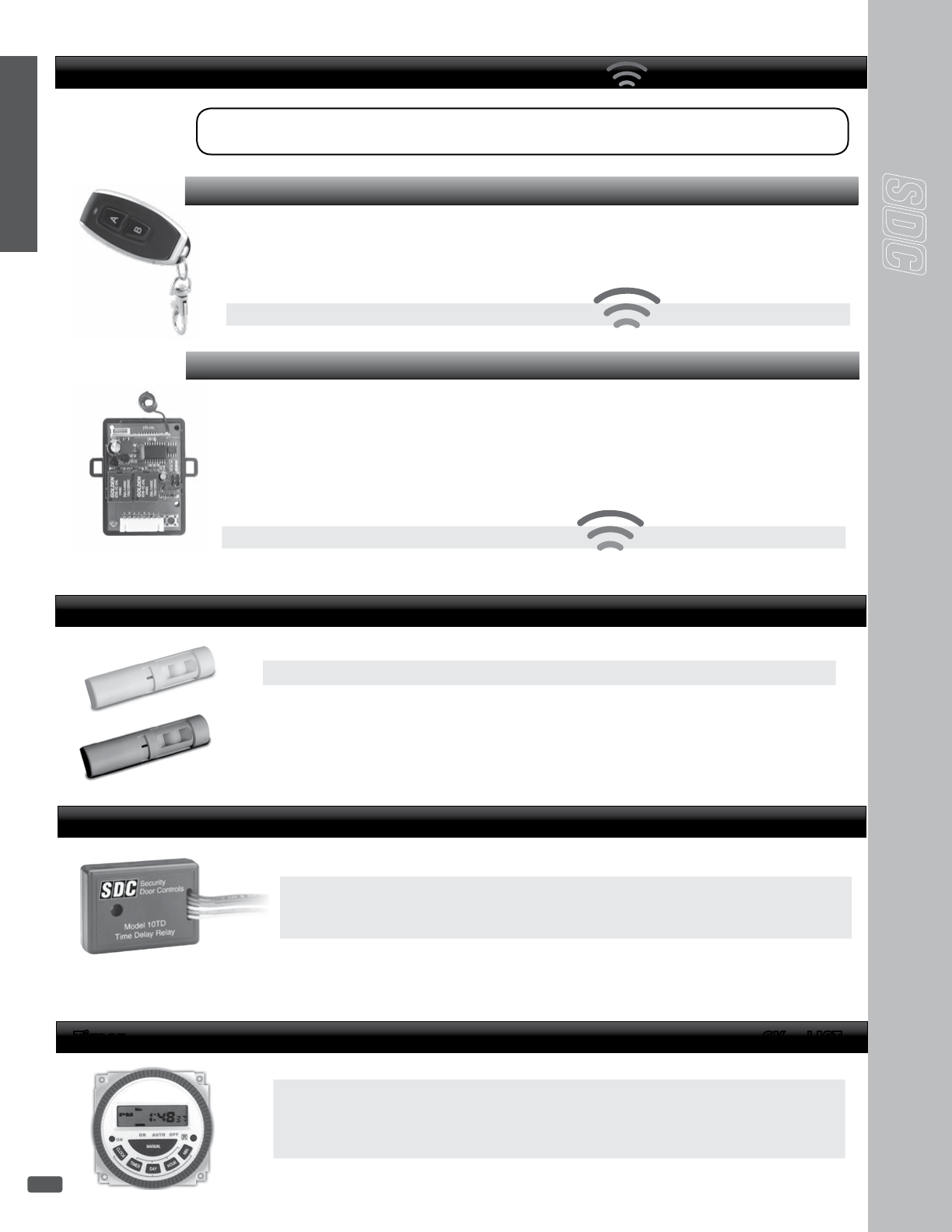

102 ..........WRC Series Wireless Transmitter and Receiver

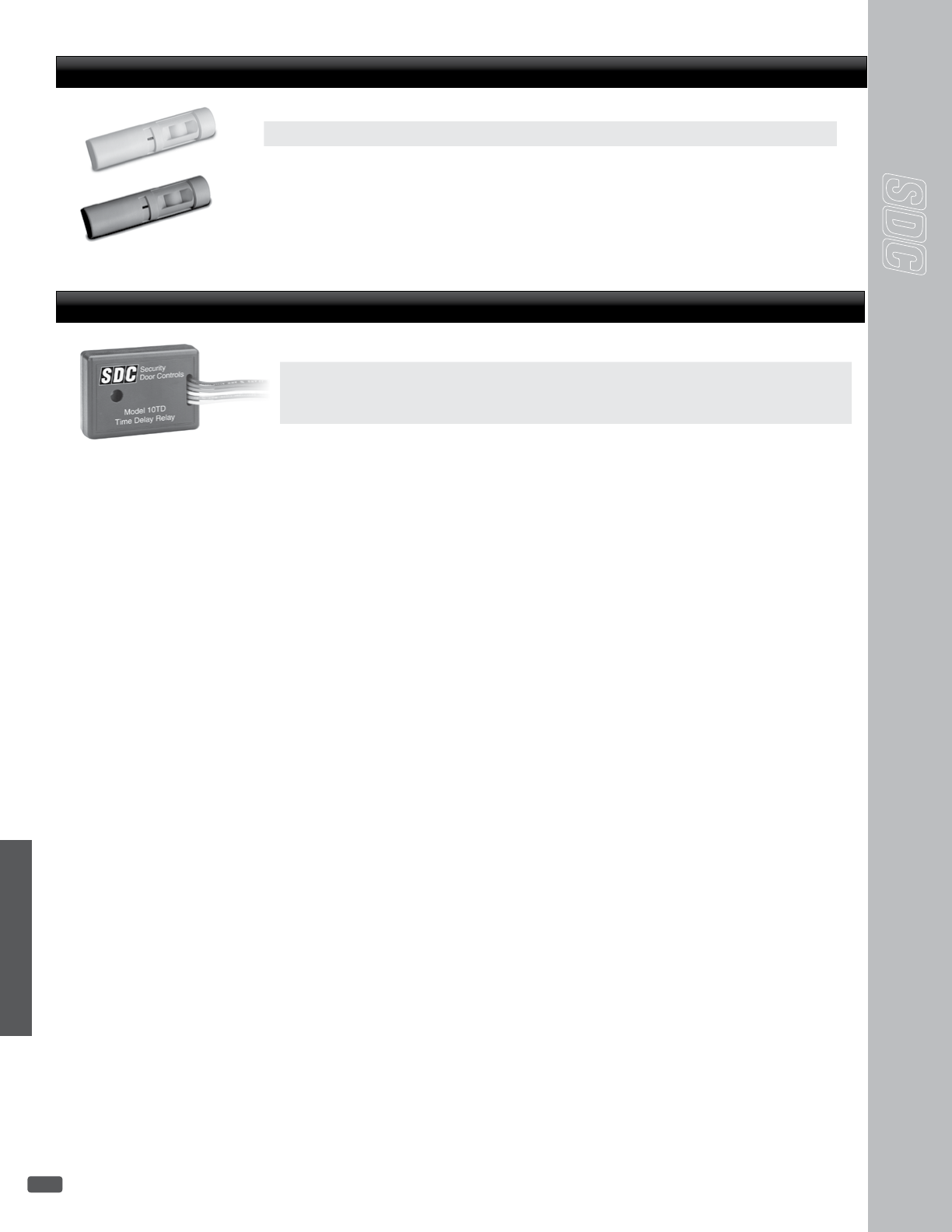

102 ...................... MD-31 Passive Infrared Egress Control
102 ................................................10TD Time Delay Relay
102 ....................................................................14-2 Timer
103 .................... DPS + MC Series Door Position Sensors
103 ............................... UME Universal Module Enclosure
103 ............................................ Emergency Access Panel

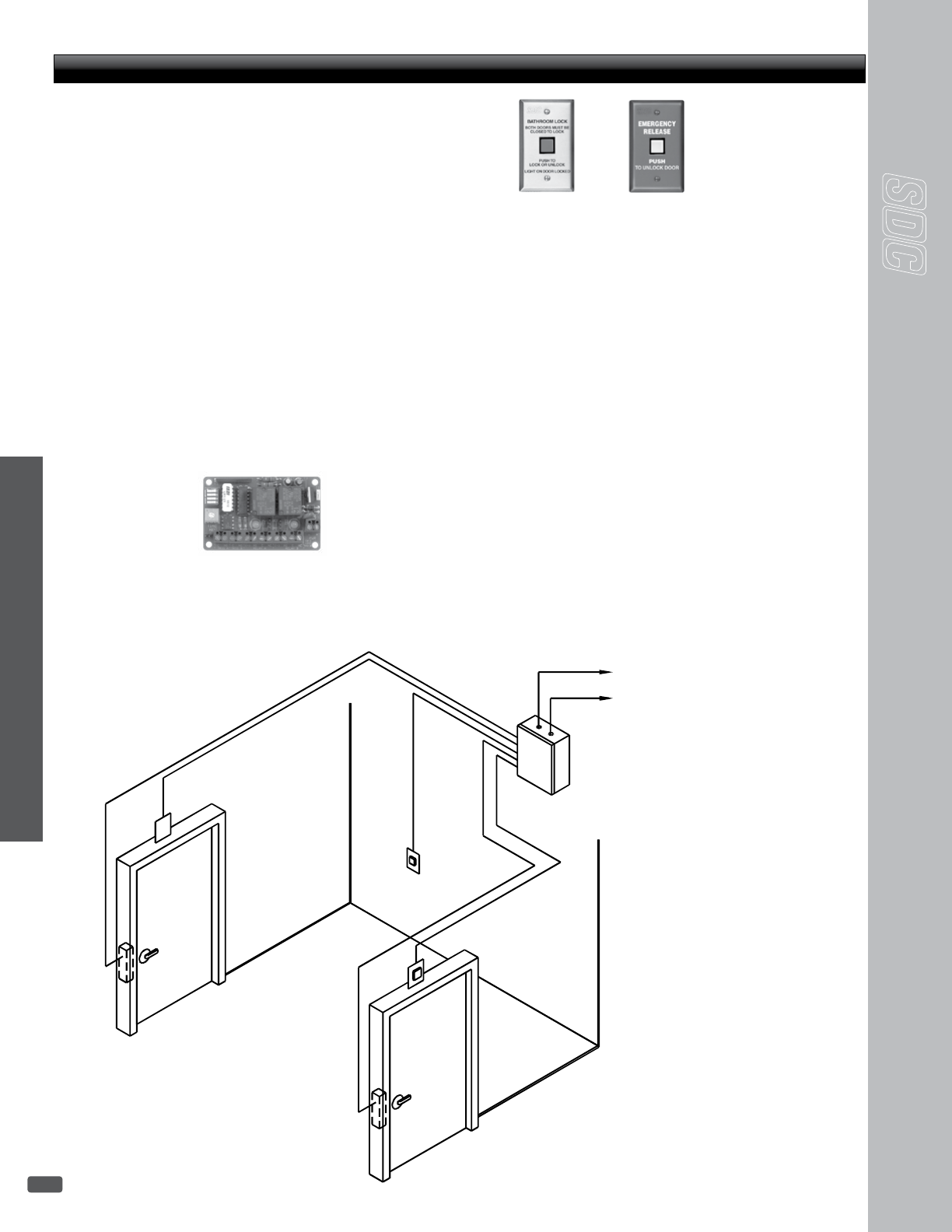

systeM Design soLutions

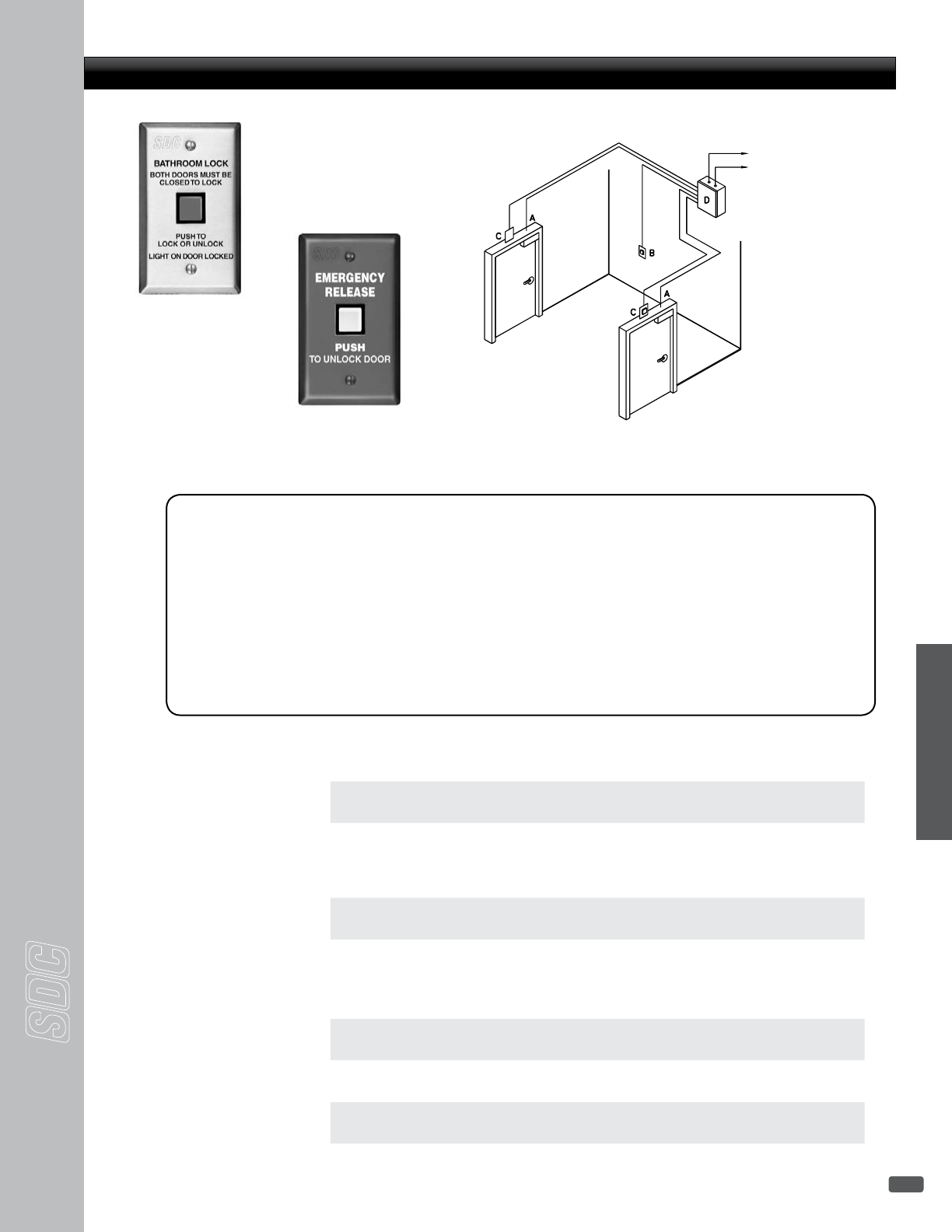

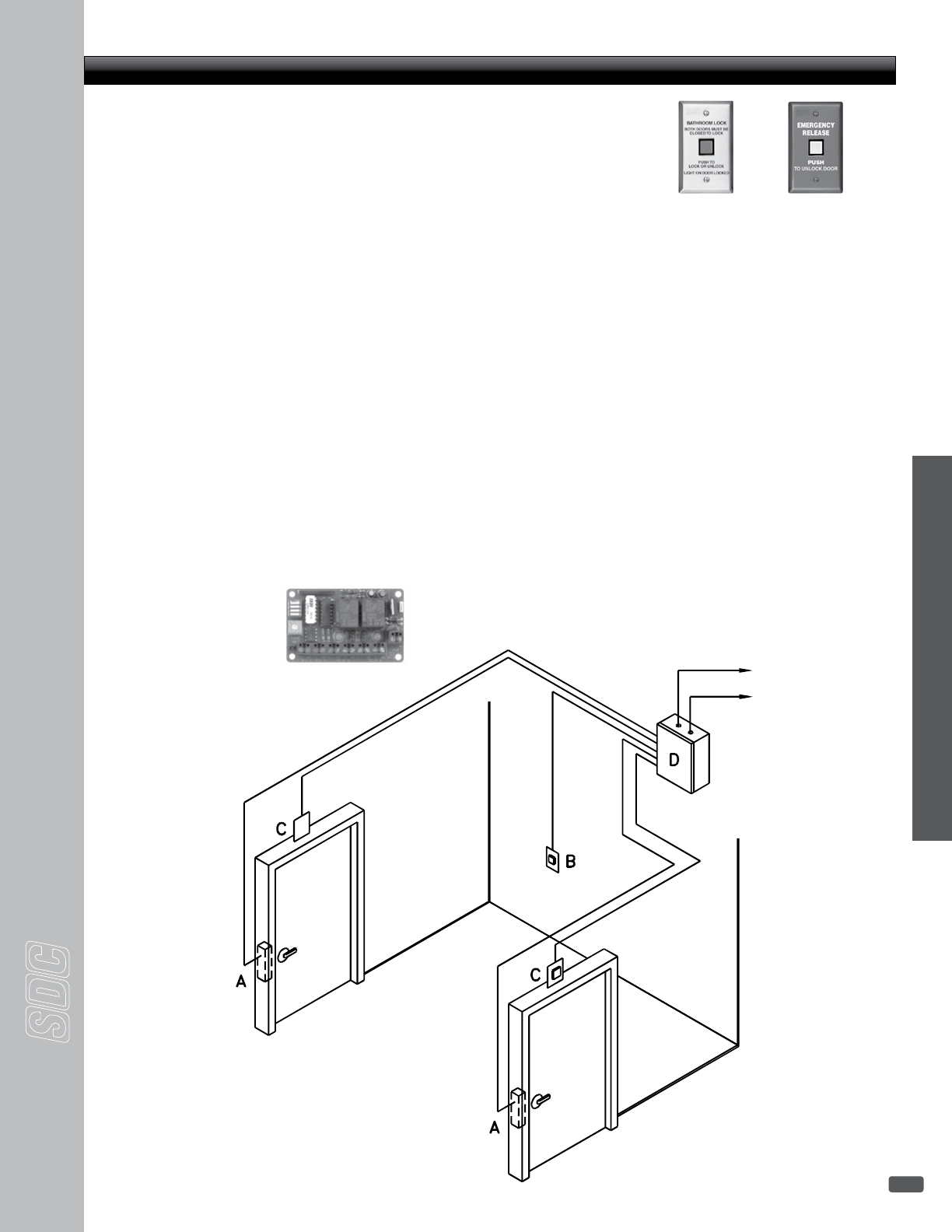

104 .......................Communicationg Bathroom EMLocks®
105 ... Communicationg Bathroom Selectric® or Electra®
106 ...
Communicationg Bathroom HiTower® or Electric Strike

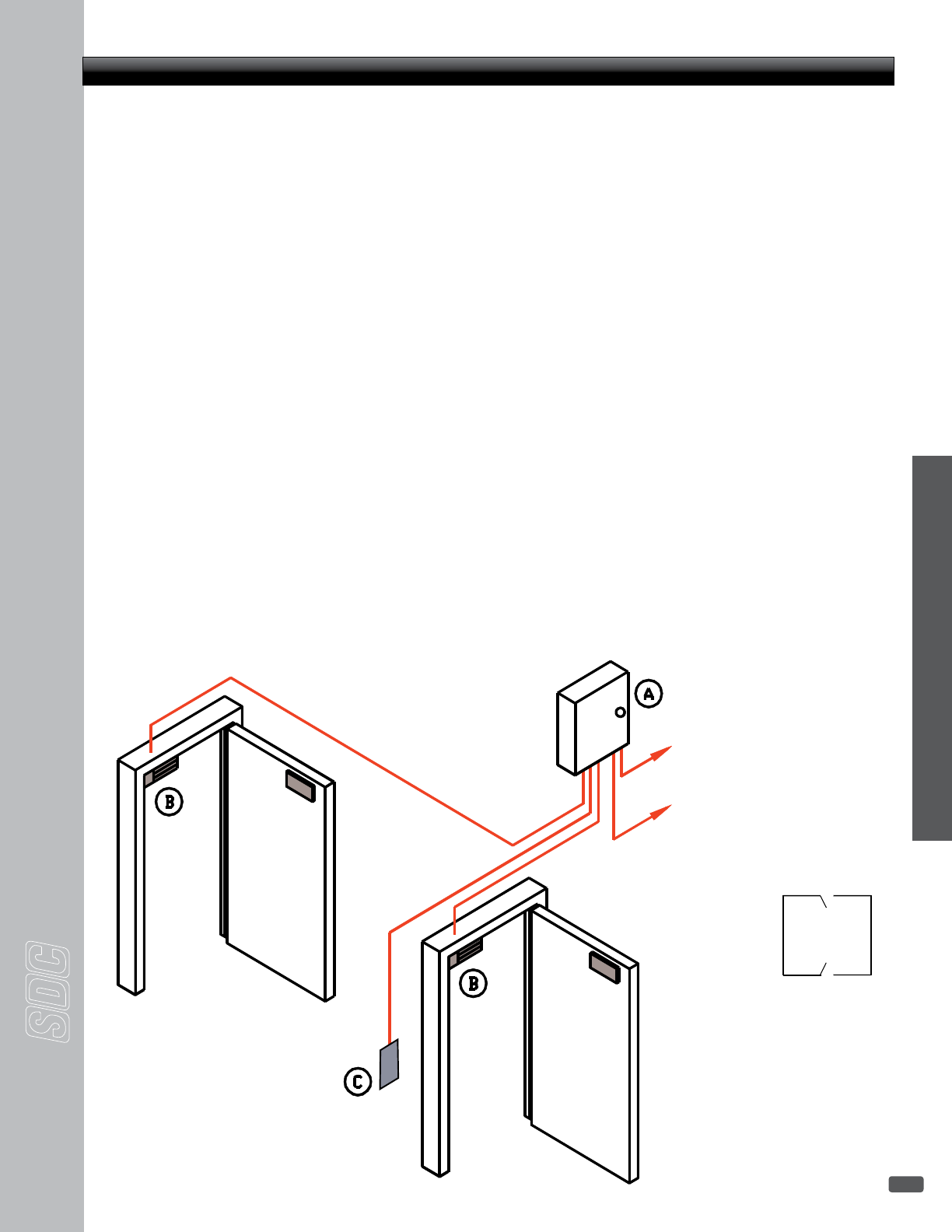

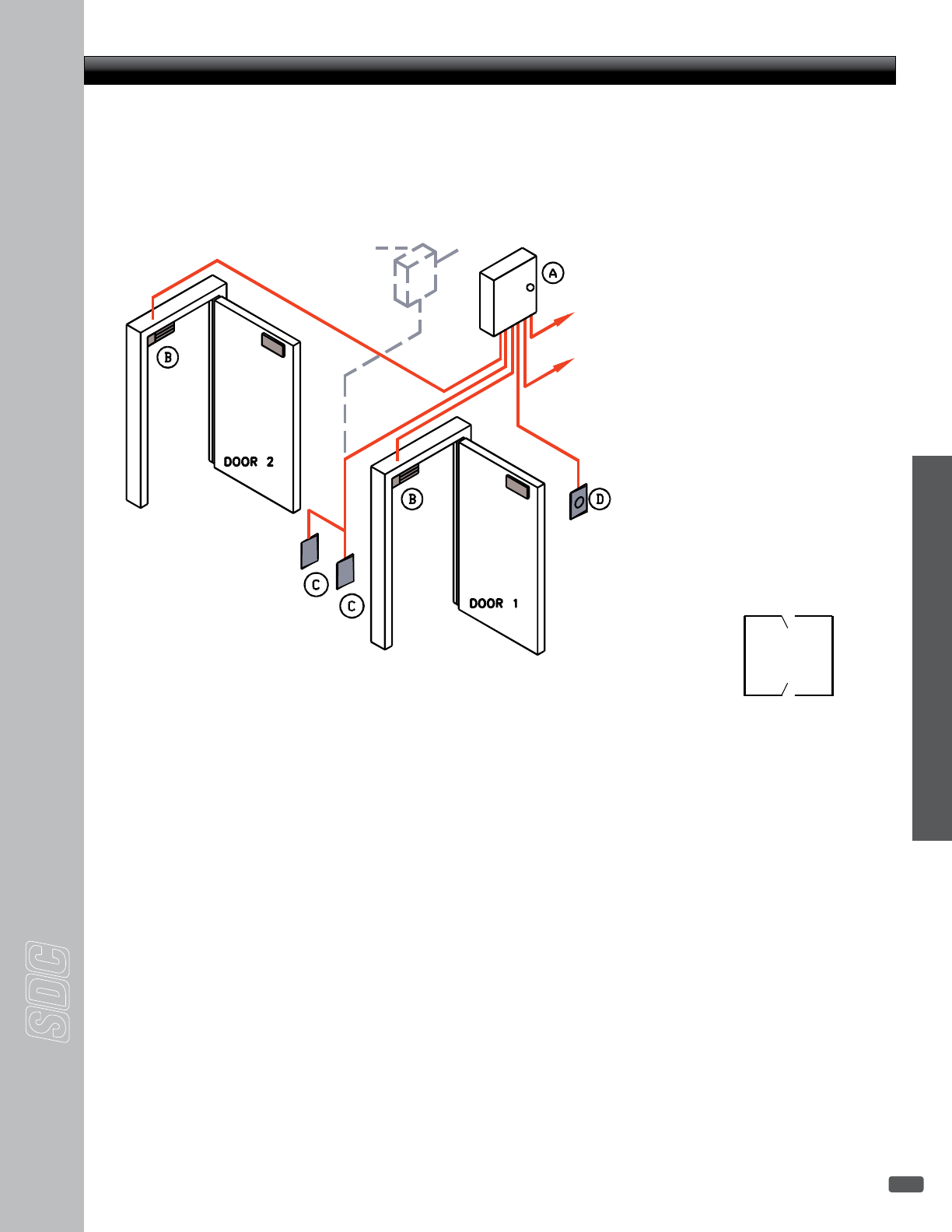

107 ......................................................2-Door Interlock ‘A’

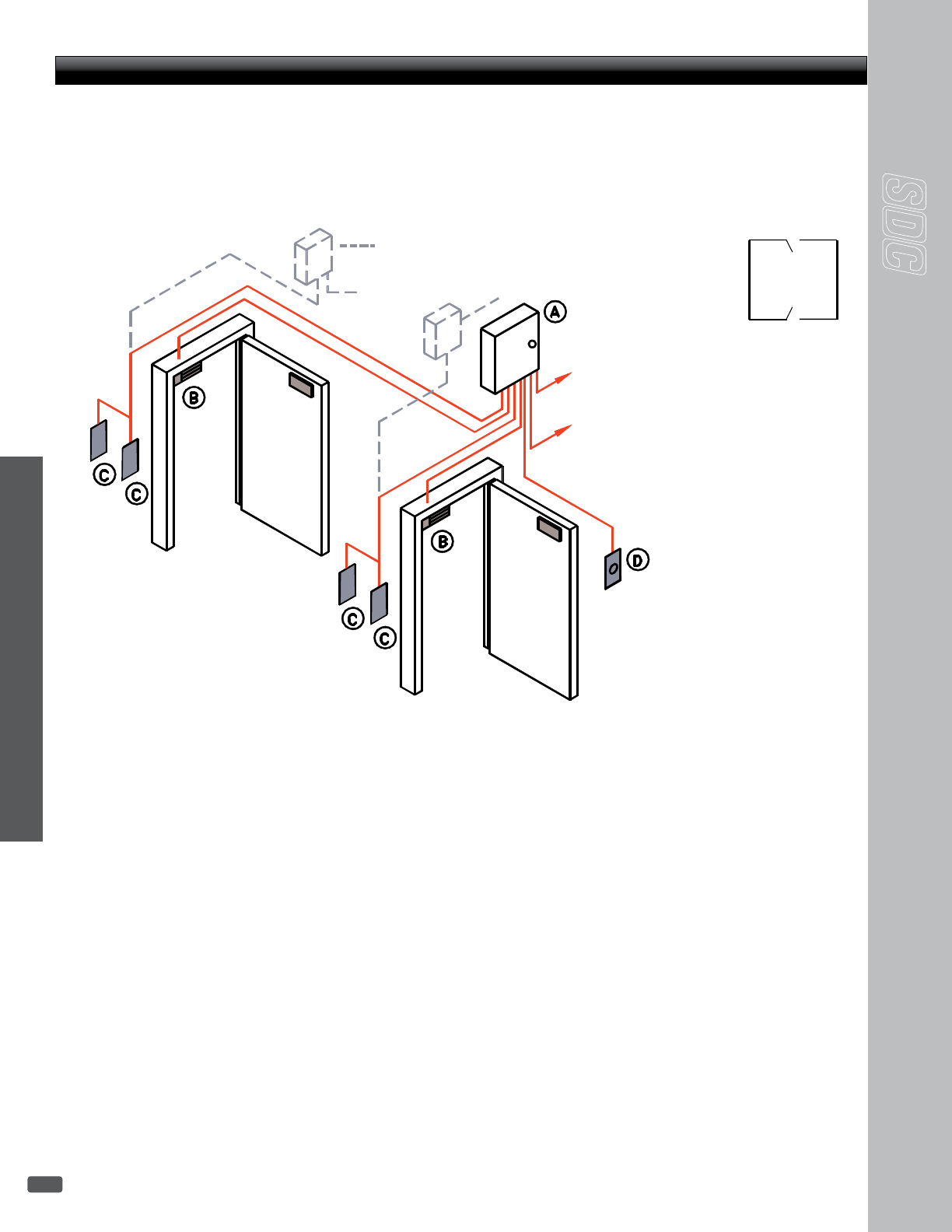

108 ......................................................2-Door Mantrap ‘B’
109 ..................................................... 2-Door Interlock ‘C’
110 ................................................Elevator Lobby System
111 ..................................................................Quick Index
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
4
Security Door Controls (SDC) warrants that all new products sold
by us are free from defects in material and workmanship and fit for
the purpose intended by SDC when properly installed in accordance
with the appropriate factory instructions and template for a period,
from the date of shipment as follows:
Lifetime: EMLock Series electromagnetic locks and Exit Check
Series Delayed Egress Electromagnetic Locks, excluding Exit Check
delayed egress PC board assemblies, purchased since January
1, 2006 are warranted for the life of the product. Excel Series
Electromagnetic Locks and 600 Series power supplies purchased
since January 1, 2012 are warranted for the life of the product.
5 Years: All other SDC products, including Exit Check electronic PC
Board Assemblies are warranted for 5 years
The extent of our liability for breach of warranty, when such is
shown to our satisfaction, shall be limited to a functionally equiva-
lent replacement, or repair of such product, or part thereof at SDC’s
sole discretion, when returned, delivery prepaid to SDC. We shall
not, except to the extent this limitation may be precluded by law, be
liable for inconvenience, labor costs, lost profit, damages to other
property, injury or any other consequential or punitive damages
resulting directly or indirectly from any product defect or breach of
this warranty.
This warranty is limited to the original purchaser, is not transferable
and shall not apply to changes of Oil Rubbed Bronze (613/US10B)
finish, which is a living finish designed to change appearance
through daily use, lamps, LED’s, maintenance, wear and tear caused
by normal use, altered product, abuse or negligence.
LIMITED WARRANTY
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS AND MERCHANTABILITY.
Warranty & Sales Policy
Mobile
Resource
20 Product
Categories
Video
Library
Document
Library
System
Library
Social
Links
Print &
Share
For Sales Calls, Onsite Installation,
Dealers, Speciers, & Engineers
Access Control Equipment
Electric & Mechanical Locking Devices
Video Demos for Sales, Installations,
Product & System Application
PDF Datasheets, 3-Part Specs,
Instructions, Templates & Cad
Cross Brand Compatible Riser &
Point-To-Point System Wiring
Latest News thru LinkedIn,
Facebook, Twitter & YouTube
Print via WiFi or Bluetooth,
Share Media Via Text or Email

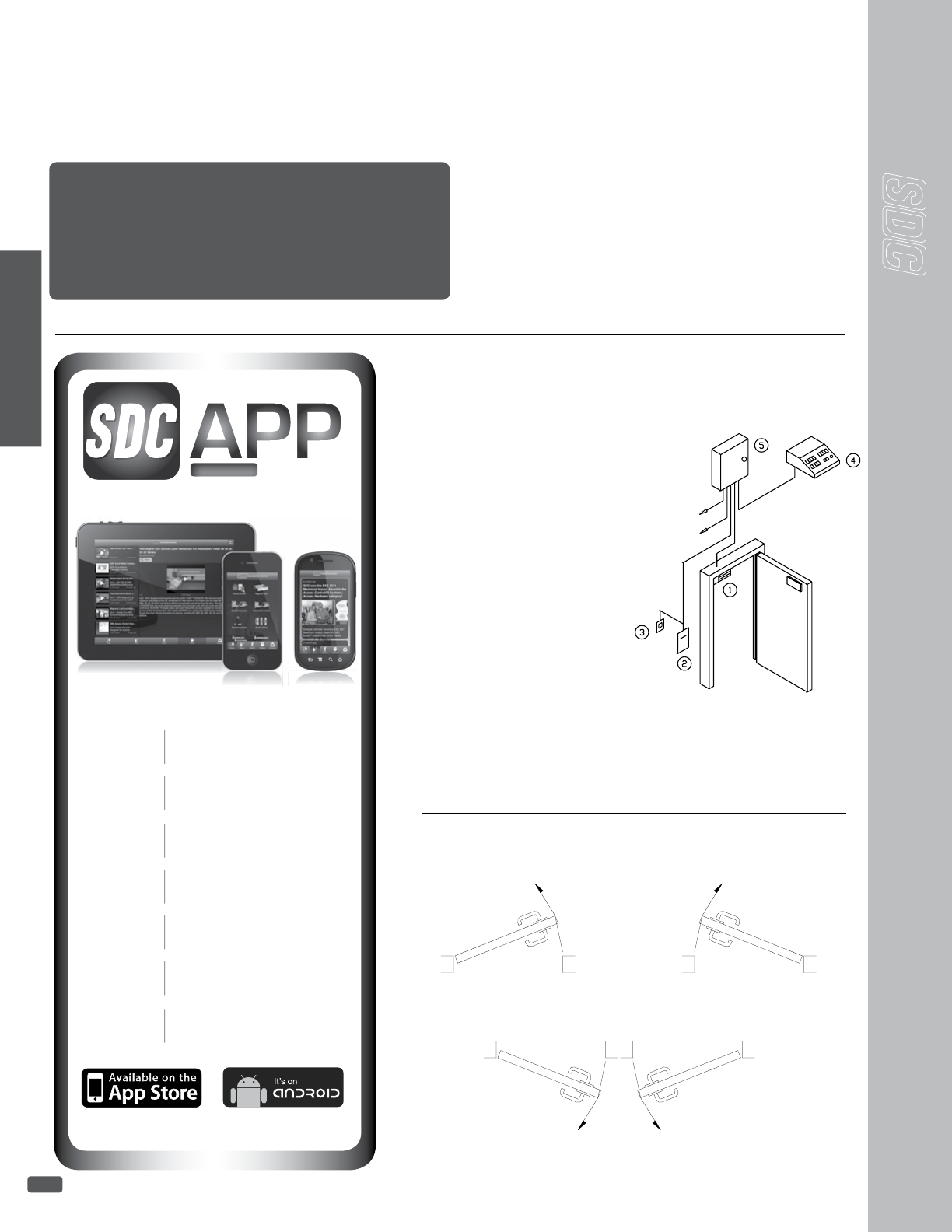

BASIC COMPONENT CONSIDERATIONS
FOR A SINGLE DOOR SYSTEM
1. LOCKING DEVICE
Electromechanical Bolt Lock
Electromagnetic Lock
Electric Strike
Electric Mortise Lock
Electrical Cylindrical Lock
Delayed Egress Lock
2. ACCESS CONTROL
Card Reader
Digital Keypad
Key Switch
3. EXIT SWITCH
Push Switch
Motion Detector
Request to Exit Push Bar®
4. REMOTE CONTROL
Desk Switch
Control/Monitoring Panel
(lock status sensors required)
5. POWER SUPPLY AND DOOR CONTROL MODULE(S)
A 600 series power supply and time delay modules provide
delayed re-locking, interface capability with alarm systems and
access control components plus system documentation.
FIRE
ALARM
PANEL
115 VAC
Left Hand
Reverse Bevel
“LHR, LR”
Right Hand
Reverse Bevel
“RHR, RR”
(Outside)
Right Hand
“RH”
(Outside)
Left Hand
“LH”
DOOR HANDS
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
5
SALES POLICY
TERMS: A minimum purchase of $3,500.00 annually is required to
maintain an open account with Security Door Controls.
RETURNED GOODS: Any defects or errors for which we are responsible
will be promptly rectified. Approval for return of merchandise must be
requested of us, and when granted the return authorization number must
be displayed on all packages returned. Material found suitable for resale
without reconditioning will be credited to customer’s account less a han-
dling and reprocessing charge of 35% of the net material value. Further
charges will be assessed on material requiring rework to return it to sale-
able condition. Obsolete products will not be accepted for return. Custom
products, special finish, options, size or pre-assembly configuration are
considered special and are not returnable for credit. Incoming transporta-
tion charges are to be prepaid by the Buyer. Credits for material returned
will have 2% deducted to cover the cash discount allowance on the original
invoice.
ADDITIONAL TERMS: 2% - TEN (10) DAYS. Net thirty (30) days from
date of invoice. Interest at 1-1/2% per month will be charged on unpaid
balances beyond thirty (30) days. Orders received from 60+ day accounts
will not be entered until account is current. It is understood that you may
use your normal purchase order or other order forms in placing orders.
However any such forms shall be used for convenience only and any
terms or provisions which may be contained therein inconsistent with,
or in addition to, those contained in our then current Acknowledgment
to Customer form or other terms or provisions contained herein shall
have no force or effect whatsoever. Custom material or wiring diagrams
requires 50% deposit. At SDC’s discretion, orders in excess of $1500 net
will be acknowledged by product category and department, and shipped
on an “as ready” basis unless customer purchase order specifically states
“Do not ship before _________,” and “No partial shipments.”
PRICES: Prices are subject to change without notice. No prices are guar-
anteed. All shipments will be made at prices prevailing at time of ship-
ment. Errors or omissions in pricing are subject to correction.
PRICING POLICY: Shipments must be accepted within sixty (60) days
after receipt of the order. Contracts extending beyond this period are sub-
ject to prices in effect at the time of shipment.
MINIMUM ORDER: Our minimum net invoice charge is $250.
ACCEPTANCE: We reserve the right to decline an order, in whole or in
part, when the price, quantity or assortment of goods is not satisfactory
to us.
CHANGE IN ORDERS: A charge of $20.00 will be applied to each change
on any order after said original order has been previously acknowledged
by SDC, plus a cost incurred by manufacturing at point of change.
CANCELLATIONS: A charge of $40.00 will apply in addition to any cost
incurred by us for any cancellation made after our acknowledgment is
issued. Custom architectural housings are non-cancelable. Orders for
custom architectural housings, custom parts, special and optional plated
finishes are non-cancelable.
FREIGHT: All goods are invoiced EXW (EXWorks) SECURITY DOOR
CONTROLS. When delivered to the transportation company the ship-
ments become the property of the purchaser, who assumes the risk of
loss or damage in transit. All ground shipments will be made by United
Parcel Service (UPS).
BACK CHARGES: We are not responsible for, do not authorize, and will
not accept any charges for the cost of any labor or material incurred
by anyone other than Security Door Controls for any installation, repair,
service or replacement unless incurred with our prior written consent and
agreement.
PRODUCT CHANGES: SDC reserves the right to modify, change, or dis-
continue any components as required.
SHORTAGES/ DISCREPANCIES: Claims must be made within ten
(10) days after receipt of material. (The original invoice number will be
required).
TEMPLATES: It shall be the customer’s responsibility to check all tem-
plates requested from SDC for suitability for proper door and frame
preparation. Direct requests from the door and frame supplier will not
release this customer of this responsibility.
ARBITRATION AND GOVERNING LAW: In the event of a dispute or
controversy, or differences, which may arise between parties, any claim
shall be settled by arbitration. The arbitration shall take place in California
under the rules of the American Arbitration Association. The validity,
interpretation, and performance of this agreement shall be controlled by
and construed under the laws of the state of California, United States of
America.
ACCEPTANCE: We reserve the right to decline an order, in whole or in
part, when the price, quantity, or assortment of goods is not satisfactory
to us.
Security, Life-Safety and Access Control. They demand the best, in
planning, products and operation. So it’s only good sense to work
with a complete product package, and to begin with an expertly
prepared, custom engineered design package from SDC. Detailed to
your needs, one entrance or a complex multi-entrance system.
Every professional in the field knows all too well the usual problems.
Wiring specs and wiring diagrams don’t match up, components are
improperly planned out or missing, projects slow down and costs
start escalating.
Security Door Controls is prepared to assist you with a complete
System Design Folder which eliminates any problems with compo-
nent compatibility, system operation or wiring installation.
We provide what your particular job requires in electrical drafts,
instructions and data. It offers a great advantage for you, with time
saved, a faster, easier, better job in every way.
General instructions. Job name. Supplier. SDC reference number
and drawing numbers for easy reference when technical support is
needed. System operation: a detailed outline of the complete oper-
ation. A full list of components with individual instruction data for
each, conduit layout indicating quantity and gauge of wires. Point-
to-point wire diagrams of all component connections.
All necessary data is a matter of record. In short, whatever that job
requires in equipment, technical understanding or assistance, at
the office or in the field, will be detailed in your SDC System Design
Folder.
*SDC fees vary according to requirements.
Engineering services are available for special system design and
documentation.
All requests must be submitted in writing with all detailed require-
ments before final quotation. Any alterations or omissions must also
be submitted in writing and are subject to additional quotation.
SDC assumes no responsibility for information exchanged by
telephone regarding estimates or product suitability for verbally
expressed systems. Email requests will speed up the process and
eliminate misunderstandings.
A non-cancelable purchase order for engineering is required before
any engineering may proceed.
CUSTOM SYSTEM DESIGN
ENGINEERING POLICY
NOTE: SDC complete sales policy as stated in our price book prevails at all times.
Warranty & Sales Policy
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
6
Magnetic Locks
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
7
Magnetic Locks
EMLock® Magnetic Locks GK
Distributor
Discount Code
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Single: 11" L x 2.75" H x 1.562" D
(279.4 x 69.9 x 39.7 mm)
Double: 22" L x 2.75" H x 1.562" D
(558.8 x 69.9 x 39.7 mm)
Voltage: 12/24VDC Voltage Sensing Input
Single: 125mA @ 24VDC; 250mA @ 12VDC
Double: 250mA @ 24VDC; 500mA @ 12VDC
1570 Series Grade 1
1200 lb / 544 Kg Holding Force
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Single: 8.75" L x 2.125" H x 1.25" D
(222.2 x 54 x 31.8 mm)
Double: 17.5" L x 2.125" H x 1.25" D
(444.5 x 54 x 31.8 mm)
Voltage: 12/24VDC Voltage Sensing Input
Single: 220mA @ 24VDC; 440mA @ 12VDC
Double: 440mA @ 24VDC; 880mA @ 12VDC
1580 Series Grade 1
650 lb / 295 Kg Holding Force
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Voltage: 12/24VDC Voltage Sensing Input
Single: 350mA @ 24VDC; 670mA @ 12VDC
Double: 700mA @ 24VDC; 1.34A @12VDC
1510 Series Grade 1
1650 lb / 748 Kg Holding Force
Single: 11" L x 2.75" H x 1.562" D
(279.4 x 69.9 x 39.7 mm)
Double: 22" L x 2.75" H x 1.562" D
(558.8 x 69.9 x 39.7 mm)
GWXT Auxiliary Locks
CVXJ Burglary Resistant Electrically Operated Door Lock
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
3 Watt Power Saver
EMLock®
Lifetime Warranty ANSI/BHMA A156.23
Grade 1
CSFM
3774-0324:100
MEA
City of New York
768-80-SA
EMLOCK® MODELS GK LIST
1650lb / 748 kg Holding Force, Automatic Voltage Sensing Input
1511 Single EmLock®466.00
1512 Double EmLock®932.00
1513 Single EmLock®, split armature for pair of doors 523.00
1200lb / 544 kg Holding Force, Automatic Voltage Sensing Input
1571 Single EmLock®435.00
1572 Double EmLock®880.00
1573 Single EmLock®, split armature for pair of doors 492.00
650lb / 295 kg Holding Force, Automatic Voltage Sensing Input
1581 Single EmLock®363.00
1582 Double EmLock®715.00
Distributor
Discount Code
SPECIFY FINISH Add to List
Anodized Finishes (Architectural Housing: Add 20.00 per foot to base) Single EmLock
Double
Emlock
V628 Aluminum (standard) N/C N/C
Y335 Black 83.00 125.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted (313/613 Equal) 83.00 125.00
CBrass Powder Coat Painted 83.00 125.00
Plated Finishes - Special order, no cancellation, no returns
P625 Bright Chrome 197.00 228.00
Q626 Dull Chrome 197.00 228.00
Architectural Housing add $30 per foot to above Single Unit Price.
1511
1512
1513
1572
1581
1582
1573
1571
1575U
see page 16
1576
see page 16
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
8
Magnetic Locks
See Modular Program price list when ordering separately for field upgrades. Different part numbers and
pricing apply.
TAdjustable timer. Built in field adj. 0-30 sec. relock delay.
Specify one for single or double EmLocks® (not available with 1580 series)
67.00
DDoor position sensor. Indicates door open and door closed.
Specify two for double EMLocks® (not available with 1513 and 1573)
SPDT Dry, 250 mA @ 30VDC.
42.00
BMagnetic bond sensor. Indicates locked with full holding power and unlocked, low holding power,
low voltage, tampering and obstruction between armature and magnetic core.
Specify (2) for double EmLocks® (Not available with 1513 and 1573)
1510 & 1570 Series: SPDT Dry, 250 mA @ 30VDC.
1580 Series: SPST N.O., Dry, 250 mA @ 30VDC.
63.00
LBi-color status LED indicator. Field selectable Red and Green. (Not installed in lock.)
Indicates lock energized when wired to lock input.
Indicates de-energized/unlocked orEnter/Go” when wired to built-in TD Module
Indicates energized and de-energized orEnter/Go” when wired to access control auxiliary output.
Indicates door is closed and locked and door is unlocked when wired to Bond Sensor.
17.00
AAnti-tamper sensor. Indicates access cover removal.
SPDT Dry, 1 Amp @ 30VDC
52.00
EMLock® Magnetic Locks
SPECIFY OPTIONS List

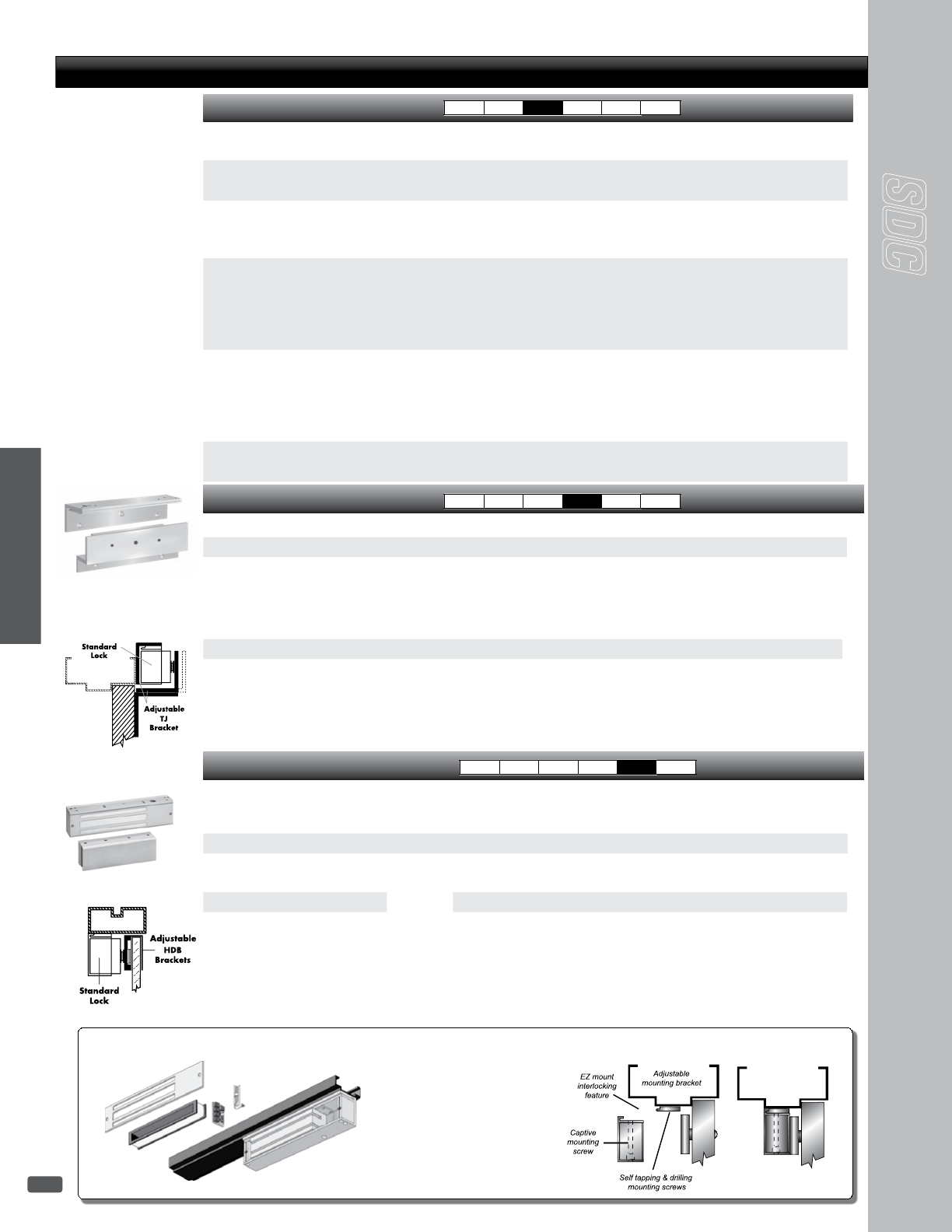

SPECIFY TOP JAMB MOUNTING KIT GK LIST
SPECIFY GLASS DOOR MOUNTING KIT GK List
Kits for 1200lb and 1650 lb Locks Kits for 650lb Locks
TJ1 Single TJ81 Single 125.00
TJ2 Double TJ82 Double 203.00
Kits for 1511, 1571, 1581 Kits for 1512, 1572, 1582
HDB1 Single 187.00 HDB2 Double, 2 single kits 373.00
Universal glass door kits are compatible with lock models, except 1513 and 1573
Field adjustable for 1/2", 5/8" and 3/4" all glass Herculite doors
Add to List
Anodized Finishes Single Top
Jamb
Double Top
Jamb
V 628 Aluminum (std) N/C Y Black Anodized 83.00 166.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted C Brass Powder Coat Painted 83.00 166.00
Plated Finishes - Special order, no cancellation, no returns Add to List
P 625 Bright Chrome Q 626 Dull Chrome 197.00 228.00
Add to List
Anodized Finishes Single Double
V 628 Aluminum (std) N/C Y Black Anodized 83.00 166.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted C Brass Powder Coat Painted 83.00 166.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 104.00 207.00
Distributor
Discount Code
Distributor
Discount Code
Field Install
Monitoring outputs
Timers
Top jamb “Z” kit
Glass door kits
Interlocking Quick Mount Assembly
Field Upgrade without Removing from the Frame
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
9
Magnetic Locks
Retrofit Kit for Discontinued Locknetics 390+ PLUS GK LIST
1511-390AMP Retrofit Kit includes lock mounting plate with self-tapping & drilling screws and
Armature assembly, utilizes existing 390+ thru-bolt hole. 52.00
Enables replacement of Locknetics 390+ PLUS with SDC's 1511 and 1571 (ordered separately)
1511-390AMP
Distributor
Discount Code
+
3
4
5
6
7
8

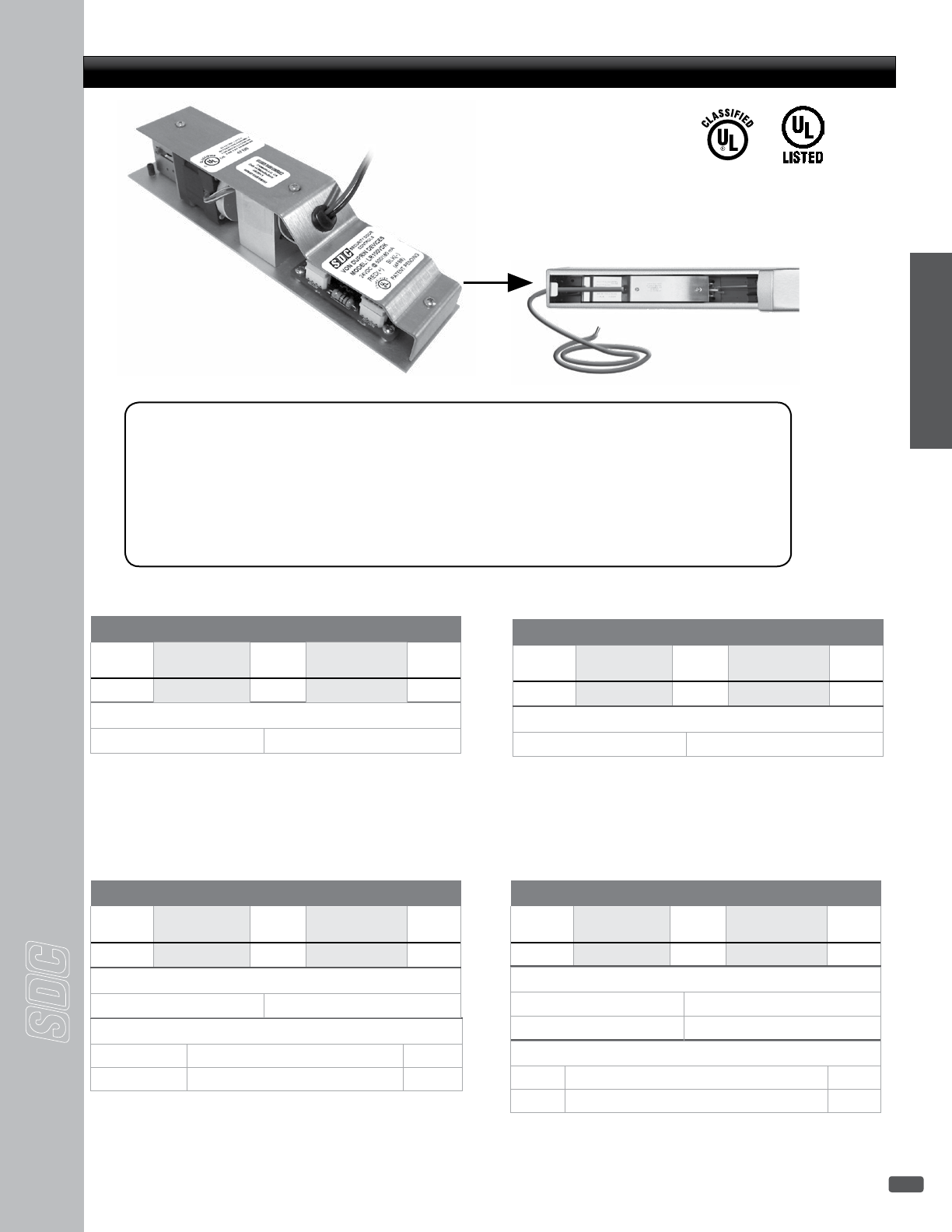

Field Installed Modular Upgrade Kits
EZ-T-10 Adjustable Timer Input Module:
Specify (1) for single or double
EmLocks® (not available with
1580 series)
67.00 EZ-A Anti-Tamper Switch Module:
Indicates cover plate removal.
52.00
EZ-D-10 1510, 1570 Door Position
Sensor Module: Specify (2)
for double EMLocks®
(not available with 1513 and 1573)
42.00 EZ-1510W Holding Force Module: Replace a
1200lb wire core (1570 series) with
this 1650lb wire core. Specify (2
for double EmLocks®
52.00
EZ-D-80 1580 Door Position Sensor Module:
Specify (2) for double EmLocks®
42.00 EZ-1570W Energy Saver Module: Save on
power supply and long term energy
costs by replacing 8.4 Watt, 1650lb coil
with 3 Watt, 1200lb holding force coil.
Specify (2) for double EmLocks®
52.00
EZ-B-10 1510, 1570 Magnetic Bond Sensor
Module: Specify (2) for double
EmLocks® (Not available
with 1513,1573)
63.00 EZ-B-80 1580 Magnetic Bond Sensor
Module (SPST):
Specify (2) for double EmLocks®
63.00
Ordered separately for field upgrade without removing the lock from the frame
For complete details contact SDC to request the Modular Upgrade Kit datasheet or download from the
SDC website: www.sdcsecurity.com/docLibrary.aspx All available through shipQuick Inventory
1511-DF Heavy duty drill fixture for 1571 and 1511 156.00
1581-DF Heavy duty drill fixture for 1580 156.00
Reusable Heavy Duty Drill Fixture G LIST
BN-PT Blind Nut Placement Tool 125.00
BN-50 Blind Nuts, 10/32, 50 Pack 52.00
Distributor
Discount Code
+
3
4
6
7
8
EMLock® Magnetic Locks
SPECIFY ARCHITECTURAL HOUSINGS GK Add to List
Single Door Housing
30 30" Lock housing 414.00
36 36" Lock housing 414.00
40 40" Lock housing 414.00
48 48" Lock housing 414.00
CH Custom length. Specify exact length POA
Double Door Housing
60 60" Lock housing 673.00
72 72" Lock housing 673.00
84 84" Lock housing 673.00
96 96" Lock housing 673.00
CH Custom length. Specify exact length POA
Full Width Housings - Appear as part of the frame to provide a superior architectural appearance.
Vertical Housings - Side jamb mount, aprovides 2,400 or 3,300 lbs. of holding force.
Compatible with Models: 1511, 1512, 1571, 1572 with or without HDB kits.
Specify housings with your EMLocks®.
1572VV82 Vertical Housing for 1572 EMLock, 82" length, for 84" opening - INCLUDES 1582 lock 1552.00
1512VV82 Vertical Housing for 1512 EMLock, 82" length, for 84" opening - INCLUDES 1512 lock 1605.00
CV Custom length. Specify exact length POA
See page 7 for special finish designation and finish price
Vertical Housing EMLock GK LIST
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
10
Magnetic Locks

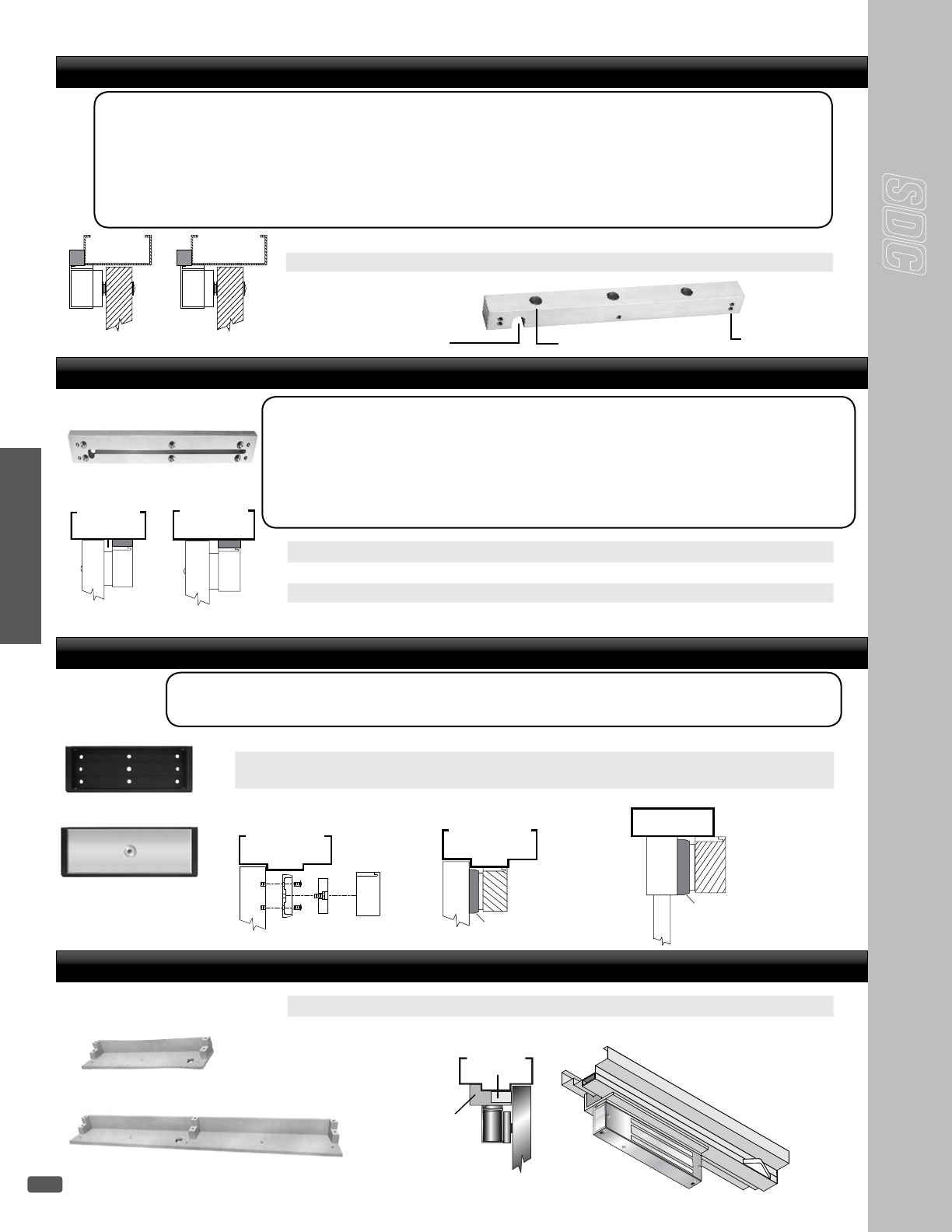

Armature Mounting Plate GK LIST
Aluminum Spacer Bracket & Concrete Filled Frame Plate - Pre-Drilled & Tapped GK LIST
Universal Header Bracket GK LIST
4.5" FRAME
4" FRAME
Machined
Wire Chase
Holes Pre-drilled & Countersunk
For Frame Mounting
Pre-drilled and Tapped
Lock Mounting Holes
UB11V Bracket for 1511, 1513, 1571. 1" x 1" x 11" 67.00
UB12V Bracket for 1512, 1572. 1" x 1" x 22" 133.00
See special finishes 7
MODEL
AR11Y Armature mounting plate (Black)
Specify two for models 1512, 1572
63.00
AR11YD Armature mounting plate (black) with door sensor
Specify two for models 1512, 1572
104.00
UF11V Bracket for 1511, 1513, 1571, 1573. 1/2" x 1-1/2" x 11" 94.00
UF12V Bracket for 1512 and 1572. 1/2" x 1-1/2" x 22" 116.00
UF81V Bracket for 1581. 1/2" x 1-1/4" x 8-3/4" 75.00
UF82V Bracket for 1582. 1/2" x 1-1/4" x 17-1/2" 104.00
UF11V
AR11Y
Aluminum
frame with
1/2" blade stop
ALUMINUM FRAME
WITH 1/2'' BLADE STOP
0.7796 in
Hollow metal
concrete lled
frame
Wood
Or
Metal
Door
Armature
Mounting Plate
Glass Door
Top Rail
Glass
Armature
Mounting Plate
Door Coordinator Lock Mounting Kit GK LIST
DC-1 Door coordinator mounting bracket for single models 1511 and 1571. 125.00
DC-2 Door coordinator mounting bracket for double models 1512 and 1572. 228.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Door
Coordinator
SDC Door
Coordinator
Bracket
Door
Coordinator
SDC Door
Coordinator
Bracket
DC-1
DC-2
The AR Mounting plate provides a solution for mounting the EmLock® armature to the top rail of aluminum, glass,
wood and hollow metal doors that do not permit the use of thru bolts. Dimension: 8 1/2" x 3"
Used in lieu of angle brackets, the Universal Header Bracket provides a faster mounting solution, saving time and labor costs
for several EmLock® models. Reduce potential for mis-sized and misaligned mounting holes, broken taps, removal of broken taps.
Combined with interlocking E-Z mount assembly, save up to a half day's labor with the installation of 12 locks.
FEATURES
Solid 1" bar provides higher security and superior aesthetics.
Machined wire chase provides concealed and secure wiring
Multiple pre-drilled and tapped mounting holes to
accommodate the use of several different locks on either
4" or 4.5" aluminum frames
APPLICATION
Aluminum frames with blade stop - lowers EmLock® below blade stop
Concrete filled hollow metal frames - provides multiple points for concealed wire entry
FEATURES
Pre-drilled and tapped specifically for 1510, 1570, 1580 EmLock
Machined wire chase provides multiple points for concealed wire entry from concrete filled frames.
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
11
Magnetic Locks
Filler Plates GK
SPECIFY FINISH Add to List
Angle Brackets GK
ANGLE BRACKETS: Used as extension on shallow door
frames to provide adequate mounting surface.
See Figure 1C.
FOR 8-3/4" (222mm) SINGLE EMLOCK MODELS GK
1581, 1581DEV
PART # A x B LIST
AB01 1" x 1" (25 x 25mm) 40.00
AB02 1" x 1-1/2" (25 x 38mm) 42.00
AB03 1-1/2" x 1-1/2" (38 x 38mm) 44.00
AB04 2" x 1-1/2" (51 x 38mm) 46.00
FOR 11" (279mm) SINGLE EMLOCK MODELS
1511 1571 1511S 1511DEV 1581S
1513 1573 1511T 1571DEV
PART # A x B LIST
AB11 1" x 1" (25 x 25mm) 42.00
AB12 1" x 1-1/2" (25 x 38mm) 44.00
AB13 1-1/2" x 1-1/2" (38 x 38mm) 46.00
AB14 2" x 1-1/2" (51 x 38mm) 48.00
FOR 17-1/2" (445mm) DOUBLE EMLOCK MODEL
1582
PART # A x B LIST
AB30 1" x 1" (25 x 25mm) 52.00
AB31 1" x 1-1/2" (25 x 38mm) 56.00
AB32 1-1/2" x 1-1/2" (38 x 38mm) 61.00
AB33 2" x 1-1/2" (51 x 38mm) 65.00
FOR 22" (559mm) DOUBLE EMLOCK MODELS
1512 1572
PART # A x B LIST
AB21 1" x 1" (25 x 25mm) 52.00
AB22 1" x 1-1/2" (25 x 38mm) 56.00
AB23 1-1/2" x 1-1/2" (38 x 38mm) 61.00
AB24 2" x 1-1/2" (51 x 38mm) 65.00
2"
2 5/16"
59mm
51mm
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
FILLER PLATES: For extension of the stop to provide a
proper mounting surface on the underside of the header.
See Figure 1B.
FOR 8-3/4" (222mm) SINGLE EMLOCK MODELS GK
1581, 1581DEV
PART # A x B LIST
FP01 1/8" x 1-1/4" (3 x 32mm) 32.00
FP02 1/4" x 1-1/4" (6 x 32mm) 34.00
FP03 3/8" x 1-1/4" (10 x 32mm) 36.00
FP04 1/2" x 1-1/4" (13 x 32mm) 38.00
FP05 5/8" x 1-1/4" (16 x 32mm) 38.00
FOR 11" (279mm) SINGLE EMLOCK MODELS
1511 1571 1511S 1511DEV 1581S
1513 1573 1511T 1571DEV
PART # A x B LIST
FP11 1/8" x 1-1/4" (3 x 32mm) 35.00
FP12 1/4" x 1-1/4" (6 x 32mm) 36.00
FP13 3/8" x 1-1/4" (10 x 32mm) 36.00
FP14 1/2" x 1-1/4" (13 x 32mm) 40.00
FP15 5/8" x 1-1/4" (16 x 32mm) 42.00
FOR 17-1/2" (445mm) DOUBLE EMLOCK MODEL
1582
PART # A x B LIST
FP30 1/8" x 1-1/4" (3 x 32mm) 40.00
FP31 1/4" x 1-1/4" (6 x 32mm) 42.00
FP32 3/8" x 1-1/4" (10 x 32mm) 44.00
FP33 1/2" x 1-1/4" (13 x 32mm) 46.00
FP34 5/8" x 1-1/4" (16 x 32mm) 48.00
FOR 22" (559mm) DOUBLE EMLOCK MODELS
1512 1572
PART # A x B LIST
FP21 1/8" x 1-1/4" (3 x 32mm) 40.00
FP22 1/4" x 1-1/4" (6 x 32mm) 42.00
FP23 3/8" x 1-1/4" (10 x 32mm) 44.00
FP24 1/2" x 1-1/4" (13 x 32mm) 46.00
FP25 5/8" x 1-1/4" (16 x 32mm) 48.00
Distributor
Discount Code Distributor
Discount Code
Single EmLock Double EmLock
V 628 Aluminum (standard) N/C N/C
Y 335 Black Anodized 32.00 63.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted 32.00 63.00
C Brass Powder Coat Painted 32.00 63.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 32.00 63.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
12
Magnetic Locks
MODEL DESCRIPTION LIST
350V Single Narrow Line Magnetic Lock, 628 Aluminum, specify 2 for pair of doors with
mullion, Retrofits Locknetics MagForce 350+ & 350+/DSM/MBS/L1 389.00
350 SINGLE SPECIFICATIONS
Holding Power 1200 Lbs.
Input Voltage Dual 12/24 VDC
Current 309mA @ 24VDC / 560mA @ 12VDC
Magnetic
Bond Sensor
1-SPDT output
250mA max. @ 12/24VDC
Door
Status Sensor
1-SPDT output
250mA max. @ 12/24VDC
LED Indicator Green-Secure, Red-Unlocked
Dimensions 12-1/ 2"L x 2-1/8H x 1-11/16W
(318 x 54 x 43mm)
352 DOUBLE SPECIFICATIONS
Holding Power 1200 Lbs. per door leaf
Input Voltage Dual 12/24 VDC
Current 618mA @ 24VDC / 1120mA @ 12VDC
2 Magnetic
Bond Sensors
SPDT outputs
250mA max. @ 12/24VDC
2 Door
Status Sensors
SPDT outputs
250mA max. @ 12/24VDC
2 LED Indicators Green-Secure, Red-Unlocked
Dimensions 25"L x 2-1/8H x 1-11/16W
(635 x 54 x 43mm)
Top Jamb Mounting Kit GK LIST
Glass Door Mounting Kit GK LIST
TJ350 Single 135.00
TJ352 Double 239.00
HDB350 Single 187.00 HDB352 Double, 2 single kits 373.00
Field adjustable for 1/2", 5/8" and 3/4" all glass Herculite doors
350 Narrow Line EMLock® GK
350V
352V
350 EMLock
Conventional
Maglock
350 EMLock
Conventional
Maglock
Conventional
Maglock
Magnetic Lock
Height Comparison
350 EMLock
INTERLOCKING QUICK MOUNT
ASSEMBLY
352V Double Narrow Line Magnetic Lock, 628 Aluminum, for pair of doors without
mullion, Retrofits Locknetics MagForce 352+ & 352+/DSM/MBS/L2 777.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
13
Magnetic Locks
Used for the extension of a narrow frame header mounting surface, the bracket provides additional surface area
for proper lock mounting
E6A E600 adjustable angle bracket. 9-7/8" L x 1-1/4" H x 2-1/4" D (250 x 32 x 57mm) 26.00
E12L E1200 angle bracket. 10-1/2" L x 1-1/2" H x 1" D (266 x 38 x 19mm)
Field cut for E600 26.00
E6200
Used where the frame stop does not provide enough mounting surface, the filler bar provides enough additional
surface area for proper lock mounting.
E12F01 E1200 stop filler plates. 5/8" H x 3/4" D x 10-1/2" L (16 x 19 x 266mm)
Field cut for E600. 21.00
E12F02 E1200 stop filler plates. 3/4" H x 3/4" D x 10-1/2" L (19 x 19 x 266mm)
Field cut for E600. 21.00
Excel™ Series Value Engineered Magnetic Locks
Excel™ Architectural Series GK LIST
MODELS
E1200 1200 lb / 545 kg with door status, locked status and LED 275.00
E600 600 lb / 272 kg with door status, locked status and LED 228.00
E300 300 lb / 136 kg with locked status 176.00
Mounting Brackets and Filler Plates GK LIST
E6A
E12L
Top Jamb Mounting Kit for Inswing Doors GK LIST
E12Z Top jamb kit for E1200 88.00
E6Z Top jamb kit for E600 88.00
Glass Door Armature Mounting Kit GK LIST
E12U Glass door kit for E1200 125.00
E6U Glass door kit for E600 125.00
E1200
E600
E12F01
E12F02
The Excel™ product line is designed for system integrators, distributors, installers and building owners presently using
low cost import or private label brand access control hardware.
Excel™ Industrial Series GK LIST
MODEL
E6200 1200 lb / 545 kg with SPDT door status, SPDT magnetic bond sensor 440.00
Retrofits popular competitive brands
Magnetic Bond Sensor and door status standard
Epoxy sealed electronics, tamper resistant
and weatherized for indoor and outdoor use
(retrofits M62j)
Stainless steel machine screws and blind nuts
10 ft [3.05m] jacketed, stranded conductor cable
Dual voltage 250/150 mA @ 12/24VDC
Architectural stainless steel housing, US32D/630
E12Z/E6Z
Field adjustable
E12U/E6U
Field adjustable
to glass thickness
Top Jamb Mounting Kit GK LIST
TJ62 Top jamb kit for E6200 125.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Retrofit Kit for Discontinued Locknetics 390+ PLUS GK LIST
E1200-390MP Retrofit Kit Includes lock mounting plate that retrofits existing 390+ mounting holes.
Existing 390+ armature may be used. 37.00
Enables replacement of Locknetics 390+ PLUS with SDC's E1200 (ordered separately)
E1200-390MP
Retrofit Kit
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Door status, lock status and Bi-color LED
Interlocking quick mount assembly
Self drilling and tapping mounting screws
and machine screws
Adjustable mounting bracket
Wire access chamber with terminal block
Dual voltage 12/24VDC
628 Clear anodized aluminum
E300
see page 17
Glass Door Armature Mounting Kit GK LIST
E1200-DF Heavy Duty Drill Fixture for E1200 156.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
14
Magnetic Locks
1561
FEATURES
Door static and relock sensor, detects door
is closed, at rest and aligned before relocking
Automatic voltage sensing input
Lateral and vertical alignment adjustment
Floating armature with alloy steel shear tabs
ELECTRICAL SPECIFICATIONS
1561 and 1562: 650/350 mA @ 12/24VDC
Auto-Sensing
1565 and 1566: 800/400 mA @ 12/24VDC
Auto-Sensing
2,000 Lbs. Holding Force, 8" x 1-1/2" Lock
1561ITCM 1-5/8" depth, integrated electronics for 1-3/4" to 2" frames 792.00
1562ITCM 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames 792.00
2,700 Lbs. Holding Force, 10-7/16" x 1-1/2" Lock
1565ITC 1-5/8" depth, integrated electronics, for 1-3/4" to 2" frames 860.00
1566ITC 1-1/4" depth, external electronics, for 1-1/4" to 1-1/2" frames 860.00
Hi/Shear Concealed EMLock® OK
CONCEALED HI/SHEAR EMLOCK LIST
OPTIONS
ADD ONS Add to List
HTR
WDRB
FTC Mounting kit for field prepared horizontal mounting in hollow metal doors with flush edge. N/C
HTC Mounting kit for 1-15/16" deep herculite channels N/C
HTR Herculite top rail armature adjustment bracket for leading edge adjustments. 352.00
BA
Bond sensor indicates proper armature contact and reduced holding power due to
improper armature contact or tampering.
SPDT 0.25 Amp maximum (not available on 1562 and 1566)
114.0 0
DPS Door position switch indicates door open or closed.
SPDT 0.25 Amp maximum. 52.00
L3 External LED status indicator, mounts separately through the frame and may be used to
indicate lock is energized or wired to BAS bond sensor for door status. 17.00
WDRB Wood door reinforcement box for 1565 and 1566 42.00
WDRBM Wood door reinforcement box for 1561 and 1562 42.00
1566
GWXT Auxiliary Locks CVXJ Burglary Resistant
Electrically Operated Door Lock
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
1565
EMLock®
Lifetime Warranty
1562
Distributor
Discount Code
ITC Standard mounting armature kit for aluminum and hollow metal
doors with 7/8" to 1-1/8" deep top channels, wood doors and factory
prepared hollow metal flush edge doors.
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
15
Magnetic Locks
2,000 Lbs. Holding Force, 8" x 1-1/2" x 1-1/4" Lock
1562SC 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4
For Hollow metal frames
932.00
1562SCHDB1/2 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames
For 1/2" Herculite full glass doors
1,155.00
1562SCHDB3/4 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames
For 3/4" Herculite full glass doors.
1,115.00
2,000 Lbs. Holding Force, 8" x 1-3/4" x 1-3/4" Lock
For Hollow metal frames and wood or hollow metal doors
1561S Surface mount for the push side of the door with integrated electronics 1098.00
1561TJ Surface top jamb mount for the pull side of the door with integrated elec-
tronics
1098.00
Hi/Shear Semi-Concealed & Surface Mount EMLock® OK
SEMI-CONCEALED HI/SHEAR EMLOCKS LIST
SURFACE MOUNT HI/SHEAR EMLOCKS LIST
STANDARD FINISH Add to List
OPTIONS Add to List
1561TJ
ANSI/BHMA A156.23
Grade 1
CSFM
3774-0324:100
MEA
City of New York
768-80-SA
EMLock®
Lifetime Warranty
BA
Bond sensor indicates proper armature contact and reduced holding power due to
improper armature contact or tampering.
SPDT 0.25 Amp maximum)
114.0 0
DPS Door position switch indicates door open or closed.
SPDT 0.25 Amp maximum. 52.00
L3 External LED status indicator, mounts separately through the frame and may be used to
indicate lock is energized or wired to BAS bond sensor for door status. 17.00
1561S
1562SC
1562SCHDB
V 628 Anodized Aluminum N/C
Y Black Anodized 63.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than
conventional paint)
X Dark Bronze Powder Coat Painted 83.00
C Brass Powder Coat Painted 63.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 197.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
16
Magnetic Locks
Distributor
Discount Code
Gate EMLock® GK LIST
MODEL DESCRIPTION
1575U Single EMLock® with magnetic bond and door status sensors 451.00
1576U Single EMLock® face drilled mounting with magnetic bond and door status sensors 451.00
MODEL DESCRIPTION
For sliding gate applications
1576-BK Mounting Bracket for 1576 83.00
1576-AB Armature Mounting Bracket for 1576 83.00
For swinging gate or top jamb door application
1575-BK Mounting Bracket for 1575 104.00
1576-MP Lock Mounting Plate for 1576 57.00
1576-ZB Lock Mounting Bracket for 1576 (Includes 1576-MP) 166.00
ACCESSORIES Add to List
1575U
1576
1576-BK
1576-MP
1576-AB
1576-ZB
Distributor
Discount Code
SPECIFICATIONS
Holding Power 1200 Lbs.
Dual Voltage 450 / 225 mA @ 12/24VDC
Sensor Magnetic Bond Sensor and Door
Position Sensor Standard
Cable 3 Ft. cable
Finish Brushed stainless steel housing
Conduit Fitting 1/2" x 3/4"
Dimensions 8-11/16" L x 2-1/2" H x 1-5/8" D
1575-BK
1576U FOR SWINGING GATES 1576U FOR SLIDING GATES
1576-ZB
1576-AB
1576-BK
1576-ZB
1576-AB
1576-BK
1576U TOP JAMB MOUNT
FOR INSWING DOORS
1576-ZB
FRAME
DOOR
1576-ZB
FRAME
DOOR
1575U FOR SWINGING GATES
1575-BK
1575U
FOR OUTSWING DOORS
1576-ZB
FRAME
DOOR
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
1576-ZB
FRAME
DOOR
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
17
Magnetic Locks
MODEL
E300 300 lb / 136 kg with door status, locked status and LED 176.00
Excel™ E300 Architectural Series Micro Cabinet Lock GK LIST
Distributor
Discount Code
Lock status
Interlocking quick mount assembly
Self drilling and tapping mounting
screws and machine screws
Adjustable mounting bracket
Wire access chamber with
terminal block
Dual voltage 12/24VDC
628 Clear anodized aluminum
EP17624
EP17624TJ
includes Top Jamb
Mounting Bracket
SPECIFICATIONS
Holding Force 600 lbs
Input Voltage 24 VDC
Current 250mA @ 24VDC
DIMENSIONS
EP17624 lock 10.5"L x 2"H x 1.75"D
EP17624TJ lock 10.5"L x 2.25"H x 1.75"D
Armature 7.125"L x 1.75"H x 0.75"D
Door Status Sensor SPDT contact, 100mA max.
@ 30VDC max
MODEL DESCRIPTION LIST
EP17624 Single Explosion Proof Magnetic Lock, side conduit location,
628 Aluminum, for use on push-side of door, conduit on side block 2484.00
EP17624TJ Single Explosion Proof Magnetic Lock, top conduit location,
628 Aluminum, includes Top Jamb mounting bracket, for use on pull-side of door, conduit on top 2588.00
This unit is intended to be used in the following atmospheres: Acetone, Ammonium Hydroxide, ATSM fuel C, Benzene, Methyl-Ethylketone, Diethyl-Ether, 2-Nitropropane, Ethyl-Acetate, Furfural,
Normal Hexane, Methyl Alcohol. Operating temperature for the magnetic lock will not exceed 185° F (85° C). Maximum ambient temperature is not to exceed 104° F (40° C). For supply connec-
tions, use a suitable wire with a minimum insulation temperature rating of 167° F (75° C). This unit must be connected to a NEC (National Electric Code, NFPA 70) Class 2 Supply Circuit rated for
24 VDC with a minimum current output of 0.5 amperes and output power of 12 watts. A UL Listed SDC 600 Series Power Controller is recommended.
EP17624 Explosion Proof EMLock® GK
Distributor
Discount Code
1591 MORTISE EMLock® for Sliding Doors GK LIST
MODEL
1591U Single EMLock® for sliding doors 363.00
LAB Surface mount armature angle bracket for 1591 on sliding doors 57.00
AMP Armature mounting plate for leading edge of door 47.00
DPS Door position sensor for 1591 EMLock®57.00
BR64XL Rectifier for less leads 26.00
1591
ACCESSORIES Add to List
Distributor
Discount Code
Holding Power 850lbs.
Selectable Voltage: 12VDC @ 700 mA, 24VDC @ 350 mA
Finish: U 630 Stainless Steel
Dimensions: 10"L x 1-7/16"H x 1-1/4"D
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
18

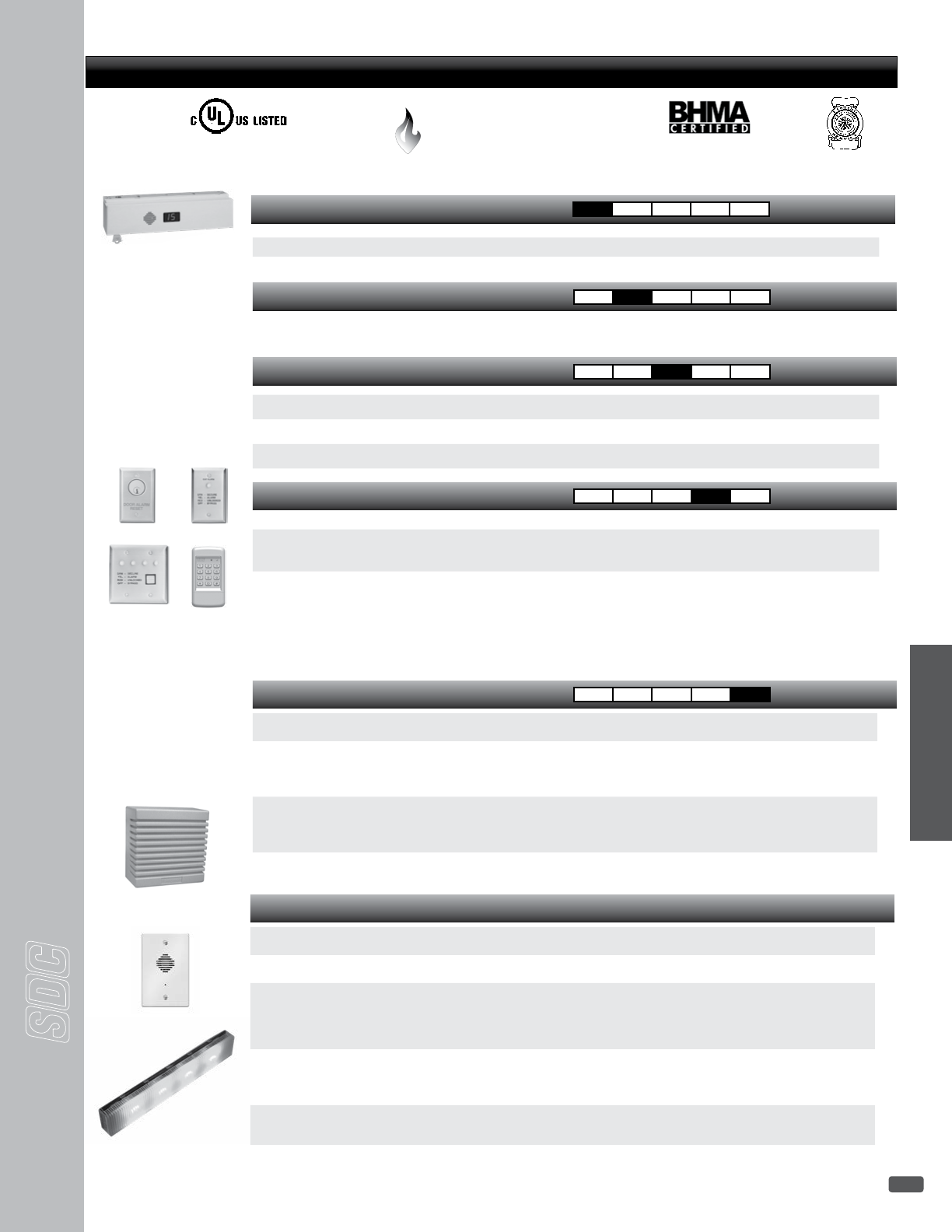

Delayed Egress Locks
& Controllers
Tandem: Master: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D)
Slave: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D mm)
Armature: 7 3/8" L x 2 3/8" H x 9/16" D
(187 L x 60 H x 14 D mm)
Sign: 13" L x 4 1/2" H
(330 L x 114 H mm)
Single: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D mm)
Armature: 7 3/8" L x 2 3/8" H x 9/16" D
187 L x 60 H x 14 D mm)
Sign: 13" L x 4 1/2" H
(330 L x 114 H mm)
Request to Exit: Normally open, dry
Fire Alarm Release: Alarm panel
closed dry contact. Opening of contact
releases lock.
ExitCheck® Delayed Egress EMLock® GKK
Distributor
Discount Code
DELAYED EGRESS OPERATION
NA NFPA 101, IBC and IFC Compliant
Field selectable: 15 or 30 second exit delay; 1 or 2 second nuisance delay
Field selectable automatic or manual power-up after emergency release
N/C
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 0/1 second nuisance delay
Calif. Building Code OSHPD/Manual Power Up
N/C
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 0/1 second nuisance delay
N/C
NH IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 30 exit delay, 0/1 second nuisance delay
N/C
BC BOCA National Building Code and Chicago Building Compliant
15 second fixed exit delay, 0 second nuisance delay, auto reset 30 seconds after door closure
N/C
BD BOCA National Building Code
15 second fixed exit delay, 0/1 second nuisance delay, auto reset 30 seconds after door closure
N/C
BH BOCA National Building Code
30 second fixed exit delay, 0/1 second nuisance delay, auto reset 30 seconds after door closure
N/C
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
1511T
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Voltage: Auto Voltage Sensing
12/24VDC ± 10%
Standard 1,650 lbs holding force:
820/450 mA @ 12/24VDC
Energy Saver E Option 1,200 lbs. Holding
Force: 400/275 mA @ 12/24VDC
1511S
Voltage: Auto Voltage Sensing
12/24VDC ± 10%
Standard 1,650 lbs holding force:
1500/850 mA @ 12/24VDC
Energy Saver E Option 1,200 lbs. Holding
Force: 650/400 mA @ 12/24VDC
CONTROL INPUTS
MONITORING OUTPUTS
Alarm Output:
SPDT Dry, 1 Amp @ 30VDC
Lock Secure / Unlocked Output:
SPDT Dry, 1 Amp @ 30VDC
DPS Door Position Status: (option)
SPDT Dry, 250 mA @ 30VDC
BAS Magnetic Bond Status: (option)
SPDT Dry, 250 mA @ 30VDC
ATS Anti-Tamper Sensor: (option)
SPDT Dry, 1 Amp @ 30VDC
1,650 lbs. Holding Force Standard
830/450 mA @ 12/24VDC (single)
1,200 lbs. Energy Saver Option E
380/225 mA @ 12/24VDC (single)
Control more locks with fewer
power supplies
Save on electricity consumption and
power supply investment.
Voice & Digital Display Standard
Energy Saver Optional
TMTM
“Security Industry Finest”
ISC Expo
TANDEM MODEL
For use with pairs of doors equipped with Exit
Sense Bars, surface mounted vertical rod exit
devices and concealed vertical rod exit devices
with surface mounted triggers and strikes.
Activating either door unlocks both doors.
SINGLE MODEL
For use with single doors equipped with Exit
Sense Bars, surface vertical rod, concealed
vertical rod, mortise and rim mount exit devices,
mortise locksets and cylindrical locksets.
FIELD SELECTABLE ACTUATION
Door Movement
Exit Sense Bar
Exit Device Switch Kit (See page XX)
Latch Monitoring Strike (See page XX)
1511S / T
VOICE & DIGITAL Annunciation
The ExitCheck® 1511S series incorporates
an alternating 85 db tone and voice
message with a digital countdown
display and sign that provides clear and
comprehensive instructions for persons
without prior knowledge of door operation.
This is especially significant for those who are
blind or hearing impaired.
1511T
1511S
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
19
Delayed Egress Locks
& Controllers
OPTIONS Add to List
SPECIFY MODEL LIST
SPECIFY OPERATION
SPECIFY FINISH Add to List
SPECIFY BUILT-IN RESET & CONTROL
KBuilt in key switch. Provides 1-30 second timed bypass, sustained bypass and alarm reset (std) N/C
PBuilt in reset push switch. Available with NFPA (NC or ND) only. N/C
LLess key or push switch (no price deduction) N/C
EEnergy Saver, 1200 lbs holding force, low power consumption, electrical specs page XX N/C
DDoor position status. Provides remote monitoring of the door open or closed status and
indicates the door has actually been opened for egress after alarm activation. Specify 2 for
tandem
42.00
BMagnetic bond alert sensor. Indicates locked or unlocked, reduced holding power,
tampering or foreign material between the electromagnet and armature.
Specify 2 for tandem
63.00
AAnti-tamper switch. Detects attempt to remove the access cover. Specify 2 for tandem 52.00
101-1A
101-4AM
702R
Controls & Annunciators
See page 22
1511S
Anodized Finishes Single Tandem
V628 Aluminum (standard) N/C N/C
Y335 Black Anodized 83.00 125.00
Plated Finishes - Special order, no cancellation, no returns
P625 Bright Chrome Q626 Dull Chrome 197.00 228.00
920
ANSI/BHMA A156.24
Grade 1
CSFM
3774-0324:103
FWAX Special Locking Arrangements
GWXT Auxiliary Locks
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
Voice & Digital
Display Standard
Field Selectable Voice
with Tone or
Tone only
Energy Saver Optional
ExitCheck® Delayed Egress EMLock® GKK
101-SP
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted CBrass Powder Coat Painted 83.00 125.00
1511S Single - 1,650 lbs., voice, tone and digital countdown annunciator. 1,211.00
1511T Tandem - 1,650 lbs., voice, tone and digital countdown annunciator. 2029.00
Distributor
Discount Code
Specify NA, NC, ND, BC, BD - see codes and description on page 18
If no Code is specified - NA is the SDC STA N DARD OPERATIONS MODE for this product
101-SPSN
EA100
ADD-ONS Add to List
VI Spanish, or English and Spanish, or English and French verbal announcement 104.00
VIC Custom verbal announcement (10 piece purchase minimum) POA
RRX Reset on REX - No Charge when ordered WITH a Delayed Egress lock
Allows the REX input to reset after an unauthorized egress alarm.
Not available for NC operation.
Replacement Chip (if ordered separately from DE lock) 52.00
101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels on
site or remote voice message annunciation. Speaker driver may be provided by others for
extreme decibel requirements.
38.00
101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck
alternating voice message and tone.
100.00
EA100 Multi-Mode Exit Annunciator Bar interfaces with Delayed Egress devices for forced entry or
unauthorized exit signaling. Highly visible from any angle, due to multi color LED lights with
rolling signal. See also page XX
182.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
20
Delayed Egress Locks
& Controllers
1581S Single Mini Delayed Egress Lock 650 lbs. holding force. Current: 320/500 mA @
24VDC/12VDC 932.00
Specify 2 for pairs of doors
Remote reset control required. See below.
Lock size 10" L x 2" H x 2.375" D
SPECIFY OPERATION
SPECIFY FINISH Add to List
SPECIFY OPTIONS Add to List
TANDEM CABLE FOR PAIR OF DOORS LIST
SPECIFY RESET AND CONTROL DEVICE LIST
ExitCheck® Mini Delayed Egress EMLock® GKK LIST
Anodized Finishes
V628 Clear Anodized Aluminum (standard) N/C
Y335 Black Anodized 83.00
Plated Finishes. Special order, no cancellations or returns
P625 Bright Chrome 197.00 Q626 Dull Chrome 197.00
DDoor position status 63.00
BMagnetic bond sensor (Not an output. Low Holding Force. Put unit into alarm.) 104.00
Select Reset Station for NC and ND functions
918 EntryCheck™ digital keypad, 500 user codes
Keyless Reset / manual power up / bypass
166.00
728 Key switch, 2 keys, 1 gang
Reset / manual power up / sustained bypass
63.00
728L3 Key switch, 2 keys, 1 gang, LED status indicator
Reset / manual power up / sustained bypass
87.00
702R Separate wall mount reset key switch assembly
MO SPDT dry contact, 6 Amp @ 30VDC max.
Accepts standard 1-1/8'' to 1-1/4'' (Mortise key cylinder not
included)
114.0 0
101-1AK Key switch assembly, 2 gang, LED status indicator, less cylinder
Reset / manual power up / sustained bypass
332.00
101-4AM Four station remote annunciator 332.00
Required when using two locks on a pair of doors, cables enable slave operation.
1581S-TC-3 Cable kit for connecting two locks through the frame header 32.00
1581S-TC-10 Cable kit for connecting wiring for two locks in a remote junction box 42.00
918
728 702R
101-4AM
101-1AK
1581S
ANSI/BHMA A156.24
Grade 1 CSFM
3774-0324:103
FWAX Special Locking
Arrangements
GWXT Auxiliary Locks
Powder Coat Finishes
(a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X
Dark Bronze Powder Coat
Painted (313/613 Equal) 83.00 C
605 Bright Brass Powder
Coat Painted 83.00
D
606 Dull Brass Powder Coat
Painted 83.00
Distributor
Discount Code
Specify ND, NC, NH, BC, BD, BH - see codes and description on page 18
If no Code is specified - ND is the SDC STA N DARD OPERATIONS MODE for this product
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
21
Delayed Egress Locks
& Controllers
101-DE
101-KDE
101-DE
with DEC-J
101-1AK
DEC-J
SHD-J
with 101-DE

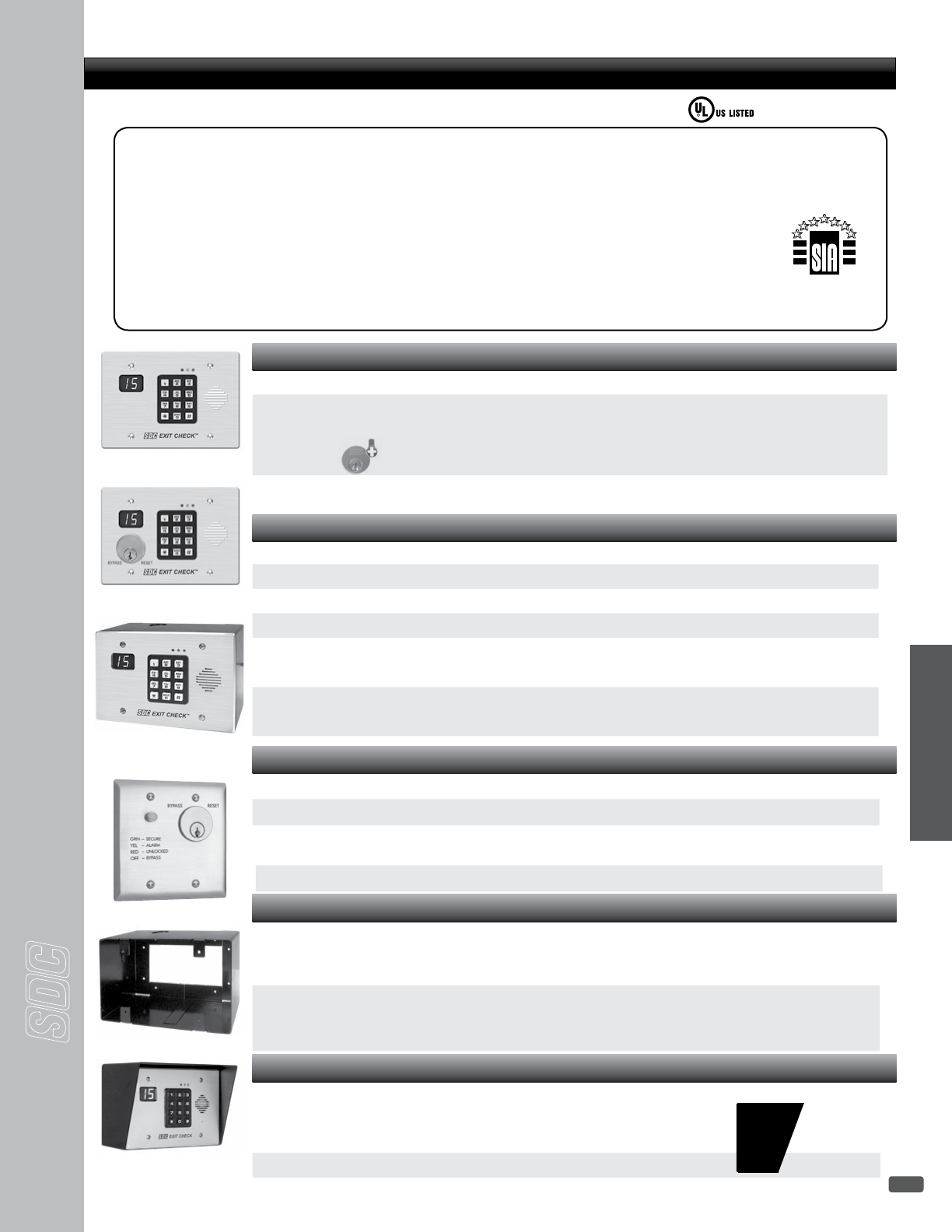

101 ExitCheck® Wall Mount Delayed Egress - NFPA 101 Locking Arrangements GKK
DELAYED EGRESS CONTROLLER (1 PER OPENING, SINGLE OR PAIRS) LIST
OPTIONAL MONITORING Add to List
OPTIONAL HARDWARE Add to List
MAGNETIC LOCK WITH INTEGRATED ACTIVATION SENSOR LIST
STANDARD FEATURES INCLUDE: 12/24VDC voltage sensing input, delay electronics packaged on a 3-gang wall plate for recessed
wall mounting or surface wall mounting with optional junction box. Features include: std. 15 or 30 second switchable exit delay (NA), 1 or 2
second nuisance delay. Keypad for violation reset, momentary bypass and on-off; Voice Annunciation and digital countdown display with
door open indicator. Status and remote control inputs are standard.
12VDC / 24VDC @ 200 mA Max.
Doors WITH latch assemblies are sensor activated and do not require power transfer or trigger switch in exit
device. Where preferred a trigger switch may be added to the exit device for manual activation in lieu of door
movement activation.
Doors WITHOUT latches require a non-latching Request-to-Exit Bar PSB560 Sure Exit® or MSB550 Switch Bar
(see XX). Also compatible with standard EMLocks (see XX.)
101-DE Wall mount controller with keypad control and reset, 200 mA @ 12/24 VDC - NA standard 823.00
101-KDE Wall mount controller with both key switch and keypad control and reset, 200 mA @ 12/24 VDC
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 32.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 32.00
932.00
BMagnetic bond sensor, indicates locked with full holding force, low holding force, unlocked,
tampering and obstructions.
(1581DE SPST only)
63.00
DDoor position sensor, indicates door open and door closed. Commonly used to verify
egress after alarm and exit delay activation.
(D) Door position sensor not available with 1581, 1575 and 1576
42.00
101-1AK Outdoor reset with LED and Audible annunciator. 2-gang outdoor box required
(Interior 101-DE and 1575 or 1576 outdoor magnetic lock required)
332.00
DEC-J 3 Gang Interior surface mount box for 101-DE 94.00
SHD-J Shroud for surface mount box DEC-J outdoor use 63.00
V628 Clear Anodized Aluminum (Standard) N/C
YBlack Anodized Single 83.00
Specify 2 for pair of doors
1511DEV Single, 1650 lbs holding force, 670/350 mA @12/24 VDC 523.00
1571DEV Single, 1200 lbs holding force Energy Saver, 250/125 mA @12/24 VDC 497.00
1581DEV Single, 650 lbs holding force, 440/220 mA @12/24 VDC 414.00
Outdoor Locks
1575DEU Single outdoor magnetic lock with magnetic bond sensor 497.00
1576DEU Single face drilled outdoor magnetic lock with magnetic bond sensor 497.00
1576DE-ZB Inswing mounting bracket for 1576DEU 156.00
TMTM
“Security Industry Finest”
ISC Expo
Mounting Kits & Angle Brackets - See page 11
Powder Coat Finishes
(a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted (313/613 Equal) Single 83.00
Specify NA, NC, ND, BC, BD - see codes and description on page 18
If no Code is specified - NA is the SDC STA N DARD OPERATIONS MODE for this product
Proprietary Verbal Exit Instructions with Alarm Tone and 3/4" Digital Countdown Display
SHD-J
End View
Distributor
Discount Code
MAGNETIC LOCK FINISH Add to List
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
22
Delayed Egress Locks
& Controllers
Local and Remote Controls and Annunciators LIST
101-SP
101-1AK
707R
702R
708R
101-4AM
101-1A
101-PAM
920
920 Keyless Reset and Bypass or Momentary Authorized Access 500 User Codes
Heavy Cast Vandal Resistant Housing
182.00
702R Separate wall mount reset key switch assembly
MO SPDT dry contact, 6 Amp @ 30VDC max.
Accepts standard 1-1/8'' to 1-1/4'' (Mortise key cylinder not included)
114.0 0
707R Remote reset key switch with dual function for Bypass (authorized egress) and reset
(2) MO SPDT dry contact, 6Amp @ 30VDC max
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder. (Mortise key cylinder not included)
156.00
708R Remote reset key switch for bypass (on/off) and reset
(1) Maintain (1) MO, SPDT dry contact, 6Amp @ 30VDC max
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder. (Mortise key cylinder not included)
156.00
101-1A Remote or local single door annunciator with audible alarm and tricolor LED, 1 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
109.00
101-4AM Remote four door annunciator with audible alarm mute button. Four tricolor LEDs, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
332.00
101-1AK Remote or local single door annunciator with 2 function key switch for on/off, reset,
audible alarm and tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder.
(Mortise key cylinder not included)
332.00
101-PAM Remote single door annunciator with 3 push button switches for momentary
access. On/off and audible alarm mute button with tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Recommended for remote installation only
332.00
101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels
onsite or remote voice message annunciation. Speaker driver may be provided by others
for extreme decibel requirements.
38.00
101-SPSN
101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck alternat-
ing voice message and tone.
100.00
918
918 Keyless Reset and Bypass or Momentary Authorized Access 500 User Codes
Keypad tamper lockout; Indoor blue backlit, moisture resistant keypad
166.00
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 32.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 32.00
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 32.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
23

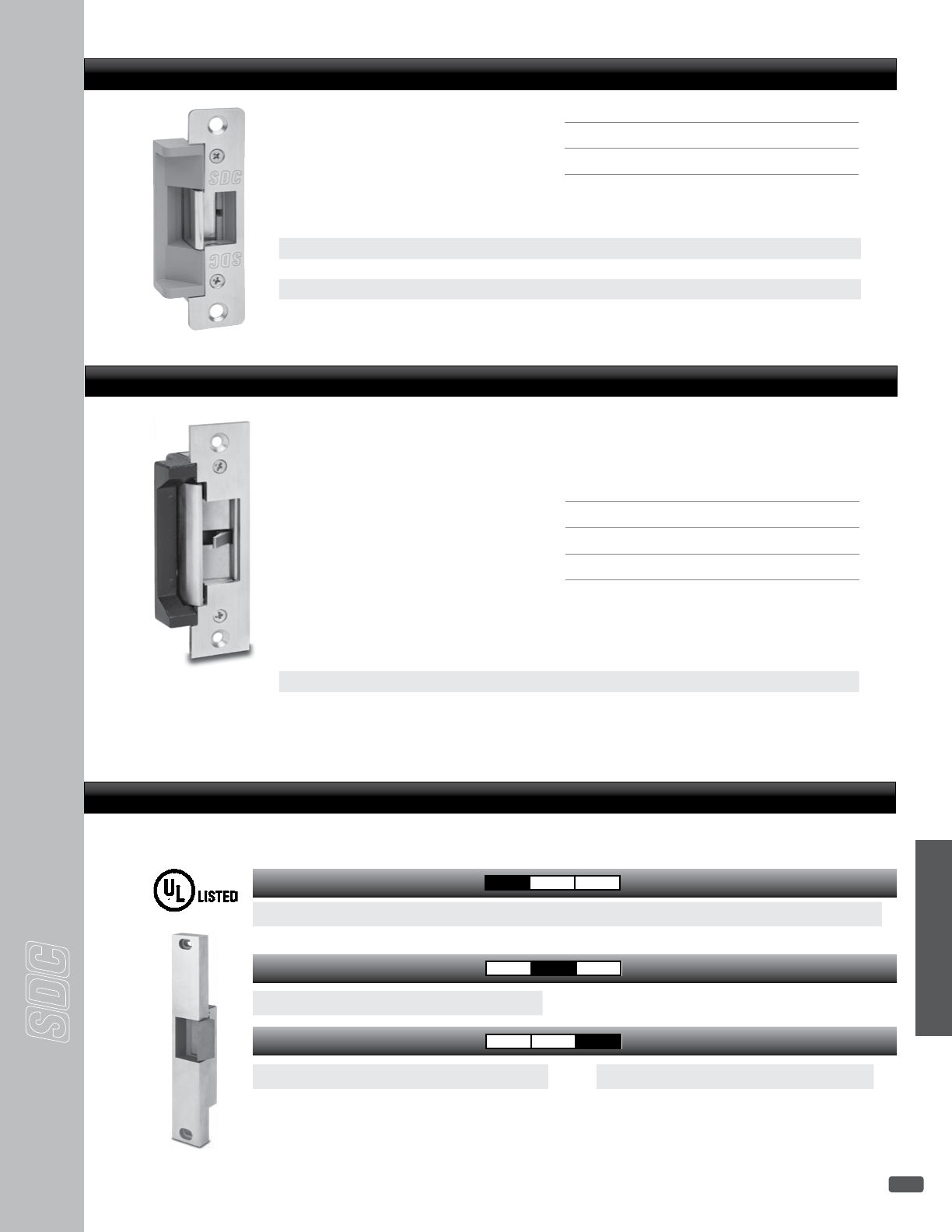

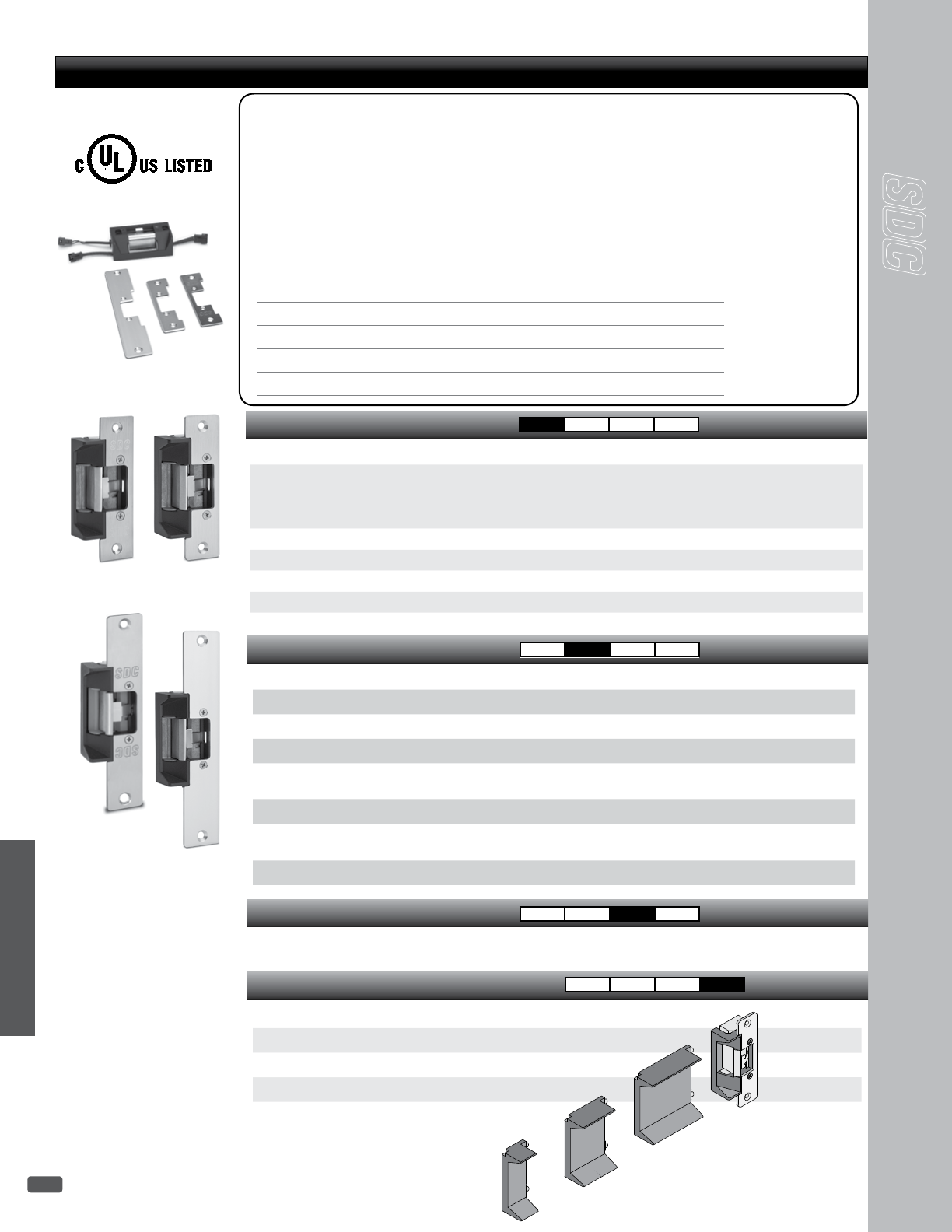

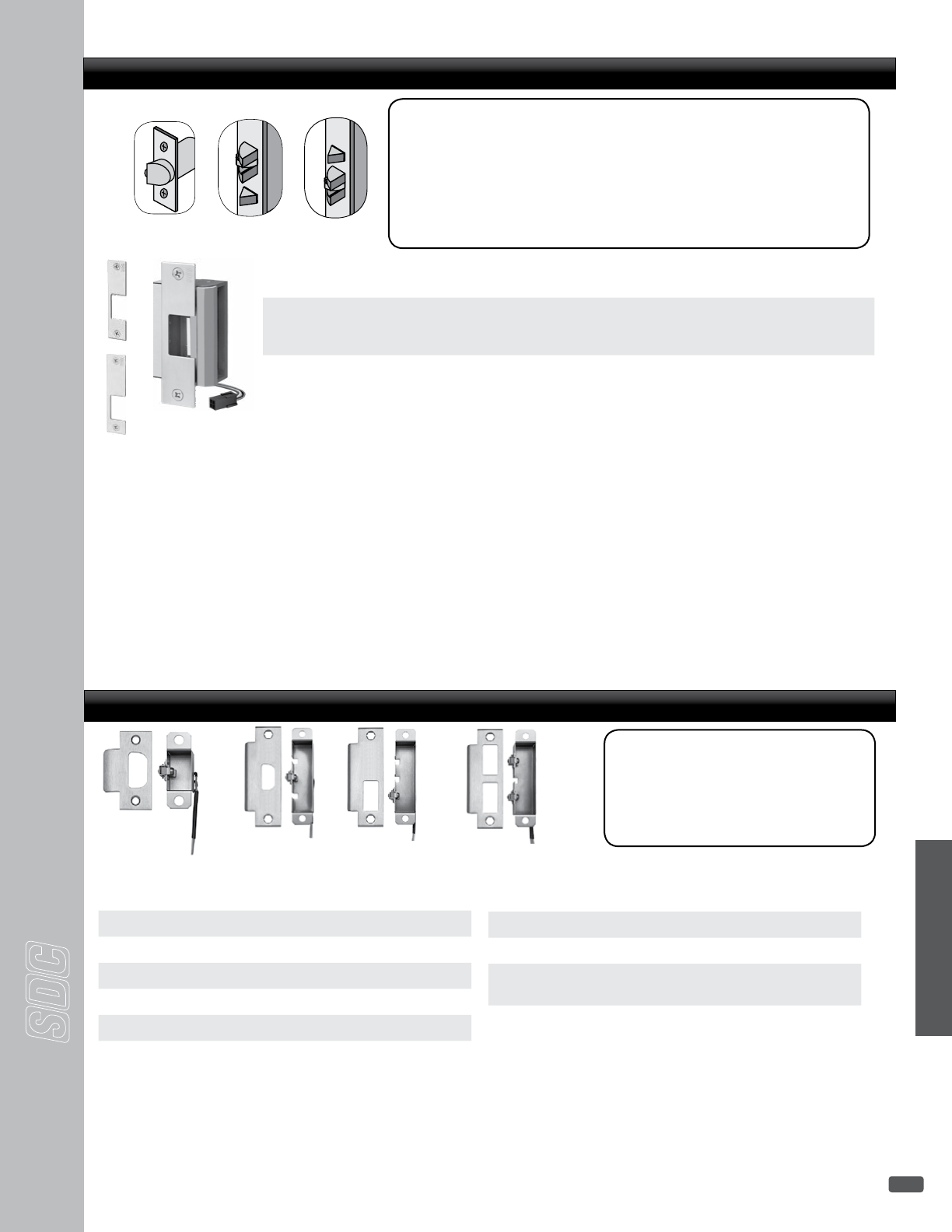

Electric Strikes
15 Series Electric Strike FK LIST
25 Series Electric Strike LIST
For 5/8'' latch or 3/4" latch with 1/8" gap
Choice of failsafe or failsecure
4.875" (124mm) radius corner
All stainless steel parts
630 Satin stainless steel face plate
The SDC 25 Series electric strike is designed for use with locksets having 5/8” (15mm) throw
latchbolt. The compact low profile design with an internally mounted solenoid and factory supplied
mounting tabs enable quick and easy installation where jamb space is limited.
For 1/2" latch or 5/8" latch with
1/8" door gap
Latch bolt monitor standard
Failsecure
Field reversible for failsafe operation
Compatible with 5/8" latchbolts
All stainless steel parts
630 Stainless steel standard finish
MODEL
25-4U 4.875" (124mm) Square corner 125.00
RMB Buzzer 12/24V AC/DC operation 40.00 BR64XL Rectier for AC operation 26.00
MODEL
15-4F12U Failsafe, 12VDC 88.00 15-4S12U Failsecure, 12VDC 88.00
15-4F24U Failsafe, 24VDC 88.00 15-4S24U Failsecure, 24VDC 88.00
RMB Buzzer 12/24V AC/DC operation 42.00 BR64XL Rectifier for AC operation 26.00
Distributor
Discount Code
Not recommended for wood application
Not recommended for wood application
Input 200mA @ 12VDC, 150mA @ 24VDC
Dimensions 1-1/4” W x 4-7/8” H x 1-1/2” D
SPECIFICATIONS
Dual Voltage 200/100 mA @ 12/24VDC
Latch Status SPDT, 3 Amp @ 30VDC
Dimensions 1-1/4” W x 4-7/8” H x 1-1/2” D
SPECIFICATIONS
30 Series Rim Mount Electric Strikes FK
SPECIFY MODEL LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
30-4
Stainless steel electric strike for rim mount exit devices. Strike is non-handed, fail secure is standard with fail safe optional.
Standard finish is stainless steel 630 (U). Check template to ensure compatibility.
30-4-12 Stainless steel electric strike designed for rim-type exit devices 12VDC@ 0.51Amp 699.00
30-4-24 Stainless steel electric strike designed for rim-type exit devices 24VDC@ 0.25Amp 699.00
U630 Dull Stainless Steel (Standard) N/C
FS Failsafe operation 37.00 BR64XL Rectifier 26.00
LCBMA-30 Latch & locking cam monitor 223.00
Distributor
Discount Code
Not Compatible with SDC S6000
See S6000 Electric Trim page 38
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
24
Electric Strikes
The SDC 45 Series electric strike is designed for use with locksets having up to ¾" latchbolts.
The compact low profile design with an internally mounted solenoid and mounting tabs enable quick
and easy installation where jamb space is limited. UL Listing pending
For 5/8'' latch or 3/4" latch with 1/8" gap
Latch bolt monitor standard
Keeper closed and deadlocked standard
Field selectable failsecure - failsafe
Field selectable voltage, 12/24V AC/DC
1/4" Horizontal alignment adjustment
Low profile, 1-3/16" deep
Plug-in wire connectors
Mounting tabs
All stainless steel parts with durable die
cast body for corrosion resistance
Fewer moving parts for maximum life
630 stainless steel standard
ANSI A156.31 compliant
SPECIFY LIP EXTENSION for 45 Series only Add to List
LE1 1" Lip Extension Kit 32.00
LE2 2" Lip Extension Kit (Includes two 1" extensions) 63.00
LE3 3" Lip Extension Kit (Includes three 1" extensions) 94.00
LE3
LE2
LE1
45 Series Electric Strike LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
MODEL
45-A Included: One 4.875" square corner faceplate. Stainless steel finish standard*
One 4.875" radius corner faceplate. Aluminum finish standard*
One 7.9375" radius corner faceplate. Aluminum finish standard*
187.00
45-4S 4.875" x 1.25" (124x32mm) square corner faceplate. Stainless steel finish standard* 158.00
45-4R 4.875" x 1.25" (124x32mm) radius corner faceplate. Aluminum finish standard* 162.00
45-6R 6.875" x 1.25" (175x32mm) radius corner faceplate. Aluminum finish standard* 166.00
45-7R 7.937" x 1.438" (202x36.5mm) radius corner faceplate. Aluminum finish standard* 171.00
Square Corner Faceplate
U630 Dull stainless Steel (std) N/C
H613 Oil Rubbed Bronze 26.00
D606 Dull Brass 26.00
Radius Corner Faceplate
V628 Dull Aluminum (std) N/C
Y335 Black Anodized 26.00
45-A Special Finish 78.00
45-6R
45-4S
KKeeper open/closed status 40.00 RMB Buzzer 12/24V AC/DC operation 42.00
45-4R
45-7R
45-A
SPECIFY MODEL List
Dual Voltage 280/140mA @ 12/24V DC, 170/85mA @ 12/24V AC
Latch Status SPDT, Dry 3Amp @ 30V (standard)
Keeper Closed/Deadlocked
SPDT, Dry 3Amp @ 30V (standard)
Keeper Open Closed Status
SPDT, Dry 3Amp @ 30V (optional - K option)
SPECIFICATIONS
Factory Installed Only
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
25
Electric Strikes
The 45F fire-rated Grade 1 strike is specially designed with a durable, stainless steel die cast body. It is
engineered with corrosion resistant components with fewer moving parts for maximum life. The standard
unit includes monitoring outputs, field-selectablevoltage, and field-adjustable operation (fail-secure or fail-
safe.) Designed for use with cylindrical and mortise locksets with 9/16” - 3/4” throw latch bolts.
ANSI/BHMA A156.31, Grade 1
Centerline Electric Strike
For 9/16” or 3/4” latch with 1/8” door gap
Latch bolt monitor standard
Keeper closed & deadlocked standard
Field selectable fail-secure - failsafe
Field selectable voltage 12/24V AC/DC
¼” Horizontal alignment adjustment
Static strength 1500lbs.
Low profile, 1-3/16” deep
45F Fire Rated Electric Strike LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
MODEL
45F-4SU Included: One 4.875" square corner faceplate. Stainless steel finish standard* 399.00
For additional Plates contact factory
Square Corner Faceplate
U630 Dull stainless Steel (std) N/C
H613 Oil Rubbed Bronze 26.00
D606 Dull Brass 26.00
KKeeper open/closed status 40.00 RMB Buzzer 12/24V AC/DC operation 42.00
SPECIFY MODEL List
Dual Voltage 280/140mA @ 12/24V DC, 170/85mA @ 12/24V AC
Latch Status SPDT, Dry 3Amp @ 30V (standard)
Keeper Closed/Deadlocked
SPDT, Dry 3Amp @ 30V (standard)
Keeper Open Closed Status
SPDT, Dry 3Amp @ 30V (optional - K option)
SPECIFICATIONS
All stainless steel parts with durable die cast
body for corrosion resistance
Plug-in wire connectors
Mounting tabs
Non-handed
Fewer moving parts for maximum life
630 stainless steel standard
UL Listed 1034 Burglary Resistant
UL 10C, 3 Hr Fire Rated (Fail-Secure only)
U.S. Patent #7,540,542 B2
BP10254
40WH
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
26
Electric Strikes
Lockset compatibility: For locksets not listed below, see UniFLEX™ 55 Series datasheet, page 5, faceplate dimension
Deadbolt Application: 55-D, 55-E and 55-F, door will not close with deadbolt extended
MODEL Application
55-A Compatible with all cylindrical locksets (Grade1 or equivalent) 435.00
55-B Mortise locksets and exit mortise devices with or without a deadlatch located below the
latchbolt. Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, Sargent, Yale. 456.00
55-C Mortise locksets and mortise exit devices with or without a deadlatch located above the
latchbolt. SDC, Schlage, Baldwin, Hager 456.00
55-D Mortise locksets with a deadbolt and deadlatch located below the latchbolt.
Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, Sargent, Yale. 477.00
55-E Mortise lockset with deadbolt and no deadlatch feature. Baldwin. 477.00
55-F Mortise locksets with a deadbolt and a deadlatch located above the latchbolt.
SDC, Schlage, Hager. 477.00
UniFLEX™ SPEC 55 Series Electric Strike, Grade 1 Heavy Duty - Factory tested 2500 lbs
SPECIFY FINISH Add to List
SPECIFY MODEL List
STANDARD ANSI 4-7/8” STRIKE PREP - NO CENTERLINE RELOCATION REQUIRED.
One strike with choice of interchangeable faceplates for cylindrical and mortise locksets with or without deadbolts.
Designed for new and retrofit hollow metal frame installations. *Frame face modification required.
FEATURES
Up to ¾Latchbolt and 1Deadbolt
Field Reversible, Failsafe/Failsecure
1/8” Horizontal alignment adjustment
Dual Voltage 12/24VDC
Exceeds 1,000,000 cycles
Factory tested 2500 lbs static strength
UL tested 1500 lb Static strength
70 ft-lb Dynamic strength
ANSI/BHMA A156.31 Grade 1
Internal Solenoid, No Heat in Keeper
All parts stainless steel
Non-handed
U630 Dull Stainless Steel (std) N/C
G612 Dull Bronze P625 Bright Chrome 42.00
D606 Dull brass H613 Oil Rubbed Bronze Q626 Dull Chrome 42.00
Warnock Hersey Tested according to:
UL 10C, 3 Hr Fire Rated, 4’ x 8’ single door
NFPA-252
CM
55-A
55-D
55-E
55-B
UL 1034
Burglary-Resistant
BP10254
40WH
SPECIFY MONITORING OPTIONS Add to List
LBM/LCM available with 55-A, 55-B, 55-C; LBM/LCM/DBM available with 55-D, 55-E, 55-F
LBM Latchbolt Monitor. Signals the door is closed and latched or unlatched and open.
Non-handed. 63.00
LBM/LCM Door Secure Monitor. Signals door is closed latched and the keeper is deadlocked. Also
signals the door is unlatched or unlocked. Non-handed. 125.00
DBM-L Deadbolt Monitor, Left Hand (Available with LCM and LBM. For D, E & F funtions only) 63.00
DBM-R Deadbolt Monitor, Right Hand (Available with LCM and LBM. For D, E & F funtions only) 63.00
CAN4-S104 (ULC-S104)
(Fail-Secure only).
ACCESSORIES Add to List
55-A, 55-B,
55-C:
LBM
LBM/LCM
55-D, 55-E, 55-F:
LBM
LBM/LCM
LBM/LCM/DBM
Monitoring Configurations
A B or C D or E F
RMB Buzzer, 12/24V. Indicates strike is energized 42.00
BR64XL Wire Lead Rectifier. Converts AC to DC 26.00
LT tri-Color LED, red or green or amber. Indicates strike energized per field wiring 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
27
Electric Strikes
UniFLEX™ Universal Strike — Multi Application Pack LIST
MODEL APPLICATION
55-ABC Universal Strike for cylindrical locks, mortise locks without deadbolts and mortise exit
devices including: SDC, Accurate, Arrow, Baldwin, Best, Corbin Russwin, Dorma, Falcon,
Hager, Marks, Sargent, Schlage, Yale.
477.00
Lockset compatibility: For locksets not listed, see UniFLEX™ 55 Series datasheet, page 5, faceplate
dimension
APPLICATION
Adaptable to all 55-A, 55-B, 55C
applications.
Strike body and 5 faceplates
For new and retrofit installation
No relocation of the centerline.
Non-handed
OPERATION
After releasing the latchbolt, the keeper
returns to the locked position.
Finish: 630 Dull Stainless Steel
AB C
B
A
C
Latch and Deadbolt Monitoring Strike Kits DK LIST
Distributor
Discount Code
Provides latch and or deadbolt position sta-
tus. Compatible with deadbolts, cylindrical
locks, mortise locks, and mortise locks with
latch and deadbolt. Strike plates shown
provided by others. 5 Amp @ 30 VAC/DC
MS-12 Cylindrical latch monitor 2-3/4" SPDT 135.00
MS-12D Cylindrical latch monitor 2-3/4" DPDT 166.00
MS-14 Cylindrical latch monitor 4-7/8" SPDT 135.00
MS-14D Cylindrical latch monitor 4-7/8" DPDT 166.00
MS-16 Mortise lock latch monitor SPDT 135.00
MS-16D Mortise lock latch monitor DPDT 166.00
MS-16
MS-14
MS-12 MS-20
MS-18 Mortise lock deadbolt monitor SPDT 135.00
MS-18D Mortise lock deadbolt monitor DPDT 176.00
MS-20* Mortise lock latch and deadbolt monitor
SPDT
166.00
MS-20D* Mortise lock latch and deadbolt monitor
DPDT
223.00
*MS-20 and MS-20D are handed but reversible
Strikeplates NOT INCLUDED
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
28
Electrified Locksets
ELECTRA MOD™ Major Brand Locks Electrified by SDC LEK
SDC’s Electra™ Mod Locksets ensure that the door stays latched even when unlocked, maintaining fire door integrity. The Electra™ Mod
locksets comply with all national building and fire life safety code requirements for use on fire rated doors, including high-rise stairwell and
elevator lobby doors where the use of electric strikes and magnetic locks is prohibited.
Outside lever normally locked,
turning inside lever provides
uninhibited egress
Request-to-exit output optional
with all locksets
Dual Voltage 12 and 24VDC
Choice of failsafe or failsecure
operating mode
Distributor
Discount Code
Schlage Sargent Best Yale Dorma
SPECIFICATIONS
Voltage Dual 12/24VDC Input
Current 600/300mA @ 12/24VD
Optional REX Output SPDT 3 Amps @ 30VDC
Latchbolt 1/2" throw
Backset 2-3/4"
Strike 4-7/8" ANSI A115.2
Door Thickness 1-5/8" to 2-1/8"
FEATURES
Athens
Augusta
B
Rhodes
Pacific Beach
Sparta
Monroe
J
Omega
P
Tubular
L
15
16
14
Schlage Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZS7250ATHQ ZS7252ATHQ Athens 704.00
ZS7250SPAQ ZS7252SPAQ Sparta 704.00
ZS7250RHOQ ZS7252RHOQ Rhodes 704.00
ZS7250TLRQ ZS7252TLRQ Tubular 704.00
ZS7250OMEQ ZS7252OMEQ Omega 704.00
Sargent Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZD7250BQ ZD7252BQ B808.00
ZD7250JQ ZD7252JQ J808.00
ZD7250LQ ZD7252LQ L808.00
ZD7250PQ ZD7252PQ P808.00
Yale Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZP7250AUQ ZP7252AUQ Augusta 721.00
ZP7250MOQ ZP7252MOQ Monroe 721.00
ZP7250PBQ ZP7252PBQ Pacific Beach 721.00
Best Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZT725014Q ZT725214Q 14 854.00
ZT725015Q ZT725215Q 15 854.00
ZT725016Q ZT725216Q 16 854.00
REX Option Request-to-exit output, SPDT, 3 Amps @ 30VDC 120.00
SDC SUPPLIED MECHANICAL LOCKSET LIST
®
®
®
®
In Stock: Following SDC electrified locksets are in stock at both SDC east and west coast warehouses
for shipment by the next business day.
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
29
Electrified Locksets
HOW TO
ORDER
DISTIBUTOR SUPPLIED MECHANICAL LOCKSET SDC FACTORY ELECTRIFIED LIST
Failsafe Failsecure
Schlage S7250 S7252 167.00
Yale P7250 P7252 167.00
Best T7250 T7252 167.00
Sargent D7250 D7252 167.00
Dorma U7250 U7252 167.00
Hager H7250 H7252 167.00
REX Option Request-to-exit output, SPDT, 3 Amps @ 30VDC 120.00
Distributors to supply SDC with cylindrical lock for modification. SDC returns modified lock to distributor
SSchlage ND80PD PYale 5405LN 167.00
TBest 93K7D DSargent 10G04 167.00
U Dorma C880 HHager 3480 167.00
ELECTRA MOD™ Major Brand Locks Electrified by SDC LEK
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
30
Electrified Locksets
Dual Voltage 600/300 mA @ 12/24VDC
Certification Exceeds ANSI A156-2-
4000 Grade 1
Latchbolt 0.5625"

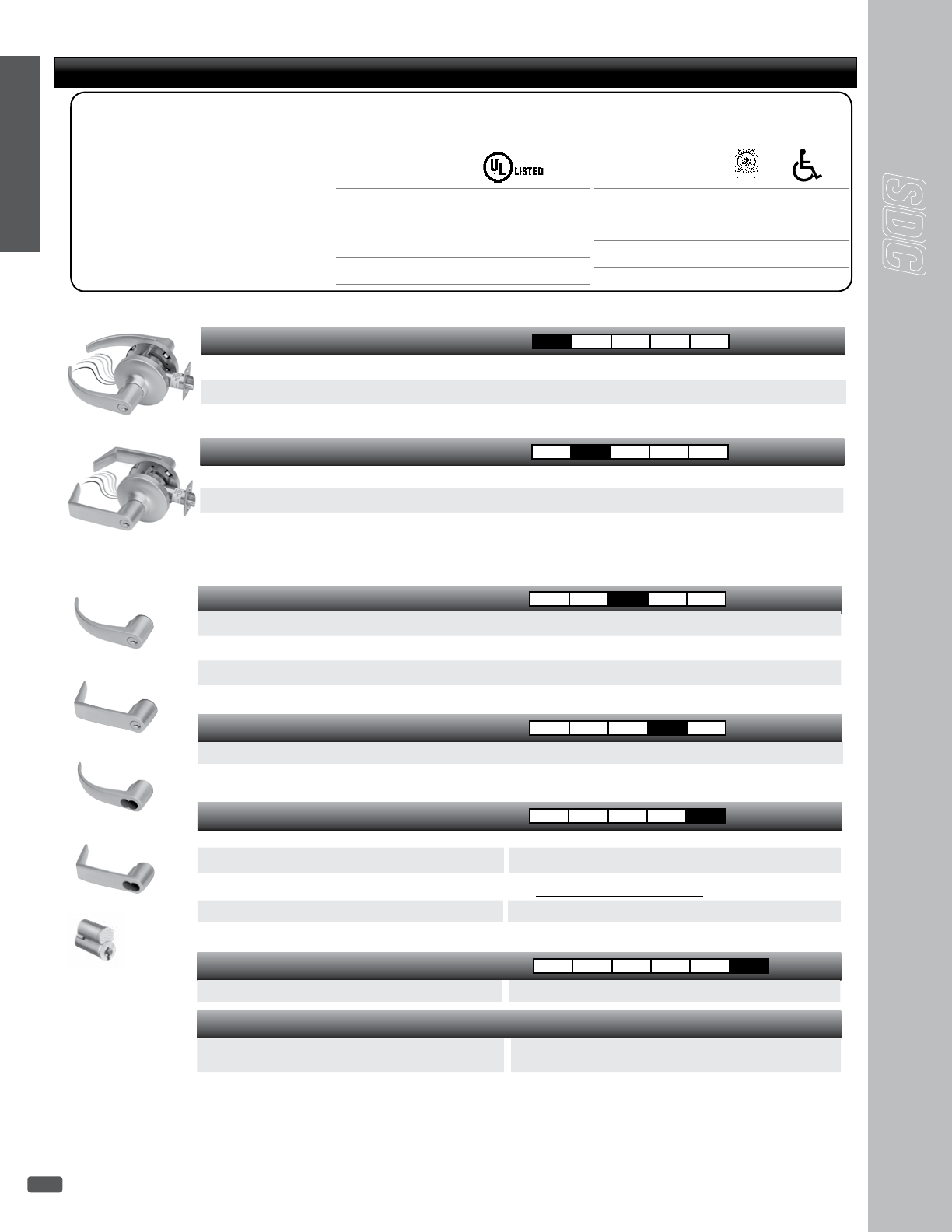

ELECTRA PRO™ SDC' Z7200 Series Heavy Duty Cylindrical Locksets LEK
SPECIFY MODEL LIST
SPECIFY FINISH Add to List
OPTIONAL CYLINDER and I-CORES Add to List
OPTIONAL LATCH AND BACKSET ASSEMBLIES
OPTIONAL STRIKE PLATES
SPECIFY LEVER TRIM
Electra Pro™ Locks
Z7250 SDC Failsafe, with Latch Status Output Z7252 SDC Failsecure, with Latch Status Output 435.00
SDC Lever Trim
GGalaxy EEclipse N/C
G5 Galaxy, I-Core prep E5 Eclipse, I-Core prep 26.00
G5 and E5 I-Core prep without I-Core
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 52.00 H613 Oil Rubbed Bronze 52.00
D606 Dull Brass 52.00 P625 Bright Chrome 52.00
Electra Pro™ Z7250G
I-CORE
Function: 7200 Series Locksets are locked on the outside and unlocked from the exterior by an access control or mechanical key.
The inside lever is always operable for uninhibited egress.
Latch Status Output: Standard with all SDC brand Z7200 locksets. SPDT, 3 Amps @ 30VDC
Electra Pro™ Z7250E
SDC Conventional Cylinders (Schlage 'C' Keyway Standard)
6PKA 6 PIN Keyed alike N/C 6PKD 6 PIN Keyed different (standard) N/C
[IC] Interchangeable Core (Best 'A' Keyway Standard) - requires E5 or G5 lever trim
IC7P-KA 7 pin I-Core, small format, keyed alike 52.00 IC7P-KD7 pin I-Core, small format, keyed different 52.00
B1 2-3/4" Backset latchbolt (Standard) N/C
ST1 ANSI 1-1/4” x 4-7/8” (Standard) N/C ST2 T-Strike with dust box, 1-1/8” x 2-3/4”
MUST BE SPECIFIED
N/C
G Galaxy
E Eclipse
E5 Eclipse, I-Core prep
G5 Galaxy, I-Core prep
SPECIFICATIONS
FEATURES
Choice of failsecure or failsafe mode
Dual 12/24 VDC
Latch Status Output: Z7200 standard
'C' type keyway, BEST IC core optional
Independent lever power return springs
Power Regulator Module included
3773-0324:104
CSFM
Electrically Controlled Single Point Locks &
Latches, 3 Hr A Label Fire Doors
Backset 2.75
Strike 4.875 strike ANSI A115.2
Door Thickness 1-5/8" to 2-1/8"
OPTIONAL CYLINDER and I-CORES Add to List
RRequest-to-exit output, operates on activation of inside lever, SPDT 0.1A @ 30VDC 120.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
31
Electrified Locksets
Optional Key Cylinders 1 required for 7650/7652 2 required for 7630/7632 32.00
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 32.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 32.00
Power Transfer Hinge
UL listed, 4.5", five knuckle hinge. Special finish available
PTH-4Q Four wire, dull chrome 156.00
PTH-10Q Ten wire, dull chrome 202.00
PTH-2+4Q 6-wire Electric Hinge 1-pair 16 Amp inrush, 4 Amp continuous;2-pair 1 Amp @ 12/24V 182.00
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 52.00 G612 Dull Bronze 52.00 S629 Bright Stainless Steel 52.00
D606 Dull Brass 52.00 H613 Oil Rubbed Bronze 52.00 U 630 Dull Stainless Steel 52.00
F611 Bright Bronze 52.00 P625 Bright Chrome 52.00
SPECIFY FUNCTION AND MODE LIST
SPECIFY HAND
OPTIONS AND ACCESSORIES Add to List
SPECIFY FINISH Add to List

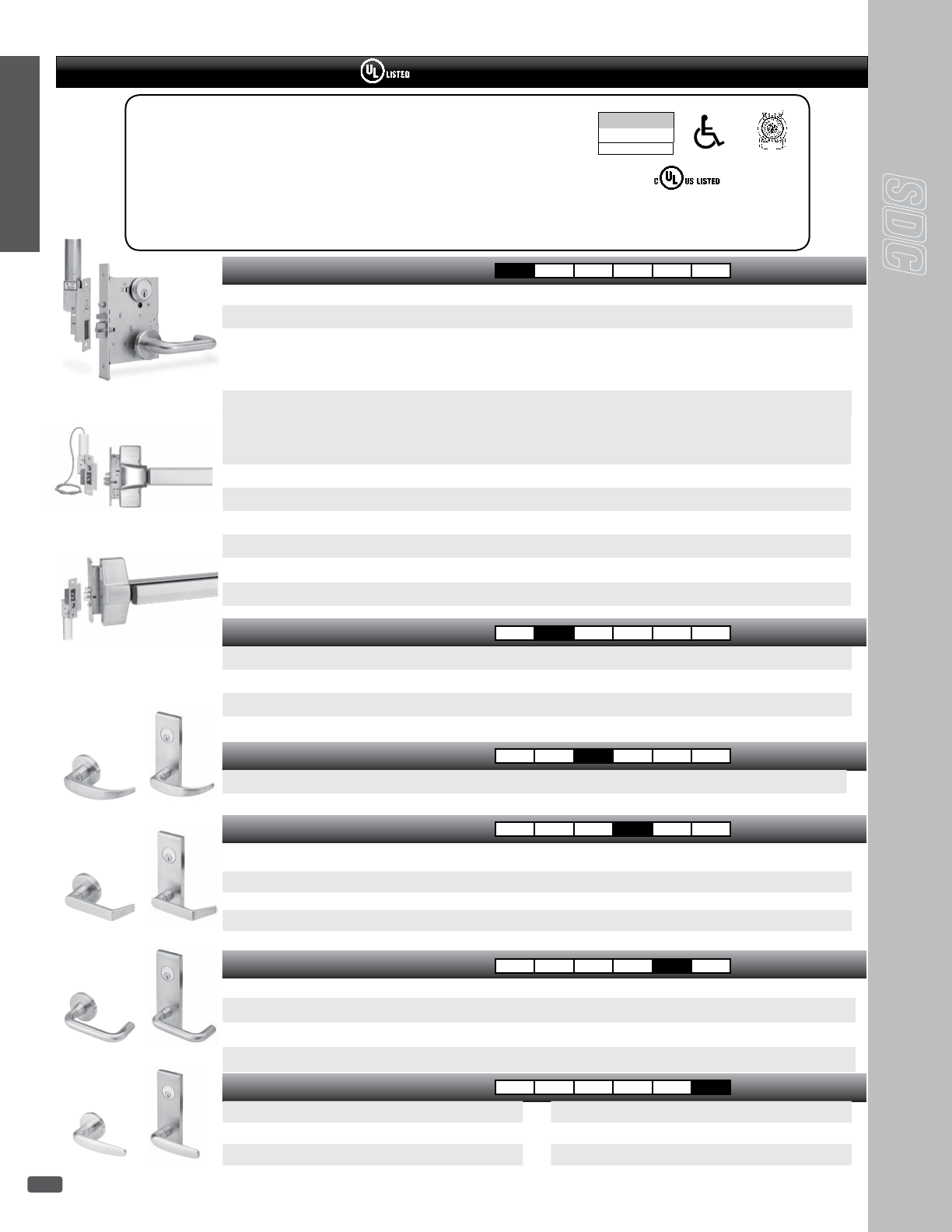

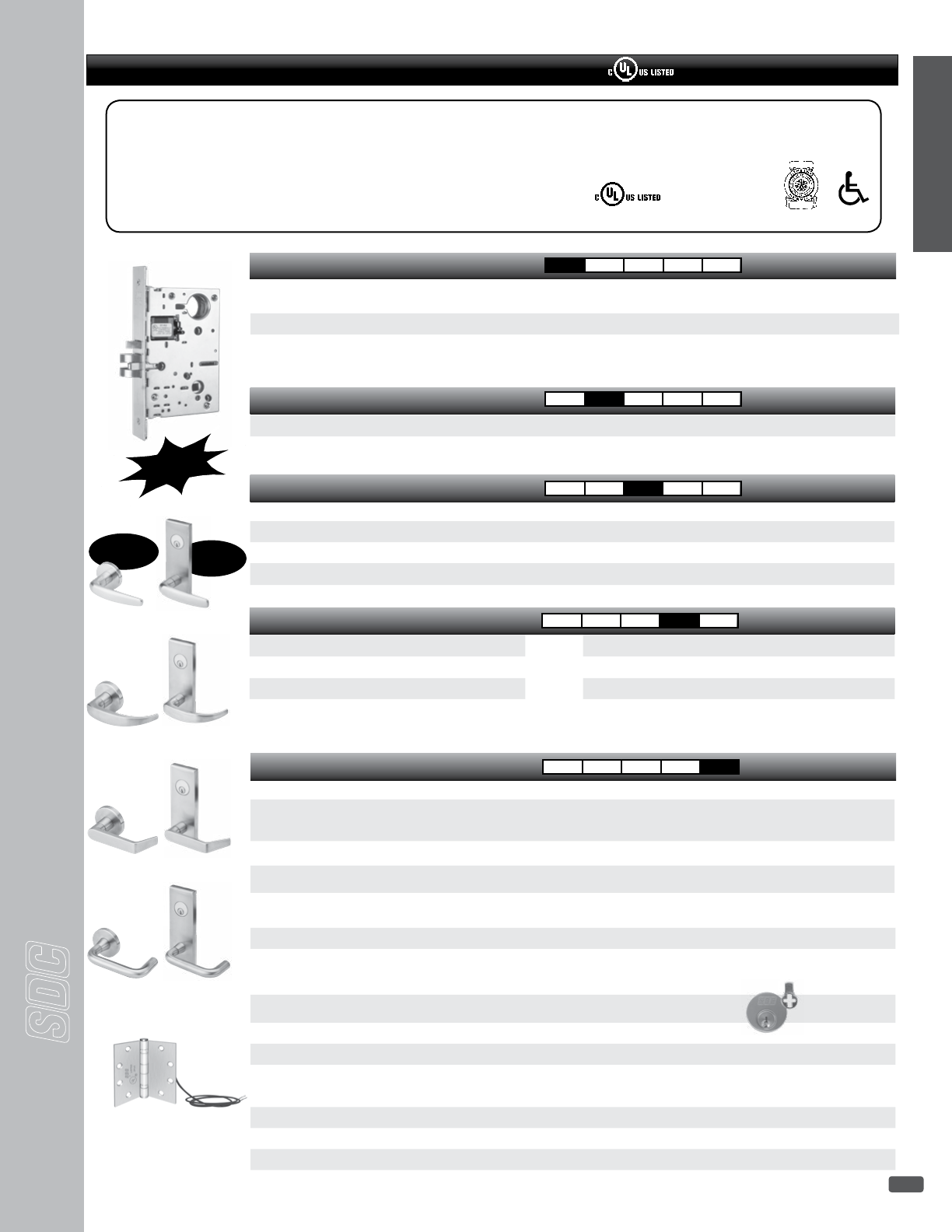

MLR Z7600 Motorized Latch Retraction Mortise Lockset LSK
* Less Trim With SDC Trim
Z7632 Locked both sides, failsecure 645.00 995.00
Z7652 Locked outside only, failsecure 645.00 995.00
LLeft hand LR Left hand reversed All hands are field reversible N/C
RRight hand RR Right hand reversed N/C
SPECIFY LEVER TRIM Add to List
GGalaxy with rose N/C GE Galaxy with escutcheon 104.00
EEclipse with rose N/C EE Eclipse with escutcheon 104.00
NNova with rose N/C NE Nova with escutcheon 104.00
07 Schlage equal with SDC B rose N/C 07E Schlage equal with SDC escutcheon 104.00
Optional Outputs
RRequest-to-exit. Indicates inside lever operation for access control request-to-exit input, alarm
shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC 83.00
DDoor position status output. (MC-4 Door Contact) 50.00
LM Latchbolt Status SPDT 5 Amp @ 30VDC 83.00
MLR Locksets incorporate an SDC manufactured Grade 1 Heavy Duty mortise lockset and vandal resistant clutch mechanism. All
operational attributes are field selectable. 620 mA inrush, 160 mA holding @ 24VDC.
Patent Pending
FIELD SELECTABLE ATTRIBUTES
Selectable function, locked outside only or both sides
Selectable handing
PTH
UL 10B Listed for 3Hr
Fire Rated Doors
Electrically Controlled
Single Point Locks or
Latches
3 Hr A Label Fire
Rated Doors 3773-0324:104
CSFM
G
E
N
GE
EE
NE
Schlage
Equal Schlage
Equal
07E07
SDC Supplied Electrified Lock (Mortise cylinder not included). SDC Brand lockset. Clutch for lever trim vandal
resistance. * Less trim - compatible with Schlage trim
Distributor
Discount Code
Optional Cable and Connectors
CC1-5 5ft. Cable and connectors for locks without optional outputs 47.00
CC3-5 5ft. Cable and connectors for locks with optional outputs 63.00
NEW
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
32
Electrified Locksets
SELECTRIC™ PRO Z7800 Electric Lockset LSK
SELECTRIC® Pro Locksets incorporate an SDC manufactured Grade 1 Heavy Duty mortise lockset and vandal resistant clutch
mechanism. Proprietary to SDC, SELECTRIC® Pro locksets. All operational attributes are field selectable. In addition, SELECTRIC® Pro
locksets retrofit many other mechanical lock brands making them fully compatible with new and retrofit applications.
FIELD SELECTABLE ATTRIBUTES (SEE DATASHEET FOR SPECIFIC MODELS)
Selectable mode, failsafe or failsecure
Selectable function, locked outside only or both sides
Selectable voltage, 12 or 24VDC
Selectable handing
Electrically Controlled
Single Point Locks or
Latches
3 Hr A Label Fire
Rated Doors 3773-0324:104
CSFM 768-80-SA
MEA
City of New York
Distributor
Discount Code
Z7830/Z7832
Z7850/Z7852
Z7835
Z7870/Z7872
Z7880/Z7882
Specify voltage for Z7835/7870/7872/7880/7882 function only.
Leave blank for all other functions which are 12/24VDC, field selectable
E12VDC C24VDC N/C
SPECIFY FUNCTION AND MODE LIST
SPECIFY HAND
VOLTAGE - Z7835/7870/7872/7880/7882 ONLY
SPECIFY FINISH Add to List
* Less Trim With SDC Trim
Z7830 Locked both sides, failsafe. Field reversible to failsecure mode. 306.00 735.00
Z7832 Locked both sides, failsecure. Field reversible to failsafe mode. 306.00 735.00
Z7850 Locked outside only, failsafe. Field reversible to failsecure mode. 306.00 735.00
Z7852 Locked outside only, failsecure. Field reversible to failsafe mode. 306.00 735.00
Z7835 Locked outside and/or inside. Outside failsecure, inside failsafe 466.00 849.00
Z7870 Locked outside only, failsafe with manual deadbolt for High Security
Applications
406.00 835.00
Z7872 Locked outside only, failsecure with manual deadbolt for High Security
Applications
406.00 835.00
Z7880 Locked outside only, failsafe with manual deadbolt for Privacy Feature 406.00 835.00
Z7882 Locked outside only, failsecure with manual deadbolt for Privacy Feature 406.00 835.00
LLeft hand LR Left hand reversed All hands are field reversible N/C
RRight hand RR Right hand reversed without disassembly (exeption Z7835) N/C
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 52.00 G612 Dull Bronze 52.00 S629 Bright Stainless Steel 52.00
D606 Dull Brass 52.00 H613 Oil Rubbed Bronze 52.00 U 630 Dull Stainless Steel 52.00
F611 Bright Bronze 52.00 P625 Bright Chrome 52.00
SDC Supplied Electrified Lock (Mortise cylinder not included). SDC Brand 7800 lockset. Clutch for lever trim
vandal resistance. * Less trim - compatible with Schlage trim
NEW
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
33
Electrified Locksets
PTH
UL 10B Listed for 3Hr
Fire Rated Doors
See page 88
SELECTRIC™ PRO Z7800 Electric Lockset LSK
Distributor
Discount Code
OPTIONS AND ACCESSORIES Add to List
Optional Outputs
RRequest-to-exit. Indicates inside lever operation for access control request-to-exit input, alarm
shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC 83.00
DDoor position status output. Indicates door open and door closed. SPDT 5 Amp @ 30VDC.
(7830/7832/7850/7852/7835 only) 83.00
SLatched & locked status output. Indicates door latched and locked and door unlocked.
SPDT 5 Amp @ 30VDC. (7830/7832/7850/7852/7835 only) 104.00
LLatch Status (7870/7872/7880/7882 only) 83.00
BDeadbolt Status (7870/7872/7880/7882 only) 83.00
Optional Cable and Connectors
CC1-5 5ft. Cable and connectors for locks without optional outputs 47.00
CC3-5 5ft. Cable and connectors for locks with optional outputs 63.00
Optional Key Cylinders 1 required for 7850/7852/7870/7872/7880/7882 2 required for 7830/7832/7835
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 32.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 32.00
Power Transfer Hinge
UL listed, 4.5", five knuckle hinge. Special finish available
PTH-4Q Four wire, dull chrome 156.00
PTH-10Q Ten wire, dull chrome 202.00
PTH-2+4Q 6-wire Electric Hinge 1-pair 16 Amp inrush, 4 Amp continuous;2-pair 1 Amp @ 12/24V 182.00
SPECIFY LEVER TRIM Add to List
GGalaxy with rose N/C GE Galaxy with escutcheon 104.00
EEclipse with rose N/C EE Eclipse with escutcheon 104.00
NNova with rose N/C NE Nova with escutcheon 104.00
07 Schlage equal with SDC B rose N/C 07E Schlage equal with SDC escutcheon 104.00
G E NGE EE NE
Schlage
Equal Schlage
Equal
07E07
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
34
Electrified Locksets
768-80-SA
MEA
City of New York
SPECIFY BRAND MODEL LIST
SELECTRIC™ MOD 7800 Series Locksets LSK
SPECIFY HAND
SPECIFY FINISH Add to List
OPTIONS AND ACCESSORIES Add to List
SPECIFY FUNCTION & ELECTRICAL MODE Add to List
Distributors supply SDC with the mortise lock body and armored front (less trim) for modification. SDC returns the modified lock
body. Upon installation, two lever return spring cages (supplied by distributor) are required for proper operation.
A Falcon - LM561/MA581 N Arrow - B12 UDorma - M9000 166.00
D Sargent - 8204 PYale - 8805 VMarks - 5EW 166.00
H Hager - 3880 SSchlage - L9080 WCal Royal - M8080 166.00
I Corbin/Russwin - ML2055 TBest - 35HEW/45H XPDQ - MR148 166.00
7830 Locked both sides, failsafe 7832 Locked both sides, failsecure 63.00
7850 Locked outside only, failsafe 7852 Locked outside only, failsecure N/C
LLeft hand LR Left hand reversed RRight hand RR Right hand reversed N/C
PTH
UL 10B Listed for 3Hr
Fire Rated Doors
See page 80
Electrified lock chassis, less trim, provided by SDC factory are special order, no cancellation, no return.
ZS Schlage ZN Arrow ZD Sargent ZT Best POA
ZA Falcon ZP Yale ZI Corbin Russwin
Optional Outputs
RRequest-To-Exit.
Indicates inside lever operation for access control request-to-exit input, alarm shunt,
remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC
Available with A, D, I, N, P, S, T, U, V and ZS only.
125.00
DDoor Position Status Output
Indicates door open and door closed. SPDT 5 Amp @ 30VDC
Available with locks S and ZS only.
83.00
SLatched & Locked Status Output
Indicates door latched and locked or door unlocked. SPDT 5 Amp @ 30VDC
Available with locks S and SZ only.
104.00
LLatchbolt status. Indicates door latched and unlatched status. SPDT 5 Amp @ 30VDC
Available with locks A, D, I, N, P, S, T, U, V and ZS only.
104.00
Consult factory for recent updates of option availability with any model
Optional Cable and Connectors
CC1-5 5ft. Cable and connectors for locks without optional outputs 47.00
CC3-5 5ft. Cable and connectors for locks with optional outputs 63.00
Optional Key Cylinders 1 required for 7850/7852 2 required for 7830/7832
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 32.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 32.00
3773-0324:104
CSFM
NOTE: All locks supplied less cylinder
Sargent
MarksCal Royal
PDQ Yale Corbin Russwin Best
Electrically Controlled
Single Point Locks or Latches
3 Hr A Label Fire Rated Doors Q626 Dull Chrome (standard) N/C
C 605 Bright Brass 52.00 G612 Dull Bronze 52.00 S629 Bri ght Sta teel 52.00
D 606 Dull Brass 52.00 H613 Oil Rubbed Bronze 52.00 U 630 Dull Stainless Steel 52.00
F611 Bright Bronze 52.00 P625 Bright Chrome 52.00
Schlage S and ZS only
Field selectable failsafe / failsecure Field selectable function without removing cover
Distributor
Discount Code
Note: Two locking hubs required for 7830 & 7832
Send the brand lockset of your choice to SDC for electrification. When factory authorized, distributors may take advantage
of SDC’s mechanical lock inventory to expedite orders. SDC stocks Schlage, Corbin Russwin, Yale, Best and Sargent
mechanical locks that may be electrified and charged to an order. Meanwhile, distributors may then send replacement
mechanical locks to SDC for credit and SDC inventory replenishment.
FEATURES SCHLAGE S AND ZS ONLY FEATURES ALL OTHER BRANDS
Field selectable failsafe/failsecure
Field selectable voltage, 12/24VDC
Field selectable function and handing without removing cover
Field selectable voltage, 12/24VDC
Field selectable function and handing
based on brand capability
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
35
Electrified Locksets
SK-L90 Field Electrification Kit for Schlage L9000 LIST
SK-L90 Field Electrification Kit for Schlage L9000 Series 125.00
SK-L90-SC Field Electrification Kit for Schlage L9080 (includes Springcage) 141.00
S7800-REX Request-To-Exit kit for Schlage L9000 Series 125.00
SK-88 Field Electrification Kit for Yale 8805 LIST
SK-88 Field Electrification Kit for Yale 8805 125.00
LM-88 Field Latch Kit for Yale 8805 104.00
SK-82 Field Electrification Kit for Sargent 8206 LIST
SK-82 Field Electrification Kit for Sargent 8204 125.00
LM-82 Field Latch Kit for Sargent 8204 104.00
Door Core Drill Guide LZK LIST
The SDC 7000-DG Laser Guided Wire Raceway Drill Fixture enables wire raceway preparation through particle filled and solid wood
doors. The door core wire raceway permits the installation and wiring of electrified locksets, exit devices and electric hinges.
The Laser Guided Wire Raceway Drill Fixture is easy to use without previous experience. The kit allows for drilling from the hinge
side without removing the door from the frame.
The 7000-DGK Kit includes: Laser Guided Door Core, Raceway Fixture, 1/4" x 6" Pilot Drill Bit, 3/8" x 50" Door Raceway
Drill Bit (Custom designed evacuator drill bit tool sharpened with 1' extra long flutes),
Fiberglass Wire Running Kit (Flexible acrylic end connection, Brass hook end for pulling, Brass eye end for pushing), Door
Wedge, Kit Carry Case
7000-DGK Laser door core drill guide Kit 621.00
7000-DB3/8 3/8" x 50" evacuator drill bit 78.00
7000-PD 1/4 X 6 1/4" x 6" pilot drill bit 25.00
Target Line
Laser beam
Drill Guide
1/4 x 6" Pilot Drill Bit
3/8" x 50" Evacuator Drill Bit - Custom Designed for Door Raceways Extra Long 1 Ft. Flute
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
36
Electrified Locksets
HiTower® – Electric Frame Actuator Controlled Locksets
The HiTower utilizes SDC’s original concept of utilizing an electric frame
actuator to control a mechanical lock in the door, eliminating the cost and labor
associated with a power transfer hinge and wires through the door.
HiTower® Z7500
SDC brand Grade 1 Heavy Duty lockset
Field selectable function,
Locked outside only or both sides
HiTower® CONVERSIONS
Distributors provide a new mechanical
lock brand of choice to the factory for
conversion to an electric frame actuator
controlled lockset.
Electrically Controlled Single
Point Locks or Latches
3 Hr A Label Fire Rated Doors
768-80-SA
MEA
City of New York
3773-0324:104
CSFM
7530 Locked both sides. Unlocked by access control, remote control and key from either side, failsafe
7550 Locked outside only. Unlocked by access control, remote control, outside key and inside lever, failsafe
7560 Locked both sides. Unlocked by access control, remote control and key from either side, failsecure
7570 Locked outside only. Unlocked by access control, remote control, outside key and inside lever, failsecure
SPECIFY SOURCE OF MORTISE LOCK
7500 Series HiTower® LK
SPECIFY FUNCTION
SPECIFY HAND
ACTUATOR VOLTAGE AND FRAME SIZE see page 35 for pricing
Z7500
HiTower® Pro - SDC supplied mortise lock and electric frame actuator, complete with lever trim (Cylinder not included)
ZSDC lockset ZR SDC Retrofit lockset, replaces discontinued 5000/6000 series
ZY SDC retrofit lockset replaces SDC modifications of discontinued manufacturer models: Falcon-LM581;
Sargent-7704/7705; Corbin-9557L/2257; Russwin- 7059L; Arrow-1600EW; Yale-8705; Almet-5007; Best-35HEW
LLeft hand LR Left hand reversed
RRight hand RR Right hand reversed
A115VAC 0.2 Amps D115VAC 0.2 Amps G115VAC 0.2 Amps
B24VAC 0.5 Amps E24VAC 0.5 Amps H24VAC 0.5 Amps
C24VDC 0.5 Amps F24VDC 0.5 Amps J24VDC 0.5 Amps
+ Fail Secure Actuator Available with Z or S lockset only. Special strike preparation required for S7560/7570.
Failsafe actuator for
1-3/4" to 2" face frames Extra Narrow failsafe actuator
for 1-1/4" to 1-1/2" face frames +Failsecure actuator
for 2" face frames
07E07
HiTower® Mod - Distributors supply SDC with the mortise lock body and armored front (less trim) for modification.
SDC returns the modified lock body with an electric actuator. Upon installation, two lever return spring cages (supplied
by distributor) are required for proper operation.
AFalcon* LM-561/MA581 PYale 8805
DSargent 8204 RSchlage Retro L9080 (replaces 5000 series)
HHager 3880 SSchlage L9080
ICorbin/Russwin 2057 TBest 35 HEW and 45H
NArrow B12 UDorma M9000
OYale 7130F-L5 Exit device VMarks 5EW
HiTower® Mod - SDC supplied Schlage mortise lock and electric frame actuator, less lever trim
ZS Schlage L9080
*All Falcon locks must be supplied with 0201000-000 face plate, less hub locking bar
G
E
N
GE
EE
NE
Distributor
Discount Code
O7550
Yale Conversion
SDC S6303FH
SPECIFY FINISH add to list
SPECIFY LEVER TRIM FOR Z, ZR & ZY add to list
GGalaxy with rose N/C GE Galaxy with escutcheon 104.00
EEclipse with rose N/C EE Eclipse with escutcheon 104.00
NNova with rose N/C NE Nova with escutcheon 104.00
07 Schlage style with SDC B rose N/C 07E Schlage style with SDC escutcheon 104.00
Q626 Dull Chrome (standard)
C605 Bright Brass 52.00 G612 Dull Bronze 52.00 S629 Bright Stainless Steel 52.00
D606 Dull Brass 52.00 H613 Oil Rubbed Bronze 52.00 U 630 Dull Stainless Steel 52.00
F611 Bright Bronze 52.00 P625 Bright Chrome 52.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
37
Electrified Locksets
PRICING BY SOURCE AND FUNCTION LK LIST
Sources A, D, I, N, O, P, S, T (see previous page)
Distributor supplied - Major brand mechanical lock for modification, SDC supplied Electric frame actuator
SOURCE/FUNCTION
A, D, H, I, N, P, S, T, U, V 7530 Failsafe, locked both sides 497.00
A, D, H, I, N, O, P, S, T, U, V 7550 Failsafe, locked outside only 461.00
S7560 Failsecure , locked both sides (5.75" Strike plate) 647.00
S7570 Failsecure, locked outside only (5.75" Strike plate) 637.00
Extra Narrow Failsafe Frame Actuator
(Actuator type D, E, F only page XX) For 1-1/4" to 1-1/2" frames. Special strike prep required.
125.00
Not available with failsecure 7560 and 7570
Source ZS (see previous page). Special order, no returns, no cancellation
SDC supplied - Schlage L mortise lock and electric frame actuator, less lever trim
SOURCE/FUNCTION
ZS7530 Schlage Failsafe, locked both sides POA
ZS7550 Schlage Failsafe, locked outside only POA
Sources Z, ZR, ZY: SDC supplied - SDC lever trim, mortise lock and electric frame actuator.
Schlage style lever trim 07 and 12 POA, consult factory for minimum qty.
SOURCE/FUNCTION
Z7530 SDC Failsafe, locked both sides with rose trim 730.00
Z7550 SDC Failsafe, locked outside only with rose trim 720.00
Z7560 SDC Failsecure, locked Both sides with rose trim 885.00
Z7570 SDC Failsecure, locked outside only with rose trim 875.00
ZY7530 SDC (Replaces discontinued lock models, see 21 for details)
Failsafe, locked both sides with rose trim
730.00
ZY7550 SDC (Replaces discontinued lock models, see 21 for details)
Failsafe, locked outside only with rose trim
720.00
ZR7530 SDC (Replaces 5000 series) Failsafe, locked both sides with rose trim 834.00
ZR7550 SDC (Replaces 5000 series) Failsafe, locked outside only with rose trim 823.00
ZR7560 SDC (Replaces 6000 series) Failsecure, locked both sides with rose trim 885.00
ZR7570 SDC (Replaces 6000 series) Failsecure, locked outside only with rose trim 875.00
Extra Narrow Failsafe Frame Actuator
(Actuator type D, E, F, only page XX) For 1-1/4" to 1-1/2" frames.
Special strike prep required. Not available with ZR or failsecure 7560 and 7570
Add 125.00
Rose Trim N/C
Escutcheon trim Add 104.00
HiTower® PRO
HiTower® MOD
HiTower® MOD
Distributor
Discount Code
Source R (see previous page)
Distributor supplied - Schlage L9080 mechanical lock for modification. SDC supplied Electric frame actuator
SOURCE/FUNCTION
R7530 (Replaces 5000 series) Failsafe, locked both sides 549.00
R7550 (Replaces 5000 series) Failsafe, locked outside only 518.00
HiTower® MOD
OPTIONS AND ACCESSORIES Add to List
Lock status and wire harness
LLatch status switch, SPDT, 5 Amps
@ 30VDC 63.00
SLatch and deadlock status, 3 Amps
@ 30VDC 104.00
SC-10 Socket connectors with 10 ft.
cable, power wiring only 63.00
SC-10-5 Socket connectors with 10 ft. cable
for power and options 80.00
Special Strikes
SSP Special retrofit strike plate 125.00 Specify extended lip strike in writing POA

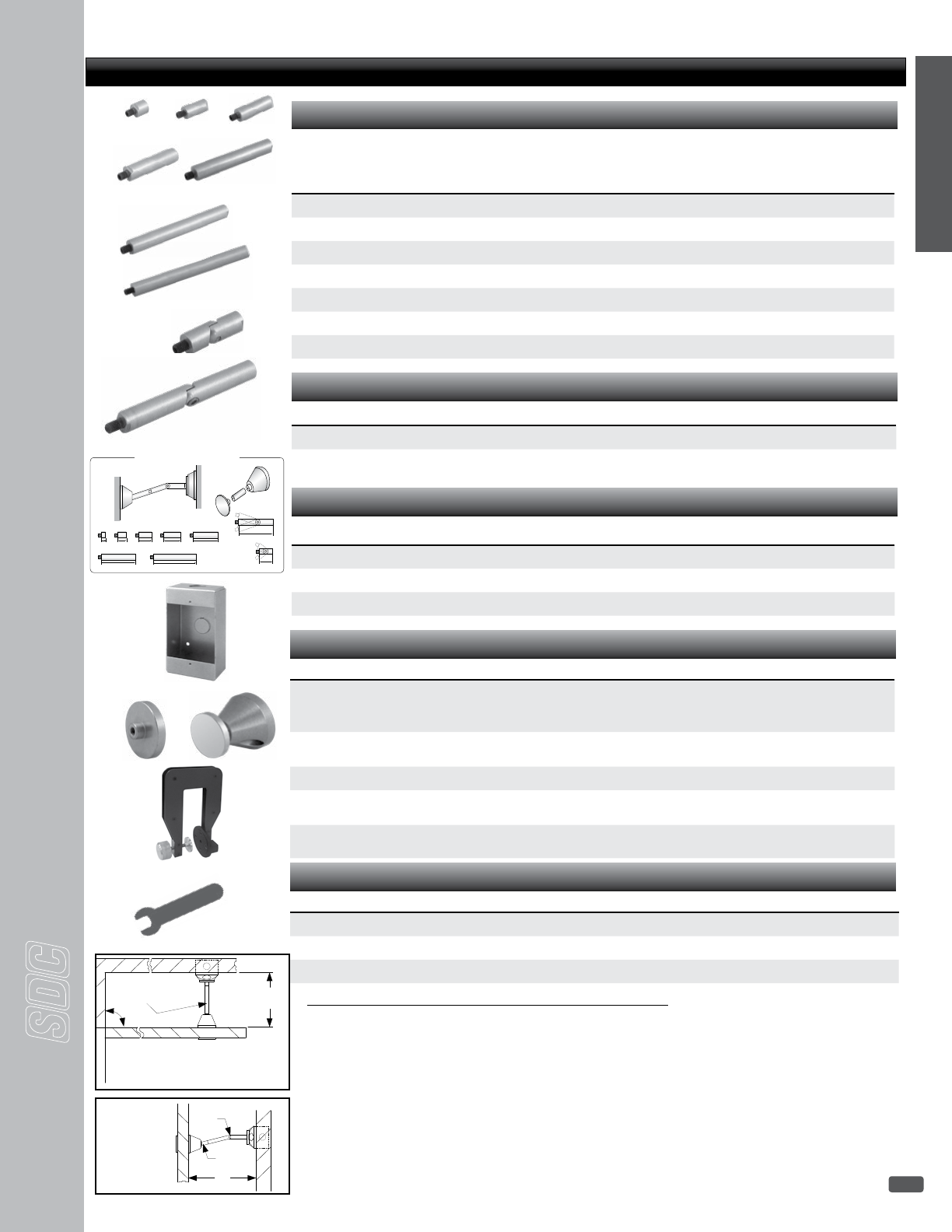

Electrical back boxes for frame actuators with conduit knockouts:
(Recommended for new construction)
7500EB-S For standard actuator in 1-3/4" or 2" face frame 32.00
7500EB-N For narrow actuator in 1-1/4" or 1-1/2" face frame 32.00
Optional Key Cylinders
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 32.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
38
Exit Devices
SPECTRA™ S6000 Touch Bar Exit Devices - RIM and SURFACE VERTICAL XK
SDC S6000 Spectra™ Series panic and fire rated exit devices are available in rim mount, mortise and surface
vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant
and comply with all national and state building and fire life safety codes.
S6200 SVR Surface Vertical Rod
Panic & Fire Rated Exit Devices ANSI / BHMA Grade 1
ANSI/BHMA A156.3-2001 Grade 1 Compliant
CA Title 19 Compliant
Meets/Exceeds ADA requirements
UBC 97, Standard 7.2
S6200-LBR SVR
Distributor
Discount Code
SPECTRA SERIES EXIT DEVICE LIST
S61 Rim mount exit device 621.00
S62 Surface vertical 932.00
SPECIFY FUNCTION
01 Exit Only, No Trim N/C
02 Dummy Pull or Lever (opens when dogged) N/C
03 Entrance by trim when latch is released by key N/C
08 Lever with key locks/unlocks lever N/C
14 Lever trim always active N/C
SPECIFY PANIC OR FIRE RATED Add to List
PPanic exit device
Mechanical Dogging STD; See part # CD for optional key cylinder dogging
N/C
FFire exit device
Mechanical dogging not available
114.0 0
SPECIFY HAND
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH Add to List
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH Add to List
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY OPTIONS Add to List
RRequest-To-Exit Output, SPDT 83.00 LLatch Status Output, SPDT 83.00
For 62 Series devices only:
LBR Less Bottom Rod,
for Panic Devices N/C LBRF Less Bottom Rod,
for Fire Rated devices N/C
S6100 Rim Mount
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
39
Exit Devices
Device Trim XK
Distributor
Discount Code
Optinal Door Strikes LIST
SPECIFY TRIM FUNCTION Add to List
Dummy Trim EK02, GK02, SP02 N/C
Key Retracts
Latchbolt
EK03, GK03, SP03 N/C
Key Locks/Unlocks
Lever
EK08, GK08 N/C
No Cylinder Lever
Always Active
EK14, GK14 N/C
SPECIFY TRIM FINISH Add to List
U 630 Dull Stainless Steel N/C
OPTIONS Add to List
CD Keyed dogging (Specify key cylinder separately)
(not available with (F) fire exit device) 21.00
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome,
incl. straight and clover cam 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome,
incl. straight and clover cam 32.00
RIM-CYL-KA 6-pin Rim Cylinder, Keyed Alike, Specially for 03 Function
Specifically For Trim EK03, GK03 and SP03 34.00
SPECIFY TRIM RIM AND VERTICAL ROD Add to List
Standard Trim
EK Eclipse GK Galaxy 233.00
SP Saturn 104.00
Standard Active and Dummy Trim
EK Eclipse
GK Galaxy
SP Saturn
EKE03 Eclipse style electric trim less mortise cylinder, Stainless Steel Finish 699.00
GKE03 Galaxy style electric trim less mortise cylinder, Stainless Steel Finish 699.00
Electric Trim Options
LS Locked/unlocked status, SPDT 3 Amp contact 83.00
EKE Eclipse
GKE Galaxy
ELECTRIC TRIM OPTIONS FOR SDC 6000 SERIES Add to List
ST1MP
For 6100P
ST1MF
For 6100F
Optional
for mullion
application
Projection: 7/8” (22.5mm)
71.00
ST2DF
Optional for pairs
of doors with rim
mount device.
KR90F
Standard Key
Removable Mullion
For Panic Exit and Fire Exit
Rim Mount Devices
Length: 8ft
Material: 2" 11 Gauge Steel Tube
Finish: Primer gray
Projection: 1-15/16” (49mm)
673.00
50.00
Removable Mullion LIST
FEATURES
Failsecure, field reversible to failsafe
4 ft cable and connectors
600/300 mA @ 12/24VDC
Rim cylinder required for 03
functions
1 key cylinder required for CD
option
Mortise cylinder required for 08
functions and GKE03, EKE03
SECURITY DOOR CONTROLS
801 Avenida Acaso
Camarillo, CA 93012
Email: Service@sdcsecurity.com
www.sdcsecurity.com Price List Effective February 1, 2017
40
Exit Devices
SPECTRA SERIES EXIT DEVICE LIST
S63 Mortise [03 Lever Trim included] 1139.0 0
SPECIFY FUNCTION
01 Exit Only, No Trim N/C
02 Dummy Pull or Lever (opens when dogged) N/C
03 Entrance by trim when latch is released by key N/C
08 Lever with key locks/unlocks lever N/C
14 Lever trim al
