Locks View PDF Trimco Full Catalog 1 17
User Manual: Locks View PDF Catalog & Manufacturer Links
Open the PDF directly: View PDF
.
Page Count: 73
for New Products on
Updated 7/15/16 mf-am
Fine Builders Hardware
1351 Rocky Point Drive
Oceanside, CA 92056
Telephone (323) 262-4191
Fax (323) 264-7214 or (800) 637-TRIM (8746)
Or For Quotes – Toll Free Fax (877) 786-8387
Online Ordering available at www.trimcohardware.com
© 2016, Triangle Brass Manufacturing Company, All rights reserved.
TRIANGLE BRASS MANUFACTURING COMPANY, INC.
N Index-10, 11, & 12
State
Sales Agencies
Factory Contact
EXT
Alabama
Belcher South Marketing, Inc.
Jorge Castellanos
115
Alaska
ASR Sales
Daniel Ayala
124
Arizona
The Clark Agency
Humberto Mata Jr.
100
Arkansas
Southwest Architectural Sales
Daniel Ayala
124
California, Northern
ASR Sales
Daniel Ayala
124
California, Southern
Security Hardware, Inc.
Daniel Ayala
124
Colorado
J. L. Jones Group
Humberto Mata Jr.
100
Connecticut
Bullard Associates
Jorge Castellanos
115
Delaware
Jester Associates
Jorge Castellanos
115
Florida
JP Nunn Sales Group, Inc.
Jorge Castellanos
115
Florida-Pan-handle
Mayo Associates
Jorge Castellanos
115
Georgia
Mayo Associates
Jorge Castellanos
115
Hawaii
J & B Marketing Co
Daniel Ayala
124
Idaho, Northern
Northwest Hdwe. Consultant
Humberto Mata Jr.
100
Idaho, Southern
J. L. Jones Group
Humberto Mata Jr.
100
Illinois-Northern
Life Safety Hardware Consult.
Jorge Castellanos
115
Illinois-Southern
D.L. Neuner
Jorge Castellanos
115
Indiana
CC Hardware Consultants
Jorge Castellanos
115
Iowa
Life Safety Hardware Consult.
Daniel Ayala
124
Kansas
D.L. Neuner
Daniel Ayala
124
Kentucky
CC Hardware Consultants
Jorge Castellanos
115
Louisiana
Southwest Architectural Sales
Daniel Ayala
124
Maine
Bullard Associates
Jorge Castellanos
115
Maryland
Factory Direct
Jorge Castellanos
115
Massachusetts
Bullard Associates
Jorge Castellanos
115
Michigan
The Eisen Group
Jorge Castellanos
115
Minnesota
Life Safety Hardware Consult.
Humberto Mata Jr.
100
Mississippi
Southwest Architectural Sales
Jorge Castellanos
115
Missouri
D.L. Neuner
Daniel Ayala
124
Montana
Factory Direct
Humberto Mata Jr.
100
Nebraska
Life Safety Hardware Consult.
Daniel Ayala
124
Nevada
ASR Sales
Daniel Ayala
124
Nevada, Las Vegas
Security Hardware, Inc.
Daniel Ayala
124
New Hampshire
Bullard Associates
Jorge Castellanos
115
New Jersey, Northern
Greico Glezen Sales
Jorge Castellanos
115
New Jersey, Southern
Jester Associates
Jorge Castellanos
115
New Mexico
The Clark Agency
Humberto Mata Jr.
100
New York, Southern
Greico Glezen Sales
Jorge Castellanos
115
New York, Metro
Greico Glezen Sales
Jorge Castellanos
115
INDEX of FACTORY REPS by STATE
State
Sales Agencies
Factory Contact
EXT
New York, Northern
Anthony Mastroianni
Jorge Castellanos
115
North Carolina
Bruch Marketing
Jorge Castellanos
115
Ohio
Anthony Mastroianni
Jorge Castellanos
115
Oklahoma
Southwest Architectural Sales
Daniel Ayala
124
Oregon
Northwest Hdwe. Consultant
Humberto Mata Jr.
100
Pennsylvania, Western
Anthony Mastroianni
Jorge Castellanos
115
Pennsylvania, Eastern
Jester Associates
Jorge Castellanos
115
Rhode Island
Bullard Associates
Jorge Castellanos
115
South Carolina
Bruch Marketing
Jorge Castellanos
115
South Dakota
Life Safety Hardware Consult.
Terry Gomez
100
Tennessee-Western
CC Hardware Consultants
Jorge Castellanos
115
Tennessee-Eastern
Mayo Associates
Jorge Castellanos
115
Texas
Southwest Architectural Sales
Daniel Ayala
124
Utah
J. L. Jones Group
100
Vermont
Bullard Associates
Jorge Castellanos
115
Virginia
Factory Direct
Jorge Castellanos
115
Washington State
Northwest Hdwe. Consultant
Humberto Mata Jr.
100
Washington, DC
Factory Direct
Jorge Castellanos
115
West Virginia
CC Hardware Consultants
Jorge Castellanos
115
Wisconsin
Life Safety Hardware Consult.
Daniel Ayala
124
Wyoming
J. L. Jones Group
Humberto Mata Jr.
100
INTERNATIONAL
Mexico
Don Tucker (International)
Daniel Ayala
124
Quebec, Canada
Les Agences Real Demers
Daniel Ayala
124
Canada, Western
TMC Sales Agency Northwest
Daniel Ayala
124
Europe
Don Tucker (International)
Daniel Ayala
124
Far East
Don Tucker (International)
Daniel Ayala
124
Central America
Don Tucker (International)
Daniel Ayala
124
South America
Don Tucker (International)
Daniel Ayala
124
Middle East
Don Tucker (International)
Daniel Ayala
124
Foundry Customers
Metal Concepts
Myrna Alcaraz
141
Daniel Ayala
Customer Service Rep
dayala@trimcohardware.com
124
Jorge Castellanos
Customer Service Rep
jcastellanos@trimcohardware.com
115
Myrna Alcaraz
Customer Svc/Product Tech
malcaraz@trimcohardware.com
141
Larry Squire
Product Tech/Special Quotes
lsquire@trimcohardware.com
156
Roberto Rivera
Global Solutions Services
rrivera@trimcohardware.com
144
Angeles Carrillo
Quote Requests (877-786-8387)
quotes@trimcohardware.com
112
CUSTOMER SERVICE TEAM MEMBERS
For Service dial extension 110
Index-1
The hardware shown on these pages are made with no compromise in quality,
design or durability. Only first quality extrusions, sheet stock and castings are used.
Careful matching, polishing, assembly and finishing result in a final product which
we present with pride.

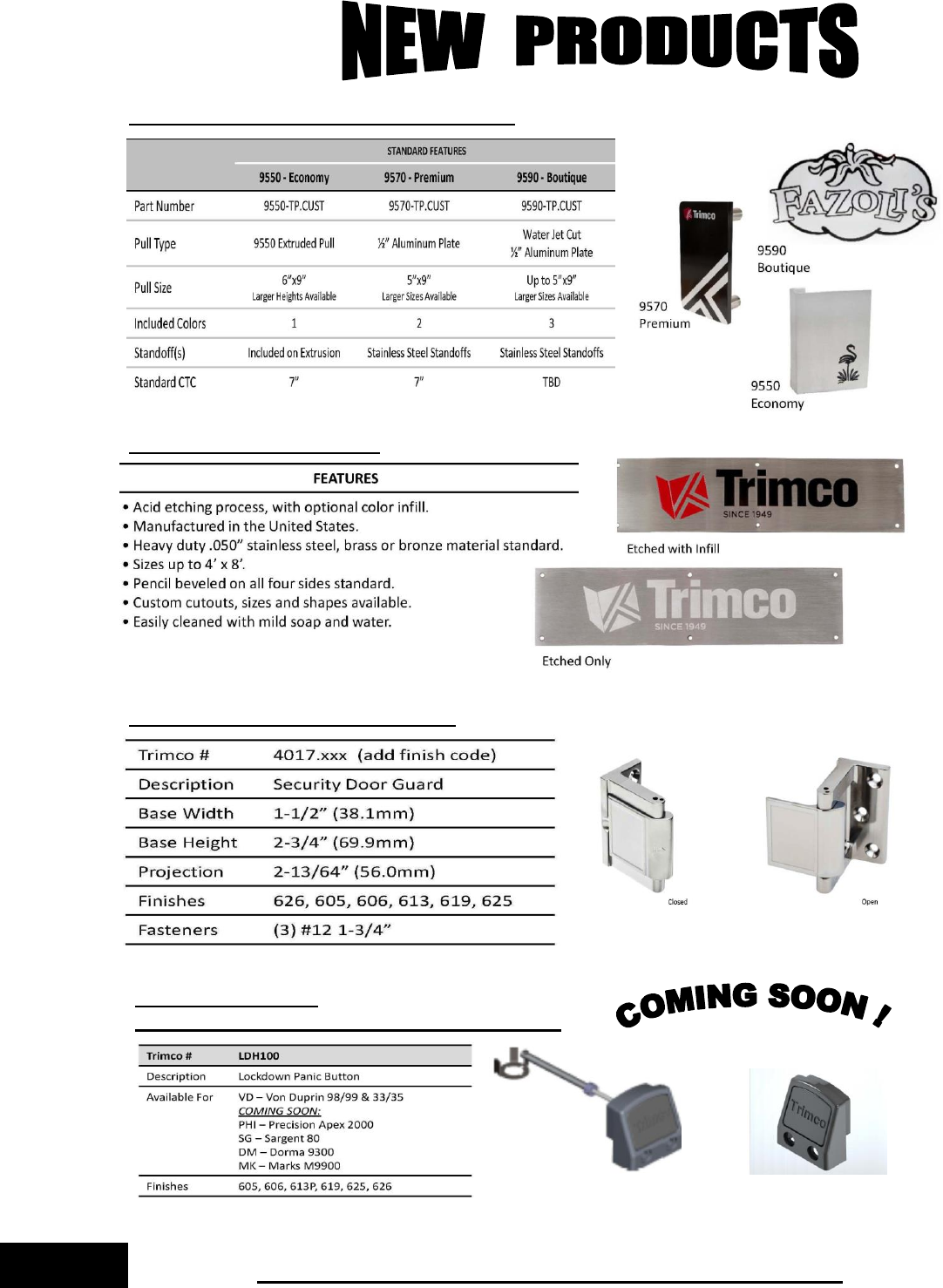

NEW PRODUCT ANNOUNCEMENTS N Index - 10,11, & 12rim
D-4
“Adjustre” Door Holder F-8
Armor Plates G-8
Back Plates D-1
Cane Bolt C-1
Closet Ball Catch C-1
Concealed Door Pull D-5
Cool Pulls Focal A-2
Coordinators and Accessories C-4, C-5
Crash Chain Stop G-6
Cremone Bolt C-8
Decal Signage G-3
Door Grille – Classic B-2
Door Guards G-6
Door Pulls B-1 – B-3, B-5, B-6, B-8, D-2 – D-4, D-6 – D12, E-1
Door Pull – Classic B-1 – B-3
Door Pull – Offset Entrance D-9, D-10
Drawer Pulls D-1
Dubl-Bolt C-6
Dust Proof Strike C-6
Dutch Door Bolt C-8
Edge Guards G-9
Entrance Handle – Classic B-1 – B-3
Escutcheon – Classic B-2
Fasteners 3
Finger Guard G-9
Finish Kits – Automatic Flushbolts C-6
Fire Bolt C-8
Flush Pulls D-5, D-6, D-7, D-8
Flush Pulls – Spindle Type D-7
Flushbolt – Corner Manual C-6
Flushbolts – Manual C-6
Flushbolts – Automatic & Semi-Automatic C-6
Focal – Contemporary Hardware Focal A-2
Grip – Classic B-1, B-2
Grips, Grab Bar D-8, D-9, D-10, D-12, D-13
Guides – Flushbolt C-8
Handrail Brackets G-5
Holders F-1, F-2, D-3, F-4, F-5 F-6, F-8, F-9
INDEX by Product
INDEX by Product
Index-2
PRODUCT NAME SECTION/PAGE
Hooks – Coat and Hat G-5
Hospital Grips D-8
Hospital Latches C-3
Indicators for Lock Sets G-1
Indicator Plates G-2
Kick Plates G-8
Knockers G-4
Latch Guards (Including Anti-Vandal) G-6, G-7
Lock Astragals G-5, G-6
Mail Plates and Accessories G-3
Mastercraft Bronze-(Parts) B-1, B-2
MasterCraft, Entry Pulls B-5, B-6, B-7
Mitey Lock – Sliding Glass Locks C-1
Modern Masterpieces, Entry Pulls B-3, B-4
Mountings 3
Pipe Adapter for Wall Strikes F-4
Pipe Adapter Strike F-6
Plate Anchor F-6
Pocket Door Pulls D-5, D-6
Pull Plates – Classic D-5, D-6, D-7
Pull Plates B-1, B-2, B-3, D-2, D-3, D-4, D-11
Pulls D-2, D-7, D-8, D-10, D-12, D-13
Push Bars, Sets E-1, E-2, E-3, E-4
Push Plates D-2, D-4, D-11, D-12, D-13
Push Plates – Classic B-1, B-2, B-3
Push Pull Latches (Hospital Latch) C-3
Restroom Signs G-1, G-2, G-3
Risers F-2, F-5
Roller Latches C-1, C-2
Signage – Engraved- “These doors to remain unlock…” G-3
Silencers F-4
Spacers, Nylon G-6
Special Plates G-7
Stops F-1, F-2, F-3, F-4, F-5, F-6, F-8, F-9
Stretcher Plates G-8
Strikes C-2
Surface Bolts C-7, C-8
Tuflok – Anti-Vandal External Hardware D-4
Viewers G-4
Universal Dome Stop F-2
Unit Lock Retrofit Kit G-5
Urbãn Focal A-2
Wall Bumpers F-7, F-8
INDEX by TRIMCO NUMBER
N Index-1
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT
BP1 BACK PLATE FOR PULLS D1
BP2 BACK PLATE FOR PULLS D1
BP3 BACK PLATE FOR PULLS D1
BP4 BACK PLATE FOR PULLS D1
15 / STANLEY CLASSIC PUSH PLATE / MASTER CRAFT BRONZE LINE B1
16 / PIERCE CLASSIC PULL PLATE / MASTER CRAFT BRONZE LINE ADA B1
17 / LAVA CLASSIC PUSH PLATE/ MASTER CRAFT BRONZE LINE B1
18 / LAVA-CAIRO CLASSIC PULL PLATE / MASTER CRAFT BRONZE LINE ADA B1
35 CLASSIC DOOR PULL ADA B1
50 / WENDELL CLASSIC PUSH PLATE / MASTER CRAFT BRONZE LINE B1
51 / WENDELLX1117-1 CLASSIC PULL PLATE / MASTER CRAFT BRONZE LINE ADA B1
57 CLASSIC GRIP ADA B1
58 CLASSIC GRIP ADA B2
59 CLASSIC GRIP ADA B2
111 ESCUTCHEON B2
242 STANDARD FLUSH PULL D8
243T CANE BOLT/TOP C1
244B CANE BOLT/BOTTOM C1
248 STANDARD FLUSH PULL D8
507 RESTROOM SIGN ADA G1
508 RESTROOM SIGN ADA G1
509 RESTROOM SIGN ADA G1
527 RESTROOM SIGN ADA G1
528 RESTROOM SIGN ADA G1
529 RESTROOM SIGN ADA G1
553 DRAWER PULL D1
562-3 DRAWER PULL D1
562-4 DRAWER PULL D1
562-96mm DRAWER PULL D1
571-3 CABINET PULL- 3” CTC-CUVERRO D1
571-6 CABINET PULL- 6” CTC D1
571-8 CABINET PULL- 8” CTC D1
571-10 CABINET PULL- 10’ CTC D1
620 DOOR KNOCKER G4
621 DOOR KNOCKER G4
625CV DOOR KNOCKER G4
625CVE DOOR KNOCKER G4
625V DOOR KNOCKER G4
625VE DOOR KNOCKER G4
751 HANDICAP SIGN G2
752 RESTROOM SIGN G2
753 RESTROOM SIGN G2
754 RESTROOM SIGN G2
755 INDICATOR PLATE G2
756 INDICATOR PLATE G2
757 INDICATOR PLATE G2
758 INDICATOR PLATE G2
760 PLASTIC SIGN G3
771 DECAL SIGNAGE G3
773 DECAL SIGNAGE G3
774-ICB DECAL SIGNAGE G3
775-ICB DECAL SIGNAGE G3
793 ENGRAVED METAL SIGN G3
802 3-WAY CATCH C1
804 3-WAY CATCH C1
810 HEAVY DUTY MAGNETIC CATCH C1
975 DOOR VIEWER G4
975L DOOR VIEWER G4
975U DOOR VIEWER G4
INDEX by TRIMCO NUMBER
N Index-2
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT
975U-CAP DOOR VIEWER WITH CAP G4
975CV DOOR VIEWER CAP ONLY G4
975-1 DOOR VIEWER G4
976 DOOR VIEWER 180º G4
976U DOOR VIEWER 180º G4
976U-CAP DOOR VIEWER WITH CAP G4
976CV DOOR VIEWER CAP ONLY G4
1001-1 PUSH PLATE D2
1001-2 PUSH PLATE D2
1001-3 PUSH PLATE D2
1001-9 PUSH PLATE D2
1001-11 PUSH PLATE D2
1001-3P PUSH PLATE D2
1010-1 PULL PLATE ADA D2
1010-2 PULL PLATE ADA D2
1010-3 PULL PLATE ADA D2
1012-2 PULL PLATE ADA D2
1012-3 PULL PLATE ADA D2
1013-2 PULL PLATE ADA D3
1013-2B PULL PLATE ADA D3
1013-3 PULL PLATE ADA D3
1013-3B PULL PLATE ADA D3
1014-2 PULL PLATE ADA D3
1014-2B PULL PLATE ADA D3
1014-3 PULL PLATE ADA D3
1014-3B PULL PLATE ADA D3
1015-2 PULL PLATE ADA D3
1015-2B PULL PLATE ADA D3
1015-3 PULL PLATE ADA D3
1015-3B PULL PLATE ADA D3
1017-2 PULL PLATE ADA D3
1017-2B PULL PLATE ADA D3
1017-3 PULL PLATE ADA D3
1017-3B PULL PLATE ADA D3
1018-2 PULL PLATE ADA D4
1018-2B PULL PLATE ADA D4
1018-3 PULL PLATE ADA D4
1018-3B PULL PLATE ADA D4
1041-4 PUSH PLATE D4
1056-4 PULL PLATE ADA D4

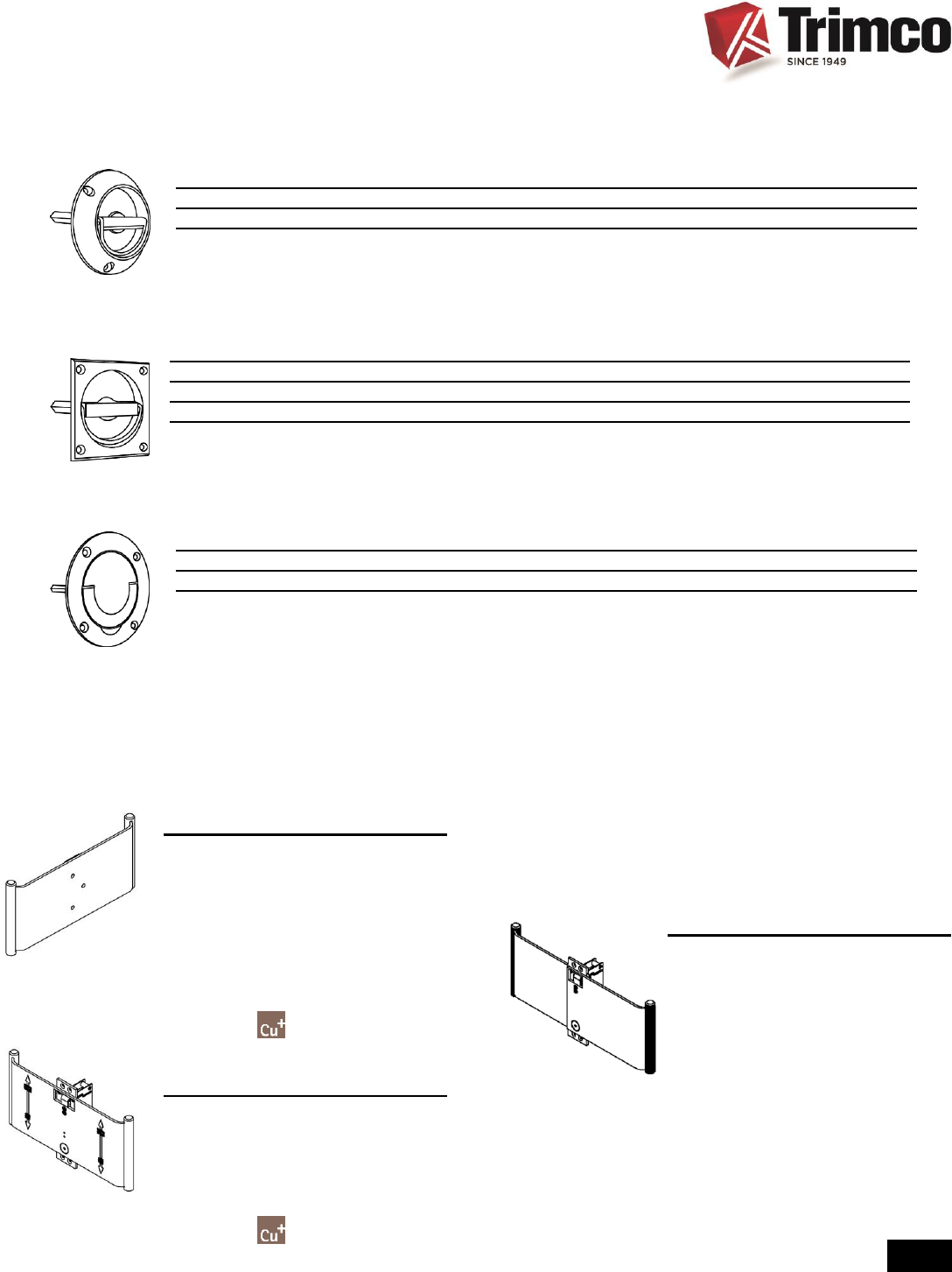

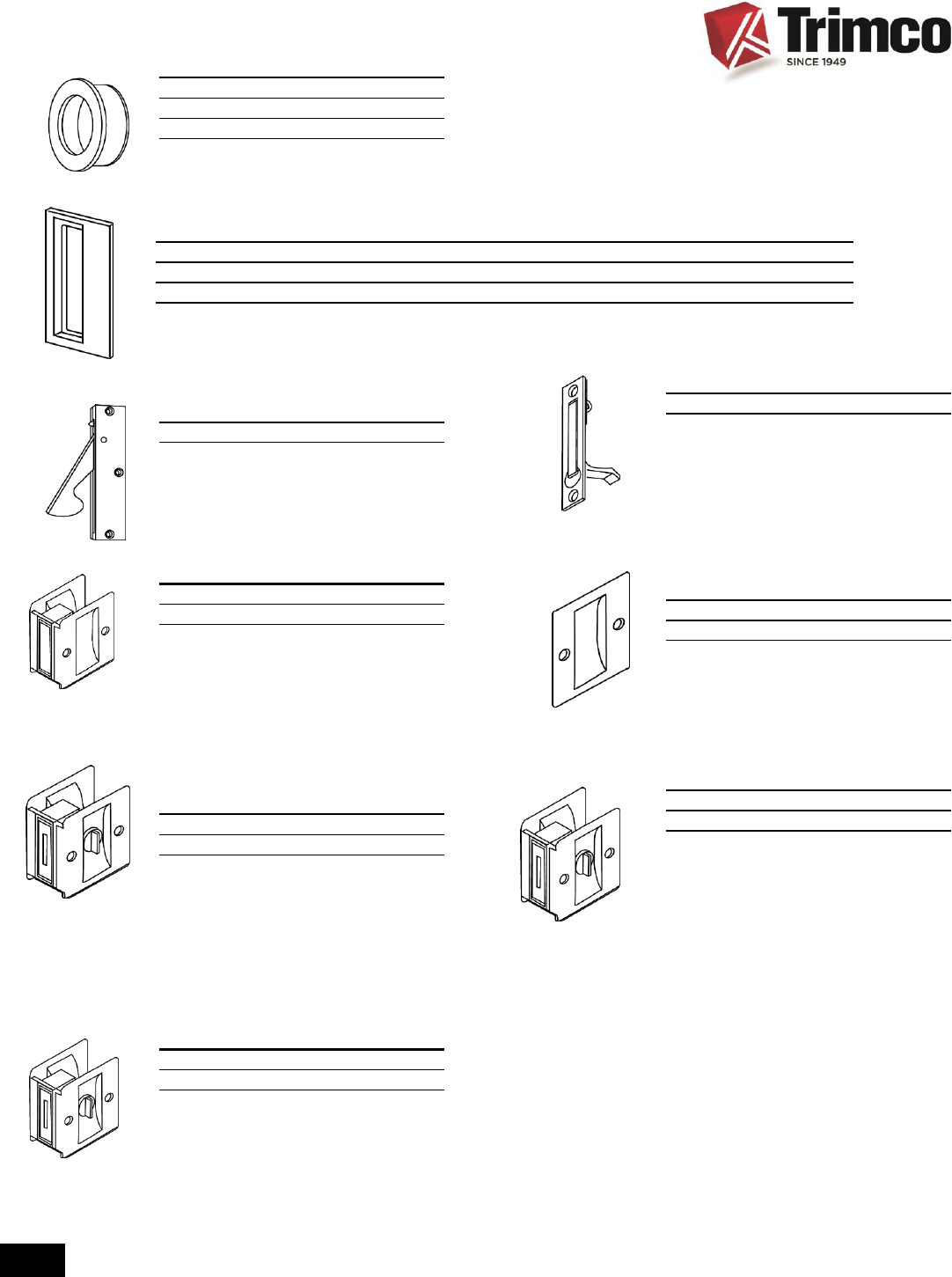

1059 ROUND FLUSH CUP D6
1060 FLUSH PULL D6
1061 FLUSH PULL D6
1062 CONCEALED DOOR PULL D6
1063 CONCEALED DOOR PULL D6
1064 POCKET DOOR PULL, PASSAGE D6
1064FCP POCKET DOOR PULL D6
1065CD POCKET DOOR PULL D6
1065 POCKET DOOR PULL, PRIVACY D6
1065PA POCKET DOOR PULL D6
1066S FLUSH PULL, SPINDLE D7
1066S-38 FLUSH PULL, SPINDLE D7
1066S-516 FLUSH PULL, SPINDLE D7
1067 FLUSH PULL, SPINDLE D7
1067-38 FLUSH PULL, SPINDLE D7
1067-516 FLUSH PULL, SPINDLE D7
1068 FLUSH PULL, SPINDLE D7
1068-38 FLUSH PULL, SPINDLE D7
1068-516 FLUSH PULL, SPINDLE D7
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT
1069 POCKET DOOR PULL D7
1069L POCKET DOOR PULL– LOCKABLE D7
1069FP POCKET DOOR PULL- FULL PRIVACY D7
1070-2 PUSH PLATE B2
1071-2 PULL PLATE ADA B2
1074-1 POCKET DOOR PULL- PRIVACY ONLY ADA D5
1074-2 POCKET DR PULL – MORTISE LOCK/ROSE TRIM ADA D5
1074-3 POCKET DOOR PULL -PASSAGE ONLY ADA D5
1074-2E POCKET DR PULL-MRTS LOCK-ESCUTCHEON ADA D5
1074-2-XXX-5004 POCKET DR PULL – MRTS AND LOCK INDICATOR ADA D5
1074-2E-XXX-5004 POCKET DR PULL- MRTS-ESCUT AND LCK INDICA ADA D5
1082-4 ANTI-VANDAL DEVICE - 5-3/8” ADA D4
1082-6 ANTI-VANDAL DEVICE – 4” X 6” X 5-3/8” ADA D4
1082-8 ANTI-VANDAL DECICE – 8” X 2-7/8” ADA D4
1096TL TUF-LOK SYSTEM ANTI VANDAL ADA D4
1096HA TUF-LOK HANDLE ONLY ADA D4
1096VD98-99-HA, NC ANTI-VANDAL PULL FOR VON DUPRIN 98-99 D4
1097HA TUF-LOK HANDLE ONLY, NO ASTRAGAL ADA D4
1097TL TUF-LOK, NO ASTRAGAL ADA D4
1097VD98-99-HA, NC ANTI-VANDAL PULL FOR VON DUPRIN 98-99 D5
1098RG ANTI VANDAL PULL ADA D5
1099RG ANTI-VANDAL PULL ADA D5
1102S PULL ADA D2
1102T PULL ADA D2
1109-1 PULL ADA D2

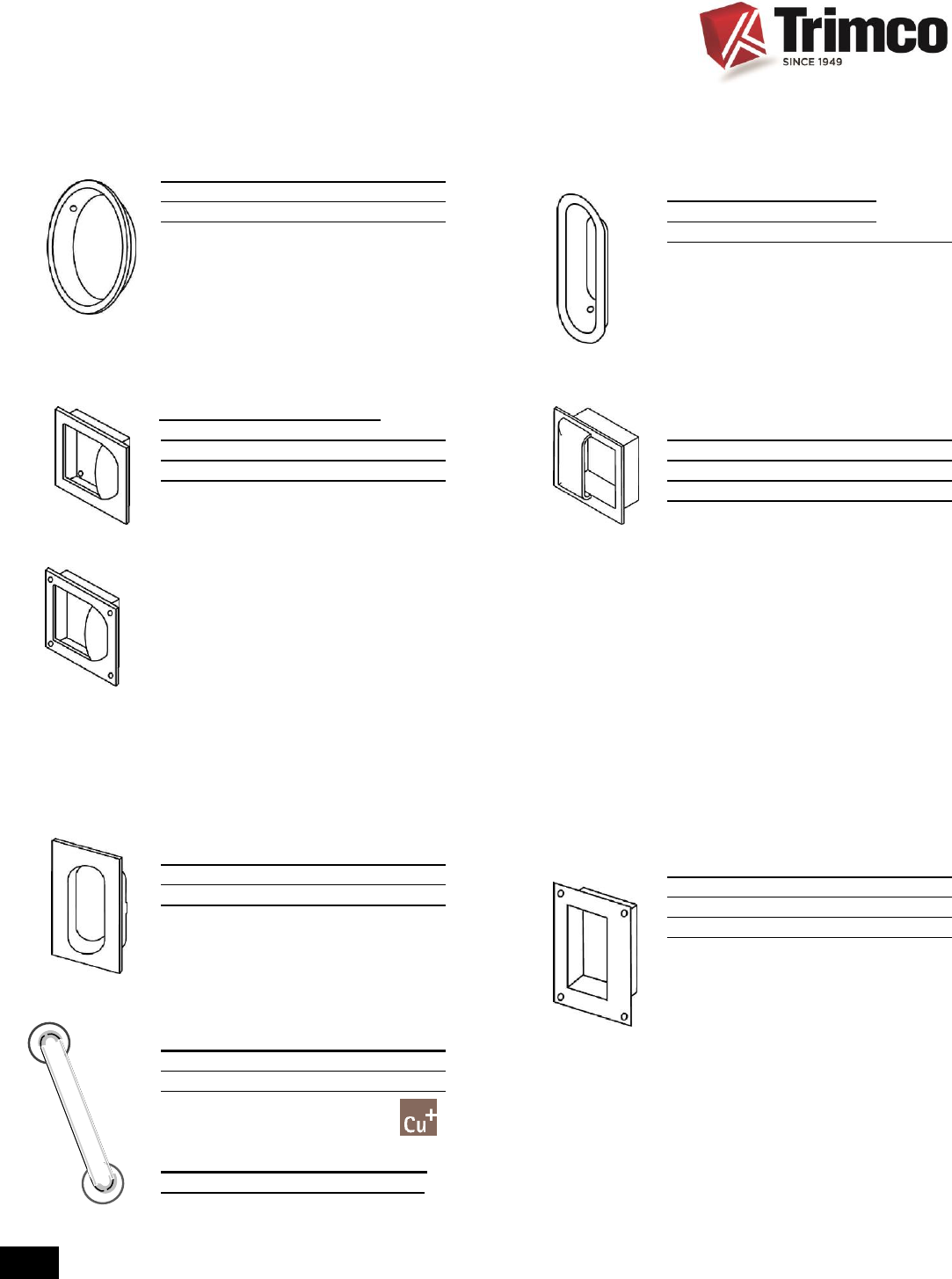

1111A FLUSH PULL, CUP MOUNT ADA D8
1111B FLUSH PULL, FACE MOUNT ADA D8
1111C FLUSH PULL, CUP MOUNT-MEETS CA DISABILITY ADA D8
1113 FLUSH PULL ADA D8
1115 FLUSH PULL, ADA D8
1115B FLUSH PULL, PAIR BTB ADA D8
1115C FLUSH PULL, CUP MOUNT ADA D8
1115P FLUSH PULL, PAIR-PREP FOR BTB W/LUGS ADA D8
1117-1 PULL ADA D9
1120 PULL ADA D9
1134 HOSPITAL PULL ADA D9
1134B HOSPITAL PULL, BTB ADA D9
1135 GRIP ADA D9
1136 / VELAZQUEZ GRIP ADA D9
1139-1 GRIP ADA D9
1139-2 GRIP ADA D9
1147 GRIP ADA D9
1147B GRIP, BTB D9
1150 GRIP ADA D10
1151 GRIP ADA D10

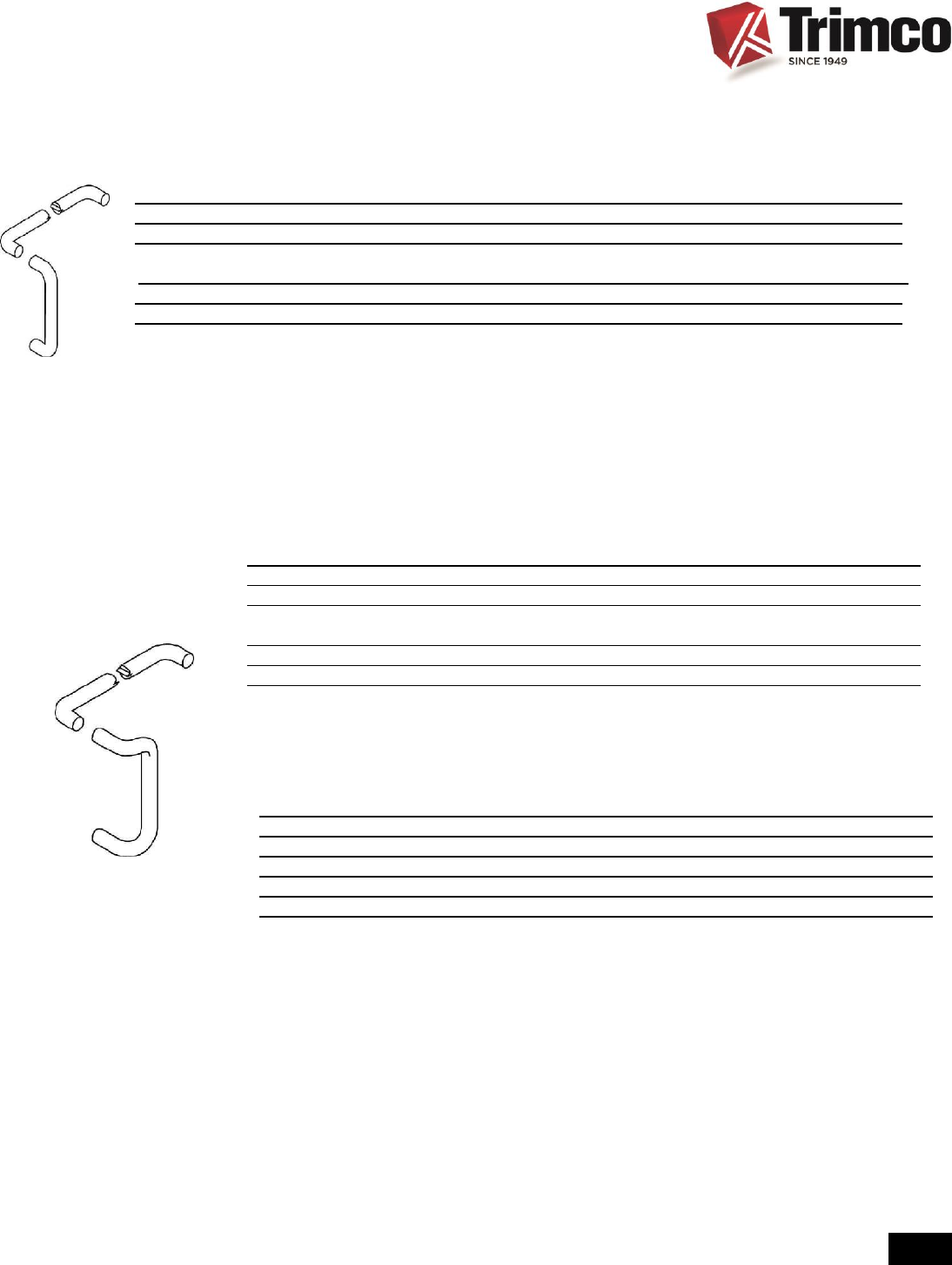

1160 PUSH/PULL BARS AND SETS ADA E3
1160-1 PUSH/PULL BARS AND SETS ADA E3
1161 PUSH/PULL BARS AND SETS ADA E3
1161-1 PUSH/PULL BARS AND SETS ADA E3
1162 PUSH/PULL BARS AND SETS ADA E3
1162-1 PUSH/PULL BARS AND SETS ADA E3
1163 PUSH/PULL BARS AND SETS ADA E3
1163-1 PUSH/PULL BARS AND SETS ADA E3
1164 PUSH/PULL BARS AND SETS ADA E3
1164-1 PUSH/PULL BARS AND SETS ADA E3
1170 PUSH/PULL BARS AND SETS ADA E3
1171 PUSH/PULL BARS AND SETS ADA E3
1172 PUSH/PULL BARS AND SETS ADA E3
1172-1 PUSH/PULL BARS AND SETS ADA E3
1173 PUSH/PULL BARS AND SETS ADA E3
1174 PUSH/PULL BARS AND SETS ADA E3
1175 PUSH/PULL BARS AND SETS ADA E3
1183-1/CAIRO GRIP/MASTERCRAFT-BRONZE LINE ADA D11
1191-1 GRIP ADA D10
1191-2 GRIP ADA D10
1191-3 GRIP ADA D10
INDEX by TRIMCO NUMBER
N Index-3
INDEX by TRIMCO NUMBER
N Index-4
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT
1191-4 GRIP ADA D10
1191-4J GRIP ADA D10
1191-5 GRIP ADA D10
1191-5J GRIP ADA D10
f1191-1 fOCAL GRIP ADA D10
f1191-2 fOCAL GRIP ADA D10
f1191-3 fOCAL GRIP ADA D10
f1191-4 fOCAL GRIP ADA D10
f1191-4J fOCAL GRIP ADA D10
f1191-5 fOCAL GRIP ADA D10
f1191-5J fOCAL GRIP ADA D10
1193-1 GRIP ADA D10
1193-2 GRIP ADA D10
1194-1 GRIP ADA D11
1194-2 GRIP ADA D11
1194-3 GRIP ADA D11
1194-4 GRIP ADA D11
1195-1 GRIP ADA D11
1195-2 GRIP ADA D11
1195-3 GRIP ADA D11
1195-3J GRIP ADA D11
1195-6 GRIP ADA D11
1195-6J GRIP ADA D11
1198-1-XX.710CU BACTERICIDAL COPPER GRAB BAR D8
1199-1 GRIP ADA D10
1199-2 GRIP ADA D10

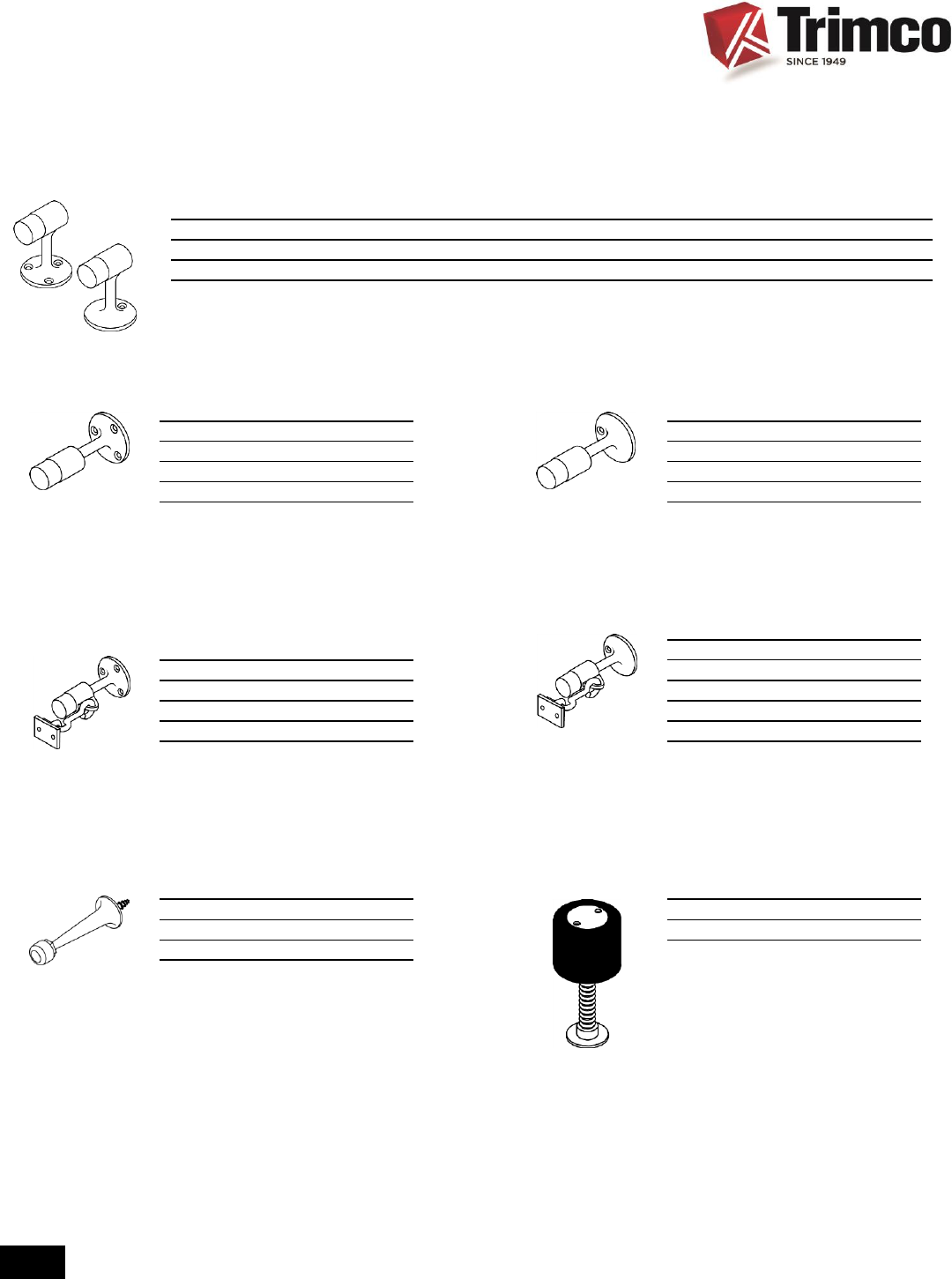

1200 FLOOR STOP WS F1
1201 FLOOR STOP F1
1201CK FLOOR STOP F1
1201-5 FLOOR STOP F1
1204 BASE STOP WS F1
1205 BASE STOP F1
1206 BASE STOP WS F1
1207 STOP F1
1208 STOP F1
1209 HEAVY DUTY FLOOR STOP F1
1209W HEAVY DUTY WALL STOP F1
1209HO HEAVY DUTY FLOOR STOP, HOLD OPEN F1
1209HA HEAVY DUTY FLOOR STOP, SS SHAFT F1
1211 UNIVERSAL DOOR STOP #4,209,876 F2
1211CH CARPET RISER F2
1211CL CARPET RISER F2
W1211 UNIVERSAL DOME STOP F2
W1211CH RISER F2
W1211CL RISER F2
1214 STOP F2
1214CK HEAVY DUTY STOP F2
1214CKx1268CK HEAVY DUTY STOP x ANCHOR PLATE F2
1214H HEAVY DUTY STOP, 2-1/4” HIGH F2
1215CKU UNIVERSAL STOP F3
1217P, S STOP F3
1220-5 KICKDOWN DOOR STOP F3
1221-4 KICKDOWN DOOR STOP F3
1221-4FF KICKDOWN DOOR STOP F3
1223 STOP WS F3
1224 STOP F3.
1224-5 STOP F3
1229A SILENCER, METAL FRAME F4
1229B SILENCER, WOOD FRAME F4
1229EL EVEVATOR BUMPER F4
1231 STOP F4
1233 STOP F4
INDEX by TRIMCO NUMBER
N Index-5
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT

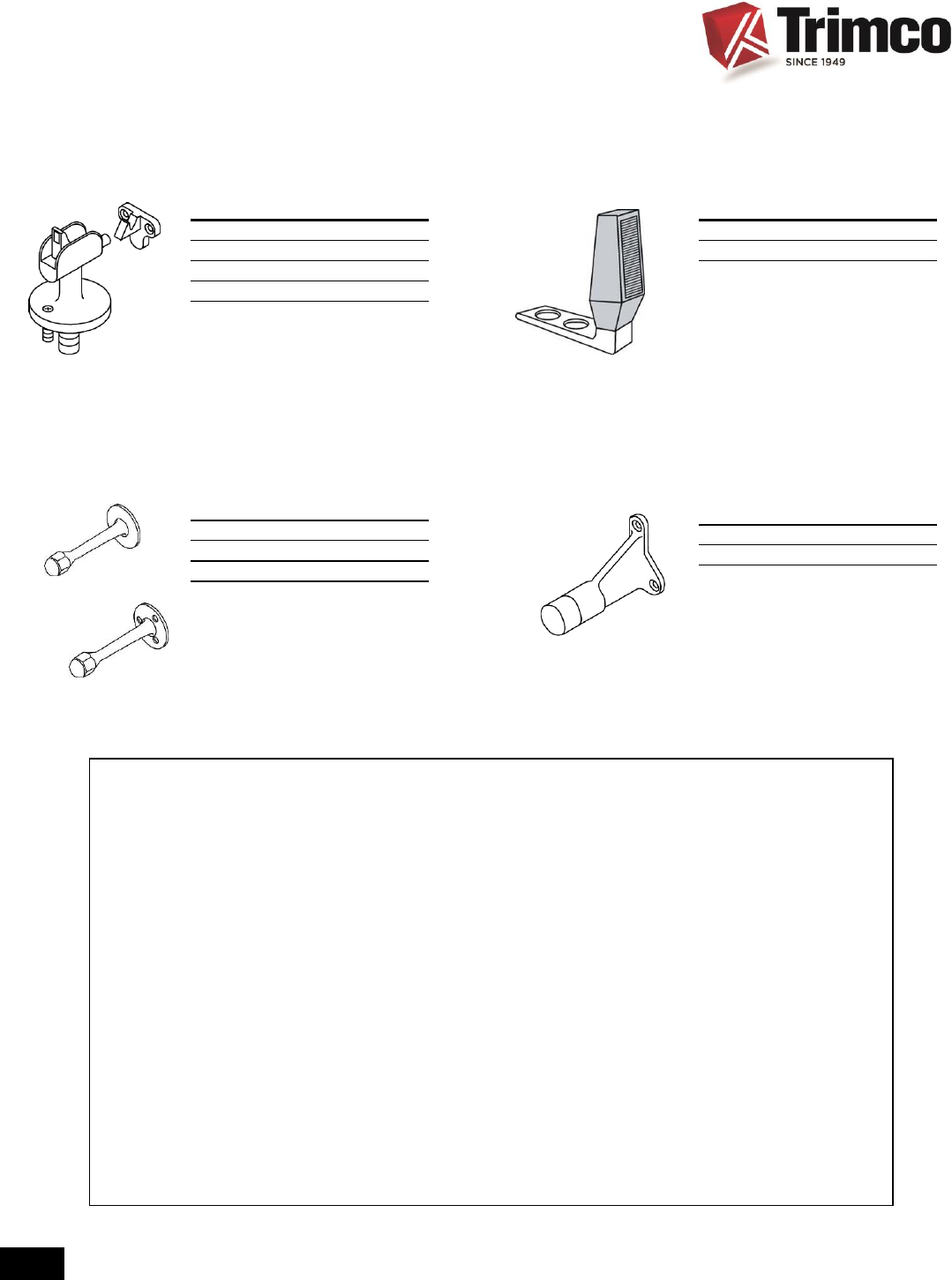

1234 STOP AND HOLDER F4
1235 BASE STOP F4
1240 HINGE PIN STOP F4
1244 STOP, ROLLER F5
1244-6 STOP, ROLLER F5
1245 STOP, ROLLER F5
1254 STOP AND HOLDER F5
1255 PLUNGER DOOR HOLDER F5
1257M STOP F5
1257R RISER F5
1258M STOP F5
1260P PIPE ADAPTER STRIKE F6
1260W STOP AND WALL STRIKE F6
1260WP STOP AND HOLDER WITH PIPE ADAPTER STRIKE F6
1261 STOP AND HOLDER F6
1263 STOP AND HOLDER F6
1265 STOP AND HOLDER F6
1267 STOP AND HOLDER F6
1268 ANCHOR PLATE F6
1268CK ANCHOR PLATE, DRILLED AND TAPPED FOR 1214CK F6
1270CX WALL BUMPER - CONVEX F7
1270CV WALL BUMPER - CONCAVE F7
1270CVPV WALL BUMPER F8
1270CVSV WALL BUMPER F8
1270WX WALL BUMPER - CONVEX F7
1270WV WALL BUMPER - CONCAVE F7
1275RP WALL BUMPER F7
1277/79 WALL BUMPER F7
1278CV WALL BUMPER F7
1278CX WALL BUMPER F7
L1280 STOP AND HOLDER F8
L1280CI STOP AND HOLDER- CAST IRON F8
1282 STOP AND HOLDER F8
1282CI STOP AND HOLDER F8
1283-2S, 4S, 6S “ADJUSTRE” DOOR STOP AND HOLDER #3,129,024 F8
1290 STOP F9
1291 STOP F9
1296, 1296S STOP F9
1298 STOP F9

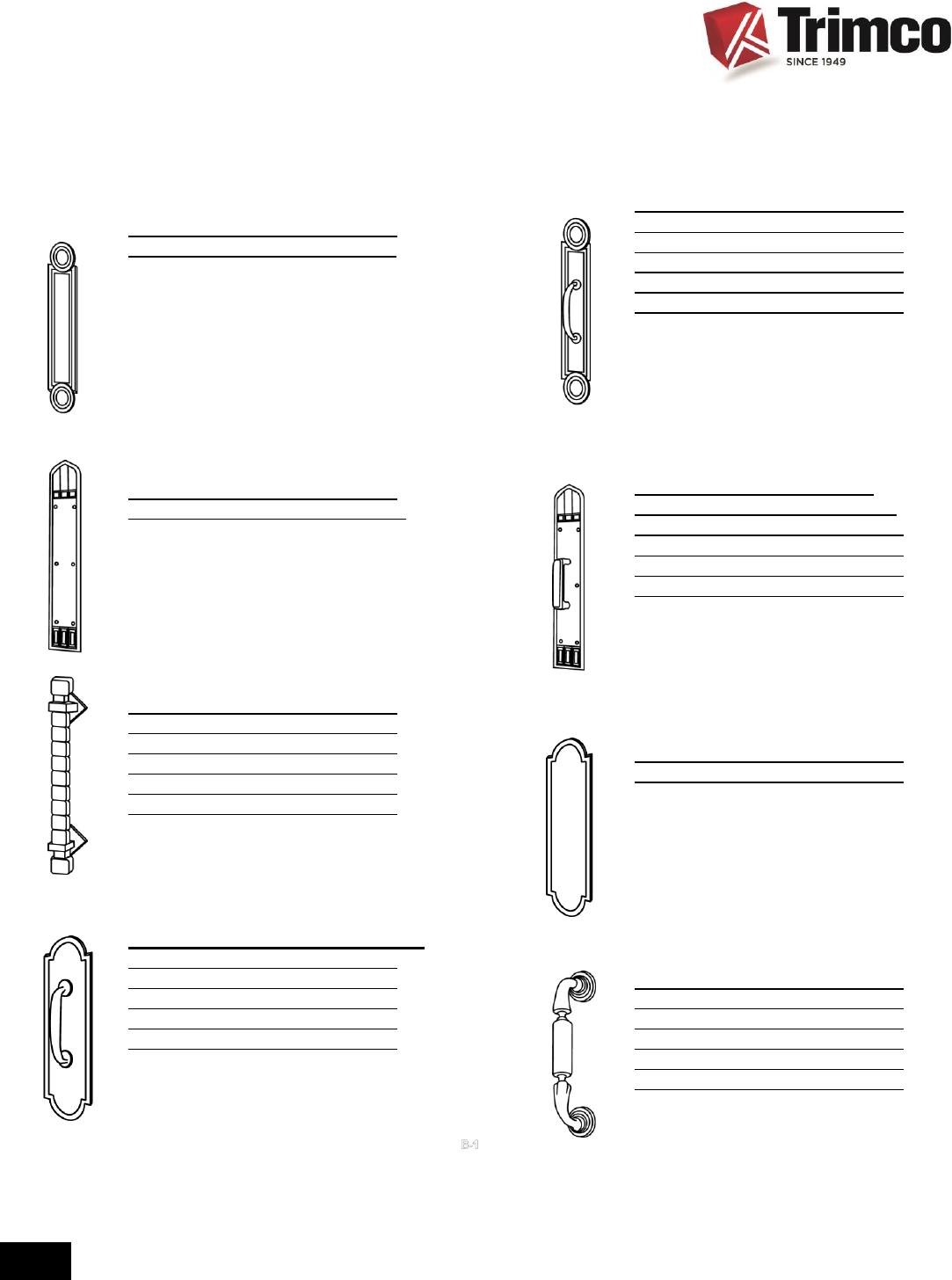

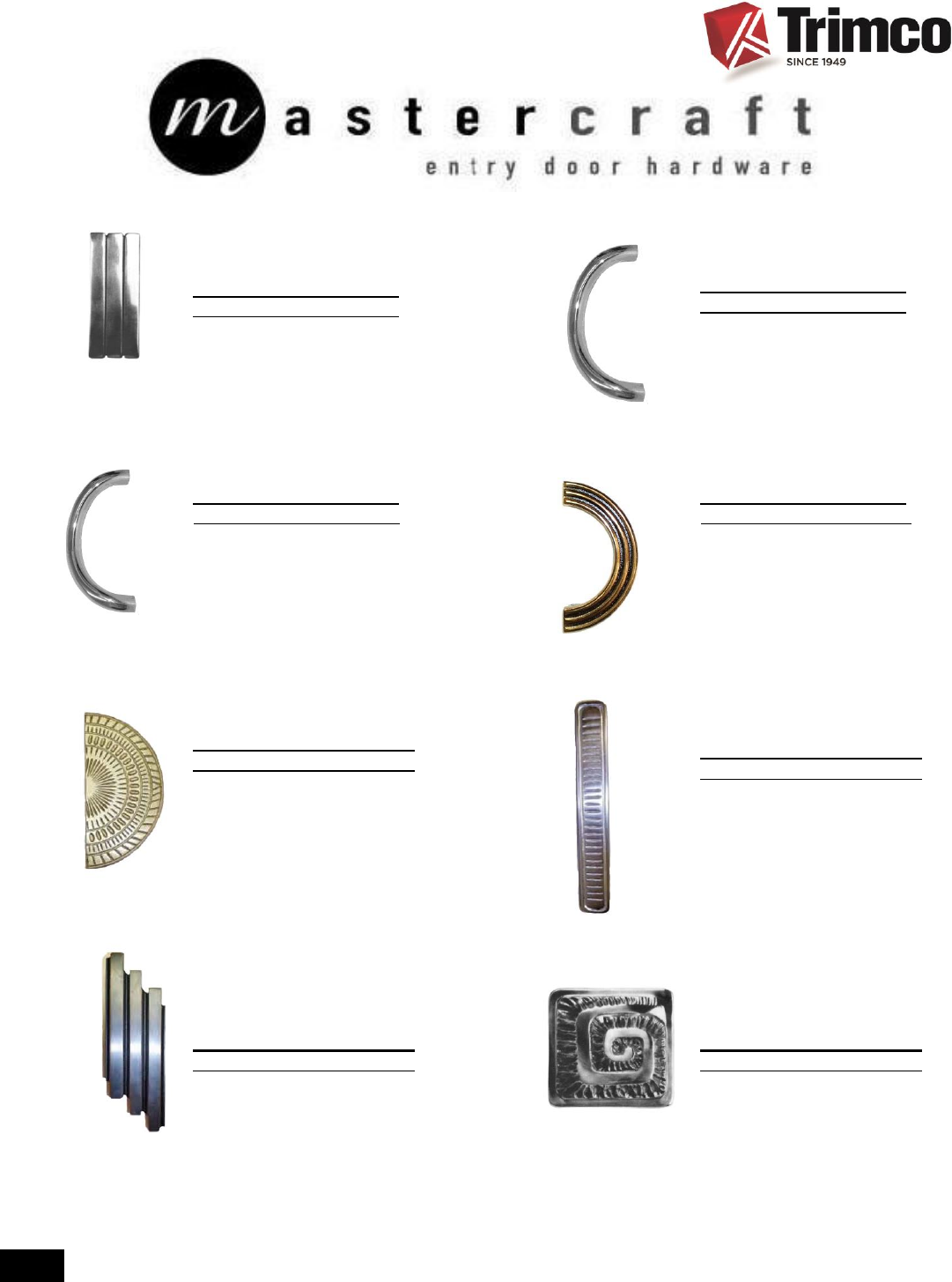

1301 MASTERPIECE PULL ADA B3
1310 MASTERPIECE PULL ADA B3
1310-1 MASTERPIECE PULL ADA B3
1320 MASTERPIECE PULL ADA B3
1330 MASTERPIECE PULL ADA B3
1340 MASTERPIECE PULL ADA B3
1340-10 MASTERPIECE PULL ADA B3
1342 MASTERPIECE PULL ADA B3
1350 MASTERPIECE PULL ADA B4
1360 MASTERPIECE PULL ADA B4
1370 MASTERPIECE PULL ADA B4
1380 MASTERPIECE PULL ADA B4
1390 MASTERPIECE PULL ADA B4
1410 MASTERPIECE PULL ADA B4
1410-1 MASTERPIECE PULL ADA B4
1502, 1503, 1505 LATCHBOLTS UL C3

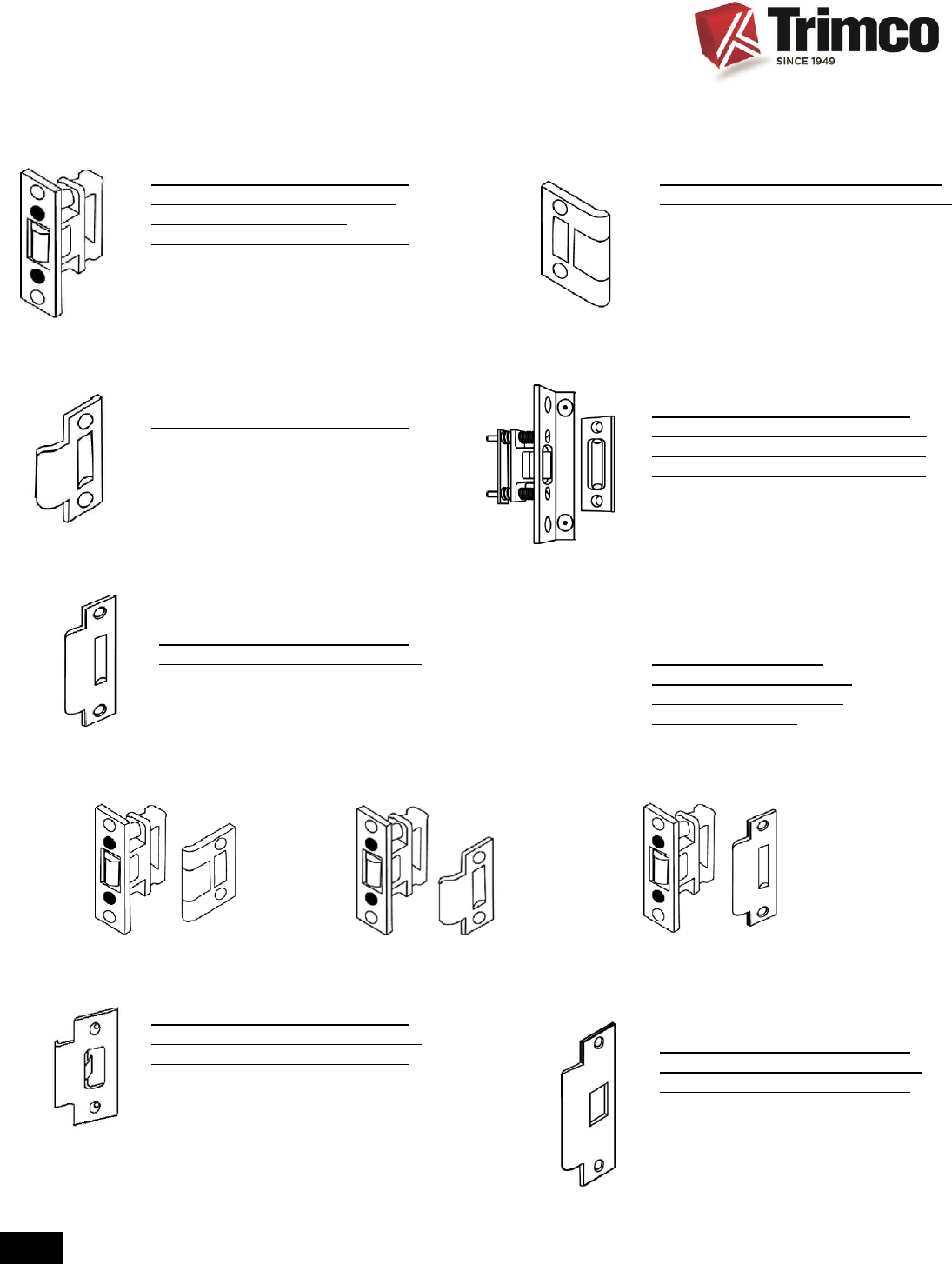

1554 ROLLER LATCH C1
1555, 1555L CLOSET BALL CATCH C1
1559 ROLLER LATCH C2
1559A STRIKE FOR THE ROLLER LATCH C2
1559B STRIKE FOR THE ROLLER LATCH C2
1559BL ROLLER LATCH WITH STOP C2
1559C STRIKE FOR THE ROLLER LATCH C2
1559WA,WB, WC STRIKE ONLY FOR HD ROLLER LATCH C2
INDEX by TRIMCO NUMBER
N Index-6
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT
1562A, 1562AP PUSH/PULL LATCH (P= ENGRAVED) ADA / UL C3
#’s 4,003,593 / 4,986,583
1562AE EXIT ONLY LATCH ADA / UL C3
#’s 4,003,593 / 4,986,583
1562M PUSH/PULL LATCH – MORTISE LOCK ADA / UL C3
#’s 4,003,593 / 4,986,583
1562Q PUSH/PULL LATCH – MORTISE LOCK ADA/UL
1563A, 1563AP PUSH/PULL LATCH (P= ENGRAVED) ADA / UL C3
#’s 4,003,593 / 4,986,583
1580A, 1580AP PUSH/PULL LATCH (P= ENGRAVED) ADA / UL C3
#’s 4,003,593 / 4,986,583
1581A, 1581AP PUSH/PULL LATCH (P= ENGRAVED) ADA / UL C3
#’s 4,003,593 / 4,986,583
1591A, 1591AP REVERSE PUSH/PULL LATCH (P= ENGRAVED) ADA C3
1592LLE LEAD LINED ESCUTCHEON C3
1592LLT LEAD LINED LATCH TUBE C3
1593RK REPLACEMENT KIT C3
1630 PUSH BAR E1
1630B PUSH BAR, BTB E1
1633 PUSH BAR E1
1633-1 PUSH BAR E1
1637 PUSH BAR E1
J1637 J-HOOK ONLY FOR THE 1637 E1
1643 PUSH BAR SET E2
1644 PUSH BAR SET E2
1661 PUSH BAR SET E2
1662 PUSH BAR SET E2
1698 PUSH BAR E2
1729 PUSH/PULL BAR SET E4
F1729 PUSH/PULL BAR SET-Focal OPTION ADA E4
1731 PUSH/PULL BAR SET ADA E4
F1731 PUSH/PULL BAR SET-Focal OPTION ADA E4
1732 PUSH/PULL BAR SET ADA E4
F1732 PUSH/PULL BAR SET-Focal OPTION ADA E4
1737 PUSH/PULL BAR SET ADA E4
F1737 PUSH/PULL BAR SET-Focal OPTION ADA E4
1738 PUSH/PULL BAR SET ADA E4
F1738 PUSH/PULL BAR SET-Focal OPTION ADA E4
1740 PUSH/PULL BAR SET ADA E4
F1740 PUSH/PULL BAR SET-Focal OPTION ADA E4
1741 PUSH BAR ADA E4
F1741 PUSH/PULL BAR SET-Focal OPTION ADA E4
1745 PUSH BAR ADA E4
F1745 PUSH/PULL BAR SET-Focal OPTION ADA E4
1746 PUSH BAR ADA E4
F1746 PUSH/PULL BAR SET-Focal OPTION ADA E4
1746-1 PUSH/PULL BAR SET ADA E4
F1746-1 PUSH/PULL BAR SET-Focal OPTION ADA E4
1747 PUSH/PULL BAR SET ADA E4
F1747 PUSH/PULL BAR SET ADA E4
1747-1 PUSH/PULL BAR SET ADA E4
1748 PUSH/PULL BAR SET ADA D11
F1748 DOOR PULL ADA D11
1748-1 DOOR PULL ADA D11
1802-4 PULL PLATE ADA D12
1802-25, 25PL, 25PH, PULL PLATE ADA D12
1804-4 PULL PLATE ADA D12
1807-4 PUSH PLATE D12
1809-4 PUSH PLATE D12
1820 PUSH/PULL PLATE D12
1820-11 PUSH/PULL PLATE D12
1822 CYLINDER PULL D12
1822-1 CYLINDER PULL D12
1822-2 CYLINDER PULL D12
N Index-7
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT
1894 PUSH/PULL PLATE COMBO D13
1895 PUSH/PULL PLATE COMBO D13
1896-4B PUSH/PULL PLATE COMBO D13
1900/ABERDEENE X VELAZQUEZ CLASSIC PULL PLATE ADA B2
1901/ABERDEEN CLASSIC PUSH PLATE B2
2082 MAIL PLATE SET G3
2085 MAIL PLATE SET G3
2091 MAIL SLOT SLEEVE G3
3070-1 COAT AND HAT HOOK G4
3071 COAT AND HAT HOOK G4
3071-1 COAT AND HAT HOOK G5
3072 COAT HOOK G5

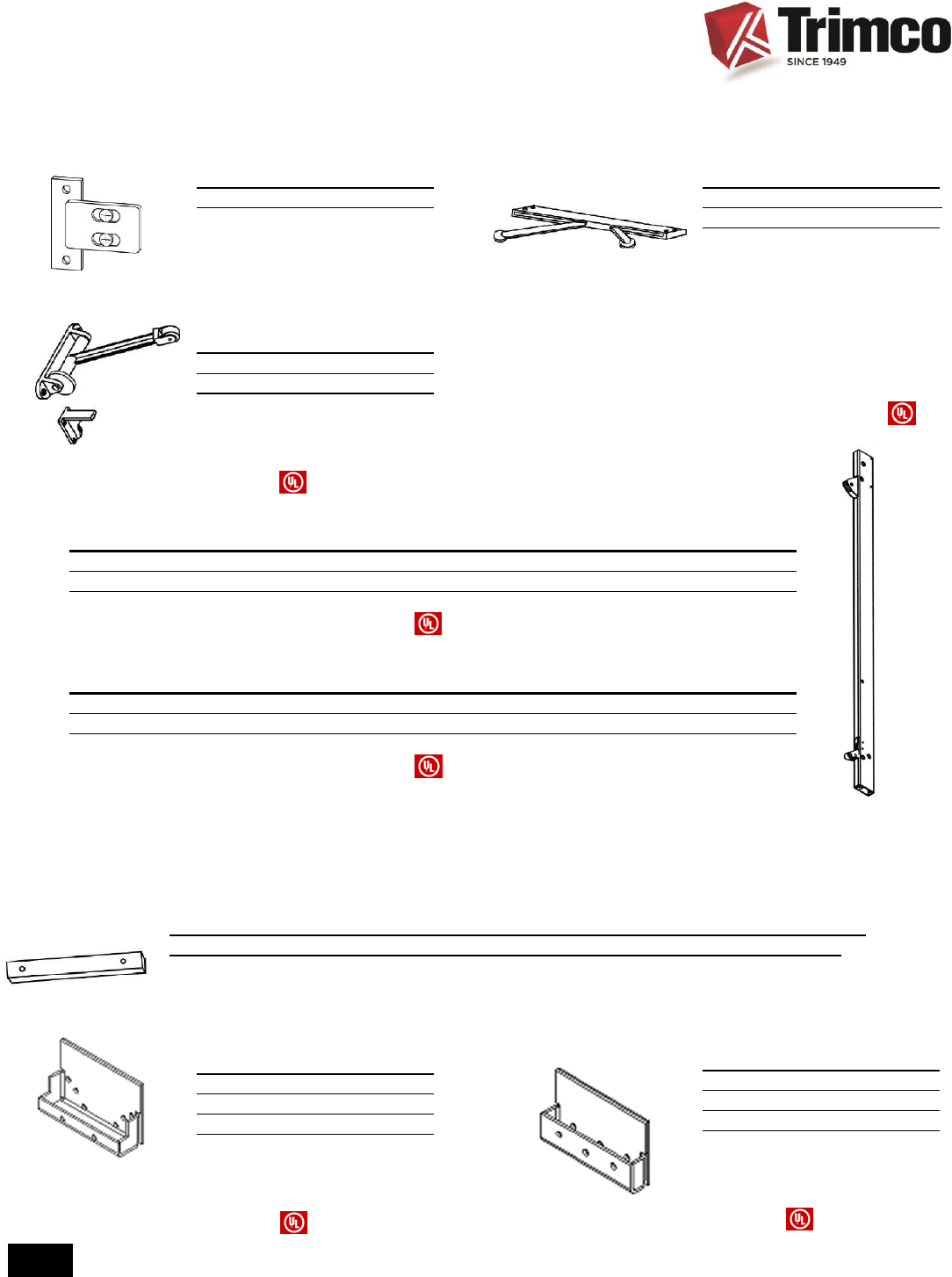

3090 CARRY OPEN BAR C4
3092 COORDINATOR UL C4
3093 COORDINATOR UL C4
3094 (A-D) COORDINATOR UL #5,033,234 C4
3094-X (1-6) FILLER BAR C4
3095 MOUNTING BRACKET UL C4
3096 MOUNTING BRACKET UL C4
3405 HANDRAIL BRACKET G5
3406 HANDRAIL BRACKET G5
3651 STRIKE 115.3 C2
3652 STRIKE 115.2 C2
3810 AUTOMATIC FLUSHBOLT, METAL DOOR UL #5,076,620 C5
3815L AUTOMATIC FLUSHBOLT, WOOD DOOR UL #5,076,620 C5
3820 SEMI-AUTOMATIC FLUSHBOLT, METAL DOOR UL #5,004,277 C5
3825L SEMI-AUTOMATIC FLUSHBOLT, WOOD DOOR UL #5,004,277 C5
3830 (A, AL, M, WL) FINISH KIT - AFB, SEMI-AFB C5
3850 FIREBOLT, DOOR EDGE MOUNTED ADA C5
3900 DUBL-BOLT ADA / UL PENDING C5

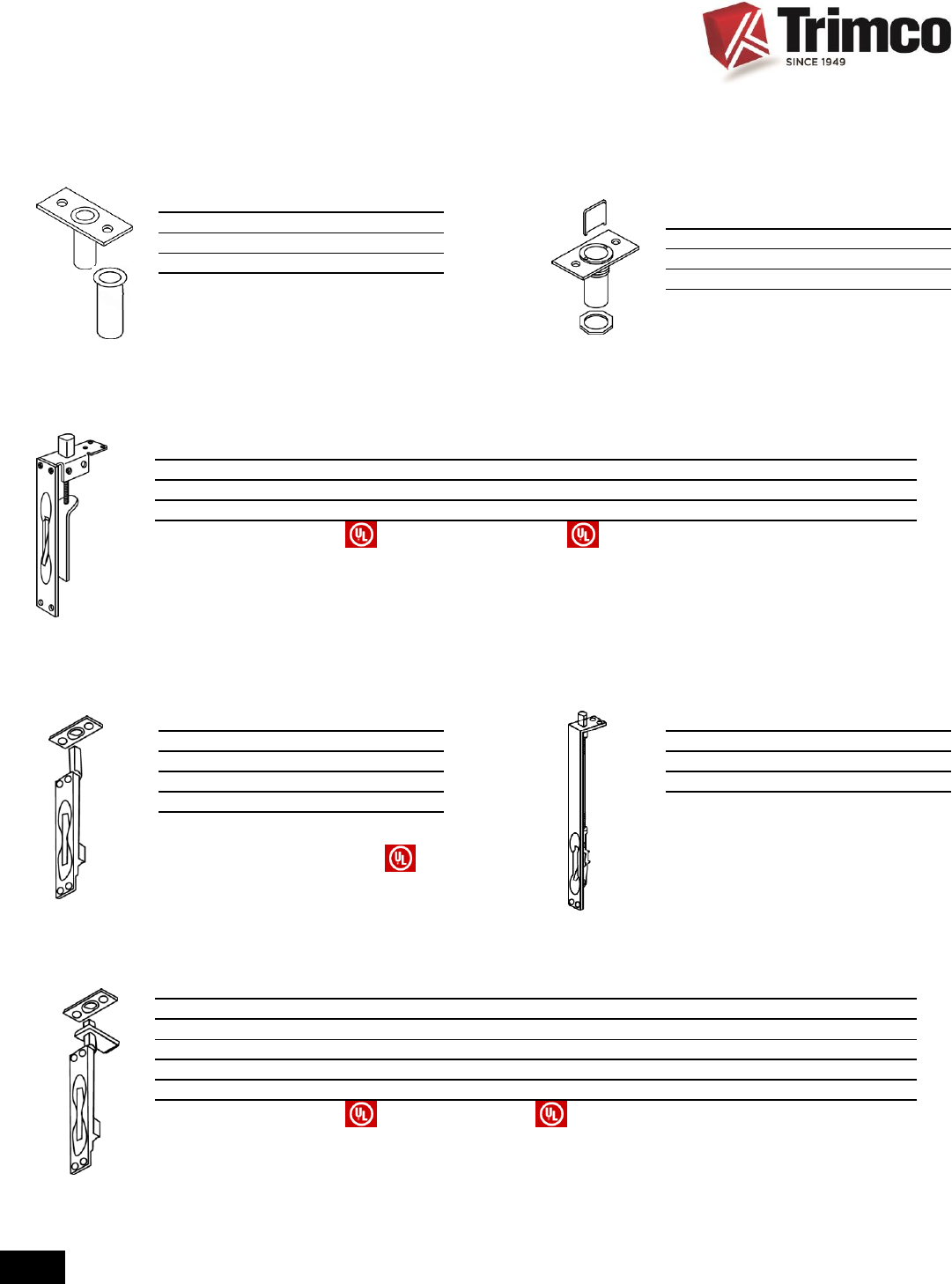

3910 DUST PROOF STRIKE C6
3911 ADJUTABLE DUST PROOF STRIKE C6
3913 FLUSH EXTENSION BOLT- WOOD DR-EXTRUDED UL C6
W3913 FLUSH EXTENSION BOLT- WOOD DR-WROUGHT UL C6
3915 FLUSH EXTENSION BOLT- METAL DOOR UL C6
3916 FLUSH EXTENSION BOLT- WOOD DOOR UL C6
3917-1B 1-1/2” BOLTHEAD C6
3917-3B 3” BOLTHEAD C6
3917-12 MANUAL FLUSHBOLT, METAL DOOR UL C6
3917-12ET MANUAL FLUSHBOLT, METAL DOOR C6
W3917-12 MANUAL FLUSHBOLT, METAL DOOR UL #4,315,647 C6
3920 (-4, -8…) DUTCH DOOR BOLT-CAST C7
3921 HD SURFACE BOLT C7
3922 HD SURFACE BOLT UL C7
3922L LOCKING HD SURFACE BOLT UL C7
3923 SURFACE BOLT UL C7
3928K, L CREMONE BOLT / KNOB, LEVER C8
3999 FLUSHBOLT, WOOD, ROUNDED END C8
3999SE FLUSHBOLT, WOOD, SQUARE END C8

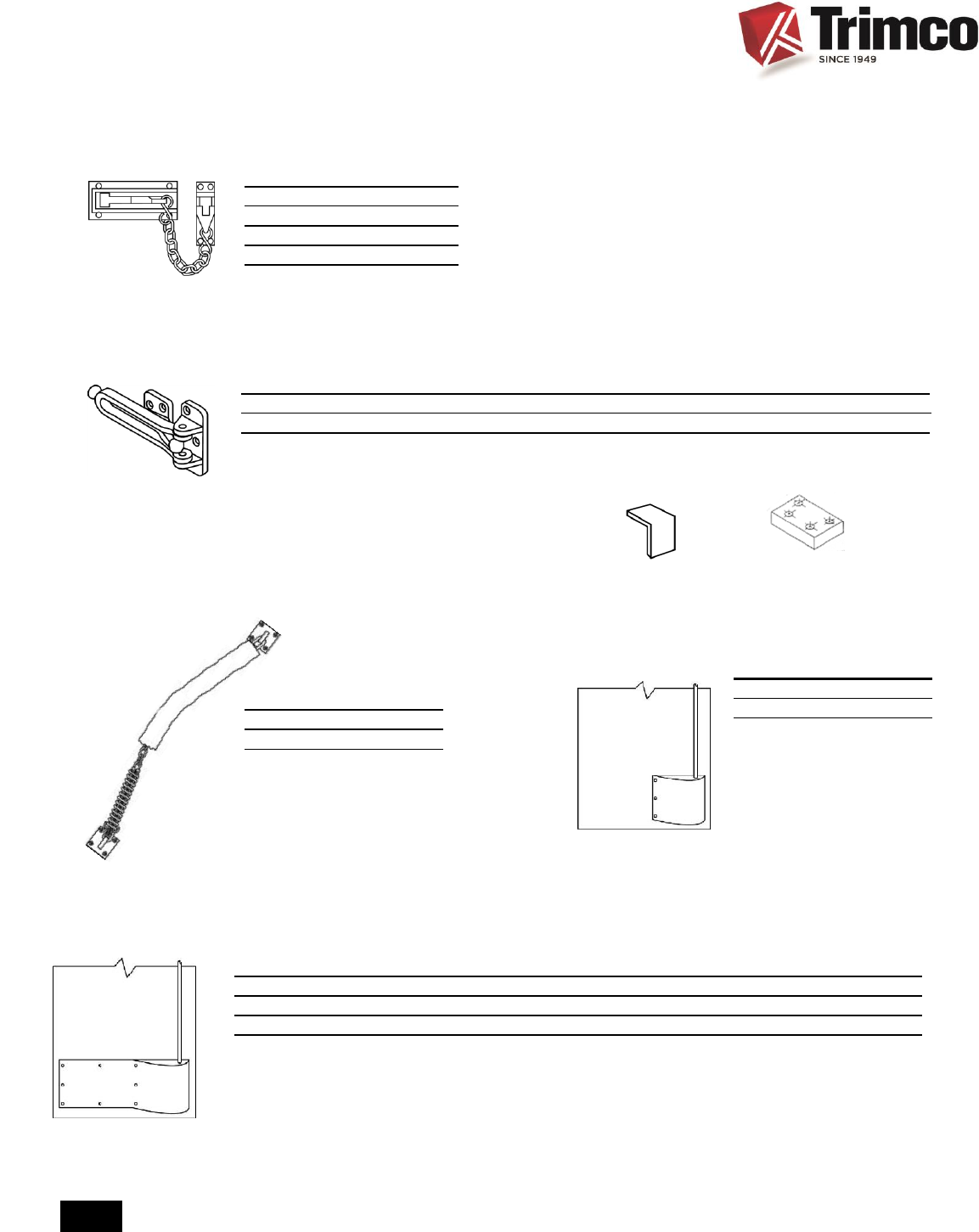

4015 DOOR GUARD, CHAIN G6
4016 DOOR GUARD, SWING ARM G6
4016ED EDGE PROTECTOR G6
4016S NYLON SPACER, BLACK ONLY G6
4048 CHAIN CRASH STOP G6
4873 SURFACE BOLT C8
4874 SURFACE BOLT C8
4876 SURFACE BOLT C8
4882 SURFACE BOLT C8
5000-T LOCK ASTRAGAL, CAST G5
5001 LOCK ASTRAGAL G5
5002 LOCK ASTRAGAL G5
5004 MORTISE LOCK INDICATOR G1
5022 UNIT LOCK TO CYLINDRICAL LOCK G5
INDEX by TRIMCO NUMBER
INDEX by TRIMCO NUMBER
N Index-8
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT

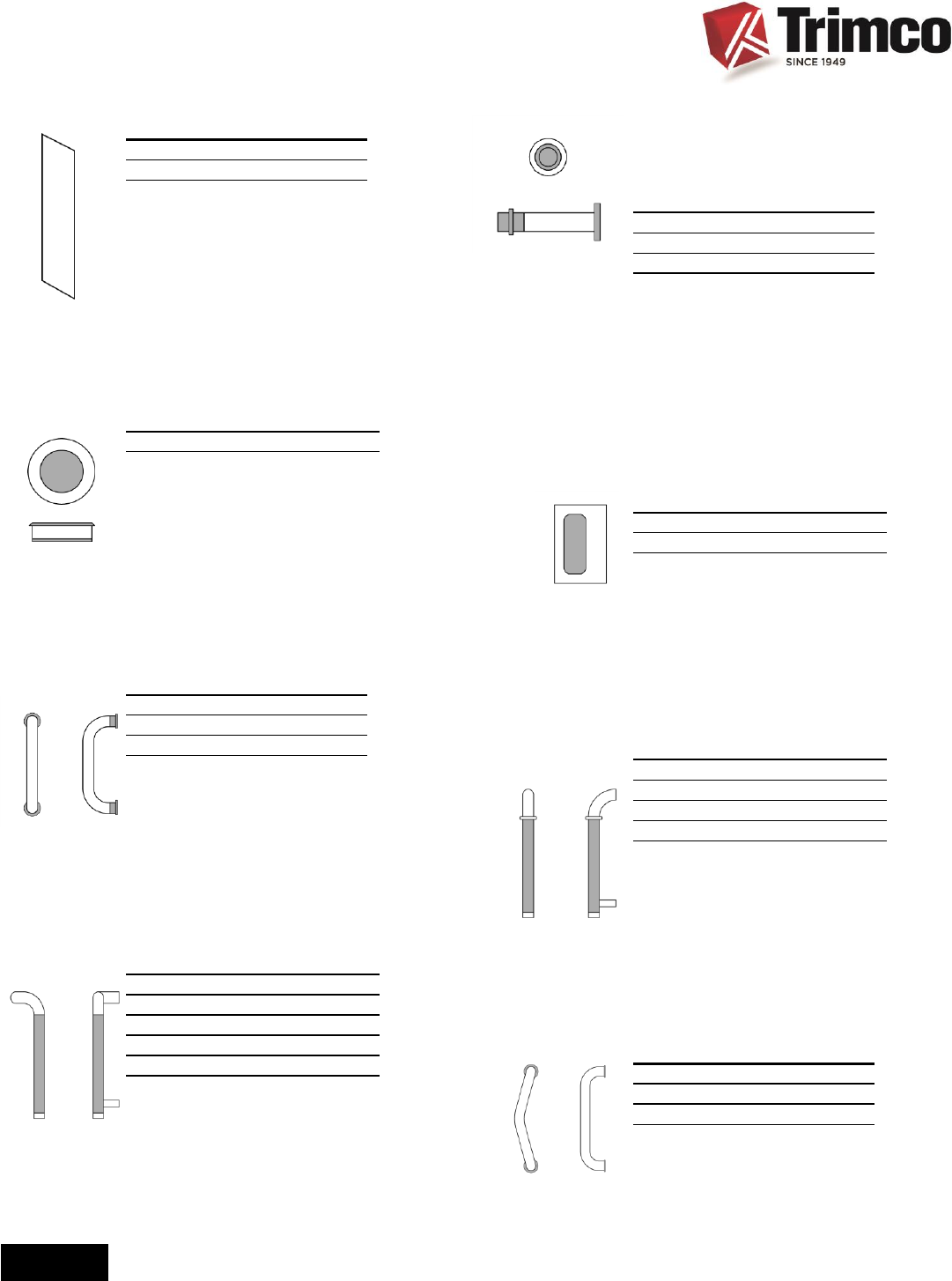

7001 fOCAL PUSH PLATE 4x16 fOCAL A2
7009 fOCAL PUSH PLAT 6x16 fOCAL A2
7010 fOCAL ROBE HOOK AND STOP fOCAL A2
7059 fOCAL FLUSH CUP fOCAL A2
7060 fOCAL FLUSH CUP, LARGE fOCAL A2
7061 fOCAL FLUSH CUP, SMALL fOCAL A2
7140 fOCAL ‘D’ PULL WITH PLATE ADA fOCAL A2
INTERIOR - 6”
7140S fOCAL ‘D’ PULL WITH STYLE PLATES ADA fOCAL A2
INTERIOR - 6”
7141 fOCAL ‘D’ PULL WITH PLATE ADA fOCAL A2
INTERIOR - 8”
7141S fOCAL ‘D’ PULL WITH STYLE PLATES ADA fOCAL A2
INTERIOR - 8”
7150 fOCAL CANE PULL - EXTERIOR ADA fOCAL A2
7160 fOCAL OFFSET CANE PULL - EXTERIOR ADA fOCAL A2
7170 fOCAL WING PULL ADA fOCAL A2
EXTERIOR - 10”
7180, 7181 fOCAL INTERIOR WING PILL
7191 fOCAL 45º OFFSET PULL ADA fOCAL A3
EXTERIOR
7196-1, 7196-2, 7196-3 COOL PULL-8”, 10’, 12” ADA fOCAL A3
7208 fOCAL PENCIL STOP fOCAL A3
7276 fOCAL WALL STOP, CAST fOCAL A3
W7276 fOCAL WALL STOP, WROUGHT fOCAL A3
7278 fOCAL DECOR WALL STOP, CONCAVE-BLK RUBBER fOCAL A3
7280 fOCAL FLOOR STOP, SMALL fOCAL A3
7281 fOCAL FLOOR STOP, LARGE fOCAL A3
7285 fOCAL FLOOR STOP AND HOLDER, LARGE WITH BAIL AND HOOK fOCAL A3
7300-1 CABINET KNOB D1
7300-1-1/4 CABINET KNOB D1
7301-1 CABINET KNOB D1
7301-1-1/4 CABINET KNOB D1
FG8000-24, 36, 42 FRAME GUARD G7
PBT8000-1, 2 PUSH BAR TRIM COVER FOR VD OR STANLEY G7
PG8000 LATCH GUARD #350,473 / 5,381,627 G6
PG8002 LATCH GUARD / KICK PLATE COMBINATION #350,473 / 5,381,627 G6
PG8002-1 LATCH GUARD & KICK PLATE (2-PIECE) #350,473 / 5,381,627 G6
9550 PUSH/PULL SET D13
9551 PUSH/PULL SET D13
9560 OFFSET ENTRANCE PULL ADA D13
9561 OFFSET ENTRANCE PULL ADA D13
9566 PUSH/PULL PLATE WITH CO. LOGO ADA D13

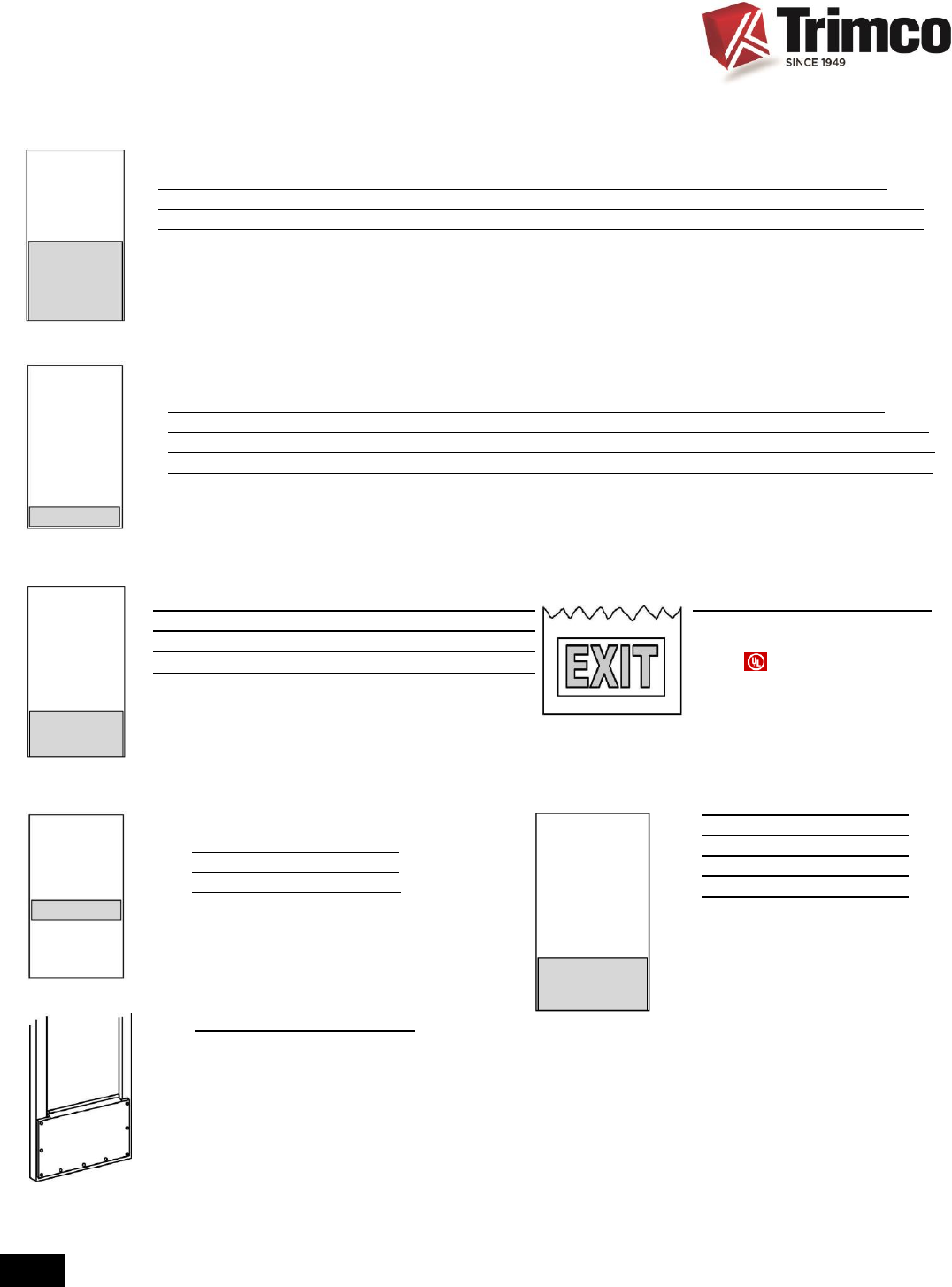

KA038 ARMOR PLATE .038 G8
KH050 HANDICAP KICK PLATE G8
KM038 MOP PLATE .038 G8
K0038 KICK PLATE .038 G8
KA050-1 ARMOR PLATE .050 17” - 24” HEIGHT G8
KA050-2 ARMOR PLATE .050 24” - 36” HEIGHT G8
KA050-3 ARMOR PLATE .050 G8
10X34-ILLUM.630 KICK PLATE WITH ILLUMINATED EXIT G8
KM050 MOP PLATE .050 6” HEIGHT TO LESS THAN 8” HEIGHT G8
KM050-1 MOP PLATE .050 LESS THAN 6” HEIGHT G8
K0050 KICK PLATE .050 G8
KS050 STRETCHER PLATE .050 G8
K6000 KICK PLATE, PLASTIC .125 G8
TRIMCO DESCRIPTION DESIGNATION/ PAGE
NUMBER PATENT
KE31-1 EDGE GUARD G9
KE32-1 EDGE GUARD G9
KE33-1 EDGE GUARD G9
KE33-2 EDGE GUARD G9
KE34-1 EDGE GUARD G9
KE35-1 EDGE GUARD G9
KE36-1 EDGE GUARD G9
KE37-1 EDGE GUARD G9
KE38-1 EDGE GUARD G9
K39 FINGER GUARD G7
WA-A SPECIAL PROTECTION PLATE G7
WA-B SPECIAL PROTECTION PLATE G7
WA-C SPECIAL PROTECTION PLATE G7
WA-D SPECIAL PROTECTION PLATE G7
WA-E SPECIAL PROTECTION PLATE G7

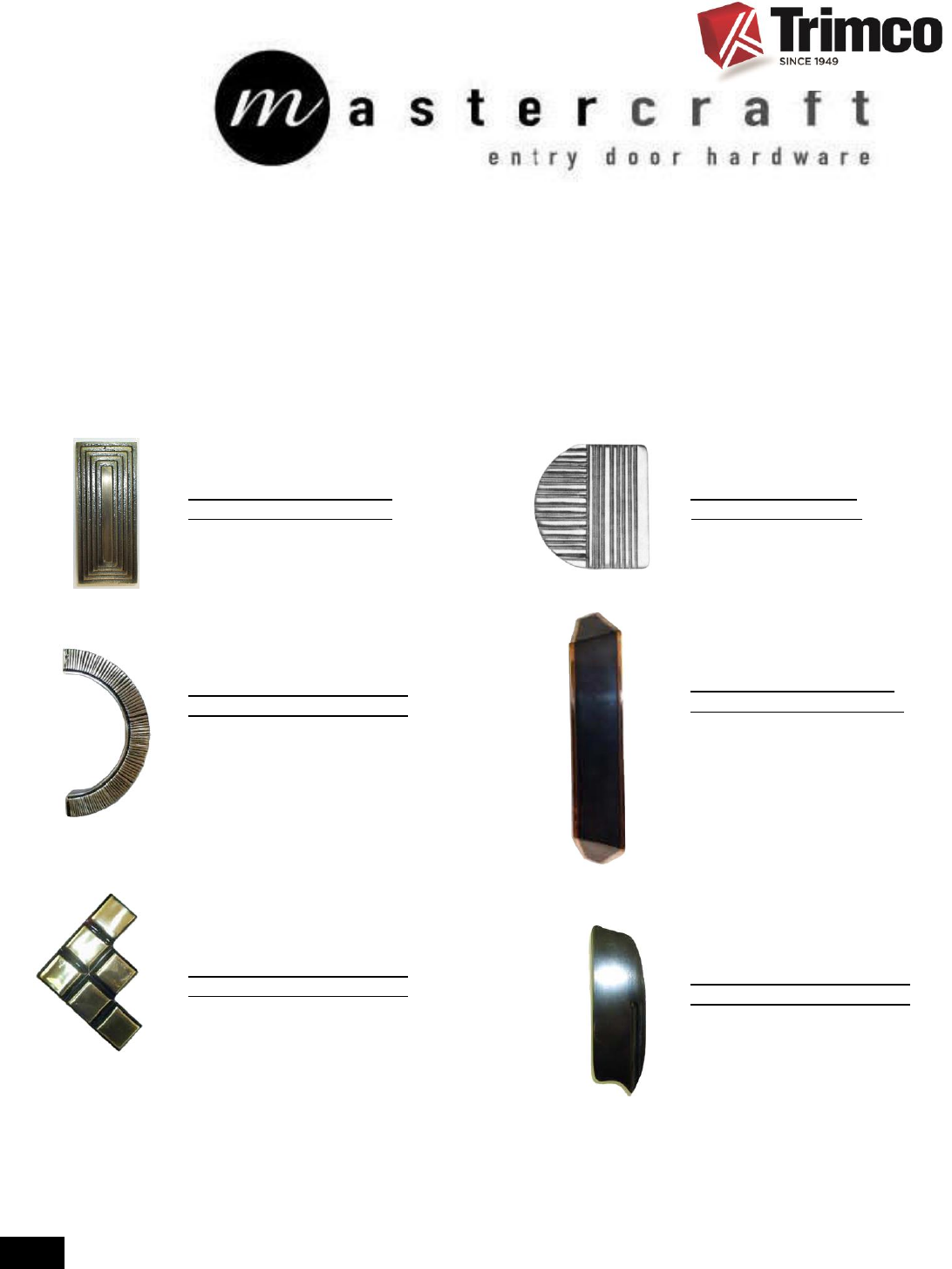

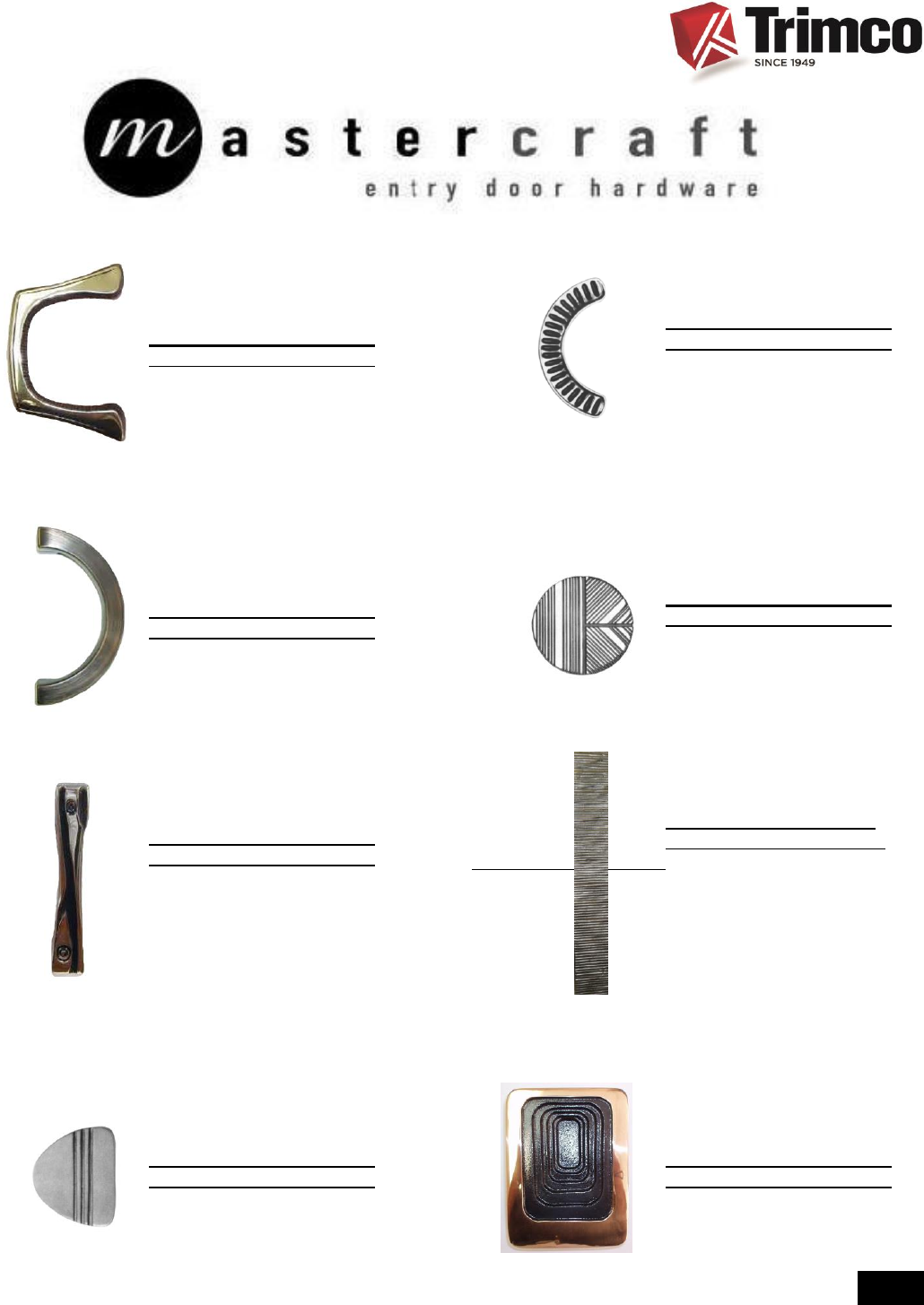

ADON MASTERCRAFT ENTRY PULL B5
APOLLO MASTERCRAFT ENTRY PULL B5
ARES MASTERCRAFT ENTRY PULL B5
ATLAS MASTERCRAFT ENTRY PULL B5
CRONUS MASTERCRAFT ENTRY PULL B5
DAPHNE MASTERCRAFT ENTRY PULL B5
HELANE MASTERCRAFT ENTRY PULL B6
HELIO MASTERCRAFT ENTRY PULL B6
HERMES MASTERCRAFT ENTRY PULL B6
HERO MASTERCRAFT ENTRY PULL B6
ISIS MASTERCRAFT ENTRY PULL B6
JUNO MASTERCRAFT ENTRY PULL B6
LUNA MASTERCRAFT ENTRY PULL B6
MEDEA MASTERCRAFT ENTRY PULL B6
MIDAS MASTERCRAFT ENTRY PULL B7
OLYMPUS MASTERCRAFT ENTRY PULL B7
SATURN MASTERCRAFT ENTRY PULL B7
SOLAR MASTERCRAFT ENTRY PULL B7
VENUS MASTERCRAFT ENTRY PULL B7
VESTA MASTERCRAFT ENTRY PULL B7
ZEUS MASTERCRAFT ENTRY PULL B7
N Index-9
INDEX by TRIMCO NUMBER
DCO50 SERIES – DOOR CAP
1110 SERIES – FLUSH PULLS
1185 SERIES - ADJUSTABLE & CONFIGURABLE PULL
5022A – UNIT LOCK ADAPTER WITH ASTRAGAL
5200 SERIES – WRAP PLATES
PLEASE VISIT US AT:
WWW.TRIMCOHARDWARE.COM
FOR MORE INFORMATION.
N Index-10
T-PRINT – CUSTOM ANODIZED PULLS
T-ETCH – ACID ETCHING
4017 – SECURITY DOOR GUARD

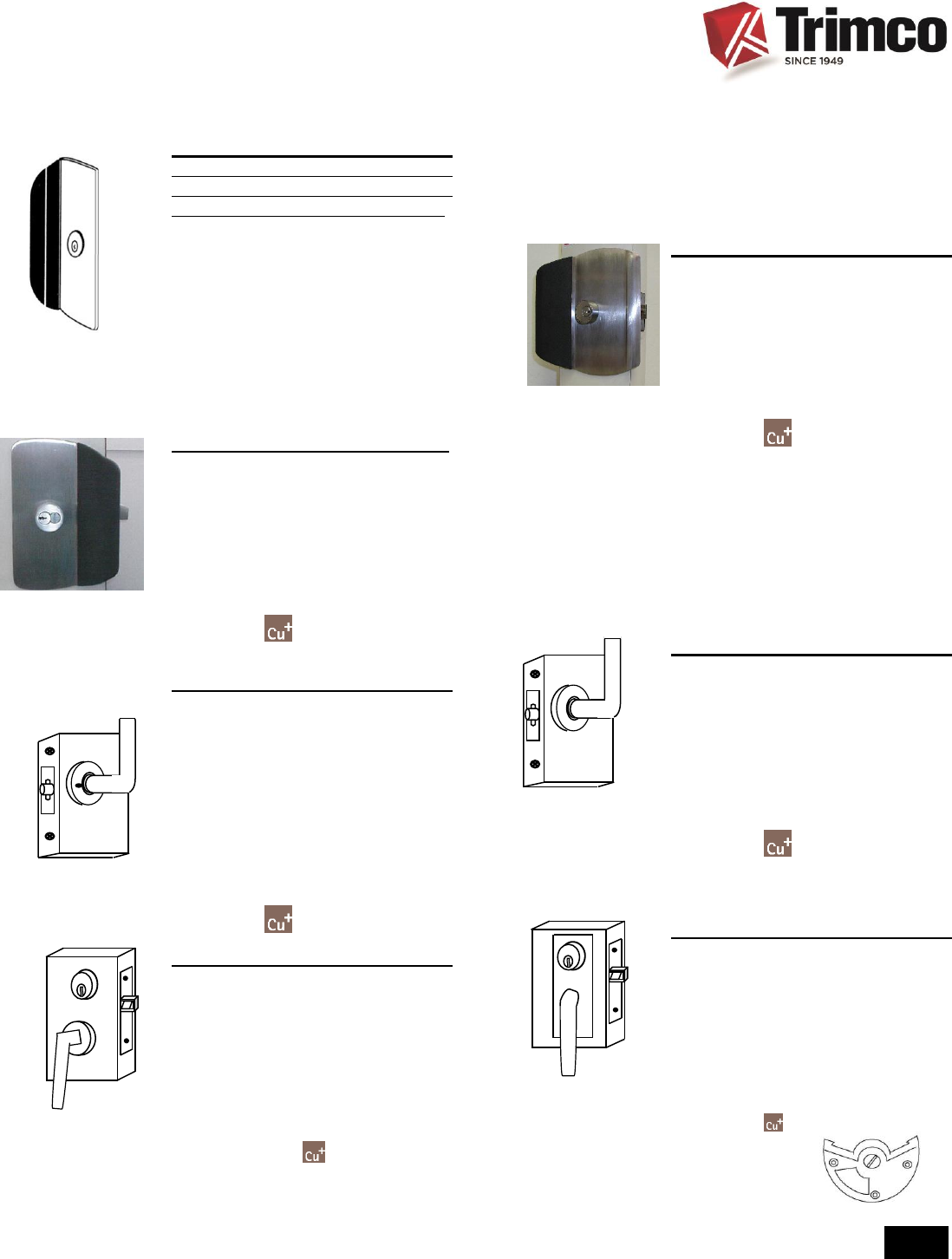

LDH100 SERIES –
LOCK DOWN HARDWARE-PANIC BUTTON
NOTE: IF YOU NEED MORE INFORMATI ON ANY OF OUR NEW PRODUCTS, VISIT US AT:
WWW.TRIMCOHARDWARE.COM, or call us at: 323-262-4191
N Index-11

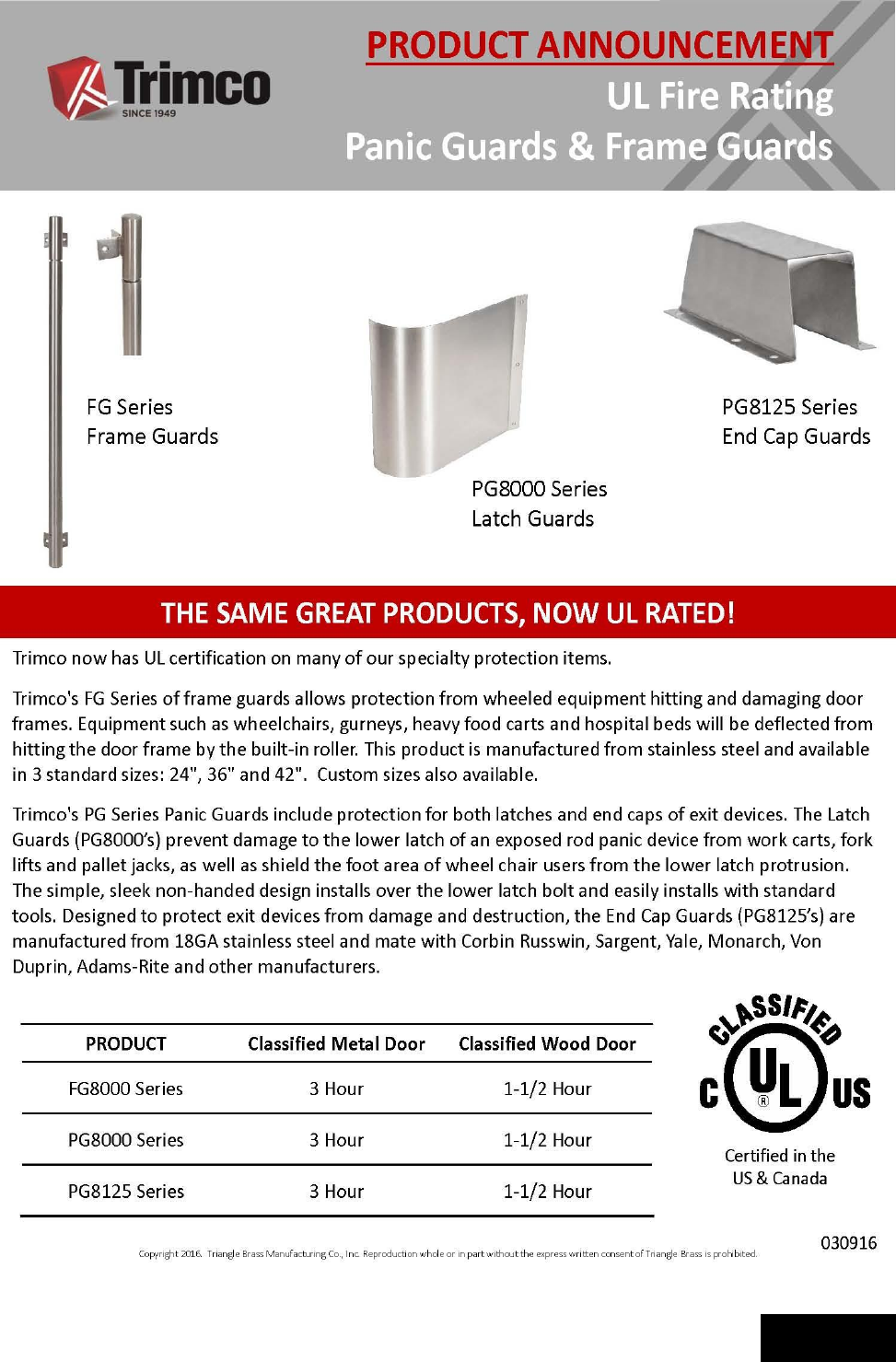

N Index-12
AVAILABLE FINISHES
U.S. GOVT. BHMA DESCRIPTION
US3 605 Polished Brass, Clear Coated
US3NL* 499* Polished Brass, No Lacquer
US4 606 Satin Brass, Clear Coated
US5* 609 Satin Brass, Blackened, Satin Relieved, Clear Coated
US7* 610* Satin Brass, Blackened, Bright Relieved, Clear Coated
US9* 611 Polished Bronze, Clear Coated
US10 612 Satin Bronze, Clear Coated
US10B 613 Dark Oxidized Satin Bronze, Oil Rubbed
US11* 616* Satin Bronze, Blackened, Satin Relieved, Clear Coated
US15 619 Satin Nickel Plated, Clear Coated
US15A 620 Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated
US19* 622* Satin Black Coated
US26 625 Bright Chrome Plated
US26D 626 Satin Chrome Plated
US28 628 Satin Aluminum, Clear Anodized
US32 629 Polished Stainless Steel
US32D 630 Satin Stainless Steel
-- 630TG SS With Trimgard
-- 313 Satin Aluminum, Dark Bronze Anodized
-- 335 Satin Aluminum, Black Anodized
-- 710CU Steralloy - CuVerro Alloy (standard)
-- 706CU Sterose - CuVerro Alloy (upon request)
Those finishes with asterisks (*) are considered “Special” and are available on request. 313 and 335 finishes are available on
limited products. Those products are marked with underlined prices in the price list.
Many other finishes can be furnished on special order, or by Quotation.
Note: Finish 613 (US-10B) is unstable and will vary when applied to different alloys or forms of base metal and in
the products of different manufacture. Limited shelf life.
Finish 622 (US19), flat black coated, is neither recommended or guaranteed.
ABBREVIATIONS USED
B - Base D - Diameter L - Length S - Spindle
BHMA - BHMA product # DP - Depth M - Material STR - Strike
BP - Base Projection E - Engraving OA - Overall Size SW - Stop Width
BR - Brackets F - Finish OD - Outside Dimension SYM - Symbol
BS - Backset G - Grip Style P - Projection TH - Throw
CL - Clearance GP - Grip Projection PP - Push Plate W - Width
COL - Color H - Height R - Riser WC - Wall to Center Line
CTC - Center to Center ID - Inside Dimension RET - Return Width CU+ - CuVerro
Combo Pack - Fasteners for both wood, plaster or concrete are included.
Abbreviations are also defined at the bottom of each page
Br - Brass, Bz - Bronze, Al - Aluminum, SS - Stainless Steel, Pl - Chrome Plated (Brass or Bronze casting)
The small letters Br, Bz, Pl, SS, Al at the lower right of each product table
Identify the base metal options in which that product is available
1
NOTES
The hardware shown on these pages is made with no compromise in quality, design or durability.
Only first quality extrusions, sheet stock and castings are used. Careful matching, polishing,
assembly and finishing result in a final product which we present with pride.
Templates are available on website, or upon request, for almost every product offered by
TRIMCO. Templates are issued only for the project for which they are requested. TRIMCO
reserves the right to make design changes without notice. Always request a current
template prior to machining doors.
Our complete in-plant capabilities enables us to produce countless items of a special
nature. Let us quote on any of your hardware needs not shown in this catalog.
A large number of exterior pull handles and push/pull bar sets may be adapted for fOCAL
styling and are marked “fOCAL option available” in the catalog and price list. Hard black
finished style plates of appropriate diameter are provided at all locations where grip or base
meet door.
All castings are available in brass, bronze, or aluminum unless otherwise noted.
The small letters at the lower right of each product table identify the base metal options in
which that product is available. Br - Brass, Bz - Bronze, Al - Aluminum, SS - Stainless Steel,
Pl - Chrome Plated
WARRANTY DISCLAIMER; EXCLUSIVE REMEDY
WE WARRANT THAT OUR PRODUCTS ARE SUITABLE FOR THE USE FOR WHICH THEY WERE
DESIGNED. PROPERLY SELECTED, PROPERLY INSTALLED AND NOT ABUSED IN USE, THEY
WILL SERVE THE PURPOSE FOR WHICH THEY WERE INTENDED. THEY COME WITH A LIFETIME
WARRANTY, PROVIDED THAT THEY ARE APPROPRIATE FOR THE SELECTED USE. PROEPERLY
INSTALLED, AND NOT ABUSE IN USE.
We do not warrant the merchantability or our products, nor do we offer any other warranty of any kind,
expressed or implied, and the customer any not extend any warranty on our behalf to anyone. Any such
unauthorized extensions shall be the customer’s responsibility. In no event shall we be liable to the customer in
warranty, contract, strict liability or otherwise for any damages alleged to be caused by one or more of our
products, beyond the cost to the customer of the subject product or products, refund of the purchase price being
customer’s sole and exclusive remedy against us upon proof of any alleged claim. Incidental and consequential
damages, including labor costs relating to installation or removal, shall not be our liability, and customer shall
not have remedy against us for such damages, the sole and exclusive remedy for a proven claim having been
stated above.
All materials and finishes meet ANSI/BHMA standards at time of shipment. We do not warrant finishes
exposed to hostile environments.
Customer is responsible for determining the suitability of our products for customer’s use or resale, or for
incorporating them into objects, or for applications which customer designs, assembles, constructs or
manufactures.
2

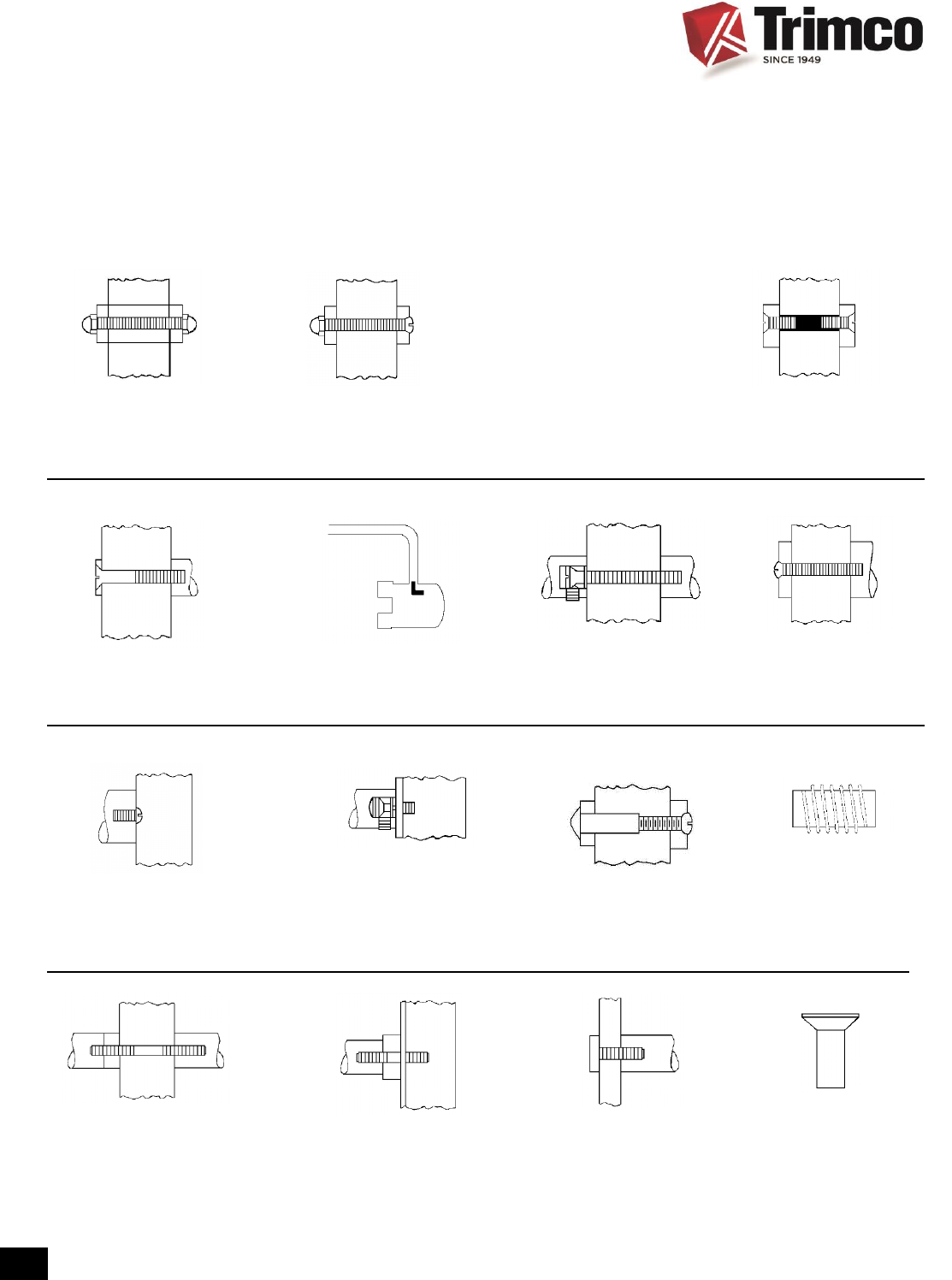

STANDARD MOUNTING METHODS:
3
Add “W” to prep for Glass Mount. Specify Glass Thickness, Hole Diameter and Finish.
Non-Standard Preps available by quotation only.
Products marked “Combo Pack” include fastening kit for mounting to wood, concrete and plaster/drywall.
All fasteners for 1-3/4” wood or metal doors unless otherwise specified.
A B C D
Threaded Stud
and Cap Nut
Thru-Bolt
and Cap Nut
Machine Screws and
Threaded Sleeve
E F G H
Thru-Bolt and
Finish Washer
Not for glass mounting
J-20 Hook (For Push
Bars only-one end)
Not for glass mounting
Threaded Shoulder Bolt
and Set Screw
BP’s req’d for glass doors.
NOTE: Not for Glass mounting
nOT
Thru-bolt
I J K B3, B4, or B5
Blind Screw
(Door detail required)
Not for glass mounting.
Shoulder Bolt and Set
Screw
Round Bases
Specify Riv-Nut “R3”, “R4” or
“B3”, “B4” or “B5” if required, for
use on aluminum doors.
Not for glass mounting
Sex Bolt
Wood Thread to Machine
Thread Bushing
For J or M Mountings
on Wood Doors
B3 - ¼-20 Thread
B4 - 5/16-18 Thread
B5 - 3/8-16 Thread
L M N R3, R4 or R5
Spanner Turning Washer and
Stud. Concealed Mounting for
Round Bases.
For Standard Metal, Wood, or Glass Doors.
Specify. BP’s req’d for glass doors.
Spanner Turning Washer,
Stud Single Mounting for
Round Bases
Specify Riv-Nut “R5 at right if
required. Wood Doors. Specify.
Flow Thru Button
Single Mount for
Round Bases
For Standard Metal, Wood
or Glass Doors. Specify.
“R5” or “B5” only.
Riv-Nut
R3 - 1/4-20 Thread
R4 - 5/16-18 Thread
R5 - 3/8-16 Thread
Note: Not recommended
for Offset Pulls.
DISCONTINUED
USE
ALTERNATE
MOUNTING “N”
Ron McCoy
Princeton educated, (currently a
University Architect) and award
winning architect Ron McCoy
worked closely with Trimco
engineers, to meet the challenging
demand for creative and affordable
hardware.
With the fOCAL Series, McCoy blends
fundamental forms, functions, and materials
into inspired shapes and accents that will add
distinction to any project.
Modern yet timeless, the McCoy concepts refine
each piece of hardware to the most elegant
solution. Subtle visual appeal combines with
strength and grace evident in a touch of the hand,
making the fOCAL fixtures unique and exquisite.
fOCAL
Quality of form.
Quality of proportion.
Quality of detail.
Trimco has designed all of
these qualities into
fOCAL, a full line of
affordable architectural
door hardware. Since
good hardware is
essential and cost control
important, the fOCAL
Series is manufactured to
be the very best value.
In a variety of fashionings
and in all standard
finishes, fOCAL solves
the problem of having to
choose between generic
and extravagantly priced
hardware.
You now have an
outstanding new range of
choices, all made in the
U.S.A.

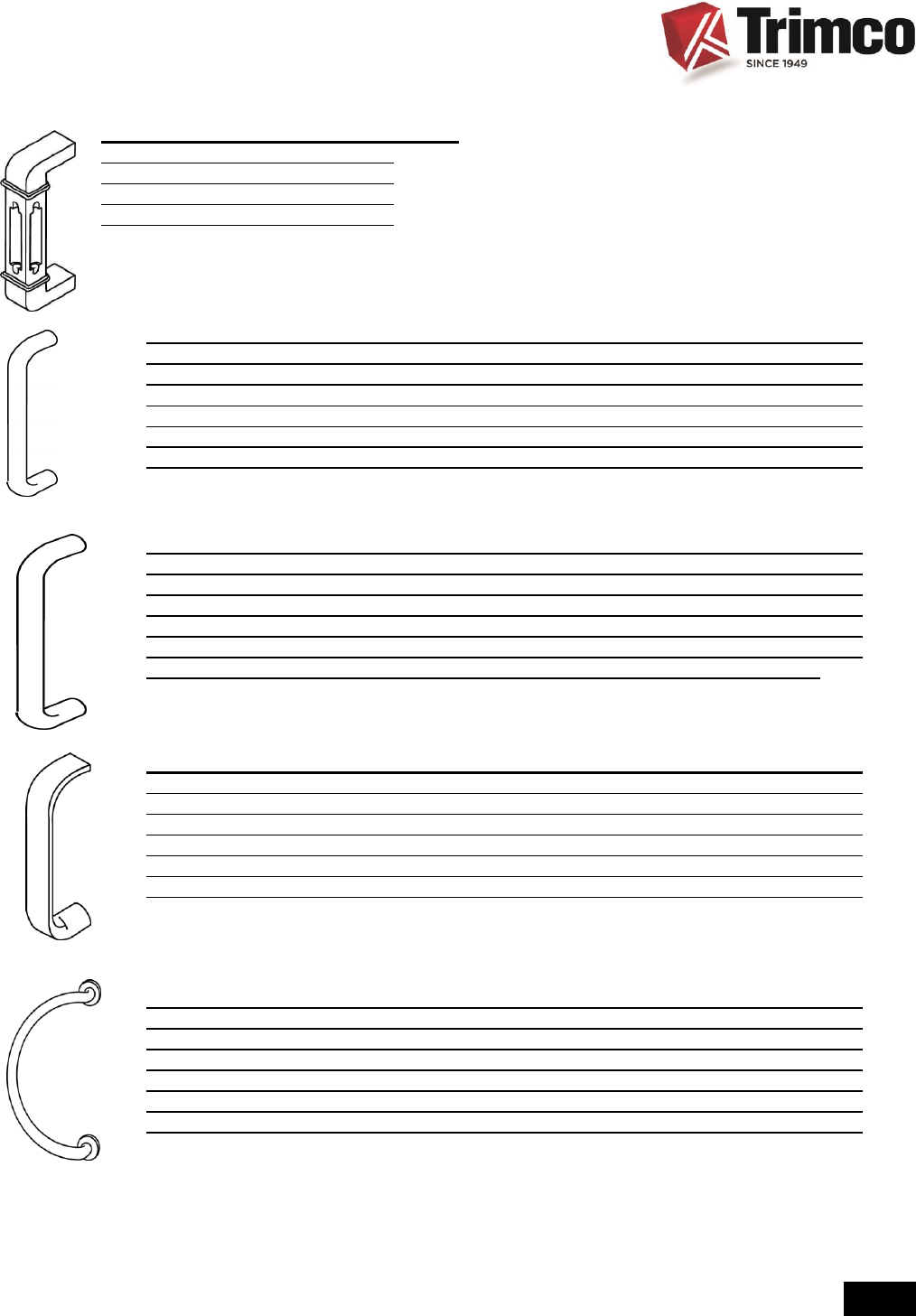

fOCAL A1
TRIMCO# 7001 7009
H 16” 16”
W 4” 6”
fOCAL Push Plate
No screw holes standard
Adhesive mounting standard
TRIMCO# 7059
D 2-1/2”
fOCAL Flush Pull
Black interior standard
Standard prep 2-1/8” dia.
Fits BTB in a 1-3/8” door.
TRIMCO# 7140 7141
D 3/4” 3/4”
CTC 6” 8”
P 2-1/4” 2-1/4”
fOCAL Interior D-Pull
3 x 12” backplate standard
thru-bolt mounting standard
.S – 1” dia. Black style plates (no BP)
thru-bolt mounting standard
TRIMCO# 7160
D 1”
CTC 10”
P 2-1/2”
L 11-3/4”
OFF 2-3/4”
fOCAL Offset Cane Pull
Matte Black Poly Grip Standard
Specify hand
BTB available ADA
TRIMCO# 7010
D 5/8”
L 3-3/8”
PL 1-1/4” dia.
fOCAL Robe Hook & Stop
Hanger bolt standard
TRIMCO# 7060 7061
H 4-1/4” 3-1/8”
W 2-3/4” 2-1/16”
fOCAL Flush Pull
Black interior standard.
TRIMCO# 7150
D 1”
CTC 10”
P 2-1/2”
OA 11-3/4”
fOCAL Cane Pull
Matte Black Poly Grip Standard
BTB available ADA
TRIMCO# 7170
D 1”
CTC 10”
P 2-1/2”
fOCAL Entry Wing Pull
Black style plates standard
ADA
fOCAL Products
fOCAL A2
TRIMCO# 7180 7181
D 3/4” 3/4”
CTC 6” 8”
P 2-1/4” 2-1/4”
fOCAL Interior Wing Pull
3 x 12” plain backplate standard
thru-bolt mounting standard
.S - 1” dia. Black style plate (no BP)
thru-bolt mounting standard
ADA
TRIMCO# 7208
D 1/2”
L 3-1/2”
PL 1-1/2” dia.

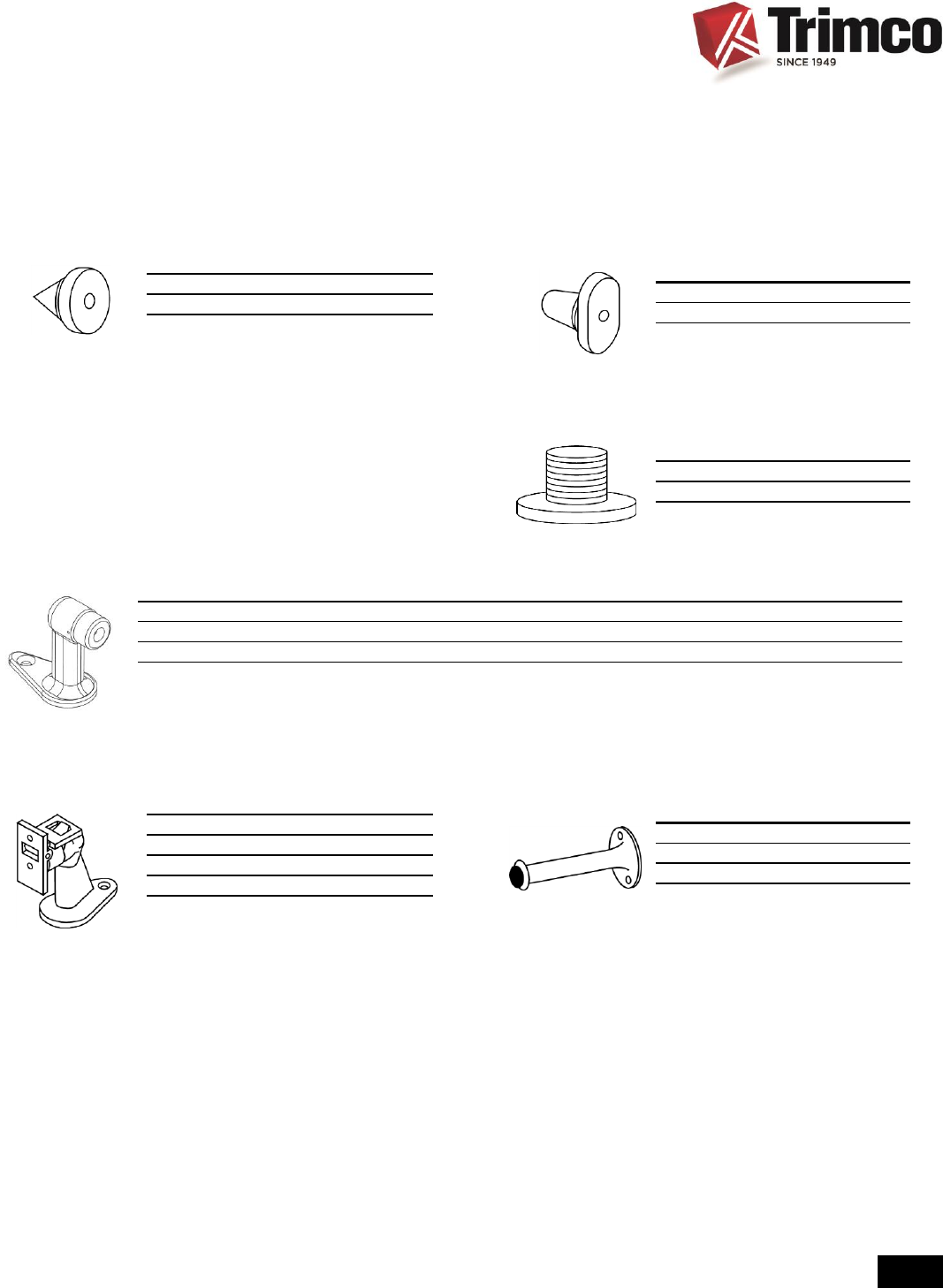

fOCAL Pencil Stop
Hanger bolt standard
TRIMCO# 7278
OD 1-1/2”
P 1” dia.
fOCAL Décor Wall Stop
Concave- Black Rubber
Wood screw & plastic toggle standard
TRIMCO# 7285
D 1-3/4”
H 2-1/4”
fOCAL Stop with Bail & Hook
TRIMCO# 7191
D 1”
CTC 10”
P 2-1/2”
fOCAL Offset Door Pull
Black style plate standard
ADA
TRIMCO# 7276 W7276
D 2-3/16” 2-3/16”
H 1” 1”
fOCAL Wall Bumper
Toggler standard
Concave (V) shown
Convex (X) available
TRIMCO# 7280 7281
D 1-1/4” 1-3/4”
H 1-9/16” 2-1/4”
fOCAL Floor Stop
MS & Anchor Standard
fOCAL Products

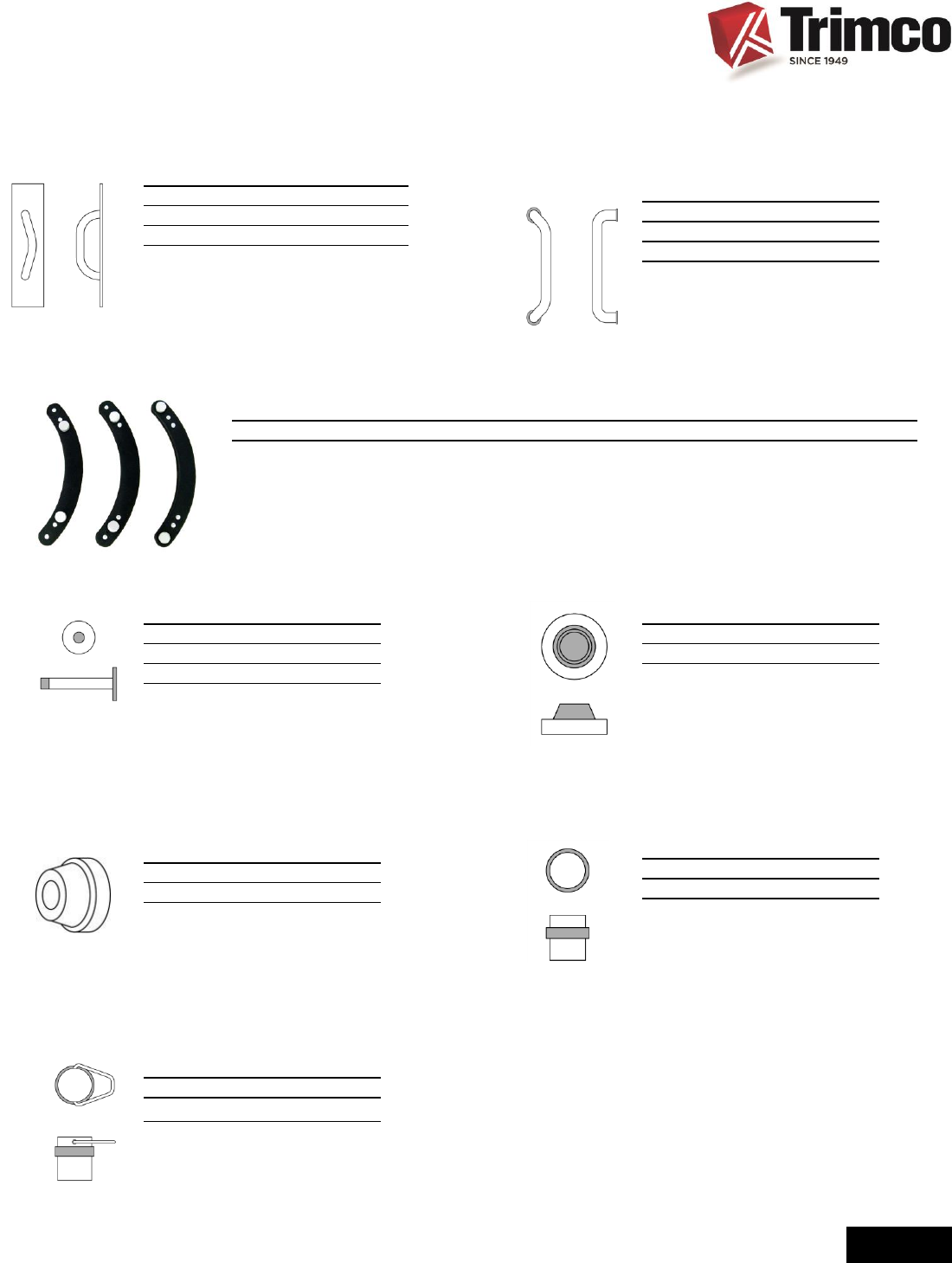

fOCAL A3
TRIMCO# 7196-1 7196-2 7196-3
CTC 8” 10” 12”
Changes the ambient by 20 degrees
BTB available
fOCAL Cool Touch Pull with PVC
B = base, CL = clearance, CTC = center to center, OA = overall size,
P = projection, D = Diameter, H = Height, L = Long,

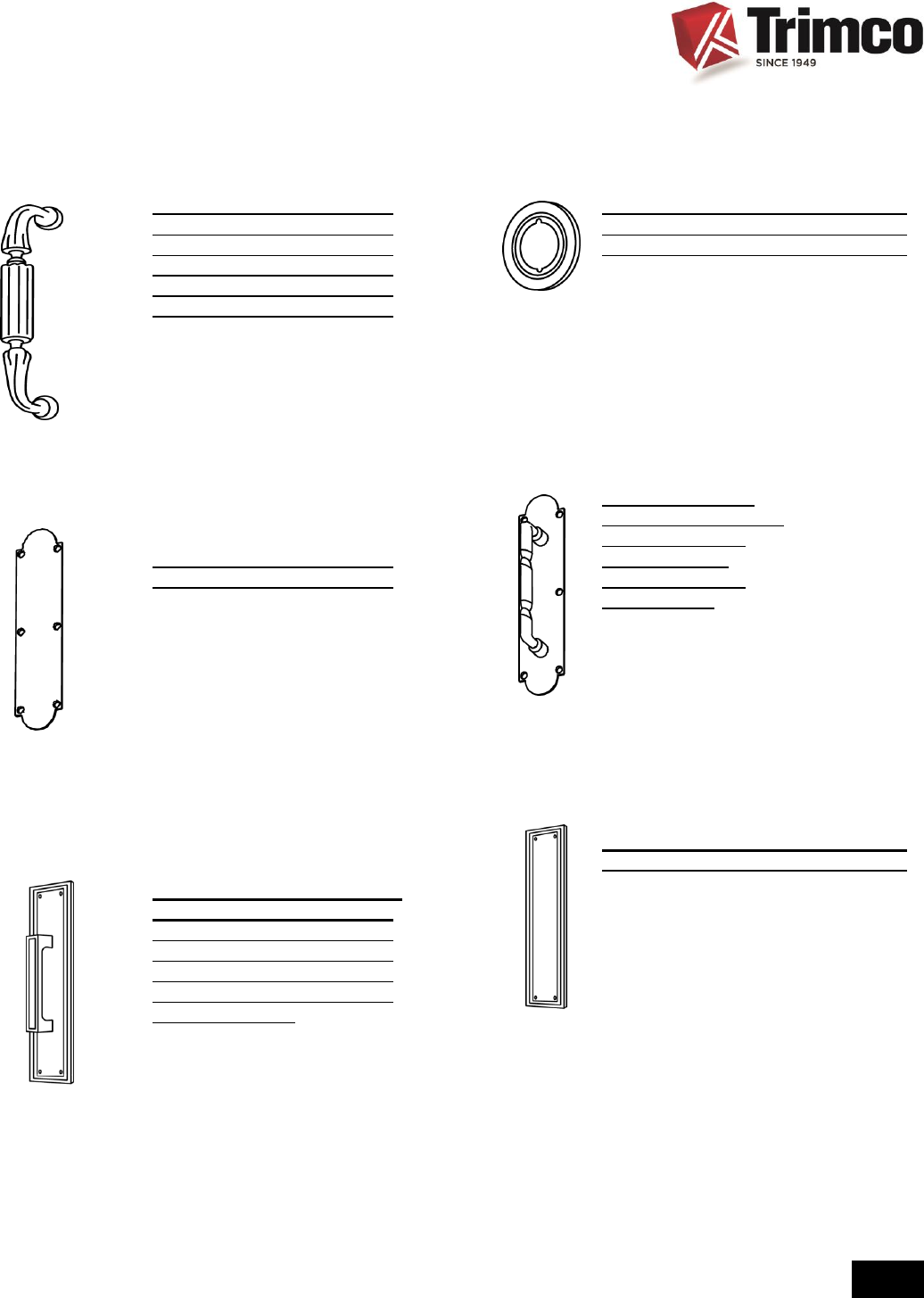

TRIMCO# 15 / STANLEY
OA 5/8 x 3-1/2 x 20-1/2”
Classic Push Plate – Cast
Solid Brass or Bronze gives rich,
old-world feeling.
Rough textured interior on decorative plate.
Br, Bz, Pl
(Stanley = Mastercraft Bronze Line)
TRIMCO# 17 / LAVA
OA 7/16 x 3-5/8 x 20-1/2”
Br, Bz, Pl
Classic Push Plate – Cast
Solid Brass or Bronze.
Classic Church Gothic.
Rough textured interior on decorative plate.
(Lava = Mastercraft Bronze Line)

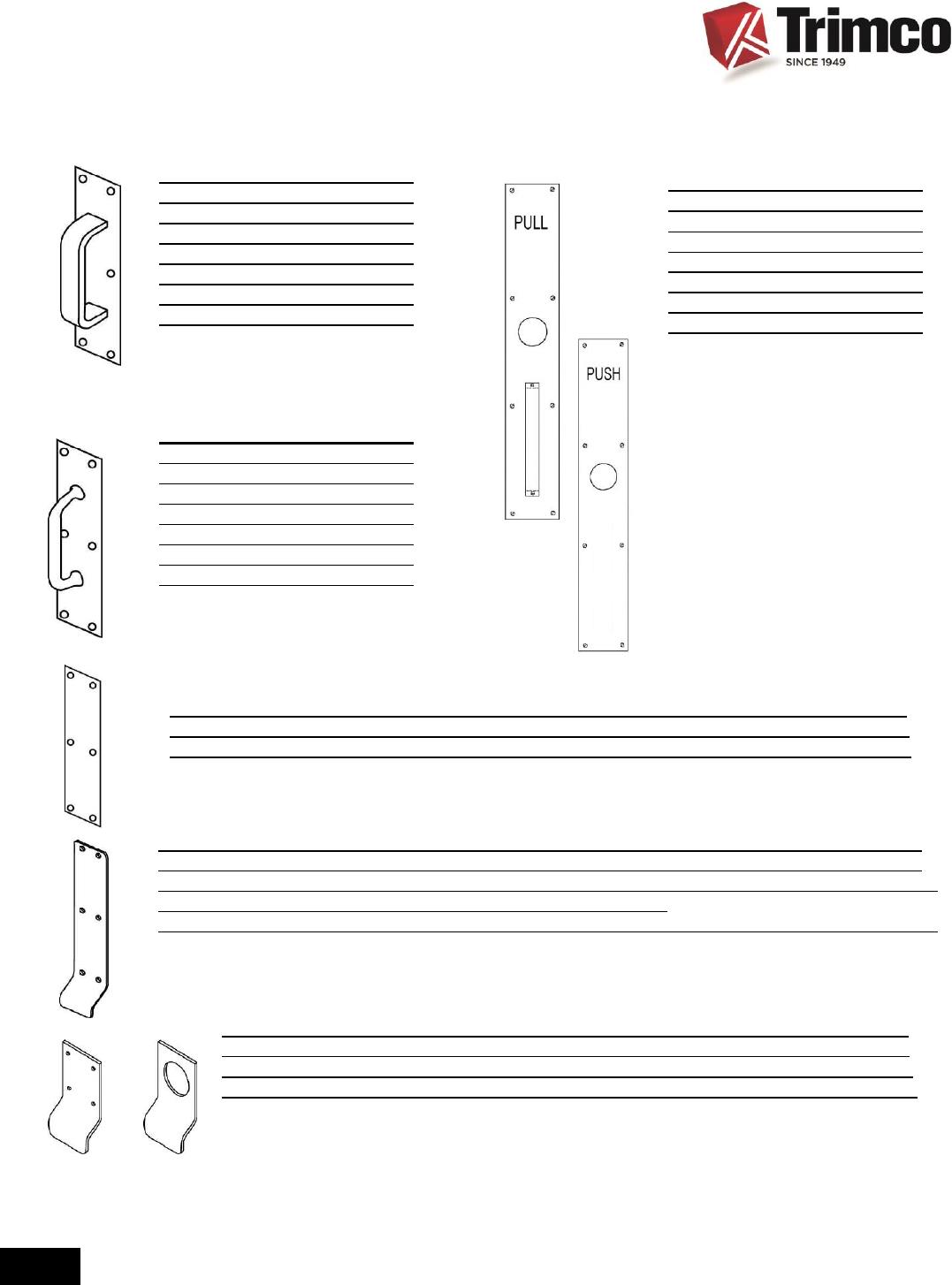

TRIMCO# 35
OA 17-3/8”
B 2-3/4”
P 4-1/2”
CL 2-1/4”
CTC 12-1/2”
Br, Bz, Pl
Classic Door Pull – Cast
Very sturdy. ADA
TRIMCO# 51 / WENDELL X 1117-1
OA 3/8 x 3-3/4 x 15”
G 1117-1
P 2-1/4”
CL 1-1/2”
CTC 5”
Br, Bz, Pl
Classic Pull Plate – Cast
Alternate grip styles available. ADA
Rough textured interior on decorative plate.
(Wendell x 1117-1 = Mastercraft Bronze Line)
Note: Dimpled finish on decorative plate.
Rough textured interior on decorative plate.
TRIMCO# 16 / PIERCE
OA 5/8 x 3-1/2 x 20-1/2”
G 1117-1
P 2-1/4”
CL 1-1/2”
CTC 5”
Br, Bz, Pl
Classic Pull Plate – Cast
Alternate grip style available. ADA
Rough textured interior on decorative plate.
(Pierce = Mastercraft Bronze Line)
TRIMCO# 18 / LAVA-CAIRO
OA 7/16 x 3-5/8 x 20-1/2”
G 1183-1
P 2-1/2”
CL 1-1/2”
CTC 5”
Br, Bz, Pl
Classic Pull Plate – Cast
Alternate grip styles available. ADA
Rough textured interior on decorative plate.
(Lava-Cairo = Mastercraft Bronze)
TRIMCO# 50 / WENDELL
OA 3/8 x 3-3/4 x 15”
Br, Bz, Pl
Classic Push Plate – Cast
Timeless Elegant Style.
Rough textured interior on decorative plate.
(Wendell = Mastercraft Bronze Line)
TRIMCO# 57
OA 9-3/4”
B 1-3/4”
P 2-5/8”
CL 1-1/2”
CTC 8”
Br, Bz, Pl
Classic Grip – Cast
With 1-3/4” dia. Roses.
Timeless Elegance. Can be mounted
On a variety of plates. ADA
Standard Mountings – See page 3.
CLASSIC PUSH, PULLS AND GRIPS
B = base, CL = clearance, CTC = center to center, G = grip, OA = overall size,
P = projection
B-1
TRIMCO# 58 59
OA 9” 10-15/16”
B 15/16” 15/16”
P 2-1/2” 2-1/2”
CL 1-1/2” 1-1/2”
CTC 8” 10”
Br, Bz
Classic Grip – Cast
Available w/roses, specify.
Can be mounted to a variety of
plates. ADA
.
TRIMCO# 1070-2
OA 3-1/2 x 15”
Br, Bz
Classic Push Plate
.050 Solid Brass Plate
Tasteful, refined style.
TRIMCO# 1900 / Aberdene X
Velazquez Grip .
OA 3-3/8 x 14-3/4”
G 1136-1
P 2-1/4”
CL 1-1/2”
CTC 6-1/4”
Br, Bz, Pl
Classic Pull Plate – 1/8” - thick
Solid brass or bronze.
ADA
(Aberdene x Velazquez = Mastercraft Bz.)
TRIMCO# 111
OD 3-5/8” ]
ID 2-3/16”
Br, Bz, Pl
Classic Escutcheon
Stamped ring.
TRIMCO# 1071-2
OA 3-1/2 x 15”
P 2-1/2”
G #58
CL 1-1/2”
CTC 8”
Br, Bz
Classic Pull Plate
.050 Solid Brass Plate
ADA
TRIMCO# 1901 / Aberdene
OA 3-3/8 x 14-3/4”
Br, Bz, Pl
Classic Push Plate – 1/8” thick
Solid brass or bronze, gives solid,
High achiever feeling.
(Aberdene = Mastercraft Bronze
Line)
B-2
CLASSIC PRODUCTS
CL = clearance, CTC = center-to-center, G = grip, OA = overall size, P = projection
Standard Mountings - See page 3.

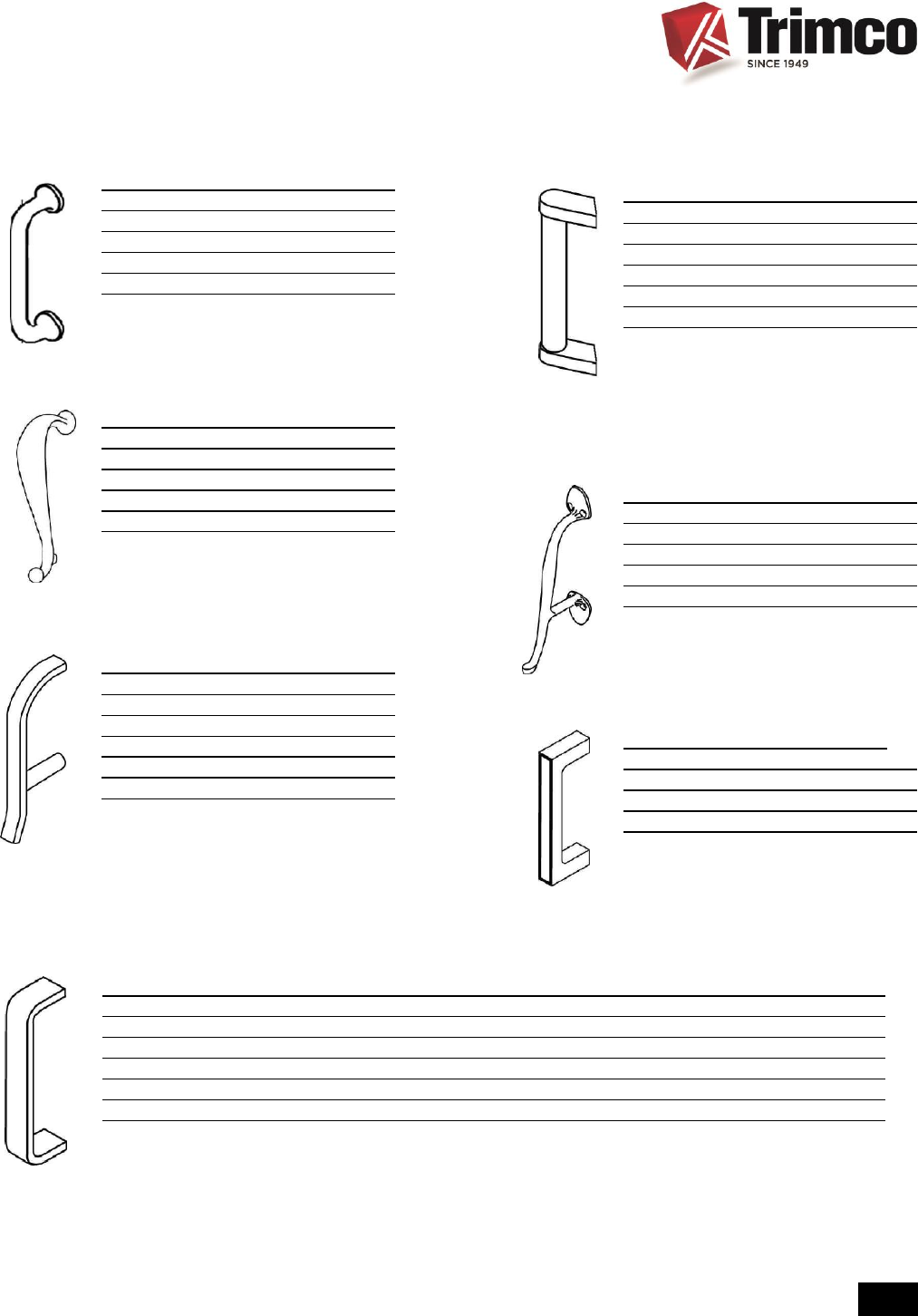

TRIMCO# 1301
Door Pull – Cast
OA 10-1/2”
CTC 9”
Offset 2”
TRIMCO# 1320
Door Pull – Cast
OA 9”
OFF 5-1/2”
P 1-1/2”
CTC 7”
TRIMCO# 1340 1340-10
Door Pull – Cast
L 23-1/4” 12-1/4”
P 2-1/2” 2-1/2”
OFF 5-1/4” 5-1/4”
CTC 21 10”
TRIMCO# 1310 1310-1
Door Pull – Cast
CTC 12” 8”
OFF 7” 4-3/4”
P 2-1/2” 2-1/2”
D 15” 9-3/4”
TRIMCO# 1330
Door Pull – Cast
H 13-1/2”
P 2-11/16”
OFF 7-5/8”
CTC 11”
TRIMCO# 1342
Door Pull – Cast
L 18”
W 1-1/2”
P 2-3/8”
CTC 17-1/4”
B-3

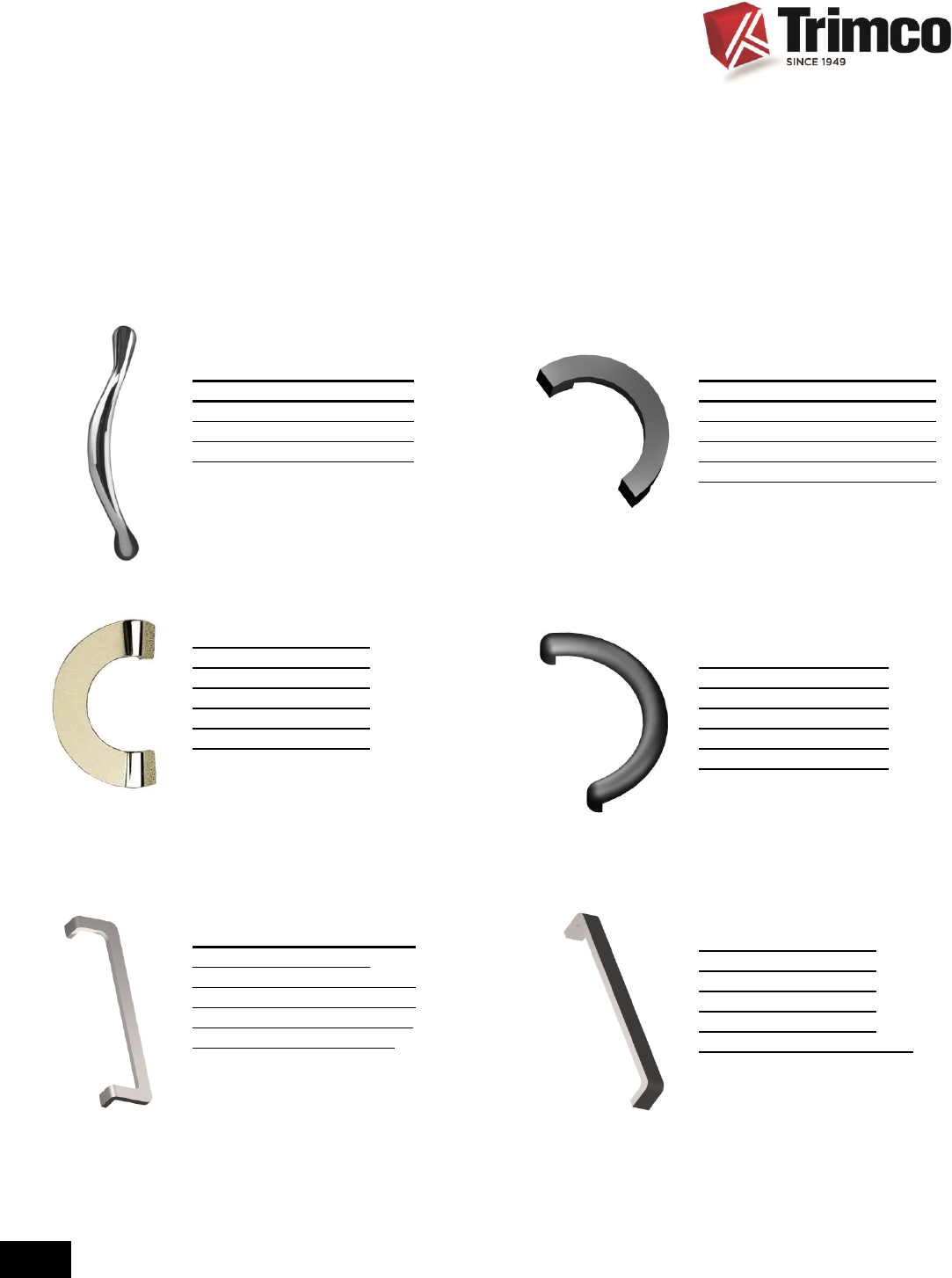

MODERN MASTERPIECES
For 65 years, TRIMCO has been designing and manufacturing
exquisite, handcrafted door pulls. Available in solid brass, and
bronze in an array of flawless finishes; this distinctive line of
superior door pulls is meticulously engineered and fabricated to
provide years of long life and lasting beauty.
L = Length, P = Projection, OFF = offset, CTC= Center to Center, W = width
TRIMCO# 1350L / 1358R
Door Pull – Cast
H 12”
W 2-1/2”
P 5-1/4”
CTC 9”
TRIMCO# 1370
Door Pull – Cast
D 9”
P 4-1/2”
W 2”
CTC 8”
TRIMCO# 1390
Door Pull – Cast
H 8-1/4”
OFF 6”
P 2-1/2”
CTC 6”
TRIMCO# 1360
Door Pull – Cast
D 6”
OFF 3”
P 2”
CTC 4-3/4”
TRIMCO# 1380
Door Pull – Cast
OA 5”
P 2”
CTC 4 x 2-3/4”
TRIMCO# 1410 1410-1
Door Pull – Cast
L 23-3/4” 18”
W 2” 2”
P 2-1/2” 2-1/2”
CTC 22-3/4” 17”
MODERN MASTERPIECES
B-4
L = Length, P = Projection, OFF = offset, CTC= Center to Center, W = width

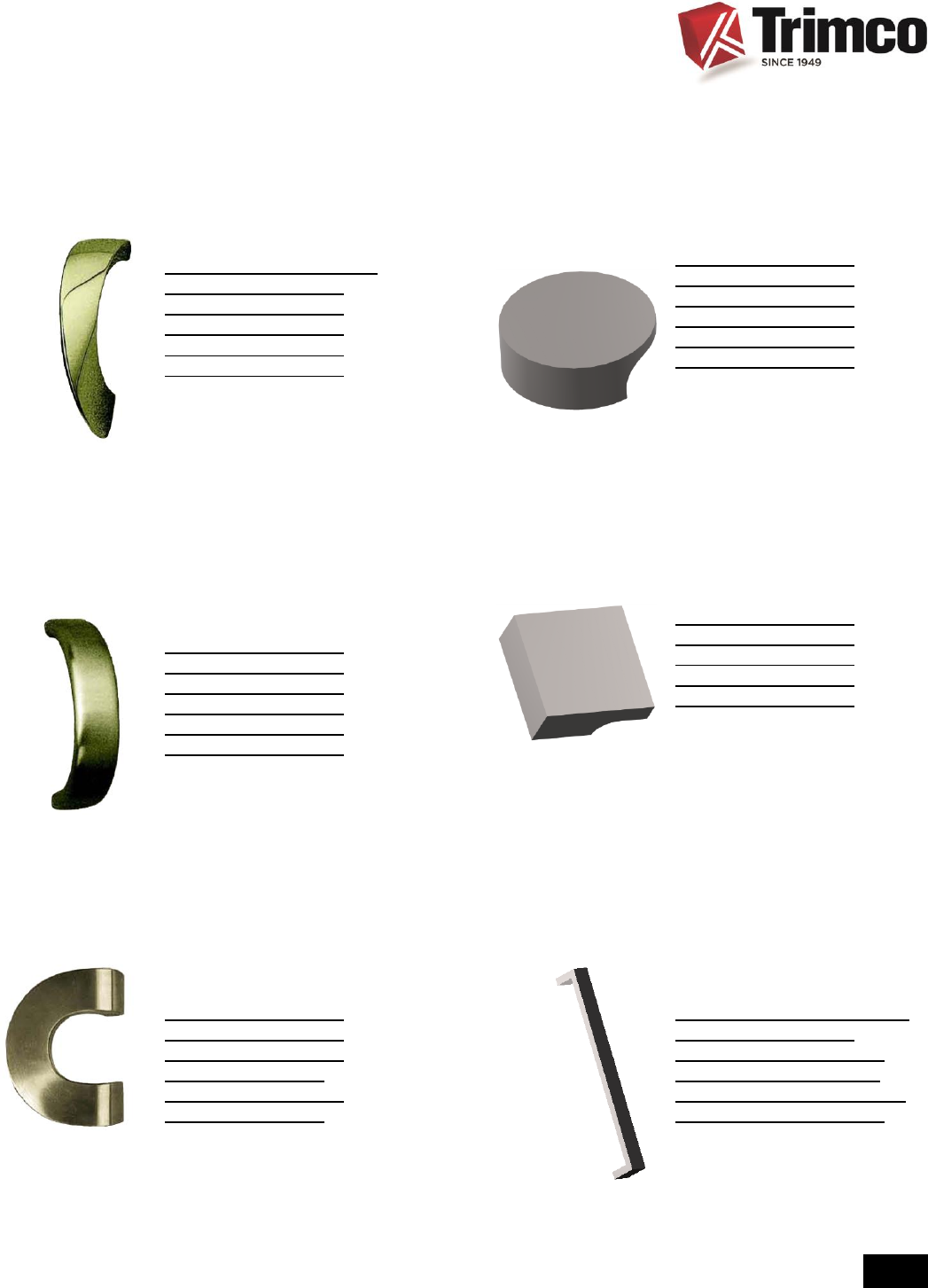

TRIMCO# ADON
OA 3” x 7”
TRIMCO# ARES
OA 5” x 9-1/4”
TRIMCO# CRONUS
OA 5-3/4” x 5-3/4”
TRIMCO# APOLLO
OA 7” x 7”
TRIMCO# ATLAS
OA 2-3/4” x 13-3/4”
TRIMCO# DAPHNE
OA 2-1/2” x 8”
MasterCraft entry door hardware is a series of strong, elegant pulls that offer a unique
opportunity to show entry doors as tasteful works of art. These hand-finished pulls provide a
stunning first impression for any building. Cast in our own foundry in all standard
architectural finishes.
No compromise in quality, design, or durability is made during the casting process. Careful
machining, polishing, assembly, and finishing results in a product, which we present with
pride.
B-5
OA = Over All Size
TRIMCO# HELANE
OA 5-3/4” x 8-3/4”
TRIMCO# HERMES
OA 4-1/4” x 8-1/2”
TRIMCO# ISIS
OA 2-1/4” x 13-3/4”
TRIMCO# LUNA
OA 6-1/4” x 7-3/4”
TRIMCO# HELIO
OA 4-1/2” x 10-1/2”
TRIMCO# HERO
OA 8-1/2” diameter
TRIMCO# JUNO
OA 1-3/4” x 18-1/2”
TRIMCO# MEDEA
OA 6” x 7-3/4”
B-6
OA = Over All Size
TRIMCO# MIDAS
OA 4” x 10-1/4”
TRIMCO# OLYMPUS
CTC 8’ .
TRIMCO# SOLAR
OA 4-1/2” x 9-1/4”
TRIMCO# VESTA
OA 3-1/4” x 10-1/4”
TRIMCO# OLYMPUS
CTC 10”
TRIMCO# SATURN
OA 4-1/2” X 8-1/2”
TRIMCO# VENUS
OA 2-1/4” x 15”
TRIMCO# ZEUS
OA 7” X 7”
B-7
OA = Over All Size

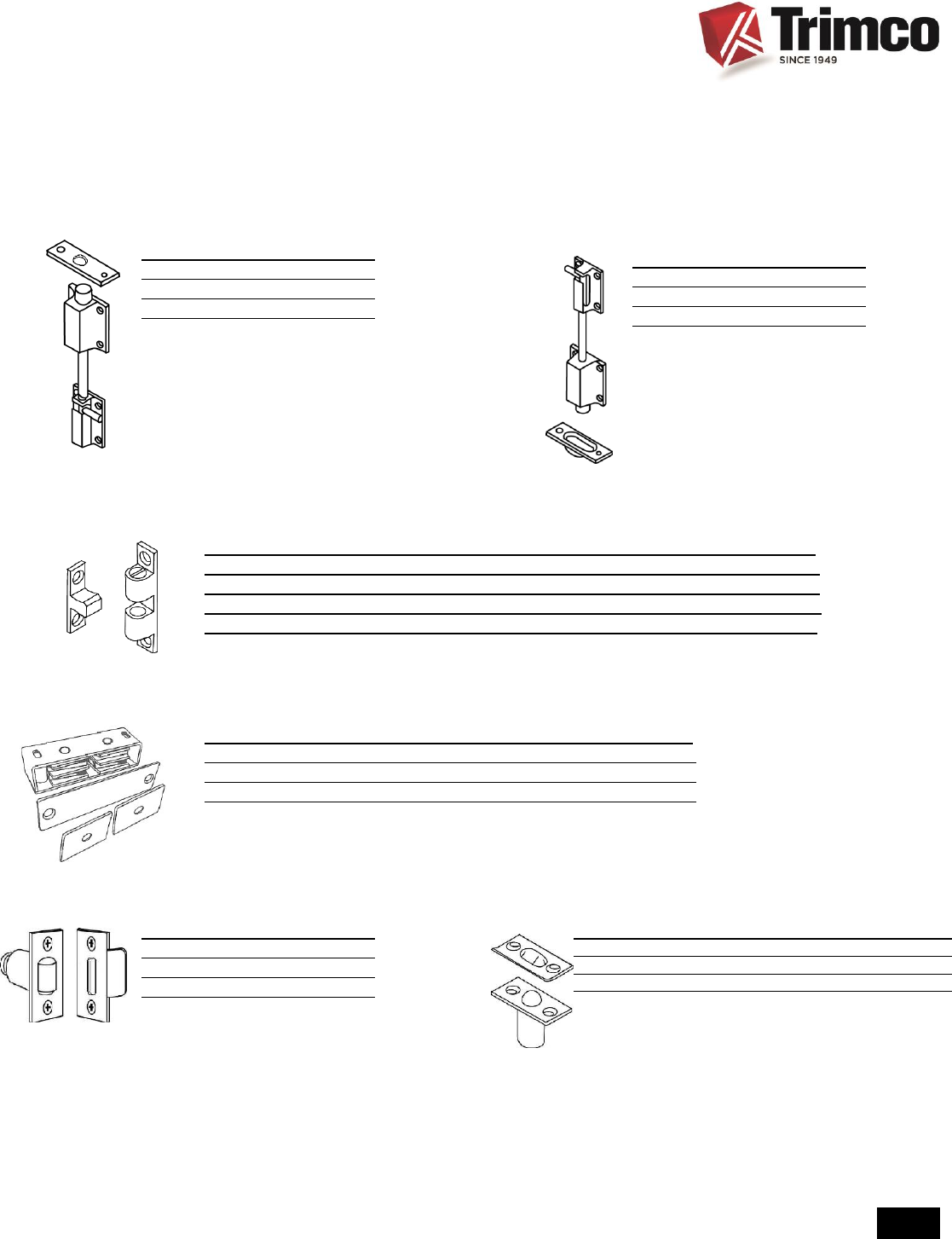

TRIMCO# 243T
OA 3/8” x 15”
M Brass/Bronze
TH 1-1/2”
Br, Bz, Pl
Cane Bolt Top - Cast
Decorative Bolts for pairs of doors.
Top door bolt with surface and mortise
strikes included.
TRIMCO# 1554
OA 1-1/8” X 2-1/4”
DP 2-1/4”
BHMA E09101
Br, Bz, Pl
Roller Latch
Fits residential latch bolt prep.
Adjustable Nylon Roller
3 Types of Strikes available
“B” Strike Shown
TRIMCO# 244B
OA 3/8” x 30”
M Brass/Bronze
TH 1-1/2”
Br, Bz, Pl
Cane Bolt Bottom - Cast
Decorative Bolts for pairs of doors.
Bottom door bolt with cup strike
included.
TRIMCO# 1555 1555L
OA 1” x 2-1/8” 1” x 2-1/8”
DP 1-3/16” 1” x 3/16”
STR 1-1/16” x 2-1/8” 1-3/8” x 2-1/8”
Br, Bz, Pl
Closet Ball Catch
Light Duty ball latch
Adjustable roller force
1555 is shown
TRIMCO# 802 804 .
OA 3/8” x 1-15/16” 1/2” x 2-3/4 .
M Brass Brass .
STR 5/16” x 1-1/8” 13-32” x 1-9/16”
BHMA B03291 B03291 .
3-Way Cabinet Catch
Machine Finish
C-1
Bolts and Latches
DP = depth, OA = overall size
TRIMCO# 810 .
OA 3-1/4” x 1” x 3/4”
M Zinc over Steel
STR 3-1/8” x 7/8” or (2) 1-1/8” x 13/16”
Heavy Duty Magnetic Catch
TRIMCO# 1559
OA 1/8” x 1” x 3-3/8”
DP 1-13/16”
BHMA E09091
Br, Bz, PL
Heavy Duty Roller Latch
Indicate strike choice – A, B or C
Adjustable Nylon Roller
TRIMCO# 1559B
OA 3/32” x 2” x 2-3/4”
Br, Bz, Pl
Strike only for Heavy duty
Roller Latch 1559 (1559WB)
TRIMCO# 1559C
OA 3/32” x 2” x 4-7/8”
Br, Bz, Pl
Strike only for Heavy duty
Roller Latch 1559 (1559WC)
1559WA
TRIMCO# 3651
OA 3/32” x 2” x 2-3/4”
BHMA 115.3
Br, Bz, Pl
Strike - 2-3/4”
Adjustable tang.
TRIMCO# 1559A
OA 3/16” x 1-3/4” x 2-1/4”
Br, Bz, Pl
Strike only for Heavy duty
Roller Latch 1559 (1559WA)
Cast
2-1/4” Full Lip.
TRIMCO# 1559BL
OA 1/8” x 1-1/2” x 4-1/2”
DP 2-1/2” .
BHMA E09111 .
Br, Bz, Pl
1559 Heavy Duty Roller Latch with
Angle Stop Face Plate..
Adjustable Nylon Roller.
For Stop-less Frames
TRIMCO# 1559W
Heavy Duty Roller Latch
Specify Strike: A, B, or C
(Included in Price)
1559WB 1559WC
TRIMCO# 3652
OA 3/32” x 2” x 4-7/8”
BHMA 115.2
Br, Bz, Pl
Strike - ASA
Adjustable tang.
C-2
DP = depth, OA = overall size
LATCHES AND STRIKES
ORDER as per part
numbers BELOW

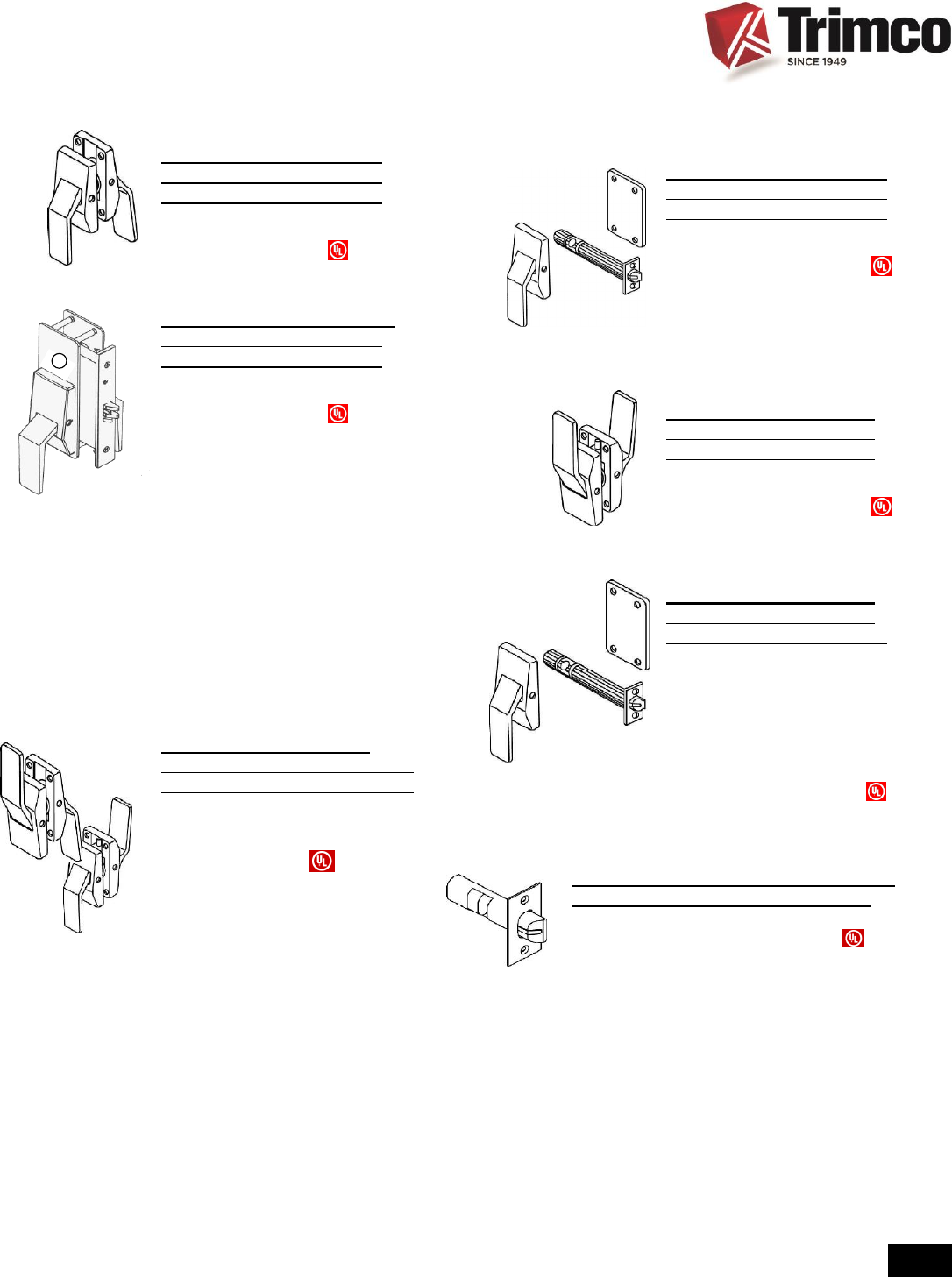

TRIMCO# 1562A
BS 5” (1505) *
STR 2-3/4” (3651) *
Br, Bz, Pl, SS
Push/Pull Latch
Levers Down ADA/ UL Listed
TRIMCO# 1562Q or 1562M
BS 2-3/4”
STR 4-7/8”
Br, Bz, Pl, SS
Push/Pull Mortise Lock
Levers Down ADA/ UL Listed
Customer to supply cylinder.
1562Q55 Classroom Function
Auxiliary latch deadlocks latchbolt
(Standard)
1562Q30 Privacy/bathroom
Deadbolt by thumbturn lever inside
or by emergency release tool
outside.
1562Q65 Dormitory/entrance
Deadbolt by key outside or by
thumbturn lever inside.
Other functions are available,
please inquire.
TRIMCO# 1580A
BS 5” (1505) *
STR 2-3/4” (3651) *
Br, Bz, Pl, SS
Push/Pull Latch,
Push Up, Pull Down
ADA /
Specify 1581A for Push Down,
Pull Up
Must Specify Handing
TRIMCO# 1562AE
BS 5” (1505) *
STR 2-3/4” (3651) *
Br, Bz, Pl
Exit Only Latch
Lever Down ADA
Exit / Entrance Only -
Used when only one side of opening
is designed for entrance or exit.
Ideal for secured areas.
Must Specify Handing
TRIMCO# 1563A
BS 5” (1505) *
STR 2-3/4” (3651) *
Br, Bz, Pl
Push/Pull Latch Push/Pull Latch
Levers Up ADA
Must Specify Handing
TRIMCO# 1591A
BS 5” (1505) *
STR 2-3/4” (3651) *
Br, Bz, Pl
Reverse Push or Pull Latch
Requires monitoring personnel to
maintain pressure on lever paddle to
prevent subject from exiting room.
Made to order, may not be returned.
ADA
Must Specify Handing
Note: PDQ
mortise chassis
supplied as
standard. (Q)
Alternate (M)
Corbin Russwin
chassis available
at an additional
cost & lead-time.
1581A
1580A
TRIMCO# 1502 1503 1505
BS 2-3/4” 3-3/4” 5”
Push/Pull latch only Br, Bz, Pl
Latchbolts for 1500 series
NOTE: Add suffix “P” to part number to have levers engraved “Push” and “Pull”.
1592LLE (Lead Lined Escutcheon Plate) and 1592LLT (Lead Lined Latch Tube) may be specified by buyer at extra
cost. Specify 1592RK Replacement Kit to replace latches on doors originally prepped for Roller Latch with Push/Pull
Latch.
* Either 2-3/4”, 3-3/4” or 5” Backset and 2-3/4” strike (3651) are supplied standard with Push/Pull latches.
7” backset
and/or ASA 4-7/8” (3652) Strike must be specified by buyer at extra cost.
Patent #4003593 & 4986583
C-3
DEPENDABLE PUSH/PULL LATCHES
DP = depth, OA = overall size, BS = Back set, STR = Strike
TRIMCO# 3090
OA 1-1/2” x 2-7/8”
Br, Bz, Pl
Carry Open Bar Assembly
For 3090 Series Coordinators
Maximum adjustment 1/2”
Trimco # 3093
OA 2-5/16” x 6-9/16”
BHMA 4.1.1 Type 25
Br, Bz, Pl
Coordinator - Cast
Drop Arm Type. Two nylon
rollers and set screw adjustment
standard.
TRIMCO# 3095
OA 3-1/4” x 5”
SW 7/8” - 2-1/4”
M Steel
600 Black
Mounting Bracket
For mounting stop-applied
hardware. In conjunction with
the 3094.
TRIMCO# 3092
OA 1-5/8” X 5/8” X 18”
BHMA 4.1.1 Type 25
600 Black
Retracting Door Coordinator
For use on pairs of doors with or
without astragal.
Not for use on unequal pairs of
doors or with exposed vertical
rods.
See Coordinator brochure for more
information.
For openings 72” to 96”
TRIMCO# 3096
OA 3” x 5”
S over 2-1/4”
M Steel
600 Black
Mounting Bracket
For mounting stop-applied
hardware. In conjunction with
the 3094.
TRIMCO# 3094A2 3094B1 3094B2 3094B3
W (of opening) 43” - 53” 53” - 63” 63” - 75” 75” - 87”
BHMA 4.1.1 Type 21 4.1.1 Type 21 4.1.1 Type 21 4.1.1 Type 21
Coordinator Size 32” 52” 52” 52” 600 Black
Stop Mounted Coordinator w/Filler Bar -
Patent #5033234
TRIMCO# 3094B4 3094C4 3094D
W (of opening) 87” - 95” 95” - 107” Special Application
BHMA 4.1.1 Type 21 4.1.1 Type 21 4.1.1 Type 21
Coordinator Size 52” 60” Custom Size 600 Black
Stop Mounted Coordinator w/Filler Bar -
Patent #5033234
3094 Easily configured for unequal pairs of doors. When ordering coordinators, specify opening width, leaf
sizes, and finish of companion hardware.
Panic Strike preps available.
See Coordinator brochure for more information.
TRIMCO# 3094-1 3094-2 3094-3 3094-4 3094-5 3094-6
OA 12” 24” 36” 48” 60” 72”
600 Black
Filler Bar Only
For the 3094 Coordinator For mounting stop-applied hardware. In conjunction with the 3094.
C-4
Quiet Coordinators & Coordinator Accessories
OA = overall size, BS = Back set, STR = Strike, M = Material
C-5

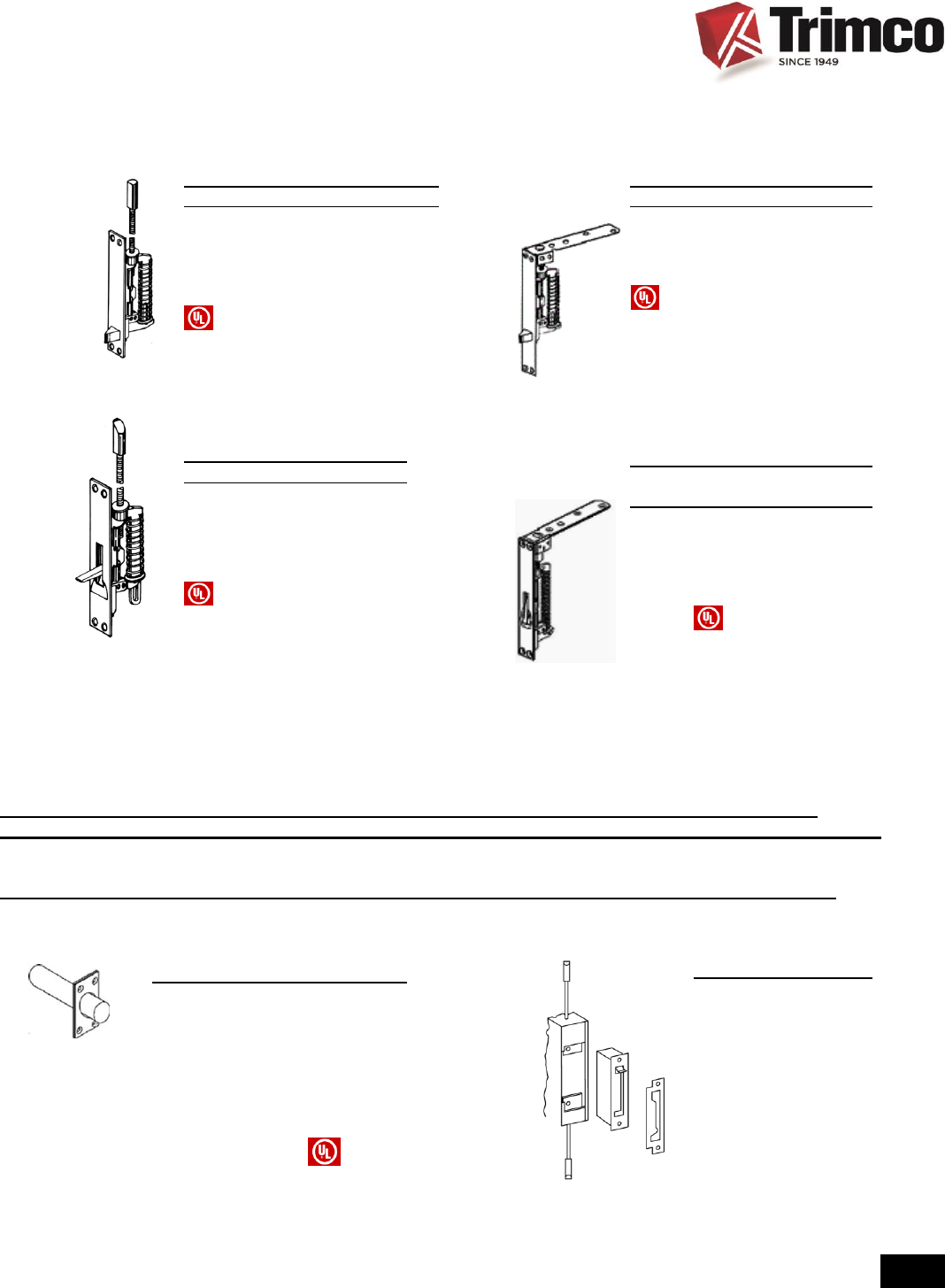

TRIMCO# 3810
BHMA 4.4 Type 25
Br, Bz, Pl, SS
Automatic Flushbolt
Metal Door - To be used in
pairs on the inactive leaf of
metal doors.
Rated 3 Hours
Patent #5076620
Can be used with the 3820 or
3850 Firebolt.
TRIMCO# 3820
BHMA 4.4 Type 25
Br, Bz, Pl, SS
Semi-Automatic Flushbolt
Metal Doors - For use at top of
the inactive leaf of metal doors.
Used with the 3810.
Rated 3 Hours
Patent #5004277
Can be used with the 3850
Firebolt.
TRIMCO# 3850
Br, Bz, Pl, SS
Firebolt
For use with the 3810, 3815L, 3820 and
3825L to replace the bottom bolt. Can
also be used in
conjunction with vertical rod panic
devices.
Patent Pending
TRIMCO# 3815L
BHMA 4.4 Type 25
Br, Bz, Pl, SS
Automatic Flushbolt
Wood Doors - To be used in pairs on
the inactive leaf of wood doors.
Rated 1-1/2 Hours
Patent #5076620
Can be used with the 3825 or 3850
Firebolt.
TRIMCO# 3825L
BHMA 4.4 Type 25
Br, Bz, Pl, SS
Semi-Automatic Flushbolt
Wood Doors - For use at top of the
inactive leaf of wood doors. Use with
the 3815
Rated 20 Minutes
Patent #5004277
Can be used with the 3850 Firebolt.
TRIMCO# 3900
Br, Bz, Pl, SS
Dubl-Bolt
Two Point Flushbolt for Inactive
Door of a pair of Hollow Metal
Doors.
ADA / UL PENDING
Patent Pending.
NOTE: Designed for use in pairs (top & bottom) with TRIMCO Door Coordinators. All Automatic and Semi-Automatic
Flushbolts are supplied with Trimkits. Specify Finish. See Automatic Flushbolt brochure for more information. All of
the above can be used with the 3850 Firebolt.
TRIMCO# 3830A 3830AL 3830M 3830WL
Finish Kit Long Finish Kit Finish Kit Long Finish Kit
Automatic Automatic Semi-Automatic Semi-Automatic
Flushbolt Flushbolt Flushbolt Flushbolt
Metal Door Wood Door Metal Door Wood Door
Br, Bz, Pl, SS
QUIET, LOW CLOSER FORCE AUTO FLUSHBOLTS, DUBL-BOLT
DP = depth, OA = overall size, BS = Back set, STR = Strike
(No Face Plate)
3910
3910N
TRIMCO# 3910 3910N
OA 3/32” x 1-5/16” x 2-1/2”
DP 1-1/2”
BHMA L04021
Br, Bz, Pl, SS
Dust Proof Strike
To omit faceplate add suffix “N”.
Available in stainless steel.
TRIMCO# 3915
OA 1-1/4” X 6-3/4”
TH 11/16”
ROD 6” – 30”
BHMA L04081
Br, Bz, Pl
Flush Extension Bolt
Metal Door
TRIMCO# 3911
OA 3/32” x 1-5/16” x 1-5/8
DP 1-1/2”
BHMA L04021
Br, Bz, Pl, SS
Adjustable Dust Proof Strike
For carpet or threshold.
Available in stainless steel.
TRIMCO# 3916
OA 1” X 15-1/2”
TH 5/8”
BHMA L04081
Br, Bz, Pl
Flush Extension Bolt
One piece flushbolt for non-labeled,
tall wood doors. Other lengths
available.
TRIMCO# 3913 W3913
OA 1” x 6-3/4” x 2-1/2” 1” x 6-3/4” x 2-1/2”
TH 3/4” 3/4”
M Extruded Wrought
Br, Bz, Pl
Patent #4315647
Flush Extension Bolt - Wood Door
Includes metal dust cover. Mounts at top corner of wood door.
TRIMCO# 3917 W3917 3917ET
OA 1” x 6-3/4” 1” x 6-3/4” 1” x 6-3/4”
TH 11/16” 11/16” 1-3/16”
ROD 12” 12” 12”
M Extruded Wrought Extruded
BHMA L04081/L04251 L04081/L04251 L04081
Br. Bz. Pl
Patent #4315647
Flush Extension Bolt - Metal Door - 1-1/2” Bolthead (3917-1B) standard; 3” Bolthead (3917-3B)
also available. Longer Rod Lengths available on request.
C-6
M = material, OA = overall size, DP = depth, TH = throw
FLUSH BOLTS AND DUST PROOF STRIKES

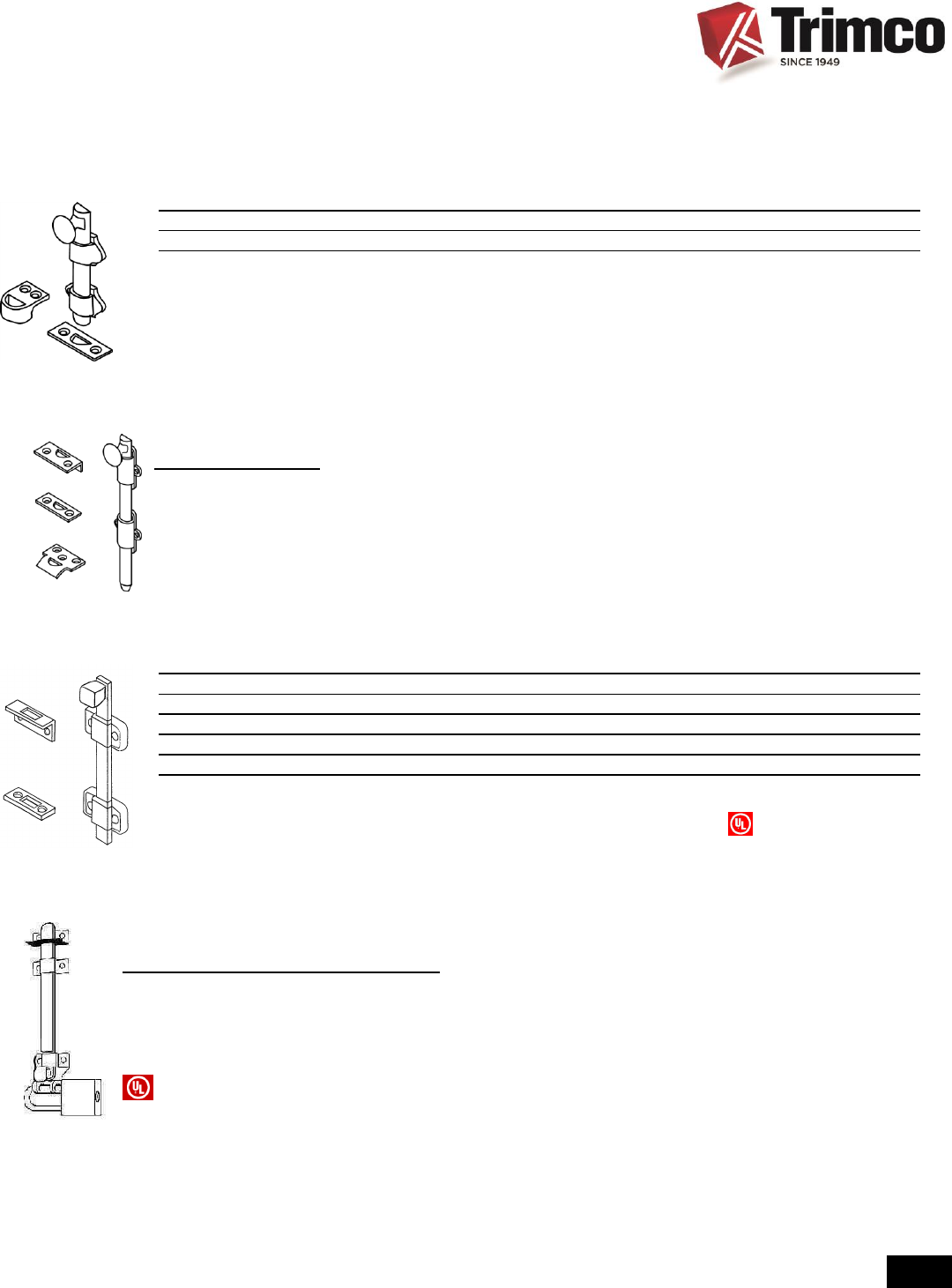

TRIMCO# 3921
Heavy Duty Surface Bolt
Available in 8”, 12”, 18”, 24”. Please
specify length and universal, angle
or mortise strike. Custom lengths
available.
TRIMCO# 3922L
Locking Heavy Duty Surface Bolt
Accepts padlock (furnished by buyer)
Furnish with surface and Mortise Strike
With Torx Screws for security. Custom
Lengths made to order upon request.
TRIMCO# 3920-4 3920-8
OA 4-1/4” 8”
TH 1/2” - 1” 1” - 2”
Br, Bz, Pl
Dutch Door Bolt – Cast
Cast Strike for application without Universal Strike supplied.
shelf and Flat Mortise Strike Please specify angle or
supplied. mortise strike.
Other lengths available
TRIMCO# 3922 3923
OA 2” x 8” 2” x 12”
TH 1-1/8” 1-1/8”
P 1-5/16” 1-5/16”
M Steel 3/4” x 1/4” Steel 3/4” x 1/4”
BHMA L04161 L04161
Br, Bz, Pl, SS
Heavy Duty Surface Bolt - Available in stainless steel.
Furnished with Surface and Mortise Strikes. Custom Lengths Available.
C-7
BOLTS
M = Material, CTC = center to center, TH = Thickness, OA Overall Size, P = projection
3999-Round-Edge
3999SE-Square-Edge
TRIMCO# 3999 3999SE
OA 3/4” x 6”
TH 1”
D 1/2” Bolt
BHMA L04201
Br, Bz. Pl
Flushbolt - 6”
Corner Mount for unlisted wood
doors. Add “SE” for Square Edges.
TRIMCO# 3928K 3928L
OA 1-9/16” X 6-13/16” 1-9/16” X 6-13/16”
up to 90” rod up to 90” rod
ROD 5/8”, half round 5/8”, half round
Br, Bz, Pl
Cremone Bolt - Cast
Decorative Bolt for pairs of doors. Mortise and surface strikes included.
“K” supplied with oval knob. “L” supplied with lever operator.
Specify height and hand of door.
TRIMCO# 4873 4874 4876 4882
L 3” 4” 6” 12”
W 5/8” 5/8” 5/8” 5/8”
TH 5/8” 7/8” 1” 2-1/4”
BHMA L04151 L04151 L04151 L04151
Surface Surface Surface Surface
Bolt 3 Bolt 4 Bolt 6 Bolt 12
Universal and Mortise strikes supplied.
Custom lengths available.
C-8
D = diameter, L = length, M = material, OA = overall size, TH = throw, W = width
BOLTS & GUIDES

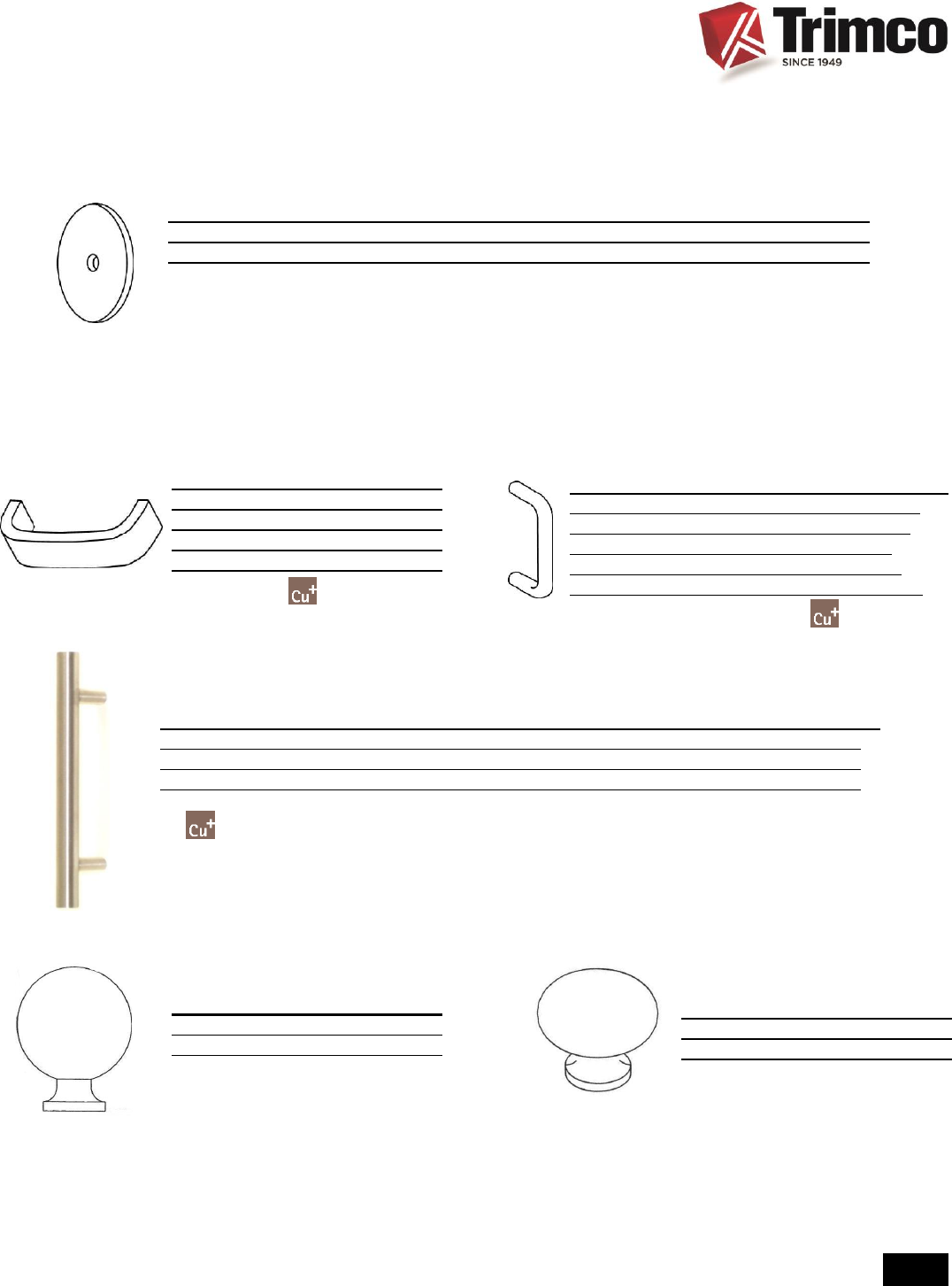

TRIMCO# 553
OA 5/8” x 3-1/4”
CTC 3”
CL 3/4”
BHMA B02012
Br, Bz, Pl
Drawer Pull
TRIMCO# 7300-1 7300-1-1/4
D 1” 1-1/4”
P 15/16” 1-1/8”
Br, Bz, Pl
Cabinet Knobs
TRIMCO# 562-3 562-4 562-96mm
OA 3-13/16” 4-5/16” 104mm
CTC 3-1/2” 4” 96mm
CL 7/8” 7/8” 7/8”
D 5/16” 5/16” 5/16”
BHMA B02012 B02012 B02012
Br, Bz, Pl, SS
Drawer Pull
TRIMCO# 7301-1 7301-1-1/4
D 1” 1-1/4”
P 1-1/4” 1-1/2”
Br, Bz, Pl
Cabinet Knob
TRIMCO# BP1 BP2 BP3 BP4
D 1” 1-1/4” 1-1/2” 2”
T 1/8” 1/8” 1/8” 1/8”
Br, Bz, Pl, SS
Back Plates for Pulls
1/8” thick
D-1
D= Diameter, T= Thickness, CL = clearance, CTC = center to center, G = grip, OA = overall size, P = projection
DRAWER PULLS AND ACCESSORIES
TRIMCO# *571-3-710CU 571-6 571-8 571-10
CTC 3” 6” 8” 10”
D 1/2” 1/2” 1/2” 1/2”
O/A 5-1/2” 8” 10” 12”
CABINET PULL
*made with CuVerro alloy
TRIMCO# 1102S 1102T
OA 7-1/2” 7-1/2”
P 2-3/16” 2-3/16”
CL 1-1/2” 1-1/2”
CTC 5-1/2” 5-1/2”
BHMA J401 J401
Pull – Cast Surface Thru-bolt
ADA Mount Mount
Br, Bz, Pl. Al
TRIMCO# 1109-1
OA 6-3/16”
P 1-7/8”
CL 1-1/2”
CTC 5-1/2”
BHMA J401
Br, Bz, Al, Pl
Pull - Cast
ADA
D-2

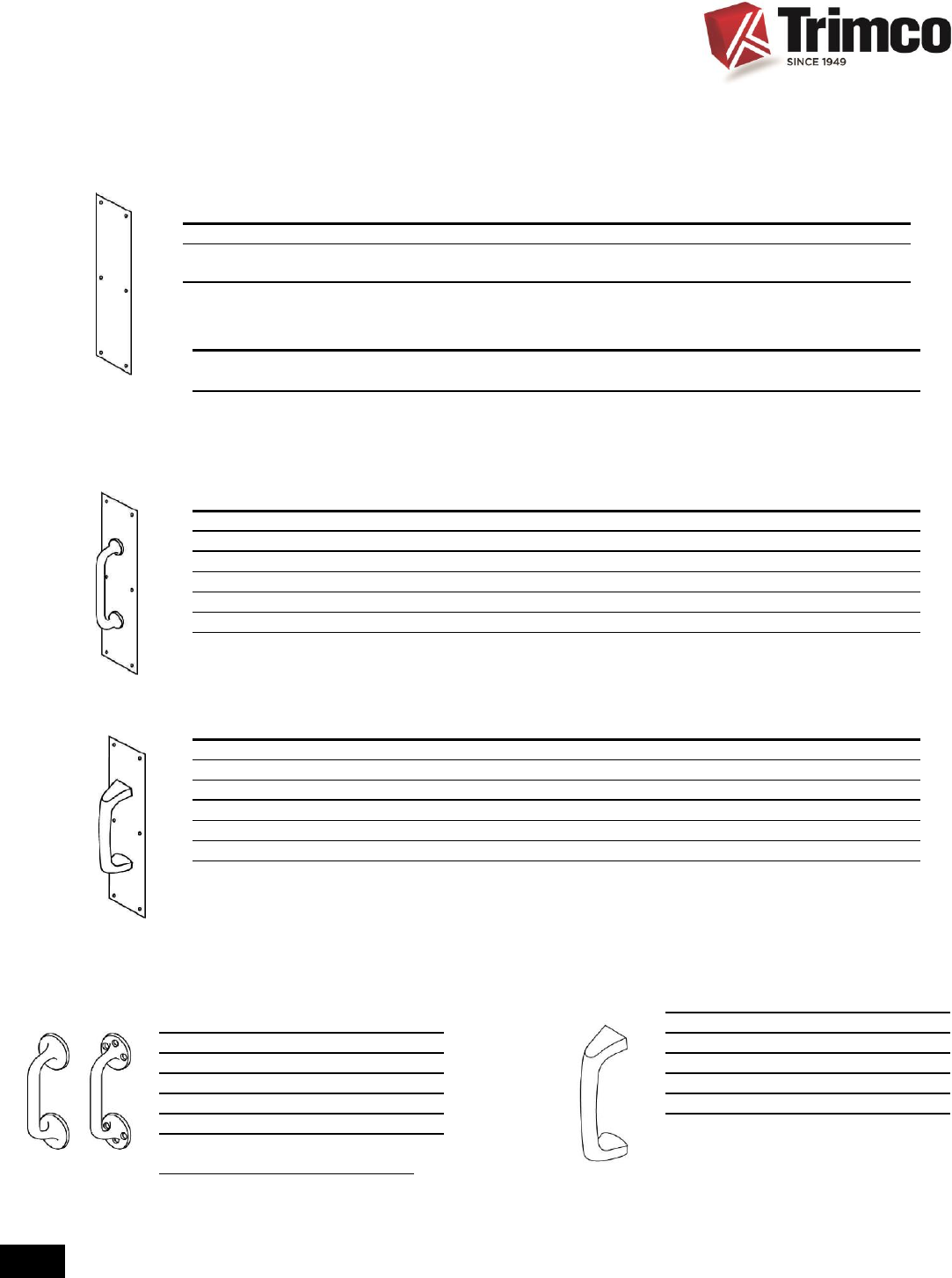

TRIMCO# 1001-1 1001-2 1001-3 1001-3P
OA 3” x 12” 3-1/2” x 15” 4” X 16” 4” X 16”
Black Plastic 1/8”
BHMA J301 J301 J301 J301
Br, Bz, Pl, SS
Push Plate .050
TRIMCO# 1001-9 1001-11
OA 6” x 16” 8” x 16”
BHMA J301 J301
Push Plate .050
Plastic Plates - .125 other standard colors and clear available.
TRIMCO# 1010-1 1010-2 1010-3
OA 3” x 12” 3-1/2” x 15” 4” X 16”
P 1-7/8” 1-7/8” 1-7/8”
G 1117-1 1117-1 1117-1
CL 1-1/2” 1-1/2” 1-1/2”
CTC 5” 5” 5”
BHMA J405 J405 J405
Br, Bz, Pl, SS
Pull Plate - .050 - ADA
TRIMCO# 1012-2 1012-3
OA 3-1/2” x 15” 4” X 16”
P 2” 2”
G 1109-1 1109-1
CL 1-1/2” 1-1/2”
CTC 5-1/2” 5-1/2”
BHMA J405 J405
Br, Bz, Pl,
Pull Plate - .050 - ADA
NOTE: All Metal Plates on this page are .050” thick.
Custom sizes available.
CL = clearance, CTC = center to center, G = grip, OA = overall size, P = projection
PULLS, PUSH AND PULL PLATE SETS
D-3

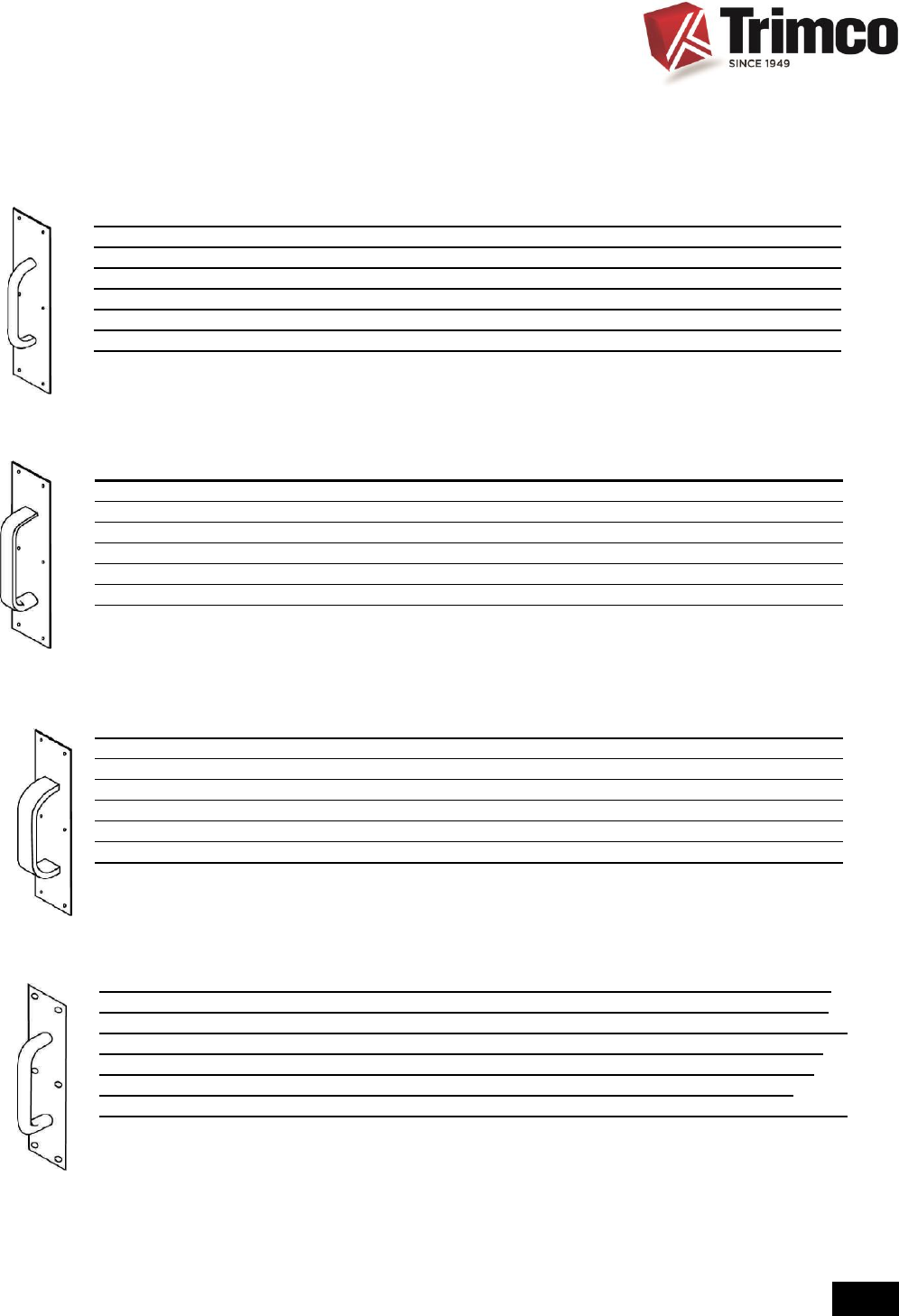

TRIMCO# 1013-2 1013-2B 1013-3 1013-3B
OA 3-1/2” x 15 3-1/2” x 15” 4” x 16” 4” x 16”
P 2” 2” 2” 2”
G 1193-1 1193-2 1193-1 1193-2
CL 1-1/2” 1-1/2” 1-1/2” 1-1/2”
CTC 5-1/2” 8” 5-1/2” 8”
BHMA J405 J405 J405 J405
Br, Bz, Al, SS
Pull Plate - ADA
TRIMCO# 1014-2 1014-2B 1014-3 1014-3B
OA 3-1/2” x 15 3-1/2” x 15” 4” x 16” 4” x 16”
P 2” 2” 2” 2”
G 1199-1 1199-2 1199-1 1199-2
CL 1-1/2” 1-1/2” 1-1/2” 1-1/2”
CTC 6” 8” 6” 8”
BHMA J405 J405 J405 J405
Br, Bz, Al, SS
Pull Plate - ADA
TRIMCO# 1015-2 1015-2B 1015-3 1015-3B
OA 3-1/2” x 15 3-1/2” x 15” 4” x 16” 4” x 16”
P 2” 2” 2” 2”
G 1139-1 1139-2 1139-1 1139-2
CL 1-1/2” 1-1/2” 1-1/2” 1-1/2”
CTC 6” 8” 6” 8”
BHMA J405 J405 J405 J405
Br, Bz, Al, SS
Pull Plate - ADA
TRIMCO# 1017-2 1017-2B 1017-3 1017-3B 1017-3C
OA 3-1/2” x 15 3-1/2” x 15” 4” x 6” 4” x 16” 4” x 16”
P 2” 2” 2” 2” 2”
G 1194-1 1194-2 1194-1 1194-2 1194-3
CL 1-1/2” 1-1/2” 1-1/2” 1-1/2” 1-1/2”
CTC 6” 8” 6” 8” 10”
BHMA J705 J705 J705 J705 J705
Br, Bz, Al, SS
Pull Plate - ADA
NOTE: All Plates on this page are .050” thick. “B & C” Suffix indicates larger size grip
Custom sizes available.
CL = clearance, CTC = center to center, G = grip, OA = overall size, P = Projection
PULL PLATES
TRIMCO# 1056-4
OA 1/16” x 8” x 16”
P 1-7/8”
G 1139-2
CL 1-1/2”
CTC 8”
BHMA J405
Br, Bz, SS
Pull Plate - .050” thick. ADA
Specific 1041-4 for plate only.
1096HA - Anti-Vandal Trim Handle Only
Same Anti-Vandal Trim used in TUF-LOK System,
but Trim Handle only.
Specify Handing.
1097HA - No Astragal
Options Available:
SP = Lugs mated to Dead Bolt, Panics, Rim and
Exit devices.
FC = Flush Cylinder. Specify 1-1/4” or 1-1/2” dia.
NC = No Cylinder Cutout
BTB = Special Back-to-Back Mounting
Specify Handing
ADA
Available: (w/o PVC coating)
TRIMCO# 1096VD98-99HA
Face 6-5/8” x 11”
Grip Black PVC__________ Br, BZ, SS
SS
Anti Vandal Pull
Made to work with Von Duprin 98 or
99 Exit Device, Cylinder rotated 90°
for non-handing. Each pull comes
with a cylinder holder. Made from
316 SS. Also available: Anti-vandal
pull with NO CYLINDER: Order,
1096VD98-99HA-NC
1096TL TUF-LOK System –
Anti-Vandal Trim System includes: 1562M Push latch with
modified paddle, the Anti-Vandal Trim Pull Handle, and
Mortise Lock. Customer supplies the cylinder.
Also Available:
1097TL - No Astragal
Options Available:
XX = Lugs mated to Mortise Lock if other than
Corbin-Russwin.
FC = Flush Cylinder. Specify 1-1/4” or 1-1/2”
diameter
ADA
Available: (w/o PVC coating)
D-4

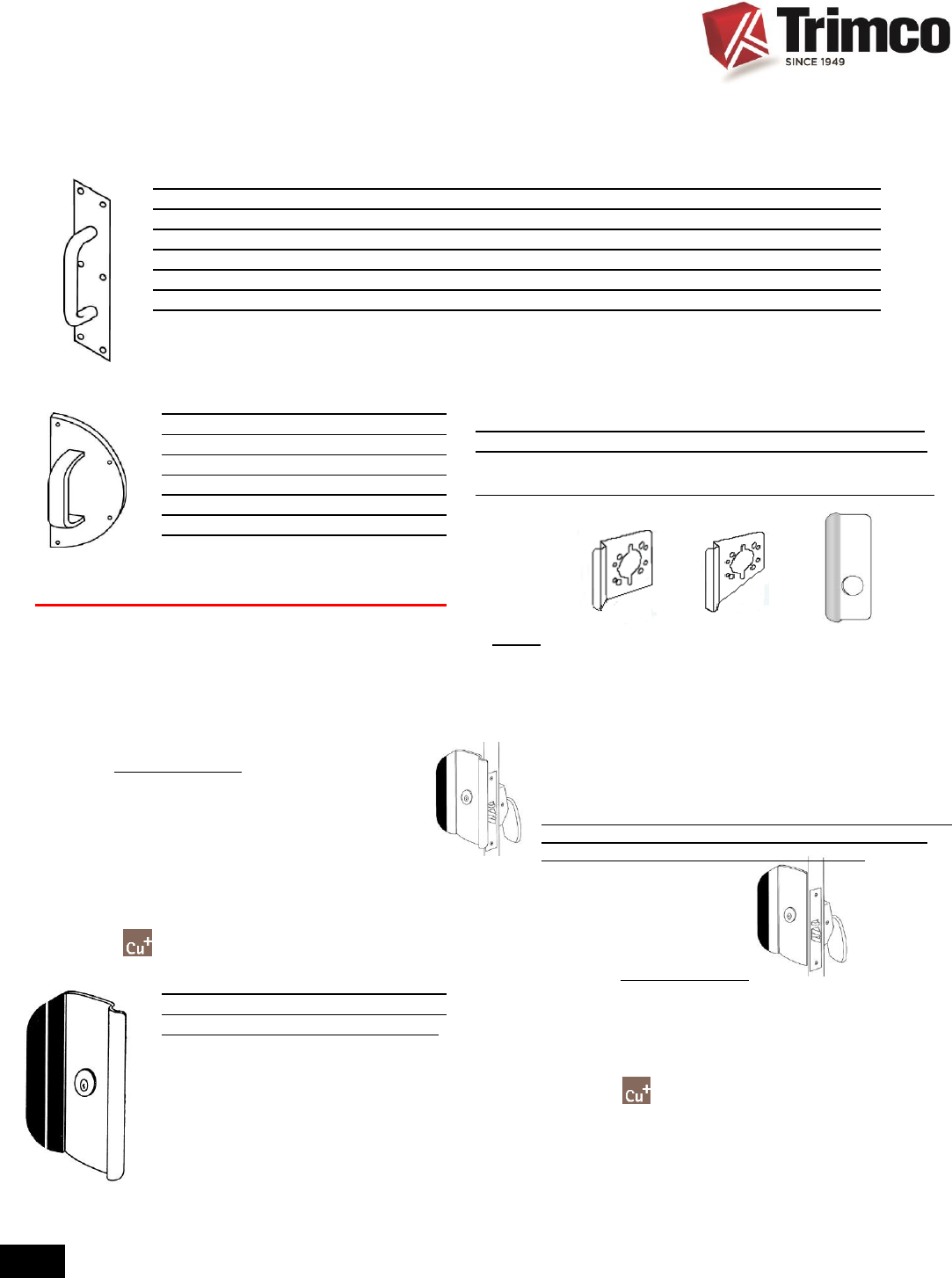

TRIMCO# 1018-2 1018-2B 1018-3 1018-3B
OA 3-1/2” X15” 3-1/2” X 15” 4” x 16” 4” X 16”
P 3-1/8” 3-1/8” 3-1/8” 31/8”
G 1195-1 1195-2 1195-1 1195-2
CL 2” 2” 2” 2”
CTC 8” 10” 8” 10”
BHMA J405 J405 J405 J405
Br, Bz, Al, SS
Pull Plate - .050 - ADA
PUSH / PULL PLATES, ANTIVANDAL TRIM
TRIMCO# 1082-4 1082-6 1082-8 .
OA 4” X 5-3/8” 4X6X5-3/8” 2-7/8” X 8”
Cylindrical Lock Guards
Installs in minutes to retrofit or for new construction.
SS
CL = clearance, CTC = center to center, G = grip, OA = overall size, P = projection
NOTE: 1082-8 order as follows: 1082-8-RHR or 1082-8-LHR
(Must specify RHR or LHR) For Aluminum Store-Front Doors
Cylinder hole 1-1/4” dia, CTC of mtg posts 7”, Backset 1-1/8”
TRIMCO# 1097VD98-99HA
Face 2-5/8” x 11”
T 1/8”
Grip Black PVC__________ Br, BZ, SS
SS
Anti Vandal Pull-NARROW LOOK
Made to work with Von Duprin 98 or
99 Exit Device, Cylinder rotated 90°
for non-handing. Each pull comes
with a cylinder holder. NEW
narrower look fabricated from 316
Stainless Steel. Also available:
Antivandal pull with no cylinder-
Specify: 1097VD-98-99HA-NC
TRIMCO# 1099RG–Inswing Door
Safety and Security Lock Set –
For Inswing Doors
For details see 1098RG brochure
Supplied with mortise lock I.C.
cylinder, PDQ cylindrical lever set
with and without hold back feature,
interior lever, small or large format.
No Astragal.
Available: (w/o PVC coating)
TRIMCO# 1074-1
Br, Bz, SS
Pocket Door Pull
Privacy Only.
2-3/8 backset
Positive latching, device is handed
Emergency access outside
Levers install vertically only
10 Urbãn levers to choose from
Specify when ordering
ADA
See our 1074 flyer for more information
Available: (levers only)
TRIMCO# 1074-2
Br, Bz, SS
Pocket Door Pull
Mortise lockset with Rose (standard)
2-3/8 backset
Positive latching, device is handed
Emergency access outside
Levers install vertically only
10 Urbãn levers to choose from
Specify when ordering
ADA Available: (levers only)
See our 1074 flyer for more information
TRIMCO# 1098RG –Outswing Dr.
Safety and Security Lock Set –
For Outswing Doors
For details see 1098RG brochure
Supplied with mortise lock I.C.
cylinder, PDQ cylindrical lever set
with and without hold back feature,
interior lever, small or large format.
With Astragal.
Available: (w/o PVC coating)
TRIMCO# 1074-3
Br, Bz, SS
Pocket Door Pull
Passage Only.
2-3/8 backset
Levers install vertically only
10 Urbãn levers to choose from
Specify when ordering
ADA
See our 1074 flyer for more information
Available: (levers only)
TRIMCO# 1074-2E
Br, Bz, SS
Pocket Door Pull
Mortise lockset with Escutcheon
2-3/8 backset
Levers install vertically only
10 Urbãn levers to choose from
Specify when ordering
ADA
See our 1074 flyer for more information
Available: (levers &
Escutcheon only)
D-5
DP = depth. OA = overall size, OD = outside dimension, ID = inside dimension
Note: Also available with 5004 indicator - Order 1074-2-XXX-5004,
or 1074-2E-XXX-5004. (XXX = lever style) specify
ANTI-VANDAL PULLS cont., POCKET DOOR PULLS
TRIMCO# 1059
OD 2-1/2”
ID 1-3/4”
DP 7/8”
Br, Bz, Pl
Flush Cup Pull
Use #7059 for Focal styling.
TRIMCO# 1062
OA 5/16” x 1” x 4-1/4”
Br, Bz, Pl
Concealed Door Pull
Non-handed. Side Mount. Mortises
into edge and face of pocket door
TRIMCO# 1064
OA 2-1/2” x 2-3/4”
BHMA D08021
Br, Bz, Pl
Pocket Door Pull
Passage Function.
1-3/8” and 1-3/4” Thick Doors.
For use on doors not requiring
privacy.
TRIMCO# 1065*
OA 2-1/2” x 2-3/4”
BHMA D08031
Br, Bz, Pl
Pocket Door Pull *
Privacy Function. 1-3/8” Thick Doors. For use on
bathroom and bedroom doors. Thumb turn on
interior, safety release on exterior.
TRIMCO# 1065PA
OA 2-1/2” x 2-3/4”
BHMA D08031
Br, Bz, Pl
Sliding Door Lock *
For use on patio and exterior doors.
Thumb turn on interior only.
TRIMCO# 1063
OA 3/4" x 3-7/8”
Br, Bz. Pl
Concealed Door Pull
Edge Mount.
TRIMCO# 1064FCP
OA 2-1/2” x 2-3/4”
BHMA D02202
Br, Bz, Pl
Flush Cup Pull
Can be used for pairs of doors.
TRIMCO# 1065CD*
OA 2-1/2” X 2-3/4”
BHMA D08031
Br, Bz, Pl
Sliding Door Lock *
For use on connecting doors.
Thumb turn on both sides.
* Can be made to fit 1-3/4” Thick Door, must
specify when ordering. P/N 1065CD-175.
TRIMCO# 1060 1061
OA 2-3/4” x 4-1/4” 2-1/16” x 3-1/8”
DP 13/16” 5/8”
BHMA J403 J403
Br, Bz, Pl
Flush Pull - Fine finish casting with black interior.
Specify for same finish inside cup and outside.
D-6
FLUSH/POCKET PULLS
DP = depth. OA = overall size, OD = outside dimension, ID = inside dimension
TRIMCO# 1069
Br, Bz, SS
Pocket Door Pull
Non-Latching. Passage Only.
Black nylon handles.
Standard model for walls upto 5-1/2”
thick. Larger available. Specify.
Custom sizes available – specify
ADA
See 1069 brochure for more information
Available: (w/o PVC coating)
TRIMCO# 1069L
Br, Bz, SS
Pocket Door Pull Latching
Pocket Door Pull,
Standard model for walls upto 5-1/2”
thick. . Custom sizes available –
specify.ADA
Available: (w/o PVC coating)
TRIMCO# 1069FP
Br, Bz, SS
Pocket Door Pull FULL PRIVACY
Pocket Door Pull
Latching on interior side only.
Passage on exterior side. Supplied
with emergency access tool.
Black nylon handles.
Standard model for walls 5-1/2”
thick. Larger available. Specify.
Custom sizes available, at an
additional charge.
specify HANDING. ADA
D-7
TRIMCO# 1066S 1066S-516 1066S-38
D 3-9/16” 3-9/16” 3-9/16”
S 9/32” 5/16” 3/8”
Br, Bz, Pl
Flush Pull - Cast
Spindle Type. Surface Mount.
TRIMCO# 1067 1067-516 1067-38
OA 3” x 3” 3” x 3” 3” x 3”
D 2-1/2” 2-1/2” 2-1/2”
S 9/32” 5/16” 3/8”
Br, Bz, Pl
Flush Pull - Cast
Spindle Type. Mortise prep. Surface mount.
TRIMCO# 1068 1068-516 1068-38
D 4-1/4” 4-1/4” 4-1/4”
S 9/32” 5/16” 3/8”
Br, Bz, Pl
Flush Pull - Cast
Spindle Type. Mortise Prep. Surface Mount.
NOTE: Spindle set on diamond standard, can be set on square. Specify.
No interference with standard mortise lock case on 1-3/4” doors.
For special prep specify lockset. Extra Charge.
See order form of this product on our website.
D = diameter, OA = overall size, S = spindle
FLUSH PULLS & POCKET DOOR PULLS
TRIMCO # 242
D 2-1/2”
DP 3/8”
Br, Bz, Pl
Standard Flush Pull
For sliding doors.
Stamped.
TRIMCO# 1111A/1111B
OA 5” x 5”
DP 1-1/8”
BHMA J403
Br, Bz, SS
Flush Pull - Anti-Vandal
Mounting Lugs on back of Cup.
Specify 1111B for mounting on face.
For high-traffic, exposed, rough-
service areas. Specially engineered
as exit trim on school doors with
interior, panic hardware. Easy
exterior access during the day;
vandal resistant at night.
Specify 1111LB for anti-vandal flush
pulls BTB on each side with two
shims-clean exterior face plate.torx
screws can be supplied if specified.
ADA Patent pending
TRIMCO# 1113
OA 1-1/4” x 3”
DP 13/32”
Br, Bz, Pl
Flush Pull - Cast
For Sliding doors only.
TRIMCO# 1198-1-XX.710CU
OD 1-1/4”
Sizes 12”,18”,24”, 30”,36”,42”,48”
XX= bar size.
Bactericidal Copper Grab Bar
Also available in Stainless Steel
TRIMCO # 1198-1-XX-.630 .
SS
TRIMCO# 248
OA 1-1/2” x 4”
DP 7/16”
Br, Bz, Pl
Standard Flush Pull
For sliding doors.
Stamped.
TRIMCO# 1111C
OA 6” x 6”
DP 1-1/2”
BHMA J403
Br, Bz, SS
Flush Pull – Anti-Vandal
Meets California Access
Requirements. ADA
See 1111C brochure for more information.
Also available 1111C-BTB
TRIMCO# 1115
OA 3-1/2” x 4-3/4”
DP 13/16”
BHMA J403
Br, Bz, SS
Flush Pull
Specify 1115B for pair of 1115
prepped for BTB mounting.
For mounting screws in cup, order
1115C. Also available: 1115P
(pair- prep for BTB with Lugs)
D-8
1111A
FLUSH PULLS
CL = clearance, CTC = center-to-center, M = material, OA = overall size,
P = projection, OD= outside diameter, CU = CuVerro
1111B
TRIMCO# 1117-1
OA 6-1/8”
P 1-7/8”
CTC 5”
CL 1-1/2”
BHMA J401
Br, Bz, Pl
Pull - Cast
TRIMCO# 1120
OA 7-1/2”
P 2-1/2”
CTC 6”
CL 1-7/8”
BHMA J401
Br, Bz, Pl
Classic Pitcher Grip - Cast
ADA
TRIMCO# 1135
OA 9”
M 3/8” x 3/4"
P 3-3/16”
CTC 6”
CL 2”
BHMA J401
Br, Bz, SS
Hospital Grip
ADA
TRIMCO# 1147
OA 10-1/2”
M 1-1/2” x 1-1/2”
P 2-7/8”
CTC 10”
CL 1-5/8”
BHMA J402
SS
Grip
Specify 1147B for pairs, mounted
Back to Back with Mounting Plates.
Other lengths available. ADA
TRIMCO# 1134 1134B
OA 9-1/16”
P 3-1/2”
CTC 5”
CL 2”
BHMA J401
Br, Bz, Pl
Hospital Grip - Cast
Specify 1134B for pair of 1134
prepped for BTB mounting. ADA
TRIMCO# 1136 / VELAZQUEZ
OA 7-3/8”
P 2-1/16”
CTC 6-1/4”
CL 1-1/2”
Br, Bz, Pl
Grip - Cast
Specify 1136G for pair of 1136
prepped for BTB mounting. ADA
(Velazquez = Mastercraft Bronze
Line)
TRIMCO# 1139-1 1139-2
OA 6-3/8” 8-3/8”
M 1” x 3/8” 1” x 3/8”
P 1-7/8” 1-7/8”
CTC 6” 8”
CL 1-1/2” 1-1/2”
BHMA J401 J401
Br, Bz, Al, SS
Grip, ADA
NOTE: All Grips may be mounted to a variety of standard and custom plates.
Standard Mountings - See Page 3.
PULLS & GRIPS
D-9
CL = clearance, CTC = center-to-center, M = material, OA = overall size,
P = projection, OD= outside diameter, CU = CuVerro
GRIPS continue…
TRIMCO# 1150 1151
OA 6-1/2” 8-1/2”
M ½’ RD ½” RD
P 2” 2”
CTC 6” 8”
CL 1-1/2” 1-1/2”
BHMA J401 J401
Br, Bz, Pl, SS
GRIP - Custom Back to Back mounting available. ADA
TRIMCO# 1191-1 1191-2 1191-3 1191-4
OA 8-3/4” 10-3/4” 11” 13”
M ¾” RD ¾” RD 1” RD 1”RD
P 3-1/4” 3-1/4” 3-1/2” 3-1/2”
CTC 8” 10” 10” 12”
CL 2” 2” 2-1/4” 2-1/4”
BHMA J402 J402 J402 J402
Br, Bz, Al, PI, SS
GRIP – OFFSET
fOCAL option available. ADA
TRIMCO# 1191-4J 1191-5 1191-5J
OA 13-1/4” 19” 19-1/4”
M 1-1/4” RD 1”RD 1-1/4”RD
P 4-1/8” 3-1/2” 4-1/8”
CTC 12” 18” 18”
CL 2-1/4” 2” 2-1/4”
BHMA J402 J402 J402
Br, Bz, Al, PI, SS
GRIP – OFFSET
fOCAL option available. ADA
TRIMCO# 1193-1 1193-2
OA 6” 8-1/2”
M ½” X ¾” RD ½” X ¾” RD
P 2” 2”
CTC 5-1/2” 8”
CL 1-1/2” 1-1/2”
BHMA J401 J401
Br, Bz, Pl, SS
GRIP -
fOCAL option available. ADA
Standard Mountings - See Page 3.
CL = clearance, CTC = center-to-center, M = material, OA = overall size, P = projection
D-10
TRIMCO# 1183-1 / CAIRO
OA 5-1/2”
P 2-1/8”
CTC 5”
CL 1-1/4”
Br, Bz, Pl
Grip - Cast
ADA
TRIMCO# 1194-1 1194-2 1194-3 1194-4
OA 6-3/4” 8-3/4” 10-3/4” 12-3/4”
M 3/4" Round 3/4" Round 3/4" Round 3/4" Round
P 2-3/4” 2-3/4” 2-3/4” 2-3/4”
CTC 6” 8” 10” 12”
CL 2” 2” 2” 2”
BHMA J401 J401 J401 J401
Br, Bz, Pl, SS
Grip - Custom BTB mounting available. ADA
TRIMCO# 1195-1 1195-2 1195-3 1195-3J 1195-6 1195-6J
OA 9” 11” 13” 13-1/4” 19” 19-1/4”
M 1” Round 1” Round 1” Round 1-1/4” Rd 1” Round 1-1/4” Rd
P 3” 3” 3” 3-1/2” 3” 3-1/2”
CTC 8” 10” 12” 12” 18” 18”
CL 2” 2” 2” 2-1/4” 2” 2-1/4”
BHMA J401 J401 J401 J401 J401 J401
Br, Bz, Pl, SS
Grip - fOCAL option is available. ADA
TRIMCO# 1199-1 1199-2
OA 6-1/2” 8-1/2
M 1” Half Round 1” Half Round
P 2” 2”
CTC 6” 8”
CL 1-1/2” 1-1/2”
BHMA J401 J401
Br, Bz, Pl, SS
Grip
ADA
TRIMCO# 1748 1748-1
OA 6-3/4” x 12-3/4” 7” x 13”
M 3/4" Round 1" Round
P 3-3/8” 3-1/2”
CTC 12” 12”
CL 2-5/8” 2-1/2”
BHMA J402 J402
Br, Bz, Pl, SS
Grip Offset
fOCAL option is available. Priced individually. Style plates required, specify. ADA
NOTE: These pulls are covered by warranty if ordered with BP4 Back Plates ad “L” or “M”
mounting.
CL = clearance, CTC = center-to-center, M = material, OA = overall size, P = projection
D-11
GRIPS continue…
TRIMCO# 1802-4
OA 1/8” x 4” x 16”
P 2”
G 1139-1
PP 1807-4
CL 1-3/4”
CTC 6”
BHMA J407
Br, Bz, Pl
Pull Plate
Beveled top and bottom
ADA
TRIMCO# 1804-4
OA 1/8” x 4” x 16”
P 2-1/4”
G 1117-1
PP 1807-4
CL 1-1/2”
CTC 5”
BHMA J407
Br, Bz, SS
Pull Plate
Beveled top and bottom
ADA
TRIMCO# 1802-25
OA 1/8” x 4” x 25”
P 2”
G 1139-1
PP 1807-4
CL 1-3/4”
CTC 6”
BHMA J407
Br, Bz, Pl
Pull Plate
Beveled top and bottom
ADA
TRIMCO# 1820 1820-11
OA 1/8” x 3-1/2” x 16-1/2” 1/8” x 8” x 16-1/2”
P 1-1/2” 1-1/8”
CL 1-1/8” 1-1/8”
BHMA J303 J303
Br, Bz, SS
Push / Pull Plate
NOTE: All 1800 Series plates are 1/8” thick.
CL = clearance, OA = overall size, P = projection
TRIMCO# 1822 1822-1 1822-2 .
OA 1/8” x 2” x 3-3/4” 1/8” x 2” x 3-3/4” 1/8” x 3” x 4-1/2”
P 7/8” 7/8” 7/8”__________
CL 3/4” 3/4” 3/4”__________
Br, Bz, SS
Cylinder Pull
for Dead Bolt only.
2-1/8” opening.
1822-1 1822-2
D-12

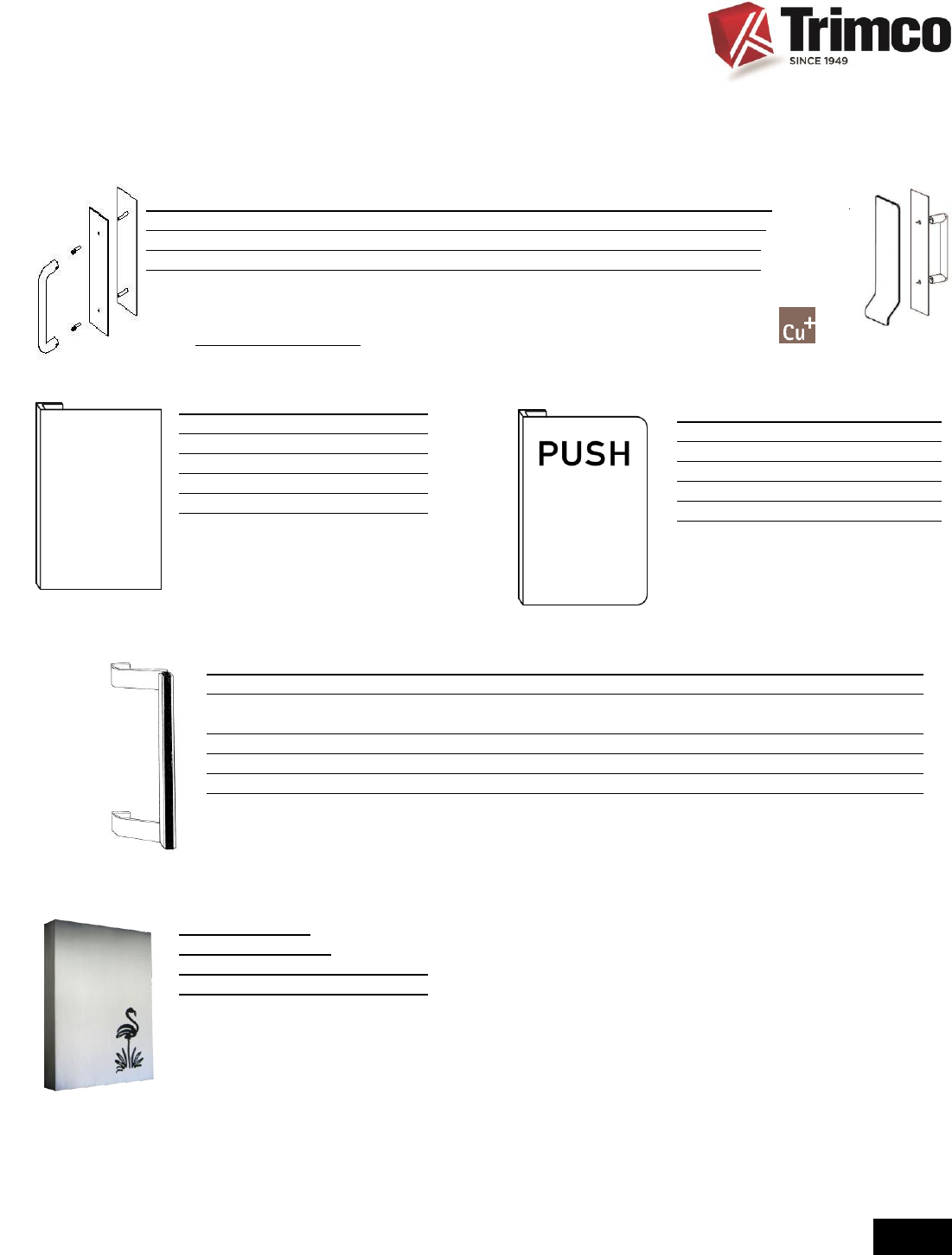

HEAVY GAUGE PUSH / PULL PLATES
TRIMCO# 1807-4 1807-25 1809-4 .
OA 1/8” x 4” x 16” 1/8” x 4” x 25” 1/8” x 4” x 16” .
BHMA J304 J304 J304__________ .
Br, Bz, SS
Beveled top & bottom / Beveled 4 sides
Also available:
1802-25-PL = Engraved Pull
1802-25-PH = Engraved Push
1802-25CC-PL = with 1-1/4”
dia. Cutout X Engraved Pull
1802-25CC-PH = with 1-1/4”
dia. Cutout X Engraved Push
TRIMCO# 9550
OA 3/16” x 6” x 9” Lgth
M Ext. Aluminum
P 1-1/2”
CTC 7”
CL 1-1/4”
Al
Push / Pull
Square corners. Smooth, Clean
surface is ideal for engraving (extra
cost). ADA when mounted on
narrow stile aluminum doors.
TRIMCO# 9566
OA 9” Lgth
M Ext. Aluminum
CTC 7”
Al
Push / Pull
Smooth, Clean surface is ideal for
engraving your logo up to 2-1/2”
max. (extra cost). Customize your
store front with this pull.
ADA when mounted on narrow stile
aluminum doors. Anodizing
available at extra cost. Installs
above any type lock. Made in USA..
TRIMCO# 9551
OA 3/16” x 6” x 9” Lgth
M Ext. Aluminum
P 1-1/2”
CTC 7”
CL 1-1/4”
Al
Push / Pull
Round corners. Smooth, Clean
surface is ideal for engraving (extra
cost). ADA when mounted on
narrow stile aluminum doors.
PULLS & PUSH AND PULL PLATES
BR = Bracket, CL = clearance, CTC = center to center, L= length, M = Material, OA – overall size, P = projection, D = diameter
TRIMCO# 9560 9561
OA 3-1/2” x 11-3/8” 3-1/2” x 11-3/8”
M 628 Pull 628 Pull
x 628 Insert x Black Insert
P 2-7/8” 2-7/8”
CTC 10” 10”
BR A A
Al
Offset Entrance Door Pull
Aluminum Pull x Insert ADA
Bracket “A”
Surface on
through-bolt
mounting
D-13
TRIMCO# 1894-3 1895-3 1896-4B .
OA 3-1/2 “ x 15” 3-1/2” x 15” 4” x 16”
CTC 6” 8” 10” .
D ¾” 1” 1” .
Br, Bz, SS
Cylinder Pull Plates
1807 Plate X 1194 Series
Note: Other Sizes Available, please inquire or see our flyers. Also available in
1894
1896-4B
TRIMCO# 1633
P 3-1/8”
CTC Specify
M 3/8” x 2-1/2”
BHMA J501
Br, Bz, Pl, SS
Push Bar
Single Bar
ADA
TRIMCO# 1637
P 2-1/2”
CTC Specify
M 3/8” x 1-1/4”
BHMA J501
Less pad
Br, Bz, Al, SS, Pl
Push Bar
Single Bar
ADA
TRIMCO# 1633-1
P 3-1/4”
CTC 14”
M 3/8” x 1-1/2”
Br, Bz, Pl, SS
Push Bar
Single Bar
ADA
TRIMCO# J1637
P 2-1/2”
CTC Specify
M 3/8” x 1-1/4”
BHMA J501
Less pad
S
“J” hook ONLY for the
1637 Push Bar
RUGGED, STYLISH PUSH AND PULL BARS
E-1
TRIMCO# 1630 1630B
P 3/4" 3/4" exterior, 7/8” interior bar
CTC Specify Specify
M 3/8” x 2-1/2” 3/8” x 2-1/2”
BHMA J501 J501
Br, Bz, Pl, SS
Push Bar (single bar) Push Bar (Pair, BTB)
NOTE: Push/Pull Bars and Sets are custom made and not returnable. Specify Center to
Center where appropriate.
Standard Mountings - See Page 3.
CTC = center to center, M = material, OA = overall size, P = projection
BR = brackets, CTC = center to center, D = diameter, GP = grip projection,
M = material, P = projection
TRIMCO# 1698
P 2-3/8”
CTC Specify
M 3/8” x 2-1/2”
CL 2”
BHMA J501
Br, Bz, Pl, SS
Push Bar
Single Bar
ADA
E-2

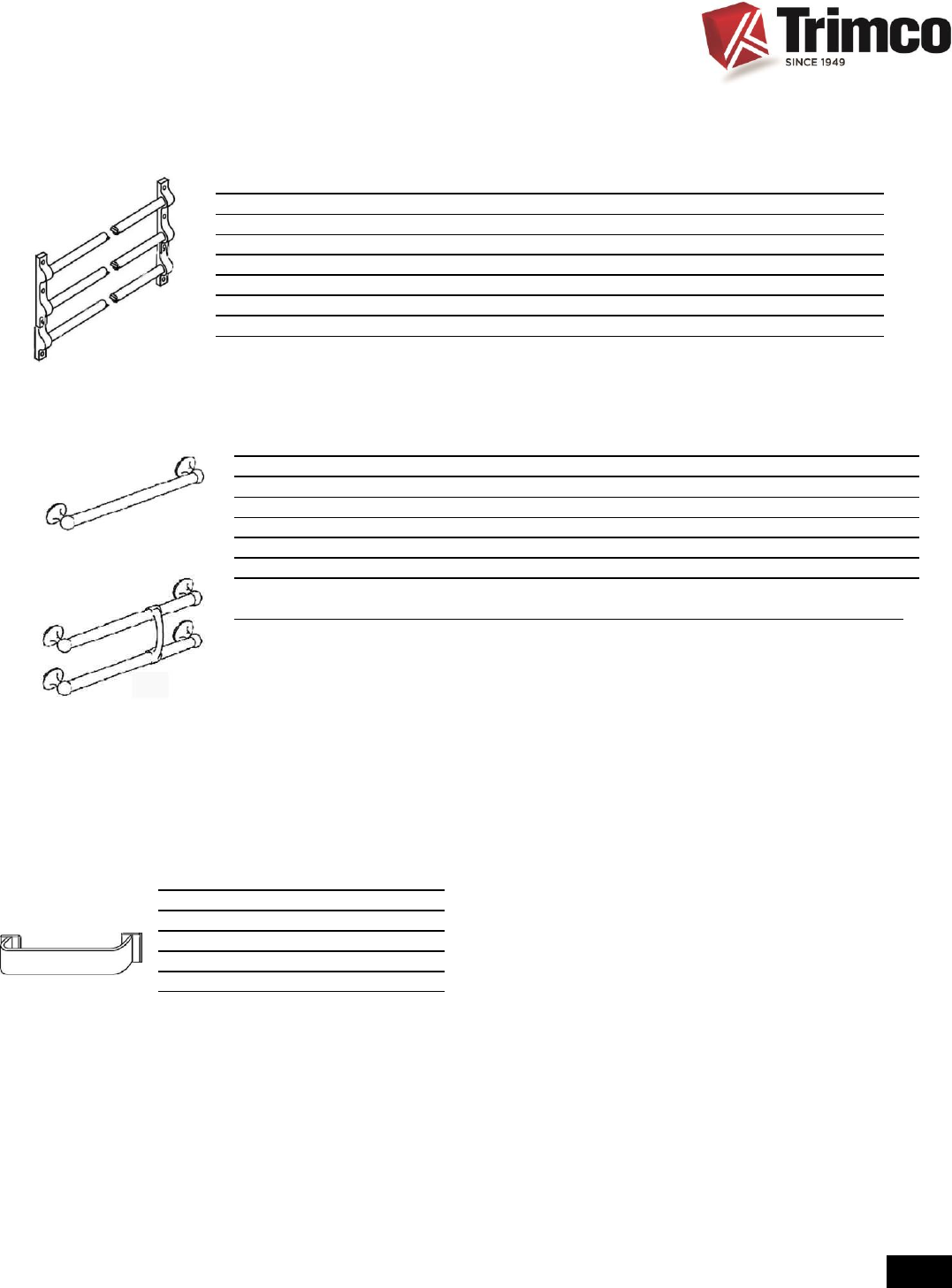

TRIMCO# 1643 1644
BR 5/8” x 8” 5/8” x 11”
D 5/8” 5/8”
P 1” 1”
CTC Specify Specify
M 5/8” OD Tube 5/8” OD Tube
BHMA J501 J501
3 Bar Set 4 Bar Set
Br, Bz, Pl
Push Bar Set
TRIMCO# 1661 1662
D 1” 1”
P 2-1/2” 2-1/2”
GP 3-1/2”
CTC Specify Specify
M 1” OD Tube 1” OD Tube
BHMA J501 J502
Single Bar 2 Bar and Grip
Br, Bz, Pl
Push Bar Set
ADA
NOTE: Push/Pull Bars and Sets are custom made and not returnable.
Specify Center to Center where appropriate.
Standard Mountings - See Page 3.
1643
1661
1662
BP = base projection, CL – clearance, CTC = center to center, D = diameter,
GP – grip projection, M = material, OA = overall size, P = projection
PUSH AND PULL BARS
E-3
TRIMCO# 1160 1161 1162
D 1” 1-1/4” 1-1/2”
PD 3/4” 1” 1-1/4”
OA specify specify specify
CTC specify specify specify
P 2-1/2” 2-3/4” 3”
CL 1-1/2” 1-1/2” 1-1/2”
END square square square
Br, Bz, Al, SS
Door Pull
ADA
BR = brackets, CTC = center to center, D = diameter, GP = grip projection,
M = material, P = projection, PD = post diameter, OA = overall, CL = clearance
TRIMCO# 1163 1164 1165
D 1” 1-1/4” 1-1/2”
PD 3/4” 1” 1-1/4”
OA specify specify specify
CTC specify specify specify
P 2-1/2” 2-3/4” 3”
CL 1-1/2” 1-1/2” 1-1/2”
END round round round
Br, Bz, Al, SS
Door Pull
ADA

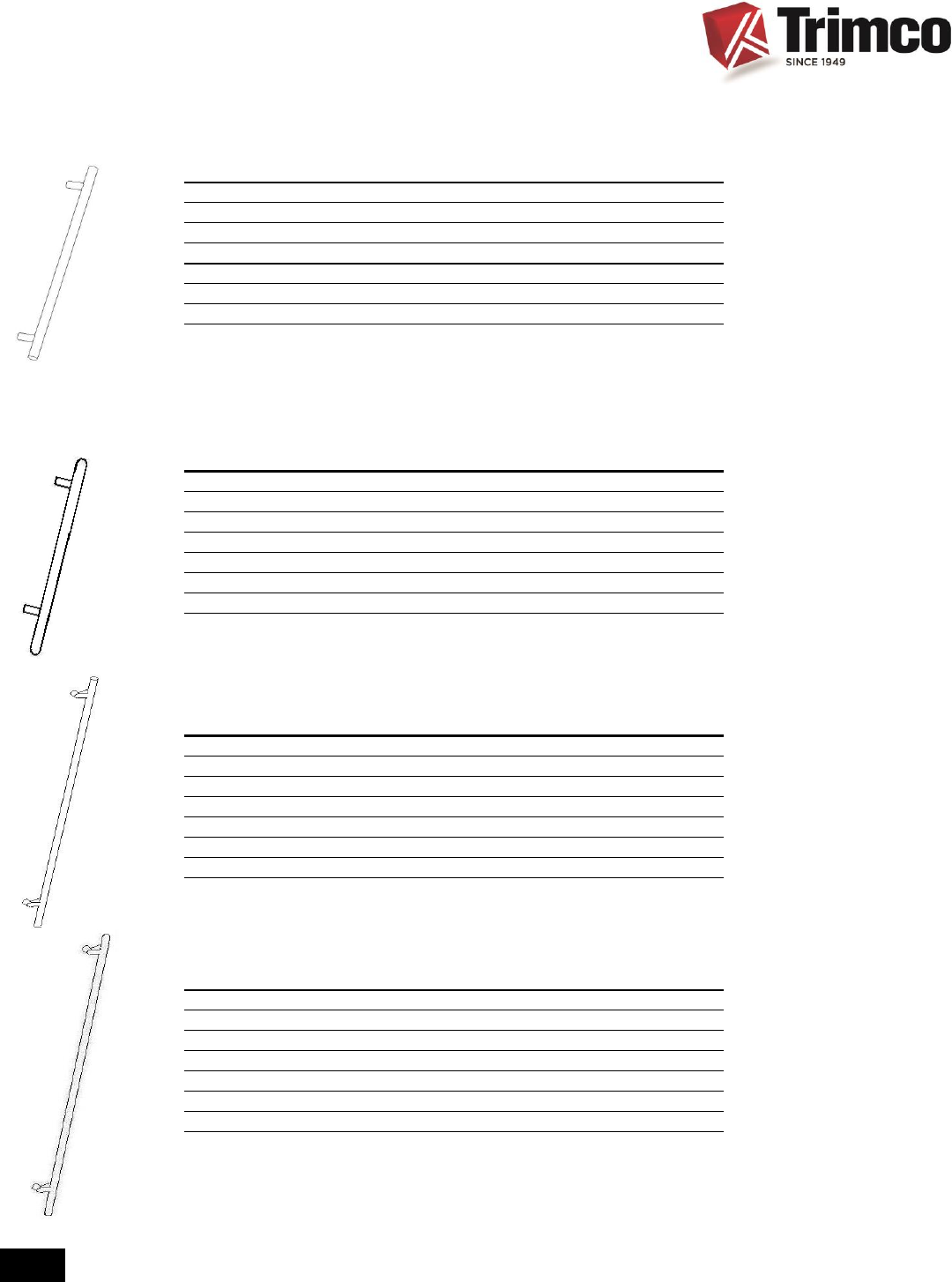

FULL LENGTH DOOR PULLS
TRIMCO# 1170 1171 1172
D 1” 1-1/4” 1-1/2”
Offset Post Cast Cast Cast
OA specify specify specify
CTC specify specify specify
P 2-1/2” 2-3/4” 3”
CL 1-1/2” 1-1/2” 1-1/2”
END square square square
Br, Bz, Al, SS
Full Length Offset Door Pull
ADA
TRIMCO# 1173 1174 1175
D 1” 1-1/4” 1-1/2”
Offset Post Cast Cast Cast
OA specify specify specify
CTC specify specify specify
P 2-1/2” 2-3/4” 3”
CL 1-1/2” 1-1/2” 1-1/2”
END round round round
Br, Bz, Al, SS
Full Length Offset Door Pull
ADA
NOTE: Push/Pull Bars and Sets are custom made and not returnable. Specify Center to Center
where appropriate.
Standard Mountings – See page 3.
TRIMCO# 1729 1731 1732 1746 1746-1
D 3/4" 1” 1” 1-1/4” 1-1/4”
P 3” 3-1/4” 3-1/4” 3-1/2” 3-1/2”
CTC Pull – 10” Pull – 10” Pull – 12” Pull – 18” Pull – 12”
Push - Specify Push - Specify Push - Specify Push - Specify Push - Specify
M 3/4" Round 1” Round 1” Round 1-1/4” Round 1-1/4” Round
BHMA J504 J504 J504 J504 J504
Br, Bz, Al, SS
Push / Pull Bar Set
fOCAL option is available
ADA

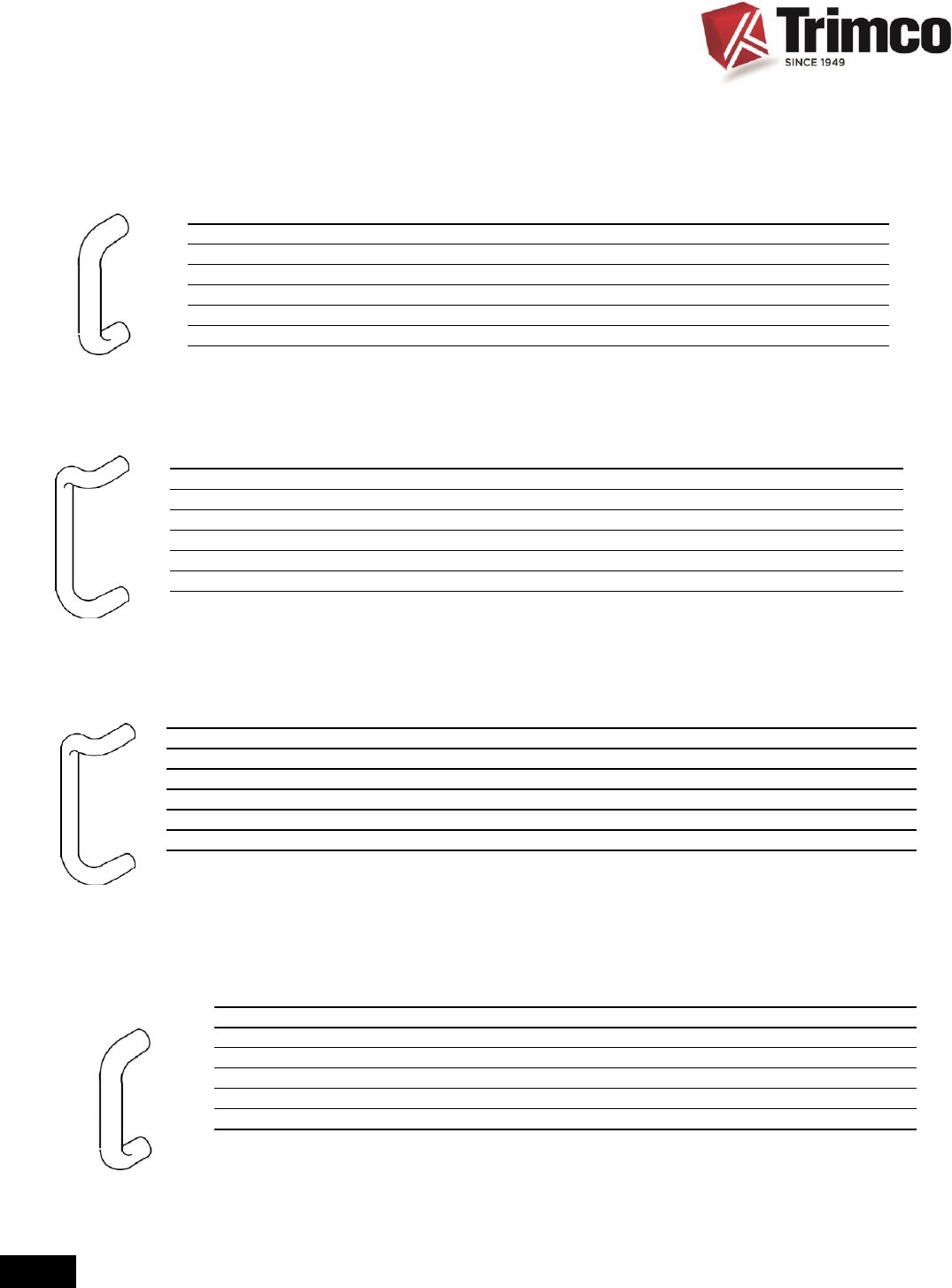

PUSH / PULL BARS AND SETS
E-4
BR = brackets, CTC = center to center, D = diameter, GP = grip projection, M
= material, P = projection
TRIMCO# 1737 1738 1747 1747-1
D 1” 1” 1-1/4” 1-1/4”
P 3-1/4” 3-1/4” 3-1/2” 3-1/2”
CTC Pull – 10” Pull – 12” Pull – 18” Pull – 12”
Push – Specify Push – Specify Push – Specify Push – Specify
M 1” Round 1” Round 1-1/4” Round 1-1/4” Round
BHMA J504 J504 J504 J504
Br, Bz, Pl, Al, SS
Push / Pull Set
fOCAL option is available
ADA
TRIMCO# 1740 1741 1745
D 3/4" 1” 1-1/4”
P 3” 3-1/4” 3-1/2”
CTC Specify Specify Specify
M 3/4" Round 1” Round 1-1/4” Round
BHMA J501 J501 J501
Br, Bz, Pl, Al, SS
Push Bar
fOCAL option is available
ADA
NOTE: Push/Pull Bars and Sets are custom made and not returnable.
Specify Center to Center where appropriate.
Standard Mountings - See Page 3.
TRIMCO# 1204
P 3-1/8”
CTC Specify
M 3/8” x 2-1/2”
BHMA J501
Br, Bz, Pl
Base Stop
For surface mounting with wood
screws, use 1204.
TRIMCO# 1206
P 3-1/8”
CTC Specify
M 3/8” x 2-1/2”
BHMA J501
Br, Bz, Pl
Base Stop and Holder - Cast
For surface mounting with wood
screws, use 1206.
TRIMCO# 1208
B 1-3/16”
P 3-11/32”
BHMA L02031
Br, Bz, Pl
Base Stop - Cast
WS.
TRIMCO# 1205
P 3-1/8”
CTC Specify
M 3/8” x 2-1/2”
BHMA J501
Br, Bz, Pl
Base Stop
TRIMCO# 1207
B 2-1/4”
P 3-3/4”
EYE 7/8” x 2-1/4”
HOOK 2-3/4”
BHMA L01351
Base Stop and Holder - Cast
TRIMCO# 1209
B 1-1/4”
H 2”
Pl
Heavy Duty Stop
Ideal for high abuse installations like
prisons, schools, heavy doors.
Installs with quick-set cement.
Requires 1-1/2” diameter cored
hole.
Available for wall mount #1209W,
hold open feature #1209HO, and
#1209HA with extra strong stainless
steel shaft and larger rubber.
STOPS
F-1
TRIMCO# 1200 1201 1201-5 1201CK
B 2-1/4” 2-1/4” 3” 2-1/4”
H 3-1/8” 3” 5” 3”
BHMA L02131 L02131 L02131 L02131
Br, Bz, Pl, SS
Floor Stop - Cast
1201CK is a heavy duty, high-abuse school design with reduces tampering and loss of rubber
bumper. For surface mounting with wood screws, use 1200.
CTC = center to center, M = material, OA = overall size, P = projection,
B =Base
TRIMCO# 1209HA
B 1” DIA
H 3” Rubber
SS
Extra Heavy Duty Door Stop
5” long, 1” DIA Stainless Steel Shaft
Also available 1209HAHO with hold
open feature #1209HO, and
#1209HA with extra strong stainless
steel shaft and longer rubber.

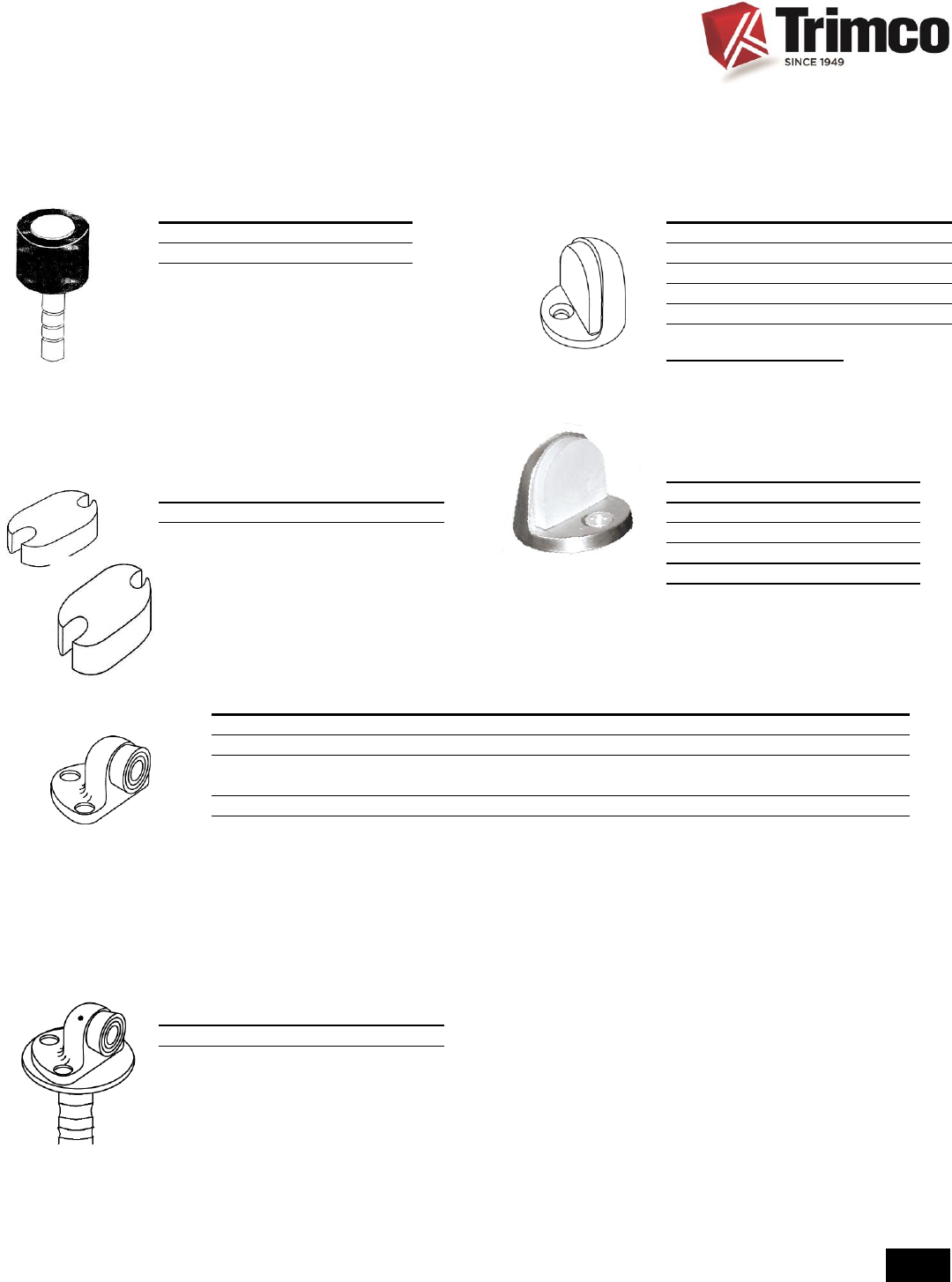

TRIMCO# 1211CH 1211CL
R 3/4" 1/2"
Al
Carpet Riser
Specify Stop Finish
TRIMCO# 1214CK x 1268CK
OA 5-7/8” x 2-1/2”
Heavy-Duty Stop
Pinned, screwed and recessed
rubber resists vandalism. Torx.
Requires 3” diameter cored hole
and Quick-crete.
TRIMCO# 1211
R .22”
B 1-1/2”
H 1.43”
M CAST
BHMA L02141/L02161
Br, Bz, Pl
Universal Dome Stop
See 1211 Brochure.
TRIMCO# W1211
R 1/8”
B 1-3/4” x 2”
H 1”
M Wrought
BHMA L02141
Br, Bz, SS
Universal Dome Stop
Patent #4,209,876
F-2
TRIMCO# 1214 1214H 1214CK
B 1-3/4” x 2-1/2” 1-3/4” x 2-1/2” 1-3/4” x 2-1/2”
H 1-3/4” 2-1/4” 2-1/4”
Supplied with
Torx Screws
BHMA L02121
Br, Bz, Pl
Door Stop - Cast - Heavy Duty. (3 fasteners)
1214CK is a heavy duty, high-abuse, school design which reduces tampering and loss of
rubber bumper.
STOPS…continue
CTC = center to center, M = material, OA = overall size, P = projection,
B =Base, R = Rise
TRIMCO# 1215CKU
H 1-1/2”
L 3/16”
CTC 2-1/5”
Br, Bz, Pl
Universal Stop
Supplied with Torx Screws upon
request at extra charge. See
1215CKU Brochure.
TRIMCO# 1223
B 2-1/4”
H 3-5/8”
FASTENERS Wood Screws
EYE 7/8” x 1-1/2”
HOOK 2-3/4”
BHMA L01371
Floor Stop / Holder - Cast
F-3
B = base, F = finish, H = height, OA = overall size, P = projection, R = rise

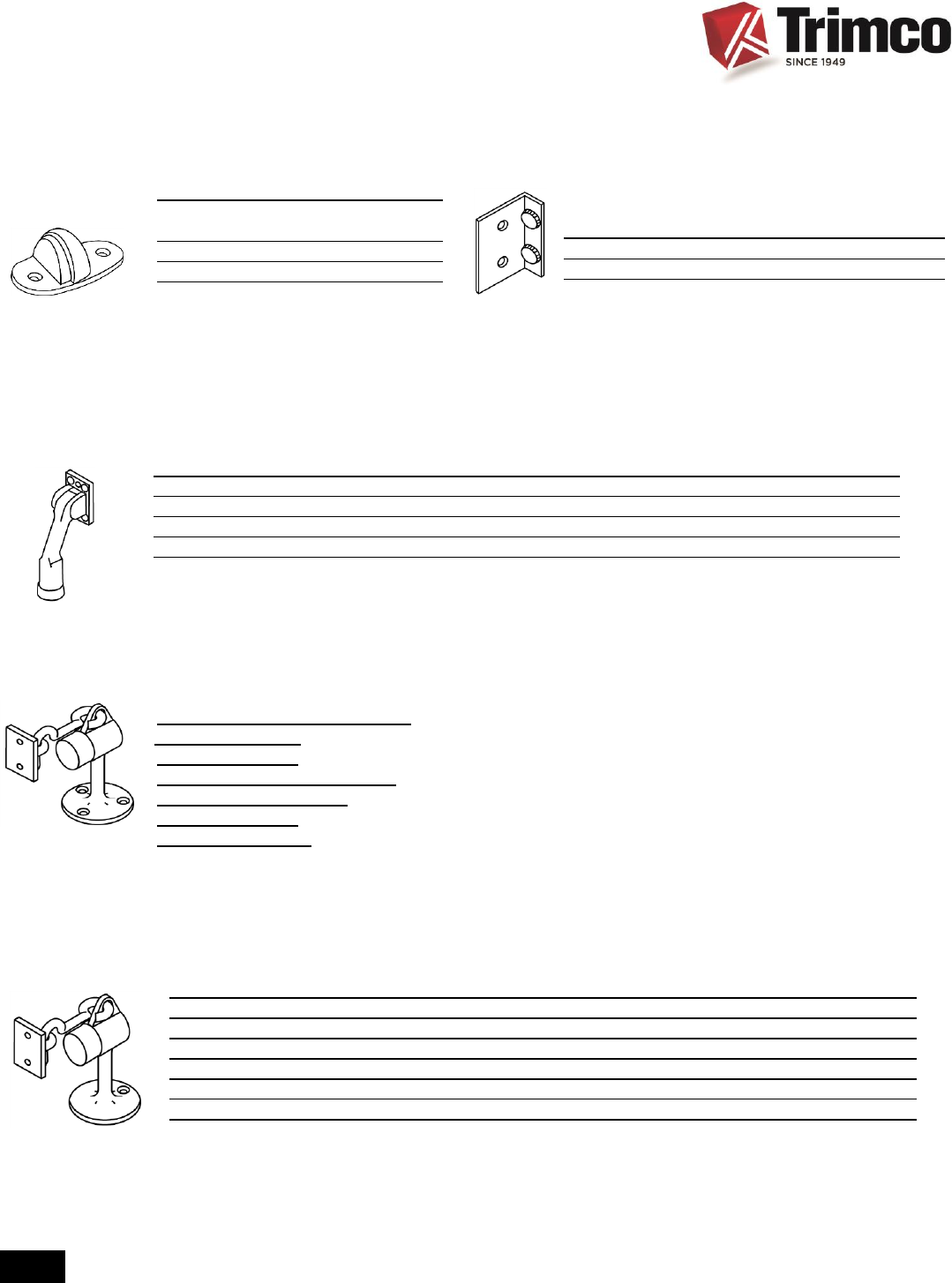

TRIMCO# 1217P 1217S
OA 1-1/2” x 2” 1-1/2” x 2”
Pair of Doors Single Doors
Br, Bz, Pl, SS
Angle Stop For use on Stopless Frames
TRIMCO# 1220-5 1221-4 1221-4FF
B 1-3/8” x 2” 1-3/8” x 2” 1-3/8” x 2”
H 5-25/32” 4-27/32” 4-27/32”
F Full Finish Spray Finish Full Finish
BHMA L01391 L01381 L01381
Br, Bz, Pl
Door Holder - Cast
TRIMCO# 1224 1224-5
B 2-1/4” 2-7/8”
H 3-5/8” 5-3/4”
FASTENERS Combo Pack Combo Pack
EYE 7/8” x 1-1/2” 7/8” x 2-1/4”
HOOK 2-3/4” 2-3/4”
BHMA L01371 L01371
Br, Bz, Pl
Floor Stop / Holder - Cast
Combo Pack. For surface mounting using wood screws, use 1223.
1217P
STOPS…continue, DOOR HOLDERS
TRIMCO# 1229A
OA 1/2" x 1/2"
BHMA L03011
Silencers for Metal Frames
Sold in multiples of 100
Silencers for Wood Frames
TRIMCO# 1234
B 1-1/2” x 2-3/4”
H 3”
STR 1” X 2”
BHMA L01361
Br, Bz, Pl
Floor Stop, Holder - Cast
Combo Pack
TRIMCO # 1229B
OA 5/8” x 3/4"
BHMA L03021
Silencers for Wood Frames
Sold in multiples of 100
TRIMCO# 1229EL
H 1/4"
D 1-1/8”
Elevator Bumper - Grey
Sold in multiples of 125
TRIMCO# 1235
B 1-3/8”
P 2-15/16”
BHMA L02041
Br, Bz, Pl
Base Stop - Cast
WS
ADAPTERS, STOPS AND SILENCERS
F-4
B = base, H = height, OA = overall size, P = projection, STR = strike

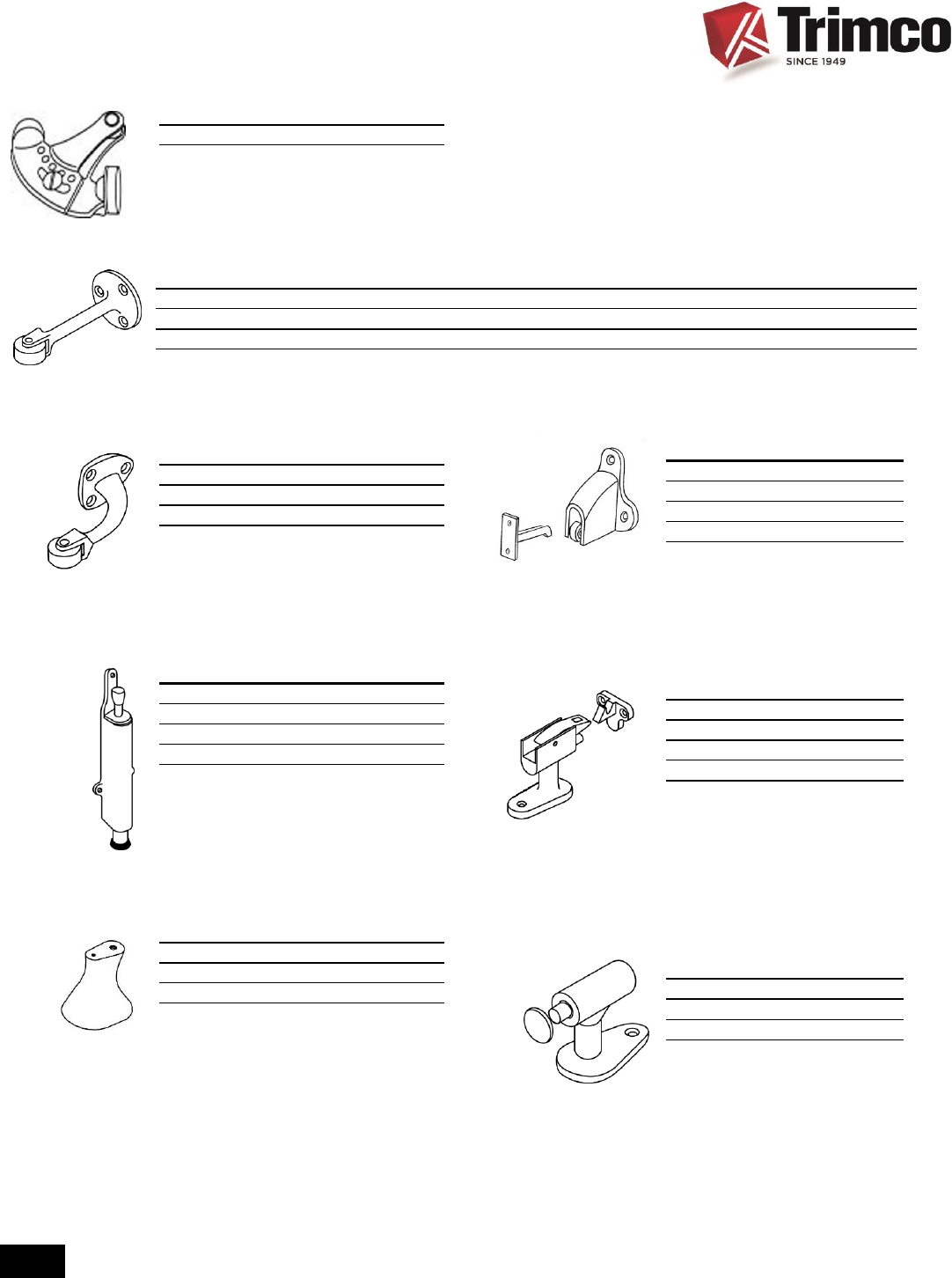

TRIMCO# 1231 1233
B 1-5/8” x 2-1/2” 1-3/8” x 2-3/4”
H 2” 2-7/8”
BHMA L02181 L02181
Br, Bz, Pl
Floor Stop - Cast
Combo Pack
TRIMCO# 1240
Door Opening 70° to 100°
Hinge Pin Stop
619 finish only
TRIMCO# 1245
B 1-11/16” x 2-1/4”
P 3”
BHMA L02211
Br, Bz, Pl
Roller Stop - Cast
TRIMCO# 1255
L 7-1/16”
W 2-7/16”
TH 1-3/4”
BHMA L01411
Br, Bz, Pl
Plunger Door Holder - Cast
Extra rugged cast brass or bronze
TRIMCO# 1257R
OA 6” x 8-3/8”
H 5”
BHMA L01241
Al
Riser for the 1257 Series Stop
Cast
Sprayed to match
TRIMCO# 1254
OA 2-3/4” x 2-1/2”
STR 1” x 2”
STR-P 2-1/8”
BHMA L01291
Br, Bz, Pl
Holder / Wall Strike - Cast
Combo Pack
TRIMCO# 1257M
B 3-1/4” x 1-3/4”
H 2-3/4”
STR 1-5/8” x 2”
BHMA L01241
Br, Bz, Pl
Heavy Duty Floor Stop - Cast
MS & ES
TRIMCO# 1258M
B 3-1/4” x 1-3/4”
H 2-3/4”
STR-D 1-1/4”
Br, Bz, Pl
Heavy Duty Floor Stop - Cast
MS & ES
STOPS / HOLDERS
F-5
TRIMCO# 1244 1244-6
B 2” 2”
P 4-1/4” 6”
BHMA L02191` L02201
Bz., Pl
Roller Stop - Cast
B = base, H = height, L = length, OA = overall size, P = projection, STR = strike,
TH = throw, W = width, STR-D = strike diameter, STR-P = strike projection
TRIMCO# 1260WP
BODY 3-1/16” x 3-1/2”
Br, Bz, Pl
Holder with Pipe Adapter Strike
Cast
Drilled for 3/4" IPS
(pipe not supplied)
TRIMCO# 1260P
OA 1-1/2” x 1-3/4”
BHMA L01331
Bz, Pl
Pipe Adapter Strike - Cast
For installation where door swings
over a step 3/4" IPS.
(pipe not supplied)
F-6
C = clearance, D = diameter, H = height, M = material, OA = overall size,
P = Projection
TRIMCO# 1260W 1261 1263 1265 1267
OA 3-1/16” x 3-1/2” 3-1/16” x 3-1/2” 3-1/16” x 3-1/2” 3-1/16” x 3-1/2” 3-1/16” x 3-1/2”
C 1/2" 9/16” – 1-1/16” 1-1/8” x 1-9/16” 1-5/8” x 2-1/16”
P-Holder 2” 2” 2” 2” 2”
P-Strike 2-1/2” 1-1/4” 1-3/4” 2-1/4” 2-3/4”
BHMA L01301 L01301 L01301 L01301 L01301
Wall Strike Floor Strike Floor Strike Floor Strike Floor Strike
Br, Bz, Pl
Door Holder and Strike - Cast
TRIMCO# 1268 1268CK
D 4” 2-3/4”
H 3-5/8” 3-5/8”
Al
Installed in wet cement Drilled and tapped for the 1214CK
Requires 3” diameter cored hole in
concrete. Not installed in wet cement.
Plate Adapter - Cast
Sprayed to match stop.
SPECIAL STRIKES AND HOLDERS
1268CK
1268
TRIMCO# 1270CVPV / 1270CVSV
Wall Bumper
Vandal Proof. Rubber cannot be
removed; Anti-Rotation Pin.
PV=Prison Version or
SV=School Version
Also available: Cast, 1270CXPV or
1270CXSV
Patent applied for.
TRIMCO# 1277/79
D 4”
P 3/4"
BHMA L02111/L02101
Br, Bz, Pl
Large Wall Bumper - Cast
Available with concealed or exposed
fasteners. Convex (X) only.
Please specify fasteners as below*
TRIMCO# 1275RP
ID 9/16”
OD 1”
P 9/16”
BHMA L02101
Br, Bz, Pl
Small Wall Bumper
WS x RP
TRIMCO# 1278CV or 1278CX
OD 1-1/2”
P 1”
BHMA L02101
Br, Bz, Pl, Al
Wall Bumper
WS x RP. Minimal Trim.
Anti-Vandal Rubber.
Concave (V)
Convex (X) Please specify
fasteners as below*
F-7
D = diameter, ID = inside diameter, M = material, OD = outside diameter,P = projection, T = trim

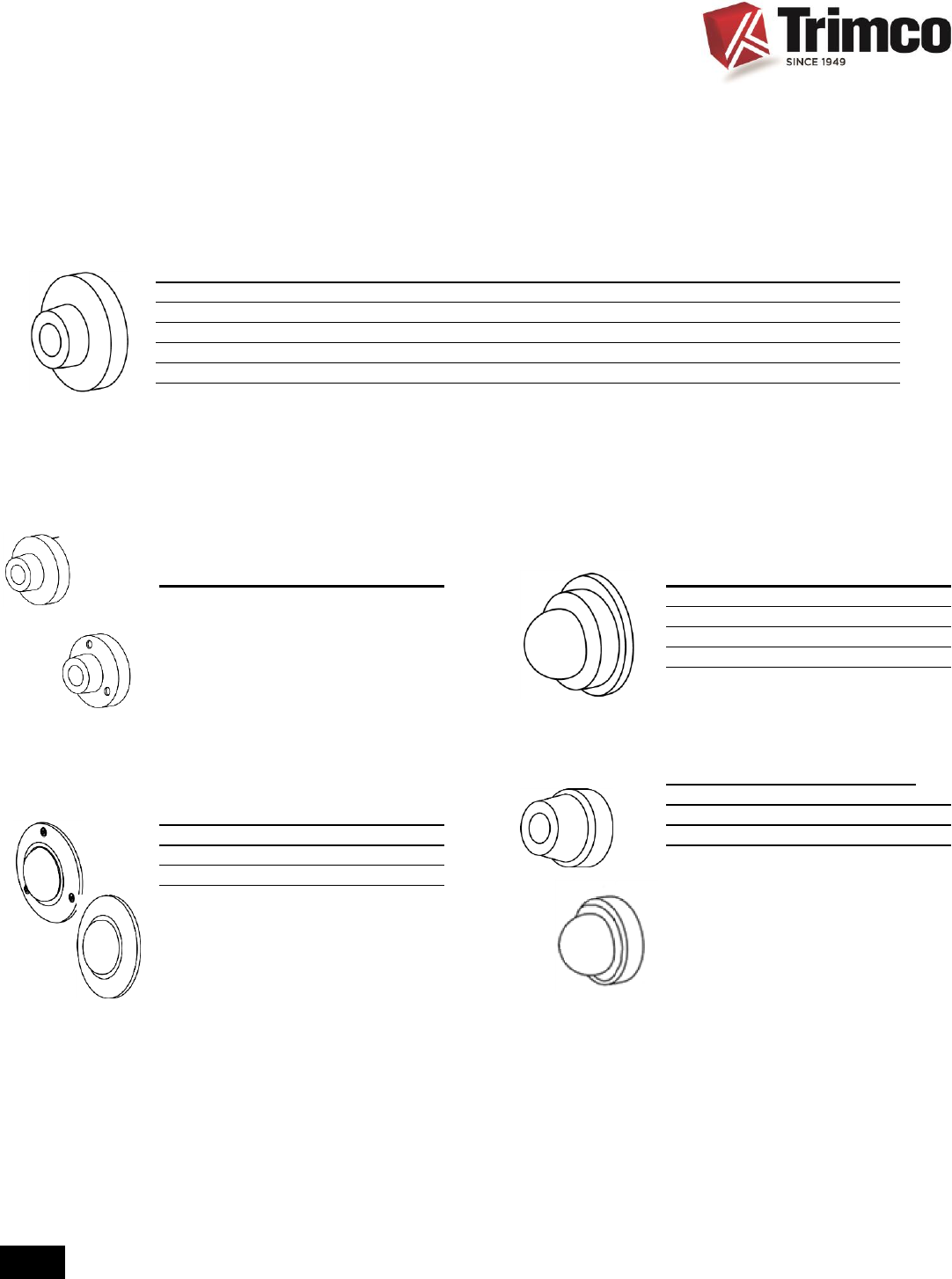

TRIMCO# 1270CV 1270WV 1270CX 1270WX
ID 1-3/8” 1-3/8” 1-3/8” 1-3/8”
OD 2-3/16” 2-3/16” 2-3/16” 2-3/16”
P 1” 1” 1” 1”
M Cast Wrought Cast Wrought
BHMA L02251 L02251 L02101 L02101
Br, Bz, Pl Br, Bz, Pl, SS Br, Bz, Pl Br, Bz, Pl, SS
Wall Bumper - Combo Pack
Anti-Vandal Rubber
Convex (X) available.
Concave (V) shown
Comes with our combo pack
*New Wall Bumper Abbreviations:
C = Cast MS = Machine Screw
W = Wrought CP = Combo Pack
X = Convex WS = Wood Screw
V = Concave RP = Rawl Plug
TB = Toggle Bolt PV = Prison Version
SV = School Version
WALL BUMPERS
1270CVPV
1270CVSV
1278CV
1278CX
TRIMCO# 1283-4S
OA 2-1/4” x 2-3/4” x 1-1/2”
STR 3” Wall
BHMA L01301
Br, Bz, Pl
“Adjustre” Holder Body and
Wall Strike - Cast
The self-adjusting “Adjustre”
compensates for door sag both
horizontally and vertically.
Patent #3129024
TRIMCO# 1283-2S
OA 2-1/4” x 2-3/4” x 1-1/2”
STR 3” Floor
BHMA L01301
Br, Bz, Pl
“Adjustre” Holder Body and
Floor Strike - Cast
The self-adjusting “Adjustre”
compensates for door sag both
horizontally and vertically.
Patent #3129024

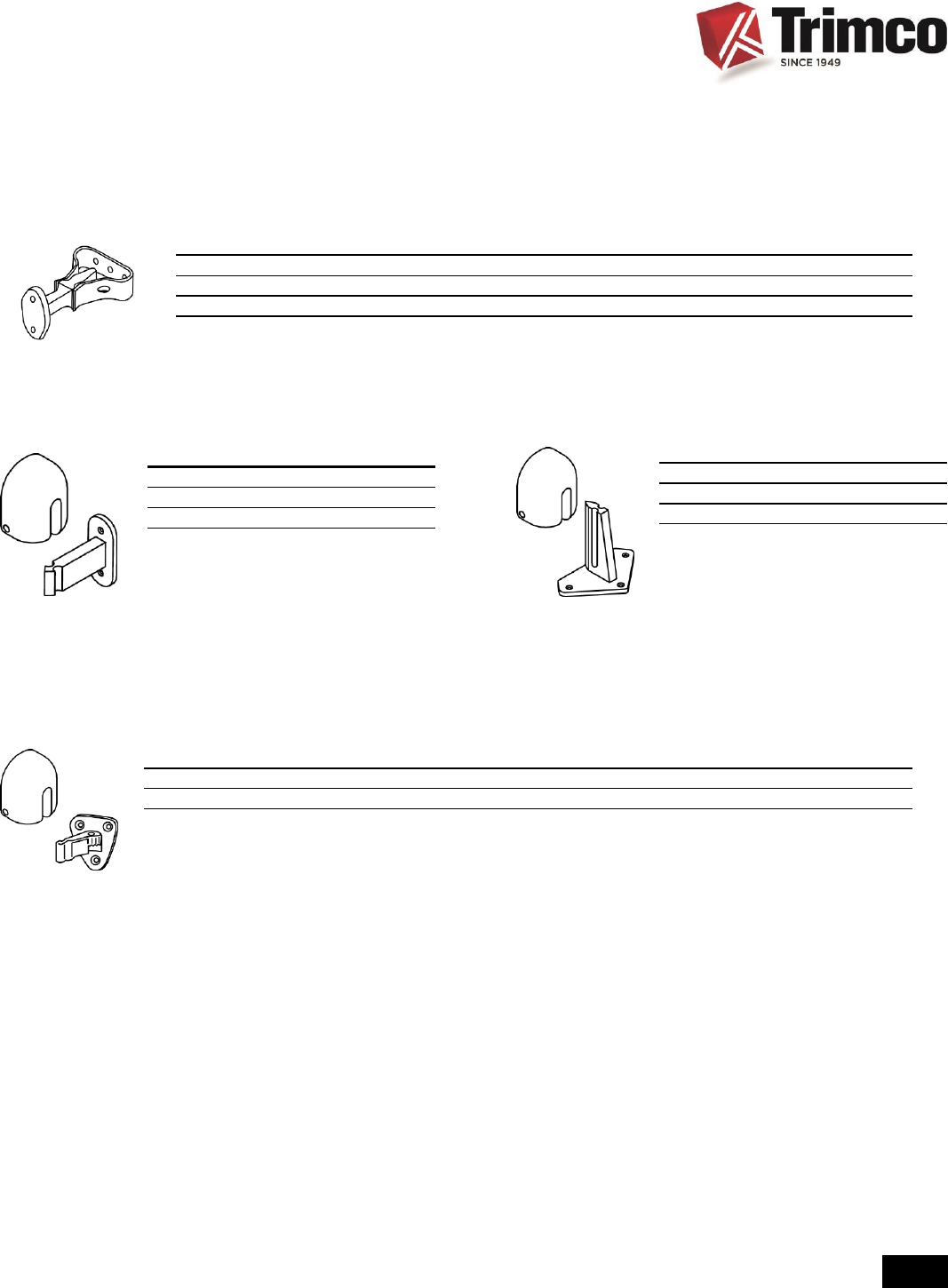

HOLDERS / STOPS
F-8
OA = overall size, P = projection, STR = strike
TRIMCO# L1280 L1280CI
OA 3/4" x 2-1/4” x 2” 3/4" x 2-1/4” x 2”
STR 5/8” x 2-13/16” 5/8” x 2-13/16”
P 3-1/2” 3-1/2”
Br, Bz, Pl
CI = Cast Iron
Sprayed to Match
Door Holder - Cast
Specify fastenings
TRIMCO# 1283-6S
OA 2-1/4” x 2-3/4” x 1-1/2”
STR 3-1/8” x 2-7/8”
Br, Bz, Pl
“Adjustre” Holder Body and Pivoting Wall Strike - Cast
Use pivoting strike to take care of any difficult opening angle hold open position. Wall mount only.
TRIMCO# 1290
B 4-1/2”
STR 15/8” x 2-1/8”
H 4-7/8”
BHMA L01251
Br, Bz, Pl
Floor Stop & Holder - Cast
Heavy Duty
TRIMCO# 1296
B 2”
P 4-11/64”
BHMA L02031
Br, Bz, Pl
Base Stop - Cast
Single Hanger Bolt.
Note: order 1296S to specify
3-hole surface mount
TRIMCO# 1291
H 2-1/2”
B 2-7/16” X 1” Zinc
Angle Floor Stop
Heavy Duty
Supplied with Wood Screws
and Machine Screws & Anchors
Finish 603 only
TRIMCO# 1298
B 2-1/4” x 2-5/8”
P 4-3/16”
Br, Bz, Pl

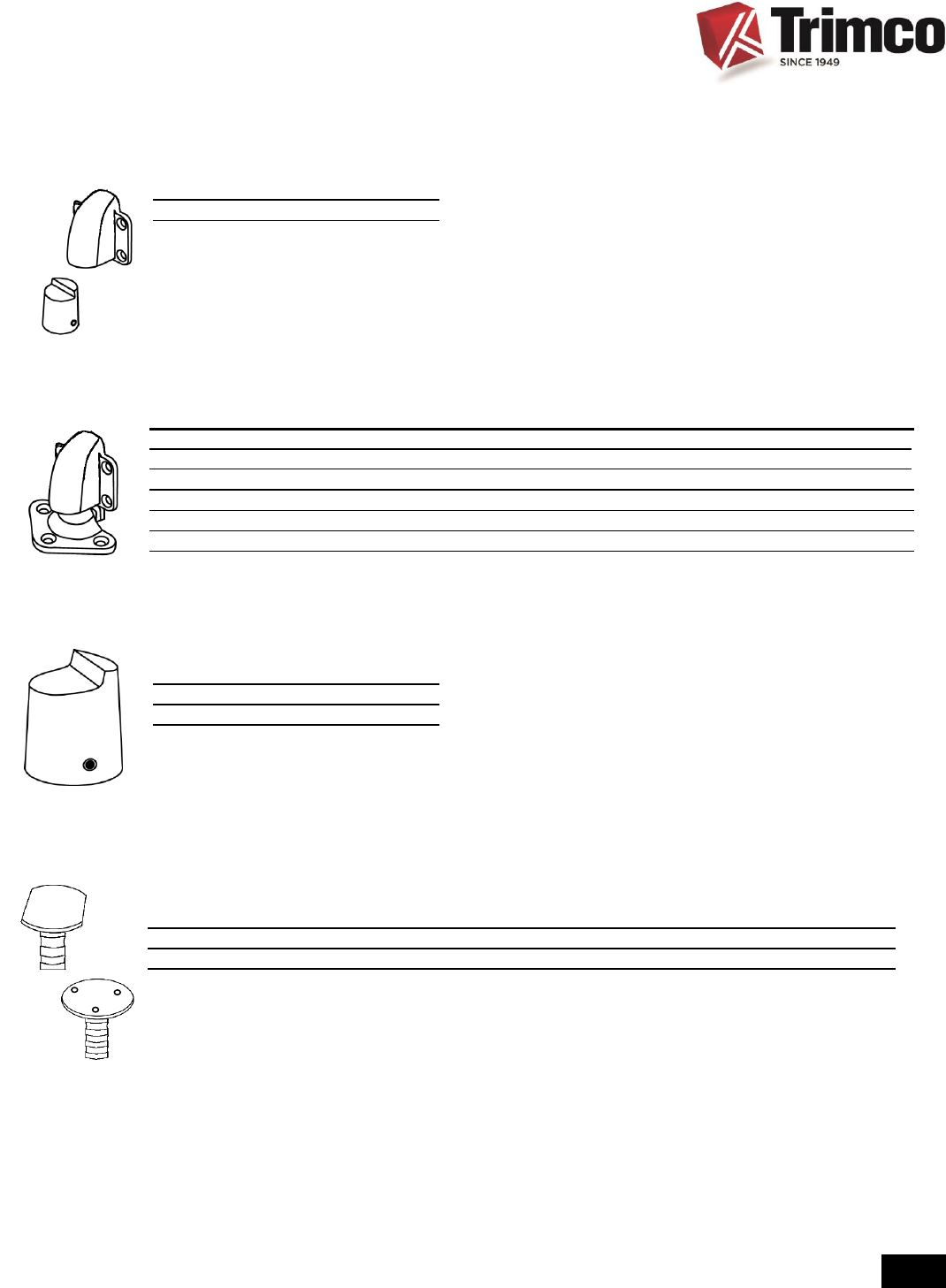

Door Stop - Cast
Extra rugged,
three point fastening
HOLDERS / STOPS
F-9
B = base, H = height, P = projection, STR = strike
Trimco has been serving the trim hardware market since 1949.
For the last 65 years, Trimco has evolved into a tuff competition
for big companies, our secret… great commitment to quality
products, exceptional customer service, and the fact that we stand
behind the products we make.
When you buy from Trimco, you know it will last!
Thank you for being a loyal customer.
As always, if there is room for improvement, we want to know!
1296
1296S

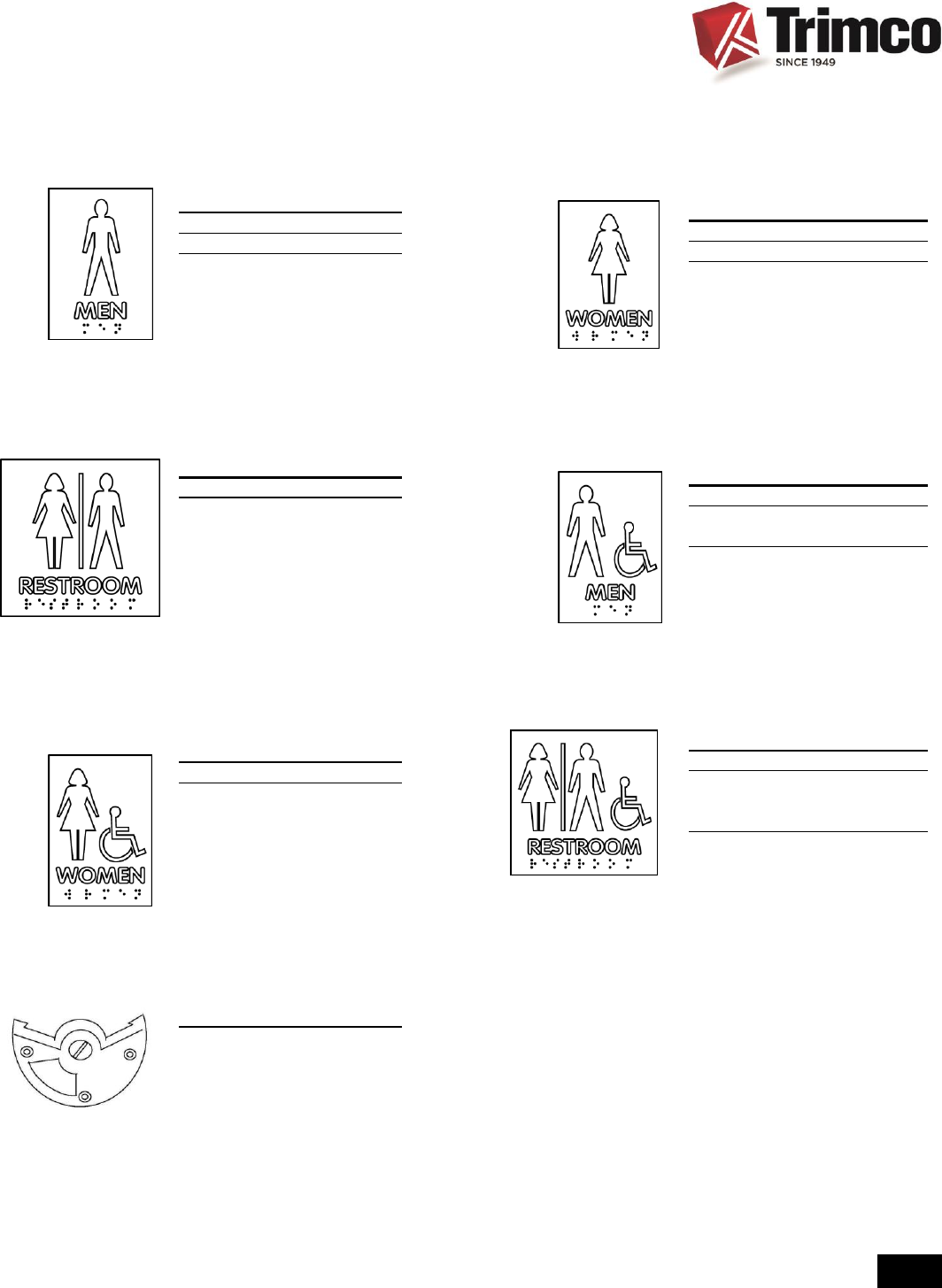

TRIMCO# 507
OA 8” x 8”
SYM Men/Braille
Restroom Sign
ADA
TRIMCO# 509
OA 8” x 8”
SYM Unisex/Braille
Restroom Sign
ADA
TRIMCO# 528
OA 8” x 8”
SYM Women/
Handicap/
Braille
Restroom Sign
ADA
TRIMCO# 5004
Mortise Lock Indicator
Red signifies Locked
Green signifies Unlocked
Emergency Access
Available. Can be
customized for most
locksets.
TRIMCO# 508
OA 8”X8”
SYM Women/Braille
Restroom Sign
ADA
TRIMCO# 527
OA 8” x 8”
SYM Men/Handicap/
Braille
Restroom Sign
ADA
TRIMCO# 529
OA 8” x 8”
SYM Unisex/
Handicap/
Braille
Restroom Sign
ADA
RESTROOM SIGNS, LOCK INDICATOR
G-1
OA = overall size, SYM = symbol

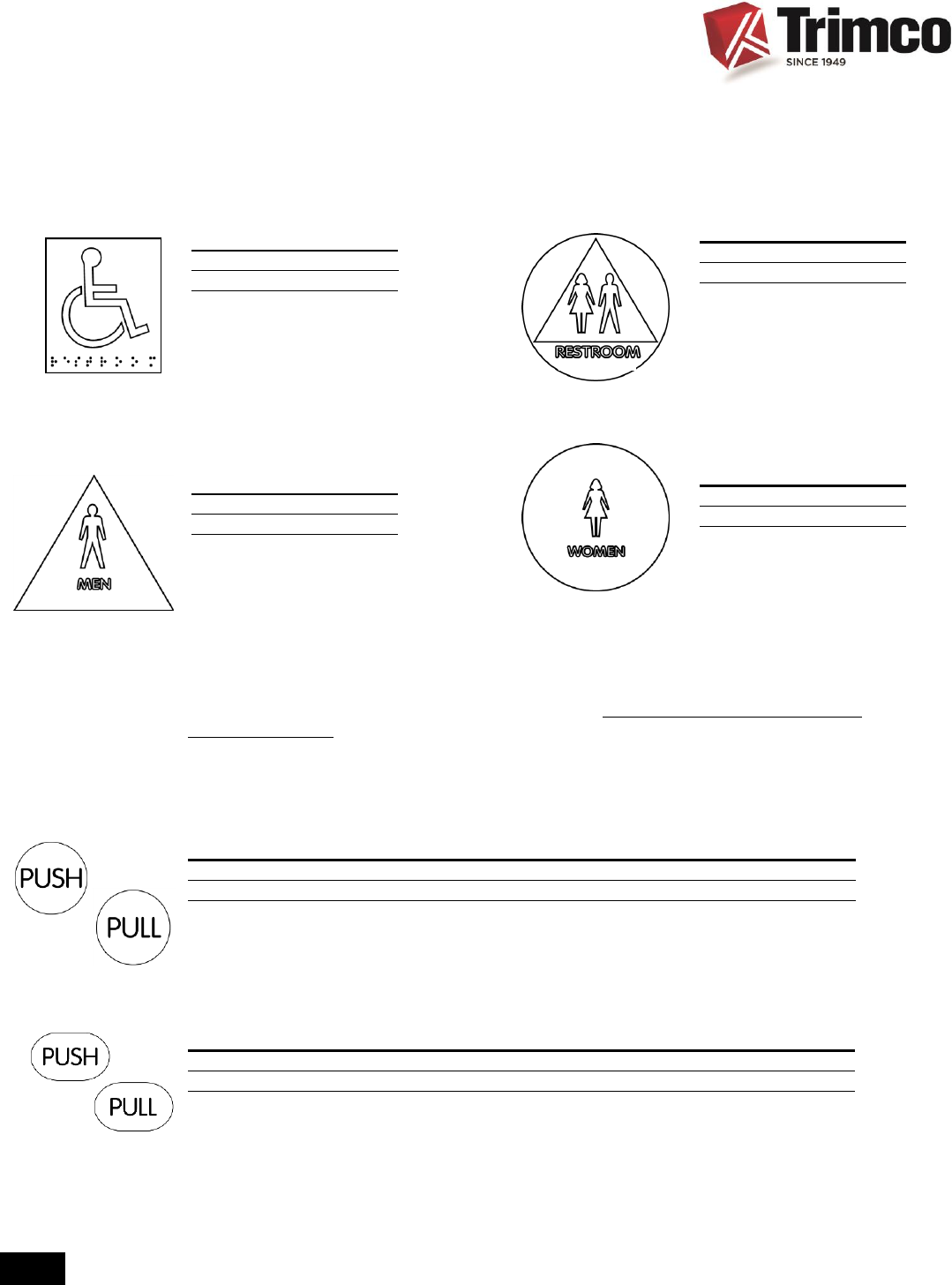

TRIMCO# 751
OA 8” x 8” Square
SYM Handicap
Handicap Sign
1/8” Engraved Sign
TRIMCO# 753
OA 12” Triangle
SYM Men
Restroom Sign
1/4" Material
Title 24 Signage
TRIMCO# 752
OA 12” Circle
SYM Unisex
Restroom Sign
1/4" Material
Title 24 Signage
TRIMCO# 754
OA 12” Circle
SYM Women
Restroom Sign
1/4" Material
Title 24 Signage
HANDICAP RESTROOM SIGNS
G-2
OA = overall size, SYM = symbol, E = engraved, D = Diameter
NOTE: All signs are raised white letters and figures, with Braille upon request (with an
additional charge). On blue plastic grade 2 and supplied with 2-sided mounting tape.
Other symbols and combinations available. Please inquire.
TRIMCO# 755 756
D 2-5/8” 2-5/8”
E Push Pull
Br, Bz, SS
Indicator Plate
1/8” material. Adhesive mount.
TRIMCO# 757 758
OA 1-1/2” x 3-3/8” 1-1/2” x 3-3/8”
E Push Pull
Br, Bz, SS
Indicator Plate
1/8” material. Adhesive mount.
Add “V” for vertical orientation.
TRIMCO# 2082
OA 3-1/2” x 13”
BHMA L06032
Br, Bz, Pl
Mail Plate Set
Magazine size, spring
type front plate with frame
inside.
TRIMCO# 2085
OA 3-1/2” x 13”
BHMA L06032
Br, Bz, Pl
Mail Plate Set
Magazine size, spring type
front plate with hood
inside
G-3
D = diameter, E = engraving, M = material, OA = overall
size

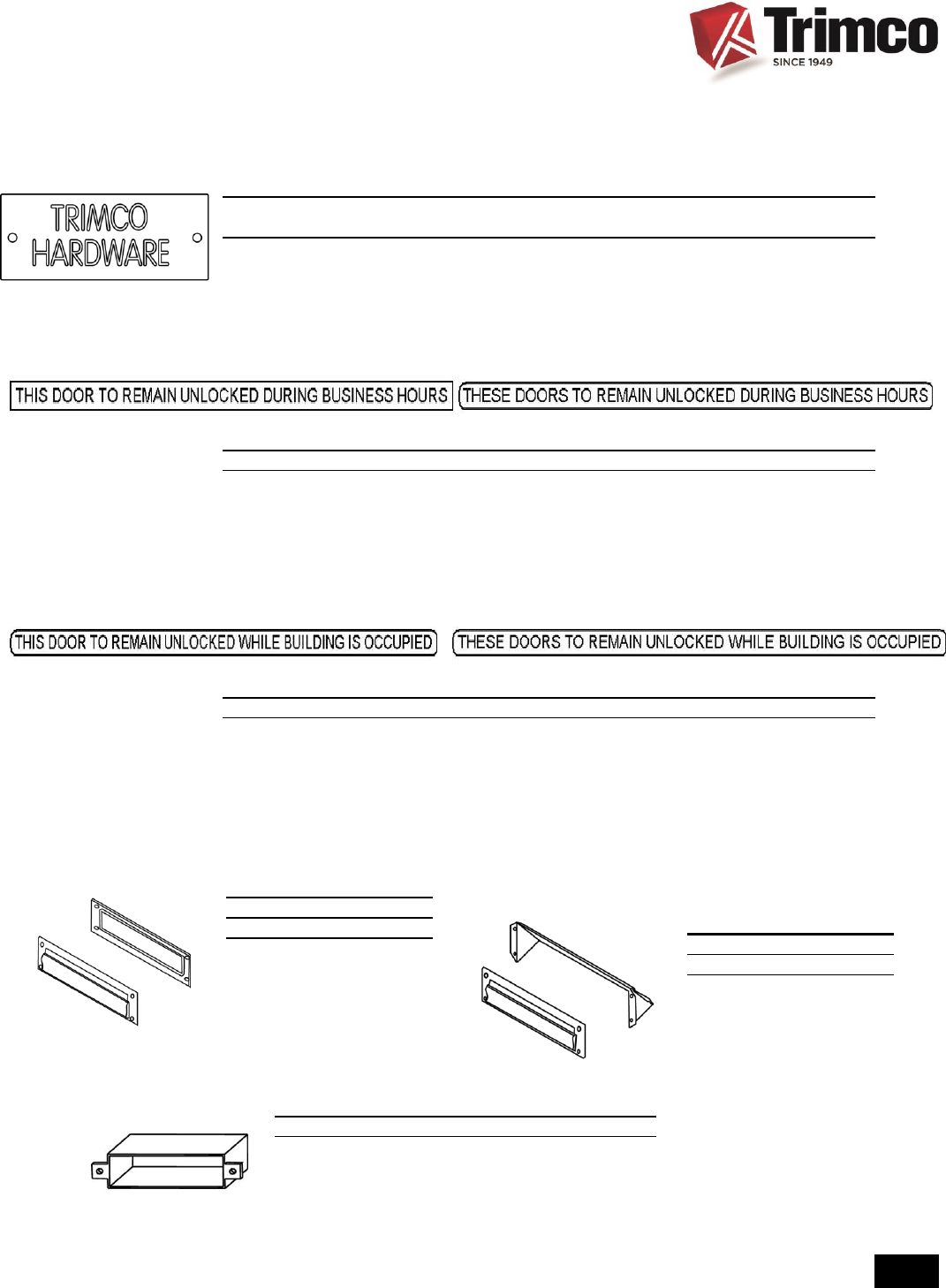

TRIMCO# 760 793
M 1/8” Plastic 1/8” Metal
Black, Red, Blue, Brown
Br, Bz, Al, SS
Engraved Sign
Sketch required.
Specify adhesive mount or wood screw mount when ordering.
TRIMCO# 771 773
OA 1-1/2” x 27” 1-1/2” x 27”
Decal Signage
“This door to remain unlocked “These doors to remain unlocked
during business hours” during business hours”
Decals only available in black letters on a silver background.
SIGNAGE- ENGRAVED , DECALS, & MAIL PLATES
TRIMCO# 774IBC 775IBC
OA 1-1/2” x 27” 1-1/2” x 27”
Decal Signage
“This door to remain unlocked “These doors to remain unlocked
while building is occupied” while building is occupied”
Decals only available in white letters on clear background.
TRIMCO# 2091
OA 2-3/4” x 12-3/4” x 1-3/4”
Al
Mail Plate Sleve
For 1-3/4” Door
TRIMCO# 3070-1
B 1-5/8” x 1-3/8”
P 3”
H 2-1/2”
BHMA L03111
Br, Bz, Pl
Coat & Hat Hook - Cast
Burnished
TRIMCO# 3071
OA 7/8” x 5-1/2” x 1-7/8
P 1-3/4”
M 3/16”
BHMA L03111
Br, Bz, Pl, SS
Coat & Hat Hook
Attractive and Rugged
G-4

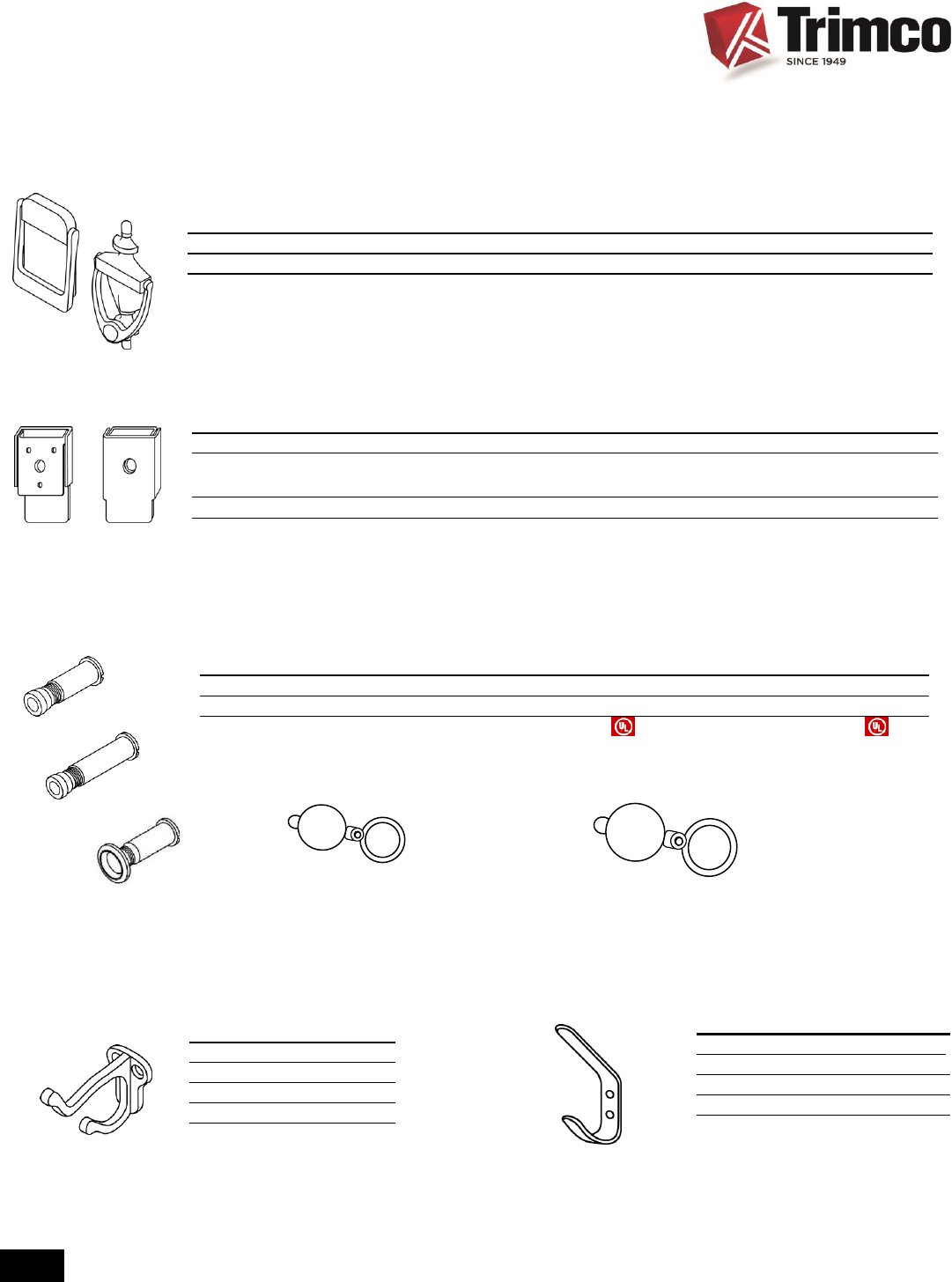

TRIMCO# 625CV 625CVE 625V 625VE
OA 3-7/8” x 2” 3-7/8” x 2” 3-1/4” x 2” 3-1/4” x 2
Knocker Card Holder Card Holder Viewer Viewer
Includes: w/Viewer w/Eng/Viewer w/Eng
BHMA L03151 L03151 L03151 L03151
Br, Pl
Door Knocker - Viewer (975)
Modern style solid metal stamping
TRIMCO# 620 621
OA 3” x 2-1/8” 6-1/8” x 3-1/8”
BHMA L03161 L03151
Br, Pl
Door Knocker
Engraving and Viewer Available
TRIMCO# 975 975-1 975U 976 976U
OA 160º 160º 160º 180º 180º
BHMA L03172 L03172 L03222 L03171 L03221
Extra Log Br, Pl
Door Viewer
Note: Also available, Viewer WITH Caps order 975U-CAP or 976U-CAP
975CV (viewer cap ONLY)
976CV (viewer cap ONLY)
DOOR KNOCKERS, VIEWERS, & COAT HOOKS
B = base, F = finish, OA = overall size, P = projection, WC = wall to centerline, H= Height

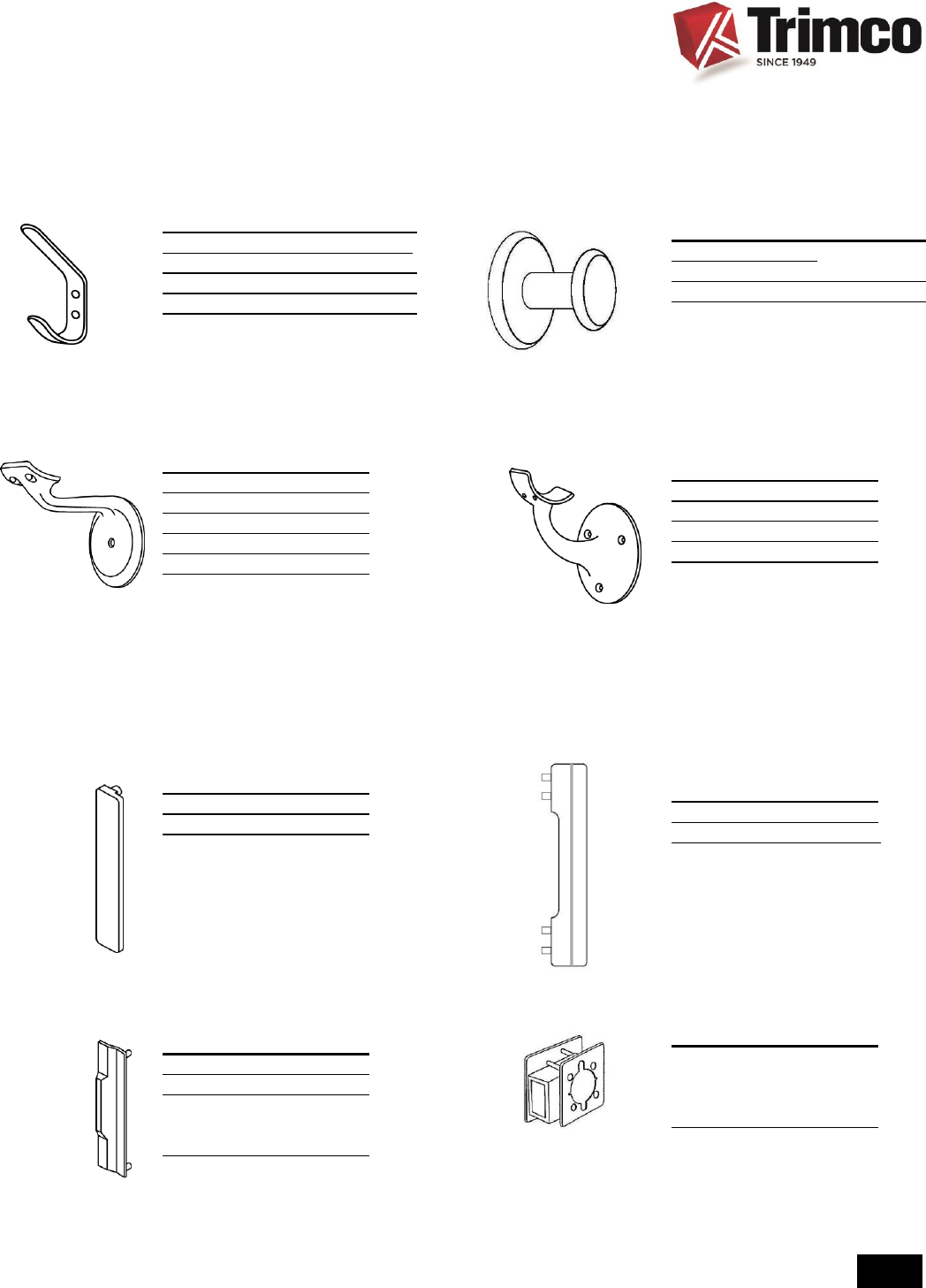

TRIMCO# 3071-1
OA 7/8” x 4-1/2” x 1-7/8
P 1-3/4”
M 3/16”
BHMA L03111
Br, Bz, Pl, SS
Coat & Hat Hook
Attractive and Rugged
TRIMCO# 3405
OA 3” Base
P 3-1/2”
WC 2-1/2”
F Full Finish
BHMA L03091
Br, Bz, Al
Handrail Bracket - Cast
Fits 1-3/4” diameter rail
TRIMCO# 5000-T
OA 9-1/2” x 1-7/8”
CTC 8-1/2”
Bz, Pl
Lock Astragal - Cast
Mortise or cylindrical
lock. Custom spacer
available for longer lipped
strikes.
TRIMCO# 5002
OA 6” x 1-9/16”
CTC 4”
M 13 GA
Stainless
Steel
SS
Lock Astragal
Cylindrical lock only.
TRIMCO# 3072
B 2” DIA
P 1-3/4”
SHAFT 5/8” DIA
SS
Coat Hook
Attractive and Rugged
TRIMCO# 3406
B 3-3/4”
WC 3”
P 3-7/8”
BHMA L03081
Br, Bz, Al
Handrail Bracket - Cast
Fits 1-3/4” diameter
wood rail
TRIMCO# 5001
OA 9-1/2”
CTC 6-1/2” & 8-1/2”
Bz, Pl
Lock Astragal - Cast
Mortise or cylindrical
lock. Custom spacer
available for longer lipped
strikes.
TRIMCO# 5022
Unit Lock Adapter
Retro-fit installation so that
a cylindrical lock can replace
a unit-lock.
SS
Note: Powder Coat finishes by
quote
COAT HOOKS…cont. & HANDRAIL BRACKETS
LOCK ADAPTER & ASTRAGALS
G-5
B = base, F = finish, OA = overall size, P = projection, WC = wall to centerline
NOTE: All of the above HANDRAILS meet ADA with narrow handrail.
May require additional spacer with wide handrail.
TRIMCO# 4015
OA (plate) 3-3/8” x 1-7/16”
(chain) 7-1/2”
(holder) 3/4" x 2”
BHMA L03041
Br, Pl
Door Guard, Chain
All Brass except chain.
TRIMCO# 4048
OA 33-3/4”
BHMA L02222
Chain Crash Stop
Extra heavy-duty solid welded
steel twist chain designed
for heavy commercial doors.
Heavy cast brass plates with
heavy compression springs
at each end. This product is
adjustable from 20” to 30-1/2”.
TRIMCO# PG8000
OA 10” x 11-1/2”
P 3-3/16”
Br, Bz, SS
Latch Guard
.050
GUARDS
G-6
CTC = center to center, M = material, OA = overall size
TRIMCO# 4016 4016ED 4016-S
OA 2-1/2” x 5-1/8” 1” x 1/2" 1-7/8” x 1-1/8” x specify ht.
BHMA L03041
Br, Bz, Pl Br, Bz, Pl
Door Guard – Swing Arm Adhesive Mount Black Nylon
Hinged bar allows guard to be Edge Protector Spacer for 4016
positioned 180º away from door for 4016
when not in use.
Optional spacers required if any
applied casing involved.
TRIMCO# PG8002 PG8002-1 (2 pieces)
OA 10” x Specify 10” x Specify
P 3-3/16” 3-3/16”
L Specify Specify
Br, Bz, SS
Latch Guard - .050
PG8000 Series Latch Guards prevent damage to lower latch of exposed-rod panic devices
and shield the foot area for the wheelchair user from the lower latch protrusion.
Patent #DES,350-473, #5381,627
(top view)

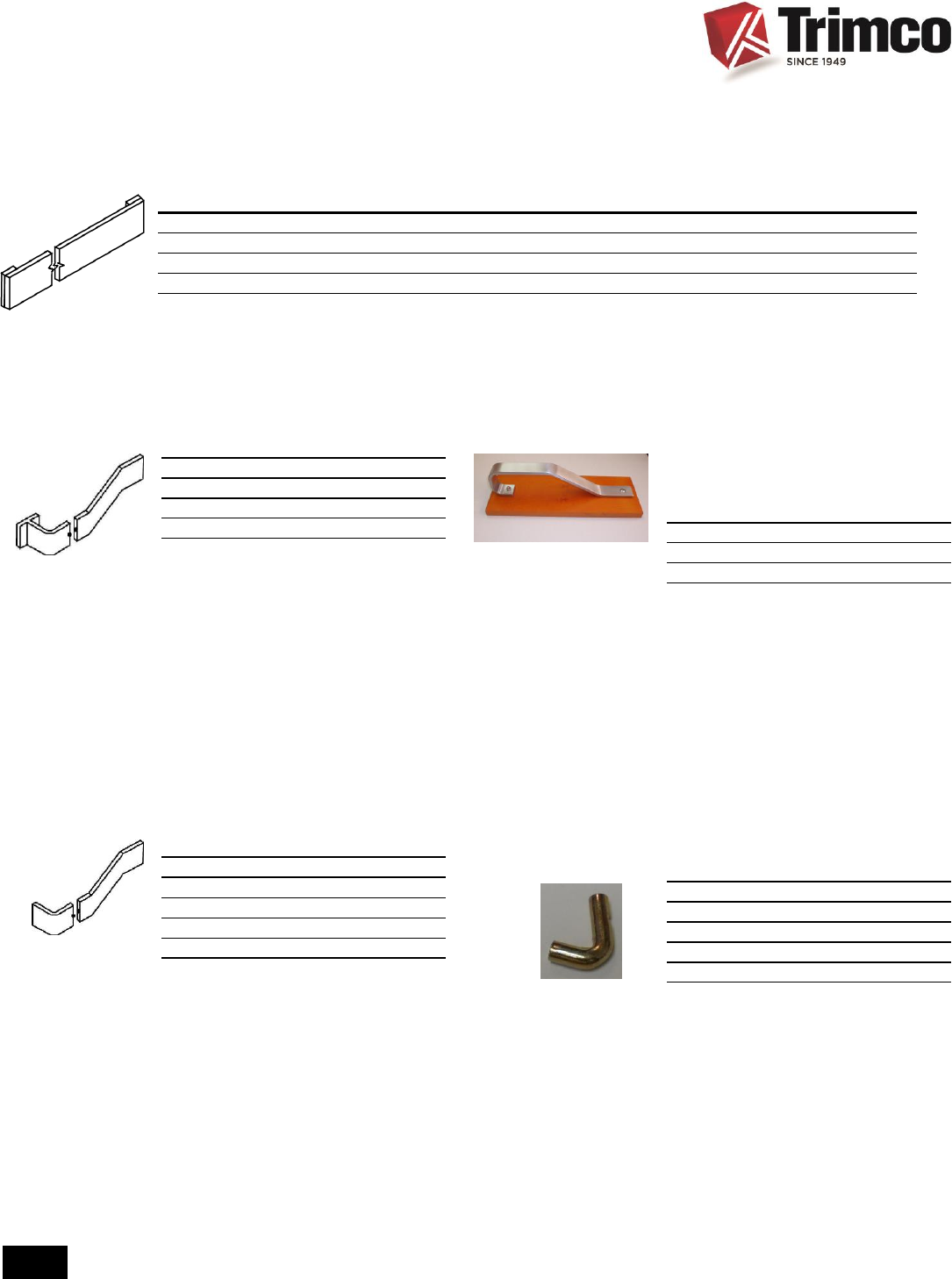

TRIMCO# FG8000-XX
OA 24”, 36”, 42” .
D 1” .
(XX=SIZE) .
SS
Frame Guard
Protects the edges of frames
From wheeled equipment.
Built in roller spins when hit.

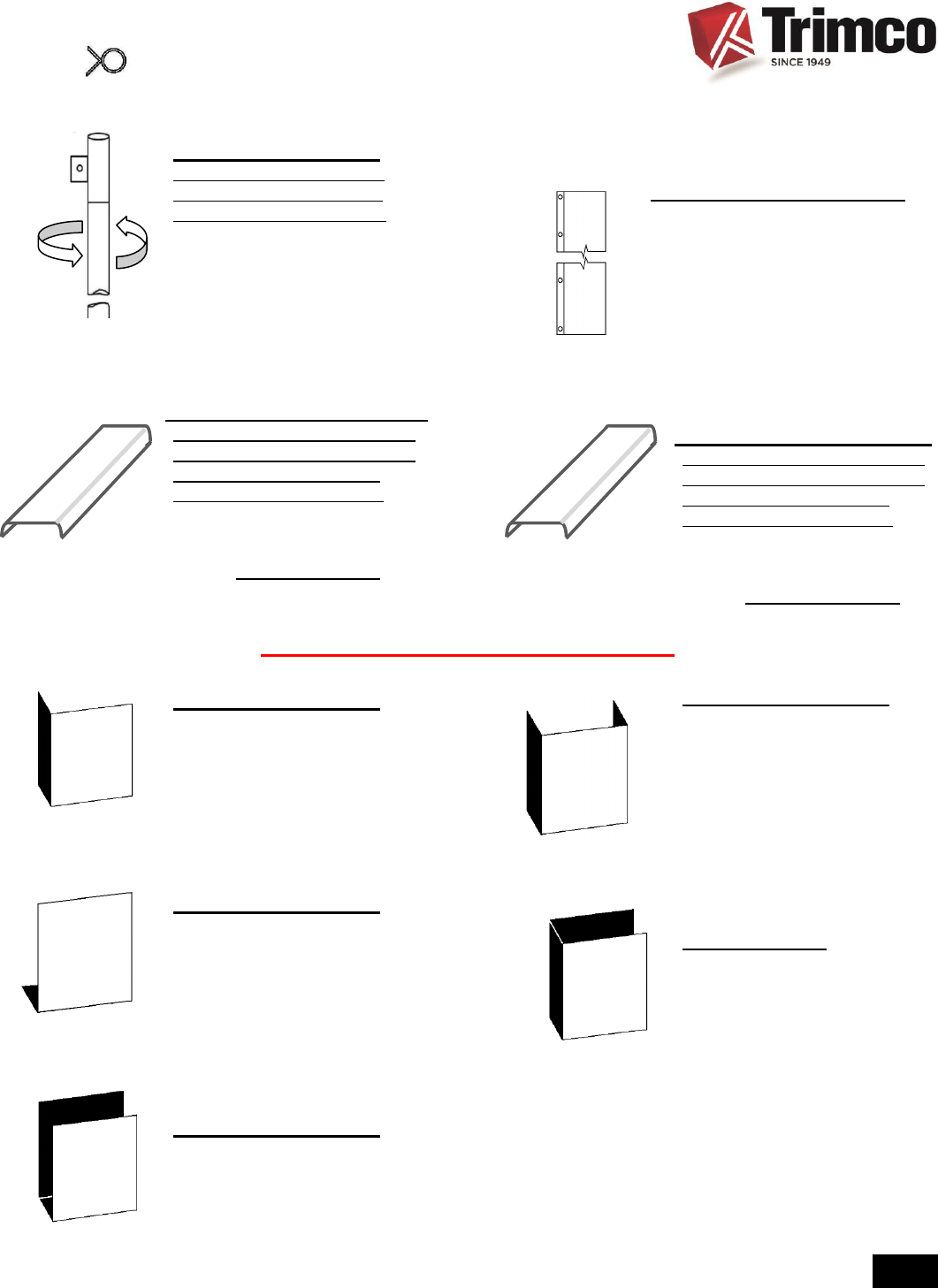

TRIMCO# PBT8000-1-X.710CU
L 16-5/16” (30” to 36” doors)
L 22-5/16” (37” to 48” doors)
W 2-1/4” _______ .
(X = SIZE) .
CU+
Push Bar Trim for Exit Device
Bactericidal Trim cover for
existing Von Duprin 98/99
TRIMCO# WA-A
One Side Return
.050
TRIMCO# WA-C
Bottom Return
.050
TRIMCO# WA-E
Bottom Wrap Around
.050
TRIMCO# K39
Fingerguard – Nursery and
Pre-school item protects little
fingers from getting pinched
between door and jamb. Up
To 48”, specify height when
ordering. Over 48” call for
quote. Maximum length is 60”
TRIMCO# PBT8000-2-X.710CU
L 19-3/16” (30” to 36” doors)
L 19-3/16” (37” to 48” doors)
W 2-1/4” _______ .
(X = SIZE) .
CU+
Push Bar Trim for Exit Device
Bactericidal Trim cover for
existing Stanley Apex 2000
TRIMCO# WA-B
Two Side Return
.050
TRIMCO# WA-D
Side Wrap Around
.050
G-7
L = length, OA – overall size, P = projection, W =
width, X=enter size, CU+ = CuVerro
GUARDS, TRIM
SPECIAL PLATES
NOTE: Furnish specifications on type, height,
and width of plate, door thickness, finish,
beveled or square edged doors, cut-outs &
handing, etc…
TRIMCO# KS050
OA 6” H
M .050________
Stretcher Plate
TRIMCO# KH050
Handicap Kick Plate
To cover glass on narrow stile
aluminum doors.
TRIMCO# K6000
OA 4-48” high
COL Black, Grey
M Plastic 1/8”
BHMA J106
Plastic
Kick Plate
Other colors and clear are
available.
PLATES
G-8
COL = color, M = material, OA = overall size
TRIMCO# KA038 KA038-1 KA050-1 KA050-2 KA050-3
OA 18-36” H 37-48” H 17-24” H 25-42” 43-48” H
M .038 .038 .050 .050 .050
BHMA J101 J101 J101
Br, Bz, Al, SS
Armor Plate 605 finish = 24” height maximum
606/609 finishes = 36” height maximum
611/612/613 finishes = 36” height maximum
Aluminum and SS = 48” height maximum
TRIMCO# KM038 K038-1 KM050 KM050-1
OA Under 6” high 4” or under Under 6” high 4” or under___
M .038 .038 .050 .050_________
BHMA J103
SS only Br, Bz, Al, SS
Mop Plate
NOTE: All Kick plates are made from solid 260 Brass,
220 Bronze, in Stainless Steel or 5005H34 Aluminum.
All edges are relieved. Heavy bevel at extra charge. All
.038 Protection plates are Stainless Steel ONLY.
Specify countersinking if required.
Available with screw or adhesive mount. – Specify when
ordering.
TRIMCO# K0038 K0050 TRIMCO# 10X34.ILLUM.630
OA 7”-16” H 7”-16” H ..050 Kick Plate
M .038 .050 with Self-illuminated “EXIT”
BHMA J102 Sign.
SS only Br, Bz, Al, SS Meets UL924 standards
Kick Plate

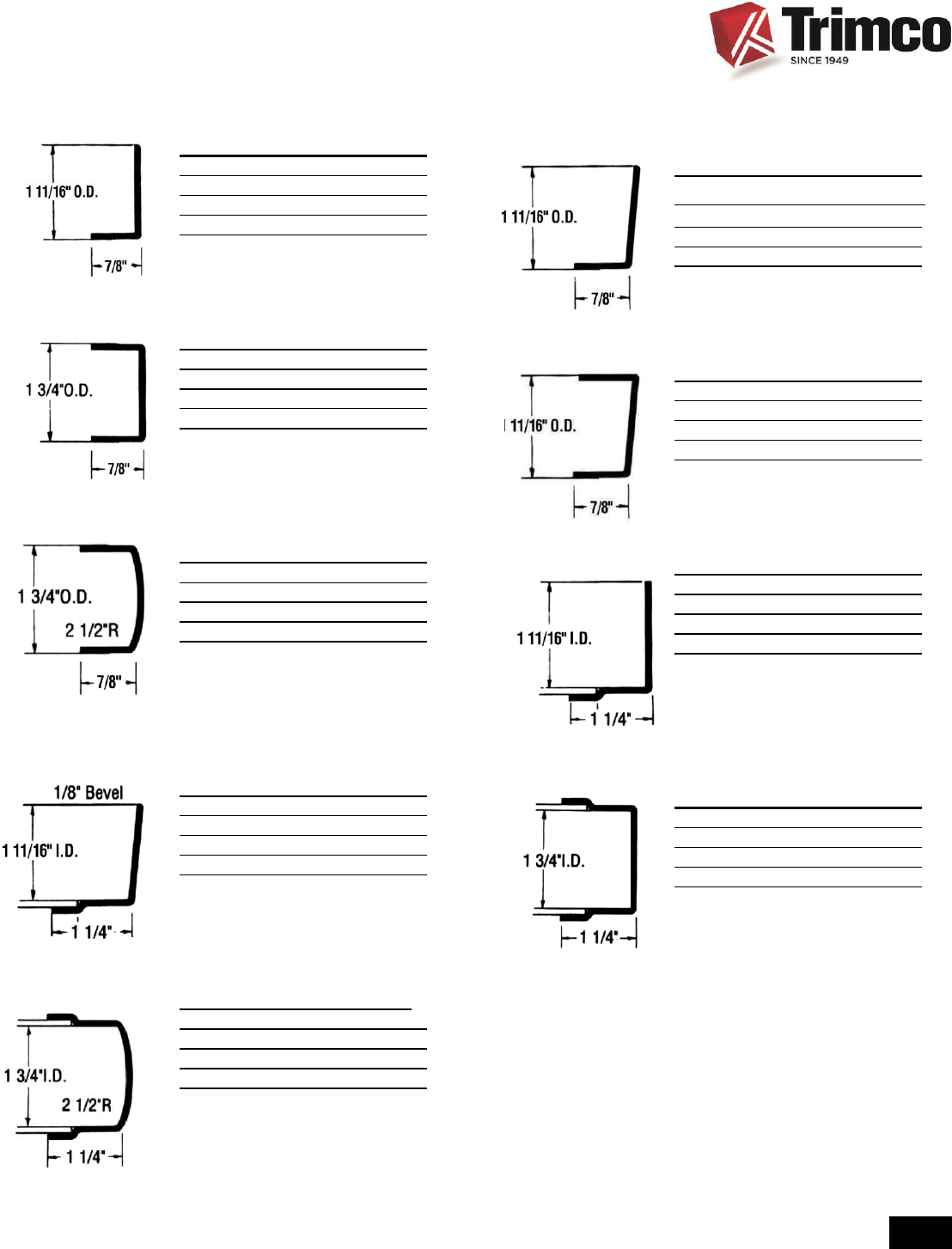

TRIMCO# KE31-1
OA 90º x up to 42”
OD 1-11/16”
RET 7/8”
BHMA J204
Br, Bz, SS
Edge Guard – for non-beveled
stile on single acting door. Mortise
prep shown, non-mortise available.
TRIMCO# KE33-1
OA 90º x up to 42”
OD 1-3/4”
RET 7/8”
BHMA J210
Br, Bz, SS
Edge Guard – for non-beveled
stile for double acting door. Mortise
prep shown, non-mortise available.
TRIMCO# KE34-1
OA DA x up to 42”
OD 1-3/4”
RET 7/8”
BHMA J212
Br, Bz, SS
Edge Guard – Double Acting. For
Radius stile on double acting
mortise prep shown, non-mortise
available.
TRIMCO# KE36-1
OA 93º x up to 42”
ID 1-11/16”
RET 1-1/4”
BHMA J202
Br, Bz, SS
Edge Guard – for stile beveled
1/8” to 2” on single acting door.
Non-mortise prep shown.
Mortise available.
TRIMCO# KE38-1
OA DA x up to 42”
ID 1-3/4”
RET 1-1/4”
BHMA J209
Br, Bz, SS
Edge Guard – for radius stile on
double acting door. Non-mortise
prep shown. Mortise available.
TRIMCO# KE32-1
OA 93º x up to 42” *
OD 1-11/16”
RET 7/8”
BHMA J205
Br, Bz, SS
Edge Guard – for stile beveled
1/8” on single acting door. Mortise
prep shown, non-mortise available.
TRIMCO# KE33-2
OA 93º x up to 42”
OD 1-3/4”
RET 7/8”
BHMA J210
Br, Bz, SS
Edge Guard – Beveled Door
Specify Mortise or Non-Mortise
TRIMCO# KE35-1
OA 90º x up to 42”
ID 1-11/16”
RET 1-1/4”
BHMA J201
Br, Bz, SS
Edge Guard – for non-beveled
stile on single acting door.
Non-mortise prep shown.
Mortise available.
TRIMCO# KE37-1
OA 90º x up to 42”
ID 1-3/4”
RET 1-1/4”
BHMA J207
Br, Bz, SS
Edge Guard – for non-beveled
stile on double acting door.
Non-mortise prep shown.
Mortise available.
G-9
ID = inside dimension, OA = overall size, OD = outside dimension,
RET = return width
EDGE GUARDS
NOTE: For angle edge guards, we suggest 1/16” less than
door thickness. For edge guards, specify: Handing,
Mortise, Non-Mortise, Bevel, Non-Bevel, No Cutouts.
Need Drawing on all Cutouts and Special Screw locations.
Holes are drilled approximately 3/8” from edge and spaced
six inches apart. Do not pre-drill doors. Include drawings
for all special screw patterns, cutouts.
*Over 42” by quote.
Tolerance on all dimensions +/- 1/16”.
