LogicMark 35911 900MHz DSSS Cordless Phone with Speakerphone User Manual FreedomAlert instructions v9 5 ENGLISH indd
LogicMark, LLC 900MHz DSSS Cordless Phone with Speakerphone FreedomAlert instructions v9 5 ENGLISH indd
Users manual
v9.5
Guardian Alert
English
INSTALLATION & OPERATION INSTRUCTIONS
Model #35911
FreedomAlert instructions v9-5 E1 1 10/24/2009 11:01:56 PM
2FreedomAlert® v9.5
PLEASE READ THIS MANUAL COMPLETELY AND SAVE IT FOR REF-
ERENCE.
Thank you for choosing FreedomAlert® – the most unique Personal Emergency
Response System in the world, and covered by both US and Canadian patents.
FreedomAlert is your personal link to Family, Friends, or Emergency Personnel
when needed. FreedomAlert allows you to program up to 4 numbers to be reached
at the push of a button.
With FreedomAlert - there are:
No Activation Costs
No Contracts
No Monthly Fees
Up to 4 user programmable contacts to call anytime. You can personalize the system
with a flick of a slide switch on the Base unit to:
Call up to 4 custom contacts
Call up to 4 custom contacts & then the 911 emergency operator
Or just the 911 emergency operator.
Because you are speaking through the pendant, FreedomAlert allows you to person-
ally communicate your emergency from anywhere in your home or yard. Emergen-
cies can happen anyplace. And just one button activation.
Traveling? Whether you are moving across town or going to visit the grandkids
across the country - just unplug your FreedomAlert from the phone jack, unplug
the power adaptor and throw it in your suitcase. When you get to your destination,
simply plug it into the local phone jack and power outlet. No additional program-
ming needed. And if you call 911, they will automatically have the local ‘caller
ID’ of that location.
Voice prompts provide easy set-up and testing.
Base unit comes with 4 rechargeable batteries to provide up to 24 hours of standby
power in the event of a power outage.
Need others to share the system in your home. No problem, you can add as many
additional Pendants to one Base unit as you wish.
FreedomAlert instructions v9-5 E2 2 10/24/2009 11:01:56 PM
v9.5 FreedomAlert® 3
TABLE OF CONTENTS
Overview of the FreedomAlert ................................................................2
Contents of FreedomAlert kit ..................................................................4
Limitation of Liability ..............................................................................5
Installing the Batteries ..............................................................................6
Connecting the Base Unit
Power Connection ...........................................................................8
Telephone Connections ...................................................................8
How to Handle VoIP & DSL ...........................................................9
Location of Base Unit ...................................................................10
Base Unit Options & Features
Friends List and Emergency Operator ..........................................10
Programming the Unit
Programming Telephone Numbers .............................................. 11
Telephone Number Programming Worksheet ...............................12
Adding Additional Pendants to the System ..................................14
Operating the FreedomAlert
Operating the Pendant ...................................................................15
Holding the Pendant ......................................................................16
Hanging Up ...................................................................................16
Lanyard, Belt Clip or Wrist-Strap .................................................16
Battery Check ................................................................................17
System Check ................................................................................18
Emergency Dialing Using the Panic Button .................................19
Operating Range ...........................................................................19
Water Resistance ...........................................................................20
Periodic Testing / Maintenance
Replacing Batteries .......................................................................19
Out of Service Storage or Transportation .....................................19
Troubleshooting Guide ...........................................................................21
Disclaimer / General Warnings & Precautions / Safety ......................25
Warranty ..................................................................................................28
Replacement Parts / Additional Accessories Available ........................29
Product Specifications ............................................................................30
FreedomAlert instructions v9-5 E3 3 10/24/2009 11:01:56 PM
4FreedomAlert® v9.5
Pendant
Rechargeable Li-Ion Special
Pendant Batteries - 2 Pieces
Screwdriver
Base Unit
AC Adapter
Phone Cord
Wrist / Walker / Wheelchair
strap
Belt Clip
Lanyard
Rechargeable AA Batteries - 4 Pieces
Contents of the FreedomAlert Kit:
The items below are included with your FreedomAlert .
FreedomAlert instructions v9-5 E4 4 10/24/2009 11:01:58 PM
v9.5 FreedomAlert® 5
Limitation of Liability
This page is a summary of the Disclaimer and Limited Warranty disclosed
in full at the end of this instruction manual.
The purchaser agrees by using this product to the terms and conditions below
and in the Disclaimer and Limited Warranty. The purchaser also agrees to
read and follow all instructions and warnings on the product and contained
within these Installation and Operation Instructions.
It will be the sole responsibility of the purchaser and user to assure that the
FreedomAlert product is installed and programmed properly, and that the unit
is used and maintained correctly. This includes, but is not limited to, periodic
use to assure that the FreedomAlert, including batteries, are in proper work-
ing order, that the unit is located in an appropriate location in the home, that
the electrical outlet is supplying power, and that the user has been educated
as to the operation and functionality of the product as a whole.
The FreedomAlert equipment is not designed or guaranteed to prevent any
loss or injury. This Limited Warranty and Disclaimer of Liability discussed
in full at the end of this instruction manual constitutes the terms of sale and
use of the FreedomAlert (and accessories) equipment, and if, notwithstanding
these terms of sale and use of the product, there should arise any liability on
the part of LogicMark LLC as a result of any cause whatsoever, regardless
of whether or not such loss, damage, or personal injury was caused by or
contributed to by LogicMark’s negligence to any degree or failure to perform
any obligation or strict products liability, such liability will be limited to an
amount paid by the Purchaser for the product.
Further, LogicMark has no obligation to assure that calls are made, received
or responded to, nor is LogicMark responsible for acts, or consequences of
the acts, of those responding.
LogicMark provides no monitoring service for this product. It is up to the
persons at the numbers called to respond in an appropriate manner.
FreedomAlert instructions v9-5 E5 5 10/24/2009 11:01:58 PM
6FreedomAlert® v9.5
Installing the Batteries
Pendant - small white batteries. The Pendant requires one of the white
Li-Ion (Lithium Ion) batteries at any given time. The pendant should be able
to run up to 2 months on a fully charged battery. The second battery is to be
charging in the Base unit when not being used in the Pendant. There is no
problem of over charging while in the base charger.
To install the battery - rotate the battery cap
90’ counter-clockwise. Pull the battery cap
straight up to remove. Install the battery
with the positive side up facing the cap.
Re-install the cap by aligning the cap as
per the diagram to the left. Then push the
cap back down and rotate 90’ clockwise to
lock in place.
When the battery is first installed into the
Pendant - you will hear an aubile announc-
ment of the battery status: “Battery is ok”;
“Battery is low” or “Replace battery now”.
If the battery is fully discharged when you
get your unit - you may not hear anything
- at which point you will need to charge
one of the batteries up overnight in the
base charger before you will be able to
use the system.
You can check the battery status at any
time by simply pushing the gray battery
test button on the back of the Pendant for a second.
NOTE: These white batteries are very special batteries that are not available
at your local store. See Specification on page 28 for more details, or contact
LogicMark to purchase replacement batteries.
FreedomAlert instructions v9-5 E6 6 10/24/2009 11:01:58 PM
v9.5 FreedomAlert® 7
Place the extra Pendant battery into the front charging area of the Base unit
so that it will charge and be ready when its time to swap the batteries around.
The LED on the right side
will glow red when charg-
ing and green when fully
charged.
Base - larger green batteries: The
Base unit requires 4 rechargeable
NiMH batteries. Unlike the Pendant
battery - these are readily available
in many retail stores. These are to
provide you with up 24 hours of bat-
tery back-up protection in the event
of a power failure. They will not be
damaged by continually charging in
the base unit.
When you first get your unit - these batteries will probably be low, or even
fully discharged - and will need to be charged overnight before being able
to provide you the 24 hour battery back-up protection.
Unscrew the cover on the bottom of the Base unit with the supplied screw-
driver. Install the 4 batteries as shown in the plastic engraving in the battery
compartment area. A few seconds after you install these, you might hear
“Running on battery power”. This will continue every 5 minutes for up to
30 minutes - then every 30 minutes until power is applied through the power
adaptor. (If you do not hear anything - this simply means your batteries will
need to be fully charged overnight. Or it may mean that you have already
plugged in the power adaptor - which is why it would not announce “Run-
ning on battery power”.
NOTE: the voice prompts of “battery is OK” etc only apply to the pendant
battery - not to the status of the base unit’s batteries. It is recommended that
you replace the base unit batteries with a new set of similar batteries every
two years.
FreedomAlert instructions v9-5 E7 7 10/24/2009 11:01:59 PM
8FreedomAlert® v9.5
Connecting the Base Unit
Power Connection. Simply plug in the AC Adapter in to the nearest elec-
trical outlet. Plug the other end of the AC power adapter into the Base unit.
You need to push the plug into the opening in the Base unit and twist 90’
clockwise to lock in place. To remove in the future, simply rotate 90’ coun-
ter-clockwise and pull outward.
Caution: Do not plug the AC Adapter into an outlet which is controlled
by a switch. The switch could accidentally be turned off, thus rendering
the Base unit inoperable after approximately 24 hour when the back up
batteries become discharged.

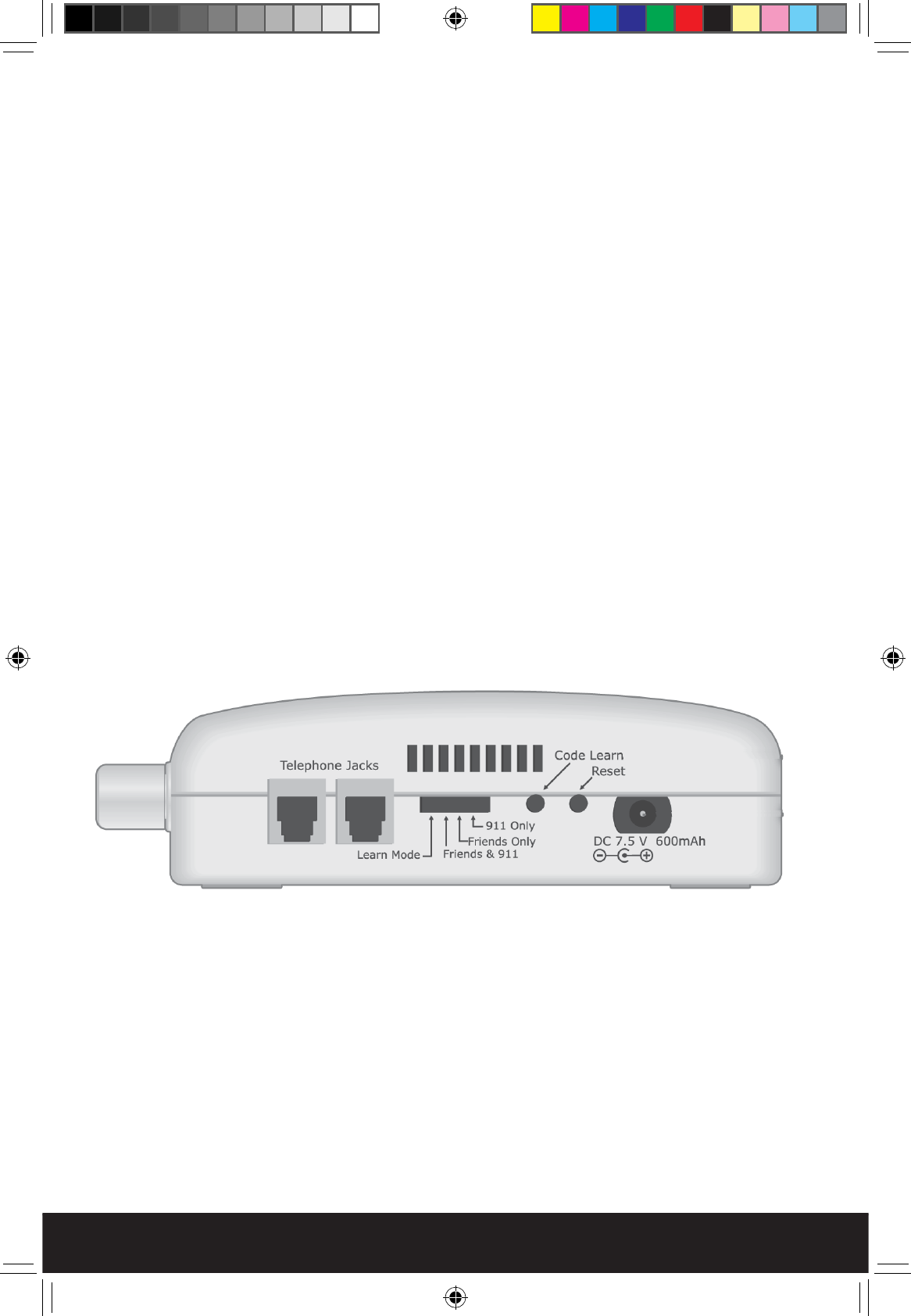

Telephone Connection. No special phone line or special service is required
to use your FreedomAlert. Your phone will work with your existing touch-
tone phone line and existing service. It works the same way as any cordless
phone. (Touch Tone service is required). Simply plug one end of the
telephone cord into your telephone jack in the wall, and the other end into
either one of the telephone jacks at the back of the Base unit. Note - you
will feel a ‘click’ when the jacks are fi rmly seated in the wall and the Base
unit jack recepticals.
If you need to plug a conventional telephone into same outlet used by the
FreedomAlert, simply plug the telephone into the spare jack at the back of
the Base unit.
FreedomAlert instructions v9-5 E8 8 10/24/2009 11:01:59 PM
v9.5 FreedomAlert® 9
How to Handle VoIP & DSL
If Your Phone System is VoIP: Voice-over-Internet Protocol (VoIP) is a
telephone service that sends your call over the Internet instead of through
the regular telephone system. FreedomAlert will work well on most VoIP
systems.
It is important (if you haven’t already done so) that you register your physi-
cal address with your VoIP provider and check to insure that 911 service is
available to you.
If you are unsure if your phone system uses VoIP, or to find if your VoIP system
is capable of calling 911, please contact your telephone service provider.
To install FreedomAlert, simply plug the product into the telephone jack (or
adaptor jack) that you would normally plug a regular telephone into.. Note,
if you have both a working traditional phone line AND a VoIP phone system
we recommend connecting the FreedomAlert system to the traditional phone
line.
For more information on using the FreedomAlert product with your VoIP
system, visit our website at www.LogicMark.com and view the FAQ under
the OUR PRODUCTS tab.
How to Handle DSL: If your home has DSL
service for your computer, you will need to
use a DSL filter in line with the FreedomAlert
OR IT WILL NOT WORK. This filter can be
obtained from a local electronics supplier or
your DSL service provider. See illustration
to the right.
To FreedomAlert
FreedomAlert instructions v9-5 E9 9 10/24/2009 11:01:59 PM
10 FreedomAlert® v9.5
Locating the Base Unit: For best results and longest range, locate the Base
unit in an area away from household appliances which could present electrical
interference. These include microwave ovens, televisions, electric mixers
or blenders, hairdryers, wifi routers or other cordless phones. Do not place
on a metal surface.
If more than one FreedomAlert is to be used in one home, it is recommended
that the Base units be located at least 10’ apart.
Base Unit Options and Features:
The FreedomAlert can work right out of the box with no programming. To
avoid programming any telephone numbers, simply slide the slide switch
at the back of the Base unit to the “911 Only” mode. Then, when you push
the blue button on the Pendant - you will be immediately connected to 911
emergency services. Note: If no Friend’s list phone numbers are entered or
a mistake was made while programming the Freedom Alert, it will automati-
cally default to 911 for each of the 3 slide switch settings.
If you choose not to program any Friends numbers, simply skip these next
steps on Programming Telephone Numbers and jump to page 14.
Friend’s List and Emergency Operator.
In addition to being able to call 911, you can also program up to 4 telephone
numbers of your choosing. You need not program all 4 - just one if you
like. Typically, you might have it programmed for 2 numbers - to call your
neighbor and if they are not available, to call a family member. Even if you
do program a number or more into the Base unit - you can still at any time
choose to call “911 Only” by just sliding the switch at the back of the Base
unit. Your numbers remain in memory and will be ready for use when you
FreedomAlert instructions v9-5 E10 10 10/24/2009 11:02:00 PM
v9.5 FreedomAlert® 11
slide the slide switch back to one of the “Friends” position. Note: Discon-
necting power or changing batteries does not erase the numbers.
How does the Base unit know when to go to the next number? The base
unit will first dial the first number in the “Friends” list. About 20 seconds
into the conversation, the Base unit will interrupt the call and announce
“This is an emergency call. If you want to continue this call - Press 5 now.
Otherwise, we will hang up and call the next contact or emergency opera-
tor”. At this point - the person that is being called must press the “5” key
on their telephone if they want to continue the call. If they don’t press “5”,
then the Base unit will assume they do not want to talk, or that it may be an
answering machine or a child - at which point it hangs up and goes on to the
next number. It is important to instruct the people you have programmed
into your “Friends” list to press “5” when they get this call, and when they
hear this message.
Programming the Base Unit
Programming Telephone Numbers:
If you choose to only contact 911 - and not a custom telephone number - skip
these next steps (and go to page 14) - and make sure your slide switch on the
back of the Base unit is set to “911 only”.
NOTES:
• As you program the system using your telephone on the same line as you
have established the call with in the previous steps, you will hear the base
unit speak each number that is pushed as you push them.
• Dial slowly and listen for each number to be announced. If you did not
hear the announcement - the number was not recorded.
• The FreedomAlert can learn telephone numbers up to 16 digits long, and
you do not have to program all 4 numbers
• Need to add a pause in your number sequence......simply insert a “”
where ever you need a 1 second pause. Insert “” if you need a 2
second pause.
• Remember to program a 1 before any long distance numbers.
• Remember to program any AREA CODE numbers if needed.
• Remember to program any PREFIX NUMBERS (like 9 to get an outside
line) if needed.
FreedomAlert instructions v9-5 E11 11 10/24/2009 11:02:00 PM
12 FreedomAlert® v9.5
Step 1: Write out the numbers you are wanting to program into the system.
Below we will refer to Number 1 as the first number, Number 2 as the second
number etc. Include area-codes and a 1 or 9 if they are needed for dialing.
Step 2: Establish a phone connection with a friend or family member - or
with your cell phone. This is done as follows. From your home phone (on
the same line as the FreedomAlert is hooked-up to) call your cell phone (or
a friend or neighbor if you don’t have a cellphone). Answer the phone (or
wait until your neighbor answers the phone and tell them just to wait a minute
while you program your system). Note: If you don’t do this step, then as
you begin to program the unit with your telephone - the phone company will
think you are trying to dial an outline number and will try to complete the
call. By having the phone line already in use with your cell phone or friend
or family member - you are now ready to program the FreedomAlert.
Step 3: With the phone connection established in Step 2, slide the slide switch
at the back of the Base unit to “Learn Mode”. You will hear an audible
announcement of this position.
Step 4: Determine how many contact numbers you want to enter. Follow
the next steps to enter these numbers.
NOTE: The “#” key (the key in the lower right corner of your phone keypad)
must be entered before each phone number as shown in the work sheet on
the next page - and then pressed 4 times to exit out of programming.
Telephone Number Programming Worksheet:
Note: You will be using your telephone keypad on an open telephone line to
program the emergency call telephone numbers. The base will speak each
number that is pushed on the telephones keypad.
Dial Slowly – listen for each number to be announced, if you did not hear
the voice announcement – the number was not recorded.
The Freedom Alert can learn telephone numbers up to 16 digits long and you
DO NOT have to program all 4 contact telephone numbers. When you have
finished entering the telephone numbers that you want, skip to step 9.
FreedomAlert instructions v9-5 E12 12 10/24/2009 11:02:00 PM
v9.5 FreedomAlert® 13
1. Completely fill out this worksheet before starting to program telephone
numbers.
2. Call a friend or family member on your telephone.
3. Slide switch to LEARN MODE [voice prompt – Learn Mode]
4. Enter: 1234 [voice prompt – one, two, three, four, programming mode]
5. (Enter “#” then the 1st phone number) :
# __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
[voice prompt – numbers as you enter them]
Skip to step 9 to Exit Programming, or
6. (Enter “#” then the 2nd phone number)
# __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
[voice prompt – numbers as you enter them]
Skip to step 9 to Exit Programming, or
7. (Enter “#” then the 3rd phone number) :
# __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
[voice prompt – numbers as you enter them]
Skip to step 9 to Exit Programming, or
8. (Enter “#” then the 4th phone number) :
# __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
[voice prompt – numbers as you enter them]
9. Enter: #### [voice prompt – end of programming]
10. Slide switch back to Friends & 911, Friends Only or 911 Only
11. Programming complete!
FreedomAlert instructions v9-5 E13 13 10/24/2009 11:02:00 PM
14 FreedomAlert® v9.5
Adding Additional Pendants to the System.
FreedomAlert comes with one Pendant. If you want to add addtional pendants
to your system - follow the directions here. If not, skip this section.
The Pendant’s unique ID code should already be learned into the Base unit
when it came from the factory. You can add additional Pendants (up to 16)
to the system by simply teaching each pendant’s ID code to the Base unit.
To program a new Pendant to the Base unit:
On the Base Unit:
1. Push and release the RED Code Learn button on the back of the base
unit. You will hear a voice prompt “Synchronizing Mode”
On the Pendant:
2. PUSH the Gray Battery Test button and then IMMEDIATELY push the
Blue Panic button –HOLD both buttons until you hear “Synchronizing
Mode” from the pendant - then release both buttons on the pendant.
• If “Base and Pendant out of Range” is heard from the pendant, STOP
- wait 30 seconds and start at step #1 again.
3. When Synchronizing has been successful you will hear “All Systems
are OK” and then it will announce the call setting that the base is set
to – Friends 911 Mode, Friends Only or 911 Only.
• If “Base and Pendant out of Range” is heard from the Base or Pen-
dant, STOP - wait 30 seconds and start at step #1 again.
Notes:
• You have less than 10 seconds after pushing the RED Code Learn button
on the base unit to get the pendant to enter “Synchronizing Mode”.
• Teaching additional pendants does not erase previously learned pen-
dants.
• The base unit will automatically exit the pendant learning mode after
several seconds.
• If you hear the voice prompt “Base and Pendant Out of Range” an error
has occurred, wait 30 seconds for the base to reset and repeat steps 1
& 2.
FreedomAlert instructions v9-5 E14 14 10/24/2009 11:02:00 PM
v9.5 FreedomAlert® 15
At a later point in time, you might want to erase your previously learned
pendnats. You can erase all previously learned pendants by simply holding
down the red Code Learn button at the back of the Base unit for 8 seconds.
you will hear the confirmation of “Previous Pendant Codes Erased” from
the Base unit. After that, you can program a new pendant to the base unit
following the steps above as desired.
Operating the FreedomAlert:
Operating the Pendant. The Pendant is simple in operation - having one
main Blue button - and a smaller Gray button on the back.
The Blue button on the front is the main button to push for a full second to
initiate a call. Once this button is pushed the call proceeds forward to the
‘Friends’ list and or 911 depending on the slide switch setting on the back
of the Base unit.
FreedomAlert instructions v9-5 E15 15 10/24/2009 11:02:00 PM
16 FreedomAlert® v9.5
Holding the Pendant. At this
point - you simply hold the Pen-
dant as you would any normal
telephone receiver - close to the
head so that you can hear the
other person being called - and
they can hear you speaking.
Hanging -Up. If you choose to cancel the call once initiated - you can simply
push the Gray button on the back for a second to cancel the call and you will
hear “Hanging up”. If at the end of the conversation, the other side hangs-
up, the system will hang-up automatically over the next 60 to 90 seconds,
or you can push the gray button to end the call immediately.
Lanyard, Belt Clip or Wrist Strap.
FreedomAlert comes with 3 accessories for carrying the pendant . You can
carry the Pendant using the Lanyard. You can slide the Pendant in the Belt
Clip, or you can use the Wrist-strap as a means to carry the Pendant. Note
that the Wrist-Strap can also be used as a way to attach the Pendant to a wheel
chair. Choose the method that suits you best.
The drawing at the right
shows the method of attach-
ing the lanyard to the Pen-
dant.
FreedomAlert instructions v9-5 E16 16 10/24/2009 11:02:01 PM
v9.5 FreedomAlert® 17
Battery Check:
The FreedomAlert has a built-in battery tester. When you press the Gray
button at the back of the Pendant, a voice announcement will inform you of
the battery condition. One of the following messages will be heard:
“Battery is ok.”
Check the battery condition twice a month.
“Replace battery soon.”
The battery should be replaced within the next week.
“Replace battery now.”
The battery should be replaced now.
To replace the battery - simply exhange the battery in the Pendant with the
battery that has been charging in the Base unit.
Please note: If there is no response after pressing the button for one second
or more, the battery is dead and must be replaced immediately.
The battery should be tested at least twice a month along
with the System Check outlined on the next page.
When it gets to the point after a few years that the pendant battery only lasts
3 or 4 weeks before needing to be charged - it is then time to replace both
the Pendant batteries. Note: This is a very unusual battery not available at
most outlets. Order replacement batteries from LogicMark as directed on
page 27.
FreedomAlert instructions v9-5 E17 17 10/24/2009 11:02:01 PM
18 FreedomAlert® v9.5
System Check:
The button on the bottom of the pendant case which is used to perform the
BATTERY CHECK, will also perform a SYSTEM CHECK. Press and hold
this button for more than four (4) seconds. One of the following announce-
ments will be made.
“System check, all systems are ok.”
This confirms the following:
Battery status.
The Pendant is working.
The Base unit is working.
The Base unit is connected to a working phone line.
The Pendant is within range of the Base unit.
“System cannot detect dial tone.”
The Base unit is not connected to the phone line or can not get a
dial tone for some reason.
“Base and Pendant out of range.”
This confirms one or more of the following:
The Pendant has malfunctioned.
The Base has malfunctioned.
The Pendant and Base unit are not communicating with each other
or are out or range.
If you receive a failure notification, please refer to the TROUBLESHOOT-
ING guide on page 21 of this manual to determine the cause.
This testing feature is very useful - allowing you to confirm that the
system has coverage from all parts of your home. Simply walk to the
various parts of your home and push the Battery Check / System Check
button until you hear the dial tone. You can then relase the button, and
you will hear “System Check. All Functions are OK” voice prompt, or
“Pendant and Base out of Range”.
FreedomAlert instructions v9-5 E18 18 10/24/2009 11:02:01 PM
v9.5 FreedomAlert® 19
We highly recommend that you perform this System Check at least
twice a month to confirm that your system is working properly
and that the pendant and base unit are in good communication
and that the base unit can get a dial tone. It is also recommended
to perform this system check after a lightning storm that could
damage the base unit which is plugged into the phone line.
Emergency Dialing Using the Pendant:
In the event of an emergency, press the blue panic button on the front of the
Pendant. When this button is pressed for more than 1 second, the Freedom-
Alert will automatically start dialing from the list of numbers.
If set to the “911 only” mode, then the 911 emergency operator will be called.
When the emergency response operator answers, speak in a normal voice
and you will be heard.
If set to the “Friends only” mode - the system will dial the first telephone
number in the list. If no one is available for that number, it will dial the
second number, etc - until it gets to the end of the list. It will then repeat
from the top of the list.
If set to the “Friends and 911” mode - the system will dial the first telephone
number in the list. If no one is available for that number, it will dial the
second number, etc - until it gets to the end of the list. After that, it will then
dial the 911 emergency operator.
Operating Range:
The operating range of your FreedomAlert will depend on many factors in-
cluding intervening walls, electrical interference or various appliances such as
vacuum cleaners, microwave ovens, mixers, coffee grinders, hair dryers and
other sources of electrical noise around the house. The system should cover
your typical home and a short distance into the front, side and back yards.
Perform the System Check on page 17 to determine the boundries of your
system to know the limits of operation in your home and surroundings.
FreedomAlert instructions v9-5 E19 19 10/24/2009 11:02:01 PM
20 FreedomAlert® v9.5
Water Resistance:
FreedomAlert will resist occasional splashes from water - i.e as in the shower.
However, it should never be submerged or exposed to water continuously.
Periodic Testing / Maintenance
It is highly recommended that you preform a full System Check (see page
18) at least twice a month. This will confirm that the Pendant battery is in
good condition and that the Base unit is able to get a dial tone.
Replacing Batteries: Replace the Base unit batteries every 2 years - or as
needed. Be sure to purchase NiMH AA batteries with 1,500 mAh or greater
capacity. A set of batteries in good condition and fully charged will supply
24 hours of back-up in the event of a power outage. You can test this by un-
plugging the AC Adapter and hearing the voice prompts. The Base unit will
announce “Running on battery power” once every 5 minutes for 30 minutes
- then once very 30 minutes until the batteries are depleated.
Out of Service Storage or Transportation: When storing the Base unit
-or taking it on a trip - or sending it in for repair - it is recommended that
you remove one or all of the AA rechargable batteries from the base unit so
that the “Running on battery power” announcement for the next 24 hours
doesn’t drive the postmaster crazy. Remember to re-install the 4 batteries
in the Base unit when it is put back in service.
FreedomAlert instructions v9-5 E20 20 10/24/2009 11:02:01 PM
v9.5 FreedomAlert® 21
TROUBLESHOOTING GUIDE
What if I can’t get the FreedomAlert to work?
Step 1 – Push the gray RESET button with a pen at the back of the base
unit (next to the power cord). Check the system. If it is now working skip
the remaining steps.
Step 2 – Check the PENDANT.
What to do:
Press the Gray Battery Test / System Check button on the
back of the Pendant.
What to expect:
A voice should announce the condition of the battery.
A light on the front of the Pendant will come on.
If nothing happens, the most likely cause is that the battery is dead or has
been installed backwards.
If the Pendant says “Battery ok”, go on to step 3.
Step 3 – Check the connections on the BASE UNIT
What to do:
Make sure the AC Adapter is plugged into a live AC outlet
and into the Base unit.
What to expect:
The Red POWER light will be on if the Base unit is connected
to power.
If the POWER light is on and the Base unit is connected to a working phone
line, go on to step 3.
Step 4 – Make sure the Pendant and the Base unit are communicating
with each other.
Background information: The Pendant and the Base unit are connected by
FreedomAlert instructions v9-5 E21 21 10/24/2009 11:02:01 PM
22 FreedomAlert® v9.5
a wireless radio link. They must be synchronized to work together. They
should have already been synchronized at the factory, but resetting this is
simple.
What to do:
Follow the steps on page 14: Adding Additional Pendants to the
System
Now perform the System Check test again (page 18) to make sure all is
well.
If your FreedomAlert is still not working, call our TECH SUPPORT
department at 703-934-7934 (option 2 for customer service).
FreedomAlert instructions v9-5 E22 22 10/24/2009 11:02:01 PM
v9.5 FreedomAlert® 23
Information The FCC Wants You To Know:
FCC ID: TYD35911
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Privacy of communications may not be ensured when using this prod-
uct.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not used in accordance
with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Canada IC: 8471A-35911 This Class B digital apparatus complies with
Canadian ICES-003.
As if that wasn’t enough, the FCC also wants you to know:
a) This equipment complies with Part 68 of the FCC rules and the requirments
adopted by the ACTA. On the bottom of this equipment is a label that contains,
among other information, a product identifier in the format US:AAAEQ##TXXXX.
If requested, this number must be provided to the telephone company.
b) An applicable certification jacks Universal Service Order Codes (USOC) for the
equipment is provided (i.e. RJ11C) in the packaging with each piece of approved
terminal equipment.
c) A plug and jack used to connect this equipment to the premises wiring and tele-
FreedomAlert instructions v9-5 E23 23 10/24/2009 11:02:01 PM
Warning: Changes or modifications to this unit not expressly approved by party
responsible Logic Mark, could void the user’s authority to operate the equipment.
24 FreedomAlert® v9.5
phone network must comply with the applicable FCC Part 68 rules and requirments
adopted by the ACTA. A compliant telephone cord and modular plug is provided
with this product. It is designed to be connected to a compatible modular jack that
is also compliant. See installation instructions for details.
d) The Ringer Equivalent Number (REN) is used to determine the number of
devices that may be connected to a telephone line. Excessive RENs on a telephone
line may result in the devices not ringing in response to an incoming call. In most
but not all areas, the sum of the RENs should not exceed five (5.0). To be certain
of the number of devices that may be connected to a line, as determined by the total
RENs, contact the local telephone company. Since our product has no ringer - the
REN is on the order of 0.2.
e) If this equipment (model 35911) causes harm to a telephone network, the tele-
phone company will notify you in advance that temporary discontinuance of service
may be required. But if advance notice isn’t practical, the telephone company will
notify the customer as soon as possible. Also, you will be advised of your right to
file a complaint with the FCC if you believe it is necessary.
f) The telephone company may make changes in its facilities, equipment, opera-
tions or procedures that could affect the operation of the equipment. If this hap-
pens the telephone company will provide advance notice in order for you to make
necessary modifications to maintain uninterrupted service.
g) Should you experience trouble with this equipment, please contact LogicMark at
703-934-7934 for repair or warranty information. If the equipment is causing harm
to the telephone network, the telephone company may request that you disconnect
the equipment until the problem is resolved.
h) Please follow instructions for repairing if any (e.g. battery replacement section);
otherwise do not alternate or repair any parts of device except specified.
i) Connection to party line service is subject to state tarrifs. Contact the state
public utility commission, public service commission or corporation commission
for information.
j) NOTICE: If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of this model 35911 does not disable your
alarm equipment. If you have questions about what will disable alarm equipment,
consult your telephone company or a qualified installer
FreedomAlert instructions v9-5 E24 24 10/24/2009 11:02:01 PM
v9.5 FreedomAlert® 25
General Warnings And Precautions!
Warning!
- LogicMark, LLC DOES NOT represent this unit to be waterproof. To
reduce the risk of damage to the unit, DO NOT expose the pendant or
base unit to prolonged water, rain or moisture.
- FreedomAlert is intended for residential use only. It may not work
properly if connected to some commercial phone systems.
- FreedomAlert works with tone dialing systems only. Do not use if you
have pulse dialing only.
- This product and/or accessories may contain lead, a chemical known
to the State of California to cause birth defects or other reproductive
harm.
Note: FreedomAlert does not interfere with pacemakers.
Important Safety Instructions:
When using your FreedomAlert , please observe the following instruc-
tions in order to reduce the risk of personal injury, electrical shock, or
fire.
1. Save these instructions for future reference.
2. Read all instructions carefully and make sure you understand them.
3. Unplug this product from the electrical outlet before attempting to
clean it. Do not use any liquids for cleaning either the Base unit or
the Pendent. Use only a soft damp cloth.
4. Do not locate the Base unit near any source of water, such as in the
bathroom, near a sink in the kitchen, or the like.
5. Do not open the unit, (except the battery compartments as directed
in these instructions) on the Pendant for any reason. Any attempt to
open the case of the Base unit or the Pendant will void the warranty
and may damage the unit or prevent it from working properly.
6. Do not use any power source other than that supplied from LogicMark,
LLC specifically for this product. Use of any other power source
could damage your unit or make it unsafe.
7. Always dispose of batteries properly. Never thrown batteries into a
fire. Consult your local ordances for proper battery safety.
8. If your unit becomes damaged do not attempt to repair it. Please
return it to LogicMark, LLC for service or replacement as stipulated
on the next page under “ONE YEAR LIMITED WARRANTY”.
FreedomAlert instructions v9-5 E25 25 10/24/2009 11:02:01 PM
26 FreedomAlert® v9.5
LogicMark Disclaimer and Limited Warranty
DISCLAIMER: LogicMark, LLC. will not be responsible for the improper
use of FreedomAlert, nor will it be responsible for failure resulting from the
use of other equipment connected to the same phone line. We will not be
responsible for the quality of the phone line or the reliability or quality of
the phone service with which FreedomAlert is used. LogicMark, LLC. will
not be responsible for the installation of the FreedomAlert. It will not be
responsible for the improper use or abuse of this unit.
COMMUNICATION AND RESPONSE LIMITATIONS: Purchaser
acknowledges that signals which are transmitted over telephone lines, or
other modes of communication pass through communication networks wholly
beyond the control of LogicMark LLC and are not maintained by LogicMark
LLC, and, therefore, LogicMark LLC shall not be responsible for any equip-
ment or communication failure which prevents transmission signals from
reaching your contact list including emergency 911 operators or damages
arising therefrom. Purchaser acknowledges that LogicMark LLC provides
no response to its FreedomAlert equipment. The equipment is designed
to communicate with the contact list of your choice as well as emergency
911 operators and LogicMark LLC is not and shall not be responsible for
ambulance, police or other emergency response time or that any response
will be provided by the anyone on your contact list including the emergency
911 response center.
ELECTRIC AND TELEPHONE SERVICE IS NECESSARY AND
PURCHASER’S RESPONSIBILITY: Purchaser acknowledges that the
FreedomAlert equipment (including optional Battery Back-up accessory)
plugs into a standard telephone jack and communicates over standard tele-
phone lines using two way voice communication. You must use a special
adaptor (not supplied) for the equipment to work with VOIP Internet transmis-
sion. VOIP Internet will not work when your electricity service is interrupted
unless you have battery back up for your computer. Purchaser acknowledges
that the FreedomAlert equipment requires 110 Volt AC power and electrical
outlets and receptacles, telephone hook-ups, RJ11 Block or equivalent, all
of which is Purchaser’s responsibility to obtain and maintain.
TESTING AND SERVICE OF FreedomAlert EQUIPMENT: The
FreedomAlert equipment, once installed, are in the exclusive possession
FreedomAlert instructions v9-5 E26 26 10/24/2009 11:02:02 PM
v9.5 FreedomAlert® 27
and control of the Purchaser, and it is Purchaser’s sole responsibility to test
the operation of equipment and request warranty service if the equipment is
under warranty.
LIMITED WARRANTIES OR REPRESENTATIONS. LogicMark LLC
does not represent nor warrant that the FreedomAlert system will prevent any
loss, damage or injury to person or property, or that the personal emergency
alert system will in all cases provide the protection for which it is installed
or intended. Purchaser acknowledges that LogicMark LLC is not an insurer,
and that Purchaser assumes all risk for loss or injury to Purchaser’s property
or person. LogicMark LLC has made no representation or warranties, except
those expressed herein and hereby disclaims any warranty of merchantability
or fitness for any particular use.
PURCHASER’S EXCLUSIVE REMEDY: Purchaser’s exclusive remedy
for LogicMark LLC’s default hereunder is to require LogicMark LLC to
repair or replace, at LogicMark LLC’s option, any equipment or part of the
personal emergency alert system which is non-operational during LogicMark
LLC’s warranty period.
LIMITATION OF LIABILITY: The FreedomAlert equipment is not
designed or guaranteed to prevent any loss or injury. This Limited War-
ranty and Disclaimer of Liability constitutes the terms of sale and use of the
FreedomAlert (and accessory) equipment, and if, notwithstanding these terms
of sale and use of the product, there should arise any liability on the part of
LogicMark LLC as a result of any cause whatsoever, regardless of whether
or not such loss, damage, or personal injury was caused by or contributed
to by LogicMark LLC’s negligence to any degree or failure to perform any
obligation or strict products liability, such liability will be limited to an
amount paid by the Purchaser to LogicMark LLC for the product, or to the
sum of $300.00, whichever is greater.
FreedomAlert instructions v9-5 E27 27 10/24/2009 11:02:02 PM
28 FreedomAlert® v9.5
ONE YEAR LIMITED WARRANTY
LogicMark, LLC warrants to the original consumer/purchaser that this prod-
uct shall be free of defects in material and workmanship under normal use and
circumstances for a period of one (1) year from the date of original purchase
for use. When the original consumer/purchaser returns the product pre-paid
to LogicMark, LLC; 8625 Hampton Way; Fairfax Station, Virginia 22039,
USA within the warranty period, and if the product is defective, LogicMark,
LLC will at its option repair or replace such.
This warranty shall constitute the sole liability of LogicMark, LLC concern-
ing the product. LogicMark, LLC expressly disclaims all other warranties
INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF MER-
CHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NO
PERSON, FIRM, OR CORPORATION IS AUTHORIZED TO ASSUME
FOR LogicMark, LLC. ANY OTHER LIABILITY IN CONNECTION WITH
THE SALE AND USE OF THE PRODUCT. LogicMark, LLC and agents and
distributors will bear no liability whatsoever for incidental or consequential
damages or charges of any kind.
Some states do not allow the exclusion or limitation of incidental or con-
sequential damages, so the above disclaimer regarding incidental or conse-
quential damages may not apply to you.
This warranty is void if the product has been damaged or tampered with or
if the product or any such parts have been opened. In all cases of damage
during shipment, a claim must be filed with the shipping carrier and not with
LogicMark, LLC.
This warranty gives you specific legal rights; you may also have other rights
which vary from state to state.
OUT OF WARRANTY REPAIRS
If the warranty period has expired or if you are not the original owner of the
product, LogicMark, LLC will at its option either (1) replace this product with
a functionally similar (but not necessarily identical) refurbished product or
(2) repair the original product and return it to the original consumer/purchaser
after payment of repair/replacement charges has been received.
FreedomAlert instructions v9-5 E28 28 10/24/2009 11:02:02 PM
v9.5 FreedomAlert® 29
Replacement Parts / Optional Accessories:
Lock Box
Part #30913 $34.95
Rechargable Li-Ion Special
Pendant Batteries 2 Pieces
Part #35917 $15.00 Rechargable AA Batteries
4 Pieces
Part #35918 $15.00
Extra Pendants
Part #35915 $119.95
All prices are in US dollars and include shipping and handling to the 50 United
States. Add an additional $7.00 for Canadian shipments. Orders can be sent in
with a check or credit card information. Include your full mailing address and
telephone number. Orders can also be placed via telephone at 1-800-519-2419.
Always include your pendant and base serial # (on the bottom of the case)
when ordering. Or have it ready when you call in.
FreedomAlert instructions v9-5 E29 29 10/24/2009 11:02:02 PM
30 FreedomAlert® v9.5
Product Specifications:
RF Characteristics: 900 Mhz Spread Spectrum
Operating Range Covers your typical American house
and into the front, back, and side yards.
Power Adapter Ratings Input: 110 VAC
Output: 7.5 volts DC - 500 mA
Base Unit Power Consumption 50 mA in standby mode
200 mA when dialing
Back-up Battery Supply AA NiMH 1,600 mAh batteries
(4 pieces). Should be replaced every 2
years.
Back-up Operation Duration 24 hours with fresh batteries
Base Unit Fuse 5 x20 mm fuse. 250v, 0.5 amp
(Radio Shack Part #270-1061)
Dialing Style Touch-Tone only
Telephone Number Length 16 digits maximum
Telephone Numbers Can learn up to 4 numbers plus the 911
emergency number.
Pedant water-resistance Water Spray Standard IPX4 (shower only).
Number of Pendants/Base Unit Up to
16 Pendants can be programmed to one
Base unit.
Pendant Batteries 3.6 (or 3.7) volt 500 mAh Li-Ion (2 pieces)
battery size 10440.
Should be replaced every 2 years
Purchase replacements from LogicMark
Operating Temperature 32˚ to 120˚ F. (0˚ to 49˚ C).
FreedomAlert instructions v9-5 E30 30 10/24/2009 11:02:02 PM
v9.5 FreedomAlert® 31
FreedomAlert instructions v9-5 E31 31 10/24/2009 11:02:02 PM
32 FreedomAlert® v9.5
8625 Hampton Way;
Fairfax Station, Virginia 22039
Tel: 1-703-934-7934
Toll Free: 1-800-519-2419
Fax: 1-703-934-7935
www.LogicMark.com
©2009 LogicMark, LLC
FreedomAlert is covered by the following patents:
US # 5,521,582 & Canadian # 2,080,921
Other patents pending
FreedomAlert instructions v9-5 E32 32 10/24/2009 11:02:02 PM
