CaretakerSentry Quick Install Guide

Instructions for Installing Your New Personal Emergency Response System

Equipment Reference Guide

LogicMark Disclaimers and Limited Warranty

COMMUNICATION AND RESPONSE LIMITATIONS: Purchaser acknowledges that signals which are transmitted over telephone lines, or other modes of communica-

tion pass through communication networks wholly beyond the control of LogicMark LLC and are not maintained by LogicMark LLC, and, therefore, LogicMark LLC shall

not be responsible for any equipment or communication failure which prevents transmission signals from reaching your contact list including emergency 911 operators

or damages arising therefrom. Purchaser acknowledges that LogicMark LLC provides no response to the System’s equipment. The equipment is designed to com-

municate with the a central station of your choice and LogicMark LLC is not and shall not be responsible for ambulance, police or other emergency response time or that

any response will be provided by the central monitoring station.

TESTING AND SERVICE OF THIS EQUIPMENT: The equipment, once installed, are in the exclusive possession and control of the Purchaser, and it is Purchaser’s sole

responsibility to test the operation of equipment and request warranty service if the equipment is under warranty.

PURCHASER’S EXCLUSIVE REMEDY: Purchaser’s exclusive remedy for LogicMark LLC’s default hereunder is to require LogicMark LLC to repair or replace, at LogicMark

LLC’s option, any equipment or part of the personal emergency alert system which is non-operational during LogicMark LLC’s warranty period.

LIMITATION OF LIABILITY: This equipment is not designed or guaranteed to prevent any loss or injury. This Limited Warranty and Disclaimer of Liability constitutes the

terms of sale and use of the equipment, and if there should arise any liability on the part of LogicMark LLC as a result of any cause whatsoever, regardless of whether

or not such loss, damage, or personal injury was caused by or contributed to by LogicMark LLC’s negligence to any degree or failure to perform any obligation or strict

products liability, such liability will be limited to an amount paid by the Purchaser to LogicMark LLC for the product, or to the sum of $350.00, whichever is greater.

For warranty information, see your delaer for details.

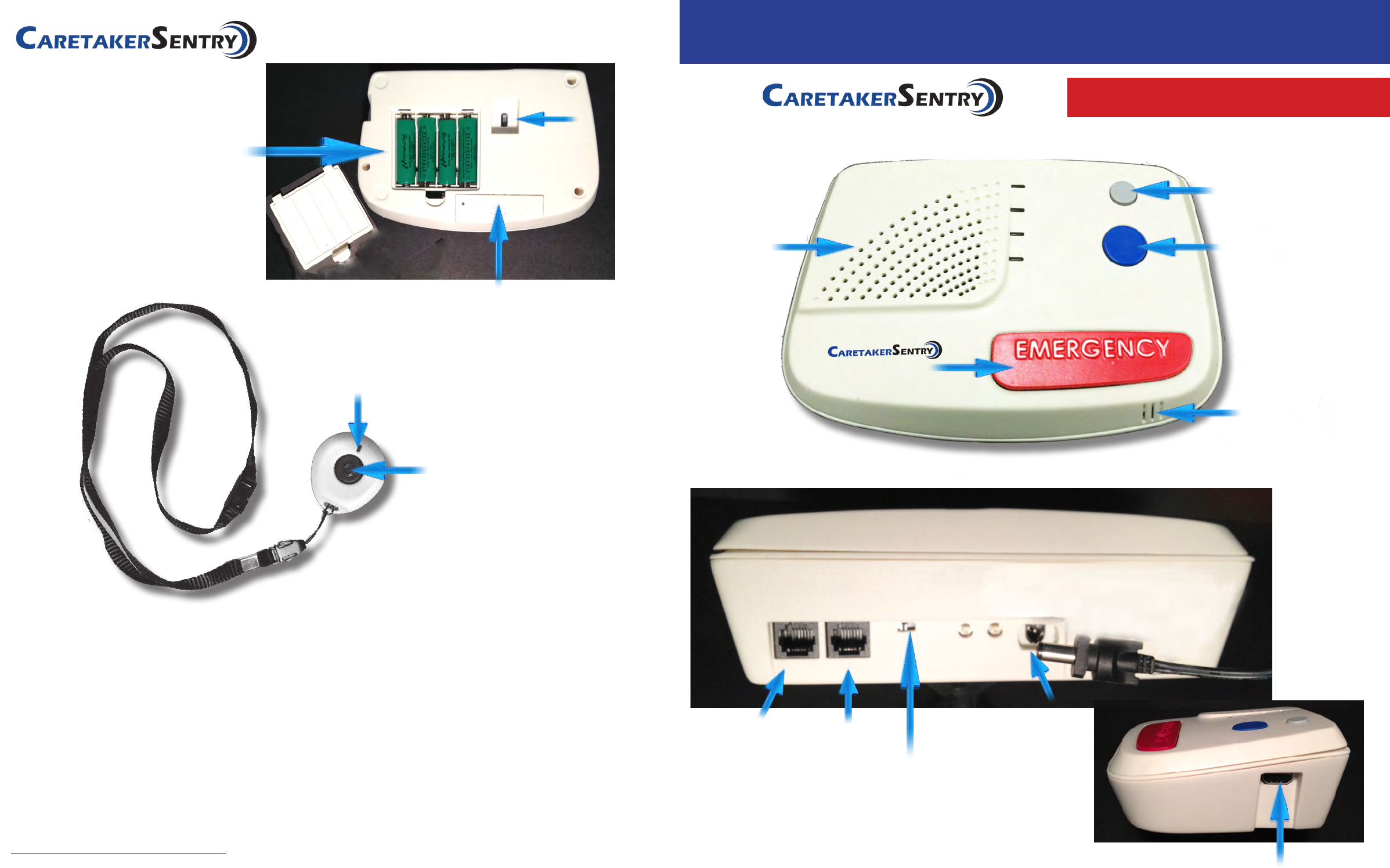

Backup Batteries

Base Bottom View

Master ON/OFF

Switch

DECT Pendant Battery Charging Port (for

optional accessrory)

Pendant Battery Charge Status LED

Pendant

Part #40915

Gray Emergency Button

2 Second Push

Red Status LED

Breakaway

Feature

Lanyard

Base Top View

Part #40914

Red Emergency button

Phone Connection

(Blue)

Info (Green)

Power (Red) Blue CareTaker button

Microphone

Battery Backup

Status (Yellow)

Speaker

Cancel (1 second)

System Check (8 seconds)

Base Back View

Telephone Jacks

Line IN To House

Phone

Programming Switch

Programming Mode “Emergency Call Mode”

Normal Operation

Reset

Power DC 7.5

800 mAh

Code Learn

(Red)

Cell Accessory Plug

Base Side

View

Caretaker Sentry Base Unit - Model 40914

FCC ID: TYD-CS40914

IC ID: IC: 8471A-CS40914

Caretaker Sentry Standard Pendant - Model 40915

FCC ID: TYD-CS40915

IC ID: IC: 8471A-CS40915

Plug Telephone Line and

Power Cord into Wall Jacks

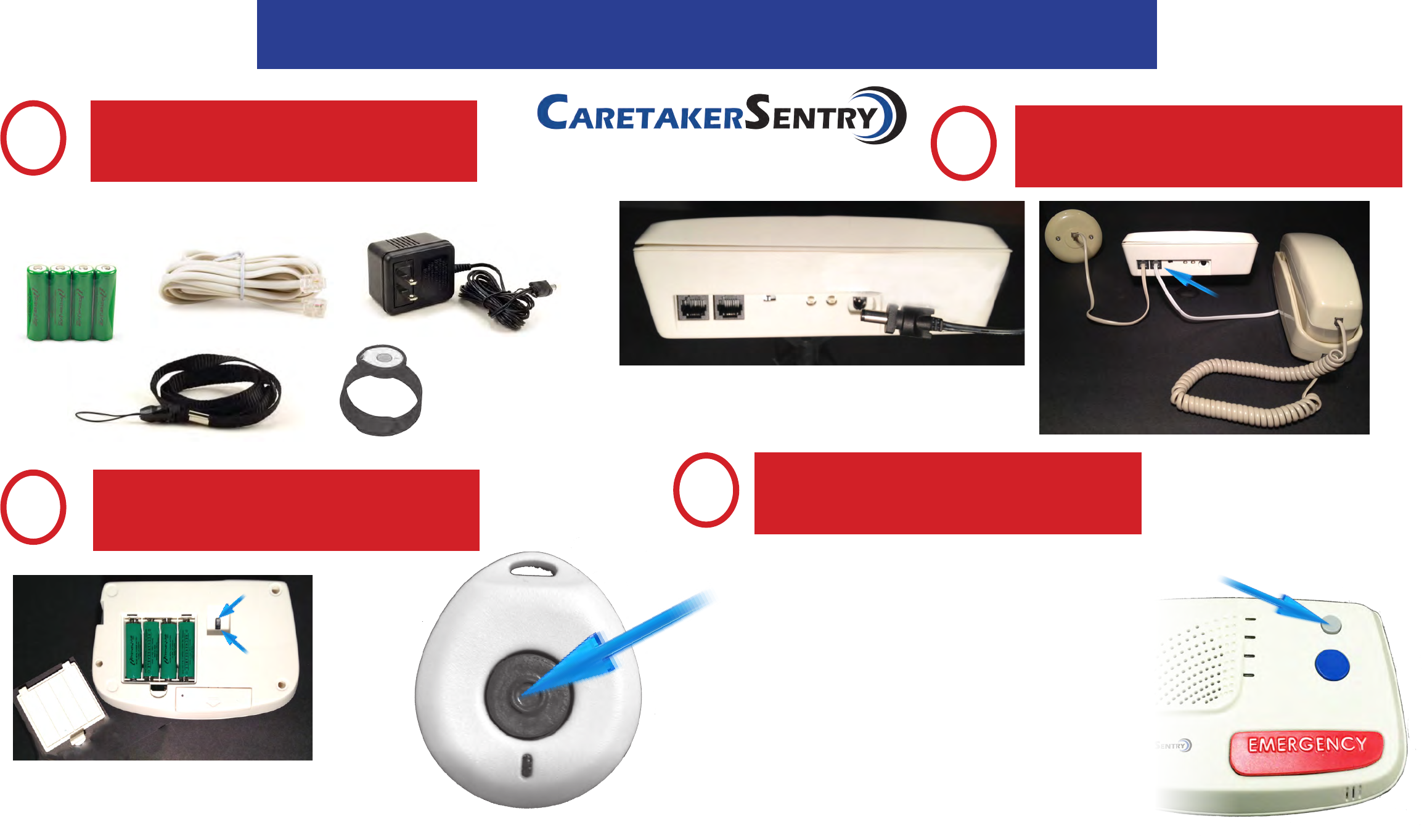

CaretakerSentry Step-by-Step Installation

Place Green Rechargeable batteries in the

compartment on the bottom of the base

unit. Make sure to turn ON/OFF switch

to ON. You will hear the announcement

“Running on Battery Power.” Unit will

do so until the AC Adapter pwer supply

is plugged in.

Place Batteries in Unit.

Confirm Accessories in Kit

Plug the AC Adapter

power cord into the power

jack and twist right to lock.

4 Rechargable AA

Batteries

Telephone Cord

Wrist strap

AC Adapter

Lanyard

Test the Unit

Place call to Emergency Operator:

a. Push GRAY EMERGENCY button for 2 seconds on Pendant (RED LED

on the pendant should turn ON for 1 second)

b. You should hear a dial tone, dialing and then communication tones

between the CaretakerSentry and central station. Several seconds later

the operator should answer the call and ask “Is everything OK”

c. Talk normally to the base unit – just like speaker phone

d. At the end of the conversation, the CaretakerAlert should automatically

hang-up – if not, push the CANCEL button for 1 second.

Performing a System Test

a. PUSH and HOLD the CANCEL button for 8-10 seconds to enter “System Check”

b. Push GRAY EMERGENCY button for 2 seconds on Pendant

(RED LED on the pendant should turn ON for 1 second)

c. Listen for voice prompt from base unit:

i. “All Systems are OK – Battery is OK” is heard system is correctly installed

ii. If any other voice prompt is heard, the unit will describe the problem

d. Push and release the CANCEL button for 1 second to exit Test Mode

(unit will automatically exit in 3 minutes)

e. We recommend that you perform this System Test weekly

OFF

Model #40911

(OPTIONAL) Plug

the telephone

into the “To House

Phone” jack.

Line

House

Phone

Caretaker Sentry Base Unit - Model 40914

FCC ID: TYD-CS40914

IC: 8471A-CS40914

Caretaker Sentry Standard Pendant - Model 40915

FCC ID: TYD-CS40915

IC: 8471A-CS40915
