Logisys 111808RM01RM02 12V Relay with remote handset User Manual RM01 02 Instruction

Logisys Corp 12V Relay with remote handset RM01 02 Instruction

Users Manual

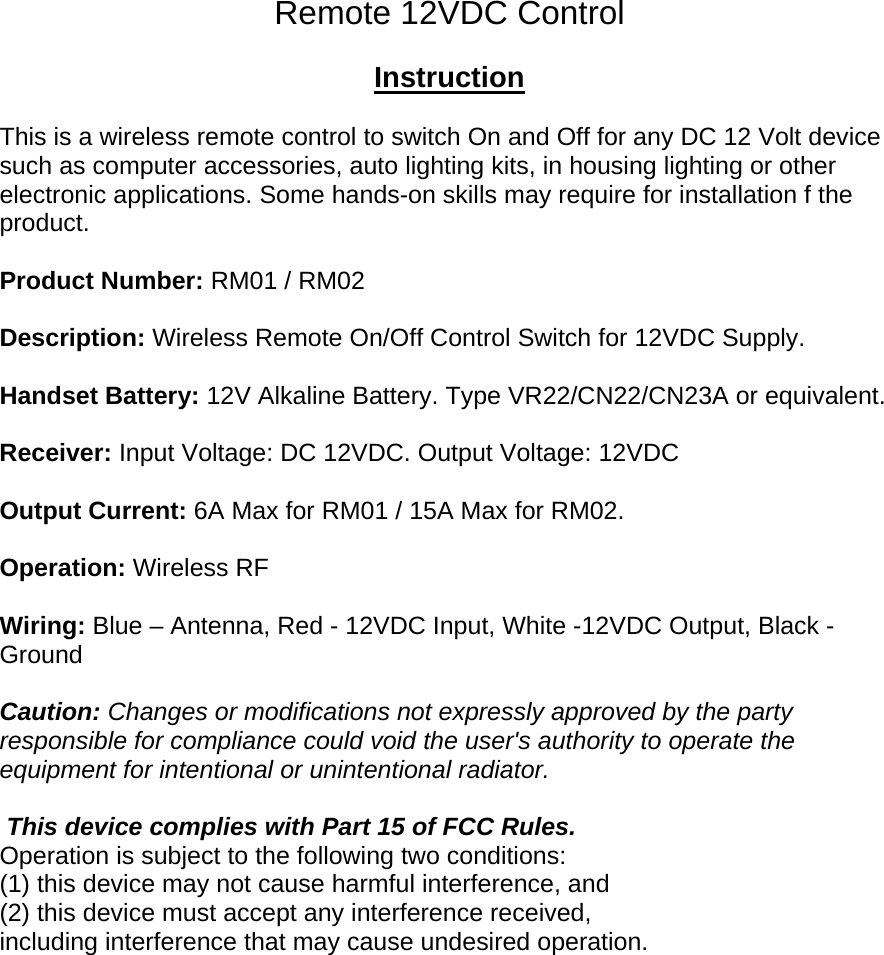

Remote 12VDC Control Instruction This is a wireless remote control to switch On and Off for any DC 12 Volt device such as computer accessories, auto lighting kits, in housing lighting or other electronic applications. Some hands-on skills may require for installation f the product. Product Number: RM01 / RM02 Description: Wireless Remote On/Off Control Switch for 12VDC Supply. Handset Battery: 12V Alkaline Battery. Type VR22/CN22/CN23A or equivalent. Receiver: Input Voltage: DC 12VDC. Output Voltage: 12VDC Output Current: 6A Max for RM01 / 15A Max for RM02. Operation: Wireless RF Wiring: Blue – Antenna, Red - 12VDC Input, White -12VDC Output, Black - Ground Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment for intentional or unintentional radiator. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
