Logitech Far East AG20130004 5.8G USB Dongle User Manual A50 PC Wireless Manual copy
Astro Gaming, Inc. 5.8G USB Dongle A50 PC Wireless Manual copy
USB Dongle-User Manual-Rev2
INSTRUCTION MANUAL
PC WIRELESS
HEADSET
A50
ASTRO Gaming's A50 Wireless Headset offers a solution
for the audio-savvy citizen who equally measures
business and pleasure. Professionally-tuned Astro Audio
paired with Dolby® 7.1 surround sound to pack aural
one-two punch, while three unique EQ modes provide
fully customizable transitions between media and
gaming. Whether you're gaming, enjoying a feature film,
or have tunes in need of heavy rotation-- control over
bass and ambient noise is all just a touch away.
Congratulations on your
sound investment.
The A50's are equipped with KleerNet's 5.8 GHz wireless
technology, designed for unimpaired performance
amongst the array of other RF traffic. ASTRO
Gaming's integrated MixAmp™ technology allows for
precise control of game to voice balance, all fitting
neatly into the contoured design of the A50. This
guide will point to the various ways in which your
A50's can be adjusted to a setup that's all your own.
A50 WIRELESS SYSTEM
5.8 GHZ
EQ PRESETS
USB CHARGING CABLE
Charges your A50 Wireless Headset from
the TxD unit.
DISPLAY STAND
Holds Transmitter and headset for
storage and charging.
Package Contents
Contents
So… you’ve breached the boxy exterior, and you’re working
your way along the inside. Revel in what you’ve uncovered.
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
ASTRO AUDIO
SUPERIOR
TOURNAMENT
COMPETITIVE

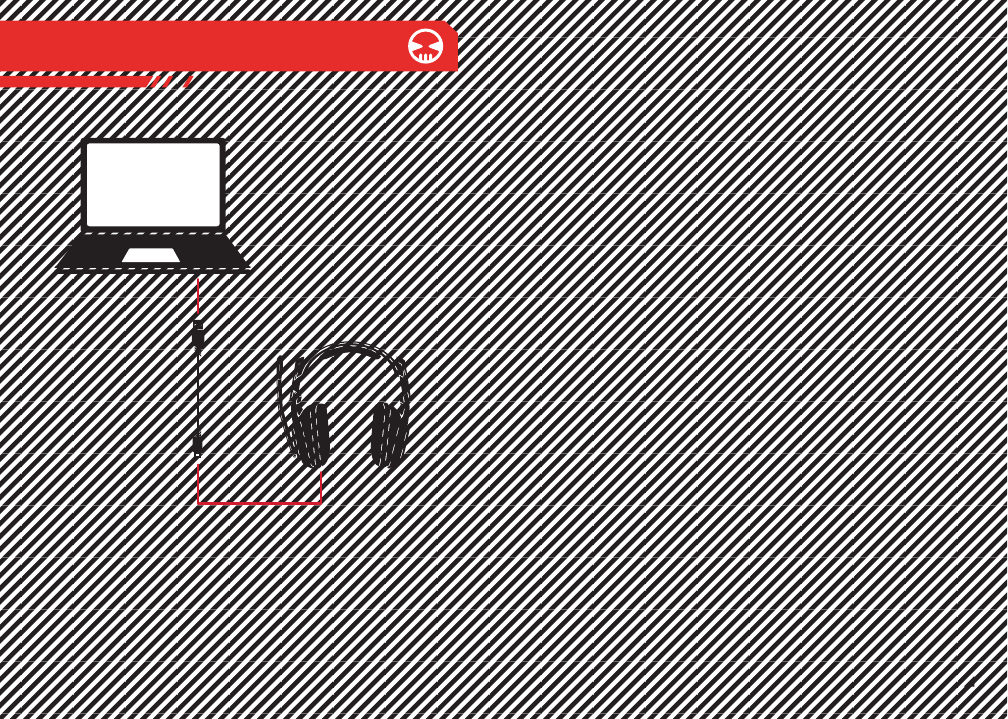

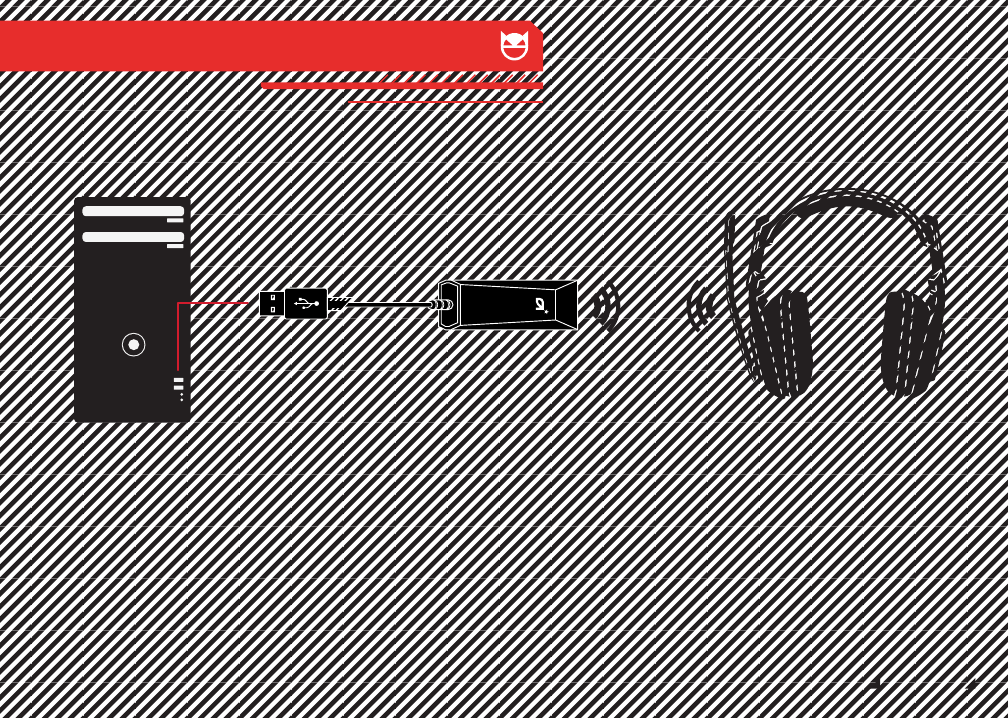

System Configuration // PC
The USB Tx is 2D/1U; Receiving both stereo game and voice audio, while outputting voice chat.
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
Connect USB Tx directly to your PC via USB Port.
Game Audio
In the Control Panel, select:
¬ Sound > Playback
¬ Select “ASTRO USB Audio Tx” then “Set Default”
Voice Chat
In the Control Panel, select:
¬ Sound > Recording
¬ Select” ASTRO USB Voice Rx” then “Set Default”
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
ASTRO AUDIO
SUPERIOR
TOURNAMENT
COMPETITIVE
System Configuration // MAC
Connect USB Tx directly to your Mac via USB Port.
Game Audio (Mac OSX)
In System Preferences, select:
¬ Sound > Output
¬ Select “ASTRO USB Audio Tx”
Voice Chat
In System Preferences, select:
¬ Sound > Input
¬ Select “ASTRO USB Voice Rx"
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
LED Indicator on A50 Headset:
Solid Red, USB connected: Charging finished.
Solid Red, USB disconnected: Powered on.
Blinking Red + Audible Beep: Low Power,
Charge Immediately.
Solid Orange: Charging Lithium-Ion Battery.
Blinking White: Pairing mode.
A50 LED BEHAVIOR
LED Indicators on USB Tx:
USB Tx Top
Off: Powered off.
Solid White: Powered on.
Blinking White: Pairing mode.
*For Dolby 7.1 Surround Sound processing, please download
the software here: astrogaming.com/A50-USB-PC-Dongle
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185

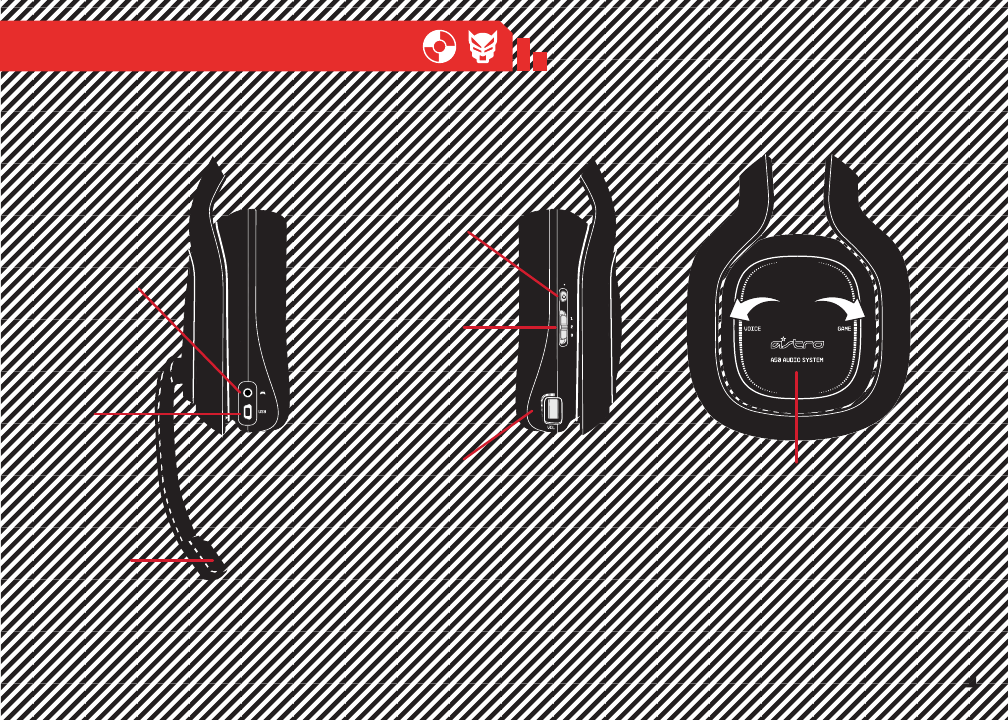

Xbox LIVE®
Cable Port
USB
Charging Port
Microphone
Power / Pairing
EQ Mode Select
1. Media Mode
2. Core Mode
3. Pro Mode
Master Volume
Game / Voice Balance
A50 User INTERFACE
A50 USER INTERFACE
A50 Controls
Game/Voice Balance: The A50’s integrated game and voice
mixing functions are located on your right earpiece. The A50s
come preset to a 50/50 balance. To adjust, press the button for
the audio function you wish to incrementally increase. Holding
down “Game” will cause the mixing function to isolate game
sounds, quieting the voice. Pressing “Voice” will cause the mixer
to decrease game sounds, amplifying voice.
While using this feature you may find your A50 emits a series of
intermittent beeps. Rest assured, you haven't been tricked into
an ASTRO hearing test.
A50 Game/Voice Balance Beeps:
At 50/50 Game + Voice: Emits a single beep
At 100% Voice: Emits a two-tone beep (unique to max voice)
At 100% Game: Emits a two-tone beep (unique to max game)
Master Volume: The Master Volume wheel located on the
bottom of the right earpiece adjusts overall volume control.
Use the Master Volume in conjunction with Game/Voice Balance
for total audio domination. Lecherous laughter is optional (but
encouraged).
Microphone: The A50 fixed microphone operates when in the
down/forward position. To activate the microphone's mute
feature, simply swing the microphone arm up to the vertical
(12 o'clock) position, where the microphone will click into place.
Equalizer (EQ) Modes: EQ modes are controlled by a switch
located on the back of the right earpiece. The A50s come
equipped with three separate EQ modes for better listening:
1. Media: Enhanced bass, for movies and music
2. Core: Balanced for single player gaming
3. Pro: Boosted high frequencies for competitive gameplay
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
ASTRO AUDIO
SUPERIOR
TOURNAMENT
COMPETITIVE
USB TX USER INTERFACE
USB Tx – Top:
Power/Pairing light indicator
USB Tx – Under:
Pairing Button - Begin pairing mode by holding this button
*For Dolby 7.1 Surround Sound processing, please download
the software here: astrogaming.com/A50-USB-PC-Dongle
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185

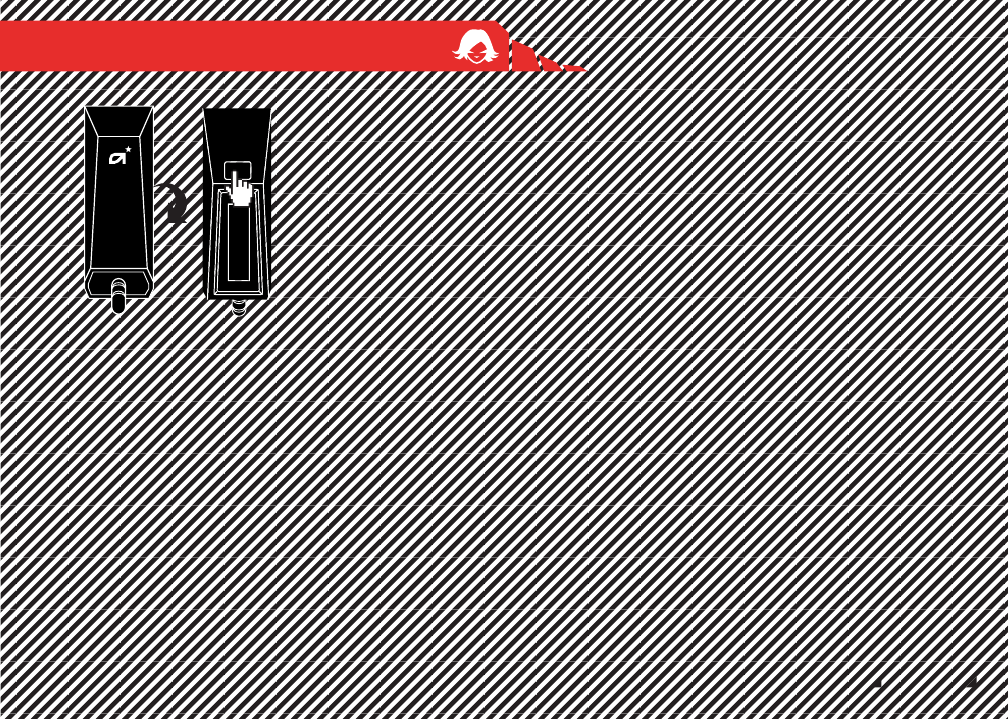

PAIRING
Begin pairing mode by holding the pairing
button on the underside of the USB Tx
until logo blinks white. USB Tx is now
in pairing mode.
1.
Hold power button on A50 until it also
blinks white and then release. A50 is now in
pairing mode.
Pairing is confirmed by both devices when A50
LED and logo are solid white.
2.
3.
When pairing is complete, A50 power button will
turn Red. USB Tx logo will be solid white.
4.
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
BATTERY & CHARGING
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
Charging
To Charge your A50, attach the USB Charging Cable to the charging port on
the A50 headset.
The USB Tx does not necessitate charging.
Battery Life
The non-removable lithium-Ion battery built into your A50s requires a five
hour charging cycle to reach full power. Once fully charged, the battery is
good for 8 -10 hours of on-head action time, depending on your degree of
use.
USB Charging Cable
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185

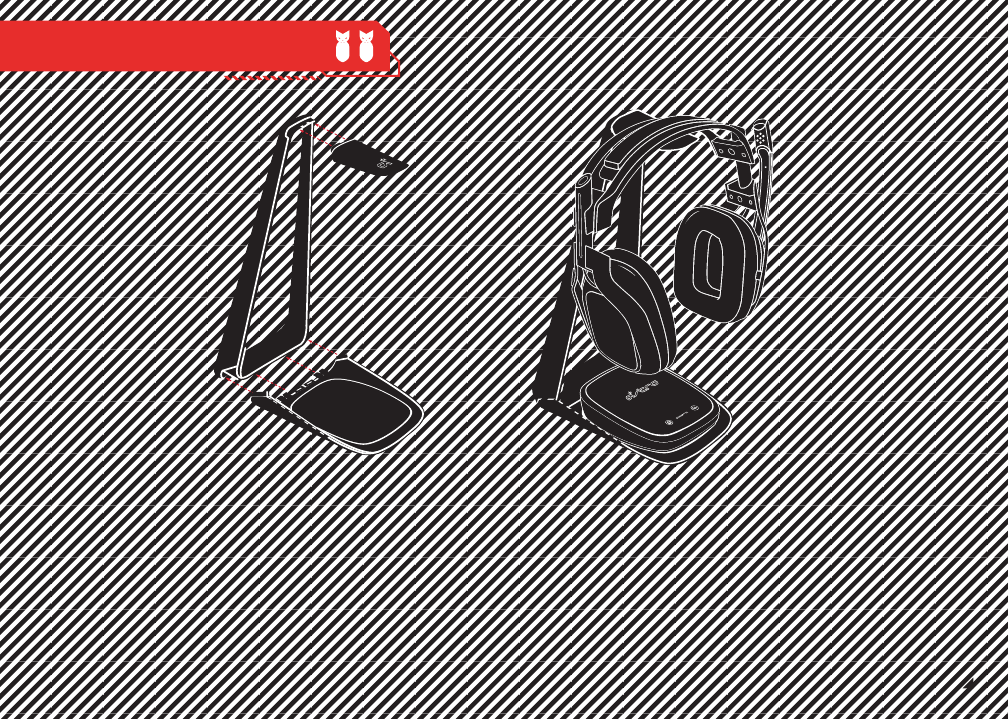

DISPLAY STAND
Display Stand - Permanent Assembly
Your display stand arrives in three parts: Base, Spine, and Beak.
To assemble:
Slide and snap in the tabbed edges of base piece
into the corresponding edges of the spine.
Slide and snap the tabbed edge of the beak into
the top of the spine.
Once assembled, the Display Stand functions as a base for your
MixAmp™Tx and A50s for charging and display. The stand is
not meant to be taken apart.
1.
2.
Firmware Updating:
Keep your A50s and your platforms playing nice, and in
proper working order by making sure you are running the
latest firmware:
http://www.astrogaming.com/firmware
Troubleshooting
See FAQ:
http://www.astrogaming.com/a50/a50-wireless-system
All products purchased directly from ASTRO Gaming comes with an automatic 1 year
warranty on defective parts or faulty workmanship. No registration is required. That
being said, if you register your product with us, we will be able to provide you with
even better customer service *and* we’ll cover your shipping in both directions if a
repair is needed for domestic customers. Furthermore, if you purchased one of our
products from a retailer other than ASTRO Gaming, you’ll need to register it with us
otherwise we’ll have no idea who you are.
Register ASTRO products here:
http://www.astrogaming.com/register
Specs:
Weight w/o cable: 0.81lbs/363 grams
Max SPL: ~118 dB @1kHz
Ear Coupling: Over-Ear
Distortion: THD<1%
Kessel Run Distance: Under 12 Parsecs
Frequency Response: 20Hz - 20 KHz
Connector: 2.5mm XBOX Live® chat port, Mini-USB port
Microphone: 6.0mm uni-directinal noise canceling
Power Source: Mini-USB (USB 2.0 compatible)
Battery Life: 8-10 Hours
Wireless Radio: 5.8GHz Kleernet
Dongle: USB Connector, 100 ft. broadcast distance
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
SUPPORT
When the device is working the body of user need retain 5mm distance the device.
body SAR value is 0.322W/kg near the device 5mm.
FCC RF Exposure requirements:
uncontrolled environment. the SAR limit is 1.6W/kg, Theis device hightest reported
Federal Communications Commission (FCC)
Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
∆ Reorient or relocate the receiving antenna.
∆ Increase the separation between the equipment and receiver.
∆ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
∆ Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
This device and its antenna(s) must not be co-located or operation in conjunction
with any other antenna or transmitter.
ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
FCC STATEMENT
Federal Communications Commission (FCC)
Statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard.
(1) cet appareil ne peut pas causer l’intervention, et (2) cet appareil doit
accepter de l’intervention, y compris l’intervention qui peut causer l’opération
non désirée de.
This Class【B】 digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICA-
TIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
