Setup Guide | Guide d’installation
HARMONY®
Elite Plus
Elite Plus
3
Languages
English . . . . . . . . . . . . . . . . . . . 4
Français . . . . . . . . . . . . . . . . . . 14
4 English
Package contents
1. Elite Plus
2. Harmony Hub
Controls devices via IR, Bluetooth®,
or Wi-Fi
3. Charging Station
4. USB cable
Set up hub via PC or Mac if access
to mobile device is not available.
5. Power adapter
Provides power to the
Harmony Hub
6. 2 IR mini blasters
Extend IR coverage when
used in combination with the
Harmony Hub
1 2
3
4
5
6
English 5
Congratulations on the purchase of Harmony Elite Plus
The Harmony Hub is the center of your Harmony system—always keep it
powered on!
1. The hub receives commands from the remote or mobile app. The remote
itself does not send commands directly to your devices.*
2. The hub sends commands to your audio video and home control devices
in the form of Bluetooth, Wi-Fi, and infrared signals (IR).
*The remote can be congured to send IR signals directly to devices. By default, it will
communicate to the hub using RF signals, as shown above.
12
6 English
Lets get started
STEP 1
Position the Harmony Hub
The Harmony Hub can be placed in any unobstructed location where IR
signals can be transmitted to AV equiment or it can be placed behind closed
cabinets with the IR mini blaster transmitters connected to the hub and
positioned as shown above.
Once plugged in, the hub takes approx. 30 seconds to power up.
The LED will glow red when plugged in. Once it has been
successfully paired and has joined your home network, it will
glow green (Step 3).
Charging Station Harmony Elite PlusIR mini blaster Harmony Hub
English 7
STEP 2

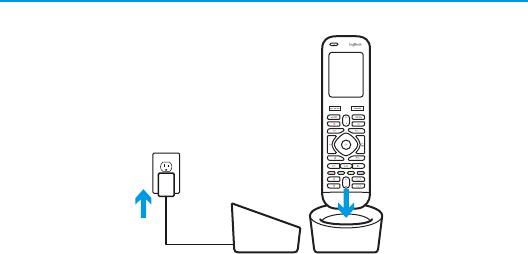

Charge your Remote
Plug in the charging station and place the remote in it. Keep the remote
in the charging station until setup is complete. The charging station should
be in the same room as your hub to optimize communication between the
remote and the hub.
8 English
STEP 3
Install the Harmony App
• Visit the Apple App Store or Google Play and install the Harmony App.
• Launch the app, select the Set Up New Remote button, and follow
setup instructions.
• Alternatively, you can set up your Elite Plus using a PC/Mac. Visit
setup.myharmony.com to download the Harmony desktop setup
software.
Note: If you have an iPhone 4, iPad 1 or iPad 2, or an Android device that does not support Bluetooth,
please visit setup.myharmony.com on a computer to connect the hub to your Wi-Fi network before
beginning Step 3 of mobile setup.
For more detailed instructions and product info, please visit
support.myharmony.com/elite-plus
The remainder of setup will be done using your mobile device. See next
section for an overview of what to expect.
English 9
Mobile App Setup Overview
After you download and open the Harmony Mobile app, you will be
guided through the following steps:
• Connect hub to Wi-Fi. Using your mobile device’s Bluetooth, connect your
hub to your wireless network.
• Create a Harmony account.
• Scan your Wi-Fi network for devices that can be controlled by Harmony
(e.g. Roku, Sonos, hue, Smart TVs).
• Add home entertainment devices for additional devices not found during
Wi-Fi scan (e.g. TV, cable box, AVR, game console, Blu-ray player).
• Add home control devices. Harmony supports various devices such
as select lights, locks, thermostats and home control platforms.
See Home Controls Explained section for further detail.
• Create Activities. You’ll be guided through creating Activities such
as Watch TV, Listen to Music, and Play Xbox. See One-Touch Activities
section for further details.
• Software Update: Your remote’s software may need to be updated. If
necessary (you will be informed after completing mobile setup), simply
keep your remote in the cradle. The amount of time remaining to complete
the update will be displayed on the remote’s screen.
10 English
Home Controls Explained
Your Harmony Elite Plus supports a variety of devices such as lights,
light switches, locks, thermostats, and blinds. Harmony Elite Plus also
connects to other home control platforms to access additional devices
supported by these solutions. The list of supported devices includes:*
Nest Learning Thermostats, Honeywell Wi-Fi Thermostats
Philips hue Lights, Lutron Caséta Wireless Lights, Lifx
Lutron Serena Window Shades
SmartThings, PĒQ
*The list of Harmony-compatible devices is always growing. Visit myharmony.com/
compatibility for the most up-to-date list of compatible brands, devices, and model numbers.
Device compatibility is subject to change without notice.
English 11
Get creative—Make it Home!
Add a Good Night activity that turns o all your lights,
lowers your blinds and thermostat, locks your doors!
Set the perfect Dinner Party mood with one touch—launch
your favorite music video, set the lights to vibrant colors and turn
up the heat.
One touch dims the lights, turns on rejuvenating music at just the
perfect volume and it’s Relax Time.
12 English
How to use your remote
1. Clock/Battery
Tap to toggle between clock and
battery meter. By default, the
clock will be displayed. If battery
drops below 20%, the battery
meter will automatically be
displayed.
2. Activities
Tap the Activities “soft button” to
access Activities Home Screen. You
will see a list of all your Activities.
3. Devices
Tap the Devices “soft button”
to access Devices Home Screen.
You will see a list of all your Home
Entertainment and Home Control
devices.
4. Button mapping
Harmony Elite Plus includes special
buttons that can be used to
control supported Home Control
devices. For example you can map
a button to turn your hue lights on
and o and use the +/- button to
adjust the bulb’s brightness.
2 3
1
4
English 13
Gestures & Gesture Hints
When an Activity is running, swiping
down from the top of any screen
will display the gesture screen.
Here, simple taps and swipes will
perform functions related to the
current Activity such as changing
the volume, skipping forward or
backward, pausing and playing,
etc. Tap the button at the top to
see what gestures are available for
each Activity.
© 2015 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned
by Logitech and may be registered. All other trademarks are the property of their respective owners.
Logitech assumes no responsibility for any errors that may appear in this manual. Information contained
herein is subject to change without notice.
© 2015 Logitech. Tous droits réservés. Logitech, le logo Logitech et les autres marques Logitech sont
la propriété exclusive de Logitech et sont susceptibles d’être des marques déposées. Toutes les autres
marques sont la propriété exclusive de leurs détenteurs respectifs. Logitech décline toute responsabilité en
cas d’erreurs dans ce manuel. Les informations énoncées dans le présent document peuvent faire l’objet
de modications sans avis préalable.
620-006751.002
www.logitech.com
support.myharmony.com/elite-plus
