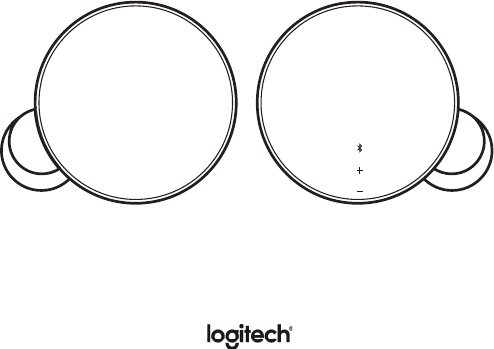

WHAT’S IN THE BOX
1. 2 MX Sound speakers
2. Power adapter
4 English
1
2

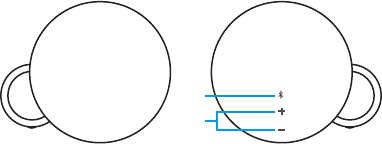

CONTROL
Touch control with LED
1. Bluetooth® (white LED)
2. Volume (white LED)
English 5
1 2 3 4 5
PC

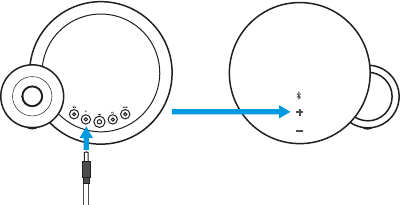

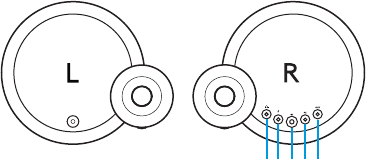

CONNECTOR
1. Audio output: 3.5mm jack
2. Power
3. Link to left SAT: RCA
4. Audio input: 3.5mm jack
5. Audio input: 3.5mm jack
6 English
PC
AUX
PC

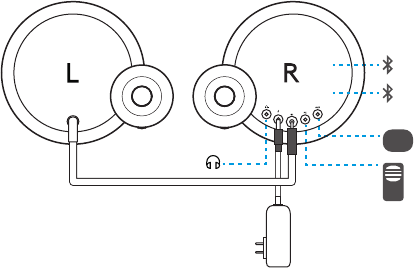

CONNECTIVITY
English 7
R
PC
POWER
MX Sound doesn’t have power
button. The product is on when
power plugged in.
All three icons light up.
8 English

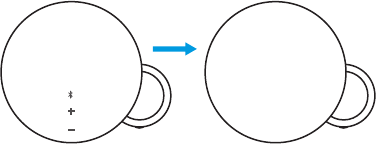

STANDBY
If proximity sensor doesn’t
sense anything for 1 min.
Standby - all lights are o.
English 9
3 inches

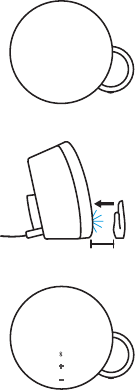

WAKE UP - PROXIMITY SENSOR
1. Stand by - Dead front
2. Waking up by gesture
Activation distance:
3 inches/70mm
3. All icons appear.
10 English
BLUETOOTH® PAIRING
1. One sec-long touch BT icon to enter pairing mode
with MX Sound
2. BT icon fast blinks (lasting for 3 mins)
3. Audio cue appears to conrm the successful pairing.
English 11
BLUETOOTH® RECONNECT
1. Double click Bluetooth® icon
2. Audio cue appears to conrm that MX Sound
is in Reconnect mode
3. MX Sound is searching last connected device.
12 English
VOLUME TONE
– When operate touch/control Volume, there is
sound feedback for each step.
– When reaching minimum/maximum volume,
MX Sound will give sound notication.
English 13
PC
HEADPHONE VOLUME
The volume of headphone out can be adjusted
independently from speaker volume through
V+ and V- touches.
Support copy?
www.logitech.com/support/mxsound
