Logitech Far East YR0009 2.4GHz Cordless keyboard User Manual Borol QSG Guidelines 0717

Logitech Far East Ltd 2.4GHz Cordless keyboard Borol QSG Guidelines 0717

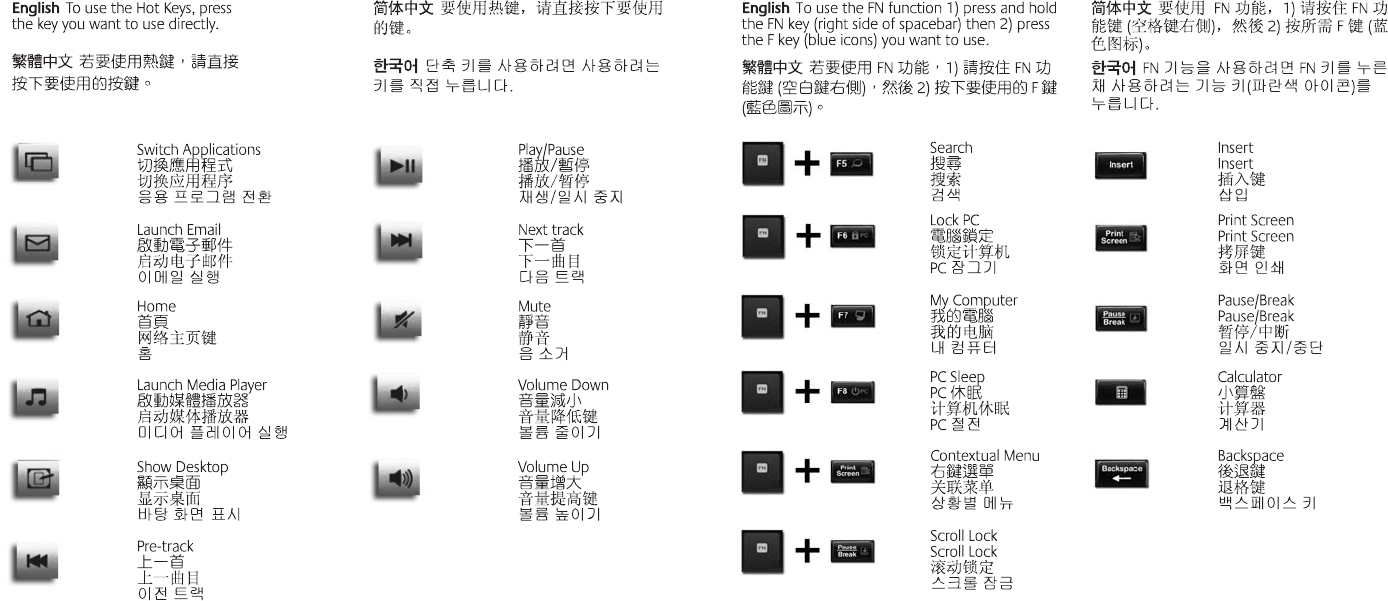

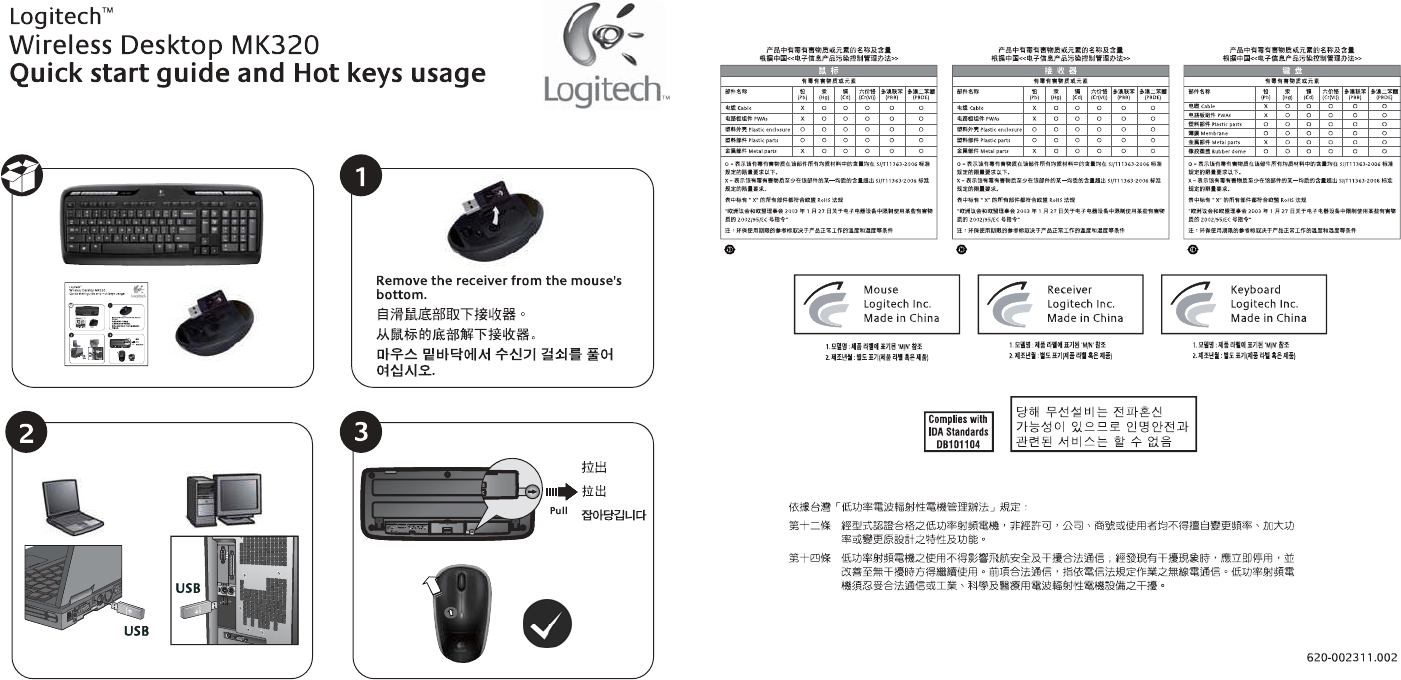

User Manual

Y-R0009
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device

Product Specification
Product Name2.4GHz Cordless keyboard
Model Name Y-R0009
Brand Name Logitech
Antenna Internal
Type of Antenna (Loop....) PCB printed
antenna gain 0.45dBi
Method of Frequency generation 16 MHz Crystal + PLL
Number of channels 12
Carrier frequencies
Index RF channel Index RF channel
1 2405(0x05) 7 2441 (0x29)
2 2408 (0x08) 8 2444 (0x2C)
3 2414 (0x0E) 9 2462 (0x3E)
4 2417 (0x11) 10 2465 (0x41)
5 2432 (0x20) 11 2471 (0x47)
6 2435 (0x23) 12 2474 (0x4A)
20dB channel bandwidth (Carson's rule) for modulated
carrier 2 MHz @ -20 dBm
Channel switching frequency range 2405 MHz - 2474 MHz
Modulation characteristics Digital GFSK
Transmitter aggregate data rate 2Mbits/s per second
Effective radiated power 0 dBi
If intermittent duty duty cycle:
Tx on = 0.08 ms
Tx off = 7.92 ms
Duty cycle (Tx on / (Tx on + Tx off)) = 1%
Transmission range 100m max in free space
Method of Frequency generation 16 MHz Crystal + PLL
Range 100m in free space
Power source AA Alkaline battery
Power consumption 10mW typical (typing)
Nominal DC voltage 3V
Operating voltage 2.1V 3.2V
Extreme test voltage (low) 2.1V
Applies cut off voltage (automatic switch off) 2.1V typ
DC maximum current 30 mA worst case
Extreme Temperature range 0 °C to 40°C
