Logitech Far East YR0014 2.4GHz Cordless Keyboard User Manual
Logitech Far East Ltd 2.4GHz Cordless Keyboard
User Manual
You’re minutes away from a whole new way of watching TV.
Of controlling TV. Of thinking about what TV can be.
Setup Guide
3
Logitech Revue™
You’re minutes away from a whole new way of watching TV.
Of controlling TV. Of thinking about what TV can be.
Setup Guide

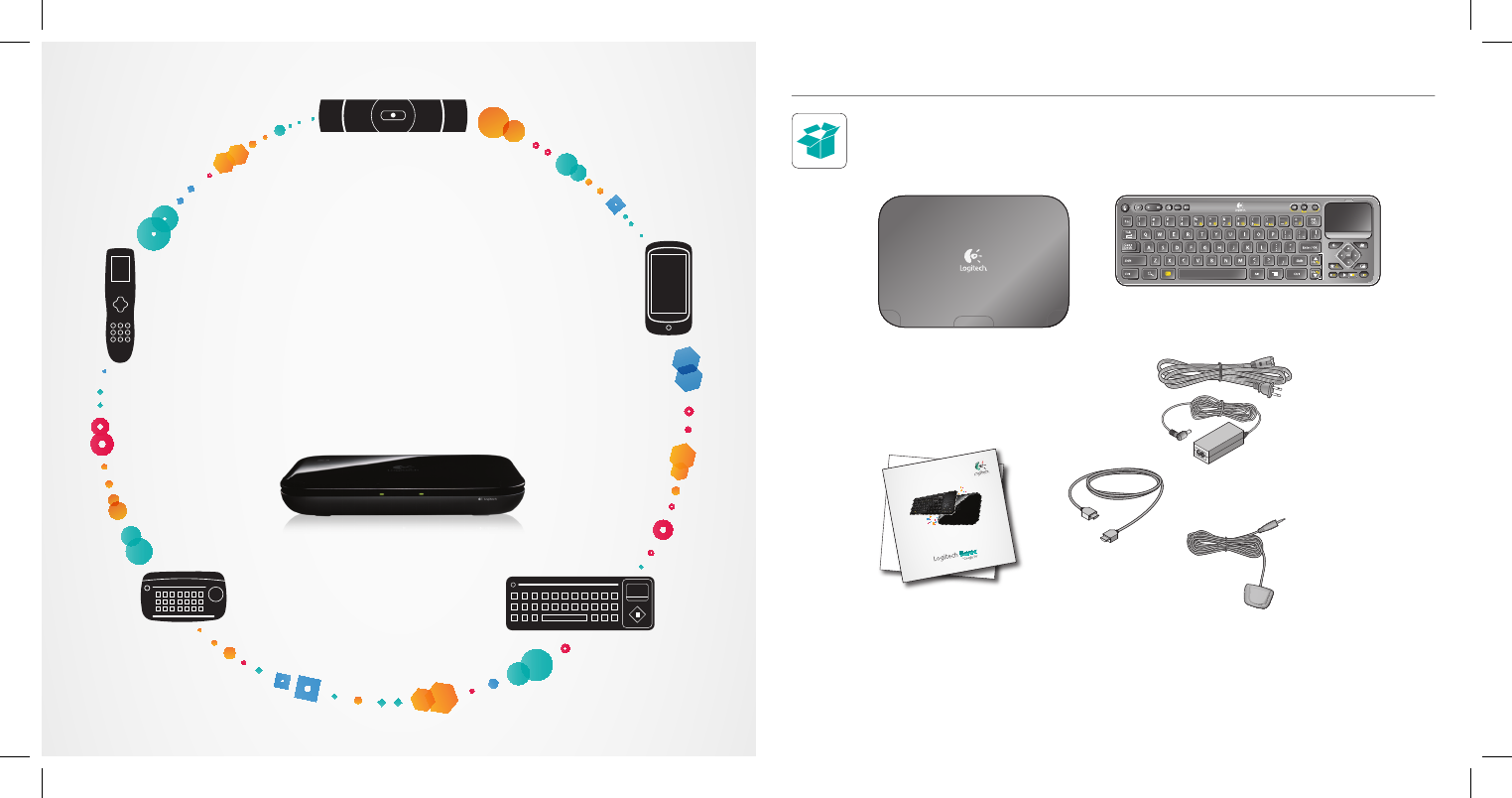

Unpack the box
IR mini blaster
Power supply
Power cord
HDMI cable
Logitech® Keyboard Controller
Logitech Revue™
From HD video calling on your couch
to house-of-the-future touch screen remotes.
Logitech Smart TV accessories make
communication more personal, information
more accessible and entertainment more fun.
www.logitech.com/SmartTV/accessories
Enjoy.
4
Logitech Revue™
5
Logitech Revue™
Pair/Reset button1. Use to pair the Keyboard Controller or other Logitech
Unifying devices or to reset Revue to factory default settings.
HDMI IN2. Use to connect from the HDMI output on your cable, satellite, or
ATSC set-top box (STB).
IR Blaster ports3. Use to connect the infrared mini blaster.
USB ports4. Use to connect supported peripherals, such as Logitech® TV Cam.
Ethernet port5. Use for wired Internet connection.
(Ethernet cable not provided)
HDMI OUT6. Use to connect to the HDMI input on your TV or AV receiver.
(HDMI cable provided)
SPDIF7. Use to connect a non-HDMI AV receiver.
Power8. Plug in the included power supply, which is connected to a 120VAC
wall outlet or power strip.
TM
* Revue has a built in Logitech Unifying receiver which allows you to add other Logitech
Unifying products.

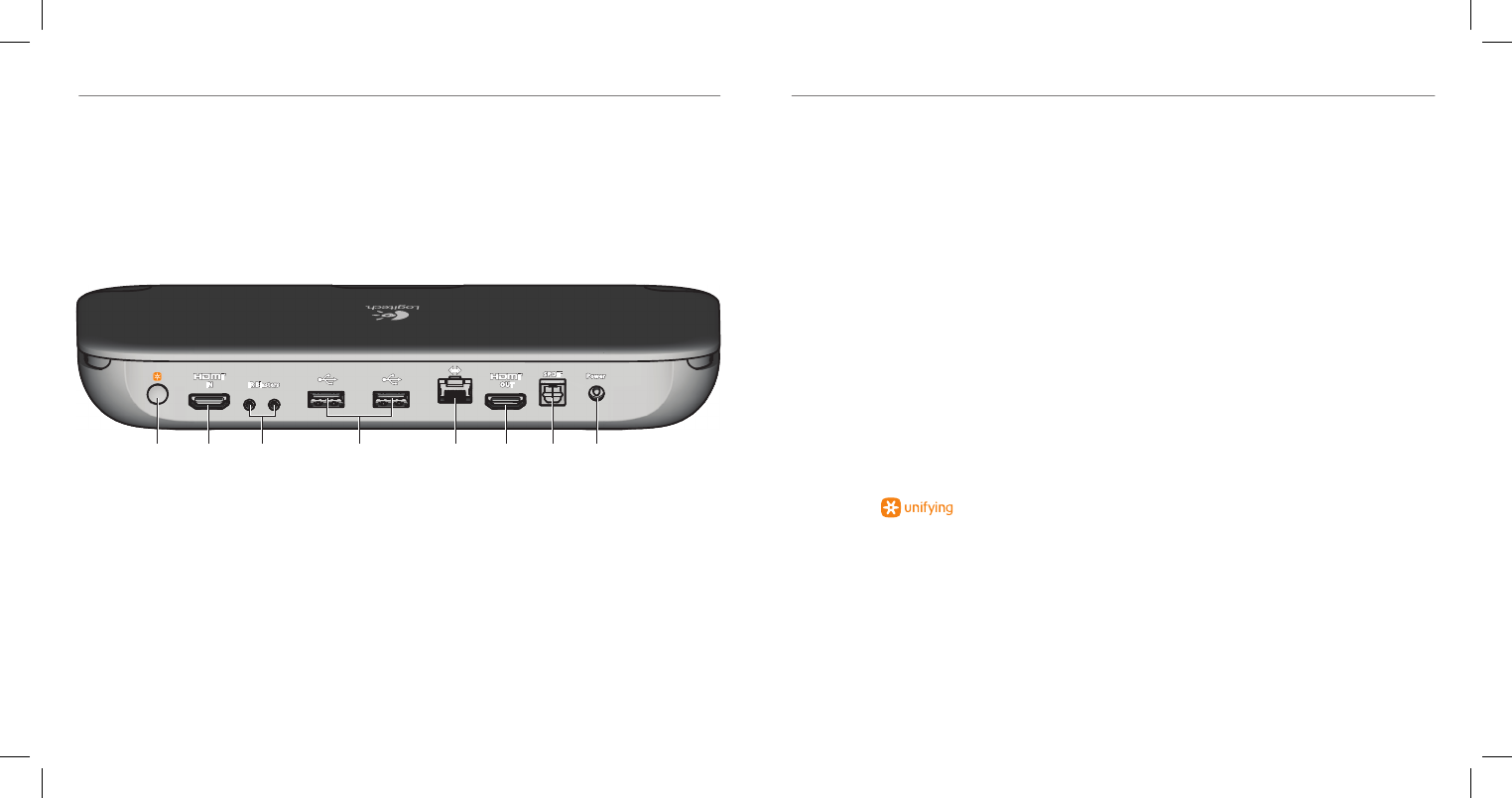

Revue at a glance
1 2 3 4 5 6 7 8
6
Logitech Revue™
7
Logitech Revue™

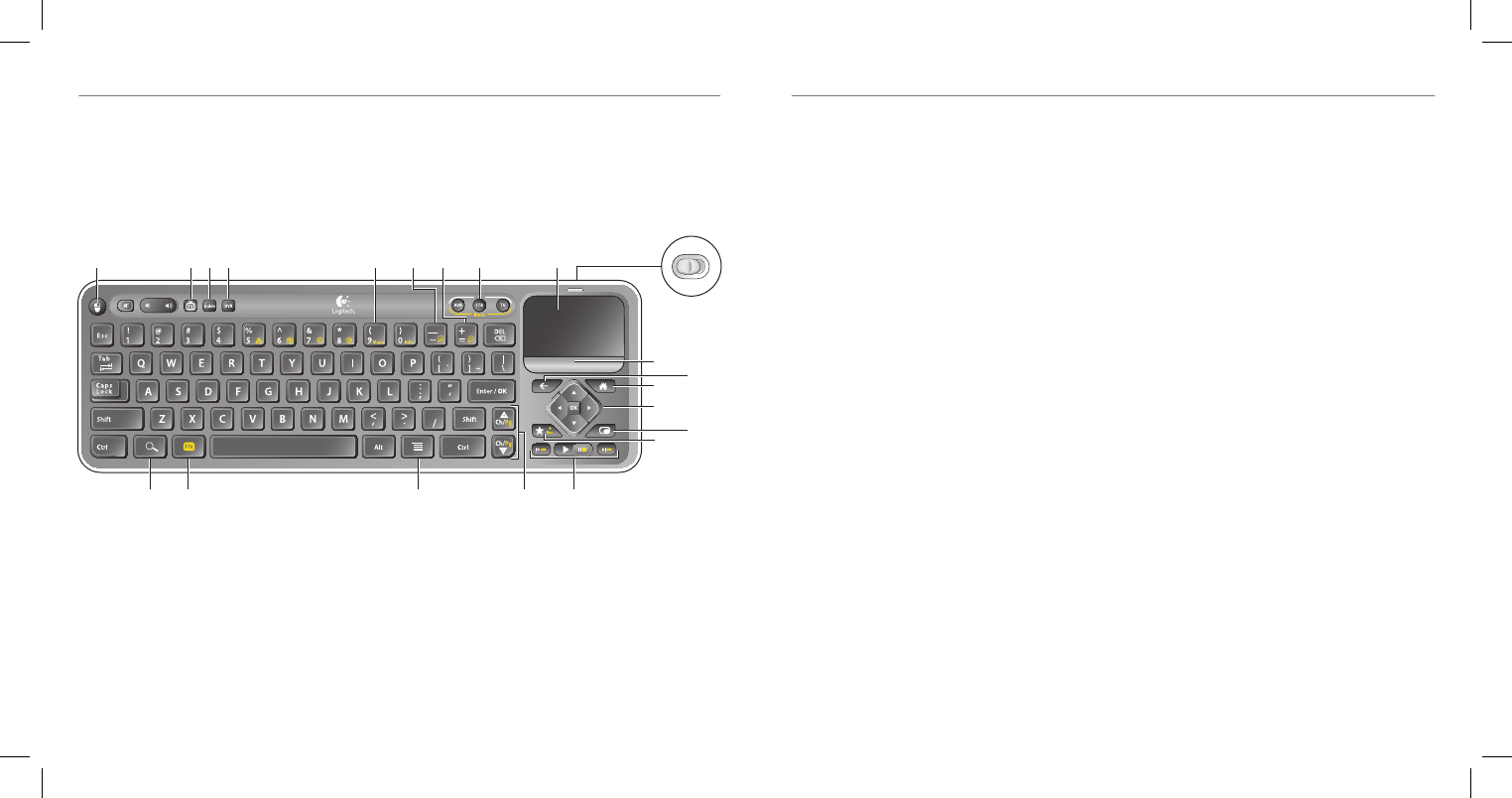

Keyboard Controller at a glance
Mouse1. Functions as a left mouse click
TV2. Switches to live TV
Guide3. Presents the program guide on your Set-top box (STB)
DVR4. Presents a list of recordings on your STB
Menu5. Displays STB on-screen menu/guide when used with the FN key
Zoom Out6. Zooms out when used with the FN key
Zoom In7. Zooms in when used with the FN key
On8. Turns devices on and off when pressed
Input Switches TV input when used with the FN key
Touchpad9. Navigates the cursor
Click Button10. Functions as a left mouse click
Back11. Returns to previous screen
Home12. Returns to Google TV home screen
Directional Keys13. Navigates Up, Down, Left, and Right
OK Selects options
Picture-in-picture14. Activates and toggles picture-in-picture modes
Favorite15. Saves favorite locations
Record Records, when used with the FN key. (This feature may not be
available for all devices.)
Playback16. Controls video playback—Rewind, Play, Fast Forward
Ch/Pg Up17. Scrolls up through channels or up through web pages when used
with the FN key
Ch/Pg Down Scrolls down through channels or down through web pages
when used with the FN key
Menu18. Displays Google TV menu options
FN19. Enables yellow-highlighted key commands
Search20. Launches the Google TV search and navigation bar
OFF ON
1 3 7 8
11
20 19 18 17 16
52 96
14
12
15
13
4
10
8
Logitech Revue™
9
Logitech Revue™
INFO MSGS A/B REMOTE CHANNEL
MENU
POWER
AUDIO IN
RL
VID IN
INFO MSGS A/B REMOTE CHANNEL
MENU
POWER
AUDIO IN
RL
VID IN

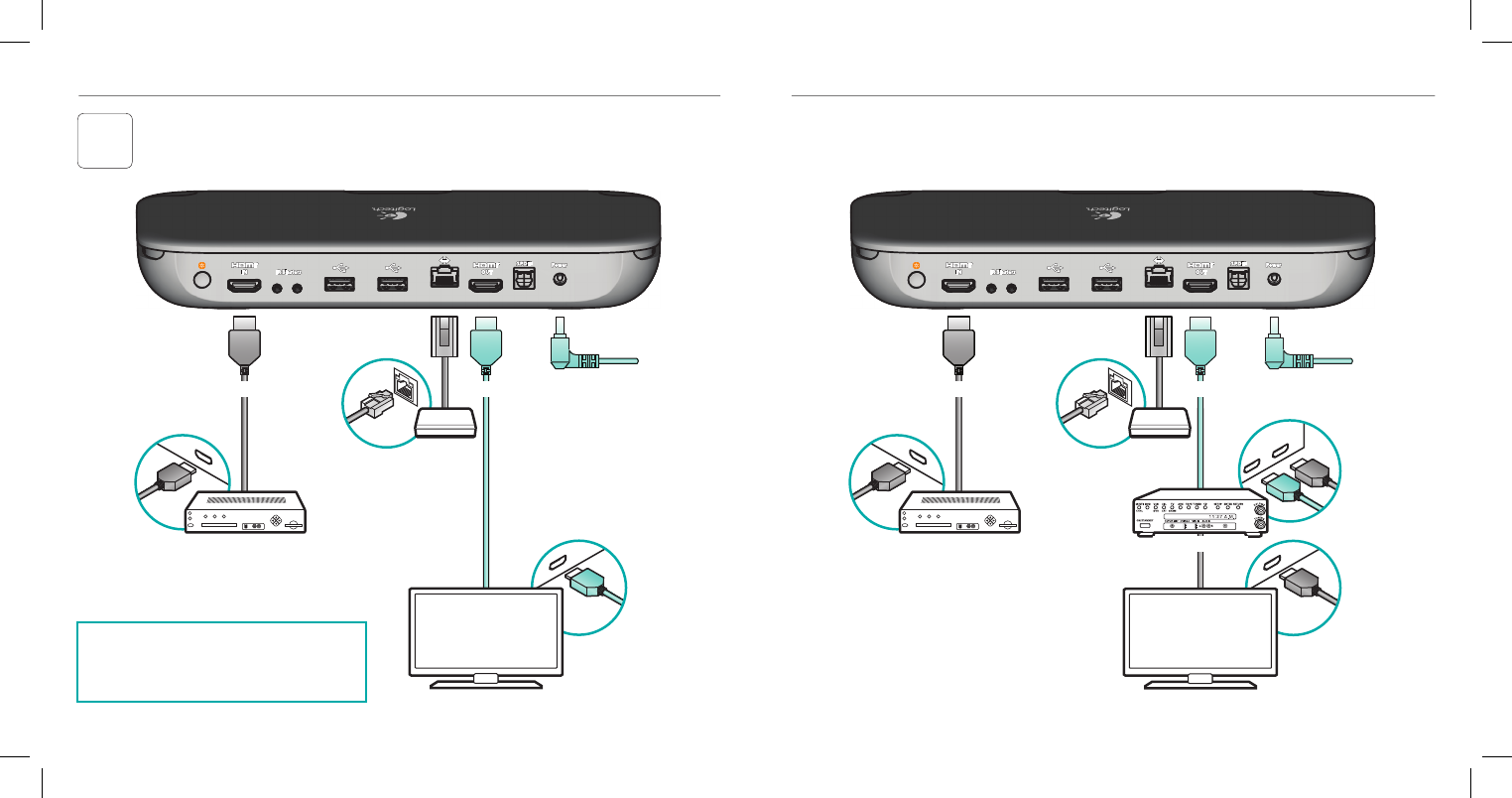

Connect the cables
Setup with TV and set-top box (STB) Setup with TV, STB, and Audio-video receiver (AVR)1
Tip: Write down the make and model
numbers of your TV, STB and AVR, and note
the input port Revue uses for each one.
You’ll need this information for setup.
1 If your AVR has no HDMI ports, use the SPDIF
port to connect your AVR to Revue. Do not
connect the AVR to the TV.
2 Revue works with either wired or wireless
Internet. When using Wi-Fi, the Ethernet cable
is not required.
Ethernet
(optional)2
Ethernet
(optional)2
Power source Power source
HDMI In HDMI InHDMI Out HDMI Out
AVR
TV TV
Internet
modem
Internet
modem
STB STB
1
10
Logitech Revue™
11
Logitech Revue™
Set up Revue with Google TV
2 3

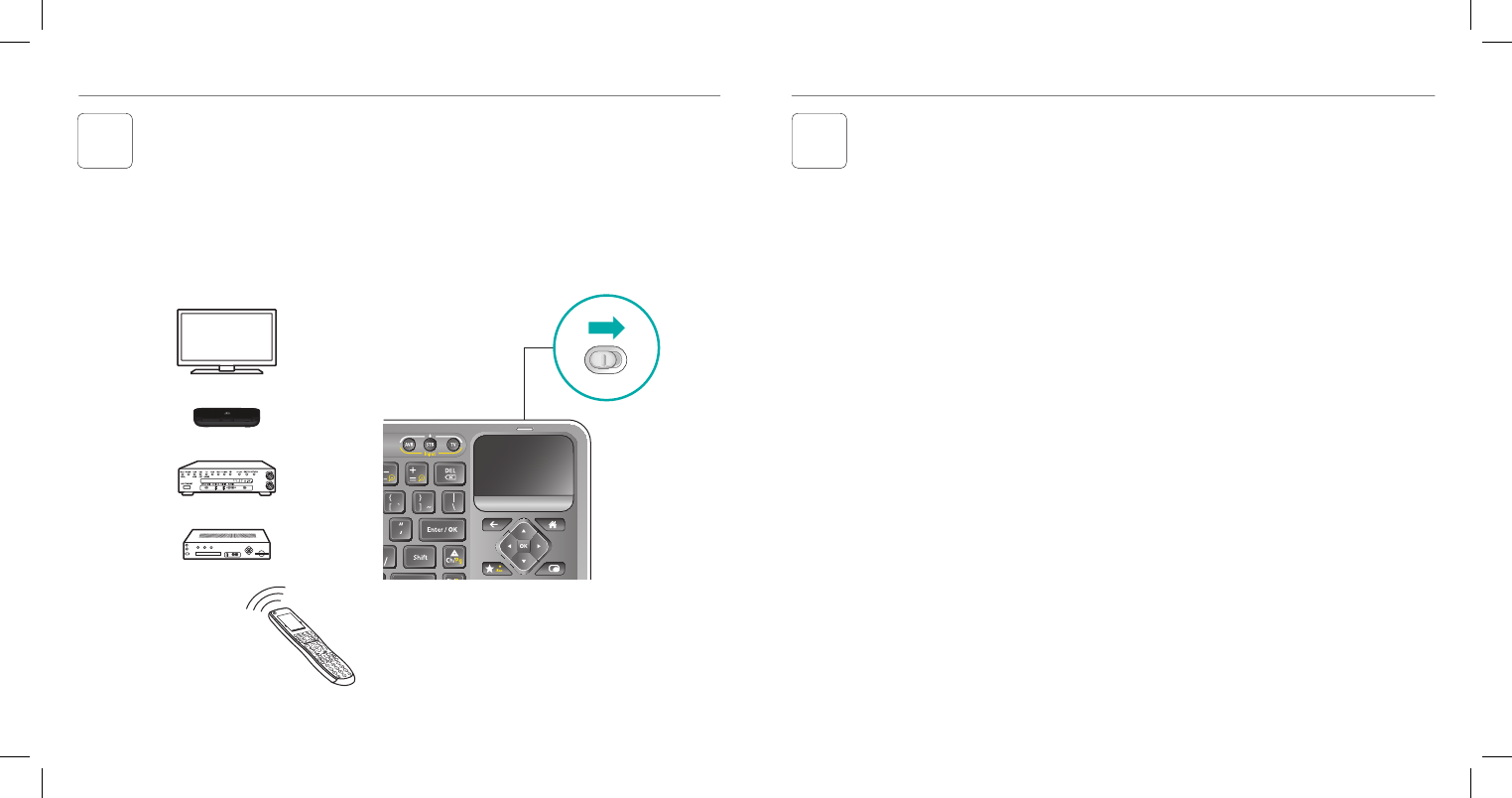

Power everything on
Your new Keyboard Controller cannot control your devices until you complete
the on-screen setup.
To begin, turn on all devices using your current method of control.1.
Switch the power slider on the Keyboard Controller to ON.2.
You are now ready to begin the Revue and Google TV setup.
OFF ON
Follow the on-screen instructions to complete the Google TV setup.
Screen Calibration1. Use the Directional Keys to optimize your TV
display size.
Network2. Set up your Internet connection.
Location3. Enter your ZIP code.
Account4. Log into your google.com account or create a new account.
TV Source5. Pair your TV source by selecting your broadcast TV provider.
Connected Devices6. Add your TV. Add your AV receiver if you have one.
Note: Your Keyboard Controller will not control your devices until they are added.
TV
AVR
Revue
STB
12
Logitech Revue™
13
Logitech Revue™
Your Revue receives RF (radio frequency) signals from the Keyboard Controller
and then flashes IR (infrared) commands to your other devices. This allows you to
control your TV, STB and AVR from your Keyboard Controller.
If some of your devices are non-responsive, they are probably not receiving the
IR signal from Revue. You can extend the IR signal range with the IR mini blaster.
Plug the mini blaster into the IR Blaster port on the back of the box and then
position it near the non-responsive device.
Mini blaster
TV Cam
Logitech TV Cam
sold separately

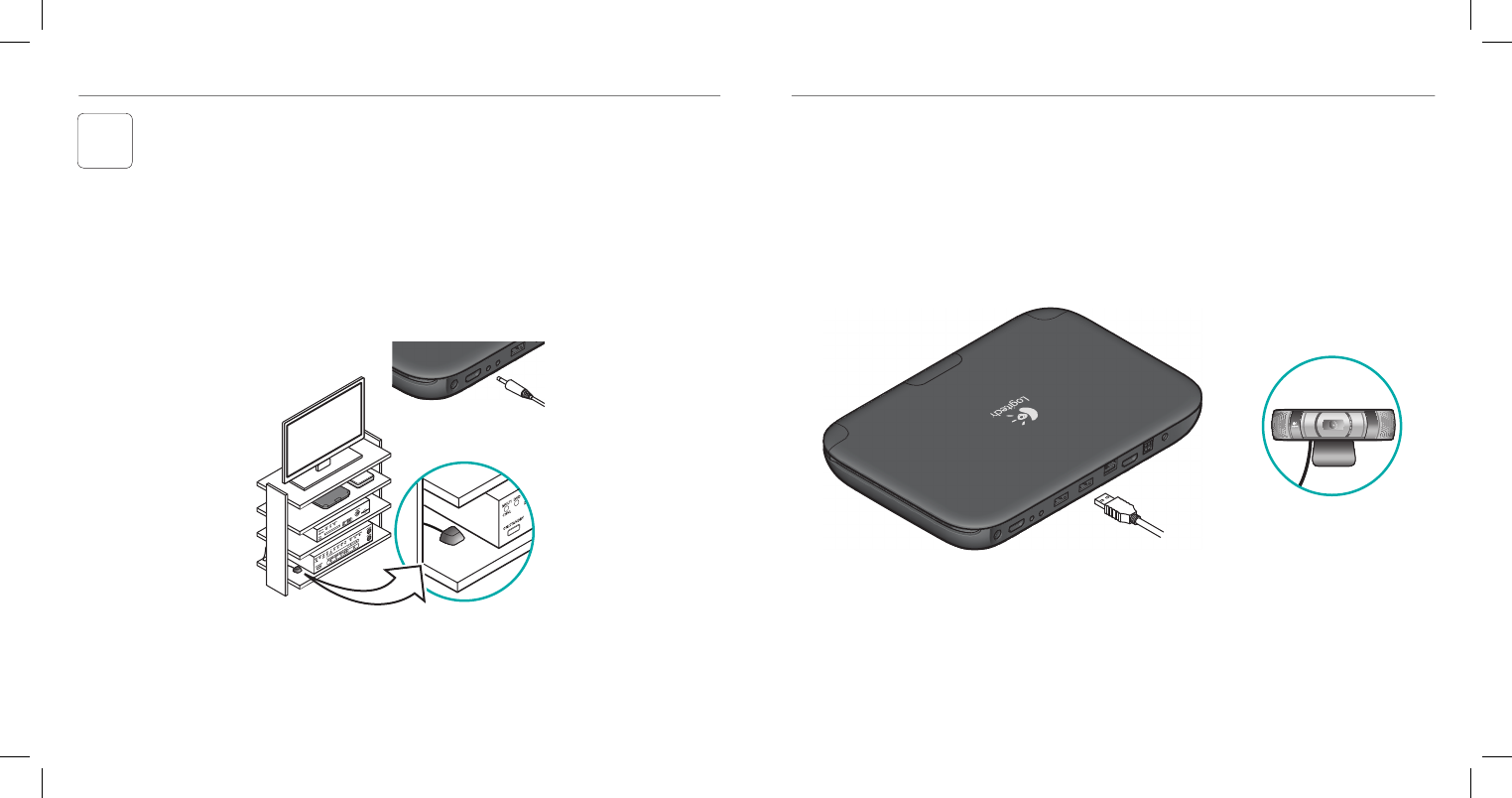

Set up IR mini blaster if needed Using supported devices
After you have completed the Google TV setup, you can add other supported
Logitech devices.
For example, if you have a Logitech TV Cam, simply plug it into a USB connector
on the back of Revue and follow the on-screen prompts and the product guide
to set up.
4
Tip: Each entertainment system is different, so you may need to get creative
when placing your Mini Blaster. IR signals cannot pass through surfaces, but they
can bounce off surfaces to reach their target.
14
Logitech Revue™
15
Logitech Revue™
Help with setup
Problem: My TV has no picture or sound during setup.
Solution: Check the following:
Are you getting power? Ensure that Revue is plugged in and receiving power.•
Are the cables connected? Ensure that all of the cables are securely connected between your •
Revue, TV and AV Receiver.
Is your TV correctly set? Ensure that your TV is set to the correct input.•
Do you have an AV Receiver? If you are using an AV receiver, ensure the AV receiver is set to the •
correct input. You may need to connect an SPDIF cable between Revue and your AV receiver.
Are you using an AV Switch? If your Revue is connected to your TV through an AV switch, try •
connecting your Revue directly to your TV, bypassing the switch altogether.
Problem: My Keyboard Controller does not work, or will not connect.
Solution: Check the following:
Is the Keyboard Controller on? Ensure that the ON/OFF slider switch is set to ON. If it is, turn OFF •
and then back ON.
Are your batteries installed properly? Remove the battery cover and ensure that batteries are •
installed correctly.
Is your Keyboard Controller paired with Revue? To pair again Revue with the Keyboard Controller, •
press and release the button located on the back of the Revue box under the Unifying logo.
Problem: I can’t access the Internet.
Solution: Check the following:
Is your cable securely connected? Unless using Wi-Fi, ensure that the Ethernet cable between •
Revue and your network switch or router is securely connected.
Is it a malfunctioning port? Try a different port on your switch or router. •
Do you have a bad cable? Try a different Ethernet cable. •
Is the problem your switch or hub? If you are using a switch or hub, connect your Revue directly •
to your router, bypassing the switch/hub altogether.
Does it work with other devices? Try connecting another device to your network using the same •
cable and/or port. Verify that the network is working as expected.
Have you tried everything? Unplug the power, wait 30 seconds and then reconnect the power. •
Then if there’s no change, consider updating your router’s firmware.
Problem: My TV, STB or AVR is not responding to the Keyboard Controller.
Solution: Check the following.
Is the device IR controlled? Revue only controls IR enabled TVs, STBs and AVRs.•
Is the IR signal blocked? Use the Mini Blaster to extend the range of the Revue IR signal.•
Is the Mini Blaster close enough to have a direct line of sight to your device? Try moving the •
Mini Blaster closer to the device.
Still not responding? You may need to teach additional IR commands to your Revue. Launch •
the “Logitech Help and More” application from Revue to find the video “Teaching Infrared
commands to your Revue”.
Problem: I want to delete my Google account and reset my Revue to the factory default settings.
How do I do it?
Solution: Press and hold the reset button located on the back of the box for 30 seconds.
Note: Actual wireless range and battery life will vary based on use, settings and environmental conditions.
www.logitech.com
For assistance, call toll free: 1-866-954-5644
Go to www.logitech.com/revue/support for current support hours
© 2010 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be
registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors
that may appear in this manual. Information contained herein is subject to change without notice. HDMI, the HDMI Logo and
Hi-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
620-002668.002
Now that cables are connected and your account is created,
the real fun begins. So, pick up your keyboard controller
and tell Google TV what you want.
But before you dive in, take a moment to think about how
you’ve watched TV until today. And say good bye. Forever.
.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may
cause undesired operation of the device
