Using Your Cordless Wheel Mouse
Using Your Cordless Wheel Mouse
Your cordless mouse has a wheel that functions both as a wheel and as a button.
Scrolling and Zooming with the Cordless Wheel Mouse
Using th e MouseWare
¤
Software in Window s
¤
95/Window s
¤
98/Window s NT
¤
4.0
The MouseWare
¤
software includes features for making button assignments, controlling cursor movement, and
setting up the cordless wheel mouse.
To access th e MouseWare software, double-click the mouse icon
on the Window s¤ 95/Window s¤ 98/Window s NT¤ 4.0 Taskbar, or start MouseWare from the Control
P anel.
The Mouse Properties tabs display, as shown on the next page. Choose from the available options to
configure the cordless wheel mouse.
Task What is It? H o w to Do It?
Wheel Scroll Use Wheel Scroll for precise up and
down movement.
To scroll up, move the wheel forw ard; to scroll
down, move the wheel back.
Horizontal Scroll Use Horizontal Scroll in Window s
¤
95, Window s
¤
98, and Window s NT
¤
4.0 to scroll left to right, or right to
left, whenever horizontal scroll bars
are present in the active window .
When both vertical and horizontally scroll bars
are present in a window , press the Ctrl and
Shift keys on your keyboard, then move the
mouse wheel forw ard to scroll left; move the
mouse wheel backward to scroll right. If
no
vertical scroll bars are present, simply move
the mouse wheel to scroll horizontally.
Zoom Use Zoom to either magnify or
demagnify the view of a document
in an application that supports it.
Place the cursor in an application that is
Microsoft Office 97 compliant. Press and hold
the Ctrl key on the keyboard, then to zoom in,
move the wheel forw ard; to zoom out, move
the wheel backw ards.
¥ To scroll, simply move the wheel
forw ard or back ward.
¥ To use the wheel like a standard
mouse button, click (press down)
the wheel.

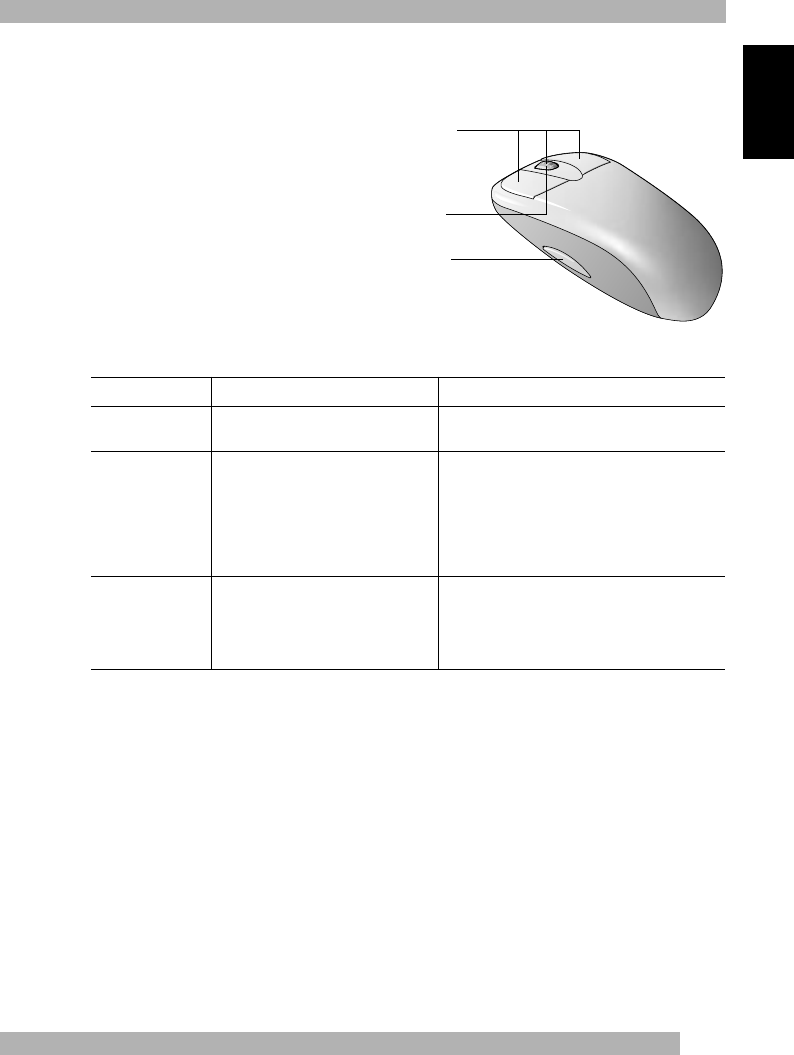

Mouse wheel
Mouse button
Mouse buttons
2
Choosing Options for the Cordless Wheel Mouse
N eed help choosing options? Let the Mouse Wizard show you how .

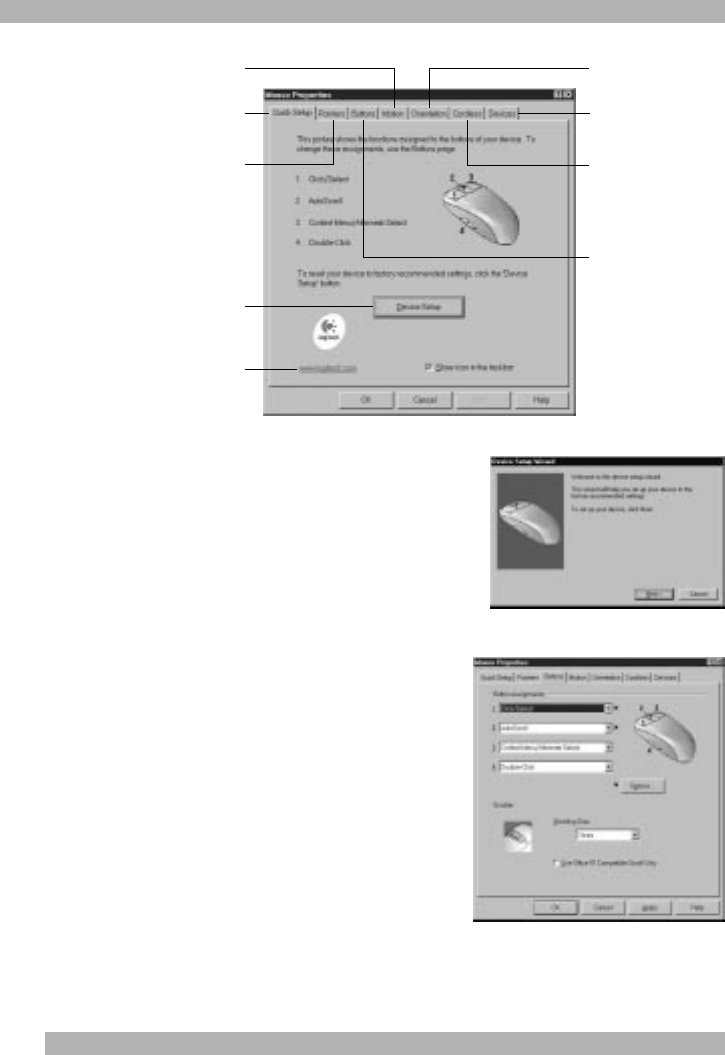

To begin, go to the Mouse Properties. To do this, double-click the
mouse icon in the Window s
¤
Taskbar. Now choose the Quick Setup
tab. Click D e vice Setup, then follow the on-screen instructions.
To Find Out What is Assigned to Your Mouse
Buttons...
By default, the mouse buttons are assigned various useful
functions, such as Click/Select, AutoScroll, Context Menu/Alternate
Select, Double-Click, etc. Using the Buttons tab of the Mouse
Properties, you can change the button settings of your mouse and
configure the mouse wheel. (Refer to the figure to the right.)
Note
The setting Context Menu/Alternate Select provides
easy-to-use short-cuts to speed up common tasks, such
as cut and paste.
To change button assignments, click the down arro w to select a
function for a button. (Note that at least one button m u st be
assigned to Click/Select.)
Click the down arrow under Scrolling Size: to choose the amount
of scrolling.
This sets the amount of scrolling in relation to
h ow m u c h you m ove the scroll wheel.
Click the Options button to specify settings for AutoScroll,
CyberJump
“
, HyperJump and double-click timing.
For more information, click the Help button.
Sets up a mouse
Modifies cursor movement Sets mouse orientation
Adds another mouse
Makes button
assignments
Click this button to run
the Mouse Wizard which
helps you set up a mouse
Selects a pointer shape Shows battery level
Click this button to launch
the Logitech website
3
English
Using the Soft w are in Window s
¤
3.1x
Double-click the MouseWare
¤
icon located in the Logitech
¤
MouseWare group window (or in th e Window s Control
Panel). Choose from the available options to configure the wheel mouse.
N ote that Scroll and Zoom, as well
as CyberJump and HyperJump functions, are not supported in W indow s 3.1x.

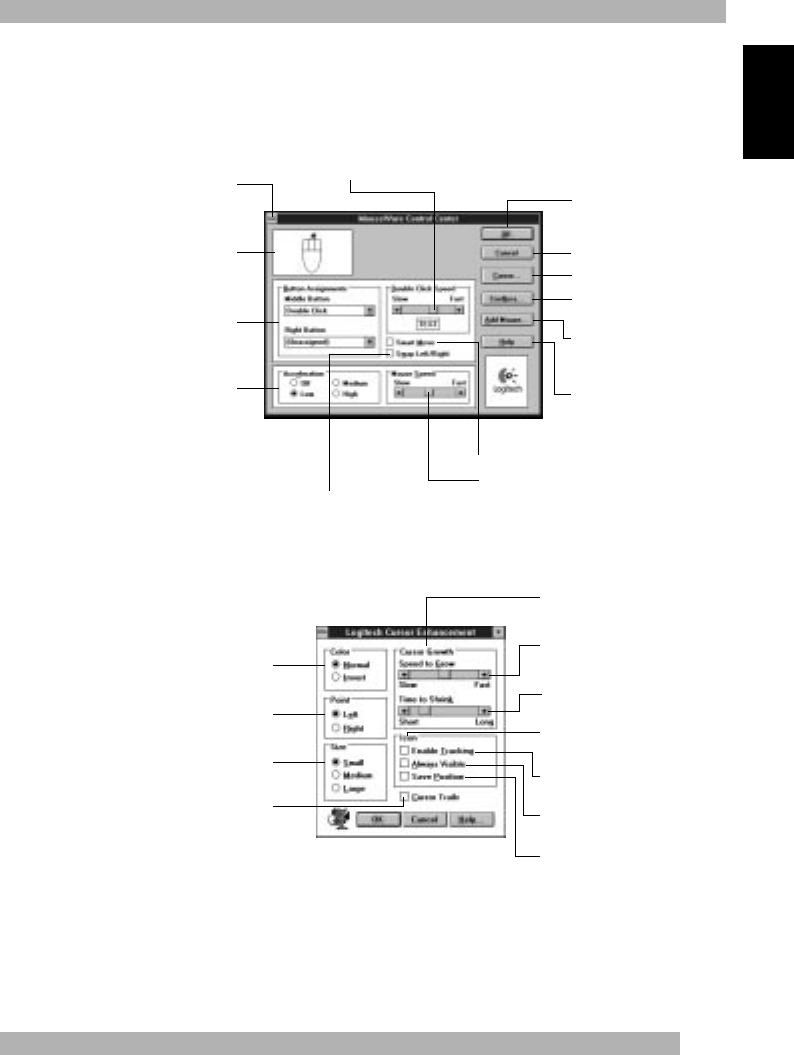

The MouseWare Control Center in Window s
¤
3.1x
Cursor Enhancement in Window s
¤
3.1x
Use the Cursor Enhancement dialog box to customize the cursor. To display the dialog box, click the Cursor button
in the Mouse Control Center.
Button Assignments in Window s
¤
3.1x
MouseWare allows you to assign functions to three mouse buttons and replaces fre q uently used tasks, such as
Double-Click, DragLock, etc., to a single button click. To o verride a button assignment te m porarily so you can use
an application-specific feature, press the Control ke y while clicking the button to be overridden.
Performs Windows
functions
Identifies button being
pressed
Assigns shortcuts
to second/third buttons
Sets cursor travel in relation
to mouse speed
Sets double-click speed
Saves settings
Cancels changes
Redetects devices
after plugging/unplugging
a serial mouse
Interchanges
button functions
Adjusts cursor speed in relation
to mouse move movement
Moves cursor to default command button
automatically
Provides online help
Enhances the cursor
Provides Connection settings
and battery status
Displays the cursor in normal
or reverse video
Changes the pointing
direction of the cursor
Sets cursor size
Leaves trail behind cursor as it
moves*
Makes the cursor grow larger as
it moves across the screen**
Sets the speed the cursor must move
to change size**
Sets the time the cursor stays large
before it shrinks in size**
Controls tracker icon at the bottom
of screen
Causes tracker icon to point to cursor
as it moves
Places the tracker icon on top of all
applications
Retains position of tracker icon upon
exiting
* Disabled with some SVGA resolutions.
**Disabled if Size is set to Large.
4
Cordless Wheel Mouse Maintenance
If the cursor skips or moves abnormally, clean the ball of your cordless
wheel mouse.
1.
R e m o ve the retainer ring.
On the bottom of the cordless wheel
mouse, twist the retainer ring counter clockwise to remove it.
2. R e m o ve the ball and wipe it with a clean, lint-free cloth,
then blow carefully into the ball-cage to dislodge dust and
lint.
Look for a build-up of dirt on the rubber roller(s) inside the ball-
cage.
3. If dirty, clean the roller(s) using a cotton swab moistened
lightly with isopro p yl (rubbing) alcohol.
After cleaning, make
sure the roller(s) are still centered in their channels. Make sure that
fluff from the swab is not left on the roller(s).
4. R eplace the ball and retainer ring.
Troubleshooting
The Cordless Wheel Mouse Does Not Work after Installation
¥ Make sure you have connected the receiver correctly. The receiver cable
goes into the c o m puter s PS/2 mouse port or serial port.
For optimal
performance, place the receiver at
least
8 inches or 20
centimeters aw ay from other electrical devices, such as the
computer, the computer monitor, or external stora g es drives.
¥ M a ke sure you have installed the batteries correctly.
¥Establish communication between the receiver and the cordless wheel
mouse. Press the Connect button on the receiver, then press the Channel
t button under the cordless wheel mouse.
¥If you are working on a metallic surface, try using a mouse pad and turning
the receiver on its side for better reception.
The Cordless Wheel Mouse Is Not Detected
¥ Ma ke sure the receiver cable is plugged into the PS/2 mouse port or serial port.
Do not plug or unplug
the receiver cable while the c o m puter is running.
¥ M ake sure the PS/2 mouse port has the proper configuration. Refer to your computer documentation for the
correct port configuration.
¥ You m ay have other syste m d e vices that conflict with the cordless wheel mouse. Check the IRQ/address
settings of these devices for conflicts, and change the settings as re q uired. Refer to your computer
documentation to m ake these changes.
¥ To determine whether the problem is cordless wheel mouse or system related, try the cordless wheel mouse
on a second system or a different mouse on your current system.
The Wheel Mouse Does Not Work after Changing the Batteries
Check to make sure the batteries you have installed are not dead. Try the batteries in another device. You may
also need to re-establish the connection between the cordless wheel mouse and its receiver. To do this, press the
Connect button on the receiver, then press the Channel button on the bottom of the mouse.
The Screen Cursor Does Not Move Properly on the Screen
Clean the mouse ball and roller(s). Try changing the position of the receiver. It is possible that the receiver may
be too far from the cordless wheel mouse. Or the computer monitor (or a large metal object) may be interfering
with the receivers radio reception. Also, the mouse batteries may be nearly dead. Check the mouse batteries as
described above. You may also need to re-establish the connection between the cordless wheel mouse and its
receiver. To do this, press the Connect button on the receiver, then press the Channel button on the bottom of
the mouse.

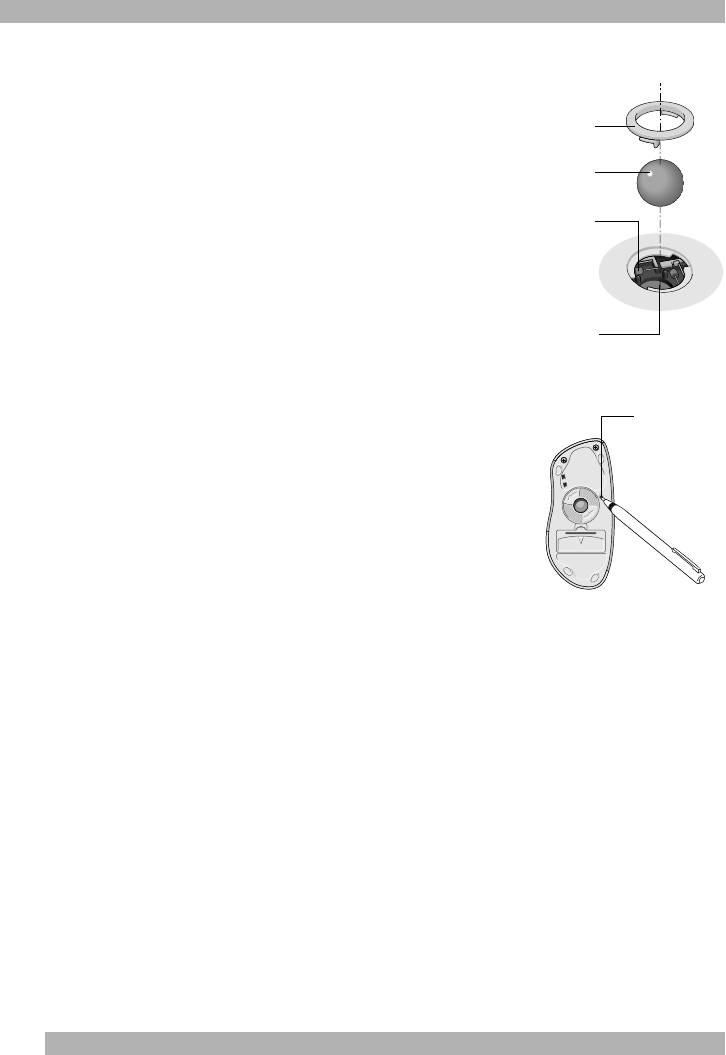

Ball
Inside roller
Retainer ring
Ball-cage
Channel button
