Users Manual
Logitech®
Cordless Headset for
PC & Mobile Phones
User Manual
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
• Do not push objects into apparatus vents or
slots because re or electric shock hazards
could result.
• Ventilation should not be impeded by covering
the ventilation openings with items, such as
newspapers, table clothes, curtains, etc.
• No naked (open) ame sources, such as lighted
candles, should be placed on or near
the apparatus.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including ampliers) that
produce heat.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
• Only use attachments/accessories specied by
the manufacturer.
• Unplug this apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
• The apparatus shall be disconnected from the
mains by unplugging the power cord of the
apparatus from the AC mains receptacle.
• The socket-outlet shall be installed near the
equipment and shall be easily accessible.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
Table of Contents
Safety
Table of Contents
English pages 1 - 16
Charge Headset Battery
The Logitech® Cordless Headset comes with a lithium-ion rechargeable, non-replaceable battery that must
be fully charged before you use the headset for the rst time.
1. Connect the power adapter to the headset.
Plug the AC adapter into the electrical outlet.
2. The LED will be red when charging. If the LED is
not red, check the connection.
3. During charging, the red LED will be lit. When
the Logitech® Cordless Headset is fully charged,
the red LED turns off. Charging can take up to
4 hours.
4. Remove the AC adapter from the headset.
5. Your headset is now ready for set-up with your
PC or mobile phone. See the Quick Start Guide
for details on pairing.
Comfort and Fit
1. Rotate the rubber earpiece around the headset for use on either ear.
2a. Place the earpiece behind your ear and rotate the product to your comfort.
OR
2b. With one hand, hold earpiece out from the headset and slide product over your ear.
3. Rotate microphone boom so it is pointing toward the corner of your mouth.
Introduction
Wearing and Using Your Headset
Headset Overview
A. WindStop™ microphone
B. LED indicator
C. Volume down: lowers volume
D. Volume up: raises volume
E. Adjustable/reversible ear piece
F. Multi-Function Button: Power on/off, answer/end calls
USB Receiver Overview
G. Receiver LED
H. Connect Button
Extender Stand
I. Extender stand
J. USB port for USB Receiver
EF
A
B
CD
I
H
G
J
Connecting Your Headset to the USB Receiver (PC)
1. With the USB receiver now plugged into the extender stand (preferred) or an available USB port and the
headset in close proximity to the USB receiver, press the Multi-Function Button on the headset for
2 seconds and release to turn on the headset. There is no need to press the button on the USB receiver.
Connection should take place automatically.
Wait approximately 20 seconds, the USB receiver and headset should automatically connect.
When connected you will see 2 blue ashes at regular intervals on the receiver. If your headset is still not
connected, unplug the USB receiver and plug it back in while the headset is on and wait another
20 seconds for conversion to take place.
. Shutting down your computer and headset.
You do not need to unplug your USB receiver when you shut down. However we recommend turning off
your headset to prevent power drain.
Answering a call on the PC.
Your PC must be on with your headset connected and the PC calling application running. When you hear
a ring, simply press the Multi-Function Button a single time to answer the call. When you wish to hang up,
simply press the same Multi-Function Button again.
. Rebooting your PC.
If you have not removed the USB receiver from your computer (or unplugged it from the receiver stand)
simply turn on your headset. After your PC has completely rebooted and is running, simply wait
20 seconds for the headset to reconnect.
. Disconnecting the headset from the receiver (in order to pair it with your mobile phone).
In the CallCentral™ software, select “Disconnect” or press and release the button on the USB receiver
once. This will disconnect the USB receiver.
To learn how to connect your headset to your phone, see the next section (page 8), “Using Your Cordless
Headset with Your Mobile Phone.”
Open the CallCentral™ software.
Click on the disconnect button (note: disconnect can also be accomplished by pressing the button on the
USB receiver once). The LED on the USB receiver will emit a single blue ash.
. Reconnecting your headset to the USB receiver.
Turn on your headset. Plug in the USB receiver if it is not already plugged in. Connection will automatically
be initiated (wait 20 seconds for it to complete).
If receiver is already plugged in, choose connect in the software or press and release the button on the
USB receiver. Both actions will initiate connection. Wait approximately 20 seconds for connection
to complete.

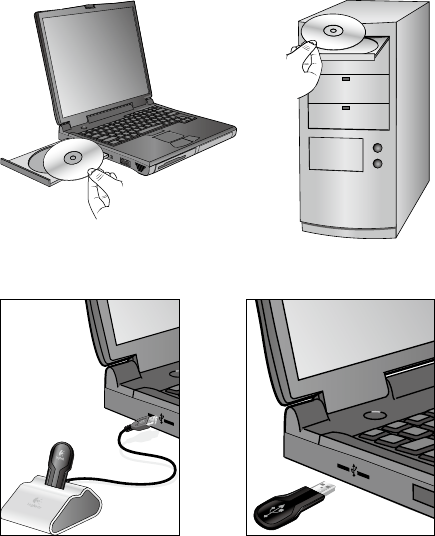

Installing the Software
Connecting Your Headset
Using the Cordless Headset with Your PC
Note: The headset can be used with only one device at a time, either the PC or a mobile phone.
. Install the software rst.
Before plugging in the receiver, the software must be installed.
2. Wait until prompted by the software, and then connect the USB receiver to the convenient extender stand
(preferred) or to an available USB port on your computer.
The Audio Tuning Wizard
The rst time that you start your Logitech®
Cordless Headset software, it guides you through
the Mircrophone/Speaker Setup Utility and Audio
Tuning Wizard that lets you do the following:
• Select the audio input device (microphone)
and audio output device (speakers).
• Specify microphone input volume and
speaker output volume.
• Test audio settings.
Tip: To modify these settings later, start your
Cordless Headset software, click the Settings
Button, and then click the Audio tab.
Start Using Your Cordless Headset
Your cordless headset is now set up and ready to provide you with seamless audio in your internet calls. Just
open a supported PC calling application, and then begin placing calls. See packaging for a list of supported
applications.
Modify Your Cordless Headset Settings
To modify your cordless headset settings:
1. Start the CallCentral™ software by doing either of the following:
• On your desktop, double-click the CallCentral™ icon.
OR
• In the lower-right corner of your desktop in the taskbar, click the Cordless Headset icon.
2. Click the Settings Button.
3. Click the Audio tab.
4. Modify as desired.
Turning Off Your Headset
PC Software
Turning Off Your Headset
Press the Multi-Function Button (MFB) continuously on the headset for more than 3 seconds.
Here is a complete chart showing all of the PC functions:
How to What you do What you see What you hear
Turning on headset Press MFB on headset for 2 seconds 5 Blue LED flashes, then slow Blue
LED flashes Brief low-to-high tone
Connecting to USB Receiver Turn on headset, plug in USB Receiver
to USB port, wait 20 seconds
3 repeating Blue flashes on headset;
2 repeating Blue flashes on dongle No tone
Notification Incoming Call No action 3 Repeating Blue flashes on headset;
Alternating red/blue flashes on dongle Melody on headset
Answering Call on headset Press MFB on headset briefly 4 Repeating Blue Flashes on headset;
Solid Blue LED on dongle Single beep when answered
Answering Call on PC Click on-screen button with mouse to
answer call
4 Repeating Blue Flashes on headset;
Solid Blue LED on dongle Normal call audio
Call in Progress Notification No action 4 Repeating Blue Flashes on headset;
Solid Blue LED on dongle No beeps
Ending Call from headset Press MFB on headset briefly 3 repeating Blue flashes on headset;
2 repeating Blue flashes on dongle Single beep
Ending Call on PC Click on-screen button with mouse
to end call
3 repeating Blue flashes on headset;
2 repeating Blue flashes on dongle Single beep
MIC Mute-On Press and hold Vol(+) and Vol(-)
buttons simultaneously for 3 seconds
4 Repeating Blue Flashes on headset;
Solid Blue LED on dongle Beep every 30 seconds
Ending MIC Mute Press and hold Vol(+) and Vol(-)
buttons simultaneously for 3 seconds
4 Repeating Blue Flashes on headset;
Solid Blue LED on dongle Single beep
Placing Outgoing call
from PC
Click on button on PC with mouse to
place outgoing call
4 Repeating Blue Flashes on headset;
Solid Blue LED on dongle Normal call audio
Incoming Call Reject Press MFB for 3 seconds 4 Repeating Blue Flashes on headset;
2 repeating Blue flashes on dongle Double beep
Low Battery Notification No action Repeating Red flashes on headset Beep every 30 seconds
Standby or Connected
Notification No action 3 repeating Blue flashes on headset;
2 repeating Blue flashes on dongle No Audio
Turning Off headset Press MFB for 2 seconds 5 Red LED flashes on headset; Slow
repeating single Blue flash on dongle High to low tone
Charging headset Plug AC adapter into headset then into
electrical outlet Continuous Red LED No beeps
Disconnect from PC Press dongle button once, short press,
<1 second
Blue blink on headset; 1 repeating
Blue blink on dongle No beeps
Reconnect to PC Disconnect from phone, press button
on dongle, short press
3 repeating Blue flashes on headset;
2 repeating Blue flashes on dongle No tone
0
Pairing Your Headset
Using Your Logitech® Cordless Headset
Note: The features listed below are phone dependent. Check your phone user’s manual.
. Starting a Call
Dial the numbers on your mobile phone keypad. When the call is connected, your headset will
automatically connect to the phone to take the call.
. Using Voice Dialing
Press and release the Multi-Function Button when in standby mode. Your phone may show a voice dialing
request on the screen. A click will be heard in the headset. After the click, speak the name of the person
you are calling. Call voice tags are pre-recorded in the phone.
. Ending a Call
Press and release the Multi-Function Button on the headset when in call mode, or end call from mobile
phone keypad.
. Answering a Call
After an incoming ring tone, press and release the Multi-Function Button once. Or, you can answer the call
with your mobile phone’s keypad. To transfer a call to your headset, press and release the Multi-Function
Button once or use the menu on your phone.
. Muting a Call
Press the Volume (+) and Volume (-) simultaneously for 3 seconds while in a call. You will hear a beep the
rst time and every 30 seconds afterwards.
. Ending Mute
Press the Volume (+) and Volume (-) simultaneously for 3 seconds while in Mute mode.
You will hear a beep.
. Last Number Redial
When in Standby Mode, press the Volume (-) button for at least 3 seconds. You will hear a beep after
pressing the button and the last number will be dialed.
. Night Mode
Press all three buttons, Volume (-), Volume (+), and Multi-Function Button simultaneously for 3 seconds.
The light will not display and 4 quick beeps will be heard. Pressing the same three buttons again will
release the headset from Night Mode.
. Disconnecting the headset from the Phone (in order to connect to the USB receiver).
Go to the Bluetooth® menu on the phone. “Drop” or “disconnect the headset” (you do not need to delete
the headset entry). Turn off your phone. Follow the process to reconnect the headset to the USB receiver.
Using Your Headset
Using Your Cordless Headset with Your Mobile Phone
Check for phone compatibility.
The Logitech® Cordless Headset is compatible with most Bluetooth® enabled mobile phones.
Consult your phone manufacturer for more information on compatibility.
Before pairing headset to phone, follow all charging and comfort and t information on page 3.
To “pair” your headset to a Bluetooth® enabled mobile phone.
1. If your headset is connected to the PC (USB Receiver), disconnect it.
2. Turn on your phone. Turn off the headset. Make sure the battery is charged in both devices.
3. Press and hold the Multi-Function Button until the headset indicator light ashes blue and red
(about 10 seconds).
4. The headset now is in Pairing mode. Release the
button. The indicator light will continue ashing red
and blue.
5. Follow the pairing instructions for your Bluetooth®
phone. Typically, this is done by going to a ‘setup’ or
‘connect’ menu on your phone and then selecting the
options to ‘discover’ Bluetooth® devices.
6. Your phone should nd the ‘Logitech HS05-Vxx’
headset. Conrm to pair.
7. Your phone should prompt you for a passkey or PIN.
The PIN/passkey is: 0000.
8. If pairing was successful, the headset LED will
ash blue (3 repeating blue blinks).
9. If pairing fails, turn the headset and phone off and
repeat the process.
10. Red and blue ashing will return to stand-by mode
(blue ashing LED) if not paired in 2 minutes.
Note: It is not necessary to repeat the above pairing process every time you want to reconnect the
headset to the phone. Once paired, simply go to your phone’s “set-up” or “connect menu” and select
the ‘Logitech HS05-Vxx’ and choose “connect.”
Multi-Function
Button (MFB)
Feature Summary
Battery Disposal & Recycling
End-of-life Battery Disposal Instructions
This device uses a Lithium-ion battery that should last the lifetime of the device. If you suspect your battery
may be dead, try charging it. If the battery does not recharge, please follow instructions below for proper
disposal. The Logitech® Cordless Headset for PC and Mobile Phones does not have a user-
serviceable battery. Please do NOT attempt to change the battery. If the battery has died, you should
follow the disposal instructions below. Consult local laws and regulations for proper battery disposal in your
region. If there are no local regulations concerning battery disposal, please dispose of the device in a waste
bin for electronic devices.
Caution: The battery used in this device
may present a risk of re, explosion or
chemical burn if mistreated.
Do not expose battery to heat above 130° F (54°C),
or incinerate. Do not use or charge the batteries if
they appear to be leaking, discolored, deformed, or
in any way abnormal. Do not leave your batteries
discharged or unused for extended periods of time.
When batteries are misused, they may explode
or leak, causing burns and personal injury. If your
batteries leak, use normal precaution and discard the
batteries immediately.
Leaking batteries can cause skin burns or other personal injury. Do not dispose of batteries in a re.
Do not immerse batteries in water. Keep batteries out of reach of children.
Recycling Information for Lithium-ion Batteries.
Battery Removal (Destruction of headset will result).
1. Remove ear pad.
2. Use at screw driver to open headset as shown.
3. Disconnect battery connector from circuit board.
4. Do not place in trash. Dispose of battery according to
local battery recycling laws.
Mobile Phone Feature Summary
The Logitech® Cordless Headset supports call reject and other advanced features. See the Headset Operation
Summary Table below for a full summary of standard features supported.
Standard Features
How to What you do What you see What you hear
Turning On Headset Press Multi-Function Button (MFB) briey 5 BLUE LED Flashes, then slow BLUE
LED Flashes Brief low-to-high-tone
Incoming Call Notication No action 3 repeating BLUE ashes Melody increases in volume
Answering Call Press MFB briey 3 repeating BLUE ashes Single beep when answered
Call in Progress No action 4 repeating BLUE ashes No beeps
Ending call Press MFB briey 3 repeating BLUE ashes Single beep
To Pair From Off state, press and hold MFB button
for 10 seconds
Alternating BLUE/RED LED ashes,
BLUE ashing LED when paired Single high-low tone beep
Standby or connected No action 1 or 3 repeating BLUE Flashes No audio
Voice Dialing Press MFB when in standby or connected 4 repeating BLUE ashes Single beep
MIC Mute-on Press and hold Vol(+) and Vol(-) button
simultaneously for 3 seconds 4 repeating BLUE ashes Beep every 30 seconds
Ending MIC mute Press and hold Vol(+) and Vol(-) button
simultaneously for 3 seconds 4 repeating BLUE ashes Single beep
Low Battery No action Slowly repeating RED ashes Beep every 30 seconds
Turning Off Press MFB for more than 3 seconds 5 brief RED ashes High-to-low tone
Charging Notication No action Continuous ORANGE LED -
Enter Night Mode Press all three buttons for 3 seconds Nothing 4 quick tones
Release Night Mode Press all three buttons for 3 seconds 4 BLUE LED ashes 4 quick tones
Handsfree Functions - supported by phones that have this feature
Last Number Redial Press Volume (-) for 3 or more seconds 4 repeating BLUE ashes A double Beep
Incoming Call Reject Press MFB for more than 3 seconds 4 repeating BLUE ashes A double Beep
These features are supported by phones that support Handsfree Mode
Note: MFB stands for Multi-Function Button; CDMA and GSM phones handle these functions differently. Please check with your service provider and
mobile phone vendor for details.
Frequently Asked Questions
Warranty
Limited Warranty
Logitech® warrants that any hardware product accompanying this documentation shall be free from significant defects in
material and workmanship for a period of two (2) years from the date of purchase. Logitec’s limited warranty is nontransferable
and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights which
vary under local laws.
Remedies. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to: (a)
repair or replace the hardware, provided that the hardware is returned to the point of purchase or such other place as Logitech
may direct, with a copy of the sales receipt, or (b) refund the price paid. Any replacement hardware will be warranted for
the remainder of the original warranty period or thirty (30) days, whichever is longer. These remedies are void if failure of the
hardware has resulted from accident, abuse, or misapplication, or any unauthorized repair, modification or disassembly. Upon
request from Logitech, you must prove the date of original purchase of the hardware by a dated bill of sale or dated
itemized receipt.
Disclaimer of warranty. The warranties expressly set forth in this agreement replace all other warranties. Logitech AND ITS
SUPPLIERS expressly disclaim all other warranties, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose and noninfringement of third-party rights with respect to the HARDWARE. No Logitech dealer,
agent, or employee is authorized to make any modification, extension, or addition to this warranty. Some jurisdictions do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Limitation of liability. In no event will Logitech or its suppliers be liable for any costs of procurement of substitute products or
services, lost profits, loss of information or data, or any other special, indirect, consequential, or incidental damages arising in
any way out of the sale of, use of, or inability to use any Logitech product or service, even if Logitech has been advised of the
possibility of such damages. In no case shall Logitech’s AND ITS SUPPLIERS’ TOTAL liability exceed the actual money paid for
the Logitech product OR SERVICE GIVING RISE TO THE LIABILITY. Some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. The above limitations will not
apply in case of personal injury where and to the extent that applicable law requires such liability.
Frequently Asked Questions
Q Can I use my Bluetooth® Mobile Phone or cordless headset on a commercial airplane?
A This is airline dependent. Most carriers do not allow using Bluetooth® while in ight.
Conrm with the aircraft carrier for details.
Q What is the range of my headset?
A The RF transmission energy from your headset is much lower than from your mobile phone.
Useful headset range is about 30 feet and tends to be better indoors than out.
Q Can other mobile phone users listen in on my conversation while using a headset?
A Once your headset is paired with your phone or PC, you have a private link to which only you
can listen.
Q Is my headset communication secure?
A The Bluetooth® specication provides for a very secure connection. The Logitech® Cordless Headset is
fully compatible with these specications.
Q Will my headset work with my cordless phone at home?
A This headset is designed to work with Bluetooth® mobile phones and any other device, such as a
PDA or PC, that supports the Bluetooth® headset or Handsfree prole.
Q Can I use my headset while it is charging?
A For safety reasons, it is designed to work only when the charger is removed.
Q How can I keep my headset clean?
A Wipe with a clean cloth. Do not expose to liquids.
English
English
EUROPEAN, MIDDLE EASTERN
& AFRICAN HEADQUARTERS
LOGITECH Trading S.A.
Moulin-du-Choc
CH 1122 Romanel-sur-Morges
+41 (0) 21 863 54 00 English
FAX +41 (0) 21 863 54 02
+41 (0) 21 863 54 01 English
FAX +41 (0) 21 863 54 02
CORPORATE HEADQUARTERS
LOGITECH Inc.
6505 Kaiser Drive
USA Fremont, CA 94555
(800) 231-7717 +1 702 269 3457
ASIAN PACIFIC HEADQUARTERS
LOGITECH Far East Ltd.
#2 Creation Road IV
Science-Based – Industrial Park
ROC Hsinchu, Taiwan
+886 (2) 27466601 x2206
AUSTRALIA
LOGITECH Australia Computer
Peripherals Pty Ltd.
Level 2, 633 Pittwater Road
AUS Dee Why NSW 2099,
Australia
+61 (02) 9804 6968
+61 (02) 9972 3561
CANADA
Sales & Marketing Ofce
5025 Orbitor Dr., Bldg. 6, Suite
200 CDN Mississauga, ON
L4W 4Y5
(800) 231-7717 +1 702 269 3457
JAPAN
LOGICOOL Co. Ltd.
Ryoshin Ginza East Mirror Bldg.,
7F 3-15-10 Ginza
Chuo-ku, Tokyo, Japan 104-0061
+81 (3) 3543 2122
FAX +81 (3) 3543 2911
In LATIN AMERICA AND
THE CARIBBEAN
Contact your local authorized distributor, or call our Customer
Support Hotline in the USA
+1 702 269 3457
Technical Support
Regulatory Information
FCC and IC Statement
This Class B digital apparatus complies with Canadian ICES-003 and part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY
interference, for example RADIO OR TV interference, caused by unauthorized modifications to this equipment. Such
modifications could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Customer Service
If you need additional help with your product, contact Logitech® at (702) 269-3457 or on the web at
www.logitech.com/support.
Regulatory Information
www.logitech.com
©2006 Logitech. All rights reserved. Logitech, the
Logitech logo, and other Logitech marks are owned by
Logitech and may be registered. All other trademarks
are the property of their respective owners.
The Bluetooth® word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks by
Logitech is under license. Other trademarks and trade
names are those of their respective owners.
624397-0403
