Safety
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Caution: risk of electric shock. Do not open mains
operated device.
• Do not use apparatus near water.
• Clean only with a dry cloth.
• Install in accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized
plug. A polarized plug has two blades with one
wider than the other. The wide blade is provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
• Only use attachments/accessories specified by the
manufacturer.
• Unplug this apparatus when unused for long
periods of time or during lightning storms.
• Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
• Refer all servicing to qualified service personnel.
• The appliance shall be disconnected from
the mains by pulling the mains power plug.
The socket - outlet shall be installed near the
equipment and shall be easily accessible.
• Batteries built into device are NOT user
replaceable. Discard used batteries according to
the manufacturers instructions.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
IMPORTANT SAFETY INFORMATION
CAUTION
ELECTRIC SHOCK HAZARD
Introduction
1
English
2
English
Headset Overview
A. WindStop
™
microphone
B. LED indicator light
C. Volume down: lowers volume
D. Volume up: raises volume
E. Adjustable/reversible ear piece
F. Multi-function button: Power on/off,
answer/end calls
A
F
E
D
C
B
Technical Specifi cations
• Full duplex communication
• Rechargeable lithium-ion battery
• Adapter:
5.0
V.D.C.
• Range: up to 33 feet/10m
• Telephone voice quality sound
• Talk time: up to 7 hours
• Stand by time: up to 300 hours
• Weight: 23g
• Bluetooth profi le v1.2 compliant
– Adaptive-frequency hopping
– Quick-connect time
– Enhanced audio quality
• Maximum conducted output power
= 2.5mW (variable adaptive power
control)
• Operates in (2402MHz-2480MHz)
Frequency Bands
•
GFSK/
FHSS Modulation
Pairing with a
Bluetooth
®
Phone
You must pair your headset to a
Bluetooth
®
Mobile Phone.
For more details, refer to your mobile phone user guide or contact the phone’s manufacturer.
1. Turn on your phone. Make sure the battery is charged in both devices. Turn off the Headset.
2. Press and hold the Multi-function button until the headset indicator
light fl ashes blue and red (about 10 seconds).
3. The Headset is now in Pairing mode. Release the button. The indicator
light will continue fl ashing red and blue.
4. Follow the pairing instructions for your
Bluetooth
®
phone. Typically,
this is done by going to a ‘setup’ or ‘connect’ menu and then selecting
the options to ‘discover’
Bluetooth
®
devices.
5. Your phone should fi nd the ‘
Logitech HS02-Vxx
’ headset.
Confi rm to pair.
6. Your phone should prompt you for a passkey or
PIN
.
The PIN/passkey is:
0000
.
7. If pairing was successful, the Headset LED will fl ash blue.
8. If pairing fails turn the headset and phone off and repeat the process.
9. Red and blue fl ashing will return to stand-by mode (blue fl ashing LED) if not paired in 2 minutes.
Comfort & Fit

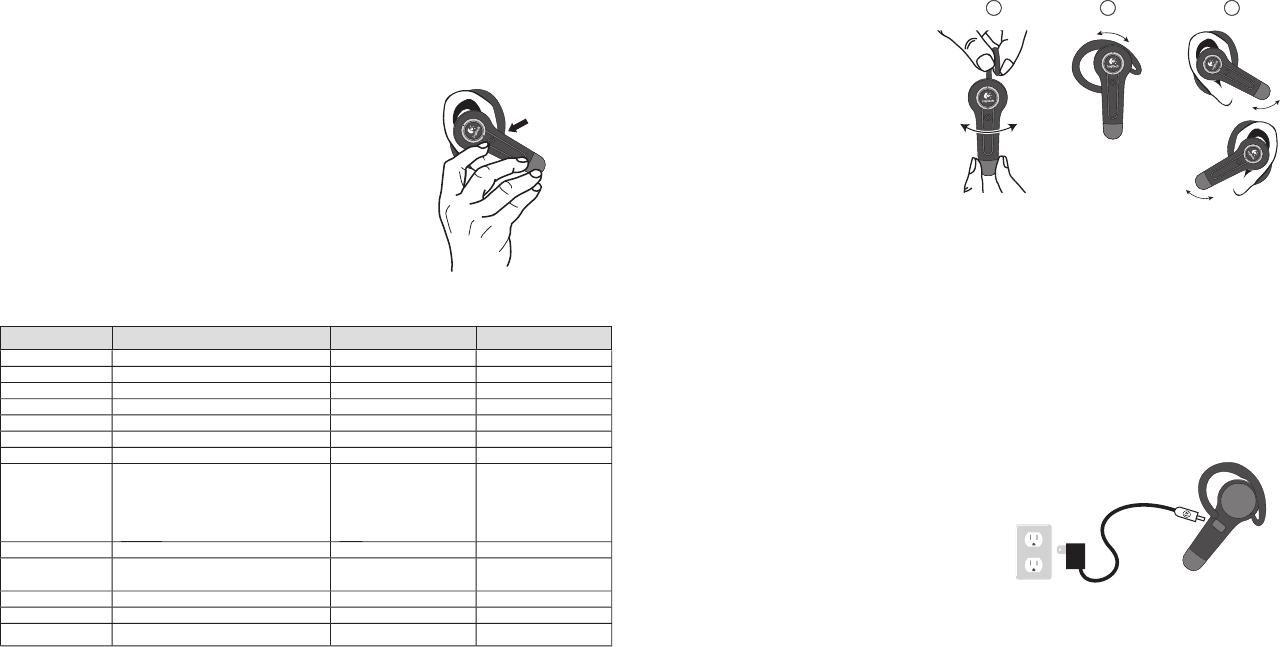

1. Flip the earpiece and slide the
headset to fi t either ear.
2. Rotate the earpiece and slide the
headset over ear to your comfort.
3. Rotate the microphone boom so
it is pointing toward the corner of
your mouth.
Please see www.logitech.com for
more information.
Using your Headset
Turning the headset on and off:
Push and hold the multi-function button for 4 seconds. A blue light will fl ash when on.
Answering/ending a call:
Press the multi-function button.
Muting a call:
Press and hold Volume up for
3
seconds. A repeating beep will indicate that the microphone is muted. Quick-Press of
Volume up or down to discontinue mute.
Charging the Headset
1. Turn off the headset and connect the power adapter.
2. Plug the power adapter to an electrical outlet.
3. The LED will be orange when charging. If the LED is not
orange, the connection is not suffi cient.
4. When the LED turns off, your headset is fully charged.
Charging can take up to
3
hours.
Setup – Pairing your Headset
Wearing and Using your Headset
3
English
4
English
Headset Operation
Activation
LED Status
Sounds
Turning On
Press multi-function button fo
r more than 3 seconds
5 BLUE flashes
brief low-to-high tone
Receiving incoming call
None
- Automatic
3 repeating BLUE flashes
melody increases in volume
Answering call
Briefly press multi-function button
3 repeating BLUE flashes
single beep when answered
During call
None
- Automatic
4 repeating BLUE flashes
no beep
Mic Mute-on during call
Press + volume button more than 2 seconds
4 repeating BLUE flashes
double-beep every 30 seconds
Ending mic mute
Press + or
- volume button briefly
4 repeating BLUE flashes
single beep
Ending call
Press multi-function button briefly
3 repeating BLUE flashes
single beep
Pairing
Option 1
Option
2
Wh
ile off, press MFB for about 8 seconds until R
ED
and BL
UE flashes (times out after 2
minutes i
f no
pairing)
From Standby, press MFB for about 8 seconds until
RED and B
LUE flashes (times out after 2 minutes if
no pairing)
no pairing)
Alternating RED and BLUE flashes
Repeating BLUE flash when
paired
Alternating RED and BLUE flashes
Repeating BLUE flash when
paired
paired
single high-low tone beep
No beep after pairing
single high-low tone beep
No beep after pairing
Standby or connected
Non
e
1 or 3 repeating BLUE flashes
None
Voice Dialing
In standby mode, press multifunction butt
on, say
n
ame (stored in phone) after tone
4 repeating BLUE flashes
single beep
Low Battery
(<30 minutes)
None
- Automatic
RED flashes
last 30 minutes
Turning off
Press multi-function button for more than 3 seconds
5 RED flashes
high-to-low tone
Charging
Connection to power adapter charger and plugging
into electrical outlet
Continuous ORANGE
(Some funtions are phone dependent)
1
2
3
Multi-function
button
Frequently Asked Questions
Q.
Can I use my headset on a plane?
A.
No. At this time, the FAA prohibits the use of wireless/RF devices on airplanes
.
Q.
How long should it take to charge my headset?
A.
It should take approximately
3
hours to charge your headset when the battery is completely discharged.
The
orange
charger LED light will turn
off
when charged
off when chargedoff
.
Q. What
should I do
if the signal from the headset to the phone is lost?
A.
A lost signal between the headset and phone could be caused either by a low battery or if the phone is out
of the headset’s range. If this occurs, return the phone to within 30
/10m
feet of the headset. If the battery
is low, re-charge the headset
/and or phone
.
Q. When wearing the headset, where should I position the mini-boom?
A.
For best results, place the end of the mini-boom as close to your mouth as possible
.
Q.
Is there a car adapter available?
A.
Yes. You can find it at www.logitech.com/adapter_offer.
Q. Is there a power saving mode for my headset?
A.
Yes. Whenever a call is not active, the headset
automatically goes into
power-conserving standby mode.
Q. Can I use my headset in windy conditions?
A.
Yes. WindStop technology ensures that your listener will hear you clearly in strong winds experienced
when walking outside in a stiff breeze, with your car windows rolled down, air conditioning blowing in your
headset,
and similar conditions
.
Frequently Asked Questions
5
English
End-of-life Battery Disposal Instructions
This device uses a 4.0V, 140mAh Lithium-ion battery that should last the lifetime of the device. If you suspect your
battery may be dead, try charging it. If the battery does not recharge, please contact Logitech
®
Customer Support
for repair information.
The Logitech
®
Mobile Freedom™ Headset does not have a user-serviceable
battery. Please do NOT attempt to change the battery yourself
. If the battery has died and you do not
want
Logitech
®
to replace your battery, you should follow the disposal instructions below. Consult local laws and
regulations for proper battery disposal in your region. If there are no local regulations concerning battery disposal,
please dispose of the device in a waste bin for electronic devices.
Caution
The battery used in this device may present a risk of fi re,
explosion or chemical burn if mistreated.
Do not expose battery to heat above 100° C (212°F), or incinerate. Do not use or charge the batteries
if they appear to be leaking, discolored, deformed, or in any way abnormal. Do not leave your batteries discharged
or unused for extended periods of time. When batteries are misused, they may explode or leak, causing burns and
personal injury. If your batteries leak, use normal precaution and discard the batteries immediately
in accordance
with these instructions
.
Recycling Information for Lithium-ion Batteries

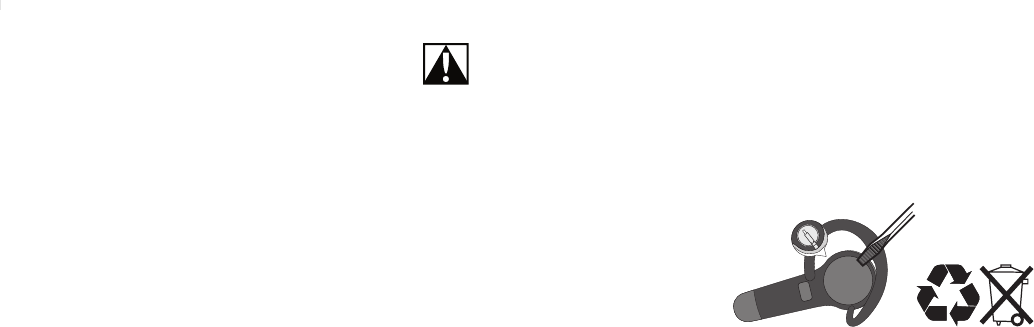

Battery Removal
1. Use fl at screw driver to open headset as shown.
2. Disconnect battery connector from circuit board.
3. Do not place in trash. Dispose of battery
according to local battery recycling laws.
Battery Disposal & Recycling
6
English
Warranty
Sécurité
7
English
8
Français
Limited Warranty
Logitech® warrants that any hardware product accompanying this documentation shall be free from significant defects
in material and workmanship for a period of one (1) year from the date of purchase. Logitech®’s limited warranty is
nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have
other rights which vary under local laws.
Remedies. Logitech®’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech®’s option,
to: (a) repair or replace the hardware, provided that the hardware is returned to the point of purchase or such other place
as Logitech® may direct, with a copy of the sales receipt, or (b) refund the price paid. Any replacement hardware will be
warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. These remedies are void
if failure of the hardware has resulted from accident, abuse, or misapplication, or any unauthorized repair, modification or
disassembly. Upon request from Logitech®, you must prove the date of original purchase of the hardware by a dated bill of
sale or dated itemized receipt.
DISCLAIMER OF WARRANTY. THE WARRANTIES EXPRESSLY SET FORTH IN THIS AGREEMENT REPLACE ALL OTHER WARRANTIES.
LOGITECH® AND ITS SUPPLIERS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD-PARTY
RIGHTS WITH RESPECT TO THE HARDWARE. NO LOGITECH® DEALER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY
MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY.
Some jurisdictions do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply to you.
LIMITATION OF LIABILITY. IN NO EVENT WILL LOGITECH® OR ITS SUPPLIERS BE LIABLE FOR ANY COSTS OF PROCUREMENT OF
SUBSTITUTE PRODUCTS OR SERVICES, LOST PROFITS, LOSS OF INFORMATION OR DATA, OR ANY OTHER SPECIAL, INDIRECT,
CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING IN ANY WAY OUT OF THE SALE OF, USE OF, OR INABILITY TO USE ANY
LOGITECH® PRODUCT OR SERVICE, EVEN IF LOGITECH® HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN
NO CASE SHALL LOGITECH®’S AND ITS SUPPLIERS’ TOTAL LIABILITY EXCEED THE ACTUAL MONEY PAID FOR THE LOGITECH®
PRODUCT OR SERVICE GIVING RISE TO THE LIABILITY.
Some jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you. The above limitations will not apply in
case of personal injury where and to the extent that applicable law requires such liability.
FCC and IC Statements
This Class B digital apparatus complies with Canadian ICES-003 and part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible
for ANY interference, for example RADIO OR TV interference, caused by unauthorized modifications to this equipment. Such
modifications could void the user’s authority to operate the equipment
.
• Veuillez lire ces instructions.
• Conservez ces instructions.
• Tenez compte de tous les avertissements.
• Suivez toutes les instructions à la lettre.
• Attention: risque d’électrocution. Cet appareil est
alimenté sur secteur, ne l’ouvrez pas.
• N’utilisez pas l’appareil à proximité d’une source
d’eau.
• Nettoyez-le uniquement à l’aide d’un chiffon sec.
• Procédez à l’installation en respectant les
instructions du fabricant.
• N’installez pas l’appareil à proximité d’un radiateur,
d’un poêle ou de toute autre source de chaleur (y
compris les amplificateurs).
• Ne supprimez pas la fonction de sécurité de
la fiche polarisée. Une fiche secteur polarisée
possède deux broches, dont l’une est plus large
que l’autre. La broche la plus large est fournie
pour votre sécurité. Si la fiche fournie n’est pas
adaptée à votre prise, consultez un électricien
pour la remplacer.
• Evitez de marcher sur le cordon d’alimentation ou
de le pincer, en particulier au niveau des prises,
des socles de prises d’alimentation et du point de
sortie de l’appareil
.
• N’utilisez que les éléments annexes et les
accessoires spécifiés par le fabricant.
• Débranchez cet appareil en cas d’orage ou si vous
ne l’utilisez pas pendant des périodes prolongées.
• L’appareil doit être réparé dès qu’il a été
endommagé (par exemple, au niveau du cordon
d’alimentation ou de la prise), ou si un liquide a
été renversé ou si des objets sont tombés dessus,
s’il a été exposé à la pluie ou à l’humidité, s’il ne
fonctionne pas normalement ou s’il est tombé.
• Les réparations doivent être effectuées par des
techniciens qualifiés.
• Déconnectez-le de l’alimentation secteur en
retirant la fiche de la prise secteur. La prise
d’alimentation doit se trouver à proximité de
l’équipement et doit être facilement accessible.
• Les piles intégrées au dispositif ne peuvent PAS
être remplacées par l’utilisateur. Avant de vous
débarrasser des piles usagées, référez-vous aux
instructions du fabricant.
AVERTISSEMENT:
POUR REDUIRE LE RISQUE D’INCENDIE OU
D’ELECTROCUTION, N’EXPOSEZ PAS CET
APPAREIL A LA PLUIE NI A L’HUMIDITE
.
CONSIGNES DE SECURITE IMPORTANTES – POUR ALIMENTATION ELECTRIQUE UNIQUEMENT
ATTENTION: RISQUE D’ELECTROCUTION
