Enjoying the ideal companion for your

Google TV™ system is just moments away.

Setup Guide

From HD video calling on your couch

to house-of-the-future touch screen remotes.

Logitech accessories for Google TV make

communication more personal, information

more accessible and entertainment more fun.

www.logitech.com/SmartTV/accessories

3

Logitech® Mini Controller

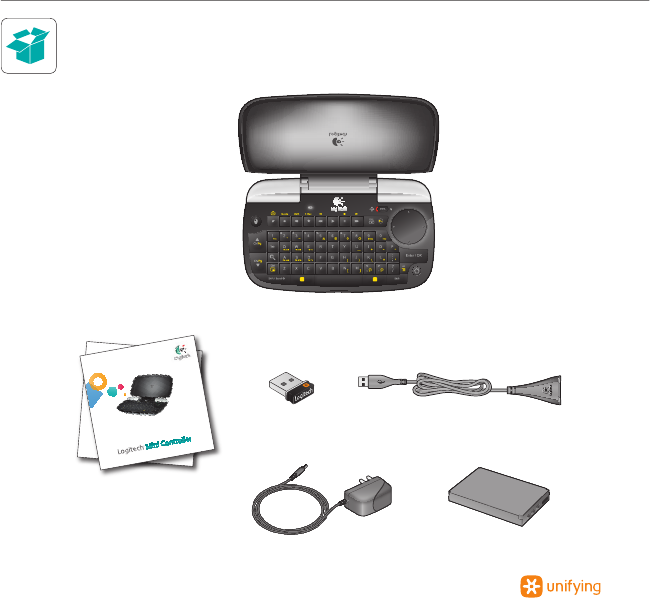

Unpack the box

Enjoying the ideal companion for your

Google TV™ system is just moments away.

Setup Guide

Logitech® Mini Controller (TV730)

Unifying receiver

Li-ion battery

Power adapter

USB cable extender

4

Logitech® Mini Controller

Mini Controller at a glance

2

15

16

17 18 19

16

20 21 22

14

3 4

55

6 7 8 9 10 11

12

1

13

5

Logitech® Mini Controller

1. Cover Functions as an on/off switch: open

to turn on controller; close to put controller

in standby mode

2. Mute Mutes volume

TV Switches to live TV when used with the

FN key

3. Volume down Reduces volume

Guide Presents the program guide on your

set-top box (STB) when used with the FN key

4. Volume up Increases volume

DVR Presents a list of recordings on your

STB when used with the FN key

5. Favorite Saves favorite locations

Record Records when used with the FN key

(may not be available for all devices)

6. Battery indicator light Blinks green

when battery is charging, turns solid green

when battery is fully charged, and red when

battery power is low

7. Playback Controls video playback—

Rewind, Forward, Play/Pause, and Fast

Forward

8. Menu Displays STB on-screen menu/guide

when used with the FN key

9. Touchpad mode slider Switches

between Navigation mode, for navigating

menus and web pages, and Pointing mode

for cursor movement

10. Back Returns to previous screen when used

with the FN key

11. Dual-mode touchpad Functions as a

directional pad in Navigation mode for

navigating menus and web pages, also

functions as a touchpad in Pointing mode

for cursor movement

12. Mouse Functions as a left-mouse click

13. Ch/Pg up Channel up, or scrolls up through

web pages when used with the FN key

Ch/Pg down Channel down, or scrolls

down through web pages when used with

the FN key

14. Search Launches the Google TV™ search

and navigation bar

15. Picture-in-picture Activates and toggles

picture-in-picture modes when used with

the FN key

16. FN Enables yellow-highlighted key

commands when held down; press to turn

on backlighting

17. Input Switches TV input when used with

the FN key

18. Device on/off Turns on/off AVR, STB, and

TV when used with the FN key

19. Zoom out Zooms out when used with the

FN key

20. Zoom in Zooms in when used with the

FN key

21. Menu Displays Google TV menu options

when used with the FN key

22. Home Returns to the Google TV home

screen.

6

Logitech® Mini Controller

1Insert battery in Mini Controller

1. Open the back cover of the Mini Controller by sliding the tab up.

2. Match the contacts on the left side of the battery with the pins on the left

side of the battery compartment.

3. Push the battery release slider right to insert the battery.

4. Replace the back cover.

7

Logitech® Mini Controller

2Connect power to Mini Controller

1. Plug the AC cable into the power port on the side of the Mini Controller.

2. Plug the AC adapter into a wall socket to start charging the Li-ion battery.

A full charge takes about four hours for up to ten days of use. A ten-minute

charge provides about one day of use.*

* The Li-ion battery has a limited number of charge cycles. Battery life may vary based

on user and computing conditions.

8

Logitech® Mini Controller

3

Plug the Unifying receiver into a USB port in your Google TV–based Smart

TV system.

If, while using the Mini Controller you notice performance issues (e.g., sluggish

pointer movement or commands not being quickly recognized, etc.), try using

the USB cable externder to place the Unifying receiver farther away from your TV,

which may be producing electromagnetic interference.

Setup with a Google TV-based Smart TV system

Connect the Mini Controller

9

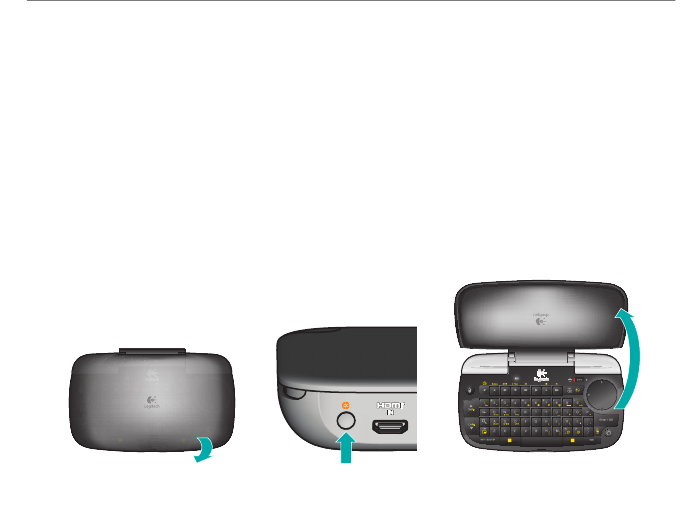

Logitech® Mini Controller

1. Turn ON the Companion Box (sold separately).

2. Close the top cover of the Mini Controller to turn it OFF.

3. Press and release the pairing button on the back of the Companion Box. This

button is located under the Unifying logo.

4. Open the top cover of the Mini Controller to turn it ON and to pair it with

the Companion Box.

Setup with a Logitech Revue Companion Box

Mini Controller Logitech Revue™

Companion Box

10

Logitech® Mini Controller

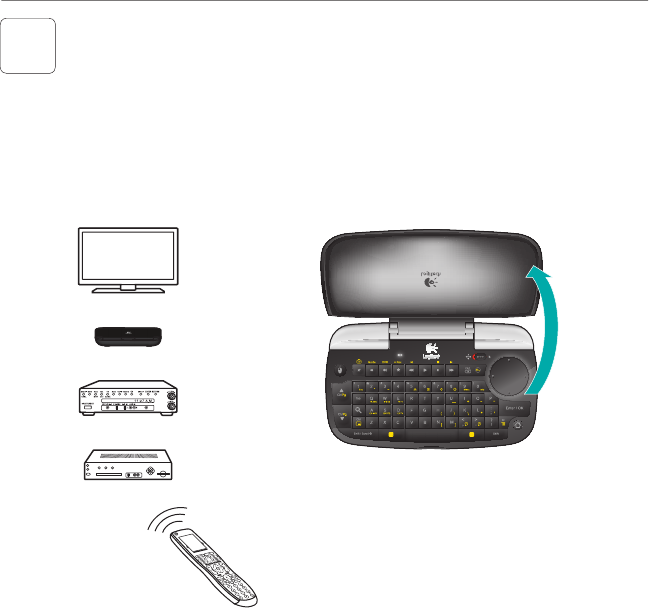

4Power everything on

Your new Mini Controller cannot control your devices until you complete

the on-screen setup.

1. To begin, turn on all devices using your current method of control.

2. Open the Mini Controller’s top cover to turn ON the unit.

3. Follow the instructions on the TV screen to complete setup.

CHANNELINFO MSGS A/B REMOTE

MENU

POWER

AUDIO IN

RL

VID IN

*

Off

TV

AVR

Companion Box

STB

11

Logitech® Mini Controller

The Mini Controller offers two operating modes:

Navigation mode for navigating menus and web

pages, and Pointing mode for moving the screen

pointer. Use the Touchpad mode slider to switch

between these two modes.

In Navigation mode, the touchpad functions as

a directional pad. Use the touchpad’s directional

arrows to move up, down, left, or right.

In Pointing mode, place your finger on the

touchpad surface and slide to move the pointer on

the screen.

Note that when you hold down the FN key the

mode switches (Navigation mode to Pointing mode,

or vice versa). As long as you hold down the FN key,

the modes remain switched.

Touchpad backlighting

In Navigation mode, the touchpad direction arrows and the word, “OK,” are backlit in green. In

Pointing mode, the perimeter of the touchpad is backlit in orange.

Touchpad mode

slider

Directional mode

Touchpad in

Navigation mode

Touchpad in

Pointing mode

Pointing mode

How changing modes affect the touchpad

12

Logitech® Mini Controller

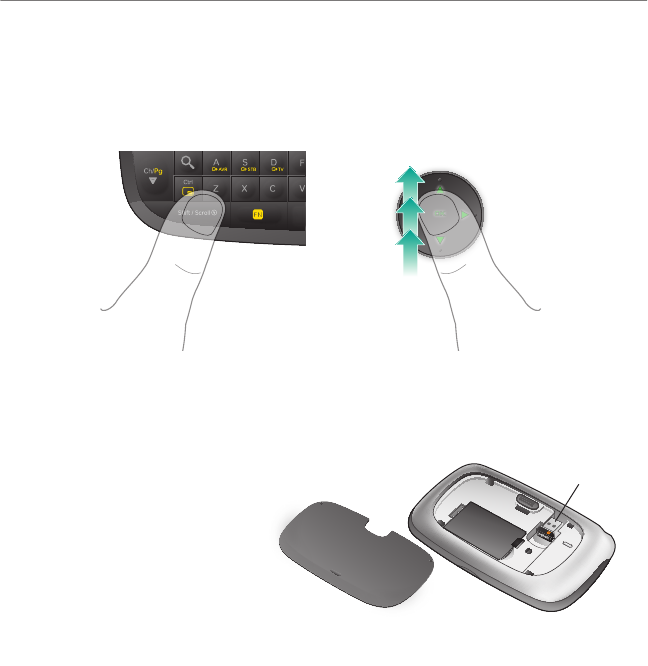

Scrolling with the touchpad

Unifying receiver storage

To scroll in either Navigation or Pointing mode, hold down the Shift/Scroll key, and

then move your finger (or thumb) up the touchpad to scroll up; move your finger

down the touchpad to scroll down.

When not using the Unifying receiver,

you can store it conveniently inside the

Mini Controller.

Press and hold

Shift/Scroll

Slide with other

thumb on touchpad

to scroll

Unifying receiver

storage

13

Logitech® Mini Controller

Help with setup

Problem: My Mini Controller does not work or will not connect.

Solution: Check the following:

• Is the Mini Controller on? Open the top cover to turn on the unit. The Battery Indicator Light

should be solid green when the battery is fully charged, and red when battery power is low.

If the Battery Indicator Light is red, you will need to recharge the battery. Refer to page 7 for

instructions.

• Is the battery installed correctly? Remove the battery cover and check battery installation. Refer

to page 6 for more information.

• Is your Mini Controller paired with the Logitech Revue™ Companion Box (sold separately)? To

pair the Companion Box with the Mini Controller, please refer to Setup with a Logitech Revue™

Companion Box on page 9.

• Is your Mini Controller paired with a Google TV–based smart TV system? Make sure the

Unifying receiver is plugged into a USB port on your Google TV. Try using the USB cable

extender to place the Unifying receiver farther away from your TV, which may be producing

electromagnetic interference. You may need to re-establish the connection between the Mini

Controller and its Unifying receiver:

1. Insert the Unifying receiver in a USB port on a PC that is connected to the Internet.

2. Download the Unifying software from www.logitech.com/unifying.

3. Follow the on-screen instructions to reconnect the Mini Controller with the Unifying receiver.

4. When finished, insert the Unifying receiver back into a USB port on the TV. The connection

between the Mini Controller and Unifying receiver should now be re-established.

• If you are navigating through TV channels or web pages, make sure the Mode Slider is set to

Navigation mode by moving the slider left. To enter text or to move the screen pointer, move

the Mode Slider right to activate Pointing mode.

14

Logitech® Mini Controller

Problem: In a Logitech Revue™ setup, my TV, STB (set-top box), or AVR (audio-video receiver) is not

responding to the Mini Controller.

Solution: Check the following:

• Is the device IR controlled? Some home theater devices are controlled by line-of-sight, infrared

communication (IR), and others are controlled by high-frequency radio waves (RF). If you are

using the Logitech Revue Companion Box, this device only controls IR-enabled TVs, STBs, and

AVRs, and will not communicate with RF-controlled components.

• Is the IR signal blocked? Use the mini blaster (which comes with your Logitech Revue

Companion Box) to extend the range of the Companion Box IR signal.

• Is the mini blaster close enough to have a direct line of sight with your device? Try moving the

mini blaster closer to the device.

• Is the device still not responding? You may need to teach additional IR commands to your

Logitech Revue Companion Box. Launch the “Logitech Help and More” application from

Logitech Revue to find the video, “Teaching Infrared commands to your Revue.”

What do you think?

Please take a minute to tell us.

Thank you for purchasing our product.

www.logitech.com/ithink

Now make yourself comfy. Settle in on the sofa.

And get ready to hang out. There’s one tricky thing left to do. . .

choosing what to watch first.

www.logitech.com

For assistance, call toll free: 1-866-954-5644

Go to www.logitech.com/revue/support for current support hours
