Long Range Solutions PRONTO PRONTO User Manual Layout 1
Long Range Systems Inc PRONTO Layout 1
User Manual
Each button on the one or six button PRONTO can be programmed to send a unique message
to separate pagers or group of pagers. Both the six-button and one-button models can also
send a specific message for an external switch or sensor.
Installation
To put the PRONTO in operation:
Note: If your Pronto is not already programmed, refer to the programming guide first.
1. Install the 2-batteries in the Pronto (note the positive and negative end)
2. Locate and install the mounting bracket where it is to be used. (use screws, straps
or velcro)
3. Position the unit into the notches in the mounting bracket and press until latch
engages.
4. Turn on the pager (refer to the pager booklet).
5. Press the button(s) on the PRONTO to test that the pager is receiving the messages.
Normal Operation
1.
Press a button the pager will receive the message.
Optional Power Supply
The PRONTO may also be powered by an optional external power supply. Please contact Long
Range Systems for more information. WARNING: Connection of an incorrect power supply will
void the warranty.
Long Range Systems 1PRONTO Quick Guide
PRONTO™
Six and One Button Paging System
QUICK SETUP & OPERATION

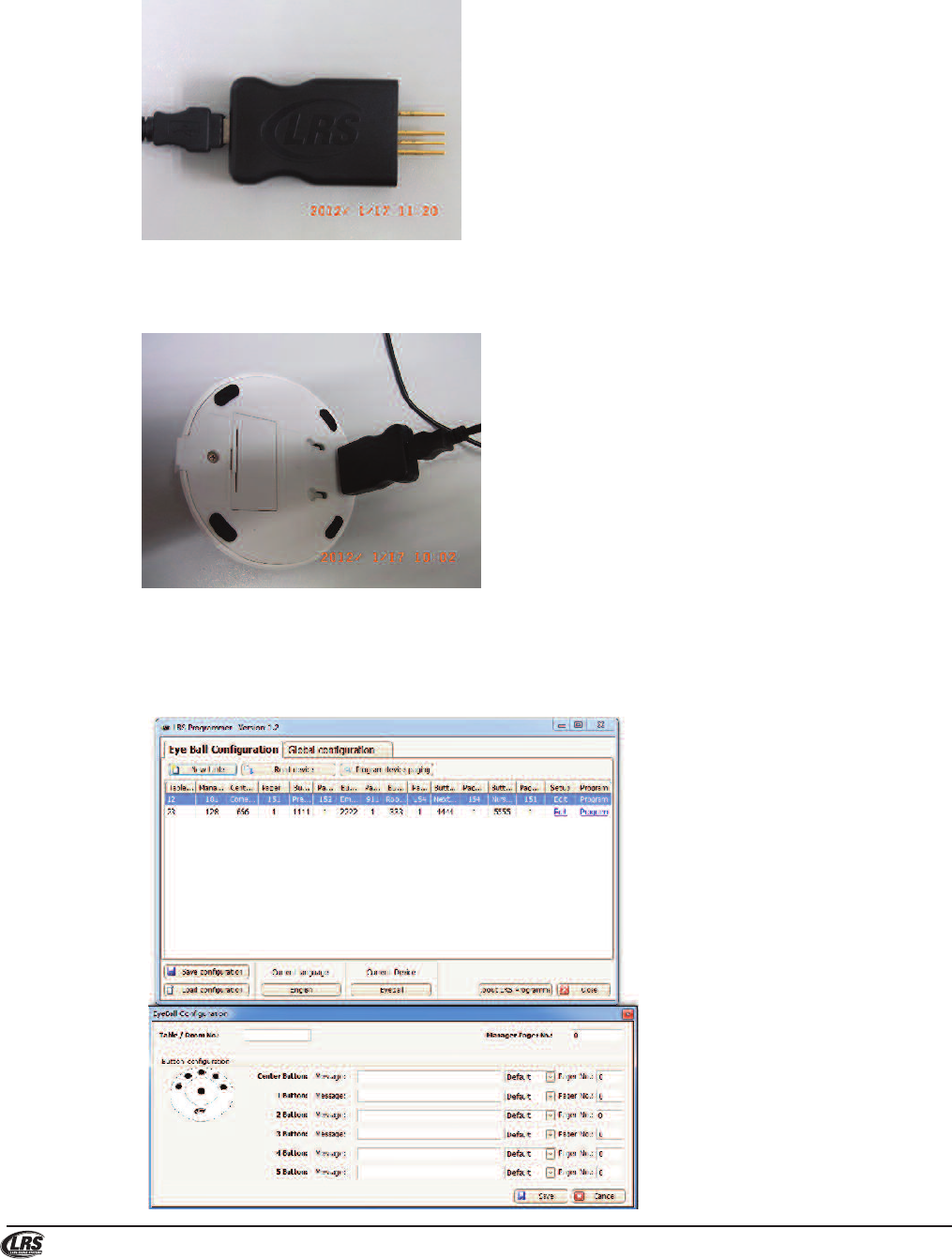

Programming Your Pronto
1. Locate the 4-pin connector.
2. Connect the USB probe with special 4-pin connectors.
3. Plug into the PRONTO with 4-hole location.
4. Connect the USB plug to the PC.
5. Execute the PC program named “LRS Programmer”.
6. Click “New Table” to edit the messages associated with each button.
Long Range Systems 2PRONTO Quick Guide

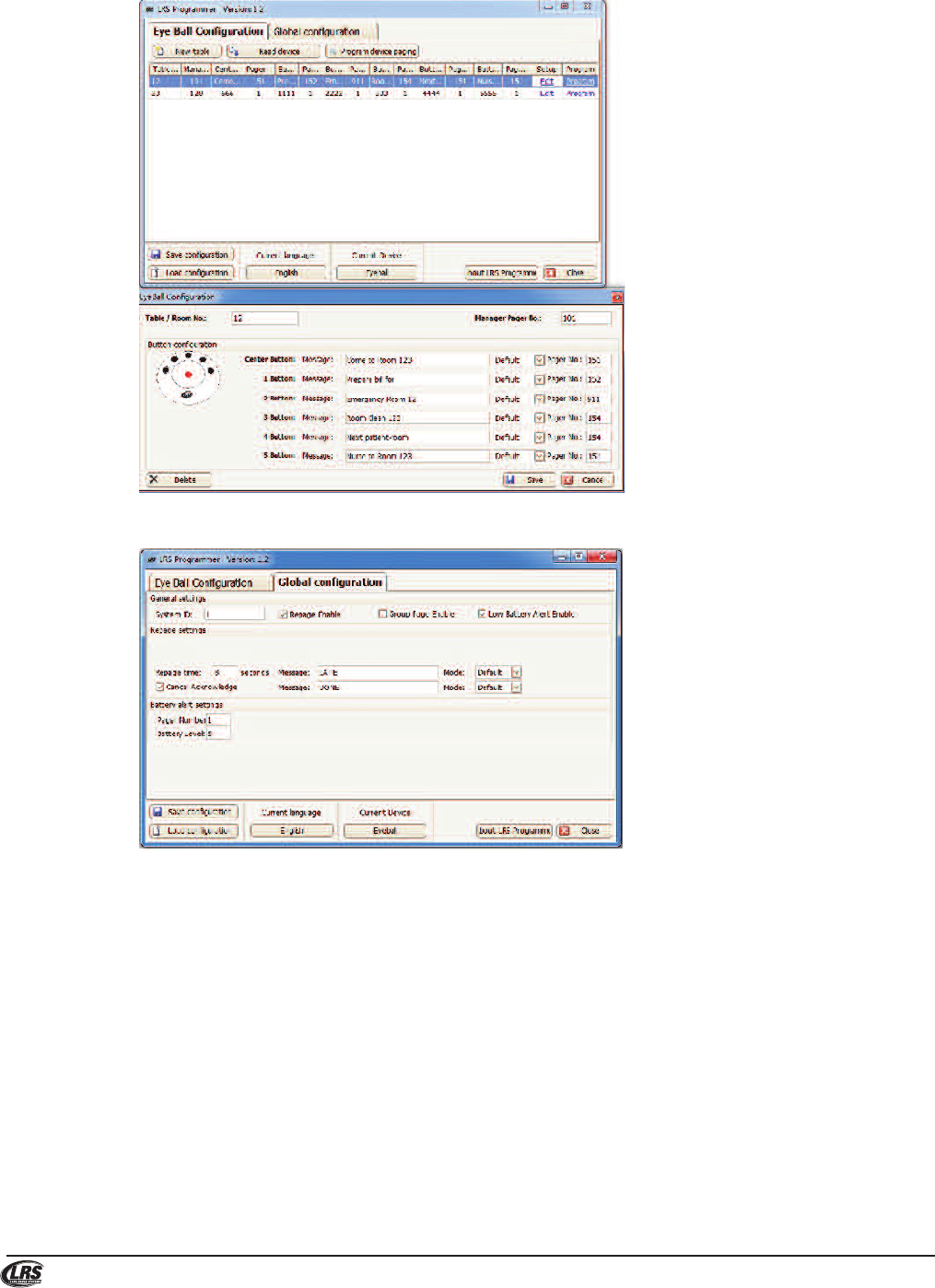

7. Click “Edit” in the corresponding entry for message re-definition.
8. Click “Global Configuration” for configuration setting.
Long Range Systems 3PRONTO Quick Guide
Long Range Systems 4PRONTO Quick Guide

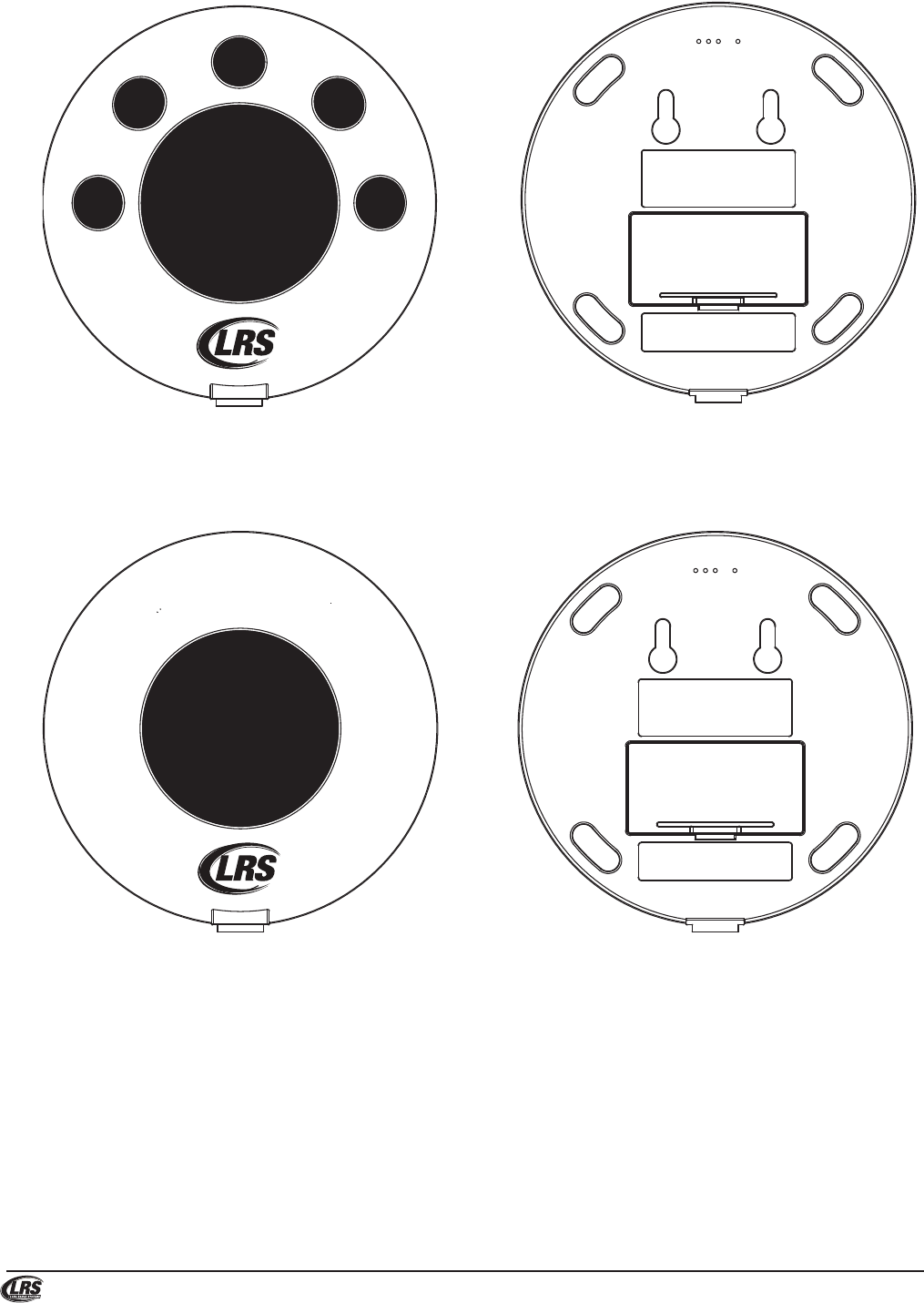

Six Button Front
Six Button Back
O
One Button Front
One Button Back
FCC Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the inter-
ference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for com-
pliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-
tions: (1) This device may not cause harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
Long Range Systems 5PRONTO Quick Guide
WARRANTY
Long Range Systems LLC warrants this product against any defects that are due to faulty material or workmanship for a one
year period after the original date of consumer purchase. The warranty does not include damage to the product resulting from
accident, misuse, improper electrical connection, or failure to charge the product within 30 days of receipt. Recharge-
able pagers are required to stay on charge while not in use. Rechargeable pagers that are left off of charge for longer
than 30 days will have a negative impact on the life of the batteries requiring them to be replaced thus voiding the war-
ranty. If this product should become defective within the warranty period, we will repair or replace it with an equivalent prod-
uct, free of charge. LRS will return your product via UPS ground shipping. All warranty claims must be initiated through our
customer service department:
Long Range Systems, LLC | 4550 Excel Pkwy, Suite 200 | Addison, TX 75001 | 800-437-4996 | www.pager.net
No return or replacement can be received without prior authorization and
the proper RMA Number posted to the outside of the shipping container.
This warranty gives you specific legal rights and you may also have rights that vary from state to state.
Copyright © 2012, Long Range Systems, LLC All Rights Reserved.
This document contains proprietary information of Long Range Systems, LLC. (LRS) and is intended for use only by it’s em-
ployees or customers. None of the material contained herein may be copied, reproduced, republished, downloaded, displayed,
posted, or transmitted in any form or by any means, including but not limited to, electronic, mechanical, photocopying, record-
ing, or otherwise without the prior written permission of LRS. Additional copies of this manual may be obtained by contacting
LRS.
Screen displays, keyboard layouts, hardware descriptions, or software are proprietary to LRS and are subject to copyright and
other intellectual property rights of LRS and shall be treated in accordance with the previous paragraph.
All attempts have been made to make the information in this document complete and accurate. LRS is not responsible for any
direct or indirect damages or loss of business resulting from inaccuracies or omissions. Specifications and other information
contained within this document are subject to change without notice.
Long Range Systems, LLC reserves the right to make changes without further notice to any products herein. Long Range Sys-
tems, LLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose,
nor does Long Range Systems, LLC assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parame-
ters that may be provided in Long Range Systems, LLC data sheets and/or specifications can and do vary in different applica-
tions and actual performance may vary over time. All operating parameters, including “Typicals”, must be validated for each
customer application by customer’s technical experts.
Long Range Systems, LLC products are not designed, intended, or authorized for use as components in systems intended to
support or sustain life, or for any other application in which the failure of the Long Range Systems, LLC product could create a
situation where personal injury or death may occur.
Should Buyer purchase or use Long Range Systems, LLC products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Long Range Systems, LLC and its officers, employees, subsidiaries,
affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out
of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that Long Range Systems, LLC was negligent regarding the design or manufacture of the part, device or system.
EU DECLARATION OF CONFORMITY
We, Long Range Systems hereby declare under our sole responsibility that the Pronto paging systerm and on-site
pagers complies with the essential requirements in the European RE&TTE Directive 1999/5/EC of the European
Parliament of the Council of 9 March 1999 on radio equipment and telecommunication terminal equipment and the
mutual recognition of their conformity. The following standards were utilized:
ETS 300 224: 1998 EN 301 489-2: 2002
EN61000-3-2: 1998 EN 61000-3-3: 1995
EN 60950: 1992 with A1, A2, & A3
Long Range Systems 6PRONTO Quick Guide
011812
