Users Manual
Usage, Installation, Warranty and Service Information
Long Range Systems, LLC
4550 Excel Parkway, Suite 200
Addison, TX 75001
800.437.4996 •www.pager.net
T13C/R1201
Table Updater for Seating Management
USER MANUAL
Table Of Contents
Long Range Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
T13C/R1201F Host Computer Table Management System Diagram . . . . . . . . . . . . 2
Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
T13C Kyppad Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Test and Resest Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
T13C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Long Range Systems 1T13C User Manual
Long Range Systems
Thank you for choosing Long Range Systems to provide your on-premise paging solution. We provide cut-
ting edge products and first-rate service to satisfy your needs for years to come. Please familiarize yourself
and your staff with the contents of this instruction in order to properly operate and maintain your system.
For help operating your system or for any service problems, please call:
(800) 437-4996
NOTE: Please keep this instruction in a safe place that is available to managers and key staff.
General Information
Table Management Systems are on-premise systems used to increase efficiency by alerting staff of the seat-
ing availability within the establishment. The LRS T13C updater and R1201 receiver integrate with these Table
Management Systems to enable restaurant staff to wirelessly update the status of tables with a compact
wireless device.
· The current status of each table is always available to the hostess station.
· Status can be changed from the floor or the hostess station.
· The R1201F receiver is updated directly through a radio transmitter located in the T13C hand held
keypad.
NOTICE: Operation is subject to the following:
• This device may not cause interference
• This device will accept any interference including interference that may cause undesired operation of
the unit.

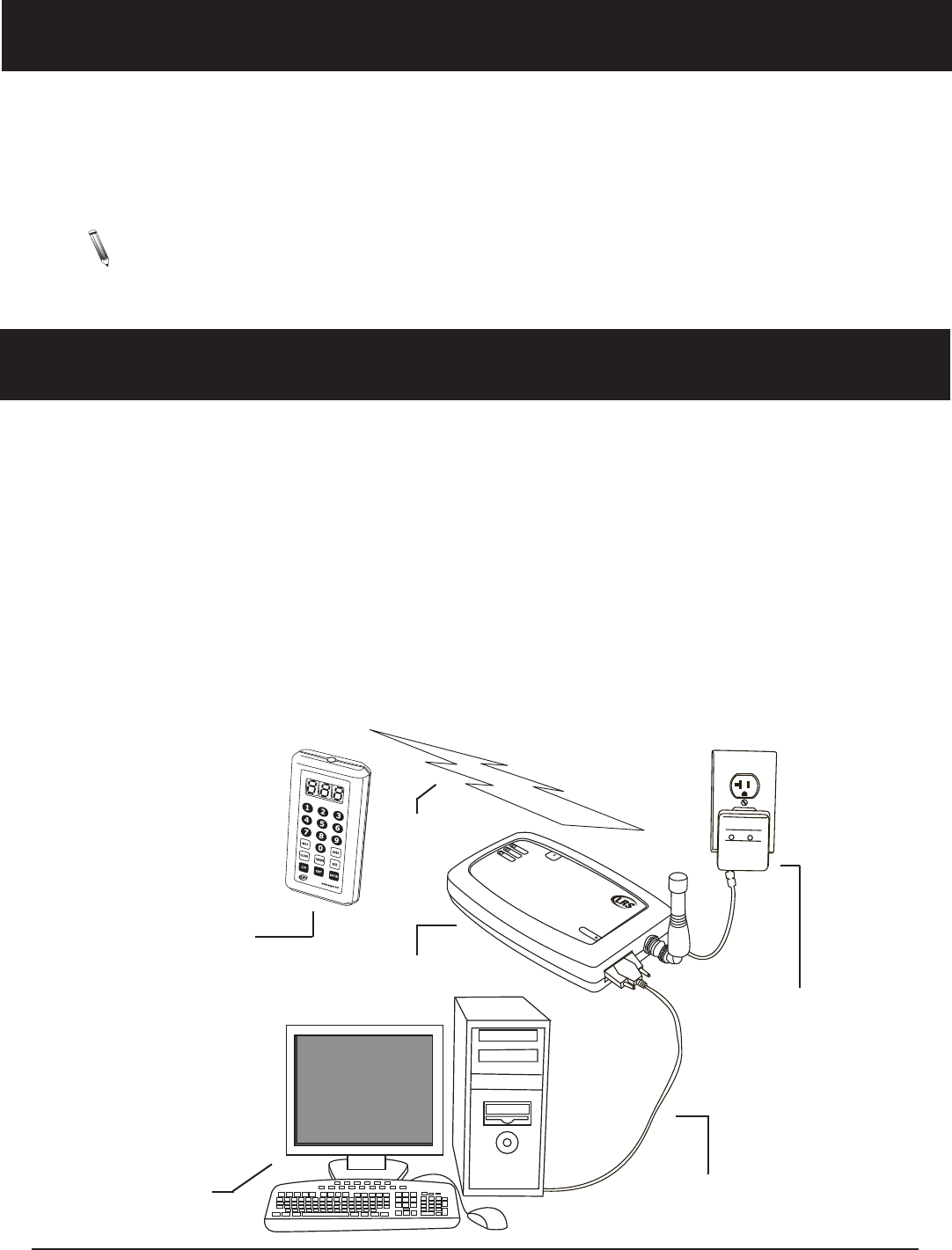

T13C/R1201F Host
Computer Table
Management
System Diagram
Long Range Systems 2T13C User Manual
R1201F
FCC ID: M74T7400
RS-232
Receive
Transmit
Power
9VAC
800.437.4996
www.pager.net
CONDOR
CLASS 2 TRANSFORMER
(408)745-7141
INPUT: AC 12OV 60Hz 19w
OUTPUT: AC 9V 1800mA
P/N: A91A8
RoHS
UU
LL
LISTED
C
MODEL: 48A -9- 1800
EIA 363 0635 S
MADE IN CHINA
T13C
Hand Held
Transmitter
Table Status
Data
12V Power
Supply
R1201 F Base
Station Receiver
RS232
Interface Cable
Table Management Host
Computer System
Installation and Setup
Transmitter Installation
CAUTION: Do not mount the T13C transmitter or R1201F receiver antennas near any large metal objects.
NOTE: The T13C transmitter should be charging whenever not in use.
1. Unwrap all T13C transmitter and R1201F receiver components.
2. The T13C transmitter is portable and battery powered. It is charged in the same power charger
used for LRS paddle and star pagers.
3. Connect the antenna (about 3” long) onto the connector on the back of the receiver. It is best to
mount the antenna pointing straight up, perpendicular to the ground.
4. Mount the receiver convenient to a 110/220V power and near the host computer.
5. Plug the power supply into standard 110V/220V outlet and the barrel connector end into the side
hole on the R1201F receiver.
6. Connect the RS-232 cable from the R1201F receiver to the host computer.
7. Upon completion, perform the initialization on the host computer system (per manufacturer’s
specifications).
!
Long Range Systems 3T13C User Manual
T13C Keypad Functions
Before you begin using the T13C handheld transmitter, read the following keypad descriptions.
Functions Keys
Clears the table from the Host Receiver list.
To designate a table as seated, enter the table number and press SEAT
Lists the table as ready on the Host Receiver.
To mark a table as Open and ready to be Seated, enter the table num-
ber and press OPEN
Sends the hold command to the Host Receiver.
To mark a table as Closed, enter the table number and press CLOSE
Transfers a party from one table to another
To move a party from one table to another, enter the table number
you wish to transfer from, press TRNSFR, enter the number of the
table you wish to transfer the party to, press ENTER
(Table# - Transfer - Table # - Enter).
Sends the Bus command to the Host receiver.
When a table is being bussed, enter the table number and press BUS
Clears the input to restart a new command
Checks functions of the T13C handheld: Version Check, Battery Level,
Handheld Reset, and Range Test,
Completes the Transfer function.
Number Keys
The number keys (1 – 0) are used to enter table numbers.
Test and Reset Functions
Version Check
Press 5 then the TEST key to check the version.
Battery Check
Press the TEST key to check the battery. The display shows a number to indicate the battery charge (5 is fully
charged and 1 is very weak).
Reset
If the battery has been allowed to totally discharge, it may be necessary to reset the T13C for it to function
properly. To reset the T13C:
1. Put the T13C on charge.
2. After the T13C is charged, enter 0-7-6 on the keypad.
3. Press the Test button.
Range Test
The operating range of the unit can be checked by sending continuous open and close commands to the re-
ceiver while moving around the test area. To start the test, press 1-2-3 TEST. To end the test press CLR (Clear).
Long Range Systems 4T13C User Manual
T13C SPECIFICATIONS
Required voltage: One 110/220V outlet for the R120F Receiver and Charger for T13C Transmitter .
Operating Frequency: 448.000MHz
Transmit Power: 10 mW
Operating Range: Approximately 1/4 mile (unobstructed)
SERVICE QUESTIONS AND ANSWERS
My system is malfunctioning - What do I do?
Should your seating system ever fail to function properly:
Call Long Range Systems at (800) 437-4996
Monday through Friday 8:30 am to 5:00 PM Central Standard Time.
• After hours, please leave a message on the technical support line. LRS technicians are on call and
will return your call as soon as possible.
• Please keep in mind that options are limited over the weekend.
What about repairing my system after the warranty expires?
Call the LRS Customer Support Department before sending any item in for repair.
Long Range Systems 5T13C User Manual
Warranty
Long Range Systems, LLC permits a one-year manufacturer’s warranty
following the original consumer purchase date of any LRS system. Any
individual components or products purchased will receive a 30-day
manufacture warranty. This warranty covers any defects due to faulty
material or workmanship, but does not include damage to the product
resulting from accident, misuse or improper electrical connection. If the
product or system should become defective within the warranty pe-
riod, we will repair or replace with equivalent equipment, free of
charge. We will pay transportation charges to return your product via
standard FedEx Ground shipping, provided the product is shipped pre-
paid to:
Long Range Systems, LLC
4550 Excel Pkwy, Suite 200
Addison, TX 75001
No return or replacement can be received without prior authorization
from the LRS Customer Support department or without the proper
RMA# posted on the outside of the shipping container. Contact Cus-
tomer Support at 800.437.4996 or www.pager.net. This warranty gives
you specific legal rights and you may also have rights that vary by state.
This manual contains proprietary information of Long Range Systems,
LLC (LRS) and is intended for use only by its employees or customers.
None of the material contained herein may be copied, reproduced, re-
published, downloaded, displayed, posted, or transmitted in any form
or by any means, including but not limited to, electronic, mechanical,
photocopying, recording, or otherwise without the prior written per-
mission of LRS. Additional copies of this manual may be obtained by
contacting LRS.
Screen displays, keyboard layouts, hardware descriptions, or software
are proprietary to LRS and are subject to copyright and other intellec-
tual property rights of LRS and shall be treated in accordance with the
previous paragraph.
All attempts have been made to make the information in this document
complete and accurate. LRS is not responsible for any direct or indirect
damages or loss of business resulting from inaccuracies or omissions.
Specifications and other information contained within this document
are subject to change without notice.
Long Range Systems, LLC reserves the right to make changes without
further notice to any products herein. LRS, LLC makes no warranty, rep-
resentation or guarantee regarding the suitability of its products for
any particular purpose, nor does LRS, LLC assume any liability arising
out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation consequen-
tial or incidental damages. “Typical” parameters that may be provided
in LRS, LLC data sheets and/or specifications can and do vary in differ-
ent applications and actual performance may vary over time. All oper-
ating parameters, including “Typicals”, must be validated for each
customer application by customer’s technical experts. LRS, LLC prod-
ucts are not designed, intended, or authorized for use as components
in systems intended to support or sustain life, or for any other applica-
tion in which the failure of the LRS, LLC product could create a situation
where personal injury or death may occur. Should Buyer purchase or
use LRS, LLC products for any such unintended or unauthorized appli-
cation, Buyer shall indemnify and hold LRS, LLC and its officers, em-
ployees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such
claim alleges that LRS, LLC was negligent regarding the design or man-
ufacture of the part, device or system.
Long Range Systems 6T13C User Manual
XU-0132 100413
DECLARATION OF CONFORMITY
Model No: TX-13C
Manufactured by:Long Range Systems, LLC
4550 Excel Parkway, Ste 200
Addison, TX 75001
800.437.4996
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications made by the user that are not
expressly approved by Long Range Systems could void
the user's authority to operate the equipment.
Warning: Modification of this product without the express
consent of the applicant may void authority granted to the
user by the FCC to operate the device.
