L i b e r t y

Wood Stove

Owner's Manual

• Freestanding Stove

• Mobile-Home Approved

• Alcove Approved

• Hearth-Stove Approved

Save these instructions

for future reference

SAFETY NOTICE:

If this appliance is not properly installed, a house fire may

result. For your safety, follow the installation directions.

Contact local building or fire officials about restrictions and

installation inspection requirements in your area.

$10.00 100-01164

4050922 Listed

Tested to: U.L. 1482

2 Introduction

Introduction

We welcome you as a new owner of a Lopi Liberty wood-burning stove. In purchasing a Lopi Liberty you

have joined the growing ranks of concerned individuals whose selection of an energy system reflects both

a concern for the environment and aesthetics. The Lopi Liberty is one of the finest appliances the world

over. This manual will explain the installation, operation, and maintenance of this appliance. Please

familiarize yourself with the Owner's Manual before operating your appliance and save the manual for

future reference. Included are helpful hints and suggestions which will make the installation and

operation of your new appliance an easier and more enjoyable experience. We offer our continual

support and guidance to help you achieve the maximum benefit and enjoyment from your appliance.

Important Information

No other Lopi Liberty appliance has the same serial

number as yours. The serial number is stamped onto

the label on the back of the appliance.

This serial number will be needed in case you require

service of any type.

Model: Lopi Liberty

Serial Number:

Purchase Date:

Purchased From:

Mail your Warranty Card Today, and Save Your Bill

of Sale.

To receive full warranty coverage, you will need to

show evidence of the date you purchased your

appliance. Do not mail your Bill of Sale to us.

We suggest that you attach your Bill of Sale to this

page so that you will have all the information you need

in one place should the need for service or information

occur.

Table of Contents 3

General Information

Introduction & Important Information...................... 2

Safety Precautions ............................................ 4

Features & Specifications.................................... 6

Stove Installation

Planning The Installation..................................... 7

Floor Protection Requirements ............................. 8

Stove Placement Requirements ........................... 8

Clearances ...................................................... 8

Chimney Requirements ...................................... 10

Chimney Termination Requirements...................... 11

Outside Air Requirements ................................... 11

Alcove Installation Requirements .......................... 12

Mobile Home Requirements ................................ 13

INSTALLATION DIAGRAMS

Standard Ceiling with a Factory Built Chimney......... 14

Cathedral Ceiling with a Factory Built Chimney........ 14

Exterior Factory Built Chimney ............................. 15

Hearth Stove Positive Connection......................... 15

Hearth Stove Direct Connection ........................... 16

Interior Masonry Chimney ................................... 16

Operating Your Appliance

Safety Notice.................................................... 17

Before Your First Fire ......................................... 17

Opening the Door .............................................. 17

Bypass Operation.............................................. 18

Starting a Fire................................................... 19

Adjusting the Burn Rate ...................................... 20

Ash Removal.................................................... 20

Optional Blower Operation .................................. 21

Re-Loading the Stove......................................... 21

Overnight Burn ................................................. 21

Normal Operating Sounds ................................... 21

Hints for Burning ............................................... 22

Selecting Wood................................................. 22

Troubleshooting ................................................ 23

Maintaining Your Appliance

Daily Maintenance ............................................. 24

Remove Ash .................................................... 24

Clean The Glass ............................................... 24

Monthly Maintenance ......................................... 25

Door and Glass Inspection .................................. 26

Check For Creosote Buildup ................................ 25

Yearly Maintenance ........................................... 26

Touch Up Paint ................................................. 26

Blower Cleaning................................................ 26

Firebrick and Baffle Inspection ............................. 26

Door Parts ....................................................... 27

Replacing the Glass........................................... 27

Replacing the Door Gasket.................................. 27

Replacing the Door Handle.................................. 27

Firebox Parts.................................................... 28

Floor & Side Firebrick Removal & Replacement....... 28

Baffle Removal and Replacement ......................... 29

Air Tube Removal and Replacement ..................... 29

Warranty

Warranty ......................................................... To

Listing Information

Listing Information ............................................. 31

Optional Equipment

Door Shell Installation ........................................ 32

Stove Legs....................................................... 34

Pedestal .......................................................... 35

Rear Blower Installation ...................................... 36

Outside Air Boot Installation................................. 37

Index

Index .............................................................. 38

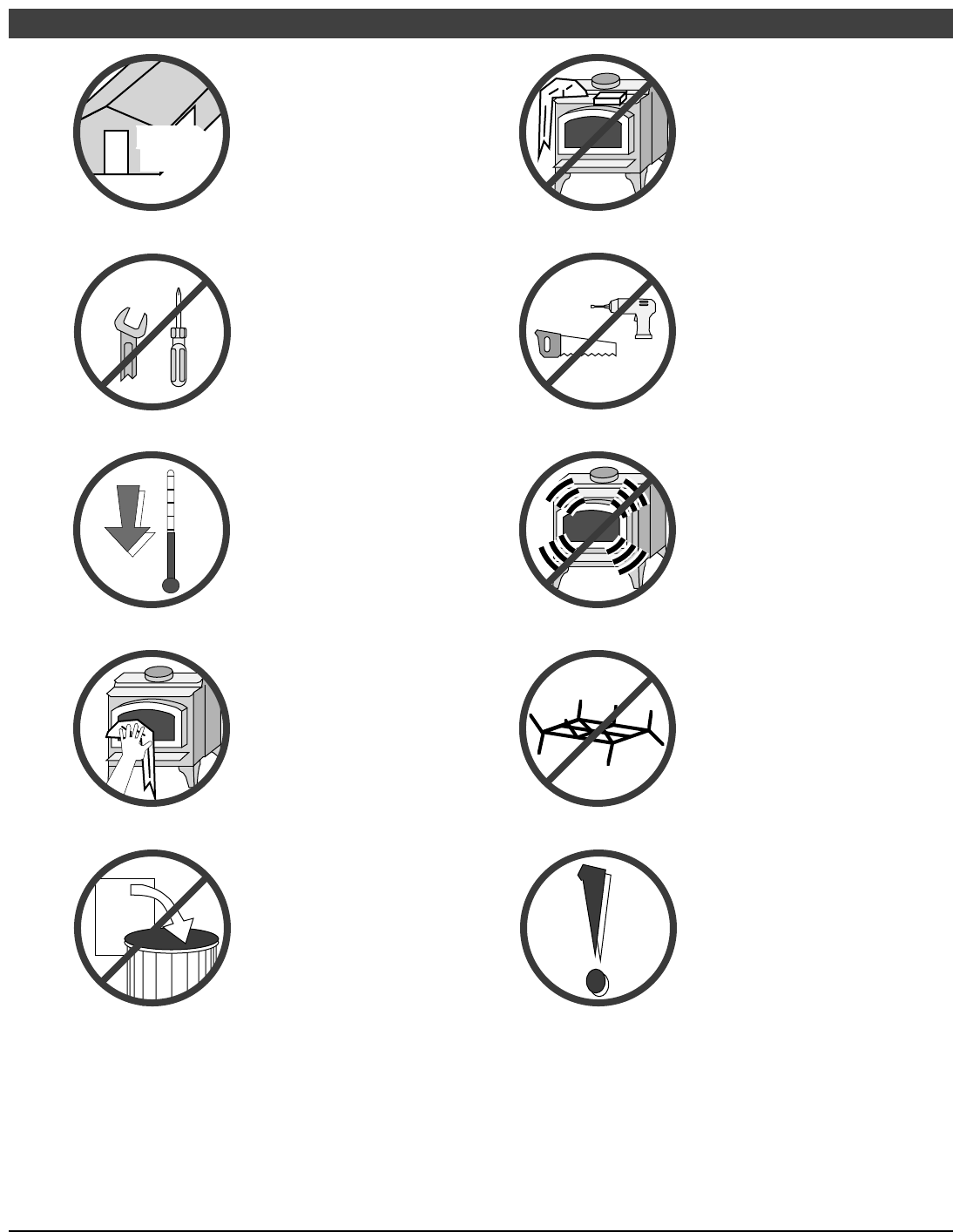

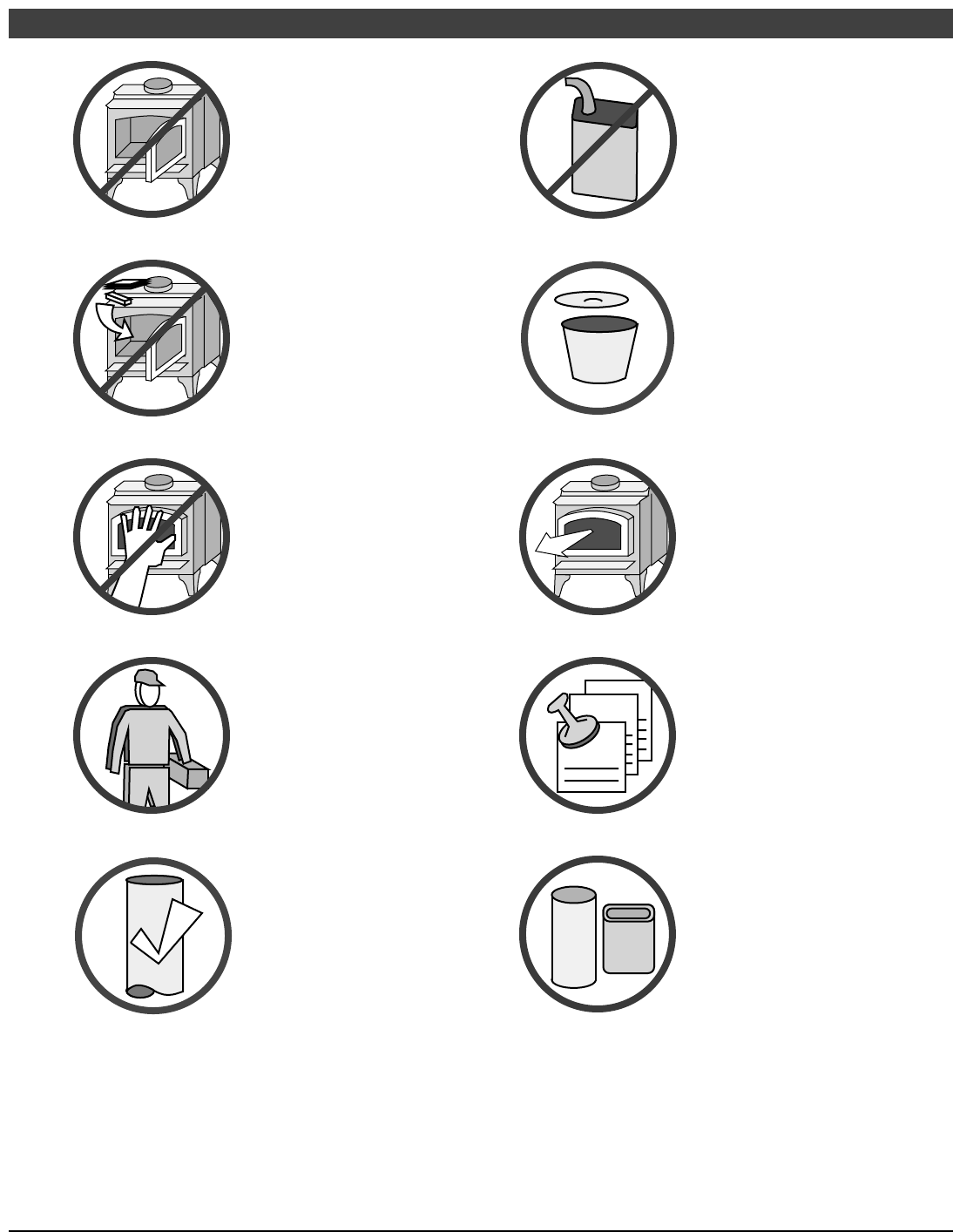

4 Safety Precautions

The viewing door must be

closed and latched during

operation.

Never block free airflow through

the air vents on this appliance.

Gas

Gasoline or other flammable

liquids must never be used to

start the fire or "Freshen Up" the

fire. Do not store or use

gasoline or other flammable

liquids in the vicinity of this

appliance.

This appliance is designed and

approved for the burning of cord

wood only. Do not attempt to

burn any other type of fuel other

than cord wood in this

appliance, it will void all

warranties and safety listings.

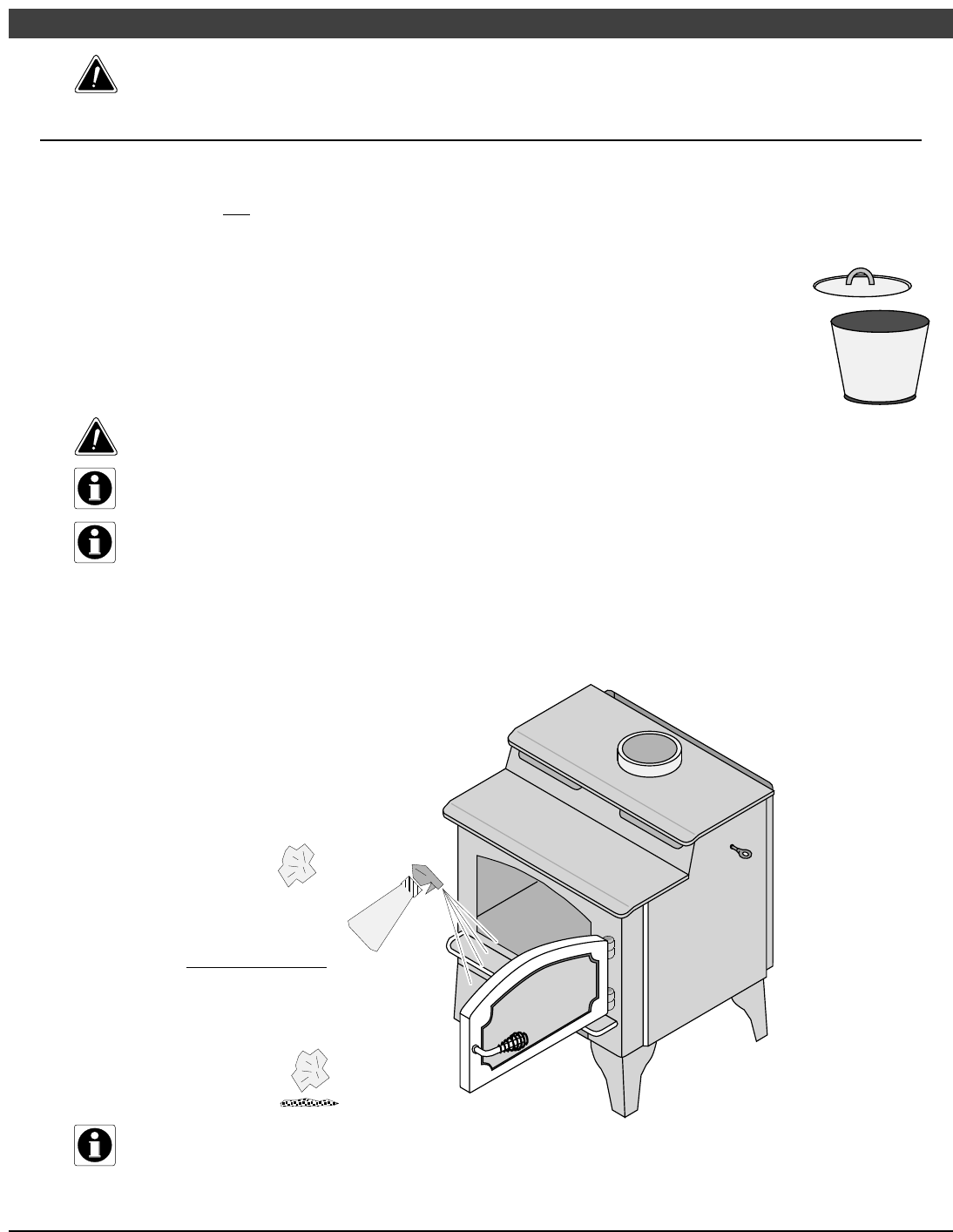

ASHES

Ashes must be disposed in a

metal container with a tight lid

and placed on a non-

combustible surface well away

from the home or structure.

Do not touch the appliance while

it is hot and educate all children

of the danger of a high-

temperature appliance. Young

children should be supervised

when they are in the same room

as the appliance.

36"

Keep furniture, drapes, curtains,

wood, paper, and other

combustibles a minimum of 36"

away from the front of the

appliance.

This appliance must be properly

installed to prevent the

possibility of a house fire. The

instructions must be strictly

adhered to. Do not use

makeshift methods or

compromise in the installation.

Contact your local building

officials to obtain a permit and

information on any installation

restrictions or inspection

requirements in your area.

Notify your insurance company

of this appliance as well.

Inspect the chimney connector

and chimney at least twice

monthly and clean if necessary.

Creosote may build up and

cause a house fire.

Do not connect this appliance to

any chimney serving another

appliance.

Type

HT Clay

Liner

This appliance must be

connected to a listed high

temperature (UL 103 HT)

residential type chimney or an

approved masonry chimney with

a standard clay tile, or stainless

steel liner.

Safety Precautions 5

Mobile

Home

When installed in a mobile

home, this appliance must be

bolted to the floor, have outside

air, and not be installed in the

bedroom (Per H.U.D.

requirements). Check with local

building officials.

Do not place clothing or other

flammable items on or near this

appliance.

Never try to repair or replace

any part of this appliance unless

instructions are given in this

manual. All other work must be

done by a trained technician.

Do not make any changes or

modifications to an existing

masonry fireplace or chimney to

install this appliance.

Do not make any changes to the

appliance to increase

combustion air.

Allow the appliance to cool

before carrying out any

maintenance or cleaning. Overfiring the appliance may

cause a house fire. If a unit or

chimney connector glows, you

are overfiring.

Maintain the door and glass seal

and keep them in good

condition.

Avoid placing wood against the

glass when loading. Do not

slam the door or strike the glass.

Do not use a grate or other

device to elevate the fire off of

the firebox floor. Burn the fire

directly on the bricks.

This

Manual

Do not throw this manual away.

This manual has important

operating and maintenance

instructions that you will need at

a later time. Always follow the

instructions in this manual.

Travis Industries, Inc. grants

no warranty, implied or

stated, for the installation or

maintenance of your

appliance, and assumes no

responsibility of any

consequential damage(s).

6 Features & Specifications

Installation Options

• Freestanding

• Freestanding in an Alcove

• Freestanding in a Mobile Home

• Freestanding Hearth Stove

Features

• EPA Phase II Approved

• 3.1 Cubic Foot Firebox Volume

• Single Operating Control

• Accepts Logs Up to 24" Long

• Steel Plate Construction (5/16" & 3/16")

• Heavy Duty Refractory Firebrick

• Optional High-Tech Blower

Heating Specifications

Approximate Maximum Heating Capacity (in square feet)* 1,500 to 2,500

Maximum BTU's per Hour (Cord Wood Calculation) 74,300

Overall Efficiency (Oregon Method) 70 %

Maximum Burn Time Up to 12 Hours

* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside temperature.

It is also affected by the quality and moisture level of the fuel.

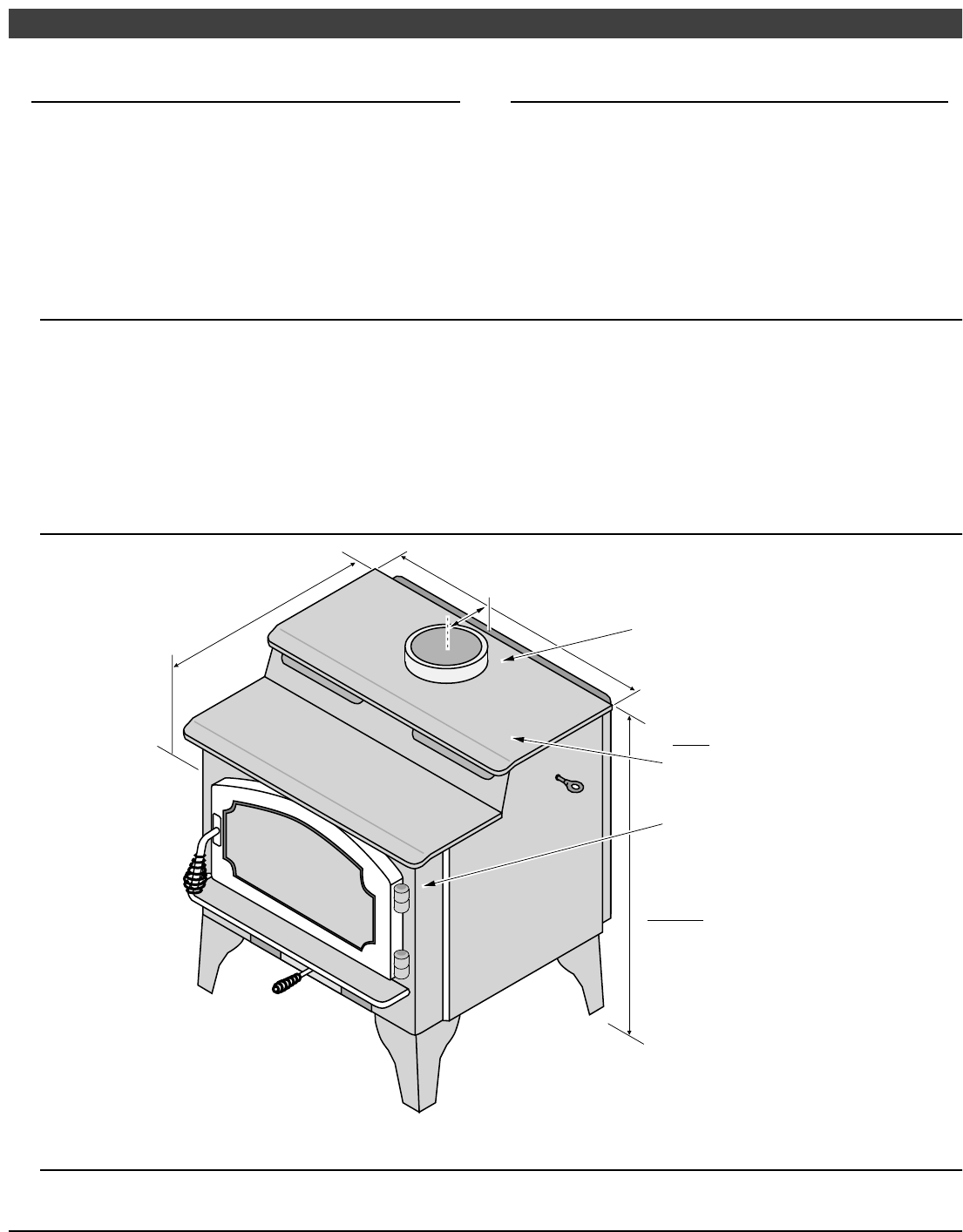

Dimensions

30”

21”

Note:

Measure side, corner, and back

clearances from the stove top.

Measure front clearances from

the stove face.

Height:

Sculptured or Cast Legs....32-1/4"

Pedestal.............................36-1/4"

The 6” diameter flue collar protrudes

1-1/4" above the stove top

6-1/4”

Weight: 470 Lbs.

Figure 1

Emissions

2.6 Grams Per Hour (EPA Phase II Approved) – Tests conducted by E.E.S.P.C.

Stove Installation (for qualified installers only) 7

SAFETY NOTICE:

Please read this entire manual before you install and use your new room heater. Failure

to follow instructions may result in property damage, bodily injury, or even death.

Contact local building or fire officials about restrictions and installation inspection

requirements in your area.

Planning The Installation

We suggest that you have an authorized Travis Industries dealer install your stove. If you install the

stove yourself, your authorized dealer should review your installation plans.

Check with local building officials for any permits required for installation of this stove and notify your

insurance company before proceeding with installation.

Preparation for Installation

• Check for damage to the exterior of the stove (dents should be reported, scratches can be fixed by

applying touch up paint).

• Check the interior of the firebox (replace cracked firebrick and make sure baffle is in place).

The stove can be lightened by removing the firebricks and baffle (pg 28) - replace before operation.

Additional Accessories Needed for Installation

• Door Shell (Black 99300165 Brass 99300166 - see pg 32)

• Legs or Pedestal

Stove Installation Considerations

The table below details the six most common types of installations and the considerations for each type.

Alternative methods of installation are available if they comply with local building codes.

Installation Type Considerations

Standard Ceiling with a Factory Built Chimney

(Page 14)

• Requires ceiling and roof penetration

• Provides best draft

Cathedral Ceiling with a Factory Built Chimney

(Page 14)

• Cathedral style chimney support required

• Provides best draft

Exterior Factory Built Chimney

(Page 15)

• Uses two elbows to route chimney outside

• Exterior chimney is hidden from the room

• Elbows reduce draft

• Optional exterior chase reduces cold air blockage

Hearth Stove Positive Connection

(Page 15)

• Utilizes existing masonry or zero clearance (metal) chimney

• Provides good draft due to full reline

• Easier to clean than direct or horizontal hearth stove

Hearth Stove Direct Connection

(Page 16)

• Utilizes existing masonry or zero clearance (metal) chimney

• Requires construction of a "block-off plate"

• Draft reduced due to elbows & chimney cross section

Interior Masonry Chimney

(Page 16)

• Utilizes existing masonry chimney (not approved for zero

clearance (metal) fireplaces)

8 Stove Installation (for qualified installers only)

Floor Protection Requirements

• Stove must be placed on the Travis Industries legs or Pedestal.

• Floor protection must extend 6" to the sides and rear of the stove and 16" to the front of the stove

(42" wide by 43" deep - see Figure 2 and Figure 3).

• Floor protection must be non-combustible and at least .018" thick (26 guage).

Stove Placement Requirements

Clearances may be reduced by methods specified in NFPA 211, listed wall shields, pipe shields, or

other means approved by local building or fire officials.

• Stove must be placed so that no combustibles are within, or can swing within (e.g. drapes, doors), 36"

of the front of the stove

• If the stove is placed in a location where the ceiling height is less than 7', it must follow the

requirements in the section "Alcove Installation Requirements"

• Must maintain the clearances to combustibles listed below (drywall, furniture, etc.):

Clearances

• The following clearances must be met (see Figure 2 and Figure 3)

Minimum Clearance Singlewall

Connector

Reduced

Clearance*

A Sidewall to stove 16" 16"

B Backwall to stove 15” 10"

C Cornerwall to stove 9-1/2" 7-1/2"

D Connector to sidewall 28" 27-1/2"

E Connector to backwall 18-1/4" 12-3/4"

F Connector to cornerwall 21" 18-1/2"

*Reduced clearance installations require one of the chimneys and connectors listed below:

AMERI-TEC model DCC with model HS chimney

DURAVENT model DVL with DURATEC or DURA-PLUS chimney

METALFAB model DW connector with TG chimney

SECURITY model DP connector with SECURITY model ASHT or S2100 chimney

Standard Masonry Chimney with any one of the above listed connectors

NOTE: Reduced clearance connectors may not connect to the flue collar – an appliance adapter may be required.

NOTE: Standard residential installations with reduced clearance connector may use the clearance

determined by the manufacturer of the connector for the connector to wall clearance or the clearance

listed in this manual. Offsets must be used to maintain the stove to wall clearance.

Stove Installation (for qualified installers only) 9

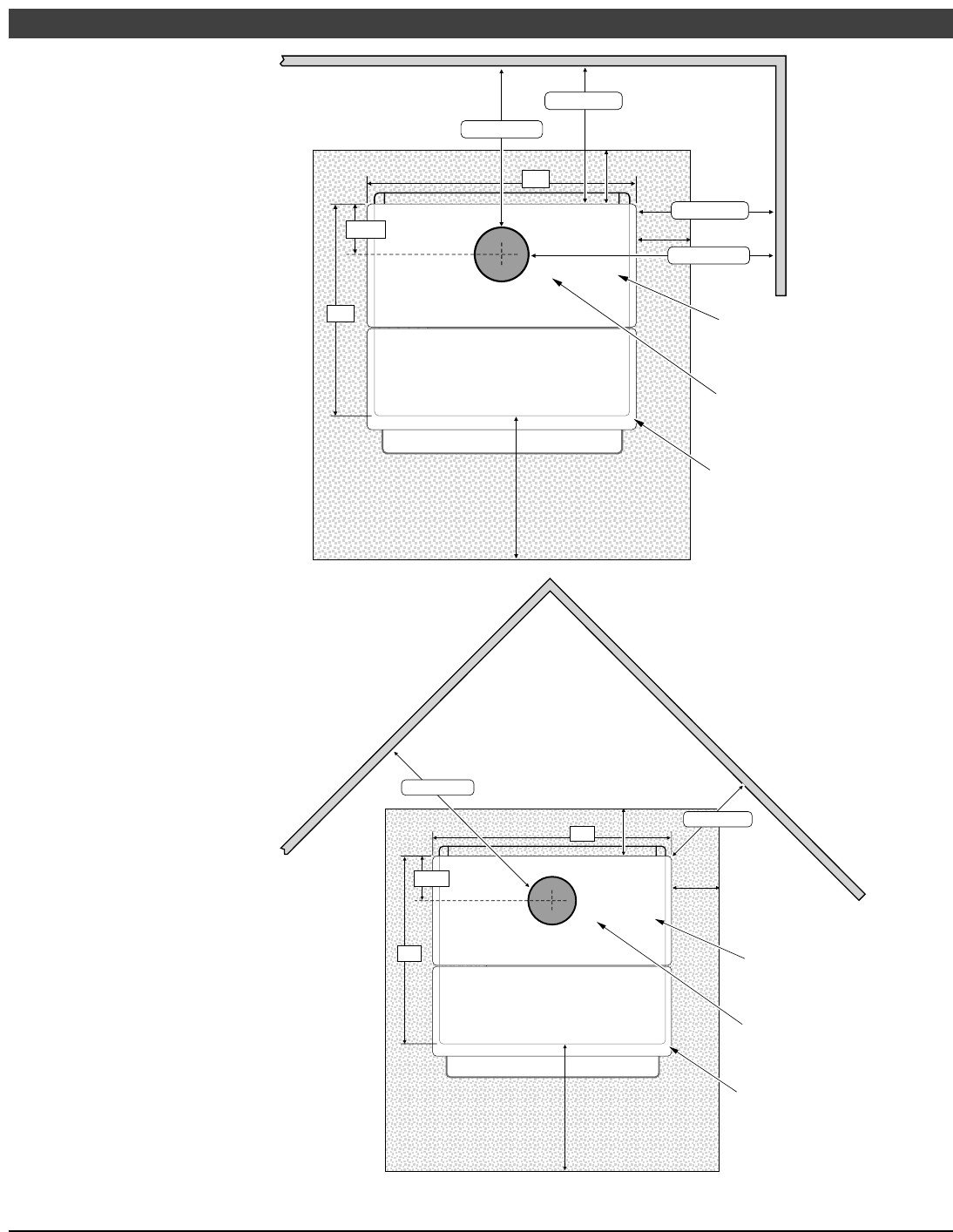

Top View -

Straight Installation

Measure rear and side

clearances from the nearest

edge of the stove top.

Measure front clearances

from the face of the stove

(unibody).

NOTE: vent diameter may

vary depending on brand

and model.

Floor Protection

21”

16” Min.

6” Min.

Clearance A

Clearance D

Clearance E

Clearance B

Back Wall

Side Wall

6-1/4”

30”

Figure 2

Top View -

Corner Installation

Floor Protection

21”

16” Min.

6” Min.

6-1/4”

30”

Measure rear and side

clearances from the nearest

edge of the stove top.

Measure front clearances

from the face of the stove

(unibody).

NOTE: vent diameter may

vary depending on brand

and model.

Corner Wall

Clearance C

Clearance F

Figure 3

10 Stove Installation (for qualified installers only)

Chimney Requirements

• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

• Chimney connector must be a minimum 24 MSG black or 26 MSG blued steel (6" diameter). Chimney

must be used from the first floor or wall penetration to the chimney cap.

• Use 6" diameter type UL 103 HT chimney from one manufacturer (do not mix brands) or code

approved masonry chimney with a flue liner.

• Chimney connector and chimney must be fastened to the stove and each adjoining section.

• Follow the chimney manufacturer's clearances and requirements.

• Use the chimney manufacturer's fire stops, attic guards, roof supports, and flashings when passing

through a ceiling or thimble when passing through a combustible wall.

• No more than 180o of elbows (two 90o elbows, or two 45o & one 90o elbow, etc.).

• NOTE: Additional elbows may be allowed if draft is sufficient. Whenever elbows are used the draft is

adversely affected. Additional chimney height may be required to boost draft.

Chimney Cap

(See the section "Chimney Termination

Requirements" for more details)

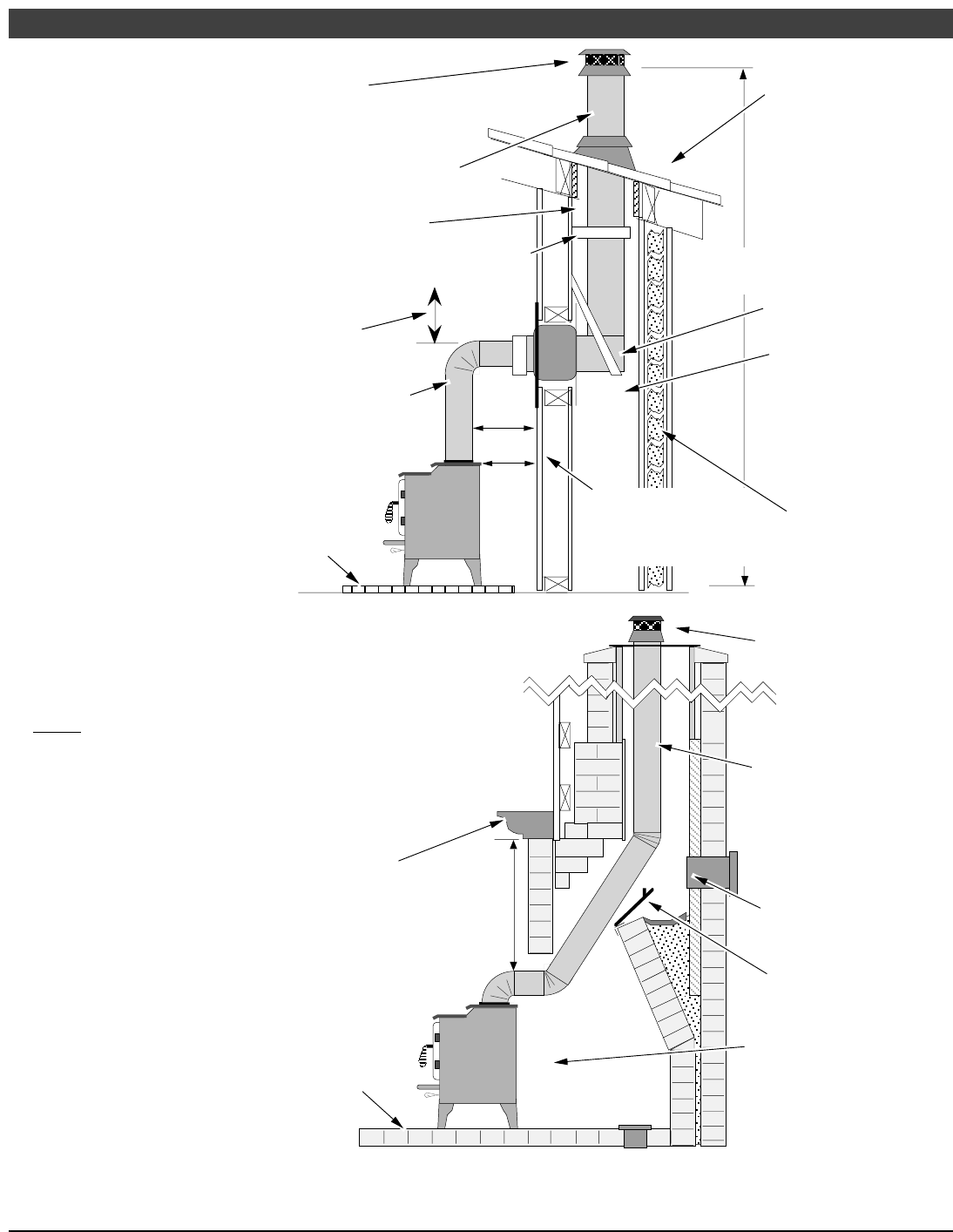

Factory Built Chimney Sections

Minimum Air Space to Combustibles

(See Chimney Manufacturer's

Instructions - usually 2")

Floor Penetration Equipment

(Attic Radiation Shield with Chimney Support)

Reduced Clearance Chimney

Connector Sections

Roof Penetration Equipment (Roof

Radiation Shield, Flashing, Storm Collar)

}

Stove Clearance

(as outlined in this manual)

}

Standard residential installations with reduced

clearance connector may use the clearance determined by

the manufacturer of the connector for the connector to wall

clearance or the clearance listed in this manual.

Mobile home installations must use the the reduced

clearance connector clearances listed in this manual under

“Additional Requirements for Mobile Home Installations”.

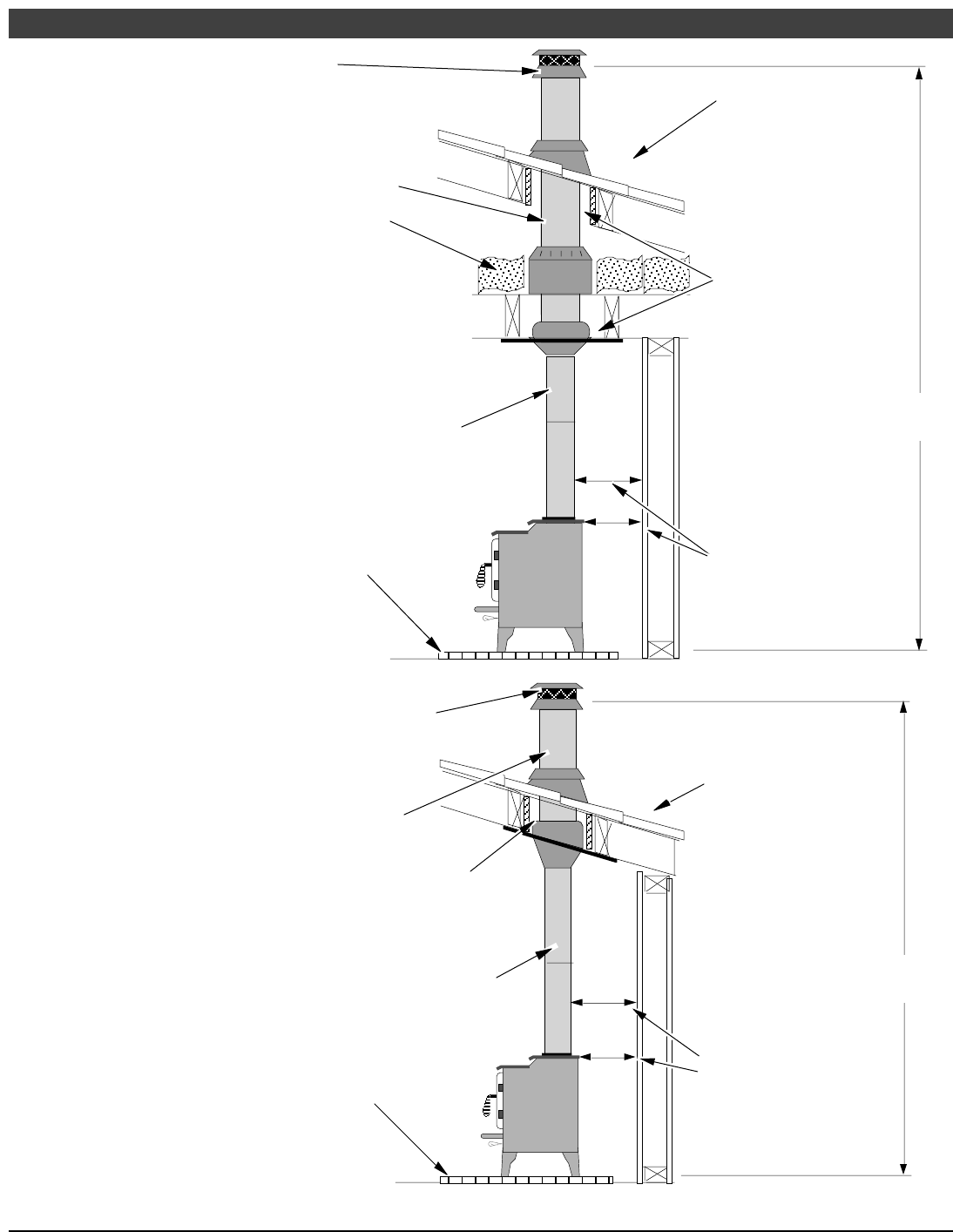

Minimum System 15'

Maximum System 33'

Floor

Protection

Figure 4

Drafting

Performance

This appliance relies upon natural draft to operate. External forces, such as wind,

barometric pressure, topography, or factors of the home (negative pressure from exhaust

fans, chimneys, air infiltration, etc.), may adversely affect draft. Travis Industries can not be

responsible for external forces leading to less than optimal performance.

Standard residential installations may use single-wall connector (Mobile-Homes may not)

• Standard residential installations with reduced clearance connector may use the clearance

determined by the manufacturer of the connector for the connector to wall clearance or the clearance

listed in this manual. Offsets must be used to maintain the stove to wall clearance. Mobile homes

must use the clearances listed in this manual under "Additional Requirements for Mobile Home

Installations".

Stove Installation (for qualified installers only) 11

Chimney Termination Requirements

• Must have an approved cap (to prevent water from entering)

• Must not be located where it will become plugged by snow or other material

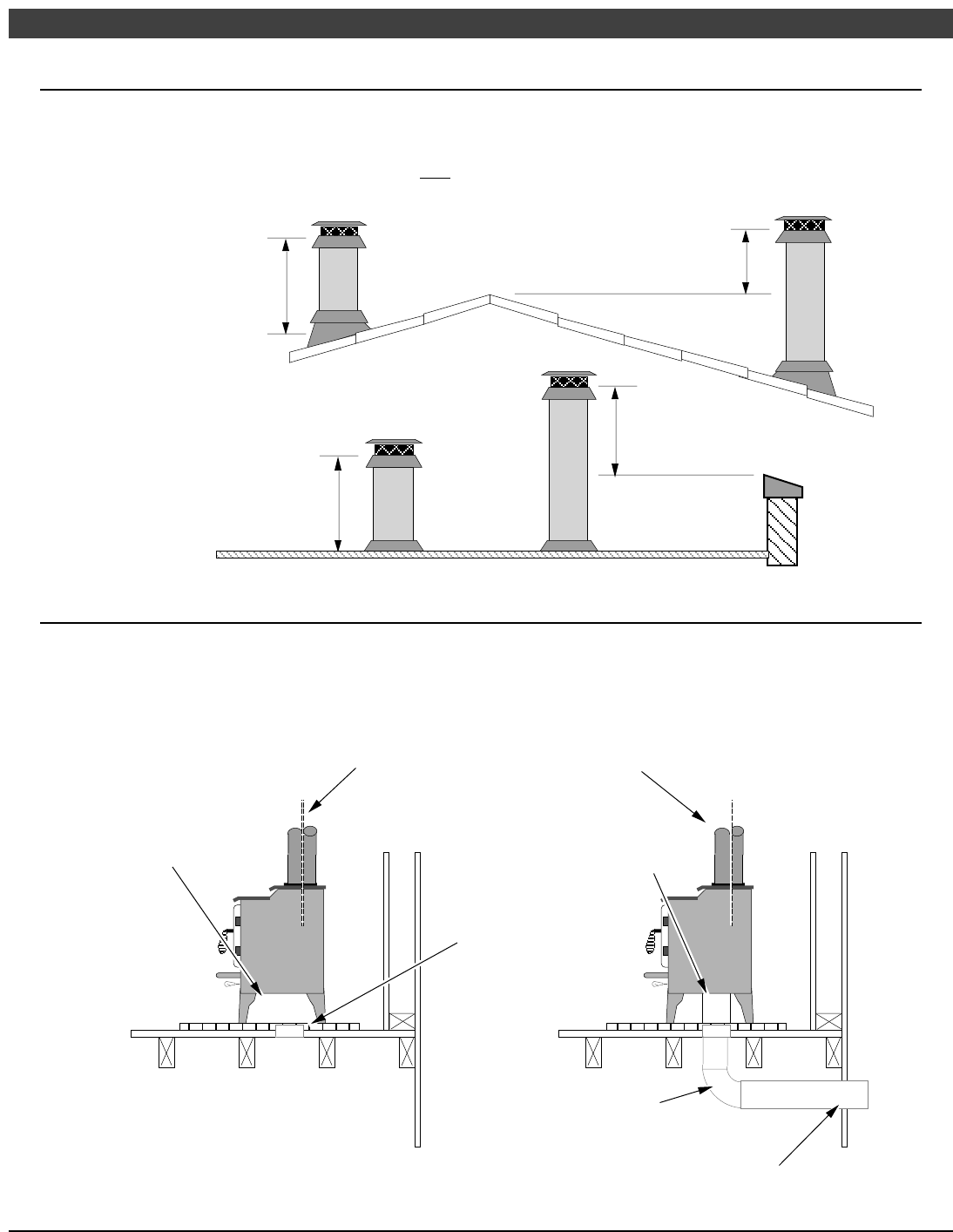

• Must terminate at least 3' above the roof and at least 2' above any portion of the roof within 10' (see

Figure 5)

Slanted Roofs

lat Roofs

Chimney must

extend 3'

above the roof

Chimney must extend 2'

above any portion of the roof

within 10' of the chimney

Chimney must

extend 3'

above the roof

Chimney must extend 2'

above any portion of the roof

within 10' of the chimney

Figure 5

Outside Air Requirements

• Required for mobile homes & in certain localities (check with building officials)

• Must not be drawn from an enclosed space (garage, unventilated crawl space)

• Requires the optional outside air boot (for legs) or pedestal.

Optional Air Duct (must not be

longer than 15' and at least 16

square inches in cross section)

A hole must be cut

through the floor

protection and floor

and the rodent

screen nailed in

place here (see the

optional equipment

instructions for

exact sizes)

Outside

Air Boot

Outside air entrance must be placed so

it does not become blocked by snow.

When using outside air, find a location where the chimney and

outside air hole do not interfere with structural members of the home.

Pedestal (with insulation)

directs air to the stove.

Air may be drawn from a ventilated

crawl space or use an air duct.

Figure 6

12 Stove Installation (for qualified installers only)

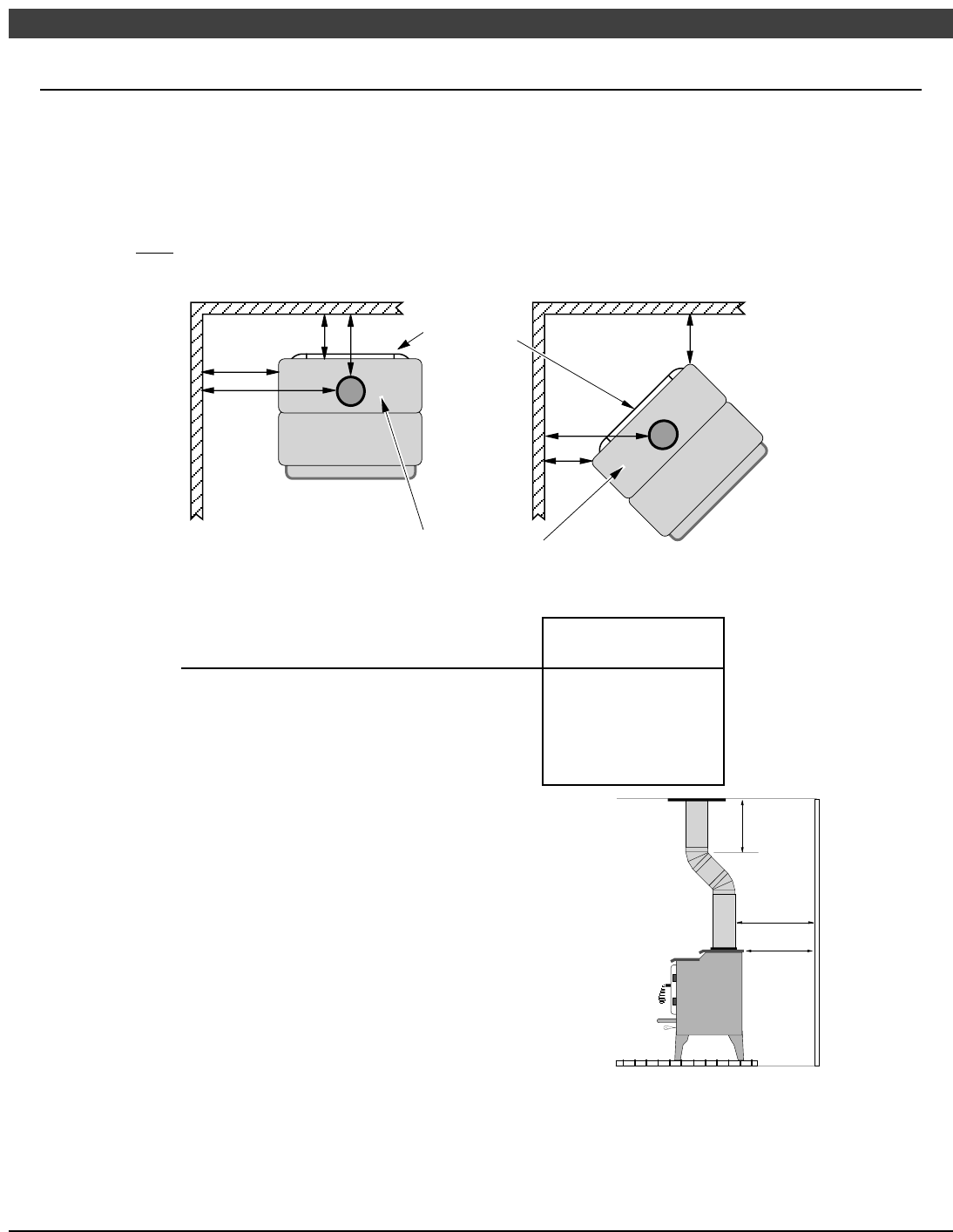

Alcove Installation Requirements

Whenever the stove is placed in a location where the ceiling height is less than 7' tall, it is considered an

alcove installation. Because of the reduced height, the special installation requirements listed below must

be met.

• Chimney connector and chimney must be one of the following types:

AMERI-TEC model DCC with model HS chimney

DURAVENT model DVL with DURATEC or DURA-PLUS chimney

METALFAB model DW connector with TG chimney

SECURITY model DP connector with SECURITY model ASHT or S2100 chimney

Standard Masonry Chimney with any one of the above listed connectors

NOTE: Reduced clearance connectors may not connect to the flue collar – an appliance adapter may be required.

• Alcoves are classified as combustible or non-combustible. Non-combustible alcoves must have walls

and a ceiling that are 3 1/2" thick of a non-combustible material (brick, stone, or concrete - see Figure

7). This non-combustible material must be spaced and ventilated at least 1" off of all combustible

materials (walls, ceiling, etc.) to allow air to move around the non-combustible walls and ceiling. All

other alcoves are considered combustible. The clearances below must be met:

Minimum Clearance

(See the Figure 7 below)

Combustible

Alcove

Non-Combustible

Alcove

A Sidewall to stove 16" 6"

B Backwall to stove 10" 2"

D Connector to sidewall 27-1/2" 17-1/2"

E Connector to backwall 12-3/4" 4-3/4"

G Maximum depth of alcove 48" 48"

H Minimum width of alcove 62" 42"

J Minimum height of alcove 84" 6" above stove top

Non-combustible alcove

construction (on walls

and ceiling) - see the

explanation above.

3 1/2" thick non-

combustible

material

Combustible

materials

1" Min.

Ventilated

air space

Non-combustible

reinforcer

Figure 7

Stove Installation (for qualified installers only) 13

Mobile Home Requirements

• Outside air must be installed - see "Outside Air Requirements" on page 11

• Chimney connector and chimney must be one of the following types:

AMERI-TEC model DCC with model HS chimney

DURAVENT model DVL with DURATEC or DURA-PLUS chimney

METALFAB model DW connector with TG chimney

SECURITY model DP connector with SECURITY model ASHT or S2100 chimney

Standard Masonry Chimney with any one of the above listed connectors

NOTE: Reduced clearance connectors may not connect to the flue collar – an appliance adapter may be required.

• Stove placement must maintain the following clearances to combustibles (drywall, furniture, etc.)

Measure all clearances from the

nearest edge of the stove top.

Rear heat

shield

Figure 8

Minimum Clearance

(See the illustration above)

Reduced Clearance

Connector

A Sidewall to stove 16"

B Backwall to stove 10"

C Cornerwall to stove 7-1/2"

D Connector to sidewall 27-1/2"

E Connector to backwall 12-3/4"

F Connector to cornerwall 18-1/2"

• If using offsets, use the connector clearance listed in Figure 9,

not the connector manufacturer's clearance.

• The appliance must be secured to the floor (consult your

building official). Secure the outside air boot to the floor and

stove to insure the stove does not dislocate.

• Mobile home installations require a spark arrester at the

chimney termination.

• The appliance must be grounded to the chassis of the mobile

home (consult your building official).

• WARNING:DO NOT INSTALL IN SLEEPING ROOM.

• CAUTION:THE STRUCTURAL INTEGRITY OF THE MOBILE

HOME FLOOR, WALL, AND CEILING/ROOF MUST BE

MAINTAINED.

Minimum Stove

Clearance

(as outlined above)

12” Min.

Minimum Connector

Clearance

(as outlined above)

Figure 9

14 Stove Installation (for qualified installers only)

Standard Ceiling

with a Factory

Built Chimney

Chimney Cap

(See the section "Chimney

Termination Requirements"

for more details)

Chimney Sections

Minimum Air Space to

Combustibles (See

Chimney Manufacturer's

Instructions - usually 2")

Chimney Connector Sections

Follow the chimney

manufacturer's instructions

and clearances for roof

penetrations. A storm collar

and flashing are required

(some require a radiation

shield).

}

Minimum 15'

Maximum 33'

Stove Clearances

(See the section "Stove

Placement Requirements"

for more details)

Floor Protection

(See the section "Floor

Protection Requirements"

for more details)

Follow the chimney

manufacturer's instructions

and clearances for floor

penetrations. A ceiling

support is required, an attic

insulation shield is required

where insulation is present.

Insulation

Figure 10

Cathedral Ceiling

with a Factory

Built Chimney

Chimney Cap

(See the section "Chimney

Termination Requirements"

for more details)

Chimney Sections

Minimum Air Space to

Combustibles (See Chimney

Manufacturer's Instructions -

usually 2")

Follow the chimney

manufacturer's instructions

and clearances for roof

penetrations. A storm

collar, flashing, and

cathedral-style chimney

support are required

(some require a radiation

shield).

}

Minimum 15'

Maximum 33'

Stove Clearances

(See the section "Stove

Placement Requirements"

for more details)

Floor Protection

(See the section "Floor

Protection Requirements"

for more details)

Chimney

Connector

Sections

Figure 11

Stove Installation (for qualified installers only) 15

Exterior Factory

Built Chimney

NOTE:

Exterior chimneys are

subject to greater

moisture and creosote

accumulation due to the

lower temperatures. An

insulated chase will

reduce these

accumulations (the

proper clearances to the

chimney must be

maintained).

himney Cap

(

See the section "Chimney

ermination Requirements"

or more details)

Chimney Sections

inimum Air Space to

ombustibles (See

himney Manufacturer's

nstructions - usually 2")

Chimney Connector

Sections

Follow the chimney

manufacturer's

instructions and

clearances for roof

penetrations. A storm

collar and flashing are

required (some

require a radiation

shield).

}

Stove Clearances

(See the section "Stove

Placement Requirements"

for more details)

}

Follow the chimney

manufacturer's

instructions and

clearances for wall

penetrations. A

wall radiation shield

(thimble) is

required.

Optional

insulated

chase

Wall Bands

and

Supports

Insulated Tee

(with cleanout )

Minimum 15'

Maximum 33'

Min. 18"

clearance to

ceiling

Floor Protection

(See "Floor

Protection

Requirements"

for details)

Figure 12

Hearth Stove

Positive

Connection

NOTE:

Most factory-built

chimney manufacturers

make stainless steel

chimney liners, either

flexible or rigid. This

provides a wide variety

of installation options.

Make sure to follow the

manufacturer's

instructions for

installation and support.

Remove damper

or wire it open

Airtight Insulated

Clean-Out

Min. 18"

Combustible

Mantle

NOTE: The entire fireplace and

chimney must be clean, undamaged,

and meet all local building codes

(UBC, etc.). Damage must be

repaired prior to installation. The

chimney must be 15' to 33' tall.

Floor Protection

(See the section

"Floor Protection

Requirements"

for more details) See the section

"Stove Placement

Requirements" for

minimum clearances

required.

The liner must be

stainless steel connector

or flexible vent. Follow

the liner manufacturer's

instructions for installation

and support.

Cap and flashing

prevents water from

entering

Figure 13

16 Stove Installation (for qualified installers only)

Hearth Stove Direct

Connection

NOTE:

Direct connections require

installation of an airtight,

non-combustible block-off

plate or damper adapter.

Block-off plate or

damper adapter

Remove damper

or wire it open

Airtight

Insulated

Clean-Out

Stainless steel

chimney connector

must Extend 1' past

the block-off plate or

to the flue liner

NOTE: The chimney must have a clay

tile liner. If it does not, the installation

must use a positive connection (full

reline). The entire fireplace and

chimney must be clean, undamaged,

and meet all local building codes (UBC,

etc.). Damage must be repaired prior

to installation. The chimney must be

15' to 33' tall.

Clay

Liner

Floor Protection

(See the section "Floor

Protection Requirements"

for more details)

Combustible Mantle

Min. 18"

See the section

"Stove Placement

Requirements" for

minimum clearances

required.

Max. 8”

Figure 14

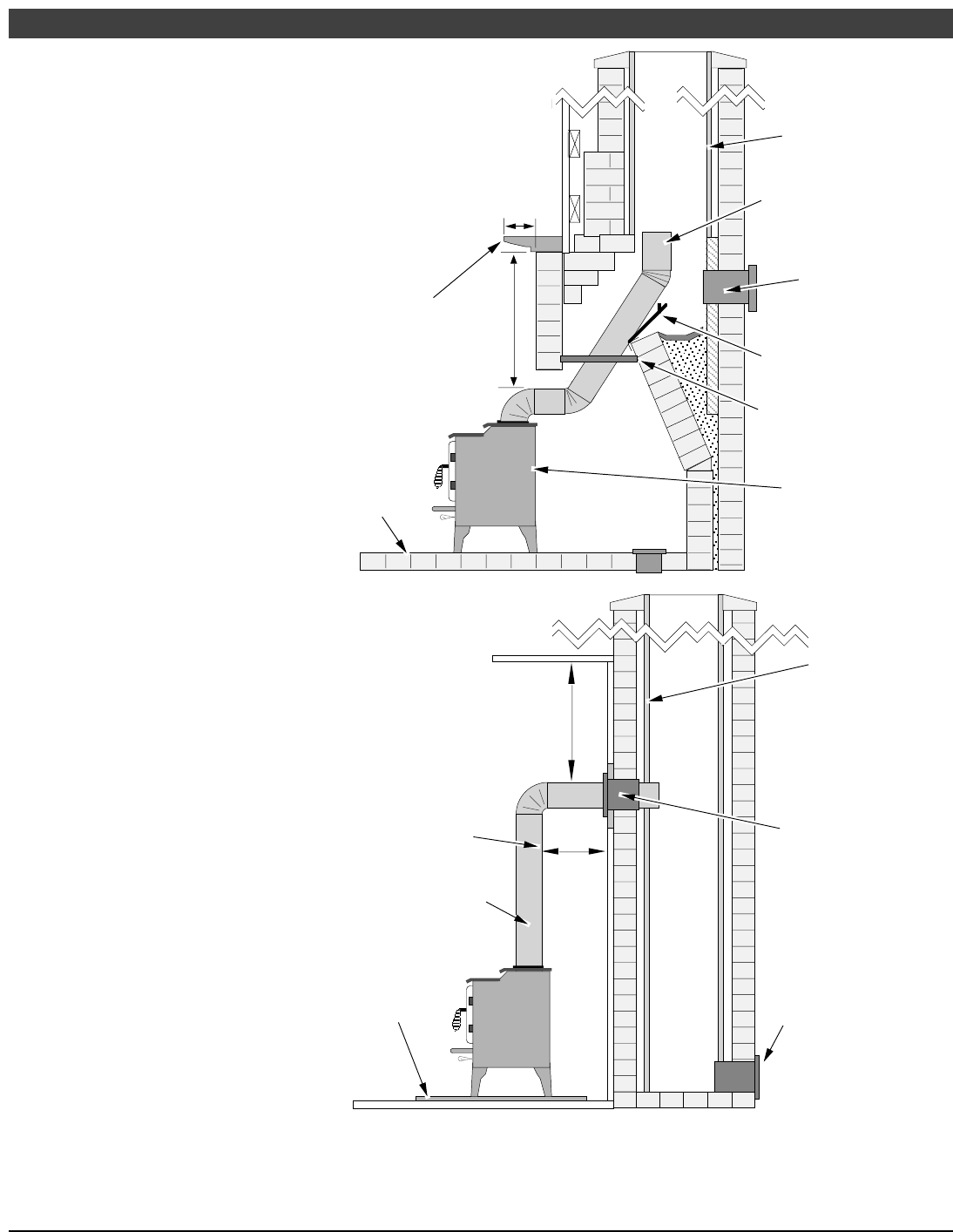

Interior or Exterior

Masonry Chimney

NOTE:

This type of installation

requires a UBC approved

masonry connector or a

factory built (U.L. Listed)

wall thimble.

Make sure the

clean-out seals in

place.

Clay Liner

See the section "Stove

Placement Requirements" for

minimum clearances required.

Min. 18"

clearance

to ceiling

This type of

installation requires

a UBC approved

masonry connector

or a factory built

(U.L. Listed) wall

thimble.

Chimney connector sections

NOTE: The chimney must have a

clay tile liner. If it does not, the

installation must use a positive

connection (full reline). The

entire fireplace and chimney must

be clean, undamaged, and meet

all local building codes (UBC,

etc.). Damage must be repaired

prior to installation. The chimney

must be 15' to 33' tall.

See the section

"Floor Protection

Requirements"

Figure 15

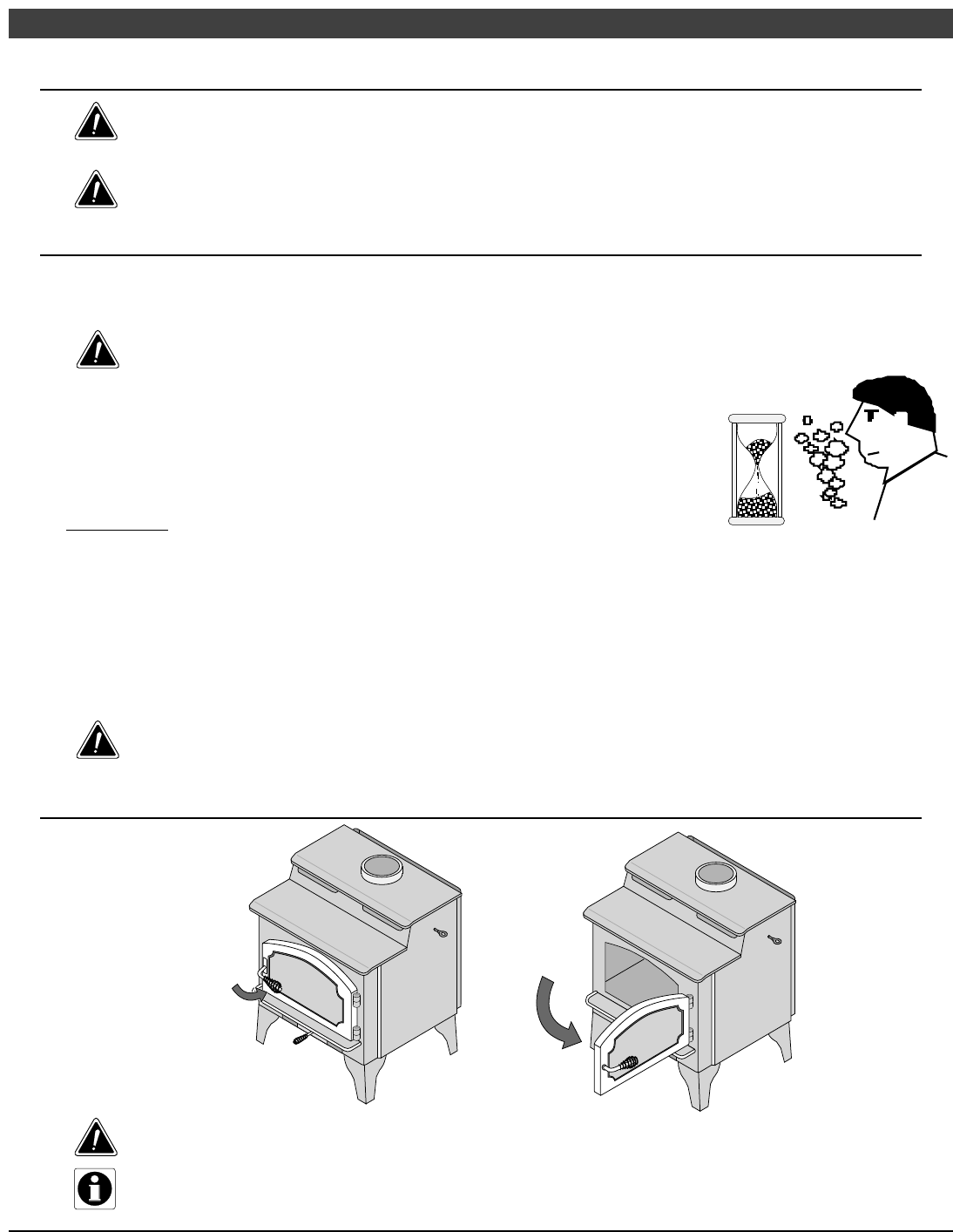

Operating Your Appliance 17

Safety Notice

If this appliance is not properly installed, a house fire may result. For your safety, follow the installation

directions. Contact local building or fire officials about restrictions and installation inspection

requirements in your area.

Read and follow all of the warnings on pages 4 and 5 of this manual.

Before Your First Fire

Verify the Installation

Before starting the stove, verify that the stove is properly installed and all of the requirements in this

manual have been followed.

Keep all flammable materials 36" away from the front of the stove (drapes, furniture, clothing, etc.).

Curing the Paint

This heater uses a heat-activated paint that will emit some fumes while starting

the first fire. Open doors and windows to the room to vent these fumes. This

typically lasts two to four hours. You may also notice oil burning off of the interior

of the heater. This rust-stopping agent will soon dissipate.

Door Gasket - The door gasket might adhere to the paint on the front of the

heater. Leave the door slightly ajar for the first fire and be careful when opening

the door after the first fire.

2 to 4 hours

Over-Firing the Stove

This stove was designed to operate at a high temperature. But due to differences in vent configuration,

fuel, and draft, this appliance can be operated at an excessive temperature. If the stove top or other area

starts to glow red, you are over-firing the stove. Shut the air control down to low and allow the stove to

cool before proceeding.

Over-firing may lead to damage of plated surfaces. If you are uncertain of over-firing conditions, we

suggest placing a stove thermometer (e.g. Rutland® Model 710) directly over the door on the stove top -

temperatures exceeding 800° are generally considered over-firing and will void the warranty.

Opening the Door

Rotate

the door

handle.

Swing

the door

open.

The door becomes hot during use. Use a glove to open the door if the handle is hot.

To prevent smoke from entering the room, open the bypass before opening the door (see following page

for directions). You can also open the door a small amount and let air enter the firebox.

18 Operating Your Appliance

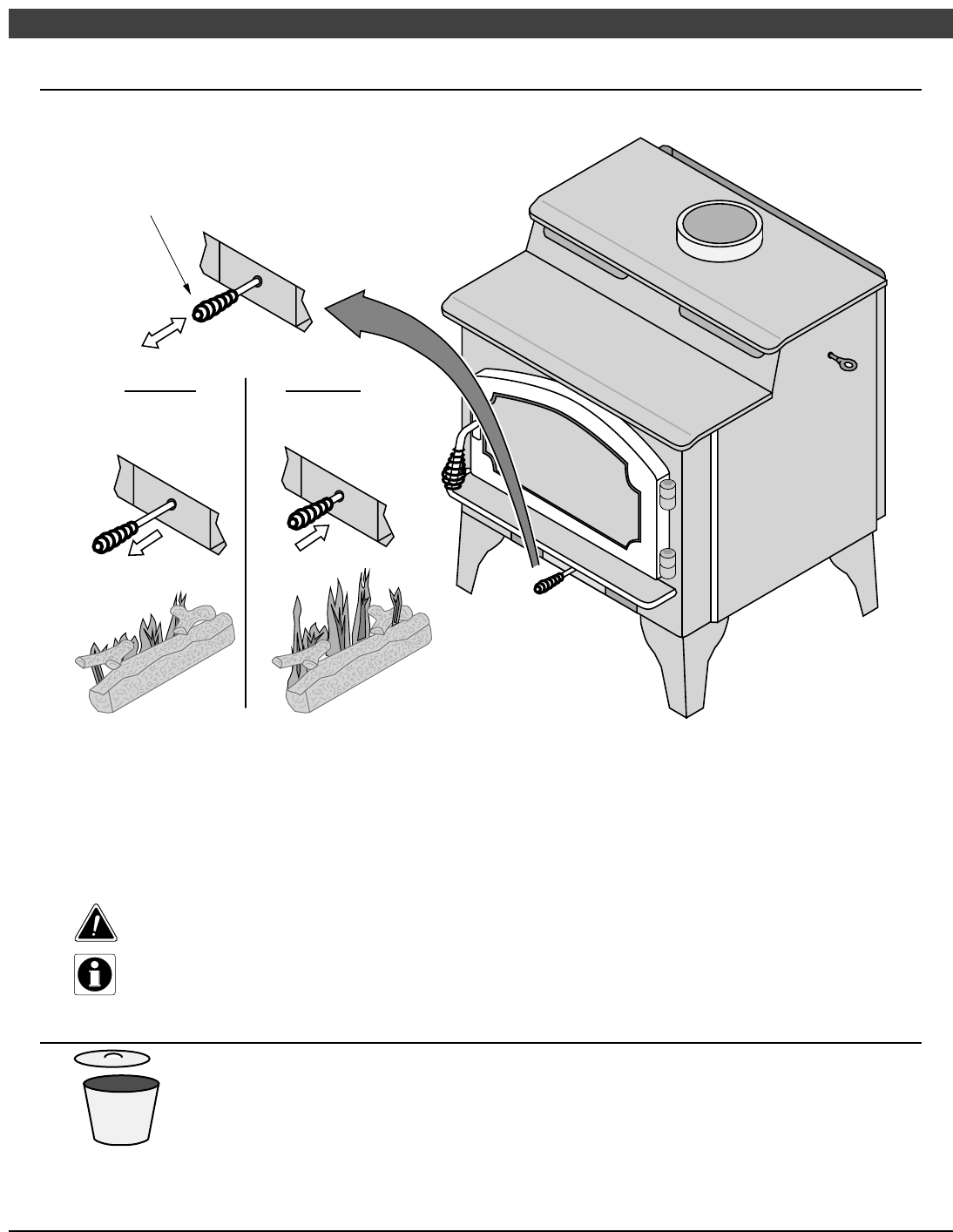

Bypass Operation

The bypass controls the flow of smoke inside the heater. When pulled out, smoke goes directly up the

flue, creating more draft. When pushed in, the smoke goes around the baffle, utilizing the secondary

combustion and making the heater more efficient.

• When starting or re-loading, pull the bypass out.

• During normal operation, push the bypass in.

Bypass Pushed In

Used for normal operation

Bypass Pulled Out

Used for starting and re-loading

Use the included pull tool

to operate the bypass rod

Operating Your Appliance 19

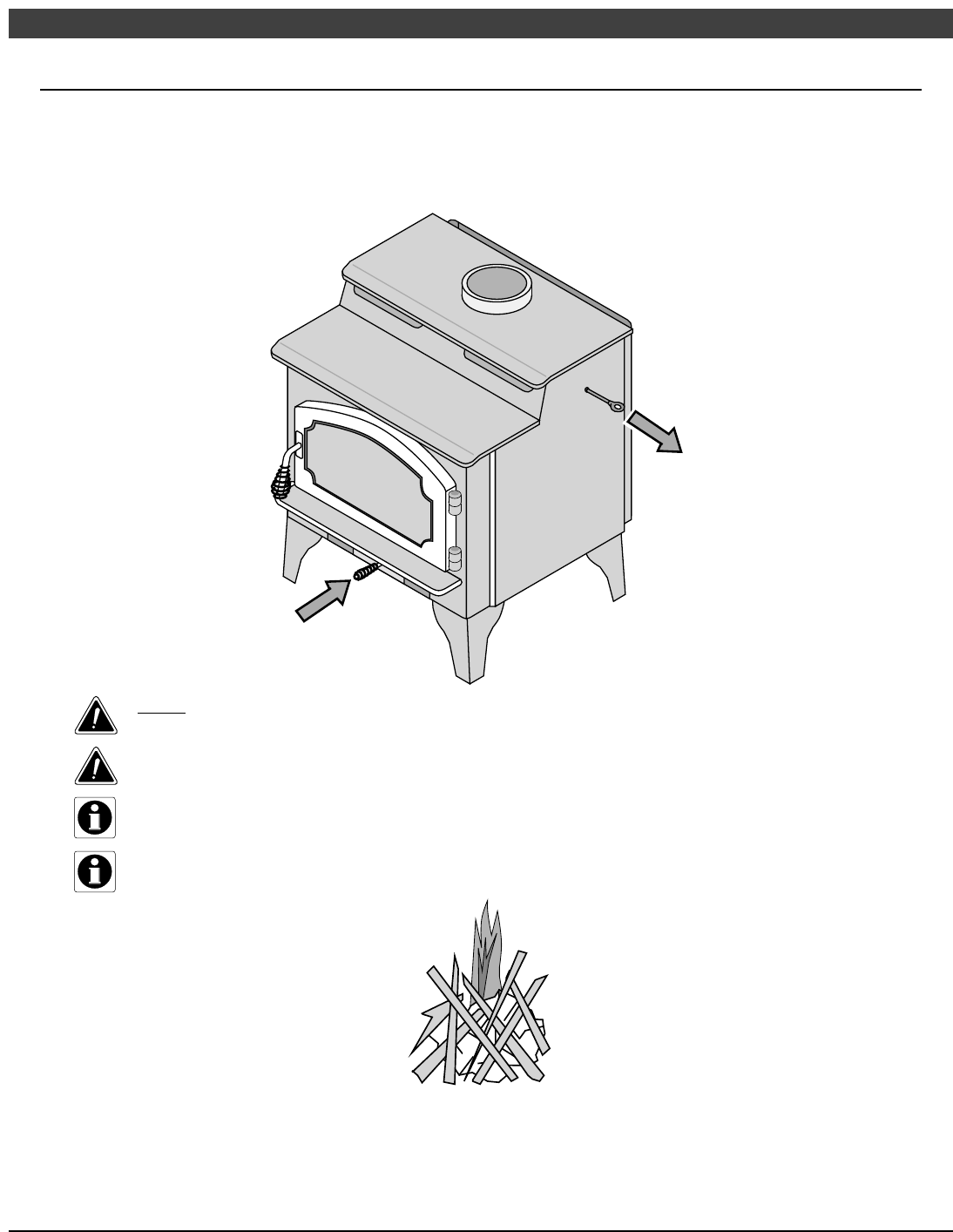

Starting a Fire

Since the dawn of time man has debated the best way to start a fire. Some use the boy-scout "tee-pee",

some prefer the "tic-tac-toe" stack. Either way, review the hints and warnings below to ensure proper fire

starting.

• Make sure the air control is pushed in and by-pass pulled out. If additional air is needed, open the

doors 1/4" during the first five minutes of start-up.

Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start

or "freshen up" a fire in this stove. Keep all such liquids well away from the stove while it is in use.

If using a firestarter, use only products specifically designed for stoves - follow the manufacturer's

instructions carefully.

If the smoke does not pass up the chimney, ball up one sheet of newspaper, place it in the center of the

firebox and light it. This should start the chimney drafting (this eliminates "cold air blockage").

Use plenty of kindling to ensure the stove reaches a proper temperature. Once the kindling is burning

rapidly, place a few larger pieces of wood onto the fire.

20 Operating Your Appliance

Adjusting the Burn Rate

Use the air control slider to control the burn rate of the stove. See the illustration below for details.

Low Burn

(air control closed)

High Burn

(air control open)

Use the air control to

change the burn rate.

Approximate Air Control Settings

Overnight Burn Fully out to 9/32" open

Medium Burn 9/32" open to 5/16" open

Medium High Burn 5/16" open to 7/16" open

High Burn 7/16" open to pushed fully in

The air control becomes hot during operation - use gloves or a tool to prevent burns.

The air control may take several minutes to influence the burn rate. When making adjustments, you

may wish to let the stove burn for 10 minutes to gauge performance.

Ash Removal

ASHES

Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes

should be placed on a noncombustible floor or on the ground, away from all combustible

materials, pending final disposal. If the ashes are disposed of by burial in soil or otherwise locally

dispersed, they should be retained in the closed container until all cinders have thoroughly

cooled.

Operating Your Appliance 21

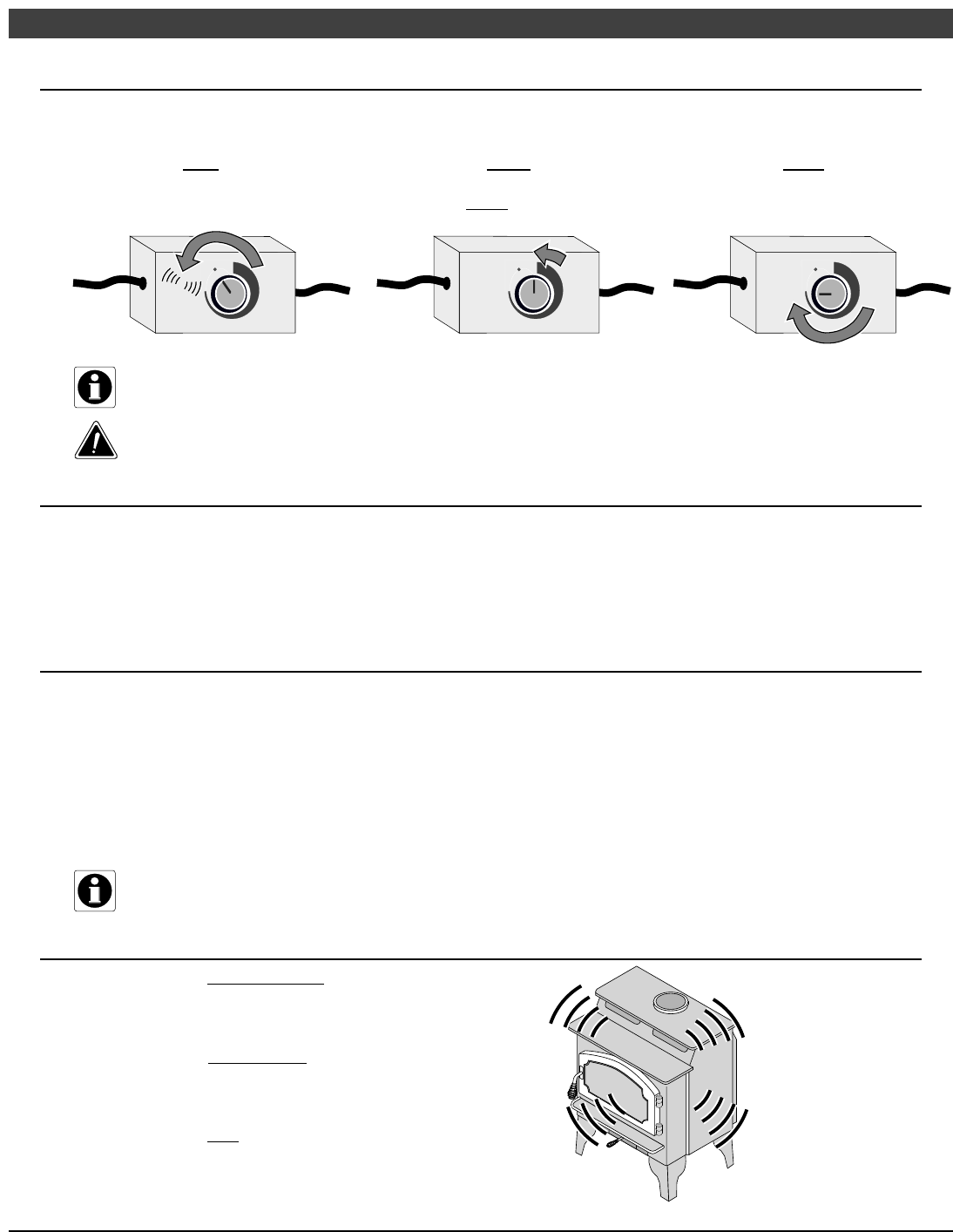

Optional Blower Operation

The blower will turn on once the stove is up to temperature. This is typically 15 to 30 minutes after

starting the fire. Follow the directions below to alter the blower speed.

OFF

Turn the dial all the way counter-

clockwise until it clicks off.

BLOWER

CONTROL

OFF HI

HIGH

The high position is all the way counter-

clockwise, without clicking off.

BLOWER

CONTROL

OFF HI

LOW

Turn the dial all the

way clockwise.

BLOWER

CONTROL

OFF HI

The blower may be used to affect heat output (i.e.: to reduce heat output, turn the blower down).

Route the power cord in a location where it will not come in contact with the appliance or become hot.

Re-Loading the Stove

Follow the directions below to minimize smoke spillage while re-loading the stove.

1 Open the air control (push it in). Open the bypass (pull it out).

2 Open the door slightly. Let the airflow inside the firebox to stabilize before opening the doors fully.

3 Load wood onto the fire.

Overnight Burn

This stove is large enough to accommodate burn times up to eight hours. Follow the steps below to

achieve an overnight burn.

1 Move the air control to high burn and let the stove become hot (burn for approximately 15 minutes).

2 Load as much wood as possible. Use large pieces if possible.

3 Let the stove burn on high for 15 minutes to keep the stove hot, then turn the air control to low.

4 In the morning the stove should still be hot, with embers in the coal bed. Stir the coals and load

small pieces of wood to re-ignite the fire, if desired.

Differences if chimney height and draft may lower overall burn times.

Normal Operating Sounds

Creaks and Clicks:

The 3/16" and 5/16" steel may creak or click when

the stove heats up and cools down - this is normal.

Blower Sounds:

The blower will make a slight "humm" as it

pushes air through the stove.

Hint:

Make sure the leveling bolts on legs are extended -

preventing the hearth from amplifying any vibrations.

22 Operating Your Appliance

Hints for Burning

• Get the appliance hot before adjusting to low burn

• Use smaller pieces of wood during start-up and high burns to increase temperature

• Use larger pieces of wood for overnight or sustained burns

• Stack the wood tightly together to establish a longer burn

• Leave a bed of ashes (1/2" deep) to allow for longer burns

• Be considerate of neighbors & the environment: burn dry wood only

• Burn small, intense fires instead of large, slow burning fires when possible

• Learn your appliance's operating characteristics to obtain optimum performance

Selecting Wood

• Dry Wood is Key

• Dry wood burns hot, emits less

smoke and creates less creosote.

• Testing Wood Moisture

• Split wood stored in a dry area will

be fully dry within a year. This

insures dry wood. If purchasing

wood for immediate use, test the

wood with a moisture meter. Some

experienced wood burners can

measure wood moisture by

knocking pieces together and

listening for a clear "knock" and not

a "thud".

Wet

Wood

Leads

Dry

Wood

Leads

Less

Heat More

Heat

More Smoke

and Creostoe Less Smoke

and Creostoe

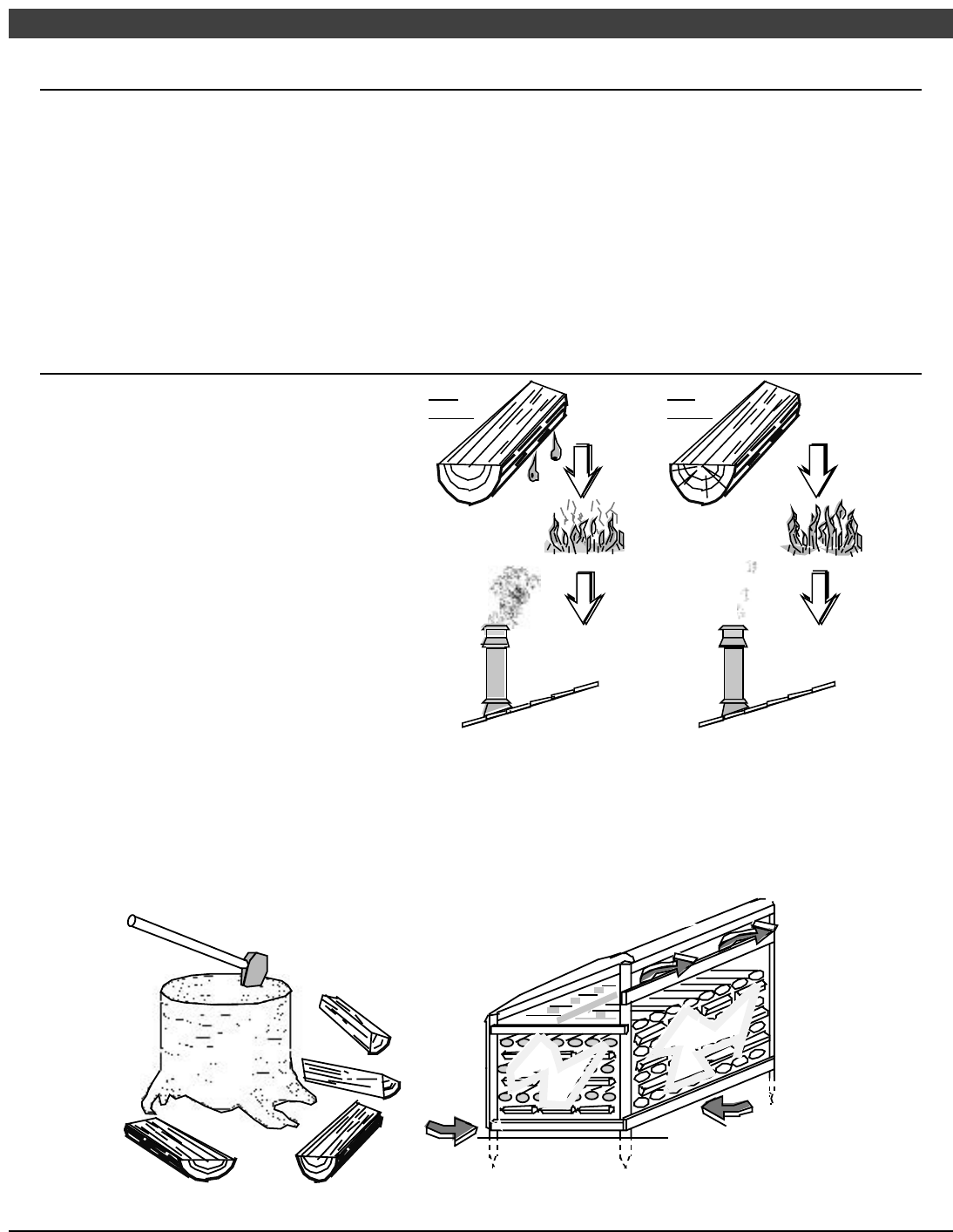

Why Dry Wood is Key

Wet wood, when burned, must release water stored within the wood. This cools the fire, creates

creosote, and hampers a complete burn. Ask any experienced wood burner and he or she will agree: dry

wood is crucial to good performance.

Wood Cutting and Storage

Cut wood to length and

chop into quarters. Store the wood off the ground in a

covered area. Allow for airflow

around the wood to dry the wood.

Air Flow

Operating Your Appliance 23

Troubleshooting

Problem Possible Cause

Smoke Enters Room During

Start-Up

• Open the bypass (pg. 18).

• Open the air control (pg. 20).

• Cold Air Blockage - burn a piece of newspaper to

establish a draft.

• If the flame is not getting enough air, a small crack in

the door is all that is needed.

Kindling Does Not Start - Fire

Smolders

• Open the bypass (pg. 18).

• Open the air control (pg. 20).

• Not enough starter paper - use additional newspaper if

necessary.

• If the flame is not getting enough air, a small crack in

the door is all that is needed.

Smoke Enters Room While Re-

• Open the bypass before opening the door (pg. 18).

• Open the air control before opening the door (pg. 20).

• Let the air stabilize before fully opening the door. Then

open the door approximately 1 inch. Let air go into the

firebox for a few seconds. Once the smoke appears to

be flowing up the chimney consistently, open the door.

• Insufficient Draft - Chimney height and outside

conditions can negatively affect draft. In these cases a

small amount of smoke may enter the home. Adding

more pipe or a draft-inducing cap may help.

Stove Does Not Burn Hot Enough • Wood is Wet - see the section "Selecting Wood" on

page 22 for details on wood.

• Make sure the air control is all the way open. Slide the

control back and forth to insure the control is not stuck.

• Insufficient Draft - Chimney height and outside

conditions can negatively affect draft. In these cases

the fire may burn slowly. Adding more pipe or a draft-

inducing cap may help.

Blower Does Not Run • Stove is Not Up to Temperature - This is normal. The

blower will come on when the stove is hot - usually 15

to 30 minutes.

• Electricity is Cut to the Blower - Check the household

breaker or fuse to make sure it is operable.

Stove Does Not Burn Long

Enough

• Depending upon wood, draft, and other factors, the

burn time may be shorter then stated. Make sure the

doors are sealing and not allowing air into the firebox -

See the section "Door and Glass Inspection" on page

25 for details.

• Check the ash bed for coals. Often, coals are still

glowing under a slight bed of flyash. By raking these

into a pile you can re-start your stove quickly.

24 Maintaining Your Appliance

Failure to properly maintain and inspect your appliance may reduce the performance and life of the

appliance, void your warranty, and create a fire hazard.

Daily Maintenance (while stove is in use)

Remove Ash (if necessary)

• Ash removal is not required once it builds up. 1/2" to 1" of ash may be desirable because it slows the

burn rate. Generally, remove ash once it has built up over 1". Follow the directions below to remove

ash.

1 Let the stove cool completely (at least two hours after the last coal has extinguished).

2 Place a cloth or cardboard protector over the hearth to catch ash and protect against

scratching.

3 Open the doors and scoop the ash into a metal container with a tight fitting lid. The

closed container of ashes should be placed on a noncombustible floor or on the

ground, away from all combustible materials, pending final disposal.

ASHES

Improperly disposed ashes lead to fires. Hot ashes placed in cardboard boxes, dumped in back yards,

or stored in garages, are recipes for disaster.

Wood-burning stoves are inherently dirty. During cleaning have a vacuum ready to catch spilled ash

(make sure ash is entirely extinguished).

There are vacuum cleaners specifically made to remove ash (even if the ash is warm). Contact your

dealer for details.

Clean the Glass (if necessary)

This appliance has an airwash to keep the glass clean. However, burning un-seasoned wood or burning

on lower burn rates leads to dirtier glass (especially on the sides). Clean the glass by following the

directions below.

For Stubborn Creosote:

Dip newspaper or a paper towel in cool

ashes and wipe it on the glass. The ash

acts as a light abrasive.

Allow the stove to fully cool. Apply glass

cleaner or soapy water to the inside of

the glass. Wipe with newspaper or a

paper towel.

The glass will develop a very slight haze over time. This is normal and will not affect viewing of the fire.

Maintaining Your Appliance 25

Monthly Maintenance (while appliance is in use)

Make sure the appliance has fully cooled prior to conducting service.

Door and Glass Inspection

The door must form an air-tight seal to the firebox for the stove to work correctly. Inspect the door gasket

to make sure it forms an air-tight seal to the firebox.

The door can be lifted off the hinges if extensive repairs are conducted.

Severely frayed or thread-bare

gasket should be replaced.

Use wood stove gasket

cement to re-adhere

loose gasket.

If the glass is damaged, replace

it - see “Replacement Parts” for

details.

High-Temperature anti-sieze

may be used on the door

hinges to eliminate squeaks.

The door latch should pull the door against the face of the stove (but not so tight as to not allow full

handle rotation). If the latch requires adjustment, follow the directions below.

Door Cam Door

Handle

Washers

Door Frame Use a 9/16"

socket wrench to

remove this nut.

Side View of Door Handle

Door Cam

Adjustment:

To tighten, remove

a washer from the

inside of the door

frame. To loosen,

place an additional

washers on the

inside of the door

frame or loosen

the nut 1/2 turn.

Exploded View

Creosote - Formation and Need for Removal

When wood is burned slowly, it produces tar and other organic vapors, which combine with expelled

moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow-

burning fire. As a result, creosote residue accumulates on the flue lining. When ignited, this creosote

makes an extremely hot fire. The chimney and chimney connector should be inspected at least once

every two months during the heating season to determine if a creosote buildup has occurred. If creosote

has accumulated, it should be removed to reduce the risk of a chimney fire.

If you are not certain of creosote inspection, contact your dealer or local chimney sweep for a full

inspection. Excess creosote buildup may cause a chimney fire, that may result in property damage,

injury, or death.

26 Maintaining Your Appliance

Yearly Maintenance

Make sure the appliance has fully cooled prior to conducting service.

Touch Up Paint

Included with the owner's pack of this appliance is a can of Stove-Brite®

paint. To touch up nicks or dulled paint, apply the paint while the appliance is

cool. Sand rusted or damaged areas before preparation (use 120 grit

sandpaper). Clean and dry the area to prepare the surface. Wait at least one

hour before starting the appliance. The touched up area will appear darker

than the surrounding paint until it cures from heat. Curing will give off some

fumes while curing – open windows to ventilate.

Touch-Up

Paint

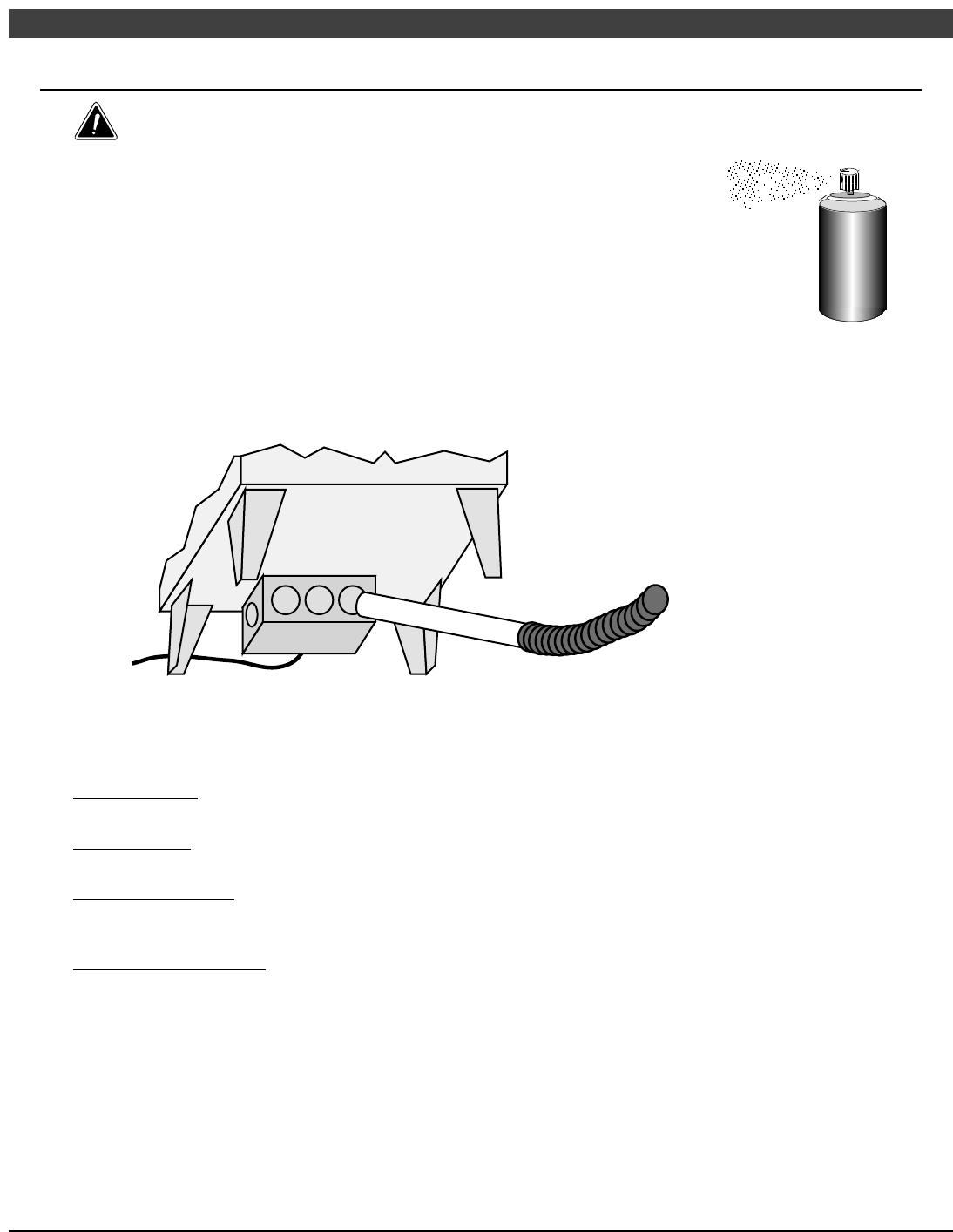

Cleaning the Air Duct and Blower (if applicable)

Use a vacuum to clean the air ducts (channels). This prevents dust from burning and creating odors.

The optional blower should be vacuumed every year to remove any buildup of dust, lint, etc.

Use a vacuum cleaner to remove any

buildup on the screens of the blower.

BOTTOM OF

STOVE

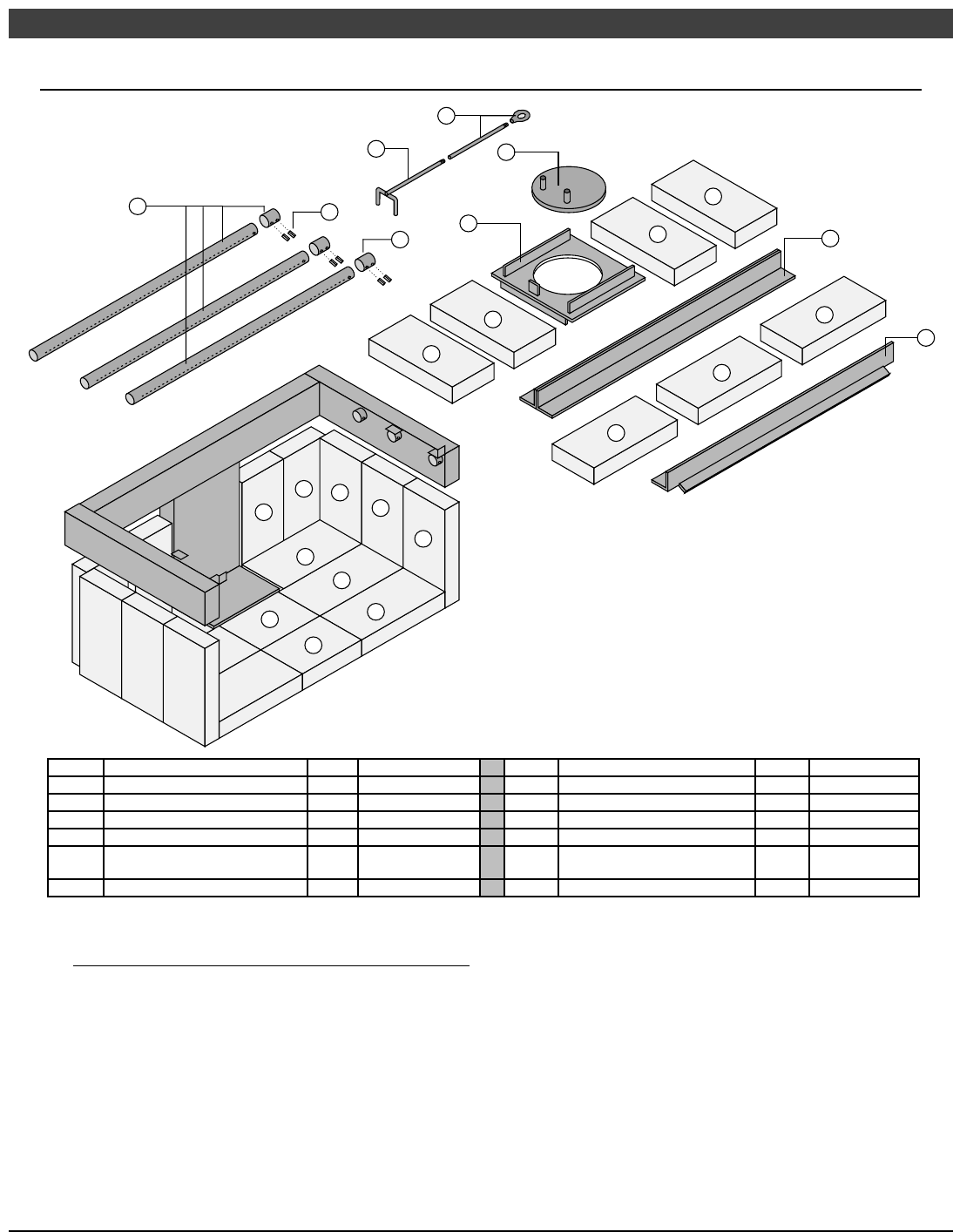

Firebrick and Baffle Inspection

Use the illustration on page 28 as a reference for checking the following items. Make sure the appliance

is cool before proceeding.

Baffle Firebricks - check the bricks along the ceiling of the firebox to make sure they are intact and have

no gaps between them. Slide the bricks to eliminate any gaps.

Baffle Supports - make sure the front and back baffle supports in are place and not degraded. Slight

scaling or rusting of the metal is normal.

Secondary Air Tubes - Check the two air tubes and collars to make sure they are intact and not severely

deteriorated. Slight scaling or rusting of the metal is normal. Make sure the push pins hold the air tubes

in place.

Floor and Wall Firebricks - replace any severely damaged firebrick along the side or floor of the firebox.

Maintaining Your Appliance 27

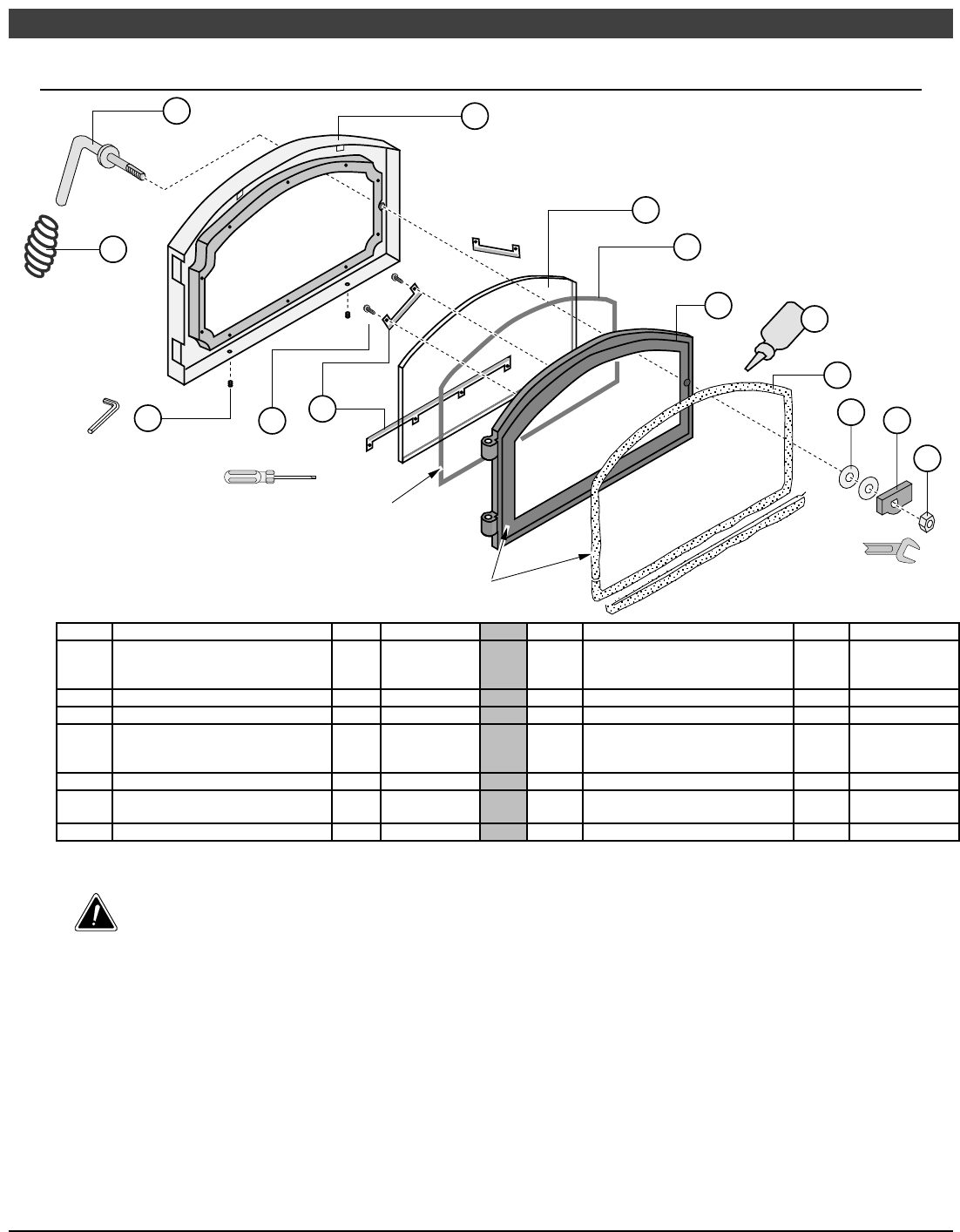

Door Parts

9/16" Wrench

NOTE: Place the glass gasket around the

perimeter of the door retainer.

NOTE: Glue the door gasket

to the door retainer.

# 20 Torx Driver

1/8” Hex Wrench

ID # Description Qty Part # ID # Description Qty Part #

1 Door Shell - Black

Door Shell - Brass

Door Shell - Pewter

1 230-00578

230-00579

230-00577

2Glass (19-1/4" x 9-7/8")1173-01001

3Glass Gasket1100-01164 4 Door Retainer (w gasket) 1 224-23029

5 Gasket Cement 1 99900409 6 Door Gasket 1 99900406

7 Door Handle Asbly - Black

Door Handle Asbly - Brass

Door Handle Asbly - Pewter

1 224-14042

99900410

224-14052

8 Spring - Black

Spring - Brass

Spring - Pewter

1 100-14122

99300100

100-04103

9 Washers 2 100-03501 10 Cam 1 99900417

11 Nut, Brass 1 101-00007 12 Glass Clips - Top

Glass Clip - Bottom

224-230022

224-230021

13 #8-32 3/8" Type F Screw 8 225-20039 14 Set Screw 2 225-20038

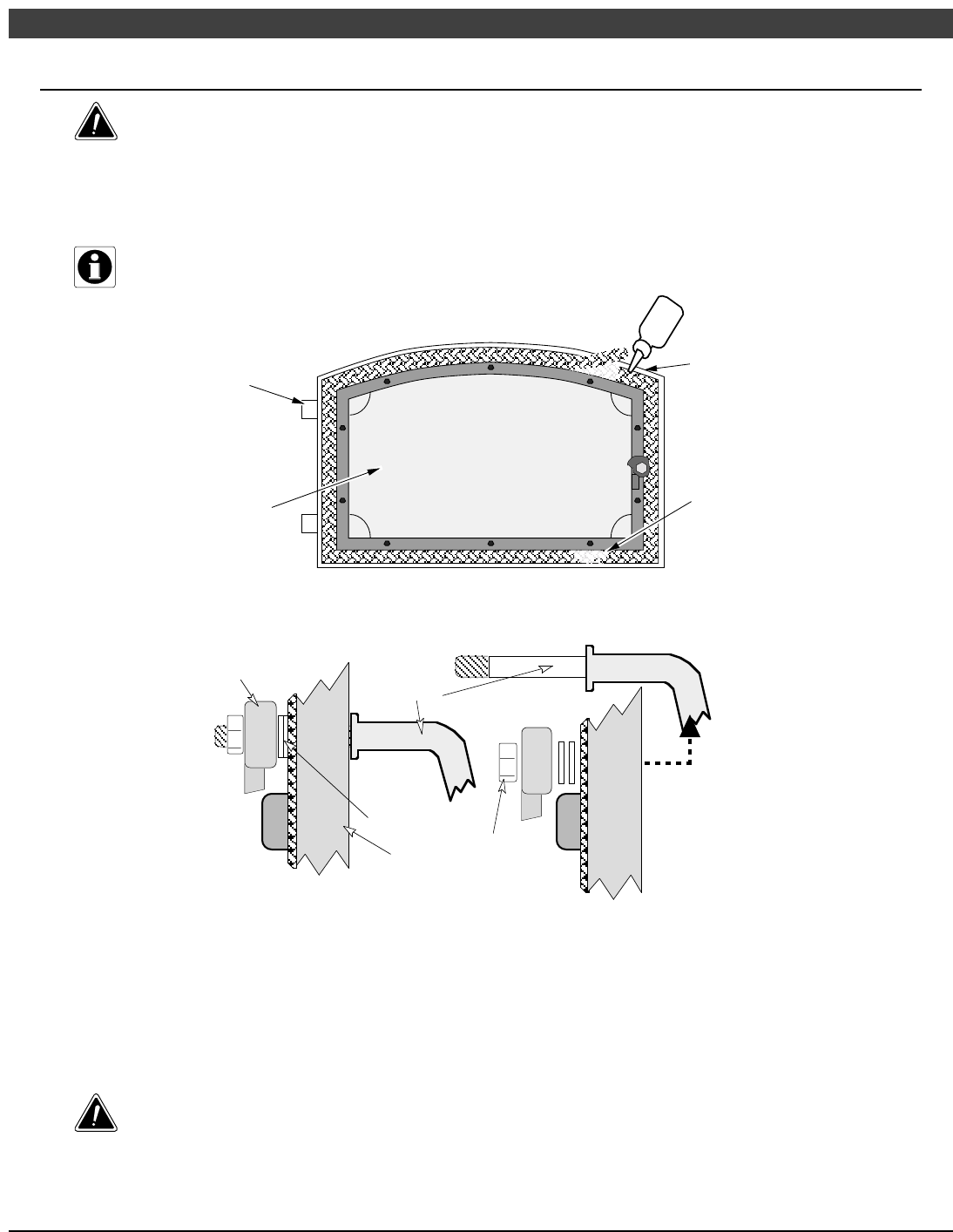

Replacing the Glass

The glass must not contact the door retainer or glass clips directly. The glass gasket and glass clip

gaskets insulate the glass to prevent cracking. Do not over-tighten the glass clips.

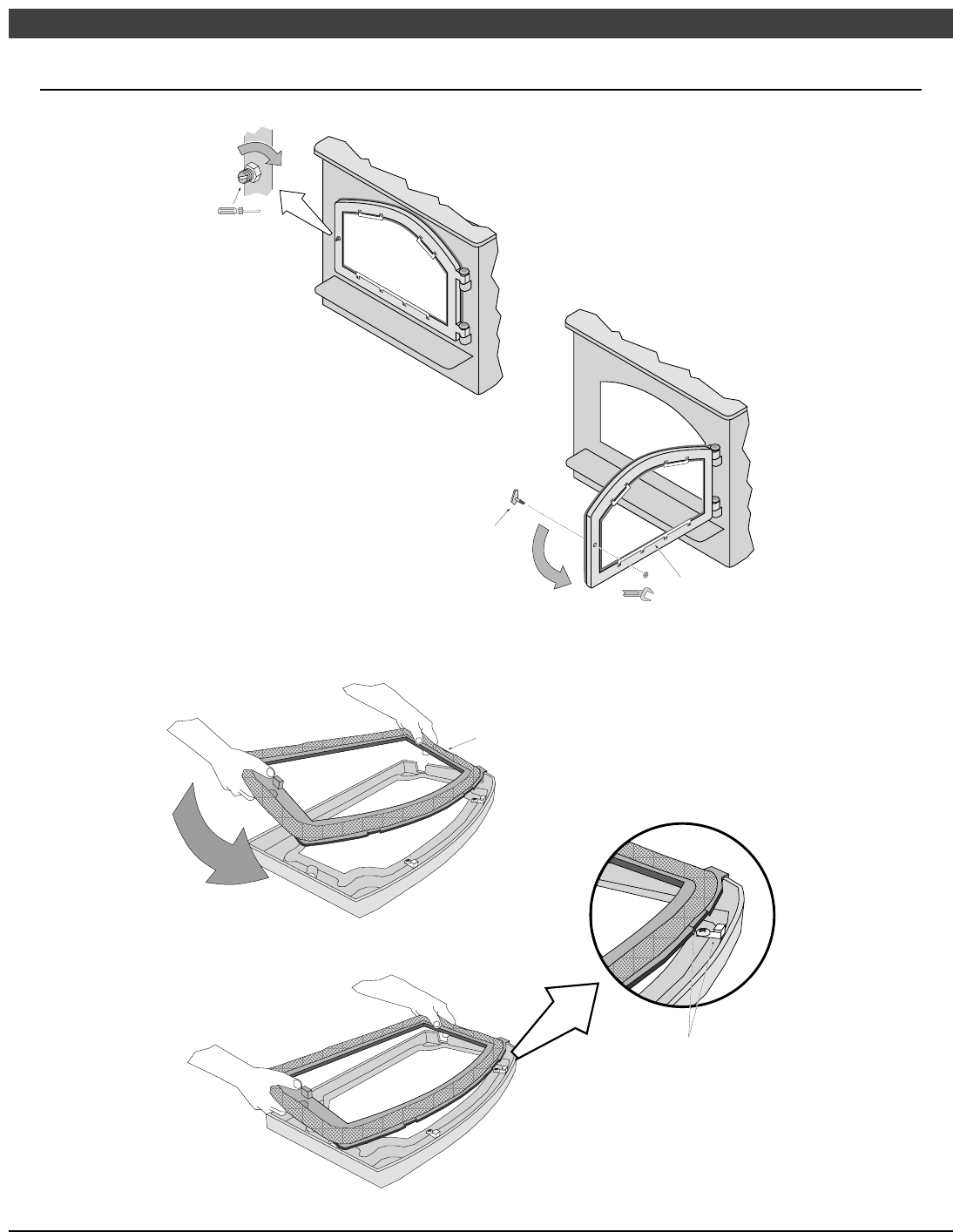

See "Door Shell Installation" (pg. 32) for details on removing the door handle and shell. NOTE: The glass

gasket is placed in the grove along the inside perimeter of the door retainer. Make sure the glass clip

screws are all fully tightened - they must be flush with the door retainer for the door shell to install.

Replacing the Door Gasket

The door gasket inserts into the outer groove of the door retainer. Stove gasket cement holds it in place.

Before installing, remove any residual cement. Lay the gasket in place (start at the lower left corner) and

cut off any excess gasket (do not stretch the gasket. The cement fully cures with heat from the stove.

You may need to open and close the door repeatedly to get the gasket to seat fully.

Replacing the Door Handle

See the illustration above for a component list (see pg. 25 for details on adjusting the door).

28 Maintaining Your Appliance

Firebox Parts

ID # Description Qty Part # ID # Description Qty Part #

1 Air Tubes & Sleeve 1 98900210 2 Air Tube Roll Pins 6 98900357

3 Air Tube Retainer Sleeve 3 100-11001 4 Baffle Support, Front "Y" 1 99900277

5 Baffle Support, Rear "T" 1 99900278 6 Damper Plate 1 98900320

7 Damper Slider 1 98900340 8 Damper Yoke 1 98900326

9 Damper Extension Rod with

Pull Ring

1 98900333 10 Brick - 9" x 4.5" un-cut 15 175-00001 (1)

98900102 (9)

11 Brick, Cut - 8.25" x 4.5" 2 251-00010 12 Brick, Cut – 6.25” x 4.5” 2 251-00011

Floor and Side Firebrick Removal & Replacement

Do not pry firebrick - they chip and crack easily. Remove the floor firebricks first. The side firebrick

are removed later because they are pinned in place by the floor firebrick. Clean the firebox prior to

replacing the firebrick.

Maintaining Your Appliance 29

Baffle Removal & Replacement

1 Lift up on the front portion of the front three firebricks.

2 Lift the front baffle support “Y” and rotate it forward until it can be removed.

3 Slide the center front firebrick forward and out the door opening. Then slide the side front

firebricks towards the middle then out in the same manner.

4 Slide the center baffle support forward and out of the firebox.

5 Slide the rear firebrick forward and out of the firebox. NOTE: When the center rear firebrick are

slid forward the damper plate will come to rest on the rear secondary air tube and rear air

channel.

6 Slide the damper slider all the way forward.

7 Reach into the firebox and push up on the damper yoke until the damper yoke separates from the

damper slider. Remove both the damper slider and damper plate by sliding them between the

front two secondary air tubes.

REPLACEMENT INSTRUCTIONS:

8 Place the damper plate above the secondary air tubes in the rear center of the firebox.

9 Position the damper slider so the damper yoke inserts into the two tubes on the damper slider

(make sure to have correct orientation). Then slide the damper slider over the damper plate until

both are centered in the firebox.

10 Follow the instructions above in reverse order, starting with step number 5.

Air Tube Removal & Replacement

Remove the left pin on the air tube collar

Air Tube Collar

Air Tube

Slide the air tube to the left, swing it

down and remove from the firebox.

Roll Pin

30 Limited 7 Year Warranty

To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance purchase

date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is

defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of

purchase as follows:

Check with your dealer in advance for any costs to you when arranging a warranty call.

Mileage or service charges are not covered by this warranty. This charge can vary from store to store.

Years 1 & 2 - COVERAGE: PARTS & LABOR

Firebox Assembly:

Firebox, Baffle Supports, Air Tubes, Air Channels, Convection Chamber

Door Assembly:

Solid Brass or Cast Door, Latch Assembly, Glass Retainers

Plated Finish

Plated Door, Legs, etc… See "Conditions & Exclusions" # 9 below.

Air Control Assembly

Slider Plate, Pressure Plate

Ceramic Glass

Glass (breakage from thermal shock)

Firebrick

Breakage from thermal shock

Accessories

Legs, Pedestal, Panels, Blower

Re-Installation Allowance

In cases where heater must be removed from home

for repairs, a partial cost of re-installation is covered

(pre-authorization required)

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair

done at factory is covered.

Exclusions:Paint, Gasketing

Years 3 Through 5 - COVERAGE: PARTS & LABOR

Firebox Assembly:

Firebox, Baffle Supports, Air Tubes, Air Channels, Convection Chamber

Air Control Assembly

Slider Plate, Pressure Plate

Door Assembly:

Solid Brass or Cast Door, Latch

Assembly, Glass Retainers

One-Way Freight Allowance

One-way freight allowance on pre-authorized

repair done at factory is covered.

Exclusions:Paint, Gasketing, Plated Finish, Accessories (Legs, Pedestal, Panels, Blower), Glass, Firebrick, Re-Installation Allowance

Years 6 & 7 - COVERAGE: PARTS ONLY

Firebox Assembly:

Firebox, Baffle Supports, Air Tubes, Air Channels, Convection Chamber

Door Assembly:

Solid Brass or Cast Door, Latch Assembly, Glass Retainers

Air Control Assembly

Slider Plate, Pressure Plate

Exclusions:Paint, Gasketing, Plated Finish, Accessories (Legs, Pedestal, Panels, Blower), Glass, Firebrick, Re-Installation Allowance, One-

Way Freight Allowance, Labor

CONDITIONS & EXCLUSIONS

1. This new appliance must be installed by a qualified installer. It must be installed, operated, and maintained at all times in accordance with the instructions in the

Owner’s Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized Travis dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered

under warranty. Over-firing (operation where the steel may glow red) of this appliance can cause serious damage and will nullify this warranty.

4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the

installation of this product. If in doubt as to the extent of this warranty, contact your authorized Travis retailer before installation.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or

mountains or negative pressure or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.

6. This Warranty is void if:

a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals.

b. The unit is subject to submersion in water or prolonged periods of dampness or condensation.

c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not

limited to, improper chimney/venting installation.

7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation, alteration or

adjustment of the manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or

act of God.

8. This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, chipped or cracked

firebrick, etc. Also excluded is damage to the unit caused by abuse, improper installation, modification of the unit, or the use of fuel other than that for which the

unit is configured (use cord wood only).

9. Damage to brass or plated surfaces caused by fingerprints, scratches, melted items, or other external sources left on the surfaces from the use of abrasive

cleaners is not covered in this warranty. Damage to the surfaces from over-firing (operation where the steel may glow red) is not covered in this warranty.

10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or

consequential damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.

11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the Travis appliance without the

express written permission of TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

12. Any statement or representation of Travis products and their performance contained in Travis advertising, packaging literature, or printed material is not part of

this 7 year warranty.

13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way. If the appliance is used for commercial purposes,

it is excluded from this warranty.

14. No dealer, distributor, or similar person has the authority to represent or warrant Travis products beyond the terms contained within this warranty. TRAVIS

INDUSTRIES, INC. assumes no liability for such warranties or representations.

15. Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.

16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17. This 7 year warranty is the only warranty supplied by Travis Industries, Inc., the manufacturer of the appliance. All other warranties, whether express or implied,

are hereby expressly disclaimed and purchaser’s recourse is expressly limited to the warranties set forth herein.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your Travis dealer WITHIN 30 DAYS, giving them proof of

purchase, the purchase date, and the model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of

the dealership where you purchased the appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your

appliance. At that time, you may be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC.,

at its option, will repair or replace, free of charge, your appliance if it is found to be defective in material or workmanship within the time frame stated

within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES,

INC., to your regional distributor, or dealership.

4. Check with your dealer in advance for any costs to you when arranging a warranty call. Mileage or service charges are not covered by this warranty. This charge

can vary from store to store.

Listing Information 31

Listing Label

LISTED SOLID FUEL BURNING APPLIANCE

SUITABLE FOR USE IN RESIDENTIAL, ALCOVE

AND MOBILE HOME INSTALLATIONS.

PREVENT HOUSE FIRES - Install and use only in accordance with the Lopi Liberty (520-NT) owner’s manual. Contact your

local building or fire officials about restrictions and installation inspection in your area. Refer to local building codes and

the chimney manufacturer’s instructions for precautions required for passing a chimney through a combustible wall or ceil-

ing. Do not run a chimney connector through a combustible wall or ceiling. Do not connect this unit to a chimney flue serv-

ing another appliance. Clearances may be reduced by methods specified in NFPA 211, listed wall shields, pipe shields, or

other means approved by local building or fire officials.

DO NOT REMOVE THIS LABEL

STANDARD RESIDENTIAL FREESTANDING INSTALLATIONS REQUIRE: 6” diameter, minimum 24 MSG black or 25 MSG

blued steel connector, with listed (type HT) factory-built chimney, suitable for use with solid fuels or masonry chimney.

Pedestal or legs are required.

ALCOVE INSTALLATIONS REQUIRE: One of the listed doublewall connectors shown below. Pedestal or legs are required.

Maximum alcove depth 48”, minimum alcove height 84”.

MOBILE HOME AND REDUCED CLEARANCE INSTALLATIONS REQUIRE: One of the listed doublewall connectors shown

below. In addition, mobile home installations require outside air - use the optional pedestal or outside air boot. Pedestal or

legs are required.

• DURAVENT model DVL with DURA-PLUS chimney

• AMERI-TEC model DCC with model HS chimney

• SECURITY model DP with SECURITY model ASHT or S2100 chimney

• METALFAB model DW connector with TG chimney

• Standard Masonry Chimney with any one of the above listed connectors

TESTED TO RELEVANT PORTIONS OF

UL 1482, 737 AND 907. SERIAL

NUMBER

FREESTANDING INSTALLATION

CLEARANCES AND

FLOOR PROTECTION

REQUIREMENTS:

A. SIDEWALL TO UNIT

B. BACKWALL TO UNIT

C. CORNER TO UNIT

D. SIDEWALL TO CONNECTOR

E. BACKWALL TO CONNECTOR

F. CORNERWALL TO CONNECTOR

STANDARD RESIDENTIAL

INSTALLATION (SINGLEWALL

CONNECTOR)

16”

15”

9.5”

28”

18.25”

21”

MOBILE HOME, ALCOVE AND

REDUCED CLEARANCE INSTALLATIONS

(REQUIRES DOUBLE WALL CONNECTOR)

16”

10”

7.5”

27.5”

12.75”

18.5”

STOVE

FLOOR PROTECTOR

MIN.

6" MIN.

16" MIN.

45û

STOVE

ADJACENT WALL

STOVE

BACKWALL

SIDEWALL

MINIMUM CLEARANCES TO COMBUSTIBLES:

OPTIONAL EQUIPMENT: Rear blower (electrical rating: 115V,

60 Hz., 1.8 Amps)

4800 Harbour Pointe Blvd. SW Mukilteo,

By:

2004 2005 2006 Jan. Feb. Mar. Apr. May June July Aug. Sep. Oct. Nov. Dec.

For use with solid wood fuels only (cord wood). Operate with

feed door closed - open to feed fire only. Do not use a grate

or elevate fire - build fire directly on the hearth.

U.S. ENVIRONMENTAL PROTECTION AGENCY

Certified to comply with July 1990 particulate emission standards.

DATE OF MANUFACTURE

Manufactured by:

MODEL:

LIBERTY (520-NT)

Replace glass only with LOPI supplied NEOCERAM ceramic

glass (5mm).

0210IGN

32 Optional Equipment

Door Shell Installation

1 Remove the door retainer shipping latch following the directions below.

Standard

Screwdriver

Rotate this shaft

1/4 turn clockwise

until the door

unlatches.

Swing the door retianer open. Remove and

discard the shipping latch and nut.

9/16" Wrench

Shipping Latch

Door Retainer

2 Place the door shell face down on a non-scratching surface. Lift the door retainer off the hinges.

Insert the retainer into the door shell following the directions below. Note how the door shell is guided

into place

Door Retainer

Door Shell

The indent on the door retainer slides into

the clip on the door shell (on both sides).

Optional Equipment 33

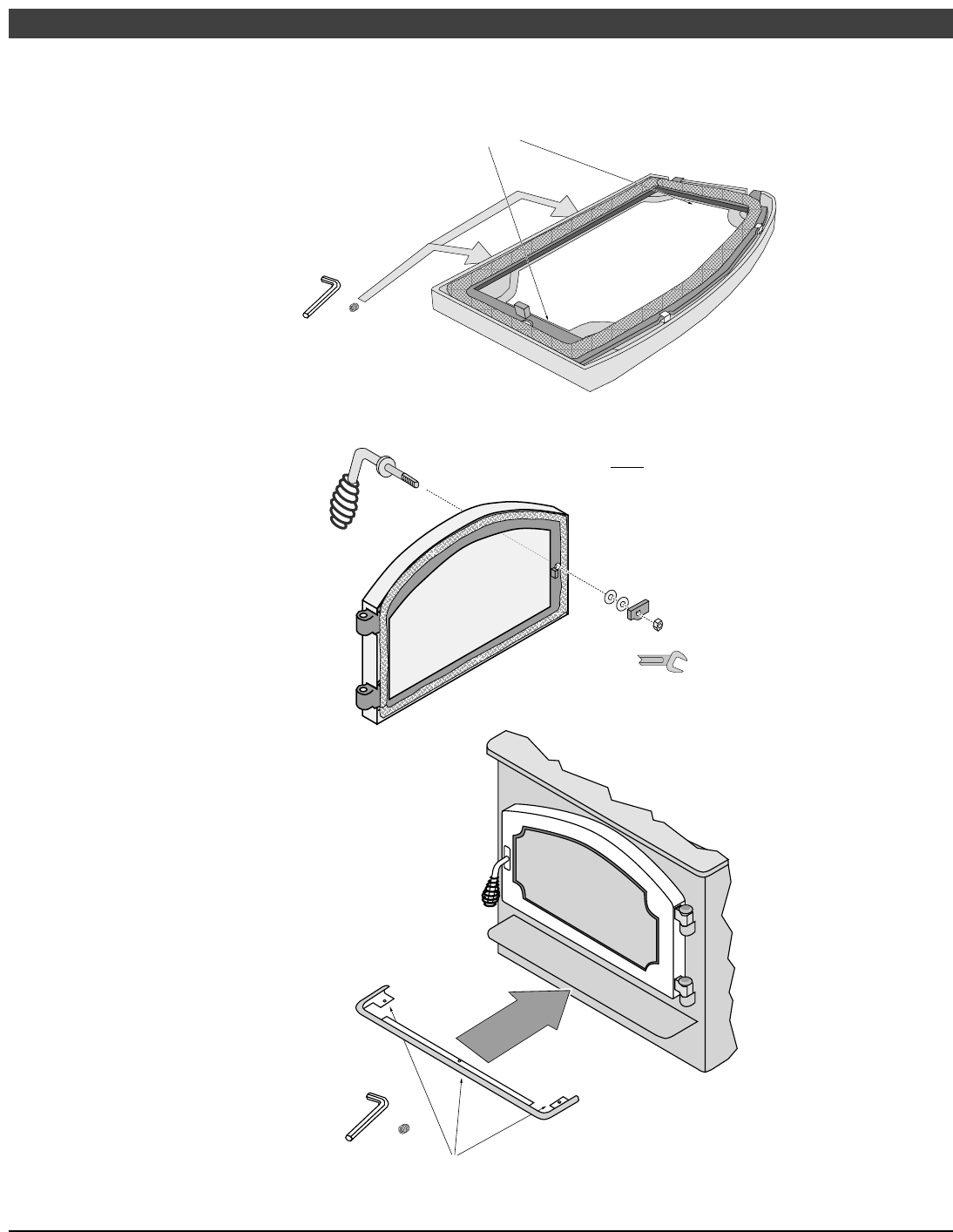

3 Attach the retainer to the shell following the directions below.

Make sure the door retainer is centered on the door shell.

You can gauge the alignment by looking at the gaps here.

Once the door is aligned, tighten

the two set screws on the bottom

of the door shell to secure the

door retainer.

1/8” Hex Wrench

4 Attach the door handle

following the directions to

the right.

5 Replace the door on the

hinges and latch the door.

6 Attach the ashlip trim

following the directions

below.

9/16" Wrench

NOTE: in rare cases the door retainer may not line up with

the door shell, preventing the door handle from lining up

correctly. To adjust the position horizontally, loosen the set

screws (see step 3) and adjust the door retainer position. To

adjust vertically, remove the retainer and adjust the clips on

the door shell (see step 2).

Slide the ashlip trim into place then tighten the three

set screws on the bottom of the ashlip to secure.

1/16” Hex Wrench

34 Optional Equipment

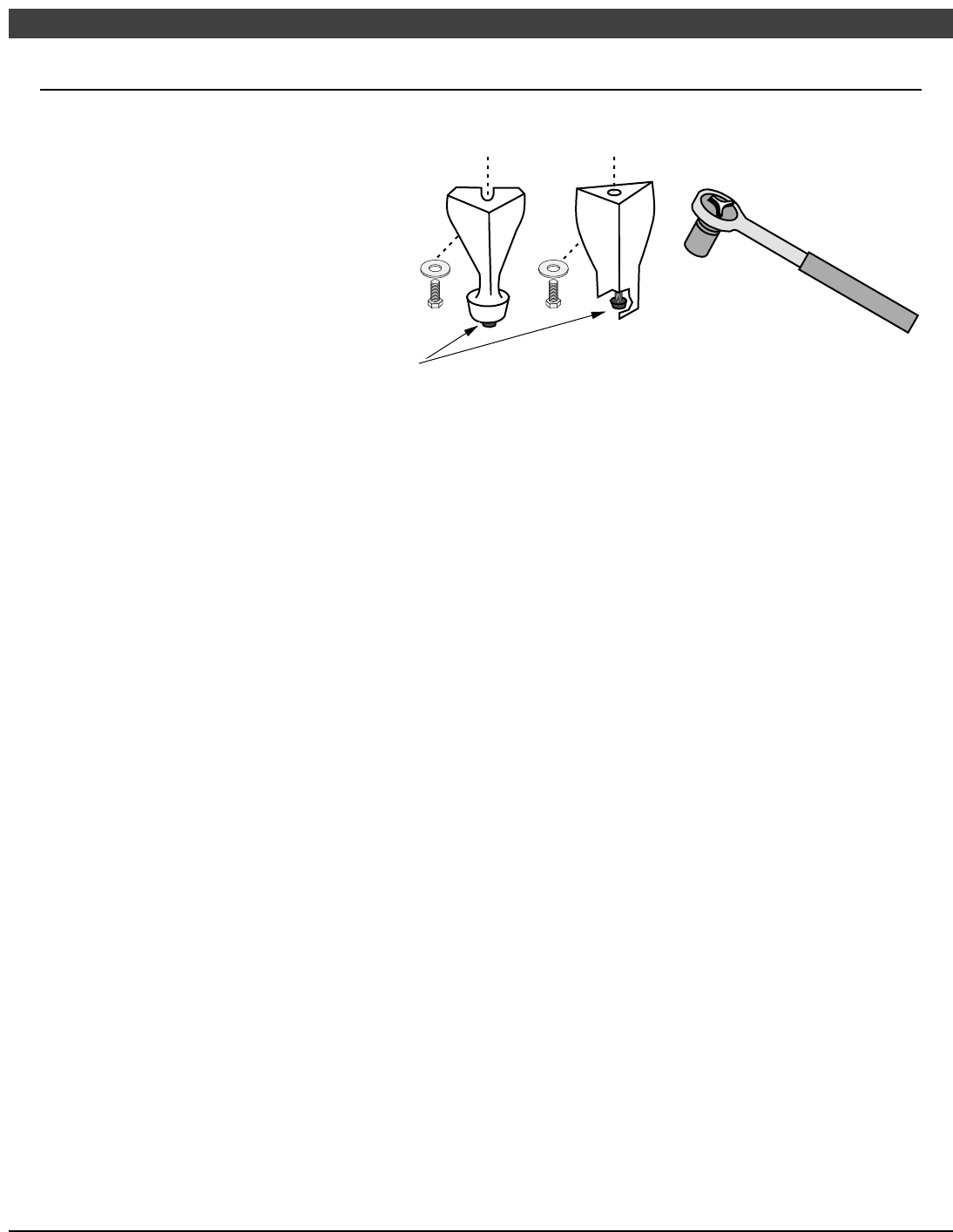

Stove Leg Installation

Part Numbers: Brass # 99200500, Cast Black # 99200800, Black Steel # 99200100

• Raise the stove 8" (use lumber). Attach each leg following the instructions below.

Attach each leg to the stove by

inserting a bolt and washer through the

hole or slot in the leg and into the

threaded hole on the stove.

9/16" Socket Wrench

These rubber-tipped bolts are for leveling the stove.

Make sure they contact the floor. Do not adjust

with weight on the legs, the rubber tips may tear.

Optional Equipment 35

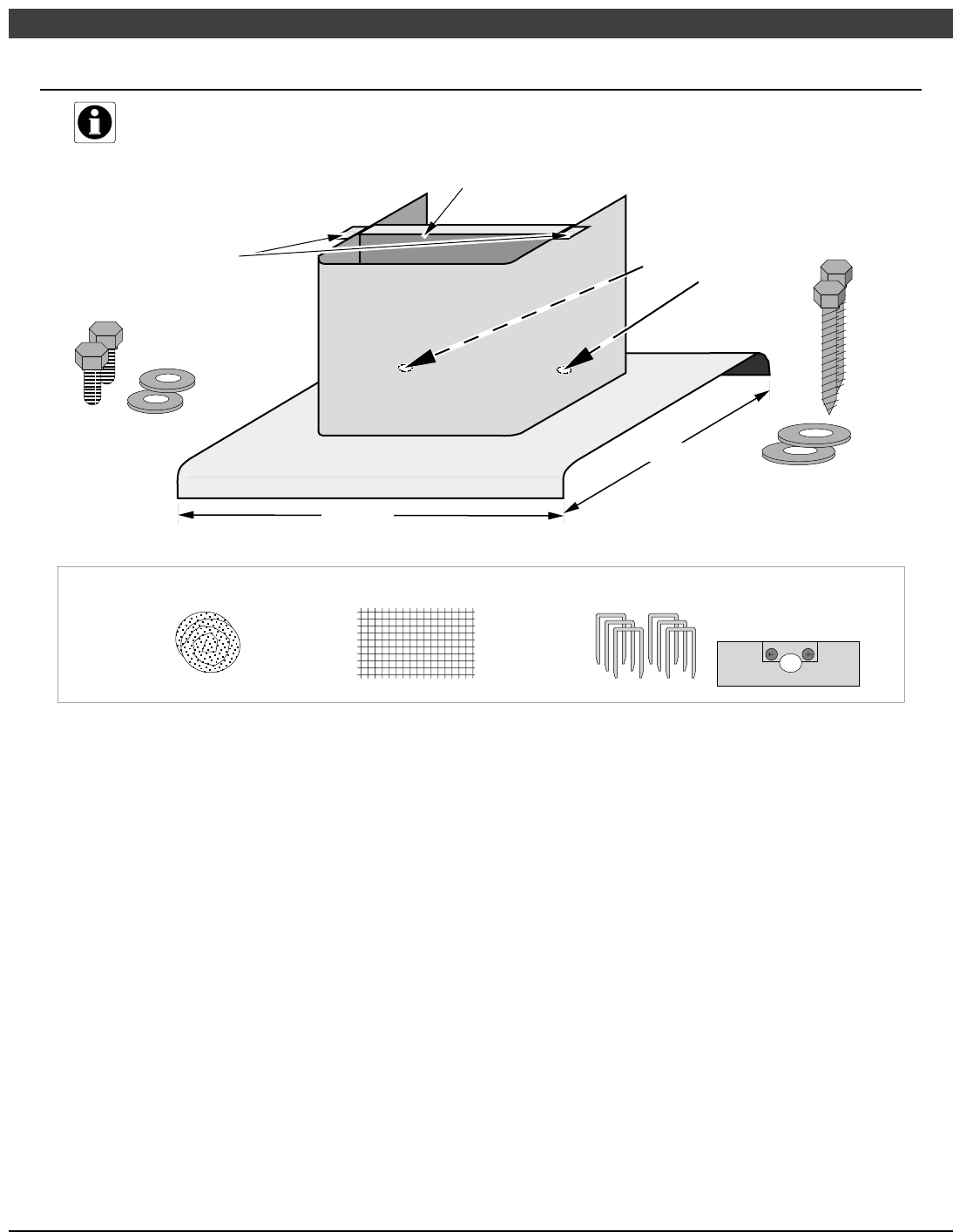

Pedestal (Part # 99200106)

If using outside air with the pedestal, follow the directions below under "Using Outside Air with the

Pedestal" prior to installing the pedestal.

When attached, the faceplate of

the stove is 4 3/4” in front of the

front edge of the pedestal.

23 5/8”

Optional Air

Intake Port

Attachment Bolts and

Washers - use a 9/16"

socket wrench to

attach the pedestal to

the stove.

If installing in a mobile home,

insert the lag bolts through

these holes and screw them

into the floor with a 1/2" socket

wrench.

OUTSIDE AIR EQUIPMENT

Staples are

used to attach

the screen to

the floor.

Screen is used

to prevent

rodents from

entering.

Insulation is

used to seal

the side edges

of the pedestal

The cover plate is used

to seal off room air.

22”

Using Outside Air with the Pedestal

Before installing, check the section "Outside Air Requirements" 11 for installation concerns.

1. Determine the location of the outside air hole penetrating the floor (& hearth). The illustration

above details the size of pedestal and its location in relation to the stove. The hole may be cut

anywhere underneath the pedestal, as long as it is not within 2" of the outside perimeter of the

pedestal, is at least 16 square inches in area, and does not interfere with structural members of

the home. Place the rodent screen over the hole (above or below) and secure with staples.

2. Attach the stove to the pedestal with the included bolts. Tuck the included insulation underneath

the side edges of pedestal to seal off any air from entering underneath the pedestal.

36 Optional Equipment

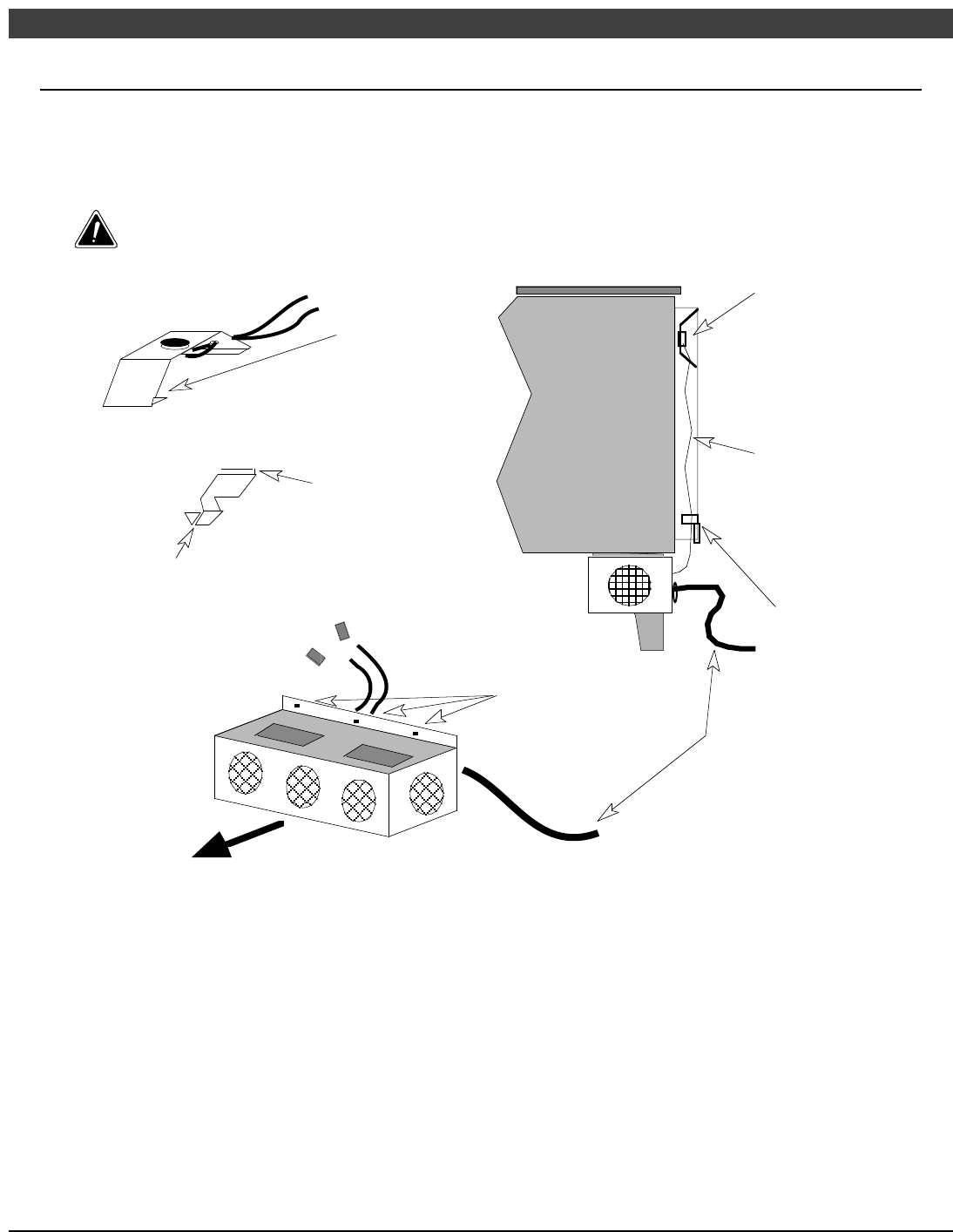

Rear Blower Installation (Part # 99000138)

The rear blower improves heat transfer by pushing heated air through the convection channel. Operating

instructions are described in the section "Blower Operation".

1 The stove should be in place with the legs installed prior to installing the rear blower.

2 Follow the directions below to install the blower. Use the

Use the wire clip to insure the wires from the thermodisk are held in place away from the firebox (this

prevents damage to the wires).

Slide the

thermodisk

assembly into

the space

between the

stove and rear

heat shield.

Run both of the

wires from the

thermodisk down

behind the stove

and through the

eye of the wire clip.

Wire Clip

Thermodisk

This portion

hooks on the

top edge of the

rear heat shield.

The two yellow wires

attach to the thermodisk.

Three holes for

attaching the

blower box to the

back of the stove

Power Cord

(exits from back

of blower box)

Blower Box

FRONT

Wire Clip

This portion of the wire

clips slides over the

rear heat shield

The wires pass through the eye of the wire clip.

Optional Equipment 37

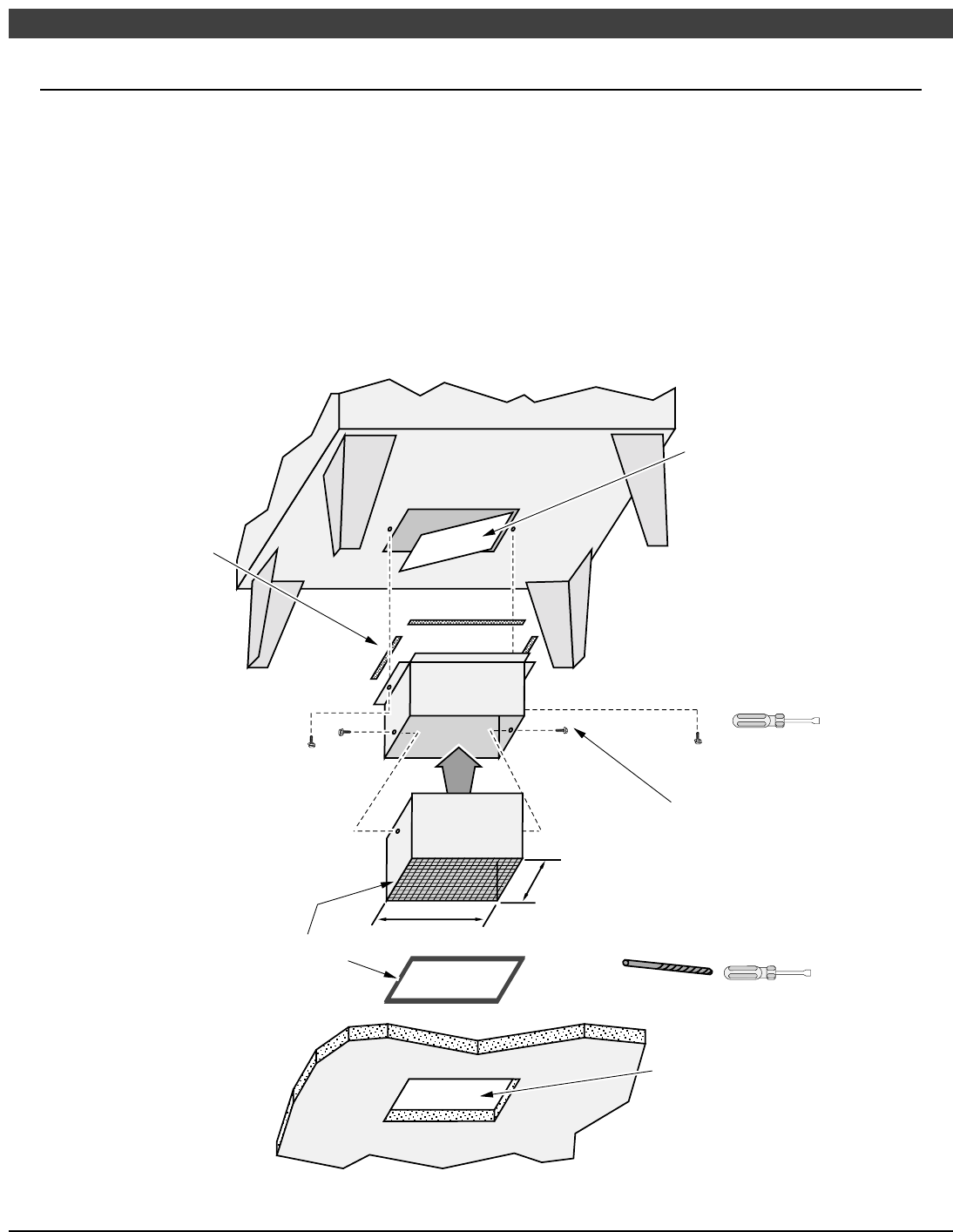

Outside Air Boot Installation (Part number 99200134)

The outside air boot routes outside air to the stove for combustion. Refer to the section "Outside Air

Requirements" for installation concerns. The directions below detail installation.

1 Refer to the illustration below to determine the location and size of the hole penetrating the floor

and hearth. The knock-out (which is pre-removed) is 6-11/16" behind the face of the stove. Cut the

hole prior to locating the stove.

2 Attach gasket to the bottom edge of the lower air boot section (near the screen). Attach gasket

on top of the flanges on the upper air boot section. Slide the two sections together with both

seams facing the rear (do not attach the two sections at this time).

3 Follow the directions below for attaching the upper section of the air boot (with gasket) to the

stove.

4 Slide the lower section down until it contacts the hearth. Attach the two sections together

following the directions below

Bottom of Stove

8-7/8”

5-1/8”

Attach the air boot with

the two screws included

with the kit.

1/4" Nutdriver

Attach gasket to the bottom

edge of the air boot.

Attach the included

gasket to all four top

edges of the air boot.

Use the included screws to attach

the two telescoping portions of air

boot together. The included drill bit

should be used to drill the hole.

Make sure the air boot is expanded

to the correct size before drilling.

5/16" Nutdriver

9/64” Drill Bit

Floor (and hearth)

The hole in the floor (and hearth)

must be a minimum 16 square

inches. It should be 1/2” smaller

than the footprint of the air boot in

each dimension to allow for the

gasket to seal.

Use a

screwdriver to

pry out the

knock-out (if

applicable).

38 Index

Air Control ...................................................20

Air Tube Part Number ....................................28

Air Tube Removal & Replacement ....................29

Alcove.........................................................12

Ash Disposal ................................................24

Baffle Parts ..................................................28

Baffle Removal and Replacement .....................29

Blower Cleaning............................................26

Blower Does Not Run (Troubleshooting) ............23

Blower Installation (rear) .................................36

Blower Operation (optional) .............................21

Burn Rate ....................................................20

Cathedral Ceiling...........................................14

Ceiling Penetration ........................................10

Chimney Cleaning .........................................25

Chimney Inspection (Creosote) ........................25

Chimney Requirements ..................................10

Chimney Termination Requirements..................11

Cleaning the Ash...........................................24

Cleaning the Glass ........................................24

Clearances (stove) ........................................8

Close Clearance Connectors ...........................8

Connector Requirements ................................10

Creosote Check ............................................25

Daily Maintenance .........................................24

Dimensions ..................................................6

Door and Glass Inspection ..............................25

Door Assembly .............................................27

Door Gasket Replacement ..............................27

Door Handle Replacement ..............................27

Door Opening ...............................................17

Door Parts ...................................................27

Draft Performance .........................................10

Elbows (Chimney) .........................................10

Emissions ....................................................6

EPA Approval ...............................................6

Exterior Chimney...........................................11

Features......................................................6

Fire Starting .................................................19

Firebox Assembly..........................................28

Firebox Parts................................................28

Firebrick and Baffle Inspection .........................26

Firebrick Removal & Replacement ....................28

Floor Protection Requirements (stove) ...............8

Glass Cleaning .............................................24

Glass Replacement .......................................27

Hearth (Floor Protection - Stove) ......................8

Hearth Stove ................................................16

Heating Specifications ....................................6

Hints for Burns..............................................22

Installation Options ........................................6

Installation (stove) .........................................7

Leg Installation .............................................34

Listing Label.................................................31

Maintenance ................................................24

Mobile Home Requirements ............................13

Monthly Maintenance .....................................25

Noise (Normal Operating Sounds) ....................21

Non-Combustible Alcove.................................12

Opening the Door ..........................................17

Operation ....................................................17

Outside Air Boot Installation.............................37

Outside Air...................................................11

Over-Firing the Stove .....................................17

Overnight Burn .............................................21

Paint (Touch-Up Paint) ...................................26

Paint Curing .................................................17

Rear Blower Installation ..................................36

Re-Loading the Stove.....................................21

Safety Label .................................................31

Safety Precautions ........................................4

Smell (from paint curing) .................................17

Smoke Enters Room (Troubleshooting)..............23

Sounds (Normal Operating Sounds) ..................21

Starting a Fire...............................................19

Stove Does Not Burn Long Enough...................23

Stove is Not Hot Enough (Troubleshooting) ........23

Table of Contents ..........................................3

Touch-Up Paint.............................................26

Troubleshooting (Operation) ............................23

Warranty Card ..............................................2

Warranty .....................................................30

Wood..........................................................22

Yearly Maintenance .......................................26

Lopi Liberty Wood Stove Users Manual

Liberty Wood Stove to the manual 9d190b39-5333-4cf7-88af-b763c0db6466

Navigation menu

Versions of this User Manual:

Views

Navigation
