Lorex Technology FXC21 IP Wireless Camera User Manual
Lorex Technology Inc. IP Wireless Camera
User Manual
2
5
3
4
1
11
12
fxc003484156
10
6
7
8
10
9
Add Camera
Scan the QR code using your mobile device
Center the QR code inside the frame
Make sure that your camera is turned on
and has a working internet connection
Serial: 1 2345 6 789 012
fxc003484156
fxc003484156
fxc003484156
13
11
12
fxc003484156
HD WIFI SECURITY CAMERA
STEP ONE
PLUG IN YOUR CAMERA.
CAMERA TURNS ON AUTOMATICALLY WHEN THE POWER ADAPTER IS CONNECTED.
fxc003484156
SETUP INSTRUCTIONS:
WHAT’S INCLUDED: STEP FOUR
REMOVE THE PROTECTIVE FILM ON THE LENS.
© 2016, FLIR Systems, Inc.
FXC21_QSG_EN_R1
FLIRSECURE.COM
1. Status LED
Steady Red: Camera is starting up or resetting.
Fast-Flashing Red:
Camera is receiving weak signal
from the router. (Reposition the camera to get a
stronger signal.)
Slow-Flashing Red:
The router or network that the
camera is connected to is down. Check your router
settings.
Steady Blue:
Camera is connected to FLIR Cloud
services.
Fast-Flashing Blue: Firmware upgrade in progress.
6. MicroUSB Power Port
7. Reset Button
8. MicroSD Card Memory Slot
9. MicroUSB Power Cable Holder:
Secure the USB power cable with
this clip.
10. Camera Base
10. Camera Base
11. QR Code: Scan during WIFI setup
using the FLIR SECURE ™ app.
12. Device ID
13. Mounting Plate: Refer to the
User Manual for wall-mounting
instructions.

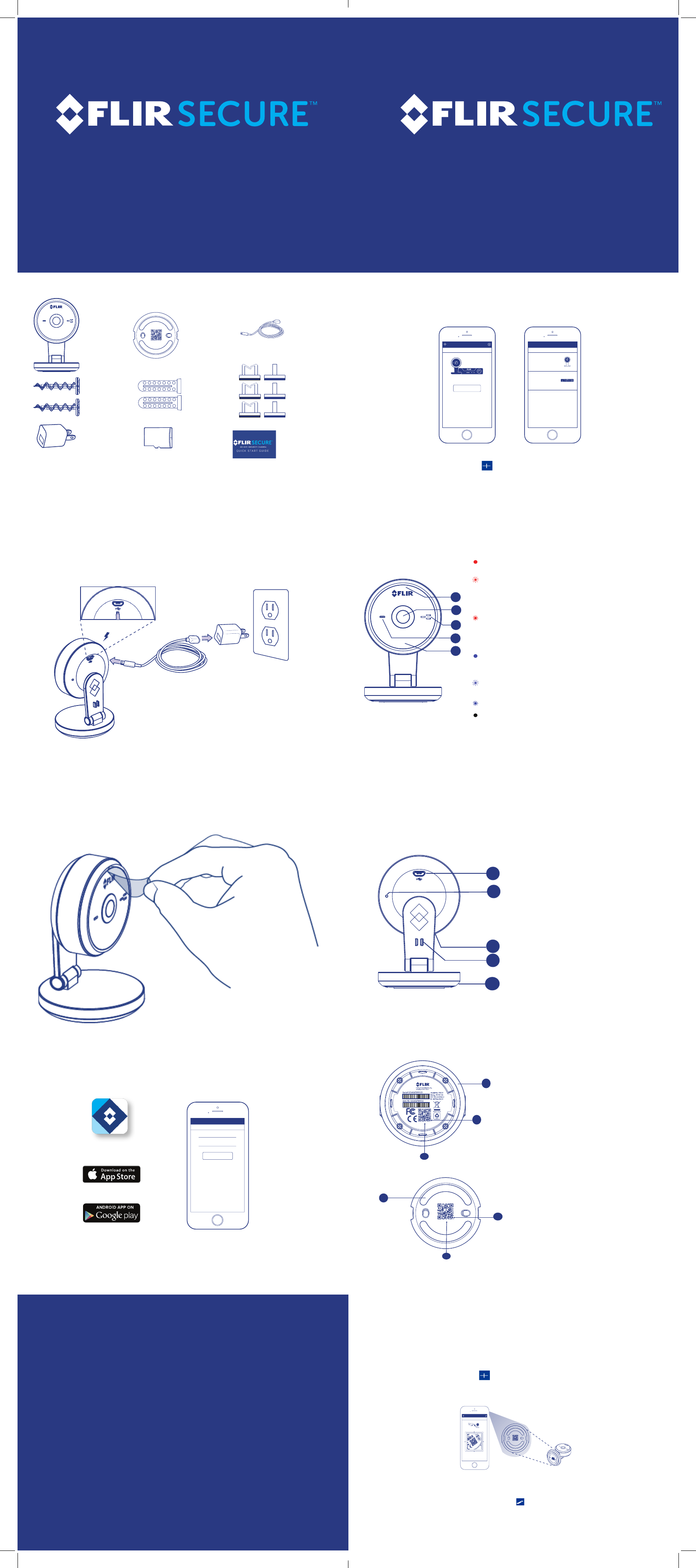

QUICK START GUIDE
(II) SCAN THE QR CODE ON THE BOTTOM OF THE
CAMERA MOUNTING PLATE.
Log In
Welcome to FLIR SECURE
SIGN UP
FORGOT PASSWORD?
LOG IN
Email
Password
STEP THREE
(I) DOWNLOAD THE FLIR SECURE™ APP TO YOUR
MOBILE DEVICE, THEN LAUNCH THE APP AND
CREATE YOUR ACCOUNT.
FLIR SECURE
Add your first Device
ADD DEVICE
WIFI SETUP - FOR ANDROID USERS ONLY
BLUETOOTH (BLE) SETUP - FOR IOS AND ANDROID USERS
IF BLUETOOTH (BLE) IS NOT AVAILABLE ON YOUR
MOBILE DEVICE, FOLLOW THESE SETUP INSTRUCTIONS:
CAMERA OVERVIEW:
(I) TAP ADD DEVICE, THEN TAP CAMERA.
NOTE: IF YOU CANNOT SCAN THE CAMERA’S QR CODE, TAP TO ENTER THE CAMERA’S DEVICE ID MANUALLY. SEE
HD WIFI SECURITY CAMERA
IF THIS IS NOT THE FIRST DEVICE ON YOUR
ACCOUNT, TAP AND THEN TAP CAMERA.
(II) FOLLOW THE ON-SCREEN INSTRUCTIONS TO
COMPLETE SETUP.
(III) FOLLOW THE ON-SCREEN INSTRUCTIONS TO
COMPLETE SETUP.
AddCancel
What would you like to add?
Security System
Camera
NOTE: IF YOUR MOBILE DEVICE HAS BLUETOOTH TURNED ON BUT YOUR CAMERA’S DEVICE ID DOES NOT SHOW UP ON
(I) TAP ADD DEVICE, THEN TAP CAMERA.
IF THIS IS NOT THE FIRST DEVICE ON YOUR
ACCOUNT, TAP AND THEN TAP CAMERA.
STEP TWO
FLIR SECURE™
1 HD WIFI
SECURITY
CAMERA*
1 MICRO
USB CABLE*
1 MICRO SD
CARD* (PRE-
INSTALLED)
1 POWER
ADAPTER*
1 MOUNTING
PLATE*
(PRE-
ATTACHED)
QUICK START
GUIDE* AND
SAFETY
INFORMATION*
2 MOUNTING
SCREWS*
2 DRYWALL
ANCHORS*
3 CABLE
CLIPS*
*CAMERA CONFIGURATION, MEMORY CARD SIZE, AND THE NUMBER OF ACCESSORIES MAY VARY
BY MODEL. PLEASE REFER TO YOUR PACKAGE FOR SPECIFIC DETAILS.
(II) MAKE SURE YOUR MOBILE DEVICE’S BLUETOOTH
IS TURNED ON.
NOTE: REFER TO YOUR MOBILE DEVICE’S USER GUIDE FOR INSTRUCTIONS ON TURNING
ON BLUETOOTH.
DISCLAIMER: YOUR ACCESSORIES MIGHT APPEAR DIFFERENT FROM THE ONES DEPICTED IN THIS
GUIDE.
2. Camera Lens 4. Microphone
3. Speaker 5. Night Vision LED
THE “CAMERA OVERVIEW” SECTION FOR DEVICE ID LOCATION.
THE LOCATE CAMERA SCREEN, TAP ‘CAN’T FIND YOUR DEVICE?’. SCAN THE QR CODE AND FOLLOW THE ON-SCREEN
INSTRUCTIONS TO COMPLETE SETUP.
DO NOT UNPLUG YOUR CAMERA.
Slow-Flashing Blue: Camera setup in progress.
LED Off: Camera is in privacy / covert mode, or is
turned off.
NOTE: IF BLUETOOTH (BLE) IS NOT AVAILABLE ON YOUR MOBILE DEVICE, FOLLOW THE SETUP INSTRUCTIONS IN
THE “WIFI SETUP - FOR ANDROID USERS ONLY” SECTION.
