Loyal Electronics KG3608 2.4G Wireless Keyboard User Manual
Shenzhen Loyal Electronics Co., Ltd. 2.4G Wireless Keyboard Users Manual
User Manual
Technical Specification
KG3608
1
-- Model: KG3608
1. Specification
-- Membrane Keyboard
-- Size: Keyboard: 326.1 x 123.5 x 18.5 mm
Touchpad: 72.5x 62.0 mm
Receiver: 14.5*6.5*18.5mm
-- Keys: 79 keys, 5 Separate multi-media keys; Left/right Mouse button
-- 2*AAA battery

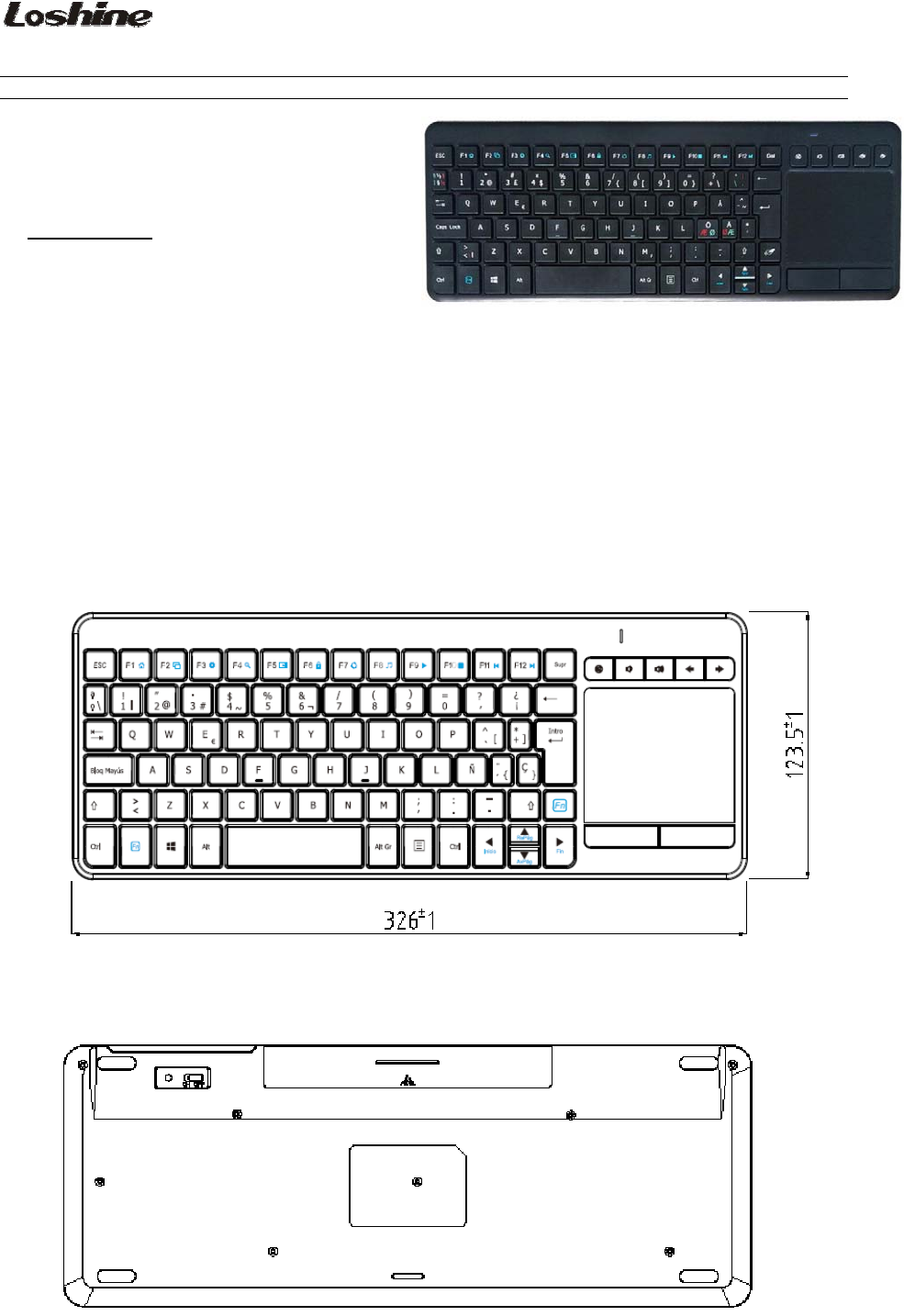

2.Appearance drawing
1)、top cover
2)、bottom cover
Technical Specification
KG3608
2
3)、Structure
3.Products features
1）、Keyboard
RF specification
Frequency 2.405GHz-2.472GHz
OS support: Mac OS、Windows 2000/XP/Vista/Windows 7/ Windows 8/ Windows 10
Connection/Power: On/Off Switch
LED: Caps Lock indicaing,Low power indicating,Pair indicating
Main IC: DKK303
Touchpad IC: Pixart PCT1322
FN media keys
Keys
Media keys
Left and right
keys
Top
Bottom
cover
foot
Battery
cover
receiver ON/OFF
battery
touchpad
Technical Specification
KG3608
3
Channel Nos：68
Channel bandwidth:1MHz
Modulation：GFSK
Working distance：up to 8m
Data transfer rate:1Mbps
2）Pairing mode: Switch on the keyboard, put on the USB dongle at the PC,
Holding on ESC+K,red LED shines,
Put the keyboard near the receiver within 20cm,red LED stop shining
Pairing successfully, keyboard works
Pairing working current: <30mA,
3）Working voltage:2.0-3.0V
Working Current
Working mode 1：Touchpanel at working ,current : 15.0mA@3V;
Working mode 2：Keyboard at working ,current : 5mA@3V;
Stand-by 1：Only keyboard on working ,current : 2mA@3V;
Stand-by 2：Touchpanel and keyboard ceased work for 1 minute :0.50mA@3V;
Sleeping mode：40uA@3V
4）Mechanical specification
1. drawing force﹕≧0.8kgf
2. resiliency ﹕55+20gf
3. Material﹕ABS
4. key stroke life﹕5 million times
5. Environment Temperature
1. Working temperature ﹕5℃～50℃
2. Storage temperature:-20℃～65℃
6. Temperature
1. Working﹕10%～90% RH 25℃
2. Storage﹕5%～95% RH 25℃

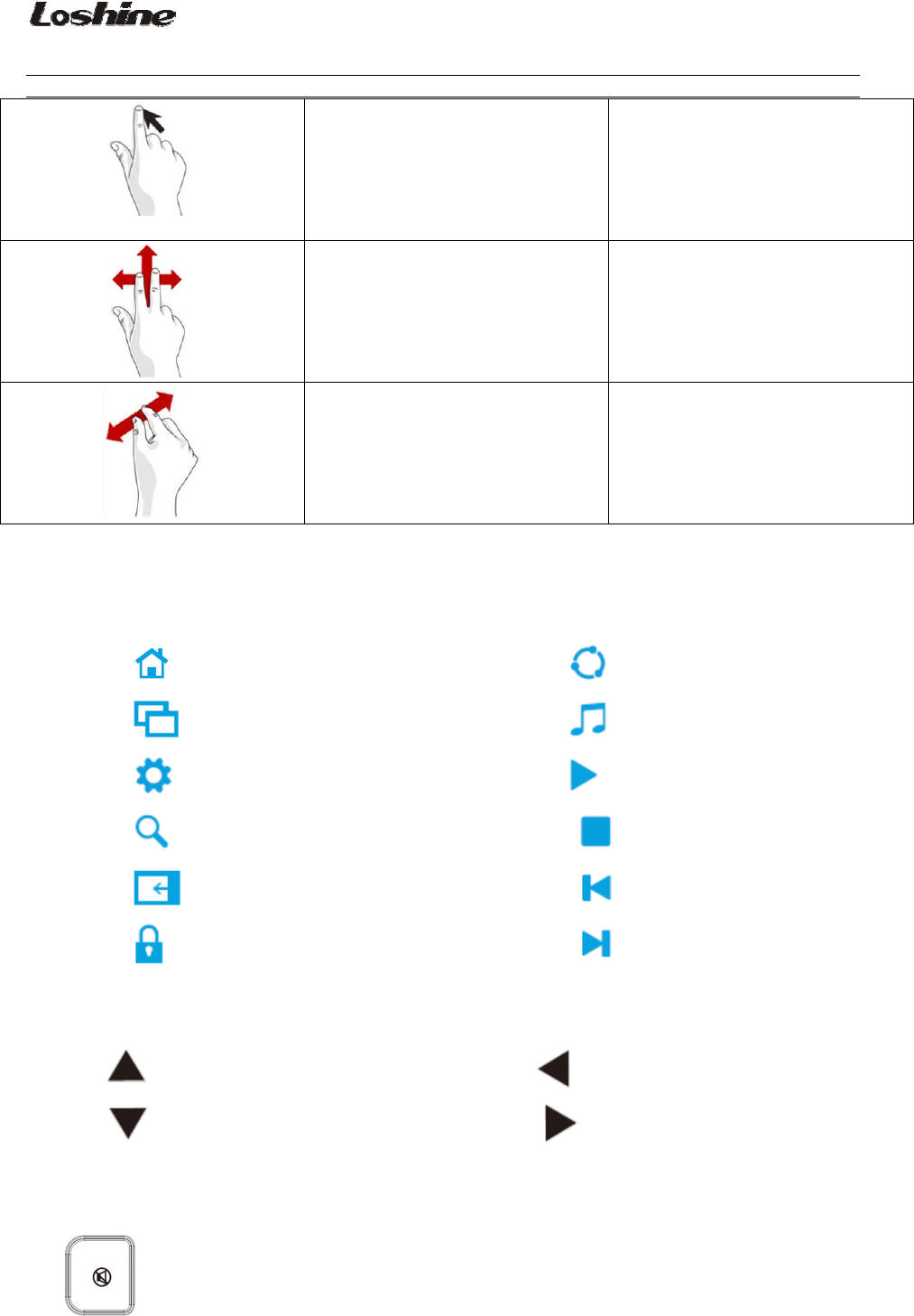

5）Gesture Functionality Support
Finger Gesture Finger Action Mouse Function
Single-finger slide Mouse cursor
manipulation
Technical Specification
KG3608
4
Single tap Click at cursor location
Two-finger slide (Horizontally or
vertically) Horizontal or vertical scroll
(mouse wheel)
Pinch on the touchpad with two
fingers for zooming. Pinch open to
zoom in or pinch close to zoom
out.
6)、Fn Media keys
Fn+F1= Web home
Fn+F2= Switch APP
Fn+F3= Windows Settings
Fn+F4= Search
Fn+F5= Operation center
Fn+F6= Keyboard sleeping
Fn+F7= Share
Fn+F8= Start Media player
Fn+F9= Start Playing
Fn+F10= Stop playing
Fn+F11= Last
Fn+F12= Next
7)、Editing Function
Fn+ =PgUp
Fn+ =PgDn
Fn+ =HOME
Fn+ =END

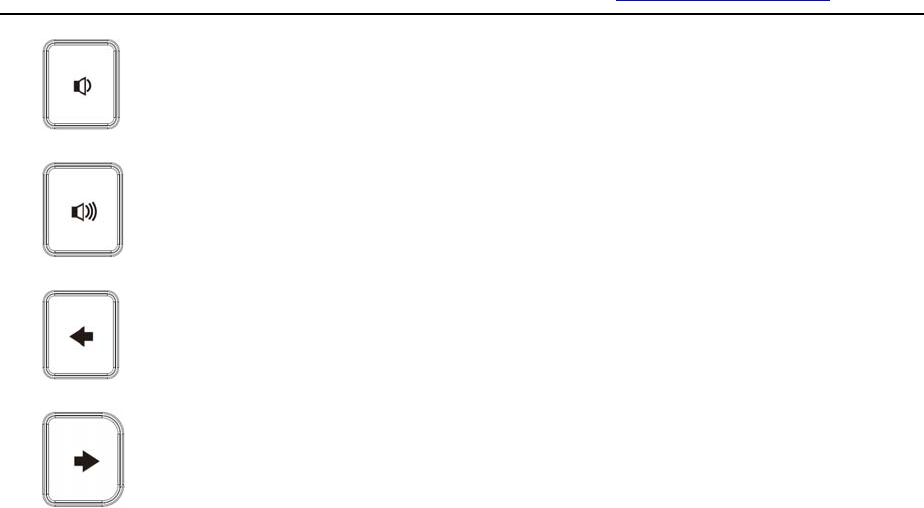

8)、Media keys
Mute
深圳市乐翔电气有限公司 http: //www.loshine.com/
5
Volume -
Volume+
Backwards
Forwards
