LSI21003 PCI to Dual Channel SCSI Host Adapter

S14051

LSI21003

PCI to Dual Channel SCSI

Host Adapter

User’s

Guide

October 2000

Version 1.0

Electromagnetic Compatibility Notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Shielded cables for SCSI connection external to the cabinet are used in the compliance testing of this Product. LSI

Logic is not responsible for any radio or television interference caused by unauthorized modification of this equipment

or the substitution or attachment of connecting cables and equipment other than those specified by LSI Logic. The

correction of interferences caused by such unauthorized modification, substitution, or attachment will be the

responsibility of the user.

The LSI21003 is tested to comply with FCC standards for home or office use.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du

Canada.

This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information

Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may

cause radio interference. Install and use the equipment according to the instruction manual.

LSI Logic Corporation

North American Headquarters

Milpitas, CA

408.433.8000

iii

This document contains proprietary information of LSI Logic Corporation. The

information contained herein is not to be used by or disclosed to third parties

without the express written permission of an officer of LSI Logic Corporation.

LSI Logic products are not intended for use in life-support appliances, devices,

or systems. Use of any LSI Logic product in such applications without written

consent of the appropriate LSI Logic officer is prohibited.

Document DB15-000165-00, First Edition (October 2000)

This document describes Version 1.0 of the LSI Logic Corporation LSI21003 PCI

to Dual Channel SCSI Host Adapter and will remain the official reference source

for all revisions/releases of this product until rescinded by an update.

To receive product literature, visit us at http://www.lsilogic.com.

LSI Logic Corporation reserves the right to make changes to any products herein

at any time without notice. LSI Logic does not assume any responsibility or

liability arising out of the application or use of any product described herein,

except as expressly agreed to in writing by LSI Logic; nor does the purchase or

use of a product from LSI Logic convey a license under any patent rights,

copyrights, trademark rights, or any other of the intellectual property rights of

LSI Logic or third parties.

TRADEMARK ACKNOWLEDGMENT

The LSI Logic logo design, SCRIPTS, and SDMS are trademarks or registered

trademarks of LSI Logic Corporation. All other brand and product names may be

trademarks of their respective companies.

Preface v

Preface

This book is the primary reference and user’s guide for the LSI Logic

LSI21003. It describes how to install and configure the LSI21003 in a PCI

computer system.

LSI Logic Technical Support

The entire LSI Logic host adapter solution has been designed for ease

of use. However, if you require additional assistance, please contact the

LSI Logic Technical Support Hot Line at (719) 533-7230. The hours of

operation are from 7:30 a.m. to 4:30 p.m. (MST), Monday through Friday.

You may also send an e-mail to support@lsil.com.

Before calling or sending an e-mail, please have the following

information:

•Which LSI Logic host adapter are you installing?

•What system are you installing into?

•What SCSI devices are you connecting to the bus?

•How is your system configured?

It is also helpful if you are at your system when you call.

Organization

This document has the following chapters and appendix:

•Chapter 1, Using the LSI21003, defines the interfaces and

characteristics of the LSI21003.

•Chapter 2, Installing the LSI21003, provides quick and detailed

installation instructions.

vi Preface

•Chapter 3, Technical Specifications, describes the physical and

operational environments of the LSI21003.

•Appendix A, Glossary of Terms and Abbreviations, provides

definitions of various terminology that is referenced throughout this

user’s guide.

Related Publications

LSI53C1010-33 PCI to Dual Channel Ultra3 SCSI Multifunction

Controller Technical Manual, Order Number S14025.A

PCI Storage Device Management System SDMS™ 4.0 User’s Guide,

Order Number S14007.A

Revision Record

Revision Date Remarks

0.1 7/00 Initial version for engineering review.

0.2 8/00 Signoff copy.

1.0 10/00 Final version.

Contents vii

Contents

Chapter 1 Using the LSI21003

1.1 General Description 1-1

1.2 Features 1-2

1.2.1 PCI Interface 1-2

1.2.2 SCSI Interface 1-2

1.2.3 Board Characteristics 1-3

1.3 Interface Descriptions 1-3

1.3.1 The PCI Interface 1-3

1.3.2 The SCSI Interface 1-4

1.3.3 SCSI Activity LED Interface 1-5

1.3.4 Cabling 1-5

Chapter 2 Installing the LSI21003

2.1 Quick Installation Procedure 2-1

2.2 Detailed Installation Procedure 2-3

2.2.1 Before You Start 2-3

2.2.2 Inserting the Host Adapter 2-4

2.2.3 Connecting the SCSI Peripherals 2-6

2.2.4 SCSI Bus Termination 2-15

2.3 Setting SCSI IDs 2-22

2.4 Setting Interrupts (Exceptional Cases) 2-24

2.5 Completing the Installation 2-25

Chapter 3 Technical Specifications

3.1 Physical Environment 3-1

3.1.1 Physical Characteristics 3-2

3.1.2 Electrical Characteristics 3-3

3.1.3 Thermal, Atmospheric Characteristics 3-3

3.1.4 Electromagnetic Compliance 3-3

viii Contents

3.1.5 Safety Characteristics 3-4

3.2 Operational Environment 3-4

3.2.1 The PCI Interface 3-4

3.2.2 The SCSI Interface 3-7

3.3 Subsystem and Subsystem Vendor ID 3-12

Appendix A Glossary of Terms and Abbreviations

Index

Customer Feedback

Figures

2.1 Hardware Connections for the LSI21003 2-5

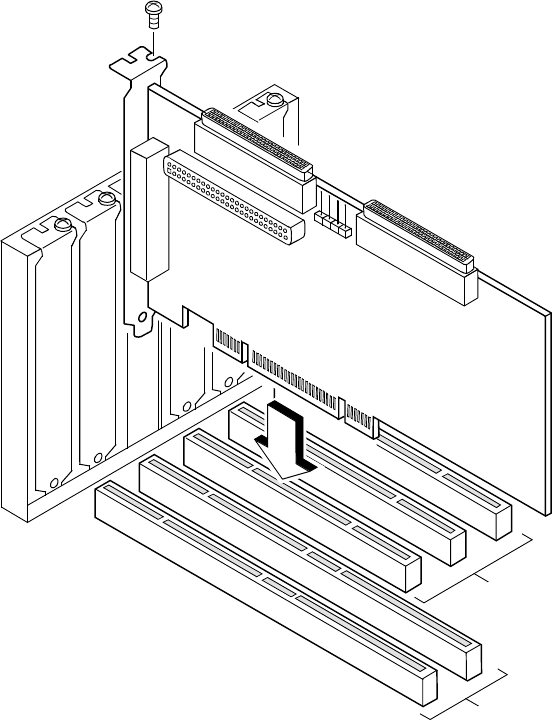

2.2 Inserting the Host Adapter 2-6

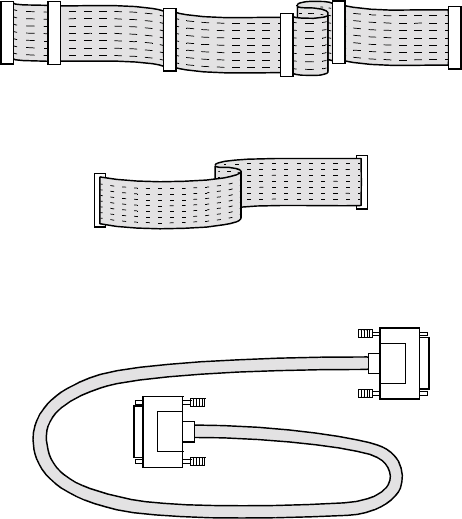

2.3 SCSI Cables 2-7

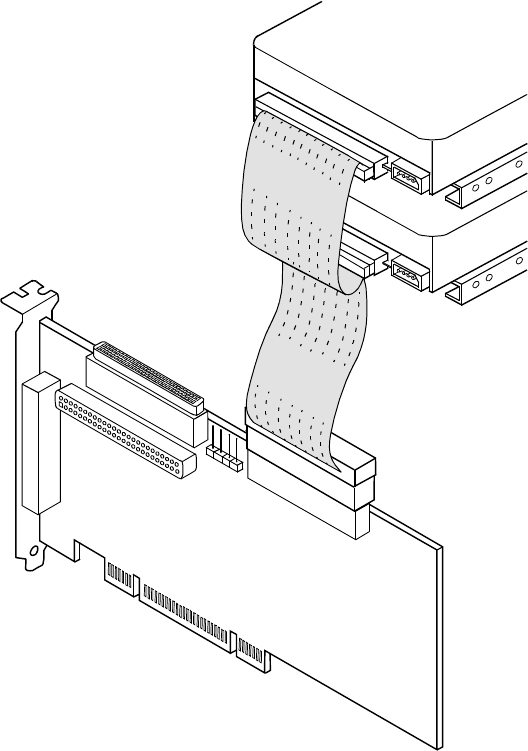

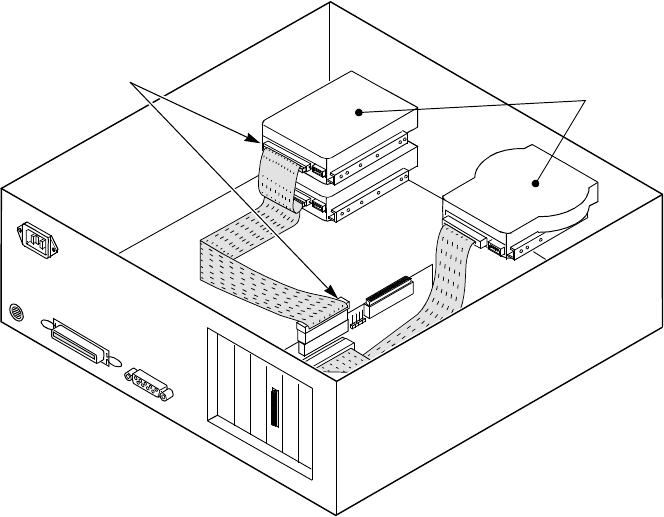

2.4 Internal SCSI Ribbon Cable to Host Adapter 2-8

2.5 Internal SCSI Ribbon Cable to Internal SCSI Device

Connection 2-9

2.6 Connecting Additional Internal SCSI Devices 2-10

2.7 Multiple Internal SCSI Devices Chained Together 2-11

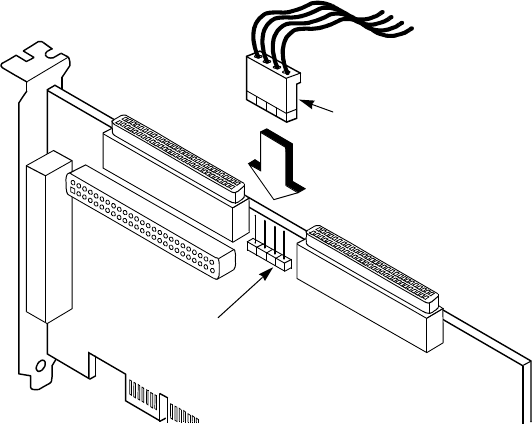

2.8 SCSI LED Connector 2-12

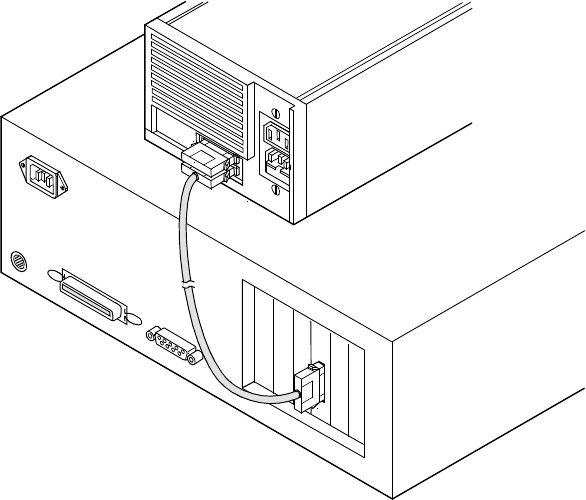

2.9 External Cable to Host Adapter 2-13

2.10 External Cable to External SCSI Device 2-14

2.11 Multiple External SCSI Devices Chained Together 2-15

2.12 High Density Internal SCSI Device Termination 2-17

2.13 Internal and Internal SCSI Device Termination 2-18

2.14 External SCSI Device Termination 2-19

2.15 Internal and External SCSI Device Termination 2-21

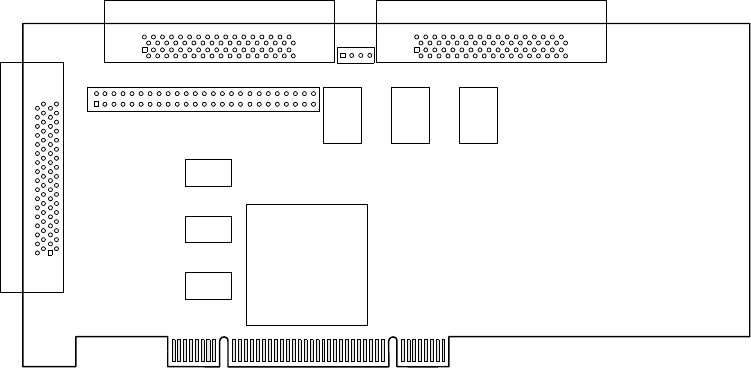

3.1 LSI21003 Mechanical Drawing 3-2

Tables

1.1 Standard Cables 1-5

2.1 SCSI ID Record 2-23

2.2 Setting Interrupts 2-24

3.1 Maximum Power Requirements 3-3

Contents ix

3.2 PCI Connector J1 Front Side Signals 3-5

3.3 PCI Connector J1 Back Side Signals 3-6

3.4 SCSI Connector J2, Channel A, Internal 3-8

3.5 SCSI Connector J3, Channel A, External 3-9

3.6 SCSI Connector J4, Channel A, Internal 3-10

3.7 SCSI Connector J5, Channel B, Internal 3-11

3.8 Connector J6 Signals 3-12

3.9 Subsystem and Subsystem Vendor ID 3-12

xContents

LSI21003 PCI to Dual Channel SCSI Host Adapter 1-1

Chapter 1

Using the LSI21003

This chapter provides an overview of the LSI Logic LSI21003 PCI to Dual

Channel SCSI Host Adapter board and its interfaces to PCI computer

systems. These topics are discussed:

•Section 1.1, “General Description,” page 1-1

•Section 1.2, “Features,” page 1-2

•Section 1.3, “Interface Descriptions,” page 1-3

1.1 General Description

The LSI21003 provides internal and external SCSI interfaces to PCI

computer systems that require BIOS support on the add-in SCSI adapter.

Installing this host adapter in your PCI system allows connection of SCSI

devices over a SCSI bus.

The LSI21003 provides 16-bit Low Voltage Differential (LVD) and

Single-Ended (SE) SCSI solutions for your computer. It supports legacy

Fast, Ultra, Ultra2, and the newest Ultra160 SCSI devices. Channel A

supports only the SE mode. Channel B supports SE and LVD modes of

operation.

The Storage Device Management System (SDMS™) software operates

the board. The design of the board does not prevent other software from

being used with it.

This guide, along with the PCI Storage Device Management System

SDMS 4.0 User’s Guide, contains product information and installation

instructions to help you gain the full benefits of the LSI21003.

1-2 Using the LSI21003

1.2 Features

This section provides a high level overview of the PCI Interface, the SCSI

Interface, and Board Characteristics for the LSI21003.

1.2.1 PCI Interface

The PCI interface includes these features:

•True PCI multifunction controller for maximum performance

•32-bit (33 MHz) DMA bus master

•Bursts up to 128 Dwords across the PCI Bus

•Zero wait-state bus master data bursts up to 110 Mbytes/s

(@ 33 MHz)

•Prefetches up to 8 Dwords of SCRIPTS™ instructions

•PCI Universal 3.3 V/5 V bus support

•Supports PCI write and invalidate, read line, and read multiple

commands

1.2.2 SCSI Interface

The SCSI interface includes these features:

•Two separate SCSI channels

•Ultra160 SCSI LVD synchronous transfers as fast as 160 Mbytes/s

(Channel B)

•Wide Ultra SCSI SE synchronous transfers as fast as

40 Mbytes/s (Channel A)

•SCSI synchronous offset up to 31

•Supports variable block size and scatter/gather data transfers

•16-bit SE/LVD

•Four connectors:

– 50-pin high density for the external Channel A

– 50-pin narrow (ribbon) for internal Channel A

– 68-pin high density for internal Channels A and B

Interface Descriptions 1-3

•Fast, Ultra, Ultra2, and Ultra160 data transfer capability

•SCSI Termination Power (TERMPWR) source with autoresetting

circuit breaker

•Supports SE and LVD signaling with automatic termination

– Channel A is SE only with autosense termination

– Channel B is SE or LVD with termination permanently enabled

•Performs complex bus sequences without interrupts, including

restore data pointers

•SCSI Plug and Play

•Flash ROM for BIOS storage

•Serial EEPROM for each channel for user configuration utility

•SCSI activity connector for external LED

•LSI53C1010-33 PCI Dual Channel SCSI Multifunction Controller

includes 8 Kbytes internal RAM per channel for SCRIPTS instruction

storage

1.2.3 Board Characteristics

The board characteristics are:

•PCI board dimensions: approximately 177.8 x 83.8 mm

(7.0 x 3.3 inches)

•Universal 32-bit PCI card edge connector

•ISA/EISA bracket

1.3 Interface Descriptions

This section provides an overview of the PCI Interface, the SCSI

Interface, and the SCSI Activity LED Interface. It also provides

information about cabling.

1.3.1 The PCI Interface

PCI is a high-speed standard local bus for interfacing a number of I/O

components to a PC processor and memory subsystem. The PCI

1-4 Using the LSI21003

functionality for the LSI21003 is contained within the LSI53C1010-33.

The chip connects directly to the PCI bus and generates timing protocol

in compliance with the PCI specification.

The PCI interface operates as a 32-bit DMA bus master. The connection

is made through edge connector J1 (see Figure 2.1). The signal

definitions and pin numbers conform to the PCI Local Bus Specification

Revision 2.2 standard. The LSI21003 conforms to the PCI universal

signaling environment for a 5 V or 3.3 V PCI bus.

1.3.2 The SCSI Interface

The SCSI functionality for the host adapter is also contained within the

LSI53C1010-33. The chip connects directly to the two SCSI buses for SE

or LVD SCSI applications and generates timing and protocol in

compliance with SCSI standards. One SCSI interface operates at a burst

transferrateofupto40Mbytes/sforwideUltraSCSItransfers,andthe

other up to 160 Mbytes/s for wide Ultra160 SCSI transfers.

Channel A is SE only with active autosensing termination. The

Channel A interface is made through connectors J2, J3, and J4.

Connector J2 is a 68-pin high density right-angle receptacle for internal

SCSI connections. Connector J3 is a 50-pin high density right-angle

receptacle that protrudes through the ISA/EISA bracket. Connector J4 is

a 50-pin narrow (ribbon) internal connector.

Channel B may be either SE or LVD with active termination always

enabled. The Channel B interface is made through connector J5. J5 is a

68-pin high density right-angle connector for internal SCSI connections.

See Figure 2.1 on page 2-5 for the location of these connectors.

The LSI21003 supplies SCSI bus TERMPWR through a blocking diode

and self-resetting 1.5 A short circuit protection device.

A 40 MHz oscillator on the host adapter provides the clock frequency to

the LSI53C1010-33 that is necessary to support SCSI transfers.

Interface Descriptions 1-5

1.3.3 SCSI Activity LED Interface

The SCSI activity LED interface is a four-wire arrangement that allows

connection of an LED harness to the board. The connector on the host

adapter is J6 for both channels. See Table 3.8 on page 3-12 for the signal

name and pin numbers on this interface.

1.3.4 Cabling

The cable provided in the kit is matched for a Fast/Ultra/Ultra2/Ultra160

SE or LVD operation. This cable also has built-in multimode (SE/LVD)

termination since most Ultra160 hard disk drives are not made with

on-board LVD termination.

Table 1.1 lists standard cable specifications.

Table 1.1 Standard Cables

Maximum Bus Length, Meters1

1. This parameter may be exceeded in point-to-point and engineered

applications.

STA Term SE LVD Maximum Devices

Wide Ultra SCSI 1.5 see note2

2. LVD was not defined in the original SCSI standards for this speed. If all

devices on the bus support LVD, then 12-meter operation is possible at

this speed. However, if any device on the bus is SE only, then the entire

bus switches to SE mode, and the distances in the SE column apply.

Wide Ultra SCSI 3 see note24

Wide Ultra2 SCSI see note3

3. SE and High Voltage Differential (HVD) are not defined at greater than

Ultra speeds.

12 16

Ultra160 see note312 16

1-6 Using the LSI21003

LSI21003 PCI to Dual Channel SCSI Host Adapter 2-1

Chapter 2

Installing the LSI21003

This chapter describes installing the LSI21003 into PCI computer

systems and includes these topics:

•Section 2.1, “Quick Installation Procedure,” page 2-1

•Section 2.2, “Detailed Installation Procedure,” page 2-3

•Section 2.3, “Setting SCSI IDs,” page 2-22

•Section 2.4, “Setting Interrupts (Exceptional Cases),” page 2-24

•Section 2.5, “Completing the Installation,” page 2-25

2.1 Quick Installation Procedure

This section provides quick setup instructions for the experienced

computer user with prior host adapter installation and SCSI bus setup

experience. If you prefer more detailed guidance for installing the

LSI21003, please follow the instructions in Section 2.2, “Detailed

Installation Procedure.”

For safe and proper installation, check the user’s manual that was

supplied with your computer and perform the following steps.

Step 1. Ground yourself before handling the host adapter board.

Note: The use of a static ground strap is recommended.

Step 2. Remove the LSI21003 from the packing and check that it is not

damaged.

Step 3. Switch off and unplug the system.

Step 4. Remove the cabinet cover on your computer to access the PCI

slots.

Step 5. Locate the slots for the PCI plug-in board installation.

2-2 Installing the LSI21003

A 32-bit slot should be used. The LSI21003 will work in a

64-bit slot, but only 32 bits are used. The host adapter requires

a PCI slot that allows bus master operation. See Figure 2.2 on

page 2-6.

Step 6. Remove the blank bracket panel on the back of the computer

aligned with the PCI slot you intend to use.

Save the bracket screw for securing the installed board.

Step 7. Carefully insert edge connector J1 of the host adapter into the

PCI slot. Make sure the edge connector is properly aligned

before pressing the board into place. See the example in

Figure 2.2.

Note: You may notice that the components on the PCI Host

Adapter face the opposite way from those on other non-PCI

plug-in boards you have in your system. This is correct, and

the board is keyed to go in only one way.

Step 8. Secure the board with the bracket screw before making the

internal and external SCSI bus connections (see Figure 2.2).

Step 9. If you are connecting any internal SCSI devices, plug the end

of an appropriate internal SCSI ribbon cable into the connector

that provides the performance/features your system needs (see

Figure 2.1 on page 2-5).

Make certain you match pin 1 on both connectors. Chain your

internal devices on this cable.

Step 10. Connect the LED cable to J6 if desired.

This is designed to drive the front panel LED found on most PC

cabinets to indicate activity on the SCSI bus. See Table 3.8 for

the signal name and pin numbers for the LED interface.

Step 11. Make all external SCSI bus connections.

Step 12. Terminate the SCSI bus.

Step 13. Set SCSI IDs as required.

You must not have duplicate SCSI IDs.

Step 14. Replace the cabinet cover.

Step 15. Refer to the PCI Storage Device Management System SDMS

4.0 User’s Guide (or the guide for the software that you will use)

to load the driver software for your particular operating system.

Detailed Installation Procedure 2-3

2.2 Detailed Installation Procedure

This section provides step-by-step instructions for installing your

LSI21003 and connecting it to your SCSI peripherals. If you are

experienced in these tasks, you may prefer to use Section 2.1, “Quick

Installation Procedure.” If you are not confident that you can perform the

tasks as described here, LSI Logic suggests getting assistance.

2.2.1 Before You Start

Before you start, look through the task list below to get an overall idea

of the steps to perform.

•Open your PC cabinet and select an open PCI slot

•Insert the host adapter

•Connect your internal and external SCSI peripherals

•Terminate the SCSI bus

•Set the peripheral SCSI IDs

•Make any configuration changes

•Replace your PC cabinet cover

•Install the software

The SCSI host adapter acts on your computer’s behalf as the host to

your suite of SCSI peripherals. Each chain of SCSI peripheral devices

and their host adapter work together, and they are referred to as a SCSI

bus.

Each SCSI host adapter that you install can act as host for up to

15 peripheral devices (depending on the SCSI bus speed), not including

the adapter itself.

2-4 Installing the LSI21003

2.2.2 Inserting the Host Adapter

For safe and proper installation, check the user’s manual supplied with

your computer and perform the following steps:

Step 1. Ground yourself before removing the host adapter board from

its package.

Note: Static charges on your body can damage electronic

components. Handle plug-in boards by the edge; do not

touch board components or gold connector contacts. The

use of a static ground strap is recommended.

Step 2. Remove the LSI21003 from its packing and verify that it is not

damaged.

An example of this host adapter board is shown in Figure 2.1.

Step 3. Switch off the computer and unplug power cords for all

components in your system.

Step 4. Remove the cover from your computer per the instructions in

the user’s manual for your system to access the PCI slots.

Make sure you are adequately grounded.

Step 5. Locate the slots for PCI plug-in board installation.

A 32-bit slot should be used. The LSI21003 will work in a

64-bit slot, but only 32 bits are used. The host adapter requires

a PCI slot that allows bus master operation. See Figure 2.2.

Step 6. Remove the blank bracket panel on the back of the computer

aligned with the PCI slot you intend to use.

Save the bracket screw.

Step 7. Carefully insert edge connector J1 (see Figure 2.1) of the host

adapter into the PCI slot.

Make sure the edge connector is properly aligned before

pressing the board into place as shown in Figure 2.2.The

bracket around connector J3 should fit where you removed the

blank panel.

Note: You may notice that the components on a PCI host adapter

face the opposite way from non-PCI adapter boards you

Detailed Installation Procedure 2-5

have in your system. This orientation is correct. The board

is keyed and can only be inserted one way.

Step 8. Secure the board with the bracket screw (see Figure 2.2)before

making the SCSI bus connections.

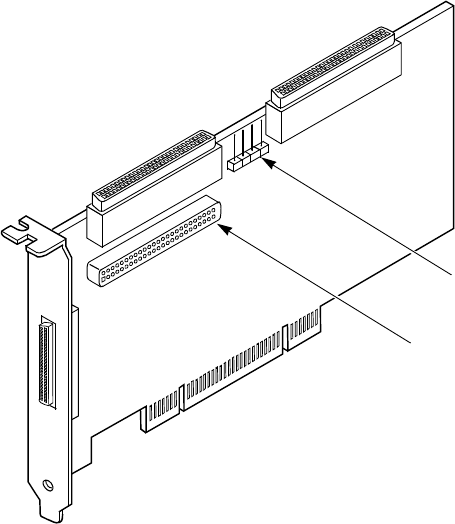

Figure 2.1 Hardware Connections for the LSI21003

Channel B 68-Pin

Internal High

Density SCSI

Connector J5

Channel A 68-Pin

Internal High

Density SCSI

Connector J2

Channel A 50-Pin

External HD SCSI

Connector J3

LSI21003 PCI Bus

Edge Connector J1

Channel A and B

Busy LED

Channel A 50-Pin

Low Density SCSI

Connector J4

Connector J6

2-6 Installing the LSI21003

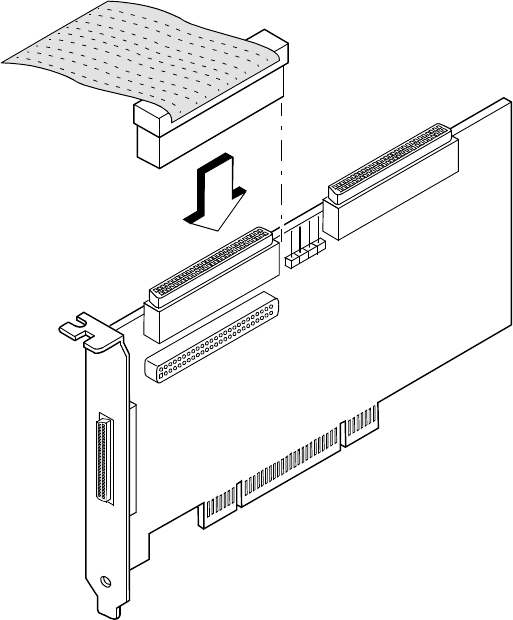

Figure 2.2 Inserting the Host Adapter

2.2.3 Connecting the SCSI Peripherals

All internal SCSI bus connections to the LSI21003 are made with an

unshielded, 68- or 50-conductor ribbon cable (see Figure 2.3). One side

of this cable is marked with a color to indicate the pin-1 side. The

connectors on this cable are keyed to ensure a proper pin-1 connection.

Use Ultra/Ultra2/Ultra160 rated cables for these bus speeds. (See

Table 1.1 in Chapter 1.)

32-Bit slots

64-Bit slots

Bracket Screw

Detailed Installation Procedure 2-7

For convenience, Channel A also has a 50-pin narrow (ribbon) connector.

Some internal cables come with an SE/LVD terminator on one end. This

end should be furthest from the host adapter.

All external SCSI bus connections to the LSI21003 are made with a

shielded, 50-pin high density cable (see Figure 2.3). The connectors on

this cable are always keyed to ensure a proper pin-1 connection.

Figure 2.3 SCSI Cables

SCSI Cable for Internal Connections

SCSI Cable for External Connections

68-Pin High Density

50-Pin High Density

and/or

50-Pin Low Density

2-8 Installing the LSI21003

2.2.3.1 Making Internal SCSI Bus Connections

This section provides step-by-step instructions about making internal

SCSI bus connections. If you have no internal devices to connect,

proceed to Step 4.

Step 1. Plug one end of a SCSI ribbon cable into an appropriate

connector, J2, J4, or J5. The example in Figure 2.4 shows a

wide cable.

Channel A (J2 and J4) supports SE mode. Channel B (J5)

supports SE and LVD modes.

Figure 2.4 Internal SCSI Ribbon Cable to Host Adapter

Detailed Installation Procedure 2-9

Step 2. Plug the other end of the cable into the connector on the

internal SCSI device.

An example of this connection appears in Figure 2.5.

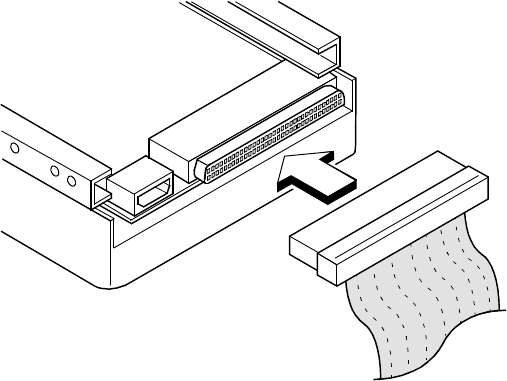

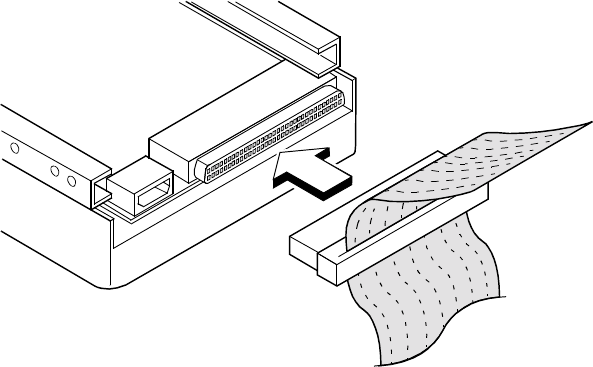

Figure 2.5 Internal SCSI Ribbon Cable to Internal SCSI Device

Connection

If this is the only internal device on the bus, proceed to Step 4.

If you have more than one internal device to connect, use an

internal SCSI ribbon cable with the required number of

connectors attached along its length and proceed to Step 3.

2-10 Installing the LSI21003

Step 3. Plug the cable into each additional device as illustrated in

Figure 2.6.

Figure 2.6 Connecting Additional Internal SCSI Devices

Detailed Installation Procedure 2-11

An example of multiple internal SCSI devices chained together is

shown in Figure 2.7.

Figure 2.7 Multiple Internal SCSI Devices Chained Together

2-12 Installing the LSI21003

Most PC cabinets are designed with a front panel LED. If you wish to

enable this feature, follow Step 4.

Step 4. Connect the LED cable to connector J6 on the host adapter, as

shown in Figure 2.8.

When properly connected, the front panel LED lights when

there is activity on the SCSI bus.

Connector J6 is not keyed. The orientation of the LED cable

should not matter as long as all four pins are connected. If the

LED does not light during SCSI bus activity from this host

adapter, you may have to rotate the LED cable connector 180°

on J6. If your connector has only two wires, refer to Table 3.8

on page 3-12 for connector pinout information.

Figure 2.8 SCSI LED Connector

LED Cable

Connector

LED

Connector

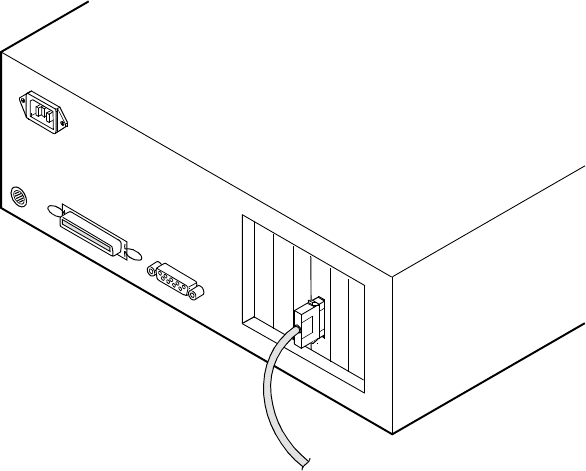

Detailed Installation Procedure 2-13

2.2.3.2 Making External SCSI Bus Connections

This section provides step-by-step instructions for making external SCSI

bus connections. If you have only internal devices, proceed to Section

2.2.4, “SCSI Bus Termination,” page 2-15. To connect external SCSI

devices to the LSI21003:

Step 1. Plug the 50-pin HD connector on one end of a shielded external

SCSI cable into the host adapter connector J3 (see Figure 2.1).

This connector is in the bracket attached to the back panel of

your computer. Figure 2.9 shows how this connection is made.

Figure 2.9 External Cable to Host Adapter

2-14 Installing the LSI21003

Step 2. Plug the 50-pin high density connector on the other end of the

shielded external SCSI cable into the SCSI connector on the

external SCSI device. An example of this connection is shown

in Figure 2.10.

Figure 2.10 External Cable to External SCSI Device

If this is the only external SCSI device on your system, proceed

to Section 2.2.4, “SCSI Bus Termination,” page 2-15, for

termination instructions. If you have multiple external devices,

proceed to page 2-15.

Detailed Installation Procedure 2-15

Step 3. Chain multiple devices together with shielded external SCSI

cables.

An example of these chained connections is shown in

Figure 2.11.

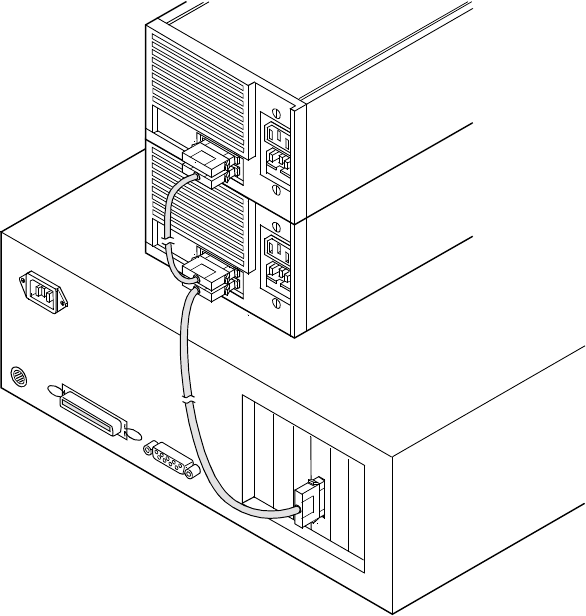

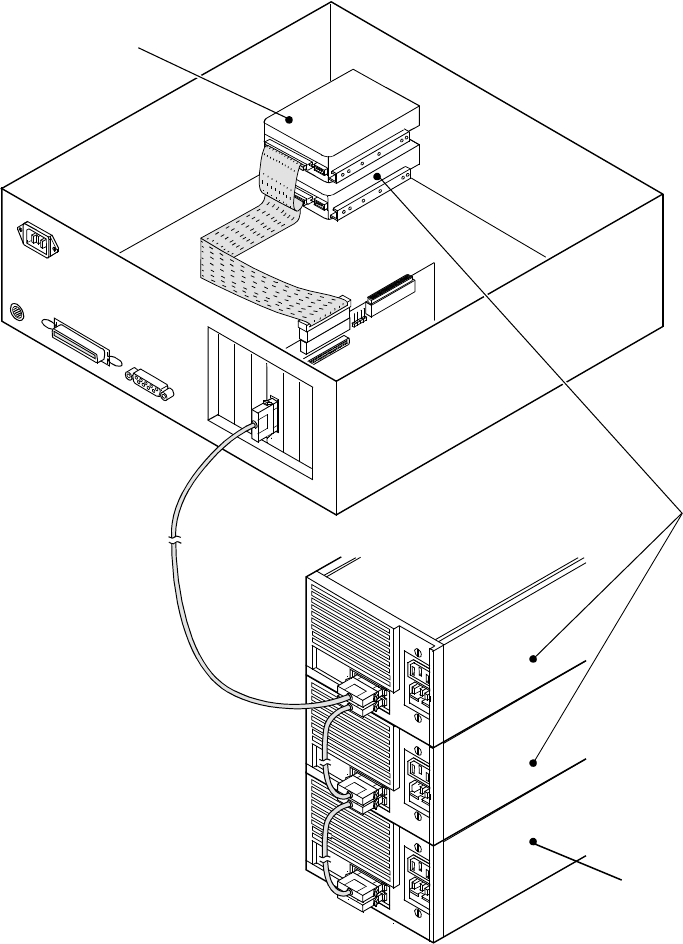

Figure 2.11 Multiple External SCSI Devices Chained Together

2.2.4 SCSI Bus Termination

The devices making up the SCSI bus are connected serially (chained

together) with SCSI cables. The first and last physical SCSI devices

connected on the ends of the SCSI bus must have their terminators

active. All other SCSI devices on the bus must have their terminators

removed or disabled. Remember that your LSI21003 is also on the SCSI

2-16 Installing the LSI21003

bus and its termination is automatically enabled when it is connected to

the end of the bus.

Important: To utilize Ultra160 SCSI performance, you must only have

LVD devices on the bus. Do not mix any SE devices with

LVD devices or the entire bus will drop to SE, limiting bus

performance to Ultra SCSI levels.

LVD peripheral devices are normally terminated with external

terminators, but are sometimes set with jumpers or with a switch on the

peripheral. Refer to the peripheral manufacturer’s instructions and to the

computer’s user’s manual for information on how to identify the

terminator setting of each device and how to change it.

Caution: The autoenable/disable sensing feature on your LSI21003

may enable termination erroneously if it is directly cabled to

another SCSI device or host adapter using the same

sensing method. The LSI21003 senses SCSI devices by

detecting the ground signal on conductor 22 of a

50-conductor internal cable, conductor 36 of a

50-conductor external cable, or conductor 50 of a

68-conductor cable.

The LSI21003 automatically controls SCSI bus termination for four

different bus configurations. The four bus configurations are:

•Connections for high density internal SCSI connections

•Connections to high and low density internal connectors

•Connections for external SCSI connection

•Connections to both internal and external SCSI connectors

These terminations are discussed below. Please note that only SE

termination control is allowed on Channel A.

2.2.4.1 High Density Internal SCSI Connections

If only internal SCSI device connections on the host adapter have been

made, then terminate the last internal device on the SCSI bus. You must

disable the termination on all other devices. Termination on the LSI21003

is automatically enabled for Channel A. The termination for Channel B is

enabled all the time.

Detailed Installation Procedure 2-17

Figure 2.12 shows an example of how termination is determined for this

SCSI bus configuration.

Figure 2.12 High Density Internal SCSI Device Termination

2-18 Installing the LSI21003

2.2.4.2 Internal SCSI Connections for Both Internal Connectors

If internal SCSI device connections to both internal connectors (J2 and

J4) on your host adapter have been made, then terminate the internal

devices on each end of the SCSI bus. You must disable the termination

on all other devices. Termination on Channel A of your host adapter is

automatically disabled in this case. Remember, you must not use the

external connector J3 if you use both internal connectors.

Figure 2.13 shows an example of how termination is determined for this

SCSI bus configuration.

Figure 2.13 Internal and Internal SCSI Device Termination

2.2.4.3 External SCSI Connections

If only external SCSI device connections to the host adapter have been

made, then terminate the last external device on the SCSI bus. You must

disable the termination on all other devices. Termination on the host

adapter is automatically enabled for Channel A.

Does Not

End Chain–

Termination

Disabled

Last Devices

on Chain–

Termination

Enabled

Note: Host Adapter Termination

Automatically Disabled

Detailed Installation Procedure 2-19

Figure 2.14 shows an example of how termination is determined for this

SCSI bus configuration on the host adapter external Channel A.

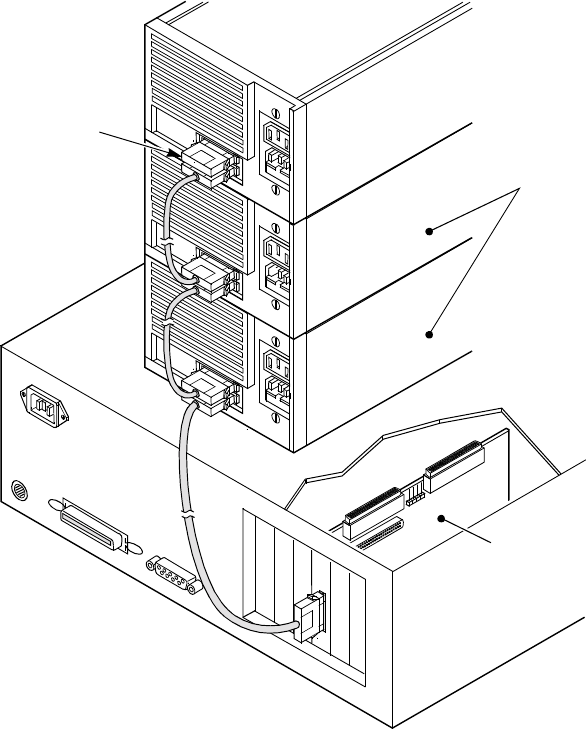

Figure 2.14 External SCSI Device Termination

Last Device

on Chain–

Termination

Enabled Does Not

End Chain–

Termination

Disabled

Host Adapter

Automatically

Terminated

2-20 Installing the LSI21003

2.2.4.4 Internal and External SCSI Connections

If internal and external SCSI devices are connected to the host adapter,

then terminate the last internal and external devices on the SCSI bus.

You must disable the termination on all other devices. Termination on

Channel A of the host adapter is automatically disabled in this case.

Figure 2.15 shows an example of how termination is determined for this

SCSI bus configuration on the host adapter internal Channel A and

external Channel A.

Detailed Installation Procedure 2-21

Figure 2.15 Internal and External SCSI Device Termination

Last Device

on Chain–

Termination

Enabled

Does Not

End Chain–

Termination

Disabled

Last Device

on Chain–

Termination

Enabled

2-22 Installing the LSI21003

2.3 Setting SCSI IDs

Set each SCSI device and the host adapter to a separate SCSI ID,

0 through 15. SCSI ID 7 is the preset host adapter setting, giving it the

highest priority on the bus. If you plan to boot your computer from a hard

disk drive on the SCSI bus, that drive should have SCSI ID 0, or the

lowest SCSI ID on the bus. Chapter 2 “SCSI BIOS” of the PCI Storage

Device Management System SDMS 4.0 User’s Guide explains how to set

your host adapter ID using the SCSI BIOS Configuration Utility.

Note: Devices on a narrow (8-bit) bus only respond to SCSI IDs

0–7. Also, they will not be able to respond to the host

adapter if the host adapter ID is set higher than 7.

The peripheral device SCSI IDs are usually set with jumpers or with a

switch on the peripheral. Refer to the peripheral manufacturer’s

instructions and to the computer’s users manual to determine the ID of

each device and how to change it. No duplication of SCSI IDs is allowed

on a SCSI bus.

Step 1. Determine the SCSI ID of each device on the SCSI bus, noting

any duplications.

Step 2. Make any necessary changes to the SCSI IDs and record the

IDs for future reference.

Table 2.1 is provided to keep this record.

Setting SCSI IDs 2-23

Table 2.1 SCSI ID Record

SCSI ID SCSI Device Channel A SCSI Device Channel B

7 LSI21003 (default) LSI21003 (default)

2-24 Installing the LSI21003

2.4 Setting Interrupts (Exceptional Cases)

Normally, you do not change the default interrupt routing for the

LSI21003, since performance is usually increased by having two

separate interrupts.

However, if your system does not support two separate interrupts, the

INTA/INTB/ jumper is provided to change the interrupt routing. This

capability requires enabling the INTA/INTB/ to act as a jumper for special

configuration purposes. This feature is not packaged with the standard

LSI21003, as the default interrupt routing is sufficient for most systems.

In the exceptional case, where a user would require jumper settings,

Table 2.2, “Setting Interrupts,” explains these settings:

Contact Technical Support for further information concerning jumper

settings for this board.

Table 2.2 Setting Interrupts

Jumper Setting Condition

Jumper Out (default) SCSI Channel B is routed to

INTB/onthePCIbus.

Jumper In SCSI Channel B is rerouted to

INTA/onthePCIbus.

Completing the Installation 2-25

2.5 Completing the Installation

Before replacing the cover on your computer, review this installation

procedure check list. This can save you effort later.

Step 1. Replace the cabinet cover on your computer.

Step 2. Plug in all power cords.

Step 3. Switch power on to all devices and to your computer.

Step 4. Wait for your computer to boot up.

Step 5. To change the configuration of the host adapter, refer to the PCI

Storage Device Management System SDMS 4.0 User’s Guide,

for information on the BIOS software and its operation.

Step 6. Load the software and drivers suitable to your application and

system.

Refer to the PCI Storage Device Management System

SDMS 4.0 User’s Guide or to the guide for the software you

plan to use.

Verify Installation Procedures Done

Host adapter connection in PCI bus slot secure

Internal SCSI bus connections secure (pin-1 continuity)

External SCSI bus connections secure

Proper SCSI bus termination established

Unique SCSI IDs set and recorded for each device

2-26 Installing the LSI21003

LSI21003 PCI to Dual Channel SCSI Host Adapter 3-1

Chapter 3

Technical

Specifications

This chapter discusses the physical environment associated with the

LSI21003 and includes a mechanical drawing of the host adapter

(Figure 3.1).

•Section 3.1, “Physical Environment,” page 3-1

•Section 3.2, “Operational Environment,” page 3-4

•Section 3.3, “Subsystem and Subsystem Vendor ID,” page 3-12

3.1 Physical Environment

The LSI21003 has specific physical, electrical, thermal, and safety

characteristics, which are described in the next sections. Additionally, the

board is compliant with electromagnetic emissions.

3-2 Technical Specifications

Figure 3.1 LSI21003 Mechanical Drawing

3.1.1 Physical Characteristics

The dimensions of the LSI21003 are approximately 177.8 x 83.8 mm

(7.0 x 3.3 inches). PCI connection is made through edge connector J1.

The component height on the top and bottom of the LSI21003 follows the

PCI specification.

Internal SCSI connections can be made in two ways:

•68-pin high density connectors J2 for Channel A or J5 for

Channel B (16-bit).

•50-pin low density connector J4 for Channel A (8-bit).

External SCSI connection is made to Channel A through the 50-pin high

density connector J3. Connector J3 extends through the ISA/EISA

bracket.

Connector J6 connects the Busy LED. It is a 4-pin, one row, right-angle

header and indicates bus activity for both Channel A and Channel B.

Note: all dimensions in inches

• J1: PCI 32-bit, universal type board edge connector.

• J2 and J5: 68-pin high density shielded latching right-angle connector.

• J3: 50-pin high density shielded right-angle connector.

• J4: 50-pin low density shrouded vertical connector.

• J6: 4-pin low density unshrouded right-angle header.

Channel A

Channel B

B Terminators

A Terminators

LSI53C1010

J1T

Channel A

Physical Environment 3-3

3.1.2 Electrical Characteristics

The LSI21003 maximum power requirements, which include SCSI

TERMPWR, under normal operation are listed in Table 3.1:

The PCI PRSNT1# and PRSNT2# pins are set to indicate a 15 W maximum

configuration.

Under abnormal conditions, such as a short on SCSI TERMPWR,

+5 V current may be higher. At temperatures of at least 25 °C, a current

of 3 A is sustained no longer than ten seconds before the self-resetting

TERMPWR short circuit protection device opens.

3.1.3 Thermal, Atmospheric Characteristics

The board is designed to operate in an environment, which is defined by

the following parameters:

•Temperature range: 0 to 55 °C (dry bulb)

•Relative humidity range: 5% to 90% (noncondensing)

•Maximum dew point temperature: 32 °C

The board is designed for a storage and transit environment, which is

defined by the following parameters:

•Temperature range: −45 °Cto+105°C (dry bulb)

•Relative humidity range: 5% to 90% (noncondensing)

3.1.4 Electromagnetic Compliance

The board is designed and implemented so as to minimize

electromagnetic emissions, susceptibility, and the effects of electrostatic

discharge. The board carries the CE mark, C-Tick mark, FCC

Self Certification logo, Canadian Compliance Statement, and meets the

requirements of FCC and CISPR Class B.

Table 3.1 Maximum Power Requirements

+5 V DC ±5% 1.5 A Over the operating range 5 °Cto55°C

3-4 Technical Specifications

3.1.5 Safety Characteristics

The bare board meets or exceeds the requirements of UL flammability

rating 94 V0. The bare board is also marked with the supplier’s name or

trademark, type, and UL flammability rating. Since this board is installed

in a PCI bus slot, all voltages are below the SELV 42.4 V limit.

3.2 Operational Environment

The LSI21003 is designed for use in PCI computer systems with an

ISA/EISA bracket type. The SDMS software operates the board;

however, the design of the board does not prevent the use of other

software.

An on-board flash memory device is provided to allow BIOS code and

open boot code support through the PCI bus and a serial EEPROM for

each channel.

3.2.1 The PCI Interface

The PCI interface operates as a 32-bit DMA bus master. The connection

is made through edge connector J1, which provides connections on both

the front and back of the board. The signal definitions and pin numbers

conform to the PCI Local Bus Specification Revision 2.2 standard. The

signal assignments appear in Tables 3.2 and 3.3.

Note: The +3.3 V pins are tied together and decoupled with high

frequency bypass capacitors to ground. No current from

these 3.3 V pins is used on the board. The PCI portion of

the LSI53C1010 is powered by 3.3 volts from the

on-board regulator.

Operational Environment 3-5

Note: Shaded pins are not connected.

Table 3.2 PCI Connector J1 Front Side Signals

Signal Name Pin Signal Name Pin Signal Name Pin

−12 V 1 GND 22 +3.3 V 43

TCK 2 AD27 23 C_BE1/ 44

GND 3 AD25 24 AD14 45

TDO 4 +3.3 V 25 GND 46

+5 V 5 C_BE3/ 26 AD12 47

+5 V 6 AD23 27 AD10 48

INTB/ 7 GND 28 GND 49

INTD/ 8 AD21 29 KEYWAY 50

GND (PRSNT1/) 9 AD19 30 KEYWAY 51

RESERVED 10 +3.3 V 31 AD08 52

GND (PRSNT2/) 11 AD17 32 AD07 53

KEYWAY 12 C_BE2/ 33 +3.3 V 54

KEYWAY 13 GND 34 AD05 55

RESERVED 14 IRDY/ 35 AD03 56

GND 15 +3.3 V 36 GND 57

CLK 16 DEVSEL/ 37 AD01 58

GND 17 GND 38 Vio 59

REQ/ 18 LOCK/ 39 ACK64/ 60

Vio 19 PERR/ 40 +5 V 61

AD31 20 +3.3 V 41 +5 V 62

AD29 21 SERR/ 42

3-6 Technical Specifications

Note: Shaded pins are not connected.

Table 3.3 PCI Connector J1 Back Side Signals

Signal Name Pin Signal Name Pin Signal Name Pin

TRST/ 1 AD28 22 PAR 43

+12 V 2 AD26 23 AD15 44

TMS 3 GND 24 +3.3 V 45

TDI 4 AD24 25 AD13 46

+5 V 5 IDSEL 26 AD11 47

INTA/ 6 +3.3 V 27 GND 48

INTC/ 7 AD22 28 AD09 49

+5 V 8 AD20 29 KEYWAY 50

RESERVED 9 GND 30 KEYWAY 51

Vio 10 AD18 31 C_BE0/ 52

RESERVED 11 AD16 32 +3.3 V 53

KEYWAY 12 +3.3 V 33 AD06 54

KEYWAY 13 FRAME/ 34 AD04 55

3.3 V AUX 14 GND 35 GND 56

RST/ 15 TRDY/ 36 AD02 57

Vio 16 GND 37 AD00 58

GNT/ 17 STOP/ 38 Vio 59

GND 18 +3.3 V 39 REQ64/ 60

PME 19 RESERVED 40 +5 V 61

AD30 20 RESERVED 41 +5 V 62

+3.3 V 21 GND 42

Operational Environment 3-7

3.2.2 The SCSI Interface

The SCSI interface conforms to ANSI X3T10.11/1142.

The SCSI interface operates as two 16-bit, SE or LVD channels, and

supports Fast, Ultra, Ultra2, and Ultra160 SCSI protocols. The interface

is made through connectors J2, J3, and J4 for Channel A and J5 for

Channel B.

J2 is a 68-pin high density right-angle connector for internal SCSI

connections to Channel A. J3 is a 50-pin high density right-angle

connector that protrudes through the ISA/EISA bracket for external

connections to Channel A. Also on Channel A is connector J4, which is

a 50-pin narrow (ribbon) connector for internal connections. Channel A

has autosensing, active SE SCSI termination.

J5 is a 68-pin high density latching right-angle connector for internal

SCSI connections to Channel B. Channel B has active, SE or LVD SCSI

termination that is always enabled.

SCSI TERMPWR is supplied by the board.

Tables 3.4,3.5,3.6,and3.7 document the signal assignments for J2, J3,

J4 and J5 respectively.

3-8 Technical Specifications

Table 3.4 SCSI Connector J2, Channel A, Internal

Signal Name Pin Signal Name Pin Signal Name Pin

GND 1 GND 24 SD7/ 47

GND 2 GND 25 SDP/ 48

GND 3 GND 26 GND 49

GND 4 GND 27 CPRSNT_A1

1. CPRSNT_A is used to sense the connection of a standard SCSI device

bysensingSCSIstandardGNDonthispin.

GND 5 GND 28 TERMPWR 51

GND 6 GND 29 TERMPWR 52

GND 7 GND 30 N/C 53

GND 8 GND 31 GND 54

GND 9 GND 32 SATN/ 55

GND 10 GND 33 GND 56

GND 11 GND 34 SBSY/ 57

GND 12 SD12/ 35 SACK/ 58

GND 13 SD13/ 36 SRST/ 59

GND 14 SD14/ 37 SMSG/ 60

GND 15 SD15/ 38 SSEL/ 61

GND 16 SDP1/ 39 SC_D/ 62

TERMPWR 17 SD0/ 40 SREQ/ 63

TERMPWR 18 SD1/ 41 SI_O/ 64

N/C 19 SD2/ 42 SD8/ 65

GND 20SD3/ 43SD9/ 66

GND 21 SD4/ 44 SD10/ 67

GND 22 SD5/ 45 SD11/ 68

GND 23 SD6/ 46

Operational Environment 3-9

Table 3.5 SCSI Connector J3, Channel A, External

Signal Name Pin Signal Name Pin Signal Name Pin

GND 1 GND 18 GND 35

GND 2 GND 19 CPRSNT_B1

1. CPRSNT_B is used to sense the connection of a standard SCSI device

bysensingSCSIstandardGNDonthispin.

GND 3 GND 20 N/C 37

GND 4 GND 21 TERMPWR 38

GND 5 GND 22 N/C 39

GND 6 GND 23 GND 40

GND 7 GND 24 SATN/ 41

GND 8 GND 25 GND 42

GND 9 SD0/ 26 SBSY/ 43

GND 10SD1/ 27SACK/ 44

GND 11SD2/ 28SRST/ 45

N/C 12 SD3/ 29 SSEL/ 46

N/C 13 SD4/ 30 SMSG/ 47

N/C 14 SD5/ 31 SC_D/ 48

GND 15SD6/ 32SREQ/ 49

GND 16SD7/ 33SI_O/ 50

GND 17 SDP/ 34

3-10 Technical Specifications

Table 3.6 SCSI Connector J4, Channel A, Internal

Signal Name Pin Signal Name Pin Signal Name Pin

GND 1 SDP/ 18 GND 35

SD0/ 2 GND 19 SBSY/ 36

GND 3 GND 20 GND 37

SD1/ 4 GND 21 SACK/ 38

GND 5 CPRSNT_C1

1. CPRSNT_C is used to sense the connection of a standard SCSI device

bysensingSCSIstandardGNDonthispin.

22 GND 39

SD2/ 6 N/C 23 SRST/ 40

GND 7 N/C 24 GND 41

SD3/ 8 N/C 25 SMSG/ 42

GND 9 TERMPWR 26 GND 43

SD4/ 10 N/C 27 SSEL/ 44

GND 11 N/C 28 GND 45

SD5/ 12 GND 29 SC_D/ 46

GND 13 GND 30 GND 47

SD6/ 14 GND 31 SREQ/ 48

GND 15 SATN/ 32 GND 49

SD7/ 16 GND 33 SI_O/ 50

GND 17 GND 34

Operational Environment 3-11

Table 3.7 SCSI Connector J5, Channel B, Internal

Signal Name Pin Signal Name Pin Signal Name Pin

SD12+ 1 SACK+ 24 SD7−47

SD13+ 2 SRST+ 25 SDP−48

SD14+ 3 SMSG+ 26 GND 49

SD15+ 4 SSEL+ 27 GND 50

SDP1+ 5 SC_D+ 28 TERMPWR 51

SD0+ 6 SREQ+ 29 TERMPWR 52

SD1+ 7 SI_O+ 30 N/C 53

SD2+ 8 SD8+ 31 GND 54

SD3+ 9 SD9+ 32 SATN−55

SD4+ 10 SD10+ 33 GND 56

SD5+ 11 SD11+ 34 SBSY−57

SD6+ 12 SD12−35 SACK−58

SD7+ 13 SD13−36 SRST−59

SDP+ 14 SD14−37 SMSG−60

GND 15 SD15−38 SSEL−61

DIFFSENS 16 SDP1−39 SC_D−62

TERMPWR 17 SD0−40 SREQ−63

TERMPWR 18 SD1−41 SI_O−64

N/C 19 SD2−42 SD8−65

GND 20 SD3−43 SD9−66

SATN+ 21 SD4−44 SD10−67

GND 22 SD5−45 SD11−68

SBSY+ 23 SD6−46

3-12 Technical Specifications

3.2.2.1 SCSI Activity LED Interface

The LED interface allows an LED harness to be connected to the board.

J6 is the connector for both channels. Table 3.8 lists the signals and pin

numbers for Connector J6.

3.3 Subsystem and Subsystem Vendor ID

The Subsystem ID and System Vendor ID for the LSI21003 are provided

in Table 3.9. The EEPROM of the LSI21003 contains the ID numbers.

During system initialization, the ID numbers are loaded into the

Subsystem Vendor ID and Subsystem ID registers of the imbedded SCSI

controller, the LSI53C1010. For more information on the operation of the

Subsystem Vendor ID and Subsystem ID registers, refer to the

LSI53C1010-33 PCI to Dual Channel Ultra3 SCSI Multifunction

Controller Technical Manual.

Table 3.8 Connector J6 Signals

Signal Name Pin

A_LED+ 1

A_LED−2

B_LED−3

B_LED+ 4

Table 3.9 Subsystem and Subsystem Vendor ID

Subsystem ID Number

Subsystem Vendor ID 1000

Subsystem ID 1050

LSI21003 PCI to Dual Channel SCSI Host Adapter A-1

3.75 pc 10.25 pc 11.25 pc 38.25 pc

4.333 pc

12 pc

12.938 pc

13.851 pc

48.583 pc

52.5 pc

34.5 pc

34.732 pc

Appendix A

Glossary of Terms and

Abbreviations

160/m An industry initiative extension of the Ultra160 SCSI specification that

requires support of Double Transition Clocking, Domain Validation, and

Cyclic Redundancy Check.

Active

Termination The electrical connection required at each end of the SCSI bus,

composed of active voltage regulation and a set of termination resistors.

Ultra, Ultra2, and Ultra160 SCSI require active termination.

Address A specific location in memory, designated either numerically or by a

symbolic name.

AIP Asynchronous Information Protection provides error checking for

asynchronous, nondata phases of the SCSI bus.

Asynchronous

Data Transfer One of the ways data is transferred over the SCSI bus. It is slower than

synchronous data transfer.

BIOS Basic Input/Output System. Software that provides basic read/write

capability. Usually kept as firmware (ROM based). The system BIOS on

the mainboard of a computer is used to boot and control the system. The

SCSI BIOS on the host adapter acts as an extension of the system BIOS.

Bit A binary digit. The smallest unit of information a computer uses. The

value of a bit (0 or 1) represents a two-way choice, such as on or off,

true or false, and so on.

Bus A collection of unbroken signal lines across which information is

transmitted from one part of a computer system to another. Connections

to the bus are made using taps on the lines.

3.75 pc 10.25 pc 11.25 pc 38.25 pc

4.333 pc

48.583 pc

52.5 pc

34.5 pc

44.25 pc

A-2 Glossary of Terms and Abbreviations

Bus Mastering A high-performance way to transfer data. The host adapter controls the

transfer of data directly to and from system memory without interrupting

the computer’s microprocessor. This is the fastest way for multitasking

operating systems to transfer data.

Byte A unit of information consisting of eight bits.

CISPR A special international committee on radio interference (Committee,

International and Special, for Protection in Radio).

Configuration Refers to the way a computer is set up; the combined hardware

components (computer, monitor, keyboard, and peripheral devices) that

make up a computer system; or the software settings that allow the

hardware components to communicate with each other.

CRC Cyclic Redundancy Check is an error detection code used in Ultra160

SCSI. Four bytes are transferred with the data to increase the reliability

of data transfers. CRC is used on the Double Transition (DT) Data-In and

DT Data-Out phases.

CPU Central Processing Unit. The “brain” of the computer that performs the

actual computations. The term Microprocessor Unit (MPU) is also used.

DMA Direct Memory Access.

DMA Bus

Master A feature that allows a peripheral to control the flow of data to and from

system memory by blocks, as opposed to PIO (Programmed I/O) where

the processor is in control and the flow is by byte.

Device Driver A program that allows a microprocessor (through the operating system)

to direct the operation of a peripheral device.

Differential SCSI A hardware configuration for connecting SCSI devices. It uses a pair of

lines for each signal transfer (as opposed to SE SCSI which references

each SCSI signal to a common ground).

Domain

Validation Domain Validation is a software procedure in which a host queries a

device to determine its ability to communicate at the negotiated Ultra160

data rate.

DT Clocking In Double Transition (DT) Clocking data is sampled on both the asserting

and deasserting edge of the REQ/ACK signal. DT clocking may only be

implemented on an LVD SCSI bus.

3.75 pc 10.25 pc 11.25 pc 38.25 pc

4.333 pc

48.583 pc

52.5 pc

34.5 pc

44.25 pc

Glossary of Terms and Abbreviations A-3

Dword A doubleword is a group of four consecutive bytes or characters that are

stored, addressed, transmitted, and operated on as a unit. The lower two

address bits of the least significant byte must equal zero in order to be

Dword aligned.

EEPROM Electronically Erasable Programmable Read Only Memory. A memory

chip typically used to store configuration information. See NVRAM.

EISA Extended Industry Standard Architecture. An extension of the 16-bit ISA

bus standard. It allows devices to perform 32-bit data transfers.

External SCSI

Device A SCSI device installed outside the computer cabinet. These devices are

connected in a continuous chain using specific types of shielded cables.

Fast-20 The SCSI Trade Association (STA) supports the use of “Ultra SCSI” over

the term “Fast-20.” Please see Ultra SCSI.

Fast-40 The SCSI Trade Association (STA) supports the use of “Ultra2 SCSI”

over the term “Fast-40.” Please see Ultra2 SCSI.

Fast SCSI A standard for SCSI data transfers. It allows a transfer rate of up to

10 Mbytes/s over an 8-bit SCSI bus and up to 20 Mbytes/s over a 16-bit

SCSI bus.

FCC Federal Communications Commission.

File A named collection of information stored on a disk.

Firmware Software that is permanently stored in ROM. Therefore, it can be

accessed during boot time.

Hard Disk A disk made of metal and permanently sealed into a drive cartridge. A

hard disk can store very large amounts of information.

Host The computer system in which a SCSI host adapter is installed. It uses

the SCSI host adapter to transfer information to and from devices

attached to the SCSI bus.

Host Adapter A circuit board or integrated circuit that provides a SCSI bus connection

to the computer system.

Internal SCSI

Device A SCSI device installed inside the computer cabinet. These devices are

connected in a continuous chain using an unshielded ribbon cable.

3.75 pc 10.25 pc 11.25 pc 38.25 pc

4.333 pc

48.583 pc

52.5 pc

34.5 pc

44.25 pc

A-4 Glossary of Terms and Abbreviations

IRQ Interrupt Request Channel. A path through which a device can get the

immediate attention of the computer’s CPU. The PCI bus assigns an IRQ

path for each SCSI host adapter.

ISA Industry Standard Architecture. A type of computer bus used in most

PCs.Itallowsdevicestosendandreceivedataupto16bitsatatime.

Kbyte Kilobyte. A measure of computer storage equal to 1024 bytes.

Local Bus A way to connect peripherals directly to computer memory. It bypasses

the slower ISA and EISA buses. PCI is a local bus standard.

Logical Unit A subdivision, either logical or physical, of a SCSI device (actually the

place for the device on the SCSI bus). Most devices have only one logical

unit, but up to eight are allowed for each of the eight possible devices on

aSCSIbus.

LUN Logical Unit Number. An identifier, zero to seven, for a logical unit.

Mainboard A large circuit board that holds RAM, ROM, the microprocessor, custom

integrated circuits, and other components that make a computer work. It

also has expansion slots for host adapters and other expansion boards.

Main Memory The part of a computer’s memory which is directly accessible by the CPU

(usually synonymous with RAM).

Mbyte Megabyte. A measure of computer storage equal to 1024 kilobytes.

Motherboard See Mainboard. In some countries, the term Motherboard is not

appropriate.

Multitasking The executing of more than one command at the same time. This allows

programs to operate in parallel.

Multithreading The simultaneous accessing of data by more than one SCSI device. This

increases the data throughput.

NVRAM NonVolatile Random Access Memory. Actually an EEPROM

(Electronically Erasable Read Only Memory chip) used to store

configuration information. See EEPROM.

Operating

System A program that organizes the internal activities of the computer and its

peripheral devices. An operating system performs basic tasks such as

moving data to and from devices, and managing information in memory.

It also provides the user interface.

3.75 pc 10.25 pc 11.25 pc 38.25 pc

4.333 pc

48.583 pc

52.5 pc

34.5 pc

44.25 pc

Glossary of Terms and Abbreviations A-5

Parity Checking A way to verify the accuracy of data transmitted over the SCSI bus. The

parity bit in the transfer is used to make the sum of all the 1 bits either

odd or even (for odd or even parity). If the sum is not correct, the

information may be retransmitted or an error message may appear.

Passive

Termination The electrical connection required at each end of the SCSI bus,

composed of a set of resistors. It improves the integrity of bus signals.

PCI Peripheral Component Interconnect. A local bus specification that allows

connection of peripherals directly to computer memory. It bypasses the

slower ISA and EISA buses.

Peripheral

Devices A piece of hardware (such as a video monitor, disk drive, printer, or

CD-ROM) used with a computer and under the computer’s control. SCSI

peripherals are controlled through a SCSI host adapter.

Pin-1

Orientation The alignment of pin 1 on a SCSI cable connector and the pin-1 position

on the SCSI connector into which it is inserted. External SCSI cables are

always keyed to insure proper alignment, but internal SCSI ribbon cables

sometimes are not keyed.

PIO Programmed Input/Output. A way the CPU can transfer data to and from

memory using the computer’s I/O ports. PIO is usually faster than DMA,

but requires CPU time.

Port Address Also Port Number. The address through which commands are sent to a

host adapter board. This address is assigned by the PCI bus.

Port Number See Port Address.

Queue Tags A way to keep track of multiple commands that allow for increased

throughput on the SCSI bus.

RAM Random Access Memory. The computer’s primary working memory in

which program instructions and data are stored and are accessible to the

CPU. Information can be written to and read from RAM. The contents of

RAM are lost when the computer is turned off.

RISC Core LSI Logic SCSI chips contain a RISC (Reduced Instruction Set

Computer) processor, programmed through microcode SCRIPTS.

ROM Read Only Memory. Memory from which information can be read but not

changed. The contents of ROM are not erased when the computer is

turned off.

3.75 pc 10.25 pc 11.25 pc 38.25 pc

4.333 pc

48.583 pc

52.5 pc

34.5 pc

44.25 pc

A-6 Glossary of Terms and Abbreviations

SCAM SCSI Configured AutoMatically. A method to automatically allocate SCSI

IDs using software when SCAM compliant SCSI devices are attached.

SCSI Small Computer System Interface. A specification for a high-performance

peripheral bus and command set. The original standard is referred to as

SCSI-1.

SCSI-2 The SCSI specification which adds features to the original SCSI

standard.

SCSI-3 The current SCSI specification which adds features to the SCSI-2

standard.

SCSI Bus A host adapter and one or more SCSI peripherals connected by cables

in a linear chain configuration. The host adapter may exist anywhere on

the chain, allowing connection of both internal and external SCSI

devices. A system may have more than one SCSI bus by using multiple

host adapters.

SCSI Device Any device that conforms to the SCSI standard and is attached to the

SCSI bus by a SCSI cable. This includes SCSI host adapters and SCSI

peripherals.

SCSI ID A way to uniquely identify each SCSI device on the SCSI bus. Each SCSI

bus has eight available SCSI IDs numbered 0 through 7 (or 0 through 15

for Wide SCSI). The host adapter usually gets the highest ID, (7 or 15)

giving it priority to control the bus.

SCSI SCRIPTS A SCSI programming language that works with the SCRIPTS processor

that is embedded on the LSI53C1010-33 device. These SCRIPTS reside

in the host computer system memory.

SCRIPTS

Processor The SCRIPTS processor allows users to fine tune SCSI operations with

regard to unique vendor commands or new SCSI specifications. The

SCRIPTS processor fetches SCRIPTS instructions from system memory

to control operation of the LSI53C8XX device.

SDMS Storage Device Management System. An LSI Logic software product that

manages SCSI system I/O.

Single-Ended

(SE) SCSI A hardware specification for connecting SCSI devices. It references each

SCSI signal to a common ground. This is the most common method (as

opposed to differential SCSI which uses a separate ground for each

signal).

3.75 pc 10.25 pc 11.25 pc 38.25 pc

4.333 pc

48.583 pc

52.5 pc

34.5 pc

44.25 pc

Glossary of Terms and Abbreviations A-7

STA SCSI Trade Association. A group of companies that cooperate to

promote SCSI parallel interface technology as a viable mainstream I/O

interconnect for commercial computing.

Synchronous

Data Transfer One of the ways data is transferred over the SCSI bus. Transfers are

clocked with fixed frequency pulses. This is faster than asynchronous

data transfer. Synchronous data transfers are negotiated between the

SCSI host adapter and each SCSI device.

System BIOS Controls the low-level POST (power-on self-test), and basic operation of

the CPU and computer system.

Ultra SCSI A standard for SCSI data transfers. It allows a transfer rate of up to

20 Mbytes/s over an 8-bit SCSI bus and up to 40 Mbytes/s over a 16-bit

SCSI bus. SCSI Trade Association (STA) supports using the term “Ultra

SCSI”overtheolderterm“Fast-20”.

Ultra2 SCSI A standard for SCSI data transfers. It allows a transfer rate of up to

40 Mbytes/s over an 8-bit SCSI bus, and up to 80 Mbytes/s over a

16-bit SCSI bus. SCSI Trade Association (STA) supports using the term

“Ultra2 SCSI” over the term “Fast-40”.

Ultra160 SCSI A standard for SCSI data transfers. It allows a transfer rate of up to

160 Mbytes/s over a 16-bit SCSI bus.

VCCI Voluntary Control Council for Interference.

VDE Verband Deucher Elektroniker (Association of German Electrical

Engineers).

Virtual Memory Space on a hard disk that can be used as if it were RAM.

Wide SCSI A SCSI-2 feature allowing 16-bit or 32-bit transfers on the SCSI bus. This

dramatically increases the transfer rate over the standard 8-bit SCSI bus.

Wide Ultra SCSI The SCSI Trade Association (STA) term for SCSI bus width 16-bits, SCSI

bus speed maximum data rate 40 Mbytes/s.

Wide Ultra2

SCSI The SCSI Trade Association (STA) term for SCSI bus width 16-bits, SCSI

bus speed maximum data rate 80 Mbytes/s.

Wide Ultra160

SCSI The SCSI Trade Association (STA) term for SCSI bus width 16-bits, SCSI

bus speed maximum data rate 160 Mbytes/s.

Word A two byte (or 16-bit) unit of information.

3.75 pc 10.25 pc 11.25 pc 38.25 pc

4.333 pc

48.583 pc

52.5 pc

34.5 pc

44.25 pc

A-8 Glossary of Terms and Abbreviations

LSI21003 PCI to Dual Channel SCSI Host Adapter IX-1

Index

board characteristics 1-3

board software 1-1

burst transfer rate 1-4

bus configurations 2-16

chained connection 2-15

completing the installation 2-25

connecting the SCSI peripherals 2-6

descriptions

PCI interface 1-3

SCSI activity LED interface 1-5,3-12

SCSI interface 1-4

detailed installation procedure 2-3

DMA bus master 32-bit 1-2

edge connector 2-4

external SCSI bus connections 2-13

features

board characteristics 1-3

PCI interface 1-2

SCSI interface 1-2

front panel LED 2-12

inserting the host adapter 2-4

installation procedure check list 2-25

internal SCSI bus connections 2-8

jumper settings 2-24

LED cable 2-12

LVD peripheral devices 2-16

multiple SCSI devices chained together 2-11

PCI interface 1-2

PCI slot 2-2

peripheral devices 2-22

preset host adapter setting SCSI ID 7 2-22

SCSI activity LED interface 1-5,3-12

SCSI bus termination 2-15

SCSI ID 2-22

SCSI interface 1-2

SCSI plug and play 1-3

SCSI TERMPWR 1-3

serial EEPROM 1-3

setting interrupts 2-24

standard cables 1-5

termination 2-15

transfer capability 1-3

volts 3.3 V/5 V bus support 1-2

IX-2 Index

LSI21003 PCI to Dual Channel SCSI Host Adapter

Customer Feedback

We would appreciate your feedback on this document. Please copy the

following page, add your comments, and fax it to us at the number

shown.

If appropriate, please also fax copies of any marked-up pages from this

document.

Important: Please include your name, phone number, fax number, and

company address so that we may contact you directly for

clarification or additional information.

Thank you for your help in improving the quality of our documents.

Customer Feedback

Reader’s Comments

Fax your comments to: LSI Logic Corporation

Technical Publications

M/S E-198

Fax: 408.433.4333

Please tell us how you rate this document: LSI21003 PCI to Dual

Channel SCSI Host Adapter User’s Guide. Place a check mark in the

appropriate blank for each category.

Whatcouldwedotoimprovethisdocument?

If you found errors in this document, please specify the error and page

number. If appropriate, please fax a marked-up copy of the page(s).

Please complete the information below so that we may contact you

directly for clarification or additional information.

Excellent Good Average Fair Poor

Completeness of information ____ ____ ____ ____ ____

Clarity of information ____ ____ ____ ____ ____

Ease of finding information ____ ____ ____ ____ ____

Technical content ____ ____ ____ ____ ____

Usefulness of examples and

illustrations ____ ____ ____ ____ ____

Overall manual ____ ____ ____ ____ ____

Name Date

Telephone

Title

Company Name

Street

City, State, Zip

Department Mail Stop

Fax

U.S. Distributors

by State

A. E. Avnet Electronics

http://www.hh.avnet.com

B. M. Bell Microproducts,

Inc. (for HAB’s)

http://www.bellmicro.com

I. E. Insight Electronics

http://www.insight-electronics.com

W. E. Wyle Electronics

http://www.wyle.com

Alabama

Daphne

I. E. Tel: 334.626.6190

Huntsville

A. E. Tel: 256.837.8700

B. M. Tel: 256.705.3559

I. E. Tel: 256.830.1222

W. E. Tel: 800.964.9953

Alaska

A. E. Tel: 800.332.8638

Arizona

Phoenix

A. E. Tel: 480.736.7000

B. M. Tel: 602.267.9551

W. E. Tel: 800.528.4040

Temp e

I. E. Tel: 480.829.1800

Tucson

A. E. Tel: 520.742.0515

Arkansas

W. E. Tel: 972.235.9953

California

Agoura Hills

B. M. Tel: 818.865.0266

Granite Bay

B. M. Tel: 916.523.7047

Irvine

A. E. Tel: 949.789.4100

B. M. Tel: 949.470.2900

I. E. Tel: 949.727.3291

W. E. Tel: 800.626.9953

Los Angeles

A. E. Tel: 818.594.0404

W. E. Tel: 800.288.9953

Sacramento

A. E. Tel: 916.632.4500

W. E. Tel: 800.627.9953

San Diego

A. E. Tel: 858.385.7500

B. M. Tel: 858.597.3010

I. E. Tel: 800.677.6011

W. E. Tel: 800.829.9953

San Jose

A. E. Tel: 408.435.3500

B. M. Tel: 408.436.0881

I. E. Tel: 408.952.7000

Santa Clara

W. E. Tel: 800.866.9953

Woodland Hills

A. E. Tel: 818.594.0404

Westlake Village

I. E. Tel: 818.707.2101

Colorado

Denver

A. E. Tel: 303.790.1662

B. M. Tel: 303.846.3065

W. E. Tel: 800.933.9953

Englewood

I. E. Tel: 303.649.1800

Idaho Springs

B. M. Tel: 303.567.0703

Connecticut

Cheshire

A. E. Tel: 203.271.5700

I. E. Tel: 203.272.5843

Wallingford

W. E. Tel: 800.605.9953

Delaware

North/South

A. E. Tel: 800.526.4812

Tel: 800.638.5988

B. M. Tel: 302.328.8968

W. E. Tel: 856.439.9110

Florida

Altamonte Springs

B. M. Tel: 407.682.1199

I. E. Tel: 407.834.6310

Boca Raton

I. E. Tel: 561.997.2540

Bonita Springs

B. M. Tel: 941.498.6011

Clearwater

I. E. Tel: 727.524.8850

Fort Lauderdale

A. E. Tel: 954.484.5482

W. E. Tel: 800.568.9953

Miami

B. M. Tel: 305.477.6406

Orlando

A. E. Tel: 407.657.3300

W. E. Tel: 407.740.7450

Tampa

W. E. Tel: 800.395.9953

St. Petersburg

A. E. Tel: 727.507.5000

Georgia

Atlanta

A. E. Tel: 770.623.4400

B. M. Tel: 770.980.4922

W. E. Tel: 800.876.9953

Duluth

I. E. Tel: 678.584.0812

Hawaii

A. E. Tel: 800.851.2282

Idaho

A. E. Tel: 801.365.3800

W. E. Tel: 801.974.9953

Illinois

North/South

A. E. Tel: 847.797.7300

Tel: 314.291.5350

Chicago

B. M. Tel: 847.413.8530

W. E. Tel: 800.853.9953

Schaumburg

I. E. Tel: 847.885.9700

Indiana

Fort Wayne

I. E. Tel: 219.436.4250

W. E. Tel: 888.358.9953

Indianapolis

A. E. Tel: 317.575.3500

Iowa

W. E. Tel: 612.853.2280

Cedar Rapids

A. E. Tel: 319.393.0033

Kansas

W. E. Tel: 303.457.9953

Kansas City

A. E. Tel: 913.663.7900

Lenexa

I. E. Tel: 913.492.0408

Kentucky

W. E. Tel: 937.436.9953

Central/Northern/ Western

A. E. Tel: 800.984.9503

Tel: 800.767.0329

Tel: 800.829.0146

Louisiana

W. E. Tel: 713.854.9953

North/South

A. E. Tel: 800.231.0253

Tel: 800.231.5775

Maine

A. E. Tel: 800.272.9255

W. E. Tel: 781.271.9953

Maryland

Baltimore

A. E. Tel: 410.720.3400

W. E. Tel: 800.863.9953

Columbia

B. M. Tel: 800.673.7461

I. E. Tel: 410.381.3131

Massachusetts

Boston

A. E. Tel: 978.532.9808

W. E. Tel: 800.444.9953

Burlington

I. E. Tel: 781.270.9400

Marlborough

B. M. Tel: 800.673.7459

Woburn

B. M. Tel: 800.552.4305

Michigan

Brighton

I. E. Tel: 810.229.7710

Detroit

A. E. Tel: 734.416.5800

W. E. Tel: 888.318.9953

Clarkston

B. M. Tel: 877.922.9363

Minnesota

Champlin

B. M. Tel: 800.557.2566

Eden Prairie

B. M. Tel: 800.255.1469

Minneapolis

A. E. Tel: 612.346.3000

W. E. Tel: 800.860.9953

St. Louis Park

I. E. Tel: 612.525.9999

Mississippi

A. E. Tel: 800.633.2918

W. E. Tel: 256.830.1119

Missouri

W. E. Tel: 630.620.0969

St. Louis

A. E. Tel: 314.291.5350

I. E. Tel: 314.872.2182

Montana

A. E. Tel: 800.526.1741

W. E. Tel: 801.974.9953

Nebraska

A. E. Tel: 800.332.4375

W. E. Tel: 303.457.9953

Nevada

Las Vegas

A. E. Tel: 800.528.8471

W. E. Tel: 702.765.7117

New Hampshire

A. E. Tel: 800.272.9255

W. E. Tel: 781.271.9953

New Jersey

North/South

A. E. Tel: 201.515.1641

Tel: 609.222.6400

Mt. Laurel

I. E. Tel: 856.222.9566

Pine Brook

B. M. Tel: 973.244.9668

W. E. Tel: 800.862.9953

Parsippany

I. E. Tel: 973.299.4425

Wayne

W. E. Tel: 973.237.9010

New Mexico

W. E. Tel: 480.804.7000

Albuquerque

A. E. Tel: 505.293.5119

U.S. Distributors

by State

(Continued)

New York

Hauppauge

I. E. Tel: 516.761.0960

Long Island

A. E. Tel: 516.434.7400

W. E. Tel: 800.861.9953

Rochester

A. E. Tel: 716.475.9130

I. E. Tel: 716.242.7790

W. E. Tel: 800.319.9953

Smithtown

B. M. Tel: 800.543.2008

Syracuse

A. E. Tel: 315.449.4927

North Carolina

Raleigh

A. E. Tel: 919.859.9159

I. E. Tel: 919.873.9922

W. E. Tel: 800.560.9953

North Dakota

A. E. Tel: 800.829.0116

W. E. Tel: 612.853.2280

Ohio

Cleveland

A. E. Tel: 216.498.1100

W. E. Tel: 800.763.9953

Dayton

A. E. Tel: 614.888.3313

I. E. Tel: 937.253.7501

W. E. Tel: 800.575.9953

Strongsville

B. M. Tel: 440.238.0404

Valley View

I. E. Tel: 216.520.4333

Oklahoma

W. E. Tel: 972.235.9953

Tuls a

A. E. Tel: 918.459.6000

I. E. Tel: 918.665.4664

Oregon

Beaverton

B. M. Tel: 503.524.1075

I. E. Tel: 503.644.3300

Portland

A. E. Tel: 503.526.6200

W. E. Tel: 800.879.9953

Pennsylvania

Mercer

I. E. Tel: 412.662.2707

Philadelphia

A. E. Tel: 800.526.4812

B. M. Tel: 877.351.2355

W. E. Tel: 800.871.9953

Pittsburgh

A. E. Tel: 412.281.4150

W. E. Tel: 440.248.9996

Rhode Island

A. E. 800.272.9255

W. E. Tel: 781.271.9953

South Carolina

A. E. Tel: 919.872.0712

W. E. Tel: 919.469.1502

South Dakota

A. E. Tel: 800.829.0116

W. E. Tel: 612.853.2280

Tennessee

W. E. Tel: 256.830.1119

East/West

A. E. Tel: 800.241.8182

Tel: 800.633.2918

Texas

Arlington

B. M. Tel: 817.417.5993

Austin

A. E. Tel: 512.219.3700

B. M. Tel: 512.258.0725

I. E. Tel: 512.719.3090

W. E. Tel: 800.365.9953

Dallas

A. E. Tel: 214.553.4300

B. M. Tel: 972.783.4191

W. E. Tel: 800.955.9953

El Paso

A. E. Tel: 800.526.9238

Houston

A. E. Tel: 713.781.6100

B. M. Tel: 713.917.0663

W. E. Tel: 800.888.9953

Richardson

I. E. Tel: 972.783.0800

Rio Grande Valley

A. E. Tel: 210.412.2047

Stafford

I. E. Tel: 281.277.8200

Utah

Centerville

B. M. Tel: 801.295.3900

Murray

I. E. Tel: 801.288.9001

Salt Lake City

A. E. Tel: 801.365.3800

W. E. Tel: 800.477.9953

Vermont

A. E. Tel: 800.272.9255

W. E. Tel: 716.334.5970

Virginia

A. E. Tel: 800.638.5988

W. E. Tel: 301.604.8488

Haymarket

B. M. Tel: 703.754.3399

Springfield

B. M. Tel: 703.644.9045

Washington

Kirkland

I. E. Tel: 425.820.8100

Maple Valley

B. M. Tel: 206.223.0080

Seattle

A. E. Tel: 425.882.7000

W. E. Tel: 800.248.9953

West Virginia

A. E. Tel: 800.638.5988

Wisconsin

Milwaukee

A. E. Tel: 414.513.1500

W. E. Tel: 800.867.9953

Wauwatosa

I. E. Tel: 414.258.5338

Wyoming

A. E. Tel: 800.332.9326

W. E. Tel: 801.974.9953

Direct Sales

Representatives by State

(Components and Boards)

E. A. Earle Associates

E. L. Electrodyne - UT

GRP Group 2000

I. S. Infinity Sales, Inc.

ION ION Associates, Inc.

R. A. Rathsburg Associ-

ates, Inc.

SGY Synergy Associates,

Inc.

Arizona

Tempe

E. A. Tel: 480.921.3305

California

Calabasas

I. S. Tel: 818.880.6480

Irvine

I. S. Tel: 714.833.0300

San Diego

E. A. Tel: 619.278.5441

Illinois

Elmhurst

R. A. Tel: 630.516.8400

Indiana

Cicero

R. A. Tel: 317.984.8608

Ligonier

R. A. Tel: 219.894.3184

Plainfield

R. A. Tel: 317.838.0360

Massachusetts

Burlington

SGY Tel: 781.238.0870

Michigan

Byron Center

R. A. Tel: 616.554.1460

Good Rich

R. A. Tel: 810.636.6060

Novi

R. A. Tel: 810.615.4000

North Carolina

Cary

GRP Tel: 919.481.1530

Ohio

Columbus

R. A. Tel: 614.457.2242

Dayton

R. A. Tel: 513.291.4001

Independence

R. A. Tel: 216.447.8825

Pennsylvania

Somerset

R. A. Tel: 814.445.6976

Texas

Austin

ION Tel: 512.794.9006

Arlington

ION Tel: 817.695.8000

Houston

ION Tel: 281.376.2000

Utah

Salt Lake City

E. L. Tel: 801.264.8050

Wisconsin

Muskego

R. A. Tel: 414.679.8250

Saukville

R. A. Tel: 414.268.1152

Sales Offices and Design

Resource Centers

LSI Logic Corporation

Corporate Headquarters

1551 McCarthy Blvd

Milpitas CA 95035

Tel: 408.433.8000

Fax: 408.433.8989

NORTH AMERICA

California

Irvine

18301 Von Karman Ave

Suite 900

Irvine, CA 92612

♦Tel: 949.809.4600

Fax: 949.809.4444

Pleasanton Design Center

5050 Hopyard Road, 3rd Floor

Suite 300

Pleasanton, CA 94588

Tel: 925.730.8800

Fax: 925.730.8700

San Diego

7585 Ronson Road

Suite 100

San Diego, CA 92111

Tel: 858.467.6981

Fax: 858.496.0548

Silicon Valley

1551 McCarthy Blvd

Sales Office

M/S C-500

Milpitas, CA 95035

♦Tel: 408.433.8000

Fax: 408.954.3353

Design Center

M/S C-410

Tel: 408.433.8000

Fax: 408.433.7695

Wireless Design Center

11452 El Camino Real

Suite 210

San Diego, CA 92130

Tel: 858.350.5560

Fax: 858.350.0171

Colorado

Boulder

4940 Pearl East Circle

Suite 201

Boulder, CO 80301

♦Tel: 303.447.3800

Fax: 303.541.0641

Colorado Springs

4420 Arrowswest Drive

Colorado Springs, CO 80907

Tel: 719.533.7000

Fax: 719.533.7020

Fort Collins

2001 Danfield Court

Fort Collins, CO 80525

Tel: 970.223.5100

Fax: 970.206.5549

Florida

Boca Raton

2255 Glades Road

Suite 324A

Boca Raton, FL 33431

Tel: 561.989.3236

Fax: 561.989.3237

Georgia

Alpharetta

2475 North Winds Parkway

Suite 200

Alpharetta, GA 30004

Tel: 770.753.6146

Fax: 770.753.6147

Illinois

Oakbrook Terrace

Two Mid American Plaza

Suite 800

Oakbrook Terrace, IL 60181

Tel: 630.954.2234

Fax: 630.954.2235

Kentucky

Bowling Green

1262 Chestnut Street

Bowling Green, KY 42101

Tel: 270.793.0010

Fax: 270.793.0040

Maryland

Bethesda

6903 Rockledge Drive

Suite 230

Bethesda, MD 20817

Tel: 301.897.5800

Fax: 301.897.8389

Massachusetts

Waltham

200 West Street

Waltham, MA 02451

♦Tel: 781.890.0180

Fax: 781.890.6158

Burlington - Mint Technology

77 South Bedford Street

Burlington, MA 01803

Tel: 781.685.3800

Fax: 781.685.3801

Minnesota

Minneapolis

8300 Norman Center Drive

Suite 730

Minneapolis, MN 55437

♦Tel: 612.921.8300

Fax: 612.921.8399

New Jersey

Red Bank

125 Half Mile Road

Suite 200

Red Bank, NJ 07701

Tel: 732.933.2656

Fax: 732.933.2643

Cherry Hill - Mint Technology

215 Longstone Drive

Cherry Hill, NJ 08003

Tel: 856.489.5530

Fax: 856.489.5531

New York

Fairport

550 Willowbrook Office Park

Fairport, NY 14450

Tel: 716.218.0020

Fax: 716.218.9010

North Carolina

Raleigh

Phase II

4601 Six Forks Road

Suite 528

Raleigh, NC 27609

Tel: 919.785.4520

Fax: 919.783.8909

Oregon

Beaverton

15455 NW Greenbrier Parkway

Suite 235

Beaverton, OR 97006

Tel: 503.645.0589

Fax: 503.645.6612

Texas

Austin

9020 Capital of TX Highway North

Building 1

Suite 150

Austin, TX 78759

Tel: 512.388.7294

Fax: 512.388.4171

Plano

500 North Central Expressway

Suite 440

Plano, TX 75074

♦Tel: 972.244.5000

Fax: 972.244.5001

Houston

20405 State Highway 249

Suite 450

Houston, TX 77070

Tel: 281.379.7800

Fax: 281.379.7818

Canada

Ontario

Ottawa

260 Hearst Way

Suite 400

Kanata, ON K2L 3H1

♦Tel: 613.592.1263

Fax: 613.592.3253

INTERNATIONAL

France

Paris

LSI Logic S.A.

Immeuble Europa

53 bis Avenue de l'Europe

B.P. 139

78148 Velizy-Villacoublay

Cedex, Paris

♦Tel: 33.1.34.63.13.13

Fax: 33.1.34.63.13.19

Germany

Munich

LSI Logic GmbH

Orleansstrasse 4

81669 Munich

♦Tel: 49.89.4.58.33.0

Fax: 49.89.4.58.33.108

Stuttgart

Mittlerer Pfad 4

D-70499 Stuttgart

♦Tel: 49.711.13.96.90

Fax: 49.711.86.61.428

Italy

Milan

LSI Logic S.P.A.

Centro Direzionale Colleoni Palazzo

Orione Ingresso 1

20041 Agrate Brianza, Milano

♦Tel: 39.039.687371

Fax: 39.039.6057867

Japan

Tokyo

LSI Logic K.K.

Rivage-Shinagawa Bldg. 14F

4-1-8 Kounan

Minato-ku, Tokyo 108-0075

♦Tel: 81.3.5463.7821

Fax: 81.3.5463.7820

Osaka

Crystal Tower 14F

1-2-27 Shiromi

Chuo-ku, Osaka 540-6014

♦Tel: 81.6.947.5281

Fax: 81.6.947.5287

Sales Offices and Design

Resource Centers

(Continued)

Korea

Seoul

LSI Logic Corporation of

Korea Ltd

10th Fl., Haesung 1 Bldg.

942, Daechi-dong,

Kangnam-ku, Seoul, 135-283

Tel: 82.2.528.3400

Fax: 82.2.528.2250

The Netherlands

Eindhoven

LSI Logic Europe Ltd

World Trade Center Eindhoven

Building ‘Rijder’

Bogert 26

5612 LZ Eindhoven

Tel: 31.40.265.3580

Fax: 31.40.296.2109

Singapore

LSI Logic Pte Ltd

7 Temasek Boulevard

#28-02 Suntec Tower One

Singapore 038987

Tel: 65.334.9061

Fax: 65.334.4749

Sweden

Stockholm

LSI Logic AB

Finlandsgatan 14

164 74 Kista

♦Tel: 46.8.444.15.00

Fax: 46.8.750.66.47

Taiwan

Taipei

LSI Logic Asia, Inc.

Taiwan Branch

10/F 156 Min Sheng E. Road

Section 3

Taipei, Taiwan R.O.C.

Tel: 886.2.2718.7828

Fax: 886.2.2718.8869

United Kingdom

Bracknell

LSI Logic Europe Ltd

Greenwood House

London Road

Bracknell, Berkshire RG12 2UB

♦Tel: 44.1344.426544

Fax: 44.1344.481039

♦Sales Offices with

Design Resource Centers

International Distributors

Australia

New South Wales

Reptechnic Pty Ltd

3/36 Bydown Street

Neutral Bay, NSW 2089

♦Tel: 612.9953.9844

Fax: 612.9953.9683

Belgium

Acal nv/sa

Lozenberg 4

1932 Zaventem

Tel: 32.2.7205983

Fax: 32.2.7251014

China

Beijing

LSI Logic International

Services Inc.

Beijing Representative

Office

Room 708

Canway Building

66 Nan Li Shi Lu

Xicheng District

Beijing 100045, China

Tel: 86.10.6804.2534 to 38

Fax: 86.10.6804.2521

France

Rungis Cedex

Azzurri Technology France

22 Rue Saarinen

Sillic 274

94578 Rungis Cedex

Tel: 33.1.41806310

Fax: 33.1.41730340

Germany

Haar

EBV Elektronik

Hans-Pinsel Str. 4

D-85540 Haar

Tel: 49.89.4600980

Fax: 49.89.46009840

Munich

Avnet Emg GmbH

Stahlgruberring 12

81829 Munich

Tel: 49.89.45110102

Fax: 49.89.42.27.75

Wuennenberg-Haaren

Peacock AG

Graf-Zepplin-Str 14

D-33181 Wuennenberg-Haaren

Tel: 49.2957.79.1692

Fax: 49.2957.79.9341

Hong Kong

AVT Industrial Ltd

Unit 608 Tower 1

Cheung Sha Wan Plaza

833 Cheung Sha Wan Road

Kowloon, Hong Kong

Tel: 852.2428.0008

Fax: 852.2401.2105

Serial System (HK) Ltd

2301 Nanyang Plaza

57 Hung To Road, Kwun Tong

Kowloon, Hong Kong

Tel: 852.2995.7538

Fax: 852.2950.0386

India

Bangalore

Spike Technologies India

Private Ltd

951, Vijayalakshmi Complex,

2nd Floor, 24th Main,

J P Nagar II Phase,

Bangalore, India 560078

♦Tel: 91.80.664.5530

Fax: 91.80.664.9748

Israel

Tel Av iv

Eastronics Ltd

11 Rozanis Street

P.O. Box 39300

Tel Aviv 61392

Tel: 972.3.6458777

Fax: 972.3.6458666

Japan

Tokyo

Daito Electron

Sogo Kojimachi No.3 Bldg

1-6 Kojimachi

Chiyoda-ku, Tokyo 102-8730

Tel: 81.3.3264.0326

Fax: 81.3.3261.3984

Global Electronics

Corporation

Nichibei Time24 Bldg. 35 Tansu-cho

Shinjuku-ku, Tokyo 162-0833

Tel: 81.3.3260.1411

Fax: 81.3.3260.7100

Technical Center

Tel: 81.471.43.8200

Marubeni Solutions

1-26-20 Higashi

Shibuya-ku, Tokyo 150-0001

Tel: 81.3.5778.8662

Fax: 81.3.5778.8669

Shinki Electronics

Myuru Daikanyama 3F

3-7-3 Ebisu Minami

Shibuya-ku, Tokyo 150-0022

Tel: 81.3.3760.3110

Fax: 81.3.3760.3101

Yokohama-City

Innotech

2-15-10 Shin Yokohama

Kohoku-ku

Yokohama-City, 222-8580

Tel: 81.45.474.9037

Fax: 81.45.474.9065

Macnica Corporation

Hakusan High-Tech Park

1-22-2 Hadusan, Midori-Ku,

Yokohama-City, 226-8505

Tel: 81.45.939.6140

Fax: 81.45.939.6141

The Netherlands

Eindhoven

Acal Nederland b.v.

Beatrix de Rijkweg 8

5657 EG Eindhoven

Tel: 31.40.2.502602

Fax: 31.40.2.510255

Switzerland

Brugg

LSI Logic Sulzer AG

Mattenstrasse 6a

CH 2555 Brugg

Tel: 41.32.3743232

Fax: 41.32.3743233

Taiwan

Taip e i

Avnet-Mercuries

Corporation, Ltd

14F, No. 145,

Sec. 2, Chien Kuo N. Road

Taipei, Taiwan, R.O.C.

Tel: 886.2.2516.7303

Fax: 886.2.2505.7391

Lumax International

Corporation, Ltd

7th Fl., 52, Sec. 3

Nan-Kang Road

Taipei, Taiwan, R.O.C.

Tel: 886.2.2788.3656

Fax: 886.2.2788.3568

Prospect Technology

Corporation, Ltd

4Fl., No. 34, Chu Luen Street

Taipei, Taiwan, R.O.C.

Tel: 886.2.2721.9533

Fax: 886.2.2773.3756

Wintech Microeletronics

Co., Ltd

7F., No. 34, Sec. 3, Pateh Road

Taipei, Taiwan, R.O.C.

Tel: 886.2.2579.5858

Fax: 886.2.2570.3123

United Kingdom

Maidenhead

Azzurri Technology Ltd

16 Grove Park Business Estate

Waltham Road

White Waltham

Maidenhead, Berkshire SL6 3LW

Tel: 44.1628.826826

Fax: 44.1628.829730

Milton Keynes

Ingram Micro (UK) Ltd

Garamonde Drive

Wymbush

Milton Keynes

Buckinghamshire MK8 8DF

Tel: 44.1908.260422

Swindon

EBV Elektronik

12 Interface Business Park

Bincknoll Lane

Wootton Bassett,

Swindon, Wiltshire SN4 8SY

Tel: 44.1793.849933

Fax: 44.1793.859555

♦Sales Offices with

Design Resource Centers

Lsi 21003 Users Manual LSI21003 PCI To Dual Channel SCSI Host Adapter User's Guide

21003 to the manual c8dbd66b-02a4-44d5-bfd1-d5abee122bce

Navigation menu

Versions of this User Manual:

Views

Navigation
