Information Manual, Rev. 1
September 1999
13
Lucent Technologies Inc. 1-1
Evaluation Kit for USS-720
Instant USB
™
USB-to-
IEEE
* 1284 Bridge
Introduction
The Lucent Technologies Microelectronics Group USS-720 Evaluation Kit is an assembly of all the peripheral-
related hardware, software, and documentation necessary to evaluate the USS-720 device and begin develop-
ment efforts. The kit is comprised of three primary components:
■Information Manual that contains a collection of data sheets, application notes, and other documents regard-
ing the USS-720, its device driver, and sample applications
■In-System Design (ISD) USB Smart Cable
■A 3 1/2 in. diskette containing related device drivers and sample application software for use with OSR2.1/
QFE 1214 and
Microsoft Windows
† 98.
A complete description of the contents is listed in the Evaluation Kit Contents section.
*
IEEE
is a registered trademark of The Institute of Electrical and Electronics Engineers, Inc.
†
Microsoft
and
Windows
are registered trademarks of Microsoft Corporation.
1-2 Lucent Technologies Inc.
Evaluation Kit for USS-720
Instant USB
Information Manual, Rev. 1
USB-to-
IEEE
1284 Bridge September 1999
13
Table of Contents
Evaluation Kit for USS-720
Instant USB
USB-to-
IEEE
1284 Bridge Introduction............ 1-1
Introduction .......................................................................................................................................................... 1-1
Evaluation Kit Contents ....................................................................................................................................... 1-5
Hardware Requirements ...................................................................................................................................... 1-6
Getting Started Instructions ................................................................................................................................. 1-7
Software Updates ................................................................................................................................................ 1-9
Notes for Developers ........................................................................................................................................... 1-9
USB Driver and Port Monitor ......................................................................................................................... 1-9
Plug and Play................................................................................................................................................. 1-9
Port Creation ................................................................................................................................................. 1-9
EEPROM ..................................................................................................................................................... 1-10
USB Applications Support.................................................................................................... 2-1
Lucent Technologies Microelectronics Group ..................................................................................................... 2-1
In-System Design, Inc. ........................................................................................................................................ 2-1
USS-720 Software Licensing ................................................................................................ 3-1
Evaluation Kit Software ....................................................................................................................................... 3-1
Introduction.................................................................................................................................................... 3-1
USS-720 Driver Software (Object Code) License Agreement ............................................................................. 3-1
Incorporating Customer Data into USS-720 Evaluation Kit Software Using the
Build Me One Utility Application Note ................................................................................. 4-1
Introduction .......................................................................................................................................................... 4-1
Software Components ......................................................................................................................................... 4-1
Class Installer................................................................................................................................................ 4-1
WDM Device Driver ....................................................................................................................................... 4-1
Port Monitor................................................................................................................................................... 4-1
Install File ...................................................................................................................................................... 4-1
Customer-Defined Data ....................................................................................................................................... 4-2
Device Description String .............................................................................................................................. 4-2
Manufacturer String ....................................................................................................................................... 4-2
Vendor ID....................................................................................................................................................... 4-2
Product ID...................................................................................................................................................... 4-2
Driver Name .................................................................................................................................................. 4-2
Port Name ..................................................................................................................................................... 4-2
Plug and Play Operation (PnP) ........................................................................................................................... 4-2
Printer Enumeration ............................................................................................................................................. 4-2
Operating Systems Supported ............................................................................................................................ 4-3
Power Management ............................................................................................................................................ 4-3
USB Hardware Types Supported ........................................................................................................................ 4-3
Installation Process ............................................................................................................................................. 4-3
USBLPTx Ports ................................................................................................................................................... 4-3
EEPROM ............................................................................................................................................................. 4-3
Printer Types Supported ...................................................................................................................................... 4-4
Information Manual, Rev. 1 Evaluation Kit for USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 1-3
13
Table of Contents (continued)
USS-720
Instant USB
USB-to-
IEEE
1284 Bridge Preliminary Data Sheet.........................5-1
Features .............................................................................................................................................................. 5-1
Description ........................................................................................................................................................... 5-1

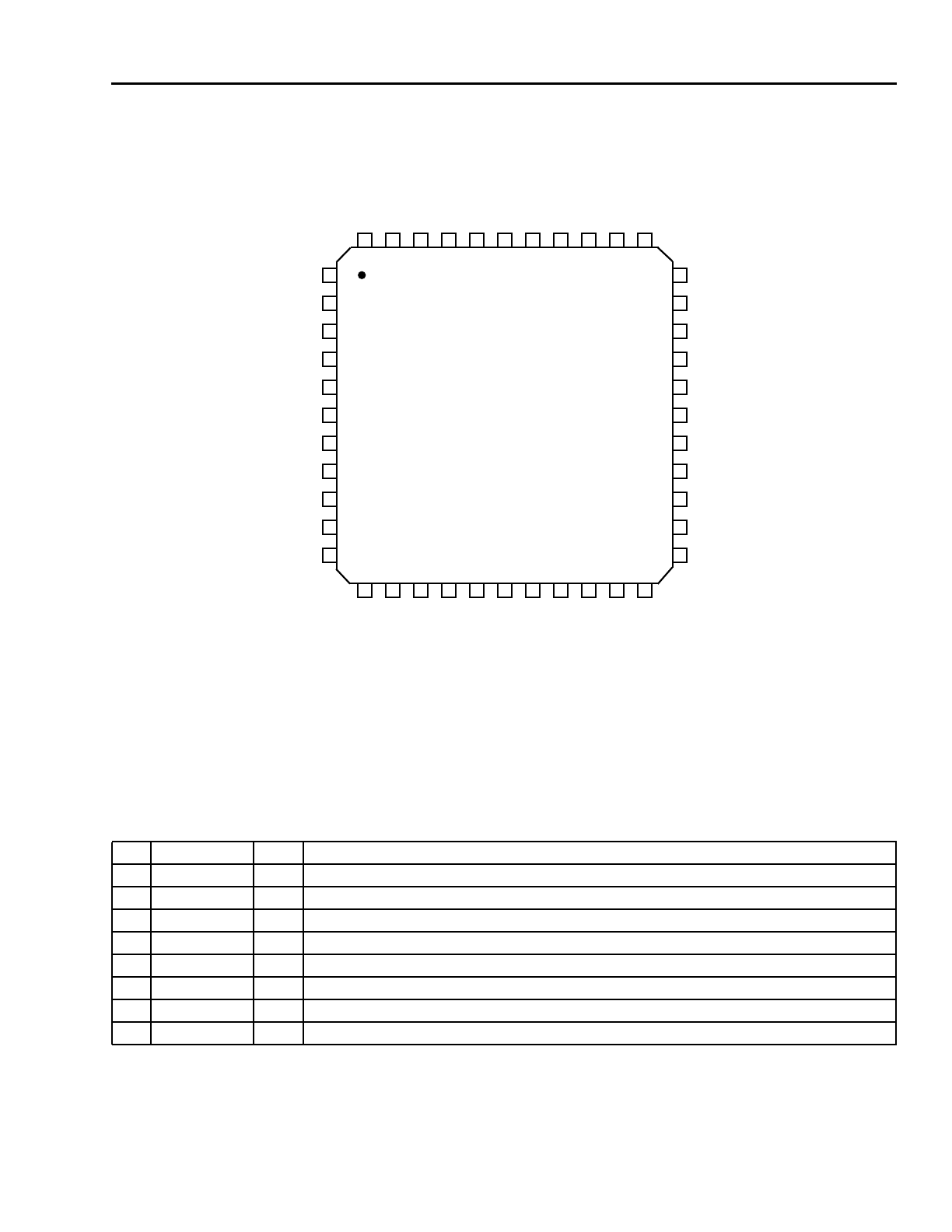

Pin Information .................................................................................................................................................... 5-3
Overview ............................................................................................................................................................... 5-5
USB Port .............................................................................................................................................................. 5-5
Device Descriptor, Configurations, and
Interfaces....................................................................................................................................................... 5-5
Supported Descriptors .......................................................................................................................... 5-5
Descriptor Locations...................................................................................................................................... 5-5
Onboard Device Descriptor ........................................................................................................................... 5-6
Configuration Descriptor................................................................................................................................ 5-7
Interface Descriptors...................................................................................................................................... 5-8
Interface 0, Alternate Setting 0 (I0:A0) ................................................................................................. 5- 8
Interface 0, Alternate Setting 1 (I0:A1) ................................................................................................. 5-9
Interface 0, Alternate Setting 2 (I0:A2) ............................................................................................... 5-10
Pipes............................................................................................................................................................ 5-11
Control Pipe ....................................................................................................................................... 5-11
Bulk In Pipe ........................................................................................................................................ 5-11
Bulk Out Pipe ..................................................................................................................................... 5-11
Interrupt Pipe ..................................................................................................................................... 5-11
Interpipe Synchronization .................................................................................................................. 5-11
Requests ..................................................................................................................................................... 5-11
Standard Requests...................................................................................................................................... 5-11
Printer Class-Specific Requests .................................................................................................................. 5-12
GET_DEVICE_ID ............................................................................................................................... 5-12
GET_PORT_STATUS ......................................................................................................................... 5-12
SOFT_RESET .................................................................................................................................... 5-12
Vendor-Specific Requests ........................................................................................................................... 5-13
GET_1284_REGISTER ..................................................................................................................... 5-13
SET_1284_REGISTER ...................................................................................................................... 5-13
IEEE
1284 Port .................................................................................................................................................. 5-14
Register-Based Operation ........................................................................................................................... 5-14
Standard Mode (000) ......................................................................................................................... 5-14
Bidirectional Mode (001) .................................................................................................................... 5-14
Compatibility Mode (010) ................................................................................................................... 5-14
ECP Mode (011) ................................................................................................................................ 5-14
EPP Mode (100) ................................................................................................................................. 5-14
Registers ..................................................................................................................................................... 5-15
Data Register ..................................................................................................................................... 5-16
Status Register ................................................................................................................................... 5-16
Control Register ................................................................................................................................. 5-17
EPP Address Register ....................................................................................................................... 5-18
EPP Data Register ............................................................................................................................. 5-18
ECP Command Register ................................................................................................................... 5-19
Extended Control Register ................................................................................................................ 5-20
USS-720 Control Register .................................................................................................................. 5-21
USS-720 Setup Register .................................................................................................................... 5-22
Interrupts.............................................................................................................................................. 5-23
nAck Interrupt ..................................................................................................................................... 5-23
EPP Time-Out Interrupt ..................................................................................................................... 5-23
1-4 Lucent Technologies Inc.
Evaluation Kit for USS-720
Instant USB
Information Manual, Rev. 1
USB-to-
IEEE
1284 Bridge September 1999
13
Table of Contents (continued)
nFault Interrupt .................................................................................................................................... 5-23
Bulk In Interrupt ................................................................................................................................... 5-23
Bulk Out Interrupt ................................................................................................................................ 5-23
Change Interrupt ................................................................................................................................. 5-23
Disconnect Interrupt ............................................................................................................................ 5-23
External Circuitry Requirements ......................................................................................................................... 5-24
Filter Bypass Mode ............................................................................................................................................. 5-25
High Drive Mode ................................................................................................................................................. 5-25
Self-Powered Mode ............................................................................................................................................ 5-25
Absolute Maximum Ratings ................................................................................................................................ 5-25
Electrical Characteristics .................................................................................................................................... 5-26
Timing Characteristics ........................................................................................................................................ 5-27

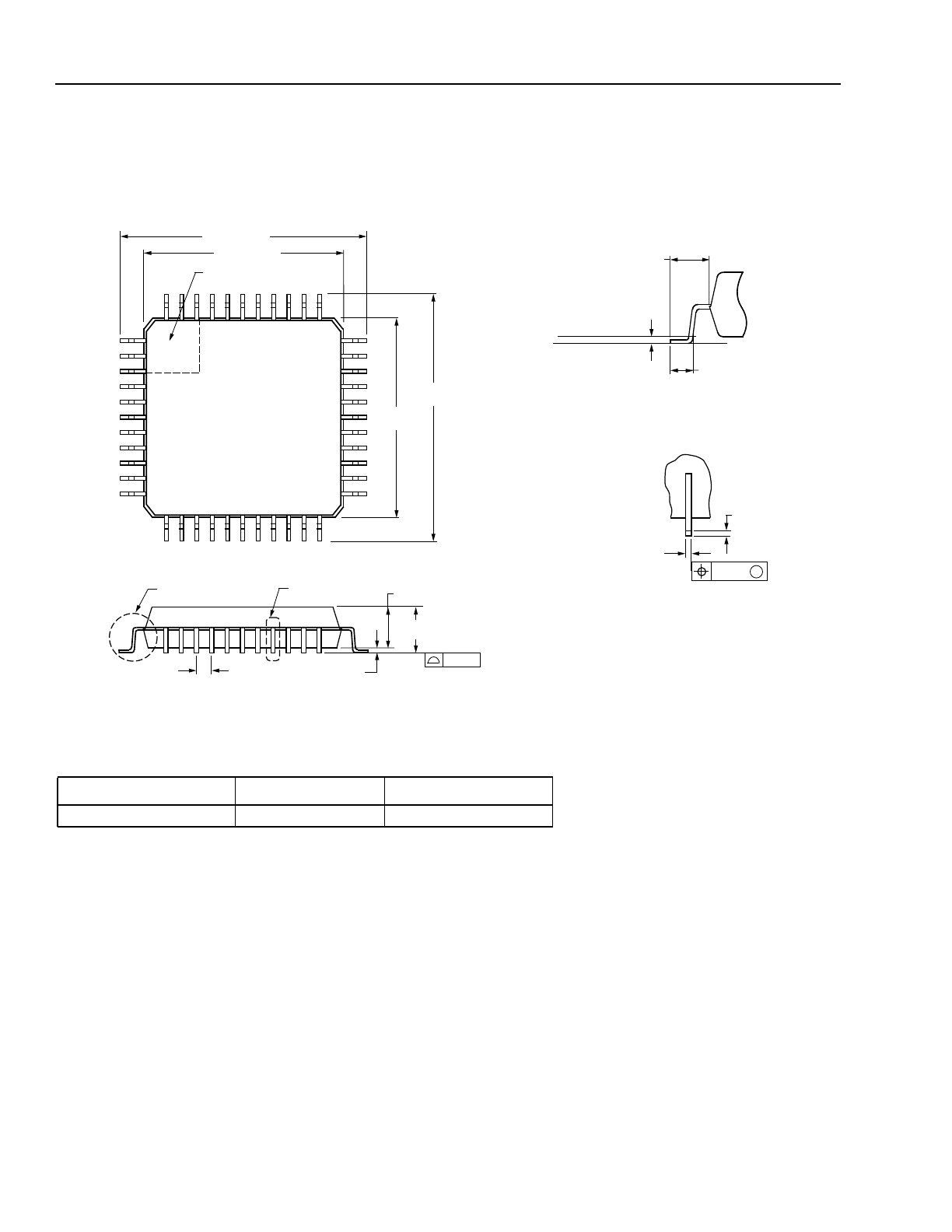

Outline Diagram ...................................................................................................................................................5-28
44-Pin MQFP................................................................................................................................................5-28
Ordering Information ............................................................................................................................................5-28

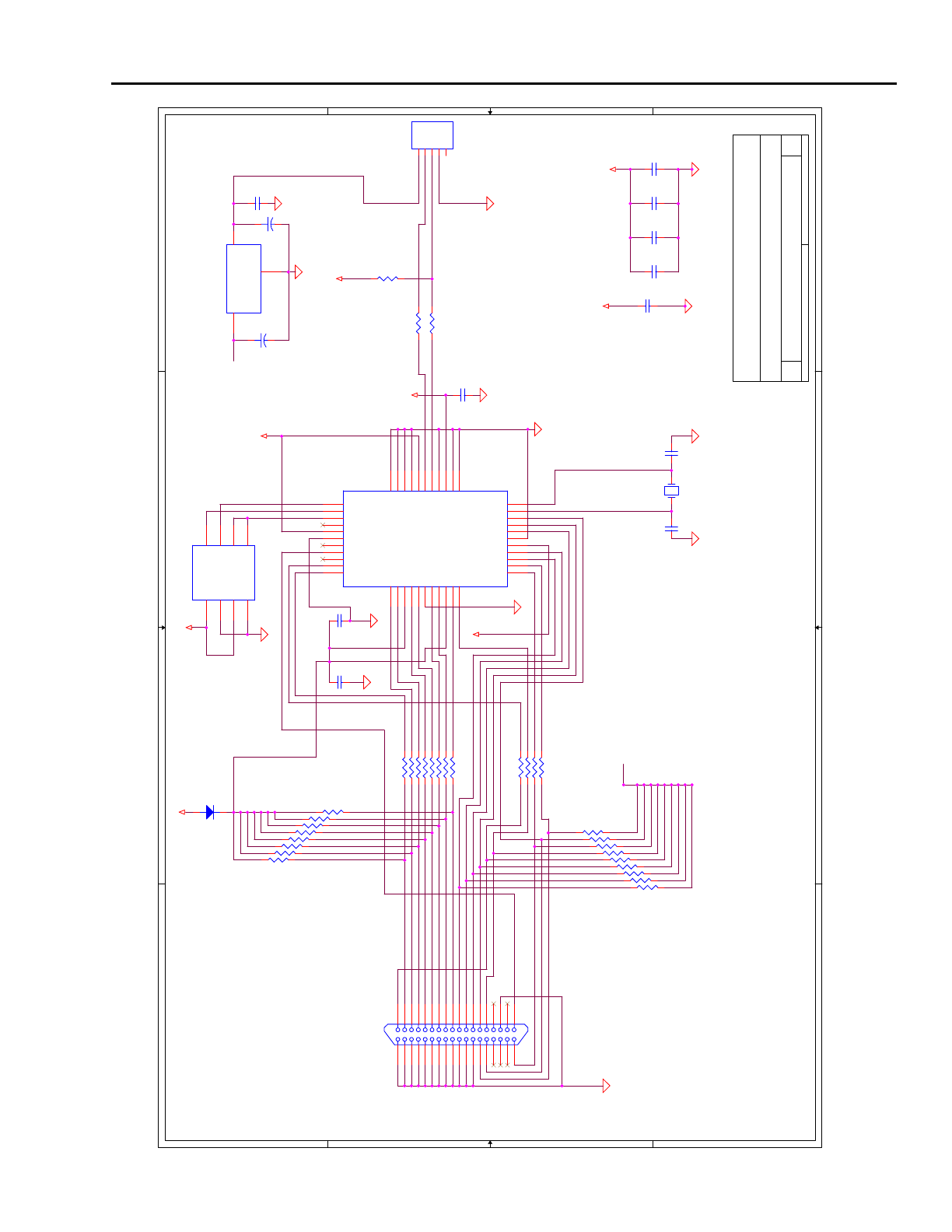

Typical Circuit Showing the USS-720 Bridging USB to Parallel Port
Application Note .................................................................................................................... 6-1
Description ............................................................................................................................................................ 6-1
USS-720 USB Device Driver Preliminary User Guide ........................................................ 7-1
1. Introduction ...................................................................................................................................................... 7-1
2. Initialization ...................................................................................................................................................... 7-3
3. I/O File Functions ............................................................................................................................................ 7-3
3.1. CreateFile ............................................................................................................................................... 7-4
3.2. ReadFile ................................................................................................................................................. 7-5
3.3. WriteFile ................................................................................................................................................. 7-6
3.4. DeviceIoControl ...................................................................................................................................... 7-7
3.5. CloseHandle ........................................................................................................................................... 7-8
4. I/O Control Codes ............................................................................................................................................ 7-9
4.1. IOCTL_1284_ ECP_FWDTOREV ........................................................................................................ 7-10
4.2. IOCTL_1284_ECP_REVTOFWD ......................................................................................................... 7-11
4.3. IOCTL_1284_ ECP_SET_CHANNEL .................................................................................................. 7-12
4.4. IOCTL_1284_ SET_MODE .................................................................................................................. 7-13
4.5. IOCTL_1284_ TERMINATE.................................................................................................................. 7-14
4.6. IOCTL_ABORT_PIPE........................................................................................................................... 7-15
4.7. IOCTL_CANCEL_PIPE_REQUEST..................................................................................................... 7-16
4.8. IOCTL_GET_1284_REGISTER ........................................................................................................... 7-17
4.9. IOCTL_GET_ALTSETTING.................................................................................................................. 7-18
4.10. IOCTL_GET_CAPABILITIES.............................................................................................................. 7-19
4.11. IOCTL_GET_CONFIGURATION_DESCRIPTOR .............................................................................. 7-20
4.12. IOCTL_GET_DEVICE_DESCRIPTOR............................................................................................... 7-21
4.13. IOCTL_GET_DEVICE_INSTANCES .................................................................................................. 7-22
4.14. IOCTL_GET_INTERFACE.................................................................................................................. 7-23
4.15. IOCTL_GET_PORT_STATUS ............................................................................................................ 7-24
4.16. IOCTL_ISSUE_USS720_COMMAND................................................................................................ 7-25
4.17. IOCTL_READ_INTERRUPT_PIPE .................................................................................................... 7-26
4.18. IOCTL_RESET_PIPE......................................................................................................................... 7-27
4.19. IOCTL_SET_1284_REGISTER.......................................................................................................... 7-28
Information Manual, Rev. 1 Evaluation Kit for USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 1-5
13
Table of Contents (continued)
4.20. IOCTL_SET_ALTSETTING ................................................................................................................ 7-29
4.21. IOCTL_SOFT_RESET........................................................................................................................ 7-30
5. I/O Control Data Structures ........................................................................................................................... 7-31
5.1. DEVICE_INSTANCE_HEADER............................................................................................................ 7-31
5.2. DEVICE_INSTANCE............................................................................................................................. 7-31
5.3. REGISTER_1284 ................................................................................................................................. 7-32
5.4. ADVREGISTER_1284 .......................................................................................................................... 7-33
USS-720 USB Port Monitor Application Note .....................................................................8-1
Description ........................................................................................................................................................... 8-1
Instructions for Downloading Software for Use with the In-System Design USB
Smart Cable Application Note .............................................................................................9-1
Introduction .......................................................................................................................................................... 9-1
Software Installation Instructions ......................................................................................................................... 9-1
1-6 Lucent Technologies Inc.
Evaluation Kit for USS-720
Instant USB
Information Manual, Rev. 1
USB-to-
IEEE
1284 Bridge September 1999
13
Evaluation Kit Contents
The Lucent Technologies USS-720 Evaluation Kit consists of the following components:
1. One USS-720 Information Manual containing:
■An introduction to the USS-720 Evaluation Kit
■USS-720 Software Licensing information covering the related software
■Lucent Technologies
Incorporating Customer Data into USS-720 Evaluation Kit Software Using the Build Me
One Utility
, Application Note, February 1999, Rev. 1 (AP99-001CMPR-01)
■Lucent Technologies
USS-720
Instant USB
USB-to-
IEEE
1284 Bridge
, Preliminary Data Sheet,
September 1999, Rev. 5 (DS98-393CMPR-5)
■Lucent Technologies
Typical Circuit Showing USS-720 Bridging USB to Parallel Port
, Application Note,
February 1999, Rev. 2 (AP97-069CMPR-2)
■Lucent Technologies USS-720:
USB Device Driver
, Preliminary User Guide, February 1999, Rev. 2 (MN98-
005CMPR-02)
■Lucent Technologies USS-720:
USB Port Monitor
, Application Note, February 1999, Rev. 2 (AP98-
004CMPR-02)
■Lucent Technologies
Instructions for Downloading Software for Use with the In-System Design USB Smart
Cable
, Application Note, June 1999, Rev. 3 (AP97-070CMPR-03)
2. One ISD USB Smart Cable: This cable assembly contains a Lucent Technologies USS-720 device embedded
in the Centronics “B” connector end.
3. One 3 1/2 in. diskette containing the following files:
■glucent.zip // Zipped text file containing example description of bytes used to program
an external EEPROM to be used with Lucent USS-720.
Note: Prior to programming the EEPROM, the data in this sample file
must be modified by the customer to include the customer’s specific
data.
■CleanUp.exe // The Cleanup application is a file unistall program to be used prior to re-
installing driver files during the USS-720 USB enumeration process.
Cleanup.exe is a utility provided as a convenience to developers using
the evaluation kit. It removes the driver files from the system.
Cleanup.exe only works with the driver files provided with the evaluation
kit and is not suitable, nor licensed, for distribution to end-users.
■\Win95_OSR21:
— USS720.INF // ISD USB Smart Cable Install file
— USS720CI.DLL // ISD USB Smart Cable PnP Class Installer
— USS720.SYS // Release version of USS-720 USB Device Driver for OSR2.1
— USS720IN.DLL // ISD USB Smart Cable PnP Printer Port Monitor Installer
— USS720MN.DLL // Release version of ISD USB Printer Port Monitor
■\Win95_OSR21\Debug:
— USS720.INF // Debug version of USS720.INF for OSR2.1
— USS720.SYS // Debug version of USS720.SYS for OSR2.1
— USS720CI.DLL // Debug version of USS720CI.DLL for OSR2.1
— USS720IN.DLL // Debug version of USS720IN.DLL for OSR2.1
— USS720IO.H // Include file required when developing an interface to the USS-720
device driver
— USS720MN.DLL // Debug version of ISD USB Printer Port Monitor
Information Manual, Rev. 1 Evaluation Kit for USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 1-7
13
Evaluation Kit Contents (continued)
■\Win98:
— USS720.INF // ISD USB Smart Cable Install file
— USS720.SYS // Release version of USS-720 USB Device Driver for
Windows
98
— USS720CI.DLL // ISD USB Smart Cable PnP Class Installer
— USS720IN.DLL // ISD USB Smart Cable PnP Printer Port Monitor Installer
— USS720MN.DLL // Release version of ISD USB Printer Port Monitor
■\Win98\Debug
— USS720.INF // Debug version of USS720.INF for
Windows
98
— USS720.SYS // Debug version of USS720.SYS for
Windows
98
— USS720CI.DLL // Debug version of ISD USB Smart Cable PnP Class Installer
— USS720IN.DLL // Debug version of USS720IN.DLL for
Windows
98
— USS720IO.H // Include file required when developing an interface to the USS-720
device driver
— USS720MN.DLL // Debug version of ISD USB Printer Port Monitor
■\SAMPLES
— MakeFile // MakeFile file required for building
— test.c // Sample source
— test.exe // Executable version of sample source
— test.rc // Resource file required for building
— Sources // Source file required for building
Hardware Requirements
In addition to the hardware included in the USS-720 Evaluation Kit, the following hardware is required in order to
use the kit:
■Personal computer with 486 (or higher) processor with:
— 16 Mbytes of RAM.
— USB connector.
And one of the two following operating systems:
—
Windows
98 or
—
Windows
95 version 4.00.950b with the USB supplement (QFE 1214), also known as OSR2.1.
Note: No upgrade path is available from previous versions of
Windows
95 version 4.00.950 to OSR2.1;
Windows
95 version 4.00.950B (OSR2.0) must first be installed, and then the system can be upgraded to OSR2.1.
■Printer or other peripheral device conforming to
IEEE
Standard 1284.
1-8 Lucent Technologies Inc.
Evaluation Kit for USS-720
Instant USB
Information Manual, Rev. 1
USB-to-
IEEE
1284 Bridge September 1999
13
Getting Started Instructions
An initial evaluation of the USS-720 device can be performed using the In-System Design USB Smart Cable (i.e.,
the Lucent USS-720-based USB printer cable), the above-mentioned required hardware, and software supplied on
the 3 1/2 in. diskette included in this kit. The basic evaluation procedure consists of the following steps outlined
below for OSR2.1 and
Windows
98:
OSR2.1 Cable Installation Instructions:
1. Connect the USB printer cable to a printer that is turned on and follow the instructions listed below. (Note that
although it is not necessary to plug the USB printer cable into a printer to perform the following steps, the use of
the printer provides a better demonstration of the USS-720 device's functionality.)
2. With the PC running OSR2.1/QFE 1214, plug the USB end of the USB printer cable into the PC's USB port.
A New Hardware Found box will appear stating that an Unknown Device has been found. Then, the Building
Driver Information Database box will appear as the database is being built. At the end of this process, the
Update Device Driver Wizard box will appear on the screen.
3. Follow the prompts to complete the installation of the Unknown Device, i.e., the USB printer cable:
a. Insert the diskette into the floppy disk drive.
b. Click on the Next button in the Update Device Driver Wizard box. Using the “Browse” button, direct the sys-
tem to the Win95_OSR21 folder on the diskette to find the driver for the “Lucent USS720-based USB Cable.”
c. Click on the Finish button.
4. At this point, the files should automatically be copied from the diskette. The installation process is now com-
plete.
Note: If a Plug and Play printer is being used, then a Plug and Play prompt may appear at this point to install the
printer drivers.
5. To verify that the Lucent USS-720-based USB cable has been correctly installed, right click on My Computer,
and then left click on Properties to access the System Properties box.
6. Choose the Device Manager tab in this box. The “Lucent USS720-based USB Cables” device type should
appear in the list under “Computer”.
7. Double click on “Lucent USS720-based USB Cables”. Another entry, “Lucent USS720-based USB Cable”
device will appear underneath.
8. Now double click on “Lucent USS720-based USB Smart Cable”. A “Lucent USS720-based USB Cable Proper-
ties” box will appear. If the installation was successful, the device status will state that the device is working
properly. If the installation was not successful, use the Cleanup.exe file on the diskette to first uninstall the soft-
ware, then return to step 2 above.
Note: Cleanup.exe is a utility provided as a convenience to developers using the evaluation kit. It removes the
driver files from the system. Cleanup.exe only works with the driver files provided with the evaluation kit and
is not suitable, nor licensed, for distribution to end-users.
If the installation was successful and a printer was attached to the USB printer Cable in step 1, a test page can now
be printed:
■Click on Start/Settings/Printers.
■Right click on the icon for the printer connected to the USB printer cable, then left click on Properties.
■Choose the Details tab. Select the correct USBLPT port [e.g., USBLPT1 (USB Port)] under “Print to the following
port:”. Under “Print using the following driver:”, select the driver that corresponds to the correct printer. Click on
the Apply button and then select the “General” tab.
■To begin the printing process, click on the Print Test Page button.
Information Manual, Rev. 1 Evaluation Kit for USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 1-9
13
Getting Started Instructions (continued)
Windows
98 Cable Installation Instructions:
1. Connect the USB printer cable to a printer that is turned on and follow the instructions listed below. (Note that
although it is not necessary to plug the USB printer cable into a printer to perform the following steps, the use of
the printer provides a better demonstration of the USS-720 device's functionality.)
2. With the PC running
Windows
98, plug the USB end of the USB printer cable into the PC's USB port.
A New Hardware Found box will appear stating that an Unknown Device has been found.
3. Use the Wizard to complete the installation of the Unknown Device, i.e., the Lucent USS-720-based USB
printer cable:
a. You will be prompted to insert the diskette into the floppy disk drive. Insert the Evaluation Kit’s diskette into
the floppy drive and click OK.
b. You will be prompted to direct the operating system to the correct location of the drivers. Using the “Browse”
button, direct the system to the Win98 folder on the diskette, and click OK.
c. Follow the prompts and the software files should automatically be copied from the diskette. The installation
process is now complete.
Note: If a Plug and Play printer is being used, then a Plug and Play prompt may appear at this point to install the
printer drivers.
4. To verify that the USB printer cable has been correctly installed, right click on “My Computer”, and then left click
on Properties to access the System Properties box.
5. Choose the Device Manager tab in this box. The “Lucent USS720-based Cables” device type should appear in
the list under “Computer”.
6. Double click on “Lucent USS720-based USB Cables”. Another entry, “Lucent USS720-based USB Cable” will
appear underneath.
7. Now double click on “Lucent USS720-based USB Cable”. This will cause the “Lucent USS720-based USB
Cable Properties” box to appear. If the installation was successful, the device status will state that the device is
working properly. If the installation was not successful, use the Cleanup.exe file on the diskette to first uninstall
the software, then return to step 2 above.
Note: Cleanup.exe is a utility provided as a convenience to developers using the evaluation kit. It removes the
driver files from the system. Cleanup.exe only works with the driver files provided with the evaluation kit and
is not suitable, nor licensed, for distribution to end-users.
If the installation was successful and an already-installed printer was attached to the USB printer cable in step 1, a
test page can now be printed:
■Click on Start/Settings/Printers.
■Right click on the icon for the printer connected to the USB Cable, then left click on Properties.
■Choose the Details tab. Select the correct USBLPT port under “Print to the following port:”. Under “Print using
the following driver:”, select the driver that corresponds to the correct printer. Click on the Apply button and then
select the General tab of the box.
■To begin the printing process, click on the Print Test Page button.
If further assistance is required during the installation and/or printing process, contact either Lucent Technologies
Applications Engineering or In-System Design (see the
USB Applications Support
document in this manual).
Software Updates
In addition to the files included on the evaluation kit’s diskette, newer versions of the software may be available on
In-System Design’s Web Site: http://www.in-system.com. The library, uss720_dev, contains files that can be
used to evaluate the USS-720 device.
1-10 Lucent Technologies Inc.
Evaluation Kit for USS-720
Instant USB
Information Manual, Rev. 1
USB-to-
IEEE
1284 Bridge September 1999
13
To access software files from In-System Design’s home page, follow these steps:
1. Click on Drivers.
2. In the box labeled Library Name, type the library name: uss720_dev
3. Type the password for the library: usb_to_lpt
(Note: Use all lower-case letters.)
Notes for Developers
Please note that the driver files in this evaluation kit are for evaluation purposes only. Developers can obtain free
drivers suitable for distribution from the web site at www.in-system.com. Selecting “Drivers”, filling out the informa-
tion in the “Build Me One” section and then selecting the “Submit” button will generate a request for drivers to In-
System Design. Select “Frequently Asked Questions” to obtain more details about the required fields such as
Vendor ID. If the information is entered correctly, a response will be sent for verification within 2—5 working days.
Use of the USS-720 Evaluation Kit by developers implies a basic understanding of the USB and
IEEE
1284 inter-
faces as well as basic competency in board design and
Windows
driver programming. The information provided in
this kit is intended only as a guide for the development of a USB-to-
IEEE
1284 bridging solution and, as such, is
not warranted for suitability to any particular purpose.
Following are additional notes regarding the software provided with the USS-720 Evaluation Kit:
USB Driver and Port Monitor
The USS-720 is supplied with a USB driver and a USB port monitor. The port monitor allows
Windows
printer
drivers to print to an
IEEE
1284-compliant printer connected to the USS-720. Note that the supplied software will
work only with printer drivers that use the
Windows
spooling system to interface with the USS-720 USB port
monitor. See the
USS-720 USB Port Monitor
Application Note in this Manual for details.
Plug and Play
The Plug and Play capabilities of the supplied software are limited to the enumeration of the USS-720 device only.
Port Creation
The USS-720 software driver supports printing via the creation of a port named USBLPTx, where x is an integer
between 1 and 127. Each instantiation of the driver will generate another USBLPTx port. If two developers both
have products based on the USS-720 connecting to the same USB bus, it may not be clear which device is
connected to which USBLPTx port.
Information Manual, Rev. 1 Evaluation Kit for USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 1-11
13
Notes for Developers (continued)
EEPROM
Developers using the USS-720 must use an external serial EEPROM (or the equivalent) in their design and create
their own hex data file for use in programming the EEPROM at their site. See the USS-720 data sheet and the
glucent.zip file on the kit’s diskette for more information. The configuration data stored in this serial EEPROM is
used by the
Microsoft
host software during enumeration to load the appropriate drivers. Using unique identification
data in the EEPROM provides a means for the developer to ensure that only their software is loaded for use with
their device. Otherwise, the enumeration of a camera using the USS-720 could cause the software for a USS-720-
based printer to be loaded, resulting in a system which does not function correctly.
1-12 Lucent Technologies Inc.
Evaluation Kit for USS-720
Instant USB
Information Manual, Rev. 1
USB-to-
IEEE
1284 Bridge September 1999
13
September 1999
13
Lucent Technologies Inc. 2-1
USB Applications Support
Applications support for Lucent Technologies USS-720 Universal Serial Bus products can be obtained by
contacting the following:
Lucent Technologies Microelectronics Group
1247 S. Cedar Crest Blvd.
Allentown, PA 18103 U.S.A.
Phone: (610) 712-2947
FAX: (610) 712-2820, Attention: USB Applications Engineering
e-mail: usb@lucent.com
77 Science Park Drive #03-18
Cintech III, Singapore 118256
Phone: (65) 870 5733
FAX: (65) 777 7495, Attention: Jeffrey Lam
e-mail: zpjlam@lucent.com
In-System Design, Inc.
12426 W. Explorer Drive
Suite 100
Boise, Idaho 83713 U.S.A.
Phone: (208) 377-9222
FAX: (208) 377-9333
e-mail: support@in-system.com (Subject: USB)
Please see “Notes for Developers” in the Introduction of this Information Manual for more information on avail-
able driver support.
2-2 Lucent Technologies Inc.
USB Applications Support September 1999
13
February 1999
Lucent Technologies Inc. 3-1
USS-720
Software Use Agreement
Evaluation Kit Software
Introduction
In accordance with the license agreement that follows, your use of the software and other information furnished
as part of the USS-720 Evaluation Kit is intended for uses in connection with evaluating and testing Lucent’s
USS-720 device and beginning development efforts. In addition, subject to the license agreement, you may
also distribute the software with the your USS-720 based peripheral. The software furnished as part of the Kit,
along with updates, is also available (without charge) at In System Design, Inc.’s website at www.in-
system.com.
Before evaluating or distributing the software, it is advisable to visit the website to access any updates and in
some cases, to furnish certain information relating to your peripheral.
BY USING THE SOFTWARE FURNISHED AS PART OF THE EVALUATION KIT OR ACCESSING THE
SOFTWARE AT THE IN-SYSTEM WEBSITE, YOU AGREE TO THE LICENSE AGREEMENT THAT
FOLLOWS. IF YOU DO NOT AGREE WITH THE LICENSE AGREEMENT PLEASE RETURN THE KIT TO
LUCENT AND REFRAIN FROM ANY USE OF THE SOFTWARE.
Please Note: The software available through the website that is free of charge is suitable for most printing
applications where the end-user manually installs the printer driver. However, the free software has limited
functionality with respect to some features, such as “Child Discovery” which enables the attached printer to
“Plug and Play.” Such enhanced versions of the software are available under a separate licensing agreement
based on per unit royalties payable to In-System Design, Inc. (Contact In-System Design Marketing for more
details: jack@in-system.com).
USS-720 Driver Software (Object Code) License Agreement
Note: Capitalized terms have the meanings ascribed to them in the Definitions Appendix.
The use and distribution of USS720 driver software by any LICENSEE is strictly limited to the following terms
and conditions:
ARTICLE I—RIGHT TO USE LICENSED SOFTWARE
1.01 Grant of Right
(a) LUCENT TECHNOLOGIES INC. (“LUCENT”) grants to LICENSEE personal, nontransferable, and nonex-
clusive rights (i) to use the LICENSED SOFTWARE to evaluate and test the LUCENT DEVICE, (ii) to use
LICENSED SOFTWARE with the LUCENT DEVICE when incorporated in SYSTEMS and (iii) subject to
Section 1.01(e), to furnish copies of LICENSED SOFTWARE to LICENSEE's customers worldwide in
object-code form solely for use in SYSTEMS.
(b) No right is granted for the use of LICENSED SOFTWARE for or by any third person except as provided
above or for use of any portion of LICENSED SOFTWARE other than for use in SYSTEMS.
3-2 Lucent Technologies Inc.
USS-720
Software Use Agreement February 1999
USS-720 Driver Software (Object Code) License Agreement (continued)
(c) LICENSEE may make those copies of LICENSED SOFTWARE necessary to the use by LICENSEE for which
rights are granted hereunder, provided that each such copy contains any copyright and/or proprietary notice
appearing on or in the LICENSED SOFTWARE being copied.
(d) LICENSEE agrees that it will not use or copy LICENSED SOFTWARE except as authorized herein.
(e) LICENSEE agrees that any distribution of the LICENSED SOFTWARE to customers shall only be in object
code form and pursuant to a license agreement containing essentially the following:
(i) only a personal, nontransferable, and nonexclusive right to use such copy in SYSTEMS is granted to such
customer;
(ii) no ownership interest in LICENSED SOFTWARE is transferred to such customer;
(iii) such customer will not copy LICENSED SOFTWARE except as necessary to use LICENSED SOFT-
WARE in SYSTEMS and for backup and archive purposes in connection with such use and will include all
copyright and/or proprietary notices in such copies;
(iv) if a customer's right-to-use is terminated for any reason, such customer will either destroy or return all
copies of LICENSED SOFTWARE in its possession;
(v) such customer will not export or re-export LICENSED SOFTWARE without the appropriate Unites States
and/or foreign government licenses;
(vi) such customer will not reverse compile or disassemble LICENSED SOFTWARE, subject to applicable
exceptions if such customer’s address is in one of the Member States of the European Economic Commu-
nity; and
(vii) LUCENT does not warrant LICENSED SOFTWARE, does not assume any liability regarding LICENSED
SOFTWARE, and does not undertake to furnish any support or information to such customer regarding
LICENSED SOFTWARE.
(f) LICENSEE agrees to use its best efforts to enforce the agreements with customers referred to in Section
1.01(e).
(g) The agreement specified in Section 1.01(e) may be (i) a written agreement signed by the customer or (ii) a
written agreement on or accompanying the package containing the LICENSED SOFTWARE that is visible or
otherwise disclosed to the customer before the customer opens the package, that the customer accepts by
opening the package and that complies with applicable law governing such agreements.
1.02 Furnishing of LICENSED SOFTWARE
Subject to receipt by LUCENT of the fee specified in Section 2.01, within a reasonable time after such receipt,
LUCENT shall furnish LICENSED SOFTWARE to LICENSEE in the form specified in the attached Schedule.
1.03 Ownership
No ownership interest in LICENSED SOFTWARE is transferred to LICENSEE hereunder. LICENSEE's ownership
interest is limited solely to those portions of LICENSEE's adaptations that do not contain any of LICENSED SOFT-
WARE.
1.04 U.S. Export Control
LICENSEE acknowledges that LICENSED SOFTWARE is subject to export restrictions under U.S. Export Admin-
istration Regulations and international arrangements of the U.S. Government. LICENSEE agrees not to ship or
otherwise transmit LICENSED SOFTWARE except in compliance with all such U.S. Government regulations and
arrangements.
USS-720
February 1999 Software Use Agreement
Lucent Technologies Inc. 3-3
USS-720 Driver Software (Object Code) License Agreement (continued)
ARTICLE II—FEES AND PAYMENTS
2.01 Fees
LICENSEE shall, within thirty (30) days after execution of this Agreement by both parties and invoice by LUCENT,
pay to LUCENT a fee of _________ for the rights granted herein.
2.02 Taxes
LICENSEE shall pay any tax (and any related interest or penalty), however designated, imposed as a result of the
existence or operation of this agreement, including any tax which LICENSEE is required to withhold or deduct from
payments to LUCENT, except (i) any such tax imposed upon LUCENT or any of its subsidiaries in the jurisdiction in
which the aforesaid office of LICENSEE is located if such tax is allowable as a credit against United States income
taxes of LUCENT or any of its subsidiaries; and (ii) any income tax imposed upon LUCENT or any of its subsid-
iaries by the United States or any governmental entity within the United States proper (the fifty states and the
District of Columbia). To assist LUCENT in obtaining the credit identified in (i) of this Section 2.03, LICENSEE shall
furnish LUCENT with such evidence as may be required by United States taxing authorities to establish that any
such tax has been paid. Fees specified in this agreement do not include taxes.
ARTICLE III—TERMINATION
3.01 Termination for Breach
If LICENSEE fails to fulfill one or more of its obligations under this agreement, LUCENT may, upon its election and
in addition to any other remedies that it may have, at any time terminate all the rights granted by it hereunder by not
less than two (2) months' written notice to LICENSEE specifying any such breach, unless within the period of such
notice all breaches specified therein have been remedied. Upon such termination, LICENSEE shall destroy all
copies of LICENSED SOFTWARE in its possession and certify such destruction in writing to LUCENT within thirty
(30) days. In the event of such termination by LUCENT, LUCENT shall have no obligation to refund any amount
paid pursuant to Section 2.01.
3.02 Survival
The obligations of LICENSEE under Sections 1.04 and 4.04 shall survive and continue after any termination of
rights under this agreement.
3-4 Lucent Technologies Inc.
USS-720
Software Use Agreement February 1999
USS-720 Driver Software (Object Code) License Agreement (continued)
ARTICLE IV—MISCELLANEOUS PROVISIONS
4.01 Agreement Prevails
This agreement shall prevail notwithstanding any conflicting terms or legends which may appear on or in
LICENSED SOFTWARE.
4.02 Warranty and Indemnity
(a) LUCENT warrants that LICENSED SOFTWARE will be in good working order at the time it is furnished. If
LICENSED SOFTWARE is not in good working order at such time, LUCENT will, upon return of LICENSED
SOFTWARE at any time within ninety (90) days after LICENSED SOFTWARE was first furnished, replace
LICENSED SOFTWARE without charge.
(b) The devices in the LUCENT CHIP SET are covered by the warranty and indemnity provisions set forth in the
LUCENT terms and conditions pursuant to which such products are sold.
(c) LUCENT AND ITS AFFILIATES MAKE NO OTHER REPRESENTATIONS OR WARRANTIES, EXPRESS OR
IMPLIED, REGARDING LICENSED SOFTWARE. BY WAY OF EXAMPLE, BUT NOT OF LIMITATION,
LUCENT AND ITS AFFILIATES MAKE NO REPRESENTATIONS OR WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE OR THAT THE USE OF LICENSED SOFTWARE WILL NOT
INFRINGE ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. LUCENT AND ITS
AFFILIATES SHALL NOT BE HELD TO ANY LIABILITY WITH RESPECT TO ANY CLAIM BY LICENSEE, OR
A THIRD PARTY ON ACCOUNT OF, OR ARISING FROM, THE USE OF LICENSED SOFTWARE.
(d) Nothing herein confers on LICENSEE, or upon anyone claiming under LICENSEE, any license (expressly,
impliedly, by estoppel or otherwise) under any patent of LUCENT or others covering or relating to any combina-
tion in which LICENSED SOFTWARE is or might be used.
4.03 Nothing Construed
Nothing contained herein shall be construed as:
(i) conferring by implication, estoppel, or otherwise any license or right to use any name, trade name, trade-
mark, service mark, symbol, or any other identification or any abbreviation, contraction, or simulation
thereof;
(ii) an obligation upon LUCENT or any of its affiliates to furnish any person, including LICENSEE, any assis-
tance of any kind whatsoever or any information or documentation other than LICENSED SOFTWARE to
be furnished pursuant to Section 1.02; or
(iii except for the right to furnish object-code versions to customers as provided in Section 1.01(a)(ii), a right
to sell, lease, sublicense or otherwise transfer or dispose of LICENSED SOFTWARE, in whole or in part.
4.04 Confidentiality
(a) LICENSEE agrees to hold all parts of LICENSED SOFTWARE in confidence for LUCENT. LICENSEE further
agrees not to make any disclosure of LICENSED SOFTWARE (including methods or concepts utilized therein)
to anyone, except to employees of LICENSEE to whom such disclosure is necessary to the use for which rights
are granted hereunder.
(b) LICENSEE shall ensure that an obligation not to disclose confidential information forms part of its terms of
employment.
USS-720
February 1999 Software Use Agreement
Lucent Technologies Inc. 3-5
USS-720 Driver Software (Object Code) License Agreement (continued)
(c) LICENSEE's obligations under this Section 4.04 shall not apply to any information relating to LICENSED SOFT-
WARE (including any method or concept utilized therein) that:
(i) is or becomes available without restriction to the general public by acts not attributable to LICENSEE or its
employees,
(ii) was rightfully in LICENSEE's possession without limitation on disclosure before disclosure hereunder to
LICENSEE,
(iii) is rightfully disclosed to LICENSEE by a third party without restrictions on disclosure, or
(iv) is independently developed by LICENSEE.
4.05 Publicity
LICENSEE agrees that it will not, without the prior written consent of LUCENT;
(i) use in advertising, publicity, packaging, labeling, or otherwise any trade name, trademark, trade device,
service mark, symbol, or any identification or any abbreviation, contraction or simulation thereof owned by
LUCENT or any of its affiliates or used by LUCENT or any of its affiliates to identify any of its or their prod-
ucts or services or
(ii) represent, directly or indirectly, that any product or service of LICENSEE is a product or service of
LUCENT or any of its affiliates or is made in accordance with or utilizes any information or documentation
of LUCENT or any of its affiliates.
4.06 Nonassignability
Neither this Agreement nor any rights hereunder shall be assignable or transferable (in insolvency proceedings or
otherwise) by LICENSEE without the express written consent of LUCENT. Any purported transfer or assignment in
contravention of this provision shall be considered void and ineffective.
4.07 Addresses
Any statement, notice, request, or other communication hereunder shall be deemed to be sufficiently given to the
addressee and any delivery hereunder deemed made when sent by certified mail addressed as follows:
to LUCENT:
LUCENT TECHNOLOGIES INC.
555 Union Boulevard
Allentown, Pa. 18103-1229
ATTN.:
to LICENSEE:
{company name}
{company street address}
{company city, state, zip}
{company phone number}
or to such changed address as the addressee shall have specified by written notice.
4.08 Integration
This agreement sets forth the entire agreement and understanding between the parties as to the subject matter
hereof and merges all prior discussions between them. Neither of the parties shall be bound by any warranties,
understandings, or representations with respect to such subject matter other than as expressly provided herein, in
the object code agreement or in a writing executed with or subsequent to the execution of this agreement by an
authorized representative of the party to be bound thereby.
3-6 Lucent Technologies Inc.
USS-720
Software Use Agreement February 1999
USS-720 Driver Software (Object Code) License Agreement (continued)
4.09 Applicable Law
The construction and performance of this agreement shall be governed by the laws of the State of New York,
U.S.A., excluding choice of law rules.
4.10 Disputes
If a dispute arises out of or relates to this Agreement, or its breach, the parties agree to submit the dispute to a sole
mediator selected by the parties or, at any time at the option of a party, to mediation by the American Arbitration
Association (“AAA”). If not thus resolved it shall be referred to a sole arbitrator selected by the parties within thirty
(30) days of the mediation or, in the absence of such selection, to AAA binding arbitration which shall be governed
by the United States Arbitration Act and judgment on the award may be entered in any court having jurisdiction.
The mediation or arbitration shall be held in New York City. The arbitrator may not limit, expand or otherwise modify
the terms of the Agreement. The arbitrator shall not have authority to award punitive, exemplary or other damages
in excess of compensatory damages and each party irrevocably waives any claim thereto. Each party shall bear its
own expenses and those of the mediator and arbitrator shall be borne equally. The parties, their representatives,
other participants and the mediator and arbitrator shall hold the existence, content and result of mediation and arbi-
tration in confidence.
IN WITNESS WHEREOF, each of the parties has caused this agreement to be executed in duplicate originals by its
duly authorized representatives on the respective dates entered below.
LUCENT TECHNOLOGIES INC.
By {Marketing person's name}
Title {Marketing person's title}
Date
Signed:___________________________________
{company name}
By
Title
Date
Signed:___________________________________
USS-720
February 1999 Software Use Agreement
Lucent Technologies Inc. 3-7
USS-720 Driver Software (Object Code) License Agreement (continued)
DEFINITIONS APPENDIX
LUCENT DEVICE means the LUCENT USS720 device.
LICENSEE means a customer of Lucent’s USS720 device using the LICENSED SOFTWARE.
LICENSED SOFTWARE means all or any portion of the software files in object-code form, other information and
documentation specifically listed in the attached “Schedule for LUCENT USS720 Driver Software and any updates
that may be furnished to LICENSEE.”
SYSTEM means any system manufactured by LICENSEE incorporating one or more LUCENT DEVICES.
Schedule for LUCENT USS720 Driver Software (Object Code)
1. Software Files
The following software files will be furnished in object-code form on 3.5” Floppy Disk or by electronic mail:
----------------
1. Class Installer, USS720CI.DLL;
2. USB WDM device driver, USS720.SYS;
3. Port monitor installer, USS720IN.DLL;
4. Port monitor, USS720MN.DLL;
5. Install file, USS720.INF;
2. Documentation
One copy of the following document(s) will be furnished:
1. USS720 USB Device Driver
2. USS720 USB Port Monitor
3-8 Lucent Technologies Inc.
USS-720
Software Use Agreement February 1999
Application Note, Rev. 1
February 1999
Lucent Technologies Inc. 4-1
Incorporating Customer Data into USS-720
Evaluation Kit Software Using the Build Me One Utility
Introduction
Using the Build Me One utility found on In-System
Design’s web site, the USS-720 Evaluation Kit soft-
ware can be modified to include data specific to a
customer’s USB peripheral. This document describes
the components, customization data, and other
general topics related to the free software provided
by Lucent Technologies and In-System Design in
support of the USS-720
Instant USB
™ device. See
the instructions under Customer-Defined Data below
for information on obtaining the free software.
Software Components
The files obtained by using the Build Me One utility
are the software necessary for standard PnP installa-
tion and operation of the USS-720-based USB Smart
Cable. This software consists of:
1. Class Installer, xxxxxxCI.DLL;
2. WDM device driver, xxxxxxSB.SYS;
3. Port monitor installer, xxxxxxIN.DLL;
4. Port monitor, xxxxxxMN.DLL;
5. Install file, xxxxxxSB.INF;
The six-character “xxxxxx” strings are defined by the
customer. (Refer to ‘Driver Name’ information in the
Customer-Defined Data section below.)
Example: If “XYZPRT” is the ‘Driver Name’ defined
by the customer, then the Class Installer software file
would be named XYZPRTCI.DLL.
Class Installer
The Class Installer checks that the operating system
version is compatible with the USB Smart Cable soft-
ware being loaded. This is necessary as there are
two different binary versions of this software, one for
Microsoft Windows
* 95/OSR2.1 and one for
Microsoft Windows
98. Furthermore, the Class
Installer checks that all required components are
installed for OSR2.1 systems (
Windows
95 with the
USB supplement and QFE).
If the Class Installer finds the operating system is
correct, the device driver and port monitor are
installed. If the Class Installer finds the operating
system either does not correspond to the software or
the operating system does not have all required
components, an error message is displayed.
WDM Device Driver
The device driver for the USB Smart Cable follows
the
Windows
Driver Model specification. Note there
are different binaries for
Windows
95 and
Windows
98 as different libraries are linked. Note
that the supplied software will work only with printer
drivers that use the
Windows
spooling system to
interface with the USS-720 USB port monitor.
Port Monitor
The port monitor, developed by In-System Design, is
responsible for the communication between the
Windows
spooler and a printer. This port monitor
enables printing from
Windows
applications using the
USB Smart Cable. The port monitor controls the I/O
port to which the physical printer is connected and is
responsible for the communication channel between
the spooler and the printer.
Install File
The install file is modified to match the information
provided by the customer. The information in the
external EEPROM is used during the Plug and Play
process to load the correct device driver.
*
Microsoft
and
Windows
are registered trademarks of Microsoft
Corporation.
4-2 Lucent Technologies Inc.
Incorporating Customer Data into USS-720 Application Note, Rev. 1
Evaluation Kit Software Using the Build Me One Utility February 1999
Customer-Defined Data
Customer-defined data may be submitted to In-System
Design using the Build Me One utility located on the In-
System Design web site. Access www.in-
system.com; select the Drivers area and then the
utility labeled “Build Me One.”
The modification of the software requires the following
strings to be provided by the customer:
1. Device Descriptor String
2. Manufacturer String
3. Vendor ID
4. Product ID
5. Driver Name
6. Port Name
Device Description String
This string describes the name of the customer’s
product. The install file will include a product name
string of 20 characters (including spaces).
Example: “XYZ PRINTER CABLE”.
Manufacturer String
This string is the name of the manufacturer and is
limited to 20 characters (including spaces).
Example: “XYZ CORP.”
Vendor ID
A unique USB Vendor ID is required for the software
modification process. The Vendor ID field is limited to
four hex characters. Prior to submitting data to In-
System Design, the customer must obtain a unique
Vendor ID from the USB organization [see
www.usb.org/developers]. Refer to the Frequently
Asked Questions section at the bottom of the In-
System Design “Drivers” web page for more informa-
tion on Vendor IDs.
Example: “0x12AB”
Product ID
The Product ID typically represents the revision
number of the product. The Product ID field is limited to
four characters. The revision number appears in a
dialog box of the device properties. The most and least
significant bytes are swapped so that a Product ID of
0x0100 is displayed as revision 1.00. The customer is
responsible for selecting its own Product ID.
Example: “0x0100”
Driver Name
The driver name is the six-character prefix that is used
to form the customer’s software file names described in
the Software Components section found earlier in this
document.
Example: “XYZPRT”
Port Name
The port name is the six-character name that identifies
the LPT port which represents the USB Smart Cable
attached device. In the Evaluation Kit version of the
software, this port is USBLPTx: (where x is a number
between 1 and 127).
Example: “LPTXYZ”
Plug and Play Operation (PnP)
Installation of the USB Smart Cable software is started
by connecting the USB Smart Cable to the host PC or
USB hub. Enumeration occurs and the proper software
components for the USB Smart Cable are loaded
through the normal PnP operation. Note that there is
no user interface or installer program that the user
needs to execute. The user will be prompted to insert
the floppy containing the USB Smart Cable driver
during the PnP operation.
Printer Enumeration
The printer attached to the USB Smart Cable does not
enumerate with this software.
Application Note, Rev. 1 Incorporating Customer Data into USS-720
February 1999 Evaluation Kit Software Using the Build Me One Utility
Lucent Technologies Inc. 4-3
Operating Systems Supported
This software runs in
Windows
95, and
Windows
98.
Windows
95 must actually be OSR2.1 version 1214,
which contains the USB supplement and QFE. Each
vendor who purchases the USB Smart Cable from In-
System Design must execute an agreement with
Microsoft
in order to distribute the USB supplement.
Microsoft
may license the vendor to distribute the
following files to update
Windows
95 software:
1. OEMUSB.EXE version 4.03.1214,
2. DETROITR.EXE,
3. USBUPD1.EXE version 4.03.1214.
To execute a distribution agreement with
Microsoft
,
contact Stephanie Selden at
Microsoft
, email
sselden@microsoft.com.
Note: As of August 1998,
Microsoft
is no longer
licensing the OSR2.1 supplement.
Power Management
The USB Smart Cable supports power management
on the PC if its operating system supports the specific
power management feature. The USB Smart Cable
supports suspend and resume functions in all
supported operating systems.
Note that OSR2.1 supports suspend and resume func-
tions but there is no USB support in OSR2.1 for “0 volt
suspend” in which case some PCs cut the power upon
suspending.
Windows
98 does support “0 volt
suspend.”
USB Hardware Types Supported
The USB Smart Cable operates with all OHCI and UHCI
USB controllers and hubs that are compliant with the
USB Specification, Revision 1.0.
Installation Process
The software for the USB Smart Cable is loaded auto-
matically by
Windows
PnP operation.
USBLPTx Ports
Evaluation kit version of software:
For each USB Smart Cable plugged into a host’s USB,
a port will be added called USBLPTx (where x can be
from 1 through 127). These ports will remain in the
system with their current status if a printer is associ-
ated with the port. If no printer is associated with a
USBLPT port when the corresponding USB Smart
Cable is removed, the port is removed from the system.
Modified version of the USS-720 software:
For each USB Smart Cable plugged into a host’s USB,
a port will be added called XXXXXXx (where x can be
from 1 through 127). The “XXXXXX” string is defined
by the customer, for example: “LPTXYZ”.
EEPROM
Developers using the USS-720 must use an external
serial EEPROM (or the equivalent) in their design and
create their own hex data file for use in programming
the EEPROM at their site. See the USS-720 Data
Sheet and the glucent.zip file on the kit’s diskette for
more information. The configuration data stored in this
serial EEPROM is used by the
Microsoft
host software
during enumeration to load the appropriate drivers.
Using unique identification data in the EEPROM
provides a means for the developer to ensure that only
their software is loaded for use with their device.
4-4 Lucent Technologies Inc.
Incorporating Customer Data into USS-720 Application Note, Rev. 1
Evaluation Kit Software Using the Build Me One Utility February 1999
Printer Types Supported
The following printers have been thoroughly tested and
are known to work with the USS-720 software. Some
printers require bidirectional mode to be disabled.
There are known to be some printers which do not
work with the USB Smart Cable. This is often due to an
incompatibility with the printer’s
Windows
driver. Some
printers also have incompatibilities in their implementa-
tion of the
IEEE
1284 printer port. Lucent’s USS-720
customer assumes all responsibility for testing the
printers that will be used by their customers.
Note also that this list of printers represents only those
printers that In-System Design has used to extensively
test the USS-720 software. There are many additional
printers that work with the USS-720 and its associated
software.
Table 1. Print Types Supported
1.
BJ
,
BJC
, and
Canon
are registered trademarks and
Bubble Jet
is a trademark of Canon Inc.
2.
EPSON
, the EPSON logo, and EPSON Stylus, are registered trademarks of Seiko Epson Corporation, registered in the U.S. and other coun-
tries.
3.
Hewlett-Packard
,
DeskJet
, and
LaserJet
are registered trademarks of Hewlett-Packard Company.
4.
Lexmark
is a registered trademark of Lexmark International, Inc.
5.
NEC
is a registered trademark of NEC Technologies Inc.
Printer Vendor Comments
Bubble Jet BJ
1-200ex InkJet printer
Canon
1Bidirectional Disabled
Bubble Jet BJC
1-240 InkJet printer
Canon
Bidirectional Disabled
Bubble Jet BJC
-610 InkJet printer
Canon
Bidirectional Disabled
Bubble Jet BJC
-4200 Color InkJet printer
Canon
Bidirectional Disabled
Epson Stylus
2 500 Color InkJet printer
Epson
2 America —
Epson Stylus
800 Color InkJet printer
Epson
America —
DeskJet
3
340CM printer
Hewlett-Packard
3—
DeskJet
672C InkJet printer
Hewlett-Packard
—
DeskJet
692C InkJet printer
Hewlett-Packard
—
DeskJet
694C InkJet printer
Hewlett-Packard
—
DeskJet
722C InkJet printer
Hewlett-Packard
—
DeskJet
820Cse InkJet printer
Hewlett-Packard
Bidirectional Disabled
DeskJet
870Cxi InkJet printer
Hewlett-Packard
—
DeskJet
1200C InkJet printer
Hewlett-Packard
—
LaserJet
3
4si
Hewlett-Packard
—
LaserJet
5P
Hewlett-Packard
—
LaserJet
6P
Hewlett-Packard
—
LaserJet
6L PCL
Hewlett-Packard
—
1000 ColorFine
Lexmark
4—
SuperScript 860 laser printer
NEC
5—
Preliminary Data Sheet, Rev. 5
September 1999
13
Lucent Technolgies Inc. 5-1
USS-720
Instant USB
™
USB-to-
IEEE
* 1284 Bridge
Features
Device Features:
■Full compliance with the
Universal Serial Bus Specifi-
cation Revision 1.0
■On-chip transceivers for USB
■Low power consumption allows part to be powered
from USB connection
■Dual on-chip USB packet buffers for fast response
■Fully compatible USB host device drivers available
■Fully compliant with USB printer device class specifi-
cation
■Implemented in Lucent Technologies Microelectron-
ics Group’s 0.35 µm, 3 V standard-cell library
■Complete single-chip solution in a 44-pin MQFP
■Evaluation kit available
IEEE
1284 (Parallel) Features:
■Transparent, fully automatic support for true bidirec-
tional communication
■Hardware initiates and manages automatic negotia-
tion for the fastest protocol available
■Supports standard PC parallel port register-based
operation
■Support of multiple logical channels
■Maximum throughput: 1.216 Mbytes/s (ECP mode)
Description
The USS-720 integrated circuit connects an
IEEE
1284
parallel port peripheral to the universal serial bus (USB).
It is designed to be a low-cost, single-chip embedded
solution requiring minimal external components. It is
suitable for a wide range of applications, from integrated
applications where the IC is mounted on a printed-
circuit board inside a product, to stand-alone applica-
tions where the chip provides a standard parallel port to
a USB-capable computer. The USS-720 software
included in the Evaluation Kit allows peripheral vendors
to evaluate and test the USS-720 device, which is
embedded in the
Centronics
† end of a USB-to-parallel
port cable provided with the kit. This solution requires
no firmware changes on the parallel port peripheral.
* IEEE
is a registered trademark of The Institute of Electrical and
Electronics Engineers, Inc.
†
Centronics
is aregistered trademark of Centronics Data Com-
puter Corporation.
5-5109a.r6

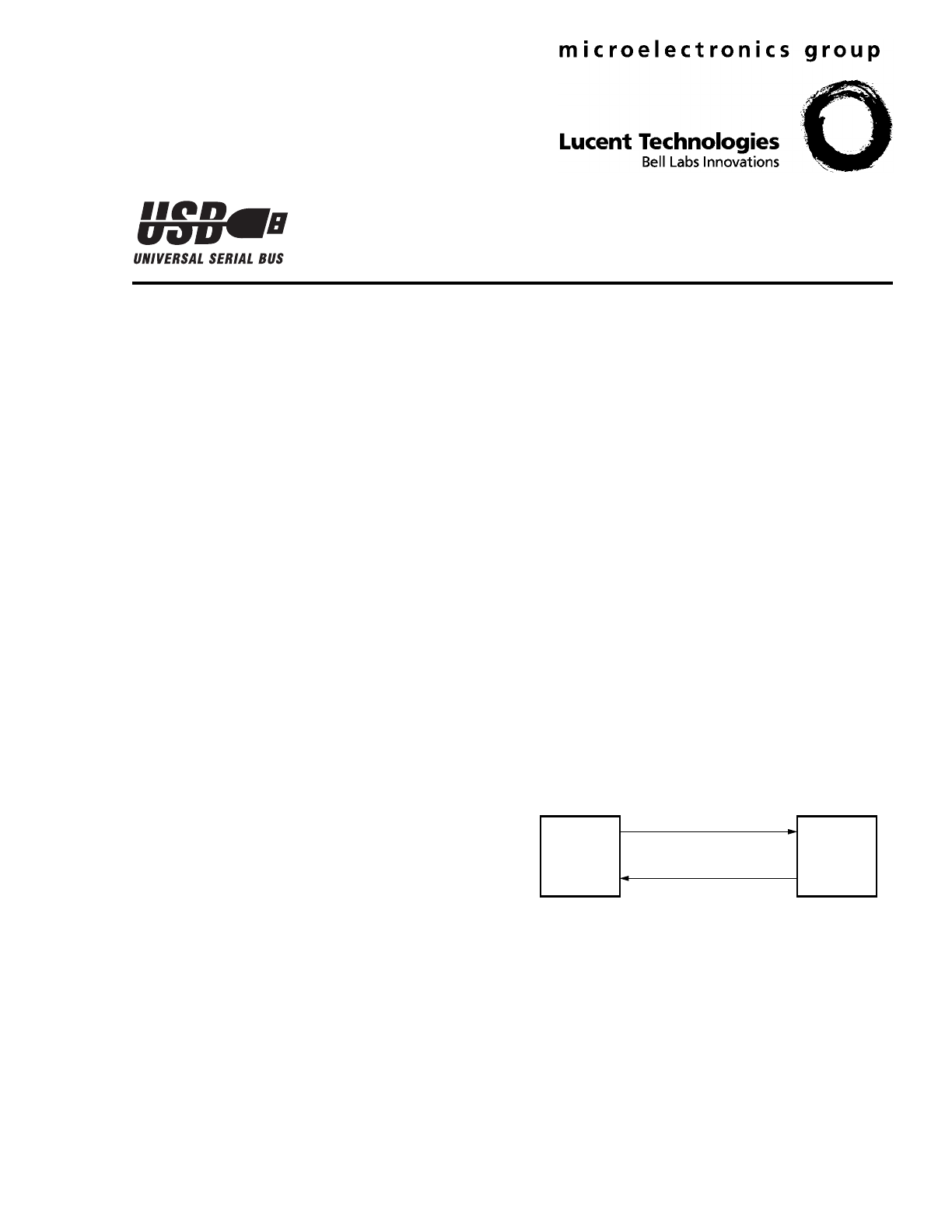

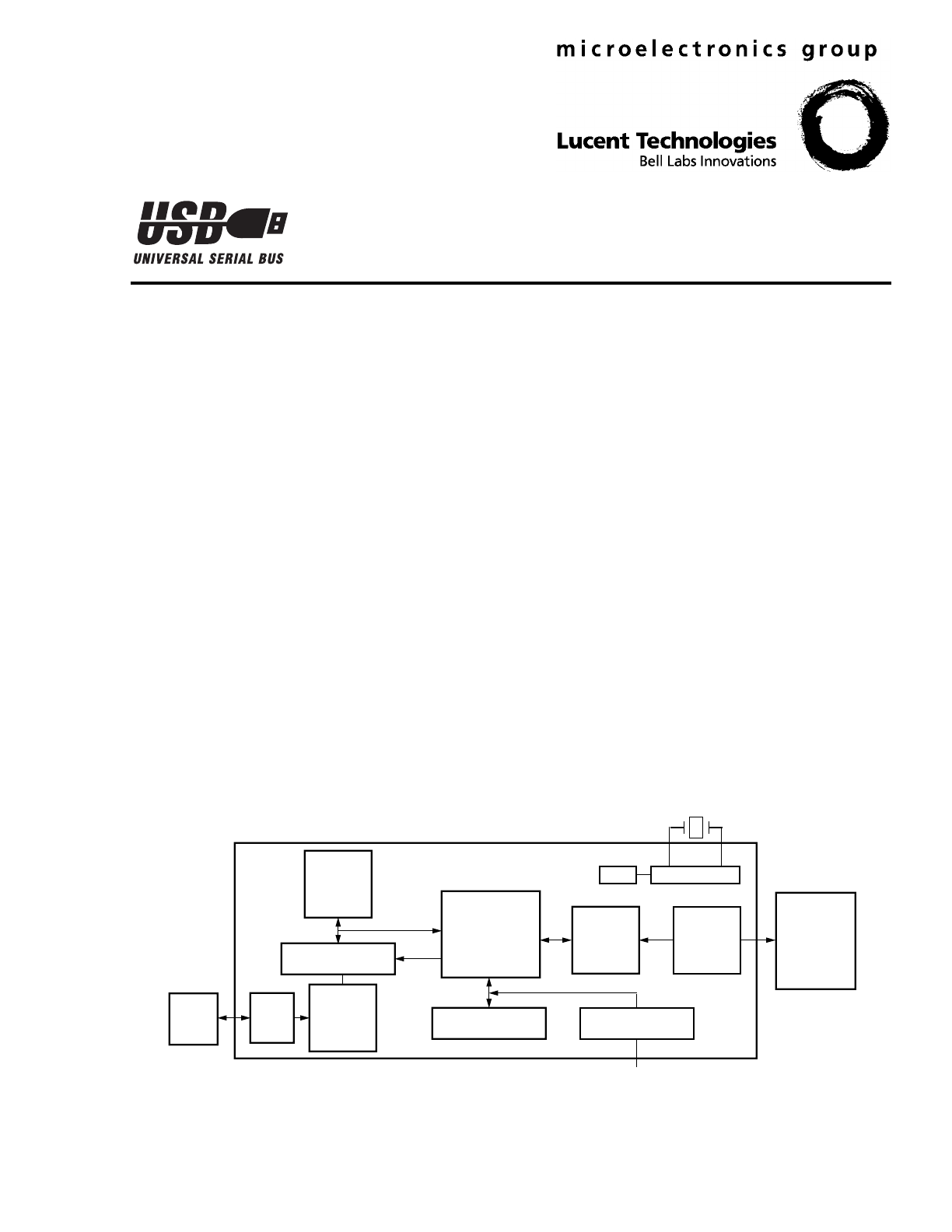

Figure 1. Block Diagram
USS-720
IEEE
1284
PARALLEL
PORT
IEEE
1284
HOST
CONTROL
AND INTERFACE
LOGIC
NONVOLATILE
CONFIGURATION
SELECT LOGIC
USB
XCVR UDC
CORE
USB
PORT
BUFFER
RAM
PERIPHERAL
IEEE
1284
BUFFERS
OSCILLATORPLL
EEPROM
INTERFACE
EXTERNAL SERIAL EEPROM
Note: Advisories are issued as needed to update product information. When using this data sheet for design purposes, please contact
your Lucent Technologies Microelectronics Group Account Manager to obtain the latest advisory on this product.
Table of Contents
Contents Page Contents Page
5-2 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
Features ................................................................. 5-1
Description .............................................................. 5-1
Pin Information ....................................................... 5-3
Overview ..................................................................5-5
USB Port ................................................................. 5-5
Device Descriptor, Configurations, and
Interfaces..........................................................5-5
Supported Descriptors .............................5-5
Descriptor Locations.........................................5-5
Onboard Device Descriptor ..............................5-6
Configuration Descriptor...................................5-7
Interface Descriptors.........................................5-8
Interface 0, Alternate Setting 0
(I0:A0) .....................................................5- 8
Interface 0, Alternate Setting 1
(I0:A1) ..................................................... 5-9
Interface 0, Alternate Setting 2
(I0:A2) ................................................... 5-10
Pipes...............................................................5-11
Control Pipe .......................................... 5-11
Bulk In Pipe ........................................... 5-11
Bulk Out Pipe ........................................ 5-11
Interrupt Pipe ........................................ 5-11
Interpipe Synchronization ..................... 5-11
Requests ........................................................5-11
Standard Requests.........................................5-11
Printer Class-Specific Requests .....................5-12
GET_DEVICE_ID .................................. 5-12
GET_PORT_STATUS ........................... 5-12
SOFT_RESET ...................................... 5-12
Vendor-Specific Requests ..............................5-13
GET_1284_REGISTER ........................ 5-13
SET_1284_REGISTER ......................... 5-13
IEEE
1284 Port ..................................................... 5-14
Register-Based Operation ............................. 5-14
Standard Mode (000) ........................... 5-14
Bidirectional Mode (001) ...................... 5-14
Compatibility Mode (010) ..................... 5-14
ECP Mode (011) .................................. 5-14
EPP Mode (100) ................................... 5-14
Registers........................................................ 5-15
Data Register ....................................... 5-16
Status Register ..................................... 5-16
Control Register ................................... 5-17
EPP Address Register ......................... 5-18
EPP Data Register ............................... 5-18
ECP Command Register ..................... 5-19
Extended Control Register .................. 5-20
USS-720 Control Register .................... 5-21
USS-720 Setup Register ...................... 5-22
Interrupts........................................................ 5-23
nAck Interrupt ....................................... 5-23
EPP Time-Out Interrupt ........................ 5-23
nFault Interrupt ..................................... 5-23
Bulk In Interrupt .................................... 5-23
Bulk Out Interrupt ................................. 5-23
Change Interrupt .................................. 5-23
Disconnect Interrupt ............................. 5-23

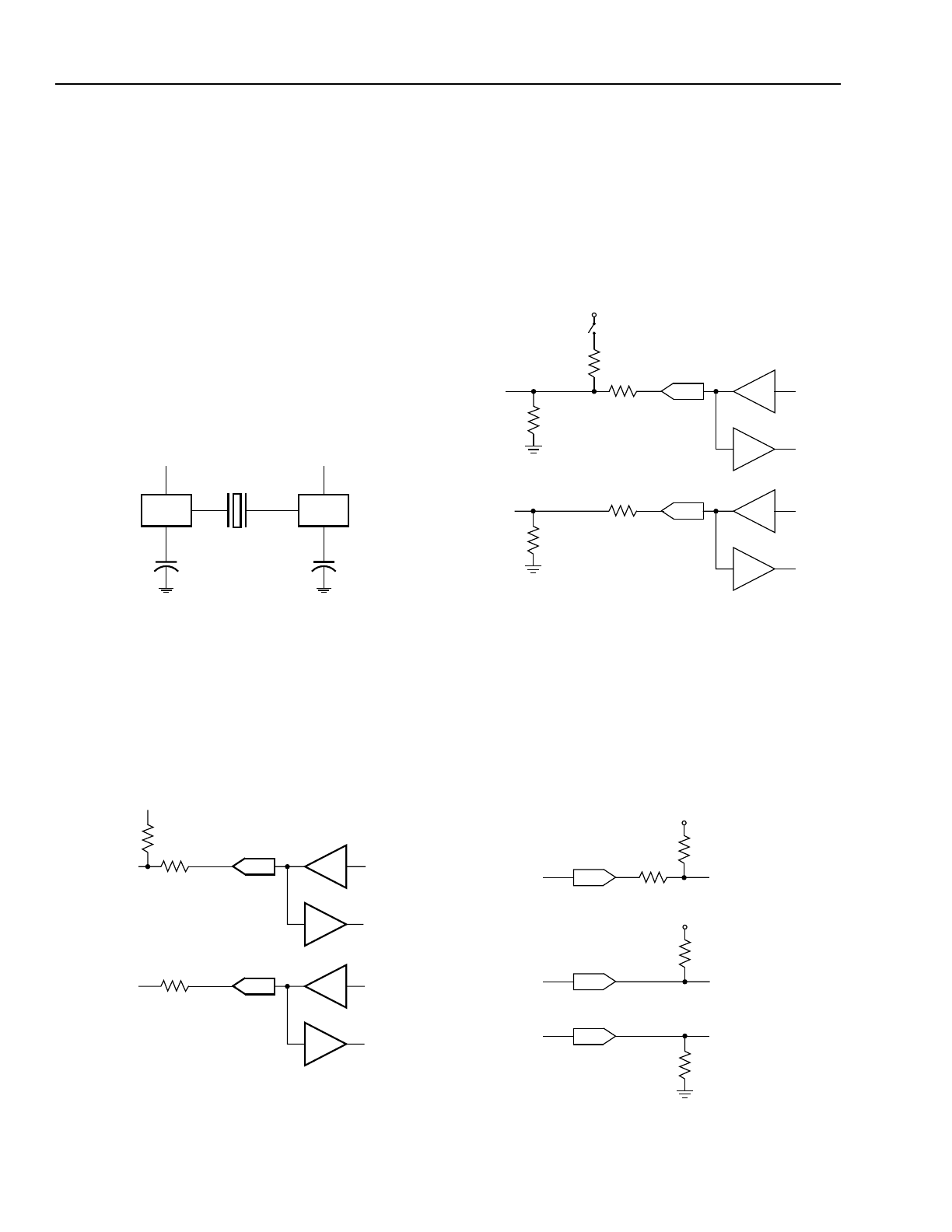

External Circuitry Requirements .......................... 5-24
Filter Bypass Mode .............................................. 5-25
High Drive Mode .................................................. 5-25
Self-Powered Mode ............................................. 5-25
Absolute Maximum Ratings ................................. 5-25
Electrical Characteristics ..................................... 5-26
Timing Characteristics ......................................... 5-27
Outline Diagram .................................................... 5-28
44-Pin MQFP................................................. 5-28
Ordering Information ............................................. 5-28
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-3
13
Pin Information
5-5429.r4
Note: An N before symbol names indicates active-low.
Figure 2. Pin Diagram
Table 1. Pin Descriptions
Pin Symbol* Type Name/Description
1 PDATA[1] I/O Parallel Port Data Signal Bit 1.
2 PDATA[2] I/O Parallel Port Data Signal Bit 2.
3 VDD5 P 5 V Power Supply for 5 V Parallel Port Signals.
4 PDATA[3] I/O Parallel Port Data Signal Bit 3.
5 PDATA[4] I/O Parallel Port Data Signal Bit 4.
6 GND P Ground.
7 PDATA[5] I/O Parallel Port Data Signal Bit 5.
8 PDATA[6] I/O Parallel Port Data Signal Bit 6.
* An N before symbol names indicates active-low.
1
3
4
5
6
7
8
9
10
11
2
44 42 41 40 39 38 37 36 35 3443
12 14 15 16 17 18 19 20 21 2213
33
31
30
29
28
27
26
25
24
23
32 RESET
GND
TEST
DMNS
DPLS
PDATA[3]
VDD5
PDATA[2]
GND
PDATA[5]
PDATA[6]
VDD5
PDATA[7]
NINIT
PDATA[1]
PDATA[4] VDD
PDATA[0]
PLH
SUSPEND
GND
HLH
NSTROBE
VDD
NUSB_RESET
DIO
CS
SK
TST_RST
NACK
CLK_HI
CLK_LO
NFAULT
PERROR
NSELECTIN
VDD
BUSY
SELECT
NAUTOFD
GND
TOP VIEW
SCAN_EN
SCAN
PLL_VDD
PLL_VSS
5-4 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
Pin Information (continued)
Table 1. Pin Descriptions (continued)
Pin Symbol* Type Name/Description
9 VDD5 P 5 V Power Supply for 5 V Parallel Port Signals.
10 PDATA[7] I/O Parallel Port Data Signal Bit 7.
11 NAUTOFD O Parallel Port nAutoFd Signal (Active-Low).
12 NSELECTIN O Parallel Port nSelectIn Signal (Active-Low).
13 NINIT O Parallel Port nInit Signal (Active-Low).
14 NACK I Parallel Port nAck Signal (Active-Low).
15 BUSY I Parallel Port Busy Signal.
16 VDD P3.3 V Power Supply.
17 GND P Ground.
18 PERROR I Parallel Port PError Signal.
19 SELECT I Parallel Port Select Signal.
20 NFAULT I Parallel Port nFault Signal (Active-Low).
21 CLK_LO I Clock Low. Crystal or CMOS input.
22 CLK_HI O Clock High. Crystal or no connection.
23 SCAN I Scan. This signal is only used for production testing. Tie to GND for normal opera-
tion.
24 SCAN_EN I Scan Enable. When high, internal chip scan is enabled. This signal is only used for
production testing. Tie to GND for normal operation.
25 PLL_VDD P 3.3 V Analog Power Supply for PLL.
26 PLL_VSS P Analog Ground for PLL.
27 DPLS I/O USB DPLS Signal.
28 DMNS I/O USB DMNS Signal.
29 VDD P3.3 V Power Supply.
30 GND P Ground.
31 TEST I Test. This signal is only used for production testing. Tie to GND for normal opera-
tion.
32 RESET I Reset. This signal is only used for production testing. Tie to GND for normal opera-
tion.
33 TST_RST I Test Reset. This signal is only used for production testing. Tie to GND for normal
operation.
34 SK O Serial ROM Clock.
35 CS O Serial ROM Chip Select.
36 DIO I/O Serial ROM Data Signal.
37 NUSB_RESET O USB Reset (Active-Low). Indicates USB reset condition.
38 VDD P3.3 V Power Supply.
39 GND P Ground.
40 SUSPEND O Suspend. Indicates USB bus in suspend.
41 PLH I Parallel Port Peripheral Logic High Signal.
42 HLH O Parallel Port Host Logic High Signal.
43 NSTROBE O Parallel Port nStrobe Signal (Active-Low).
44 PDATA[0] I/O Parallel Port Data Signal.
* An N before symbol names indicates active-low.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-5
13
Overview
The USS-720 creates a bridge between one USB port
and one
IEEE
1284 enhanced parallel port. Internally,
the USS-720 contains an integrated USB transceiver, a
USB device controller (UDC) core, an
IEEE
1284 core,
integrated
IEEE
1284 buffers, storage for USB configu-
ration data, data buffers, and control logic to tie the
blocks together. The USS-720 also contains an
onboard oscillator, PLL, and reset block for single-chip
operation.
In use, the USB port of the USS-720 is connected via a
USB cable to a host computer or the downstream port
of a USB hub. Host software sends commands and
data to the USS-720 and receives status and data from
the USS-720 using the USB protocol.
The
IEEE
1284 enhanced parallel port of the device is
connected to a peripheral device. If the peripheral is
IEEE
1284 compatible, then the associated features
and communication modes can be used. The USS-720
provides both automatic and manual operation of the
IEEE
1284 port.
USB Port
The USB port on the USS-720 is electrically and logi-
cally compliant with the
USB Specification Revision
1.0
.
Device Descriptor, Configurations, and Inter-
faces
Supported Descriptors
■Device.
■Configuration.
■Interface. The USS-720 device supports one inter-
face with three alternate settings.
— Interface 0, alternate settings 0 and 1 are
compliant with the
USB Device Class Definition
for Printing Devices, Release Candidate 1.0
.
— Interface 0, alternate setting 2 is a vendor-specific
interface.
■Endpoint. The USS-720 supports the following end-
points:
— Control endpoint. Accessible as endpoint 0 in all
three alternate interface settings.
— Bulk Out endpoint. Accessible as endpoint 1 in all
three alternate interface settings.
— Bulk In endpoint. Accessible as endpoint 2 in
alternate interface settings 1 and 2.
— Interrupt endpoint. Accessible as endpoint 3 in
alternate interface setting 2.
■String.
Descriptor Locations
Descriptor data is supplied from an external ROM or
other device. The USS-720 provides support for
93CS56 and 93CS66 EEPROM interfaces.
(Note: Substitution EEPROM components must be pin
and functional compatible with the 93CS56L/66L.
93C56L/66L, 93CS46L, and 93C46L EEPROM parts
will not function correctly with the USS-720.) The for-
mat for the externally supplied descriptor data requires
that the descriptors loaded be preceded by the total
length of the descriptor to be returned. In the case of
the device descriptor, this value would be 0x12, which
is redundant since the descriptor returned is always
0x12 bytes long; the first byte of the descriptor would
also be 0x12. The length of the configuration descrip-
tor, however, is not the same as the first byte of that
descriptor, since the configuration descriptor and all
associated interface and endpoint descriptors are
returned as a whole.
The USS-720 also contains a set of device, configura-
tion, interface, and endpoint descriptors that may be
used in development and prototyping. Retrieval of the
onboard descriptors will occur if no external descriptor
data is supplied.
5-6 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
USB Port (continued)
The format for the externally supplied data is as shown in Table 2. The addressing for the specified EEPROM
device is word aligned, so the following restrictions are placed upon the starting locations for the configuration and
string descriptors.
■The configuration descriptor must start at word address 0x13 (byte address 0x26).
■String descriptors must start at an address that is aligned on a double-word boundary.
* The question marks (???) indicate that this byte address value is determined for the user’s application based on the above information. The
number is going to vary depending on how the user formats their configuration information.
Note: Tables 3—14 describe the descriptor data contained in the USS-720’s internal ROM. This information can be
used as a guide in creating the externally supplied descriptor data.
Onboard Device Descriptor
There is only one device descriptor for each USB device. This descriptor contains the definitions of the device class
and the device subclass, among other things.
Table 2. Externally Supplied Data Format
Byte Address Word Address Value
0x00 0x00 0x12
0x01—0x12 — Device descriptor as defined in
USB Specification Revision 1.0
.
0x26 0x13 Total length of string to be returned in response to a
GET_CONFIGURATION_DESCRIPTOR request.
0x27—0x2F — Configuration descriptor as defined in
USB Specification Revision 1.0
.
0x30—???* — Interface and endpoint descriptors to be returned in response to a
GET_CONFIGURATION_DESCRIPTOR request.
Any even word address beyond
the end of the configuration
descriptor return string.
Length of string to return in response to a GET_STRING_DESCRIPTOR
request. This address divided by two should be included in the low byte of the
wIndex field of the GET_DESCRIPTOR standard command.
Next address—end of string
descriptor. String descriptor as defined in
USB Specification Revision 1.0
.
Table 3. Device Descriptor
Offset Field Size Value Description
0 bLength Byte 0x12 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x01 Device descriptor type.
2 bcdUSB Word 0x0100 USB Specification release number in BCD.
4 bDeviceClass Byte 0x00 Interface specific. See Tables 6, 8, and 11.
5 bDeviceSubClass Byte 0x00 Interface specific. See Tables 6, 8, and 11.
6 bDeviceProtocol Byte 0x00 Interface specific. See Tables 6, 8, and 11.
7 wMaxPacketSize0 Byte 0x08 Maximum packet size for endpoint 0.
8 idVendor Word 0x047E Vendor ID for Lucent Technologies.
10 idProduct Word 0x1001 Product ID.
12 bcdDevice Word 0x0103 Device release number in BCD.
14 iManufacturer Byte 0x00 Index of string descriptor describing manufacturer.
15 iProduct Byte 0x00 Index of string descriptor describing this product.
16 iSerialNumber Byte 0x00 Index of string descriptor describing the device’s serial number.
17 bNumConfigurations Byte 0x01 Number of possible configurations.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-7
13
USB Port (continued)
Configuration Descriptor
The USS-720 has one default configuration descriptor. This descriptor has one interface, which has three alternate
settings. The three alternate settings and the endpoints that they support are shown in Table 4.
Table 4. Alternate Settings and Supported Endpoints
Endpoint Interface
Alternate Setting 0 Alternate Setting 1 Alternate Setting 2
Control Pipe Endpoint Number 0
8 bytes Endpoint Number 0
8 bytes Endpoint Number 0
8 bytes
Bulk Out Pipe Endpoint Number 1
64 bytes Endpoint Number 1
64 bytes Endpoint Number 1
64 bytes
Bulk In Pipe — Endpoint Number 2
64 bytes Endpoint Number 2
64 bytes
Interrupt Pipe — — Endpoint Number 3
4 bytes
Table 5. Configuration Descriptor
Offset Field Size Value Description
0 bLength Byte 0x09 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x02 Configuration descriptor type.
2 bTotalLength Word 0x004E Number of bytes in this configuration. This includes the configura-
tion descriptor plus all of the interface and endpoint descriptors.
4 bNumInterfaces Byte 0x01 The USS-720 has one interface.
5 bConfigurationValue Byte 0x01 Value to use as an argument to Set Configuration to select this con-
figuration.
6 iConfiguration Byte 0x00 Index of string descriptor describing this configuration.
7 bmAttributes Byte 0x80 Configuration characteristics:
Bit Description USS-720
7 Bus-powered. Set.
6 Self-powered. Cleared.
5 Remote wakeup. Cleared.
4—0 Reserved, set to 0. Cleared.
8 MaxPower Byte 0x31 Maximum power consumption of this configuration. Units are
mA *2; therefore, the value 0x31 is equivalent to 98 mA.
5-8 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
USB Port (continued)
Interface Descriptors
The USS-720 supports a single interface with three alternate settings.
Interface 0, Alternate Setting 0 (I0:A0)
Table 6. Interface Descriptor, I0:A0
Offset Field Size Value Description
0 bLength Byte 0x09 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x04 Interface descriptor type.
2 bInterfaceNumber Byte 0x00 Zero-based value identifying the number of this interface.
3 bAlternateSetting Byte 0x00 Value used to select this alternate interface.
4 bNumEndpoints Byte 0x01 Number of endpoints used by this descriptor.
5 bInterfaceClass Byte 0x07 Printer class.
6 iInterfaceSubClass Byte 0x01 Printer subclass.
7 bInterfaceProtocol Byte 0x01 Unidirectional interface.
8 iInterface Byte 0x00 Index to string describing this interface.
Table 7. Bulk Out Endpoint Descriptor, I0:A0:E1
Offset Field Size Value Description
0 bLength Byte 0x07 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x05 Endpoint descriptor type.
2 bEndpointAddress Byte 0x01 This is an Out endpoint, endpoint number 1.
3 bmAttributes Byte 0x02 This is a Bulk endpoint.
4 wMaxPacketSize Word 0x0040 Maximum data transfer size.
6 bInterval Byte 0x00 Does not apply to bulk endpoints.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-9
13
USB Port (continued)
Interface 0, Alternate Setting 1 (I0:A1)
Table 8. Interface Descriptor, I0:A1
Offset Field Size Value Description
0 bLength Byte 0x09 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x04 Interface descriptor type.
2 bInterfaceNumber Byte 0x00 Zero-based value identifying the number of this interface.
3 bAlternateSetting Byte 0x01 Value used to select this alternate interface.
4 bNumEndpoints Byte 0x02 Number of endpoints used by this descriptor.
5 bInterfaceClass Byte 0x07 Printer class.
6 iInterfaceSubClass Byte 0x01 Printer subclass.
7 bInterfaceProtocol Byte 0x02 Bidirectional interface.
8 iInterface Byte 0x00 Index to string describing this interface.
Table 9. Bulk Out Endpoint Descriptor, I0:A1:E1
Offset Field Size Value Description
0 bLength Byte 0x07 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x05 Endpoint descriptor type.
2 bEndpointAddress Byte 0x01 This is an Out endpoint, endpoint number 1.
3 bmAttributes Byte 0x02 This is a Bulk endpoint.
4 wMaxPacketSize Word 0x0040 Maximum data transfer size.
6 bInterval Byte 0x00 Does not apply to Bulk endpoints.
Table 10. Bulk In Endpoint Descriptor, I0:A1:E2
Offset Field Size Value Description
0 bLength Byte 0x07 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x05 Endpoint descriptor type.
2 bEndpointAddress Byte 0x82 This is an In endpoint, endpoint number 2.
3 bmAttributes Byte 0x02 This is a Bulk endpoint.
4 wMaxPacketSize Word 0x0040 Maximum data transfer size.
6 bInterval Byte 0x00 Does not apply to Bulk endpoints.
5-10 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
USB Port (continued)
Interface 0, Alternate Setting 2 (I0:A2)
Table 11. Interface Descriptor, I0:A2
Offset Field Size Value Description
0 bLength Byte 0x09 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x04 Interface descriptor type.
2 bInterfaceNumber Byte 0x00 Zero-based value identifying the number of this interface.
3 bAlternateSetting Byte 0x02 Value used to select this alternate interface.
4 bNumEndpoints Byte 0x03 Number of endpoints used by this descriptor.
5 bInterfaceClass Byte 0xFF Vendor specific.
6 iInterfaceSubClass Byte 0x00 —
7 bInterfaceProtocol Byte 0xFF Vendor specific.
8 iInterface Byte 0x00 Index to string describing this interface.
Table 12. Bulk Out Endpoint Descriptor, I0:A2:E1
Offset Field Size Value Description
0 bLength Byte 0x07 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x05 Endpoint descriptor type.
2 bEndpointAddress Byte 0x01 This is an Out endpoint, endpoint number 1.
3 bmAttributes Byte 0x02 This is a Bulk endpoint.
4 wMaxPacketSize Word 0x0040 Maximum data transfer size.
6 bInterval Byte 0x00 Does not apply to Bulk endpoints.
Table 13. Bulk In Endpoint Descriptor, I0:A2:E2
Offset Field Size Value Description
0 bLength Byte 0x07 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x05 Endpoint descriptor type.
2 bEndpointAddress Byte 0x82 This is an In endpoint, endpoint number 2.
3 bmAttributes Byte 0x02 This is a Bulk endpoint.
4 wMaxPacketSize Word 0x0040 Maximum data transfer size.
6 bInterval Byte 0x00 Does not apply to Bulk endpoints.
Table 14. Interrupt Endpoint Descriptor, I0:A2:E3
Offset Field Size Value Description
0 bLength Byte 0x07 Size of this descriptor in bytes.
1 bDescriptorType Byte 0x05 Endpoint descriptor type.
2 bEndpointAddress Byte 0x83 This is an In endpoint, endpoint number 3.
3 bmAttributes Byte 0x03 This is an Interrupt endpoint.
4 wMaxPacketSize Word 0x0004 Maximum data transfer size.
6 bInterval Byte 0x01 This pipe should be serviced every frame.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-11
13
USB Port (continued)
Pipes
Four pipes are defined: Control, Bulk Out, Bulk In, and
Interrupt.
Control Pipe
The Control pipe is the default pipe, used for USB
setup and control packets. Its maximum packet size is
8 bytes. The Control pipe is also used for class- and
vendor-specific commands that:
■Configure class- and vendor-specific features.
■Retrieve Device, Configuration, and String descrip-
tors.
Note: Descriptor data shares the physical buffer used
to transfer Bulk In data. Retrieving this data will
result in the loss of any reverse channel data
currently in the Bulk In buffer.
■Read and write the parallel port registers.
— Access standard parallel port register set.
— Read/write an address byte from/to the peripheral
in EPP Mode.
— Read/write a data byte from/to the peripheral in
EPP Mode (but multiple bytes can be transferred
more efficiently via the Bulk Out pipe).
■Read Printer Class Get Device ID data.
Note: This data shares the physical buffer used to
transfer Bulk In data. Retrieving this data will
result in the loss of any reverse channel data
currently in the Bulk In buffer.
Bulk In Pipe
The Bulk In pipe is used to read data bytes from the
peripheral in Automatic Mode and register-based ECP
Mode. Its maximum packet size is 64 bytes. The buffer
used for this pipe is shared with the Control pipe for
descriptor data and
IEEE
1284 Device ID string data.
The Control pipe has priority over Bulk In data, so any
data in this buffer when a request is made for descrip-
tor data or
IEEE
1284 Device ID string will be lost.
Bulk Out Pipe
The Bulk Out pipe is used to send data to the periph-
eral in Automatic Mode and in Compatibility, EPP, or
ECP Register Modes. Its maximum packet size is
64 bytes.
Interrupt Pipe
The Interrupt pipe is used to report changes in parallel
port and buffer status to the host. Interrupt packets are
4 bytes in length. When the Interrupt pipe is enabled by
host software, the host automatically polls the USS-720
once per frame. The USS-720 returns 4 bytes of status
whenever an interrupt condition exists, as described in
the Interrupts section on page 23, and returns nothing
otherwise. This enables the host to detect and react to
parallel port and buffer status changes without explicit
polling.
Interpipe Synchronization
With commands and data going to different pipes, and
data potentially being buffered inside the USS-720, it
could be difficult for host software to maintain serializa-
tion of operations on the peripheral. This can be done
by reading the registers to determine the status of the
USS-720. Or, the Interrupt pipe status mechanism
described above can be used to alleviate this problem.
Software can use the port status and buffer status
information thus returned to determine when buffered
data has been sent and when port control commands
have been processed and it is safe to continue. Since
interrupt information is returned to the software auto-
matically and only when it changes, overhead for the
host operating system and driver software is kept low
when using the interrupt pipe as opposed to polling the
registers.
Requests
The USS-720 can respond to three different types of
requests:
■Standard USB device requests.
■Class-specific requests.
■Vendor-specific requests.
Standard Requests
The USS-720 supports all of the standard device
requests described in Chapter 9, Device Framework, of
the USB Specification except Set Descriptor:
■Clear Feature.
■Get Configuration.
■Get Descriptor. Direct requests for interface and end-
point descriptors are not supported in the USS-720
and will cause the Control pipe to be stalled.
■Get Interface.
■Get Status.
■Set Address.
■Set Configuration.
■Set Interface.
■Set Feature.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
5-12 Lucent Technologies Inc.
USB Port (continued)
Printer Class-Specific Requests
Printer class-specific requests supported by the USS-720 are listed in Table 15.
Table 15. Class-Specific Requests
Label bmRequestType bRequest wValue wIndex wLength Data
GET_DEVICE_ID 10100001B 0 Config
Index Interface and
Alternate Setting Maximum
Length
IEEE
1284 Device
ID String
GET_PORT_STATUS 10100001B 1 Zero Interface 1 BYTE
SOFT_RESET 00100011B 2 Zero Interface Zero [None]
GET_DEVICE_ID
This request returns an
IEEE
1284 Device ID string.
This command is supported by all three alternate inter-
face settings.
The Device ID is a length field followed by a case-
sensitive string of ASCII characters. The first 2 bytes
are the length of the sequence, including the two length
bytes. The first byte is the most significant; length
values of 0000h, 0001h, and 0002h are reserved.
Following the two length bytes, the sequence is
composed of a series of keys and values of the form:
key: value {, value};
repeated for each key. As indicated, each key will have
one value, and may have more than one value. The
minimum necessary keys are MANUFACTURER,
COMMAND SET, and MODEL (case sensitive). These
keys may be abbreviated as MFG, CMD, and MDL.
Each key (and each value) is a string of characters.
Any characters except colon (:), comma (,), and semi-
colon (;) may be included as part of the key or value
string. Any leading or trailing white space in the string
is ignored by the parsing program, but is still counted
as part of the overall length of the sequence.
For more details, see
IEEE
1284-1994, Section 7.6.
Note: The USS-720 satisfies this request by
requesting Device ID data from the attached
IEEE
1284 peripheral. If the peripheral does not
support Device ID, the USS-720 will return a
zero-length data packet to the host.
GET_PORT_STATUS
This request returns the current status of the printer.
Table 16 defines the data returned and describes the
format of the status data. This command is only sup-
ported by the two printer class-specific alternate inter-
face settings (0 and 1). Attempts to issue this
command to interface 0, alternate setting 2 will result in
a stall.
SOFT_RESET
This request flushes all buffers and resets the Bulk Out
and Bulk In pipes to their default states, and also resets
all parallel port hardware and registers to their default
state. This command is supported in all three alternate
interface settings.
Table 16. Get Port Status Data
Bit Description
7—6 Reserved, will always read 0.
5 Paper error.
4 Select.
3 Not error: 0 = error, 1 = no error.
2—0 Reserved, will always read 0.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-13
USB Port (continued)
Vendor-Specific Requests
Vendor-specific requests supported by the USS-720.
Table 17. Vendor-Specific Requests
Label bmRequestType bRequest wValue wIndex wLength Data
GET_1284_REGISTER 11000000B 3 Address Zero 7 Register Data
SET_1284_REGISTER 01000000B 4 Address Data Zero Zero [None]
GET_1284_REGISTER
The high byte of the wValue field specifies the address
of the register that is to be read. The USS-720
responds by returning the current values in all of the
parallel port registers. This command is only supported
in interface 0, alternate setting 2. Attempts to issue this
command to alternate settings 0 or 1 will result in a
stall.
SET_1284_REGISTER
The wValue field specifies the address of the parallel
port register to be written in the high byte and the value
to be written in the low byte. This command is only sup-
ported in interface 0, alternate setting 2. Attempts to
issue this command to alternate settings 0 or 1 will
result in a stall.
5-14 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
IEEE
1284 Port
The
IEEE
1284 port on the USS-720 is compliant with
the
IEEE
1284-1994 standard. The parallel port oper-
ates in two distinct modes. In fully Automatic Mode, the
IEEE
1284 protocol is implemented completely in hard-
ware. Compatibility Mode, Nibble Mode, and ECP
Mode (with or without RLE compression) are
supported, with all negotiation, termination, and other
features of the protocol handled transparently by the
hardware. The USS-720 also features a Register
Mode, which presents a standard register interface to
the host. These two modes provide the host with two
distinct operating paradigms. In Automatic Mode, the
host software interacts with the USS-720 as if with a
USB-capable printer; while in Register Mode, the USS-
720 emulates standard PC parallel port hardware. In
the Automatic Mode, the host application software
doesn’t know that the USB data stream is being
converted to
IEEE
1284 protocol. In the Register Mode,
it need not know that its interaction with parallel port
registers is actually talking place remotely over a USB
link.
Automatic mode is recommended for almost all appli-
cations. (Note: The drivers included in the Lucent
Technologies USS-720 Evaluation Kit use only Auto-
matic Mode.) Automatic Mode implements all negotia-
tion handshakes automatically for Compatibility, Nibble,
and ECP modes. In Register mode, the user must do
the negotiations manually in software. Register mode
can be useful when implementing a nonstandard
parallel port interface.
Register-Based Operation
In its Register Mode of operation, the USS-720 emu-
lates standard host-side parallel port hardware, with
the register accesses being performed remotely over a
USB connection. As in the standard register set, the
interface mode is controlled by the Mode field in the
Extended Control Register. The supported modes and
their meanings are given in the Extended Control Reg-
ister section on page 5-20, and operation and required
software interaction for each of the supported modes
are described in the sections that follow.
Standard Mode (000)
In this mode, the parallel port is under full software con-
trol, with no form of hardware assist. Software has
complete control of all parallel port signals. This mode
can be used for negotiations, terminations, proprietary
handshake sequences, etc. As in standard host-side
parallel port hardware, the parallel port data lines are
unidirectional outputs in this mode.
Bidirectional Mode (001)
This mode is identical to Standard Mode (000), except
that the direction of the parallel port data lines may be
controlled with the Direction bit in the Control Register.
Compatibility Mode (010)
This mode provides hardware-based Compatibility
Mode data transfers. Data sent to the USS-720 over
the Bulk Out pipe will be transferred automatically to
the peripheral using Compatibility Mode.
ECP Mode (011)
This mode provides hardware-based ECP Mode data
transfers. To use ECP, the host software should negoti-
ate for ECP Mode via the Control and Status Registers,
then set Mode to 011. At this time, the Compress
Enable bit in the USS-720 Control Register should also
be set appropriately.
EPP Mode (100)
This mode provides hardware-based EPP Mode data
transfers. To use EPP, the host software should negoti-
ate for EPP Mode via the Control and Status Registers,
and then set Mode to 100.
EPP mode in the USS-720 has the following data
transfer rate characteristics. Note that the rates are
approximate.
Because the reverse channel operation is implemented
in the USB Control Pipe, the transfer rates are limited
according to the particular implementation of the host
controller, either UHCI or OHCI.
The high performance of the forward direction in EPP
mode makes it attractive for implementations requiring
little reverse channel traffic.
Table 18. Transfer Rates
Direction UHCI OHCI
Forward 1 Mbyte/s 1 Mbyte/s
Reverse 250 bytes/s 1 Kbyte/s
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-15
IEEE
1284 Port (continued)
Registers
Nine parallel port registers are available to the host.
They are read and written using the
GET_1284_REGISTER and SET_1284_REGISTER
vendor-specific commands described above. The
SET_1284_REGISTER writes a value into a particular
register. Writes may either affect the configuration of
the hardware or have a direct effect on parallel port
control lines. In the case of the EPP Registers, writes
initiate EPP write cycles on the parallel port.
The GET_1284_REGISTER returns seven register val-
ues: Status, Control, Extended Control, USS-720 Con-
trol, Data, EPP Address/Data, and USS-720 Setup
Registers, in that order (see 19). Register values can
also be read via the Interrupt pipe, which returns the
values of Status, Control, Extended Control, and USS-
720 Control Registers, in that order (see Table 20).
Reads may affect the contents of the registers in one of
two ways. Any register read clears any interrupt status
that may exist at the time of the read. Also, a read tar-
geting the EPP address or EPP Data Register will ini-
tiate the appropriate EPP read cycle on the parallel
port. The value returned will be the address or data
byte read from the peripheral as a result of that read
cycle.
Each of the nine registers are described in detail in
Tables 21—29.
Table 19. GET_1284_REGISTER Data
Byte Register Data
0 Status
1 Control
2 Extended Control
3 USS-720 Control
4 Data
5 EPP Address/Data
6 USS-720 Setup
Table 20. Interrupt Pipe Read Data
Byte Register Data
0 Status
1 Control
2 Extended Control
3 USS-720 Control
5-16 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
IEEE
1284 Port (continued)
Data Register
Status Register
Table 21. Data Register
Data Register Address: 0
Bit 7 6 5 4 3 2 1 0
Symbol D7 D6 D5 D4 D3 D2 D1 D0
Access R/W R/W R/W R/W R/W R/W R/W R/W
Default 0 0 0 0 0 0 0 0
Bit Symbol Bit Description
7—0 D7—D0 Data. This register is equivalent to and operates in the same manner as the Data
Register in a standard host-side parallel port controller chip. The register is writable
when Auto Mode is 0 and the Mode field in the Extended Control Register is set to
000 or 001. It is always readable. The read value will be the value of the data latched
into the register unless the Mode field is set to 001 and the Direction bit in the Control
Register is set to 1 (Input Mode). In this case, the read value will be the value present
on the parallel port data lines.
Table 22. Status Register
Status Register Address: 1
Bit 76543210
Symbol nBusy nAck PError Select nFault — PLH Timeout
Access Read Read Read Read Read Read Read Read
Default X X X X X X X 0
Bit Symbol Bit Description
7 nBusy Inverted Busy. An inverted version of the parallel port Busy signal.
6 nAck Parallel Port nAck Signal.
5 PError Parallel Port PError Signal.
4 Select Parallel Port Select Signal.
3 nFault Parallel Port nFault Signal.
2—Reserved.
1 PLH Peripheral Logic High. The parallel port PLH signal.
0 Timeout EPP Time-Out. This bit indicates that a time-out has occurred during an EPP read or
write. If the peripheral fails to respond to an EPP read or write for longer than 10 µs,
this bit will be set and an interrupt will be returned if interrupts are enabled. This bit is
cleared by a read.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-17
13
IEEE
1284 Port (continued)
Control Register
Table 23. Control Register
Control Register Address: 2
Bit 7 6 5 4 3 2 1 0
Symbol HLH EPP mask Direction Int enbl SelectIn nInit AutoFd Strobe
Access R/W R/W R/W R/W R/W R/W R/W R/W
Default 0 1 0 0 1 1 0 0
Bit Symbol Bit Description
7 HLH Host Logic High. The parallel port HLH signal.
6 EPP mask EPP Time-Out Interrupt Mask. This bit masks the generation of an interrupt upon
time-out of an EPP data or address transfer. Note that in typical host-side parallel port
controller chips, this interrupt condition is grouped with and controlled by the Interrupt
Enable bit in this register; so for exact emulation of typical parallel port hardware, this
bit should always be written with the inverse of the Interrupt Enable bit.
5 Direction Parallel Port Direction. When the Mode field in the Extended Control Register is set
to 001, this bit controls the direction of the parallel port data lines. When set to 0, the
lines are in Output Mode, and when set to 1, they are in Input Mode (see the Data
Register on previous page). This bit also controls the direction of the interface in ECP
Mode (011). It has no effect in Modes 000 or 010 (which are unidirectional only), or
100 (where the direction is uniquely determined by the type of access to the EPP
Registers).
4 Int enbl Interrupt Enable. This bit enables interrupt generation on nAck events. If this bit is
set, interrupt status will be generated on transitions of nAck from low to high (this
status being reflected by the nAck Interrupt bit in the USS-720 Control Register).
3 SelectIn Inverted nSelectIn. An inverted version of the parallel port nSelectIn signal.
2 nInit Parallel Port nInit Signal.
1 AutoFd Inverted nAutoFd. An inverted version of the parallel port nAutoFd signal.
0 Strobe Inverted nStrobe. An inverted version of the parallel port nStrobe signal.
5-18 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
IEEE
1284 Port (continued)
EPP Address Register
EPP Data Register
Table 24. EPP Address Register
EPP Address Register Address: 3
Bit 7 6 5 4 3 2 1 0
Symbol A7 A6 A5 A4 A3 A2 A1 A0
Access R/W R/W R/W R/W R/W R/W R/W R/W
Default XXXXXXXX
Bit Symbol Bit Description
7—0 A7—A0 EPP Address. This register is equivalent to and operates in the same manner as the
EPP Address Register in a standard host-side parallel port controller chip. The
register is writable when Auto Mode is 0 and the Mode field in the Extended Control
Register is set to 100. A write to this register initiates an EPP address write transfer
on the parallel port. The register is always readable. When the Mode is set to 100, a
read access will initiate an EPP address read transfer on the parallel port, and the
value returned will be the address value read from the peripheral. Reads when not in
Mode 100 will return whatever value has been previously latched, but will not have
any effect on the parallel port.
Table 25. EPP Data Register
EPP Data Register Address: 4
Bit 7 6 5 4 3 2 1 0
Symbol D7 D6 D5 D4 D3 D2 D1 D0
Access R/W R/W R/W R/W R/W R/W R/W R/W
Default X X X X X X X X
Bit Symbol Bit Description
7—0 D7—D0 EPP Data. This register is equivalent to and operates in the same manner as the EPP
Data Register in a standard host-side parallel port controller chip. The register is writ-
able when Auto Mode is 0 and the Mode field in the Extended Control Register is set
to 100. A write to this register initiates an EPP data write transfer on the parallel port.
The register is always readable. When the Mode is set to 100, a read access will
initiate an EPP data read transfer on the parallel port, and the value returned will be
the data value read from the peripheral. Reads, when not in Mode 100, will return
whatever value has been previously latched, but will not have any effect on the
parallel port.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-19
13
IEEE
1284 Port (continued)
ECP Command Register
Table 26. ECP Command Register
ECP Command Register Address: 5
Bit 7 6 5 4 3 2 1 0
Symbol C7 C6 C5 C4 C3 C2 C1 C0
Access Write Write Write Write Write Write Write Write
Default XXXXXXXX
Bit Symbol Bit Description
7—0 C7—C0 ECP Command. This register is equivalent to the ECP Address FIFO Register in a
standard host-side parallel port controller chip, but has some different restrictions on
its usage. The register is writable when Auto Mode is 0 and the Mode field in the
Extended Control Register is set to 011 and there is no ECP data in either the Bulk
Out buffers or in the process of being transmitted. Writes to this address in a mode
other than 011 will be ignored; writes while in mode 011 and when the hardware is
busy will generate a NAK. The value written to this register will be transferred to the
peripheral as an ECP command.
5-20 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
IEEE
1284 Port (continued)
Extended Control Register
Table 27. Extended Control Register
Extended Control Register Address: 6
Bit 7 6 5 4 3 2 1 0
Symbol Mode[2] Mode[1] Mode[0] nAck
interrupt nFault
interrupt Bulk In
interrupt Bulk In
empty Bulk Out
empty
Access R/W R/W R/W Read Read Read Read Read
Default 0 0 0 0 0 0 1 1
Bit Symbol Bit Description
7—5 Mode[2:0] Mode. In Register Mode (when Auto Mode is 0), this bit controls the mode of the
parallel port interface. This field is equivalent to the Mode field in a standard host-side
parallel port controller chip. The supported modes are as follows:
Mode[2:0] Mode Description
000 Standard Mode Full software control, data lines are output only
001 Bidirectional Mode Full software control, data lines are bidirectional
010 Compatibility Mode Hardware handshaking
011 ECP Mode Software negotiations, hardware data transfers
100 EPP Mode Software negotiations, hardware data transfers
101 Reserved
110 Reserved
111 Reserved
For more information, see the Register-Based Operation section on page 14.
4 nAck
Interrupt nAck Interrupt. This bit will be set when the parallel port nAck signal makes a transi-
tion from 0 to 1 while the Interrupt Enable bit in the Control Register is set to 1. Inter-
rupt status is cleared by any register read.
3 nFault
Interrupt nFault Interrupt. This bit will be set when the parallel port nFault signal makes a tran-
sition from 1 to 0 while the nFault Interrupt Mask bit in the USS-720 Control Register
is set to 0. An interrupt will also be generated if the mask bit goes low while nFault is
low. Interrupt status is cleared by any register read.
2 Bulk In
Interrupt Bulk In Interrupt. This bit will be set when Bulk In data is available and the Bulk In
Interrupt Mask bit in the Control Register is set to 0. This allows software to use the
interrupt pipe to automatically receive notification of available Bulk In data rather than
polling with Bulk In requests. Interrupt status is cleared by any register read.
1 Bulk In
Empty Bulk In Empty. This bit will be clear when there is Bulk In data available for reading
by the host, and set when there is not.
0 Bulk Out
Empty Bulk Out Empty. This bit will be clear when there is Bulk Out data waiting in the
buffers or in the process of being transmitted over the parallel port, and set otherwise.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-21
13
IEEE
1284 Port (continued)
USS-720 Control Register
Table 28. USS-720 Control Register
USS-720 Control Register Address: 7
Bit 7 6 5 4 3 2 1 0
Symbol Discon.
int mask Change
int mask Bulk In
int mask Bulk Out
int mask nFault
int mask Reserved Compress
enable Auto
mode
Access R/W R/W R/W R/W R/W R/W R/W R/W
Default 1 1 1 1 1 0 1 1
Bit Symbol Bit Description
7 Discon.int
mask Disconnect Interrupt Mask. This bit masks the generation of an interrupt on the
detection of what appears to be a disconnection of the peripheral from the parallel
port. Disconnect is detected when the Peripheral Logic High signal changes from 1 to
0, or when all parallel port lines driven by the peripheral are high for a long period of
time.
6 Change
int mask Change Interrupt Mask. This bit masks the generation of an interrupt on the detec-
tion of a transition on any of the parallel port lines driven by the peripheral.
5 Bulk In int
mask Bulk In Interrupt Mask. This bit masks the generation of an interrupt when Bulk In
data is available for reading by the host.
4 Bulk Out
int mask Bulk Out Interrupt Mask. This bit masks the generation of an interrupt when the Bulk
Out data path goes empty.
3 nFault int
mask nFault Interrupt Mask. This bit masks the generation of an interrupt falling edge of
nFault when Mode is set to 011 (ECP Mode).
2 Reserved Reserved. This bit must always be written to 0.
1 Compress
enable Compress Enable. This bit enables automatic hardware-based RLE compression of
outgoing data, for use in ECP with RLE Mode. If software desires to use this feature,
this bit should be set before attempting to send data. This bit must be cleared for
proper operation in ECP (without RLE) Mode.
0 Auto
mode Auto Mode. Setting this bit puts the chip in fully Automatic Mode. When set, USS-720
can handle all communications with the peripheral with no assistance from software,
and all registers except the USS-720 Control Register are read only. Clearing this bit
enables write access to the other registers and disables all automatic operation,
provided that none has yet taken place.
5-22 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
IEEE
1284 Port (continued)
USS-720 Setup Register
Table 29. USS-720 Setup Register
USS-720 Setup Register Address: 8
Bit 765432 1 0
Symbol Reserved Reserved Reserved Reserved Reserved Reserved Filter Software
Override Filter
Enable
Access R/W R/W R/W R/W R/W R/W R/W R/W
Default 000000 0 1
Bit Symbol Bit Description
7 Reserved Reserved.
6 Reserved Reserved.
5 Reserved Reserved.
4 Reserved Reserved.
3 Reserved Reserved.
2 Reserved Reserved.
1 Filter Software Override Filter Software Override. When this bit is set, software can control the
digital filtering of incoming parallel port signals with the Filter Enable bit.
When clear, filters are controlled by the pull-up or pull-down stage of the
SUSPEND pin. (See Filter Bypass Mode.)
0 Filter Enable Filter Enable. Controls digital filtering of incoming parallel port signals
when the Filter Software override bit is set. Setting to 1 enables filtering;
clearing this bit disables filtering.
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-23
13
IEEE
1284 Port (continued)
Interrupts
The USS-720 can return interrupt status on the inter-
rupt pipe. Interrupt status may be generated as a result
of one of seven separately maskable conditions. Any
interrupts that are pending will no longer be pending
after a read operation. The individual conditions are
described in the sections that follow.
nAck Interrupt
The nAck interrupt is enabled by setting the Interrupt
Enable bit in the Control Register. An interrupt will be
generated whenever nAck transitions from 0 to 1. Inter-
rupt status is indicated by the nAck Interrupt bit in the
Extended Control Register.
EPP Time-Out Interrupt
The EPP time-out interrupt is enabled by setting the
EPP Time-Out Interrupt Mask bit in the Control Regis-
ter to 0. Note that this is a change from typical host-
side parallel port hardware, where interrupts on EPP
time-out conditions are enabled by the Interrupt Enable
bit in the Control Register.
An EPP time-out occurs when the peripheral fails to
respond to an EPP handshake within the time allowed
by the
IEEE
1284 specification. If this occurs, there is
no reliable way to determine whether the peripheral is
still functioning or not, or whether the byte in transit was
transferred properly, and it will be up to software to
attempt to recover by resetting the connection or some
other means.
nFault Interrupt
The nFault interrupt is enabled by setting the nFault
Interrupt Mask bit in the USS-720 Control Register to 0.
Interrupt status is reported via the nFault Interrupt bit in
the Extended Control Register. The interrupt is gener-
ated when in ECP Mode and either the nFault line tran-
sitions from 1 to 0 or the nFault line is low and the
interrupt is unmasked. This may indicate that the
peripheral has reverse data to transmit.
Bulk In Interrupt
The Bulk In interrupt is enabled by setting the Bulk In
Interrupt Mask bit in the USS-720 Control Register to 0.
Interrupt status is reported by the Bulk In Interrupt bit in
the Extended Control Register, as well as the Bulk In
Empty bit in the same register. This interrupt is gener-
ated when there is Bulk In data available for reading by
the host. By enabling this interrupt, the host may use
the automatic polling of the interrupt pipe to receive
notification of incoming data, rather than explicitly poll-
ing the Bulk In pipe.
Bulk Out Interrupt
The Bulk Out interrupt is enabled by setting the Bulk
Out Interrupt Mask bit in the USS-720 Control Register
to 0. Bulk Out empty status is reported via the Bulk Out
Empty bit in the Extended Control Register. This inter-
rupt is generated when the Bulk Out data pipeline goes
completely empty. By enabling this interrupt, the host
may use the automatic polling of the interrupt pipe to
be notified of the completion of a data transfer, rather
than explicitly polling the Bulk Out Empty bit.
Change Interrupt
The Change interrupt is enabled by setting the Change
Interrupt Mask bit in the USS-720 Control Register to 0.
There is no Interrupt Status bit associated with the
Change Interrupt. This interrupt is generated when any
of the parallel port signal lines driven by the peripheral
(nAck, Busy, nFault, PError, Select, or PLH) change
state.
Disconnect Interrupt
The Disconnect interrupt is enabled by setting the Dis-
connect Interrupt Mask bit in the USS-720 Control
Register to 0. There is no Interrupt Status bit associ-
ated with the Disconnect interrupt. This interrupt is
generated when the Peripheral Logic High signal
makes a transition from 1 to 0, or when Peripheral
Logic High is 0 and all other parallel port signal lines
driven by the peripheral (nAck, Busy, nFault, PError,
and Select) are high for longer than one second. Either
of these conditions should indicate that the peripheral
has been disconnected from the USS-720.
5-24 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
External Circuitry Requirements
The USS-720 is intended to be a single-chip solution.
As such, the USB transceiver and the
IEEE
1284 buff-
ers have been integrated on-chip. External require-
ments include a 3.3 V supply and a 1.5 kΩ±5% pull-up
resistor for the DPLS pin. If the internal oscillator is
used, a 12 MHz crystal along with bias capacitors are
needed (see Figure 3). If the internal oscillator is not
used, a 12 MHz clock signal should be supplied to
CLK_LO, and CLK_HI should be left unconnected.
1.2 kΩ ± 5% pull-up resistors are needed on all
IEEE
1284 signals (except PLH), unless used in the High
Drive Mode (see the following page). A 5 V supply and
USB and/or
IEEE
1284 connectors might also be
needed, depending on the application.
Figure 3. External Crystal Connection
Figure 4 shows the normal USS-720 connection to the
USB. Both DPLS and DMNS require 24 Ω ± 1% series
resistors for USB impedance matching. Additionally, a
1.5 kΩ pull-up resistor is required on DPLS for full-
speed/low-speed differentiation.
Figure 4. USB Transceiver Connection
(Normal Mode)
For using the USS-720 in a self-powered device, there
are some additional considerations. The device must
refrain from supplying power through the pull-up
resistor when the device is plugged into an unpowered
bus. The USS-720 device circuit must also ensure that
the DPLS and DMNS lines are in an appropriate state
when the device is powered but not plugged in.
Figure 5 shows an example connection to meet these
requirements.
Figure 5. Self-Powered Device Example Connection
Figure 6 shows a USS-720-to-
IEEE
1284 parallel port
connection that complies with the
IEEE
1284 specifica-
tion. Other connections are also possible. While the
IEEE
specification requires these resistors, developers
must make their own design decision against the
500 µA suspend mode current requirements required
by the USB specification.
Figure 6. USS-720 Connection to
IEEE
1284
5-5259.r2
CRYSTAL
12 MHz
CLK_LO
15 pF
CLK_HI
15 pF
TO INTERNAL
USS-720 TO INTERNAL
USS-720
5-5404.r1
+3.3 V VDD
DPLS
DMNS
1.5 kΩ ± 5%
24 Ω± 1%
24 Ω± 1%
5-5506a.r4
DPLS
DMNS
24 Ω± 1%
24 Ω± 1%
+3.3 V
1.5 MΩ
SWITCH ON WHEN VBUS
IS POWERED
1.5 kΩ± 5%
1.5 MΩ
+5 V
PLH
7.5 kΩ± 5%
1.2 kΩ± 5%
ALL PARALLEL PORT
INPUT SIGNALS
EXCEPT PLH
+5 V
1.2 kΩ± 5%
ALL PARALLEL PORT
OUTPUT SIGNALS
24 Ω± 5%
5-5505a.r1
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-25
Filter Bypass Mode
For embedded applications, the USS-720
IEEE
1284
port can be operated in Filter Bypass Mode. This mode
disables digital filtering of the parallel port signals into
the USS-720, providing a performance improvement.
Note: Since digital filtering is disabled, the parallel port
lines will be susceptible to noise. Do not use this
mode when driving across a cable.
Filter Bypass Mode is enabled by connecting a 20 kΩ
pull-down resistor to the SUSPEND line.
High Drive Mode
If desired (e.g., for embedded applications), the USS-
720
IEEE
1284 port can operate in High Drive Mode. In
this mode, all parallel port signals are constantly driven
by 14 mA totem-pole drivers, rather than with the
normal open-drain drivers. This eliminates the need for
external pull-up resistors on the parallel port signals
(and, if driving another chip on the same board, there
is no need for the 24 Ωimpedance matching resistors).
High Drive Mode is enabled by connecting a 20 kΩ
pull-down resistor to the SK line.
Self-Powered Mode
When using the USS-720 in a self-powered applica-
tion, attach a 5 kΩpull-up resistor to the CS line. This
causes the correct self-powered status to be reported
in response to a USB Get-Status command.
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are abso-
lute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess
of those given in the operations sections of this data sheet. Exposure to absolute maximum ratings for extended
periods can adversely affect device reliability.
Table 30. Absolute Maximum Ratings
Parameter Symbol Min Max Unit
Ambient Operating Temperature Range TA070°C
Storage Temperature Tstg −40 125 °C
Voltage on Any Pin with Respect to Ground VIN VSS − 0.3 VDD + 0.3*
* Except for 5 V tolerant buffers where VIN max = VDD5 max + 0.3 V. VIN must never exceed VDD5 + 0.3 V at any time. VDD5 should be selected
to satisfy this condition.
V
5-26 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
Electrical Characteristics
Table 31. dc Characteristics (TA = 0 °C to 70 °C, VDD = 3.3 V ± 0.3 V, VSS = 0 V.)
Table 32. USB Transceiver Driver Characteristics
* The output impedance includes both the external resistor and the transceiver.
The USS-720 is a 3.3 V part, and it has separate pins (VDD5) for power to the
IEEE
1284 drivers. Capacitance val-
ues for the USS-720 pins are listed in Table 33.
Parameter Symbol Test Conditions Min Typ Max Unit
Input Voltage:
Low
High VIL
VIH
—
——
2.0 —
—0.8
—V
V
Output Voltage:
Low
High VOL
VOH
—
——
2.4 —
—0.4
—V
V
Power Dissipation PD25 °C, VDD = 3.3 V 1.65 231 323.4 mW
Power Supply Voltage VDD, VDDA — 3 3.3 3.6 V
VDD5 5 V environment
3 V environment 4.375
35
3.3 5.5
3.6 V
V
Power Supply Current IDD — 0.5 70 98 mA
Parameter Symbol Test Conditions Min Max Unit
Rise and Fall Times:
(10%—90%)
(90%—10%) tR
tF
OEN = 0, CL = 50 pF 4
420
20 ns
ns
Rise/Fall Time Matching tRFM OEN = 0, CL = 50 pF 90 110 %
Crossover Point VCRS OEN = 0, CL = 50 pF 1.3 2.0 V
Output Impedance* ZDRV OEN = 0 28 43 Ω
Table 33. Capacitance Values
Parameter Value Unit
CLK_LO 1.0 pF
CLK_HI 1.0 pF
All Other Pins 3.0 pF
Preliminary Data Sheet, Rev. 5 USS-720
Instant USB
September 1999 USB-to-
IEEE
1284 Bridge
Lucent Technologies Inc. 5-27
13
Timing Characteristics
■Timing is specified over the operating range from 0 °C to 70 °C ambient temperature, VDD = 3.0 V to 3.6 V, and
VDD5 = 4.75 V to 5.25 V.
■All timing is referenced from the rising edge of CLK_LO, with 70 pF output load.
■Only DIO is required to meet these input setup and hold times for proper operation. For other inputs, meeting the
limit is only required to ensure that the signal will be recognized on the referenced clock edge rather than one
period later.
Table 34. Setup and Hold Input Timing
Parameter Setup Time Hold Time Unit
DIO Setup and Hold 2.9 3.4 ns
Table 35. Clock Characteristics/Miscellaneous Input Timing
Parameter Symbol Min Typical Max Unit
Frequency of Operation (CLK_LO) f 11.976 12.000 12.024 MHz
Clock Period tcyc 83.1 83.3 83.5 ns
Duty Cycle — — 40/60*
* The duty cycle applies to any frequency in the specified range.
—%
Table 36. Output Delay Timing
Parameter Min Max Unit
PDATA Output Delay 5.3 21.5 ns
NUSB_RESET Output Delay 6.5 17.1 ns
SUSPEND Output Delay 2.6 34.6 ns
SK Output Delay 6.4 16.0 ns
CS Output Delay — 75.0 ns
DIO Output Delay 3.6 31.6 ns
Table 37. Miscellaneous Output Timing
Parameter Symbol Min Typical Max Unit
Frequency of Operation (SK) f 390 429 476 kHz
Clock Period tcyc 2.10 2.33 2.56 µs
Duty Cycle — — 50/50*
* The duty cycle applies to any frequency in the specified range.
—%
5-28 Lucent Technologies Inc.
USS-720
Instant USB
Preliminary Data Sheet, Rev. 5
USB-to-
IEEE
1284 Bridge September 1999
13
Outline Diagram
44-Pin MQFP
Dimensions are in millimeters.
Ordering Information
Device Code Package Comcode
USS720E-DB 44-Pin MQFP 108127085
5-2111.r11
44
1
10.00 ± 0.20
13.20 ± 0.20
10.00 ±
0.20
13.20 ±
0.20
PIN #1 IDENTIFIER ZONE
11
12 22
23
33
34
0.80 TYP
DETAIL A
2.35
MAX
0.10
SEATING
PLANE
1.95/2.10
DETAIL B
0.25 MAX
0.30/0.45
0.20 M
0.130/0.230
DETAIL B
0.25
0.73/1.03
1.60 REF
GAGE PLANE
SEATING PLANE
DETAIL A
13
Lucent Technologies Inc. 6-1
Application Note
February 1999
Typical Circuit Showing the USS-720
Bridging USB to Parallel Port
Description
The USS-720 can be used in a variety of applica-
tions, such as bus-powered devices, self-powered
devices, hubs, and embedded printer controllers. The
following describes using the device in a bus-
powered application (see attached schematic).
Note: The attached schematic depicts a typical func-
tional circuit using the USS-720 as a bridge
between the USB and a parallel port. Actual
applications may require additional protection
circuitry. The schematic and circuit description
provided in this application note are for refer-
ence purposes only. Neither Lucent nor In-
System Design warrants their suitability for
any particular purpose.
The USS-720 is a dual-powered chip requiring both
5 V and 3.3 V supplies. The 3.3 V is generated using
a low dropout regulator. The USS-720 must operate
with a USB supply (VBUS) of 4.4 V to 5.25 V. Using a
low dropout regulator ensures a solid 3.3 V supply
even at the lowest limits of the 5 V VBUS. The 5 V
supply is used by the 1284 printer port drivers.
The USS-720 also requires a 12 MHz ± 0.25%
crystal. In embedded applications, an oscillator
output should be connected to clk_lo (pin 21), and
pin 22 should be left unconnected.
The USS-720 requires a 1.5 kΩ pull-up resistor
attached to the DPLS signal to indicate that it is a
high-speed 12 Mbits/s device as per the USB specifi-
cation. There is also a USB differential driver imped-
ance specification of 30 Ω to 42 Ω. A 24 Ωseries
resistor, when added to the output impedance of the
USS-720 USB drivers, puts the total output imped-
ance in the middle of that range.
A similar driver output impedance requirement is true
for the
IEEE
* 1284 printer signals. A 24 Ω series
resistor is used on all the 1284 signals that are driven
by the USS-720 to give each signal a total output
impedance of 45 Ω to 55 Ω. The
IEEE
1284 specifi-
cation also requires 1.2 kΩpull-up resistors on all the
printer signals, except PLH. PLH only requires a
7.5 kΩ pull-down resistor.
While the
IEEE
1284 specification requires these
resistors, developers must make their own design
decisions against the 500 µA suspend mode current
requirements of the USB specification. The following
schematic does not show the pull-down resistor on
the PLH signal. The internal pull-down on the USS-
720 can be used for this purpose. Similarly, the pull-
up resistor values may have to be modified to higher
values than the
IEEE
1284 specification allows in
order to meet the USB requirements.
Standard decoupling should be used on the board. It
is recommended that 0.1 µF capacitors are placed
between VCC_5V/VCC and GND and that they are
located as close as possible to the power pins on the
USS-720. Sufficient grounding must be implemented
on the board to ensure proper functionality. A four-
layer board design is recommended with two of the
layers used for power and ground planes.
The test and scan signals (pins 23, 24, 31, 32, and
33) are used for functional testing after fabrication
and are tied low during normal operation. It is recom-
mended that typical bypass techniques be used on
the voltage supply pins (see ASIC BYPASS CAPS on
attached schematic).
The USS-720 contains a small amount of ROM
space that is used to store descriptor data. This data
is used during the Plug and Play mode in a
Microsoft
Windows
† operating system to identify the product.
This onboard ROM data can be used during the ini-
tial development phase, but unique descriptor data
must be provided by the USB peripheral developer
for each design.
*
IEEE
is a registered trademark of The Institute of Electrical and
Electronics Engineers, Inc.
†
Microsoft
and
Windows
are registered trademarks of Microsoft
Corporation.
6-2 Lucent Technologies Inc.
Typical Circuit Showing the USS-720 Application Note
Bridging USB to Parallel Port February 1999
13
Description (continued)
Whenever device descriptor data is requested, the
USS-720 drives both control pins CS (pin 35, Serial
ROM Chip Select) and SK (pin 34, Serial ROM Clock).
The USS-720 then looks for a response on DIO
(pin 36, Serial ROM Data Signal). If there is no external
device connected, and no data is present on the DIO
pin, then the descriptor data is taken from the internal
ROM. The USS-720 accesses this data through a
MicroWire
* ROM Interface. One method for this is to
use an EEPROM such as the 93CS56L/66L. The USS-
720 Evaluation Kit is specifically designed for use with
this part. Substitution components must be pin and
functional compatible with the 93CS56L/66L. 93C56L/
66L, 93CS46L, and 93C46L EEPROM parts will not
work. The connection scheme for this device is shown
on the attached schematic. The circuit diagram
assumes that a preprogrammed EEPROM is used.
Note: Developers using the USS-720 must use an
external serial EEPROM (or the equivalent) in
their design and create their own hex data file for
use in programming the EEPROM at their site.
The configuration data stored in this serial
EEPROM is used by the
Microsoft
host software
during the enumeration to load the appropriate
drivers. Using unique identification data in the
EEPROM provides a means for the developer to
ensure that only their software is loaded for use
with their device. Otherwise, the enumeration of
a camera using the USS-720 could cause the
software for a USS-720-based printer to be
loaded, resulting in a system that does not func-
tion correctly.
See the Device Descriptor, Configurations, and
Interfaces section in
USS-720 USB-to-
IEEE
1284 Bridge
Data Sheet for more information on
device descriptors.
*
MicroWire
is a registered trademark of Advanced Interconnection
Technology, Inc.
Application Note Typical Circuit Showing the USS-720
February 1999 Bridging USB to Parallel Port
Lucent Technologies Inc. 6-3
13
A
A
B
B
C
C
D
D
4 4
3 3
2 2
1 1
Data_1
PError
SELECT
nFAULT
nACK
nSELECTIN
nFAULT
Data_0
Data_7
BUSY
Data_6
Data_3
Data_0
Data_2
VDD_5V
Data_3
nINIT
nINIT
PLH
Data_5
nSTROBE
PError
Data_7
Data_4
Data_1
BUSY
nSTROBE
Data_6
nSELECTIN
nAUTOFD
PLH
Data_4
SELECT
nACK
Data_5
Data_2
nAUTOFD
VDD_5V
EEPROM
ASIC BYPASS
The schematic provided with the
Evaluation Kit is for reference only.
It’s suitability for use for any
particular purpose is not warrented by
Lucent or In-System Design.
Standard decoupling should be used on the
board. 0.1ufd capacitors between VCC_5V, VCC,
and GND placed as close as possible to the
power pins on the USS-720 is recommended.
Sufficient grounding must be
implemented on the board to ensure
proper functionality. A 4-layer
board design is recommended with
two layers for power and ground
planes.
Copywrite 1997, 1998, In-System Design Inc.
{Doc} B
ISD-101 USB to Parallel 1284
In-System Design, Inc.
Boise, Idaho
B
11Wednesday, June 24, 1998
Title
Size Document Number Rev
Date: Sheet of
DATA-
DATA+
VCC_5V
GND
VCC5V_pullup
5V_pullup
VCC
VCC
VCC
VCC
VCC_5V
VCC
VCC
VCC
C11
.01ufd
12
C5
.1ufd
12
R12 24
1 2
C7
15 pf
R31
R19 24
1 2
R33
D1
DIODE
R10
1.5k
R28
R27
R2
C6
15 pf
Y1
CRYSTAL
J1
CONNECTOR CENT36
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
R14 24
1 2
R11 24
1 2
+
C2
3.3ufd tant.
R21 24
1 2
R15 24
1 2
C10
.1ufd
C8
.1ufd
R3 R26R4
R13 24
1 2
R22 24
1 2
R17 24
1 2
R25
+
C1
3.3ufd tant.
R32
R1
R5
C9
.1ufd
R16 24
1 2
R24 24
1 2
R18 24
1 2
C3
.1ufd
R6
R23 24
1 2
R30
R8
R29
U1
LT1121CST_3.3
13
2
VINVOUT
GND
J2
CON5
1
2
3
4
5
RED
WHITE
GREEN
BLACK
SHIELD
R20 24
1 2
C4
.1ufd
C13
.1ufd
U?
93CS56
6
7
5
8 1
2
3
4
nc
nc
GND
VCC CS
SK
DI
DO
C12
.1ufd
U2
QUAD_44_p
34
35
36
37
16
12
38
13
39
26
14
17
15
30
40
41
18
42
19
43
20
44
21
22
29
32
33
23
31
27
28
24
25
1
6
2
3
4
5
7
8
9
10
11
SK
CS
DIO
nUSB_Reset
VCC
nSELECTIN
VCC
nINIT
GND
PLL_VSS
nACK
GND
BUSY
GND
Suspend
PLH
PEerror
HLH
SELECT
nSTROBE
nFAULT
D0
CLK_LO
CLK_HI
VCC
reset
tst_rst
SCAN
test
DPLS
DMNS
SCAN_EN
PLL_VDD
D1
GND
D2
VDD_5V
D3
D4
D5
D6
VDD_5V
D7
nAUTOFD
R7
Figure 1. USS-720 Evaluation Kit Schematic
6-4 Lucent Technologies Inc.
Typical Circuit Showing the USS-720 Application Note
Bridging USB to Parallel Port February 1999
Preliminary User Guide, Rev. 2
February 1999
13
Lucent Technologies Inc. 7-1
USS-720
USB Device Driver
1 Introduction
This document describes the design and implemen-
tation of USS720.SYS, a
Windows
* WDM USB driver
developed by In-System Design, Inc. (Note that this
driver was written specifically to work with the In-
System Design USB Smart Cable. For vendor-
specific implementations, refer to the “Notes for
Developers” in the Introduction of this Information
Manual.) The purpose of USS720.SYS is to provide
bulk data transfers and a mapping layer for the
IEEE
†
1284 registers over the Universal Serial Bus inter-
face.
The purpose of this document is to:
■Define how USS720.SYS will interact with the
Win-
dows
operating system components and the inter-
face layer to other device classes.
■Provide a guide for using USS720.SYS.
Note: The USS-720’s Automatic Mode is recom-
mended for almost all applications. The drivers
included in the Lucent Technologies USS-720
Evaluation Kit use only Automatic Mode. Auto-
matic mode implements all negotiation hand-
shakes automatically for Compatibility, Nibble,
and ECP modes. In Register Mode, the user
must do the negotiations manually in software.
Register Mode can be useful when imple-
menting a nonstandard parallel port interface.
For more information on the
Windows
system-level
components, USB architecture, and 1284 hardware,
please refer to:
■
Microsoft Win32 SDK
(October 96 or later), avail-
able from
Microsoft
*.
■
WDM Driver Model Specification
, available from
Microsoft.
■
WDM USB Driver Specification
, available from
Microsoft.
■
USB Device Class Definition for Printing Devices,
from usb.org web site.
■
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary
Data Sheet (DS98-393CMPR), available from
Lucent Technologies Microelectronics Group.
■IEEE
Standard Signaling Method for a Bidirectional
Parallel Peripheral Interface for Personal Comput-
ers
(
IEEE
Standard 1284-1994)

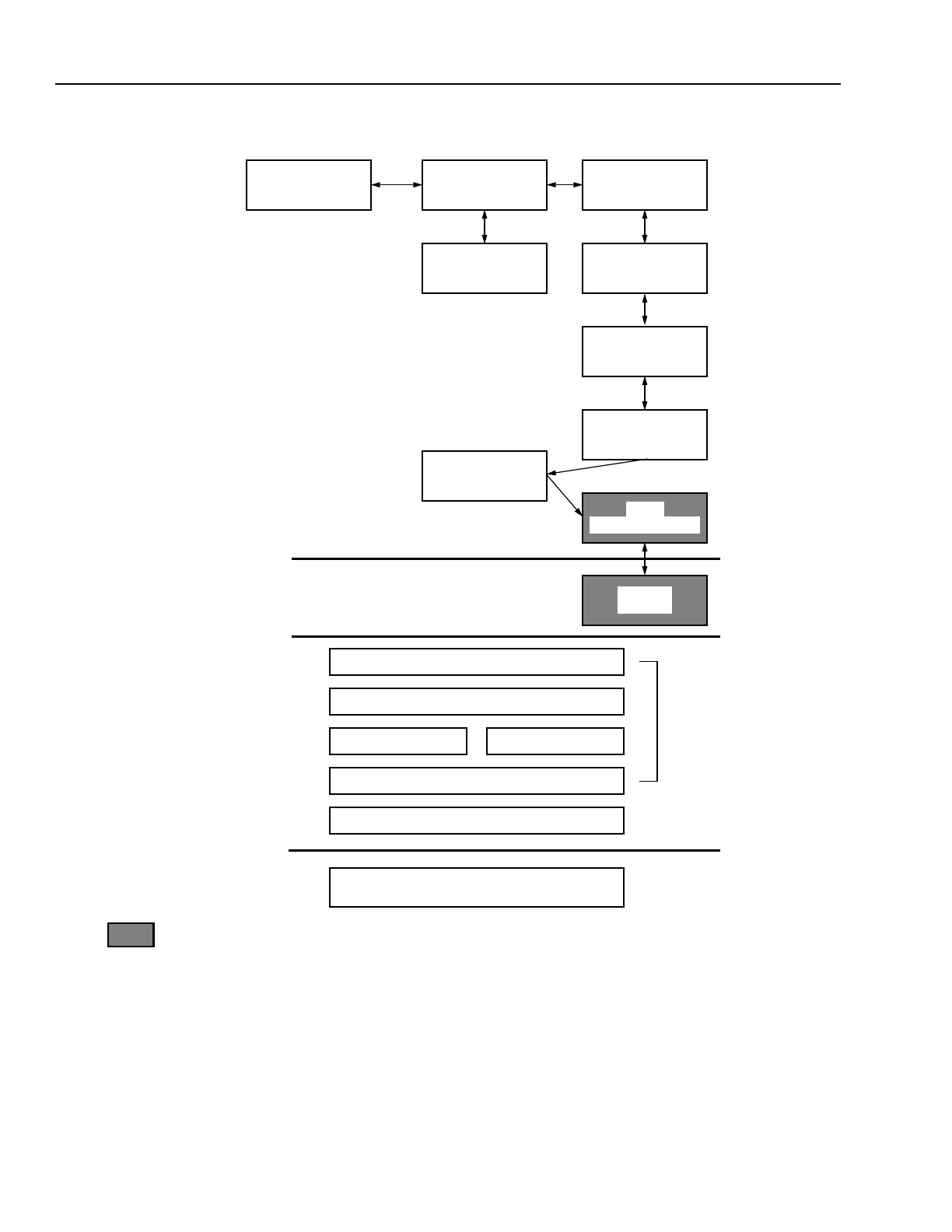

Figure 1 provides a point of reference for directions
mentioned in this document.
5-6005.r2
Figure 1. Signal Directions
*
Windows
and
Microsoft
are registered trademarks of Microsoft
Corporation.
†
IEEE
is a registered trademark of The Institute of Electrical and
Electronics Engineers, Inc.
OUTPUT
DRIVER
INPUT
INPUT
OUTPUT
BULK OUT
BULK IN
HOST PC
USS-720 IN
PERIPHERAL
USB
Table of Contents
Contents Page
7-2 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
1. Introduction ...................................................................................................................................................... 7-1
2. Initialization ...................................................................................................................................................... 7-3
3. I/O File Functions ............................................................................................................................................ 7-3
3.1. CreateFile ............................................................................................................................................... 7-4
3.2. ReadFile ................................................................................................................................................. 7-5
3.3. WriteFile ................................................................................................................................................. 7-6
3.4. DeviceIoControl ...................................................................................................................................... 7-7
3.5. CloseHandle ........................................................................................................................................... 7-8
4. I/O Control Codes ............................................................................................................................................ 7-9
4.1. IOCTL_1284_ ECP_FWDTOREV ........................................................................................................ 7-10
4.2. IOCTL_1284_ECP_REVTOFWD ......................................................................................................... 7-11
4.3. IOCTL_1284_ ECP_SET_CHANNEL .................................................................................................. 7-12
4.4. IOCTL_1284_ SET_MODE .................................................................................................................. 7-13
4.5. IOCTL_1284_ TERMINATE.................................................................................................................. 7-14
4.6. IOCTL_ABORT_PIPE........................................................................................................................... 7-15
4.7. IOCTL_CANCEL_PIPE_REQUEST..................................................................................................... 7-16
4.8. IOCTL_GET_1284_REGISTER ........................................................................................................... 7-17
4.9. IOCTL_GET_ALTSETTING.................................................................................................................. 7-18
4.10. IOCTL_GET_CAPABILITIES.............................................................................................................. 7-19
4.11. IOCTL_GET_CONFIGURATION_DESCRIPTOR .............................................................................. 7-20
4.12. IOCTL_GET_DEVICE_DESCRIPTOR............................................................................................... 7-21
4.13. IOCTL_GET_DEVICE_INSTANCES .................................................................................................. 7-22
4.14. IOCTL_GET_INTERFACE.................................................................................................................. 7-23
4.15. IOCTL_GET_PORT_STATUS ............................................................................................................ 7-24
4.16. IOCTL_ISSUE_USS720_COMMAND................................................................................................ 7-25
4.17. IOCTL_READ_INTERRUPT_PIPE .................................................................................................... 7-26
4.18. IOCTL_RESET_PIPE......................................................................................................................... 7-27
4.19. IOCTL_SET_1284_REGISTER.......................................................................................................... 7-28
4.20. IOCTL_SET_ALTSETTING ................................................................................................................ 7-29
4.21. IOCTL_SOFT_RESET ....................................................................................................................... 7-30
5. I/O Control Data Structures ........................................................................................................................... 7-31
5.1. DEVICE_INSTANCE_HEADER ........................................................................................................... 7-31
5.2. DEVICE_INSTANCE ............................................................................................................................ 7-31
5.3. REGISTER_1284 ................................................................................................................................. 7-32
5.4. ADVREGISTER_1284 .......................................................................................................................... 7-33
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-3
13
2 Initialization
■The driver entry routine is called and initializes callbacks for the following functions when the operating system
loads the driver:
— Create: Open a handle to a device instance.
— Read: Read a block of data from the Bulk In pipe.
— Write: Write a block of data to the Bulk Out pipe.
— DeviceIoControl: Process I/O requests documented in Section 4 of this document.
— Close: Close the handle of the device instance.
■A symbolic link will be created associating this device driver with a special device instance that can be used to
call IOCTL_GET_DEVICE_INSTANCES (i.e., LPTUSB). (See Section 4.13 of this document.)
■The Add_Device routine is called by the configuration manager. The configuration manager interacts with the
USB bus enumerator to identify newly attached devices in the system. Through the layered driver architecture
with the host controller driver, this USS-720 routine will be called when a USS-720 device is identified. After the
device object has been successfully created, symbolic links will be created associating this device driver with the
specific device instances (i.e., LPTUSB1, LPTUSB2, LPTUSBx).
3 I/O File Functions
This section provides instructions on how to use the I/O file functions to interface with the USS-720. Only parame-
ters relative to the USS-720 Device Driver are explained in this document. Please refer to the
Win32 SDK
docu-
mentation for the complete definitions of the following functions and all referenced data types:
Function Description
CreateFile Open an instance of a particular device.
ReadFile Reads data from the Bulk In pipe.
WriteFile Write data to the Bulk Out pipe.
DeviceIoControl Send a control code to a device instance.
CloseHandle Close an instance of a device.
7-4 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
3 I/O File Functions (continued)
3.1 CreateFile
The CreateFile I/O file function opens an instance of a particular device and returns an open handle to the device
instance. Details regarding the syntax, parameters, return values, and error codes are listed below.
3.1.1 Syntax
HANDLE
CreateFile(
LPCTSTR lpDevName,
DWORD dwDesiredAccess,
DWORD dwShareMode,
LPSECURITY_ATTRIBUTES lpSecurityAttributes,
DWORD dwCreationDistribution,
DWORD dwFlagsAndAttributes,
HANDLE hTemplateFile
);
3.1.2 Parameters
Input:
lpDevName—Points to a null-terminated string that specifies the symbolic link name of a specific device instance to
open (see Section 4.12 IOCTL_GET_DEVICE_INSTANCES). Note that the symbolic link must be prefixed with
“\\.\”. For example, to retrieve the handle of the symbolic name LPTUSB1, “\\.\LPTUSB1” must be passed to the
lpDevName parameter.
Note: For definitions of other input parameters, refer to CreateFile Function in the
WIN32 SDK
documentation.
Output:
None.
3.1.3 Return Values
If the function succeeds, the return value is an open handle to the device instance.
If the function fails, the return value is INVALID_HANDLE_VALUE. To get extended error information, call
GetLastError.
3.1.4 Notes
See the
Win32 SDK
documentation for complete definitions of parameters.
3.1.5 Error Code
ERROR_ALREADY_OPENED—Device instance is already open.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-5
13
3 I/O File Functions (continued)
3.2 ReadFile
The ReadFile I/O file function reads data from the Bulk In pipe and returns TRUE if the function is successful and
FALSE if it fails. Details regarding the syntax, parameters, return values, and error codes are listed below.
3.2.1 Syntax
BOOL
ReadFile(
HANDLE hDev,
LPVOID lpBuffer,
DWORD nNumberOfBytesToRead,
LPDWORD lpNumberOfBytesRead,
LPOVERLAPPED lpOverlapped
);
3.2.2 Parameters
Input:
hDev—Handle returned from a successful CreateFile.
nNumberOfBytesToRead—Specifies the number of bytes to read from the device.
lpOverlapped—Pointer to an OVERLAPPED structure. This is an optional parameter that can be “NULL” if overlap-
ping I/O is not required.
Output:
lpBuffer—Pointer to the buffer to receive data from the Bulk In pipe of the device. This buffer is assumed to be in
locked system memory allocated from the nonpaged pool.
lpNumberOfBytesRead—Pointer to the number of bytes that were read.
3.2.3 Return Values
If the function succeeds, the return value is TRUE (1).
If the function fails, the return value is FALSE (0). To get extended error information, call GetLastError.
3.2.4 Notes
See the
Win32 SDK
documentation for complete definitions.
3.2.5 Error Codes
ERROR_DEVICE_REMOVE—The device instance has been removed.
ERROR_DEVICE_STOP—The device instance has been stopped.
ERROR_INVALID_ALTERNATESETTING—The current alternate interface setting for this device instance does not
support the Bulk In pipe.
ERROR_PIPE_ALREADY_OPEN—The Bulk In pipe for this device instance is already open.
STATUS_INVALID_HANDLE—The Bulk In pipe handle is invalid for this device instance.
STATUS_INVALID_PARAMETER—The pipe type is invalid for this device instance.
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to allocate a request to read Bulk In on this device
instance.
7-6 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
3 I/O File Functions (continued)
3.3 WriteFile
The WriteFile I/O file function writes data to the Bulk Out pipe and returns TRUE if the function is successful and
FALSE if it fails. Details regarding the syntax, parameters, return values, and error codes are listed below.
3.3.1 Syntax
BOOL
WriteFile(
HANDLE hDev,
LPVOID lpBuffer,
DWORD nNumberOfBytesToWrite,
LPDWORD lpNumberOfBytesWritten,
LPOVERLAPPED lpOverlapped
);
3.3.2 Parameters
Input:
hDev—Handle returned from a successful CreateFile.
nNumberOfBytesToWrite—Specifies the number of bytes to be written.
lpOverlapped—Pointer to OVERLAPPED structure. This is an optional parameter that can be “NULL” if overlapping
I/O is not required.
Output:
lpBuffer—Pointer to the buffer containing the data to be written to the Bulk Out pipe of the device. This buffer is
assumed to be in locked system memory allocated from the nonpaged pool.
lpNumberOfBytesWritten—Pointer to the number of bytes written.
3.3.3 Return Values
If the function succeeds, the return value is TRUE (1).
If the function fails, the return value is FALSE (0). To get extended error information, call GetLastError.
3.3.4 Notes
See the
Win32 SDK
documentation for complete definitions.
3.3.5 Error Codes
ERROR_DEVICE_REMOVE—The device instance has been removed.
ERROR_DEVICE_STOP—The device instance has been stopped.
ERROR_INVALID_ALTERNATESETTING—The current alternate interface setting for this device instance does not
support the Bulk Out pipe.
ERROR_PIPE_ALREADY_OPEN—The Bulk Out pipe for this device instance is already open.
STATUS_INVALID_HANDLE—The Bulk Out pipe handle is invalid for this device instance.
STATUS_INVALID_PARAMETER—The pipe type is invalid for this device instance.
STATUS_INSUFFICIENT_RESOURCES—This is an internal error resulting from insufficient memory available to
perform a required USB request.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-7
13
3 I/O File Functions (continued)
3.4 DeviceIoControl
The DeviceIoControl I/O file function sends a control code to a device instance and returns TRUE if the function is
successful and FALSE if it fails. Details regarding the syntax, parameters, return values, and error codes are listed
below.
3.4.1 Syntax
BOOL
DeviceIoControl(
HANDLE hDev,
DWORD dwIoControlCode,
LPVOID lpInBuffer,
DWORD nInBufferSize,
LPVOID lpOutBuffer,
DWORD nOutBufferSize,
LPDWORD lpBytesReturned,
LPOVERLAPPED lpOverlapped
);
3.4.2 Parameters
Input:
hDev—Handle returned from a successful CreateFile.
dwIoControlCode—Specifies the control code for the operation. See Section 4 of this document for a list of valid
I/O control codes and more detailed information on each control code.
lpInBuffer—Pointer to a buffer that contains the data required to perform the operation. This parameter can be
NULL if the dwIoControlCode parameter specifies an operation that does not require input data. The usage of lpIn-
Buffer is dependent on the dwIoControlCode parameter.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. The usage of nInBufferSize is
dependent on dwIoControlCode parameter.
lpOverlapped—Pointer to OVERLAPPED structure. This is an optional parameter that can be “NULL” if overlapping
I/O is not required.
Output:
lpOutBufferSize—Pointer to a buffer that receives the operation’s output data. This parameter can be NULL if the
dwIoControlCode parameter specifies an operation that does not require output data. The usage of
lpOutBufferSize is dependent on dwIoControlCode parameter.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. The usage of nOutBufferSize
is dependent on dwIoControlCode parameter.
lpBytesReturned—Pointer to a variable that receives the size (in bytes) of data stored into the output buffer pointed
to by lpOutBuffer. The usage of lpBytesReturned is dependent on dwIoControlCode parameter.
3.4.3 Return Values
If the function succeeds, the return value is TRUE (1).
If the function fails, the return value is FALSE (0). To get extended error information, call GetLastError.
3.4.4 Notes
See the
Win32 SDK
documentation for complete definitions.
7-8 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
3 I/O File Functions (continued)
3.4.5 Error Codes
ERROR_DEVICE_REMOVE—The device instance has been removed.
ERROR_DEVICE_STOP—The device instance has been stopped.
STATUS_INVALID_PARAMETER—Control Code is either invalid for this device instance or the device instance is
in a state that cannot process the Control Code.
See specific Control Code for other errors (see Section 4 of this document).
3.5 CloseHandle
The CloseHandle I/O function closes an instance of a device and returns TRUE if the function is successful and
FALSE if it fails. Details regarding the syntax, parameters, return values, and error codes are listed below.
3.5.1 Syntax
BOOL
CloseHandle(
HANDLE hDev
);
3.5.2 Parameters
Input:
hDev—Handle returned from a successful CreateFile.
Output:
None.
3.5.3 Return Values
If the function succeeds, the return value is TRUE (1).
If the function fails, the return value is FALSE (0). To get extended error information, call GetLastError.
3.5.4 Notes
See the
Win32 SDK
documentation for complete definitions.
3.5.5 Error Codes
See
WIN32 SDK
documentation for possible errors.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-9
13
4 I/O Control Codes
This section provides information for the I/O control codes used in the DeviceIoControl file function (see
Section 3.4). These control codes are used in the DeviceIoControl function to perform any of the following device-
specific operations.
Note: Refer to the header file <USS720io.h> included on the USS-720 Evaluation Kit diskette for details regarding
these control codes definitions. Please note that this file may be subject to periodic modifications. To obtain
more information about these control codes, contact In-System Design.
Control Code Description
IOCTL_1284_ ECP_FWDTOREV Negotiates the peripheral from forward idle to reverse while in
ECP register mode.
IOCTL_1284_ECP_REVTOFWD Negotiates the peripheral from reverse to forward idle while in
ECP register mode.
IOCTL_1284_ ECP_SET_CHANNEL Sets the ECP channel on the peripheral for reads and writes.
IOCTL_1284_ SET_MODE Negotiates the peripheral into one of the valid register modes.
IOCTL_1284_ TERMINATE Performs a standard 1284 termination sequence.
IOCTL_ABORT_PIPE Cancels any pending transfers for the specified pipe. The pipe
state and endpoint state are unaffected.
IOCTL_CANCEL_PIPE_REQUEST Cancels the current request on the specified pipe by flushing
the pipe and canceling any outstanding requests on that pipe.
IOCTL_GET_ALTSETTING Retrieves the current alternate interface setting from the USS-
720 device.
IOCTL _GET_CAPABILITIES Returns a variable buffer length containing the device capabil-
ities string. This is a
IEEE
1284 compatible string.
IOCTL_GET_CONFIGURATION_DESCRIPTOR Retrieves the current configuration descriptor.
IOCTL_GET_DEVICE_DESCRIPTOR Receives the current device descriptor.
IOCTL_GET_DEVICE_INSTANCES Returns a list of current devices based on the symbolic links
created during each device enumeration.
IOCTL_GET_INTERFACE Gets the information about the current interface and pipes.
IOCTL _GET_PORT_STATUS Returns a status byte.
IOCTL_ISSUE_USS720_COMMAND Issues a specific command for the USS-720 device.
IOCTL _GET_1284_REGISTER Returns all 1284 registers.
IOCTL_READ_INTERRUPT_PIPE Reports changes in the parallel port and buffer status when
they occur.
IOCTL_RESET_PIPE Clears the halted state of the specified pipe within the USB
stack and resets the stalled state of the endpoint on the
device.
IOCTL _SET_1284_REGISTER Sets one of the 1284 registers.
IOCTL _SET_ALTSETTING Sets the alternate interface setting.
IOCTL _SOFT_RESET Resets the device, flushes the Bulk Out and Bulk In pipes to
the default states.
7-10 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.1 IOCTL_1284_ ECP_FWDTOREV
IOCTL_1284_ECP_FWDTOREV negotiates the peripheral from forward idle to reverse while in ECP register
mode. Details regarding parameters and error codes follow.
4.1.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.1.2 Notes
Requires that the register-based mode be successfully set to ECP_REGISTER_MODE or
ECP_RLE_REGISTER_MODE (see
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “Register-Based
Operation” and Section 4.4, IOCTL_1284_SET_MODE, of this document).
4.1.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—This command is only supported in ALT_INTERFACE_2 (see
Section 4.9 of this document).
STATUS_IO_DEVICE_ERROR—Negotiation failed.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-11
13
4 I/O Control Codes (continued)
4.2 IOCTL_1284_ECP_REVTOFWD
IOCTL_1284_ECP_REVTOFWD negotiates the peripheral from reverse to forward idle while in ECP register
mode. Details regarding parameters and error codes follow.
4.2.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.2.2 Notes
Requires that the register-based mode be successfully set to ECP_REGISTER_MODE or
ECP_RLE_REGISTER_MODE (see
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “Register-Based
Operation” and Section 4.4, IOCTL_1284_SET_MODE, of this document).
4.2.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—This command is only supported in ALT_INTERFACE_2 (see
Section 4.9).
STATUS_IO_DEVICE_ERROR—Negotiation failed.
7-12 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.3 IOCTL_1284_ ECP_SET_CHANNEL
IOCTL_1284_ ECP_SET_CHANNEL sets the ECP channel on the peripheral for reads and writes. Details
regarding parameters and error codes follow.
4.3.1 Parameters
lpInBuffer—Points to a buffer that contains a single byte which specifies the ECP channel to be set.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. For this operation, this value
should be 1.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.3.2 Notes
Requires that the register-based mode be successfully set to ECP_REGISTER_MODE or
ECP_RLE_REGISTER_MODE (see
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “Register-Based
Operation” and Section 4.4, IOCTL_1284_SET_MODE, of this document).
4.3.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—This command is only supported in ALT_INTERFACE_2 (see
Section 4.9 of this document).
STATUS_IO_DEVICE_ERROR—Negotiation failed.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-13
13
4 I/O Control Codes (continued)
4.4 IOCTL_1284_ SET_MODE
IOCTL_1284_ SET_MODE negotiates the peripheral into one of the valid register modes. Details regarding param-
eters and error codes follow.
4.4.1 Parameters
lpInBuffer—Points to a buffer that contains a single byte that specifies one of the following register modes:
* Using EPP mode is possible in the USS-720 for users capable of writing their own software based on the USS-720 data sheet information.
However, the USS720.SYS driver does not support EPP mode applications.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. For this operation, this value
should be 1.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.4.2 Notes
All operations expect the USS-720 device to have been reset (see IOCTL_SOFT_RESET) before executing this
command.
In standard, bidirectional, and compatibility register modes, no 1284 negotiation takes place. The USS-720 device
is simply placed into the appropriate register-based operation. (See
USS-720 USB-to-
IEEE
1284 Bridge
Prelimi-
nary Data Sheet, “Register-Based Operations.”)
In ECP_REGISTER_MODE and ECP_RLE_REGISTER_MODE, the USS-720 device is placed into ECP register-
based operation after correctly negotiating into ECP mode via the Control and Status registers. (See
USS-720
USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “Register-Based Operations.”)
4.4.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—This command is only supported in ALT_INTERFACE_2 (see Section
4.9 of this document).
ERROR_INVALID_REGISTER_MODE—Register mode is either invalid or not currently supported for the device
instance.
STATUS_IO_DEVICE_ERROR—Negotiation failed.
Register Mode Description
STANDARD_REGISTER_MODE Sets USS-720 into register-based Standard Mode.
BIDIRECTIONAL_REGISTER_MODE Sets USS-720 into register-based Bidirectional Mode.
COMPATIBILITY_REGISTER_MODE Sets USS-720 into register-based Compatibility Mode.
ECP_REGISTER_MODE Negotiates the USS-720 into register-based ECP Mode without RLE.
ECP_RLE_REGISTER_MODE Negotiates the USS-720 into register-based ECP Mode with RLE.
EPP_REGISTER_MODE Currently not supported.*
7-14 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.5 IOCTL_1284_ TERMINATE
IOCTL_1284_ TERMINATE performs a standard 1284 termination sequence. Details regarding parameters and
error codes follow.
4.5.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.5.2 Notes
Requires that the register-based mode be successfully set to ECP_REGISTER_MODE or
ECP_RLE_REGISTER_MODE (see
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “Register-Based
Operation” and Section 4.4, IOCTL_1284_SET_MODE, of this document).
4.5.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—This command is only supported in ALT_INTERFACE_2 (see
Section 4.9).
STATUS_IO_DEVICE_ERROR—Standard termination failed.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-15
13
4 I/O Control Codes (continued)
4.6 IOCTL_ABORT_PIPE
IOCTL_ABORT_PIPE cancels any pending transfers for the specified pipe. The pipe state and endpoint state are
unaffected. Details regarding parameters and error codes follow.
4.6.1 Parameters
lpInBuffer—Points to a buffer that contains a single byte that specifies one of the following values:
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. For this operation, this value
should be 1.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.6.2 Notes
None.
4.6.3 Error Codes
ERROR_INVALID_PIPE_INDEX—Specified pipe is invalid for this device instance or invalid for the current alter-
nate interface setting.
STATUS_INVALID_PARAMETER—nInBufferSize cannot be zero.
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to allocate a request to abort the pipe on this
device instance.
Value Description
BULK_OUT_PIPE Bulk Out pipe.
BULK_IN_PIPE Bulk In pipe.
INTERRUPT_PIPE Interrupt pipe.
7-16 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.7 IOCTL_CANCEL_PIPE_REQUEST
IOCTL_CANCEL_PIPE_REQUEST cancels the current request on the specified pipe by flushing the pipe and
canceling any outstanding requests on the pipe. Details regarding parameters and error codes follow.
4.7.1 Parameters
lpInBuffer—Points to a buffer that contains a single byte that specifies one of the following values:
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. For this operation, this value
should be 1.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.7.2 Notes
None.
4.7.3 Error Codes
ERROR_INVALID_PIPE_INDEX—Specified pipe is invalid for this device instance or invalid for the current alter-
nate interface setting.
STATUS_INVALID_PARAMETER—nInBufferSize cannot be zero.
Value Description
BULK_OUT_PIPE Bulk Out pipe.
BULK_IN_PIPE Bulk In pipe.
INTERRUPT_PIPE Interrupt pipe.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-17
13
4 I/O Control Codes (continued)
4.8 IOCTL_GET_1284_REGISTER
IOCTL_GET_1284_REGISTER returns all 1284 registers. Details regarding parameters and error codes follow.
4.8.1 Parameters
lpInBuffer—Points to an input buffer that contains a byte that specifies the address of the parallel port register to be
read.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. This buffer must be large enough
to contain one byte value.
lpOutBuffer—Points to an output buffer that will receive a REGISTER_1284 structure or an ADVREGISTER_1284
structure (see Sections 5.3 and 5.4 of this document).
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer, which must be large enough to
contain a REGISTER_1284 data structure or an ADVREGISTER_1284 structure. The size specified in nOutBuffer-
Size will determine whether REGISTER_1284 or ADVREGISTER_1284 is returned (see Sections 5.3 and 5.4 of
this document).
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
4.8.2 Notes
See the
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “GET_1284_REGISTER” for more details on
the vendor-specific requests.
4.8.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—This command is only supported in ALT_INTERFACE_2 (see
Section 4.9 of this document).
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer needs to be large enough to receive a REGISTER_1284 struc-
ture (see Section 5.3 of this document).
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to perform the request on this device instance.
7-18 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.9 IOCTL_GET_ALTSETTING
IOCTL_GET_ALTSETTING retrieves the current alternate interface setting from the USS-720 device. Details
regarding parameters and error codes follow.
4.9.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer that will receive a single byte indicating the current alternate setting based
on one of the following:
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. The buffer must be large
enough to contain one byte value.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
4.9.2 Notes
None.
4.9.3 Error Code
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer needs to be large enough to contain one byte value.
Value Description
ALT_INTERFACE_0 Bulk Out pipe only.
ALT_INTERFACE_1 Bulk Out and Bulk In pipe.
ALT_INTERFACE_2 Bulk Out, Bulk In, Interrupt pipe, and 1284 register capabilities.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-19
13
4 I/O Control Codes (continued)
4.10 IOCTL_GET_CAPABILITIES
IOCTL_GET_CAPABILITIES returns a variable buffer length containing the device capabilities string. This is an
IEEE
1284 compatible string. Details regarding parameters and error codes follow.
4.10.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer that will receive an
IEEE
1284 Device ID string.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Specify zero to return only the
length of the Device ID string in lpBytesReturned.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer or
returns the length of the Device ID string if nOutBufferSize is zero.
4.10.2 Notes
None.
4.10.3 Error Codes
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer was not large enough to receive the Device ID string (see
USS-
720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “Printer Class-Specific Requests”).
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to perform the request on this device instance.
7-20 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.11 IOCTL_GET_CONFIGURATION_DESCRIPTOR
IOCTL_GET_CONFIGURATION_DESCRIPTOR retrieves the current configuration descriptor. Details regarding
parameters and error codes follow.
4.11.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer that will receive a USB_CONFIGURATION_DESCRIPTOR data structure
(see
WDM USB Driver Specification
).
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer, which must be large enough to
contain the USB_CONFIGURATION_DESCRIPTOR data structure (see
WDM USB Driver Specification
). Specify
zero to return only the length of the Device ID string in lpBytesReturned.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
4.11.2 Notes
None.
4.11.3 Error Code
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer was not large enough to receive the USB Configuration
Descriptor.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-21
13
4 I/O Control Codes (continued)
4.12 IOCTL_GET_DEVICE_DESCRIPTOR
IOCTL_GET_DEVICE_DESCRIPTOR retrieves the current device descriptor. Details regarding parameters and
error codes follow.
4.12.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer that will receive a USB_DEVICE_DESCRIPTOR data structure (see
WDM
USB Driver Specification
).
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer, which must be large enough to
contain the USB_DEVICE_DESCRIPTOR data structure (see
WDM USB Driver Specification
). Specify zero to
return only the length of the Device ID string in lpBytesReturned.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
4.12.2 Notes
None.
4.12.3 Error Code
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer was not large enough to receive the USB Device Descriptor.
7-22 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.13 IOCTL_GET_DEVICE_INSTANCES
IOCTL_GET_DEVICE_INSTANCES returns a list of current devices based on the symbolic links created during
each device enumeration. Details regarding parameters and error codes follow.
4.13.1 Parameters
lpInBuffer—Points to an input buffer that will receive. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer that will receive a DEVICE_INSTANCE_HEADER structure (see
Section 5.1) and a series of DEVICE_INSTANCE structures (see Section 5.2), one for each device instance.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Specify zero to return only the
length of the Device ID string in lpBytesReturned.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
4.13.2 Notes
None.
4.13.3 Error Code
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer needs to be large enough to receive the device instances.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-23
13
4 I/O Control Codes (continued)
4.14 IOCTL_GET_INTERFACE
IOCTL_GET_INTERFACE gets the information about the current interface and pipes. Details regarding parameters
and error codes follow.
4.14.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer that will receive a USBD_INTERFACE_INFORMATION data structure (see
WDM USB Driver Specification
).
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer, which must be large enough to
contain the USBD_INTERFACE_INFORMATION data structure. Specify zero to return only the length of the
Device ID string in lpBytesReturned.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
4.14.2 Notes
None.
4.14.3 Error Code
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer needs to be large enough to receive the interface information.
7-24 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.15 IOCTL_GET_PORT_STATUS
IOCTL_GET_PORT_STATUS returns a status byte. Details regarding parameters and error codes follow.
4.15.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer that receives a byte indicating the current port status. The bit mask is
defined as follows (see the
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “Get_Port_Status”):
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. The buffer must be large
enough to contain one byte value.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
4.15.2 Notes
None.
4.15.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—The command is only supported in ALT_INTERFACE_0 and
ALT_INTERFACE_1 (see Section 4.9 of this document).
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer needs to be large enough to receive the interface information.
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to perform the request on this device instance.
Bit Meaning
0—2 Reserved, will always read 0.
3 0 = error, 1 = no error.
4 Select.
5 Paper empty.
6—7 Reserved, will always read 0.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-25
13
4 I/O Control Codes (continued)
4.16 IOCTL_ISSUE_USS720_COMMAND
IOCTL_ISSUE_USS720_COMMAND issues a specific command for the USS-720 device. Details regarding
parameters and error codes follow.
4.16.1 Parameters
lpInBuffer—Points to an buffer that contains a single byte which specifies one of the following USS-720 commands:
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. For this operation, this value
should be 1.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.16.2 Notes
Returns TRUE if successful; FALSE otherwise.
4.16.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—This command is only supported in ALT_INTERFACE_2 (see
Section 4.9 of this document).
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to perform the request on this device instance.
Command Description
CMD_AUTOECP_ON Turn Auto Mode on.
CMD_AUTOECP_OFF Turn Auto Mode off.
CMD_COMPRESS_ON Turn ECP RLE compression on.
CMD_COMPRESS_OFF Turn ECP RLE compression off.
7-26 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.17 IOCTL_READ_INTERRUPT_PIPE
IOCTL_READ_INTERRUPT_PIPE reports changes on the parallel port and buffer status when they occur. Details
regarding parameters and error codes follow.
4.17.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer that will receive four status bytes reflecting changes in the parallel port and
buffer status as follows (see the
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, “Registers”):
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer, which must be large enough to
contain 4 bytes.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
4.17.2 Notes
None.
4.17.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—The command is only supported in ALT_INTERFACE_2 (see
Section 4.9 of this document).
ERROR_NOT_ENOUGH_BUFFER—lpOutBuffer needs to be large enough to receive the status bytes.
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to perform the request on this device instance.
Byte Description
0 Status.
1 Control.
2 Extended control.
3 USS-720 control.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-27
13
4 I/O Control Codes (continued)
4.18 IOCTL_RESET_PIPE
IOCTL_RESET_PIPE clears the halted state of the specified pipe within the USB stack and resets the stalled state
of the endpoint on the device. Details regarding parameters and error codes follow.
4.18.1 Parameters
lpInBuffer—Points to a buffer that contains a single byte which specifies one of the following values:
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. For this operation, this value
should be 1.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.18.2 Notes
None.
4.18.3 Error Codes
ERROR_INVALID_PIPE_INDEX—Specified pipe is invalid for this device instance or invalid for the current alter-
nate interface setting.
STATUS_INVALID_PARAMETER—nInBufferSize cannot be zero.
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to allocate a request to reset the pipe on this
device instance.
Value Description
BULK_OUT_PIPE Bulk Out pipe.
BULK_IN_PIPE Bulk In pipe.
INTERRUPT_PIPE Interrupt pipe
7-28 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.19 IOCTL_SET_1284_REGISTER
IOCTL_SET_1284_REGISTER sets one of the 1284 registers. Details regarding parameters and error codes
follow.
4.19.1 Parameters
lpInBuffer—Points to an input buffer that contains the following 2 bytes:
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer
.
For this operation, this value
should be 2.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.19.2 Notes
See
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet, for more detail on the vendor-specific requests
SET_1284_REGISTER.
4.19.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—This command is only supported in ALT_INTERFACE_2 (see
Section 4.9 of this document).
ERROR_INVALID_ADDRESS_REGISTER—Address of the parallel port register is read only.
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to perform the request on this device instance.
Byte Description
0 Value to be written to the register.
1 Address of the parallel port register.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-29
13
4 I/O Control Codes (continued)
4.20 IOCTL_SET_ALTSETTING
IOCTL_SET_ALTSETTING sets the alternate interface setting. Details regarding parameters and error codes
follow.
4.20.1 Parameters
lpInBuffer—Points to an buffer that contains a single byte that specifies one of the following values:
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. For this operation, this value
should be 1.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.20.2 Notes
None.
4.20.3 Error Codes
ERROR_INVALID_ALTERNATESETTING—The alternate interface setting passed in for this command is invalid.
ERROR_INVALID_DESCRIPTOR—Configuration descriptor is invalid and could not set the alternate interface.
Value Description
ALT_INTERFACE_0 Bulk Out pipe only.
ALT_INTERFACE_1 Bulk Out and Bulk In pipe.
ALT_INTERFACE_2 Bulk Out, Bulk In, Interrupt pipe, and 1284 register capabilities.
7-30 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
4 I/O Control Codes (continued)
4.21 IOCTL_SOFT_RESET
IOCTL_SOFT_RESET resets the device, flushes the Bulk Out and Bulk In pipes to the default states. Details
regarding parameters and error codes follow.
4.21.1 Parameters
lpInBuffer—Points to an input buffer. Not used with this operation. Set to NULL.
nInBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpInBuffer. Not used with this operation. Set
to zero.
lpOutBuffer—Points to an output buffer. Not used with this operation. Set to NULL.
nOutBufferSize—Specifies the size (in bytes) of the buffer pointed to by lpOutBuffer. Not used with this operation.
Set to zero.
lpBytesReturned—Points to a DWORD that receives the actual size (in bytes) of the data stored into lpOutBuffer.
Not used with this operation.
4.21.2 Notes
None.
4.21.3 Error Code
STATUS_INSUFFICIENT_RESOURCES—Not enough memory to allocate a request to perform a soft reset on this
device instance.
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-31
13
5 I/O Control Data Structures
This section describes the data structures used in I/O control codes.
5.1 DEVICE_INSTANCE_HEADER
The DEVICE_INSTANCE_HEADER structure is used when issuing the IOCTL_GET_DEVICE_INSTANCES con-
trol code.
5.1.1 Data Structure
typedef struct _DEVICE_INSTANCE_HEADER{
DWORD NumDeviceInstance;
DWORD TotalLength;
}DEVICE_INSTANCE_HEADER;
5.1.2 Members
NumDeviceInstance—Total number of device instances.
TotalLength—Total length (in bytes) of device instances including the header.
5.2 DEVICE_INSTANCE
The DEVICE_INSTANCE structure is used when issuing the IOCTL_GET_DEVICE_INSTANCES control code.
5.2.1 Data Structure
typedef struct _DEVICE_INSTANCE{
DWORD InstanceIndex;
DWORD LinkNameLength;
CHAR DeviceLinkName[64];
}DEVICE_INSTANCE, *PDEVICE_INSTANCE;
5.2.2 Members
InstanceIndex—Index of this instance.
LinkNameLength—Length (in bytes) of the DeviceLinkName.
DeviceLinkName—Pointer to a null terminated string containing the symbolic link name of a device instance.
7-32 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
5 I/O Control Data Structures (continued)
5.3 REGISTER_1284
The REGISTER_1284 structure is used when issuing the IOCTL_GET_1284_REGISTER control code.
5.3.1 Data Structure
typedef struct _REGISTER_1284
{UCHAR RegisterAddress;
UCHAR DataRegister;
UCHAR StatusRegister;
UCHAR ControlRegister;
UCHAR EppAddressRegister;
UCHAR EppDataRegister;
UCHAR EcpCommandRegister;
UCHAR ExtendedControlRegister;
UCHAR USS720ControlRegister
}
REGISTER_1284, *PREGISTER_1284;
5.3.2 Members
RegisterIndex—Address of the parallel port register.
DataRegister—Data Register value (see Data Register table in Lucent Technologies
USS-720 USB-to-
IEEE
1284
Bridge
Preliminary Data Sheet for details).
StatusRegister—Status Register value (see Status Register table in Lucent Technologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
ControlRegister—Control Register value (see Control Register table in Lucent Technologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
EppAddressRegister—EPP Address Register value (see EPP Address Register table in Lucent Technologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
EppDataRegister—EPP Data Register value (see EPP Data Register table in Lucent Technologies
USS-720 USB-
to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
EcpCommandRegister—ECP Command Register value (see ECP Command Register table in Lucent Technolo-
gies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
ExtendedControlRegister—Extended Control Register value (see Extended Control Register table in Lucent Tech-
nologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
USS720ControlRegister—USS-720 Control Register value (see USS-720 Control Register table in Lucent Tech-
nologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
Preliminary User Guide, Rev. 2 USS-720
February 1999 USB Device Driver
Lucent Technologies Inc. 7-33
13
5 I/O Control Data Structures (continued)
5.4 ADVREGISTER_1284
The ADVREGISTER_1284 structure is used when issuing the IOCTL_GET_1284_REGISTER control code.
5.4.1 Data Structure
typedef struct _ADVREGISTER_1284
{UCHAR RegisterAddress;
UCHAR DataRegister;
UCHAR StatusRegister;
UCHAR ControlRegister;
UCHAR EppAddressRegister;
UCHAR EppDataRegister;
UCHAR EcpCommandRegister;
UCHAR ExtendedControlRegister;
UCHAR USS720ControlRegister;
UCHAR USS720SetupRegister;
UCHAR Reserved[10];
}
ADVREGISTER_1284, *PADVREGISTER_1284;
5.4.2 Members
RegisterIndex—Address of the parallel port register.
DataRegister—Data Register value (see Data Register table in Lucent Technologies
USS-720 USB-to-
IEEE
1284
Bridge
Preliminary Data Sheet for details).
StatusRegister—Status Register value (see Status Register table in Lucent Technologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
ControlRegister—Control Register value (see Control Register table in Lucent Technologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
EppAddressRegister—EPP Address Register value (see EPP Address Register table in Lucent Technologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
EppDataRegister—EPP Data Register value (see EPP Data Register table in Lucent Technologies
USS-720 USB-
to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
EcpCommandRegister—ECP Command Register value (see ECP Command Register table in Lucent Technolo-
gies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
ExtendedControlRegister—Extended Control Register value (see Extended Control Register table in Lucent Tech-
nologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
USS720ControlRegister—USS-720 Control Register value (see USS-720 Control Register table in Lucent Tech-
nologies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
USS720SetupRegister—USS-720 Setup Register value (see USS-720 Setup Register table in Lucent Technolo-
gies
USS-720 USB-to-
IEEE
1284 Bridge
Preliminary Data Sheet for details).
Reserved—Reserved for future use.
7-34 Lucent Technologies Inc.
USS-720 Preliminary User Guide, Rev. 2
USB Device Driver February 1999
13
Application Note
February 1999
13
Lucent Technologies Inc. 8-1
USS-720
USB Port Monitor
Description
A port monitor is responsible for the communication
between the
Windows
* spooler and a printing device.
It controls the I/O port to which the physical printer is
connected and is responsible for the communication
channel between the spooler and the print device.
Typically, the port monitor communicates with base
I/O drivers (e.g., serial and parallel drivers) for device
I/O, but it may also call different interfaces, such as
Windows
sockets, SCSI, USB, etc.
Note: For more specifics on the
Windows
spooler
and port monitors, see the
Windows
95/98
DDK documentation.
The USB Port Monitor, developed by In-System
Design, enables printing from
Windows
applications
using the ISD USB Smart Cable. It is included in the
USS-720 Evaluation Kit to demonstrate a functional
use of the USS-720 device. Figure 1 shows how the
USB Port Monitor is included in the
Windows
spooler.
*
Windows
is a registered trademark of Microsoft Corporation.
The USB Port Monitor is installed during the Plug
and Play installation of the ISD USB Smart Cable. At
initialization, the spooler calls the USB Port Monitor
to obtain a current list of USB ports available on the
host. Once initialization is complete, the spooler has
a record of which USB ports exist, and which printers
are associated with each USB port. When the
spooler determines that a particular spooled job can
be printed, it calls the USB Port Monitor to perform
the following:
■Notify the start of the print job,
■Send data to be written to the printer,
■Request data to be read from the printer, and
■Notify the end of the print job.
For a description of the data and control flow in and
out of the USB Port Monitor, please refer to the
Design and Implementation Notes of the
Windows
95/98 DDK.
8-2 Lucent Technologies Inc.
USS-720 Application Note
USB Port Monitor February
13
Description (continued)
5-6004.r6
Figure 1. Printer Cable with
Instant USB
™
APPLICATION
PRINTER
GDI GDI32
SPOOLER
ROUTER
LOCAL PRINT
LANGUAGE
USBHUB.SYS
USBD.SYS
PCI ENUMERATOR
USB BUS
UHCD.SYS OPENHCI.SYS
DRIVER PROCESS
PROVIDER
MONITOR
USS-720
DRIVER
USS-720 IN
USB
DRIVER
INTERFACE
HARDWARE
INTERFACE
APPLICATION
USB DRIVER STACK
USS-720
DRIVER
INTERFACE
USB
PORT MONITOR
Software provided with the USS-720
Application Note
June 1999
13
Lucent Technologies Inc. 9-1
Instructions for Downloading Software for Use
with the In-System Design USB Smart Cable
Introduction
Before you begin, please note: In order to use the
software for the In-System Design USB Smart Cable,
the PC where the software will be installed must be
running either:
■
Windows
* 95/version 4.00.95b with the USB sup-
plement (QFE 1214), also known as OSR2.1 or
■
Windows
98
No upgrade path is available from previous versions
of
Windows
95/version 4.00.950 to OSR2.1.
Windows
95/version 4.00.95b (OSR2.0) must first be
installed, and then the system can be upgraded to
OSR2.1. The USB supplement file, usbsupp.exe, is
required to upgrade the OSR2.0 operating system to
OSR 2.1 (QFE 1214). Contact
Microsoft
* to obtain
this file.
Software Installation Instructions
1. Point your web browser to
http://www.in-system.com to access the In-Sys-
tem Design web site.
2. Click on "Drivers".
3. For the library name, type: uss720_dev
Note: Use lower-case letters only.
4. For the password, type: usb_to_lpt
Note: Use lower-case letters only.
5. Click on "Enter Library".
6. At this point, the uss720_dev library page will
appear with a list of files.
7. If your PC is running OSR2.1 with QFE, click on
OSR21_USS720_Eval_Kit_2401.zip to down-
load the installation files. Continue to step #9
below.
8. If your PC is running
Windows
98, click on
W98_USS720_Eval_Kit_2402.zip to download
the installation files.
9. Unzip the above file and store the extracted files
either on a diskette or in a directory on your hard
drive. When you install the USB Smart Cable, you
will direct the operating system to search for the
files in the location you have selected.
*
Windows
and
Microsoft
are registered trademarks of Microsoft
Corporation.
