LucidSound 16301 2.4G Wireless DONGLE User Manual

LucidSound, Inc. 2.4G Wireless DONGLE Users Manual

Users Manual

USER GUIDE

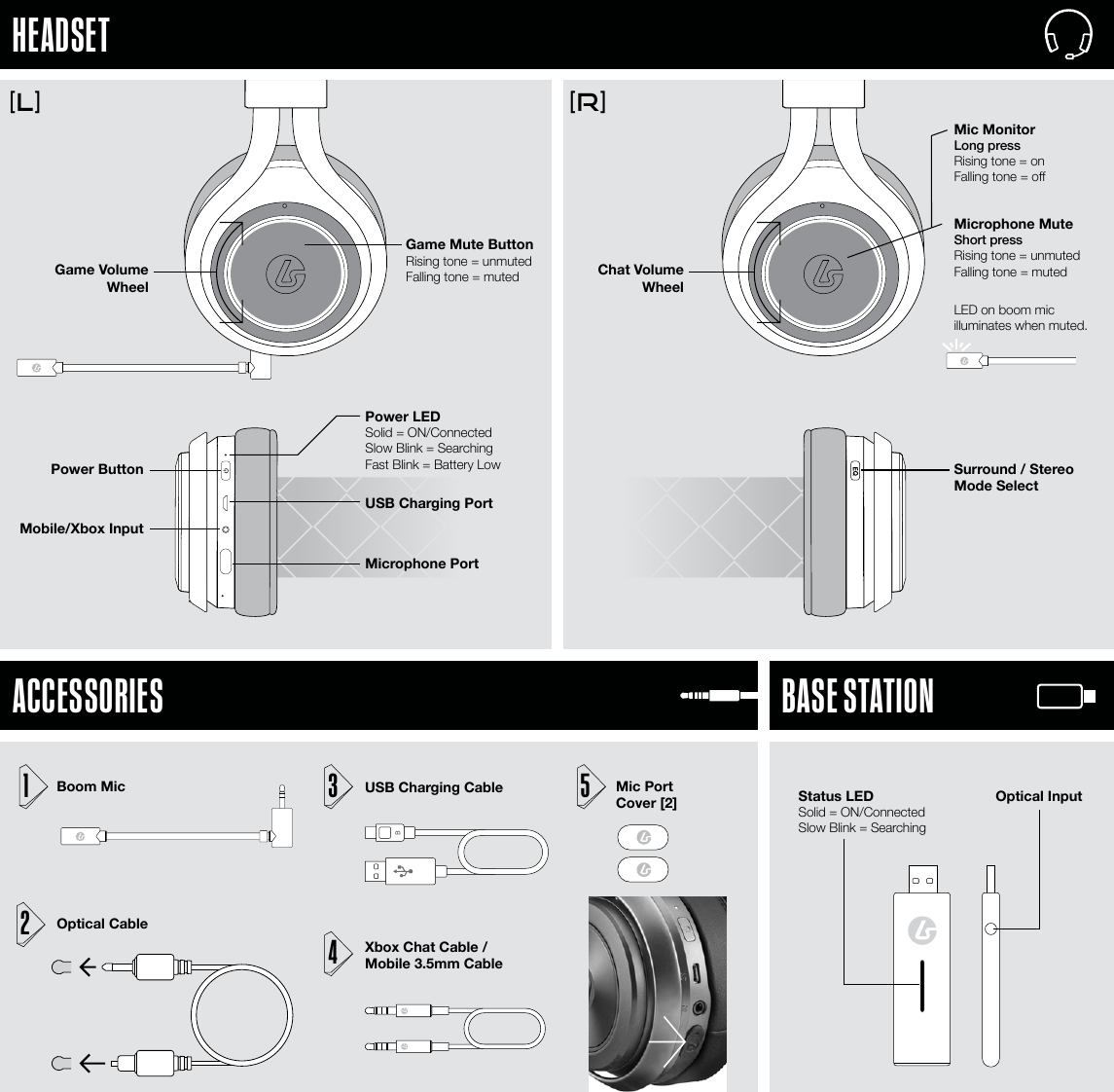

Surround / Stereo Mode SelectStatus LEDSolid = ON/ConnectedSlow Blink = SearchingOptical InputPower LEDSolid = ON/Connected Slow Blink = SearchingFast Blink = Battery LowMicrophone PortGame VolumeWheelGame Mute ButtonRising tone = unmutedFalling tone = muted Chat VolumeWheelPower ButtonMobile/Xbox Input HEADSET ACCESSORIES BASE STATION[L] [R]Microphone MuteShort pressRising tone = unmutedFalling tone = mutedLED on boom mic illuminates when muted.Mic MonitorLong pressRising tone = onFalling tone = oUSB Charging PortBoom MicXbox Chat Cable / Mobile 3.5mm CableUSB Charging CableOptical Cable1423Mic Port Cover [2]5

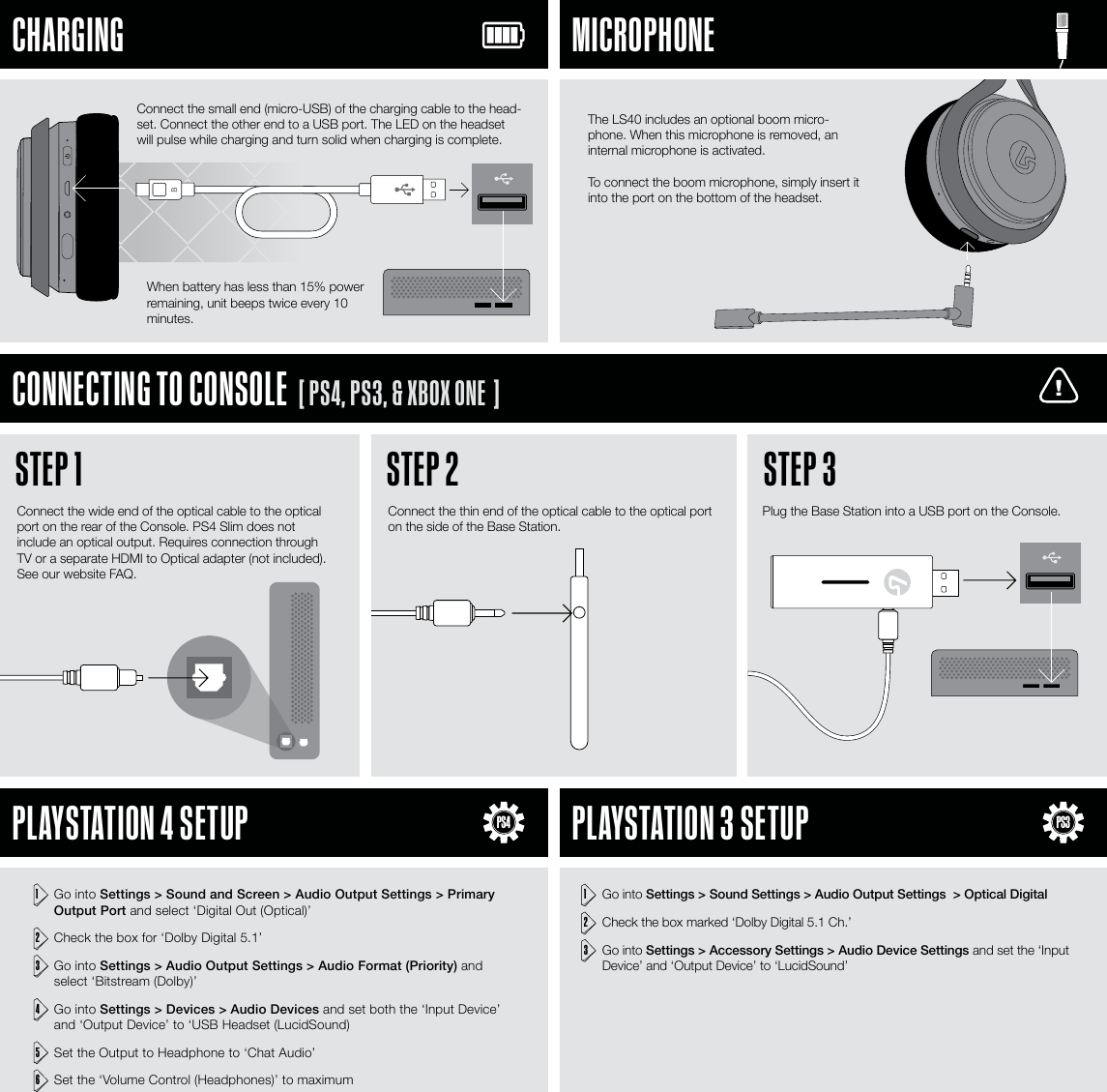

Connect the wide end of the optical cable to the optical port on the rear of the Console. PS4 Slim does not include an optical output. Requires connection through TV or a separate HDMI to Optical adapter (not included). See our website FAQ.Connect the thin end of the optical cable to the optical port on the side of the Base Station.Plug the Base Station into a USB port on the Console.!The LS40 includes an optional boom micro-phone. When this microphone is removed, an internal microphone is activated. To connect the boom microphone, simply insert it into the port on the bottom of the headset.When battery has less than 15% power remaining, unit beeps twice every 10 minutes.1 Go into Settings > Sound and Screen > Audio Output Settings > Primary Output Port and select ‘Digital Out (Optical)’2 Check the box for ‘Dolby Digital 5.1’3 Go into Settings > Audio Output Settings > Audio Format (Priority) and select ‘Bitstream (Dolby)’4 Go into Settings > Devices > Audio Devices and set both the ‘Input Device’ and ‘Output Device’ to ‘USB Headset (LucidSound)5 Set the Output to Headphone to ‘Chat Audio’6 Set the ‘Volume Control (Headphones)’ to maximum1 Go into Settings > Sound Settings > Audio Output Settings > Optical Digital2 Check the box marked ‘Dolby Digital 5.1 Ch.’3 Go into Settings > Accessory Settings > Audio Device Settings and set the ‘Input Device’ and ‘Output Device’ to ‘LucidSound’ CHARGING CONNECTING TO CONSOLE [ PS4, PS3, & XBOX ONE ] MICROPHONEConnect the small end (micro-USB) of the charging cable to the head-set. Connect the other end to a USB port. The LED on the headset will pulse while charging and turn solid when charging is complete. STEP 1 STEP 2 STEP 3 PLAYSTATION 4 SETUP PLAYSTATION 3 SETUPPS4 PS3

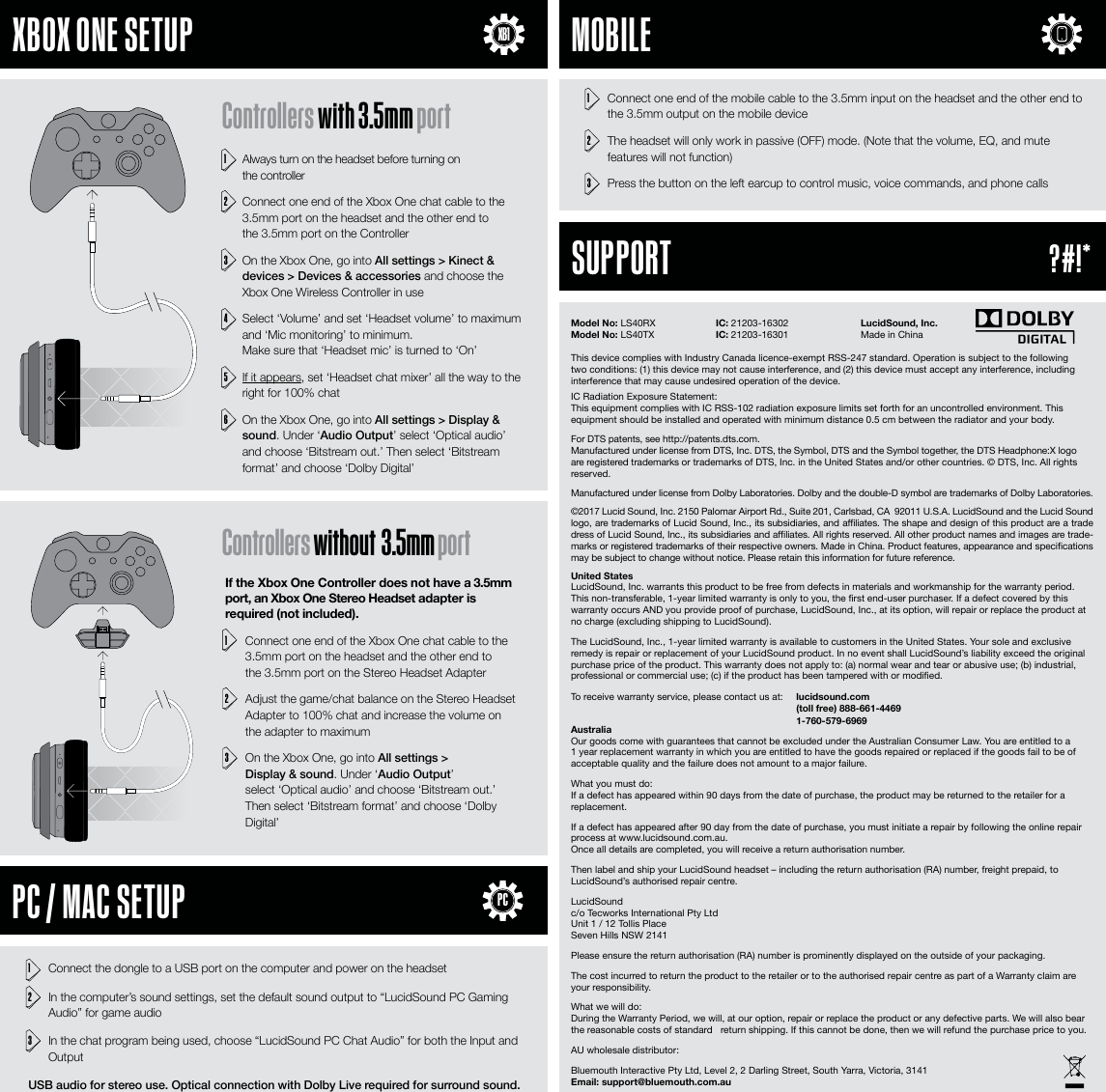

United StatesLucidSound, Inc. warrants this product to be free from defects in materials and workmanship for the warranty period. This non-transferable, 1-year limited warranty is only to you, the rst end-user purchaser. If a defect covered by this warranty occurs AND you provide proof of purchase, LucidSound, Inc., at its option, will repair or replace the product at no charge (excluding shipping to LucidSound).The LucidSound, Inc., 1-year limited warranty is available to customers in the United States. Your sole and exclusive remedy is repair or replacement of your LucidSound product. In no event shall LucidSound’s liability exceed the original purchase price of the product. This warranty does not apply to: (a) normal wear and tear or abusive use; (b) industrial, professional or commercial use; (c) if the product has been tampered with or modied. To receive warranty service, please contact us at: lucidsound.com (toll free) 888-661-4469 1-760-579-6969AustraliaOur goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a 1 year replacement warranty in which you are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.What you must do: If a defect has appeared within 90 days from the date of purchase, the product may be returned to the retailer for a replacement. If a defect has appeared after 90 day from the date of purchase, you must initiate a repair by following the online repair process at www.lucidsound.com.au. Once all details are completed, you will receive a return authorisation number.Then label and ship your LucidSound headset – including the return authorisation (RA) number, freight prepaid, to LucidSound’s authorised repair centre.LucidSound c/o Tecworks International Pty Ltd Unit 1 / 12 Tollis Place Seven Hills NSW 2141Please ensure the return authorisation (RA) number is prominently displayed on the outside of your packaging. The cost incurred to return the product to the retailer or to the authorised repair centre as part of a Warranty claim are your responsibility.What we will do: During the Warranty Period, we will, at our option, repair or replace the product or any defective parts. We will also bear the reasonable costs of standard return shipping. If this cannot be done, then we will refund the purchase price to you.AU wholesale distributor:Bluemouth Interactive Pty Ltd, Level 2, 2 Darling Street, South Yarra, Victoria, 3141 Email: support@bluemouth.com.au1 Always turn on the headset before turning on the controller2 Connect one end of the Xbox One chat cable to the 3.5mm port on the headset and the other end to the 3.5mm port on the Controller 3 On the Xbox One, go into All settings > Kinect & devices > Devices & accessories and choose the Xbox One Wireless Controller in use4 Select ‘Volume’ and set ‘Headset volume’ to maximum and ‘Mic monitoring’ to minimum. Make sure that ‘Headset mic’ is turned to ‘On’5 If it appears, set ‘Headset chat mixer’ all the way to the right for 100% chat6 On the Xbox One, go into All settings > Display & sound. Under ‘Audio Output’ select ‘Optical audio’ and choose ‘Bitstream out.’ Then select ‘Bitstream format’ and choose ‘Dolby Digital’If the Xbox One Controller does not have a 3.5mm port, an Xbox One Stereo Headset adapter is required (not included). 1 Connect one end of the Xbox One chat cable to the 3.5mm port on the headset and the other end to the 3.5mm port on the Stereo Headset Adapter2 Adjust the game/chat balance on the Stereo Headset Adapter to 100% chat and increase the volume on the adapter to maximum3 On the Xbox One, go into All settings > Display & sound. Under ‘Audio Output’ select ‘Optical audio’ and choose ‘Bitstream out.’ Then select ‘Bitstream format’ and choose ‘Dolby Digital’1 Connect the dongle to a USB port on the computer and power on the headset2 In the computer’s sound settings, set the default sound output to “LucidSound PC Gaming Audio” for game audio3 In the chat program being used, choose “LucidSound PC Chat Audio” for both the Input and OutputUSB audio for stereo use. Optical connection with Dolby Live required for surround sound.1 Connect one end of the mobile cable to the 3.5mm input on the headset and the other end to the 3.5mm output on the mobile device 2 The headset will only work in passive (OFF) mode. (Note that the volume, EQ, and mute features will not function)3 Press the button on the left earcup to control music, voice commands, and phone calls Model No: LS40RX IC: 21203-16302 LucidSound, Inc.Model No: LS40TX IC: 21203-16301 Made in ChinaThis device complies with Industry Canada licence-exempt RSS-247 standard. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.IC Radiation Exposure Statement:This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0.5 cm between the radiator and your body.For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, the DTS Headphone:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All rights reserved.Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. ©2017 Lucid Sound, Inc. 2150 Palomar Airport Rd., Suite 201, Carlsbad, CA 92011 U.S.A. LucidSound and the Lucid Sound logo, are trademarks of Lucid Sound, Inc., its subsidiaries, and aliates. The shape and design of this product are a trade dress of Lucid Sound, Inc., its subsidiaries and aliates. All rights reserved. All other product names and images are trade-marks or registered trademarks of their respective owners. Made in China. Product features, appearance and specications may be subject to change without notice. Please retain this information for future reference. XBOX ONE SETUP PC / MAC SETUP MOBILE SUPPORTXB1Controllers with 3.5mm portControllers without 3.5mm portPC?#!*
