Luda Farm CAMERA Wireless IP Camera User Manual Reolink WiFi CameraQSG 20151020

Luda. Farm AB Wireless IP Camera Reolink WiFi CameraQSG 20151020

User Manual

Use Reolink APP
2
Remote Config
Edit Devices
Delete
During start-up , you will see the splash screen and Devices
page . App will auto show the device list in your LAN (Local
Area Network).
3
WiFi Settings(For WiFi
camera only)
Add device when Camera
and Mobile connect to
different network
Device Page
Play Selected Device on
Camera List
Help
Help
1Install Reolink APP
1 2
You can search for " Reolink " App from Apple Store or Google
Play or you may scan the QR code below to download the App .
After downloading , Install and launch the application .

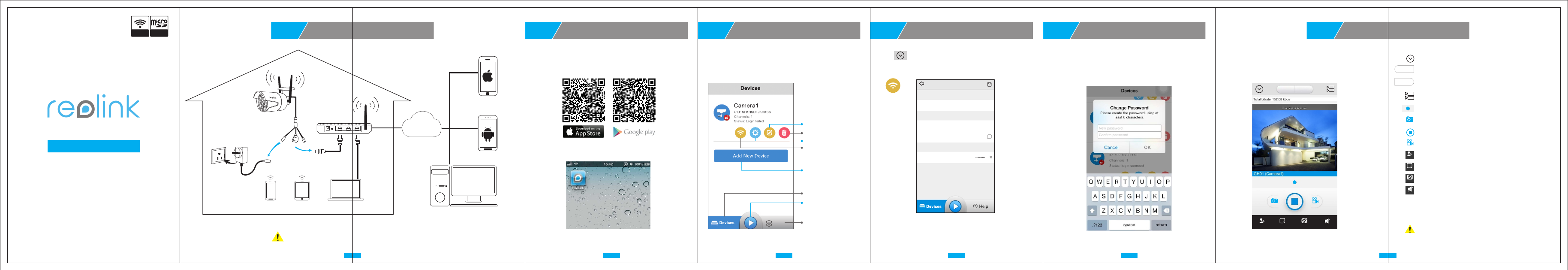

Camera Connection Diagram
Attention: For Initial Setup, connect the camera by network
and power cable. Then follow the steps below.
PC
Android phone
iPhone/iPad
Router
Power adapter
PC
IPADPhone
Qui c k Sta r t Gui d e
Create the password
4Live View
5
Choose and click the Device you want to add , For security
purpose ,You need to create the password for first time use .
Then click OK.
5 6
Menu Button: Access to Devices page
Camera List : Allows to enable or disable the camera
availability
Live View: Access to live view mode
Live View
Playback: Remotely playback video recorded ( This
function for camera with SD card and NVR only)
Playback
Stop/Start live view of the camera
Capture:Take snapshot and save image to your mobile
device
Capture
Record: Video of the camera
Record
Shows the camera or group you are viewing
PTZ Control PTZ camera
Close Stop/Start selected camera
Stream Video quality stream
Sound Enable/Disable audio
Now you can see the Live View page as below
Capture and Record path on mobile devices as below:
iPhone/iPad : Photos folder
Android device : My File / Reolink
Record
Capture
PTZ Close Stream Sound
Live View Playback
Mobile App
WiFi camera
Power
Internet
Network Reset
3WiFi Settings
Click Menu button , you will go back to the device page ,
Click WiFi button , then you can set WiFi settings.
4
A: Click SS I D to search the WiF i signal, choose the WiFi
signal and enter the password
B: If Use Other WiF i, click it and input SS ID and password.
Then save the settings.
Wifi Settings
Station
Reolink
Use Other Wifi
Password
Wifi Type
SSID
SDWiFi
9
You can also use UID mode to log in .
From Register Mode area, select the mode to UID , then input
your UID to UID field.
1Add Device
10
2Client UI Introduction
11 12
3Remote Config
Right click the Device , it will show
the setting windows
1.Live View: Access the live view mode.
2.Playback : Remotely playback video recorded to N V R or
camera SD card.
3.RAM/CPU: Shows the memory and CPU loading.
4.Local Setting: Setting the Record/Download/Capture path.
5.Device List: Shows the Device connected to the software.
6.PTZ : Setting the PTZ parameters.
7.Basic Settings: Can set OSD/Encode/Image parameters.
10.Play Control: Choose to play Clear/Fluent video.
1
2
Live View
Playback 3RAM/CPU
4Local Setting
5Device List
6PTZ
7Basic Settings
10
Play control
Previous and Next Page
12
Snap/Record
Sound Display Layout
9 8
11.Previous and Next Page : Choose which group of channel to
display during multi-channel view .
12.Snap/Record: Capture image or record live video.
9 . Sound: Enable / Disable the sound and adjust the volume of
the sound
8 . Display Layout: Choose 1 / 4 channel view
Click Remote Config , you will see below windows
1
2
3
1.Click Add Device button on the top right
2.Click Scan Device in LAN
3.Double click the device you want to add,then device info will
be displayed.
4.Input the password (default password is Blank) ,if you already
create password on Reolink App ,You need to use the password
you created to log in .
5.Then click OK to log in
4WiFi Settings
1
2
3
4
5
11
8

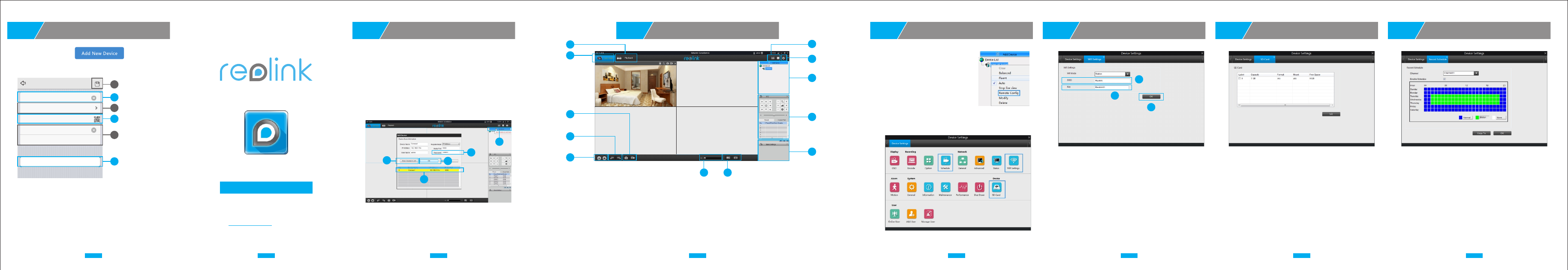

Client Software
Reolink Client
Please Install Reolink Client Software from CD or download
software from . Then run the software . www.reo-link.com
5SD Card
Click the Init button you may format the SD card.
SD card can only support alarm video storage.
6Record schedule
On Device Setting --Record Schedule page,you may make the
recording plan.
1. Normal: Keep recording all the time during your plan
2. Motion: If have motion during this schedule, you may receive
alarm video and save to SD card.
3. None: No recording during this period of time.
On Device Setting — WiFi Setting page ̀
You can set WiFi for the camera.
1. Input the SSID for your WiFi signal.
2. Input password for your WiFi.
3. Click OK.
Now you can disconnect the network cable and view the
camera by WiFi .
On device Setting- SD card page, you may check the storage
for the SD card.
Note: For the IP cameras with SD card only.
13 147
On Devices page,click button to add and
modify Device . After finished setting ,click Save .
6Add Device in Different Network
1.Device Name:Modify Device name here
2.Connect Mode:Change the connection mode to P2P or IP/
Domain by click arrow button
3.UID:Click QR code button to scan QR code or directly input
the UID
4.User Name and Password
5.Save: Save the settings you modified on this page
6.Start Live View: Click to view the device
Start Live View
1Device Name
2Connect Mode
3UID
4User Name
Password
5Save
6Start Live View
Device
Camera1
Device Name
Connect Mode P2P
UID XCPTP018898LS
User Name admin
Password Please input Pass...
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
